CAMCORDER
LYT2536-005A
Detailed User Guide
GZ-E305
GZ-E307
GZ-EX315
Table of Contents
Beginner’s Guide ........................................................... 4
Useful Shooting Techniques
Holiday Season/Christmas ...................................................... 5
Wedding .................................................................................. 6
Travel ....................................................................................... 8
Amusement Park ................................................................... 10
Getting Started

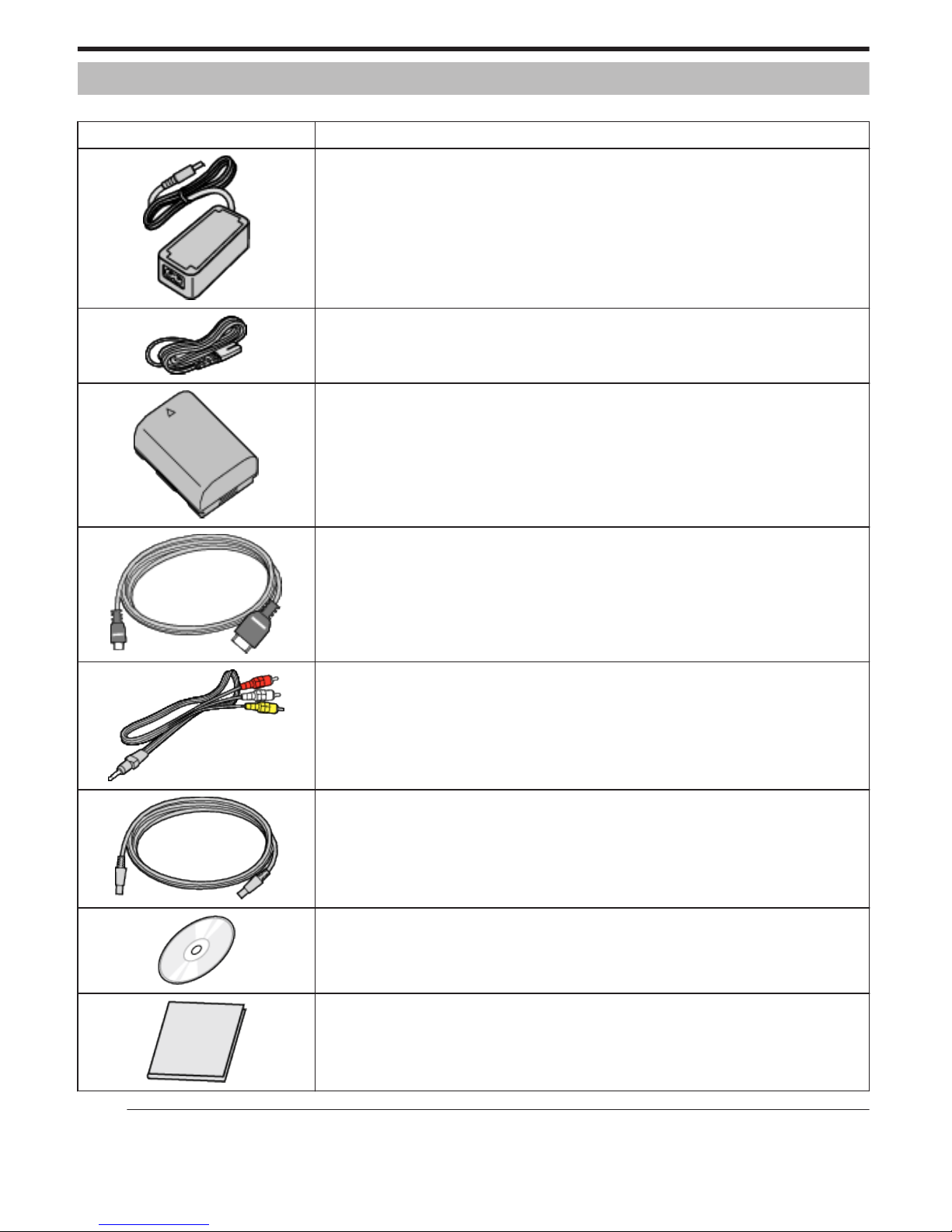

Verifying the Accessories ...................................................... 12
Charging the Battery Pack ..................................................... 14
Grip Adjustment ..................................................................... 15
Using as a Hand Strap ....................................................... 15
Inserting an SD Card ............................................................. 15
Types of Usable SD Card ................................................... 16
Using the Touch Screen ........................................................ 17
Adjusting the Touch Panel ................................................. 17
Names of Buttons and Functions on the LCD Monitor ....... 18
Clock Setting ......................................................................... 20
Resetting the Clock ............................................................ 21
Changing the Display Language ............................................ 22
Holding this Unit .................................................................... 22
Tripod Mounting .................................................................... 23
Using this Unit Overseas ....................................................... 23
Charging the Battery Pack Overseas ................................. 23
Setting the Clock to Local Time when Traveling ................. 24
Setting Daylight Saving Time ............................................. 24
Optional Accessories ............................................................. 25
Recording
Taking Videos in Auto Mode .................................................. 26
Capturing Still Images During Video Recording ................. 28
Taking Still Images in Auto Mode ........................................... 29
Zooming ................................................................................ 32
Manual Recording ................................................................. 32
Shooting According to Scene (Subject) ............................. 34
Adjusting Focus Manually .................................................. 35
Adjusting Brightness .......................................................... 36

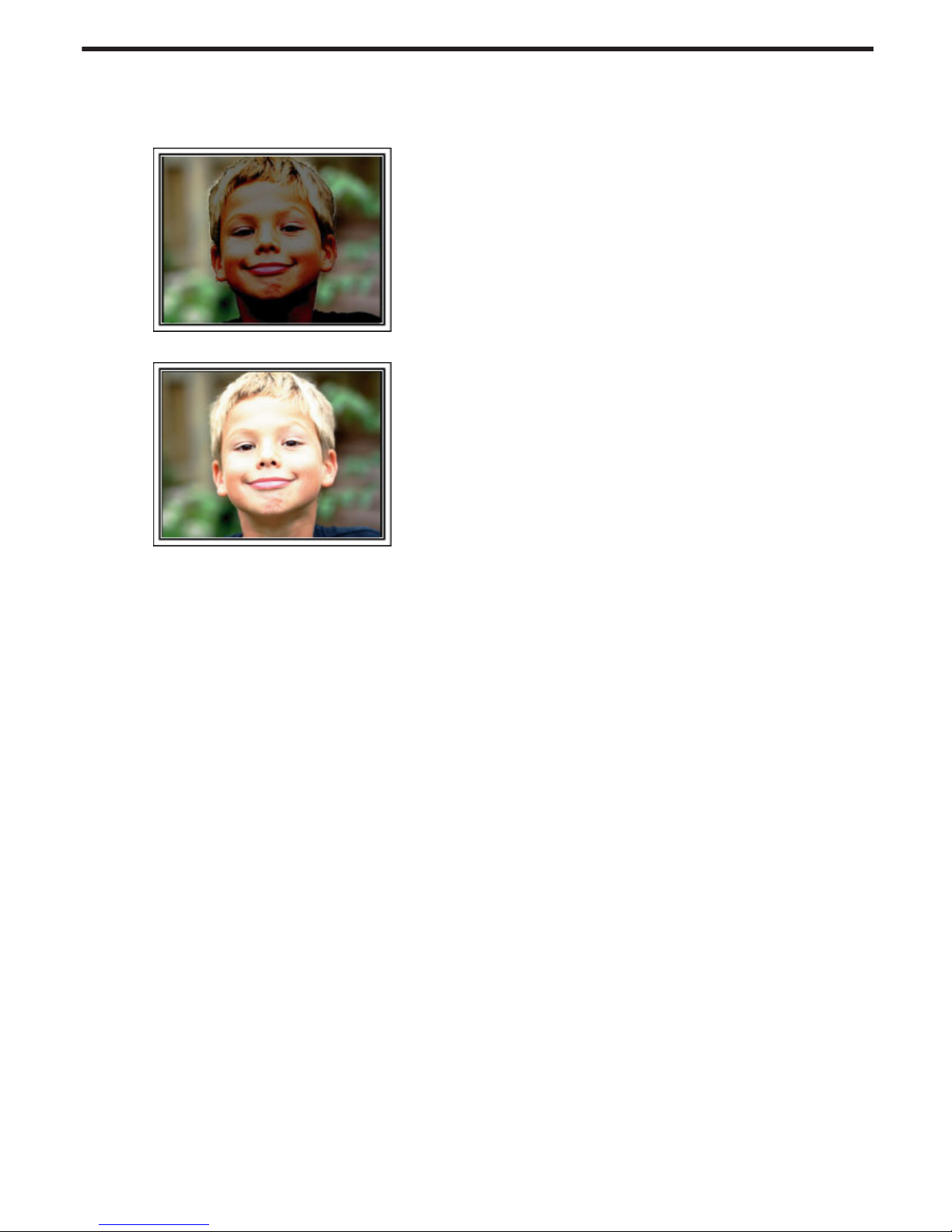

Setting Backlight Compensation ........................................ 37
Setting White Balance ........................................................ 38
Taking Close-up Shots ....................................................... 39
Recording with Effects ........................................................... 40
Recording with Animation Effects (ANIMATION EFFECT) . 41
Recording with Face Decorations (DECORATE FACE
EFFECT) ........................................................................ 43
Recording with Decorative Stamps (STAMP) .................... 44
Recording with Personal Handwriting (HANDWRITING
EFFECT) ........................................................................ 45
Capturing Subjects Clearly (TOUCH PRIORITY AE/AF) ....... 46
Capturing Smiles Automatically (SMILE SHOT) ................. 47
Capturing Pets Automatically (PET SHOT) ........................ 48
Registering Human Face Personal Authentication Information
............................................................................................ 50
Setting SMILE%/NAME DISPLAY ...................................... 52
Editing the Registered Face Information ............................ 53
Reducing Camera Shake ....................................................... 54
Marking the Video While Recording ...................................... 55
Slow-motion (High-speed) Recording .................................... 55
Recording at Intervals (TIME-LAPSE RECORDING) ............. 56
Recording Stop-Motion Videos (STOP-MOTION REC) ......... 58
Recording Automatically by Sensing Movements (AUTO REC)
............................................................................................ 59
Taking Group Shots (Self-timer) ............................................ 60
Recording Videos with Date and Time ................................... 62
Checking the Remaining Recording Time ............................. 63
Playback
Playing Back Videos .............................................................. 65
Normal Playback ................................................................ 67
MARKING PLAYBACK ...................................................... 69
DIGEST PLAYBACK .......................................................... 73
PLAYBACK PLAYLIST ...................................................... 74
PLAYBACK OTHER FILE .................................................. 75
Playing Back Still Images ....................................................... 76
Slideshow Playback ........................................................... 78
Searching for a Specific Video/Still Image by Date ................ 78
Connecting to and Viewing on TV .......................................... 79
Connecting via the HDMI Mini Connector .......................... 80
Connecting via the AV Connector ...................................... 81
Editing
Deleting Unwanted Files ........................................................ 82
Deleting the Currently Displayed File ................................. 82
Deleting Selected Files ...................................................... 82
Protecting Files ...................................................................... 83
Protecting/Releasing Protection of the Currently Displayed
File .................................................................................. 83
Protecting/Releasing Protection of Selected Files .............. 84
Capturing a Still Image in the Video During Playback ............ 85
Capturing a Required Part in the Video (TRIMMING) ............ 85
Creating Playlists from the Recorded Videos ......................... 86
Creating Playlists with Selected Files ................................. 86
Creating Playlists by Date .................................................. 88
Editing Playlists .................................................................. 89
Deleting Playlists ................................................................ 90
Copying
Creating a Disc Using a Connected Blu-ray Recorder ........... 91
Dubbing Files to a Disc by Connecting to a DVD Recorder ... 92
Dubbing Files to a VHS Tape by Connecting to a VCR .......... 93
Copying to Windows PC (GZ-EX315) .................................... 94
Verifying System Requirements (Guideline) ....................... 94
Installing the Provided Software ......................................... 95
Backing Up Files ................................................................ 96
Recording Videos to Discs ................................................. 97
Backing Up Files Without Using Provided Software ........... 99
List of Files and Folders ................................................... 100
Copying to Windows PC (GZ-E307/GZ-E305) ..................... 101
Verifying System Requirements (Guideline) ..................... 101
Installing the Provided Software (Built-in) ......................... 102
Backing Up All Files ......................................................... 103
Organizing Files ............................................................... 104
Recording Videos to Discs ............................................... 105
Backing Up Files Without Using Provided Software ......... 107
List of Files and Folders ................................................... 108
Copying to Mac Computer ................................................... 109
Using Wi-Fi (GZ-EX315)
Wi-Fi Capabilities ................................................................. 110
Operating Environment ........................................................ 111
Precautions on Using Wi-Fi ................................................. 111
Image Monitoring via Direct Connection (DIRECT
MONITORING) ................................................................ 112
Image Monitoring via an Access Point at Home (INDOOR
MONITORING) ................................................................ 115
Image Monitoring via the Internet (OUTDOOR MONITORING)
.......................................................................................... 120
Sending Still Images via E-mail upon Detection of Face or
Movement (DETECT/MAIL) ............................................. 123
Record and Send Videos via E-mail (VIDEO MAIL) ............. 124
Image Monitoring on TV (TV MONITORING) ....................... 126
EASY STORAGE ................................................................. 127
Recording the Location Information ..................................... 128
Using the Pan Cradle (Sold Separately) .............................. 131
Changing the Settings ......................................................... 133
2
Setting the Password (DIRECT MONITORING/INDOOR
MONITORING/OUTDOOR MONITORING) ................. 136
Setting the Enforced Group Owner (DIRECT MONITORING)
...................................................................................... 137
Changing the HTTP Port (DIRECT MONITORING/INDOOR
MONITORING/OUTDOOR MONITORING) ................. 137
Setting the UPnP of this Camera (OUTDOOR MONITORING)
...................................................................................... 138
Obtaining a Dynamic DNS (DDNS) Account .................... 138
Setting Dynamic DNS on this Camera (OUTDOOR
MONITORING) ............................................................. 139
Setting the Sender’s E-mail Address of the Camera ........ 140
Registering the Recipient’s E-mail Address of the Camera 142
Setting the Detection Method of this Camera (DETECT/MAIL
SETTING) ..................................................................... 144
Setting the Detection Interval of this Camera (DETECT/MAIL
SETTING) ..................................................................... 144
Setting Self Recording on this Camera (DETECT/MAIL
SETTING) ..................................................................... 145
Registering the Access Points of the Camera to Connect
(ACCESS POINTS) ...................................................... 145
Setting the Password (DIRECT MONITORING) ............... 151
Enabling the MAC Address Filter (TV MONITORING) ..... 152
Registering the MAC Address (TV MONITORING) .......... 152
Checking the MAC Address of this Camera ..................... 153
Protecting the Network Settings with a Password ............ 153
Initializing the Wi-Fi Settings ............................................ 154
Changing the Panning Speed .......................................... 155
Using Smartphone Applications ........................................... 156

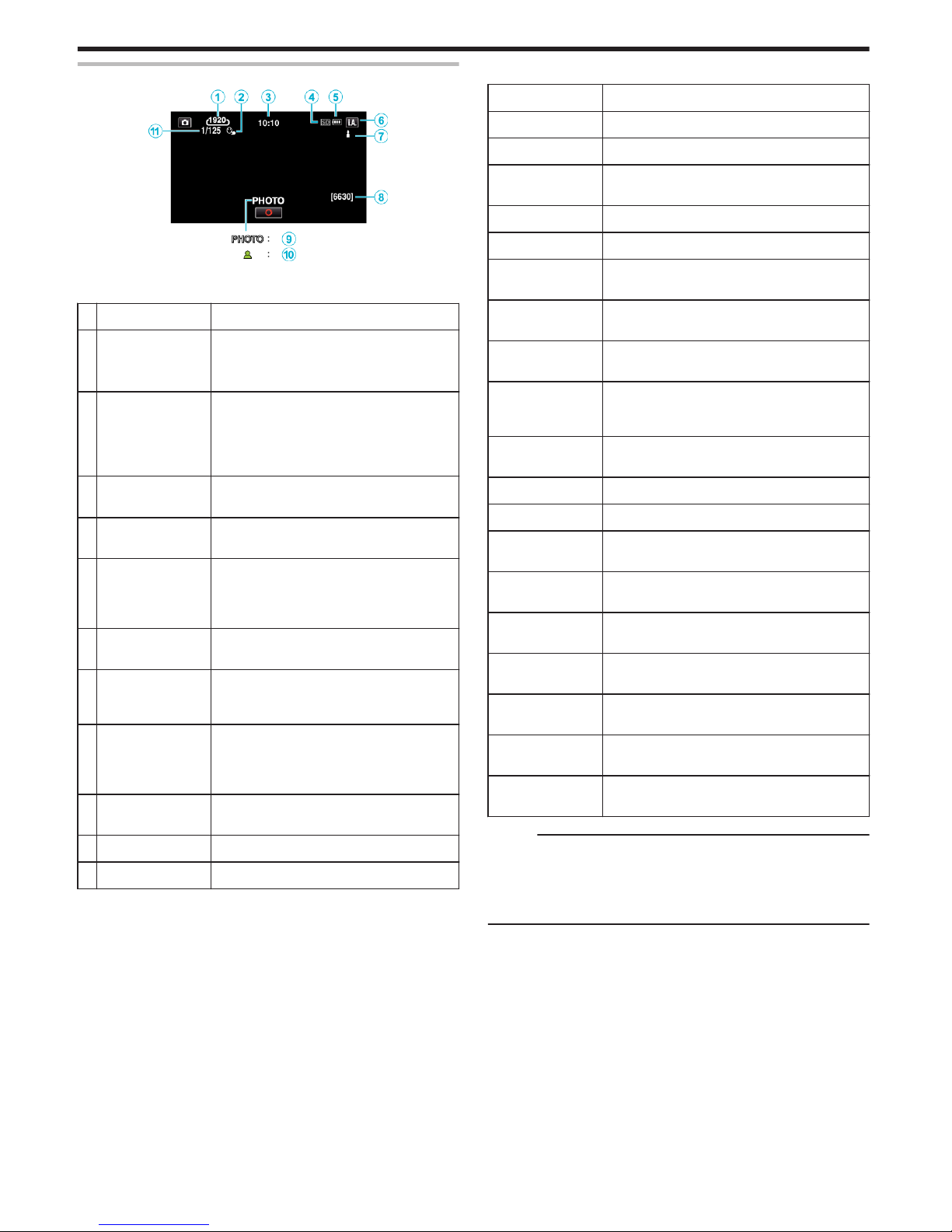

Indications on the Screen ................................................. 156
Using the Markings .......................................................... 157
Using the Game Score ..................................................... 158
Transferring Videos (AVCHD format) ............................... 160
Transferring Videos (iFrame format) ................................ 163
Transferring Still Images .................................................. 165
Smartphone Application Settings ..................................... 167
Using the Wi-Fi Function from a Web Browser .................... 169
Indications on the Screen ................................................. 169
Troubleshooting ................................................................... 172
Wi-Fi Specifications ............................................................. 176
Using Wi-Fi by Creating a QR Code (GZ-EX315)
DIRECT MONITORING ....................................................... 179
INDOOR MONITORING ...................................................... 183
OUTDOOR MONITORING .................................................. 187
DETECT/MAIL ..................................................................... 192
VIDEO MAIL ........................................................................ 196
TV MONITORING ................................................................ 200
Settings Menu
Operating the Menu ............................................................. 204
Operating the Top Menu .................................................. 204
Operating the Shortcut Menu ........................................... 205
RECORD SETTING Menu (video) ....................................... 206
SPECIAL RECORDING Menu (video) ................................. 210
RECORD SETTING Menu (still image) ................................ 211
SPECIAL RECORDING Menu (still image) .......................... 213
PLAYBACK SETTING Menu (video) ................................... 214
EDIT Menu (video) ............................................................... 215
PLAYBACK SETTING Menu (still image) ............................ 216
EDIT Menu (still image) ....................................................... 217
SETUP (video/still image) .................................................... 218
CONNECTION SETTINGS (video/still image) ..................... 221
MEDIA SETTINGS (video/still image) .................................. 222
USB CONNECTION MENU ................................................. 223
Names of Parts
Indications on the LCD monitor
Troubleshooting
When the unit is not working properly .................................. 230
Battery Pack ........................................................................ 231
Recording ............................................................................ 231
SD Card ............................................................................... 232
Playback .............................................................................. 232
Editing/Copying ................................................................... 233
Computer ............................................................................. 234
Screen/Image ...................................................................... 234
Other Problems ................................................................... 235
Error Message? ................................................................... 236
Maintenance
Specifications
3
Basic Way to Hold a Camcorder
~ Recording Stable Images ~
.
This is the standard way of shooting while standing up.
Be sure to master this basic technique in order to achieve stable images.
o
[Getting Ready]
A Open your feet to the width of your shoulders.
B Keep the elbow of your right arm, which is holding the camcorder, close
to your side.
C Hold the LCD monitor with your left hand and adjust the angle
accordingly.
Extending Your Hands to Shoot
~ High-Angle Shooting ~
.
Extend your hand when your subject is being hidden behind a crowd of
people.
o
[Getting Ready]
A Open your feet to the width of your shoulders.
B Extend your right hand and hold the camcorder over your head.
C Hold the LCD monitor with your left hand and adjust the angle
accordingly.
Caution :
0
Use this way of shooting only as a last resort as it is difficult to achieve
stable images.
0
Set to the wide angle as much as possible as the image will be prone to
camera shake.
0
Be considerate. Do not inconvenience the people around you.
Squatting and Shooting at Eye Level
.
Staying low is a common position to take when shooting small children.
By recording from the eye level of the child, you can capture all his cute
expressions clearly.
o
[Getting Ready]
A Kneel down with your left knee while keeping your right foot on the
ground.
B Place the elbow of your right arm, which is holding the camcorder, on
your right knee.
C Hold the LCD monitor with your left hand and adjust the angle
accordingly.
Panning
0
Refer to the operating instructions found in the animation on the Detailed
User Guide.
Use this method to shoot a wide angle of view.
o
[Getting Ready]
A Shoot by rotating your body instead of moving your arms while keeping
the basic way of holding a camcorder as stated above.
B Stand facing the direction where the rotation will stop.
C Twist your upper body to the direction where recording will start.
D Press the start button and record for 2 seconds, then slowly twist back
your body to face the front.
Record for another 2 seconds while facing the front, then press the
stop button.
(The 90 degrees rotation should take about 5 seconds, giving the
feeling of a slow motion.)
Beginner’s Guide
4
Introducing the Various Shooting
Techniques!
.
o
“Holiday Season/Christmas” (A p. 5)
Record the happy Christmas celebration with your family!
.
o
“Wedding” (A p. 6)
Create an awesome wedding video for the bride and groom!
.
o
“Travel” (A p. 8)
Capture all the good times of your domestic or overseas trips!
.
o
“Amusement Park” (A p. 10)
Take more shots of the smiling faces of everyone in the family!
Holiday Season/Christmas
Record the happy Christmas celebration with your family!
.
Photo by 101st CAB, Wings of Destiny
Decorating the Tree and Preparing the Dinner
The decoration of tree and preparation of dinner are part of the joy of
Christmas. Be sure to record these happy family times!
o
Decorating the tree
.
A tree is the most important thing to bring out the mood of Christmas.
Simply the scene of all family members engaging in the decorating of a fir
tree with various colorful ornaments is full of the feeling of happiness.
o
Preparing the Dinner
.
Photo by Manicosity
Creative Commons Attribution-No Derivative Works 3.0
Record the scenes as everyone helps to prepare the feast of the night.
You can film the mother who is cooking, the children who are helping, and
of course, the process of making a cake!
Useful Shooting Techniques
5
Recording the Christmas Party
.
Photo by InnerSpirit
Creative Commons Attribution-No Derivative Works 3.0
After all preparations, it is finally the Christmas party itself. Not only should
you record the candle-blowing scene, but also the smiles of the family while
being surrounded by good food, or even the father who is slightly drunk from
champagne!
Finding the Presents
.
For children, the greatest joy of Christmas is receiving presents the next
morning. Their expression of delight when finding a present next to their
pillow is a recording opportunity not to be missed. Get ready to shoot before
the children wake up!
Wedding
Create an awesome wedding video for the bride and groom!
.
Discussing and Planning Before the Event
Before the day of the wedding reception, it is important to discuss with the
bride and groom about various details such as the order of the ceremony
and whether there are any entertainment programs or change of clothes. By
understanding the preferences of the bride and groom, you will be able to
shoot more appropriately.
o
Finding out the route of entrance
.
The highlight of a wedding reception is the entrance of the bride and groom.
Find out which door they will enter from and the route they will take from the
person-in-charge of the wedding hall in advance. Set up the tripod at a place
where you can follow the couple using zoom without having to move around.
o
Number of times and timing of clothes-changing
Find out the timing of any changing of clothes so as to capture the scene well
when the bride and groom enter again.
You can also make use the time while the bride and groom are changing to
record comments of well wishes from the guests.
Finding the Right Angle to Capture Both Bride and Groom
o
Composing the picture with the groom in front and the
guests at the back
.
The main characters of a wedding are of course the bride and groom. Record
their expressions clearly during the toast, speech, entertainment programs,
and other scenes. Another recommendation is to capture the face shots of
the guests, then pan towards the groom. Picture composition containing the
crowd of guests only lacks fun, so be sure to pay attention to the shooting
angle and size.
Useful Shooting Techniques
6
Recording the Expressions and Comments of Guests
o
Setting the shot from eye level to chest level
.
You can record comments from the guest by going around asking, "Please
say a few words for the bride and groom". This can be done at the guests'
waiting room, when the bride and groom are changing, or during the
entertainment programs.
Advanced Operation with Two Camcorders
If video-editing is to be done, record using two camcorders so that a video
with varying scenes can be created. You can try asking a close friend who
has a camcorder at home. Set the borrowed camcorder on a tripod to focus
on taking close-up shots of the bride and groom. In this way, the other
camcorder can be moved around to record other scenes, enabling an
interesting video with changing scenes to be created through editing and
compilation. As most people own at least a digital camera nowadays, even
if you are really unable to find an extra camcorder, inserting still pictures to
the video at various points is also a good way to add variety. Do give it a try!
o
<Camcorder 1>
Closing up on the bride and groom all the time
.
o
<Camcorder 2>
Recording the congratulatory messages from friends at the
same time
.
Useful Shooting Techniques
7
Travel
Capture all the good times of your domestic or overseas trips!
.
Bringing the Necessary Equipment
The necessary things to bring on a trip depends on your traveling purpose
and the destination. For overseas trips in particular, you have to think about
what to bring in accordance to the local conditions. Here are some
suggestions for your consideration.
o
Camcorder
Think about how many hours of shooting you will usually perform in a day.
Be sure to prepare enough recording medium especially for long overseas
trips.
If you are recording in SD cards, get ready the sufficient number of cards,
including some for backup.
o
Battery Pack
Prepare a battery pack that is ready for three times the expected recording
time in a day. For example, if you plan to record for 2 hours a day, prepare
a battery pack that is ready for 6 hours (actual recording time).
For a day trip, you can prepare a battery with low capacity but for a long trip,
do prepare a few batteries with high capacities.
o
AC Adapter
The JVC AC adapter supports voltages from 110 V to 240 V, and hence can
be used anywhere in the world.
Bring along the adapter if you are traveling for a long time. Charge the battery
pack while sleeping so that you can record with full battery power the next
day.
o
Power Plug Adapter
.
The shape of the power plug varies according to countries. Be sure to check
the shape of the power plug beforehand, and bring the appropriate power
plug adapter.
“Charging the Battery Pack Overseas” (A p. 23)
o
Battery Charger
.
Recording cannot be performed when an AC adapter is connected to the
camcorder for battery charging.
You can bring an additional battery charger to charge battery packs if you
plan to use the camcorder for recording at night. You can also charge
multiple battery packs by using both the battery charger and this camcorder
at the same time.
o
Tripod
.
A tripod is an essential item to take stable images. Select an appropriate
tripod in accordance to your purpose and style of traveling, such as a
compact one to be used on a table or one that is at least 1 m tall.
Recording the Excitement Before Departure
It may be a little abrupt to start your travel video at the destination suddenly.
Record also the preparations prior to departure if it is a family trip, or the time
when everyone is gathered at the meeting place if you are traveling with your
friends. For overseas trips, taking a shot of the signs and displays at the
airport of the flight you are taking may be useful for future reference.
.
.
Useful Shooting Techniques
8
Using Pan at the Places of Interest
Tourists spots with beautiful scenery or historical sites are places that you
would certainly want to record. To capture the magnificence of a scene which
cannot be fitted into a single frame, try the panning technique. Refer to
“Shooting Tips” found in the “Beginner’s Guide” on this website on how to
use panning effectively. In addition, you may also like to take a shot of the
signs or monuments that can often be found at the tourist spots.
.
.
Showing Everyone Having a Good Time
When taking a video, it is rather dull to shoot only the scenery or historical
sites. Talk about your feelings while recording the breath-taking scenery of
an attraction so that it will be an interesting scene to view later.
Useful Shooting Techniques
9
Amusement Park
Take more shots of the smiling faces of everyone in the family!
.
Taking Videos or Still Images According to the Attraction
You may choose to take videos all the time. However, you may want to take
some still images too.
The following section explains the scenarios suitable for taking videos or still
images.
o
Scenarios suitable for taking videos
.
Scenarios with changes in body movement are suitable for taking videos.
This includes situations where there are rapid changes in facial expressions
or voices of surprise and delight.
*Some amusement parks do not allow passengers to perform any recording.
Be sure to check beforehand.
[Examples]
0
Merry-go-round, go kart, coffee cup, etc.
o
Scenarios suitable for taking still images (photos)
.
Scenarios with little movement of the subject are suitable for taking still
images.
Try to take the still images from an angle such that the surroundings can be
seen clearly.
[Examples]
0
Carousal, ferris wheel, fun bicycle rides, etc.
Inducing Responses by Calling Out
.
Videos with no waving of hands nor laughter are not only dull when you view
them later, but also put the capability of the audio-recording function of the
camcorder to a waste. When recording, induce more reactions by
enthusiastically waving your hands or shouting out "Is it fun?" and the like.
Capturing the Best Moment in a Video as a Still Image
Shots with the eyes closed are often taken by accident. To reduce such
mistakes, make use of the function to capture still images from videos. As
videos are actually continuous recording of 50 still images within 1 minute,
using this function allows you to select the best moment and save it as a still
image.
“Capturing a Still Image in the Video During Playback” (A p. 85)
.
Photo by just that good guy jim
Creative Commons Attribution-No Derivative Works 3.0
Video Playback in Progress
.
Creative Commons Attribution-No Derivative Works 3.0
.
Photo by just that good guy jim
Creative Commons Attribution-No Derivative Works 3.0
Video Playback in Progress
Advanced Operation with Backlight Compensation
When the subject’s face is in backlight or when the expression cannot be
seen clearly, the Intelligent Auto function of this unit automatically increases
Useful Shooting Techniques
10
its brightness for recording. If Intelligent Auto fails to function as expected or
if the brightness correction is insufficient, you can increase the brightness
by using backlight compensation in the Manual mode.
“Setting Details” (A p. 37)
o
<Without backlight compensation>
.
o
<With backlight compensation>
.
Useful Shooting Techniques
11
Verifying the Accessories
If any of the items are missing or defective, consult your JVC dealer or the nearest JVC service center.
Illustration Description
.
AC Adapter
AC-V10M
0
Connects to this unit to charge the battery pack.
It can also be used when recording or playing back videos indoors.
.
Power Cord
0
Connect the power cord to the AC adapter.
.
Battery Pack
BN-VG108E
(GZ-E305)
BN-VG114E
(GZ-EX315/GZ-E307)
0
Attaches to this unit to supply power.
.
HDMI Mini Cable
(GZ-E307)
0
Connects this unit to a TV to play back recorded images on the TV in a better quality.
.
AV Cable
QAM1322-001
0
Connects this unit to a TV to play back recorded images on the TV.
0
Consult your nearest JVC service center if you need to purchase the AV cable.
.
USB Cable
(Type A - Mini Type B)
0
Connects this unit to a computer.
.
CD-ROM
(GZ-EX315)
0
For installing the provided software on a computer.
.
Basic User Guide
0
Read well and keep in a safe place where it can be accessed easily when necessary.
Memo :
0
SD cards are sold separately.
“Types of Usable SD Card” (A p. 16)
0
When using the AC adapter overseas, please prepare a commercially available converter plug for the country or region of visit.
Getting Started
12
“Charging the Battery Pack Overseas” (A p. 23)
Getting Started
13
Charging the Battery Pack
Charge the battery pack immediately after purchase and when the remaining
battery power is low.
The battery pack is not charged at the time of purchase.
1
Attach the battery pack.
.
0
Align the top of the battery with the mark on this unit, and slide in until
the battery clicks into place.
2
Connect the AC adapter to the DC connector.
.
3
Plug in the power.
.
0
The charging lamp blinks when charging is in progress.
It goes out when charging is finished.
Warning
0
Make sure not to insert the battery pack in the wrong direction.
It may cause damage to the unit and battery pack.
Caution :
Be sure to use JVC battery packs.
0
If you use any other battery packs besides JVC battery packs, safety and
performance cannot be guaranteed.
0
Charging Time:
Approx. 2 h 20 m (using supplied battery pack, BN-VG108E)
Approx. 2 h 30 m (using supplied battery pack, BN-VG114E)
0
The charging time is when the unit is used at 25°C. If the battery pack is
charged outside the room temperature range of 10°C to 35°C, charging
may take a longer time or it may not start.
CHARGE lamp blinks 2 times in a slow cycle for notification if the battery
charge does not start. Also, please note that the recordable and playable
time may also be shortened under some usage conditions such as at low
temperature.
0
If malfunctions (overvoltage, etc) occur, or if any battery manufactured
other than JVC is attempted for battery charge, charging stops. In these
cases, CHARGE lamp blinks quickly for notification.
Be sure to use the supplied AC adapter.
0
If you use any other AC adapters besides the supplied AC adapter,
malfunctions may occur.
0
You can record or play back videos while the AC adapter is connected.
(Battery charging cannot be performed during recording or playback.)
Remove the battery when the unit is to be used for a long time.
Performance of the battery may drop if it is left attached to the unit.
Rechargeable Batteries：
0
When using the battery in a low temperature environment (10°C or below),
the operating time may be shortened, or it may not function properly. When
using this unit outdoors in the winter weather, warm the battery, such as
by placing it in the pocket, before attaching it. (Keep away from direct
contact with a warm pack.)
0
Do not expose the battery to excessive heat, such as direct sunlight or fire.
0
After removing the battery, store it in a dry place between 15°C to 25°C.
0
Keep a 30 % battery level (X) if the battery pack is not to be used for a
long period of time. In addition, fully charge and then fully discharge the
battery pack every 6 months, then continue to store it at a 30 % battery
level (X).
Memo :
0
You can connect this unit to the AC adapter to record for long hours
indoors.
(Battery charging begins when the LCD monitor is closed.)
Detaching the Battery Pack
To detach the battery pack, perform the above steps in reverse order.
.
Slide the battery release lever to detach the battery from this unit.
Approximate Battery Charging Time (Using AC Adapter)
Battery Pack Charging time
BN-VG108E
(Supplied: GZ-E305)
2 h 20 m
BN-VG114E
(Supplied: GZ-EX315/GZ-E307)
2 h 30 m
BN-VG121E 3 h 30 m
BN-VG138E 6 h 10 m
0
When the battery life is reached, the recording time becomes shorter even
if the battery pack is fully charged.
(Replace the battery pack with a new one.)
* The charging time is when the unit is used at 25°C. If the battery pack is
charged outside the room temperature range of 10°C to 35°C, charging may
take a longer time or it may not start. The recordable and playable time may
also be shortened under some usage conditions such as at low temperature.
“Approximate Recording Time (Using Battery)” (A p. 64)
Getting Started
14
Grip Adjustment
.
A Open the lever on the strap lock
B Adjust the length of the belt
C Close the lever
Caution :
0
Be sure to fasten the grip belt properly.
If the belt is loose, this unit may drop and result in injuries or damages.
Using as a Hand Strap
Adjust the length of the belt and loop it around your wrist.
.
Inserting an SD Card
Insert a commercially available SD card before recording.
“Types of Usable SD Card” (A p. 16)
“Approximate Video Recording Time” (A p. 64)
1
Close the LCD monitor.
.
2
Open the cover.
.
3
Insert an SD card.
.
0
Insert with the label facing outward.
Warning
0
Make sure not to insert the SD card in the wrong direction.
It may cause damage to the unit and SD card.
0
Turn off the power of this unit before inserting or removing an SD card.
0
Do not touch the metal contact area when inserting the SD card.
Memo :
0
Both videos and still images can be recorded on one SD card. It is
recommended to confirm the video operation of the SD card before usage.
0
To use SD cards that have been used on other devices, it is necessary to
format (initialize) the SD card using “FORMAT SD CARD” from media
settings.
“ FORMAT SD CARD ” (A p. 222)
Getting Started
15
Removing the Card
Push the SD card inward once, then pull it out straight.
.
Types of Usable SD Card
The following SD cards can be used on this unit.
Operations are confirmed on the SD cards from the following manufacturers.
0
Panasonic
0
TOSHIBA
0
SanDisk
SD Card
.
0
This unit supports 256 MB to 2 GB SD cards.
0
Use a Class 4 or higher compatible SD card (2 GB) for video recording.
SDHC Card
.
0
Use a Class 4 or higher compatible SDHC card (4 GB to 32 GB) for video
recording.
SDXC Card
.
0
Use a Class 4 or higher compatible SDXC card (Max. 128 GB) for video
recording.
Memo :
0
Using SD cards (including SDHC/SDXC cards) other than those specified
above may result in recording failure or data loss.
0
This unit is not guaranteed to operate with all SD cards. Some SD cards
may not work due to specification changes, etc.
0
To record videos with “VIDEO QUALITY” set to “UXP”, use of a Class 6 or
higher compliant SDHC/SDXC card is recommended.
0
To select “iFrame” in the video recording format, use a Class 6 or higher
compliant SDHC/SDXC card. (GZ-EX315)
0
Class 4 and Class 6 are guaranteed to have a minimum transfer rate of 4
MB/s and 6 MB/s respectively during reading or writing of data.
0
You can also use a Class 10 compliant SDHC/SDXC card.
0
Both videos and still images can be recorded on one SD card. It is
recommended to confirm the video operation of the SD card before usage.
0
To protect the data, do not touch the terminals of the SD card.
0
UHS-I SDHC/SDXC cards can be used in the same manner as standard
SDHC/SDXC cards.
UHS Speed Class is not supported.
When your computer cannot recognize the SDXC card
Confirm and update the OS of your computer.
Windows XP
0
Make sure that the operating system version is SP2 or
higher.
0
Download and install the updating program
(KB955704) from the following URL.
http://www.microsoft.com/downloads/details.aspx?
FamilyID=1cbe3906-ddd1-4ca2-b727c2dff5e30f61&displaylang=en
Windows
Vista
0
Make sure that the operating system version is SP1 or
higher.
0
Download and install the updating program
(KB975823) from the following URL.
32 bit version
http://www.microsoft.com/downloads/en/details.aspx?
FamilyID=2d1abe01-0942-4f8a-abb2-2ad529de00a1
64 bit version
http://www.microsoft.com/downloads/en/details.aspx?
FamilyID=7d54c53f-017c-4ea5-ae08-34c3452ba315
Windows 7 Download and install the updating program (KB976422)
from the following URL.
32 bit version
http://www.microsoft.com/downloads/en/details.aspx?
FamilyID=3ee91fc2-a9bc-4ee1-aca3-2a9aff5915ea
64 bit version
http://www.microsoft.com/downloads/en/details.aspx?
FamilyID=73f766dd-7127-4445-b860-47084587155f
Mac OS X
10.4 Tiger /
Mac OS X
10.5 Leopard
Not compatible.
Mac OS X
10.6 Snow
Leopard
Update the OS version to 10.6.5 or later.
Getting Started
16
Using the Touch Screen
Icon operation buttons, thumbnails, and menu items are displayed on the
touch screen according to the mode in use.
0
There are two ways to operate the touch screen, namely “tap” and “drag”.
The following are some examples.
*The following is a screen of the model with Wi-Fi functions.
A Tap the displayed button (icon) or thumbnail (file) on the touch screen
to make selection.
B Drag the thumbnails on the touch screen to search for the desired file.
.
Memo :
0
The touch screen of this unit is pressure-sensitive. When the touch screen
does not respond smoothly, apply slightly more force to your fingertip.
0
Tap the buttons (icons) on the touch screen accurately. The buttons may
not respond if they are not tapped on the right area.
0
Do not press or rub with excessive force.
0
Do not operate the touch screen using an object with a sharp tip.
0
Pressing two or more places at a time may cause a malfunction.
0
Perform “TOUCH SCREEN ADJUST” if the reactive area of the screen is
misaligned with the touched area. (Adjust by lightly tapping with a corner
of an SD card, etc. Do not press with an object with a sharp tip or do not
press hard.)
“Adjusting the Touch Panel” (A p. 17)
Adjusting the Touch Panel
Adjusts the response position of the buttons on the touch screen.
*The following is a screen of the model with Wi-Fi functions.
1
Tap “MENU”.
.
2
Tap “SETUP”.
.
3
Tap “TOUCH SCREEN ADJUST”.
.
0
The touch screen adjustment screen appears.
4
Tap “+”. (3 times in total)
.
0
Keep tapping “+” as its position changes with every tap.
0
If areas other than the “+” mark are tapped, errors will occur. Make
sure to tap the “+” mark.
5
Tap “+” again to confirm the adjusted positions. (3 times in total)
.
0
Keep tapping “+” as its position changes with every tap.
6
Tap “OK”.
Getting Started
17
.
0
Setting ends and returns to the menu screen.
Caution :
0
Do not tap areas other than the “+” mark during touch screen adjustment
(steps 4 - 5). Doing so may cause the touch screen to malfunction.
Memo :
0
Adjust by lightly tapping with a corner of an SD card, etc.
0
Do not press with an object with a sharp tip or do not press hard.
Names of Buttons and Functions on the LCD Monitor
The following screens are displayed during the video and still image modes,
and operate as the touch screens.
Recording Screen (Video/Still Image)
.
1
A/B (Video/Still Image) Mode Button
0
Switches between video and still image modes.
2
Zoom Button
“Zooming” (A p. 32)
3
Playback Mode Button
0
Switches to the playback mode.
4
Recording Start/Stop Button
0
6: Video Recording Start Button
0
7: Video Recording Stop Button
0
Q: Still Image Recording Button
5
Mark Button (for video only)
0
By tapping the icon while recording is in progress, you can mark a
particular scene to make it easier to find it.
“Marking the Video While Recording” (A p. 55)
6
Menu Button
“Operating the Menu” (A p. 204)
7
Display Button
Switches the display between full (m) and simple (n) with every tap of
the button.
0
Simple display: Some displays disappear after approximately 3
seconds.
0
Full display: Displays everything. The display button changes from n
to m.
0
When the power is turned off, simple display (n) will be set.
8
Recording Mode Button
Switches the recording mode between P Intelligent Auto and H
Manual.
Getting Started
18
Playback Screen (Video)
.
0
Operations buttons on the touch screen disappear if the unit is not
operated for about 5 seconds. Tap on the screen to display the operation
buttons again.
1
A/B (Video/Still Image) Mode Button
0
Switches between video and still image modes.
2
Recording Mode Button
0
Switches to the recording mode.
3
Index Screen (Thumbnail Display) Button
“Operation Buttons for Video Playback” (A p. 67)
4
Delete Button
“Deleting the Currently Displayed File” (A p. 82)
5
Menu Button
“Operating the Menu” (A p. 204)
6
Operation Buttons
“Operation Buttons for Video Playback” (A p. 67)
Playback Screen (Still Image)
.
0
Operations buttons on the touch screen disappear if the unit is not
operated for about 5 seconds. Tap on the screen to display the operation
buttons again.
1
A/B (Video/Still Image) Mode Button
0
Switches between video and still image modes.
2
Rotate Button
Rotates a still image 90°. (Clockwise/Counterclockwise)
3
Recording Mode Button
0
Switches to the recording mode.
4
Index Screen (Thumbnail Display) Button
“Operation Buttons for Still Image Playback” (A p. 77)
5
Delete Button
“Deleting the Currently Displayed File” (A p. 82)
6
Menu Button
“Operating the Menu” (A p. 204)
7
Operation Buttons
“Operation Buttons for Still Image Playback” (A p. 77)
Index Screen (Thumbnail Display) Display
.
1
A/B (Video/Still Image) Mode Button
0
Switches between video and still image modes.
2
Date Button
“Operation Buttons for Video Playback” (A p. 67)
“Operation Buttons for Still Image Playback” (A p. 77)
3
Recording Mode Button
0
Switches to the recording mode.
4
Mark Playback button (video only)
“ MARKING PLAYBACK ” (A p. 69)
5
Delete Button
“Deleting Selected Files” (A p. 82)
6
Menu Button
“Operating the Menu” (A p. 204)
7
Page Forward/Back Button
“Operation Buttons for Video Playback” (A p. 67)
“Operation Buttons for Still Image Playback” (A p. 77)
Menu screen (recording mode)
*The following is a screen of the model with Wi-Fi functions.
.
1
Wi-Fi menu (GZ-EX315 only)
“Wi-Fi Capabilities” (A p. 110)
2
Shortcut Menu
“Operating the Shortcut Menu” (A p. 205)
3
SETUP Menu
“SETUP (video/still image)” (A p. 218)
4
Help Button
Tap the K (help) button and item to display descriptions.
5
CONNECTION SETTINGS Menu
“CONNECTION SETTINGS (video/still image)” (A p. 221)
6
Close Button
Exit the menu.
7
MEDIA SETTINGS Menu
“MEDIA SETTINGS (video/still image)” (A p. 222)
8
SPECIAL RECORDING Menu
“SPECIAL RECORDING Menu (video)” (A p. 210)
9
RECORD SETTING Menu
“RECORD SETTING Menu (video)” (A p. 206)
Getting Started
19
Menu screen (playback mode)
.
1
PLAYBACK SETTING Menu
“PLAYBACK SETTING Menu (video)” (A p. 214)
“PLAYBACK SETTING Menu (still image)” (A p. 216)
2
CONNECTION SETTINGS Menu
“CONNECTION SETTINGS (video/still image)” (A p. 221)
3
Help Button
Tap the K (help) button and item to display descriptions.
4
MEDIA SETTINGS Menu
“MEDIA SETTINGS (video/still image)” (A p. 222)
5
Close Button
Exit the menu.
6
SETUP Menu
“SETUP (video/still image)” (A p. 218)
7
EDIT Menu
“EDIT Menu (video)” (A p. 215)
“EDIT Menu (still image)” (A p. 217)
Clock Setting
The “SET DATE/TIME!” screen appears when you turn on this unit for the
first time after purchase, when it has not been used for a long time, or when
the clock is not set yet.
Set the clock before recording.
*The following is a screen of the model with Wi-Fi functions.
1
Open the LCD monitor.
.
0
The unit turns on.
0
When the LCD monitor is closed, the unit turns off.
2
Tap “YES” when “SET DATE/TIME!” is displayed.
.
3
Set the date and time.
.
0
When the day, month, year, hour, or minute item is tapped, “3” and
“2” will be displayed.
0
Tap 3 or 2 to adjust the day, month, year, hour, and minute.
4
After setting the date and time, tap “SET”.
5
Select the region where you live and tap “SAVE”.
.
0
Time difference between the selected city and the GMT (Greenwich
Mean Time) is displayed.
0
Tap 0 or 1 to select the city name.
Memo :
0
The clock can be reset again later.
“Resetting the Clock” (A p. 21)
0
When using this unit overseas, you can set it to the local time for recording.
“Setting the Clock to Local Time when Traveling” (A p. 24)
0
“SET DATE/TIME!” is displayed when you turn on this unit after it has not
been used for a prolonged period.
Connect the AC adapter for more than 24 hours to charge the internal clock
battery of this unit before setting the clock.
Getting Started
20
Resetting the Clock
Set the clock with “CLOCK ADJUST” from the menu.
*The following is a screen of the model with Wi-Fi functions.
1
Tap “MENU”.
.
2
Tap “SETUP”.
.
3
Tap “CLOCK ADJUST”.
.
0
Tap 3 or 2 to scroll the screen.
4
Tap “CLOCK SETTING”.
.
5
Set the date and time.
.
0
When the day, month, year, hour, or minute item is tapped, “3” and
“2” will be displayed.
0
Tap 3 or 2 to adjust the day, month, year, hour, and minute.
6
After setting the date and time, tap “SET”.
7
Select the region where you live and tap “SAVE”.
.
0
Time difference between the selected city and the GMT (Greenwich
Mean Time) is displayed.
0
Tap 0 or 1 to select the city name.
Getting Started
21
Changing the Display Language
The language on the display can be changed.
*The following is a screen of the model with Wi-Fi functions.
1
Tap “MENU”.
.
2
Tap “SETUP”.
.
3
Tap “LANGUAGE”.
.
0
Tap 3 or 2 to scroll the screen.
4
Tap to the desired language.
.
0
Tap 3 or 2 to scroll the screen.
Holding this Unit
When holding this unit, keep your elbows close to your sides to prevent
camera shake.
.
0
Hold the LCD monitor with your left hand and adjust the angle accordingly.
Holding the LCD monitor with your left hand helps to stabilize the camera
for recording.
Caution :
0
Be careful not to drop this unit during transportation.
0
Guardians should pay close attention when this unit is being used by
children.
Memo :
0
If camera shake is excessive, use the image stabilizer.
“Reducing Camera Shake” (A p. 54)
Getting Started
22
Tripod Mounting
This unit can be mounted on a tripod (or monopod). This is useful for
preventing camera shake and recording from the same position.
.
0
To prevent this unit from falling off, check the tripod mounting screw holes
and positioning holes on the unit carefully before mounting, and turn the
screws until they are fastened firmly.
Caution :
0
To prevent injuries or damages which may result if this unit falls off, read
the instruction manual of the tripod (or monopod) to be used and make
sure that it is securely attached.
Memo :
0
It is recommended to use a tripod or monopod when recording in
conditions prone to camera shake (such as in dark places or when zoomed
to the telephoto end).
0
Set the image stabilizer to b (OFF) when using a tripod for recording.
“Reducing Camera Shake” (A p. 54)
Using this Unit Overseas
The shape of the power outlet varies according to countries and regions.
To charge the battery pack, you need a converter plug that matches the
shape of the outlet.
“Charging the Battery Pack Overseas” (A p. 23)
Change the date and time display to the local time by selecting your travel
destination in “AREA SETTING” of “CLOCK ADJUST”.
“Setting the Clock to Local Time when Traveling” (A p. 24)
When “ON” is selected in “DST SETTING” of “CLOCK ADJUST”, the time is
set 1 hour ahead.
“Setting Daylight Saving Time” (A p. 24)
Charging the Battery Pack Overseas
The shape of the power outlet varies according to countries and regions.
To charge the battery pack, you need a converter plug that matches the
shape of the outlet.
.
Getting Started
23
Setting the Clock to Local Time when Traveling
Change the date and time display to the local time by selecting your travel
destination in “AREA SETTING” of “CLOCK ADJUST”.
Restore the region settings after you returned from the trip.
*The following is a screen of the model with Wi-Fi functions.
1
Tap “MENU”.
.
2
Tap “SETUP”.
.
3
Tap “CLOCK ADJUST”.
.
0
Tap 3 or 2 to scroll the screen.
4
Tap “AREA SETTING”.
.
5
Select the area you are traveling to and tap “SAVE”.
.
0
Time difference between the selected city and the GMT (Greenwich
Mean Time) is displayed.
0
Tap 0 or 1 to select the city name.
Memo :
0
Setting “AREA SETTING” changes the clock time such that time difference
is accounted for.
After returning to your country, re-select the region that was set initially to
restore the original clock settings.
Setting Daylight Saving Time
When “ON” is selected in “DST SETTING” of “CLOCK ADJUST”, the time is
set 1 hour ahead.
*The following is a screen of the model with Wi-Fi functions.
1
Tap “MENU”.
.
2
Tap “SETUP”.
.
3
Tap “CLOCK ADJUST”.
.
0
Tap 3 or 2 to scroll the screen.
4
Tap “DST SETTING”.
.
5
Tap “ON”.
.
Memo :
0
What is daylight saving time?
Daylight saving time is the system of setting the clock 1 hour ahead for a
fixed period in summer.
It is used mainly in the Western countries.
0
Restore the daylight saving time settings after you returned from the trip.
Getting Started
24
Optional Accessories
You can record for a longer time by using the optional battery pack.
Product Name Description
Battery Pack
BN-VG114E
BN-VG121E
BN-VG138E
0
Provides a longer recording time. It can also be
used as a spare battery pack.
Battery Charger
0
AA-VG1
0
Enables the battery pack to be charged without
using this unit.
HDMI Mini Cable
0
VX-HD310
0
VX-HD315
0
Allows viewing in high picture quality when
connected to a TV.
0
Transmits video, audio, and control signals
between devices.
Memo :
0
The optional accessories above may not be supported in some regions.
0
For more information, refer to the catalog.
0
BN-VG108E is not sold separately. BN-VG107E is an equivalent battery
pack.
0
For details on the provided accessories, refer to “Verifying the
Accessories”.
“Verifying the Accessories” (A p. 12)
Approximate Recording Time (Using Battery)
o
GZ-EX315
Battery Pack Actual recording time Continuous recording time
(Maximum Recording
Time)
BN-VG114E
(Supplied)
1 h 5 m 2 h
BN-VG121E 1 h 40 m 3 h 5 m
BN-VG138E 3 h 5 h 30 m
o
GZ-E307/GZ-E305
Battery Pack Actual recording
time
Continuous recording
time
(Maximum Recording
Time)
BN-VG108E
(Supplied: GZE305)
40 m 1 h 5 m
BN-VG114E
(Supplied: GZE307)
1 h 15 m 2 h 10 m
BN-VG121E 1 h 55 m 3 h 15 m
BN-VG138E 3 h 20 m 5 h 45 m
0
The above are values when “MONITOR BRIGHTNESS” is set to “3”
(standard).
0
The actual recording time is an estimate in case that such operations as
zooming is used or recording is stopped repeatedly. It may be shorter in
the actual usage.
(It is recommended to prepare battery packs ready for three times the
expected recording time.)
0
When the battery life is reached, the recording time becomes shorter even
if the battery pack is fully charged.
(Replace the battery pack with a new one.)
Getting Started
25
Taking Videos in Auto Mode
You can record without worrying about the setting details by using the
Intelligent Auto mode. Settings such as exposure and focus will be adjusted
automatically to suit the shooting conditions.
0
In case of specific shooting scenes such as person etc., its icon is
displayed on the screen.
0
Before recording an important scene, it is recommended to conduct a trial
recording.
1
Open the lens cover.
.
2
Open the LCD monitor.
.
0
Check if the recording mode is A.
0
If the mode is B still image, tap B on the recording screen to display
the mode switching screen.
Tap A to switch the mode to video.
3
Check if the recording mode is P Intelligent Auto.
.
0
If the mode is H Manual, tap H on the recording screen to display
the mode switching screen.
Tap P to switch the recording mode to Intelligent Auto.
.
4
Press the START/STOP button to start recording.
.
0
Press again to stop.
0
Some displays disappear after approximately 3 seconds.
Use the n button to change the displays.
Indications for Video Recording
.
Display Icon Description
A
Video Quality Displays the icon of the “VIDEO QUALITY”
setting selected in the recording menu.
“ VIDEO QUALITY ” (A p. 207)
B
TOUCH PRIORITY
AE/AF
Displays the setting of “TOUCH PRIORITY AE/
AF”.
By default, it is set to “FACE TRACKING”.
“Capturing Subjects Clearly (TOUCH
PRIORITY AE/AF)” (A p. 46)
C
Time Displays the current time.
“Clock Setting” (A p. 20)
D
Image Stabilizer Displays the image stabilizer setting.
“Reducing Camera Shake” (A p. 54)
E
Recording Media Displays the icon of the media where videos
are recorded to.
F
Battery Indicator Displays the approximate remaining battery
power during use.
“Checking the Remaining Recording Time”
(A p. 63)
G
Recording Mode Displays the current recording mode of P
(Intelligent Auto) or H (Manual).
H
Setting Scenes of
Intelligent Auto
Displays scenes detected automatically in the
Intelligent Auto function. Multiple scenes may
be detected.
I
Remaining
Recording Time
Displays the remaining time for video
recording.
“Checking the Remaining Recording Time”
(A p. 63)
J
Scene Counter
(Recorded Time)
Displays the elapsed time of the video that is
currently being recorded.
Recording
26
o
Scenes of Intelligent Auto
Display Icon Description
g
Captures one’s skin beautifully.
V
Allows people to be captured naturally.
f
Record a group of people with the most suitable
settings.
W
Record the smiling face clearly.
S
Records while focusing on a near object.
a
Focuses at a far distance and captures a sharp
image with vivid colors.
Z
Records in dark places with minimal noise in the
overall image.
T
Allows night scenes to be captured accurately with
minimal noise in the overall image.
d
Prevents colors from fading even when recording
in a bright environment, such as snowfield and
beaches.
X
Prevents colors from fading when recording a
subject in a spotlight.
i
Reproduces the green color of trees vividly.
Y
Reproduces the colors of sunset naturally.
h
Adjusts settings so that the subject does not
appear too dark due to backlight.
k
Records while emphasizing the brightness of the
colors.
U
Reproduces the natural colors of the outdoors
during the day.
c
Reproduces the natural colors of the indoors in a
cold-color illumination.
b
Reproduces the natural colors of the indoors in a
warm-color illumination.
e
Selects the most suitable settings for handheld
shooting.
j
Selects the most suitable settings when a tripod is
used for shooting.
Memo :
0
Scenes can be detected according to the shooting conditions and
automatically adjusted in Intelligent Auto mode.
0
Multiple scenes may be detected depending on the recording conditions.
0
Some functions may not work properly depending on the shooting
conditions.
Operation Buttons for Video Recording
.
Operation
Buttons
Description
A
Video/Still Image
Mode
A/B
Switches between video and still image
modes.
B
T/W Zoom Allows the same functions as the zoom
lever to be performed.
Camera shake that often occurs when
using the zoom lever can be minimized.
“Zooming” (A p. 32)
C
Playback Mode Switches to the playback mode.
D / E Recording Start
6
Record-Standby
7
Functions as the START/STOP button.
F
Mark
D
By tapping the icon while recording is in
progress, you can mark a particular scene
to make it easier to find it.
G
MENU Displays the various menus of video
recording.
“Operating the Menu” (A p. 204)
H
Display Button n Switches the display between full (m) and
simple (n) with every tap of the button.
0
Simple display: Some displays
disappear after approximately 3
seconds.
0
Full display: Displays everything. The
display button changes from n to m.
0
When the power is turned off, simple
display (n) will be set.
I
Recording Mode
P/H
Switches the recording mode.
Recording
27
Using the Silent Mode
When the Silent mode is used, the LCD monitor darkens and operation
sounds will not be output. Use this mode to record quietly in dark places such
as during a performance.
.
0
Press and hold the SILENT button to turn on the Silent mode. The Silent
mode can be cancelled by holding down the button again.
0
T appears when “SILENT MODE” is set to “ON”.
0
The light is disabled when “SILENT MODE” is set to “ON”.
Useful Settings for Recording
0
When “QUICK RESTART” is set to “ON”, this unit turns on immediately if
you open the LCD monitor within 5 minutes after the power is turned off
by closing the monitor.
“ QUICK RESTART ” (A p. 219)
0
When “AUTO POWER OFF” is set to “ON”, this unit turns itself off
automatically to conserve power when it is not operated for 5 minutes.
(only when using the battery pack)
“ AUTO POWER OFF ” (A p. 219)
0
When “TOUCH PRIORITY AE/AF” is set to “FACE TRACKING”, this unit
detects faces and automatically adjusts its brightness and focus to record
the faces more clearly.
“Capturing Subjects Clearly (TOUCH PRIORITY AE/AF)” (A p. 46)
0
When “DATE/TIME RECORDING” is used, the date and time can be
recorded together with the video.
“Recording Videos with Date and Time” (A p. 62)
Caution :
0
Do not expose the lens to direct sunlight.
0
Do not use this unit in the rain, snow, or places with high humidity like the
bathroom.
0
Do not use this unit in places subject to excessive humidity or dust, as well
as places exposed to steam or smoke directly.
0
The power may turn off to protect the circuit if the temperature of this unit
rises too much.
0
Do not remove the battery pack, AC adapter, or SD card when the access
lamp is lighted. The recorded data may become unreadable.
0
This unit is a microcomputer-controlled device. Electrostatic discharge,
external noise and interference (from a TV, a radio, etc.) might prevent it
from functioning properly. In such a case, turn off the power, then remove
the AC adapter and battery pack. This unit will be reset.
0
Disclaimer
- We shall not be held responsible for loss of recorded contents when
recording videos/audio or playback cannot be operated due to
malfunctions in this unit, provided parts, or SD card.
- Once deleted, recorded contents (data), including data loss due to
malfunctions in this unit, cannot be restored. Please be forewarned.
- JVC will not be responsible for any lost data.
- In order for quality improvement, defective recording medium is subject
to be analyzed. Therefore, it may not be returned.
Memo :
0
Check the remaining recording time in the media before you start shooting.
If there is not enough space, move (copy) the data to a computer or disc.
0
When there are many files in the media, it may take time for them to be
displayed on the playback screen. Wait for a while as the access lamp
appears blinking, which indicates normal operation.
0
Do not forget to make copies after recording!
0
Recording stops automatically as it cannot be performed for 12 or more
consecutive hours according to specifications.
(It may take some time to resume recording.)
0
For long recordings, the file is split into two or more files if the size exceeds
4 GB.
0
You can connect this unit to the AC adapter to record for long hours
indoors.
0
Depending on the subject and shooting conditions, recording may not be
performed properly even in the Intelligent Auto mode.
0
Depending on the shooting conditions, the four corners of the screen may
appear dark, but this is not a malfunction. In this case, change the shooting
conditions by moving the zoom lever, etc.
Capturing Still Images During Video Recording
.
0
“PHOTO” lights up on the screen when a still image is being captured.
.
Memo :
0
This function does not support the iFrame recording format. (GZ-EX315)
0
The size of the still image that is captured in the video mode is 1,920 x
1,080.
0
Operation is invalid under the following conditions:
- when menu is being displayed
- when remaining recording time or battery power is being displayed
- when any functions in “SPECIAL RECORDING” is set
Recording
28
Taking Still Images in Auto Mode
You can record without worrying about the setting details by using the
Intelligent Auto mode.
1
Open the lens cover.
.
2
Open the LCD monitor.
.
0
Check if the recording mode is B.
0
If the mode is A video, tap A on the recording screen to display the
mode switching screen.
Tap B to switch the mode to still image.
3
Check if the recording mode is P Intelligent Auto.
.
0
If the mode is H Manual, tap H on the recording screen to display
the mode switching screen.
Tap P to switch the recording mode to Intelligent Auto.
.
4
Set the focus on the subject.
.
0
When focused, the focus icon lights up in green.
5
Take a still image.
.
0
PHOTO lights up when a still image is being captured.
0
After recording, close the lens cover.
Memo :
0
Depending on the subject and shooting conditions, recording may not be
performed properly even in the Intelligent Auto mode.
Recording
29
Indications During Still Image Recording
.
0
Some displays disappear after approximately 3 seconds.
Use the n button to change the displays.
Display Icon Description
A
Image Size Displays the icon of the image size.
0
The size of still images can be changed.
“ IMAGE SIZE ” (A p. 212)
B
TOUCH PRIORITY
AE/AF
Displays the setting of “TOUCH PRIORITY AE/
AF”.
By default, it is set to “FACE TRACKING”.
“Capturing Subjects Clearly (TOUCH
PRIORITY AE/AF)” (A p. 46)
C
Time Displays the current time.
“Clock Setting” (A p. 20)
D
Recording media Displays the icon of the media where still
images are recorded to.
E
Battery Indicator Displays the approximate remaining battery
power during use.
“Checking the Remaining Recording Time”
(A p. 63)
F
Recording Mode Displays the current recording mode of P
(Intelligent Auto) or H (Manual).
G
Setting Scenes of
Intelligent Auto
Displays scenes detected automatically in the
Intelligent Auto function. Multiple scenes may
be detected.
H
Remaining Number
of Shots
Displays the remaining number of shots for still
image recording.
“Approximate Number of Still Images (Unit:
Number of Shots)” (A p. 64)
I
Recording in
Progress
“PHOTO” appears when a still image is being
captured.
J
Focus Lights up in green when focused.
K
Shutter Speed Displays the shutter speed.
o
Scenes of Intelligent Auto
Display Icon Description
g
Captures one’s skin beautifully.
V
Allows people to be captured naturally.
f
Record a group of people with the most suitable
settings.
W
Record the smiling face clearly.
S
Records while focusing on a near object.
a
Focuses at a far distance and captures a sharp
image with vivid colors.
Z
Records in dark places with minimal noise in the
overall image.
T
Allows night scenes to be captured accurately with
minimal noise in the overall image.
d
Prevents colors from fading even when recording
in a bright environment, such as snowfield and
beaches.
X
Prevents colors from fading when recording a
subject in a spotlight.
i
Reproduces the green color of trees vividly.
Y
Reproduces the colors of sunset naturally.
h
Adjusts settings so that the subject does not
appear too dark due to backlight.
k
Records while emphasizing the brightness of the
colors.
U
Reproduces the natural colors of the outdoors
during the day.
c
Reproduces the natural colors of the indoors in a
cold-color illumination.
b
Reproduces the natural colors of the indoors in a
warm-color illumination.
e
Selects the most suitable settings for handheld
shooting.
j
Selects the most suitable settings when a tripod is
used for shooting.
Memo :
0
Scenes can be detected according to the shooting conditions and
automatically adjusted in Intelligent Auto mode.
0
Multiple scenes may be detected depending on the recording conditions.
0
Some functions may not work properly depending on the shooting
conditions.
Recording
30
