GR-SZ7000
COMPACT VHS CAMCORDER
LYT0002-0A3A
INSTRUCTIONS
ENGLISH
EN
Super VHS
VHS
PA L
625
Dear Customer,
Thank you for purchasing the JVC Compact VHS
camcorder. Before use, please read the safety
information and precautions contained in the
following pages to ensure safe use of your new
camcorder.
Warning on lithium battery
The battery used in this device may present a
fire or chemical burn hazard if mistreated. Do
not recharge, disassemble, heat above 100°C or
incinerate.
Replace battery with Panasonic (Matsushita
Electric), Sanyo or Maxell CR2025; use of
another battery may present a risk of fire or
explosion.
n Dispose of used battery promptly.
n Keep away from children.
n Do not disassemble and do not dispose of in
fire.
Crossed Out Dust Bin Mark
n The Crossed Out Dust Bin
Mark on the battery pack
indicates that the product
complies with Directives
91/157/EEC and 93/86/
EEC.
n Nickel-Cadmium (Ni-Cd)
battery pack must be
recycled or disposed of
properly.
This camcorder is designed to be used with
PAL-type colour television signals. It cannot be
used for playback with a television of a different
standard. However, live recording is possible
anywhere. Use the BN-V12U/V22U/V25U
battery packs and, to recharge them, the
provided multi-voltage AC Power Adapter/
Charger. (An appropriate conversion adapter
may be necessary to accommodate different
designs of AC outlets in different countries.)
NOTES:
●
The rating plate (serial number plate) and
safety caution are on the bottom and/or the
back of the main unit.
●
The rating plate (serial number plate) of the
AC Power Adapter/Charger is on its bottom.
This unit is produced to comply with Standard
IEC Publ. 65.
2 EN
625
PAL
Using This Instruction Manual
•All major sections and subsections are listed in the
Table Of Contents (Z pg. 3).
•Notes appear after most subsections. Be sure to
read these as well.
•Basic and advanced features/operation are
separated for easier reference.
It is recommended that you . . .
..... refer to the Index (Z pgs. 48 – 50) and
familiarize yourself with button locations, etc.
before use.
..... read thoroughly the Safety Precautions that
follow and cautions (Z pgs. 51, 52). They
contain extremely important information
regarding the safe use of your new camcorder.
SAFETY
PRECAUTIONS
WARNING:
TO PREVENT FIRE OR SHOCK
HAZARD, DO NOT EXPOSE
THIS UNIT TO RAIN OR
MOISTURE.
CAUTIONS:
n To prevent shock, do not open the cabinet.
No user serviceable parts inside. Refer
servicing to qualified personnel.
n When you are not using the AC Power
Adapter/Battery charger for a long period of
time, it is recommended that you disconnect
the power cord from AC outlet.
Cassettes marked “ ” and “ ” can be
used with this camcorder. However, S-VHS
recordings are possible only with cassettes
marked “ ”.
MAJOR FEATURES
CONTENTS
EN 3
GETTING STARTED 4
Power .............................................. 4
Clock (Lithium) Battery Insertion/Removal ... 6
Viewfinder Adjustment .......................... 6
Date/Time Setting................................ 7
Tape Length Setting............................... 8
Recording Format Setting........................ 8
Loading/Unloading A Cassette.................. 9

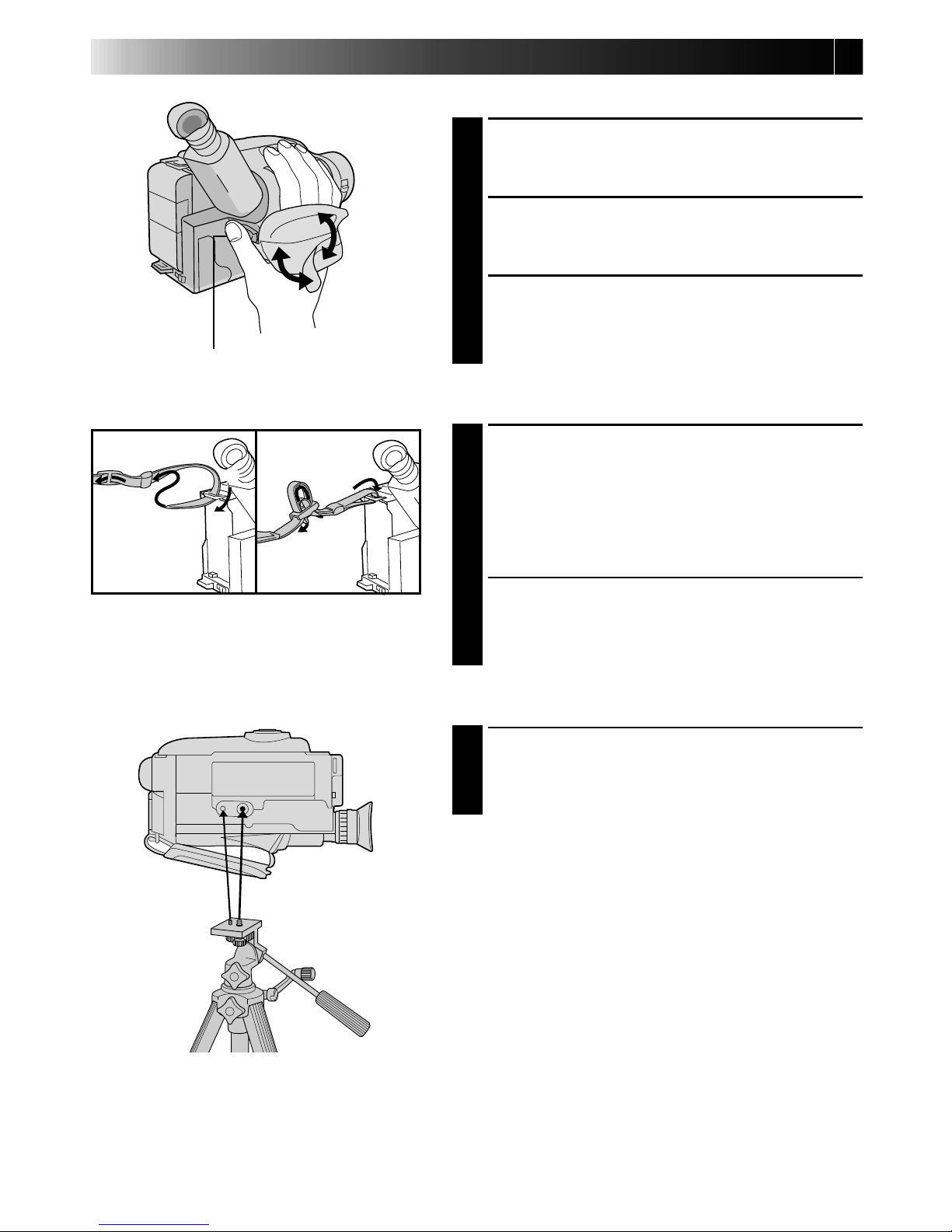

Grip Adjustment................................. 10
Shoulder Strap Attachment .................... 10
Tripod Mounting................................. 10
RECORDING 11
Basic Recording ................................. 11
Basic Features ................................... 12
Advanced Features ............................. 16
PLAYBACK 32
Basic Connections ............................... 32
Basic Playback .................................. 34
Features.......................................... 35
Using The Cassette Adapter ................... 36
EDITING 37
Tape Dubbing .................................... 37
Random Assemble Editing [R.A.Edit] ......... 38
USING REMOTE CONTROL
UNIT 42
Insert Editing .................................... 44
Audio Dubbing ................................... 45
TROUBLESHOOTING 46
INDEX 48
Controls .......................................... 48
Connectors ....................................... 49
Indicators ........................................ 49
Other Parts ...................................... 49
Viewfinder ....................................... 50
CAUTIONS 51
SPECIFICATIONS 53
GETTING STARTED
RECORDING
PLAYBACK
EDITING
n Program Manager (Z pg. 16 – 29)
n Programme AE with Special Effects
(
Z pgs. 16, 17)
• Auto Mode Lock • Auto Mode Release
• 180X Digital Zoom • Strobe • Classic Film
• Twilight • Sports • Slow Shutter
• 1/2000 sec. High Speed Shutter
n Picture Stabilizer (Z pg. 20)
n Digital Hyper Zoom (
Z pg. 12)
n Digital Fades/Wipes (
Z pg. 22)
n EasyEdit with Random Assemble Editing
(
Z pg. 38 – 41)
n Built-In Auto Light (
Z pg. 15)
n Snapshot (
Z pg. 14)

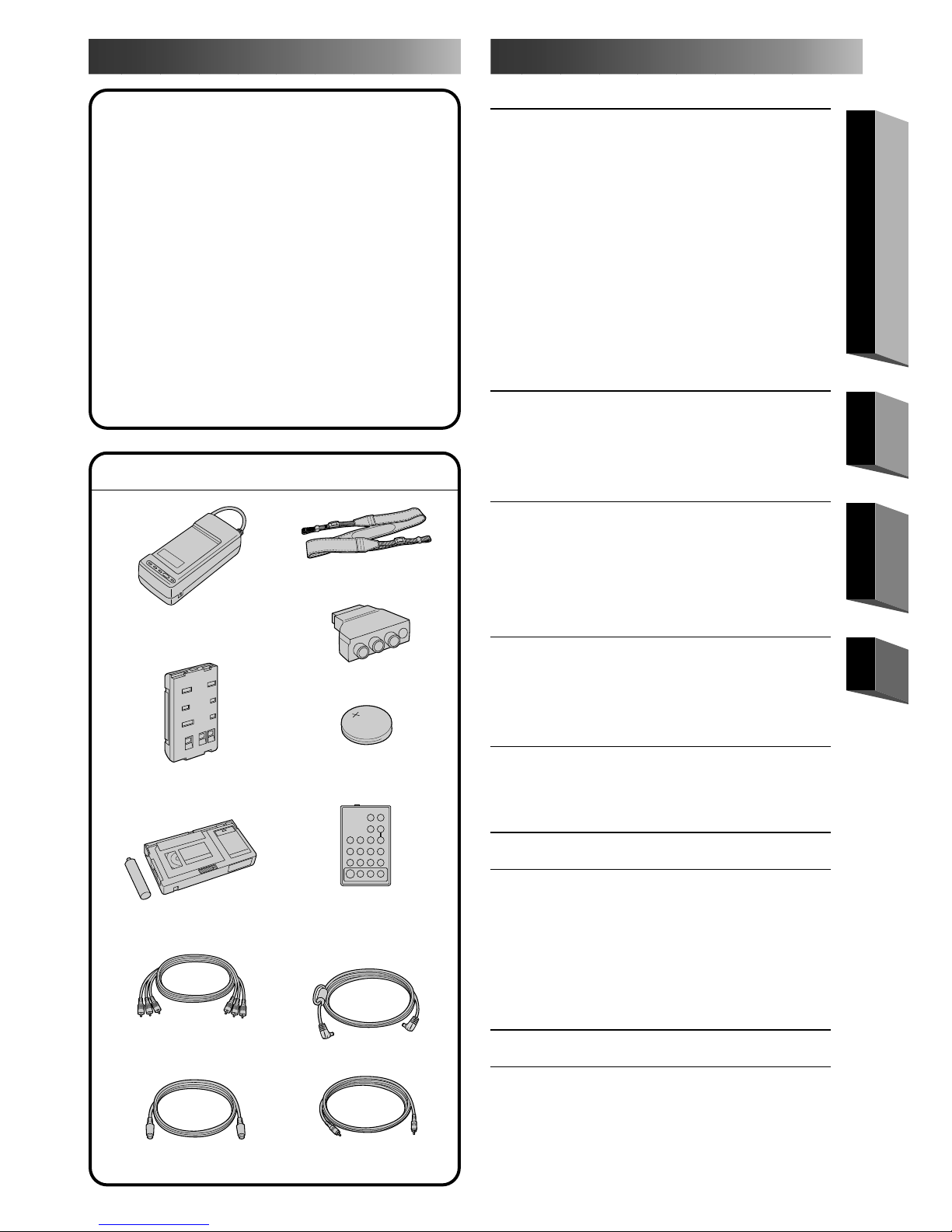

PROVIDED ACCESSORIES
•AC Power Adapter/
Charger AA-V11EG
•Shoulder Strap
•Battery Pack
BN-V12U
•Cassette Adapter
C-P7U
•AUDIO/VIDEO
(A/V) cable
•S-VIDEO cable
•Editing cable
•Cable Adapter
•Lithium Battery
CR2025 x 2
•Remote Control
Unit RM-V706U
or RM-V709U
•DC cord
4 EN
GETTING STARTED
REFRESH indicatorREFRESH switch
CHG. (charge) indicator
Marks
END
indicator
POWER
indicator
ATTENTION:
Before detaching the power source, make
sure that the camcorder’s power is turned
off. Failure to do so can result in a
camcorder malfunction.
Hook on.
Push in.
BATT. RELEASE

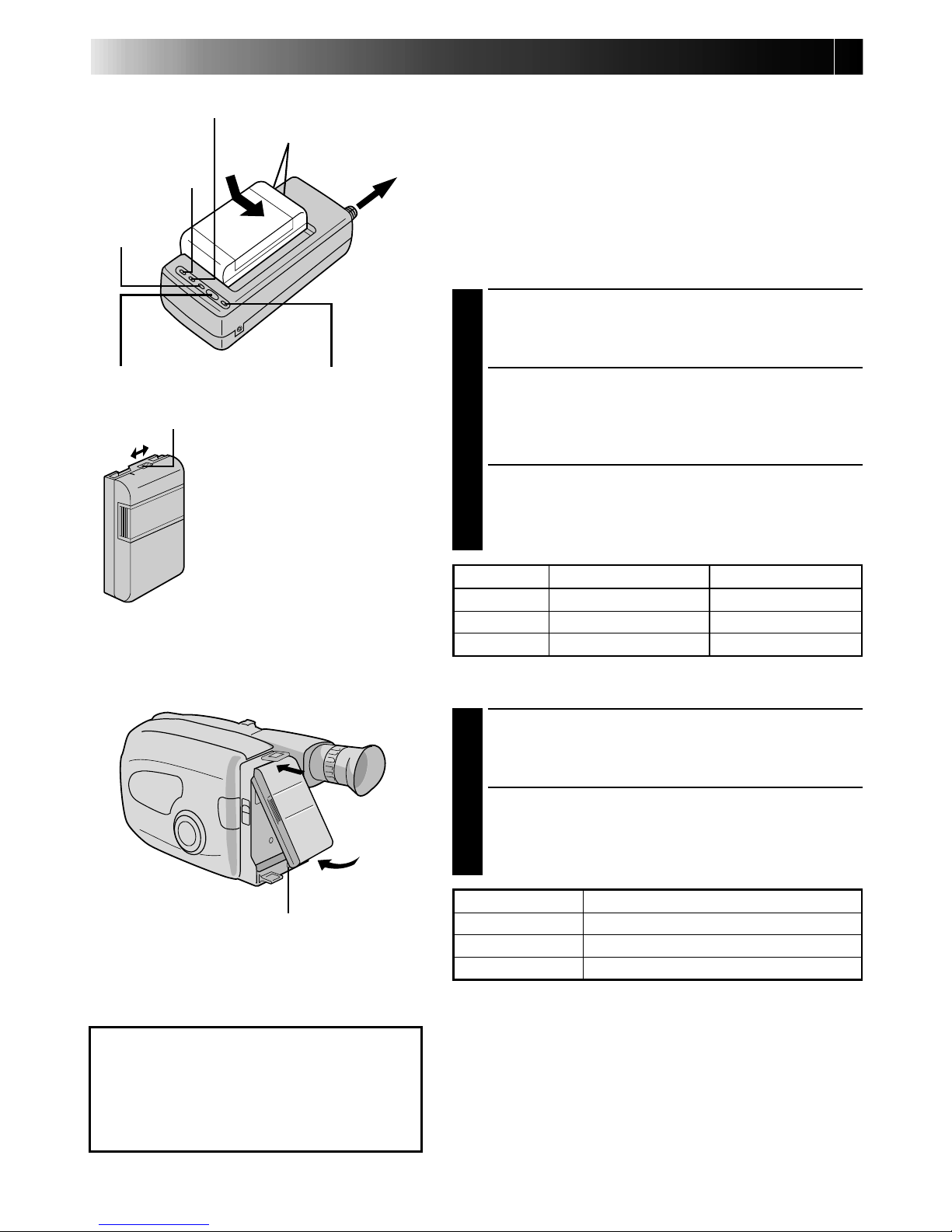

Power
This camcorder’s 3-way power supply system lets you
choose the most appropriate source of power.
NOTES:
●
No function is available without power supply.
●
Use only specified power supply.
●
Do not use provided power supply units with other
equipment.
CHARGING THE BATTERY PACK
SUPPLY POWER
1
Connect the charger’s AC power cord to a wall
outlet. The power indicator lights.
ATTACH BATTERY PACK
2
Align the marks and slide the battery pack in the
direction of the arrow until it locks in place.
The CHG. indicator lights.
DETACH BATTERY PACK
3
When charging is completed, the END indicator
lights. Slide the battery pack opposite the direction
of the arrow.
To AC outlet
BATT. PACK CHARGE DISCHARGE
BN-V12U approx. 1 hr. 10 min. approx. 3 hrs. 30 min.
BN-V22U approx. 2 hrs. 10 min. approx. 7 hrs.
BN-V25U approx. 2 hrs. 40 min. approx. 10 hrs.
USING THE BATTERY PACK
ATTACH BATTERY PACK
1
Hook its top end to the camcorder and push the
battery pack in until it locks in place.
DETACH BATTERY PACK
2
Slide BATT. RELEASE and pull out the battery pack.
Charge marker
** CHARGE MARKER
A charge marker is provided on
the battery pack to help you
remember whether it has been
charged or not. Two colors are
provided (red and black)—you
choose which one means
charged and which means
discharged.
BATT. PACK APPROXIMATE RECORDING TIME
BN-V12U 45 min. (30 min.)
BN-V22U 1 hr. 40 min. (1 hr. 10 min.)
BN-V25U 2 hrs. 5 min. (1 hr. 35 min.)
( ) : when the video light is on.
**REFRESH
The AC power adapter features a REFRESH function that
allows you to fully discharge the battery pack before
recharging.
To discharge the battery . . .
..... attach the battery pack to the adapter as shown in the
illustration to the left. Then push REFRESH. The
REFRESH indicator lights when discharging starts,
and goes out when discharging is complete.
EN 5
NOTES:
●
The recording time per charge is affected by such factors as the time spent in Record/Standby mode and
the frequency of zooming. It is safer to have spare battery packs.
●
Charging times noted on page 4 are for fully discharged battey pack, and discharging times are for fully
charged battery pack.
●
Charging and discharging times vary according to the ambient temperature and the status of the battery
pack.
●
Remember to set the charge marker after charging a battery pack or after detaching a discharged one from
your camcorder.
●
Perform the REFRESH function after no less than 5 chargings.
●
High temperatures can damage the battery pack, so use only where good ventilation is available. Don’t
allow it to discharge in container, such as a bag.
●
If you stop recharging or discharging part way through, make sure to remove the battery pack before
unplugging the adapter’s AC cord.
●
Remove the battery pack from the adapter immediately after discharging.
●
To avoid interference with reception, do not use the AC Power Adapter/Charger near a radio.
●
Make sure you unplug the DC cord before charging or discharging the battery pack.
●
A blinking CHG. indicator means that the battery pack has become hot. Wait until it cools down to
continue.
●
The CHG. indicator may not light properly with a brand new battery pack, or with one that’s been stored
for an extended period. In this case, remove and reattach the battery pack and recharge it. The CHG.
indicator should light during recharging. If not, contact your nearest JVC dealer.

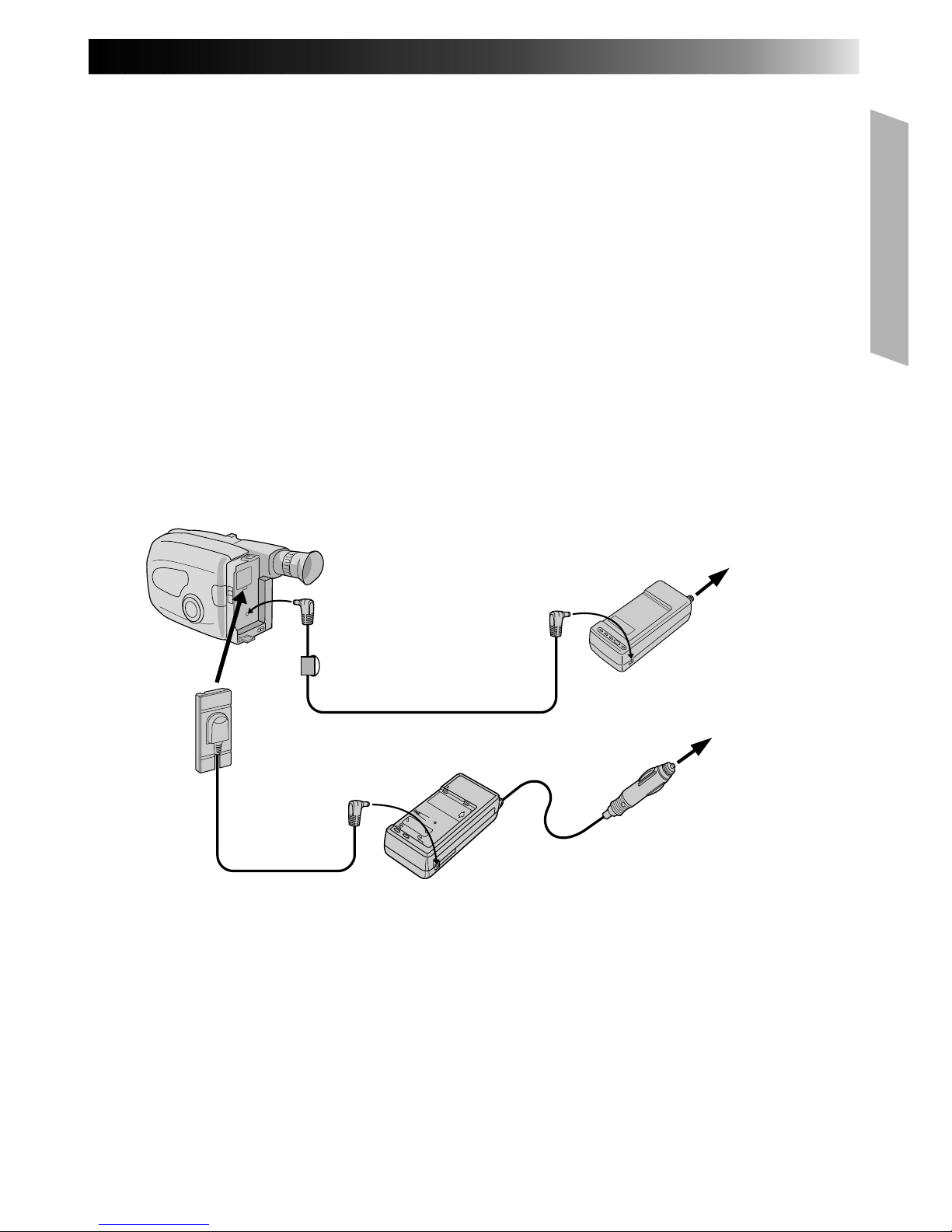

USING AC POWER
Use the AC Power Adapter (connect as shown in
the above illustration).
NOTES:
●
The supplied AC Power Adapter/Charger features
automatic voltage selection in the AC range from
110 V to 240 V.
●
When using the provided DC cord, make sure
you connect the end of the cable with the core
filter to the camcorder. The core filter improves
performance of equipment.
USING A CAR BATTERY
Use the optional Car Battery Charger/Adapter
(connect as shown in the above illustration).
NOTES:
●
When using the car battery, leave the engine
idling.
●
The optional Car Battery Charger (BH-V3E) can
also be used to charge the battery pack.
●
When using the optional Car Battery Charger,
refer to the respective instruction booklet.
To AC outlet
Car Battery Charger/Adapter
BH-V3E (optional)
AC Power
Adapter/Charger
AA-V11EG
To car’s
cigarette
lighter socket
To DC in jack
DC OUT
terminal
DC cord
Core Filter
6 EN
GETTING STARTED
(cont.)

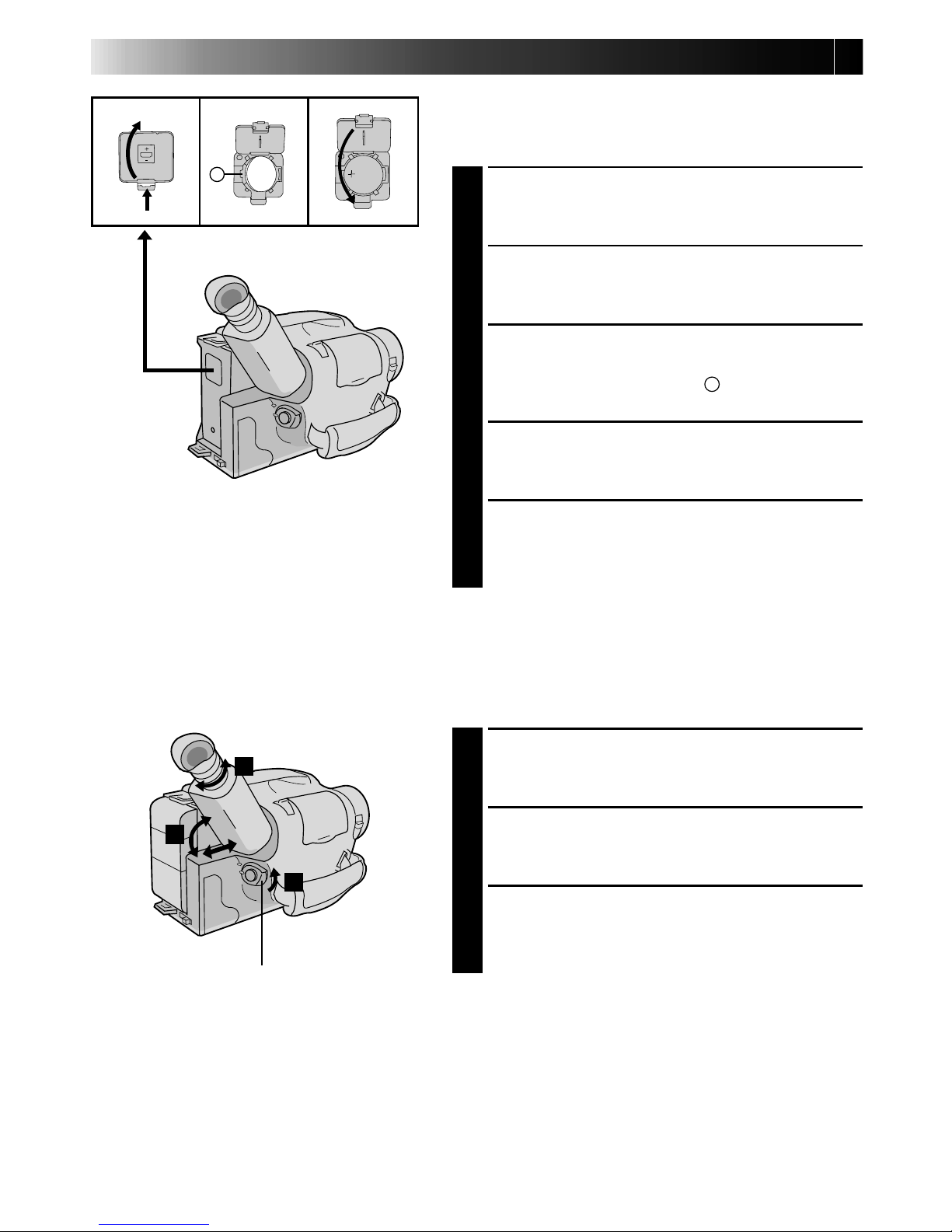

Clock (Lithium) Battery Insertion/Removal
This battery is necessary for clock operation and to
perform date/time settings.
SWITCH OFF POWER
1
Switch off the unit’s power and remove the power
supply unit.
OPEN COVER
2
Open the clock battery compartment cover while
pressing the release tab.
REMOVE BATTERY (when replacing)
3
Insert a pointed, non-metallic object between the
battery and the compartment (A) and pull the
battery out.
INSERT BATTERY
4
Ensuring the plus (+) side is up, insert a CR2025
lithium battery and push it in.
CLOSE COVER
5
Close the compartment cover until it clicks in place.
NOTE:
See “SAFETY PRECAUTIONS” (Z pg. 2) for information
on safe handling of lithium batteries.
Viewfinder Adjustment
POSITION VIEWFINDER
1
Adjust the viewfinder manually for best viewability
(see illustration at left).
SELECT MODE
2
Set the power switch to CAMERA.
ADJUST DIOPTER
3
Turn the diopter adjustment control until the
indications in the viewfinder are clearly focused.
1
2
3
Set POWER to “CAMERA”.
A
EN 7
Set Cancel
1.1.00 10:45
+
–
Gain Up NORM
Tele Macro OFF
Interval Timer OFF
Rec Time OFF
JLIP ID NO. 07
Tally ON
Set Character
Date/Time
END :MENU KEY

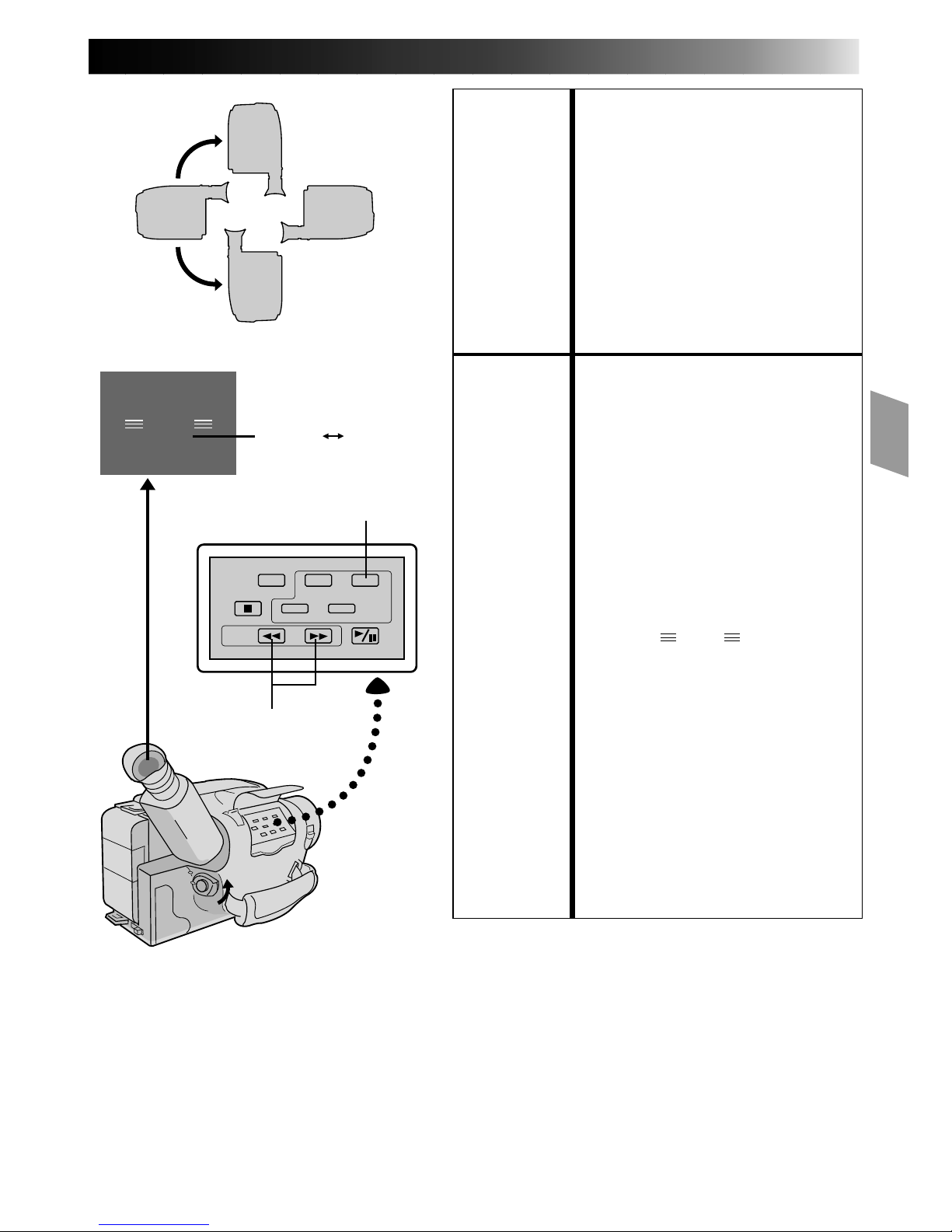

Date/Time Setting
SELECT MODE
1
First set the power switch to “CAMERA”. Turn the
PROGRAM AE select dial to any position except
AUTO LOCK.
ACCESS MENU SCREEN
2
Press MENU.
SELECT FUNCTION
3
Press – to move the highlight bar down to “Date/
Time”, then press NEAR. The Set Date And Time
screen appears.
SET DATE/TIME
4
Press FAR or NEAR until the item you want to set
begins blinking, then press + or – to until the correct
setting appears.
•If you decide you want to return the date and time
to the previous settings, press FAR or NEAR to
move the highlight bar to “Cancel”, then press
MENU.
•If you’re satisfied with the settings, go on to step 5.
START CLOCK OPERATION
5
Once you’ve set the date and time, press FAR or
NEAR until “Set” begins to blink, then press MENU.
The Menu screen reappears.
CLOSE MENU
6
Press MENU.
NOTES:
●
To display the date and time in the viewfinder and on a
connected TV, see “Date/Time Character Insert”
(Z pg. 26).
●
If, in step 4, you input an invalid date (30. 2, 31. 6,
etc.) and perform step 5, “Input Error” appears blinking
at the bottom of the screen. Press +, –, FAR or NEAR to
input the correct number.
PROGRAM AE
select dial
NEAR
FAR
Set time and
date screen
Menu screen
Time
24-hour indication
MENU
Date
Day/Month/Year
8 EN
30
30
45 60
T
GETTING STARTED
(cont.)
Tape Length Setting
Set the tape length according to the length of the tape
used.
SET TAPE LENGTH
1
Press 30•45•60 until the required indication
appears in the veiwfinder. 30 = 30 minutes of
recording time, 45 = 45 minutes, and 60 = 60
minutes.
NOTE:
The tape remaining time (Z pg. 11) displayed in the
viewfinder is correct only if the correct tape length has
been selected.
Recording Format Setting
When using an S-VHS-C cassette, set to either of the
recording formats.
SET RECORDING FORMAT
1
Press S-VHS/VHS button until the required
indication appears in the viewfinder.
: Super VHS
T : Regular VHS
NOTE:
Super VHS recordings cannot be made on VHS-C tapes.
S-VHS VCR
Regular VHS VCR
COMPATIBILITY BETWEEN S-VHS AND VHS
Recording Playback
Recorded tapeCamcorderBlank tape Cassette adapter
S-VHS-C cassette
VHS recordingsVHS-C cassette
• The recorded format (S-VHS or
VHS) is automatically detected
when playlback begins.
• S-VHS recorded tapes cannot
be viewed on regular VHS VCRs.
Set POWER to “CAMERA”.
Tape length indicator
30•45•60
tape length
select button
S-VHS/VHS recording
format select button
Recording format
indicator
Playback
The pictures recorded with the camcorder can be viewed in playback by directly connecting it to a TV; and
can also be played back using a VCR.
S-VHS
recordings
EN 9
Loading/Unloading A Cassette
OPEN CASSETTE HOLDER
1
Slide EJECT until the holder opens. Do not use force
to open.
INSERT/REMOVE CASSETTE
2
Make sure the label is facing outward.
CLOSE CASSETTE HOLDER
3
Press PUSH and make sure the holder is closed and
locked.
NOTES:
●
A cassette holder can’t be opened unless a power
supply is attached.
●
Make sure that the tape is not slack when loading the
cassette. If there is any slack, turn the gear on the
cassette in the direction of the arrow to take up the
slack.
●
Make sure the Erase Protection tab is in the position
that allows recording. If not, slide the tab. Some
cassettes have removable tabs. If the tab has been
removed, cover the hole with adhesive tape.
●
The cassette holder can’t be opened while the
camcorder is in the record mode.
GearErase protection
Turn to take
up slack.
10 EN
Grip Adjustment
EXPAND LOOP
1
Separate the Velcro strip.
INSERT HAND
2
Pass your right hand through the loop and grasp the
grip.
ADJUST STRAP LENGTH
3
Adjust so your thumb and fingers can easily operate
the Recording Start/Stop button and Power Zoom
lever. Refasten the Velcro strip.
Shoulder Strap Attachment
ATTACH STRAP
1
Following the illustration at left, thread the strap
through the top of the eyelet 1, then fold it back
and thread it through the keeper 2, and then
through the buckle 3. Repeat the procedure to
attach the other end of the strap to the other eyelet,
making sure the strap isn’t twisted.
ADJUST LENGTH
2
Adjust as shown in the illustration at left 1, then
slide both keepers snug against the eyelets to
prevent slipping 2.
Tripod Mounting
ALIGN AND TIGHTEN
1
Align the screw and camera direction stud on the
tripod with the camera’s mounting socket and stud
hole. Then tighten the screw.
2
3
1
2
1
Recording Start/Stop button
GETTING STARTED
(cont.)
EN 11
25min
60min
59min
3min
2min (Blinking)
1min (Blinking)
0min (Blinking)
*-
-
-min
(Now calculating)
RECORDING
Basic Recording
NOTE:
You should already have performed the procedures listed
below. If not, do so before continuing.
●
Power (Z pg. 4)
●
Date/Time Setting (Z pg. 7)
●
Tape Length Setting (Z pg. 8)
●
Recording Format Setting (Z pg. 8)
●
Grip Adjustment (Z pg. 10)
LOAD A CASSETTE
1
Slide EJECT to open the cassette holder, then insert
the cassette with the label facing out. Press PUSH to
ensure the holder is closed and locked.
ENTER RECORD–STANDBY MODE
2
Slide the LENS COVER open/close switch to open
the lens cover, then set the power switch to
“CAMERA”.
•The power indicator lights and the camcorder
enters the Record–Standby Mode.
•The scene you’re aimed at appears on the
viewfinder screen, with the word “PAUSE”
superimposed upon it.
START SHOOTING
3
Press the Start/Stop button.
•The tally lamp lights while recording is in progress,
and “
REC
” appears in the viewfinder.
STOP RECORDING
4
Press the Start/Stop button again to stop recording.
•The camcorder re-enters the Record-Standby
mode.
Tape remaining time indicator
POWER
Start/Stop button
LENS COVER
switch
Tally lamp
Power indicator
NOTES:
●
A cassette holder can’t be opened unless a power supply is attached.
●
There may be a delay after you slide EJECT until the holder opens. Do not use force.
●
The tape’s remaining time is displayed in the viewfinder as shown.
●
The indicated remaining time is approximate.
●
The time required to calculate the remaining tape length, and the accuracy of the calculation, may vary
according to the type of tape used.
●
The tape remaining time displayed in the viewfinder is correct only if the correct tape length has been
selected (Z pg. 8).
●
“TAPE END” appears when the tape reaches its end, and the power goes off automatically if left in this
condition for 5 minutes. “TAPE END” also appears when a cassette whose tape is already at its end is loaded.
●
If the Record–Standby mode continues for 5 minutes without performing Zoom or any other operations,
the camcorder’s power shuts off automatically. Set the Power switch to “POWER OFF”, and then back to
“CAMERA” to turn the camcorder on again.
●
If the Recording Start/Stop button is pressed after the Record-Standby mode has continued for over 5
minutes, recording may not start immediately.
●
If you’re recording on a cassette from the middle, use the RETAKE function (Z pg. 13) to find the end of
the last recording so you don’t erase any of it.
●
The LENS COVER warning blinks for about 10 seconds when the camcorder is turned on, when the cover
is closed.
12 EN
FEATURE: Zooming
PURPOSE: To produce the zoom in/out effect, or
an instantaneous change in image
magnification.
OPERATION: 36X Hyper zoom
Digital circuitry doubles the
maximum 18x magnification offered
by optical zoom.
1) To zoom in, slide the Zoom Lever
toward “T”.
2) To zoom out, slide toward “W”.
180X Hyper zoom
The maximum 180x zoom magnification is available through digital
processing when Programme AE is
set to 180x. (
Z pg. 17)
NOTES: ●
During Hyper Zoom, the speed
increases the further you slide the
Zoom Lever.
●
Focusing may become unstable
during Hyper Zoom. In this case,
set the zoom while in Record–
Standby, set manual focus or Focus
Lock (Z pg. 18, 19), then zoom in
or out in Record mode.
●
The Zoom Level Indicator (5) only
moves during optical zoom. Once
the Zoom Level indicator reaches
the top of the zoom indicator bar,
all magnification from that point is
through digital processing.
●
During digital image processing,
the quality of the image may suffer.
●
Snapshot (Z pg. 14), Dissolve and
Auto Select in Fade/Wipe
(Z pg. 23), do not function when
Programme AE is set to 180x.
FEATURE: Quick Review
PURPOSE: To check the end of the last
recording.
OPERATION: 1) Press “
” and release quickly
during the Record–Standby mode.
•Tape is rewound for about 2
seconds and played back
automatically, then pauses in
Record–Standby mode for the
next shot.
NOTE:
Distortion may occur at start of
playback. This is normal.
RECORDING
Basic Features
Zoom-out
Zoom-in
Zoom level
indicator
Zoom indicator
bar
Power zoom lever
EN 13
APS ON APS OFF
AUTO
PAUSE
APS ON
FEATURE: Retake
PURPOSE: To re-record certain segments.
OPERATION: 1) Make sure the camcorder is in the
Record–Standby mode.
2) Press either RETAKE button to
reach the start point for new
recording.
Pressing “F” forwards the tape and
pressing “R” reverses it.
3) Press Recording Start/Stop to start
recording.
NOTE:
Noise may appear during Retake.
This is normal.
FEATURE: Auto Pause System
PURPOSE: To automatically stop recording
when the camcorder is pointed
down, preventing accidental
recordings of the ground, your feet,
etc.
OPERATION: 1) Press AUTO PAUSE so that “APS
ON” appears in the viewfinder for
2 seconds. When the camcorder is
tilted down by a large degree from
its horizontal position during
recording, the Record-Standby
mode is automatically engaged.
During this, “AUTO” is displayed
above “
PAUSE
”.
•To switch off the Auto Pause
System, press AUTO PAUSE
again so that “APS OFF” appears
in the viewfinder for 2 seconds.
NOTES: ●
The Auto Pause System is also
effective when the camcorder is
pointed up, or is positioned upside
down.
●
Auto Pause also works when the
camcorder is twisted by a large
degree to the left or right.
●
When you want to shoot in any of
the aforementioned positions, be
sure to switch off Auto Pause.
Record-Standby
Record-Standby
Record-Standby
Record
Normal
Up
Down
Upside down
AUTO PAUSE
RETAKE (R/F)
14 EN
RECORDING
Basic Features (cont.)
Multi4
Pin-Up Frame
Full
Multi 9 Multi 4
12
34
12
45
78
3
6
9
Record multiple images in one scene
(4 or 9 at a time). The images appear and are
stored in this order: 1, 2, 3, 4 (5, 6, 7, 8, 9 for
Multi-Analyzer 9). In the Motor Drive mode,
after “9”, the next image recorded is “1”, and
the cycle is repeated.
Multi-Analyzer 4/Multi-Analyzer 9
Full
A still image that occupies
the entire image field is
recorded.
Frame
A still image with a white
border is recorded.
Pin-Up
A still image on a blue
background. The image is
bordered in white and a
shadow effect is added to
give it a more dimensional
feel.
Snapshot
This interesting feature lets you record several types of
digital still images that look, and sound, like photographs. It’s a great way to spice up footage of events such
as parties, weddings and graduations.
SELECT SNAPSHOT MODE
1
Press SNAPSHOT MODE to cycle through the
modes as shown in the illustration at left. Once the
desired mode appears, it is selected and activated,
and its indicator appears, within 2 seconds.
PERFORM SNAPSHOT
RECORDING
2
Press SNAPSHOT.
If you press during recording . . .
.... a still image is displayed and recorded in the
selected mode, then the camcorder resumes
normal recording. In the Full and Frame modes,
the new image comes in gradually overall. In
the Pin-Up and Multi-Analyzer modes, the new
image comes in gradually from the center.
If you press during Record–Standby . . .
.... a still image is displayed and recorded in the
selected mode, then the camcorder re-enters the
Record–Standby mode.
Motor Drive Function
SELECT SNAPSHOT MODE
1
Select as in step 1 above.
ACTIVATE MOTOR DRIVE
2
During Snapshot recording, press and hold down
SNAPSHOT. You can take rapid snapshots with an
interval of approximately 0.7 seconds between stills.
NOTES:
●
The Date/Time and title display will disappear during
Snapshot recording.
●
The Motor Drive function cannot be activated using the
SNAPSHOT button on the RM-V706U/V709U remote
control unit (provided).
●
When Multi-Analyzer is activated, the shutter sound
may not match the appearance of the images.
●
Snapshot recording does not function when
programme AE is set to 180x (Z pg. 17)
SNAPSHOT
SNAPSHOT MODE
EN 15

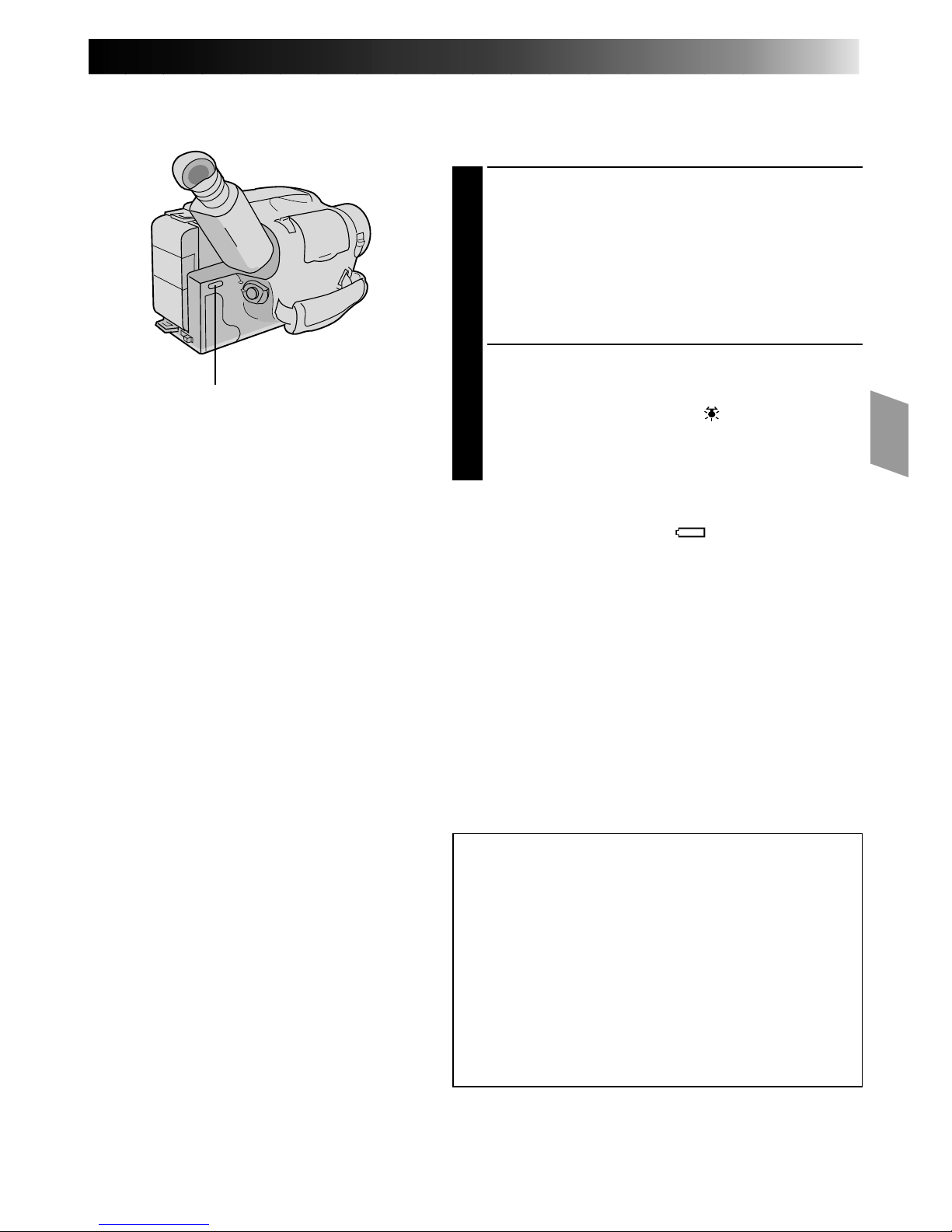

Video Light
When natural lighting is too dim, you can brighten the
scene by using the built-in video light.
SET VIDEO LIGHT
1
Set the LIGHT OFF/AUTO/ON as required.
ON : Always keeps the light on as long as the
camcorder is turned on.
AUTO : Automatically turns on the light when the
camcorder senses insufficient lighting on
the subject.
OFF : Turns off the light.
•The video light can be used with the camcorder’s
power on.
•It is recommended to set the white balance
(Z pg. 27) to indoor mode ( ) when you use the
video light.
•When not using the video light, turn it off to save
battery power.
NOTES:
●
Even if the battery indicator ( ) does not blink in the
viewfinder, if the battery pack’s charge is low, the
camcorder may turn off automatically when you turn
on the video light, or when you start recording with the
video light turned on.
●
When the LIGHT OFF/AUTO/ON switch is set to
“AUTO”:
•
Depending on the lighting conditions, the video light
may keep turning on and off. In this case, manually
switch the light on or off using the LIGHT OFF/
AUTO/ON switch.
•
While the Sports or High-Speed Shutter mode
(Z pg. 17) is engaged, the light is likely to stay on.
•
While the Twilight mode (Z pg. 17) is engaged, the
light will not activate.
DANGER
•The video light become extremely hot. Do not
touch it either while in operation or soon after
turning it off, otherwise serious injury may result.
•Do not place the camcorder into the carrying case
immediately after using the video light, since it
remains extremely hot.
•When operating, keep a distance of about 30 cm.
between the video light and people or objects.
•Do not use near flammable or explosive materials.
•It is recommended that you consult your nearest
JVC dealer for replacing the video light.
LIGHT OFF/AUTO/ON
16 EN
RECORDING
Advanced Features
Programme AE With Special Effects
All you have to do to access any of the variety of
shooting effects is to turn the PROGRAM AE select dial.
SELECT MODE
1
Turn the PROGRAM AE select dial until the symbol
of the function you want is aligned with the mark.
•The selected mode’s name and its indication are
displayed in the viewfinder for approx.
1 second. Then the name disappears, and only the
indication remains. The mode is activated.
•When Auto Mode Lock or Auto Mode Release
mode is selected, only the mode’s name is
displayed. Then the name disappears and the
mode is activated.
NOTES:
●
Only one effect can be engaged at a time.
●
The screen becomes slightly dark in the High Speed
Shutter mode. Use in well-lighted situations.
●
In the High Speed Shutter or Sports modes, picture
colour may be adversely affected if subject is lit by
alternating discharge-type light sources such as
flourescent or mercury-vapour lights.
Sports
1
/
2
0
0
0
1
8
0
x
A
U
T
O
M
O
D
E
L
O
C
K
R
E
L
E
A
S
E
FAR NEAR
+
–
1 second later, the mode is activated.
Mark
PROGRAM AE
select dial
Viewfinder
After 1 sec.
EN 17

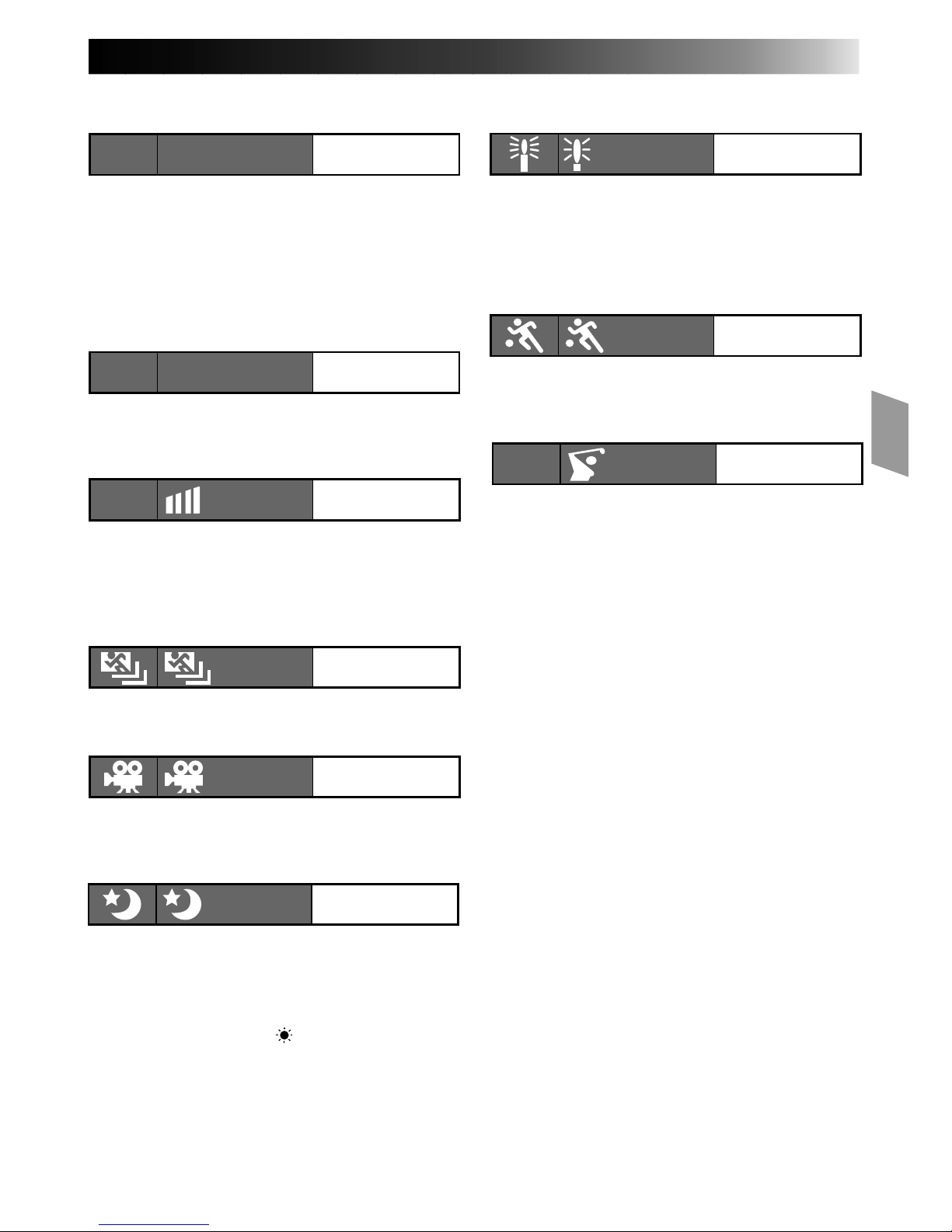

DIAL VIEWFINDER
MODE
SYMBOL INDICATION
Auto Mode Lock
Locks the camcorder in Full Auto mode, preventing
incorrect operation due to accidental button
pressing during shooting.
•In this mode the following controls are disabled;
Fade/Wipe, Wide, Title, Display, M.W.B. (Manual
White Balance), Manual Focus, Focus Lock,
Exposure Control and MENU.
Auto Mode Release
Re-enables the controls that were disabled by Auto
Mode Lock.
180X Digital Zoom
Boosts the maximum zoom magnification to
approx. 180x.
•Snapshot (
Z pg. 14), Dissolve and Auto Select in
Fade/Wipe (Z pg. 23) do not function.
Strobe
Freezes images in rapid succession.
Classic Film
A strobe effect that gives the black and white
picture a “flickery” effect like an old movie.
Twilight
Dusk, twilight scenery, fireworks, etc., look more
natural and dramatic. The following happens when
Twilight mode is selected:
•Auto gain control is turned off.
•White Balance is set to “
” (outdoor mode), but
can also be manually changed to another mode
(Z pg. 27).
•Auto Focus becomes available only in the range of
10 m to infinity. To focus when the subject-tocamera distance is less than 10 m, use manual
focusing (Z pg. 19).
DIAL VIEWFINDER
MODE
SYMBOL INDICATION
Slow Shutter
Sets the shutter speed to 1/12.5 sec. and boosts the
sensitivity so that the camcorder can record subjects
even in virtual darkness.
•Use it only in dark locations.
•The picture flickers like a quick strobe.
Sports
High shutter speed clearly captures fast-moving
action.
High-Speed Shutter (1/2000s.)
Captures faster action than Sports mode.
Auto Mode Lock
LOCK
Auto Lock
Auto Mode Release
RELEASE
Auto Release
180x Digital Zoom
D.Zoom 180x
180x
Strobe
Strobe
Slow Shutter
Slow Shutter
1/2000 sec.
High Speed Shutter
1/2000
S 1/2000
2
Sports
Sports
Classic Film
Classic Film
NOTES:
●
When the Classic Film effects are activated,
manual white balance adjustment (Z pg. 27) is
not possible.
●
When Slow Shutter is activated, Auto Focus may
not work properly.
●
When Slow Shutter is activated, bright spots may
appear on the screen. This is not a camcorder
malfunction.
●
Certain effects cannot be used together with other
functions. When an effect not usable in the
present situation is selected, its indicator blinks.
●
Snapshot (Z pg. 14), Dissolve and Auto Select in
Fade/Wipe (Z pg. 23) do not function when
programme AE is set to 180x.
Twilight
Twilight
Loading...
