SERVICE MANUAL
DIGITAL VIDEO CAMERA
YF04620044
GR-DX107EK, GR-DX107EX, GR-DX107EY,
GR-DX107EZ, GR-DX307EK, GR-DX307EX,
GR-DX307EY, GR-DX307EZ, GR-DX317EX
GR-DX107EK, GR-DX107EX, GR-DX107EY, GR-DX107EZ[M4D3S9]
GR-DX307EK, GR-DX307EX, GR-DX307EY, GR-DX307EZ, GR-DX317EX[M4D3M9]
For disassembling and assembling of MECHANISM ASSEMBLY, refer to the SERVICE MANUAL No.86700(MECHANISM ASSEMBLY).
1 PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-3
2 SPECIFIC SERVICE INSTRUCTIONS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-5
3 DISASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-6
4 ADJUSTMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-15
5 TROUBLE SHOOTING. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-18
COPYRIGHT © 2004 VICTOR COMPANY OF JAPAN, LIMITED
TABLE OF CONTENTS
No.YF046
2004/4
SPECIFICATION
1-2 (No.YF046)
SECTION 1
r
e
PRECAUTIONS
1.1 SAFTY PRECAUTIONS
Prior to shipment from the factory, JVC products are strictly
inspected to conform with the recognized product safety and
electrical codes of the countries in which they are to be
sold.However,in order to maintain such compliance, it is equally
important to implement the following precautions when a set is
being serviced.
1.1.1 Precautions during Servicing
(1) Locations requiring special cauti on are denoted by labels
and inscriptions on the cabinet, chassis and certain parts of
the product.When performing service, be sure to read and
comply with these and other cautionary notices appearing
in the operation and service manuals.
(2) Parts identified by the symbol and shaded ( ) parts
are critical for safety.
Replace only with specified part numbers.
NOTE :
Parts in this category also include those specified to
comply with X-ray emission standards for products
using cathode ray tubes and those specified for
compliance with various regulations regarding
spurious radiation emission.
(3) Fuse replacement caution notice.
Caution for continued protection against fire hazard.
Replace only with same type and rated fuse(s) as
specified.
(4) Use specified internal wiring. Note especially:
• Wires covered with PVC tubing
• Double insulated wires
• High voltage leads
(5) Use specified insulating materials for hazardous live parts.
Note especially:
• Insulation Tape
• PVC tubing
•Spacers
• Insulation sheets for transistors
•Barrier
(6) When replacing AC primary side compon ents (transformers,
power cords, noise blocking capacitors, etc.) wrap ends of
wires securely about the terminals before soldering.
emission. Consequently, when servicing these products,
replace the cathode ray tubes and other parts with only the
specified parts. Under no circumstances attempt to modify
these circuits.Unauthorized modification can increase the
high voltage value and cause X-ray emission from the
cathode ray tube.
(12) Crimp type wire connectorIn such cases as when replacing
the power transformer in sets where the connections
between the power cord and power trans former primary
lead wires are performed using crimp type connectors, if
replacing the connectors is unavoidable, in order to prevent
safety hazards, perform carefully and precisely according
to the following steps.
• Connector part number :E03830-001
• Required tool : Connector crimping tool of the proper
type which will not damage insulated parts.
• Replacement procedure
a) Remove the old connector by cutting the wires at a
point close to the connector.Important : Do not
reuse a connector (discard it).
cut close to connector
Fig.1-1-3
b) Strip about 15 mm of the insulati on from the ends
of the wires. If the wires are stranded, twist the
strands to avoid frayed conductors.
15 mm
Fig.1-1-4
c) Align the lengths of the wires to be connected.
Insert the wires fully into the connector.
Metal sleeve
Fig.1-1-1
(7) Observe that wires do not contact heat producing parts
(heatsinks, oxide metal film resistors, fusible resistors, etc.)
(8) Check that replaced wires do not contact sharp edged or
pointed parts.
(9) When a power cord has been replaced, check that 10-15
kg of force in any direction will not loosen it.
Power cord
Fig.1-1-2
(10) Also check areas surrounding repaired locations.
(11) Products using cathode ray tubes (CRTs)In regard to such
products, the cathode ray tubes themselves, the high
voltage circuits, and related circuits are specified for
compliance with recognized codes pertaining to X-ray
Connector
Fig.1-1-5
d) As sh ow n i n Fi g.1-1-6, use the crimping tool to crimp
the metal sleeve at the center position. Be sure to
crimp fully to the complete closure of the tool.
1.2
5
2
.0
5.5
Crimping tool
Fig.1-1-6
e) Check the four points noted in Fig.1-1-7.
Not easily pulled free
Wire insulation recessed
more than 4 mm
Crimped at approx. cente
of metal sleev
Conductors extended
Fig.1-1-7
(No.YF046)1-3
1.1.2 Safety Check after Servicing
Examine the area surrounding the repaired location for d amage
or deterioration. Observe that screws, parts and wires have been
returned to original positions, Afterwards, perform the following
tests and confirm the specified values in order to verify
compliance with safety standards.
(1) Insulation resistance test
Confirm the specified insulation resistance or greater
between power cord plug prongs and externally exposed
parts of the set (RF terminals, antenna terminals, video and
audio input and output terminals, microphone jacks,
earphone jacks, etc.).See table 1 below.
(2) Dielectric strength test
Confirm specified dielectric strength or greater between
power cord plug prongs and exposed accessible parts of
the set (RF terminals, antenna terminals, video and audio
input and output terminals, microphone jacks, earphone
jacks, etc.). See Fig.1-1-11 below.
(3) Clearance distance
When replacing primary circuit components, confirm
specified clearance distance (d), (d') between soldered
terminals, and between terminals and surrounding metallic
parts. See Fig.1-1-11 below.
d
Chassis
d'
Power cord
primary wire
Fig.1-1-8
(4) Leakage current test
Confirm specified or lower leakage current between earth
ground/power cord plug prongs and externally exposed
accessible parts (RF terminals, antenna terminals, video
and audio input and output terminals, microphone jacks,
earphone jacks, etc.).
Measuring Method : (Power ON)Insert load Z between
earth ground/power cord plug prongs and externally
exposed accessible parts. Use an AC voltmeter to
measure across both terminals of load Z. See Fig.1-1-9
and following Fig.1-1-12.
ab
Externally
exposed
accessible part
Z
V
c
A
Fig.1-1-9
(5) Grounding (Class 1 model only)
Confirm specified or lower grounding impedance between
earth pin in AC inlet and externally exposed accessible
parts (Video in, Video out, Audio in, Audio out or Fixing
screw etc.).Measuring Method:
Connect milli ohm meter between earth pin in AC inlet and
exposed accessible parts. See Fig.1-1-10 and grounding
specifications.
AC inlet
Earth pin
Exposed accessible part
MIlli ohm meter
Grounding Specifications
Region
USA & Canada
Europe & Australia
Grounding Impedance (Z
Z 0.1 ohm
Z 0.5 ohm
)
Fig.1-1-10
AC Line Voltage
100 V
100 to 240 V
110 to 130 V
110 to 130 V
200 to 240 V
Region
Japan
USA & Canada
Europe & Australia
Insulation Resistance (R
R 1 M /500 V DC
1 M R 12 M /500 V DC
R 10 M /500 V DC
)
Dielectric Strength
AC 1 kV 1 minute
AC 1.5 kV 1 minute
AC 1 kV 1 minute
AC 3 kV 1 minute
AC 1.5 kV 1 minute
(
Class
(
Class
Clearance Distance (d), (d'
d, d' 3 mm
d, d' 4 mm
d, d' 3.2 mm
d 4 mm
)
d' 8 mm (Power cord
d' 6 mm (Primary wire
)
Fig.1-1-11
AC Line Voltage
100 V
110 to 130 V
110 to 130 V
220 to 240 V
Region
Japan
USA & Canada
Europe & Australia
Load Z
1
0.15
1.5
2
50
Leakage Current (i)
i 1 mA rms
i 0.5 mA rms
i 0.7 mA peak
i 2 mA dc
i 0.7 mA peak
i 2 mA dc
a, b, c
Exposed accessible parts
Exposed accessible parts
Antenna earth terminals
Other terminals
Fig.1-1-12
NOTE :
These tables are unofficial and for reference only. Be sure to confirm the precise values for your particular country and locality.
)
)
)
1-4 (No.YF046)
SECTION 2
SPECIFIC SERVICE INSTRUCTIONS
The following table indicate main different points between models GR-DX107EK, GR-DX107EX, GR-DX107EY, GR-DX107EZ,
GR-DX307EK, GR-DX307EX, GR-DX307EY, GR-DX307EZ and GR-DX317EX.
MODEL GR-DX107EK GR-DX107EX GR-DX107EY GR-DX107EZ GR-DX307EK
LCD MONITOR 2.5INCH 2.5INCH 2.5INCH 2.5INCH 3.0INCH
BODY COLOR Silver & Silver Silver & Black Silver & Black Silver & Black Silver & Black
AC CORD BS PULG CEE PULG CEE PULG CEE PULG BS PULG
BATTERY PACK BN-V107U-S BN-V107U-S BN-V107U-S BN-V107U-S BN-V107U-S
MODEL GR-DX307EX GR-DX307EY GR-DX307EZ GR-DX317EX
LCD MONITOR 3.0INCH 3.0INCH 3.0INCH 3.0INCH
BODY COLOR Silver & Black Silver & Black Silver & Black D.Gray & Black
AC CORD CEE PULG CEE PULG CEE PULG CEE PULG
BATTERY PACK BN-V107U-S BN-V107U-S BN-V107U-S BN-V107U
(No.YF046)1-5
SECTION 3
DISASSEMBLY
3.1 BEFORE ASSEMBLY AND DISASSEMBLY
3.1.1 Precautions
• Be sure to disconnect the power supply unit prior to mounting
and soldering of parts.
• Prior to removing a component part that needs to disconnect
its connector(s) and its screw(s), first disconnect the wire(s)
from the connector(s), and then remove the screw(s).
• When connecting/disconnecting wires, pay enough attention
not to damage the connectors.
• When inserting the flat wire to the connector, pay attention to
the direction of the flat wire.
• Be careful in removing the parts to which some spacer or
shield is attached for reinforcement or insulation.
• When replacing chip parts (especially IC parts), first remove
the solder completely to prevent peeling of the pattern.
• Tighten screws properly during the procedures. Unless
specified otherwise, tighten screws at a torque of 0.088N
·cm). However, 0.088N·m (0.9kgf·cm) is a value at the
(0.9kgf
time of production. At the time of service, perform the
procedure at a torque 10% less than 0.088N
·m (0.9kgf·cm).
(See "SERVICE NOTE" as for tightening torque.)
3.1.2 Destination of connectors
Two kinds of double-arrows in connection tables respectively
show kinds of connector/wires.
: Wire: Flat wire : Board to board (B-B)
: The connector of the side to remove
CONN. No. PIN No.CONNECTOR
CN2a
CN2b
MAIN CN101
MAIN CN103
MONI BW CN761
MINI BW CN762
3.1.3 Disconnection of connectors (Wires)
Wire
· Pull both ends of the connector in the arrow
direction, remove the lock and disconnect the flat
wire.
B-B Connector
B-B Connector
· Pull the both ends of the board in the direction of the arrow, and remove the B-B Connector.
FPC Connector
· Extend the locks in the direction of the arrow for
unlocking and then pull out the wire. After
removing the wire, immediately restore the locks
to their original positions because the locks are
apt to come off the connector.
Wire
FPC Connector
Lock
B-B Connector
Fig.3-1-1
3.1.4 Tools required for disassembly and assembly
Torque driver
YTU94088
Bit
YTU94088-003
Tweezers
P-895
·m
40
10
• Torque driver
Be sure to use to fastening the mechanism and exterior parts
because those parts must strictly be controlled for tightening
torque.
• Bit
This bit is slightly longer than those set in conventional torque
drivers.
• Tweezers
To be used for removing and installing parts and wires.
• Chip IC replacement jig
To be used for replacement of IC.
• Cleaning cloth
Recommended cleaning cloth to wipe down the video heads,
mechanism (tape transport system), optical lens surface.
3.2 ASSEMBLY AND DISASSEMBLY OF MAIN PARTS
3.2.1 Assembly and disassembly
When reassembling, perform the step(s) in reverse order.
STEP
No.
[1]
[2]
[8]
PART
TOP COVER ASSY
UPPER ASSY
(Inc. VF ASSY,
SPEAKER/MONITOR)
E.VF UNIT(B/W)
(∗1) Order of steps in Procedure
When reassembling, preform th e step(s) in the reverseorder.
These numbers are also used as the identification (location)
No. of parts Figures.
(∗2) Part to be removed or installed.
(∗3) Fig. No. showing Procedure or Part Location.
C = CABINET
(∗4) Identification of part to be removed, unhooked, unlocked,
released, unplugged, unclamped or unsoldered.
S = Screw
L = Lock, Release, Hook
SD = Solder
CN = Connector
[Example]
• 4 (S1a) = Remove 4 S1a screws.
• 3 (L1a) = Disengage 3 L1a hooks.
• 2 (SD1a) = Unsolder 2 SD1a points.
• CN1a = Remove a CN1a connector.
(∗5) Adjustment information for installation.
Fig.
No.
4(S1a), 3(L1a),CN1a
Fig.C1
(S2a),2(S2b),3(S2c)
Fig.C2-1
2(SD1a),
L2,CN2a,b
2(S8),L8,CN8a
Fig.C2-2
POINT
( 4) ( 5)( 2) ( 3)( 1)
NOTE
-
-
NOTE 8
Chip IC replacement jig
PTS40844-2
Cleaning cloth
KSMM-01
Fig.3-1-2
1-6 (No.YF046)
3.2.2 ASSEMBLY/DISASSEMBLY OF CABINET PARTS AND ELECTRICAL PARTS
zDisassembly procedure
STEP
PART NAME
No.
[1]
CASSETTE COVER ASSY
[2]
SIDE COVER(R)
[3]
TOP COVER
[4]
SIDE COVER(L)ASSY
[5]
UPPER CASE ASSY
[6]
FRONT COVER ASSY
[7]
MIC ASSY
[8]
REAR COVER ASSY
[9]
MONITOR BOARD
[10]
SD BOARD ASSY
[11]
LOWER UNIT ASSY
(INCLUDE VF ASSY/OP BLOCK ASSY)
[12]
VF ASSY
[13]
OP BLOCK ASSY/CCD BOARD ASSY
[14]
MAIN BOARD ASSY
[15]
MDA BOARD ASSY
[16]
MECHANISM ASSY
Fig.
No.
GRIP BELT ASSY,2(S1),HOOK(F)
Fig.C1
(S1),L1a,COVER(ADJ),4(S1),L1b
(S2a),(S2b),L2a,L2b
Fig.C2
2(S3),2(L3)
6(S4a),(S4b),(S4c),COVER(DV)ASSY
Fig.C3
JACK COVER ASSY
(S5),L5,COVER(JIG CON),4(S5),CN5
Fig.C4
5(S6),CN6
Fig.C5
2(S7)
2(S8),L8a,2(L8b),L8c,CN8
Fig.C6
2(S9),3(L9a),BKT(TOP)ASSY
Fig.C7
CN9a,b,6(S9),L9b,2(L9c)
CN10,(S10)
Fig.C8
CN11a,b,c,d,e,3(S11)
4(S12)
Fig.C9
(S13),2(L13)
2(S14),2(L14a),SHIELD COVER
Fig.C10
CN14a,b,c,L14b
CN15a,b,c,d,2(S15)
Fig.C11
(S16a),BKT(PRE-REC),3(S16b)
BKT(MECHA)ASSY
POINT NOTE
NOTE1:
Before removing the CASSETTE COVER ASSEMBLY, remove the GRIP BELT ASSEMBLY.
NOTE4a:
During the procedure, be careful in handling the parts.
NOTE4b:
In attaching the SIDE COVER (L) ASSEMBLY, attach the
COVER (JACK, DV) ASSEMBLY at the same time.
NOTE5:
In removing the UPPER CASE ASSEMBLY, be careful not
to damage connectors.
NOTE6:
NOTE1
-
-
NOTE4a, b
NOTE5
NOTE6
NOTE7
NOTE8
NOTE9
-
-
NOTE12a, b
NOTE13
NOTE14
-
NOTE16
NOTE13:
For the disassembly procedure of the OP BLOCK ASSEMBLY/CCD BOARD ASSEMBLY, see "3.2.5 DISASSEMBLY
of [13] OP BLOCK ASSMBLY/CCD BOARD ASSEMBLY"
NOTE14:
In removing the MAIN BOARD ASSEMBLY, remove the SPACER.
NOTE16:
Be careful in handling the parts.
zDestination of connectors
CN.NO.
CN5 MAIN CN115 SUB OPE UNIT - 6
CN6 MAIN CN111 MIC ASSY - 4
CN8 MAIN CN109 CAMERA OPE UNIT - 13
CN9a MAIN CN104 MONITOR
/CN7602 20
CN9b MAIN CN108 POWER OPE UNIT - 7
CN10 MAIN CN114 SD CN701 12
CN11a MAIN CN112 FRONT CN401 12
CN11b MAIN CN107 OP BLOCK ASSY - 28
CN11c MAIN CN102 CCD CN5501 20
CN11d MAIN CN101 BATT. TERM. - 21
CN11e MAIN CN113 VF FPC ASSY - 22/20
CN14a MAIN CN106 SENSOR - 16
CN14b MAIN CN103 MDA CN305 30
CN14c MAIN CN110 HEAD - 8
CN15a MDA CN301 CAPSTAN MOTOR - 18
CN15b MDA CN302 DRUM MOTOR - 11
CN15c MDA CN303
CN15d MDA CN304 LOADING MOTOR - 6
In attaching the FRONT COVER ASSEMBLY, be careful not
to cut or damage wires.
NOTE7:
In attaching the MIC ASSEMBLY, be careful not to cut or
damage wires.
NOTE8:
When attaching the REAR COVER ASSEMBLY, be careful
about the position of switch.
NOTE9:
For the disassembly procedure of the MONITOR ASSEMBLY,
see "3.2 .3 DISASSEMBLY of [9] MONITOR ASSEMBLY"
NOTE12a:
Pull out the VF ASSEMBLY, and remove one screw (No.46).
NOTE12b:
For the disassembly procedure of the VF ASSEMBLY, see
"3.2.4 DISASSMBLY of [12] VF ASSEMBLY"
CONNECTOR
CN7601
ROTARY ENCODER SW
PIN
NO.
39/20,
- 6
(No.YF046)1-7
2
DC
A
V
(S1)
b
1
(S1)
a
[1]
L1b
NOTE1
7
(S1)
6
(S1)
L3
4
(S1)
L1a
5
(S1)
3
(S1)
HOOK(F)
COVER(ADJ)
NOTE1
b
a
Fig.C1
[3]
a
b
a
11
(S3)
10
(S3)
a
c
b
L2a
d
9
(S2b)
L2b
[2]
c
8
(S2a)
e
h
19
(S4c)
d
g
JACK COVER ASSEMBLY
NOTE4b
f
c
COVER(DV)
ASSEMBLY
NOTE4b
13
(S4a)
h
18
(S4b)
b
d
b
g
12
(S4a)
a
d
15
(S4a)
[4]
NOTE4a
c
14
(S4a)
e
f
16
(S4a)
17
(S4a)
Fig.C2 Fig.C3
1-8 (No.YF046)

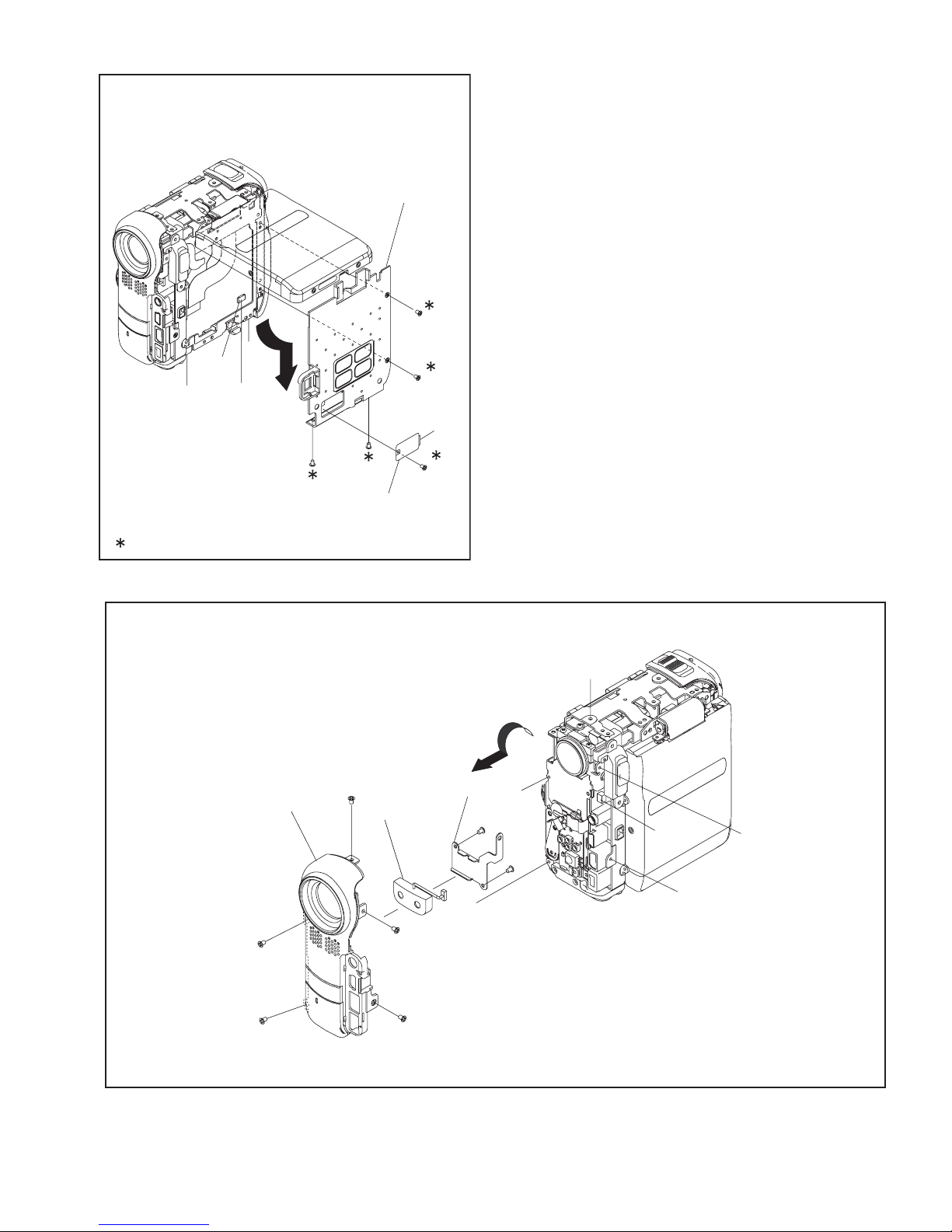

b
CN5
NOTE5
[5]
21
a
(S5)
22
(S5)
: 0.078N.m(0.8kgf.cm)
Fig.C4
b
24
(S5)
NOTE6
[6]
a
23
(S5)
20
(S5)
COVER(JIG CON)
L5
25
BKT(MIC) ASSEMBLY
(S6)
[7]
NOTE7
e
30
(S7)
a
31
(S7)
e
CN6
c
a
26
(S6)
b
27
(S6)
c
28
(S6)
d
29
(S6)
b
Fig.C5
d
(No.YF046)1-9
L8a
[8]
[10]
42
(S10)
[11]
L9a
35
(S9)
NOTE8
34
(S9)
a
CN9a
CN9b
L8b
L8c
Fig.C6
BKT(TOP)ASSEMBLY
L9a
36
(S9)
b
CN8
32
(S8)
33
(S8)
45
(S11)
44
(S11)
CN11e
43
(S11)
CN10
b
CN11b
CN11c
a
CN11d
b
a
CN11a
NOTE11
CN
Fig.C8
[12]
50
(S13)
(S12)
46
(S12)
a
47
b
NOTE12a, b
48
(S12)
49
(S12)
b
L9b
a
L9c
Fig.C7
1-10 (No.YF046)
41
(S9)
[9]
NOTE9
37
(S9)
39
(S9)
40
(S9)
38
(S9)
[13]
NOTE13
b
a
Fig.C9
L13
SHIELD COVER
a
b
NOTE14
SPACER(A)
: 0.069N.m(0.7kgf.cm)
Fig.10
(S14)
CN14c
CN14a
52
(S14)
51
a
b
L14a
[14]
CN14b
L14b
[16]
b
a
BKT(MECHA)ASSEMBLY
: 0.069N.m(0.7kgf.cm)
: 0.078N
Fig.C11
(S16b)
57
(S16b)
58
(S16b)
.
m(0.8kgf.cm)
NOTE16
BKT(PRE-REC)
55
(S16a)
56
CN16b
CN16a
[15]
a
53
(S15)
CN16d
CN16c
b
54
(S15)
(No.YF046)1-11
3.2.3 DISASSEMBLY of [9] MONITOR ASSEMBLY
zCAUTIONS
(1) During the procedure, be careful in handling the LCD
MODULE,etc., especially not to damage or soil the monitor screen. If it is soiled with fingerprints, etc., gently
clean it with chamois or the cleaning cloth.
(2) Since the BACKLIGHT is soldered to the BOARD AS-
SEMBLY (SD9), the BACKLIGHT should not be separated from the BOARD ASSEMBLY except when replacing
the BACKLIGHT.
(3) Remove the POWER (OPE) UNIT if necessary.
zDisassembly
(1) Remove the three screws (1-3) so that the FPC moves
easily.
(2) Remove the two screws (4 and 5), and remove the MON-
ITOR ASSEMBLY from the FRAME (UP) ASSEMBLY.
(3) While removing the five screws (6-10) in numerical order
and disengaging the two hooks (L9a and L9b) in alphabetical order, remove the MONITOR COVER ASSY.
(4) Remove the SWITCH BOARD from the MONITOR
CASE.
(5) Unlock the two connectors C N9a and CN9b, and raise
and remove the HINGE UNIT ASSEMBLY.
NOTE9a:
During the procedure, be careful in handling the F PC
ASSEMBLY.
(6) Unlock one connector CN9c, and remove the FPC.
(7) Remove one screw (11), and remove the MONITOR
BOARD ASSEMBLY together with the BACKLIGHT.
(8) Remove the LCD BRACKET (2).
(9) Remove the LCD MODULE.
(10) Remove the LCD BRACKET (1).
11
(S9f)
MONITOR COVER ASSEMBLY
L9a
L9b
e
9
(S9e)
10
(S9e)
4
(S9a)
(S9a)
2
(S9a)
d
3
e
5
(S9a)
F2
F3
L9c
HINGE UNIT ASSEMBLY
NOTE9a
7
(S9d)
(S9c)
(S9d)
6
L9d
8
SWITCH BOARD
ASSEMBLY
F3
F2
CN9a
CN9b
SD9
MONITOR BOARD
a
ASSEMBLY[0][5]
F1
CN9c
For 3.0INCH
F1
a
BACK LIGHT
LCD BKT (2)
For 2.5INCH
LCD MODULE
a
1
(S9a)
d
FRAME(UP)ASSEMBLY
POWER(OPE)UNIT
1-12 (No.YF046)
Fig.3-2-3
For 2.5INCHFor 3.0INCH
LCD BKT (1)
MONITOR CASE
: 0.098N.m(1.0kgf.cm)
: 0.196N
: 0.246N
.
m(2.0kgf.cm)
.
m(2.5kgf.cm)
3.2.4 DISASSMBLY of [12] VF ASSEMBLY
zDisassembly
(1) Remove the EYE CUP.
NOTE12a:
After the EYE CUP is removed, be careful of handling
the EYE CUP since the SHEET (LENS) is removed.
NOTE12b:
In attaching the EYE CUP, be careful of the attachment direction of the SHEET (LENS).
(2) Remove the three screws (1-3) and remove the HOLD-
ER (EYE).
(3) Remove one screw (4) and remove the BRACKET
(TOP2).
(4) Remove the two screws (5 and 6), lift the VF COVER in
a direction of arrow, and remove the VF COVER from the
ZOOM UNIT.
(5) Remove the FPC from one connector (CN12a), remove
one screw (7), and remove the ZOOM UNIT.
(6) Remove the two screws (8 and 9), and remove the
BRACKET.
(7) Remove the FPC attached to the GUIDE (OUT ER) little
by little so that the FPC moves easily, and remove the
COVER (VF) from the GUIDE (OUTER).
NOTE12c:
Be careful enough not to cut or damage the removed
FPC since the FPC is attached again.
NOTE12d:
Disassemble the COVER (VF) if necessary. In an attachment procedure, confirm that the LEVER (1)
moves smoothly.
(8) Remove the two screws (10 and 11), and remove the
FRAME ASSEMBLY.
(9) Remove the SPACER (A), and remove the FPC from
one connector (CN12b).
(10) Remove the two screws (12 and 13), and remove the VF
BOARD ASSEMBLY.
NOTE12e:
Disassemble the FRAME ASSEMBLY if necessary. In
an assembly procedure, be careful not to insert foreign
materials inside the VF and not to soil the VF.
< FRAME ASSEMBLY >
CASE(B.LIGHT)
SHEET(DIFF)
SPRING(LCD)
SHEET(POLA)
LCD MODULE
BRACKET(TOP2)
10
CN12b
VF BOARD
ASSEMBLY
[0][6]
12
(S12d)
(S12d)
SPACER(A)
13
(S12d)
g
F1F1
(S12b)
HOLDER(SHEET)
FRAME(VF)
BRACKET
(S12b)
g
f
f
8
9
(S12b)
STOPPER(POLA)
4
11
(S12d)
GUIDE(LCD)
NOTE12a,b
SHEET(LENS)
NOTE12e
SHEET(POLA)
5
(S12a)
1
(S12c)
2
(S12a)
3
(S12a)
< CASE(VF) >
ZOOM UNIT
VF COVER
e
HOLDER(EYE)
: 0.059N.m(0.6kgf.cm)
: 0.049N
.
m(0.5kgf.cm)
14
(S12e)
LEVER(2)
a
a
LENS HOLDER
ASSEMBLY
c
7
(S12c)
e
c
d
d
(S12c)
GUIDE(OUTER)
6
LEVER(1)
NOTE12d
CASE(VF)
FPC
NOTE12c
CN12a
EYE CUP
Fig.3-2-4
(No.YF046)1-13
3.2.5 DISASSEMBLY of [13] OP BLOCK ASSMBLY/CCD BOARD ASSEMBLY
zCAUTIONS
(1) During the procedure, remove the OP BLOCK ASSEMBLY
if necessary. When removing the OP BLOCK ASSEMBLY,
be careful not to damage the lens.
(2) During the procedure, be careful in handling CCD
IMAGE SENSOR, OP LPF, lens, and so on. Be careful
not to damage or soil the surface of them.
If they are soiled with fingerprints, etc., gently clean them
with chamois or the cleaning cloth.
(3) When products are shipped from the factory, protection
seals are applied onto transparent glass of some CCD
image sensors. Leave the protection seal as it is, and
take it off just before assembling the CCD image sensor
to the OP BLOCK ASSEMBLY.
(4) When removing OP LPF, be careful of the atta chment
direction of OP LPF. (Marking is attached to some OP
LPFs.) When reassembling OP LPF, reattach OP LPF to
the original position.
zDisassembly procedure of OP BLOCK ASSEMBLY/CCD
BOARD ASSEMBLY
(1) Unsolder the fourteen soldered parts (SD13) on the CCD
BOARD ASSEMBLY, and remove the CCD BOARD
ASSEMBLY.
(2) Remove the two screws (1 and 2), and remove the CCD
BASE ASSEMBLY.
NOTE13a:
When removing the CCD BASE ASSEMBLY, be
careful in handling a sheet and OP LPF since a sheet
or OP LPF may be removed together with the CCD
zAssembly procedure of OP BLOCK ASSEMBLY/CCD
BOARD ASSEMBLY
(1) Attach the OP LPF to the OP BLOCK ASSEMBLY, and
then the sheet to the OP BLOCK ASSEMBLY.
NOTE13c:
When attaching OP LPF to the OP BLOCK ASSEMBLY,
be careful about the attachment direction.
(2) Attach the CCD ASSEMBLY so that the sheet is not
shifted, and attach the CCD ASSEMBLY and the sheet
to the OP BLOCK ASSEMBLY by tightening them with
the two screws (1 and 2).
(3) Insert the CCD BOARD ASSEMBLY to the CCD BASE
ASSEMBLY, and solder the fourteen points (SD13).
zReplacement of service repair parts
Service repair parts of the OP BLOCK ASSEMBLY are as
follows. When replacing the parts, be careful not to cut or
damage the FPC, and not to damage the parts due to
soldering (overheat).
(1) FOCUS MOTOR
(2) ZOOM MOTOR
(3) IRIS MOTOR
NOTE13d:
When replacing the FOCUS MOTOR or the ZOOM
MOTOR, lift the FPC approx.0.5mm away from the
jack to solder the FPC.
NOTE13e:
Iris motor unit contains the FPC ASSEMBLY and the
SENSOR × 2.
BASE ASSEMBLY.
NOTE13b:
When replacing the CCD image sensor, don't remove the
CCD image sensor from the CCD BASE ASSEMBLY.
Instead, replace the entire CCD BASE ASSEMBLY.
IRIS MOTOR
NOTE13e
ZOOM MOTOR
NOTE13d
6
(S13b)
9
(S13c)
SENSOR
5
(S13b)
7
(S13b)
8
(S13c)
SD13c
SD13b
1-14 (No.YF046)
OP LPF
Blue
OP
side
OP BLOCK ASSEMBLY
4
(S13b)
3
(S13b)
Fig.3-2-5
CCD BOARD ASSEMBLY
CCD
FOCUS MOTOR
NOTE13d
side
OP LPF
NOTE13c
SD13a
SHEET
CCD BASE ASSEMBLY
NOTE13a,b
.
0.15N
m (1.5kgf.cm)
.
m (0.7kgf.cm)
0.069N
1
(S13a)
2
(S13a)
SECTION 4
ADJUSTMENT
4.1 PREPARATION
4.1.1 Precaution
Camera system and deck system of this model are specially
adjusted by using PC.
However, if parts such as the following are replaced, an
adjustment is required. The adjus tment must be performed in a
Service Center equipped with the concerned facilities.
• OP BLOCK ASSEMBLY
• EEP ROM (IC1005 of MAIN board)
In the event of malfunction with electrical circuits, first find a
defective portion with the aid of proper test instruments as shown
in the following electrical adjustment procedure, and then
commence necessary repair/ replacement/adjustment.
• In observing chip TP, use IC clips, etc. to avoid any stress.
Prior to replacement of chip parts (especially IC), remove the
solder completely to prevent peeling of the pattern.
• Use a patch cord if necessary. As for a patch cord, see the
BOARD INTERCONNECTIONS.
• Since connectors are fragile, carefully handle them in
disconnecting and connecting the FPC.
4.1.2 REQUIRED TEST EQUIPMENT
• Personal computer (for Windows)
• Color TV monitor
• Oscilloscope (dual-trace type, observable 100MHz or higher
frequency). The one observable 300 MHz or higher frequency
is recommended.
• Digital voltmeter
• DC power supply or AC adapter
• Frequency counter (with threshold level adjuster)
4.1.3 TOOLS REQUIRED FOR ADJUSTMENT
Torque Driver
YTU94088
Chip IC Replacement Jig
PTS40844-2
INF Adjustment Lens
YTU92001B
Light box Assembly
YTU93096A
Alignment Tape
MC-2
INF Adjustment Lens Holder
Bit
YTU94088-003
Cleaning Cloth
KSMM-01
YTU94087
Gray Scale Chart
YTU94133A
PC Cable
QAM0099-005
Guide Driver (Hexagonal)
Camera Stand
YTU93079
Color Bar Chart
YTU94133C
Communication Cable
YTU93107A
Tweezers
P-895
D-770-1.27
Service Support System
YTU94057-80
Jig Connector Cable
YTU93106C
Extension Connector
YTU94145D-40
• Torque driver
Be sure to use to fastening the mechanism and exterior parts
because those parts must strictly be controlled for tightening
torque.
• Bit
This bit is slightly longer than those set in conventional torque
drivers.
• Tweezers
To be used for removing and installing parts and wires.
• Chip IC replacement jig
To be used for adjustment of the camera system.
• Cleaning cloth
Recommended the Cleaning cloth to wipe down the video
heads, mechanism (tape transport system), optical lens surface.
(No.YF046)1-15
• Guide driver (Hexagonal)
To be used to turn the guide roller to adjustment of the linarity
of playback envelope.
• INF adjustment lens
To be used for adjustment of the camera system. For the
usage of the INF adjustment lens, refer to the Service Bulletin
No. YA-SB-10035.
• INF lens holder
To be used together with the Camera stand for operating the
Videocamera in the stripped-down condition such as the status without the exterior parts or f or usin g commod ities th at are
not yet conformable to the interchangeable ring. For the usage
of the INF lens holder, refer to the Service Bulletin No. YA-SB-
10035.
• Camera stand
To be used together with the INF adjustment lens holder. For
the usage of the Camera stand, refer to the Service Bulletin
No. YA-SB-10035.
• Light box assembly
To be used for adjustment of the camera system. For the
usage of the Light box assembly, refer to the Service Bulletin
No. YA-SB-10035.
• Gray scale chart
To be used for adjustment of the camera system. For the
usage of the INF adjustment lens, refer to the Service Bulletin
No. YA-SB-10035.
• Color bar chart
To be used for adjustment of the camera system. For the
usage of the INF adjustment lens, refer to the Service Bulletin
No. YA-SB-10035.
• Alignment tape
To be used for check and adjustment of interchangeability of
the mechanism.
• PC cable
To be used to connect the Videocamera and a personal computer
with each other when a personal computer issued for adjustment.
• Communication cable
Connect the Communication cable between the PC cable and
Jig connector cable when performing a PC adjustment.
• Service support system
To be used for adjustment with a personal computer. Software
can be downloaded also from JS-net.
• Jig connector cable
Connected to JIG CONNECTOR of the main board and used
for electrical adjustment, etc.
• Extension connector
Connect this extension connector to the connector of the Jig
connector cable for extending the cable connector.
4.2 JIG CONNECTOR CABLE CONNECTION
• Remove one screw (1), and remove the COVER (JIG CON).
• As the figure shows, insert JIG CONNECTOR CABLE in JIG
CONNECTOR by using the EXTENSION CONNECTOR so
that the wire side faces downward.
Connection procedure
GUIDE ROLLER (SUP)
GUIDE ROLLER (TU)
COVER(ADJ)
SCREW(2)
COVER(JIG CON)
SCREW(1)
EXTENSION CONNECTOR
JIG CONNECTOR CABLE
SERVICE SUPPORT SYSTEM
MENU
PERSONAL COMPUTER
COMMUNICATION CABLE
PC CABLE
FOR
COMMUNICATION CABLE
RS232C
COM PORT
1-16 (No.YF046)
TO JLIP_RX
TO JLIP_TX
TO GND
COMMUNICATION CABLEJIG CONNECTOR OSCILLOSCOPEJIG CONNECTOR
RED
WHITE
BLACK
TO ENV_OUT
TO HID1
Jig connector diagrams 4.3 MECHANISM COMPATIBILITY ADJUSTMENT
4.3.1 Tape pattern adjustment
JIG CONNECTOR CABLE (YTU93106C)
MAIN CN105
DDI
DD0
DMS
DCK
DRST
FL_MDO
RESET
AL_3VSYS
IF_TX
JLIP_TX
JLIP_RX
TMS_DSC
TCK_DSC
TDI_DSC
TRST_DSC
TDO_DSC
PB_CLK
ENV_OUT
MAIN_VCO
ATFI
HID1
DISCRI
FS_PLL
TXD2
SPA
SBE
RXD2
GND
GND
V_OUT
VCOM_M
CVF_B
CVF_R
CVF_G
HD_M
VCOM_E
NC
EMU1
KENTO
MVD
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
NOTE :
The JIG CONNECTOR BOARD uses
21
30 of the 40 pins of the MAIN BOARD.
10 Pins (1 to 5, 21 to 24 and 34) on
22
the JIG CONNECTOR BOARD on the
Main board are NC.
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
JIG CONN. BOARD
(PIN NO.)
6
7
TRST_DSC
8
9
MAIN_VCO
10
11
12
13
14
15
16
17
18
19
20
25
26
27
28
29
30
31
32
33
35
36
37
38
39
40
JLIP_RX
TCK_DSC
PB_CLK
HID1
FS_PLL
SPA
RXD2
GND
VCOM_M
CVF_R
HD_M
NC
KENTO
JLIP_TX
TMS_DSC
TDI_DSC
TDO_DSC
ENV_OUT
ATFI
DISCRI
TXD2
SBE
V_OUT
CVF_B
CVF_G
VCOM_E
EMU1
MVD
NOTE:
Prior to the adjustment, remove the COVER (ADJ).
(1) Play back the compatibility adjustment tape.
(2) While triggering the HID1, observe the waveform of
ENV_OUT.
(3) Set the manual tracking mode (ATF OFF).
(4) Confirm that the waveform is entirely pa rallel and straight,
and free from remarkable level-down, through the tracking
operation.
Make the confirmation as follows if necessary.
(5) If level-down is observed on the left hand side of the
waveform, straighten the level by turning the GUIDE
ROLLER (SUP).
If level-down is observed on the right hand side of the
waveform, straighten the
level by turning the GUIDE ROLLER (TU).
(6) After the adjustment, try th e unloading motion once, and
confirm that the waveform is flat when the tape has been
played back again.
(7) Play back the self-recording.
(8) Confirm that the waveform is flat.
ENV_OUT
HID1
Fig.4-3-1
Flatten the waveform.
Misalignment of guide
roller height on the
supply side
Misalignment of guide roller
height on the take-up side
Fig.4-3-2
4.4 ELECTRICAL ADJUSTMENT
Electrical adjustment is performed by using a personal computer
and software for SERVICE SUPPORT SYSTEM. Read
README.TXT file to use the software properly.
As for the connection of cables, see "4.2 JIG CONNECTOR
CABLE CONNECTION".
(No.YF046)1-17
5.1 SERVICE NOTE
C3 C4
[10]
C8
SECTION 5
TROUBLE SHOOTING
cm)
cm)
cm)
.
.
.
m (0.7kgf
m (2.5kgf
3-2-5
[13] OP BLOCK ASSEMBLY / CCD BOARD ASSEMBLY
.
m (0.5kgf
.
.
[3] [4] [5]
[14] [15] [16]
[1] [2]
CABINET PARTS AND ELECTRICAL PARTS
C1 C2
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24
CABINET PARTS AND ELECTRICAL PARTS
C5 C6 C7
[6] [7] [8] [9] [11]
[12] [13]
25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45
CABINET PARTS AND ELECTRICAL PARTS
46 47 48 49 50 51 52 53 54 55 56 57 58
C10 C11
C9
Φ
3-2-3
[9] MONITOR ASSEMBLY
1234567891011
[12] VF ASSEMBLY
1234567891011121314 123456789
3-2-4
cm) : 0.069N
cm) : 0.246N
cm) : 0.049N
.
.
.
m (0.8kgf
m (2.0kgf
m (0.6kgf
.
.
.
cm) : 0.078N
cm) : 0.196N
cm) : 0.059N
.
.
.
cm)
.
m (0.9kgf
m (1.0kgf
m (0.2kgf
.
.
.
m (1.5kgf
.
: 0.098N
: 0.019N
: 0.088N
1) * : Don't reuse the screw, because screw lock bond was applied to them.
2) Pay careful attention to tightening torque for each screw.
NOTE:
: 0.15N
Symbol No.
Place to stick screw
Removing order of screw
1-18 (No.YF046)
Screw tightening torque
Reference drawing (Fig.No.)
Symbol No.
Place to stick screw
Removing order of screw
Screw tightening torque
Reference drawing (Fig.No.)
Symbol No.
Place to stick screw
Removing order of screw
Screw tightening torque
Reference drawing (Fig.No.)
Place to stick screw
Screw tightening torque
Removing order of screw
Reference drawing (Fig.No.)
Removing order of screw
Place to stick screw
Screw tightening torque
Reference drawing (Fig.No.)
5.2 TAKE OUT CASSETTE TAPE
The following procedure is a method for taking out the cassette
tape in case the cassette tape cannot be ejected due to an electrical failure. The following procedure is a simplified method;
therefore, for more reliable operation, it is recommended that you
should remove exterior parts so that you can take out the tape
without excessive force.
(1) Remove the Power Unit (battery or DC cord) from the set.
(2) Open the CASSETTE COVER till it is completely opened
and fixed.

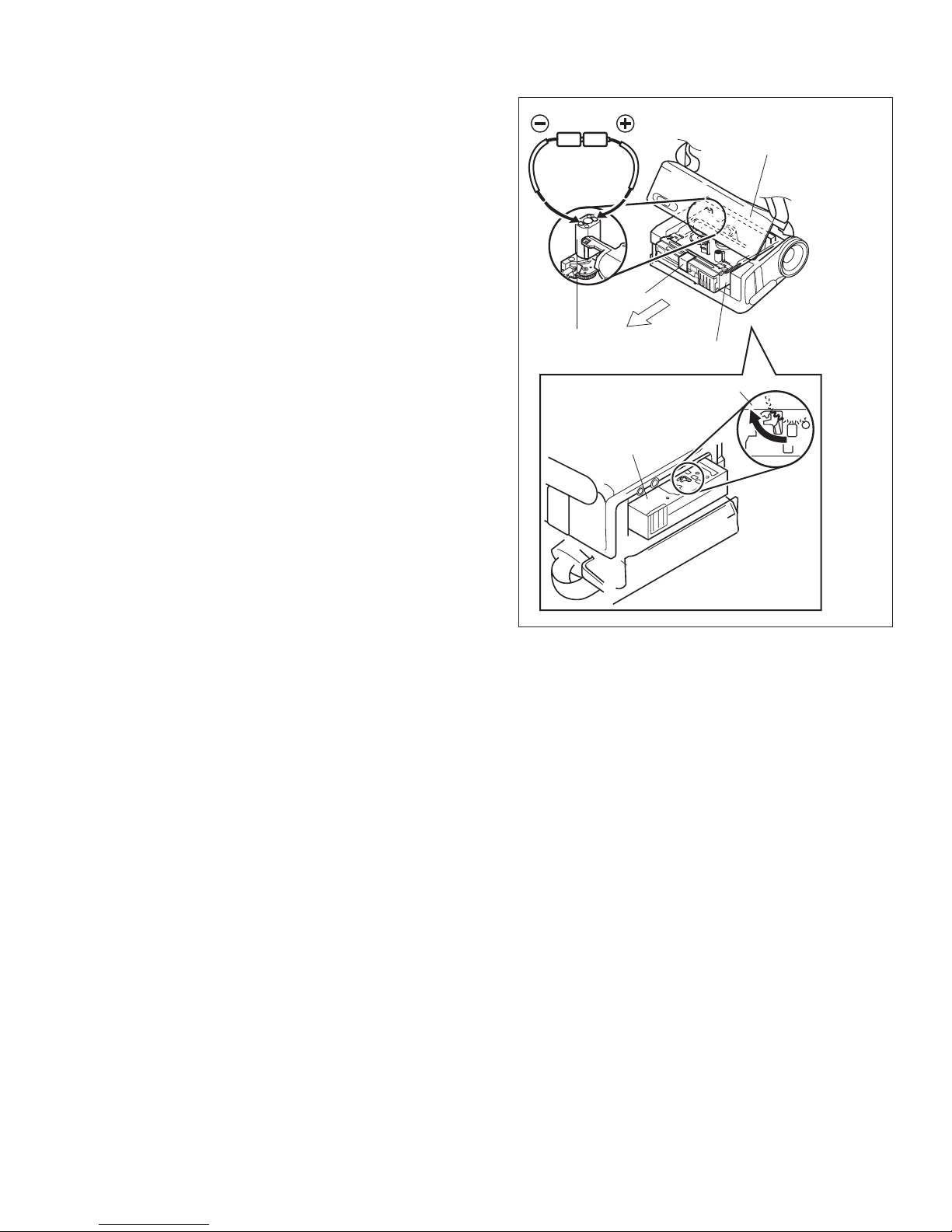

(3) Attach a PVC tape as shown in the figure.
NOTE:
Be careful of cassette tape damage caused because the
Cassette Housing Assembly is moved upward at the unloading end (Eject mode).
(4) To set the Slide Deck Assembly to the un loading end , ap-
ply DC 3V to the electrode (terminal) on the top surface of
the LOADING MOTOR that is seen through a space of VF
side.
NOTE:
Be careful not to attach grease or a similar substance to
the surface of the cassette tape on the tape transport
system.
(5) Wind the cassette tape by directly turning the Reel Disk As-
sembly (SUP) from the backside of the SLIDE DECK ASSEMBLY by using a sharp tool (Chip IC replacement tool).
(6) Confirm that the cassette tape is completely woun d, and
then peel off the PVC tape from the CASSETTE HOUSING
ASSEMBLY and take out the cassette tape.
NOTE:
To confirm that the cassette tape is completely wound,
confirm that one REEL DISK ASSEMBLY (TU) rotates
as you rotate the other REEL DISK ASSEMBLY (SUP).
(7) Make sure that grease or a similar substance is not at-
tached to the surface of the tape taken out in the procedure
(6). Similarly, also make sure that grease or a similar substance is not attached on the MECHANISM ASSEMBLY,
especially the tape transport system.
(DC3V)
LOADING MOTOR
ASSEMBLY
SLIDE DECK
ASSEMBLY
CASSETTE COVER
TAPE
CASSETTE HOUSING
ASSEMBLY
REEL DISK
ASSEMBLY (SUP)
Fig.5-2-1
(No.YF046)1-19
5.3 EMERGENCY DISPLAY
Example (in case of the error number E01):
Whenever some abnormal signal is input to the syscon CPU, an
error number (E01, as an example) is displayed on the LCD
monitor or (in the electronic view finder).In every error status,
such the message as shown below alter nately appear over and
E01
UNIT IN
SAFEGUARD MODE
E01
REMOVE AND
REATTACH BATTERY
over.
• In an emergency mode, all operations except turning on/off the
POWER switch are ineffectual.
LCD display Emergencymode Details Possible cause
E01 LOADING In the case the encoder position is
not shifted to the next point though
the loading motor has rotated in the
loading direction for 4 seconds or
more. This error is defined as [E01].
E02 UNLOADING In the case the encoder position is
not shifted to the next point though
the loading motor has rotated in the
unloading direction for 4 seconds or
1. The mechanism is locked during mode shift.
2. The mechanism is locked at the mechanism loading end,
because the encoder position is skipped during
mechanism mode shift.
3. No power is supplied to the loading MDA.
1. The mechanism is locked during mode shift.
2. The mechanism is locked at the mechanism loading end,
because the encoder position is skipped during
mechanism mode shift.
more. This error is defined as [E02].
E03 TU & SUP REEL FG In the case no REEL FG is
produced for seconds shown in the
table below or more in the capstan
rotation mode after loading was
complete, the mechanism mode is
shifted to STOP with the pinch roller
set off. This error is defined as
[E03].However, no REEL EMG is
detected in the SLW/STILL mode.
REEL(SUP) REEL(TU)
PB/REC
S-FWD
S-REW
FF
REW
3 SEC
3 SEC
0.3 SEC
3 SEC
0.1 SEC
3 SEC
0.3 SEC
3 SEC
0.1 SEC
3 SEC
E04 DRUM FG In the case there is no DRUM FG
input in the drum rotation mode for
4 seconds or more. This error is
defined as [E04], and the
mechanism mode is shifted to
STOP with the pinch roller set off.
1. The idler gear does not engage with the reel disk well.
2. Though the idler gear and reel disk are engaged with
each other, the tape is not wound because of overload
to the mechanism.
3. No FG pulse is output from the reel sensor.
4. No power is supplied to the reel sensor.
5. Tape transport operation takes place with a cassette
having no tape inside.
6. The tape slackens and no pulse is produced until the
slack is taken up and the tape comes into the normal
status.
1. The drum cannot be started or drum rotation is stopped
because tape transport load is too high.
1) Tape tension is extremely high.
2) The tape is damaged or soiled with grease, etc.
2. The DRUM FG signal is not received by the syscon CPU.
1) Disconnection in the middle of the signal line.
2) Failure of the DRUM FG pulse generator (hall
element).
3. No drum control voltage is supplied to the MDA.
4. No power is supplied to the DRUM MDA.
E05 - - E06 CAPSTAN FG In the case no CAPSTAN FG is
produced in the capstan rotation
mode for 2 seconds or more. This
error is defined as [E06], and the
mechanism mode is shifted to
STOP with the pinch roller set
off.However, no CAPSTAN EMG is
detected in the STILL/FF/REW
mode.
1. The CAPSTAN FG signal is not received by the syscon
CPU.
1) Disconnection in the middle of the signal line.
2) Failure of the CAPSTAN FG pulse generator (MR
element).
2. No capstan control voltage is supplied to the MDA.
3. The capstan cannot be started or capstan rotation is
stopped because tape transport load is too high.
1) Tape tension is extremely high. (Mechanical locking)
2) The tape is damaged or soiled with grease, etc. (Tape
tangling occurs, etc.)
1-20 (No.YF046)
Fig.5-3-1
VICTOR COMPANY OF JAPAN, LIMITED
AV & MULTIMEDIA COMPANY CAMCORDER CATEGORY 12, 3-chome, Moriya-cho, kanagawa-ku, Yokohama, kanagawa-prefecture, 221-8528, Japan
(No.YF046)
Printed in Japan
WPC
SCHEMATIC DIAGRAMS
DIGITAL VIDEO CAMERA
YF04620044
GR-DX107EK, GR-DX107EX, GR-DX107EY,
GR-DX107EZ, GR-DX307EK, GR-DX307EX,
GR-DX307EY, GR-DX307EZ, GR-DX317EX
CD-ROM No.SML200405
GR-DX107EK, GR-DX107EX, GR-DX107EY, GR-DX107EZ[M4D3S9]
GR-DX307EK, GR-DX307EX, GR-DX307EY, GR-DX307EZ, GR-DX317EX[M4D3M9]
For disassembling and assembling of MECHANISM ASSEMBLY, refer to the SERVICE MANUAL No.86700(MECHANISM ASSEMBLY).
COPYRIGHT © 2004 VICTOR COMPANY OF JAPAN, LIMITED
No.YF046SCH
2004/4
CHARTS AND DIAGRAMS

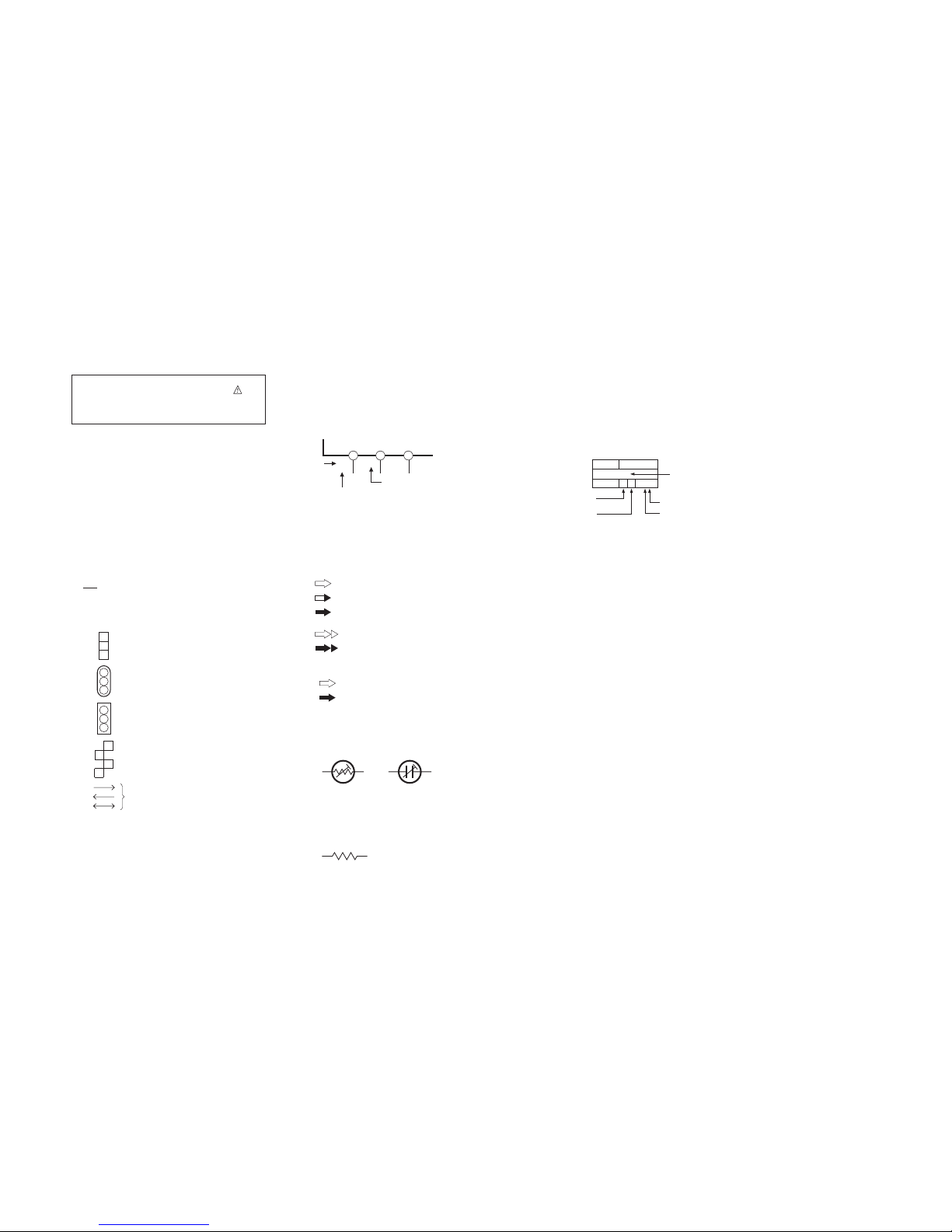

NOTES OF SCHEMATIC DIAGRAM
Safety precautions
The Components identified by the symbol are
critical for safety. For continued safety, replace safety
critical components only with manufacturer's recommended parts.
1. Units of components on the schematic diagram
Unless otherwise specified.
1) All resistance values are in ohm. 1/6 W, 1/8 W (refer to
parts list).
Chip resistors are 1/16 W.
K: KΩ (1000Ω), M: MΩ (1000KΩ)
2) All capacitance values are in µF, (P: PF).
3) All inductance values are in µH, (m: mH).
4) All diodes are 1SS133, MA165 or 1N4148M (refer to parts
list).
2. Indications of control voltage
AUX : Active at high.
AUX or AUX(L) : Active at low.
3. Interpreting Connector indications
Note: If the voltages are not indicated on the schematic
diagram, refer to the voltage charts.
123
2.5
(5.0)
1.8
PB and REC modes
(Voltage of PB and REC modes
are the same)
PB mode
REC mode
4. Voltage measurement
1) Regulator (DC/DC CONV) circuits
REC : Colour bar signal.
PB : Alignment tape (Colour bar).
— : Unmeasurable or unnecessary to measure.
2) Indication on schematic diagram
Voltage Indications for REC and PB mode on the schematic diagram are as shown below.
5. Signal path Symbols
The arrows indicate the signal path as follows.
NOTE : The arrow is DVC unique object.
Playback signal path
Playback and recording signal path
Recording signal path
(including E-E signal path)
Capstan servo path
Drum servo path
(Example)
R-Y
Y
Playback R-Y signal path
Recording Y signal path
6. Indication of the parts for adjustments
The parts for the adjustments are surrounded with the circle as
shown below.
7. Indication of the parts not mounted on the circuit board
“OPEN” is indicated by the parts not mounted on the circuit
board.
R216
OPEN
1
2
3
1
2
3
1
2
3
1
4
2
3
Removable connector
Wire soldered directly on board
Non-removable Board connector
Board to Board
Connected pattern on board
The arrows indicate signal path
Note: The Parts Number, value and rated voltage etc. in
the Schematic Diagram are for references only.
When replacing the par ts, refer to the Parts List.
Note: For the destination of each signal and further line
connections that are cut off from the diagram,
refer to "BOARD INTERCONNECTIONS"
CIRCUIT BOARD NOTES
1. Foil and Component sides
1) Foil side (B side) :
Parts on the foil side seen from foil face (pattern face)
are indicated.
2) Component side (A side) :
Parts on the component side seen from component face
(parts face) indicated.
2. Parts location guides
Parts location are indicated by guide scale on the circuit board.
Note: For general information in service manual, please
refer to the Service Manual of GENERAL INFORMATION Edition 4 No. 82054D (January 1994).
LOCATION
REF No.
IC101 B C 6 A
IC
Category : IC
Horizontal “A” zone
Vertical “6” zone
B : Foil side
(A : Component side)
C : Chip component
D : Discrete component)
2-1 2-2
A
1
2
3
4
5
BCDEFG
J105
CN109
CN102
CN304
CN105
CN302CN301
REG_3.1V
CN106
REG_3.6V
EXTM_H
CN103
CN7602
J104
CN7601
EXTM_H
S401
V_OUT
Y_OUT
C_OUT
CN111
SHP
CDS_3V
OSD_VD
ADP_L
OUTV
OSD_VD
SHD
CN104
CN114
CN110
REG_1.8V
EM_DET_L
HID1
AGC_OUT
VRB_AGC
ATFI
VRB_ATF
REC_DATA
REC_CTL
P_DET
REF_CLK
VREF_1.1
VF_CTL
CN101
HID1
CN701
DISCRI
MVD
SELCT_SW
REG_1.8V
ANA_IN_H
DDI
SBE
CDWE
TDA
TAPE_LED
FS_PLL
MAIN_VCO
DD0
PB_CLK
E_SENS
REEL_VCC
GND
DCO[0-3]
PRST
CDDSTB
REG_2.5V
S_SENS
MIC_1
CDWE
MIC_2
MIC_3
REC_SAFE
CDALE
RESET
DCK
SPA
XINT
DV_CS
CPOB
DYO[0-3]
S2_DET
DCI[0-3]
BLKC
CDDSTB
SHUT_ATT
FSPLLCTL
SHUT_ATT
DSC_RST
VC1
DSC_RST
REC_CLK
NAVI_SW
ADDT[00-15]
MD_DEM1
REG_3.1V
AU_DATA
DV_WAIT
DRWSEL
M_VCOCTL
PBVCOCTL
PBPLLCTL
INV
INH
OUTV
OUTH
VC2
J101
CN305
S701
CN115
CN702
TRIG_SW
DYI[0-3]
TSR
FRP
CLK27A
DV_RST
SPA
TPA+
TPA-
TPB+
TPB-
ZOOM_SW
IF_TX
AL_3VSYS
JLIP_TX
T_BATT
CN113
CLK27SEL
SRV_TRK
ASPECT2
ASPECT1
CN7002
CN7001
CN112CN401
CN7603
CN107
MD_AU/L
MD_AU/R
EM_AU/L
EM_AU/R
PWDA2
PWAD2
MD_DEM1
DMS
JLIP_RX
AU_CLK
V_OUT
USBSENS
USB_DN
USB_DP
S_IN_L
D_GAIN
AU_SIG/L
VIFD_OUT
C_OUT
VIFD_IN
AU_SIG/R
IR_OUT
ADCLK
SYSVDSEL
CPOB
CN108
ADP_DC
J103
Y_OUT
EDIT
VIFD_CLK
VENC_CS
TG_RST
DUMP_CTL
ATF_GAIN
NOSIG_LV
RECCADJ
INV
INH
REG_3.1V
REG_4.8V
GND
INT_GND
SPK-
SPK+
P_MEDIA
PWAD2
PD_L
PWDA2
AUDIO_CS
A_MUTE
BUZZER
INT/L
PD_L
AU_CLK
AUDIO_CS
AU_DATA
A_MUTE
BUZZER
EM_DET_L
( E_MIC_GND)
GND
VC0
CN303
EM_DET_L
( E_MIC_L)
( E_MIC_R)
24M_DSC24M_DSC
TMS
TCMK
DYO[0-3]
DCO[0-3]
TRST
PSCTL
CDDSTB
TDI
CAM_CS
SYSVDSEL
USBDOWN
LIT_3V
PHOTO_H
PHOTO_F
TELE_SW
WIDE_SW
MENU_SW
TDI
SET_SW
FF_SW
PLAY_SW
REW_SW
STOP_SW
AL_3.1V
GND
INT/R
MD_AU/L
EM_AU/R
MD_AU/R
EM_AU/L
CDALE
DSP_RST
ADCLK
REG_3.1V
OMT
CDS_3V
SHP
SHD
TCMK
TMS
BLKA
TRST
ADDT[00-15]
PBLKPBLK
OSD_HD
OSD_VD
DOT_CLK
VC3
MVD
MFLD
ADP_L
LITHIUM
BATT_+
REG_CS
AREG_CLK
MMC_DOUT
MMC_CLK
MMC_DIN
MMC_CD
SD_WP
VF_SW
USB_DP
USB_DN
USBSENS
BLKB
USBDOWN
J102
AREG_SO
RESET
V_BATT
I_MTR
CAS_SW
CHRG_EVR
MMC_CS
GND
INFO_SW
INDEX_SW
RECH
DOBCK2
HGVss-ND
HG_U[+]
HG_W[-]
HG_BS[-]
HG_W[+]
HG_BS[+]
HG_U[-]
HG_V[+]
HG_V[-]
C_COIL_U
C_COIL_W
C_FG[+]
C_FG[-]
C_COIL_V
MDA_PS
CCD_CTL
DOMCK2
PBH
DOLRCK2
DODAT2
PSCTL
Z_VCC
CCD-7.5V
CCD+15V
TG_36M
REG_1.8V
REG_4.8V
HID3
P_DET
M_REG4.8
P_DET
CAM_CLK
CAM_OUT
CAM_SW_C
ANA_IN_H
HDIN
REG_4.8V
DRUM_ERR
CAM_SW_B
V_OUT
S_RL[+]
M_REG4.8
CAM_SW_A
GND
S_REEL
OUTV
IR_RMC
T_REEL
TDO
CAPT_REQ
DRUM_PWR
VDIN
REG_3.1V
T_RL[+]
ZOOM01
ZOOM04F_PTR_AD
F_VCC
F_LED
ZOOM03
ZOOM02
L_FRB
HGout+IS
BLKC
HGout-IS
Z_LED
OP_THRMO
DRIVE+IS
DRIVE-IS
HGVss-IS
HGout+ND
S_REEL
REG_3.1V
DEW_SENS
Z_PTR_AD
IRIS_PWM
MDA_PS
DRUM_ERR
CAP_REF
CAP_FG
DRUM_REF
DRUM_PG
REG+CCD
DRUM_FG
LD_ON
REG-CCD
S_IN_L
VENC_CS
S2_DET
TG_RST
XAVD
HID1
SPA
HID1
FRP
TSR
SRV_TRK
CLK27SEL
DV_RST
T_REEL
C_FRB
NOSIG_LV
ADDT[00-15]
DV_CS
DV_WAIT
CPOB
MONI_CHG
REG_3.6V
PBPLLCTL
CLK27A
ATF_GAIN
TG_CS
VIFD_IN
DIAL_PB
DIAL_OFF
TBCCTL
OSD_HD
OSD_VD
DOT_CLK
RECCADJ
DIAL_AUTO
M_VCOCTL
DIAL_MANU
OUT_Y[0-3]
AIDAT
AODAT
AILRCK
AIBCK
AIMCK
PBVCOCTL
POW_LED
AIDAT2
V_BATT
VF_CTL
I_MTR
AREG_SO
AREG_CLK
FSPLLCTL
REG_CS
VC0
REM_OUT
LV_CLK
LV_OUT
LD_ON
DSCIO[0-7]
DSYIO[0-7]
HGout-ND
FOCUS04
FOCUS03
FOCUS02
DRIVE-ND
DRIVE+ND
VIFD_IN
HDCVF
REM_OUT
DOBCK2
DOMCK2
DOLRCK2
FOCUS01
REG_3.1V
HALL_AD
IRIS_O/C
DODAT2
F/Z_CS
AIDAT2
IR_OUT
VIFD_CLK
VIFD_OUT
OUT_C[0-3]
OUT_VS
AU_SIG/R
OUT_HS
AU_SIG/L
USBSENS
USB_DN
USB_DP
L_MUTE
L_MUTE
M_CS
F/Z_CS
VC1
TG_RST
IRIS_O/C
M_REG4.8
OP_THRMO
CAP_PWR
IRIS_CS
IRIS_CS
CAM_VD
CAM_CLK
VIFD_CLK
CLK4M5
CAM_OUT
IRIS_PS
LCD_R
LCD_G
LCD_B
CAM_CLK
ASPECT1
VDCVF
REG_4.8V
REG_3.1V
REG_1.8V
CLK9A
IRIS_MCK
GND
XAVD
XAHD
ASPECT2
DUMP_CTL
TG_RST
LENS_LED
HDIN
TG_36M
CLK9A
EMU1
TMS_DSC
TCK_DSC
TDI_DSC
CHRG_EVR
TRST_DSC
TG_RST
H2
H1
RG
SUB
HID3
HID1
PBH
GND
RECH
INV
INH
DYO[0-3]
CAP_PWR
DRUM_REF
DRUM_PG
DCO[0-3]
MONI_CHG
LOAD_FWD
LOAD_REV
MDA_2.9V
COIL_COM
D_PFG[+]
D_COIL_W
D_COIL_V
D_COIL_U
D_PG[-]
D_FG[-]
CAP_ERR
GND
DRUM_PWR
ENV_OUT
CAP_REF
CAP_FG
DRUM_FG
BLKB
DSCO[0-7]
ATFI
REC_CTL
VREF_1.1
GND
AGC_OUT
V1V2V3
V4
VRB_AGC
VRB_ATF
ATFI
REF_CLK
DSYO[0-7]
HGVcc+ND
REC_DATA
Z_PTR_AD
F_PTR_AD
M_UNREG
M_REG4.8
REC_CLK
AILRCK
AIMCK
AIBCK
AODAT
AIDAT
TMS
RESET
MXDT_OUT
ADP_L
REG_4.8V
REG_3.1V
REG_2.5V
S_SHUT
M_RVS
GND
AU_SIG/R
AU_SIG/L
2S
TALLY
MONI_SW
D_GAIN
2F1S1F
FLDDSC
REG_2.5V
S_RL[-]
T_RL[-]
TCMK
TRST
IRIS_CLK
TBCCTL
HGVcc+IS
OUT_Y[0-3]
OUT_C[0-3]
OUT_VS
OUT_HS
HALL_AD
HDDSC
VDDSC
FLDDSC
OP_THRMO
F_PTR_AD
REG_3.1V
TMS
TCMK
TRST
Z_PTR_AD
HDDSC
TDO
MMC_CD
TDO_DSC
IRIS_PS
VIFD_IN
LENS_LED
V_OUT
CAP_ERR
DSC_STS
FLSH_RST
DSC_RST
DSC_CS
DSC_DT_IN
DSC_DT_OUT
DSC_CLK
DSC_WKUP VDDSC
CAM_OUT
CLKDSC
CLK27B
VIFD_OUT
CLK27B
FLSH_RST
DSC_RST
DSC_CLK
REG_8.5V
DSC_DT_OUT
DSC_DT_IN
DSC_CS
MXDT_OUT
DSC_STS
CAPT_REQ
DSC_WKUP
REG_3.6V
D[0-15]
A10
EM_CS2
FLSH_OE
FLSH_WE
USBDOWN
C_OUT
GIO3
C_FRB
Y_OUT
GIO6
GIO15
CDDSTB
REG_3.1V
L_FRB
DSCIO[0-7]
CAM_CLK
CAM_OUT
LAMP_ON
CLKDSC
GIO15
CDALE
CDWE
DSP_RST
GIO6
GIO3
CPOB
CLK27A
XAHD
ADIN[0-9]
PBLK
CLK27A
VDIN
CDS_CS
MMC_CD
DSYO[0-7]
DSCO[0-7]
GND
CLK27B
USBDOWN
DSYIO[0-7]
TDA
CCD_CTL
VC2
CCD_OUT
CDS_CS
CAM_OUT
CAM_CLK
ADIN[0-9]
REG_3.6V
GND
PBLK
IRIS_PWM
ADDT[00-15]
CAM_VD
CLK4M5
CAM_CS
OMT
MFLD
OUTH
OUTV
DYI[0-3]
MVD
DCI[0-3]
INV
DCO[0-3]
INH
DYO[0-3]
S_SHUT
REG_3.1V
GND
CLK27B
BLKA
REG+CCD
REG-CCD
LIT_3V
AL_3.1V
GND
VFREG4.8
REG_2.5V
REG_3.1V
FLSH_WE
FLSH_OE
EM_CS2
A10
D[0-15]
REG_1.8V
REG_3.1V
GND
RXD2
TXD2
LCD_CTL
GND
REG_4.8V
VIFD_OUT
VIFD_CLK
VC3
M_UNREG
CCD_CTL
EJT_SW
CAM_OUT
CAM_CLK
TG_RST
CDWE
DRWSEL
XINT
CDALE
TG_CS
(Page 2-25)
(Page 2-23)
(Page 2-31)
(Page 2-15)
(Page 2-39)
(Page 2-5)
(Page 2-33)
(Page 2-11)
(Page 2-13)
(Page 2-17)
(Page 2-7)
(Page 2-9)
(Page 2-19)
(Page 2-35)
(Page 2-37)
(Page 2-29)
(Page 2-41)
(Page 2-21)
(Page 2-44)
(Page 2-45)
(Page 2-27)
(Page 2-43)
YTU94074-12
YTU94077-12
YTU94129A-39
YTU94109-39
YTU94074-16
YTU94077-16
YTU94074-8
YTU94077-8
YTU94074-6
YTU94077-6
YTU94074-6
YTU94077-6
YTU94074-11
YTU94077-11
YTU94074-18
YTU94077-18
YTU94074-30
YTU94077-30
YTU94074-6
YTU94077-6
YTU94074-12
YTU94077-12
YTU94074-13
YTU94077-13
YTU94074-22
YTU94077-22
YTU94074-7
YTU94077-7
YTU94074-20
YTU94077-20
YTU94074-28
YTU94077-28
y10459001a_rev0.1
BOARD INTERCONNECTION
NOTE : :The number of patch cords are indicated by interconnected.
2-3 2-4
A
1
2
3
4
5
BCD EFG
NOTE : The par ts with marked () is not used.
REG_3.1V
CN101
KEY_C
CN112
CN113
R2001
CN108
CN109
R2002
MMC_CS
CN103
CN114
MMC_DIN
MMC_CLK
MMC_CD
MMC_DOUT
SD_WP
REG_3.1V
P_MEDIA
GND
CN115
D2803
C2803
R2004
R2003
KEY_A
KEY_B
R2007R2006R2005
CN105
TRIG_SW
WIDE_SW
TELE_SW
SET_SW
MENU_SW
GND
GND
NC
CN104
J103
LITHIUM
REG_4.8V
IR_OUT
IR_RMC
TALLY
LAMP_ON
EJT_SW
REG_4.8V
GND
GND
DIAL_PB
DIAL_OFF
DIAL_AUTO
DIAL_MANU
PWR_LED
Q2801
R2803R2804
R2801
R2802
R2805
AU_SIG/R
AU_SIG/L
L_MUTE
CN106
GND
D2802
C_OUT
Y_OUT
REM_OUT
L2801
USBSENS
USB_DP
USB_DN
V_OUT
P_DET
L2802
C2802 C2801
D2801
GND
J102
VCOM_E
TL2003
TDI
R2813
TDO
TRST
TCMK
TMS
TL2002
TL2001
R2812
R2811
R2810
EMU1
TMS_DSC
TCK_DSC
TDI_DSC
TRST_DSC
BATT_+
T_BATT
GND
SPK+
SPK-
TDO_DSC
GND
CVF_G
CVF_R
ZOOM_SW
VCOM_M
GND
GND
RXD2
GND
CVF_B
FS_PLL
ATFI
MAIN_VCO
ENV_OUT
SBE
HID1
HD_M
KENTO
MVD
DISCRI
CAP_REF
TXD2
SPA
DRUM_REF
LD_ON
L_FRB
C_FRB
MDA_PS
CAP_FG
DRUM_PG
DRUM_FG
REG_3.6V
HDCVF
LCD_CTL
GND
MONI_SW
M_RVS
M_UNREG
DEW_SENS
CAM_SW_A
CAM_SW_B
REG_4.8V
VDCVF
CAM_SW_C
M_CS
LV_CLK
LCD_B
LCD_R
LCD_G
DRUM_ERR
DRUM_PWR
GND
CAP_ERR
LV_OUT
CAP_PWR
PB_CLK
REG_3.1V
M_REG4.8
JLIP_RX
JLIP_TX
IF_TX
AL_3VSYS
RESET
FL_MD0
DRST
DCK
DMS
DDO
DDI
V_OUT
REG_8.5V
HST_E
HCK2
HCK1
REG_3.1V
LCD_REF
STB_E
VST_E
VCK
LCD_EN
PCG
CVF_B
CVF_R
CVF_G
PSIG
VCOM_E
VFREG48.
VF_SW
HST_E
HCK2
HCK1
LCD_REF
STB_E
VST_E
VCK
LCD_EN
PCG
CVF_B
CVF_R
CVF_G
PSIG
VCOM_E
REG_8.5V
GND
HD_M
VCOM_M
S_RL[+]
T_RL[-]
S_RL[-]
T_RL[+]
E_SENS
MIC2
MIC3
MIC1
S_SENS
REEL_VCC
TAPE_LED
CAS_SW
REC_SAFE
GND
REG_3.1V
GND
MA8068-X
AU_SIG/L
AU_SIG/R
P_DET
GND
GND
GND
C_OUT
V_OUT
Y_OUT
EDIT
QNZ0670-001
UMX1N-W
NQR0251-004X
NQR0251-004X
QNZ0497-001
3.3k 6.8k
3.3k
22k
22k6.8k3.3k
560k560k
820
820
3.3k
0.01 0.01
0Ω
㧖
㧖
㧖
㧖
y20323001a_rev0.1
MAIN
(MAIN_IF)
SCHEMATIC DIAGRAM
2-5 2-6
A
1
2
3
4
5
BCDEFG
R1138 22K
C1017 C1018
MENU_SW
C1027 0.1
1K R1129
SET_SW
R1139
C1028 0.1
C1021
R1133
C1034 0.1
IR_RMC
ASPECT1
1K R1128
C1029 0.1
Q1012
Q1010
DCK
R1151 100K
FL_MD0
C1031 0.1
C1032 0.1
C1033 0.1
C1035 0.1
C1041 0.1
RESET
1K R1127
R1055
IRIS_CS
ASPECT2
C1026 0.1
R1081
DMS
R1026
KENTO
REM_OUT
Q1011
R1140
XINT
DRST
DDO
DDI
PSCTL
ANA_IN_H
HALL_AD
IRIS_MCK
IRIS_O/C
LENS_LED
IC1006
X1002
R1062
LAMP_ON
EM_DET_L
EXTM_H
SHUT_ATT
PWDA2
WIDE_SW
TELE_SW
KEY_C
TALLY
C1056 0.1
R1056
1K R1027
IF_TX
JLIP_RX
Q1005
JLIP_TX
IC1009
D1002
TG_RST
L_MUTE
R1039
R1037
IC1001
R1094
R1114
C1002
R1001
X1001
C1001
R1008
P_MEDIA
CCD_CTL
MONI_SW
PWR_LED
OP_THRMO
AL_3VSYS
DSC_WKUP
R1060
R1054
R1092
S_IN_L
S2_DET
F_PTR_AD
CAS_SW
LCD_CTL
F/Z_CS
IRIS_PS
Z_PTR_AD
TG_CS
CDS_CS
R1002
KEY_A
R1082
R1080
M_CS
M_RVS
BUZZER
Q1007
Q1008
R1073
R1074
R1070
R1071
R1072
C1046
D1001
R1006
R1089
VF_CTL
L_FRB
DIAL_PB
DIAL_OFF
DIAL_AUTO
DIAL_MANU
ZOOM_SW
TRIG_SW
R1084
R1088
EJT_SW
R1087 R1086
C1054
D_GAIN
Q1004
C1053C1052C1051
REC_SAFEKEY_B
LV_CLK
MIC1
OUTV
MIC2
MIC3
E_SENS
S_SENS
S_REEL
MONI_CHG
CAM_SW_B
CAM_SW_A
CAM_SW_C
T_REEL
DEW_SENS
Q1003
Q1002
TAPE_LED
REEL_VCC
GND
R1028
GND
ADDT06
ADDT07
ADDT08
ADDT09
ADDT10
ADDT11
ADDT12
ADDT13
ADDT14
ADDT15
ADDT00
ADDT01
ADDT02
ADDT03
ADDT04
ADDT05
CDRE
REG_3V
TSR
M_REG4.8
M_UNREG
HID1
SPA
SRV_TRK
REG_3V
M_REG4.8
M_UNREG
CAP_FG
DRUM_PG
DRUM_FG
DRWSEL
CDALE
CDWE
DRUM_REF
CAP_REF
C_FRB
MDA_PS
LD_ON
Q1001
FRP
CLK27SEL
DV_RST
HID3
RECH
PBH
DV_WAIT
L1002
C1042
GND
V_BATT
VF_SW
R1085
DSC_CLK
REG_3.1V
BLKC
CAM_CLK
CAM_OUT
R1053
DV_CS
CAM_CS
DSP_RST
MFLD
IC1003
DSC_DT_OUT
DSC_STS
A_MUTE
OSD_VD
T_BATT
DSC_DT_IN
LV_OUT
AL_3.1V
OMT
OSD_HD
MVD
I_MTR
IC1005
IC1002
L1001
DSC_CS
C1040
P_DET
AREG_SO
AREG_CLK
LIT_3V
VENC_CS
AUDIO_CS
VIFD_CLK
VIFD_OUT
PWAD2
VIFD_IN
R1069
BLKA
VC3
BLKB
VC2
VC1
VC0
DOT_CLK
USBDOWN
DSC_RST
MMC_CD
PD_L
REG_CS
FLSH_RST
CAPT_REQ
MXDT_OUT
C1037
R1045
ADP_L
R1043
CHRG_EVR
R1004
C1003 0.1
C1004 0.1
C1005 0.1
C1006 0.1
C1007 0.1
C1009 0.1
C1010 0.1
C1011 0.1
C1012 0.1
TL1023TL1022TL1021
Q1009
IC1010
C1023
C1024
R1035
R1036
R1041
R1042
C1019
R1021 100K
R1022 100K
R1018 100K
R1017 100K
R1016 100K
R1015 100K
R1013 10K
R1012 10K
R1152 47K
R1083 22K
R1090 22K
C1020
C1025
R1126
R1125
R1117 1K
R1118 1K
R1119 1K
R1120 1K
R1121 1K
R1122 1K
R1123 1K
R1124 1K
R1116
R1137
R1014 10K
R1019 10K
R1136
R1020 10K
R1077
C1048
R1096
R1067
R1134
R1095
R1057
R1058
R1025
C1022
R1024
R1109 22K
R1110 22K
R1111 22K
R1112 22K
R1113
R1052
R1010 47K
R1011 100K
R1038 100K
R1040 100K
R1099 100K
R1093
R1091
R1003
R1079
R1078
C1049
C1050
C1043
R1076
C1047
R1075
R1031
R1030
R1097
R1032
R1033
R1034
IC1004
R1051
R1048R1047
R1061
R1046
TL1014
C1036
C1039
R1050
R1049
C1038
R1044
IC1007
6.3V
DTC143XE-X
DTC144EE-X
UMC3N-W
VSS
VDD
SIO
CLKCSXin
Xout
INTR
RS5C314-X
NAX0564-001X
DTC143XE-X
SN74AHC1G08K-X
1SS376-X
HALL_LV
Z_PTR_LV
F_PTR_LV
OP_THRMO
IR_DET
ZOOM_SW
KEY_A
KEY_B
KEY_C
T_BATT
I_MTR
STRB_AD
S2_DET
SHOE_DET
PHOTO_SW
FOCUS_SW
MENU_SET
F/Z_CS
REG_CS
EEP_CS
DAC_CS
ROM_CS
OSD_CS
AUDIO_CS
TBC_CS
LD_ON
CAP_RVS
CAP_BRK
MDA_PS
LD_FWD
LD_REV
REEL_ON
MVD
OMT
OUTV
XINT
TALLY
D_GAIN
SHOE_VON
GATEPULS
DSC_RST
DSC_WKUP
FLSH_RST
CAPT_REQ
DSC_STS
UDBDOWN
MMC_L
BZ_FREQ
BZ_ENV
CCD_CTL
TGFZ_RST
IR_WB
TAPE_LED
SHOEGATE
HID1
PD_L
VF_CTL
LCD_CTL
M_BL_ON
M_CSADDT13
ADDT14
ADDT15
RESET
CKSEL1
MODE0
FL_MD0
MODEJ
PLLSEL
X1
X2
TD0
TCK
TRST
TMS
TDI
Vdd
Vdd
Vdd
Vdd
Vdd
Vdd
UREG_SEL
AVREF
CVDD
M_RVS
MIC_CTL
PVDD
UPD703166-M40
UPD70F3166M40
UPD70F3166M40A
NAX0645-001X
2SC4617/QR/-X
DTC124EE-X
PDTC124EE-X
DA221-X
UMC3N-W
UMC3N-W
UMC3N-W
DTA114EE-X
RN2102-X
PDTA114EE-X
74HC1G00GW-X
SN74AHC1G00K-X
MC74HC1G00DF-X
VCC
HOLD
SCK
SI
CS
SO
WP
VSS
M95320-WDW6-X
SCLK
CS
DATA
RST
VDD
SDR
XD
EXD
TEST
VSS BLKC
TST0
BLKB
VC3
VD
HD
VC0
VC1
VC2
BLKA
MB90097PFV153-X
D
G
S
2SJ347-X
R1160N251B-X
V_BATT
EJT_SW
MONI_SW
DSC_CS
CHG_WKUP
JLIP_INT
VF_SW
DIAL_PB
DIAL_OFF
DIAL_AUTO
DIAL_MANU
OSD_TBC_OUT
OSD_TBC_IN
OSD_TBC_CLK
ALV_OUT
ALV_IN
ALV_CLK
MIC_SDA
MIC_SCL
IF_TX
IF_RX
EEP_OUT
EEP_IN
EEP_CLK
REG_RTC_OUT
RTC_IN
REG_RTC_CLK
CAM_OUT
RTC_CS
CAM_CLK
DSC_DT_OUT
DSC_DT_IN
DSC_CLK
TG_CS
CDS_CS
DRUM_FG
CAP_FG
T_REEL
S_REEL
RTC_INTR
FLD
DRUM_PG
SPA
SRV_TRK
TSR
FRP
MXDT_OUT
REMOTE
MENU_P_A
MENU_P_B
STO_OFF
ZOOM_T
ZOOM_W
S_SENS
E_SENS
DEW_SENS
MIC3
MIC2
MIC1
CAS_SW
SHOE_PWM
HP_DET
CHRG_LED
TRG_OUT
IRIS_PS
DSP_RST
AVREFOFF
DRUM_REF
CAP_REF
CHRG_EVR
BATT_H
ADP_H
P_DET
S_DET
DV_WAIT
S_IN_L
PSCTL
CLK27SEL
MONI_CHG
CAM_CS
HID3
RECH
PBH
DV_RST
ZMIC_ATT
SHUT_ATT
DV_CS
CDWE
DRWSEL
DSTB
KENTO2
ASTB
KENTO1
CAM_SW_A
CAM_SW_B
CAM_SW_C
REC_SAFE
P_MEDIA
TRIG_SW
A_MUTE
L_MUTE
PWAD2
PWDA2
ADDT00
ADDT01
ADDT02
ADDT03
ADDT04
ADDT05
ADDT06
ADDT07
ADDT08
ADDT09
ADDT10
ADDT11
ADDT12
IRIS_O/CASPECT1
ASPECT2
STRB_SEL
IRIS_CS
EM_DET
EXTM_H
LAMP_ON
LENS_LED
STRB_CHG
ANA_IN_H
S-89220ACNC-W
IC-PST3423U-X
22/
0.1
22/6.3V
0.1
1K
0.1
1.5K
10K
4.7K
0R0
220K
560
510
10K
100
10p1M8p
0R0
100K
10K
12k
8.2k
10K
4.7K
150K 2.7K
18K
1
47K
3.3K1K3.3K
3.3K 3.3K
0.0220.0220.0220.022
10
µ
0.1
1K
2.2K
10
µ
7p
100K
0.01
1M
1k
0.0068
0.01
47K
47K
47K
47K
0.1
1K
1K
100K
1K
1K
100K
0.01
47K
330K
1K
1K
10K
10K
1K
0.0068
1K
22K
100K
10K
10K
22k
39k
0.01
0.01
0.1
47K
0.01
47K
330k
75k
100k
3.3k
3.3k
3.3k
47K
10k100k
100K
100k
0.1
0.01
82k62k
0.01
100k
T_BATT
ALV_IN
HALL_LV
LAMP_ONH
ASPECT1
ASPECT2
HALL_LV
OUTV
I_MTR
IF/TX
KEY_B
PSCTL
IRIS_O/C
IF_RX
AVREFOFF
Z_PTR_LV
F_PTR_LV
MMC_CD
ROM_CS
OP_THRMO
ANA_IN_H
TRG_OUT
ZOOM_SW
KEY_A
MRESET
EEP_CS
S2_DET
EM_DET
EXTM_H
SHUT_ATT
F/Z_CS
PWDA2
REG_CS
ZOOM_T
EEP_CS
ZOOM_W
KEY_C
ROM_CS
OSD_CS
MIC_CTL
AUDIO_CS
TBC_CS
LD_ON
C_FRB1
C_FRB2
MDA_PS
L_FRB1
L_FRB2
REEL_ON
MVD
OMT
OUTV
REMOTE
TALY_LED
TALY_LED
IRIS_CS
D_GAIN
LENS_LED
CCD_CTL
DSC_STS
KEY_C
IR_WB
DSC_RST
DSC_WKUP
FLSH_RST
BZ_FREQ
CAPT_REQ
USBDOWN
BZ_FREQ
BZ_ENV
VF_CTL
TGFZ_RST
M_CS
RTC_INTR
PD_L
IR_WB
ZOOM_SW
BZ_ENV
KEY_A
MENU
DSC_WKUP
SET
EJT_SW
REC_SAFE
P_MEDIA
E_SENS
MONI_SW
DSC_RST
DSC_CS
DSC_DIN
DSC_DOUT
DSC_CLK
DSC_STS
USBDOWN
FLSH_RST
CAPT_REQ
MXDT_OUT
MMC_CD
T_REEL
S_REEL
P_DET
DSP_RST
MVD
FLD
OMT
T_BATT
I_MTR
CHRG_EVR
REG_CS
S_IN_L
PWAD2
A_MUTE
L_MUTE
PD_L
AUDIO_CS
KEY_B
CAM_SW_C
F/Z_CS
IRIS_PS
ALV_OUT
D_REF
DRUM_FG
C_REF
DRUM_PG
L_FRB2
CAP_FG
D_GAIN
MDA_PS
C_FRB1
LD_ON
MIC2
ALV_CLK
CAM_SW_B
MIC3
S_SENS
C_FRB2
VF_CTL
M_BL_ON
M_RVS
CAM_CLK
CAM_OUT
M_CS
VDO_CLK
CDS_CS
TG_CS
TGFZ_RST
OSD_CS
TLED_ON
HID1
M_RVS
M_BL_ON
CAM_SW_A
CHRG_LED
TBC_CS
HID1
SRV_TRK
SPA
FRP
TSR
V_BATT
CAM_CS
DV_CS
ADDT15
ADDT14
ADDT13
RECH
PBH
MONI_CHG
HID3
DV_RST
CLK27SEL
DV_WAIT
CDWE
TRIG_SW
CDALE
DRWSEL
CDRE
ADDT00
ADDT01
ADDT02
ADDT03
ADDT04
ADDT05
ADDT06
ADDT07
ADDT08
VDO_OUT
ADDT09
MRESET
ADDT10
MIC1
ADDT11
ADDT12
MIC_CTL
L_FRB1
CCD_CTL
VF_SW
ADDT13
ADDT14
ADDT15
MRESET
S2_DET
AREG_CLK
AREG_SO
DIAL_MANU
DIAL_AUTO
DIAL_OFF
DIAL_PB
CAS_SW
Z_PTR_LV
F_PTR_LV
OP_THRMO
TGFZ_RST
DEW_SENS
REEL_ON
TLED_ON
VDO_CLK
VDO_OUT
VDO_IN
RTC_IN
AREG_SO
AREG_CLK
RTC_CS
EEP_IN
EEP_OUT
EEP_CLK
VF_SW
ZOOM_W
ZOOM_T
IRIS_O/C
PSCTL
ASPECT1
ASPECT2
LAMP_ONH
EM_DET
LENS_LED
CAM_CS
SPA
SRV_TRK
TSR
DSP_RST
ANA_IN_H
IRIS_PS
CHRG_LED
TRG_OUT
RTC_INTR
FLD
IRIS_CSS
EXTM_H
CAS_SW
EJT_SW
MONI_SW
DSC_CS
CHG_WKUP
IF_RX
SHUT_ATT
PWDA2
DIAL_PB
DIAL_OFF
DIAL_AUTO
DIAL_MANU
VDO_OUT
VDO_IN
AREG_CLK
VDO_CLK
T_BATT
ALV_OUT
ALV_IN
ALV_CLK
MIC2
MIC3
IF/TX
IF_RX
EEP_OUT
EEP_IN
EEP_CLK
AREG_SO
RTC_IN
CAM_OUT
RTC_CS
CAM_CLK
DSC_DOUT
DSC_DIN
DSC_CLK
TG_CS
CDS_CS
DRUM_FG
CAP_FG
S_REEL
T_REEL
DRUM_PG
FRP
MXDT_OUT
REMOTE
MENU
AVREFOFF
D_REF
C_REF
CHRG_EVR
BATT_H
ADP_H
P_DET
DV_WAIT
S_IN_L
CLK27SEL
MONI_CHG
DV_CS
HID3
RECH
PBH
DV_RST
CDWE
DRWSEL
CDRE
CDALE
CAM_SW_A
CAM_SW_B
CAM_SW_C
REC_SAFE
P_MEDIA
TRIG_SW
A_MUTE
L_MUTE
PWAD2
ADDT00
SET
S_SENS
E_SENS
DEW_SENS
MIC3
MIC2
MIC1
V_BATT
ADDT01
ADDT02
ADDT03
ADDT04
ADDT05
ADDT06
ADDT07
ADDT08
ADDT09
ADDT10
ADDT11
ADDT12
BATT_H
ADP_H
CHG_WKUP
SYSCON
TO JIG CONN
TO DVMAIN
TO REG
TO OP_DRV
TO OP_DRV
TO MONITOR
TO POWER OPE
TO MDA
TO MDA
TO CAMERA OPE
TO CAMERA OPE
TO CDS, TG/VDR,
OP DRV
TO MONITOR,
AUDIO
TO OP_DRV
TO CN113
TO FRONT
TO FRONT
TO FRONT
TO JIG CONN
TO JIG CONN
TO JIG CONN
TO CN108
TO MAIN_IF
TO JIG CONN
TO REG
TO AUDIO
TO OP_DRV
TO SENSOR
TO MONITOR
TO SD
TO VF
TO REG
TO SUB OPE
TO TG/VDR
TO CDS
TO CCD
TO VIDEO I/O
TO DSC
TO AUDIO
TO AUDIO
TO VIDEO I/O
TO REEL
TO MAIN_IF
TO PRE/REC
TO REG
TO REG
TO BATT. TERMINAL
TO AUDIO
TO MAIN IF
TO AUDIO AD/DA
TO DVMAIN
TO DVMAIN
TO DVMAIN,
CAMERA_DSP
TO CAMERA_DSP
TO MDA
TO SENSOR
TO MDA
TO CAMERA OPE
TO SENSOR
TO VIDEO I/O
y10460001a_rev0.1
MAIN(SYSCON) SCHEMATIC DIAGRAM
NOTE : The par ts with marked () is not used.
2-7 2-8
A
1
2
3
4
5
BCD EFG
R1713
M_REG4.8
REG_3.1V
GND
IC1702 IC1701
R1708
R1707
R1706
R1705
R1704
R1703
R1702
R1701
R1709
R1711
R1710
R1712
S_RL[+]
T_RL[-]
S_RL[-]
T_RL[+]
T_REEL
S_REEL
TO SYSCON
TO SYSCON
C1703
C1701
C1702
NJM2407R-W BA10358FVM-W
T
0
120K
10K
82K
2.2K
2.2K
2.2K
2.2K
82K
10K
1K
120K
1K
10/6.3
0.1
0.1
REEL
y30266001a_rev0.1
MAIN(
REEL) SCHEMATIC DIAGRAM
2-9 2-10
A
1
2
3
4
5
BCDEFG
EM_AU/R
EM_AU/L AIDAT2
REG_3.1V
GND
DOBCK2
L2101
C2105
C2108
PWDA2
TO SYSCON
TO DSC
TO REG
IC2101
DOLRCK2
C2106
R2102R2101
DODAT2
DOMCK2
PWAD2
C2107
MD_AU/R
MD_AU/L
TO AUDIO
C2102
C2101
C2104
C2103
T
T
AK4550VT-X
VCOM
AINR
AINL
VSS
VDD
DEM0
DEM1
SDTO SDTI
LRCK
MCLK
SCLK
PWAD
PWDA
AOUTL
AOUTR
10µ
10/6.3
4.7/6.3
0.1
470
470
0.1
1.0
1.0
0.0022
0.0022
y30281001a_rev0.1
MAIN(AUDIO AD/DA) SCHEMATIC DIAGRAM
2-11 2-12
A
1
2
3
4
5
BCD EFG
TO
TO
TO
TO
TO
TO SYSCON
TO BATT.TERMINAL
R2408
PD_L
S_SHUT
R2230
REG_3.1V
AODAT
LV_OUT
AIMCK
REG_4.8V
BUZZER
AIBCK
LV_CLK
AUDIO_CS
AU_SIG/L
AILRCK
R2229
L2602
L2603
L2601
R2602
R2601
C2602
C2601
CN111
C2604
C2603
C2606
C2605
C2613
R2610
R2609
R2607
R2608
C2611
C2612
R2201
R2203C2201
C2223
C2224
R2204
R2202
C2615
L2651
EM_DET_L
C2226
C2225
L2401
L2652
C2402
C2401
Q2401
R2401
R2604
R2407
L2402
C2403
AIDAT
C2405
J101
C2203
R2217
R2605
R2603
Q2601
A_MUTE
SPK+
SPK-
C2210
C2214
C2209
C2213
R2207
R2206
R2209
R2208
C2212
C2216
C2211
C2215
EM_AU/R
EM_AU/L
MD_AU/R
MD_AU/L
SHUT_ATT
EXTM_H
GND
R2228
R2227
IC2201
REG_3.6V
C2406
C2614
Q2403
R2402
R2403C2404
R2232
AU_SIG/R
C2618 R2611
R2613C2616
C2617 R2614
R2612
C2619
R2231
Q2201
C2651
C2655
C2656
L2653
R2615
R2616
C2622
C2621
C2610
C2623
C2624
C2609
D2652
C2652
D2651
C2202
C2204
C2620
R2213
R2212
C2218
C2217
C2205
C2653
C2654
NQR0269-013X
NQR0269-013X
NQR0269-013X
QGA1001F1-04X
#
##
#
CH
NQR0269-013X
NQR0269-013X
T
T
2SC5658-X
#
T
QNS0233-001
#
#
#
AK4564VQ
/6.3
T
CH
2SC5658-X
T
##
#
#
##
#
#
DTC144EE-X
NQR0269-013X
#
#
#
#
EMZ6.8N-X
UDZS6.8B-X
OPEN
33k
33k
2.2k
2.2k
OPEN
OPEN
0.022
0.022
0.0047
0.0047
1.0
22k
22k
220k
39k0.1
0.1
0.1
150k
560k
100p
0.1
0.1
10µ
10/6.3
10/6.3
4.7k
10
10µ
10/6.3
0.11.0
10
1.0
0.1
1.0
0.1
33k
33k
22k
22k
0.1
0.1
0.1
0.1
8.2k
8.2k
10
100p
4.7k
18k10/6.3
OPEN
1k
0.001
0.047
0.047
0.001
OPEN
OPEN
0.001
0.001
1.0
1.0
OPEN
2.7
2.7
0.1
0.1
1.0
OPEN
OPEN
y20324001a_rev0.1
MAIN(
AUDI O) SCHEMATIC DIAGRAM
2-13 2-14
A
1
2
3
4
5
BCDEFG
NOTE : The parts with marked () is not used.
IC3001
GND
REG_2.5V
CLK27SEL
REG_3.1V
ADDT15
TO SYSCON
TO JIG CONN
TO OP DRV
TO AUDIO AD/DA
ADDT07
L3002
L3004
C3040
ADDT06
RA3001
C3005
ADDT05
ADDT04
ADDT03
ADDT02
ADDT01
ADDT00
ADDT08
ADDT09
ADDT10
ADDT11
ADDT12
ADDT13
ADDT14
C3037
PBPLLCTL
DV_WAIT
R3026
RA3002
DRWSEL
CDRE
CDWE
CDALE
INV
INH
OUTV
OUTH
DCO3
DCO2
DCO1
DCO0
DYO3
DYO2
DYO1
DYO0
DCI3
DCI2
DCI1
DCI0
DYI3
DYI2
DYI1
DYI0
AIDAT
AODAT
AILRCK
AIBCK
AIMCK
C3034
C3030
J105
PB_CLK
C3031
R3010
FS_PLL
MAIN_VCO
TSR
DV_CS
R3036
SPA
TL3001
HID1
CLK27A
DV_RST
C3049
R3009
X3002
AGC_OUT
FRP
TDO
TO MAIN_IF
TO REG
TO PRE/REC
VRB_AGC
ATFI
VRB_ATF
REC_DATA
REC_CTL
RA3003
L3005
TMS
TCMK
C3008
C3007
C3011
C3043
C3029
C3048
C3038
C3045
C3003
C3056
C3036
Q3001
RA3004
REF_CLK
IC3004
RA3005
TDA
L3001
C3001
VREF_1.1
R3021
R3022
XINT
R3077
R3078
TRST
PBVCOCTL
M_VCOCTL
FSPLLCTL
C3075
C3071
R3052
L3003
C3002
R3025
C3079
C3006
C3050
DISCRI
R3034
R3029
R3071
C3047
D3002
C3004
REG_1.8V
R3040
C3042
R3053
Q3003
IC3006
R3039
R3038
R3037
L3012
R3044
C3044
R3075
D3004
R3045
IC3007
C3078
R3046
L3015
R3047
C3009
C3077
R3042
R3043 C3081
R3048
R3027
R3005
R3006
SRV_TRK
R3051
C3033
C3082
SBE
C3046
REC_CLK
L3007
L3008
C3032
R3020
C3028
R3015
C3027
R3013
R3014
R3018
R3019
R3016
R3017
C3026
C3017
R3032
C3024
C3023
C3025
C3015
C3013
C3016
C3020
R3057
R3002
R3007
R3008
R3030
C3080
R3041
C3039
C3076
R3049
R3050
D3001
R3011
C3021
C3012
R3004
C3064
C3055
C3022
D3003
R3031
LPFIN
LPFOUT
PHYVDA
PHYVDR
PHYVSA
PHYVSR
PHYAVS3
VDDE
N.C
VDDE
VSS
PWMAUDIO
VDDE
VSSP
VCIAUD
VDDP
VCXO11I
VCXO11O
VCXO12I
VCXO12O
OSC24I
OSC24O
OSC11I
OSC11O
DILRCK
DIBCK
DIMCK
DIDAT
AILRCK
AIBCK
AIMCK
AIDAT1
AIDAT0
DOLRCK
DOBCK
VDDI
DODAT
AOLRCK
AOBCK
VSS
AODAT1
AODAT0
YSO0
YSO1
YSO2
YSO3
BRSO0
BRSO1
BRSO2
BRSO3
YSI0
YSI1
YSI2
YSI3
BRSI0
BRSI1
BRSI2
BRSI3
OUTH
OUTV
INH
INV
CPUALE
XCPUDSTB0
XCPUDSTB1
XCPURW
XCPUCS
XINT
CPUWAIT
CPUWAITLOGIC
CPUDSLOGIC
CPUBUSTYPE
VDDI
MON2
MON5
N.C
VDDE
MON3
N.C
MON0
MON1
MON4
VSS
MON6
MON9
MON11
VDDE
MON14
MON16
MON7
MON8
MON12
VDDI
MON13
MON17
MON10
MON15
MON27
N.C
MON18
MON19
MON21
VDDE
VSS
MON20
MON22
MON23
VDDE
MON24
MON25
MON26
VDDE
VSS
N.C
VSS
VDDE
VDDP
VSSP
VDDA
N.C
VDDE
VSS
VSS
VDDI
VDDE
VDDI
VSS
VSS
MTEST
PHYAVD2
BUSRST
PMODE
VDDI
PHYAVD3
PWR3
PHYAVS2
PWR1
PWR2
PHYAVS1
PHYAVD1
VSS
VSS
VDDE
VDDI
JCY0152
NQR0129-002X
NQR0006-001X
T
CH
CH
[NAX0480-001X]
NQR0006-001X
T
T
2SC5658/QRS/-X
OPEN
NRZ0040-0R0X
NQR0129-002X
T
EC2C01C-TR-X
T
OPEN
2SC5658/QRS/-X
JCY0177-W
OPEN
NQR0129-002X
RB551V-30-X
SN74AHC1G04K-X
NQR0006-001X
CH
ADVIN0
ADAVD0
ADAVS0
ADVRH0
ADVRL0
EXDATAI7
EXDATAI6
EXDATAI5
EXDATAI4
EXDATAI3
EXDATAI2
EXDATAI1
EXDATAI0
PBCLKO
PBCLKI
VSSP
VCI4185
VDDP
DAAOUT0
DAVRO0
DAVREF0
DAAVS0
DAAVD0
DAAOUT1
DAVRO1
DAVREF1
DAAVS1
DAAVD1
SBE
HID
HSP
RECDATA
RECCLK
RECCTL
SPA
VSS
VDDE
VSS
OSC4185I
OSC4185O
DISCRI
REFCLK
ADVIN1
ADAVD1
ADAVS1
ADVRH1
ADVRL1
VSS
PWM27O
VDDE
OSC27I
OSC27O
CLK27I
CLK27O
CLK27SEL
VSS
CLK135O
VDDI
FRRES
FRREF
TRKREF
SERVOFRREF
SERVOTRKREF
PHYTPA
PHYTPB
PHYTPBIAS
PHYXTPA
PHYXTPB
PHYRO
PHYRF
PHYFIL
XRESET AD0
AD1
AD2
AD3
AD4
AD5
AD6
AD7
AD8
AD9
AD10
AD11
AD12
AD13
AD14
AD15
VSS
VDDE
VDDI
VSS
ADRS0
ADRS1
ADRS2
ADRS3
ADRS4
VDDE
VDDI
BUSCLK
VSS
ADRS5
ADRS6
ADRS7
ADRS10
ADRS8
ADRS9
VSS
VDDI
VSS
EXTFRP
EXTREQ
EXTACCESS
EXTDATA0
EXTDATA2
VDDE
EXTDATA5
VSS
EXTDATA6
N.C
N.C
EXTDATA1
VSS
EXTDATA3
EXTDATA4
EXTDATA7
N.C
N.C
TTST
VPD
N.C
N.C
N.C
PBI
TBST
NC.
DCTEST0
VSS
TDI
DCTEST1
TRST
TCK
TMS
TDO
CHCH
T
EC2C01C-TR-X0.001
EC2C01C-TR-X
OPEN
47
10/6.3
8P
OPEN
47
3p
0.1
0.1
10k
10K
2200P
10k
10
10/6.3
47/4
0.1
0.01
0.01
0.047
0.1
0.1
1
OPEN
8P
10k
0Ω
10/6.3
OPEN
0
0Ω
OPEN
OPEN
OPEN
OPEN
OPEN
OPEN
1K
10/6.3
1
0.01
2.2k
8.2k
0
0.1
OPEN
0.01
0W
10k
680
0Ω
0.1
OPEN
OPEN
1
180
4.7k
1
0.1
OPEN
OPEN
OPEN
OPEN
10k
10
10
OPEN
3p
0.01
0.01
2.2
µ
12
µ
0.001
5.1k
270p
3.9k
0.0047
2.4k
3.9k
565656
56
1
0.1
1M
33p
0.1
0.01
0.01
0.1
0.1
150
10k
5.6k
2.2k
220k
0.001
0.1
OPEN
560
560
220k
0.1
0.1
10k
1000P
0.01
0.1
220k
TDA
ADDT00
ADDT01
ADDT02
ADDT03
ADDT15
ADDT14
ADDT13
ADDT12
ADDT11
ADDT10
ADDT09
TDO
TRST
ADDT08
ADDT07
TMS
TCMK
ADDT06
ADDT05
ADDT04
TRST
TDA
TCMK
TMS
TDO
ADDT00
ADDT01
ADDT02
ADDT03
ADDT04
ADDT05
ADDT06
ADDT07
ADDT08
ADDT09
ADDT10
ADDT11
ADDT12
ADDT13
ADDT14
ADDT15
㧖
TO CAMERA DSP
TO SYSCON
y10461001a_rev0.1
MAIN(
DVMA IN) SCHEMATIC DIAGRAM
2-15 2-16
Loading...
