SECTION 5
PARTS LIST
SAFETY PRECAUTION
Parts identified by the symbol are critical for safety. Replace only with specified part numbers.
5.1 PACKING AND ACCESSORY ASSEMBLY <M1>
The instruction manual to be provided with this product will differ according to the destination.
9
36
30
33
15
25
22
26
20
21
31
23
17
16
32
FINAL ASSY
<M2>
5
50
8
7
6
3
38
35
24
34
5-1
2
1
LABEL
40
(SERIAL)
# REF No. PART No. PART NAME, DESCRIPTION
---------------- ----------------------- -----------------------------------------------------
*****************************
PACKING AND ACCESSORY ASSEMBLY <M1>
1 LY32700-003A PACKING CASE
2 LY20862-001B CUSHION
3 LY30023-003A POLY BAG
5 QPA02003506 POLY BAG
!
6 LYT1010-001A INST.BOOK(KO)
7 LYT0912-013A INST.BOOK(SOFT.KO)
8 LYT0934-001A SHEET(AGREMENT)
9 BT-56010-1 WARRANTY CARD
15 QPA01703005 POLY BAG
16 QAM0346-001 CABLE ASSY,AUDIO/VIDEO CABLE
17 QQR0918-002 CORE FILTER
20 PEAC0428-150 CABLE ASSY,EDITING CABLE
21 QQR0491-002 CORE FILTER
!
22 LY20847-004A AC ADAPTER,AP-V12KR
23 QQR0917-002 CORE FILTER
!
24 QMPS130-190-JC POWER CORD
25 QAM0324-001 USB CABLE
26 QQR0491-002 CORE FILTER
30 – BATTERY,AAA(R03),X2
31 LY43501-001A SLEEVE,FINGER SUPPORT
32 LY32758-001A GRIP BELT
33 LY43576-001A HOOD CAP ASSY
!
34 LY32752-001A BATTERY PACK,BN-V306U
35 LY20750-001A REMOTE CONTROL UNIT,RM-V717U
36 LY32210-023A CD ROM ASSY
38 QAM0405-002 MEMORY CARD,16MB(MMC)
40 QPA02502505P POLY BAG
50 LYT0966-013A INST.BOOK(P.NAVI.KO)
• INSTRUCTIONS
KO....... KOREAN
5-2

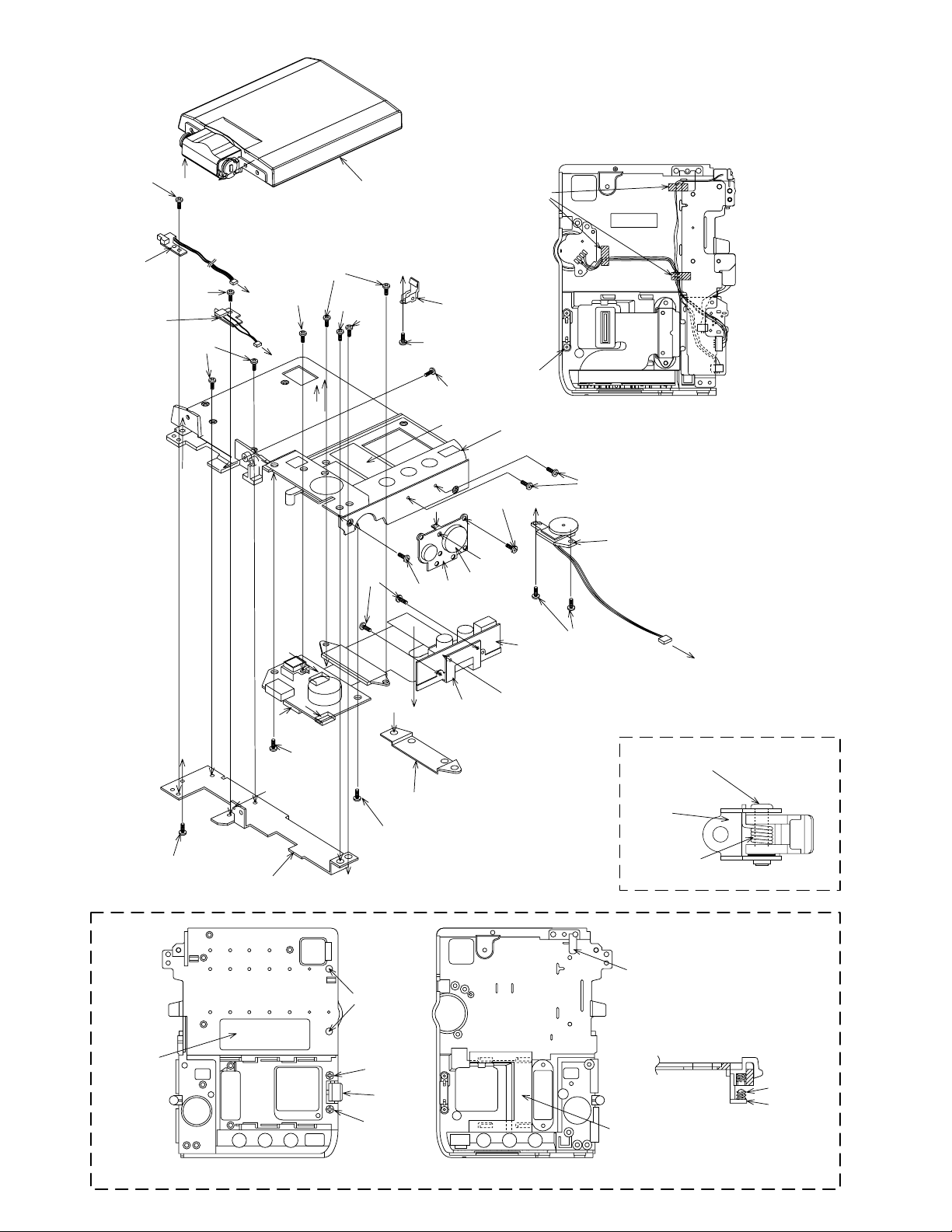

5.2 FINAL ASSEMBLY <M2>
5
1
170
161
167
172
251D
251C
164
251
169
251D
163
w1
168
OPTICAL BLOCK
SECTION
165
162
181
y
201
183
184
u
v
180
F
222
221
101E
101H
101B
101A
101
158
183
157
150
206
154
k
251C
251E
251H
251C
251B
251F
251G
251G
F6
CCD
F5
<03>
251J
251C
251C
153
154
t
251A
s
e
g
1
156
RATING
LABEL
j
101D
220
d
101
106
q
r
F15
r
107
108
F15
q
STROBE
<07>
c
105
145
<06>
150A
f
a
159
160
109
SD
5-3
103
F16
a
b
105A
106
102
104
105B
201
F14
MECHANISM
<M3>
200
212
F4
k
ELECTRONIC
202
F9
VIEWFINDER
<M4>
209
06
F12
F11
F10
F7
p
171
151
F12
F10
MDA
<02>
F9
n
F11
F13
m
p
204
F8
205
203
189
190
208
F16
188
h
n
210
F13
203
F6
185
MAIN
<01>
F5
F14
F1
F3
F8
F7
207
F2
211
187
v
185D
195
u
t
185B
186
192
j
s
AUDIO
<08>
F4
w1
191
y
h
m
185A
NG
EL
154
152
155
193
g
155
182
F3
194
185E
185C
140
142
141
137
x
135
d
143
146
F1
c
x
e
134
139
w
f
b
136
138
w
133
5-4
115
jj
gg
hh
MONITOR
<M5>
132
W/B
<11>
MONI SW
<12>
gg
aa
aa
114
113
117
ee
118
w4
129
131
116
119
w3
147
ff
ee
jj
cc
dd
112
144
bb
122
110
127
ff
MEMU SW
<13>
w2
118
118C
120
125
121
cc
124
JACK
<05>
dd
w4
w3
w2
126
123
z
z
F2
128
hh
130
118A
128
5-5
110
110D
112
111
bb
110E
110F
110F
110A
118B
110G
110C
110B
110H
# REF No. PART No. PART NAME, DESCRIPTION # REF No. PART No. PART NAME, DESCRIPTION
---------------- ----------------------- ----------------------------------------------------- ----------------- ----------------------- -----------------------------------------------------
*****************************
FINAL ASSEMBLY <M2>
101 LY20858-002A FRONT COVER ASSY
101A LY43478-001A INDICATOR
101B LY43479-001A WINDOW(IR)
101D LY32664-001A HOOD
101E LY32665-001A RING
101H LY43480-001A WINDOW(STB)
102 LY30018-0B7A SPECIAL SCREW
103 LY30018-0F4A SPECIAL SCREW
104 LY30018-0A3A SPECIAL SCREW
105 LY32667-001A COVER(SD)ASSY
105A LY32669-001A HINGE ASSY
105B LY30018-0F3A SPECIAL SCREW,X2
106 LY43780-001A SHEET(STB)
107 LY30018-063A SPECIAL SCREW,X2
108 LY30018-063A SPECIAL SCREW
109 LY30018-063A SPECIAL SCREW
110 LY32661-002D UPPER CASE ASSY
110A LY32662-001A KNOB(LOCK)
110B LY32663-001A HOLDER(KNOB)
110C LY30002-027A COMPRESSION SPRING
110D LY43575-001A SHEET(CAUTION)
110E LY42350-001A FOOT,X2
110F LY30018-0G4A SPECIAL SCREW,X2
110G LY43573-001A SHEET(EARTH)
110H LY43826-001A SHEET(UPPER)
111 LY32697-001A BRACKET(UPPER)
112 LY30018-0F7A SPECIAL SCREW,X2
113 LY30018-006B SPECIAL SCREW,X2
114 LY30018-0E3A SPECIAL SCREW
115 LY30018-0E4A SPECIAL SCREW
116 LY30018-0E4A SPECIAL SCREW
117 LY30018-0E4A SPECIAL SCREW
118 LY43472-001A MONI LOCK ASSY
118A LY43473-001A BRACKET(MONI LOCK)
118B LY43474-001A TORSION SPRING
118C LY30019-043A SPECIAL SCREW
119 LY30018-021A SPECIAL SCREW
120 LY43560-001A BRACKET(BASE)
121 LY32673-001A BASE
122 LY30018-063A SPECIAL SCREW
123 LY30018-0A3A SPECIAL SCREW
124 LY30018-063A SPECIAL SCREW,X2
125 LY32696-001A BRACKET(JACK PWB)
126 LY30018-032A SPECIAL SCREW,X2
127 LY30018-0E3A SPECIAL SCREW,X2
128 LY30018-063A SPECIAL SCREW,X2
129 LY30018-0E4A SPECIAL SCREW
130 LY43486-001A BRACKET(TERMINAL)
131 LY30018-0E4A SPECIAL SCREW,X2
132 LY30029-023A SPACER(A),X3
133 LY32639-001B COVER(JACK)
134 LY30018-012A SPECIAL SCREW
135 LY30018-0B7A SPECIAL SCREW
136 LY30018-065A SPECIAL SCREW
137 QYSPSGT1780R SCREW,X2
138 LY30018-0E4A SPECIAL SCREW
139 LY30018-0F6A SPECIAL SCREW
140 LY32677-002A COVER(JIG)
141 LY30018-026A SPECIAL SCREW
142 LY32678-001A DUMMY BATTERY
143 LY43483-001A COVER(DV)ASSY
144 LY43571-001A STICKER
145 LY43825-001A SHEET(FRONT)
146 LY43637-004A STICKER
147 LY30029-0Z3A SPACER(A)
!
150 LY20841-002B LOWER CASE ASSY
150A LY43482-001A SHAFT
151 LY32656-001A BRACKET(LOWER)
152 LY30018-019A SPECIAL SCREW,X2
153 LY43513-001A SHEET(ADJUST)
154 LY30018-0E3A SPECIAL SCREW,X4
155 LY30018-063A SPECIAL SCREW,X3
156 LY30018-0E3A SPECIAL SCREW
157 LY30018-063A SPECIAL SCREW
158 LY30018-0F5A SPECIAL SCREW
159 LY30018-0A3A SPECIAL SCREW
160 LY30018-065A SPECIAL SCREW
161 LY20853-001A TOP COVER
162 LY32582-001A MICROPHONE
163 LY32655-001A MIC COVER
164 LY43568-001A SHEET(MIC)
165 LY43471-001A BRACKET(TOP)
167 LY30018-005A SPECIAL SCREW,X2
168 LY43569-001A EARTH SHEET
169 LY43763-001A EARTH(MIC COV.)
170 LY30018-012A SPECIAL SCREW
171 LY43887-001A EARTH SHEET(2)
172 LY43888-001A EARTH SHEET(3)
180 LY32702-002A CASSETTE COVER ASSY
181 LY43462-001A HOOK
182 LY30018-038A SPECIAL SCREW,X2
183 LY30018-0E3A SPECIAL SCREW,X4
184 LY30018-0D5A SPECIAL SCREW
185 LY20850-001B ARM ASSY
185A LY32652-001B KNOB(LOCK)
185B LY30001-023A TENSION SPRING
185C LY30018-0E8A SPECIAL SCREW
185D LY43468-001A SPACER(SPK)
185E LY32653-001A PLATE(LOCK)
186 LY20840-001B CAMERA OPE UNIT
187 LY30018-0E3A SPECIAL SCREW,X2
188 QAS0103-001 SPEAKER
189 LY43469-001A BRACKET(SPK)
190 LY30018-0E3A SPECIAL SCREW,X2
191 LY43810-001A SHEET(ARM)
192 LY30018-0E3A SPECIAL SCREW,X2
193 LY30029-0Z1A SPACER(A)
194 LY30029-0Z2A SPACER(A)
195 LY30029-0Y9A SPACER(A)
200 LY40698-002A LABEL(HOUSING)
201 LY40699-002A LABEL(PUSH)
202 LY20854-001B BRACKET(MECHA)
203 LY30019-026A SPECIAL SCREW,X2
204 YQ43893-4 MINI SCREW
205 LY30018-0E3A SPECIAL SCREW
206 LY30018-065A SPECIAL SCREW
207 LY30018-065A SPECIAL SCREW
208 YQ43893-4 MINI SCREW
209 LY30018-063A SPECIAL SCREW
210 LY43866-001A SPACER(MECHA)
211 LY43876-001A SHEET(MAIN)
212 LY43886-001A EARTH SHEET(1)
220 LY32681-001A OP BRACKET(J7A)
221 LY30019-042A SPECIAL SCREW
222 LY30018-0E3A SPECIAL SCREW,X2
– OPTICAL BLOCK SECTION –
251 J7A-163A OPTICAL BLOCK ASSY
251A LY30723-001B ZOOM MOTOR
251B LY30724-001B FOCUS MOTOR
251C LY30727-002A SCREW,X5
251D LY30727-001A SCREW,X2
251E LY42936-001A OPTICAL LPF
251F LY31639-003A SPACER RUBBER
251G QYSPSGU1750Z SCREW,X2
251H LY32754-001A IRIS MOTOR
251J LYH30375-002A CCD BASE ASSY
5-6
5.3 MONITOR ASSEMBLY <M5>
500
505E
505C
505
505E
505F
504
503
503B
503D
509
b
503D
509
c
503C
a
508
503F
503A
503E
510
MONITOR
<04>
507
508
d
505B
505D
# REF No. PART No. PART NAME, DESCRIPTION # REF No. PART No. PART NAME, DESCRIPTION
--------------- ----------------------- ----------------------------------------------------- ---------------- ----------------------- ------------------------------------------------------
******************************
MONITOR ASSEMBLY <M5>
!
500 LYH20434-002B MONITOR ASSY
501 LY20855-001C MONITOR CASE
502 LY30029-0G5A SPACER(A)
!
503 LY32694-001D MONITOR COVER ASSY
503A LY43497-001A BRACKET
503B LY42883-001B MARK
503C LY32658-001A BRACKET(MONI)
503D QYSPSPT1720R SCREW,X2
503E LY43579-001A SHEET(MONI)
503F LY30030-010A SPACER(A)
(Sanwa)-M2D327
5-7
GR-DVM76KR
c
505A
502
506
d
b
a
504 LY43475-001A WINDOW(MONI)
505 LY32765-001A MONI FPC ASSY
505A LY32605-001A FPC ASSY(MONI)
505B LY31701-001C HINGE ASSY
505C LY32659-001A HINGE COVER(U)
505D LY32660-001A HINGE COVER(L)
505E LY30018-063A SPECIAL SCREW,X2
505F LY42355-001A MAGNET
506 QLD0138-001 LCD MODULE
507 QLL0132-001 BACK LIGHT
508 QYSPSPT1730D SCREW,X2
509 LY30018-099A SPECIAL SCREW,X2
510 LY30030-015A SPACER(A)
501
