SECTION 5
PARTS LIST
SAFETY PRECAUTION
Parts identified by the symbol are critical for safety. Replace only with specified part numbers.
5.1 PACKING AND ACCESSORY ASSEMBLY <M1>
The instruction manual to be provided with this product will differ according to the destination.
38
34
36
33
21
17
20
42
43
16
15
35
9
13
7
6
4
5
3
FINAL ASSY
<M2>
37
5-1
24
32
25
31
30
2
39
1
LABEL
(SERIAL)
# REF No. PART No. PART NAME, DESCRIPTION
---------------- ----------------------- -----------------------------------------------------
******************************
PACKING AND ACCESSORY ASSEMBLY <M1>
1 LY32567-008A PACKING CASE
2 LY32923-001C CUSHION
3 LY30023-022A POLY BAG
4 QPA02003506 POLY BAG
!
5 LYT1038-001A INST.BOOK(EN)
!
!
!
6 LYT0912-001A INST.BOOK(SOFT.EN)
!
!
7 LYT0934-001A SHEET(AGREMENT)
9 BT-51005-5 WARRANTY INF.
13 LYT0889-007A SHEET(U.UE)
15 QPA01703005 POLY BAG
16 QAM0211-001 CABLE ASSY,AUDIO/VIDEO CABLE
17 QQR0918-002 CORE FILTER
20 QAM0324-001 USB CABLE
21 QQR0491-002 CORE FILTER
!
24 LY20848-001B AC ADAPTER,AP-V12U
25 QQR0917-002 CORE FILTER
!
30 LY32566-001A BATTERY PACK ASSY,BN-V408U-B
31 LY20186-001A SHOULDER STRAP
32 LY42129-001A REMOTE CONTROL UNIT,RM-V715U
33 – BATTERY,AAA(R03),X2
34 LY32210-023A CD ROM ASSY
35 LY32210-009A CD ROM ASSY
36 LY43322-002A CAP(M)ASSY
37 QAM0404-002 MEMORY CARD,8MB(MMC)
38 BT-51028-1 REGIST.CARD
39 QPA02502505P POLY BAG
42 QAM0004-003 S-VIDEO CABLE
43 QQR0491-002 CORE FILTER
LYT1038-002A INST.BOOK(FR)
LYT1038-003A INST.BOOK(SP)
LYT0912-003A INST.BOOK(SOFT.FR)
LYT0912-005A INST.BOOK(SOFT.SP)
• INSTRUCTIONS
EN ....... ENGLISH
FR ....... FRENCH
SP ....... SPANISH
5-2

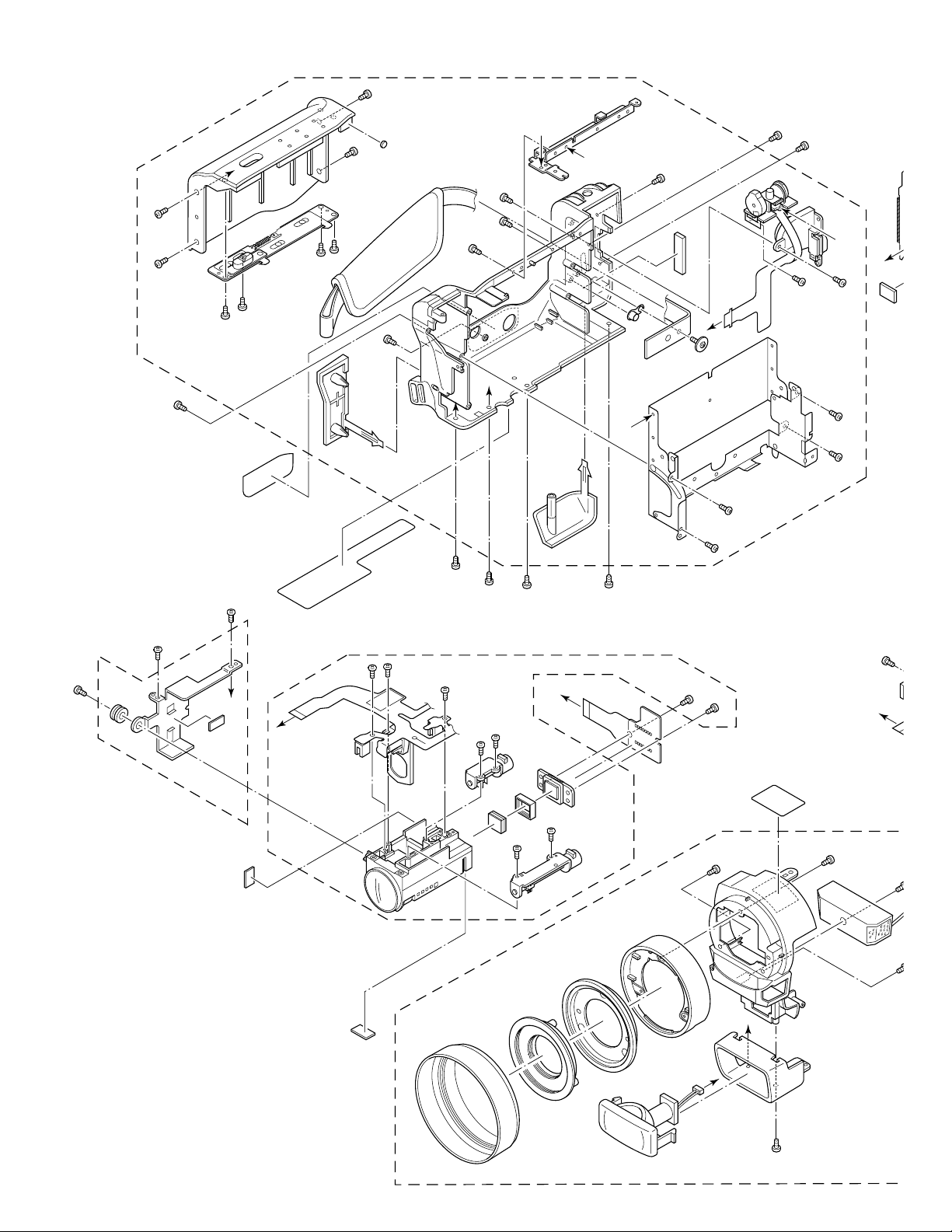

5.2 FINAL ASSEMBLY <M2>
5
5
140J
a
140T
140T
140T
140U
140G
140
140N
140F
c
g
140R
143
131
140H
173
170A
140T
171
141
170
140S
170B
172
c
140K
140S
144
140S
RATING
LABEL
s
140S
251D
251J
140M
140A
251C
140N
d
141
251D
251C
140N
b
142
251C
142
251
251B
140B
r
131
140C
a
140E
140D
251H
CCD
<04>
m
140P
140L
251H
140L
140R
140R
140L
140L
k
bb
166
1
1
111
p
5-3
252
OPTICAL BLOCK
SECTION
253
125K
251E
251F
251C
125C
251C
251A
251G
125B
125H
125A
125E
t
126
125
125E
125F
d
125G
125D
12
12
166
111
p
bb
155
110
110
110
h
aa
110
ff
113
154
z
110
y
cc
153
JACK
<06>
153
MONITOR
<02>
gg
MECHANISM
<M3>
x
bb
v
156
JUNCTION
<05>
dd
108
107
101K
z
116
g
156
w
101A
165
aa
150
152
101K
158
151
v
159
163
153
w
101J
y
152
116
157
u
158
t
s
162
ELECTRONIC
VIEWFINDER
<M4>
DSC
<10>
o
164
p
MAIN
<01>
n
160
o
r
q
160
cc
130F
130F
101
x
n
118
ee
m
REAR
<07>
130F
118
ee
130E
130C
f
130B
130A
130D
dd
130
j
k
130E
131
132
j
134
135
132
133
125E
125E
122
101C
101C
114
121
101B
104
122
117
MONITOR
104
e
<M5>
120
102
102
q
u
106
106
112
123
105
103
ff
109
e
101F
101D
b
101L
101G
101M
101M
gg
101E
101H
114
f
101L
h
115
5-4
# REF No. PART No. PART NAME, DESCRIPTION # REF No. PART No. PART NAME, DESCRIPTION
---------------- ----------------------- ----------------------------------------------------- ----------------- ----------------------- -----------------------------------------------------
140B LY32364-001A COVER(DC)
******************************
FINAL ASSEMBLY <M2>
101 LY20797-001D UPPER CASE(3.5)ASSY
101A LY20776-001A TOP COVER(3.5)
101B LY32371-001A PLATE(UPPER)
101C LY40664-001A SPACER,X2
101D LY31019-001A BASE
101E LY32375-001A COVER(SD)
101F LY43292-001A SHAFT
101G LY43293-001A SPRING
101H LY43261-001A HOOK(UPPER)
101J LY43541-001A EARTH SHEET(3.5)
101K LY30018-023A SPECIAL SCREW,X2
101L LY30018-084A SPECIAL SCREW,X2
101M LY30018-084A SPECIAL SCREW,X2
102 LY30018-0D6A SPECIAL SCREW,X2
103 LY32373-001A BRACKET(MONITOR)
104 LY30018-066A SPECIAL SCREW,X2
105 LY20777-001A COVER(HINGE)
106 LY30018-047A SPECIAL SCREW,X2
107 LY43263-001A KNOB(SLIDE)
108 LY43263-002A KNOB(SLIDE)
109 QAS0048-001 SPEAKER
110 LY30018-023A SPECIAL SCREW,X5
111 LY30018-047A SPECIAL SCREW
112 QUQ105-4007AA FFC WIRE,MONI CN761-MAIN CN101
113 QUQ105-1011AA FFC WIRE,MONI CN762-DSC CN8002
114 LY30018-084A SPECIAL SCREW,X2
115 LY30018-084A SPECIAL SCREW
116 LY30018-047A SPECIAL SCREW,X2
117 LY30018-047A SPECIAL SCREW
118 LY30018-064A SPECIAL SCREW,X2
120 LY43566-003A STICKER(SIDE)
121 LY30018-084A SPECIAL SCREW
122 LY30018-099A SPECIAL SCREW,X2
123 LY30029-0Y5A SPACER(A)
125 LY32382-006A FRONT COVER ASSY
125A LY32383-001A HOOD
125B LY32687-001B RING(MEGA)
125C LY32705-001A HOOD(SCREW)
125D LY30018-084A SPECIAL SCREW
125E LY30018-0A7A SPECIAL SCREW,X4
125F LY32343-001A MICROPHONE
125G LY32388-001A BASE(LIGHT)
125H LY32338-001A DC LIGHT ASSY
125K LY32387-001A HOOD(MEGA)
126 LY43567-004A STICKER(TOP)
130 LY10317-001A REAR UNIT
130A LY32408-001A KNOB(BATT.RELE)
130B LY30001-018A TENSION SPRING
130C LY32409-001A TERMINAL BASE
130D LY43291-001A TERMINAL(R),X2
130E LY43290-001A TERMINAL(L),X3
130F LY30018-084A SPECIAL SCREW,X3
131 LY30018-084A SPECIAL SCREW,X3
132 LY30018-0C9A SPECIAL SCREW,X2
133 LY30018-0C9A SPECIAL SCREW
134 LY41691-001A COVER(JIG)
135 LY30018-037A SPECIAL SCREW
140 LY20769-003E LOWER CASE ASSY
140A LY32363-001A COVER(JACK)
140C LY40592-001A CAP(GRIP BELT)
140D LY20770-001A ARM ASSY
140E LY30029-0T9A SPACER(A)
140F LY32365-001A PLATE
140G LY20780-001A GRIP BELT
140H LY10304-001A ZOOM UNIT
140J LY10309-001A CASSETTE COVER
140K LY43254-001B LOCK ASSY
140L LY30018-084A SPECIAL SCREW,X4
140M LY30018-038A SPECIAL SCREW
140N LY30018-038A SPECIAL SCREW,X3
140P LY30018-0D1A SPECIAL SCREW
140R LY30018-084A SPECIAL SCREW,X3
140S LY30018-023A SPECIAL SCREW,X4
140T LY30018-038A SPECIAL SCREW,X4
140U LY43609-001A SPACER(B)
141 LY30018-084A SPECIAL SCREW,X2
142 LY30018-084A SPECIAL SCREW,X2
143 LY30018-0C9A SPECIAL SCREW
144 LY43256-001B PLATE(ADJUST)
150 LY20778-001A BRACKET(MECHA)
151 YQ43893-4 MINI SCREW
152 LY30019-026A SPECIAL SCREW,X2
153 QYSPSPT1730R SCREW,X3
154 LY40698-002A LABEL(HOUSING)
155 LY40699-002A LABEL(PUSH)
156 LY30018-084A SPECIAL SCREW,X2
157 LY30018-066A SPECIAL SCREW
158 LY30018-066A SPECIAL SCREW,X2
159 LY30018-038A SPECIAL SCREW
160 LY30019-038A SPECIAL SCREW,X2
162 YQ43893-4 MINI SCREW
163 WJT0066-001A
164 LY30019-038A SPECIAL SCREW
165 LY30029-0V6A SPACER(A)
166 LY30029-0X1A SPACER(A)
170 LY43258-001A BRACKET(OP)ASSY
170A LY42796-001A BUSH
170B LY30016-0N9A SPACER-A
171 LY30018-084A SPECIAL SCREW
172 LY30018-066A SPECIAL SCREW
173 LY30019-029B SPECIAL SCREW
252 LY30029-0Z7A SPACER(A)
253 LY30029-0P8A SPACER(A)
E-CARD WIRE,MAIN CN113-JUNC.CN571
– OPTICAL BLOCK SECTION –
251 J7C-112A OPTICAL BLOCK ASSY
251A LY31572-001A ZOOM MOTOR
251B LY31571-001A FOCUS MOTOR
251C LY30727-002A SCREW,X5
251D LY30727-001A SCREW,X2
251E LY43384-001A OPTICAL LPF
251F LY43494-001A SHEET
251G LYH30375-003A CCD BASE ASSY
251H QYSPSGU1750Z SCREW,X2
251J LY32721-001A IRIS MOTOR UNIT
5-5
5.3 MONITOR ASSEMBLY <M5>
501E
500
501H
501
501G
501J
d
501A
501C
508A
508F
508E
508D
c
508G
a
508
508C
508E
c
508B
b
510
504
507
LCD BL
<03>
506
d
501F
501D
512
501B
501D
509
b
502
a
# REF No. PART No. PART NAME, DESCRIPTION # REF No. PART No. PART NAME, DESCRIPTION
--------------- ----------------------- ----------------------------------------------------- ---------------- ----------------------- ------------------------------------------------------
******************************
MONITOR ASSEMBLY <M5>
500 LYH20246-042B MONITOR ASSY
501 LY20864-001C MONITOR COVER(3.5MEGA)ASSY
501A LY31620-001A KNOB(LOCK 1)
501B LY42180-001A KNOB(LOCK 2)
501C LY30002-044A COMPRESSION SPRING
501D LY30018-084A SPECIAL SCREW,X2
501E LY42883-001A MARK
501F LY43785-001A EARTH MON(3.5)
501G LY32704-002A WINDOW(M.MEGA)
501H LY32707-001B PLATE(M3.5MEGA)
501J QLE0017-001 EL PANEL
502 LY20598-002A MONITOR CASE ASSY
502A LY42388-001A EARTH MON(2)
504 LY20568-001A HOLDER(3.5PWB)
505 LY31622-001A BRACKET(EARTH)
506 QLL0123-001 BACK LIGHT
507 QLD0203-001 LCD MODULE
508 LY32695-001A MONITOR FPC ASSY
508A LY32574-001A MONITOR FPC ASSY
508B LY32079-001A HINGE ASSY
508C LY32380-001A HINGE COVER(U)
508D LY32381-001A HINGE COVER(L)
508E LY30018-058A SPECIAL SCREW,X2
508F LY30018-023A SPECIAL SCREW
508G LY30029-0Q5A SPACER(A)
509 QYSPSPT1730R SCREW,X2
510 LY30018-0F2A SPECIAL SCREW,X2
512 LY30029-0Y6A SPACER(A)
505
502A
(Sanwa)-M2D249
GR-DVL822U
5-6
