DIGITAL VIDEO CAMERA

GR-DVL145

CONTENTS

AUTOMATIC DEMONSTRATION

GETTING STARTED

ENGLISH

7 – 13

Please visit our Homepage on the World Wide Web and answer our Consumer Survey (in English only):

http://www.jvc-victor.co.jp/english/index-e.html

For Accessories:

http://www.jvc-victor.co.jp/english/accessory/

RECORDING & PLAYBACK

RECORDING ................................ 15 – 18

PLAYBACK .................................. 19 – 22

ADVANCED FEATURES

FOR RECORDING .......................... 24 – 31

USING MENUS FOR

DETAILED ADJUSTMENT ............. 32 – 37

DUBBING .................................... 38 – 39

USING THE OPTIONAL REMOTE

CONTROL UNIT .......................... 40 – 44

SYSTEM CONNECTIONS ........................ 45

REFERENCES

DETAILS ............................................ 47

TROUBLESHOOTING ..................... 48 – 52

USER MAINTENANCE ........................... 53

CAUTIONS ...................................54 – 56

SPECIFICATIONS ................................. 57

INDEX ........................................ 58 – 62

TERMS ............................ 63 –

14 – 22

23 – 45

– Back Cover

Back Cover

INSTRUCTIONS

LYT1023-001A

Dear Customer,

Thank you for purchasing this digital video camera. Before use, please read the safety information and precautions contained in the following pages to ensure safe use of this product.

Using This Instruction Manual

• All major sections and subsections are listed in the Table Of Contents on the cover page.

• Notes appear after most subsections. Be sure to read these as well.

• Basic and advanced features/operation are separated for easier reference.

It is recommended that you . . .

..... refer to the Index (

..... read thoroughly the Safety Precautions. They contain extremely important information regarding the safe

use of this product.

You are recommended to carefully read the cautions on pages 54 through 56 before use.

墌 pgs. 58 – 62) and familiarize yourself with button locations, etc. before use.

SAFETY PRECAUTIONS

IMPORTANT (for owners in the U.K.)

Connection to the mains supply in the United Kingdom. DO NOT cut off the mains plug from this equipment.

If the plug fitted is not suitable for the power points in your home or the cable is too short to reach a power point, then obtain an appropriate safety approved extension lead or consult your dealer.

BE SURE to replace the fuse only with an identical approved type, as originally fitted, and to replace the fuse cover.

If nonetheless the mains plug is cut off be sure to remove the fuse and dispose of the plug immediately, to avoid possible shock hazard by inadvertent connection to the mains supply. If this product is not supplied fitted with a mains plug then follow the instructions given below: DO NOT make any connection to the Larger Terminal coded E or Green. The wires in the mains lead are coloured in accordance with the following code:

Blue to N (Neutral) or Black Brown to L (Live) or Red

If these colours do not correspond with the terminal identifications of your plug, connect as follows: Blue wire to terminal coded N (Neutral) or coloured black. Brown wire to terminal coded L (Live) or coloured Red. If in doubt — consult a competent electrician.

WARNING: TO PREVENT FIRE OR SHOCK

HAZARD, DO NOT EXPOSE THIS UNIT TO RAIN OR MOISTURE.

CAUTIONS:

● To prevent shock, do not open the cabinet. No user serviceable parts inside. Refer servicing to qualified personnel.

● When you are not using the AC Adapter for a long period of time, it is recommended that you disconnect the power cord from AC outlet.

NOTES:

● The rating plate (serial number plate) and safety caution are on the bottom and/or the back of the main unit.

● The rating information and safety caution of the AC Adapter are on its upper and lower sides.

CAUTION:

To avoid electric shock or damage to the unit, first firmly insert the small end of the power cord into the AC Adapter until it is no longer wobbly, and then plug the larger end of the power cord into an AC outlet.

CAUTIONS:

● This camcorder is designed to be used with PAL-type colour television signals. It cannot be used for playback with a television of a different standard. However, live recording and LCD monitor/viewfinder playback are possible anywhere.

●

Use the JVC BN-V408U/V416U/V428U battery packs and, to recharge them or to supply power to the camcorder from an AC outlet, use the provided multi-voltage AC Adapter and Power Cord. (An appropriate conversion adapter may be necessary to accommodate different designs of AC outlets in different countries.)

When the equipment is installed in a cabinet or on a shelf, make sure that it has sufficient space on all sides to allow for ventilation (10 cm or more on both sides, on top and at the rear).

Do not block the ventilation holes. (If the ventilation holes are blocked by a newspaper, or cloth etc. the heat may not be able to get out.)

No naked flame sources, such as lighted candles, should be placed on the apparatus.

When discarding batteries, environmental problems must be considered and the local rules or laws governing the disposal of these batteries must be followed strictly.

The apparatus shall not be exposed to dripping or splashing.

Do not use this equipment in a bathroom or places with water. Also do not place any containers filled with water or liquids (such as cosmetics or medicines, flower vases, potted plants, cups etc.) on top of this unit. (If water or liquid is allowed to enter this equipment, fire or electric shock may be caused.)

SOME DO’S AND DON’TS ON THE SAFE USE OF EQUIPMENT

This equipment has been designed and manufactured to meet international safety standards but, like any electrical equipment, care must be taken if you are to obtain the best results and safety is to be assured.

DO read the operating instructions before you attempt to use the equipment. DO ensure that all electrical connections (including the mains plug, extension leads and interconnections

between pieces of equipment) are properly made and in accordance with the manufacturer’s instructions. Switch off and withdraw the mains plug when making or changing connections.

DO consult your dealer if you are ever in doubt about the installation, operation or safety of your equipment. DO be careful with glass panels or doors on equipment. DON’T continue to operate the equipment if you are in any doubt about it working normally, or if it is damaged in

any way — switch off, withdraw the mains plug and consult your dealer.

DON’T remove any fixed cover as this may expose dangerous voltages. DON’T leave equipment switched on when it is unattended unless it is specifically stated that it is designed for

unattended operation or has a standby mode. Switch off using the switch on the equipment and make sure that your family knows how to do this. Special arrangements may need to be made for infirm or handicapped people.

DON’T use equipment such as personal stereos or radios so that you are distracted from the requirements of

road safety. It is illegal to watch television whilst driving.

DON’T listen to headphones at high volume, as such use can permanently damage your hearing. DON’T obstruct the ventilation of the equipment, for example with curtains or soft furnishings. Overheating will

cause damage and shorten the life of the equipment.

DON’T use makeshift stands and NEVER fix legs with wood screws — to ensure complete safety always fit the

manufacturer’s approved stand or legs with the fixings provided according to the instructions.

DON’T allow electrical equipment to be exposed to rain or moisture. ABOVE ALL

— NEVER let anyone especially children push anything into holes, slots or any other opening in the case — this

could result in a fatal electrical shock;

— NEVER guess or take chances with electrical equipment of any kind — it is better to be safe than sorry!

SAFETY PRECAUTIONS

Do not point the lens or the viewfinder directly into the sun. This can cause eye injuries, as well as lead to the malfunctioning of internal circuitry. There is also a risk of fire or electric shock.

CAUTION!

The following notes concern possible physical damage to the camcorder and to the user.

When carrying, be sure to always securely attach and use the provided shoulder strap. Carrying or holding the camcorder by the viewfinder and/or the LCD monitor can result in dropping the unit, or in a malfunction.

Take care not to get your finger caught in the cassette holder cover. Do not let children operate the camcorder, as they are particularly susceptible to this type of injury.

Do not use a tripod on unsteady or unlevel surfaces. It could tip over, causing serious damage to the camcorder.

CAUTION!

Connecting cables (Audio/Video, S-Video, etc.) to the camcorder and leaving the unit on top of the TV is not recommended, as tripping on the cables will cause the camcorder to fall, resulting in damage.

䡲 This camcorder is designed exclusively for the digital video cassette. Only cassettes marked

“ ” can be used with this unit.

Before recording an important scene . . .

.... make sure you only use cassettes with the Mini DV mark .

.... remember that this camcorder is not compatible with other digital video formats.

.... remember that this camcorder is intended for private consumer use only. Any commercial use without

proper permission is prohibited. (Even if you record an event such as a show, performance or exhibition for personal enjoyment, it is strongly recommended that you obtain permission beforehand.)

PROVIDED ACCESSORIES

AC Adapter AP-V10EG or AP-V12EG

Shoulder Strap

Core Filter (for optional S-Video cable

墌 pg. 6 for attachment)

NOTE:

In order to maintain optimum performance of the camcorder, provided cables may be equipped with one or more core filter. If a cable has only one core filter, the end that is closest to the filter should be connected to the camcorder.

Battery Pack BN-V408U

Power CordCable Adapter

Audio/Video Cable (ø3.5 mini-plug to RCA plug)

Lens Cap (See below for attachment)

How To Attach The Lens Cap

To protect the lens, attach the provided lens cap to the camcorder as shown in the illustration.

NOTE:

To confirm the lens cap is on correctly make sure the cap is flush to the camera.

1 2 3

MOD EDEMO –ONOFF

How To Attach The Core Filter

Attach the Core Filter(s) (if provided with your model 墌 pg. 5) to an optional cable(s). The Core Filter reduces interference.

Stopper

Release the stoppers on both ends of the Core Filter.

䡲 When connecting cables, attach the end with the Core Filter to the camcorder.

Run the cable through the Core Filter, leaving approx. 3 cm of cable between the cable plug and the Core Filter. Wind the cable once around the outside of the Core Filter as shown in the illustration.

• Wind the cable so that it is not slack.

NOTE:

Take care not to damage the cable.

3 cm

Wind once

Close the Core Filter until it clicks shut.

AUTOMATIC DEMONSTRATION

Automatic Demonstration takes place when “DEMO MODE” is set to “ON” (factory-preset).

䡲 Automatic Demonstration starts when there is no operation for

about 3 minutes after the Power Switch is set to “ ” or “ ” and no cassette is in the camcorder.

䡲 Performing any operation during the demonstration stops the

demonstration temporarily. If no operation is performed for more than 3 minutes after that, the demonstration will resume.

䡲 “DEMO MODE” remains “ON” even if the camcorder power is

turned off.

䡲 To cancel Automatic Demonstration:

1. Set the Power Switch to “ ” while pressing down the Lock Button located on the switch and press the MENU/BRIGHT wheel in. The Menu Screen appears.

2. Rotate the MENU/BRIGHT wheel to select “ SYSTEM” and press it. The SYSTEM Menu appears.

3. Rotate the MENU/BRIGHT wheel to select “DEMO MODE” and press it. The Sub Menu appears.

4. Rotate the MENU/BRIGHT wheel to select “OFF” and press it.

5. Rotate the MENU/BRIGHT wheel to select “ RETURN”, and press it twice. The normal screen appears.

NOTE:

If you do not detach the Lens Cap, you cannot see the actual changes of the Automatic Demonstration activated on the LCD monitor or viewfinder.

MENU/BRIGHT Wheel

Lock Button

Power Switch

Sub Menu

GETTING STARTED

CONTENTS

Power.................................................. 8 – 9

Grip Adjustment ......................................... 10

Viewfinder Adjustment.................................. 10

Shoulder Strap Attachment ............................. 10

Tripod Mounting .......................................... 10

Date/Time Settings...................................... 11

Loading/Unloading A Cassette ......................... 12

Recording Mode Setting ................................. 13

BAT. RELEASE Button

GETTING STARTED

(cont.)

Power

This camcorder’s 2-way power supply system lets you choose the most appropriate source of power. Do not use provided power supply units with other equipment.

AC Adapter

To AC outlet

Battery pack

BN-V408U

BN-V416U (optional)

BN-V428U (optional)

Power Switch

CHARGE Lamp

To D C

connector

Charging time

approx. 1 hr. 30 min.

approx. 3 hrs.

approx. 5 hrs.

Battery pack

CHARGING THE BATTERY PACK

1 Tilt the viewfinder upward 1. With the arrow on

the battery pack pointing downward, push the battery pack slightly against the battery pack mount 2, then slide down the battery pack until it locks in place 3.

2 Set the Power Switch to “OFF”. Connect the AC

Adapter to the camcorder 4, then connect the Power Cord to the AC Adapter 5.

3 Plug the Power Cord into an AC outlet 6.

The CHARGE lamp on the camcorder blinks to indicate charging has started.

4 When the CHARGE lamp stops blinking but stays

lit, charging is finished. Unplug the Power Cord from the AC outlet. Disconnect the AC Adapter from the camcorder.

To Detach The Battery Pack . . .

..... Press BAT. RELEASE and pull out the battery

pack.

NOTES:

● If the protective cap is attached to the battery pack, remove it first.

● During charging, the camcorder cannot be operated.

● Charging is not possible if the wrong type of battery is

used.

● When charging the battery pack for the first time or after a long storage period, the CHARGE lamp may not light. In this case, remove the battery pack from the camcorder, then try charging again.

● If the battery operation time remains extremely short even after having been fully charged, the battery is worn out and needs to be replaced. Please purchase a new one.

● Using the optional AA-V40EG or AA-V40EK AC Power Adapter/Charger, you can charge the BN-V408U/ V416U/V428U battery pack without the camcorder. However, it cannot be used as an AC adapter.

For other notes, 墌 pg. 47

ATTENTION

Before detaching the power source, make sure that the camcorder’s power is turned off. Failure to do so can result in a camcorder malfunction.

NOTES:

● Recording time is reduced significantly under the following conditions:

• Zoom or Record-Standby mode is engaged

repeatedly.

• The LCD monitor is used repeatedly.

•

The playback mode is engaged repeatedly.

● Before extended use, it is recommended that you prepare enough battery packs to cover 3 times the planned shooting time.

Perform step 1 of “CHARGING THE BATTERY PACK” (墌 pg. 8).

Approximate recording time

Battery pack

BN-V408U

BN-V416U (optional)

BN-V428U (optional)

BN-V840U (optional)

BN-V856U (optional)

USING THE BATTERY PACK

LCD monitor on

1 hr.

2 hrs.

3 hrs. 30 min.

5 hrs.

7 hrs.

Viewfinder on

1 hr. 15 min.

2 hrs. 30 min.

4 hrs. 20 min.

6 hrs. 10 min.

8 hrs. 40 min.

INFORMATION

The extended-use battery pack kit is a set composed of a battery pack and AC Power Adapter/Charger: VU-V840 KIT : BN-V840U battery pack & AA-V15EG or AA-V15EK AC Power Adapter/Charger VU-V856 KIT : BN-V856U battery pack & AA-V80EG or AA-V80EK AC Power Adapter/Charger Read the kit's instruction manual before using. Also, by using the optional JVC VC-VBN856U DC Cord, it will be possible to connect BN-V840U or BN-V856U battery packs to the camcorder and supply power directly to the camcorder.

USING AC POWER

Use the AC Adapter (connect as shown in the

To AC outlet

AC Adapter

To D C connector

illustration).

NOTES:

● The provided AC Adapter features automatic voltage selection in the AC range from 110 V to 240 V.

● For other notes, 墌 pg. 47.

Lithium-ion is vulnerable in colder temperatures.

About Batteries

DANGER! Do not attempt to take the batteries apart,

or expose them to flame or excessive heat, as it may cause a fire or explosion.

WARNING! Do not allow the battery or its terminals to come in contact with metals, as this can result in a short circuit and possibly start a fire.

The Benefits Of Lithium-Ion Batteries

Lithium-ion battery packs are small but have a large power capacity. However, when one is exposed to cold temperatures (below 10°C), its usage time becomes shorter and it may cease to function. If this happens, place the battery pack in your pocket or other warm, protected place for a short time, then reattach it to the camcorder. As long as the battery pack itself is not cold, it should not affect performance.

(If you’re using a heating pad, make sure the battery pack does not come in direct contact with it.)

PAUSE

GETTING STARTED

(cont.)

Power Zoom Lever

Recording Start/Stop button

Power Switch

Dioptre Adjustment Control

Grip Adjustment

1 Separate the Velcro strip. 2 Pass your right hand through the loop and grasp

the grip.

3 Adjust your thumb and fingers through the grip, to

easily operate the Recording Start/Stop button and Power Switch and Power Zoom Lever. Be sure to fasten the Velcro strip to your preference.

Viewfinder Adjustment

1 Set the Power Switch to “ ” or “ ” while

pressing down the Lock Button located on the switch.

2 Turn the Dioptre Adjustment Control until the

indications in the viewfinder are clearly focused.

Shoulder Strap Attachment

1 Make sure the battery pack is removed. Following

the illustration, thread the strap through the eyelet 1, then fold it back and thread it through the buckle 2. Repeat the procedure to attach the other end of the strap to the other eyelet 3 located under the Grip Strap . Confirm the strap is not twisted.

Tripod Mounting

CAUTION

When attaching the camcorder to a tripod, extend its legs to stabilise the camcorder. It is not advised to use small sized tripods. This may cause damage to the unit by falling over.

1 To attach the camcorder to a tripod, align the

direction stud and screw to the mounting socket and stud hole on the camcorder. Then tighten the screw clockwise. Some tripods are not equipped with studs.

/ W I P E

EXPOSURE

W. BAL

DSC END

T I ME CODE

CLOCK

ADJ .

MENU/BRIGHT Wheel

Lock Button

Power Switch

Display

FADER

AM A EPROGR

AN E ACAMER LMANUA MSYSTE AYDISPL

RE NEON SC

–

LCD/TV

–

UAOT

IMETDATE /

– FFO

Power Lamp

12.02 17 30:

DISPLAY Menu

Date/Time Settings

The date/time is recorded onto the tape at all times, but its display can be turned on or off during playback (墌 pg. 36, 37).

1 Set the Power Switch to “ ” while pressing

down the Lock Button located on the switch. The power lamp lights and the camcorder is turned on.

2 Press the MENU/BRIGHT wheel in to access the

Menu Screen.

3 Rotate the MENU/BRIGHT wheel to select

“

DISPLAY”. Press it and the DISPLAY Menu

appears.

4 Rotate the MENU/BRIGHT wheel to select

“CLOCK ADJ.”. Press it and “day” is highlighted. Rotate the MENU/BRIGHT wheel to input the day. Press it. Repeat to input the month, year, hour and minute. Rotate the MENU/BRIGHT wheel to select “ RETURN”, and press it twice. The Menu Screen closes.

NOTE:

Even if you select “CLOCK ADJ.”, if the parameter is not highlighted the camcorder’s internal clock continues to operate. Once you move the highlight bar to the first date/ time parameter (day), the clock stops. When you finish setting the minute and press the MENU/BRIGHT wheel in, the date and time begin operation from the date and time you just set.

CLOCK ADJ .

NRETUR

12.02

17 30:

GETTING STARTED

(cont.)

Erase protection tab*

Make sure the window side is facing out.

PUSH HERE

Cassette holder cover

OPEN/EJECT Switch

Cassette holder

* To Protect Valuable Recordings . . .

....

slide the erase protection tab on the back of the tape in the direction of “SAVE”. This prevents the tape from being recorded over. To record on this tape, slide the tab back to “REC” before loading it.

Be sure to press only the section labeled “PUSH HERE” to close the cassette holder; touching other parts may cause your finger to get caught in the cassette holder, resulting in injury or product damage.

Loading/Unloading A Cassette

The camcorder needs to be powered up to load or eject a cassette.

1 Slide and hold OPEN/EJECT in the direction of

the arrow then pull the cassette holder cover open until it locks. The cassette holder opens automatically.

• Do not touch internal components.

2 Insert or remove a tape and press “PUSH HERE”

to close the cassette holder.

• Once the cassette holder is closed, it recedes

automatically. Wait until it recedes completely before closing the cassette holder cover.

• When the battery’s charge is low, you may not be

able to close the cassette holder cover. Do not apply force. Replace the battery with a fully charged one before continuing.

3 Close the cassette holder cover firmly until it

locks into place.

Approximate recording time

Tape

30 min. 30 min. 45 min.

60 min. 60 min. 90 min.

80 min. 80 min. 120 min.

Recording mode

SP LP

NOTES:

● It takes a few seconds for the cassette holder to open. Do not apply force.

● If you wait a few seconds and the cassette holder does not open, close the cassette holder cover and try again. If the

cassette holder still does not open, turn the camcorder off then on again.

● If the tape does not load properly, open the cassette holder cover fully and remove the cassette. A few minutes later, insert it again.

● When the camcorder is suddenly moved from a cold place to a warm environment, wait a short time before opening the cassette holder cover.

● Closing the cassette holder cover before the cassette holder comes out may cause damage to the camcorder.

● Even when the camcorder is switched off, a cassette can be loaded or unloaded. After the cassette holder is closed

with the camcorder switched off, however, it may not recede. It is recommended to turn the power on before loading or unloading.

● When resuming recording, once you open the cassette holder cover a blank portion will be recorded on the tape or a previously recorded scene will be erased (recorded over) regardless of whether the cassette holder came out or not. See page 18 for information about recording from the middle of a tape.

MENU/BRIGHT Wheel

Lock Button

Power Switch

Display

SPREC MODE –

Power Lamp

Menu Screen

Sub Menu

Recording Mode Setting

Set the tape recording mode depending on your preference.

1 Set the Power Switch to “ ” while pressing

down the Lock Button located on the switch. The power lamp lights and the camcorder is turned on.

2 Press the MENU/BRIGHT wheel in. The Menu

Screen appears.

3 Rotate the MENU/BRIGHT wheel to select

CAMERA” and press it. The CAMERA Menu

“

appears.

4 Rotate the MENU/BRIGHT wheel to select “REC

MODE” and press it. The Sub Menu appears. Select “SP” or “LP” by rotating the MENU/BRIGHT wheel and press it. Rotate the MENU/BRIGHT wheel to select “ RETURN”, and press it twice. The Menu Screen closes.

• Audio Dubbing (墌 pg. 43) and Insert Editing (墌 pg. 44) are possible on tapes recorded in the SP mode.

•“LP” (Long Play) is more economical, providing

1.5 times the recording time.

NOTES:

● If the recording mode is switched during recording, the

playback picture will be blurred at the switching point.

● It is recommended that tapes recorded in the LP mode

on this camcorder be played back on this camcorder.

● During playback of a tape recorded on another

camcorder, blocks of noise may appear or there may be momentary pauses in the sound.

RECORDING & PLAYBACK

RECORDING

PLAYBACK

CONTENTS

RECORDING ................................. 15 – 18

Basic Recording ..................................... 15

Journalistic Shooting ............................... 16

Self-Recording ...................................... 16

Operation Mode .................................... 16

Zooming ............................................ 17

Time Code ........................................... 18

PLAYBACK ................................... 19 – 22

Normal Playback ................................... 19

Still Playback ....................................... 19

Shuttle Search ...................................... 19

Frame-By-Frame Playback ........................ 19

Connections .................................. 20 – 21

Blank Search ........................................ 22

RECORDING

Power lamp

Power Switch

Lock Button

Recording Start/Stop Button

Display

min

(Now calculating)

PUSH OPEN Button

90 min

(Blinking) (Blinking) (Blinking)

GHT

BR I

min

Tape remaining time indicator (Approximate)

89 min

1 min0 min

MENU/BRIGHT Wheel

During

shooting

3 min

2 min

Basic Recording

NOTE:

You should already have performed the procedures listed below. If not, do so before continuing.

● Power (墌 pg. 8)

● Grip Adjustment (

● Viewfinder Adjustment (

● Load A Cassette (

● Recording Mode Setting (

墌 pg. 10)

墌 pg. 12)

墌 pg. 13)

1 Remove the lens cap. 2 Set the Power Switch to “ ” or “ ” while

pressing down the Lock Button located on the switch. Shooting while using the LCD monitor: Make sure the LCD monitor is fully open. Tilt it upward/ downward for best viewability. Shooting while using the viewfinder: Close the LCD monitor.

• The power lamp lights and the camcorder enters the Record-Standby mode. “PAUSE” is displayed.

3 Press the Recording Start/Stop Button. “ ”

appears while recording is in progress.

To Stop Recording . . .

..... press the Recording Start/Stop Button. The

camcorder re-enters the Record-Standby mode.

To Adjust The Brightness Of The Display . . .

..... rotate the MENU/BRIGHT wheel until the bright

level indicator on the display moves and the appropriate brightness is reached.

NOTES:

● If the Record-Standby mode continues for 5 minutes,

the camcorder’s power shuts off automatically. To turn the camcorder on again, set the Power Switch to “OFF”, then back to “

● The image will not appear simultaneously on the LCD

monitor and the viewfinder. It will appear in the viewfinder when the LCD monitor is in the lock position, and it will appear on the LCD monitor when fully extended.

● When a blank portion is left between recorded scenes

on the tape, the time code is interrupted and errors may occur when editing the tape. To avoid this, refer to “Recording from the middle of a tape” (

● To turn the beep sounds off,

” or “ ”.

墌 pg. 18).

墌 pg. 32, 34.

For other notes, 墌 pg. 47

SelfRecording

RECORDING

(cont.)

JOURNALISTIC SHOOTING

In some situations, different shooting angles may provide more dramatic results. Hold the camcorder in the desired position and tilt the LCD monitor in the most convenient direction. It can rotate 270° (90° downward, 180° upward).

SELF-RECORDING

You can shoot yourself while viewing your own image in the LCD monitor. Open the LCD monitor and tilt it upward 180° so that it faces forward, then point the lens toward yourself and start recording.

To turn on the camcorder, set the Power Switch to any operation mode except “OFF”while pressing down the Lock Button located on the switch.

Power Switch

Power lamp

Lock Button

Operation Mode

Choose the appropriate operation mode according to your preference using the Power Switch.

Power Switch Position

(Manual):

Allows you to set various recording functions using the Menus. If you want more creative capabilities than Full Auto recording, try this mode.

(Full Auto):

Allows you to record using NO special effects or manual adjustments. Suitable for standard recording.

OFF:

Allows you to switch off the camcorder.

PLAY:

• Allows you to play back a recording on the tape.

• Allows you to transfer a still image recorded on the

tape to a computer.

When the Power Switch is set to “ appears. When set to “ indication.

” or “PLAY”, there is no

”, “ ”

Zoom in (T: Telephoto)

61x

Approximate zoom ratio

01x

Zoom display

Power Zoom Lever

02x

Zoom out (W: Wide angle)

Digital zoom zone

16X (optical) zoom zone

04x

FEATURE:

Zooming

PURPOSE:

To produce the zoom in/out effect, or an instantaneous change in image magnification.

OPERATION:

Zoom In

Slide the Power Zoom Lever towards “T”.

Zoom Out

Slide the Power Zoom Lever towards “W”. 䡲 The further you slide the Power Zoom Lever, the

quicker the zoom action.

NOTES:

● Focusing may become unstable during Zooming. In this case, set the zoom while in Record-Standby, lock the focus by using the manual focus

墌 pg. 29), then zoom in or out in Record mode.

(

● Zooming is possible to a maximum of 700X, or it can be switched to 16X magnification using the optical zoom (

● Zoom magnification of over 16X is done through Digital image processing, and is therefore called Digital Zoom.

● During Digital zoom, the quality of image may suffer.

● Macro shooting (as close as approx. 5 cm to the subject) is possible when the Power Zoom Lever is set all the way to “W”. Also see “TELE MACRO” in the Menu Screen on page 34.

墌 pg. 33).

RECORDING

(cont.)

Time Code

During recording, a time code is recorded on the tape. This code is to confirm the location of the recorded scene on the tape during playback. If recording starts from a blank portion, the time code begins counting from “00:00:00” (minute:second:frame). If recording starts from the end of a previously recorded scene, the time code continues from the last time code number.

If during recording a blank portion is left partway through the tape, the time code is interrupted. When recording is resumed, the time code starts counting up again from “00:00:00”. This means the camcorder may record the same time codes as those existing in a previously recorded scene. To prevent this, perform

“Recording From The Middle of A Tape” below in the following cases;

• When shooting again after playing back a

recorded tape.

• When power shuts off during shooting.

• When a tape is removed and re-inserted during

shooting.

• When shooting using a partially recorded tape.

• When shooting on a blank portion located

partway through the tape.

• When shooting again after shooting a scene then opening/closing the cassette holder cover.

Recording From The Middle Of A Tape

1. Play back a tape or use Blank Search (墌 pg. 22) to find the spot at which you want to start recording,

then engage the Still Playback mode (墌 pg. 19).

2. Set the Power Switch to “ ” or “ ” while pressing down the Lock Button located on the switch, then

start recording.

NOTES:

● The time code cannot be reset.

● During fast-forwarding and rewinding, the time code indication does not move smoothly.

● The time code is displayed only when “TIME CODE” is set to “ON” (墌 pg. 35, 37).

12: 34:24

Display

Frames are not displayed during recording.

Minutes

Seconds

Frames (25 frames = 1 second)

When a blank portion is recorded on a tape

Time code 00:00:00

Tape

Shooting start point

Time code 05:43:21

Time code 00:00:00

Shooting start pointShooting stop point

Proper recording

Time code 00:00:00

Tape

Shooting start point Shooting start point Shooting start point

Time code 05:43:21

Time code 05:44:00

Newly recorded sceneBlankAlready recorded scene

Latest sceneNew sceneAlready recorded scene

PLAYBACK

Play/Pause Button (

Rewind Button (2)

Stop Button (5)

/6)

Speaker

Power Zoom Lever (VOL.)

Fast-Forward

Button (

)

Normal Playback

1 Load a tape (墌 pg. 12). 2 Set the Power Switch to “PLAY” while pressing down

the Lock Button located on the switch. To start playback, press 4/6.

• To stop playback, press 5.

• Press 2 to rewind, or 3 to fast-forward the tape

during Stop mode.

To Control The Speaker Volume . . .

..... slide the Power Zoom Lever (VOL.) towards “+”

to turn up the volume, or towards “–” to turn down the volume.

NOTES:

● If Stop mode continues for 5 minutes when power is supplied from a battery, the camcorder shuts off automatically. To turn on again, set the Power Switch to “OFF”, then to “PLAY”.

● The playback picture can be viewed in the LCD monitor, viewfinder or on a connected TV (墌 pg. 20).

● You can also view the playback picture on the LCD monitor with it flipped over and pushed against the camera body.

● LCD monitor/viewfinder indications:

• When power is supplied from a battery: the “

When power is supplied from an AC outlet: “

• During Stop mode, none of the indications are displayed.

● When a cable is connected to the AV connector, the sound is not heard from the speaker.

” battery pack remaining power indicator is displayed.

” does not appear.

Still Playback:

1) Press 4/6 during playback.

2) To resume normal playback, press 4/6 again.

● If still playback continues for more than about 3 minutes, the camcorder’s Stop mode is automatically engaged. After 5 minutes in the Stop mode, the camcorder’s power is automatically turned off.

● When 4/6 is pressed, the image may not pause immediately while the camcorder stabilises the still image.

Shuttle Search:

1) Press 3 for forward or 2 for reverse search during playback.

2) To resume normal playback, press 4/6.

● During playback, press and hold 2 or 3. The search continues as long as you hold the button. Once you release it, normal playback resumes.

● A slight mosaic effect appears on screen during Shuttle Search. This is not a malfunction.

Pauses during playback.

Allows high-speed search in either direction.

Frame-By-Frame Playback: Allows frame-by-frame search.

1) Engage Still Playback.

2) Rotate the MENU/BRIGHT wheel towards “+” for forward Frame-By-Frame Playback, or towards “–” for

reverse Frame-By-Frame Playback during Still Playback.

● To resume normal playback, press 4/6.

ATTENTION

During Shuttle Search, parts of the picture may not be clearly visible, particularly on the left side of the screen.

Connections

Use the provided Audio/Video cable and optional S-Video cable.

PLAYBACK

(cont.)

To AV

Audio/Video cable [mini-plug to RCA plug] (provided)

cover*

* When connecting the cables, open this cover. ** The Audio cable is not required for watching still images only.

To S-VIDEO

S-Video cable (optional)

If your TV/VCR has a 21-pin connector

Use the provided Cable Adapter.

Audio/Video cable [mini-plug to RCA plug] (provided)

White to

To AV

Camcorder

AUDIO L*

When the S-Video cable is not used.

Yellow to VIDEO IN

White to AUDIO L IN**

Red to AUDIO R IN**

To S-VIDEO IN

When the S-Video cable is not used.

Yellow

Red to AUDIO R*

To TV or VCR

Cable Adapter

VCRConnector

TV or VCR

To S-VIDEO

* The Audio cable is not required for watching still images only.

S-Video cable (optional)

-IN “Y/C”/“CVBS”

Video Out Select Switch

NOTE:

Set the video out select switch of the cable adapter as required: Y/C : When connecting to a TV or VCR which accepts Y/C signals and uses an S-Video cable.

CVBS : When connecting to a TV or VCR which does not accept Y/C signals and uses an audio/video cable.

1 Make sure all units are turned off. 2 Connect the camcorder to a TV or VCR as shown

in the illustration ( pg. 20).

If using a VCR . . . go to step 3. If not . . . go to step 4.

3 Connect the VCR output to the TV input, referring

to your VCR’s instruction manual.

4 Turn on the camcorder, the VCR and the TV. 5 Set the VCR to its AUX input mode, and set the

TV to its VIDEO mode.

To choose whether or not the following displays appear on the connected TV . . .

• Date/Time

..... set “DATE/TIME” to “AUTO”, “ON” or “OFF” in the

Menu Screen ( pg. 36).

• Time Code

..... set “TIME CODE” to “ON” or “OFF” in the Menu

Screen ( pg. 36).

• Playback Sound Mode, Tape Speed And Tape

Running Displays for tape playback

..... set “ON SCREEN” to “LCD” or “LCD/TV” in the

Menu Screen ( pg. 36).

NOTES:

● It is recommended to use the AC Adapter as the

power supply instead of the battery pack (

● To monitor the picture and sound from the camcorder

without inserting a tape, set the camcorder’s Power Switch to “ appropriate input mode.

● Make sure you adjust the TV sound volume to its

minimum level to avoid a sudden burst of sound when the camcorder is turned on.

● If you have a TV or speakers that are not specially

shielded, do not place the speakers adjacent to the TV as interference will occur in the camcorder playback picture.

● While the Audio/Video cable is connected to the AV

connector, sound cannot be heard from the speaker.

” or “ ”, then set your TV to the

 pg. 9).

Power Switch

Display

BLANK SEARCH

BLANK SEARCH Button

Lock Button

Stop Button (5)

PLAYBACK

(cont.)

Blank Search

Helps you find where you should start recording in the middle of a tape to avoid time code interruption ( pg. 18).

1 Load a tape ( pg. 12). 2 Set the Power Switch to “PLAY” while pressing

down the Lock Button located on the switch.

3 Press BLANK SEARCH.

•“BLANK SEARCH” appears blinking and the camcorder automatically starts reverse or forward shuttle search, then stops at the spot which is about 3 seconds of tape before the beginning of the detected blank portion.

To cancel Blank Search midway . . .

..... press 5.

NOTES:

● In step 3, if the current position is at a blank portion the

camcorder searches in the reverse direction, and if the current position is at a recorded portion the camcorder searches in the forward direction.

● Blank Search does not work if “HEAD CLEANING

REQUIRED. USE CLEANING CASSETTE” has appeared with the tape.

● If the beginning or end of the tape is reached during

Blank Search, the camcorder stops automatically.

● A blank portion which is shorter than 5 seconds of tape

may not be detected.

● The detected blank portion may be located between

recorded scenes. Before you start recording, make sure there is no recorded scene after the blank portion.

ADVANCED FEATURES

CONTENTS

FOR RECORDING ........................................... 24 – 31

Night-Scope............................................................ 24

Programme AE With Special Effects .......................... 24 – 25

Fade/Wipe Effects ............................................. 26 – 27

Snapshot ............................................................... 28

Auto Focus/Manual Focus ............................................ 29

Exposure Control ...................................................... 30

Iris Lock ................................................................ 30

White Balance Adjustment ........................................... 31

Manual White Balance Operation.................................... 31

USING MENUS FOR DETAILED ADJUSTMENT............. 32 – 37

For Recording Menu............................................ 32 – 35

For Playback Menu ............................................ 36 – 37

DUBBING .................................................... 38 – 39

Dubbing To A VCR ..................................................... 38

Dubbing To A Video Unit Equipped With A DV Connector

.............. 39

USING THE OPTIIONAL REMOTE CONTROL UNIT ........ 40 – 44

Installing The Battery ................................................. 40

Playback Zoom ........................................................ 42

Audio Dubbing ......................................................... 43

Insert Editing .......................................................... 44

SYSTEM CONNECTIONS ............................................ 45

Connection To A Personal Computer ................................. 45

FOR RECORDING

NOTES:

● During Night-Scope, the following functions or settings

cannot be activated and its indicator blinks or goes out:

• Some modes of “Programme AE With Special Effects”

 pg. 24, 25).

(

•“GAIN UP” in the CAMERA Menu (

•“DIS” in the MANUAL Menu (

● During Night-Scope, it may be difficult to bring the

camcorder into focus. To prevent this, use of manual focus and/or a tripod is recommended.

MENU/BRIGHT Wheel

Lock Button

Power Switch

NIGHT SCOPE Button

Display

SNO

ILI

GHTT

SEP I A

ONEMONOT

IC FILMCLASS ES TROB 4

SL XO

OFF

 pg. 33).

 pg.33).



GIHTSPOTL



Night-Scope

Makes dark subjects or areas even brighter than they would be under good natural lighting. Although the recorded image is not grainy, it may look as if it is strobing due to the slow shutter speed.

1 Set the Power Switch to “ ” while pressing

down the Lock Button located on the switch.

2 Press NIGHT SCOPE so that the Night-Scope

indicator “ ”appears.

• The shutter speed is automatically adjusted to provide up to 30 times sensitivity.

•“A” appears beside “ ” while the shutter speed is being automatically adjusted.

To Deactivate Night-Scope . . .

..... press NIGHT SCOPE again so that the Night-

Scope indicator disappears.

Programme AE With Special Effects

1 Set the Power Switch to “ ” while pressing

down the Lock Button located on the switch.

2 Press the MENU/BRIGHT wheel in. The Menu

Screen appears.

3 Rotate the MENU/BRIGHT wheel to select

“ PROGRAM AE”, then press it.

4 Rotate the MENU/BRIGHT wheel to select the

desired mode ( pg. 25), then press it. Selection is complete. Press the MENU/BRIGHT wheel in again. The Menu Screen closes.

• The PROGRAM AE Menu disappears and the selected mode is activated. The selected mode indicator appears.

To Deactivate The Selected Mode . . .

..... select “OFF” in step 4.

NOTES:

● Programme AE with special effects can be changed

during recording or during Record-Standby.

● Some modes of Programme AE special effects cannot

be used during Night-Scope.

IMPORTANT

Some modes of Programme AE with special effects cannot be used with certain Fade/Wipe Effects ( pg. 26, 27). If an unusable mode is selected, its indicator blinks or goes out.

SHUTTER 1/50–The shutter speed is fixed at 1/50th of a

second. Black bands that usually appear when shooting a TV screen become narrower. 1/120–The shutter speed is fixed at 1/120th of a second. The flickering that occurs when shooting under a fluorescent light or mercury-vapour lamp is reduced.

SPORTS (Variable Shutter Speed: 1/250 – 1/4000)

This setting allows fast-moving images to be captured one frame at a time, for vivid, stable slowmotion playback. The faster the shutter speed, the darker the picture becomes. Use the shutter function under good lighting conditions.

SNOW

Compensates for subjects that may otherwise appear too dark when shooting in extremely bright surroundings such as in the snow.

SPOTLIGHT

Compensates for subjects that may otherwise appear too bright when shooting under extremely strong direct lighting such as spotlights.

NOTE:

“SPOTLIGHT” has the same effect as –3 with the exposure control (

 pg. 30).

TWILIGHT

Makes evening scenes look more natural. White Balance ( pg. 31) is initially set to , but can be changed to your desired setting. When Twilight is chosen, the camcorder automatically adjusts the focus from approx. 10 m to infinity. From less than 10 m, adjust the focus manually.

SEPIA

Recorded scenes have a brownish tint like old photos. Combine this with the Cinema mode for a classic look.

MONOTONE

Like black and white films, your footage is shot in B/W. Used together with the Cinema mode, it enhances the “classic film” effect.

CLASSIC FILM

Gives recorded scenes a strobe effect.

STROBE

Your recording looks like a series of consecutive snapshots.

SLOW (Slow Shutter)

Lights dark subjects or areas even brighter than they would be under good natural lighting. Use “SLOW” only in dark areas.

SLOW 4X

Slow Shutter raises light sensitivity to allow shooting in dark environments.

NOTES:

● When using “SLOW”, the image takes on a strobe-

like effect.

● When using “SLOW”, it may be difficult to bring the

camcorder into focus. To prevent this, use of manual focus and/or a tripod is recommended.

FOR RECORDING

(cont.)

IMPORTANT

Some Fade/Wipe Effects cannot be used with certain modes of Programme AE with special effects ( pg. 24, 25). If an unusable Fade/Wipe Effect is selected, its indicator blinks or goes out.

MENU/BRIGHT Wheel

Power Switch

Lock Button

Recording Start/Stop Button

Fade/Wipe Effects

These effects let you make pro-style scene transitions. Use them to spice up the transition from one scene to the next.

Fade or Wipe works when tape recording is started or when you stop recording.

1 Set the Power Switch to “ ” while pressing

down the Lock Button located on the switch.

2 Press the MENU/BRIGHT wheel in. The Menu

Screen appears.

3 Rotate the MENU/BRIGHT wheel to select “

WIPE/FADER”, then press it.

4 Rotate the MENU/BRIGHT wheel to select the

desired function, then press it. Selection is complete. Press the MENU/BRIGHT wheel in again.

• The WIPE/FADER Menu disappears and the effect is reserved. The indicator representing the selected effect appears.

5 Press the Recording Start/Stop Button to activate

the Fade-in/out or Wipe-in/out.

To Deactivate The Selected Effect . . .

..... select “OFF” in step 4.

NOTE:

You can extend the length of a Fade or Wipe by pressing and holding the Recording Start/Stop Button.

Fader And Wipe Menu

Menu Effect

FADER — WHITE

Fade in or out with a white screen.

FADER — BLACK

FADER — B.W

WIPE — CORNER

WIPE — WINDOW

WIPE — SLIDE

WIPE — DOOR

WIPE — SCROLL

WIPE — SHUTTER

Fade in or out with a black screen.

Fade in to a colour screen from a black and white screen, or fade out from colour to black and white.

Wipe in on a black screen from the upper right to the lower left corner, or wipe out from lower left to upper right, leaving a black screen.

The scene starts in the centre of a black screen and wipes in toward the corners, or comes in from the corners, gradually wiping out to the centre.

Wipe in from right to left, or wipe out from left to right.

Wipe in as the two halves of a black screen open to the left and right, revealing the scene, or wipe out and the black screen reappears from left and right to cover the scene.

The scene wipes in from the bottom to the top of a black screen, or wipes out from top to bottom, leaving a black screen.

Wipe in from the centre of a black screen toward the top and bottom, or wipe out from the top and bottom toward the centre leaving a black screen.

SNAP MODE –

SNAPSHOT Button

Power Switch

Display

FULL

PIN–UP FRAME

Lock Button

Menu Screen

FOR RECORDING

(cont.)

Snapshot

This feature lets you record still images that look like photographs onto a tape.

SNAPSHOT MODE SELECTION

1 Set the Power Switch to “ ” while pressing

down the Lock Button located on the switch.

2 Press the MENU/BRIGHT wheel in. The Menu

Screen appears.

3 Rotate the MENU/BRIGHT wheel to select

“ CAMERA”. Press it and the CAMERA Menu appears.

4 Rotate the MENU/BRIGHT wheel to select

“SNAP MODE”, then press it.

5 Rotate the MENU/BRIGHT wheel to select the

desired Snapshot mode, then press it. Rotate the MENU/BRIGHT wheel to select “ RETURN” and press it twice. The Menu Screen closes.

SNAPSHOT RECORDING

FULL Snapshot mode with no frame

PIN-UP Pin-Up mode

FRAME Snapshot mode with frame

There is the sound effect of a shutter closing.

1 Press SNAPSHOT. “PHOTO” appears while the

snapshot is being taken.

If you press during Record-Standby . . .

..... “PHOTO” appears and a still image will be recorded

for approx. 6 seconds, then the camcorder re-enters the Record-Standby mode.

If you press during Recording . . .

..... “PHOTO” appears and a still image will be recorded

for approx. 6 seconds, then the normal recording resumes.

• Regardless of the Power Switch position (“ Snapshot recording takes place using the selected Snapshot mode.

Motor Drive Mode

Keeping SNAPSHOT pressed provides an effect similar to serial photography. (Interval between still images: approx. 1 second)

NOTES:

● To remove the shutter sound,  “BEEP” on pg. 32, 34.

● If Snapshot recording is not possible, “PHOTO” blinks

when SNAPSHOT is pressed.

● If Programme AE with special effects (

engaged, certain modes of Program AE with special effects are disabled during Snapshot recording. In such a case, the icon blinks.

● If SNAPSHOT is pressed when “DIS” is set to “ON”

 pg. 33), the Stabiliser will be disabled.

(

● During playback as well, all Snapshot modes are

available. The shutter sound is not heard.

● During Snapshot recording, the image displayed in the

viewfinder may be partially missing. However, there is no effect in the recorded image.

● When a cable is connected to the AV connector, the

shutter sound is not heard from the speaker, however it is recorded onto the tape.

” or “ ”),

 pg. 24) is

Focus detection zone

While focusing on a further subject

While focusing on a nearer subject

FEATURE: Auto Focus

PURPOSE:

The camcorder’s Full Range AF system offers continuous shooting ability from close-up (as close as approx. 5 cm to the subject) to infinity. However, correct focus may not be obtainable in the situations listed below (in these cases use manual focusing):

• When two subjects overlap in the same scene.

• When illumination is low.*

• When the subject has no contrast (difference in brightness and darkness), such as a flat, one-colour

wall, or a clear, blue sky.*

• When a dark object is barely visible in the viewfinder.*

• When the scene contains minute patterns or identical patterns that are regularly repeated.

• When the scene is affected by sunbeams or light reflecting off the surface of a body of water.

• When shooting a scene with a high-contrast background.

* The following low-contrast warnings appear blinking: , , and

NOTES:

● If the lens is smeared or blurred, accurate focusing is not possible. Keep the lens clean, wiping with a piece of soft

cloth if it gets dirty. When condensation occurs, wipe with a soft cloth or wait for it to dry naturally.

● When shooting a subject close to the lens, zoom out first ( pg. 17). If zoomed-in in the auto focus mode, the

camcorder may automatically zoom out depending on the distance between the camcorder and the subject. This will not occur when “TELE MACRO” (

 pg. 34) is activated.

FEATURE:

Manual Focus

PURPOSE:

To obtain correct focus.

OPERATION:

1) If you are using the viewfinder, you should already have made the necessary viewfinder adjustments

( pg. 10).

2) Set the Power Switch to “ ” while pressing down the Lock Button located on the switch, then press

FOCUS ( pgs. 58 and 59, 7 FOCUS Button). The manual focus indicator appears.

3) To focus on a farther subject, rotate the MENU/BRIGHT wheel towards “+”. “ ” appears and blinks. To focus on a nearer subject, rotate the MENU/BRIGHT wheel towards “–”. “ ” appears and blinks.

4) Press the MENU/BRIGHT wheel in. Focus adjustment is complete.

To reset to Auto Focus, press FOCUS twice or set the Power Switch to “ ”. If FOCUS is pressed once, the camcorder will enter the focus adjustment mode again.

NOTES:

● Be sure to focus the lens in the maximum telephoto position when you use the Manual Focus mode. If you focus in

on a subject in the wide-angle position, sharply focused images cannot be obtained when zoomed up because the depth-of-field is reduced at longer focal lengths.

● When the focus level cannot be adjusted any further or closer, “

” or “ ” will blink.

FOR RECORDING

(cont.)

Exposure Control

Manual exposure adjustment is recommended in the following situations:

• When shooting using reverse lighting or when the background is too bright.

• When shooting on a reflective natural background such as at the beach or when skiing.

• When the background is overly dark or the subject light.

1 Set the Power Switch to “ ” while pressing

down the Lock Button located on the switch.

2 Press the MENU/BRIGHT wheel in. The Menu

Screen appears.

3 Rotate the MENU/BRIGHT wheel to select “

EXPOSURE”, then press it.

4 Rotate the MENU/BRIGHT wheel to select

“MANUAL”, then press it. The Menu Screen disappears. The exposure control indicator appears.

5 Rotate the MENU/BRIGHT wheel towards “+” to

brighten the image, or towards “–” to darken the image. (maximum ±6)

6 Press the MENU/BRIGHT wheel in. Exposure

adjustment is complete.

To Return To Automatic Exposure Control . . .

..... select “AUTO” in step 4. Or, set the Power Switch

to “ ”.

To Brighten The Subject Quickly . . .

..... press BACKLIGHT. is displayed and the

subject is brightened. If pressed again, disappears and the brightness returns to the previous level.

• +3 exposure has the same effect as the BACKLIGHT Button.

• Using BACKLIGHT may cause the light around the subject to become too bright and the subject to become white.

• Backlight compensations is also available when the Power Switch is set to “ ”.

NOTE:

You cannot use the manual exposure control at the same time with backlight, spotlight ( and “SNOW” (

 pg. 25).

 pg. 25) compensation

Iris Lock

Use this function in the following situations:

• When shooting a moving subject.

• When the distance to the subject changes (so its

size in the LCD monitor or the viewfinder changes), such as when the subject is backing away.

• When shooting on a reflective natural background such as at the beach or when skiing.

• When shooting objects under a spotlight.

• When zooming.

When the subject is close, keep the iris locked. Even when the subject moves away from you, the image will not darken or brighten.

Before the following steps, perform steps 1 through 4 of “Exposure Control”.

5 Adjust zoom so that the subject fills the LCD

monitor or the viewfinder, then press and hold the MENU/BRIGHT wheel for over 2 seconds. The exposure control indicator and “ ” appear. Press the MENU/BRIGHT wheel in. “ ” changes to “ ” and the iris is locked.

Iris lock indicator

BACKLIGHT Button (5)

MENU/BRIGHT Wheel

Power Switch

To Return To Automatic Iris Control . . .

..... rotate MENU/BRIGHT to display “AUTO” then

press it in step 4. The exposure control indicator and “ ” disappear. Or, set the Power switch to “ ”.

To Lock The Exposure Control And The Iris . . .

..... after step 4 of “Exposure Control”, adjust the

exposure rotating the MENU/BRIGHT wheel. Then lock the iris in step 5 of “Iris Lock”. For automatic locking, rotate the MENU/BRIGHT wheel to select “AUTO”, then press it in step 4. The iris becomes automatic after about 2 seconds.

Iris

Like the pupil of the human eye, it contracts in well-lit environments to keep too much light from entering, and dilates in dim environments to allow in more light.

White Balance Adjustment

A term that refers to the correctness of colour reproduction under various lighting. If the white balance is correct, all other colours will be accurately reproduced. The white balance is usually adjusted automatically. However, more advanced camcorder operators control this function manually to achieve a more professional colour/tint reproduction.

1 Set the Power Switch to “ ” while pressing

down the Lock Button located on the switch.

2 Press the MENU/BRIGHT wheel in. The Menu

Screen appears.

3 Rotate the MENU/BRIGHT wheel to select

“ W.BALANCE”, then press it. The W.BALANCE Menu appears.

4 Rotate the MENU/BRIGHT wheel to select the

desired mode.

“AUTO” ................. White balance is adjusted

“ MWB” ............ White balance is set manually.

“ FINE” ............. Outdoors on a sunny day.

“ CLOUD” ........ Outdoors on a cloudy day.

“ HALOGEN” ... A video light or similar type of

automatically (factory preset).

lighting is used.

5 Press the MENU/BRIGHT wheel in. Selection is

complete. Press the MENU/BRIGHT wheel in again. The Menu Screen closes and the selected mode indicator except “AUTO” appears.

To Return To Automatic White Balance . . .

..... select “AUTO” in step 4. Or, set the Power Switch

to “ ”.

NOTE:

White balance cannot be used when Sepia or Monotone

 pg. 25) is activated.

(

Manual White Balance Operation

Perform Manual White Balance when shooting under various types of lighting.

1 Follow steps 1 through 4 of the white balance

adjustment, and select “ MWB”.

2 Hold a sheet of plain white paper in front of the

subject. Adjust zoom or position yourself so that the white paper fills the screen.

3 Press the MENU/BRIGHT wheel in until

begins blinking rapidly. When the setting is completed, blinking.

resumes normal

4 Press the MENU/BRIGHT wheel in twice. The

Menu Screen closes and the Manual White Balance indicator is displayed.

MENU/BRIGHT Wheel

White paper

Power Switch

NOTES:

● In step 2, it may be difficult to focus on the white paper.

In such a case, adjust focus manually (

● A subject can be shot under various types of lighting

conditions indoors (natural, flourescent, candlelight, etc.). Because the colour temperature is different depending on the light source, the subject tint will differ depending on the white balance settings. Use this function for a more natural result.

● Once you adjust white balance manually, the setting is

retained even if the power is turned off or the battery removed.

 pg. 29).

W. BAL

FADER

/ W I P E

AM AEPROGR

EXPOSURE

AN E ACAMER LMANUA MSYSTE

AYDISPL DSC END

MENU/BRIGHT Wheel

Lock Button

Power Switch

Display

BEEP

DE MO MODE – NO CAM ERSET

Menu Screen

ODEREC M

ZOOM

MOD ESNAP UPGAIN

NRETUR

Sub Menu

DIS –ONOFF

–

MEL ODY

USING MENUS FOR DETAILED ADJUSTMENT

For Recording Menu

This camcorder is equipped with an easy-to-use, on-screen menu system that simplifies many of the more detailed camcorder settings ( pg. 33 – 35).

1 Set the Power Switch to “ ” while pressing

down the Lock Button located on the switch.

2 Press the MENU/BRIGHT wheel in. The Menu

Screen appears.

3 Rotate the MENU/BRIGHT wheel to select the

desired function menu, and press it. The selected function menu appears.

4 Function menu setting depends on the function.

If you have selected “ WIPE/FADER”, “ PROGRAM AE”, “ EXPOSURE” or “ W. BALANCE” . . .

..... see pg. 33.

–

BTMOD ESOUND

–

LFUL

–

AGC

–

If you have selected “ CAMERA”, “ MANUAL”, “ SYSTEM” or “ DISPLAY” . . .

..... go to step 5.

5 Rotate the MENU/BRIGHT wheel to select the

desired function and press it. The Sub Menu appears. Then, rotate the MENU/BRIGHT wheel to select the parameter, and press it. Selection is complete.

6 Rotate the MENU/BRIGHT wheel to select

“ RETURN” and press it twice. The Menu Screen closes.

• The icon represents “END”.

NOTE:

When the Menu Screen is left on for a couple of minutes, a residual image may be left on the screen and it may take several seconds for the residual image to disappear. This is not due to any defect of the unit.

RE NEON SC LCD / T V

IMETDATE / T I ME CODE

CLOCK

ADJ .

NRETUR

– – – FFO

NRETUR

UAOT

12 02 17 30

FADER/ W I P E AM AEPROGR UREEXPOS AN E

W. BAL

ACAMER LMANUA MSYSTE

AYDISPL DSC END

Normal Screen

Menu Screen Explanations

WIPE/FADER

PROGRAM AE

EXPOSURE

W.BALANCE

REC MODE

SOUND MODE

ZOOM

CAMERA

SNAP MODE

GAIN UP

DIS

MANUAL

12BIT

16BIT

16X

40X

700X

OFF

AGC

AUTO

OFF

Refer to “Fade/Wipe Effects” ( pg. 26, 27). Refer to “Programme AE With Special Effects” ( pg. 24, 25). Refer to “Exposure Control” and “Iris Lock” ( pg. 30).

Refer to “White Balance Adjustment” and “Manual White Balance Operation” ( pg. 31).

Allows you to set the tape recording mode (SP or LP) depending on your preference ( pg. 13).

Enables tape recording of stereo sound on four separate channels, and is recommended for use when performing audio dubbing. (Equivalent to the 32 kHz mode of previous models)

Enables tape recording of stereo sound on two separate channels. (Equivalent to the 48 kHz mode of previous models)

When set to “16X” while using digital zoom, the zoom magnification will reset to 16X since digital zoom will be disengaged.

Allows you to use the Digital Zoom. By digitally processing and magnifying images, zooming is possible from 16X (the optical zoom limit), to a maximum of 40X digital magnification.

Allows you to use the Digital Zoom. By digitally processing and magnifying images, zooming is possible from 16X (the optical zoom limit), to a maximum of 700X digital magnification.

Refer to “Snapshot” ( pg. 28).

Allows you to shoot dark scenes with no picture brightness adjustment.

The overall appearance may be grainy, but the image is bright.

The shutter speed is automatically adjusted (1/25 — 1/200 sec.). Shooting a subject in low or poor lighting at 1/25 sec. shutter speed provides a brighter image than in the AGC mode, but the subject’s movements are not smooth or natural. The overall appearance may be grainy. While the shutter speed is being automatically adjusted, “ ” is displayed.

To compensate for unstable images caused by camera-shake, particularly at high magnification.

NOTES:

● Accurate stabilisation may not be possible if hand shake is excessive, or

● Switch off this mode when recording with the camcorder on a tripod.

● The “ ” indicator blinks or goes out if the Stabiliser cannot be used.

under the following conditions:

• When shooting subjects with vertical or horizontal stripes.

• When shooting dark or dim subjects.

• When shooting subjects with excessive backlighting.

• When shooting scenes with movement in various directions.

• When shooting scenes with low-contrast backgrounds.

: Factory-preset

NOTES:

● Settings made in the “ CAMERA” Menu remain effective whether the Power Switch is set to “ ” or “ ”. However,

the menu settings can be changed only when the Power Switch is set to “

● The “

MANUAL” settings are effective only when the Power Switch is set to “ ”.

”.

CONTINUED ON NEXT PAGE

USING MENUS FOR DETAILED ADJUSTMENT

Menu Screen Explanations (cont.)

TELE MACRO

WIDE MODE

MANUAL

WIND CUT

BEEP

SYSTEM

OFF

CINEMA

SQUEEZE

OFF

BEEP

MELODY

Usually the distance to a subject where the lens is in focus depends on the zoom magnification. Unless there is a distance more than 1m to the subject, the lens is out of focus at the maximum telephoto setting. When set to “ON”, you can shoot a subject as large as possible at a distance of approx. 60 cm.

• Depending on the zoom position, the lens may go out of focus.

Records with no change in the screen ratio. For playback on a TV with a normal screen ratio.

Inserts black bands at the top and bottom of the screen. During playback on wide-screen TVs, the black bands at the top and bottom of the screen are cut and the screen ratio becomes 16:9. appears. When using this mode, refer to your wide-screen TV’s instruction manual. During playback/recording on 4:3 TVs/LCD monitor/viewfinder, black bands are inserted at the top and bottom of the screen and the image appears like a letterboxed 16:9 movie.

For playback on TVs with an aspect ratio of 16:9. Naturally expands the image to fit the screen without distortion. appears. When using this mode, refer to your wide-screen TV’s instruction manual. During playback/recording on 4:3 TVs/LCD monitor/viewfinder, the image is elongated vertically.

Disengages the function which cuts down on noise created by wind.

Helps cut down on noise created by wind. “ ” appears. The quality of the sound will change. This is normal.

Even though not heard while shooting, shutter sound is recorded on the tape.

The beep sounds when the power is turned on or off, and at the beginning and end of recording. Also to activate the shutter sound effect ( pg. 28).

Instead of a beep, a melody sounds when any operation is performed. It also activates the shutter sound effect ( pg. 28).

(cont.)

: Factory-preset

NOTES:

● The “ MANUAL” settings are effective only when the Power Switch is set to “ ”.

SYSTEM” functions which are set when the Power Switch is set to “ ” are also applied when the Power Switch

● “

is set to “PLAY” (

 pg. 36).

DEMO MODE

SYSTEM

CAM RESET

ON SCREEN

DATE/ TIME

DISPLAY

TIME CODE

CLOCK ADJ.

OFF

CANCEL

EXECUTE

LCD

LCD/TV

OFF

AUTO

OFF

Automatic demonstration will not take place.

Demonstrates certain functions such as Programme AE with special effects, etc., and can be used to confirm how these functions operate. Demonstration starts in the following cases:

• When the Menu Screen is closed after “DEMO MODE” is turned “ON”.

• With “DEMO MODE” set to “ON”, if there is no operation for about 3 minutes

after the Power Switch is set to “ ” or “ ” . Performing any operation during the demonstration stops the demonstration temporarily. If no operation is performed for more than 3 minutes after that, the demonstration will resume.

NOTES:

● If a tape is in the camcorder, the demonstration cannot be turned on.

● “DEMO MODE” remains “ON” even if the camcorder power is turned off.

● If “DEMO MODE” remains “ON”, some functions will not be available. After

viewing demo, set to “OFF”.

Does not reset all settings to the factory-preset.

Resets all settings to the factory-preset.

Keeps the camcorder’s display (except the date, time and time code) from appearing on the connected TV screen.

Makes the camcorder’s display appear on screen when the camcorder is connected to a TV.

The date/time does not appear.

Displays the date/time for approx. 5 seconds in the following cases:

• When the Power Switch is set from “OFF” to “ ” or “ ”.

• When tape playback starts. The camcorder displays the date/time when

scenes are recorded.

• When the date is changed during tape playback.

The date/time is always displayed.

Time code is not displayed.

Time code is displayed on the camcorder and on the connected TV. Frame numbers are not displayed during recording.

Allows you to set the current date and time ( pg. 11).

: Factory-preset

NOTES:

● “ SYSTEM” and “ DISPLAY” functions which are set when the Power Switch is set to “ ” are also applied

when the Power Switch is set to “PLAY” (

“

”.

● Settings made in the “

menu settings can be changed only when the Power Switch is set to “

DISPLAY” Menu remain effective even when the Power Switch is set to “ ”. However, the

 pg. 36). “CLOCK ADJ.” only appears when the Power Switch is set to

”.

MENU/BRIGHT Wheel

Recording Start/Stop Button

Display

VIDEO SOUND MODE

MSYSTE AYDISPL

END

Lock Button

MOD E

BIT

MOD E

REC

COPY

Power Switch

USING MENUS FOR DETAILED ADJUSTMENT

For Playback Menu

1 Set the Power Switch to “PLAY” while pressing

down the Lock Button located on the switch.

2 Press the MENU/BRIGHT wheel in. The Menu

Screen appears.

3 Rotate the MENU/BRIGHT wheel to select the

desired function menu, and press it. The selected function menu appears.

4 Rotate the MENU/BRIGHT wheel to select the

desired function, and press it to display the Sub Menu.

5 Rotate the MENU/BRIGHT wheel to select the

desired parameter and press it. Selection is complete.

6 Rotate the MENU/BRIGHT wheel to select

“ RETURN” and press it twice to close the Menu Screen.

Menu Screen Explanations

SOUND MODE

12BIT MODE

REC MODE

VIDEO

 pg. 37.  pg. 37.

Allows you to set the tape recording mode (SP or LP) depending on your preference ( pg. 13).

(cont.)

RE NEON SC LCD/TV

IMETDATE /

T I ME CODE

NRETUR

BIT

BEEP

DEMO MODE – NO CAM ERSET

– – – FFO

–

NRETUR

UAOT

MDOESOUND MDOE

ODEREC M

COPY OF F–

NRETUR

MEL ODY

STEREO– SOUND

SP––

SYSTEM

Each setting is linked with “ DISPLAY” or

SYSTEM”, which appears when the Power

“

Switch is set to “ ” ( pg. 34, 35). The parameters are the same as in the description on pg. 34, 35.

DISPLAY

NOTE:

“REC MODE” can be set when the Power Switch is set to “PLAY” or “

” ( pg. 13, 33).

Playback Sound

During tape playback, the camcorder detects the sound mode in which the recording was made, and plays the sound back. Select the type of sound to accompany your playback picture. According to the menu access explanation on pg. 36, select “SOUND MODE” or “12BIT MODE” from the Menu Screen and set it to the desired parameter.

SOUND MODE

STEREO

SOUND L

SOUND R

MIX

Sound is output on both “L” and “R” channels in stereo.

Sound from the “L” channel is output.

Sound from the “R” channel is output.

Original and dubbed sounds are combined and output in stereo on both “L” and “R” channels.

12BIT MODE

SOUND 1

SOUND 2

Original sound is output on both “L” and “R” channels in stereo.

Dubbed sound is output on both “L” and “R” channels in stereo.

: Factory-preset

NOTES:

● The “SOUND MODE” setting is available for both 12-bit and 16-bit sound. (In previous models’ functions, “12-bit” is

called “32 kHz” and “16-bit” is called “48 kHz”.)

● The camcorder cannot detect the sound mode in which the recording was made during fast-forward or rewind. During

playback the sound mode is displayed in the upper left corner.

Display

ON SCREEN setting: For playback sound, tape speed and tape running.

1L2

BIT/SOU

DATE/TIME setting: For date/time.

TIME CODE setting: For time code.

20..21

12: 34:24

Frames*

Seconds

Minutes

*25 frames = 1 second

Power Switch

“Y/C”/“CVBS” video out select switch

Connector cover*

To S-VIDEO

S-Video cable (optional)

VCR

To AV

Audio/Video cable [mini-plug to RCA plug] (provided)

To AUDIO, VIDEO**

-IN

and connectors

Cable Adapter (provided)

If your VCR has a SCART connector, use the provided cable adapter.

DUBBING

Dubbing To A VCR

1 Following the illustration, connect the camcorder

and the VCR. Also refer to pg. 20 and 21.

2 Set the camcorder’s Power Switch to “PLAY”

while pressing down the Lock Button located on the switch, turn on the VCR’s power, and insert the appropriate cassettes in the camcorder and the VCR.

3 Engage the VCR’s AUX and Record-Pause modes. 4 Engage the camcorder’s Play mode to find a spot

just before the edit-in point. Once it is reached, press

/6 on the camcorder.

5 Press

VCR’s Record mode.

/6 on the camcorder and engage the

6 Engage the VCR’s Record-Pause mode and

press 4/6 on the camcorder.

7 Repeat steps 4 through 6 for additional editing,

then stop the VCR and camcorder when finished.

NOTES:

● As the camcorder starts to play your footage it will

appear on your TV. This will confirm the connections and the AUX channel for dubbing purposes.

● Before you start dubbing, make sure that the

indications do not appear on the connected TV. If they do, they are being recorded onto the new tape.

● Set the video out select switch of the cable adapter as

required: Y/C : When connecting to a TV or VCR which

accepts Y/C signals and uses an S-Video cable.

CVBS : When connecting to a TV or VCR which does

not accept Y/C signals and uses an audio/video cable.

To choose whether or not the following displays appear on the connected TV . . .

• Date/Time

..... set “DATE/TIME” to “AUTO”, “ON” or “OFF” in

the Menu Screen ( pg. 36).

• Time Code

..... set “TIME CODE” to “ON” or “OFF” in the Menu

Screen ( pg. 36).

• Playback Sound Mode, Tape Speed And Tape

Running Displays

..... set “ON SCREEN” to “LCD” or “LCD/TV” in the

Menu Screen ( pg. 36).

* When connecting the cables, open this cover. ** Connect when an S-Video cable is not used.

To DV OUT

Core filter

DV cable (optional)

To DV IN

Lock Button

Power Switch

Core filter

Video unit equipped with DV input connector

Dubbing To A Video Unit Equipped With A DV Connector (Digital Dubbing)

It is also possible to copy recorded scenes from this camcorder onto another video unit equipped with a DV connector. Since a digital signal is sent, there is little if any image or sound deterioration.

1 Make sure all units are turned off. Connect this

camcorder to a video unit equipped with a DV input connector using a DV cable as shown in the illustration.

2 Set this camcorder’s Power Switch to “PLAY”

while pressing down the Lock Button located on the switch, turn on the video unit’s power, and insert the appropriate cassettes in this camcorder and the video unit.

3 Press

to play back the source tape.

4 While watching the playback on the monitor,

engage the DV connector-equipped video unit’s record mode from the spot on the source tape you want to begin recording.

NOTES:

● It is recommended to use the AC Adapter as the power supply instead of the battery pack (

● If the remote control is used when both the player and recorder are JVC video units, both units will perform the same operation. To prevent this from happening, press the buttons on both units.

● If a blank portion or disturbed image is played back on the player during dubbing, the dubbing may stop so that an unusual image is not dubbed.

● Even though the DV cable is connected correctly, sometimes the image may not appear in step 4. If this occurs, turn off the power and make connections again.

● If “Playback Zoom” ( attempted during playback, only the original playback image recorded on the tape is output from the DV OUT connector.

● When using a DV cable, be sure to use the optional JVC VC-VDV204U DV cable.

 pg. 42) or “Snapshot” is

 pg. 9).

USING THE OPTIONAL REMOTE CONTROL UNIT

The Full-Function Remote Control Unit can operate this camcorder from a distance as well as the basic

operations (Playback, Stop, Pause, Fast-Forward and Rewind) of your VCR. It also makes additional playback functions possible.

Lock hole

Knob

Remote sensor

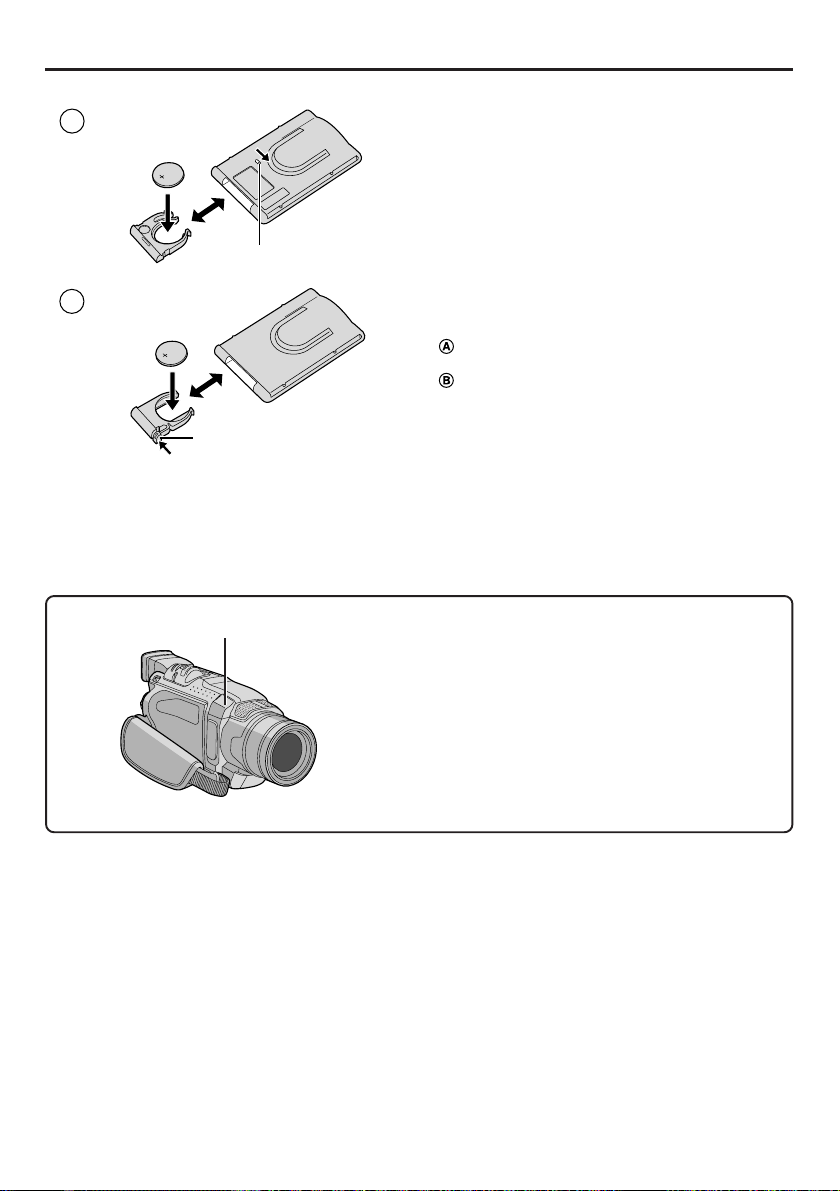

Installing The Battery (RM-V700U, optional)

The remote control uses one lithium battery (CR2025).

1There are 2 ways to pull the battery holder out of

the RM-V700U.

: Pull out the battery holder while sliding the lock

hole.

: Pinch the release tab and pull out the battery

holder.

2 Insert the battery in the holder, and be sure to

have the “+” mark visible.

3 Slide the holder back in until you hear a click.

• Read the caution concerning lithium batteries in the

RM-V700U instruction manual.

When using the remote control, be sure to point it at the remote sensor. The transmitted beam’s approximate effective distance for indoor use is 5m. The transmitted beam may not be effective or may cause incorrect operation outdoors or when the remote sensor is directly exposed to sunlight or powerful lighting.

Buttons

1 PAUSE IN Connector*

2 MBR SET Button*

3 INT. TIME Button*

SELF TIMER Button*

4 REC TIME Button*

ANIM. Button*

5 FF Button

6 REW Button

7 PAUSE Button

8 PLAY Button

9 Infrared beam

transmitting window

0 START/STOP Button

! VISS Button*

@ ZOOM (T/W) Buttons

# VCR CTL Button*

$ A.DUB Button

% STOP Button

^ INSERT Button

& R.A.EDIT Buttons*

* This function is unavailable with this camcorder.

With the camcorder’s Power Switch set to the camera position (

Transmits the beam signal.

Functions the same as the Recording Start/Stop Button on the camcorder.

Zoom in/out (墌 pg. 17)

RM-V700U

(optional)

“ ” or “ ”

—

Functions

With the camcorder’s Power Switch

set to “PLAY”.

—

Forward, Forward Shuttle Search (

墌 pg. 19)

Rewind, Reverse Shuttle Search (

墌 pg. 19)

Pause (

墌 pg. 19)

Playback start (

—

Zoom in/out (

—

墌 pg. 43

Stops (

墌 pg. 44

—

墌 pg. 19)

墌 pg. 42)

墌 pg. 19)

Remote sensor

USING THE OPTIONAL REMOTE CONTROL UNIT

RM-V700U (optional)

Zoom Buttons

FEATURE:

PURPOSE:

To magnify the recorded image up to 44X at any time during playback.

OPERATION:

1) Press PLAY (4) to find the scene of interest.

2) Press the Zoom Buttons (T/W) on the remote

control. Make sure the remote control is pointed at the camcorder's remote sensor. Pressing T zooms in.

䡲 To end zoom, press and hold W until

magnification returns to normal. Or, press STOP (5) and then press PLAY (4).

NOTES:

● Zoom can also be used during still playback.

● Due to ditital image processing, the quality of the

image may suffer.

Playback Zoom

(cont.)

PLAY

STOP

Normal playback

Press T

Display

Audio Dub Standby mode

Speaker

Remote sensor

Stereo microphone

Power Switch

RM-V700U (optional)

Audio Dubbing

The audio track can be customized only when recorded in the 12-bit mode (墌 pg. 33).

NOTES:

● Audio Dubbing is not possible on a tape recorded in 16bit audio, on a tape recorded in the LP mode or on a blank portion of a tape.

● To perform Audio Dubbing while watching on the television, make connections (

墌 pg. 20).

1 Play back the tape to locate the point where

editing will start, then press PAUSE (6).

2 While holding A.DUB (e) on the remote control,

press PAUSE (6). “6e” appears.

3 Press PLAY (

Speak into the microphone.

• To pause dubbing, press PAUSE (6).

) , then begin “narrating”.

4 To end Audio Dubbing, press PAUSE (6), then

STOP (5).

To hear the dubbed sound during playback . . .

..... set “12BIT MODE” to “SOUND 2” or “MIX” in the

Menu Screen (墌 pg. 36, 37).

NOTES:

● Sound is not heard from the speaker during Audio Dubbing.

● When editing onto a tape that was recorded at 12-bit, the old and new soundtracks are recorded separately.

● If you dub onto a blank space on the tape, the sound may be disrupted. Make sure you only edit recorded areas.

● If feedback or howling occurs during TV playback, move the camcorder’s microphone away from the TV, or turn down the TV’s volume.

● If you change from 12-bit to 16-bit in mid-recording and then use the tape for Audio Dubbing, it is not effective from the point where 16-bit recording began.

● During Audio Dubbing, when the tape moves to scenes recorded in the LP mode, scenes recorded in 16-bit audio or a blank portion, Audio Dubbing stops

墌 pg. 62).

(

PAUSE

PLAY

A.DUB

STOP

12: 34

Lock Button

Power Switch

Display

USING THE OPTIONAL REMOTE CONTROL UNIT

Remote sensor

START/STOP

(cont.)

Insert Editing

You can record a new scene into a previously recorded tape, replacing a section of the original recording with minimal picture distortion at the in and outpoints. The original audio remains unchanged.

NOTES:

● Before performing the following steps, make sure that

“TIME CODE” is set to “ON” in the Menu Screen (墌 pg. 35, 37).

● Insert Editing is not possible on a tape recorded in the LP mode or on a blank portion of a tape.

● To perform Insert Editing while watching in the television, make connections (

墌 pg. 20).

1 Play back the tape, locate the Edit-Out point and

press PAUSE (6). Confirm the time code at this point (墌 pg. 35, 37).

2 Press REW (

then press PAUSE (6).

) until the Edit-In point is located,

3 Press and hold INSERT (w) on the remote

control, then press PAUSE (6). “6w” and the Time Code (min.:sec.) appear and the camcorder enters Insert-Pause mode.

4 Press START/STOP to begin editing.

• Confirm the insert at the time code you checked in

step 1.

• To pause editing, press START/STOP. Press it

again to resume editing.

5 To end Insert Editing, press START/STOP, then

STOP (5).

NOTES:

● Programme AE with special effects (墌 pg. 24, 25) can be used to spice up the scenes being edited during Insert Editing.

● During Insert Editing, the date and time information changes.

● If you perform Insert Editing onto a blank space on the tape, the audio and video may be disrupted. Make sure you only edit recorded areas.

● During Insert Editing, when the tape moves to scenes recorded in the LP mode or a blank portion, Insert Edting stops (

墌 pg. 62).

REW

PAUSE

PLAY

RM-V700U

(optional)

STOP

INSERT

SYSTEM CONNECTIONS

To DV OUT

Core filter

DV cable (optional)

To D V connector

Core filter

Power Switch

Connection To A Personal Computer

This camcorder can transfer still images to a PC with a DV connector by using software equipped with the PC or commercially available software.

1 Make sure the camcorder and PC are turned off. 2 Connect the camcorder to your PC using the

appropriate cable as shown in the illustration.

3 Turn the camcorder’s Power Switch to “PLAY”

while pressing down the Lock Button located on the

switch and turn on the PC.

• Refer to the instruction manual of the software on

how to transfer a still image to the PC.

4 When finished, turn off the PC first, then the

camcorder.

NOTES:

● It is recommended to use the AC Adapter as the power supply instead of the battery pack (

● The date/time information cannot be captured into the PC.

● Refer to the instruction manuals of the PC and Software.

● The still images can also be transferred to a PC with a DV connector-equipped capture board.

● When using a DV cable, be sure to use the optional JVC VC-VDV206U or VC-VDV204U DV cable depending on the type of DV connector (4 or 6 pins) on the PC, or use the DV cable provided with the capture board.

● The system may not work properly depending on the PC or capture board you are using.

墌 pg. 9).

PC with DV connector

REFERENCES

CONTENTS

DETAILS ............................................ 47

TROUBLESHOOTING ....................... 48 – 52

USER MAINTENANCE ............................. 53

CAUTIONS .................................. 54 – 56

SPECIFICATIONS .................................. 57

INDEX ....................................... 58 – 62

Controls, Connectors And Indicators ....... 58 – 59

Indications ................................... 60 – 62

TERMS ........................ 63 –

Back Cover

DETAILS

I T E M S N O T E S

➪ Power

(

墌 pg. 8)

➪ RECORDING

墌 pg. 15, 16)

(

❍ Perform charging where the temperature is between 10°C and 35°C. 20°C to

25°C is the ideal temperature range for charging. If the environment is too cold, charging may be incomplete.

❍ Charging times are for a fully discharged battery pack.

❍ Charging time varies according to the ambient temperature and the status of

the battery pack.

❍ To avoid interference with reception, do not use the AC Adapter near a radio.

❍ Since the AC Adapter processes electricity internally, it becomes warm

during use. Be sure to use it only in well-ventilated areas.

❍ The following operation stops charging:

• Set the Power Switch to “PLAY”, “ ” or “ ”.

• Disconnect the AC adapter from the camcorder.

• Unplug the AC adapter from the AC outlet.

• Detach the battery from the camcorder.

❍ When you use the LCD monitor outdoors in direct sunlight, the LCD monitor

may be difficult to see. If this happens, use the viewfinder instead.

❍ The cassette holder cannot be opened unless a power supply is attached.

❍ There may be a delay after you open the cassette holder cover until the

cassette holder opens. Do not use force.

❍ Once the cassette holder is closed, it recedes automatically. Wait until it

recedes completely before closing the cassette holder cover.

❍ When the Recording Start/Stop button is pressed, it may take a few seconds

before actual recording starts. “ ” starts rotating when the camcorder actually starts recording.

❍ The time required to calculate and display the remaining tape length, and the

accuracy of the calculation, may vary according to the type of tape used.

❍ “TAPE END” appears when the tape reaches its end, and the power goes off

automatically if left in this condition for 5 minutes. “TAPE END” also appears when a cassette at its end is loaded.

If, after following the steps in the chart below, the problem still exists, please consult your nearest JVC dealer.

The camcorder is a microcomputer-controlled device. External noise and interference (from a TV, a radio, etc.) might prevent it from functioning properly. In such cases, first disconnect its power supply unit (battery pack, AC Adapter, etc.) and wait a few minutes; and then re-connect it and proceed as usual from the beginning.

TROUBLESHOOTING

SYMPTOM POSSIBLE CAUSES CORRECTIVE ACTION

1 No power is supplied.

• The power is not connected properly.

• The battery is dead.

• Connect the AC Adapter securely

(墌 pg. 9).

• Replace the dead battery with a

fully charged one (墌 pg. 8, 9).

2 “SET DATE/TIME!”

appears.

3 Recording cannot be

performed.

4 There is no picture.

5 The focus does not adjust

automatically.

6 The cassette will not load

properly.

7 Snapshot mode cannot be

used.

• The date/time is not set.

• The built-in clock battery has run

out and the previously set date/time has been erased.

• The tape’s erase protection tab is set to “SAVE”.

• The Power Switch is set to “PLAY” or “OFF”.

•“TAPE END” appears.

• The cassette holder cover is open.

• The camcorder is not getting

power, or some other malfunction exists.

• Focus is set to the Manual mode.

• The recording was done in a dark

place, or the contrast was low.

• The lens is dirty or covered with condensation.

• The cassette is in the wrong position.

• The battery’s charge is low.

• The Squeeze mode is selected.

• Set the date/time (墌 pg. 11).

• Consult your nearest JVC dealer

for replacement.

• Set the tape’s erase protection tab

to “REC” (墌 pg. 12).

• Set the Power Switch to “ ” or

“ ” (墌 pg. 16).

• Replace with new cassette

(墌 pg. 12).

• Close the cassette holder cover.

• Turn the camcorder’s power off

and on again (墌 pg. 16).

• Set Focus to the Auto mode

(墌 pg. 29).

• Clean the lens and check the focus

again (墌 pg. 53).

• Set it in the right position

(墌 pg. 12).

• Install a fully charged battery

(墌 pg. 8, 9).

• Disengage the Squeeze mode

(墌 pg. 34).

SYMPTOM POSSIBLE CAUSES CORRECTIVE ACTION

8 The colour of Snapshot

looks strange.

• The light source or the subject does not include white. Or there are various different light sources behind the subject.

• The Sepia or Monotone mode is activated.

• Find a white subject and compose your shot so that it also appears in the frame (墌 pg. 28).

• Turn off Sepia and Monotone (墌 pg. 24, 25).

9 The image taken using

Snapshot is too dark.

0 The image taken using

Snapshot is too bright.

! Digital Zoom does not work.

@ The Black & White Fader

does not work.

# Even when Slow Shutter is

not selected, the image looks like it is activated.

$ White Balance cannot be

activated.

% When shooting a subject

illuminated by bright light, vertical lines appear.

^ When the screen is under

direct sunlight during shooting, the screen becomes red or black for an instant.

• Shooting was performed under backlit conditions.

• The subject is too bright.

• 16X optical zoom is selected.

• The Sepia or Monotone mode is

activated.

• When shooting in the dark, the unit becomes highly sensitive to light and the image takes on an effect similar to Slow Shutter.

• The Sepia or Monotone mode is activated.

• This is a result of exceedingly high contrast, and is not a malfunction.

• This is not a malfunction.

• Press the BACKLIGHT Button

(墌 pg. 30).

• Set “PROGRAM AE” to “SPOTLIGHT” in the Menu Screen

(墌 pg. 24).

• Set “ZOOM” to “40X” or “700X” in the Menu Screen (墌 pg. 33).

• Turn off Sepia and Monotone (墌 pg. 24, 26).

• If you want the lighting to look more natural, set GAIN UP to “AGC” or “OFF” in the Menu Screen (墌 pg. 33).

• Turn off Sepia or Monotone before setting White Balance (墌 pg. 25,

31).

————

CONTINUED ON NEXT PAGE

SYMPTOM POSSIBLE CAUSES CORRECTIVE ACTION

& During recording, the date/

time does not appear.

•“DATE/TIME” is set to “OFF” in the Menu Screen.

TROUBLESHOOTING

• Set “DATE/TIME” to “ON” in the

Menu Screen (墌 pg. 35).

(cont.)

* Time code does not appear.

( Images on the LCD monitor

appear dark or whitish.

) The rear of the LCD monitor

is hot.

q The indicators and the

image colour on the LCD monitor are not clear.

w The LCD monitor or

viewfinder indications blink.

•“TIME CODE” is set to “OFF” in the Menu Screen.

• In places subject to low temperature, images become dark due to the characteristics of the LCD monitor. When this happens, the displayed colours differ from those that are actually recorded. This is not a defect of the camcorder.

• When the LCD monitor's fluorescent light reaches the end of its service life, images on the LCD monitor become dark. Consult your nearest JVC dealer.

• The light used to illuminate the LCD monitor causes it to become hot.

• This may occur when the surface or the edge of the LCD monitor is pressed.

• Certain Fade/Wipe effects, certain modes of Programme AE with special effects, “DIS” and other functions that cannot be used together are selected at the same time.

• Set “TIME CODE” to “ON” in the

Menu Screen (墌 pg. 35, 36).

• Adjust the brightness and angle of

the LCD monitor (墌 pg. 15, 16).

• Close the LCD monitor to turn it off or set the Power Switch to “OFF”, and let the unit cool down.

————

• Re-read the sections covering

Fade/Wipe effects, Programme AE with special effects and “DIS” (墌 pg. 24 – 27, 33).

SYMPTOM POSSIBLE CAUSES CORRECTIVE ACTION

e Coloured bright spots

appear all over the LCD monitor or the viewfinder.

• The LCD monitor and the viewfinder are made with high-precision technology. However, black spots or bright spots of light (red, green or blue) may appear constantly on the LCD monitor or the viewfinder. These spots are not recorded on the tape. This is not due to any defect of the unit. (Effective dots: more than 99.99 %)

————

r During recording, sound

cannot be heard.

t Play, Rewind and Fast-

Forward functions do not work.

y The LCD monitor image is

distorted.

u Images on the LCD monitor

are jittery.

i Blocks of noise appear

during playback, or there is no playback picture and the screen becomes blue.

• This is normal.

• The Power Switch is set to “ ” or “ ”.

• During playback of the unrecorded

portion, High-speed Search and still playback, LCD monitor indications appear distorted. This is not a defect.

• The speaker volume is too great.

————

• Set the Power Switch to “PLAY”

(墌 pg. 19).

————

• Turn the speaker volume down

(墌 pg. 19).

• Clean the video heads with an optional cleaning cassette (墌 pg. 55).

CONTINUED ON NEXT PAGE

SYMPTOM POSSIBLE CAUSES CORRECTIVE ACTION

o The LCD monitor, the

viewfinder and the lens have become dirty (ex. fingerprints).

————

TROUBLESHOOTING

• Wipe them gently with soft cloth. Wiping strongly can cause damage (墌 pg. 53).

(cont.)

p An unusual mark appears.

Q An error indication

(E01, E02 or E06) appears.

W An error indication

(E03 or E04) appears.

E The charger indicator on

the camcorder does not light.

R When the image is printed

from the printer, a black bar appears at the bottom of the screen.

————

• A malfunction of some kind has

occurred. In this case the camcorder’s functions become unusable.

• A malfunction of some kind has occurred. In this case the camcorder’s functions become unusable.

• The temperature of the battery is extremely high/low.

• Charging is difficult in places subject to extremely high/low temperatures.

• This is not a malfunction.

• Check the section of the manual

that explains LCD monitor/ viewfinder indications (墌 pg. 60 – 62).

• Remove the power supply (battery pack, etc.) and wait a few minutes for the indication to clear. When it does, you can resume using the camcorder. If the indication remains even though you repeat the above two or three times, please consult your nearest JVC dealer. Do not eject the cassette. This will cause damage to the tape.

• Eject the cassette once and reinsert it, then check if the indication clears. When it does, you can resume using the camcorder. If the indication remains even though you repeat the above two or three times, please consult your nearest JVC dealer.

• To protect the battery, it is recommended to charge it in places with a temperature of 10°C to 35°C (墌 pg. 54).

• By recording with “DIS” activated (墌 pg. 33) this can be avoided.

T When the camcorder is

connected via the DV connector, the camcorder does not operate.

• The DV cable was plugged/ unplugged with power turned on.

• Turn the camcorder’s power off and on again, then operate it.

USER MAINTENANCE

After Use

1 Turn off the camcorder. 2 Slide and hold OPEN/EJECT in the direction of

the arrow, then pull the cassette holder cover open until it locks. The cassette holder opens automatically. Remove the cassette.

3 Press “PUSH HERE” to close the cassette holder.

• Once the cassette holder is closed, it recedes

automatically. Wait until it recedes completely before closing the cassette holder cover.

4 Tilt the viewfinder upward 1. Press BAT.

RELEASE 2 and remove the battery pack 3 .

Remove.

PUSH HERE

Cassette holder

Cleaning The Camcorder

1 To clean the exterior, wipe gently with a soft cloth.

Put the cloth in diluted mild soap and wring it well to wipe off heavy dirt. Then wipe again with a dry cloth.

2 Press PUSH OPEN and open the LCD monitor.

Wipe gently with a soft cloth. Be careful not to damage the monitor. Close the LCD monitor.

3 To clean the lens, blow it with a blower brush,

then wipe gently with lens cleaning paper.

4 To clean the viewfinder, raise it to the vertical

position. Open the viewfinder cleaning hatch in the direction of the arrow 1.

5 Insert a lens blower or soft cloth into the gap at

the bottom of the viewfinder and clean the interior of the viewfinder with it 2.

6 Close the hatch. Tilt the viewfinder back to the

horizontal position.

NOTES:

● Avoid using strong cleaning agents such as benzine or alcohol.

● Cleaning should be done only after the battery pack has been removed or other power units have been disconnected.

● Mould may form if the lens is left dirty.

● When using a cleaner or chemically treated cloth refer

to the cautions of each product.

Cassette holder cover

OPEN/EJECT Switch

BAT. RELEASE Button

Hatch

Lens blower

CAUTIONS

Battery Packs

The supplied battery pack is a lithium-ion battery. Before using the supplied battery pack or an optional battery pack, be sure to read the following cautions:

1. To avoid hazards . . .

... do not burn. ... do not short-circuit the terminals. When

transporting, make sure the provided battery cap is attached to the battery. If the battery cap is

misplaced, carry the battery in a plastic bag. ... do not modify or disassemble. ... do not expose the battery to temperatures

exceeding 60°C, as this may cause the battery

to overheat, explode or catch fire. ... use only specified chargers.

2. To prevent damage and prolong service life . . .

... do not subject to unnecessary shock. ... charge in an environment where temperatures

are within the tolerances shown in the chart

below. This is a chemical reaction type battery—

cooler temperatures impede chemical reaction,

while warmer temperatures can prevent

complete charging. ... store in a cool, dry place. Extended exposure to

high temperatures will increase natural

discharge and shorten service life. ... fully charge and then fully discharge the battery

every 6 months when storing the battery pack

over a long period time. ... remove from charger or powered unit when not

in use, as some machines use current even

when switched off.

NOTES:

● It is normal for the battery pack to be warm after charging, or after use.

Temperature Range Specifications

Charging ........................ 10°C to 35°C

Operation ....................... 0°C to 40°C

Storage .......................... –10°C to 30°C

● Recharging time is based on room temperature of 20°C.

● The lower the temperature, the longer recharging takes.

Terminals

Cassettes

To properly use and store your cassettes, be sure to read the following cautions:

1. During use . . .

... make sure the cassette bears the Mini DV mark. ... be aware that recording onto prerecorded tapes

automatically erases the previously recorded video and audio signals.

... make sure the cassette is positioned properly

when inserting.

... do not load and unload the cassette repeatedly

without allowing the tape to run at all. This slackens the tape and can result in damage.

... do not open the front tape cover. This exposes

the tape to fingerprints and dust.

2. Store cassettes . . .

... away from heaters or other heat sources. ... out of direct sunlight. ... where they won’t be subject to unnecessary

shock or vibration.

... where they won’t be exposed to strong magnetic

fields (such as those generated by motors, transformers or magnets).

... vertically, in their original cases.

LCD Monitor

1. To prevent damage to the LCD monitor,

DO NOT . . .

... push it strongly or apply any shocks. ... place the camcorder with the LCD monitor on

the bottom.

2. To prolong service life . . .

... avoid rubbing it with coarse cloth.

3. Be aware of the following phenomena for LCD

monitor use. These are not malfunctions:

• While using the camcorder, the surface around the LCD monitor and/or the back of the LCD monitor may heat up.

• If you leave power on for a long time, the surface around the LCD monitor becomes hot.

Main Unit

1. For safety, DO NOT . . .

... open the camcorder’s chassis. ... disassemble or modify the unit. ... short-circuit the terminals of the battery pack.

Keep it away from metallic objects when not in use.

... allow inflammables, water or metallic objects to

enter the unit.

... remove the battery pack or disconnect the

power supply while the power is on.

... leave the battery pack attached when the

camcorder is not in use.

2. Avoid using the unit . . .

... in places subject to excessive humidity or dust. ... in places subject to soot or steam such as near

a cooking stove.

... in places subject to excessive shock or

vibration. ... near a television set. ... near appliances generating strong magnetic or

electric fields (speakers, broadcasting antennas,

etc.). ... in places subject to extremely high (over 40°C)

or extremely low (under 0°C) temperatures.

3. DO NOT leave the unit . . .

... in places of over 50°C. ... in places where humidity is extremely low

(below 35%) or extremely high (above 80%). ... in direct sunlight. ... in a closed car in summer. ... near a heater.

4. To protect the unit, DO NOT . . .

... allow it to become wet. ... drop the unit or strike it against hard objects. ... subject it to shock or excessive vibration during

transportation. ... keep the lens directed at extremely bright

objects for long periods. ... expose the lens to direct sunlight. ... carry it by holding the LCD monitor or the

viewfinder. ... swing it excessively when using the shoulder

strap or the grip.

5. Dirty heads can cause the following problems:

• No picture during playback.

• Blocks of noise appear during playback.

• During recording or playback, the Head Clog Warning indicator “ ” appears.

• Recording cannot be performed properly.

In such cases, use an optional cleaning cassette. Insert it and play back. If the cassette is used more than once consecutively, damage to the video heads may result. After the camcorder plays back for about 20 seconds, it stops automatically. Also refer to the cleaning cassette’s instructions. If, after using the cleaning cassette, the problems still exist, consult your nearest JVC dealer. Mechanical moving parts used to move the video heads and video tape tend to become dirty and worn out over time. In order to maintain a clear picture at all times, periodic check-ups are recommended after using the unit for about 1,000 hours. For periodic check-ups please consult your nearest JVC dealer.

CAUTIONS

About moisture condensation . . .

● You have observed that pouring a cold liquid into a glass will cause drops of water to form on the glass‘ outer surface. This same phenomenon occurs on the head drum of a camcorder when it is moved from a cool place to a warm place, after heating a cold room, under extremely humid conditions or in a place directly subjected to the cool air from an air conditioner.

● Moisture on the head drum can cause severe damage to the video tape, and can lead to internal damage to the camcorder itself.

Serious malfunctioning

If malfunctioning occurs, stop using the unit immediately and consult your local JVC dealer.

The camcorder is a microcomputer-controlled device. External noise and interference (from a TV, a radio, etc.) might prevent it from functioning properly. In such cases, first disconnect its power supply unit (battery pack, AC Adapter, etc.) and wait a few minutes and then re-connect it and proceed as usual from the beginning.

(cont.)

SPECIFICATIONS

Camcorder

General

Power supply : DC 11.0 V (Using AC Adapter)

Power consumption

LCD monitor off, viewfinder on : Approx. 4.3 W LCD monitor on, viewfinder off : Approx. 5.3 W

Dimensions (W x H x D) : 83 mm x 94 mm x 223 mm

Weight : Approx. 630 g Operating temperature :0°C to 40°C Operating humidity : 35% to 80% Storage temperature : –20°C to 50°C Pickup : 1/4" CCD Lens : F 1.6, f = 3.9 mm to 62.4 mm, 16:1 power zoom lens Filter diameter : ø40.5 mm LCD monitor : 2.5" diagonally measured, LCD panel/TFT active matrix system Viewfinder : Electronic viewfinder with 0.24" black/white LCD Speaker : Monaural

Format : DV format (SD mode) Signal format : PAL standard Recording/Playback format : Video: Digital component recording

Cassette : Mini DV cassette Tape speed : SP: 18.8 mm/s

Maximum recording time : SP: 80 min. (using 80 min. cassette) LP: 120 min.

DC 7.2 V (Using battery pack)

(with the LCD monitor closed and the viewfinder pushed down)

Digital Video Camera

: Audio: PCM digital recording, 32 kHz 4-channel (12-bit),

48 kHz 2-channel (16-bit)

LP: 12.5 mm/s

Connectors

S-Video

Output : Y: 1 V (p-p), 75 Ω, analogue

Video output : 1 V (p-p), 75 Ω, analogue Audio output : 300 mV (rms), 1 kΩ, analogue, stereo

Output : 4-pin, IEEE 1394 compliant

C: 0.29 V (p-p), 75 Ω, analogue

AC Adapter

Power requirement : AC 110 V to 240 V`, 50 Hz/60 Hz Output : DC 11 V , 1 A

Specifications shown are for SP mode unless otherwise indicated. E & O.E. Design and specifications subject to change without notice.

INDEX

Controls, Connectors And Indicators

)

4 5

6 7

# $@

0 !8 9

Q W

(

Controls

1 Monitor Open Button [PUSH OPEN] ...... 墌 pg. 15

2 Dioptre Adjustment Control .................... 墌 pg. 10

3 Battery Release Button

[BAT. RELEASE] ...................................... 墌 pg. 8

4 • MENU Wheel [+, –, PUSH] .................. 墌 pg. 32

• LCD Monitor BRIGHT (Brightness)

Control [+, –] ........................................ 墌 pg. 15

5 Snapshot Button

[SNAPSHOT] ......................................... 墌 pg. 28

6 • Power Zoom Lever [T/W] ..................... 墌 pg. 17

• Speaker Volume Control [VOL.] ........... 墌 pg. 19

7 • FOCUS Button ..................................... 墌 pg. 29

• BLANK SEARCH Button ...................... 墌 pg. 22

8 • Stop Button [5] .................................... 墌 pg. 19

• BACKLIGHT Button ............................. 墌 pg. 30

9 • Rewind Button [

• NIGHT SCOPE Button ......................... 墌 pg. 24

0 Play/Pause Button [ ! Fast-Forward Button [

] ............................. 墌 pg. 19

/6] ........................ 墌 pg. 19

] ...................... 墌 pg. 19

@ Power Switch

[ , , PLAY, OFF] .............................. 墌 pg. 16

# Recording Start/Stop Button .................. 墌 pg. 15

$ Lock Button ............................................ 墌 pg. 16

% OPEN/EJECT Switch ............................. 墌 pg. 12

Connectors

The connectors ^ to * are located beneath a cover.

^ Audio/Video Output Connector

[AV]................................................... 墌 pg. 20, 38

& S-Video Output Connector

[S-VIDEO] ........................................ 墌 pg. 20, 38

* DC Input Connector ............................. 墌 pg. 8, 9

( Digital Video Connector

[DV OUT] (i.Link*) ............................ 墌 pg. 39, 45

* i.Link refers to the IEEE1394-1995 industry

specification and extensions thereof. The logo is used for products compliant with the i.Link standard.

Indicators

) CHARGE Lamp ........................................ 墌 pg. 8

q Power Lamp ..................................... 墌 pg. 15, 16

Other Parts

w Stereo Microphone ................................. 墌 pg. 43

e Viewfinder............................................... 墌 pg. 10

r Viewfinder Cleaning Hatch ..................... 墌 pg. 53

t Shoulder Strap Eyelets .......................... 墌 pg. 10

y Grip Strap ............................................... 墌 pg. 10

u • Remote Sensor .................................... 墌 pg. 40

• Camera Sensor Be careful not to cover this area, a sensor necessary for shooting is built-in here.

i LCD Monitor ..................................... 墌 pg. 15, 16

o Speaker .................................................. 墌 pg. 19

p Battery Pack Mount .................................. 墌 pg. 8

Q Stud Hole ............................................... 墌 pg. 10

W Tripod Mounting Socket ......................... 墌 pg. 10

LCD Monitor/Viewfinder Indications During Recording

8 0 ! @ # $9

3 4 5

xW T

BR I GHT

15:55

0.01 01:

min

CER

20.1 00

% ^

& *

INDEX

Indications

1 Appears when the Power Switch is set to “ ”.

(墌 pg. 16)

2 • : Appears when Night-Scope is engaged.

(墌 pg. 24)

• : Appears when “GAIN UP” is set to “AUTO” and the shutter speed is being

automatically adjusted. (墌 pg. 33)

3 Appears when the white balance is adjusted.

(墌 pg. 31)

4 •“ⴣ”: Appears when the exposure is adjusted.

(墌 pg. 30)

• : Appears when backlight compensation is

used. (墌 pg. 30)

5 Displays the selected Programme AE with special

effects. (墌 pg. 24)

6 Appears when the iris is locked. (墌 pg. 30) 7 Appears when Digital Image Stabiliser (“DIS”) is

engaged. (墌 pg. 33)

8 Approximate zoom ratio: Appears during

zooming. (墌 pg. 17)

9 Appears during zooming.

Zoom level indicator (墌 pg. 17)

0 Displays the selected Fade/Wipe effect.

(墌 pg. 26, 27)

)

! Appears when in the Squeeze or Cinema mode.

@ Rotates while the tape is running. (墌 pg. 15) # Displays the recording mode (SP or LP).

$ Displays the tape remaining time. (墌 pg. 15) % •“REC” appears during recording.

•“PAUSE” appears during Record-Standby

mode. (墌 pg. 15)

•“PHOTO” appears when taking a Snapshot.

^ Appears when the Insert Editing (w) or Insert

Editing Pause (6w) mode is engaged.(墌 pg. 44)

& Appears when the wind cut mode is engaged to

cut down on noise created by wind. (墌 pg. 34)

* • BRIGHT : Displays the brightness of the LCD

• SOUND : Displays the sound mode for approx.

monitor. (墌 pg. 15)

5 seconds after turning on the camcorder. (墌 pg. 33)

( Displays the date/time. (墌 pg. 11) ) Appears when the focus is adjusted manually.

q Displays the Time Code. (墌 pg. 18, 35)

(墌 pg. 34)

(墌 pg. 13)

(墌 pg. 28)

(墌 pg. 29)

LCD Monitor/Viewfinder Indications During Playback

1 Displays the sound mode. (墌 pg. 36, 37)

1 32 4

12 / 1

BI SOUND

BLANK SEARCH

VOLUME

116:21: 25

7 6

25 .

01:

2 00

2 Displays the Blank Search mode. (墌 pg. 22) 3 Displays the tape speed. (墌 pg. 13) 4 Appears while a tape is running.

4 3 2 6 : Pause 64: Forward slow-motion 1

6 : Reverse slow-motion e : Audio Dubbing 6e : Audio Dubbing Pause

5 Displays the date/time. (墌 pg. 36, 37) 6 • BRIGHT : Displays the brightness of the

• VOLUME : Displays the speaker

7 Displays the time code. (墌 pg. 36, 37)

: Playback : Fast-Forward/Shuttle search : Rewind/Shuttle search

LCD monitor. (墌 pg. 15)

volume. (墌 pg. 19)

The level indicator moves.

Warning Indications

Indications Function

Displays the battery remaining power. Remaining power level: high

Remaining power level: exhausted As the battery power comes close to nil, the battery indicator

When the battery power is exhausted, power turns off automatically.

Appears when no tape is loaded. (墌 pg. 12)

CHECK TAPE’S ERASE

PROTECTION TAB

HEAD CLEANING

REQUIRED USE

CLEANING CASSETTE

CONDENSATION

OPERATION PAUSED

PLEASE WAIT

TAPE!

TAPE END

DIFFERENT

FORMATTED TAPE

SET DATE/TIME!

LENS COVER

A. DUB ERROR!

<CANNOT DUB

ON A LP RECORDED TAPE>

<CANNOT DUB

ON A 16BIT

RECORDING>

<CHECK TAPE’S ERASE

PROTECTION TAB>

INSERT ERROR!

<CANNOT EDIT

ON A LP RECORDED TAPE>

<CHECK TAPE’S ERASE

PROTECTION TAB>

E01, E02 or E06

UNIT IN SAFEGUARD

MODE REMOVE AND

REATTACH BATTERY

E03 or E04

UNIT IN SAFEGUARD

MODE EJECT AND

REINSERT TAPE

Appears when the erase protection tab is set to “SAVE” while the Power Switch is set to “ ” or “ ”.(墌 pg. 12)

Appears if dirt is detected on the heads during recording or playback. Use an optional cleaning cassette. (墌 pg. 55)

Appears if condensation occurs. When this indication is displayed, wait more than 1 hour until condensation disappears.

Appears if a tape is not loaded when the Recording Start/Stop Button or SNAPSHOT Button is pressed while the Power Switch is set to “ “ ”.

Appears when the tape ends during recording or playback. (墌 pg. 47)

Appears if a tape in another format is loaded.

● Appears when the date/time is not set. (墌 pg. 11)

● Appears when the built-in clock battery runs out and the previously set

date/time is erased. Consult your nearest JVC dealer for replacement.

Appears for 5 seconds after power is turned on if the lens cap is attached.

Appears if Audio Dubbing is attempted on a blank portion of a tape.

● Appears if Audio Dubbing is attempted on a tape recorded in the LP mode.

● Appears if Audio Dubbing is attempted on a tape recorded in 16-bit audio.

● Appears if A. DUB (e) on the remote control is pressed when the erase

protection tab is set to “SAVE”.(

Appears if Insert Editing is attempted on a blank portion of a tape.

● Appears if Insert Editing is attempted on a tape recorded in the LP mode.

● Appears if INSERT (w) on the remote control is pressed when the erase

protection tab is set to “SAVE”.(

The error indications (E01, E02 or E06) show what type of malfunction has occured. When an error indication appears, the camcorder turns off automatically. Remove the power supply (battery, etc.) and wait a few minutes for the indication to clear. When it does, you can resume using the camcorder. If the indication remains, consult your nearest JVC dealer.

The error indications (E03 or E04) show what type of malfunction has occured. When an error indication appears, the camcorder turns off automatically. Eject the cassette once and re-insert it, then check if the indication clears. When it does, you can resume using the camcorder. If the indication remains, consult your nearest JVC dealer.

INDEX

Indications (cont.)

blinks.

” or

(墌 pg. 43)

(

墌 pg. 43)

(墌 pg. 44)

墌 pg. 44)

Terms

AC Adapter ................................................ 墌 pg. 8, 9

Audio Dubbing ............................................ 墌 pg. 43

Auto Date .................................................... 墌 pg. 35

Auto Focus .................................................. 墌 pg. 29

Auto Shut off ......................................... 墌 pg. 15, 19

Backlight Compensation ............................. 墌 pg. 30

Battery Low ................................................. 墌 pg. 62

Battery Pack ........................................ 墌 pg. 8, 9, 54

Beep ............................................................ 墌 pg. 34

Blank Search ............................................... 墌 pg. 22

Brighten The LCD Monitor .......................... 墌 pg. 15

Channels (Left/Right) .................................. 墌 pg. 37

Charge The Battery Pack .............................. 墌 pg. 8

Cinema ........................................................ 墌 pg. 34

Classic Film ................................................. 墌 pg. 25

Clean The Camcorder ................................. 墌 pg. 53

Connections ...................... 墌 pg. 8, 9, 20, 21, 38, 45

Darken The LCD Monitor ............................ 墌 pg. 15

Date/Time Display ............................... 墌 pg. 35 – 37

Date/Time Settings...................................... 墌 pg. 11

Demonstration Mode ............................... 墌 pg. 6, 35

Digital Zoom .......................................... 墌 pg. 17, 33

DIS (Digital Image Stabiliser) ...................... 墌 pg. 33

Dioptre Adjustment ...................................... 墌 pg. 10

Dubbing ................................................. 墌 pg. 38, 39

Erase Protection ......................................... 墌 pg. 12

Exposure Control ........................................ 墌 pg. 30

Fade-In/Out ........................................... 墌 pg. 26, 27

Fast-Forward The Tape ............................... 墌 pg. 19

Frame-By-Frame Playback ......................... 墌 pg. 19

Gain Up ....................................................... 墌 pg. 33

Grip Adjustment .......................................... 墌 pg. 10

Icons ................................................... 墌 pg. 33 – 35

Insert Editing ............................................... 墌 pg. 44

Iris ............................................................... 墌 pg. 30

Iris Lock ....................................................... 墌 pg. 30

Journalistic Shooting ................................... 墌 pg. 16

LCD monitor/Viewfinder Indications .... 墌 pg. 60 – 62

Load A Tape ................................................ 墌 pg. 12

Manual Focus ............................................. 墌 pg. 29

Menu Screen, CAMERA ............................. 墌 pg. 33

Menu Screen, DISPLAY........................ 墌 pg. 35, 36

Menu Screen, MANUAL ........................ 墌 pg. 33, 34

Menu Screen, SYSTEM ...................... 墌 pg. 34 – 36

Menu Screen, VIDEO ................................. 墌 pg. 36

Monotone .................................................... 墌 pg. 25

Motor Drive Mode ....................................... 墌 pg. 28

Night-Scope ................................................ 墌 pg. 24

Playback Zoom ........................................... 墌 pg. 42

Power Switch Position ................................ 墌 pg. 16

Programme AE With Special Effects..... 墌 pg. 24, 25

Provided Accessories .................................... 墌 pg. 5

Record-Standby .......................................... 墌 pg. 15

Recording Mode .......................................... 墌 pg. 13

Remote Control ........................................... 墌 pg. 40

Reset ........................................................... 墌 pg. 35

Rewind The Tape ........................................ 墌 pg. 19

CONTINUED ON NEXT PAGE

Self-Recording ............................................ 墌 pg. 16

Sepia ........................................................... 墌 pg. 25

Shuttle Search ............................................ 墌 pg. 19

Shutter Speed ............................................. 墌 pg. 25

Slow Shutter ................................................ 墌 pg. 25

Snapshot ..................................................... 墌 pg. 28

Snapshot Mode ........................................... 墌 pg. 28

Snow ........................................................... 墌 pg. 25

Sound Mode ....................................

Speaker Volume..........................................

Specifications .............................................. 墌 pg. 57

Sports .......................................................... 墌 pg. 25

Spotlight ...................................................... 墌 pg. 25

Squeeze ...................................................... 墌 pg. 34

Still Playback ............................................... 墌 pg. 19

Strobe ......................................................... 墌 pg. 25

墌 pg. 33, 36, 37

墌 pg. 19

Tele Macro .................................................. 墌 pg. 34

Time Code..................................... 墌 pg. 18, 35 – 37

Tripod Mounting .......................................... 墌 pg. 10

Twilight ........................................................ 墌 pg. 25

Unload A Tape ............................................. 墌 pg. 12

White Balance ............................................. 墌 pg. 31

Wide Mode .................................................. 墌 pg. 34

Wind Cut ..................................................... 墌 pg. 34

Wipe In/Out ........................................... 墌 pg. 26, 27

Zooming ...................................................... 墌 pg. 17

See previous page as well.

VICTOR COMPANY OF JAPAN, LIMITED

EG/EK

Printed in Malaysia 0302HOV

*UN*

JVC GR-DVL145EK, GR-DVL149EG-X User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

SAFETY PRECAUTIONS

AUTOMATIC DEMONSTRATION

GETTING STARTED

RECORDING & PLAYBACK

ADVANCED FEATURES

REFERENCES
