JVC GR-DVL120KR Schematics
SCHEMATIC DIAGRAMS
DIGITAL VIDEO CAMERA
GR-DVL120KR
CD-ROM No.SML200206
Regarding service information other than these sections, refer to the GR-DVL120U service manual (No. 86671).
Also, be sure to note important safety precautions provided in the service manual.
SPECIFICATIONS
(The specifications shown pertain specifically to the model GR-DVL120)
This schematic diagrams is printed on 100% recycled paper.
COPYRIGHT © 2002 VICTOR COMPANY OF JAPAN, LTD.
No. 86698SCH
May 2002

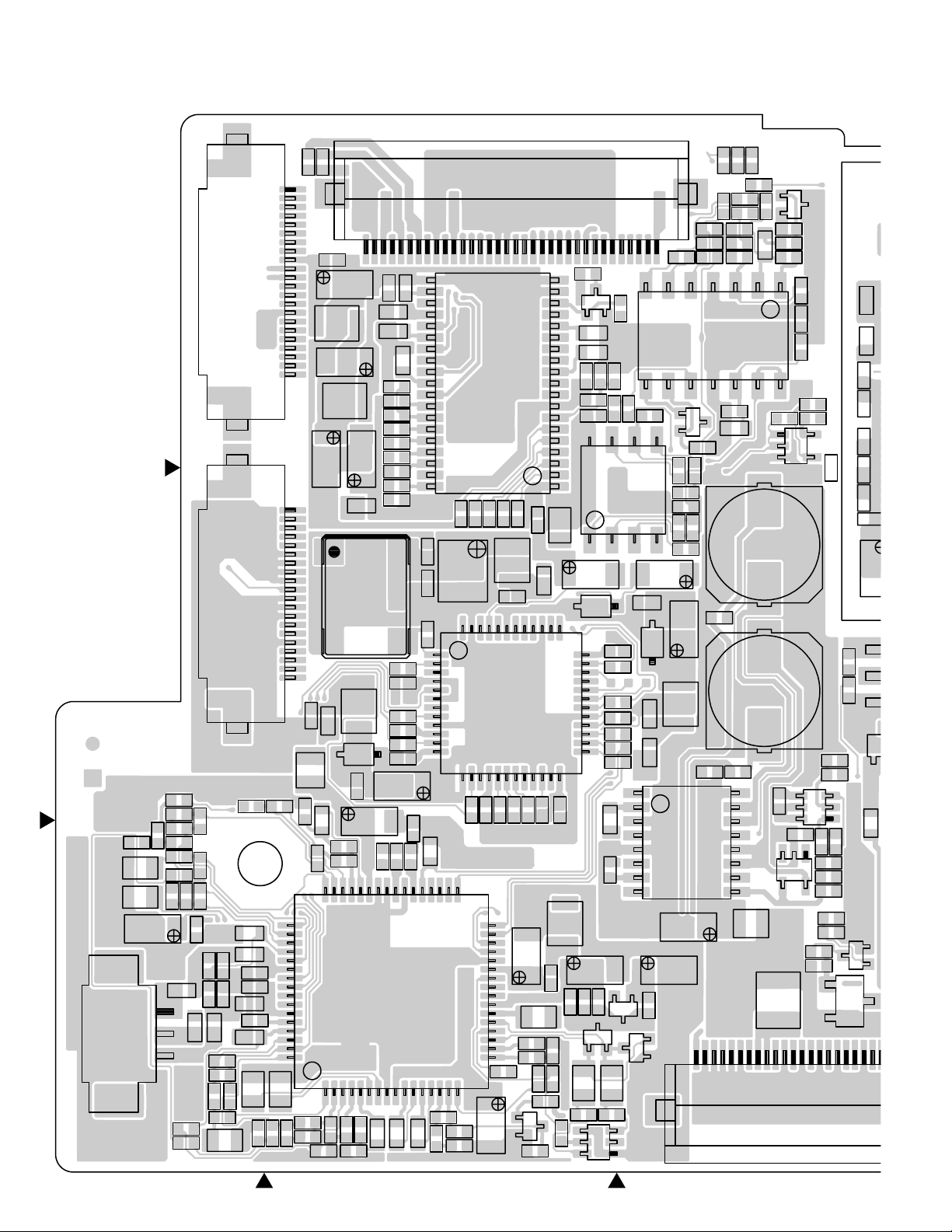

4.1 MAIN CIRCUIT BOARD
