JVC GR-DVL1020, GR-DVL820 User Manual

DIGITAL VIDEO CAMERA

GR-DVL1020 GR-DVL820 GR-DVL520 GR-DVL320

Please visit our Homepage on the World Wide Web and answer our Consumer Survey (in English only):

http://www.jvc-victor.co.jp/english/index-e.html

For Accessories:

http://www.jvc-victor.co.jp/english/accessory/

ENGLISH

CONTENTS

AUTOMATIC DEMONSTRATION

GETTING STARTED

TAPE RECORDING & PLAYBACK

TAPE RECORDING ........................

TAPE PLAYBACK ..........................

MEMORY CARD RECORDING & PLAYBACK

MEMORY CARD RECORDING .........

MEMORY CARD PLAYBACK............

ADVANCED FEATURES ....................

ADVANCED FEATURES

FOR RECORDING ...........................

USING MENUS FOR

DETAILED ADJUSTMENT ..............

DUBBING .....................................

USING THE REMOTE CONTROL UNIT

SYSTEM CONNECTIONS ..................

REFERENCES

DETAILS .............................................

TROUBLESHOOTING ......................

USER MAINTENANCE ............................

CAUTIONS ....................................

SPECIFICATIONS ...........................

INDEX .........................................

TERMS ...............................

67 –

7 – 14

15 – 24

16 – 20 21 – 24

25 – 36

26 – 27 28 – 29 30 – 36

37 – 66

38 – 45

46 – 51 52 – 53

...

54 – 64 65 – 66

Back Cover

69 – 73

75 – 77 78 – 79 80 – 86

87 –

Back Cover

INSTRUCTIONS

The camcorder illustrations appearing in this instruction manual are of the GR-DVL1020.

Memory card recording features are available on GR-DVL1020, GR-DVL820 and GR-DVL520

LYT0963-001A

A/A-S/EA

Printed in Japan 0202HOV*ID*VP

SD Memory Card .................................. Z pg. 14, 76

Self-Recording ............................................ Z pg. 17

Sepia ........................................................... Z pg. 39

Set Remote Control/VCR Code .................. Z pg. 58

Shuttle Search ............................................ Z pg. 21

Shutter Speed ............................................. Z pg. 39

Slow-Motion Playback........................... Z pg. 21, 56

Slow Shutter................................................ Z pg. 39

Snapshot ............................................... Z pg. 26, 42

Snapshot Mode ........................................... Z pg. 42

Snow ........................................................... Z pg. 39

Sound Mode.................................... Z pg. 47, 50, 51

Speaker Volume.......................................... Z pg. 21

Specifications ........................................ Z pg. 78, 79

Sports.......................................................... Z pg. 39

Spotlight ...................................................... Z pg. 39

Squeeze ...................................................... Z pg. 48

Still Playback............................................... Z pg. 21

Strobe ......................................................... Z pg. 39

Tally ............................................................. Z pg. 48

Tele Macro .................................................. Z pg. 48

Time Code..................................... Z pg. 20, 49 – 51

Tripod Mounting .......................................... Z pg. 10

Twilight ........................................................ Z pg. 39

Unload A T ape............................................. Z pg. 12

VIDEO/MEMORY Switch Position .............. Z pg. 17

Video Light .................................................. Z pg. 19

WebCam ..................................................... Z pg. 66

White Balance............................................. Z pg. 45

Wide Mode .................................................. Z pg. 48

Wind Cut ..................................................... Z pg. 48

Wipe In/Out ........................................... Z pg. 40, 41

Zooming ...................................................... Z pg. 18

See previous page as well.

VICTOR COMPANY OF JAPAN, LIMITED

Dear Customer,

Thank you for purchasing this digital video camera. Before use, please read the safety information and precautions contained in the following pages to ensure safe use of this product.

Using This Instruction Manual

•All major sections and subsections are listed in the Table Of Contents on the cover page.

•Notes appear after most subsections. Be sure to read these as well.

•Basic and advanced features/operation are separated for easier reference.

It is recommended that you . . .

..... refer to the Index (Z pgs. 80 – 86) and familiarize yourself with button locations, etc. before use.

..... read thoroughly the Safety Precautions. They contain extremely important information regarding the safe use

of this product.

You are recommended to carefully read the cautions on pages 75 through 77 before use.

SAFETY PRECAUTIONS

WARNING: TO PREVENT FIRE OR SHOCK

HAZARD, DO NOT EXPOSE THIS UNIT TO RAIN OR MOISTURE.

CAUTIONS:

● If you notice smoke or a peculiar smell coming from

the camcorder or AC Adapter, shut it down and unplug it immediately. Continue using the camcorder or AC Adapter under these conditions could lead to fire or electric shock. Contact your JVC dealer. Do not attempt to repair the malfunction yourself.

● To prevent shock, do not open the cabinet. No user serviceable parts inside. Refer servicing to qualified personnel.

● When you are not using the AC Adapter for a long period of time, it is recommended that you disconnect the power cord from AC outlet.

NOTES:

● The rating plate (serial number plate) and safety caution are on the bottom and/or the back of the main unit.

● The rating information and safety caution of the AC Adapter are on its upper and lower sides.

CAUTION:

To avoid electric shock or damage to the unit, first firmly insert the small end of the power cord into the AC Adapter until it is no longer wobbly, and then plug the larger end of the power cord into an AC outlet.

CAUTIONS:

● This camcorder is designed to be used with PAL-type colour television signals. It cannot be used for playback with a television of a different standard. However, live recording and LCD monitor/viewfinder playback are possible anywhere.

●

Use the JVC BN-V408U/V416U/V428U battery packs and, to recharge them or to supply power to the camcorder from an AC outlet, use the provided multi-voltage AC Adapter and Power Cord. (An appropriate conversion adapter may be necessary to accommodate different designs of AC outlets in different countries.)

When the equipment is installed in a cabinet or on a shelf, make sure that it has sufficient space on all sides to allow for ventilation (10 cm or more on both sides, on top and at the rear).

Do not block the ventilation holes. (If the ventilation holes are blocked by a newspaper, or cloth etc. the heat may not be able to get out.)

No naked flame sources, such as lighted candles, should be placed on the apparatus. When discarding batteries, environmental problems must be considered and the local rules or laws

governing the disposal of these batteries must be followed strictly. The apparatus shall not be exposed to dripping or splashing. Do not use this equipment in a bathroom or places with water.

Also do not place any containers filled with water or liquids (such as cosmetics or medicines, flower vases, potted plants, cups etc.) on top of this unit. (If water or liquid is allowed to enter this equipment, fire or electric shock may be caused.)

SAFETY PRECAUTIONS

Do not point the lens or the viewfinder directly into the sun. This can cause eye injuries, as well as lead to the malfunctioning of internal circuitry. There is also a risk of fire or electric shock.

CAUTION!

The following notes concern possible physical damage to the camcorder and to the user. When carrying, be sure to always securely attach and use the provided shoulder strap. Carrying or holding the

camcorder by the viewfinder and/or the LCD monitor can result in dropping the unit, or in a malfunction. Take care not to get your finger caught in the cassette holder cover. Do not let children operate the camcorder, as

they are particularly susceptible to this type of injury. Do not use a tripod on unsteady or unlevel surfaces. It could tip over, causing serious damage to the camcorder.

CAUTION!

Connecting cables (Audio/Video, S-Video, etc.) to the camcorder and leaving the unit on top of the TV is not recommended, as tripping on the cables will cause the camcorder to fall, resulting in damage.

n This camcorder is designed exclusively for the digital video cassette, SD Memory Card and

MultiMediaCard. Only cassettes marked “ “

” can be used with this unit.

” and memory cards* marked “ ” or

Before recording an important scene . . .

.... make sure you only use cassettes with the Mini DV mark .

.... make sure you only use memory cards* with the mark or .

.... remember that this camcorder is not compatible with other digital video formats.

.... remember that this camcorder is intended for private consumer use only. Any commercial use without

proper permission is prohibited. (Even if you record an event such as a show, performance or exhibition for personal enjoyment, it is strongly recommended that you obtain permission beforehand.)

* Memory cards can be used with GR-DVL1020/DVL820/DVL520 only.

PROVIDED ACCESSORIES

AC Adapter AP-V10EG or AP-V12EG

Shoulder Strap

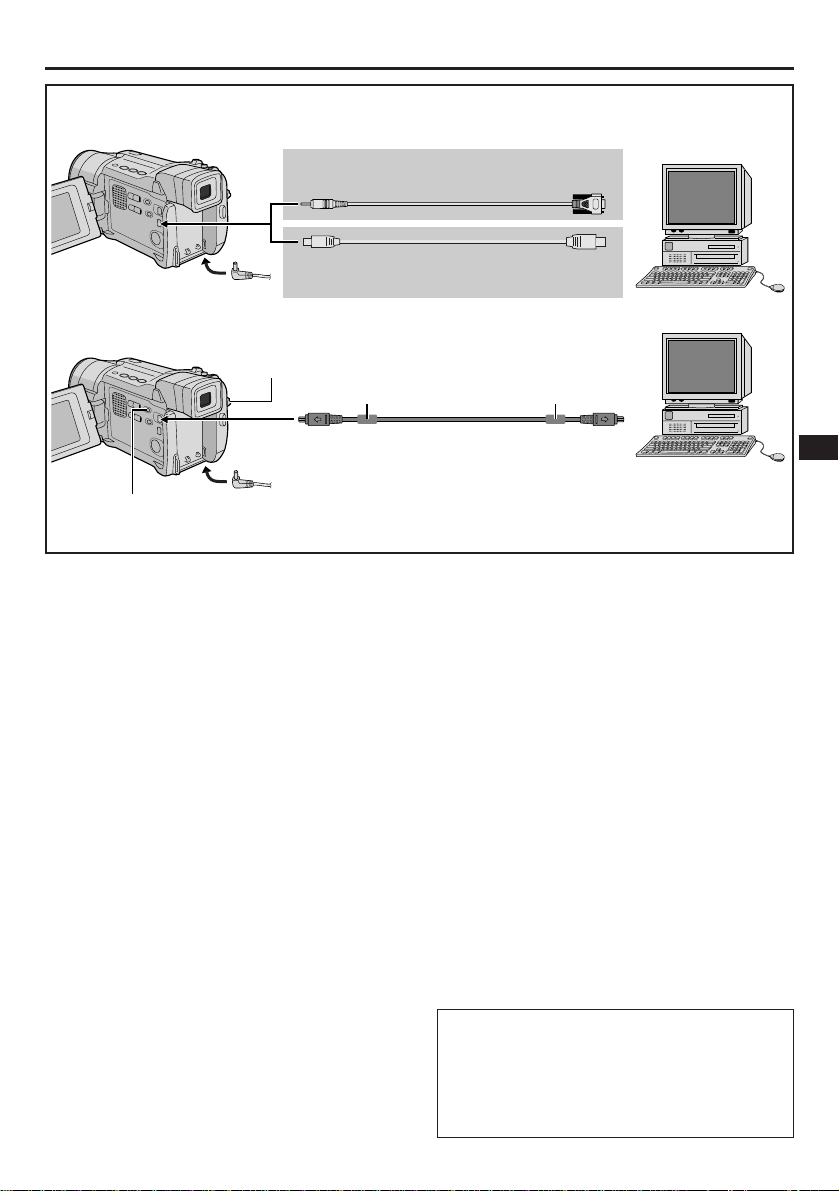

PC Connection Cable (GR-DVL320 only)

USB Cable (GR-DVL1020/ DVL820/DVL520 only)

Lens hood (Already attached to the camcorder; GR-DVL1020/DVL820 only)

Battery Pack BN-V408U

Lens Cap (See below for attachment)

Memory Card 8 MB (GR-DVL1020/DVL820/ DVL520 only) (Already inserted in the camcorder)

Core Filter x 1 (for optional S-Video

Z pg. 6 for

cable attachment)

Power Cord

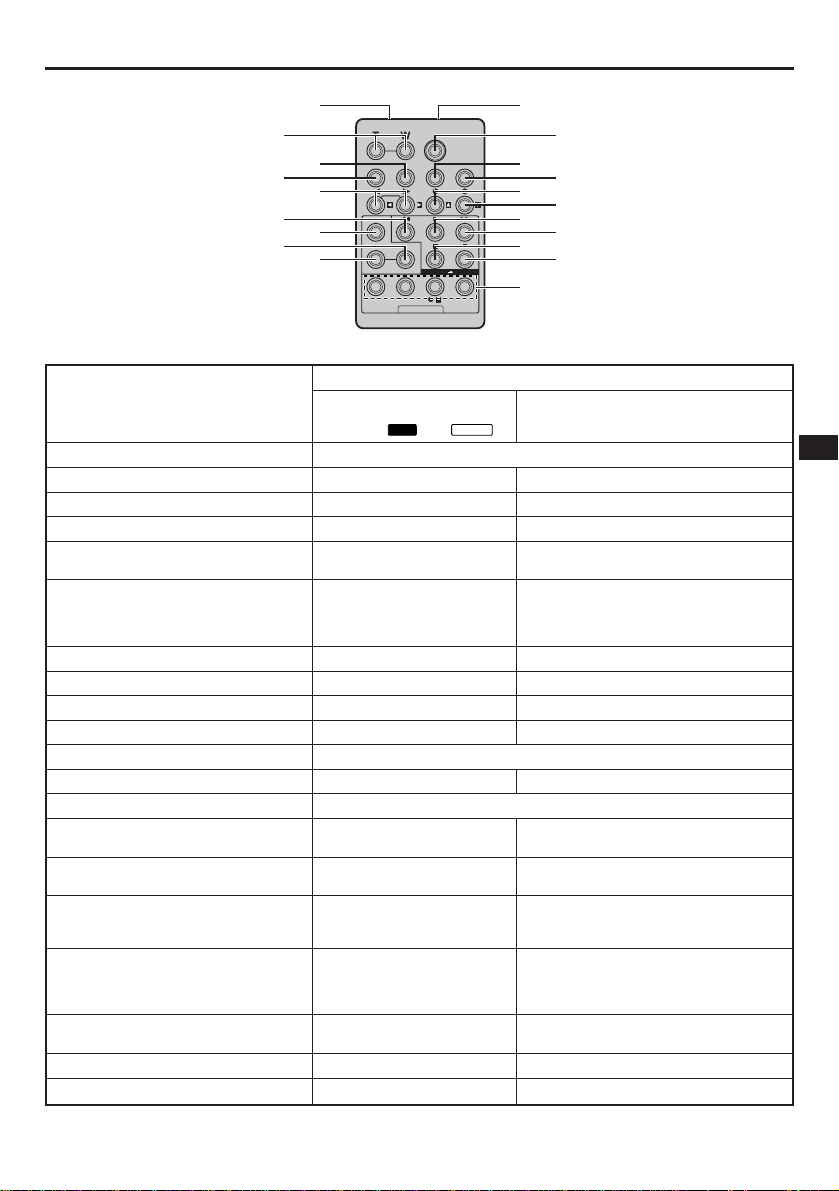

Remote Control Unit RM-V717U

Audio/Video Cable (ø3.5 mini-plug to RCA plug)

AAA (R03) Battery x 2 (for remote control unit)

CD-ROM

Editing Cable GR-DVL320:

One plug has 3 rings around the pin, and the other has 1 ring around the pin.

GR-DVL1020/DVL820/ DVL520: Both plugs have 1 ring around the pin.

NOTE:

In order to maintain optimum performance of the camcorder, provided cables may be equipped with one or more core filter. If a cable has only one core filter , the end that is closest to the filter should be connected to the camcorder.

How To Attach The Lens Cap

To protect the lens, attach the provided lens cap to the camcorder as shown in the illustration.

NOTE:

To confirm the lens cap is on correctly make sure the cap is flush to the camera.

1 2 3

For GR-DVL1020/ DVL820 Owners:

The lens cap can be attached only when the lens hood is attached to the camcorder.

MODEDEMO –ONOFF

How T o Attach The Core Filter

Attach the Core Filter(s) (if provided with your model Z pg. 5) to an optional cable(s). The Core Filter reduces interference.

Stopper

Release the stoppers on both ends of the Core Filter.

n When connecting cables, attach the end with the Core Filter to the camcorder.

Run the cable through the Core Filter, leaving approx. 3 cm of cable between the cable plug and the Core Filter. Wind the cable once around the outside of the Core Filter as shown in the illustration.

• Wind the cable so that it is not slack.

NOTE:

Take care not to damage the cable.

3 cm

Wind once

AUTOMATIC DEMONSTRATION

Automatic Demonstration takes place when “DEMO MODE” is set to “ON” (factory-preset).

n Automatic Demonstration starts when there is no operation for

about 3 minutes after the Power Switch is set to “

MANUAL

“

” and no cassette is in the camcorder.

n Performing any operation during the demonstration stops the

demonstration temporarily. If no operation is performed for more than 3 minutes after that, the demonstration will resume.

n “DEMO MODE” remains “ON” even if the camcorder power is

turned off.

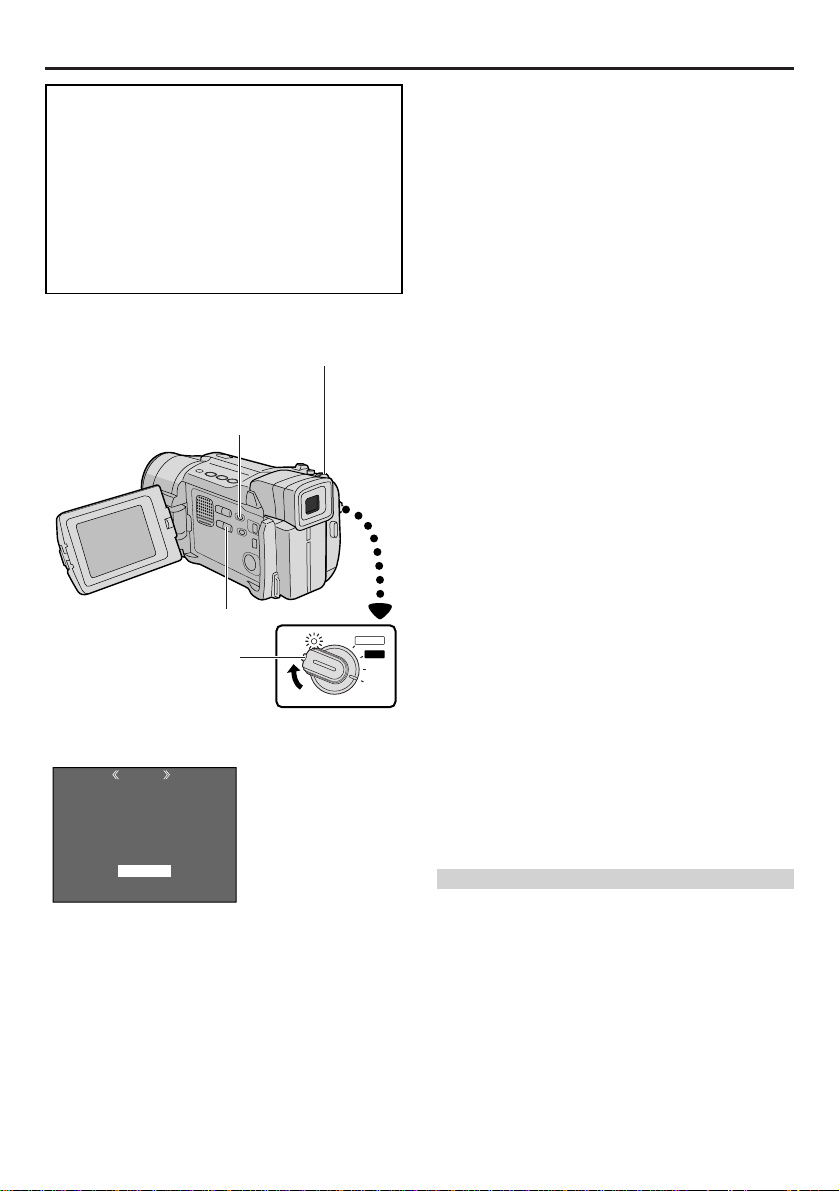

n To cancel Automatic Demonstration:

1. Set the Power Switch to “

MANUAL

” while pressing down the

Lock Button located on the switch and press the MENU/

BRIGHT wheel in. The Menu Screen appears.

2. Rotate the MENU/BRIGHT wheel to select “ SYSTEM”

and press it. The SYSTEM Menu appears.

3. Rotate the MENU/BRIGHT wheel to select “DEMO MODE” and press it. The Sub Menu appears.

4. Rotate the MENU/BRIGHT wheel to select “OFF” and press it.

5. Rotate the MENU/BRIGHT wheel to select “ RETURN”,

and press it twice. The normal screen appears.

AUTO

” or

Close the Core Filter until it clicks shut.

MENU/BRIGHT Wheel

Power Switch

Lock Button

Sub Menu

NOTE:

If you do not detach the Lens Cap, you cannot see the actual changes of the Automatic Demonstration activated on the LCD monitor or viewfinder.

GR-DVL1020/DVL820/DVL520 only

GETTING STARTED

CONTENTS

Power.................................................. 8 – 9

Grip Adjustment ......................................... 10

Viewfinder Adjustment.................................. 10

Shoulder Strap Attachment ............................. 10

Tripod Mounting .......................................... 10

Date/Time Settings...................................... 11

Loading/Unloading A Cassette ......................... 12

Recording Mode Setting ................................. 13

Loading A Memory Card

(GR-DVL1020/DVL820/DVL520 only) ....................... 14

Picture Quality/Image Size Setting

(GR-DVL1020/DVL820/DVL520 only) ....................... 14

BATT. RELEASE Button

GETTING STARTED

(cont.)

Power

This camcorder’s 2-way power supply system lets you choose the most appropriate source of power. Do not use provided power supply units with other equipment.

Battery pack

AC Adapter

To AC outlet

Power Switch

CHARGE Lamp

To DC connector

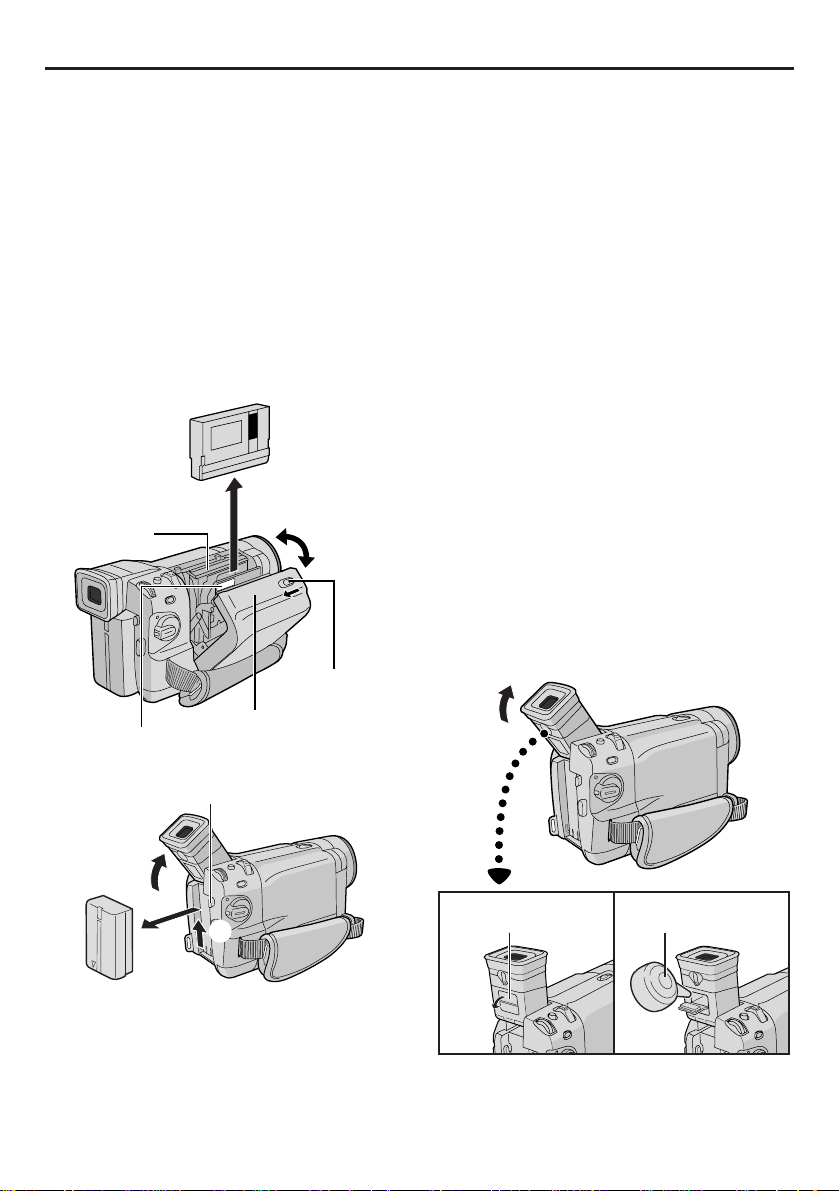

CHARGING THE BATTERY PACK

1 Tilt the viewfinder upward 1. With the arrow on

the battery pack pointing downward, push the battery pack slightly against the battery pack mount 2, then slide down the battery pack until it locks in place 3.

2 Set the Power Switch to “OFF”. Connect the AC

Adapter to the camcorder 4, then connect the Power Cord to the AC Adapter 5.

3 Plug the Power Cord into an AC outlet 6.

The CHARGE lamp on the camcorder blinks to indicate charging has started.

4 When the CHARGE lamp stops blinking but stays

lit, charging is finished. Unplug the Power Cord from the AC outlet. Disconnect the AC Adapter from the camcorder.

To Detach The Battery Pack . . .

.....Press BATT. RELEASE and pull out the battery

pack.

NOTES:

● If the protective cap is attached to the battery pack, remove it first.

● During charging, the camcorder cannot be operated.

● Charging is not possible if the wrong type of battery is

used.

● When charging the battery pack for the first time or after a long storage period, the CHARGE lamp may not light. In this case, remove the battery pack from the camcorder, then try charging again.

● If the battery operation time remains extremely short even after having been fully charged, the battery is worn out and needs to be replaced. Please purchase a new one.

● Using the optional AA-V40 AC Power Adapter/Charger, you can charge the BN-V408U/V416U/V428U battery pack without the camcorder. However, it cannot be used as an AC adapter.

Battery pack

BN-V408U BN-V416U (optional) BN-V428U (optional)

Charging time

approx. 1 hr. 30 min. approx. 3 hrs. approx. 5 hrs.

For other notes, Z pg. 68

ATTENTION

Before detaching the power source, make sure that the camcorder’s power is turned off. Failure to do so can result in a camcorder malfunction.

NOTES:

● Recording time is reduced significantly under the following conditions:

• Zoom or Record-Standby mode is engaged

repeatedly.

• The LCD monitor is used repeatedly.

•

The playback mode is engaged repeatedly.

● Before extended use, it is recommended that you prepare enough battery packs to cover 3 times the planned shooting time.

INFORMATION

The extended-use battery pack kit is a set composed of a battery pack and AC Power Adapter/Charger: VU-V840 KIT: BN-V840U battery pack & AA-V15 AC

Power Adapter/Charger

VU-V856 KIT: BN-V856U battery pack & AA-V80 AC

Power Adapter/Charger Read the kit's instruction manual before using. Also, by using the optional JVC VC-VBN856U DC Cord, it will be possible to connect BN-V840U or BNV856U battery packs to the camcorder and supply power directly to the camcorder.

USING THE BATTERY PACK

Perform step 1 of “CHARGING THE BATTERY PACK” (Z pg. 8).

Approximate recording time

GR-DVL520/DVL320

Battery pack

BN-V408U

BN-V416U (optional)

BN-V428U (optional)

BN-V840U (optional)

BN-V856U (optional)

( ) : when the video light is on

Approximate recording time

GR-DVL1020/DVL820

Battery pack

BN-V408U

BN-V416U (optional)

BN-V428U (optional)

BN-V840U (optional)

BN-V856U (optional)

( ) : when the video light is on

LCD monitor on

1 hr.

(35 min.)

2 hrs.

(1 hr. 10 min.)

3 hrs. 30 min.

(2 hrs.)

5 hrs.

(2 hrs. 50 min.)

7 hrs.

(4 hrs.)

LCD monitor on

55 min.

(35 min.)

1 hr. 55min.

(1 hr. 15 min.)

3 hrs. 25 min.

(2 hrs. 15 min.)

4 hrs. 25 min.

(2 hrs. 55 min.)

6 hrs. 40 min.

(4 hrs. 15 min.)

Viewfinder on

1 hr. 15 min.

(40 min.)

2 hrs. 30 min. (1 hr. 20 min.)

4 hrs. 20 min.

(2 hrs. 20 min.)

6 hrs. 10 min.

(3 hrs. 20 min.)

8 hrs. 40 min.

(4 hrs. 40 min.)

Viewfinder on

1 hr. 10 min.

(45 min.)

2 hrs. 25 min. (1 hr. 30 min.)

4 hrs. 20 min.

(2 hrs. 40 min.)

5 hrs. 40 min.

(3 hrs. 30 min.)

8 hrs. 30 min.

(5 hrs. 5 min.)

To AC outlet

AC Adapter

To DC connector

USING AC POWER

Use the AC Adapter (connect as shown in the illustration).

NOTES:

● The provided AC Adapter features automatic voltage selection in the AC range from 110 V to 240 V.

● For other notes,

Z pg. 68.

GETTING STARTED

Grip Adjustment

(cont.)

Power Zoom Lever

Recording Start/Stop button

PAUSE

Power Switch

Dioptre Adjustment Control

1 Separate the Velcro strip. 2 Pass your right hand through the loop and grasp

the grip.

3 Adjust your thumb and fingers through the grip, to

easily operate the Recording Start/Stop button and Power Switch and Power Zoom Lever. Be sure to fasten the Velcro strip to your preference.

Viewfinder Adjustment

” or “

MANUAL

”

1 Set the Power Switch to “

while pressing down the Lock Button located on the switch.

AUTO

2 Turn the Dioptre Adjustment Control until the

indications in the viewfinder are clearly focused.

Shoulder Strap Attachment

1 Make sure the battery pack is removed. Following

the illustration, thread the strap through the eyelet 1, then fold it back and thread it through the buckle 2. Repeat the procedure to attach the other end of the strap to the other eyelet 3 located under the Grip Strap. Confirm the strap is not twisted.

Tripod Mounting

CAUTION

When attaching the camcorder to a tripod, extend its legs to stabilise the camcorder. It is not advised to use small sized tripods. This may cause damage to the unit by falling over.

1 To attach the camcorder to a tripod, align the

direction stud and screw to the mounting socket and stud hole on the camcorder. Then tighten the screw clockwise. Some tripods are not equipped with studs.

MENU/BRIGHT Wheel

Power Switch

Lock Button

Display

FADER/ W I P E

AM A EPROGR

EXPOSURE

AN E

W. BAL

ACAMER

LMANUA MSYSTE AYDISPL

DSC END

RE NEON SC LCD/ TV

–

T I ME CODE

CLOCK

ADJ .

– –FFO

Power Lamp

UAOTIMETDATE /

12 ..02

1730 :

GR-DVL1020/DVL820/ DVL520 only

DISPLAY Menu

Date/Time Settings

The date/time is recorded onto the tape at all times, but its display can be turned on or off during playback (Z pg. 50, 51).

1 Set the Power Switch to “

MANUAL

” while pressing down the Lock Button located on the switch. The power lamp lights and the camcorder is turned on.

2 Press the MENU/BRIGHT wheel in to access the

Menu Screen.

3 Rotate the MENU/BRIGHT wheel to select

“ DISPLAY”. Press it and the DISPLAY Menu appears.

4 Rotate the MENU/BRIGHT wheel to select

“CLOCK ADJ.”. Press it and “day” is highlighted. Rotate the MENU/BRIGHT wheel to input the day. Press it. Repeat to input the month, year, hour and minute. Rotate the MENU/BRIGHT wheel to select “ RETURN”, and press it twice. The Menu Screen closes.

NOTE:

Even if you select “CLOCK ADJ.”, if the parameter is not highlighted the camcorder’s internal clock continues to operate. Once you move the highlight bar to the first date/ time parameter (day), the clock stops. When you finish setting the minute and press the MENU/BRIGHT wheel in, the date and time begin operation from the date and time you just set.

CLOCK ADJ .

NRETUR

12 ..02

1730:

GETTING STARTED

(cont.)

Erase protection tab*

Make sure the window side is facing out.

Cassette holder

OPEN/EJECT Switch

PUSH HERE

Cassette holder cover

* To Protect Valuable Recordings . . .

....

slide the erase protection tab on the back of the tape in the direction of “SAVE”. This prevents the tape from being recorded over. To record on this tape, slide the tab back to “REC” before loading it.

Be sure to press only the section labeled “PUSH HERE” to close the cassette holder; touching other parts may cause your finger to get caught in the cassette holder, resulting in injury or product damage.

Loading/Unloading A Cassette

The camcorder needs to be powered up to load or eject a cassette.

1 Slide and hold OPEN/EJECT in the direction of

the arrow then pull the cassette holder cover open until it locks. The cassette holder opens automatically.

•Do not touch internal components.

2 Insert or remove a tape and press “PUSH HERE”

to close the cassette holder.

•Once the cassette holder is closed, it recedes

automatically. Wait until it recedes completely before closing the cassette holder cover.

•When the battery’s charge is low, you may not be

able to close the cassette holder cover. Do not apply force. Replace the battery with a fully charged one before continuing.

3 Close the cassette holder cover firmly until it

locks into place.

Approximate recording time

Tape

30 min. 30 min. 45 min. 60 min. 60 min. 90 min. 80 min. 80 min. 120 min.

Recording mode

SP LP

NOTES:

● It takes a few seconds for the cassette holder to open. Do not apply force.

● If you wait a few seconds and the cassette holder does not open, close the cassette holder cover and try again. If the

cassette holder still does not open, turn the camcorder off then on again.

● If the tape does not load properly, open the cassette holder cover fully and remove the cassette. A few minutes later, insert it again.

● When the camcorder is suddenly moved from a cold place to a warm environment, wait a short time before opening the cassette holder cover.

● Closing the cassette holder cover before the cassette holder comes out may cause damage to the camcorder.

● Even when the camcorder is switched off, a cassette can be loaded or unloaded. After the cassette holder is closed

with the camcorder switched off, however, it may not recede. It is recommended to turn the power on before loading or unloading.

● When resuming recording, once you open the cassette holder cover a blank portion will be recorded on the tape or a previously recorded scene will be erased (recorded over) regardless of whether the cassette holder came out or not. See page 20 for information about recording from the middle of a tape.

● Loosen the Grip Strap if it appears to interfere with the cassette holder cover operation (

Z pg. 10).

MENU/BRIGHT Wheel

Power Lamp

Power Switch

Lock Button

Display

SPREC MODE –

GR-DVL1020/DVL820/DVL520 only

Menu Screen

Sub Menu

Recording Mode Setting

Set the tape recording mode depending on your preference.

1 Set the Power Switch to “

down the Lock Button located on the switch. The power lamp lights and the camcorder is turned on.

MANUAL

” while pressing

2 Press the MENU/BRIGHT wheel in. The Menu

Screen appears.

3 Rotate the MENU/BRIGHT wheel to select

“ CAMERA” and press it. The CAMERA Menu appears.

4 Rotate the MENU/BRIGHT wheel to select “REC

MODE” and press it. The Sub Menu appears. Select “SP” or “LP” by rotating the MENU/BRIGHT wheel and press it. Rotate the MENU/BRIGHT wheel to select “ RETURN”, and press it twice. The Menu Screen closes.

•Audio Dubbing (Z pg. 63) and Insert Editing (Z pg. 64) are possible on tapes recorded in the SP mode.

•“LP” (Long Play) is more economical, providing

1.5 times the recording time.

NOTES:

● If the recording mode is switched during recording, the

playback picture will be blurred at the switching point.

● It is recommended that tapes recorded in the LP mode

on this camcorder be played back on this camcorder.

● During playback of a tape recorded on another

camcorder, blocks of noise may appear or there may be momentary pauses in the sound.

Label

Clipped edge

Memory card

Card Cover

MENU/BRIGHT Wheel

Lock Button

Power Lamp

GETTING STARTED

Power Switch

Display

TYQUAL I

IMAGE SI ZE––

REC SELECT

NRETUR

(cont.)

FINE

021X7486

–

Loading A Memory Card

(GR-DVL1020/DVL820/DVL520 only)

The provided memory card is already inserted in the camcorder when you receive the camcorder.

1 Make sure the camcorder’s power is off. 2 Press PUSH OPEN and open the LCD monitor,

then open the card cover (MEMORY CARD).

3 Insert the memory card clipped edge first.

•Do not touch the terminal on the reverse side of the label.

4 To close the card cover, push it until you hear a

click.

To Unload A Memory Card . . .

..... in step 3 push the memory card, which then

comes out of the camcorder automatically. Pull it out and close the card cover.

NOTES:

● Be sure to use only SD Memory Cards marked

” or MultiMediaCards marked

“ “

● Some brands of memory cards are not compatible with

this camcorder. Before purchasing a memory card , consult its manufacturer or dealer.

● Before using a new memory card, it is necessary to

FORMAT the card.

Do not insert/remove the memory card while the camcorder is turned on, as this may cause the memory card to be corrupted or cause the camcorder to become unable to recognize whether or not the card is installed.

”.

Z pg. 36.

ATTENTION

Picture Quality/Image Size Setting

(GR-DVL1020/DVL820/DVL520 only)

The Picture Quality/Image Size can be selected to best match your needs. Refer to the chart on page 27 for your selection.

1 Set the VIDEO/MEMORY Switch to “MEMORY”,

then set the Power Switch to “ down the Lock Button located on the switch. The power lamp lights and the camcorder turns on.

MANUAL

” while pressing

2 Press the MENU/BRIGHT wheel in. The Menu

Screen appears.

3 Rotate the MENU/BRIGHT wheel to select

“ DSC” and press it. The DSC Menu appears.

4 Rotate the MENU/BRIGHT wheel to select

“QUALITY” and press it. The Sub Menu appears. Rotate the MENU/BRIGHT wheel to select the desired mode and press it.

5 Rotate the MENU/BRIGHT wheel to select

“IMAGE SIZE” and press it. The Sub Menu appears. Rotate the MENU/BRIGHT wheel to select the desired mode and press it.

6 Rotate the MENU/BRIGHT wheel to select

“ RETURN”, and press it twice. The Menu Screen closes.

TAPE RECORDING & PLAYBACK

TAPE RECORDING

PLAYBACK

CONTENTS

TAPE RECORDING ......................... 16 – 20

Basic Recording ..................................... 16

Journalistic Shooting ............................... 17

Self-Recording ...................................... 17

Operation Mode .................................... 17

Zooming ............................................ 18

Video Light ......................................... 19

Time Code ........................................... 20

TAPE PLAYBACK ........................... 21 – 24

Normal Playback ................................... 21

Still Playback ....................................... 21

Shuttle Search ...................................... 21

Frame-By-Frame Playback ........................ 21

Connections .................................. 22 – 23

Blank Search ........................................ 24

TAPE RECORDING

Power lamp

Power Switch

Lock Button

Recording Start/Stop Button

Display

min

(Now calculating)

PUSH OPEN Button

90 min

(Blinking) (Blinking) (Blinking)

GHT

BR I

180°

90°

During

shooting

min

Tape remaining time indicator (Approximate)

89 min

1 min0 min

VIDEO/MEMORY Switch (GR-DVL1020/DVL820/ DVL520 only)

3 min

2 min

MENU/BRIGHT Wheel

Basic Recording

NOTE:

You should already have performed the procedures listed below. If not, do so before continuing.

● Power (Z pg. 8)

● Grip Adjustment (

● Viewfinder Adjustment (

● Load A Cassette (

● Recording Mode Setting (

Z pg. 10)

Z pg. 12)

Z pg. 13)

1 Remove the lens cap.

GR-DVL1020/DVL820/DVL520 only: Press PUSH OPEN, open the LCD monitor and set the VIDEO/ MEMORY Switch to “VIDEO”.

” or “

MANUAL

”

2 Set the Power Switch to “

while pressing down the Lock Button located on the switch. Shooting while using the LCD monitor: Make sure the LCD monitor is fully open. Tilt it upward/ downward for best viewability . Shooting while using the viewfinder: Close the LCD monitor.

•The power lamp lights and the camcorder enters the Record-Standby mode. “PAUSE” is displayed.

AUTO

3 Press the Recording Start/Stop Button. “ ”

appears while recording is in progress.

T o Stop Recording . . .

.....press the Recording Start/Stop Button. The

camcorder re-enters the Record-Standby mode.

T o Adjust The Brightness Of The Display . . .

.....rotate the MENU/BRIGHT wheel until the bright

level indicator on the display moves and the appropriate brightness is reached.

•If you are using GR-DVL1020, it is also possible to adjust the brightness of the viewfinder by closing the LCD monitor and adjusting as described above.

NOTES:

● If the Record-Standby mode continues for 5 minutes,

the camcorder’s power shuts off automatically. To turn the camcorder on again, set the Power Switch to “OFF”, then back to “

● The image will not appear simultaneously on the LCD

monitor and the viewfinder. It will appear in the viewfinder when the LCD monitor is in the lock position, and it will appear on the LCD monitor when fully extended.

● When a blank portion is left between recorded scenes

on the tape, the time code is interrupted and errors may occur when editing the tape. To avoid this, refer to “Recording from the middle of a tape” (

● To turn the tally lamp or beep sounds off,

48.

AUTO

” or “

MANUAL

”.

Z pg. 20).

Z pg. 46,

Tally lamp (lights while recording is in progress)

For other notes, Z pg. 68

MANUAL

SelfRecording

JOURNALISTIC SHOOTING

In some situations, different shooting angles may provide more dramatic results. Hold the camcorder in the desired position and tilt the LCD monitor in the most convenient direction. It can rotate 270° (90° downward, 180° upward).

SELF-RECORDING

You can shoot yourself while viewing your own image in the LCD monitor. Open the LCD monitor and tilt it upward 180° so that it faces forward, then point the lens toward yourself and start recording.

To turn on the camcorder, set the Power Switch to any operation mode except “OFF”while pressing down the Lock Button located on the switch.

Power Switch

Power lamp

Lock Button

VIDEO/MEMORY Switch (GR-DVL1020/DVL820/DVL520 only; open the LCD monitor to access this switch.)

When the Power Switch is set to “ When set to “

(GR-DVL1020/DVL820/DVL520 only)

1024

When the Power Switch is set to “ the VIDEO/MEMORY Switch is set to “MEMORY”, the currently selected image size appears. When set to “VIDEO”, there is no indication.

MANUAL

” or “PLA Y”, there is no indication.

AUTO

”, “ ” appears.

AUTO

” or “

MANUAL

AUTO

OFF PLAY

” and

Operation Mode

Choose the appropriate operation mode according to your preference using the Power Switch and VIDEO/ MEMORY Switch (GR-DVL1020/DVL820/DVL520 only).

Power Switch Position

Allows you to set various recording functions using the Menus. If you want more creative capabilities than Full Auto recording, try this mode.

AUTO

(Full Auto):

Allows you to record using NO special effects or manual adjustments. Suitable for standard recording.

OFF:

Allows you to switch off the camcorder.

PLAY:

• Allows you to play back a recording on the tape.

• Allows you to transfer a still image recorded on the tape to a computer (GR-DVL320 only).

• Allows you to access data stored on the memory card or to transfer a still image stored on the memory card to a computer (GR-DVL1020/DVL820/ DVL520 only).

VIDEO/MEMORY Switch Position

(GR-DVL1020/DVL820/DVL520 only)

VIDEO:

• Allows you to record on a tape or play back a tape.

If “REC SELECT” is set to “ DSC Menu Screen, still images are recorded on the memory card as well.

• Zoom magnification over 10X is available

(Z pg. 18, 47).

MEMORY:

Allows you to record on a memory card or access data stored on a memory card.

/ ” in the

TAPE RECORDING

(cont.)

Zoom in (T: Telephoto)

01x

Approximate zoom ratio

01x

Zoom display

Power Zoom Lever

02x

Zoom out (W: Wide angle)

Digital zoom zone

10X (optical) zoom zone

04x

FEATURE:

Zooming

PURPOSE:

To produce the zoom in/out effect, or an instantaneous change in image magnification.

OPERATION:

Zoom In

Slide the Power Zoom Lever towards “T”.

Zoom Out

Slide the Power Zoom Lever towards “W”. n The further you slide the Power Zoom Lever, the

quicker the zoom action.

NOTES:

● Focusing may become unstable during Zooming. In

this case, set the zoom while in Record-Standby, lock the focus by using the manual focus

Z pg. 43), then zoom in or out in Record mode.

(

● Zooming is possible to a maximum of 700X, or it

can be switched to 10X magnification using the optical zoom (

● Zoom magnification of over 10X is done through

Digital image processing, and is therefore called Digital Zoom.

● During Digital zoom, the quality of image may

suffer.

● Digital zoom cannot be used when the VIDEO/

MEMORY Switch is set to “MEMORY” (

● Macro shooting (as close as approx. 5 cm to the

subject) is possible when the Power Zoom Lever is set all the way to “W”. Also see “TELE MACRO” in the Menu Screen on page 48.

Z pg. 47).

Z pg. 17).

LIGHT OFF/AUTO/ON Switch (Open the LCD monitor to access this switch.)

DANGER

n The video light can become extremely

hot. Do not touch it either while in operation or soon after turning it off, otherwise serious injury may result.

n Do not place the camcorder into the carrying case

immediately after using the video light, since it remains extremely hot for some time.

n When operating, keep a distance of about 30 cm

between the video light and people or objects.

n Do not use near flammable or explosive materials. n Do not place the camcorder in a cabinet or box while

the video light is in operation.

n When using the video light, if you wish to install the

camcorder in a fixed position, attach it to a tripod, etc. Do not affix it directly to a surface such as a table top.

n It is recommended that you consult your nearest JVC

dealer for replacing the video light.

FEATURE:

Video Light

PURPOSE:

To brighten the scene when natural lighting is too dim.

OPERATION:

Set LIGHT OFF/AUTO/ON as required: OFF : Turns off the light. AUTO: Automatically turns on the light when the

camcorder senses insufficient lighting on the subject.

ON : Always keeps the light on as long as the

camcorder is turned on.

n The video light can only be used with the

camcorder’s power on.

n It is recommended to set the white balance

(Z pg. 45) to when you use the video light.

n When not using the video light, turn it off to save

battery power.

NOTES:

● Even if the battery indicator ( ) does not blink

due to low battery charge, the camcorder may turn off automatically when you turn on the video light, or when you start recording with the video light turned on.

● When LIGHT OFF/AUTO/ON is set to “AUTO”:

• Depending on the lighting conditions, the video light may keep turning on and off. In this case, manually switch the light on or off using LIGHT OFF/AUTO/ON.

• While the “SHUTTER” or “SPORTS” mode

Z pg. 39) is engaged, the light is likely to stay

( on.

• While the “TWILIGHT” mode ( engaged, the light will not activate.

• While the “Night-Scope” mode ( engaged, the light will not activate.

Z pg. 39) is

Z pg. 38) is

TAPE RECORDING

Time Code

During recording, a time code is recorded on the tape. This code is to confirm the location of the recorded scene on the tape during playback. If recording starts from a blank portion, the time code begins counting from “00:00:00” (minute:second:frame). If recording starts from the end of a previously recorded scene, the time code continues from the last time code number.

To perform Random Assemble Editing (Z pg. 58 – 62), time code is necessary. If during recording a blank portion is left partway through the tape, the time code is interrupted. When recording is resumed, the time code starts counting up again from “00:00:00”. This means the camcorder may record the same time codes as those existing in a previously recorded scene. To prevent this, perform “Recording From The Middle of A Tape” below in the following cases;

• When shooting again after playing back a recorded tape.

• When power shuts off during shooting.

• When a tape is removed and re-inserted during shooting.

• When shooting using a partially recorded tape.

• When shooting on a blank portion located partway through the tape.

• When shooting again after shooting a scene then opening/closing the cassette holder cover.

Recording From The Middle Of A Tape

1. Play back a tape or use Blank Search (Z pg. 24) to find the spot at which you want to start recording,

then engage the Still Playback mode (Z pg. 21).

” or “

MANUAL

” while pressing down the Lock Button located on the switch,

2. Set the Power Switch to “

then start recording.

AUTO

NOTES:

● The time code cannot be reset.

● During fast-forwarding and rewinding, the time code indication does not move smoothly.

● The time code is displayed only when “TIME CODE” is set to “ON” (Z pg. 49, 50).

12: 34 : 24

Display

Frames are not displayed during recording.

Minutes Seconds Frames

(25 frames = 1 second)

(cont.)

When a blank portion is recorded on a tape

Time code 00:00:00

Tape

Shooting start point

Time code 05:43:21

Time code 00:00:00

Shooting start pointShooting stop point

Proper recording

Time code 00:00:00

Tape

Shooting start point Shooting start point Shooting start point

Time code 05:43:21

Time code 05:44:00

Newly recorded sceneBlankAlready recorded scene

Latest sceneNew sceneAlready recorded scene

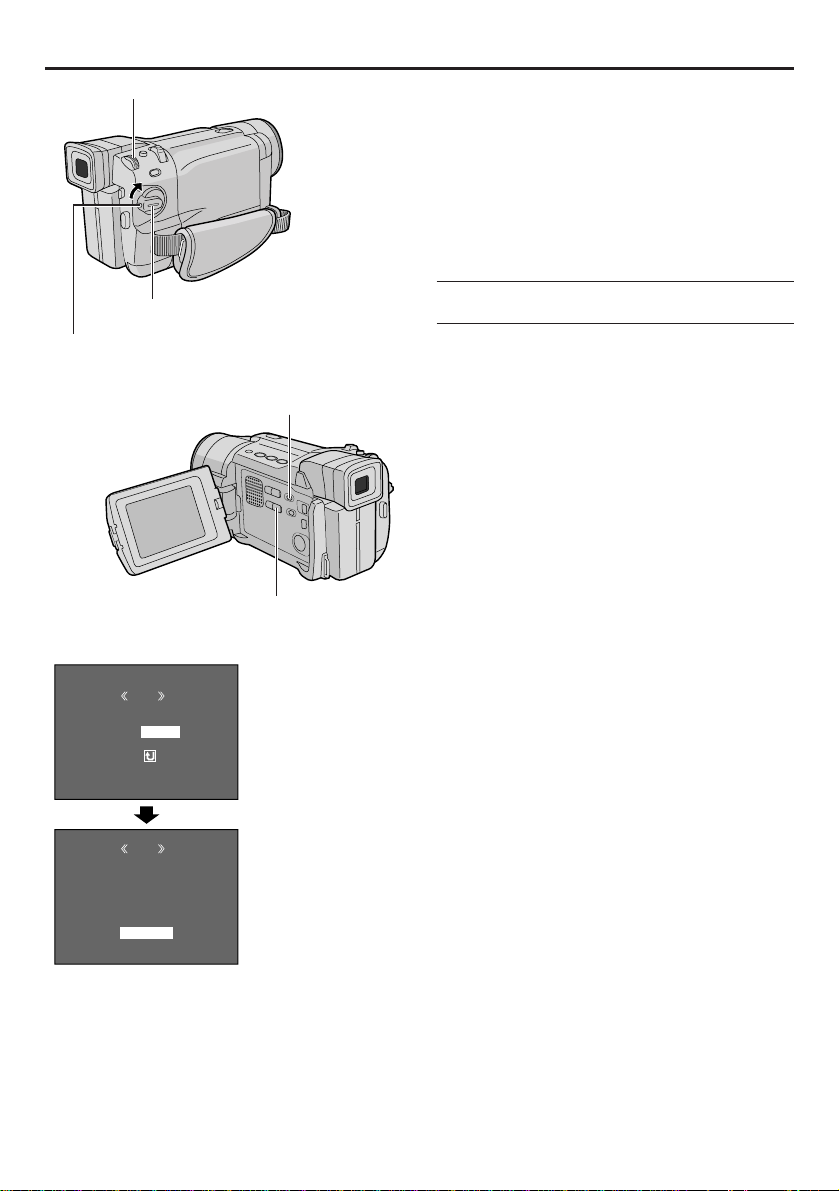

TAPE PLAYBACK

Speaker

Stop Button (5) Rewind Button (2) Play/Pause Button ( Fast-Forward Button (

Power Zoom Lever (VOL.)

VIDEO/MEMORY Switch (GR-DVL1020/DVL820/ DVL520 only; open the LCD monitor to access this switch.)

/6)

)

Normal Playback

1 Load a tape (Z pg. 12). 2 Set the VIDEO/MEMORY Switch to “VIDEO”

(GR-DVL1020/DVL820/DVL520 only), then set the Power Switch to “PLAY” while pressing down the Lock Button located on the switch. To start playback, press 4/

• To stop playback, press 5.

• Press 2 to rewind, or 3 to fast-forward the tape during Stop mode.

To Control The Speaker Volume . . .

.....slide the Power Zoom Lever (VOL.) towards “+”

to turn up the volume, or towards “–” to turn down the volume.

NOTES:

● If Stop mode continues for 5 minutes when power is supplied from a battery, the camcorder shuts off automatically. To turn on again, set the Power Switch to “OFF”, then to “PLAY”.

● The playback picture can be viewed in the LCD monitor, viewfinder or on a connected TV (Z pg. 22).

● You can also view the playback picture on the LCD monitor with it flipped over and pushed against the camera body.

● LCD monitor/viewfinder indications:

• When power is supplied from a battery: the “

When power is supplied from an AC outlet: “

• During Stop mode, none of the indications are displayed.

● When a cable is connected to the AV connector, the sound is not heard from the speaker.

Still Playback:

1) Press 4/6 during playback.

2) To resume normal playback, press 4/6 again.

● If still playback continues for more than about 3 minutes, the camcorder’s Stop mode is automatically engaged. After 5 minutes in the Stop mode, the camcorder’s power is automatically turned off.

● When 4/6 is pressed, the image may not pause immediately while the camcorder stabiliseds the still image.

Shuttle Search:

1) Press 3 for forward or 2 for reverse search during playback.

2) To resume normal playback, press 4/6.

● During playback, press and hold 2 or 3. The search continues as long as you hold the button. Once you release it, normal playback resumes.

● A slight mosaic effect appears on screen during Shuttle Search. This is not a malfunction.

Pauses during playback.

Allows high-speed search in either direction.

” battery pack remaining power indicator is displayed.

” does not appear.

Frame-By-Frame Playback: Allows frame-by-frame search.

1) Engage Still Playback.

2) Rotate the MENU/BRIGHT wheel towards “+” for forward Frame-By-Frame Playback, or towards “–” for reverse

Frame-By-Frame Playback during Still Playback.

● To resume normal playback, press 4/6.

● You can also use the provided remote control for Frame-By-Frame Playback (Z pg. 56).

Slow-Motion Playback/Playback Special Effects and Playback Zoom

Available only with the remote control (provided) (Z pg. 56, 57).

ATTENTION

During Shuttle Search, parts of the picture may not be clearly visible, particularly on the left side of the screen.

TAPE PLAYBACK

(cont.)

Connections

These are some basic types of connections. When making the connections, refer also to your VCR and TV instruction manuals.

A. Connection to a TV or VCR equipped with an S-VIDEO IN and A/V input

connectors

To AV

To TV or VCR

Audio/Video cable

Connector cover*

To S-VIDEO

* When connecting the cables, open this cover. ** The Audio cable is not required for watching still images only.

(provided)

S-Video cable (optional)

White to AUDIO L IN**

Red to AUDIO R IN**

Yellow: Not connected

To S-VIDEO IN

B. Connection to a TV or VCR equipped only with A/V input connectors

To TV or VCR

To AV

White to AUDIO L IN**

Connector cover*

Audio/Video cable (provided)

Red to AUDIO R IN**

Yellow to VIDEO IN

VCR

* When connecting the cables, open this cover. ** The Audio cable is not required for watching still images only.

1 Make sure all units are turned off. 2 Connect the camcorder to a TV or VCR as shown

in the illustration (Z pg. 22).

If using a VCR . . . go to step 3. If not . . . go to step 4.

3 Connect the VCR output to the TV input, referring

to your VCR’s instruction manual.

4 Turn on the camcorder, the VCR and the TV. 5 Set the VCR to its AUX input mode, and set the

TV to its VIDEO mode.

To choose whether or not the following displays appear on the connected TV . . .

• Date/Time

.....set “DATE/TIME” to “AUTO”, “ON” or “OFF” in the

Menu Screen (Z pg. 50). Or, press DISPLAY on the remote control (provided) to turn on/off the date indication.

• Time Code

.....set “TIME CODE” to “ON” or “OFF” in the Menu

Screen (Z pg. 50).

• Playback Sound Mode, Tape Speed And Tape

Running Displays for tape playback

.....set “ON SCREEN” to “LCD” or “LCD/TV” in the

Menu Screen (Z pg. 50).

NOTES:

● It is recommended to use the AC Adapter as the power supply instead of the battery pack (

● To monitor the picture and sound from the camcorder without inserting a tape or memory card*, set the camcorder’s Power Switch to “ then set your TV to the appropriate input mode.

* GR-DVL1020/DVL820/DVL520 only

● Make sure you adjust the TV sound volume to its minimum level to avoid a sudden burst of sound when the camcorder is turned on.

● If you have a TV or speakers that are not specially shielded, do not place the speakers adjacent to the TV as interference will occur in the camcorder playback picture.

● While the Audio/Video cable is connected to the AV connector, sound cannot be heard from the speaker.

● If no image is displayed or no sound is heard from the TV, set “S/AV INPUT” to “OFF” in the Menu Screen (GR-DVL1020/DVL820 only,

AUTO

Z pg. 50).

” or “

Z pg. 9).

MANUAL

”,

Lock Button

Display

BLANK SEARCH

BLANK Button

Power Switch

VIDEO/MEMORY Switch (GR-DVL1020/ DVL820/DVL520 only; open the LCD monitor to access this switch.)

Stop Button (5)

TAPE PLAYBACK

(cont.)

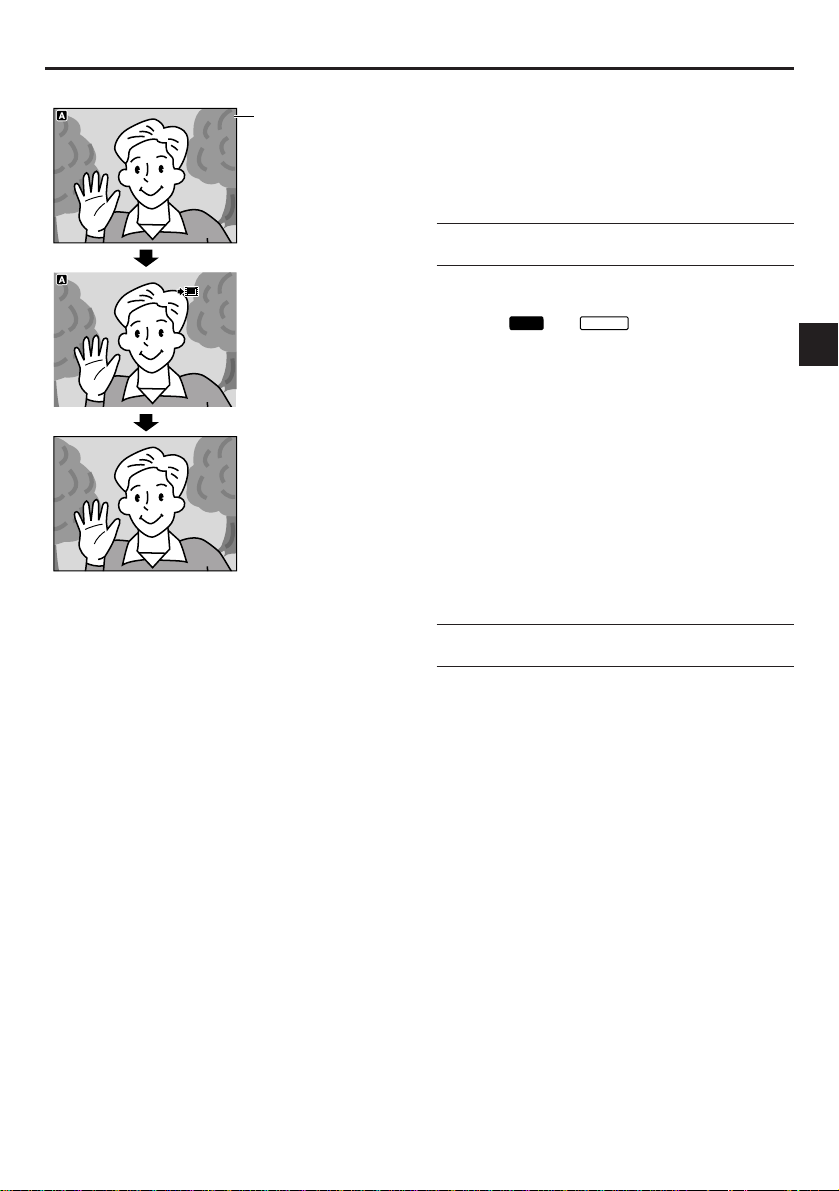

Blank Search

Helps you find where you should start recording in the middle of a tape to avoid time code interruption (Z pg. 20).

1 Load a tape (Z pg. 12). 2 Set the VIDEO/MEMORY Switch to “VIDEO”

(GR-DVL1020/DVL820/DVL520 only), then set the Power Switch to “PLAY” while pressing down the Lock Button located on the switch.

3 Press BLANK.

•“BLANK SEARCH” appears blinking and the

camcorder automatically starts reverse or forward shuttle search, then stops at the spot which is about 3 seconds of tape before the beginning of the detected blank portion.

To cancel Blank Search midway . . .

..... press 5.

NOTES:

● In step 3, if the current position is at a blank portion the camcorder searches in the reverse direction, and if the current position is at a recorded portion the camcorder searches in the forward direction.

● Blank Search does not work if “HEAD CLEANING REQUIRED. USE CLEANING CASSETTE” has appeared with the tape.

● If the beginning or end of the tape is reached during Blank Search, the camcorder stops automatically.

● A blank portion which is shorter than 5 seconds of tape may not be detected.

● The detected blank portion may be located between recorded scenes. Before you start recording, make sure there is no recorded scene after the blank portion.

MEMORY CARD RECORDING & PLAYBACK

MEMORY CARD

Memory Card recording features are available on GR-DVL1020,GR-DVL820 and GR-DVL520.

MEMORY CARD RECORDING ......... 26 – 27

Basic Shooting (Snapshot) ............... 26 – 27

MEMORY CARD PLAYBACK ........... 28 – 29

Normal Playback .................................. 28

Auto Playback ..................................... 28

RECORDING

PLAYBACK

CONTENTS

Index Playback .................................... 29

Viewing File Information ......................... 29

Removing On-Screen Display .................... 29

ADVANCED FEATURES ....................30 – 36

Protecting Files .................................... 30

Deleting Files ...................................... 31

Dubbing Still Images Recorded On A Tape To A

Memory Card ....................................... 32

E-Mail Clip Recording ............................. 33

Setting Print Information

(DPOF Setting)............................. 34 – 35

Making A New Folder ............................ 36

Initialising A Memory Card ...................... 36

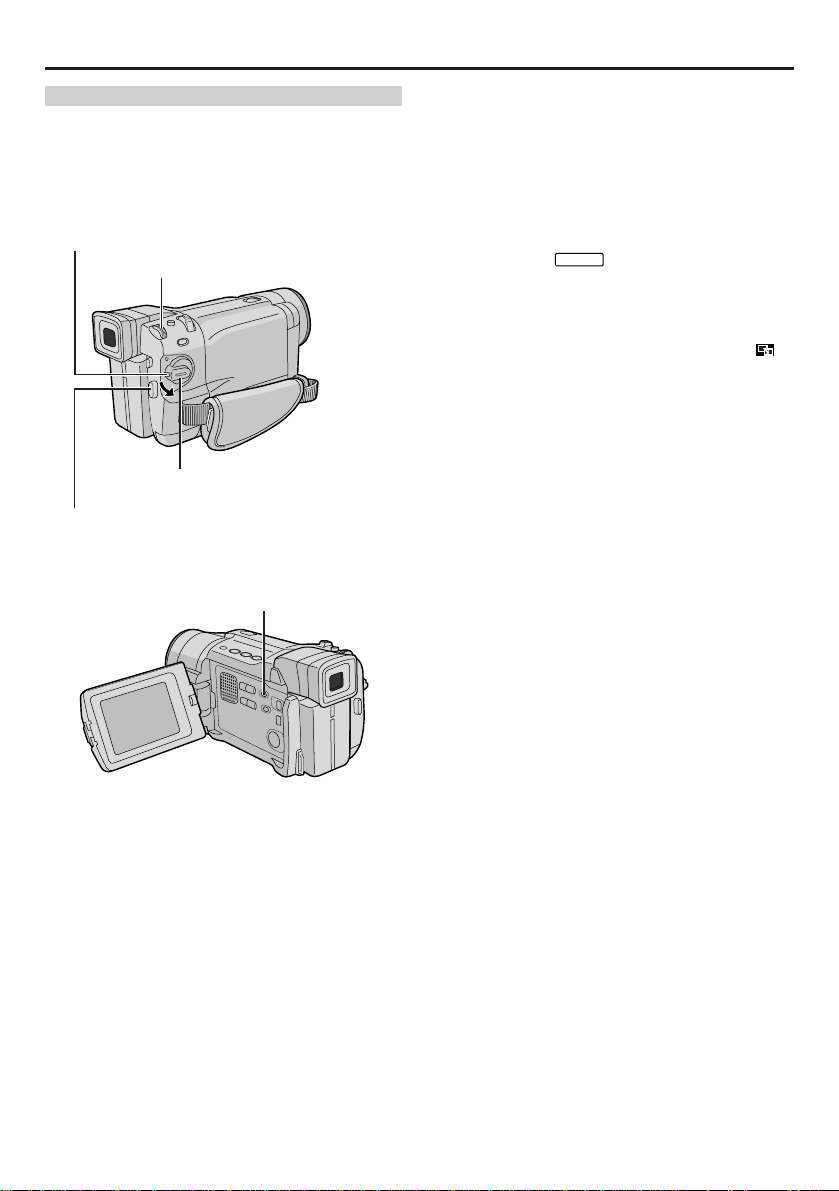

Lock Button

SNAPSHOT Button

Power Switch

VIDEO/MEMORY Switch (Open the LCD monitor to access this switch.)

MEMORY CARD RECORDING

Basic Shooting (Snapshot)

You can use your camcorder as a digital still camera for taking snapshots.

NOTE:

You should already have performed the procedures listed below. If not, do so before continuing.

Z pg. 8)

● Power (

● Grip Adjustment (

● Viewfinder Adjustment (

● Loading A Memory Card (

● Picture Quality/Image Size Setting (

1 Set the VIDEO/MEMORY Switch to “MEMORY”,

then set the Power Switch to “ while pressing down the Lock Button located on the switch.

Z pg. 10)

Z pg. 14)

AUTO

Z pg. 14)

MANUAL

” or “

”

2 Press SNAPSHOT. “PHOTO” appears while the

snapshot is being taken. The image is recorded on the memory card.

•Still images are recorded in the snapshot mode with

no frame.

1024

Display

Image Size

Displays the image file size: 1280 (1280 x 960)*, 1024 (1024 x 768) or 640 (640 x 480) (

Z pg. 14).

GR-DVL1020/DVL820 only.

Shooting icon

Appears and blinks during shooting.

Card icon

Appears during shooting and blinks when a memory card is not loaded:

(SD Memory Card) or (MultiMediaCard).

Remaining number of shots

Displays the remaining number of shots that can be stored. The number increases or decreases depending on the Picture Quality/Image Size, etc.

Picture Quality

Displays the quality of image: F (Fine) or S (Standard) (in order of quality) (

Z pg. 14).

+ 61 hidden pages
