JVC GR-DV3000A, GR-DV3000EA, GR-DV3000ED, GR-DV3000EG, GR-DV3000EK Service Manual

SERVICE MANUAL

DIGITAL VIDEO CAMERA

VICTOR COMPANY OF JAPAN, LIMITED VIDEO DIVISION

S40894

GR-DV3000A/EA/ED/EG/EK/SH

SPECIFICATIONS

No. 86666

Power supply : DC 6.3 V (Using AC Power Adapter/Charger)

Power consumption

LCD monitor off, viewfinder on : Approx. 4.3 W LCD monitor on, viewfinder off : Approx. 5.4 W

Dimensions (W x H x D) : 76 mm x 90 mm x 194 mm

Weight : Approx. 660 g (without cassette, memory card and battery)

Operating temperature : 0°C to 40°C Operating humidity : 35% to 80% Storage temperature : –20°C to 50°C Pickup : 1/3.6" CCD Lens : F 1.2, f = 4.5 mm to 45 mm, 10:1 power zoom lens Filter diameter : ø52 mm LCD monitor : 3.5" diagonally measured, LCD panel/TFT active matrix system Viewfinder : Electronic viewfinder with 0.44" colour LCD Speaker : Monaural

Format : DV format (SD mode) Signal format : PAL standard Recording/Playback format : Video: Digital component recording

Cassette : Mini DV cassette Tape speed : SP: 18.8 mm/s

Maximum recording time : SP: 80 min. (using 80 min. cassette) LP: 120 min.

Storage media : SD Memory Card/MultiMediaCard Compression system : Still image : JPEG (compatible)

File size : Still image :

Picture quality : 2 modes (FINE/STANDARD) Approximate number of storable images (with the provided memory card [8 MB])

FINE : 32 (640 x 480 pixels), 14 (1024 x 768 pixels),

STANDARD : 110 (640 x 480 pixels), 46 (1024 x 768 pixels),

For other memory cards, 墌 pg. 17.

DC 7.2 V (Using battery pack)

(with the LCD monitor closed and the viewfinder pushed back in, without the lens hood)

Approx. 740 g (incl. cassette, memory card and battery)

Digital Video Camera

: Audio: PCM digital recording, 32 kHz 4-channel (12-bit),

48 kHz 2-channel (16-bit)

LP: 12.5 mm/s

Digital Still Camera Function

Moving image : MPEG4 (compatible)

Moving image : 2 modes (240 x 176 pixels, 160 x 120 pixels)

9 (1280 x 960 pixels), 6 (1600 x 1200 pixels)

30 (1280 x 960 pixels), 20 (1600 x 1200 pixels)

(The specifications shown pertain specifically to the model GR-DV3000EG/EK)

Camcorder

General

AV

Video output : 1 V (p-p), 75 Ω, analogue Video input : 0.5 V (p-p) – 2.0 V (p-p), 75 Ω, analogue Audio output : 300 mV (rms), 1 kΩ, analogue, stereo Audio input : 300 mV (rms), 50 kΩ, analogue, stereo

DV

Input/output : 4-pin, IEEE 1394 compliant

PHONE

Headphone output : ø3.5 mm, stereo

PRINTER : For an optional video printer equipped with a PRINT DATA

Connectors

connector

AC Power Adapter/Charger AA-V40EG or AA-V40EK

Power requirement : AC 110 V to 240 V`, 50 Hz/60 Hz Power consumption : 23 W Output

Charge : DC 7.2 V , 1.2 A

VTR : DC 6.3 V , 1.8 A Dimensions (W x H x D) : 68 mm x 38 mm x 110 mm Weight

AA-V40EG : Approx. 260 g

AA-V40EK : Approx. 340 g

Jack Box CU-V504U

General

Dimensions (W x H x D) : 37.5 mm x 18.5 mm x 55 mm Weight : Approx. 30 g

Connectors

USB : TYPE B S-VIDEO

4 modes (1600 x 1200 pixels, 1280 x 960 pixels, 1024 x 768 pixels, 640 x 480 pixels)

Output : Y: 1 V (p-p), 75 Ω, analogue

Input : Y: 0.8 V (p-p) – 1.2 V (p-p), 75 Ω, analogue

EDIT : ø3.5 mm, 2-pole

Specifications shown are for SP mode unless otherwise indicated. E & O.E. Design and specifications subject to change without notice.

C: 0.29 V (p-p), 75 Ω, analogue

C: 0.2 V (p-p) – 0.4 V (p-p), 75 Ω, analogue

Printed in Japan

This service manual is printed on 100% recycled paper.

No. 86666

January 2002

Important Safety Precautions

Prior to shipment from the factory, JVC products are strictly inspected to conform with the recognized product safety and electrical codes of the countries in which they are to be sold. However, in order to maintain such compliance, it is equally important to implement the following precautions when a set is being serviced.

Precautions during Servicing

•

1. Locations requiring special caution are denoted by labels and inscriptions on the cabinet, chassis and certain parts of the product. When performing service, be sure to read and comply with these and other cautionary notices appearing in the operation and service manuals.

2. Parts identified by the ! symbol and shaded ( ) parts are critical for safety. Replace only with specified part numbers.

Note: Parts in this category also include those specified to com-

ply with X-ray emission standards for products using cathode ray tubes and those specified for compliance with various regulations regarding spurious radiation emission.

3. Fuse replacement caution notice. Caution for continued protection against fire hazard. Replace only with same type and rated fuse(s) as specified.

4. Use specified internal wiring. Note especially:

1) Wires covered with PVC tubing

2) Double insulated wires

3) High voltage leads

5. Use specified insulating materials for hazardous live parts. Note especially:

1) Insulation Tape 3) Spacers 5) Barrier

2) PVC tubing 4) Insulation sheets for transistors

6. When replacing AC primary side components (transformers, power cords, noise blocking capacitors, etc.) wrap ends of wires securely about the terminals before soldering.

12. Crimp type wire connector In such cases as when replacing the power transformer in sets where the connections between the power cord and power transformer primary lead wires are performed using crimp type connectors, if replacing the connectors is unavoidable, in order to prevent safety hazards, perform carefully and precisely according to the following steps.

1) Connector part number : E03830-001

2) Required tool : Connector crimping tool of the proper type which

will not damage insulated parts.

3) Replacement procedure

(1) Remove the old connector by cutting the wires at a point

close to the connector. Important : Do not reuse a connector (discard it).

cut close to connector

Fig.3

(2) Strip about 15 mm of the insulation from the ends of the

wires. If the wires are stranded, twist the strands to avoid frayed conductors.

15 mm

Fig.1

7. Observe that wires do not contact heat producing parts (heatsinks, oxide metal film resistors, fusible resistors, etc.)

8. Check that replaced wires do not contact sharp edged or pointed parts.

9. When a power cord has been replaced, check that 10-15 kg of force in any direction will not loosen it.

Power cord

Fig.2

10. Also check areas surrounding repaired locations.

11. Products using cathode ray tubes (CRTs) In regard to such products, the cathode ray tubes themselves, the high voltage circuits, and related circuits are specified for compliance with recognized codes pertaining to X-ray emission. Consequently, when servicing these products, replace the cathode ray tubes and other parts with only the specified parts. Under no circumstances attempt to modify these circuits. Unauthorized modification can increase the high voltage value and cause X-ray emission from the cathode ray tube.

Fig.4

(3) Align the lengths of the wires to be connected. Insert the

wires fully into the connector.

Metal sleeve

Connector

Fig.5

(4) As shown in Fig.6, use the crimping tool to crimp the metal

sleeve at the center position. Be sure to crimp fully to the complete closure of the tool.

1

.2

5

2

.0

5

.5

Fig.6

(5) Check the four points noted in Fig.7.

Not easily pulled free

Wire insulation recessed

more than 4 mm

Fig.7

Crimping tool

Crimped at approx. center

of metal sleeve

Conductors extended

I

S40888-01

Safety Check after Servicing

•

Examine the area surrounding the repaired location for damage or deterioration. Observe that screws, parts and wires have been returned to original positions, Afterwards, perform the following tests and confirm the specified values in order to verify compliance with safety standards.

1. Insulation resistance test

Confirm the specified insulation resistance or greater between power cord plug prongs and externally exposed parts of the set (RF terminals, antenna terminals, video and audio input and output terminals, microphone jacks, earphone jacks, etc.). See table 1 below.

2. Dielectric strength test

Confirm specified dielectric strength or greater between power cord plug prongs and exposed accessible parts of the set (RF terminals, antenna terminals, video and audio input and output terminals, microphone jacks, earphone jacks, etc.). See table 1 below.

3. Clearance distance

When replacing primary circuit components, confirm specified clearance distance (d), (d’) between soldered terminals, and between terminals and surrounding metallic parts. See table 1 below.

Fig. 8

4. Leakage current test

Confirm specified or lower leakage current between earth ground/power cord plug prongs and externally exposed accessible parts (RF terminals, antenna terminals, video and audio input and output terminals, microphone jacks, earphone jacks, etc.). Measuring Method : (Power ON) Insert load Z between earth ground/power cord plug prongs and externally exposed accessible parts. Use an AC voltmeter to measure across both terminals of load Z. See figure 9 and following table 2.

Externally exposed accessible part

Fig. 9

Z

V

ab

A

c

5. Grounding (Class 1 model only)

Confirm specified or lower grounding impedance between earth pin in AC inlet and externally exposed accessible parts (Video in, Video out, Audio in, Audio out or Fixing screw etc.).

Measuring Method:

Connect milli ohm meter between earth pin in AC inlet and exposed accessible parts. See figure 10 and grounding specifications.

Fig. 10

Table 1 Specifications for each region

Table 2 Leakage current specifications for each region

Note: These tables are unofficial and for reference only. Be sure to confirm the precise values for your particular country and locality.

II

S40888-01

SECTION 1

DISASSEMBLY

1.1 BEFORE ASSEMBLY AND DISASSEMBLY

1.1.1 Precautions

1. Be sure to remove the power supply unit prior to mounting and soldering of parts.

2. When removing a component part that needs to disconnect the connector and to remove the screw for removing itself, first disconnect the connecting wire from the connector and then remove the screw beforehand.

3. When connecting and disconnecting the connectors, be careful not to damage the wire.

4. Carefully remove and handle the part to which some spacer or shield is attached for reinforcement or insulation.

5. When replacing chip parts (especially IC parts), desolder completely first (to prevent peeling of the pattern).

6. Tighten screws properly during the procedures. Unless specified otherwise, tighten screws at a torque of 0.078N

•

m(0.8kgf•cm).

1.1.2 Assembly and disassembly

STEP

No.

1 2

PART

ZOOM OPE UNIT Fig.1-3-1 3(S1),(L1a),5(L1b),CN1a- FRONT COVER Fig.1-3-2a CN2a,CN2b,2(S2a),(S2b), NOTE2a

ASSY (S2c),(S2d),2(S2e),CN2c NOTE2b

Fig.No.

POINT NOTE

NOTE2c NOTE2d

1.1.4 Disconnection of Connectors (Wires)

Connector Pull both ends of the connector in the arrow direction, remove the lock and disconnect the flat wire.

Flat wire

Connector

Fig. 1-1-1 Connector 1

Extend the locks in the direction of the arrow for unlocking and then pull out the wire. After removing the wire, immediately restore the locks to their original positions because the locks are apt to come off the connector.

Flat wire

(1) (2) (3) (4) (5)

(1) Indicate the disassembly steps. When assembling, per-

form in the reverse order of these steps. This number corresponds to the number in the disassembly diagram.

(2) Indicates the name of disassembly/assembly parts.

(3) Indicates the number in the disassembly diagram.

(4) Indicates parts and points such as screws, washers,

springs which must be removed during disassembly/ assembly.

Symbol Name, Point S Screw L Lock, Pawl, Hook SD Soldering

夡(Others) Connector, Cover, Bracket, etc.

(Example)

• 2 (S1) : Remove the two screws (S1) for removing

the part 1.

• CN 1a : Disconnect the connector 1a.

•SD1 : Unsolder at the point SD1.

(5) Precautions on disassembly/assembly.

1.1.3 Destination of connectors

Note:

Three kinds of double-arrows in connection tables respectively show kinds of connector/wires.

↔ : Wire ⇔ : Flat wire

: Board to Board connector

[Example]

Note:

Remove the parts marked in .

CONN.

No.

1a JUNCTION CN1102 ⇔ ZOOM OPE – 8

CONNECTOR

Pin No.

Connector

Fig. 1-1-2 Connector 2

B-B connector Pull the board by both the sides in the direction of the arrow for disconnecting the B-B connector.

Connector

Fig. 1-1-3 Connector 3

Connector

Fig. 1-1-4 Connector 4

1-1

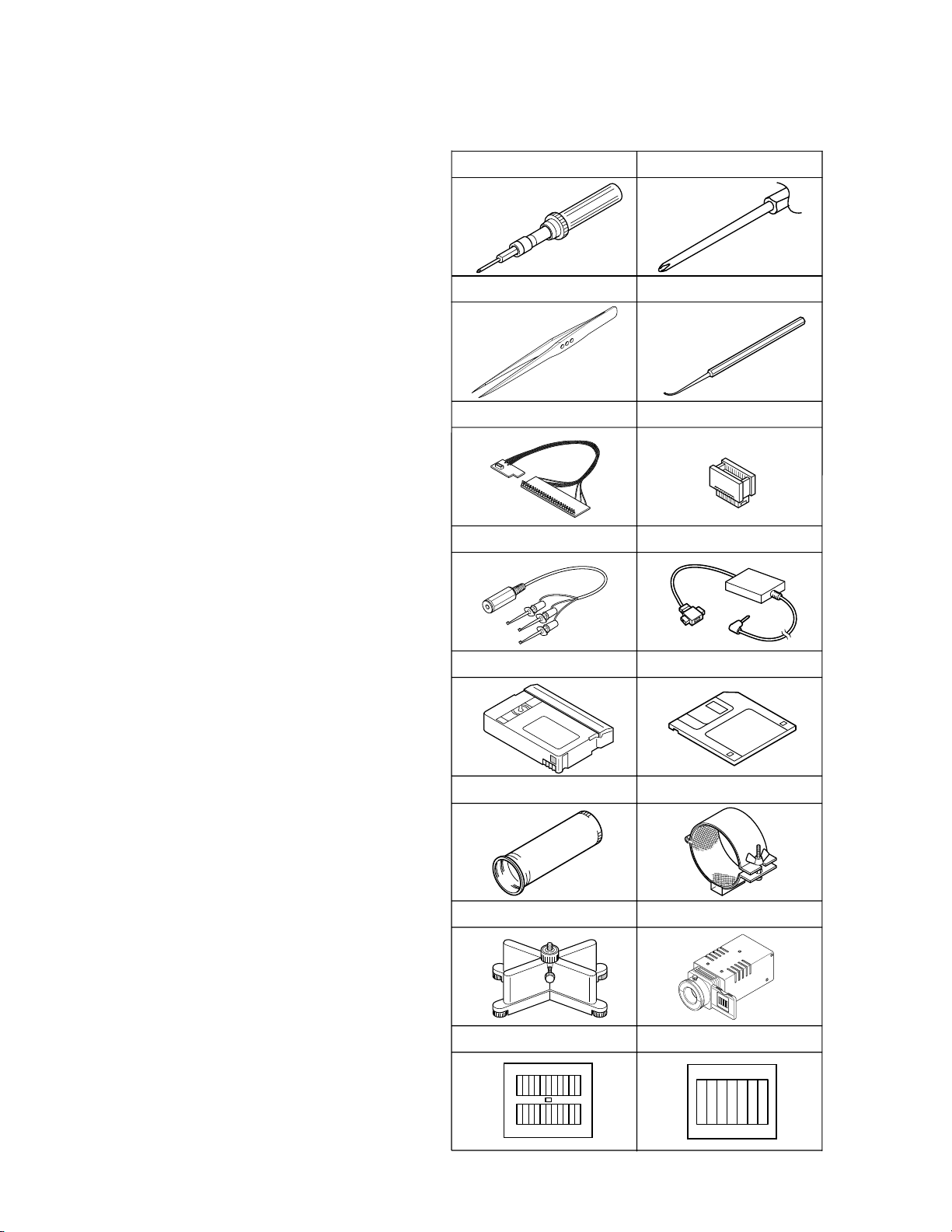

1.2 JIGS AND TOOLS REQUIRED FOR DISASSEMBLY,

2

1

3

4

5

6

7

8

9

0

!

ASSEMBLY AND ADJUSTMENT

1.2.1 Tools required for adjustments

1

Torque driver

YTU94088

2

Bit

YTU94088-003

1.3 DISASSEMBLY/ASSEMBLY OF CABINET PARTS AND BOARD ASSEMBLY

1.3.1 Disassembly flow chart

This flowchart indicates the disassembly step for the cabinet parts and board assembly in order to gain access to item(s) to be serviced. When reassembling, perform the step(s) in reverse order.

ZOOM OPE UNIT

3

5

1. Torque driver

2. Bit

3. Tweezers

4. Chip IC replacement jig

5. Cleaning cloth

Tweezers

P-895

Cleaning cloth

KSMM-01

Be sure to use to fastening the mechanism and exterior parts because those parts must strictly be controlled for tightening torque.

This bit is slightly longer than those set in conventional torque drivers.

To be used for removing and installing parts and wires.

To be used for adjustment of the camera system.

Recommended cleaning cloth to wipe down the video heads, mechanism (tape transport system), optical lens surface.

4

Table 1-2-1

Chip IC replacement jig

PTS40844-2

FRONT COVER ASSY

(Inc. FE SW BOARD ASSY,

FRONT BOARD ASSY,

JUNCTION BOARD ASSY,

SHOE ASSY, SW FPC UNIT,

FOCUS UNIT, MICROPHONE)

UPPER CASE ASSY

(Inc.

MONITOR ASSY)

@

OP BLOCK ASSY

DSC BOARD ASSY

REAR COVER ASSY

E. VF ASSY

LOWER CASE ASSY

MAIN BOARD ASSY

/

PRE/MDA BOARD ASSY,

MECHANISM ASSY

Table 1-3-1

1-2

1.3.2 Disassembly method

STEP

No.

1 2

3

PART

ZOOM OPE UNIT Fig.1-3-1 3(S1),(L1a),5(L1b),CN1a- FRONT COVER Fig.1-3-2a CN2a,CN2b,2(S2a),(S2b), NOTE2a

ASSY (S2c),(S2d),2(S2e),CN2c NOTE2b

FRONT BOARD ASSY FE SW BOARD ASSY JUNCTION BOARD

ASSY CN2f,CN2g SHOE ASSY Fig1-3-2c (S2h) SW FPC UNIT (S2f),COVER(MENU),(S2f) FOUCUS UNIT 2(S2h),SPACER MICROPHONE 2(S2j)

UPPER CASE ASSY Inc.MONITOR ASSY

Fig.No.

Fig1-3-2b (S2f),CN2d,CN2e NOTE2e

2(S2f),CN2h NOTE2f (S2g),2(L2),2(S2f),

Fig.1-3-3 3(S3a),6(S3b),(S3c),CN3a NOTE3a

POINT NOTE

NOTE2c NOTE2d

NOTE3b NOTE3c

4 OP BLOCK ASSY Fig.1-3-4 CN4a,CN4b,CN4c, NOTE4

2(S4),(L4a),(L4b)

5

DSC BOARD ASSY

6

REAR COVER ASSY

Fig.1-3-5 (L5),CN5a,CN5b NOTE5 Fig.1-3-6 CN6a,2(S6a),(S6b) -

7 E.VF ASSY Fig.1-3-7 CN7a,(S7a),2(S7b),(L7a), NOTE7

(L7b),2(L7c)

8

LOWER CASE ASSY

9

MAIN BOARD ASSY

Fig.1-3-8 CN8a,CN8b,3(S8a),(S8b), -

2(L8a),(L8b)

Fig.1-3-9 CN9a,(S9),(L9)

0 PRE/MDA BOARD Fig.1-3-10 3(S0a),BKT(MECHA)ASSY, NOTE0a

/ ASSY, 2(S0b), NOTE0b

!

MECHANISM ASSY

SHIELD COVER(PRE/REC), (L0),CN0a,CN0b,CN0c, CN0d,CN0e,CN0f 3(S0b)

Table 1-3-2

NOTE 2a:

Open the cassette cover after removing the screws.

NOTE 2b:

NOTE 2c:

Be sure to confirm the position of the screws.

Be careful not to damage the FPC when unplugging it.

NOTE 2d:

As the result of the above steps, be careful not to damage any of its parts. Take particular care not to scratch the lens surfaces.

NOTE 2e:

NOTE 2f:

Treat the microphone wire with care.

When mounting, be careful not to damage the switches.

NOTE 3a/3b:

NOTE 3c:

For the disassembly of the bly, see section 1.6, “Disassembly/Assembly of

@

NOTE 4:

NOTE 5:

NOTE 7:

NOTE 0a:

NOTE 0b:

For the disassembly of the 4 OP block assembly, see section 1.4, “Disasembly/Assembly of

4

Be careful not to damage the CONNECTOR.

For the disassembly of the

1.4, “Disassembly/Assembly of

The FPC of the loading motor should be mounted by inserting it between the Mechanism Assembly and the PRE/MDA Board Assembly.

When mounting the shield cover, push down the FPC of the drum while attaching it.

OP Block Assembly is exposed as a

7

Be sure to confirm the position of the screws.

Monitor Assem-

@

Monitor Assembly”.

OP block assembly.

E.VF, see section

7

E.VF”.

7

Remove the parts marked in .

Note:

CONN.

No.

CN1a JUNCTION CN1102 ⇔ ZOOM OPE UNIT – 8 CN2a JUNCTION CN1101 ⇔ MAIN CN112 16 CN2b MAIN CN103 ⇔ SHOE ASSY – 16 CN2c FRONT CN2413 ⇔ EJECT CN2411 6 CN2d FRONT CN2412 ↔ MICROPHONE – 3 CN2e FRONT CN2411 ⇔ SW FPC UNIT – 6

CN2f JUNCTION CN1104 ⇔ FOCUS UNIT – 6 CN2g JUNCTION CN1105 ↔ MICROPHONE – 3 CN2h FE SW CN1181 ↔ JUNCTION CN1103 3 CN3a MAIN CN108 MONITOR – 50 CN4a MAIN CN101 ↔ CCD – 2 CN4b MAIN CN102 ⇔ CCD – 20 CN4c MAIN CN104 ⇔ OP BLOCK ASSY – 24 CN5a DSC CN8401 MAIN CN105 80 CN5b DSC CN8402 ⇔ JACK CN301 20/45 CN6a MAIN CN109 REG CN601 80 CN7a MAIN CN110 ⇔ CN8a EJECT CN2422 ⇔ MAIN CN113 6 CN8b JACK CN301 ⇔ MAIN CN111 24/45 CN9a MAIN CN106 PRE/MDA CN401 80 CN0a PRE/MDA CN406 ⇔ SENSOR – 16 CN0c PRE/MDA CN404 ⇔ DRUM MOTOR – 11 CN0d PRE/MDA CN402 ⇔ HEAD – 8 CN0e PRE/MDA CN407 ⇔

CN0f PRE/MDA CN403 ⇔

CONNECTOR

E.VF ASSY(VF BL)

ROTARY ENCODER LOADING MOTOR

Pin No.

CN501 22

– 6 – 6

Table 1-3-3

1-3

1

CN a

(L b)

1

(L a)

1

2

CN g

15

(S f)

2

14

(S g)

NOTE e

2

WIRERING

3

(S )

1

(S )

1

2

(S )

1

2

(L )

2

CN f

(S f)

CN d

16

2

JUNCTION BOARD ASSY

NOTE f

2

FE SW

BOARD ASSY

11

(S f)

2

CN h

CN e

FRONT BOARD ASSY

MIC

WIRE

12

(S f)

2

13

(S f)

2

6

(S b)

2

NOTE a

2

Fig. 1-3-1

2

NOTE a

7

(S c)

2 2

4

(S a)

2

NOTE d

8

(S d)

2

NOTE b

2

NOTE a

2

NOTE c

CN c

CN b

2

(S a)

2

CN a

5

2

NOTE a

Fig. 1-3-2b

9

(S e)

2

10

(S e)

2

(BOTTOM)

8

1-4

7

Fig. 1-3-2a

(

)

FOCUS UNIT

18

(S f)

2

22

(S j)

2

SHOE ASSY

20

(S h)

2

21

(S h)

2

17

(S h)

23

(S j)

2

SW FPC UNIT

COVER (MENU)

2

19

(S f)

2

NOTE 3 a

27

28

29

27

(S b)

3

NOTE 3 a

(BOTTOM)

30

31

26

(S a)

3

NOTE 3 c

MICROPHONE

Fig. 1-3-2c

(S c)

NOTE 3 b

25

(S a)

3

33

3

28

(S b)

3

(S b)

3

CN a

29

3

30

S b

3

NOTE 3 c

12

NOTE 3 b

32

(S b)

3

24

(S a)

3

31

(S b)

3

NOTE 3 b

32

33

Fig. 1-3-3

1-5

NOTE

6

(L a)

(L b)

4

(S )

35

(S )

34

4

CN c

4

CN b

CN a

4

6

CN a

38

(S b)

6

36

(S a)

6

37

(S a)

6

5

CN a

Fig. 1-3-4

5

(L )

5

CN b

NOTE

Fig. 1-3-6

41

(S b)

7

40

(S b)

7

(L a)

7

(L b)

(L c)

7

CN a

7

NOTE

5

39

(S a)

7

1-6

Fig. 1-3-5

Fig. 1-3-7

9

10

(L )

9

46

(S )

9

CN a

9

(L a)

8

CN a

44

(S a)

8

45

(S b)

8

CN b

(L b)

8

42

(S a)

8

43

(S a)

8

9810 11

Fig. 1-3-8 Fig. 1-3-9

NOTE a

10

NOTE a

10

NOTE b

10

CN c

10

CN d

10

CN e

10

CN f

10

CN407

CN403

FPC

SHIELD COVER (PRE/REC)

∗

CN b

10

11

CN a

10

NOTE b

10

FPC

54

(S b)

10

52

∗

(S b)

10

∗

53

(S b)

10

(L )

BKT (MECHA) ASSY

10

(S b)

51

(S b)

10

∗

50

10

∗

49

(S a)

10

47

(S a)

48

(S a)

10

: 0.069 N•m (0.7 kgf•cm)

∗

Fig. 1-3-10

1-7

1.4 DISASSEMBLY OF THE 4 OP BLOCK AND CCD BOARD ASSEMBLIES

1.4.1 Precautions

1. Take care in handling the CCD image sensor, optical LPF

and lens components2when performing maintenance etc., especially with regard to surface contamination, attached dust or scratching. If fingerprints are present on the surface they should be wiped away using either a silicon paper, clean chamois or the cleaning cloth recommended by the Video Product Division.

2. The CCD image sensor may have been shipped with a

protective sheet attached to the transmitting glass. When replacing the CCD image sensor, do not peel off this sheet from the new part until immediately before it is mounted in the OP Block Assembly.

1.4.2 How to remove

1. Remove the solder (SD1) from the 16 soldered points

on the CCD Board Assembly and take the assembly out.

2. Remove the two screws (1, 2) and take out the CCD Base

Assembly.

Note

a:

When removing the CCD Base Assembly, be

4

careful not to take out the CCD image sensor together with the spacer rubbers attached to it.

Note 4b:

The CCD image sensor should not be replaced as a single part but should be replaced together with the entire CCD Base Assembly.

1.4.3 How to install

1. With the spacer rubbers attached to the CCD base, mount the CCD base in the OP Block Assembly and tighten them together using the two screws (1, 2).

2. Mount the CCD Board Assembly and attach solder to the 16 points (SD1).

1.4.4 Replacement of Service Repair Parts

The service repair parts for the OP Block Assembly are as listed below. Before replacement of these parts, remove the bracket (OP assyembly) as required. Take special care not to disconnect any of the FPC wires or cause any damage due to soldering (excessive heating).

1. Focusing motor

2. Zoom motor

3. Iris motor unit

Note

c:

When replacing the focusing motor or the zoom

4

motor, solder the FPC at a space of about 1 mm above the terminal pin. When assembling, make sure that the slide section is positioned correctly.

Note 4d:

The iris motor unit includes the FPC Assembly, switch and two sensors.

Note 4e:

Be careful not to damage the switch.

BRAKET (OP) ASSY

NOTE 4 c

ZOOM MOTOR

∗

3

4

(S c)

∗

4 4

(S c)

∗∗

10

4

(S b)

(S c)

(S b)

∗

9 4

∗∗

11

4

(S d)

∗

7 4

BLUE

OP

side

∗

5 4

(S c)

CCD

side

THIN

THICK

NOTE 4 a OPTICAL LPF

∗

8 4

(S d)

∗

6

4

(S c)

(SD 1 )

NOTE 4 b

BASE ASSY

NOTE 4 a SPACER RUBBER

FOCUS MOTOR

NOTE 4 c

∗

1 4

(S a)

∗

2 4

(S a)

CCD BORD ASSY

1-8

NOTE 4 c/ 4 d/ 4 e IRIS MOTOR UNIT

Fig. 1-4-1

•

∗ : 0.118 N ∗∗ : 0.147 N•m (1.5kgf•cm)

m (1.2kgf•cm)

1.57 E.VF(COLOR)

1.5.1. Disassembly/Assembly of the 7 E.VF(COLOR)

1. Remove the two screws (1 and 2) and then remove the EYE CUP.

2. Remove the two screws (3 and 4).

3. Pull out the VF assembly and then remove the three screws (5 to 7) to release the FPC ASSY.

4. Remove the two screws (8 and 9) then lift the E.VF from the BRACKET (VF) ASSY and take out the FPC ASSY.

Note

a :

Be careful not to disconnect or break the FPC

7

ASSY wire.

5. Remove the two screws (10 and 11) to remove the UPPER CASE ASSY.

6. Remove the LCD UNIT from the BOTTOM CASE ASSY.

Note

b :

Refer to the parts list for detail of the parts.

7

7. Remove the screw (12) and then remove the HOLD ASSY (for lens), LINK (for lens), wave washer, LEVER (for lens).

5 7

(S c)

6 7

(S c)

NOTE a FPC ASSY

7 7

(S d)

UPPER CASE ASSY

3

7

(S b)

7

4 7

(S b)

NOTE b

7

LCD UNIT

HOLD ASSY

(for lens)

LINK

(S a)

(for lens)

∗

1 7

EYE CUP

∗

2

7

(S a)

Wave washer

BOTTOM CASE ASSY

10

7

(S e)

11

7

(S e)

8 7

(S e)

BRACKET (VF) ASSY

9 7

(S e)

Fig. 1-5-1

∗

12

7

(S e)

LEVER (for lens)

: 0.059 N•m (0.6kgf•cm)

∗

1-9

1.6 DISASSEMBLY/ASSEMBLY OF THE @ MONITOR ASSEMBLY

1.6.1

Monitor Assembly and Hinge Assembly

@

Note:

Before proceeding to the work, separate the Monitor As-

•

sembly from the Upper Case Assembly as required.

1. Remove the four screws (1 to 4), disengage the four

hooks (L@a to L@d) in order, and take out the Monitor Cover Assembly.

2. Unlock the connector ( @a ) and, while lifting the Hinge

Assembly, unplug and take out the FPC.

3. Remove the screw (5) and take out the bracket (MONI-

TOR CASE).

4. Unplug the FPC from the connector ( @b ) and take out

the Monitor Board Assembly and the backlight.

5. Remove the LCD module by disengaging the five hooks

(L@e to L@j).

6. Remove the two screws (6, 7) and take out the hinge

covers (U, L) by disengaging the four hooks (L@k, L@l) at both sides of each of the hinge covers.

7. Remove the FPC Assembly from the Hinge Assembly.

12

NOTE e,g

FPC ASSY

HINGE ASSY

∗

1

12

(S a)

Note

Note @b:

Note @c:

Note @d:

Note @e:

Note @f:

Note @g:

12

(L a)

(S a)

∗

2

12

a:

Be careful not to damage the FPC or the connec-

@

tor when removing the Monitor Cover Assembly. Be careful not to damage the parts when remov-

ing or mounting the Hinge Assembly.

To unplug the FPC, release only the lock of the connector and remove the FPC together with the Hinge Assembly.

As the backlight is soldered at two points on the Monitor Board Assembly, the solder should be removed when disassembling the backlight as a single part.

Take care when handling the FPC. Be careful not to lose the magnets and attach

them in the correct orientation.

When mounting the FPC Assembly, wrap it around the Hinge Assembly by 3-1/2 turns.

12

(L d)

a

12

(L b)

(S b)

3

12

NOTE a MONITOR COVER ASSY

12

(L c)

4

12

(S b)

12

NOTE f

MARKING

12

NOTE d

WIRE

12

NOTE c,e

FPC ASSY

CN a

HINGE COVER (L)

6

12

(S d)

7

12

(S d)

NOTE b HINGE ASSY

MAGNETS NOTE

12

(L k)

HINGE COVER (U)

∗ : 0.118 N•m (1.2kgf•cm)

12

(L l)

(L j)

12

f

12

NOTE d

BACK LIGHT

(L g)

12

(L h)

CN b

MONITOR CASE ASSY

12

(L f)

MONITOR BOARD ASSY

12

LCD MODULE

5 12

(S c)

12

(L e)

BRACKET

(MONI CASE)

1-10

Fig. 1-6-1

1.7 MANUAL EJECTION OF THE CASSETTE TAPE

Note:

The following procedure describes a simplified method of ejecting the cassette tape in case it is not possible to eject it, due to an electrical failure.

Be careful not to damage any of the parts or the tape when performing repairs or maintenance work.

1. Remove the Power Unit (battery, DC code, etc.) from the main unit.

2. Open the cassette cover.

3. Attach a piece of PVC tape at the front of the cassette housing.

Note:

This helps prevent the tape from being damaged when the Cassette Housing Assembly is moved upward at the unloading end.

(DC3V)

4. In order to change the mechanism mode at the unloading end apply 3 V, DC to the electrode on the top surface of the Loading Motor Assembly and then set it to the eject mode.

5. If there is any slack tape in the tape transport system, wind it inside the cassette tape by turning the Supply Reel Disk from the backside of the Slide Deck Assembly.

6. Peel off the PVC tape and take out the cassette tape from the cassette housing.

Note:

Make sure that grease or a similar substance is not attached to the surface of the tape.

Similarly, also make sure that grease or a similar sub-

stance is not attached on the Mechanism

Assembly.

PVC TAPE

REEL DISK ASSY (SUP)

Fig. 1-7-1

1-11

1.8 EMERGENCY DISPLAY

Whenever some abnormal signal is input to the syscon CPU, an error number (E01, as an example) is displayed on the LCD monitor or (in the electronic view finder). In every error status, such the message as shown below alternately appear over and over.

• In an emergency mode, all operations except turning on/ off the POWER switch are ineffectual.

Example (in case of the error number E01):

UNIT IN

E01

SAFEGUARD MODE

E01 REMOVE AND REATTACH BATTERY

LCD

display

E01 LOADING

E02 UNLOADING

E03 TU & SUP REEL

E04 DRUM FG

Emergency

mode

FG

Details Possible cause

In the case the encoder position is not shifted to the next point though the loading motor has rotated in the loading direction for 4 seconds or more. This error is defined as [E01].

In the case the encoder position is not shifted to the next point though the loading motor has rotated in the unloading direction for 4 seconds or more. This error is defined as [E02].

In the case no REEL FG is produced for 4 seconds or more in the capstan rotation mode after loading was complete, the mechanism mode is shifted to STOP with the pinch roller set off. This error is defined as [E03]. However, no REEL EMG is detected in the SLOW/STILL mode.

In the case there is no DRUM FG input in the drum rotation mode for 4 seconds or more. This error is defined as [E04], and the mechanism mode is shifted to STOP with the pinch roller set off.

1. The mechanism is locked during mode shift.

2. The mechanism is locked at the mechanism loading end, because the encoder position is skipped during mechanism mode shift.

3. No power is supplied to the loading MDA.

1. The mechanism is locked during mode shift.

2. The mechanism is locked at the mechanism loading end, because the encoder position is skipped during mechanism mode shift.

1. The idler gear does not engage with the reel disk well.

2. Though the idler gear and reel disk are engaged with each other, the tape is not wound because of overload to the mechanism.

3. No FG pulse is output from the reel sensor.

4. No power is supplied to the reel sensor.

5. Tape transport operation takes place with a cassette having no tape inside.

6. The tape slackens and no pulse is produced until the slack is taken up and the tape comes into the normal status.

1. The drum cannot be started or drum rotation is stopped because tape transport load is too high.

1) Tape tension is extremely high.

2) The tape is damaged or soiled with grease, etc.

2. The DRUM FG signal is not received by the syscon CPU.

1) Disconnection in the middle of the signal line.

2) Failure of the DRUM FG pulse generator (hall element).

3. No drum control voltage is supplied to the MDA.

4. No power is supplied to the DRUM MDA.

E05 –

E06 CAPSTAN FG

1-12

– –

In the case no CAPSTAN FG is produced in the capstan rotation mode for 2 seconds or more. This error is defined as [E06], and the mechanism mode is shifted to STOP with the pinch roller set off. However, no CAPSTAN EMG is detected in the STILL/FF/REW mode.

1. The CAPSTAN FG signal is not received by the syscon CPU.

1) Disconnection in the middle of the signal line.

2) Failure of the CAPSTAN FG pulse generator (MR

element).

2. No capstan control voltage is supplied to the MDA.

3. No power is supplied to the CAPSTAN MDA.

4. The capstan cannot be started or capstan rotation is stopped because tape transport load is too high.

1) Tape tension is extremely high. (Mechanical

locking)

2) The tape is damaged or soiled with grease, etc.

(Tape tangling occurs, etc.)

Table 1-8-1

(DVC_03)

1.9 SERVICE NOTE

1234 5

99 99 9 9

6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23

1

Fig. 1-3-1

Fig. 1-3-2a

Fig. 1-3-2cFig. 1-3-2b

Symbol No.

Removing order of screw

Place to stick screw

Reference drawing

Screw tightening torque

→

Symbol No.

Removing order of screw

Place to stick screw

Reference drawing

Screw tightening torque

→

Symbol No.

Removing order of screw

Place to stick screw

Reference drawing

Screw tightening torque

→

12

34 567

MONITOR ASSY

I

III

Removing order of screw

Place to stick screw

Reference drawing

Screw tightening torque

→

4

OP BLOCK ASSY

Fig. 1-4-1

IVIII

12

34

5678

9

10

11

< NOTE >

1)

9

;

Don't reuse the screw, because screw lock bond was applied to them.

2) Pay careful attention to tightening torque for each screw.

I

: 0.069N·m (0.7kgf

·cm)

: 0.078N

·m (0.8kgf·cm)

IIIII

: 0.059N·m (0.6kgf·cm)

IV

: 0.118N·m (1.2kgf

·cm)

V: 0.147N

·m (1.5kgf·cm)

Fig. 1-6-1

→

9999

99

I

99 9 9999

24 25 26 27 28 29 30 31 32 33 34 35 –

–

36 37 38 39 40 41

3

5

2

764

Fig. 1-3-3 Fig. 1-3-4 Fig. 1-3-5 Fig. 1-3-6 Fig. 1-3-7

II

42 43 44 45 46

99

47 48 49 50 51 52 53 54

098!

@

Fig. 1-3-8

Fig. 1-3-9 Fig. 1-3-10

/

Symbol No.

Removing order of screw

Place to stick screw

Reference drawing

Screw tightening torque

→

IIII

7

Fig. 1-5-1

E. VF ASSY

VVI

12345 67 8

9101112

Table 1-9-1

1-13

SECTION 2

MECHANISM ADJUSTMENT

2.1 PRELIMINARY REMARKS ON ADJUSTMENT AND REPAIR

2.1.1 Precautions

1. When fastening parts, pay careful attention to the tight-

ening torque of each screw. Unless otherwise specified, tighten a screw with the torque of 0.039 N

2. Be sure to disconnect the set from the power supply be-

fore fastening and soldering parts.

3. When disconnecting/connecting wires, be careful not to

get them and their connectors damaged. (Refer to the Section 1.)

4. When replacing parts, be very careful neither to dam-

age other parts nor to fit wrong parts by mistake.

5. In the following work, use the patch cords as required.

For details of the patch cords, see the “4.1 BOARD INTERCONNECTIONS” (SECTION 4, CHART AND DIAGRAM).

6. Some mechanism parts may be added to or deleted from

the parts list depending on a particular product modification. Please refer to the “SECTION 5, PARTS LIST” for details of the parts available.

2.1.2 Notes on procedure for disassemby/assembly

The disassembling procedure table (Table 2-4-1 on page 2-5,a part of the table is shown below for reference)shows the procedure to disassemble/reassemble mechanism parts. Carefully read the following explanation before starting actual disassembling/reassembling work. The item numbers (circled numbers)in the following explanation correspond to those appearing under respective columns of the table.

(1) Circled numbers appearing in this column indicate the

order to remove parts. When reassembling, follow these numbers in the reverse order. Circled numbers in this column correspond to those appearing in drawings of this section.

(2) This column shows part names corresponding to circled

numbers in the left column.

•

m (0.4 kgf•cm).

(3) The symbol (T or B)appearing in this column shows the

side which the objective part is mounted on. T =the upper side, B =the lower side

(4) Symbols appearing in this column indicate drawing

numbers. Step Part Name Fig. Point Note Remarks

(5) This column indicates parts and points such as screws,

washers,springs,and others to be removed/fitted for disassembling/reassembling the mechanism. Besides such the parts, this column occasionally indicates working points.

P = Spring W = Washer S = Screw ∗ = Lock (L),soldering (SD),shield,connector (CN),

etc.

Example • Remove ((W1)=Washer W1.

• ∗Remove the solder at (SD1)=Point SD1.

• ∗Disconnect

(6) Numbers in this column represent the numbers of notes

in the text.For example, “1” means “Note 1”. (For parts that need phase adjustment after reassembling, refer to “2.6 MECHANISM ADJUSTMENTS”.)

(7) This column indicates required after-disassembling/-re-

assembling work such as phase adjustment or mechanism adjustment.

=Connector Å .

Å

NO. PART NAME FIG. POINT NOTE REMARKS

1 CASSETTE HOUSING ASSY T Fig.2-4-3 3(S1),(L1a)-(L1e)

2 UPPER BASE ASSY T Fig.2-4-4 (S2),(L2a),(L2b)

3 DRUM ASSY T (S3a),2(S3b)

4 REEL DISK ASSY(SUP) T Fig.2-4-5 (W4)

5 REEL DISK ASSY(TU) T (W5)

6 REEL COVER ASSY T 2(W6),(S6a),2(S6b)

(1) (2) (3) (4) (5) (6) (7)

2-1

NOTE1a,b,c,d

NOTE

2

NOTE3a,b

NOTE4a

NOTE

5

NOTE

6

ADJUSTMENT

2.2 JIGS AND TOOLS REQUIRED FOR DISASSEMBLY, ASSEMBLY AND ADJUSTMENT

2.2.1 Tools required for adjustments

1

3

5

7

9

11

13

15

Torque driver

YTU94088

Tweezers

P-895

Guide driver (Hexagonal)

D-770-1.27

Slit washer installation jig

YTU94121A

Jig connector cable

YTU93106B

Communication cable

YTU93107A

Alignment tape

MC-2

Cleaning cloth

KSMM-01

2

Chip IC replacement jig

4

6

Service support system

8

10

12

14

Bit

YTU94088-003

PTS40844-2

Adjustment driver

YTU94028

YTU94057-55

Extension connector

YTU94145C-30

PC cable

QAM0099-002

Cassette torque meter

YTU94151A

1. Torque driver

Be sure to use to fastening the mechanism and exterior parts because those parts must strictly be controlled for tightening torque.

2. Bit

This bit is slightly longer than those set in conventional torque drivers.

3. Tweezers

To be used for removing and installing parts and wires.

4. Chip IC replacement jig

To be used for adjustment of the camera system.

5. Guide driver (Hexagonal)

To be used to turn the guide roller to adjustment of the linarity of playback envelope.

6. Adjustment driver

To be used for adjustment.

7. Slit washer installation jig

To be used to install slit washers.

8. Service support system

To be used for adjustment with a personal computer.

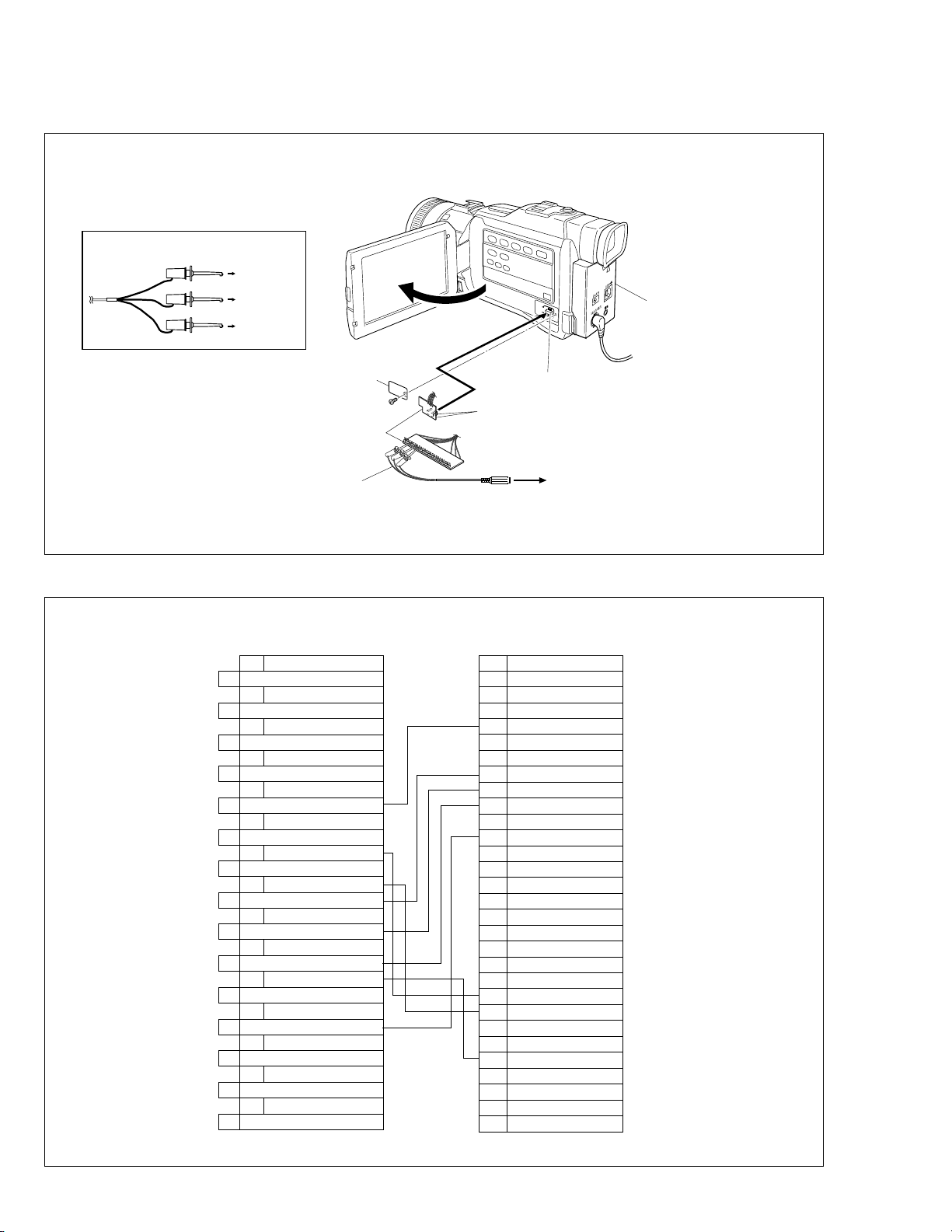

9. Jig connector cable

Connected to CN107 of the main board and used for electrical adjustment, etc.

10. Extension connector

Connect this extension connector to the connector of the jig connector cable for extending the cable connector.

Removing the cover (for jig), use this extension con-

Note:

nector double for connecting the jig connector cable.

11. Communication cable

Connect the Communication cable between the PC cable and Jig connector cable when performing a PC adjustment.

12. PC cable

To be used to connect the VideoMovie and a personal computer with each other when a personal computer is used for adjustment.

13. Alignment tape

To be used for check and adjustment of interchangeability of the mechanism.

14. Cassette torque meter

This is used to cheek the back tension and play torque during mechanism adjustment.

When using the cassette torque meter, install the

Note:

service support system software in advance.

•

LED : Forced to ON

•

EJECT SW : OFF (Cancel)

The above setting is required to prevent any tape damage that may occur because the cassette torque meter cannot detect the leading/trailing sections of the tape.

15. Cleaning cloth

Recommended cleaning cloth to wipe down the video heads, mechanism (tape transport system), optical lens surface.

Table 2-2-1

2-2

2.3 DISASSEMBLY/ASSEMBLY OF MECHANISM ASSEMBLY

2.3.1 General statement

The mechanism should generally be disassembled/assembled in the C.IN mode (ASSEMBLY mode). (Refer to Fig. 2-3-1,2.) However, when the mechanism is removed from the main body, it is set in the STOP mode. Therefore, after the mechanism is removed from the main body, supply 3 V DC to the electrode on the top of the loading motor to enter the mechanism mode into the C,IN mode compulsory.

2.3.2 Explanation of mechanism mode

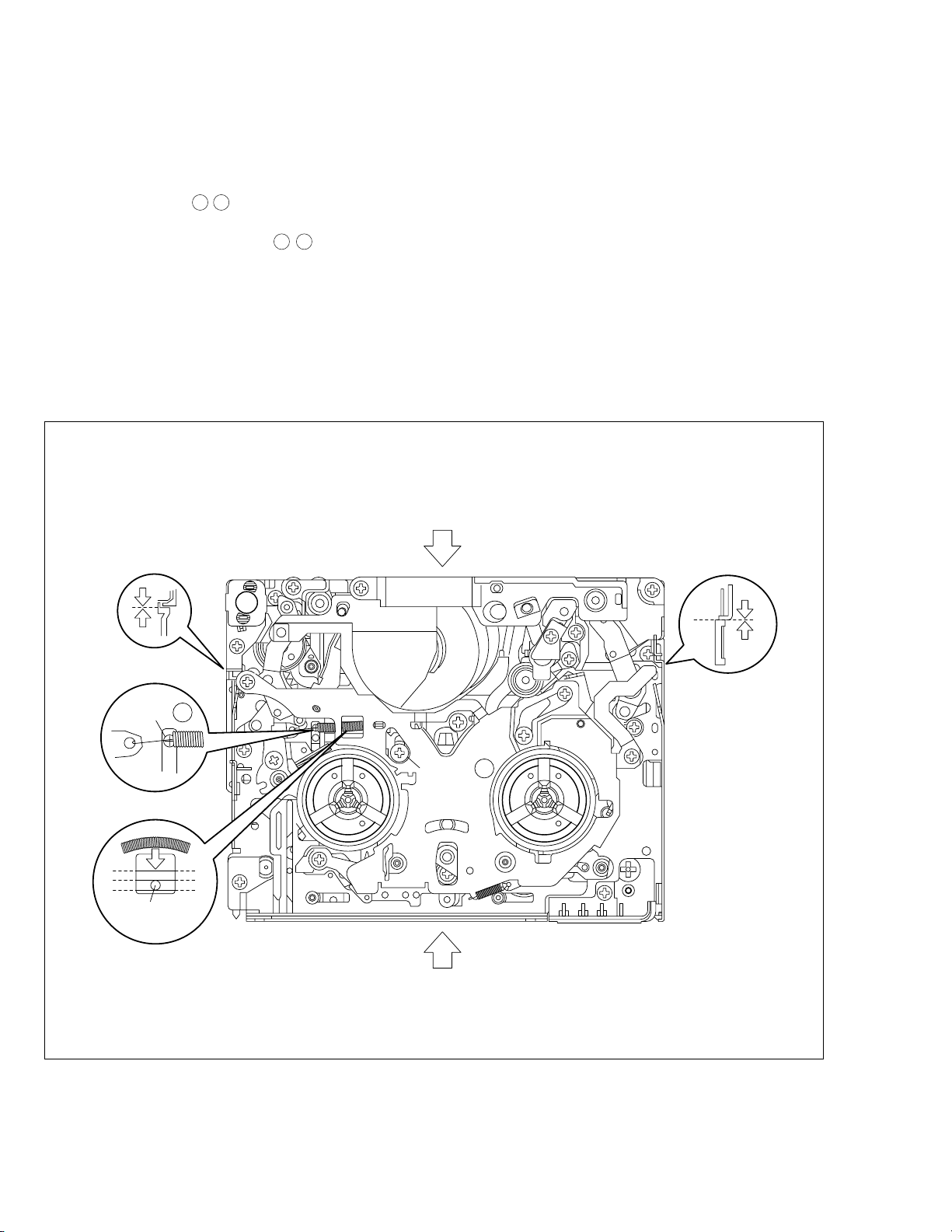

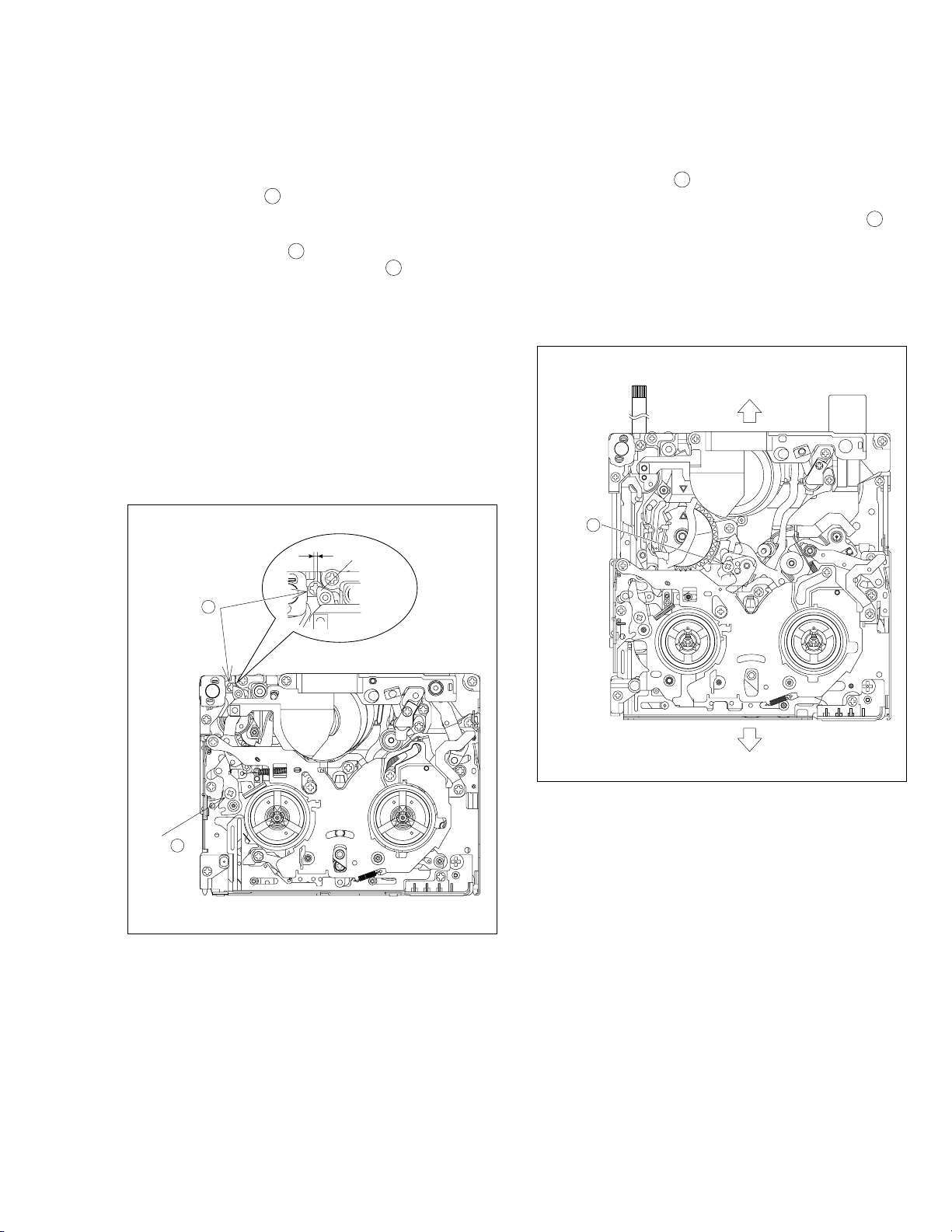

The mechanism mode of this model is classified into five modes as shown in Table 2-3-1. Each mechanism mode can be distinguished from others by the relative position

”, “Q”, “Q” “ ” marks on the sub cam gear to the in-

of “ ner or outer protrusion on the main deck. Refer to Fig. 2-3-3 to 2-3-8 below.

DC3V

TOP VIEW BOTTOM VIEW

Fig. 2-3-3

LOADING MOTOR

Fig. 2-3-4

Fig. 2-3-5

Fig. 2-3-1

C IN mode

Back side of deck

Fig. 2-3-2

2-3

Fig. 2-3-6

Fig. 2-3-7

Fig. 2-3-8

EJECT LEVER

PARTS

MODE

ON

EJECT

RELEASE

-15° (27.14°) (84.08°) (97.35°) (182.10°) (185.63°)71°0°

-13°-3° 3° 68°

215°

212° 218°

257.3°

254.3° 260.3°

295°

-12.40° (22.44°) (69.53°) (80.5°) (150.58°) (153.5°)58.71°0° 177.79° 212.77° 243.94°

-16.97° (30.71°) (95.14°) (110.06°) (206.06°) (210.05°)80.34°0° 243.29° 291.16° 333.82°

292° 310°74°

L. END

LOCK

OFF

TU ARM

ON

OFF

SLIDE DECK

LOAD

UL

BRAKE (S)

ON

OFF

BRAKE (T)

ON

OFF

RELEASE LEVER

ROTARY ENCODER

MAIN CAM

SUB CAM

ON

a

OFF

CTL PLATE

C

R

L

TENSION ARM

UL

L. END

OFFPAD ARM

UL

L. END

LOADSUP. L. ARM

UL

L. END

LOADTU. L. ARM

UL

PRESS

LOADP. ROLLER

UL

b

c

CAS. IN

SHORT

STOP PLAYREVFWD

TU. P. B

START

TU. P. B

END END

SLIDE SLIDE START

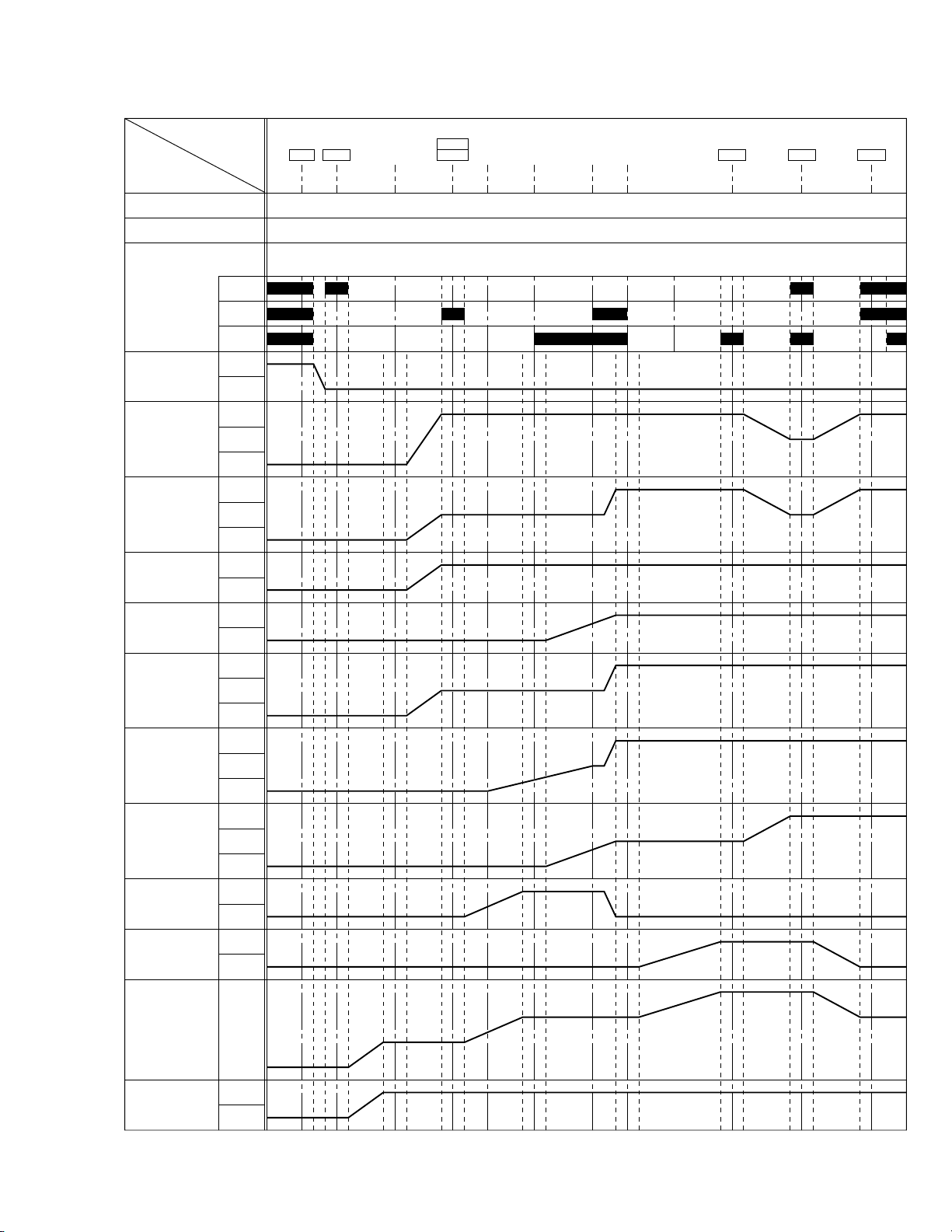

2.3.3 Mechanism timing chart

Table 2-3-1

2-4

2.4 DISASSEMBLING PROCEDURE TABLE

MARK: 夝 After assembly, perform adjustments.

NO. PART NAME FIG. POINT NOTE REMARKS

1 CASSETTE HOUSING ASSY T Fig.2-4-3 3(S1),(L1a)-(L1e)

2 UPPER BASE ASSY T Fig.2-4-4 (S2),(L2a),(L2b)

3 DRUM ASSY T (S3a),2(S3b)

4 REEL DISK ASSY(SUP) T Fig.2-4-5 (W4)

5 REEL DISK ASSY(TU) T (W5)

6 REEL COVER ASSY T 2(W6),2(S6a),(S6b)

7 TENSION ARM ASSY T Fig.2-4-6 —

8 SLANT POLE ARM ASSY T (P8)

9 TU ARM ASSY T —

10 SWING ARM ASSY T (S0)

11 SLIDE DECK ASSY T Fig.2-4-7a 2(S!a),(S!b),2(L!a),

2(L!b),(L!c)

12 PAD ARM ASSY T Fig.2-4-7b (P@),(L@),(W@)

13 SUP BRAKE ASSY T (P#),(L#),(S#)

14 TU BRAKE ASSY T (P$),(L$),(W$)

15 TENSION CTL LEVER ASSY T Fig.2-4-8 (W%)

16 CENTER GEAR T —

17 PINCH ROLLER ARM F. ASSY T (W&)

18 TENSION CTL PLATE ASSY T —

19 BRAKE CTL LEVER ASSY T —

20 MOTOR BRACKET ASSY T Fig.2-4-9 3(S)),(L)a),2(L)b)

21 GUIDE RAIL ASSY T

22 SLIDE LEVER 2 ASSY T —

23 LOADING PLATE ASSY T (W‹)

24 MODE GEAR T —

25 EJECT LEVER T (Wﬁ)

26 BASE R ASSY T Fig.2-4-10 (Sﬂa),(Sﬂb),2(Lﬂ)

27 ROTARY ENCODER T 2(S‡)

28 GEAR COVER ASSY T (S°a),2(S°b)

29 MAIN CAM ASSY T —

30 SLIDE ARM ASSY T Fig.2-4-11 —

31 CONNECT GEAR 2 T —

32 SUB CAM ASSY T (S™)

33 CONTROL ARM ASSY T —

34 REEL GEAR 1 T —

35 / 36

36 CAPSTAN MOTOR T (S§)

37 MAIN DECK ASSY T —

DRUM BASE ASSY/ T Fig.2-4-12 3(S∞) CAPSTAN MOTOR

2(W⁄),(S⁄),2(L⁄a),(L⁄b)

NOTE1a,b,c,d

NOTE

2

NOTE3a,b

NOTE

4

NOTE

5

NOTE

6

NOTE

7

NOTE

8

NOTE

9

NOTE

0

NOTE!a,b

NOTE

@

NOTE

#

NOTE

$

NOTE

%

NOTE

^

NOTE

&

NOTE

*

NOTE

(

NOTE

)

NOTE

⁄

NOTE

¤

NOTE

‹

NOTE

›

NOTE

ﬁ

NOTE

ﬂ

NOTE

‡

—

NOTE

·

NOTE

‚

NOTE

¡

NOTE

™

NOTE

£

NOTE

¢

NOTE∞a,b

NOTE

§

—

ADJUSTMENT

ADJUSTMENT / 夝

ADJUSTMENT

ADJUSTMENT / 夝

ADJUSTMENT

ADJUSTMENT / 夝

ADJUSTMENT

PHASE ADJUSTMENT

ADJUSTMENT

PHASE ADJUSTMENT

ADJUSTMENT

2-5

Table 2-4-1

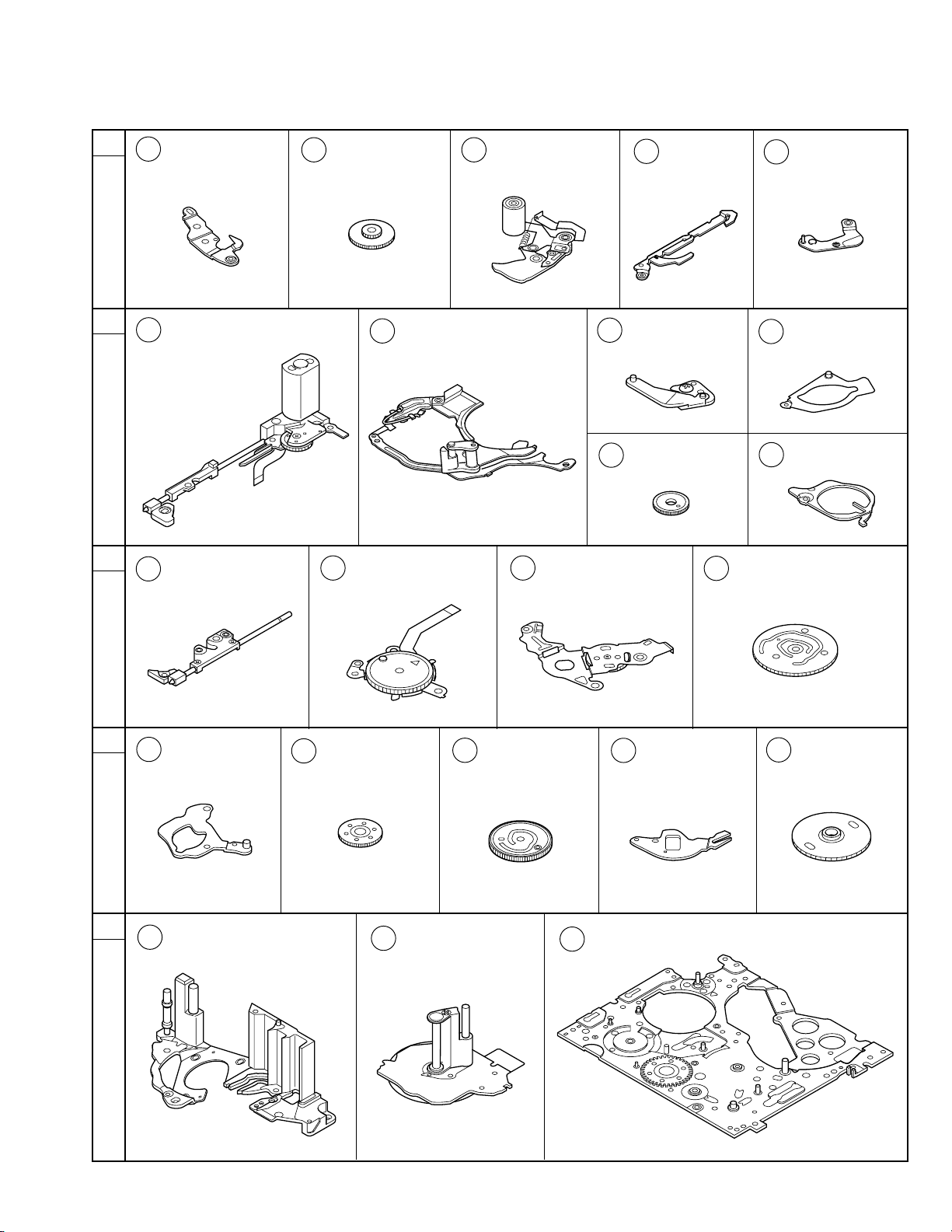

24 27 2 3 36 3521

26

17

34

9

10

33

26

6

5

25

11

32

37

143128161530

29

13

4

12

7

8

22

18

23

20

19

< TOP VIEW >

< BOTTOM VIEW >

26

32

25

34

Fig. 2-4-1

36 3 22

27

20

30

18

19

29

31 16 6

37

11

30

Fig. 2-4-2

2-6

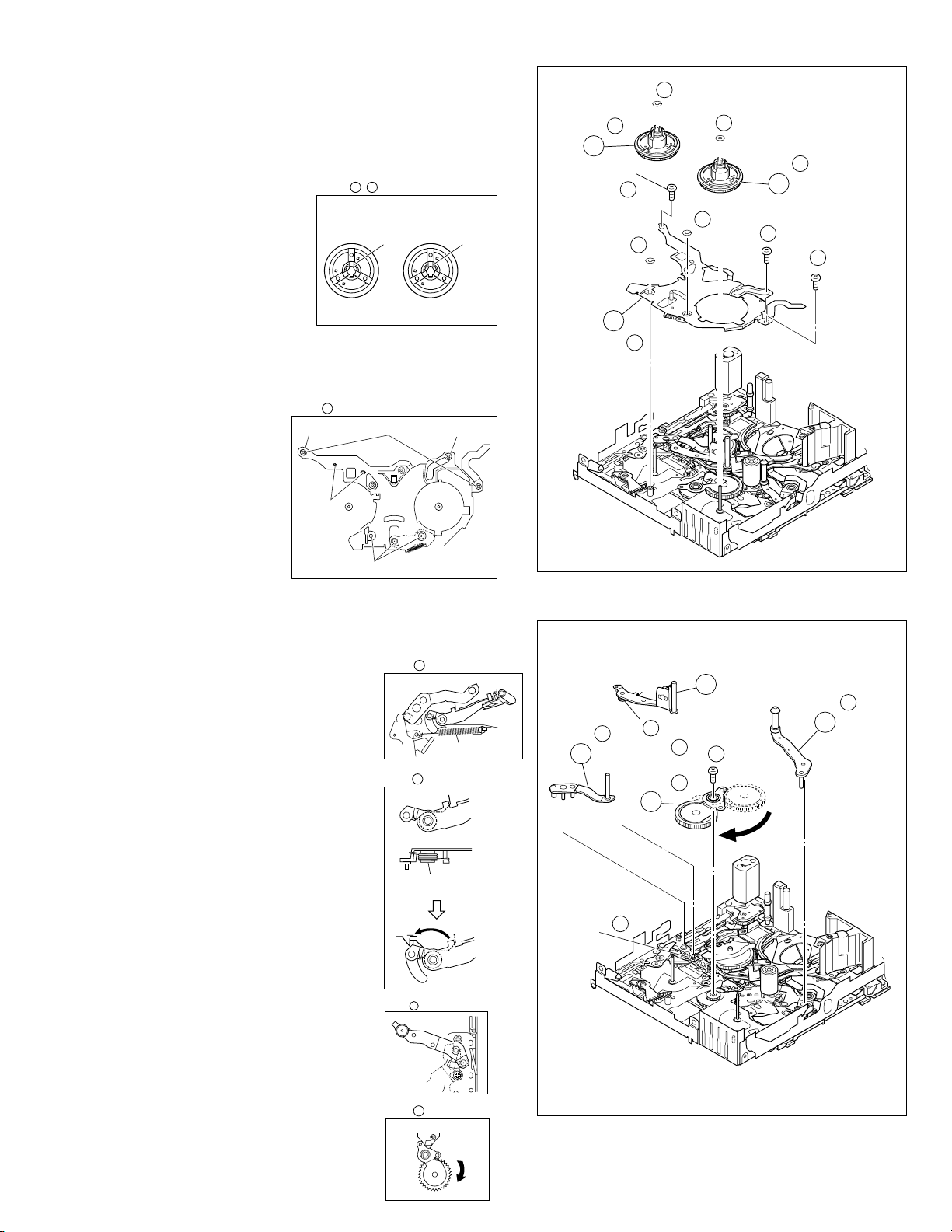

2.4.1 Disassembly/assembly

1

(S )

1

2

(S )

1

NOTE d

1

NOTE c

1

NOTE b

1

NOTE a

1

(S )

1

3

(L d)

LOCK LEVER

1

(L a)

1

(L e)

1

(L c)

1

(L b)

1

NOTE d

1

CASSETTE HOUSING ASSY

1.

1

NOTE1a:

Be careful not to damage any of the parts during work.

NOTE1b:

Special care is required in mounting.

1

NOTE b

NOTE1c:

NOTE c

When mounting, the CASSETTE HOUSING ASSY should be attached in the Eject status. Pay heed to the positions of the LOCK LEVER and EJECT LEVER during mounting.

NOTE1d:

When mounting, be sure to locate the FPC in the gap.

2.

UPPER BASE ASSY

2

DRUM ASSY

3

NOTE

NOTE2:

When mounting, be sure to insert the FPC reinforcing sheet.

1

EJECT LEVER

NOTE d

2

1

LOCK LEVER

Fig. 2-4-3

4

2

(S )

2

NOTE3a:

Be mindful of scratches or damage during work.

NOTE3b:

Be careful not to attach screws incorrectly.

2-7

NOTE

5

2

NOTE

2

(L b)

3

NOTE

3

b

7

3

6

3

(S b)

a

7

3

5

3

(S a)

3

NOTE b

2

(L a)

NOTE

2

6

Fig. 2-4-4

REEL DISK ASSY(SUP)

3.

4

REEL DISK ASSY(TU)

5

REEL COVER ASSY

6

NOTE4:

Be careful not to attach the REEL DISK wrongly. The Supply side can be identified by the white color at the center.

4 5

NOTE ,

NOTE5:

Be careful not to attach the REEL DISK wrongly. The

REEL DISK ASSY

WHITE

BLACK

Take-up side can be identified by the black color at the center.

NOTE

4

(W )

4

8

6

(S a)

6

(W )

4

(W )

5

(W )

6

NOTE

5

10

6

(S b)

5

9

6

(S a)

SUP

TU

NOTE6:

Perform the following steps for mounting.

1. Align the 2 holes with the pins.

2. Attach the PINCH ROLLER ARM ASSY by aligning the positions.

3. Attach the SUB DECK ASSY by aligning the

NOTE

6

53

2,6

positions.

4. Check that the parts below them are located in the correct positions.

4

5. Tighten the 2 screws.

6. Tighten the screw.

7. Attach the 2 SLIT WASHER parts.

1, 7

4.7 TENSION ARM ASSY

SLANT POLE ARM ASSY

8

TU ARM ASSY

9

SWING ARM ASSY

0

NOTE

7

NOTE7:

When detaching, remove the spring of the vance. Pay attention to the attachment position.

NOTE8:

@

PAD ARM ASSY in ad-

NOTE

A

SPRING

8

When mounting the SLANT POLE ARM ASSY, hook the spring onto the lug as in diagram A, and fit the combination onto the SLIDE DECK ASSY. After fitting, hook the spring

SPRING

onto the lug of the SLIDE DECK ASSY as in diagram B. Be careful not to lose the spring.

B

NOTE

7

NOTE

6

NOTE

7

6

(P )

NOTE

7

10

8

Fig. 2-4-5

8

(S )

10

8

11

10

NOTE

9

NOTE9:

Pay attention to the mounting position.

NOTE0:

When detaching, remove the screw then remove the SWING ARM ASSY by pulling it up and turning it.

NOTE

9

10

Fig. 2-4-6

2-8

5.

SLIDE DECK ASSY

!

NOTE!a:

Each of the parts on the SLIDE DECK ASSY can be replaced separately. When detaching the assembly, if there is no need to replace any of its parts, remove the SLIDE DECK ASSY as it is.

NOTE!b:

When mounting, pay attention to the positions of the

¤

SLIDE LEVER (2) studs and the ( BRAKE CONTROL LEVER ASSY. When mounting, position the CONTROL PLATE on the left side. Pay attention to the position of the SLIDE GUIDE PLATE during mounting.

11

NOTE

b

11

(L b)

14

11

(S b)

11

NOTE b

11

(L c)

13

11

(S a)

12

11

(S a)

(L a)

NOTE a

11

6.

PAD ARM ASSY

@

SUP BRAKE ASSY

#

TU BRAKE ASSY

$

NOTE@:

The spring may have already been disengaged when the

8

SLANT POLE ARM ASSY was removed.

NOTES$:

When mounting, pay attention to the correct positioning. Mount the CONTROL PLATE by moving it fully toward the left side.

12 13 14

NOTE

12

CONTROL PLATE

SPRING

13 14

12

(W )

NOTE

(L )

13

12

(P )

15

(S )

13

NOTE

12

13

Fig. 2-4-7a

12

13

(P )

(W )

12

(L )

14

NOTE

(L )

14

(P )

14

2-9

Fig. 2-4-7b

7.% TENSION CTL LEVER ASSY

(S )

20

18

(S )

20

17

(S )

20

16

(W )

23

(W )

21

(W )

21

(S )

21

19

21

22

23

20

24

25

(W )

25

(L b)

20

(L a)

20

(L a)

21

(L b)

21

NOTE

24

NOTE

22

NOTE

21

NOTE

23

NOTE

20

NOTE

25

CENTER GEAR

^

PINCH ROLLER ARM F. ASSY

&

TENSION CTL PLATE ASSY

*

BRAKE CTL LEVER ASSY

(

NOTES%/^:

When mounting, pay attention to the correct positioning.

15

NOTE

16

NOTE

(TOP)

(BOTTOM)

NOTES*/(:

When mounting, pay atten-

NOTE&:

Take care against grease attachment during work.

17

NOTE

tion to the correct positioning.

18

NOTE

19

15

(W )

NOTE

15

NOTE

15

19

NOTE

18

19

18

NOTE

17

16

NOTE

17

(W )

16

MOTOR BRACKET ASSY

8.

)

GUIDE RAIL ASSY

⁄

SLIDE LEVER 2 ASSY

¤

LOADING PLATE ASSY

‹

MODE GEAR

›

EJECT LEVER

ﬁ

NOTE):

When mounting, pay attention to the positioning of the sliding parts.

NOTE

23

22

NOTE⁄:

When mounting, take care that no part is allowed to float or rattle.

NOTES¤/‹/›/ﬁ:

When mounting, pay attention to the correct positioning.

NOTE

Fig. 2-4-8

20

NOTE

21

24

NOTE

25

Fig. 2-4-9

2-10

BASE R ASSY

9.

ﬂ

ROTARY ENCODER

‡

GEAR COVER ASSY

°

MAIN CAM ASSY

·

NOTEﬂ:

When mounting, fold the sliding part to the inner side.

NOTE

22

27

(S )

27

NOTE

26

27

23

27

(S )

25

26

28

24

28

(S a)

20

26

(S b)

28

(S b)

NOTE‡:

When mounting, pay attention to the correct positioning and the FPC layout.

NOTE

·

:

When mounting, pay attention to the correct positioning.

SLIDE ARM ASSY

10.

‚

CONNECT GEAR 2

¡

SUB CAM ASSY

™

CONTROL ARM ASSY

£

REEL GEAR 1

¢

NOTE

‚

:

When mounting, pay attention to the correct positioning and the FPC layout.

NOTE

21

26

27

(S a)

28

29

NOTE

29

26

NOTE

26

(L )

Fig. 2-4-10

30

NOTE

30

27

32

(S )

NOTE

32

NOTE

34

NOTE¡:

When mounting, pay attention to the position of the front and back.

31

NOTE

(BOTTOM)

(TOP)

NOTES™/£/¢:

When mounting, pay attention to the correct positioning and the FPC layout.

34

32 33

NOTE /

32

33

NOTE

2-11

NOTE

31

Fig. 2-4-11

33

NOTE

33

11.

DRUM BASE ASSY

∞

CAPSTAN MOTOR

§

MAIN DECK ASSY

¶

NOTES

∞

a /§:

When detaching, remove them together and then separate

from ∞a.

§

∞

b:

NOTE

When mounting, attach the DRUM BASE ASSY so that the screw hole is located at the center of the ellipse.

35

NOTE b

35

28

35

(S )

29

35

(S )

31

36

(S )

30

35

(S )

NG

OK

NG

NOTE

36

Fig. 2-4-12

37

NOTE

35

a

(Z27 Ver.4_P)

2-12

2.4.2 List of procedures for disassembly

(S )

13

(P )

18

(S )

20

15

13

12

(W )

14

(S )

20

17

12

20

(S b)

8

(P )

14

(W )

14

(P )

14

8

2

(S )

11

12

(P )

16

(S )

1

(W )

4

(S a)

(W )

6

7

(W )

22

(S )

20

18

27

1

4

29

35

(S )

35

5

3

2

(S )

36

17

2

(S )

17

(W )

31

3

36

30

35

(S )

1

4

5

(W )

8

6

(W )

6

5

10

6

(S b)

(S a)

(S )

9

6

9

21

19

21

28

(S )

35

7

3

(S b)

(S a)

6

3

(S b)

23

27

30

23

11

(S )

23

27

(S )

10

13

11

(S a)

3

1

(S )

34

10

12

11

(S a)

11

21

(W )

22

(W )

(S )

21

2-13

15

(W )

25

28

(S b)

15

29

16

31

26

28

(S b)

28

24

28

(S a)

19

24

37

Fig. 2-4-13

21

26

(S b)

20

26

(S a)

26

25

(W )

(S )

25

27

32

33

2.5 CHECKUP AND ADJUSTMENT OF MECHANISM PHASE

MODE GEAR

Align the MODE GEAR with the Main Deck Assembly hole.

ROTARY ENCODER

Mount the ROTARY ENCODER by aligning its mark ( ) and the mark ( ) of the Main Deck Assembly.

Note:

Be careful when handling the FPC during mounting.

MAIN CAM ASSY/ 30 SLIDE ARM ASSY

When mounting the SLIDE ARM ASSY align it with the Main Deck Assembly and MAIN CAM ASSY holes.

Note:

During the mounting procedure, make sure that the 32 . SUB CAM ASSY is in the correct mounting position.

SUB CAM ASSY/ 33 CONTROL ARM ASSY

Mount the SUB CAM ASSY hole to align with the CONTROL ARM ASSY and Main Deck Assembly holes and then tighten them all together with a screw. The screw tightening torque should be 0.039 N•m (0.4 kgf•cm)

Note:

When mounting it, make sure that the 29 MAIN CAM ASSY is in the correct mounting position.

REEL GEAR 1

Align the REEL GEAR 1 with the Main Deck Assembly hole.

Note:

The REEL GEAR 1 may be displaced during mechanism operation, however this can be checked from the rear and realigned during manual assembly.

Note:

The MODE GEAR may be displaced during the mechanism operation, however it can be checked from the rear and realigned during manual assembly.

24

29 32

34

27

Fig. 2-5-1

2-14

2.6 MECHANISM ADJUSTMENTS

2.6.1 Adjustment of the slide guide plate

Use Fig. 2-6-1 as the reference unless otherwise specified.

1. Set the PLAY mode. See Fig. 2-3-8.

2. Loosen the screws ( A , B ).

3. With the Main Deck and Slide Deck Assemblies pushed into the unit, tighten the screws ( A , B ) while applying pressure to the stud (shaft) on the Slide Guide plate. The pressure applied should be enough to enable utilization of the rebounding force of the springs. The tightening torque should be 0.069 N

•

m (0.7 kgf•cm).

4. Check the operation. Repeat unloading and loading several times and make sure that these operations can be performed smoothly without producing rattles.

3

2, 3

SCREW

3

STUD

(SHAFT)

3

A

2,3

SCREW

B

3

2-15

Fig. 2-6-1

3

SCREW

2, 3

A

2.6.2 Adjustment of the Tension Arm and Pad Arm Assemblies

Use Fig. 2-6-2 as the reference unless otherwise specified.

1. Set the PLAY mode.

Se Fig. 2-3-8.

2. Loosen the screw A .

3. With the take-up side at the bottom, align the extreme

end of the Tension Arm Assembly with the crossed grooves on the screw B that retains the Loading Motor Assembly and then tighten the screw A . The tightening torque should be 0.069 N

•

m (0.7 kgf•cm).

4. Check the operation.

Repeat unloading and loading several times and make sure that the Tension Arm Assembly is located within the normal range.

Note :

With the above checking method, a Torque Meter is not used. When a Torque meter is used, the following are the reference values:

2.6.3 Adjustment of the Slide Lever 2

Use Fig. 2-6-3 as the reference unless otherwise specified.

1. Set the C IN mode. See Fig. 2-3-4.

2. Loosen the screw A .

3. Set the Main Deck and Slide Deck Assemblies apart so that they do not rattle, then tighten the screw A by screwing it fully toward the Drum Assembly. The tightening torque should be 0.069 N

•

m (0.7 kgf•cm).

4. Check the operation. Repeat unloading and loading several times and make sure that these operations can be performed smoothly without producing rattles.

2, 3 SCREW

Back Tension : 2.0 to 6.0 g•cm Play Torque : 8.3 to 12.5 g

SCREW

B

A

•

cm

TENSIOM ARM ASSY

Fig. 2-6-3

Fig. 2-6-2

2-16

2.7 SERVICE NOTE

Use the following chart to manage mechanism parts that are removed for disassembling the mechanism.

Fig.

1

CASSETTE HOUSING ASSY UPPER BASE ASSY

Fig.

2

I

4

I

3

Fig. Fig.

3

DRUM ASSY

2

I

4

I

4

2

I

4

I

5

REEL DISK ASSY(SUP)

4

REEL DISK ASSY(TU)

5

2

I

4

I

4

REEL COVER ASSY

6

Fig.

TENSION ARM ASSY

7

SLANT POLE ARM ASSY SWING ARM ASSYTU ARM ASSY

8 9

2

I

4

I

6

Fig. Fig.

2

I

4

I 7 a

SLIDE DECK ASSY

11

2

I

4

I 7 b

PAD ARM ASSY

1312

10

SUP BRAKE ASSY

14

TU BRAKE ASSY

2-17

Table 2-7-1a

Fig.

2

I

4

I

8

TENSION CTL

15

LEVER ASSY

CENTER GEAR

16

PINCH ROLLER

17

ARM F. ASSY

TENSION

18

CTL PLATE ASSY

BRAKE CTL

19

LEVER ASSY

Fig.

2

I

4

I

9

Fig.

2

I

4

I

10

Fig.

MOTOR

20

BRACKET ASSY

BASE R ASSY ROTARY

26

SLIDE ARM

30

ASSY

27

31

CONNECT GEAR 2

GUIDE

21

RAIL ASSY

ENCODER

32

28

SUB CAM ASSY

22

24

GEAR COVER ASSY

33

SLIDE LEVER 2 ASSY

MODE GEAR EJECT LEVER

MAIN CAM ASSY

29

CONTROL ARM ASSY

LOADING

23

PLATE ASSY

25

REEL GEAR 1

34

2

I

4

I

11

Fig.

2

I

4

I

12

DRUM BASE ASSY

35

CAPSTAN MOTOR MAIN DECK ASSY

36

Table 2-7-1b

37

2-18

2.8 JIG CONNECTOR CABLE CONNECTION

Remove one screw (1) first and the cover (JIG) next.

COMMUNICATION CABLE JIG CONNECTOR

to 8 pin

RED

( JLIP_RX )

to 9 pin ( JLIP_TX )

WHITE

to 5 or 23 pin

BLACK

( GND )

JACK BOX

COVER

(JIG)

JIG CONNECTOR CABLE

COMMUNICATION CABLE

MAIN BOARD ASSY CN107

16

1

17

2

18

3

19

4

20

5

21

6

22

7

23

8

24

9

25

10

26

11

27

12

28

13

29

14

30

15

D_REG3V

SRV_RX

SRV_TX

DRST

TDO

TDI

TCMK

TMS

TRST

GND

SBE

SPA TX2 RX2

GND JLIP_RX PB_CLK JLIP_TX

GND

HID1

ENV_OUT

ATFI

DISCRI

MAIN_VCO

VPPD

AL_3VSYS

FS_PLL

VPPC IF_TX

RST

1

Fig. 2-8-1

CN107

EXTENSION CONNECTOR

Removing the cover (for jig), use this extension

NOTE:

connector double for connecting the jig connector cable.

TO PC CABLE

JIG CONNECTOR CABLE

1 2 3 4 5 6 7 8

9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30

NC NC NC NC

GND

NC

NC JLIP_RX JLIP_TX

HID1

NC

MAIN_VCO

NC

TX2

GND

NC

ENV_OUT

NC

FS_PLL

NC

2-19

Fig. 2-8-2

2.8.1 Tape pattern check

CN107 (ENV_OUT)

CN107 (HID1)

Flatten the waveform.

Misalignment of guide roller height on the take-up side

Misalignment of guide roller height on the supply side

(1) Play back the compatibility adjustment tape.

(2) While triggering the MAIN CN107-10PIN (HID1), ob-

serve the waveform of CN107-26PIN (ENV_OUT).

(3) Confirm that the waveform is free from remarkable

level-down, and entirely parallel and straight. Moreover, perform the following adjustment as required.

(4) In case any level-down is observed on the left hand

side, straighten the level by turning the guide roller of the pole base assembly (supply). In case any level-down is observed on the right hand side, however, straighten the level by turning the guide roller of the pole base assembly (Take-up).

(5) After adjustment, try the unloading motion once, and

confirm that the waveform is flat (straight) when the tape has been played back again. Moreover, perform readjustment as required.

(6) When the recording has been played back again, play

back the self-recording to confirm that the waveform is flat.

Note:

When an adjustment is performed with the lower case cover attached, first slide the two covers (cassette and cassette rear) open and then perform the compatibility adjustment. Be sure not to damage the covers when sliding them open to make an adjustment because they must be re-positioned after completing the adjustment.

Fig. 2-8-3

Fig. 2-8-4

GUIDE ROLLER (SUP) ASSY

JIG CONNECTOR CABLE

MAIN CN107 26PIN (ENV_OUT) 10PIN (HID1)

Refer to page 2-19.

JIG CONN. BOARD JIG CONN-26PIN (ENV_OUT) JIG CONN-10PIN (HID1)

NOTE:

The two covers serve as the covers for the service adjustment access holes.

GUIDE ROLLER (TU) ASSY

COVER (Cassette)

COVER (Cassette rear)

Fig. 2-8-5

2-20

SECTION 3

ELECTRICAL ADJUSTMENT

3.1 PRECAUTION

1. Precaution

Both the camera and deck sections of this model needs a personal computer for adjustment except simple adjustment with potentiometers. If some of the following parts is replaced for repair or other reason, the repaired set must be adjusted with a personal computer.

• OP block

2

• E

PROM (IC1003 of MAIN board)

• MONITOR

2

• E

PROM (IC7302 of MONITOR board)

In the event of malfunction with electrical circuits, troubleshooting with the aid of proper test instruments most be done first, and then commence necessary repair, replacement and adjustment, etc.

1. In case of wiring to chip test points for measurement, use IC clips, etc. to avoid any stress.

2. In the following work, use the patch cords as required. For details of the patch cords, see the “4.1 BOARD INTERCONNECTIONS” (SECTION 4, CHART AND DIAGRAM).

3. Shortcircuit between operation un it and DECK chassis.

2. Required test equipment

1. Color TV monitor.

2. AC power adapter/charger

3. Oscilloscope (dual-trace type, observable 100 MHz or higher frequency)

3. Tools required for adjustments

1

3

5

7

9

Torque driver

YTU94088

Tweezers

P-895

Jig connector cable

YTU93106B

Communication cable

YTU93107A

Alignment tape

MC-2

2

4

6

8

10

Bit

YTU94088-003

Chip IC replacement Jig

PTS40844-2

Extension connector

YTU94145C-30

PC cable

QAM0099-002

Service support system

YTU94057-55

Note :

It is recommended to use one observable 300 MHz or higher frequency.

4. Digital voltmeter

5. Frequency counter (with threshold level adjuster)

6. Personal computer

INF adjustment lens

11

13

15

Gray scale chart

YTU92001B

Camera stand

YTU93079

YTU94133A

INF adjustment lens holder

12

14

16

YTU94087

Light box assembly

YTU93096A

Color bar chart

YTU94133C

3-1

Table 3-1-1

1. Torque driver

Be sure to use to fastening the mechanism and exterior parts because those parts must strictly be controlled for tightening torque.

2. Bit

This bit is slightly longer than those set in conventional torque drivers.

3. Tweezers

To be used for removing and installing parts and wires.

4. Chip IC replacement jig

To be used for adjustment of the camera system.

5. Jig connector cable

Connected to CN107 of the main board and used for electrical adjustment, etc.

6. Extension connector

Connect this extension connector to the connector of the jig connector cable for extending the cable connector.

Note :

For supplying the power through the coupler by removing the cover (for jig), use this extension connector double for connecting the jig connector cable.

7. Communication cable

Connect the Communication cable between the PC cable and Jig connector cable when performing a PC adjustment.

8. PC cable

To be used to connect the VideoMovie and a personal computer with each other when a personal computer is used for adjustment.

9. Alignment tape

To be used for check and adjustment of interchangeability of the mechanism.

10. Service support system

To be used for adjustment with a personal computer.

11. INF adjustment lens

To be used for adjustment of the camera system.

12. INF adjustment lens holder

To be used together with the camera stand for operating the VideoMovie in the stripped-down condition such as the status without the exterior parts or for using commodities that are not yet conformable to the interchangeable ring.

13. Camera stand

To be used together with the INF adjustment lens holder.

14. Light box assembly

To be used for adjustment of the camera system.

15. Gray scale chart (for Light box assembly)

To be used for adjustment of the camera system.

16. Color bar chart (for Light box assembly)

To be used for adjustment of the camera system.

3.2 SETUP

1. Setup for electrical adjustment with personal computer

COMMUNICATION CABLE JIG CONNECTOR

to 8 pin

RED

( JLIP_RX )

to 9 pin ( JLIP_TX )

WHITE

to 5 or 23 pin

BLACK

( GND )

COVER

(JIG)

JIG CONNECTOR CABLE

1

EXTENSION CONNECTOR

Removing the cover (for jig),

NOTE:

use this extension connector double for connecting the jig connector cable.

Fig. 3-2-1 Connection for Service support system

JACK BOX

TL2005 MONI CHG

30

15

PC CABLE

16

1

RS232C

COM Port

CN107 (JIG CONN.)

Service Support

System software

MENU

Personal Computer

3-2

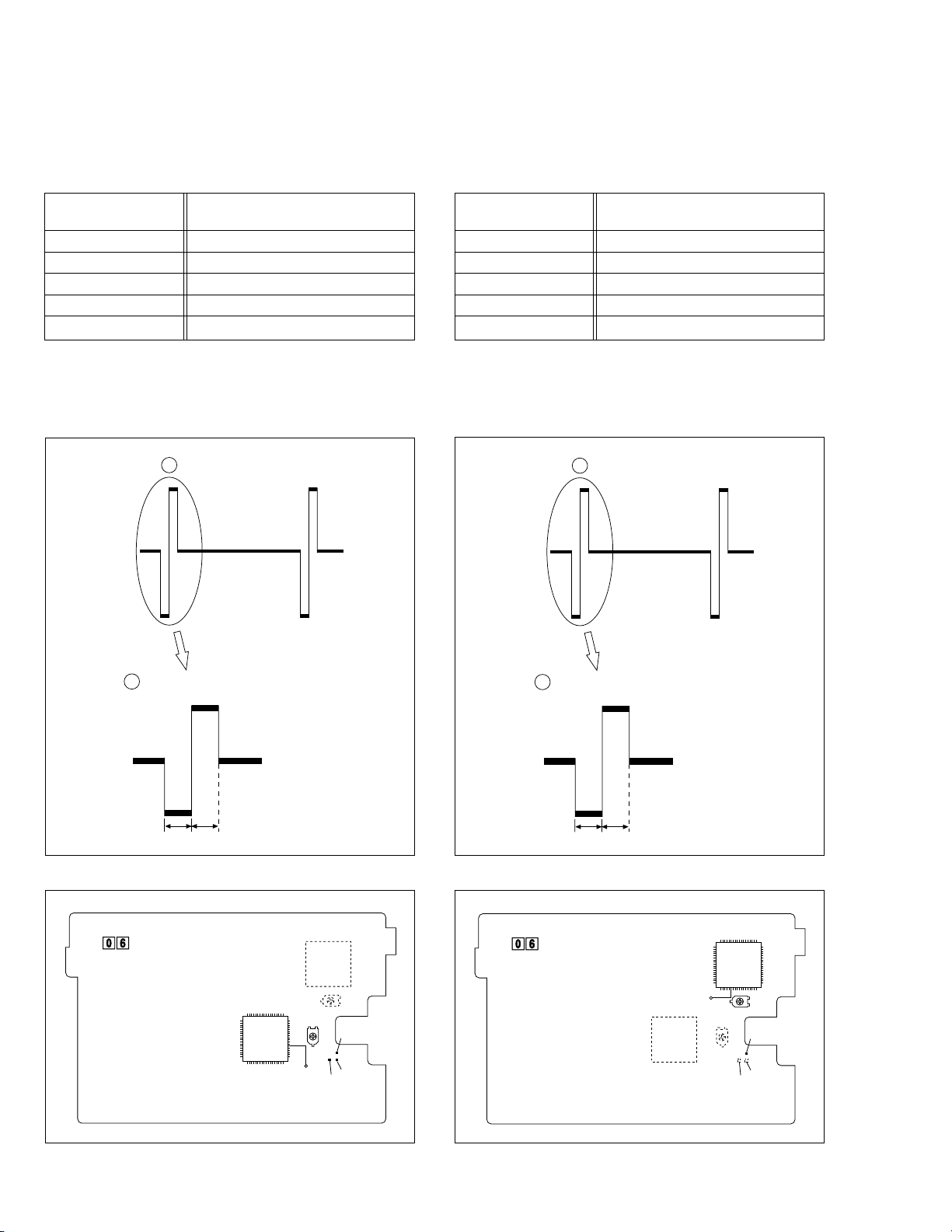

3.3 MONITOR ADJUSTMENT

Notes :

Unless otherwise specified, all measurement points and adjustment parts are located on MONITOR board.

3.4 ELECTRONIC VIEWFINDER (E.VF) ADJUSTMENT

Notes :

Unless otherwise specified, all measurement points and adjustment parts are located on MONITOR board.

3.3.1 PLL (MONI)

Subject •Camera picture

•Gray scale

Mode •EE Equipment •Oscilloscope Measurement point •

IC7301 pin 24 (RPD) or TL7301 (RPD)

Adjustment part •R7321 (PLL MONI)

Specification

•A = B

1) Observe waveform at pin 24 of the IC7301 or TP7301 (RPD).

2) For the wavefor shown in the waveform chart (Fig. 3-3-

1), equalize the width of A and B with each other by adjusting R7321.

a

H. rate

3.4.1 PLL (VF)

Subject •Camera picture

•Gray scale

Mode •EE Equipment •Oscilloscope Measurement point •

IC7401 pin 24 (RPD) or TL7401 (RPD)

Adjustment part •R7421 (PLL VF)

Specification

•A = B

1) Observe waveform at pin 24 of the IC7401 or TL7401 (RPD).

2) For the wavefor shown in the waveform chart (Fig. 3-4-

1), equalize the width of A and B with each other by adjusting R7421.

a

H. rate

< magnification>

a

A = B

AB

Fig. 3-3-1 PLL (MONI)

MONITOR PWB

54 37

55

IC7301

72

81

36

19

(PRD)

R7321

PLL(MONI)

24

IC7401

TL7301 (PRD)

R7421

PLL(VF)

TL7401(PRD)

TL7302

< magnification>

a

A = B

AB

Fig. 3-4-1 PLL (VF)

MONITOR PWB

IC7301

(PRD)

18

24

72 55

1

IC7401

R7321

PLL(MONI)

3619

R7421

PLL(VF)

TL7401(PRD)

TL7302

TL7301 (PRD)

54

37

Fig. 3-3-2 MONITOR board (COMPONENT SIDE)

3-3

Fig. 3-4-2 MONITOR board (COMPONENT SIDE)

JVC GR-DV3000A, GR-DV3000EA, GR-DV3000ED, GR-DV3000EG, GR-DV3000EK Service Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

TABLE OF CONTENTS

Important Safety Precautions

DISASSEMBLY

1.1 BEFORE ASSEMBLY AND DISASSEMBLY

1.3 DISASSEMBLY/ASSEMBLY OF CABINET PARTS AND BOARD ASSEMBLY

1.4 DISASSEMBLY OF THE 4 OP BLOCK AND CCD BOARD ASSEMBLIES

1.57 E.VF(COLOR)

1.6 DISASSEMBLY/ASSEMBLY OF THE @ MONITOR ASSEMBLY

1.7 MANUAL EJECTION OF THE CASSETTE TAPE

1.8 EMERGENCY DISPLAY

1.9 SERVICE NOTE

MECHANISM ADJUSTMENT

2.1 PRELIMINARY REMARKS ON ADJUSTMENT AND REPAIR

2.2 JIGS AND TOOLS REQUIRED FOR DISASSEMBLY, ASSEMBLY AND ADJUSTMENT

2.4 DISASSEMBLING PROCEDURE TABLE

2.5 CHECKUP AND ADJUSTMENT OF MECHANISM PHASE

2.6 MECHANISM ADJUSTMENTS

2.7 SERVICE NOTE

2.8 JIG CONNECTOR CABLE CONNECTION

ELECTRICAL ADJUSTMENT

3.1 PRECAUTION

3.2 SETUP

3.3 MONITOR ADJUSTMENT

3.4 ELECTRONIC VIEWFINDER (E.VF) ADJUSTMENT
