JVC GR-DV2000 User Manual

DIGITAL VIDEO CAMERA

GR-DV2000

Please visit our Homepage on the World Wide Web and answer our Consumer Survey (in English only):

http://www.jvc-victor.co.jp/english/index-e.html

ENGLISH

CONTENTS

AUTOMATIC DEMONSTRATION

GETTING STARTED

RECORDING

Basic Recording For Video........................ 16

Basic Recording For Digital Still Camera

(D.S.C.) ............................................ 19

Basic Recording For Video And D.S.C. .......... 20

Advanced Features For Video And D.S.C. ...... 22

PLAYBACK

Basic Playback For Video ......................... 38

Advanced Features For Video ................... 39

Basic Playback For D.S.C. ........................ 4 2

Advanced Features For D.S.C. ................... 44

CONNECTIONS

Basic Connections .................................. 52

Advanced Connections ............................ 54

DUBBING

Dubbing To A VCR ................................. 56

Dubbing From A VCR .............................. 57

Dubbing To A Video Unit

Equipped With A DV Connector ................ 58

Dubbing From A Video Unit

Equipped With A DV Connector ................ 59

Dubbing Images Recorded

On A Tape To A Memory Card ................. 60

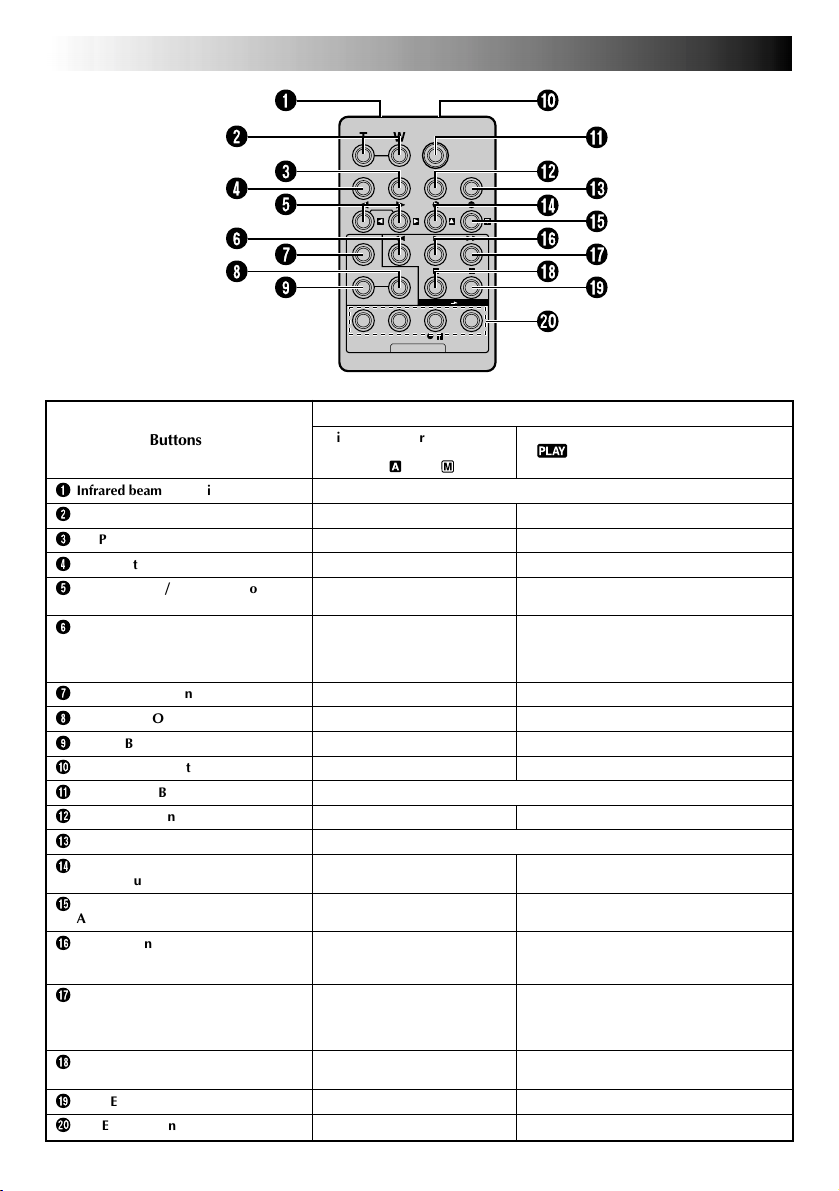

USING THE REMOTE CONTROL UNIT

Slow-Motion Playback, Frame-By-Frame

Playback and Playback Zoom .................. 63

Playback Special Effects .......................... 64

Random Assemble Editing ........................ 6 5

For More Accurate Editing ........................ 69

Audio Dubbing ...................................... 71

Insert Editing ....................................... 72

6 – 15

16 – 37

38 – 51

52 – 55

56 – 60

61 – 72

INSTRUCTIONS

TROUBLESHOOTING

USER MAINTENANCE

INDEX

Jack Box ............................................ 8 1

Controls, Connectors And Indicators ............ 82

Indications .......................................... 84

CAUTIONS

TERMS

SPECIFICATIONS

LYT0755-001A

73 – 79

81 – 88

89 – 91

92 – 93

94 – 95

2 EN

Dear Customer,

Thank you for purchasing this digital video camera. Before use, please read the safety information and precautions contained in the following pages to ensure safe use of this product.

Using This Instruction Manual

•All major sections and subsections are listed in the Table Of Contents on the cover page.

•Notes appear after most subsections. Be sure to read these as well.

•Basic and advanced features/operation are separated for easier reference.

It is recommended that you . . .

.... refer to the Index ( pgs. 81 – 88) and familiarize yourself with button locations, etc. before use.

.... read thoroughly the Safety Precautions. They contain extremely important information regarding the safe

use of this product.

You are recommended to carefully read the cautions on pages 89 through 91 before use.

SAFETY PRECAUTIONS

WARNING: TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS

UNIT TO RAIN OR MOISTURE.

Caution: (applies to Jack Box)

To reduce the risk of fire, do not remove cover. No user-serviceable parts inside. Refer servicing to qualified service person.

CAUTIONS:

 If you notice smoke or a peculiar smell coming from the camcorder or AC adapter/charger, shut it down

and unplug it immediately. Continue using the camcorder or AC adapter/charger under these conditions could lead to fire or electric shock. Contact your JVC dealer. Do not attempt to repair the malfunction yourself.

 To prevent shock, do not open the cabinet. No user serviceable parts inside. Refer servicing to qualified

personnel.

 When you are not using the AC Power Adapter/Charger for a long period of time, it is recommended that

you disconnect the power cord from AC outlet.

NOTES:

●

The rating plate (serial number plate) and safety caution are on the bottom and/or the back of the main unit.

●

The rating plate (serial number plate) of the AC Power Adapter/Charger is on its bottom.

This camcorder is designed to be used with PAL-type colour television signals. It cannot be used for playback with a television of a different standard. However, live recording and LCD monitor/ viewfinder playback are possible anywhere. Use the JVC BN-V408U/V416U/V428U battery packs and, to recharge them, the provided multi-voltage AC Power Adapter/Charger. (An appropriate conversion adapter may be necessary to accommodate different designs of AC outlets in different countries.)

EN3

When the equipment is installed in a cabinet or on a shelf, make sure that it has sufficient space on all sides to allow for ventilation (10 cm or more on both sides, on top and at the rear).

Do not block the ventilation holes. (If the ventilation holes are blocked by a newspaper, or cloth etc. the heat may not be able to get out.)

No naked flame sources, such as lighted candles, should be placed on the apparatus. When discarding batteries, environmental problems must be considered and the local rules or laws

governing the disposal of these batteries must be followed strictly. The apparatus shall not be exposed to dripping or splashing. Do not use this equipment in a bathroom or places with water.

Also do not place any containers filled with water or liquids (such as cosmetics or medicines, flower vases, potted plants, cups etc.) on top of this unit. (If water or liquid is allowed to enter this equipment, fire or electric shock may be caused.)

Do not point the lens or the viewfinder directly into the sun. This can cause eye injuries, as well as lead to the malfunctioning of internal circuitry. There is also a risk of fire or electric shock.

CAUTION!

The following notes concern possible physical damage to the camcorder and to the user. When carrying, be sure to always securely attach and use the provided shoulder strap. Carrying or holding the camcorder by the viewfinder and/or the LCD monitor can result in dropping the unit, or in a malfunction. Take care not to get your finger caught in the cassette holder cover. Do not let children operate the camcorder, as they are particularly susceptible to this type of injury. Do not use a tripod on unsteady or unlevel surfaces. It could tip over, causing serious damage to the camcorder.

CAUTION!

Attaching the Jack Box to the camcorder with cables (S-Video, Editing, DC, etc.) connected, then leaving it on top of the TV is not recommended, as tripping on the cables will cause the camcorder to fall, resulting in damage. Attach only the optional JVC VL-V3U Video Light, VL-F3U Video Flash or MZ-V3U Stereo Zoom Microphone to the camcorder’s Info-Shoe.

 This camcorder is designed exclusively for the digital video cassette, SD Memory Card and

MultiMediaCard. Only cassettes marked “

” and memory cards marked “ ” or

“ ” can be used with this unit.

Before recording an important scene . . .

.... make sure you only use cassettes with the Mini DV mark .

.... make sure you only use memory cards with the mark

or .

.... remember that this camcorder is not compatible with other digital video formats.

.... remember that this camcorder is intended for private consumer use only. Any commercial use

without proper permission is prohibited. (Even if you record an event such as a show, performance or exhibition for personal enjoyment, it is strongly recommended that you obtain permission beforehand.)

4 EN

PROVIDED ACCESSORIES

• AC Power Adapter/Charger AA-V40EA, AA-V40A, AA-V40A-S, AA-V40SH or AA-V40ED

• DC Cord

• S-Video Cable

• Shoulder Strap

• USB Cable

• Remote Control Unit RM-V716U

• Core Filter (for an optional external microphone)

• Editing Cable

• MultiMediaCard (GR-DV2000EA/A/A-S: 16 MB, GR-DV2000SH/ED: 8 MB) (Already inserted in the camcorder)

• Audio/Video Cable

• Jack Box CU-V504U

• Lens Hood (See below for attachment)

(ø3.5 mini-plug to RCA plug)

• Battery Pack BN-V408U

• AAA (R03) Battery x 2 (for remote control unit)

• CD-ROM The CD ROM contains the following 5 software programmes:

• USB Driver Soft

(for Windows

• USB Driver Soft

(for Macintosh

Presto!

• Mr. Photo

• PhotoAlbum

• ImageFolio

)

How To Attach The Lens Hood

The provided lens hood helps block out glare when shooting under bright sunlight, the same way professional photographers do.

Align the lens hood with the camcorder’s lens and screw it in clockwise.

Threading

MOD EDEMO –ONOFF

How To Attach Core Filter

Attach the provided Core Filter to an optional external microphone. Core Filter reduces interference.

EN5

12 3

3 cm

Stopper

Release the stoppers on both ends of the Core Filter.

 When connecting cables, attach the end with the Core Filter to the camcorder.

Run the cable through the Core Filter, leaving approx. 3 cm of cable between the cable plug and the Core Filter. Wind the cable around the outside of the Core Filter as shown in the illustration.

•Wind the cable so that it is not slack.

NOTE:

Take care not to damage the cable.

wind once

Close the Core Filter until it clicks shut.

AUTOMATIC DEMONSTRATION

Automatic Demonstration takes place when “DEMO MODE” is set to “ON” (factory-preset).

 Available when the Power Switch is set to “

no cassette is in the camcorder.

 Performing any operation during the demonstration stops the

demonstration temporarily. If no operation is performed for more than 1 minute after that, the demonstration will resume.

 “DEMO MODE” remains “ON” even if the camcorder power

is turned off.

 To cancel Automatic Demonstration:

1. Set the Power Switch to “

” while pressing down the Lock

Button located on the switch and press the MENU wheel. The Menu Screen appears.

2. Rotate the MENU wheel to select “

it. The SYSTEM Menu appears.

3. Rotate the MENU wheel to select “DEMO MODE” and

press it. The Sub Menu appears.

4. Rotate the MENU wheel to select “OFF” and press it.

5. Rotate the MENU wheel to select “

The normal screen appears.

twice.

” or “ ” and

MENU Wheel

SYSTEM” and press

RETURN”, and press it

Sub Menu

6 EN

Battery pack BN-V408U, BN-V416U or BN-V428U

POWER indicator

DC OUT connector

CHARGE indicator

To AC outlet

AC Power Adapter/ Charger

GETTING STARTED

Power

This camcorder’s 2-way power supply system lets you choose the most appropriate source of power. Do not use provided power supply units with other equipment.

CHARGING THE BATTERY PACK

Make sure you unplug the camcorder’s DC cord from

the AC Power Adapter/Charger. Plug the AC Adapter/ Charger’s power cord into an AC outlet. The POWER indicator lights.

Attach the battery pack with the mark aligned

with the corresponding marks on the AC Power Adapter/Charger. The CHARGE indicator begins blinking to indicate charging has started.

Battery pack

BN-V408U

BN-V416U (optional)

BN-V428U (optional)

NOTES:

●

If the protective cap is attached to the battery pack, remove it first.

●

Perform charging where the temperature is between 10°C and 35°C. 20°C to 25°C is the ideal temperature range for charging. If the environment is too cold, charging may be incomplete.

●

Charging times noted above are for a fully discharged battery pack.

●

Charging time varies according to the ambient temperature and the status of the battery pack.

●

To avoid interference with reception, do not use the AC Power Adapter/Charger near a radio.

●

If you connect the camcorder’s DC cord to the adapter during battery charging, power is supplied to the camcorder and charging stops.

●

Since the AC Power Adapter/Charger processes electricity internally, it becomes warm during use. Be sure to use it only in well-ventilated areas.

●

When charging the battery pack for the first time or after a long storage period, the CHARGE indicator may not light. In this case, remove the battery pack from the AC Power Adapter/Charger, then try charging again.

●

If the battery operation time remains extremely short even after having been fully charged, the battery is worn out and needs to be replaced. Please purchase a new one.

Fully charging time

approx. 1 hr. 30 min.

approx. 2 hrs.

approx. 3 hrs. 20 min.

When the CHARGE indicator stops blinking but stays

lit, charging is finished. Slide the battery and lift off. Remember to unplug the AC Adapter/Charger’s power cord from the AC outlet.

About Batteries

DANGER! Do not attempt to take the batteries apart, or

expose them to flame or excessive heat, as it may cause a fire or explosion.

WARNING! Do not allow the battery or its terminals to come in contact with metals, as this can result in a short circuit and possibly start a fire.

Lithium-ion is vulnerable in colder temperatures.

The Benefits Of Lithium-Ion Batteries

Lithium-ion battery packs are small but have a large power capacity. However, when one is exposed to cold temperatures (below 10°C), its usage time becomes shorter and it may cease to function. If this happens, place the battery pack in your pocket or other warm, protected place for a short time, then re-attach it to the camcorder. As long as the battery pack itself is not cold, it should not affect performance.

(If you’re using a heating pad, make sure the battery pack does not come in direct contact with it.)

BATT. RELEASE Switch

ATTENTION:

Before detaching the power source, make sure that the camcorder’s power is turned off. Failure to do so can result in a camcorder malfunction.

INFORMATION:

The extended-use battery pack kit is a set composed of a battery pack and AC Power Adapter/Charger: VU-V840 KIT : BN-V840U battery pack & AA-V15

VU-V856 KIT : BN-V856U battery pack & AA-V80

Read the kit's instruction manual before using. Neither BN-V840U nor BN-V856U can be charged by using the AC Power Adapter/Charger provided with this camcorder. Use only the AA-V15 AC Power Adapter/Charger for BN-V840U battery pack and only AA-V80 AC Power Adapter/ Charger for BN-V856U battery pack .

AC Power Adapter/Charger

USING THE BATTERY PACK

With the arrow on the battery pack pointing upward,

push the battery pack slightly against the battery pack mount 1.

Slide up the battery pack until it locks in place 2.

•If the battery pack is attached with its mark set in the wrong direction, a malfunction may occur.

To Detach The Battery Pack . . .

.... slide the battery pack down slightly while sliding

down BATT. RELEASE to detach it.

Approximate recording time

Battery pack

BN-V408U

BN-V416U

(optional)

BN-V428U

(optional)

BN-V840U

(optional)

BN-V856U

(optional)

NOTES:

●

Recording time is reduced significantly under the following conditions:

•

Zoom or Record-Standby mode is engaged repeatedly.

•

The LCD monitor is used repeatedly.

•

The playback mode is engaged repeatedly.

●

Before extended use, it is recommended that you prepare enough battery packs to cover 3 times the planned shooting time.

LCD monitor on/ Viewfinder off

1 hr. 5 min.

2 hrs. 10 min.

3 hrs. 50 min.

5 hrs. 20 min.

7 hrs. 30 min.

LCD monitor off/ Viewfinder on

1 hr. 15 min.

2 hrs. 30 min.

4 hrs. 20 min.

6 hrs. 10 min.

8 hrs. 40 min.

EN7

USING AC POWER

Use the AC Power Adapter/Charger (connect as shown in the illustration).

NOTES:

●

The provided AC Power Adapter/Charger features automatic voltage selection in the AC range from 110 V to 240 V.

●

For other notes,  pg. 6.

To A C outlet

AC Power Adapter/ Charger

To DC OUT connector

Power cord

DC cord

To DC Input connector

Jack Box

8 EN

PAUSE

GETTING STARTED

(cont.)

Power Zoom Lever

Recording Start/Stop button

Power Switch

Shooting Mode Switch

Dioptre Adjustment Control

Grip Adjustment

Separate the Velcro strip.

Pass your right hand through the loop and grasp

the grip.

Adjust so that your thumb and fingers can easily

operate the Recording Start/Stop Button and Power Zoom Lever. Refasten the Velcro strip.

Viewfinder Adjustment

Set the Power Switch to “ ” or “ ” while

pressing down the Lock Button located on the switch. Set the Shooting Mode Switch to any position.

Pull out the viewfinder fully and adjust it

manually for best viewability.

Turn the Dioptre Adjustment Control until the

indications in the viewfinder are clearly focused.

Shoulder Strap Attachment

Following the illustration, thread the strap

through the eyelet 1, then fold it back and thread it through the buckle 2. Repeat the procedure to attach the other end of the strap to the other eyelet 3, making sure the strap is not twisted.

Tripod Mounting

Align the screw and camera direction stud on

the tripod with the camera’s mounting socket and stud hole. Then tighten the screw.

•Some tripods are not equipped with studs.

CAUTION:

When using a tripod, be sure to open and extend its legs fully to stabilise the camcorder. To prevent damage to the unit caused by falling over, do not use a smallsized tripod.

Power Lamp

Power Switch

Lock Button

EN9

Date/Time Settings

The date/time is recorded onto the tape at all times, but its display can be turned on or off during playback ( pg. 39).

Set the Power Switch to “ ” while pressing down

the Lock Button located on the switch, and open the LCD monitor fully or pull out the viewfinder fully. The power lamp lights and the camcorder is turned on.

Press the MENU wheel. The Menu Screen appears.

Rotate the MENU wheel to select “ DISPLAY”.

Press it and the DISPLAY Menu appears.

Rotate the MENU wheel to select “CLOCK ADJ.”.

Press it and “day” is highlighted. Rotate the MENU wheel to input the day. Press it. Repeat to input the month, year, hour and minute. Rotate the MENU wheel to select “1RETURN”, and press it twice. The Menu Screen closes.

AM AEPROGR AN E

W. BAL

ACAMER LMANUA MSYSTE AYDISPL

DSC

END

T I ME CODE

CLOCK

Display

RE NEON SC

IMETDATE /

ADJ .

NRETUR

ADJ .

MENU Wheel

F.WHITEFADER /WIPE

–

LCD/ TV

UTOA

– – FFO

12 ..0125 17 30:

DISPLAY Menu

Built-in Clock’s Rechargeable Lithium Battery

To store the date/time in memory, the clock’s rechargeable lithium battery is integrated in the camcorder. While the camcorder is connected to an AC outlet using the AC Power Adapter/Charger, or while the battery pack attached to the camcorder continues to supply power, the clock’s rechargeable lithium battery is always charged. However, if the camcorder is not used for approx. 3 months, the clock’s lithium battery will become discharged and the date/time stored in memory will be lost. When this occurs, first connect the camcorder to an AC outlet using the AC Power Adapter/Charger for over 24 hours to charge the clock’s rechargeable lithium battery. Then perform the date/time setting before using the camcorder. Note that the camcorder can be used without setting the date/time.

NOTE:

Even if you select “CLOCK ADJ.”, if the parameter is not highlighted the camcorder’s internal clock continues to operate. Once you move the highlight bar to the first date/ time parameter (day), the clock stops. When you finish setting the minute and press the MENU wheel, the date and time begin operation from the date and time you just set.

10 EN

Erase protection tab*

Make sure the window side is facing out.

PUSH HERE

Cassette holder cover

To Protect Valuable Recordings . . .

.... slide the erase protection tab on the back of

the tape in the direction of “SAVE”. This prevents the tape from being recorded over. To record on this tape, slide the tab back to “REC” before loading it.

Be sure to press only the section labeled “PUSH HERE” to close the cassette holder; touching other parts may cause your finger to get caught in the cassette holder, resulting in injury or product damage.

OPEN/EJECT Switch

Cassette holder

GETTING STARTED

(cont.)

Loading/Unloading A Cassette

The camcorder needs to be powered up to load or eject a cassette.

Slide and hold OPEN/EJECT in the direction of the

arrow then pull the cassette holder cover open until it locks. The cassette holder opens automatically.

•Do not touch internal components.

Insert or remove a tape and press “PUSH HERE” to

close the cassette holder.

•Once the cassette holder is closed, it recedes automatically. Wait until it recedes completely before closing the cassette holder cover.

•When the battery’s charge is low, you may not be able to close the cassette holder cover. Do not apply force. Replace the battery with a fully charged one before continuing.

Close the cassette holder cover firmly until it locks

into place.

Approximate recording time

Tape

30 min. 30 min. 45 min.

60 min. 60 min. 90 min.

80 min. 80 min. 120 min.

Recording mode

SP LP

NOTES:

●

It takes a few seconds for the cassette holder to open. Do not apply force.

●

If you wait a few seconds and the cassette holder does not open, close the cassette holder cover and try again. If the cassette holder still does not open, turn the camcorder off then on again.

●

If the tape does not load properly, open the cassette holder cover fully and remove the cassette. A few minutes later, insert it again.

●

When the camcorder is suddenly moved from a cold place to a warm environment, wait a short time before opening the cassette holder cover.

●

Closing the cassette holder cover before the cassette holder comes out may cause damage to the camcorder.

●

Even when the camcorder is switched off, a cassette can be loaded or unloaded. After the cassette holder is closed with the camcorder switched off, however, it may not recede. It is recommended to turn the power on before loading or unloading.

●

When resuming recording, once you open the cassette holder cover a blank portion will be recorded on the tape or a previously recorded scene will be erased (recorded over) regardless of whether the cassette holder came out or not. See page 21 for information about recording from the middle of a tape.

Card Cover

Clipped edge

Memory card

Label

EN11

Loading A Memory Card

The provided MultiMediaCard is already inserted in the camcorder when you receive the camcorder.

Make sure the camcorder’s power is off.

Open the card cover (MEMORY CARD).

Insert the memory card clipped edge first.

•Do not touch the terminal on the reverse side of the label.

To close the card cover, push it until you hear a click.

To Unload A Memory Card . . .

.... in step 3 push the memory card, which then comes

out of the camcorder automatically. Pull it out and close the card cover.

NOTES:

●

Be sure to use only SD Memory Cards marked “ ” or MultiMediaCards marked “ ”.

●

Some brands of memory cards are not compatible with this camcorder. Before purchasing a memory card , consult its manufacturer or dealer.

●

Before using a new memory card, it is necessary to FORMAT the card.  pg. 47.

●

Even if a memory card is inserted in the camcorder, the camcorder may not recognize it. In this case, remove the memory card once and insert it again.

ATTENTION:

Do not insert/remove the memory card while the camcorder is turned on, as this may cause the memory card to be corrupted or cause the camcorder to become unable to recognize whether or not the card is installed.

12 EN

UXGA

To turn on the camcorder, first set the Power Switch to any operation mode except “OFF” while pressing down the Lock Button located on the switch, then pull out the viewfinder fully or open the LCD monitor fully.

GETTING STARTED

(cont.)

Operation Mode

Choose the appropriate operation mode according to your preference using the Power Switch and Shooting Mode Switch.

Power Switch

Lock Button

Power lamp

When the Power Switch is set to “ ”, “ ” appears. When set to “ ” or “ ”, there is no indication.

The following indications appear in the upper left corner, depending on the Shooting Mode Switch position.

No display : When set to “VIDEO”

XGA or VGA : When set to “XGA/VGA”

UXGA : When set to “UXGA”

Shooting Mode Switch

Power Switch Position

(Manual):

Allows you to set various recording functions using the Menus. If you want more creative capabilities than Full Auto recording, try this mode.

(Full Auto):

Allows you to record using NO special effects or manual adjustments. Suitable for standard recording.

OFF:

Allows you to switch off the camcorder.

Allows you to play back a recording on the tape, to display an image stored in the memory card or to transfer a still image recorded on the tape or in the memory card to a computer.

Shooting Mode Switch Position

VIDEO:

•Allows you to record on a tape. Approx. 6 seconds of a still image can be inserted between video recordings ( pg. 18).

•Zoom magnification over 10X is available ( pg. 20, 27).

•Allows you to record video on a tape and store still images in a memory card simultaneously ( pg. 24).

•Allows you to record moving images (successive jitter-free still images) with superior quality on a tape ( pg. 22). The still images can also be processed on a PC or printed out.

XGA/VGA:

•Allows you to record still images in a memory card ( pg. 14, 19).

•File size:1024 x 768 pixels (XGA) or

640 x 480 pixels (VGA)

UXGA:

•Allows you to record still images in a memory card at high resolution ( pg. 14, 19). Suitable for recording still images with superior quality.

•File size:1600 x 1200 pixels

Power Lamp

Power Switch

EN13

Recording Mode Setting

Set the tape recording mode depending on your preference.

Set the Power Switch to “ ” while pressing down

the Lock Button located on the switch, and open the LCD monitor fully or pull out the viewfinder fully. The power lamp lights and the camcorder is turned on.

Press the MENU wheel. The Menu Screen appears.

Lock Button

MENU Wheel

Display

REC MODE – SP

Menu Screen

Sub Menu

Rotate the MENU wheel to select “ CAMERA” and

press it. The CAMERA Menu appears.

Rotate the MENU wheel to select “REC MODE” and

press it. The Sub Menu appears. Select “SP” or “LP” by rotating the MENU wheel and press it. Rotate the MENU wheel to select “1RETURN”, and press it twice. The Menu Screen closes.

•Audio Dubbing ( pg. 71) and Insert Editing ( pg. 72) are impossible on a tape recorded in the LP mode.

•“LP” (Long Play) is more economical, providing

1.5 times the recording time.

NOTES:

●

If the recording mode is switched during recording, the playback picture will be blurred at the switching point.

●

It is recommended that tapes recorded in the LP mode on this camcorder be played back on this camcorder.

●

During playback of a tape recorded on another camcorder, blocks of noise may appear or there may be momentary pauses in the sound.

14 EN

Power Lamp

Power Switch

GETTING STARTED

(cont.)

Picture Mode Setting

The Picture mode can be selected to best match your needs.

Set the Power Switch to “ ” while pressing down

the Lock Button located on the switch, and open the LCD monitor fully or pull out the viewfinder fully. The power lamp lights and the camcorder turns on.

Press the MENU wheel. The Menu Screen appears.

UXGA

Display

TYQUAL I

NRETUR

Lock Button

MENU Wheel

FINE

–

GAXSIZE

–

AUTO

–

Menu Screen

Rotate the MENU wheel to select “ DSC” and

press it. The DSC Menu appears.

Rotate the MENU wheel to select “QUALITY” and

press it. The Sub Menu appears. Rotate the MENU wheel to select the desired mode and press it.

If you are recording with the Shooting Mode Switch ( pg. 12) set to “XGA/VGA” . . . go to step 5.

If you are recording with the Shooting Mode Switch set to “UXGA” . . . go to step 6.

Rotate the MENU wheel to select “SIZE” and press it.

The Sub Menu appears. Rotate the MENU wheel to select “XGA” or “VGA”.

Go to step 7.

Rotate the MENU wheel to select “UXGA” and press

it. The Sub Menu appears. Rotate the MENU wheel to select the desired mode.

AUTO : or appears when the SNAPSHOT

DOUBLE : appears ( pg. 19).

ENLARGE : appears ( pg. 19).

button is pressed ( pg. 19). Automatically processes the image according to the DOUBLE or ENLARGE methods described below, depending on the shooting situation or subject.

Engages pixel-shift technology to doubleexpose the image and generate a UXGAsized picture.

Digitally enlarges the image to UXGA size.

Rotate the MENU wheel to select “ RETURN”, and

press it twice. The Menu Screen closes.

EN15

STORAGE CAPACITY

The number of storable images depends on the selected picture quality and size as well as the composition of the subjects in the images.

Approximate number of storable images

(with 16 MB MultiMediaCard)

SIZE

UXGA (1600 x 1200)

XGA (1024 x 768)

VGA (640 x 480)

Approximate number of storable images

(with 8 MB MultiMediaCard)

SIZE

UXGA (1600 x 1200)

XGA (1024 x 768)

VGA (640 x 480)

NOTES:

●

If the Shooting Mode Switch is set to “XGA/VGA” or “UXGA” during video recording, the camcorder stops

video recording.

●

The camcorder automatically zooms out to less than 2X when the Shooting Mode Switch is set to “UXGA”.

●

With images shot in the UXGA mode . . .

— the shutter speed is applicable only up to 1/500 in the

“SPORTS” mode ( pg. 35).

— Sepia and Monotone cannot be activated.

●

If “DOUBLE” is selected in the UXGA mode, images may not be processed properly in the following situations: — when the subject has no contrast (difference in

brightness and darkness).

— when shooting in a dark place. — when the subject contains identical patterns that are

regularly repeated.

— when shooting under a flickering light such as a

fluorescent light or candlelight.

— when the subject is moving rapidly. — when there is excessive camera-shake.

●

If “AUTO” is selected in the UXGA mode, and any of the shooting situations listed above are encountered, the camcorder will automatically process the image using the ENLARGE method.

FINE

100

FINE

QUALITY

STANDARD

144

300

QUALITY

STANDARD

150

16 EN

min

BR I GHT

Power lamp

Recording Start/Stop Button

min

(Now

calculating)

Tally lamp (lights while recording is in progress)

Power Switch

Lock Button

Display

90 min

(Blinking) (Blinking) (Blinking)

Shooting Mode Switch

Tape remaining time indicator (Approximate)

89 min

1 min0 min

RECORDING

NOTE:

You should already have performed the procedures listed below. If not, do so before continuing.

●

Power ( pg. 6)

●

Grip Adjustment ( pg. 8)

●

Viewfinder Adjustment ( pg. 8)

●

Load A Cassette ( pg. 10)

●

Recording Mode Setting ( pg. 13)

3 min

2 min

To Stop Recording . . .

.... press the Recording Start/Stop Button. The camcorder

Basic Recording For Video

Set the Shooting Mode Switch to “VIDEO”, then set the Power Switch to “ ” or “ ” while pressing down the Lock Button located on the switch. Make sure “CAMERA MODE” is set to “VIDEO” in the Menu Screen ( pg. 26, 27).

Shooting while using the viewfinder:

LCD monitor is closed and locked. Pull out the viewfinder fully.

•Be sure to pull out the viewfinder until you hear a click, otherwise it may be pushed back in during use.

Shooting while using the LCD monitor:

the viewfinder is pushed back in. Press PUSH OPEN and open the LCD monitor fully. Tilt it upward/ downward for best viewability.

•The power lamp lights and the camcorder enters the Record-Standby mode. “PAUSE” is displayed.

Press the Recording Start/Stop Button. “ ” appears while recording is in progress.

re-enters the Record-Standby mode.

Make sure the

Make sure

180°

90°

PUSH OPEN Button

To Adjust The Brightness Of The Display

.... rotate the MENU wheel until the bright level indicator

on the display moves and the appropriate brightness is reached.

•It is also possible to adjust the brightness of the viewfinder.

MENU Wheel

EN17

NOTES:

●

When you use the LCD monitor outdoors in direct sunlight, the LCD monitor may be difficult to see. If this happens, use the viewfinder instead.

●

The image will not appear simultaneously in the LCD monitor and the viewfinder except during Interface Shooting.

●

The cassette holder cannot be opened unless a power supply is attached.

●

There may be a delay after you open the cassette holder cover until the cassette holder opens. Do not use force.

●

Once the cassette holder is closed, it recedes automatically. Wait until it recedes completely before closing the cassette holder cover.

●

The time required to calculate and display the remaining tape length, and the accuracy of the calculation, may vary according to the type of tape used.

●

“TAPE END” appears when the tape reaches its end, and the power goes off automatically if left in this condition for 5 minutes. “TAPE END” also appears when a cassette at its end is loaded.

●

If the Record-Standby mode continues for 5 minutes, the camcorder’s power shuts off automatically. To turn the camcorder on again, push back and pull out the viewfinder again or close and re-open the LCD monitor.

●

When a blank portion is left between recorded scenes on the tape, the time code is interrupted and errors may occur when editing the tape. To avoid this, refer to “Recording from the middle of a tape” ( pg. 21).

●

During recording, sound is not heard from the speaker. To hear the sound, connect optional headphones to the PHONE connector. The sound volume is at the level it was adjusted to during playback ( pg. 38).

●

To turn the tally lamp or beep sounds off,  pg. 26, 29.

JOURNALISTIC SHOOTING

In some situations, different shooting angles may provide more dramatic results. Hold the camcorder in the desired position and tilt the LCD monitor in the most convenient direction. It can rotate 270° (90° downward, 180° upward).

Self-Recording

INTERFACE SHOOTING

The person you shoot can view himself/herself in the LCD monitor, and you can even shoot yourself while viewing your own image in the LCD monitor. Open the LCD monitor and tilt it upward to 180° so that it faces forward. When the LCD monitor is tilted upward to an angle of over approx. 105°, the monitor image is inverted vertically. If the viewfinder is pulled out at that time, it also switches on. Point the lens toward the subject (yourself when selfrecording) and start recording. During Interface Shooting, the monitor image and indications do not appear inverted as they would when viewing a mirror.

NOTES:

●

During Interface Shooting, the “Tape Running” indicator and warning indications ( pg. 87, 88) are the only ones that are shown; they appear reversed in the display as they would when viewing a mirror, but are not reversed in the recording.

●

The tape remaining indicator does not appear during interface shooting. However, when the remaining time reaches 2 minutes, the indicator appears showing the remaining time: (blinking) (blinking) (blinking)

18 EN

Power Switch

SNAPSHOT Button

Lock Button

Display

Menu Screen

SNAP MODE –

FULL Snapshot mode with no frame*

MULTI-9 Multi-Analyser 9

PIN-UP Pin-Up mode

* There is the sound effect of a shutter closing.

When “FULL”, “FRAME”, “PIN-UP” or “NEGA

√

POSI” is selected, snapshot recording will always be performed with higher quality ( “CAMERA MODE” is set to “VIDEO”.

PIN–UP

FRAME FULL MUL T I – MUL T I – NEGA POS I

√

4 9

Shooting Mode Switch

MULTI-4 Multi-Analyser 4

NEGA POSI Nega/Posi mode*

FRAME Snapshot mode with frame*

√

 pg. 22) even if

RECORDING

Snapshot (For Video Recording)

This feature lets you record still images that look like photographs onto a tape.

SNAPSHOT MODE SELECTION

Set the Shooting Mode Switch to “VIDEO”, then set the Power Switch to “ ” while pressing down the Lock

Button located on the switch. Pull out the viewfinder fully or open the LCD monitor fully.

Press the MENU wheel. The Menu Screen appears.

Rotate the MENU wheel to select “ CAMERA”. Press it and the CAMERA Menu appears.

Rotate the MENU wheel to select “SNAP MODE”, then press it.

Rotate the MENU wheel to select the desired Snapshot mode, then press it.

Rotate the MENU wheel to select “1RETURN” and press it twice. The Menu Screen closes.

SNAPSHOT RECORDING

Set “CAMERA MODE” to “VIDEO” or “PS-VIDEO” in the Menu Screen ( pg. 26, 27).

Press SNAPSHOT.

If you press during Record-Standby . . .

..... “PHOTO” appears and a still image will be recorded

If you press during Recording . . .

..... “PHOTO” appears and a still image will be recorded

Motor Drive Mode

Keeping SNAPSHOT pressed provides an effect similar to serial photography. (Interval between still images: approx. 1 second)

NOTES:

●

√

To remove the shutter sound,  “BEEP” on pg. 29.

●

If Digital Zoom is used while in the “MULTI-4” or “MULTI9” mode, Snapshot recording will be performed with 10X magnification.

●

If Snapshot recording is not possible, “PHOTO” blinks when SNAPSHOT is pressed.

●

If Programme AE with special effects ( pg. 34) is engaged, certain modes of Programme AE with special effects are disabled during Snapshot recording. In such a case, the icon blinks.

●

If SNAPSHOT is pressed when “DIS” is set to “ON” ( pg. 27), the Stabiliser will be disabled.

●

To dub images recorded on a tape to a memory card,



pg. 60.

●

When shooting in the Multi-Analyser 4 or Multi-Analyser 9 modes, the optional flash ( pg. 83) will not light.

●

During playback as well, all snapshot modes except Nega/ Posi mode are available when “ COPY” is set to “OFF” in the Menu Screen ( pg. 39).

●

When a headphone set is connected to the PHONE connector, the shutter sound is not heard from the speaker, however it is recorded onto the tape.

Basic Recording For Video (cont.)

for approx. 6 seconds, then the camcorder re-enters the Record-Standby mode.

for approx. 6 seconds, then the normal recording resumes.

RECORDING

Power Switch

SNAPSHOT Button

Picture Size

Displays the file size of the stored image: UXGA, XGA

 pg. 14).

or VGA (

Picture Quality

Displays the quality of the stored image: FINE or STD (standard) (in order of quality) (

Number of shots taken

Displays the number of images that have already been shot.

UXGA F I NE

Total number of shots

Displays the approximate total number of shots that can be stored, including those already taken. The number increases or decreases depending on the shots stored, the Picture mode, Shooting mode, etc.

Card icon

Appears during shooting and blinks when a memory card is not loaded.

Shooting icon

Appears and blinks during shooting.

UXGA Mode icon

Displays the process utilized to create the UXGA size image:

There is the sound of a shutter closing.

(DOUBLE) or (ENLARGE) ( pg. 14).

Basic Recording For Digital Still Camera (D.S.C.)

Shooting Mode Switch

Lock Button

 pg. 14).

Display

10 /24

Snapshot mode with no frame

EN19

Basic Shooting (Snapshot)

You can use your camcorder as a Digital Still Camera for taking snapshots.

NOTE:

You should already have performed the procedures listed below. If not, do so before continuing.

●

Power ( pg. 6)

●

Grip Adjustment ( pg. 8)

●

Viewfinder Adjustment ( pg. 8)

●

Loading A Memory Card ( pg. 11)

●

Picture Mode Setting ( pg. 14)

Set the Shooting Mode Switch to “XGA/VGA” or “UXGA”, then set the Power Switch to “ ” or “ ” while pressing

down the Lock Button located on the switch. Open the LCD monitor fully or pull out the viewfinder fully.

Press SNAPSHOT halfway. The screen becomes a still image, which is captured into the camcorder’s memory.

However, it is not recorded until SNAPSHOT is pressed fully.

•At this moment, if you release SNAPSHOT, snapshot

recording will be cancelled.

Press SNAPSHOT fully. The image is recorded in the memory card .

•Still images are recorded in the snapshot mode with no frame.

To Delete Unwanted Still Images . . .

..... when unwanted still images are stored in the memory

card or its memory is full, refer to “Deleting Images” ( pg. 45) and delete unwanted still images.

To Remove The Shutter Sound . . .

..... when you do not want to hear the shutter sound, set

“BEEP” to “OFF” in the Menu Screen ( pg. 26, 29). The sound is no longer heard from the speaker.

NOTES:

●

Even if “DIS” is set to “ON” ( pg. 27), the Stabiliser will be disabled.

●

If Snapshot recording is not possible, “PHOTO” blinks when SNAPSHOT is pressed.

●

If Programme AE with special effects ( pg. 34) is engaged, certain modes of Programme AE with special effects are disabled during Snapshot recording. In such a case, the icon blinks.

●

If shooting is not performed for approx. 5 minutes when the Power Switch is set to “ ” or “ ” and power is supplied from the battery pack, the camcorder shuts off automatically to save power. To perform shooting again, close the LCD monitor and re-open it. When using the viewfinder, push back it in and pull it out again.

●

The Motor Drive mode ( pg. 18) is disabled when the Shooting Mode Switch is set to “XGA/VGA” or “UXGA”.

●

When a headphone set is connected to the PHONE connector, the shutter sound is not heard from the speaker.

●

Still images taken are compliant to DCF (Design rules for Camera File systems). They do not have any compatibility with devices which are not compliant to DCF.

●

In the XGA mode, images shot using a 680,000-pixel Progressive Scan CCD (effective area: 630,000 pixels, 962 x 654 pixels) are converted and stored in the XGA mode file size (1024 x 768 pixels).

20 EN

1xW

10xW

20xW

40xW

Zoom in (T: Telephoto)

Zoom display

10xW

Approximate zoom ratio

Power Zoom Lever

Power Switch

RECORDING

Basic Recording For Video And D.S.C.

FEATURE:

Zooming

PURPOSE:

To produce the zoom in/out effect, or an instantaneous change in image magnification.

OPERATION:

Zoom In

Zoom out (W: Wide angle)

Digital zoom zone

10X (optical) zoom zone

Slide the Power Zoom Lever towards “T”.

Zoom Out

Slide the Power Zoom Lever towards “W”.

 The further you slide the Power Zoom Lever, the

quicker the zoom action.

NOTES:

●

Focusing may become unstable during Zooming. In this case, set the zoom while in Record-Standby, lock the focus by using the manual focus ( pg. 25), then zoom in or out in Record mode.

●

Zooming is possible to a maximum of 300X, or it can be switched to 10X magnification using the optical zoom ( pg. 27).

●

Zoom magnification of over 10X is done through Digital image processing, and is therefore called Digital Zoom.

●

During Digital zoom, the quality of image may suffer.

●

Digital zoom cannot be used in the following cases:

•

When digital image processing, such as Picture Wipe/Dissolve ( pg. 32, 33) or Video Echo ( pg. 34, 35), is activated.

•

When the Shooting Mode Switch is set to “UXGA” or “XGA/VGA” ( pg. 12).

•

When “CAMERA MODE” is set to “DUAL” in the Menu Screen ( pg. 26, 27).

•

When “CAMERA MODE” is set to “PS-VIDEO” and “WIDE MODE” is set to “PS-WIDE” in the Menu Screen ( pg. 26, 27).

●

Macro shooting (as close as approx. 5 cm to the subject) is possible when the Power Zoom Lever is set all the way to “W”. Also see “TELE MACRO” in the Menu Screen on page 28.

MENU Wheel

EN21

NOTE: Recording From The Middle Of A Tape

Time Code

During recording, a time code is recorded on the tape. This code is to confirm the location of the recorded scene on the tape during playback. If recording starts from a blank portion, the time code begins counting from “00:00:00” (minute:second:frame). If recording starts from the end of a previously recorded scene, the time code continues from the last time code number.

To perform Random Assemble Editing ( pg. 65 – 70), time code is necessary. If during recording a blank portion is left partway through the tape, the time code is interrupted. When recording is resumed, the time code starts counting up again from “00:00:00”. This means the camcorder may record the same time codes as those existing in a previously recorded scene. To prevent this, perform “Recording From The Middle of A Tape” below in the following cases;

•When shooting again after playing back a recorded tape.

•When power shuts off during shooting.

•When a tape is removed and re-inserted during

shooting.

•When shooting using a partially recorded tape.

•When shooting on a blank portion located

partway through the tape.

•When shooting again after shooting a scene then opening/closing the cassette holder cover.

Recording From The Middle Of A Tape

1. Play back a tape or use Blank Search ( pg. 41) to find the spot at which you want to start recording,

then engage the Still Playback mode ( pg. 38).

2. Set the Power Switch to “ ” or “ ” while pressing down the Lock Button located on the switch, then

start recording.

NOTES:

●

The time code cannot be reset.

●

During fast-forwarding and rewinding, the time code indication does not move smoothly.

●

The time code is displayed only when “TIME CODE” is set to “ON” ( pg. 29, 39).

12:34:24

Display

Frames are not displayed during recording.

Minutes

Seconds

Frames (25 frames = 1 second)

When a blank portion is recorded on a tape

Time code 00:00:00

Tape

Shooting start point

Time code 05:43:21

Proper recording

Time code 00:00:00

Tape

Shooting start point

Time code 05:43:21

Time code 00:00:00

Shooting start pointShooting stop point

Time code 05:44:00

Shooting start pointShooting start point

Newly recorded sceneBlankAlready recorded scene

Latest sceneNew sceneAlready recorded scene

22 EN

SNAPSHOT Button

Power Switch

RECORDING

Shooting Mode Switch

Advanced Features For Video And D.S.C.

Progressive Mode Recording

This mode lets you record moving images (successive jitter-free still images) onto a tape. Images can then played back jitter-free, with superior quality. High-resolution still images can also be processed on a personal computer or can be printed out ( pg. 55).

Set the Shooting Mode Switch to “VIDEO”, then set

the Power Switch to “ ” while pressing down the Lock Button located on the switch. Pull out the viewfinder fully or open the LCD monitor fully.

Lock Button

Recording Start/Stop Button

Set “CAMERA MODE” to “PS-VIDEO” in the Menu

Screen ( pg. 26, 27).

To start Progressive Mode Recording, press the

Recording Start/Stop Button.

To End Progressive Mode Recording . . .

.... press the Recording Start/Stop Button. The camcorder

enters the Record-Standby mode.

NOTES:

●

When an image recorded using the Progressive Mode is played back, the image may not look natural.

●

When “CAMERA MODE” is set to “PS-VIDEO”, Picture Wipe/Dissolve ( pg. 32) and some Programme AE with special effects ( pg. 34) cannot be used.

●

If SNAPSHOT is pressed in the PS-VIDEO mode, a snapshot will be recorded with higher quality than in VIDEO mode. However, “MULTI-4” and “MULTI-9” cannot be used ( pg. 18).

EN23

Description of Progressive Scan CCD

Progressive Scan is a special image sensing method which, unlike conventional interlace scanning, is able to pick up all the lines of picture information in one Scan. Since the Progressive Scan CCD is capable of outputting 50 full Frames* per second — twice the amount of conventional systems — it is able to deliver a high quality picture even when its output signal is converted to a format that can be viewed on a TV screen.

*A PAL TV screen image is composed of 25 Frames per second. 1 Frame is made up of 2 Fields.

Scan A

1 Frame

Scan B

1. Regular shooting of moving images

Records 25 odd and 25 even image Fields, for a total of 50 per second. Since there is a time lag between an odd and even Field, when they are combined to make 1 Frame the part of the image that is moving appears as image jitter.

However, during normal playback, the moving picture looks smooth and natural.

2. Progressive mode shooting of moving images (Progressive Mode Recording  pg. 22)

Scan A is recorded, divided into an odd- and even-number Field, and then Scan B is skipped. Scans C and D are handled in the same way as Scans A and B, as illustrated below, thereby recording 25 Frames per second.

Since each recorded odd- and even-number Field originates from the same Scan there is no time lag between them, and so when they are combined into a Frame and a still image is displayed on a TV or PC monitor the

picture does not look jittery. However, when moving images are played back, the picture can look unnatural.

Scan A

Scan B

Skip

Scan C

Scan D

Skip

Odd-number

Field

Even-number

Field

Odd-number

Field

Even-number

Field

25 Frames per second

24 EN

SNAPSHOT Button

Video image

RECORDING

Power Switch

Lock Button

Shooting Mode Switch

SNAPSHOT Button

Released position

Advanced Features For Video And D.S.C. (cont.)

Dual Shooting

Lets you record images on a tape and store still images in a memory card simultaneously. In other words, it is possible to store still images in the memory card without interrupting image recording on the tape.

Set the Shooting Mode Switch to “VIDEO”, then set

the Power Switch to “ ” while pressing down the Lock Button located on the switch. Pull out the viewfinder fully or open the LCD monitor fully.

Set “CAMERA MODE” to “DUAL” in the Menu

Screen ( pg. 26, 27).

While recording to a tape, press SNAPSHOT halfway.

A still image is displayed in the lower right corner of the screen where the video image being recorded is displayed.

•At this moment, if you release SNAPSHOT,

snapshot recording will be cancelled.

Press SNAPSHOT fully. The displayed still image is

stored in the memory card.

Still image

FOCUS Ring

Half-pressed

position

Fully-pressed

position

FOCUS Button

NOTES:

●

If SNAPSHOT is pressed in the Record-Standby mode, only a still image is stored in the memory card. Video recording does not take place.

●

If SNAPSHOT is pressed when “DIS” is set to “ON”

( pg. 27), the Stabiliser will be disabled.

●

The Stabiliser is less effective in the DUAL mode than in

other modes.

●

Still images are stored in the memory card in VGA mode

file size ( pg. 12).

●

When “CAMERA MODE” is set to “DUAL”, all Fade/

Wipe Effects and some Programme AE with special effects cannot be used ( pg. 32 – 35).

●

The optional flash ( pg. 3, 83) will not light during

video recording.

Focus detection zone

While focusing on a further subject

While focusing on a nearer subject

EN25

FEATURE:

Auto Focus

PURPOSE:

The camcorder’s Full Range AF system offers continuous shooting ability from close-up (as close as approx. 5 cm to the subject) to infinity. However, correct focus may not be obtainable in the situations listed below (in these cases use manual focusing):

•When two subjects overlap in the same scene.

•When illumination is low.*

•When the subject has no contrast (difference in brightness and darkness), such as a flat, one-colour wall,

or a clear, blue sky.*

•When a dark object is barely visible in the viewfinder.*

•When the scene contains minute patterns or identical patterns that are regularly repeated.

•When the scene is affected by sunbeams or light reflecting off the surface of a body of water.

•When shooting a scene with a high-contrast background.

* The following low-contrast warnings appear blinking: , , and

NOTES:

●

If the lens is smeared or blurred, accurate focusing is not possible. Keep the lens clean, wiping with a piece of soft cloth if it gets dirty. When condensation occurs, wipe with a soft cloth or wait for it to dry naturally.

●

When shooting a subject close to the lens, zoom out first ( pg. 20). If zoomed-in in the auto focus mode, the camcorder may automatically zoom out depending on the distance between the camcorder and the subject. This will not occur when “TELE MACRO” ( pg. 28) is activated.

FEATURE:

Manual Focus

PURPOSE:

To obtain correct focus.

OPERATION:

1) If you are using the viewfinder, you should already have made the necessary viewfinder adjustments

( pg. 8).

2) Set the Power Switch to “ ” while pressing down the Lock Button located on the switch and set the Shooting Mode Switch to “VIDEO”, then press FOCUS. The manual focus indicator appears.

3) To focus on a farther subject, rotate the Focus Ring clockwise. “ ” appears and blinks. To focus on a nearer subject, rotate the Focus Ring counterclockwise. “ ” appears and blinks.

To reset to Auto Focus, press FOCUS or set the Power Switch to “ ”.

NOTES:

●

Be sure to focus the lens in the maximum telephoto position when you use the Manual Focus mode. If you focus in on a subject in the wide-angle position, sharply focused images cannot be obtained when zoomed up because the depth-of-field is reduced at longer focal lengths.

●

When the focus level cannot be adjusted any further or closer, “ ” or “ ” will blink.

26 EN

Power Switch

Lock Button

Display

AM A EPROGR AN E

W. BAL

ACAMER LMANUA

MSYSTE

AYDISPL

DSC

END

RECORDING

F.WHITEFADER /WI PE

BEEP

TALLY DE MO MOD E

Menu Screen

ODEREC M SP

ZOOM

MOD ESNAP UPGA I N

AMODECAMER

NRETUR

Sub Menu

DIS –ONOFF

–

MEL ODY

– – NO

Advanced Features For Video And D.S.C. (cont.)

Using Menus For Detailed Adjustment

This camcorder is equipped with an easy-to-use, on-screen menu system that simplifies many of the more detailed camcorder settings ( pg. 27 – 29) .

Set the Power Switch to “ ” while pressing down

the Lock Button located on the switch, then pull out the viewfinder fully or open the LCD monitor fully.

Press the MENU wheel. The Menu Screen appears.

MENU Wheel

–

BTMOD ESOUND

–

LFUL

–

AGC

–

EVID O

–

Rotate the MENU wheel to select the desired function

menu, and press it. The selected function menu appears.

Function menu setting depends on the function.

If you have selected “ FADER/WIPE”, “ PROGRAM AE” or “ W. BALANCE” . . .

.... see pg. 27.

If you have selected “ CAMERA”, “ MANUAL”, “ SYSTEM”, “ DISPLAY” or “ DSC” . . .

.... go to step 5.

Rotate the MENU wheel to select the desired function

and press it. The Sub Menu appears. Then, rotate the MENU wheel to select the parameter, and press it. Selection is complete.

Rotate the MENU wheel to select “1RETURN” and

press it twice. The Menu Screen closes.

•The icon represents “END”.

UXGA

T I ME COD E

CLOCK

TYQUAL I

NRETUR

–

RE NEON SC

IMETDAT E /

ADJ .

NRETUR

FINE

GAXSIZE––

AUTO

– – – FFO

NRETUR

LCD/ TV

12 ..0152 17 30:

FADER/W I PE

AM A EPROGR AN E

W. BAL

ACAMER LMANU A MSYSTE AYDISPL

DSC

END

Normal Screen

Menu Screen Explanations

FADER/WIPE

PROGRAM AE

W.BALANCE

REC MODE

SOUND MODE

ZOOM

CAMERA

SNAP MODE

GAIN UP

CAMERA MODE

DIS

MANUAL

12 BIT

16 BIT

10X

40X

300X

OFF

AGC

AUTO

VIDEO

DUAL

PS-VIDEO

OFF

Refer to “Fade/Wipe Effects” ( pg. 32, 33).

Refer to “Programme AE With Special Effects” ( pg. 34, 35).

Refer to “White Balance Adjustment” and “Manual White Balance Operation” ( pg. 37).

Allows you to set the video recording mode (SP or LP) depending on your pre-ference ( pg. 13).

Enables video recording of stereo sound on four separate channels, and is recommended for use when performing audio dubbing. (Equivalent to the 32 kHz mode of previous models)

Enables video recording of stereo sound on two separate channels. (Equivalent to the 48 kHz mode of previous models)

When set to “10X” while using digital zoom, the zoom magnification will reset to 10X since digital zoom will be disengaged.

Allows you to use the Digital Zoom. By digitally processing and magnifying images, zooming is possible from 10X (the optical zoom limit), to a maximum of 40X digital magnification.

Allows you to use the Digital Zoom. By digitally processing and magnifying images, zooming is possible from 10X (the optical zoom limit), to a maximum of 300X digital magnification.

Refer to “Snapshot (For Video Recording)” ( pg. 18).

Allows you to shoot dark scenes with no picture brightness adjustment.

The overall appearance may be grainy, but the image is bright.

The shutter speed is automatically adjusted (1/25 — 1/200 sec.). Shooting a subject in low or poor lighting at 1/25 sec. shutter speed provides a brighter image than in the AGC mode, but the subject’s movements are not smooth or natural. The overall appearance may be grainy. While the shutter speed is being automatically adjusted, “ ” is displayed.

Enables regular video shooting.

Enables “Dual Shooting” ( pg. 24).

Enables “Progressive Mode Recording” ( pg. 22).

To compensate for unstable images caused by camera-shake, particularly at high magnification.

NOTES:

● Accurate stabilisation may not be possible if hand shake is excessive, or

● Switch off this mode when recording with the camcorder on a tripod.

● The “ ” indicator blinks or goes out if the Stabiliser cannot be used.

EN27

under the following conditions:

•When shooting subjects with vertical or horizontal stripes.

•When shooting dark or dim subjects.

•When shooting subjects with excessive backlighting.

•When shooting scenes with movement in various directions.

•When shooting scenes with low-contrast backgrounds.

: Factory-preset

NOTES:

●

The “ CAMERA” settings are effective when the Power Switch is set to both “ ” and “ ”.

●

The “ MANUAL” settings are effective only when the Power Switch is set to “ ”.

CONTINUED ON NEXT PAGE

28 EN

RECORDING

Menu Screen Explanations (cont.)

Advanced Features For Video And D.S.C. (cont.)

SELF-TIMER

TELE MACRO

WIDE MODE

MANUAL

WIND CUT

OFF 5S

ANIM.

OFF

CINEMA

SQUEEZE

PS-WIDE

OFF

Refer to “Self-Timer” ( pg. 30).

Refer to “5-Second Recording” ( pg. 31).

Allows you to record a few frames only. By using an inanimate object and changing its position between shots, you can record the subject as though it is moving ( pg. 31).

Usually the distance to a subject where the lens is in focus depends on the zoom magnification. Unless there is a distance more than 1m to the subject, the lens is out of focus at the maximum telephoto setting. When set to “ON”, you can shoot a subject as large as possible at a distance of approx. 60 cm.

•Depending on the zoom position, the lens may go out of focus.

Records with no change in the screen ratio. For playback on a TV with a normal screen ratio.

Inserts black bands at the top and bottom of the screen. During playback on wide-screen TVs, the black bands at the top and bottom of the screen are cut and the screen ratio becomes 16:9. appears. When using this mode, refer to your wide-screen TV’s instruction manual. During playback/recording on 4:3 TVs/LCD monitor/viewfinder, black bands are inserted at the top and bottom of the screen and the image appears like a letterboxed 16:9 movie.

•“CINEMA” mode is effective only when the Shooting Mode Switch is set to “VIDEO” ( pg. 12) and “CAMERA MODE” is set to “VIDEO” or “PS-

VIDEO” in the Menu Screen ( pg. 27).

For playback on TVs with an aspect ratio of 16:9. Naturally expands the image to fit the screen without distortion. appears. When using this mode, refer to your wide-screen TV’s instruction manual. During playback/ recording on 4:3 TVs/LCD monitor/viewfinder, the image is elongated vertically.

•“SQUEEZE” mode is effective only when the Shooting Mode Switch is set to “VIDEO” ( pg. 12) and “CAMERA MODE” is set to “VIDEO” or “PS- VIDEO” in the Menu Screen ( pg. 27).

“SW” appears. The zoom range is extended beyond the maximum optical

zoom wide angle range. This mode’s wide angle setting is equivalent to using a 0.7X wide conversion lens. Zooming is possible from 0.7X to 10X. This mode is suitable for shooting in a small room.

•“PS-WIDE” mode is effective only when the Shooting Mode Switch is set to “VIDEO” ( pg. 12) and “CAMERA MODE” is set to “PS-VIDEO” in the

Menu Screen ( pg. 27).

Disengages the function which cuts down on noise created by wind.

Helps cut down on noise created by wind. “ ” appears. The quality of the sound will change. This is normal.

: Factory-preset

NOTE:

The “ MANUAL” settings are effective only when the Power Switch is set to “ ”.

EN29

BEEP

TALLY

DEMO MODE

SYSTEM

ON SCREEN

DATE/ TIME

DISPLAY

TIME CODE

CLOCK ADJ.

QUALITY SIZE

DSC

UXGA

: Factory-preset

OFF

BEEP

MELODY

OFF

LCD

LCD/TV

OFF

AUTO

OFF

Even though not heard while shooting, shutter sound is recorded on the tape.

The beep sounds when the power is turned on or off, and at the beginning and end of recording. Also to activate the shutter sound effect ( pg. 18, 19).

Instead of a beep, a melody sounds when any operation is performed. It also activates the shutter sound effect ( pg. 18, 19).

The tally lamp remains off at all times.

The tally lamp comes on to signal the start of recording.

Automatic demonstration will not take place.

Demonstrates certain functions such as Programme AE with special effects, etc., and can be used to confirm how these functions operate. When “DEMO MODE” is set to “ON” and the Menu Screen is closed, demonstration starts. Performing any operation during the demonstration stops the demonstration temporarily. If no operation is performed for more than 1 minute after that, the demonstration will resume.

NOTES:

● If a tape is in the camcorder, the demonstration cannot be turned on.

● “DEMO MODE” remains “ON” even if the camcorder power is turned off.

● If “DEMO MODE” remains “ON”, some functions will not be available.

After viewing demo, set to “OFF”.

Keeps the camcorder’s display (except the date, time and time code) from appearing on the connected TV screen.

Makes the camcorder’s display appear on screen when the camcorder is connected to a TV.

The date/time does not appear.

Displays the date/time for approx. 5 seconds in the following cases:

•When the Power Switch is set from “OFF” to “ ” or “ ”.

•When video playback starts. The camcorder displays the date/time when

scenes are recorded.

•When the date is changed during video playback.

The date/time is always displayed.

Time code is not displayed.

Time code is displayed on the camcorder and on the connected TV. Frame numbers are not displayed during recording.

Allows you to set the current date and time ( pg. 9).

Refer to “Picture Mode Setting” ( pg. 14).

NOTES:

●

“ SYSTEM” and “ DISPLAY” functions which are set when the Power Switch is set to “ ” are also applied when the Power Switch is set to “ ” ( pg. 39). “CLOCK ADJ.” only appears when the Power Switch is set to “ ”.

●

The “ DISPLAY” settings are effective even when the Power Switch is set to “ ”.

●

The “ON SCREEN” setting can also be changed by pressing the DISPLAY Button on the remote control (provided) ( pg. 53, 56, 66).

+ 67 hidden pages
