JVC GR-DF450 User Manual

DIGITAL VIDEO CAMERA

Dear Customer,

Thank you for purchasing this digital
video camera. Before use, please
read the safety information and
precautions contained in the pages
3 – 4 and 10 to ensure safe use of
this product.

ENGLISH

GR-DF470
GR-DF450
GR-DF430

Please visit our Homepage on the World Wide Web for
Digital Video Camera:

http://www.jvc.co.jp/english/cyber/

For Accessories:

http://www.jvc.co.jp/english/accessory/

The camcorder illustrations appearing in this instruction manual are
of the GR-DF470.

The D.S.C (Digital Still Camera) features are available on
GR-DF470 and GR-DF450.

GETTING STARTED

VIDEO RECORDING &
PLAYBACK

DIGITAL STILL CAMERA
(D.S.C.) RECORDING &
PLAYBACK (GR-DF470/450
only)

ADVANCED FEATURES

REFERENCES

TERMS

For Customer Use:

Enter below the Model No. and
Serial No. which is located on the
bottom of the camcorder. Retain this
information for future reference.

Model No.
Serial No.

To deactivate the demonstration,
set “DEMO MODE” to “OFF”.
(墌 pg. 36, 39)

6

19

27

36

56

67

INSTRUCTIONS

LYT1426-001B

EN

2 EN

Major Features of this Camcorder

Wipe/Fader Effects

You can use the Wipe/Fader Effects to make
pro-style scene transitions. (墌 pg. 47)

Fade in

Fade out

Program AE with Special Effects

For example, “SPORTS” mode allows fast­moving images to be captured one frame at a
time, for vivid, stable slow-motion. (墌 pg. 47)

Backlight Compensation

Simply pressing the BACK LIGHT button
brightens the image darkened by backlight.
(墌 pg. 45)

● You can also select a spot metering area so
that more precise exposure compensation
is available. (墌 pg. 45, Spot Exposure
Control)

Navigation Function*

The Navigation Function helps you check
tape contents by making thumbnail images
on a memory card. (墌 pg. 48)

DAT : 3:29 MMAY 2 4 0 4’A
TC : : 3 : 1 5

1 2 3

4 5

ONITNAV I GA

2E31

E-Mail Clip Recording*

You can record video clips on the memory
card as files which can be sent via e-mail.
(墌 pg. 31)

* GR-DF470/450 only

SAFETY PRECAUTIONS

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK,

DO NOT REMOVE COVER (OR BACK).

NO USER-SERVICEABLE PARTS INSIDE.

REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

The lightning flash with arrowhead symbol, within an
equilateral triangle, is intended to alert the user to the
presence of uninsulated "dangerous voltage" within the
product's enclosure that may be of sufficient magnitude
to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is
intended to alert the user to the presence of important
operating and maintenance (servicing) instructions in
the literature accompanying the appliance.

WARNING: TO PREVENT FIRE OR SHOCK
HAZARD, DO NOT EXPOSE THIS UNIT TO
RAIN OR MOISTURE.

CAUTIONS:

● This camcorder is designed to be used with
NTSC-type colour television signals. It cannot
be used for playback with a television of a
different standard. However, live recording and
LCD monitor/viewfinder playback are possible
anywhere.

● This product includes patented and other
proprietary technology and will operate only
with JVC Data Battery. Use the JVC
BN-VF707U/VF714U/VF733U battery packs
and, to recharge them or to supply power to the
camcorder from an AC outlet, use the provided
multi-voltage AC Adapter. (An appropriate
conversion adapter may be necessary to
accommodate different designs of AC outlets in
different countries.)

Caution on Replaceable lithium battery

The battery used in this device may present a fire
or chemical burn hazard if mistreated.

Do not recharge, disassemble, heat above 100°C
(212F°) or incinerate.

Replace battery with Panasonic (Matsushita
Electric), Sanyo, Sony or Maxell CR2025.

Danger of explosion or Risk of fire if the battery is
incorrectly replaced.

● Dispose of used battery promptly.

● Keep away from children.

● Do not disassemble and do not dispose of in

fire.

EN 3

NOTES:

● The rating plate (serial number plate) and
safety caution are on the bottom and/or the
back of the main unit.

● The rating information and safety caution of the
AC Adapter are on its upper and lower sides.

This product has a fluorescent lamp that contains
a small amount of mercury. Disposal of these
materials may be regulated in your community
due to environmental considerations.
For disposal or recycling information please
contact your local authorities, or the Electronics
Industries Alliance:

<http://www.eiae.org>

4 EN

When the equipment is installed in a cabinet or on
a shelf, make sure that it has sufficient space on
all sides to allow for ventilation (10 cm (3-15/16")
or more on both sides, on top and at the rear).

Do not block the ventilation holes.
(If the ventilation holes are blocked by a
newspaper, or cloth etc. the heat may not be able
to get out.)

No naked flame sources, such as lighted candles,
should be placed on the apparatus.

When discarding batteries, environmental
problems must be considered and the local rules
or laws governing the disposal of these batteries
must be followed strictly.

The apparatus shall not be exposed to dripping or
splashing.

Do not use this equipment in a bathroom or
places with water.
Also do not place any containers filled with water
or liquids (such as cosmetics or medicines, flower
vases, potted plants, cups etc.) on top of this unit.
(If water or liquid is allowed to enter this
equipment, fire or electric shock may be caused.)

Do not point the lens or the viewfinder directly into
the sun. This can cause eye injuries, as well as
lead to the malfunctioning of internal circuitry.
There is also a risk of fire or electric shock.

CAUTION!

The following notes concern possible physical
damage to the camcorder and to the user.

When carrying, be sure to always securely attach
and use the provided strap. Carrying or holding
the camcorder by the viewfinder and/or the LCD
monitor can result in dropping the unit, or in a
malfunction.

Take care not to get your finger caught in the
cassette holder cover. Do not let children operate
the camcorder, as they are particularly
susceptible to this type of injury.

Do not use a tripod on unsteady or unlevel
surfaces. It could tip over, causing serious
damage to the camcorder.

CAUTION!

Connecting cables (Audio/Video, S-Video, etc.) to
the camcorder and leaving it on top of the TV is
not recommended, as tripping on the cables will
cause the camcorder to fall, resulting in damage.

IMPORTANT SAFETY INSTRUCTIONS

1. Read these instructions.

2. Keep these instructions.

3. Heed all warnings.

4. Follow all instructions.

5. Do not use this apparatus near water.

6. Clean only with dry cloth.

7. Do not block any ventilation openings. Install in
accordance with the manufacturer’s instructions.

8. Do not install near any heat sources such as
radiators, heat registers, stoves, or other
apparatus (including amplifiers) that produce
heat.

9. Only use attachments/accessories specified by
the manufacturer.

10. Use only with the
cart, stand, tripod,
bracket, or table
specified by the
manufacturer, or
sold with the
apparatus. When a
cart is used, use
caution when
moving the cart/
apparatus combination to avoid injury from tip­over.

11. Unplug this apparatus during lightning storms or
when unused for long periods of time.

12. Refer all servicing to qualified service
personnel. Servicing is required when the
apparatus has been damaged in any way, such
as power-supply cord or plug is damaged, liquid
has been spilled or objects have fallen into the
apparatus, the apparatus has been exposed to
rain or moisture, does not operate normally, or
has been dropped.

GETTING STARTED 6

Index................................................................. 6

Provided Accessories ..................................... 11

Power.............................................................. 13

Operation Mode.............................................. 15

Language Settings..........................................16

Date/Time Settings ......................................... 16

Grip Adjustment.............................................. 16

Viewfinder Adjustment.................................... 16

Brightness Adjustment Of The Display........... 17

Tripod Mounting.............................................. 17

Loading/Unloading A Cassette....................... 17

Loading/Unloading A Memory Card

(GR-DF470/450 only) ................................. 18

VIDEO RECORDING & PLAYBACK 19

VIDEO RECORDING ........................................... 19

Basic Recording.............................................. 19

Tape Remaining Time ................................ 19

LCD Monitor And Viewfinder ...................... 19

Zooming...................................................... 20

Journalistic Shooting .................................. 20

Self Recording............................................ 20

Time Code .................................................. 21

Quick Review.............................................. 21

Recording From The Middle Of A Tape...... 21

VIDEO PLAYBACK ............................................. 22

Normal Playback............................................. 22

Still Playback .............................................. 22

Shuttle Search............................................ 22

Blank Search .............................................. 22

Connections To A TV Or VCR........................ 23

Playback Using The Remote Control.............. 24

DIGITAL STILL CAMERA (D.S.C.) RECORDING
& PLAYBACK (GR-DF470/450 only) 27

D.S.C. RECORDING (GR-DF470/450 only) ......... 27

Basic Shooting (D.S.C. Snapshot).................. 27

Interval Shooting......................................... 28

D.S.C. PLAYBACK (GR-DF470/450 only)............ 29

Normal Playback Of Images........................... 29

Auto Playback Of Images ............................... 29

Playback Of Video Clips ................................. 29

Index Playback Of Files.................................. 30

Viewing File Information ................................. 30

Removing On-Screen Display ........................ 30

CONTENTS

EN

ADDITIONAL FEATURES FOR D.S.C.

(GR-DF470/450 only) ...................................... 31

E-Mail Clip Recording..................................... 31

Dubbing Still Images Recorded On A Tape

To A Memory Card ..................................... 32

Resetting The File Name................................ 32

Protecting Files............................................... 32

Deleting Files.................................................. 33

Setting Print Information (DPOF Setting)........34

Initializing A Memory Card.............................. 35

ADVANCED FEATURES 36

MENUS FOR DETAILED ADJUSTMENT.................. 36

Changing The Menu Settings......................... 36

Recording Menus............................................ 37

Playback Menus ............................................. 40

FEATURES FOR RECORDING............................... 42

LED Light........................................................ 42

Live Slow (GR-DF470/450 only)..................... 42

5-Second Recording....................................... 42

Night-Alive ...................................................... 43

Snapshot (For Video Recording).................... 43

Manual Focus ................................................. 44

Exposure Control............................................ 44

Iris Lock .......................................................... 45

Backlight Compensation................................. 45

Spot Exposure Control.................................... 45

White Balance Adjustment.............................. 46

Manual White Balance Adjustment................. 46

Wipe Or Fader Effects .................................... 47

Program AE With Special Effects ................... 47

Navigation Function (GR-DF470/450 only)..... 48

EDITING............................................................ 51

Dubbing To Or From A VCR........................... 51

Dubbing To Or From A Video Unit Equipped With

A DV Connector (Digital Dubbing).............. 52

Connection To A Personal Computer............. 53

Audio Dubbing ................................................ 54

Insert Editing...................................................55

REFERENCES 56

TROUBLESHOOTING.......................................... 56

USER MAINTENANCE......................................... 61

CAUTIONS ........................................................62

SPECIFICATIONS................................................ 66

TERMS 67

5

6 EN

Index

GETTING STARTED

e

MN

aZ

1C

B

J

9

8

G

fO T

U
V

W
X

KS

b

c

d

L

D
E

F

hig

j

PQR

lkY

onm

Controls

A Menu Button [MENU] (墌 pg. 36)

Data Battery Button [BATT. DATA] (墌 pg. 14)

B E-Mail Clip Recording Button [E-MAIL]*

(墌 pg. 31)
Index Button [INDEX]*
(墌 pg. 30)

C D.S.C. Playback Select Button [SEL]*

(墌 pg. 29)
Thumbnail Storing Button [STORE]*
(墌 pg. 48)

D Information Button [INFO]*

(墌 pg. 30)

E Set Button [SET] (墌 pg. 36)
F Fast-Forward Button [

LED Light Button [LIGHT]
(墌 pg. 42)
Right Button [>] (墌 pg. 36)

G Stop Button [8] (墌 pg. 22)

Backlight Compensation Button [BACK
LIGHT] (墌 pg. 45)
Down Button [ ] (墌 pg. 36)

H Rewind Button [

Quick Review Button [Q.REVIEW] (墌 pg. 21)
Left Button [<] (墌 pg. 36)

I VIDEO/MEMORY Switch*

(墌 pg. 15)

J Play/Pause Button [4/9] (墌 pg. 22)

Manual Focus Button [FOCUS] (墌 pg. 44)
Up Button [ ] (墌 pg. 36)

K Diopter Adjustment Control (墌 pg. 16)
L Battery Release Button [BATT. RELEASE]

(墌 pg. 14)

M Snapshot Button [SNAPSHOT]

(墌 pg. 27, 43)
Live Slow Button [SLOW]*
(墌 pg. 36, 42)

N Power Zoom Lever [T/W] (墌 pg. 20)

Speaker Volume Control [VOL. +, –]
(墌 pg. 22)

O Cassette Open/Eject Switch [OPEN/EJECT]

(墌 pg. 17)

P Recording Start/Stop Button (墌 pg. 19)
Q Power Switch [A, M, PLAY, OFF] (墌 pg. 15)
R Lock Button (墌 pg. 15)

3

] (墌 pg. 22)

5

] (墌 pg. 22)

GETTING STARTED

EN 7

Connectors

The connectors are located beneath the covers.

S S-Video Input/Output Connector [S]

(墌 pg. 23, 51)

T Microphone connector [MIC] (墌 pg. 54)
U USB (Universal Serial Bus) Connector*

(墌 pg. 53)

V Digital Video (i.Link) Connector [DV IN/OUT]

(墌 pg. 52, 53)

i.Link: i.Link refers to the IEEE1394-1995

industry specification and extensions
thereof. The logo is used for products
compliant with the i.Link standard.

W Audio/Video Input/Output Connector [AV]

(墌 pg. 23, 51)

X DC Input Connector [DC] (墌 pg. 13)

Indicators

Y POWER/CHARGE Lamp (墌 pg. 13, 19)

Other Parts

Z LCD Monitor (墌 pg. 19, 20)
a Shoe

(Before you purchase optional shoe

accessories, make sure the items are

compatible and can attach to the shoe on

your camcorder. There may be cases where a

part of an accessor y item obtrudes onto the

camcorder’s body, preventing attachment to

your unit.)

b Viewfinder (墌 pg. 16)
c Speaker (墌 pg. 22)
d Battery Pack Mount (墌 pg. 14)
e Cassette Holder Cover (墌 pg. 17)
f Lens
g LED Light (墌 pg. 42)

(When using an optional conversion lens, it

may cover this area and block the light.)

h Remote Sensor (墌 pg. 24)
i Camera Sensor

(Be careful not to cover this area, a sensor

necessary for shooting is built-in here.)

j Stereo Microphone (墌 pg. 54)
k Shoulder Strap Eyelet (墌 pg. 12)
l Grip Strap (墌 pg. 16)
m Card Cover [MEMORY CARD]*

(墌 pg. 18)

n Tripod Mounting Socket (墌 pg. 17)
o Stud Hole (墌 pg. 17)

* GR-DF470/450 only

GETTING STARTED

8 EN

GETTING STARTED

LCD Monitor/Viewfinder Indications

During Video Recording Only

13467

r

SOUND12BIT

e

15:55

w

a Navigation Indicator*

(墌 pg. 48)

B Selected Wipe/Fader Effect Indicator

(墌 pg. 47)

C Tape Running Indicator (墌 pg. 19)

(Rotates while tape is running.)

D Selected Wide Mode Indicator (墌 pg. 38)
E : Live Slow Indicator*

(墌 pg. 42)

: Snapshot Indicator*

(墌 pg. 43)

F Recording Speed Mode (SP/LP) (墌 pg. 37)
G Tape Remaining Time (墌 pg. 19)
H REC: (Appears during recording.) (墌 pg. 19)

PAUSE: (Appears during Record-Standby
mode.) (墌 pg. 19)

I Insert Editing/Insert Editing Pause Mode

(墌 pg. 55)

J 5S/Anim.: Displays the 5-Second Recording

mode or Animation recording mode.
(墌 pg. 38)

K Wind Cut Indicator (墌 pg. 38)
L Time Code (墌 pg. 39, 41)
M Digital Image Stabilizer (“DIS”) (墌 pg. 38)
N SOUND 12BIT/16BIT: Sound Mode Indicator

(墌 pg. 37) (Appears for approx. 5 seconds
after turning on the camcorder.)

L
R

(Appears when an optional microphone is
connected. 墌 pg. 39, “AUDIO LEV.”)

* GR-DF470/450 only

: Auxiliary Microphone Level

Indicator

5

2

1h40m

REC

8
9
0

q

During D.S.C. Recording Only (GR-DF470/ 450 only)

634 5

1024

INTERVAL

51

7

a Image Size: 1024 (1024 x 768) or 640

(640x480) (墌 pg. 40)

B : Interval Shooting Icon (墌 pg. 28)

: Focus Icon (墌 pg. 27)

C Shooting Icon

(Appears and blinks during shooting.)

D Card Icon

: Appears during shooting.
: Blinks in white when a memory card is

not loaded.

: Blinks in yellow while the camcorder is
reading the data in the memory card such as
Navigation thumbnail images, video clips, still
images, etc.

E Picture Quality: (FINE) and

(STANDARD) (in order of quality) (墌 pg. 40)

F Remaining Number Of Shots (墌 pg. 27)

(Displays the approximate remaining number
of shots that can be stored during D.S.C.
recording.)

G Clock Icon (墌 pg. 28)

During E-Mail Clip Recording (GR-DF470/ 450 only)

160

a Image Size: 160 (160 x 120)
b Shooting Icon (墌 pg. 27, 31)
c E-Mail Clip Recording Indicator (墌 pg. 31)
d Memory Card Remaining Time For E-Mail

Clip Recording (墌 pg. 31)

e E-Mail Clip Recording Time (墌 pg. 31)

0

hm

PILC-E

:10

00:15

During Both Video And D.S.C.* Recording

8

9

1
2

1

5

3
4
5

6
7

x

BRIGHT

W

T

N

OV

10

a Operation Mode (墌 pg. 15)

B : Gain Up Mode (墌 pg. 37)
C LED Light Indicator (墌 pg. 42)
D White Balance Indicator (墌 pg. 46)
E : Spot Exposure Control Indicator

(墌 pg. 45)

: Backlight Compensation Indicator
(墌 pg. 45)
±: Exposure Adjustment Indicator (墌 pg. 44)

F Selected Program AE With Special Effects

Indicator (墌 pg. 47)

: Night-Alive Indicator (墌 pg. 43)

G Iris Lock Indicator (墌 pg. 45)
H Approximate Zoom Ratio (墌 pg. 20)
I Zoom Indicator (墌 pg. 20)
J O: (Appears when taking Snapshot.)

(墌 pg. 28, 43)

SLOW

: (Appears when using Live Slow.)*

(墌 pg. 42)

K Brightness Control Indicator (LCD monitor/

Viewfinder) (墌 pg. 17)

L Battery Remaining Power Indicator

(墌 pg. 58)

M Date/Time (墌 pg. 16)
N Manual Focus Adjustment Indicator

(墌 pg. 44)

:10000A

O

50m

er

'

5

M

GETTING STARTED

During Video Playback

1

BIT

1L2

2 0 :/2M

0

q

w

q

PUSH "STOP" BUTTON

L

V

R

1

0

a Sound Mode Indicator (墌 pg. 40)

B Blank Search Indicator (墌 pg. 22)
C : Live Slow Indicator*

(墌 pg. 42)

: Snapshot Indicator*

(墌 pg. 43)

D Tape Speed (墌 pg. 37)
E 4: Playback

5

: Fast-Forward/Shuttle Search

3

: Rewind/Shuttle Search

9: Pause
9 U: Forward Frame-By-Frame Playback/

Slow-Motion
Y 9: Reverse Frame-By-Frame Playback/
Slow-Motion
D: Audio Dubbing
9D: Audio Dubbing Pause
(Appear while a tape is running.)

F Sound Input For Audio Dubbing (墌 pg. 54)
G Battery Remaining Power Indicator

(墌 pg. 58)

H Date/Time (墌 pg. 39, 41)
I VOLUME: Volume Level Indicator (墌 pg. 22)

BRIGHT: Brightness Control Indicator (LCD
monitor/Viewfinder) (墌 pg. 17)

J Time Code (墌 pg. 39, 41)
K : Auxiliary Microphone Level

L
R

(Appears when an optional microphone is
connected during Audio Dubbing. 墌 pg. 54)

* GR-DF470/450 only

Indicator

2

I

X

BLANK SEARCH

TO CANCEL

O

L

U

M

E

OV

N

:

2

5

10

9

43

5

50m

:10000A

8

MIC

'

5
M

EN 9

6

7

GETTING STARTED

10 EN

GETTING STARTED

During D.S.C. Playback (GR-DF470/450 only)

1

BR IGHT

4

a Operation Mode Indicator (墌 pg. 30)

B Folder/File Number (墌 pg. 30)
C Battery Remaining Power Indicator

(墌 pg. 58)

D Brightness Control Indicator (LCD monitor/

Viewfinder) (墌 pg. 17)

2

100-0013

50m

3

Before Using This Camcorder

Make sure you only use cassettes with the Mini
DV mark .

Make sure you only use memory cards* with the
mark or .

This camcorder is designed exclusively for the
digital video cassette, SD Memory Card and
MultiMediaCard. Only cassettes marked “ ” and
memory cards marked “ ” or
“ ” can be used with this unit.

* Memory cards can be used with GR-DF470 and

GR-DF450 only.

Remember that this camcorder is not
compatible with other digital video formats.

Remember that this camcorder is intended for
private consumer use only.

Any commercial use without proper permission is
prohibited. (Even if you record an event such as a
show, performance or exhibition for personal
enjoyment, it is strongly recommended that you
obtain permission beforehand.)

Before recording important video, be sure to
make a trial recording.

Play back your trial recording to make sure the
video and audio have been recorded properly.

We recommend cleaning your video heads
before use.

If you haven’t used your camcorder for a while, the
heads may be dirty. We recommend periodically
cleaning the video heads with a cleaning cassette
(optional).

Be sure to store your cassette tapes and
camcorder in the proper environment.

Video heads can become dirty more easily if your
cassette tapes and camcorder are stored in a dusty
area. Cassette tapes should be removed from the
camcorder and stored in cassette cases. Store the
camcorder in a bag or other container.

Use SP (Standard) mode for important video
recordings.

LP (Long Play) mode lets you record 50% more
video than SP (Standard) mode, but you may
experience mosaic-like noise during playback
depending on the tape characteristics and the
usage environment.
So, for important recordings, we recommend using
SP mode.

It is recommended that you use JVC brand
cassette tapes.

Your camcorder is compatible with all brands of
commercially available cassette tapes complying
with the MiniDV standard, but JVC brand cassette
tapes are designed and optimized to maximize the
performance of your camcorder.

Also read “CAUTIONS” on pages 62 – 65.

®

● Microsoft
trademarks or trademarks of Microsoft
Corporation in the United States and/or other
countries.

● Macintosh is a registered trademark of Apple
Computer, Inc.

● QuickTime is a registered trademark of Apple
Computer, Inc.

and Windows® are either registered

Provided Accessories

OR

a AC Adapter AP-V16U or AP-V14U
b Battery Pack BN-VF707U
c AV Ca bl e
d Audio Extension Cable

(for optional microphone, 墌 pg. 12 for
connection)

e USB Cable*
f Core Filter [large]*

(for USB cable 墌 pg. 13 for attachment)

g Core Filter [small] x 2

(for Audio extention cable 墌 pg. 13 for
attachment)

h Core Filter

(for AV cable 墌 pg. 13 for attachment)

i CD-ROM*
j Remote Control Unit RM-V720U
k Lithium Battery CR2025**

(for remote control unit)

l Memory Card 8 MB***

(Already inserted in the camcorder)

m Shoulder Strap (墌 pg. 12 for attachment)
n Lens Cap (see the right column for

attachment)

* GR-DF470/450 only
** A lithium battery is pre-installed in the Remote

Control Unit at time of shipment (with insulation
sheet). To use the Remote Control Unit, remove
the insulation sheet.

***GR-DF470 only

GETTING STARTED

NOTES:

● In order to maintain optimum performance of the
camcorder, provided cables may be equipped with
one or more core filter. If a cable has only one core
filter, the end that is closest to the filter should be
connected to the camcorder.

● Make sure to use the provided cables for
connections. Do not use any other cables.

EN 11

How To Attach The Lens Cap

To protect the lens, attach
the provided lens cap to the
camcorder as shown in the
illustration.

NOTE:

To confirm the lens cap is on
correctly make sure the cap is
flush to the camcorder.

Place here during

shooting.

GETTING STARTED

CONTINUED ON NEXT PAGE

12 EN

GETTING STARTED

How To Attach The Shoulder Strap

Follow the illustration.

1 Thread the strap through the eyelet.
2 Fold it back and thread it through the strap

guide and the buckle.

● To adjust the length of the strap, loosen and then
tighten the strap in the buckle.

3 Slide the strap guide fully towards the eyelet.

Strap guide

Buckle

How To Use The Audio Extension Cable

When using an optional external microphone,
connect to the provided Audio extension cable
(with a core filter attached), then connect the
Audio extension cable to the camcorder. The
core filter reduces interference. (墌 pg. 13)

Open the

cover.

Eyelet

2

1

3

Stereo
microphone

Core filter

To M IC

Audio extension
cable (provided)

How To Attach The Core Filter

Attach the core filters to the cables. The core
filter reduces interference.

1 Release the stoppers on both ends of the

core filter.

Stopper

2 Run the cable through the core filter, leaving

approx. 3 cm (1-3/16") of cable between the
cable plug and the core filter.
Wind the cable once around the outside of the
core filter as shown in the illustration.

3 cm (1-3/16")

Core filter

GETTING STARTED

EN 13

Power

This camcorder’s 2-way power supply system
lets you choose the most appropriate source of
power. Do not use provided power supply units
with other equipment.

Charging The Battery Pack

BATT. RELEASE

Battery pack

Arrow

Battery pack mount

Open the
cover.

To
DC connector

mark

GETTING STARTED

Wind once.

3 Close the core filter until it clicks shut.

NOTES:

● Take care not to damage the cable.

● When connecting a cable, attach the end with the

core filter to the camcorder.

Power switch

POWER/CHARGE lamp

To AC outlet

AC Adapter

1 Set the Power Switch to “OFF”.
2 With the arrow on the battery pack pointing

right, push the battery pack slightly against the
battery pack mount a.

3 Slide the battery pack to the right until it locks

in place b.

4 Connect the AC Adapter to the camcorder.
5 Plug the AC Adapter into an AC outlet. The

POWER/CHARGE lamp on the camcorder
blinks to indicate charging has started.

6 When the POWER/CHARGE lamp goes out,

charging is finished. Unplug the AC Adapter
from the AC outlet. Disconnect the AC Adapter
from the camcorder.

CONTINUED ON NEXT PAGE

14 EN

A

GETTING STARTED

To detach the battery pack

Slide the battery pack to the left while pressing
BATT. RELEASE to detach it.

Battery pack Charging time

BN-VF707U* Approx. 1 hr. 30 min.

BN-VF714U Approx. 2 hr. 40 min.

BN-VF733U Approx. 5 hr. 40 min.

* Provided

NOTES:

● This product includes patented and other
proprietary technology and will operate only
with JVC Data Battery. Use the JVC BN­VF707U/VF714U/VF733U battery packs. Using
generic non-JVC batteries can cause damage
to the internal charging circuitry.

● If the protective cap is attached to the battery
pack, remove it first.

● During charging, the camcorder cannot be
operated.

● Charging is not possible if the wrong type of
battery is used.

● When charging the battery pack for the first time
or after a long storage period, the POWER/
CHARGE lamp may not light. In this case, remove
the battery pack from the camcorder, then try
charging again.

● If the battery operation time remains extremely
short even after having been fully charged, the
battery is worn out and needs to be replaced.
Please purchase a new one.

● Since the AC Adapter processes electricity
internally, it becomes warm during use. Be sure to
use it only in well-ventilated areas.

● Using the optional AA-VF7 Battery Charger, you
can charge the BN-VF707U/VF714U/VF733U
battery pack without the camcorder.

● After 5 minutes has elapsed in Record-Standby
mode with the cassette inserted, the camcorder
will automatically turn off its power supplied from
the AC adapter. In this case, the battery charge
starts if the battery is attached to the camcorder.

Using The Battery Pack

Perform steps 2 – 3 in “Charging The Battery
Pack”.

Maximum continuous recording time

Battery pack LCD monitor on Viewfinder on

BN-VF707U* 1hr.5min. 1hr.25min.

BN-VF714U 2 hr. 20 min. 3 hr.

BN-VF733U 5 hr. 25 min. 7 hr. 5 min.

* Provided

NOTES:

● Recording time is reduced significantly under the
following conditions:

• Zoom or Record-Standby mode is engaged

repeatedly.

• The LCD monitor is used repeatedly.

• The playback mode is engaged repeatedly.

• The LED Light is used.

● Before extended use, it is recommended that you
prepare enough battery packs to cover 3 times the
planned shooting time.

TTENTION:

Before detaching the power source, make sure that
the camcorder’s power is turned off. Failure to do so
can result in a camcorder malfunction.

Data Battery System

You can check the remaining battery power and
the recordable time.

1) Make sure the battery is attached and the

Power Switch is set to “OFF”.

2) Open the LCD monitor fully.

3) Press BATT. DATA, and the battery status

screen appears.

● It can be displayed on the viewfinder when the
LCD monitor is closed.

● It is displayed for approx. 3 seconds if the
button is pressed and released quickly, and for
15 seconds if the button is pressed and hold
for several seconds.

● If “COMMUNICATION ERROR” appears
instead of the battery status even though you
tried to press BATT. DATA several times, there
may be a problem on the battery. In such a
case, consult your nearest JVC dealer.

Using AC Power

Perform step 4 in “Charging The Battery Pack”.

NOTE:

The provided AC Adapter features automatic
voltage selection in the AC range from 110 V to
240 V.

About Batteries

DANGER! Do not attempt to take the batteries
apart, or expose them to flame or excessive
heat, as it may cause a fire or explosion.
WARNING! Do not allow the battery or its
terminals to come in contact with metals, as this
can result in a short circuit and possibly start a
fire.

To resume the original function of the
accurate battery power indication

If the battery power indication differs from the
actual operating time, fully charge the battery, and
then run it down. However this function may not
turn back if the battery was used for a long period
of time under extremely high/low temperature
condition or charged too many times.

Operation Mode

To turn on the camcorder, set the Power Switch
to any operation mode except “OFF” while
pressing down the Lock Button located on the
switch.

Power Switch

Lock Button

POWER/

VIDEO/MEMORY*

Choose the appropriate operation mode
according to your preference using the Power
Switch and VIDEO/MEMORY Switch.*

* GR-DF470/450 only

Power Switch Position

A (Full Auto Recording):

Allows you to record using NO special effects
or manual adjustments. Suitable for standard
recording.
The “A” indicator appears on the display.

CHARGE lamp

GETTING STARTED

M (Manual Recording):

Allows you to set various recording functions
using the Menus. (墌 pg. 36)
If you want more creative capabilities than Full
Auto Recording, try this mode.

OFF:
Allows you to switch off the camcorder.

PLAY:

● Allows you to play back a recording on the
tape.

● Allows you to display a still image stored in
the memory card or to transfer a still image
stored in the memory card to a PC.
(GR-DF470/450 only)

● Allows you to set various playback functions
using the Menus. (墌 pg. 36)

VIDEO/MEMORY Switch Position

(GR-DF470/450 only)

VIDEO:

Allows you to record on a tape or play back a
tape. If “REC SELECT” is set to “ / ”
(墌 pg. 40), still images are recorded both on
the tape and the memory card.

MEMORY:

● Allows you to record in a memory card or
access data stored in a memory card.

● When the Power Switch is set to “A” or “M”,
the currently selected image size appears.

EN 15

Power-Linked Operation

When the Power Switch is set to “A” or “M”, you
can also turn on/off the camcorder by opening/
closing the LCD monitor or pulling out/pushing in
the viewfinder.

INFORMATION:

The following explanations in this manual
supposes the use of LCD monitor in your
operation. If you want to use the viewfinder,
close the LCD monitor and pull out the
viewfinder fully.

GETTING STARTED

16 EN

PAUSE

GETTING STARTED

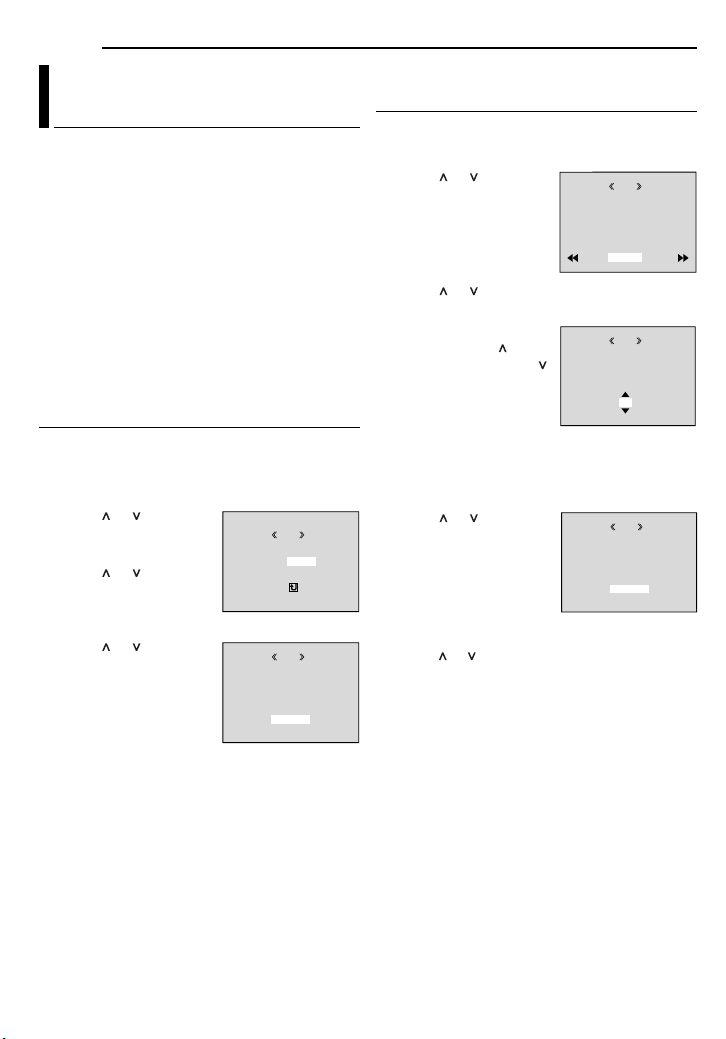

Language Settings

The language on the display can be changed.
(墌 pg. 36, 39, 41)

1 Set the Power Switch to “M” while pressing

down the Lock Button located on the switch.

2 Open the LCD monitor fully. (墌 pg. 19)
3 Press MENU. The Menu Screen appears.
4 Press or to select

“n”, and press SET. The
CAMERA DISPLAY Menu
appears.

5 Press or to select

“LANGUAGE”, and press
SET.

6 Press or to select

the desired language, and
press SET.

7 Press or to select

“BRETURN”, and press
SET twice. The Menu
Screen closes.

ex. for GR-DF470/
450

LANGUAGE

J

NRETUR

LA DASERA CM I YP

BRIGHT

LC – T/D

NCREON S E

AU

–/TI DA E

MET

OT

OF

– CO TI E

DEM

F

LANGUAGE ENGLISH

–

OND–OLEV.AU
DEC 02

OK CL CI

: 0 0

5

AD .

LA DASERA CM I YP

–

ENGLISH
FRANÇAIS
ESPAÑOL
PORTUGUÊS

Date/Time Settings

The date/time is recorded onto the tape at all
times, but its display can be turned on or off
during playback. (墌 pg. 36, 41)

1 Perform steps 1 – 4 in “Language Settings”

above.

2 Press or to select “CLOCK ADJ.”, and

press SET. The parameter for “Month” is
highlighted.

I Y

D

P

ASERA CM

3 Press or to input

the day, and press SET.
Repeat to input the day,
year, hour and minute.

4 Press or to select

“BRETURN”, and press
SET twice. The Menu
Screen closes.

O

KCL C

AD

J.

LA

02

ECD

:

5

0

0

Grip Adjustment

1 Adjust the velcro strip.
2 Pass your right hand

through the loop and grasp
the grip.

3 Adjust your thumb and

fingers through the grip to
easily operate the
Recording Start/Stop

V

Button, Power Switch and
Power Zoom Lever. Be
sure to fasten the velcro strip to your preference.

' 0 5
PM

Viewfinder Adjustment

1 Set the Power Switch to “A” or “M” while

pressing down the Lock Button located on the
switch.

2 Make sure the LCD monitor is closed and

locked. Pull out the viewfinder fully and adjust it
manually for best viewability.

3 Turn the Diopter Adjustment Control until the

indications in the viewfinder are clearly focused.

Example:

CAUTION:

When retracting the viewfinder, take care not to

05

'

PM

pinch your fingers.

Diopter Adjustment Control

GETTING STARTED

EN 17

Brightness Adjustment Of The Display

1 Set the Power Switch

to “M” or “PLAY” while
pressing down the Lock
Button located on the
switch.

2 Open the LCD monitor

fully. (墌 pg. 19)

● To adjust the brightness of

the viewfinder, pull out the
viewfinder fully and set
“PRIORITY” to “FINDER”
(墌 pg. 36, 39).

3 Press MENU. The

Menu Screen appears.

4 Press or to select “n”, and press SET.

The CAMERA DISPLAY or VIDEO DISPLAY
Menu appears.

5 Press or to select “BRIGHT”, and press

SET. The Menu Screen closes and the
brightness control indicator appears.

6 Press < or > until the appropriate brightness

is reached.

7 Press MENU to clear the brightness control

indicator from the display.

MENU

<

SET

>

BRIGHT

Tripod Mounting

To attach the camcorder
to a tripod, align the
direction stud and screw
to the mounting socket
and stud hole on the
camcorder. Then tighten
the screw clockwise.

● Some tripods are not
equipped with studs.

Loading/Unloading A Cassette

The camcorder needs to be powered up to load
or eject a cassette.

Cassette holder cover

PUSH HERE

OPEN/EJECT
Erase
protection tab

Make sure the window
side is facing out.

1 Slide and hold OPEN/EJECT in the direction

of the arrow, then pull the cassette holder cover
open until it locks. The cassette holder opens
automatically.

● Do not touch internal components.

2 Inser t or remove a tape and press “PUSH

HERE” to close the cassette holder.

● Be sure to press only the section labeled “PUSH
HERE” to close the cassette holder; touching
other parts may cause your finger to get caught in
the cassette holder, resulting in injury or product
damage.

● Once the cassette holder is closed, it recedes
automatically. Wait until it recedes completely
before closing the cassette holder cover.

● When the battery pack’s charge is low, you may
not be able to close the cassette holder cover. Do
not apply force. Replace the battery pack with a
fully charged one or use AC power before
continuing.

3 Close the cassette holder cover firmly until it

locks into place.

To protect valuable recordings

Slide the erase protection tab on the back of the
tape in the direction of “SAVE”. This prevents the
tape from being recorded over. To record on this
tape, slide the tab back to “REC” before loading
it.

Cassette holder

GETTING STARTED

CONTINUED ON NEXT PAGE

18 EN

A

GETTING STARTED

NOTES:

● If you wait a few seconds and the cassette holder
does not open, close the cassette holder cover
and try again. If the cassette holder still does not
open, turn the camcorder off then on again.

● If the tape does not load properly, open the
cassette holder cover fully and remove the
cassette. A few minutes later, insert it again.

● When the camcorder is suddenly moved from a
cold place to a warm environment, wait a short
time before opening the cassette holder cover.

Loading/Unloading A Memory Card (GR-DF470/450 only)

The provided memory card is already inserted*
in the camcorder at the time of purchase.

Card Cover
(MEMORY CARD)

Memory card

Clipped edge

NOTES:

● Some brands of memory cards are not compatible
with this camcorder. Before purchasing a memory
card, consult its manufacturer or dealer.

● Before using a new memory card, it is necessary
to format the card. (墌 pg. 35)

TTENTION:

Do not insert or remove the memory card while the
camcorder is turned on, as this may cause the
memory card to be corrupted or cause the
camcorder to become unable to recognize whether
or not the card is installed.

Write/erase protection tab

* GR-DF470 only

1 Make sure the camcorder’s power is off.
2 Open the card cover (MEMORY CARD).
3 To load a memory card, firmly insert it with

its clipped edge first.
To unload a memory card, push it once. After
the memory card comes out of the camcorder,
pull it out.

● Do not touch the terminal on the reverse side of
the label.

4 Close the card cover.

To protect valuable files (available only for
SD Memory Card)

Slide the write/erase protection tab on the side
of the memory card in the direction of “LOCK”.
This prevents the memory card from being
recorded over. To record on this memory card,
slide the tab back to the position opposite to
“LOCK” before loading it.

Label

Basic Recording

NOTE:

Before continuing, perform the procedures listed
below:

● Power (墌 pg. 13)

● Loading A Cassette (墌 pg. 17)

VIDEO/MEMORY*

Power Zoom Lever

Power Switch

Recording Start/Stop Button

Lock Button

POWER/CHARGE Lamp

1 Remove the lens cap. (墌 pg. 11)
2 Open the LCD monitor fully.
3 Set the VIDEO/MEMORY Switch to

“VIDEO”.*

4 Set the Power Switch to “A” or “M” while

pressing down the Lock Button located on the
switch.

● The POWER/CHARGE lamp lights and the
camcorder enters the Record-Standby mode.
“PAUSE” is displayed.

● To record in LP (Long Play) mode, 墌 pg. 37.

5 To start recording, press the Recording Start/

Stop Button. “T REC” appears on the display
while recording is in progress.

6 To stop recording, press the Recording Star t/

Stop Button again. The camcorder re-enters the
Record-Standby mode.

* GR-DF470/450 only

Approximate recording time

Tape

30 min. 30 min. 45 min.

60 min. 60 min. 90 min.

80 min. 80 min. 120 min.

Recording mode

SP LP

VIDEO RECORDING

EN

19

NOTES:

● If the Record-Standby mode continues for
5 minutes, the camcorder’s power shuts off
automatically. To turn the camcorder on again,
push back and pull out the viewfinder again or
close and re-open the LCD monitor.

● When a blank portion is left between recorded
scenes on the tape, the time code is interrupted
and errors may occur when editing the tape. To
avoid this, refer to “Recording From The Middle Of
A Tape” (墌 pg. 21).

● To turn the beep sounds off, 墌 pg. 36, 38.

Tape Remaining Time

Approximate tape remaining
time appears on the display.
“–h––m” means the
camcorder is calculating the
remaining time. When the
remaining time reaches 2 minutes, the indication
starts blinking.

● The time required to calculate and display the
remaining tape length, and the accuracy of the
calculation, may vary according to the type of tape
used.

LCD Monitor And Viewfinder

While using the LCD monitor:

Make sure the viewfinder is pushed back in. Pull
on the end of the LCD monitor and open the
LCD monitor fully. It can rotate 270° (90°
downward, 180° upward).

While using the viewfinder:

Make sure the LCD monitor is closed and
locked. Pull out the viewfinder fully.

180˚

90˚

VIDEO RECORDING & PLAYBACK

CONTINUED ON NEXT PAGE

20 EN

VIDEO RECORDING

NOTES:

● The image will not appear simultaneously on the
LCD monitor and the viewfinder. When the
viewfinder is pulled out while the LCD monitor is
opened, you can select which one to use. Set
“PRIORITY” to the desired mode in SYSTEM
Menu. (墌 pg. 36, 39)

● Colored bright spots may appear all over the LCD
monitor or the viewfinder. However, this is not a
malfunction. (墌 pg. 57)

Zooming

Produces the zoom in/out effect, or an
instantaneous change in image magnification.

Zoom In

Slide the Power Zoom Lever towards “T”.

Zoom Out

Slide the Power Zoom Lever towards “W”.

● The further you slide the Power Zoom Lever, the
quicker the zoom action.

Zoom in (T: Telephoto)

1xW

T

10xW

T

20xW

T

40xW

T

Zoom out (W: Wide angle)

10xW

T

Digital zoom zone

15X (optical) zoom zone

Approximate zoom ratio

Macro shooting (as close as approx. 5 cm (2") to

●

the subject) is possible when the Power Zoom
Lever is set all the way to “W”. Also see “TELE
MACRO” in MANUAL Menu on page 38.

● When shooting a subject close to the lens, zoom
out first. If zoomed-in in the auto focus mode, the
camcorder may automatically zoom out
depending on the distance between the
camcorder and the subject. This will not occur
when “TELE MACRO” is set to “ON”. (墌 pg. 38)

Journalistic Shooting

In some situations,
different shooting
angles may provide
more dramatic results.
Hold the camcorder in
the desired position
and tilt the LCD
monitor in the most
convenient direction. It
can rotate 270° (90°
downward, 180°
upward).

Self Recording

Open the LCD
monitor and tilt it
upward to 180° so
that it faces forward,
point the lens toward
yourself and start
recording.

Self
Recording

NOTES:

● Focusing may become unstable during Zooming.
In this case, set the zoom while in Record­Standby, lock the focus by using the manual focus
(墌 pg. 44), then zoom in or out in Record mode.

● Zooming is possible to a maximum of 700X, or it
can be switched to 15X magnification using the
optical zoom. (墌 pg. 37)

● Zoom magnification of over 15X is done through
Digital image processing, and is therefore called
Digital Zoom.

● During Digital zoom, the quality of image may
suffer.

● Digital zoom cannot be used when the VIDEO/
MEMORY Switch is set to “MEMORY”.

(GR-DF470/450 only)

Time Code

During recording, a time code is recorded on the
tape. This code is to confirm the location of the
recorded scene on the tape during playback.

Display

Minutes
Seconds
Frames*

12:34:24

* Frames are not displayed during recording.

If recording starts from a blank portion, the time
code begins counting from “00:00:00”
(minute:second:frame). If recording starts from
the end of a previously recorded scene, the time
code continues from the last time code number.
If during recording a blank por tion is left partway
through the tape, the time code is interrupted.
When recording is resumed, the time code starts
counting up again from “00:00:00”. This means
the camcorder may record the same time codes
as those existing in a previously recorded scene.
To prevent this, perform Recording From The
Middle Of A Tape (See the right column.) in the
following cases;

● When shooting again after playing back a
recorded tape.

● When power shuts off during shooting.

● When a tape is removed and re-inserted during

shooting.

● When shooting using a partially recorded tape.

● When shooting on a blank portion located partway

through the tape.

● When shooting again after shooting a scene then
opening/closing the cassette holder cover.

NOTES:

● The time code cannot be reset.

● During fast-forwarding and rewinding, the time

code indication does not move smoothly.

● The time code is displayed only when “TIME
CODE” is set to “ON”. (墌 pg. 39)

(30 frames = 1 second)

VIDEO RECORDING

EN 21

Quick Review

Enables to check the end of the last recording.

1) Press Q.REVIEW during the Recording­Standby mode.

2) Tape is rewound for about several seconds
and played back automatically, then pauses in
the Recording-Standby mode for the next shot.

● Distortion may occur at start of playback. This is
normal.

Recording From The Middle Of A Tape

1) Play back a tape or use Blank Search

(墌 pg. 22) to find the spot at which you want to
start recording, then engage the Still Playback
mode. (墌 pg. 22)

2) Set the Power Switch to “A” or “M” while

pressing down the Lock Button located on the
switch, then start recording.

VIDEO RECORDING & PLAYBACK

22 EN

A

VIDEO PLAYBACK

Normal Playback

VOL. + /–

5

Power SwitchMENU

SET

Lock Button

Speaker

VIDEO/
MEMORY*

3

4/9/

8/

1 Load a cassette. (墌 pg. 17)
2 Set the VIDEO/MEMORY Switch to

“VIDEO”.*

3 Set the Power Switch to “PLAY” while

pressing down the Lock Button located on the
switch.

4 To start playback, press 4/9.
5 To stop playback, press 8.

● During Stop mode, press 3 to rewind, or 5
to fast-forward the tape.

* GR-DF470/450 only

To control the speaker volume
Slide the Power Zoom Lever (VOL. +/–) towards
“+” to turn up the volume, or towards “–” to turn

down the volume.

NOTES:

● The playback picture can be viewed in the LCD
monitor, viewfinder or on a connected TV.
(墌 pg. 23)

● If Stop mode continues for 5 minutes when power
is supplied from a battery, the camcorder shuts off
automatically. To turn on again, set the Power
Switch to “OFF”, then to “PLAY”.

● When a cable is connected to the AV connector,
the sound is not heard from the speaker.

Still Playback

Pauses during video playback.

1) Press 4/9 during playback.

2) To resume normal playback, press 4/9

again.

● If still playback continues for more than about
3 minutes, the camcorder’s Stop mode is
automatically engaged.

Shuttle Search

Allows high-speed search in either direction
during video playback.

1) During playback, press 5 for forward
search, or 3 for reverse search.

2) To resume normal playback, press 4/9.

● During playback, press and hold 5 or 3. The
search continues as long as you hold the button.
Once you release the button, normal playback
resumes.

● A slight mosaic effect appears on the display
during Shuttle Search. This is not a malfunction.

TTENTION:

During Shuttle Search, parts
of the picture may not be
clearly visible, particularly on
the left side of the screen.

Blank Search

Helps you find where you should start recording
in the middle of a tape to avoid time code
interruption. (墌 pg. 21)

1 Load a cassette. (墌 pg. 17)
2 Set the VIDEO/MEMORY Switch to

“VIDEO”.*

3 Set the Power Switch to “PLAY” while

pressing down the Lock Button located on the
switch.

4 Press MENU. The Menu Screen appears.
5 Press SET to select “t”. The VIDEO Menu

appears.

6 Press or to select “BLANK SRCH”, and

press SET. The Sub Menu appears.

7 Press or to select “EXECUTE”, and press

SET.

● The “BLANK SEARCH” indication appears and
the camcorder automatically starts reverse or
forward search, then stops at the spot which is
about 3 seconds of tape before the beginning of
the detected blank portion.

● To cancel Blank Search midway, press 8.

* GR-DF470/450 only

NOTES:

● Before starting Blank Search, if the current
position is at a blank portion, the camcorder
searches in the reverse direction. If the current
position is at a recorded portion, the camcorder
searches in the forward direction.

● If the beginning or end of the tape is reached
during Blank Search, the camcorder stops
automatically.

● A blank portion which is shorter than 5 seconds of
tape may not be detected.

● The detected blank portion may be located
between recorded scenes. Before you start
recording, make sure there is no recorded scene
after the blank portion.

Connections To A TV Or VCR

Open the cover.

To S connector

To AV connector

S cable

(optional)

AV cable
(provided)

2413

TV

VCR

VIDEO PLAYBACK

EN 23

A Black to S-VIDEO IN (Connect when your TV/

VCR has S-VIDEO IN and A/V input
connectors. In this case, it is not necessary to
connect the yellow video cable.)

B Yellow to VIDEO IN (Connect when your TV/

VCR has only A/V input connectors.)

C Red to AUDIO R IN*
D White to AUDIO L IN*

* Not required for watching still images only.

NOTE:

The S-Video cable is optional. Be sure to use the
YTU94146A S-Video cable. Consult the JVC
Service Center described on the sheet included
in the package for details on its availability.
Make sure to connect the end with a core filter
to the camcorder. The core filter reduces
interference.

1 Make sure all units are turned off.
2 Connect the camcorder to a TV or VCR as

shown in the illustration.

If using a VCR, go to step 3.
If not, go to step 4.

3 Connect the VCR output to the TV input,

referring to your VCR’s instruction manual.

4 Turn on the camcorder, the VCR and the TV.
5 Set the VCR to its AUX input mode, and set

the TV to its VIDEO mode.

6 Start playback on the camcorder. (墌 pg. 22)

To choose whether or not the following
displays appear on the connected TV

● Date/time
Set “DATE/TIME” to “AUTO”, “ON” or “OFF”.
(墌 pg. 36, 41)
Or, press DISPLAY on the remote control to turn
on/off the date indication.

● Time code
Set “TIME CODE” to “ON” or “OFF”.
(墌 pg. 36, 41)

● Indications other than date/time and time code
Set “ON SCREEN” to “OFF”, “LCD” or “LCD/TV”.
(墌 pg. 36, 41)

VIDEO RECORDING & PLAYBACK

CONTINUED ON NEXT PAGE

24 EN

3

VIDEO PLAYBACK

NOTES:

● It is recommended to use the AC Adapter as
the power supply instead of the battery pack.
(墌 pg. 15)

● To monitor the picture and sound from the

camcorder without inserting a tape or memory
card*, set the camcorder’s Power Switch to “A” or
“M”, then set your TV to the appropriate input
mode.

* GR-DF470/450 only

● Make sure you adjust the TV sound volume to its

minimum level to avoid a sudden burst of sound
when the camcorder is turned on.

Playback Using The Remote Control

The Full-Function Remote Control Unit can
operate this camcorder from a distance as well
as the basic operations (Playback, Stop, Pause,
Fast-Forward and Rewind) of your VCR. It also
makes additional playback functions possible.
(墌 pg. 25)

Installing The Battery

The remote control uses
one lithium battery
(CR2025).

1 Pull out the battery

holder by pushing the lock
tab.

2 Insert the battery in the

holder, and be sure to
have the “+” mark visible.

3 Slide the holder back in until you hear a click.

2

1

Lock tab

3

1

Beam Effective Area (indoor use)

When using the remote
control, be sure to point it
at the remote sensor.
The transmitted beam’s
approximate effective
distance for indoor use is
5 m (16 ft).

Remote sensor

NOTE:

The transmitted beam may not be effective or may
cause incorrect operation when the remote sensor
is directly exposed to sunlight or powerful lighting.

Buttons And Functions

A Infrared beam transmitting window

● Transmits the beam signal.

The following buttons are available only when
the camcorder’s Power Switch is set to “PLAY”.

B PAUSE Button

● Pauses the tape (墌 pg. 25)

Up Button (墌 pg. 26)

C SLOW Rewind Button (墌 pg. 25)
D REW Button

● Rewind/Reverse Shuttle Search on a tape
(墌 pg. 22)

● Displays previous file in a memory card*
(墌 pg. 29)

Left Button (墌 pg. 26)

E INSERT Button (墌 pg. 55)
F SHIFT Button (墌 pg. 26)
G DISPLAY Button (墌 pg. 23, 51)
H SLOW Forward Button (See the right column.)
I PLAY Button

● Starts Playback of a tape (墌 pg. 22)

● Starts Auto Playback of images in a memory
card* (墌 pg. 29)

J FF Button

● Forward/Forward Shuttle Search on a tape
(墌 pg. 22)

● Displays next file in a memory card* (墌 pg. 29)

Right Button (墌 pg. 26)

K A. DUB Button (墌 pg. 54)
L STOP Button

● Stops the tape (墌 pg. 22)

● Stops Auto Playback* (墌 pg. 29)

Down Button (墌 pg. 26)

M EFFECT Button (墌 pg. 26)
N EFFECT ON/OFF Button (墌 pg. 26)

The following buttons are available when the
camcorder’s Power Switch is set to “A” or “M”.

o Zoom (T/W) Buttons

Zoom in/out (墌 pg. 20, 26)
(Also available with the Power Switch set to
“PLAY”)

p START/STOP Button

Functions the same as the Recording Start/
Stop Button on the camcorder.

q S.SHOT Button

Functions the same as SNAPSHOT on the
camcorder.
(Also available with the Power Switch set to
“PLAY”)

* GR-DF470/450 only

VIDEO PLAYBACK

.

Zoom (T/W)

SLOW (YI)

PLAY

(Left)

SHIFT

EN 25

PAUSE or

(Up)

SLOW (IU)

(Right)

STOP or

(Down)

Slow-Motion Playback

During normal video playback, press SLOW (YI
or IU) more than approx. 2 seconds.

● After approx. 10 minutes, normal playback
resumes.

● To pause Slow-Motion playback, press PAUS E
(9).

● To stop Slow-Motion playback, press PLAY (U).

NOTES:

● You can also engage Slow-Motion Playback from
Still Playback by pressing SLOW (YI or IU) more
than approx. 2 seconds.

● During Slow-Motion Playback, due to digital image
processing, the picture may take on a mosaic
effect.

● After SLOW (YI or IU) is pressed and held, the
still image may be displayed for a few seconds,
followed by a blue screen for a few seconds. This
is not a malfunction.

● During Slow-Motion Playback, there will be
disturbances in video and the picture may seem
unstable, especially with steady images. This is
not a malfunction.

Frame-By-Frame Playback

During normal or still playback, press SLOW
(IU) repeatedly for forward or SLOW (YI)
repeatedly for reverse. Each time SLOW (YI or
IU) is pressed, the frame is played back.

VIDEO RECORDING & PLAYBACK

CONTINUED ON NEXT PAGE

26 EN

VIDEO PLAYBACK

Playback Zoom

Magnifies the recorded image up to 47X at any
time during video playback and D.S.C. playback
(GR-DF470/450 only).

1) Press PLAY (U) to start video
playback. Or perform normal
playback of images.

2) At the point you want to zoom
in, press the Zoom Button (T).

● To zoom out, press the Zoom

Button (W).

3) You can move the image on
the screen around to find a
particular portion of the picture.
While holding down SHIFT,
press (Left), (Right),
(Up) and (Down).

● To end zoom, press and hold W until magnification
returns to normal. Or, press STOP (8) and then
press PLAY (U) during video playback.

NOTES:

● Zoom can also be used during slow-motion and still
playback.

● Due to digital image processing, the quality of the
image may suffer.

Playback Special Effects

Allows you to add creative effects to the video
playback image.

CLASSIC FILM: Gives recorded scenes a

strobe effect.

MONOTONE: Like classic black and white

films, your footage is shot in B/W. Used together
with the Cinema mode, it enhances the “classic
film” effect.

SEPIA: Recorded scenes have a brownish

tint like old photos. Combine this with the
Cinema mode for a classic look.

STROBE: Your recording looks like a

series of consecutive snapshots.

1) To start
playback,
press PLAY
(U).

2) Press
EFFECT. The

PLAYBACK EFFECT Select Menu appears.

3) Press EFFECT repeatedly to move the
highlight bar to the desired effect.

● The selected function is activated and after
2 seconds the menu disappears.

● To deactivate the selected effect, press EFFECT
ON/OFF. To reactivate the selected effect press
EFFECT ON/OFF again.

● To change the selected effect, repeat from step 2
above.

EFFECT ON/OFF

EFFECT
