JVC GR-AX640 User Manual

COMP ACT VHS CAMCORDER

GR-AX640

ENGLISH

INSTRUCTIONS

For Customer Use:

Enter below the Model No. and Serial No. which is located on the bottom of cabinet. Retain this information for future reference.

Model No.

Serial No.

LYT0255-001C

2 EN

Dear Customer,

Thank you for purchasing the JVC Compact VHS camcorder. Before use, please read the safety information and precautions contained in the following pages to ensure safe use of this product.

Using This Instruction Manual

• All major sections and subsections are listed in the Table Of Contents (

• Notes appear after most subsections. Be sure to read these as well.

• Basic and advanced features/operation are separated for easier reference.

Z pg. 7).

It is recommended that you . . .

..... refer to the Index (Z pgs. 45 – 48) and familiarize

yourself with button locations, etc. before use.

..... read thoroughly the Safety Precautions and Safety

Instructions that follow. They contain extremely important information regarding the safe use of this product.

You are recommended to carefully read the cautions on pages 49 and 50 before use.

SAFETY PRECAUTIONS

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK,

DO NOT REMOVE COVER (OR BACK).

NO USER-SERVICEABLE PARTS INSIDE.

REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

WARNING: TO PREVENT FIRE OR SHOCK

HAZARD, DO NOT EXPOSE THIS UNIT TO RAIN OR MOISTURE.

Warning on lithium battery

(for clock operation)

The battery used in this device may present a fire or chemical burn hazard if mistreated. Do not recharge, disassemble, heat above 100°C (212°F) or incinerate. Replace the battery with Maxell, Panasonic (Matsushita Electric), Sanyo or Sony CR2025; use of another battery may present a risk of fire or explosion.

n Dispose of used battery promptly. n Keep away from children. n Do not disassemble and do not dispose of in fire.

NOTES:

●

The rating plate (serial number plate) and safety caution are on the bottom and/or the back of the main unit.

●

The rating plate (serial number plate) of the AC Power Adapter/Charger is on its bottom.

This Class B digital apparatus complies with Canadian ICES-003

Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated "dangerous voltage" within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

The AA-V15U AC Power Adapter/Charger should be used with: AC 120 V`, 60 Hz in the USA and Canada, AC 110 – 240 V`, 50/60 Hz in other countries.

CAUTION (applies to the AA-V15U)

TO PREVENT ELECTRIC SHOCK MATCH WIDE BLADE OF PLUG TO WIDE SLOT, FULLY INSERT.

ATTENTION (s’applique à l’AA-V15U)

POUR ÉVITER LES CHOCS ÉLECTRIQUES, INTRODUIRE LA LAME LA PLUS LARGE DE LA FICHE DANS LA BORNE CORRESPONDANTE DE LA PRISE ET POUSSER JUSQU’AU FOND.

This camcorder is designed to be used with NTSCtype color television signals. It cannot be used for playback with a television of a different standard. However, live recording and viewfinder playback are possible anywhere. Use the BN-V11U/V12U/ V20U battery packs and, to recharge them, the provided multi-voltage AC Power Adapter/Charger. (An appropriate conversion adapter may be necessary to accommodate different designs of AC outlets in different countries.)

ATTENTION:

The product that you have purchased is powered by a rechargeable battery. The battery is recyclable. At the end of its useful life, under various state and local laws, it may be illegal to dispose of this battery into the municipal waste stream. Check with your local solid waste officials for details in your area for recycling options or proper disposal.

IMPORTANT PRODUCT

SAFETY INSTRUCTIONS

Electrical energy can perform many useful functions. But improper use can result in potential electrical shock or fire hazards. This product has been engineered and manufactured to assure your personal safety. In order not to defeat the built-in safeguards, observe the following basic rules for its installation, use and servicing.

ATTENTION:

Follow and obey all warnings and instructions marked on your product and its operating instructions. For your safety, please read all the safety and operating instructions before you operate this product and keep this manual for future reference.

INSTALLATION

1. Grounding or Polarization

(A) Your product may be equipped with a polarized

alternating-current line plug (a plug having one blade wider than the other). This plug will fit into the power outlet only one way. This is a safety feature. If you are unable to insert the plug fully into the outlet, try reversing the plug. If the plug should still fail to fit, contact your electrician to replace your obsolete outlet. Do not defeat the safety purpose of the polarized plug.

(B) Your product may be equipped with a 3-wire

grounding-type plug, a plug having a third (grounding) pin. This plug will only fit into a grounding-type power outlet. This is a safety feature. If you are unable to insert the plug into the outlet, contact your electrician to replace your obsolete outlet. Do not defeat the safety purpose of the grounding-type plug.

2. Power Sources

Operate your product only from the type of power source indicated on the marking label. If you are not sure of the type of power supply to your home, consult your product dealer or local power company. If your product is intended to operate from battery power, or other sources, refer to the operating instructions.

3. Overloading

Do not overload wall outlets, extension cords, or integral convenience receptacles as this can result in a risk of fire or electric shock.

4. Power Cord Protection

Power supply cords should be routed so that they are not likely to be walked on or pinched by items placed upon or against them, paying particular attention to cords at plugs, convenience receptacles, and the point where they exit from the product.

EN3

5. Ventilation

Slots and openings in the cabinet are provided for ventilation. To ensure reliable operation of the product and to protect it from overheating, these openings must not be blocked or covered.

•Do not block the openings by placing the product on a bed, sofa, rug or other similar surface.

•Do not place the product in a built-in installation such as a bookcase or rack unless proper ventilation is provided or the manufacturer’s instructions have been adhered to.

6. Wall or Ceiling Mounting

The product should be mounted to a wall or ceiling only as recommended by the manufacturer.

ANTENNA INSTALLATION INSTRUCTIONS

1. Outdoor Antenna Grounding

If an outside antenna or cable system is connected to the product, be sure the antenna or cable system is grounded so as to provide some protection against voltage surges and built-up static charges. Article 810 of the National Electrical Code, ANSI/NFPA 70, provides information with regard to proper grounding of the mast and supporting structure, grounding of the lead-in wire to an antenna discharge unit, size of grounding conductors, location of antenna discharge unit, connection to grounding electrodes, and requirements for the grounding electrode.

2. Lightning

For added protection for this product during a lightning storm, or when it is left unattended and unused for long periods of time, unplug it from the wall outlet and disconnect the antenna or cable system. This will prevent damage to the product due to lightning and power-line surges.

3. Power Lines

An outside antenna system should not be located in the vicinity of overhead power lines or other electric light or power circuits, or where it can fall into such power lines or circuits. When installing an outside antenna system, extreme care should be taken to keep from touching such power lines or circuits as contact with them might be fatal.

EXAMPLE OF ANTENNA GROUNDING AS PER NATIONAL ELECTRICAL CODE, ANSI/NFPA 70

ANTENNA LEAD IN WIRE

GROUND CLAMP

ANTENNA DISCHARGE UNIT

(NEC SECTION ELECTRIC SERVICE EQUIPMENT

POWER SERVICE GROUNDING ELECTRODE SYSTEM (NEC ART 250. PART H)

NEC – NATIONAL ELECTRICAL CODE

810-20)

GROUNDING CONDUCTORS (NEC SECTION 810-21)

GROUND CLAMPS

4 EN

USE

1. Accessories

To avoid personal injury:

• Do not place this product on an unstable cart, stand, tripod, bracket or table. It may fall, causing serious injury to a child or adult, and serious damage to the product.

• Use only with a cart, stand, tripod, bracket, or table recommended by the manufacturer or sold with the product.

• Use a mounting accessory recommended by the manufacturer and follow the manufacturer’s instructions for any mounting of the product.

• Do not try to roll a cart with small casters across thresholds or deep-pile carpets.

2. Product and Cart

Combination

A product and cart combination should be moved with care. Quick stops, excessive force, and uneven surfaces may cause the product and cart combination to overturn.

3. Water and Moisture

Do not use this product near water—for example, near a bath tub, wash bowl, kitchen sink or laundry tub, in a wet basement, or near a swimming pool and the like.

4. Object and Liquid Entry

Never push objects of any kind into this product through openings as they may touch dangerous voltage points or short-out parts that could result in a fire or electric shock. Never spill liquid of any kind on the product.

5. Attachments

Do not use attachments not recommended by the manufacturer of this product as they may cause hazards.

6. Cleaning

Unplug this product from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. Use a damp cloth for cleaning.

7. Heat

The product should be situated away from heat sources such as radiators, heat registers, stoves, or other products (including amplifiers) that produce heat.

PORTABLE CART WARNING (Symbol provided by RETAC)

SERVICING

1. Servicing

If your product is not operating correctly or exhibits a marked change in performance and you are unable to restore normal operation by following the detailed procedure in its operating instructions, do not attempt to service it yourself as opening or removing covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel.

2. Damage Requiring Service

Unplug this product from the wall outlet and refer servicing to qualified service personnel under the following conditions:

a. When the power supply cord or plug is damaged. b. If liquid has been spilled, or objects have fallen

into the product.

c. If the product has been exposed to rain or water. d. If the product does not operate normally by

following the operating instructions. Adjust only those controls that are covered by the operating instructions as an improper adjustment of other controls may result in damage and will often require extensive work by a qualified technician to restore the product to its normal operation.

e. If the product has been dropped or damaged in

any way.

f. When the product exhibits a distinct change in

performance—this indicates a need for service.

3. Replacement Parts

When replacement parts are required, be sure the service technician has used replacement parts specified by the manufacturer or have the same characteristics as the original part. Unauthorized substitutions may result in fire, electric shock or other hazards.

4. Safety Check

Upon completion of any service or repairs to this product, ask the service technician to perform safety checks to determine that the product is in safe operating condition.

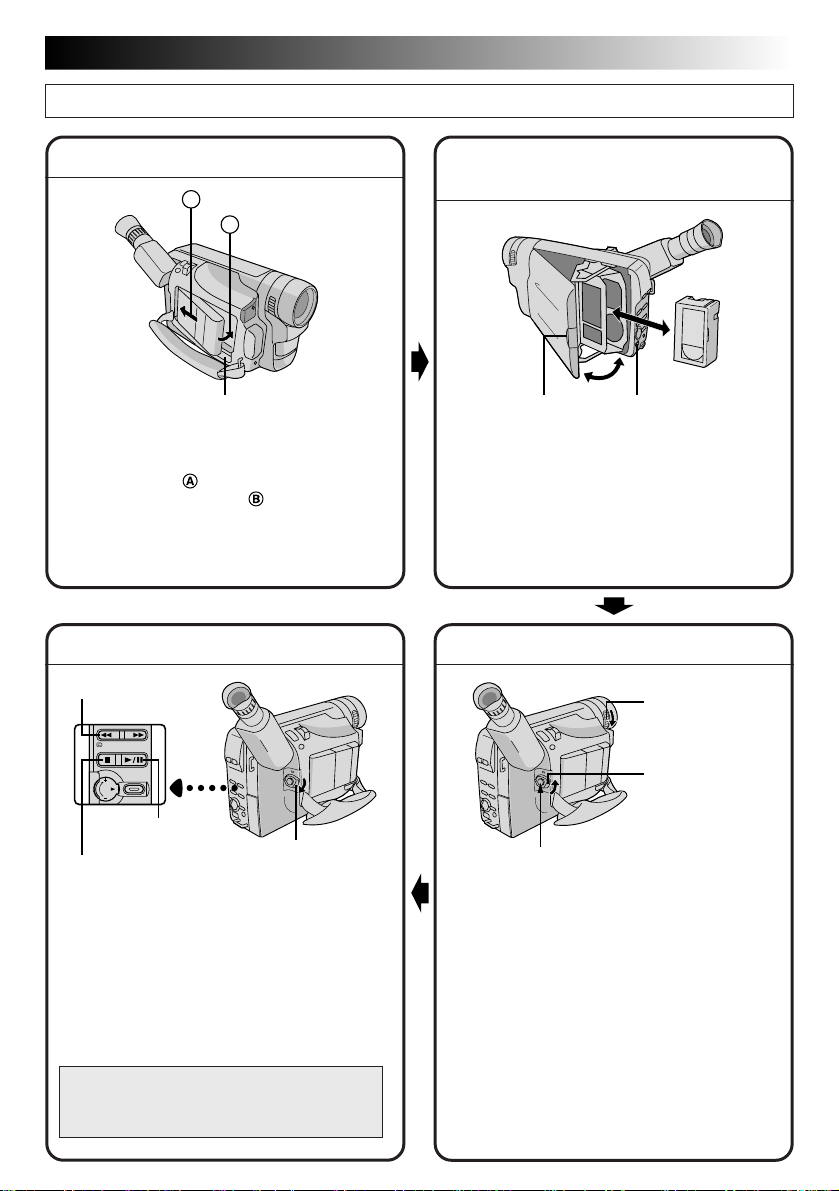

QUICK OPERATION GUIDE

EN5

SUPPLY POWER

INSERTING A VIDEO CASSETTE

Hook on.

Push in.

BATTERY RELEASE

Using the battery pack

Hook its end to the camcorder ( ) and push the battery pack in until it locks in place ( (Charging procedure,

Z pg. 8)

1 Slide EJECT to open the cassette holder. 2 Insert a video cassette. 3 Press PUSH to close the cassette holder.

PUSH Button EJECT Switch

(For more details, Z pg. 13)

To remove the battery pack

Slide BATTERY RELEASE and pull out the battery pack.

PLAYBACK SHOOTING

REW (

) Button

LENS COVER Open/Close Ring

PLAY/PAUSE

(

/6) Button

STOP (5) Button

Set to “PLAY”

1 Set the Power Switch to “PLAY”. 2 Press REW (

— The tape will automatically stop at the

beginning of the tape.

3 Press PLAY/PAUSE (

— Playback starts and the playback picture

appears.

•To stop playback, press STOP (5).

(For more details, Z pg.36.)

Or simply play back the tape on a VHS VCR using the Cassette Adapter (VHS Playpak).

/6).

Z pg. 39

Set to “AUTO” or “PRO.”

Recording Start/Stop Button

1 Turn the LENS COVER Open/Close Ring to

open the lens cover.

2 Set the Power Switch to “AUTO” or “PRO.”.

— The power lamp will light and an image

will appear.

3 Press the Recording Start/Stop Button.

— Recording starts.

•To stop recording temporarily, momentarily press the Recording Start/Stop Button once again. (For more details, Z pgs. 16, 17)

6 EN

MAJOR FEATURES

REMEMBER

The Logical Choice

The only compact video

cassettes that can be

used with your VHS VCR*

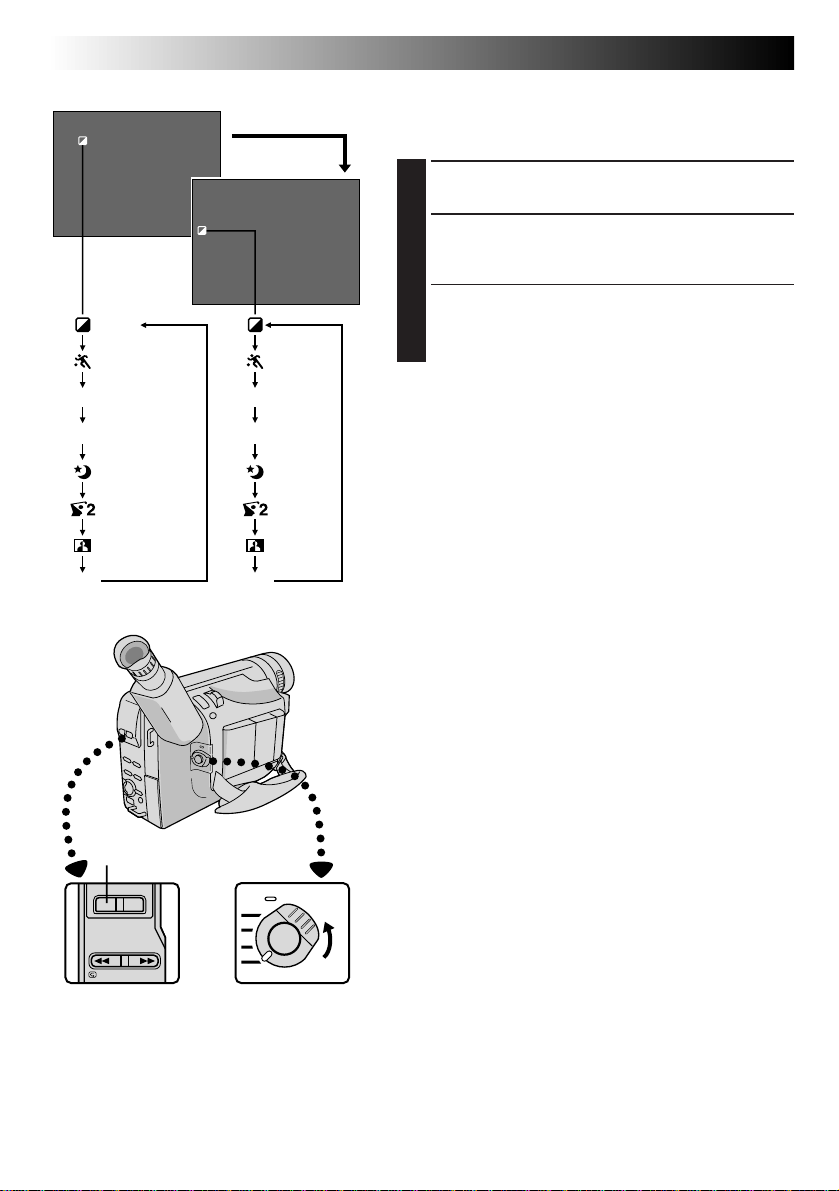

Program AE with Special Effects (

n Electronic Fog Filter n ND Effect n Sepia n Twilight n Sports n Nega/Posi n 1/2000 sec. High Speed Shutter

5-Sec. Recording (Z pg. 20)

Z pg. 22, 23)

Picture Stabilizer (Z pg. 20)

Digital Hyper Zoom

Z pg. 18)

(

Zoom in

Zoom out

PROVIDED ACCESSORIES

•AC Power Adapter/ Charger AA-V15U

•Cassette Adapter (VHS Playpak) C-P7U

Menu Adjustment

Z pg. 26, 27, 28)

(

Cassettes marked can be used with this camcorder.

•Shoulder Strap •Battery Pack

•Lithium Battery CR2025 x 1 (for clock operation)

BN-V11U

•DC Cord

CONTENTS

EN7

GETTING STARTED

Power............................................................................................................ 8

Clock (Lithium) Battery Insertion/Removal .............................................................. 10

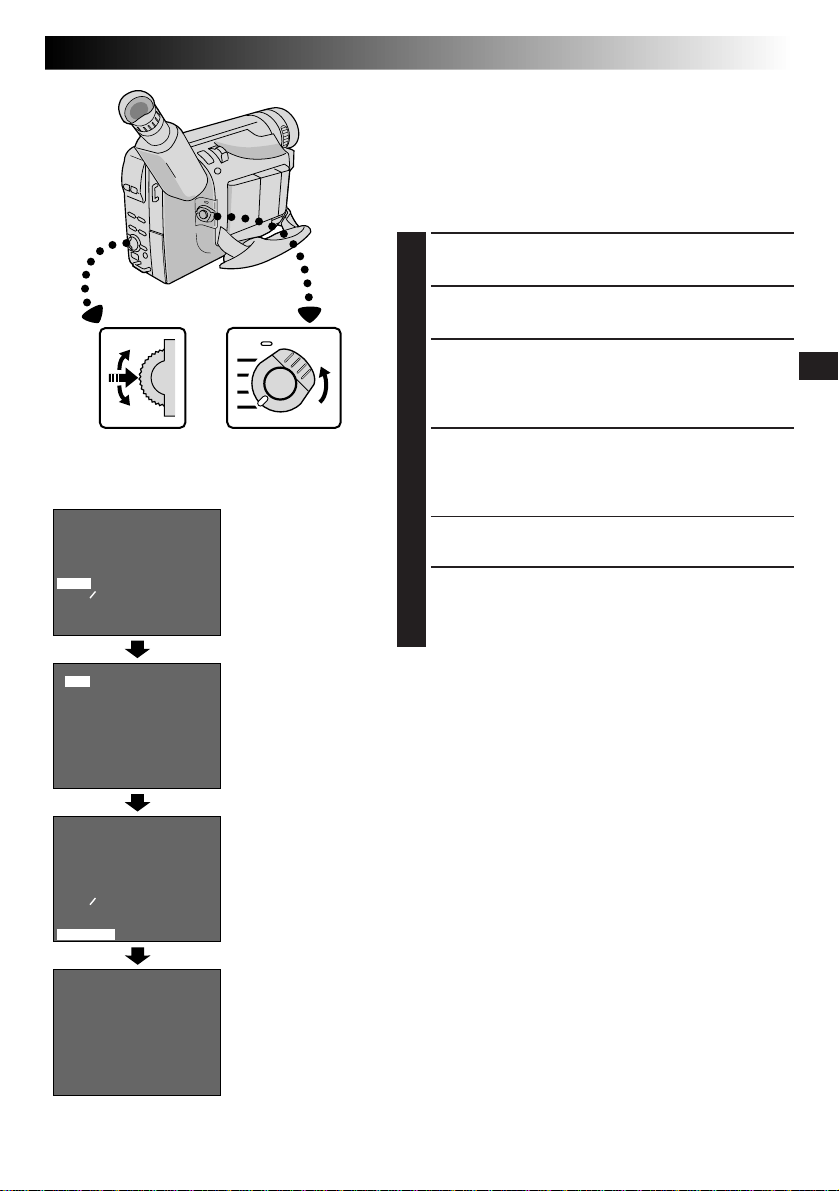

Date/Time Settings.......................................................................................... 11

Recording Mode Setting..................................................................................... 12

Tape Length Setting.......................................................................................... 12

Loading/Unloading A Cassette............................................................................. 13

Grip Adjustment .............................................................................................. 14

Viewfinder Adjustment ..................................................................................... 14

Shoulder Strap Attachment ................................................................................. 15

Tripod Mounting .............................................................................................. 15

RECORDING

Basic Recording............................................................................................... 16

Basic Features ................................................................................................ 18

Advanced Features........................................................................................... 21

PLAYBACK

Basic Playback................................................................................................ 36

Features ....................................................................................................... 37

Using The Cassette Adapter ................................................................................ 39

Basic Connections And Tape Dubbing ...................................................................... 40

8 – 15

16 – 35

36 – 41

USER MAINTENANCE TROUBLESHOOTING

43 – 44

INDEX

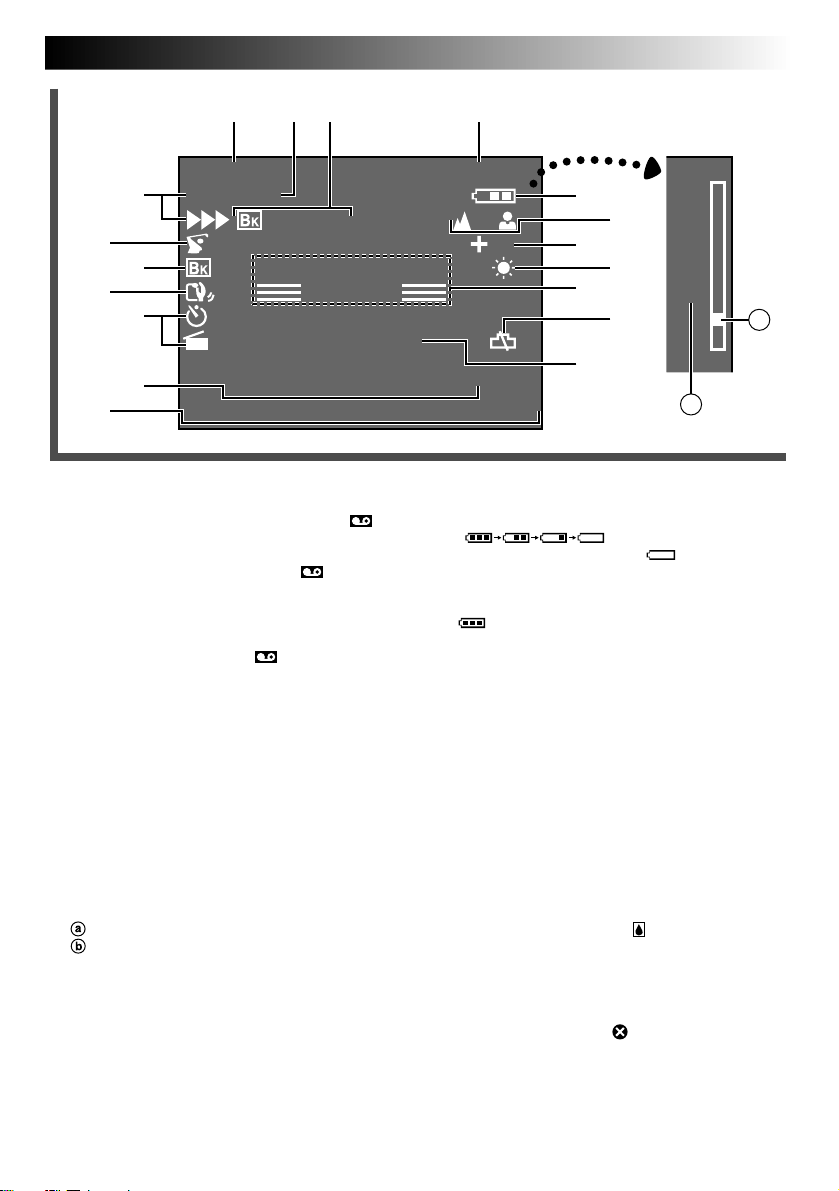

Indications..................................................................................................... 45

Controls, Connectors And Indicators ...................................................................... 46

Terms .......................................................................................................... 48

CAUTIONS

45 – 48

49 – 50

SPECIFICATIONS OPTIONAL ACCESSORIES ESPAÑOL

52 – 53

FOR SERVICING (Only in U.S.A.) WARRANTY (Only in U.S.A.)

8 EN

Marks

CHARGE indicator

REFRESH switch

REFRESH indicator

REFRESH

The AC Power Adapter/Charger features a REFRESH function that allows you to fully discharge the battery pack before recharging. Perform the REFRESH function after no less than 5 chargings.

To discharge the battery . . .

.... attach the battery pack to the adapter as

shown in the above illustration. Then push REFRESH. The REFRESH indicator lights when discharging starts, and goes out when discharging is complete.

To AC outlet

GETTING STARTED

Power

This camcorder’s 3-way power supply system lets you choose the most appropriate source of power.

NOTES:

●

No function is available without power supply.

●

Use only the specified power supply.

●

Do not use provided power supply units with other equipment.

CHARGING THE BATTERY PACK

SUPPLY POWER

Connect the charger’s AC power cord to a wall outlet.

ATTACH BATTERY PACK

Align the marks and slide the battery pack in the direction of the arrow until it locks in place.

•The CHARGE indicator begins blinking to indicate charging has started.

DETACH BATTERY PACK

When the CHARGE indicator stops blinking but stays lit, charging is finished. Slide the battery pack opposite the direction of the arrow.

Battery pack Charging time Discharging time

BN-V11U approx. 1 hr. 10 min. approx. 3 hrs. 30 min. BN-V12U approx. 1 hr. 10 min. approx. 3 hrs. 30 min. BN-V20U approx. 1 hr. 50 min. approx. 6 hrs. 40 min.

Hook on.

Push in.

BATTERY RELEASE

ATTENTION:

Before detaching the power source, make sure that the camcorder’s power is turned off. Failure to do so can result in a camcorder malfunction.

USING THE BATTERY PACK

ATTACH BATTERY PACK

Hook its end to the camcorder ( ) and push the battery pack in until it locks in place (

DETACH BATTERY PACK

Slide BATTERY RELEASE and pull out the battery pack.

Battery pack Approximate recording time (unit: min.)

BN-V11U 70 BN-V12U 70

BN-V20U 110

) .

INFORMATION:

VU-V856KIT is a set composed of the BN-V856U battery pack and AA-V80U AC Power Adapter/Charger. The BN-V856U battery pack provides approx. 7 hours of recording time. Also read thoroughly the VU-V856KIT’s instruction manuals. It is impossible to charge the BN-V856U battery pack using the provided AC Power Adapter/Charger. Use the optional AA-V80U AC Power Adapter/Charger.

EN9

Charge marker

Charge Marker

A charge marker is provided on the battery pack to help you remember whether it has been charged or not. Two colors are provided (red and black)—you choose which one means charged and which means discharged.

NOTES:

●

The recording time per charge is affected by such factors as the time spent in Record-Standby mode and the frequency of zooming. It is safer to have spare battery packs to cover 3 times the planned shooting time.

●

Charging times noted on page 8 are for a fully discharged battery pack, and discharging times are for a fully charged battery pack.

●

Charging and discharging times vary according to the ambient temperature and the status of the battery pack.

●

Remember to set the charge marker after charging a battery pack or after detaching a discharged one from your camcorder.

●

Perform the REFRESH function after no less than 5 chargings.

●

While the AC Power Adapter/Charger’s power cord is disconnected from the AC outlet, it is possible to discharge the battery by pressing the REFRESH switch. During that time, the AC Power Adapter/Charger does not charge the battery. When discharging is complete, detach the battery from the AC Power Adapter/ Charger to store it.

●

High temperatures can damage the battery pack, so use only where good ventilation is available. Do not allow it to discharge in a container, such as a bag.

●

If you stop recharging or discharging part way through, make sure to remove the battery pack before unplugging the adapter’s AC cord.

●

Remove the battery pack from the adapter immediately after discharging.

●

To avoid interference with reception, do not use the AC Power Adapter/Charger near a radio.

●

Make sure you unplug the DC cord before charging or discharging the battery pack.

●

The CHARGE indicator may not light properly with a brand new battery pack, or with one that has been stored for an extended period. In this case, remove and reattach the battery pack and recharge it. The CHARGE indicator should blink during recharging. If it doesn’t, contact your nearest JVC dealer.

GETTING STARTED

To DC IN jack

Car Battery Cord AP-V7U (optional)

DC OUT terminal

DC Cord

Car Battery Charger/Adapter BH-V3U (optional)

To AC outlet

AC Power Adapter/Charger AA-V15U

To car’s cigarette lighter socket

USING AC POWER

Use the AC Power Adapter/Charger (connect as shown in the illustration to the left).

NOTES:

●

The provided AC Power Adapter/Charger features automatic voltage selection in the AC range from 110 V to 240 V.

●

When using the DC cord, make sure you connect the end of the cord with the core filter to the camcorder. The core filter reduces interference.

USING A CAR BATTERY

Use the optional Car Battery Cord or Car Battery Charger/Adapter (connect as shown in the illustration to the left).

NOTES:

●

When using the car battery, leave the engine idling.

●

The optional Car Battery Charger (BH-V3U) can also be used to charge the battery pack (except BN-V20U/V856U).

●

When using the optional Car Battery Charger or Car Battery Cord (AP-V7U), refer to the respective instruction booklet.

10 EN

Battery holder

Slot

GETTING STARTED

(cont.)

Clock (Lithium) Battery Insertion/Removal

This battery is necessary for clock operation and to perform date/time settings.

SWITCH OFF POWER

Switch off the unit’s power and remove the power supply unit (battery pack, AC Power Adapter/Battery Charger, etc.).

REMOVE BATTERY HOLDER

Pull out the battery holder.

INSERT BATTERY IN HOLDER

Insert the battery in the holder, and be sure to have the “+” mark visible.

RE-INSERT HOLDER

Slide the holder back into the slot until you hear a click.

NOTE:

See “SAFETY PRECAUTIONS” (Z pg. 2) for information on safe handling of lithium batteries.

MENU Button

Select Dial

Display

NEXT M . W . B . D . ZOOM TELE MACRO

DATE TIME

TAPE LENGTH

RETURN

DATE TIME

YEAR

MONTH

DAY

TIME

EXIT

NEXT M . W . B . D . ZOOM TELE MACRO DATE TIME TAPE LENGTH

RETURN

AUTO ON OFF

T30

1999

JAN

PM 12 : 00

AUTO ON OFF

T30

Power lamp

Power Switch

Menu Screen

DATE/TIME Menu

12-hour indication with AM or PM

EN11

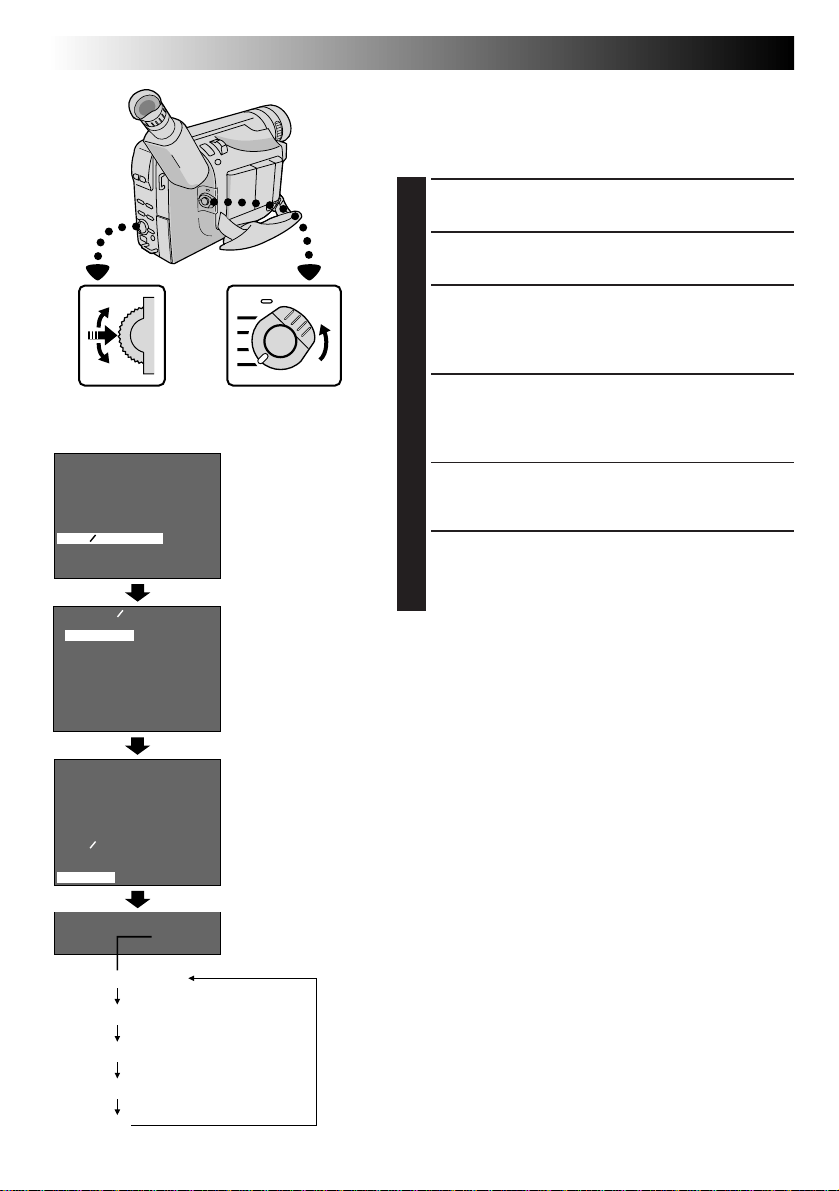

Date/Time Settings

ACCESS MENU SCREEN

Set the Power Switch to “PRO.”, then press MENU.

•The power lamp comes on.

SELECT FUNCTION

Rotate the Select Dial to move the highlight bar to “DATE/TIME”, then press it. The DATE/TIME Menu appears.

•If you decide you want to return the date and time to the previous settings, rotate the Select Dial to move the highlight bar to “EXIT” and press it, then go to step 6.

•If you want to set only the time without changing the date, go to step 4.

SET DATE

Rotate the Select Dial to move the highlight bar to the item you want to set and then press it. When the setting begins blinking, rotate the Select Dial until the correct setting appears and then press it. The setting stops blinking.

•Repeat this procedure until you’re satisfied with the Date settings (“YEAR”, “MONTH” and “DAY”).

SET TIME

Rotate the Select Dial to move the highlight bar to “TIME” and then press it. When the hour setting begins blinking, rotate the Select Dial until the correct setting appears and then press it. When the hour setting stops blinking and the minute setting begins blinking, rotate the Select Dial until the correct setting appears and then press it. The minute setting stops blinking.

START CLOCK OPERATION

When none of these settings (“YEAR”, “MONTH”, “DAY”, “TIME”) blinks, rotate the Select Dial to move the highlight bar to “EXIT”, and press it. The Menu Screen reappears with the highlight bar on “RETURN”.

CLOSE MENU SCREEN

Press the Select Dial.

NOTE:

To display the date and time in the camcorder’s display and on a connected TV, see “Date/Time Insert” (Z pg. 24).

GETTING STARTED

12 EN

Viewfinder

NEXT M . W . B . D . ZOOM TELE MACRO DATE TIME

TAPE LENGTH

RETURN

TAPE LENGTH

T20

T30

T40

MENU Button

SP/EP Recording Mode Button

Select Dial Power Switch

T30

Tape length indicator

Recording mode indicator

Display

Menu Screen

TAPE LENGTH Setting Menu

AUTO ON OFF

T30

GETTING STARTED

(cont.)

Recording Mode Setting

Set depending on your preference.

SET RECORDING MODE

First set the Power Switch to “AUTO” or “PRO.”. Press SP/EP for more than 1 second. “SP” (Standard Play) provides higher picture and sound quality and is better for dubbing, while “EP” (Extended Play) is more economical, providing three times the recording time.

NOTE:

If the recording mode is switched during recording, the playback picture will be blurred at the switching point.

Tape Length Setting

Set the tape length according to the length of the tape used.

ACCESS MENU SCREEN

First set the Power Switch to “PRO.”. Press MENU.

SELECT FUNCTION

Rotate the Select Dial to move the highlight bar to “TAPE LENGTH”, then press it. The TAPE LENGTH Setting Menu appears.

SET TAPE LENGTH

Rotate the Select Dial to move the highlight bar to the correct setting. T20=20 minutes of recording time, T30=30 minutes, and T40=40 minutes (in SP).

•If you decide you want to return the tape length to the previous setting, rotate the Select Dial to move the highlight bar to “EXIT”.

CLOSE MENU SCREEN

Press the Select Dial. The Menu Screen reappears with the highlight bar on “RETURN”. Press the Select Dial again to close the Menu Screen.

NOTE:

The tape remaining time (Z pg. 17) displayed in the viewfinder is correct only if the correct tape length has been selected.

EXIT

NEXT M . W . B . D . ZOOM TELE MACRO DATE TIME TAPE LENGTH

RETURN

AUTO ON OFF

T40

Cassette holder

EJECT SwitchPUSH Button

Erase Protection Gear

Turn to take up slack.

EN13

Loading/Unloading A Cassette

OPEN CASSETTE HOLDER

Slide EJECT until the holder opens. Do not use force to open.

INSERT/REMOVE CASSETTE

Make sure the label is facing outward.

CLOSE CASSETTE HOLDER

Press PUSH and make sure the holder is closed and locked.

NOTES:

●

The cassette holder cannot be opened unless a power supply is attached.

●

Make sure that the tape is not slack when loading the cassette. If there is any slack, turn the gear on the cassette in the direction of the arrow to take up the slack.

●

Make sure the Erase Protection tab is in the position that allows recording. If not, slide the tab. Some cassettes have removable tabs. If the tab has been removed, cover the hole with adhesive tape.

●

The cassette holder cannot be opened while the camcorder is in the record mode.

GETTING STARTED

14 EN

Power Zoom Lever

GETTING STARTED

Grip Adjustment

EXPAND LOOP

Separate the Velcro strip.

INSERT HAND

Pass your right hand through the loop and grasp the grip.

ADJUST STRAP LENGTH

Adjust so your thumb and fingers can easily operate the Recording Start/Stop Button and Power Zoom Lever. Refasten the Velcro strip.

(cont.)

Recording Start/Stop Button

180°180

Set “POWER” to “CAMERA” (“AUTO” or “PRO.”)

PAUSE

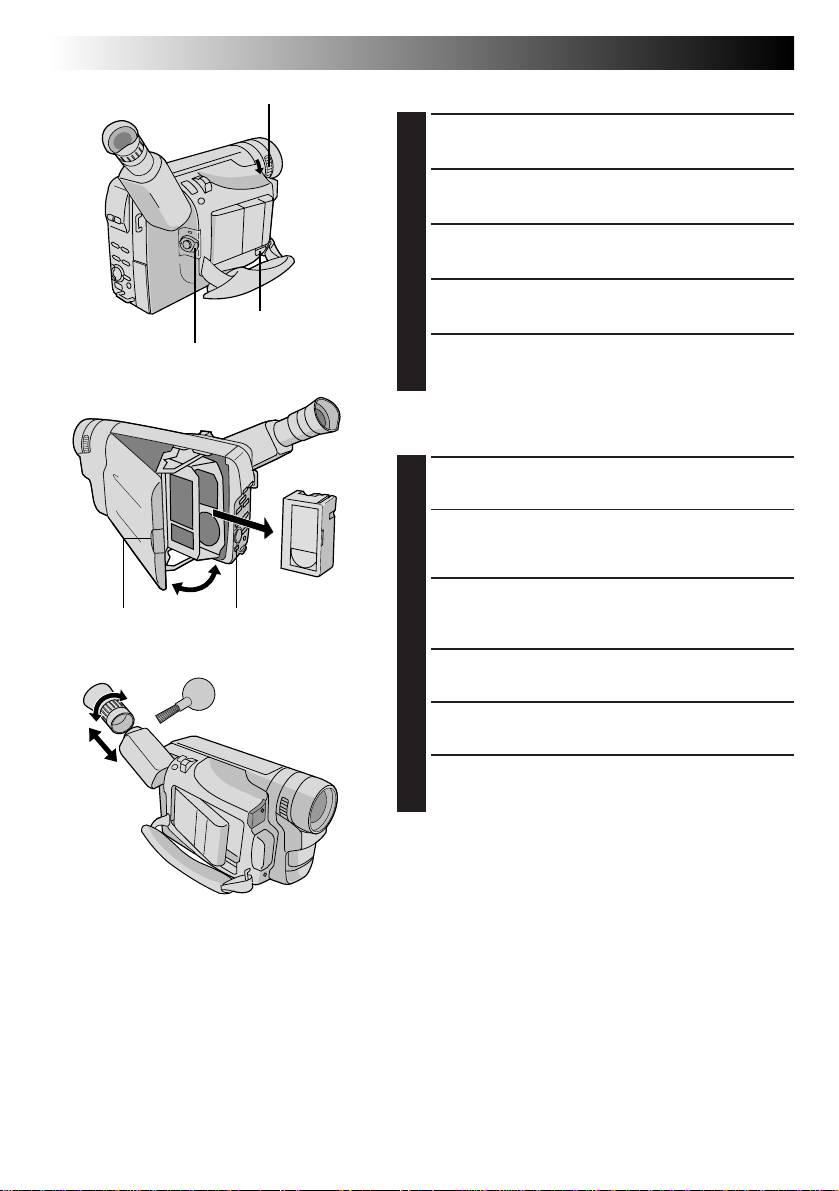

Viewfinder Adjustment

SELECT OPERATION MODE

Set the Power Switch to “CAMERA” (“AUTO” or “PRO.”).

POSITION VIEWFINDER

Adjust the viewfinder manually for best viewability (see illustration at left).

ADJUST DIOPTER

Turn the Diopter Adjustment Control until the indications in the viewfinder are clearly focused.

EN15

Shoulder Strap Attachment

ATTACH STRAP

Following the illustration at left, thread the strap through the top of the eyelet 1, then fold it back and thread it through the buckle 2. Repeat the procedure to attach the other end of the strap to the other eyelet

3, making sure the strap is not twisted.

ADJUST LENGTH

Adjust as shown in the illustration at left 4.

Tripod Mounting

ALIGN AND TIGHTEN

Align the screw and camera direction stud on the tripod with the camera’s mounting socket and stud hole. Then tighten the screw.

CAUTION:

When using a tripod, be sure to open and extend its legs fully to stabilize the camcorder. To prevent damage to the unit caused by falling over, do not use a small-sized tripod.

GETTING STARTED

16 EN

EJECT Switch

Recording Start/Stop Button

LENS COVER Open/Close Ring

Power Switch

Power lamp

RECORDING

Basic Recording

NOTE:

You should already have performed the procedures listed below. If not, do so before continuing.

●

Power (Z pg. 8)

●

Recording Mode Setting (Z pg. 12)

●

Tape Length Setting (Z pg. 12)

●

Grip Adjustment (Z pg. 14)

●

Viewfinder Adjustment (Z pg. 14)

LOAD A CASSETTE

Slide EJECT to open the cassette holder, then insert the cassette with the label facing out. Press PUSH to ensure the holder is closed and locked.

ENTER RECORD-STANDBY MODE

Turn the LENS COVER Open/Close Ring to open the lens cover, then set the Power Switch to “CAMERA” (“AUTO” or “PRO.”).

•The power lamp lights and the camcorder enters the Record-Standby mode.

•The scene you are aimed at appears on the viewfinder screen, with the word “PAUSE” superimposed upon it.

Tally lamp (lights while recording is in progress)

START SHOOTING

Press the Recording Start/Stop Button.

•“ ” appears in the viewfinder while recording is in progress.

Power Switch Position

According to the Power Switch position you have selected, the following functions are available:

AUTO (Full Auto mode):

Allows you to record using NO special effects or manual adjustments. Suitable for standard recording.

Allows you to set various recording functions using the menus. If you want more creative capabilities than full auto recording, try this mode.

PRO. (PRO. mode):

OFF:

Allows you to switch off the camcorder.

Tape remaining time indicator

25MIN

Recording Start/Stop Button

DISPLAY Button

MIN

(Now calculating)

120MIN

119MIN

3MIN

2MIN

(Blinking)

1MIN

(Blinking)

0MIN

(Blinking)

EN17

STOP RECORDING

Press the Recording Start/Stop Button again to stop recording.

•The camcorder re-enters the Record-Standby mode.

NOTES:

●

The cassette holder cannot be opened unless a power supply is attached.

●

There may be a delay after you slide EJECT until the holder opens. Do not use force.

●

The tape remaining time is only displayed in the viewfinder as shown.

●

The remaining time indicated in the viewfinder is approximate.

●

The time required to calculate the remaining tape length, and the accuracy of the calculation, may vary according to the type of tape used.

●

The tape remaining time indicator is correct only if the correct tape length has been selected (

●

“TAPE END” appears when the tape reaches its end, and the power goes off automatically if left in this condition for 5 minutes. “TAPE END” also appears when a cassette whose tape is already at its end is loaded.

●

If the Record–Standby mode continues for 5 minutes without performing Zoom or any other operations, the camcorder’s power shuts off automatically. Set the Power Switch to “POWER OFF”, and then back to “CAMERA” to turn the camcorder on again.

●

If the Recording Start/Stop button is pressed after the Record-Standby mode has continued for over 5 minutes, recording may not start immediately.

●

If you are recording on a cassette from the middle (such as when a tape is removed and re-inserted during recording), use the Retake function ( the end of the last recording so you don’t erase any of it.

●

The LENS COVER warning blinks for about 5 seconds when the camcorder is turned on with the cover closed.

●

While shooting, sound is not heard from the speaker.

●

To turn the tally lamp off during recording, refer to pgs. 26 and 28.

pg. 12).

pg. 19) to find

RECORDING

Viewfinder Indications

By pressing DISPLAY, you can make the following, indications appear/disappear from the camcorder’s display: cassette warning, tape remaining time, battery pack remaining power indicator and tape length indicator (Z pg. 45).

PRESS DISPLAY BUTTON

When you do not want the indications to appear, press DISPLAY for longer than approximately 1 second. Certain indications disappear. Press again for longer than approx. 1 second to make the indications reappear.

NOTE:

Even if DISPLAY is pressed, the tape remaining time appears blinking when the tape is about to reach its end, and the battery pack remaining power indicator also appears blinking when the power is almost gone.

18 EN

RECORDING

Basic Features

Zoom in

Display

Approximate zoom ratio

Power Zoom Lever

Zoom out

Zoom indicator bar

Zoom level indicator

FEATURE:

Zooming

PURPOSE:

To produce the zoom in/out effect, or an instantaneous change in image magnification. Digital circuitry extends the maximum magnification offered by optical zoom. This system is called Digital Zoom.

OPERATION:

Zoom In Push the Power Zoom Lever towards “T”.

Zoom Out Push the Power Zoom Lever towards “W”.

n The quicker you push the Power Zoom Lever, the

quicker the zoom action.

NOTES:

●

Focusing may become unstable during Zooming. In this case, set the zoom while in Record–Standby, lock the focus by using the manual focus (Z pg. 31), then zoom in or out in Record mode.

●

The zoom level indicator (5) moves during zoom. Once the zoom level indicator reaches the top of the zoom indicator bar, all magnification from that point is through digital processing.

●

When using Digital Zoom, the image quality of the image may suffer. To deactivate Digital Zoom, set “D.ZOOM” to “OFF” in the Menu Screen (Z pg. 27).

Power Switch

EN19

RETAKE (R/F) Button

FEATURE:

Quick Review

PURPOSE:

To check the end of the last recording.

OPERATION:

1) Press “ ” and release quickly during the Record–

Standby mode.

n Tape is rewound for about 2 seconds and played

back automatically, then pauses in Record–Standby mode for the next shot.

NOTE:

Distortion may occur at the start of playback. This is normal.

FEATURE:

Retake

PURPOSE:

To re-record certain segments.

OPERATION:

1) Make sure the camcorder is in the Record–Standby

mode.

2) Press either RETAKE to reach the start point for new

recording. Pressing “F” forwards the tape and pressing “R” reverses it.

3) Press the Recording Start/Stop Button to start

recording.

NOTE:

Noise bars appear and pictures may become monochrome or darken during Retake. This is normal.

RECORDING

20 EN

5 SEC. REC Button

Power Switch

Display

PAUSE

P. STABILIZER Button

Picture stabilizer indicator

5 Sec. Rec mode indicator

RECORDING

FEATURE:

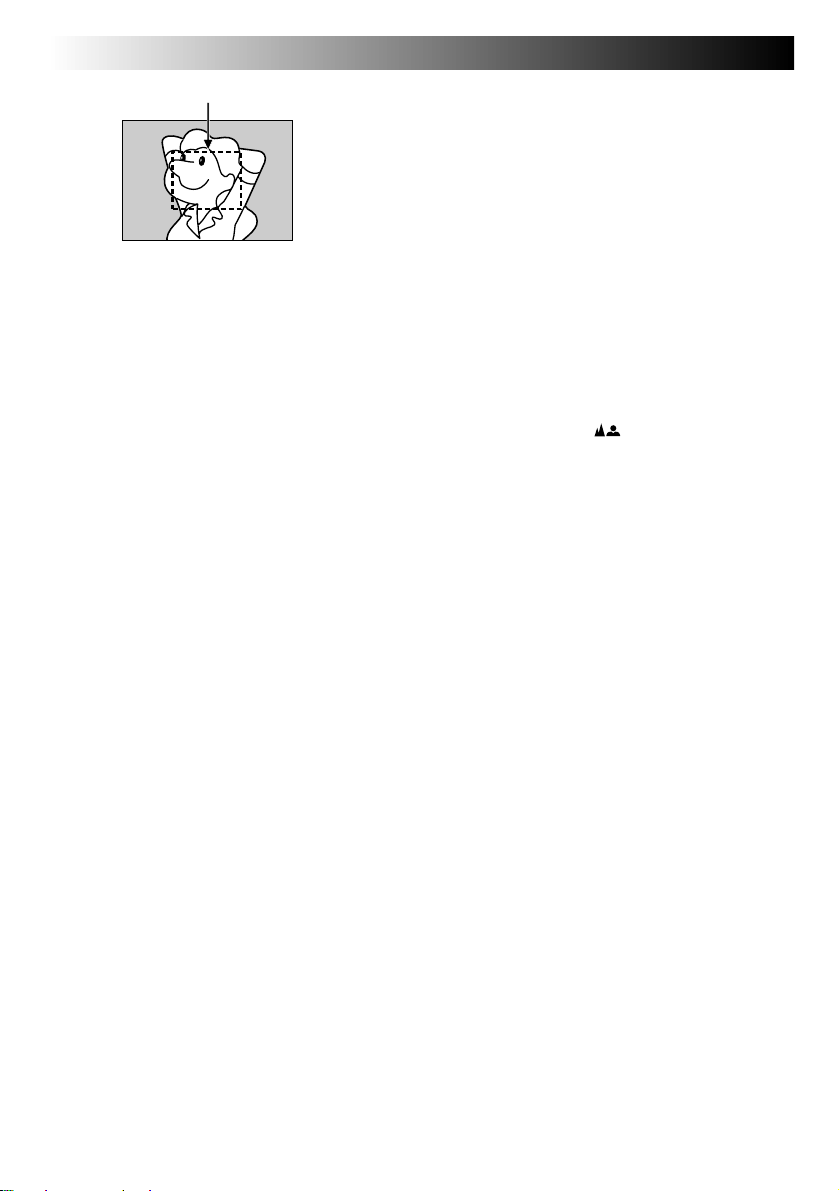

Picture Stabilizer

Basic Features (cont.)

PURPOSE:

To compensate for unstable images caused by camerashake, particularly at high magnification.

OPERATION:

1) Press P. STABILIZER. “ ”appears.

n To switch off the Picture Stabilizer, press

P. STABILIZER. The indicator disappears.

NOTES:

●

Accurate stabilization may not be possible if hand shake is excessive, or under the following conditions:

•

When shooting subjects with vertical or horizontal stripes.

•

When shooting dark or dim subjects.

•

When shooting subjects with excessive backlighting.

•

When shooting scenes with movement in various directions.

•

When shooting scenes with low-contrast backgrounds.

●

Switch off the Picture Stabilizer when recording with the camcorder on a tripod.

●

The “ ” indicator appears blinking if the Stabilizer cannot be used.

FEATURE:

5Sec. Rec (5-sec. Recording)

PURPOSE:

To record a scene for 5 seconds, providing quick scene transitions like those seen in TV programs.

OPERATION:

n Make sure the recording mode is set to “SP”.

1) During Record–Standby, press 5SEC. REC. “ 5S”

appears and 5Sec. Rec is reserved.

2) Press the Recording Start/Stop Button. Recording

starts, and after 5-second recording is finished, the camcorder reenters the Record–Standby mode automatically.

n To cancel the 5Sec. Rec. function, press 5SEC. REC

again so that “ 5S” disappears.

NOTE:

Fade/Wipe (Z pg. 21) cannot be activated by pressing 5SEC. REC.

RECORDING

[Ex.: Fader]

Fade in

Display

EFFECT

MOSAIC

OFF (No indication)

EFFECT Button

OFF

Advanced Features

Fade out

After 2 sec.

EFFECT

MOSAIC

FADER

MOSAIC

SHUTTER

SLIDE

Power Switch

Recording Start/Stop Button

EN21

Fade/Wipe

These effects let you make pro-style scene transitions. Fade- or wipe-in works at recording start, and fade- or wipe-out works at recording end or when you enter Record–Standby mode.

SELECT OPERATION MODE

Set the Power Switch to “PRO.”.

ENGAGE FADE- OR WIPE-STANDBY

MODE

Press EFFECT to cycle through the modes as shown at left. Once the desired mode appears, it is selected and reserved.

•The selected mode’s name and its indication are displayed for approx. 2 seconds. Then the name disappears, and only the indication remains.

START OR END RECORDING

Press the Recording Start/Stop Button to activate fadein/out or wipe-in/out.

TO CANCEL FADE- OR WIPE-STANDBY

MODE

Press EFFECT repeatedly until “OFF” appears.

•“OFF” is displayed for approx. 2 seconds and the fade/wipe standby mode is canceled.

FADER

Fades in/out to a black screen.

MOSAIC (Fader)

Gradually turns/returns the picture into/from a mosaic pattern.

SHUTTER (Wipe)

A black screen moves in from the top and bottom, closing over the image like a shutter, or a new image pushes open the black screen vertically from the center.

SLIDE (Wipe)

A black screen moves in from the left to gradually cover the image, or a new image moves in from right to left.

NOTES:

●

Pressing and holding the Recording Start/Stop Button allows you to vary the length for the image during fade in/out or wipe in/out.

●

The screen becomes slightly reddish when the Fade/ Wipe is used with Sepia (Z pg. 23).

●

With the Electronic fog filter mode (Z pg. 23) engaged, the image fades in/out to a white screen.

RECORDING

22 EN

SEPIA

Display

P.AE

After 2 sec.

RECORDING

Advanced Features (cont.)

Program AE With Special Effects

All you have to do to access any of the variety of shooting effects is press P.AE.

SEPIA

SPORTS

ND EFFECT

FOG

TWILIGHT

S1/2000

NEGA/POSI

OFF

P.AE

SEPIA

OFF (No indication)

SELECT OPERATION MODE

Set the Power Switch to “PRO.”.

SELECT MODE

Press P.AE to cycle through the modes as shown on the left.

•The selected mode’s name and its indication are displayed for approx. 2 seconds. Then the name disappears, and only the indication remains. The mode is activated.

NOTES:

●

Only one mode can be engaged at a time.

●

The screen becomes slightly reddish when the Fade/ Wipe (Z pg. 21) is used in the Sepia mode.

●

The screen becomes slightly dark in the High Speed Shutter mode. Use in well-lit situations.

●

In the “High Speed Shutter” or “Sports” modes, picture color may be adversely affected if the subject is lit by alternating discharge-type light sources such as flourescent or mercury-vapor lights.

P.AE Button

Power Switch

Display Mode

EN23

Display Mode

SEPIA

Sepia

The scene being shot is recorded in sepia-tinted (reddish-brown) monochrome, giving the effect of an older movie. Use together with Wide (Z pg. 27) for the authentic look of a classic Hollywood movie.

SPORTS

Sports

High shutter speed clearly captures fast-moving action.

ND:ND EFFECT

ND Effect

A black mist darkens the picture, as when an ND filter is used. Helps to counter the effects of glare on the subject.

FG:FOG

Electronic Fog Filter

Makes the picture look misty white, as when an external fog filter is attached to the lens. Softens the image and gives it a “fantasy” look.

Sepia

Sports

ND Effect

Electronic Fog Filter

S1/2000

High-Speed Shutter (1/2000s.)

Captures faster action than Sports mode.

NEGA POSI

Nega/Posi (Negative/Positive)

The colors of a picture are reversed.

1/2000 sec. High Speed Shutter

Nega/Posi

NEGA POSI mode

RECORDING

TWILIGHT

Twilight

Dusk, twilight scenery, fireworks, etc., look more natural and dramatic. The following happens when Twilight mode is selected:

•Auto gain control is turned off.

•White Balance is set to “ ” (FINE day mode), but can also be manually changed to another mode (Z pg. 32).

•Auto Focus becomes available only in the range of 10 m (33 ft.) to infinity. To focus when the subjectto-camera distance is less than 10 m (33 ft.), use manual focusing (Z pg. 31).

Twilight

24 EN

Select Dial

FOCUS EXPOSURE WIDE S . LX TITLE

DATE TIME DISP.

RETURN

DATE TIME DISP.

AUTO DATE

DATE TIME DATE&TIME OFF

EXIT

FOCUS EXPOSURE WIDE S . LX TITLE DATE TIME DISP.

RETURN

Display

AUTO AUTO OFF OFF

DEC 25 . 99

Power Switch

Menu Screen

DATE/TIME DISP. Menu

RECORDING

Advanced Features (cont.)

Date/Time Insert

This feature allows you to display the date and time in the viewfinder or on a connected color monitor, as well as to record them manually or automatically.

SELECT OPERATION MODE

Set the Power Switch to “PRO.”.

ACCESS MENU SCREEN

Press the Select Dial to display the Menu Screen.

ACCESS “DATE/TIME DISP.” MENU

Move the highlight bar to “DATE/TIME DISP.” by rotating the Select Dial while in Record-Standby. Then press it to display the DATE/TIME DISP. Menu.

SELECT THE DESIRED MODE

Move the highlight bar to the desired mode by rotating the Select Dial, then press it. The desired mode is activated.

•You should have already performed the Date/Time Setting procedure (Z pg. 11). If you haven’t, do so first.

CLOSE MENU SCREEN

The Menu Screen reappears with the highlight bar on “RETURN”. Then press the Select Dial to close the Menu Screen.

NOTES:

DISPLAY

●

The selected display can be recorded.

●

If you do not want to record the display, select the OFF mode before shooting.

AUTO DATE

●

Your camcorder automatically records the date for about 5 seconds after recording is initiated in the following situations:

•

After changing the date.

•

After loading a cassette.

•

After Auto Date Record mode is selected by rotating the Select Dial.

●

In this mode, the date is replaced after 5 seconds with “AUTO DATE” but this is not recorded.

AUTO DATE

DEC 25 . 99

(DATE)

AM 10 : 25 : 00

(TIME)

DEC 25 . 99

(DATE&TIME)

OFF (No indication)

AM 10 : 25 : 00

Select Dial

Display

FOCUS EXPOSURE WIDE S . LX

TITLE

DATE TIME DISP.

RETURN

OFF

HAPPY BIRTHDAY OUR VACATION MERRY CHRISTMAS A SPECIAL DAY HAPPY HOLIDAYS OUR NEW BABY WEDDING DAY CONGRATULATIONS EXIT

TITLE

AUTO AUTO OFF OFF

Power Switch

Menu Screen

TITLE Menu

EN25

Instant Titles

The camcorder has eight preset titles in memory. You can superimpose one of them above a previously stored title as shown in the illustration to the left. Instant Titles can be displayed not only in English but also in French, Spanish and Portuguese. Change the setting in TITLE LANG. in the Menu Screen. (Z pg. 26, 28).

SELECT OPERATION MODE

Set the Power Switch to “PRO.”.

ACCESS MENU SCREEN

Press the Select Dial to display the Menu Screen.

ACCESS “TITLE” MENU

Move the highlight bar to “TITLE” by rotating the Select Dial while in Record-Standby. Then press it to display the TITLE Menu.

SELECT THE DESIRED MODE

Move the highlight bar to the desired mode by rotating the Select Dial, then press it. The desired mode is activated.

•If you wish to make the title indication disappear, select “OFF”.

CLOSE MENU SCREEN

The Menu Screen reappears with the highlight bar on “RETURN”. Then press the Select Dial to close the Menu Screen.

RECORDING

FOCUS EXPOSURE WIDE S . LX TITLE DATE TIME DISP.

RETURN

CONGRATULATIONS

AUTO AUTO OFF OFF

26 EN

Select Dial

MENU Button

Display (ex. Menu Screen available using the MENU Button)

Menu Screen 1

Menu Screen 2

Setting Menu (ex. TITLE LANG.)

M . W . B . D . ZOOM TELE MACRO DATE TIME TAPE LENGTH

RETURN

BACK REC. TIME INT. TIME TALLY LAMP

TITLE LANG.

JLIP ID NO DEMO MODE

RETURN

ENGLISH

FRENCH

SPANISH

PORTUGUESE

EXIT

BACK REC. TIME INT. TIME TALLY LAMP TITLE LANG. JLIP ID NO DEMO MODE

RETURN

AUTO ON OFF

T30

OFF OFF ON

ENGLISH

07 OFF

TITLE LANG.

OFF OFF ON FRENCH 07 OFF

Normal Screen

NOTE:

No menu functions except “FOCUS” and “EXPOSURE” are available while in the Record mode.

RECORDING

Advanced Features (cont.)

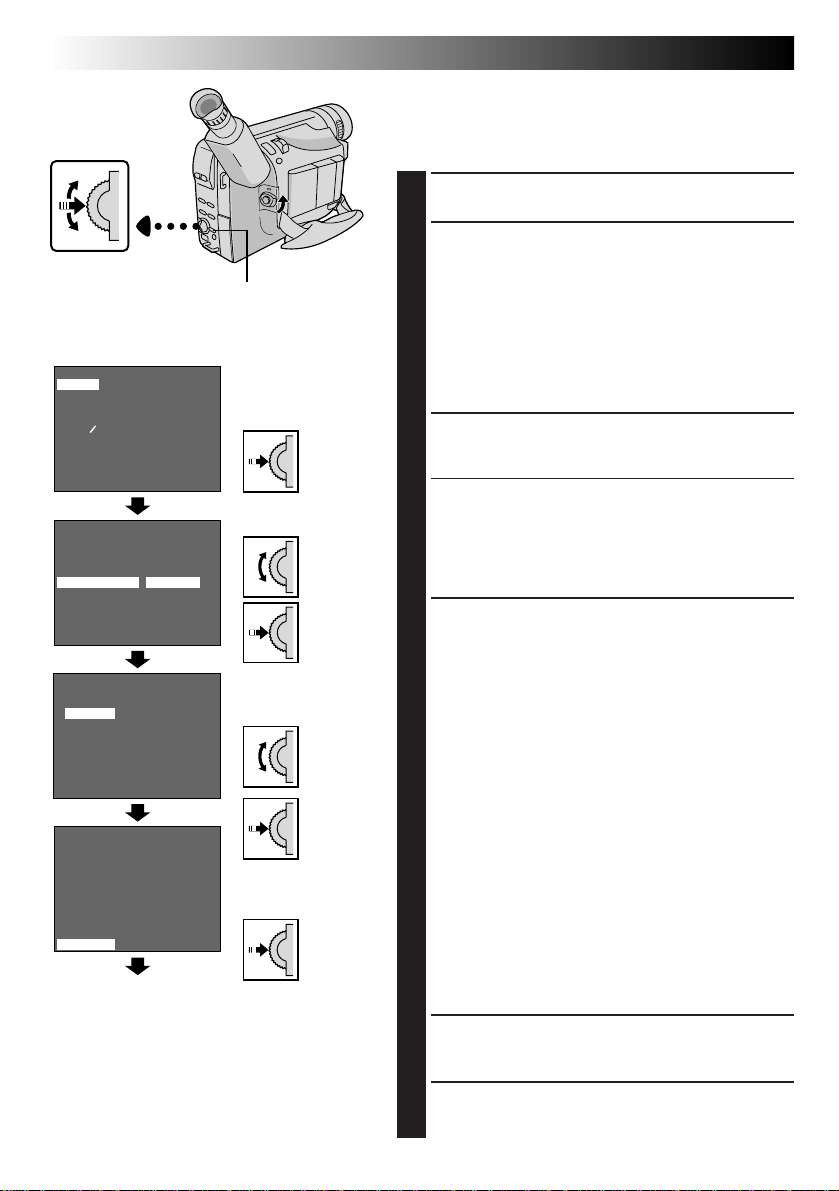

Using Menu For Detailed Adjustment

This camcorder is equipped with an easy-to-use, on-screen menu system that simplifies many of the more detailed camcorder settings.

SELECT OPERATION MODE

Turn the Power Switch to “PRO.”.

ACCESS MENU SCREEN

Menu access depends on the function you select.

If you select the functions from the “Menu Screen Available Using The Select Dial” described on pg. 27 . . .

.... press the Select Dial. The Menu Screen appears.

If you select the functions from the “Menu Screen Available Using The MENU Button” described on pg. 27 and 28 . . .

.... press MENU. The Menu Screen appears.

SELECT FUNCTION

Rotate the Select Dial to place the highlight bar on the desired function.

•To go from Menu Screen 1 to Menu Screen 2, rotate the Select Dial to “NEXT” and press it. To go back to Menu Screen 1 from Menu Screen 2, rotate the Select Dial to “BACK”, and press it.

•If the setting you want cannot be found in the Menu Screen, place the highlight bar on “RETURN”, then go to step 6.

MAKE SETTING

Press the Select Dial. The setting procedure depends on the function you select.

If you select “FOCUS”, “EXPOSURE”, “TITLE”, “DATE/TIME DISP.” or “DATE/ TIME” . . .

.... see respective pages (FOCUS: Z pg. 30, 31,

EXPOSURE: DATE/TIME DISP.:

If you select “WIDE”, “D.ZOOM”, “TELE MACRO” or “DEMO MODE” . . .

.... the selected function’s parameter starts blinking.

Rotate the Select Dial until the desired parameter appears. Go to step 5.

If you select “JLIP ID NO.” . . .

.... press the Select Dial so that the number blinks, then

rotate it until the desired number appears, and press it. Then rotate the Select Dial to move the highlight bar to “EXIT”.

If you select any other functions . . .

.... rotate the Select Dial to move the highlight bar to the

desired setting.

• If you decide you want to return to the previous setting, rotate the Select Dial to move the highlight bar to “EXIT”.

END SETTING

Press the Select Dial. The Menu Screen reappears with the highlight bar on “RETURN”.

CLOSE MENU SCREEN

Press the Select Dial. The normal screen reappears.

Z pg. 29, TITLE: Z pg. 25,

Z pg. 24, DATE/TIME: Z pg. 11).

MENU SCREEN EXPLANATIONS

Menu Screen Available Using The Select Dial

FOCUS

EXPOSURE

WIDE

S.LX

TITLE DA TE/TIME DISP.

AUTO MANU AUTO MANU OFF ON

MAX

NORMAL

OFF

Allows you to superimpose one of eight preset titles (Z pg. 25). Makes the date/time settings appear in the camcorder or on a connected monitor

(Z pg. 24).

Adjusts focus automatically. Allows you to adjust focus manually (Z pg. 30, 31). Adjusts exposure automatically. Allows you to adjust exposure manually (Z pg. 29). Does not display black bars. Allows you to record black bars at the top and bottom of the screen

to produce a cinema-like “wide-screen” effect. To record a subject in a darkly lit environment, when it is more

convenient to shoot the subject with a brighter image even if the picture becomes slightly coarse.

To record a subject in a dimly lit environment, when it is more convenient to shoot with a less coarse picture although the subject becomes slightly dark. This setting is suitable for measuring sensitivity conforming to EIA-639 (EIA* Standard for Low Light Sensitivity Measurement). *EIA : Electronic Industries Alliance

Allows you to shoot dark scenes with no picture brightness adjustment.

EN27

RECORDING

Menu Screen Available Using The MENU Button

This Menu Screen cannot be accessed while recording.

M.W.B.

D. ZOOM

TELE MACRO

: Factory-preset

AUTO

: FINE : CLOUD : HALOGEN

MWB

OFF

OFF ON

This camcorder’s Automatic Color Temperature system senses the color temperature of the ambient lighting for automatic white balance adjustment. However, precise color adjustment is not possible under the following conditions:

• When an object is in various shades of the same color.

• When a predominantly red or brown object is being shot outdoors. In these cases, use the camcorder’s built-in preset filters for

white balance adjustment (Z pg. 32, 33). Allows you to use the Digital Zoom. By digitally processing and

magnifying images, zooming is possible from 16 times (the optical zoom limit), to a maximum of 50 times digital magnification.

Digital Zoom is not available. Only optical zoom (maximum 16x magnification) can function. When set to “OFF” during Digital Zoom, zoom magnification changes to 16x.

Usually the distance to a subject where the lens is in focus depends on the zoom magnification. Unless there is a distance of more than 1m (3.3 ft.) to the subject, the lens is out of focus at the maximum telephoto setting. When set to “ON”, you can shoot a subject as large as possible at a distance of approx. 60 cm (2 ft.).

• Depending on the zoom position, the lens may go out of focus.

CONTINUED ON NEXT PAGE

28 EN

RECORDING

Menu Screen Available Using The MENU Button (cont.)

DATE/TIME TAPE LENGTH REC TIME

INT. TIME

TALLY LAMP

TITLE LANG.

JLIP ID NO.

DEMO MODE

Allows you to set the current date and time (Z pg. 11). Allows you to set the tape length depending on the tape used (Z pg. 12). This feature allows you to set the parameters for Animation and Time-Lapse

recording (Z pg. 35). This feature allows you to set the parameters for Self-Timer (Z pg. 34) and Time-

Lapse recording (Z pg. 34, 35).

OFF ON

Allows you to select the language (ENGLISH, FRENCH, SPANISH or PORTUGUESE) of Instant Titles (Z pg. 25).

This number is necessary when connecting the camcorder to a device such as a computer using the J terminal (JLIP). The numbers range from 01 to 99. Factory setting is 07.

OFF ON

The tally lamp remains off at all times. The tally lamp comes on to signal the start of recording.

Automatic demonstration will not take place. Demonstrates certain functions such as Fade/Wipe, etc. When

“DEMO MODE” is set to “ON” and the Menu Screen is closed, the demonstration starts.

NOTES:

●

When a tape whose Erase Protection tab is in the position that allows recording is loaded in the camcorder, demonstration is not available.

●

By turning off the camcorder or inserting a tape whose Erase Protection tab is in the position that allows recording into it, “DEMO MODE” is set to “OFF” automatically.

●

During the demonstration, all functions except zoom are disabled.

Advanced Features (cont.)

: Factory-preset

Select Dial Power Switch

Display

FOCUS

EXPOSURE

WIDE S . LX TITLE DATE TIME DISP.

RETURN

AUTO

MANU

EXIT

AUTO

OFF OFF

EXPOSURE

Menu Screen

EXPOSURE Menu

Manual Exposure Screen

Exposure control level counter

EN29

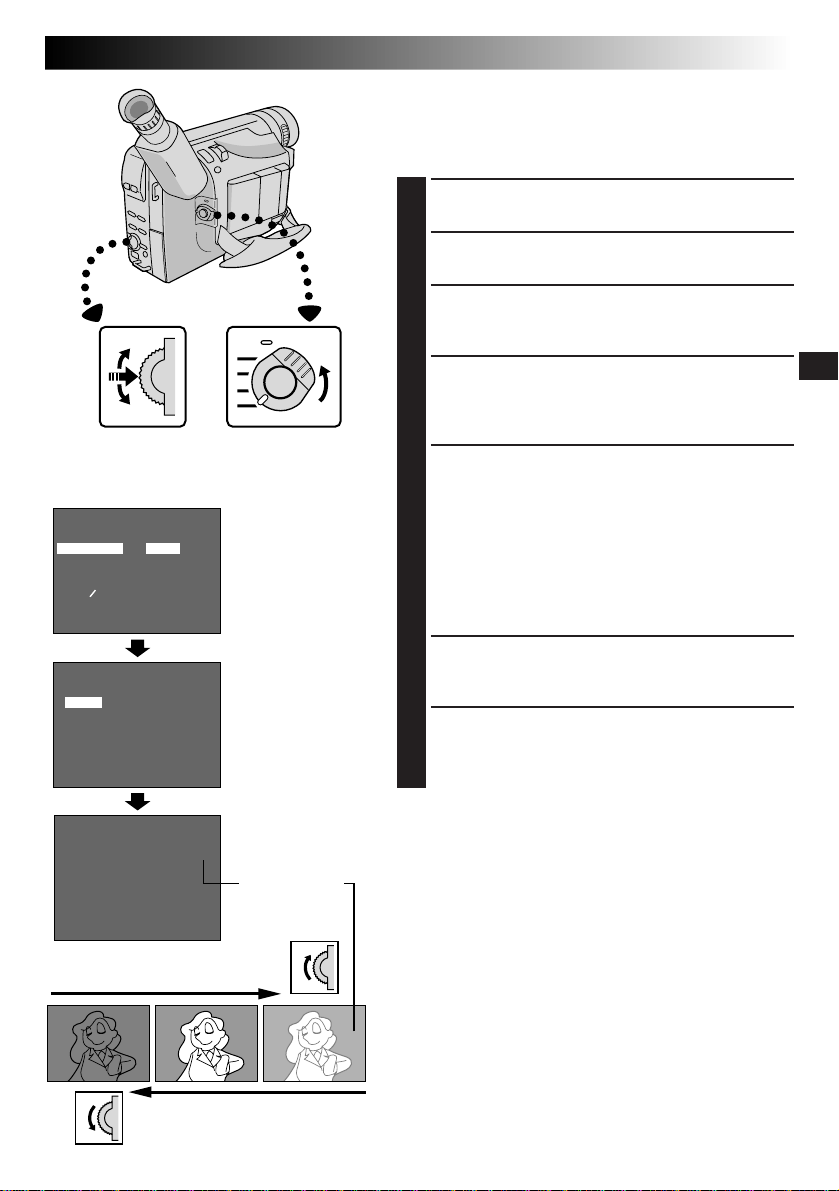

Exposure Control

This feature automatically adjusts the iris for the best available picture quality, but you can override and make the adjustment manually.

SELECT OPERATION MODE

Set the Power Switch to “PRO.”.

ACCESS MENU SCREEN

Press the Select Dial to display the Menu Screen.

ACCESS “EXPOSURE” MENU

Rotate the Select Dial to move the highlight bar to “EXPOSURE” and press it.

ACCESS MANUAL EXPOSURE

Rotate the Select Dial to move the highlight bar to “MANU”, then press it. “00” (exposure control level counter) appears.

ADJUST EXPOSURE

To brighten the image . . .

.... rotate the Select Dial upward. The exposure

control level counter increases (maximum +06). Go to step 6.

To darken the image . . .

.... rotate the Select Dial downward. The exposure

control level counter decreases (maximum –06). Go to step 6.

END ADJUSTMENT OF EXPOSURE

Press the Select Dial. The Menu Screen reappears with the highlight bar on “RETURN”.

CLOSE MENU SCREEN

Press the Select Dial. The Menu Screen disappears and the exposure control level counter reappers to indicate the exposure is adjusted.

NOTES:

●

To return to the factory setting, select “AUTO” in step 4.

●

To re-adjust exposure, repeat the procedure from step 2.

RECORDING

To brighten the image

–06 –06

To darken the image

30 EN

Focus detection zone

RECORDING

Advanced Features (cont.)

Focusing

AUTO FOCUS

The camcorder’s Full Range AF system offers continuous shooting ability from close-up to infinity. However, correct focus may not be obtainable in the situations listed below (in these cases use manual focusing):

•When two subjects overlap in the same scene.

•When illumination is low.*

•When the subject has no contrast (difference in brightness and darkness), such as a flat, one-color wall, or a clear, blue sky.*

•When a dark object is barely visible in the viewfinder.*

•When the scene contains minute patterns or identical patterns that are regularly repeated.

•When the scene is affected by sunbeams or light reflecting off the surface of a body of water.

•When shooting a scene with a high-contrast background.

* The low-contrast warning “ ” appears.

NOTES:

●

If the lens is smeared or blurred, accurate focusing is not possible. Keep the lens clean, wiping with a piece of soft cloth if it gets dirty. When condensation occurs, wipe with a soft cloth or wait for it to dry naturally.

●

When shooting a subject close to the lens, zoom out first (Z pg. 18). If zoomed in in the auto focus mode, the camcorder could automatically zoom out depending on the distance between the camcorder and the subject. When Tele Macro (Z pg. 27) is activated, the camcorder will not zoom out automatically.

Select Dial Power Switch

Display

FOCUS

EXPOSURE WIDE S . LX TITLE DATE TIME DISP.

RETURN

AUTO

MANU

EXIT

FOCUS

AUTO

AUTO OFF OFF

Menu Screen

FOCUS Menu

Manual Focus Screen

EN31

MANUAL FOCUS

NOTE:

You should already have made the necessary viewfinder adjustments (Z pg. 14). If you haven’t, do so before continuing.

SELECT OPERATION MODE

Set the Power Switch to “PRO.”.

ACCESS MENU SCREEN

Press the Select Dial to display the Menu Screen.

ACCESS “FOCUS” MENU

Press the Select Dial.

ACCESS MANUAL FOCUS

Rotate the Select Dial to move the highlight bar to “MANU”, then press it. “ ” and “ ” appear. The focus is locked at this point.

ADJUST FOCUS

To farther subject . . .

.... rotate the Select Dial upward. “ ” appears and

blinks. Go to step 6.

To nearer subject . . .

.... rotate the Select Dial downward. “ ” appears

and blinks. Go to step 6.

END ADJUSTMENT OF FOCUS

Press the Select Dial. The Menu Screen reappears with the highlight bar on “RETURN”.

CLOSE MENU SCREEN

Press the Select Dial. The Menu Screen disppears and “ ” reappears to indicate the focus is locked.

NOTES:

●

To return to Auto Focus, select “AUTO” in step 4.

●

To re-adjust Manual Focus, repeat the procedure from step 2.

●

Be sure to focus the lens in the maximum telephoto position when you use the Manual Focus mode. If you focus in on a certain subject in the wide-angle position, sharply focused images cannot be obtained when zoomed in because the depth-of-field is reduced at longer focal lengths.

●

When the focus level cannot be adjusted any farther or closer, “ ” or “ ” will blink.

RECORDING

32 EN

M . W . B .

D . ZOOM TELE MACRO DATE TIME TAPE LENGTH

RETURN

AUTO

FINE

CLOUD

HALOGEN

MWB

EXIT

MENU Button

Display

AUTO

ON OFF

T30

M.W.B.

Power SwitchSelect Dial

Menu Screen

M.W.B. Menu

RECORDING

Advanced Features (cont.)

White Balance Adjustment

A term that refers to the correctness of color reproduction under various lighting. If the white balance is correct, all other colors will be accurately reproduced. The white balance is usually adjusted automatically. However, the more advanced camcorder operator would prefer to control this function manually and achieve a more professional color/tint reproduction.

SELECT OPERATION MODE

Set the Power Switch to “PRO.”.

ACCESS MENU SCREEN

Press MENU. The Menu Screen appears.

ACCESS WHITE BALANCE

ADJUSTMENT

Move the highlight bar to “M.W.B.” by rotating the Select Dial, then press it. The Menu Screen disappears and the M.W.B. Menu appears.

SET FUNCTION PARAMETERS

Move the highlight bar to the required white balance by rotating the Select Dial.

“AUTO” The white balance is adjusted automatically. This is the factory preset position.

“ : FINE” When shooting outdoors on a sunny day.

“ : CLOUD” When shooting outdoors on a cloudy day.

“

: HALOGEN”

When using a video light or other similar type of lighting.

“MWB” When shooting with the white balance already having been set on the subject (Z pg. 35).

CLOSE MENU SCREEN

Press the Select Dial. The Menu Screen reappears with the highlight bar on “RETURN”. Press the Select Dial again to close the Menu Screen.

To Return To Automatic White Balance . . .

.... select “AUTO” in step 4. Or set the Power Switch to

“AUTO”.

NOTE:

White balance cannot be used when Sepia (Z pg. 23) is activated.

White paper

EN33

Manual White Balance Operation

If the camera is operating in PRO. mode, perform a Manual White Balance when shooting under various types of lighting.

SELECT OPERATION MODE

Follow steps 1 through 4 of the white balance adjustment (Z pg. 32), and select “MWB”.

SET MANUAL WHITE BALANCE

Hold a sheet of plain white paper in front of the subject. Adjust zoom or position yourself so that the white paper fills the screen.

ENTER SETTING

Press the Select Dial until “MWB” begins blinking.

•When the setting is completed, “MWB” stops blinking, and the Menu Screen reappears with the highlight bar on “RETURN”.

Display

M . W . B .

D . ZOOM TELE MACRO DATE TIME TAPE LENGTH

RETURN

M.W.B.

AUTO

FINE

CLOUD

HALOGEN

MWB

EXIT

AUTO

ON OFF

T30

Power SwitchSelect Dial

Menu Screen

M.W.B. Menu

CLOSE MENU SCREEN

Press the Select Dial again to close the Menu Screen.

To Change The Tint For Recording . . .

.... in step 2, substitute colored paper for white. The white

balance is adjusted based on the color, changing the tint. Red paper — deeper green; blue paper — orange; yellow paper — deeper purple.

NOTES:

●

In step 2, it may be difficult to focus on the white paper in some circumstances. In such a case, adjust focus manually (Z pg. 31).

●

A subject can be shot under various types of lighting conditions indoors (natural, flourescent, candlelight, etc.). Because the color temperature is different depending on the light source, the tint of the subject will differ depending on the white balance settings. Use this function for a more natural result.

●

Once you adjust white balance during Manual White Balance operation, the setting is retained even if the power is turned off or the battery removed.

RECORDING

34 EN

M . W . B . D . ZOOM TELE MACRO DATE TIME TAPE LENGTH

RETURN

BACK

REC. TIME

INT. TIME TALLY LAMP TITLE LANG. JLIP ID NO DEMO MODE

RETURN

MENU Button

Select Dial

Display

AUTO ON OFF

T30

OFF

OFF ON PORTUGUESE 07 OFF

Recording Start/Stop Button

Menu Screen 1

Menu Screen 2

RECORDING

Advanced Features (cont.)

Self-Timer

You can set the delay between pressing the Recording Start/Stop button and the actual start of recording. If you secure the camcorder, you (or whoever is operating the camcorder) can enter the scene before recording starts.

NOTE:

Make sure the Power Switch is set to “PRO.” and the camcorder is in the Record-Standby mode before performing the following steps.

ACCESS MENU SCREEN

Press MENU.

ACCESS “INT. TIME” MENU

Rotate the Select Dial to move the highlight bar to “NEXT” in Menu Screen 1 and press it to display Menu Screen 2. Then, move the highlight bar to “INT. TIME” and press it.

SET INTERVAL TIME

Rotate the Select Dial to move the highlight bar to the desired time, then press it. The Menu Screen reappears with the highlight bar on “RETURN”.

CLOSE MENU SCREEN

Press the Select Dial.

START DELAYED RECORDING

Press the Recording Start/Stop Button. When the selected time has elapsed, recording begins automatically.

To Cancel Self-Timer . . .

.... Before the recording begins, press the Recording Start/

Stop Button to display “ ”, then set “INT. TIME” in the Menu Screen to “OFF”.

INT. TIME

OFF

15S

30S

1 MIN

5 MIN

EXIT

INT. TIME Menu

15S 1S

INT. TIME and REC TIME indications on the normal screen

REC TIME

OFF 1 4S 1 2S

1 S

5 S

EXIT

REC TIME Menu

INT. TIME indicator

REC TIME indicator

Animation

You can give stationary scenes or objects an illusion of movement. This function allows you to shoot a series of pictures, each slightly different, of the same object for a brief period of time.

NOTE:

Before performing the following steps, make sure that:

●

The Power Switch is set to “PRO.”.

●

The camcorder is in the Record-Standby mode.

●

The recording mode is set to “SP”.

ACCESS MENU SCREEN

Press MENU.

SET RECORDING TIME

Rotate the Select Dial to move the highlight bar to “NEXT” in Menu Screen 1 and press it to display Menu Screen 2. Then, move the highlight bar to “REC TIME” and press it. The REC TIME Menu appears. Rotate the Select Dial to move the highlight bar to the desired time, then press it. The Menu Screen reappears with the highlight bar on “RETURN”. Press the Select Dial again to close the Menu Screen.

START RECORDING

Press the Recording Start/Stop Button after focusing on the subject. The recording stops automatically after the selected period of time.

ASSEMBLE SERIES OF PICTURES

Repeat step 3 for the desired number of pictures.

RELEASE ANIMATION MODE

Set “REC TIME” in the Menu screen to “OFF”.

EN35

Time-Lapse

You can record sequentially at preset time spans. Leaving the camcorder aimed at a specific subject, you can record subtle changes over an extended period of time.

NOTE:

Before performing the following steps, make sure that:

●

The Power Switch is set to “PRO.”.

●

The camcorder is in the Record-Standby mode.

●

The recording mode is set to “SP”.

ACCESS MENU SCREEN

Press MENU.

SET INTERVAL BETWEEN

RECORDINGS

Rotate the Select Dial to move the highlight bar to “NEXT” in Menu Screen 1 and press it to display Menu Screen 2. Then, move the highlight bar to “INT. TIME” and press it. The INT. TIME Menu appears. Rotate the Select Dial to move the highlight bar to the desired time, then press it. The Menu Screen reappears.

SET RECORDING TIME

Rotate the Select Dial to move the highlight bar to “REC TIME”, then press it. The REC TIME Menu appears. Rotate the Select Dial to move the highlight bar to the desired time, then press it. The Menu Screen reappears with the highlight bar on “RETURN”. Press the Select Dial again to close the Menu Screen.

START TIME-LAPSE RECORDING

Press the Recording Start/Stop Button. Recording and intervals alternate automatically.

RECORDING

NOTES:

●

For best results, make sure the camcorder is secured when shooting in Animation or TimeLapse mode.

●

Fade- or wipe-in/out cannot be performed during Animation or Time-Lapse shooting.

●

Before performing other operations following Animation or Time-Lapse recording, make sure the Animation or Time-Lapse mode is deactivated.

●

Self-Timer, Animation and Time-Lapse are canceled when the power is shut off or when the cassette is ejected.

RELEASE TIME-LAPSE MODE

To release when “ ” is displayed, set “REC TIME” and “INT. TIME” in the Menu Screen to “OFF”. To release when “ ” and “ ” are not displayed, press the Recording Start/Stop Button to display “ ”, then set “REC TIME” and “INT. TIME” in the Menu Screen to “OFF”.

36 EN

EJECT Switch

Power lamp

REW (

) Button

FF (

PLAY/PAUSE (4/6) Button

STOP (5) Button

Power Switch

PLAYBACK

Basic Playback

LOAD A CASSETTE

Slide EJECT to open the cassette holder, then insert the cassette with the label facing out. Press PUSH to ensure the holder is closed and locked.

SELECT MODE

Set the Power Switch to “PLAY”. The power lamp lights.

PLAY BACK

Press PLAY/PAUSE (4/6). The playback picture appears.

STOP PLAYBACK

Press STOP (5).

Rewind or Fast-Forward the tape

Press REW (2) to rewind, or FF (3) to fast-forward the tape during Stop mode.

NOTES:

●

The camcorder shuts off automatically after about 5 minutes in Stop mode. To turn on again, set the Power Switch to “POWER OFF”, then to “PLAY”.

●

During Stop, Fast-Forward or Rewind mode, none of the indications are displayed in the viewfinder.

●

If a blank portion on the tape is played back, the screen may become black. This is not a malfunction.

Battery pack remaining power indicator

Tape counter

Recording mode indicator

S ET

M 1 : 23 : 45

TAPE END

VOLUNE

Viewfinder indications

Tape running indicator

4 3

6 : Still Playback

:Playback :Fast-Forward/

Forward Search

:Rewind/Reverse

PLAYBACK

Features

P.AE Button

EFFECT Button

EN37

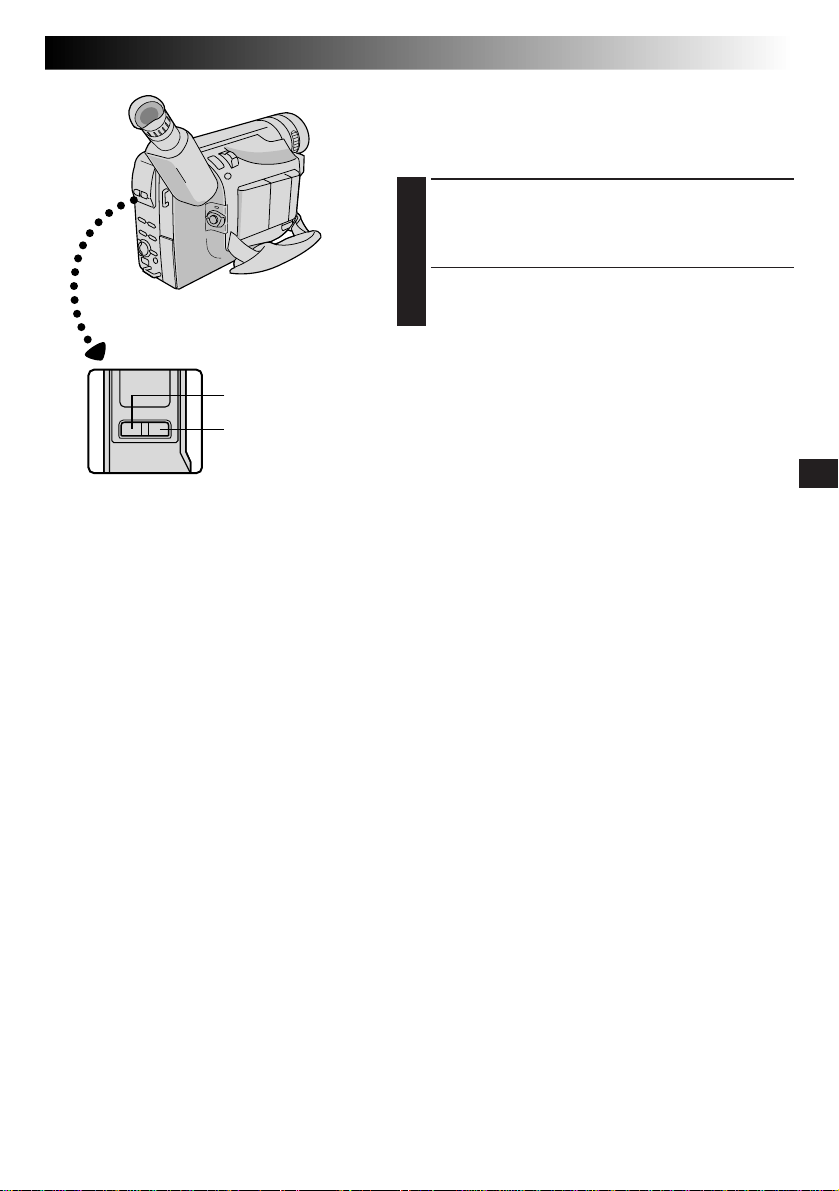

Tracking

This function can be used to eliminate noise bars that appear on-screen during playback. Initial setting is Auto Tracking. Manual Tracking is also available.

ACTIVATE MANUAL TRACKING

Press P.AE and EFFECT simultaneously. Then, press P.AE or EFFECT as many times as necessary until the

noise bars disappear.

•To return to Auto Tracking, press P.AE and EFFECT

simultaneously. “AT” blinks. When Auto Tracking finishes, the indication disappears.

NOTES:

●

When noise bars appear during playback, the camcorder enters the Auto Tracking mode and “AT” is displayed.

●

Manual Tracking may not work with tapes recorded on other VCRs or camcorders.

PLAYBACK

38 EN

Power Switch

FEATURE:

PLAYBACK

Still Playback

Features (cont.)

PURPOSE:

To pause during playback.

OPERATION:

1) Press PLAY/PAUSE (4/6) during playback.

2) To resume normal playback, press PLAY/PAUSE

(4/6) again.

NOTE:

Noise bars appear and pictures may become monochrome during Still Playback. This is normal.

REW (

) Button

FF (

PLAY/PAUSE ( Button

STOP (5) Button

COUNTER R/M Button

) Button

/6)

FEATURE:

Shuttle Search

PURPOSE:

To allow high-speed search in either direction.

OPERATION:

1) Press FF (3) to search forward or press REW (2)

to reverse during playback.

2) To resume normal playback, press PLAY/PAUSE

(

/6).

NOTES:

●

During playback, press and hold REW (2) or FF (3). The search continues as long as you hold

the button. Once you release it, normal playback resumes.

●

Noise bars appear and pictures may become monochrome or darken during Shuttle Search. This is normal.

FEATURE:

Counter Memory Function

PURPOSE:

To make it easier to locate a specific tape segment.

OPERATION:

1) Press COUNTER R/M and hold for more than

1 second. The counter resets to “0:00:00”.

2) Press COUNTER R/M for less than 1 second. “M”

appears.

3) After recording or playback, press STOP (5), then REW (

to 0:00:00.

4) Press PLAY/PAUSE (4/6) to start playback.

). The tape automatically stops at or close

NOTES:

●

The counter memory functions in the Fast-Forward and Rewind modes.

●

To disable the Counter Memory Function, press COUNTER R/M for less than 1 second so that “M” disappears.

PLAYBACK

Compact video cassette

Using The Cassette Adapter

Cassette Adapter (VHS Playpak)

Use this to play back a VHS-C video cassette recorded with this camcorder on a VHS VCR. It is fully compatible with any VHS video cassette recorder. The C-P7U adapter is battery powered and automatically performs tape loading and unloading.

VCR

Compartment door

3 4

Sliding latch

Reels

NOTES:

●

During tape loading and unloading, do not touch the reels for safety and tape protection.

●

During special-effect playback (slow motion, still frame, etc.), the picture may vibrate or noise bars may appear on the screen.

●

To record on a VCR using a compact cassette and the adapter, cover the adapter’s recording safety hole with adhesive tape.

EN39

INSERT BATTERY

Slide the battery cover up to remove it, and install one “AA(R6)” size battery as shown in the illustration at left, then reattach the cover.

INSERT CASSETTE IN ADAPTER

Slide the latch to open the adapter compartment door, then insert the cassette and close the compartment door.

PLAY BACK ON CONNECTED VCR

Load the cassette adapter into the VCR and play the tape back as you would any other.

REMOVE CASSETTE FROM ADAPTER

Slide the latch and the compartment door opens automatically. This may take around 10 seconds. Do not attempt to force the adapter open. Then, insert your finger in the hole on the underside of the adapter as shown in the illustration at left, and push up and remove the cassette.

PLAYBACK

Recording safety hole

40 EN

These are some basic types of connections. When making connections, refer also to your VCR and TV instruction manuals.

A. Connection to a TV or VCR equipped with an S-VIDEO

Basic Connections

Use optional Video and Audio cables.

PLAYBACK

Basic Connections And Tape Dubbing

To Video Output

Video cable (optional)

Audio cable (optional)

To Audio Output

Connector cover*

A. Connection to a TV or VCR equipped with an S-VIDEO

Connection For Tape Dubbing

Use optional Video and Audio cables.

To VIDEO IN

To AUDIO IN

Power Switch

PLAY/PAUSE ( Button

/6)

To TV or VCR

VCR

To Video Output

Connector cover*

* When connecting the cables, open this cover.

Video cable (optional)

Audio cable (optional)

To VIDEO IN

To AUDIO INTo Audio Output

VCR (Recording deck)

Basic Connections

EN41

Tape Dubbing

CONFIRM POWER-OFF STATUS

Make sure the camcorder’s power is off.

CONNECT CAMCORDER TO TV OR

VCR

Pull out the connector cover and open it. Connect as shown in the illustration (Z pg. 40).

If using a VCR . . . go to step 3. If not . . . go to step 4.

CONNECT VCR OUTPUT TO TV

INPUT

Refer to your VCR’s instruction manual.

SUPPLY POWER

Turn on the camcorder, the VCR and the TV.

SELECT MODE

Set the VCR to its AUX input mode, and set the TV to its VIDEO mode.

NOTES:

●

It is recommended to use the AC Power Adapter/ Charger as the power supply instead of the battery pack (Z pg. 9).

●

To monitor the picture and sound from the camcorder without inserting a tape, set the camcorder’s Power Switch to “CAMERA” (“AUTO” or “PRO.”), then set your TV to the appropriate input mode.

●

Make sure you adjust the TV sound volume to its minimum level to avoid a sudden burst of sound when the camcorder is turned on.

●

If you have a TV or speakers that are not specially shielded, do not place the speakers adjacent to the TV as interference will occur in the camcorder playback picture.

CONNECT EQUIPMENT

Following the illustration on pg. 40, connect the camcorder and the VCR.

PREPARE FOR DUBBING

Set the camcorder’s Power Switch to “PLAY”, turn on the VCR’s power, and insert the appropriate cassettes in the camcorder and the VCR.

SELECT VCR MODE

Engage the VCR’s AUX and Record-Pause modes.

FIND EDIT-IN POINT

Engage the camcorder’s Play mode to find a spot just before the edit-in point. Once it is reached, press PLAY/PAUSE (4/6) on the camcorder.

START EDITING

Press PLAY/PAUSE (4/6) on the camcorder and engage the VCR’s Record mode.

STOP EDITING TEMPORARILY

Engage the VCR’s Record-Pause mode and press PLAY/PAUSE (4/6) on the camcorder.

EDIT MORE SEGMENTS

Repeat steps 4 through 6 for additional editing, then stop the VCR and camcorder when finished.

PLAYBACK

42 EN

LENS COVER Open/Close Ring

BATTERY RELEASE

Set to “POWER OFF”.

PUSH

EJECT

Remove.

USER MAINTENANCE

After Use

Set the Power Switch to “POWER OFF” to turn off

the camcorder.

Slide EJECT to open the cassette holder, then remove

the cassette.

Close and lock the cassette holder by pressing PUSH.

Slide BATTERY RELEASE to remove the battery pack.

Turn the LENS COVER Open/Close Ring to close

the lens cover.

Cleaning The Camcorder

CLEAN EXTERIOR

Wipe gently with a soft cloth.

•Put cloth in diluted mild soap and wring it well to wipe off heavy dirt, then wipe again with a dry cloth.

CLEAN LENS

Blow it with a blower brush, then wipe it gently with lens cleaning paper.

REMOVE EYEPIECE

Turn the eyepiece counterclockwise and pull it out.

CLEAN VIEWFINDER

Remove dust using a blower brush.

RE-ATTACH EYEPIECE

Re-attach the eyepiece and turn it clockwise.

NOTES:

●

Avoid using strong cleaning agents such as benzine or alcohol.

●

Cleaning should be done only after the battery pack has been removed or other power units have been disconnected.

●

Mold may form if the lens is left dirty.

●

When using a cleaner or chemically treated cloth, refer to the cautions that came with it.

●

When removing the eyepiece, be sure to hold the viewfinder securely.

TROUBLESHOOTING

If, after following the steps in the chart below, the problem still exists, please consult your JVC dealer.

The camcorder is a microcomputer-controlled device. External noise and interference (from a TV, a radio, etc.) might prevent it from functioning properly. In such cases, first disconnect its power supply unit (battery pack, AC Power Adapter/Battery Charger, etc.) and clock battery; and then re-connect it and proceed as usual from the beginning.

EN43

SYMPTOM POSSIBLE CAUSE(S)

POWER

No power is supplied.

● The battery pack has not been attached correctly (Z pg. 8).

● The battery pack is not charged (Z pg. 8).

● The power supply has not been correctly connected

(Z pg. 9).

The power suddenly goes off and does not come back on by itself.

RECORDING

Recording cannot be performed.

Recording does not start.

Animation or Time-Lapse is not available.

PLAYBACK

The tape is running, but there is no playback picture.

Playback picture is blurred or interrupted.

The counter indication is blurred during Still playback.

● The battery pack has completely discharged.

● Remove the cassette and disconnect the power source, then

after a few minutes, try turning the power back on. If it still does not come on, consult your nearest JVC dealer.

● Make sure the Erase Protection tab is in the position that allows recording. If not, slide the tab. Some cassettes have removable tabs. If the tab has been removed, cover the hole with adhesive tape.

● The camcorder Power Switch has not been set to “CAMERA” (“AUTO“ or “PRO“.) (Z pg. 16).

● Before recording in the Animation mode at the very beginning of a tape, set the camcorder to the Recording mode for about 5 seconds, so that the tape runs smoothly. Using the Fade-in function at this point is a good way to begin an animated program (Z pg. 35).

● The TV has not been set to its VIDEO mode or channel.

● If A/V connection is used, the TV’s VIDEO/TV Switch has

not been set to VIDEO.

● The video heads are dirty or worn out. Consult your nearest JVC dealer for head cleaning or replacement.

● This is normal.

TAPE TRANSPORT

The tape stops during fast-forward or rewind.

Rewinding or fast-forwarding cannot be performed.

● The Counter Memory Function has been activated

Z pg. 38).

(

● The tape is already fully wound on one reel or the other.

44 EN

SYMPTOM POSSIBLE CAUSE(S)

OTHER

During recording, the indications do not appear.

TROUBLESHOOTING

● Press DISPLAY for longer than 1 second to make the indications appear (Z pg. 17).

(cont.)

The tape will not eject.

Some functions are not available.

Vertical white lines appear when shooting a very bright object.

Bright, crystal-shaped spots appear in the viewfinder.

Colored bright spots appear all over the viewfinder.

The viewfinder and the lens have become dirty (ex. fingerprints).

The picture is blurred in the Quick Review or Retake mode.

An error number (i.e. E03) appears.

The image is out of focus.

The date and time displays disappear.

● The battery pack is running low.

● The Power Switch is set to “AUTO”.

● Certain combinations of modes or effects are not possible

to use.

● This sometimes occurs when the contrast between the background and the object is great. It is not a defect of the camcorder.

● Sunlight is directly entering the lens. This is not a defect of the camcorder.

● The viewfinder is made with high-precision technology. However, black spots or bright spots of light (red, green or blue) may appear constantly in the viewfinder. These spots are not recorded on the tape. This is not due to any defect of the unit. (Effective dots: more than 99.99 %.)

● Wipe them gently with a soft cloth. Gently wipe in a semicircular motion, as wiping strongly spreads the stain and it won’t come out easily.

● This is normal while recording in the EP mode. Some noise may be present while recording in the SP mode (Z pg. 12).

● Turn the camcorder’s power off, then disconnect the power source. After a few minutes, try turning the power on again. If the error number still appears in the viewfinder, consult your nearest JVC dealer.

● The diopter needs to be adjusted (Z pg. 14).

● The scene being shot is adversely affecting the operation of

Auto Focus (Z pg. 30).

● If you remove the power source from the camcorder while the power is on, all settings and selections are erased. Make sure to turn the camcorder’s power off before disconnecting the power source.

The wrong date and time are displayed/recorded.

Even though the lens cover is open, the Lens Cover Warning indicator blinks.

● If you have not performed Date/Time Setting (Z pg. 11), the date and time are not displayed/recorded correctly. Be sure that Date/Time setting is carried out.

● The Lens Cover Warning indicator may blink when the camcorder is used in dark areas, regardless of the position of the lens cover.

INDEX

Indications

EN45

432 1

30MIN

REC

FINE 10

F ADER

15S 5S

LENS COVER

PAUSE

T APE END

NORM

BRIGHT

1 Cassette Warning/

Tape Remaining Time ..........................

When no cassette is inserted: the cassette ( warning blinks. When the Erase Protection tab is not in the position that allows recording: the cassette ( lights. Otherwise, the tape remaining time is displayed and the tape remaining time warning blinks when the tape is about to reach its end. When the Power Switch is set to “PLAY” and a tape is loaded: the cassette ( regardless of the Erase Protection tab’s position.

2 Recording Mode (SP/EP) Indicator ........ Z pg. 12

3, 7 Program AE Indicator ...................... Z pg. 22

Displayed at Program AE with special effects is switched from one mode to another by pressing P.AE., then only the indicator remains at

3, 8 Fade/Wipe-Standby Indicator .......... Z pg. 21

Displayed at Fade/Wipe is switched from one effect to another by pressing EFFECT, then only the indicator remains at

4 Tape Length Indicator .......................... Z pg. 12

5 Zoom Indicator Bar ............................. Z pg. 18

Zoom Level Indicator Approximate Zoom Ratio

6 Recording Indicator ............................. Z pg. 16

9 Picture Stabilizer Indicator ................... Z pg. 20

0 • Interval Timer/Recording Time

Indicator ...........................................

•5 Sec. Rec Mode Indicator ................

! Instant Title Display ............................. Z pg. 25

@ Date/Time Display ............................... Z pg. 24

3 for approx. 2 seconds when

3 for approx. 2 seconds when the

MERRY CHRISTMAS

DEC 25. 99

) mark is displayed

AM 11 : 45 : 18

Z pg. 17

)

) warning

Z pg. 34 Z pg. 20

T30

20X

INDEX

(

# Battery Pack Remaining Power Indicator

Changes as follows according to the battery pack’s remaining power level: “ almost gone, the indicator “ power warning), then the unit shuts off. Replace the battery pack with a fully charged one.

Note: The symbol containing 3 darkened squares —

— does not necessarily mean that the battery

pack is fully charged.

$ Focus Indicator .................................... Z pg. 31

% Exposure Control Level Counter ........... Z pg. 29

^ White Balance Mode Indicator ............ Z pg. 32

& •Record–Standby Mode Indicator ....... Z pg. 16

•Lens Cover Warning:

LENS COVER ....................................

* Clock Battery Warning

Blinks for approx. 10 seconds when the power is turned on. This display also blinks when the clock (lithium) battery is either not installed or has discharged. Install or replace the old battery with a new one (

( • Tape End Display: TAPE END ............ Z pg. 17

Appears when the end of the tape is reached during playback, recording or fast-forward.

• Condensation Warning: When this indication appears, all functions except tape eject and power on/off are disabled. Turn the unit off (without removing the power source) for a few hours, and when you turn it on again the indication should disappear.

• Head Clog Warning: Appears if dirty heads are detected during recording. In such a case, use the optional Cleaning Cassette. If, after using it, the problems still exist, consult your nearest JVC dealer.

Z pg. 10).

”. When the power is

” blinks (battery

Z pg. 17

46 EN

INDEX

Controls, Connectors And Indicators

8 0

)

9 !

rwq2

3 4 5

# $

(

^ *&

E R

Controls

1 Diopter Adjustment Control ................. Z pg. 14

2 Lens Cover Open/Close Ring................ Z pg. 16

3 5-Second Recording Button

[5SEC. REC] ......................................... Z pg. 20

4 Power Zoom Lever [T/W]..................... Z pg. 18

5 Picture Stabilizer Button

[P.STABILIZER] ..................................... Z pg. 20

6 Program AE Button [P.AE] ..................... Z pg. 22

7 Fade/Wipe Button [EFFECT] ................. Z pg. 21

8 •Rewind Button [

•Retake Rewind Button [RETAKE R]..... Z pg. 19

•Quick Review Button [ R] ............. Z pg. 19

9 •Fast-Forward Button [

•Retake Forward Button [RETAKE F] .... Z pg. 19

0 Stop Button [5, STOP]......................... Z pg. 36

! Play/Pause Button

[4/6, PLAY/PAUSE] ............................. Z pg. 36

@ Select Dial [+, –, PUSH] ................ Z pg. 11, 26

# MENU/DISPLAY Button ................. Z pg. 17, 26

$ •Counter Reset/Memory Button

[COUNTER R/M] .............................. Z pg. 38

•Recording Mode Button [SP/EP] ......... Z pg. 12

% EJECT Switch ....................................... Z pg. 13

^ Recording Start/Stop Button.................. Z pg. 16

& Power Switch ................................ Z pg. 16, 36

* Battery Release Switch

[BATTERY RELEASE] .............................. Z pg. 8

( PUSH Button ....................................... Z pg. 13

, REW] ................ Z pg. 36

, FF] ............ Z pg. 36

EN47

Connectors

) DC IN Jack ............................................ Z pg. 9

The connectors q to e are located beneath the cover.

q Video Output Connector ...................... Z pg. 40

w Audio Output Connector ..................... Z pg. 40

e J Terminal [JLIP (Joint Level Interface Protocol)

Connector]

• It is used to connect the camcorder to a device such as a personal computer. For further details consult your nearest JVC dealer.

• JLIP-controlled editing from camcorder to VCR is not possible if the VCR is not equipped with a J terminal.

Indicators

r Tally Lamp ........................................... Z pg. 16

t Power Lamp ........................................ Z pg. 16

Other Parts

y Battery Pack Mount ............................... Z pg. 8

u Viewfinder ........................................... Z pg. 14

i Grip Strap ............................................ Z pg. 14

o Camera sensor

Be careful not to cover this area; a sensor necessary for shooting is built-in here.

p Microphone

For use when recording.

Q Eyepiece .............................................. Z pg. 42

W Shoulder Strap Eyelets .......................... Z pg. 15

E Clock Battery Slot ................................ Z pg. 10

R Tripod Mounting Socket ....................... Z pg. 15

48 EN

AC Power Adapter/Charger ..................... Z pg. 8, 9

Animation Recording ................................ Z pg. 35

Auto Date Record ..................................... Z pg. 24

Auto Focus ............................................... Z pg. 30

Auto Shut off ...................................... Z pg. 17, 36

Battery Pack ..................................... Z pg. 8, 9, 49

Car Battery ................................................. Z pg. 9

Charge Marker............................................ Z pg. 9

Charge The Battery Pack ............................. Z pg. 8

Clean The Camcorder ............................... Z pg. 42

Clock (Lithium) Battery ............................. Z pg. 10

Connections ......................................... Z pg. 9, 40

Date/Time Display .................................... Z pg. 24

Date/Time Settings .................................... Z pg. 11

Demonstration Mode ................................ Z pg. 28

Digital Zoom ............................................ Z pg. 27

Discharge The Battery Pack ........................ Z pg. 8

Diopter Adjustment .................................. Z pg. 14

Dubbing ................................................... Z pg. 41

Electronic Fog Filter Mode ........................ Z pg. 23

Erase Protection ........................................ Z pg. 13

Exposure Control ...................................... Z pg. 29

Fade-In/Out .............................................. Z pg. 21

Fast-Forward Tape .................................... Z pg. 36

5-Sec. Recording ...................................... Z pg. 20

Grip Adjustment ....................................... Z pg. 14

High Speed Shutter Mode ......................... Z pg. 23

Instant Titles ............................................. Z pg. 25

Load A Tape ............................................. Z pg. 13

Manual Focus ........................................... Z pg. 31

Menu Screen ..................................... Z pg. 27, 28

ND Effect Mode........................................ Z pg. 23

Nega/Posi Mode ....................................... Z pg. 23

INDEX

Terms

Picture Stabilizer ...................................... Z pg. 20

Power Switch Position .............................. Z pg. 16

Program AE With Special Effects................ Z pg. 22

Provided Accessories .................................. Z pg. 6

Quick Review .......................................... Z pg. 19

Record-Standby ........................................ Z pg. 16

Recording Mode ....................................... Z pg. 12

Retake ...................................................... Z pg. 19

Rewind The Tape ...................................... Z pg. 36

Self-Timer................................................. Z pg. 34

Sepia ....................................................... Z pg. 23

Shoulder Strap Attachment........................ Z pg. 15

Shuttle Search........................................... Z pg. 38

Specifications ........................................... Z pg. 51

Still Playback ............................................ Z pg. 38

Super LoLux (S.LX).................................... Z pg. 27

Tally ......................................................... Z pg. 28

Tape Counter ............................................ Z pg. 36

Tape Length Setting................................... Z pg. 12

Tele Macro ............................................... Z pg. 27

Time-Lapse Shooting ................................ Z pg. 35

Tracking ................................................... Z pg. 37

Tripod Mounting....................................... Z pg. 15

Twilight .................................................... Z pg. 23

Unload A Tape ......................................... Z pg. 13

Viewfinder Indications .............................. Z pg. 45

White Balance .................................... Z pg. 32, 33

Wide Mode .............................................. Z pg. 27

Wipe In/Out ............................................. Z pg. 21

Zooming .................................................. Z pg. 18

CAUTIONS

When using the AC Power Adapter/Charger in areas other than the USA

n The provided AC Power Adapter/Charger features

automatic voltage selection in the AC range from 110 V to 240 V.

USING HOUSEHOLD AC PLUG ADAPTER

In case of connecting the unit’s power cord to an AC wall outlet other than American National Standard C73 series type use an AC plug adapter, called a “Siemens Plug”, as shown. For this AC plug adapter, consult your nearest JVC dealer.

Plug adapter

EN49

General Battery Precautions

•When the C-P6U or C-P7U (cassette adapter) is not functioning even when correctly operated, the battery is exhausted. Replace it with a fresh one.

•Use only the following battery:

C-P6U or C-P7U ....................... AA (R6) size

Please make note of the following rules for battery use. When misused, the battery can leak or explode.

1. Refer to the C-P6U/C-P7U instructions when

replacing the battery.

2. Do not expose the battery to excessive heat as it can

leak or explode.

3. Do not dispose of the battery in a fire.

4. Remove the battery from the unit if it is to be stored

for an extended period to avoid battery leakage which can cause malfunctions.

INFORMATION

This device complies with Part 15 of FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Change or modifications not approved by the party responsible for compliance could void the user’s authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help.

Battery Packs

The supplied battery pack is a nickel-cadmium battery. Before using the supplied battery pack or an optional battery pack, be sure to read the following cautions:

1. To avoid hazard . . .

....do not burn.

....do not short-circuit the terminals.

....do not modify or disassemble.

....use only specified chargers.

2. To prevent damage and prolong service life . . .

....do not subject to unnecessary shock.

....avoid repeated charging without fully discharging.

....charge in an environment where temperatures are

within the tolerances shown in the chart below. This is a chemical reaction type battery—cooler temperatures impede chemical reaction, while warmer temperatures can prevent complete charging.

....store in a cool, dry place. Extended exposure to

high temperatures will increase natural discharge

and shorten service life.

....avoid prolonged uncharged storage.

....remove from charger or powered unit when not in

use, as some machines use current even when

switched off.

NOTES:

●

It is normal for the battery pack to be warm after charging, or after use. Temperature Range Specifications

Charging ................ 10°C to 35°C (50°F to 95°F)

Operation .............. 0°C to 40°C (32°F to 104°F)

Storage .................. –10°C to 30°C (14°F to 86°F)

●

Recharging time is based on room temperature of 20°C (68°F).

●

The lower the temperature, the longer recharging takes.

Terminals

50 EN

Cassettes

To properly use and store your cassettes, be sure to read the following cautions:

1. During use . . .

.... make sure the cassette bears the VHS-C mark.

.... be aware that recording onto prerecorded tapes

automatically erases the previously recorded video and audio signals.

.... make sure the cassette is positioned properly

when inserting.

.... do not load and unload the cassette repeatedly

without allowing the tape to run at all. This slackens the tape and can result in damage.

.... do not open the front tape cover. This exposes the

tape to fingerprints and dust.

2. Store cassettes . . .

.... away from heaters or other heat sources.

.... out of direct sunlight.

.... where they won’t be subject to unnecessary shock

or vibration.

.... where they won’t be exposed to strong magnetic

fields (such as those generated by motors, transformers or magnets).

.... vertically, in their original cases.

CAUTIONS

4. To protect the unit, DO NOT . . .

.... allow it to become wet.

.... drop the unit or strike it against hard objects.

.... subject it to shock or excessive vibration during

transportation.

.... keep the lens directed at extremely bright objects

for long periods.

.... direct the eyepiece of the viewfinder at the sun.

.... carry it by holding the viewfinder. Be sure to hold

the main unit with both hands or use the grip.

.... swing it excessively when using the shoulder

strap.

About moisture condensation . . .

● You may have observed that pouring a cold liquid into a glass will cause drops of water to form on the glass’ outer surface. This same phenomenon occurs on the head drum of a camcorder when it is moved from a cool place to a warm place, after heating a cold room, under extremely humid conditions or in a place directly subjected to the cool air from an air conditioner.

● Moisture on the head drum can cause severe damage to the video tape, and can lead to internal damage to the camcorder itself.

(cont.)

Main Unit

1. For safety, DO NOT . . .

.... open the camcorder’s chassis.

.... disassemble or modify the unit.

.... short-circuit the terminals of the battery pack.

Keep it away from metallic objects when not in use.

.... allow inflammables, water or metallic objects to

enter the unit.

.... remove the battery pack or disconnect the power

supply while the power is on.

.... leave the battery pack attached when the

camcorder is not in use.

2. Avoid using the unit . . .

.... in places subject to excessive humidity or dust.

.... in places subject to soot or steam such as near a

cooking stove.

.... in places subject to excessive shock or vibration.

.... near a television set.

.... near appliances generating strong magnetic or

electric fields (speakers, broadcasting antennas,

etc.).

.... in places subject to extremely high (over 40°C or

104°F) or extremely low (under 0°C or 32°F)

temperatures.

3. DO NOT leave the unit . . .

.... in places of over 50°C (122°F).

.... in places where humidity is extremely low. (below

35%) or extremely high (above 80%).

.... in direct sunlight.

.... in a closed car in summer.

.... near a heater.

Serious malfunctioning

If malfunctioning occurs, stop using the unit immediately and consult your local JVC dealer.

SPECIFICATIONS

General

Format : VHS NTSC standard Power source : DC 6.0 V Power consumption : 5.4 W Signal system : NTSC-type Video recording system

Luminance : FM recording Color : Converted sub-carrier

Cassette : Tape speed

SP : 33.35 mm/sec. (1-5/16 ips) EP : 11.12 mm/sec. (7/16 ips)

Recording time (max.)

SP : 40 minutes EP : 120 minutes (with TC-40)

Connectors

JLIP : ø3.5 mm, 4-pole, mini-head

direct recording Conforms to VHS standard

cassette

jack (compatible with RC-5325 plug)

Camcorder

Operating temperature Operating humidity : 35% to 80% Storage temperature : –20°C to 50°C (–4°F to 122°F) Weight : Approx. 740 g (1.7 lbs) Dimensions : 91 (W) x 119 (H) x 198 (D) mm

Pickup : 1/4” format CCD Lens : F1.6, f = 3.9 to 62.4 mm, 16:1

Viewfinder : Electronic viewfinder

White balance

adjustment : Auto/Manual adjustment

Video : 1 Vp-p, 75 Ω unbalanced,

Audio : –8 dBs, 1 kΩ analog output

: 0°C to 40°C (32°F to 104°F)

(3-8/5" x 4-11/16" x 7-13/16") (with the viewfinder fully tilted downward)

power zoom lens with auto iris and macro control, filter diameter 40.5 mm

with 0.5” black/white CRT

analog output (via Video output connector)

(via Audio output connector)

EN51

AC Power Adapter/Charger AA-V15U

Power requirement

U.S.A. and Canada : AC 120 V`, 60 Hz Other countries : AC 110 V to 240 V` , 50/60

Power consumption : 23 W Output

Charge : DC 8.5 V VTR : DC 6.3 V

Charging system : Constant current, peak

Dimensions : 140 (W) x 42 (H) x 68 (D) mm

Weight : Approx. 300 g (0.71 lbs)

, 1.3 A , 1.8 A

detection, timer controlled

(5-9/16” x 1-11/16” x 2-11/16”)

Cassette Adapter C-P7U

Dimensions : 188 (W) x 25 (H) x 104 (D) mm

Weight : Approx. 240 g (0.53 lbs) Accessory : “AA (R6)”-size battery x 1

(7-7/16” x 1” x 4-1/8”)

Provided Accessories ..................Z pg. 6

Optional Accessories

•Battery Packs BN-V12U, BN-V20U, BN-V856U

•Car Battery Charger BH-V3U

•Battery Charger BH-VC10U

•Car Battery Cord AP-V7U

•Compact VHS-C Cassettes TC-40/30/20

•Active Carrying Bag CB-V7U

•Audio/Video Cable

Some accessories are not available in some areas. Please consult your nearest JVC dealer for details on accessories and their availability.

Specifications shown are for SP mode unless otherwise indicated. E & O.E. Design and specifications subject to change without notice.

52 EN

Marcas

Indicador CHARGE (carga)

Interruptor REFRESH

Indicador REFRESH

REFRESCADO (REFRESH)

El adaptador de CA se caracteriza por la función REFRESH que le permite descargar totalmente la batería antes de recargarla.

Efectúe la función REFRESH después de un mínimo de 5 cargas.

Para descargar la batería . . .

.... coloque la batería en el adaptador como

se muestra en la ilustración de arriba. Luego presione REFRESH. El indicador REFRESH se enciende cuando se inicia la descarga y se apaga cuando la descarga ha terminado.

Enganche.

Empuje.

A la toma de corriente de CA

ESPAÑOL

Alimentación

Esta cámara de video posee un sistema de alimentación de 3 vías que le permite seleccionar la fuente de alimentación más apropiada.

NOTAS:

●

Sin alimentación no hay ninguna función disponible.

●

Utilice exclusivamente la alimentación indicada.

●

No utilice las unidades de alimentación suministradas con otro equipo.

CARGA DE LA BATERIA

ALIMENTACION

Conecte el cable de alimentación de CA del cargador a una toma de corriente.

COLOCACION DE LA BATERIA

Alinee las marcas y deslice la batería en la dirección de la flecha hasta que quede bloqueada en su lugar.

• El indicador CHARGE comienza a destellar para indicar que se ha iniciado la carga.

EXTRACCION DE LA BATERIA

Cuando el indicador CHARGE deja de destellar y permanece encendido, la carga ha terminado. Deslice la batería en el sentido opuesto al de la flecha.

Batería

BN-V11U aprox. 1 h 10 min aprox. 3 h 30 min BN-V12U aprox. 1 h 10 min aprox. 3 h 30 min BN-V20U aprox. 1 h 50 min aprox. 6 h 40 min

Tiempo de carga Tiempo de descarga

BATTERY RELEASE

ATENCION:

Antes de desmontar la fuente de alimentación, asegúrese que la alimentación de la cámara de video esté desconectada. El no hacerlo puede producir un error de funcionamiento en la cámara de video.

Indicador de carga

Se incorpora un indicador de carga sobre la batería para ayudarle a recordar si ha sido cargada o no. Los dos colores indicadores (rojo y negro), le permiten seleccionar la carga y la descarga.

USO DE LA BATERIA

COLOCACION DE LA BATERIA

Enganche el lado extremo de la batería en la cámara de video ( el lugar (

EXTRACCION DE LA BATERIA

Deslice BATTERY RELEASE y extraiga la batería.

Batería Tiempo de grabación aproximado (unidad: min)

BN-V11U 70 BN-V12U 70

BN-V20U 110

) y empuje la batería hasta que se bloquee en

INFORMACION:

El VU-V856KIT es un juego compuesto de la batería BN-V856U y del cargador/adaptador de CA AA-V80U. La batería BN-V856U suministra aprox. 7 horas de tiempo de grabación. También lea completamente los manuales de instrucción del VU-V856KIT. Es imposible cargar la batería BN-V856U utilizando el cargador/adaptador de CA suministrado. Use el cargador/ adaptador de CA AA-V80U opcional.

GUIA PARA OPERACION RAPIDA

Si la unidad comienza a funcionar mal, deje de usarla inmediatamente y consulte a su concesionario local de JVC.

EN53

ALIMENTACION

Enganche.

Empuje.

BATTERY RELEASE

Utilización de la batería

Enganche el lado extremo de la batería en la cámara de video ( ) y empuje la batería hasta que se bloquee en el lugar ( ). (Procedimiento para carga, Z p. 8)

INSERCION DEL CASSETTE DE VIDEO

Botón PUSH Conmutador EJECT

1 Deslice EJECT para abrir el portacassette. 2 Inserte cassette de video. 3 Presione PUSH para cerrar el portacassette.

(Por más detalles, Z p. 13.)

Para extraer la batería

Deslice BATTERY RELEASE y extraiga la batería.

REPRODUCCION FILMACION

Botón REW (

Botón STOP (5)

Botón PLAY/ PAUSE (

/6)

)

Colóquelo en “PLAY”.

Botón de inicio/parada de grabación

Anillo de abertura del cubreobjetivo (LENS COVER)

Colóquelo en “AUTO” o “PRO.”.

1 Ajuste el interruptor de alimentación en “PLAY”. 2 Presione REW (

— La cinta se detiene automáticamente al

comienzo de la misma.

3 Presione PLAY/PAUSE (

— Comienza la reproducción y la imagen

aparece.

•Presione STOP (5) para detener la grabación.

(Por más detalles, Z p. 36.)

O simplemente reproduzca la cinta en un VCR de VHS utilizando el adaptador de cassette (VHS Playpak).

/6).

Z p. 39

1 Gire el anillo LENS COVER de abertura/cierre

para abrir el cubreobjetivo.

2 Adjuste el interruptor de alimentación en

“AUTO” o “PRO.”. — La lámpara de alimentación se encenderá

y aparecerá una imagen.

3 Presione el botón inicio/parada de grabación.

— Comenzará la grabación.

•Para detener temporariamente la grabación, presione nuevamente el botón de inicio/parada de grabación. (Por más detalles, Z p. 16 y 17.)

54 EN

FOR SERVICING (Only in U.S.A.)

HOW TO LOCATE YOUR JVC SERVICE CENTER

TOLL FREE: 1-800-252-5722

Dear customer:

In order to receive the most satisfaction from your purchase, read the instruction booklet before operating the unit. In the event that repair is necessary, or for the address nearest your location, please refer to the factory service center list below or within the Continental United States, call 1-800252-5722 for your authorized servicer. Remember to retain your Bill of Sale for Warranty Service.

— JVC

JVC SERVICE & ENGINEERING

COMPANY OF AMERICA

DIVISION OF US JVC CORP.

FACTORY SERVICE CENTER LOCATIONS

107 Little Falls Road 1500 Lakes Parkway 705 Enterprise Street Fairfield, NJ 07004-2105 Lawrenceville, GA 30243-5857 Aurora, IL 60504-8135 (973) 808-9279 (770) 339-2522 (630) 851-7855

5665 Corporate Avenue 10700 Hammerly Blvd., Suite 110 2969 Mapunapuna Place, Suite 101 Cypress, CA 90630-4727 Houston, TX 77043-2310 Honolulu, HI 96819-2000 (714) 229-8011 (713) 935-9331 (808) 833-5828

230 Eliot Street 8192 West State Road 84 890 Dubuque Avenue Ashland, MA 01721-2377 Davie, FL 33324-4611 South San Francisco, CA 94080-1804 (508) 881-5923 (954) 472-1960 (415) 871-2666

Sophisticated electronic products may require occasional service. Just as quality is a keyword in the engineering and production of the wide array of JVC products, service is the key to maintaining the high level performance for which JVC is world famous. The JVC service and engineering organization stands behind our products.

NATIONAL HEADQUARTERS

JVC SERVICE & ENGINEERING COMPANY OF AMERICA

DIVISION OF US JVC CORP.

107 Little Falls Road

Fairfield, NJ 07004-2105

If you ship the product...

Pack your JVC unit in the original carton or one of equivalent size and strength. Enclose, with the unit, a letter stating the problem or symptom that exists and also a copy of the receipt or bill of sale you received when you purchased your JVC unit. Print your home return address on the outside and the inside of the carton. Send to the appropriate JVC Factory Service Center as listed above.

ACCESSORIES

To purchase accessories for your JVC product, you may contact your local JVC Dealer. Or from the 48 Continental United States call toll free: 1-800-882-2345.

Don’t service it yourself.

CAUTION

To prevent electrical shock, do not open the cabinet. No user serviceable parts inside. Refer servicing to qualified service personnel.

WARRANTY (Only in U.S.A.)

EN55

LIMITED WARRANTY

JVC COMPANY OF AMERICA warrants this product and all parts thereof, except as set forth below ONLY TO THE ORIGINAL PURCHASER AT RETAIL to be FREE FROM DEFECTIVE MATERIALS AND WORKMANSHIP from the date of original retail purchase for the period as shown below. (“The Warranty Period”)

PARTS

THIS LIMITED WARRANTY IS VALID ONLY IN THE FIFTY (50) UNITED STATES, THE DISTRICT OF COLUMBIA AND IN THE COMMONWEALTH OF PUERTO RICO.

WHAT WE WILL DO:

If this product is found to be defective, JVC will repair or replace defective parts at no charge to the original owner. Such repair and replacement services shall be rendered by JVC during normal business hours at JVC authorized service centers. Parts used for replacement are warranted only for the remainder of the Warranty Period. All products and parts thereof may be brought to a JVC authorized service center on a carry-in basis except for Television sets having a screen size 25 inches and above which are covered on an in-home basis.

WHAT YOU MUST DO FOR WARRANTY SERVICE:

Return your product to a JVC authorized service center with a copy of your bill of sale. For your nearest JVC authorized service center, please call toll free: (800) 252-5722.

If service is not available locally, box the product carefully, preferably in the original carton, and ship, insured, with a copy of your bill of sale plus a letter of explanation of the problem to the nearest JVC Factory Service Center, the name and location of which will be given to you by the toll-free number.

If you have any questions concerning your JVC Product, please contact our Customer Relations Department.

WHAT IS NOT COVERED:

This limited warranty provided by JVC does not cover:

1. Products which have been subject to abuse, accident, alteration, modification, tampering, negligence, misuse, faulty installation, lack of reasonable care, or if repaired or serviced by anyone other than a service facility authorized by JVC to render such service, or if affixed to any attachment not provided with the products, or if the model or serial number has been altered, tampered with, defaced or removed;

2. Initial installation and installation and removal for repair;

3. Operational adjustments covered in the Owner’s Manual, normal maintenance, video and audio head cleaning;

4. Damage that occurs in shipment, due to act of God, and cosmetic damage;

5. Signal reception problems and failures due to line power surge;

6. Video Pick-up Tubes/CCD Image Sensor, Cartridge, Stylus (Needle) are covered for 90 days from the date of purchase;

7. Accessories;

8. Batteries (except that Rechargeable Batteries are covered for 90 days from the date of purchase);from the date of purchase);

There are no other express warranties except as listed above. THE DURATION OF ANY IMPLIED WARRANTIES INCLUDING THE IMPLIED WARRANTY OF MERCHANTABILITY, IS LIMITED TO THE DURATION OF THE EXPRESS WARRANTY HEREIN.

JVC SHALL NOT BE LIABLE FOR THE LOSS OF USE OF THE PRODUCT, INCONVENIENCE, LOSS OR ANY OTHER DAMAGES, WHETHER DIRECT, INCIDENTAL OR CONSEQUENTIAL (INCLUDING, WITHOUT LIMITATION, DAMAGE TO TAPES, RECORDS OR DISCS) RESULTING FROM THE USE OF THIS PRODUCT, OR ARISING OUT OF ANY BREACH OF THIS WARRANTY. ALL EXPRESS AND IMPLIED WARRANTIES, INCLUDING THE WARRANTIES OF MERCHANTABILITY AND FITNESS FOR PARTICULAR PURPOSE, ARE LIMITED TO THE WARRANTY PERIOD SET FORTH ABOVE.

Some states do not allow the exclusion of incidental or consequential damages or limitations on how long an implied warranty lasts, so these limitations or exclusions may not apply to you. This warranty gives you specific legal rights and you may also have other rights which vary from state to state.

JVC COMPANY OF AMERICA 1700 Valley Road DIVISION OF US JVC CORP. Wayne, N.J. 07470

1 YR

LABOR

90 DAYS

CONSUMER VIDEO 1-90

REFURBISHED PRODUCTS CARRY A SEPARATE WARRANTY, THIS WARRANTY DOES NOT APPLY. FOR DETAILS OF REFURBISHED PRODUCT WARRANTY, PLEASE REFER TO THE REFURBISHED PRODUCT WARRANTY INFORMATION PACKAGED WITH EACH REFURBISHED PRODUCT.

For customer use:

Enter below the Model No. and Serial No. which is located either on the rear, bottom or side of the cabinet. Retain this information for future reference.

Model No.: Serial No: Purchase date: Name of dealer:

GR-AX640

Printed in Japan 1198MKV*UN*YP

VICTOR COMPANY OF JAPAN, LIMITED

JVC GR-AX640 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
