JVC GR-AX558EG User's Guide

2 EN

Dear Customer,

Thank you for purchasing the JVC Compact VHS camcorder. Before use, please read the safety information and precautions contained in the following pages to ensure safe use of your new camcorder.

Using This Instruction Manual

•All major sections and subsections are listed in the Table Of Contents (Z pg. 3).

•Notes appear after most subsections. Be sure to read these as well.

•Basic and advanced features/operation are separated for easier reference.

It is recommended that you . . .

.... refer to the Index (Z pg. 40 – 42) and familiarize yourself with button locations, etc. before use.

.... read thoroughly the Safety Precautions that follow and cautions (Z pg. 43, 44). They contain extremely

important information regarding the safe use of your new camcorder.

SAFETY PRECAUTIONS

WARNING: TO PREVENT FIRE OR SHOCK

HAZARD, DO NOT EXPOSE THIS UNIT TO RAIN OR MOISTURE.

CAUTIONS:

n To prevent shock, do not open the cabinet.

No user serviceable parts inside. Refer servicing to qualified personnel.

n When you are not using the AC Power

Adapter/Battery charger for a long period of time, it is recommended that you disconnect the power cord from AC outlet.

NOTES:

●

The rating plate (serial number plate) and safety caution are on the bottom and/or the back of the main unit.

●

The rating plate (serial number plate) of the AC Power Adapter/Charger is on its bottom.

Warning on lithium battery

The battery used in this device may present a fire or chemical burn hazard if mistreated. Do not recharge, disassemble, heat above 100°C or incinerate. Replace the battery with Maxell, Panasonic (Matsushita Electric), Sanyo or Sony CR2025; use of another battery may present a risk of fire or explosion.

n Dispose of used battery promptly. n Keep away from children. n Do not disassemble and do not dispose of in

fire.

This camcorder is designed to be used with PAL-type colour television signals. It cannot be used for playback with a television of a different standard. However, live recording and viewfinder playback are possible anywhere. Use the BN-V12U/V22U/V25U battery packs and, to recharge them, the provided multivoltage AC Power Adapter/Charger. (An appropriate conversion adapter may be necessary to accommodate different designs of AC outlets in different countries.)

This unit is produced to comply with Standard IEC Publ. 65.

PAL

n Camcorder is designed exclusively for the VHS-C video cassette. Only cassettes marked VHS-C can be

used with this unit.

n HQ VHS is compatible with existing VHS equipment.

MAJOR FEATURES

Program Manager II (Z pg. 18 – 31)

n Programme AE with Special Effects

(Z pg. 18, 19)

•Auto Mode Lock •Auto Mode Release

•Electronic Fog Filter •ND Effect

•Sepia •Twilight •Sports

•1/1000 sec. High Speed Shutter

•1/2000 sec. High Speed Shutter

n 5Sec.-Rec (5 sec. Recording)

(Z pg. 15)

22x Optical Hyper Zoom (Z pg. 14)

n Intergrated Auto Light

(GR-AX558 only) (Z pg. 16)

The Logical Choice

The only compact video cassettes that can be used with your VHS VCR*

PROVIDED ACCESSORIES

*With Cassette Adapter

CONTENTS

EN 3

GETTING STARTED

Power .............................................. 4

Clock (Lithium) Battery Insertion/Removal ..... 6

Date/Time Setting ................................ 7

Tape Length Setting ............................... 8

Recording Mode Setting .......................... 8

Loading/Unloading A Cassette .................. 9

Grip Adjustment ................................. 10

Viewfinder Adjustment ......................... 10

Shoulder Strap Attachment .................... 11

Tripod Mounting ................................. 11

RECORDING

Basic Recording ................................. 12

Basic Features .................................. 14

Advanced Features ............................. 18

PLAYBACK

Basic Playback .................................. 32

Features ......................................... 33

Using The Cassette Adapter .................. 35

Basic Connections .............................. 36

• AC Power Adapter/ Charger AA-V15EG

•Shoulder Strap

•AUDIO/VIDEO (A/V) Cable

• DC Cord

•Cassette Adapter C-P7U

•Battery Pack BN-V12U

• Lithium Battery CR2025 x 1 (clock operation)

TAPE DUBBING

TROUBLESHOOTING

INDEX

Controls ......................................... 40

Connectors ...................................... 40

Indicators ........................................ 40

Other Parts ..................................... 40

Viewfinder Indications ........................ 42

CAUTIONS

SPECIFICATIONS

4 EN

Marks

CHG. (charge) indicator

REFRESH switch

REFRESH indicator

REFRESH

The AC power adapter features a REFRESH function that allows you to fully discharge the battery pack before recharging. Perform the REFRESH function after no less than 5 chargings.

To discharge the battery . . .

..... attach the battery pack to the adapter

as shown in the above illustration. Then push REFRESH. The REFRESH indicator lights when discharging starts, and goes out when discharging is complete.

To AC outlet

GETTING STARTED

Power

This camcorder’s 3-way power supply system lets you choose the most appropriate source of power.

NOTES:

●

No function is available without power supply.

●

Use only specified power supply.

●

Do not use provided power supply units with other equipment.

CHARGING THE BATTERY PACK

SUPPLY POWER

Connect the charger’s AC power cord to a wall

outlet.

ATTACH BATTERY PACK

Align the marks and slide the battery pack in the

direction of the arrow until it locks in place.

•The CHG. indicator begins blinking to indicate charging has started.

DETACH BATTERY PACK

When the CHG. indicator stops blinking but stays lit,

charging is finished. Slide the battery pack opposite the direction of the arrow.

BATT. PACK

BN-V12U approx. 1 hr. 10 min. approx. 3 hrs. 30 min. BN-V22U approx. 2 hrs. 10 min. approx. 7 hrs. BN-V25U approx. 2 hrs. 40 min. approx. 10 hrs.

CHARGE DISCHARGE

Hook on.

Push in.

BATT. RELEASE

ATTENTION:

Before detaching the power source, make sure that the camcorder’s power is turned off. Failure to do so can result in a camcorder malfunction.

USING THE BATTERY PACK

ATTACH BATTERY PACK

Hook its top end to the camcorder and push the

battery pack in until it locks in place.

DETACH BATTERY PACK

Slide BATT. RELEASE and pull out the battery pack.

Approximate recording time (unit: min.)

BATT. PACK GR-AX558 GR-AX358

BN-V12U 75 (40) 75 BN-V22U 150 (90) 155 BN-V25U 200 (120) 200

( ) : when the video light is on. (GR-AX558 only)

EN 5

Charge marker

CHARGE MARKER

A charge marker is provided on the battery pack to help you remember whether it has been charged or not. Two colours are provided (red and black)—you choose which one means charged and which means discharged.

NOTES:

●

The recording time per charge is affected by such factors as the time spent in Record-Standby mode and the frequency of zooming. It is safer to have spare battery packs.

●

Charging times noted on page 4 are for fully discharged battery pack, and discharging times are for fully charged battery pack.

●

Charging and discharging times vary according to the ambient temperature and the status of the battery pack.

●

Remember to set the charge marker after charging a battery pack or after detaching a discharged one from your camcorder.

●

Perform the REFRESH function after no less than 5 chargings.

●

While the AC Power Adapter/Charger’s power cord is disconnected from the AC outlet, it is possible to discharge the battery by pressing the REFRESH switch. During that time, the AC Power Adapter/Charger does not charge the battery. When disharging is complete, detach the battery from the AC Power Adapter/ Charger to store it.

●

High temperatures can damage the battery pack, so use only where good ventilation is available. Don’t allow it to discharge in container, such as a bag.

●

If you stop recharging or discharging part way through, make sure to remove the battery pack before unplugging the adapter’s AC cord.

●

Remove the battery pack from the adapter immediately after discharging.

●

To avoid interference with reception, do not use the AC Power Adapter/Charger near a radio.

●

Make sure you unplug the DC cord before charging or discharging the battery pack.

●

The CHG. indicator may not light properly with a brand new battery pack, or with one that’s been stored for an extended period. In this case, remove and reattach the battery pack and recharge it. The CHG. indicator should blink during recharging. If not, contact your nearest JVC dealer.

To DC IN jack

DC cord

USING A CAR BATTERY

Use the optional Car Battery Charger/Adapter (connect as shown in the illustration above).

NOTES:

●

When using the car battery, leave the engine idling.

●

The optional Car Battery Charger (BH-V3E) can also be used to charge the battery pack.

●

When using the optional Car Battery Charger, refer to the respective instruction booklet.

DC OUT terminal

Car Battery Charger/Adapter BH-V3E (optional)

To AC outlet

AC Power Adapter/Charger AA-V15EG

To car ’s cigarette lighter socket

USING AC POWER

Use the AC Power Adapter (connect as shown in the illustration above).

NOTE:

The supplied AC Power Adapter/Charger features automatic voltage selection in the AC range from 110 V to 240 V.

6 EN

GETTING STARTED

Clock (Lithium) Battery Insertion/Removal

This battery is necessary for clock operation and to perform date/time settings.

SWITCH OFF POWER

Switch off the unit’s power and remove the power

supply unit.

OPEN COVER

Open the clock battery compartment cover while

pressing the release tab.

REMOVE BATTERY (when replacing)

Insert a pointed, non-metallic object between the

battery and the compartment (A) and pull the battery out.

INSERT BATTERY

Ensure that the plus (+) side is up and insert a

CR2025 lithium battery and push it in.

CLOSE COVER

Close the compartment cover until it clicks in place.

(cont.)

NOTE:

See “SAFETY PRECAUTIONS” (Z pg. 2) for information on safe handling of lithium batteries.

Select Dial

MENU Jog Dial

Viewfinder

MENU END FOCUS EXPOSURE

DATE TIME

TELE MACRO TAPE LENGTH M. W. B. ZOOM SPEED

Menu Screen

YEAR

MONTH DAY TIME

EXIT

DATE/TIME Setting Menu

MENU END

FOCUS EXPOSURE DATE TIME TELE MACRO TAPE LENGTH M. W. B. ZOOM SPEED

DATE TIME

AUTO AUTO

1. 1. 98 OFF T30 AUTO FAST

1998

1 1

22:50

AUTO AUTO

25. 12. 98 OFF T30 AUTO FAST

24-hour indication

EN 7

Date/Time Setting

ACCESS MENU SCREEN

First set the Power Switch to “CAMERA”. Turn the

Select Dial to any position except AUTO LOCK, then press the MENU Jog Dial.

SELECT FUNCTION

Rotate the MENU Jog Dial to move the highlight bar

to “DATE/TIME”, then press it. The DATE/TIME Setting Menu appears.

•If you decide you want to return the date and time to the previous settings, rotate the MENU Jog Dial to move highlight bar to “EXIT” and press it, then go to step 6.

•If you want to set only the time without changing the date, go to step 4.

SET DATE

Rotate the MENU Jog Dial to move the highlight bar

to the item you want to set and then press it. When the setting begins blinking, rotate the MENU Jog Dial until the correct setting appears and then press it. The setting stops blinking.

•Repeat this procedure until you’re satisfied with the Date settings (“YEAR”, “MONTH” and “DAY”).

SET TIME

Rotate the MENU Jog Dial to move the highlight bar

to “TIME” and then press it. When the hour setting begins blinking, rotate the MENU Jog Dial until the correct setting appears and then press it. When the hour setting stops blinking and the minute setting begins blinking, rotate the MENU Jog Dial until the correct setting appears and then press it. The minute setting stops blinking.

START CLOCK OPERATION

When none of these settings (YEAR, MONTH, DAY,

TIME) blinks, rotate the MENU Jog Dial to move the highlight bar to “EXIT”, and press it. The Menu Screen appears and “MENU END” is highlighted.

CLOSE MENU

Press the MENU Jog Dial.

NOTE:

To display the date and time in the viewfinder and on a connected TV, see “Date/Time/Character Insert” (Z pg. 17).

8 EN

SP/LP Recording Mode Button

Viewfinder

MENU END FOCUS EXPOSURE DATE TIME TELE MACRO

TAPE LENGTH

M. W. B. ZOOM SPEED

Menu Screen

TAPE LENGTH

T30

T45 T60

EXIT

TAPE LENGTH Setting Menu

MENU END

FOCUS EXPOSURE DATE TIME TELE MACRO TAPE LENGTH M. W. B. ZOOM SPEED

AUTO AUTO

25. 12. 98 OFF

T60

AUTO FAST

AUTO AUTO

25. 12. 98 OFF T20 AUTO FAST

GETTING STARTED

(cont.)

Tape Length Setting

Set the tape length according to the length of the tape used.

ACCESS MENU SCREEN

First set the Power Switch to “CAMERA”. Turn the

Select Dial to any position except AUTO LOCK, then press the MENU Jog Dial.

SELECT FUNCTION

Rotate the MENU Jog Dial to move the highlight bar

to “TAPE LENGTH”, then press it. The TAPE LENGTH Setting Menu appears.

SET TAPE LENGTH

Rotate the MENU Jog Dial to move the highlight bar

to the correct setting. T30=30 minutes of recording time, T45=45 minutes, and T60=60 minutes (in SP).

•If you decide you want to return the tape length to the previous setting, rotate the MENU Jog Dial to move the highlight bar to “EXIT”.

CLOSE MENU

Press the MENU Jog Dial. The Menu Screen

reappears and the highlight bar is on “MENU END”. Then press the MENU Jog Dial again to close the Menu Screen.

NOTES:

●

The tape remaining time (Z pg. 13) is correct only if the correct tape length has been selected.

●

Once you have set the tape length, it remains unchanged even if the Select Dial is returned to AUTO LOCK.

Select Dial

T30

MENU Jog Dial

Tape length indicator

Recording mode indicator

Recording Mode Setting

Set depending on your preference.

SET RECORDING MODE

First set the Power Switch to “CAMERA”. Press SP/LP

Button for more than 1 second. “SP” (Standard Play) provides higher picture and sound quality and is better for dubbing, while “LP” (Long Play) is more economical, providing three times as the recording time.

NOTE:

If the recording mode is switched during recording, the playback picture will be blurred at the switching point.

Erase Protection

Gear

Turn to take up slack.

Loading/Unloading A Cassette

OPEN CASSETTE HOLDER

Slide EJECT until the holder opens. Do not use force

to open.

INSERT/REMOVE CASSETTE

Make sure the label is facing outward.

CLOSE CASSETTE HOLDER

Press PUSH and make sure the holder is closed and

locked.

NOTES:

●

A cassette holder can’t be opened unless a power supply is attached.

●

Make sure that the tape is not slack when loading the cassette. If there is any slack, turn the gear on the cassette in the direction of the arrow to take up the slack.

●

Make sure the Erase Protection tab is in the position that allows recording. If not, slide the tab. Some cassettes have removable tabs. If the tab has been removed, cover the hole with adhesive tape.

●

The cassette holder can’t be opened while the camcorder is in the record mode.

EN 9

10 EN

Recording Start/Stop Button

Power Zoom Button

GETTING STARTED

Grip Adjustment

EXPAND LOOP

Separate the Velcro strip.

INSERT HAND

Pass your right hand through the loop and grasp the

grip.

ADJUST STRAP LENGTH

Adjust so your thumb and fingers can easily operate

the Recording Start/Stop Button and Power Zoom Button. Refasten the Velcro strip.

Viewfinder Adjustment

(cont.)

Set POWER to “CAMERA”.

POSITION VIEWFINDER

Adjust the viewfinder manually for best viewability

(see illustration to the left).

SELECT MODE

Set the Power Switch to CAMERA.

ADJUST DIOPTRE

Turn the Dioptre Adjustment Control until the

indications in the viewfinder are clearly focused.

Shoulder Strap Attachment

ATTACH STRAP

Following the illustration at left, thread the strap

through the top of the eyelet 1, then fold it back and thread it through the keeper 2, and then through the buckle 3. Repeat the procedure to attach the other end of the strap to the other eyelet

4, making sure the strap isn’t twisted.

ADJUST LENGTH

Adjust as shown in the illustration at left 1, then

slide both keepers snug against the eyelets to prevent slipping 2.

Tripod Mounting

ALIGN AND TIGHTEN

Align the screw and camera direction stud on the

tripod with the camera’s mounting socket and stud hole. Then tighten the screw.

EN 11

CAUTION:

When using a tripod, be sure to open and extend its legs fully to stabilize the camcorder. To prevent damage to the unit caused by falling over, do not use a small-sized tripod.

12 EN

LENS COVER Switch

Power Switch

Start/Stop Button

Tally lamp (GR-AX558 only) (lights while recording is in progress)

Power indicator

RECORDING

Basic Recording

NOTE:

You should already have performed the procedures listed below. If not, do so before continuing.

●

Power (Z pg. 4)

●

Tape Length Setting (Z pg. 8)

●

Recording Mode Setting (Z pg. 8)

●

Grip Adjustment (Z pg. 10)

LOAD A CASSETTE

Slide EJECT to open the cassette holder, then insert

the cassette with the label facing out. Press PUSH to ensure the holder is closed and locked.

ENTER RECORD-STANDBY MODE

Slide the LENS COVER Open/Close Switch to open

the lens cover, then set the Power Switch to CAMERA.

•The power indicator lights and the camcorder enters the Record-Standby mode.

•The scene you’re aimed at appears on the viewfinder screen, with the word “PAUSE” superimposed upon it.

START SHOOTING

Press the Recording Start/Stop Button.

REC

•“

” appears in the viewfinder while recording is

in progress.

Tape remaining time indicator

25MIN

(Now calculating)

120MIN

119MIN

Start/Stop Button

MIN

3MIN

2MIN

(Blinking)

1MIN

(Blinking)

0MIN

(Blinking)

EN 13

STOP RECORDING

Press the Recording Start/Stop Button again to stop

recording.

•The camcorder re-enters the Record-Standby mode.

NOTES:

●

A cassette holder can’t be opened unless a power supply is attached.

●

There may be a delay after you slide EJECT until the holder opens. Do not use force.

●

The displayed remaining time is approximate.

●

The time required to calculate the remaining tape length, and the accuracy of the calculation, may vary according to the type of tape used.

●

The tape remaining time indicator is correct only if the correct tape length has been selected (Z pg. 8).

●

“TAPE END” appears when the tape reaches its end, and the power goes off automatically if left in this condition for 5 minutes. “TAPE END” also appears when a cassette whose tape is already at its end is loaded.

●

If the Record-Standby mode continues for 5 minutes without performing Zoom or any other operations, the camcorder’s power shuts off automatically. Set the Power Switch to “POWER OFF”, and then back to “CAMERA” to turn the camcorder on again.

●

If the Recording Start/Stop Button is pressed after the Record-Standby mode has continued for over 5 minutes, recording may not start immediately.

●

If you’re recording on a cassette from the middle (such as when a tape is removed and re-inserted during recording), use the Retake function (Z pg. 15) to find the end of the last recording so you don’t erase any of it.

●

The LENS COVER warning blinks for about 5 seconds when the camcorder is turned on when the cover is closed.

14 EN

RECORDING

Basic Features

Zoom-in

Power Zoom button

Select Dial

Viewfinder

MENU END FOCUS EXPOSURE DATE TIME TELE MACRO TAPE LENGTH M. W. B.

ZOOM SPEED

Menu Screen

ZOOM SPEED

FAST

SLOW

EXIT

ZOOM SPEED Setting Menu

Zoom-out

Zoom indicator bar

MENU Jog Dial

AUTO AUTO

25. 12. 98 OFF T30 AUTO

FAST

FEATURE: Zooming PURPOSE: To produce the zoom in/out effect, or

an instantaneous change in image magnification.

OPERATION:

Zoom In

Press the “T” of the Power Zoom Button.

Zoom Out

Press “W” of the Power Zoom Button.

n Zooming speed is available. A total

of 4 zoom speeds are available. 2 speeds can be selected depending on how hard the Power Zoom Button is pressed (press the button fully for regular-speed, press it lightly for slow-speed), while 2 speed levels (FAST/SLOW) can be selected in the ZOOM SPEED Menu depending on the overall speed you prefer.

The combinations of zoom speeds are shown in the chart below.

Changing the ZOOM SPEED in the Menu

1) Set the Select Dial to any position

except AUTO LOCK and press the MENU Jog Dial. The Menu Screen appears.

2) Rotate the MENU Jog Dial to move the highlight bar to “ZOOM SPEED”, then press it. The ZOOM SPEED Setting Menu appears.

3) Rotate the MENU Jog Dial to move the highlight bar to the desired speed and press it twice. The Menu Screen disappears and setting is completed.

NOTE:

Focusing may become unstable during Zooming. In this case, set the zoom while in Record-Standby, lock the focus by using the manual focus (Z pg. 27), then zoom in or out in Record mode.

Zooming Speed ( 1 – 4 in order of speed)

“ZOOM SPEED” in the Menu Screen

FAST 1 (fastest) 3

SLOW 2 4 (slowest)

Pressing the Power Zoom Button

fully lightly

: when the Select Dial is set to AUTO LOCK.

5SEC. REC

RETAKE (R/F)

Viewfinder

PAUSE

5Sec. Rec mode indicator

EN 15

FEATURE: Quick Review PURPOSE: To check the end of the last

OPERATION: 1) Press “ ” and release quickly

NOTE:

FEATURE: Retake PURPOSE: To re-record certain segments. OPERATION: 1) Make sure the camcorder is in the

NOTE:

FEATURE: 5Sec. Rec (5-sec. Recording) PURPOSE: To record a scene for 5 seconds,

OPERATION: 1) During Record-Standby, press

NOTE:

recording.

during the Record-Standby mode.

n Tape is rewound for about 2

seconds and played back automatically, then pauses in Record-Standby mode for the next shot.

Distortion may occur at start of playback. This is normal.

Record-Standby mode.

2) Press either RETAKE button to reach the start point for new recording. Pressing “F” forwards the tape and pressing “R” reverses it.

3) Press Recording Start/Stop Button to start recording.

Noise may appear during Retake. This is normal.

providing quick scene transitions like those seen in TV programmes.

5SEC. REC. “

5S” appears and

5Sec. Rec is reserved.

2) Press Recording Start/Stop Button. Recording starts, and after 5-second recording is finished, the camcorder reenters the RecordStandby mode automatically.

n To cancel the 5Sec. Rec.

function, press 5SEC. REC again so that “ 5S” disappears.

The Fader (Z pg. 20) cannot be activated by pressing 5SEC. REC.

16 EN

LIGHT OFF/AUTO/ON

DANGER

n The video light can become extremely

hot. Do not touch it either while in operation or soon after turning it off, otherwise serious injury may result.

n Do not place the camcorder into the

carrying case immediately after using the video light, since it remains extremely hot for some time.

n When operating, keep a distance of

about 30 cm. between the video light and people or objects.

n Do not use near flammable or explosive

materials.

n It is recommended that you consult your

nearest JVC dealer for replacing the video light.

RECORDING

FEATURE: Video Light (GR-AX558 only) PURPOSE: To brighten the scene when natural

OPERATION: 1) Set the LIGHT OFF/AUTO/ON

NOTES: ●

Basic Features (cont.)

lighting is too dim.

Switch as required:

ON : Always keeps the light on

AUTO : Automatically turns on

OFF : Turns off the light.

n The video light can only be used

n It is recommended to set the

n When not using the video light,

Even if the battery indicator ( ) does not blink if the battery pack’s charge is low, the camcorder may turn off automatically when you turn on the video light, or when you start recording with the video light turned on.

●

When the LIGHT OFF/AUTO/ON Switch is set to “AUTO”:

•

as long as the camcorder is turned on.

the light when the camcorder senses insufficient lighting on the subject.

with the camcorder’s power on.

white balance (Z pg. 29) to HALOGEN mode ( ) when you use the video light.

turn it off to save battery power.

Depending on the lighting conditions, the video light may keep turning on and off. In this case, manually switch the light on or off using the LIGHT OFF/ AUTO/ON switch. While the Sports or High-Speed Shutter mode (Z pg. 19) is engaged, the light is likely to stay on. While the Twilight mode (Z pg. 19) is engaged, the light will not activate.

DATE/TIME

Select Dial

Date display

Time display

Date/Time display

Auto Date Record mode

The characters you have set using Character Generator (

Date display

25.12.98

Time display

22:50:00

Date/Time display

Display

Date-off mode (No display)

Z pg. 22)

Auto Date Record mode

AUTO DATE

Auto date record mode

Auto date record executed

25.12.98

EN 17

FEATURE: Date/Time/Character Insert PURPOSE: To display the date and time in the

OPERATION: 1) Turn the Select Dial to any

NOTES:

viewfinder or on a connected colour monitor, as well as to record them manually or automatically.

position except AUTO LOCK.

2) Choose a display mode by pressing DATE/TIME repeatedly while in Record-Standby to cycle through the modes as shown in the illustration to the left.

n You should have already

performed the Date/Time Setting procedure (Z pg. 7). If you haven’t, do so first.

DISPLAY

●

The selected display can be recorded.

●

If you don’t want to record the display, select the Date-off mode before shooting.

●

If you want to delete the display during shooting, press DATE/TIME.

●

To recall the display, engage the Record-Standby mode and press DATE/TIME repeatedly until the desired display appears.

AUTO DATE RECORD

●

Your camcorder automatically records the date for about 5 seconds after recording is initiated in the following situations:

•

After changing the date.

•

After loading a cassette.

•

After Auto Date Record mode is

selected by pressing DATE/TIME. In this mode, the date is replaced after 5 seconds with “AUTO DATE” but this is not recorded.

●

Setting the Select Dial to AUTO LOCK always engages the Auto Date Record mode, and disables all other modes.

25.12.98

22:50:00

18 EN

1 second later, the mode is activated.

SEPIA

After 1 sec.

Viewfinder

Mark

RECORDING

Advanced Features

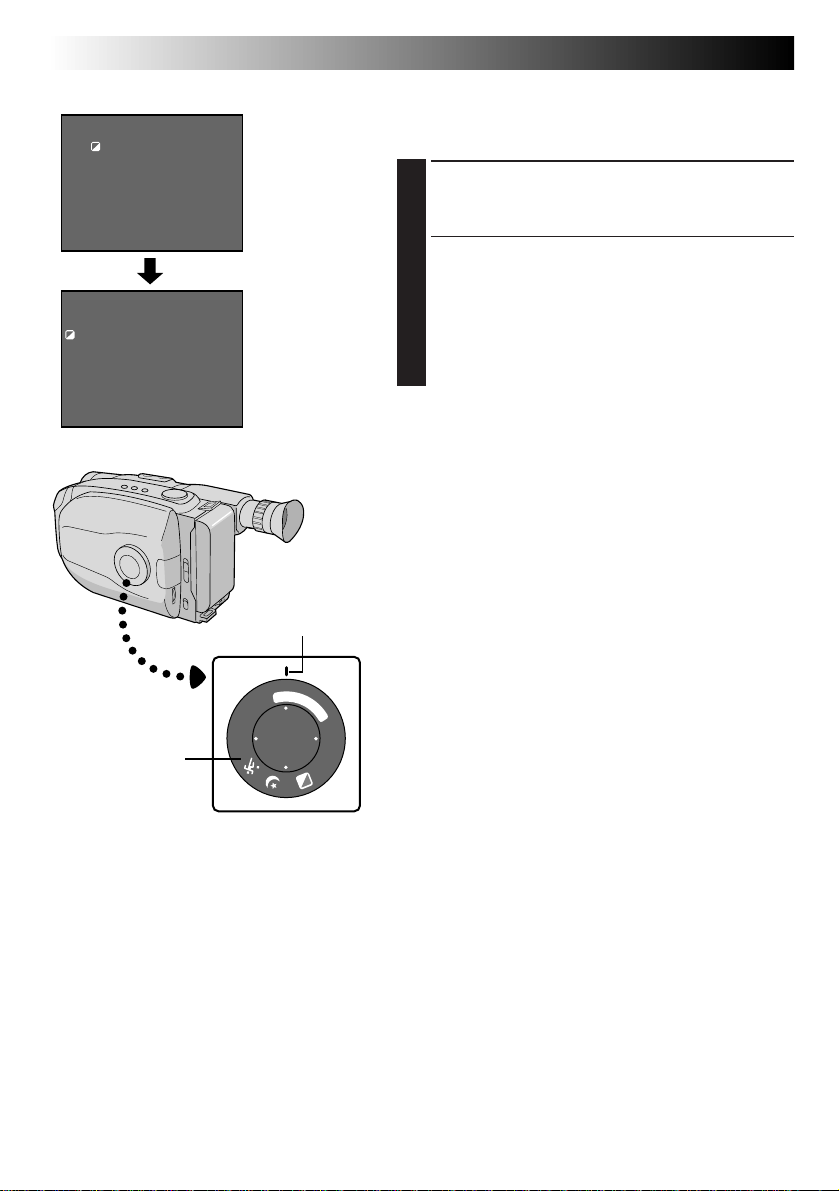

Programme AE With Special Effects

All you have to do to access any of the variety of shooting effects is to turn the Select Dial.

SELECT MODE

Turn the Select Dial until the symbol of the function

you want is aligned with the mark.

•The selected mode’s name and its indication are displayed for approx. 1 second. Then the name disappears, and only the indication remains. The mode is activated.

•When Auto Mode Lock or Auto Mode Release mode is selected, only the mode’s name is displayed. Then the name disappears and the mode is activated.

NOTES:

●

Only one effect can be engaged at a time.

●

The screen becomes slightly reddish when the Fader (Z pg. 20) is used in the Sepia mode.

●

The screen becomes slightly dark in the High Speed Shutter mode. Use in well-lit situations.

●

In the High Speed Shutter or Sports modes, picture colour may be adversely affected if subject is lit by alternating discharge-type light sources such as flourescent or mercury-vapour lights.

Select Dial

WIDE TITLE

EFFECT

SUPER LOLUX

Dial Viewfinder

symbol indication

Mode

Dial Viewfinder

symbol indication

EN 19

Mode

LOCK AUTO LOCK

Auto Mode Lock

Locks the camcorder in Full Auto mode, preventing incorrect operation due to accidental button pressing during shooting.

•In this mode the following controls are disabled; DATE/TIME display select, and the Menu Jog Dial.

RELEASE AUTO RELEASE

Auto Mode Release

Re-enables the controls that were disabled by Auto Mode Lock.

FG FG : FOG

Electronic Fog Filter

Makes the picture look misty white, as when an external fog filter is attached to the lens. Softens the image and gives it a “fantasy” look.

ND ND:ND EFFECT

ND Effect

A black mist darkens the picture, as when an ND filter is used. Helps to counter the effects of glare on the subject.

SEPIA

Sepia

TWILIGHT

Twilight

Dusk, twilight scenery, fireworks, etc., look more natural and dramatic. The following happens when Twilight mode is selected:

•Auto gain control is turned off.

•White Balance is set to “ ” (FINE day mode), but can also be manually changed to another mode (Z pg. 29).

•Auto Focus becomes available only in the range of 10 m to infinity. To focus when the subject-tocamera distance is less than 10 m, use manual focusing (Z pg. 27).

SPORTS

Sports

High shutter speed clearly captures fast-moving action.

1/1000 S 1/1000

1/2000 S 1/2000

1/1000 sec. High Speed Shutter

1/2000 sec. High Speed Shutter

High-Speed Shutter (1/1000s., 1/2000s.)

Captures faster action than Sports mode.

Sepia

The scene being shot is recorded in sepia-tinted (reddish-brown) monochrome, giving the effect of an older movie. Use together with Wide (Z pg. 20) for the authentic look of a classic Hollywood movie.

20 EN

Fade-in

RECORDING

Advanced Features (cont.)

Fader

This feature allows smooth fade-in and fade-out to black blank screen. Fade-in works at recording start, and fadeout works at recording end or when you enter RecordStandby mode.

Viewfinder

EFFECT

FADER

After 2 sec.

EFFECT

WIDE

Viewfinder

Fade-out

Recording Start/Stop Button

ENGAGE FADE-STANDBY MODE

Press EFFECT to engage the Fade-Standby mode.

•“

FADER” is displayed for approx. 2 seconds. Then “BLACK FADER” disappears, and only “ remains.

START OR END RECORDING

Press Recording Start/Stop Button to activate fade-in

or fade-out.

TO CANCEL FADE-STANDBY MODE

While

“

”

is displayed, press EFFECT.

•“OFF” is displayed for approx. 2 seconds and the fade-standby mode is cancelled.

NOTES:

●

Pressing and holding the Recording Start/Stop Button allows you to record a black blank screen.

●

The screen becomes slightly reddish when the Fader is used with Sepia (Z pg. 19).

●

With the Electronic fog filter mode (Z pg. 19) engaged, the image fades in/out to a white screen.

Wide

This feature allows you to record black bars at the top and bottom of the screen to produce a cinema-like “wide-screen” effect.

”

ENGAGE WIDE MODE

Press WIDE.

Wide mode

NOTE (for Fader, Wide, Super LoLux, and Instant Titles) :

When the Select Dial is turned to AUTO LOCK, the above functions will be set to the Factory settings (Fade-standby : “OFF”, Wide mode : off, Super LoLux : “MAX”, Instant Titles : off). Then when the Select Dial is returned to any position except AUTO LOCK, the above functions return to the settings you selected before turning it to AUTO LOCK. However, if the function is switched during AUTO LOCK, the selected mode will be set and will remain unchanged even when the Select Dial is turned to any position except AUTO LOCK.

•To restore normal screen, press WIDE again.

Viewfinder

S.LX

MAX

NORM

OFF

After 2 sec.

TITLE SUPER LOLUX

EN 21

Super LoLux(Gain Up)

Bright, natural recordings can be taken even in areas with low or poor lighting.

SELECT SUPER LOLUX MODE

Press SUPER LOLUX repeatedly to cycle through the

modes as shown to the left. Once the desired mode appears, it is engaged.

•The mode’s name is displayed for approx. 2 seconds, then disappears.

MAX : To record a subject in a dark lit environ-

NORM : To record a subject in a dimly lit environ-

OFF : Allows you to shoot dark scenes with no

ment. When it is more convenient to shoot the subject with a brighter image even if the picture becomes slightly coarse.

ment. When it is more convenient to shoot with a less coarse picture although the subject becomes slightly dark.

picture brightness adjustment.

Viewfinder

Title display

HAPPY BIRTHDAY No display

HAPPY HOLIDAYS

OUR FAMILY

MOVIE STAR

PARTY TIME

MERRY CHRISTMAS

WEDDING DAY

CONGRATULATIONS

The characters you have set using Character Generator (Z pg. 22)

Instant Titles

The camcorder has eight preset titles in memory. You can superimpose one of them above a previously stored title as shown in the illustration to the left.

SELECT PRESET TITLE

Press TITLE repeatedly to cycle through the preset

titles until the desired title is displayed.

22 EN

Select Dial

MENU Jog Dial

RECORDING

Advanced Features (cont.)

Character Generator

You can enter an original title of up to 18 characters.

ACCESS MENU SCREEN

Turn the Select Dial to any position except AUTO

LOCK, then press the MENU Jog Dial. The Menu Screen appears.

ACCESS CHARACTER MENU

Rotate the MENU Jog Dial to move the highlight bar

to “CHARACTER”, then press it.

Viewfinder

MENU END FOCUS EXPOSURE DATE TIME TELE MACRO TAPE LENGTH M. W. B.

ZOOM SPEED

BACK REC TIME INT. TIME TALLY LAMP

CHARACTER

JLIP ID NO. DEMO MODE

  4

MENU END

CHARACTER

A B C D E F G H I J K L M N O P Q R S T U V W X Y Z Ä Ö Ü

À È Ì Ò Ù Ñ Æ Ø Å & : . , ’ – / ! ? ¿ k 0 1 2 3 4 5 6 7 8 9

I L I

BACK NEXT4 EXIT CLEAR

CHARACTER

A B C D E F G H I J K L M N O P Q R S T U V W X Y Z Ä Ö Ü

À È Ì Ò Ù Ñ Æ Ø Å & : . , ’ – / ! ? ¿ k 0 1 2 3 4 5 6 7 8 9

I L I KE YOU k

BACK NEXT4 EXIT CLEAR

AUTO AUTO

25. 12. 98 OFF T30 AUTO

FAST

OFF OFF ON

07 OFF

Menu Screen

GR-AX558 only

INPUT CHARACTERS

Rotate the MENU Jog Dial to make the desired

character blink, then press it. The selected character appears at the bottom of the screen. Repeat for additional characters (max. 18).

•To select the location of the next character, rotate the MENU Jog Dial to make “ at the bottom of the screen blink, then press it repeatedly to move the blinking cursor underneath the desired location. Rotate the MENU Jog Dial when you are done, and the blinking cursor returns to the character grid.

BACK

”or “

END CHARACTER SETTING

Rotate the MENU jog dial to make “EXIT” blink,

then press it. The Menu Screen reappears and the highlight bar is placed on “MENU END”.

CLOSE MENU

Press the MENU Jog Dial.

NOTES:

●

To erase a character you entered mistakenly, make “CLEAR” blink by rotating the MENU Jog Dial, then press it. All characters are deleted at once. Or, to erase selected characters only, first move the blinking cursor to the characters at the bottom row which you want to replace, then rotate the MENU Jog Dial to highlight “ ” in the top left corner, and then press it.

●

To display the characters you have set — “Date/Time/ Character Insert” (Z pg. 17) or “Instant Titles” (Z pg. 21).

●

Characters may be set only in the Record-Standby mode.

”

Select Dial

Viewfinder

MENU END

FOCUS

EXPOSURE DATE TIME TELE MACRO TAPE LENGTH M. W. B. ZOOM SPEED

Menu Screen 1

AUTO

25. 12. 98 OFF T30 AUTO FAST

MENU Jog Dial

EN 23

Using Menu For Detailed Adjustment

This camcorder is equipped with an easy-to-use, on-screen menu system that simplifies many of the more detailed camcorder settings.

ACCESS MENU SCREEN

Turn the Select Dial to any position except AUTO

LOCK, then press the MENU Jog Dial. The Menu Screen appears.

SELECT FUNCTION

Rotate the MENU Jog Dial to place the highlight bar

on the desired function.

•When the highlight bar reaches the bottom of Menu Screen 1, Menu Screen 2 is automatically displayed. When the highlight bar reaches the top of Menu Screen 2, Menu Screen 1 is automatically displayed.

•If the setting you want can’t be found in the Menu Screen, place the highlight bar on “MENU END”, then go to step 5.

REC TIME

INT. TIME TALLY LAMP CHARACTER JLIP ID NO. DEMO MODE

  4

OFF 1 4 S 1 2 S

1 S

5 S

EXIT

REC TIME INT. TIME TALLY LAMP CHARACTER JLIP ID NO. DEMO MODE

 

BACK

MENU END

Menu Screen 2

REC TIME

Setting Menu

(ex. REC TIME)

BACK

MENU END

Normal Screen

OFF

OFF ON

07 OFF

1S OFF ON

07 OFF

GR-AX558 only

MAKE SETTING

Press the MENU Jog Dial. The setting menu of the

selected function appears. The setting procedure depends on the function you select.

If you select “FOCUS”, “EXPOSURE”, “DATE/ TIME”, or “CHARACTER” . . .

.... see respective pages (FOCUS: Z pg. 26, 27,

EXPOSURE: Z pg. 28, DATE/TIME: Z pg. 7, CHARACTER: Z pg. 22).

If you select “JLIP ID NO.” . . .

.... press the MENU Jog Dial so that the number

blinks, then rotate it until the desired number appears, and press it. Then rotate the MENU Jog Dial to move the highlight bar to “EXIT”.

If you select any other functions . . .

.... rotate the MENU Jog Dial to move the highlight

bar to the desired setting.

•If you decide you want to return to the previous setting, rotate the MENU Jog Dial to move the highlight bar to “EXIT”.

END SETTING

Press the MENU Jog Dial. The Menu Screen

reappears and the highlight bar is on “MENU END”.

CLOSE MENU

Press the MENU Jog Dial. The normal screen

reappears.

NOTES:

●

The menu function except “FOCUS” and “EXPOSURE” are not available while in the Record mode.

●

For GR-AX358: The tally lamp is not built-in. “TALLY LAMP” in the Menu Screen is always set to “OFF” and cannot be set to “ON”.

24 EN

RECORDING

Advanced Features (cont.)

Menu Screen Explanations

FOCUS AUTO Adjusts focus automatically.

MANU Allows you to adjust focus manually (Z pg. 26, 27).

EXPOSURE AUTO Adjusts exposure automatically.

MANU Allows you to adjust exposure manually (Z pg. 28). DATE/TIME Allows you to set the current date and time (Z pg. 7). TELE MACRO Usually the distance to a subject where the lens is in focus

TAPE LENGTH Allows you to set the tape length depending on the tape used (Z pg. 8). M.W.B. This camcorder’s Automatic Colour Temperature system senses

ZOOM SPEED Allows you to set the zooming speed (

OFF

AUTO

: FINE : CLOUD : HALOGEN

MWB

FAST

SLOW

depends on the zoom magnification. Unless there is a distance more than 1m to the subject, the lens is out of focus at the maximum telephoto setting. When set to “ON”, you can shoot a subject as large as possible at a distance of approx. 60 cm.

•Depending on the zoom position, the lens may go out of focus.

the colour temperature of the ambient lighting for automatic white balance adjustment. However, precise colour adjustment is not possible under the following conditions:

•When an object is in various shades of the same colour.

•When a predominantly red or brown object is being shot outdoors.

In these cases, use the camcorder’s built-in preset filters for white balance adjustment (Z pg. 29).

Z pg. 14).

EN 25

REC TIME This feature allows you to set the parameters for Animation and Time-Lapse

INT. TIME This feature allows you to set the parameters for Self-Timer (

TALLY LAMP ON The tally lamp comes on to signal the start of recording.

CHARACTER Allows you to enter an original title of up to 18 characters (Z pg. 22). JLIP ID NO. This number is necessary when connecting the camcorder to a device such as a

DEMO MODE OFF Automatic demonstration will not take place.

= Factory setting and when the Select Dial is set to AUTO LOCK

recording (Z pg. 31).

Z pg. 30) and Time-

Lapse recording (Z pg. 31).

(available only for GR-AX558)

OFF The tally lamp remains off at all times.

(GR-AX358: always set to this mode.)

computer using the J terminal (JLIP). The numbers range from 01 to 99. Factory setting is 07.

ON Demonstrates certain functions such as the Fader, Instant Titles

etc. When “DEMO MODE” is set to “ON” and the Menu Screen is closed, demonstration starts.

NOTES:

● When a tape whose Erase Protection tab is in the position that allows recording is loaded in the camcorder, demonstration is not available.

● By turning off the camcorder or inserting a tape whose Erase Protection tab is in the position that allows recording into it, “DEMO MODE” is set to “OFF” automatically.

● During demonstration, all functions except zoom are disabled.

26 EN

Focus detection zone

RECORDING

Advanced Features (cont.)

Focusing

Auto Focus

The camcorder’s Full Range AF system offers continuous shooting ability from close-up to infinity. However, correct focus may not be obtainable in the situations listed below (in these cases use manual focusing):

•When two subjects overlap in the same scene.

•When illumination is low.*

•When the subject has no contrast (difference in brightness and darkness), such as a flat, one-colour wall, or a clear, blue sky.*

•When a dark object is barely visible.*

•When the scene contains minute patterns or identical patterns that are regularly repeated.

•When the scene is affected by sunbeams or light reflecting off the surface of a body of water.

•When shooting a scene with a high-contrast background.

* The low-contrast warning “

NOTES:

●

If the lens is smeared or blurred, accurate focusing is not possible. Keep the lens clean, wiping with a piece of soft cloth if it gets dirty. When condensation occurs, wipe with a soft cloth or wait for it to dry naturally.

●

When shooting a subject close to the lens, zoom-out first (Z pg. 14). If zoomed-in in the auto focus mode, the camcorder could automatically zoom out depending on the distance between the camcorder and the subject. When Tele Macro (Z pg. 24) is activated, the camcorder will not zoom out automatically.

” appears.

Select Dial

Viewfinder

MENU END

FOCUS

EXPOSURE DATE TIME TELE MACRO TAPE LENGTH M. W. B. ZOOM SPEED

Menu Screen

AUTO

MANU

EXIT

Focus Menu Screen

FOCUS

AUTO

25. 12. 98 OFF T30 AUTO FAST

MENU Jog Dial

No indication during recording

EN 27

Manual Focus

NOTE:

You should already have made the necessary viewfinder adjustments (Z pg. 10). If you haven’t, do so before continuing.

ACCESS MENU SCREEN

Turn the Select Dial to any position except AUTO

LOCK, then press the MENU Jog Dial. The Menu Screen appears, and the highlight bar is placed on “FOCUS”.

ACCESS FOCUS MENU SCREEN

Press the MENU Jog Dial.

ACCESS MANUAL FOCUS

Rotate the MENU Jog Dial to move the highlight bar

to “MANU”, then press it. “ focus is locked at this point.

ADJUST FOCUS

To farther subject . . .

Rotate the MENU Jog Dial upward. “ ” appears and blinks. Go to step 5.

To nearer subject . . .

Rotate the MENU Jog Dial downward. “ ” appears and blinks. Go to step 5.

END ADJUSTMENT OF FOCUS

Press the MENU Jog Dial. The Menu Screen

reappears and the highlight bar is placed on “MENU END”.

” and “ ” appear. The

Manual Focus Screen

CLOSE MENU

Press the MENU Jog Dial. The Menu Screen

disppears and “ ” reappears to indicate the focus is locked.

NOTES:

●

To return to Auto Focus, select “AUTO” in step 3.

●

To re-adjust Manual Focus, repeat the procedure from step 1.

●

Be sure to focus the lens in the maximum telephoto position when you use the Manual Focus mode. If you focus in on a certain subject in the wide-angle position, sharply focused images cannot be obtained when zoomed up because the depth-of-field is reduced at longer focal lengths.

●

When the focus level cannot be adjusted any farther or closer, “ ” or “ ” will blink.

28 EN

Select Dial

Viewfinder

MENU END FOCUS

EXPOSURE

DATE TIME TELE MACRO TAPE LENGTH M. W. B. ZOOM SPEED

Menu Screen

EXPOSURE

AUTO

MANU

EXIT

Exposure Menu Screen

AUTO

25. 12. 98 OFF T30 AUTO FAST

MENU Jog Dial

No indication during recording

RECORDING

Advanced Features (cont.)

Exposure Control

This feature automatically adjusts the iris for the best available picture quality, but you can override and make the adjustment manually.

ACCESS MENU SCREEN

Turn the Select Dial to any position except AUTO

LOCK, then press the MENU Jog Dial. The Menu Screen appears.

ACCESS EXPOSURE MENU SCREEN

Rotate the MENU Jog Dial to move the highlight bar

to “EXPOSURE” and press it.

ACCESS MANUAL EXPOSURE

Rotate the MENU Jog Dial to move the highlight bar

to “MANU”, then press it. “00” (exposure control level counter) appears.

ADJUST EXPOSURE

To brighten the image . . .

Rotate the MENU Jog Dial upward. The exposure control level counter increases (maximum +06). Go to step 5.

To darken the image . . .

Rotate the MENU Jog Dial downward. The exposure control level counter decreases (maximum –06). Go to step 5.

END ADJUSTMENT OF EXPOSURE

Press the MENU Jog Dial. The Menu Screen

reappears and the highlight bar is placed on “MENU END”.

Manual Exposure Screen

To brighten the image

–

To darken the image

Exposure control level counter

CLOSE MENU

Press the MENU Jog Dial. The Menu Screen

disappears and the exposure control level counter reappers to indicate the exposure is adjusted.

NOTES:

●

To return to the factory setting, select “AUTO” in step 3.

●

To re-adjust exposure, repeat the procedure from step 1.

Viewfinder

MENU END FOCUS EXPOSURE DATE TIME TELE MACRO TAPE LENGTH

M. W. B.

ZOOM SPEED

M. W. B.

AUTO : FINE : CLOUD : HALOGEN

MWB

EXIT

AUTO AUTO

25. 12. 98 OFF T30

AUTO

FAST

Menu Screen

M.W.B. Menu Screen

EN 29

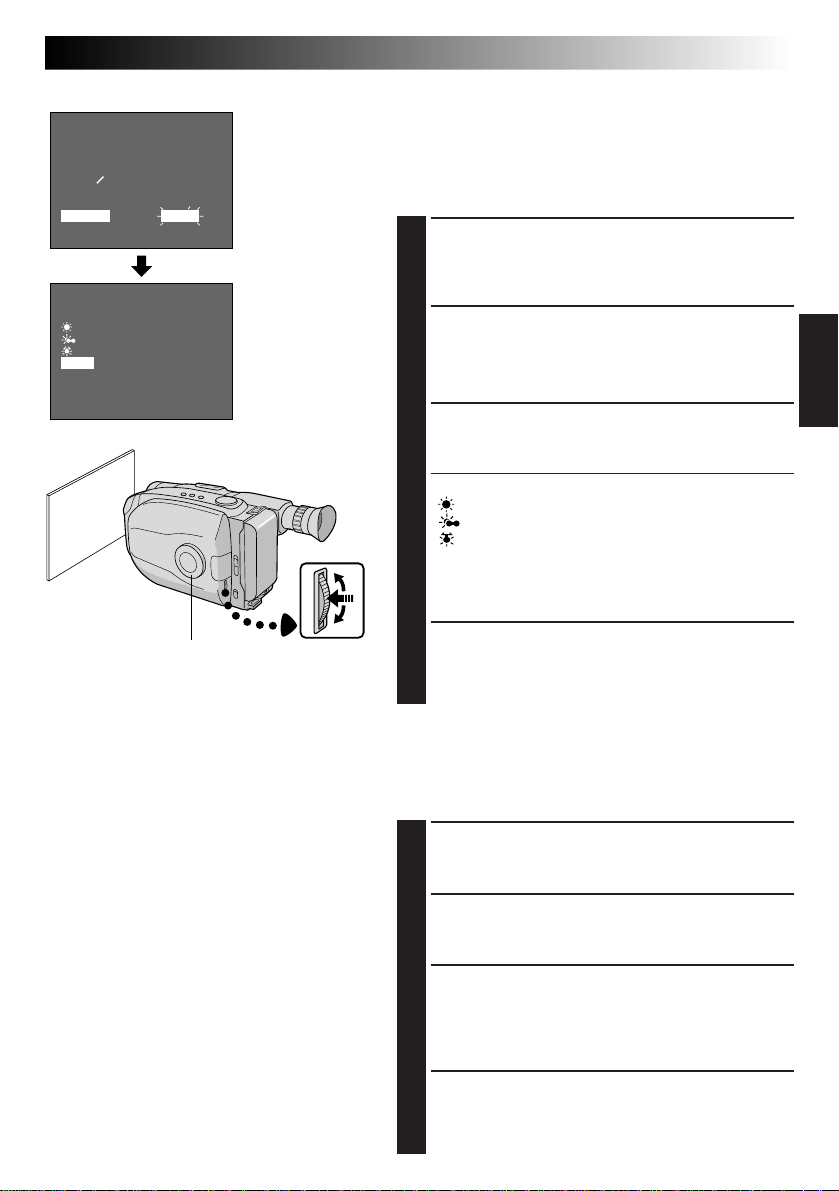

Manual White Balance Adjustment (M.W.B.)

The white balance is usually adjusted automatically. However, the more advanced camcorder operator would prefer to control this function manually and achieve a more professional colour/tint reproduction.

ACCESS MENU SCREEN

Turn the Select Dial to any position except AUTO LOCK, then press the MENU Jog Dial. The Menu

Screen appears.

ACCESS WHITE BALANCE MENU SCREEN

Rotate the MENU Jog Dial to move the highlight bar to “M.W.B.”, then press it.

SELECT WHITE BALANCE

Rotate the MENU Jog Dial to move the highlight bar to the required white balance.

“AUTO” ................... Automatic adjustment

“

: FINE” ............. Outdoors on sunny day

“

: CLOUD” ........ Outdoors on cloudy day

“

: HALOGEN” ... Light source is halogen or

“MWB” .................... When using a personal White

tungsten lamp

Balance Setting stored in memory (see below.)

Select Dial

MENU Jog Dial

NOTES:

●

To switch to automatic white balance adjustment, set the M.W.B. in the Menu Screen to “AUTO”, or turn the Select Dial to “AUTO LOCK”.

●

Re-adjust the White Balance when the lighting has changed, when the camcorder has been turned off and on again, or when the Select Dial’s position has been changed.

●

When adjusted by putting coloured paper in front of the subject in step 1 of “MWB”, this unit makes its colour temperature standard for automatic white balance. So you can enjoy shooting with different colours. For example, when adjusting with red, blue or yellow colours, the image becomes the colour which approximates to green, orange or purple respectively.

●

It is helpful to connect your camcorder to a colour monitor when adjusting the white balance (Z pg. 36).

CLOSE MENU

Press the MENU Jog Dial. The Menu Screen reappears. Then press the MENU Jog Dial again to

exit the Menu Screen.

MWB

MWB sets the colour temperature for the subject’s light source so you can shoot with natural colours that are unaffected by surroundings, even when there are multiple subjects with different colour temperatures.

PREPARE WHITE OBJECT

Point the camcorder at a white, flat object such as a

sheet of white paper.

SELECT MWB

Follow step 1 through 3 of the above, select “MWB”.

MEMORIZE WHITE BALANCE

Press the MENU Jog Dial until “MWB” begins blinking. “MWB” blinks while the white balance is

being stored in memory, then the Menu Screen reappears when memorization is complete.

CLOSE MENU

Press the MENU Jog Dial.

30 EN

Recording Start/Stop Button

Select Dial

Viewfinder

MENU END FOCUS EXPOSURE DATE TIME TELE MACRO TAPE LENGTH M. W. B.

ZOOM SPEED

AUTO AUTO

25. 12. 98 OFF T30 AUTO

FAST

MENU Jog Dial

Menu Screen

RECORDING

Advanced Features (cont.)

Self-Timer

You can set the delay between pressing the Recording Start/Stop Button and the actual start of recording. If you secure the camcorder, you (or whomever is operating the camcorder) can enter the scene before recording starts.

NOTE:

Make sure the camcorder is in the Record-Standby mode before performing the following steps.

ACCESS MENU SCREEN

Turn the Select Dial to any position except AUTO

LOCK, then press the MENU Jog Dial.

ACCESS INT. TIME MENU SCREEN

Rotate the MENU Jog Dial to move the highlight bar

to “INT. TIME”, then press the MENU Jog Dial.

SET INTERVAL TIME

Rotate the MENU Jog Dial to move the highlight bar

to the desired time, then press the MENU Jog Dial. The Menu Screen reappears and the highlight bar is placed on “MENU END”.

BACK

MENU END

INT. TIME

15S 1S

OFF

OFF ON

07 OFF

REC TIME

INT. TIME TALLY LAMP CHARACTER JLIP ID NO. DEMO MODE

  4

OFF

15 S

30 S 1 MIN 5 MIN

EXIT

INT. TIME Indicator

REC TIME Indicator

GR-AX558 only

REC TIME

OFF 1 4 S 1 2 S

1 S

5 S

EXIT

REC TIME MenuINT. TIME Menu

INT. TIME and REC TIME indications on the normal screen

CLOSE MENU

Press the MENU Jog Dial.

START DELAYED RECORDING

Press the Recording Start/Stop Button. When the

selected time has elapsed, recording begins automatically.

To Cancel Self-Timer . . .

... Before the recording begins, press the Recording Start/

Stop Button to display “ TIME” in the Menu Screen to “OFF”.

PAUSE

”, then set “INT.

Animation

Give stationary scenes or objects an illusion of movement. This function allows you to shoot a series of pictures, each slightly different, of the same object for a brief period of time.

NOTE:

Make sure the camcorder is in the Record-Standby mode and the recording mode is set to “SP” before performing the following steps.

EN 31

Time-Lapse

You can record sequentially at preset time spans. Leaving the camcorder aimed at a specific subject, you can record subtle changes over an extended period of time.

NOTE:

Make sure the camcorder is in the Record-Standby mode and the recording mode is set to “SP” before performing the following steps.

ACCESS MENU SCREEN

Turn the Select Dial to any position except

AUTO LOCK, then press MENU Jog Dial.

SET RECORDING TIME

Rotate the MENU Jog Dial to move the

highlight bar to “REC TIME”, then press the MENU Jog Dial. The REC TIME Menu appears. Rotate the MENU Jog Dial to move the highlight bar to the desired time, then press the MENU Jog Dial. The Menu Screen reappears. Press the MENU Jog Dial again to exit the Menu Screen.

START RECORDING

Press the Recording Start/Stop Button after

focusing on the subject. The recording stops automatically after the selected period of time.

ASSEMBLE SERIES OF PICTURES

Repeat step 3 for the desired number of

pictures.

RELEASE ANIMATION MODE

Set “REC TIME” in the Menu screen to “OFF”.

NOTES:

●

For best results, make sure the camcorder is secured when shooting in Animation or Time-Lapse mode.

●

Fade-in/out cannot be performed during Animation or Time-Lapse shooting.

●

Before performing other operations following Animation or Time-Lapse recording, make sure the Animation or Time-Lapse mode is deactivated.

●

Self-Timer, Animation and Time-Lapse are cancelled when the power is shut off or when the cassette is ejected.

ACCESS MENU SCREEN

Turn the Select Dial to any position except

AUTO LOCK, then press MENU Jog Dial.

SET INTERVAL BETWEEN RECORDINGS

Rotate the MENU Jog Dial to move the

highlight bar to “INT. TIME”, then press the MENU Jog Dial. The INT. TIME Menu appears. Rotate the MENU Jog Dial to move the highlight bar to the desired time, then press the MENU Jog Dial. The Menu Screen reappears.

SET RECORDING TIME

Rotate the MENU Jog Dial to move the

START TIME-LAPSE RECORDING

Press the Recording Start/Stop Button.

Recording and intervals alternate automatically.

RELEASE TIME-LAPSE MODE

To release when “

“REC TIME” and “INT. TIME” in the Menu Screen to “OFF”. To release when “

PAUSE

press the Recording Start/Stop Button to display “

PAUSE

TIME” in the Menu Screen to “OFF”.

PAUSE

REC

” and “

”, then set “REC TIME” and “INT.

” is displayed, set

” are not displayed,

32 EN

Battery pack remaining power indicator

Tape counter

Recording mode indicator

M–0:23 :45

Tape running indicator

: Playback

: Fast-Forward/

Forward Search

: Rewind/Reverse

6 : Still Playback

PLAYBACK

Basic Playback

LOAD A CASSETTE

Slide EJECT to open the cassette holder, then insert

the cassette with the label facing out. Press PUSH to ensure the holder is closed and locked.

SELECT MODE

Set the Power Switch to “PLAY”. The power

indicator lights.

PLAY BACK

Press PLAY/PAUSE. The playback picture appears.

PLAY/PAUSE

STOP

Power Switch

STOP PLAYBACK

Press STOP.

FFREW

Rewind or Fast-forward the tape

Press REW to rewind, or FF to fast-forward the tape during Stop mode.

NOTE:

The camcorder shuts off automatically after about 5 minutes in Stop mode. To turn on again, set the Power Switch to “POWER OFF”, then to “PLAY”.

PLAYBACK

Features

MENU Jog Dial

Tracking

This function can be used to eliminate noise bars that appear on-screen during playback. Initial setting is Auto Tracking. Manual Tracking is also available.

ACTIVATE MANUAL TRACKING

Press the MENU Jog Dial during playback mode.

Keep rotating it until noise bars disappear.

•To return to Auto Tracking, press the MENU Jog Dial. “AT” blinks. When Auto Tracking finishes, the indication disappears.

NOTES:

●

When noise bars appear during playback, the camcorder enters the Auto Tracking mode and “AT” is displayed.

●

Manual Tracking may not work with tapes recorded on other VCRs or camcorders.

EN 33

34 EN

REW

STOP

COUNTER R/M

PLAY/PAUSE

PLAYBACK

FEATURE: Still Playback PURPOSE: To pause during playback. OPERATION: 1) Press PLAY/PAUSE during

NOTE:

FEATURE: Shuttle Search PURPOSE: To allow high-speed search in either

OPERATION:

NOTE:

FEATURE: Counter Memory Function PURPOSE: To make it easier to locate a specific

OPERATION: 1) Press COUNTER R/M and hold for

NOTES: ●

playback.

2) To resume normal playback, press PLAY/PAUSE again.

Noise bars appear and pictures may become monochrome during Still Playback. This is normal.

direction.

Forward Search

1) Press FF during playback.

Reverse Search

1) Press REW during playback.

Noise bars appear and pictures may become monochrome or darken in Shuttle Search. This is normal.

tape segment.

more than 1 second. The counter resets to “0:00:00”.

2) Press COUNTER R/M for less than 1 second. “M” appears.

3) After recording or playback, press STOP, then REW. The tape

automatically stops at or close to 0:00:00.

4) Press PLAY/PAUSE to start playback.

The counter memory functions in the Fast-Forward and Rewind modes.

●

To disable Counter Memory Function, press COUNTER R/M for less than 1 second so the “M” disappears.

Features (cont.)

PLAYBACK

Compact video cassette

Using The Cassette Adapter

Cassette Adapter

Use this to play back a VHS-C video cassette recorded with this camcorder. It is fully compatible with any VHS video cassette recorder. The C-P7U adapter is battery powered and automatically performs tape loading and unloading.

INSERT BATTERY

Slide the battery cover up to remove it, and install

one “R6(AA)” size battery as shown in the

VCR

Compartment door

Sliding latch

illustration to the left. Then reattach the cover.

INSERT CASSETTE IN ADAPTER

Slide the latch to open the adapter compartment

door, then insert the cassette and close the compartment door.

PLAY BACK ON CONNECTED VCR

Load the cassette adapter into the VCR and play the

tape back as you would any other.

REMOVE CASSETTE FROM ADAPTER

Slide the latch and the compartment door opens

automatically. This may take around 10 seconds. Do not attempt to force the adapter open. Then insert your finger in the hole on the underside of the adapter as shown in the illustration to the left, push up and remove the cassette.

EN 35

Recording safety hole

Reels

NOTES:

●

During tape loading and unloading, do not touch the reels for safety and tape protection.

●

During special-effect playback (slow motion, still frame, etc.), the picture may vibrate or noise bars may appear on the screen.

●

To record on a VCR using a compact cassette and the adapter, cover the adapter’s recording safety hole with adhesive tape.

36 EN

When connecting the cables, open the jack cover.

Audio and Video cables (provided)

VCR

To AUDIO and VIDEO OUT connectors

To AUDIO and VIDEO IN connectors

PLAYBACK

There are three basic types of connections. When making the connections, refer also to your VCR and TV instruction manuals.

Connection To A VCR

Basic Connections

(Editing, Dubbing and Playback)

NOTE:

Use the optional Audio and Video cables.

CONNECT CAMCORDER TO VCR

As shown in the illustration to the left, connect the

Audio and Video cables between the AUDIO and VIDEO OUT connectors on the camcorder and those on the VCR.

SUPPLY POWER

Turn on the camcorder, the VCR and the TV.

SELECT MODE

Set the VCR to its AUX input mode, and set the TV

to its VIDEO mode.

Antenna

RF unit

RF-V5E

(optional)

To AUDIO, VIDEO and RF DC OUT connectors

NOTES:

●

It is recommended to use the AC Power Adapter/Charger as the power supply instead of the battery pack.

●

To monitor the picture and sound from the camcorder without inserting a tape, set the camcorder’s Power Switch to “CAMERA”, then set your TV to the appropriate input mode.

●

If you have a TV or speakers that are not specially shielded, do not place the speakers adjacent to the TV as interference will occur in the camcorder playback picture.

Connection To A TV With A/V Input

Connectors

(Playback ONLY)

NOTE:

Use the optional Audio and Video cables.

CONNECT CAMCORDER TO TV

As shown in the illustration to the left, connect the

Audio and Video cables between the AUDIO and VIDEO OUT connectors on the camcorder and those on the TV.

SELECT MODE

Set the TV to its VIDEO or AV mode (as specified in

its instructions).

Connection To A TV With NO A/V Input Connectors (Playback ONLY)

NOTE:

Use the optional RF-V5E RF unit.

*Refer to the RF-V5E instruction manual for connection

procedure.

TAPE DUBBING

PLAY/PAUSE

Power Switch

When connecting the cables, open the jack cover.

Audio and Video cables (provided)

To AUDIO and VIDEO OUT connectors

Tape Dubbing

CONNECT EQUIPMENT

Following the illustration to the left, connect the

camcorder and the VCR.

PREPARE FOR DUBBING

Set the camcorder’s Power Switch to “PLAY”, turn

on the VCR’s power, and insert the appropriate cassettes in the camcorder and the VCR.

SELECT VCR MODE

Engage the VCR’s AUX and Record-Pause modes.

FIND EDIT-IN POINT

Engage the camcorder’s Play mode to find a spot

just before the edit-in point. Once it’s reached, press PAUSE on the camcorder.

START EDITING

Press PLAY on the camcorder and engage the VCR’s

Record mode.

STOP EDITING TEMPORARILY

Engage the VCR’s Record-Pause mode and press

PAUSE on the camcorder.

EDIT MORE SEGMENTS

Repeat steps 4 through 6 for additional editing, then

stop the VCR and camcorder when finished.

EN 37

To AUDIO and VIDEO IN connectors

VCR

(Recording deck)

38 EN

TROUBLESHOOTING

SYMPTOM

POWER

No power is supplied.

The power suddenly goes off and doesn’t come back on by itself.

RECORDING

Recording cannot be performed.

Recording does not start.

PLAYBACK

The tape is running, but there’s no playback picture.

Playback picture is blurred or interrupted.

The counter indication is blurred during Still playback.

POSSIBLE CAUSE(S)

● The battery pack has not been attached correctly (Z pg. 4).

● The battery pack is not charged (Z pg. 4).

● The power supply has not been correctly connected

(Z pg. 5).

● The battery pack has completely discharged.

● Remove the cassette and disconnect the power source,

then after a few minutes, try turning the power back on. If it still doesn’t come on, consult your nearest JVC dealer.

● Make sure the Erase Protection tab is in the position that allows recording. If not, slide the tab. Some cassettes have removable tabs. If the tab has been removed, cover the hole with adhesive tape.

● The camcorder Power Switch has not been set to “CAMERA” (Z pg. 12).

● The TV has not been set to its VIDEO mode.

● If A/V connection is used, the TV’s VIDEO/TV Switch has

not been set to VIDEO.

● The RF unit has not been set to the correct channel.

● The video heads are dirty or worn out. Consult your

nearest JVC dealer for head cleaning or replacement.

● This is normal.

TAPE TRANSPORT

The tape stops during fast-forward or rewind.

Rewinding or fast-forwarding cannot be performed.

● The Counter Memory Function has been activated (Z pg. 34).

● The tape is already fully wound on one reel or the other.

EN 39

SYMPTOM

OTHER

The tape won’t eject.

Some functions are not available.

Vertical white lines appear when shooting a very bright object.

Bright, crystal-shaped spots appear in the viewfinder.

The viewfinder and the lens have become dirty (ex. fingerprints).

The picture is blurred in the Quick Review or Retake mode.

An error number (i.e. E03) appears.

The image is out of focus.

The date and time displays disappear.

The wrong date and time are displayed/recorded.

Even though the Lens Cover is open, the Lens Cover Warning indicator blinks.

POSSIBLE CAUSE(S)

● The battery pack is running low.

● The Select Dial is set to “AUTO LOCK”.

● This sometimes occurs when the contrast between the

background and the object is great. It is not a defect of the camcorder.

● Sunlight is directly entering the lens. This is not a defect of the camcorder.

● Wipe them gently with soft cloth.

●

This is normal while recording in the LP mode. Some noise may be present while recording in the SP mode (Z pg. 8).

● Turn the camcorder’s power off, then disconnect the power source. After a few minutes, try turning the power on again. If the error number still appears in the viewfinder, consult your nearest JVC dealer.

● The dioptre needs to be adjusted (Z pg. 10).

● The scene being shot is adversely affecting the operation

of Auto Focus (Z pg. 26).

● If you remove the power source from the camcorder while the power is on, all settings and selections are erased. Make sure to turn the camcorder’s power off before disconnecting the power source.

● If you have not performed Date/Time Setting (Z pg. 7), the date and time are not displayed/recorded correctly. Be sure that Date/Time setting is carried out.

● The Lens Cover Warning indicator may blink when the camcorder is used in dark areas, regardless of the position of the Lens Cover.

The camcorder is a microcomputer-controlled device. External noise and interference (from a TV, a radio, etc.) might prevent it from functioning properly. In such cases, first disconnect its power supply unit (battery pack, AC Power Adapter/Battery Charger, etc.) and clock battery; and then re-connect it and proceed as usual from the beginning.

40 EN

INDEX

i o

)

%$@

q w e r

(

&R* t

Controls

1 Power Zoom Button ........................... Z pg. 14

2 Select Dial ......................................... Z pg. 18

3 Multi-Function Control

•EFFECT Button ................................. Z pg. 20

•WIDE Button ...................................

•TITLE Button ....................................

•SUPER LOLUX Button .....................

4 PUSH Button...................................... Z pg. 9

5 Recording Mode [SP/LP] Button ......... Z pg. 8

6 DATE/TIME Button ............................. Z pg. 17

COUNTER R/M Button .......................

7 5SEC. REC [5-sec recording] Button ... Z pg. 15

8 REW Button ....................................... Z pg. 32

RETAKE R [Quick Review] Button ......

9 PLAY/PAUSE Button ........................... Z pg. 32

0 FF Button ........................................... Z pg. 32

RETAKE F Button ................................

! STOP Button ...................................... Z pg. 32

@ EJECT Switch ...................................... Z pg. 9

# Function Navigator Dial

[MENU Jog Dial] ................................ Z pg. 7

$ LIGHT OFF/AUTO/ON Switch

(GR-AX558 only) ................................ Z pg. 16

% BATT. [Battery] RELEASE Switch ......... Z pg. 4

^ Dioptre Adjustment............................ Z pg. 10

& Recording Start/Stop Button................ Z pg. 12

* Power Switch ................................ Z pg.12, 32

( LENS COVER Switch .......................... Z pg. 12

Z pg. 20 Z pg. 21 Z pg. 21

Z pg. 34

Z pg. 15

EN 41

Connectors

) DC IN Jack ......................................... Z pg. 5

The jacks q to r are located beneath the jack cover.

q J terminal [JLIP (Joint Level Interface Protocol)

Connector.]

•It is used to connect the camcorder to a device such as a personal computer. For further details consult your nearest JVC dealer.

•JLIP-controlled editing from camcorder to VCR is not possible if the VCR is not equipped with a J terminal.

w VIDEO OUT Connector ..................... Z pg. 36

e RF DC OUT Connector ...................... Z pg. 36

r AUDIO OUT Connector .................... Z pg. 36

Indicators

t Power Indicator .................................. Z pg. 12

y Tally Lamp (GR-AX558 only) .............. Z pg. 12

Other Parts

u Video Light (GR-AX558 only) ............. Z pg. 16

i Microphone o Camera sensor

Be careful not to cover this area; built-in here is the sensor necessary for shooting.

p Clock Battery Compartment ............... Z pg. 6

Q Battery Pack Mount ............................ Z pg. 4

W Shoulder Strap Eyelets ........................ Z pg. 11

E Electronic Viewfinder ......................... Z pg. 10

R Grip Strap .......................................... Z pg. 10

T Tripod Mounting Socket ..................... Z pg. 11

42 EN

INDEX

(cont.)

1 6 7

30MIN

REC SP

444

3 4 5

S.LX T30

TWILIGHT

LENS COVER

PAUSE

5MIN

1 4S

Viewfinder Indications

1 Cassette Warning/

Tape Remaining Time ......................... Z pg. 13

When no cassette is inserted: the cassette ( warning blinks. When Erase Protection tab is not in the position that allows recording: the cassette ( ) warning lights. Otherwise, the tape remaining time is displayed and the tape remaining time warning blinks when the tape is about to reach its end. When the Power Switch is set to “PLAY” and a tape is loaded: the cassette ( ) mark is displayed regardless of the Erase Protection tab’s position.

2 Recording Mode (SP/LP) Indicator.......Z pg. 8

3, 9 Programme AE Indicator ................ Z pg. 18

Displayed at Select Dial is switched from one position to another. Then only the indicator remains at 9.

3, 0 Fade-Standby Indicator .................. Z pg. 20

Displayed at Fader is engaged by pressing the EFFECT button. Then only the indicator remains at 0.

4 Multi-Function Control Indication ...... Z pg. 20

Displayed when any of the buttons located on the Multi-Function Control is pressed. The indication disappears within approx. 2 seconds.

5 Super LoLux Indicator ......................... Z pg. 21

6 Tape Length Indicator ......................... Z pg. 8

7 Zoom Indicator Bar.............................Z pg. 14

8 Recording Indicator ............................ Z pg. 12

! •Record-Standby Mode Indicator ....... Z pg. 12

•Lens Cover Warning:

LENS COVER ................................... Z pg. 13

3 for approx. 1 second when the

3 for approx. 2 seconds when the

25. 12. 98

TAPE END

MERRY CHRISTMAS

)

NORM

MWB

(

)

22:50:00

@ Interval Timer/Recording Time/

5Sec. Rec Mode Indicator ............. Z pg. 15 ,30

# Instant Title Display ............................ Z pg. 21

$ Date/Time/Character Display .............. Z pg. 17

% Battery Pack Remaining Power Indicator

Changes as follows according to the battery pack’s remaining power level: “ ”. When the power is almost gone, the indicator “ ” blinks (battery power warning), then the unit shuts off. Replace the battery pack with a fully charged one. Note: The symbol containing 3 darkened squares — — does not necessarily mean that the battery pack is fully charged.

^ Focus Indicator ................................... Z pg. 27

& Exposure Control Level Counter ......... Z pg. 28

* White Balance Mode Indicator ........... Z pg. 29

( Clock Battery Warning

Blinks for approx. 10 seconds when the power is turned on. This display also blinks when the clock (lithium) battery is either not installed or has discharged. Install or replace the old battery with a new one (

) • Tape End Display: TAPE END ........... Z pg. 13

Appears when the end of the tape is reached during playback, recording or fast-forward.

•Condensation Warning: When this indication appears, all functions

except tape eject and power on/off are disabled. Turn the unit off (without removing the power source) for a few hours, and when you turn it on again the indication should disappear.

Z pg. 6).

CAUTIONS

DANGER:

Video Light

• The video light becomes extremely hot. Do not touch it either while in operation or soon after turning it off, otherwise serious injury may result.

• Do not place the camcorder into the carrying case immediately after using the video light, since it remains extremely hot for some time.

• When operating, keep a distance of about 30 cm between the video light and people or object.

• Do not use near flammable or explosive materials.

• It is recommended that you consult your nearest JVC dealer for replacing the video light.

General Battery Precautions

• When the C-P6U or C-P7U (cassette adapter) is not functioning even when correctly operated, the battery is exhausted. Replace it with a fresh one.

• Use only the following battery:

C-P6U or C-P7U ....................... AA (R6) size

Please make note of the following rules for battery use. When misused, battery can leak or explode.

1. Refer to the C-P6U/C-P7U instructions when

replacing the battery.

2. Do not expose the battery to excessive heat as it can

leak or explode.

3. Do not dispose of battery in a fire.

4. Remove battery from the unit if it is to be stored for

an extended period to avoid battery leakage which can cause malfunctions.

Battery Packs

The supplied battery pack is a nickel-cadmium battery. Before using the supplied battery pack or an optional battery pack, be sure to read the following cautions:

1. To avoid hazard . . .

..... do not burn.

..... do not short-circuit the terminals.

..... do not modify or disassemble.

..... use only specified chargers.

2. To prevent damage and prolong service life . . .

..... do not subject to unnecessary shock.

..... avoid repeated charging without fully discharg-

ing.

..... charge in an environment where temperatures

are within the tolerances shown in the chart below. This is a chemical reaction type battery—cooler temperatures impede chemical reaction, while warmer temperatures can prevent complete charging.

..... store in a cool, dry place. Extended exposure to

high temperatures will increase natural

discharge and shorten service life.

..... avoid prolonged uncharged storage.

..... remove from charger or powered unit when not

in use, as some machines use current even

when switched off.

Terminals

EN 43

NOTES:

●

It is normal for the battery pack to be warm after charging, or after use.

Temperature Range Specifications

Charging ........................... 10°C to 35°C

Operation .........................0°C to 40°C

Storage ............................. –10°C to 30°C

Recharging time is based on room temperature of

●

20°C.

●

The lower the temperature, the longer recharging takes.

Cassettes

To properly use and store your cassettes, be sure to read the following cautions:

1. During use . . .

..... make sure the cassette bears the VHS-C mark.

..... be aware that recording onto prerecorded tapes

automatically erases the previously recorded video and audio signals.

..... make sure the cassette is positioned properly

when inserting.

..... do not load and unload the cassette

repeatedly without allowing the tape to run at all. This slackens the tape and can result in damage.

..... do not open the front tape cover. This exposes

the tape to fingerprints and dust.

2. Store cassettes . . .

..... away from heaters or other heat sources.

..... out of direct sunlight.

..... where they won’t be subject to unnecessary

shock or vibration.

..... where they won’t be exposed to strong magnetic

fields (such as those generated by motors, transformers or magnets).

..... vertically, in their original cases.

Main Unit

1. For safety, DO NOT . . .

..... open the camcorder’s chassis.

..... disassemble or modify the unit.

..... short-circuit the terminals of the battery pack.

Keep it away from metallic objects when not in use.

..... allow inflammables, water or metallic objects to

enter the unit.

..... remove the battery pack or disconnect the

power supply while the power is on.

..... leave the battery pack attached when the

camcorder is not in use.

2. Avoid using the unit . . .

..... in places subject to excessive humidity or dust.

..... in places subject to soot or steam such as near a

cooking stove.

..... in places subject to excessive shock or vibration.

..... near a television set.

..... near appliances generating strong magnetic or

electric fields (speakers, broadcasting antennas,

etc.).

..... in places subject to extremely high (over 40°C)

or extremely low (under 0°C) temperatures.

44 EN

3. DO NOT leave the unit . . .

..... in places of over 50°C.

..... in places where humidity is extremely low.

(below 35%) or extremely high (above 80%).

..... in direct sunlight.

..... in a closed car in summer.

..... near a heater.

4. To protect the unit, DO NOT . . .

..... allow it to become wet.

..... drop the unit or strike it against hard objects.

..... subject it to shock or excessive vibration during

transportation.

..... keep the lens directed at extremely bright

objects for long periods.

..... direct the eyepiece of the viewfinder at the sun.

..... carry it by holding the viewfinder. Be sure to

hold the main unit with both hands or use the

grip.

..... swing it excessively when using the shoulder

strap.

About moisture condensation . . .

● You may have observed that pouring a cold liquid into a glass will cause drops of water to form on the glass’ outer surface. This same phenomenon occurs on the head drum of a camcorder when it is moved from a cool place to a warm place, after heating a cold room, under extremely humid conditions or in a place directly subjected to the cool air from an air conditioner.

● Moisture on the head drum can cause severe damage to the video tape, and can lead to internal damage to the camcorder itself.

Serious malfunctioning

If malfunctioning occurs, stop using the unit immediately and consult your local JVC dealer.

CAUTIONS

(cont.)

For Your Maintenance

1. After Use

1 Set the power switch to “POWER OFF” to

turn off the camcorder.

2 Slide EJECT to open the cassette holder, then

remove the cassette.

3 Close and lock the cassette holder by pressing

PUSH.

4 Slide BATT. RELEASE to remove the battery

pack.

5 Slide the LENS COVER open/close switch to

close the lens cover.

2. Cleaning The Camcorder

1 CLEAN EXTERIOR

Wipe gently with a soft cloth.

2 CLEAN LENS

Blow it with a blower brush, then wipe gently with lens cleaning paper.

3 REMOVE EYEPIECE

Turn the eyepiece counterclockwise and pull it out.

4 CLEAN VIEWFINDER

Remove dust using a blower brush.

5 RE-ATTACH EYEPIECE

Align the marks, re-attach the eyepiece and turn it clockwise.

NOTES:

●

Avoid using strong cleaning agents such as benzine or alcohol.

●

Cleaning should be done only after the battery pack has been removed or other power units have been disconnected.

●

Mould may form if the lens is left dirty.

SPECIFICATIONS

GENERAL

Format : VHS PAL standard Power source : DC 6V Power consumption

•GR-AX558 light on : 8.0 W

•GR-AX558 light off : 5.1 W

•GR-AX358 : 5.0 W

Signal system : PAL-type Video recording system

Luminance : FM recording Colour : Converted sub-carrier

direct recording Conforms to VHS

standard Cassette : cassette Tape speed

SP : 23.39 mm/sec. LP : 11.70 mm/sec.

Recording time (max.)

SP : 60 minutes LP : 120 minutes

(with EC-60 cassette) Operating temperature : 0°C to +40°C Operating humidity : 35% to 80% Storage temperature : –20°C to +50°C Weight

•GR-AX558 : Approx. 780 g

•GR-AX358 : Approx. 790 g

Dimensions

(Including viewfinder)

•GR-AX558 : 113 (W) x 117 (H) x

222 (D) mm

•GR-AX358 : 113 (W) x 117 (H) x

242 (D) mm

CAMERA

Pick up : 1/4” format CCD Lens : F1.6, f = 3.8 to 83.6 mm,

22:1 power zoom lens

with auto iris and macro

control, filter diameter

46 mm Viewfinder : Electronic viewfinder

with

•0.55” colour LCD

(GR-AX558)

•0.5” black/white CRT

(GR-AX358)

White balance

adjustment : Auto/Manual adjustment

EN 45

VIDEO

Output : 1 Vp-p, 75 ohms,

unbalanced (via VIDEO OUT connector)

AUDIO

Output : –8 dBs, 1 k-ohm

(via AUDIO OUT connector)

AC POWER ADAPTER/BATTERY CHARGER (AA-V15EG)

Power requirement : AC 110 V to 240 V`,

50/60 Hz Power consumption : 23 W Output

Charge : DC 8.5 V , 1.3 A VTR : DC 6.3 V , 1.8 A

Charging system : Constant current,

peak detection,

timer controlled Dimensions : 140 (W) x 42 (H) x

68 (D) mm Weight : Approx. 300 g

CASSETTE ADAPTER (C-P7U)

Dimensions : 188 (W) x 25 (H) x

104 (D) mm Weight : Approx. 240 g Accessory : “AA (R6)”-size battery x 1

Provided Accessories ...................... Z pg. 3

Optional Accessories

•Battery Packs BN-V12U, BN-V22U, BN-V25U

•Car Battery Charger BH-V3E

•RF Unit RF-V5E

•Compact VHS-C Cassettes EC-60/45/30

•Active Carrying Bag CB-V7U

Some acccessories are not available in some areas. Please consult your nearest JVC dealer for details on accessories and their availability.

Specifications shown are for SP mode unless otherwise indicated. E. & O. E. Design and specifications subject to change without notice.

JVC GR-AX558EG User's Guide

Specifications and Main Features

Frequently Asked Questions

User Manual
