WIDE LCD PANEL TV
INSTRUCTIONS
2
3
1
4
65
9
8
7
+
0
OK
VOL
RM-C2022
LCD
LT - 42E10
ENGLISH
Contents
PREPARATION
Safety precautions ...................................2
Remote control buttons and functions ..... 3
Set up and connections ........................... 4
Initial settings ...........................................6

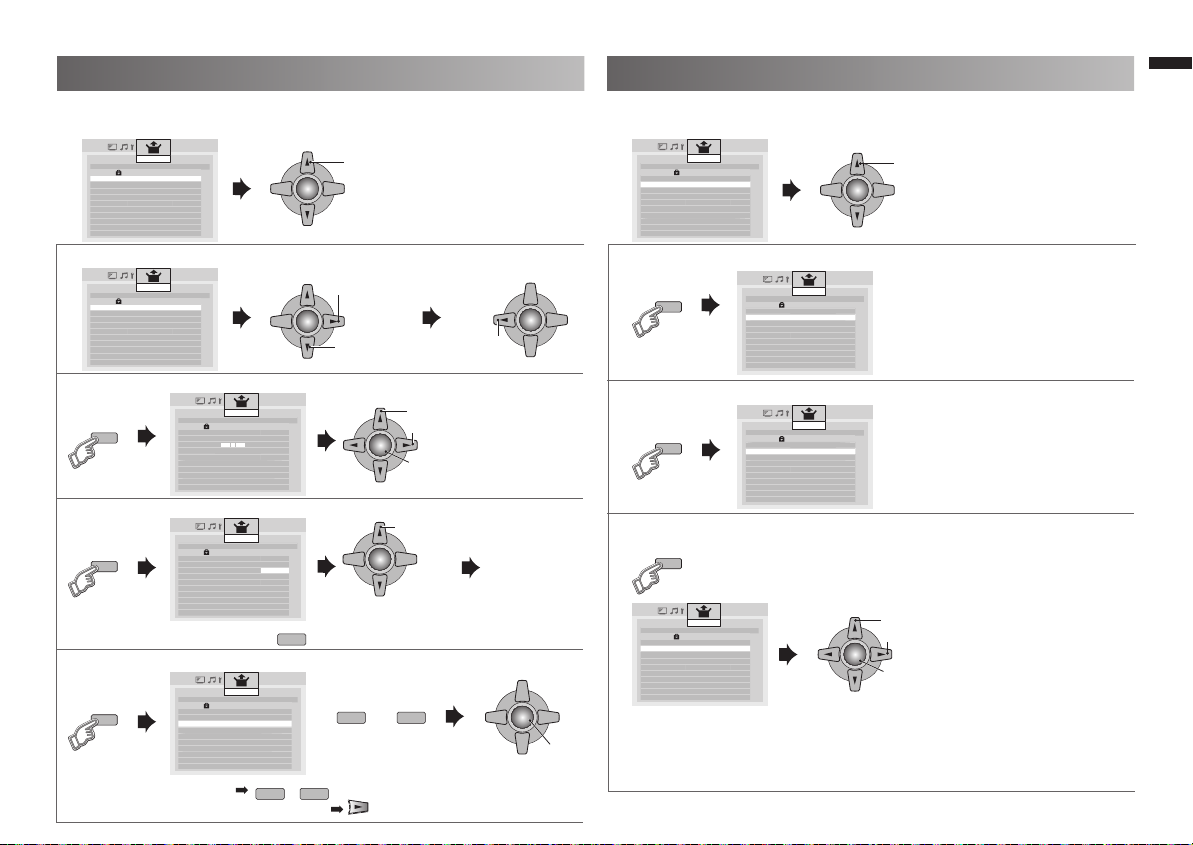

Registering / Editing channels ................. 7
Channel Summary ...................................7
Operating the menus ............................... 8
FUNCTIONS

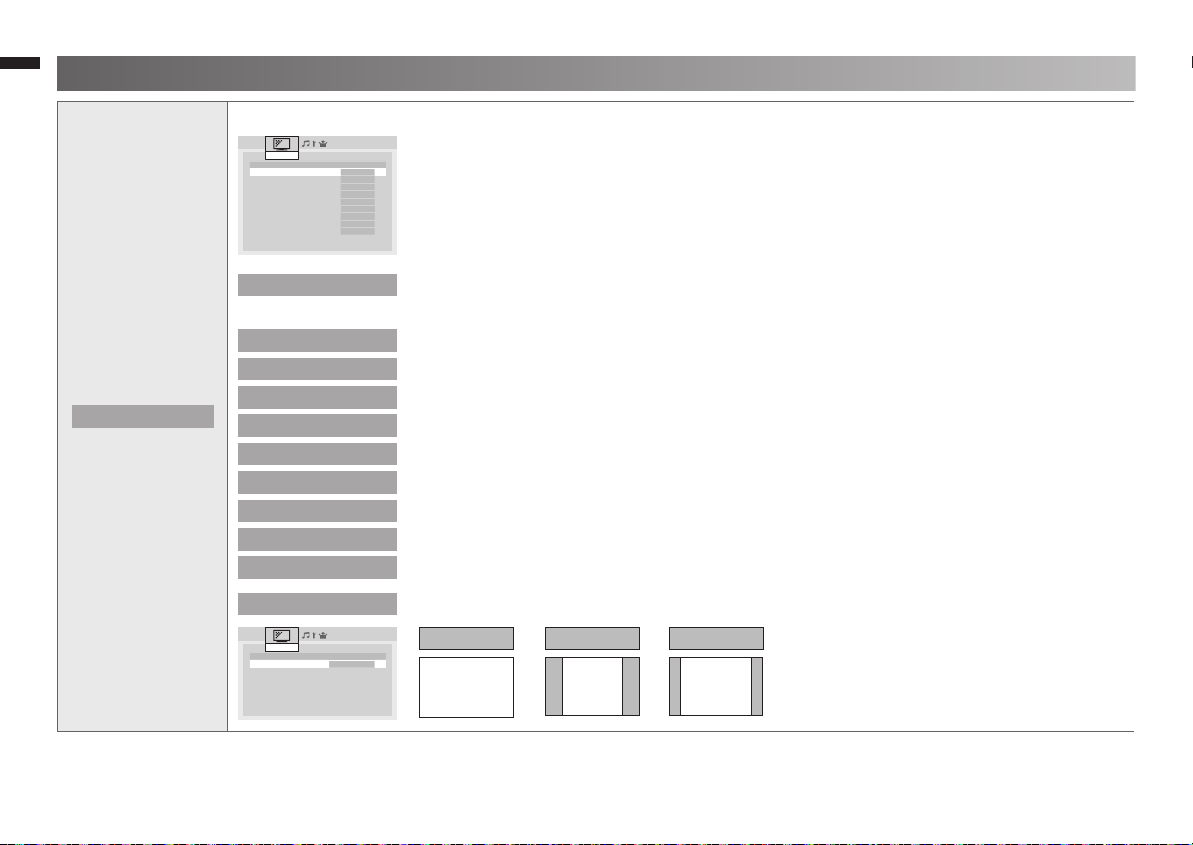

Picture setting ..........................................9

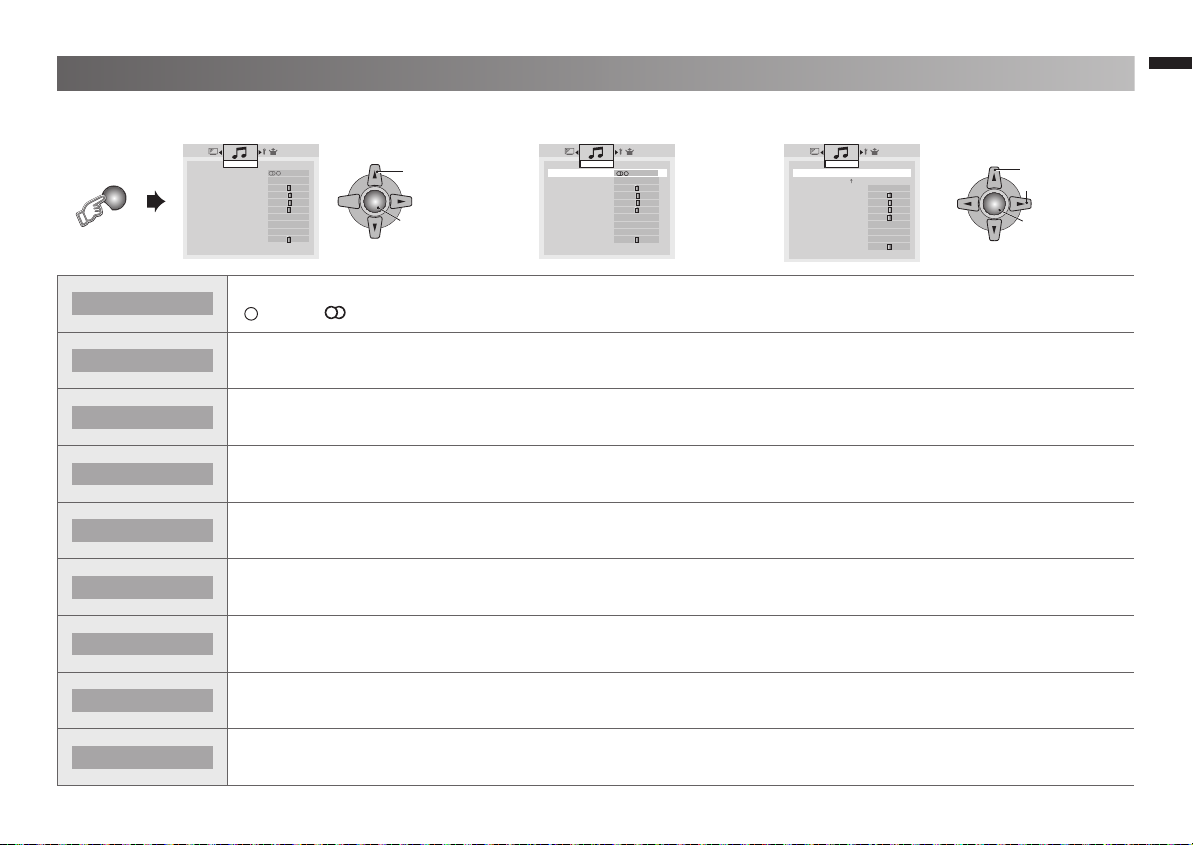

Sound setting......................................... 11
Useful functions ..................................... 13

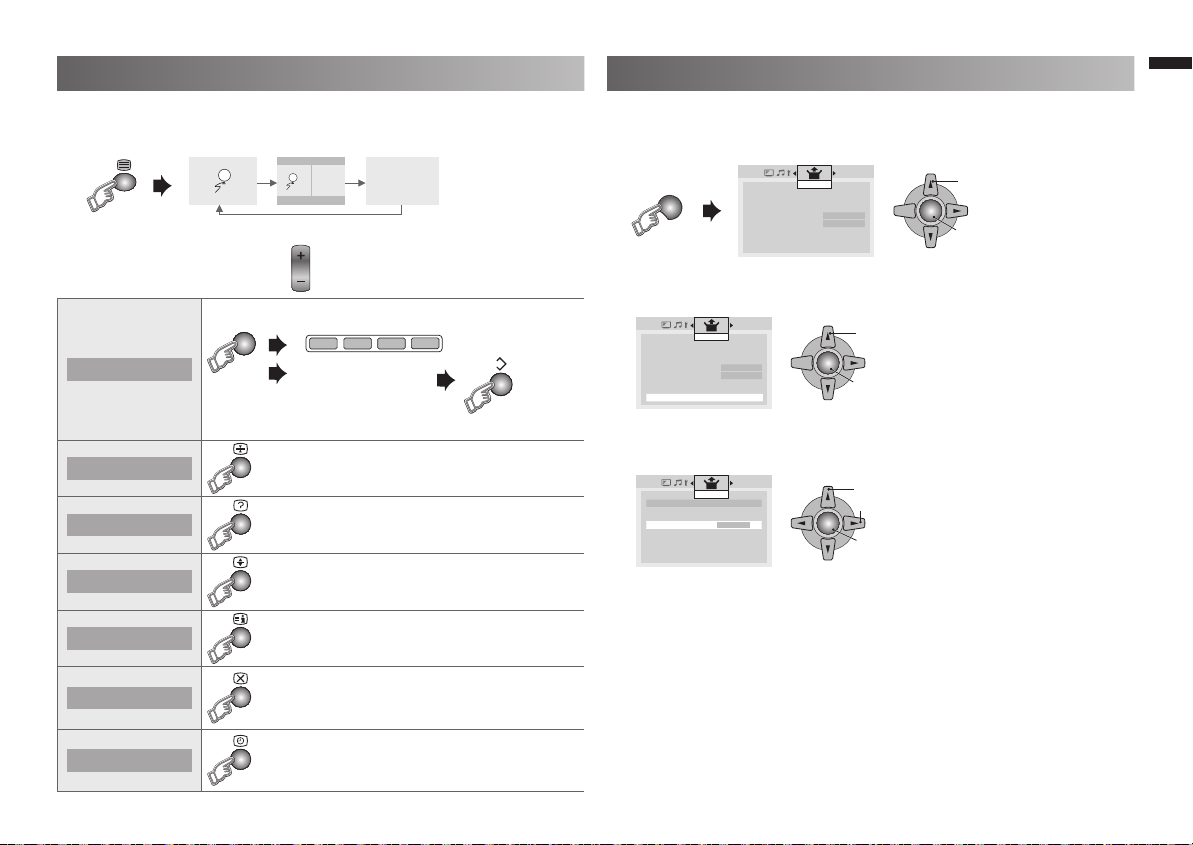

Viewing Teletext ..................................... 15
Viewing Closed Caption ........................15
Watching Video or DVDs .......................16
REFERENCE
Technical information ............................. 16
Troubleshooting ..................................... 18
CH/CC List ............................................. 19
Specifi cation ..........................................20
GGT0372-001A-H
Safety precautions
To make sure you understand how to use your new TV, please read this manual thoroughly before you begin.
Follow this manual regarding setup!
•
Connect only to a 110-240 V, 50/60Hz AC outlet.
-
Make enough room for inserting and removing the power plug!
•
Place the TV as close to the outlet as possible!
•
The main power supply for this TV is controlled by inserting or removing the power plug.
-
Never cut or damage the power cord!
•
If the AC plug is not the right shape, or the power cord is not long enough, use an
-
appropriate plug adapter or extension cable. (Consult your retailer)
Unplug the power cord when going out!
•
The power buttons on the remote control and the TV unit cannot completely turn off the
-
TV. (Make appropriate arrangements for bedridden people.)
Do not allow the TV to fall!
•
Do not rest your elbows on, or allow children to hang from the TV.
-
There is a risk that the TV will fall and cause injuries.
-
Make use of the hole on the back of the stand to prevent the TV from falling easily.
-
If the TV is damaged or behaving strangely, stop using it at once!
•
Unplug the power cord and contact your retailer.
-
Never place anything on the TV!
•
Placing liquid, naked fl ames, cloths, paper, etc. on the TV may cause a fi re.
-
Never expose to rain or moisture!
•
To prevent fi re or electric shock, never allow liquids to enter the unit.
-
Never insert objects into the cabinet openings!
•
It may cause a fatal electric shock.
-
Take care when children are near.
-
Hold the TV so as not to scratch the screen!
•
Do not touch the screen when carrying the TV.
-
Do not carry the TV on your own!
•
In order to prevent accidents, ensure that the TV is carried by
-
two or more people.
Never insert the power cord by wet hand!
•
It may cause a fatal electric shock.
-
Keep the TV set away from direct sunlight!
•
TV set can be damaged.
-
For more details on installation, usage and safety • Consult your retailer.
Thank you for buying this JVC LCD panel television.
Place the TV set in a neat and dry place. Do not place the product close to
•
source of steam, heat, moisture or oil. Because it may cause a fi re hazard
or electric shock hazard!
•
Don’t touch an external metal part of the TV set!
It may cause an electrocuted.
-
For keep a distance from potential ignition sources to the
•
components or part in side TV set, customer should install
TV set with a stand within ± 10 perpendicularly degree.
Never dismantle the rear panel!
•
It may cause an electric shock.
-
Never obstruct the ventilation holes!
•
It may cause overheating or a fi re.
-
Handle LCD panel with care!
•
Use a soft, dry cloth when cleaning.
-
Never try repair the TV yourself!
•
If the problem cannot be solved in “Troubleshooting” unplug the power cord and contact
-
your retailer.
If a television is not positioned in a suffi ciently stable location, it can be
•
potentially hazardous due to falling. Many injuries, particularly to children,
can be avoided by talking simple precautions such as:
Using cabinets or stands recommended by the manufacturer of the television.
-
Only using furniture that can safely support the television.
-
Ensuring the television is not overhanging the edge of the supporting furniture.
-
Not placing the television on tall furniture (for example, cupboards or bookcases) without
-
anchoring both the furniture and the television to a suitable support.
-
Not standing the television on cloth or other materials placed between the television and
supporting furniture.
-
Educating children about the dangers of climbing on furniture to reach the television or
its controls.
To prevent accidents, fi rmly attach the TV stands to the TV shelf before •
using microphone.
Make sure that the subwoofer is in good condition before installing it on •
the TV.
If the subwoofer has leakage current, it may damage the TV or cause electric shock. -
WARNING:
To prevent the spread of fi re, keep candles or other open fl ames away from this
product at all times.
2
10
Plane
10
Remote control buttons and functions
1
Power On / Off
20
19
RETURN
18
TV/VIDEO
17
21
DISPLAY BACK
16
15
14
1
4
7
CH
2
5
8
+
0
RM-C2022
LCD
Clear SD
3
ZOOM
6
ECO
9
KARAOKE
MENU
OK
VOL
MODE
2
1
Colour buttons
3
Turn on “Clear SD”
4
Turn on “Zoom”
2
5
Turn on “Eco Mode”
3
6
Turn on “Karaoke”
7
Favourite channel setting
4
5
Zoom : Change the aspect ratio.
6
Zoom
7
Auto Panoramic
Regular
8
Panoramic
14:9 Zoom
16:9 Zoom
16:9 Zoom Subtitle
9
Full
10
Hyper Scan :
11
Press and hold
12
Once you release the button, the picture of the selected PR will appear.
13
OK
CH
. PR changes without changing the picture screen.
Return Plus : Return to the frequently viewed channel
Return Plus Programmed by select the frequently viewed channel then
press and hold
RETURN+
.
Return Plus Canceled by press and hold
Return : Return to the previously viewed channel.
1. Select
2. Set
8
Display on-screen menu
9
Operate the menu
10
To previous screen
11
Turn on “Sound Meister”
12
Volume control / Turn off muting
13
Function for viewing Teletext
14
To Teletext
V-Scroll
16:9 Zoom
Move the picture with
while this bar is displayed.
RETURN+
.
or
15
Change channel / Page / Hyper Scan
16
Channel information
17
Switch between TV / Video input
18
Return Plus / Return function
19
Change channel / page
20
Turn the volume off / on
21
Turn on "Freeze"
PR List Calendar
DISPLAY
PR List
AV
01
02 – – – – – –
03 – – – – – –
04 – – – – – –
05 – – – – – –
06 – – – – – –
07 – – – – – –
08 – – – – – –
09 – – – – – –
Jan 2010
09 : 08
Su Mo Tu We Th Fr Sa
3456789
10 11 12 13 14 15 16
17 18 19 20 21 22 23
24 25 26 27 28 29 30
31
Channel information
No Indication
•
Insert the batteries
Use two “AAA/R03” dry cell batteries.
Insert the batteries from the end,
making sure the and polarities are
correct.
“AAA/R03” Batteries
1 2
01
Favourite channel setting.
1. Register the favourite channel 2. Recall the favourite channel
Set 1-4 ? Favourite 1-4 ?
Press and hold Press
Programmed! will be displayed.
Press
number
button
(1-4 only)
If the favourite channel has not been registed
•
then “ No memory “ will be displayed.
Press
number
button
(1-4 only)
WARNING:
Batteries shall not be exposed to excessive
heat such as direct sunshine, fi re or the like.
If this symbol is shown, it is only
valid in the European Union.
3
Set up and connections
Power lamp
ON : Lit (Blue)
OFF : Unlit
Power lamp lights while
the TV is on.
“Power Lamp” (P. 14)
•
Remote control sensor
Care when setting
Power requirements
■
Connect the power cord only to a •
110-240V, 50/60Hz AC outlet.
When attaching the TV to the ■
wall, use the optional JVC wall
mounting unit.
Consult a qualifi ed technician.•
JVC assumes no responsibility for •
damage due to improper mounting.
400 mm x 200 mm mount which •
conforms to VESA standards.
Installation requirements ■
To avoid overheating, ensure the •
unit has ample room.
200 mm
Switch between TV / VIDEO
TV/VIDEO
devices
MENU/OK
Display on-screen menu / set
Change channel / Page /
CHANNEL
Hyper Scan Function (P. 3)
VOLUME
Volume / Adjust
Power On / Off
Microphone
If the microphone is installed, •
should be lock it’s cable follow
picture.
To prevent the TV from falling •
thread the belt through the hole
on the back of the stand and
secure it to the TV rack.
Hole for
belt
Connect an aerial and VCR / DVD Player
VIDEO-2
V
L
R
VCR (DVD Player)
OR
AERIAL
•
After all the connections
have been made, insert
the plug into an AC
outlet.
Stand Assembly
1
2
3
4
5
6
Belt (not
Screw (not provided)
150 mm150 mm 50 mm 50 mm
provided)
4
Set up and connections (continued)
You can connect many different devices to the rear panel of the TV.
Please read the user manuals of each device before setup.
(Connecting cables are not supplied with this TV.)
Microphone
Component input
L
R
V
VIDEO-1
Pr
Y
Pb
DVD Player
Game
consoles
Video
camera
PC
Check for PC compatibility.•
“PC signals that can be displayed” (P. 17)
VC
J
PC input line in
Composite input
L
R
V
Pr
Y
Pb
Game Video
VCR
To Video-2
VIDEO-1
C
V
J
OUTPUT
L
R
HDMI-1
(
DVI ANALOG AUDIO
(
PC AUDIO
R
R
Pr
R
TM
HDMI
Connector.
To “HDMI-1” To “HDMI-3”
DVD player
(HDMI compatible)
DVD player
(HDMI compatible)
SUBWOOFER
L
V
L
VIDEO-1
Pb Y
V
L
VIDEO-2
PC
PC IN
(
D-SUB
VIDEO-1 Watching videos
Output Input
Composite signal / •
Component signal
(P. 20)
Sound L / R•
HDMI-1 HDMI-3HDMI-2
DIGITAL VIDEO/AUDIO
Use Component signal “Video - 1 •
Setting” (P. 16)
VIDEO-2 Watching videos
Output Input
Composite signal•
Sound L / R•
Connecting HDMI devices
To “HDMI-2”
HD Video camera
HDMI-1
HDMI-2
HDMI-3
Subwoofer
(not provided)
(
Amplifi er
(L) (R)
Output Input
HDMI signal (P. 20)•
“HDMI Setting” (P. 16)•
HDMI-2 and HDMI-3 inputs do not •
support analogue sound.
Connect a “DVI” device to •
“HDMI-1” (P.16)
Please use a High Speed HDMI•
Cable. High Speed HDMI
TM
Cables
TM
are tested to carry an HD signal up
to 1080p and higher.
OUTPUT
Subwoofer and sound signal of a
TV channel you are viewing outputs
from this terminal
Output
Subwoofer signal•
Sound L / R•
5
Initial Settings
1 Turn on the TV.
OK
JVC logo appears
Show only when powering on for the fi rst time.•
The power on the unit can also be used.•
2 Select a language. 3 Select Country Area.
Set Up
> Language
English
Укрaїнcькa
ﻲﺑ ﺭﻋ Castellano
Français Melayu
Pуccкий ﻰﺴ ﺮ ﻔ
Português
中文
ไทย
Tiếng Việt
1. Select
OK
2. Set
> Country Area
Area - 1
Area - 2
Set Up
Area-1 : Asia, Middle East, Europe, Oceania, Africa
Area-2 : South America, Philippines
The select the new Country Area after Initial Setting has completed.•
MENU
(While the cursor is pointing to Picture menu and hold
1
for 3 seconds.)
If you select Country Area to “Area-1” If you select Country Area to “Area-2”
4 Select the Teletext language group. 4 Select Air or Cable.
Set Up
> Teletext Language
Group-1
Group-2
Group-3
Group-4
Group-5
Group-6
See “Language group for Teletext” (P. 17).
•
Select
OK
5 Automatically register channels (Auto Program).
OK
> Auto Program
50%
Set Up
CH 40
6 Check what was registered.
Set Up
> Edit
ID CH/CC
PR
01 CH 02
02 CH 03
03 CH 07
04 CH 76
05 CH 12
06 CH 09
07 CH 05
08 CH 02
09 CH 15
10 CH 28
OK
If you want to edit channel, see •
“Registering / Editing channels” (P. 7)
Set Up
> Auto Program
Air
Cable
5 Searching for the channels (Auto Program).
OK
>> Auto Program
50%
Set Up
CH 40
6 Check what was registered.
Set Up
> Channel Summary
ID Skip
CH/CC
CH 02
CH 03
CH 04
CH 05
CH 06
CH 07
CH 08
CH 09
CH 10
CH 11
1. Select
OK
2. Set
OK
If you want to set undesired channels •
to be skiped, see “Channel Summary”
(P. 7)
1. Select
OK
2. Set
6
Registering / Editing channels Channel Summary
This function is available when select Country Area to “Area-1” only.
You can edit the channel list or register new channel manually.
Set Up
> Edit
ID CH/CC
PR
01 CH 02
02 CH 03
03 CH 07
04 CH 76
05 CH 12
06 CH 09
07 CH 05
08 CH 02
09 CH 15
10 CH 28
Select a channel
OK
Move : Move a channel position.
Set Up
> Edit
ID CH/CC
PR
01 CH 02
02 CH 03
03 CH 07
04 CH 76
05 CH 12
06 CH 09
07 CH 05
08 CH 02
09 CH 15
10 CH 28
1. Start
OK
2. Move
Finish
ID : Edit a channel name
(Red)
Set Up
> Edit
ID CH/CC
PR
01 CH 02
02 CH 03
03 A
04 ABCDEF CH 76
05 CH 12
06 CH 09
07 CH 05
08 CH 02
09 CH 15
10 CH 28
CH 07
1. Select the character
2. Move to the next
column
OK
3. Set
Insert / Delete : Insert / Delete a channel
> Edit
ID CH/CC
(Green)
Delete a channel by press
•
PR
01 CH 02
02 CH 03
03
04 ABCDEF CH 76
05 CH 12
06 CH 09
07 CH 05
08 CH 02
09 CH 15
10 CH 28
Set Up
CH
**
(Yellow)
button.
1. Select a
OK
CH/CC
2. Enter a
number 0-9
button then,
receives the
broadcast
signal.
“CH/CC List” (P. 19)•
Manual : Register a new channel
Set Up
> Manual
ID CH/CC
(Blue)
•
Channel fi ne tunning
PR
01 CH 02
02 CH 03
03 BBCABC CH 07 (B/G)
04 ABCDEF CH 76
05 CH 12
06 CH 09
07 CH 05
08 CH 02
09 CH 15
10 CH 28
(Yellow) /(Blue)
1. Beginning channel search
(Red) (Green)
or
From high
frequencies
From low
frequencies
OK
If the picture or sound is unnatural • for select a system.
OK
2. Set
This function is available when select Country Area to “Area-2” only.
You can edit the channel list.
Set Up
> Channel Summary
ID Skip
CH/CC
CH 02
CH 03
CH 04
CH 05
CH 06
CH 07
CH 08
CH 09
CH 10
CH 11
Skip : Skip the channel.
(Red)
> Channel Summary
CH/CC ID Skip
CH 02 Yes
CH 03 Yes
CH 04 Yes
CH 05 Yes
CH 06 Yes
CH 07 Yes
CH 08 Yes
CH 09 Yes
CH 10 Yes
CH 11 Yes
Cancel : Cancel the skip channel.
(Green)
> Channel Summary
CH/CC
CH 02
CH 03
CH 04 Yes
CH 05 Yes
CH 06 Yes
CH 07 Yes
CH 08 Yes
CH 09 Yes
CH 10 Yes
CH 11 Yes
ID : Edit a channel name.
(Yellow)
Set Up
> Channel Summary
ID Skip
CH/CC
CH 02
CH 03
CH 04 Yes
CH 05 Yes
CH 06 Yes
CH 07 Yes
CH 08 Yes
CH 09 Yes
CH 10 Yes
CH 11 Yes
Channels are to be skipped cannot be selected by the CHANNEL -/+
•
button.
The skip can be set to all channels of Air (CH02 - CH69) and Cable •
(CC01 - CC125)
Set Up
Set Up
ID Skip
Select a channel
OK
1. Select the character
2. Move to the next column
OK
3. Set
7
Operating the menus
You can select the Country Area between Area-1 and Area-2. See in item 3 of “Initial setting” (P. 6)
See the menus location in the below table.
Set Country Area to “Area-1”
Top Menu 2nd Menu Page
Sound
Features
Set Up
Picture Mode 9
Backlight 9
Contrast 9
Brightness 9
Sharpness 9
Colour 9
Tint 9
White Balance 9
Features 10
Stereo / I▪II
-Sound Meister 11
Treble 11
Bass 11
Surround 11
Balance 11
Voice Enhancer 11
AI Volume 11
Subwoofer Out 11
Subwoofer Level 11
Karaoke 11
On Timer 13
Sleep Timer 13
Calendar 13
Channel Guard 13
Blue Back 14
Child Lock 14
Auto Shutoff 14
Favorite Setting 14
Power Lamp 14
Eco Mode 14
Auto Program 6
Edit / Manual 7
-Language 6
Video-1 Setting 16
Rocket Start 14
Teletext Language 6
HDMI Setting 16
PC Setting 16
8
11
-
Top Menu 2nd Menu Page
Sound
Features
Set Up
Set Country Area to “Area-2”
Picture Mode 9
Backlight 9
Picture 9
Brightness 9
Detail 9
Color 9
Tint 9
White Balance 9
Features 10
-
MTS 11
Sound Meister 11
Treble 11
Bass 11
Surround 11
Balance 11
Voice Enhancer 11
AI Volume 11
Subwoofer Out 11
Subwoofer Level 11
Karaoke 11
On Timer 13
Sleep Timer 13
Calendar 13
Channel Guard 13
Blue Back 14
Child Lock 14
Auto Shutoff 14
Favorite Setting 14
Power Lamp 14
Eco Mode 14
Auto Program 6
-Channel Summary 7
Language 6
Video-1 Setting 16
Rocket Start 14
-HDMI Setting 16
PC Setting 16
Closed Caption 15
-
Picture setting
1. Display “Picture” menu 2. Select item and setting or adjust To enter an items menu•
MENU
Picture Mode
Backlight
Contrast
Brightness
Sharpness
Colour
Tint
White Balance
Picture Mode Bright
Backlight
Contrast
Brightness
Sharpness
Colour
Tint
White Balance Warm
Features
f
1. Select
OK
2. Enter
Picture ModeeBright
Backlight
Contrast
Brightness
Sharpness
Colour
Tint
White Balance Warm
Features
f
f
You can select a preset picture setting according to your favour.
Bright : Hightens contrast and sharpness.
Game Mode : Adjust sharpness of the picture when play the game.
Soft : Softens contrast and sharpness.
Standard : Standardize picture adjustment.
You can change the backlight brightness.
Darker ↔ Brighter
You can change the contrast of the picture.
Lower ↔ Higher
You can change the brightness of the picture.
Darker ↔ Brighter
You can change the sharpness of the picture.
Softer ↔ Sharper
You can change the colour of the picture.
Lighter ↔ Deeper
You can change tint only in NTSC.
Reddish ↔ Greenish
You can change the white balance of the picture to better match the type of video being view.
Cool : Bluish white colour.
Warm : Reddish white colour.
Mid : Normal white colour.
OK
1. Select
2. Adjust
3. Finish
1. Select
OK
2. Enter
9
Picture setting (continued)
Finer Picture adjustment
> Features
Clear SD
Digital VNR
DigiPure Off
Pull Down Off
Colour Management Off
Picture Management Off
Smart Picture Off
Dynamic Backlight Off
MPEG Noise Reduction
Colour System
Zoom
Off
e
Off
Off
f
f
f
10
Features
Clear SD
Digital VNR Reduce the amount of noise in original picture. (Off / On) :
DigiPure For natural - looking outlines (Off / On) :
Pull Down For smooth cinema fi lm (Auto / Off / On) :
Colour Management For natural - looking pictures (Off / On) :
Picture Management Fix bright / dark pictures. (Off / On) :
Smart Picture Make it easier to view white areas. (Off / On) :
Dynamic Backlight
MPEG Noise Reduction
Colour System
Zoom Change the aspect ratio. :
>> Zoom
Auto
Regular
Panoramic
14:9 Zoom
16:9 Zoom
16:9 Zoom Subtitle
Full
e
Panoramic
f
For clearly picture (Off / Mode-1 / Mode-2) :
When Clear SD set to Mode-1 or Mode-2, then Digital VNR, DigiPure, Picture Management and
MPEG Noise Reduction cannot operate.
Reduce the brightness of the backlight when the screen is dark. (Off / On) :
Reduce MPEG video noise. (Off / On) :
When there is no colour, change the colour system. :
(Area-1 : PAL / SECAM / NTSC 3.58 / NTSC 4.43 / Auto, Area-2 : PAL-M / PAL-N / NTSC / Auto)
Panoramic
16 : 9
Regular/Slim
4 : 3
14:9 Zoom
14 : 9
When 720p or 1080i or 1080p signal is •
received, “Full”, “Slim” and “Panoramic Zoom”
can be selected.
In PC mode, “Regular” and “Full” can be •
selected.
Sound setting
1. Display “Sound” menu. 2. Select item and setting or adjust.
• Set Country Area to “Area-2”.•
Set Country Area to “Area-1”.
MENU
Sound
Stereo / I▪II
Sound Meister Dynamic
Treble
Bass
Surround
Balance
Voice Enhancer Off
AI Volume On
Subwoofer Out Off
Subwoofer Level
Karaoke
I II Mono
f
1. Select
OK
2. Enter
Sound
Stereo / I▪II
e
Sound Meister
Treble
Bass
Surround
Balance
Voice Enhancer Off
AI Volume On
Subwoofer Out Off
Subwoofer Level
Karaoke
Dynamic
f
I II Mono
f
Sound
MTS Stereo SAP Mono
On Air
Sound Meister Dynamic
Treble
Bass
Surround
Balance
Voice Enhancer Off
AI Volume On
Subwoofer Out Off
Subwoofer Level
Karaoke
f
1. Select
2. Adjust
OK
3. Finish
Stereo/I■II
MTS
Select the broadcast sound stereo, mono or bilingual language.
( : Mono / : Stereo / I : SUB1 / II : SUB2 / Mono)
Select the stereo and SAP broadcasted programs.
(Stereo : Stereo sound / SAP : Second Audio Programs / Mono : mono sound)
Sound Meister Ambience (Off / Dynamic / Pure / Living)
Treble Compensates high frequencies to widen the frequency band. (Weaker ↔ Stronger)
Bass Compensates low frequencies to widen the frequency band. (Weaker ↔ Stronger)
Surround Expands the stereo sound naturally. (Narrow ↔ Wide)
Balance Speaker balance (Left Stronger ↔ Right Stronger)
Voice Enhancer Sound enhancement technology. (Off / On)
Al Volume Prevent sudden increase or decrease of sound when changing channels. (Off / On)
11
Sound setting (continued)
Subwoofer Out
Subwoofer Level
Karaoke
Chooses to connect subwoofer. (Off / On)
Subwoofer to be used must have a built-in amplifi er.•
Adjusts sound level of your subwoofer. (Lower ↔ Louder)
When Subwoofer Out set to On, you can adjust Subwoofer Level.
•
You can enjoy to reduce the vocals for your own karaoke.
KARAOKE
Karaoke
Karaoke
Main Volume
Microphone Volume
Off
e
f
Karaoke Chooses to reduce the vocals.
Off : Normal sound of song
Mode-1 : Only sound of music
Mode-2 : To sing, accompanying with sound of song.
•
Karaoke function works only for stereo sound system.
If using Karaoke disc, users must choose to remove the vocals from the player.•
Main Volume Adjusts volume level. (Lower ↔ Louder)
Microphone Volume Adjusts volume level of microphone. (Lower ↔ Louder)
•
Microphone Volume is available when plug in microphone.
Microphone to be used with the “• Karaoke” function of JVC must be of “HIGH GRADE LOW NOISE MICROPHONE
CABLE” type; otherwise, noise will result.
12
Useful functions
1. Display “Features” menu.
Features
MENU
On Timer
TV to turn on
automatically from
standby mode at
a set channel and
time.
Sleep Timer
TV to turn off
automatically to
standby mode after
a set time.
Calendar
Watch calendar,
date and time on
screen LCD TV.
Channel Guard
Stop children from
watching specifi c
channels.
On Timer
Sleep Timer
Calendar
Channel Guard
Blue Back Off
Child Lock Off
Auto Shutoff Off
Favourite Setting
Power Lamp On
Eco Mode Eco-2
1. Select PR channel that you want to watch. 2. Set the On time to your desired period at time.
1. Select "Calendar" to On.
1. Select “Channel Guard”.
To enter an items menu•
1. Select
OK
2. Enter
OK
3. Set
2. Select item
f
f
f
f
Features
> On Timer
PR
On Timer
e01f
Note : Press
Features
> Sleep Timer
60
1. Select
OK
2. Enter
00 : 00
(Blue)
for reset time setting.
1200
1. Select PR
channel
OK
2. Set
1. Select a time in
minutes
OK
2. Set
2. Select item and setting or adjust.
Features
On Timer
Sleep Timer
Calendar
Channel Guard
Blue Back Off
Child Lock Off
Auto Shutoff Off
Favourite Setting
Power Lamp On
Eco Mode Eco-2
f
f
f
f
1. Select “On
Timer”
OK
OK
1
4
7
1. Select
2. Adjust
3. Finish
2
3
6
5
9
8
0
Note : When the remaining elapse is one minute,
“Good Night!” appears on the screen.
2. Set "Time" and "Date". 3. Set "Position" for adjust screen position.
2
3
> Calendar
Calendar
Date / Time
Position
Features
eOnf
f
f
Features
>> Date / Time
Time
Date 18/08/10
8:08
0
e
Note : After unplugging the TV,
this function will be reset.
0
View a locked channel by use the numerical buttons to enter the channel number. When
• appears, press “DISPLAY”
> Set ID No.
Features
0 0 0 0
OK
1
4
f
7
1. Select a
number
2. To the next
column
3. Enter
6
5
9
8
0
1. Select item
OK
2. Set
2. Select a channel and lock it (
Features
>> Channel Guard
PR ID CH/CC
01
SAT CH 02
02 GAME CH 03
03 BCC CH 07
04 IEEE CH 76
05 APL CH 12
06 DANY CH 09
07 CH 05
08 CH 02
09 CH 15
10 CH 28
Jan 2010
09 : 12
Su Mo Tu We Th Fr Sa
567891011
12 13 14 15 16 17 18
19 20 21 22 23 24 25
26 27 28 29 30 31
: locked ).
1. Select a
channel
OK
1
4
1. Adjust
OK
2. Set
Lock / Release
(Blue)
button and enter your “ID No.”
13
Useful functions (continued)
Blue Back Display a blue screen and mute the sound when the signal is weak or absent. (Off / On)
Child Lock Disables the side control buttons of the TV. (Off / On)
Auto Shutoff Set the power to turn off if no signal is received and no operation is performed for about 15 minute. (Off / On)
Favourite Setting
Power Lamp Power lamp lights while the TV is on. (Off / On) (P. 4)
Eco Mode
Delete the favourite channel that you registered.
OK
1. Select
(Blue)
To Delete
Features
> Favourite Setting
1
2
3
4
PR 01
PR 02
Features
> Favourite Setting
1
2
3
4
PR 32
PR 05
PR 07
PR 09
Adjusts picture contrast according to the brightness of your room to reduce power consumption.
Off : Deactivates the function
Eco-1 : Picture is darkened for the 1st level.
Eco-2 : Picture is darkened for the 2nd level (more than the 1st level).
Max-Eco : Only sound is available, no picture (this is to save energy in such situation as when you want to listen to the
news while doing other house works at the same time).
After choosing Eco Mode as Max-Eco, picture will go off in 3 seconds.
-
When you want the picture to appear again, press any button on the remote control then function will be -
reset back to “Off”.
After unplugging the TV or press “Power off” button, this function will be reset back to “Off” -
Freeze
"Set up" Menu
Rocket Start
14
Take snapshots of the screen.
OK
Freeze
still picture
■ Cancel
Press “OK” again, or change the channel.
You cannot save or export the snapshot.•
Freeze function is not available for HDMI, •
PC and Component signal.
TV can turn on quickly. (Off / On)
When Rocket Start is On, power consumption at standby mode will more than normal standby mode.
Viewing Teletext Viewing Closed Caption
This function is available when select Country Area to “Area-1” only.
This TV can display TV broadcasts and Teletext on the same channel in
two windows.
1.
Select a Teletext page by press number button (0-9).
2.
• Move up or down a page by
When watching TV TV TEXT TEXT
TEXT---
TEXT---
TEXT---
TEXT---
CH
.
Bookmark your favourite page.
MODE
(Red) (Green) (Yellow) (Blue)
to bookmark
List Mode
Press number
button for enter the
Save
number of page.
Recall your favourite page by press the colour button.
•
Hold
Reveal
Hold the current page.
Cancel by press this button again.•
Display hidden information.
Example : answer to a quiz, etc.•
Select the input Source.
1. Select “Set Up”.
MENU
Auto Program
Channel Summary
Language
Video-1 Setting
Rocket Start
HDMI Setting
PC Setting
Closed Caption
Set Up
f
f
f
f
f
f
Component
On
2. Select “Closed Caption”
Set Up
Auto Program
Channel Summary
Language
Video-1 Setting
Rocket Start
HDMI Setting
PC Setting
Closed Caption
f
f
f
Component
f
f
f
On
OK
3. Select the desired caption or text channel.
Set Up
> Closed Caption
Closed Caption Off
Caption
e
Text T1
CC1
f
OK
1. Select
OK
2. Enter
1. Select
2. Enter
1. Select item
2. Setting
3. Set
Size Double the size of the displayed text.
Index
Returns to page “100” or a previously
designated page.
Leave the current page open, while you
Cancel
switch to watch TV.
Useful when running a page search.•
Sub-page
Display the number of Sub-page.
Cancel by press this button again.•
Closed Caption : Select to view close caption or text information.
(Off / CC / Text)
Caption : Select the desired caption.
(CC1 / CC2 / CC3 / CC4)
Text : Select the desired text channel.
(T1 / T2 / T3 / T4)
15
Watching Video or DVDs
Select the input Source.
TV/VIDEO
Operate the connected device and play video.
•
AV Select
0AV
1 HDMI 1
2 HDMI 2
3 HDMI 3
4 Video-1
5 Video-2
6PC
OK
1. Select “Set Up”.
MENU
2. Select item.
Set Up
Auto Program
Edit / Manual
Language
Video-1 Setting
Rocket Start
Teletext Language
HDMI Setting
PC Setting
Video - 1 Setting
> HDMI Setting
HDMI-1
HDMI-2
HDMI-3
> PC Setting
PC Position
Phase
Pixel
f
f
f
Component
On
f
f
HDMI Setting Setting for HDMI input
Set Up
Size
Auto
e
Digital
Audio
Mode 1
Size Auto
Mode 1
Size Auto
Mode 1
PC Setting
Set Up
f
Set Up
Auto Program
Edit / Manual
Language
Video-1 Setting
Rocket Start
Teletext Language
HDMI Setting
PC Setting
f
f
f
f
f
Component
On
1. Select item
2. Setting or Adjust
OK
3. Set
Switch between video and component signal.
(Video / Component)
Size
f
Audio
Normally set to “Auto.” If wrong screen :
size appears in 480p (525p), change to
“1” or “2”.
Normally set to “Auto.” If no sound, :
change to “Analogue” or “Digital.
Mode
Setting for PC input
If no picture, change to “1” or “2”. :
1. Select PC Position
OK
2. Enter
1. Select
2. Set
OK
1. Select
2. Enter
OK
1. Adjust
2. Set
Technical information
Connect “DVI” devices
Connect a “DVI” device to “HDMI” using “DVI-HDMI” conversion cable.
Connect analogue sound output of the DVI device to L and R terminals in
HDMI-1.
Set “Audio” in “HDMI Setting” to “Analogue” or “Auto”•
HDMI-2 and HDMI-3 input does not support analogue sound (IN HDMI-1).
•
HDMI-2 and HDMI-3 input does not support DVI devices.•
What is "Full Native" ?
With the full HD LCD display and “Full Native”, you can enjoy full native •
HD resolution of 1920 x 1080. It exposes fl aws in the video that were
hidden when viewing on “Full”.
Full Full Native
The illustrations are emphasised to make clear differences between
•
“Full” and “Full Native”.
Dark bar or noise may appear at the edges of the screen when viewing •
in “Full native” for some videos. This is resulted from the signal itself, not
due to TV malfunction.
16
PC Position : Adjust screen position.
Phase : Sets the focus of screen.
Pixel : Adjusts the horizontal feature of screen.
Technical information (continued)
Language group for Teletext PC Signals that can be displayed
Group Languages
Group-1 Turkish, Hungarian, English, German, French, Italian, Spanish,
Group-2 Polish, Serbian, Croatian, Slovenian, Czech, Slovak, Rumanian,
Group-3 Russian, Bulgarian, Lettish, Lithuanian, Estonian, Ukrainian, Serbian,
Group-4 Arabic, Czech, Slovak, Hungarian, English, German, French, Italian,
Group-5 Farsi, English, French, Turkish
Group-6 Lettish, Lithuanian, Estonian, Ukrainian, Czech, Slovak, English,
If the characters are unreadable. • Select different Teletext language
group. (P. 6)
Sound and Colour system in your country or region
Area Country or Region System System
Asia,
Middle
East
Europe
Oceania Australia, New Zealand, etc. B/G PAL
Africa
South
America
Portuguese, Greek, Swedish, Finnish
Hungarian, German, French, Italian, Swedish, Finnish
Croatian, Slovenian, Czech, Slovak, English, German
Spanish, Portuguese, Swedish, Finnish
German, Serbian, Croatian, Slovenian
Bahrain, Kuwait, Oman, Qatar, United Arab Emirates,
Yemen, Indonesia, Malaysia, Singapore, Thailand,
India, etc.
China, Vietnam, etc. D/K
Hong Kong, etc. I
Islamic Republic of Iran, Lebanon, Saudi Arabia, etc. B/G SECAM
Philippines, Taiwan, Myanmar, etc. M NTSC
Russia, etc.
Czech Republic, Poland, etc.
UK, etc. I
Republic of South Africa, etc. I
Nigeria, etc.
Egypt, Morocco, etc. SECAM
Agentina, Paraguay, Uruguay N
Brazil M
Chile, Peru, Colombia, Venezuela, Ecuador, etc.
Bolivia
B/G
PAL
SECAM
D/K
PALGermany, Holland, Belgium, etc. B/G
PAL
B/G
PAL
M NTSC
If the signal doesn’t appear, check that the vertical frequency on the PC
•
is set to “60Hz”.
Resolution 640 x 480(VGA) / 1024 x 768(XGA)
Vertical frequency (Hz) 60.0
What is “Clear SD”
LCD picture is unstable due to a large number of signal noise. Such noise
appears extensively especially when an LCD displays SD signals. Clear
SD mode resolves disadvantage for better picture quality.
Use "Clear SD"No use "Clear SD"
17
Troubleshooting
If a problem occurs when you are using the TV, check the below troubleshooting guide before calling for repair.
Severe noise or snow Page
Check the aerial cable and TV connections .
Check the direction of the aerial.
Check the aerial or its cable damaged or not.
Patterns, stripes or noise
Interference caused by devices such as an amplifi er, personal computer,
or a hair drier, Move it away from TV.
Ghosting (Doubling of images)
Interference occurs caused by signal refl ection from mountains or
building. Try to adjust the aerial’s direction or use another antenna.
Cannot turn it on
Ensure the power cord is connected to the AC outlet correctly. --
Cannot operate the remote control.
The batteries may be exhausted. Replace with new batteries.
Ensure that you are operation the remote control at less than 7 meters
from the front of your TV.
Remote control stops working
Unplug TV, several minutes later plug it in again. --
Side control buttons do not work
Switch “Child Lock” to “Off”. P. 14
Aspect ratio changed unintentionally
ZOOM
Press “
PC screen alignment is off
Adjust the “PC Position” in “PC Setting” of Set Up menu. P. 16
Blue screen appears on the screen
Switch “Blue Back” to “Off”. P. 14
Strange picture when using an external device
If the top of the image is distorted, check the video signal quality itself.
If movement appears unnatural when receiving a signal from a DVD
player, etc. with 625p (progressive-scanning), change the output setting of
the external device to 625i (interlace-scanning).
” button to return to your settings.
P. 10
18
P. 4
P. 4
Poor picture quality Page
Unnatural colour >> Adjust “Colour” and “Backlight” P. 9
Check “Colour System”. If “Auto” is selected. P. 10
--
--
--
--
--
--
Select the specifi c colour system manually.
Noise >> Set to the following functions.
Picture Mode : Standard P. 9
DigiPure : On P. 10
Dull picture >> Set to the following functions.
Picture Mode : Bright P. 9
DigiPure : On P. 10
Poor sound
Adjust the “Bass” and “Treble”.
If receiving a poor signal in “Stereo/I■II” switch to “Mono”.
Adjust the channel reception using “Manual”.
For HDMI signal, wrong screen size in 480p (525p).
Switch “Size” in “HDMI Setting” to “1” or “2”. P. 16
For HDMI signal, green and distorted screen
Wait a little for the signal to stabilize when switching the signal format for
an “HDMI” device.
For HDMI signal, No picture / No sound
Use the cable marked with HDMI logo.
Check if the device is compliant with HDMI.
Switch “Audio” in “HDMI Setting” to “Digital” or “Auto” for HDMI devices, or
“Analogue” or “Auto” for DVI devices.
Some functions do not work.
It is not a malfunction. Some functions (dark background) in the menu do
not work depending on the situation.
Black or white dots appear on the screen.
LCD panels use fi ne dots (“pixels”) to display images. While more than
99.99% of these pixels function properly, a very small number of pixels
may not light, or may light all the time. It is not a malfunction.
No picture, No sound
Some input do not output from OUT terminal. --
Subwoofer, No sound
May be signal source is not low frequency bass signal.
Check subwoofer cable connected correctly.
Feedback sound symptoms
Keep the microphone away from the TV’s speakers. --
Echo
Lower the sound level in “Microphone Volume” in order to prevent the echo.
P. 11
P. 11
P. 7
--
P. 5
P. 16
--
--
--
--
CH / CC List
To use the Insert function (P. 7), fi nd the “CH/CC” number corresponding to the TV’s channel number from this table.
US: The US channel numbers are the channel numbers used in the United States, Philippines, etc.
CCIR: The CCIR channel numbers are the channel numbers used in the Middle East, Southeast Asia, etc.
OIRT: The OIRT channel numbers are the channel numbers used in Eastern Europe, Russia, Vietnam, etc.
AUSTRALIA: The AUSTRALIA channel numbers are the channel numbers used in Australia, etc.
CH
CH 02 US-02 E2 R1 AU-0
CH 03 US-03 E3 AU-1
CH 04 US-04 E4 R2 AU-2
CH 05 US-05 E5 R6 AU-6
CH 06 US-06 E6 R7 AU-7
CH 07 US-07 E7 R8 AU-8
CH 08 US-08 E8 R9 AU-9
CH 09 US-09 E9
CH 10 US-10 E10 R10 AU-10
CH 11 US-11 E11 R11 AU-11
CH 12 US-12 E12 R12
CH 13 US-13
CH 14 US-14, W+29
CH 15 US-15, W+30
CH 16 US-16, W+31
CH 17 US-17, W+32
CH 18 US-18, W+33
CH 19 US-19, W+34
CH 20 US-20, W+35
CH 21 US-21, W+36 E21
CH 22 US-22, W+37 E22
CH 23 US-23, W+38 E23
CH 24 US-24, W+39 E24
CH 25 US-25, W+40 E25
CH 26 US-26, W+41 E26
CH 27 US-27, W+42 E27
CH 28 US-28, W+43 E28
CH 29 US-29, W+44 E29
CH 30 US-30, W+45 E30
CH 31 US-31, W+46 E31
CH 32 US-32, W+47 E32
CH 33 US-33, W+48 E33
CH 34 US-34, W+49 E34
CH 35 US-35, W+50 E35
CH 36 US-36, W+51 E36
CH 37 US-37, W+52 E37
CH 38 US-38, W+53 E38
CH 39 US-39, W+54 E39
CH 40 US-40, W+55 E40
CH 41 US-41, W+56 E41
CH 42 US-42, W+57 E42
CH 43 US-43, W+58 E43
CH 44 US-44, W+59 E44
CH 45 US-45, W+60 E45
CH 46 US-46, W+61 E46
CH 47 US-47, W+62 E47
US CCIR OIRT AUSTRALIA
Channel
CH 48 US-48, W+63 E48
CH 49 US-49, W+64 E49
CH 50 US-50, W+65 E50
CH 51 US-51, W+66 E51
CH 52 US-52, W+67 E52
CH 53 US-53, W+68 E53
CH 54 US-54, W+69 E54
CH 55 US-55, W+70 E55
CH 56 US-56, W+71 E56
CH 57 US-57, W+72 E57
CH 58 US-58, W+73 E58
CH 59 US-59, W+74 E59
CH 60 US-60, W+75 E60
CH 61 US-61, W+76 E61
CH 62 US-62, W+77 E62
CH 63 US-63, W+78 E63
CH 64 US-64, W+79 E64
CH 65 US-65, W+80 E65
CH 66 US-66, W+81 E66
CH 67 US-67, W+82 E67
CH 68 US-68, W+83 E68
CH 69 US-69, W+84 E69
CC
CC 01 S-1 AU-5
CC 02 S-2
CC 03 S-3
CC 04 S-4
CC 05 S-5
CC 06 S-6 AU-5A
CC 07 S-7
CC 08 S-8
CC 09 S-9
CC 10 S-10
CC 11 S-11
CC 12 S-12
CC 13 S-13
CC 14 A S-14
CC 15 B S-15
CC 16 C S-16
CC 17 D S-17
CC 18 E S-18
CC 19 F S-19
CC 20 G S-20
CC 21 H S-21
CC 22 I S-22
CC 23 J S-23
US CCIR OIRT AUSTRALIA
Channel
CC 24 K S-24
CC 25 L S-25
CC 26 M S-26
CC 27 N S-27
CC 28 O S-28
CC 29 P S-29
CC 30 Q S-30
CC 31 R S-31
CC 32 S S-32
CC 33 T S-33
CC 34 U S-34
CC 35 V S-35
CC 36 W S-36
CC 37 W+1 S-37
CC 38 W+2 S-38
CC 39 W+3 S-39
CC 40 W+4 S-40
CC 41 W+5 S-41
CC 42 W+6
CC 43 W+7
CC 44 W+8
CC 45 W+9
CC 46 W+10
CC 47 W+11
CC 48 W+12
CC 49 W+13
CC 50 W+14
CC 51 W+15
CC 52 W+16
CC 53 W+17
CC 54 W+18
CC 55 W+19
CC 56 W+20
CC 57 W+21
CC 58 W+22
CC 59 W+23
CC 60 W+24
CC 61 W+25
CC 62 W+26
CC 63 W+27
CC 64 W+28
CC 75 X
CC 76 Y R3
CC 77 Z R4 AU-3
CC 78 Z+1 R5
CC 79 Z+2 AU-4
CC 95 A-5
CC 96 A-4
CC 97 A-3
CC 98 A-2
CC 99 A-1
19
Specifi cation
Main unit Terminals / Connectors
Model LT-42E10
Broadcasting systems Area-1 B / G / I / D / K / M
Colour systems Area-1 PAL / SECAM / NTSC 3.58 / NTSC 4.43
Channels and
frequencies
Sound-multiplex systems NICAM (I / B / G / D / K), A2 (B / G / D / K)
Teletext systems FLOF (Fastext), WST (World System Teletext)
Power requirements AC 110 V - 240 V, 50/60Hz
Audio output
(Rated power output)
Speakers (4 cm x 16 cm) x 2
Power consumption
[standby]
Screen size
(visible area size
measured diagonally)
Dimensions
(W x H x D: mm)
[without stand]
Weights
[without stand]
Accessories Power cord x 1
Area-2 M / N
Area-2 NTSC / PAL-M / PAL-N
Area-1
Area-2
Receives cable channels in mid band (X to Z+2, S1 to S10),
super band (S11 to S20) and hyper band (S21 to S41)
Remote control unit : RM-C2022 x 1
AAA/R03 dry cell battery x 2
Screw x 8
VHF low channel (VL) = 46.25 to 140.25 MHz
VHF high channel (VH) = 147.25 to 423.25 MHz
UHF channel (U) = 431.25 to 863.25 MHz
VHF low channel (VL) = 55.25 to 127.25 MHz
VHF high channel (VH) = 133.25 to 361.25 MHz
UHF channel (U) = 367.25 to 801.25 MHz
10 W + 10 W
161 W
[1.0 W]
106.7 cm
1014.8 x 698.4 x 296
[1014.8 x 646.9 x 108.7]
20.5 kg
[18.5 kg]
Terminal name Terminal type Signal type (IN)
Composite video, Analogue
component 576i (625i) / 480i
(525i),
Progressive : 576p (625p) /
480p (525p),
HD : 1080i (1125i), 720p
(750p) / 1080p (1125p)
Audio L / R
Composite video, Audio L / R
HDMI
576i (625i) / 480i (525i) /
576p (625p) / 480p (525p),
720p (750p) / 1080p (1125p)
/ 1080i (1125i)
Audio L/R
Analogue PC signal
Audio
Microphone input
Input
terminals
Output
terminals
VIDEO-1
VIDEO-2
HDMI-1
HDMI-2
HDMI-3
IN HDMI -1
PC INPUT
PC AUDIO
Microphone
MONITOR
OUT
RCA connectors x 6
RCA connectors x 3
HDMI connector x 1
RCA connectors x 2
D-SUB (15 pins) x 1
PC-IN (3.5 pin
jack) x 1
mini-jack x 1
(3.5 mm in diameter)
RCA connectors x 3
Signal type (OUT)
Subwoofer,
Audio L / R
We may change the design and specifi cations without notice.•
HDMI, the HDMI Logo, and High-Defi nition Multimedia Interface are •
trademarks or registered trademarks of HDMI Licensing LLC in the
United States and other countries.
© 2010 Victor Company of Japan, Limited 0710GLT-NF-MT
Loading...
