WIDE LCD PANEL TV

ENGLISH

INSTRUCTIONS

HIGH-DEFINITION MULTIMEDIA INTERFACE

LT - 32EX18 LT - 42EX18

Contents

PREPARATION

Safety precautions ............................... 2

Remote control buttons and functions

Set up and connections ....................... 4

Initial settings ....................................... 6

Registering / Editing channels ............. 7

Channel Summary ............................... 7

Operating the menus ........................... 8

FUNCTIONS

Picture setting ...................................... 9

Sound setting .....................................11

Useful functions ................................. 12

Viewing Teletext ................................. 14

Viewing Closed Caption .................... 14

Watching Video or DVDs ................... 15

REFERENCE

Troubleshooting ................................. 16

Technical information ......................... 17

CH/CC List ......................................... 18

Speciﬁcation ...................................... 19

GGT0220-001A-H

... 3

JVC

Thank you for buying this JVC LCD panel television.

To make sure you understand how to use your new TV, please read this manual thoroughly before you begin.

• Follow this manual regarding setup!

- Connect only to a 110-240 V,

50/60Hz AC outlet.

• Make enough room for inserting and removing the

• Do not allow the TV to fall!

- Do not rest your elbows on, or allow children to hang from the TV.

- There is a risk that the TV will fall and cause injuries .

power plug!

• Place the TV as close to the outlet as possible!

- The main power supply for this

TV is controlled by inserting or removing the power plug.

If the TV is damaged or behaving strangely, stop using it at once!

➡ Unplug the power cord and contact your retailer.

• Never cut or damage the power cord!

- If the AC plug is not the right

shape, or the power cord is not long enough, use an appropriate plug adapter or extension cable. (Consult your retailer.)

• Unplug the power cord when going out!

- The power buttons on the

remote control and the TV unit

cannot completely turn off the TV. (Make appropriate arrangements for bedridden people.)

• Never dismantle the rear panel!

- It may cause an electric shock.

• Never obstruct the ventilation holes !

- It may cause overheating or a ﬁre.

• Handle LCD panel with care!

- Use a soft, dry cloth when

cleaning.

• For more details on installation, usage and safety ➡ Consult your retailer.

• Never place anything on the TV!

- Placing liquid, naked ﬂames, cloths,

paper, etc. on the TV may cause a ﬁre.

• Never expose to rain or moisture!

- To prevent ﬁre or electric shock, never allow liquids to enter the unit.

• Never insert objects into the cabinet openings !

- It may cause a fatal electric shock.

- Take care when children are near.

• Hold the TV so as not to scratch the screen!

- Do not touch the screen when carrying

the TV.

• Do not carry the TV on your own!

- In order to prevent accidents, ensure that

the TV is carried by two or more people.

•

When attaching the TV to the wall, use the optional JVC wall mounting unit!

- Consult a qualiﬁed technician.

- See the included manual on

mounting procedures.

- JVC assumes no responsibility for

damage due to improper mounting.

•

Never listen to headphones at high volume!

- It may damage your hearing.

Never try repair the TV yourself!

➡

If the problem cannot be solved in “Troubleshooting”

(P.16), unplug the power cord and contact your retailer.

RM-C2020

LCD

DISPLAY

CHANNEL

VOLUME

MODE

BACK

ZO OM

EC O

ME NU

TV /VI DEO

RE TUR N

Cl ear SD

16:9 Zoom

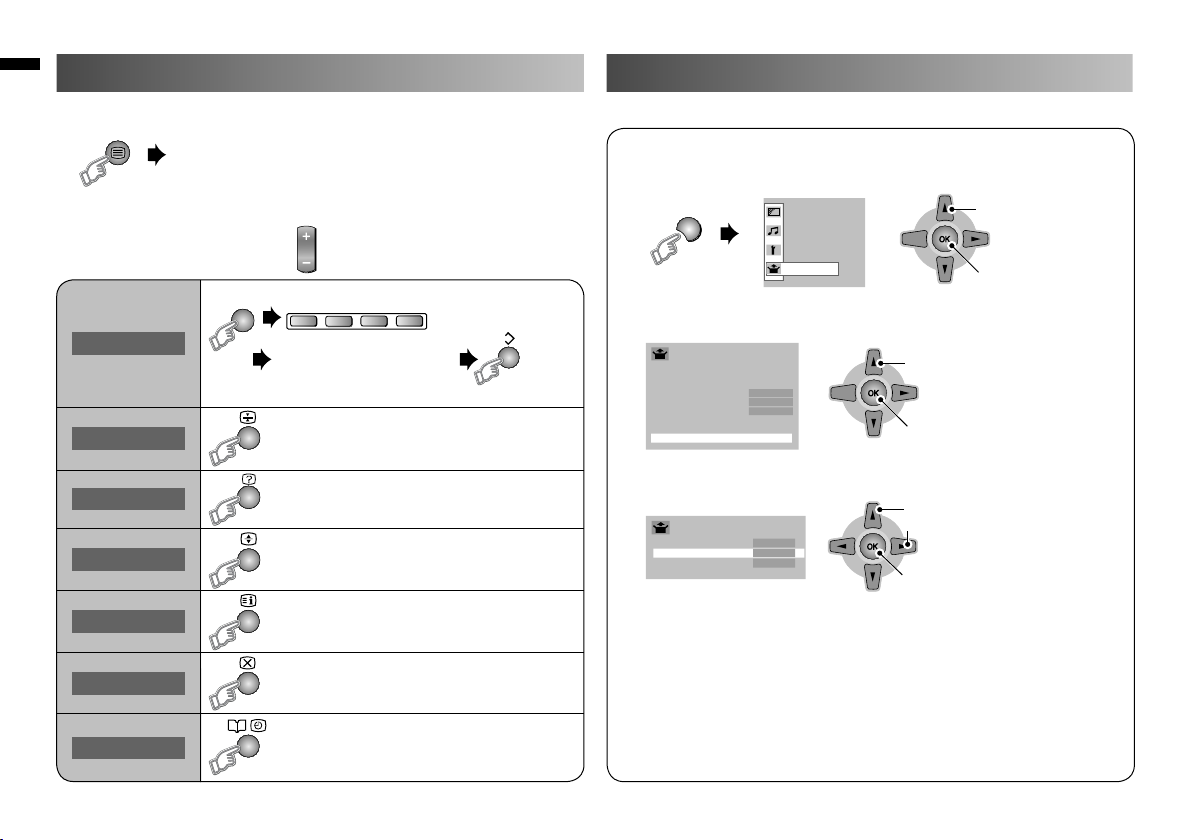

Remote control buttons and functions

CHANNEL

Zoom

Auto Panoramic Regular Panoramic 14:9 Zoom

16:9 Zoom

Full

• Insert the batteries Use two “AAA/R03” dry cell batteries. Insert the batteries from the · end, making sure the · and ª polarities are correct.

WARNING:

Batteries shall not be exposed to excessive heat such as direct sunshine, ﬁre or the like.

Turn the volume off/on

Change channel/page

RETURN PLUS function

Return to the frequently viewed channel.

Choose the channel you want to programme

Press and hold

To cancel

Press and hold

RETURN function

If you have not set or have canceled the RETURN PLUS channel, this will return to the previously viewed channel.

RETURN +

Return Plus

Programmed!

Return Plus

Canceled!

Select TV or Video input

Channel information

Channel selection

Select the desired channel number.

For Hyper Scan

PR changes without changing the picture. Once you stop pressing CHANNEL+ or CHANNEL - button, picture will change to the desired PR.

Press and hold

“AAA/R03” Batteries

Turn the TV on from standby Colour button Turn on “Clear SD”

Change the aspect ratio (P. 10)

V-Scroll

1. Select

Move the picture with

2. Set

5 or ∞ while this bar is displayed.

Turn on “Cinema Surround”

Turn on “Eco Mode” To Teletext (P. 14)

Display on-screen menu Operate the menu

To previous screen Adjust the volume, Turn off muting

View the Teletext (P. 14)

Favorite channel setting. (P. 13)

1. Register the favorite channel

Set 1-4 ?

Press and hold

Press number button (1-4 only)

will be displayed.Programmed!

2. Recall the favorite channel

Favorite 1-4 ?

Press

Press number button (1-4 only)

• If the favorite channel has not been registed then “No Memory” will be displayed.

Set up and connections

TV/VIDEO

MENU/OK

CHANNEL

VOLUME

150mm 50mm 150mm

200mm

50mm

VIDEO-2

Switch between TV / VIDEO devices Display on-screen menu / set

Change channel / Page / Hyper Scan Function (P. 3)

Power lamp

ON : Lit (Blue) OFF : Unlit Power lamp lights while the TV is on.

• “Power Lamp” (P. 13)

Remote control sensor

Volume / Adjust

Power On / Off

To Headphone (P. 5)

Care when setting

■

Power requirements

• Connect the power cord only to a 110-240V, 50/60Hz AC outlet.

■

When attaching the TV to the wall, use the optional JVC wall

mounting unit

• Consult a qualiﬁed technician.

• JVC assumes no responsibility for damage due to improper mounting.

• 200mm x 200mm mount which conforms to VESA standards.

■

Installation requirements

• To avoid overheating, ensure the unit has ample room.

Connect an aerial and VCR / DVD Player

AERIAL

VCR (DVD Player)

• After all the connections have been made, insert the plug into an AC outlet.

Stand Assembly

- Insert the stand into the panel at the position where the screw holes are, and fasten the screws.

- If you have any problem with assembly, please contact a retailer or a dealership.

Note: 4 screws included.

Set up and connections (continued)

OUTPUT

VIDEO-2

VIDEO-1

PC AUDIO

HDMI-1

( DVI ANALOG AUDIO )

PC IN

(D-SUB)

JVC

(L) (R)

HDMI-1 HDMI-2

DIGITAL VIDEO/AUDIO

VIDEO-1

JVC

You can connect many different devices to the rear panel of the TV. Please read the user manuals of each device before setup. (Connecting cables are not supplied with this TV.)

Headphone

Component input

DVD Player

Game consoles Video camera

• Check for PC compatibility.

“PC signals that can be displayed” (P. 17)

Composite input

Game Video

VCR

To VIDEO-2

VIDEO-1 Watching videos

Output Input

· Composite signal / Component signal (P. 19)

· Sound L / R

· Use Component signal

To “HDMI-1”

To “HDMI-2”

“Video - 1 Setting” (P. 15)

VIDEO-2 Watching videos

Output Input

DVD player

(HDMI compatible)

DVD player

(HDMI compatible)

VCR / DVD recorder

· Composite signal

· Sound L / R

HDMI-1 Connecting

Ampliﬁer

HDMI-2 HDMI devices

Output Input

· HDMI signal (P. 19)

· “HDMI Setting” (P. 15)

· HDMI-2 input does not support analogue audio.

· Connect a “DVI” device to “HDMI-1” (P. 17)

OUT

- Video and sound signal of a TV channel you are viewing outputs from this terminal.

Output

· Composite Signal

· Sound L/R

> Language

English



Castellano Português

Teletext Language

Group - 1

Group - 2 Group - 3 Group - 4 Group - 5 Group - 6

Auto Program

CH 09

12%

02 03 04 05 06 07 08 09 10

CH 02

CH 03 CH 07 CH 76 CH 12 CH 09 CH 05 CH 02 CH 15 CH 28

_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _

Edit

ID CH/CC

Initial Settings

Country Area

Area-1

Area-2

Auto Program

Air Cable

Auto Program

CH 09

12%

CH 02

CH 03

CH 04 CH 05 CH 06 CH 07 CH 08 CH 09 CH 10 CH 11

_ _ _ _

_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _

Channel Summary

CH/CC

ID Skip

1. Turn on the TV

2. Select a language 3. Select Country Area

JVC logo appears

• The power on the unit can also be used.

If you select Country Area to “Area-1”

4. Select the teletext language group.

Select

• See “Language group for teletext” (P. 17)

5. Automatically register channels (Auto Program)

6. Check what was registered.

1. Select

2. Set

1. Select

2. Set

• To select the new Country Area after Initial Setting has completed.

(While the cursor is pointing to Picture

menu and hold for 3 seconds.)

If you select Country Area to “Area-2”

4. Select Air or Cable.

1. Select

2. Set

5. Searching for the channels (Auto Program)

6. Check what was registered.

• If you want to edit channel, see “Registering / Editing channels” (P. 7)

• If you want to set undesired channels to be skiped, see “Channel Summary” (P. 7)

Registering / Editing channels

OKOK

02 03 04 05 06 07 08 09 10

CH 02

CH 03 CH 07 CH 76 CH 12 CH 09 CH 05 CH 02 CH 15 CH 28

_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _

Edit

ID CH/CC

01 02 03 04 05 06 07 08 09 10

CH 02 CH 03 CH 07 CH 76 CH 12 CH 09 CH 05 CH 02 CH 15 CH 28

Edit

ID CH/CC

_ _ _ _

ABC D _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _

01 02

04 05 06 07 08 09 10

CH 02 CH 03

CH 76 CH 12 CH 09 CH 05 CH 02 CH 15 CH 28

_ _ _ _

BBC

ABC D _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _

Edit

ID CH/CC

01 02

04 05 06 07 08 09 10

CH 02 CH 03

CH 07 (B/G)

CH 76 CH 12 CH 09 CH 05 CH 02 CH 15 CH 28

_ _ _ _

BBC

ABC D _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _

Manual

ID CH/CC

02 03 04 05 06 07 08 09 10

CH 02

CH 03 CH 07 CH 76 CH 12 CH 09 CH 05 CH 02 CH 15 CH 28

_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _

Edit

ID CH/CC

(Red)

(Blue)

(Green)

(Red)

(Green)

CH 02

CH 03

CH 04 CH 05 CH 06 CH 07 CH 08 CH 09 CH 10 CH 11

_ _ _ _

_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _

Channel Summary

CH/CC

ID Skip

CH 02

CH 03

CH 04 CH 05 CH 06 CH 07 CH 08 CH 09 CH 10 CH 11

_ _ _ _

■■■■

_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _

Channel Summary

CH/CC ID Skip

Yes

Yes Yes Yes Yes Yes Yes Yes Yes

(Yellow)

CH 02

CH 03

CH 04 CH 05 CH 06 CH 07 CH 08 CH 09 CH 10 CH 11

_ _ _ _

_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _

Channel Summary

CH/CC

ID Skip

Yes

Yes Yes Yes Yes Yes Yes Yes Yes

CH 02

CH 03

CH 04 CH 05 CH 06 CH 07 CH 08 CH 09 CH 10 CH 11

_ _ _ _

_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _

Channel Summary

CH/CC ID Skip

Yes

Yes Yes Yes Yes Yes Yes Yes Yes

(Yellow)

(Blue)

(Red)

(Green)

(Yellow)

This function is available when select Country Area to “Area-1” only. You can edit the channel list or register new channel manually.

Select a channel

Channel Summary

This function is available when select Country Area to “Area-2” only. You can edit the channel list.

Select a channel

Insert/Delete

• Delete a channel by press

• Channel ﬁne tunning ➡

• If the picture or sound is unnatural ➡ for select a system.

Move

Manual

Move a channel position

Edit a channel name

Insert / Delete a channel

1. Beginning channel search

From high frequencies

1. Start

2. Move Finish

1. Select a

CH/CC

button.

From low frequencies

1. Select the character

Move to the next column

3. Set

Enter a number 0-9 button then, receives the broadcast signal.

• “CH/CC List” (P. 18)

2. Set

Skip

Skip the channel.

Cancel

ID Edit

Cancel the skip channel.

Edit a channel name.

1. Select the character

2. Move to the next column

3. Set

• Channels are to be skipped cannot be selected by the CHANNEL -/+ button.

• The skip can be set to all channels of Air (CH02 - CH69) and Cable (CC01 - CC125)

Operating the menus

You can select the Country Area between Area-1 and Area-2. See in item 3 of “Initial setting” (P. 6) See the menus location in the below table.

Set Country Area to “Area-1”

Top Menu 2nd Menu Page


Sound

Features

Set Up

Picture Mode 9 Back Light 9 Picture 9 Bright 9 Detail 9 Color 9 Tint 9 White Balance 9 Features 10 Stereo / I■II 11

- Bass 11 Treble 11 Balance 11 Cinema Surround 11 On Timer 12 Sleep Timer 12 Channel Guard 12 Blue Back 13 Child Lock 13 Auto Shutoff 13 Favorite Setting 13 Power Lamp 13 Eco Mode 13 Auto Program 6 Edit / Manual 7

- Language 6 Video-1 Setting 15 AI Volume 11 Appearance 13 Teletext Language 7 HDMI Setting 15 PC Setting 15

- -

Top Menu 2nd Menu Page


Sound

Features

Set Up

Set Country Area to “Area-2”

Picture Mode 9 Back Light 9 Picture 9 Bright 9 Detail 9 Color 9 Tint 9 White Balance 9 Features 10

- MTS 11 Bass 11 Treble 11 Balance 11 Cinema Surround 11 On Timer 12 Sleep Timer 12 Channel Guard 12 Blue Back 13 Child Lock 13 Auto Shutoff 13 Favorite Setting 13 Power Lamp 13 Eco Mode 13 Auto Program 6

- Channel Summary 7 Language 6 Video-1 Setting 15 AI Volume 11 Appearance 13

- HDMI Setting 15 PC Setting 15 Closed Caption 14

Picture setting


Picture Mode

Detail Color Tint White Balance Features

Back Light

Bright


Bright

Cool

1. Display “Picture” menu 2. Select item and setting or adjust

1. Select

2. Adjust

• To enter an items menu

1. Select

Picture Mode

Back Light


Bright

Detail

Color

White Balance

Tint

2. Enter

3. Finish

2. Enter

You can select a preset picture setting according to your favor.

Bright : Hightens contrast and sharpness.

Standard : Standardize picture adjustment.

Soft : Softens contrast and sharpness.

You can change the backlight brightness. Darker Brighter

You can change the contrast of the picture. Lower Higher

You can change the brightness of the picture. Darker Brighter

You can change the sharpness of the picture. Softer

Sharper

You can change the color of the picture. Lighter Deeper

You can change tint only in NTSC. Reddish Greenish

You can change the white balance of the picture to better match the type of video being view.

Cool : Bluish white color.

Warm : Reddish white color.

Mid : Normal white color.

Picture setting (continued)

Auto

16:9 Zoom Full

Regular

14:9 Zoom

Panoramic

Zoom

Panoramic

Clear SD

Color Management Picture Management Color System Zoom

Digital VNR

Pull Down

DigiPure

Features

off

off off off off off

Finer Picture adjustment

Features

Clear SD : For clearly picture (Off / Mode-1 / Mode-2)

When Clear SD set to Mode-1 or Mode-2, then Digital VNR and DigiPure and Picture Management cannot operate.

Digital VNR : Reduce the amount of noise in original picture. (Off / On)

DigiPure : For natural - looking outlines (Off / On)

Pull Down : For smooth cinema ﬁlm (Auto / Off / On)

Color Management : For natural - looking pictures (Off / On)

Picture Management : Fix bright / dark pictures. (Off / On)

Color System : When there is no color, change the color system.

(Area-1 : PAL / SECAM / NTSC 3.58 / NTSC 4.43 / Auto, Area-2 : PAL-M / PAL-N / NTSC / Auto)

Zoom : Change the aspect ratio.

Panoramic Regular/Slim 14:9 Zoom

16 : 9

4 : 3

14 : 9

• When 720p or 1080i or 1080p signal is received, “Full” and “Slim” can be selected.

• In PC mode, “Regular” and “Full” can be selected.

Sound setting

Sound

Set Up

Video-1 Setting

Video

Al Volume

Appearance Size-1

HDMI Setting PC Setting Closed Caption

Channel Summary

Language

> > >

> >

Auto Program

Set Up

Stereo / I■II

Cinema Surround Off

Bass

Balance

Treble

Sound

I II Mono

Sound

MTS Stereo SAP Mono On Air

Bass Treble Balance Cinema Surround Off

1. Display “Sound” menu.

1. Select

2. Select item and setting or adjust.

• Set Country Area to “Area-1” • Set Country Area to “Area-2”

1. Select

2. Adjust

Stereo / I■II

MTS

Bass Low tones (Weaker Stronger)

Treble High tones (Weaker Stronger)

Balance Speaker balance (Left Stronger

Cinema Surround

• Prevent the sudden change of sound.

AI Volume

Prevent sudden increase or decrease of sound when changing channels.

2. Enter

3. Finish

Select the stereo, mono or bilingual language (O : Mono / m : Stereo / I : SUB1 / II : SUB2 / Mono)

Select the stereo and SAP broadcasted programs. (Stereo : Stereo sound / SAP : Second Audio Programs / Mono: mono sound)

Right Stronger)

Ambient sound

High

Low

Mono Off

1. Display “Set Up” menu.

1. Select

2. Select “Al Volume”

Select “AI Volume”

“Set Up”

2. Enter

2. Adjust to On/Off

This on screen is shown for Area-2 of Country Area. For Area-1, see in “Operating the menus” (P. 8)

Useful functions

Features

Off

Features

On Timer

Off

Child Lock Auto Shutoff Favorite Setting

Eco Mode

Sleep Timer

Blue Back

Channel Guard

Power Lamp

Features

PR 02

On Timer 00 : 00

On Timer

Sleep Timer

Off

120

Set ID No.

0 0 0 0

CH 02

CH 03 CH 04 CH 05 CH 06 CH 07 CH 08 CH 09 CH 10 CH 11

Yes Yes Yes Yes Yes Yes Yes Yes Yes

ABC D

_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _

Channel Guard

CH/CC

ID Skip

1. Display “Features” menu. 2. Select item and setting or adjust.

1. Select

2. Adjust

• To enter an items menu

1. Select

On Timer

TV to turn on automatically from standby mode at a set channel and time.

Sleep Timer

TV to turn off automatically to standby mode after a set time.

Channel Guard

Stop children from watching speciﬁc channels.

2. Enter

3. Finish

2. Enter

1. Select PR channel that you want to watch. 2. Set the On Timer to your desired period at time.

1. Select PR channel

2. Set

Note : Press

(Blue)

for reset time setting.

1. Select a time in minutes

2. Set

1. Select “Channel Guard”

2. Select a channel and lock it ( : locked )

1. Select a number

2. To the next column

3. Enter

• This on screen is show for Area-2 of Country Area. For Area-1, see in “Operating the menus” (P. 8)

• View a locked channel by use the numerical buttons to enter the channel number. When appears, press “DISPLAY” button and enter your “ID No.”

1. Select “On Timer”

2. Select item

Note : When the remaining elapse is one minute,

“Good Night!” appears on the screen.

1. Select a

Lock / Release

channel

3. Set

(Blue)

Useful functions (continued)

Favorite Setting

PR 01

PR 03

PR 02

Favorite Setting

PR 01

PR 02

Set Up

Auto Program > Channel Summary > Language > Video-1 Setting Video AI Volume On

Appearance < Size-1 >

HDMI Setting > PC Setting > Closed Caption >

Set Up

Blue Back Display a blue screen and mute the sound when the signal is weak or absent. (On / Off)

Child Lock Disables the side control buttons of the TV. (On / Off)

Auto Shutoff Set the power to turn off if no signal is received and no operation is performed for about 15 minute. (On / Off)

Delete the favorite channel that you registered.

(Blue)

To delete

2. Select “Appearance”

Favorite Setting

Power Lamp Power lamp lights while the TV is on. (On / Off) (P. 4)

Eco Mode Adjust contrast of light and dark according to the brightness of your room. (Off / Eco-1 / Eco-2)

• Change the on screen menu size.

Appearance

1. Display “Set Up” menu.

Change the on-screen menu size.

1. Select

2. Enter

2. Adjust to

Size-1 / Size-2

This on screen is shown for Area-2 of Country Area. For Area-1, see in “Operating the menus” (P. 8)

Viewing Teletext Viewing Closed Caption

Set Up

Closed Caption

Closed Caption Off

Caption < CC1 >

Text T1

Set Up

Auto Program > Channel Summary > Language

> Video-1 Setting Video AI Volume On Appearance Size-1 HDMI Setting > PC Setting

Closed Caption >

MODE

(Red) (Green) (Yellow) (Blue)

CHANNEL

This function is available when select Country Area to “Area-1” only. You can watch the Teletext broadcast channel with Text Functions.

TV mode <--> TEXT mode

This function is available when select Country Area to “Area-2” only.

Select the input Source.

1. Select “Set Up”

2. Select a teletext page by press number button (0-9)

• Move up or down a page by

Bookmark your favorite page.

List Mode

Hold

Reveal

Size

Index

Cancel

Sub-page

• Recall your favorite page by press the color button.

Press number button for enter the number of page

Hold the current page.

• Cancel by press this button again.

Display hidden information.

• Example : answer to a quiz, etc.

Double the size of the displayed text.

Returns to page “100” or a previously designated page.

Leave the current page open, while you switch to watch TV.

• Useful when running a page search.

Display the number of Sub-page.

• Cancel by press this button again.

to bookmark

Save

1. Select

2. Enter

2. Select “Closed Caption”

1. Select

2. Enter

3. Select the desired caption or text channel.

1. Select item

2. Setting

3. set

Closed Caption : Select to view close caption or text information.

(Off / CC / Text) Caption : Select the desired caption (CC1 / CC2 / CC3 / CC4) Text : Select the desired text channel. (T1 / T2 / T3 / T4)

Watching Video or DVDs

Set Up

TV / VI D E O

Set Up

Auto Program >

Channel Summary > Language > Video-1 Setting Video AI Volume On Appearance Size-1 HDMI Setting > PC Setting

Closed Caption >

PC Position

Phase

Pixel

PC Setting

4 HDMI 2 5 PC

1 Video - 1

3 HDMI 1

2 Video - 2

AV Select

0 01

HDMI Setting

HDMI-1 Size < 1 >

Audio Analogue

HDMI-2

Size 1

Select the input Source.

• Operate the connected device and play video.

1. Select

2. Set

Note: TV/VIDEO button select the video source by move

down or use button 0-5 for selection.

1. Select “Set Up”

2. Select item

This on screen is show for Area-2 of Country Area. For Area-1, see in “Operating the menus” (P. 8)

Video - 1 Setting

Size : Normally set to “Auto.” If wrong screen size appears in 480p (525p), change to “1” or “2” Audio : Normally set to “Auto.” If no sound, change to “Analogue” or “Digital.”

• “Audio” is not available for HDMI - 2

HDMI Setting

PC Setting

1. Select

2. Enter

1. Select item

2. Setting or Adjust

3. set

Switch between video and component signal (Video / Component)

Setting for HDMI input

Setting for PC input

1. Select PC Position

1. Adjust

PC Position : Adjust screen position. Phase : Sets the focus of screen.

2. Enter

2. Set

Pixel : Adjusts the horizontal feature of screen.

ZOOM

Troubleshooting

If a problem occurs when you are using the TV, check the below troubleshooting guide before calling for repair.

Severe noise or snow Page

Check the aerial cable and TV connections . P. 4

Check the direction of the aerial. P. 4

Check the aerial or its cable damaged or not. --

Patterns, stripes or noise

Interference caused by devices such as an ampliﬁer, --

personal computer, or a hair drier, Move it away from TV.

Ghosting ( Doubling of images )

Interference occurs caused by signal reﬂection from mountains --

or building. Try to adjust the aerial’s direction or use another antenna.

Cannot turn it on

Ensure the power cord is connected to the AC outlet correctly. --

Cannot operate the remote control.

The batteries may be exhausted. Replace with new batteries. --

Ensure that you are operation the remote control at less than 7 meters from the front of your TV.

Remote control stops working

Unplug TV, several minutes later plug it in again. --

Side control buttons do not work

Switch “Child Lock” to “Off”. P. 13

Aspect ratio changed unintentionally

Press “

PC screen alignment is off

Adjust the “PC Position” in “PC Setting” of Set Up menu. P. 15

Blue screen appears on the screen

Switch “Blue Back” to “Off”. P. 13

Strange picture when using an external device

If the top of the image is distorted, check the video signal quality itself. --

If movement appears unnatural when receiving a signal from a DVD player, etc. with 625p (progressive-scanning), change the output setting of the external device to 625i (interlace-scanning)

” button to return to your settings.

P. 10

Poor picture quality Page

Unnatural color >> Adjust “Color” and “Back Light” P. 9 Check “Color System”. If “Auto” is selected P. 10 select the speciﬁc color system manually. Noise >> Set to the following functions. Picture Mode : Standard P. 9 DigiPure : On P. 10 Dull picture >> Set to the following functions. Picture Mode : Bright P. 9 DigiPure : On P. 10

Poor sound

Adjust the “Bass” and “Treble”. P. 11 If receiving a poor signal in “Stereo/■” switch to “Mono”. P. 11 Adjust the channel reception using “Manual”. P. 7

For HDMI signal, wrong screen size in 480p (525p).

Switch “Size” in “HDMI setting” to “1” or “2”. P. 15

For HDMI signal, green and distorted screen

Wait a little for the signal to stabilize when switching the signal format for an “HDMI” device.

For HDMI signal, No picture / No sound

Use the cable marked with HDMI logo. -Check if the device is compliant with HDMI. P. 15 Switch “Audio” in “HDMI Setting” to “Digital” or “Auto” for HDMI devices,

or “Analogue” or “Auto” for DVI devices.

Some functions do not work.

It is not a malfunction. Some functions (dark background) in the menu do not work depending on the situation.

Black or white dots appear on the screen.

LCD panels use ﬁne dots (“pixels”) to display images. While more than

99.99% of these pixels function properly, a very small number of pixels may not light, or may light all the time. It is not a malfunction.

No picture, No sound

Some input do not output from OUT terminal. --

Technical information

No use "Clear SD" Use "Clear SD"

Language group for teletext PC Signals that can be displayed

Group Languages

Group-1 Turkish, Hungarian, English, German, French, Italian, Spanish, Portuguese,

Group-2 Polish, Serbian, Croatian, Slovenian, Czech, Slovak, Rumanian, Hungarian,

Group-3 Russian, Bulgarian, Lettish, Lithuanian, Estonian, Ukrainian, Serbian, Croatian,

Group-4 Arabic, Czech, Slovak, Hungarian, English, German, French, Italian, Spanish,

Group-5 Farsi, Czech, Slovak, Hungarian, English, German, French, Italian, Spanish,

Group-6 Lettish, Lithuanian, Estonian, Ukrainian, Czech, Slovak, English, German

Greek, Swedish, Finnish

German, French, Italian, Swedish, Finnish

Slovenian, Czech, Slovak, English, German

Portuguese, Swedish, Finnish

• If the characters are unreadable. ➡ Select different teletext language group. (P. 6)

Sound and Color system in your country or region

Area Country or Region System System

Asia, Middle East

Europe

Oceania Australia, New Zealand, etc. B/G PAL

Africa

South America

Bahrain, Kuwait, Oman, Qatar, United Arab Emirates, Yemen, Indonesia, Malaysia, Singapore, Thailand, India, etc.

China, Vietnam, etc. D/K Hong Kong, etc. I Islamic Republic of Iran, Lebanon, Saudi Arabia, etc. B/G SECAM Philippines, Taiwan, Myanmar, etc. M NTSC Russia, etc. Czech Republic, Poland, etc.

UK, etc. I

Republic of South Africa, etc. I Nigeria, etc. Egypt, Morocco, etc. SECAM Argentina, Paraguay, Uruguay PAL-N Brazil PAL-M Chile, Peru, Bolivia, Colombia, Venezuela, Ecuador, etc. NTSC

B/G

D/K

B/G

PAL

SECAM

PALGermany, Holland, Belgium, etc. B/G

PAL

• If the signal doesn’t appear, check that the vertical frequency on the PC is set to “60Hz”.

Resolution 640 x 480(VGA) / 1024 x 768(XGA)

Vertical frequency (Hz) 60.0

What is “Clear SD”

LCD picture is unstable due to a large number of signal noise. Such noise appears extensively especially when an LCD displays SD signals. Clear SD mode resolves disadvantage for better picture quality.

Connect “DVI” devices

Connect a “DVI” device to “HDMI-1” using “DVI-HDMI” conversion cable. Connect analogue sound output of the DVI device to L and R terminals in IN HDMI-1.

• Set “Audio” in “HDMI Setting” to “Analogue” or “Auto” (P. 15)

• HDMI-2 input does not support analogue sound (IN HDMI-1).

• HDMI-2 input does not support DVI devices.

CH / CC List

This information is used for Area-1 setting only. To use the Insert function (P. 7), ﬁnd the “CH/CC” number corresponding to the TV’s channel number from this table. US: The US channel numbers are the channel numbers used in the United States, Philippines, etc. CCIR: The CCIR channel numbers are the channel numbers used in the Middle East, Southeast Asia, etc. OIRT: The OIRT channel numbers are the channel numbers used in Eastern Europe, Russia, Vietnam, etc. AUSTRALIA: The AUSTRALIA channel numbers are the channel numbers used in Australia, etc.

CH 02 US-02 E2 R1 AU-0 CH 03 US-03 E3 AU-1 CH 04 US-04 E4 R2 AU-2 CH 05 US-05 E5 R6 AU-6 CH 06 US-06 E6 R7 AU-7 CH 07 US-07 E7 R8 AU-8 CH 08 US-08 E8 R9 AU-9 CH 09 US-09 E9 CH 10 US-10 E10 R10 AU-10 CH 11 US-11 E11 R11 AU-11 CH 12 US-12 E12 R12 CH 13 US-13 CH 14 US-14, W+29 CH 15 US-15, W+30 CH 16 US-16, W+31 CH 17 US-17, W+32 CH 18 US-18, W+33 CH 19 US-19, W+34 CH 20 US-20, W+35 CH 21 US-21, W+36 E21 CH 22 US-22, W+37 E22 CH 23 US-23, W+38 E23 CH 24 US-24, W+39 E24 CH 25 US-25, W+40 E25 CH 26 US-26, W+41 E26 CH 27 US-27, W+42 E27 CH 28 US-28, W+43 E28 CH 29 US-29, W+44 E29 CH 30 US-30, W+45 E30 CH 31 US-31, W+46 E31 CH 32 US-32, W+47 E32 CH 33 US-33, W+48 E33 CH 34 US-34, W+49 E34 CH 35 US-35, W+50 E35 CH 36 US-36, W+51 E36 CH 37 US-37, W+52 E37 CH 38 US-38, W+53 E38 CH 39 US-39, W+54 E39 CH 40 US-40, W+55 E40 CH 41 US-41, W+56 E41 CH 42 US-42, W+57 E42 CH 43 US-43, W+58 E43 CH 44 US-44, W+59 E44 CH 45 US-45, W+60 E45 CH 46 US-46, W+61 E46 CH 47 US-47, W+62 E47

US CCIR OIRT AUSTRALIA

Channel

CH 48 US-48, W+63 E48 CH 49 US-49, W+64 E49 CH 50 US-50, W+65 E50 CH 51 US-51, W+66 E51 CH 52 US-52, W+67 E52 CH 53 US-53, W+68 E53 CH 54 US-54, W+69 E54 CH 55 US-55, W+70 E55 CH 56 US-56, W+71 E56 CH 57 US-57, W+72 E57 CH 58 US-58, W+73 E58 CH 59 US-59, W+74 E59 CH 60 US-60, W+75 E60 CH 61 US-61, W+76 E61 CH 62 US-62, W+77 E62 CH 63 US-63, W+78 E63 CH 64 US-64, W+79 E64 CH 65 US-65, W+80 E65 CH 66 US-66, W+81 E66 CH 67 US-67, W+82 E67 CH 68 US-68, W+83 E68 CH 69 US-69, W+84 E69

CC 01 S-1 AU-5 CC 02 S-2 CC 03 S-3 CC 04 S-4 CC 05 S-5 CC 06 S-6 AU-5A CC 07 S-7 CC 08 S-8 CC 09 S-9 CC 10 S-10 CC 11 S-11 CC 12 S-12 CC 13 S-13 CC 14 A S-14 CC 15 B S-15 CC 16 C S-16 CC 17 D S-17 CC 18 E S-18 CC 19 F S-19 CC 20 G S-20 CC 21 H S-21 CC 22 I S-22 CC 23 J S-23

US CCIR OIRT AUSTRALIA

Channel

CC 24 K S-24 CC 25 L S-25 CC 26 M S-26 CC 27 N S-27 CC 28 O S-28 CC 29 P S-29 CC 30 Q S-30 CC 31 R S-31 CC 32 S S-32 CC 33 T S-33 CC 34 U S-34 CC 35 V S-35 CC 36 W S-36 CC 37 W+1 S-37 CC 38 W+2 S-38 CC 39 W+3 S-39 CC 40 W+4 S-40 CC 41 W+5 S-41 CC 42 W+6 CC 43 W+7 CC 44 W+8 CC 45 W+9 CC 46 W+10 CC 47 W+11 CC 48 W+12 CC 49 W+13 CC 50 W+14 CC 51 W+15 CC 52 W+16 CC 53 W+17 CC 54 W+18 CC 55 W+19 CC 56 W+20 CC 57 W+21 CC 58 W+22 CC 59 W+23 CC 60 W+24 CC 61 W+25 CC 62 W+26 CC 63 W+27 CC 64 W+28 CC 75 X CC 76 Y R3 CC 77 Z R4 AU-3 CC 78 Z+1 R5 CC 79 Z+2 AU-4 CC 95 A-5 CC 96 A-4 CC 97 A-3 CC 98 A-2 CC 99 A-1

Speciﬁcation

Main unit Terminals / Connectors

Model LT-32EX18 LT-42EX18

Broadcasting systems For Area-1 setting : B / G / I / D / K / M

Color systems For Area-1 setting : PAL / SECAM / NTSC 3.58 / NTSC 4.43 MHz

Channels and frequencies

Sound-multiplex systems NICAM (I / B / G / D / K), A2 (B / G / D / K)

Teletext systems FLOF (Fastext), WST (Standard system)

Power requirements AC 110 V - 240 V, 50/60Hz

Audio output (Rated power output)

Speakers (16 cm x 4 cm) x 2 (16 cm x 4 cm) x 2

Power consumption [standby]

Screen size (visible area size measured diagonally)

Dimensions (W x H x D: mm) [without stand]

Weights [without stand]

Accessories Remote control unit : RM-C2020 x 1

For Area-2 setting : M / N

For Area-2 setting : NTSC / PAL-M / PAL-N

VHF low channel ( VL) =46.25 to 140.25 MHz

Area-1

VHF high channel ( VH) = 147.25 to 423.25 MHz UHF channel ( U ) = 431.25 to 863.25 MHz

VHF low channel ( VL) =55.25 to 127.25 MHz

Area-2

VHF high channel ( VH) = 133.25 to 361.25 MHz UHF channel ( U ) = 367.25 to 801.25 MHz

Receives cable channels in mid band (X to Z+2, S1 to S10), super band (S11 to S20) and hyper band (S21 to S41).

MTS (Multi-channel Television Sound)

6 W + 6 W 10 W + 10 W

129 W

[1.3 W]

80 cm 105 cm

791 x 571.7 x 230.5

[791 x 520.5 x 103.9]

12.6 kg [11.9 kg]

AAA/R03 dry cell battery x 2 Matching box x 1 Screw x 4

203 W

[1.2 W]

1014 x 698 x 296

[1014 x 646.5 x 108.7]

22 kg

[20 kg]

Terminal name Terminal type Signal type (IN) Signal type (OUT)

Composite video, Analogue component 576i (625i) / 480i (525i), Progressive : 576p (625p) / 480p (525p), HD : 1080i (1125i), 720p (750p) / 1080p (1125p) Audio L / R

HDMI 576i (625i) / 480i (525i) / 576p (625p) / 480p (525p), 720p (750p) / 1080p (1125p) / 1080i (1125i)

Audio

Composite video, Audio L / R

Headphone output

Input terminals

Output terminals

VIDEO-1

VIDEO-2

HDMI-1

HDMI-2

IN HDMI-1

PC INPUT

PC AUDIO

MONITOR OUT RCA connectors x 3

Headphone

RCA connectors x 6

RCA connectors x 3 Composite video, Audio L / R

HDMI connector x 1

RCA connectors x 2 Audio L / R

D-SUB (15 pins) x 1 Analogue PC signal

PC-IN (3.5 pinjack) x 1

Stereo mini-jack x 1 (3.5 mm in diameter)

• We may change the design and speciﬁcations without notice.

JVC GGT0220-001A-H User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

Remote control buttons and functions

Set up and connections

Care when setting

Initial Settings

Registering / Editing channels

Channel Summary

Operating the menus

Picture setting

Sound setting

Useful functions

Viewing Teletext Viewing Closed Caption

Watching Video or DVDs

Troubleshooting

Technical information

Language group for teletext PC Signals that can be displayed

Sound and Color system in your country or region

What is “Clear SD”

Connect “DVI” devices

CH / CC List
