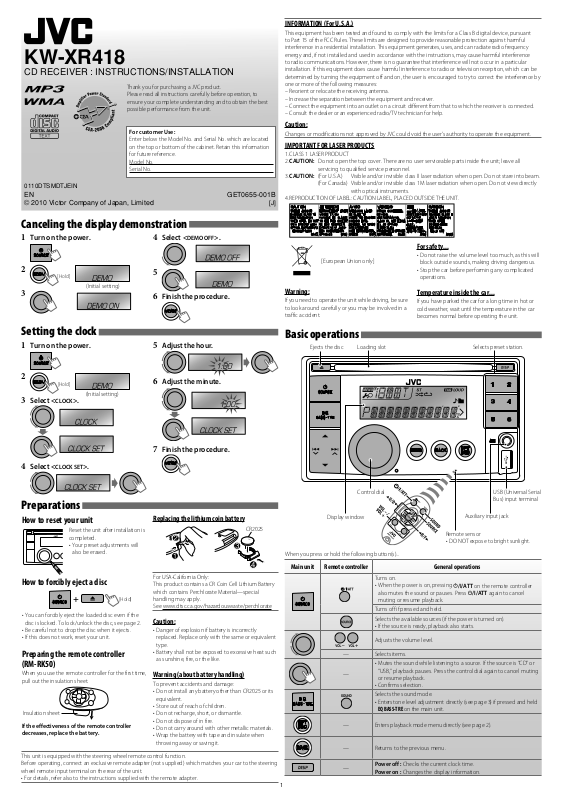

KW-XR418

CD RECEIVER : INSTRUCTIONS/INSTALLATION

Thank you for purchasing a JVC product. Please read all instructions carefully before operation, to ensure your complete understanding and to obtain the best possible performance from the unit.

For customer Use:

Enter below the Model No. and Serial No. which are located on the top or bottom of the cabinet. Retain this information for future reference. Model No. Serial No.

0110DTSMDTJEIN

Canceling the display demonstration

1 Turn on the power.

[Hold]

(Initial setting)

Setting the clock

1 Turn on the power.

4 Select <DEMO OFF>.

6 Finish the procedure.

5 Adjust the hour.

GET0655-001B

[J]

INFORMATION (For U.S.A.)

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: – Reorient or relocate the receiving antenna. – Increase the separation between the equipment and receiver. – Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. – Consult the dealer or an experienced radio/TV technician for help.

Caution:

Changes or modifications not approved by JVC could void the user’s authority to operate the equipment.

IMPORTANT FOR LASER PRODUCTS

1. CLASS 1 LASER PRODUCT

2. CAUTION: Do not open the top cover. There are no user serviceable parts inside the unit; leave all

3. CAUTION: (For U.S.A.) Visible and/or invisible class II laser radiation when open. Do not stare into beam. (For Canada) Visible and/or invisible class 1M laser radiation when open. Do not view directly

4. REPRODUCTION OF LABEL: CAUTION LABEL, PLACED OUTSIDE THE UNIT.

servicing to qualified service personnel.

with optical instruments.

For safety...

[European Union only]

Warning:

If you need to operate the unit while driving, be sure to look around carefully or you may be involved in a traffic accident.

• Do not raise the volume level too much, as this will block outside sounds, making driving dangerous.

• Stop the car before performing any complicated operations.

Temperature inside the car...

If you have parked the car for a long time in hot or cold weather, wait until the temperature in the car becomes normal before operating the unit.

Basic operations

Ejects the disc

Loading slot

Selects preset station.

[Hold]

(Initial setting)

6 Adjust the minute.

3 Select <CLOCK>.

7 Finish the procedure.

4 Select <CLOCK SET>.

Preparations

How to reset your unit

Reset the unit after installation is completed.

• Your preset adjustments will also be erased.

How to forcibly eject a disc

[Hold]

• You can forcibly eject the loaded disc even if the disc is locked. To lock/unlock the disc, see page 2.

• Be careful not to drop the disc when it ejects.

• If this does not work, reset your unit.

Preparing the remote controller (RM-RK50)

When you use the remote controller for the first time, pull out the insulation sheet.

Insulation sheet

If the effectiveness of the remote controller decreases, replace the battery.

This unit is equipped with the steering wheel remote control function. Before operating, connect an exclusive remote adapter (not supplied) which matches your car to the steering wheel remote input terminal on the rear of the unit.

• For details, refer also to the instructions supplied with the remote adapter.

Replacing the lithium coin battery

CR2025

When you press or hold the following button(s)...

For USA-California Only: This product contains a CR Coin Cell Lithium Battery which contains Perchlorate Material—special handling may apply. See www.dtsc.ca.gov/hazardouswaste/perchlorate

Caution:

• Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type.

• Battery shall not be exposed to excessive heat such as sunshine, fire, or the like.

Warning (about battery handling)

To prevent accidents and damage:

• Do not install any battery other than CR2025 or its equivalent.

• Store out of reach of children.

• Do not recharge, short, or dismantle.

• Do not dispose of in fire.

• Do not carry around with other metallic materials.

• Wrap the battery with tape and insulate when throwing away or saving it.

Control dial

Display window

Main unit Remote controller General operations

Turns on.

• When the power is on, pressing also mutes the sound or pauses. Press muting or resume playback.

Turns off if pressed and held.

Selects the available sources (if the power is turned on).

• If the source is ready, playback also starts.

Adjusts the volume level.

— Selects items.

• Mutes the sound while listening to a source. If the source is “CD” or

—

— Enters playback mode menu directly (see page 2).

— Returns to the previous menu.

—

“USB,” playback pauses. Press the control dial again to cancel muting or resume playback.

• Confirms selection.

Selects the sound mode.

• Enters tone level adjustment directly (see page 3) if pressed and held

EQ BASS-TRE on the main unit.

Power off : Checks the current clock time. Power on : Changes the display information.

Auxiliary input jack

Remote sensor

• DO NOT expose to bright sunlight.

/I/ATT on the remote controller

/I/ATT again to cancel

USB (Universal Serial Bus) input terminal

Listening to the radio

Listening to the disc

]

“FM” or “AM”

Manual search

[Hold]

When an FM stereo broadcast is hard

“ST” lights up when receiving an FM stereo broadcast with sufficient signal strength.

“M” flashes, then press the button repeatedly.

Selecting a preset station

to receive

[Hold]

]

<TUNER> ] <MONO> ] <MONO ON> Reception improves, but stereo effect will be lost.

To restore the stereo effect, repeat the same procedure to select <MONO OFF>.

• Pressing the number buttons (1 to 6) can also select the preset stations (1 – 6).

Assigning title to a station

You can assign titles to 30 station frequencies (FM and AM) using 8 characters (maximum) for each title.

]

“FM” or “AM”

Automatic presetting (FM)—

SSM (Strong-station Sequential Memory)

You can preset up to 18 stations for FM.

While listening to a station...

]

Show the title entry screen.

[Hold]

]

Selects a character.

]

Move to the next (or previous) character

] <TUNER> ] <SSM> ] <SSM 01 – 06> / <SSM 07 – 12> / <SSM 13 – 18> “SSM” flashes and local stations with the strongest signals are searched and stored automatically.

To preset another 6 stations, repeat the above procedure by selecting one of the other 6 SSM setting ranges.

Manual presetting (FM/AM)

You can preset up to 18 stations for FM and 6 stations for AM.

Ex.: Storing FM station of 92.50 MHz into preset number “04.”

]

“92.50MHz”

[Hold]

“PRESET MODE” flashes.

position.

Repeat steps 3 and 4 until you finish entering

the title.

To erase the entire title, press and hold step 2, then press the control dial.

Available characters

ABCDEFGHI

J K LMNOPQR STUVWXYZ0 123456789

—/ <> Space

Changing the display information

Station name * = Frequency = Clock = (back to the beginning)

* If no title is assigned to a station, “NO NAME” appears

for a few seconds.

DISP

Using the remote controller

5 U

]

Selects preset number “04.”

“P04” flashes and “MEMORY” appears.

•

Pressing and holding the number buttons (1 to 6) can also store the current station to the selected number buttons (1 – 6).

/ D ∞: Changes the preset stations

2 R

/ F 3: Searches for stations

Listening to the external components

You can connect an external component to the AUX (auxiliary) input jack on the control panel.

• Make sure <AUX ON> is selected for the <SRC SELECT> = <AUX IN> setting on page 3.

]

“AUX IN”

3.5 mm (3/16”) stereo mini plug (not supplied)

Portable audio player,

etc.

Turn on the connected component and start playing the source.

after

]

Turn on the power.

Caution on volume setting:

Discs produce very little noise compared with other sources. Lower the volume before playing a disc to avoid damaging the speakers by the sudden increase of the output level.

All tracks will be played repeatedly until you change the source or eject the disc.

Selecting the playback modes

You can use only one of the following playback modes at a time.

Stopping playback and ejecting the disc

“NO DISC” appears. Press

SOURCE

playback source.

to listen to another

Prohibiting disc ejection

[Hold]

To cancel the prohibition, repeat the same procedure.

Selects folder of the MP3/ WMA

Selects track

Fast-forwards or reverses

[Hold]

the track

Selecting a track/folder

For MP3/WMA discs, select the desired folder, then the desired track by repeating step 2.

• To return to the previous menu, press

BACK

To cancel repeat play or random play, select “RPT OFF” or “RND OFF.”

Changing the display information

Disc title/Album name/performer (folder name)*

number with the elapsed playing time = Current track number with the clock time = (back to the

beginning)

* If the current disc is an audio CD (except for CD Text),

“NO NAME” appears.

If an MP3/WMA file does not have Tag information

or <TAG DISPLAY> is set to <TAG OFF> (see page 3), folder name and file name appear.

Using the remote controller

Listening to the USB device

This unit can play MP3/WMA tracks stored in a USB device.

]

Turn on the power.

Caution on volume setting:

USB devices produce very little noise compared with other sources. Lower the volume before playing a USB to avoid damaging the speakers by sudden increase of the output level.

If you have turned off the power (without detaching the USB device)...

Pressing starts from where it has been stopped previously.

• If a different USB device is currently attached,

Stopping playback USB device

Straightly pull it out from the unit. “NO USB” appears. Press playback source.

You can operate the USB device in the same way you operate the files on a disc.

SOURCE

turns on the power and playback

playback starts from the beginning.

All tracks will be played repeatedly until you change the source or detach the USB device.

and detaching the

SOURCE

to listen to another

USB input terminal

Cautions:

• Avoid using the USB device if it might hinder your safety driving.

• Do not pull out and attach the USB device repeatedly while “READING” is shown on the display.

• Do not start the car engine if a USB device is connected.

• This unit may not be able to play the files depending on the type of USB device.

• Operation and power supply may not work as intended for some USB devices.

• You cannot connect a computer to the USB input terminal of the unit.

• Make sure all important data has been backed up to avoid losing the data.

• Do not leave a USB device in the car, expose to direct sunlight, or high temperature to avoid deformation or cause damages to the device.

• Some USB devices may not work immediately after attaching USB device or turn on the power.

• For more details about USB operations, see page 5.

]

“REPEAT” j “RANDOM”

REPEAT TRACK RPT FOLDER RPT

RANDOM FOLDER RND

ALL RND

Track title (file name)* = Current track

: Repeats current track : Repeats current folder

: Randomly plays all tracks of

current folder, then tracks of next folders

: Randomly plays all tracks

5 U

/ D ∞: Selects folder of the MP3/

WMA

2 R

/ F 3: Selects track

2 R

/ F

: Fast-forwards or reverses the

[Hold]

track

USB memory

Selecting a preset sound mode

You can select a preset sound mode suitable for the music genre.

FLAT = NATURAL = DYNAMIC = VOCAL BOOST = BASS BOOST = USER = (back to the beginning)

While listening, you can adjust the tone level of the selected sound mode.

[Hold]

Storing your own sound mode

You can store your own adjustments in memory.

[Hold]

]

Tone

BASS 60 Hz, 80 Hz, 100 Hz,

MIDDLE 0.5 kHz, 1.0 kHz,

TREBLE 10.0 kHz, 12.5 kHz,

Frequency Level Q

200 Hz

1.5 kHz, 2.5 kHz

15.0 kHz, 17.5 kHz

Sound element

–06 to +06 Q1.0, Q1.25,

Q1.5, Q2.0

–06 to +06 Q0.75, Q1.0,

Q1.25

–06 to +06 Q FIX

Adjust the level (–06 to +06) of the selected tone (BASS / MID / TRE). The sound mode is automatically stored and changed to “USER.”

Menu operations

1 2 3

[Hold]

Category Menu item Selectable setting, [

DEMO • DEMO ON

DEMO

CLOCK SET [ 1:00 ] : Adjust the hour, then the minute.

CLOCK

BASS — : For settings, see “Storing your own sound mode.”

MIDDLE

PRO EQ

TREBLE

DIMMER • DIMMER ON

SCROLL *

DISPLAY

TAG DISPLAY

SSM *

AREA

MONO *

TUNER

IF BAND

• DEMO OFF

• DIMMER OFF

• SCROLL ONCE

• SCROLL AUTO

• SCROLL OFF

Pressing setting.

• TAG ON

• TAG OFF

• SSM 01 – 06

• SSM 07 – 12

• SSM 13 – 18

• AREA US

• AREA EU

• AREA SA

• MONO ON

• MONO OFF

• AUTO

• WIDE

DISP

for more than one second can scroll the display regardless of the

: Display demonstration will be activated automatically if

no operation is done for about 20 seconds.

: Cancels.

: Dims the display and button illumination. : Cancels.

: Scrolls the displayed information once. : Repeats scrolling (at 5-second intervals). : Cancels.

: Shows the Tag information while playing MP3/WMA

tracks.

: Cancels.

: For settings, see “Automatic presetting (FM)—SSM

(Strong-station Sequential Memory)” on page 2.

: When using in North/Central/South America. AM/FM

intervals are set to 10 kHz/200 kHz.

: When using in any other areas. AM/FM intervals are set

to 9 kHz/50 kHz (100 kHz during auto search).

: When using in South American countries where FM

interval is 100 kHz. AM interval is set to 10 kHz.

: Activate monaural mode to improve FM reception, but

stereo effect will be lost. (See page 2.)

: Restore the stereo effect.

: Increases the tuner selectivity to reduce interference

noises between adjacent stations. (Stereo effect may be lost.)

: Subject to interference noises from adjacent stations,

but sound quality will not be degraded and the stereo effect will remain.

Repeat step 2 if necessary.

• To return to the previous menu, press

• To exit from the menu, press

Adjust the sound elements of the selected tone ( see table on the right).

Repeat steps 2 and 3 to adjust other tones.

The adjustments made will be stored automatically in “USER.”

The current sound mode changes to “USER” automatically.

Category Menu item Selectable setting, [

AUDIO

SRC

SELECT

*1 Some characters or symbols will not be shown correctly (or will be blanked) on the display.

Displayed only when the source is “FM.”

*3 If you are using a two-speaker system, set the fader level to “00.” *4 This adjustment will not affect the subwoofer output. *5 Displayed only when <L/O MODE> is set to <SUB.W>. *6 The volume level automatically changes to “VOLUME 30” if you change to <LOW POWER> with the volume level

is set higher than “VOLUME 30.”

*7 Displayed only when any source other than “AM” is selected. *8 Displayed only when any source other than “AUX IN” is selected.

Initial: Underlined

BACK

DISP

]

FADER *

BALANCE *

LOUD

VOL ADJUST

L/O MODE

SUB.W FREQ *

SUB.W LEVEL *

BEEP

AMP GAIN *6• LOW POWER

AM *

AUX IN *

R06 – F06 [ 00 ] : Adjust the front and rear speaker output balance.

L06 – R06 [ 00 ] : Adjust the left and right speaker output balance.

• LOUD ON

• LOUD OFF

VOL ADJ –05 — VOL ADJ +05

[ VOL ADJ 00 ]

• SUB.W

• REAR

• LOW

• MID

• HIGH

SUB.W 00 —

SUB.W 08

[ SUB.W 04 ]

• BEEP ON

• BEEP OFF

• HIGH POWER

• AM ON

• AM OFF

• AUX ON

• AUX OFF

Initial: Underlined

: Boost low and high frequencies to produce a well-

balanced sound at a low volume level.

: Cancels.

: Preset the volume adjustment level of each source

(except FM), compared to the FM volume level. The volume level will automatically increase or decrease when you change the source.

• Before making an adjustment, select the source you want to adjust.

• “VOL ADJ FIX” appears on the display if “FM” is selected as the source.

: Select if the REAR LINE OUT terminals are used for

connecting a subwoofer (through an external amplifier).

: Select if the REAR LINE OUT terminals are used for

connecting the speakers (through an external amplifier).

: Frequencies lower than 72 Hz are sent to the subwoofer. : Frequencies lower than 111 Hz are sent to the subwoofer. : Frequencies lower than 157 Hz are sent to the subwoofer.

: Adjust the subwoofer output level.

: Activates the keypress tone. : Deactivates the keypress tone.

: VOLUME 00 – VOLUME 30 (Select if the maximum power

of each speaker is less than 50 W to prevent damaging the speakers.)

: VOLUME 00 – VOLUME 50

: Enable “AM” in source selection. : Disable “AM” in source selection.

: Enable “AUX IN” in source selection. : Disable “AUX IN” in source selection.

]

Installation

This unit is designed to operate on 12 V DC, NEGATIVE ground electrical systems. If your vehicle does not have this system, a

voltage inverter is required, which can be purchased at JVC car audio dealers.

Warnings

• To prevent short circuits: – Disconnect the battery’s negative terminal and make all electrical connections before installing the unit. – Cover the terminals of the UNUSED leads with insulating tape.

• Be sure to ground this unit to the car’s chassis again after installation.

• Replace the fuse with one of the specified rating.

• Connect speakers with a maximum power of more than 50 W (impedance of 4 Ω to 8 Ω). Otherwise, change the <AMP GAIN> setting. (See “Menu operations: <AMP GAIN>” on page 3.)

• The heat sink becomes very hot after use. Be careful not to touch it when removing this unit.

Heat sink

Parts List

Sleeve (fitted to the main unit when shipped) ....1

Brackets (fitted to the main unit when shipped) 2

* Flat countersunk screws—M5 × 8 mm (3/8”) ....... 8

* Round head screws—M2.6 × 3 mm (1/8”) .............4

* Four of these screws are fitted to the main unit when shipped.

Keep these screws for installation use if necessary.

Prepare these before installation....

Round head screws—M5 × 8 mm (3/8”) ....8

Power cord .....................................................................1

Trim plate ........................................................................ 1

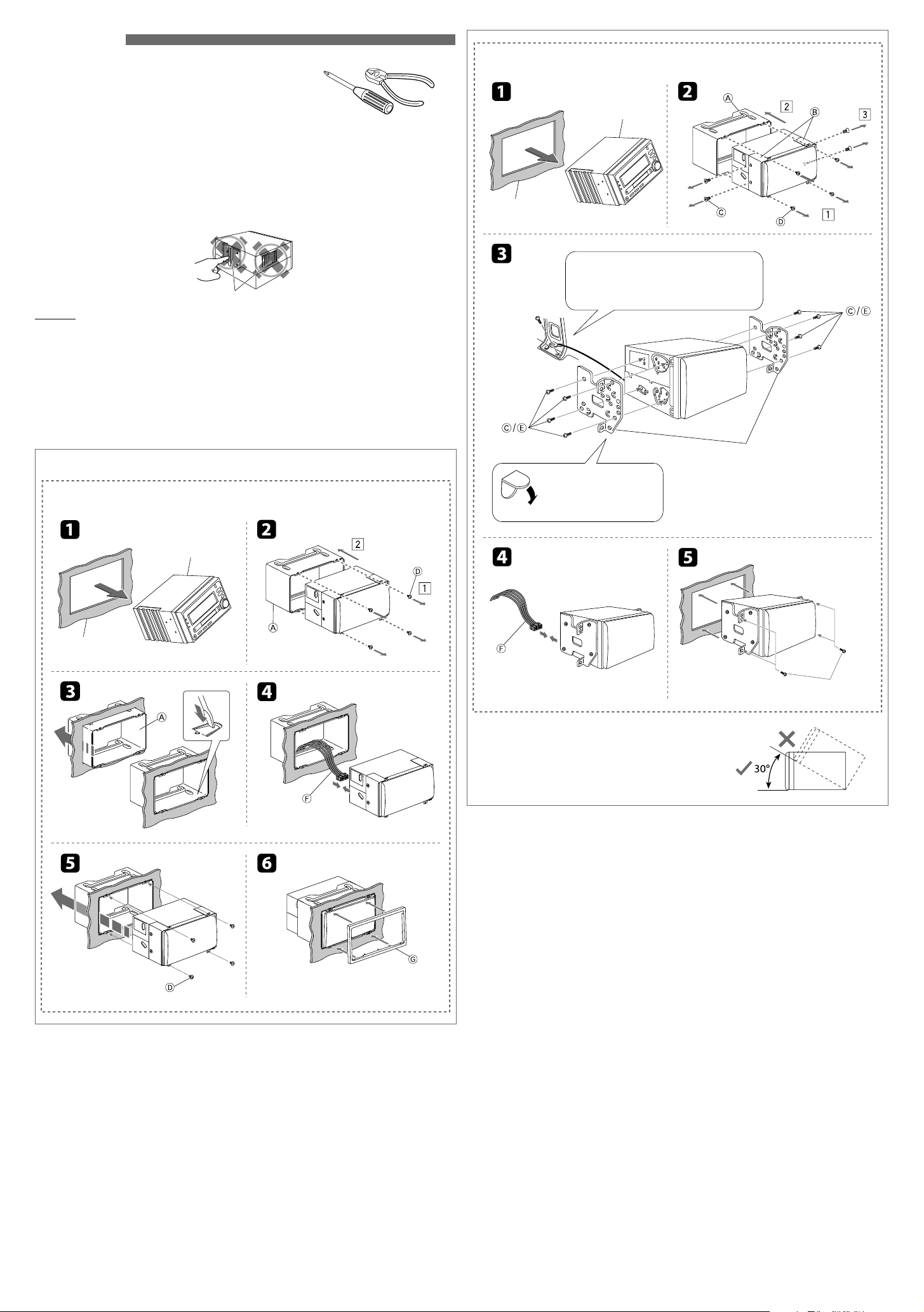

(B) Installing with the mounting brackets from the car

Audio system originally installed in the car

Car dashboard

Firmly attach the ground wire to the metallic body of the car using the screw originally fixed to the metallic body of the car.

The following illustration shows a typical installation. If you have any questions or require information regarding installation kits, consult your JVC car audio dealer or a company supplying kits.

In-dash mounting

(A) Installing with the supplied sleeve

Audio system originally installed in the car

Car dashboard

Mounting bracket removed from the car

If there is an interfering tab on the mounting bracket, bend it flat.

Screw removed from the car

Install the unit at an angle of less than 30˚.

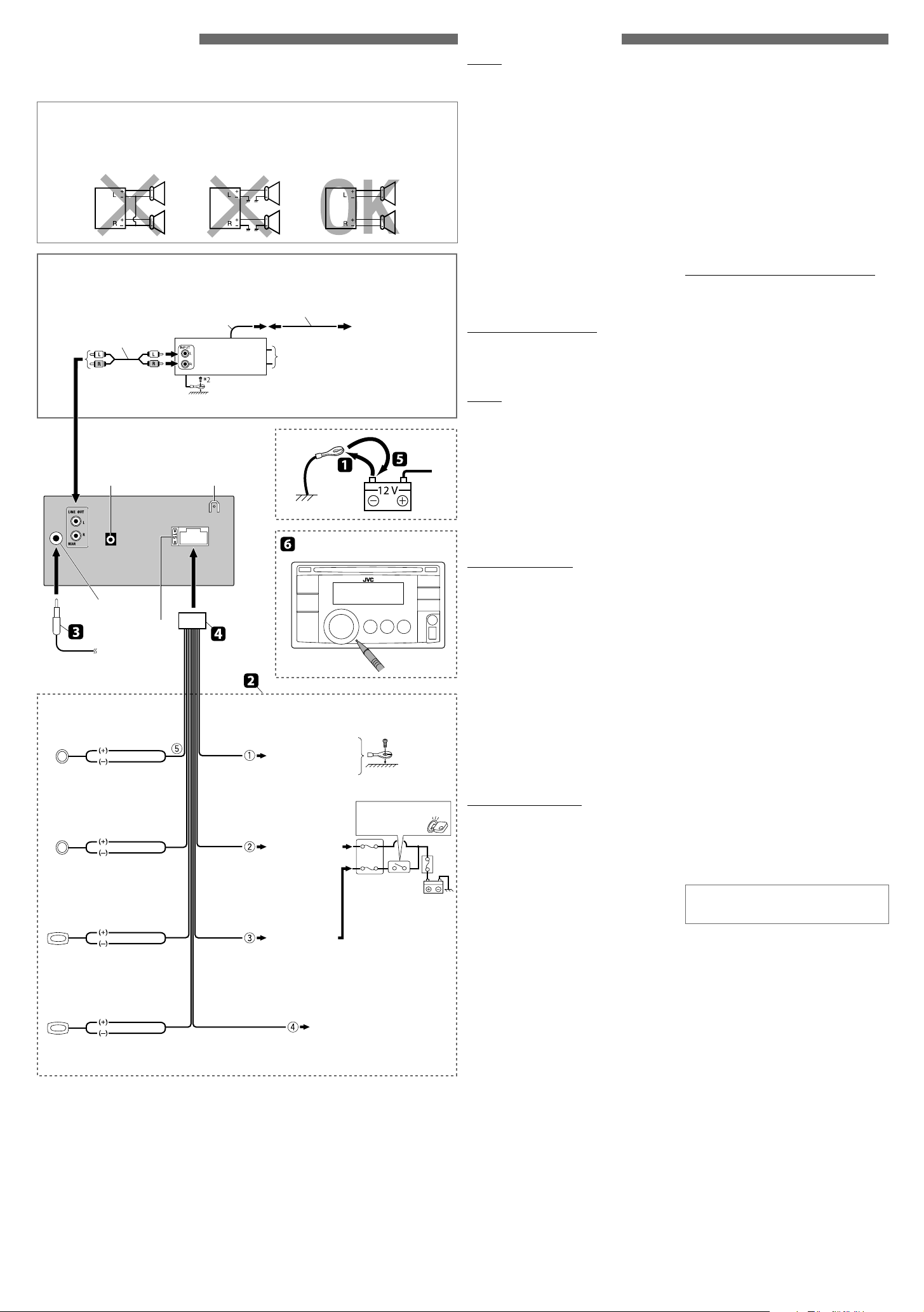

Electrical connections

IMPORTANT: A custom wiring harness (separately purchased) which is suitable for your car is recommended for connection between the unit and your car.

• Consult your JVC car audio dealer or a company supplying kits for details.

PRECAUTIONS on power supply and speaker connections

• DO NOT connect the speaker leads of the power cord to the car battery; otherwise, the unit will be

seriously damaged.

• BEFORE connecting the speaker leads of the power cord to the speakers, check the speaker wiring in your

car.

Connecting the external amplifier or subwoofer

To the blue (white stripe) lead of the unit

Signal cord *

Remote lead

JVC Amplifier

Y-connector *

Rear speakers or subwoofer Make the <L/O MODE> setting accordingly. (See “Menu operations” on page 3.)

More about this unit

General

• If you turn off the power while listening to a track,

• If no operation is done for about 60 seconds

Tuner operations

• During SSM search... – All previously stored stations are erased and the

– When SSM is over, the station stored in the lowest

• When storing a station manually, the previously

• If you try to assign titles to more than 30 station

Disc/USB operations

Caution for DualDisc playback

• The Non-DVD side of a “DualDisc” does not comply

General

• This unit has been designed to reproduce CDs/

Steering wheel remote input

Rear ground terminal

Reset the unit.

• If you change the source while listening to a disc,

• If the ejected disc is not removed within

Playing a CD-R or CD-RW

• Use only “finalized” CD-Rs or CD-RWs.

• This unit can play back multi-session discs;

Antenna input

• Some CD-Rs or CD-RWs may not be played back on

– Discs are dirty or scratched. – Moisture condensation has occurred on the lens

– The pickup lens inside the unit is dirty. – The files on the CD-R/CD-RW are written using the

– There are improper recording conditions (missing

• CD-RWs may require a longer readout time since Front speaker (left)

15 A fuse

White

White (black stripe)

Black

To the metallic body or chassis of the car

Playing an MP3/WMA disc

Ignition switch

Gray

Front speaker (right)

Rear speaker (left)

Rear speaker (right)

*1 Not supplied for this unit. *2 Firmly attach the ground wire to the metallic body or to the chassis of the car—to the place uncoated with

paint.

*3 Before checking the operation of this unit prior to installation, this lead must be connected, otherwise the power

cannot be turned on.

Gray (black stripe)

Green

Green (black stripe)

Purple

Purple (black stripe)

Yellow *

Red

Blue (white stripe)

To a live terminal (constant 12 V)

To an accessory terminal

Fuse block

To the remote lead of other equipment or automatic antenna if any (200 mA max.)

• This unit can play back MP3/WMA files with the

• This unit can show the names of albums, artists

• This unit can display only one-byte characters. No

• This unit can play back MP3/WMA files meeting the

– Bit rate of MP3/WMA: 32 kbps — 320 kbps – Sampling frequency of MP3: 32 kHz, 44.1 kHz, 48 kHz (for MPEG-1) 16 kHz, 22.05 kHz, 24 kHz (for MPEG-2) – Sampling frequency of WMA:

22.05 kHz, 32 kHz, 44.1 kHz, 48 kHz

– Disc format: ISO 9660 Level 1/ Level 2, Romeo,

• The maximum number of characters for file/folder

– ISO 9660 Level 1: up to 12 characters; ISO 9660

playback will start from where it had been stopped previously next time you turn on the power.

after pressing MENU button, the operation will be canceled.

stations are stored anew.

preset number will be automatically tuned in.

preset station is erased when a new station is stored in the same preset number.

frequencies, “NAME FULL” appears. Delete unwanted titles before assignment.

with the “Compact Disc Digital Audio” standard. Therefore, the use of Non-DVD side of a DualDisc on this product may not be recommended.

CD Texts, and CD-Rs (Recordable)/CD-RWs (Rewritable) in audio CD (CD-DA), MP3 and WMA formats.

playback stops. Next time you select “CD” as the playback source, playback will start from where it had been stopped previously.

15 seconds, it is automatically inserted into the loading slot again to protect it from dust. Playback starts automatically.

however, unclosed sessions will be skipped while playing.

this unit:

inside the unit.

“Packet Write” method.

data, etc.) or media conditions (stained, scratched, warped, etc.).

the reflectance of CD-RWs is lower than that of regular CDs.

extension code <.mp3> or <.wma> (regardless of the letter case—upper/lower).

(performer), and tag (Version 1.0, 1.1, 2.2, 2.3, or 2.4) for MP3 files and for WMA files.

other characters can be correctly displayed.

conditions below:

Joliet, Windows extension

names vary depending on the disc format used (includes 4 extension characters—<.mp3> or <.wma>).

Level 2: up to 31 characters; Romeo: up to 64 characters; Joliet: up to 32 characters; Windows extension: up to 64 characters

• This unit can recognize a total of 512 files, 255 folders, and 8 hierarchical levels.

• This unit can play back files recorded in VBR (variable bit rate).

Files recorded in VBR have a discrepancy in the

elapsed time display, and do not show the actual elapsed time. In particular, this difference becomes noticeable after performing the search function.

• This unit cannot play back the following files:

– MP3 files: encoded in MP3i and MP3 PRO format;

an inappropriate format; layer 1/2.

– WMA files: encoded in lossless, professional, and

voice format; not based upon Windows Media® Audio; copy-protected with DRM.

– Files which have data such as AIFF, ATRAC3, etc.

• The search function works but search speed is not constant.

Playing MP3/WMA tracks from a USB device

• While playing from a USB device, the playback order may differ from other players.

• This unit may be unable to play back some USB devices or some files due to their characteristics or recording conditions.

• Depending on the shape of the USB devices and connection ports, some USB devices may not be attached properly or the connection might be loose.

• Connect one USB mass storage class device to the unit at a time. Do not use a USB hub.

• If the connected USB device does not have the correct files, “CANNOT PLAY” appears.

• This unit can show Tag (Version 1.0, 1.1, 2.2, 2.3, or

2.4) for MP3 files and for WMA files.

• This unit can play back MP3/WMA files meeting the conditions below:

– Bit rate of MP3/WMA: 32 kbps — 320 kbps – Sampling frequency of MP3: 32 kHz, 44.1 kHz, 48 kHz (for MPEG-1) 16 kHz, 22.05 kHz, 24 kHz (for MPEG-2) – Sampling frequency of WMA:

22.05 kHz, 32 kHz, 44.1 kHz, 48 kHz

• This unit can play back MP3 files recorded in VBR (variable bit rate).

• The maximum number of characters for:

– Folder names: 32 characters; File names: 32

characters; MP3 Tag: 64 characters; WMA Tag: 32 characters

• This unit can recognize a total of 5 000 files, 255 folders (255 files per folder including folder without unsupported files), and of 8 hierarchies.

• This unit does not support SD card reader.

• This unit cannot recognize a USB device whose rating is other than 5 V and exceeds 500 mA.

• USB devices equipped with special functions such as data security functions cannot be used with the unit.

• Do not use a USB device with 2 or more partitions.

• This unit may not recognized a USB device connected through a USB card reader.

• This unit may not play back files in a USB device properly when using a USB extension cord.

• This unit cannot play back the following files:

– MP3 files: encoded in MP3i and MP3 PRO format;

an inappropriate format; layer 1/2.

– WMA files: encoded in lossless, professional, and

voice format; not based upon Windows Media® Audio.

Microsoft and Windows Media are either registered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries.

JVC bears no responsibility for any loss of the data in the USB mass storage class device while using this System.

Troubleshooting

Symptom Remedy/Cause

Sound cannot be heard from the speakers.

“PROTECT” appears on the display and no operations can be done.

General

This unit does not work at all. Reset the unit. (See page 1.)

“AUX IN” cannot be selected. Check the <SRC SELECT>

SSM automatic presetting does not work. Store stations manually.

Static noise while listening to the radio. Connect the antenna firmly.

“AM” cannot be selected. Check the <SRC SELECT>

FM/AM

Disc cannot be played back. Insert the disc correctly.

• CD-R/CD-RW cannot be played back.

• Tracks on the CD-R/CD-RW cannot be skipped.

Disc can be neither played back nor ejected.

Disc sound is sometimes interrupted. • Stop playback while driving on rough roads.

Disc playback

“NO DISC” appears on the display. Insert a playable disc into the loading slot.

“PLEASE” and “EJECT” appear alternately on the display.

Disc cannot be played back. • Use a disc with MP3/WMA tracks recorded in a format

Noise is generated. Skip to another track or change the disc. (Do not add

A longer readout time is required (“READING” keeps flashing on the display).

Tracks are not played back in the order you have intended.

“NO FILE” appears on the display. Selected folder is an empty folder *. Select another

MP3/WMA playback

“NOT SUPPORT” appears on the display and track skips.

The elapsed playing time is not correct. This sometimes occurs during playback. This is caused

The correct characters are not displayed (e.g. album name).

Noise is generated. The track played back is not an MP3/WMA track. Skip to

“READING” keeps flashing on the display. • Readout time varies depending on the USB device.

“NO FILE” appears on the display. Selected folder is an empty folder*. Select another

“NOT SUPPORT” appears on the display and track skips.

Tracks/folders are not played back in the order you have intended.

USB device playback

• “CANNOT PLAY” flashes on the display.

• “NO USB” appears on the display.

• The unit cannot detect the USB device.

While playing a track, sound is sometimes interrupted.

Correct characters are not displayed (e.g. album name).

The fuse blows. Connect the red and black leads correctly.

Power cannot be turned on. Check to make sure the yellow lead is connected.

No sound from the speakers. Check to make sure the speaker output lead is not

Sound is distorted. • Check to make sure the speaker output lead is

Noise interfere with sounds. Check to make sure the rear ground terminal connected

Installation/connection

This unit becomes hot. • Check to make sure the speaker output lead is

This unit does not work at all. Reset the unit. (See page 1.)

• Adjust the volume to the optimum level.

• Make sure the unit is not muted/paused. (See page 1.)

• Check the cords and connections.

Check to be sure the terminals of the speaker leads are covered with insulating tape properly, then reset the unit. (See page 1.) If “PROTECT” does not disappear, consult your JVC car audio dealer or a company supplying kits.

“Menu operations” on page 3.)

operations” on page 3.)

• Insert a finalized CD-R/CD-RW.

• Finalize the CD-R/CD-RW with the component which you used for recording.

• Unlock the disc. (See page 2.)

• Eject the disc forcibly. (See page 1.)

• Change the disc.

• Check the cords and connections.

Press

, then insert a disc correctly.

compliant with ISO 9660 Level 1, Level 2, Romeo, or Joliet.

• Add the extension code <.mp3> or <.wma> to the file names.

the extension code <.mp3> or <.wma> to non-MP3 or WMA tracks.)

Do not use too many hierarchical levels and folders.

Playback order is determined when the files are recorded.

folder that contains MP3/WMA tracks. * Folder that is physically empty or folder that contains data

but does not contain valid MP3/WMA track.

Skip to the next track encoded in an appropriate format or to the next non-copy-protected WMA track.

by how the tracks are recorded on the disc.

This unit can only display letters (upper case), numbers, and a limited number of symbols. (See page 2.)

another file. (Do not add the extension code <.mp3> or <.wma> to non-MP3 or WMA tracks.)

• Do not use too many hierarchy or folders.

• Turn off the power then on again.

• Reattach the USB device again.

folder that contains MP3/WMA tracks. * Folder that is physically empty or folder that contains

data but does not contain valid MP3/WMA track.

Skip to the next track encoded in an appropriate format or to the next non-copy-protected WMA track.

The playback order is determined by the write-in time stamp. The first track/folder written into the USB device will be the first track/folder for playback.

• Attach a USB device that contains tracks encoded in an appropriate format.

• Reattach the USB device again.

The MP3/WMA tracks have not been properly copied into the USB device. Copy MP3/WMA tracks again into the USB device, and try again.

This unit can only display letters (upper case), numbers, and a limited number of symbols. (See page 2.)

shortcircuited.

grounded.

• Check to make sure the “–” terminals of L and R speakers are grounded in common.

to the car’s chassis is using shorter and thicker cords.

grounded.

• Check to make sure the “–” terminals of L and R speakers are grounded in common.

<AUX IN> setting. (See

<AM> setting. (See “Menu

Maintenance

Moisture condensation

Moisture may condense on the lens inside the unit. Eject the disc and leave the unit turned on for a few hours until the moisture has evaporated.

To keep discs clean

Wipe in a straight line from center of disc to edge. Do not use liquid cleaners, thinners, or benzene.

To play new discs

Remove any rough areas from the inner and outer edges of the disc.

Do not use the following discs:

• Single CD—8 cm (3-3/16”) disc

• Warped disc

• Disc with sticker and sticker residue

• Disc with stick-on label

• Unusual shape disc

• C-thru Disc (semi-transparent disc)

• Disc with transparent or semi-transparent parts on its recording area

Specifications

AUDIO AMPLIFIER SECTION

Power Output:

20 W RMS × 4 Channels at 4 Ω and

≤ 1% THD+N

Signal-to-Noise Ratio:

80 dBA (reference: 1 W into 4 Ω)

Load Impedance: 4 Ω (4 Ω to 8 Ω allowance) Tone Control Range: Bass: ±12 dB (60 Hz, 80 Hz, 100 Hz, 200 Hz) Q1.0, Q1.25, Q1.5, Q2.0 Middle: ±12 dB (0.5 kHz, 1.0 kHz, 1.5 kHz,

2.5 kHz) Q0.75, Q1.0, Q1.25 Treble: ±12 dB (10.0 kHz, 12.5 kHz, 15.0 kHz,

17.5 kHz) Q (Fixed) Frequency Response: 40 Hz to 20 000 Hz Line-Out Level/Impedance:

2.5 V/20 kΩ load (full scale)

Subwoofer-Out Level/Impedance:

2.5 V/20 kΩ load (full scale) Output Impedance: 1 kΩ Other Terminal: USB input terminal, AUX

(auxiliary) input jack, Antenna input, Steering wheel remote input

TUNER SECTION

Frequency Range: FM: 87.5 MHz to 107.9 MHz (with channel interval set to 100 kHz or

200 kHz)

87.5 MHz to 108.0 MHz (with channel interval set to 50 kHz) AM: 530 kHz to 1 710 kHz (with channel interval set to 10 kHz) 531 kHz to 1 602 kHz (with channel interval set to 9 kHz)

[FM Tuner]

Usable Sensitivity: 9.3 dBf (0.8 μV/75 Ω) 50 dB Quieting Sensitivity: 16.3 dBf (1.8 μV/75 Ω) Alternate Channel Selectivity (400 kHz): 65 dB Frequency Response: 40 Hz to 15 000 Hz Stereo Separation: 40 dB

[AM Tuner]

Sensitivity/Selectivity: 20 μV/40 dB

CD PLAYER SECTION

Type: Compact disc player Signal Detection System: Non-contact optical pickup

(semiconductor laser) Number of channels: 2 channels (stereo) Frequency Response: 5 Hz to 20 000 Hz Dynamic Range: 96 dB Signal-to-Noise Ratio: 98 dB Wow and Flutter: Less than measurable limit MP3 Decoding Format: MPEG1/2 Audio Layer 3 Max. Bit Rate: 320 kbps WMA (Windows Media® Audio) Decoding Format: Max. Bit Rate: 320 kbps

USB SECTION

USB Standard: USB 1.1, USB 2.0 Data Transfer Rate (Full Speed): Max. 12 Mbps Compatible Device: Mass storage class Compatible File System: FAT 32/16/12 Playable Audio Format: MP3/WMA Max. Current: DC 5 V

GENERAL

Power Requirement: Operating Voltage:

DC 14.4 V (11 V to 16 V

allowance) Grounding System: Negative ground Allowable Operating Temperature: 0°C to +40°C (32°F to 104°F) Dimensions (W × H × D): Installation Size (approx.): 182 mm × 111 mm × 160 mm (7-3/16” × 4-3/8” × 6-5/16”) Panel Size (approx.): 188 mm × 117 mm × 23 mm (7-7/16” × 4-5/8” × 5/16”) Mass (approx.): 1.8 kg (3.9 lbs) (excluding

accessories)

Design and specifications are subject to change without notice.

If a kit is necessary for your car, consult your telephone directory for the nearest car audio speciality shop.

Having TROUBLE with operation?

Please reset your unit

Still having trouble??

Call 1-800-252-5722 (USA ONLY)

http://www.jvc.com

500 mA

JVC GET0655-001B User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
