2 ENGLISH

For safety...

• Do not raise the volume level too much, as this will block outside sounds, making driving dangerous.

• Stop the car before performing any complicated operations.

Temperature inside the car...

If you have parked the car for a long time in hot or cold weather, wait until the temperature in the car becomes normal before operating the unit.

How to read this manual

The following icons/symbols are used to indicate:

Press and hold the button(s)

[Hold]

until the desired operation begins.

Turn the control dial.

Turn the control dial to make a selection, then press to confirm.

( <XXXX> Menu setting item

Reference page number

XX)

Continued on the next page

How to attach/detach the control panel

How to reset your unit

Your preset adjustments will also be erased (except the registered Bluetooth device). ( 14 )

How to forcibly eject a disc

[Hold]

• You can forcibly eject the loaded disc even if the disc is locked. To lock/unlock the disc,

10.

• Be careful not to drop the disc when it ejects.

• If this does not work, reset your unit.

Thank you for purchasing a JVC product.

Please read all instructions carefully before

operation, to ensure your complete

understanding and to obtain the best possible

performance from the unit.

CONTENTS

3 How to read this manual 3 How to attach/detach the control

panel

3 How to reset your unit 3 How to forcibly eject a disc

Canceling the display demonstration

4 Setting the clock 5 Preparing the remote controller

(RM-RK50)

6 Basic operations 8 Listening to the radio 10 Listening to a disc 11 Listening to the USB device 13 Using the Bluetooth ® device

15 Using a Bluetooth mobile phone 18 Using a Bluetooth audio player 19 Changing the Bluetooth settings

21 Listening to the HD Radio ™

Broadcast

22 Listening to the satellite radio 24 Listening to the iPod/iPhone 27 Listening to the other external

components

28 Selecting a preset sound mode 29 Menu operations 36 More about this unit 41 Maintenance 42 Troubleshooting 48 Specifications

3ENGLISH

Canceling the display demonstration

1 Turn on the power.

[Hold]

SET UP

DEMO Clock PRO EQ

(Initial setting)

3 Select <DEMO>.

DEMO

Off On

Setting the clock

1 Turn on the power.

3 Select <Clock>.

SET UP

4 Select <Set Clock>.

Clock

5 Adjust the hour.

Set Clock

6 Adjust the minute.

[Hold]

DEMO Clock PRO EQ

Set Clock 24H/12H Clock Adjust

SET UP

(Initial setting)

1 : 00 AM

Set Clock

DEMO Clock PRO EQ

1 : 00 AM

4 Select <Off>.

DEMO

Off On

5 Finish the procedure.

7 Select <24H/12H>.

Clock

Set Clock 24H/12H Clock Adjust

8 Select <24Hours> or <12Hours>.

24H/12H

24Hours 12Hours

9 Finish the procedure.

4 ENGLISH

Clock

Set Clock 24H/12H Clock Adjust

Preparing the remote controller (RM-RK50)

When you use the remote controller for the first time, pull out the insulation sheet.

Insulation sheet

For USA-California Only: This product contains a CR Coin Cell Lithium Battery which contains Perchlorate Material— special handling may apply. See www.dtsc.ca.gov/hazardouswaste/ perchlorate

If the effectiveness of the remote controller decreases, replace the battery.

Replacing the lithium coin battery

CR2025

Caution:

• Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type.

• Battery shall not be exposed to excessive heat such as sunshine, fire, or the like.

Warning (to prevent accidents and damage):

• Do not install any battery other than CR2025 or its equivalent.

• Do not leave the remote controller in a place (such as dashboards) exposed to direct sunlight for a long time.

• Store the battery in a place where children cannot reach.

• Do not recharge, short, disassemble, heat the battery, or dispose of it in a fire.

• Do not leave the battery with other metallic materials.

• Do not poke the battery with tweezers or similar tools.

• Wrap the battery with tape and insulate when throwing away or saving it.

KD-A815 is equipped with the steering wheel remote control function. Before operating, connect an exclusive remote adapter (not supplied) which matches your car to the steering wheel remote input terminal on the rear of the unit.

• For details, refer also to the instructions supplied with the remote adapter.

5ENGLISH

Basic operations

Ejects the disc Loading slot USB (Universal Serial Bus) input terminalDisplay window

Detaches the panel

Control dial

• DO NOT expose to bright sunlight.

When you press or hold the following button(s)...

Main unit

6 ENGLISH

Remote

controller

Turns on.

• When the power is on, pressing /I/ATT on the remote controller also mutes the sound or pauses. Press /I/ATT again to cancel muting or resume playback.

Turns off if pressed and held.

Selects the available sources (if the power is turned on).

• If the source is ready, playback also starts.

Adjusts the volume level.

— Selects items.

• Mutes the sound while listening to a source. If the source is “CD,”

—

“USB FRONT/USB REAR” or “iPod FRONT/iPod REAR,” playback pauses. Press the control dial again to cancel muting or resume playback.

• Confirms selection.

Remote sensor

General operation

Auxiliary input jack

Main unit

Remote

controller

—

Selects the sound mode.

• Enters tone level adjustment directly ( 28 ) if pressed and held EQ/BASS-TRE on the main unit.

• Enters “Call Menu” screen * or answers incoming call when the unit rings.

• Ends a call if pressed and held after a phone call conversation.

• Switches the connected mobile phone to the last connected mobile phone if pressed and held. (

* If there is no call list, the unit beeps.

• Returns to the previous menu.

• Switches the controlling terminal for iPod playback if pressed and

Power off : Checks the current clock time. Power on : Changes the display information and pattern.

held. (

24, 33 )

General operation

Changing the display information and pattern

Ex.: When tuner is selected as the source

18 )

Source operation display

• If a station has been assigned a title, station title appears after about 5 seconds.

• To assign a title to a station,

Caution:

If the temperature inside the car is below 0°C (32°F), the movement of animation and text scroll will be halted on the display to prevent the display from being blurred. appears on the display. When the temperature increases, and the operating temperature is resumed, these functions will start working again.

Audio level meter display

(<Level Meter>, 31)

Caution on volume setting:

Digital devices (CD/USB) produce very little noise compared with other sources. Lower the volume before playing these digital sources to avoid damaging the speakers by sudden increase of the output level.

7ENGLISH

Listening to the radio

]

“FM” or “AM”

Manual search

[Hold]

“M” appears, then press the button repeatedly.

with sufficient signal strength.

When an FM stereo broadcast is hard to receive

[Hold]

]

<Tuner> ] <Stereo/Mono> ] <Mono> Reception improves, but stereo effect will be lost.

To restore the stereo effect, repeat the same procedure to select <Stereo>.

lights up when receiving an FM stereo broadcast

Automatic presetting (FM)—

SSM (Strong-station Sequential Memory)

You can preset up to 18 stations for FM.

While listening to a station...

[Hold]

]

<Tuner> ] <SSM> ] <SSM 01 – 06 / SSM 07 – 12 / SSM 13 – 18> “SSM” appears and local stations with the strongest signals are searched and stored automatically.

To preset another 6 stations, repeat the above procedure by selecting one of the other 6 SSM setting ranges.

If an HD Radio tuner box is connected ( you can also search and store 6 stations for AM by following the above operations.

21 ),

8 ENGLISH

Manual presetting (FM/AM)

You can preset up to 18 stations for FM and 6 stations for AM.

Ex.: Storing FM station of 92.50 MHz into preset number “4.”

]

“92.50MHz”

]

[Hold]

Shows the “Preset Mode” screen.

]

Selects preset number “4.”

“04” flashes.

Selecting a preset station

Using the remote controller

5 U

/ D ∞: Changes the preset

stations

2 R

/ F 3: Searches for stations

Title assignment

You can assign titles up to 30 station frequencies (FM and AM) using 8 characters (maximum) for each title.

• If you try to assign titles to more than 30 station frequencies, “Name Full” appears. Delete unwanted titles before assignment.

• When HD Radio tuner box is connected (

21 ), this feature will be disabled.

]

“FM” or “AM”

]

Shows the title entry screen.

[Hold]

]

Selects a character.

]

Moves to the next (or previous)

character position. Repeat steps 3 and 4 until you have

finished entering the title.

To erase the entire title, press and hold after step 2, then press the control dial.

Available characters

A – Z (upper case), a – z (lower case), 0 – 9 (numbers), and the following symbols:

!”#$% *+,–./: ;< =>?@–' space

DISP

’()

9ENGLISH

Listening to a disc

]

Turn on the power.

All tracks will be played repeatedly until you change the source or eject the disc.

Stopping playback and ejecting the disc

“No Disc” appears. Remove the disc, then press

SOURCE

to listen to another

playback source.

Prohibiting disc ejection

[Hold]

To cancel the prohibition, repeat the same procedure.

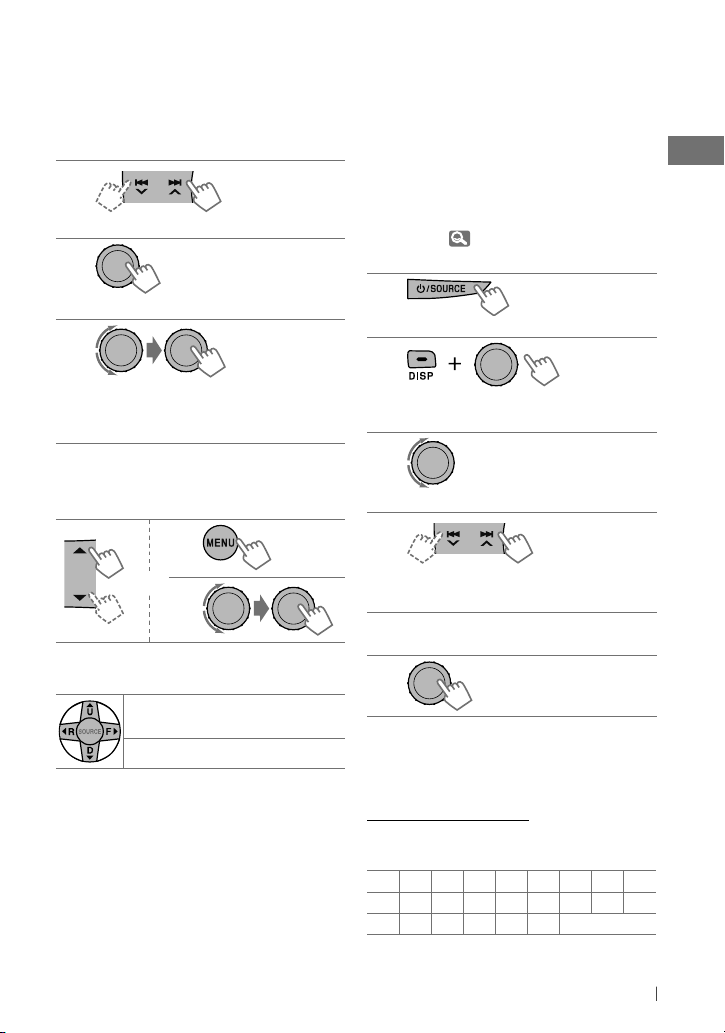

Selects folder of the MP3/WMA

Selects track

Fast-forwards or

[Hold]

reverses the track

Selecting a folder/track on the list

While listening to a disc....

]

Enter the list menu.

]

Select your desired item. MP3/WMA: Select your desired folder, then the desired track by repeating this step.

• If the MP3/WMA disc contains many tracks, you can fast search (±10, ±100, ±1000) through the disc by turning the control dial quickly.

• To return to the previous menu, press

For MP3/WMA disc, you can also use the search menu (A to Z, 0 to 9, and OTHERS) to scroll through the list menu.

• “OTHERS” appears if the 1st character is not A to Z or 0 to 9, such as #, —, !, and etc.

While in list menu....

Press 5/∞ to show the search menu.

• The first character of the current folder/file

name appears.

Press 5/∞ to select your desired character.

Then press the control dial to confirm.

• The track list with the selected character

appears.

BACK

10 ENGLISH

Turn the control dial to select your desired

track. Then press the control dial to confirm.

• Only the existing characters will be shown on the search menu.

• Press and hold 5/∞ to continuously change the character of the search menu.

• If your disc contains many tracks, searching take some time.

Selecting the playback modes

You can use only one of the following playback modes at a time.

[Hold]

]

“Repeat” j “Random”

Repeat Track : Repeats current track Folder : Repeats current folder

Random Folder : Randomly plays all tracks of

current folder, then tracks of next folders

All : Randomly plays all tracks

To cancel repeat play or random play, select “Off.”

Using the remote controller

5 U

/ D ∞: Selects folder of the

MP3/WMA

2 R

/ F 3: Selects track

2 R

/ F

: Fast-forwards or

[Hold]

reverses the track

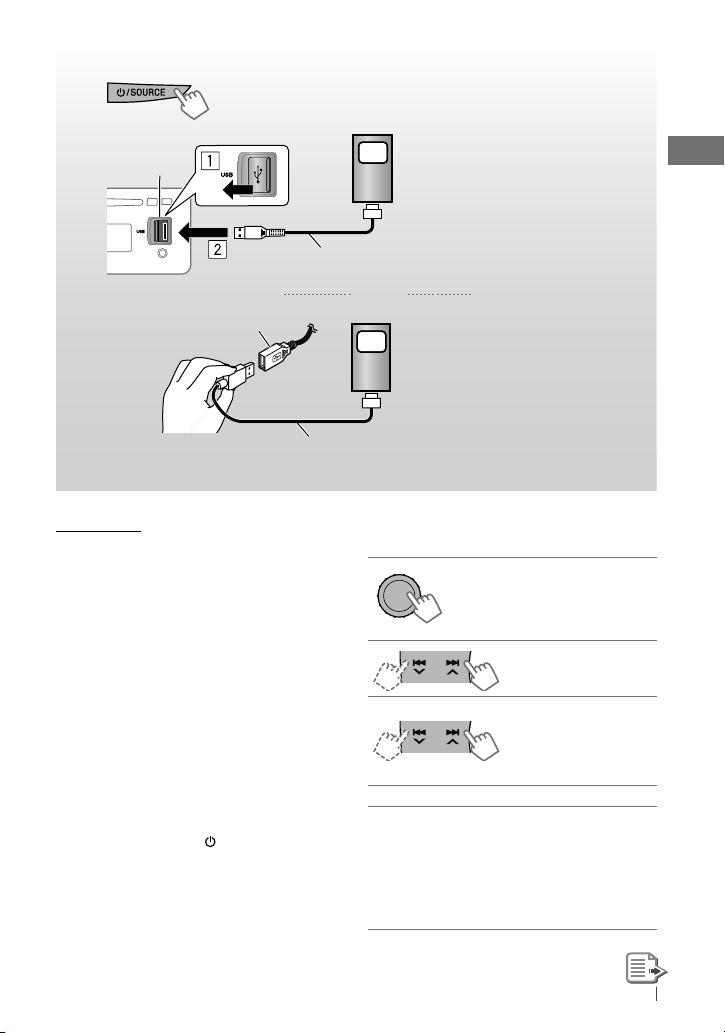

Listening to the USB device

This unit is equipped with two USB input terminals (on the control panel and USB cable from the rear of the unit). You can use these two terminals at the same time.

• You can also connect a USB Bluetooth Adapter, KS-UBT1 (supplied), ( 13) and/or an Apple iPod/iPhone ( 24) to the USB input terminal(s).

This unit can play MP3/WMA/WAV tracks stored in a USB mass storage class device (such as a USB memory, Digital Audio Player, etc.).

11ENGLISH

]

Turn on the power.

If you have turned off the power (without detaching the USB device)...

Pressing playback starts from where it has been stopped previously.

• If a different USB device is currently attached, playback starts from the beginning.

Stopping playback and detaching the USB device

Straightly pull it out from the unit. “No USB” appears. Press another playback source.

You can operate the USB device in the same way you operate the files on a disc. ( 10, 11)

• You can listen to WAV files by following the MP3/WMA file operations. ( 10, 11)

Cautions:

• Avoid using the USB device if it might hinder your safety driving.

• While “Reading” is shown on the display:

– Do not pull out and attach the USB device

– Do not pull out or attach another USB

USB input terminal

USB memory

All tracks will be played repeatedly until you change the source or detach the USB device.

• Do not start the car engine if a USB device is

/ SOURCE

repeatedly.

device.

turns on the power and

/ SOURCE

to listen to

connected.

• This unit may not be able to play the files depending on the type of USB device.

• Operation and power supply may not work as intended for some USB devices.

• You cannot connect a computer to the USB input terminal of the unit.

• Make sure all important data has been backed up to avoid losing the data.

• Electrostatic shock at connecting a USB device may cause abnormal playback of the device. In this case, disconnect the USB device then reset this unit and the USB device.

• Do not leave a USB device in the car, expose to direct sunlight, or high temperature to avoid deformation or cause damages to the device.

• Some USB devices may not work immediately after you turn on the power.

• The detect time and response time may be very long for some USB devices (such as Digital Audio Player, etc.).

• For more details about USB operations,

37, 38.

USB cable from the rear of the unit

and / or

12 ENGLISH

Using the Bluetooth ® device

Bluetooth is a short-range wireless radio communication technology for the mobile device such as mobile phones, portable PCs, and other devices. The Bluetooth devices can be connected without cables and communicate with each other.

• Refer to page 4 of the Installation/Connection Manual (separate volume) to check the countries where you may use the Bluetooth® function.

Bluetooth profile

This unit supports the following Bluetooth profiles; HFP (Hands-Free Profile) 1.5 OPP (Object Push Profile) 1.1 PBAP (Phonebook Access Profile) 1.0 A2DP (Advanced Audio Distribution Profile) 1.2 AVRCP (Audio/Video Remote Control Profile) 1.3

Refer also to the instructions supplied with the Bluetooth device.

Preparation:

• Connect the supplied USB Bluetooth Adapter (KS-UBT1) to one of the USB input terminals of the unit.

• Operate the device to turn on its Bluetooth function.

]

Turn on the power.

USB input terminal

KS-UBT1

Only one USB Bluetooth Adapter can be detected at a time.

USB cable from the rear of the unit

13ENGLISH

Pairing a device

When you connect a Bluetooth device to the unit for the first time, make pairing between the unit and the device.

• Once the connection is established, it is registered in the unit even if you reset the unit. Up to five devices can be registered in total.

• Only one device for Bluetooth phone and one for Bluetooth audio can be connected at a time.

[Hold]

] <Bluetooth> ] <New Pairing>

]

Enter a PIN (Personal Identification Number) code in to the unit. You can enter any number you like (1-digit to 16-digit number). [Initial: 0000]

• Some devices have their own PIN

code. Enter the specified PIN code in to the unit.

Repeat step 3 until you have finished

entering the PIN code.

Use the Bluetooth device to search.

On the device to be connected, enter the same PIN code you have just entered for this unit. “Pairing OK“ appears for a while, then “Connect Now Using Phone” appears.

Phone icon appears when Bluetooth connection is established.

Use the Bluetooth device to connect *.

• Refer to the table below for connectivity results shown on the display.

* Operations may be different according

to the connected device.

Display result

Connect OK [Device Name]

Handsfree OK [Device Name]

Audio Stream OK [Device Name]

Connect Fail Try Reconnect

The device remains registered even after you disconnect the device. Use <Connect Phone> or <Connect Audio> (or activate <Auto Connect>, device from next time on.

Hands-

Free Call

‡‡

‡

—

——

20) to connect the same

Audio

Streaming

—

‡

]

Confirm the entry.

“Search Now Using Phone” appears.

14 ENGLISH

Deleting a registered device

[Hold]

] <Bluetooth> ] <Delete Pairing>

]

Select a device you want to delete.

“Delete OK?” appears on the display.

]

Delete the selection. “OK” appears when the device is deleted.

• To return to the previous menu, press

BACK

Connecting/disconnecting a registered device

[Hold]

] <Bluetooth> ] <Connect Phone / Connect Audio> or <Disconnect Phone / Disconnect Audio>

• For connecting a device, go to step 3.

• For disconnecting a device,

“Disconnecting” appears, then “Disconnected [Device Name]” appears on the display when the device is disconnected.

]

Select a device you want to connect.

• “Connecting...” appears, then “Connected [Device Name]” appears on the display when the device is connected.

Using a Bluetooth mobile phone

Making a call

] Enter “Call Menu” screen.

] Select the method to make a call.

• Dialed Calls *1: Shows the list of the phone numbers you have dialed. Go to the following step.

• Received Calls *1: Shows the list of the received calls. Go to the following step.

• Missed Calls *1: Shows the list of the missed calls. Go to the following step.

*1 “No History Found” appears and the

unit beeps if there is no history stored.

15ENGLISH

• Phonebook *2: Shows the name/ phone number of the phonebook registered in the unit or from the connected phone *3. Go to the following step.

– To copy the phonebook memory,

<Phonebook Trans>, 20.

– If the phonebook contains many

numbers, you can fast search (±10, ±100, ±1000 numbers) through the phonebook by turning the control dial quickly.

– To search through the phonebook,

right column.

• Dial Number: Shows the “Dial Number” screen. ( right column)

• Voice Dial (only accessible when the connected mobile phone has the voice recognition system): Speak the name (registered words) you want to call when “Say Name Clearly” appears *4, *5.

*2 “No Entries Found” or “Send

Phonebook Manually” appears depending on the <Phonebook Select> settings, 20.

*3 Depends on the <Phonebook Select>

settings, 20.

*4 Operations may be different according

to the connected device.

*5 “Not Support” appears if the

connected phone does not support this feature.

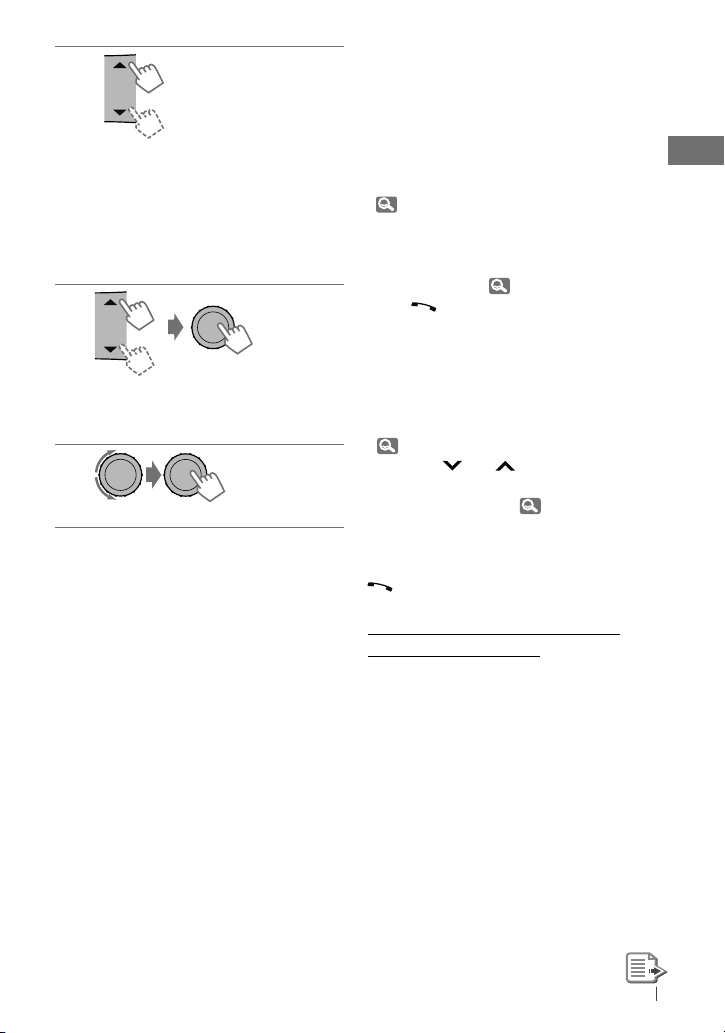

How to enter phone number

Turn the control dial to select a number.

Press 4 /¢ to move the entry

position.

Repeat steps 1 and 2 until you finish

entering the phone number.

Press the control dial to confirm the entry.

How to delete name/phone number

Only when <In Unit> is selected for <Phonebook Select>, 20.

Press to enter “Call Menu” screen.

Display the list of name/phone numbers

using one of the dialing method (see step 2 of “Making a call,” 15).

Turn the control dial to select the name/

phone number you want to delete.

Press and hold

Entries” screen.

Turn the control dial to select “Delete” or

“Delete All.”

• If “Delete” is selected, the selected name/ phone number in step

• If “Delete All” is selected, the listed numbers in step 2 selection are deleted.

Press the control dial to confirm.

BACK

to enter the “Delete

is deleted.

Selecting a contact from the phonebook

] Enter “Call Menu” screen.

]

Select the name/phone number you

want to call.

• When the sound is stopped or interrupted during the use of a Bluetooth device, turn off, then turn on the unit.

– If the sound is not yet restored,

connect the device again using <Connect Phone>.

16 ENGLISH

]

]

Show the search menu (A to Z, 0 to 9, and OTHERS). The first character of the first contact on the phonebook appears.

• “OTHERS” appears if the 1st character

is not A to Z or 0 to 9, such as #, —, !, and etc.

]

Select your desired character. The name list of the selected character appears.

]

Select your desired contact.

BACK

• To return to the previous menu, press

• Only the existing characters will be shown on the search menu.

• Press and hold 5/∞ to continuously change the character of the search menu.

• If your phonebook contains many contacts, searching take some time.

Receiving/ending a phone call

When a call comes in, the source is automatically changed to “BT FRONT/BT REAR.” “Receiving... [Phone number/name]” appears on the display.

• The display will flash in blue. (<Ring Color>,

30)

When <Auto Answer> is activated....

The unit answers the incoming calls automatically,

• Press or the control dial to answer the incoming call when <Auto Answer> is deactivated.

• Press 5/∞ to adjust the microphone volume (01 – 03) during a phone call conversation.

To preset the microphone volume, 20.

• Press 4 /¢ to turn on/off the Noise Reduction and Echo Cancelation mode. To preset, 20.

To end a call or reject an incoming call, press and hold or the control dial.

Switching conversation media (the unit/ mobile phone)

Press the control dial during a phone call conversation, then continue your conversation using the other media.

• Operations may be different according to the connected Bluetooth device.

20.

17ENGLISH

Switching the connected mobile phone

You can switch the current connected mobile phone to the last connected mobile phone.

[Hold]

Phone icon appears and “Connecting” flashes on the display. When the last connected phone is being reconnected again, “Connected [Device Name]” appears on the display. Now you can use the last connected mobile phone with the unit.

Arriving of a text message

When a text message comes in, the unit rings if your mobile phone is compatible with text message and <Message Notice> is set to <On>. ( 20)

• “Received Message” appears on the display and the display illuminate in blue. (<Ring Color>, 30)

• You cannot read, edit, or send a message through the unit.

Using a Bluetooth audio player

Operations and display indications differ depending on their availability on the connected device.

] Select “BT FRONT” or “BT REAR.”

• If playback does not start operate the Bluetooth audio player to start playback.

automatically,

Starts or resumes playback

Mutes the sound

Selects group/folder

Using the remote controller

5 U

/ D ∞ / 2 R / F 3 /

SOURCE

5 U

/ D ∞ / 2 R / F 3 /

SOURCE

[Hold]

: Switches the conversation media

(between the unit and mobile phone) during a phone call conversation

18 ENGLISH

: Answers calls

: Rejects calls

Forward skips or reverse skips

Fast-forwards or

[Hold]

reverses the track

Using the remote controller

2 R

/ F 3: Reverse skips/

Forward skips

2 R

/ F

: Fast-forwards or

[Hold]

reverses the track

Selecting the playback modes

• For Bluetooth devices that support AVRCP 1.3.

[Hold]

]

“Repeat” j “Random”

Repeat Track

: Repeats current track

All

: Repeats all tracks

Group

: Repeats all track of current

group

Random All

: Randomly plays all tracks

Group

: Randomly plays all track of

current group

To cancel repeat play or random play, select “Off.”

BACK

• To return to the previous menu, press

Warning messages

Connection Error

The device is registered but the connection

has failed. Use <Connect Phone / Connect Audio> to connect the device again. ( 15)

Error

Try the operation again. If “Error” appears

again, check if the device supports the function you have tried.

Please Wait...

The unit is preparing to use the Bluetooth

function. If the message does not disappear, turn off and turn on the unit, then connect the device again (or reset the unit).

Please Reset...

Reset the unit and try the operation again. If

“Please Reset...” appears again, consult your nearest JVC car audio dealers.

Changing the Bluetooth settings

[Hold]

Bluetooth Information: If you wish to receive more information about Bluetooth, visit the following JVC web site: <http://www.jvc.co.jp/english/car/> (English website only)

] <Bluetooth> ] <Setting>

]

Select a setting item, then repeat the procedure to change the setting accordingly.

• To return to the previous menu, press

• To exit from the menu, press

DISP

BACK

19ENGLISH

Setting item Selectable setting, [ Initial: Underlined ]

Auto Connect • Last

• Off

Auto Answer

• On

• Off

Message

• On

Notice

• Off

MIC Setting —

NR/EC Mode

• On

• Off

Ringing Tone

• In Unit

• In Phone

Phonebook

— : You can copy the phonebook memory of a mobile phone into

Trans

Phonebook

Select *

Initialize

• In Phone

• In Unit

• Yes

• No

Information • My BT Name

• My Address

• BT Software Ver

• Connected Phone *

• Connected Audio *

Selectable only when the connected phone supports PBAP.

*2 Displayed only when a Bluetooth phone/audio player is connected.

: The connection is established automatically with the last

connected Bluetooth device when you turn on the unit.

: The unit does not connect the Bluetooth device automatically.

Connect the device manually. (

15)

: The unit answers the incoming calls automatically. : The unit does not answer the calls automatically. Answer the

calls manually. (

17)

: The unit informs you of the arrival of a message by ringing and

displaying “Received Message.”

: The unit does not inform you of the arrival of a message. : Adjust the volume of the microphone connected to the unit.

[ Level 01/02/03 ]

: The unit adjusts the Noise Reduction and Echo Cancelation of

the microphone connected to the unit for clearer sound.

: Cancels. : The unit rings to alert you when a call/Text Message comes in.

Call: Select your preferred ring tone when a call comes

in. [ Tone 1/2/3 ]

Message: Select your preferred ring tone when a Text

Message comes in. [ Tone 1/2/3 ]

: The unit rings (using the connected phones’ ring tone) to

alert you when a call/Text Message comes in. (The connected mobile phone rings if it does not support this feature.)

the unit (via OPP).

Enter the PIN code to the unit to transfer the phonebook into

the unit. You can transfer a maximum of 400 numbers.

: The unit browses the phonebook of the connected phone. : The unit browses the phonebook registered in the unit.

: Initialize all the Bluetooth settings (including stored pairing,

phonebook, and etc.).

: Cancels.

: Shows the unit name. : Shows address of USB Bluetooth Adapter. : Shows the software version.

: Shows connected phone name.

: Shows connected audio device name.

20 ENGLISH

Listening to the HD Radio ™ Broadcast

Before operating, connect HD Radio tuner box, KT-HD300 (not supplied) to the expansion port on the rear of the unit.

• For details, refer also to the instructions supplied with the HD Radio tuner box.

What is HD Radio Technology?

HD Radio Technology can deliver high-quality digital sound—AM digital will have FM-like quality (in stereo) and FM digital will have CD-like quality—with static-free and clear reception. Furthermore, stations can offer text and data, such as artist names and song titles.

• When the HD Radio tuner box is connected, it can also receive conventional analog broadcasts.

• Many HD Radio stations also offer more than one channel of programming. This service is called multicasting.

• To find HD Radio stations in your area, visit <http://www.hdradio.com/>.

For basic radio operations, 8, 9.

When receiving...

An HD Radio station

WXYZ-HD1

Select your desired channel.

HD1 j HD2 j .... j HD8

(back to the beginning)

“Linking” appears while linking to a multicast channel.

Searching for HD Radio stations only

[Hold]

Changing HD Radio reception mode

While receiving an HD Radio broadcast, the unit receives digital or analog audio automatically due to the receiving condition.

While listening to an HD Radio station...

[Hold]

Station Call Sign appears.

HD Radio multicast channels

Channel number

First four letters of Call Sign

]

<Tuner> ] <Blend Hold> ]

lights up when holding the digital reception or flashes when holding the analog reception.

• If no sound can be heard with <Auto>, change the setting to <Analog> or <Digital>.

• The setting automatically changes to <Auto> if you tune in to or change to another station, or if you turn off the power.

21ENGLISH

• This setting cannot take effect for the conventional FM/AM stations.

• If the radio station forces the reception mode to digital or analog, the indicator lights up.

Using the remote controller

5 U

/ D ∞: Changes the preset

stations

2 R

/ F 3: Searches for stations

Listening to the satellite radio

Before operating, connect either one of the following systems (not supplied) to the expansion port on the rear of this unit.

For listening to a SIRIUS Satellite radio:

• SC-C1 and KS-SRA100

• PnP, SC-VDOC1 and KS-SRA100

• For details, refer also to the instructions supplied with the other components.

GCI (Global Control Information) update

• If channels are updated after subscription, updating starts automatically. The following appears and no sound can be heard:

– For SIRIUS Satellite radio: “Updating” – For XM Satellite radio: “UPDATING”

• Update takes a few minutes to complete.

• During update, you cannot operate your satellite radio.

For listening to an XM Satellite radio:

• JVC Smart Digital Adapter (XMDJVC100)

• CNP2000UC and CNPJVC1

]

SIRIUS: If you select “ALL,” you can tune in to all the channels of all categories.

22 ENGLISH

“SIRIUS” or “XM”

Select a category.

]

Select a channel to listen. Holding the button changes the channels rapidly. While searching, invalid and unsubscribed channels are skipped. XM: If you do not select a channel within 15 seconds, category selected in step Ÿ is canceled. You can select all channels of all categories now (including non-categorised channels).

Activate your SIRIUS subscription after connection

]

“SIRIUS” SIRIUS Satellite radio starts updating all the SIRIUS channels. Once completed, SIRIUS Satellite radio tunes in to the preset channel, CH184.

Check your SIRIUS ID. ( 32)

Contact SIRIUS on the internet at

<http://activate.siriusradio.com/> to activate your subscription, or you can call SIRIUS toll-free at 1-888-539-SIRIUS (7474).

• “Sub Updated Press Any Key” scrolls on

the display once subscription has been completed.

Activate your XM subscription after connection

• Only Channel 0, 1, and 247 are available before activation.

]

“XM” XMDirect ™ Tuner Box or XMDirect2 Tuner System starts updating all the XM channels. “Channel 1” is tuned in automatically.

Check your XM Satellite radio ID labelled

on the casing of the XMDirect™ Tuner Box or XMDirect2 Tuner System, or tune in to “Channel 0”. ( right column)

Contact XM Satellite radio on the internet

at <http://xmradio.com/activation/> to activate your subscription, or you can call 1-800-XM-RADIO (1-800-967-2346).

• Once completed, the unit tunes in to

one of the available channels (Channel 4 or higher).

Checking the satellite radio ID

While selecting “SIRIUS” or “XM”...

]

Select “Channel 0.” SIRIUS: SIRIUS identification number is displayed after “Channel 0” is selected. XM: The display alternately shows “RADIO ID” and the 8-digit (alphanumeric) ID number.

To cancel the ID number display, select any channel other than “Channel 0.”

Storing channels in memory

You can preset up to 18 channels for both SIRIUS and XM.

Ex.: Storing channel into preset number “04.”

Tune in to a channel you want to store.

(Steps ~ – !, 22.)

[Hold]

]

Shows the “Preset Mode” screen.

]

Selects preset number “4.”

23ENGLISH

Selecting preset station/category/ channel on the list

]

Shows the “List” screen.

Using the remote controller

5 U

/ D ∞: Changes the
