JVC GET0642-001A User Manual

CD RECEIVER

KD-S26

ENGLISHESPAÑOL

Having TROUBLE with operation?

Please reset your unit

Refer to page of How to reset your unit

Still having trouble??

USA ONLY

Call 1-800-252-5722

http://www.jvc.com

We can help you!

RECEPTOR CON CD

For canceling the display demonstration, see page 4. Para cancelar la demostración en pantalla, consulte la página 4.

For installation and connections, refer to the separate manual. Para la instalación y las conexiones, refiérase al manual separado.

INSTRUCTIONS

MANUAL DE INSTRUCCIONES

KD-S26

For customer Use:

Enter below the Model No. and Serial No. which are located on the top or bottom of the cabinet. Retain this information for future reference.

Model No. Serial No.

EN, SP

0709DTSMDTJEIN

GET0642-001A

[J]

Thank you for purchasing a JVC product.

Please read all instructions carefully before operation, to ensure your complete understanding and to obtain the best

possible performance from the unit.

INFORMATION (For U.S.A.)

ENGLISH

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: – Reorient or relocate the receiving antenna. – Increase the separation between the equipment and receiver. – Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. – Consult the dealer or an experienced radio/TV technician for help.

Caution:

Changes or modifications not approved by JVC could void the user’s authority to operate the equipment.

IMPORTANT FOR LASER PRODUCTS

1. CLASS 1 LASER PRODUCT

2. CAUTION: Do not open the top cover. There are no user serviceable parts inside the unit; leave all servicing to qualified service personnel.

3. CAUTION: (For U.S.A.) Visible and/or invisible class II laser radiation when open. Do not stare into beam.

(For Canada) Visible and/or invisible class 1M laser radiation when open. Do not view directly with

optical instruments.

4. REPRODUCTION OF LABEL: CAUTION LABEL, PLACED OUTSIDE THE UNIT.

[European Union only]

Warning:

If you need to operate the unit while driving, be sure to look around carefully or you may be involved in a traffic accident.

For safety...

• Do not raise the volume level too much, as this will block outside sounds, making driving dangerous.

• Stop the car before performing any complicated operations.

Temperature inside the car...

If you have parked the car for a long time in hot or cold weather, wait until the temperature in the car becomes normal before operating the unit.

How to reset your unit

• Your preset adjustments will also be erased (except the registered Bluetooth device, see page 10).

How to forcibly eject a disc

• Be careful not to drop the disc when it ejects.

• If this does not work, reset your unit.

Attaching the control panel

Detaching the control panel

CONTENTS

How to reset your unit ................................. 3

How to forcibly eject a disc ........................... 3

Attaching the control panel ......................... 3

Detaching the control panel ......................... 3

Canceling the display demonstration ........... 4

Setting the clock .......................................... 4

OPERATIONS

Basic operations ........................................... 5

• Using the control panel ............................... 5

• Using the remote controller (RM-RK50) ...... 6

Listening to the radio ................................... 8

Disc operations ............................................. 9

EXTERNAL DEVICES

Using the Bluetooth

• Using the Bluetooth cellular phone ............ 12

• Using the Bluetooth audio player ............... 13

Listening to the HD Radio ™ Broadcast ......... 14

Listening to the CD changer ......................... 15

Listening to the satellite radio ..................... 16

Listening to the iPod .................................... 18

Listening to the other external

components .............................................. 19

SETTINGS

Selecting a preset sound mode .................... 20

Title assignment .......................................... 21

Bluetooth settings ....................................... 22

Menu operations .......................................... 23

Color settings ............................................... 26

® devices ....................... 10

ENGLISH

Caution on volume setting:

Discs produce very little noise compared with other sources. Lower the volume before playing a disc to avoid damaging the speakers by the sudden increase of the output level.

REFERENCES

More about this unit .................................... 27

Troubleshooting ........................................... 30

Maintenance ................................................ 35

Specifications ............................................... 36

Canceling the display demonstration

1 Turn on the power.

ENGLISH

Setting the clock

1 Turn on the power.

3 Select “CLOCK.”

4 Select “CLOCK SET.”

4 Select “DEMO OFF.”

(Initial setting)

6 Finish the procedure.

(Initial setting)

5 Adjust the hour.

6 Adjust the minute.

7 Finish the procedure.

Basic operations

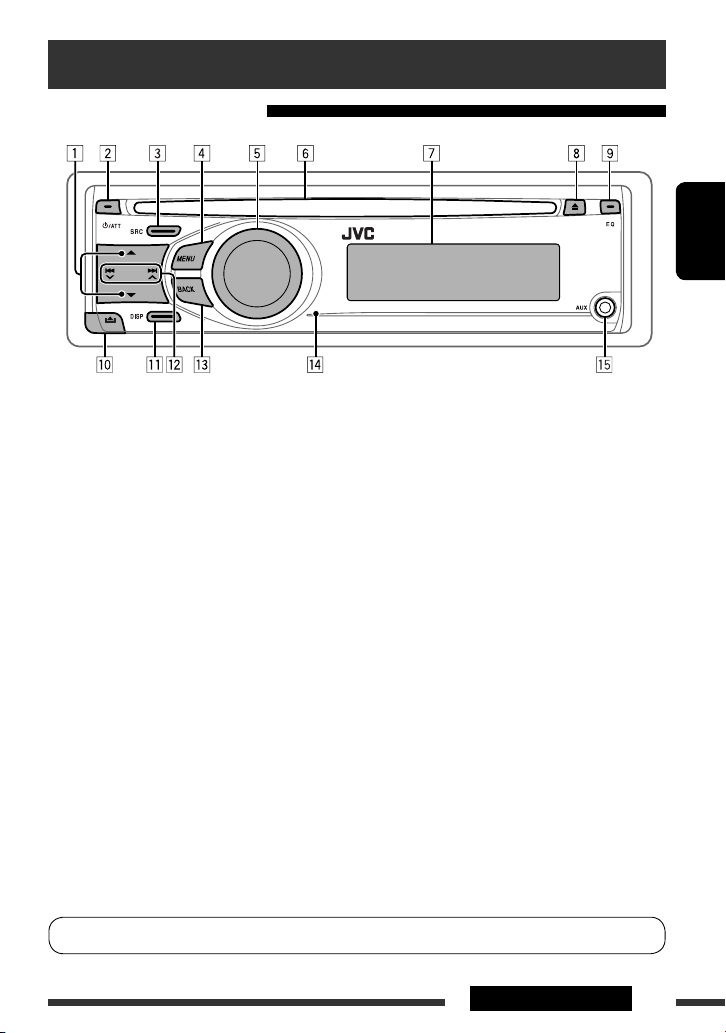

Using the control panel

ENGLISH

1 • FM/AM: Select preset station.

• HD RADIO: Select channel.

• SIRIUS/XM: Select category.

• CD/CD-CH: Select folder.

• IPOD: Enter the main menu/Pause playback/

Confirm selection.

• BT-PHONE/BT-AUDIO: Enter/go back to

previous Bluetooth menu.

2 • Turn on the power.

• Attenuate the sound (if the power is on).

• Turn off the power [Hold].

3 Select the source.

FM/HD RADIO FM *1 = AM/HD RADIO AM *

= SIRIUS *

IPOD *

/XM *3 = CD *3 = CD-CH *3/

(or EXT INPUT) = BT-PHONE *3 = BT-

p Detach the panel. q When the power is turned off: Check the current

clock time when “CLOCK DISP” is set to “CLOCK OFF,” (see page 23).

When the power is turned on: Change the display

information of the current source.

w • FM/AM/HD RADIO/SIRIUS/XM: Search for

station/channel.

• CD/CD-CH: Select track.

• IPOD: Select track.

• BT-PHONE/BT-AUDIO: Select setting item/ registered device.

1, *2

e Return to the previous menu. r Remote sensor t AUX (auxiliary) input jack

AUDIO *3 = AUX IN *2 = (back to the beginning)

4 • Enter list operations.

• Enter Menu setting [Hold] .

5 • Control the volume or selection [Turn]. *

• Confirm the selection [Press] . *

• FM/HD Radio: Enter SSM preset mode [Hold] . *

• CD/CD-CH/IPOD: Enter playback mode [Hold] . *

6 Loading slot 7 Display window 8 Eject disc. 9 Select the sound mode.

*1 When the HD Radio tuner box is connected, the

built-in tuner of this unit will be disabled. To listen to the HD Radio broadcast, refer to “Listening to the radio” on page 8. For more features, see page 14.

*2 You cannot select these sources if they were disabled

in the Menu (see “Menu operations” on page 26).

*3 You cannot select these sources if they are not ready

or not connected.

*4 Also known as “Control dial” in this manual.

You can change the display and button illumination (see “COLOR” on page 24).

Continued on the next page

5OPERATIONS

Display window

ENGLISH

1 Bluetooth indicator 2 Tr (track) indicator 3 Status of Bluetooth device

(Device number, [P: 1 – 5]; signal strength,

7 HD (HD Radio) indicator 8 EQ (equalizer) indicator 9 LOUD (loudness) indicator p Disc information indicators—

[ : 0 – 3]*; battery reminder, [ : 0 – 3]*)

* As the number increases, the signal/battery power

becomes stronger.

4 Source display / Track number / Folder number /

Time countdown indicator

5 Playback source indicators—CH (CD changer), DISC 6 Sound mode indicators—CLASSIC, HIP HOP, JAZZ,

q Main display w Playback mode / item indicators—RND (random),

e HOLD indicator r Tuner reception indicators—ST (stereo),

ROCK, POPS, USER

Using the remote controller (RM-RK50)

Installing the lithium coin battery (CR2025)

Caution:

• Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type.

• Battery shall not be exposed to excessive heat such as sunshine, fire, or the like.

If the effectiveness of the remote controller decreases, replace the battery.

For USA-California Only: This product contains a CR Coin Cell Lithium Battery which contains Perchlorate Material—special handling may apply. See www.dtsc.ca.gov/hazardouswaste/perchlorate

Before using the remote controller:

• Aim the remote controller directly at the remote sensor on the unit.

• DO NOT expose the remote sensor to bright light (direct sunlight or artificial lighting).

TAG (Tag information), (track/file), (folder)

(disc), (folder), RPT (repeat)

MO (monaural)

Remote sensor

1 • Turns the power on if pressed briefly or

attenuates the sound when the power is on.

• Turns the power off if pressed and held.

2 • Changes the tuner/HD Radio preset stations.

• Changes the folder of the MP3/WMA.

• While playing an MP3 disc on an MP3-compatible CD changer:

– Changes the disc if pressed briefly. – Changes the folder if pressed and held.

• While listening to the satellite (SIRIUS or XM) radio:

– Changes the categories.

• While listening to an Apple iPod:

– Pauses or resumes playback with D

∞.

– Enters the main menu with 5 U. (Now

5 U/D ∞/2 R/F 3 work as the menu

selecting buttons.)*

* 5 U : Returns to the previous menu. D ∞ : Confirms the selection.

7 • Searches for stations if pressed briefly.

• Fast-forwards or reverses the track if pressed and held.

• Changes the tracks if pressed briefly.

• While listening to the satellite radio:

– Changes the channels if pressed briefly. – Changes the channels rapidly if pressed and

held.

• While listening to an iPod (in menu selecting mode):

– Selects an item if pressed briefly. (Then, press

∞ to confirm the selection.)

– Skips 10 items at a time if pressed and held.

• Reverse skip/forward skip for Bluetooth audio.

Warning (to prevent accidents and damage):

• Do not install any battery other than CR2025 or its

equivalent.

• Do not leave the remote controller in a place (such

as dashboards) exposed to direct sunlight for a long time.

• Store the battery in a place where children cannot

reach.

• Do not recharge, short, disassemble, heat the battery,

or dispose of it in a fire.

• Do not leave the battery with other metallic

materials.

• Do not poke the battery with tweezers or similar

tools.

• Wrap the battery with tape and insulate when

throwing away or saving it.

ENGLISH

3 Adjusts the volume level. 4 Selects the sound mode. 5 Selects the source. 6 For Bluetooth cellular phone:

– Answers calls if pressed briefly. – Rejects calls if pressed and held.

7OPERATIONS

Listening to the radio

1 2

ENGLISH

Select “FM” or “AM.”

Search for a station to listen—Auto Search.

Manual Search: Hold either one of the buttons until “M” flashes on the display, then press it repeatedly.

• When receiving an FM stereo broadcast with sufficient signal strength, “ST” lights up on the display.

When an FM stereo broadcast is

hard to receive

• See also page 24.

[Turn] = [Press]

Select “TUNER” = “MONO”

= “MONO ON”

Reception improves, but stereo effect will be lost.

• “MO” lights up on the display.

To restore the stereo effect, repeat the same procedure to select “MONO OFF.” The MO indicator goes off.

FM station automatic presetting

— SSM (Strong-station Sequential Memory)

You can preset up to 18 stations for FM.

1 While listening to a station...

2 Select the preset number range you want to

store.

Change the display information

Station name * = Frequency = Clock = (back to the beginning)

* If no title is assigned to a station, “NO NAME”

appears. To assign a title to a station, see page 21.

Local FM stations with the strongest signals are searched and stored automatically.

• If an HD Radio tuner box is connected, you can also search and store the AM stations.

To preset other 6 stations, repeat from step 1 again.

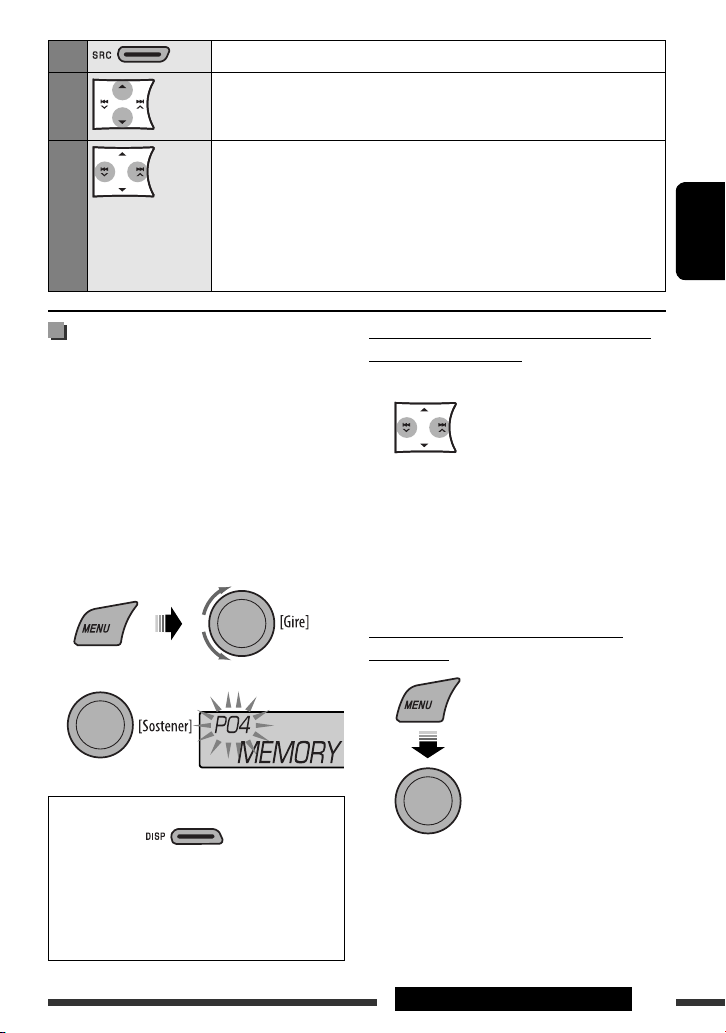

Manual presetting (FM/AM)

You can preset up to 18 stations for FM and 6 stations for AM. Ex.: Storing FM station of 92.50 MHz into preset

number “04.”

2 Select preset number “04.”

Disc operations

Selecting preset station

ENGLISH

[Turn] = [Press]

Stop playing and ejecting the disc

• “NO DISC” appears. Press SRC to listen to another playback source.

Prohibiting disc ejection

To cancel the prohibition, repeat the same

procedure.

Selecting a track/folder

[Turn] = [Press]

• For MP3/WMA discs, select the desired folder, then the desired track by performing the control dial.

• To return to the previous menu, press BACK.

Turn on the power.

Insert a disc.

All tracks will be played repeatedly until you change the source or eject the disc.

Change the display information

Audio CD/CD Text:

Disc title/performer *1 = Track title *1 = Current track number with the elapsed playing time = Current track number with the clock time = (back to the beginning)

MP3/WMA:

Album name/performer (folder name) *2 = Track title (file name) *2 = Current track number with the elapsed playing time = Current track number with the clock time = (back to the beginning)

*1 If the current disc is an audio CD, “NO NAME”

appears.

*2 If an MP3/WMA file does not have Tag information

or “TAG DISPLAY” is set to “TAG OFF” (see page 24), folder name and file name appear.

Continued on the next page

9OPERATIONS

Pressing (or holding) the following buttons allows you to...

MP3/WMA: Select folder

ENGLISH

[Press] Select track [Hold] Reverse/fast-forward track

Selecting the playback modes

You can use only one of the following playback modes at a time.

[Turn] = [Press]

REPEAT Ô RANDOM

[Turn] = [Press]

REPEAT

TRACK RPT : Repeats current track

FOLDER RPT : MP3/WMA: Repeats current folder

RANDOM

FOLDER RND : MP3/WMA: Randomly plays all

tracks of current folder, then tracks of next folders

ALL RND : Randomly plays all tracks

• To cancel repeat play or random play, select “RPT OFF” or “RND OFF.”

• To return to the previous menu, press BACK.

Using the Bluetooth ® devices

For Bluetooth operations, it is required to connect the Bluetooth adapter (KS-BTA200) (separately purchased) to the CD changer jack on the rear of this unit.

• Refer also to the instructions supplied with the Bluetooth adapter and the Bluetooth device.

• Refer to the list (included in the box) to check the countries where you may use the Bluetooth ® function.

To use a Bluetooth device through the unit (“BT-PHONE” and “BT-AUDIO”) for the first time, you need to establish Bluetooth wireless connection between the unit and the device.

• Once the connection is established, it is registered in the unit even if you reset your unit. Up to five devices can be registered in total.

• Only one device can be connected at a time for each source (“BT-PHONE” and “BT-AUDIO”).

Registering a Bluetooth device

Registration (Pairing) methods

Use either of the following items in the Bluetooth menu to register and establish the connection with a device.

• Select “BT-PHONE” or “BT-AUDIO” as the source to operate the Bluetooth menu.

OPEN Make the unit ready to establish a new

Bluetooth connection. Connection is established by operating the Bluetooth device.

SEARCH Make the unit ready to establish a new

Bluetooth connection. Connection is established by operating the unit.

OPERATIONS & EXTERNAL DEVICES

Registering using “OPEN”

Preparation: Operate the device to turn on its

Bluetooth function.

1 Select “BT-PHONE” or “BT-AUDIO.”

2 Select “NEW DEVICE.”

3 Select “OPEN.”

4 Enter a PIN (Personal Identification Number)

code to the unit.

• You can enter any number you like (1-digit to 16-digit number). [Initial: 0000]

* Some devices have their own PIN code. Enter the

specified PIN code to the unit.

1 Move to the next (or previous) number

position.

2 Select a number.

5 Use the Bluetooth device to search and

connect.

On the device to be connected, enter the same

PIN code you have just entered for this unit. “CONNECTED” appears on the display.

Now connection is established and you can use the

device through the unit.

The device remains registered even after you disconnect the device. Use “CONNECT“ (or activate “AUTO CNNCT”) to connect the same device from next time on. (See the following and page 22.)

Connecting a device

Perform steps 1 and 2 on left column, then...

1 • Select “SEARCH” to search for available

devices.

The unit searches and displays the list of the

available devices. If no available device is detected, “UNFOUND” appears.

• Select “SPECIAL” to connect a special

device.

The unit displays the list of the preset devices.

2 Select a device you want to connect.

ENGLISH

3 Repeat steps 1 and 2 until you finish

entering a PIN code.

4 Confirm the entry.

“OPEN..” flashes on the display.

3 • For available devices...

Enter the specific PIN code of the device to the

unit.

Refer to the instructions supplied with the device

to check the PIN code. Use the Bluetooth device to connect. Now connection is established and you can use

the device through the unit.

• For special device... Use “OPEN” or “SEARCH” to connect.

Continued on the next page

11EXTERNAL DEVICES

Connecting/disconnecting/deleting a registered device

1 Select “BT-PHONE” or “BT-AUDIO.”

ENGLISH

2 Select a registered device you want to

connect/disconnect/delete.

Using the Bluetooth cellular phone

1 2

Select “BT-PHONE.”

Enter the Bluetooth menu.

3 • Select “CONNECT” or “DISCONNECT” to

connect/disconnect the selected device.

• Select “DELETE,” then “YES” to delete the selected device.

You can set the unit to connect the Bluetooth device automatically when the unit is turned on. (See “AUTO CNNCT” on page 22.)

—

Make a call or setting using the Bluetooth setting menu. (See the following and page 22.)

When a call comes in....

The source is automatically changed to “BT-PHONE.”

• The display will flash in blue (see “RING COLOR” on page 24 for setting.)

When “AUTO ANSWER” is activated....

The unit answers the incoming calls automatically, see page 22.

• When “AUTO ANSWER” is deactivated, press any button (except / /0) to answer the incoming call.

• You can adjust the microphone volume level (see page 22).

To end the call

Hold any button (except / /0).

When a text message comes in....

If the cellular phone is compatible with text message (notified through JVC Bluetooth adapter) and “MSG INFO” (message info) is set to “AUTO” (see page 22), the unit rings to inform you of the message arrival.

• “RCV MESSAGE” (receiving message) appears on the display and the display illuminate in blue (see “RING COLOR” on page 24 for setting).

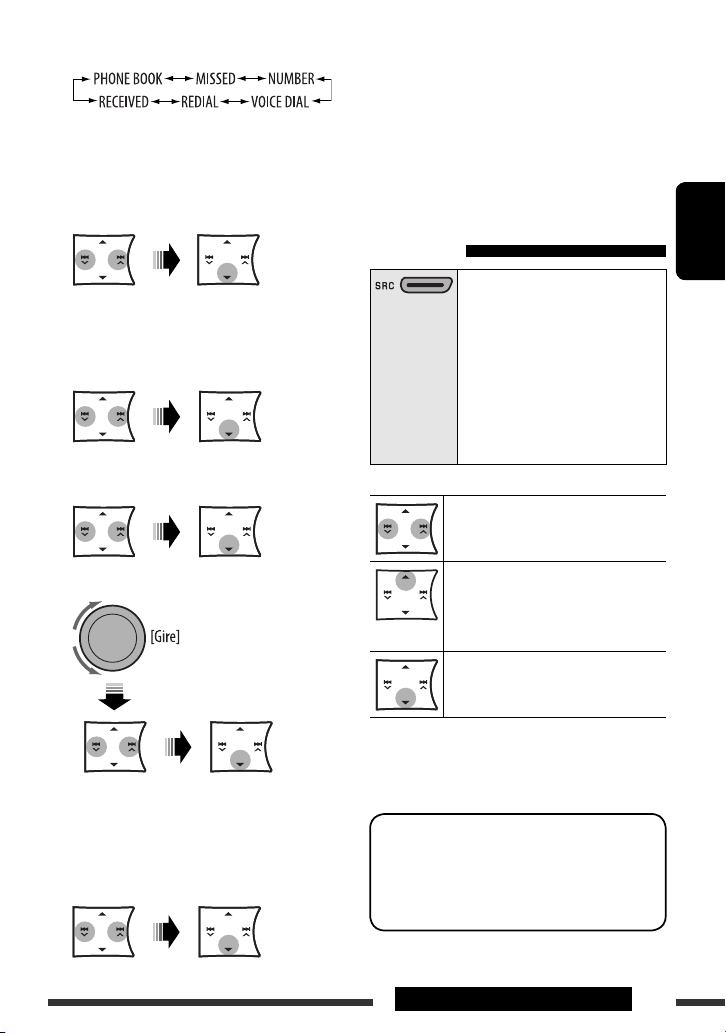

Making a call

You can make a call using the following methods.

Select “BT-PHONE,” then follow the following steps to make a call:

• To return to the previous menu, press BACK.

1 Enter the “DIAL” menu.

2 Select a calling method.

Call history:

1 Select a call history (REDIAL*, RECEIVED*,

MISSED*).

2 Then select a name (if it is acquired) or phone

number.

Phone book:

1 Select “PHONE BOOK*”. The list of phone number appears.

2 Select a name from the list.

2 Speak the name you want to call.

• If your cellular phone does not support the voice recognition system, “ERROR” appears on the display.

• Using voice tags may be difficult in a noisy environment or during an emergency.

Using the Bluetooth audio player

Select “BT-AUDIO.”

If playback does not start, operate the Bluetooth audio player to start playback.

• Operate the Bluetooth audio player to pause (if playback does not pause when you change the source).

ENGLISH

Direct dialing:

1 Select “NUMBER.”

2 Enter the phone number.

* Displays only when your cellular phone is equipped

with these functions and is compatible with this unit.

Voice dialing:

1 Select “VOICE DIAL.”

“SAY NAME” appears on the display.

Reverse skip/forward skip

Pause/start playback* * Operation may be different

according to the connected Bluetooth audio player.

Enter setting menu (Device list)

• Refer also to page 12 for connecting/disconnecting/ deleting a registered device.

Bluetooth Information:

If you wish to receive more information about Bluetooth, visit the following JVC web site: <http://www.jvc.co.jp/english/car/> (English website only)

EXTERNAL DEVICES

Listening to the HD Radio ™ Broadcast

Before operating, connect HD Radio tuner box, KT-HD300 (separately purchased) to the CD changer jack on the rear of the unit.

ENGLISH

What is HD Radio Technology?

HD Radio Technology can deliver high-quality digital sound—AM digital will have FM-like quality (in stereo) and FM digital will have CD-like quality—with staticfree and clear reception. Furthermore, stations can offer text and data, such as artist names and song titles.

• When the HD Radio tuner box is connected, it can also receive conventional analog broadcasts.

• Many HD Radio stations also offer more than one channel of programming. This service is called multicasting.

• To find HD Radio stations in your area, visit <http://www.hdradio.com/>.

Refer also to pages 8 and 9 for basic radio operations.

When receiving an HD Radio

station...

[Lights up] When digital audio is broadcast [Flashes] When analog audio is broadcast

Station Call Sign appears.

When receiving HD Radio multicast

channels...

Searching for HD Radio stations

only

Changing HD Radio reception mode

While receiving an HD Radio broadcast, the unit receives digital or analog audio automatically due to the receiving condition.

While listening to an HD Radio station...

• See also page 24.

[Turn] = [Press]

Select “TUNER” = “BLEND HOLD” = “AUTO”/”DIGITAL”/”ANALOG”

[Lights up] When holding the digital reception [Flashes] When holding the analog reception

• If no sound can be heard with AUTO, change the setting to ANALOG or DIGITAL.

• The setting automatically changes to AUTO if you tuned in to or change to another station, or if you turned off the power.

• This setting cannot take effect for the conventional FM/AM stations.

• If the radio station forces the reception mode to digital, the HOLD indicator flashes.

Change the display information

Channel numberFirst four letters of Call Sign

Select your desired channel.

“LINKING” appears while linking to a multicast channel.

Call Sign *1 = Frequency = Title/artist/album name of the current segment * beginning)

*1 “ **** -FM” or “ **** ” appears when no Call Sign is

received.

*2 “NO TEXT” appears when no text is received.

= Clock = (back to the

Listening to the CD changer

It is recommended to use a JVC MP3-compatible CD changer (separately purchased) with your unit. You can connect a CD changer to the CD changer jack on the rear of the unit.

• You can only play conventional CDs (including CD Text) and MP3 discs.

Preparation: Make sure “CH / IPOD” is selected in the “SRC SELECT”

1 2

Select “CD-CH.”

Enter the list mode.

= “EXT IN” setting, see page 26.

ENGLISH

[Turn] = [Press]

• To select a desired folder/track to start playback (for MP3 discs), repeat step 2 and 3 above until the desired folder/track is selected. The selection always start from disc number first.

MP3: Select folders

[Press] Select track [Hold] Reverse/fast-forward track

Selecting the playback modes

[Turn] = [Press]

REPEAT Ô RANDOM

Select a disc, folder, then the track.

Playback starts automatically.

• If there is no disc on the selected tray, the unit beeps.

REPEAT

TRACK RPT : Repeats current track

FOLDER RPT : MP3: Repeats all tracks of current

folder

DISC RPT : Repeats all tracks of the current

disc

RANDOM

FOLDER RND : MP3: Randomly plays all tracks of

the current folder, then tracks of the next folder

DISC RND : Randomly plays all tracks of current

disc

ALL RND : Randomly plays all tracks of the

discs in the magazine

• To cancel repeat play or random play, select “RPT OFF” or “RND OFF.”

• To return to the previous menu, press BACK.

[Turn] = [Press]

See page 9 for changing the display information.

EXTERNAL DEVICES

Listening to the satellite radio

Before operating, connect either one of the following (separately purchased) to the CD changer jack on the rear of this unit.

• JVC SIRIUS satellite radio System, SC-C1 and KS-SRA100, PnP, SC-VDOC1 and KS-SRA100, for listening to the

ENGLISH

SIRIUS Satellite radio.

• XM satellite radio System, JVC Smart Digital Adapter–XMDJVC100, CNP2000UC and CNPJVC1 for listening to the XM Satellite radio.

GCI (Global Control Information) update

• If channels are updated after subscription, updating starts automatically. “UPDATING” flashes and no sound can be heard.

• Update takes a few minutes to complete.

• During update, you cannot operate your satellite radio.

Activate your SIRIUS subscription after connection

SIRIUS Satellite radio starts updating all the SIRIUS

channels.

Once completed, SIRIUS Satellite radio tunes in to

the preset channel, CH184.

3 Check your SIRIUS ID, see page 24.

4 Contact SIRIUS on the internet at

<http://activate.siriusradio.com/> to activate your subscription, or you can call SIRIUS toll-free at 1-888-539-SIRIUS (7474).

“SUB UPDT PRESS ANY KEY” scrolls on the display

once subscription has been completed.

Activate your XM subscription after connection

• Only Channel 0, 1, and 247 are available before activation.

XMDirect ™ Tuner Box or XMDirect2 Tuner System

starts updating all the XM channels. “Channel 1” is tuned in automatically.

3 Check your XM Satellite radio ID labelled

on the casing of the XMDirect ™ Tuner Box or XMDirect2 Tuner System, or tune in to “Channel 0” (see page 17).

4 Contact XM Satellite radio on the internet

at <http://xmradio.com/activation/> to activate your subscription, or you can call 1-800-XM-RADIO (1-800-967-2346).

Once completed, the unit tunes in to one of the

available channels (Channel 4 or higher).

1 2

Select “SIRIUS” or “XM.”

Select a category.

SIRIUS: If you select “ALL,” you can tune in to all the channels of all categories.

Select a channel to listen.

• Holding the button changes the channels rapidly.

• While searching, invalid and unsubscribed channels are skipped. XM: If you do not select a channel within 15 seconds, category selected in step 2

is canceled. You can select all channels of all categories now (including noncategorised channels).

Storing channels in memory

You can preset up to 18 channels for both SIRIUS and XM.

Ex.: Storing channel into preset number “04.”

1 Tune in to a channel you want to store (see

steps 1 – 3 above).

2 Select preset number “04.”

ENGLISH

Checking the XM Satellite radio ID

While selecting “XM,” select “Channel 0.”

The display alternately shows “RADIO ID” and the 8-digit (alphanumeric) ID number.

To cancel the ID number display, select any channel other than “Channel 0.”

Selecting SIRIUS/XM preset station

[Turn] = [Press]

Change the display information

Category name = Channel name = Artist name = Composer name * = Song/program name/title = Clock = (back to the beginning)

* Only for SIRIUS Satellite radio.

EXTERNAL DEVICES

Listening to the iPod

Before operating, connect the Interface adapter for iPod, KS-PD100 (separately purchased) to the CD changer jack on the rear of the unit.

ENGLISH

Preparation: Make sure “CH / IPOD” is selected in the “SRC SELECT” = “EXT IN” setting, see page 26.

Select “IPOD.”

1 2

Select a song.

Playback starts automatically.

Selecting a track from the menu

1 Enter the main menu.

This mode will be canceled if no operations are

done for about 5 seconds.

2 Select the desired menu.

PLAYLISTS

SONGS

to the beginning)

Ô ARTISTS Ô ALBUMS Ô

Ô GENRES Ô COMPOSERS Ô (back

3 Confirm the selection.

• To return to the previous menu, press

• If a track is selected, playback starts automatically.

Pause playback

• To resume playback, press the button again.

[Press] Select tracks [Hold] Reverse/fast-forward track

Selecting the playback modes

[Turn] = [Press]

REPEAT Ô RANDOM

[Turn] = [Press]

REPEAT

ONE RPT : Functions the same as “Repeat

One” of the iPod.

ALL RPT : Functions the same as “Repeat

All” of the iPod.

RANDOM

ALBUM RND * : Functions the same as “Shuffle

Albums” of the iPod.

SONG RND : Functions the same as “Shuffle

Songs” of the iPod.

• To cancel repeat play or random play, select “RPT OFF” or “RND OFF.”

• To return to the previous menu, press BACK.

* Functions only if you select “ALL” in “ALBUMS” of the

main “MENU.”

Change the display information

Folder name = Track name = Current track number with the elapsed playing time = Current track number with the clock time = (back to the beginning)

Listening to the other external components

You can connect an external component to:

• CD changer jack on the rear of this unit using the following adapters: – Line Input Adapter, KS-U57 (separately purchsed) – AUX Input Adapter, KS-U58 (separately purchsed)

Preparation: Make sure “EXT INPUT” is selected in the “SRC SELECT” = “EXT IN” setting, see page 26.

• AUX (auxiliary) input jack on the control panel.

Preparation: Make sure “AUX ON” is selected in the “SRC SELECT” = “AUX IN” setting, see page 26.

ENGLISH

1 2

—

Connecting an external component to the AUX input jack

—

Select “EXT INPUT” or “AUX IN.”

Turn on the connected component and start playing the source.

Adjust the volume.

Adjust the sound as you want (see pages 20 and 21).

3.5 mm (3/16”) stereo mini plug (not supplied)

Portable audio player, etc.

EXTERNAL DEVICES

Selecting a preset sound mode

You can select a preset sound mode suitable to the music genre.

• See also page 23 (“EQ”).

ENGLISH

Preset value setting for each sound mode

Sound

mode

USER 60 Hz 00 Q1.0 1.0 kHz 00 Q1.0 10.0 kHz 00 Q1.25

ROCK 100 Hz +03 Q1.0 1.0 kHz 00 Q1.25 10.0 kHz +02 Q1.25

CLASSIC 80 Hz +01 Q1.0 1.0 kHz 00 Q1.25 10.0 kHz +03 Q1.25

POPS 100 Hz +02 Q1.0 1.0 kHz +01 Q1.25 10.0 kHz +02 Q1.25

HIP HOP 60 Hz +04 Q1.0 1.0 kHz –02 Q1.0 10.0 kHz +01 Q1.25

JAZZ 80 Hz +03 Q1.0 1.0 kHz 00 Q1.25 10.0 kHz +03 Q1.25

Freq.: Frequency Q: Q-slope

BASS MIDDLE TREBLE LOUD

Freq. Level Q Freq. Level Q Freq. Level Q

Selecting from Menu.

[Turn] = [Press]

Select “EQ”

Preset value

(loudness)

OFF

Storing your own sound mode

You can store your own adjustments in memory.

1 Select “USER” for “EQ.”

[Turn] = [Press]

Select “EQ” = “USER”

2 While “USER” is shown on the display...

• If no operation is done for about 30 seconds, the operation will be canceled.

3 Select a tone.

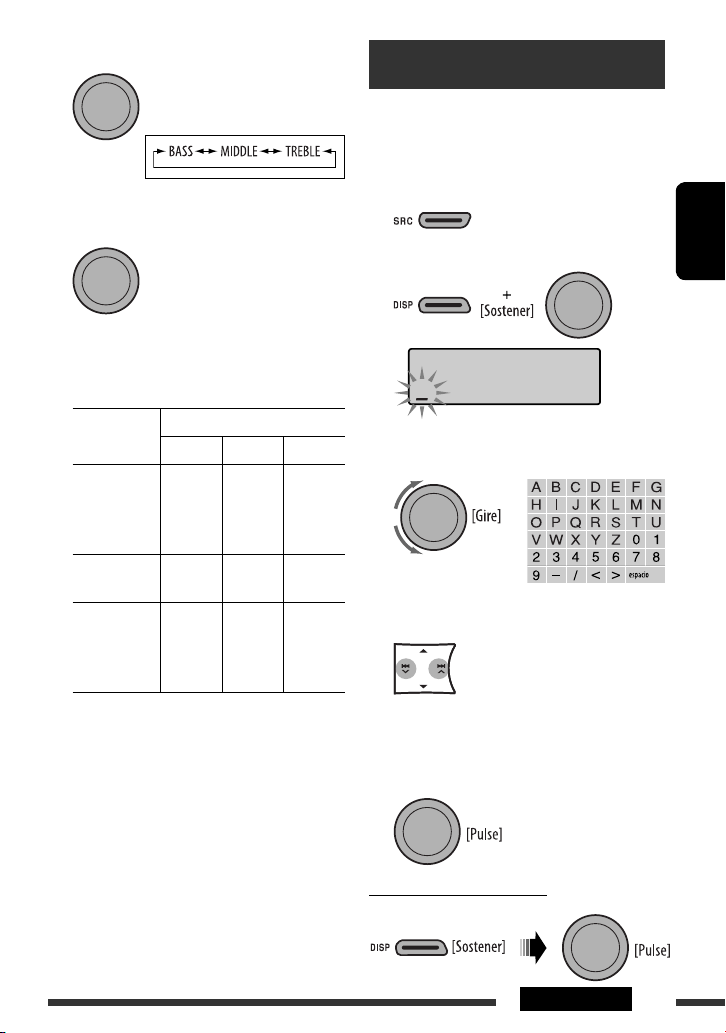

Title assignment

[Turn] = [Press]

4 Adjust the sound elements of the selected

tone.

[Turn] = [Press]

1 Adjust the frequency. 2 Adjust the level. 3 Adjust the Q-slope.

Sound

elements

Frequency 60 Hz

Level –06 to

Q Q0.5

Range/selectable items

BASS MIDDLE TREBLE

80 Hz 100 Hz 120 Hz

+06

Q1.0 Q1.5 Q2.0

500 Hz

1.0 kHz

1.5 kHz

2.5 kHz

–06 to +06

Q0.75 Q1.0 Q1.25 Q1.5

7.5 kHz

10.0 kHz

12.5 kHz

15.0 kHz

–06 to +06

Q0.75 Q1.25

You can assign titles to 30 station frequencies (FM and AM) using 8 characters (maximum) for each title.

• When HD Radio tuner box is connected, this feature will be disable.

1 Select “FM” or “AM.”

2 Show the title entry screen.

3 Assign a title.

1 Select a character.

2 Move to the next (or previous) character

position.

ENGLISH

5 Repeat steps 3 and 4 to adjust other sound

characteristics.

The adjustment made will be stored automatically.

3 Repeat steps 1 and 2 until you finish

entering the title.

4 Finish the procedure.

To erase the entire title

In step 2 above...

SETTINGS

Bluetooth settings

You can change the settings listed on the right column according to your preference.

1 Select “BT-PHONE” or “BT-AUDIO.”

ENGLISH

2 Enter the Bluetooth menu.

3 Select “SETTINGS.”

4 Select a setting item.

*1 Appears only when a Bluetooth phone is

connected.

*2 Appears only when a Bluetooth phone is

connected and it is compatible with text message (notified through JVC Bluetooth adapter).

*3 Bluetooth Audio: Shows only “Version.”

5 Change the setting accordingly.

Setting menu ( : Initial)

AUTO CNNCT (connect) When the unit is turned on, the connection is established automatically with...

OFF: No Bluetooth device. LAST: The last connected Bluetooth device. ORDER: The available registered Bluetooth device

found at first.

AUTO ANSWER Only for the device being connected for “BT-PHONE.” ON: The unit answers the incoming calls

automatically.

OFF: The unit does not answer the calls

automatically. Answer the calls manually.

REJECT: The unit rejects all incoming calls.

MSG INFO (message info) Only for the device being connected for “BT-PHONE.” AUTOMATIC: The unit informs you of the arrival of

a message by ringing and displaying “RCV MESSAGE” (receiving message).

• The display illuminate in blue (see

“RING COLOR” on page 24).

MANUAL: The unit does not inform you of the

arrival of a message.

MIC SETTING (microphone setting) Only for the device being connected for “BT-PHONE.” Adjust microphone volume connected to the Bluetooth adapter, [LEVEL 01/02/03].

VERSION The Bluetooth software and hardware versions are shown.

+ 51 hidden pages
