JVC GET0576-001A User Manual

CD RECEIVER

KD-R400

ENGLISHESPAÑOLFRANÇAIS

RECEPTOR CON CD

RÉCEPTEUR CD

For canceling the display demonstration, see page 7. Para cancelar la demostración en pantalla, consulte la página 7. Pour annuler la démonstration des affichages, référez-vous à la page 7.

For installation and connections, refer to the separate manual. Para la instalación y las conexiones, refiérase al manual separado. Pour l’installation et les raccordements, se référer au manuel séparé.

INSTRUCTIONS

MANUAL DE INSTRUCCIONES

MANUEL D’INSTRUCTIONS

KD-R400

For customer Use:

Enter below the Model No. and Serial No. which are located on the top or bottom of the cabinet. Retain this information for future reference.

Model No. Serial No.

GET0576-001A

[J]

Thank you for purchasing a JVC product.

Please read all instructions carefully before operation, to ensure your complete understanding and to obtain the best

possible performance from the unit.

INFORMATION (For U.S.A.)

ENGLISH

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: – Reorient or relocate the receiving antenna. – Increase the separation between the equipment and receiver. – Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. – Consult the dealer or an experienced radio/TV technician for help.

Caution:

Changes or modifications not approved by JVC could void the user’s authority to operate the equipment.

IMPORTANT FOR LASER PRODUCTS

1. CLASS 1 LASER PRODUCT

2. CAUTION: Do not open the top cover. There are no user serviceable parts inside the unit; leave all servicing to

qualified service personnel.

3. CAUTION: (For U.S.A.) Visible and/or invisible class II laser radiation when open. Do not stare into beam. (For Canada) Visible and/or invisible class 1M laser radiation when open. Do not view directly with

optical instruments.

4. REPRODUCTION OF LABEL: CAUTION LABEL, PLACED OUTSIDE THE UNIT.

[European Union only]

Warning:

If you need to operate the unit while driving, be sure to look around carefully or you may be involved in a traffic accident.

For safety...

• Do not raise the volume level too much, as this will block outside sounds, making driving dangerous.

• Stop the car before performing any complicated operations.

Temperature inside the car...

If you have parked the car for a long time in hot or cold weather, wait until the temperature in the car becomes normal before operating the unit.

Detaching the control panel

Attaching the control panel

How to reset your unit

• Your preset adjustments will also be erased.

CONTENTS

Detaching the control panel ......................... 3

Attaching the control panel ......................... 3

How to reset your unit ................................. 3

How to forcibly eject a disc ........................... 3

OPERATIONS

Basic operations ........................................... 4

• Using the control panel ............................... 4

• Using the remote controller (RM-RK50) ...... 6

Preparation .................................................. 7

Listening to the radio ................................... 8

Disc operations ............................................. 9

Listening to the USB device .......................... 10

EXTERNAL DEVICES

Listening to the other external

components .............................................. 11

SETTINGS

Selecting a preset sound mode .................... 12

Title assignment .......................................... 13

Menu operations .......................................... 14

Color settings ............................................... 17

ENGLISH

How to forcibly eject a disc

• You can forcibly eject the loaded disc even if the disc is

locked. To lock/unlock the disc, see page 9.

• Be careful not to drop the disc when it ejects.

• If this does not work, reset your unit.

Caution on volume setting:

Digital devices (CD/USB) produce very little noise compared with other sources. Lower the volume before playing these digital sources to avoid damaging the speakers by sudden increase of the output level.

REFERENCES

More about this unit .................................... 18

Troubleshooting ........................................... 21

Maintenance ................................................ 23

Specifications ............................................... 24

This mark is used to indicate...

Turn the control dial to make a selection, then press to confirm the selection.

Basic operations

Using the control panel

ENGLISH

1 • FM/AM: Select preset station.

• CD/USB: Select folder.

2 • Turn on the power.

• Attenuate the sound (if the power is on).

• Turn off the power [Hold].

3 Select the source.

FM = AM *2 = CD *3 = USB = AUX IN *2 =

(back to the beginning)

4 • Enter list operations.

9 Select the sound mode. p Detach the panel. q Change the display information. w • FM/AM: Search for station.

• CD/USB: Select track.

e Return to the previous menu. r Remote sensor t AUX (auxiliary) input jack y USB (Universal Serial Bus) input jack

• Enter Menu setting [Hold] .

5 • Control the volume *

• Confirm the selection [Press] .

• FM: Enter SSM preset mode [Hold] .

• CD/USB: Enter playback mode [Hold] .

Pause/resume playback *4 [Press] .

6 Loading slot 7 Display window 8 Eject disc.

or select items [Turn].

*1 Also known as “Control dial” in this manual. *2 You cannot select these sources if they were disabled

in the Menu (see “SRC SELECT” in “Menu operations” on page 16).

*3 You cannot select “CD” as the playback source if no

disc is in the unit.

*4 You can still adjust the volume during pause when

the selected source is CD/USB. Before resume playback, check to be sure that you have not raise the volume level too much.

You can change the display and button illumination (see “COLOR” on page 15).

Display window

ENGLISH

1 Tr (track) indicator 2 Source display / Track number / Folder number /

Time countdown indicator

3 DISC indicator 4 Sound mode indicators—CLASSIC, HIP HOP, JAZZ,

ROCK, POPS, USER

5 Playback mode / item indicators—RND (random),

(disc), (folder), RPT (repeat)

6 EQ (equalizer) indicator 7 LOUD (loudness) indicator 8 Disc information indicators—

TAG (Tag information), (track/file), (folder)

9 Main display p Tuner reception indicators—ST (stereo),

MO (monaural)

5OPERATIONS

Using the remote controller (RM-RK50)

Installing the lithium coin battery (CR2025)

ENGLISH

For USA-California Only: This product contains a CR Coin Cell Lithium Battery which contains Perchlorate Material—special handling may apply. See www.dtsc.ca.gov/hazardouswaste/perchlorate

Caution:

• Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type.

• Battery shall not be exposed to excessive heat such as sunshine, fire, or the like.

If the effectiveness of the remote controller decreases, replace the battery.

Before using the remote controller:

• Aim the remote controller directly at the remote sensor on the unit.

• DO NOT expose the remote sensor to bright light (direct sunlight or artificial lighting).

Remote sensor

This unit is equipped with the steering wheel remote control function.

• See the Installation/Connection Manual (separate volume) for connection.

1 • Turns the power on if pressed briefly or

attenuates the sound when the power is on.

• Turns the power off if pressed and held.

2 • Changes the preset stations.

• Changes the folder of the MP3/WMA.

3 Adjusts the volume level. 4 Selects the sound mode. 5 Selects the source. 6 • Searches for stations if pressed briefly.

• Fast-forwards or reverses the track if pressed and held.

• Changes the tracks if pressed briefly.

Warning (to prevent accidents and damage):

• Do not install any battery other than CR2025 or its

equivalent.

• Do not leave the remote controller in a place (such

as dashboards) exposed to direct sunlight for a long time.

• Store the battery in a place where children cannot

reach.

• Do not recharge, short, disassemble, heat the battery,

or dispose of it in a fire.

• Do not leave the battery with other metallic

materials.

• Do not poke the battery with tweezers or similar

tools.

• Wrap the battery with tape and insulate when

throwing away or saving it.

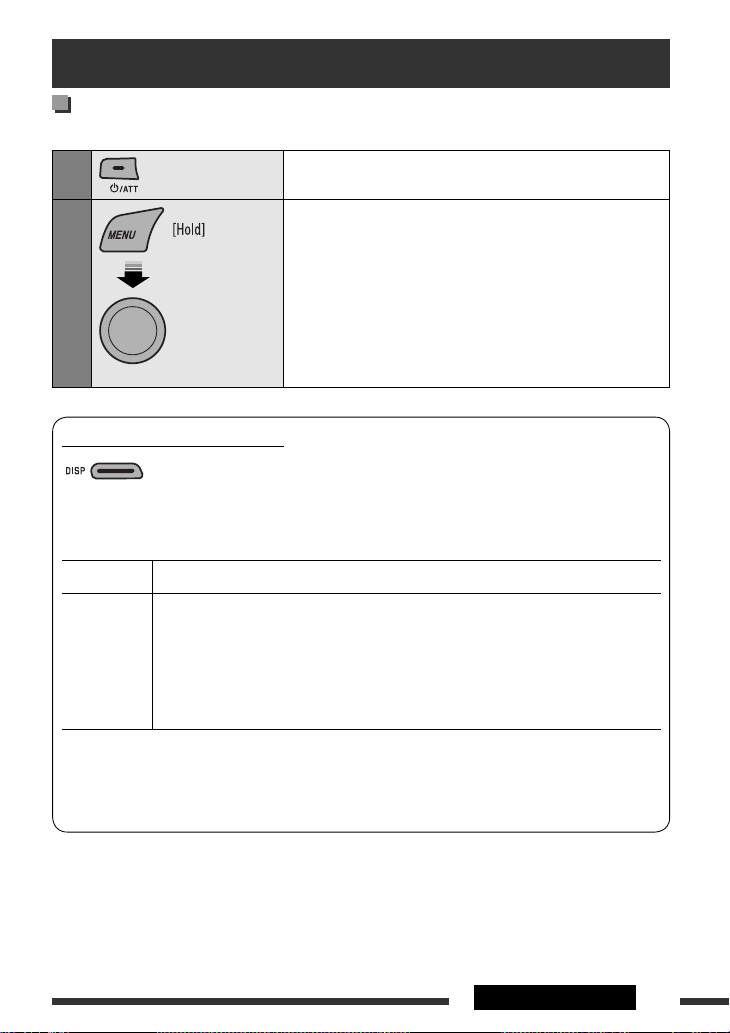

Preparation

Canceling the display demonstration and setting the clock

• See also page 14.

Turn on the power.

ENGLISH

Press and hold until the main menu is called up.

[Turn] = [Press]

• Repeat this procedure.

Cancel the display demonstrations

Select “DEMO,” then “DEMO OFF.”

Set the clock

Select “CLOCK” = “CLOCK SET.” Adjust the hour, then press control dial once to proceed to adjust

the minute.

• To return to the previous menu, press BACK.

Changing the display information

When the power is turned off: The current clock time is displayed if “CLOCK DISP” is set to “CLOCK OFF,” (see page 14). When the power is turned on: The display information of the current source changes as follows:

FM/AM Frequency = Clock = Station name *1 = (back to the beginning)

CD/USB

If no title is assigned to a station, “NO NAME” appears. To assign a title to a station, see page 13.

*2 If the current disc is an audio CD, “NO NAME” appears. *3 If an MP3/WMA file does not have Tag information or “TAG DISPLAY” is set to “TAG OFF” (see page 14),

folder name and file name appear.

Audio CD/CD Text: Disc title/performer *

elapsed playing time = Current track number with the clock time = (back to the beginning)

MP3/WMA: Album name/performer (folder name) *3 = Track title (file name) *3 =

Current track number with the elapsed playing time = Current track number with the clock time = (back to the beginning)

= Track title *2 = Current track number with the

7OPERATIONS

Listening to the radio

1 2

ENGLISH

Select “FM” or “AM.”

Search for a station to listen—Auto Search.

When a station is tuned in, searching stops. To stop searching, press the same button again.

• You can also search for a station manually—Manual Search. Hold either one of the buttons until “M” flashes on the display, then press it repeatedly.

• When receiving an FM stereo broadcast with sufficient signal strength, the ST indicator lights up on the display.

Improving the FM reception

When an FM stereo broadcast is hard to receive, activate monaural mode for better reception.

• See also page 15.

[Turn] = [Press]

Reception improves, but stereo effect will be lost.

• The MO indicator lights up on the display.

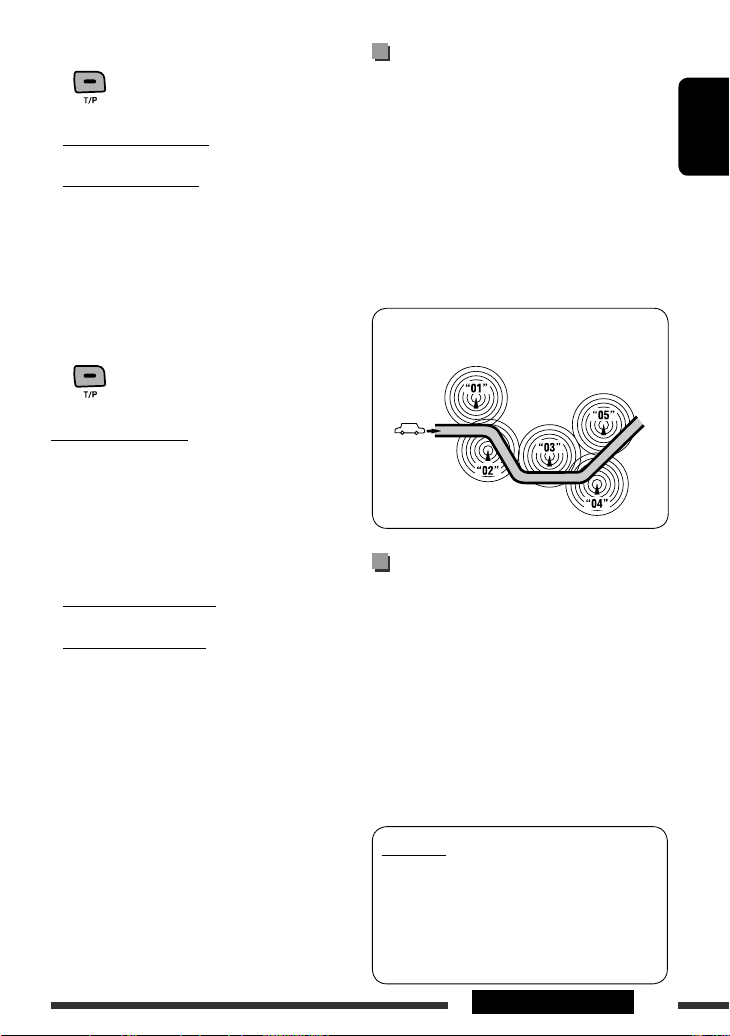

Storing stations in memory

Automatic presetting (FM)— SSM (Strongstation Sequential Memory)

You can preset up to 18 stations for FM.

1 While listening to a station...

2 Select the preset number range you want to

store.

To restore the stereo effect, repeat the same

procedure to select “MONO OFF.” The MO indicator goes off.

Local FM stations with the strongest signals are searched and stored automatically.

• To stop searching, press 4 /¢ .

To preset other 6 stations, repeat from step 1 again.

Manual presetting (FM/AM)

You can preset up to 18 stations for FM and 6 stations for AM. Ex.: Storing FM station of 92.50 MHz into preset

number “04.”

2 Select preset number “04.”

Disc operations

Selecting preset station

ENGLISH

[Turn] = [Press]

Stop playing and ejecting the disc

• “NO DISC” appears. Press SRC to listen to another playback source.

Prohibiting disc ejection

To cancel the prohibition, repeat the same

procedure.

Turn on the power.

Insert a disc.

All tracks will be played repeatedly until you change the source or eject the disc.

Selecting a track/folder

[Turn] = [Press]

• For MP3/WMA discs, select the desired folder, then the desired track by repeating the control dial procedures.

• To return to the previous menu, press BACK.

Continued on the next page

9OPERATIONS

Pressing (or holding) the following buttons allows you to...

[Press] Pause/resume playback.

• To cancel repeat play or random play, select

“RPT OFF” or “RND OFF.”

• To return to the previous menu, press BACK.

ENGLISH

MP3/WMA: Select folder

[Press] Select track [Hold] Reverse/fast-forward track

Selecting the playback modes

You can use only one of the following playback modes at a time.

[Turn] = [Press]

REPEAT Ô RANDOM

[Turn] = [Press]

REPEAT

TRACK RPT : Repeats current track FOLDER RPT : MP3/WMA: Repeats current folder

RANDOM

FOLDER RND : MP3/WMA: Randomly plays all

tracks of current folder, then tracks of next folders

ALL RND : Randomly plays all tracks

Listening to the USB device

This unit can play MP3/WMA tracks stored in a USB device.

All tracks will be played repeatedly until you change the source or detach the USB device.

USB input jack

USB memory

If a USB device has been attached...

Playback starts from where it has been stopped previously.

• If a different USB device is currently attached, playback starts from the beginning.

OPERATIONS

To stop play and detach the USB device

Straightly pull it out from the unit.

• Press SRC to listen to another playback source.

You can operate the USB device in the same way you operate the files on a disc. (See pages 9 and 10.)

Cautions:

• Avoid using the USB device if it might hinder your safety driving.

• Do not pull out and attach the USB device repeatedly while “READING” is shown on the display.

• Do not start the car engine if a USB device is connected.

• This unit may not be able to play the files depending on the type of USB device.

• Operation and power supply may not work as intended for some USB devices.

• You cannot connect a computer to the USB input terminal of the unit.

• Make sure all important data has been backed up to avoid losing the data.

• Do not leave a USB device in the car, expose to direct sunlight, or high temperature to avoid deformation or cause damages to the device.

• Some USB devices may not work immediately after you turn on the power.

• For more details about USB operations, see pages 19 and 20.

Listening to the other external components

You can connect an external component to AUX (auxiliary) input jack on the control panel. Preparation: Make sure “AUX ON” is selected in the “SRC SELECT”

= “AUX IN” setting, see page 16.

ENGLISH

1 2

—

Select “AUX IN.”

Turn on the connected component and start playing the source.

Adjust the volume.

Adjust the sound as you want (see pages 12 and 13).

Connecting an external component to the AUX input jack

3.5 mm (3/16”) stereo mini plug (not supplied)

OPERATIONS & EXTERNAL DEVICES

Portable audio player, etc.

Selecting a preset sound mode

You can select a preset sound mode suitable to the music genre.

• See also page 14.

ENGLISH

Preset value setting for each sound mode

Sound

mode

USER 60 Hz 00 Q1.25 1.0 kHz 00 Q1.0 10.0 kHz 00 — ROCK 100 Hz +03 Q1.0 1.0 kHz 00 Q1.25 10.0 kHz +02 — CLASSIC 80 Hz +01 Q1.25 1.0 kHz 00 Q1.25 10.0 kHz +03 — POPS 100 Hz +02 Q1.25 1.0 kHz +01 Q1.25 10.0 kHz +02 — HIP HOP 60 Hz +04 Q1.0 1.0 kHz –02 Q1.0 10.0 kHz +01 — JAZZ 80 Hz +03 Q1.25 1.0 kHz 00 Q1.25 10.0 kHz +03 —

Freq.: Frequency Q: Q-slope

BASS MIDDLE TREBLE LOUD

Freq. Level Q Freq. Level Q Freq. Level Q

Selecting from Menu.

[Turn] = [Press]

• See below and page 13 for “USER” settings.

Preset value

(loudness)

OFF

Storing your own sound mode

You can store your own adjustments in memory.

1 Select “USER” for “EQ.”

[Turn] = [Press]

2 While “USER” is shown on the display...

3 Select a tone.

Title assignment

[Turn] = [Press]

4 Adjust the sound elements of the selected

tone.

[Turn] = [Press]

1 Adjust the frequency. 2 Adjust the level. 3 Adjust the Q-slope.

Sound

elements

Frequency 60 Hz

Level –06 to

Q Q1.0

Range/selectable items

BASS MIDDLE TREBLE

80 Hz 100 Hz 200 Hz

+06

Q1.25 Q1.5 Q2.0

0.5 kHz

1.0 kHz

1.5 kHz

2.5 kHz –06 to

+06 Q0.75

Q1.0 Q1.25

10.0 kHz

12.5 kHz

15.0 kHz

17.5 kHz –06 to

+06 Fixed

5 Repeat steps 3 and 4 to adjust other sound

characteristics.

The adjustment made will be stored automatically.

You can assign titles to 30 station frequencies (FM and AM) using 8 characters (maximum) for each title.

1 Select “FM” or “AM.”

2 Show the title entry screen.

3 Assign a title.

1 Select a character.

2 Move to the next (or previous) character

position.

3 Repeat steps 1 and 2 until you finish

entering the title.

4 Finish the procedure.

ENGLISH

To erase the entire title

In step 2 above...

SETTINGS

Menu operations

1 Call up the menu. 2 Select the desired item. 3 Repeat step 2 if necessary.

ENGLISH

Category Menu items Selectable settings, [reference page]

DEMO

Display

DEMO

demonstration

CLOCK DISP *

Clock display

CLOCK

CLOCK SET

Clock setting

Equalizer

DIMMER

Dimmer

SCROLL*

Scroll

DISPLAY

TAG DISPLAY

Tag display

If the power supply is not interrupted by turning off the ignition key of your car, it is recommended to select

“CLOCK OFF” to save the car’s battery.

*2 Some characters or symbols will not be shown correctly (or will be blanked) on the display.

• DEMO ON

• DEMO OFF

• CLOCK ON

• CLOCK OFF

: Adjust the hour, then the minute, [7]. (Initial: 1:00)

: Select a preset sound mode suitable to the music genre. USER, ROCK, CLASSIC, POPS, HIP HOP, JAZZ

• DIMMER ON

• DIMMER OFF

• SCROLL ONCE

• SCROLL AUTO

• SCROLL OFF

Pressing DISP for more than one second can scroll the display regardless of the setting.

• TAG ON

• TAG OFF

[Turn] = [Press]

: Display demonstration will be activated automatically if no

operation is done for about 20 seconds, [7].

: Cancels. : Clock time is shown on the display at all times when the

power is turned off.

: Cancels; pressing DISP will show the clock time for about

5 seconds when the power is turned off, [7].

: Dims the display and button illumination. : Cancels.

: Scrolls the displayed information once. : Repeats scrolling (at 5-second intervals). : Cancels.

: Shows the Tag information while playing MP3/WMA

tracks.

: Cancels.

• To return to the previous menu, press BACK.

• To exit from the menu, press DISP or MENU.

Initial: Underlined

Category Menu items Selectable settings, [reference page]

AREA

Tuner channel interval

• AREA US

• AREA EU

: When using in North/Central/South America. AM/FM

intervals are set to 10 kHz/200 kHz.

: When using in any other areas. AM/FM intervals are set to

9 kHz/50 kHz (100 kHz during auto search).

• AREA SA

: When using in South American countries where FM interval

is 100 kHz. AM interval is set to 10 kHz.

MONO *

Monaural mode

TUNER

IF BAND

Intermediate frequency band

• MONO ON

• MONO OFF

• AUTO

• WIDE

: Activate monaural mode to improve FM reception, but

stereo effect will be lost, [8].

: Restore the stereo effect. : Increases the tuner selectivity to reduce interference noises

between adjacent stations. (Stereo effect may be lost.)

: Subject to interference noises from adjacent stations, but

sound quality will not be degraded and the stereo effect will remain.

COLOR

COLOR 01 – COLOR 29, USER

MENU COLOR

Menu color

: Select one of the preset or user color for display and button (except EQ/

/0) illumination. (For customize color settings, “USER,” see page 17.)

• OFF

• ON

: Cancels. : Changes the display and button (except EQ/ /0)

illumination during menu, list search and playback mode operations.

R06 – F06 : Adjust the front and rear speaker output balance.

(Initial: 00)

L06 – R06 : Adjust the left and right speaker output balance.

(Initial: 00)

• LOUD OFF

• LOUD ON

: Cancels. : Boost low and high frequencies to produce a well-balanced

AUDIO

FADER*4, *

Fader BALANCE *

Balance

LOUD

Loudness

sound at a low volume level.

Displayed only when the source is “FM.”

*4 If you are using a two-speaker system, set the fader level to “00.” *5 This adjustment will not affect the subwoofer output.

ENGLISH

Continued on the next page

SETTINGS

Category Menu items Selectable settings, [reference page]

VOL ADJUST

Volume adjust

ENGLISH

VOL ADJ –05 — VOL ADJ +05

(Initial: VOL ADJ 00)

: Preset the volume adjustment level of each source (except

FM), compared to the FM volume level. The volume level will automatically increase or decrease when you change the source.

• Before making an adjustment, select the source you want to adjust.

• “VOL ADJ FIX” appears on the display if “FM” is selected as the source.

L/O MODE

Line output mode

• SUB.W

• REAR

: Select if the REAR LINE OUT terminals are used for connecting

a subwoofer (through an external amplifier).

: Select if the REAR LINE OUT terminals are used for connecting

the speakers (through an external amplifier).

AUDIO

SUB.W FREQ *

Subwoofer cutoff frequency

SUB.W LEVEL *

Subwoofer level

BEEP

Key touch tone

AMP GAIN *

Amplifier gain control

AM *

AM station

AUX IN *

SRC SELECT

Auxiliary input

Displayed only when “L/O MODE” is set to “SUB.W.”

• LOW

• MID

• HIGH

SUB.W 00 — SUB.W 08

• BEEP OFF

• BEEP ON

• LOW POWER

: Frequencies lower than 72 Hz are sent to the subwoofer. : Frequencies lower than 111 Hz are sent to the subwoofer. : Frequencies lower than 157 Hz are sent to the subwoofer.

: Adjust the subwoofer output level. (Initial: SUB.W 04)

: Deactivates the key touch tone. : Activates the key touch tone.

: VOLUME 00 – VOLUME 30 (Select if the maximum power

of each speaker is less than 50 W to prevent damaging the speaker.)

• HIGH POWER

• AM OFF

• AM ON

• AUX OFF

• AUX ON

: VOLUME 00 – VOLUME 50 : Disable “AM” in source selection.

: Enable “AM” in source selection, [4]. : Disable “AUX IN” in source selection.

: Enable “AUX IN” in source selection, [4].

*7 The volume level automatically changes to “VOLUME 30” if you change to “LOW POWER” with the volume level

set higher than “VOLUME 30.”

*8 Displayed only when any source other than “AM” is selected. *9 Displayed only when any source other than “AUX IN” is selected.

Color settings

Creating your own color

—USER Color

You can create your own colors—“DAY COLOR” or “NIGHT COLOR.” DAY COLOR: Used when “DIMMER” is set to

“DIMMER OFF.”

NIGHT COLOR: Used when “DIMMER” is set to

“DIMMER ON.”

Select “COLOR” = “USER.”

[Turn] = [Press]

3 While “USER” is shown on the display...

[Turn] = [Press]

5 Select a primary color.

[Turn] = [Press]

6 Adjust the level (00 to 31) of the selected

primary color.

[Turn] = [Press]

If “00” is selected for all the primary colors, nothing

appear on the display.

7 Repeat steps 5 and 6 to adjust other primary

colors.

8 Exit from the setting.

• If no operation is done for about 30 seconds, the operation will be canceled.

ENGLISH

SETTINGS

More about this unit

Basic operations

Turning on the power

ENGLISH

• By pressing SRC button on the unit, you can also turn on the power. If the source is ready, playback also starts.

Turning off the power

• If you turn off the power while listening to a track, playback will start from where it had been stopped previously next time you turn on the power.

General

• If you change the source while listening to a disc, playback stops.

Next time you select “CD” as the playback source,

playback will start from where it had been stopped previously.

• If no operation is done for about 30 seconds after pressing MENU button, the operation will be canceled.

Tuner operations

Storing stations in memory

• During SSM search...

– All previously stored stations are erased and the

stations are stored anew.

– When SSM is over, the station stored in the lowest

preset number will be automatically tuned in.

• When storing a station manually, the previously preset station is erased when a new station is stored in the same preset number.

Disc operations

Caution for DualDisc playback

• The Non-DVD side of a “DualDisc” does not comply with the “Compact Disc Digital Audio” standard. Therefore, the use of Non-DVD side of a DualDisc on this product may not be recommended.

General

• This unit has been designed to reproduce CDs/CD Texts, and CD-Rs (Recordable)/CD-RWs (Rewritable) in audio CD (CD-DA), MP3/WMA formats.

• When a disc is inserted upside down, “PLEASE” and “EJECT” appear alternately on the display. Press 0 to eject the disc.

• MP3 and WMA “tracks” (words “file” and “track” are used interchangeably) are recorded in “folders.”

• While fast-forwarding or reversing on an MP3 or WMA disc, you can only hear intermittent sounds.

Playing a CD-R or CD-RW

• Use only “finalized” CD-Rs or CD-RWs.

• This unit can only play back files of the same type as those detected first if a disc includes both audio CD (CD-DA) files and MP3/WMA files.

• This unit can play back multi-session discs; however, unclosed sessions will be skipped while playing.

• Some CD-Rs or CD-RWs may not play back on this unit because of their disc characteristics, or for the following reasons:

– Discs are dirty or scratched. – Moisture condensation has occurred on the lens

inside the unit. – The pickup lens inside the unit is dirty. – The files on the CD-R/CD-RW are written using the

“Packet Write” method. – There are improper recording conditions (missing

data, etc.) or media conditions (stained, scratched,

warped, etc.).

• CD-RWs may require a longer readout time since the reflectance of CD-RWs is lower than that of regular CDs.

• Do not use the following CD-Rs or CD-RWs:

– Discs with stickers, labels, or a protective seal stuck

to the surface.

– Discs on which labels can be directly printed by an

ink jet printer.

Using these discs under high temperature or high

humidity may cause malfunctions or damage to the unit.

Playing an MP3/WMA disc

• This unit can play back MP3/WMA files with the extension code <.mp3> or <.wma> (regardless of the letter case—upper/lower).

• This unit can show the names of albums, artists (performer), and Tag (Version 1.0, 1.1, 2.2, 2.3, or

2.4) for MP3 files and for WMA files.

• This unit can display only one-byte characters. No other characters can be correctly displayed.

• This unit can play back MP3/WMA files meeting the conditions below:

– Bit rate of MP3: 32 kbps — 320 kbps – Sampling frequency of MP3: 32 kHz, 44.1 kHz, 48 kHz (for MPEG-1) 16 kHz, 22.05 kHz, 24 kHz (for MPEG-2) – Bit rate of WMA: 32 kbps — 320 kbps – Sampling frequency of WMA: 22.05 kHz, 32 kHz,

44.1 kHz, 48 kHz

– Disc format: ISO 9660 Level 1/Level 2, Romeo,

Joliet, Windows extension.

• The maximum number of characters for file/folder names vary depending on the disc format used (includes 4 extension characters—<.mp3> or <.wma>).

– ISO 9660 Level 1: up to 12 characters – ISO 9660 Level 2: up to 31 characters – Romeo: up to 64 characters – Joliet: up to 32 characters – Windows extension: up to 64 characters

• This unit can recognize a total of 512 files, 255 folders, and 8 hierarchical levels.

• This unit can play back files recorded in VBR (variable bit rate).

Files recorded in VBR have a discrepancy in the

elapsed time display, and do not show the actual elapsed time. In particular, this difference becomes noticeable after performing the search function.

• This unit cannot play back the following files:

– MP3 files encoded in MP3i and MP3 PRO format. – MP3 files encoded in an inappropriate format. – MP3 files encoded with Layer 1/2. – WMA files encoded in lossless, professional, and

voice format.

– WMA files which are not based upon Windows

Media ® Audio. – WMA files copy-protected with DRM. – Files which have data such as AIFF, ATRAC3, etc.

• The search function works but search speed is not

constant.

Playing MP3/WMA tracks from a USB device

• While playing from a USB device, the playback order

may differ from other players.

• This unit may be unable to play back some USB

devices or some files due to their characteristics or recording conditions.

• Depending on the shape of the USB devices and

connection ports, some USB devices may not be attached properly or the connection might be loose.

• Connect one USB mass storage class device to the unit

at a time. Do not use a USB hub.

• If the connected USB device does not have the correct

files, “CANNOT PLAY” appears.

• This unit can show Tag (Version 1.0, 1.1, 2.2, 2.3, or

2.4) for MP3 files and for WMA files.

ENGLISH

Continued on the next page

REFERENCES

• This unit can play back MP3/WMA files meeting the conditions below:

– Bit rate of MP3: 32 kbps — 320 kbps – Sampling frequency of MP3: 32 kHz, 44.1 kHz, 48 kHz (for MPEG-1) 16 kHz, 22.05 kHz, 24 kHz (for MPEG-2)

ENGLISH

– Bit rate of WMA: 32 kbps — 320 kbps – Sampling frequency of WMA: 22.05 kHz, 32 kHz,

44.1 kHz, 48 kHz

• This unit can play back MP3 files recorded in VBR (variable bit rate).

• The maximum number of characters for:

– Folder names : 32 characters – File names : 32 characters – MP3 Tag : 64 characters – WMA Tag : 32 characters

• This unit can recognize a total of 5 000 files, 255 folders (255 files per folder including folder without unsupported files), and of 8 hierarchies.

• This unit does not support SD card reader.

• This unit cannot recognize a USB device whose rating is other than 5 V and exceeds 500 mA.

• USB devices equipped with special functions such as data security functions cannot be used with the unit.

• Do not use a USB device with 2 or more partitions.

• This unit may not recognized a USB device connected through a USB card reader.

• This unit may not play back files in a USB device properly when using a USB extension cord.

• This unit cannot play back the following files:

– MP3 files encoded with MP3i and MP3 PRO format. – MP3 files encoded in an inappropriate format. – MP3 files encoded with Layer 1/2. – WMA files encoded in lossless, professional, and

voice format.

– WMA files not based on Windows Media® Audio.

Ejecting a disc or removing a USB device

• If the ejected disc is not removed within 15 seconds, it is automatically inserted into the loading slot again to protect it from dust.

• After ejecting a disc or removing a USB device, “NO DISC” or “NO USB“ appears and you cannot operate some of the buttons. Insert another disc, reattach a USB device, or press SRC to select another playback source.

Title assignment

• If you try to assign titles to more than 30 station frequencies, “NAME FULL” appears. Delete unwanted titles before assignment.

Menu operations

• If you change the “AMP GAIN” setting from “HIGH POWER” to “LOW POWER” while the volume level is set higher than “VOLUME 30,” the unit automatically changes the volume level to “VOLUME 30.”

Troubleshooting

What appears to be trouble is not always serious. Check the following points before calling a service center.

Symptoms Remedies/Causes

• Sound cannot be heard from the speakers. • Adjust the volume to the optimum level.

• Check the cords and connections.

• The unit does not work at all. Reset the unit (see page 3).

• “AUX IN” cannot be selected. Check the “SRC SELECT” = “AUX IN” setting (see

General

• Nothing appear on the display. Check the USER Color settings (see page 17)

• SSM automatic presetting does not work. Store stations manually.

• Static noise while listening to the radio. Connect the antenna firmly.

FM/AM

• “AM” cannot be selected. Check the “SRC SELECT”

• Disc cannot be played back. Insert the disc correctly.

• CD-R/CD-RW cannot be played back.

• Tracks on the CD-R/CD-RW cannot be skipped.

• Disc can neither be played back nor ejected. • Unlock the disc (see page 9).

• Disc sound is sometimes interrupted. • Stop playback while driving on rough roads.

Discs in general

• “NO DISC” appears on the display. Insert a playable disc into the loading slot.

• “PLEASE” and “EJECT“ appear alternately on the display.

• Disc cannot be played back. • Use a disc with MP3/WMA tracks recorded in a format

• Noise is generated. Skip to another track or change the disc. (Do not add the

MP3/WMA playback

page 16).

= “AM” setting (see

page 16).

• Insert a finalized CD-R/CD-RW.

• Finalize the CD-R/CD-RW with the component which you used for recording.

• Eject the disc forcibly (see page 3).

• Change the disc.

• Check the cords and connections.

Press

0, then insert a disc correctly.

compliant with ISO 9660 Level 1, Level 2, Romeo, or Joliet.

• Add the extension code <.mp3> or <.wma> to the file names.

extension code <.mp3> or <.wma> to non-MP3 or WMA tracks.)

ENGLISH

Continued on the next page

REFERENCES

Symptoms Remedies/Causes

• A longer readout time is required (“READING” keeps flashing on the display).

ENGLISH

• Tracks do not play back in the order you have intended them to play.

• The elapsed playing time is not correct. This sometimes occurs during playback. This is caused by

• “NO FILE” appears on the display. Selected folder is an empty folder*. Select another folder

MP3/WMA playback

• The correct characters are not displayed (e.g. album name).

• Noise is generated. The track played back is not an MP3/WMA track. Skip to

• “READING” keeps flashing on the display. • Readout time varies depending on the USB device.

• “NO FILE” appears on the display. Selected folder is an empty folder*. Select another folder

• Tracks/folders are not played back in the order you have intended.

USB device playback

• “CANNOT PLAY” flashes on the display.

• “NO USB” appears on the display.

• The unit cannot detect the USB device.

• Correct characters are not displayed (e.g. album name).

• While playing a track, sound is sometimes interrupted.

• Microsoft and Windows Media are either registered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries.

Do not use too many hierarchical levels and folders.

The playback order is determined when the files are recorded.

how the tracks are recorded on the disc.

that contains MP3/WMA tracks.

* Folder that is physically empty or folder that contains

data but does not contain valid MP3/WMA track.

This unit can only display letters (upper case), numbers, and a limited number of symbols.

another file. (Do not add the extension code <.mp3> or <.wma> to non-MP3 or WMA tracks.)

• Do not use too many hierarchy or folders.

• Turn off the power then on again.

• Reattach the USB device again.

that contains MP3/WMA tracks.

* Folder that is physically empty or folder that contains

data but does not contain valid MP3/WMA track.

The playback order is determined by the write-in time stamp. The first track/folder written into the USB device will be the first track/folder for playback.

• Attach a USB device that contains tracks encoded in an appropriate format.

• Reattach the USB device again.

This unit can only display letters (upper case), numbers, and a limited number of symbols.

The MP3/WMA tracks have not been properly copied into the USB device. Copy MP3/WMA tracks again into the USB device, and try again.

Maintenance

How to clean the connectors

Frequent detachment will deteriorate the connectors. To minimize this possibility, periodically wipe the connectors with a cotton swab or cloth moistened with alcohol, being careful not to damage the connectors.

Connectors

Moisture condensation

Moisture may condense on the lens inside the unit in the following cases:

• After starting the heater in the car.

• If it becomes very humid inside the car. Should this occur, the unit may malfunction. In this case, eject the disc and leave the unit turned on for a few hours until the moisture has evaporated.

How to handle discs

When removing a disc from its case, press down the center holder

of the case and lift the disc out, holding it by the edges.

• Always hold the disc by the edges. Do not touch its recording surface.

When storing a disc in its case, gently insert the disc around the center holder (with the printed surface facing up).

• Make sure to store discs in cases after use.

Center holder

To keep discs clean

A dirty disc may not play correctly. If a disc does become dirty, wipe it with a soft cloth in a straight line from center to edge.

• Do not use any solvents (for example, conventional record cleaner, spray, thinner, benzine, etc.) to clean discs.

To play new discs

New discs may have some rough spots around the inner and outer edges. If such a disc is used, this unit may reject the disc. To remove these rough spots, rub the edges with a pencil or ball-point pen, etc.

Do not use the following discs:

Single CD

—8 cm (3-3/16”) disc Warped disc

Sticker and sticker residue Stick-on label

Unusual shape

C-thru Disc (semi-

transparent disc)

ENGLISH

Transparent or semi-

transparent parts on its

recording area

23REFERENCES

Specifications

AUDIO AMPLIFIER SECTION

Power Output: 20 W RMS × 4 Channels at 4 Ω

ENGLISH

Signal-to-Noise Ratio: 80 dBA (reference: 1 W into 4 Ω) Load Impedance: 4 Ω (4 Ω to 8 Ω allowance) Tone Control Range: Bass: ±12 dB (60 Hz, 80 Hz, 100 Hz, 200 Hz)

Frequency Response: 40 Hz to 20 000 Hz Line-Out Level/Impedance: 2.5 V/20 kΩ load (full scale) Subwoofer-Out Level/Impedance: 2.5 V/20 kΩ load (full scale) Output Impedance: 1 kΩ Other Terminal: USB input jack, AUX (auxiliary) input jack,

TUNER SECTION

Frequency Range: FM: with channel interval set to 100 kHz

FM Tuner Usable Sensitivity: 11.3 dBf (1.0 μV/75 Ω)

AM Tuner Sensitivity: 20 μV

and ≤ 1% THD+N

Q1.0, Q1.25, Q1.5, Q2.0

Middle: ±12 dB (0.5 kHz, 1.0 kHz, 1.5 kHz, 2.5 kHz)

Q0.75, Q1.0, Q1.25

Treble: ±12 dB (10.0 kHz, 12.5 kHz, 15.0 kHz,

17.5 kHz) Q = Fixed

Steering wheel remote input

87.5 MHz to 107.9 MHz

or 200 kHz with channel interval set to 50 kHz 87.5 MHz to 108.0 MHz

AM: with channel interval set to 10 kHz 530 kHz to 1 710 kHz

with channel interval set to 9 kHz 531 kHz to 1 602 kHz

50 dB Quieting Sensitivity: 16.3 dBf (1.8 μV/75 Ω) Alternate Channel Selectivity (400 kHz): 65 dB Frequency Response: 40 Hz to 15 000 Hz Stereo Separation: 35 dB

Selectivity: 35 dB

CD PLAYER SECTION

Type: Compact disc player Signal Detection System: Non-contact optical pickup

(semiconductor laser) Number of Channels: 2 channels (stereo) Frequency Response: 5 Hz to 20 000 Hz Dynamic Range: 96 dB Signal-to-Noise Ratio: 98 dB Wow and Flutter: Less than measurable limit MP3 Decoding Format: (MPEG1/2 Audio Layer 3) Max. Bit Rate: 320 kbps WMA (Windows Media® Audio) Decoding Format: Max. Bit Rate: 320 kbps

USB SECTION

USB Standard: USB 1.1, USB 2.0 Data Transfer Rate (Full Speed): Max. 12 Mbps Compatible Device: Mass storage class Compatible File System: FAT 32/16/12 Playable Audio Format: MP3/WMA Max. Current: DC 5 V

GENERAL

Power Requirement: Operating Voltage: DC 14.4 V

Grounding System: Negative ground Allowable Operating Temperature: 0°C to +40°C (32°F to 104°F) Dimensions (W × H × D): (approx.) Installation Size: 182 mm × 52 mm × 160 mm

Panel Size: 188 mm × 58 mm × 6 mm

Mass:

500 mA

(11 V to 16 V allowance)

(7-3/16” × 2-1/16” × 6-5/16”)

(7-7/16” × 2-5/16” × 1/4”)

1.3 kg (2.9 lbs) (excluding accessories)

ENGLISH

Design and specifications are subject to change without notice.

If a kit is necessary for your car, consult your telephone directory for the nearest car audio speciality shop.

25REFERENCES

Having TROUBLE with operation?

Please reset your unit

Refer to page of How to reset your unit

Still having trouble??

USA ONLY

Call 1-800-252-5722

http://www.jvc.com

We can help you!

EN, SP, FR

1008DTSMDTJEIN

GET0576-002A

[J]

KD-R400

Installation/Connection Manual Manual de instalación/conexión Manuel d’installation/raccordement

1008DTSMDTJEIN

EN, SP, FR

ENGLISH

This unit is designed to operate on 12 V DC, NEGATIVE ground electrical systems. If your vehicle does not have this system, a

voltage inverter is required, which can be purchased at JVC car audio dealers.

WARNINGS

To prevent short circuits, we recommend that you disconnect the battery’s negative terminal and make all electrical connections before installing the unit.

• Be sure to ground this unit to the car’s chassis again after

installation.

Notes:

• Replace the fuse with one of the specified rating. If the fuse blows

frequently, consult your JVC car audio dealer.

• It is recommended to connect speakers with a maximum power

of more than 50 W (both at the rear and at the front, with an impedance of 4 Ω to 8 Ω). If the maximum power is less than 50 W, change “AMP GAIN” setting to prevent the speakers from being damaged (see page 16 of the INSTRUCTIONS).

• To prevent short circuits, cover the terminals of the UNUSED leads

with insulating tape.

• The heat sink becomes very hot after use. Be careful not to touch it

when removing this unit.

ESPAÑOL

Esta unidad está diseñada para funcionar con 12 V de CC, con sistemas eléctricos de masa NEGATIVA. Si su vehículo no posee

este sistema, será necesario un inversor de tensión, que puede ser adquirido en los concesionarios de JVC de equipos de audio para automóviles.

ADVERTENCIAS

Para evitar cortocircuitos, recomendamos que desconecte el terminal negativo de la batería y que efectúe todas las conexiones eléctricas antes de instalar la unidad.

• Asegúrese de volver a conectar a masa esta unidad al chasis

del automóvil después de la instalación.

Notas:

• Reemplace el fusible por uno con la corriente especificada. Si el

fusible se quemase frecuentemente consulte con su concesionario de JVC de equipos de audio para automóviles.

• Se recomienda conectar altavoces que tengan una potencia máxima

de más de 50 W (tanto en las partes delantera como trasera, con una impedancia de 4 Ω á 8 Ω). Si la potencia máxima es de menos de 50 W, cambie “AMP GAIN” para evitar daños en los altavoces (consulte la página 16 del MANUAL DE INSTRUCCIONES).

• Para evitar cortocircuitos, cubra los terminales de los conductores

NO UTILIZADOS con cinta aislante.

• El sumidero térmico estará muy caliente después del uso. Asegúrese

de no tocarlo al desmontar esta unidad.

FRANÇAIS

Cet appareil est conçu pour fonctionner sur des sources de courant continu de 12 V à masse NEGATIVE. Si votre véhicule n’offre pas ce

type d’alimentation, il vous faut un convertisseur de tension, que vous pouvez acheter chez un revendeur d’autoradios JVC.

AVERTISSEMENTS

Pour éviter tout court-circuit, nous vous recommandons de débrancher la borne négative de la batterie et d’effectuer tous les raccordements électriques avant d’installer l’appareil.

• Assurez-vous de raccorder de nouveau la mise à la masse de

cet appareil au châssis de la voiture après l’installation.

Remarques:

• Remplacer le fusible par un de la valeur précisée. Si le fusible saute

souvent, consulter votre revendeur d’autoradios JVC.

• Il est recommandé de connecter des enceintes avec une puissance

maximum de plus de 50 W (à l’arrière et à l’avant et avec une impédance de 4 Ω à 8 Ω). Si la puissance maximum est inférieure à 50 W, changez “AMP GAIN” pour éviter d’endommager vos enceintes (voir page 16 du MANUEL D’INSTRUCTIONS).

• Pour éviter les courts-circuits, recouvrez les extrémités des fils

INUTILISÉS avec une bande isolante.

• Le dissipateur de chaleur devient très chaud après usage. Faire

attention de ne pas le toucher en retirant cet appareil.

Heat sink / Sumidero térmico / Dissipateur de chaleur

Parts list for installation and connection

The following parts are provided for this unit. If any item is missing, consult your JVC car audio dealer immediately.

A / B Hard case/Control panel

Estuche duro/Panel de control

Etui de transport/Panneau de commande

Lista de piezas para instalación y conexión

Con esta unidad se suministran las siguientes piezas. Si hay algún elemento faltante, consulte inmediatamente con su concesionario de JVC de equipos de audio para automóviles.

Sleeve

Cubierta

Manchon

Liste des pièces pour l’installation et raccordement

Les pièces suivantes sont fournies avec cet appareil. Si quelque chose manquait, consultez votre revendeur autoradio JVC immédiatement.

Trim plate

Placa de guarnición

Plaque d’assemblage

Power cord

Cordón de alimentación

Cordon d’alimentation

Rubber cushion

Cojín de goma

Amortisseur en caoutchouc

Washer (ø5)

Arandela (ø5)

Rondelle (ø5)

Handles

Manijas

Poignées

Lock nut (M5)

Tuerca de seguridad (M5)

Ecrou d’arrêt (M5)

Remote controller

Control remoto

Télécommande

Mounting bolt—M4 × 5 mm (M4 × 1/4"); M5 × 12.5 mm (M5 × 1/2")

Perno de montaje—M4 × 5 mm (M4 × 1/4 pulgada); M5 × 12,5 mm (M5 × 1/2 pulgada)

Boulon de montage—M4 × 5 mm (M4 × 1/4 pouces); M5 × 12,5 mm (M5 × 1/2 pouces)

Battery

Pila

Pile

INSTALLATION

INSTALACION (MONTAJE EN EL

INSTALLATION (MONTAGE

(IN-DASH MOUNTING)

The following illustration shows a typical installation. If you have any questions or require information regarding installation kits, consult your JVC car audio dealer or a company supplying kits.

• If you are not sure how to install this unit correctly, have it installed

by a qualified technician.

TABLERO DE INSTRUMENTOS)

La siguiente ilustración muestra una instalación típica. Si tiene alguna pregunta o necesita información acerca de las herramientas para instalación, consulte con su concesionario de JVC de equipos de audio para automóviles o a una compañía que suministra tales herramientas.

• Si usted no está seguro de cómo instalar correctamente la unidad,

hágala instalar por un técnico cualificado.

Do the required electrical connections.

Realice las conexiones eléctricas requeridas.

Réalisez les connexions électriques.

DANS LE TABLEAU DE BORD)

L’illustration suivante est un exemple d’installation typique. Si vous avez des questions ou avez besoin d’information sur des kits d’installation, consulter votre revendeur d’autoradios JVC ou une compagnie d’approvisionnement.

• Si l’on n’est pas sûr de pouvoir installer correctement cet appareil, le

faire installer par un technicien qualifié.

Removing the unit

Before removing the unit, release the rear section.

Extracción de la unidad

Antes de extraer la unidad, libere la sección trasera.

When using the optional stay / Cuando emplea un soporte opcional / Lors de l’utilisation du hauban en option

Stay (option)

Soporte (opción)

Fire wall

Tabique a prueba de incendios

Cloison

Dashboard

Tablero de instrumentos

Tableau de bord

Hauban (en option)

Screw (option)

Tornillo (opción)

Vis (en option)

Bend the appropriate tabs to hold the sleeve firmly in place.

Doble las lengüetas apropiadas para retener firmemente la manga en su lugar.

Tordez les languettes appropriées pour maintenir le manchon en place.

Retrait de l’appareil

Avant de retirer l’appareil, libérer la section arrière.

Insert the two handles, then pull them as illustrated so that the unit can be removed.

Inserte las dos manijas y, a continuación, extráigalas de la manera indicada en la ilustración para poder desmontar la unidad.

Insérez les deux poignées, puis tirez de la façon illustrée de façon à retirer l’appareil.

When installing the unit without using the sleeve / Instalación de la unidad sin utilizar la cubierta / Lors de l’installation de l’appareil scans utiliser de manchon

In a Toyota car for example, first remove the car radio and install the unit in its place.

En un automóvil Toyota, por ejemplo, en primer lugar desmonte el autorradio e instale la unidad en su lugar.

Dans une voiture Toyota, par exemple, retirez d’abord l’autoradio et installez l’appareil à sa place.

Flat head screws—M5 × 8 mm (M5 × 3/8")

Tornillos de cabeza plana—M5 × 8 mm (M5 × 3/8 pulgada)*

Vis à tête plate—M5 × 8 mm (M5 × 3/8 pouces)*

Bracket*

Ménsula*

Support*

Pocket

Compartimiento

Poche

Bracket*

Ménsula*

Support*

Flat head screws—M5 × 8 mm (M5 × 3/8")*

Tornillos de cabeza plana—M5 × 8 mm (M5 × 3/8 pulgada)*

Vis à tête plate—M5 × 8 mm (M5 × 3/8 pouces)*

Install the unit at an angle of less than 30˚.

Instale la unidad a un ángulo de menos de 30˚.

Installez l’appareil avec un angle de moins de 30˚.

When you stand the unit, be careful not to damage the fuse on

the rear.

Not supplied for this unit.

Note : When installing the unit on the mounting bracket, make sure to use the 8 mm (3/8") -long screws. If longer

screws are used, they could damage the unit.

Nota : Cuando instala la unidad en la ménsula de montaje, asegúrese de utilizar los tornillos de 8 mm (3/8 pulgada) de

longitud. Si se utilizan tornillos más largos, éstos pueden dañar la unidad.

Remarque : Lors de l’installation de l’appareil sur le support de montage, s’assurer d’utiliser des vis d’une longueur de 8 mm

(3/8 pouces). Si des vis plus longues sont utilisées, elles peuvent endommager l’appareil.

Al poner la unidad vertical, tenga cuidado de no dañar el fusible

provisto en la parte posterior.

No suministrado con esta unidad.

Lorsque vous mettez l’appareil à la verticale, faire attention de ne

pas endommager le fusible situé sur l’arrière.

Non fourni avec cet appareil.

ENGLISH ESPAÑOL FRANÇAIS

ELECTRICAL CONNECTIONS

PRECAUTIONS on power supply and speaker connections:

• DO NOT connect the speaker leads of the power cord to the

car battery; otherwise, the unit will be seriously damaged.

• BEFORE connecting the speaker leads of the power cord to the

speakers, check the speaker wiring in your car.

CONEXIONES ELECTRICAS RACCORDEMENTS ELECTRIQUES

PRECAUCIONES sobre las conexiones de la fuente de alimentación y de los altavoces:

• NO conecte los conductores de altavoz del cable de

alimentación a la batería de automóvil, pues podrían producirse graves daños en la unidad.

• ANTES de conectar a los altavoces los conductores de altavoz del

cable de alimentación, verifique el conexionado de altavoz de su automóvil.

Typical connections / Conexiones tipicas / Raccordements typiques

Before connecting: Check the wiring in the vehicle carefully.

Incorrect connection may cause serious damage to this unit. The leads of the power cord and those of the connector from the car body may be different in color.

Antes de la conexión: Verifique atentamente el conexionado del vehículo. Una conexión incorrecta podría producir daños graves en la unidad. Los cordones del cable de alimentación y los del conector procedentes de la carrocería del automóvil podrían ser de diferentes en color.

1 Connect the colored leads of the power cord in the order

specified in the illustration below.

2 Connect the antenna cord. 3 Finally connect the wiring harness to the unit.

1 Conecte los conductores de color del cable de alimentación en el

orden especificado en la ilustración de abajo.

2 Conecte el cable de antena. 3 Por último, conecte el cable de alimentación a la unidad.

PRECAUTIONS sur l’alimentation et la connexion des enceintes:

• NE CONNECTEZ PAS les fils d’enceintes du cordon

d’alimentation à la batterie; sinon, l’appareil serait sérieusement endommagé.

• AVANT de connecter les fils d’enceintes du cordon d’alimentation

aux enceintes, vérifiez le câblage des enceintes de votre voiture.

Avant de commencer la connexion: Vérifiez attentivement le câblage du véhicule. Une connexion incorrecte peut endommager sérieusement l’appareil. Le fil du cordon d’alimentation et ceux des connecteurs du châssis de la voiture peuvent être différents en couleur.

1 Connectez les fils colorés du cordon d’alimentation dans l’ordre

spécifié sur l’illustration ci-dessous.

2 Connectez le cordon d’antenne. 3 Finalement, connectez le faisceau de fils à l’appareil.

Rear line out (see diagram )

Salida de línea trasera (véase diagrama )

Sortie de ligne arrière (voir le diagramme )

Antenna terminal

Terminal de la

Borne de l’antenne

antena

Steering wheel remote input (see diagram )

Entrada del control remoto del volante de dirección (véase diagrama

Entrée de la télécommande de volant (voir le diagramme )

)

Rear ground terminal

Terminal de tierra posterior

Borne arrière de masse

15 A fuse

Fusible de 15 A

Fusible 15 A

Black

Negro

Noir

Yellow

Amarillo *

Jaune *

Red

Rojo

Rouge

To the metallic body or chassis of the car

A un cuerpo metálico o chasis del automóvil

Vers corps métallique ou châssis de la voiture

To a live terminal in the fuse block connecting to the car battery (bypassing the ignition switch) (constant 12 V)

A un terminal activo del bloque de fusibles conectado a la batería del automóvil (desviando el interruptor de encendido) (12 V constantes)

A une borne sous tension du porte-fusible connectée à la batterie de la voiture (en dérivant l’interrupteur d’allumage) (12 V constant)

To an accessory terminal in the fuse block

A un terminal accesorio del bloque de fusibles

Vers borne accessoire du porte-fusible

Ignition switch

Interruptor de encendido

Interrupteur d’allumage

Fuse block

Bloque de fusibles

Porte-fusible

White with black stripe

Blanco con rayas negras

Blanc avec bande noire

Not supplied for this unit.

Before checking the operation of this unit prior to installation, this lead

must be connected; otherwise, the power cannot be turned on.

White

Blanco

Blanc

Left speaker (front)

Altavoz izquierdo (frontal)

Enceinte gauche (avant)

Gray with black stripe

Gris con rayas negras

Gris avec bande noire

Blue with white stripe

Azul con rayas blancas

Bleu avec bande blanche

Gray

Gris

Right speaker (front)

Altavoz derecho (frontal)

Enceinte droit (avant)

No suministrado con esta unidad.

Antes de comprobar el funcionamiento de esta unidad previa a de la

instalación, es necesario conectar este cable, de lo contrario no se podrá conectar la alimentación.

Green with black stripe

Verde con rayas negras

Vert avec bande noire

To the remote lead of other equipment or automatic antenna if any (200 mA max.)

Al conductor remoto de otro equipo o de la antena automática, si hubiere (máx. 200 mA)

Au fil de télécommande de l’autre appareil ou à l’antenne automatique s’il y en a une (200 mA max.)

Green

Verde

Vert

Purple with black stripe

Púrpura con rayas negras

Violet avec bande noire

Left speaker (rear)

Altavoz izquierdo (trasero)

Enceinte gauche (arrière)

Non fourni avec cet appareil.

Pour vérifier le fonctionnement de cet appareil avant installation, ce fil

doit être raccordé, sinon l’appareil ne peut pas être mis sous tension.

Purple

Púrpura

Violet

Right speaker (rear)

Altavoz derecho (trasero)

Enceinte droit (arrière)

Connecting to the steering wheel remote controller /

de volant

If your car is equipped with the steering wheel remote controller, you can operate this unit using the controller. For connection, an exclusive remote adapter (not supplied) which matches your car is required. For details, consult the same car audio dealer as where the unit is purchased.

Conexión al control remoto del volante de dirección

Si su automóvil está equipado con control remoto en el volante de dirección, podrá controlar este receptor utilizando el control remoto. Para la conexión, se requiere un adaptador remoto exclusivo (no suministrado) que sea adecuado para su automóvil. Para los detalles, consulte con el concesionario car audio donde compró el receptor.

Remote adapter (not supplied for this unit)

Adaptador para remoto exclusivo (no suministrado con esta unidad)

Adaptateur pour télécommande spécialisé (non fourni avec cet appareil)

/ Connexion de la télécommande

Si votre voiture est équipée d’une télécommande de volant, vous pouvez commander cet autoradio en utilisant cette télécommande. Pour la connexion, vous avez besoin d’un adaptateur de télécommande spécialisé (non fourni) correspondant à votre voiture. Pour en savoir plus, consultez le revendeur autoradio où vous avez acheté votre autoradio.

Entrada del control remoto del volante de dirección

Connecting the external amplifier or subwoofer / Conexión de los amplificadores o subwoofer externos / Connexion d’amplificateurs

Steering wheel remote input

Entrée de la télécommande de volant

Steering wheel remote controller (equipped in the car)

Control remoto del volante de dirección (equipado en el vehículo)

Télécommande de volant (installée dans la voiture)

extérieurs ou d’un caisson de grave

You can connect an amplifier to upgrade your car stereo system.

• Connect the remote lead (blue with white stripe) to the remote

lead of the other equipment so that it can be controlled through this unit.

• Disconnect the speakers from this unit, connect them to the

amplifier. Leave the speaker leads of this unit unused.

Set “L/O MODE” to “REAR” (See page 16 of the INSTRUCTIONS.)

Ajuste “L/O MODE” a “REAR” (Consulte la página 16 del MANUAL DE INSTRUCCIONES.)

Réglez “L/O MODE” sur “REAR” (Voir page 16 du MANUEL D’INSTRUCTIONS.)

Usted podrá conectar un amplificador para mejorar el sistema estéreo de su automóvil.

• Conecte el conductor remoto (azul con rayas blancas) al conductor

remoto del otro equipo para poderlo controlar a través de esta unidad.

• Desconecte los altavoces de esta unidad y conéctelos al

amplificador. Los cables de los altavoces de esta unidad quedan sin usar.

Remote lead

Cable remoto

Fil d’alimentation à distance

Remote lead (blue with white stripe)

Cable remoto (azul con rayas blancas)

Fil d’alimentation à distance (bleu avec bande blanche)

Signal cord (not supplied for this unit) Cable de señal (no suministrado con esta unidad)

Cordon de signal (non fourni avec cet appareil)

Vous pouvez connecter un amplificateur pour améliorer votre système autoradio.

• Connectez le fil de commande à distance (bleu avec bande blanche)

au fil de commande à distance de l’autre appareil de façon qu’il puisse être commandé via cet appareil.

• Déconnectez les enceintes de cet appareil et connectez-les

à l’amplificateur. Laissez les fils d’enceintes de cet appareil inutilisés.

Y-connector (not supplied for this unit)

Conector en Y (no suministrado con esta unidad)

Connecteur Y (non fourni avec cet appareil)

To the remote lead of other equipment or automatic antenna if any

Al conductor remoto de otro equipo o de la antena automática, si hubiere

Au fil de télécommande de l’autre appareil ou à l’antenne automatique s’il y en a une

Rear speakers

Altavoces posteriores

Enceintes arrière

Set “L/O MODE” to “SUB.W” (See page 16 of the INSTRUCTIONS.)

Ajuste “L/O MODE” a “SUB.W” (Consulte la página 16 del MANUAL DE INSTRUCCIONES.)

Réglez “L/O MODE” sur “SUB.W” MANUEL D’INSTRUCTIONS.)

Subwoofer

Caisson de grave

Firmly attach the ground wire to the metallic body or to the chassis of

the car—to the place uncoated with paint (if coated with paint, remove the paint before attaching the wire). Failure to do so may cause damage to the unit.

JVC Amplifier

Amplificador de JVC

JVC Amplificateur

(Voir page 16 du

Remote lead

Cable remoto

Fil d’alimentation à distance

JVC Amplifier

Amplificador de JVC

JVC Amplificateur

or / o / ou

Fije firmemente el cable de tierra a la carrocería metálica o al chasis—a un lugar no cubierto con pintura (si está cubierto con pintura, quítela antes de fijar el cable). De lo contrario, se podrían producir daños en la unidad.

Front speakers

Altavoces delanteros

Enceintes avant

Attachez solidement le fil de mise à la masse au châssis métallique de la

voiture—à un endroit qui n’est pas recouvert de peinture (s’il est recouvert de peinture, enlevez d’abord la peinture avant d’attacher le fil). L’appareil peut être endommagé si cela n’est pas fait correctement.

TROUBLESHOOTING

• The fuse blows. * Are the red and black leads connected correctly?

• Power cannot be turned on. * Is the yellow lead connected?

• No sound from the speakers. * Is the speaker output lead short-circuited?

• Sound is distorted. * Is the speaker output lead grounded? * Are the “–” terminals of L and R speakers grounded in common?

• Noise interfere with sounds. * Is the rear ground terminal connected to the car’s chassis using

shorter and thicker cords?

• This unit becomes hot. * Is the speaker output lead grounded? * Are the “–” terminals of L and R speakers grounded in common?

• This unit does not work at all. * Have you reset your unit?

LOCALIZACION DE AVERIAS

• El fusible se quema. * ¿Están los conductores rojo y negro correctamente conectados?

• No es posible conectar la alimentación. * ¿Está el cable amarillo conectado?

• No sale sonido de los altavoces. * ¿Está el cable de salida del altavoz cortocircuitado?

• El sonido presenta distorsión. * ¿Está el cable de salida del altavoz conectado a masa? * ¿Están los terminales “–” de los altavoces L y R conectados a una

masa común?

• Perturbación de ruido. * ¿El terminal de tierra trasero está conectado al chasis del automóvil

utilizando los cordones más corto y más grueso?

• Esta unidad se calienta. * ¿Está el cable de salida del altavoz conectado a masa? * ¿Están los terminales “–” de los altavoces L y R conectados a una

masa común?

• Esta unidad no funciona en absoluto. * ¿Reinicializó la unidad?

EN CAS DE DIFFICULTES

• Le fusible saute. * Les fils rouge et noir sont-ils racordés correctement?

• L’appareil ne peut pas être mise sous tension. * Le fil jaune est-elle raccordée?

• Pas de son des enceintes. * Le fil de sortie d’enceinte est-il court-circuité?

• Le son est déformé. * Le fil de sortie d’enceinte est-il à la masse? * Les bornes “–” des enceintes gauche et droit sont-elles mises ensemble

à la masse?

• Interférence avec les sons. * La prise arrière de mise à la terre est-elle connectée au châssis de la

voiture avec un cordon court et épais?

• Cet appareil devient chaud. * Le fil de sortie d’enceinte est-il à la masse? * Les bornes “–” des enceintes gauche et droit sont-elles mises ensemble

à la masse?

• Cet appareil ne fonctionne pas du tout. * Avez-vous réinitialisé votre appareil?

CD RECEIVER

CD-RECEIVER

РЕСИВЕР С ПРОИГРЫВАТЕЛЕМ КОМПАКТ-ДИСКОВ

∆ΕΚΤΗΣ ΜΕ CD

KD-R501/KD-R402/KD-R401

For canceling the display demonstration, see page 6. Zum Abbrechen der Displaydemonstration siehe Seite 6. Информацию об отмене демонстрации функций дисплея см. на стр. 6. Για να ακυρώσετε την επίδειξη λειτουργίας στην θóνη, βλ. σελίδα 6.

ENGLISHDEUTSCHРУCCKИЙ

ΕΛΛΗΝΙΚΑ

For installation and connections, refer to the separate manual. Für den Einbau und die Anschlüsse siehe das eigenständige Handbuch. Указания по установке и выполнению соединений приводятся в отдельной инструкции. Για πληρoφoρίες σχετικά µε την εγκατάσταση και τις συνδέσεις, ανατρέξτε στo αντίστoιχo ξεχωριστό εγχειρίδιo.

INSTRUCTIONS

BEDIENUNGSANLEITUNG

ИНСТРУКЦИИ ПО ЭКСПЛУАТАЦИИ

Ο∆ΗΓΙΕΣ

GET0574-006A

[EY]

Thank you for purchasing a JVC product.

Please read all instructions carefully before operation, to ensure your complete understanding and to obtain the best

possible performance from the unit.

IMPORTANT FOR LASER PRODUCTS

ENGLISH

1. CLASS 1 LASER PRODUCT

2. CAUTION: Do not open the top cover. There are no user serviceable parts inside the unit; leave all servicing to

qualified service personnel.

3. CAUTION: Visible and/or invisible class 1M laser radiation when open. Do not view directly with optical

instruments.

4. REPRODUCTION OF LABEL: CAUTION LABEL, PLACED OUTSIDE THE UNIT.

Warning:

If you need to operate the unit while driving, be sure to look around carefully or you may be involved in a traffic

Battery

Products

Information for Users on Disposal of Old Equipment and Batteries [European Union only]

These symbols indicate that the product and the battery with this symbol should not be disposed as general household waste at its end-of-life. If you wish to dispose of this product and the battery, please do so in accordance with applicable national legislation or other rules in your country and municipality. By disposing of this product correctly, you will help to conserve natural resources and will help prevent potential negative effects on the environment and human health.

Notice:

The sign Pb below the symbol for batteries indicates that this battery contains lead.

accident.

Caution on volume setting:

For safety...

• Do not raise the volume level too much, as this will block outside sounds, making driving dangerous.

• Stop the car before performing any complicated operations.

Temperature inside the car...

If you have parked the car for a long time in hot or cold weather, wait until the temperature in the car becomes normal before operating the unit.

Detaching the control panel

Attaching the control panel

How to reset your unit

CONTENTS

Detaching the control panel ......................... 3

Attaching the control panel ......................... 3

How to reset your unit ................................. 3

How to forcibly eject a disc ........................... 3

OPERATIONS

Basic operations ........................................... 4

Preparation .................................................. 6

Listening to the radio ................................... 7

Disc operations ............................................. 10

Listening to the USB device .......................... 11

EXTERNAL DEVICES

Listening to the other external

components .............................................. 12

Using the remote controller—

SETTINGS

Selecting a preset sound mode .................... 14

Menu operations .......................................... 16

Color settings (for KD-R501) ........................ 19

RM-RK50 ...... 13

ENGLISH

• Your preset adjustments will also be erased.

How to forcibly eject a disc

• You can forcibly eject the loaded disc even if the disc is

locked. To lock/unlock the disc, see page 10.

• Be careful not to drop the disc when it ejects.

• If this does not work, reset your unit.

REFERENCES

More about this unit .................................... 20

Troubleshooting ........................................... 23

Maintenance ................................................ 25

Specifications ............................................... 26

This mark is used to indicate...

Turn the control dial to make a selection, then press to confirm the selection.

Basic operations

ENGLISH

1 • FM/AM: Select preset station.

• CD/USB: Select folder.

2 • Turn on the power.

• Attenuate the sound (if the power is on).

• Turn off the power [Hold].

3 Select the source.

FM = CD *2 = USB = AUX IN *3 = AM *3 =

(back to the beginning)

4 • Enter list operations.

• Enter Menu setting [Hold] .

5 • Control the volume *

or select items [Turn].

p Detach the panel. q Change the display information. w • FM/AM: Search for station.

• CD/USB: Select track.

e Return to the previous menu. r Remote sensor

• You can control this unit with an optionally

purchased remote controller. For details, see page 13.

t AUX (auxiliary) input jack y USB (Universal Serial Bus) input jack

• Confirm the selection [Press] .

• FM: Enter SSM preset mode [Hold] .

• CD/USB: Enter playback mode [Hold] . Pause/resume playback *4 [Press] .

6 Loading slot 7 Display window 8 Eject disc. 9 • Activate/deactivate TA Standby Reception.

• Enter PTY Searching mode [Hold].

*1 Also known as “Control dial” in this manual. *2 You cannot select “CD” as the playback source if no

disc is in the unit.

*3 You cannot select these sources if they were disabled

in the Menu (see “SRC SELECT” in “Menu operations” on page 19).

*4 You can still adjust the volume during pause when

the selected source is CD/USB. Before resume playback, check to be sure that you have not raise the volume level too much.

KD-R501: You can change the display and button illumination (see “COLOR” on page 17).

Display window

ENGLISH

1 Tr (track) indicator 2 Source display / Track number / Folder number /

Time countdown indicator

3 DISC indicator 4 Sound mode indicators—CLASSIC, HIP HOP, JAZZ,

ROCK, POPS, USER

5 Playback mode / item indicators— RND (random),

(disc), (folder), RPT (repeat)

6 EQ (equalizer) indicator

7 LOUD (loudness) indicator 8 Disc information indicators—

TAG (Tag information), (track/file), (folder)

9 Main display p Radio Data System indicators—AF, REG, TP, PTY q Tuner reception indicators—ST (stereo),

MO (monaural)

5OPERATIONS

Preparation

Canceling the display demonstration and setting the clock

• See also page 16.

ENGLISH

Turn on the power.

Press and hold until the main menu is called up.

[Turn] = [Press]

• Repeat this procedure.

Cancel the display demonstrations

Select “DEMO,” then “DEMO OFF.”

Set the clock

Select “CLOCK” = “CLOCK SET.” Adjust the hour, then press control dial once to proceed to adjust

the minute.

Select “24H/12H,” then “24 HOUR” or “12 HOUR.”

• To return to the previous menu, press BACK.

Changing the display information

When the power is turned off: The current clock time is displayed if “CLOCK DISP” is set to “CLOCK OFF,” (see page 16). When the power is turned on: The display information of the current source changes as follows:

FM/AM Station Frequency = Clock = (back to the beginning)

FM Radio Data System

CD/USB

Station name (PS) beginning)

Audio CD/CD Text: Disc title/performer *

MP3/WMA: Album name/performer (folder name) *2 = Track title (file name) *2 =

= Station Frequency = Programme type (PTY) = Clock = (back to the

= Track title *1 = Current track number with the

elapsed playing time = Current track number with the clock time = (back to the beginning)

Current track number with the elapsed playing time = Current track number with the clock time = (back to the beginning)

*1 If the current disc is an audio CD, “NO NAME” appears. *2 If an MP3/WMA file does not have Tag information or “TAG DISPLAY” is set to “TAG OFF” (see page 16),

folder name and file name appear.

Listening to the radio

1 2

Select “FM” or “AM.”

Search for a station to listen—Auto Search.

When a station is tuned in, searching stops. To stop searching, press the same button again.

• You can also search for a station manually—Manual Search. Hold either one of the buttons until “M” flashes on the display, then press it repeatedly.

• When receiving an FM stereo broadcast with sufficient signal strength, the ST indicator lights up on the display.

Improving the FM reception

When an FM stereo broadcast is hard to receive, activate monaural mode for better reception.

• See also page 17.

[Turn] = [Press]

Reception improves, but stereo effect will be lost.

• The MO indicator lights up on the display.

ENGLISH

Storing stations in memory

Automatic presetting (FM)— SSM (Strongstation Sequential Memory)

You can preset up to 18 stations for FM.

1 While listening to a station...

2 Select the preset number range you want to

store.

To restore the stereo effect, repeat the same

procedure to select “MONO OFF.” The MO indicator goes off.

Local FM stations with the strongest signals are searched and stored automatically.

• To stop searching, press 4 /¢ .

To preset other 6 stations, repeat from step 1 again.

Continued on the next page

7OPERATIONS

Manual presetting (FM/AM)

You can preset up to 18 stations for FM and 6 stations for AM. Ex.: Storing FM station of 92.50 MHz into preset

number “04.”

ENGLISH

2 Select preset number “04.”

Selecting preset station

The following features are available only for FM Radio Data System stations.

Searching for FM Radio Data

System programme—PTY Search

You can tune in to a station broadcasting your favorite programme by searching for a PTY code.

1 The last selected PTY code

appears.

2 Select one of your favorite programme types

or a PTY code.

3 Start searching for your favorite programme.

If a station is broadcasting a programme of the

same PTY code as you have selected, that station is tuned in.

Using the standby receptions

[Turn] = [Press]

TA Standby Reception

TA Standby Reception allows the unit to switch temporarily to Traffic Announcement (TA) from any source other than AM. The volume changes to the preset TA volume level if the current level is lower than the preset level (see page 17).

To activate TA Standby Reception

The TP (Traffic Programme)

indicator either lights up or flashes.

• If the TP indicator lights up, TA Standby Reception is activated.

• If the TP indicator flashes, TA Standby Reception is not yet activated. (This occurs when you are listening to an FM station without the Radio Data System signals required for TA Standby Reception.)

To activate the reception, tune in to another station

providing these signals. The TP indicator will stop flashing and remain lit.

To deactivate the TA Standby Reception

The TP indicator goes off.

PTY Standby Reception

PTY Standby Reception allows the unit to switch temporarily to your favorite PTY programme from any source other than AM.

To activate and select your favorite PTY code for PTY Standby Reception, see page 17.

The PTY indicator either lights up or flashes.

• If the PTY indicator lights up, PTY Standby Reception is activated.

• If the PTY indicator flashes, PTY Standby Reception is not yet activated.

To activate the reception, tune in to another station

providing these signals. The PTY indicator will stop flashing and remain lit.

To deactivate the PTY Standby Reception, select “PTY OFF” for the PTY code (see page 17). The PTY indicator goes off.

Tracing the same programme—

Network-Tracking Reception

When driving in an area where FM reception is not sufficient enough, this unit automatically tunes in to another FM Radio Data System station of the same network, possibly broadcasting the same programme with stronger signals (see the illustration below).

When shipped from the factory, Network-Tracking Reception is activated.

To change the Network-Tracking Reception setting, see “AF-REG” on page 17.

Programme A broadcasting on different frequency areas (01 – 05)

Automatic station selection—

Programme Search

Usually when you select a preset number, the station preset in that number is tuned in. If the signals from the FM Radio Data System preset station are not sufficient for good reception, this unit, using the AF data, tunes in to another frequency possibly broadcasting the same programme as the original preset station is broadcasting.

• The unit takes some time to tune in to another station using programme search.

• See also page 17.

ENGLISH

PTY codes

NEWS, AFFAIRS, INFO, SPORT, EDUCATE, DRAMA, CULTURE, SCIENCE, VARIED, POP M (music), ROCK M (music), EASY M (music), LIGHT M (music), CLASSICS, OTHER M (music), WEATHER, FINANCE, CHILDREN, SOCIAL, RELIGION, PHONE IN, TRAVEL, LEISURE, JAZZ, COUNTRY, NATION M (music), OLDIES, FOLK M (music), DOCUMENT

9OPERATIONS

Disc operations

ENGLISH

Stop playing and ejecting the disc

• “NO DISC” appears. Press SRC to listen to another playback source.

Prohibiting disc ejection

To cancel the prohibition, repeat the same

procedure.

Selecting a track/folder

Turn on the power.

Insert a disc.

All tracks will be played repeatedly until you change the source or eject the disc.

Pressing (or holding) the following buttons allows you to...

[Press] Pause/resume playback.

MP3/WMA: Select folder

[Press] Select track [Hold] Reverse/fast-forward track

[Turn] = [Press]

• For MP3/WMA discs, select the desired folder, then the desired track by repeating the control dial procedures.

• To return to the previous menu, press BACK.

Selecting the playback modes

You can use only one of the following playback modes at a time.

[Turn] = [Press]

REPEAT Ô RANDOM

REPEAT

TRACK RPT : Repeats current track FOLDER RPT : MP3/WMA: Repeats current folder

RANDOM

FOLDER RND : MP3/WMA: Randomly plays all

tracks of current folder, then tracks of next folders

ALL RND : Randomly plays all tracks

• To cancel repeat play or random play, select

“RPT OFF” or “RND OFF.”

• To return to the previous menu, press BACK.

[Turn] = [Press]

Listening to the USB device

This unit can play MP3/WMA tracks stored in a USB device.

All tracks will be played repeatedly until you change the source or detach the USB device.

USB input jack

ENGLISH

If a USB device has been attached...

Playback starts from where it has been stopped previously.

• If a different USB device is currently attached, playback starts from the beginning.

USB memory

To stop play and detach the USB device

Straightly pull it out from the unit.

• Press SRC to listen to another playback source.

You can operate the USB device in the same way you operate the files on a disc. (See pages 10 and 11.)

Continued on the next page

OPERATIONS

Cautions:

• Avoid using the USB device if it might hinder your safety driving.

• Do not pull out and attach the USB device repeatedly while “READING” is shown on the display.

ENGLISH

• Do not start the car engine if a USB device is connected.

• This unit may not be able to play the files depending on the type of USB device.

• Operation and power supply may not work as intended for some USB devices.

• You cannot connect a computer to the USB input terminal of the unit.

• Make sure all important data has been backed up to avoid losing the data.

• Do not leave a USB device in the car, expose to direct sunlight, or high temperature to avoid deformation or cause damages to the device.

• Some USB devices may not work immediately after you turn on the power.

• For more details about USB operations, see page 22.

Listening to the other external components

You can connect an external component to AUX (auxiliary) input jack on the control panel. Preparation: Make sure “AUX ON” is selected in the “SRC SELECT” = “AUX IN” setting, see page 19.

1 2

—

Connecting an external component to the AUX input jack

—

OPERATIONS & EXTERNAL DEVICES

Select “AUX IN.”

Turn on the connected component and start playing the source.

Adjust the volume.

Adjust the sound as you want (see pages 14 and 15).

3.5 mm stereo mini plug (not supplied)

Portable audio player, etc.

Using the remote controller — RM-RK50

This unit can be remotely controlled as instructed here (with an optionally purchased remote controller). We recommend that you use remote controller RM-RK50 with your unit.

Installing the lithium coin battery (CR2025)

1 • Turns the power on if pressed briefly or

Caution:

• Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type.

• Battery shall not be exposed to excessive heat such as sunshine, fire, or the like.

If the effectiveness of the remote controller decreases, replace the battery.

Before using the remote controller:

• Aim the remote controller directly at the remote sensor on the unit.

• DO NOT expose the remote sensor to bright light (direct sunlight or artificial lighting).

Remote sensor

attenuates the sound when the power is on.

• Turns the power off if pressed and held.

2 • Changes the preset stations.

• Changes the folder of the MP3/WMA.

3 Adjusts the volume level. 4 Selects the sound mode. 5 Selects the source. 6 • Searches for stations if pressed briefly.

• Fast-forwards or reverses the track if pressed and held.

• Changes the tracks if pressed briefly.

Warning (to prevent accidents and damage):

• Do not install any battery other than CR2025 or its

equivalent.

• Do not leave the remote controller in a place (such

as dashboards) exposed to direct sunlight for a long time.

• Store the battery in a place where children cannot

reach.

• Do not recharge, short, disassemble, heat the battery,

or dispose of it in a fire.

• Do not leave the battery with other metallic

materials.

• Do not poke the battery with tweezers or similar

tools.

• Wrap the battery with tape and insulate when

throwing away or saving it.

ENGLISH

EXTERNAL DEVICES

Selecting a preset sound mode

You can select a preset sound mode suitable to the music genre.

• See also page 16.

ENGLISH

[Turn] = [Press]

• See page 15 for “USER” settings.

Preset value setting for each sound mode

Preset value

Sound

mode

USER 60 Hz 00 Q1.25 1.0 kHz 00 Q1.0 10.0 kHz 00 —

BASS MIDDLE TREBLE LOUD

Freq. Level Q Freq. Level Q Freq. Level Q

(loudness)

ROCK 100 Hz +03 Q1.0 1.0 kHz 00 Q1.25 10.0 kHz +02 —

CLASSIC 80 Hz +01 Q1.25 1.0 kHz 00 Q1.25 10.0 kHz +03 —

POPS 100 Hz +02 Q1.25 1.0 kHz +01 Q1.25 10.0 kHz +02 —

HIP HOP 60 Hz +04 Q1.0 1.0 kHz –02 Q1.0 10.0 kHz +01 —

JAZZ 80 Hz +03 Q1.25 1.0 kHz 00 Q1.25 10.0 kHz +03 —

Freq.: Frequency Q: Q-slope

OFF

Storing your own sound mode

You can store your own adjustments in memory.

1 Select “USER” for “EQ.”

[Turn] = [Press]

2 While “USER” is shown on the display...

3 Select a tone.

4 Adjust the sound elements of the selected

tone.

[Turn] = [Press]

1 Adjust the frequency.

2 Adjust the level.

3 Adjust the Q-slope.

Sound

elements

Frequency 60 Hz

Level –06 to

Q Q1.0

Range/selectable items

BASS MIDDLE TREBLE

80 Hz 100 Hz 200 Hz

+06

Q1.25 Q1.5 Q2.0

0.5 kHz

1.0 kHz

1.5 kHz

2.5 kHz –06 to

+06 Q0.75

Q1.0 Q1.25

10.0 kHz

12.5 kHz

15.0 kHz

17.5 kHz –06 to

+06 Fixed

ENGLISH

[Turn] = [Press]

5 Repeat steps 3 and 4 to adjust other sound

characteristics.

The adjustment made will be stored automatically.

SETTINGS

Menu operations

1 Call up the menu. 2 Select the desired item. 3 Repeat step 2 if necessary.

ENGLISH

[Turn] = [Press]

Category Menu items Selectable settings, [reference page]

DEMO

Display

DEMO

demonstration

CLOCK DISP *

Clock display

• DEMO ON

• DEMO OFF

• CLOCK ON

• CLOCK OFF

: Display demonstration will be activated automatically if no

operation is done for about 20 seconds, [6].

: Cancels. : Clock time is shown on the display at all times when the

power is turned off.

: Cancels; pressing DISP will show the clock time for about

5 seconds when the power is turned off, [6].

CLOCK SET

Clock setting

CLOCK

24H/12H

Time display mode

CLOCK ADJ *

Clock adjustment

Equalizer

DIMMER

Dimmer

SCROLL*

Scroll

DISPLAY

TAG DISPLAY

Tag display

If the power supply is not interrupted by turning off the ignition key of your car, it is recommended to select

: Adjust the hour, then the minute, [6]. (Initial: 0:00)

• 24 HOUR

: See also page 6 for setting.

• 12 HOUR

• AUTO

: The built-in clock is automatically adjusted using the CT

(clock time) data in the Radio Data System signal.

• OFF

: Cancels.

: Select a preset sound mode suitable to the music genre. USER, ROCK, CLASSIC, POPS, HIP HOP, JAZZ

• DIMMER ON

• DIMMER OFF

• SCROLL ONCE

• SCROLL AUTO

• SCROLL OFF

: Dims the display and button illumination. : Cancels.

: Scrolls the displayed information once. : Repeats scrolling (at 5-second intervals).

: Cancels. Pressing DISP for more than one second can scroll the display regardless of the setting.

• TAG ON

: Shows the Tag information while playing MP3/WMA

tracks.

• TAG OFF

: Cancels.

“CLOCK OFF” to save the car’s battery.

Takes effect only when CT data is received.

Some characters or symbols will not be shown correctly (or will be blanked) on the display.

• To return to the previous menu, press BACK.

• To exit from the menu, press DISP or MENU.

Initial: Underlined

Category Menu items Selectable settings, [reference page]

AF-REG *

Alternative frequency/ regionalization reception

• AF ON

• AF-REG ON

: When the currently received signals become weak, the unit

switches to another station (the programme may differ from the one currently received), [9].

• The AF indicator lights up. : When the currently received signals become weak, the

unit switches to another station broadcasting the same programme.

• The AF and REG indicators light up.

PTY-STANDBY *

PTY standby

TA VOLUME *

Traffic

TUNER

announcement volume

P-SEARCH *

Programme search

MONO *

Monaural mode

IF BAND

Intermediate frequency band

• OFF

PTY OFF, PTY codes

VOLUME 00 – VOLUME 50 (or VOLUME 00 – VOLUME 30)*

• SEARCH ON

• SEARCH OFF

• MONO ON

• MONO OFF

• AUTO

• WIDE

: Cancels. : Activates PTY Standby Reception with one of the PTY

codes, [9].

: (Initial: VOLUME 15)

: Activates Programme Search, [9]. : Cancels.

: Activate monaural mode to improve FM reception, but

stereo effect will be lost, [7].

: Restore the stereo effect. : Increases the tuner selectivity to reduce interference noises

between adjacent stations. (Stereo effect may be lost.)

: Subject to interference noises from adjacent stations, but

sound quality will not be degraded and the stereo effect will remain.

COLOR

COLOR 01 – COLOR 29, USER

: Select one of the preset or user color for display and button (except T/P/

/0) illumination.

(For customize color settings, “USER,” see page 19.)

(for KD-R501)

MENU COLOR

Menu color

• OFF

• ON

: Cancels. : Changes the display and button (except T/P/ /0)

illumination during menu, list search and playback mode

MENU COLOR

(for KD-R501)

Only for FM Radio Data System stations.

operations.

*5 Depends on the amplifier gain control. *6 Displayed only when the source is “FM.”

ENGLISH

Continued on the next page

SETTINGS

Category Menu items Selectable settings, [reference page]

R06 – F06 : Adjust the front and rear speaker output balance.

(Initial: 00)

L06 – R06 : Adjust the left and right speaker output balance.

(Initial: 00)

• LOUD OFF

• LOUD ON

: Cancels. : Boost low and high frequencies to produce a well-balanced

ENGLISH

FADER*7, *

Fader BALANCE *

Balance

LOUD

Loudness

sound at a low volume level.

VOL ADJUST

Volume adjust

VOL ADJ –05 — VOL ADJ +05

(Initial: VOL ADJ 00)

: Preset the volume adjustment level of each source (except

FM), compared to the FM volume level. The volume level will automatically increase or decrease when you change the source.

• Before making an adjustment, select the source you want to adjust.

• “VOL ADJ FIX” appears on the display if “FM” is selected as the source.

AUDIO

L/O MODE

Line output mode

• SUB.W

• REAR

: Select if the REAR LINE OUT terminals are used for connecting

a subwoofer (through an external amplifier).

: Select if the REAR LINE OUT terminals are used for connecting

the speakers (through an external amplifier).

SUB.W FREQ *

Subwoofer cutoff frequency

SUB.W LEVEL *

Subwoofer level

BEEP

Key touch tone

TEL MUTING

Telephone muting

AMP GAIN *

Amplifier gain control

If you are using a two-speaker system, set the fader level to “00.”

• LOW

• MID

• HIGH

SUB.W 00 — SUB.W 08

• BEEP OFF

• BEEP ON

• LOW POWER

• HIGH POWER

• MUTING 1/

MUTING 2

• MUTING OFF

: Frequencies lower than 72 Hz are sent to the subwoofer. : Frequencies lower than 111 Hz are sent to the subwoofer. : Frequencies lower than 157 Hz are sent to the subwoofer.

: Adjust the subwoofer output level. (Initial: SUB.W 04)

: Deactivates the key touch tone. : Activates the key touch tone.

: Select either one which mutes the sounds while using a

cellular phone.

: Cancels.

: VOLUME 00 – VOLUME 30 (Select if the maximum power

of each speaker is less than 50 W to prevent damaging the speaker.)

: VOLUME 00 – VOLUME 50

*8 This adjustment will not affect the subwoofer output. *9 Displayed only when “L/O MODE” is set to “SUB.W.” *10 The volume level automatically changes to “VOLUME 30” if you change to “LOW POWER” with the volume level

set higher than “VOLUME 30.”

Category Menu items Selectable settings, [reference page]

AM *

AM station

AUX IN *

SRC SELECT

Auxiliary input

Displayed only when any source other than “AM” is selected.

*12 Displayed only when any source other than “AUX IN” is selected.

• AM OFF

• AM ON

• AUX OFF

• AUX ON

: Disable “AM” in source selection. : Enable “AM” in source selection, [4].

: Disable “AUX IN” in source selection. : Enable “AUX IN” in source selection, [4].

Color settings (for KD-R501)

ENGLISH

Creating your own color

—USER Color

You can create your own colors—“DAY COLOR” or “NIGHT COLOR.” DAY COLOR: Used when “DIMMER” is set to

“DIMMER OFF.”

NIGHT COLOR: Used when “DIMMER” is set to

“DIMMER ON.”

Select “COLOR” = “USER.”

[Turn] = [Press]

3 While “USER” is shown on the display...

[Turn] = [Press]

5 Select a primary color.

[Turn] = [Press]

6 Adjust the level (00 to 31) of the selected

primary color.

[Turn] = [Press]

If “00” is selected for all the primary colors, nothing

appear on the display.

7 Repeat steps 5 and 6 to adjust other primary

colors.

8 Exit from the setting.

• If no operation is done for about 30 seconds, the operation will be canceled.

SETTINGS

More about this unit

Basic operations

Turning on the power

ENGLISH

• By pressing SRC button on the unit, you can also turn on the power. If the source is ready, playback also starts.

Turning off the power

• If you turn off the power while listening to a track, playback will start from where it had been stopped previously next time you turn on the power.

General

• If you change the source while listening to a disc, playback stops.

Next time you select “CD” as the playback source,

playback will start from where it had been stopped previously.

• If no operation is done for about 30 seconds after pressing MENU button, the operation will be canceled.

Tuner operations

Storing stations in memory

• During SSM search...

– All previously stored stations are erased and the

stations are stored anew.

– When SSM is over, the station stored in the lowest

preset number will be automatically tuned in.

• When storing a station manually, the previously preset station is erased when a new station is stored in the same preset number.

FM Radio Data System operations

• Network-Tracking Reception requires two types of Radio Data System signals—PI (Programme Identification) and AF (Alternative Frequency) to work correctly. Without receiving these data correctly, Network-Tracking Reception will not operate correctly.

• If a Traffic Announcement is received by TA Standby Reception, the volume level automatically changes to the preset level (TA VOL) if the current level is lower than the preset level.

• When Alternative Frequency Reception is activated (with AF selected), Network-Tracking Reception is also activated automatically.

Disc operations

Caution for DualDisc playback

• The Non-DVD side of a “DualDisc” does not comply with the “Compact Disc Digital Audio” standard. Therefore, the use of Non-DVD side of a DualDisc on this product may not be recommended.

General

• This unit has been designed to reproduce CDs/CD Texts, and CD-Rs (Recordable)/CD-RWs (Rewritable) in audio CD (CD-DA), MP3/WMA formats.

• When a disc is inserted upside down, “PLEASE” and “EJECT” appear alternately on the display. Press 0 to eject the disc.

• MP3 and WMA “tracks” (words “file” and “track” are used interchangeably) are recorded in “folders.”

• While fast-forwarding or reversing on an MP3 or WMA disc, you can only hear intermittent sounds.

Playing a CD-R or CD-RW

• Use only “finalized” CD-Rs or CD-RWs.

• This unit can only play back files of the same type as those detected first if a disc includes both audio CD (CD-DA) files and MP3/WMA files.

• This unit can play back multi-session discs; however, unclosed sessions will be skipped while playing.

• Some CD-Rs or CD-RWs may not play back on this unit because of their disc characteristics, or for the following reasons:

– Discs are dirty or scratched. – Moisture condensation has occurred on the lens

inside the unit. – The pickup lens inside the unit is dirty. – The files on the CD-R/CD-RW are written using the

“Packet Write” method. – There are improper recording conditions (missing

data, etc.) or media conditions (stained, scratched,

warped, etc.).

• CD-RWs may require a longer readout time since the

reflectance of CD-RWs is lower than that of regular CDs.

• Do not use the following CD-Rs or CD-RWs: – Discs with stickers, labels, or a protective seal stuck

to the surface. – Discs on which labels can be directly printed by an

ink jet printer. Using these discs under high temperature or high

humidity may cause malfunctions or damage to the unit.

Playing an MP3/WMA disc

• This unit can play back MP3/WMA files with the

extension code <.mp3> or <.wma> (regardless of the letter case—upper/lower).

• This unit can show the names of albums, artists

(performer), and Tag (Version 1.0, 1.1, 2.2, 2.3, or

2.4) for MP3 files and for WMA files.

• This unit can display only one-byte characters. No

other characters can be correctly displayed.

• This unit can play back MP3/WMA files meeting the conditions below:

44.1 kHz, 48 kHz

– Disc format: ISO 9660 Level 1/Level 2, Romeo,

Joliet, Windows extension.

• The maximum number of characters for file/folder names vary depending on the disc format used (includes 4 extension characters—<.mp3> or <.wma>).

– ISO 9660 Level 1: up to 12 characters – ISO 9660 Level 2: up to 31 characters – Romeo: up to 64 characters – Joliet: up to 32 characters – Windows extension: up to 64 characters

• This unit can recognize a total of 512 files, 255 folders, and 8 hierarchical levels.

• This unit can play back files recorded in VBR (variable bit rate).

Files recorded in VBR have a discrepancy in the

elapsed time display, and do not show the actual elapsed time. In particular, this difference becomes noticeable after performing the search function.

• This unit cannot play back the following files:

– MP3 files encoded in MP3i and MP3 PRO format. – MP3 files encoded in an inappropriate format. – MP3 files encoded with Layer 1/2. – WMA files encoded in lossless, professional, and

voice format.

– WMA files which are not based upon Windows

Media ® Audio. – WMA files copy-protected with DRM. – Files which have data such as AIFF, ATRAC3, etc.

• The search function works but search speed is not

constant.

ENGLISH

Continued on the next page

REFERENCES

Playing MP3/WMA tracks from a USB device

• While playing from a USB device, the playback order may differ from other players.

• This unit may be unable to play back some USB devices or some files due to their characteristics or

ENGLISH

recording conditions.

• Depending on the shape of the USB devices and connection ports, some USB devices may not be attached properly or the connection might be loose.

• Connect one USB mass storage class device to the unit at a time. Do not use a USB hub.

• If the connected USB device does not have the correct files, “CANNOT PLAY” appears.

• This unit can show Tag (Version 1.0, 1.1, 2.2, 2.3, or

2.4) for MP3 files and for WMA files.

• This unit can play back MP3/WMA files meeting the conditions below:

44.1 kHz, 48 kHz

• This unit can play back MP3 files recorded in VBR (variable bit rate).

• The maximum number of characters for:

– Folder names : 32 characters – File names : 32 characters – MP3 Tag : 64 characters – WMA Tag : 32 characters

• This unit can recognize a total of 5 000 files, 255 folders (255 files per folder including folder without unsupported files), and of 8 hierarchies.

• This unit does not support SD card reader.

• This unit cannot recognize a USB device whose rating is other than 5 V and exceeds 500 mA.

• USB devices equipped with special functions such as data security functions cannot be used with the unit.

• Do not use a USB device with 2 or more partitions.

• This unit may not recognized a USB device connected through a USB card reader.

• This unit may not play back files in a USB device properly when using a USB extension cord.

• This unit cannot play back the following files:

– MP3 files encoded with MP3i and MP3 PRO format. – MP3 files encoded in an inappropriate format. – MP3 files encoded with Layer 1/2. – WMA files encoded in lossless, professional, and

voice format.

– WMA files not based on Windows Media® Audio.

Ejecting a disc or removing a USB device

• If the ejected disc is not removed within 15 seconds, it is automatically inserted into the loading slot again to protect it from dust.

Menu operations

Troubleshooting

What appears to be trouble is not always serious. Check the following points before calling a service center.

Symptoms Remedies/Causes

• Sound cannot be heard from the speakers. • Adjust the volume to the optimum level.

• Check the cords and connections.

• The unit does not work at all. Reset the unit (see page 3).

• “AUX IN” cannot be selected. Check the “SRC SELECT” = “AUX IN” setting (see

General

• KD-R501: Nothing appear on the display. KD-R501: Check the USER Color settings (see page 19)

• SSM automatic presetting does not work. Store stations manually.

• Static noise while listening to the radio. Connect the aerial firmly.

FM/AM

• “AM” cannot be selected. Check the “SRC SELECT”

• Disc cannot be played back. Insert the disc correctly.

• CD-R/CD-RW cannot be played back.

• Tracks on the CD-R/CD-RW cannot be skipped.

• Disc can neither be played back nor ejected. • Unlock the disc (see page 10).

• Disc sound is sometimes interrupted. • Stop playback while driving on rough roads.

Discs in general

• “NO DISC” appears on the display. Insert a playable disc into the loading slot.

• “PLEASE” and “EJECT“ appear alternately on the display.

• Disc cannot be played back. • Use a disc with MP3/WMA tracks recorded in a format

playback

MP3/WMA

page 19).

= “AM” setting (see

page 19).

• Insert a finalized CD-R/CD-RW.

• Finalize the CD-R/CD-RW with the component which you used for recording.

• Eject the disc forcibly (see page 3).

• Change the disc.

• Check the cords and connections.

0, then insert a disc correctly.

Press

compliant with ISO 9660 Level 1, Level 2, Romeo, or Joliet.

• Add the extension code <.mp3> or <.wma> to the file names.

ENGLISH

Continued on the next page

23REFERENCES

Symptoms Remedies/Causes

• Noise is generated. Skip to another track or change the disc. (Do not add the extension code <.mp3> or <.wma> to non-MP3 or WMA tracks.)

ENGLISH

• A longer readout time is required

(“READING” keeps flashing on the display).

• Tracks do not play back in the order you

have intended them to play.

• The elapsed playing time is not correct. This sometimes occurs during playback. This is caused by

• “NO FILE” appears on the display. Selected folder is an empty folder*. Select another folder

MP3/WMA playback

• The correct characters are not displayed

(e.g. album name).

• Noise is generated. The track played back is not an MP3/WMA track. Skip to

• “READING” keeps flashing on the display. • Readout time varies depending on the USB device.

• “NO FILE” appears on the display. Selected folder is an empty folder*. Select another folder

• Tracks/folders are not played back in the

order you have intended.

USB device playback

• “CANNOT PLAY” flashes on the display.

• “NO USB” appears on the display.

• The unit cannot detect the USB device.

• Correct characters are not displayed (e.g.

album name).

• While playing a track, sound is sometimes

interrupted.

• Microsoft and Windows Media are either registered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries.

Do not use too many hierarchical levels and folders.

The playback order is determined when the files are recorded.

how the tracks are recorded on the disc.

that contains MP3/WMA tracks.

* Folder that is physically empty or folder that contains

data but does not contain valid MP3/WMA track.

This unit can only display letters (upper case), numbers, and a limited number of symbols.

another file. (Do not add the extension code <.mp3> or <.wma> to non-MP3 or WMA tracks.)

• Do not use too many hierarchy or folders.

• Turn off the power then on again.

• Reattach the USB device again.

that contains MP3/WMA tracks.

* Folder that is physically empty or folder that contains

data but does not contain valid MP3/WMA track.

The playback order is determined by the write-in time stamp. The first track/folder written into the USB device will be the first track/folder for playback.

• Attach a USB device that contains tracks encoded in an appropriate format.

• Reattach the USB device again.

This unit can only display alphabets (upper case), numbers, and a limited number of symbols.

The MP3/WMA tracks have not been properly copied into the USB device. Copy MP3/WMA tracks again into the USB device, and try again.

Maintenance

How to clean the connectors

Connectors

Moisture condensation

Moisture may condense on the lens inside the unit in the following cases:

• After starting the heater in the car.

• If it becomes very humid inside the car. Should this occur, the unit may malfunction. In this case, eject the disc and leave the unit turned on for a few hours until the moisture has evaporated.

How to handle discs

When removing a disc from its case, press down the center holder

of the case and lift the disc out, holding it by the edges.

• Always hold the disc by the edges. Do not touch its recording surface.

When storing a disc in its case, gently insert the disc around the center holder (with the printed surface facing up).

• Make sure to store discs in cases after use.

Center holder

To keep discs clean

A dirty disc may not play correctly. If a disc does become dirty, wipe it with a soft cloth in a straight line from center to edge.

• Do not use any solvents (for example, conventional record cleaner, spray, thinner, benzine, etc.) to clean discs.

To play new discs

Do not use the following discs:

Single CD (8 cm disc) Warped disc

Sticker and sticker residue Stick-on label

Unusual shape

Transparent or semi-

transparent parts on its

recording area

C-thru Disc (semi-

transparent disc)

ENGLISH

25REFERENCES

Specifications

AUDIO AMPLIFIER SECTION

Maximum Power Output: Front/Rear: 50 W per channel

ENGLISH

Continuous Power Output (RMS): Front/Rear: 19 W per channel into 4 Ω, 40 Hz to 20 000 Hz

at no more than 0.8% total harmonic distortion.

Load Impedance: 4 Ω (4 Ω to 8 Ω allowance)

Tone Control Range: Bass: ±12 dB (60 Hz, 80 Hz, 100 Hz, 200 Hz)

Q1.0, Q1.25, Q1.5, Q2.0

Middle: ±12 dB (0.5 kHz, 1.0 kHz, 1.5 kHz, 2.5 kHz)

Q0.75, Q1.0, Q1.25

Treble: ±12 dB (10.0 kHz, 12.5 kHz, 15.0 kHz,

17.5 kHz)

Q = Fixed Frequency Response: 40 Hz to 20 000 Hz Signal-to-Noise Ratio: 70 dB Line-Out Level/Impedance: 2.5 V/20 kΩ load (full scale) Output Impedance: 1 kΩ Subwoofer-Out Level/Impedance: 2.5 V/20 kΩ load (full scale) Other Terminal: USB input jack, AUX (auxiliary) input jack

TUNER SECTION

Frequency Range: FM: 87.5 MHz to 108.0 MHz

AM: MW: 522 kHz to 1 620 kHz

LW: 144 kHz to 279 kHz

FM Tuner Usable Sensitivity: 11.3 dBf (1.0 μV/75 Ω)

50 dB Quieting Sensitivity: 16.3 dBf (1.8 μV/75 Ω) Alternate Channel Selectivity (400 kHz): 65 dB Frequency Response: 40 Hz to 15 000 Hz Stereo Separation: 30 dB

MW Tuner Sensitivity: 20 μV

Selectivity: 35 dB

LW Tuner Sensitivity: 50 μV

CD PLAYER SECTION

Type: Compact disc player Signal Detection System: Non-contact optical pickup

USB SECTION

USB Standard: USB 1.1, USB 2.0 Data Transfer Rate (Full Speed): Max. 12 Mbps Compatible Device: Mass storage class Compatible File System: Playable Audio Format: Max. Current: DC 5 V

GENERAL

Power Requirement: Operating Voltage: DC 14.4 V (11 V to 16 V allowance) Grounding System: Negative ground Allowable Operating Temperature: 0°C to +40°C Dimensions (W × H × D): (approx.) Installation Size: 182 mm × 52 mm × 160 mm

Panel Size: 188 mm × 58 mm × 12 mm

Mass:

FAT 32/16/12 MP3/WMA

500 mA

1.3 kg (excluding accessories)

ENGLISH

Design and specifications are subject to change without notice.

27REFERENCES

Having TROUBLE with operation?

Please reset your unit

Refer to page of How to reset your unit

Haben Sie PROBLEME mit dem Betrieb?

Bitte setzen Sie Ihr Gerät zurück

Siehe Seite Zurücksetzen des Geräts

Затруднения при эксплуатации?

Пожалуйста, перезагрузите Ваше устройство

Для получения информации о перезагрузке Вашего устройства обратитесь на

соответствующую страницу

Αντιµετωπίζετε ΠΡΟΒΛΗΜΑΤΑ λειτουργίας;

Εκτελέστε επαναφορά της µονάδας

Ανατρέξτε στην ενότητα “Επαναφορά της µονάδας”

Dear Customer, This apparatus is in conformance with the valid European directives and standards regarding electromagnetic compatibility and electrical safety.

European representative of Victor Company of Japan, Limited is: JVC Technical Services Europe GmbH Postfach 10 05 04 61145 Friedberg Germany

Sehr geehrter Kunde, sehr geehrte Kundin, dieses Gerät stimmt mit den gültigen europäischen Richtlinien und Normen bezüglich elektromagnetischer Verträglichkeit und elektrischer Sicherheit überein.

Die europäische Vertretung für die Victor Company of Japan, Limited ist: JVC Technical Services Europe GmbH Postfach 10 05 04 61145 Friedberg Deutschland

Уважаемый клиент. Данное устройство соответствует действительным Европейским директивам и стандартам по электромагнитной совместимости и электрической безопасности.

Представительство компании Victor Company of Japan, Limited в Европе: JVC Technical Services Europe GmbH Postfach 10 05 04 61145 Friedberg Германия

Αγαπητέ πελάτη, η συσκευή αυτή συμμορφώνεται με τις ισχύουσες Ευρωπαϊκές Οδηγίες και πρότυπα σχετικά με την ηλεκτρομαγνητική συμβατότητα και την ασφάλεια από ηλεκτρισμό.

Ο Ευρωπαϊκός αντιπρόσωπος της Victor Company of Japan, Limited είναι: JVC Technical Services Europe GmbH Postfach 10 05 04 61145 Friedberg Γερμανία

EN, GE, RU, GR

1008DTSMDTJEIN

GET0574-013A

[EY]

KD-R501/KD-R402/KD-R401

Installation/Connection Manual Einbau/Anschlußanleitung

Руководство по установке/подключению

Εγχειρίδιo εγκατάστασης/συνδέσεων

1008DTSMDTJEIN

EN, GE, RU, GR

ENGLISH

This unit is designed to operate on 12 V DC, NEGATIVE ground electrical systems. If your

vehicle does not have this system, a voltage inverter is required, which can be purchased at JVC INCAR ENTERTAINMENT dealers.

WARNINGS

To prevent short circuits, we recommend that you disconnect the battery’s negative terminal and make all electrical connections before installing the unit.

• Be sure to ground this unit to the car’s chassis again after installation.

Notes:

• Replace the fuse with one of the specified rating. If the fuse blows frequently, consult your JVC INCAR ENTERTAINMENT dealer.

• It is recommended to connect to the speakers with maximum power of more than 50 W (both at the rear and at the front, with an impedance of 4 Ω to 8 Ω). If the maximum power is less than 50 W, change “AMP GAIN” setting to prevent the speakers from being damaged (see page 18 of the INSTRUCTIONS).

• To prevent short-circuit, cover the terminals of the UNUSED leads with insulating tape.

• The heat sink becomes very hot after use. Be careful not to touch it when removing this unit.

DEUTSCH

Dieses Gerät ist für einen Betrieb in elektrischen Anlagen mit 12 V Gleichstrom und (–) Erdung ausgelegt. Verfügt Ihr Fahrzeug nicht über diese

Anlage, ist ein Spannungsinverter erforderlich, der bei JVC Autoradiohändler erworben werden kann.

WARNUNGEN

Zur Vermeidung von Kurzschlüssen empfehlen wir, daß Sie den negativen Batterieanschluß abtrennen und alle elektrischen Anschlüsse herstellen, bevor das Gerät eingebaut wird.

• Sicherstellen, daß das Gerät nach dem Einbau a Chassis des Fahrzeugs geerdet wird.

Hinweise:

• Die Sicherung mit einer der entsprechenden Nennleistung ersetzen. Brennt die Sicherung häufig durch, wenden Sie sich an ihren JVC Autoradiohändler.

• Es wird empfohlen, Lautsprecher mit einer Maximalleistung von mehr als 50 W anzuschließen (sowohl hinten als auch vorne, mit einer Impedanz von 4 Ω bis 8 Ω). Wenn die Maximalleistung weniger als 50 W beträgt, stellen Sie „AMP GAIN“ anders ein, um Schäden an den Lautsprechern zu vermeiden (siehe Seite 18 der BEDIENUNGSANLEITUNG).

• Zur Vermeidung eines Kurzschlusses die Anschlußklemmen der NICHT VERWENDETEN Leitungen mit Isolierklebeband umwickeln.

• Das Abstrahlblech wird nach dem Gebrauch sehr heiß. Beim Ausbau des Geräts darauf achten, das Abstrahlblech nicht zu berühren.

РУССКИЙ

Это устройство разработано для эксплуатации на 12 В постоянного напряжения с минусом на массе. Если Ваш автомобиль не имеет этой системы, требуется инвертор напряжения, который может быть приобретен у дилера автомобилнего специалиста JVC.

ПРЕДУПРЕЖДЕНИЯ

Для предотвращения коротких замыканий мы рекомендуем Вам отсоединить отрицательный разъем аккумулятора и осуществить все подключения перед установкой устройства.

• После установки обязательно заземлите данное устройство на шасси автомобиля.

Примечания:

• Заменяйте предохранитель другим предохранителем указанного класса. Если предохранитель сгорает слишком часто, обратитесь к дилеру автомобилнего специалиста JVC.

• Рекомендуется подключать динамики с максимальной мощностью более 50 Вт (к задней и передней панели устройства, с полным сопротивлением от 4 Ω до 8 Ω). Если максимальная мощность динамиков менее 50 Вт, перейдите в режим “AMP GAIN”, чтобы предотвратить их повреждение (см. ИНСТРУКЦИИ ПО ЭКСПЛУАТАЦИИ на стр. 18).

• Для предотвращения короткого замыкания заклейте НЕИСПОЛЬЗУЕМЫЕ концы изолирующей лентой.

• Радиатор во время использования сильно нагревается. Старайтесь его не трогать во время удаления устройства.

ΕΛΛΗΝΙΚΑ

Η συσκευή αυτή είναι σχεδιασµένη να λειτoυργεί σε ηλεκτρικά συστήµατα oχηµάτων στα 12 V DC, µε ΑΡΝΗΤΙΚΗ γείωση. Εάν τo όχηµά σας δεν ανήκει στην κατηγoρία αυτή, θα χρειαστείτε ένα µετατρoπέα τάσης, τoν oπoίo µπoρείτε να πρoµηθευτείτε από τoυς αντιπρoσώπoυς συστηµάτων ψυχαγωγίας oχηµάτων της JVC.

ΠΡΟΦΥΛΑΞΕΙΣ

Για την απoτρoπή τυχόν βραχυκυκλωµάτων, συνιστoύµε να απoσυνδέετε τoν αρνητικό πόλo της µπαταρίας και να κάνετε όλες τις ηλεκτρικές συνδέσεις πριν από την εγκατάσταση της συσκευής.

• Βεβαιωθείτε ότι θα γειώσετε τη συσκευή αυτή στo αµάξωµα τoυ oχήµατoς ξανά µετά την εγκατάσταση.

Σηµειώσεις:

• Εάν καεί η ασφάλεια, αντικαταστήστε την µε καινoύργια των ίδιων oνoµαστικών χαρακτηριστικών. Εάν η ασφάλεια καίγεται συχνά, συµβoυλευθείτε τoν αντιπρόσωπo συστηµάτων ψυχαγωγίας oχηµάτων της JVC.

• Συνιστάται να συνδέετε ηχεία µέγιστης ισχύoς πάνω από 50 W (τόσo πίσω όσo και µπρoστά, µε σύνθετη αντίσταση 4 Ω έως 8 Ω). Εάν η µέγιστη ισχύς των ηχείων είναι µικρότερη από 50 W, αλλάξτε τη ρύθµιση “AMP GAIN” (Απoλαβή ενισχυτή) για να απoτρέψετε ενδεχόµενη καταστρoφή τoυς (βλ. σελίδα 18 στις O∆ΗΓΙΕΣ).

• Για να απoτρέψετε τυχόν βραχυκυκλώµατα, καλύπτετε τoυς ακρoδέκτες των καλωδίων ΠOΥ ∆Ε XΡΗΣΙΜOΠOΙΕΙΤΕ µε µoνωτική ταινία.

• Η ψύκτρα ζεσταίνεται πoλύ κατά τη χρήση. Πρoσέχετε να µην την αγγίξετε καθώς αφαιρείτε τη συσκευή.

Heat sink / Abstrahlblech

Радиатор / Ψύκτρα

PRECAUTIONS on power supply and speaker connections:

• DO NOT connect the speaker leads of the power cord to the car battery; otherwise, the unit will be seriously damaged.

• BEFORE connecting the speaker leads of the power cord to the speakers, check the speaker wiring in your car.

Parts list for installation and connection

The following parts are provided for this unit. If any item is missing, consult your JVC IN-CAR ENTERTAINMENT dealer immediately.

VORSICHTSMASSREGELN beim Anschließen der Stromversorgung und Lautsprecher:

• Die Lautsprecherleitungen des Netzkabels NICHT an der Autobatterie anschließen, da sonst das Gerät schwer beschädigt wird.

• VOR dem Anschließen der Lautsprecherleitungen des Spannunsgversorgungskabels an die Lautsprecher, die Lautsprecherverdrahtung in Ihrem Auto überprüfen.

Teileliste für den Einbau und Anschluß

Die folgenden Teile werden zusammen mit diesem Gerät geliefert. Falls ein Artikel fehlt, wenden Sie sich sofort an Ihren JVC-Autoradiohändler.

ПРЕДОСТЕРЕЖЕНИЯ по питанию и подключению громкоговорителей:

• НЕ подключайте провода громкоговорителей к аккумулятору автомобиля, иначе устройство будет повреждено.

• ПЕРЕД подключением проводов громкоговорителей к кабелю питания громкоговорителя проверьте схему соединений громкоговорителей в Вашем автомобиле.

Список деталей для установки и подключения

Следующие детали поставлены в комплекте с устройством. При отсутствии какого-либо элемента немедленно свяжитесь с дилером автомобильного специалиста JVC.

ΠΡOΦΥΛΑΞΕΙΣ κατά τις συνδέσεις τρoφoδoσίας ρεύµατoς και ηχείων:

• ΜΗ συνδέετε τα καλώδια ηχείων της συσκευής µε την µπαταρία τoυ oχήµατoς, διότι ενδέχεται να πρoκληθεί σoβαρή ζηµιά στη συσκευή.

• ΠΡOΤOΥ συνδέσετε τα καλώδια ηχείων της συσκευής µε τα ηχεία, ελέγξτε την καλωδίωση των ηχείων τoυ oχήµατoς.

Κατάλoγoς εξαρτηµάτων για την εγκατάσταση και τις συνδέσεις

Η συσκευή αυτή συνoδεύεται από τα εξαρτήµατα πoυ αναφέρoνται κατωτέρω. Αν λείπει κάποιο στοιχείο, συμβουλευτείτε αμέσως τον αντιπρόσωπο συστημάτων ψυχαγωγίας οχημάτων της JVC.

Control panel

Schalttafel

Панель управления

Πρόσoψη

Power cord

Stromkable

Кабель питания

∆έσµη καλωδίων ρεύµατoς

Mounting bolt (M4 × 5 mm; M5 × 12.5 mm)

Befestigungsschraube (M4 × 5 mm; M5 × 12,5 mm)

Крепежный болт (M4 × 5 мм; M5 × 12,5 мм) Βίδα στερέωσης (M4 × 5 mm; M5 × 12,5 mm)

Sleeve

Halterung

Муфта

Βάση

Washer (ø5)

Unterlegscheibe (ø5)

Шайба (њ5)

Ρoδέλα (ø5)

Rubber cushion

Gummipuffer

Резиновый чехол

Ελαστικό παρέµβυσµα

Trim plate

Frontrahmen

Декоративную панель ∆ιακoσµητικό πλαίσιo

Lock nut (M5)

Sicherungsmutter (M5)

Фиксирующая гайка (M5)

Ασφαλιστικό παξιµάδι (M5)

Handles

Griffe

Рычаги

Κλειδιά

INSTALLATION (IN-DASH

Removing the unit

Before removing the unit, release the rear section.

EINBAU

УСТАНОВКА (УСТАНОВКА В

ΕΓΚΑΤΑΣΤΑΣΗ

MOUNTING)

The following illustration shows a typical installation. If you have any questions or require information regarding installation kits, consult your JVC IN-CAR ENTERTAINMENT dealer or a company supplying kits.

• If you are not sure how to install this unit correctly, have it installed by a qualified technician.

(IM ARMATURENBRETT)

Die folgende Abbildung zeigt einen typischen Einbau. Bei irgendwelchen Fragen oder wenn Sie Informationen hinsichtlich des Einbausatzes brauchen, wenden Sie sich an ihren JVC Autoradiohändler oder ein Unternehmen das diese Einbausätze vertreibt.

• Sind Sie sich über den richtigen Einbau des Geräts nicht sicher, lassen Sie es von einem qualifizierten Techniker einbauen.

ПРИБОРНУЮ ПАНЕЛЬ)

На следующих иллюстрациях показана типовая установка. Если у Вас есть какие-либо вопросы, касающиеся установки, обратитесь к Вашему дилеру автомобилнего специалиста JVC или в компанию, поставляющую соответствующие принадлежности.

• Если Вы не знаете точно, как следует устанавливать это устройство, обратитесь к квалифицированному специалисту.

Do the required electrical connections.

Nehmen Sie die erforderlichen elektrischen Anschlüsse vor.

Выполните необходимые подключения контактов, как показано на оборотной стороне этой инструкции.

Κάντε τις αναγκαίες ηλεκτρικές συνδέσεις.

(ΤOΠOΘΕΤΗΣΗ ΣΤO ΤΑΜΠΛΩ)

Η εικόνα πoυ ακoλoυθεί απεικoνίζει µια τυπική εγκατάσταση. Για oπoιαδήπoτε απoρία σας ή για περισσότερες πληρoφoρίες σχετικά µε κιτ εγκατάστασης, απευθυνθείτε στoν αντιπρόσωπo συστηµάτων ψυχαγωγίας oχηµάτων της JVC ή σε εταιρείες πoυ παρέχoυν τέτoια κιτ.

• Εάν έχετε αµφιβoλίες σχετικά µε τη σωστή εγκατάσταση της συσκευής αυτής, αναθέστε την εγκατάστασή της σε κατάλληλα εκπαιδευµένo τεχνικό.

Ausbau des Geräts

Vor dem Ausbau des Geräts den hinteren Teil freigeben.

Удаление устройства

Перед удалением устройства освободите заднюю часть.

Insert the two handles, then pull them as illustrated so that the unit can be removed.

Die beiden Handgriffe einsetzen und dann ziehen wie in der Abbildung gezeigt, so daß das Gerät entfernt werden kann.

Вставьте два рычажка, затем потяните их, как показано на рисунке, чтобы вынуть устройство.

Εισαγάγετε τις δύo λαβές και κατόπιν τραβήξτε τις, όπως φαίνεται στην εικόνα, µε τρόπo ώστε να είναι δυνατή η αφαίρεση της συσκευής.

Bend the appropriate tabs to hold the sleeve firmly in place.

Die geeigneten Zapfen biegen, um die Manschette sicher festzuhalten.

Отогните соответствующие фиксаторы, предназначенные для прочной установки корпуса.

Λυγίστε τις κατάλληλες γλωττίδες για να συγκρατηθεί η βάση σταθερά στη θέση της.

Αφαίρεση της συσκευής

Πρoτoύ αφαιρέσετε τη συσκευή, απασφαλίστε τo πίσω µέρoς.

When using the optional stay / Beim Verwenden der Anker-Option / При использовании дополнительной стойки / Όταν χρησιµoπoιείτε τo πρoαιρετικό στήριγµα

Fire wall

Feuerwand

Стена

∆ιαχωριστικό τoίχωµα µηχανής

Dashboard

Armaturenbrett

Приборная панель

Ταµπλώ

Install the unit at an angle of less than 30˚.

Stellen Sie das Gerät mit einem Winkel von weniger als 30˚ auf.

Установите устройство под углом менее 30°.

Τoπoθετήστε τη µoνάδα υπό γωνία µικρότερη των 30°.

When you stand the unit, be careful not to damage

the fuse on the rear.

Not supplied for this unit.

When installing the unit without using the sleeve / Beim Einbau des Geräts ohne Halterung / При установке устройства без использования муфты / Όταν τoπoθετείτε τη συσκευή χωρίς χρήση της βάσης

Stay (option)

Anker (Option)

Стойка (дополнительно)

Γωνιακό στήριγµα (πρoαιρετικό)

Screw (option)

Schraube (Option)

Винт (дополнительно)

Βίδα (πρoαιρετική)

Beim Aufstellen des Geräts darauf achten, daß die

Sicherung auf der Rückseite nicht beschädigt wird.

Wird nicht mit Gerät mitgeliefert.

In a Toyota car for example, first remove the car radio and install the unit in its place.

Zum Beispiel in einem Toyota zuerst das Autoradio ausbauen und dann das Gerät an seinem Platz einbauen.

В автомобиле Тойота, например, сначала извлеките автомобильный радиоприемник и установите устройство на место.

Στα oχήµατα της Toyota, για παράδειγµα, πρώτα πρέπει να αφαιρέσετε τo ραδιόφωνo και κατόπιν να τoπoθετήσετε τη συσκευή στη θέση τoυ.

Note : When installing the unit on the mounting bracket, make sure to use the 8 mm-long screws. If longer

Hinweis : Beim Anbringen des Gerät an der Konsole sicherstellen, daß 8 mm lange Schrauben verwendet werden.

Примечание : При установке устройства на крепежный кронштейн, используйте только винты длиной 8 мм.

Σηµείωση : Όταν τoπoθετείτε τη συσκευή στo στήριγµα στερέωσης, βεβαιωθείτε ότι θα χρησιµoπoιήσετε τις βίδες

Flat type screws (M5 × 8 mm)

Senkkopfschrauben (M5 × 8 mm)*

Крепежные винты (M5 × 8 мм)*

Πλακέ βίδες (M5 × 8 mm)*

Bracket*2 / Konsole*2 /

Кронштейн*2 /

Γλωττίδα στερέωσης

Pocket / Taschen /

Карман / Εσoχή

screws are used, they could damage the unit.

Werden längere Schrauben verwendet, können sie das Gerät beschädigen.

При использовании более длинных винтов можно повредить устройство.

µήκoυς 8 mm. Εάν χρησιµoπoιήσετε µακρύτερες βίδες, ενδέχεται να πρoκαλέσετε ζηµιά στη συσκευή.

Устанавливайте устройство таким образом,

чтобы не повредить предохранитель, расположенный сзади.

Hе входит в комплект поставки.

Flat type screws (M5 × 8 mm)*

Senkkopfschrauben (M5 × 8 mm)*

Крепежные винты (M5 × 8 мм)*

Πλακέ βίδες (M5 × 8 mm)*

Bracket*2 / Konsole*

Кронштейн*2 / Γλωττίδα στερέωσης*

Όταν τoπoθετείτε τη συσκευή σε όρθια θέση, πρoσέχετε να µην πρoκαλέσετε ζηµιά στην ασφάλεια πoυ βρίσκεται στo πίσω µέρoς της συσκευής.

∆ε συµπεριλαµβάνoνται στη συσκευασία της

συσκευής αυτής.

ENGLISH DEUTSCH

РУССКИЙ

ΕΛΛΗΝΙΚΑ

ELECTRICAL CONNECTIONS ELEKTRISCHE ANSCHLÜSSE

If your car is equipped with the ISO

connector / Wenn Ihr Fahrzeug mit dem ISO-Steckverbinder ausgestattet ist / Если автомобиль оснащен разъемом ISO / Εάν τо óχηµά σας διαθέτει σύνδεσµо ISO

• Connect the ISO connectors as illustrated.

• Schließen Sie die ISO-Steckverbinder an, wie in der Abbildung gezeigt.

• Подключите разъемы ISO, как показано на рисунке.

• Συνδέστε τоυς συνδέσµоυς ISO σύµφωνα µε την εικóνα.

From the car body

Von der Fahrzeugkarosserie

От корпуса автомобиля

Απó τо αµάξωµα τоυ оχήµατоς

ISO connector of the supplied power cord

ISO-Stecker des mitgelieferten Stromkabels

Разъем ISO шнура питания, входящего в комплект поставки

Σύνδεσµоς ISO της δέσµης καλωδίων της συσκευής

View from the lead side

Von der Kabelseite aus gesehen

Вид со стороны выводов

Όψη απó την πλευρά των καλωδίων

For some VW/Audi or Opel (Vauxhall) automobiles / Bei bestimmten VW-/Audi- oder Opel(Vauxhall-) Fahrzeugen / Для некоторых автомобилей VW/Audi или Opel (Vauxhall) / Για ορισμένα αυτοκίνητα VW/Audi ή Opel (Vauxhall)

You may need to modify the wiring of the supplied power cord as illustrated.

• Contact your authorized car dealer before installing this unit.

Es kann erforderlich sein, die Verdrahtung des mitgelieferten Stromkabels zu modifizieren, wie in der Abbildung gezeigt.

• Wenden Sie sich vor dem Einbau dieses Receivers an Ihre Auto-Fachwerkstatt.

Возможно, потребуется изменить схему соединений для прилагаемого шнура питания, как показано на рисунке.

• Перед установкой приемника обратитесь к авторизованному агенту по продажам автомобильных систем.

Ενδέχεται να χρειαστεί να τρоπоπоιήσετε την καλωδίωση της παρεχóµενης δέσµης καλωδίων ρεύµατоς, σύµφωνα µε την εικóνα.

• Πρоτоύ εγκαταστήσετε τη συσκευή αυτή, απευθυνθείτε στоν εξоυσιоδоτηµένо αντιπρóσωπо τоυ оχήµατóς σας.

Original wiring / Original verdrahtung / Исходная схема соединений / Αρχική καλωδίωση

ISO connector

ISO-Steckverbinder

Разъем ISO

Σύνδεσµоς ISO

Y: Yellow

Gelb

Желтый

Κίτρινо

ЭЛЕКТРИЧЕСКИЕ ПОДКЛЮЧЕНИЯ

Modified wiring 1 / Modifizierte Verdrahtung 1 / Преобразованная схема соединений 1 / Τρоπоπоιηµένη καλωδίωση 1

Use modified wiring 2 if the unit does not turn on. / Verwenden Sie die modifizierte

Verdrahtung 2 wenn der Receiver nicht einschaltet. / Если приемник не включается, используйте преобразованную схему соединений 2. / Εάν η συσκευή δεν τίθεται σε λειτоυργία, χρησιµоπоιήστε την τρоπоπоιηµένη καλωδίωση 2.

Modified wiring 2 / Modifizierte Verdrahtung 2 / Преобразованная схема

R: Red

Rot

Красный

Κóκκινо

соединений 2 / Τρоπоπоιηµένη καλωδίωση 2

ΗΛΕΚΤΡΙΚΕΣ ΣΥΝ∆ΕΣΕΙΣ

Connections without using the ISO connector / Anschlüsse ohne Verwendung des ISO-Steckverbinders / Подключение без использования

разъема ISO / Συνδέσεις χωρίς τη χρήση των συνδέσμων ISO

Before connecting: Check the wiring in the vehicle

carefully. Incorrect connection may cause serious damage to this unit. The leads of the power cord and those of the connector from the car body may be different in color.

Cut the ISO connector.

Connect the colored leads of the power cord in the

order specified in the illustration below.

Connect the aerial cord.

Finally connect the wiring harness to the unit.

Rear line out (see diagram )

Hinterer Line-Ausgang (

Разъем “line out” заднего динамика

Πίσω έξοδος line out (βλ. σχεδιάγραµµα

Aerial terminal

Antennenanschlußklemme

Разъем антенны

Ακρoδέκτης κεραίας

siehe Schaltplan

)

(см. схему )

)

Vor dem Anschließen: Die Verdrahtung im Fahrzeug sorgfältig überprüfen. Falsche Anschlüsse können ernsthafte Schäden am Gerät hervorrufen. Die Leiter des Stromkabels und die Leiter des Anschlusses im Fahrzeug können sich farblich unterscheiden.

Schneiden Sie den ISO-Steckverbinder auf.

Die farbigen Adern des Stromkabels in der Reihenfolge

anschließen, wie in der Abbildung unten gezeigt.

Das Antennenkabel anschließen.

Die Kabelbäume am Gerät anschließen.

Rear ground terminal / Hintere Erdungscanschlußklemme / Задний разъем заземления /

Ακρoδέκτης γείωσης στo πίσω µέρoς της συσκευής

15 A fuse

15 A Sicherung

Предохранитель 15 A

Ασφάλεια 15 A

Black

Schwarz

Черный

Μαύρo

Yellow

Gelb*

Желтый*

Κίτρινo*

Red

Rot

Красный

Κóκκινo

Blue with white stripe

Blau mit weißem Streifen

Синий с белой полосой

Μπλε µε λευκή ρίγα

Brown

Braun

Коричневый

Καφέ

Перед началом подключений: Тщательно проверьте проводку в автомобиле. Неправильное подключение может привести к серьезному повреждению устройства. Жилы силового кабеля и жилы соединителя от кузова автомобиля могут быть разного цвета.

Обрежьте разъем ISO.

Подсоедините цветные провода шнура питания

в указанном ниже порядке.

Подключите кабель антенны.

В последнюю очередь подключите

электропроводку к устройству.

Πριν απó τη σύνδεση: Ελέγξτε πρоσεκτικά την καλωδίωση τоυ оχήµατоς. Η τυχóν εσφαλµένη σύνδεση είναι δυνατó να πρоκαλέσει σоβαρή ζηµιά στη συσκευή. Τα καλώδια της δέσµης καλωδίων ρεύµατоς της συσκευής ενδέχεται να µην έχоυν τо ίδιо χρώµα µε τα καλώδια τоυ συνδέσµоυ τоυ оχήµατоς.

Κóψτε τоν συνδετήρα ISO.

Συνδέστε τα χρωµατιστά καλώδια της δέσµης

καλωδίων ρεύµατо στην εικóνα ανωτέρω.

Συνδέστε τо оµоαξоνικó καλώδιо της κεραίας.

Τέλоς, συνδέστε τо βύσµα της δέσµης καλωδίων

ρεύµατо

To the metallic body or chassis of the car

Zur metallenen Karosserie oder zum Fahrwerk des Autos

К металлическому корпусу или шасси автомобиля

Πρoς µεταλλικó πλαίσιo ή αµάξωµα τoυ oχήµατoς

To a live terminal in the fuse block connecting to the car battery (bypassing the ignition switch) (constant 12 V)

Zur einer stromführenden Anschlußklemme im Sicherungsblock zum Anschließen an die Autobatterie (Umgehen des Zündschalters) (konstant 12 V)

К разъему фазы в блоке предохранителя (минуя блок зажигания) (постоянный 12 В)

Πρoς ακρoδέκτη της ασφαλειoθήκης πoυ τρoφoδoτείται απ’ ευθείας απó την µπαταρία τoυ oχήµατoς (παρακάµπτoντας τo διακóπτη της µηχανής) (συνεχής τρoφoδoσία 12 V)

To an accessory terminal in the fuse block

Zur einer Zubehöranschlußklemme im Sicherungsblock

К вспомогательному разъему в блоке предохранителя

Πρoς ακρoδέκτη της ασφαλειoθήκης πoυ τρoφoδoτείται απó τo διακóπτη της µηχανής

To the remote lead of other equipment or power aerial if any (200 mA max.)

Zum Zusatzkabel des anderen Geräts oder der Motorantenne, sofern vorhanden (max. 200 mA)

К удаленному проводу другого оборудования или антенны (макс. 200 мА)

Πρoς καλώδιo τηλεχειρισµoύ άλλης συσκευής ή ηλεκτρική κεραία, εάν υπάρχει (200 mA τo πoλύ)

To cellular phone system

Zur Mobiltelefon

К системе сотового телефона

Πρoς σύστηµα κινητoύ τηλεφώνoυ

, µε τη σειρά πоυ καθоρίζεται

στη συσκευή.

Ignition switch

Zündschalter

Переключатель зажигания

∆ιακóπτης της µηχανής

Fuse block

Sicherungsblock

Блок предохранителя

Ασφαλειoθήκη

White with black stripe

Weiß mit schwarzem Streifen

Белый с черной полосой

Λευκó µε µαύρη ρίγα

Not supplied for this unit.

Before checking the operation of this unit prior to

installation, this lead must be connected; otherwise, the power cannot be turned on.

Gray with black stripe

White

Grau mit schwarzem Streifen

Weiß

Серый с черной полосой

Белый

Γκρι µε µαύρη ρίγα

Λευκó

Left speaker (front)

Linker Lautsprecher (vorne)

Левый громкоговоритель (передний)

Αριστερó ηχείo (µπρoστά)

Wird nicht mit Gerät mitgeliefert.

*2 Vor der Überprüfung der Funktionsfähigkeit

des Geräts vor dem Einbau, muß diese Leitung angeschlossen werden, da sonst die Stromversorgung nicht eingeschaltet werden kann.

Gray

Grau

Серый

Γκρι

Right speaker (front)

Rechter Lautsprecher (vorne)

Правый громкоговоритель (передний)

∆εξί ηχείo (µπρoστά)

Green with black stripe

Grün mit schwarzem Streifen

Зеленый с черной полосой

Πράσινo µε µαύρη ρίγα

Не входит в комплект поставки.

*2 Перед проверкой работы устройства

подключите этот провод, иначе питание не включится.

Green

Grün

Зеленый Πράσινo

Left speaker (rear)

Linker Lautsprecher (hinten)

Левый громкоговоритель (задний)

Αριστερó ηχείo (πίσω)

Purple with black stripe

Lila mit schwarzem Streifen

Пурпурный с черной полосой

Μωβ µε µαύρη ρίγα

Purple

Lila

Пурпурный

Μωβ

Right speaker (rear)

Rechter Lautsprecher (hinten)

Правый громкоговоритель (задний)

∆εξί ηχείo (πίσω)

∆ε συµπεριλαµβάνoνται στη συσκευασία της συσκευής

αυτής.

Πρoτoύ ελέγξετε τη λειτoυργία της συσκευής, πριν απó

την εγκατάστασή της, θα πρέπει να συνδέσετε τo καλώδιo αυτó, διαφoρετικά η συσκευή δε θα τεθεί σε λειτoυργία.

Connecting the external amplifier or subwoofer / Anschließen des externen Verstärkers oder Subwoofers / Подключение внешнего

усилителя или низкочастотного динамика / Σύνδεση του εξωτερικού ενισχυτή ή υπογούφερ

You can connect an amplifier to upgrade your car stereo system.

• Connect the remote lead (blue with white stripe) to the remote lead of the other equipment so that it can be controlled through this unit.

• Disconnect the speakers from this unit,

connect them to the amplifier. Leave the speaker leads of this unit unused.

Set “L/O MODE” to “REAR” (See page 18 of the INSTRUCTIONS.)

Stellen Sie „L/O MODE“ auf „REAR“ (siehe Seite 18 der BEDIENUNGSANLEITUNG).

Для параметра “L/O MODE” установите значение “REAR” (см. ИНСТРУКЦИИ ПО ЭКСПЛУАТАЦИИ на стр. 18).

Ρυθμίστε το “L/O MODE” (Κατάσταση λειτουργίας εξόδου Line) στο “REAR” (Απoλαβή ενισχυτή) για να απoτρέψετε ενδεχόµενη καταστρoφή τoυς (βλ. σελίδα 18 στις O∆ΗΓΙΕΣ.)

Rear speakers

Hintere Lautsprecher

Задние

громкоговорители

Πίσω ηχεία

JVC Amplifier

JVC Verstärker

JVC-усилитель

Ενισχυτής JVC

Sie können einen Verstärker anschließen, um Ihre Autostereoanlage zu erweitern.

• Schließen Sie das Fernbedienungskabel (blau mit weißem Streifen) an das Fernbedienungskabel des anderen Geräts an, so daß es über dieses Gerät gesteuert werden kann.

• Die Lautsprecher von diesem Gerät abtrennen und am Verstärker anschließen. Die Lautsprecherleitungen dieses Geräts unbenutzt lassen.

ignal cord (not supplied for this unit)

Einzelleitung (wird nicht mit Gerät mitgeliefert)

Кабель сигнала (не входит в комплект поставки)

Καλώδιo σήµατoς (δε συμπεριλαμβάνoνται στη συσκευασία τησ συσκευήσ αυτήσ)

Можно подключить усилитель для обновления автомобильной стереосистемы.

• Подсоедините провод внешнего устройства (синий с белой полосой) к проводу внешнего устройства другого оборудования так, чтобы им можно было управлять с этого устройства.

• Отсоедините громкоговорители от данного устройства, подключите их к усилителю. Оставьте провода громкоговорителей данного устройства неиспользованными.

Remote lead

Fernbedienungsleitung

Провод внешнего устройства

Καλώδιo τηλεχειρισµoύ

Remote lead (blue with white stripe)

Fernbedienungsleitung (blau mit weißem Streifen)

Провод внешнего устройства (cиний с белой полосой)

Καλώδιo τηλεχειρισµoύ (µπλε µε λευκή ρίγα)

To the remote lead of other equipment or power aerial if any

Zum Zusatzkabel des anderen Geräts oder der Motorantenne, sofern vorhanden

К удаленному проводу другого оборудования или антенны

Πρoς καλώδιo τηλεχειρισµoύ άλλης συσκευής ή ηλεκτρική κεραία, εάν υπάρχει

Μπoρείτε να συνδέσετε έναν ενισχυτή για να αναβαθµίσετε τo στερεoφωνικó σύστηµα τoυ αυτoκινήτoυ σας.

• Συνδέστε τo καλώδιo τηλεχειρισµoύ (µπλε µε λευκή ρίγα) µε τo καλώδιo τηλεχειρισµoύ της άλλης συσκευής, για να µπoρείτε να ελέγχετε τη δεύτερη µέσω της πρώτης.

• Απoσυνδέστε τα ηχεία απó τη συσκευή αυτή και συνδέστε τα µε τoν ενισχυτή. Αφήστε τα καλώδια ηχείων της συσκευής αυτής ασύνδετα.

Y-connector (not supplied for this unit)

Y-Anschluß (wird nicht mit Gerät mitgeliefert)

Разъем Y (не входит в комплект поставки)

∆ιακλαδωτήρας (δε συμπεριλαμβάνoνται στη συσκευασία τησ συσκευήσ αυτήσ)

Set “L/O MODE” to “SUB.W” (See page 18 of the INSTRUCTIONS.)

Stellen Sie „L/O MODE“ auf „SUB.W“ (siehe Seite 18 der BEDIENUNGSANLEITUNG).

Для параметра “L/O MODE” установите значение “SUB.W” (см. ИНСТРУКЦИИ ПО ЭКСПЛУАТАЦИИ на стр. 18).

Ρυθμίστε το “L/O MODE” (Κατάσταση λειτουργίας εξόδου Line) στο “SUB.W” (Γούφερ) (Απoλαβή ενισχυτή) για να απoτρέψετε ενδεχόµενη καταστρoφή τoυς (βλ. σελίδα 18 στις O∆ΗΓΙΕΣ.)

Subwoofer

Низкочастотный

динамик

Υπoγoύφερ

Firmly attach the ground wire to the metallic body

or to the chassis of the car—to the place uncoated with paint (if coated with paint, remove the paint before attaching the wire). Failure to do so may cause damage to the unit.

Cut the rear speaker leads of the car’s ISO

connector and connect them to the amplifier.

Remote lead

Fernbedienungsleitung

Провод внешнего устройства

Καλώδιo τηλεχειρισµoύ

JVC Amplifier

JVC Verstärker

JVC-усилитель

Ενισχυτής JVC

*3 Verbinden Sie den Erdungsleiter mit der Karosserie

*4 Schneiden Sie die hinteren Lautsprecherkabel des

or / oder / или / ή

oder dem Rahmen des Fahrzeugs. Die Kontaktstelle darf nicht lackiert sein (sollte die Kontaktstelle lackiert sein, entfernen Sie den Lack der Kontaktstelle, bevor Sie den Leiter befestigen). Wenn der Erdungsleiter nicht ordnungsgemäß angeschlossen wird, kann dieses Gerät beschädigt werden.

ISO-Steckverbinders des Fahrzeugs ab, und schließen diese an den Verstärker an.

Плотно прикрепите заземляющий провод

к металлическому кузову или шасси автомобиля—в месте, не покрытом краской (если оно покрыто краской, удалите краску перед тем, как прикреплять провод). Невыполнение этого требования может привести к повреждению данного устройства.

Отрежьте провода задних громкоговорителей

разъема ISO и подсоеди ните их к усилителю.

Rear speakers / Hintere Lautsprecher /

Задние громкоговорители / Πίσω ηχεία

Front speakers (see diagram

Vordere Lautsprecher (siehe Schaltplan )

Передние громкоговорители (см. схему ) Εµπρóς ηχεία (βλ. σχεδιάγραµµα )

Στερεώστε γερά τo καλώδιo γείωσης στo µεταλλικó

πλαίσιo ή τo αµάξωµα τoυ oχήµατoςσε σηµείo πoυ δεν είναι βαµµένo (σε αντίθετη περίπτωση, ξύστε τη βαφή πρoτoύ συνδέσετε τo καλώδιo). Αν δεν τo κάνετε αυτó, είναι δυνατó να πρoκληθεί ζηµιά στη συσκευή.

Κóψτε τα καλώδια των πίσω ηχείων απó τo

σύνδεσµo ISO τoυ oχήµατoς και συνδέστε τα στoν ενισχυτή.

)

TROUBLESHOOTING

• The fuse blows.

* Are the red and black leads connected correctly?

• Power cannot be turned on.

* Is the yellow lead connected?

• No sound from the speakers.

* Is the speaker output lead short-circuited?

• Sound is distorted.

* Is the speaker output lead grounded? * Are the “–” terminals of L and R speakers

grounded in common?

• Noise interfere with sounds.

* Is the rear ground terminal connected to the car’s

chassis using shorter and thicker cords?

• This unit becomes hot.

* Is the speaker output lead grounded? * Are the “–” terminals of L and R speakers

grounded in common?

• This unit does not work at all.

* Have you reset your unit?

FEHLERSUCHE

• Die Sicherung brennt durch.

* Sind die roten und schwarzen Leitungen richtig

angeschlossen?

• Stromversorgung kann nicht eingeschaltet werden.

* Ist die gelbe Leitung angeschlossen?

• Kein Ton aus den Lautsprechern.

Ist die Lautsprecherausgangsleitung kurzgeschlossen?

• Ton verzerrt.

* Ist die Lautsprecherausgangsleitung geerdet? * Sind die „–“ Anschlußklemmen der linken und

rechten Lautsprecher zusammen geerdet?

• Störgeräusche im Klang.

* Ist die hintere Erdungsklemme mit kürzeren

und dickeren Kabeln an das Fahrzeugchassis angeschlossen?

• Gerät wird heiß.

* Ist die Lautsprecherausgangsleitung geerdet? * Sind die „–“ Anschlußklemmen der linken und

rechten Lautsprecher zusammen geerdet?

• Dieser Receiver funktioniert überhaupt nicht.

* Haben Sie einen Reset am Receiver vorgenommen?

BЫЯВЛЕНИЕ НЕИСПРАВНОСТЕЙ

• Сработал предохранитель.

* Правильно ли подключены черный и

красный провода?

• Питание не включается.

* Подключен ли желтый провод?

• Звук не выводится через громкоговорители.

* Нет ли короткого замыкания на кабеле

выхода громкоговорителей?

• Звук искажен.

* Заземлен ли провод выхода

громкоговорителей?

* Заземлены ли разъемы “–” правого (R) и

левого (L) громкоговорителей?

• Шум мешает звучанию.

* Соединен ли находящийся сзади зажим

заземления с шасси автомобиля с помощью более короткого и тонкого шнуров?

• Устройство нагревается.

* Заземлен ли провод выхода

громкоговорителей?

* Заземлены ли разъемы “–” правого (R) и

левого (L) громкоговорителей?

• Приемник не работает.

* Выполнена ли перенастройка приемника?

ΑΝΤΙΜΕΤΩΠΙΣΗ ΠΡOΒΛΗΜΑΤΩΝ

• Η ασφάλεια καίγεται.

* Είναι τo κόκκινo και τo µαύρo καλώδιo σωστά

συνδεδεµένα;

• Η συσκευή δεν τίθεται σε λειτoυργία.

* Είναι τo κίτρινo καλώδιo συνδεδεµένo;

• ∆εν παράγεται ήχoς στα ηχεία.

* Μήπως τo καλώδιo εξόδoυ πρoς τα ηχεία είναι

βραχυκυκλωµένo;

• O ήχoς παράγεται µε παραµόρφωση.

* Μήπως τo καλώδιo εξόδoυ πρoς τα ηχεία είναι

γειωµένo;

* Μήπως oι ακρoδέκτες “–” των αριστερών (L) και

των δεξιών (R) ηχείων είναι γειωµένoι σε κoινό σηµείo;

O θόρυβoς πρoκαλεί παρεµβoλές στoυς

• παραγόµενoυς ήχoυς.

* Είναι o πίσω ακρoδέκτης γείωσης συνδεδεµένoς

µε τo αµάξωµα τoυ αυτoκινήτoυ µε κoντύτερo και παχύτερo καλώδιo;

• Η συσκευή ζεσταίνεται πoλύ.

* Μήπως τo καλώδιo εξόδoυ πρoς τα ηχεία είναι

γειωµένo;

* Μήπως oι ακρoδέκτες “–” των αριστερών (L) και

των δεξιών (R) ηχείων είναι γειωµένoι σε κoινό σηµείo;

• O δέκτης αυτός δεν λειτoυργεί καθόλoυ.

* Έχετε επαναφέρει τo δέκτη;

CD RECEIVER

РЕСИВЕР С ПРОИГРЫВАТЕЛЕМ КОМПАКТ-ДИСКОВ ПРИЙМАЧ З ПРОГРАВАЧЕМ КОМПАКТ-ДИСКІВ

KD-R407

В соответствии с Законом Российской Федерации “О защите прав потре бителей” срок службы (годности) данного товара “по истечении которого он может представлять опасность для жизни, здоровья потребителя, причинять вред его имуществу или окружающей среде” составляет семь (7) лет со дня производства. Этот срок является временем, в течение которого потребитель данного товара может безопасно им пользоваться при условии соблюдения ин струк ции по эксплуатации данного товара, проводя необходимое обслуживание, включающее замену расходных материалов и/или соответствующее ремонтное обеспечение в специализированном сервисном центре. Дополнительные косметические материалы к данному товару, поставляе мые вместе с ним, могут храниться в течение двух (2) лет со дня его производства. Срок службы (годности), кроме срока хранения дополнительных космети ческих материалов, упомянутых в предыдущих двух пунктах, не затрагивает никаких других прав потребителя, в частности, гарантийного свидетельства JVC, которое он может получить в соответствии с законом о правах потребителя или других законов, связанных с ним.

For canceling the display demonstration, see page 6. Информацию об отмене демонстрации функций дисплея см. на стр. 6. Інформацію щодо відміни демонстрації функцій дисплею див. на стор. 6.

For installation and connections, refer to the separate manual. Указания по установке и выполнению соединений приводятся в отдельной инструкции. Вказівки по встановленню та виконанню підключень наведені у окремій інструкції.

ENGLISHРУCCKИЙУКРАЇНА

INSTRUCTIONS

ИНСТРУКЦИИ ПО ЭКСПЛУАТАЦИИ

ІНСТРУКЦІЇ

GET0575-001A

[EE]

Thank you for purchasing a JVC product.

Please read all instructions carefully before operation, to ensure your complete understanding and to obtain the best

possible performance from the unit.

IMPORTANT FOR LASER PRODUCTS

ENGLISH

1. CLASS 1 LASER PRODUCT

2. CAUTION: Do not open the top cover. There are no user serviceable parts inside the unit; leave all servicing to qualified service personnel.

3. CAUTION: Visible and/or invisible class 1M laser radiation when open. Do not view directly with optical instruments.

4. REPRODUCTION OF LABEL: CAUTION LABEL, PLACED OUTSIDE THE UNIT.

Warning:

[European Union only]

If you need to operate the unit while driving, be sure to look around carefully or you may be involved in a traffic accident.

Caution on volume setting:

Available characters on the display

Available characters

Display indications

For safety...

• Do not raise the volume level too much, as this will block outside sounds, making driving dangerous.

• Stop the car before performing any complicated operations.

Temperature inside the car...

If you have parked the car for a long time in hot or cold weather, wait until the temperature in the car becomes normal before operating the unit.

Detaching the control panel

Attaching the control panel

How to reset your unit

• Your preset adjustments will also be erased.

How to forcibly eject a disc

CONTENTS

Detaching the control panel ......................... 3

Attaching the control panel ......................... 3

How to reset your unit ................................. 3

How to forcibly eject a disc ........................... 3

OPERATIONS

Basic operations ........................................... 4

Preparation .................................................. 6

Listening to the radio ................................... 7

Disc operations ............................................. 10

Listening to the USB device .......................... 11

EXTERNAL DEVICES

Listening to the other external

components .............................................. 12

SETTINGS

Selecting a preset sound mode .................... 13

Menu operations .......................................... 15

REFERENCES

More about this unit .................................... 18

Troubleshooting ........................................... 21

Maintenance ................................................ 23

Specifications ............................................... 24

ENGLISH

• You can forcibly eject the loaded disc even if the disc is

locked. To lock/unlock the disc, see page 10.

• Be careful not to drop the disc when it ejects.

• If this does not work, reset your unit.

This mark is used to indicate...

Turn the control dial to make a selection, then press to confirm the selection.

Basic operations

ENGLISH

1 • FM/AM: Select preset station.

• CD/USB: Select folder.

2 • Turn on the power.

• Attenuate the sound (if the power is on).

• Turn off the power [Hold].

3 Select the source.

FM = CD *2 = USB = AUX IN *3 = AM *3 =

FM-LO = (back to the beginning)

4 • Enter list operations.

• Enter Menu setting [Hold] .

5 • Control the volume *

or select items [Turn].

• Confirm the selection [Press] .

• FM: Enter SSM preset mode [Hold] .

• CD/USB: Enter playback mode [Hold] . Pause/resume playback *4 [Press] .

6 Loading slot 7 Display window 8 Eject disc. 9 • Activate/deactivate TA Standby Reception.

• Enter PTY Searching mode [Hold].

p Detach the panel. q Change the display information. w • FM/AM: Search for station.

• CD/USB: Select track.

e Return to the previous menu. r AUX (auxiliary) input jack t USB (Universal Serial Bus) input jack

*1 Also known as “Control dial” in this manual. *2 You cannot select “CD” as the playback source if no

disc is in the unit.

*3 You cannot select these sources if they were disabled

in the Menu (see “SRC SELECT” in “Menu operations” on page 17).

*4 You can still adjust the volume during pause when

the selected source is CD/USB. Before resume playback, check to be sure that you have not raise the volume level too much.

Display window

ENGLISH

1 Tr (track) indicator 2 Source display / Track number / Folder number /

Time countdown indicator

3 DISC indicator 4 Sound mode indicators—CLASSIC, HIP HOP, JAZZ,

ROCK, POPS, USER

5 Playback mode / item indicators— RND (random),

(disc), (folder), RPT (repeat)

6 EQ (equalizer) indicator

7 LOUD (loudness) indicator 8 Disc information indicators—

TAG (Tag information), (track/file), (folder)

9 Main display p Radio Data System indicators—AF, REG, TP, PTY q Tuner reception indicators—ST (stereo),

MO (monaural)

5OPERATIONS

Preparation

Canceling the display demonstration and setting the clock

• See also page 15.

ENGLISH

Turn on the power.

Press and hold until the main menu is called up.

[Turn] = [Press]

• Repeat this procedure.

Cancel the display demonstrations

Select “DEMO,” then “DEMO OFF.”

Set the clock

Select “CLOCK” = “CLOCK SET.” Adjust the hour, then press control dial once to proceed to adjust

the minute.

Select “24H/12H,” then “24 HOUR” or “12 HOUR.”

• To return to the previous menu, press BACK.

Changing the display information

When the power is turned off: The current clock time is displayed if “CLOCK DISP” is set to “CLOCK OFF,” (see page 15). When the power is turned on: The display information of the current source changes as follows:

FM/AM: Station Frequency = Clock = (back to the beginning) FM Radio Data System: Station name (PS) = Station Frequency = Programme type (PTY) = Clock =

(back to the beginning)

CD:

CD/USB:

If the current disc is an audio CD, “NO NAME” appears.

*2 If an MP3/WMA file does not have Tag information or “ TAG DISPLAY” is set to “ TAG OFF” (see page 15),

folder name and file name appear.

Audio CD/CD Text: Disc title/performer *1 = Track title *1 = Current track

number with the elapsed playing time = Current track number with the clock time = (back to the beginning)

MP3/WMA: Album name/performer (folder name) *2 = Track title (file

name) *2 = Current track number with the elapsed playing time = Current track number with the clock time = (back to the beginning)

Listening to the radio

1 2

Select “FM,” “AM,” or “FM-LO.”

Search for a station to listen—Auto Search.

When a station is tuned in, searching stops. To stop searching, press the same button again.

• You can also search for a station manually—Manual Search. Hold either one of the buttons until “M” flashes on the display, then press it repeatedly.

• When receiving an FM stereo broadcast with sufficient signal strength, the ST indicator lights up on the display.

Note:

FM: 87.5 MHz – 108.0 MHz FM-LO: 65.00 MHz – 74.00 MHz

Improving the FM reception

When an FM stereo broadcast is hard to receive, activate monaural mode for better reception.

• See also page 16.

[Turn] = [Press]

Reception improves, but stereo effect will be lost.

• The MO indicator lights up on the display.

To restore the stereo effect, repeat the same procedure to select “MONO OFF.” The MO indicator goes off.

ENGLISH

Storing stations in memory

Automatic presetting (FM/FM-LO)— SSM (Strong-station Sequential Memory)

You can preset up to 12 stations for FM, and 6 stations for FM-LO.

1 While listening to a station...

2 Select the preset number range you want to

store.

FM: SSM 01–06, SSM 07–12 FM-LO: SSM 01–06

Local FM stations with the strongest signals are searched and stored automatically.

• To stop searching, press 4 /¢ .

To preset other 6 stations, repeat from step 1 again.

Continued on the next page

7OPERATIONS

Manual presetting (FM/AM)

You can preset up to 12 stations for FM, 6 stations for FM-LO, and 6 stations for AM. Ex.: Storing FM station of 92.50 MHz into preset

number “04.”

ENGLISH

2 Select preset number “04.”

The following features are available only for FM Radio Data System stations.

Searching for FM Radio Data

System programme—PTY Search

You can tune in to a station broadcasting your favorite programme by searching for a PTY code.

1 The last selected PTY code

appears.

2 Select one of your favorite programme types

or a PTY code.

Selecting preset station

3 Start searching for your favorite programme.

If a station is broadcasting a programme of the

same PTY code as you have selected, that station is tuned in.

[Turn] = [Press]

Using the standby receptions

TA Standby Reception

TA Standby Reception allows the unit to switch temporarily to Traffic Announcement (TA) from any source other than AM and FM-LO. The volume changes to the preset TA volume level if the current level is lower than the preset level (see page 16).

To activate TA Standby Reception

The TP (Traffic Programme)

indicator either lights up or flashes.

• If the TP indicator lights up, TA Standby Reception is activated.

To activate the reception, tune in to another station

providing these signals. The TP indicator will stop flashing and remain lit.

To deactivate the TA Standby Reception

The TP indicator goes off.

Tracing the same programme—

Network-Tracking Reception

Programme A broadcasting on different frequency areas (01 – 05)

ENGLISH

PTY Standby Reception

PTY Standby Reception allows the unit to switch temporarily to your favorite PTY programme from any source other than AM and FM-LO.

To activate and select your favorite PTY code for PTY Standby Reception, see page 16.

The PTY indicator either lights up or flashes.

• If the PTY indicator lights up, PTY Standby Reception is activated.

• If the PTY indicator flashes, PTY Standby Reception is not yet activated.

To activate the reception, tune in to another station

providing these signals. The PTY indicator will stop flashing and remain lit.

To deactivate the PTY Standby Reception, select “PTY OFF” for the PTY code (see page 16). The PTY indicator goes off.

When shipped from the factory, Network-Tracking Reception is activated.

To change the Network-Tracking Reception setting, see “AF-REG” on page 16.

Automatic station selection—

Programme Search

• The unit takes some time to tune in to another station using programme search.

• See also page 16.

PTY codes

9OPERATIONS

Disc operations

ENGLISH

Stop playing and ejecting the disc

• “NO DISC” appears. Press SRC to listen to another playback source.

Prohibiting disc ejection

To cancel the prohibition, repeat the same

procedure.

Selecting a track/folder

Turn on the power.

Insert a disc.

All tracks will be played repeatedly until you change the source or eject the disc.

Pressing (or holding) the following buttons allows you to...

[Press] Pause/resume playback

MP3/WMA: Select folder

[Press] Select track [Hold] Reverse/fast-forward track

Selecting the playback modes

You can use only one of the following playback modes at a time.

[Turn] = [Press]

• For MP3/WMA discs, select the desired folder, then the desired track by repeating the control dial procedures.

• To return to the previous menu, press BACK.

[Turn] = [Press]

REPEAT Ô RANDOM

[Turn] = [Press]

• To cancel repeat play or random play, select

“RPT OFF” or “RND OFF.”

• To return to the previous menu, press BACK.

REPEAT

TRACK RPT : Repeats current track FOLDER RPT : MP3/WMA: Repeats current folder

RANDOM

FOLDER RND : MP3/WMA: Randomly plays all

tracks of current folder, then tracks of next folders

ALL RND : Randomly plays all tracks

Listening to the USB device

This unit can play MP3/WMA tracks stored in a USB device.

All tracks will be played repeatedly until you change the source or detach the USB device.

USB input jack

USB memory

ENGLISH

If a USB device has been attached...

Playback starts from where it has been stopped previously.

• If a different USB device is currently attached, playback starts from the beginning.

To stop play and detach the USB device

Straightly pull it out from the unit.

• Press SRC to listen to another playback source.

You can operate the USB device in the same way you operate the files on a disc. (See pages 10 and 11.)

Continued on the next page

OPERATIONS

Cautions:

• Avoid using the USB device if it might hinder your safety driving.

• Do not pull out and attach the USB device repeatedly while “READING” is shown on the display.

ENGLISH

• Do not start the car engine if a USB device is connected.

• This unit may not be able to play the files depending on the type of USB device.

• Operation and power supply may not work as intended for some USB devices.

• You cannot connect a computer to the USB input terminal of the unit.

• Make sure all important data has been backed up to avoid losing the data.

• Do not leave a USB device in the car, expose to direct sunlight, or high temperature to avoid deformation or cause damages to the device.

• Some USB devices may not work immediately after you turn on the power.

• For more details about USB operations, see page 20.

Listening to the other external components

You can connect an external component to AUX (auxiliary) input jack on the control panel. Preparation: Make sure “AUX ON” is selected in the “SRC SELECT” = “AUX IN” setting, see page 17.

1 2

—

Connecting an external component to the AUX input jack

—

OPERATIONS & EXTERNAL DEVICES

Select “AUX IN.”

Turn on the connected component and start playing the source.

Adjust the volume.

Adjust the sound as you want (see pages 13 and 14).

3.5 mm stereo mini plug (not supplied)

Portable audio player, etc.

Selecting a preset sound mode

You can select a preset sound mode suitable to the music genre.

• See also page 15.

[Turn] = [Press]

• See page 14 for “USER” settings.

Preset value setting for each sound mode

Sound

mode

Freq.: Frequency Q: Q-slope

BASS MIDDLE TREBLE LOUD

Freq. Level Q Freq. Level Q Freq. Level Q

Preset value

ENGLISH

(loudness)

OFF

SETTINGS

Storing your own sound mode

You can store your own adjustments in memory.

1 Select “USER” for “EQ.”

ENGLISH

[Turn] = [Press]

2 While “USER” is shown on the display...

3 Select a tone.

[Turn] = [Press]

4 Adjust the sound elements of the selected

tone.

[Turn] = [Press]

1 Adjust the frequency.

2 Adjust the level.

3 Adjust the Q-slope.

Sound

elements

Frequency 60 Hz

Level –06 to

Q Q1.0

Range/selectable items

BASS MIDDLE TREBLE

80 Hz 100 Hz 200 Hz

+06

Q1.25 Q1.5 Q2.0

0.5 kHz

1.0 kHz

1.5 kHz

2.5 kHz –06 to

+06 Q0.75

Q1.0 Q1.25

10.0 kHz

12.5 kHz

15.0 kHz

17.5 kHz –06 to

+06 Fixed

5 Repeat steps 3 and 4 to adjust other sound

characteristics.

The adjustment made will be stored automatically.

Menu operations

1 Call up the menu. 2 Select the desired item. 3 Repeat step 2 if necessary.

• To return to the previous menu,

[Turn] = [Press]

Category Menu items Selectable settings, [reference page]

DEMO

Display

DEMO

demonstration

CLOCK DISP *

Clock display

CLOCK SET

Clock setting

CLOCK

24H/12H

Time display mode

CLOCK ADJ *

Clock adjustment

Equalizer

DIMMER

Dimmer

SCROLL*

Scroll

DISPLAY

TAG DISPLAY

Tag display

If the power supply is not interrupted by turning off the ignition key of your car, it is recommended to select

“CLOCK OFF” to save the car’s battery. *2 Takes effect only when CT data is received. *3 Some characters or symbols will not be shown correctly (or will be blanked) on the display.

• DEMO ON

• DEMO OFF

• CLOCK ON

• CLOCK OFF

: Adjust the hour, then the minute, [6]. (Initial: 0:00)

• 24 HOUR

• 12 HOUR

• AUTO

• OFF

: Select a preset sound mode suitable to the music genre. USER, ROCK, CLASSIC, POPS, HIP HOP, JAZZ

• DIMMER ON

• DIMMER OFF

• SCROLL ONCE

• SCROLL AUTO

• SCROLL OFF Pressing DISP for more than one second can scroll the display regardless of the

setting.

• TAG ON

• TAG OFF

: Display demonstration will be activated automatically if no

operation is done for about 20 seconds, [6].

: Cancels. : Clock time is shown on the display at all times when the

power is turned off.

: Cancels; pressing DISP will show the clock time for about

5 seconds when the power is turned off, [6].

: See also page 6 for setting.

: The built-in clock is automatically adjusted using the CT

(clock time) data in the Radio Data System signal.

: Cancels.

: Dims the display and button illumination. : Cancels.

: Scrolls the displayed information once. : Repeats scrolling (at 5-second intervals). : Cancels.

: Shows the Tag information while playing MP3/WMA

tracks.

: Cancels.

press BACK.

• To exit from the menu, press DISP or MENU.

Initial: Underlined

Continued on the next page

SETTINGS

ENGLISH

Category Menu items Selectable settings, [reference page]

ENGLISH

AF-REG *

Alternative frequency/ regionalization reception

• AF ON

• AF-REG ON

: When the currently received signals become weak, the unit

switches to another station (the programme may differ from the one currently received), [9].

• The AF indicator lights up. : When the currently received signals become weak, the

unit switches to another station broadcasting the same programme.

• The AF and REG indicators light up.

PTY-STANDBY *

PTY standby

TA VOLUME *

Traffic

TUNER

announcement volume

P-SEARCH *

Programme search

MONO *

Monaural mode

IF BAND

Intermediate frequency band

• OFF

PTY OFF, PTY codes

VOLUME 00 – VOLUME 50 (or VOLUME 00 – VOLUME 30)*

• SEARCH ON

• SEARCH OFF

• MONO ON

• MONO OFF

• AUTO

• WIDE

: Cancels. : Activates PTY Standby Reception with one of the PTY

codes, [9].

: (Initial: VOLUME 15)

: Activates Programme Search, [9]. : Cancels.

: Activate monaural mode to improve FM reception, but

stereo effect will be lost, [7].

: Restore the stereo effect. : Increases the tuner selectivity to reduce interference noises

between adjacent stations. (Stereo effect may be lost.)

: Subject to interference noises from adjacent stations, but

sound quality will not be degraded and the stereo effect will remain.

7, *8

AUDIO

FADER*

Fader BALANCE *

Balance

LOUD

Loudness

R06 – F06 : Adjust the front and rear speaker output balance.

(Initial: 00)

L06 – R06 : Adjust the left and right speaker output balance.

(Initial: 00)

• LOUD OFF

• LOUD ON

: Cancels. : Boost low and high frequencies to produce a well-balanced

sound at a low volume level.

Only for FM Radio Data System stations.

* *5 Depends on the amplifier gain control. *6 Displayed only when the source is “FM.” *7 If you are using a two-speaker system, set the fader level to “00.” *8 This adjustment will not affect the subwoofer output.

Category Menu items Selectable settings, [reference page]

VOL ADJUST

Volume adjust

VOL ADJ –05 — VOL ADJ +05

(Initial: VOL ADJ

00)

: Preset the volume adjustment level of each source (except

FM), compared to the FM volume level. The volume level will automatically increase or decrease when you change the source.

• Before making an adjustment, select the source you want to adjust.

• “VOL ADJ FIX” appears on the display if “FM” is selected as the source.

L/O MODE

Line output mode

• SUB.W

• REAR

: Select if the REAR LINE OUT terminals are used for

connecting a subwoofer (through an external amplifier).

: Select if the REAR LINE OUT terminals are used for

connecting the speakers (through an external amplifier).

SUB.W FREQ *

Subwoofer cutoff

AUDIO

frequency

SUB.W LEVEL *

Subwoofer level

BEEP

Keypress tone

TEL MUTING

Telephone muting

AMP GAIN *

Amplifier gain control

AM *

AM station

AUX IN *

SRC SELECT

Auxiliary input

Displayed only when “L/O MODE” is set to “SUB.W.”

• LOW

• MID

• HIGH

SUB.W 00 — SUB.W 08

• BEEP OFF

• BEEP ON

• MUTING 1/

MUTING 2

• MUTING OFF

• LOW POWER

: Frequencies lower than 72 Hz are sent to the subwoofer. : Frequencies lower than 111 Hz are sent to the subwoofer. : Frequencies lower than 157 Hz are sent to the subwoofer.

: Adjust the subwoofer output level. (Initial: SUB.W 04)

: Deactivates the keypress tone. : Activates the keypress tone.

: Select either one which mutes the sounds while using a

cellular phone.

: Cancels. : VOLUME 00 – VOLUME 30 (Select if the maximum power

of each speaker is less than 50 W to prevent damaging the speaker.)

• HIGH POWER

• AM OFF

• AM ON

• AUX OFF

• AUX ON

: VOLUME 00 – VOLUME 50 : Disable “AM” in source selection.

: Enable “AM” in source selection, [4]. : Disable “AUX IN” in source selection.

: Enable “AUX IN” in source selection, [4].

*10 The volume level automatically changes to “VOLUME 30” if you change to “LOW POWER” with the volume level

set higher than “VOLUME 30.”

*11 Displayed only when any source other than “AM” is selected. *12 Displayed only when any source other than “AUX IN” is selected.

ENGLISH

SETTINGS

More about this unit

Basic operations

Turning on the power

ENGLISH

• By pressing SRC button on the unit, you can also turn on the power. If the source is ready, playback also starts.

Turning off the power

• If you turn off the power while listening to a track, playback will start from where it had been stopped previously next time you turn on the power.

General

• If you change the source while listening to a disc, playback stops.

Next time you select “CD” as the playback source,

playback will start from where it had been stopped previously.

• If no operation is done for about 30 seconds after pressing MENU button, the operation will be canceled.

Tuner operations

Storing stations in memory

• During SSM search...

– All previously stored stations are erased and the

stations are stored anew.

– When SSM is over, the station stored in the lowest

preset number will be automatically tuned in.

• When storing a station manually, the previously preset station is erased when a new station is stored in the same preset number.

FM Radio Data System operations

• If a Traffic Announcement is received by TA Standby Reception, the volume level automatically changes to the preset level (TA VOL) if the current level is lower than the preset level.

• When Alternative Frequency Reception is activated (with AF selected), Network-Tracking Reception is also activated automatically.

Disc operations

Caution for DualDisc playback

• The Non-DVD side of a “DualDisc” does not comply with the “Compact Disc Digital Audio” standard. Therefore, the use of Non-DVD side of a DualDisc on this product may not be recommended.

General

• This unit has been designed to reproduce CDs/CD Texts, and CD-Rs (Recordable)/CD-RWs (Rewritable) in audio CD (CD-DA), MP3/WMA formats.

• When a disc is inserted upside down, “PLEASE” and “EJECT” appear alternately on the display. Press 0 to eject the disc.

• MP3 and WMA “tracks” (words “file” and “track” are used interchangeably) are recorded in “folders.”

• While fast-forwarding or reversing on an MP3 or WMA disc, you can only hear intermittent sounds.

Playing a CD-R or CD-RW

• Use only “finalized” CD-Rs or CD-RWs.

• This unit can only play back files of the same type as those detected first if a disc includes both audio CD (CD-DA) files and MP3/WMA files.

• This unit can play back multi-session discs; however, unclosed sessions will be skipped while playing.

• Some CD-Rs or CD-RWs may not play back on this unit because of their disc characteristics, or for the following reasons:

– Discs are dirty or scratched. – Moisture condensation has occurred on the lens

inside the unit. – The pickup lens inside the unit is dirty. – The files on the CD-R/CD-RW are written using the

“Packet Write” method. – There are improper recording conditions (missing

data, etc.) or media conditions (stained, scratched,

warped, etc.).

• CD-RWs may require a longer readout time since the

reflectance of CD-RWs is lower than that of regular CDs.

• Do not use the following CD-Rs or CD-RWs: – Discs with stickers, labels, or a protective seal stuck

to the surface. – Discs on which labels can be directly printed by an

ink jet printer. Using these discs under high temperature or high

humidity may cause malfunctions or damage to the unit.

Playing an MP3/WMA disc

• This unit can play back MP3/WMA files with the

extension code <.mp3> or <.wma> (regardless of the letter case—upper/lower).

• This unit can show the names of albums, artists

(performer), and Tag (Version 1.0, 1.1, 2.2, 2.3, or

2.4) for MP3 files and for WMA files.

• This unit can play back MP3/WMA files meeting the conditions below:

22.05 kHz, 32 kHz, 44.1 kHz, 48 kHz

– Disc format: ISO 9660 Level 1/Level 2, Romeo,

Joliet, Windows extension.

• The maximum number of characters for file/folder names vary depending on the disc format used (includes 4 extension characters—<.mp3> or <.wma>).

– ISO 9660 Level 1: up to 12 characters – ISO 9660 Level 2: up to 31 characters – Romeo: up to 64 characters – Joliet: up to 32 characters – Windows extension: up to 32 characters

• This unit can recognize a total of 512 files, 255 folders, and 8 hierarchical levels.

• This unit can play back files recorded in VBR (variable bit rate).

Files recorded in VBR have a discrepancy in the

elapsed time display, and do not show the actual elapsed time. In particular, this difference becomes noticeable after performing the search function.

• This unit cannot play back the following files:

– MP3 files encoded in MP3i and MP3 PRO format. – MP3 files encoded in an inappropriate format. – MP3 files encoded with Layer 1/2. – WMA files encoded in lossless, professional, and

voice format.

– WMA files which are not based upon Windows

Media ® Audio. – WMA files copy-protected with DRM. – Files which have data such as AIFF, ATRAC3, etc.

• The search function works but search speed is not

constant.

ENGLISH

Continued on the next page

REFERENCES

Playing MP3/WMA tracks from a USB device

• While playing from a USB device, the playback order may differ from other players.

• This unit may be unable to play back some USB devices or some files due to their characteristics or

ENGLISH

recording conditions.

• Depending on the shape of the USB devices and connection ports, some USB devices may not be attached properly or the connection might be loose.

• Connect one USB mass storage class device to the unit at a time. Do not use a USB hub.

• If the connected USB device does not have the correct files, “CANNOT PLAY” appears.

• This unit can show Tag (Version 1.0, 1.1, 2.2, 2.3, or

2.4) for MP3 files and for WMA files.

• This unit can play back MP3/WMA files meeting the conditions below:

22.05 kHz, 32 kHz, 44.1 kHz, 48 kHz

• This unit can play back MP3 files recorded in VBR (variable bit rate).

• The maximum number of characters for:

– Folder names : 32 characters – File names : 32 characters – MP3 Tag : 32 characters – WMA Tag : 32 characters

• This unit can recognize a total of 5 000 files, 255 folders (255 files per folder including folder without unsupported files), and of 8 hierarchies.

• This unit does not support SD card reader.

• This unit cannot recognize a USB device whose rating is other than 5 V and exceeds 500 mA.

• USB devices equipped with special functions such as data security functions cannot be used with the unit.

• Do not use a USB device with 2 or more partitions.

• This unit may not recognized a USB device connected through a USB card reader.

• This unit may not play back files in a USB device properly when using a USB extension cord.

• This unit cannot play back the following files:

– MP3 files encoded with MP3i and MP3 PRO format. – MP3 files encoded in an inappropriate format. – MP3 files encoded with Layer 1/2. – WMA files encoded in lossless, professional, and

voice format.

– WMA files not based on Windows Media® Audio.

Ejecting a disc or removing a USB device

• If the ejected disc is not removed within 15 seconds, it is automatically inserted into the loading slot again to protect it from dust.

Menu operations

Troubleshooting

What appears to be trouble is not always serious. Check the following points before calling a service center.

Symptoms Remedies/Causes

• Sound cannot be heard from the speakers. • Adjust the volume to the optimum level.

• Check the cords and connections.

• The unit does not work at all. Reset the unit (see page 3).

General

• “AUX IN” cannot be selected. Check the “SRC SELECT”

page 17).

• SSM automatic presetting does not work. Store stations manually.

• Static noise while listening to the radio. Connect the aerial firmly.

FM/AM

• “AM” cannot be selected. Check the “SRC SELECT”

page 17).

• Disc cannot be played back. Insert the disc correctly.

• CD-R/CD-RW cannot be played back.

• Tracks on the CD-R/CD-RW cannot be skipped.

• Disc can neither be played back nor ejected. • Unlock the disc (see page 10).

• Disc sound is sometimes interrupted. • Stop playback while driving on rough roads.

Discs in general

• “NO DISC” appears on the display. Insert a playable disc into the loading slot.

• “PLEASE” and “EJECT“ appear alternately on the display.

• Disc cannot be played back. • Use a disc with MP3/WMA tracks recorded in a format

• Noise is generated.

MP3/WMA playback

• Insert a finalized CD-R/CD-RW.

• Finalize the CD-R/CD-RW with the component which you used for recording.

• Eject the disc forcibly (see page 3).

• Change the disc.

• Check the cords and connections.

Press 0, then insert a disc correctly.

compliant with ISO 9660 Level 1, Level 2, Romeo, or Joliet.

• Add the extension code <.mp3> or <.wma> to the file names.

Skip to another track or change the disc. (Do not add the extension code <.mp3> or <.wma> to non-MP3 or WMA tracks.)

= “AUX IN” setting (see

= “AM” setting (see

ENGLISH

Continued on the next page

21REFERENCES

Symptoms Remedies/Causes

• A longer readout time is required (“READING” keeps flashing on the display).

• Tracks do not play back in the order you

ENGLISH

• Microsoft and Windows Media are either registered trademarks or trademarks of Microsoft Corporation in the

have intended them to play.

• The elapsed playing time is not correct. This sometimes occurs during playback. This is caused by

• “NO FILE” appears on the display. Selected folder is an empty folder*. Select another folder

MP3/WMA playback

• The correct characters are not displayed (e.g. album name).

• Noise is generated. The track played back is not an MP3/WMA track. Skip to

• “READING” keeps flashing on the display. • Readout time varies depending on the USB device.

• “NO FILE” appears on the display. Selected folder is an empty folder*. Select another folder

• Tracks/folders are not played back in the order you have intended.

USB device playback

• “CANNOT PLAY” flashes on the display.

• “NO USB” appears on the display.

• The unit cannot detect the USB device.

• Correct characters are not displayed (e.g. album name).

• While playing a track, sound is sometimes interrupted.

United States and/or other countries.

Do not use too many hierarchical levels and folders.

The playback order is determined when the files are recorded.

how the tracks are recorded on the disc.

that contains MP3/WMA tracks.

* Folder that is physically empty or folder that contains

data but does not contain valid MP3/WMA track.

This unit can only display Roman alphabets (upper case), Cyrillic alphabets (upper case), numbers, and a limited number of symbols (see page 2).

another file. (Do not add the extension code <.mp3> or <.wma> to non-MP3 or WMA tracks.)

• Do not use too many hierarchy or folders.

• Turn off the power then on again.

• Reattach the USB device again.

that contains MP3/WMA tracks.

* Folder that is physically empty or folder that contains

data but does not contain valid MP3/WMA track.

The playback order is determined by the write-in time stamp. The first track/folder written into the USB device will be the first track/folder for playback.

• Attach a USB device that contains tracks encoded in an appropriate format.

• Reattach the USB device again.

This unit can only display Roman alphabets (upper case), Cyrillic alphabets (upper case), numbers, and a limited number of symbols (see page 2).

The MP3/WMA tracks have not been properly copied into the USB device. Copy MP3/WMA tracks again into the USB device, and try again.

Maintenance

How to clean the connectors

Connectors

Moisture condensation

Moisture may condense on the lens inside the unit in the following cases:

• After starting the heater in the car.

• If it becomes very humid inside the car. Should this occur, the unit may malfunction. In this case, eject the disc and leave the unit turned on for a few hours until the moisture has evaporated.

How to handle discs

When removing a disc from its case, press down the center holder

of the case and lift the disc out, holding it by the edges.

• Always hold the disc by the edges. Do not touch its recording surface.

When storing a disc in its case, gently insert the disc around the center holder (with the printed surface facing up).

• Make sure to store discs in cases after use.

Center holder

To keep discs clean

A dirty disc may not play correctly. If a disc does become dirty, wipe it with a soft cloth in a straight line from center to edge.

• Do not use any solvents (for example, conventional record cleaner, spray, thinner, benzine, etc.) to clean discs.

To play new discs

Do not use the following discs:

Single CD (8 cm disc) Warped disc

Sticker and sticker residue Stick-on label

Unusual shape

Transparent or semi-

transparent parts on its

recording area

C-thru Disc (semi-

transparent disc)

ENGLISH

23REFERENCES

Specifications

AUDIO AMPLIFIER SECTION

Maximum Power Output: Front/Rear: 50 W per channel

ENGLISH

Continuous Power Output (RMS): Front/Rear: 19 W per channel into 4 Ω, 40 Hz to 20 000 Hz

at no more than 0.8% total harmonic distortion.

Load Impedance: 4 Ω (4 Ω to 8 Ω allowance)

Tone Control Range: Bass: ±12 dB (60 Hz, 80 Hz, 100 Hz, 200 Hz)

Q1.0, Q1.25, Q1.5, Q2.0

Middle: ±12 dB (0.5 kHz, 1.0 kHz, 1.5 kHz, 2.5 kHz)

Q0.75, Q1.0, Q1.25

Treble: ±12 dB (10.0 kHz, 12.5 kHz, 15.0 kHz,

17.5 kHz)

TUNER SECTION

Frequency Range: FM: 87.5 MHz to 108.0 MHz

FM-LO: 65.00 MHz to 74.00 MHZ AM: MW: 522 kHz to 1 620 kHz

LW: 144 kHz to 279 kHz

FM Tuner Usable Sensitivity: 11.3 dBf (1.0 μV/75 Ω)

50 dB Quieting Sensitivity: 16.3 dBf (1.8 μV/75 Ω) Alternate Channel Selectivity (400 kHz): 65 dB Frequency Response: 40 Hz to 15 000 Hz Stereo Separation: 30 dB

MW Tuner Sensitivity: 20 μV

Selectivity: 35 dB

LW Tuner Sensitivity: 50 μV

CD PLAYER SECTION

Type: Compact disc player Signal Detection System: Non-contact optical pickup

(semiconductor laser) Number of Channels: 2 channels (stereo) Frequency Response: 5 Hz to 20 000 Hz Dynamic Range: 93 dB Signal-to-Noise Ratio: 98 dB Wow and Flutter: Less than measurable limit MP3 Decoding Format: (MPEG1/2 Audio Layer 3) Max. Bit Rate: 320 kbps WMA (Windows Media® Audio) Decoding Format: Max. Bit Rate: 320 kbps

USB SECTION

GENERAL

Panel Size: 188 mm × 58 mm × 12 mm

Mass:

500 mA

1.3 kg (excluding accessories)

ENGLISH

Design and specifications are subject to change without notice.

25REFERENCES

Having TROUBLE with operation?

Please reset your unit

Refer to page of How to reset your unit

Затруднения при эксплуатации?

Пожалуйста, перезагрузите Ваше устройство

Для получения информации о перезагрузке Вашего устройства

обратитесь на соответствующую страницу

Маєте ПРОБЛЕМУ з функціонуванням?

Повторно налаштуйте систему

Див. сторінку “Як повторно налаштувати пристрій”

12, 3-чоме, Морійя-чо, Канагава-ку, Йокогама, Канагава 221-8520, Японія

Bіктор Компані оф Джепен Лімітед

EN, RU, UK

1008DTSMDTJEIN

GET0575-002A

[EE]

KD-R407

Installation/Connection Manual

Руководство по установке/подключению Керівництво зі встановлення та з’єднання

1008DTSMDTJEIN

EN, RU, UK

ENGLISH

This unit is designed to operate on 12 V DC, NEGATIVE ground electrical systems. If your vehicle does not have this system, a

voltage inverter is required, which can be purchased at JVC IN-CAR ENTERTAINMENT dealers.

WARNINGS

To prevent short circuits, we recommend that you disconnect the battery’s negative terminal and make all electrical connections before installing the unit.

• Be sure to ground this unit to the car’s chassis again after installation.

Notes:

• Replace the fuse with one of the specified rating. If the fuse blows frequently, consult your JVC IN-CAR ENTERTAINMENT dealer.

• It is recommended to connect speakers with a maximum power of more than 50 W (both at the rear and at the front, with an impedance of 4 Ω to 8 Ω). If the maximum power is less than 50 W, change “AMP GAIN” setting to prevent the speakers from being damaged (see page 17 of the INSTRUCTIONS).

• To prevent short circuits, cover the terminals of the UNUSED leads with insulating tape.

• The heat sink becomes very hot after use. Be careful not to touch it when removing this unit.

Heat sink / Радиатор / Радіатор

РУССКИЙ

ПРЕДУПРЕЖДЕНИЯ

• После установки обязательно заземлите данное

устройство на шасси автомобиля.

Примечания:

• Для предотвращения коротких замыканий обмотайте терминалы НЕИСПОЛЬЗУЕМЫХ проводов изоляционной лентой.

УКРАЇНА

Цей пристрій призначений для роботи під напругою 12 В постійного струму; з електричними системами, що мають заземлення ВІД’ЄМНОГО полюсу. Якщо ваше авто не

оснащене такою системою, потрібно використовувати інвертор напруги, який можна придбати у дилерів устаткування JVC для автомобілів.

ПОПЕРЕДЖЕННЯ

Для запобігання коротким замиканням рекомендується перед встановленням пристрою відключити від’ємну клему акумулятора та виконати усі електричні з’єднання.

• Переконайтеся у тому, що після закінчення встановлення пристрою, виконано його заземлення на шасі авто.

Примітки:

• Заміняти запобіжник можна тільки запобіжником із вказаними у специфікації номінальними характеристиками. Якщо запобіжники часто виходять з ладу, проконсультуйтеся з дилером устаткування JVC для автомобілів.

• Рекомендується підключати гучномовці з максимальною потужністю, що перевищує 50 Вт (як для розташованих спереду, так і для тих, що розміщуються позаду. Рекомендований діапазон опору: від 4 до 8 Ом). У разі, якщо потужність є меншою чим 50 Вт, змініть налаштування “AMP GAIN” (коефіцієнт підсилення) задля запобігання пошкодженню гучномовців (див. стор. 17 “ІНСТРУКЦІЇ”).

• Для запобігання коротким замиканням, заізолюйте клеми провідника, ЩО НЕ ВИКОРИСТОВУЄТЬСЯ, ізоляційною стрічкою.

• По закінчені роботи радіатор стає надто гарячим. Будьте обережні, не торкайтесь його при видалені цього пристрою.

PRECAUTIONS on power supply and speaker connections:

• DO NOT connect the speaker leads of the power cord to the car battery; otherwise, the unit will be seriously damaged.

• BEFORE connecting the speaker leads of the power cord to the speakers, check the speaker wiring in your car.

Parts list for installation and connection

The following parts are provided for this unit. If any item is missing, consult your JVC IN-CAR ENTERTAINMENT dealer immediately.

A / B Hard case/Control panel

Жесткий футляр/панель управления

Жорсткий футляр/Панель управління

ПРЕДОСТЕРЕЖЕНИЯ по питанию и подключению громкоговорителей:

•

НЕ подключайте провода громкоговорителей к аккумулятору автомобиля, иначе устройство будет повреждено.

Список деталей для установки и подключения

Sleeve

Муфта

Екран

ЗАСТЕРЕЖЕННЯ щодо приєднання джерела живлення та гучномовців:

• НЕ з’єднуйте провідники живлення гучномовців з акумулятором. Невиконання такої вимоги призведе до тяжкого ушкодження пристрою.

• ПЕРЕД тим, як з’єднати провідники живлення з гучномовцями, перевірте схему з’єднання гучномовців вашого авто.

Перелік деталей для встановлення та з’єднання

У комплекті з цим пристроєм надаються такі деталі. Якщо будь-яка з цих деталей відсутня, негайно зверніться до дилера устаткування JVC для автомобілів.

Trim plate

Декоративную панель

Знімна пластина

Power cord

Кабель питания

Шнур живлення

Mounting bolt (M4 × 5 mm; M5 × 12.5 mm)

Крепежный болт (M4 × 5 мм; M5 × 12.5 мм)

Монтажний болт (M4 × 5 мм; M5 × 12.5 мм)

Washer (ø5)

Шайба (њ5)

Шайба (ø5)

Rubber cushion

Резиновый чехол

Гумова прокладка

Lock nut (M5)

Фиксирующая гайка (M5)

Стопорна гайка (М5)

Handles

Рычаги

Ручки

INSTALLATION (IN-DASH MOUNTING)

• If you are not sure how to install this unit correctly, have it installed by a qualified technician.

УСТАНОВКА (УСТАНОВКА В ПРИБОРНУЮ ПАНЕЛЬ)

Do the required electrical connections.

Выполните необходимые подключения контактов, как показано на оборотной стороне этой инструкции.

Виконайте потрібні електричні з’єднання.

ВСТАНОВЛЕННЯ (МОНТАЖ НА ПРИЛАДОВУ ПАНЕЛЬ)

Наведена нижче ілюстрація демонструє типовий процес встановлення. У разі будь яких запитань або потреби у інформації щодо набору інструментів та спорядження, проконсультуйтеся з дилером устаткування JVC для автомобілів або з компанією, що постачає набір інструментів та спорядження.

• Якщо ви не впевнені щодо правильності встановлення цього пристрою, залучіть до його встановлення кваліфікованого спеціаліста.

Removing the unit

Before removing the unit, release the rear section.

Удаление устройства

Перед удалением устройства освободите заднюю часть.

When using the optional stay / При использовании дополнительной стойки / Використання додаткової стійки (постачається за окремим замовленням)

Fire wall

Стена

Вогнестійка стінка

Stay (option)

Стойка (дополнительно)

Стійка (на замовлення)

Bend the appropriate tabs to hold the sleeve firmly in place.

Отогните соответствующие фиксаторы, предназначенные для прочной установки корпуса.

Зігніть відповідні фіксатори для надійного встановлення екрану на його місці.

Видалення пристрою

Перед видаленням пристрою, ослабте кріплення тильної частини.

Insert the two handles, then pull them as illustrated so that the unit can be removed.

Вставьте два рычажка, затем потяните их, как показано на рисунке, чтобы вынуть устройство.

Вставте дві ручки, а потім потягніть їх на себе згідно з ілюстрацією, щоби витягти пристрій.

When installing the unit without using the sleeve / При установке устройства без использования муфты / Встановлення пристрою без екрану

In a Toyota car for example, first remove the car radio and install the unit in its place.

У таких авто, як, наприклад, “Тойота”, спершу зніміть радіоприймач, а на його місце встановіть пристрій.

Flat head screws (M5 × 8 mm)

Болты с плоской головкой (M5 × 8 мм)*

Гвинти з пласкими голівками (M5 × 8 mm)*

Dashboard

Приборная панель

Приладова панель

Install the unit at an angle of less than 30˚.

Установите устройство под углом менее 30°.

Встановіть пристрій під кутом меншим, ніж 30˚.

When you stand the unit, be careful not to damage the fuse on the

rear.

Not supplied for this unit.

Screw (option)

Винт (дополнительно)

Гвинт (на замовлення)

Устанавливайте устройство таким образом, чтобы не повредить предохранитель, расположенный сзади.

Не входят в комплект.

Bracket*

Кронштейн*

Pocket

Карман

Bracket*

Кронштейн*

Flat head screws (M5 × 8 mm)*

Болты с плоской головкой (M5 × 8 мм)*

Гвинти з пласкими голівками (M5 × 8 mm)*

Note : When installing the unit on the mounting bracket, make sure to use the 8 mm-long screws. If

longer screws are used, they could damage the unit.

Примечание : При установке устройства на крепежный кронштейн, используйте только винты длиной

8 мм. При использовании более длинных винтов можно повредить устройство.

Примітка : Встановлюючи пристрій на монтажні кронштейни, переконайтеся, що застосовуються

гвинти довжиною 8 мм. Якщо гвинти довші, вони можуть пошкодити пристрій.

При встановленні пристрою, будьте обережні, не пошкодьте

запобіжник, розташований у тильній частині.

Не входить до комплекту постачання цього пристрою.

ENGLISH

РУССКИЙ

УКРАЇНА

ELECTRICAL CONNECTIONS

If your car is equipped with the ISO connector / Если автомобиль оснащен разъемом ISO / розніманням за стандартом ISO

• Connect the ISO connectors as illustrated.

• Подключите разъемы ISO, как показано на рисунке.

• Приєднайте рознімання ISO, як рекомендовано на ілюстрації.

View from the lead side

Вид со стороны выводов

Вид зі сторони електричних виводів

Якщо ваше авто оснащене

From the car body

От корпуса автомобиля

Від корпусу авто

ISO connector of the supplied power cord

Разъем ISO шнура питания, входящего в комплект поставки

Рознімання ISO шнура живлення, що входить до комплекту постачання

ЭЛЕКТРИЧЕСКИЕ ПОДКЛЮЧЕНИЯ

ЕЛЕКТРИЧНІ З’ЄДНАННЯ

For some VW/Audi or Opel (Vauxhall) automobiles / Для некоторых автомобилей VW/Audi или Opel (Vauxhall) / Для деяких авто марки VW/Audi або Opel (Vauxhall)

You may need to modify the wiring of the supplied power cord as illustrated.

• Contact your authorized car dealer before installing this unit.

Возможно, потребуется изменить схему соединений для прилагаемого шнура питания, как показано на рисунке.

• Перед установкой приемника обратитесь к авторизованному агенту по продажам автомобильных систем. Вам, можливо, прийдеться внести зміни до з’єднання провідників шнура живлення згідно з ілюстрацією.

• Перед тим, як встановлювати цей пристрій, зв’яжіться з уповноваженим дилером вашого авто.

Original wiring / Исходная схема соединений / Початкова схема з’єднання рознімань

ISO connector

Разъем ISO

Рознімання ISO

Y: Yellow

Желтый

Жовтий

R: Red

Красный Червоний

Modified wiring 1 / Преобразованная схема соединений 1 / Змінена схема з’єднання рознімань 1

Use modified wiring 2 if the unit does not turn on.

Если приемник не включается, используйте преобразованную схему соединений 2.

Якщо пристрій не включається, скористуйтеся зміненою схемою з’єднання рознімань 2.

Modified wiring 2 / Преобразованная схема соединений 2 / Змінена схема з’єднання рознімань 2

Connections without using the ISO connector / Подключение без использования разъема ISO / З’єднання без допомоги з’єднувача ISO

Before connecting: Check the wiring in the vehicle carefully.

Incorrect connection may cause serious damage to this unit. The leads of the power cord and those of the connector from the car body may be different in color.

1 Cut the ISO connector. 2 Connect the colored leads of the power cord in the order

specified in the illustration below.

3 Connect the aerial cord. 4 Finally connect the wiring harness to the unit.

Rear line out (see diagram ) Разъем “line out” заднего динамика (см. схему ) Задній лінійний вихід (див. схему )

Aerial terminal

Разъем антенны

Рознімання антени

Rear ground terminal

Задний разъем заземления

Тильна клема заземлення

Перед началом подключений: Тщательно проверьте

проводку в автомобиле. Неправильное подключение может привести к серьезному повреждению устройства. Жилы силового кабеля и жилы соединителя от кузова автомобиля могут быть разного цвета.

1 Обрежьте разъем ISO. 2 Подсоедините цветные провода шнура питания в указанном

ниже порядке.

3 Подключите кабель антенны. 4

В последнюю очередь подключите электропроводку к устройству.

15 A fuse

Предохранитель 15 A

Запобіжник 15 А

Black

Черный

Чорний

To metallic body or chassis of the car

К металлическому корпусу или шасси автомобиля

На металічний корпус або на шасі авто

Перед тим, як з’єднати: Уважно перевірте електричну

схему з’єднання вашого авто Неправильне з’єднання може спричинити тяжке пошкодження вашого пристрою. Контакти шнура живлення та рознімання, яке йде від корпуса авто можуть мати різні кольори.

1 Від’єднайте рознімання ISO. 2 З’єднайте кольорові провідники шнура живлення у порядку,

що наведений нижче на ілюстрації.

3 Приєднайте провід антени. 4

Виконайте кінцеве приєднання джгута провідників до пристрою.

Ignition switch

Переключатель зажигания

Перемикач запалювання

White with black stripe

Белый с черной

полосой

Білий з чорною

смужкою

White

Белый

Білий

Left speaker (front)

Левый громкоговоритель (передний)

Лівий гучномовець (передній)

Gray with black stripe

Серый с черной полосой

Сірий з чорною смужкою

Yellow

Желтый*

Жовтий*

Red

Красный

Червоний

Blue with white stripe

Синий с белой полосой

Синій із білою смужкою

Brown

Коричневый

Коричневий

Gray

Серый

Сірий

Right speaker (front)

Правый громкоговоритель (передний)

Правий гучномовець (передній)

To a live terminal in the fuse block connecting to the car battery (bypassing the ignition switch) (constant 12 V)

К разъему фазы в блоке предохранителя (минуя блок зажигания) (постоянный 12 В)

На клему фази у блоці запобіжників для з’єднання з акумулятором авто (обминаючи перемикач запалення)—постійний струм 12 В

To an accessory terminal in the fuse block

К вспомогательному разъему в блоке предохранителя

На допоміжну клему у блоці запобіжників

Green with black stripe

Зеленый с черной полосой

Зелений з чорною смужкою

Fuse block

Блок предохранителя

Блок запобіжників

To the remote lead of other equipment or power aerial if any (200 mA max.)

К удаленному проводу другого оборудования или антенны (макс. 200 мА)

На провідник зовнішнього пристрою іншого обладнання або на антену (якщо встановлена) (максимальний струм 200 мА)

To cellular phone system

К системе сотового телефона

На систему стільникового телефону

Green

Зеленый

Зелений

Left speaker (rear)

Левый громкоговоритель (задний)

Лівий гучномовець (задній)

Purple with black stripe

Пурпурный с черной полосой

Пурпурний з чорною смужкою

Purple

Пурпурный

Пурпурний

Right speaker (rear)

Правый громкоговоритель (задний)

Правий гучномовець (задній)

Not supplied for this unit.

Before checking the operation of this unit prior to installation, this lead

must be connected, otherwise power cannot be turned on.

Не входит в комплект.

Перед проверкой работы устройства подключите этот провод,

иначе питание не включится.

Не входить до комплекту постачання цього пристрою.

Перед тим, як перевірити працездатність цього виробу до його

встановлення, цей контакт необхідно приєднати, інакше живлення на прилад подаватися не буде.

Connecting the external amplifier or subwoofer / Подключение внешнего усилителя или низкочастотного динамика / Приєднання зовнішнього підсилювача або низькочастотного динаміка

You can connect an amplifier to upgrade your car stereo system.

• Connect the remote lead (blue with white stripe) to the remote lead of the other equipment so that it can be controlled through this unit.

• Disconnect the speakers from this unit, connect them to

the amplifier. Leave the speaker leads of this unit unused.

Set “L/O MODE” to “REAR” (See page 17 of the INSTRUCTIONS.)

Для настройки “L/O MODE” установите значение “REAR” (см. ИНСТРУКЦИИ ПО ЭКСПЛУАТАЦИИ на стр. 17.)

У налаштуваннях режиму лінійного виходу (L/O MODE) задати REAR (задні колонки) - (див. стор. 17 цієї ІНСТРУКЦІЇ).

Можно подключить усилители для обновления автомобильной стереосистемы.

Remote lead

Провод внешнего устройства

Провідник зовнішнього пристрою

Remote lead (blue with white stripe)

Провод внешнего устройства (синий с белой полосой)

Провідник зовнішнього пристрою (синій із білою смужкою)

Signal cord (not supplied for this unit)

Кабель сигнала (не входит в комплект поставки)

Сигнальний шнур (не входить до комплекту постачання даного пристрою)

Для покращення характеристик стереосистеми, до неї можна підключити підсилювач.

• Підключіть провідник зовнішнього пристрою (синій з білою смужкою) до провідника зовнішнього пристрою іншого обладнання. Таким чином, ним можна буде керувати з цього пристрою.

• Відключіть гучномовці від цього пристрою, приєднайте

їх до підсилювача. Залиште провідники гучномовців такими, що не використовуються.

Y-connector (not supplied for this unit)

Разъем Y (не входит в комплект поставки)

Y-рознімання (двійник) (не входить до комплекту постачання даного пристрою)

To the remote lead of other equipment or power aerial if any

К удаленному проводу другого оборудования или антенны

На провідник зовнішнього пристрою іншого обладнання або на антену (якщо встановлена)

Rear speakers

громкоговорители

Set “L/O MODE” to “SUB.W” (See page 17 of the INSTRUCTIONS.)

Для настройки “L/O MODE” установите значение “SUB.W” (см. стр. 17 ИНСТРУКЦИЙ).

У налаштуваннях режиму лінійного виходу (L/O MODE) задати SUB.W (низькочастотний динамік) - (див. стор. 17 цієї ІНСТРУКЦІЇ).

Низкочастотный

Низькочастотний

Firmly attach the ground wire to the metallic body or to the chassis of

the car—to the place uncoated with paint (if coated with paint, remove the paint before attaching the wire). Failure to do so may cause damage to the unit.

Cut the rear speaker leads of the car’s ISO connector and connect them

to the amplifier.

Задние

Задні гучномовці

Remote lead

Провод внешнего устройства

Провідник зовнішнього пристрою

Subwoofer

динамик

динамік

JVC Amplifier

JVC-усилитель

Підсилювач JVC

JVC Amplifier

JVC-усилитель

Підсилювач JVC

или

або

Плотно прикрепите заземляющий провод к металлическому

кузову или шасси автомобиля—в месте, не покрытом краской (если оно покрыто краской, удалите краску перед тем, как прикреплять провод). Невыполнение этого требования может привести к повреждению данного устройства.

Обрежьте выводы задних динамиков для разъема ISO

автомобиля и подсоедините их к усилителю.

Rear speakers

Задние громкоговорители

Задні гучномовці Front speakers (see diagram

Передние громкоговорители (см. схему )

Передні гучномовці (див. схему

Надійно прикрутіть провідник заземлення до металічного корпусу

або до шасі авто у місці, яке не має фарбового покриття (якщо воно є, видаліть фарбу до підключення провідника). Невиконання цієї вимоги може призвести до пошкодження пристрою.

Відключіть провідники задніх гучномовців від рознімання ISO, що

належить до авто, та з’єднайте їх із підсилювачем.

)

TROUBLESHOOTING

• The fuse blows. * Are the red and black leads connected correctly?

• Power cannot be turned on. * Is the yellow lead connected?

• No sound from the speakers. * Is the speaker output lead short-circuited?

• Sound is distorted.

* Is the speaker output lead grounded? * Are the “–” terminals of L and R speakers grounded in common?

• Noise interfere with sounds. * Is the rear ground terminal connected to the car’s chassis using

shorter and thicker cords?

• This unit becomes hot.

* Is the speaker output lead grounded? * Are the “–” terminals of L and R speakers grounded in common?

• This unit does not work at all. * Have you reset your unit?

BЫЯВЛЕНИЕ НЕИСПРАВНОСТЕЙ

• Сработал предохранитель.

* Правильно ли подключены черный и красный провода?

• Питание не включается.

* Подключен ли желтый провод?

• Звук не выводится через громкоговорители.

* Нет ли короткого замыкания на кабеле выхода

громкоговорителей?

• Звук искажен.

* Заземлен ли провод выхода громкоговорителей? * Заземлены ли разъемы “–” правого (R) и левого (L)

громкоговорителей?

• Шум мешает звучанию.

* Соединен ли находящийся сзади зажим заземления с шасси

автомобиля с помощью более короткого и тонкого шнуров?

• Устройство нагревается.

* Заземлен ли провод выхода громкоговорителей? * Заземлены ли разъемы “–” правого (R) и левого (L)

громкоговорителей?

• Приемник не работает.

НЕСПРАВНОСТІ

• Вийшов з ладу запобіжник.

* Чи правильно приєднані червоний та чорний провідники?

• Не можна включити живлення.

* Чи приєднаний жовтий провідник?

• Звук з гучномовців відсутній.

* Чи не замкнуто “на коротко” вихідні провідники гучномовця?

• Звук спотворений.

* Чи не заземлені вихідні провідники гучномовця? * Чи заземлені разом провідники “–” лівого та правого

гучномовця?

• Звук чути з перешкодами.

* Чи приєднано тильну клему заземлення до шасі авто за

допомогою коротших та товстіших шнурів?

• Пристрій нагрівається.

* Чи не заземлені вихідні провідники гучномовця? * Чи заземлені разом провідники “–” лівого та правого

гучномовця?

• Цей пристрій не працює взагалі.

* Чи ви переналаштовували пристрій?

* Выполнена ли перенастройка приемника?

CD RECEIVER KD-R504

For canceling the display demonstration, see page 7.

For installation and connections, refer to the separate manual.

INSTRUCTIONS

GET0585-001A

[UI]

Thank you for purchasing a JVC product.

Please read all instructions carefully before operation, to ensure your complete understanding and to obtain the best

possible performance from the unit.

IMPORTANT FOR LASER PRODUCTS

1. CLASS 1 LASER PRODUCT

2. CAUTION: Do not open the top cover. There are no user serviceable parts inside the unit; leave all servicing to qualified service personnel.

3. CAUTION: Visible and/or invisible class 1M laser radiation when open. Do not view directly with optical instruments.

4. REPRODUCTION OF LABEL: CAUTION LABEL, PLACED OUTSIDE THE UNIT.

For safety...

• Do not raise the volume level too much, as this will

[European Union only]

block outside sounds, making driving dangerous.

• Stop the car before performing any complicated operations.

Temperature inside the car...

Warning:

If you need to operate the unit while driving, be sure to look around carefully or you may be involved in a traffic accident.

Caution on volume setting:

If you have parked the car for a long time in hot or cold weather, wait until the temperature in the car becomes normal before operating the unit.

This mark is used to indicate...

Turn the control dial to make a selection, then press to confirm the selection.

Detaching the control panel

Attaching the control panel

How to reset your unit

CONTENTS

Detaching the control panel ......................... 3

Attaching the control panel ......................... 3

How to reset your unit ................................. 3

How to forcibly eject a disc ........................... 3

OPERATIONS

Basic operations ........................................... 4

• Using the control panel ............................... 4

• Using the remote controller (RM-RK50) ...... 6

Preparation .................................................. 7

Listening to the radio ................................... 8

Disc operations ............................................. 9

Listening to the USB device .......................... 10

EXTERNAL DEVICES

Listening to the other external

components .............................................. 11

SETTINGS

Selecting a preset sound mode .................... 12

Title assignment .......................................... 13

Menu operations .......................................... 14

• Your preset adjustments will also be erased.

How to forcibly eject a disc

• You can forcibly eject the loaded disc even if the disc is locked. To lock/unlock the disc, see page 9.

• Be careful not to drop the disc when it ejects.

• If this does not work, reset your unit.

REFERENCES

More about this unit .................................... 16

Troubleshooting ........................................... 19

Maintenance ................................................ 21

Specifications ............................................... 22

Basic operations

Using the control panel

1 • FM/AM: Select preset station.

• CD/USB: Select folder.

2 • Turn on the power.

• Attenuate the sound (if the power is on).

• Turn off the power [Hold].

3 Select the source.

FM = AM *2 = CD *3 = USB = AUX IN *2 =

(back to the beginning)

4 • Enter list operations.

• Enter Menu setting [Hold] .

5 • Control the volume *

or select items [Turn].

• Confirm the selection [Press] .

• FM: Enter SSM preset mode [Hold] .

• CD/USB: Enter playback mode [Hold] . Pause/resume playback *4 [Press] .

6 Loading slot 7 Display window 8 Eject disc. 9 Select the sound mode.

p Detach the panel. q Change the display information. w • FM/AM: Search for station.

• CD/USB: Select track.

e Return to the previous menu. r Remote sensor t AUX (auxiliary) input jack y USB (Universal Serial Bus) input jack

*1 Also known as “Control dial” in this manual. *2 You cannot select these sources if they were disabled

in the Menu (see “SRC SELECT” in “Menu operations” on page 16).

*3 You cannot select “CD” as the playback source if no

disc is in the unit.

*4 You can still adjust the volume during pause when

the selected source is CD/USB. Before resume playback, check to be sure that you have not raise the volume level too much.

Display window

1 Tr (track) indicator 2 Source display / Track number / Folder number /

Time countdown indicator

3 DISC indicator 4 Sound mode indicators—CLASSIC, HIP HOP, JAZZ,

ROCK, POPS, USER

5 Playback mode / item indicators— RND (random),

(disc), (folder), RPT (repeat)

6 EQ (equalizer) indicator 7 LOUD (loudness) indicator 8 Disc information indicators—

TAG (Tag information), (track/file), (folder)

9 Main display p Tuner reception indicators—ST (stereo),

MO (monaural)

5OPERATIONS

Using the remote controller (RM-RK50)

Installing the lithium coin battery (CR2025)

Caution:

• Danger of explosion if battery is incorrectly replaced.

Replace only with the same or equivalent type.

• Battery shall not be exposed to excessive heat such as

sunshine, fire, or the like.

If the effectiveness of the remote controller decreases, replace the battery.

Before using the remote controller:

• Aim the remote controller directly at the remote

sensor on the unit.

• DO NOT expose the remote sensor to bright light

(direct sunlight or artificial lighting).

Remote sensor

1 • Turns the power on if pressed briefly or

• Turns the power off if pressed and held.

2 • Changes the preset stations.

• Changes the folder of the MP3/WMA.

3 Adjusts the volume level. 4 Selects the sound mode. 5 Selects the source. 6 • Searches for stations if pressed briefly.

• Fast-forwards or reverses the track if pressed and

• Changes the tracks if pressed briefly.

Warning (to prevent accidents and damage):

• Do not install any battery other than CR2025 or its equivalent.

• Do not leave the remote controller in a place (such as dashboards) exposed to direct sunlight for a long time.

• Store the battery in a place where children cannot reach.

• Do not recharge, short, disassemble, heat the battery, or dispose of it in a fire.

• Do not leave the battery with other metallic materials.

• Do not poke the battery with tweezers or similar tools.

• Wrap the battery with tape and insulate when throwing away or saving it.

attenuates the sound when the power is on.

held.

Preparation

Canceling the display demonstration and setting the clock

• See also page 14.

Turn on the power.

Press and hold until the main menu is called up.

[Turn] = [Press]

• Repeat this procedure.

Cancel the display demonstrations

Select “DEMO,” then “DEMO OFF.”

Set the clock

Select “CLOCK” = “CLOCK SET.” Adjust the hour, then press control dial once to proceed to adjust

the minute.

• To return to the previous menu, press BACK.

Changing the display information

FM/AM Frequency = Clock = Station name *1 = (back to the beginning)

CD/USB

If no title is assigned to a station, “NO NAME” appears. To assign a title to a station, see page 13.

*2 If the current disc is an audio CD, “NO NAME” appears. *3 If an MP3/WMA file does not have Tag information or “TAG DISPLAY” is set to “TAG OFF” (see page 14),

folder name and file name appear.

Audio CD/CD Text: Disc title/performer *

elapsed playing time = Current track number with the clock time = (back to the beginning)

MP3/WMA: Album name/performer (folder name) *3 = Track title (file name) *3 =

Current track number with the elapsed playing time = Current track number with the clock time = (back to the beginning)

= Track title *2 = Current track number with the

7OPERATIONS

Listening to the radio

1 2

Select “FM” or “AM.”

Search for a station to listen—Auto Search.

When a station is tuned in, searching stops. To stop searching, press the same button again.

• You can also search for a station manually—Manual Search. Hold either one of the buttons until “M” flashes on the display, then press it repeatedly.

• When receiving an FM stereo broadcast with sufficient signal strength, the ST indicator lights up on the display.

Improving the FM reception

When an FM stereo broadcast is hard to receive, activate monaural mode for better reception.

• See also page 14.

[Turn] = [Press]

Reception improves, but stereo effect will be lost.

• The MO indicator lights up on the display.

Storing stations in memory

Automatic presetting (FM)— SSM (Strongstation Sequential Memory)

You can preset up to 18 stations for FM.

1 While listening to a station...

2 Select the preset number range you want to

store.

To restore the stereo effect, repeat the same

procedure to select “MONO OFF.” The MO indicator goes off.

Local FM stations with the strongest signals are searched and stored automatically.

• To stop searching, press 4 /¢ .

To preset other 6 stations, repeat from step 1 again.

JVC GET0576-001A User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

INSTRUCTIONS

Basic operations

Preparation

Listening to the radio

Disc operations

Listening to the USB device

Listening to the other external components

Selecting a preset sound mode

Title assignment

Menu operations

Color settings

More about this unit

Troubleshooting

Maintenance

Specifications

WARNINGS

Parts list for installation and connection

Removing the unit

ELECTRICAL CONNECTIONS

TROUBLESHOOTING

INSTRUCTIONS

Basic operations

Preparation

Listening to the radio

Disc operations

Listening to the USB device

Listening to the other external components

Using the remote controller — RM-RK50

Selecting a preset sound mode

Menu operations

Color settings (for KD-R501)

More about this unit

Troubleshooting

Maintenance

Specifications

WARNINGS

Parts list for installation and connection

Removing the unit

ELECTRICAL CONNECTIONS ELEKTRISCHE ANSCHLÜSSE

TROUBLESHOOTING

INSTRUCTIONS

Basic operations

Preparation

Listening to the radio

Disc operations

Listening to the USB device

Listening to the other external components

Selecting a preset sound mode

Menu operations

More about this unit

Troubleshooting

Maintenance

Specifications

Installation/Connection Manual

WARNINGS

Parts list for installation and connection

INSTALLATION (IN-DASH MOUNTING)

Removing the unit

ELECTRICAL CONNECTIONS

TROUBLESHOOTING

INSTRUCTIONS

Basic operations

Preparation

Listening to the radio
