JVC GET0483-001A User Manual

CD RECEIVER KD-APD49/KD-PDR40

RECEPTOR CON CD KD-APD49/KD-PDR40

RÉCEPTEUR CD KD-APD49/KD-PDR40

For canceling the display demonstration, see page 6. Para cancelar la demostración en pantalla, consulte la página 6. Pour annuler la démonstration des affichages, référez-vous à la page 6.

ENGLISHESPAÑOLFRANÇAIS

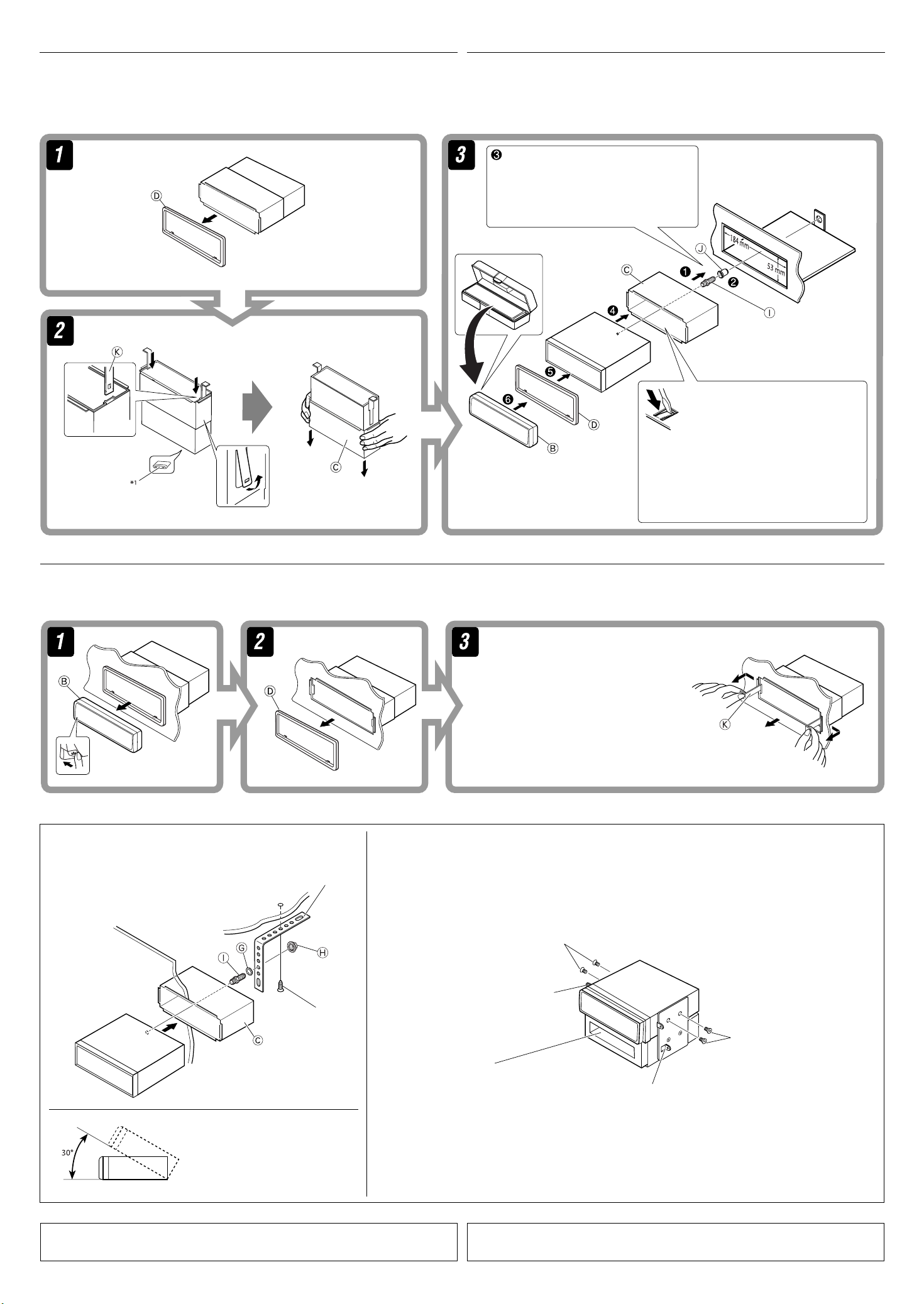

For installation and connections, refer to the separate manual. Para la instalación y las conexiones, refiérase al manual separado. Pour l’installation et les raccordements, se référer au manuel séparé.

INSTRUCTIONS

MANUAL DE INSTRUCCIONES

MANUEL D’INSTRUCTIONS

For customer Use:

Enter below the Model No. and Serial No. which are located on the top or bottom of the cabinet. Retain this information for future reference.

Model No. Serial No.

GET0483-001A

[J]

Thank you for purchasing a JVC product.

Please read all instructions carefully before operation, to ensure your complete understanding and to obtain the best

possible performance from the unit.

INFORMATION (For U.S.A.)

ENGLISH

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: – Reorient or relocate the receiving antenna. – Increase the separation between the equipment and receiver. – Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. – Consult the dealer or an experienced radio/TV technician for help.

Caution:

Changes or modifications not approved by JVC could void the user’s authority to operate the equipment.

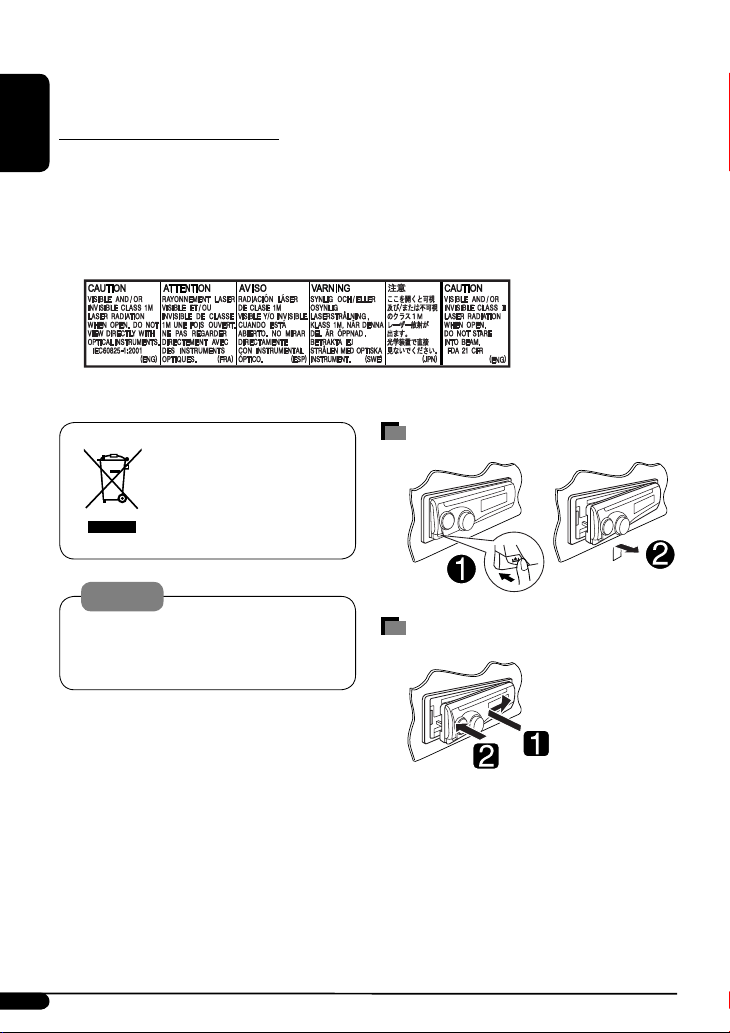

IMPORTANT FOR LASER PRODUCTS

1. CLASS 1 LASER PRODUCT

2. CAUTION: Do not open the top cover. There are no user serviceable parts inside the unit; leave all servicing to qualified service personnel.

3. CAUTION: (For U.S.A.) Visible and/or invisible class II laser radiation when open. Do not stare into beam.

(For Canada) Visible and/or invisible class 1M laser radiation when open. Do not view directly with

optical instruments.

4. REPRODUCTION OF LABEL: CAUTION LABEL, PLACED OUTSIDE THE UNIT.

[European Union only]

Warning:

If you need to operate the unit while driving, be sure to look around carefully or you may be involved in a traffic accident.

For safety...

• Do not raise the volume level too much, as this will block outside sounds, making driving dangerous.

• Stop the car before performing any complicated operations.

Temperature inside the car...

If you have parked the car for a long time in hot or cold weather, wait until the temperature in the car becomes normal before operating the unit.

How to reset your unit

• Your preset adjustments will also be erased.

How to forcibly eject a disc

• Be careful not to drop the disc when it ejects.

• If this does not work, reset your unit.

How to use the M MODE button

If you press M MODE, the unit goes into functions mode, then the number buttons and 5/∞ buttons will work as different function buttons.

Ex.: When number button 2 works as

MO (monaural) button.

Control panel — KD-APD49/KD-PDR40 ... 4

Remote controller —

Getting started ................................ 6

Basic operations ................................................... 6

Radio operations ............................. 7

Disc operations ................................ 8

Playing a disc in the unit ..................................... 8

iPod operations ............................... 10

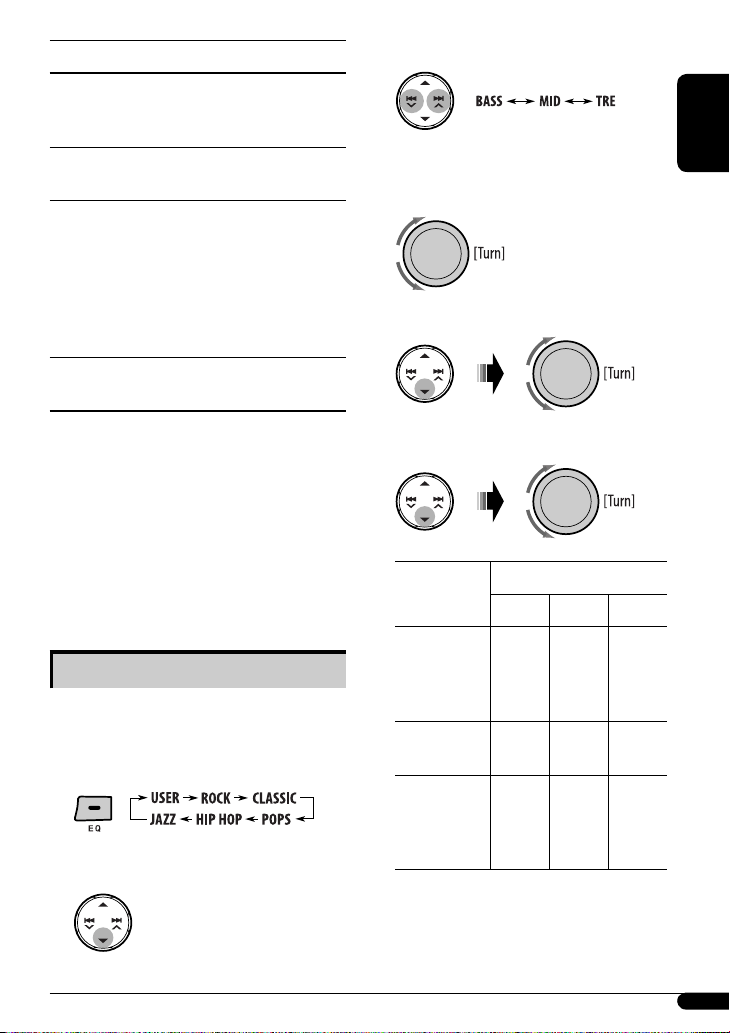

Sound adjustments .......................... 12

General settings — PSM .................. 14

Other external component

operations ................................... 16

Title assignment .............................. 16

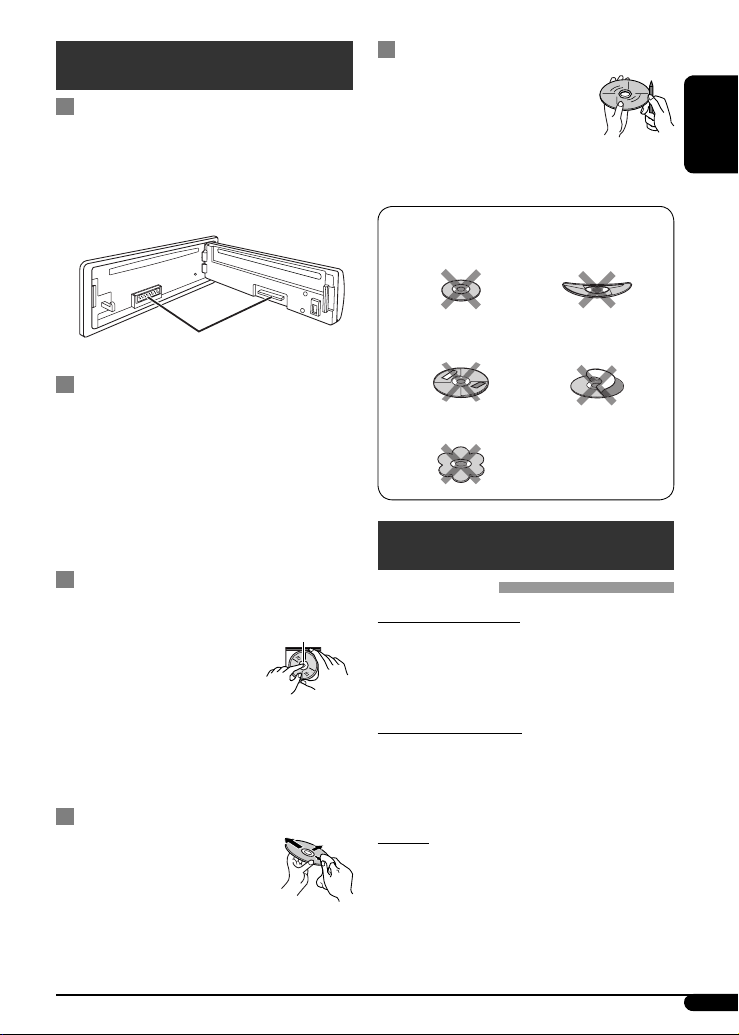

Maintenance ................................... 17

More about this unit ........................ 17

Troubleshooting .............................. 20

Specifications .................................. 22

The control panel illustrations used for explanation in this manual is of KD-APD49.

RM-RK50 ........... 5

ENGLISH

To use these buttons for their original functions again after pressing M MODE, press M MODE again.

• Waiting for about 5 seconds without pressing any of these buttons will automatically cancels the functions mode.

KD-APD49 is equipped with the steering wheel remote control function.

• See the Installation/Connection Manual (separate

volume) for connection.

Detaching the control panel

Attaching the control panel

Control panel — KD-APD49 / KD-PDR40

Parts identification

ENGLISH

1 5 (up) / ∞ (down) buttons 2 0 (eject) button 3 (standby/on attenuator) button 4 Control dial 5 Remote sensor

Display window

DO NOT expose the remote sensor to strong light

(direct sunlight or artificial lighting).

6 BAND button 7 Loading slot 8 Display window 9 EQ (equalizer) button p DISP (display) button q (control panel release) button w i (iPod) button e 4 /¢ buttons r SRC (source) button t SEL (select) button y M MODE button u MO (monaural) button i SSM (Strong-station Sequential Memory) button

o Number buttons ; RPT (repeat) button a RND (random) button s AUX (auxiliary) input jack d Source display / Track number / Folder number /

Time countdown indicator

f Tr (track) indicator g DISC indicator h Playback mode / item indicators— RND (random),

(disc), (folder), RPT (repeat)

j Tuner reception indicators—ST (stereo),

MO (monaural)

k Sound mode (iEQ: intelligent equalizer) indicators

—CLASSIC, HIP HOP, JAZZ, ROCK, POPS, USER

l LOUD (loudness) indicator / EQ (equalizer) indicator z Disc information indicators—

TAG (Tag information), (folder), (track/file)

x Main display

Remote controller — RM-RK50

Installing the lithium coin battery

(CR2025)

For USA-California Only: This product contains a CR Coin Cell Lithium Battery which contains Perchlorate Material—special handling may apply. See www.dtsc.ca.gov/hazardouswaste/perchlorate

Aim the remote controller directly at the remote sensor on the unit. Make sure there is no obstacle in between.

Warning:

• Do not install any battery other than CR2025 or its

equivalent; otherwise, it may explode.

• Do not leave the remote controller in a place

(such as the dashboard) exposed to direct sunlight for a long time; otherwise, it may explode.

• Store the battery in a place where children cannot

reach to avoid the risk of accidents.

• To prevent the battery from over-heating,

cracking, or starting a fire: – Do not recharge, short, disassemble, heat the

battery, or dispose of it in a fire.

– Do not leave the battery with other metallic

materials.

– Do not poke the battery with tweezers or

similar tools.

– Wrap the battery with tape and insulate when

throwing away or saving it.

Main elements and features

1 (standby/on/attenuator) button

• Turns the power on if pressed briefly or attenuates the sound when the power is on.

• Turns the power off if pressed and held.

2 5 U (up) / D (down) ∞ buttons

• Changes the FM/AM bands with 5 U.

• Changes the preset stations with D ∞.

• Changes the folder of the MP3/WMA discs.

• While listening to an Apple iPod.

– Enters the main menu if pressed and held. (Now 5 U/D ∞/2 R/F 3 work as the menu

selecting buttons.)

• While listening to an iPod (in menu selecting mode):

– Returns to the previous menu if pressed 5 U

briefly.

– Selects an item if pressed D ∞ briefly. (Then,

press and hold D ∞ to play back the selection directly.)

3 VOL – / VOL + buttons

• Adjusts the volume level.

4 SOUND button

•

Selects the sound mode (iEQ: intelligent equalizer).

5 SOURCE button

• Selects the source.

6 2 R (reverse) / F (forward) 3 buttons

• Searches for stations if pressed briefly.

• Fast-forwards or reverses the track if pressed and held.

• Changes the track if pressed briefly.

• While listening to an iPod (in menu selecting mode):

– Accelerated file search: Hold 2 R/F 3 to fast

skip during song search in the main menu.

ENGLISH

Getting started

Basic operations

~ Turn on the power.

ENGLISH

To drop the volume in a moment (ATT)

To restore the sound, press the button again.

To turn off the power

*1 You cannot select “CD” as the playback source

if there is no disc in the unit.

*2 “NO IPOD” appears if an iPod is not connected.

! For FM/AM tuner

⁄ Adjust the volume.

Volume level appears.

@ Adjust the sound as you want. (See

pages 12 and 13.)

Caution on volume setting:

Discs produce very little noise compared with other sources. Lower the volume before playing a disc to avoid damaging the speakers by the sudden increase of the output level.

Basic settings

• See also “General settings — PSM” on pages 14 and 15.

1 Canceling the display demonstrations Select “DEMO,” then “DEMO OFF.” 2 Setting the clock Select “CLOCK HOUR,” then adjust the hour. Select “CLOCK MIN” (minute), then adjust the

minute.

3 Finish the procedure.

To check the current clock time while the power is turned off

Clock time is shown on the display for about 5 seconds. See also page 14.

Radio operations

Lights up when receiving an FM stereo broadcast with sufficient signal strength.

Start searching for a station.

When an FM stereo broadcast is hard to receive

Lights up when monaural mode is activated.

Reception improves, but the stereo effect will be lost.

To restore the stereo effect, repeat the same procedure. “MONO OFF” appears and the MO indicator goes off.

Storing stations in memory

You can preset six stations for each band.

ENGLISH

When a station is received, searching stops. To stop searching, press the same button again.

To tune in to a station manually

In step ! above...

Select a desired station frequency.

FM station automatic presetting —

SSM (Strong-station Sequential Memory)

1 Select the FM band (FM1 – FM3) you want to

store into.

“SSM” flashes, then disappears when automatic presetting is over.

Local FM stations with the strongest signals are searched and stored automatically in the FM band.

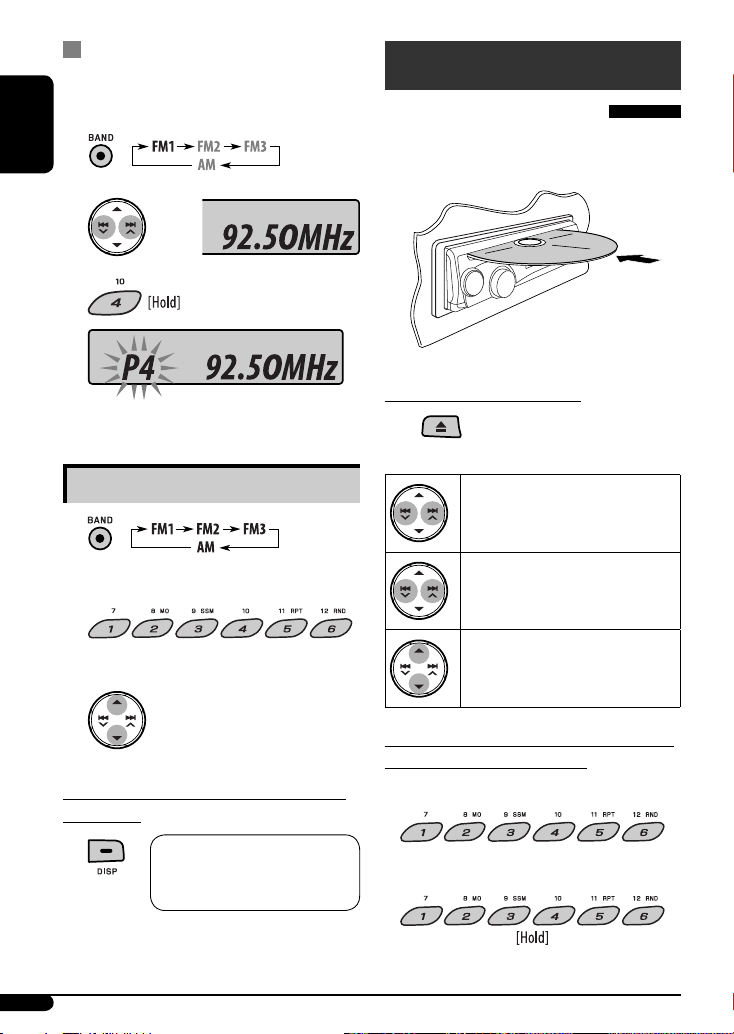

Manual presetting

Ex.: Storing the FM station of 92.50MHz into preset

number 4 of the FM1 band.

ENGLISH

Disc operations

Playing a disc in the unit

All tracks will be played repeatedly until you change the source or eject the disc.

Preset number flashes for a while.

Listening to a preset station

2 Select the preset station (1 – 6) you want.

To check other information while listening to the radio

Frequency = Clock = Station name * = (back to the

beginning)

* If no title is assigned to a station, “NO NAME” appears.

To assign a title to a station, see page 16.

To stop play and eject the disc

• Press SRC to listen to another playback source.

[Hold] To fast-forward or reverse the

track

[Press] To go to the next or previous

track

[Press] To go to the next or previous

folder (only for MP3 or WMA discs)

To locate a particular track (for CD) or folder (for MP3 or WMA discs) directly

To select a number from 01 – 06:

To select a number from 07 – 12:

• To use direct folder access on MP3/WMA discs, it is required that folders are assigned with 2-digit numbers at the beginning of their folder names— 01, 02, 03, and so on.

Changing the display information

To select a particular track in a folder

(for MP3 or WMA discs):

Other main functions

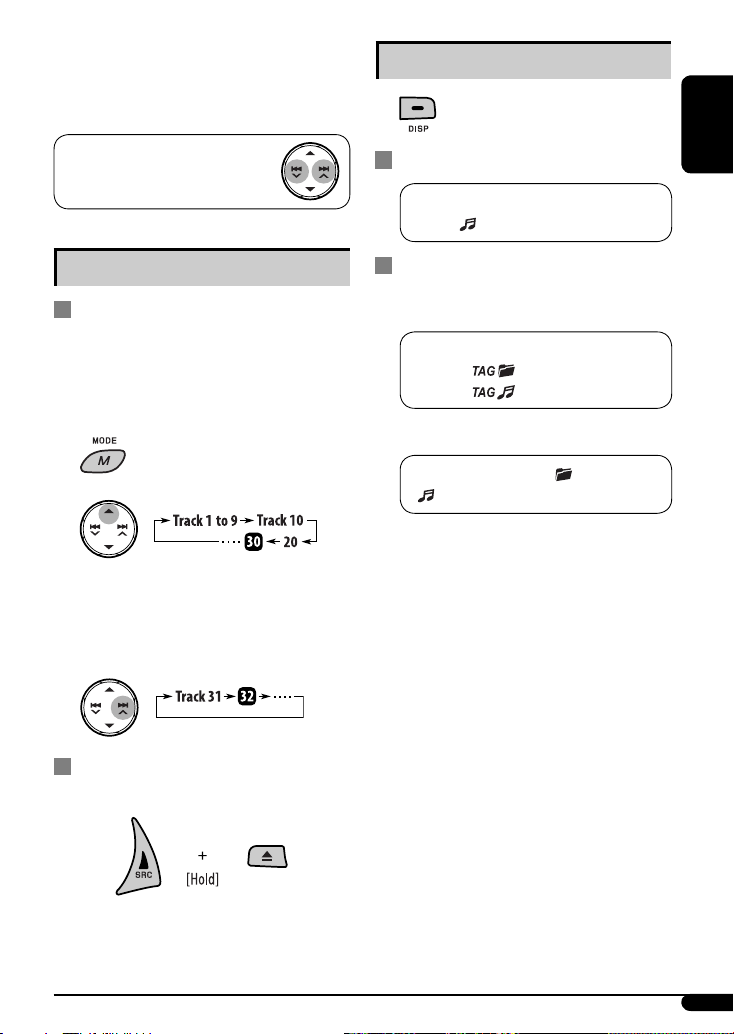

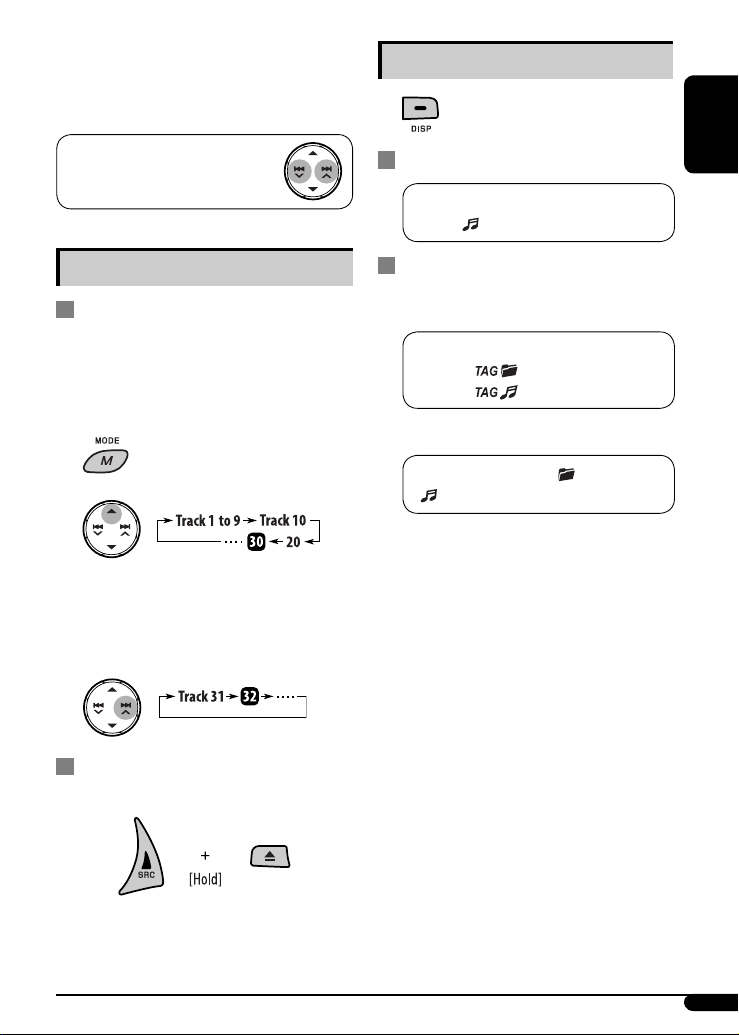

Skipping tracks quickly during play

• For MP3 or WMA discs, you can skip tracks within the same folder.

Ex.: To select track 32 while playing a track whose

number is a single digit (1 to 9)

Each time you press the button, you can skip 10 tracks.

• After the last track, the first track will be selected and vice versa.

While playing an audio CD or CD Text

A = B = Disc title/performer *1 = Track

title *1 [ ] = (back to the beginning)

While playing an MP3 or a WMA track

• When “TAG DISPLAY” is set to “TAG ON” (see page 15)

A = B = Album name/performer (folder

name *2) [ ] = Track title (file name *2) [ ] = (back to the beginning)

• When “TAG DISPLAY” is set to “TAG OFF”

A = B = Folder name [ ] = File name

[ ] = (back to the beginning)

A : Current track number with the elapsed playing

time

B : Current track number with the clock time [ ] : Corresponding indicator lights up on the display.

*1 If the current disc is an audio CD, “NO NAME” appears. *2 If an MP3/WMA file does not have Tag information,

folder name and file name appear. In this case, the TAG indicator will not light up.

ENGLISH

Prohibiting disc ejection

You can lock a disc in the loading slot.

“EJECT LOCK” flashes on the display. To cancel the prohibition, repeat the same procedure.

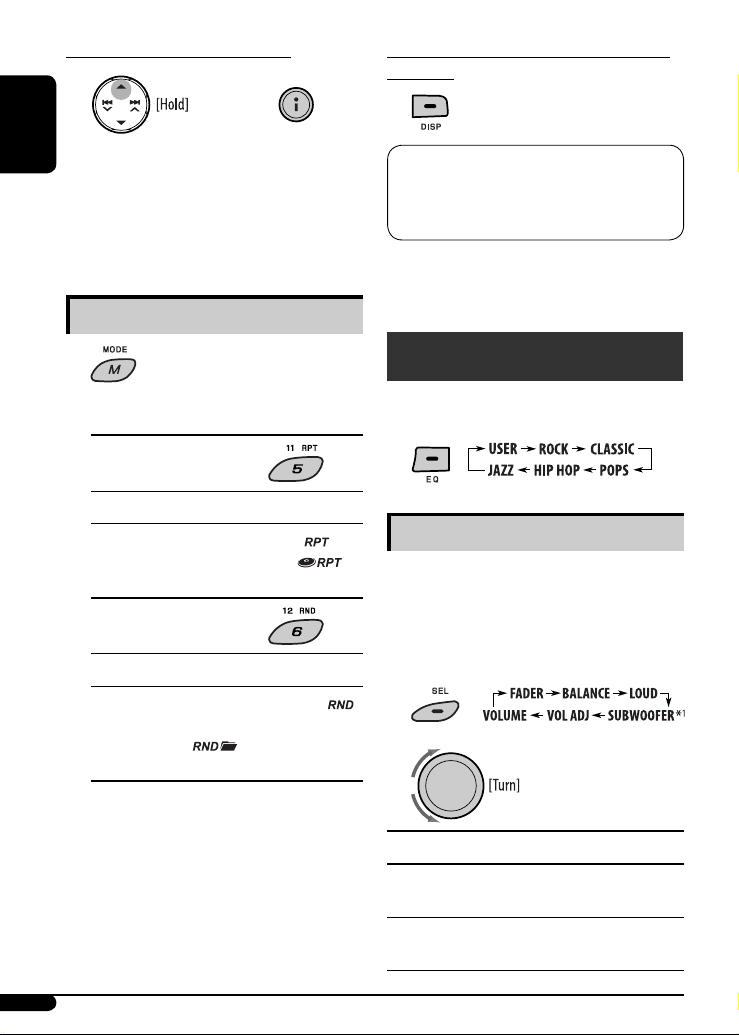

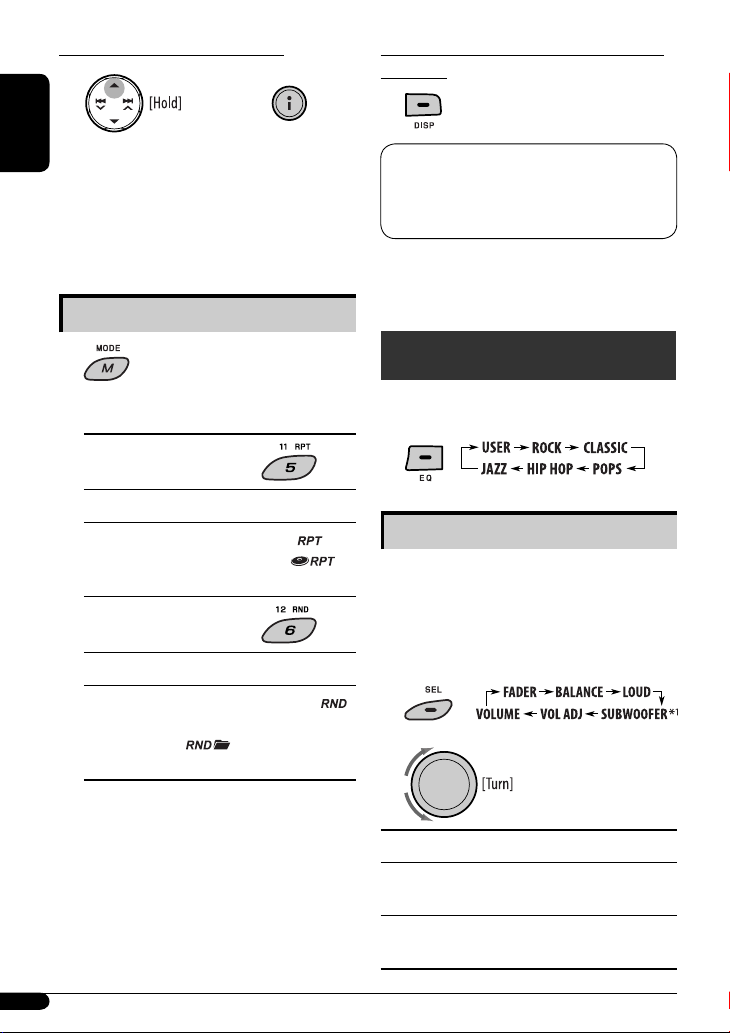

Selecting the playback modes

You can use only one of the following playback modes at a time.

ENGLISH

2 Select your desired playback mode.

7 Repeat play

Mode Plays repeatedly

TRACK RPT : The current track. [ FOLDER RPT * : All tracks of the current folder.

[ ]

RPT OFF : Cancels.

7 Random play

iPod operations

You can play songs in an Apple iPod by connecting it with the supplied direct connection cable for iPod. You can control playback from the unit or from your iPod.

• Disconnecting the iPod will stop playback. Press SRC to listen to another playback source.

Caution:

• Avoid using the iPod if it might hinder your safety while driving.

• Make sure all important data has been backed up

]

to avoid losing the data.

• For connection, see the Installation/Connection Manual (separate volume).

• For details, refer also to the manual supplied for your iPod.

Mode Plays at random

FOLDER RND * : All tracks of the current folder,

then the tracks of the next folder and so on. [

ALL RND : All tracks of the current disc.

[ ]

RND OFF : Cancels.

* Only while playing an MP3 or a WMA disc.

[ ] : Corresponding indicator lights up on the

display.

~ Connect an iPod.

Direct connection cable for iPod

]

If an iPod has been connected...

To directly select “IPOD” as the source while listening to another source or when the power is turned off.

Playback starts automatically from where it had been paused previously.

Ÿ Adjust the volume.

! Adjust the sound as you want. (See

pages 12 and 13.)

To control playback from your iPod

“IPOD MODE” appears on the

display.

• Press and hold this button again to control playback from the unit. “HEAD MODE” appears on the display.

Playback control from the unit

Selecting a track from the menu

1 Enter the main menu.

5/∞/4 /¢ /number

Now the buttons work as the menu selecting buttons.

2 Select the desired menu.

ENGLISH

[Press] Go to the next or previous

track

[Hold] Fast-forward or reverse the

track during playback

Fast-skip the menu items of

the main menu

[Hold] Enter the main menu (see the

right column).

[Press] Pause/resume playback.

[Press] Go to the top menu of “PLAYLIST,” “ARTIST,”

“ALBUM,” “SONG,” “PODCAST,” or “GENRE” in the main menu (see the right column).

[Hold] Go to the top menu of “COMPOSER” or

“AUDIOBOOK” in the main menu (see the right column).

PLAYLIST Ô ARTIST Ô ALBUM Ô SONG

Ô PODCASTÔ GENRE Ô COMPOSER Ô AUDIOBOOK Ô (back to the beginning)

• Pressing the number buttons can directly select the desired menu (see the left column for details).

3 Confirm the selection.

To move back to the previous menu, press 5.

• Holding the button will start play back the selected item directly.

• If a track is selected, playback starts automatically.

• If the selected item has another layer, you will enter the layer. Repeat steps 2 and 3 until the desired track is played.

• Accelerated file search: Hold 4 /¢ to fast skip during song search in the main menu.

Continued on the next page

To exit from menu selecting mode

To check other information while listening to an iPod

* The menu selecting mode will be canceled:

ENGLISH

– If no operations are performed for about

10 seconds. – When you confirm the selection of a track. – Pressing some other buttons such as DISP, SEL,

MODE, or EQ.

Selecting the playback modes

2 Select your desired playback mode.

7 Repeat play

Mode Playback functions (as on iPod)

ONE RPT : Same as “Repeat One.” [

ALL RPT : Same as “Repeat All.” [ ]

RPT OFF : Cancels.

7 Random play

Mode Playback functions (as on iPod)

SONG RND : Same as “Shuffle Songs.” [ ]

ALBUM RND * : Same as “Shuffle Albums.”

[ ]

RND OFF : Cancels.

* Functions only if you select “ALL” in “ALBUMS” of

the main menu.

Current track number with the elapsed playing time the clock time = Track title * = Album name/ performer * = (back to the beginning)

* When “TAG DISPLAY” is set to “TAG OFF” (see page 15),

file name and folder name appear.

= Current track number with

Sound adjustments

You can select a preset sound mode suitable to the music genre (iEQ: intelligent equalizer).

]

You can adjust the sound characteristics to your preference.

• The adjustment you make will be stored for the

Adjusting the sound

currently selected sound mode (iEQ) including “USER.”

[ ] : Corresponding indicator lights up on the

display.

Indication, [Range]

, [R06 to F06]

FADER * Adjust the front and rear speaker balance.

BALANCE * Adjust the left and right speaker balance.

, [L06 to R06]

Indication, [Range]

(loudness), [LOUD ON or LOUD OFF]

LOUD * Boost low and high frequencies to produce a well-balanced sound at a low volume level.

SUBWOOFER *

, [00 to 08, initial: 04]

Adjust the subwoofer output level.

VOL ADJ (volume adjust), [–05 to +05, initial: 00] Adjust the volume level of each source (except FM), in relation to the FM volume level. The volume level will automatically increase or decrease when you change the source.

• Before making an adjustment, select the source you want to adjust.

VOLUME, [00 to 50 or 00 to 30 ]*

Adjust the volume.

Displayed only when “L/O MODE” is set to “SUB.W”

(see page 15).

*2 If you are using a two-speaker system, set the fader

level to “00.”

This adjustment will not affect the subwoofer output.

* *4 The adjustment made (LOUD ON/LOUD OFF) will be

applied to all sound modes.

Depending on the amplifier gain control setting. (See

page 15 for details.)

Storing your own sound mode

You can adjust the sound modes and store your own adjustments in memory.

1 Select a sound mode.

2 Enter the adjustment mode.

• If no operation is done within 5 seconds, this mode is canceled.

3 Select a sound characteristic.

4 Adjust the sound elements of the selected

sound characteristic.

1 Adjust the frequency.

2 Adjust the level.

3 Adjust the quality slope (Q).

Sound elements

Frequency 60 Hz

Level –06 to

Q (Q-slope) Q0.5

Range/selectable items

BASS MID TRE

500 Hz

80 Hz

1.0 kHz

100 Hz

1.5 kHz

120 Hz

2.5 kHz

–06 to

+06

Q0.75

Q1.0

Q1.5

Q1.25

Q2.0

Q1.5

7.5 kHz

10.0 kHz

12.5 kHz

15.0 kHz

–06 to +06

Q0.75 Q1.25

BASS: Bass MID: Mid-range TRE: Treble

5 The adjustment made will be stored

automatically. Repeat steps 3 and 4 to adjust other sound characteristics.

ENGLISH

General settings — PSM

You can change PSM (Preferred Setting Mode) items listed in the table below and on page 15.

ENGLISH

2 Select a PSM item.

3 Adjust the PSM item selected.

4 Repeat steps 2 and 3 to adjust other PSM

items if necessary.

5 Finish the procedure.

Indications Item

( : Initial)

DEMO

Display demonstration

CLOCK DISP *

Clock display

CLOCK HOUR

Hour adjustment

CLOCK MIN

Minute adjustment

DIMMER

Dimmer

If the power supply is not interrupted by turning off the ignition key of your car, it is recommended that you select

“CLOCK OFF” to save the car’s battery.

• DEMO ON

• DEMO OFF

• CLOCK ON

• CLOCK OFF

1 – 12 [Initial: 1 (1:00)], [6].

00 – 59 [Initial: 00 (1:00)], [6].

• ON

• OFF

Setting, [reference page]

: The display demonstration will be activated automatically if no

operation is done for about 20 seconds, [6].

: Cancels.

: The clock time is shown on the display at all times when the power is

turned off.

: Cancels; pressing DISP will show the clock time for about 5 seconds

when the power is turned off, [6].

: Dims the display and button illumination. : Cancels.

Indications Item

Setting, [reference page]

( : Initial)

AUDIOBOOKS *

Speed control of “Audiobook”

SCROLL *

Scroll

• NORMAL

• FASTER

• SLOWER

• ONCE

• AUTO

• OFF

: You can select the playback speed of the “Audiobook” sound file in

your iPod.

: Scrolls the displayed information once. : Repeats scrolling (at 5-second intervals). : Cancels.

• Pressing DISP for more than one second can scroll the display regardless of the setting.

L/O MODE

Line output mode

• REAR

• SUB.W

: Select if the REAR LINE OUT terminals are used for connecting the

speakers (through an external amplifier).

: Select if the REAR LINE OUT terminals are used for connecting a

subwoofer (through an external amplifier).

SUB.W FREQ *

Subwoofer cutoff frequency

TAG DISPLAY

Tag display

AMP GAIN

Amplifier gain control

IF BAND

Intermediate frequency band

• LOW

• MID

• HIGH

• TAG ON

• TAG OFF

• LOW POWER

• HIGH POWER

• AUTO

• WIDE

: Frequencies lower than 90 Hz are sent to the subwoofer. : Frequencies lower than 135 Hz are sent to the subwoofer. : Frequencies lower than 180 Hz are sent to the subwoofer.

: Shows the Tag information while playing MP3/WMA tracks, [9]. : Cancels.

: VOLUME 00 – VOLUME 30. (Select this if the maximum power of the

speaker is less than 50 W to avoid damaging the speaker.)

: VOLUME 00 – VOLUME 50.

: Increases the tuner selectivity to reduce interference noise between

close stations. (The stereo effect may be lost.)

: Subject to interference noise from adjacent stations, but the sound

quality will not be degraded and the stereo effect will remain.

AREA

Tuner channel interval

• AREA US

• AREA EU

: When using in North/Central/South America. AM/FM intervals are

set to 10 kHz/200 kHz.

: When using in any other areas. AM/FM intervals are set to 9 kHz/

50 kHz (100 kHz during auto search).

• AREA SA

: When using in South American countries where FM interval is

100 kHz. AM interval is set to 10 kHz.

Displayed only when an iPod is connected and playback is controlled from the unit.

Some characters or symbols will not be shown correctly (or will be blanked) on the display.

Displayed only when “L/O MODE” is set to “SUB.W.”

ENGLISH

Other external component

Title assignment

operations

You can connect an external component to the AUX

ENGLISH

(auxiliary) input jack on the control panel.

Portable audio player, etc.

3.5 mm stereo mini plug (not supplied)

Ÿ Turn on the connected component and

start playing the source.

! Adjust the volume.

You can assign names to 30 station frequencies (FM and AM) and up to 8 characters for each station name.

1 Select FM/AM.

2 Show the title entry screen.

3 Assign a title.

1 Select a character.

2 Move to the next (or previous) character

position.

⁄ Adjust the sound as you want. (See

pages 12 and 13.)

To check other information while listening to an external component

Clock Ô AUX IN

3 Repeat steps 1 and 2 until you finish

entering the title.

4 Finish the procedure.

To erase the entire title

In step 2 above...

Maintenance

How to clean the connectors

Frequent detachment will deteriorate the connectors. To minimize this possibility, periodically wipe the connectors with a cotton swab or cloth moistened with alcohol, being careful not to damage the connectors.

Connectors

To play new discs

New discs may have some rough spots around the inner and outer edges. If such a disc is used, this unit may reject the disc. To remove these rough spots, rub the edges with a pencil or ball-point pen, etc.

Do not use the following discs:

Single CD

—8 cm (3-3/16”) disc

Warped disc

ENGLISH

Moisture condensation

Moisture may condense on the lens inside the unit in the following cases:

• After starting the heater in the car.

• If it becomes very humid inside the car. Should this occur, the unit may malfunction. In this case, eject the disc and leave the unit turned on for a few hours until the moisture has evaporated.

How to handle discs

When removing a disc from its case, press down the center holder

of the case and lift the disc out, holding it by the edges.

• Always hold the disc by the edges. Do not touch its recording surface.

When storing a disc in its case, gently insert the disc around the center holder (with the printed surface facing up).

• Make sure to store discs in cases after use.

Center holder

To keep discs clean

A dirty disc may not play correctly. If a disc does become dirty, wipe it with a soft cloth in a straight line from center to edge.

• Do not use any solvents (for example, conventional record cleaner, spray, thinner, benzine, etc.) to clean discs.

Sticker and

sticker residue

Unusual shape

Stick-on label

More about this unit

Basic operations

Turning on the power

• By pressing SRC (source) or i (iPod) button on the unit, you can also turn on the power. If the source is ready, playback also starts.

Turning off the power

• If you turn off the power while listening to a track, playback will start from where it had been stopped previously next time you turn on the power.

Continued on the next page

General

• If you change the source while listening to a disc or an iPod, playback stops.

Next time you select “CD” or “IPOD” as the playback

source, playback will start from where it had been

ENGLISH

stopped/paused previously.

• After ejecting a disc or disconnecting an iPod, “NO DISC” or “NO IPOD” appears and you cannot operate some of the buttons. Insert another disc, connect an iPod, or press SRC to select another playback source.

Tuner operations

Storing stations in memory

• During SSM search... – All previously stored stations are erased and the

stations are stored anew.

– Received stations are preset in No. 1 (lowest

frequency) to No. 6 (highest frequency).

– When SSM is over, the station stored in No. 1 will

be automatically tuned in.

• When storing a station manually, the previously preset station is erased when a new station is stored in the same preset number.

Disc operations

Caution for DualDisc playback

• The Non-DVD side of a “DualDisc” does not comply with the “Compact Disc Digital Audio” standard. Therefore, the use of Non-DVD side of a DualDisc on this product may not be recommended.

General

• This unit has been designed to reproduce CDs/CD Texts, and CD-Rs (Recordable)/CD-RWs (Rewritable) in audio CD (CD-DA), MP3 and WMA formats.

• When a disc is inserted upside down, “PLEASE” and “EJECT” appear alternately on the display. Press 0 to eject the disc.

• MP3 and WMA “tracks” (words “file” and “track” are used interchangeably) are recorded in “folders.”

• While fast-forwarding or reversing on an MP3 or WMA disc, you can only hear intermittent sounds.

Playing a CD-R or CD-RW

• Use only “finalized” CD-Rs or CD-RWs.

• This unit can only play back files of the same type as those which are detected first if a disc includes both audio CD (CD-DA) files and MP3/WMA files.

• This unit can play back multi-session discs; however, unclosed sessions will be skipped while playing.

• Some CD-Rs or CD-RWs may not play back on this unit because of their disc characteristics, or for the following reasons: – Discs are dirty or scratched. – Moisture condensation has occurred on the lens

inside the unit. – The pickup lens inside the unit is dirty. – The files on the CD-R/CD-RW are written using the

“Packet Write” method. – There are improper recording conditions (missing

data, etc.) or media conditions (stained, scratched,

warped, etc.).

•

CD-RWs may require a longer readout time since the reflectance of CD-RWs is lower than that of regular CDs.

• Do not use the following CD-Rs or CD-RWs: – Discs with stickers, labels, or a protective seal stuck

to the surface.

– Discs on which labels can be directly printed by an

ink jet printer.

Using these discs under high temperature or high

humidity may cause malfunctions or damage to the unit.

Playing an MP3/WMA disc

• This unit can play back MP3/WMA files with the extension code <.mp3> or <.wma> (regardless of the letter case—upper/lower).

• This unit can show the names of albums, artists (performer), and Tag (Version 1.0, 1.1, 2.2, 2.3, or

2.4) for MP3 files and for WMA files.

• This unit can display only one-byte characters. No other characters can be correctly displayed.

• This unit can play back MP3/WMA files meeting the conditions below: – Bit rate: 8 kbps — 320 kbps – Sampling frequency: 48 kHz, 44.1 kHz, 32 kHz (for MPEG-1) 24 kHz, 22.05 kHz, 16 kHz (for MPEG-2)

– Disc format: ISO 9660 Level 1/Level 2, Romeo,

Joliet, Windows long file name

• The maximum number of characters for file/folder names vary depending on the disc format used (includes 4 extension characters—<.mp3> or <.wma>). – ISO 9660 Level 1: up to 12 characters – ISO 9660 Level 2: up to 31 characters – Romeo: up to 128 characters – Joliet: up to 64 characters – Windows long file name: up to 128 characters

• This unit can recognize a total of 512 files, 255 folders, and 8 hierarchical levels.

• This unit can play back files recorded in VBR (variable bit rate).

Files recorded in VBR have a discrepancy in the

elapsed time display, and do not show the actual elapsed time. In particular, this difference becomes noticeable after performing the search function.

• This unit cannot play back the following files: – MP3 files encoded in MP3i and MP3 PRO format. – MP3 files encoded in an inappropriate format. – MP3 files encoded with Layer 1/2. – WMA files encoded in lossless, professional, and

voice format.

– WMA files which are not based upon Windows

Media® Audio. – WMA files copy-protected with DRM. – Files which have data such as AIFF, ATRAC3, etc.

• The search function works but search speed is not constant.

Ejecting a disc

• If the ejected disc is not removed within 15 seconds, it is automatically inserted into the loading slot again to protect it from dust. Playback starts automatically.

iPod operations

• Controllable iPod: – iPod mini – iPod G4 – iPod photo – iPod nano (1st & 2nd Generation) – iPod with video (5th Generation)

• Update your iPod to the latest software version before using it with this unit.

• When you turn on this unit, the iPod is charged through this unit.

• While connecting an iPod with Video: – No video shows on the iPod’s display or the

external monitor (only the audio part is available).

– It is not possible to browse video files on the

“Video“ menu. (If you connect the iPod during the playback or pausing of a video file, resuming playback will not work.)

• iPod shuffle cannot be used with this unit.

• You can control the iPod from this unit when “JVC” or

” appears on the iPod display after connection.

“

• The song order displayed on the selection menu of this unit may differ from that of the iPod.

• If playback is stopped, select a track from the selection menu or press BAND to playback the same track again.

• The text information may not be displayed correctly: – Some characters such as accented letters cannot be

shown correctly on the display.

– Communication between the iPod and the unit is

not stable.

• If the text information includes more than 11 characters, it scrolls on the display. This unit can display up to 64 characters.

Notice:

When operating an iPod, some operations may not be performed correctly or as intended. In this case, visit the following JVC web site: <http://www.jvc-victor.co.jp/english/car/>

General settings—PSM

• If you change the “AMP GAIN” setting from “HIGH POWER” to “LOW POWER” while the volume level is set higher than “VOLUME 30,” the unit automatically changes the volume level to “VOLUME 30.”

ENGLISH

Continued on the next page

Preset value setting for each sound mode

Preset value

Sound mode

ENGLISH

USER 60 Hz 00 Q1.0 1.0 kHz 00 Q1.25 7.5 kHz 00 Q1.25 ROCK 100 Hz +03 Q1.0 1.0 kHz 00 Q1.25 10.0 kHz +02 Q1.25 CLASSIC 80 Hz +01 Q1.0 1.0 kHz 00 Q1.25 10.0 kHz +03 Q1.25 POP 100 Hz +02 Q1.0 1.0 kHz +01 Q1.25 10.0 kHz +02 Q1.25 HIP HOP 60 Hz +04 Q1.0 1.0 kHz –02 Q1.0 10.0 kHz +01 Q1.25 JAZZ 80 Hz +03 Q1.0 1.0 kHz 00 Q1.25 10.0 kHz +03 Q1.25

Freq.: Frequency Q: Q-slope

BASS (bass) MID (mid-range) TRE (treble) LOUD

Freq. Level Q Freq. Level Q Freq. Level Q

Troubleshooting

What appears to be trouble is not always serious. Check the following points before calling a service center.

Symptoms Remedies/Causes

• Sound cannot be heard from the speakers. • Adjust the volume to the optimum level.

• Check the cords and connections.

General

• The unit does not work at all. Reset the unit (see page 3).

• SSM automatic presetting does not work. Store stations manually.

FM/AM

• Static noise while listening to the radio. Connect the antenna firmly.

(loudness)

OFF

• Disc cannot be played back. Insert the disc correctly.

• CD-R/CD-RW cannot be played back.

• Tracks on the CD-R/CD-RW cannot be skipped.

• Disc can neither be played back nor ejected. • Unlock the disc (see page 9).

• Disc sound is sometimes interrupted. • Stop playback while driving on rough roads.

Disc playback

• “NO DISC” appears on the display.

• “PLEASE” and “EJECT“ appear alternately on the display.

• Insert a finalized CD-R/CD-RW.

• Finalize the CD-R/CD-RW with the component which you used for recording.

• Eject the disc forcibly (see page 3).

• Change the disc.

• Check the cords and connections.

Insert a playable disc into the loading slot.

Symptoms Remedies/Causes

• Disc cannot be played back. • Use a disc with MP3/WMA tracks recorded in a format compliant with ISO 9660 Level 1, Level 2, Romeo, or Joliet.

• Add the extension code <.mp3> or <.wma> to the file names.

• Noise is generated. Skip to another track or change the disc. (Do not add the extension code <.mp3> or <.wma> to non-MP3 or WMA tracks.)

ENGLISH

• A longer readout time is required (“READING”

keeps flashing on the display).

MP3/WMA playback

• Tracks do not play back in the order you have

intended them to play.

• The elapsed playing time is not correct. This sometimes occurs during playback. This is caused by

• The correct characters are not displayed (e.g.

album name).

• The iPod does not turn on or does not work. • Check the connecting cable and its connection.

• The sound is distorted. Deactivate the equalizer either on the unit or the iPod.

• “NO IPOD” appears on the display. • Check the connecting cable and its connection.

• Playback stops. The headphones are disconnected during playback. Turn

• No sound can be heard when connecting an

iPod playback

iPod nano.

• “NO FILES” appears on the display. No tracks are stored. Import tracks to the iPod.

• The iPod’s controls do not work after

disconnecting from this unit.

Do not use too many hierarchical levels and folders.

The playback order is determined when the files are recorded.

how the tracks are recorded on the disc.

This unit can only display letters (upper case), numbers, and a limited number of symbols.

• Update the firmware version.

• Charge the battery.

off the unit’s power and turn it on again.

• Disconnect the headphones from the iPod nano.

• Update the firmware version of the iPod nano.

Reset the iPod.

• “CANNOT PLAY” appears on the display. Communication error occurs. Disconnect and connect the cable to the iPod again.

Specifications

AUDIO AMPLIFIER SECTION

Power Output: 20 W RMS × 4 Channels at 4 Ω

ENGLISH

Signal-to-Noise Ratio: 80 dBA (reference: 1 W into 4 Ω)

Load Impedance: 4 Ω (4 Ω to 8 Ω allowance)

Tone Control Range: Bass: ±12 dB (60 Hz, 80 Hz, 100 Hz, 120 Hz)

Frequency Response: 40 Hz to 20 000 Hz

Line-Out Level/Impedance: KD-APD49: 5.0 V/20 kΩ load (full scale)

Subwoofer-Out Level/Impedance: KD-APD49: 5.0 V /20 kΩ load (full scale)

Output Impedance: 1 kΩ

Other Terminal: AUX (auxiliary) input jack, iPod connector,

TUNER SECTION

Frequency Range: FM: with channel interval set to 100 kHz

FM Tuner Usable Sensitivity: 11.3 dBf (1.0 μV/75 Ω)

AM Tuner Sensitivity: 20 μV

and ≤ 1% THD+N

Mid-range: ±12 dB (500 Hz, 1 kHz, 1.5 kHz, 2.5 kHz)

Treble: ±12 dB (7.5 kHz, 10 kHz, 12.5 kHz, 15 kHz)

Q (Q-slope): Q0.5 to Q2.0

KD-PDR40: 2.5 V/20 kΩ load (full scale)

Steering wheel remote input (only for KD-APD49)

87.5 MHz to 107.9 MHz

or 200 kHz

with channel interval set to 50 kHz 87.5 MHz to 108.0 MHz

AM: with channel interval set to 10 kHz 530 kHz to 1 710 kHz

with channel interval set to 9 kHz 531 kHz to 1 602 kHz

50 dB Quieting Sensitivity: 16.3 dBf (1.8 μV/75 Ω)

Alternate Channel Selectivity (400 kHz): 65 dB

Frequency Response: 40 Hz to 15 000 Hz

Stereo Separation: 35 dB

Selectivity: 35 dB

CD PLAYER SECTION

Type: Compact disc player

Signal Detection System: Non-contact optical pickup

(semiconductor laser)

Number of Channels: 2 channels (stereo)

Frequency Response: 5 Hz to 20 000 Hz

Dynamic Range: 96 dB

Signal-to-Noise Ratio: 98 dB

Wow and Flutter: Less than measurable limit

MP3 Decoding Format: (MPEG1/2 Audio Layer 3)

WMA (Windows Media® Audio) Decoding Format:

GENERAL

Power Requirement: Operating Voltage: DC 14.4 V (11 V to 16 V allowance)

Grounding System: Negative ground

Allowable Operating Temperature: 0°C to +40°C (32°F to 104°F)

Dimensions (W × H × D): (approx.) Installation Size: 182 mm × 52 mm × 160 mm

Mass:

Max. Bit Rate: 320 kbps

(7-3/16” × 2-1/16” × 6-5/16”)

Panel Size: 188 mm × 58 mm × 6 mm

(7-7/16” × 2-5/16” × 1/4”)

1.3 kg (2.9 lbs) (excluding accessories)

ENGLISH

Design and specifications are subject to change without notice.

If a kit is necessary for your car, consult your telephone directory for the nearest car audio speciality shop.

• Microsoft and Windows Media are either registered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries.

• iPod is a trademark of Apple Inc., registered in the U.S. and other countries.

Having TROUBLE with operation?

Please reset your unit

Refer to page of How to reset your unit

Still having trouble??

USA ONLY

Call 1-800-252-5722

http://www.jvc.com

We can help you!

EN, SP, FR

1107DTSMDTJEIN

GET0483-002A

[J]

KD-APD49/KD-PDR40

Installation/Connection Manual Manual de instalación/conexión Manuel d’installation/raccordement

1107DTSMDTJEIN

EN, SP, FR

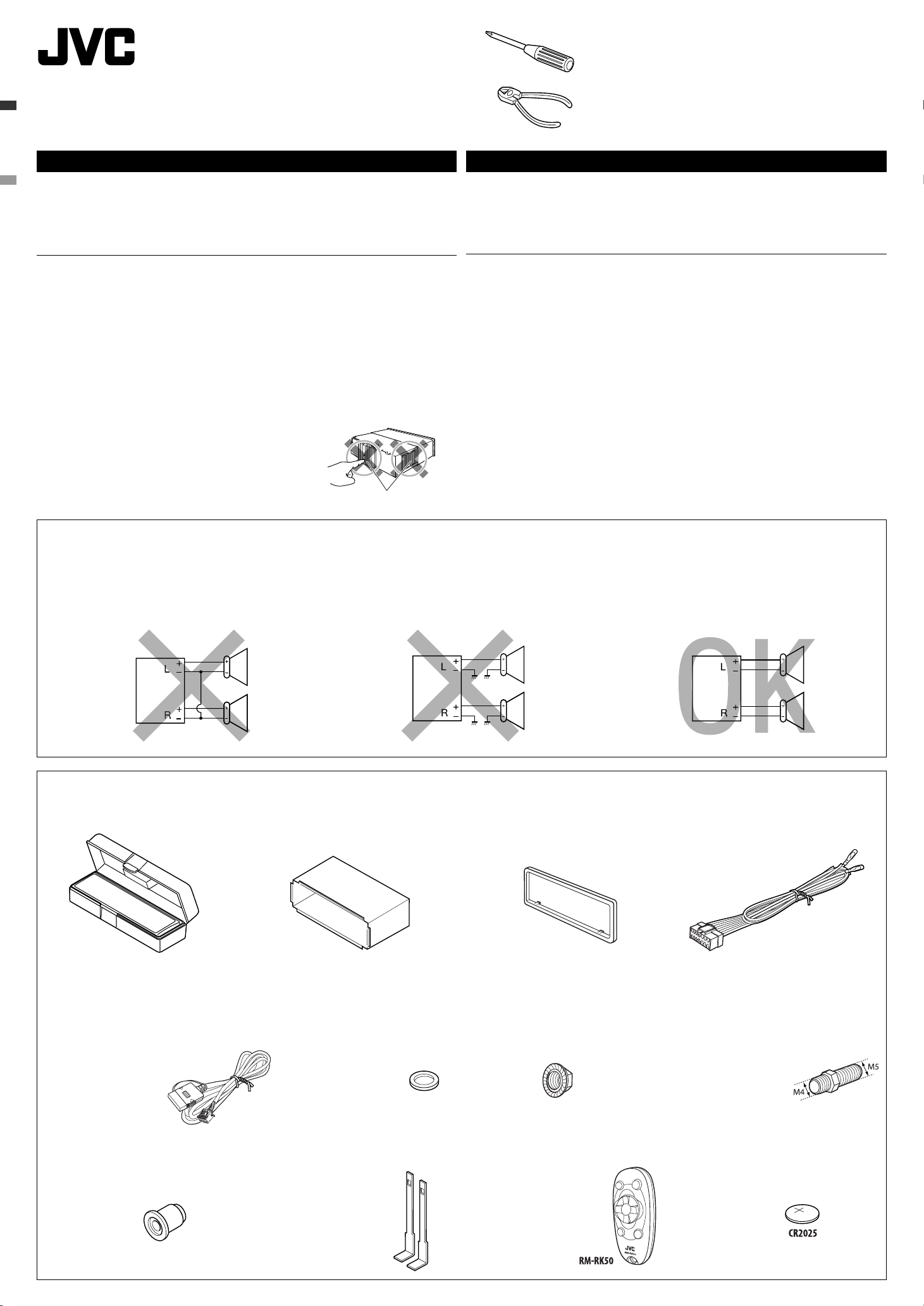

ENGLISH

This unit is designed to operate on 12 V DC, NEGATIVE ground electrical systems. If your vehicle does not have this system, a

voltage inverter is required, which can be purchased at JVC car audio dealers.

WARNINGS

To prevent short circuits, we recommend that you disconnect the battery’s negative terminal and make all electrical connections before installing the unit.

• Be sure to ground this unit to the car’s chassis again after

installation.

Notes:

• Replace the fuse with one of the specified rating. If the fuse blows

frequently, consult your JVC car audio dealer.

• It is recommended to connect speakers with a maximum power

of more than 50 W (both at the rear and at the front, with an impedance of 4 Ω to 8 Ω). If the maximum power is less than 50 W, change “AMP GAIN” setting to prevent the speakers from being damaged (see page 15 of the INSTRUCTIONS).

• To prevent short circuits, cover the terminals of the UNUSED leads

with insulating tape.

• The heat sink becomes very hot after use. Be careful not to touch it

when removing this unit.

ESPAÑOL

Esta unidad está diseñada para funcionar con 12 V de CC, con sistemas eléctricos de masa NEGATIVA. Si su vehículo no posee

este sistema, será necesario un inversor de tensión, que puede ser adquirido en los concesionarios de JVC de equipos de audio para automóviles.

ADVERTENCIAS

Para evitar cortocircuitos, recomendamos que desconecte el terminal negativo de la batería y que efectúe todas las conexiones eléctricas antes de instalar la unidad.

• Asegúrese de volver a conectar a masa esta unidad al chasis

del automóvil después de la instalación.

Notas:

• Reemplace el fusible por uno con la corriente especificada. Si el

fusible se quemase frecuentemente consulte con su concesionario de JVC de equipos de audio para automóviles.

• Se recomienda conectar altavoces que tengan una potencia máxima

de más de 50 W (tanto en las partes delantera como trasera, con una impedancia de 4 Ω á 8 Ω). Si la potencia máxima es de menos de 50 W, cambie “AMP GAIN” para evitar daños en los altavoces (consulte la página 15 del MANUAL DE INSTRUCCIONES).

• Para evitar cortocircuitos, cubra los terminales de los conductores

NO UTILIZADOS con cinta aislante.

• El sumidero térmico estará muy caliente después del uso. Asegúrese

de no tocarlo al desmontar esta unidad.

FRANÇAIS

Cet appareil est conçu pour fonctionner sur des sources de courant continu de 12 V à masse NEGATIVE. Si votre véhicule n’offre pas ce

type d’alimentation, il vous faut un convertisseur de tension, que vous pouvez acheter chez un revendeur d’autoradios JVC.

AVERTISSEMENTS

Pour éviter tout court-circuit, nous vous recommandons de débrancher la borne négative de la batterie et d’effectuer tous les raccordements électriques avant d’installer l’appareil.

• Assurez-vous de raccorder de nouveau la mise à la masse de

cet appareil au châssis de la voiture après l’installation.

Remarques:

• Remplacer le fusible par un de la valeur précisée. Si le fusible saute

souvent, consulter votre revendeur d’autoradios JVC.

• Il est recommandé de connecter des enceintes avec une puissance

maximum de plus de 50 W (à l’arrière et à l’avant et avec une impédance de 4 Ω à 8 Ω). Si la puissance maximum est inférieure à 50 W, changez “AMP GAIN” pour éviter d’endommager vos enceintes (voir page 15 du MANUEL D’INSTRUCTIONS).

• Pour éviter les courts-circuits, recouvrez les extrémités des fils

INUTILISÉS avec une bande isolante.

• Le dissipateur de chaleur devient très chaud après usage. Faire

attention de ne pas le toucher en retirant cet appareil.

Heat sink / Sumidero térmico / Dissipateur de chaleur

PRECAUTIONS on power supply and speaker connections:

• DO NOT connect the speaker leads of the power cord to the

car battery; otherwise, the unit will be seriously damaged.

• BEFORE connecting the speaker leads of the power cord to the

speakers, check the speaker wiring in your car.

Parts list for installation and connection

The following parts are provided for this unit. If any item is missing, consult your JVC car audio dealer immediately.

PRECAUCIONES sobre las conexiones de la fuente de alimentación y de los altavoces:

• NO conecte los conductores de altavoz del cable de

alimentación a la batería de automóvil, pues podrían producirse graves daños en la unidad.

• ANTES de conectar a los altavoces los conductores de altavoz del

cable de alimentación, verifique el conexionado de altavoz de su automóvil.

Lista de piezas para instalación y conexión

Con esta unidad se suministran las siguientes piezas. Si hay algún elemento faltante, consulte inmediatamente con su concesionario de JVC de equipos de audio para automóviles.

PRECAUTIONS sur l’alimentation et la connexion des enceintes:

• NE CONNECTEZ PAS les fils d’enceintes du cordon

d’alimentation à la batterie; sinon, l’appareil serait sérieusement endommagé.

• AVANT de connecter les fils d’enceintes du cordon d’alimentation

aux enceintes, vérifiez le câblage des enceintes de votre voiture.

Liste des pièces pour l’installation et raccordement

Les pièces suivantes sont fournies avec cet appareil. Si quelque chose manquait, consultez votre revendeur autoradio JVC immédiatement.

A / B Hard case/Control panel

Estuche duro/Panel de control

Etui de transport/Panneau de commande

Direct connection cable for iPod

Cable de conexión directa para iPod

Câble de connexion directe pour iPod

Rubber cushion

Cojín de goma

Amortisseur en caoutchouc

Sleeve

Cubierta

Manchon

Washer (ø5)

Arandela (ø5)

Rondelle (ø5)

Handles

Manijas

Poignées

Lock nut (M5)

Tuerca de seguridad (M5)

Ecrou d’arrêt (M5)

Remote controller

Control remoto

Télécommande

Trim plate

Placa de guarnición

Plaque d’assemblage

Power cord

Cordón de alimentación

Cordon d’alimentation

Mounting bolt—M4 × 5 mm (M4 × 1/4"); M5 × 12.5 mm (M5 × 1/2")

Perno de montaje—M4 × 5 mm (M4 × 1/4 pulgada); M5 × 12,5 mm (M5 × 1/2 pulgada)

Boulon de montage—M4 × 5 mm (M4 × 1/4 pouces); M5 × 12,5 mm (M5 × 1/2 pouces)

Battery

Pila

Pile

INSTALLATION

INSTALACION (MONTAJE EN EL

INSTALLATION (MONTAGE

(IN-DASH MOUNTING)

The following illustration shows a typical installation. If you have any questions or require information regarding installation kits, consult your JVC car audio dealer or a company supplying kits.

• If you are not sure how to install this unit correctly, have it installed

by a qualified technician.

TABLERO DE INSTRUMENTOS)

La siguiente ilustración muestra una instalación típica. Si tiene alguna pregunta o necesita información acerca de las herramientas para instalación, consulte con su concesionario de JVC de equipos de audio para automóviles o a una compañía que suministra tales herramientas.

• Si usted no está seguro de cómo instalar correctamente la unidad,

hágala instalar por un técnico cualificado.

Do the required electrical connections.

Realice las conexiones eléctricas requeridas.

Réalisez les connexions électriques.

DANS LE TABLEAU DE BORD)

L’illustration suivante est un exemple d’installation typique. Si vous avez des questions ou avez besoin d’information sur des kits d’installation, consulter votre revendeur d’autoradios JVC ou une compagnie d’approvisionnement.

• Si l’on n’est pas sûr de pouvoir installer correctement cet appareil, le

faire installer par un technicien qualifié.

Removing the unit

Before removing the unit, release the rear section.

Extracción de la unidad

Antes de extraer la unidad, libere la sección trasera.

Insert the two handles, then pull them as illustrated so that the unit can be removed.

Inserte las dos manijas y, a continuación, extráigalas de la manera indicada en la ilustración para poder desmontar la unidad.

Insérez les deux poignées, puis tirez de la façon illustrée de façon à retirer l’appareil.

Bend the appropriate tabs to hold the sleeve firmly in place.

Doble las lengüetas apropiadas para retener firmemente la manga en su lugar.

Tordez les languettes appropriées pour maintenir le manchon en place.

Retrait de l’appareil

Avant de retirer l’appareil, libérer la section arrière.

When using the optional stay / Cuando emplea un soporte opcional / Lors de l’utilisation du hauban en option

Stay (option)

Soporte (opción)

Hauban (en option)

Fire wall

Tabique a prueba de incendios

Cloison

Dashboard

Tablero de instrumentos

Tableau de bord

Screw (option)

Tornillo (opción)

Vis (en option)

Install the unit at an angle of less than 30˚.

Instale la unidad a un ángulo de menos de 30˚.

Installez l’appareil avec un angle de moins de 30˚.

When installing the unit without using the sleeve / Instalación de la unidad sin utilizar la cubierta / Lors de l’installation de l’appareil scans utiliser de manchon

In a Toyota car for example, first remove the car radio and install the unit in its place.

En un automóvil Toyota, por ejemplo, en primer lugar desmonte el autorradio e instale la unidad en su lugar.

Dans une voiture Toyota, par exemple, retirez d’abord l’autoradio et installez l’appareil à sa place.

Flat head screws—M5 × 8 mm (M5 × 3/8")*

Tornillos de cabeza plana—M5 × 8 mm (M5 × 3/8 pulgada)*

Vis à tête plate—M5 × 8 mm (M5 × 3/8 pouces)*

Bracket*

Ménsula*

Support*

Pocket

Compartimiento

Poche

Note : When installing the unit on the mounting bracket, make sure to use the 8 mm (3/8") -long screws. If longer

screws are used, they could damage the unit.

Nota : Cuando instala la unidad en la ménsula de montaje, asegúrese de utilizar los tornillos de 8 mm (3/8 pulgada) de

longitud. Si se utilizan tornillos más largos, éstos pueden dañar la unidad.

Remarque : Lors de l’installation de l’appareil sur le support de montage, s’assurer d’utiliser des vis d’une longueur de 8 mm

(3/8 pouces). Si des vis plus longues sont utilisées, elles peuvent endommager l’appareil.

Bracket*

Ménsula*

Support*

Flat head screws—M5 × 8 mm (M5 × 3/8")*

Tornillos de cabeza plana—M5 × 8 mm (M5 × 3/8 pulgada)*

Vis à tête plate—M5 × 8 mm (M5 × 3/8 pouces)*

*1 When you stand the unit, be careful not to damage the fuse on the

rear.

*2 Not supplied for this unit.

Al poner la unidad vertical, tenga cuidado de no dañar el fusible provisto en la parte posterior.

*2 No suministrado con esta unidad.

Lorsque vous mettez l’appareil à la verticale, faire attention de ne pas

endommager le fusible situé sur l’arrière.

Non fourni avec cet appareil.

ENGLISH

ESPAÑOL FRANÇAIS

ELECTRICAL CONNECTIONS

Typical connections / Conexiones tipicas / Raccordements typiques

Before connecting: Check the wiring in the vehicle carefully.

Incorrect connection may cause serious damage to this unit. The leads of the power cord and those of the connector from the car body may be different in color.

CONEXIONES ELECTRICAS

Antes de la conexión: Verifique atentamente el conexionado del vehículo. Una conexión incorrecta podría producir daños graves en la unidad. Los cordones del cable de alimentación y los del conector procedentes de la carrocería del automóvil podrían ser de diferentes en color.

1 Connect the colored leads of the power cord in the order

specified in the illustration below.

2 Connect the antenna cord. 3 Finally connect the wiring harness to the unit.

Line out (see diagram ) Salida de línea (véase diagrama ) Sortie de ligne (voir le diagramme )

Antenna terminal

Terminal de la antena

Borne de l’antenne

Steering wheel remote input (see diagram

Entrada del control remoto del volante de dirección (véase diagrama

Entrée de la télécommande de volant (voir le diagramme pour le KD-APD49

)—only for KD-APD49

)—sólo para KD-APD49

)—seulement

1 Conecte los conductores de color del cable de alimentación en el

orden especificado en la ilustración de abajo.

2 Conecte el cable de antena. 3 Por último, conecte el cable de alimentación a la unidad.

Rear ground terminal

Terminal de tierra posterior

Borne arrière de masse

15 A fuse

Fusible de 15 A

Fusible 15 A

iPod connector (see diagram Conector iPod (véase diagrama )

Connecteur iPod (voir le diagramme )

Black

Negro

Noir

To the metallic body or chassis of the car

A un cuerpo metálico o chasis del automóvil

Vers corps métallique ou châssis de la voiture

RACCORDEMENTS ELECTRIQUES

Avant de commencer la connexion: Vérifiez attentivement le câblage du véhicule. Une connexion incorrecte peut endommager sérieusement l’appareil. Le fil du cordon d’alimentation et ceux des connecteurs du châssis de la voiture peuvent être différents en couleur.

1 Connectez les fils colorés du cordon d’alimentation dans l’ordre

spécifié sur l’illustration ci-dessous.

2 Connectez le cordon d’antenne. 3 Finalement, connectez le faisceau de fils à l’appareil.

)

Ignition switch

Interruptor de encendido

Interrupteur d’allumage

White with black stripe

Blanco con rayas negras

Blanc avec bande noire

White

Blanco

Blanc

Left speaker (front)

Altavoz izquierdo (frontal)

Enceinte gauche (avant)

Gray with black stripe

Gris con rayas negras

Gris avec bande noire

Yellow

Amarillo *

Jaune *

Red

Rojo

Rouge

Blue with white stripe

Azul con rayas blancas

Bleu avec bande blanche

Gray

Gris

Right speaker (front)

Altavoz derecho (frontal)

Enceinte droit (avant)

To a live terminal in the fuse block connecting to the car battery (bypassing the ignition switch) (constant 12 V)

A un terminal activo del bloque de fusibles conectado a la batería del automóvil (desviando el interruptor de encendido) (12 V constantes)

A une borne sous tension du porte-fusible connectée à la batterie de la voiture (en dérivant l’interrupteur d’allumage) (12 V constant)

To an accessory terminal in the fuse block

A un terminal accesorio del bloque de fusibles

Vers borne accessoire du porte-fusible

To the remote lead of other equipment or automatic antenna if any (200 mA max.)

Al conductor remoto de otro equipo o de la antena automática, si hubiere (máx. 200 mA)

Au fil de télécommande de l’autre appareil ou à l’antenne automatique s’il y en a une (200 mA max.)

Green with black stripe

Verde con rayas negras

Vert avec bande noire

Green

Verde

Vert

Left speaker (rear)

Altavoz izquierdo (trasero)

Enceinte gauche (arrière)

Purple with black stripe

Púrpura con rayas negras

Violet avec bande noire

Fuse block

Bloque de fusibles

Porte-fusible

Purple

Púrpura

Violet

Right speaker (rear)

Altavoz derecho (trasero)

Enceinte droit (arrière)

Connecting to the steering wheel remote controller (only for KD-APD49) /

Conexión al control remoto del volante de dirección

KD-APD49) / Connexion de la télécommande de volant (seulement pour le KD-APD49)

If your car is equipped with the steering wheel remote controller, you can operate this unit using the controller. For connection, an exclusive remote adapter (not supplied) which matches your car is required. For details, consult the same car audio dealer as where the unit is purchased.

Steering wheel remote input

Entrada del control remoto del volante de dirección

Entrée de la télécommande de volant

Not supplied for this unit.

*2 Before checking the operation of this unit prior to installation, this

lead must be connected, otherwise the power cannot be turned on.

Si su automóvil está equipado con control remoto en el volante de dirección, podrá controlar este receptor utilizando el control remoto. Para la conexión, se requiere un adaptador remoto exclusivo (no suministrado) que sea adecuado para su automóvil. Para los detalles, consulte con el concesionario car audio donde compró el receptor.

Remote adapter Adaptador para remoto exclusivo * Adaptateur pour télécommande spécialisé *

No suministrado con esta unidad.

Antes de comprobar el funcionamiento de esta unidad previa a de

la instalación, es necesario conectar este cable, de lo contrario no se podrá conectar la alimentación.

Si votre voiture est équipée d’une télécommande de volant, vous pouvez commander cet autoradio en utilisant cette télécommande. Pour la connexion, vous avez besoin d’un adaptateur de télécommande spécialisé (non fourni) correspondant à votre voiture. Pour en savoir plus, consultez le revendeur autoradio où vous avez acheté votre autoradio.

Steering wheel remote controller (equipped in the car)

Control remoto del volante de dirección (equipado en el vehículo)

Télécommande de volant (installée dans la voiture)

Non fourni avec cet appareil.

Pour vérifier le fonctionnement de cet appareil avant installation, ce fil

doit être raccordé, sinon l’appareil ne peut pas être mis sous tension.

(sólo para

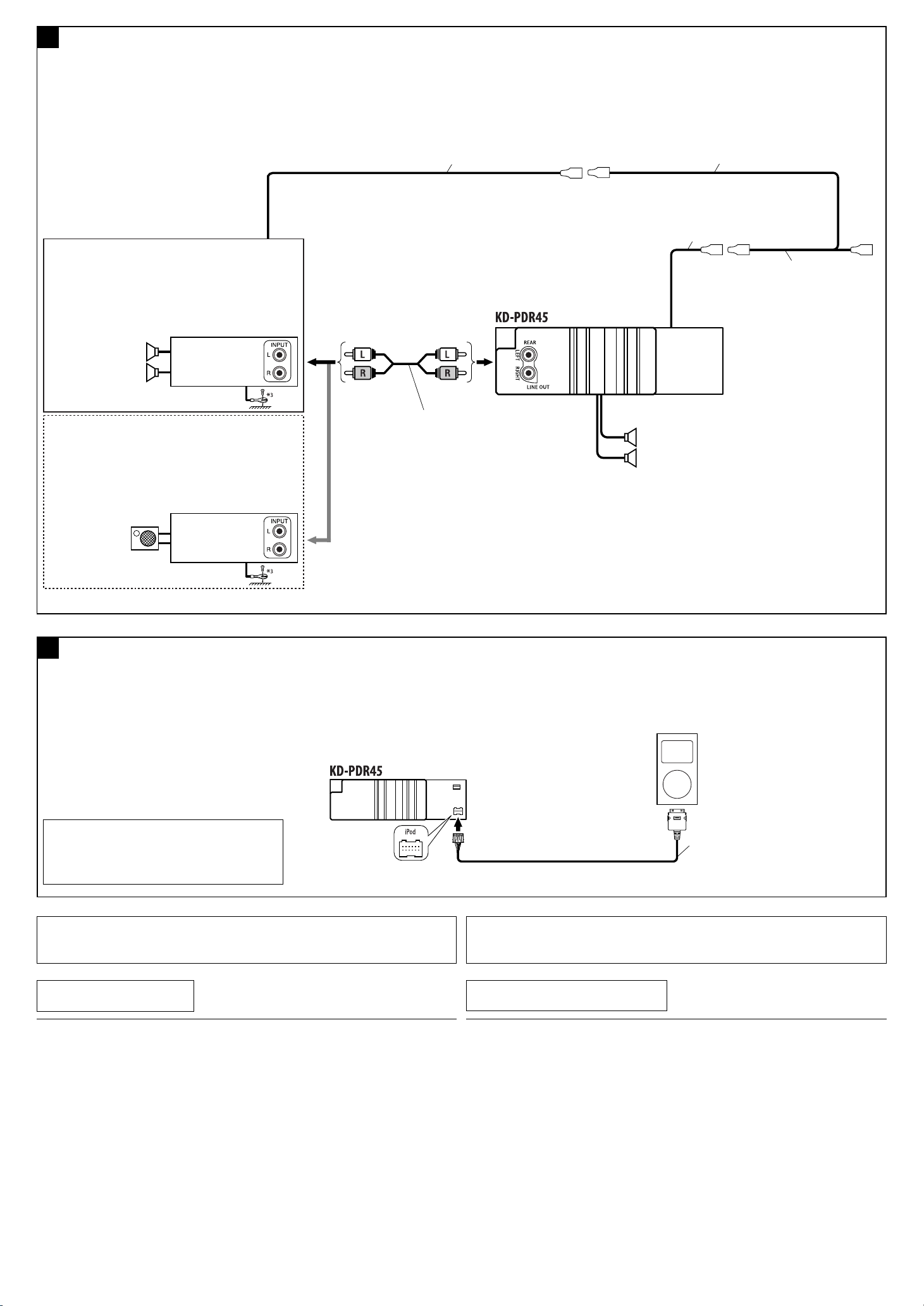

Connecting the external amplifier or subwoofer / Conexión del amplificador o subwoofer exterior / Conexión del amplificador o subwoofer

exterior

You can connect an amplifier to upgrade your car stereo system.

• Connect the remote lead (blue with white stripe) to the remote

lead of the other equipment so that it can be controlled through this unit.

• For amplifier only: – Disconnect the speakers from this unit, connect them to

the amplifier. Leave the speaker leads of this unit unused.

– For KD-APD49: The line output level of this unit is kept high to

maintain the hi-fi sounds reproduced from this unit.

When connecting an external amplifier to this unit, turn down

the gain control on the external amplifier to obtain the best performance from this unit.

Set “L/O MODE” to “REAR” (See page 15 of the INSTRUCTIONS.)

Ajuste “L/O MODE” a “REAR” (Consulte la página 15 del MANUAL DE INSTRUCCIONES.)

Réglez “L/O MODE” sur “REAR” (Voir page 15 du MANUEL D’INSTRUCTIONS.)

Rear speakers

Altavoces posteriores

Enceintes arrière

JVC Amplifier

Amplificador de JVC

JVC Amplificateur

Set “L/O MODE” to “SUB.W” (See page 15 of the INSTRUCTIONS.)

Ajuste “L/O MODE” a “SUB.W” (Consulte la página 15 del MANUAL DE INSTRUCCIONES.)

Réglez “L/O MODE” sur “SUB.W” (Voir page 15 du MANUEL D’INSTRUCTIONS.)

Usted podrá conectar un amplificador para mejorar el sistema estéreo de su automóvil.

•

Conecte el conductor remoto (azul con rayas blancas) al conductor remoto del otro equipo para poderlo controlar a través de esta unidad.

• Sólo para el amplificador: – Desconecte los altavoces de esta unidad y conéctelos al

amplificador. Los cables de los altavoces de esta unidad quedan sin usar.

– Para KD-APD49: El nivel de salida de línea de esta unidad

permanece alto para que corresponda con los sonidos de alta fidelidad reproducidos por esta unidad.

Cuando conecte un amplificador externo a esta unidad, disminuya

el control de ganancia del amplificador externo para obtener un óptimo rendimiento de esta unidad.

Signal cord (not supplied for this unit)

Cable de señal (no suministrado con esta unidad)

Cordon de signal (non fourni avec cet appareil)

Vous pouvez connecter un amplificateur pour améliorer votre système autoradio.

• Connectez le fil de commande à distance (bleu avec bande blanche)

au fil de commande à distance de l’autre appareil de façon qu’il puisse être commandé via cet appareil.

• Pour l’amplificateur seulement: – Déconnectez les enceintes de cet appareil et connectez-

les à l’amplificateur. Laissez les fils d’enceintes de cet appareil inutilisés.

– Pour le KD-APD49: Le niveau de sortie de ligne de cet appareil

est maintenu à un niveau élevé pour maintenir une qualité Hi-Fi pour les sons reproduits par cet appareil.

Lors de la connexion d’un amplificateur extérieur à cet appareil,

diminuez le réglage du gain sur l’amplificateur extérieur pour obtenir les meilleures performances de cet appareil.

Y-connector (not supplied for this unit)

Conector en Y (no suministrado con esta unidad)

Connecteur Y (non fourni avec cet appareil)

Remote lead (blue with white stripe)

Cable remoto (azul con rayas blancas)

Fil d’alimentation à distance (bleu avec bande blanche)

To the remote lead of other equipment or automatic antenna if any

Al conductor remoto de otro equipo o de la antena automática, si hubiere

Au fil de télécommande de l’autre appareil ou à l’antenne automatique s’il y en a une

Front speakers

Altavoces delanteros

Enceintes avant

Subwoofer

Caisson de grave

Connecting an Apple iPod / Conexión del Apple iPod / Connexion d’un iPod Apple

You can connect an iPod to this unit using the supplied direct connection cable for iPod.

iPod is a trademark of Apple Inc., registered in the U.S. and other countries.

*3 Remote lead *4 Firmly attach the ground wire to the metallic body or to the chassis of

the car—to the place uncoated with paint (if coated with paint, remove the paint before attaching the wire). Failure to do so may cause damage to the unit.

JVC Amplifier

Amplificador de JVC

JVC Amplificateur

or / o / ou

Puede conectar un iPod a esta unidad por medio del cable de conexión directa para iPod suministrado.

iPod es una marca comercial de Apple Inc., registrada en los EE.UU. y otros países.

Cable remoto

Fije firmemente el cable de tierra a la carrocería metálica o al chasis—a

un lugar no cubierto con pintura (si está cubierto con pintura, quítela antes de fijar el cable). De lo contrario, se podrían producir daños en la unidad.

Vous pouvez connecter un iPod à cet appareil en utilisant le câble de connexion directe du iPod fourni.

Apple iPod (separately purchased)

Apple iPod (adquirido separadamente)

iPod Apple (vendu séparément)

Direct connection cable for iPod (supplied)

Cable de conexión directa para iPod (suministrado)

Câble de connexion directe pour iPod (fourni)

iPod est une marque de commerce d’Apple Inc., enregistrée aux États-Unis et dans les autres pays.

Fil d’alimentation à distance

Attachez solidement le fil de mise à la masse au châssis métallique de

la voiture—à un endroit qui n’est pas recouvert de peinture (s’il est recouvert de peinture, enlevez d’abord la peinture avant d’attacher le fil). L’appareil peut être endommagé si cela n’est pas fait correctement.

TROUBLESHOOTING

• The fuse blows. * Are the red and black leads connected correctly?

• Power cannot be turned on. * Is the yellow lead connected?

• No sound from the speakers. * Is the speaker output lead short-circuited?

• Sound is distorted. * Is the speaker output lead grounded? * Are the “–” terminals of L and R speakers grounded in common?

• Noise interfere with sounds. * Is the rear ground terminal connected to the car’s chassis using

shorter and thicker cords?

• This unit becomes hot. * Is the speaker output lead grounded? * Are the “–” terminals of L and R speakers grounded in common?

• This unit does not work at all. * Have you reset your unit?

LOCALIZACION DE AVERIAS

• El fusible se quema. * ¿Están los conductores rojo y negro correctamente conectados?

• No es posible conectar la alimentación. * ¿Está el cable amarillo conectado?

• No sale sonido de los altavoces. * ¿Está el cable de salida del altavoz cortocircuitado?

• El sonido presenta distorsión. * ¿Está el cable de salida del altavoz conectado a masa? * ¿Están los terminales “–” de los altavoces L y R conectados a una

masa común?

• Perturbación de ruido. * ¿El terminal de tierra trasero está conectado al chasis del automóvil

utilizando los cordones más corto y más grueso?

• Esta unidad se calienta. * ¿Está el cable de salida del altavoz conectado a masa? * ¿Están los terminales “–” de los altavoces L y R conectados a una

masa común?

• Esta unidad no funciona en absoluto. * ¿Reinicializó la unidad?

EN CAS DE DIFFICULTES

• Le fusible saute. * Les fils rouge et noir sont-ils racordés correctement?

• L’appareil ne peut pas être mise sous tension. * Le fil jaune est-elle raccordée?

• Pas de son des enceintes. * Le fil de sortie d’enceinte est-il court-circuité?

• Le son est déformé. * Le fil de sortie d’enceinte est-il à la masse? * Les bornes “–” des enceintes gauche et droit sont-elles mises ensemble

à la masse?

• Interférence avec les sons. * La prise arrière de mise à la terre est-elle connectée au châssis de la

voiture avec un cordon court et épais?

• Cet appareil devient chaud. * Le fil de sortie d’enceinte est-il à la masse? * Les bornes “–” des enceintes gauche et droit sont-elles mises ensemble

à la masse?

• Cet appareil ne fonctionne pas du tout. * Avez-vous réinitialisé votre appareil?

CD RECEIVER KD-PDR45

KD-PDR45

For canceling the display demonstration, see page 6.

ENGLISH

For installation and connections, refer to the separate manual.

INSTRUCTIONS

GET0489-001A

[U/UH]

Thank you for purchasing a JVC product.

Please read all instructions carefully before operation, to ensure your complete understanding and to obtain the best

possible performance from the unit.

IMPORTANT FOR LASER PRODUCTS

ENGLISH

1. CLASS 1 LASER PRODUCT

2. CAUTION: Do not open the top cover. There are no user serviceable parts inside the unit; leave all servicing to qualified service personnel.

3. CAUTION: Visible and/or invisible class 1M laser radiation when open. Do not view directly with optical instruments.

4. REPRODUCTION OF LABEL: CAUTION LABEL, PLACED OUTSIDE THE UNIT.

Detaching the control panel

[European Union only]

Warning:

If you need to operate the unit while driving, be sure to look around carefully or you may be involved in a traffic accident.

Attaching the control panel

+ 108 hidden pages

JVC GET0483-001A User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

INSTRUCTIONS

INFORMATION (For U.S.A.)

IMPORTANT FOR LASER PRODUCTS

CONTENTS

Getting started

Radio operations

Disc operations

iPod operations

Sound adjustments

General settings — PSM

Title assignment

Maintenance

More about this unit

Troubleshooting

Specifications

WARNINGS

Parts list for installation and connection

INSTALLATION

Removing the unit

ELECTRICAL CONNECTIONS

TROUBLESHOOTING

INSTRUCTIONS

IMPORTANT FOR LASER PRODUCTS
