JVC GET0266-003A User Manual

CD RECEIVER

RECEPTEUR CD

KD-G612/KD-G611/KD-G511

For canceling the display demonstration, see page 8. Pour annuler la démonstration des affichages, référez-vous à la page 8.

ENGLISH

FRANÇAIS

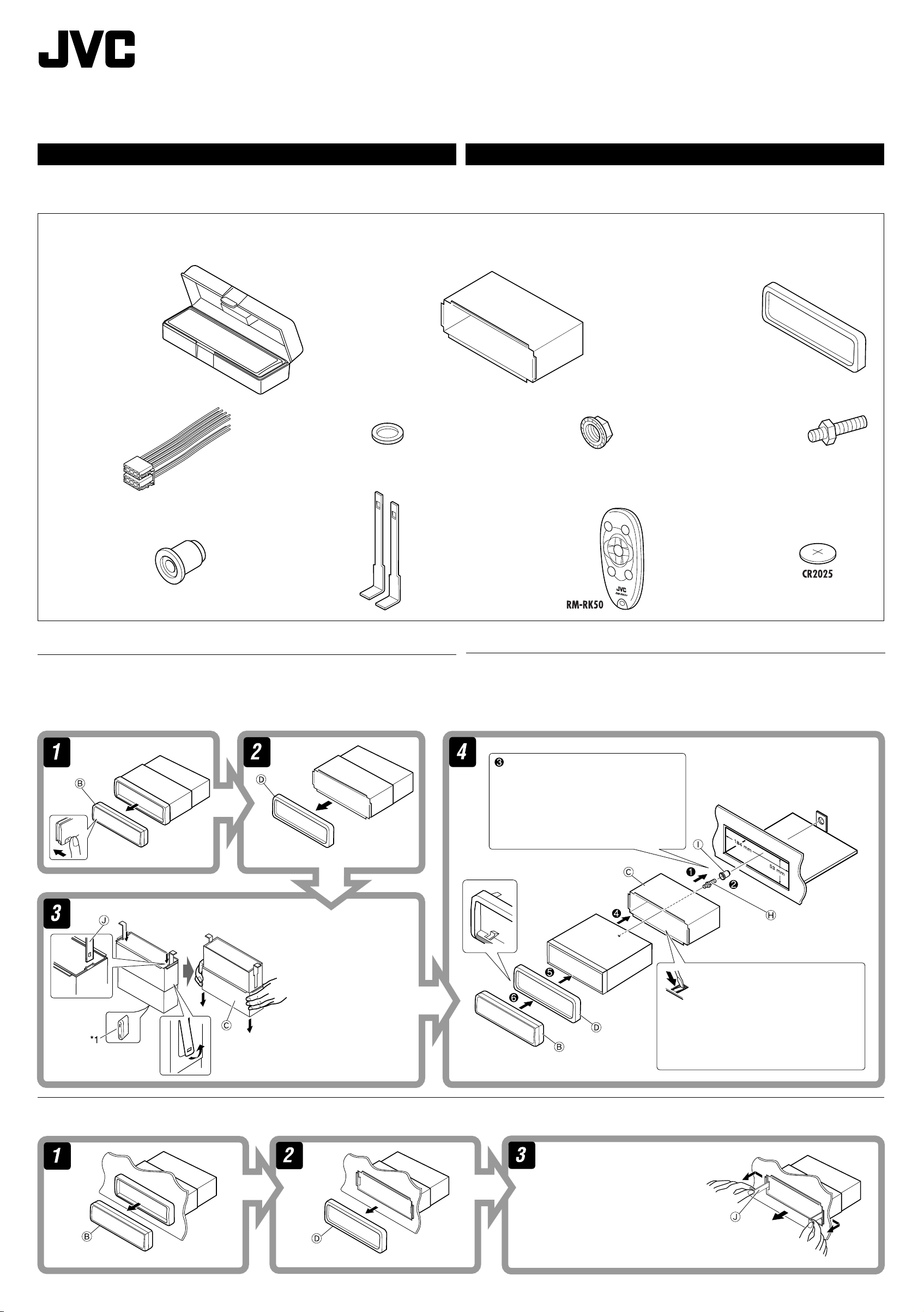

For installation and connections, refer to the separate manual. Pour l’installation et les raccordements, se référer au manuel séparé.

INSTRUCTIONS

MANUEL D’INSTRUCTIONS

GET0266-003A

[EX/EU]

Thank you for purchasing a JVC product.

Please read all instructions carefully before operation, to ensure your complete understanding and to

obtain the best possible performance from the unit.

ENGLISH

IMPORTANT FOR LASER PRODUCTS

1. CLASS 1 LASER PRODUCT

2. CAUTION : Do not open the top cover. There are no user serviceable parts inside the unit; leave all servicing to qualified service personnel.

3. CAUTION: Visible and invisible laser radiation when open and interlock failed or defeated. Avoid direct exposure to beam.

4. REPRODUCTION OF LABEL: CAUTION LABEL, PLACED OUTSIDE THE UNIT.

Warning:

If you need to operate the receiver while driving, be sure to look ahead carefully or you may be involved in a traffic accident.

How to forcibly eject a disc

If a disc cannot be recognized by the receiver or cannot be ejected, ejects the disc as follows.

How to reset your unit

“PLEASE” and “EJECT” appear alternately on the display.

This will reset the microcomputer. Your preset adjustments will also be erased.

• If this does not work, try to reset your receiver.

• Be careful not to drop the disc when it ejects.

Note: Only for [EX] model users in UK and European countries For security reasons, a numbered ID card is provided with this receiver, and the same ID number is imprinted on the receiver’s chassis. Keep the card in a safe place, as it will help the authorities to identify your receiver if stolen.

How to reset your unit ........................... 2

How to forcibly eject a disc ................... 2

How to read this manual ........................ 4

How to use the M MODE button ........... 4

Control panel

—

KD-G612/KD-G611/KD-G511

Parts identification ................................. 5

Remote controller —

Main elements and features ................... 6

RM-RK50

.... 5

... 6

Getting started ....................... 7

Basic operations .................................. 7

Canceling the display demonstrations ... 8

Setting the clock .................................... 8

Radio operations ................... 9

Listening to the radio ........................... 9

Storing stations in memory .................... 10

Listening to a preset station ................... 10

FM RDS operations ................. 11

Searching for your favorite FM RDS

programme

Storing your favorite programmes ......... 12

Using the standby receptions ................. 12

Tracking the same programme

—Network-Tracking Reception ........ 13

....................................... 11

Disc operations ...................... 14

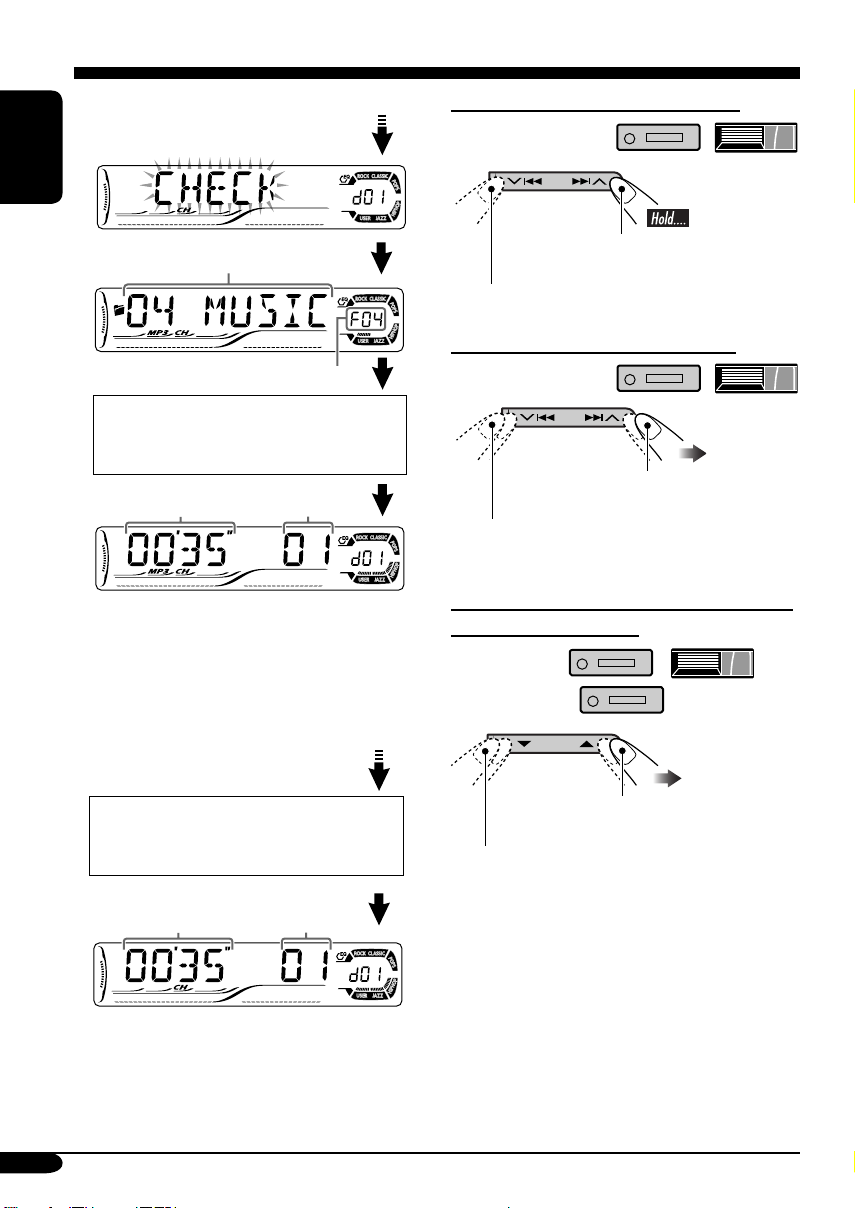

Playing a disc in the receiver ............... 14

Playing discs in the CD changer ........... 15

Other main functions ............................. 17

Changing the display information ......... 18

Selecting the playback modes ................ 19

Sound adjustments ................ 20

Selecting preset sound modes

(C-EQ: custom equalizer) .................. 20

Adjusting the sound ............................... 21

General settings — PSM ......... 22

Basic procedure ..................................... 22

Other main functions ............. 25

Assigning titles to the sources ............... 25

Detaching the control panel ................... 26

External component operations

... 27

Playing an external component ............ 27

DAB tuner operations

................ 28

Listening to the DAB tuner ................... 28

Storing DAB services in memory .......... 29

Tuning in to a preset DAB service ........ 29

Tracing the same programme

—Alternative Reception .................... 29

Maintenance .......................... 30

More about this receiver ........ 31

Troubleshooting ..................... 34

Specifications ......................... 37

ENGLISH

*For safety....

• Do not raise the volume level too much, as this will block outside sounds, making driving dangerous.

• Stop the car before performing any complicated operations.

The receiver is equipped with the steering wheel remote control function.

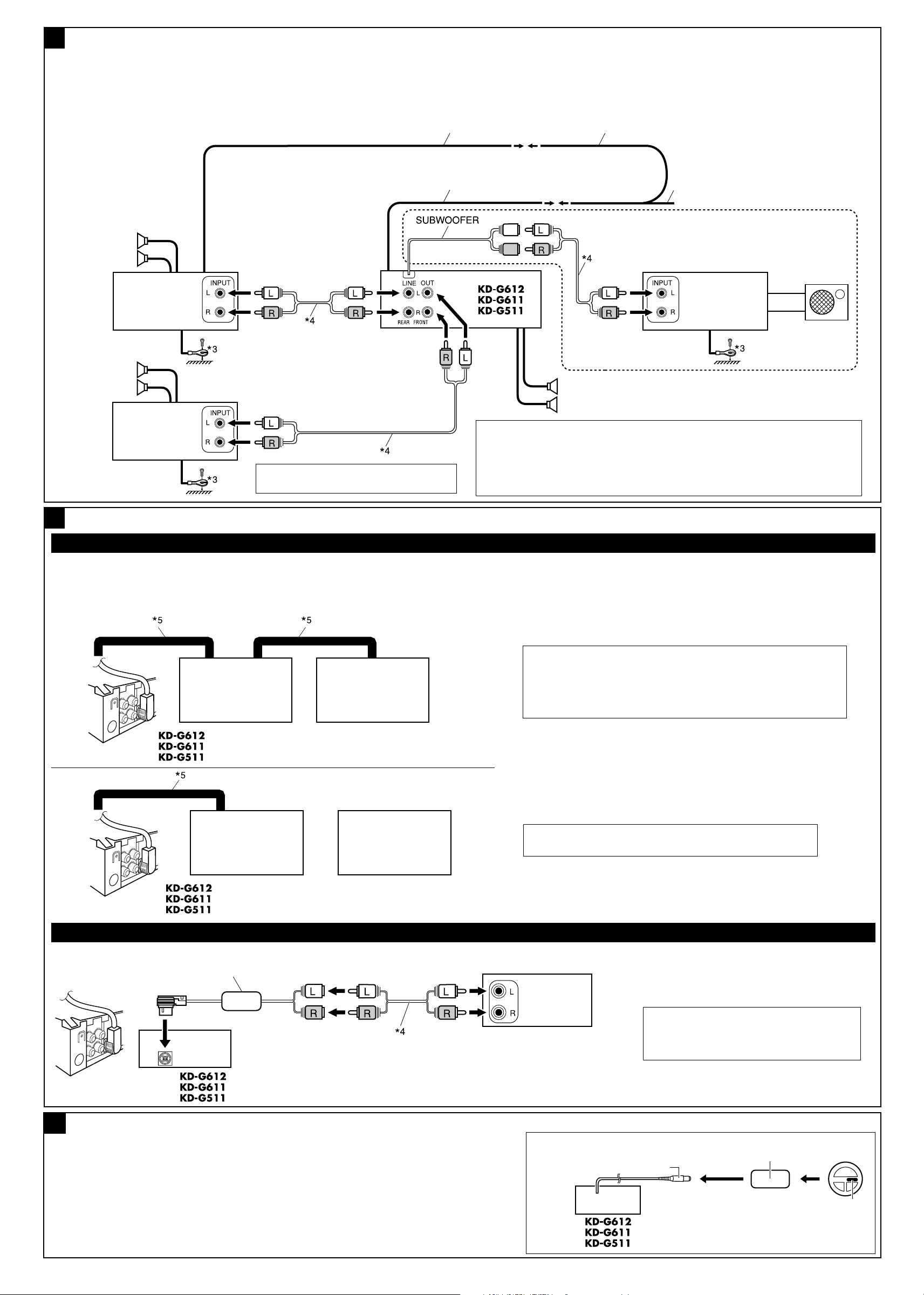

• See the Installation/Connection Manual (separate volume) for connection.

*Temperature inside the car....

If you have parked the car for a long time in hot or cold weather, wait until the temperature in the car becomes normal before operating the unit.

How to read this manual

The following methods are used to made the explanations simple and easy-to-understand:

• Some related tips and notes are explained in

ENGLISH

“More about this receiver” (see pages 31 – 33).

• Button operations are mainly explained with the illustrations as follows:

Press briefly.

Press repeatedly.

How to use the M MODE button

If you press M MODE, the receiver goes into functions mode, then the number buttons and 5/∞ buttons work as different function buttons.

Ex.: When number button 2 works as

MO (monaural) button.

Press either one.

Press and hold until your desired response begins.

Press and hold both buttons at the same time.

The following marks are used to indicate...

: Built-in CD player operations.

: External CD changer operations.

Time countdown indicator

To use these buttons for original functions again after pressing M MODE, wait for

5 seconds without pressing any of these buttons until the functions mode is cleared.

• Pressing M MODE again also clears the functions mode.

Caution on volume setting:

Discs produce very little noise compared with other sources. Lower the volume before playing a disc to avoid damaging the speakers by the sudden increase of the output level.

Control panel — KD-G612/KD-G611/KD-G511

Parts identification

Display window

ENGLISH

1 5 (up) / ∞ (down) buttons 2 T/P TP/PTY (traffic programme/programme

type) button

3 D DISP (display) button 4 S SEL (select) button 5 • Control dial

•

6 Display window 7 Remote sensor

• DO NOT expose the remote sensor to strong light (direct sunlight or artificial lighting).

8 0 (eject) button 9 p q SOURCE button w BAND button e Number buttons r EQ (equalizer) button t MO (monaural) button y SSM (Strong-station Sequential Memory)

button

u RPT (repeat) button i RND (random) button o M MODE button

AUX (auxiliary) input jack

;

• Only for KD-G612/KD-G611.

• NOT compatible with digital signals.

(standby/on attenuator) button

4/¢ buttons

(control panel release) button

Display window

a Disc information indicators—TAG (ID3

Tag),

s Main display d Source display / Volume level indicator f EQ (equalizer) indicator g Sound mode (C-EQ: custom equalizer)

indicators—ROCK, CLASSIC, POPS, HIP HOP, JAZZ, USER

•

h Disc type indicators—WMA, MP3 j Tuner reception indicators—ST (stereo),

MO (monaural)

k RDS indicators—TP, PTY, AF, REG l Playback source indicators—

CH: Lights up only when CD-CH is selected

DISC: Lights up for the built-in CD player.

/ Playback mode / item indicators—

RND (random), RPT (repeat)

z LOUD (loudness) indicator x Tr (track) indicator

(folder), (track/file)

also works as the time countdown indicator and level meter during play (see page 23).

as the playback source.

(disc), (folder),

Remote controller — RM-RK50

•

RM-RK50 is supplied for KD-G612/KD-G611.

• KD-G511 can be remotely controlled as instructed here (with an optionally purchased remote controller—recommended to use RM-RK50).

ENGLISH

Installing the lithium coin battery

(CR2025)

• When operating, aim the remote controller directly at the remote sensor on the receiver. Make sure there is no obstacle in between.

Warning:

• Store the battery in a place where children cannot reach to avoid risk of accident.

• To prevent the battery from over-heating, cracking, or starting a fire:

– Do not recharge, short, disassemble, or

heat the battery or dispose of it in a fire.

– Do not leave the battery with other

metallic materials.

– Do not poke the battery with tweezers or

similar tools.

– Wrap the battery with tape and insulate

when throwing away or saving it.

Caution:

Main elements and features

1 (standby/on/attenuator) button

• Turns on and off the power and also attenuates the sound.

2 5 U (up) / D (down) ∞ buttons

• 5 U: Changes the FM/AM/DAB bands.

• D ∞: Changes the preset stations (or

services).

• Changes the folder of the MP3/WMA discs.

• While playing an MP3 disc on an MP3-compatible CD changer:

– Changes the disc if pressed briefly. – Changes the folder if pressed and held. 3 VOL – / VOL + buttons

• Adjusts the volume level.

4 SOUND button

• Selects the sound mode (C-EQ: custom equalizer).

5 SOURCE button

• Selects the source.

6 2 R (reverse) / F (forward) 3 buttons

• Searches for stations (or services) if pressed briefly.

• Searches for ensembles if pressed and held.

• Fast-forwards or reverses the track if pressed and held.

• Changes the tracks of the disc.

Getting started

Basic operations

You cannot select some sources if they are not ready. * Only for KD-G612/KD-G611.

! • For FM/AM tuner only

* The control panel

illustrations used for explanation in this manual is KD-G612/ KD-G611.

⁄

Volume level appears.

Volume level indicator

@ Adjust the sound as you want.

(See pages 20 and 21.)

To drop the volume in a moment (ATT)

To restore the sound,

press it again.

ENGLISH

• For DAB tuner only

To turn off the power

Canceling the display

demonstrations

ENGLISH

If no operations are done for about 20 seconds, display demonstration starts.

[Initial: DEMO ON]—see page 22.

Setting the clock

Set the hour, minute, and clock

system.

1 Select “CLOCK H” (hour), then

adjust the hour.

2 Select “CLOCK M” (minute),

then adjust the minute.

3 Select “24H/12H,” then select

“24H” (hour) or “12H” (hour).

3 Finish the procedure.

Finish the procedure.

To activate the display demonstration

In step 3 above...

To check the current clock time when the power is turned off

Radio operations

Listening to the radio

ENGLISH

Selected band appears.

Lights up when receiving an FM stereo broadcast with sufficient signal strength.

! Start searching for a station.

When a station is received, searching stops. To stop searching, press the same button again.

To tune in to a station manually

In step ! on the left... 1

2 Select the desired station frequencies.

When an FM stereo broadcast is hard to receive

Lights up when monaural

mode is activated.

Reception improves, but stereo effect will be lost.

To restore the stereo effect, repeat the same procedure. “MONO OFF” appears and the MO indicator goes off.

Storing stations in memory

You can preset six stations for each band.

ENGLISH

FM station automatic presetting —

SSM (Strong-station Sequential Memory)

2 Select the FM band (FM1 – FM3)

you want to store into.

“SSM” flashes, then disappears when automatic presetting is over.

Local FM stations with the strongest signals are searched and stored automatically in the FM band.

Manual presetting

Ex.: Storing FM station of 92.5 MHz into the

preset number 4 of the FM1 band.

Preset number flashes for a while.

Listening to a preset station

3 Select the preset station (1 – 6) you

want.

To check the current clock time while listening to an FM (non-RDS) or AM station

• For FM RDS stations, see page 13.

FM RDS operations

Searching for your favorite FM RDS programme

You can tune in to a station broadcasting your favorite programme by searching for a PTY code.

ENGLISH

! Start searching for your favorite

programme.

The last selected PTY code appears.

Ÿ Select one of your favorite

programme type.

Select one of the twenty-nine PTY

codes.

Ex.: When “ROCK M” is selected

If there is a station broadcasting a programme of the same PTY code as you have selected, that station is tuned in.

PTY codes

NEWS, AFFAIRS, INFO, SPORT, EDUCATE, DRAMA, CULTURE, SCIENCE, VARIED, POP M (music), ROCK M (music), EASY M (music), LIGHT M (music), CLASSICS, OTHER M (music), WEATHER, FINANCE, CHILDREN, SOCIAL, RELIGION, PHONE IN, TRAVEL, LEISURE, JAZZ, COUNTRY, NATION M (music), OLDIES, FOLK M (music), DOCUMENT

What you can do with RDS

RDS (Radio Data System) allows FM stations to send an additional signal along with their regular programme signals.

ENGLISH

By receiving the RDS data, this receiver can do the following:

•

Programme Type (PTY) Search (see page 11)

• Standby Reception of Traffic Announcement—TA (see the following) or your favorite programme (PTY) (see pages 13 and 23)

•

Tracing the same programme automatically —Network-Tracking Reception (see page 13)

• Programme Search (see page 23)

Storing your favorite programmes

You can store six favorite programme types.

Preset programme types in the number buttons (1 to 6):

3 Repeat steps 1 and 2 to store

other PTY codes into other preset numbers.

4 Finish the procedure.

Using the standby receptions

TA Standby Reception

TA Standby Reception allows the receiver to switch temporarily to Traffic Announcement (TA) from any source other than AM. The volume changes to the preset TA volume level (see page 23).

To activate TA Standby Reception

The TP indicator either

lights up or flashes.

1 Select a PTY code (see page 11).

2 Select the preset number (1 – 6) you

want to store into.

Ex.: When “ROCK M” is selected

• If the TP indicator lights up, TA Standby Reception is activated.

• If the TP indicator flashes, TA Standby Reception is not yet activated. (This occurs when you are listening to an FM station without the RDS signals required for TA Standby Reception.)

To activate TA Standby Reception, tune in to

another station providing these signals. The TP indicator will stop flashing and remain lit.

To deactivate the TA Standby Reception

The TP indicator goes off.

PTY Standby Reception

PTY Standby Reception allows the receiver to switch temporarily to your favorite PTY programme from any source other than AM.

To activate and select your favorite PTY code for PTY Standby Reception, see page

23. The PTY indicator either lights up or flashes.

• If the PTY indicator lights up, PTY Standby Reception is activated.

• If the PTY indicator flashes, PTY Standby Reception is not yet activated.

To activate PTY Standby Reception, tune in

to another station providing these signals. The PTY indicator will stop flashing and remain lit.

To deactivate the PTY Standby Reception, select “OFF” for the PTY code (see page 23). The PTY indicator goes off.

Tracking the same programme—

Network-Tracking Reception

When driving in an area where FM reception is not sufficient enough, this receiver automatically tunes in to another FM RDS station of the same network, possibly broadcasting the same programme with stronger signals (see the illustration below).

When shipped from the factory, NetworkTracking Reception is activated.

To change the Network-Tracking Reception setting, see “AF-REG” on page 23.

Programme A broadcasting on different frequency areas (01 – 05)

ENGLISH

To check the current clock time while listening to an FM RDS station

Disc operations

ENGLISH

Playing a disc in the receiver

All tracks will be played repeatedly until you change the source or eject the disc.

About MP3 and WMA discs

MP3 and WMA (Windows Media® Audio) “tracks” (words “file” and “track” are used interchangeably) are recorded in “folders.”

• When inserting an MP3 or a WMA disc:

Total folder number

Disc information appears automatically (see page 18).

Elapsed playing time

Total track number

Current track number

• When inserting an audio CD or a CD Text

disc:

Total playing time of the inserted disc

Total track number of the inserted disc

CD Text: Disc title/performer = Track title appears automatically (see page 18).

Elapsed playing time

Current track number

To stop play and eject the disc

Selected folder number

Either the MP3 or WMA indicator lights up depending on the detected file.

Playing discs in the CD changer

ENGLISH

About the CD changer

It is recommended to use the JVC MP3compatible CD changer with your receiver.

• You can also connect other CH-X series

CD changers (except CH-X99 and CH-X100). However, they are not compatible with MP3 discs, so you cannot play back MP3 discs.

• You cannot use the KD-MK series CD

changers with this receiver.

• Disc text information recorded in the CD

Text can be displayed when a JVC CD Text compatible CD changer is connected.

Before operating your CD changer:

• Refer also to the Instructions supplied

with your CD changer.

• You cannot control and play any WMA

disc in the CD changer.

All tracks of the inserted discs in the magazine will be played repeatedly until you change the source or eject the magazine from the CD changer.

If you have changed “EXT IN” setting to “EXT IN” (see page 24), you cannot select the CD changer.

Selected disc number

Ÿ Select a disc.

For disc number from 01 – 06:

For disc number from 07 – 12:

• When the current disc is an MP3 disc:

ENGLISH

To fast-forward or reverse the track

Folder name*

Selected folder number

Disc information appears automatically (see page 18).

Elapsed playing time

Current track number

* “ROOT” appears if no folder is included in

the disc.

• When the current disc is an audio CD or a

CD Text disc:

CD Text: Disc title/performer = Track title appears automatically (see page 18).

Fast-forwards.

Reverses.

To go to the next or previous tracks

To the following tracks.

To the beginning of the current track, then the previous tracks.

To go to the next or previous folders (only for MP3 or WMA discs)

For MP3 discs: For WMA discs:

To next folders.

To previous folders.

Elapsed playing time

Current track number

To locate a particular track (for CD) or folder (for MP3 or WMA discs) directly

To select a number from 01 – 06:

To select a number from 07 – 12:

• To use folder search on MP3/WMA discs, it is required that folders are assigned with 2-digits number at the beginning of their folder names—01, 02, 03, and so on.

• To select a particular track in a folder (for MP3 or WMA disc) after selecting a folder:

ENGLISH

First time you press +10 or –10 button, the track skips to the nearest higher or lower track with a track number of multiple ten (ex. 10th, 20th, 30th). Then each time you press the button, you can skip 10 tracks.

• After the last track, the first track will be selected and vice versa.

Prohibiting disc ejection

You can lock a disc in the loading slot.

Other main functions

Skipping a track quickly during play

• For MP3 or WMA disc, you can skip a track within the same folder.

Ex.: To select track 32 while playing track 6

To cancel the prohibition, repeat the same procedure.

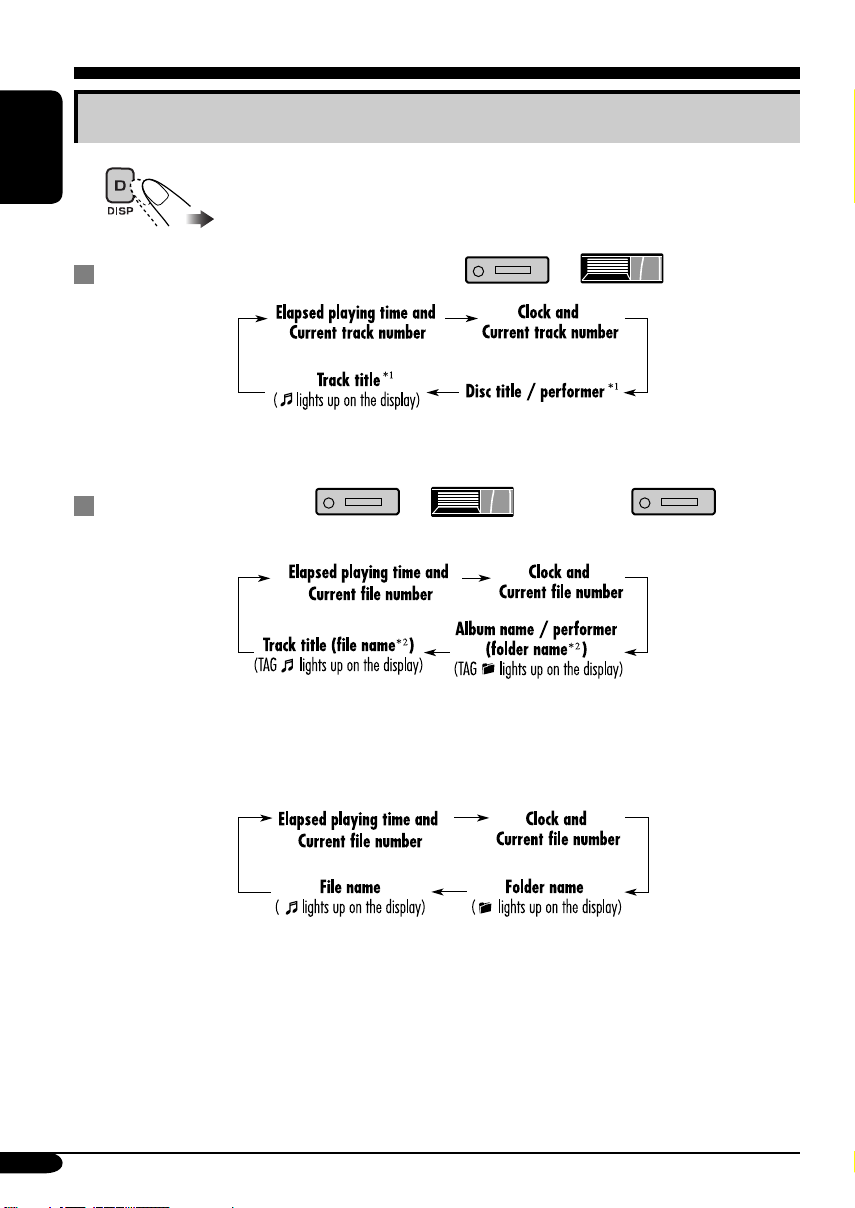

Changing the display information

ENGLISH

While playing an audio CD or a CD Text ( / )

*1 For KD-G612/KD-G611: If no title is assigned to an audio CD, “NO NAME” appears. To assign a title to an audio CD, see page 25. For KD-G511: “NO NAME” appears.

While playing an MP3 ( / ) or WMA ( ) disc

• When “TAG DISP” is set to “TAG ON” (see page 24)

If an MP3/WMA file does not have ID3 tags, folder name and file name appear. In this

case, the TAG indicator will not light up.

• When “TAG DISP” is set to “TAG OFF”

Selecting the playback modes

You can use only one of the following playback modes at a time.

2 Select your desired playback mode.

ENGLISH

Repeat play

Mode Plays repeatedly

TRK RPT: The current track.

• RPT lights up. FLDR RPT*

• DISC RPT*

•

: All tracks of the current folder.

and RPT light up.

: All tracks of the current disc.

and RPT light up.

RPT OFF: Cancels.

Ex.: When “TRK RPT” is selected while

playing an MP3 disc in the receiver

Random play

Mode Plays at random

FLDR RND*1: All tracks of the current folder,

then tracks of the next folder and so on.

• RND and DISC RND: All tracks of the current disc.

• RND and MAG RND*

Ex.: When “DISC RND” is selected while

playing an MP3 disc in the receiver

Only while playing an MP3 ( / ) or WMA ( ) disc.

Only while playing discs in the CD changer ( ).

• RND lights up. RND OFF: Cancels.

: All tracks of the inserted discs.

light up.

Sound adjustments

Selecting preset sound modes (C-EQ: custom equalizer)

ENGLISH

You can select a preset sound mode suitable to the music genre.

Ex.: When “ROCK” is selected

Indication pattern for each sound mode:

Indication For:

USER (Flat sound) 00 00 OFF ROCK Rock or

disco music

CLASSIC Classical

music POPS Light music +04 +01 OFF HIP HOP Funk or rap

music JAZZ Jazz music +02 +03 OFF

*1 BAS: Bass

TRE: Treble

LOUD: Loudness

TRE

LOUD

BAS

+03 +01 ON

+01 –02 OFF

+02 00 ON

Preset values

Adjusting the sound

You can adjust the sound characteristics to your preference.

Ex.: When “TRE” is selected

Indication pattern changes as you adjust the level.

Indication To do: Range

BAS*1 (bass)

TRE* (treble)

FAD* (fader)

BAL (balance)

LOUD* (loudness)

SUB. W* (subwoofer)

VOL* (volume)

Adjust the bass. –06 (min.)

Adjust the treble. –06 (min.)

Adjust the front and rear speaker balance.

Adjust the left and right speaker balance.

Boost low and high frequencies to produce a wellbalanced sound at low volume level.

Adjust the subwoofer output level.

Adjust the volume.

to +06 (max.)

R06 (Rear only) to F06 (Front only)

L06 (Left only) to R06 (Right only)

LOUD ON

LOUD OFF

00 (min.) to 08 (max.)

00 (min.) to 30 or 50 (max.)*

ENGLISH

*1 When you adjust the bass, treble, or

loudness, the adjustment you have made is stored for the currently selected sound mode (C-EQ) including “USER.”

If you are using a two-speaker system, set

the fader level to “00.”

Only for KD-G612/KD-G611: This takes

effect only when a subwoofer is connected.

Normally the control dial works as the

volume control. So you do not have to select “VOL” to adjust the volume level.

Depending on the amplifier gain control

setting. (See page 24 for details.)

General settings — PSM

Basic procedure

3 Adjust the PSM item selected.

You can change PSM (Preferred Setting Mode) items listed in the table that follows.

ENGLISH

4 Repeat steps 2 and 3 to adjust the

2 Select a PSM item.

Ex.: When you select “DIMMER”

Indications Selectable settings, [reference page]

DEMO

Display demonstration

DEMO ON: [Initial]; Display demonstration will be activated

DEMO OFF: Cancels.

other PSM items if necessary.

5 Finish the procedure.

automatically if no operation is done for about 20 seconds, [8].

CLOCK H

Hour adjustment

CLOCK M

Minute adjustment

24H/12H

24 hours or 12 hours time display

CLK ADJ

Clock adjustment

0 – 23 (1 – 12), [8]

[Initial: 0 (0:00)]

00 – 59, [8]

[Initial: 00 (0:00)]

12H O 24H, [8]

[Initial: 24H]

AUTO : [Initial]; The built-in clock is automatically adjusted

using the CT (clock time) data in the RDS signal.

OFF: Cancels.

Indications Selectable settings, [reference page]

AF-REG

Alternative frequency/ regionalization reception

PTY-STBY

PTY standby

TA V O L

Traffic announcement volume

P-SEARCH

Programme search

DAB AF*

Alternative frequency reception

DAB VOL*

DAB volume adjustment

When the received signals from the current station become weak... AF: [Initial]; Switches to another station (the programme

may differ from the one currently received), [13].

• The AF indicator lights up. AF REG: Switches to another station broadcasting the same

programme.

• The AF and REG indicators light up. OFF: Cancels (not selectable when “DAB AF” is set to

“AF ON”).

Activates PTY Standby Reception with one of the 29 PTY codes, [13].

OFF [Initial]

[Initial: VOL 20]; VOL 00 — VOL 30 or 50*

29 PTY codes, [11] = (back to the beginning)

, [12]

ON: Using the AF data, the receiver tunes in to another

frequency broadcasting the same programme as the original preset RDS station is if the preset station signals are not sufficient.

OFF: [Initial]; Cancels.

AF ON: [Initial]; Traces the programme among DAB services

and FM RDS stations, [29].

AF OFF: Cancels.

You can adjust the volume level (VOL –12 — VOL +12) of DAB tuner to match the FM sound level and store it in memory.

[Initial: VOL 00]

ENGLISH

LEVEL

Audio level meter

DIMMER

ON: [Initial]; Activates the audio level indicator. OFF: Cancels; sound mode indicator is shown, [20].

AUTO : [Initial]; Dims the display when you turn on the

Dimmer

ON: Activates dimmer. OFF: Cancels.

Depends on the amplifier gain control.

Displayed only when DAB tuner is connected.

headlights.

To be continued...

Indications Selectable settings, [reference page]

TEL

Telephone muting

ENGLISH

SCROLL*

Scroll

WOOFER*

Subwoofer cutoff

frequency

EXT IN*

External input

AUX ADJ*

Auxiliary input level

adjustment

TAG D I S P

Tag display

MUTING 1/MUTING 2: Select either one which mutes the sounds

while using the cellular phone.

OFF: [Initial]; Cancels.

ONCE: [Initial]; Scrolls the disc information once. AUTO :

Repeats scrolling (5-seconds interval in between).

OFF: Cancels.

• Pressing D DISP for more than one second can scroll the display regardless of the setting.

LOW: Frequencies lower than 55 Hz are send to the subwoofer. MID: [Initial]; Frequencies lower than 85 Hz are send to the

subwoofer.

HIGH: Frequencies lower than 115 Hz are send to the subwoofer.

CHANGER:

[Initial]; To use a JVC CD changer, [15] or DAB tuner, [28].

EXT IN: To use another external component, [27].

A.ADJ 00 – A.ADJ 05: Adjust the auxiliary input level

accordingly, to avoid the sudden increase of the output level when changing the source from external component connected to the AUX input jack on the control panel.

[Initial: A.ADJ 00]

TAG ON: [Initial]; Shows the ID3 tag while playing MP3/WMA

tracks, [18].

TAG O FF: Cancels.

AMP GAIN

Amplifier gain control

Some characters or symbols will not be shown (and will be blanked) on the display (Ex. “ABCå!d#” ]“ABCA D ”).

Only for KD-G612/KD-G611.

Displayed only when one of the following sources is selected—FM, AM, CD, or (AUX IN: only for KD-G612/KD-G611).

You can change the maximum volume level of this receiver. LOW PWR: VOL 00 – VOL 30 (Select this if the maximum power

of the speaker is less than 50 W to prevent them from damaging the speaker.)

HIGH PWR: [Initial]; VOL 00 – VOL 50

Other main functions

Assigning titles to the sources

This section is only for KD-G612/KD-G611.

You can assign titles to CDs (both in this receiver and in the CD changer).

Sources

CDs/CD-CH Up to 32 characters (up to

* You cannot assign a title to a CD Text or an

MP3/WMA disc.

1 Select the sources.

• For a CD in this receiver: Insert a CD.

• For CDs in the CD changer: Select “CD-CH,” then select a disc number.

2 Enter the title assignment mode.

Maximum number of

characters

30 discs)

3 Assign a title.

1 Select a character.

ENGLISH

2 Move to the next (or previous)

character position.

3 Repeat steps 1 and 2 until you

finish entering the title.

4 Finish the procedure.

Ex.: When you select CD as the source

To erase the entire title

In step 2 on the left...

Detaching the control panel

When detaching or attaching the control panel, be careful not to damage the connectors on

ENGLISH

the back of the control panel and on the panel holder.

Detaching the control panel

Before detaching the control panel, be sure to turn off the power.

Attaching the control panel

External component operations

Playing an external component

Portable MD player, etc.

ENGLISH

For KD-G612/KD-G611:

You can connect an external component to the CD changer jack on the rear using the Line Input Adapter KS-U57 (not supplied), and another to the AUX (auxiliary) input jack on the control panel.

For KD-G511:

You can connect an external component to the CD changer jack on the rear using the Line Input Adapter KS-U57 (not supplied).

• For connection, see Installation/Connection Manual (separate volume).

~ For KD-G612/KD-G611:

AUX IN: For selecting the external

component connected to the AUX input jack.

EXT IN: For selecting the external

component connected to the CD changer jack on the rear using KS-U57 (see page 24 for selecting the external input—EXT IN).

For KD-G511:

• If “EXT IN” does not appear, see page 24 and select the external input (EXT IN).

Ÿ Turn on the connected component

and start playing the source.

! Adjust the volume.

⁄ Adjust the sound as you want.

(See pages 20 and 21.)

DAB tuner operations

Listening to the DAB tuner

ENGLISH

2 Select the desired ensemble frequencies.

! Start searching for an ensemble.

When an ensemble is received, searching stops. To stop searching, press the same button again.

⁄ Select a service (either primary or

secondary) to listen to.

To tune in to an ensemble manually

In step ! above... 1

What is DAB system?

DAB can deliver CD quality sound without any annoying interference and signal distortion. Furthermore, it can carry text, pictures, and data. When transmitting, DAB combines several programmes (called “services”) to form one “ensemble.” In addition, each “service”—called “primary service”—can also be divided into its components (called “secondary service”). A typical ensemble has six or more programmes (services) broadcast at the same time. By connecting the DAB tuner, this receiver can do the following:

•

Tracing the same programme automatically —Alternative Reception (see “DAB AF” on page 23).

It is recommended to use DAB (Digital Audio Broadcasting) tuner KT-DB1000 with your receiver. If you have another DAB tuner, consult your JVC IN-CAR ENTERTAINMENT dealer.

• Refer also to the Instructions supplied for your DAB tuner.

Storing DAB services in memory

You can preset six DAB services (primary) for each band.

1 Perform steps ~ to ⁄ on page 28, to

select a service you want.

2 Select the preset number (1 – 6) you

want to store into.

Preset number flashes for a while.

Tuning in to a preset DAB service

Tracing the same programme—

Alternative Reception

You can keep listening to the same programme by activating the Alternative Reception.

• While receiving a DAB service: When driving in an area where a service

cannot be received, this receiver automatically tunes in to another ensemble or FM RDS station, broadcasting the same programme.

• While receiving an FM RDS station: When driving in an area where a DAB service

is broadcasting the same programme as the FM RDS station is broadcasting, this receiver automatically tunes in to the DAB service.

When shipped from the factory, Alternative Reception is activated. To deactivate the Alternative Reception, see page 23.

To change the display information while tuning in to an ensemble

ENGLISH

3 Select the preset DAB service

(primary) number (1 – 6) you want.

If the selected primary service has some secondary services, press the same button again will tune in to the secondary services.

Maintenance

How to clean the connectors

Frequent detachment will deteriorate the connectors. To minimize this possibility, periodically wipe

ENGLISH

the connectors with a cotton swab or cloth moistened with alcohol, being careful not to damage the connectors.

Connector

Moisture condensation

Moisture may condense on the lens inside the CD player in the following cases:

• After starting the heater in the car.

• If it becomes very humid inside the car. Should this occur, the CD player may malfunction. In this case, eject the disc and leave the receiver turned on for a few hours until the moisture evaporates.

To keep discs clean

A dirty disc may not play correctly. If a disc does become dirty, wipe it with a soft cloth in a straight line from center to edge.

• Do not use any solvent (for

example, conventional record cleaner, spray, thinner, benzine, etc.) to clean discs.

To play new discs

New discs may have some rough spots around the inner and outer edges. If such a disc is used, this receiver may reject the disc. To remove these rough spots, rub the edges with a pencil or ball-point pen, etc.

How to handle discs

When removing a disc from its case, press down the center

holder of the case and lift the disc out, holding it by the edges.

• Always hold the disc by the edges. Do not touch its recording surface.

When storing a disc into its case, gently insert the disc around the center holder (with the printed surface facing up).

• Make sure to store discs into the cases after use.

Do not use the following discs:

Warped

disc

Center holder

Sticker

Sticker residue

Disc

Stick-on label

More about this receiver

Basic operations

Turning on the power

• By pressing SOURCE on the receiver, you can also turn on the power.

Turning off the power

• If you turn off the power while listening to a disc, disc play will start from where playback has been stopped previously, next time you turn on the power.

Selecting the sources

• When no disc is loaded in the receiver, “CD” cannot be selected.

• Without connecting to the CD changer or DAB tuner, “CD-CH” or “DAB” cannot be selected.

Tuner operations

Storing stations in memory

• During SSM search...

– All previously stored stations are erased and

stations are stored newly.

– Received stations are preset in No. 1 (lowest

frequency) to No. 6 (highest frequency).

– When SSM is over, the station stored in

No. 1 will be automatically tuned in.

• When storing a station manually, a previously preset station is erased when a new station is stored in the same preset number.

FM RDS operations

• Network-Tracking Reception requires two types of RDS signals—PI (Programme Identification) and AF (Alternative Frequency) to work correctly. Without receiving these data correctly, NetworkTracking Reception will not operate.

• If a Traffic Announcement is received, the volume level (TA VOL) automatically changes to the preset level.

• If a DAB tuner is connected and Alternative Reception for DAB services (DAB AF) is activated, Network-Tracking Reception (AF-REG) is also activated automatically. On the other hand, Network-Tracking Reception cannot be deactivated without deactivating Alternative Reception. (See page 23.)

Disc operations

General

• This receiver has been designed to reproduce CDs/CD Texts, and CD-Rs (Recordable)/ CD-RWs (Rewritable) in audio CD (CD-DA), MP3 and WMA format.

• When a disc has been loaded, selecting “CD” for the playback source starts disc play.

Inserting a disc

• When a disc is inserted upside down, “PLEASE” and “EJECT” appear alternately on the display. Press 0 to eject the disc.

• Do not insert 8 cm discs (single CD) and unusual shape discs (heart, flower, etc.) into the loading slot.

ENGLISH

Playing a disc

• While fast-forwarding or reversing on an MP3 or WMA disc, you can only hear intermittent sounds.

To be continued...

Playing a CD-R or CD-RW

• Use only “finalized” CD-Rs or CD-RWs.

• This receiver can play back only the files of the same type which is first detected if a disc

ENGLISH

includes both audio CD (CD-DA) files and MP3/WMA files.

• This receiver can play back multi-session discs; however, unclosed sessions will be skipped while playing.

• Some CD-Rs or CD-RWs may not play back on this receiver because of their disc characteristics, and for the following causes:

– Discs are dirty or scratched. – Moisture condensation occurs on the lens

inside the receiver. – The pickup lens inside the receiver is dirty. – CD-R/CD-RW on which the files are

written with “Packet Write” method. – There are improper recording conditions

(missing data, etc.) or media conditions

(stain, scratch, warp, etc.).

• CD-RWs may require a longer readout time

since the reflectance of CD-RWs is lower than that of regular CDs.

• Do not use the following CD-Rs or CD-RWs: – Discs with stickers, labels, or protective seal

stuck to the surface. – Discs on which labels can be directly

printed by an ink jet printer. Using these discs under high temperatures or

high humidities may cause malfunctions or damages to discs.

Playing an MP3/WMA disc

• This receiver can play back MP3/WMA files with the extension code <.mp3> or <.wma> (regardless of the letter case—upper/lower).

• This receiver can show the names of albums, artists (performer), and ID3 Tag (Version 1.0,

1.1, 2.2, 2.3, or 2.4) for MP3 files and for WMA files.

• This receiver can display only one-byte characters. No other characters can be correctly displayed.

• This receiver can play back MP3/WMA files meeting the conditions below:

– Bit rate: 8 kbps — 320 kbps – Sampling frequency: 48 kHz, 44.1 kHz, 32 kHz (for MPEG-1) 24 kHz, 22.05 kHz, 16 kHz (for MPEG-2) – Disc format: ISO 9660 Level 1/ Level 2,

Romeo, Joliet, Windows long file name

• The maximum number of characters for file/ folder names vary among the disc format used (includes 4 extension characters—<.mp3> or <.wma>).

– ISO 9660 Level 1: up to 12 characters – ISO 9660 Level 2: up to 31 characters – Romeo*: up to 128 (72) characters – Joliet*: up to 64 (36) characters – Windows long file name*: up to 128 (72)

characters

* The parenthetic figure is the maximum

number of characters for file/folder names in case the total number of files and folders is 313 or more.

• This receiver can recognize the total of 512 files, of 200 folders, and of 8 hierarchies.

• This receiver can play back the files recorded in VBR (variable bit rate).

The files recorded in VBR have a discrepancy

in elapsed time display, and do not show the actual elapsed time. Especially, after performing the search function, this difference becomes noticeable.

• This receiver cannot play back the following files:

– MP3 files encoded with MP3i and

MP3 PRO format.

– MP3 files encoded in an unappropriated

format. – MP3 files encoded with Layer 1/2. – WMA files encoded with lossless,

professional, and voice format. – WMA files which are not based upon

Windows Media – WMA files copy-protected with DRM. – Files which have the data such as WAVE,

ATRAC3, etc.

• The search function works but search speed is

not constant.

Audio.

Changing the source

• If you change the source, playback also stops

(without ejecting the disc).

Next time you select “CD” for the playback

source, disc play starts from where it has been stopped previously.

Ejecting a disc

• If the ejected disc is not removed within 15 seconds, the disc is automatically inserted again into the loading slot to prevent it from dust. (Disc will not play this time.)

General settings—PSM

• If you change the “AMP GAIN” setting from “HIGH PWR” to “LOW PWR” while the volume level is set higher than “VOL 30,” the receiver automatically changes the volume level to “VOL 30.”

Other main functions (only for KD-G612/KD-G611)

• If you try to assign a title to a 31st disc, “NAMEFULL” flashes on the display. Delete unwanted titles before assignment.

• Titles assigned to discs in the CD changer can also be shown if you playback the disc from the receiver.

DAB tuner operations

• Only primary DAB services can be presetted even when you store a secondary service.

• A previously preset DAB service is erased when a new DAB service is stored in the same preset number.

ENGLISH

Troubleshooting

What appears to be trouble is not always serious. Check the following points before calling a service center.

ENGLISH

• Sound cannot be heard

General

• The receiver does not

• SSM automatic presetting

• Static noise while listening

FM/AM

• Disc cannot be played

• CD-R/CD-RW cannot be

• Tracks on the CD-R/

• Disc can be neither played

Symptoms Causes Remedies

from the speakers.

work at all.

does not work.

to the radio.

back.

played back.

CD-RW cannot be skipped.

back nor ejected.

The volume level is set to the minimum level.

Connections are incorrect. Check the cords and

The built-in microcomputer may have functioned incorrectly due to noise, etc.

Signals are too weak. Store stations manually.

The aerial is not connected firmly.

Disc is inserted upside down.

CD-R/CD-RW is not finalized.

Disc is locked. Unlock the disc (see page

Adjust it to the optimum level.

connections.

Reset the receiver (see page

2).

Connect the aerial firmly.

Insert the disc correctly.

• Insert a finalized CD-R/ CD-RW.

•

Finalize the CD-R/CD-RW with the component which you used for recording.

17).

Disc playback

• Disc sound is sometimes interrupted.

• “NO DISC” appears on the display.

The CD player may have functioned incorrectly.

You are driving on rough roads.

Disc is scratched. Change the disc.

Connections are incorrect. Check the cords and

Disc is inserted incorrectly. Insert the disc correctly.

Eject the disc forcibly (see page 2).

Stop playback while driving on rough roads.

connections.

Symptoms Causes Remedies

• Disc cannot be played back.

• Noise is generated. The track played back is not

• A longer readout time is required (“CHECK” keeps flashing on the display).

MP3/WMA playback

• Tracks cannot be played back as you have intended them to play.

• Elapsed playing time is not correct.

No MP3/WMA tracks are recorded on the disc.

MP3/WMA tracks do not have the extension code <.mp3> or <.wma> in their file names.

MP3/WMA tracks are not recorded in the format compliant with ISO 9660 Level 1, Level 2, Romeo, or Joliet.

an MP3/WMA file (although it has the extension code <.mp3> or <.wma>).

Readout time varies due to the complexity of the folder/ file configuration.

Playback order is determined when the files are recorded.

This sometimes occurs during play. This is caused by how the tracks are recorded on the disc.

Change the disc.

ENGLISH

Add the extension code <.mp3> or <.wma> to their file names.

Change the disc. (Record MP3/WMA tracks using a compliant application.)

Skip to another track or change the disc. (Do not add the extension code <.mp3> or <.wma> to non-MP3 or WMA tracks.)

Do not use too many hierarchies and folders.

• “NO FILES” appears on the display.

• Correct characters are not displayed (e.g. album name).

The current disc does not contain any MP3/WMA tracks.

This receiver can only display alphabets (capital: A – Z), numbers, and a limited number of symbols.

Insert a disc that contains MP3/WMA tracks.

To be continued...

Symptoms Causes Remedies

• “NO DISC” appears on

ENGLISH

• “NO MAG” appears on

• “RESET 8” appears on the

CD changer

• “RESET 1” – “RESET 7”

• The CD changer does not

the display.

display.

appears on the display.

work at all.

No disc is in the magazine.

Disc is inserted upside down.

No magazine is loaded in the CD changer.

This receiver is not connected to the CD changer correctly.

The built-in microcomputer may function incorrectly due to noise, etc.

Insert disc into the magazine.

Insert disc correctly.

Insert the magazine.

Connect this receiver and the CD changer correctly and press the reset button of the CD changer.

Press the reset button of the CD changer.

Reset the receiver (see page

2).

Specifications

AUDIO AMPLIFIER SECTION

Maximum Power Output: Front: 50 W per channel Rear: 50 W per channel Continuous Power Output (RMS): Front: 19 W per channel into 4 Ω, 40 Hz

to 20 000 Hz at no more than 0.8% total harmonic distortion.

Rear: 19 W per channel into 4 Ω, 40 Hz

to 20 000 Hz at no more than 0.8%

total harmonic distortion. Load Impedance: 4 Ω (4 Ω to 8 Ω allowance) Tone Control Range: Bass: ±10 dB at 100 Hz Treble: ±10 dB at 10 kHz Frequency Response: 40 Hz to 20 000 Hz Signal-to-Noise Ratio: 70 dB Line-Out Level/Impedance:

2.5 V/20 kΩ load (full scale) Output Impedance: 1 kΩ Subwoofer-Out Level/Impedance:

KD-G612/KD-G611:

2.0 V/20 kΩ load (full scale) Other Terminals:

CD changer, SUBWOOFER (only for KD-G612/KD-G611), Steering wheel remote input

TUNER SECTION

Frequency Range: FM: 87.5 MHz to 108.0 MHz AM: (MW) 522 kHz to 1 620 kHz (LW) 144 kHz to 279 kHz

[FM Tuner]

Usable Sensitivity: 11.3 dBf (1.0 µV/75 Ω) 50 dB Quieting Sensitivity:

16.3 dBf (1.8 µV/75 Ω) Alternate Channel Selectivity (400 kHz): 65 dB Frequency Response: 40 Hz to 15 000 Hz Stereo Separation: 35 dB Capture Ratio: 1.5 dB

[MW Tuner]

Sensitivity: 20 µV Selectivity: 35 dB

[LW Tuner]

Sensitivity: 50 µV

CD PLAYER SECTION

Type: Compact disc player Signal Detection System: Non-contact optical

pickup (semiconductor laser) Number of Channels: 2 channels (stereo) Frequency Response: 5 Hz to 20 000 Hz Dynamic Range: 96 dB Signal-to-Noise Ratio: 98 dB Wow and Flutter: Less than measurable limit MP3 Decoding Format: MPEG1/2 Audio Layer 3 Max. Bit Rate: 320 kbps WMA (Windows Media Format: Max. Bit Rate: 192 kbps

Audio) Decoding

GENERAL

Power Requirement: Operating Voltage:

DC 14.4 V (11 V to 16 V allowance) Grounding System: Negative ground Allowable Operating Temperature:

0°C to +40°C Dimensions (W × H × D): Installation Size (approx.):

182 mm × 52 mm × 150 mm Panel Size (approx.):

188 mm × 58 mm × 11 mm Mass (approx.):

1.5 kg (excluding accessories)

Design and specifications are subject to change without notice.

ENGLISH

• Microsoft and Windows Media are either registered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries.

Having TROUBLE with operation?

Please reset your unit

Refer to page of How to reset your unit

Vous avez des PROBLÈMES de fonctionnement?

Réinitialisez votre appareil

Référez-vous à la page intitulée Comment réinitialiser votre appareil

EN, FR

1104DTSMDTJEIN

KD-G612/KD-G611/KD-G511

Removing the receiver

Before removing the receiver, release the rear section.

Retrait de l’appareil

Avant de retirer l’appareil, libérer la section arrière.

Installation/Connection Manual Manuel d’installation/raccordement

GET0266-010A

[EX/EU]

ENGLISH

This receiver is designed to operate on 12 V DC, NEGATIVE ground electrical systems. If your vehicle does not have this system, a voltage inverter is required, which can be purchased at JVC IN-CAR ENTERTAINMENT dealers.

Parts list for installation and connection

The following parts are provided for this receiver. After checking them, please set them correctly.

A / B Hard case/Control panel

Etui de transport/Panneau de commande

Power cord

Cordon d’alimentation

Washer (ø5)

Rondelle (ø5)

Sleeve

Manchon

1104DTSMDTJEIN

EN, FR

FRANÇAIS

Cet appareil est conçu pour fonctionner sur des sources de courant continu de 12 V à masse NEGATIVE. Si votre véhicule n’offre pas ce type d’alimentation, il vous faut un convertisseur de tension,

que vous pouvez acheter chez un revendeur d’autoradios JVC.

Liste des pièces pour l’installation et raccordement

Les pièces suivantes sont fournies avec cet appareil. Après vérification, veuillez les placer correctement.

Trim plate

Plaque d’assemblage

Lock nut (M5)

Ecrou d’arrêt (M5)

Mounting bolt (M5 x 20 mm)

Boulon de montage (M5 x 20 mm)

Rubber cushion

Amortisseur en caoutchouc

Handles

Poignées

INSTALLATION (IN-DASH MOUNTING)

The following illustration shows a typical installation. If you have any questions or require information regarding installation kits, consult your JVC IN-CAR ENTERTAINMENT dealer or a company supplying kits.

• If you are not sure how to install this receiver correctly, have it installed by a qualified technician.

Only for KD-G612/KD-G611

Uniquement pour le KD-G612/KD-G611

Remote controller

Télécommade

Battery

Pile

INSTALLATION (MONTAGE DANS LE TABLEAU DE BORD)

L’illustration suivante est un exemple d’installation typique. Si vous avez des questions ou avez besoin d’information sur des kits d’installation, consulter votre revendeur d’autoradios JVC ou une compagnie d’approvisionnement.

• Si l’on n’est pas sûr de pouvoir installer correctement cet appareil, le faire installer par un technicien qualifié.

Do the required electrical connections.

Réalisez les connexions électriques.

When you stand the receiver, be careful not to damage the fuse on the rear.

Lorsque vous mettez

l’appareil à la verticale, faire attention de ne pas endommager le fusible situé sur l’arrière.

Bend the appropriate tabs to hold the sleeve firmly in place.

Tordez les languettes appropriées pour maintenir le manchon en place.

Insert the two handles, then pull them as illustrated so that the receiver can be removed.

Insérez les deux poignées, puis tirez de la façon illustrée de façon à retirer l’appareil.

When using the optional stay / Lors de l’utilisation du hauban en option

Stay (option)

Hauban (en option)

Fire wall

Cloison

When installing the receiver without using the sleeve / Lors de l’installation de l’appareil scans utiliser de manchon

In a Toyota for example, first remove the car radio and install the receiver in its place.

Par exemple dans une Toyota, retirer d’abord l’autoradio et installer l’appareil à la place.

Flat type screws (M5 x 8 mm)

Vis à tête plate (M5 x 8 mm)*

* Not included for this receiver. * Non fourni avec cet autoradio.

Dashboard

Tableau de bord

Install the receiver at an angle of less than 30˚.

Installez l’appareil avec un angle de moins de 30˚.

Screw (option)

Vis (en option)

Note : When installing the receiver on the mounting bracket, make sure to use the 8 mm-long screws. If

longer screws are used, they could damage the receiver.

Remarque : Lors de l’installation de l’appareil sur le support de montage, s’assurer d’utiliser des vis d’une longueur de

8 mm. Si des vis plus longues sont utilisées, elles peuvent endommager l’appareil.

ELECTRICAL CONNECTIONS

To prevent short circuits, we recommend that you disconnect the battery’s negative terminal and make all electrical connections before installing the receiver.

• Be sure to ground this receiver to the car’s chassis again after installation.

Notes:

• Replace the fuse with one of the specified rating. If the fuse blows frequently, consult your JVC IN-CAR ENTERTAINMENT dealer.

• It is recommended to connect to the speakers with maximum power of more than 50 W (both at the rear and at the front, with an impedance of 4 Ω to 8 Ω). If the maximum power is less than 50 W, change “AMP GAIN” setting to prevent the speakers from being damaged (see page 24 of the INSTRUCTIONS).

• To prevent short-circuit, cover the terminals of the UNUSED leads with insulating tape.

• The heat sink becomes very hot after use. Be careful not to touch it when removing this receiver.

Bracket*

Support*

Flat type screws (M5 x 8 mm)*

Vis à tête plate (M5 x 8 mm)*

Pocket

Poche

Bracket*

Support*

RACCORDEMENTS ELECTRIQUES

Pour éviter tout court-circuit, nous vous recommandons de débrancher la borne négative de la batterie et d’effectuer tous les raccordements électriques avant d’installer l’appareil.

• Assurez-vous de raccorder de nouveau la mise à la masse de cet appareil au châssis

de la voiture après l’installation.

Remarques:

• Remplacer le fusible par un de la valeur précisée. Si le fusible saute souvent, consulter votre revendeur d’autoradios JVC.

• Il est recommandé de connecter des enceintes avec une puissance de plus de 50 W (les enceintes arrière et les enceintes avant, avec une impédance comprise entre 4 Ω et 8 Ω). Si la puissance maximum est inférieure à 50 W, changez “AMP GAIN” pour éviter d’endommager vos enceintes (voir page 24 du MANUEL D’INSTRUCTIONS).

• Pour éviter les court-circuits, couvrir les bornes des fils qui ne sont PAS UTILISÉS avec de la bande isolante.

• Le dissipateur de chaleur devient très chaud après usage. Faire attention de ne pas le toucher en retirant cet appareil.

Heat sink

Dissipateur de chaleur

PRECAUTIONS on power supply and speaker connections:

• DO NOT connect the speaker leads of the power cord to the car battery; otherwise, the receiver will be seriously damaged.

• BEFORE connecting the speaker leads of the power cord to the speakers, check the speaker wiring in your car.

TROUBLESHOOTING

PRECAUTIONS sur l’alimentation et la connexion des enceintes:

• NE CONNECTEZ PAS les fils d’enceintes du cordon d’alimentation à la batterie;

sinon, l’appareil serait sérieusement endommagé.

• AVANT de connecter les fils d’enceintes du cordon d’alimentation aux enceintes, vérifiez le câblage des enceintes de votre voiture.

EN CAS DE DIFFICULTES

• The fuse blows. * Are the red and black leads connected correctly?

• Power cannot be turned on. * Is the yellow lead connected?

• No sound from the speakers. * Is the speaker output lead short-circuited?

• Sound is distorted. * Is the speaker output lead grounded? * Are the “–” terminals of L and R speakers grounded in common?

• Noise interfere with sounds. * Is the rear ground terminal connected to the car’s chassis using shorter and thicker cords?

• Receiver becomes hot. * Is the speaker output lead grounded? * Are the “–” terminals of L and R speakers grounded in common?

• This receiver does not work at all. * Have you reset your receiver?

• Le fusible saute.

* Les fils rouge et noir sont-ils racordés correctement?

• L’a p p a r ei l n e p e ut pas être mise sous tension.

* Le fil jaune est-elle raccordée?

• Pas de son des enceintes.

* Le fil de sortie d’enceinte est-il court-circuité?

• Le son est déformé.

* Le fil de sortie d’enceinte est-il à la masse? * Les bornes “–” des enceintes gauche et droit sont-elles mises ensemble à la masse?

• Interférence avec les sons.

* La prise arrière de mise à la terre est-elle connectée au châssis de la voiture avec un cordon court et

épais?

• L’a p p a r ei l d e vient chaud.

* Le fil de sortie d’enceinte est-il à la masse? * Les bornes “–” des enceintes gauche et droit sont-elles mises ensemble à la masse?

• Cet appareil ne fonctionne pas du tout.

* Avez-vous réinitialisé votre appareil?

ENGLISH FRANÇAIS

Typical Connections / Raccordements typiques

Before connecting: Check the wiring in the vehicle carefully. Incorrect connection may cause serious damage to this receiver. The leads of the power cord and those of the connector from the car body may be different in color.

1 Connect the colored leads of the power cord in the order specified in the illustration below. 2 Connect the aerial cord. 3 Finally connect the wiring harness to the receiver.

Avant de commencer la connexion: Vérifiez attentivement le câblage du véhicule. Une connexion incorrecte peut endommager sérieusement l’appareil. Le fil du cordon d’alimentation et ceux des connecteurs du châssis de la voiture peuvent être différents en couleur.

1 Connectez les fils colorés du cordon d’alimentation dans l’ordre spécifié sur l’illustration ci-dessous. 2 Connectez le cordon d’antenne. 3 Finalement, connectez le faisceau de fils à l’appareil.

Note: If your vehicle does not have any accessory terminal, move the fuse from the fuse position 1 (initial position) to fuse position 2, and connect the red lead (A7) to the positive (+) battery terminal.

• The yellow lead (A4) is not used in this case.

SUBWOOFER—Only for KD-G612/KD-G611 (see diagram )

SUBWOOFER—Uniquement pour le KD-G612/KD-G611 (voir le diagramme )

To steering wheel remote controller (see diagram )

Pour la télécommande de volant (voir le diagramme )

To CD changer/DAB tuner or another external component

Rear ground terminal

Borne arrière de masse

Aerial terminal

Borne de l’antenne

(see diagram

Au changeur de CD/tuner DAB ou à un autre appareil extérieur (voir le diagramme )

Line out (see diagram )

Sortie de ligne (voir le diagramme

)

15 A fuse

Fusible 15 A

Remarque: Si votre véhicule ne possède pas de borne accessoire, déplacez le fusible de la position de fusible 1 (position originale) à la position de fusible 2 et connectez le fil rouge (A7) à la borne positive (+) de la batterie.

• Le fil jaune (A4) n’est pas utilisé dans ce cas.

Fuse position 2 / Position de fusible 2

Fuse position 1 / Position de fusible 1

Not included for this receiver

Non fourni avec cet autoradio

Ignition switch

Interrupteur d’allumage

*2 Before checking the operation of this

receiver prior to installation, this lead must be connected, otherwise power cannot be turned on.

*2 Pour vérifier le fonctionnement de cet appareil

avant installation, ce fil doit être raccordé, sinon l’appareil ne peut pas être mis sous tension.

Black

Noir

Yellow

Jaune*

Red

Rouge

Blue with white stripe

Bleu avec bande blanche

To metallic body or chassis of the car

Vers corps métallique ou châssis de la voiture

To a live terminal in the fuse block connecting to the car battery (bypassing the ignition switch) (constant 12 V)

À une borne sous tension du porte-fusible connectée à la batterie de la voiture (en dérivant l’interrupteur d’allumage) (12 V constant)

Fuse block

Porte-fusible

To an accessory terminal in the fuse block

Vers borne accessoire du porte-fusible

To the remote lead of other equipment or power aerial if any (200 mA max.)

Au fil de télécommande de l’autre appareil ou à l’antenne automatique s’il y en a une (200 mA max.)

White with black stripe

Blanc avec bande noire

White

Blanc

Left speaker (front)

Enceinte gauche (avant)

Gray with black stripe

Gris avec bande noire

Orange with white stripe

Orange avec bande blanche

Brown

Marron

Gray

Gris

Right speaker (front)

Enceinte droit (avant)

Green with black stripe

Vert avec bande noire

To car light control switch

À l’interrupteur d’éclairage de la voiture

To cellular phone system

À un système de téléphone cellulaire

Green

Vert

Left speaker (rear)

Enceinte gauche (arrière)

Purple with black stripe

Violet avec bande noire

Purple

Violet

Right speaker (rear)

Enceinte droit (arrière)

Connecting the external amplifiers / Connexion d’amplificateurs extérieurs

You can connect amplifiers to upgrade your car stereo system.

• Connect the remote lead (blue with white stripe) to the remote lead of the other equipment so that it can be controlled through this receiver.

•

Disconnect the speakers from this receiver, connect them to the amplifier. Leave the speaker leads of this receiver unused.

Remote lead

Fil d’alimentation à distance

Vous pouvez connecter un amplificateur ou autre appareil pour améliorer votre système autoradio.

• Connectez le fil de commande à distance (bleu avec bande blanche) au fil de commande à distance de l’autre appareil de façon qu’il puisse être commandé via cet appareil.

• Déconnectez les enceintes de cet appareil et connectez-les à l’amplificateur. Laissez les fils d’enceintes de cet appareil inutilisés.

Y-connector (not supplied for this receiver)

Connecteur Y (non fourni avec cet autoradio)

Rear speakers

Enceintes arrière

JVC Amplificateur

Front speakers

Enceintes avant

JVC Amplificateur

JVC Amplifier

Remote lead (Blue with white stripe)

Fil d’alimentation à distance (Bleu avec bande blanche)

Signal cord (not supplied for this receiver)

Cordon de signal (non fourni avec cet autoradio)

To the remote lead of other equipment or power aerial if any

Au fil de télécommande de l’autre appareil ou à l’antenne automatique s’il y en a une

Only for KD-G612/KD-G611

Uniquement pour le KD-G612/KD-G611

JVC Amplifier

JVC Amplificateur

Subwoofer

Caisson de grave

Front speakers

Enceintes avant

Firmly attach the ground wire to the metallic body or to the chassis of the car—to the place not

coated with paint (if coated with paint, remove the paint before attaching the wire). Failure to do so may cause damage to the receiver.

Attachez solidement le fil de mise à la masse au châssis métallique de la voiture—à un endroit qui n’est

pas recouvert de peinture (s’il est recouvert de peinture, enlevez d’abord la peinture avant d’attacher le fil). L’appareil peut être endommagé si cela n’est pas fait correctement.

Connecting the external components / Connexion d’un autre appareil extérieur

CD changer and DAB tuner / Changeur CD et tuner DAB

• Refer also to pages 15 and 28 of the INSTRUCTIONS.

• Référez-vous aussi à les pages 15 et 28 du MANUEL D’INSTRUCTIONS.

• You can connect both components in series as illustrated below.

• Vous pouvez connecter les deux appareils en série comme montré sur l’illustration.

JVC DAB tuner

Tuner DAB JVC

JVC DAB tuner

Tuner DAB JVC

JVC CD changer

Changeur CD JVC

JVC CD changer

Changeur CD JVC

CAUTION / PRECAUTION:

• Before connecting the CD changer and/or DAB tuner, make sure that the receiver is turned off.

• Avant de connecter le changeur CD et/ou le tuner DAB, s’assurer que l’unité

est éteinte.

Connecting cord supplied for your CD changer or DAB tuner

Cordon de connexion fourni avec votre changeur CD ou tuner DAB

External Component / Appareil extérieur

• Set “EXT IN” for the external input setting (see page 24 of the INSTRUCTIONS.) / Choisissez “EXT IN” pour le réglage de l’entrée extérieure (référez-vous à la page 24 du MANUEL D’INSTRUCTIONS).

KS-U57*

Connecting to the steering wheel remote controller / Connexion de la télécommande de volant

If your car is equipped with the steering wheel remote controller, you can operate this receiver using the controller. To do it, a JVC’s OE remote adapter (not supplied) which matches with your car is required. Consult your JVC IN-CAR ENTERTAINMENT dealer for details.

Si votre voiture est munie d’une télécommande de volant, vous pouvez commander cet autoradio en utilisant la télécommande. Pour le faire, un adaptateur pour télécommande au volant JVC (non fourni) correspondant à votre voiture est nécessaire. Consultez votre revendeur d’autoradio JVC pour les détails.

Line Input Adapter KS-U57 (not supplied for this

External component

Appareil extérieur

Steering wheel remote input

Entrée de la télécommande de volant

receiver)

Adaptateur d’entrée de ligne KS-U57 (non fourni avec

cet autoradio)

OE remote adapter (not supplied)

Adaptateur pour télécommande au volant (non fourni)

Steering wheel remote controller (equipped in the car)

Télécommande de volant (installée dans la voiture)

CD RECEIVER

РЕСИВЕР С ПРОИГРЫВАТЕЛЕМ КОМПАКТ-ДИСКОВ

KD-G617

В соответствии с Законом Российской Федерации “О защите прав потре бителей” срок службы (годности) данного товара “по истечении которого он может представлять опасность для жизни, здоровья потребителя, причинять вред его имуществу или окружающей среде” составляет семь (7) лет со дня производства. Этот срок является временем, в течение которого потребитель данного товара может безопасно им пользоваться при условии соблюдения ин струк ции по эксплуатации данного товара, проводя необходимое обслуживание, включающее замену расходных материалов и/или соответствующее ремонтное обеспечение в специализированном сервисном центре.

Дополнительные косметические материалы к данному товару,

For installation and connections, refer to the separate manual.

Указания по установке и выполнению соединений приводятся в отдельной инструкции.

For canceling the display demonstration, see page 8.

Информацию об отмене демонстрации функций дисплея см. на стр. 8.

поставляе мые вместе с ним, могут храниться в течение двух (2) лет со дня его производства.

Срок службы (годности), кроме срока хранения дополнительных космети ческих материалов, упомянутых в предыдущих двух пунктах, не затрагивает никаких других прав потребителя, в частности, гарантийного свидетельства JVC, которое он может получить в соответствии с законом о правах потребителя или других законов, связанных с ним.

ENGLISH

РУCCKИЙ

INSTRUCTIONS

ИНСТРУКЦИИ ПО ЭКСПЛУАТАЦИИ

GET0270-001A

[EE]

Thank you for purchasing a JVC product.

Please read all instructions carefully before operation, to ensure your complete understanding and to

obtain the best possible performance from the unit.

ENGLISH

IMPORTANT FOR LASER PRODUCTS

1. CLASS 1 LASER PRODUCT

2. CAUTION : Do not open the top cover. There are no user serviceable parts inside the unit; leave

all servicing to qualified service personnel.

3. CAUTION: Visible and invisible laser radiation when open and interlock failed or defeated.

Avoid direct exposure to beam.

4. REPRODUCTION OF LABEL: CAUTION LABEL, PLACED OUTSIDE THE UNIT.

Warning:

If you need to operate the receiver while driving, be sure to look ahead carefully or you may be involved in a traffic accident.

How to forcibly eject a disc

If a disc cannot be recognized by the receiver or cannot be ejected, ejects the disc as follows.

How to reset your unit

This will reset the microcomputer. Your preset adjustments will also be erased.

“PLEASE” and “EJECT” appear alternately on the display.

• If this does not work, reset your receiver.

• Be careful not to drop the disc when it ejects.

How to reset your unit ........................... 2

How to forcibly eject a disc ................... 2

How to read this manual ........................ 4

How to use the M MODE button ........... 4

Control panel —

Parts identification ................................. 5

Remote controller —

Main elements and features ................... 6

KD-G617

RM-RK50

......... 5

... 6

Getting started ....................... 7

Basic operations .................................. 7

Canceling the display demonstrations ... 8

Setting the clock .................................... 8

Radio operations ................... 9

Listening to the radio ........................... 9

Storing stations in memory .................... 10

Listening to a preset station ................... 10

FM RDS operations ................. 11

Searching for your favorite FM RDS

programme

Storing your favorite programmes ......... 12

Using the standby receptions ................. 12

Tracking the same programme

—Network-Tracking Reception ........ 13

....................................... 11

Disc operations ...................... 14

Playing a disc in the receiver ............... 14

Playing discs in the CD changer ........... 15

Other main functions ............................. 17

Changing the display information ......... 18

Selecting the playback modes ................ 19

Sound adjustments ................ 20

Selecting preset sound modes

(C-EQ: custom equalizer) .................. 20

Adjusting the sound ............................... 21

General settings — PSM ......... 22

Basic procedure ..................................... 22

Other main functions ............. 25

Assigning titles to the sources ............... 25

Detaching the control panel ................... 26

External component operations

... 27

Playing an external component ............ 27

DAB tuner operations

................ 28

Listening to the DAB tuner ................... 28

Storing DAB services in memory .......... 29

Tuning in to a preset DAB service ........ 29

Tracing the same programme

—Alternative Reception .................... 29

Maintenance .......................... 30

More about this receiver ........ 31

Troubleshooting ..................... 34

Specifications ......................... 37

ENGLISH

*For safety....

• Do not raise the volume level too much, as this will block outside sounds, making driving dangerous.

• Stop the car before performing any complicated operations.

*Temperature inside the car....

If you have parked the car for a long time in hot or cold weather, wait until the temperature in the car becomes normal before operating the unit.

How to read this manual

The following methods are used to make the explanations simple and easy-to-understand:

• Some related tips and notes are explained in

ENGLISH

“More about this receiver” (see pages 31 – 33).

• Button operations are mainly explained with the illustrations as follows:

Press briefly.

Press repeatedly.

How to use the M MODE button

If you press M MODE, the receiver goes into functions mode, then the number buttons and 5/∞ buttons work as different function buttons.

Ex.: When number button 2 works as

MO (monaural) button.

Press either one.

Press and hold until your desired response begins.

Press and hold both buttons at the same time.

The following marks are used to indicate...

: Built-in CD player operations.

: External CD changer operations.

Time countdown indicator

To use these buttons for original functions again after pressing M MODE, wait for

5 seconds without pressing any of these buttons until the functions mode is cleared.

• Pressing M MODE again also clears the functions mode.

Caution on volume setting:

Discs produce very little noise compared with other sources. Lower the volume before playing a disc to avoid damaging the speakers by the sudden increase of the output level.

Control panel — KD-G617

Parts identification

Display window

ENGLISH

1 5 (up) / ∞ (down) buttons 2 T/P TP/PTY (traffic programme/programme

type) button

3 D DISP (display) button 4 S SEL (select) button 5 • Control dial

•

6 Display window 7 Remote sensor

• DO NOT expose the remote sensor to strong light (direct sunlight or artificial lighting).

8 0 (eject) button 9 p q SOURCE button w BAND button e Number buttons r EQ (equalizer) button t MO (monaural) button y SSM (Strong-station Sequential Memory)

button

u RPT (repeat) button i RND (random) button o M MODE button

AUX (auxiliary) input jack

;

• NOT compatible with digital signals.

(standby/on attenuator) button

4/¢ buttons

(control panel release) button

Display window

a Disc information indicators—TAG (ID3

Tag),

s Main display d Source display / Volume level indicator f EQ (equalizer) indicator g Sound mode (C-EQ: custom equalizer)

indicators—ROCK, CLASSIC, POPS, HIP HOP, JAZZ, USER

•

h Disc type indicators—WMA, MP3 j Tuner reception indicators—ST (stereo),

MO (monaural)

k RDS indicators—TP, PTY, AF, REG l Playback source indicators—

CH: Lights up only when CD-CH is selected

DISC: Lights up for the built-in CD player.

/ Playback mode / item indicators—

RND (random), RPT (repeat)

z LOUD (loudness) indicator x Tr (track) indicator

(folder), (track/file)

also works as the time countdown indicator and level meter during play (see page 23).

as the playback source.

(disc), (folder),

Remote controller — RM-RK50

Installing the lithium coin battery

(CR2025)

ENGLISH

• When operating, aim the remote controller directly at the remote sensor on the receiver. Make sure there is no obstacle in between.

Warning:

• Store the battery in a place where children cannot reach to avoid risk of accident.

• To prevent the battery from over-heating, cracking, or starting a fire:

– Do not recharge, short, disassemble, or

heat the battery or dispose of it in a fire.

– Do not leave the battery with other

metallic materials.

– Do not poke the battery with tweezers or

similar tools.

– Wrap the battery with tape and insulate

when throwing away or saving it.

Caution:

Main elements and features

1 (standby/on/attenuator) button

• Turns on and off the power and also attenuates the sound.

2 5 U (up) / D (down) ∞ buttons

• 5 U: Changes the FM/AM/DAB bands.

• D ∞: Changes the preset stations (or

services).

• Changes the folder of the MP3/WMA discs.

• While playing an MP3 disc on an MP3-compatible CD changer:

– Changes the disc if pressed briefly. – Changes the folder if pressed and held. 3 VOL – / VOL + buttons

• Adjusts the volume level.

4 SOUND button

• Selects the sound mode (C-EQ: custom equalizer).

5 SOURCE button

• Selects the source.

6 2 R (reverse) / F (forward) 3 buttons

• Searches for stations (or services) if

pressed briefly.

• Searches for ensembles if pressed and

held.

• Fast-forwards or reverses the track if

pressed and held.

• Changes the tracks of the disc.

Getting started

Basic operations

ENGLISH

You cannot select some sources if they are not ready.

! • For FM/AM tuner only

• For DAB tuner only

⁄

Volume level appears.

Volume level indicator

@ Adjust the sound as you want.

(See pages 20 and 21.)

To drop the volume in a moment (ATT)

To restore the sound,

press it again.

To turn off the power

Canceling the display

demonstrations

ENGLISH

If no operations are done for about 20 seconds, display demonstration starts.

[Initial: DEMO ON]—see page 22.

Setting the clock

Set the hour, minute, and clock

system.

1 Select “CLOCK H” (hour), then

adjust the hour.

2 Select “CLOCK M” (minute),

then adjust the minute.

3 Select “24H/12H,” then select

“24H” (hour) or “12H” (hour).

3 Finish the procedure.

Finish the procedure.

To activate the display demonstration

In step 3 above...

To check the current clock time when the power is turned off

Radio operations

Listening to the radio

ENGLISH

Selected band appears.

Lights up when receiving an FM stereo broadcast with sufficient signal strength.

! Start searching for a station.

When a station is received, searching stops. To stop searching, press the same button again.

Note:

FM1 and FM2: 87.5 MHz – 108.0 MHz

FM3: 65.00 MHz – 74.00 MHz

To tune in to a station manually

In step ! on the left... 1

2 Select the desired station frequencies.

When an FM stereo broadcast is hard to receive

Lights up when monaural

mode is activated.

Reception improves, but stereo effect will be lost.

To restore the stereo effect, repeat the same procedure. “MONO OFF” appears and the MO indicator goes off.

Storing stations in memory

You can preset six stations for each band.

ENGLISH

FM station automatic presetting —

SSM (Strong-station Sequential Memory)

2 Select the FM band (FM1 – FM3)

you want to store into.

“SSM” flashes, then disappears when automatic presetting is over.

Local FM stations with the strongest signals are searched and stored automatically in the FM band.

Manual presetting

Ex.: Storing FM station of 92.5 MHz into the

preset number 4 of the FM1 band.

Preset number flashes for a while.

Listening to a preset station

3 Select the preset station (1 – 6) you

want.

To check the current clock time while listening to an FM (non-RDS) or AM station

• For FM RDS stations, see page 13.

FM RDS operations

Searching for your favorite FM RDS programme

You can tune in to a station broadcasting your favorite programme by searching for a PTY code.

•

To store your favorite programme, see page

12.

The last selected PTY code appears.

Ÿ Select one of your favorite

programme type.

Select one of the twenty-nine PTY

codes.

ENGLISH

! Start searching for your favorite

programme.

If there is a station broadcasting a programme of the same PTY code as you have selected, that station is tuned in.

PTY codes

Ex.: When “ROCK M” is selected

What you can do with RDS

RDS (Radio Data System) allows FM stations to send an additional signal along with their regular programme signals.

ENGLISH

By receiving the RDS data, this receiver can do the following:

•

Programme Type (PTY) Search (see page 11)

• Temporarily switches to Traffic Announcement—TA Standby Reception. (See the right column.)

•

Temporarily switches to your favorite programme—PTY Standby Reception. (See pages 13 and 23.)

•

Tracing the same programme automatically —Network-Tracking Reception (see page 13)

• Programme Search (see page 23)

Storing your favorite programmes

You can store six favorite programme types.

Preset programme types in the number buttons (1 to 6):

1 Select a PTY code (see page 11).

2 Select the preset number (1 – 6) you

want to store into.

3 Repeat steps 1 and 2 to store

other PTY codes into other preset numbers.

4 Finish the procedure.

Using the standby receptions

TA Standby Reception

TA Standby Reception allows the receiver to switch temporarily to Traffic Announcement (TA) from any source other than AM.

• The volume changes to the preset TA volume level (see page 23).

To activate TA Standby Reception

The TP indicator either

lights up or flashes.

• If the TP indicator lights up, TA Standby Reception is activated.

• If the TP indicator flashes, TA Standby Reception is not yet activated. (This occurs when you are listening to an FM station without the RDS signals required for TA Standby Reception.)

To activate TA Standby Reception, tune in to

another station providing these signals. The TP indicator will stop flashing and remain lit.

Ex.: When “ROCK M” is selected

To deactivate the TA Standby Reception

The TP indicator goes off.

PTY Standby Reception

PTY Standby Reception allows the receiver to switch temporarily to your favorite PTY programme from any source other than AM.

To activate and select your favorite PTY code for PTY Standby Reception, see page

23. The PTY indicator either lights up or flashes.

• If the PTY indicator lights up, PTY Standby Reception is activated.

• If the PTY indicator flashes, PTY Standby Reception is not yet activated.

To activate PTY Standby Reception, tune in

to another station providing these signals. The PTY indicator will stop flashing and remain lit.

To deactivate the PTY Standby Reception, select “OFF” for the PTY code (see page 23). The PTY indicator goes off.

Tracking the same programme—

Network-Tracking Reception

When shipped from the factory, NetworkTracking Reception is activated.

To change the Network-Tracking Reception setting, see “AF-REG” on page 23.

Programme A broadcasting on different frequency areas (01 – 05)

ENGLISH

To check the current clock time while listening to an FM RDS station

Disc operations

ENGLISH

Playing a disc in the receiver

All tracks will be played repeatedly until you change the source or eject the disc.

About MP3 and WMA discs

MP3 and WMA (Windows Media® Audio) “tracks” (words “file” and “track” are used interchangeably) are recorded in “folders.”

• When inserting an MP3 or a WMA disc:

Total folder number

Disc information appears automatically (see page 18).

Elapsed playing time

Total track number

Current track number

• When inserting an audio CD or a CD Text disc:

Total playing time of the inserted disc

Total track number of the inserted disc

CD Text: Disc title/performer = Track title appears automatically (see page 18).

Elapsed playing time

Current track number

To stop play and eject the disc

Selected folder number

Either the MP3 or WMA indicator lights up depending on the detected file.

Playing discs in the CD changer

ENGLISH

About the CD changer

It is recommended to use the JVC MP3compatible CD changer with your receiver.

• You can also connect other CH-X series CD changers (except CH-X99 and CH-X100). However, they are not compatible with MP3 discs, so you cannot play back MP3 discs.

• You cannot use the KD-MK series CD changers with this receiver.

• Disc text information recorded in the CD Text can be displayed when a JVC CD Text compatible CD changer is connected.

Before operating your CD changer:

• Refer also to the Instructions supplied with your CD changer.

• You cannot control and play any WMA disc in the CD changer.

All tracks of the inserted discs in the magazine will be played repeatedly until you change the source or eject the magazine from the CD changer.

If you have changed “EXT IN” setting to “EXT IN” (see page 24), you cannot select the CD changer.

Selected disc number

Ÿ Select a disc.

For disc number from 01 – 06:

For disc number from 07 – 12:

• When the current disc is an MP3 disc:

ENGLISH

To fast-forward or reverse the track

Folder name*

Selected folder number

Disc information appears automatically (see page 18).

Elapsed playing time

Current track number

* “ROOT” appears if no folder is included in

the disc.

• When the current disc is an audio CD or a CD Text disc:

CD Text: Disc title/performer = Track title appears automatically (see page 18).

Fast-forwards.

Reverses.

To go to the next or previous tracks

To the following tracks.

To the beginning of the current track, then the previous tracks.

To go to the next or previous folders (only for MP3 or WMA discs)

For MP3 discs:

For WMA discs:

To next folders.

To previous folders.

Elapsed playing time

Current track number

To locate a particular track (for CD) or folder (for MP3 or WMA discs) directly

To select a number from 01 – 06:

To select a number from 07 – 12:

• To use folder search on MP3/WMA discs, it is required that folders are assigned with 2-digit numbers at the beginning of their folder names—01, 02, 03, and so on.

• To select a particular track in a folder (for MP3 or WMA disc) after selecting a folder:

ENGLISH

• After the last track, the first track will be selected and vice versa.

Prohibiting disc ejection

You can lock a disc in the loading slot.

Other main functions

Skipping a track quickly during play

• For MP3 or WMA disc, you can skip a track within the same folder.

Ex.: To select track 32 while playing track 6

To cancel the prohibition, repeat the same procedure.

Changing the display information

ENGLISH

While playing an audio CD or a CD Text ( / )

*1 If no title is assigned to an audio CD, “NO NAME” appears. To assign a title to an audio

CD, see page 25.

While playing an MP3 ( / ) or WMA ( ) disc

• When “TAG DISP” is set to “TAG ON” (see page 24)

If an MP3/WMA file does not have ID3 tags, folder name and file name appear. In this

case, the TAG indicator will not light up.

• When “TAG DISP” is set to “TAG OFF”

Selecting the playback modes

You can use only one of the following playback modes at a time.

2 Select your desired playback mode.

ENGLISH

Repeat play

Mode Plays repeatedly

TRK RPT : The current track.

• RPT lights up. FLDR RPT*

• DISC RPT*

•

: All tracks of the current folder.

and RPT light up.

: All tracks of the current disc.

and RPT light up.

RPT OFF : Cancels.

Ex.: When “TRK RPT” is selected while

playing an MP3 disc in the receiver

Random play

Mode Plays at random

FLDR RND*1 : All tracks of the current folder,

then tracks of the next folder and so on.

• RND and DISC RND : All tracks of the current disc.

• RND and MAG RND*

Ex.: When “DISC RND” is selected while

playing an MP3 disc in the receiver

Only while playing an MP3 ( / ) or WMA ( ) disc.

Only while playing discs in the CD changer ( ).

• RND lights up. RND OFF : Cancels.

: All tracks of the inserted discs.

light up.

Sound adjustments

Selecting preset sound modes (C-EQ: custom equalizer)

ENGLISH

You can select a preset sound mode suitable to the music genre.

Ex.: When “ROCK” is selected

Indication pattern for each sound mode:

Indication For:

USER (Flat sound) 00 00 OFF

ROCK Rock or

disco music

CLASSIC Classical

music

POPS Light music +04 +01 OFF

HIP HOP Funk or rap

music

JAZZ Jazz music +02 +03 OFF

*1 BAS: Bass

TRE: Treble

LOUD: Loudness

TRE

LOUD

BAS

+03 +01 ON

+01 –02 OFF

+02 00 ON

Preset values

Adjusting the sound

You can adjust the sound characteristics to your preference.

Ex.: When “TRE” is selected

Indication pattern changes as you adjust the level.

Indication To do: Range

BAS*1 (bass)

TRE* (treble)

FAD* (fader)

BAL (balance)

LOUD* (loudness)

SUB. W* (subwoofer)

VOL* (volume)

Adjust the bass. –06 (min.)

Adjust the treble. –06 (min.)

Adjust the front and rear speaker balance.

Adjust the left and right speaker balance.

Boost low and high frequencies to produce a well-balanced sound at low volume level.

Adjust the subwoofer output level.

Adjust the volume.

to +06 (max.)

R06 (Rear only) to F06 (Front only)

L06 (Left only) to R06 (Right only)

LOUD ON

LOUD OFF

00 (min.) to 08 (max.)

00 (min.) to 30 or 50 (max.)*

ENGLISH

*1 When you adjust the bass, treble, or

loudness, the adjustment you have made is stored for the currently selected sound mode (C-EQ) including “USER.”

If you are using a two-speaker system, set

the fader level to “00.”

This takes effect only when a subwoofer is

connected.

Normally the control dial works as the

volume control. So you do not have to select “VOL” to adjust the volume level.

Depending on the amplifier gain control

setting. (See page 24 for details.)

General settings — PSM

Basic procedure

3 Adjust the PSM item selected.

You can change PSM (Preferred Setting Mode) items listed in the table that follows.

ENGLISH

4 Repeat steps 2 and 3 to adjust the

2 Select a PSM item.

Ex.: When you select “DIMMER”

Indications Selectable settings, [reference page]

DEMO

Display demonstration

DEMO ON : [Initial]; Display demonstration will be activated

DEMO OFF : Cancels.

other PSM items if necessary.

5 Finish the procedure.

automatically if no operation is done for about 20 seconds, [8].

CLOCK H

Hour adjustment

CLOCK M

Minute adjustment

24H/12H

24 hours or 12 hours time display

CLK ADJ

Clock adjustment

0 – 23 (1 – 12), [8]

[Initial: 0 (0:00)]

00 – 59, [8]

[Initial: 00 (0:00)]

12H O 24H, [8]

[Initial: 24H]

AUTO : [Initial]; The built-in clock is automatically

adjusted using the CT (clock time) data in the RDS signal.

OFF : Cancels.

Indications Selectable settings, [reference page]

AF-REG

Alternative frequency/ regionalization reception

PTY-STBY

PTY standby

TA V O L

Traffic announcement volume

P-SEARCH

Programme search

DAB AF*

Alternative frequency reception

DAB VOL*

DAB volume adjustment

When the received signals from the current station become weak... AF : [Initial]; Switches to another station (the

programme may differ from the one currently received), [13].

• The AF indicator lights up. AF REG : Switches to another station broadcasting the

same programme.

• The AF and REG indicators light up. OFF : Cancels (not selectable when “DAB AF” is set to

“AF ON”).

Activates PTY Standby Reception with one of the 29 PTY codes, [13].

OFF [Initial]

[Initial: VOL 20]; VOL 00 — VOL 30 or 50*

29 PTY codes, [11] = (back to the beginning)

, [12]

ON : Using the AF data, the receiver tunes in to

another frequency broadcasting the same programme as the original preset RDS station is if the preset station signals are not sufficient.

OFF : [Initial]; Cancels.

AF ON : [Initial]; Traces the programme among DAB

services and FM RDS stations, [29].

AF OFF : Cancels.

You can adjust the volume level (VOL –12 — VOL +12) of DAB tuner to match the FM sound level and store it in memory.

[Initial: VOL 00]

ENGLISH

LEVEL

Audio level meter

DIMMER

ON : [Initial]; Activates the audio level indicator. OFF : Cancels; sound mode indicator is shown, [20].

AUTO : [Initial]; Dims the display when you turn on the

Dimmer

ON : Activates dimmer. OFF : Cancels.

*1 Depends on the amplifier gain control.

Displayed only when DAB tuner is connected.

headlights.

To be continued...

Indications Selectable settings, [reference page]

TEL

Telephone muting

ENGLISH

SCROLL*

Scroll

WOOFER

Subwoofer cutoff

frequency

EXT IN*

External input

AUX ADJ

Auxiliary input level

adjustment

MUTING 1/MUTING 2: Select either one which mutes the sounds

while using the cellular phone.

OFF : [Initial]; Cancels.

ONCE : [Initial]; Scrolls the disc information once. AUTO :

Repeats scrolling (5-second intervals in between).

OFF : Cancels.

• Pressing D DISP for more than one second can scroll the display regardless of the setting.

LOW : Frequencies lower than 55 Hz are send to the

subwoofer.

MID : [Initial]; Frequencies lower than 85 Hz are send to

the subwoofer.

HIGH : Frequencies lower than 115 Hz are send to the

subwoofer.

CHANGER :

[Initial]; To use a JVC CD changer, [15] or DAB tuner, [28].

EXT IN : To use another external component, [27].

A.ADJ 00 – A.ADJ 05: Adjust the auxiliary input level

accordingly, to avoid the sudden increase of the output level when changing the source from external component connected to the AUX input jack on the control panel.

[Initial: A.ADJ 00]

TAG D I S P

Tag display

AMP GAIN

Amplifier gain control

Some characters or symbols will not be shown (and will be blanked) on the display (Ex. “AБBЁ б ! ” ]“AБBE Б ”).

Displayed only when one of the following sources is selected—FM, AM, CD, or AUX IN.

TAG O N : [Initial]; Shows the ID3 tag while playing MP3/

WMA tracks, [18].

TAG O FF : Cancels.

You can change the maximum volume level of this receiver. LOW PWR : VOL 00 – VOL 30 (Select this if the maximum

power of the speaker is less than 50 W to prevent them from damaging the speaker.)

HIGH PWR : [Initial]; VOL 00 – VOL 50

Other main functions

Assigning titles to the sources

You can assign titles to CDs (both in this receiver and in the CD changer).

Sources

CDs/CD-CH Up to 32 characters (up to

* You cannot assign a title to a CD Text or an

MP3/WMA disc.

1 Select the sources.

• For a CD in this receiver: Insert a CD.

• For CDs in the CD changer: Select “CD-CH,” then select a disc number.

2 Enter the title assignment mode.

Maximum number of

characters

30 discs)

3 Assign a title.

1 Select a character.

ENGLISH

2 Move to the next (or previous)

character position.

3 Repeat steps 1 and 2 until you

finish entering the title.

4 Finish the procedure.

Ex.: When you select CD as the source

To erase the entire title

In step 2 on the left...

Detaching the control panel

When detaching or attaching the control panel, be careful not to damage the connectors on

ENGLISH

the back of the control panel and on the panel holder.

Detaching the control panel

Before detaching the control panel, be sure to turn off the power.

Attaching the control panel

External component operations

Playing an external component

Portable MD player, etc.

You can connect an external component to the CD changer jack on the rear using the Line Input Adapter KS-U57 (not supplied), and another to the AUX (auxiliary) input jack on the control panel.

Ÿ Turn on the connected component

and start playing the source.

! Adjust the volume.

• For connection, see Installation/Connection Manual (separate volume).

ENGLISH

AUX IN : For selecting the external

component connected to the AUX input jack.

EXT IN : For selecting the external

component connected to the CD changer jack on the rear using KS-U57.

• If “EXT IN” does not appear, see page 24 and select the external input (EXT IN).

⁄ Adjust the sound as you want.

(See pages 20 and 21.)

DAB tuner operations

Listening to the DAB tuner

ENGLISH

2 Select the desired ensemble frequencies.

! Start searching for an ensemble.

When an ensemble is received, searching stops. To stop searching, press the same button again.

⁄ Select a service (either primary or

secondary) to listen to.

To tune in to an ensemble manually

In step ! above... 1

What is DAB system?

•

Tracing the same programme automatically —Alternative Reception (see “DAB AF” on page 23).

It is recommended to use DAB (Digital Audio Broadcasting) tuner KT-DB1000 with your receiver. If you have another DAB tuner, consult your JVC IN-CAR ENTERTAINMENT dealer.

• Refer also to the Instructions supplied for your DAB tuner.

Storing DAB services in memory

You can preset six DAB services (primary) for each band.

1 Perform steps ~ to ⁄ on page 28, to

select a service you want.

2 Select the preset number (1 – 6) you

want to store into.

Preset number flashes for a while.

Tuning in to a preset DAB service

Tracing the same programme—

Alternative Reception

You can keep listening to the same programme by activating the Alternative Reception.

• While receiving a DAB service: When driving in an area where a service

cannot be received, this receiver automatically tunes in to another ensemble or FM RDS station, broadcasting the same programme.

• While receiving an FM RDS station: When driving in an area where a DAB service

is broadcasting the same programme as the FM RDS station is broadcasting, this receiver automatically tunes in to the DAB service.

When shipped from the factory, Alternative Reception is activated. To deactivate the Alternative Reception, see page 23.

To change the display information while tuning in to an ensemble

ENGLISH

3 Select the preset DAB service

(primary) number (1 – 6) you want.

If the selected primary service has some secondary services, press the same button again will tune in to the secondary services.

Maintenance

How to clean the connectors

Frequent detachment will deteriorate the connectors. To minimize this possibility, periodically wipe

ENGLISH

the connectors with a cotton swab or cloth moistened with alcohol, being careful not to damage the connectors.

Connector

Moisture condensation

Moisture may condense on the lens inside the CD player in the following cases:

• After starting the heater in the car.

To keep discs clean

A dirty disc may not play correctly. If a disc does become dirty, wipe it with a soft cloth in a straight line from center to edge.

• Do not use any solvent (for example,

conventional record cleaner, spray, thinner, benzine, etc.) to clean discs.

To play new discs

How to handle discs

When removing a disc from its case, press down the center

holder of the case and lift the disc out, holding it by the edges.

• Always hold the disc by the edges. Do not touch its recording surface.

When storing a disc into its case, gently insert the disc around the center holder (with the printed surface facing up).

• Make sure to store discs into the cases after use.

Do not use the following discs:

Warped

disc

Center holder

Sticker

Sticker residue

Disc

Stick-on label

More about this receiver

Basic operations

Turning on the power

• By pressing SOURCE on the receiver, you can also turn on the power.

Selecting the sources

• When no disc is loaded in the receiver, “CD” cannot be selected.

• Without connecting to the CD changer or DAB tuner, “CD-CH” or “DAB” cannot be selected.

Turning off the power

• If you turn off the power while listening to a disc, disc play will start from where playback has been stopped previously, next time you turn on the power.

Tuner operations

Storing stations in memory

• During SSM search...

– All previously stored stations are erased and

stations are stored newly.

– Received stations are preset in No. 1 (lowest

frequency) to No. 6 (highest frequency).

– When SSM is over, the station stored in

No. 1 will be automatically tuned in.

• When storing a station manually, a previously preset station is erased when a new station is stored in the same preset number.

FM RDS operations

• If a Traffic Announcement is received, the volume level (TA VOL) automatically changes to the preset level.

• If you want to know more about RDS, visit «http://www.rds.org.uk».

Disc operations

Caution for DualDisc playback

• The Non-DVD side of a “DualDisc” does not comply with the “Compact Disc Digital Audio” standard. Therefore, the use of NonDVD side of a DualDisc on this product may not be recommended.

General

• This receiver has been designed to reproduce CDs/CD Texts, and CD-Rs (Recordable)/ CD-RWs (Rewritable) in audio CD (CD-DA), MP3 and WMA format.

• When a disc has been loaded, selecting “CD” for the playback source starts disc play.

Inserting a disc

• When a disc is inserted upside down, “PLEASE” and “EJECT” appear alternately on the display. Press 0 to eject the disc.

• Do not insert 8 cm discs (single CD) and unusual shape discs (heart, flower, etc.) into the loading slot.

Playing a disc

• While fast-forwarding or reversing on an MP3 or WMA disc, you can only hear intermittent sounds.

ENGLISH

To be continued...

Playing a CD-R or CD-RW

• Use only “finalized” CD-Rs or CD-RWs.

• This receiver can play back only the files of the same type which is first detected if a disc

ENGLISH

includes both audio CD (CD-DA) files and MP3/WMA files.

• This receiver can play back multi-session discs; however, unclosed sessions will be skipped while playing.

• Some CD-Rs or CD-RWs may not play back on this receiver because of their disc characteristics, and for the following causes:

– Discs are dirty or scratched. – Moisture condensation occurs on the lens

inside the receiver. – The pickup lens inside the receiver is dirty. – CD-R/CD-RW on which the files are

written with “Packet Write” method. – There are improper recording conditions

(missing data, etc.) or media conditions

(stain, scratch, warp, etc.).

• CD-RWs may require a longer readout time

since the reflectance of CD-RWs is lower than that of regular CDs.

• Do not use the following CD-Rs or CD-RWs: – Discs with stickers, labels, or protective seal

stuck to the surface. – Discs on which labels can be directly

printed by an ink jet printer. Using these discs under high temperatures or

high humidities may cause malfunctions or damages to discs.

Playing an MP3/WMA disc

• This receiver can play back MP3/WMA files with the extension code <.mp3> or <.wma> (regardless of the letter case—upper/lower).

• This receiver can show the names of albums, artists (performer), and ID3 Tag (Version 1.0,

1.1, 2.2, 2.3, or 2.4) for MP3 files and for WMA files.

• This receiver can display only one-byte characters. No other characters can be correctly displayed.

• This receiver can play back MP3/WMA files meeting the conditions below:

– Bit rate: 8 kbps — 320 kbps – Sampling frequency: 48 kHz, 44.1 kHz, 32 kHz (for MPEG-1) 24 kHz, 22.05 kHz, 16 kHz (for MPEG-2) – Disc format: ISO 9660 Level 1/ Level 2,

Romeo, Joliet, Windows long file name

• The maximum number of characters for file/ folder names vary among the disc format used (includes 4 extension characters—<.mp3> or <.wma>).

characters

* The parenthetic figure is the maximum

number of characters for file/folder names in case the total number of files and folders is 313 or more.

• This receiver can recognize the total of 512 files, of 200 folders, and of 8 hierarchies.

• This receiver can play back the files recorded in VBR (variable bit rate).

The files recorded in VBR have a discrepancy

in elapsed time display, and do not show the actual elapsed time. Especially, after performing the search function, this difference becomes noticeable.

• This receiver cannot play back the following files:

– MP3 files encoded with MP3i and

MP3 PRO format.

– MP3 files encoded in an unappropriated

format. – MP3 files encoded with Layer 1/2. – WMA files encoded with lossless,

professional, and voice format. – WMA files which are not based upon

Windows Media – WMA files copy-protected with DRM. – Files which have the data such as WAVE,

ATRAC3, etc.

• The search function works but search speed is

not constant.

Audio.

Changing the source

• If you change the source, playback also stops

(without ejecting the disc).

Next time you select “CD” for the playback

source, disc play starts from where it has been stopped previously.

Ejecting a disc

• If the ejected disc is not removed within 15 seconds, the disc is automatically inserted again into the loading slot to prevent it from dust. (Disc will not play this time.)

General settings—PSM

Other main functions

• If you try to assign a title to a 31st disc, “NAMEFULL” flashes on the display. Delete unwanted titles before assignment.

• Titles assigned to discs in the CD changer can also be shown if you playback the disc from the receiver.

DAB tuner operations

• Only primary DAB services can be presetted even when you store a secondary service.

• A previously preset DAB service is erased when a new DAB service is stored in the same preset number.

ENGLISH

Troubleshooting

What appears to be trouble is not always serious. Check the following points before calling a service center.

ENGLISH

• Sound cannot be heard

General

• The receiver does not

• SSM automatic presetting

• Static noise while listening

FM/AM

• Disc cannot be played

• CD-R/CD-RW cannot be

• Tracks on the CD-R/

• Disc can be neither played

Symptoms Causes Remedies

from the speakers.

work at all.

does not work.

to the radio.

back.

played back.

CD-RW cannot be skipped.

back nor ejected.

The volume level is set to the minimum level.

Connections are incorrect. Check the cords and

The built-in microcomputer may have functioned incorrectly due to noise, etc.

Signals are too weak. Store stations manually.

The aerial is not connected firmly.

Disc is inserted upside down.

CD-R/CD-RW is not finalized.

Disc is locked. Unlock the disc

Adjust it to the optimum level.

connections.

Reset the receiver (see page 2).

Connect the aerial firmly.

Insert the disc correctly.

• Insert a finalized CD-R/ CD-RW.

•

Finalize the CD-R/CD-RW with the component which you used for recording.

(see page 17).

Disc playback

• Disc sound is sometimes interrupted.

• “NO DISC” appears on the display.

The CD player may have functioned incorrectly.

You are driving on rough roads.

Disc is scratched. Change the disc.

Connections are incorrect. Check the cords and

Disc is inserted incorrectly. Insert the disc correctly.

Eject the disc forcibly (see page 2).

Stop playback while driving on rough roads.

connections.

Symptoms Causes Remedies

• Disc cannot be played back.

• Noise is generated. The track played back is not

• A longer readout time is required (“CHECK” keeps flashing on the display).

MP3/WMA playback

• Tracks cannot be played back as you have intended them to play.

• Elapsed playing time is not correct.

No MP3/WMA tracks are recorded on the disc.

MP3/WMA tracks do not have the extension code <.mp3> or <.wma> in their file names.

MP3/WMA tracks are not recorded in the format compliant with ISO 9660 Level 1, Level 2, Romeo, or Joliet.

an MP3/WMA file (although it has the extension code <.mp3> or <.wma>).

Readout time varies due to the complexity of the folder/ file configuration.

Playback order is determined when the files are recorded.

This sometimes occurs during play. This is caused by how the tracks are recorded on the disc.

Change the disc.

ENGLISH

Add the extension code <.mp3> or <.wma> to their file names.

Change the disc. (Record MP3/WMA tracks using a compliant application.)

Skip to another track or change the disc. (Do not add the extension code <.mp3> or <.wma> to non-MP3 or WMA tracks.)

Do not use too many hierarchies and folders.

• “NO FILES” appears on the display.

• Correct characters are not displayed (e.g. album name).

The current disc does not contain any MP3/WMA tracks.

This receiver can display Roman alphabets (A – Z), Cyrillic alphabets, numbers, and a limited number of symbols (see page 25).

Insert a disc that contains MP3/WMA tracks.

To be continued...

Symptoms Causes Remedies

• “NO DISC” appears on

ENGLISH

• “NO MAG” appears on

• “RESET 8” appears on the

CD changer

• “RESET 1” – “RESET 7”

• The CD changer does not

the display.

display.

appears on the display.

work at all.

No disc is in the magazine.

Disc is inserted upside down.

No magazine is loaded in the CD changer.

This receiver is not connected to the CD changer correctly.

The built-in microcomputer may function incorrectly due to noise, etc.

Insert disc into the magazine.

Insert disc correctly.

Insert the magazine.

Connect this receiver and the CD changer correctly and press the reset button of the CD changer.

Press the reset button of the CD changer.

Reset the receiver (see page 2).

Specifications

AUDIO AMPLIFIER SECTION

Maximum Power Output: Front: 50 W per channel Rear: 50 W per channel Continuous Power Output (RMS): Front: 19 W per channel into 4 Ω, 40 Hz

to 20 000 Hz at no more than 0.8% total harmonic distortion.

Rear: 19 W per channel into 4 Ω, 40 Hz

to 20 000 Hz at no more than 0.8%

2.5 V/20 kΩ load (full scale) Output Impedance: 1 kΩ Subwoofer-Out Level/Impedance:

2.0 V/20 kΩ load (full scale) Other Terminal: CD changer

TUNER SECTION

Frequency Range: FM1/FM2: 87.5 MHz to 108.0 MHz FM3: 65.00 MHz to 74.00 MHz AM: (MW) 522 kHz to 1 620 kHz (LW) 144 kHz to 279 kHz

[FM Tuner]

Usable Sensitivity: 11.3 dBf (1.0 µV/75 Ω) 50 dB Quieting Sensitivity:

16.3 dBf (1.8 µV/75 Ω) Alternate Channel Selectivity (400 kHz): 65 dB Frequency Response: 40 Hz to 15 000 Hz Stereo Separation: 35 dB Capture Ratio: 1.5 dB

[MW Tuner]

Sensitivity: 20 µV Selectivity: 35 dB

[LW Tuner]

Sensitivity: 50 µV

CD PLAYER SECTION

Type: Compact disc player Signal Detection System: Non-contact optical

Audio) Decoding

GENERAL

Power Requirement: Operating Voltage:

DC 14.4 V (11 V to 16 V allowance) Grounding System: Negative ground Allowable Operating Temperature:

0°C to +40°C Dimensions (W × H × D): Installation Size (approx.):

182 mm × 52 mm × 150 mm Panel Size (approx.):

188 mm × 58 mm × 11 mm Mass (approx.):

1.5 kg (excluding accessories)

Design and specifications are subject to change without notice.

ENGLISH

• Microsoft and Windows Media are either registered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries.

Having TROUBLE with operation?

Please reset your unit

Refer to page of How to reset your unit

Затруднения при эксплуатации?

Пожалуйста, перезагрузите Ваше устройство

Для получения информации о перезагрузке Вашего

устройства обратитесь на соответствующую страницу

EN, RU

0105DTSMDTJEIN

KD-G617

Removing the receiver

Before removing the receiver, release the rear section.

Installation/Connection Manual

Руководство по установке/подключению

GET0270-002A

[EE]

ENGLISH

Parts list for installation and connection

The following parts are provided for this receiver. After checking them, please set them correctly.

A / B Hard case/Control panel

Жесткий футляр/ панель управления

Power cord

Кабель питания

Washer (ø5)

Шайба (њ5)

Sleeve

Муфта

0105DTSMDTJEIN

EN, RU

РУССКИЙ

Это устройство разработано для эксплуатации на 12 В постоянного напряжения с минусом на массе. Если Ваш автомобиль не имеет этой системы, требуется инвертор напряжения, который может быть приобретен у дилера автомобилнего специалиста JVC.

Список деталей для установки и подключения

Следующие детали поставлены в комплекте с устройством. После проверки комплектации, пожалуйста, установите их правильно.

Trim plate

Декоративную панель

Lock nut (M5)

Фиксирующая гайка (M5)

Mounting bolt (M5 x 20 mm)

Крепежный болт (M5 x 20 мм)

Rubber cushion

Резиновый чехол

Handles

Рычаги

INSTALLATION (IN-DASH MOUNTING)

• If you are not sure how to install this receiver correctly, have it installed by a qualified technician.

Remote controller

дистанционного управления

Battery

Батарейка

УСТАНОВКА (УСТАНОВКА В ПРИБОРНУЮ ПАНЕЛЬ)

На следующих иллюстрациях показана типовая установка. Если у Вас есть какие-либо вопросы, касающиеся установки, обратитесь к Вашему дилеру автомобилнего специалиста JVC или в компанию, поставляющую соответствующие принадлежности.

• Если Вы не знаете точно, как следует устанавливать это устройство, обратитесь к квалифицированному специалисту.

Do the required electrical connections.

Выполните необходимые подключения контактов, как показано на оборотной стороне этой инструкции.

When you stand the receiver, be careful not to damage the fuse on the rear.

Устанавливайте устройство таким образом, чтобы не повредить предохранитель, расположенный сзади.

Bend the appropriate tabs to hold the sleeve firmly in place.

Отогните соответствующие фиксаторы, предназначенные для прочной установки корпуса.

Удаление устройства

Перед удалением устройства освободите заднюю часть.

Insert the two handles, then pull them as illustrated so that the receiver can be removed.

Вставьте два рычажка, затем потяните их, как показано на рисунке, чтобы вынуть устройство.

When using the optional stay / При использовании дополнительной стойки

Stay (option)

Стойка (дополнительно)

Fire wall

Стена

Dashboard

Приборная панель

Screw (option)

Винт (дополнительно)

When installing the receiver without using the sleeve / При установке устройства без использования муфты

In a Toyota for example, first remove the car radio and install the receiver in its place.

В автомобилях “Toyota”, например, сначала удалите автомобильную магнитолу, затем установите на ее место это устройство.

Flat type screws (M5 x 8 mm)

Крепежные винты (M5 x 8 мм)*

Pocket

Карман

Bracket* Кронштейн*

* Not included for this receiver. * Не входят в комплект.

Flat type screws (M5 x 8 mm)* Крепежные винты (M5 x 8 мм)*

Install the receiver at an angle of less than 30˚.

Установите устройство под углом менее 30°.

Note : When installing the receiver on the mounting bracket, make sure to use the 8 mm-long screws. If

longer screws are used, they could damage the receiver.

Примечание : При установке устройства на крепежный кронштейн, используйте только винты длиной 8

мм. При использовании более длинных винтов можно повредить устройство.

ELECTRICAL CONNECTIONS

To prevent short circuits, we recommend that you disconnect the battery’s negative terminal and make all electrical connections before installing the receiver.

• Be sure to ground this receiver to the car’s chassis again after installation.

Notes:

• Replace the fuse with one of the specified rating. If the fuse blows frequently, consult your JVC IN-CAR ENTERTAINMENT dealer.

• To prevent short-circuit, cover the terminals of the UNUSED leads with insulating tape.

• The heat sink becomes very hot after use. Be careful not to touch it when removing this receiver.

ЭЛЕКТРИЧЕСКИЕ ПОДКЛЮЧЕНИЯ

Для предотвращения коротких замыканий мы рекомендуем Вам отсоединить отрицательный разъем аккумулятора и осуществить все подключения перед установкой устройства.

• После установки обязательно заземлите данное устройство на шасси автомобиля.

Примечания:

• Заменяйте предохранитель другим предохранителем указанного класса. Если предохранитель сгорает слишком часто, обратитесь к дилеру автомобилнего специалиста JVC.

• Рекомендуется подключать динамики с максимальной мощностью более 50 Вт (к задней и передней панели устройства, с полным сопротивлением от 4 Ω до 8 Ω). Если максимальная мощность динамиков менее 50 Вт, перейдите в режим “AMP GAIN”, чтобы предотвратить их повреждение (см. стр. 24 ИНСТРУКЦИЙ).

• Для предотвращения короткого замыкания заклейте НЕИСПОЛЬЗУЕМЫЕ концы изолирующей лентой.

• Радиатор во время использования сильно нагревается. Старайтесь его не трогать во время удаления устройства.

Heat sink

Радиатор

PRECAUTIONS on power supply and speaker connections:

• DO NOT connect the speaker leads of the power cord to the car battery; otherwise,

the receiver will be seriously damaged.

• BEFORE connecting the speaker leads of the power cord to the speakers, check the speaker wiring in your car.

TROUBLESHOOTING

ПРЕДОСТЕРЕЖЕНИЯ по питанию и подключению громкоговорителей:

• НЕ подключайте провода громкоговорителей к аккумулятору автомобиля, иначе устройство будет повреждено.

• ПЕРЕД подключением проводов громкоговорителей к кабелю питания громкоговорителя проверьте схему соединений громкоговорителей в Вашем автомобиле.

BЫЯВЛЕНИЕ НЕИСПРАВНОСТЕЙ

• The fuse blows. * Are the red and black leads connected correctly?

• Power cannot be turned on. * Is the yellow lead connected?

• No sound from the speakers. * Is the speaker output lead short-circuited?

• Sound is distorted. * Is the speaker output lead grounded? * Are the “–” terminals of L and R speakers grounded in common?

• Noise interfere with sounds. * Is the rear ground terminal connected to the car’s chassis using shorter and thicker cords?

• Receiver becomes hot. * Is the speaker output lead grounded? * Are the “–” terminals of L and R speakers grounded in common?

• This receiver does not work at all. * Have you reset your receiver?

• Сработал предохранитель.

* Правильно ли подключены черный и красный провода?

• Питание не включается.

* Подключен ли желтый провод?

• Звук не выводится через громкоговорители.

* Нет ли короткого замыкания на кабеле выхода громкоговорителей?

• Звук искажен.

* Заземлен ли провод выхода громкоговорителей? * Заземлены ли разъемы “–” правого (R) и левого (L) громкоговорителей?

• Шум мешает звучанию.

* Соединен ли находящийся сзади зажим заземления с шасси автомобиля с помощью

более короткого и тонкого шнуров?

• Устройство нагревается.

• Приемник не работает.

* Выполнена ли перенастройка приемника?

ENGLISH

Typical Connections / Типичные подключения

1 Connect the colored leads of the power cord in the order specified in the illustration below. 2 Connect the aerial cord. 3 Finally connect the wiring harness to the receiver.

РУССКИЙ

Перед началом подключений: Тщательно проверьте проводку в автомобиле. Неправильное подключение может привести к серьезному повреждению устройства. Жилы силового кабеля и жилы соединителя от кузова автомобиля могут быть разного цвета.

1 Подсоедините цветные провода шнура питания в указанном ниже порядке. 2 Подключите кабель антенны. 3 В последнюю очередь подключите электропроводку к устройству.

• The yellow lead (A4) is not used in this case.

Rear ground terminal

Задний разъем заземления

Aerial terminal

Разъем антенны

SUBWOOFER (see diagram

НИЗКОЧАСТОТНЫЙ ДИНАМИК (см. схему )

To CD changer/DAB tuner or another external component (see diagram )

К устройству автоматической смены компакт-дисков/ тюнеру DAB или к другому внешнему устройству (см. схему )

15 A fuse

Предохранитель 15 A

)

Примечание: Если в Вашем автомобиле никакого вспомогательного разъема не имеется, переставьте предохранитель из положения 1 предохранителя (первоначальное положение) в положение 2 предохранителя и подключите красный провод (А7) к положительному (+) полюсу аккумулятора.

• Желтый провод (А4) в этом случае не используется.

Fuse position 2 / Положение 2 предохранителя

Fuse position 1 / Положение 1 предохранителя

Not included for this receiver

Не входит в комплект

Ignition switch

Переключатель зажигания

Line out (see diagram )

К выходу (см. схему

*2 Before checking the operation of this

receiver prior to installation, this lead must be connected, otherwise power cannot be turned on.

*2 Перед проверкой работы устройства

подключите этот провод, иначе питание не включится.

Black

Черный

)

Yellow

Желтый*

Red

Красный

Blue with white stripe

Синий с белой полосой

To metallic body or chassis of the car

К металлическому корпусу или шасси автомобиля

To a live terminal in the fuse block connecting to the car battery (bypassing the ignition switch) (constant 12 V)

К разъему фазы в блоке предохранителя (минуя блок зажигания) (постоянный 12 В)

Fuse block

Блок предохранителя

To an accessory terminal in the fuse block

К вспомогательному разъему в блоке предохранителя

To the remote lead of other equipment or power aerial if any (200 mA max.)

К удаленному проводу другого оборудования или антенны (макс. 200 мА)

White with black stripe

Белый с черной полосой

White

Белый

Left speaker (front)

Левый громкоговоритель (передний)

Gray with black stripe

Серый с черной полосой

Orange with white stripe

Оранжевый с белой полосой

Brown

Коричневый

Gray

Серый

Right speaker (front)

Правый громкоговоритель (передний)

Green with black stripe

Зеленый с черной полосо

To car light control switch

К контрольному переключателю освещения автомобиля

To cellular phone system

К системе сотового телефона

Green

Зеленый

Left speaker (rear)

Левый громкоговоритель (задний)

Purple with black stripe

Пурпурный с черной полосой

Purple

Пурпурный

Right speaker (rear)

Правый громкоговоритель (задний)

Connecting the external amplifiers / Подключение внешних усилителей

You can connect amplifiers to upgrade your car stereo system.

• Connect the remote lead (blue with white stripe) to the remote lead of the other equipment so that it can be controlled through this receiver.

•

Disconnect the speakers from this receiver, connect them to the amplifier. Leave the speaker leads of this receiver unused.

Можно подключить усилители для обновления автомобильной стереосистемы.

• Подсоедините провод внешнего устройства (синий с белой полосой) к проводу внешнего устройства другого оборудования так, чтобы им можно было управлять с этого устройства.

• Отсоедините громкоговорители от данного устройства, подключите их к усилителю. Оставьте провода громкоговорителей данного устройства неиспользованными.

Rear speakers

Задние

громкоговорители

JVC-усилитель

Front speakers

Передние

громкоговорители

JVC-усилитель

JVC Amplifier

Remote lead

Провод внешнего устройства

Remote lead (Blue with white stripe)

Провод внешнего устройства (Синий с белой полосой)

Y-connector (not supplied for this receiver)

Разъем Y (не входит в комплект)

To the remote lead of other equipment or power aerial if any

К удаленному проводу другого оборудования или антенны

JVC Amplifier

JVC-усилитель

Subwoofer

Низкочастотный динамик

Front speakers

Передние громкоговорители

Firmly attach the ground wire to the metallic body or to the chassis of the car—to the place not

coated with paint (if coated with paint, remove the paint before attaching the wire). Failure to do so may cause damage to the receiver.

*3 Плотно прикрепите заземляющий провод к металлическому кузову или шасси

автомобиля—в месте, не покрытом краской (если оно покрыто краской, удалите

Signal cord (not supplied for this receiver)

Кабель сигнала (не входит в комплект)

Connecting the external components / Подключение внешних устройств

краску перед тем, как прикреплять провод). Невыполнение этого требования может привести к повреждению данного устройства.

CD changer and DAB tuner / Проигрыватель нескольких компакт-дисков и тюнер DAB

• Refer also to pages 15 and 28 of the INSTRUCTIONS.

• Также см. ИНСТРУКЦИИ на стр. 15 и 28.

• You can connect both components in series as illustrated below.

• Внешние устройства можно подключать параллельно, как показано на рисунке.

CAUTION /

• Before connecting the CD changer and/or DAB tuner, make sure that the receiver is turned off.

• Перед подключением устройства автоматической смены

компакт-дисков и/или тюнера DAB убедитесь в том, что приемник отключен.

JVC DAB tuner

Тюнер DAB JVC

JVC CD changer

Проигрыватель

нескольких компакт-

дисков JVC

ПРЕДОСТЕРЕЖЕНИЕ

JVC DAB tuner

Тюнер DAB JVC

или

JVC CD changer

Проигрыватель

нескольких компакт-

Connecting cord supplied for your CD changer or DAB tuner

Подключение кабеля, входящего в комплект поставки устройства

автоматической смены компакт-дисков или тюнера DAB

дисков JVC

External Component / Внешнее устройство

• Set “EXT IN” for the external input setting (see page 24 of the INSTRUCTIONS). / Установите для внешнего входа значение “EXT IN” (см. стр. 24 ИНСТРУКЦИЙ).

KS-U57*

Line Input Adapter KS-U57 (not supplied for this

External component

Внешнее устройство

receiver)

Коммуникационный адаптер KS-U57 (не входит

в комплект поставки)

JVC GET0266-003A User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

INSTRUCTIONS

IMPORTANT FOR LASER PRODUCTS

Contents

Getting started

Radio operations

FM RDS operations

Disc operations

Sound adjustments

General settings — PSM

Other main functions

External component operations

DAB tuner operations

Maintenance

More about this receiver

Troubleshooting

Specifications

ELECTRICAL CONNECTIONS

TROUBLESHOOTING

KD-G617

INSTRUCTIONS

IMPORTANT FOR LASER PRODUCTS

Contents

Getting started

Radio operations

FM RDS operations

Disc operations

Sound adjustments

General settings — PSM

Other main functions

External component operations

DAB tuner operations

Maintenance

More about this receiver

Troubleshooting

Specifications

Installation/Connection Manual

ELECTRICAL CONNECTIONS

TROUBLESHOOTING
