JVC GET0253-003A User Manual

CD RECEIVER

RECEPTEUR CD

KD-G111

For canceling the display demonstration, see page 7. Pour annuler la démonstration des affichages, référez-vous à la page 7.

ENGLISH

FRANÇAIS

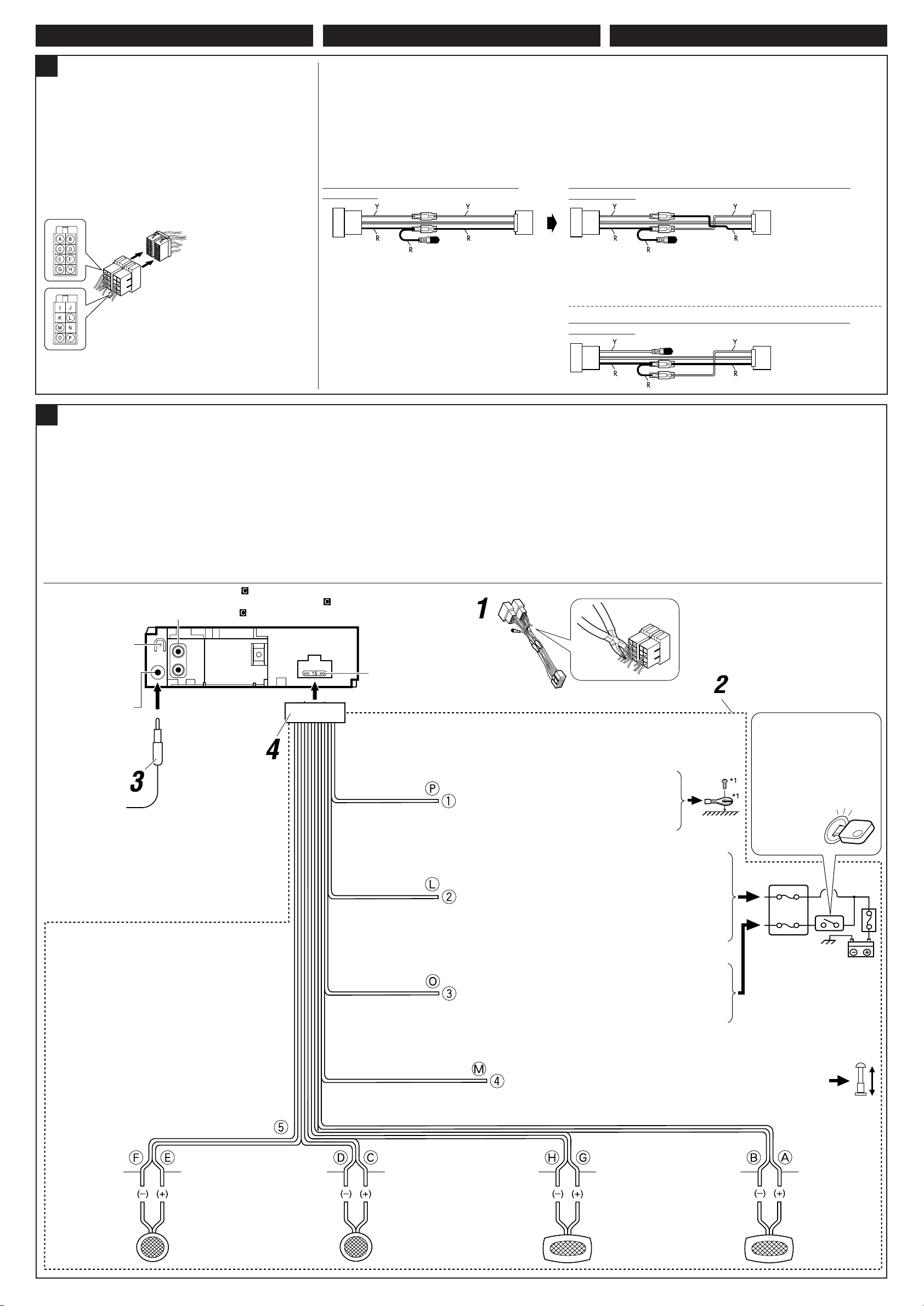

For installation and connections, refer to the separate manual. Pour l’installation et les raccordements, se référer au manuel séparé.

INSTRUCTIONS

MANUEL D’INSTRUCTIONS

GET0253-003A

[EX/EU]

Thank you for purchasing a JVC product.

Please read all instructions carefully before operation, to ensure your complete understanding and

to obtain the best possible performance from the unit.

ENGLISH

IMPORTANT FOR LASER PRODUCTS

1. CLASS 1 LASER PRODUCT

2. CAUTION : Do not open the top cover. There are no user serviceable parts inside the unit; leave

all servicing to qualified service personnel.

3. CAUTION : Visible and invisible laser radiation when open and interlock failed or defeated.

Avoid direct exposure to beam.

4. REPRODUCTION OF LABEL: CAUTION LABEL, PLACED OUTSIDE THE UNIT.

Warning:

If you need to operate the receiver while driving, be sure to look ahead carefully or you may be involved in a traffic accident.

How to forcibly eject a disc

If a disc cannot be recognized by the receiver or cannot be ejected, ejects the disc as follows.

How to reset your unit

• If this does not work, try to reset your receiver.

• This will reset the microcomputer. Your preset adjustments will also be erased.

• If a disc is loaded, it will eject. Be careful not to drop the disc.

Note: Only for [EX] model users in UK and European countries For security reasons, a numbered ID card is provided with this receiver, and the same ID number is imprinted on the receiver’s chassis. Keep the card in a safe place, as it will help the authorities to identify your unit if stolen.

2

• Be careful not to drop the disc when it ejects.

Getting started

ENGLISH

Basic operations

~

Ÿ

You cannot select “CD” as the playback source if there is no disc in the loading slot.

!

Volume level appears.

Volume level indicator

To drop the volume in a moment (ATT)

To restore the sound, press it

again.

To turn off the power

Caution on volume setting:

Discs produce very little noise compared with other sources. Lower the volume before playing a disc to avoid damaging the speakers by the sudden increase of the output level.

⁄ Adjust the sound as you want.

(See pages 12 and 13.)

6

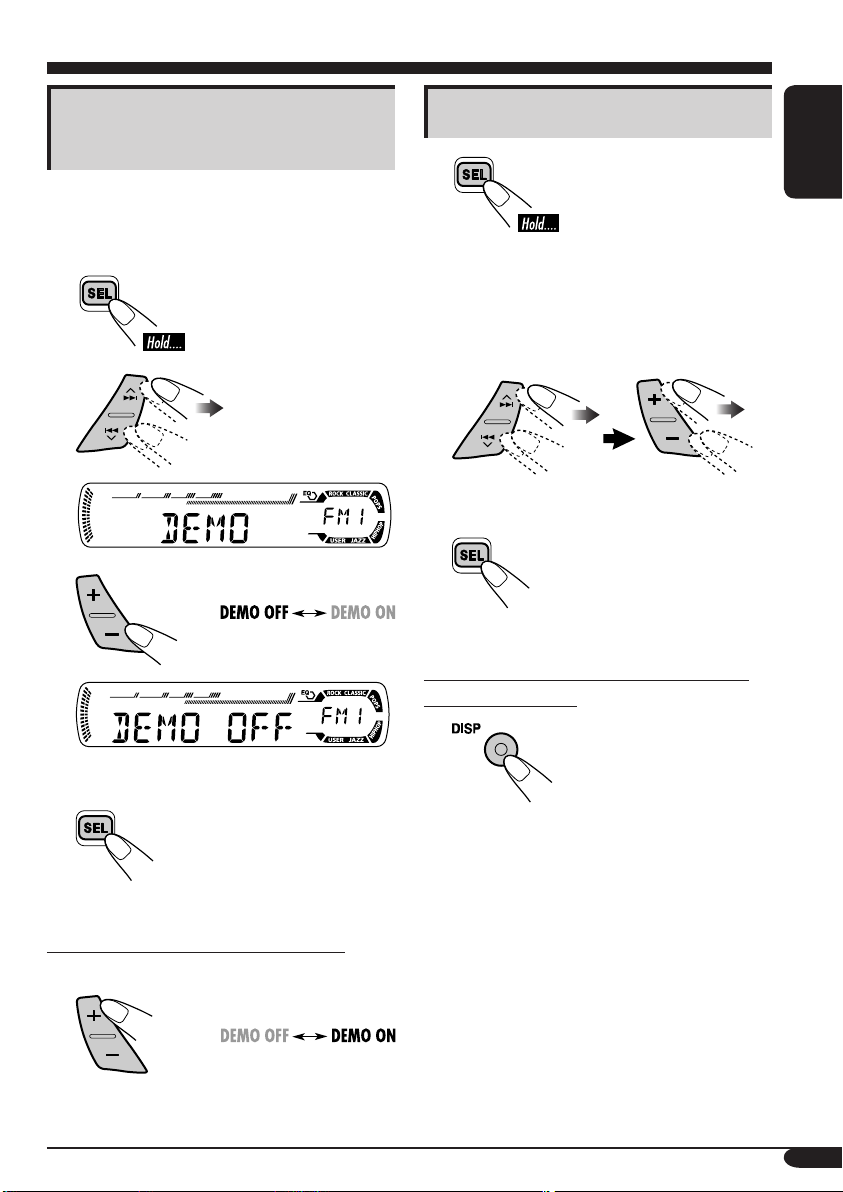

Canceling the display

demonstrations

If no operations are done for about 20 seconds, display demonstration starts.

[Initial: DEMO ON]—see page 14.

1

2

3

Setting the clock

1

2

Set the hour and minute.

1 Select “CLOCK H” (hour), then

adjust the hour.

2 Select “CLOCK M” (minute),

then adjust the minute.

3 Finish the procedure.

To check the current clock time when the power is turned off

ENGLISH

Finish the procedure.

4

To activate the display demonstration

In step 3 above...

7

Radio operations

Listening to the radio

ENGLISH

~

Lights up when receiving an FM stereo broadcast with sufficient signal strength.

Selected band appears.

Ÿ Start searching for a station.

2 Select the desired station frequencies.

When an FM stereo broadcast is hard to receive

1

When a station is received, searching stops. To stop searching, press the same button again.

To tune in to a station manually

In step Ÿ above... 1

8

2

Lights up when monaural mode is activated.

Reception improves, but stereo effect will be lost.

To restore the stereo effect, repeat the same procedure so that the MO indicator goes off.

Storing stations in memory

You can preset six stations for each band.

FM station automatic presetting —

SSM (Strong-station Sequential Memory)

Select the FM band (FM1 – FM3)

1

you want to store into.

2

ENGLISH

3

Preset number flashes for a while.

3

“SSM” flashes, then disappears when automatic presetting is over.

Local FM stations with the strongest signals are searched and stored automatically in the FM band.

Manual presetting

Ex.: Storing FM station of 92.5 MHz into the

preset number 4 of the FM1 band.

1

Listening to a preset station

1

2 Select the preset station (1 – 6) you

want.

To check the current clock time while listening to an FM or AM station

9

Disc operations

ENGLISH

Playing a disc

All tracks will be played repeatedly until you stop playback.

Total playing time of the inserted disc

Elapsed playing time

Total track number of the inserted disc

Current track number

To stop play and eject the disc

To fast-forward or reverse the track

Fast-forwards.

Reverses.

To go to the next or previous tracks

To the following

tracks.

To the beginning of the current track, then

the previous tracks.

To go to a particular track directly

To select a number from 01 – 06:

10

To select a number from 07 – 12:

Prohibiting disc ejection

You can lock a disc in the loading slot.

To cancel the prohibition, repeat the same procedure.

To check the current clock time while listening to a disc

Selecting the playback modes

You can use only one of the following playback modes at a time.

1

2 Select your desired playback mode.

ENGLISH

Repeat play

Ex.: When “TRK RPT” is selected

Random play

Ex.: When “DISC RND” is selected

Mode Plays repeatedly

TRK RPT: The current track.

• RPT lights up. RPT OFF: Cancels repeat play.

Mode Plays at random

DISC RND: All tracks of the current disc.

• RND RND OFF: Cancels random play.

lights up.

11

Sound adjustments

Selecting preset sound modes (C-EQ: custom equalizer)

ENGLISH

You can select a preset sound mode suitable to the music genre.

~

Ex.: When “ROCK” is selected

Indication pattern for each sound mode:

Indication For:

USER (Flat sound) 00 00 OFF

ROCK Rock or disco

music

CLASSIC Classical

music

POPS Light music +04 +01 OFF

HIP HOP Funk or rap

music

JAZZ Jazz music +02 +03 OFF

1

*

BAS: Bass

2

*

TRE: Treble

3

*

LOUD: Loudness

1

TRE

*

2

LOUD

*

BAS

+03 +01 ON

+01 –02 OFF

+02 00 ON

Preset values

3

*

12

Adjusting the sound

You can adjust the sound characteristics to your preference.

1

Ex.: When “TRE” is selected

2

Indication pattern changes as you adjust the level.

Indication To do: Range

BAS*1 (bass)

1

TRE* (treble)

FAD* (fader)

BAL (balance)

LOUD* (loudness)

VOL*3 (volume)

Adjust the bass. –06 (min.)

Adjust the treble. –06 (min.)

2

Adjust the front and rear speaker balance.

Adjust the left and right speaker balance.

1

Boost low and high frequencies to produce a wellbalanced sound at low volume level.

Adjust the volume.

to +06 (max.)

R06 (Rear only) to F06 (Front only)

L06 (Left only) to R06 (Right only)

LOUD ON

LOUD OFF

00 (min.) to 30 or 50 (max.)*

ENGLISH

J

4

*1 When you adjust the bass, treble, or

loudness, the adjustment you have made is stored for the currently selected sound mode (C-EQ) including “USER.”

2

*

If you are using a two-speaker system, set

the fader level to “00.”

3

*

Normally the +/– buttons work as the

volume control. So you do not have to select “VOL” to adjust the volume level.

4

*

Depending on the amplifier gain control

setting. (See page 14 for details.)

13

General settings — PSM

Basic procedure

3 Adjust the PSM item selected.

You can change PSM (Preferred Setting Mode) items listed on the table that follows.

ENGLISH

1

4 Repeat steps 2 and 3 to adjust the

other PSM items if necessary.

Select a PSM item.

2

Ex.: When you select “AMP GAIN”

Indications Selectable settings, [reference page]

5 Finish the procedure.

DEMO

Display demonstration

CLOCK H

Hour adjustment

CLOCK M

Minute adjustment

AMP GAIN

Amplifier gain control

14

DEMO ON: [Initial]; Display demonstration will be activated

automatically if no operation is done for about 20 seconds, [7].

DEMO OFF: Cancels.

0 – 23, [7]

[Initial: 0 (0:00)]

00 – 59, [7]

[Initial: 00 (0:00)]

You can change the maximum volume level of this receiver. LOW PWR: VOL 00 – VOL 30 (Select this if the maximum power

of the speaker is less than 45 W to prevent them from damaging the speaker.)

HIGH PWR: [Initial]; VOL 00 – VOL 50

Detaching the control panel

When detaching or attaching the control panel, be careful not to damage the connectors on the back of the control panel and on the panel holder.

Detaching the control panel

Before detaching the control panel, be sure to turn off the power.

Attaching the control panel

ENGLISH

15

Maintenance

How to clean the connectors

Frequent detachment will deteriorate the connectors. To minimize this possibility, periodically wipe

ENGLISH

the connectors with a cotton swab or cloth moistened with alcohol, being careful not to damage the connectors.

Connector

Moisture condensation

Moisture may condense on the lens inside the CD player in the following cases:

• After starting the heater in the car.

• If it becomes very humid inside the car. Should this occur, the CD player may malfunction. In this case, eject the disc and leave the receiver turned on for a few hours until the moisture evaporates.

To keep discs clean

A dirty disc may not play correctly. If a disc does become dirty, wipe it with a soft cloth in a straight line from center to edge.

• Do not use any solvent (for example, conventional record cleaner, spray, thinner, benzine, etc.) to clean discs.

To play new discs

New discs may have some rough spots around the inner and outer edges. If such a disc is used, this receiver may reject the disc. To remove these rough spots, rub the edges with a pencil or ball-point pen, etc.

How to handle discs

When removing a disc from its case, press down the center

holder of the case and lift the disc out, holding it by the edges.

• Always hold the disc by the edges. Do not touch its recording surface.

When storing a disc into its case, gently insert the disc around the center holder (with the printed surface facing up).

• Make sure to store discs into the cases after use.

Do not use the following discs:

Wrap disc

16

Center holder

Sticker

Sticker residue

Disc

Stick-on label

More about this receiver

Basic operations

Turning off the power

• If you turn off the power while listening to a disc, disc play will start from where playback has been stopped previously, next time you turn on the power.

Tuner operations

Storing stations in memory

• During SSM search...

– All previously stored stations are erased and

stations are stored newly.

– Received stations are preset in No. 1 (lowest

frequency) to No. 6 (highest frequency).

– When SSM is over, the station stored in

No. 1 will be automatically tuned in.

• When storing a station manually, a previously preset station is erased when a new station is stored in the same preset number.

Disc operations

General

• This receiver has been designed to reproduce CDs, and CD-Rs (Recordable)/CD-RWs (Rewritable) in audio CD (CD-DA) format.

• When a disc has been loaded, selecting “CD” for the playback source starts disc play.

Inserting a disc

• When a disc is inserted upside down, the disc automatically ejects.

• Do not insert 8 cm discs (single CD) and unusual shape discs (heart, flower, etc) into the loading slot.

• Some CD-Rs or CD-RWs may not play back on this receiver because of their disc characteristics, and for the following causes:

– Discs are dirty or scratched. – Moisture condensation occurs on the lens

inside the receiver. – The pickup lens inside the receiver is dirty. – CD-R or CD-RW on which the files are

written with “Packet Write” method. – There are improper recording conditions

(missing data, etc.) or media conditions

(stain, scratch, warp, etc.).

• CD-RWs may require a longer readout time

since the reflectance of CD-RWs is lower than that of regular CDs.

• Do not use the following CD-Rs or

CD-RWs:

– Discs with stickers, labels, or protective seal

stuck to the surface. – Discs on which labels can be directly

printed by an ink jet printer. Using these discs under high temperatures

or high humidity may cause malfunctions or damage to discs.

Changing the source

• If you change the source, playback also stops

(without ejecting the disc).

Next time you select “CD” for the playback

source, disc play starts from where it has been stopped previously.

Ejecting a disc

• If the ejected disc is not removed within

15 seconds, the disc is automatically inserted again into the loading slot to prevent it from dust. (Disc will not play this time.)

ENGLISH

Playing a CD-R or CD-RW

• Use only “finalized” CD-Rs or CD-RWs.

• This receiver can play back multi-session discs; however, unclosed sessions will be skipped while playing.

General settings—PSM

• If you change the “AMP GAIN” setting from “HIGH PWR” to “LOW PWR” while the volume level is set higher than “VOL 30,” the receiver automatically changes the volume level to “VOL 30.”

17

Troubleshooting

What appears to be trouble is not always serious. Check the following points before calling a service center.

ENGLISH

• Sound cannot be heard

General

• The receiver does not

• SSM automatic presetting

• Static noise while listening

FM/AM

• Disc automatically ejects. Disc is inserted upside

• CD-R/CD-RW cannot be

• Tracks on the CD-R/

• Disc can be neither played

Symptoms Causes Remedies

from the speakers.

work at all.

does not work.

to the radio.

played back.

CD-RW cannot be skipped.

back nor ejected.

The volume level is set to the minimum level.

Connections are incorrect. Check the cords and

The built-in microcomputer may have functioned incorrectly due to noise, etc.

Signals are too weak. Store stations manually.

The aerial is not connected firmly.

down.

CD-R/CD-RW is not finalized.

Disc is locked. Unlock the disc (see page

Adjust it to the optimum level.

connections.

Reset the receiver (see page

2).

Connect the aerial firmly.

Insert the disc correctly.

• Insert a finalized CD-R/ CD-RW.

• Finalize the CD-R/ CD-RW with the component which you used for recording.

11).

18

Disc playback

• Disc sound is sometimes interrupted.

• “NO DISC” appears on the display.

The CD player may have functioned incorrectly.

You are driving on rough roads.

Disc is scratched. Change the disc.

Connections are incorrect. Check the cords and

No disc in the loading slot. Insert a disc into the loading

Disc is inserted incorrectly. Insert the disc correctly.

Eject the disc forcibly (see page 2).

Stop playback while driving on rough roads.

connections.

slot.

Specifications

AUDIO AMPLIFIER SECTION

Maximum Power Output: Front: 45 W per channel Rear: 45 W per channel Continuous Power Output (RMS): Front: 17 W per channel into 4 Ω, 40 Hz

to 20 000 Hz at no more than 0.8% total harmonic distortion.

Rear: 17 W per channel into 4 Ω, 40 Hz

to 20 000 Hz at no more than 0.8%

total harmonic distortion. Load Impedance: 4 Ω (4 Ω to 8 Ω allowance) Tone Control Range: Bass: ±10 dB at 100 Hz Treble: ±10 dB at 10 kHz Frequency Response: 40 Hz to 20 000 Hz Signal-to-Noise Ratio: 70 dB Line-Out Level/Impedance:

2.0 V/20 kΩ load (full scale) Output Impedance: 1 kΩ

TUNER SECTION

Frequency Range: FM: 87.5 MHz to 108.0 MHz AM: (MW) 522 kHz to 1 620 kHz (LW) 144 kHz to 279 kHz

CD PLAYER SECTION

Type: Compact disc player Signal Detection System: Non-contact optical

pickup (semiconductor laser) Number of channels: 2 channels (stereo) Frequency Response: 5 Hz to 20 000 Hz Dynamic Range: 96 dB Signal-to-Noise Ratio: 98 dB Wow and Flutter: Less than measurable limit

GENERAL

Power Requirement: Operating Voltage: DC 14.4 V (11 V to 16 V allowance) Grounding System: Negative ground Allowable Operating Temperature: 0°C to +40°C Dimensions (W × H × D): Installation Size (approx.): 182 mm × 52 mm × 150 mm Panel Size (approx.): 188 mm × 58 mm × 11 mm Mass (approx.):

1.3 kg (excluding accessories)

ENGLISH

[FM Tuner]

Usable Sensitivity: 11.3 dBf (1.0 µV/75 Ω) 50 dB Quieting Sensitivity:

16.3 dBf (1.8 µV/75 Ω) Alternate Channel Selectivity (400 kHz): 65 dB Frequency Response: 40 Hz to 15 000 Hz Stereo Separation: 30 dB Capture Ratio: 1.5 dB

[MW Tuner]

Sensitivity: 20 µV Selectivity: 35 dB

[LW Tuner]

Sensitivity: 50 µV

Design and specifications are subject to change without notice.

19

Having TROUBLE with operation?

Please reset your unit

Refer to page of How to reset your unit

Vous avez des PROBLÈMES de fonctionnement?

Réinitialisez votre appareil

Référez-vous à la page intitulée Comment réinitialiser votre appareil

EN, FR

1004DTSMDTJEIN

KD-G111

Installation/Connection Manual Manuel d’installation/raccordement

GET0253-010A

[EX/EU]

ENGLISH

This receiver is designed to operate on 12 V DC, NEGATIVE ground electrical systems. If your vehicle does not have this system, a voltage inverter is required, which can be purchased at JVC IN-CAR ENTERTAINMENT dealers.

Parts list for installation and connection

The following parts are provided for this receiver. After checking them, please set them correctly.

A / B Hard case/Control panel

Etui de transport/Panneau de commande

F

Washer (ø5)

Rondelle (ø5)

G

Lock nut (M5)

Ecrou d’arrêt (M5)

C

Sleeve

Manchon

H

Mounting bolt (M5 x 20 mm)

Boulon de montage (M5 x 20 mm)

INSTALLATION (IN-DASH MOUNTING)

The following illustration shows a typical installation. If you have any questions or require information regarding installation kits, consult your JVC IN-CAR ENTERTAINMENT dealer or a company supplying kits.

• If you are not sure how to install this receiver correctly, have it installed by a qualified technician.

1004DTSMDTJEIN EN, FR

FRANÇAIS

Cet appareil est conçu pour fonctionner sur des sources de courant continu de 12 V à masse NEGATIVE. Si votre véhicule n’offre pas ce type d’alimentation, il vous faut un convertisseur de tension,

que vous pouvez acheter chez un revendeur d’autoradios JVC.

Liste des pièces pour l’installation et raccordement

Les pièces suivantes sont fournies avec cet appareil. Après vérification, veuillez les placer correctement.

D

Trim plate

Plaque d’assemblage

I

Rubber cushion

Amortisseur en caoutchouc

E

Power cord

Cordon d’alimentation

J

Handles

Poignées

INSTALLATION (MONTAGE DANS LE TABLEAU DE BORD)

L’illustration suivante est un exemple d’installation typique. Si vous avez des questions ou avez besoin d’information sur des kits d’installation, consulter votre revendeur d’autoradios JVC ou une compagnie d’approvisionnement.

• Si l’on n’est pas sûr de pouvoir installer correctement cet appareil, le faire installer par un technicien

qualifié.

*1 When you stand the receiver, be careful

not to damage the fuse on the rear.

1

*

Lorsque vous mettez l’appareil à la

verticale, faire attention de ne pas endommager le fusible situé sur l’arrière.

Removing the receiver / Retrait de l’appareil

Before removing the receiver, release the rear section.

Avant de retirer l’appareil, libérer la section arrière.

Insert the two handles, then pull them as illustrated so that the receiver can be removed.

Insérez les deux poignées, puis tirez de la façon illustrée de façon à retirer l’appareil.

Do the required electrical connections.

Réalisez les connexions électriques.

When using the optional stay / Lors de l’utilisation du hauban en option

Stay (option)

Fire wall

Cloison

Dashboard

Tableau de bord

Install the receiver at an angle of less than 30˚.

Installez l’appareil avec un angle de moins de 30˚.

Hauban (en option)

Screw (option)

Vis (en option)

Bend the appropriate tabs to hold the sleeve firmly in place.

Tordez les languettes appropriées pour maintenir le manchon en place.

When installing the receiver without using the sleeve / Lors de l’installation de l’appareil scans utiliser de manchon

In a Toyota for example, first remove the car radio and install the receiver in its place.

Par exemple dans une Toyota, retirer d’abord l’autoradio et installer l’appareil à la place.

Flat type screws (M5 x 8 mm)*

Vis à tête plate (M5 x 8 mm)

Note : When installing the receiver on the mounting bracket, make

Remarque : Lors de l’installation de l’appareil sur le support de montage,

Bracket*

*

Support*

Pocket

Poche

sure to use the 8 mm-long screws. If longer screws are used, they could damage the receiver.

s’assurer d’utiliser des vis d’une longueur de 8 mm. Si des vis plus longues sont utilisées, elles peuvent endommager l’appareil.

Bracket*

Support*

Not included with this

*

receiver.

*

Non fourni avec cet appareil.

Flat type screws (M5 x 8 mm)*

Vis à tête plate (M5 x 8 mm)

*

PRECAUTIONS on power supply and speaker connections:

• DO NOT connect the speaker leads of the power cord to the car battery; otherwise, the receiver will be seriously damaged.

• BEFORE connecting the speaker leads of the power cord to the speakers, check the speaker wiring in your car.

PRECAUTIONS sur l’alimentation et la connexion des enceintes:

• NE CONNECTEZ PAS les fils d’enceintes du cordon d’alimentation à la batterie; sinon, l’appareil serait sérieusement endommagé.

• AVANT de connecter les fils d’enceintes du cordon d’alimentation aux enceintes, vérifiez le câblage des enceintes de votre voiture.

TROUBLESHOOTING

• The fuse blows. * Are the red and black leads connected correctly?

• Power cannot be turned on. * Is the yellow lead connected?

• No sound from the speakers. * Is the speaker output lead short-circuited?

• Sound is distorted. * Is the speaker output lead grounded? * Are the “–” terminals of L and R speakers grounded in common?

• Noise interfere with sounds. * Is the rear ground terminal connected to the car’s chassis using shorter and thicker cords?

• Receiver becomes hot. * Is the speaker output lead grounded? * Are the “–” terminals of L and R speakers grounded in common?

• This receiver does not work at all. * Have you reset your receiver?

EN CAS DE DIFFICULTES

• Le fusible saute. * Les fils rouge et noir sont-ils racordés correctement?

• L’appareil ne peut pas être mise sous tension. * Le fil jaune est-elle raccordée?

• Pas de son des enceintes. * Le fil de sortie d’enceinte est-il court-circuité?

• Le son est déformé. * Le fil de sortie d’enceinte est-il à la masse? * Les bornes “–” des enceintes gauche et droit sont-elles mises ensemble à la masse?

• Interférence avec les sons. * La prise arrière de mise à la terre est-elle connectée au châssis de la voiture avec un cordon court et

épais?

• L’appareil devient chaud. * Le fil de sortie d’enceinte est-il à la masse? * Les bornes “–” des enceintes gauche et droit sont-elles mises ensemble à la masse?

• Cet appareil ne fonctionne pas du tout. * Avez-vous réinitialisé votre appareil?

1

ENGLISH FRANÇAIS

ELECTRICAL CONNECTIONS

To prevent short circuits, we recommend that you disconnect the battery’s negative terminal and make all electrical connections before installing the receiver.

• Be sure to ground this receiver to the car’s chassis again after installation.

Notes:

• Replace the fuse with one of the specified rating. If the fuse blows frequently, consult your JVC IN-CAR ENTERTAINMENT dealer.

• It is recommended to connect to the speakers with maximum power of more than 45 W (both at the rear and at the front, with an impedance of 4 Ω to 8 Ω). If the maximum power is less than 45 W, change “AMP GAIN” setting to prevent the speakers from being damaged (see page 14 of the INSTRUCTIONS).

• To prevent short-circuit, cover the terminals of the UNUSED leads with insulating tape.

• The heat sink becomes very hot after use. Be careful not to touch it when removing this receiver.

If your car is equipped with the ISO connector / Si

A

votre voiture est équippée d’un connecteur ISO

• Connect the ISO connectors as illustrated.

• Connectez les connecteurs ISO comme montré sur l’illustration.

From the car body

De la carrosserie de la voiture

ISO connector of the supplied power cord

Connecteur ISO pour le cordon d’alimentation fourni

View from the lead side

Vue à partir du côté des fils

Dissipateur de chaleur

Heat sink

For some VW/Audi or Opel (Vauxhall) automobile / Pour certaine voiture VW/Audi ou Opel (Vauxhall)

You may need to modify the wiring of the supplied power cord as illustrated.

• Contact your authorized car dealer before installing this receiver.

Vous aurrez peut-être besoin de modifier le câblage du cordon d’alimentation fourni comme montré sur l’illustration.

• Contactez votre revendeur automobile autorisé avant d’installer l’appareil.

Original wiring / Câblage original

ISO connector

Connecteur ISO

RACCORDEMENTS ELECTRIQUES

Pour éviter tout court-circuit, nous vous recommandons de débrancher la borne négative de la batterie et d’effectuer tous les raccordements électriques avant d’installer l’appareil.

• Assurez- vous de raccorder de nouveau la mise à la masse de cet appareil au châssis de la voiture après l’installation.

Remarques:

• Remplacer le fusible par un de la valeur précisée. Si le fusible saute souvent, consulter votre revendeur d’autoradios JVC.

• Il est recommandé de connecter des enceintes avec une puissance de plus de 45 W (les enceintes arrière et les enceintes avant, avec une impédance comprise entre 4 Ω et 8 Ω). Si la puissance maximum est inférieure à 45 W, changez “AMP GAIN” pour éviter d’endommager vos enceintes (voir page 14 du MANUEL D’INSTRUCTIONS).

• Pour éviter les court-circuits, couvrir les bornes des fils qui ne sont PAS UTILISÉS avec de la bande isolante.

• Le dissipateur de chaleur devient très chaud après usage. Faire attention de ne pas le toucher en retirant cet appareil.

Modified wiring 1 / Câblage modifié 1

Modified wiring 2 / Câblage modifié 2

Use modified wiring 2 if the receiver does not turn on.

Utilisez le câblage modifié 2 si l’appareil ne se met pas sous tension.

Y: Yellow

Jaune

R: Red

Rouge

Connections without using the ISO connectors / Connexions sans l’utilisation des connecteurs ISO

B

Before connecting: Check the wiring in the vehicle carefully. Incorrect connection may cause serious damage to this receiver. The leads of the power cord and those of the connector from the car body may be different in color.

1 Cut the ISO connector. 2 Connect the colored leads of the power cord in the order specified in the illustration below. 3 Connect the aerial cord. 4 Finally connect the wiring harness to the receiver.

Rear ground terminal

Borne arrière de masse

15 A fuse

Fusible 15 A

Aerial terminal

Borne de l’antenne

*2 Before checking the operation of this receiver

prior to installation, this lead must be connected, otherwise power cannot be turned on.

*2 Pour vérifier le fonctionnement de cet appareil avant

installation, ce fil doit être raccordé, sinon l’appareil

Line out (see diagram )

Sortie de ligne (voir le diagramme

)

Black

Noir

2

Yellow*

2

Jaune*

Red

Rouge

Blue with white stripe

Bleu avec bande blanche

Avant de commencer la connexion: Vérifiez attentivement le câblage du véhicule. Une connexion incorrecte peut endommager sérieusement l’appareil. Le fil du cordon d’alimentation et ceux des connecteurs du châssis de la voiture peuvent être différents en couleur.

1 Coupez le connecteur ISO. 2

Connectez les fils colorés du cordon d’alimentation dans l’ordre spécifié sur l’illustration ci-dessous.

3 Connectez le cordon d’antenne. 4 Finalement, connectez le faisceau de fils à l’appareil.

To metallic body or chassis of the car

Vers corps métallique ou châssis de la voiture

To a live terminal in the fuse block connecting to the car battery (bypassing the ignition switch) (constant 12 V)

À une borne sous tension du porte-fusible connectée à la batterie de la voiture (en dérivant l’interrupteur d’allumage) (12 V constant)

To an accessory terminal in the fuse block

Vers borne accessoire du porte-fusible

To the remote lead of other equipment or power aerial if any (200 mA max.)

Au fil de télécommande de l’autre appareil ou à l’antenne automatique s’il y en a une (200 mA max.)

ne peut pas être mis sous tension.

*1 Not included for this receiver

1

*

Non fourni avec cet appareil

Ignition switch

Interrupteur d’allumage

Fuse block

Porte-fusible

White with black stripe

Blanc avec bande noire

Connecting the external amplifier / Connexion d’un amplificateur extérieur

C

White

Blanc

Left speaker (front)

Enceinte gauche (avant)

Gray with black stripe

Gris avec bande noire

Gray

Gris

Right speaker (front)

Enceinte droit (avant)

Green with black stripe

Vert avec bande noire

You can connect an amplifier to upgrade your car stereo system.

• Connect the remote lead (blue with white stripe) to the remote lead of the other equipment so that it can be controlled through this receiver.

• Disconnect the speakers from this receiver, connect them to the amplifier. Leave the

speaker leads of this receiver unused.

Rear speakers

Enceintes arrière

JVC Amplifier

Remote lead

Fil d’alimentation à distance

Y-connector (not supplied with this receiver)

Connecteur Y (non fourni avec cet appareil)

JVC

Amplificateur

Signal cord (not supplied with this receiver)

Cordon de signal (non fourni avec cet appareil)

Remote lead (Blue with white stripe)

Fil d’alimentation à distance (Bleu avec bande blanche)

* Cut the rear speaker leads of the car’s ISO connector

K D - G111

and connect them to the amplifier.

* Coupez les fils des enceintes arrière du connecteur ISO de

la voiture et connectez-les à l’amplificateur.

Rear speakers

Enceintes arrière

Front speakers (see diagram

Enceintes avant (voir le diagramme

Green

Vert

Left speaker (rear)

Enceinte gauche (arrière)

Purple with black stripe

Violet avec bande noire

Purple

Violet

Right speaker (rear)

Enceinte droit (arrière)

Vous pouvez connecter un amplificateur pour améliorer votre système autoradio.

• Connectez le fil de commande à distance (bleu avec bande blanche) au fil de commande à distance de l’autre appareil de façon qu’il puisse être commandé via cet appareil.

• Déconnectez les enceintes de cet appareil et connectez- les à l’amplificateur. Laissez les fils d’enceintes de cet appareil inutilisés.

To the remote lead of other equipment or power aerial if any

Au fil de télécommande de l’autre appareil ou à l’antenne automatique s’il y en a une

*3 Firmly attach the ground wire to

the metallic body or to the chassis of the car—to the place not coated with paint (if coated with paint, remove the paint before attaching the wire). Failure to do so may cause damage to the receiver.

3

*

Attachez solidement le fil de mise

à la masse au châssis métallique de la voiture—à un endroit qui n’est pas recouvert de peinture (s’il est recouvert de peinture, enlevez d’abord la peinture avant d’attacher le fil).

)

L’appareil peut être endommagé si cela n’est pas fait correctement.

2

CD RECEIVER

CD-RECEIVER

РЕСИВЕР С ПРОИГРЫВАТЕЛЕМ КОМПАКТ-ДИСКОВ

KD-G111

For canceling the display demonstration, see page 7. Zum Abbrechen der Displaydemonstration siehe Seite 7.

Информацию об отмене демонстрации функций дисплея см. на стр. 7.

ENGLISHDEUTSCH

РУCCKИЙ

For installation and connections, refer to the separate manual. Für den Einbau und die Anschlüsse siehe das eigenständige Handbuch.

Указания по установке и выполнению соединений приводятся в отдельной инструкции.

INSTRUCTIONS

BEDIENUNGSANLEITUNG

ИНСТРУКЦИИ ПО ЭКСПЛУАТАЦИИ

GET0253-006A

[EY]

Thank you for purchasing a JVC product.

Please read all instructions carefully before operation, to ensure your complete understanding and

to obtain the best possible performance from the unit.

ENGLISH

IMPORTANT FOR LASER PRODUCTS

1. CLASS 1 LASER PRODUCT

2. CAUTION : Do not open the top cover. There are no user serviceable parts inside the unit; leave

all servicing to qualified service personnel.

3. CAUTION : Visible and invisible laser radiation when open and interlock failed or defeated.

Avoid direct exposure to beam.

4. REPRODUCTION OF LABEL: CAUTION LABEL, PLACED OUTSIDE THE UNIT.

Warning:

If you need to operate the receiver while driving, be sure to look ahead carefully or you may be involved in a traffic accident.

How to forcibly eject a disc

If a disc cannot be recognized by the receiver or cannot be ejected, ejects the disc as follows.

How to reset your unit

• If this does not work, try to reset your receiver.

• This will reset the microcomputer. Your preset adjustments will also be erased.

• If a disc is loaded, it will eject. Be careful not to drop the disc.

For security reasons, a numbered ID card is provided with this receiver, and the same ID number is imprinted on the receiver’s chassis. Keep the card in a safe place, as it will help the authorities to identify your unit if stolen.

2

• Be careful not to drop the disc when it ejects.

Control panel — KD-G111

Parts identification

Display window

1 +/– buttons 2 DISP (display) button 3 Loading slot 4 Display window 5 MODE button 6 0 (eject) button 7

¢/4 buttons

8 9 SEL (select) button p MO (monaural) button q SSM (Strong-station Sequential Memory)

w CD button e FM/AM button r RPT (repeat) button t RND (random) button y EQ (equalizer) button u i Number buttons

(standby/on/attenuator) button

button

(control panel release) button

Display window

o Tuner reception indicators

MO (monaural), ST (stereo)

; CD indicator a RND s RPT (repeat) indicator

d LOUD (loudness) indicator f EQ (equalizer) indicator g Sound mode (C-EQ: custom equalizer)

indicators ROCK, CLASSIC, POPS, HIP HOP, JAZZ, USER

•

h Main display j Source display

Volume level indicator

(disc random) indicator

also works as the time countdown

indicator.

ENGLISH

5

Getting started

ENGLISH

Basic operations

~

Ÿ

You cannot select “CD” as the playback source if there is no disc in the loading slot.

!

Volume level appears.

Volume level indicator

To drop the volume in a moment (ATT)

To restore the sound, press it

again.

To turn off the power

Caution on volume setting:

Discs produce very little noise compared with other sources. Lower the volume before playing a disc to avoid damaging the speakers by the sudden increase of the output level.

⁄ Adjust the sound as you want.

(See pages 12 and 13.)

6

Canceling the display

demonstrations

If no operations are done for about 20 seconds, display demonstration starts.

[Initial: DEMO ON]—see page 14.

1

2

3

Setting the clock

1

2

Set the hour and minute.

1 Select “CLOCK H” (hour), then

adjust the hour.

2 Select “CLOCK M” (minute),

then adjust the minute.

3 Finish the procedure.

To check the current clock time when the power is turned off

ENGLISH

Finish the procedure.

4

To activate the display demonstration

In step 3 above...

7

Radio operations

Listening to the radio

ENGLISH

~

Lights up when receiving an FM stereo broadcast with sufficient signal strength.

Selected band appears.

Ÿ Start searching for a station.

2 Select the desired station frequencies.

When an FM stereo broadcast is hard to receive

1

When a station is received, searching stops. To stop searching, press the same button again.

To tune in to a station manually

In step Ÿ above... 1

8

2

Lights up when monaural mode is activated.

Reception improves, but stereo effect will be lost.

To restore the stereo effect, repeat the same procedure so that the MO indicator goes off.

Storing stations in memory

You can preset six stations for each band.

FM station automatic presetting —

SSM (Strong-station Sequential Memory)

Select the FM band (FM1 – FM3)

1

you want to store into.

2

ENGLISH

3

Preset number flashes for a while.

3

“SSM” flashes, then disappears when automatic presetting is over.

Local FM stations with the strongest signals are searched and stored automatically in the FM band.

Manual presetting

Ex.: Storing FM station of 92.5 MHz into the

preset number 4 of the FM1 band.

1

Listening to a preset station

1

2 Select the preset station (1 – 6) you

want.

To check the current clock time while listening to an FM or AM station

9

Disc operations

ENGLISH

Playing a disc

All tracks will be played repeatedly until you stop playback.

Total playing time of the inserted disc

Elapsed playing time

Total track number of the inserted disc

Current track number

To stop play and eject the disc

To fast-forward or reverse the track

Fast-forwards.

Reverses.

To go to the next or previous tracks

To the following

tracks.

To the beginning of the current track, then

the previous tracks.

To go to a particular track directly

To select a number from 01 – 06:

10

To select a number from 07 – 12:

Prohibiting disc ejection

You can lock a disc in the loading slot.

To cancel the prohibition, repeat the same procedure.

To check the current clock time while listening to a disc

Selecting the playback modes

You can use only one of the following playback modes at a time.

1

2 Select your desired playback mode.

ENGLISH

Repeat play

Ex.: When “TRK RPT” is selected

Random play

Ex.: When “DISC RND” is selected

Mode Plays repeatedly

TRK RPT: The current track.

• RPT lights up. RPT OFF: Cancels repeat play.

Mode Plays at random

DISC RND: All tracks of the current disc.

• RND RND OFF: Cancels random play.

lights up.

11

Sound adjustments

Selecting preset sound modes (C-EQ: custom equalizer)

ENGLISH

You can select a preset sound mode suitable to the music genre.

~

Ex.: When “ROCK” is selected

Indication pattern for each sound mode:

Indication For:

USER (Flat sound) 00 00 OFF

ROCK Rock or disco

music

CLASSIC Classical

music

POPS Light music +04 +01 OFF

HIP HOP Funk or rap

music

JAZZ Jazz music +02 +03 OFF

1

*

BAS: Bass

2

*

TRE: Treble

3

*

LOUD: Loudness

1

TRE

*

2

LOUD

*

BAS

+03 +01 ON

+01 –02 OFF

+02 00 ON

Preset values

3

*

12

Adjusting the sound

You can adjust the sound characteristics to your preference.

1

Ex.: When “TRE” is selected

2

Indication pattern changes as you adjust the level.

Indication To do: Range

BAS*1 (bass)

1

TRE* (treble)

FAD* (fader)

BAL (balance)

LOUD* (loudness)

VOL*3 (volume)

Adjust the bass. –06 (min.)

Adjust the treble. –06 (min.)

2

Adjust the front and rear speaker balance.

Adjust the left and right speaker balance.

1

Boost low and high frequencies to produce a wellbalanced sound at low volume level.

Adjust the volume.

to +06 (max.)

R06 (Rear only) to F06 (Front only)

L06 (Left only) to R06 (Right only)

LOUD ON

LOUD OFF

00 (min.) to 30 or 50 (max.)*

ENGLISH

J

4

*1 When you adjust the bass, treble, or

loudness, the adjustment you have made is stored for the currently selected sound mode (C-EQ) including “USER.”

2

*

If you are using a two-speaker system, set

the fader level to “00.”

3

*

Normally the +/– buttons work as the

volume control. So you do not have to select “VOL” to adjust the volume level.

4

*

Depending on the amplifier gain control

setting. (See page 14 for details.)

13

General settings — PSM

Basic procedure

3 Adjust the PSM item selected.

You can change PSM (Preferred Setting Mode) items listed on the table that follows.

ENGLISH

1

4 Repeat steps 2 and 3 to adjust the

other PSM items if necessary.

Select a PSM item.

2

Ex.: When you select “AMP GAIN”

Indications Selectable settings, [reference page]

5 Finish the procedure.

DEMO

Display demonstration

CLOCK H

Hour adjustment

CLOCK M

Minute adjustment

AMP GAIN

Amplifier gain control

14

DEMO ON: [Initial]; Display demonstration will be activated

automatically if no operation is done for about 20 seconds, [7].

DEMO OFF: Cancels.

0 – 23, [7]

[Initial: 0 (0:00)]

00 – 59, [7]

[Initial: 00 (0:00)]

You can change the maximum volume level of this receiver. LOW PWR: VOL 00 – VOL 30 (Select this if the maximum power

of the speaker is less than 45 W to prevent them from damaging the speaker.)

HIGH PWR: [Initial]; VOL 00 – VOL 50

Detaching the control panel

When detaching or attaching the control panel, be careful not to damage the connectors on the back of the control panel and on the panel holder.

Detaching the control panel

Before detaching the control panel, be sure to turn off the power.

Attaching the control panel

ENGLISH

15

Maintenance

How to clean the connectors

Frequent detachment will deteriorate the connectors. To minimize this possibility, periodically wipe

ENGLISH

the connectors with a cotton swab or cloth moistened with alcohol, being careful not to damage the connectors.

Connector

Moisture condensation

Moisture may condense on the lens inside the CD player in the following cases:

• After starting the heater in the car.

• If it becomes very humid inside the car.

Should this occur, the CD player may malfunction. In this case, eject the disc and leave the receiver turned on for a few hours until the moisture evaporates.

To keep discs clean

A dirty disc may not play correctly. If a disc does become dirty, wipe it with a soft cloth in a straight line from center to edge.

• Do not use any solvent (for example, conventional record cleaner, spray, thinner, benzine, etc.) to clean discs.

To play new discs

New discs may have some rough spots around the inner and outer edges. If such a disc is used, this receiver may reject the disc. To remove these rough spots, rub the edges with a pencil or ball-point pen, etc.

How to handle discs

When removing a disc from its case, press down the center

holder of the case and lift the disc out, holding it by the edges.

• Always hold the disc by the edges. Do not touch its recording surface.

When storing a disc into its case, gently insert the disc around the center holder (with the printed surface facing up).

• Make sure to store discs into the cases after use.

Do not use the following discs:

Wrap disc

16

Center holder

Sticker

Sticker residue

Disc

Stick-on label

More about this receiver

Basic operations

Turning off the power

• If you turn off the power while listening to a disc, disc play will start from where playback has been stopped previously, next time you turn on the power.

Tuner operations

Storing stations in memory

• During SSM search...

– All previously stored stations are erased and

stations are stored newly.

– Received stations are preset in No. 1 (lowest

frequency) to No. 6 (highest frequency).

– When SSM is over, the station stored in

No. 1 will be automatically tuned in.

• When storing a station manually, a previously preset station is erased when a new station is stored in the same preset number.

Disc operations

General

• This receiver has been designed to reproduce CDs, and CD-Rs (Recordable)/CD-RWs (Rewritable) in audio CD (CD-DA) format.

• When a disc has been loaded, selecting “CD” for the playback source starts disc play.

Inserting a disc

• When a disc is inserted upside down, the disc automatically ejects.

• Do not insert 8 cm discs (single CD) and unusual shape discs (heart, flower, etc) into the loading slot.

• Some CD-Rs or CD-RWs may not play back on this receiver because of their disc characteristics, and for the following causes:

– Discs are dirty or scratched. – Moisture condensation occurs on the lens

inside the receiver. – The pickup lens inside the receiver is dirty. – CD-R or CD-RW on which the files are

written with “Packet Write” method. – There are improper recording conditions

(missing data, etc.) or media conditions

(stain, scratch, warp, etc.).

• CD-RWs may require a longer readout time

since the reflectance of CD-RWs is lower than that of regular CDs.

• Do not use the following CD-Rs or

CD-RWs:

– Discs with stickers, labels, or protective seal

stuck to the surface. – Discs on which labels can be directly

printed by an ink jet printer. Using these discs under high temperatures

or high humidity may cause malfunctions or damage to discs.

Changing the source

• If you change the source, playback also stops

(without ejecting the disc).

Next time you select “CD” for the playback

source, disc play starts from where it has been stopped previously.

Ejecting a disc

• If the ejected disc is not removed within

15 seconds, the disc is automatically inserted again into the loading slot to prevent it from dust. (Disc will not play this time.)

ENGLISH

Playing a CD-R or CD-RW

• Use only “finalized” CD-Rs or CD-RWs.

• This receiver can play back multi-session

discs; however, unclosed sessions will be skipped while playing.

General settings—PSM

• If you change the “AMP GAIN” setting from

“HIGH PWR” to “LOW PWR” while the

volume level is set higher than “VOL 30,” the receiver automatically changes the volume level to “VOL 30.”

17

Troubleshooting

What appears to be trouble is not always serious. Check the following points before calling a service center.

ENGLISH

• Sound cannot be heard

General

• The receiver does not

• SSM automatic presetting

• Static noise while listening

FM/AM

• Disc automatically ejects. Disc is inserted upside

• CD-R/CD-RW cannot be

• Tracks on the CD-R/

• Disc can be neither played

Symptoms Causes Remedies

from the speakers.

work at all.

does not work.

to the radio.

played back.

CD-RW cannot be skipped.

back nor ejected.

The volume level is set to the minimum level.

Connections are incorrect. Check the cords and

The built-in microcomputer may have functioned incorrectly due to noise, etc.

Signals are too weak. Store stations manually.

The aerial is not connected firmly.

down.

CD-R/CD-RW is not finalized.

Disc is locked. Unlock the disc (see page

Adjust it to the optimum level.

connections.

Reset the receiver (see page

2).

Connect the aerial firmly.

Insert the disc correctly.

• Insert a finalized CD-R/ CD-RW.

• Finalize the CD-R/ CD-RW with the component which you used for recording.

11).

18

Disc playback

• Disc sound is sometimes interrupted.

• “NO DISC” appears on the display.

The CD player may have functioned incorrectly.

You are driving on rough roads.

Disc is scratched. Change the disc.

Connections are incorrect. Check the cords and

No disc in the loading slot. Insert a disc into the loading

Disc is inserted incorrectly. Insert the disc correctly.

Eject the disc forcibly (see page 2).

Stop playback while driving on rough roads.

connections.

slot.

Specifications

AUDIO AMPLIFIER SECTION

Maximum Power Output: Front: 45 W per channel Rear: 45 W per channel Continuous Power Output (RMS): Front: 17 W per channel into 4 Ω, 40 Hz

to 20 000 Hz at no more than 0.8% total harmonic distortion.

Rear: 17 W per channel into 4 Ω, 40 Hz

to 20 000 Hz at no more than 0.8%

total harmonic distortion. Load Impedance: 4 Ω (4 Ω to 8 Ω allowance) Tone Control Range: Bass: ±10 dB at 100 Hz Treble: ±10 dB at 10 kHz Frequency Response: 40 Hz to 20 000 Hz Signal-to-Noise Ratio: 70 dB Line-Out Level/Impedance:

2.0 V/20 kΩ load (full scale) Output Impedance: 1 kΩ

TUNER SECTION

Frequency Range: FM: 87.5 MHz to 108.0 MHz AM: (MW) 522 kHz to 1 620 kHz (LW) 144 kHz to 279 kHz

CD PLAYER SECTION

Type: Compact disc player Signal Detection System: Non-contact optical

pickup (semiconductor laser) Number of channels: 2 channels (stereo) Frequency Response: 5 Hz to 20 000 Hz Dynamic Range: 96 dB Signal-to-Noise Ratio: 98 dB Wow and Flutter: Less than measurable limit

GENERAL

Power Requirement: Operating Voltage: DC 14.4 V (11 V to 16 V allowance) Grounding System: Negative ground Allowable Operating Temperature: 0°C to +40°C Dimensions (W × H × D): Installation Size (approx.): 182 mm × 52 mm × 150 mm Panel Size (approx.): 188 mm × 58 mm × 11 mm Mass (approx.):

1.3 kg (excluding accessories)

ENGLISH

[FM Tuner]

Usable Sensitivity: 11.3 dBf (1.0 µV/75 Ω) 50 dB Quieting Sensitivity:

16.3 dBf (1.8 µV/75 Ω) Alternate Channel Selectivity (400 kHz): 65 dB Frequency Response: 40 Hz to 15 000 Hz Stereo Separation: 30 dB Capture Ratio: 1.5 dB

[MW Tuner]

Sensitivity: 20 µV Selectivity: 35 dB

[LW Tuner]

Sensitivity: 50 µV

Design and specifications are subject to change without notice.

19

Having TROUBLE with operation?

Please reset your unit

Refer to page of How to reset your unit

Haben Sie PROBLEME mit dem Betrieb?

Bitte setzen Sie Ihr Gerät zurück

Siehe Seite Zurücksetzen des Geräts

Затруднения при эксплуатации?

Пожалуйста, перезагрузите Ваше устройство

Для получения информации о перезагрузке Вашего

устройства обратитесь на соответствующую страницу

EN, GE, RU

1004DTSMDTJEIN

GET0253-013A

[EY]

KD-G111

Installation/Connection Manual Einbau/Anschlußanleitung

Руководство по установке/подключению

1004DTSMDTJEIN EN, GE, RU

ENGLISH

This receiver is designed to operate on 12 V DC, NEGATIVE ground electrical systems. If your vehicle does not have this

system, a voltage inverter is required, which can be purchased at JVC IN-CAR ENTERTAINMENT dealers.

Parts list for installation and connection

The following parts are provided for this receiver. After checking them, please set them correctly.

A / B Hard case/Control panel

Etui/Schalttafel

Жесткий футляр/панель управления

DEUTSCH

Dieses Gerät ist für einen Betrieb in elektrischen Anlagen mit 12 V Gleichstrom und (–) Erdung ausgelegt. Verfügt

Ihr Fahrzeug nicht über diese Anlage, ist ein Spannungsinverter erforderlich, der bei JVC Autoradiohändler erworben werden kann.

Teileliste für den Einbau und Anschluß

Die folgenden Teile werden zusammen mit diesem Gerät geliefert. Nach ihrer Überprüfung, die Teile richtig einsetzen.

C

Sleeve

Halterung

Муфта

РУССКИЙ

Это устройство разработано для эксплуатации на 12 В постоянного напряжения с минусом на массе. Если Ваш автомобиль не имеет этой системы, требуется инвертор напряжения, который может быть приобретен у дилера автомобилнего специалиста JVC.

Список деталей для установки и подключения

Следующие детали поставлены в комплекте с устройством. После проверки комплектации, пожалуйста, установите их правильно.

D

Trim plate

Frontrahmen

Декоративную панель

E

Power cord

Stromkable

Кабель питания

H

Mounting bolt (M5 x 20 mm)

Befestigungsschraube (M5 x 20 mm)

Крепежный болт (M5 x 20 мм)

INSTALLATION (IN-DASH MOUNTING)

The following illustration shows a typical installation. If you have any questions or require information regarding installation kits, consult your JVC IN-CAR ENTERTAINMENT dealer or a company supplying kits.

• If you are not sure how to install this receiver correctly, have it installed by a qualified technician.

F

Washer (ø5)

Unterlegscheibe (ø5)

Шайба (њ5)

I

Rubber cushion

Gummipuffer

Резиновый чехол

EINBAU (IM ARMATURENBRETT)

Die folgende Abbildung zeigt einen typischen Einbau. Bei irgendwelchen Fragen oder wenn Sie Informationen hinsichtlich des Einbausatzes brauchen, wenden Sie sich an ihren JVC Autoradiohändler oder ein Unternehmen das diese Einbausätze vertreibt.

• Sind Sie sich über den richtigen Einbau des Geräts nicht sicher, lassen Sie es von einem qualifizierten Techniker einbauen.

G

Lock nut (M5)

Sicherungsmutter (M5)

Фиксирующая гайка (M5)

J

Handles

Griffe

Рычаги

УСТАНОВКА (УСТАНОВКА В ПРИБОРНУЮ ПАНЕЛЬ)

На следующих иллюстрациях показана типовая установка. Если у Вас есть какие-либо вопросы, касающиеся установки, обратитесь к Вашему дилеру автомобилнего специалиста JVC или в компанию, поставляющую соответствующие принадлежности.

• Если Вы не знаете точно, как следует устанавливать это устройство, обратитесь к квалифицированному специалисту.

1

*

When you stand the receiver, be careful not to damage the fuse on the rear.

1

*

Beim Aufstellen des Geräts darauf

achten, daß die Sicherung auf der Rückseite nicht beschädigt wird.

1

*

Устанавливайте устройство таким образом, чтобы не повредить предохранитель, расположенный сзади.

Do the required electrical connections.

Nehmen Sie die erforderlichen elektrischen Anschlüsse vor.

Выполните необходимые подключения контактов, как показано на оборотной стороне этой инструкции.

Bend the appropriate tabs to hold the sleeve firmly in place.

Die geeigneten Zapfen biegen, um die Manschette sicher festzuhalten.

Отогните соответствующие фиксаторы, предназначенные для прочной установки корпуса.

1

Removing the receiver

Before removing the receiver, release the rear section.

Ausbau des Geräts

Vor dem Ausbau des Geräts den hinteren Teil freigeben.

Insert the two handles, then pull them as illustrated so that the receiver can be removed.

Die beiden Handgriffe einsetzen und dann ziehen wie in der Abbildung gezeigt, so daß das Gerät entfernt werden kann.

Вставьте два рычажка, затем потяните их, как показано на рисунке, чтобы вынуть устройство.

Удаление устройства

Перед удалением устройства освободите заднюю часть.

When using the optional stay / Beim Verwenden der Anker-Option / При использовании дополнительной стойки

Fire wall

Feuerwand

Стена

Dashboard

Armaturenbrett

Приборная панель

Install the receiver at an angle of less than 30˚.

Stellen Sie das Gerät mit einem Winkel von weniger als 30˚ auf.

Установите устройство под углом менее 30°.

Stay (option)

Anker (Option)

Стойка (дополнительно)

Screw (option)

Schraube (Option)

Винт (дополнительно)

When installing the receiver without using the sleeve / Beim Einbau des Geräts ohne Halterung / При установке устройства без использования муфты

In a Toyota for example, first remove the car radio and install the receiver in its place.

Zum Beispiel in einem Toyota zuerst das Autoradio ausbauen und dann das Gerät an seinem Platz einbauen.

В автомобилях “Toyota”, например, сначала удалите автомобильную магнитолу, затем установите на ее место это устройство.

Flat type screws (M5 x 8 mm)* Senkkopfschrauben (M5 x 8 mm)* Крепежные винты (M5 x 8 мм)*

Bracket* Konsole* Кронштейн*

Pocket

Taschen

Карман

Note : When installing the receiver on the mounting bracket, make sure to use the 8 mm-long

screws. If longer screws are used, they could damage the receiver.

Hinweis : Beim Anbringen des Gerät an der Konsole sicherstellen, daß 8 mm lange Schrauben verwendet

werden. Werden längere Schrauben verwendet, können sie das Gerät beschädigen.

Примечание : При установке устройства на крепежный кронштейн, используйте только винты

длиной 8 мм. При использовании более длинных винтов можно повредить устройство.

Bracket* Konsole* Кронштейн*

* Not included with this receiver. * Nicht Teil dieses Geräts. * Не входят в комплект.

Flat type screws (M5 x 8 mm)* Senkkopfschrauben (M5 x 8 mm)* Крепежные винты (M5 x 8 мм)*

ELECTRICAL CONNECTIONS

To prevent short circuits, we recommend that you disconnect the battery’s negative terminal and make all electrical connections before installing the receiver.

• Be sure to ground this receiver to the car’s chassis

again after installation.

Notes:

• Replace the fuse with one of the specified rating. If the fuse blows frequently, consult your JVC IN-CAR ENTERTAINMENT dealer.

• It is recommended to connect to the speakers with maximum power of more than 45 W (both at the rear and at the front, with an impedance of 4 Ω to 8 Ω). If the maximum power is less than 45 W, change “AMP GAIN” setting to prevent the speakers from being damaged (see page 14 of the INSTRUCTIONS).

• To prevent short-circuit, cover the terminals of the UNUSED leads with insulating tape.

• The heat sink becomes very hot after use. Be careful not to touch it when removing this receiver.

Heat sink

Abstrahlblech

Радиатор

ELEKTRISCHE ANSCHLÜSSE

Zur Vermeidung von Kurzschlüssen empfehlen wir, daß Sie den negativen Batterieanschluß abtrennen und alle elektrischen Anschlüsse herstellen, bevor das Gerät eingebaut wird.

• Sicherstellen, daß das Gerät nach dem Einbau a

Chassis des Fahrzeugs geerdet wird.

Hinweise:

• Die Sicherung mit einer der entsprechenden Nennleistung ersetzen. Brennt die Sicherung häufig durch, wenden Sie sich an ihren JVC Autoradiohändler.

• Es wird empfohlen, Lautsprecher mit einer Maximalleistung von mehr als 45 W anzuschließen (sowohl hinten als auch vorne, mit einer Impedanz von 4 Ω bis 8 Ω). Wenn die Maximalleistung weniger als 45 W beträgt, stellen Sie „AMP GAIN“ anders ein, um Schäden an den Lautsprechern zu vermeiden (siehe Seite 14 der BEDIENUNGSANLEITUNG).

• Zur Vermeidung eines Kurzschlusses die Anschlußklemmen der NICHT VERWENDETEN Leitungen mit Isolierklebeband umwickeln.

• Das Abstrahlblech wird nach dem Gebrauch sehr heiß. Beim Ausbau des Geräts darauf achten, das Abstrahlblech nicht zu berühren.

ЭЛЕКТРИЧЕСКИЕ ПОДКЛЮЧЕНИЯ

Для предотвращения коротких замыканий мы рекомендуем Вам отсоединить отрицательный разъем аккумулятора и осуществить все подключения перед установкой устройства.

• После установки обязательно заземлите данное устройство на шасси автомобиля.

Примечания:

• Заменяйте предохранитель другим предохранителем указанного класса. Если предохранитель сгорает слишком часто, обратитесь к дилеру автомобилнего специалиста JVC.

• Рекомендуется подключать динамики с максимальной мощностью более 45 Вт (к задней и передней панели устройства, с полным сопротивлением от 4 Ω до 8 Ω). Если максимальная мощность динамиков менее 45 Вт, перейдите в режим “AMP GAIN”, чтобы предотвратить их повреждение (см. ИНСТРУКЦИИ ПО ЭКСПЛУАТАЦИИ на стр. 14).

• Для предотвращения короткого замыкания заклейте НЕИСПОЛЬЗУЕМЫЕ концы изолирующей лентой.

• Радиатор во время использования сильно нагревается. Старайтесь его не трогать во время удаления устройства.

TROUBLESHOOTING

• The fuse blows. * Are the red and black leads connected correctly?

• Power cannot be turned on. * Is the yellow lead connected?

• No sound from the speakers. * Is the speaker output lead short-circuited?

• Sound is distorted. * Is the speaker output lead grounded? * Are the “–” terminals of L and R speakers grounded in

common?

• Noise interfere with sounds. * Is the rear ground terminal connected to the car’s chassis

using shorter and thicker cords?

• Receiver becomes hot. * Is the speaker output lead grounded? * Are the “–” terminals of L and R speakers grounded in

common?

• This receiver does not work at all. * Have you reset your receiver?

FEHLERSUCHE

• Die Sicherung brennt durch. * Sind die roten und schwarzen Leitungen richtig angeschlossen?

• Stromversorgung kann nicht eingeschaltet werden. * Ist die gelbe Leitung angeschlossen?

• Kein Ton aus den Lautsprechern. *

Ist die Lautsprecherausgangsleitung kurzgeschlossen?

• Ton verzerrt. * Ist die Lautsprecherausgangsleitung geerdet? * Sind die (–) Anschlußklemmen der linken und rechten Lautsprecher

zusammen geerdet?

• Störgeräusche im Klang. * Ist die hintere Erdungsklemme mit kürzeren und dickeren Kabeln

an das Fahrzeugchassis angeschlossen?

• Gerät wird heiß. * Ist die Lautsprecherausgangsleitung geerdet? * Sind die (–) Anschlußklemmen der linken und rechten Lautsprecher

zusammen geerdet?

• Dieser Receiver funktioniert überhaupt nicht. * Haben Sie einen Reset am Receiver vorgenommen?

2

BЫЯВЛЕНИЕ НЕИСПРАВНОСТЕЙ

• Сработал предохранитель.

* Правильно ли подключены черный и красный провода?

• Питание не включается.

* Подключен ли желтый провод?

• Звук не выводится через громкоговорители.

* Нет ли короткого замыкания на кабеле выхода

громкоговорителей?

• Звук искажен.

* Заземлен ли провод выхода громкоговорителей? * Заземлены ли разъемы “–” правого (R) и левого (L)

громкоговорителей?

• Шум мешает звучанию.

* Соединен ли находящийся сзади зажим заземления с

шасси автомобиля с помощью более короткого и тонкого шнуров?

• Устройство нагревается.

* Заземлен ли провод выхода громкоговорителей? * Заземлены ли разъемы “–” правого (R) и левого (L)

громкоговорителей?

• Приемник не работает.

* Выполнена ли перенастройка приемника?

ENGLISH DEUTSCH

If your car is equipped with the ISO

A

connector / Wenn Ihr Auto mit ISOSteckern ausgestattet ist / Если Ваш

автомобиль оборудован разъемами ISO

• Connect the ISO connectors as illustrated.

• Die ISO-Stecker wie abgebildet anschließen.

• Подключите разъемы ISO, как показано на

иллюстрации.

For some VW/Audi or Opel (Vauxhall) automobile / F Fahrzeuge / Для некоторых автомобилей VW/Audi или Opel (Vauxhall)

You may need to modify the wiring of the supplied power cord as illustrated.

• Contact your authorized car dealer before installing this receiver.

Sie müssen evtl. die Verdrahtung des mitgelieferten Stromkabels wie abgebildet ändern.

• Wenden Sie sich an Ihre Vertragswerkstatt, bevor Sie das Gerät einbauen.

Вам может потребоваться изменение соединений полученного в комплекте кабеля питания, как показано на иллюстрации.

• Перед установкой устройства обратитесь к Вашему официальному дилеру автомобиля.

РУССКИЙ

ür manche VW/Audi oder Opel (Vauxhall)

From the car body

Von der Karosserie

На корпусе автомобиля

ISO connector of the supplied power cord

ISO-Stecker am Stromkabel

Разъем ISO, полученный в комплекте кабеля питания

Original wiring / Originalverdrahtung / Исходное

соединение

ISO connector

ISO-Stecker

Разъем ISO

Modified wiring 1 / Geänderte Verdrahtung 1 / Модифицированное

соединение 1

Use modified wiring 2 if the receiver does not turn on.

Geänderte Verdrahtung 2 verwenden, wenn das Gerät so nicht an geht.

Если устройство не включается, модифи-цируйте кабель по схеме 2.

Modified wiring 2 / Geänderte Verdrahtung 2 / Модифицированное

соединение 2

Y: Yellow

View from the lead side

Ansicht von der Leitungsseite

Вид со стороны контактов

B

Connections without using the ISO connectors / Anschlüsse ohne ISO-Stecker / Подключение без использования

Before connecting: Check the wiring in the vehicle carefully. Incorrect connection may cause serious damage to this receiver. The leads of the power cord and those of the connector from the car body may be different in color.

1 Cut the ISO connector. 2 Connect the colored leads of the power cord in the order

specified in the illustration below.

3 Connect the aerial cord. 4 Finally connect the wiring harness to the receiver.

Gelb

Желтый

Vor dem Anschließen: Die Verdrahtung im Fahrzeug sorgfältig überprüfen. Falsche Anschlüsse können ernsthafte Schäden am Gerät hervorrufen. Die Leiter des Stromkabels und die Leiter des Anschlusses im Fahrzeug können sich farblich unterscheiden.

1 Den ISO-Stecker abschneiden. 2 Die farbigen Adern des Stromkabels in der Reihenfolge

anschließen, wie in der Abbildung unten gezeigt.

3 Das Antennenkabel anschließen. 4 Die Kabelbäume am Gerät anschließen.

R: Red

Rot

Красный

Перед началом подключений: Тщательно проверьте проводку в автомобиле. Неправильное подключение может привести к серьезному повреждению устройства. Жилы силового кабеля и жилы соединителя от кузова автомобиля могут быть разного цвета.

1 Отрежьте разъем ISO. 2 Подсоедините цветные провода шнура питания в

указанном ниже порядке.

3 Подключите кабель антенны. 4 В последнюю очередь подключите электропроводку к

устройству.

Line out (see diagram

Schutz kappen Signalausgang (siehe Schaltplan )

К выходу (см. схему )

Rear ground terminal

Hintere Erdungscanschlußklemme

Задний разъем заземления

)

15 A fuse

15 A Sicherung

Предохранитель 15 A

Aerial terminal

Antennenanschlußklemme

Разъем антенны

*2 Before checking the operation of this receiver prior to

installation, this lead must be connected, otherwise power cannot be turned on.

2

*

Vor der Überprüfung der Funktionsfähigkeit

des Geräts vor dem Einbau, muß diese Leitung angeschlossen werden, da sonst die Stromversorgung nicht eingeschaltet werden kann.

*2 Перед проверкой работы устройства подключите

этот провод, иначе питание не включится.

Black

Schwarz

Черный

Yellow*

2

Gelb* Желтый*

Red

Rot

Красный

*1 Not included for this receiver

1

*

Wird nicht mit Gerät mitgeliefert

1

*

Не входит в комплект

To metallic body or chassis of the car

Zur metallenen Karosserie oder zum Fahrwerk des Autos

К металлическому корпусу или шасси автомобиля

2

To a live terminal in the fuse block connecting to the car battery (bypassing the ignition switch) (constant 12 V)

Zur einer stromführenden Anschlußklemme im Sicherungsblock zum Anschließen an die Autobatterie (Umgehen des Zündschalters) (konstant 12 V)

К разъему фазы в блоке предохранителя (минуя блок зажигания) (постоянный 12 В)

To an accessory terminal in the fuse block

Zur einer Zubehöranschlußklemme im Sicherungsblock

К вспомогательному разъему в блоке предохранителя

Ignition switch

Zündschalter

Переключатель зажигания

Fuse block

Sicherungsblock

Блок предохранителя

White with black stripe

Weiß mit schwarzem Streifen

Белый с черной полосой

White

Weiß

Белый

Left speaker (front)

Linker Lautsprecher (vorne)

Левый громкоговоритель (передний)

Gray with black stripe

Grau mit schwarzem Streifen

Серый с черной полосой

Blue with white stripe

Blau mit weißem Streifen

Синий с белой полосой

Gray

Grau

Серый

Right speaker (front)

Rechter Lautsprecher (vorne)

Правый громкоговоритель (передний)

Green with black stripe

Grün mit schwarzem Streifen

Зеленый с черной полосой

3

To the remote lead of other equipment or power aerial if any (200 mA max.)

Zum Zusatzkabel des anderen Geräts oder der Motorantenne, sofern vorhanden (max. 200 mA)

К удаленному проводу другого оборудования или антенны (макс. 200 мА)

Green

Grün

Зеленый

Left speaker (rear)

Linker Lautsprecher (hinten)

Левый громкоговоритель (задний)

Purple with black stripe

Lila mit schwarzem Streifen

Пурпурный с черной полосой

Purple

Lila

Пурпурный

Right speaker (rear)

Rechter Lautsprecher (hinten)

Правый громкоговоритель (задний)

C

Connecting the external amplifier / Anschließen des externen Verstärkers / Подключение внешнего усилителя

You can connect an amplifier to upgrade your car stereo system.

• Connect the remote lead (blue with white stripe) to the remote lead of the other equipment so that it can be controlled through this receiver.

• Disconnect the speakers from this receiver, connect

them to the amplifier. Leave the speaker leads of this receiver unused.

Rear speakers

Hintere Lautsprecher

Задние громкоговорители

Sie können einen Verstärker anschließen, um Ihre Autostereoanlage zu erweitern.

• Schließen Sie das Fernbedienungskabel (blau mit weißem Streifen)

an das Fernbedienungskabel des anderen Geräts an, so daß es über dieses Gerät gesteuert werden kann.

• Die Lautsprecher von diesem Gerät abtrennen und am

Verstärker anschließen. Die Lautsprecherleitungen dieses Geräts unbenutzt lassen.

Remote lead

Fernbedienungsleitung

Провод внешнего устройства

JVC Amplifier

JVC Verstärker

JVC-усилитель

Можно подключить усилитель для обновления автомобильной стереосистемы.

• Подсоедините провод внешнего устройства (синий с

белой полосой) к проводу внешнего устройства другого оборудования так, чтобы им можно было управлять с этого устройства.

• Отсоедините громкоговорители от данного устройства, подключите их к усилителю. Оставьте провода громкоговорителей данного устройства неиспользованными.

Y-connector (not supplied with this receiver)

Y-Anschluß (nicht mit diesem Gerät mitgeliefert)

Разъем Y (не входит в комплект)

Signal cord (not supplied with this receiver)

Einzelleitung (nicht mit diesem Gerät mitgeliefert)

Кабель сигнала (не входит в комплект)

Remote lead (Blue with white stripe)

Fernbedienungsleitung (Blau mit weißem Streifen)

Провод внешнего устройства (Синий с белой полосой)

To the remote lead of other equipment or power aerial if any

Zum Zusatzkabel des anderen Geräts oder der Motorantenne, sofern vorhanden

К удаленному проводу другого оборудования или антенны

* Cut the rear speaker leads of the car’s ISO connector and connect

them to the amplifier.

* Die Leitungen des ISO-Steckers der hinteren Lautsprecher

durchtrennen und am Verstärker anschließen.

*

Отрежьте провода задних громкоговорителей разъема ISO и

подсоеди≠ните их к усилителю.

Rear speakers

Hintere Lautsprecher

Задние громкоговорители

Front speakers (see diagram

Vordere Lautsprecher (siehe Schaltplan )

Передние громкоговорители (см. схему )

)

*3 Firmly attach the ground wire to the metallic body or to

the chassis of the car—to the place not coated with paint (if coated with paint, remove the paint before attaching the wire). Failure to do so may cause damage to the receiver.

PRECAUTIONS on power supply and speaker connections:

• DO NOT connect the speaker leads of the power cord

to the car battery; otherwise, the receiver will be seriously damaged.

• BEFORE connecting the speaker leads of the power cord to the speakers, check the speaker wiring in your car.

3

*

Verbinden Sie den Erdungsleiter mit der Karosserie oder dem

Rahmen des Fahrzeugs. Die Kontaktstelle darf nicht lackiert sein (sollte die Kontaktstelle lackiert sein, entfernen Sie den Lack der Kontaktstelle, bevor Sie den Leiter befestigen). Wenn der Erdungsleiter nicht ordnungsgemäß angeschlossen wird, kann dieses Gerät beschädigt werden.

VORSICHTSMASSREGELN beim Anschließen der Stromversorgung und Lautsprecher:

• Die Lautsprecherleitungen des Netzkabels NICHT an der

Autobatterie anschließen, da sonst das Gerät schwer beschädigt wird.

• VOR dem Anschließen der Lautsprecherleitungen des

Spannunsgversorgungskabels an die Lautsprecher, die Lautsprecherverdrahtung in Ihrem Auto überprüfen.

*3 Плотно прикрепите заземляющий провод к

металлическому кузову или шасси автомобиля—в месте, не покрытом краской (если оно покрыто краской, удалите краску перед тем, как прикреплять провод). Невыполнение этого требования может привести к повреждению данного устройства.

ПРЕДОСТЕРЕЖЕНИЯ по питанию и подключению громкоговорителей:

• НЕ подключайте провода громкоговорителей к аккумулятору автомобиля, иначе устройство будет повреждено.

• ПЕРЕД подключением проводов громкоговорителей к кабелю питания громкоговорителя проверьте схему соединений громкоговорителей в Вашем автомобиле.

4

CD RECEIVER

РЕСИВЕР С ПРОИГРЫВАТЕЛЕМ КОМПАКТ-ДИСКОВ

KD-G117

В соответствии с Законом Российской Федерации “О защите прав потре бителей” срок службы (годности) данного товара “по истечении которого он может представлять опасность для жизни, здоровья потребителя, причинять вред его имуществу или окружающей среде” составляет семь (7) лет со дня производства. Этот срок является временем, в течение которого потребитель данного товара может безопасно им пользоваться при условии соблюдения ин струк ции по эксплуатации данного товара, проводя необходимое обслуживание, включающее замену расходных материалов и/или соответствующее

For installation and connections, refer to the separate manual.

Указания по установке и выполнению соединений приводятся в отдельной инструкции.

ремонтное обеспечение в специализированном сервисном центре.

Дополнительные косметические материалы к данному товару, поставляе мые вместе с ним, могут храниться в течение двух (2) лет со дня его производства.

Срок службы (годности), кроме срока хранения дополнительных космети ческих материалов, упомянутых в предыдущих двух пунктах, не затрагивает никаких других прав потребителя, в частности, гарантийного свидетельства JVC, которое он может получить в соответствии с законом о правах потребителя или других законов, связанных с ним.

ENGLISH

РУCCKИЙ

For canceling the display demonstration, see page 7.

Информацию об отмене демонстрации функций дисплея см. на стр. 7.

INSTRUCTIONS

ИНСТРУКЦИИ ПО ЭКСПЛУАТАЦИИ

GET0254-001A

[EE]

Thank you for purchasing a JVC product.

Please read all instructions carefully before operation, to ensure your complete understanding and to

obtain the best possible performance from the unit.

ENGLISH

IMPORTANT FOR LASER PRODUCTS

1. CLASS 1 LASER PRODUCT

2. CAUTION : Do not open the top cover. There are no user serviceable parts inside the unit; leave

all servicing to qualified service personnel.

3. CAUTION: Visible and invisible laser radiation when open and interlock failed or defeated.

Avoid direct exposure to beam.

4. REPRODUCTION OF LABEL: CAUTION LABEL, PLACED OUTSIDE THE UNIT.

Warning:

If you need to operate the receiver while driving, be sure to look ahead carefully or you may be involved in a traffic accident.

How to forcibly eject a disc

If a disc cannot be recognized by the receiver or cannot be ejected, ejects the disc as follows.

How to reset your unit

• This will reset the microcomputer. Your preset adjustments will also be erased.

• If a disc is loaded, it will eject. Be careful not to drop the disc.

2

• If this does not work, try to reset your receiver.

• Be careful not to drop the disc when it ejects.

Control panel — KD-G117

Parts identification

Display window

1 +/– buttons 2 DISP (display) button 3 Loading slot 4 Display window 5 MODE button 6 0 (eject) button 7

¢/4 buttons

8 9 SEL (select) button p MO (monaural) button q SSM (Strong-station Sequential Memory)

button

w CD button e FM/AM button r RPT (repeat) button t RND (random) button y EQ (equalizer) button u i Number buttons

(standby/on/attenuator) button

(control panel release) button

Display window

o Tuner reception indicators

MO (monaural), ST (stereo)

; CD indicator a RND s RPT (repeat) indicator d LOUD (loudness) indicator f EQ (equalizer) indicator g Sound mode (C-EQ: custom equalizer)

indicators ROCK, CLASSIC, POPS, HIP HOP, JAZZ, USER

•

h Main display j Source display

Volume level indicator

(disc random) indicator

also works as the time countdown

indicator.

ENGLISH

5

Getting started

ENGLISH

Basic operations

~

Ÿ

You cannot select “CD” as the playback source if there is no disc in the loading slot.

!

Volume level appears.

To drop the volume in a moment (ATT)

To restore the sound, press it

again.

To turn off the power

Caution on volume setting:

Discs produce very little noise compared with other sources. Lower the volume before playing a disc to avoid damaging the speakers by the sudden increase of the output level.

Volume level indicator

⁄ Adjust the sound as you want.

(See pages 12 and 13.)

6

Canceling the display

demonstrations

If no operations are done for about 20 seconds, display demonstration starts.

[Initial: DEMO ON]—see page 14.

1

2

3

Setting the clock

1

2

Set the hour and minute.

1 Select “CLOCK H” (hour), then

adjust the hour.

2 Select “CLOCK M” (minute),

then adjust the minute.

3 Finish the procedure.

To check the current clock time when the power is turned off

ENGLISH

Finish the procedure.

4

To activate the display demonstration

In step 3 above...

7

Radio operations

Listening to the radio

ENGLISH

~

Lights up when receiving an FM stereo broadcast with sufficient signal strength.

Selected band appears.

2 Select the desired station frequencies.

When an FM stereo broadcast is hard to receive

1

Ÿ Start searching for a station.

When a station is received, searching stops. To stop searching, press the same button again.

Note:

FM1 and FM2: 87.5 MHz – 108.0 MHz

FM3: 65.00 MHz – 74.00 MHz

To tune in to a station manually

In step Ÿ above...

1

8

2

Lights up when monaural mode is activated.

Reception improves, but stereo effect will be lost.

To restore the stereo effect, repeat the same procedure. “MONO OFF” appears and the MO indicator goes off.

Storing stations in memory

You can preset six stations for each band.

FM station automatic presetting —

SSM (Strong-station Sequential Memory)

Select the FM band (FM1 – FM3)

1

you want to store into.

2

ENGLISH

3

Preset number flashes for a while.

3

“SSM” flashes, then disappears when

automatic presetting is over.

Local FM stations with the strongest signals are searched and stored automatically in the FM band.

Manual presetting

Ex.: Storing FM station of 92.5 MHz into the

preset number 4 of the FM1 band.

1

Listening to a preset station

1

Select the preset station (1 – 6) you

2

want.

To check the current clock time while listening to an FM or AM station

9

Disc operations

ENGLISH

Playing a disc

All tracks will be played repeatedly until you change the source or eject the disc.

Total playing time of the inserted disc

Elapsed playing time

Total track number of the inserted disc

Current track number

To stop play and eject the disc

To fast-forward or reverse the track

Fast-forwards.

Reverses.

To go to the next or previous tracks

To the following tracks.

To the beginning of the current track, then the previous tracks.

To go to a particular track directly

To select a number from 01 – 06:

To select a number from 07 – 12:

10

Prohibiting disc ejection

You can lock a disc in the loading slot.

To cancel the prohibition, repeat the same procedure.

To check the current clock time while listening to a disc

Selecting the playback modes

You can use only one of the following playback modes at a time.

1

2 Select your desired playback mode.

ENGLISH

Repeat play

Ex.: When “TRK RPT” is selected

Random play

Ex.: When “DISC RND” is selected

Mode Plays repeatedly

TRK RPT: The current track.

• RPT lights up. RPT OFF: Cancels.

Mode Plays at random

DISC RND: All tracks of the current disc.

• RND RND OFF: Cancels.

lights up.

11

Sound adjustments

Selecting preset sound modes (C-EQ: custom equalizer)

ENGLISH

You can select a preset sound mode suitable to the music genre.

~

Ex.: When “ROCK” is selected

Indication pattern for each sound mode:

Indication For:

USER (Flat sound) 00 00 OFF

ROCK Rock or

disco music

CLASSIC Classical

music

POPS Light music +04 +01 OFF

HIP HOP Funk or rap

music

JAZZ Jazz music +02 +03 OFF

1

*

BAS: Bass

2

*

TRE: Treble

3

*

LOUD: Loudness

1

TRE

*

2

LOUD

*

BAS

+03 +01 ON

+01 –02 OFF

+02 00 ON

Preset values

3

*

12

Adjusting the sound

You can adjust the sound characteristics to your preference.

1

Ex.: When “TRE” is selected

2

Indication pattern changes as you adjust the level.

Indication To do: Range

BAS*1 (bass)

TRE* (treble)

FAD* (fader)

BAL (balance)

LOUD* (loudness)

VOL* (volume)

Adjust the bass. –06 (min.)

1

Adjust the treble. –06 (min.)

2

Adjust the front and rear speaker balance.

Adjust the left and right speaker balance.

1

Boost low and high frequencies to produce a wellbalanced sound at low volume level.

3

Adjust the volume. 00 (min.) to

to +06 (max.)

R06 (Rear only) to F06 (Front only)

L06 (Left only) to R06 (Right only)

LOUD ON

LOUD OFF

30 or 50 (max.)*

ENGLISH

J

4

*1 When you adjust the bass, treble, or

loudness, the adjustment you have made is stored for the currently selected sound mode (C-EQ) including “USER.”

2

*

If you are using a two-speaker system, set

the fader level to “00.”

3

*

Normally the +/– buttons work as the volume

control. So you do not have to select “VOL” to adjust the volume level.

4

*

Depending on the amplifier gain control

setting. (See page 14 for details.)

13

General settings — PSM

Basic procedure

3 Adjust the PSM item selected.

You can change PSM (Preferred Setting Mode) items listed on the table that follows.

ENGLISH

1

4 Repeat steps 2 and 3 to adjust the

other PSM items if necessary.

2

Select a PSM item.

Ex.: When you select “AMP GAIN”

Indications Selectable settings, [reference page]

5 Finish the procedure.

DEMO

Display demonstration

CLOCK H

Hour adjustment

CLOCK M

Minute adjustment

AMP GAIN

Amplifier gain control

14

DEMO ON: [Initial]; Display demonstration will be activated

automatically if no operation is done for about 20 seconds, [7].

DEMO OFF: Cancels.

0 – 23, [7]

[Initial: 0 (0:00)]

00 – 59, [7]

[Initial: 00 (0:00)]

You can change the maximum volume level of this receiver. LOW PWR: VOL 00 – VOL 30 (Select this if the maximum

power of the speaker is less than 50 W to prevent them from damaging the speaker.)

HIGH PWR: [Initial]; VOL 00 – VOL 50

Detaching the control panel

When detaching or attaching the control panel, be careful not to damage the connectors on the back of the control panel and on the panel holder.

Detaching the control panel

Before detaching the control panel, be sure to turn off the power.

Attaching the control panel

ENGLISH

15

Maintenance

How to clean the connectors

Frequent detachment will deteriorate the connectors. To minimize this possibility, periodically wipe

ENGLISH

the connectors with a cotton swab or cloth moistened with alcohol, being careful not to damage the connectors.

Connector

Moisture condensation

Moisture may condense on the lens inside the CD player in the following cases:

• After starting the heater in the car.

• If it becomes very humid inside the car. Should this occur, the CD player may malfunction. In this case, eject the disc and leave the receiver turned on for a few hours until the moisture evaporates.

To keep discs clean

A dirty disc may not play correctly. If a disc does become dirty, wipe it with a soft cloth in a straight line from center to edge.

• Do not use any solvent (for example, conventional record cleaner, spray, thinner, benzine, etc.) to clean discs.

To play new discs

New discs may have some rough spots around the inner and outer edges. If such a disc is used, this receiver may reject the disc. To remove these rough spots, rub the edges with a pencil or ball-point pen, etc.

How to handle discs

When removing a disc from its case, press down the center

holder of the case and lift the disc out, holding it by the edges.

• Always hold the disc by the edges. Do not touch its recording surface.

When storing a disc into its case, gently insert the disc around the center holder (with the printed surface facing up).

• Make sure to store discs into the cases after use.

Do not use the following discs:

Warped

disc

16

Center holder

Sticker

Sticker residue

Disc

Stick-on label

More about this receiver

Basic operations

Turning off the power

• If you turn off the power while listening to a disc, disc play will start from where playback has been stopped previously, next time you turn on the power.

Tuner operations

Storing stations in memory

• During SSM search... – All previously stored stations are erased and

stations are stored newly.

– Received stations are preset in No. 1 (lowest

frequency) to No. 6 (highest frequency).

– When SSM is over, the station stored in

No. 1 will be automatically tuned in.

• When storing a station manually, a previously preset station is erased when a new station is stored in the same preset number.

Disc operations

General

• This receiver has been designed to reproduce CDs, and CD-Rs (Recordable)/ CD-RWs (Rewritable) in audio CD (CD-DA) format.

• When a disc has been loaded, selecting “CD” for the playback source starts disc play.

• Some CD-Rs or CD-RWs may not play back on this receiver because of their disc characteristics, and for the following causes: – Discs are dirty or scratched. – Moisture condensation occurs on the lens

inside the receiver. – The pickup lens inside the receiver is dirty. – CD-R or CD-RW on which the files are

written with “Packet Write” method. – There are improper recording conditions

(missing data, etc.) or media conditions

(stain, scratch, warp, etc.).

• CD-RWs may require a longer readout time since the reflectance of CD-RWs is lower than that of regular CDs.

• Do not use the following CD-Rs or CD-RWs: – Discs with stickers, labels, or protective seal

stuck to the surface.

– Discs on which labels can be directly

printed by an ink jet printer.

Using these discs under high temperatures or

high humidities may cause malfunctions or damages to discs.

Changing the source

• If you change the source, playback also stops (without ejecting the disc).

Next time you select “CD” for the playback

source, disc play starts from where it has been stopped previously.

ENGLISH

Inserting a disc

• When a disc is inserted upside down, the disc automatically ejects.

• Do not insert 8 cm discs (single CD) and unusual shape discs (heart, flower, etc.) into the loading slot.

Playing a CD-R or CD-RW

• Use only “finalized” CD-Rs or CD-RWs.

• This receiver can play back multi-session discs; however, unclosed sessions will be skipped while playing.

Ejecting a disc

• If the ejected disc is not removed within 15 seconds, the disc is automatically inserted again into the loading slot to prevent it from dust. (Disc will not play this time.)

General settings—PSM

• If you change the “AMP GAIN” setting from “HIGH PWR” to “LOW PWR” while the volume level is set higher than “VOL 30,” the receiver automatically changes the volume level to “VOL 30.”

17

Troubleshooting

What appears to be trouble is not always serious. Check the following points before calling a service center.

ENGLISH

• Sound cannot be heard

General

• This receiver does not

• SSM automatic presetting

• Static noise while listening

FM/AM

• Disc automatically ejects. Disc is inserted upside

• CD-R/CD-RW cannot be

• Tracks on the CD-R/

• Disc can be neither played

Symptoms Causes Remedies

from the speakers.

work at all.

does not work.

to the radio.

played back.

CD-RW cannot be skipped.

back nor ejected.

The volume level is set to the minimum level.

Connections are incorrect. Check the cords and

The built-in microcomputer may have functioned incorrectly due to noise, etc.

Signals are too weak. Store stations manually.

The aerial is not connected firmly.

down.

CD-R/CD-RW is not finalized.

Disc is locked. Unlock the disc (see page

Adjust it to the optimum level.

connections.

Reset the receiver (see page

2).

Connect the aerial firmly.

Insert the disc correctly.

• Insert a finalized CD-R/ CD-RW.

• Finalize the CD-R/ CD-RW with the component which you used for recording.

11).

18

Disc playback

• Disc sound is sometimes interrupted.

• “NO DISC” appears on the display.

The CD player may have functioned incorrectly.

You are driving on rough roads.

Disc is scratched. Change the disc.

Connections are incorrect. Check the cords and

No disc is in the loading slot.

Disc is inserted incorrectly. Insert the disc correctly.

Eject the disc forcibly (see page 2).

Stop playback while driving on rough roads.

connections.

Insert a disc into the loading slot.

Specifications

AUDIO AMPLIFIER SECTION

Maximum Power Output: Front: 50 W per channel Rear: 50 W per channel Continuous Power Output (RMS): Front: 19 W per channel into 4 Ω, 40 Hz to 20 000 Hz at no more than 0.8% total harmonic distortion. Rear: 19 W per channel into 4 Ω, 40 Hz to 20 000 Hz at no more than 0.8% total harmonic distortion. Load Impedance: 4 Ω (4 Ω to 8 Ω allowance) Tone Control Range: Bass: ±10 dB at 100 Hz Treble: ±10 dB at 10 kHz Frequency Response: 40 Hz to 20 000 Hz Signal-to-Noise Ratio: 70 dB Line-Out Level/Impedance:

2.0 V/20 kΩ load (full scale) Output Impedance: 1 kΩ

TUNER SECTION

Frequency Range: FM1/FM2: 87.5 MHz to 108.0 MHz FM3: 65.00 MHz to 74.00 MHz AM: (MW) 522 kHz to 1 620 kHz (LW) 144 kHz to 279 kHz

[FM Tuner]

Usable Sensitivity: 11.3 dBf (1.0 µV/75 Ω) 50 dB Quieting Sensitivity:

16.3 dBf (1.8 µV/75 Ω) Alternate Channel Selectivity (400 kHz): 65 dB Frequency Response: 40 Hz to 15 000 Hz Stereo Separation: 30 dB Capture Ratio: 1.5 dB

CD PLAYER SECTION

Type: Compact disc player Signal Detection System: Non-contact optical

pickup (semiconductor laser) Number of channels: 2 channels (stereo) Frequency Response: 5 Hz to 20 000 Hz Dynamic Range: 96 dB Signal-to-Noise Ratio: 98 dB Wow and Flutter: Less than measurable limit

GENERAL

Power Requirement: Operating Voltage: DC 14.4 V (11 V to 16 V allowance) Grounding System: Negative ground Allowable Operating Temperature: 0°C to +40°C Dimensions (W × H × D): Installation Size (approx.): 182 mm × 52 mm × 150 mm Panel Size (approx.): 188 mm × 58 mm × 11 mm Mass (approx.):

1.3 kg (excluding accessories)

Design and specifications are subject to change without notice.

ENGLISH

[MW Tuner]

Sensitivity: 20 µV Selectivity: 35 dB

[LW Tuner]

Sensitivity: 50 µV

19

Having TROUBLE with operation?

Please reset your unit

Refer to page of How to reset your unit

Затруднения при эксплуатации?

Пожалуйста, перезагрузите Ваше устройство

Для получения информации о перезагрузке Вашего

устройства обратитесь на соответствующую страницу

EN, RU

1004DTSMDTJEIN

KD-G117

Installation/Connection Manual

Руководство по установке/подключению

GET0254-002A

[EE]

ENGLISH

This receiver is designed to operate on 12 V DC, NEGATIVE ground electrical systems. If your vehicle does not have this system, a voltage inverter is required, which can be purchased at JVC IN-CAR ENTERTAINMENT dealers.

Parts list for installation and connection

The following parts are provided for this receiver. After checking them, please set them correctly.

A / B Hard case/Control panel

Жесткий футляр/ панель управления

F

Washer (ø5)

Шайба (њ5)

G

Lock nut (M5)

Фиксирующая гайка (M5)

C

Sleeve

Муфта

H

Mounting bolt (M5 x 20 mm)

Крепежный болт (M5 x 20 мм)

INSTALLATION (IN-DASH MOUNTING)

1004DTSMDTJEIN EN, RU

РУССКИЙ

Это устройство разработано для эксплуатации на 12 В постоянного напряжения с минусом на массе. Если Ваш автомобиль не имеет этой системы, требуется инвертор напряжения, который может быть приобретен у дилера автомобилнего специалиста JVC.

Список деталей для установки и подключения

Следующие детали поставлены в комплекте с устройством. После проверки комплектации, пожалуйста, установите их правильно.

D

Trim plate

Декоративную панель

I

Rubber cushion

Резиновый чехол

E

Power cord

Кабель питания

J

Handles

Рычаги

УСТАНОВКА (УСТАНОВКА В ПРИБОРНУЮ ПАНЕЛЬ)

The following illustration shows a typical installation. If you have any questions or require information regarding installation kits, consult your JVC IN-CAR ENTERTAINMENT dealer or a company supplying kits.

•

If you are not sure how to install this receiver correctly, have it installed by a qualified technician.

1

*

When you stand the receiver, be careful not to damage the fuse on the rear.

1

*

Устанавливайте устройство таким образом, чтобы не повредить предохранитель, расположенный сзади.

Removing the receiver / Удаление устройства

Before removing the receiver, release the rear section.

Перед удалением устройства освободите заднюю часть.

When using the optional stay /

использовании дополнительной стойки

Fire wall

Стена

Dashboard

Приборная панель

Insert the two handles, then pull them as illustrated so that the receiver can be removed.

Вставьте два рычажка, затем потяните их, как показано на рисунке, чтобы вынуть устройство.

Install the receiver at an angle of less than 30˚.

Установите устройство под углом менее 30°.

На следующих иллюстрациях показана типовая установка. Если у Вас есть какие-либо вопросы, касающиеся установки, обратитесь к Вашему дилеру автомобилнего специалиста JVC или в компанию, поставляющую соответствующие принадлежности.

• Если Вы не знаете точно, как следует устанавливать это устройство, обратитесь к квалифицированному специалисту.

Do the required electrical connections.

Выполните необходимые подключения контактов, как показано на оборотной стороне этой инструкции.

Bend the appropriate tabs to hold the sleeve firmly in place.

Отогните соответствующие фиксаторы, предназначенные для прочной установки корпуса.

При

When installing the receiver without using the sleeve /

При установке устройства без использования муфты

Stay (option)

Стойка (дополнительно)

Screw (option)

Винт (дополнительно)

In a Toyota for example, first remove the car radio and install the receiver in its place.

В автомобилях “Toyota”, например, сначала удалите автомобильную магнитолу, затем установите на ее место это устройство.

* Not included for this receiver.

Flat type screws (M5 x 8 mm)*

Крепежные винты (M5 x 8 мм)*

Pocket

Карман

Note : When installing the receiver on the mounting bracket,

Примечание : При установке устройства на крепежный кронштейн,

Bracket* Кронштейн*

make sure to use the 8 mm-long screws. If longer screws are used, they could damage the receiver.

используйте только винты длиной 8 мм. При использовании более длинных винтов можно повредить устройство.

* Не входят в комплект.

Flat type screws (M5 x 8 mm)*

Крепежные винты (M5 x 8 мм)*

TROUBLESHOOTING

• The fuse blows. * Are the red and black leads connected correctly?

• Power cannot be turned on. * Is the yellow lead connected?

• No sound from the speakers. * Is the speaker output lead short-circuited?

• Sound is distorted. * Is the speaker output lead grounded? * Are the “–” terminals of L and R speakers grounded in common?

• Noise interfere with sounds. * Is the rear ground terminal connected to the car’s chassis using shorter and thicker cords?

• Receiver becomes hot. * Is the speaker output lead grounded? * Are the “–” terminals of L and R speakers grounded in common?

• This receiver does not work at all. * Have you reset your receiver?

BЫЯВЛЕНИЕ НЕИСПРАВНОСТЕЙ

• Сработал предохранитель.

* Правильно ли подключены черный и красный провода?

• Питание не включается.

* Подключен ли желтый провод?

• Звук не выводится через громкоговорители.

* Нет ли короткого замыкания на кабеле выхода громкоговорителей?

• Звук искажен.

* Заземлен ли провод выхода громкоговорителей? * Заземлены ли разъемы “–” правого (R) и левого (L) громкоговорителей?

• Шум мешает звучанию.

* Соединен ли находящийся сзади зажим заземления с шасси автомобиля с помощью

более короткого и тонкого шнуров?

• Устройство нагревается.

* Заземлен ли провод выхода громкоговорителей? * Заземлены ли разъемы “–” правого (R) и левого (L) громкоговорителей?

• Приемник не работает.

* Выполнена ли перенастройка приемника?

1

ENGLISH РУССКИЙ

ELECTRICAL CONNECTIONS

To prevent short circuits, we recommend that you disconnect the battery’s negative terminal and make all electrical connections before installing the receiver.

• Be sure to ground this receiver to the car’s chassis again after installation.

Notes:

• Replace the fuse with one of the specified rating. If the fuse blows frequently, consult your JVC IN-CAR ENTERTAINMENT dealer.

• It is recommended to connect to the speakers with maximum power of more than 50 W (both at the rear and at the front, with an impedance of 4 Ω to 8 Ω). If the maximum power is less than 50 W, change “AMP GAIN” setting to prevent the speakers from being damaged (see page 14 of the INSTRUCTIONS).

• To prevent short-circuit, cover the terminals of the UNUSED leads with insulating tape.

• The heat sink becomes very hot after use. Be careful not to touch it when removing this receiver.

Heat sink

Радиатор

Typical connections / Типичные подключения

A

Before connecting: Check the wiring in the vehicle carefully. Incorrect connection may cause serious damage to this receiver. The leads of the power cord and those of the connector from the car body may be different in color.

1 Connect the colored leads of the power cord in the order specified in the illustration below. 2 Connect the aerial cord. 3 Finally connect the wiring harness to the receiver.

Note: If your vehicle does not have any accessory terminal, move the fuse from the fuse position 1 (initial position) to fuse position 2, and connect the red lead (A7) to the positive (+) battery terminal.

• The yellow lead (A4) is not used in this case.

ЭЛЕКТРИЧЕСКИЕ ПОДКЛЮЧЕНИЯ

Для предотвращения коротких замыканий мы рекомендуем Вам отсоединить отрицательный разъем аккумулятора и осуществить все подключения перед установкой устройства.

• После установки обязательно заземлите данное устройство на шасси автомобиля.

Примечания:

• Заменяйте предохранитель другим предохранителем указанного класса. Если предохранитель сгорает слишком часто, обратитесь к дилеру автомобилнего специалиста JVC.

• Рекомендуется подключать динамики с максимальной мощностью более 50 Вт (к задней и передней панели устройства, с полным сопротивлением от 4 Ω до 8 Ω). Если максимальная мощность динамиков менее 50 Вт, перейдите в режим “AMP GAIN”, чтобы предотвратить их повреждение (см. ИНСТРУКЦИИ ПО ЭКСПЛУАТАЦИИ на стр. 14).

• Для предотвращения короткого замыкания заклейте НЕИСПОЛЬЗУЕМЫЕ концы изолирующей лентой.

• Радиатор во время использования сильно нагревается. Старайтесь его не трогать во время удаления устройства.

Перед началом подключений: Тщательно проверьте проводку в автомобиле. Неправильное подключение может привести к серьезному повреждению устройства. Жилы силового кабеля и жилы соединителя от кузова автомобиля могут быть разного цвета.

1 Подсоедините цветные провода шнура питания в указанном ниже порядке. 2 Подключите кабель антенны. 3 В последнюю очередь подключите электропроводку к устройству.

Примечание: Если в Вашем автомобиле никакого вспомогательного разъема не имеется, переставьте предохранитель из положения 1 предохранителя (первоначальное положение) в положение 2 предохранителя и подключите красный провод (А7) к положительному (+) полюсу аккумулятора.

• Желтый провод (А4) в этом случае не используется.

Rear ground terminal

Задний разъем заземления

Aerial terminal

Разъем антенны

Line out (see diagram )

К выходу (см. схему )

*2 Before checking the operation of this receiver

prior to installation, this lead must be connected, otherwise power cannot be turned on.

*2 Перед проверкой работы устройства

подключите этот провод, иначе питание не включится.

15 A fuse

Предохранитель 15 A

Black

Черный

2

*

Yellow Желтый*

Red

Красный

Blue with white stripe

Синий с белой полосой

2

Fuse position 2 / Положение 2 предохранителя

Fuse position 1 / Положение 1 предохранителя

*1 Not included for this receiver

1

*

Не входит в комплект

To metallic body or chassis of the car

К металлическому корпусу или шасси автомобиля

To a live terminal in the fuse block connecting to the car battery (bypassing the ignition switch) (constant 12 V)

К разъему фазы в блоке предохранителя (минуя блок зажигания) (постоянный 12 В)

To an accessory terminal in the fuse block

К вспомогательному разъему в блоке предохранителя

To the remote lead of other equipment or power aerial if any (200 mA max.)

К удаленному проводу другого оборудования или антенны (макс. 200 мА)

Ignition switch

Переключатель зажигания

Fuse block

Блок предохранителя

White with black stripe

Белый с черной полосой

B

Connecting the external amplifier / Подключение внешнего усилителя

White

Белый

Left speaker (front)

Левый громкоговоритель (передний)

Gray with black stripe

Серый с черной полосой

Gray

Серый

Right speaker (front)

Правый громкоговоритель (передний)

Green with black stripe

Зеленый с черной полосо

You can connect an amplifier to upgrade your car stereo system.

• Connect the remote lead (blue with white stripe) to the remote lead of the other equipment so that it can be controlled through this receiver.

• Disconnect the speakers from this receiver, connect them to the amplifier. Leave the

speaker leads of this receiver unused.

Rear speakers

Задние громкоговорители

Remote lead

Провод внешнего устройства

JVC Amplifier

JVC-усилитель

Signal cord (not supplied for this receiver)

Кабель сигнала (не входит в комплект)

Remote lead (Blue with white stripe)

Провод внешнего устройства (Синий с белой полосой)

To the remote lead of other equipment or power aerial if any

К удаленному проводу другого оборудования

Front speakers

Передние громкоговорители

или антенны

Green

Зеленый

Left speaker (rear)

Левый громкоговоритель (задний)

Purple with black stripe

Пурпурный с черной полосой

Purple

Пурпурный

Right speaker (rear)

Правый громкоговоритель (задний)

Можно подключить усилитель для обновления автомобильной стереосистемы.

• Подсоедините провод внешнего устройства (синий с белой полосой) к проводу внешнего устройства другого оборудования так, чтобы им можно было управлять с этого устройства.

• Отсоедините громкоговорители от данного устройства, подключите их к усилителю. Оставьте провода громкоговорителей данного устройства неиспользованными.

Y-connector (not supplied for this receiver)

Разъем Y (не входит в комплект)

*3 Firmly attach the ground wire to the metallic

body or to the chassis of the car—to the place not coated with paint (if coated with paint, remove the paint before attaching the wire). Failure to do so may cause damage to the receiver.

3

*

Плотно прикрепите заземляющий провод

к металлическому кузову или шасси автомобиля—в месте, не покрытом краской (если оно покрыто краской, удалите краску перед тем, как прикреплять провод). Невыполнение этого требования может привести к повреждению данного устройства.

PRECAUTIONS on power supply and speaker connections:

• DO NOT connect the speaker leads of the power cord to

the car battery; otherwise, the receiver will be seriously damaged.

• BEFORE connecting the speaker leads of the power cord to the speakers, check the speaker wiring in your car.

ПРЕДОСТЕРЕЖЕНИЯ по питанию и подключению громкоговорителей:

• НЕ подключайте провода громкоговорителей к аккумулятору автомобиля, иначе устройство будет повреждено.

• ПЕРЕД подключением проводов громкоговорителей к кабелю питания громкоговорителя проверьте схему соединений громкоговорителей в Вашем автомобиле.

2

JVC GET0253-003A User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

INSTRUCTIONS

IMPORTANT FOR LASER PRODUCTS

Contents

Getting started

Radio operations

Disc operations

Sound adjustments

General settings — PSM

Detaching the control panel

Maintenance

More about this receiver

Troubleshooting

Specifications

TROUBLESHOOTING

ELECTRICAL CONNECTIONS

INSTRUCTIONS

IMPORTANT FOR LASER PRODUCTS

Contents

Control panel — KD-G111

Getting started

Radio operations

Disc operations

Sound adjustments

General settings — PSM

Detaching the control panel

Maintenance

More about this receiver

Troubleshooting

Specifications

ELECTRICAL CONNECTIONS

TROUBLESHOOTING

INSTRUCTIONS

IMPORTANT FOR LASER PRODUCTS

Contents

Control panel — KD-G117

Getting started

Radio operations

Disc operations

Sound adjustments

General settings — PSM

Detaching the control panel

Maintenance

More about this receiver

Troubleshooting

Specifications

Installation/Connection Manual

TROUBLESHOOTING

ELECTRICAL CONNECTIONS
