CD RECEIVER

CD-RECEIVER RECEPTEUR CD CD-RECEIVER

KD-G801/KD-G701

KD-G801

SOUND

ATT

ENGLISH

DEUTSCH

SOURCE

VOL

KD-G701

SOUND

ATT

SOURCE

VOL

KD-G801

KD-G701

• This unit is equipped with the display demonstration. To cancel it, see page 8.

• Dieses Gerät ist mit einer Demonstrationsfunktion für das Display ausgestattet. Auf Seite 8 wird beschrieben, wie Sie diese Demonstrationsfunktion deaktivieren können.

• Cet appareil est équipé d’une fonction de démonstration des affichages. Pour l’annuler, référez-vous à la page 8.

• Dit toestel heeft een display-demonstratiefunctie. Zie bladzijde 8 voor het annuleren van deze functie.

For installation and connections, refer to the separate manual. Für den Einbau und die Anschlüsse siehe das eigenständige Handbuch. Pour l’installation et les raccordements, se référer au manuel séparé. Bijzonderheden over de installatie en aansluiting van het apparaat vindt u in de desbetreffende handleiding.

FRANÇAIS

NEDERLANDS

INSTRUCTIONS

BEDIENUNGSANLEITUNG

MANUEL D’INSTRUCTIONS

GEBRUIKSAANWIJZING

GET0199-001A

[E/EX]

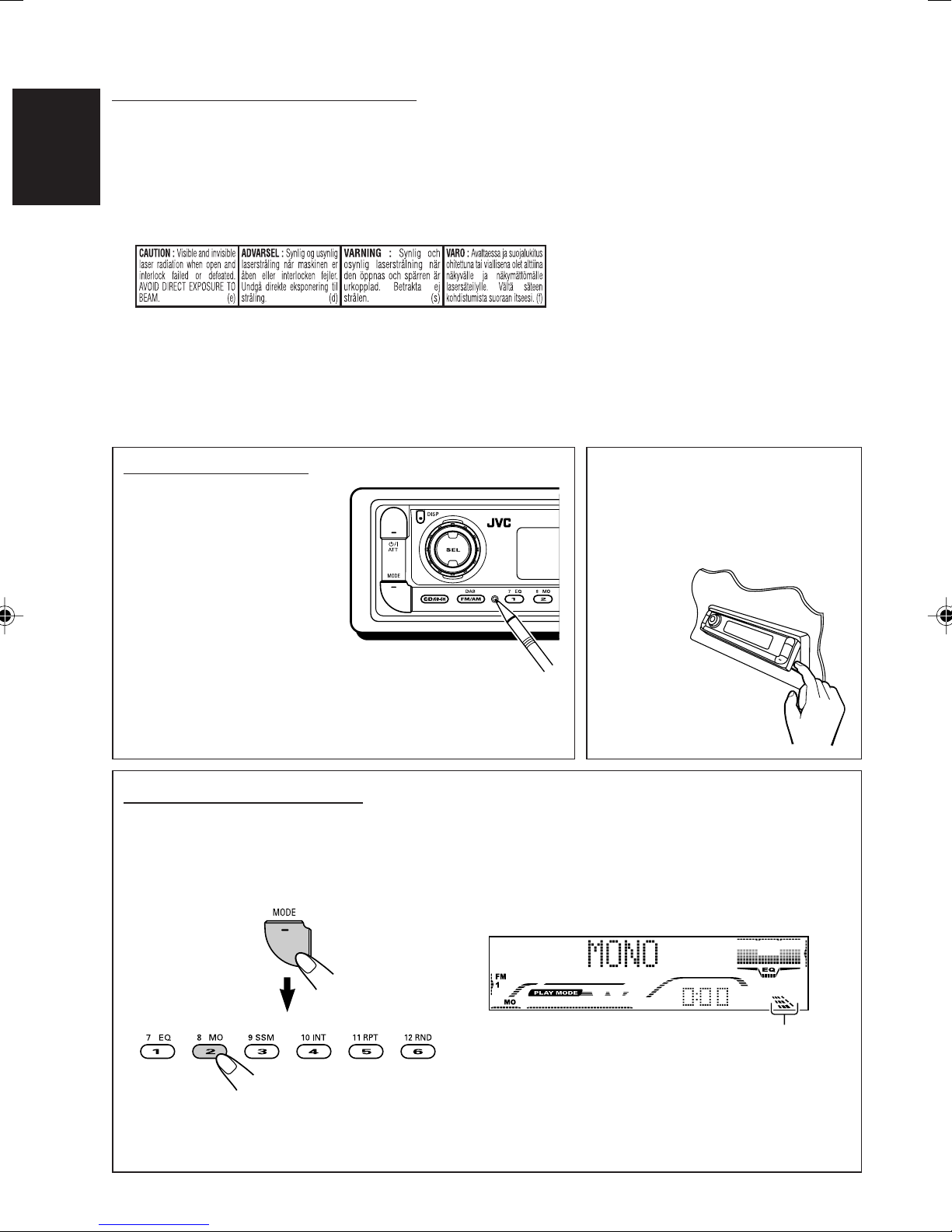

IMPORTANT FOR LASER PRODUCTS

1. CLASS 1 LASER PRODUCT

2. CAUTION: Do not open the top cover. There are no user serviceable parts inside the unit; leave all servicing to qualified service personnel.

3. CAUTION: Visible and invisible laser radiation when open and interlock failed or defeated. Avoid

ENGLISH

direct exposure to beam.

4. REPRODUCTION OF LABEL: CAUTION LABEL, PLACED OUTSIDE THE UNIT.

How to reset your unit

Press the reset button on the control panel using a ball-point pen or similar tool. This will reset the built-in microcomputer.

Note:

Your preset adjustments—such as preset channels or sound adjustments—will also be erased.

CAUTION:

NEVER insert your finger in between the control panel and the unit, as it may get caught or hurt. (See page 40.)

How to use the MODE button

If you press MODE, the unit goes into functions mode, then the number buttons and 5/∞ buttons work as different function buttons.

Ex.: When number button 2 works as MO (monaural) button.

To use these buttons for original functions again after pressing MODE, wait for 5 seconds without pressing any of these buttons until the functions mode is cleared.

• Pressing MODE again also clears the functions mode.

Note:

For security reasons, a numbered ID card is provided with this unit, and the same ID number is imprinted on the unit’s chassis. Keep the card in a safe place, as it will help the authorities to identify your unit if stolen.

Time countdown indicator

Thank you for purchasing a JVC product. Please read all instructions carefully before operation,

to ensure your complete understanding and to obtain the best possible performance from the unit.

CONTENTS

How to reset your unit ............................... 2

How to use the MODE button ................... 2

LOCATION OF THE BUTTONS ............ 4

Control panel ............................................. 4

Remote controller ...................................... 5

Preparing the remote controller ................ 6

BASIC OPERATIONS ....................... 7

Turning on the power ................................ 7

Canceling the display demonstration ........ 8

Setting the clock ........................................ 9

RADIO OPERATIONS ...................... 10

Listening to the radio ................................. 10

Storing stations in memory ....................... 11

Tuning in to a preset station ...................... 13

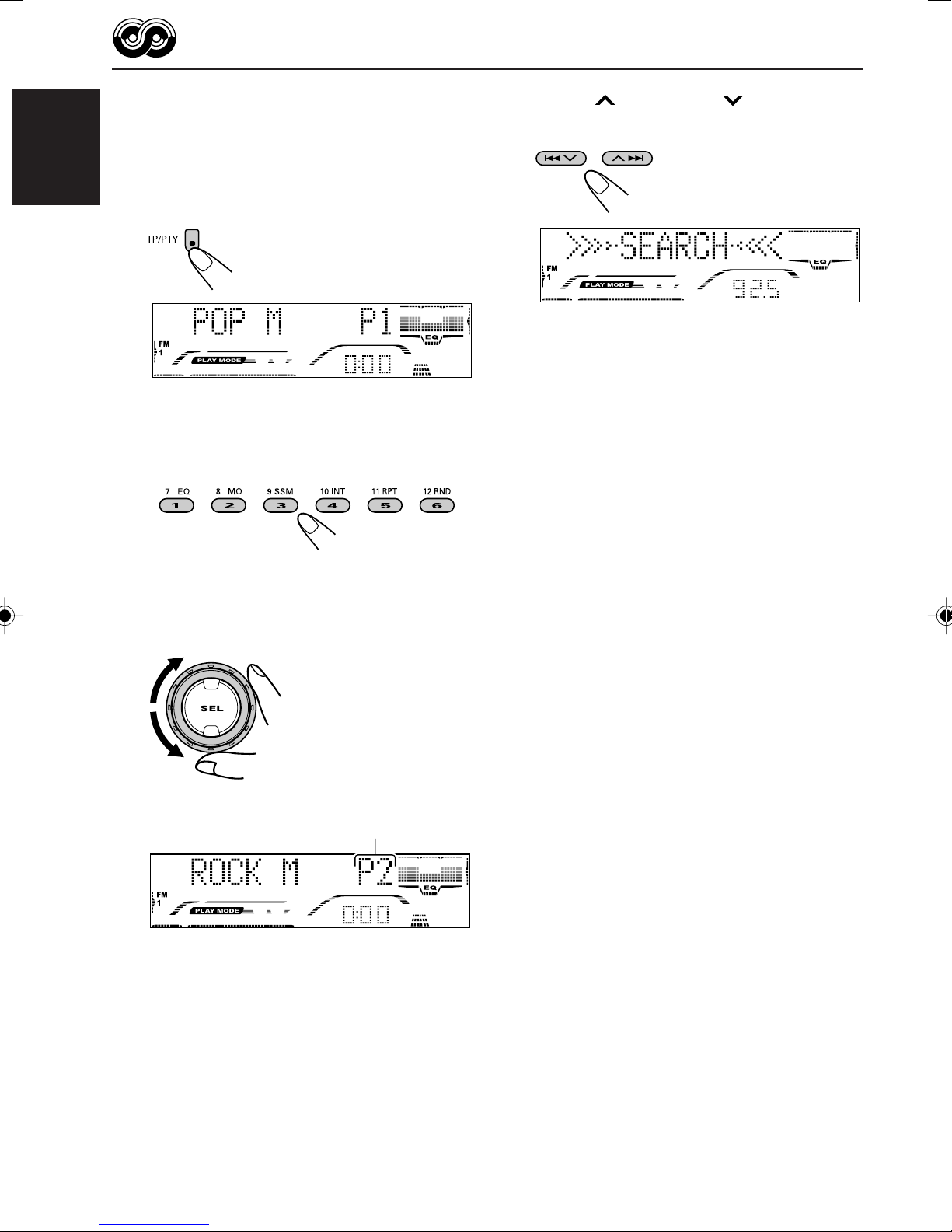

RDS OPERATIONS ......................... 14

What you can do with RDS ....................... 14

Other convenient RDS functions and

adjustments ............................................ 19

CD OPERATIONS ........................... 21

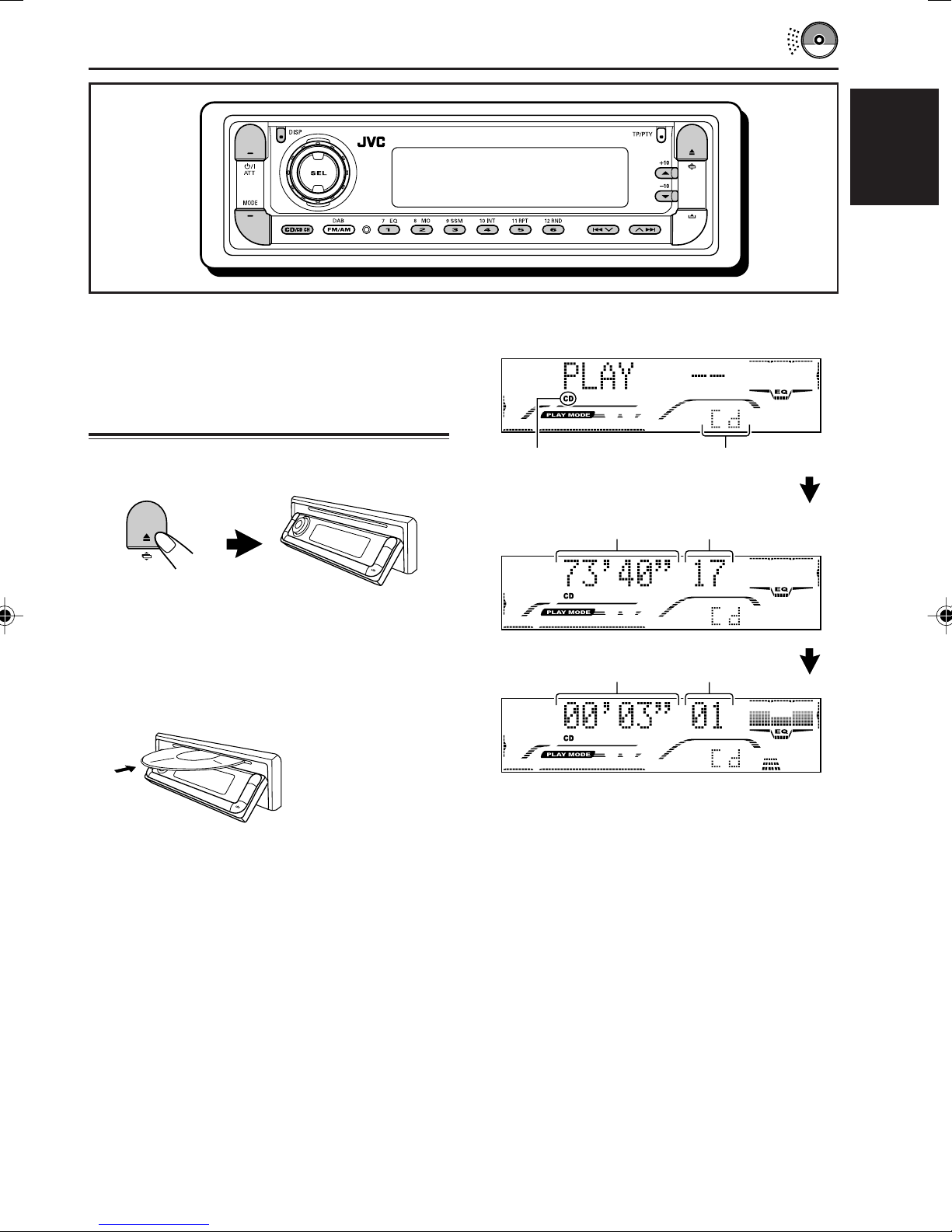

Playing a CD ............................................. 21

Locating a track or a particular portion

on a CD .................................................. 22

Selecting CD playback modes .................. 23

Playing a CD Text ...................................... 24

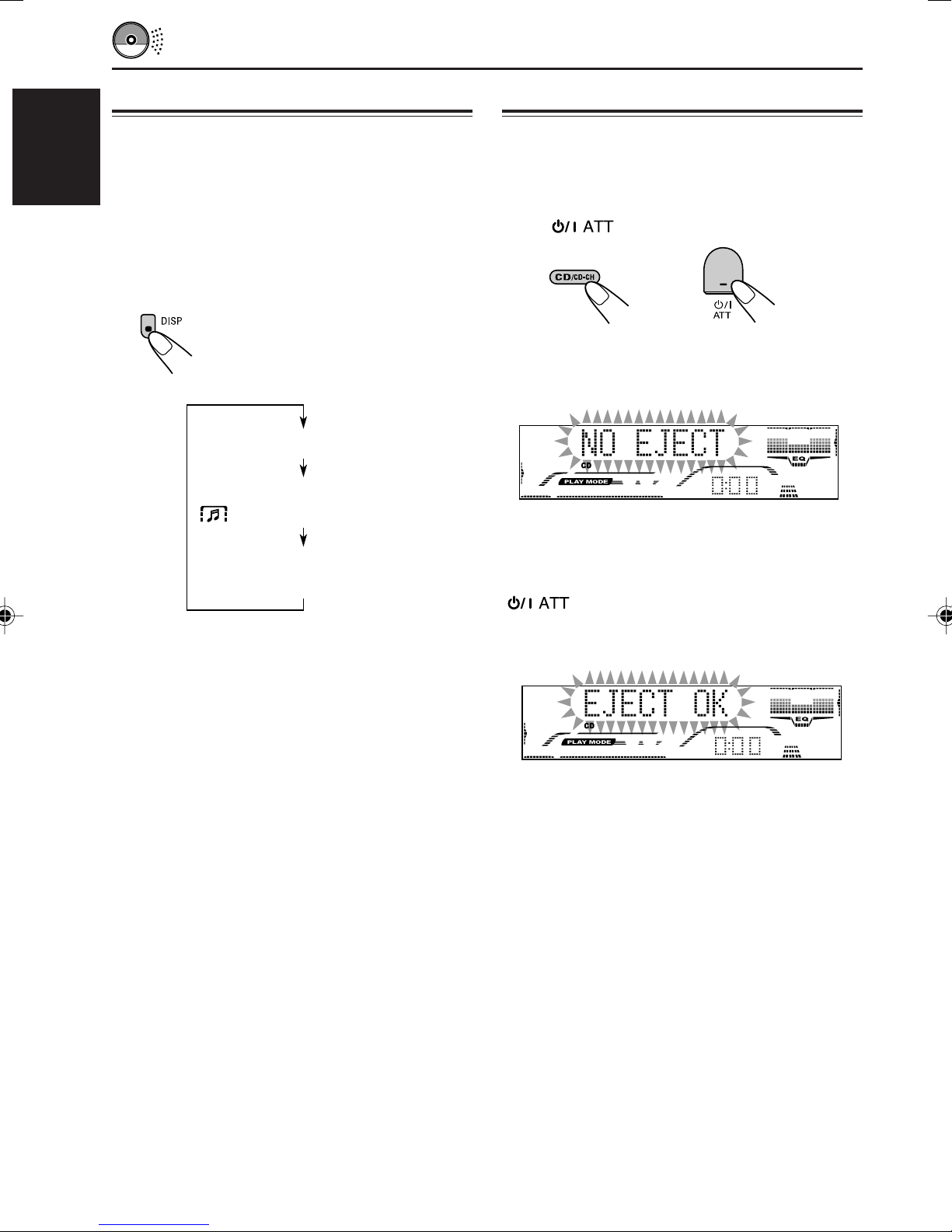

Prohibiting disc ejection ............................ 24

MP3/WMA INTRODUCTION .............. 25

What are MP3/WMA? ............................... 25

How are MP3/WMA files recorded and

played back? .......................................... 25

SOUND ADJUSTMENTS ................... 31

Adjusting the sound .................................. 31

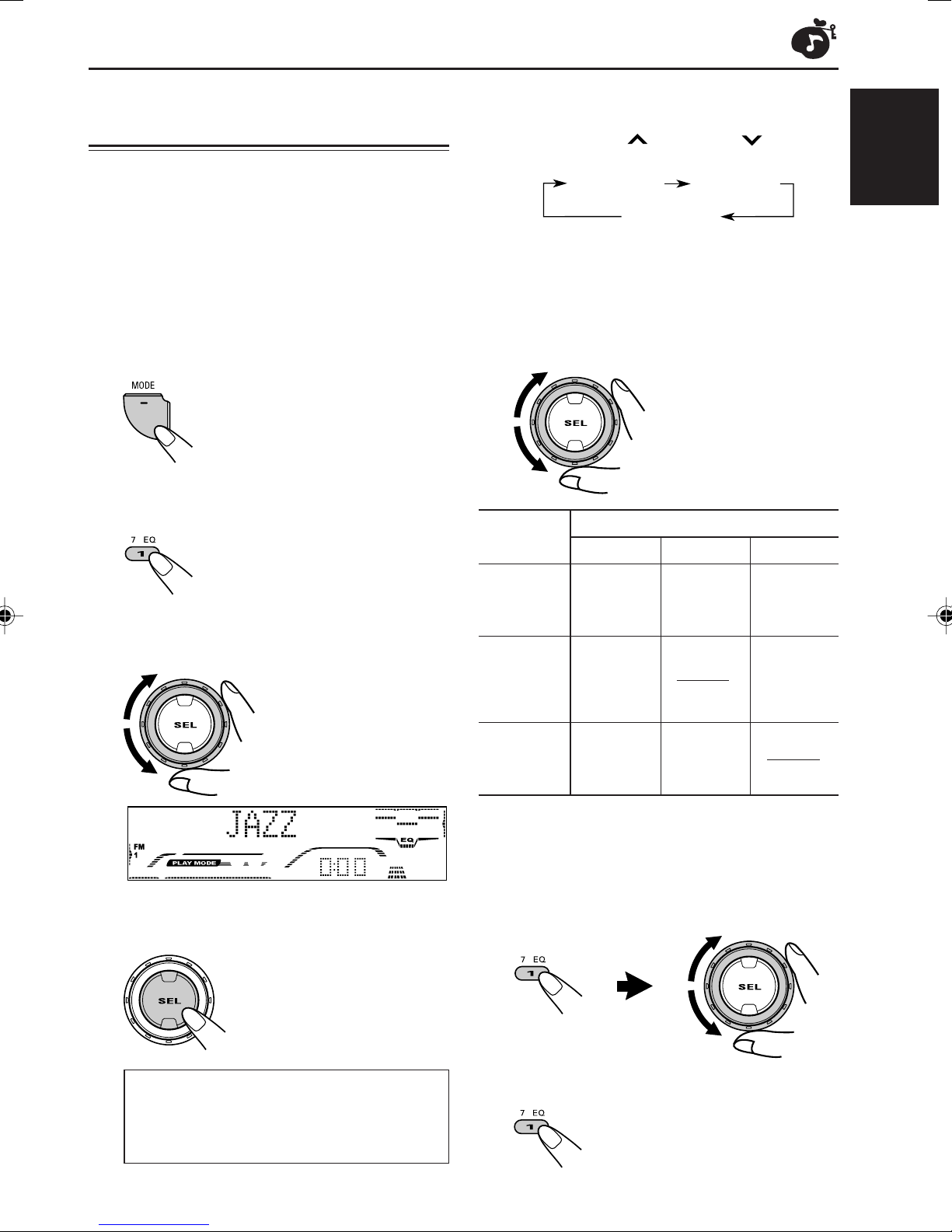

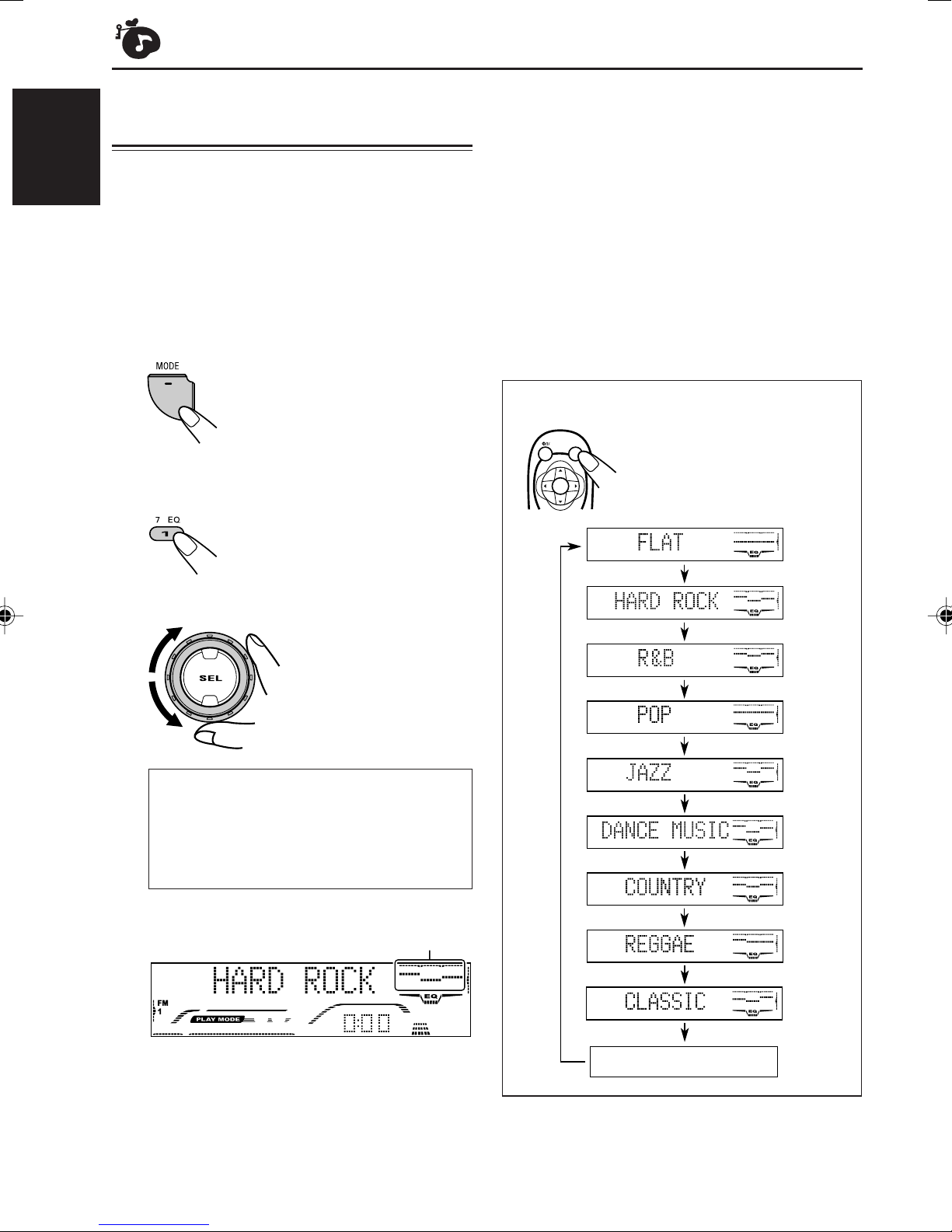

Selecting preset sound modes

(iEQ: intelligent equalizer) ...................... 32

Storing your own sound adjustments ........ 33

OTHER MAIN FUNCTIONS ................ 34

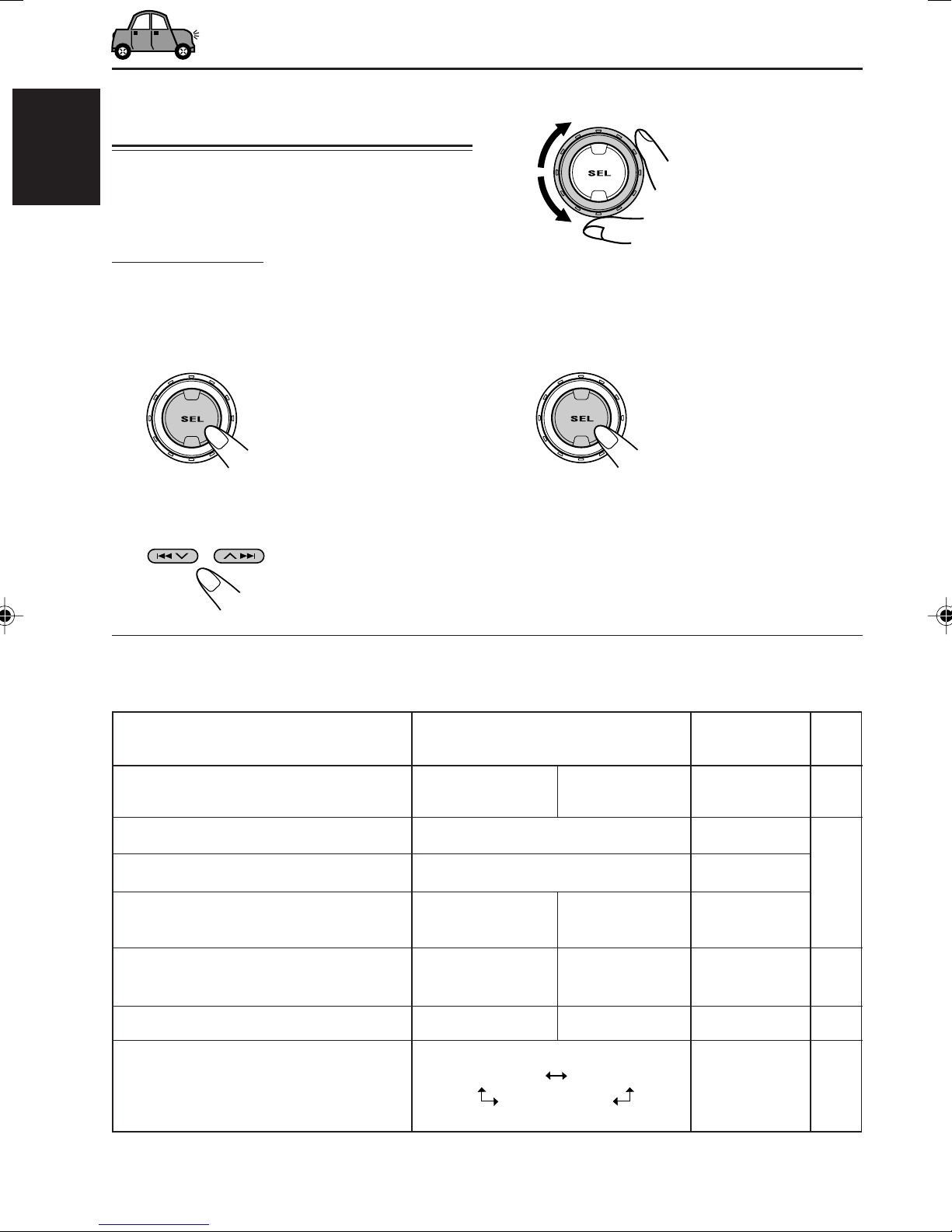

Changing the general settings (PSM) ....... 34

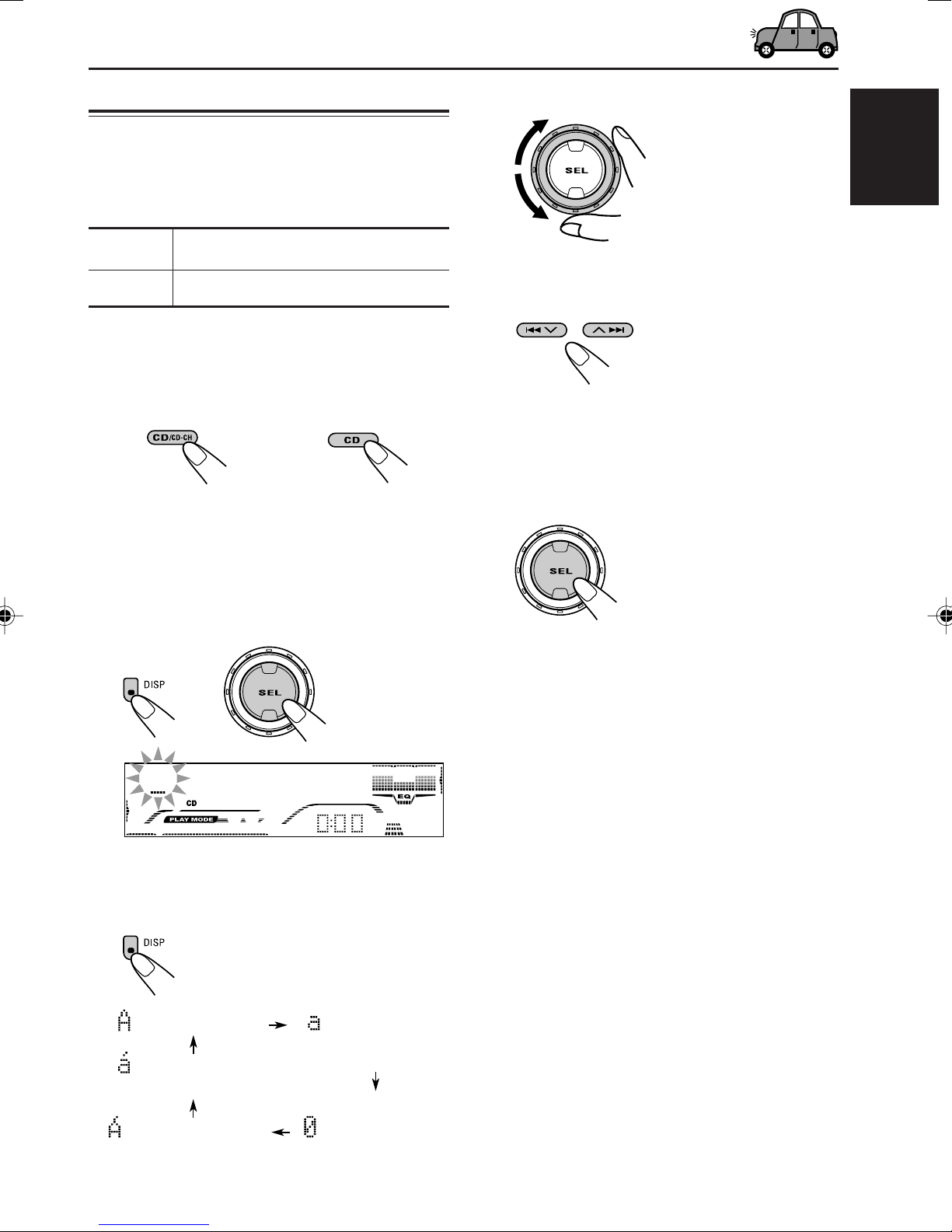

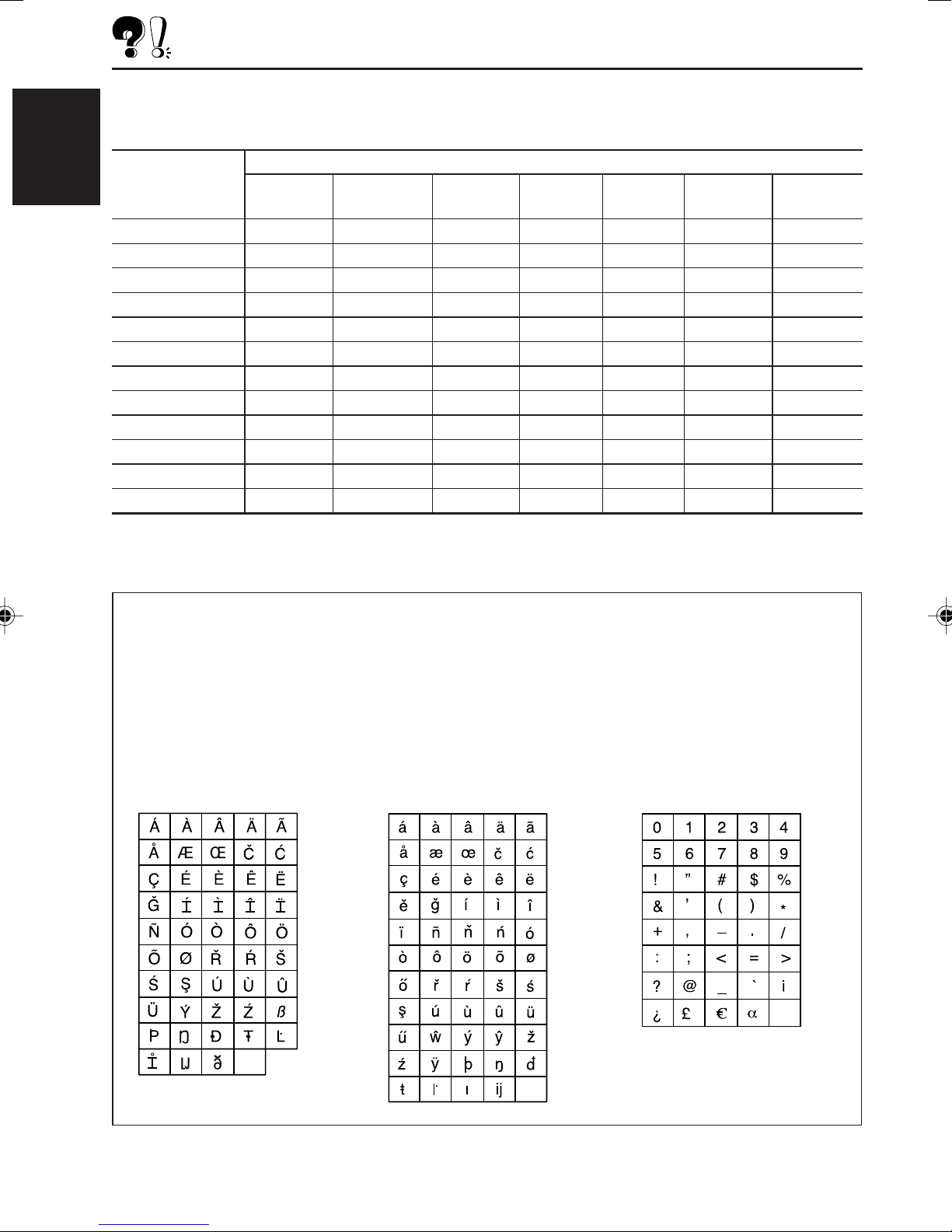

Assigning names to CDs ........................... 39

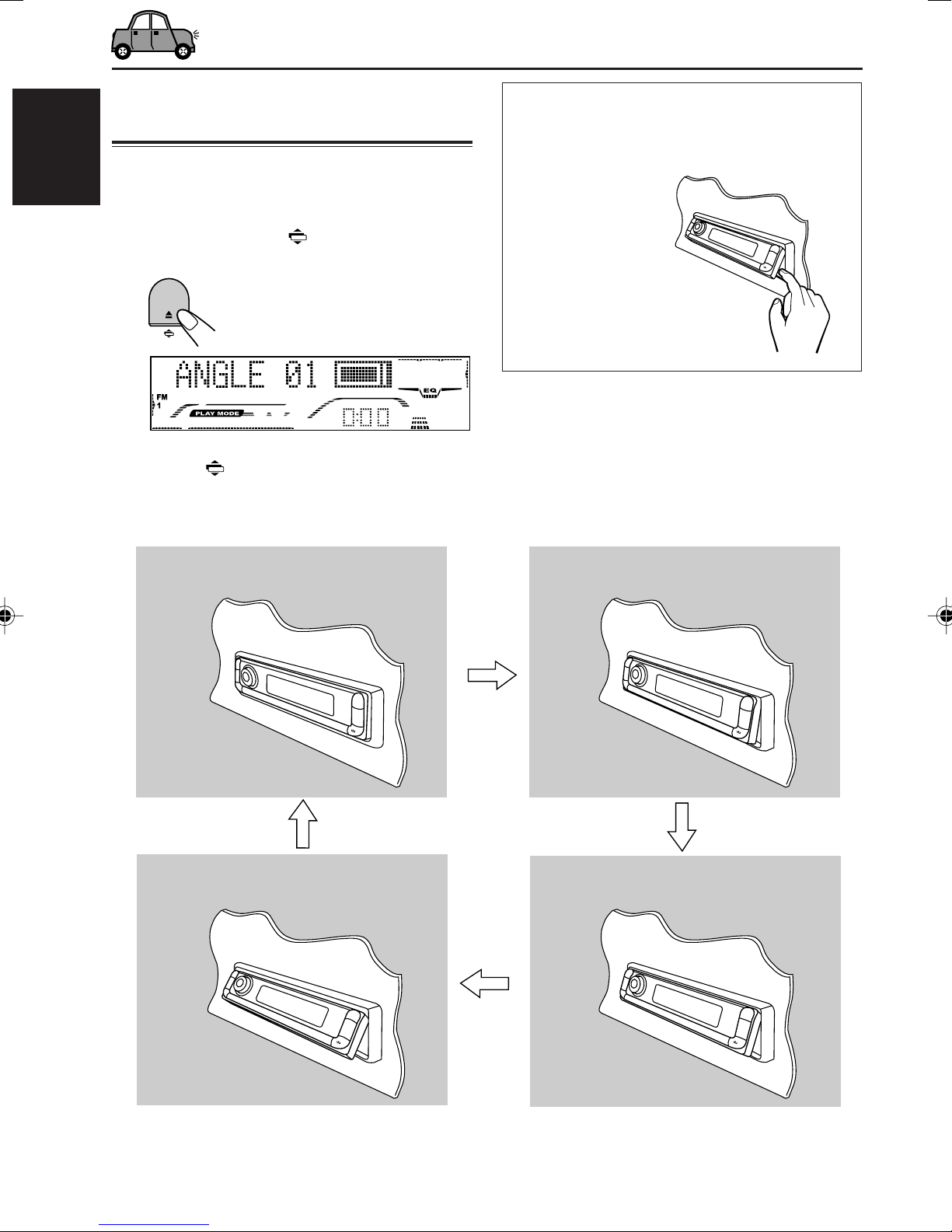

Changing the control panel angle ............. 40

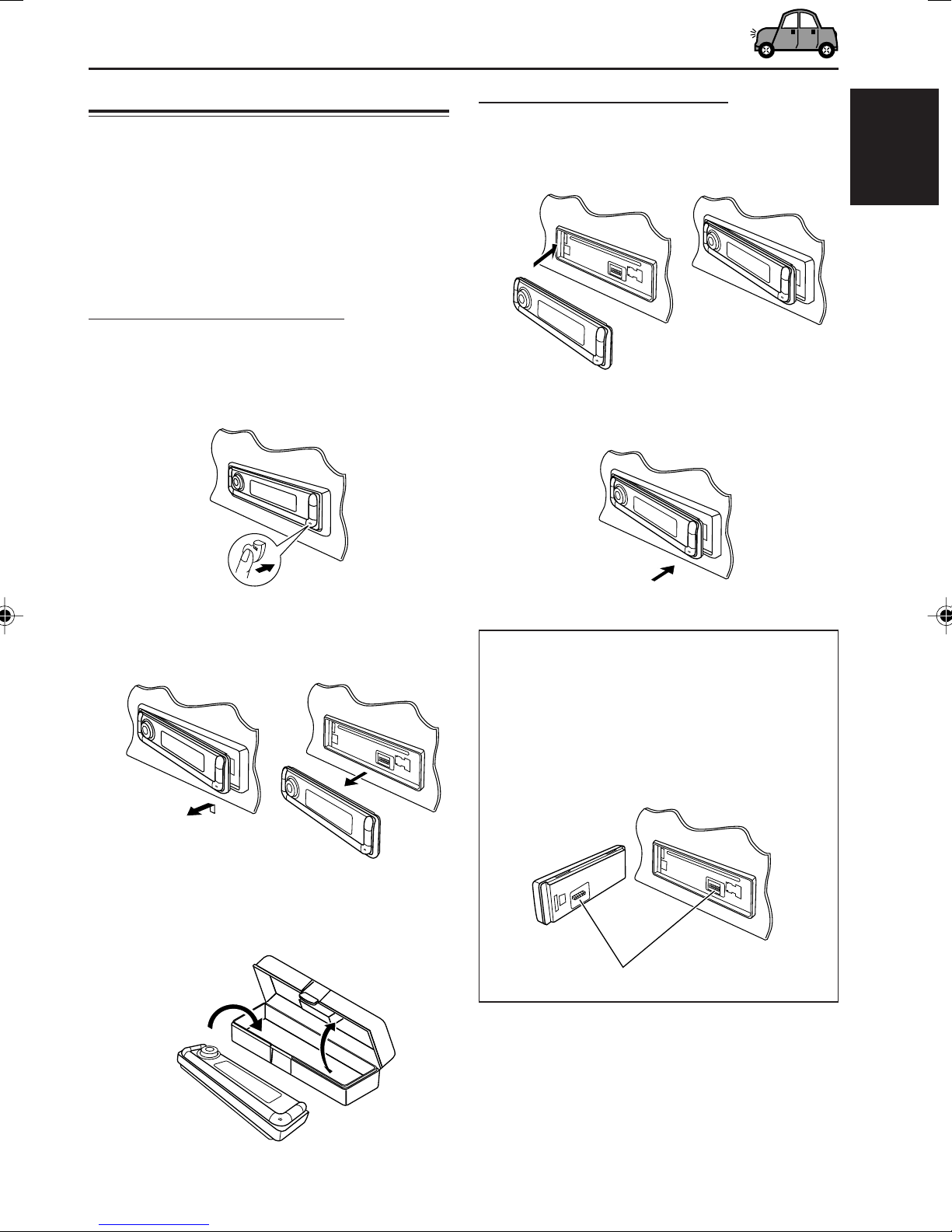

Detaching the control panel ...................... 41

CD CHANGER OPERATIONS

(only for KD-G801) ........................... 42

Playing discs ............................................. 42

Selecting the playback modes .................. 45

EXTERNAL COMPONENT OPERATIONS

(only for KD-G801) ........................... 47

Playing an external component ................. 47

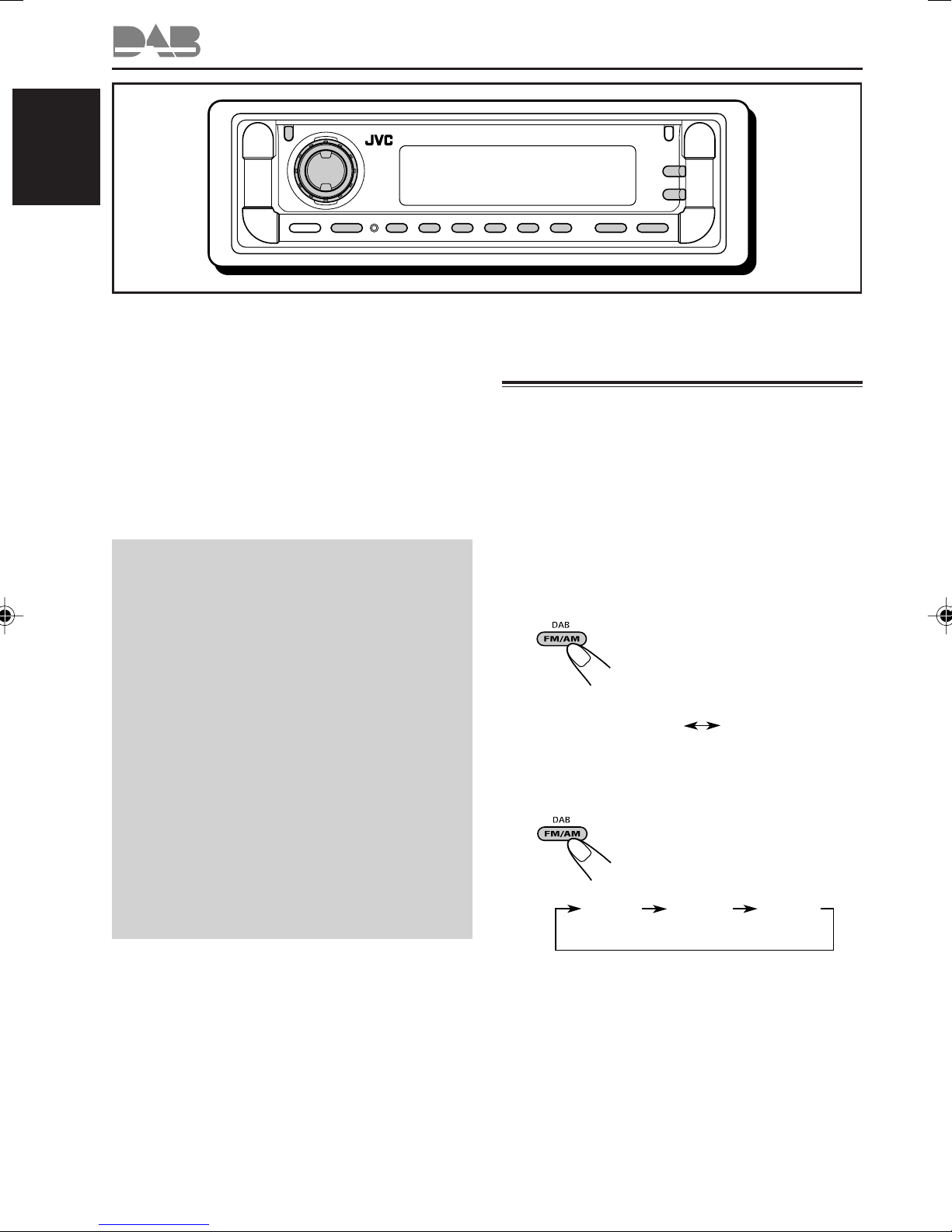

DAB TUNER OPERATIONS

(only for KD-G801) ........................... 48

Tuning in to an ensemble and one of the

services .................................................. 48

Storing DAB services in memory .............. 49

Tuning in to a preset DAB service ............. 50

What you can do more with DAB .............. 51

ADDITIONAL INFORMATION ............. 52

TROUBLESHOOTING ...................... 53

MAINTENANCE ............................. 56

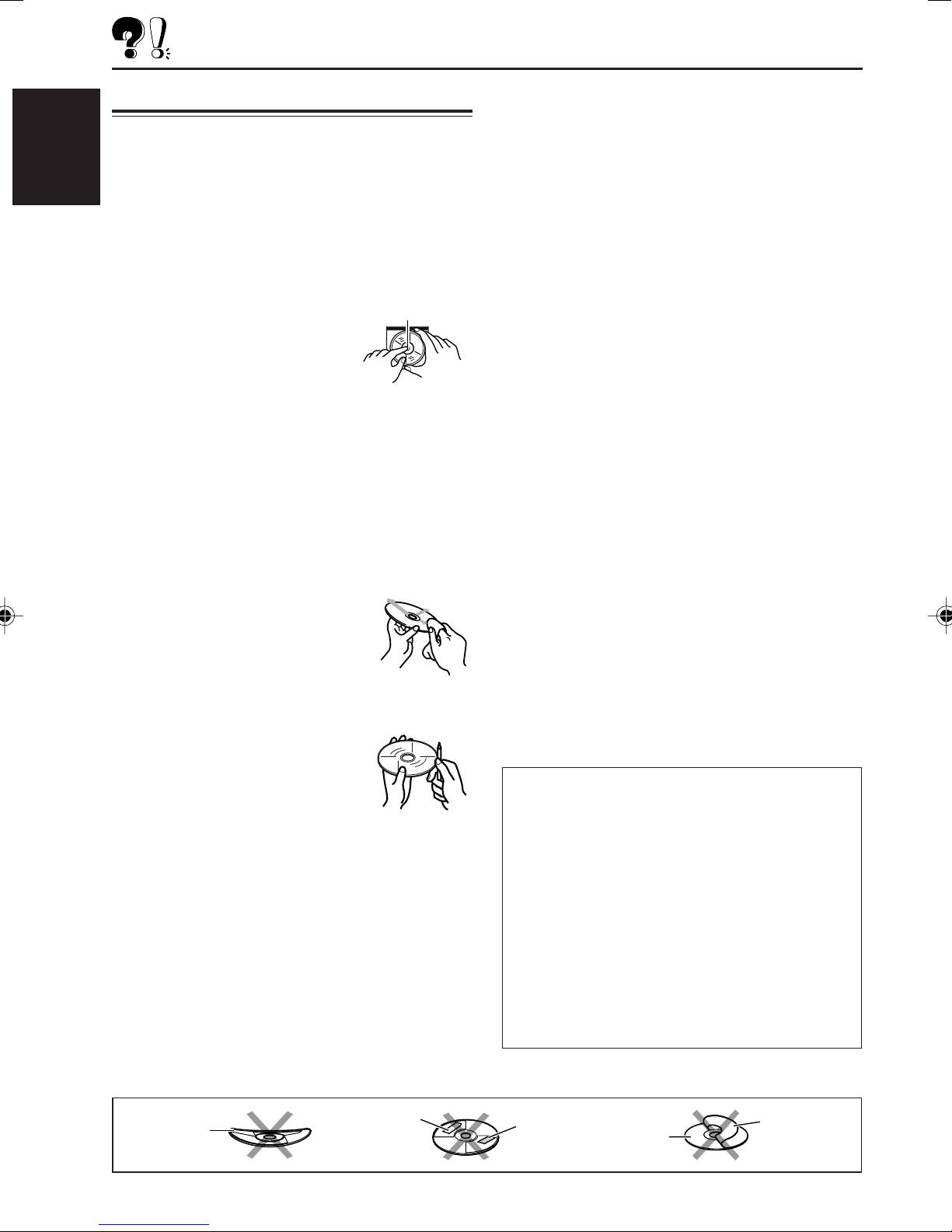

Handling discs ........................................... 56

ENGLISH

MP3/WMA OPERATIONS .................. 26

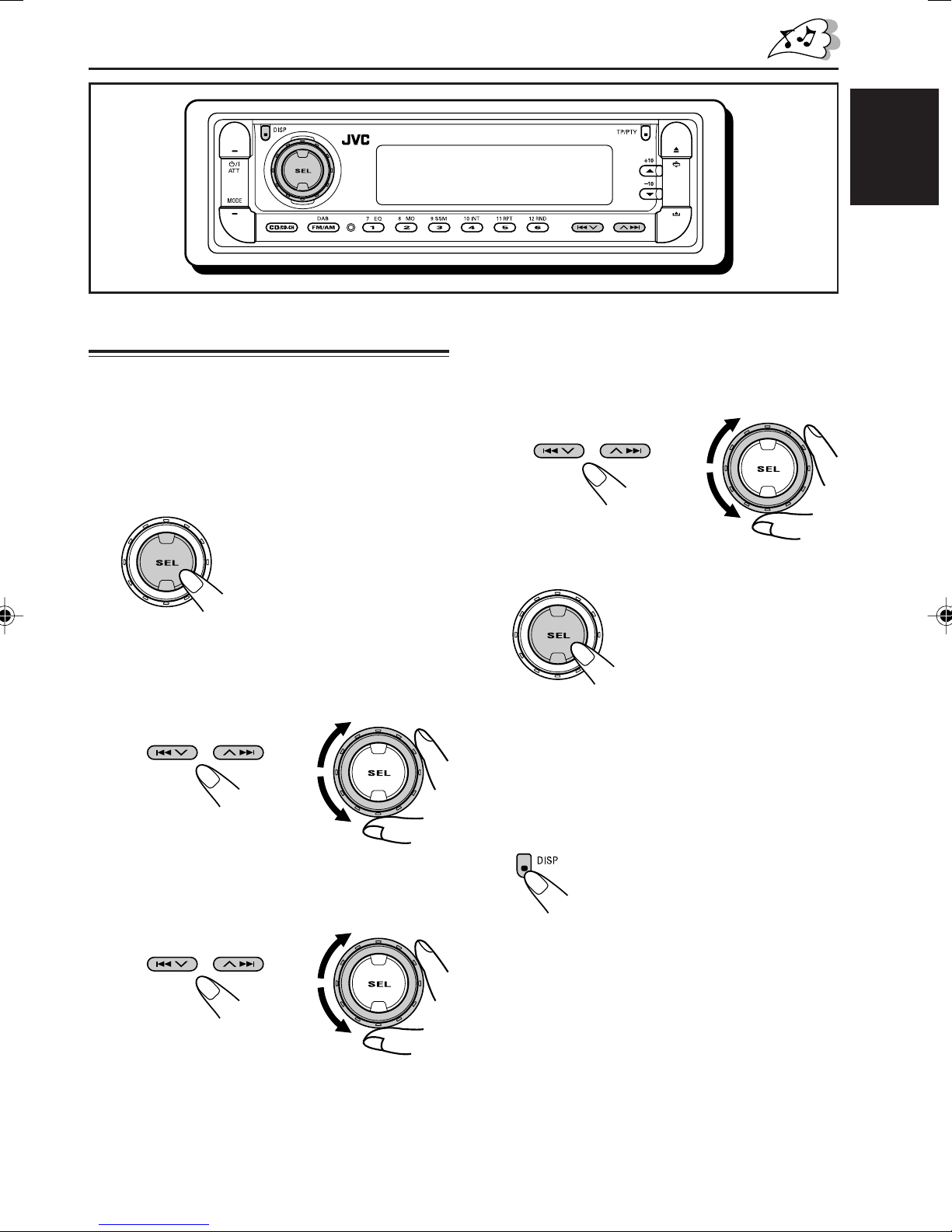

Playing a disc ............................................ 26

Locating a file or a particular portion

on a disc ................................................. 27

Selecting the playback modes .................. 29

BEFORE USE

*For safety....

• Do not raise the volume level too much, as this will block outside sounds, making driving dangerous.

• Stop the car before performing any complicated operations.

SPECIFICATIONS ........................... 57

*Temperature inside the car....

If you have parked the car for a long time in hot or cold weather, wait until the temperature in the car becomes normal before operating the unit.

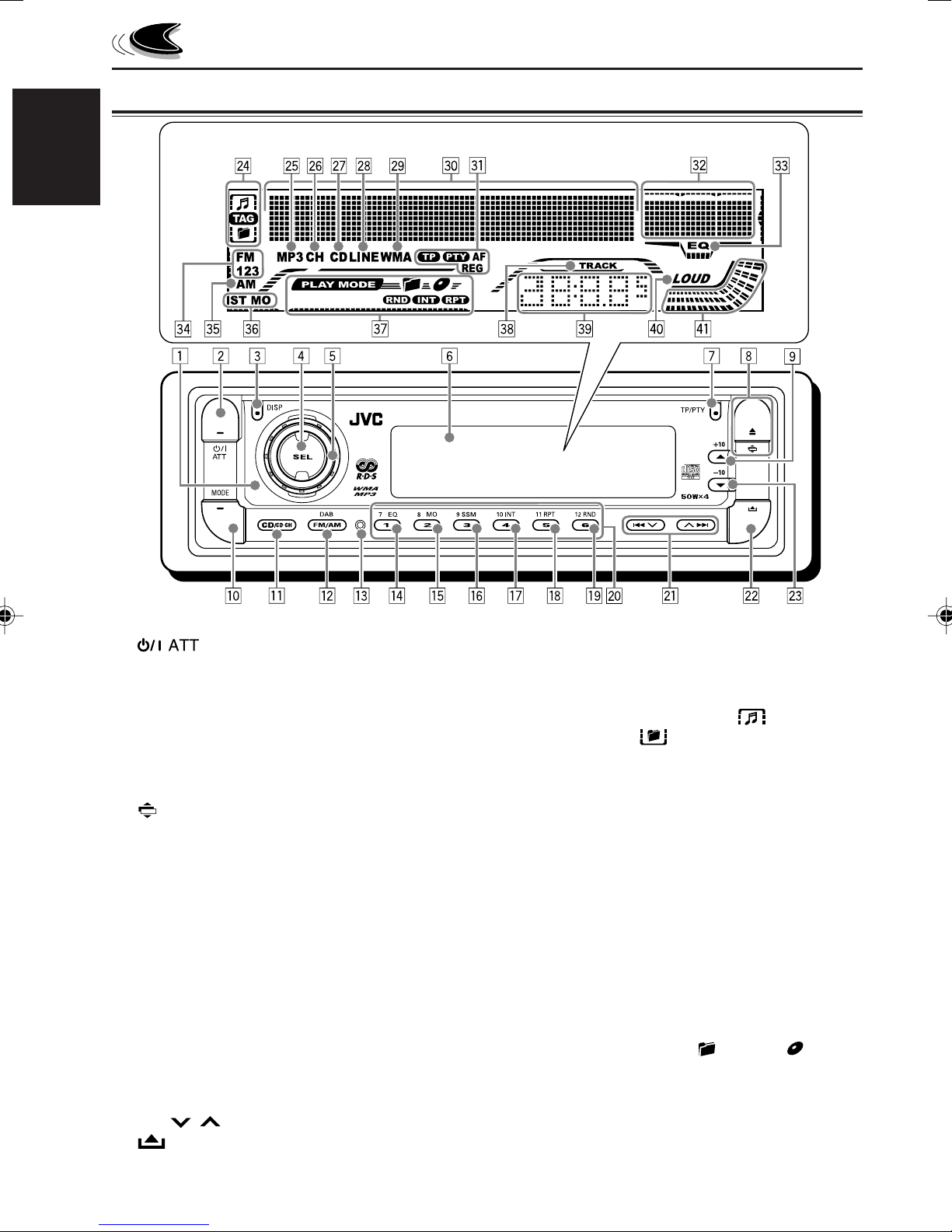

Control panel

ENGLISH

LOCATION OF THE BUTTONS

Display window

KD-G801

1 Remote sensor 2 (standby/on attenuator) button 3 DISP (display) button 4 SEL (select) button 5 Control dial 6 Display window 7 TP/PTY (traffic programme/programme type)

button

8 0 (eject) button / (angle) button 9 5 (up) button / +10 button p MODE button q For KD-G801: CD/CD-CH (CD changer) button

For KD-G701: CD button

w For KD-G801: FM/AM DAB button

For KD-G701: FM/AM button

e Reset button r EQ (equalizer) button t MO (monaural) button y SSM (Strong-station Sequential Memory)

button

u INT (intro) button i RPT (repeat) button o RND (random) button ; Number buttons a 4 / ¢ buttons s (control panel release) button d ∞ (down) button / –10 button

KD-G701

KD-G801

KD-G701

Display window

f Disc information indicators— (track/file),

TAG (ID3 Tag), (folder)

g MP3 indicator h Only for KD-G801: CH (CD changer) indicator j CD indicator k Only for KD-G801: LINE indicator l WMA indicator / Main display z RDS indicators—TP, PTY, AF, REG x Equalizer pattern indicator

Audio level indicator

c EQ (equalizer) indicator v FM band indicators—FM1, FM2, FM3 b AM band indicator n Tuner reception indicators—ST (stereo), MO

(monaural)

m Play mode indicators— (folder), (disc),

RND (random), INT (intro), RPT (repeat)

, TRACK indicator . Source/clock display P LOUD (loudness) indicator Q Audio level indicator

Volume level indicator

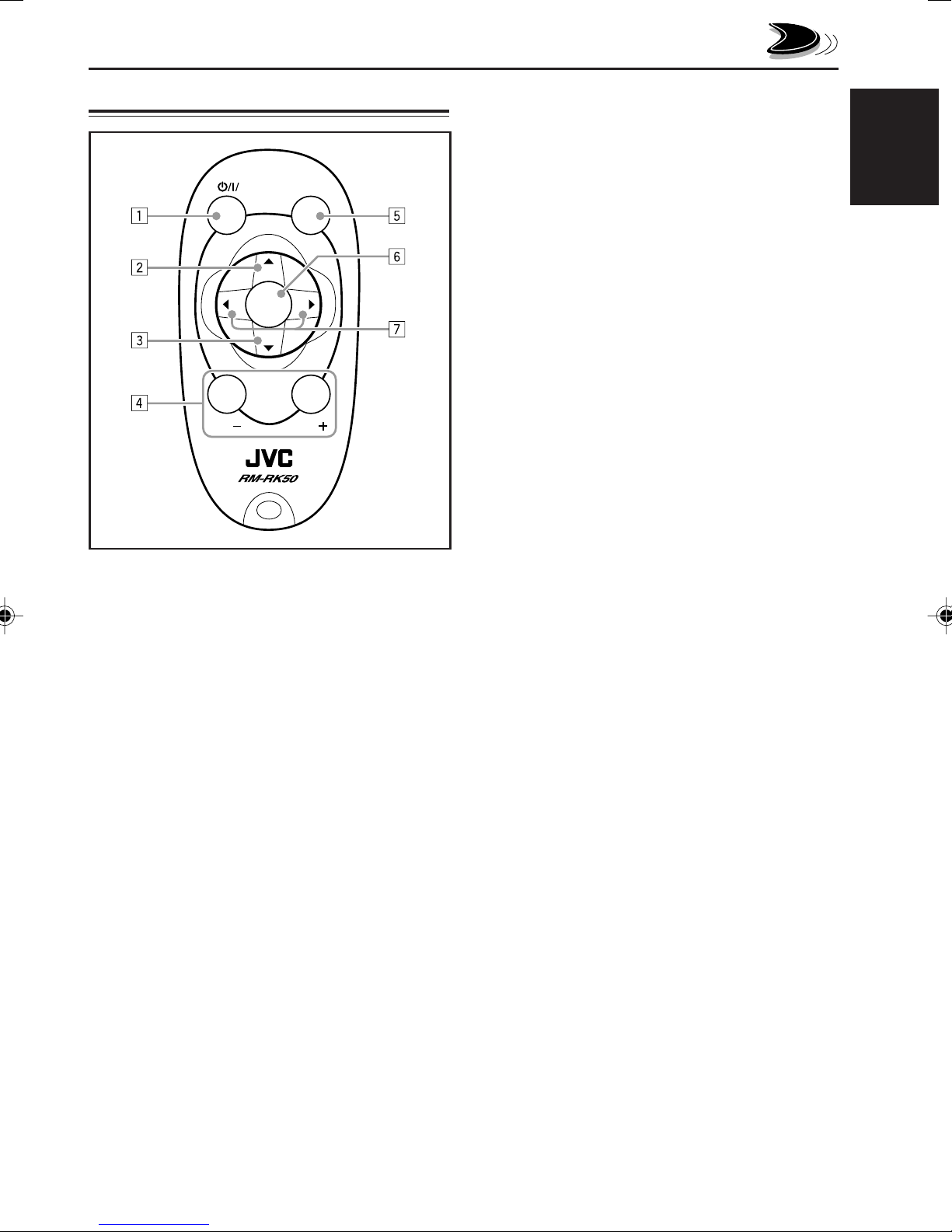

Remote controller

SOURCE

SOUND

VOL

ATT

VOL

1 • Turns on the unit if pressed when the unit is

turned off.

• Turns off the unit if pressed and held until “SEE YOU” appears on the display.

• Drops the volume level in a moment if

pressed briefly. Press again to resume the volume.

2 • Selects the band while listening to the radio

(or the DAB tuner*). Each time you press the button, the band changes.

• Skips to the first file of the next folder while listening to an MP3 or a WMA disc. Each time you press the button, you can move to the next folder and start playing the first file.

• While playing an MP3 disc on an MP3compatible CD changer*;

– Skips to the next disc if pressed briefly. – Skips to the next folder if pressed and

held.

Note:

While playing a CD on a CD changer, this always skips to the next disc.

3 • Selects the preset stations (or services*)

while listening to the radio (or the DAB tuner*). Each time you press the button, the preset station (or service*) number increases, and the selected station (or service*) is tuned in.

• Skips to the first file of the previous folder while listening to an MP3 or a WMA disc. Each time you press the button, you can move to the previous folder and start playing the first file.

• While playing an MP3 disc on an MP3compatible CD changer*; – Skips to the previous disc if pressed

briefly.

– Skips to the previous folder if pressed and

held.

Note:

While playing a CD on a CD changer, this always skips to the previous disc.

4 Functions the same as the control dial on the

main unit.

Note:

These buttons do not function for the preferred setting mode (PSM) adjustment.

5 Selects the sound mode (iEQ: intelligent

equalizer). Each time you press the button, the sound mode (iEQ) changes.

6 Selects the source.

Each time you press the button, the source changes.

7 • Searches for stations while listening to the

radio.

• Selects services while listening to the DAB tuner if pressed briefly*.

• Searches for ensembles while listening to the DAB tuner if pressed and held*.

• Fast-forwards or reverses the track/file if pressed and held while listening to a disc.

• Skips to the beginning of the next track/file or goes back to the beginning of the current (or previous) tracks/files if pressed briefly while listening to a disc.

* Only for KD-G801.

ENGLISH

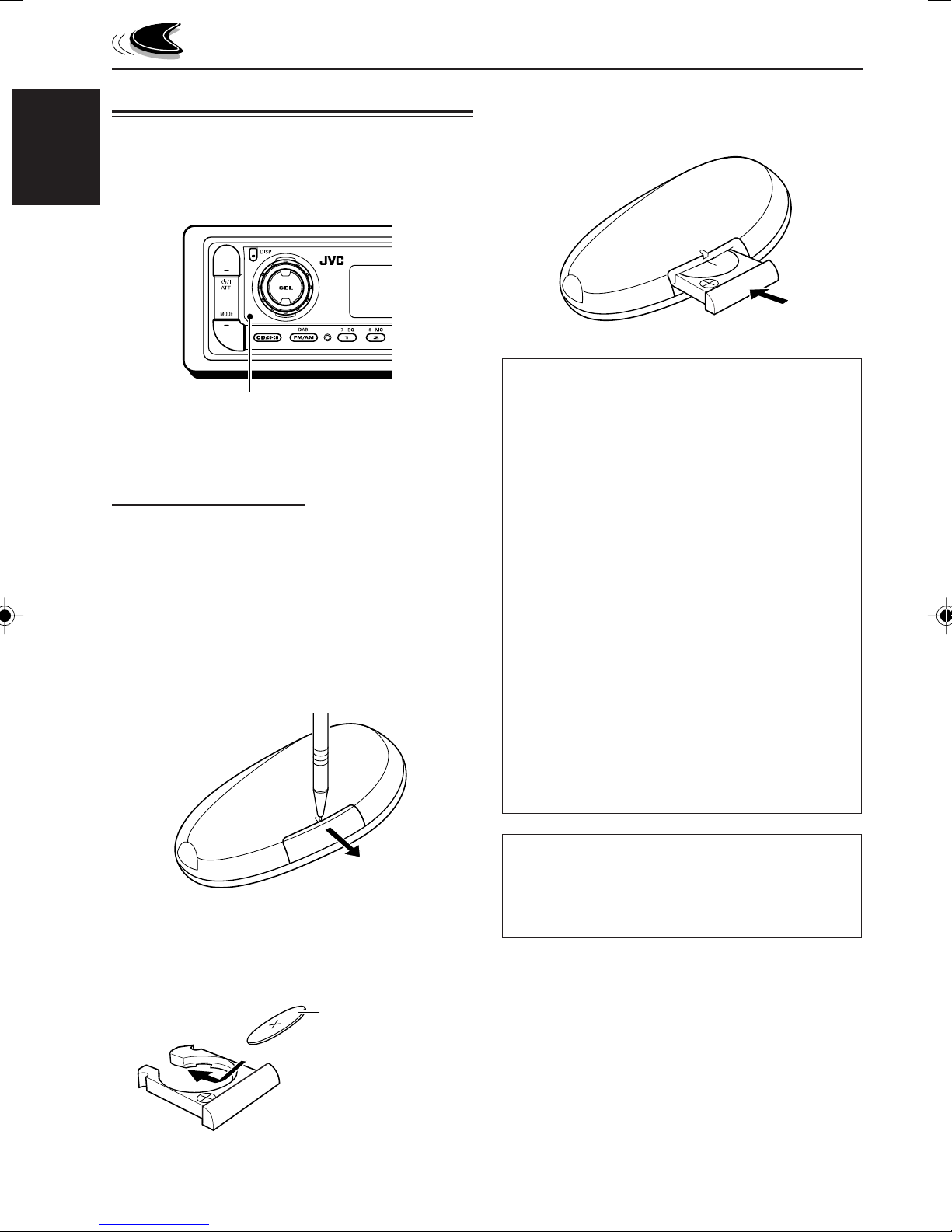

Preparing the remote controller

Before using the remote controller:

• Aim the remote controller directly at the remote sensor on the main unit. Make sure there is no

ENGLISH

obstacle in between.

Remote sensor

• Do not expose the remote sensor to strong light (direct sunlight or artificial lighting).

Installing the battery

When the controllable range or effectiveness of the remote controller decreases, replace the battery.

1. Remove the battery holder.

1) Push out the battery holder in the direction indicated by the arrow using a ball-point pen or a similar tool.

2) Remove the battery holder.

(back side)

3. Return the battery holder.

Insert again the battery holder by pushing it until you hear a clicking sound.

(back side)

WARNING:

• Store the battery in a place where children cannot reach. If a child accidentally swallows the battery, consult a doctor immediately.

• Do not recharge, short, disassemble, or heat the battery or dispose of it in a fire. Doing any of these things may cause the battery to give off heat, crack, or start a fire.

• Do not leave the battery with other metallic materials. Doing this may cause the battery to give off heat, crack, or start a fire.

• When throwing away or saving the battery, wrap it in tape and insulate; otherwise, the battery may start to give off heat, crack, or start a fire.

• Do not poke the battery with tweezers or similar tools. Doing this may cause the battery to give off heat, crack, or start a fire.

2. Place the battery.

Slide the battery into the holder with the + side facing upwards so that the battery is fixed in the holder.

Lithium coin battery (product number: CR2025)

CAUTION:

DO NOT leave the remote controller in a place (such as dashboards) exposed to direct sunlight for a long time. Otherwise, it may be damaged.

KD-G801 and KD-G701 are equipped with the steering wheel remote control function. If your car is equipped with the steering wheel remote controller, you can operate the unit using the controller.

• See the Installation/Connection Manual (separate volume) for connection to utilize this function.

BASIC OPERATIONS

ENGLISH

Turning on the power

Turn on the power.

Note on One-Touch Operation:

When you select a source in step 2 below, the power automatically comes on. You do not have to press this button to turn on the power.

Select the source.

(For KD-G801) (For KD-G701)

To operate the tuner (FM or AM),

see pages 10 – 20.

To play a CD,

see pages 21 – 24.

To play an MP3/WMA disc,

see pages 26 – 30.

To operate the CD changer (only for

KD-G801), see pages 42 – 46.

To operate the external component (LINE IN—

only for KD-G801), see page 47.

To operate the DAB tuner (only for

KD-G801), see pages 48 – 51.

Adjust the volume.

To increase the volume

To decrease the volume

Volume level appears.

Volume level indicator

Adjust the sound as you want. (See pages 31 – 33.)

To drop the volume in a moment

Press briefly while listening to any source. “ATT” starts flashing on the display, and the volume level will drop in a moment. To resume the previous volume level, press the button briefly again.

• If you turn the control dial, you can also restore the sound.

To turn off the power

Press and hold for more than one second.

“SEE YOU” appears, then the unit turns off.

• If you turn off the power while listening to a

disc, disc play will start from where playback has been stopped previously, next time you turn on the power.

CAUTION on Volume Setting:

Discs produce very little noise compared with other sources. If the volume level is adjusted for the tuner, for example, the speakers may be damaged by the sudden increase in the output level. Therefore, lower the volume before playing a disc and adjust it as required during playback.

ENGLISH

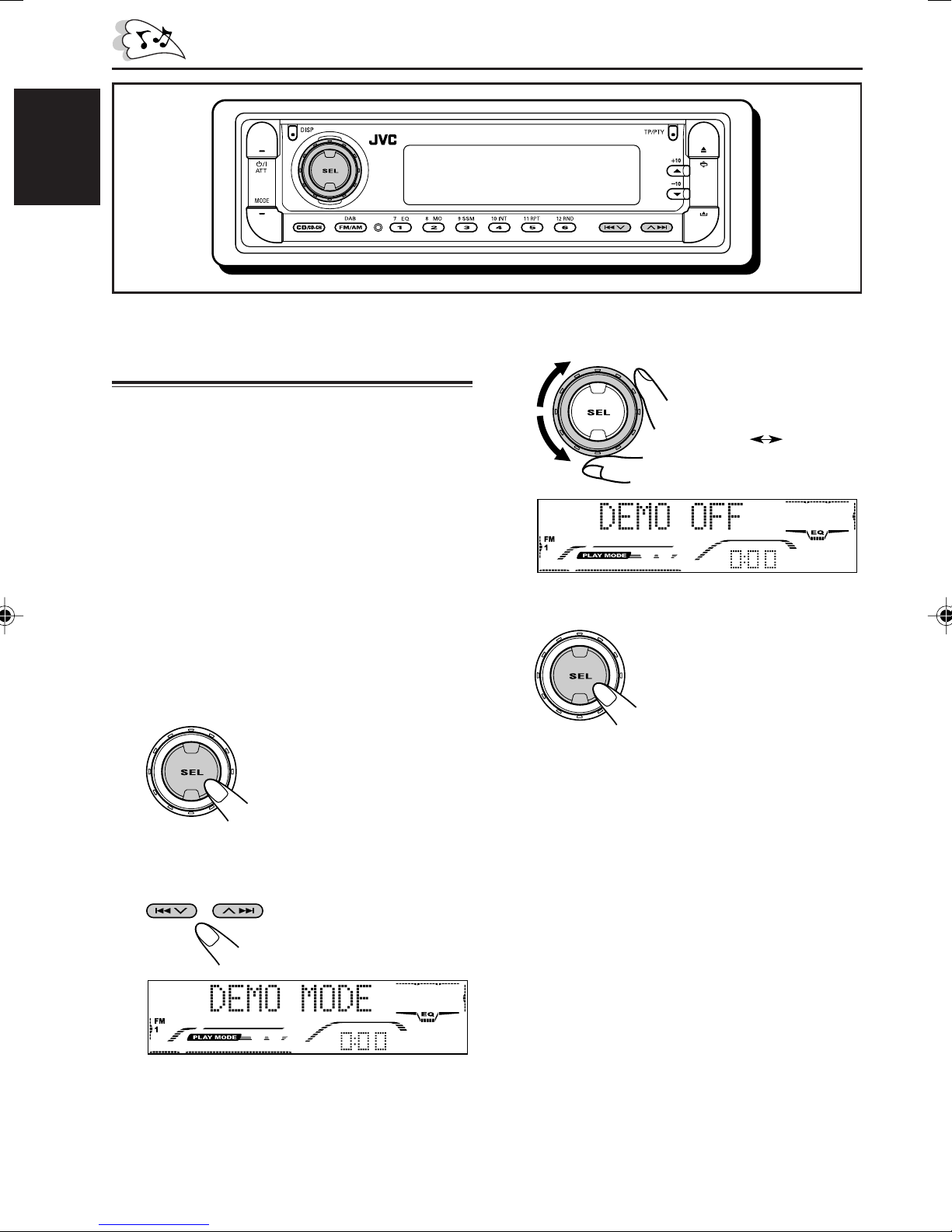

Canceling the display demonstration

When shipped from the factory, display demonstration has been activated, and starts automatically when no operations are done for about 20 seconds.

• It is recommended to cancel the display demonstration before you use the unit for the first time.

To cancel the display demonstration, follow the procedure below:

Press and hold SEL (select) for more than 2 seconds so that one of the PSM items appears on the display. (PSM: see pages 34 and 35.)

Select “DEMO OFF.”

Finish the setting.

DEMO OFF

DEMO ON

Select “DEMO MODE” if not shown on the display.

To activate the display demonstration, repeat the same procedure and select “DEMO ON” in step 3.

ENGLISH

Setting the clock

You can also set the clock system to either 24 hours or 12 hours.

Press and hold SEL (select) for more than 2 seconds so that one of the PSM items appears on the display. (PSM: see pages 34 and 35.)

Set the hour.

1 Select “CLOCK HOUR” if not shown on

the display.

2 Adjust the hour.

Set the clock system.

1 Select “CLOCK24H/12H.” 2 Select “CLOCK 24HOUR” or “CLOCK

12HOUR.”

Finish the setting.

Note:

To show the clock time on the display, see page 36.

Set the minute.

1 Select “CLOCK MINUTE.” 2 Adjust the minute.

To check other information during play, press DISP (display).

Each time you press the button, the other information will be shown on the lower part of the display. (See page 36 for details.)

• Pressing DISP (display) with the unit turned off will show the clock time for about 5 seconds.

ENGLISH

RADIO OPERATIONS

Listening to the radio

You can use either automatic searching or manual searching to tune in to a particular station.

Searching for a station automatically: Auto search

Select the band (FM1 – 3, AM).

(For KD-G801) (For KD-G701)

Each time you press the button, the band changes as follows:

FM 1

(F1)

FM 2

(F2)

FM 3

(F3)

Selected band appears*.

A M

(A1)

Start searching for a station.

To search for stations of higher frequencies

To search for stations of lower frequencies

When a station is received, searching stops.

To stop searching before a station is received, press the same button you have

pressed for searching.

Searching for a station manually: Manual search

Select the band (FM1 – 3, AM).

(For KD-G801) (For KD-G701)

Lights up when receiving an FM stereo broadcast with sufficient signal strength.

* When “CLOCK DISP” is set to “CLK DISP

ON” (see page 36), the current indication will soon change to the clock time.

Note:

This receiver has three FM bands (FM1, FM2, FM3). You can use any one of them to listen to an FM broadcast.

Each time you press the button, the band changes as follows:

FM 1

(F1)

Note:

This receiver has three FM bands (FM1, FM2, FM3). You can use any one of them to listen to an FM broadcast.

FM 2

(F2)

FM 3

(F3)

A M

(A1)

Press and hold ¢ or 4 until “M” (manual) starts flashing on the display.

Tune in to a station you want while “M” (manual) is still flashing.

To tune in to stations of higher frequencies

To tune in to stations of lower frequencies

• If you release your finger from the button, the manual mode will automatically turns off after 5 seconds.

• If you hold down the button, the frequency keeps changing (in 50 kHz intervals for FM and 9 kHz for AM—MW/LW) until you release the button.

When an FM stereo broadcast is hard to receive:

1 Press MODE to enter the

functions mode while listening to an FM stereo broadcast.

2 Press MO (monaural), while

“MODE” is still on the display, so that “MONO” appears on the display. Each time you press the button, the monaural mode turns on and off alternately.

MO (monaural) indicator

When the MO indicator is lit on the display, the sound you hear becomes monaural but the reception will be improved.

Storing stations in memory

You can use one of the following two methods to store broadcasting stations in memory.

• Automatic preset of FM stations: SSM (Strongstation Sequential Memory)

• Manual preset of both FM and AM stations

ENGLISH

FM station automatic preset: SSM

You can preset 6 local FM stations in each FM band (FM1, FM2, and FM3).

Select the FM band (FM1 – 3) you want to store FM stations into.

(For KD-G801) (For KD-G701)

Each time you press the button, the band changes as follows:

FM 1

(F1)

CONTINUED ON THE NEXT PAGE

FM 2

(F2)

FM 3

(F3)

A M

(A1)

Press MODE to enter the functions mode.

Manual preset

You can preset up to 6 stations in each band (FM1, FM2, FM3, and AM) manually.

ENGLISH

Press and hold SSM for about 2 seconds.

“SSM” appears, then disappears when automatic preset is over.

Local FM stations with the strongest signals are searched and stored automatically in the band number you have selected (FM1, FM2, or FM3). These stations are preset in the number buttons —No.1 (lowest frequency) to No.6 (highest frequency). When automatic preset is over, the station stored in number button 1 will be automatically tuned in.

Ex.: Storing FM station of 92.5 MHz into the

preset number 1 of the FM1 band.

Select the band (FM1 – 3, AM) you want to store stations into (in this example, FM1).

(For KD-G801) (For KD-G701)

Each time you press the button, the band changes as follows:

FM 1

(F1)

Tune in to a station (in this example,

FM 2

(F2)

FM 3

(F3)

A M

(A1)

of 92.5 MHz).

To tune in to stations of higher frequencies

To tune in to stations of lower frequencies

Press and hold the number button (in this example, 1) for more than 2 seconds.

Tuning in to a preset station

You can easily tune in to a preset station. Remember that you must store stations first. If you have not stored them yet, see “Storing stations in memory” on pages 11 – 13.

ENGLISH

Preset number flashes for a while.

Repeat the above procedure to store other stations into other preset numbers.

Notes:

• A previously preset station is erased when a new station is stored in the same preset number.

• Preset stations are erased when the power supply to the memory circuit is interrupted (for example, during battery replacement). If this occurs, preset the stations again.

Select the band (FM1 – 3, AM).

(For KD-G801) (For KD-G701)

Each time you press the button, the band changes as follows:

FM 1

(F1)

Select the number (1 – 6) for the preset station you want.

Note (only for KD-G701):

You can also use the 5 (up) or ∞ (down) button on the unit to select the next or previous preset stations. Each time you press the 5 (up) or ∞ (down) button, the next or previous preset station is tuned in.

FM 2

(F2)

FM 3

(F3)

A M

(A1)

RDS OPERATIONS

What you can do with RDS

RDS (Radio Data System) allows FM stations to send an additional signal along with their regular programme signals. For example, the stations

ENGLISH

send their station names, as well as information about what type of programme they broadcast, such as sports or music, etc. Another advantage of RDS function is called “Enhanced Other Networks.” By using the Enhanced Other Networks data sent from a station, you can tune in to a different station of a different network broadcasting your favorite programme or traffic announcement while listening to another programme or to another source such as CD.

By receiving the RDS data, this unit can do the following:

• Tracing the same programme automatically (Network-Tracking Reception)

• Standby Reception of TA (Traffic Announcement) or your favorite programme

• PTY (Programme Type) search

• Programme search

• And some other functions

Tracing the same programme automatically (Network-Tracking Reception)

To use Network-Tracking Reception

You can select the different modes of networktracking reception to continue listening to the same programme in its finest reception. When shipped from the factory, “AF ON” is selected.

• AF ON: Network-Tracking Reception is activated with Regionalization set to “off.” With this setting, the unit switches to another station within the same network when the received signals from the current station become weak. (In this mode, the programme may differ from the one currently received.) The AF indicator lights up but the REG indicator does not.

• AF REG: Network-Tracking Reception is activated with Regionalization set to “on.” With this setting, the unit switches to another station, within the same network, broadcasting the same programme when the received signals from the current station become weak. Both the AF indicator and the REG indicator light up.

When driving in an area where FM reception is not good, the tuner built in this unit automatically tunes in to another RDS station, broadcasting the same programme with stronger signals. So, you can continue to listen to the same programme in its finest reception, no matter where you drive. (See the illustration on page 20.) Two types of the RDS data are used to make Network-Tracking Reception work correctly —PI (Programme Identification) and AF (Alternative Frequency). Without receiving these data correctly from the RDS station you are listening to, NetworkTracking Reception will not operate.

• AF OFF: Network-Tracking Reception is deactivated. Neither the AF indicator nor the REG indicator lights up.

AF and REG indicators

Note (only for KD-G801):

If a DAB tuner is connected and Alternative Reception (for DAB services) is activated, Network-Tracking Reception is also activated (“AF ON”) automatically. On the other hand, Network-Tracking Reception cannot be deactivated without deactivating Alternative Reception. (See page 51.)

Press and hold SEL (select) for more than 2 seconds so that one of the PSM items appears on the display. (PSM: see pages 34 and 35.)

Select “AF-REG” (alternative frequency/regionalization reception) if not shown on the display.

Select the desired mode—“AF ON,” “AF REG,” or “AF OFF.”

Finish the setting.

Using TA Standby Reception

TA Standby Reception allows the unit to switch temporarily to Traffic Announcement (TA) from the current source (another FM station, CD, or other connected components).

• TA Standby Reception will not work if you are listening to an AM station.

Press TP/PTY to activate TA Standby Reception.

7 When the current source is FM, the TP

indicator either lights up or flashes.

• If the TP indicator lights up, TA Standby

Reception is activated. If a station starts broadcasting a traffic announcement, “TRAFFIC” appears on the display, and this unit automatically tunes in to the station. The volume changes to the preset TA volume level (see page 19) and the traffic announcement can be heard.

• If the TP indicator flashes, TA Standby

Reception is not yet activated since the station being received does not provide the signals used for TA Standby Reception. To activate TA Standby Reception, you need to tune in to another station providing these signals. Press ¢ or 4 to search for such a station. When a station providing these signals is tuned in, the TP indicator stops flashing and remains lit. Now TA Standby Reception is activated.

ENGLISH

7 When the current source is other than FM,

the TP indicator lights up. If a station starts broadcasting a traffic announcement, “TRAFFIC” appears on the display, and this unit automatically changes the source and tunes in to the station.

To deactivate the TA Standby Reception,

press TP/PTY again. The TP indicator disappears.

Using PTY Standby Reception

PTY Standby Reception allows the unit to switch temporarily to your favorite programme (PTY: Programme Type) from the current source

ENGLISH

(another FM station, CD, or other connected components).

Finish the setting.

• PTY Standby Reception will not work if you are listening to an AM station.

You can select your favorite programme type for PTY Standby Reception. When shipped from the factory, PTY Standby Reception is turned off. (“OFF” is selected for PTY Standby Reception.)

Press and hold SEL (select) for more than 2 seconds so that one of the PSM items appears on the display. (PSM: see pages 34 and 35.)

Select “PTY STANDBY” if not shown on the display.

7 When the current source is FM, the PTY

indicator either lights up or flashes.

• If the PTY indicator lights up, PTY Standby Reception is activated. If a station starts broadcasting the selected PTY programme, this unit automatically tunes in to the station.

• If the PTY indicator flashes, PTY Standby Reception is not yet activated since the station being received does not provide the signals used for PTY Standby Reception. To activate PTY Standby Reception, you need to tune in to another station providing these signals. Press ¢ or 4 to search for such a station. When a station providing these signals is tuned in, the PTY indicator stops flashing and remains lit. Now PTY Standby Reception is activated.

7 When the current source is other than FM,

the PTY indicator lights up. If a station starts broadcasting the selected PTY programme, this unit automatically changes the source and tunes in to the station.

Select one of the twenty-nine PTY codes. (See page 20.)

Selected code name appears on the display and is stored into memory.

To deactivate the PTY Standby Reception,

select “OFF” in step 3 on the left column. The PTY indicator disappears.

Searching your favorite programme

You can search any one of the PTY codes. In addition, you can store your 6 favorite programme types in the number buttons. When shipped from the factory, the following 6 programme types have been stored in the number buttons (1 to 6).

To store your favorite programme types, see below.

To search for your favorite programme type,

see page 18.

Press and hold the number button for more than 2 seconds to store the PTY code selected into the preset number you want.

ENGLISH

POP M

CLASSICS

ROCK M EASY M

AFFAIRS

VARIED

To store your favorite programme types

Press and hold TP/PTY for more than 2 seconds while listening to an FM station.

The last selected PTY code appears.

Ex.: When you select “FOLK M”

Press and hold TP/PTY for more than 2 seconds to exit from this mode.

Select one of the twenty-nine PTY codes. (See page 20.)

Selected code name appears on the display.

To search for your favorite programme type

Press and hold TP/PTY for more

ENGLISH

than 2 seconds while listening to an FM station.

The last selected PTY code appears.

To select one of your favorite programme type

Press ¢ or 4 to start PTY search for your favorite programme.

• If there is a station broadcasting a programme of the same PTY code as you selected, that station is tuned in.

• If there is no station broadcasting a programme of the same PTY code as you selected, the station will not change.

Note:

In some areas, the PTY search will not work correctly.

To select any one of the twenty-nine PTY codes

Preset number appears only if you select a PTY code using the number buttons.

Ex.: When “ROCK M” is selected

Other convenient RDS

Setting the TA volume level

functions and adjustments

Automatic selection of the station when using the number buttons

Usually when you press the number button, the preset station is tuned in. However, when the preset station is an RDS station, something different will happen. If the signals from that preset station are not sufficient for good reception, this unit, using the AF data, tunes in to another frequency broadcasting the same programme as the original preset station is broadcasting. (Programme search)

• The unit takes some time to tune in to another station using programme search.

To activate programme search, follow the procedure below.

• See also “Changing the general settings (PSM)” on pages 34 and 35.

1 Press and hold SEL (select) for more than

2 seconds so that one of the PSM items appears on the display.

2 Press ¢ or 4 to select

“P(Programme)-SEARCH.”

3 Turn the control dial clockwise to select

“SEARCH ON.” Now programme search is activated.

4 Press SEL (select) to finish the setting.

To cancel programme search, repeat the same

procedure and select “SEARCH OFF” in step 3 by turning the control dial counterclockwise.

You can preset the volume level for TA Standby Reception. When a traffic programme is received, the volume level automatically changes to the preset level.

• See also “Changing the general settings (PSM)” on pages 34 and 35.

1 Press and hold SEL (select) for more than

2 seconds so that one of the PSM items appears on the display.

2 Press ¢ or 4 to select “TA

VOLUME.”

3 Turn the control dial to set to the desired

volume. You can set it from “VOL 00” to “VOL 30” or “VOL 50” (depending on the amplifier gain control setting: see page 38).

4 Press SEL (select) to finish the setting.

Automatic clock adjustment

When shipped from the factory, the clock built in this unit is set to be readjusted automatically using the CT (Clock Time) data in the RDS signal. If you do not want to use automatic clock adjustment, follow the procedure below.

• See also “Changing the general settings (PSM)” on pages 34 and 35.

1 Press and hold SEL (select) for more than

2 seconds so that one of the PSM items appears on the display.

2 Press ¢ or 4 to select “AUTO

ADJUST.”

3 Turn the control dial counterclockwise to select

“ADJUST OFF.” Now automatic clock adjustment is canceled.

4 Press SEL (select) to finish the setting.

ENGLISH

To reactivate clock adjustment, repeat the same procedure and select “ADJUST ON” in step 3 by turning the control dial clockwise.

Note:

You must stay tuned to the same station for more than 2 minutes after setting “AUTO ADJUST” to “ADJUST ON.” Otherwise, the clock time will not be adjusted. (This is because the unit takes up to 2 minutes to capture the CT data in the RDS signal.)

PTY codes

NEWS: News AFFAIRS: Topical programmes expanding

ENGLISH

INFO: Programmes which impart

SPORT: Sport events EDUCATE: Educational programmes DRAMA: Radio plays CULTURE: Programmes on national or

SCIENCE: Programmes on natural science

VARIED: Other programmes like comedies

POP M: Pop music ROCK M: Rock music EASY M: Easy-listening music LIGHT M: Light music CLASSICS: Classical music OTHER M: Other music WEATHER: Weather information FINANCE: Reports on commerce, trading,

CHILDREN: Entertainment programmes for

on current news or affairs

advice on a wide variety of topics

regional culture

and technology

or ceremonies

the Stock Market, etc.

children

SOCIAL: Programmes on social

activities

RELIGION: Programmes dealing with any

aspect of belief or faith, or the nature of existence or ethics

PHONE IN: Programmes where people can

express their views either by phone or in a public forum

TRAVEL: Programmes about travel

destinations, package tours, and travel ideas and opportunities

LEISURE: Programmes concerned with

recreational activities such as gardening, cooking, fishing,

etc. JAZZ: Jazz music COUNTRY: Country music NATION M: Current popular music from

another nation or region, in that

country’s language OLDIES: Classic pop music FOLK M: Folk music DOCUMENT: Programmes dealing with

factual matters, presented in an

investigative style

The same programme can be received on different frequencies.

Programme 1 broadcasting on frequency A

Programme 1 broadcasting on frequency B

Programme 1 broadcasting on frequency C

Programme 1

broadcasting on

frequency E

Programme 1 broadcasting on frequency D

CD OPERATIONS

ENGLISH

Refer to “MP3/WMA OPERATIONS” on pages 26 to 30 for operating MP3/WMA discs.

Playing a CD

Open the control panel.

Note on One-Touch Operation:

When a CD is already in the loading slot, pressing CD/CD-CH (for KD-G801) or CD (for KD-G701) turns on the unit and starts playback automatically.

Insert a CD into the loading slot.

The unit draws the CD, the control panel goes back to the previous position (see page 40), and playback starts automatically.

All tracks will be played repeatedly until you stop playback.

The display changes to show the following:

CD indicator

Total playing time of the inserted disc

Elapsed playing time

* When “CLOCK DISP” is set to “CLK DISP ON”

(see page 36), the current indication will soon change to the clock time.

Notes:

• When a CD is inserted upside down, the control panel moves down, the CD automatically ejects from the loading slot. The source changes to the previously selected source.

• If there is no CD in the loading slot, you cannot select CD as the source.

• If the current disc is a CD Text, disc title/performer and then track title will automatically appear.

Current source indication*

Total track number of the inserted disc

Current track number

To stop play and eject the CD

Press 0. CD play stops and the control panel moves down. The CD automatically ejects from the loading slot.

ENGLISH

• If you change the source or turn the power off, CD play also stops (without ejecting the CD). Next time you select “CD” as the source, CD play starts from where playback has been stopped previously.

To return the control panel to its previous position, press 0 again.

• If you keep the loading slot fully open for 1 minute, (beeps sound when the “BEEP SWITCH” is set to “BEEP ON”—see page 37) the control panel automatically returns to its previous position. Be careful not to get the disc or your finger caught in between the control panel and the unit.

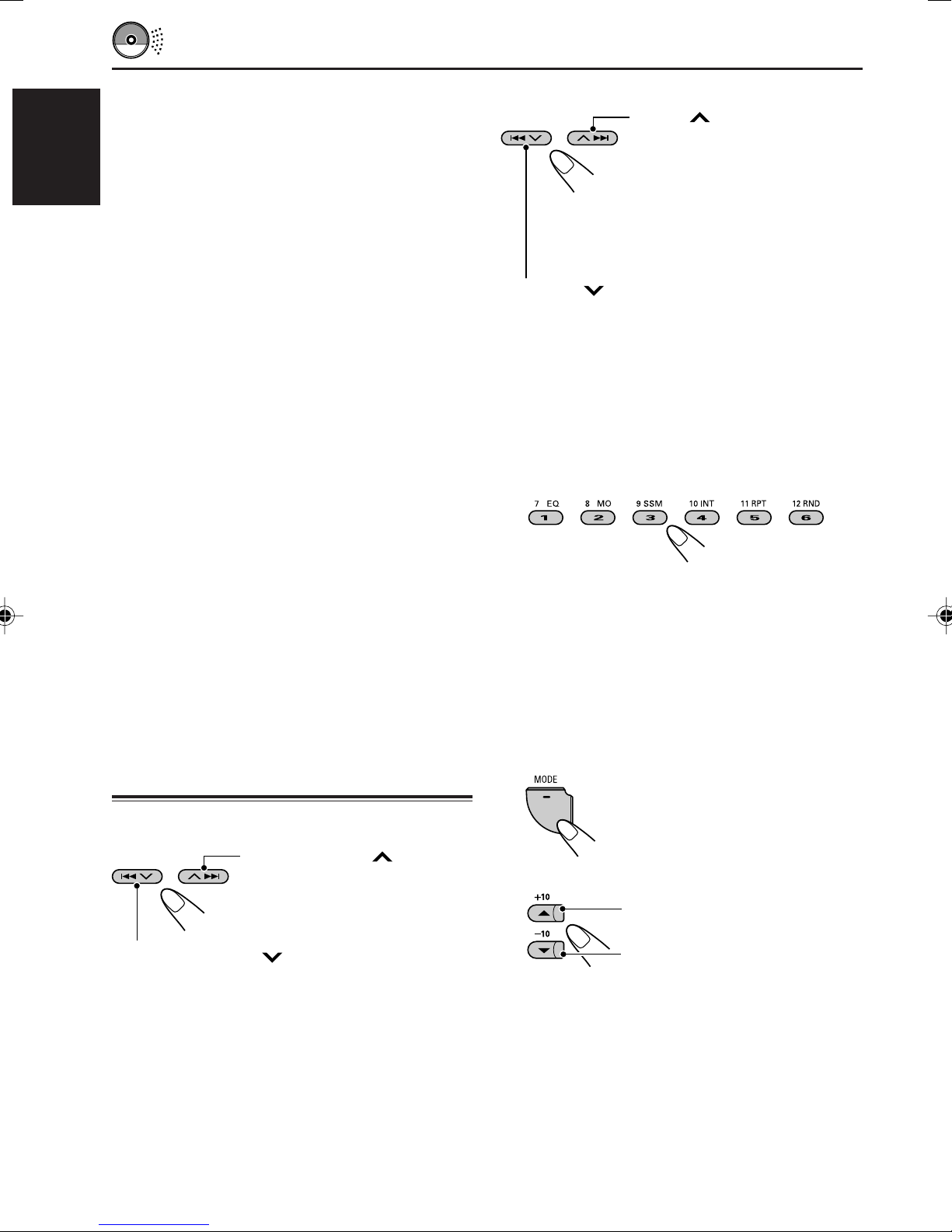

To go to the next or previous tracks

Press ¢ briefly, while playing a CD, to go ahead to the beginning of the next track. Each time you press the button consecutively, the beginning of the next tracks is located and played back.

Press 4 briefly, while playing a CD, to go back to the beginning of the current track. Each time you press the button consecutively, the beginning of the previous tracks is located and played back.

To go to a particular track directly

Press the number button corresponding to the track number to start its playback.

Notes:

• If the ejected disc is not removed for about 15 seconds, the disc is automatically inserted again into the loading slot to protect it from dust. (Disc play will not start this time.)

• You can eject the disc even when the unit is turned off.

Locating a track or a particular portion on a CD

To fast-forward or reverse the track

Press and hold ¢, while playing a CD, to fastforward the track.

Press and hold 4 , while playing a CD, to reverse the track.

• To select a track number from 1 – 6: Press 1 (7) – 6 (12) briefly.

• To select a track number from 7 – 12: Press and hold 1 (7) – 6 (12) for more than one second.

To go to a track quickly (+10 and –10 buttons)

1 Press MODE to enter the functions mode

while playing a CD.

2 Press +10 or –10.

To skip 10 tracks* forwards to the last track

To skip 10 tracks* backwards to the first track

* First time you press +10 or –10 button, the

track skips to the nearest higher or lower track with a track number of multiple ten (ex.

10th, 20th, 30th). Then each time you press the button, you can skip 10 tracks (see “How to use the +10 and –10 buttons” on page 23).

• After the last track, the first track will be

selected, and vice versa.

How to use the +10 and –10 buttons

• Ex. 1: To select track number 32 while playing track number 6

To play back tracks repeatedly (Track Repeat Play)

You can play back the current track repeatedly.

1 Press MODE to enter the

functions mode while playing a CD.

ENGLISH

(Three times)

Track 6 \ 10 \ 20 \ 30 \ 31 \ 32

• Ex. 2: To select track number 8 while playing track number 36

(Three times) (Twice)

Track 36 \ 30 \ 20 \ 10 \ 9 \ 8

(Twice)

Selecting CD playback modes

To play back tracks at random (Disc Random Play)

You can play back all tracks on the CD at random.

1 Press MODE to enter the

functions mode while playing a CD.

2 Press RPT (repeat), while

“MODE” is still on the display, so that “TRK RPT” appears on the display. Each time you press the button, track repeat play mode turns on and off alternately.

RPT indicator

When track repeat play is turned on, the RPT indicator lights up on the display. The current track starts playing repeatedly.

To play back only intros (Track Intro Scan)

You can play back the first 15 seconds of each track sequentially.

1 Press MODE to enter the

functions mode while playing a CD.

2 Press RND (random), while

“MODE” is still on the display, so that “DISC RND” appears on the display. Each time you press the button, disc random play mode turns on and off alternately.

(disc) and RND indicators

When disc random play is turned on, the and RND indicators light up on the display. A track randomly selected starts playing.

2 Press INT (intro), while “MODE”

is still on the display, so that “TRK INT” appears on the display. Each time you press the button, track intro scan mode turns on and off alternately.

INT indicator

When track intro scan is turned on, the INT indicator lights up on the display. The first 15 seconds of each track is played sequentially.

Playing a CD Text

Prohibiting disc ejection

In a CD Text, some information about the disc (its disc title, performer, and track title) is recorded. This CD Text information will be shown

ENGLISH

automatically when you play a CD Text.

To change the CD Text information manually, select text display mode while playing a CD Text.

Press DISP (display) repeatedly. Each time you press the button, the display changes as follows:

Disc title / performer

Track title

( lights up on the display)

Elapsed playing time and

Current track number

You can prohibit disc ejection and can lock a disc in the loading slot.

While pressing CD/CD-CH (for KD-G801) or CD (for KD-G701), press and hold

for more than

2 seconds.

(For KD-G801)

(For KD-G701)

“NO EJECT” flashes on the display for about 5 seconds, and the disc is locked and cannot be ejected.

Notes:

• The display shows up to 12 characters at one time and scrolls if there are more than 12 characters. See also “To select the scroll mode—SCROLL MODE” on page 37. Some characters or symbols will not be shown (will be blanked or substituted) on the display.

• If no name is assigned to the CD, “NO NAME” will appear. To assign a name to an audio CD, see page

39.

• If no disc title/performer or no track title is recorded for the CD Text, “NO NAME” will appear.

• When track title is shown, TRACK indicator and current track number also appear on the lower part of the display.

To cancel the prohibition and unlock the disc

While pressing CD/CD-CH (for KD-G801) or CD (for KD-G701), press and hold again for more than 2 seconds. “EJECT OK” flashes on the display for about 5 seconds, and the disc is unlocked.

MP3/WMA INTRODUCTION

What are MP3/WMA?

MP3 is an abbreviation of Motion Picture Experts Group (or MPEG) Audio Layer 3. MP3 is simply a file format with a data compression ratio of 1:10 (128 Kbps*).

WMA (Windows Media® Audio) is the digital audio compression format developed by Microsoft Corporation.

* Bit rate is the average number of bits that one

second of audio data will consume. The unit used is Kbps. To get a better audio quality, choose a higher bit rate. The most popular bit rate for encoding is 128 Kbps.

• For details information about the MP3/WMA discs, refer to “A Guide to MP3/WMA” (separate volume).

Compatible with ID3 Tag

Extra information data such as album title, performer name, song title, recording year, music genre and a brief comment can be stored within an MP3/WMA file.

How are MP3/WMA files recorded and played back?

MP3/WMA “files (tracks)” can be recorded in “folders”—in PC terminology. During recording, the files and folders can be arranged in a way similar to arranging files and folders of computer data. “Root” is similar to the root of a tree. Every file and folder can be linked to and be accessed from the root.

The illustration below shows an example of how MP3/WMA files are recorded on a CD-R or CD-RW, how they are played back, and how they are searched for on this unit.

Notes:

• This unit cannot read or play an MP3 file without the extension code <.mp3> and a WMA track without the extension code <.wma>.

• This unit is not compatible with MP3 files encoded with Layer 1 and Layer 2 formats.

• This unit is not compatible with WMA files which are not based upon Windows Media® Audio.

• This unit is not compatible with Playlist**.

ENGLISH

This unit can show both ID3v1 (Version 1) and ID3v2 (Version 2) tags on the display. (See page

27.)

• Some characters cannot be shown correctly.

• If both ID3v1 and ID3v2 are recorded on a disc, ID3v2 information will be shown.

Hierarchy

Level 1 Level 2 Level 3 Level 4 Level 5

ROOT

02 03

**A playlist is a simple text file, used on a PC, which

enables users to make their own playback order without physically rearranging the files.

: Folder and their playback

order

: MP3/WMA files and their

playback order

• Microsoft and Windows Media are either registered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries.

ENGLISH

MP3/WMA OPERATIONS

Refer also to “CD OPERATIONS” on pages 21 to 24.

Playing a disc

Open the control panel.

Note on One-Touch Operation:

When a disc is already in the loading slot, pressing CD/CD-CH (for KD-G801) or CD (for KD-G701) turns on the unit and starts playback automatically.

Insert a disc into the loading slot.

The unit draws the disc, the control panel goes back to the previous position (see page 40), and playback starts automatically.

All files will be played repeatedly until you stop playback.

The display changes to show the following:

CD indicator

Total folder number

MP3 or WMA indicator*

Ex.: When the disc contains 19 folders

and 144 MP3/WMA files

*1When “CLOCK DISP” is set to “CLK DISP ON”

(see page 36), the current indication will soon change to the clock time.

*2WMA or MP3 indicator lights up depending on the

first detected file.

Notes:

• MP3/WMA discs require a longer readout time. (It differs due to the complexity of the folder/file configuration.)

• When playback starts, folder and file names (or ID3 tags) will automatically appear. (See also page 27.)

• If you change the source or turn the power off, disc playback stops (without ejecting the disc). Next time you select the CD player as the source or turn the power on, disc play starts from where playback has been stopped previously.

Current source indication*

Total file number

To stop play and eject the disc

Press 0. Playback stops and the control panel moves down. The disc automatically ejects from the loading slot.

To change the display information

While playing back an MP3/WMA file, you can change the disc information shown on the display.

Press DISP (display) repeatedly. Each time you press the button, the display changes to show the following:

Notes:

• The display shows up to 12 characters at a time and scrolls if there are more than 12 characters. See also “To select the scroll mode—SCROLL MODE” on page 37.

• When file name is shown, TRACK indicator and current file number also appear on the lower part of the display.

Locating a file or a particular portion on a disc

To fast-forward or reverse the file

ENGLISH

• When “TAG DISPLAY” is set to “TAG DISP ON” (initial setting: see page 38)

Album name / performer

(folder name*)

( lights up on the display)

Track title (file name*)

( lights up on the display)

Elapsed playing time and

Current file number

* If ID3 tags are not recorded, folder name and file

name appear. In this case, the TAG indicator will not light up on the display.

• When “TAG DISPLAY” is set to “TAG DISP OFF”

Press and hold ¢ while playing a disc, to fastforward the file.

Press and hold 4 while playing a disc, to reverse the file.

Note:

During this operation, you can only hear intermittent sounds. (The elapsed playing time also changes intermittently on the display.)

To skip to the next or previous files

Press ¢ briefly while playing, to skip ahead to the beginning of the next file. Each time you press the button consecutively, the beginning of the next files is located and played back.

Folder name

( lights up on the display)

File name

( lights up on the display)

Elapsed playing time and

Current file number

Press 4 briefly while playing, to skip back to the beginning of the current file. Each time you press the button consecutively, the beginning of the previous files is located and played back.

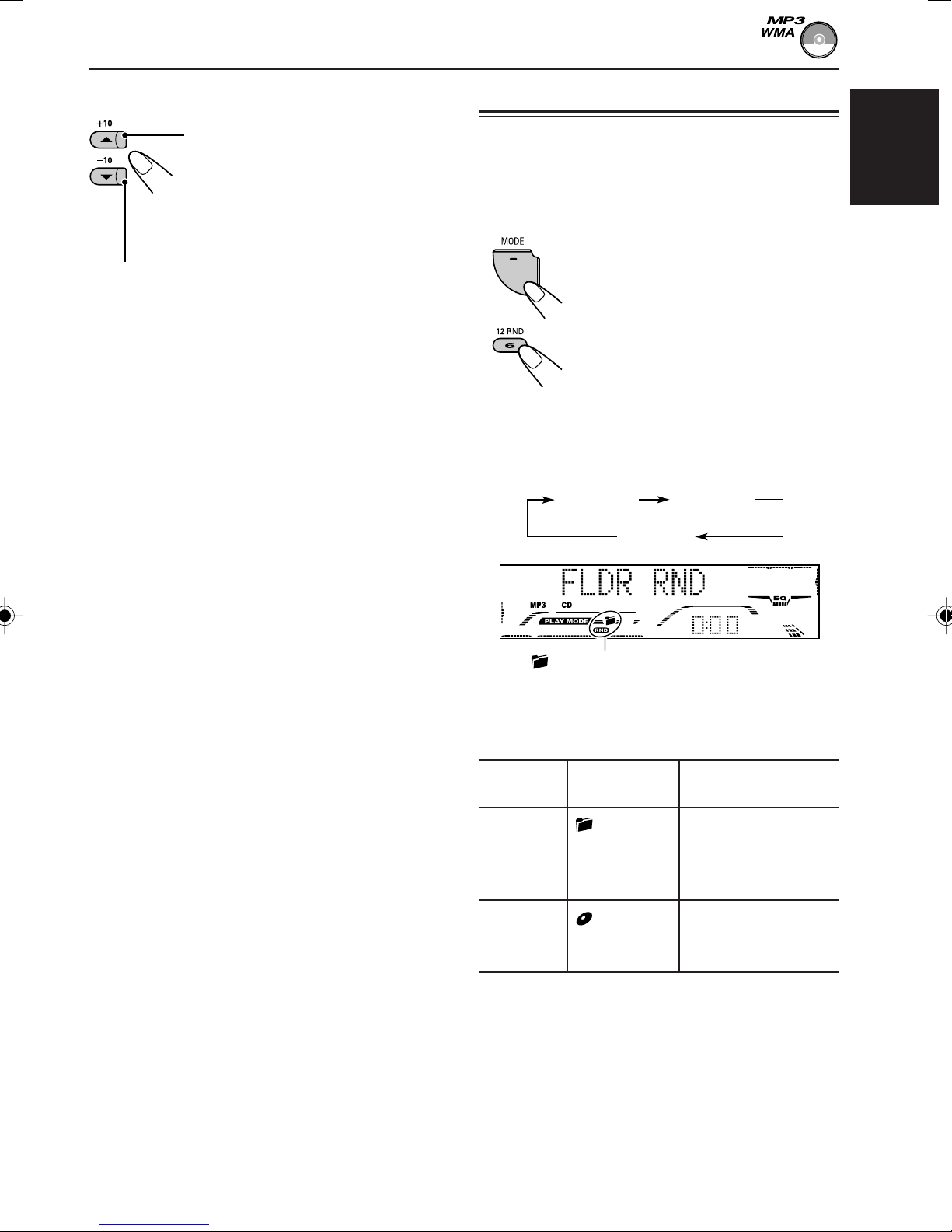

To go to a particular file quickly within the current folder (+10 and –10 buttons)

1 Press MODE to enter the functions mode

while playing a disc.

ENGLISH

2 Press +10 or –10.

To skip 10 files* forwards to the last file

To skip 10 files* backwards to the first file

To go to a particular folder directly

IMPORTANT:

To directly select the folders using the number button(s), it is required that folders are assigned 2 digit numbers at the beginning of their folder names. (This can only be done during the recording of CD-Rs or CD-RWs.) Ex.: If folder name is “01 ABC”

= Press 1 to go to Folder 01 ABC.

If folder name is “1 ABC,” pressing 1 does not work.

If folder name is “12 ABC” = Press and hold 6 (12) to go to Folder

12 ABC.

* First time you press +10 or –10 button, the

file skips to the nearest higher or lower file with a file number of multiple ten (ex. 10th,

20th, 30th). Then each time you press the button, you can skip 10 files (see “How to use the +10 and

–10 buttons” below).

• After the last file, the first file will be

selected, and vice versa.

How to use the +10 and –10 buttons

• Ex. 1: To select file number 32 while playing file number 6

(Three times) (Twice)

File 6 \ 10 \ 20 \ 30 \ 31 \ 32

• Ex. 2 : To select file number 8 while playing file number 36

Press the number button corresponding to the folder number to start playing the first file in the selected folder.

• To select a folder number from 01 – 06: Press 1 (7) – 6 (12) briefly.

• To select a folder number from 07 – 12: Press and hold 1 (7) – 6 (12) for more than one second.

Notes:

• If indicator flashes on the display after you have selected a folder, it means that the folder does not contain any MP3/WMA files.

• You cannot directly select a folder with a number greater than 12.

To select a particular file in a folder, press

¢ or 4 after selecting the folder.

(Three times)

File 36 \ 30 \ 20 \ 10 \ 9 \ 8

(Twice)

To skip to the next or previous folder

Selecting the playback modes

Press 5 (up) while playing a disc to skip to the next folder. Each time you press the button consecutively, the next folder is located (and the first file in the folder starts playing, if recorded).

Press ∞ (down) while playing a disc to skip back to the previous folder. Each time you press the button consecutively, the previous folder is located (and the first file in the folder starts playing, if recorded).

Note:

If the folder does not contain any MP3/WMA files, it is skipped.

To play back files at random (Folder Random/Disc Random Play)

You can play back all files of the current folder or all files on the disc at random.

1 Press MODE to enter the

functions mode while playing a disc.

2 Press RND (random), while

“MODE” is still on the display, so that “FLDR RND” or “DISC RND” appears on the display. Each time you press the button, the random play mode changes as follows:

DISC RNDFLDR RND

Canceled

ENGLISH

(folder) and RND indicators

Ex.: When you select “FLDR RND”

while listening to an MP3 file

Mode

FLDR RND and RND All files of the

DISC RND and RND All files on the disc.

Active

indicator

indicators current folder, then light up. files of the next

indicators light up.

Plays at random

folder and so on.

To play back files repeatedly (Track Repeat/Folder Repeat Play)

To play back only intros (Track Intro Scan/Folder Intro Scan)

You can play back the current file or all the files in the current folder repeatedly.

ENGLISH

1 Press MODE to enter the

functions mode while playing a disc.

2 Press RPT (repeat), while

“MODE” is still on the display, so that “TRK RPT” or “FLDR RPT” appears on the display. Each time you press the button, the repeat play mode changes as follows:

TRK RPT FLDR RPT

Canceled

You can play back the first 15 seconds of each file sequentially.

1 Press MODE to enter the

functions mode while playing a disc.

2 Press INT (intro), while

“MODE” is still on the display, so that “TRK INT” or “FLDR INT” appears on the display. Each time you press the button, the intro scan mode changes as follows:

FLDR INTTRK INT

Canceled

RPT indicator

Ex.: When you select “TRK RPT”

while listening to an MP3 file

Mode

TRK RPT RPT indicator The current (or

FLDR RPT and RPT All files of the

Active

indicator

lights up. specified) file.

indicators current (or light up. specified) folder.

Plays repeatedly

INT indicator

Ex.: When you select “TRK INT”

while listening to an MP3 file

Mode

TRK INT INT indicator All files on the current

FLDR INT and INT The first file of every

Active Plays the beginnings

indicator (15 seconds) of

lights up. disc.

indicators folder of the current lights up. disc.

SOUND ADJUSTMENTS

Adjusting the sound

You can adjust the sound characteristics to your preference.

Select the item you want to adjust.

Each time you press the button, the adjustable items change as follows:

If you are using a two-speaker system, set the fader level to “00.”

This takes effect only when a subwoofer is connected.

Normally the control dial works as the volume control. So you do not have to select “VOL” to adjust the volume level.

Depending on the amplifier gain control setting. (See page 38 for details.)

Adjust the setting.

ENGLISH

For KD-G801:

LOUD

(loudness)

BAL

LOUD ON | LOUD OFF

VOL

BAL

(balance)

WOOFER

(subwoofer)

FAD

(fader)

(volume)

For KD-G701:

FAD

(fader)

VOL

(volume)

Indication To do: Range

FAD*

BAL Adjust the left L06 (Left only)

LOUD Boost low and

Adjust the front R06 (Rear only) and rear speaker | balance. F06 (Front only)

and right speaker | balance. R06 (Right only)

high frequencies to produce a well-balanced sound at low volume level.

(balance)

LOUD

(loudness)

To increase the level or turn on the loudness

To decrease the level or turn off the loudness

Indication pattern changes as you adjust the fader or balance.

Ex. 1: When you adjust “FAD” (fader)

LOUD indicator

Ex. 2: When you turn on the loudness

Repeat steps 1 and 2 to adjust the other items.

WOOFER*2Adjust the 00 (min.) (only for subwoofer | KD-G801) output level. 08 (max.)

VOL*

Adjust the 00 (min.) volume. |

30 or 50 (max.)*

Selecting preset sound modes

USER 1,USER 2, USER 3

(iEQ: intelligent equalizer)

You can select a preset sound mode (iEQ:

ENGLISH

intelligent equalizer) suitable to the music genre.

• There is a time limit in doing the following procedure. If the setting is canceled before you finish, start from step 1 again.

Press MODE to enter the functions mode.

To cancel the preset sound mode, select

“FLAT” in step 3.

Notes:

• You can adjust the preset sound modes temporarily. However, your temporary adjustments will be reset when you select another sound mode.

• For details about the preset settings of each sound mode, see table on page 52.

• For showing the iEQ pattern on the display during play, select “EQ & LEVEL” or “SILENT” for the level meter. See also page 36.

When using the remote controller:

Press EQ (equalizer) while “MODE” is still on the display.

The last selected sound mode is called up.

Select the sound mode you want.

As you turn the control dial, the sound modes change as follows:

FLAT O HARD ROCK O R&B O POP O JAZZ O DANCE MUSIC O COUNTRY O REGGAE O CLASSIC O USER 1 O USER 2 O USER 3 O (back to the beginning)

SOUND

ATT

Press SOUND repeatedly. Each time you press the

SOURCE

button, the sound modes change as follows:

Indication pattern changes for each sound mode.

Ex.: When you select “HARD ROCK”

Storing your own sound adjustments

You can adjust the sound modes to your preference and store your own adjustments in memory (USER 1, USER 2 and USER 3).

LEVEL (LOW, MID, HI):

Adjust the enhancement level.

* By pressing ¢ or 4 , you can

directly move as follows:

LOW LEVEL MID LEVEL

HI LEVEL

ENGLISH

• There is a time limit in doing the following procedure. If the setting is canceled before you finish, start from step 1 again.

Press MODE to enter the functions mode.

Press EQ (equalizer) while “MODE” is still on the display.

The last selected sound mode is called up.

Select the sound mode you want to adjust.

FREQ (LOW, HI):

Select the center frequency to adjust.

WIDTH (LOW, MID):

Select the band width level.

Adjust the selected sound element.

Indication

LOW MID HI

LEVEL –06 (min.) –06 (min.) –06 (min.)

+06 (max.) +06 (max.) +06 (max.)

FREQ. 60Hz 8kHz

80Hz 10kHz 100Hz 12kHz 120Hz 15kHz

Preset values

|||

Ex.: When you select “JAZZ”

Select sound elements to adjust.

Each time you press the button, the sound elements change as follows:

LOW LEVEL* = LOW FREQ = LOW WIDTH = MID LEVEL* = MID WIDTH = HI (high) LEVEL* = HI (high) FREQ = (back to the beginning)

WIDTH 1 (min.) 1 (min.)

4 (max.) 2 (max.)

Repeat steps 4 and 5 to adjust the other sound elements.

Select one of the user sound modes (USER 1, USER 2, USER 3).

Press EQ to store the adjustments.

“MEMORY” appears for a while.

OTHER MAIN FUNCTIONS

Changing the general settings (PSM)

You can change the items listed in the table

ENGLISH

below and on page 35 by using the PSM (Preferred Setting Mode) control.

Basic Procedure

Press and hold SEL (select) for more than 2 seconds so that one of the PSM items appears on the display. (See below and page 35.)

Select the PSM item you want to adjust.

Adjust the PSM item selected.

Repeat steps 2 and 3 to adjust the other PSM items if necessary.

Finish the setting.

Preferred Setting Mode (PSM) items

• For detailed operations of each PSM items, refer to the pages listed in the table.

Indications Selectable values/items

DEMO MODE Display

demonstration

CLOCK HOUR Hour adjustment

CLOCK MINUTE Minute adjustment

CLOCK24H/12H 24/12-hour time

display

AUTO ADJUST Automatic clock

setting

CLOCK DISP Clock display

AF-REG Alternative

frequency/ Regionalization reception

DEMO OFF

0 — 23 (1 — 12)

00 — 59

CLOCK 12HOUR CLOCK 24HOUR

ADJUST OFF ADJUST ON ADJUST ON 19

CLK DISP OFF CLK DISP ON CLK DISP ON 36

AF ON

AF OFF*

DEMO ON DEMO ON 8

AF REG

Factory-preset See

settings page

0 (0:00)

00 (0:00)

CLOCK

24HOUR

AF ON

14, 15

Only for KD-G801: Displayed only when the “DAB AF” is set to “OFF.”

Indications Selectable values/items

Factory-preset See

settings page

PTY STANDBY PTY standby

TA VOLUME Traffic

announcement volume

P-SEARCH Programme search

DAB AF*

Alternative frequency search

DAB VOL*

DAB volume adjustment

LEVELMETER Level meter

DIMMER MODE Dimmer mode

TELEPHONE Telephone muting

OFF

VOL 00 — VOL 30 or 50*

29 programme types

(see page 20)

OFF

VOL 20 19

SEARCH OFF SEARCH ON SEARCH OFF 19

AF OFF AF ON AF ON 51

VOL –12 — VOL +12 VOL 00 51

LEVEL 1 LEVEL 2

LEVEL 1 36

EQ & LEVELSILENT

DIMMER AUTO

DIMMER ON

MUTING OFF

MUTING 2

DIMMER OFF

MUTING 1

DIMMER

AUTO

MUTING OFF 37

ENGLISH

BEEP SWITCH Key-touch tone

CONTRAST Display contrast

SCROLL MODE Scroll mode

SCROLL ONCE SCROLL AUTO

01 – 10 05 37

SCROLL OFF

WOOFER FREQ*2Subwoofer

cutoff frequency

EXTERNAL IN*5External component

TAG DISPLAY Tag display

AMP.GAIN Amplifier gain

FREQ MID FREQ HIGH

FREQ LOW

CHANGER LINE IN CHANGER 38

TAG DISP OFF TAG DISP ON TAG DISP ON

LOW POWER HIGH POWER

control

SLOT LIGHT Slot light

Only for KD-G801.

Only for KD-G801: Displayed only when the DAB tuner is connected.

Depending on the amplifier gain control setting.

Only for KD-G801: Displayed only when one of the following sources is selected—FM, AM, and CD.

OFF ONON 38

BEEP ON 37BEEP OFF BEEP ON

SCROLL

ONCE

FREQ MID

HIGH

POWER

To set the clock display—CLOCK DISP

To select the level meter—LEVELMETER

You can set the clock to be shown on the lower part of the display when the unit is turned on. When shipped from the factory, the clock is set to be shown on the display.

ENGLISH

• CLK DISP ON: Clock display is turned on.

• CLK DISP OFF: Clock display is turned off. When “CLK DISP OFF” is selected, the current source name, station band, folder number, or disc number appears instead of the clock display (except when “LINE IN”* is selected as the source).

When “CLOCK DISP” is set to “CLK DISP OFF”:

Source Initial Pressing DISP

indication (display)

Tuner Band

CD CD, folder or number, or CD-CH* disc number

When “CLOCK DISP” is set to “CLK DISP ON”:

Clock appears for about 5 seconds.

You can select the level meter display according to your preference. When shipped from the factory, this mode is set to “LEVEL 1.”

• LEVEL 1/LEVEL 2: Display the audio level meter with different illumination pattern.

• EQ & LEVEL: Display the equalizer pattern and audio level meter.

• SILENT: Display the equalizer pattern and volume level meter.

To select the dimmer mode —DIMMER MODE

When you turn on the car headlights, the display automatically dims (Auto Dimmer). When shipped from the factory, Auto Dimmer mode is activated.

• DIMMER AUTO: Activates Auto Dimmer.

• DIMMER OFF: Cancels Auto Dimmer.

• DIMMER ON: Always dims the display.

Source Initial Pressing DISP

indication (display) repeatedly

Tuner Clock Band number appears

for about 5 seconds.

CD Clock CD, or track/file/folder

number appears for about 5 seconds.

CD-CH* Clock Disc number, or track/

file/folder number appears for about 5 seconds.

* Only for KD-G801.

Note:

Auto Dimmer equipped with this unit may not work correctly on some vehicles, particularly on those having a control dial for dimming. In this case, set the dimmer mode to “DIMMER ON” or “DIMMER OFF.”

To select the telephone muting —TELEPHONE

This mode is used when a cellular phone system is connected. Depending on the phone system used, select either “MUTING 1” or “MUTING 2,” whichever mutes the sounds from this unit. When shipped from the factory, this mode is deactivated.

• MUTING 1: Selects this if this setting can mute the sounds.

• MUTING 2: Selects this if this setting can mute the sounds.

• MUTING OFF: Cancels the telephone muting.

Note (only for KD-G801):

With the CD or CD changer selected as the source, playback pauses during telephone muting.

To turn the key-touch tone on or off —BEEP SWITCH

You can deactivate the key-touch tone if you do not want it to beep each time you press a button. When shipped from the factory, the key-touch tone is activated.

• BEEP ON: Activates the key-touch tone.

• BEEP OFF: Deactivates the key-touch tone.

To adjust the display contrast level —CONTRAST

To select the scroll mode—SCROLL MODE

You can select the scroll mode for the disc information (when the entire text cannot be shown at a time). When shipped from the factory, scroll mode is set to “SCROLL ONCE.”

• SCROLL ONCE: Scrolls only once.

• SCROLL AUTO: Repeats the scroll (5-second intervals in between).

• SCROLL OFF: Cancels scroll mode.

Note:

Even if the scroll mode is set to “SCROLL OFF,” you can scroll the display by pressing DISP (display) for more than 1 second.

To select the subwoofer cutoff frequency —WOOFER FREQ (only for KD-G801)

When a subwoofer is connected to this unit, select an appropriate cutoff frequency level for your subwoofer. When shipped from the factory, the subwoofer cutoff frequency is set to “FREQ MID.”

• FREQ LOW: Frequencies higher than 50 Hz

are cut off to the subwoofer.

• FREQ MID: Frequencies higher than 80 Hz

are cut off to the subwoofer.

• FREQ HIGH: Frequencies higher than 120 Hz

are cut off to the subwoofer.

ENGLISH

Adjust the display contrast (01 – 10) to make the display indications clear and legible. When shipped from the factory, the display contrast level is set at level 05.

To select the external component to use —EXTERNAL IN (only for KD-G801)

To select the amplifier gain control —AMP.GAIN

You can connect the external component to the CD changer jack on the rear using the Line Input

ENGLISH

Adapter KS-U57 (not supplied). To use the external component as the playback source through this unit, you need to select which component—CD changer or external component—to use. When shipped from the factory, CD changer is selected as the external component.

• CHANGER: To use the CD changer.

• LINE IN: To use the external component other than CD changer.

Note:

For connecting the Line Input Adapter KS-U57 and the external component, refer to the Installation/ Connection Manual (separate volume).

To turn the tag display on or off —TAG DISPLAY

You can change the maximum volume level of this unit. When the maximum power of the speakers is less than 50 W, select “LOW POWER” to prevent them from being damaged. When shipped from the factory, “HIGH POWER” is selected.

• LOW POWER: You can adjust the volume level from “VOL 00” to “VOL 30.”

Note:

If you change the setting from “HIGH POWER” to “LOW POWER” while listening at a volume level more than 30, the unit automatically changes the volume level to “VOL 30.”

• HIGH POWER: You can adjust the volume level from “VOL 00” to “VOL 50.”

An MP3/WMA file can contain file information called “ID3 Tag” where its album name, performer, track title, etc. are recorded. There are two versions–ID3v1 (ID3 Tag version

1) and ID3v2 (ID3 Tag version 2). If both ID3v1 and ID3v2 are recorded on a disc, ID3v2 information will be shown. When shipped from the factory, “TAG DISP ON” is selected.

• TAG DISP ON: Turns on the ID3 tag display while playing MP3/WMA files.

• If an MP3/WMA file does not

have ID3 tags, folder name and file name appear.

Note (only for KD-G801):

If you change the setting from “TAG DISP OFF” to “TAG DISP ON” while playing an MP3/WMA file, the tag display will be activated when the next file starts playing.

To turn the slot light on or off —SLOT LIGHT

You can turn off the slot light if you do not want the illumination each time you insert/eject the disc or when you change the control panel angle. When shipped from the factory, slot light is activated.

• ON: Activates the illumination.

• OFF: Deactivates the illumination.

• TAG DISP OFF: Turns off the ID3 tag display while playing MP3/WMA files. (Only the folder name and file name can be shown.)

Assigning names to CDs

You can assign names to CDs (both in this unit and in the CD changer—only for KD-G801). After assigning a name, it will appears on the display when you select the source.

Source Maximum number of characters

CDs* Up to 32 characters (up to 40 discs)

* You cannot assign a name to a CD Text or an

MP3/WMA disc.

Select a CD you want to assign a name to.

(For KD-G801) (For KD-G701)

When you select CD as the source, the power automatically comes on.

Select a character.

• About the available characters, see page

52.

Move the cursor to the next (or previous) character position.

Repeat steps 3 to 5 until you finish entering the name.

Finish the procedure while the last selected character is flashing.

ENGLISH

While pressing DISP (display), press and hold SEL (select) for more than 2 seconds.

Select the character set you want while the first character position is flashing.

Each time you press the button, the character set changes as follows:

(A – Z: capital)

(a – z: small)

To erase the input characters

To erase all the characters at a time, press and hold DISP (display) for more than 1 second as described in the procedure above.

Notes:

• When you try to assign a name to a 41st disc, “NAME FULL” appears and you cannot enter the text entry mode. In this case, delete unwanted names before assignment.

• Only for KD-G801: When the CD changer is connected, you can assign names to CDs in the CD changer. These names can also be shown on the display if you insert the CDs in this unit.

(Accented letters:

lower case)

(Accented letters:

upper case)

(0 – 9: numbers,

and symbols)

Changing the control panel angle

You can change the angle of the control panel in

ENGLISH

four positions.

Press and hold (angle) until the angle adjustment screen appears.

Press (angle) repeatedly to adjust the angle to the position you want.

The control panel angles changes as follows:

CAUTION:

NEVER insert your finger in between the control panel and the unit, as it may get caught or hurt.

ANGLE 01

ANGLE 04

ANGLE 02

ANGLE 03

Note:

If you turn the power off, the control panel automatically returns to the closed position. Next time you turn on the power, the control panel moves to its previous position.

Detaching the control panel

You can detach the control panel when leaving the car. When detaching or attaching the control panel, be careful not to damage the connectors on the back of the control panel and on the panel holder.

Detaching the control panel

Before detaching the control panel, be sure to turn off the power.

Unlock the control panel.

Attaching the control panel

Insert the left side of the control panel into the groove on the panel holder.

Press the right side of the control panel to fix it to the panel holder.

ENGLISH

Lift and pull the control panel out of the unit.

Put the detached control panel into the provided case.

Note on cleaning the connectors:

If you frequently detach the control panel, the connectors will deteriorate. To minimize this possibility, periodically wipe the connectors with a cotton swab or cloth moistened with alcohol, being careful not to damage the connectors.

Connectors

ENGLISH

CD CHANGER OPERATIONS

This section is only for KD-G801.

We recommend that you use the JVC MP3compatible CD changer with your unit.

By using this CD changer, you can play back your original CD-Rs (Recordable) and CD-RWs (Rewritable) recorded either in audio CD format or in MP3 format.

• You can also connect other CH-X series CD changers (except CH-X99 and CH-X100). However, they are not compatible with MP3 discs, so you cannot play back MP3 discs.

• You cannot use the KD-MK series CD changers with this unit.

Before operating your CD changer:

• Refer also to the Instructions supplied for your CD changer.

• If no discs are in the magazine of the CD changer or the discs are inserted upside down, “NO DISC” will appear on the display. If this happens, remove the magazine and set the discs correctly.

• If no magazine is loaded in the CD changer, “NO MAG” appears on the display. If this happens, insert the magazine in the CD changer.

• If “RESET 1” – “RESET 8” appears on the display, something is wrong with the connection between this unit and the CD changer. If this happens, check the connection and make sure the cords are connected firmly. Then, press the reset button of the CD changer.

Playing discs

Select the CD changer (CD-CH).

CD CD-CH*

* If you have changed “EXTERNAL IN” setting to

“LINE IN” (see page 38), you cannot select the CD changer.

• When the current disc is an MP3 disc:

Playback starts from the first folder of the current disc once file check is completed.

Selected disc number*

(folder) indicator

Note:

You cannot control and play any WMA disc on the CD changer.

MP3 indicator Selected folder number

* When “CLOCK DISP” is set to “CLK DISP ON”

(see page 36), the current indication will soon change to the clock time.

Note:

Folder name appears on the display instead of “ROOT,” if an MP3 disc contains a folder.

• When the current disc is a CD: Playback starts from the first track of the current disc.

Selected disc number*

Current track

Elapsed playing time

number

To go to a particular disc directly

Press the number button corresponding to the disc number to start its playback (while the CD changer is playing).

ENGLISH

• To select a disc number from 1 – 6: Press 1 (7) – 6 (12) briefly.

• To select a disc number from 7 – 12: Press and hold 1 (7) – 6 (12) for more than one second.

To fast-forward or reverse the track/file

Press and hold ¢, during play, to fast-forward the track/file.

* When “CLOCK DISP” is set to “CLK DISP ON”

(see page 36), the current indication will soon change to the clock time.

Notes:

• When you press CD/CD-CH, the power automatically comes on. You do not have to press

to turn on the power.

• If you change the source, CD changer play also stops. Next time you select the CD changer as the source, CD changer play starts from where playback has been stopped previously.

• When you start playing back a CD Text or MP3 disc, disc information will automatically appear on the display. (See pages 24 and 27.)

Press and hold 4 , during play, to reverse the track/file.

Note:

During this operation on an MP3 disc, you can only hear intermittent sounds. (The elapsed playing time also changes intermittently on the display.)

To go to the next or previous tracks/files

Press ¢ briefly during play, to skip ahead to the beginning of the next track/file. Each time you press the button consecutively, the beginning of the next tracks/ files is located and played back.

Press 4 briefly during play, to skip back to the beginning of the current track/file. Each time you press the button consecutively, the beginning of the previous tracks/files is located and played back.

This operation is only possible when using JVC MP3-compatible CD changer (CH-X1500).

To go to a track/file quickly (+10 and –10

ENGLISH

buttons)

1 Press MODE to enter the functions mode

while playing a disc.

2 Press +10 or –10.

To skip 10 tracks/files* forwards to the last track/file

To skip 10 tracks/files* backwards to the first track/file

* First time you press +10 or –10 button, the

track/file skips to the nearest higher or lower track/file with a track/file number of

multiple ten (ex. 10th, 20th, 30th). Then each time you press the button, you can skip 10 tracks/files (see “How to use the +10 and –10 buttons” below).

• After the last track/file, the first track/file will

be selected, and vice versa.

To skip to the next or previous folder (only for MP3 discs)

Press 5 (up) while playing an MP3 disc, to go to the next folder. Each time you press the button consecutively, the next folder is located, and the first file in the folder starts playback.

Press ∞ (down) while playing an MP3 disc, to go to the previous folder. Each time you press the button consecutively, the previous folder is located, and the first file in the folder starts playback.

To show the disc information for CD Text and MP3 discs

This is possible only when connecting a JVC CD changer equipped with CD Text and/or MP3 disc information reading capability.

Select text display mode while playing a CD Text or an MP3 disc.

Note:

If the current playing disc is an MP3 disc, files are skipped within the same folder.

How to use the +10 and –10 buttons

• Ex. 1: To select track/file number 32 while playing track/file number 6

(Three times)

Track/file 6 \ 10 \ 20 \ 30 \ 31 \ 32

• Ex. 2: To select track/file number 8 while playing track/file number 36

(Three times) (Twice)

Track/file 36 \ 30 \ 20 \ 10 \ 9 \ 8

• For details, see page 24 about CD Text disc information and page 27 about MP3 disc information.

(Twice)

Selecting the playback modes

Mode

Active

indicator

Plays at random

To play back tracks/files at random (Folder Random/Disc Random/Magazine Random Play)

1 Press MODE to enter the

functions mode while playing a disc.

2 Press RND (random), while

“MODE” is still on the display. Each time you press the button, the random play mode changes as follows:

For MP3 discs:

DISC RNDFLDR RND

Canceled

For CDs:

MAG RND

MAG RNDDISC RND

FLDR RND* and RND All files of the

indicators current folder, then light up. files of the next

folder and so on.

DISC RND and RND All tracks/files of the

indicators current (or specified) light up. disc.

MAG RND RND indicator All tracks/files of the

lights up. inserted discs.

* “FLDR RND” is only applicable for MP3 disc.

To play back tracks/files repeatedly (Track Repeat/Folder Repeat/Disc Repeat Play)

1 Press MODE to enter the

functions mode while playing a disc.

ENGLISH

Canceled

RND indicator

Ex.: When you select “MAG RND”

Note:

MP3 indicator also lights up if the current playing disc is an MP3 disc.

For MP3 discs:

TRK RPT

Canceled

For CDs:

TRK RPT DISC RPT

(disc) and RPT indicators

2 Press RPT (repeat), while

“MODE” is still on the display. Each time you press the button, the repeat play mode changes as follows:

FLDR RPT

DISC RPT

Canceled

Ex.: When you select “DISC RPT”

Note:

MP3 indicator also lights up if the current playing disc is an MP3 disc.

Mode

TRK RPT RPT indicator The current (or

Active

indicator

lights up. specified) track/file.

Plays repeatedly

ENGLISH

FLDR RPT* and RPT All files of the

indicators current (or specified) light up. folder of the current

disc.

DISC RPT and RPT All tracks/files of the

indicators current (or specified) light up. disc.

* “FLDR RPT” is only applicable for MP3 disc.

To play back only intros (Track Intro Scan/Folder Intro Scan/Disc Intro Scan)

INT indicator

Ex.: When you select “TRK INT”

Note:

MP3 indicator also lights up if the current playing disc is an MP3 disc.

Mode

TRK INT INT indicator All tracks/files of the

FLDR INT* and INT The first file of every

Active Plays the beginnings

indicator (15 seconds) of

lights up. current disc.

indicators folder of the current light up. disc.

For MP3 discs:

TRK INT

Canceled

For CDs:

1 Press MODE to enter the

functions mode while playing a disc.

2 Press INT (intro), while “MODE”

is still on the display. Each time you press the button, the intro scan mode changes as follows:

FLDR INT

DISC INT

DISC INTTRK INT

Canceled

DISC INT and INT The first tracks/files of

indicators the inserted discs. light up.

* “FLDR INT” is only applicable for MP3 disc.

EXTERNAL COMPONENT OPERATIONS

ENGLISH

This section is only for KD-G801.

Playing an external component

You can connect the external component to the CD changer jack on the rear using the Line Input Adapter KS-U57 (not supplied).

Preparations:

• For connecting the Line Input Adapter KS-U57 and the external component, refer to the Installation/ Connection Manual (separate volume).

• Before operating the external component using the following procedure, select the external input correctly. See “To select the external component to use—EXTERNAL IN” on page 38.

Select the external component (LINE IN).

CD LINE IN

Turn on the connected component and start playing the source.

Adjust the volume.

Adjust the sound as you want. (See pages 31 – 33.)

• If “LINE IN” does not appear on the display, see page 38 and select the external input (“LINE IN”).

Note on One-Touch Operation:

When you press CD/CD-CH, the power automatically comes on. You do not have to press to turn on the power.

ENGLISH

DAB TUNER OPERATIONS

This section is only for KD-G801.

We recommend that you use DAB (Digital Audio Broadcasting) tuner KT-DB1500 or KT-DB1000 with your unit. If you have another DAB tuner, consult your JVC IN-CAR ENTERTAINMENT dealer.

• Refer also to the Instructions supplied for your DAB tuner.

What is DAB system?

DAB is one of the digital radio broadcasting systems available today. It can deliver CD quality sound without any annoying interference and signal distortion. Furthermore, it can carry text, pictures, and data. In contrast to FM broadcast, where each programme is transmitted on its own frequency, DAB combines several programmes (called “services”) to form one “ensemble.” In addition, each “service”—called “primary service”—can also be divided into its components (called “secondary service”).

Tuning in to an ensemble and one of the services

A typical ensemble has 6 or more programmes (services) broadcast at the same time. After tuning in to an ensemble, you can select a service you want to listen to.

Before you start....

Press FM/AM DAB briefly if CD, CD changer, or external component is the current source.

Select the DAB tuner.

Each time you press and hold the button, the DAB tuner and the FM/AM tuner are alternately selected.

FM/AMDAB

Select the DAB band (DAB1, DAB2, or DAB3).

Each time you press the button, the DAB band changes as follows:

With the DAB tuner connected with this unit, you can enjoy these DAB services.

Note:

When reception switches between DAB and FM, the listening volume level may increase or decrease inconveniently. This change in the volume level results from unequal audio injection levels at broadcaster site, but not from the malfunction of this unit. To prevent this inconvenience, you can adjust the DAB volume level. (See “To adjust the DAB volume level” on page 51.)

DAB 1

(d1)

Note:

This receiver has three DAB bands (DAB1, DAB2, DAB3). You can use any of them to tune in to an ensemble.

DAB 2

(d2)

DAB 3

(d3)

Start searching for an ensemble.

To search for ensembles of higher frequency

To tune in to a particular ensemble without searching

Before you start....

Press FM/AM DAB briefly if CD, CD changer, or external component is the current source.

ENGLISH

To search for ensembles of lower frequency

When an ensemble is received, searching stops.

To stop searching before an ensemble is received, press the same button you have

pressed for searching.

Select a service (either primary or secondary) you want to listen to.

To select the next service (If a primary service has some secondary services, they are selected before the next primary service is selected.)

To select the previous service (either primary or secondary)

1 Press and hold FM/AM DAB to select DAB

tuner as the source.

2 Press FM/AM DAB repeatedly to select the

DAB band (DAB1, DAB2, or DAB3).

3 Press and hold ¢ or 4 for more

than one second.

4 Press ¢ or 4 repeatedly until the

ensemble you want is reached.

• If you hold down the button, the frequency keeps changing until you release the button.

5 Press 5 (up) or ∞ (down) to select a service

(either primary or secondary) you want to listen to.

To restore the FM/AM tuner

Press and hold FM/AM DAB again.

Storing DAB services in memory

To change the display information while tuning in to an ensemble

Normally service name is shown on the display. If you want to check the ensemble name or its frequency, press DISP (display) repeatedly.

Each time you press the button, the following information appears for a while on the display.

Service name

Ensemble name

Channel number

Frequency

You can preset up to 6 DAB services in each DAB band (DAB1, DAB2, and DAB3) manually.

Before you start....

Press FM/AM DAB briefly if CD, CD changer, or external component is the current source.

Select the DAB tuner.

Each time you press and hold the button, the DAB tuner and the FM/AM tuner are alternately selected.

FM/AMDAB

Select the DAB band (DAB1, DAB2, or DAB3) you want.

Each time you press the button, the DAB band changes as follows:

DAB 1

(d1)

DAB 2

(d2)

DAB 3

(d3)

CONTINUED ON THE NEXT PAGE

Tune in to an ensemble you want.

Tuning in to a preset DAB service

ENGLISH

Select a service of the ensemble you want to listen to.

Press and hold the number button (in this example, 1) for more than 2 seconds to store the selected service into the preset number you want.

To select the next service

To select the previous service

Selected preset number

You can easily tune in to a preset DAB service. Remember that you must store services first. If you have not stored them yet, see “Storing DAB services in memory” on pages 49 and 50.

Before you start....

Press FM/AM DAB briefly if CD, CD changer, or external component is the current source.

Select the DAB tuner.

Each time you press and hold the button, the DAB tuner and the FM/AM tuner are alternately selected.

FM/AMDAB

Select the DAB band (DAB1, DAB2, or DAB3) you want.

Each time you press the button, the DAB band changes as follows:

Repeat the above procedure to store other DAB services into other preset numbers.

Notes:

• You can only preset primary DAB services. If you store a secondary service, its primary service will be stored instead.

• A previously preset DAB service is erased when a new DAB service is stored in the same preset number.

• Preset DAB services are erased when the power supply to the memory circuit is interrupted (for example, during battery replacement). If this occurs, preset the DAB services again.

DAB 1

(d1)

Select the number (1 – 6) for the preset DAB service (primary) you want.

Note:

If the selected primary service has some secondary services, pressing the same number button repeatedly will tune in to the secondary services.

DAB 2

(d2)

DAB 3

(d3)

What you can do more with DAB

Tracing the same programme automatically (Alternative Reception)

You can keep listening to the same programme.

• While receiving a DAB service: When driving in an area where a service cannot be received, this unit automatically tunes in to another ensemble or FM RDS station, broadcasting the same programme.

• While receiving an FM RDS station: When driving in an area where a DAB service is broadcasting the same programme as the FM RDS station is broadcasting, this unit automatically tunes in to the DAB service.

To use Alternative Reception

When shipped from the factory, Alternative Reception is activated.

• See also “Changing the general settings (PSM)” on pages 34 and 35.

To adjust the DAB volume level

You can adjust the volume level of DAB tuner and store it in memory. By adjusting the volume level properly to match it to the FM sound level, you will not need to adjust the volume level each time you change the source to DAB. When shipped from the factory, DAB volume level is set at “VOL 00.”

• See also “Changing the general settings (PSM)” on pages 34 and 35.

1 Press and hold SEL (select) for more than

2 seconds so that one of the PSM items appears on the display.

2 Press ¢ or 4 to select “DAB VOL”

(volume).

3 Turn the control dial to set to the desired

volume. You can set it from “VOL –12” to “VOL +12.”

4 Press SEL (select) to finish the setting.

ENGLISH

1 Press and hold SEL (select) for more than

2 seconds so that one of the PSM items appears on the display.

2 Press ¢ or 4 to select “DAB AF”

(alternative frequency).

3 Turn the control dial to select the desired

mode.

• AF ON: Traces the programme among DAB services and FM RDS stations—Alternative Reception. The AF indicator lights up on the display (see page 14).

• AF OFF: Alternative Reception is deactivated.

4 Press SEL (select) to finish the setting.

Note:

When Alternative Reception (for DAB services) is activated, Network-Tracking Reception (for RDS stations: see page 14) is also activated automatically. On the other hand, Network-Tracking Reception cannot be deactivated without deactivating Alternative Reception.

ADDITIONAL INFORMATION

Sound modes (preset frequency level settings)

The list below shows the preset frequency level settings for each sound mode.

Preset equalizing values

Sound modes

ENGLISH

FLAT 00 60Hz 1 00 1 00 8kHz

HARD ROCK +03 120Hz 4 00 1 +02 8kHz R&B +03 80Hz 1 +01 1 +03 15kHz

POP +02 120Hz 1 +01 1 +02 10kHz JAZZ +03 80Hz 1 00 1 +03 10kHz

DANCE MUSIC +04 60Hz 2 –02 2 +01 8kHz COUNTRY +02 60Hz 3 00 1 +02 12kHz

REGGAE +03 60Hz 1 +02 1 +02 12kHz CLASSIC +01 80Hz 1 00 1 +03 10kHz

USER 1 00 60Hz 1 00 1 00 8kHz USER 2 00 60Hz 1 00 1 00 8kHz

USER 3 00 60Hz 1 00 1 00 8kHz

LOW LOW LOW MID MID HI HI

LEVEL FREQ WIDTH LEVEL WIDTH LEVEL FREQ

Available characters

In addition to the alphabets (A – Z, a – z), you can use the following characters to assign names to CDs and CD changer—only for KD-G801. (See page 39.)

• These characters can be also used to show other information such as disc title/performer, RDS, and DAB on the display.

Accented letters

Lower caseUpper case

space

Numbers and symbols

space

TROUBLESHOOTING

What appears to be trouble is not always serious. Check the following points before calling a service center.

Symptoms

• Sound cannot be heard from the speakers.

• This unit does not work at all.

General

• When “PUSH RESET” appears on the display.

• SSM (Strong-station Sequential Memory) automatic preset does not work.

FM/AM

• Static noise while listening to the radio.

Causes

The volume level is set to the minimum level.

Connections are incorrect.

The built-in microcomputer may have functioned incorrectly due to noise, etc.

There is something blocking the control movement.

Signals are too weak.

The aerial is not connected firmly.

Remedies

Adjust it to the optimum level.

ENGLISH

Check the cords and connections.

Press the reset button on the control panel. (Your preset adjustments will also be erased.) (See page 2.)

Press the reset button on the control panel. (See page 2.) If the reset button does not work, check the Installation/ Connection Manual (separate volume). (Ex.: You have used a longer screw than specified.)

Store stations manually.

Connect the aerial firmly.

• Disc cannot be played back.

• CD-R/CD-RW cannot be played back.

• Tracks on the CD-R/ CD-RW cannot be skipped.

• Disc cannot be ejected.

• Disc sound is sometimes

interrupted.

Disc Playback

• Disc cannot be recognized (“NO DISC” appears on the display).

Disc is inserted upside down.

CD-R/CD-RW is not finalized.

Disc is locked.

You are driving on rough roads.

Disc is scratched.

Connections are incorrect.

No disc in the loading slot.

Disc is inserted incorrectly.

The unit may have functioned incorrectly.

Insert the disc correctly.

• Insert a finalized CD-R/ CD-RW.

• Finalize the CD-R/CD-RW with the component which you used for recording.

Unlock the disc. (See page 24.)

Stop playback while driving on rough roads.

Change the disc.

Check the cords and connections.

Insert a disc into the loading slot.

Insert the disc correctly.

While pressing CD/CD-CH (for KD-G801) or CD (for KD-G701), press and hold SEL (select) for more than 2 seconds to eject the disc.

Symptoms

Causes

Remedies

• Disc cannot be played

ENGLISH

• Noise is generated.

• A longer readout time is

back.

required (“FILE CHECK” keeps flashing on the display).

No MP3/WMA files are recorded on the disc.

MP3/WMA files do not have the extension code <.mp3> or <.wma> in their file names.

MP3/WMA files are not recorded in the format compliant with ISO 9660 Level 1, Level 2, Romeo, or Joliet.

The file played back is not an MP3/WMA file (although it has the extension code <.mp3> or <.wma>).

Readout time varies due to the complexity of the folder/file configuration.

Change the disc.

Add the extension code <.mp3> or <.wma> to their file names.

Change the disc. (Record MP3/WMA files using a compliant application.)

Skip to another file or change the disc. (Do not add the extension code <.mp3> or <.wma> to non-MP3 or nonWMA files.)

Do not use too many hierarchies and folders.

• Files cannot be played back as you have intended them

MP3/WMA Playback

to play.

• Elapsed playing time is not correct.

• indicator flashes on the display.

•“NO FILES” appears on the display.

• Correct characters are not displayed (e.g. album name).

Playback order is determined when the files are recorded.

This sometimes occurs during play. This is caused by how the files are recorded on the disc.

The current folder does not contain any MP3/WMA file.

The current disc does not contain any MP3/WMA file.

This unit can only display alphabets (capital: A–Z, small: a–z), numbers, and a limited number of symbols and some accented letters (see page

52).

Select another folder.

Insert a disc that contains MP3/ WMA files.

This section is only for KD-G801

Symptoms

•“NO DISC” appears on the display.

•“NO MAG” appears on the display.

•“RESET 8” appears on the display.

•“RESET 1” – “RESET 7” appears on the display.

• The CD changer does not work at all.

Causes

No disc is in the magazine.

Discs are inserted upside down.

No magazine is loaded in the CD changer.

This unit is not connected to the CD changer correctly.

The built-in microcomputer may function incorrectly due to noise, etc.

Remedies

Insert discs into the magazine.

Insert discs correctly.

Insert the magazine.

Connect this unit and the CD changer correctly and press the reset button of the CD changer.

Press the reset button of the CD changer.

Press the reset button on the control panel. (Your preset adjustments will also be erased.) (See page 2.)

ENGLISH

CD Changer

About mistracking:

Mistracking may result from driving on extremely rough roads. This does not damage the unit and the disc, but will be annoying. We recommend that you stop disc play while driving on such rough roads.

MAINTENANCE

Handling discs

This unit has been designed to reproduce CDs, CD-Rs (Recordable), CD-RWs (Rewritable), and CD Texts.

ENGLISH

• This unit is also compatible with MP3 and WMA discs.

How to handle discs

When removing a disc from its case, press down

the center holder of the case and lift the disc out, holding it by the edges.

• Always hold the disc by the edges. Do not touch its recording surface.

When storing a disc into its case, gently insert the disc around the center holder (with the printed surface facing up).

• Make sure to store discs into the cases after use.

To keep discs clean

A dirty disc may not be played correctly. If a disc does become dirty, wipe it with a soft cloth in a straight line from center to edge.

To play new discs

New discs may have some rough spots around the inner and outer edges. If such a disc is used, this unit may reject the disc. To remove these rough spots, rub the edges with a pencil or ball-point pen, etc.

Moisture condensation

Moisture may condense on the lens inside the CD player in the following cases:

• After starting the heater in the car.

• If it becomes very humid inside the car.

Should this occur, the CD player may malfunction. In this case, eject the disc and leave the unit turned on for a few hours until the moisture evaporates.

Center holder

When playing a CD-R or CD-RW

Before playing back CD-Rs or CD-RWs, read their instructions or cautions carefully.

• Use only “finalized” CD-Rs or CD-RWs.

• Some CD-Rs or CD-RWs may not be played

back on this unit because of their disc characteristics, and for the following reasons:

– Discs are dirty or scratched. – Moisture condensation on the lens inside the

unit.

– The pickup lens inside the unit is dirty.

• CD-RWs may require a longer readout time

since the reflectance of CD-RWs is lower than that of regular CDs.

• CD-Rs or CD-RWs are susceptible to high temperatures or high humidity, so do not leave them inside your car.

• Do not use following CD-Rs or CD-RWs: – Discs with stickers, labels, or protective seal

stuck to the surface.

– Discs on which labels can be directly printed

by an ink jet printer. Using these discs under high temperatures or high humidity may cause malfunctions or damage to discs. For example, – Stickers or labels may shrink and warp a

disc. – Stickers or labels may be peeled off so discs

cannot be ejected. – Print on discs may get sticky. Read instructions or cautions about labels and printable discs carefully.

CAUTIONS:

• Do not insert 8 cm discs (single CDs) into the loading slot. (Such discs cannot be ejected.)

• Do not insert any disc of unusual shape—like a heart or flower; otherwise, it will cause a malfunction.

• Do not expose discs to direct sunlight or any heat source or place them in a place subject to high temperature and humidity. Do not leave them in a car.

• Do not use any solvent (for example, conventional record cleaner, spray, thinner, benzine, etc.) to clean discs.

Warped disc

Sticker

Sticker residue

Disc

Stick-on label

SPECIFICATIONS

AUDIO AMPLIFIER SECTION

Maximum Power Output:

Front: 50 W per channel Rear: 50 W per channel

Continuous Power Output (RMS):

Front: 19 W per channel into 4 Ω, 40 Hz to

20 000 Hz at no more than 0.8% total harmonic distortion.

Rear: 19 W per channel into 4 Ω, 40 Hz to

20 000 Hz at no more than 0.8%

total harmonic distortion. Load Impedance: 4 Ω (4 Ω to 8 Ω allowance) Equalizer Control Range

Low: ±12 dB (60 Hz, 80 Hz, 100 Hz,

120 Hz)

Mid: ±12 dB High: ±12 dB (8 kHz, 10 kHz, 12 kHz,

15 kHz) Frequency Response: 40 Hz to 20 000 Hz Signal-to-Noise Ratio: 70 dB Only for KD-G801:

Line-Out Level/Impedance:

5.0 V/20 kΩ load (full scale)

Only for KD-G701:

Line-Out Level/Impedance:

2.0 V/20 kΩ load (full scale) Output Impedance: 1 kΩ Only for KD-G801:

Subwoofer-Out Level/Impedance:

2.0 V/20 kΩ load (full scale)

CD PLAYER SECTION

Type: Compact disc player Signal Detection System: Non-contact optical

pickup (semiconductor laser) Number of channels: 2 channels (stereo) Frequency Response: 5 Hz to 20 000 Hz Dynamic Range: 96 dB Signal-to-Noise Ratio: 98 dB Wow and Flutter: Less than measurable limit MP3 decoding format:

MPEG1/2 Audio Layer 3

Max. Bit Rate: 320 Kbps WMA (Windows Media® Audio) decoding format:

Max. Bit Rate: 192 Kbps

GENERAL

Power Requirement

Operating Voltage:

DC 14.4 V (11 V to 16 V allowance) Grounding System: Negative ground Allowable Operating Temperature:

0°C to +40°C Dimensions (W × H × D):

Installation Size (approx.):

182 mm × 52 mm × 159 mm

Panel Size (approx.):

188 mm × 58 mm × 12 mm

Mass (approx.):

1.5 kg (excluding accessories)

ENGLISH

TUNER SECTION

Frequency Range:

FM: 87.5 MHz to 108.0 MHz AM: (MW) 522 kHz to 1 620 kHz

(LW) 144 kHz to 279 kHz

[FM Tuner]

Usable Sensitivity:

11.3 dBf (1.0 µV/75 Ω)

50 dB Quieting Sensitivity:

16.3 dBf (1.8 µV/75 Ω)

Alternate Channel Selectivity (400 kHz):

65 dB Frequency Response: 40 Hz to 15 000 Hz Stereo Separation: 30 dB Capture Ratio: 1.5 dB

[MW Tuner]

Sensitivity: 20 µV Selectivity: 35 dB

[LW Tuner]

Sensitivity: 50 µV

Design and specifications are subject to change without notice.

Having TROUBLE with operation?

Please reset your unit

Refer to page of How to reset your unit

Haben Sie PROBLEME mit dem Betrieb?

Bitte setzen Sie Ihr Gerät zurück

Siehe Seite Zurücksetzen des Geräts

Vous avez des PROBLÈMES de fonctionnement?

Réinitialisez votre appareil

Référez-vous à la page intitulée Comment réinitialiser votre appareil

Hebt u PROBLEMEN met de bediening?

Stel het apparaat terug

Zie de pagina met de paragraaf Het apparaat terugstellen

EN, GE, FR, NL

0104KKSMDTJEIN

⁄

53 mm

184 mm

KD-G801/KD-G701

Installation/Connection Manual Einbau/Anschlußanleitung Manuel d’installation/raccordement Handleiding voor installatie/aansluiting

0104KKSMDTJEIN EN, GE, FR, NL

GET0199-005A

[E/EX]

Teileliste für den Einbau und Anschluß

Die folgenden Teile werden zusammen mit diesem Gerät geliefert. Nach ihrer Überprüfung, die Teile richtig einsetzen.

Liste des pièces pour l’installation et raccordement

Les pièces suivantes sont fournies avec cet appareil. Après vérification, veuillez les placer correctement.

Lijst van onderdelen die u bij installatie en aansluiting nodig hebt

De volgende onderdelen worden bij het apparaat geleverd. Installeer ze op de juiste wijze, nadat u ze hebt gecontroleerd.

Parts list for installation and connection

The following parts are provided for this unit. After checking them, please set them correctly.

INSTALLATIE (INBOUW IN HET DASHBOARD)

Op de volgende afbeelding kunt u zien hoe de installatie, normaal gesproken, in zijn werk gaat. Neem bij vragen of voor meer bijzonderheden over inbouwpakketten contact op met uw JVC car audio dealer of een dealer of een bedrijf dat inbouwpakketten levert.

• Als u niet zeker weet hoe u dit apparaat moet installeren, kunt u dit beter door een daartoe gekwalificeerde technicus laten doen.

INSTALLATION (MONTAGE DANS LE TABLEAU DE BORD)

L’illustration suivante est un exemple d’installation typique. Si vous avez des questions ou avez besoin d’information sur des kits d’installation, consulter votre revendeur d’autoradios JVC ou une compagnie d’approvisionnement.

• Si l’on n’est pas sûr de pouvoir installer correctement cet appareil, le faire installer par un technicien qualifié.

EINBAU (IM ARMATURENBRETT)

Die folgende Abbildung zeigt einen typischen Einbau. Bei irgendwelchen Fragen oder wenn Sie Informationen hinsichtlich des Einbausatzes brauchen, wenden Sie sich an ihren JVC Autoradiohändler oder ein Unternehmen das diese Einbausätze vertreibt.

• Sind Sie sich über den richtigen Einbau des Geräts nicht sicher, lassen Sie es von einem qualifizierten Techniker einbauen.

INSTALLATION (IN-DASH MOUNTING)

The following illustration shows a typical installation. If you have any questions or require information regarding installation kits, consult your JVC IN-CAR ENTERTAINMENT dealer or a company supplying kits.

• If you are not sure how to install this unit correctly, have it installed by a qualified technician.

NEDERLANDS

Dit apparaat mag worden gebruikt bij elektrische systemen die werken op 12 V gelijkstroom met negatieve aarding. Als uw auto niet is uitgerust met een dergelijk systeem, is een spanningsomzetter vereist. Dit instrument kan worden aangeschaft bij JVC car audio dealers.

FRANÇAIS

Cet appareil est conçu pour fonctionner sur des sources de courant continu de

12 V à masse

NEGATIVE

. Si votre véhicule n’offre pas ce type d’alimentation, il vous faut un convertisseur de tension, que vous pouvez acheter chez un revendeur d’autoradios JVC.

DEUTSCH

Dieses Gerät ist für einen Betrieb in

elektrischen Anlagen mit 12 V Gleichstrom und (–) Erdung ausgelegt. Verfügt Ihr

Fahrzeug nicht über diese Anlage, ist ein Spannungsinverter erforderlich, der bei JVC Autoradiohändler erworben werden kann.

ENGLISH

This unit is designed to operate on 12 V DC, NEGATIVE ground electrical systems. If your

vehicle does not have this system, a voltage inverter is required, which can be purchased at JVC IN-CAR ENTERTAINMENT dealers.

*1When you stand the unit, be careful not to damage

the fuse on the rear.

Beim Aufstellen des Geräts darauf achten, daß die Sicherung auf der Rückseite nicht beschädigt wird.

Lorsque vous mettez l’appareil à la verticale, faire attention de ne pas endommager le fusible situé sur l’arrière.

*1Wanneer u het apparaat rechtop zet, moet u erop letten

dat u de zekering aan de achterkant niet beschadigt.

Do the required electrical connections.

Nehmen Sie die erforderlichen elektrischen Anschlüsse vor.

Réalisez les connexions électriques.

Breng de vereiste elektrische verbindingen tot stand.

Bend the appropriate tabs to hold the sleeve firmly in place.

Die geeigneten Zapfen biegen, um die Manschette sicher festzuhalten.

Tordez les languettes appropriées pour maintenir le manchon en place.

Buig de vereiste lipjes zodat de huls goed op zijn plaats wordt gehouden.

Handles

Griffe

Poignées

Hendels

Washer (ø5)

Unterlegscheibe (ø5)

Rondelle (ø5)

Sluitring (ø5)

Lock nut (M5)

Sicherungsmutter (M5)

Ecrou d’arrêt (M5)

Contra-moer (M5)

Mounting bolt (M5 x 20 mm)

Befestigungsschraube (M5 x 20 mm)

Boulon de montage (M5 x 20 mm)

Bevestigingsbout (M5 x 20 mm)

Rubber cushion

Gummipuffer

Amortisseur en caoutchouc

Rubberdop

A / B Hard case/Control panel

Etui/Schalttafel

Etui de transport/Panneau de commande

Behuizing/Bedieningspaneel

Sleeve

Halterung

Manchon

Huis

Trim plate

Frontrahmen

Plaque d’assemblage

Sierplaat

Power cord

Stromkable

Cordon d’alimentation

Stroomkabel

Removing the unit

Before removing the unit, release the rear section.

Ausbau des Geräts

Vor dem Ausbau des Geräts den hinteren Teil freigeben.

Retrait de l’appareil

Avant de retirer l’appareil, libérer la section arrière.

Verwijderen van het apparaat

Voordat u het apparaat verwijdert, moet u het achtergedeelte losmaken.

Insert the two handles, then pull them as illustrated so that the unit can be removed.

Die beiden Handgriffe einsetzen und dann ziehen wie in der Abbildung gezeigt, so daß das Gerät entfernt werden kann.

Insérez les deux poignées, puis tirez de la façon illustrée de façon à retirer l’appareil.

Plaats de twee hendels en trek ze vervolgens zoals afgebeeld naar voren zodat het toestel kan worden verwijderd.

Battery

Batterie

Pile

Batterij

Remote controller

Fernbedienung

Télécommande

Afstandsbediening

CR2025

Fit the protrusions outside the unit.

Die Vorsprünge außen am Gerät anpassen.

Fixez les protubérances à l'extérieur de l'appareil.

Plaats de uitsteeksels buiten het toestel.

TROUBLESHOOTING

• The fuse blows. * Are the red and black leads connected

correctly?

• Power cannot be turned on. * Is the yellow lead connected?

• No sound from the speakers. * Is the speaker output lead short-circuited?

• Sound is distorted. * Is the speaker output lead grounded? * Are the “–” terminals of L and R speakers

grounded in common?

• Noise interfere with sounds. * Is the rear ground terminal connected to the

car’s chassis using shorter and thicker cords?

• Unit becomes hot. * Is the speaker output lead grounded? * Are the “–” terminals of L and R speakers

grounded in common?

FEHLERSUCHE

• Die Sicherung brennt durch. * Sind die roten und schwarzen Leitungen

richtig angeschlossen?

• Stromversorgung kann nicht eingeschaltet werden.

* Ist die gelbe Leitung angeschlossen?

• Kein Ton aus den Lautsprechern.

* Ist die Lautsprecherausgangsleitung

kurzgeschlossen?

• Ton verzerrt.

* Ist die Lautsprecherausgangsleitung geerdet? * Sind die (–) Anschlußklemmen der linken und

rechten Lautsprecher zusammen geerdet?

• Störgeräusche im Klang.

* Ist die hintere Erdungsklemme mit kürzeren

und dickeren Kabeln an das Fahrzeugchassis angeschlossen?

• Gerät wird heiß.

* Ist die Lautsprecherausgangsleitung geerdet? * Sind die (–) Anschlußklemmen der linken und

rechten Lautsprecher zusammen geerdet?

PROBLEMEN OPLOSSEN

• De zekering slaat door. * Zijn de rode en de zwarte draden op de juiste

manier aangesloten?

• De stroom kan niet worden ingeschakeld. * Is de gele draad aangesloten?

• Er komt geen geluid uit de speakers. * Is de uitgaande speakerdraad kortgesloten?

• Het geluid wordt vervormd. * Is de uitgaande speakerdraad geaard? * Zijn de “–” polen van de linker- en de

rechterspeakers gemeenschappelijk geaard?

• Geluid wordt door ruis gestoord. * Is de aarde-aansluiting achter met gebruik van

kortere en dikkere snoeren met het chassis van de auto verbonden?

• Het apparaat raakt verhit. * Is de uitgaande speakerdraad geaard? * Zijn de “–” polen van de linker- en de

rechterspeakers gemeenschappelijk geaard?

When installing the unit without using the sleeve / Beim Einbau des Geräts ohne Halterung / Lors de l’installation de l’appareil scans utiliser de manchon / Wanneer u het apparaat zonder huis installeert

In a Toyota for example, first remove the car radio and install the unit in its place.

Zum Beispiel in einem Toyota zuerst das Autoradio ausbauen und dann das Gerät an seinem Platz einbauen.

Par exemple dans une Toyota, retirer d’abord l’autoradio et installer l’appareil à la place.

Voorbeeld: Bij een Toyota moet u eerst de autoradio verwijderen en daarna het apparaat installeren.

RACCORDEMENTS ELECTRIQUES

Pour éviter tout court-circuit, nous vous recommandons de débrancher la borne négative de la batterie et d’effectuer tous les raccordements électriques avant d’installer l’appareil.

• Assurez-vous de raccorder de nouveau la mise à la masse de cet appareil au châssis de la voiture après l’installation.

Remarques:

•

Remplacer le fusible par un de la valeur précisée. Si le fusible saute souvent, consulter votre revendeur d’autoradios JVC.

•

Il est recommandé de connecter des enceintes avec une puissance de plus de 50 W (les enceintes arrière et les enceintes avant, avec une impédance comprise entre

4 Ω et 8 Ω

). Si la puissance maximum est inférieure à 50 W, changez “AMP.GAIN” pour éviter d’endommager vos enceintes (voir page 38 du MANUEL D’INSTRUCTIONS).

•

Pour éviter les court-circuits, couvrir les bornes des fils qui ne sont PAS UTILISÉS avec de la bande isolante.

•

Le dissipateur de chaleur devient très chaud après usage. Faire attention de ne pas le toucher en retirant cet appareil.

ELEKTRISCHE ANSCHLÜSSE

Zur Vermeidung von Kurzschlüssen empfehlen wir, daß Sie den negativen Batterieanschluß abtrennen und alle elektrischen Anschlüsse herstellen, bevor das Gerät eingebaut wird.

• Sicherstellen, daß das Gerät nach dem Einbau a Chassis des Fahrzeugs geerdet wird.

Hinweise:

• Die Sicherung mit einer der entsprechenden Nennleistung ersetzen. Brennt die Sicherung häufig durch, wenden Sie sich an ihren JVC Autoradiohändler.

• Es wird empfohlen, Lautsprecher mit einer Maximalleistung von mehr als 50 W anzuschließen (sowohl hinten als auch vorne, mit einer Impedanz von 4 Ω bis 8 Ω). Wenn die Maximalleistung weniger als 50 W beträgt, stellen Sie „AMP.GAIN“ anders ein, um Schäden an den Lautsprechern zu vermeiden (siehe Seite 38 der BEDIENUNGSANLEITUNG).

• Zur Vermeidung eines Kurzschlusses die Anschlußklemmen der NICHT VERWENDETEN Leitungen mit Isolierklebeband umwickeln.

• Das Abstrahlblech wird nach dem Gebrauch sehr heiß. Beim Ausbau des Geräts darauf achten, das Abstrahlblech nicht zu berühren.

ELEKTRISCHE VERBINDINGEN

Om kortsluiting te voorkomen adviseren wij u om de minpool van de accu los te maken en alle elektrische verbindingen tot stand te brengen voordat u het apparaat in de auto installeert.

• Aard dit toestel beslist weer op het chassis van de auto na het installeren.

Opmerkingen:

• Vervang de zekering door een exemplaar met het aangegeven vermogen. Als de zekering vaak doorslaat, moet u uw JVC car audio dealer raadplegen.

• Sluit bij voorkeur luidsprekers met een hoger maximaal vermogen dan 50 W (zowel achter als voor, met een impedantie van 4 Ω t/m 8 Ω) aan. Indien het maximale vermogen lager dan 50 W is, moet u “AMP.GAIN” in de andere stand stellen zodat de luidsprekers niet kunnen worden beschadigd (zie bladzijde 38 van de GEBRUIKSAANWIJZING).

• Om kortsluiting te voorkomen, moet u de aansluitklemmen van ONGEBRUIKTE gekleurde draden met isolatieband bedekken.

• De warmte-opnemer kan na gebruik erg heet worden. Raak de warmte-opnemer niet aan wanneer u dit apparaat van zijn plaats haalt.

Note : When installing the unit on the mounting bracket, make sure to use the 8 mm-long screws. If

longer screws are used, they could damage the unit.

Hinweis :Beim Anbringen des Gerät an der Konsole sicherstellen, daß 8 mm lange Schrauben verwendet

werden. Werden längere Schrauben verwendet, können sie das Gerät beschädigen.

Remarque :

Lors de l’installation de l’appareil sur le support de montage, s’assurer d’utiliser des vis d’une longueur de 8 mm. Si des vis plus longues sont utilisées, elles peuvent endommager l’appareil.

Opmerking :Wanneer u het apparaat aan de bevestigingsklem vastmaakt, moet u de 8 mm lange schroeven gebruiken. Als

u langere schroeven gebruikt, kan het apparaat worden beschadigd.

When using the optional stay / Beim Verwenden der AnkerOption / Lors de l’utilisation du hauban en option / Wanneer u de steun gebruikt (facultatief)

ELECTRICAL CONNECTIONS

To prevent short circuits, we recommend that you disconnect the battery’s negative terminal and make all electrical connections before installing the unit.

• Be sure to ground this unit to the car’s

chassis again after installation.

Notes:

• Replace the fuse with one of the specified rating. If the fuse blows frequently, consult your JVC IN-CAR ENTERTAINMENT dealer.

• It is recommended to connect to the speakers with maximum power of more than 50 W (both at the rear and at the front, with an impedance of 4 Ω to 8 Ω). If the maximum power is less than 50 W, change “AMP.GAIN” setting to prevent the speakers from being damaged (see page 38 of the INSTRUCTIONS).

• To prevent short-circuit, cover the terminals of the UNUSED leads with insulating tape.

• The heat sink becomes very hot after use. Be careful not to touch it when removing this unit.

Heat sink

Abstrahlblech

Dissipateur de chaleur

Warmte-opnemer

Bracket* Konsole*

Support

Console*

Bracket* Konsole*

Support

Console*

* Not included with this unit. * Nicht Teil dieses Geräts. *

Non fourni avec cet appareil.

* Niet meegeleverd.

Flat type screws (M5 x 8 mm)* Senkkopfschrauben (M5 x 8 mm)*

Vis à tête plate (M5 x 8 mm)

Platkopschroeven (M5 x 8 mm)*

Pocke t

Taschen

Poche

Zak

Flat type screws (M5 x 8 mm)* Senkkopfschrauben (M5 x 8 mm)*

Vis à tête plate (M5 x 8 mm)

Platkopschroeven (M5 x 8 mm)*

Install the unit at an angle of less than 30˚.

Stellen Sie das Gerät mit einem Winkel von weniger als 30˚ auf.

Installez l’appareil avec un angle de moins de 30˚.

Installeer het toestel met een hoek kleiner dan 30˚.

PRECAUTIONS on power supply and speaker connections:

• DO NOT connect the speaker leads of the power cord to the car battery; otherwise, the unit will be seriously damaged.

• BEFORE connecting the speaker leads of the power cord to the speakers, check the speaker wiring in your car.

VORSICHTSMASSREGELN beim Anschließen der Stromversorgung und Lautsprecher:

• Die Lautsprecherleitungen des Netzkabels NICHT an der Autobatterie anschließen, da sonst das Gerät schwer beschädigt wird.

• VOR dem Anschließen der Lautsprecherleitungen des Spannunsgversorgungskabels an die Lautsprecher, die Lautsprecherverdrahtung in Ihrem Auto überprüfen.

PRECAUTIONS sur l’alimentation et la connexion des enceintes:

• NE CONNECTEZ PAS les fils d’enceintes du cordon d’alimentation à la batterie; sinon, l’appareil serait sérieusement endommagé.

•

AVANT de connecter les fils d’enceintes du cordon d’alimentation aux enceintes, vérifiez le câblage des enceintes de votre voiture.

VOORZORGSMAATREGELEN bij het verbinden van de stroomkabeldraad met de speakers:

• Verbind de speakerdraden van de stroomkabel NIET met de accu van de auto; als u dit wel doet, zal het apparaat ernstige schade oplopen.

• VOORDAT u de speakerdraden van de stroomkabel met de speakers verbindt, moet u de bedrading van de speakers in uw auto controleren.

Screw (option)

Schraube (Option)

Vis (en option)

Schroef (facultatief)

Stay (option)

Anker (Option)

Hauban (en option)

Steun (facultatief)

Fire wall

Feuerwand

Cloison

Brandscherm

Dashboard

Armaturenbrett

Tableau de bord

Dashboard

EN CAS DE DIFFICULTES

• Le fusible saute. *

Les fils rouge et noir sont-ils racordés correctement?

• L’appareil ne peut pas être mise sous tension.

Le fil jaune est-elle raccordée?

• Pas de son des enceintes.

Le fil de sortie d’enceinte est-il court-circuité?

• Le son est déformé.

Le fil de sortie d’enceinte est-il à la masse?

Les bornes “–” des enceintes gauche et droit sont-elles mises ensemble à la masse?

• Interférence avec les sons.

La prise arrière de mise à la terre est-elle connectée au châssis de la voiture avec un cordon court et épais?

• L’appareil devient chaud.

Le fil de sortie d’enceinte est-il à la masse?

Les bornes “–” des enceintes gauche et droit sont-elles mises ensemble à la masse?

(ILLUMINATION)

B1 B3 B5 B7

B2 B4 B6 B8

A5 A7

A2 A4

B1 B3 B5 B7

B2 B4 B6 B8

A5 A7

A2 A4

B5B6

B8 B7

B2 B1

*2Before checking the operation of this unit prior to

installation, this lead must be connected, otherwise power cannot be turned on.

*2Vor der Überprüfung der Funktionsfähigkeit des Geräts

vor dem Einbau, muß diese Leitung angeschlossen werden, da sonst die Stromversorgung nicht eingeschaltet werden kann.

Pour vérifier le fonctionnement de cet appareil avant installation, ce fil doit être raccordé, sinon l’appareil ne peut pas être mis sous tension.

*2Voordat u controleert of het apparaat werkt (alvorens het te

installeren), moet deze draad aangesloten zijn. Als dit niet het geval is, kan de stroom niet worden ingeschakeld.

15 A fuse

15 A Sicherung

Fusible 15 A

Zekering 15 A

Yellow*

Gelb*

Jaune

Geel *

Blue with white stripe

Blau mit weißem Streifen

Bleu avec bande blanche

Blauw met witte streep

Red

Rot

Rouge

Rood

Orange with white stripe

Orange mit weißem Streifen

Orange avec bande blanche

Oranje met witte streep

To cellular phone system

Zur Mobiltelefon

À un système de téléphone cellulaire

Naar het mobiele-telefoonsysteem

To car light control switch

Zur Autolichtschalter

À l’interrupteur d’éclairage de la voiture

Naar de schakelaar voor de autoverlichting

Fuse block

Sicherungsblock

Porte-fusible

Zekeringblok

To a live terminal in the fuse block connecting to the car battery (bypassing the ignition switch) (constant 12 V)

Zur einer stromführenden Anschlußklemme im Sicherungsblock zum Anschließen an die Autobatterie (Umgehen des Zündschalters) (konstant 12 V)

À une borne sous tension du porte-fusible connectée à la batterie de la voiture (en dérivant l’interrupteur d’allumage) (12 V constant)

Naar een onder spanning staande aansluitklem in het zekeringblok die is aangesloten op de accu van de auto (u passeert de ontstekingsschakelaar) (constant 12 V)

To metallic body or chassis of the car

Zur metallenen Karosserie oder zum Fahrwerk des Autos

Vers corps métallique ou châssis de la voiture

Naar metalen ondergrond of chassis van de auto

*1Not included for this unit *1Wird nicht mit Gerät mitgeliefert *

Non fourni avec cet appareil

*1Niet bij het apparaat inbegrepen

Black

Schwarz

Noir

Zwart

To an accessory terminal in the fuse block

Zur einer Zubehöranschlußklemme im Sicherungsblock

Vers borne accessoire du porte-fusible

Naar een aansluitklem in het zekeringblok

Gray with black stripe

Grau mit schwarzem Streifen

Gris avec bande noire

Grijs met zwarte streep

White

Weiß

Blanc

Wit

White with black stripe

Weiß mit schwarzem Streifen

Blanc avec bande noire

Wit met zwarte streep

Green with black stripe

Grün mit schwarzem Streifen

Vert avec bande noire

Groen met zwarte streep

Gray

Grau

Gris

Grijs

Green

Grün

Ver t

Groen

Purple with black stripe

Lila mit schwarzem Streifen

Violet avec bande noire

Paars met zwarte streep

Purple

Lila

Violet

Paars

Rear ground terminal

Hintere Erdungscan– schlußklemme

Borne arrière de masse

Massaklem aan de achterkant

Line out (see diagram )

Schutz kappen Signalausgang (siehe Diagramm )

Sortie de ligne (voir le diagramme )

Uitgang (zie schema )

Left speaker (rear)

Linker Lautsprecher (hinten)

Enceinte gauche (arrière)

Linkerspeaker (achterin)

Right speaker (front)

Rechter Lautsprecher (vorne)

Enceinte droit (avant)

Rechterspeaker (voorin)

Left speaker (front)

Linker Lautsprecher (vorne)

Enceinte gauche (avant)

Linkerspeaker (voorin)

Right speaker (rear)

Rechter Lautsprecher (hinten)

Enceinte droit (arrière)

Rechterspeaker (achterin)

Brown

Braun

Marron

Bruin

Ignition switch

Zündschalter

Interrupteur d’allumage

Ontstekingsschakelaar

To CD changer/DAB tuner or another external component (see diagram ) (Only for KD-G801)

An CD-Wechsler/DAB-Tuner oder andere externe Komponente (siehe Diagramm ) (Nur für KD-G801)

Au changeur de CD/tuner DAB ou à un autre appareil extérieur (voir le diagramme ) (Seulement pour le KD-G801)

Naar CD-wisselaar/DAB-tuner of ander extern component (zie schema ) (Uitsluitend voor de KD-G801)

Typical Connections / Typische Anschlüsse / Raccordements typiques / Normale verbindingen

To steering wheel remote controller (see diagram )

An Lenkradfernbedienung (siehe Diagramm )

Pour la télécommande de volant (voir le diagramme )

Naar stuurwiel-afstandsbediening (zie schema )

To the remote lead of other equipment or power aerial if any (200 mA max.)

Zum Zusatzkabel des anderen Geräts oder der Motorantenne, sofern vorhanden (max. 200 mA)

Au fil de télécommande de l’autre appareil ou à l’antenne automatique s’il y en a une (200 mA max.)

Naar afstandsdraad van andere apparatuur of antenne met circuit indien aanwezig (200 mA max.)

NEDERLANDS

FRANÇAISDEUTSCHENGLISH

To SUBWOOFER (see diagram ) (Only for KD-G801)

An SUBWOOFER (siehe Diagramm ) (Nur für KD-G801)

À SUBWOOFER (voir le diagramme ) (Seulement pour le KD-G801)

Naar SUBWOOFER (zie schema ) (Uitsluitend voor de KD-G801)

Fuse position 2 / 2. Sicherungsposition /

Position de

fusible 2

/ Zekering, stand 2

Fuse position 1 / 1. Sicherungsposition /

Position de

fusible 1 /

Zekering, stand 1

Vor dem Anschließen: Die Verdrahtung im Fahrzeug sorgfältig überprüfen. Falsche Anschlüsse können ernsthafte Schäden am Gerät hervorrufen. Die Leiter des Stromkabels und die Leiter des Anschlusses im Fahrzeug können sich farblich unterscheiden.

Die farbigen Adern des Stromkabels in der Reihenfolge anschließen, wie in der Abbildung unten gezeigt.

Das Antennenkabel anschließen.

Die Kabelbäume am Gerät anschließen.

Hinweis: Verfügt Ihr Fahrzeug nicht über eine Zubehöranschlußklemme, die Sicherung von der 1. Sicherungsposition (Erstposition) in die 2. Sicherungsposition versetzen, die rote Leitung (A7) an der (+) Batterieanschlußklemme anschließen.

• Die gelbe Leitung (A4) wird in diesem Fall nicht verwendet.

Before connecting: Check the wiring in the vehicle carefully. Incorrect connection may cause serious damage to this unit. The leads of the power cord and those of the connector from the car body may be different in color.

Connect the colored leads of the power cord in the order specified in the illustration below.

Connect the aerial cord.

Finally connect the wiring harness to the unit.

Note: If your vehicle does not have any accessory terminal, move the fuse from the fuse position 1 (initial position) to fuse position 2, and connect the red lead (A7) to the positive (+) battery terminal.

• The yellow lead (A4) is not used in this case.

Avant de commencer la connexion:

Vérifiez attentivement le câblage du véhicule. Une connexion incorrecte peut endommager sérieusement l’appareil. Le fil du cordon d’alimentation et ceux des connecteurs du châssis de la voiture peuvent être différents en couleur.

Connectez les fils colorés du cordon d’alimentation dans l’ordre spécifié sur l’illustration ci-dessous.

Connectez le cordon d’antenne.

Finalement, connectez le faisceau de fils à l’appareil.

Remarque:

Si votre véhicule ne possède pas de borne accessoire, déplacez le fusible de la position de fusible 1 (position originale) à la position de fusible 2 et connectez le fil rouge (A7) à la borne positive (+) de la batterie.

• Le fil jaune (A4) n’est pas utilisé dans ce cas.

Alvorens de verbindingen tot stand te brengen: Moet u de bedrading in de auto

zorgvuldig. Het apparaat kan door verkeerde verbindingen ernstige schade oplopen. De draden van het stroomsnoer verschillen mogelijk van kleur metde aansluitingen op het chassis van de auto.

Verbind de gekleurde draden van het stroomsnoer in de afbeelding hieronder aangegeven volgorde.

Sluit de antenne aan.

Verbind de draadbundel daarna met het apparaat.

Opmerking: Als uw voertuig niet beschikt over een aansluitklem, moet u de zekering verplaatsen van stand 1 (beginstand) naar stand 2 en moet u de rode draad (A7) met de pluspool (+) van de accu verbinden.

• In dit geval wordt de gele draad (A4) niet gebruikt.

LRL

INPUT

LINE

REAR

FRONT

OUT

INPUT

You can connect an amplifier (and other equipment) to upgrade your car stereo system.

• Connect the remote lead (blue with white stripe) to the remote lead of the other equipment so that it can be controlled through this unit.

• For amplifier only:

– Disconnect the speakers from this unit,

connect them to the amplifier. Leave the speaker leads of this unit unused.

– Only for KD-G801: The line output level of

this unit is kept high to maintain the hi-fi sounds reproduced from this unit. When connecting an external amplifier to this unit, turn down the gain control on the external amplifier to obtain the best performance from this unit.

Sie können einen Verstärker (oder ein anderes Gerät anschließen), um Ihre Autostereoanlage zu erweitern.

• Schließen Sie das Fernbedienungskabel (blau mit weißem Streifen) an das Fernbedienungskabel des anderen Geräts an, so daß es über dieses Gerät gesteuert werden kann.

• Nur für den Verstärker: – Die Lautsprecher von diesem Gerät

abtrennen und am Verstärker anschließen. Die Lautsprecherleitungen dieses Geräts unbenutzt lassen.

– Nur für KD-G801: Der Ausgangspegel

dieses Geräts wird auf einem hohen Wert gehalten, um den Hifi-Klang zu unterstützen, den dieses Gerät reproduziert. Wenn Sie einen externen Verstärker an dieses Gerät anschließen, stellen Sie den Verstärkungsregler des externen Verstärkers herunter, um die bestmögliche Leistung dieses Geräts zu erzielen.

Vous pouvez connecter (un amplificateur ou autre appareil) pour améliorer votre système autoradio.

•

Connectez le fil de commande à distance (bleu avec bande blanche) au fil de commande à distance de l’autre appareil de façon qu’il puisse être commandé via cet appareil.

• Pour l’amplificateur seulement: – Déconnectez les enceintes de cet

appareil et connectez-les à l’amplificateur. Laissez les fils d’enceintes de cet appareil inutilisés.

– Seulement pour le KD-G801: Le niveau de

sortie de ligne de cet appareil est maintenu à un niveau élevé pour maintenir une qualité Hi-Fi pour les sons reproduits par cet appareil. Lors de la connexion d’un amplificateur extérieur à cet appareil, diminuez le réglage du gain sur l’amplificateur extérieur pour obtenir les meilleures performances de cet appareil.

Het is mogelijk om uw autostereosysteem uit te breiden met een versterker (of andere apparatuur).

• Verbind de externe kabel (blauw met witte streep)

met de externe kabel van het andere apparatuur zodat deze op afstand vanaf deze apparaat kan worden bediend.

• Alleen voor een versterker: – Koppel de speakers van dit apparaat los

en verbind ze aan de versterker. Gebruik de speakerdraden van dit apparaat niet.

– Uitsluitend voor de KD-G801: Het

uitgangsniveau van het geluid is hoog om het hifi-geluid van deze eenheid te behouden. Wanneer u een extern apparaat op deze eenheid aansluit, moet u erop letten dat u de versterkingsfactor van de externe versterker laag houdt, zodat deze eenheid de beste prestaties levert.

Connections Adding Other Equipment / Anschlüsse zum Hinzufügen von anderer Ausrüstung / Raccordement pour ajouter d’autres appareils / Aansluitingen voor het toevoegen van andere apparatuur

Amplifier / Verstärker / Amplificateur / Versterker

Rear speakers

Hintere Lautsprecher

Enceintes arrière

Achterspeakers

Front speakers

Vordere Lautsprecher

Enceintes avant

Voorspeakers

Signal cord (not supplied for this unit)

Einzelleitung (nicht mit diesem Gerät mitgeliefert)

Cordon de signal (non fourni avec cet appareil)

Signaalkabel (wordt niet bij dit apparaat geleverd)

Remote lead

Fernbedienungsleitung

Fil d’alimentation à distance

Afstandbedieningsdraad

*3Firmly attach the ground wire to the metallic

body or to the chassis of the car—to the place uncoated with paint (if coated with paint, remove the paint before attaching the wire). Failure to do so may cause damage to the unit.

Verbinden Sie den Erdungsleiter mit der Karosserie oder dem Rahmen des Fahrzeugs. Die Kontaktstelle darf nicht lackiert sein (sollte die Kontaktstelle lackiert sein, entfernen Sie den Lack der Kontaktstelle, bevor Sie den Leiter befestigen). Wenn der Erdungsleiter nicht ordnungsgemäß angeschlossen wird, kann dieses Gerät beschädigt werden.

Attachez solidement le fil de mise à la masse au châssis métallique de la voiture—à un endroit qui n’est pas recouvert de peinture (s’il est recouvert de peinture, enlevez d’abord la peinture avant d’attacher le fil). L’appareil peut être endommagé si cela n’est pas fait correctement.

*3Bevestig de aardedraad goed met een metalen

onderdeel of het chassis van de auto—bevestig op een niet-gelakt gedeelte (indien gelakt, schuur dan af alvorens de draad te bevestigen). Het toestel kan worden beschadigd indien de aardedraad niet goed is aangesloten.

To the remote lead of other equipment or power aerial if any

Zum Zusatzkabel des anderen Geräts oder der Motorantenne, sofern vorhanden

Au fil de télécommande de l’autre appareil ou à l’antenne automatique s’il y en a une

Naar afstandsdraad van andere apparatuur of antenne met circuit indien aanwezig

Y-connector (not supplied for this unit)

Y-Anschluß (nicht mit diesem Gerät mitgeliefert)

Connecteur Y (non fourni avec cet appareil)

Y-connector (wordt niet bij dit apparaat geleverd)

Remote lead (Blue with white stripe)

Fernbedienungsleitung (Blau mit weißem Streifen)

Fil d’alimentation à distance (Bleu avec bande blanche)

Afstandbedieningsdraad (Blauw met witte streep)

KD-G801/

KD-G701

• You can connect both components in series as illustrated above.

• Es ist möglich, beide Komponenten in einer Serienschaltung entsprechend der obigen

Darstellung anzuschließen.

•

Vous pouvez connecter les deux appareils en série comme montré ci-dessus.

• Beide apparaten zijn volgens bovenstaande illustratie in serie aan te sluiten.

KD-G801

CAUTION / VORSICHT / PRECAUTION / LET OP!:

• Before connecting the CD changer and/or the DAB tuner, make sure that the unit is turned off.

• Bevor Sie den CD-Wechsler und/oder den DAB-Tuner anschließen, vergewissern Sie sich,

daß das Gerät ausgeschaltet ist.

•

Avant de connecter le changeur CD et/ou le tuner DAB, s’assurer que l’unité est éteinte.

• Zorg ervoor dat het apparaat is uitgeschakeld alvorens u de CD-wisselaar en/of DAB-tuner aansluit.

KD-G801

JVC DAB tuner

DAB-Tuner von JVC

Tuner DAB JVC

JVC DAB-tuner

JVC CD changer

CD-Wechsler von JVC

Changeur CD JVC

JVC CD-wisselaar

oder

Connecting cord supplied for your DAB tuner or CD changer

Verbindungskabel, das zum Lieferumfang des DAB-Tuners oder CD-Wechslers gehört

Cordon de connexion fourni avec votre tuner DAB ou changeur CD

Verbindingskabel die met de DAB-tuner of CD-wisselaar wordt meegeleverd

Connecting cord supplied for your DAB tuner

Verbindungskabel, das zum Lieferumfang des DAB-Tuners gehört

Cordon de connexion fourni avec votre tuner DAB

Verbindingskabel die met de DAB-tuner wordt meegeleverd

Connecting cord supplied for your CD changer

Verbindungskabel, das zum Lieferumfang des CD-Wechsler gehört

Cordon de connexion fourni avec votre changeur CD

Verbindingskabel die met de CD-wisselaar wordt meegeleverd

CD changer and DAB tuner / CD-Wechsler und DAB-Tuner / Changeur CD et tuner DAB / CD-wisselaar en DAB-tuner

If your car is equipped with the steering wheel remote controller, you can operate this receiver using the controller. To do it, a JVC’s OE remote adapter (not supplied) which matches with your car is required. Consult your JVC IN-CAR ENTERTAINMENT dealer for details.

Wenn Ihr Fahrzeug mit einer Lenkradferndienung ausgestattet ist, können Sie damit diesen Receiver steuern. Hierfür ist ein für Ihr Fahrzeug passender Radio-Lenkrad-Fernbedienungsadaption von JVC (nicht im Lieferumfang enthalten) erforderlich. Für weitere Einzelheiten wenden Sie sich an Ihren JVC Autoradiohändler.

Si votre voiture est munie d’une télécommande de volant, vous pouvez commander cet autoradio en utilisant la télécommande. Pour le faire, un adaptateur pour télécommande au volant JVC (non fourni) correspondant à votre voiture est nécessaire. Consultez votre revendeur d’autoradio JVC pour les détails.

Indien uw auto een stuurwiel-afstandsbediening heeft, kunt u deze receiver met die afstandsbediening bedienen. Hiervoor heeft u echter een JVC adapter (niet bijgeleverd) nodig die geschikt is voor de stuurwielafstandsbediening van uw auto. Raadpleeg uw JVC car audio dealer voor details.

Steering wheel remote input

Eingang für Lenkradfernbedienung

Entrée de la télécommande de volant

Ingang stuurwiel-afstandsbediening

OE remote adapter (not supplied)

Radio-Lenkrad-Fernbedienungsadaption (nicht im Lieferumfang enthalten)

Adaptateur pour télécommande au volant (non fourni)

Adapter voor stuurwiel-afstandsbediening (niet bijgeleverd)

Steering wheel remote controller (equipped in the car)

Lenkradfernbedienung (im Fahrzeug installiert)

Télécommande de volant (installée dans la voiture)

Stuurwiel-afstandsbediening (in de auto)

Connecting to the steering wheel remote controller / Anschluß an die Lenkradfernbedienung / Connexion de la télécommande de volant / Verbinden met de stuurwiel-afstandsbediening

KD-G801/

KD-G701

External Component / Externe Komponente / Appareil extérieur / Extern apparaat

Signal cord (not supplied for this unit)

Einzelleitung (nicht mit diesem Gerät mitgeliefert)

Cordon de signal (non fourni avec cet appareil)

Signaalkabel (wordt niet bij dit apparaat geleverd)

KD-G801

*4Line Input Adapter KS-U57 (not supplied with this unit) *4Line-Eingangsadapter KS-U57 (nicht mit diesem Gerät mitgeliefert) *

Adaptateur d’entrée de ligne KS-U57 (non fourni avec cet appareil)

*4Line Input Adapter KS-U57 (wordt niet bij dit apparaat geleverd)

KS-U57 *

CD changer jack

Buchse für CD-Wechsler

Prise du changeur CD

Aansluiting voor CD-wisselaar

JVC DAB tuner

DAB-Tuner von JVC

Tuner DAB JVC

JVC DAB-tuner

JVC CD changer

CD-Wechsler von JVC

Changeur CD JVC

JVC CD-wisselaar

JVC Amplifier

JVC Verstärker

JVC Amplificateur

JVC Versterker

You can connect another power amplifier for front speakers.

Sie können einen anderen Leistungsverstärker für die vorderen Lautsprecher anschließen.

Vous pouvez connecter un autre amplificateur de puissance pour les enceintes avant.

U kunt nog een eindversterker voor de voorspeakers aansluiten.

JVC Amplifier

JVC Verstärker

JVC Amplificateur

JVC Versterker

Front speakers

Vordere Lautsprecher

Enceintes avant

Voorspeakers

External component

Externe Komponente

Appareil extérieur

Extern apparaat

Refer also to page 42 of the INSTRUCTIONS.

Siehe auch Seite 42 in der BEDIENUNGSANLEITUNG.

Référez-vous aussi à la page 42 du MANUEL D’INSTRUCTIONS.

Zie tevens bladzijde 42 van de GEBRUIKSAANWIJZING.

Only for KD-G801 / Nur für KD-G801 /

Seulement pour le KD-G801

/ Uitsluitend voor de KD-G801

Only for KD-G801 / Nur für KD-G801 /

Seulement pour le KD-G801

/ Uitsluitend voor de KD-G801

Subwoofer / Subwoofer / Caisson de grave / Subwoofer

You can connect a subwoofer through an amplifier to reinforce the bass.

• For their connections, refer to the instructions supplied with your subwoofer.

Sie können einen Subwoofer über einen Verstärker anschließen, um den Bass zu verstärken.

• Sehen Sie die mit Ihrem Subwoofer mitgelieferten Anweisungen bzgl. der Anschlüsse.

Vous pouvez connecter un caisson de grave par un amplificateur pour renforcer les graves.

•

Pour la connexion, référez-vous aux instructions fournies avec le caisson de grave.

U kunt een subwoofer via een versterker aansluiten om de weergave van de lage tonen te versterken.

• Zie de bij de subwoofer geleverde aanwijzingen voor het verbinden.

Subwoofer

Caisson de grave

Subwoofer

KD-G801

Only for KD-G801 / Nur für KD-G801 /

Seulement pour le KD-G801

/ Uitsluitend voor de KD-G801

Signal cord (not supplied for this unit)

Einzelleitung (nicht mit diesem Gerät mitgeliefert)

Cordon de signal (non fourni avec cet appareil)

Signaalkabel (wordt niet bij dit apparaat geleverd)

JVC Amplifier

JVC Verstärker

JVC Amplificateur

JVC Versterker

SUBWOOFER OUT

SUBWOOFER OUT (Sortie de caisson de grave)

SUBWOOFER OUT

CD RECEIVER

ENGLISH

РЕСИВЕР С ПРОИГРЫВАТЕЛЕМ КОМПАКТ-ДИСКОВ

KD-G807

SOUND

ATT

SOURCE

VOL

В соответствии с Законом Российской Федерации “О защите прав потребителей” срок службы (годности) данного товара “по истечении которого он может представлять опасность для жизни, здоровья потребителя, причинять вред его имуществу или окружающей среде” составляет семь (7) лет со дня производства. Этот срок является временем, в течение которого потребитель данного товара может безопасно им пользоваться при условии соблюдения инструкции по эксплуатации данного товара, проводя необходимое обслуживание, включающее замену расходных материалов и/или соответствующее ремонтное обеспечение в специализированном сервисном центре.

For installation and connections, refer to the separate manual.

Указания по установке и выполнению соединений приводятся в отдельной

Дополнительные косметические материалы к данному товару, поставляемые вместе с ним, могут храниться в течение двух (2) лет со дня его производства.

Срок службы (годности), кроме срока хранения дополнительных косметических материалов, упомянутых в предыдущих двух пунктах, не затрагивает никаких других прав потребителя, в частности, гарантийного свидетельства JVC, которое он может получить в соответствии с законом о правах потребителя или других законов, связанных с ним.

инструкции.

• This unit is equipped with the display demonstration. To cancel it, see page 8.

• Данное устройство имеет функцию демонстрации на экране дисплея. Порядок ее отмены

смотрите на странице 8.

KD-G807

РУCCKИЙ

INSTRUCTIONS

ИНСТРУКЦИИ ПО ЭКСПЛУАТАЦИИ

GET0200-001A

[EE]

IMPORTANT FOR LASER PRODUCTS

1. CLASS 1 LASER PRODUCT

2. CAUTION: Do not open the top cover. There are no user serviceable parts inside the unit; leave all servicing to qualified service personnel.

3. CAUTION: Visible and invisible laser radiation when open and interlock failed or defeated. Avoid

ENGLISH

direct exposure to beam.

4. REPRODUCTION OF LABEL: CAUTION LABEL, PLACED OUTSIDE THE UNIT.

How to reset your unit

Press the reset button on the control panel using a ball-point pen or similar tool. This will reset the built-in microcomputer.

Note:

Your preset adjustments—such as preset channels or sound adjustments—will also be erased.

CAUTION:

NEVER insert your finger in between the control panel and the unit, as it may get caught or hurt. (See page 40.)

How to use the MODE button

If you press MODE, the unit goes into functions mode, then the number buttons and 5/∞ buttons work as different function buttons.

Ex.: When number button 2 works as MO (monaural) button.

To use these buttons for original functions again after pressing MODE, wait for 5 seconds without pressing any of these buttons until the functions mode is cleared.

• Pressing MODE again also clears the functions mode.

Time countdown indicator

Thank you for purchasing a JVC product. Please read all instructions carefully before operation,

to ensure your complete understanding and to obtain the best possible performance from the unit.

CONTENTS

How to reset your unit ............................... 2

How to use the MODE button ................... 2

LOCATION OF THE BUTTONS ............ 4

Control panel ............................................. 4

Remote controller ...................................... 5

Preparing the remote controller ................ 6

BASIC OPERATIONS ....................... 7

Turning on the power ................................ 7

Canceling the display demonstration ........ 8

Setting the clock ........................................ 9

RADIO OPERATIONS ...................... 10

Listening to the radio ................................. 10

Storing stations in memory ....................... 11

Tuning in to a preset station ...................... 13

RDS OPERATIONS ......................... 14

What you can do with RDS ....................... 14

Other convenient RDS functions and

adjustments ............................................ 19

CD OPERATIONS ........................... 21

Playing a CD ............................................. 21

Locating a track or a particular portion

on a CD .................................................. 22

Selecting CD playback modes .................. 23

Playing a CD Text ...................................... 24

Prohibiting disc ejection ............................ 24

MP3/WMA INTRODUCTION .............. 25

What are MP3/WMA? ............................... 25

How are MP3/WMA files recorded and

played back? .......................................... 25

SOUND ADJUSTMENTS ................... 31

Adjusting the sound .................................. 31

Selecting preset sound modes

(iEQ: intelligent equalizer) ...................... 32

Storing your own sound adjustments ........ 33

OTHER MAIN FUNCTIONS ................ 34

Changing the general settings (PSM) ....... 34

Assigning names to CDs ........................... 39

Changing the control panel angle ............. 40

Detaching the control panel ...................... 41

CD CHANGER OPERATIONS .............. 42

Playing discs ............................................. 42

Selecting the playback modes .................. 45

EXTERNAL COMPONENT OPERATIONS ... 47

Playing an external component ................. 47

DAB TUNER OPERATIONS ................ 48

Tuning in to an ensemble and one of the

services .................................................. 48

Storing DAB services in memory .............. 49

Tuning in to a preset DAB service ............. 50

What you can do more with DAB .............. 51

ADDITIONAL INFORMATION ............. 52

TROUBLESHOOTING ...................... 53

MAINTENANCE ............................. 56

Handling discs ........................................... 56

SPECIFICATIONS ........................... 57

ENGLISH

MP3/WMA OPERATIONS .................. 26

Playing a disc ............................................ 26

Locating a file or a particular portion

on a disc ................................................. 27

Selecting the playback modes .................. 29

BEFORE USE

*For safety....

• Do not raise the volume level too much, as this will block outside sounds, making driving dangerous.

• Stop the car before performing any complicated operations.

*Temperature inside the car....

If you have parked the car for a long time in hot or cold weather, wait until the temperature in the car becomes normal before operating the unit.

Control panel

Display window

ENGLISH

LOCATION OF THE BUTTONS

KD-G807

1 Remote sensor 2 (standby/on attenuator) button 3 DISP (display) button 4 SEL (select) button 5 Control dial 6 Display window 7 TP/PTY (traffic programme/programme type)

button

8 0 (eject) button

(angle) button

9 5 (up) button

+10 button

p MODE button q CD/CD-CH (CD changer) button w FM/AM DAB button e Reset button r EQ (equalizer) button t MO (monaural) button y SSM (Strong-station Sequential Memory)

button

u INT (intro) button i RPT (repeat) button o RND (random) button ; Number buttons a 4 / ¢ buttons s (control panel release) button

d ∞ (down) button

–10 button

Display window

f Disc information indicators— (track/file),

TAG (ID3 Tag), (folder)

g MP3 indicator h CH (CD changer) indicator j CD indicator k LINE indicator l WMA indicator / Main display z RDS indicators—TP, PTY, AF, REG x Equalizer pattern indicator

Audio level indicator

c EQ (equalizer) indicator v FM band indicators—FM1, FM2, FM3 b AM band indicator n Tuner reception indicators—ST (stereo), MO

(monaural)

m Play mode indicators— (folder), (disc),

RND (random), INT (intro), RPT (repeat)

, TRACK indicator . Source/clock display P LOUD (loudness) indicator Q Audio level indicator

Volume level indicator

Remote controller

SOURCE

SOUND

VOL

ATT

VOL

1 • Turns on the unit if pressed when the unit is

turned off.

• Turns off the unit if pressed and held until “SEE YOU” appears on the display.

• Drops the volume level in a moment if

pressed briefly. Press again to resume the volume.

2 • Selects the band while listening to the radio

(or the DAB tuner). Each time you press the button, the band changes.

• Skips to the first file of the next folder while listening to an MP3 or a WMA disc. Each time you press the button, you can move to the next folder and start playing the first file.

• While playing an MP3 disc on an MP3compatible CD changer;

– Skips to the next disc if pressed briefly. – Skips to the next folder if pressed and

held.

Note:

While playing a CD on a CD changer, this always skips to the next disc.

3 • Selects the preset stations (or services)

while listening to the radio (or the DAB tuner). Each time you press the button, the preset station (or service) number increases, and the selected station (or service) is tuned in.

• Skips to the first file of the previous folder while listening to an MP3 or a WMA disc. Each time you press the button, you can move to the previous folder and start playing the first file.

• While playing an MP3 disc on an MP3compatible CD changer; – Skips to the previous disc if pressed

briefly.

– Skips to the previous folder if pressed and

held.

Note:

While playing a CD on a CD changer, this always skips to the previous disc.

4 Functions the same as the control dial on the

main unit.

Note:

These buttons do not function for the preferred setting mode (PSM) adjustment.

5 Selects the sound mode (iEQ: intelligent

equalizer). Each time you press the button, the sound mode (iEQ) changes.

6 Selects the source.

Each time you press the button, the source changes.

7 • Searches for stations while listening to the

radio.

• Selects services while listening to the DAB tuner if pressed briefly.

• Searches for ensembles while listening to the DAB tuner if pressed and held.

• Fast-forwards or reverses the track/file if pressed and held while listening to a disc.

• Skips to the beginning of the next track/file or goes back to the beginning of the current (or previous) tracks/files if pressed briefly while listening to a disc.

ENGLISH

Preparing the remote controller

Before using the remote controller:

• Aim the remote controller directly at the remote sensor on the main unit. Make sure there is no

ENGLISH

obstacle in between.

Remote sensor

• Do not expose the remote sensor to strong light (direct sunlight or artificial lighting).

Installing the battery

When the controllable range or effectiveness of the remote controller decreases, replace the battery.

1. Remove the battery holder.

1) Push out the battery holder in the direction indicated by the arrow using a ball-point pen or a similar tool.

2) Remove the battery holder.

(back side)

3. Return the battery holder.

Insert again the battery holder by pushing it until you hear a clicking sound.

(back side)

WARNING:

• Store the battery in a place where children cannot reach. If a child accidentally swallows the battery, consult a doctor immediately.

• Do not recharge, short, disassemble, or heat the battery or dispose of it in a fire. Doing any of these things may cause the battery to give off heat, crack, or start a fire.

• Do not leave the battery with other metallic materials. Doing this may cause the battery to give off heat, crack, or start a fire.

• When throwing away or saving the battery, wrap it in tape and insulate; otherwise, the battery may start to give off heat, crack, or start a fire.

• Do not poke the battery with tweezers or similar tools. Doing this may cause the battery to give off heat, crack, or start a fire.

2. Place the battery.

Slide the battery into the holder with the + side facing upwards so that the battery is fixed in the holder.

CAUTION:

DO NOT leave the remote controller in a place (such as dashboards) exposed to direct sunlight for a long time. Otherwise, it may be damaged.

Lithium coin battery (product number: CR2025)

BASIC OPERATIONS

ENGLISH

Turning on the power

Turn on the power.

Note on One-Touch Operation:

When you select a source in step 2 below, the power automatically comes on. You do not have to press this button to turn on the power.

Select the source.

To operate the tuner (FM or AM),

see pages 10 – 20.

To play a CD,

see pages 21 – 24.

To play an MP3/WMA disc,

see pages 26 – 30.

To operate the CD changer,

see pages 42 – 46.

To operate the external component

(LINE IN), see page 47.

To operate the DAB tuner,

see pages 48 – 51.

Volume level appears.

Volume level indicator

Adjust the sound as you want. (See pages 31 – 33.)

To drop the volume in a moment

Press briefly while listening to any source. “ATT” starts flashing on the display, and the volume level will drop in a moment. To resume the previous volume level, press the button briefly again.

• If you turn the control dial, you can also restore the sound.

To turn off the power

Press and hold for more than one second.

“SEE YOU” appears, then the unit turns off.

• If you turn off the power while listening to a

disc, disc play will start from where playback has been stopped previously, next time you turn on the power.

Adjust the volume.

To increase the volume

To decrease the volume

CAUTION on Volume Setting:

ENGLISH

Canceling the display demonstration

When shipped from the factory, display demonstration has been activated, and starts automatically when no operations are done for about 20 seconds.

• It is recommended to cancel the display demonstration before you use the unit for the first time.

To cancel the display demonstration, follow the procedure below:

Press and hold SEL (select) for more than 2 seconds so that one of the PSM items appears on the display. (PSM: see pages 34 and 35.)

Select “DEMO OFF.”

Finish the setting.

DEMO OFF

DEMO ON

Select “DEMO MODE” if not shown on the display.

To activate the display demonstration, repeat the same procedure and select “DEMO ON” in step 3.

ENGLISH

Setting the clock

You can also set the clock system to either 24 hours or 12 hours.

Press and hold SEL (select) for more than 2 seconds so that one of the PSM items appears on the display. (PSM: see pages 34 and 35.)

Set the hour.

1 Select “CLOCK HOUR” if not shown on

the display.

2 Adjust the hour.

Set the clock system.

1 Select “CLOCK24H/12H.” 2 Select “CLOCK 24HOUR” or “CLOCK

12HOUR.”

Finish the setting.

Note:

To show the clock time on the display, see page 36.

Set the minute.

1 Select “CLOCK MINUTE.” 2 Adjust the minute.

To check other information during play, press DISP (display).

Each time you press the button, the other information will be shown on the lower part of the display. (See page 36 for details.)

• Pressing DISP (display) with the unit turned off will show the clock time for about 5 seconds.

ENGLISH

RADIO OPERATIONS

Listening to the radio

You can use either automatic searching or manual searching to tune in to a particular station.

Searching for a station automatically: Auto search

Select the band (FM1 – 3, AM).

Each time you press the button, the band changes as follows:

FM 1

(F1)

Lights up when receiving an FM stereo broadcast with sufficient signal strength.

* When “CLOCK DISP” is set to “CLK DISP

ON” (see page 36), the current indication will soon change to the clock time.

FM 2

(F2)

Selected band appears*.

FM 3

(F3)

A M

(A1)

Start searching for a station.

To search for stations of higher frequencies

To search for stations of lower frequencies

When a station is received, searching stops.

To stop searching before a station is received, press the same button you have

pressed for searching.

Note:

FM1 and FM2: 87.5 MHz – 108.0 MHz

FM3: 65.00 MHz – 74.00 MHz

Searching for a station manually: Manual search

Select the band (FM1 – 3, AM).

Each time you press the button, the band changes as follows:

FM 1

(F1)

FM 2

(F2)

FM 3

(F3)

A M

(A1)

Note:

This receiver has three FM bands (FM1, FM2, FM3). You can use any one of them to listen to an FM broadcast.

Note:

This receiver has three FM bands (FM1, FM2, FM3). You can use any one of them to listen to an FM broadcast.

Press and hold ¢ or 4 until “M” (manual) starts flashing on the display.

Tune in to a station you want while “M” (manual) is still flashing.

To tune in to stations of higher frequencies

To tune in to stations of lower frequencies

• If you release your finger from the button, the manual mode will automatically turns off after 5 seconds.

• If you hold down the button, the frequency

keeps changing—in 50 kHz intervals (87.5 MHz – 108.0 MHz for FM 1 and FM 2), in 30 kHz intervals (65.00 MHz –

74.00 MHz for FM 3) and 9 kHz for AM —MW/LW until you release the button.

When an FM stereo broadcast is hard to receive:

1 Press MODE to enter the

functions mode while listening to an FM stereo broadcast.

2 Press MO (monaural), while

“MODE” is still on the display, so that “MONO” appears on the display. Each time you press the button, the monaural mode turns on and off alternately.

MO (monaural) indicator

When the MO indicator is lit on the display, the sound you hear becomes monaural but the reception will be improved.

Storing stations in memory

You can use one of the following two methods to store broadcasting stations in memory.

• Automatic preset of FM stations: SSM (Strongstation Sequential Memory)

• Manual preset of both FM and AM stations

ENGLISH

FM station automatic preset: SSM

You can preset 6 local FM stations in each FM band (FM1, FM2, and FM3).

Select the FM band (FM1 – 3) you want to store FM stations into.

Each time you press the button, the band changes as follows:

FM 1

(F1)

CONTINUED ON THE NEXT PAGE

FM 2

(F2)

FM 3

(F3)

A M

(A1)

Press MODE to enter the functions mode.

Manual preset

You can preset up to 6 stations in each band (FM1, FM2, FM3, and AM) manually.

ENGLISH

Press and hold SSM for about 2 seconds.

“SSM” appears, then disappears when automatic preset is over.

Ex.: Storing FM station of 92.5 MHz into the

preset number 1 of the FM1 band.

Select the band (FM1 – 3, AM) you want to store stations into (in this example, FM1).

Each time you press the button, the band changes as follows:

FM 1

(F1)

Tune in to a station (in this example, of 92.5 MHz).

To tune in to stations of lower frequencies

FM 2

(F2)

FM 3

(F3)

To tune in to stations of higher frequencies

A M

(A1)

Press and hold the number button (in this example, 1) for more than 2 seconds.

Tuning in to a preset station

You can easily tune in to a preset station. Remember that you must store stations first. If you have not stored them yet, see “Storing stations in memory” on pages 11 – 13.

ENGLISH

Preset number flashes for a while.

Repeat the above procedure to store other stations into other preset numbers.

Notes:

• A previously preset station is erased when a new station is stored in the same preset number.

• Preset stations are erased when the power supply to the memory circuit is interrupted (for example, during battery replacement). If this occurs, preset the stations again.

Select the band (FM1 – 3, AM).

Each time you press the button, the band changes as follows:

FM 1

(F1)

Select the number (1 – 6) for the preset station you want.

FM 2

(F2)

FM 3

(F3)

A M

(A1)

RDS OPERATIONS

What you can do with RDS

RDS (Radio Data System) allows FM stations to send an additional signal along with their regular programme signals. For example, the stations

ENGLISH

By receiving the RDS data, this unit can do the following:

• Tracing the same programme automatically (Network-Tracking Reception)

• Standby Reception of TA (Traffic Announcement) or your favorite programme

• PTY (Programme Type) search

• Programme search

• And some other functions

Tracing the same programme automatically (Network-Tracking Reception)

To use Network-Tracking Reception

You can select the different modes of networktracking reception to continue listening to the same programme in its finest reception. When shipped from the factory, “AF ON” is selected.

• AF OFF: Network-Tracking Reception is deactivated. Neither the AF indicator nor the REG indicator lights up.

AF and REG indicators

Note:

Press and hold SEL (select) for more than 2 seconds so that one of the PSM items appears on the display. (PSM: see pages 34 and 35.)

Select “AF-REG” (alternative frequency/regionalization reception) if not shown on the display.

Select the desired mode—“AF ON,” “AF REG,” or “AF OFF.”

Finish the setting.

Using TA Standby Reception

TA Standby Reception allows the unit to switch temporarily to Traffic Announcement (TA) from the current source (another FM station, CD, or other connected components).

• TA Standby Reception will not work if you are listening to an AM station.

Press TP/PTY to activate TA Standby Reception.

7 When the current source is FM, the TP

indicator either lights up or flashes.

• If the TP indicator lights up, TA Standby

• If the TP indicator flashes, TA Standby

ENGLISH

7 When the current source is other than FM,

the TP indicator lights up. If a station starts broadcasting a traffic announcement, “TRAFFIC” appears on the display, and this unit automatically changes the source and tunes in to the station.

To deactivate the TA Standby Reception,

press TP/PTY again. The TP indicator disappears.

Using PTY Standby Reception

PTY Standby Reception allows the unit to switch temporarily to your favorite programme (PTY: Programme Type) from the current source

ENGLISH

(another FM station, CD, or other connected components).

Finish the setting.

• PTY Standby Reception will not work if you are listening to an AM station.

You can select your favorite programme type for PTY Standby Reception. When shipped from the factory, PTY Standby Reception is turned off. (“OFF” is selected for PTY Standby Reception.)

Press and hold SEL (select) for more than 2 seconds so that one of the PSM items appears on the display. (PSM: see pages 34 and 35.)

Select “PTY STANDBY” if not shown on the display.

7 When the current source is FM, the PTY

indicator either lights up or flashes.

• If the PTY indicator lights up, PTY Standby Reception is activated. If a station starts broadcasting the selected PTY programme, this unit automatically tunes in to the station.

7 When the current source is other than FM,

the PTY indicator lights up. If a station starts broadcasting the selected PTY programme, this unit automatically changes the source and tunes in to the station.

Select one of the twenty-nine PTY codes. (See page 20.)

Selected code name appears on the display and is stored into memory.

To deactivate the PTY Standby Reception,

select “OFF” in step 3 on the left column. The PTY indicator disappears.

Searching your favorite programme

To store your favorite programme types, see below.

To search for your favorite programme type,

see page 18.

POP M

CLASSICS

ROCK M EASY M

AFFAIRS

To store your favorite programme types

VARIED

Press and hold the number button for more than 2 seconds to store the PTY code selected into the preset number you want.

Ex.: When you select “FOLK M”

Press and hold TP/PTY for more than 2 seconds to exit from this mode.

ENGLISH

Press and hold TP/PTY for more than 2 seconds while listening to an FM station.

The last selected PTY code appears.

Select one of the twenty-nine PTY codes. (See page 20.)

Selected code name appears on the display.

To search for your favorite programme type

Press and hold TP/PTY for more

ENGLISH

than 2 seconds while listening to an FM station.

The last selected PTY code appears.

To select one of your favorite programme type

Press ¢ or 4 to start PTY search for your favorite programme.

• If there is a station broadcasting a programme of the same PTY code as you selected, that station is tuned in.

• If there is no station broadcasting a programme of the same PTY code as you selected, the station will not change.

Note:

In some areas, the PTY search will not work correctly.

To select any one of the twenty-nine PTY codes

Preset number appears only if you select a PTY code using the number buttons.

Ex.: When “ROCK M” is selected

Other convenient RDS

Setting the TA volume level

functions and adjustments

Automatic selection of the station when using the number buttons

• The unit takes some time to tune in to another station using programme search.

To activate programme search, follow the procedure below.

• See also “Changing the general settings (PSM)” on pages 34 and 35.

1 Press and hold SEL (select) for more than

2 seconds so that one of the PSM items appears on the display.

2 Press ¢ or 4 to select

“P(Programme)-SEARCH.”

3 Turn the control dial clockwise to select

“SEARCH ON.” Now programme search is activated.

4 Press SEL (select) to finish the setting.

To cancel programme search, repeat the same

procedure and select “SEARCH OFF” in step 3 by turning the control dial counterclockwise.

You can preset the volume level for TA Standby Reception. When a traffic programme is received, the volume level automatically changes to the preset level.

• See also “Changing the general settings (PSM)” on pages 34 and 35.

1 Press and hold SEL (select) for more than

2 seconds so that one of the PSM items appears on the display.

2 Press ¢ or 4 to select “TA

VOLUME”.

3 Turn the control dial to set to the desired

volume. You can set it from “VOL 00” to “VOL 30” or “VOL 50” (depending on the amplifier gain control setting: see page 38).

4 Press SEL (select) to finish the setting.

Automatic clock adjustment

• See also “Changing the general settings (PSM)” on pages 34 and 35.

1 Press and hold SEL (select) for more than

2 seconds so that one of the PSM items appears on the display.

2 Press ¢ or 4 to select “AUTO

ADJUST”.

3 Turn the control dial counterclockwise to select

“ADJUST OFF.” Now automatic clock adjustment is canceled.

4 Press SEL (select) to finish the setting.

ENGLISH

To reactivate clock adjustment, repeat the same procedure and select “ADJUST ON” in step 3 by turning the control dial clockwise.

Note:

PTY codes

NEWS: News AFFAIRS: Topical programmes expanding

ENGLISH

INFO: Programmes which impart

SPORT: Sport events EDUCATE: Educational programmes DRAMA: Radio plays CULTURE: Programmes on national or

SCIENCE: Programmes on natural science

VARIED: Other programmes like comedies

CHILDREN: Entertainment programmes for

on current news or affairs

advice on a wide variety of topics

regional culture

and technology

or ceremonies

the Stock Market, etc.

children

SOCIAL: Programmes on social

activities

RELIGION: Programmes dealing with any

aspect of belief or faith, or the nature of existence or ethics

PHONE IN: Programmes where people can

express their views either by phone or in a public forum

TRAVEL: Programmes about travel

destinations, package tours, and travel ideas and opportunities

LEISURE: Programmes concerned with

recreational activities such as gardening, cooking, fishing,

etc. JAZZ: Jazz music COUNTRY: Country music NATION M: Current popular music from

another nation or region, in that

country’s language OLDIES: Classic pop music FOLK M: Folk music DOCUMENT: Programmes dealing with

factual matters, presented in an

investigative style

The same programme can be received on different frequencies.

Programme 1 broadcasting on frequency A

Programme 1 broadcasting on frequency B

Programme 1 broadcasting on frequency C

Programme 1

broadcasting on

frequency E

Programme 1 broadcasting on frequency D

CD OPERATIONS

ENGLISH

Refer to “MP3/WMA OPERATIONS” on pages 26 to 30 for operating MP3/WMA discs.

Playing a CD

Open the control panel.

Note on One-Touch Operation:

When a CD is already in the loading slot, pressing CD/CD-CH turns on the unit and starts playback automatically.

Insert a CD into the loading slot.

The unit draws the CD, the control panel goes back to the previous position (see page 40), and playback starts automatically.

All tracks will be played repeatedly until you stop playback.

The display changes to show the following:

CD indicator

Total playing time of the inserted disc

Elapsed playing time

* When “CLOCK DISP” is set to “CLK DISP ON”

(see page 36), the current indication will soon change to the clock time.

Notes:

• When a CD is inserted upside down, the control panel moves down, the CD automatically ejects from the loading slot. The source changes to the previously selected source.

• If there is no CD in the loading slot, you cannot select CD as the source.

• If the current disc is a CD Text, disc title/performer and then track title will automatically appear.

Current source indication*

Total track number of the inserted disc

Current track number

To stop play and eject the CD

Press 0. CD play stops and the control panel moves down. The CD automatically ejects from the loading slot.

ENGLISH

To return the control panel to its previous position, press 0 again.

To go to the next or previous tracks

Press ¢ briefly, while playing a CD, to go ahead to the beginning of the next track. Each time you press the button consecutively, the beginning of the next tracks is located and played back.

Press 4 briefly, while playing a CD, to go back to the beginning of the current track. Each time you press the button consecutively, the beginning of the previous tracks is located and played back.

To go to a particular track directly

Press the number button corresponding to the track number to start its playback.

Notes:

• If the ejected disc is not removed for about 15 seconds, the disc is automatically inserted again into the loading slot to protect it from dust. (Disc play will not start this time.)

• You can eject the disc even when the unit is turned off.

Locating a track or a particular portion on a CD

To fast-forward or reverse the track

Press and hold ¢, while playing a CD, to fastforward the track.

Press and hold 4 , while playing a CD, to reverse the track.

• To select a track number from 1 – 6: Press 1 (7) – 6 (12) briefly.

• To select a track number from 7 – 12: Press and hold 1 (7) – 6 (12) for more than one second.

To go to a track quickly (+10 and –10 buttons)

1 Press MODE to enter the functions mode

while playing a CD.

2 Press +10 or –10.

To skip 10 tracks* forwards to the last track

To skip 10 tracks* backwards to the first track

* First time you press +10 or –10 button, the

track skips to the nearest higher or lower track with a track number of multiple ten (ex.

10th, 20th, 30th). Then each time you press the button, you can skip 10 tracks (see “How to use the +10 and –10 buttons” on page 23).

• After the last track, the first track will be

selected, and vice versa.

How to use the +10 and –10 buttons

• Ex. 1: To select track number 32 while playing track number 6

To play back tracks repeatedly (Track Repeat Play)

You can play back the current track repeatedly.

1 Press MODE to enter the

functions mode while playing a CD.

ENGLISH

(Three times)

Track 6 \ 10 \ 20 \ 30 \ 31 \ 32

• Ex. 2: To select track number 8 while playing track number 36

(Three times) (Twice)

Track 36 \ 30 \ 20 \ 10 \ 9 \ 8

(Twice)

Selecting CD playback modes

To play back tracks at random (Disc Random Play)

You can play back all tracks on the CD at random.

1 Press MODE to enter the

functions mode while playing a CD.

2 Press RPT (repeat), while

“MODE” is still on the display, so that “TRK RPT” appears on the display. Each time you press the button, track repeat play mode turns on and off alternately.

RPT indicator

When track repeat play is turned on, the RPT indicator lights up on the display. The current track starts playing repeatedly.

To play back only intros (Track Intro Scan)

You can play back the first 15 seconds of each track sequentially.

1 Press MODE to enter the

functions mode while playing a CD.

2 Press RND (random), while

“MODE” is still on the display, so that “DISC RND” appears on the display. Each time you press the button, disc random play mode turns on and off alternately.

(disc) and RND indicators

When disc random play is turned on, the and RND indicators light up on the display. A track randomly selected starts playing.

2 Press INT (intro), while “MODE”

is still on the display, so that “TRK INT” appears on the display. Each time you press the button, track intro scan mode turns on and off alternately.

INT indicator

When track intro scan is turned on, the INT indicator lights up on the display. The first 15 seconds of each track is played sequentially.

Playing a CD Text

Prohibiting disc ejection

In a CD Text, some information about the disc (its disc title, performer, and track title) is recorded. This CD Text information will be shown

ENGLISH

automatically when you play a CD Text.

To change the CD Text information manually, select text display mode while playing a CD Text.

Press DISP (display) repeatedly. Each time you press the button, the display changes as follows:

Disc title / performer

Track title

( lights up on the display)

Elapsed playing time and

Current track number

Notes:

• If no name is assigned to the CD, “NO NAME” will appear. To assign a name to an audio CD, see page

39.

• If no disc title/performer or no track title is recorded for the CD Text, “NO NAME” will appear.

• When track title is shown, TRACK indicator and current track number also appear on the lower part of the display.

You can prohibit disc ejection and can lock a disc in the loading slot.

While pressing CD/CD-CH, press and hold for more than 2 seconds.

“NO EJECT” flashes on the display for about 5 seconds, and the disc is locked and cannot be ejected.

To cancel the prohibition and unlock the disc

While pressing CD/CD-CH, press and hold

again for more than 2 seconds. “EJECT OK” flashes on the display for about 5 seconds, and the disc is unlocked.

MP3/WMA INTRODUCTION

What are MP3/WMA?

MP3 is an abbreviation of Motion Picture Experts Group (or MPEG) Audio Layer 3. MP3 is simply a file format with a data compression ratio of 1:10 (128 Kbps*).

WMA (Windows Media® Audio) is the digital audio compression format developed by Microsoft Corporation.

* Bit rate is the average number of bits that one

second of audio data will consume. The unit used is Kbps. To get a better audio quality, choose a higher bit rate. The most popular bit rate for encoding is 128 Kbps.

• For details information about the MP3/WMA discs, refer to “A Guide to MP3/WMA” (separate volume).

Compatible with ID3 Tag

Extra information data such as album title, performer name, song title, recording year, music genre and a brief comment can be stored within an MP3/WMA file.

How are MP3/WMA files recorded and played back?

The illustration below shows an example of how MP3/WMA files are recorded on a CD-R or CD-RW, how they are played back, and how they are searched for on this unit.

Notes:

• This unit cannot read or play an MP3 file without the extension code <.mp3> and a WMA track without the extension code <.wma>.

• This unit is not compatible with MP3 files encoded with Layer 1 and Layer 2 formats.

• This unit is not compatible with WMA files which are not based upon Windows Media® Audio.

• This unit is not compatible with Playlist**.

ENGLISH

This unit can show both ID3v1 (Version 1) and ID3v2 (Version 2) tags on the display. (See page

27.)

• Some characters cannot be shown correctly.

• If both ID3v1 and ID3v2 are recorded on a disc, ID3v2 information will be shown.

Hierarchy

Level 1 Level 2 Level 3 Level 4 Level 5

ROOT

02 03

**A playlist is a simple text file, used on a PC, which

enables users to make their own playback order without physically rearranging the files.

: Folder and their playback

order

: MP3/WMA files and their

playback order

• Microsoft and Windows Media are either registered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries.

ENGLISH

MP3/WMA OPERATIONS

Refer also to “CD OPERATIONS” on pages 21 to 24.

Playing a disc

Open the control panel.

Note on One-Touch Operation:

When a disc is already in the loading slot, pressing CD/CD-CH turns on the unit and starts playback automatically.

Insert a disc into the loading slot.

The unit draws the disc, the control panel goes back to the previous position (see page 40), and playback starts automatically.

All files will be played repeatedly until you stop playback.

The display changes to show the following:

CD indicator

Total folder number

MP3 or WMA indicator*

Ex.: When the disc contains 19 folders

and 144 MP3/WMA files

*1When “CLOCK DISP” is set to “CLK DISP ON”

(see page 36), the current indication will soon change to the clock time.

*2WMA or MP3 indicator lights up depending on the

first detected file.

Current source indication*

Total file number

Notes:

• MP3/WMA discs require a longer readout time. (It differs due to the complexity of the folder/file configuration.)

• When playback starts, folder and file names (or ID3 tags) will automatically appear. (See also page 27.)

To stop play and eject the disc

Press 0. Playback stops and the control panel moves down. The disc automatically ejects from the loading slot.

To change the display information

While playing back an MP3/WMA file, you can change the disc information shown on the display.

Press DISP (display) repeatedly. Each time you press the button, the display changes to show the following:

Notes:

• The display shows up to 12 characters at a time and scrolls if there are more than 12 characters. See also “To select the scroll mode—SCROLL MODE” on page 37.

• When file name is shown, TRACK indicator and current file number also appear on the lower part of the display.

Locating a file or a particular portion on a disc

To fast-forward or reverse the file

ENGLISH

• When “TAG DISPLAY” is set to “TAG DISP ON” (initial setting: see page 38)

Album name / performer

(folder name*)

( lights up on the display)

Track title (file name*)

( lights up on the display)

Elapsed playing time and

Current file number

* If ID3 tags are not recorded, folder name and file

name appear. In this case, the TAG indicator will not light up on the display.

• When “TAG DISPLAY” is set to “TAG DISP OFF”

Press and hold ¢ while playing a disc, to fastforward the file.

Press and hold 4 while playing a disc, to reverse the file.

Note:

During this operation, you can only hear intermittent sounds. (The elapsed playing time also changes intermittently on the display.)

To skip to the next or previous files

Press ¢ briefly while playing, to skip ahead to the beginning of the next file. Each time you press the button consecutively, the beginning of the next files is located and played back.

Folder name

( lights up on the display)

File name

( lights up on the display)

Elapsed playing time and

Current file number

Press 4 briefly while playing, to skip back to the beginning of the current file. Each time you press the button consecutively, the beginning of the previous files is located and played back.

To go to a particular file quickly within the current folder (+10 and –10 buttons)

1 Press MODE to enter the functions mode

while playing a disc.

ENGLISH

2 Press +10 or –10.

To skip 10 files* forwards to the last file

To skip 10 files* backwards to the first file

To go to a particular folder directly

IMPORTANT:

= Press 1 to go to Folder 01 ABC.

If folder name is “1 ABC,” pressing 1 does not work.

If folder name is “12 ABC” = Press and hold 6 (12) to go to Folder

12 ABC.

* First time you press +10 or –10 button, the

file skips to the nearest higher or lower file with a file number of multiple ten (ex. 10th,

20th, 30th). Then each time you press the button, you can skip 10 files (see “How to use the +10 and

–10 buttons” below).

• After the last file, the first file will be

selected, and vice versa.

How to use the +10 and –10 buttons

• Ex. 1: To select file number 32 while playing file number 6

(Three times) (Twice)

File 6 \ 10 \ 20 \ 30 \ 31 \ 32

• Ex. 2 : To select file number 8 while playing file number 36

Press the number button corresponding to the folder number to start playing the first file in the selected folder.

• To select a folder number from 01 – 06: Press 1 (7) – 6 (12) briefly.

• To select a folder number from 07 – 12: Press and hold 1 (7) – 6 (12) for more than one second.

Notes:

• If indicator flashes on the display after you have selected a folder, it means that the folder does not contain any MP3/WMA files.

• You cannot directly select a folder with a number greater than 12.

To select a particular file in a folder, press

¢ or 4 after selecting the folder.

(Three times)

File 36 \ 30 \ 20 \ 10 \ 9 \ 8

(Twice)

To skip to the next or previous folder

Selecting the playback modes

Press 5 (up) while playing a disc to skip to the next folder. Each time you press the button consecutively, the next folder is located (and the first file in the folder starts playing, if recorded).

Note:

If the folder does not contain any MP3/WMA files, it is skipped.

To play back files at random (Folder Random/Disc Random Play)

You can play back all files of the current folder or all files on the disc at random.

1 Press MODE to enter the

functions mode while playing a disc.

2 Press RND (random), while

“MODE” is still on the display, so that “FLDR RND” or “DISC RND” appears on the display. Each time you press the button, the random play mode changes as follows:

DISC RNDFLDR RND

Canceled

ENGLISH

(folder) and RND indicators

Ex.: When you select “FLDR RND”

while listening to an MP3 file

Mode

FLDR RND and RND All files of the

DISC RND and RND All files on the disc.

Active

indicator

indicators current folder, then light up. files of the next

indicators light up.

Plays at random

folder and so on.

To play back files repeatedly (Track Repeat/Folder Repeat Play)

To play back only intros (Track Intro Scan/Folder Intro Scan)

You can play back the current file or all the files in the current folder repeatedly.

ENGLISH

1 Press MODE to enter the

functions mode while playing a disc.

2 Press RPT (repeat), while

“MODE” is still on the display, so that “TRK RPT” or “FLDR RPT” appears on the display. Each time you press the button, the repeat play mode changes as follows:

TRK RPT FLDR RPT

Canceled

You can play back the first 15 seconds of each file sequentially.

1 Press MODE to enter the

functions mode while playing a disc.

2 Press INT (intro), while

“MODE” is still on the display, so that “TRK INT” or “FLDR INT” appears on the display. Each time you press the button, the intro scan mode changes as follows:

FLDR INTTRK INT

Canceled

RPT indicator

Ex.: When you select “TRK RPT”

while listening to an MP3 file

Mode

TRK RPT RPT indicator The current (or

FLDR RPT and RPT All files of the

Active

indicator

lights up. specified) file.

indicators current (or light up. specified) folder.

Plays repeatedly

INT indicator

Ex.: When you select “TRK INT”

while listening to an MP3 file

Mode

TRK INT INT indicator All files on the current

FLDR INT and INT The first file of every

Active Plays the beginnings

indicator (15 seconds) of

lights up. disc.

indicators folder of the current lights up. disc.

SOUND ADJUSTMENTS

Adjusting the sound

You can adjust the sound characteristics to your preference.

Select the item you want to adjust.

Each time you press the button, the adjustable items change as follows:

If you are using a two-speaker system, set the fader level to “00.”

This takes effect only when a subwoofer is connected.

Normally the control dial works as the volume control. So you do not have to select “VOL” to adjust the volume level.

Depending on the amplifier gain control setting. (See page 38 for details.)

Adjust the setting.

ENGLISH

LOUD

(loudness)

LOUD ON | LOUD OFF

30 or 50 (max.)*

VOL

BAL

(balance)

WOOFER

(subwoofer)

FAD

(fader)

(volume)

Indication To do: Range

FAD*

BAL Adjust the left L06 (Left only)

LOUD Boost low and

WOOFER*2Adjust the 00 (min.)

VOL*

Adjust the front R06 (Rear only) and rear speaker | balance. F06 (Front only)

and right speaker | balance. R06 (Right only)

high frequencies to produce a well-balanced sound at low volume level.

subwoofer | output level. 08 (max.)

Adjust the 00 (min.) volume. |

To increase the level or turn on the loudness

To decrease the level or turn off the loudness

Indication pattern changes as you adjust the fader or balance.

Ex. 1: When you adjust “FAD” (fader)

LOUD indicator

Ex. 2: When you turn on the loudness

Repeat steps 1 and 2 to adjust the

other items.

Selecting preset sound modes

USER 1,USER 2, USER 3

(iEQ: intelligent equalizer)

You can select a preset sound mode (iEQ:

ENGLISH

intelligent equalizer) suitable to the music genre.

• There is a time limit in doing the following procedure. If the setting is canceled before you finish, start from step 1 again.

Press MODE to enter the functions mode.

To cancel the preset sound mode, select

“FLAT” in step 3.

Notes:

• You can adjust the preset sound modes temporarily. However, your temporary adjustments will be reset when you select another sound mode.

• For details about the preset settings of each sound mode, see table on page 52.

• For showing the iEQ pattern on the display during play, select “EQ & LEVEL” or “SILENT” for the level meter. See also page 36.

When using the remote controller:

Press EQ (equalizer) while “MODE” is still on the display.

The last selected sound mode is called up.

Select the sound mode you want.

As you turn the control dial, the sound modes change as follows:

FLAT O HARD ROCK O R&B O POP O JAZZ O DANCE MUSIC O COUNTRY O REGGAE O CLASSIC O USER 1 O USER 2 O USER 3 O (back to the beginning)

SOUND

ATT

Press SOUND repeatedly. Each time you press the

SOURCE

button, the sound modes change as follows:

Indication pattern changes for each sound mode.

Ex.: When you select “HARD ROCK”

Storing your own sound adjustments

You can adjust the sound modes to your preference and store your own adjustments in memory (USER 1, USER 2 and USER 3).

LEVEL (LOW, MID, HI):

Adjust the enhancement level.

* By pressing ¢ or 4 , you can

directly move as follows:

LOW LEVEL MID LEVEL

HI LEVEL

ENGLISH

• There is a time limit in doing the following procedure. If the setting is canceled before you finish, start from step 1 again.

Press MODE to enter the functions mode.

Press EQ (equalizer) while “MODE” is still on the display.

The last selected sound mode is called up.

Select the sound mode you want to adjust.

FREQ (LOW, HI):

Select the center frequency to adjust.

WIDTH (LOW, MID):

Select the band width level.

Adjust the selected sound element.

Indication

LOW MID HI

LEVEL –06 (min.) –06 (min.) –06 (min.)

+06 (max.) +06 (max.) +06 (max.)

FREQ. 60Hz 8kHz

80Hz 10kHz 100Hz 12kHz 120Hz 15kHz

Preset values

|||

Ex.: When you select “JAZZ”

Select sound elements to adjust.

Each time you press the button, the sound elements change as follows:

LOW LEVEL* = LOW FREQ = LOW WIDTH = MID LEVEL* = MID WIDTH = HI (high) LEVEL* = HI (high) FREQ = (back to the beginning)

WIDTH 1 (min.) 1 (min.)

4 (max.) 2 (max.)

Repeat steps 4 and 5 to adjust the other sound elements.

Select one of the user sound modes (USER 1, USER 2, USER 3).

Press EQ to store the adjustments.

“MEMORY” appears for a while.

OTHER MAIN FUNCTIONS

Changing the general settings (PSM)

You can change the items listed in the table

ENGLISH

below and on page 35 by using the PSM (Preferred Setting Mode) control.

Basic Procedure

Press and hold SEL (select) for more than 2 seconds so that one of the PSM items appears on the display. (See below and page 35.)

Select the PSM item you want to adjust.

Adjust the PSM item selected.

Repeat steps 2 and 3 to adjust the other PSM items if necessary.

Finish the setting.

Preferred Setting Mode (PSM) items

• For detailed operations of each PSM items, refer to the pages listed in the table.

Indications Selectable values/items

DEMO MODE Display

demonstration

CLOCK HOUR Hour adjustment

CLOCK MINUTE Minute adjustment

CLOCK24H/12H 24/12-hour time

display

AUTO ADJUST Automatic clock

setting

CLOCK DISP Clock display

AF-REG Alternative

frequency/ Regionalization reception

DEMO OFF

0 — 23 (1 — 12)

00 — 59

CLOCK 12HOUR CLOCK 24HOUR

ADJUST OFF ADJUST ON ADJUST ON 19

CLK DISP OFF CLK DISP ON CLK DISP ON 36

AF ON

AF OFF*

DEMO ON DEMO ON 8

AF REG

Factory-preset See

settings page

0 (0:00)

00 (0:00)

CLOCK

24HOUR

AF ON

14, 15

Displayed only when the “DAB AF” is set to “OFF.”

Indications Selectable values/items

Factory-preset See

settings page

PTY STANDBY PTY standby

TA VOLUME Traffic

announcement volume

P-SEARCH Programme search

DAB AF*

Alternative frequency search

DAB VOL*

DAB volume adjustment

LEVELMETER Level meter

DIMMER MODE Dimmer mode

TELEPHONE Telephone muting

OFF

VOL 00 — VOL 30 or 50*

29 programme types

(see page 20)

OFF

VOL 20 19

SEARCH OFF SEARCH ON SEARCH OFF 19

AF OFF AF ON AF ON 51

VOL –12 — VOL +12 VOL 00 51

LEVEL 1 LEVEL 2

LEVEL 1 36

EQ & LEVELSILENT

DIMMER AUTO

DIMMER ON

MUTING OFF

MUTING 2

DIMMER OFF

MUTING 1

DIMMER

AUTO

MUTING OFF 37

ENGLISH

BEEP SWITCH Key-touch tone

CONTRAST Display contrast

SCROLL MODE Scroll mode

SCROLL ONCE SCROLL AUTO

01 – 10

SCROLL OFF

WOOFER FREQ Subwoofer

cutoff frequency

EXTERNAL IN*4External component

TAG DISPLAY Tag display

AMP.GAIN Amplifier gain

FREQ MID FREQ HIGH

FREQ LOW

CHANGER LINE IN CHANGER 38

TAG DISP OFF TAG DISP ON TAG DISP ON

LOW POWER HIGH POWER

control

SLOT LIGHT Slot light

Displayed only when the DAB tuner is connected.

Depending on the amplifier gain control setting.

Displayed only when one of the following sources is selected—FM, AM, and CD.

OFF ONON 38

BEEP ON 37BEEP OFF BEEP ON

05 37

SCROLL

ONCE

FREQ MID

HIGH

POWER

To set the clock display—CLOCK DISP

To select the level meter—LEVELMETER

You can set the clock to be shown on the lower part of the display when the unit is turned on. When shipped from the factory, the clock is set to be shown on the display.

ENGLISH

• CLK DISP ON: Clock display is turned on.

When “CLOCK DISP” is set to “CLK DISP OFF”:

Source Initial Pressing DISP

indication (display)

Tuner Band

CD CD, folder or number, or CD-CH disc number

When “CLOCK DISP” is set to “CLK DISP ON”:

Clock appears for about 5 seconds.

You can select the level meter display according to your preference. When shipped from the factory, this mode is set to “LEVEL 1.”

• LEVEL 1/LEVEL 2: Display the audio level meter with different illumination pattern.

• EQ & LEVEL: Display the equalizer pattern and audio level meter.

• SILENT: Display the equalizer pattern and volume level meter.

To select the dimmer mode —DIMMER MODE

When you turn on the car headlights, the display automatically dims (Auto Dimmer). When shipped from the factory, Auto Dimmer mode is activated.

• DIMMER AUTO: Activates Auto Dimmer.

• DIMMER OFF: Cancels Auto Dimmer.

• DIMMER ON: Always dims the display.

Source Initial Pressing DISP

indication (display) repeatedly

Tuner Clock Band number appears

for about 5 seconds.

CD Clock CD, or track/file/folder

number appears for about 5 seconds.

CD-CH Clock Disc number, or track/

file/folder number appears for about 5 seconds.

Note:

To select the telephone muting —TELEPHONE

• MUTING 1: Selects this if this setting can mute the sounds.

• MUTING 2: Selects this if this setting can mute the sounds.

• MUTING OFF: Cancels the telephone muting.

Note:

With the CD or CD changer selected as the source, playback pauses during telephone muting.

To turn the key-touch tone on or off —BEEP SWITCH

You can deactivate the key-touch tone if you do not want it to beep each time you press a button. When shipped from the factory, the key-touch tone is activated.

• BEEP ON: Activates the key-touch tone.

• BEEP OFF: Deactivates the key-touch tone.

To adjust the display contrast level —CONTRAST

To select the scroll mode—SCROLL MODE

You can select the scroll mode for the disc information (when the entire text cannot be shown at a time). When shipped from the factory, scroll mode is set to “SCROLL ONCE.”

• SCROLL ONCE: Scrolls only once.

• SCROLL AUTO: Repeats the scroll (5-second intervals in between).

• SCROLL OFF: Cancels scroll mode.

Note:

Even if the scroll mode is set to “SCROLL OFF,” you can scroll the display by pressing DISP (display) for more than 1 second.

To select the subwoofer cutoff frequency —WOOFER FREQ

When a subwoofer is connected to this unit, select an appropriate cutoff frequency level for your subwoofer. When shipped from the factory, the subwoofer cutoff frequency is set to “FREQ MID.”

• FREQ LOW: Frequencies higher than 50 Hz

are cut off to the subwoofer.

• FREQ MID: Frequencies higher than 80 Hz

are cut off to the subwoofer.

• FREQ HIGH: Frequencies higher than 120 Hz

are cut off to the subwoofer.

ENGLISH

Adjust the display contrast (01 – 10) to make the display indications clear and legible. When shipped from the factory, the display contrast level is set at level 05.

To select the external component to use —EXTERNAL IN

To select the amplifier gain control —AMP.GAIN

You can connect the external component to the CD changer jack on the rear using the Line Input

ENGLISH

• CHANGER: To use the CD changer.

• LINE IN: To use the external component other than CD changer.

Note:

For connecting the Line Input Adapter KS-U57 and the external component, refer to the Installation/ Connection Manual (separate volume).

To turn the tag display on or off —TAG DISPLAY

• LOW POWER: You can adjust the volume level from “VOL 00” to “VOL 30.”

Note:

If you change the setting from “HIGH POWER” to “LOW POWER” while listening at a volume level more than 30, the unit automatically changes the volume level to “VOL 30.”

• HIGH POWER: You can adjust the volume level from “VOL 00” to “VOL 50.”

An MP3/WMA file can contain file information called “ID3 Tag” where its album name, performer, track title, etc. are recorded. There are two versions–ID3v1 (ID3 Tag version

1) and ID3v2 (ID3 Tag version 2). If both ID3v1 and ID3v2 are recorded on a disc, ID3v2 information will be shown. When shipped from the factory, “TAG DISP ON” is selected.

• TAG DISP ON: Turns on the ID3 tag display while playing MP3/WMA files.

• If an MP3/WMA file does not

have ID3 tags, folder name and file name appear.

Note:

If you change the setting from “TAG DISP OFF” to “TAG DISP ON” while playing an MP3/WMA file, the tag display will be activated when the next file starts playing.

To turn the slot light on or off —SLOT LIGHT

• ON: Activates the illumination.

• OFF: Deactivates the illumination.

• TAG DISP OFF: Turns off the ID3 tag display while playing MP3/WMA files. (Only the folder name and file name can be shown.)

JVC GET0199-001A, GET0199-005A, GET0200-001A, GET0200-002A, KD-G701EU Instructions Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
