INSTRUCTIONS

DIGITAL

GRAPHICS PROJECTOR

G1000

ENGLISH

G1000 [D] SubcoverEN 99.2.24, 5:49 PM1

Thank you for purchasing this projector. Before using it, read and follow all instructions carefully to take full advantage of the projector's capabilities.

SAFETY PRECAUTIONS

IMPORTANT INFORMATION

WARNING :

TO PREVENT FIRE OR SHOCK HAZARDS, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.

CAUTION :

To reduce the risk of electric shock, do not remove cover. Refer servicing to qualified service personnel.

This projector is equipped with a 3-blade grounding-type plug to satisfy FCC rule. If you are unable to insert the plug into the outlet, contact your electrician.

FCC INFORMATION (U.S.A. only)

CAUTION: Changes or modification not approved by

Hughes-JVC Technology Coporation could void the user's authority to operate the equipment.

NOTE: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense.

About burning-in of the D-ILA device

Do not allow the same still picture to be projected for a long time or an abnormally bright video picture to be projected. Do not project video images with high-intensity or highcontrast on a screen. The video image could be burned in to the D-ILA device. Use special care when projecting video games or computer program images. There is no problem with ordinary videocassette playback images.

IMPORTANT SAFEGUARDS

Electrical energy can perform many useful functions. This unit has been engineered and manufactured to assure your personal safety . But IMPROPER USE CAN RESUL T

IN POTENTIAL ELECTRICAL SHOCK OR FIRE HAZARD. In order not to defeat the safeguards

incorporated into this product, observe the following basic rules for its installation, use and service. Please read these “Important Safeguards” carefully before use.

– All the safety and operating instructions should be read

before the product is operated.

– The safety and operating instructions should be retained

for future reference.

– All warnings on the product and in the operating

instructions should be adhered to. – All operating instructions should be followed. – Unplug this product from the wall outlet before cleaning.

Do not use liquid cleaners or aerosol cleaners. Use a

damp cloth for cleaning. – Do not use attachments not recommended by the

product manufacturer as they may be hazardous. – Do not use this product near water. Do not use

immediately after moving from a low temperature to high

temperature, as this causes condensation, which may

result in fire, electric shock, or other hazards. – Do not place this product on an unstable cart, stand, or

table. The product may fall, causing serious injury to a

child or adult, and serious damage to the product. The

product should be mounted according to the

manufacturer’s instructions, and should use a mount

recommended by the manufacturer. – When the product is used on a cart, care

should be taken to avoid quick stops,

excessive force, and uneven surfaces

which may cause the product and cart to

overturn, damaging equipment or causing

possible injury to the operator. – Slots and openings in the cabinet are provided for

ventilation. These ensure reliable operation of the

product and protect it from overheating. These openings

must not be blocked or covered. (The openings should

never be blocked by placing the product on bed, sofa,

rug, or similar surface. It should not be placed in a built-

in installation such as a bookcase or rack unless proper

ventilation is provided and the manufacturer’s

instructions have been adhered to.)

G1000[D] p.02-04 Safety 99.2.24, 5:50 PM2

For proper ventilation, separate the product from other

equipment, which may prevent ventilation and keep

distance more than 50 cm (19-3/4”).

SAFETY PRECAUTIONS (Cont.)

– This product should be operated only with the type of

power source indicated on the label. If you are not sure of the type of power supply to your home, consult your product dealer or local power company.

– This product is equipped with a three-wire plug. This

plug will fit only into a grounded power outlet. If you are unable to insert the plug into the outlet, contact your electrician to install the proper outlet. Do not defeat the safety purpose of the grounded plug.

– Power-supply cords should be routed so that they are

not likely to be walked on or pinched by items placed upon or against them. Pay particular attention to cords at doors, plugs, receptacles, and the point where they exit from the product.

– For added protection of this product during a lightning

storm, or when it is left unattended and unused for long periods of time, unplug it from the wall outlet and disconnect the cable system. This will prevent damage to the product due to lightning and power line surges.

– Do not overload wall outlets, extension cords, or

convenience receptacles on other equipment as this can result in a risk of fire or electric shock.

– Never push objects of any kind into this product through

openings as they may touch dangerous voltage points or short out parts that could result in a fire or electric shock. Never spill liquid of any kind on the product.

– Do not attempt to service this product yourself as opening

or removing covers may expose you to dangerous voltages and other hazards. Refer all service to qualified service personnel.

– Unplug this product from the wall outlet and refer service

to qualified service personnel under the following conditions:

a) When the power supply cord or plug is damaged. b) If liquid has been spilled, or objects have fallen on

the product. c) If the product has been exposed to rain or water. d) If the product does not operate normally by following

the operating instructions. Adjust only those controls

that are covered by the Operation Manual, as an

improper adjustment of controls may result in damage

and will often require extensive work by a qualified

technician to restore the product to normal operation. e) If the product has been dropped or damaged in any

way. f ) When the product exhibits a distinct change in

performance – this indicates a need for service.

– When replacement parts are required, be sure the service

technician has used replacement parts specified by the manufacturer or with same characteristics as the original part. Unauthorized substitutions may result in fire, electric shock, or other hazards.

– Upon completion of any service or repairs to this product,

ask the service technician to perform safety checks to determine that the product is in proper operating condition.

– The product should be placed more than one foot away

from heat sources such as radiators, heat registers, stoves, and other products (including amplifiers) that produce heat.

– When connecting other products such as VCR’s, and

personal computers, you should turn off the power of this product for protection against electric shock.

– Do not place combustibles behind the cooling fan. For

example, cloth, paper, matches, aerosol cans or gas lighters that present special hazards when over heated.

– Do not look into the projection lens while the illumination

lamp is turned on. Exposure of your eyes to the strong light can result in impaired eyesight.

– Do not look into the inside of this unit through vents

(ventilation holes), etc. Do not look at the illumination lamp directly by opening the cabinet while the illumination lamp is turned on. The illumination lamp also contains ultraviolet rays and the light is so powerful that your eyesight can be impaired.

– Xenon gas is enclosed with high pressure inside the light-

source lamp (lamp unit) of this projector. If you drop or impart a shock to the lamp, or discard it as is, there is the possibility of explosion, leading to personal injury. Use special care when handling the lamp. For any unclear points, consult your product dealer.

– Use only the accessory cord designed for this product to

prevent shock. The power supply voltage rating of this product is AC

120 V, the power cord attached conforms to the following power supply voltage. Use only the power cord designated by our dealer to ensure Safety and EMC.

When it is used by other power supply voltage, power cable must be changed.

Consult your product dealer.

Power cord

Power supply voltage: AC 120 V

*DO NOT allow any unqualified person to

install the unit.

Be sure to ask your dealer to install the unit (eg. attaching it to the ceilling) since special technical knowledge and skills are required for installation. If installation is performed by an unqualified person, it may cause personal injury or electrical shock.

ENGLISH

G1000[D] p.02-04 Safety 99.2.24, 5:50 PM3

Contents

SAFETY PRECAUTIONS ........................... 2

Accessories ............................................... 5

Controls and Features .............................. 6

Front Side / Top Surface / Right Side ....................6

Left-hand side ....................................................... 7

Bottom Surface .....................................................8

Control Panel ........................................................9

Connector Panel .................................................11

Remote Control Unit ........................................... 13

Installing Batteries...............................................14

Installing the Projector ........................... 15

Precautions for installation ..................................15

Projection Distance and Screen Size.................. 16

Relationship between Projection Distances and

Projection Screen Sizes................................. 17

Effective Range and Distance of the Remote

Control unit.....................................................18

Connecting to V arious Devices.............. 19

Signals that Can Be Input to the Projector..........19

Connecting to Video Devices .............................. 20

Connecting to Hi-Vision Devices......................... 20

Connecting to Other Devices .............................. 21

Connecting to Devices which Control the

Projector.........................................................21

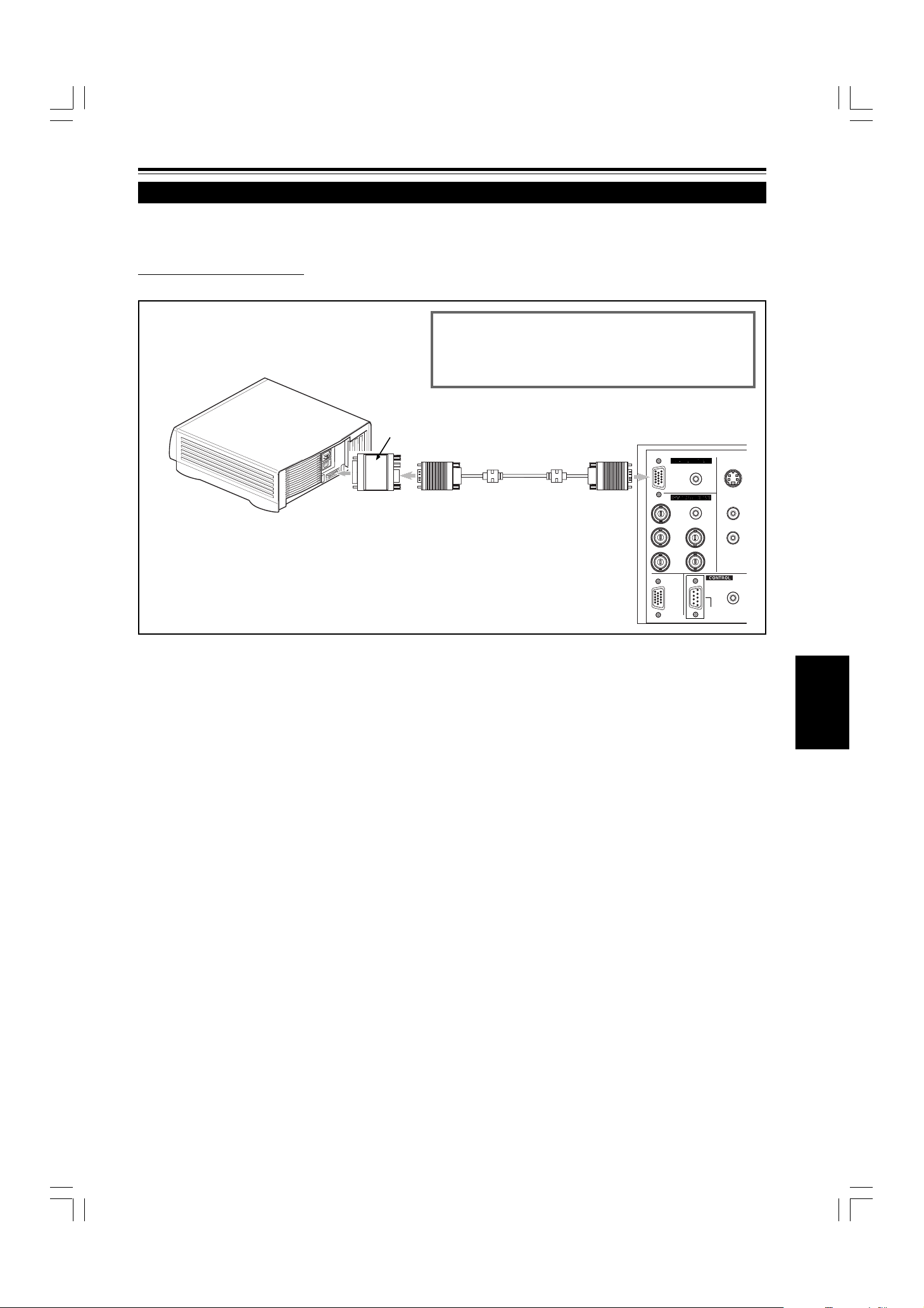

Connecting to Computer Devices .......................22

Connecting the Power Cord (Supplied)............... 24

When Turning On the Devices Connected to the

Projector.........................................................25

Operating the Main Menu ....................... 32

Configuration of the Main Menu ..........................32

Operating the Main Menu (Basic Operation of the

Main Menu) ....................................................34

Changing the Color System ................................35

Changing the Language Display .........................36

Adjusting the Pixel Clock..................................... 37

Adjusting the Screen Position ............................. 38

Adjusting Picture Quality.....................................39

Adjusting Sound Quality...................................... 42

Setting and Adjusting Other Functions

(OPTIONS) ....................................................43

Changing (Setting) the Source............................ 46

Replacing the Light-Source Lamp......... 48

Resetting the Lamp Use Time.............................50

Cleaning and Replacing the Filter ......... 51

Troubleshooting ...................................... 52

Specifications.......................................... 54

Basic Operations..................................... 26

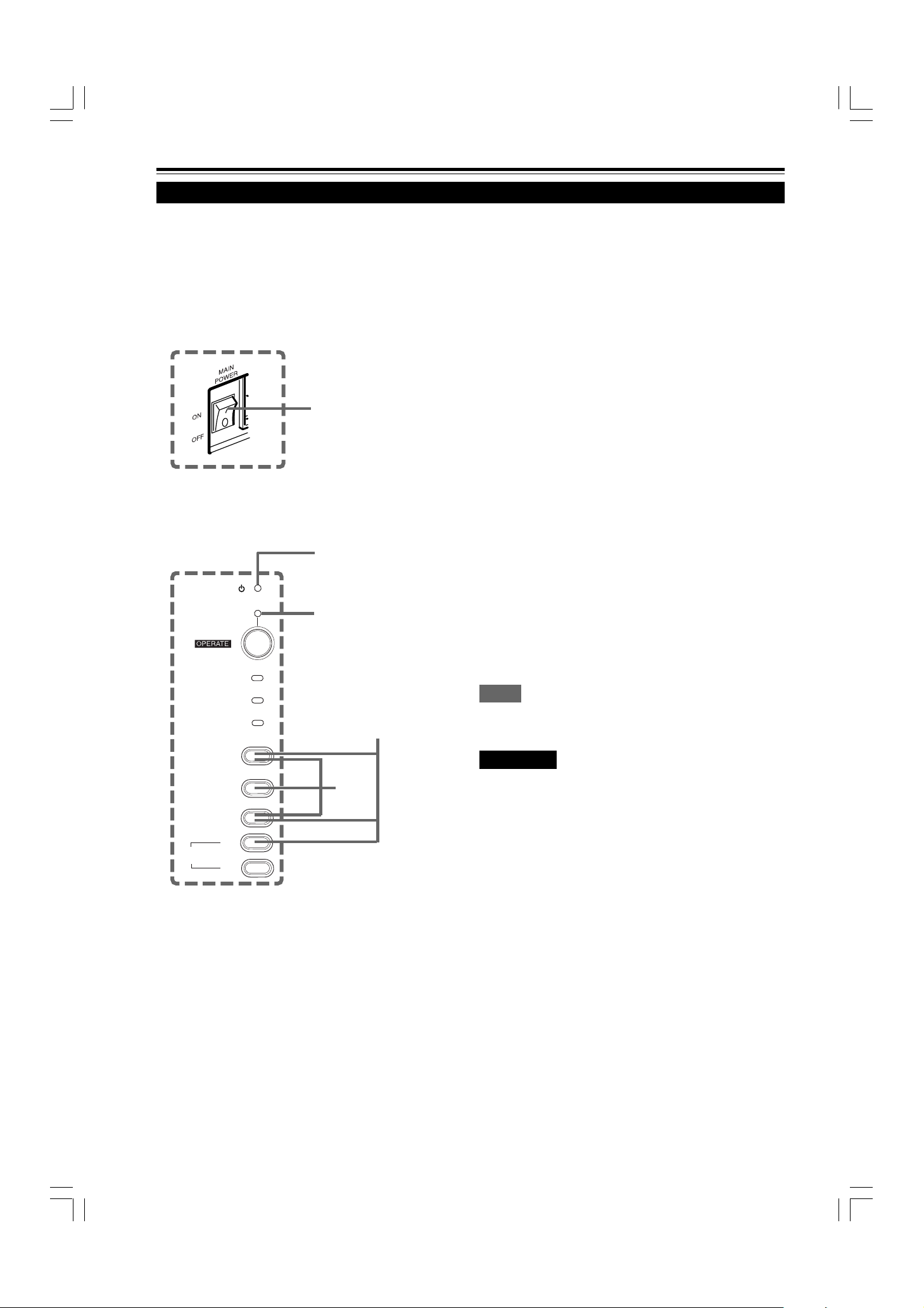

1. Turning on the Power.......................................26

2. Select the video input to be projected ............. 27

3. Adjust the screen size.....................................27

4. Adjust focus .....................................................28

5. Adjust sound volume....................................... 28

• For Operating Other Functions ......................... 29

Operating the Setting Menu ................... 31

Making Basic Settings......................................... 31

G1000[D] p.02-04 Safety 99.2.24, 5:50 PM4

Accessories

The following accessories are included with this projector. Check for them; if any item is missing, please contact your dealer.

Remote control unit (RM-M100U) AAA/R03-size dry cell battery (×2)

(for checking operation)

Personal computer connection cable

[approx. 2 m (6.56 ft)]

(D-sub, 3-row 15 pin)

AV connection cable

[approx. 1.5 m (4.92 ft)]

Power code

[approx. 2.5 m (8.2 ft)]

Audio cable

[approx. 3 m (9.84 ft)]

(3.5 mm dia. stereo mini plug)

ENGLISH

Conversion adapter for Mac

(for Macintosh)

G1000 [D] p.05-14 99.2.24, 5:50 PM5

BNC-RCA conversion plug

Controls and Features

Front Side / Top Surface / Right Side

ALIG

QUICK

SETTING

COMPUTER

VIDEO

TEMP

ERGENCY

LAM

OPERATE

STAND BY

Control panel

For details, refer to “Control Panel” (page 9).

Exhaust vents

Vents for cooling fans through which warm air comes out.

CAUTION

• Do not block the exhaust vents, or heat builds up inside, possibly causing a fire. Also, do not touch the vents, or this could cause a low-temperature burn.

Carrying handle

Raise this handle when carrying the projector.

How to use the carrying handle

ALIGN

QUICK

SETTING

COMPUTER

VIDEO

TEMP

EMERGENCY

LAMP

OPERAT

4 Adjustable foot (for adjusting upper/lower angles)

It is adjusted to be level when shipped from the factory. Turning to extend the foot allows adjustment up to + 7°.

AV IN

COMPUTER IN-1

COMPUTER IN-2

CONTROL

MAIN

AC IN ~

POWER

OFF

Extend Shorten

Built-in speaker (left)

Built-in speaker (right)

Lens

Projection lens, which is an electrically driven, approx. 1.5 x zoom lens. Before projection, remove the lens cap.

+7˚

Lens cap

Carrying handle

The cap has a string attached and the string is fixed to the projector when shipped from the factory . It is recommended that the cap be fitted on to prevent the lens becoming dirty

CAUTIONS

when the projector is not used.

• When carrying the projector, do not give a shock to it. Be

Remote sensor

careful to keep its balance.

• Do not carry it while the light source lamp is on or the cooling fan is operating. This could cause personal injury .

When operating with the remote control, aim it toward this sensor. Y ou can also operate the remote control by pointing it to a screen and allowing the remote sensor to receive the reflected light.

G1000 [D] p.05-14 99.2.24, 5:50 PM6

Controls and Features (cont.)

Left-hand side

AC IN (power input) terminal

This is the power input terminal where the supplied power cord is connected. For details, refer to page 24.

MAIN POWER switch

This is the main power switch. When it is turned on, the projector goes into stand-by state, and the STAND BY indicator on the control panel comes on. ON [ ❙ ]: The main power turns on.

‡‡

OFF [

‡]: The main power turns off.

‡‡

Connector panel

For details, refer to “Connector Panel” on page 11.

Adjustable foot (for horizontal angle adjustment)

It is set at the shortest position when shipped from the factory. Turn the foot to make the projector level. Adjustment can be made in the range of + 1.5° and – 1.5° from the horizontal position.

+1.5°

–1.5°

Extend Shorten

ENGLISH

G1000 [D] p.05-14 99.2.24, 5:50 PM7

Controls and Features (cont.)

Bottom Surface

Air intake area (filter)

Air is taken in through this area to cool the light-source lamp. If this area is blocked or if something that obstructs taking in or exhausting air is placed around the projector, heat may build up inside and could cause a fire. For details, refer to “Precautions for Installation” on page 15.

CAUTIONS

• Be careful as paper, cloth or soft cushion could be drawn in if placed nearby. Do not block the intake area, or heat may build up and could cause a fire.

• Clean the filter periodically. For details, refer to “Cleaning and Replacing the Filter” on page 51. Deposition of dirt on the filter works to reduce the cooling effect, causing heat to build up inside, which could cause a fire or malfunction.

Opening for replacing the light-source lamp

For replacing the light-source lamp, refer to “Replacing the Light-Source Lamp” on page 48.

Fixing foot

G1000 [D] p.05-14 99.2.24, 5:50 PM8

Controls and Features (cont.)

Control Panel

STAND BY

LAMP

TEMP

EMERGENCY

VIDEO

COMPUTER

SETTING

QUICK ALIGN.

STAND BY Indicator

ON : When in stand-by mode. Blinking: When in cool-down mode.

Memo

About the cool-down mode:

This projector has a function to cool down the heated lamp for a fixed period of time after projection is finished. This feature is referred to as the cool-down mode.

CAUTION

• The purpose of the cool-down mode is to prevent inner parts from being deformed or broken by heat from the heated lamp as well as to prolong the life of the lamp. Do not turn off the main power switch while in the cool-down mode. Also, do not place the projector on its side or stand it upright; this may block the exhaust vents.

4 5

Lamp indicator

ON : After the light-source lamp has been used for

more than approx. 900 hours.

Blinking : Replace the lamp. Refer to “Replacing the Light-

Source Lamp” on page 48.

TEMP indicator

ON: The temperature inside the projector has abnormally

risen.

Note

• While the TEMP indicator is on (during abnormal temperature), the power is automatically cut off, and an emergency mode is shown (with the EMERGENCY indicator blinking).

EMERGENCY indicator

Blinking: Something abnormal has occurred with the

projector.

Memo

About the emergency mode:

The emergency mode is shown when the following anomalies have occurred with the projector (the EMERGENCY indicator blinks). In the emergency mode, projection is automatically interrupted and the cooling fans operate for about 20 seconds.

• When the air filter is displaced.

• When the filter is clogged.

• When the light-source lamp has suddenly gone off.

• When the fans have stopped.

• When the temperature inside has risen abnormally high.

CAUTION

• When an emergency mode is shown:

After the cooling fans have stopped, turn off the main power switch and unplug the power cord from the wall outlet. Make sure the lamp-replacement cover and the air filter are correctly installed. Then, plug in the power cord again and operate the projector. If it goes into an emergency mode again, after the cooling fans have stopped, turn off the main power switch, unplug the power cord, and call your dealer for repair.

ENGLISH

OPERATE indicator

ON: When the projector is in operation (projecting)

OPERA TE button

When the projector is in the stand-by mode, press this button, and the main power switch is turned on, causing the OPERATE indicator to light. Press it again, and the projector goes into the cool-down mode, then stand-by mode.

Memo

While in the cool-down mode:

If you press the OPERATE button, the projector is not tuned on.

G1000 [D] p.05-14 99.2.24, 5:50 PM9

Controls and Features (cont.)

Control Panel (Cont.)

STAND BY

LAMP

TEMP

EMERGENCY

VIDEO

COMPUTER

SETTING

QUICK ALIGN.

VIDEO button

Use this button to select a device such as a video deck connected to the A V IN terminal of the projector . Each time you press the button, the device selected changes as follows:

Y/C

VIDEO

4 5

/B-Y,PR/R-Y

Y,P

QUICK ALIGN. button

While a menu screen is shown, use this button to adjust the values for the item selected. When no menu is shown, the quick alignment function works.

• When a menu is shown

+ 3 button: The value for the selected item increases. – 2 button: The value for the selected item decreases.

• When no menu is shown Press the +3 button and –2 button at the same time:

QUICK ALIGNMENT is displayed on the screen and the quick alignment function works (TRACKING, PHASE, H. POS. and V . POS. are automatically adjusted). When the adjustment is finished, the display goes off automatically .

Memo

The quick alignment function :

• Works for computer input (COMPUTER- 1 and - 2 input terminals) signals.

• Does not work for video input (AV IN input terminal) signals.

CAUTION

• Automatic adjustment with the quick alignment function should be done on a bright still-picture screen. This function may not work correctly on a dark screen or motion-picture screen. If adjustment with this function is not satisfactory, adjust TRACKING, PHASE, H. POS. and V. POS. manually (see pages 31, 37 and 38).

COMPUTER button

Use this button to select a device connected to the COMPUTER -1 or -2 terminals. Each time you press the button, the selection changes as follows:

COMPUTER 1

SETTING button

COMPUTER 2

Use this button to call up the setting menu. For details, refer to “Making Basic Settings” on page 31.

G1000 [D] p.05-14 99.2.24, 5:50 PM10

Controls and Features (cont.)

Connector Panel

AUDIO

COMPUTER

OUT

Y/C (S video) input terminal (Mini DIN 4 pin)

Connect this terminal to the S video output terminal of a video deck, etc.

VIDEO (composite video) input terminal (BNC)

Connect this terminal to the composite video output terminal of a video deck, etc.

H/C

RS-232C

Y/C VIDEO

AUDIO

REMOTE

AUDIO OUT

AUDIO OUT (audio output) terminal (stereo mini jack)

Of input signals inputted to the projector, the audio signal of the device being projected is output. Volume should be adjusted using the VOL. (+/–) buttons on the remote control or VOLUME on the setting menu. When a cable is connected to this jack, no audio sound is produced from the projector’s speakers.

/B-Y

/R-Y

Y, PB/B-Y, PR/R-Y input terminals (BNC)

These are input terminals for component (Y, B-Y, R-Y) signals or DTV-format (Y, P

B, PR) signals.

Device with component output terminals can be connected. * For details about DTV-format signals (480i, 480p, 720p,

1080i) compatible with this unit, refer to page 56.

AUDIO L/R (Audio • left/right) input terminals (pin jacks)

Of devices connected to the video input terminals, such as a video deck, etc., the audio output terminals of the device to be projected is connected to these terminals. The input audio signal is reproduced by the speakers of the projector. The signal is also output from the AUDIO OUT terminal of the projector . * When the input signal is stereo signal, connection should

be made to both L and R.

* Signals from a monaural device should be connected to

only L. That way , the projector’s speakers and the AUDIO OUT terminal produce the same sound from both L and R.

Memo

To select the proper audio input for video input:

The video input terminals (AV IN input terminals) can be switched with the projector’s or remote control’s VIDEO button. However, since this projector has only single audio input terminal, reconnect audio input in accordance with the AV device to be used.

REMOTE terminal (mini jack)

Connect an infrared remote control extension unit, etc. to this jack. * For details, consult your dealer.

RS-232C terminal (D-sub 9 pin)

This is a RS-232C interface-specified terminal. This projector can be controlled by a computer connected externally. * For details, consult your dealer.

COMPUTER OUT (computer output) terminal (D-sub

3-row 15 pin)

The computer input signal projected on the screen is output. A display unit can be used by connecting it to this terminal.

ENGLISH

G1000 [D] p.05-14 99.2.24, 5:50 PM11

Controls and Features (cont.)

Connector Panel (Cont.)

AUDIO

H/C

COMPUTER

OUT

RS-232C

COMPUTER IN (computer input) -2 terminal (BNC)

These are input terminals for analog RGB signals, vertical sync (V) signals, and horizontal sync (H) signals / composite signals(Cs). Devices which have analog RGB signal output terminals can be connected. * Input of external sync signals is automatically

detected.

Detection of H/V signals or Cs signals causes automatic switch to external sync. The priority order is H/V > Cs.

Note

• DTV-format (480i, 480p, 720p, 1080i) signals can be input. When the source is set to “AUTO”, signals of 480i and 1080i can automatically be detected, but 480p and 720p signals can not be detected. To be able to input 480p or 720p signal, the source should be set to a dedicated source mode “SDTV(480p)” or “HDTV1(720p)”. For setting the source, refer to “Chenging (setting) the source” on page 46.

CAUTION

• When computer-related signals are input, the uppermost edge of the screen may appear bowing if the sync signal input is composite sync (Cs) or G on sync signal. In that case, use separate sync signals for vertical sync (V) and horizontal sync (H).

AUDIO input terminal (stereo mini jack)

This is an audio input terminal for COMPUTER IN (computer input) -2 terminal. Connect the audio output signal of a device connected to COMPUTER IN (computer input) -2 terminal. * When input to COMPUTER -2 is selected, the audio signal

input is reproduced by the projector’s speakers. Also, signals can be output from the AUDIO OUT (audio output) terminal. (However, if a cable is connected to AUDIO OUT (audio output) terminal, audio sound does not come out from the projector’s speakers.)

Y/C VIDEO

AUDIO

/B-Y

/R-Y

REMOTE

AUDIO OUT

COMPUTER IN (computer input) -1 terminal (D-sub 3-

row 15 pin)

This is an input terminal (PC) dedicated for computer signals (RGB video signals and sync signals). Connect the display output terminal of the computer to this terminal. When a Macintosh computer is to be connected, use the Conversion adapter for Mac supplied.

CAUTION

AUDIO (audio) input terminal (stereo mini jack)

This is an audio input terminal for COMPUTER IN (computer input) -1 terminal. Connect the audio output signal of a device connected to COMPUTER IN (computer input) -1 terminal. * When input to COMPUTER -1 is selected, the audio signal

G1000 [D] p.05-14 99.2.24, 5:50 PM12

Controls and Features (Cont.)

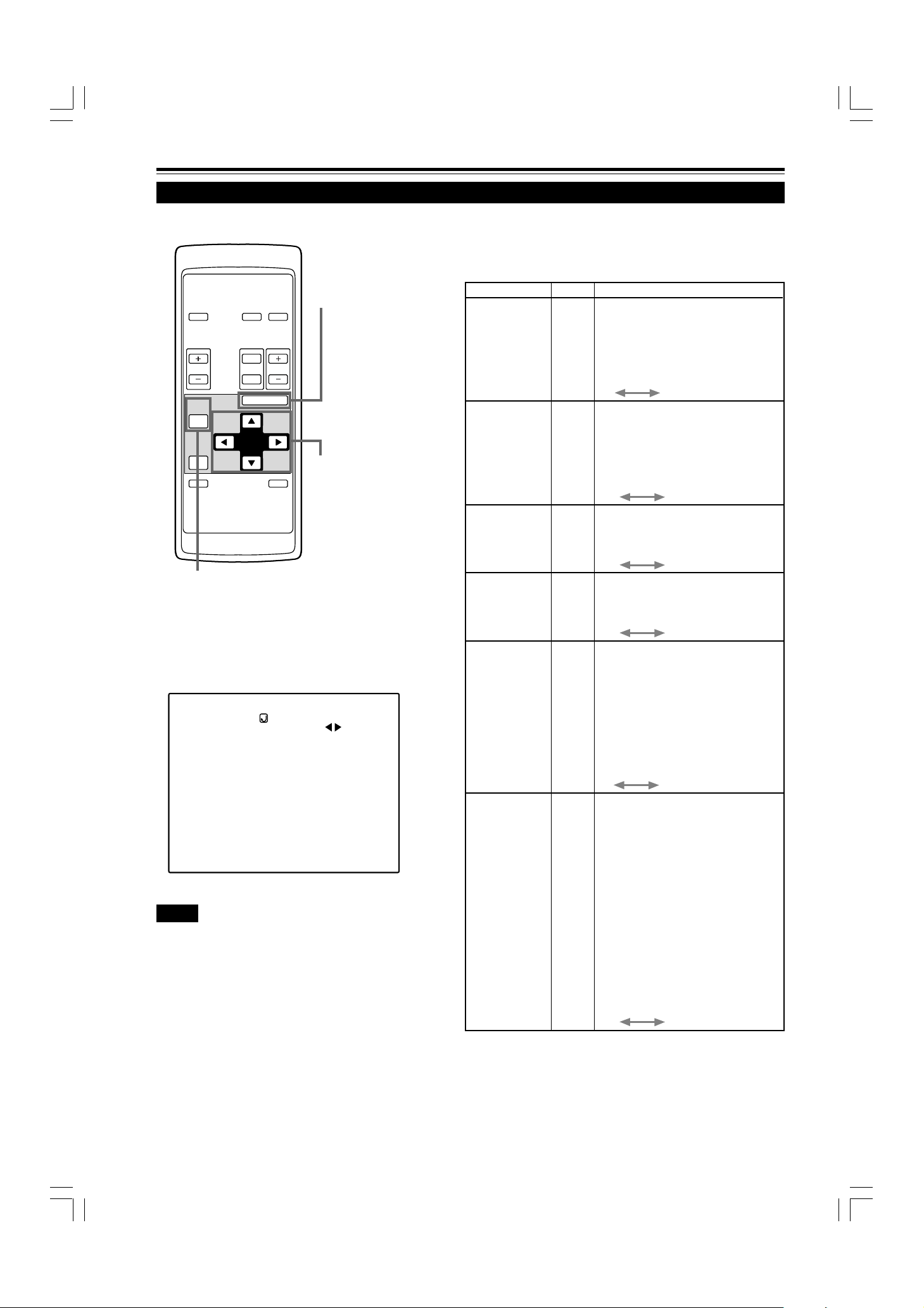

Remote Control Unit

OPERATE

VOL.

PAGE BACK

COMPUTER VIDEO

ZOOM FOCUS

MENU/ENTER

2 3

Remote control’s signal transmitter

COMPUTER button

Use this button to select the devices connected to the projector’s COMPUTER IN (computer input) -1 and -2 input terminals. Each time you press the button, the selection changes as follows:

COMPUTER 1

VIDEO button

Use this button to select the devices such as a video connected to the projector’s A V IN (A V input) terminal. Each time you press the button, the selection changes as follows:

Y/C

ZOOM (T/W) button

VIDEO

Use these buttons to increase or decrease the screen size. (The projector’s projection lens is an electrically driven zoom lens of about 1.5 x.)

T:The screen size decreases. W:The screen size increases.

FOCUS (+/–) button

Use these buttons to adjust the focus of the projected video.

+: The focus point becomes more distant. –: The focus point becomes nearer.

MENU/ENTER button

Use this button to display the main menu. While the main menu is displayed, pressing this button displays a details setting (submenu) for items with details settings.

Cursor (5/∞/2/3) button

While the main menu is displayed, use these buttons to select an item to adjust or make adjustment.

AV MUTING (On/Off) button

Use this button to turn off the video image and audio sound temporarily . Pressing it again makes the video image and audio sound to resume.

COMPUTER 2

/B-Y,PR/R-Y

Y,P

PRESET

QUICK ALIGN.

MUTING

QUICK ALIGN. (Quick Alignment) button

Use this button to automatically adjust TRACKING, PHASE, H. POS. and V. POS. of the projected video. During the automatic adjustment, QUICK ALIGNMENT appears on the screen, and disappears after it is finished.

Memo

Quick alignment function:

Does not work for video input (AV IN input terminal) signals. Works only for computer-related (COMPUTER-1 and-2 input terminals) signals.

CAUTION

PRESET button

While making adjustment on the main or setting menu, use this button to reset the setting of the selected item to the factory-set value. This button works only for numerical settings and does not work for switching ON to OFF.

PAGE BACK button

While a details setting is displayed, use this button to go back to the previous page.

VOL. (Volume) (+/–) button

Use these buttons to adjust the sound volume:

+: Increase the volume level. –: Decrease the volume level.

OPERATE button

To turn on the power, press this button for one second or more. * About 30 seconds after the power has turned on, video

image will appear on the screen.

ENGLISH

G1000 [D] p.05-14 99.2.24, 5:50 PM13

Controls and Features (cont.)

Installing Batteries

Install batteries in the remote control. If the remote control has started to work erratically, replace the batteries.

Open the back cover.

While pushing on the back cover, slide it in the direction of the arrow.

Install the batteries.

Place the two batteries (AAA/R03-size) supplied in the remote control as illustrated below.

Precautions for using batteries

If batteries are used incorrectly, they may crack or leak liquid. This could cause a fire, burn, malfunction, or staining or damaging the surrounding. Beware of the following:

• Do not mix new and old batteries.

• Do not mix different types of batteries as they differ in characteristics.

• Place batteries so they match the polarities indicated: (+) to (+) and (–) to (–).

• Be sure to put the minus (–) end in first to avoid shortcircuiting.

• Use only designated batteries.

• Remove the batteries if not used for a prolonged period of time.

• When the batteries are exhausted, replace them immediately . Otherwise, liquid could leak, or malfunction could occur due to leaked liquids. If the leaked liquid contacts the skin, wipe it off with a cloth, otherwise the skin could become rough.

• Do not put batteries into fire or try to recharge them.

• Batteries run for six months to one year in normal use. But the batteries supplied are for confirming operation and may not run that long. When the remote control starts failing to work properly, replace the batteries with new ones.

Close the back cover.

Slide the back cover in the direction of the arrow until a click is heard.

G1000 [D] p.05-14 99.2.24, 5:50 PM14

Installing the Projector

Precautions for Installation

CAUTION

Do not install the projector in the following places :

• There is much water, humidity or dust.

• The projector may be subjected to oil smoke or cigarette smoke.

• On a soft surface such as a carpet or cushion.

• The projector may be subjected to direct sunlight.

• Temperature is high or humidity is low. Allowable operation temperature range: + 5°C to + 35°C (41°F to 95°F) Allowable relative humidity range: 20% to 80% (no condensation) Allowable storage temperature range: –10°C to +60°C (14°F to 140°F)

■ When installing the projector, observe the followings:

• Do not use the projector placed on its side.

Avoid using the projector placed on its side. This could cause a malfunction.

• Use the projector within the installed angle.

Avoid using the projector inclined ±30° or more right-to-left or left-to-right. This could cause color variation or harm the lamp life.

• Do not block the exhaust vents.

Do not use a cover which encloses the projector air-tight or blocks the exhaust vents. Allow sufficient space around the projector. When the projector is enclosed in a space of the following dimensions, use an air conditioner so the temperature inside becomes equal to the outside temperature.

Allowable minimum space required

20cm (7 - 7/8”) 50cm (19 - 3/4”)

20cm (7 - 7/8”)

ENGLISH

20cm (7 - 7/8”)

G1000[D] p.15-25 99.2.24, 5:50 PM15

20cm (7 - 7/8”)

Installing the Projector (Cont.)

Projection Distance and Screen Size

■ The projector’s projection lens is a zoom lens of about 1.5 x. The screen size at the maximum enlargement is 1.5

times that of the minimum size.

■ The projection distance that can be focused is 2.5 to 20 m. Install the projector within this range.

Screen

■ Change of projection screen

according to aspect ratio

Screen with 4 : 3 aspect ratio

Screen with 16 : 9 aspect ratio

90°

Install the projector so the lower edge of the projection screen is at the same height as the lens’ center line.

Projection

distance

8.2 ft 42” 63” 39” 57”

(2.5 m) (approx. 107 cm) (approx. 160 cm) (approx. 100 cm) (approx. 144 cm)

16.4 ft 86” 128” 79” 117” (5 m) (approx. 219 cm) (approx. 325 cm) (approx. 201 cm) (approx. 297 cm)

32.8 ft 172” 259” 158” 237”

(10 m) (approx. 437 cm) (approx. 657 cm) (approx. 402 cm) (approx. 601 cm)

65.6 ft 345” 521” 317” 478”

(20 m) (approx. 877 cm) (approx. 1,323 cm) (approx. 806 cm) (approx. 1,214 cm)

Minimum projection screen Maximum projection screen Minimum projection screen Maximum projection screen

When screen aspect ratio is 4 : 3 When screen aspect ratio is 16 : 9

90° 90°

Center line of the lens

Projection screen size (diagonal length)

*Also, refer to the table of “Relationship Between Projection Distances and Projection Screen Sizes” on page 17 as a reference.

CAUTIONS and NOTES

• Install the screen so the lower edge of the projected picture aligns with the extended center line of the projector’s lens. That way , the lower edge of the picture projected on a 4 : 3 aspect ratio screen aligns with the extended center line of the lens. Also, the screen must be at right angles with the extended center line of the lens (so that projection occurs at right angles with the screen).

• When installing the screen, use a 4 : 3 aspect ratio picture. (A 16 : 9 aspect ratio picture is projected based on the width of the range in which a 4 : 3 aspect ratio picture is projected.)

• The diagonal length of a 16 : 9 aspect ratio picture is about 91.8% that of a 4 : 3 aspect ratio picture. This value is a guide and should be used as a reference.

• When projecting at the maximum projection distance (20 m/65.6 ft), we recommend that the projector be used with the zoom on the Tele (T).

• If sunlight or lamp light strikes the projection screen directly, the picture becomes whitish and dim. Be sure to use a curtain, etc. to shield the light.

• Trapezoidal distortion may not be corrected. Adjust the projector within the range of angle adjustment (up/down adjustment angle: +7°; horizontal adjustment angle: ±1.5°) so that it is set up level.

• The numeric values listed in the table of Relationship between Projection Distances and Screen Sizes on page 17 are provided only as a guide or reference. The projection sizes may vary within manufacturing tolerances of the projection lens.

• When hanging the projector from the ceiling, use a dedicated hanging fixture.

G1000[D] p.15-25 99.2.24, 5:50 PM16

Installing the Projector (Cont.)

Relationship between Projection Distances and Projection Screen Sizes

■ For 4 : 3 aspect ratio screens

Projection

distance

8.2 ft (2.5 m) 42” (approx. 107 cm) 63” (approx. 160 cm)

9.84 ft (3.0 m) 51” (approx. 130 cm) 76” (approx. 193 cm)

13.12 ft (4.0 m) 68” (approx. 173 cm) 102” (approx. 259 cm)

16.4 ft (5.0 m) 86” (approx. 219 cm) 128” (approx. 325 cm)

19.68 ft (6.0 m) 103” (approx. 262 cm) 154” (approx. 391 cm)

22.96 ft (7.0 m) 120” (approx. 305 cm) 180” (approx. 457 cm)

26.24 ft (8.0 m) 138” (approx. 351 cm) 207” (approx. 525 cm)

29.52 ft (9.0 m) 155” (approx. 394 cm) 233” (approx. 591 cm)

32.8 ft (10.0 m) 172” (approx. 437 cm) 259” (approx. 657 cm)

36.08 ft (11.0 m) 190” (approx. 483 cm) 285” (approx. 723 cm)

39.36 ft (12.0 m) 207” (approx. 526 cm) 310” (approx. 787 cm)

42.64 ft (13.0 m) 224” (approx. 569 cm) 338” (approx. 858 cm)

45.92 ft (14.0 m) 242” (approx. 615 cm) 364” (approx. 924 cm)

49.2 ft (15.0 m) 260” (approx. 661 cm) 390” (approx. 990 cm)

52.48 ft (16.0 m) 276” (approx. 702 cm) 416” (approx. 1,056 cm)

55.76 ft (17.0 m) 294” (approx. 747 cm) 443” (approx. 1,125 cm)

59.04 ft (18.0 m) 311” (approx. 790 cm) 469” (approx. 1,191 cm)

62.32 ft (19.0 m) 328” (approx. 834 cm) 495” (approx. 1,257 cm)

65.6 ft (20.0 m) 345” (approx. 877 cm) 521” (approx. 1,323 cm)

Minimum projection screen size (Tele end) Maximum projection screen size (Wide end)

Projection screen size (diagonal length)

■ For 16 : 9 aspect ratio screens

Projection

distance

8.2 ft (2.5 m) 39” (approx. 100 cm) 57” (approx. 144 cm)

9.84 ft (3.0 m) 47” (approx. 120 cm) 69” (approx. 175 cm)

13.12 ft (4.0 m) 63” (approx. 161 cm) 93” (approx. 236 cm)

16.4 ft (5.0 m) 79” (approx. 201 cm) 117” (approx. 297 cm)

19.68 ft (6.0 m) 95” (approx. 242 cm) 140” (approx. 355 cm)

22.96 ft (7.0 m) 110” (approx. 280 cm) 165” (approx. 419 cm)

26.24 ft (8.0 m) 126” (approx. 321 cm) 189” (approx. 480 cm)

29.52 ft (9.0 m) 142” (approx. 361 cm) 213” (approx. 541 cm)

32.8 ft (10.0 m) 158” (approx. 402 cm) 237” (approx. 601 cm)

36.08 ft (11.0 m) 174” (approx. 442 cm) 260” (approx. 660 cm)

39.36 ft (12.0 m) 190” (approx. 483 cm) 286” (approx. 726 cm)

42.64 ft (13.0 m) 206” (approx. 524 cm) 310” (approx. 787 cm)

45.92 ft (14.0 m) 222” (approx. 564 cm) 334” (approx. 848 cm)

49.2 ft (15.0 m) 238” (approx. 605 cm) 358” (approx. 909 cm)

52.48 ft (16.0 m) 254” (approx. 646 cm) 382” (approx. 970 cm)

55.76 ft (17.0 m) 270” (approx. 686 cm) 406” (approx. 1,031 cm)

59.04 ft (18.0 m) 285” (approx. 724 cm) 430” (approx. 1,092 cm)

62.32 ft (19.0 m) 301” (approx. 765 cm) 454” (approx. 1,153 cm)

65.6 ft (20.0 m) 317” (approx. 806 cm) 478” (approx. 1,214 cm)

Minimum projection screen size (Tele end) Maximum projection screen size (Wide end)

Projection screen size (diagonal length)

ENGLISH

G1000[D] p.15-25 99.2.24, 5:50 PM17

Installing the Projector (Cont.)

Effective Range and Distance of the Remote Control Unit

The operable distance of the remote control unit is about 10 m (32.8 ft) for direct reception. The remote control can be used by having it reflected on the screen, etc. When you use the remote control by reflecting it at the screen, the total distance of A + B should be about 10 m (32.8 ft) or less. The operable angles of the remote control unit is 50° right to left, and 15° up and down.

The effective range and distance of the remote control unit

• Use the projector with A+B about 10 m (32.8 ft) or less.

Screen

50˚

Projector (G1000)

Note

• Depending on the type of the screen used, the effective distance of the remote control may be reduced.

50˚

A 30˚

Remote control unit

G1000[D] p.15-25 99.2.24, 5:50 PM18

Connecting to Various Devices

* Before connection, be sure to turn off the projector and connected devices. * Read the manual which comes with each device thoroughly.

Signals that Can Be Input to the Projector

The following signals can be input to the projector:

■ Video signals

(1) Response to color systems

Input terminal VIDEO ‡‡‡‡ Y/C ‡‡* Y, PB/B-Y, PR/R-Y ‡* G, B, R, H/CS, V ‡*

: Responds if Y/C output is available.

: Signifies that component signals (“Y, PB, PR ” / “ Y, B-Y , R-Y” / “G, B, R, H/C S, V”) conform to the signal timing (synchroniza-

Color system

tion and video period) of each color system. The color systems are used for convenience only.

(2) Response to double density (*1), high-vision signals

: Signals whose density of scanning lines/field is twice as high.

Input terminal NTSC* Y, PB/B-Y, PR/R-Y ‡‡‡ G, B, R, H/CS, V ‡‡‡

*2 : Responds to signals whose horizontal scanning frequency is 31.5 kHz. NTSC can be made twice as dense by a line doubler

(separately available: recommended article). Also, possible to respond to fully-specified, decoded 525P progressive signals.

: Responds to signals whose horizontal scanning frequency is 33.5 kHz. PAL can be made twice as dense by a line doubler

(separately available: recommended article).

Note

• DTV-format signals (480i, 480p, 720p, 1080i) can be input into this unit (Y, PB/B-Y, PR/R-Y input terminals). For details about DTV-format signals (480i, 480p, 720p, 1080i) compatible with this unit, refer to page 56.

NTSC NTSC4.43 PAL SECAM

‡* ‡*

PAL*

‡ - - - - ‡* ‡*

High-vision signal

‡* ‡*

■ Computer signals

• Signals with the following resolutions can be input to the input terminal of COMPUTER IN-1 (PC) or COMPUTER IN-2 (G, B, R, H/Cs, V). (The following signals are preset.)

Screen resolution (standard name) Horizontal frequency Vertical frequency Scanning method

640 × 400 (PC-9801) 24.8kHz 56.4Hz Non-interlace 640 × 350 (VGA1) 31.5kHz 70.1Hz Non-interlace 640 × 480 (VGA3) 31.5kHz 59.9Hz Non-interlace 640 × 480 (Macintosh 13”) 35.0kHz 66.7Hz Non-interlace 640 × 480 (VGA VESA) 37.5kHz 75.0Hz Non-interlace 800 × 600 (SVGA1) 37.9kHz 60.3Hz Non-interlace 800 × 600 (SVGA2) 48.1kHz 72.2Hz Non-interlace 832 × 624 (Macintosh16”) 49.7kHz 74.6Hz Non-interlace 1024 × 768 (XGA1) 48.4kHz 60.0Hz Non-interlace 1024 × 768 (XGA2) 56.5kHz 70.1Hz Non-interlace 1024 × 768 (Macintosh 19”) 60.2kHz 74.9Hz Non-interlace5 1152 × 870 (Macintosh 21”) 68.7kHz 75.0Hz Non-interlace 1280 × 1024 (SXGA1) 64.0kHz 60.0Hz Non-interlace 1280 × 1024 (SXGA2) 70.8kHz 67.0Hz Non-interlace 1360 × 1024 (SXGA3: Mac Board) 80.0kHz 75.1Hz Non-interlace

Notes

• Interlace signals are not handled.

• Some signals other than listed above can be displayed. But they require adjustment. Even some of the signals listed above may require adjustment depending on the video board used.

• When a signal other than listed above is input, the screen could be partially erased or an unneeded fold-over screen could appear.

• Even signals in the frequency range that can be input may not be displayed normally depending on the type of the signal.

• Composite sync.(Cs) and G on sync. signals can not handled depending on the devices connected.

ENGLISH

G1000[D] p.15-25 99.2.24, 5:50 PM19

Connecting to Various Devices (Cont.)

Connecting to Video Devices

Before connection, be sure to turn off both the projector and video device.

• Read the manual which comes with each video device thoroughly.

• Use the supplied AV connection cable. An AV connection cable with an S video terminal is not supplied.

S video cable

T o Y/C

(separately available)

BNC-RCA conversion plug (accessory)

RS-232C

Y/C

AUDIO

REMOTE

VIDEO

/B-Y

/R-Y

AUDIO OUT

To VIDEO

T o AUDIO (L)

T o AUDIO (R)

AV connection cable (accessory)

To select the proper audio input for video input

The video input terminal (AV IN input terminal) can be switched with the VIDEO button. However, since this projector has only a single audio input terminal, reconnect audio input in accordance with the AV device to be used.

Video devices

• VCR (Video Cassette recorder)

• Laser video disc player

• Camcorder

Memo

• Use of an extension cable to connect a video device and the projector could cause video degradation.

• When a signal with much jitter is reproduced on a VCR or specialeffect playback is performed, the upper part of the picture or the picture itself may be erased or distorted.

Connecting to Hi-Vision Devices

Before connection, be sure to turn off both the projector and Hi-Vision devices.

• Read the manual which comes with each Hi-Vision device thoroughly.

• Use separately available BNC cables and audio cables to connect Hi-Vision devices.

T o AUDIO (R) T o AUDIO (L)

Audio cable (separately available)

To VIDEO

To Y To PB/B-Y To PR/R-Y

BNC cable (separately available)

RS-232C

Y/C

AUDIO

REMOTE

VIDEO

/B-Y

/R-Y

AUDIO OUT

To select the proper audio input for video input

Hi-Vision devices

• W-VHS VCR

• Text/video camera

• Hi-Vision video camera

Memo

• Other devices with component signal output terminals (DVD player (NTSC), etc.) can be connected. (*DVD: Digital Video Disc)

• DTV-format signals (480i, 480p,720p,1080i) can be input. For DTVformat signals that can be handled, refer to page 56.

G1000[D] p.15-25 99.2.24, 5:50 PM20

Connecting to Various Devices (Cont.)

Connecting to Other Devices

Before connection, be sure to turn off both the projector and other devices to be connected.

• Read the manual thoroughly which comes with the device to be connected.

• Speakers with a built-in amplifier and game devices can be connected. Use the A V connection cable and audio cable supplied, or the cable supplied with a game device.

RS-232C

AUDIO

REMOTE

Y/C

VIDEO

AUDIO OUT

BNC-RCA conversion plug (supplied)

/B-Y

/R-Y

T o AUDIO OUT

To VIDEO

T o AUDIO (L)

T o AUDIO (R)

Cable supplied with the game device, or supplied AV connection cable

• Speakers with a built-in amplifier

• Game device, etc.

Audio cable (supplied) (or stereo mini-plug)

Connecting to Devices which Control the Projector

Before connection, be sure to turn off both the projector and devices to be connected.

• Read the manual thoroughly which comes with each device to be connected.

• By connecting a computer to the RS-232C terminal, you can control the projector. Also, you can make an infrared remote sensor extension unit and connect it to the REMOTE terminal of the projector. * Obtain connection cables as required. * For details, consult a authorized your dealer or service center .

• Desktop type

H/C

RS-232C

Y/C

AUDIO

REMOTE

• Note type

To RS-232C connector

RS-232C reverse connection cable (separately available)

To RS-232C connector

Infrared remote sensor extension unit

(Needs to be made)

AUDIO

COMPUTER

OUT

To REMOTE terminal

ENGLISH

G1000[D] p.15-25 99.2.24, 5:50 PM21

Connecting to Various Devices (Cont.)

Connecting to Computer Devices

Before connection, be sure to turn off both the projector and computer devices.

• Read the manual which comes with each device thoroughly.

■ Connection to an IBM PC or IBM-compatible computer

• Use the supplied computer connection cable. Also, prepare cables required for connecting the devices connected.

• Desktop type

Computer cable (supplied)

To monitor connector

• Note type

* There are some note types which do not allow the computer’s

LCD to work if an external display is connected. With such a note type, the LCD display and external display output need to be switched.

When connecting an audio output terminal such as a computer sound source to the projector, connect to the AUDIO terminal using the supplied audio cable.

To COMPUTER IN-1

Y/C

AUDIO

To R

AUDIO

To G

To B

To COMPUTER IN-2

COMPUTER

To COMPUTER OUT

OUT

REMOTE

RS-232C

To H/Cs

To V

• Desktop type

• RGB output devices

To monitor connector

Laser video disc player, etc.

Separate cable (separately available)

To R To G

To B

To H/Cs

To V

Cable supplied with the display (or separately available)(D-sub 3-row 15-pin)

POWER

Display monitor

* When a monitor is connected to the

COMPUTER OUT terminal, you can view the video from the computer on the monitor.

G1000[D] p.15-25 99.2.24, 5:50 PM22

Connecting to Various Devices (Cont.)

Connecting to Computer Devices (Cont.)

Before connection, be sure to turn off both the projector and computer devices.

• Read the manual which comes with each device thoroughly.

■ Connection to Macintosh

• Use the supplied Personal computer connection cable and the supplied conversion adapter for Mac.

• When connecting an audio output terminal such as a computer sound source to the projector, connect to the AUDIO terminal using the supplied audio cable.

• Desktop type

• Other connections are the same as in the connection example for IBM PC or IBM compatible PCs.

To monitor connector

Conversion adapter for Mac

(supplied)

Personal computer connection cable (supplied)

To COMPUTER IN-1

COMPUTER

OUT

AUDIO

H/C

RS-232C

Y/C

AUDIO

REMOTE

ENGLISH

G1000[D] p.15-25 99.2.24, 5:50 PM23

Connecting to Various Devices (Cont.)

Connecting the Power Cord (Supplied)

After all devices have finished being connected, connect the projector’s power cord. At this time, do not turn on the MAIN POWER switch yet.

1 Insert the supplied power cord

into the power input terminal (AC IN

~) of the projector.

Power cord (supplied)

CAUTION

T o prevent fire and electric shock, observe the following:

• When you do not use devices, pull out their power cords from wall outlets.

• Do not connect the devices with power cords other than supplied.

• Do not use voltage other than the power voltage indicated.

• Do not scar, damage, or work on the power cords. Also, do not put a heavy object on, heat or pull the power cords, otherwise they may be damaged.

• Do not insert or pull out the plugs with a wet hand.

AC IN ~

2 Insert the plug of the supplied

power cord into a wall outlet.

CAUTION

• Since the power requirement of the projector is high, be sure to insert the power plug directly into a wall outlet.

Lens cap

■To use the projector

LIG

TTIN

• Remove the lens cap.

* The lens cap has a string attached and it is fixed to the

projector.

Be sure to fit lens cap when not in use.

G1000[D] p.15-25 99.2.24, 5:50 PM24

Connecting to Various Devices (Cont.)

When Turning On the Devices Connected to the Projector

Turn on the switches of the projector and the devices connected in the following order. Skip over unconnected devices if there is any .

Power switch of the monitor of the computer which provides input to the projector

Peripheral devices of the computer which provides input to the projector

(Hard disk, magneto optical disk, scanner, etc.)

Power switch of AV devices which provide input to the projector

Projector itself

Power switches of devices to which the projector provides output

(AV devices and display monitor)

Power switch of the computer which provides input to the projector

* When turning off the power switches, do so in the reverse order.

Memo

When the OPERATE button is pressed but the power is not supplied:

If the filter or lamp replacement opening cover is displaced, the power is not supplied. Check them for correct installation.

CAUTIONS and NOTES

Do not turn off the MAIN POWER switch suddenly while the projector is being used or immediately after it has been used. This could cause a malfunction.

•Since the projector uses a high-intensity lamp and is heated to high temperature, cooling fans are operating even during

projection. So, after use, the cooling fans continue to run from when the OPERATE button is pressed until the light-source lamp is cooled down. During cooling, the STAND BY indicator blinks to alert the cooling fans are running. During this time, do not turn off the main power switch. After the cooling of the light-source lamp is finished (the fans stop) and the STAND BY indicator comes on, then turn off the main power switch.

•If you press the OPERATE button immediately after the light-source lamp lights, it takes about 40 seconds for the lamp to go

off. To turn the lamp on again, wait 10 seconds or more before pressing the OPERATE button.

ENGLISH

When the TEMP indicator lights, the power turns off automatically.

•While the light-source lamp is on, if an abnormal temperature rise is detected, the TEMP indicator comes on, the power is

automatically cut off, and the projector’s EMERGENCY indicator blinks (goes into an emergency mode).

When the EMERGENCY indicator blinks, turn off the main power switch after the fans have stopped running.

•If the following abnormality occur to the projector, it goes into an emergency mode (the EMERGENCY indicator blinks).

When the projector goes into an emergency mode, it stops projecting automatically and runs the fans for about 20 seconds. – When the filter is dislodged. – When the filter is clogged. – When the light-source lamp suddenly goes off. – When the fans stop running. – When the temperature inside rises abnormally high.

•When the projector goes into an emergency mode:

After the fans have stopped, turn off the MAIN POWER switch and pull out the power cord. After that, re-insert the power cord and try to operate the projector. If it goes into emergency again, after the fans have stopped, turn off the main power switch, pull out the power cord, and consult your authorized dealer or service center for repair.

G1000[D] p.15-25 99.2.24, 5:50 PM25

Basic Operations

■ Projector’s buttons

STAND BY

LAMP

TEMP

EMERGENCY

VIDEO

COMPUTER

SETTING

QUICK ALIGN.

STAND BY indicator OPERATE indicator

OPERATE button

2, 1

MAIN POWER switch

1, 2

The following describes the basic procedure for normal use of the projector.

1. T urning on the Power

1 Turn on the MAIN POWER

switch.

ON [ ❙ ]:The main power turns on and the STAND BY

indicator comes on.

Projector’s indicator

STAND BY

(ON)

2 Press the OPERATE button.

(Or press the remote control’s OPERATE button for one second or more.)

• The OPERATE indicator comes on.

• About 30 seconds after the MAIN POWER switch is turned on, you can start projecting.

Projector

Remote control unit

OPERATE

(ON)

■ Remote control unit

OPERATE

VOL.

PAGE BACK

PRESET

QUICK ALIGN.

COMPUTER VIDEO

ZOOM FOCUS

MENU/ENTER

MUTING

OPERATE button

2, 1

Note

• After the power is turned on, the screen may be jumbled for a few seconds, but this is not a malfunction.

■ Turning off the Power

1 Press the OPERATE button.

(Or press the remote control’s OPERATE button for one second or more.)

• The STAND BY indicator changes to blinking, and the projector goes into cool-down mode.

Example of the projector’s button

(ON)

Projector

(Blinking)

STAND BY

2 T urn off the MAIN POWER switch

after the STAND BY indicator changes to steady on.

‡‡

OFF [

‡]: The MAIN POWER switch turns off and the

‡‡

ST AND BY indicator goes off.

Projector

G1000[D] p.26-33 99.2.24, 5:51 PM26

(OFF)

STAND BY

* Do not turn off the MAIN POWER switch during cool

down mode (the ST AND BY indicator blinking). Turn it off after the STAND BY indicator becomes on (standby mode).

Basic Operations (Cont.)

■ Projector’s buttons

STAND BY

LAMP

TEMP

EMERGENCY

VIDEO

COMPUTER

SETTING

QUICK ALIGN.

VIDEO button

COMPUTER button

Select the video input to be projected

■ Press the VIDEO button or the COMPUTER button to

switch the input.

• Each time you press either button, the selected input changes as follows.

■ When you press VIDEO:

Y/C

VIDEO

■ When you press COMPUTER:

COMPUTER 1

Remote control unit Projector

COMPUTER VIDEO

Screen display

VIDEO NTSC(480i)

/B-Y,PR/R-Y

Y,P

COMPUTER 2

VIDEO

COMPUTER

■ Remote control unit

OPERATE

VOL.

PAGE BACK

PRESET

QUICK ALIGN.

COMPUTER VIDEO

ZOOM FOCUS

MENU/ENTER

MUTING

COMPUTER button

VIDEO button

ZOOM (T/W) buttons

* When the input is switched, the line display (ex. VIDEO) and

the source display (ex. NTSC(480i)) are shown on the upper part of the screen (they disappear in about five seconds). However, they will not be shown if LINE DISPLAY in “Setting and Adjusting Other Functions (OPTIONS)” on page 43 is set to OFF. (For setting the source, see page 46.)

Note

• To select the proper audio input for video input

3. Adjust the screen size

■ Adjust the screen size with the remote control’s ZOOM

(T/W) buttons.

■ To enlarge the screen size:

Press the ZOOM (W) button.

■ To reduce the screen size:

Press the ZOOM (T) button.

ENGLISH

ATTENTIONS

• DO NOT give any shock to this projector while

operating it; otherwise, the light-source lamp goes off

(the EMERGENCY indicator lights up). If the shock turns off the light-source lamp —

Turn off the power by pressing the MAIN POWER switch, then turn it on again. Now you can operate the projector as usual.

G1000[D] p.26-33 99.2.24, 5:51 PM27

Remote control unit

ZOOM

Note

• The adjustment of the screen size (zoom adjustment) can also be made on the setting menu. For operating the setting menu, refer to “Making Basic Settings” on page 31.

Basic Operations (Cont.)

■ Remote control unit

OPERATE

VOL.

PAGE BACK

PRESET

QUICK ALIGN.

COMPUTER VIDEO

ZOOM FOCUS

MENU/ENTER

MUTING

FOCUS (+/–) buttons

VOL. (+/–) buttons

4. Adjust focus

■ Adjust focus with the remote control’s FOCUS (+/–)

buttons.

■ To focus on farther points:

Press the FOCUS (+) button.

■ To focus on nearer points:

Press the FOCUS (–) button.

Remote control unit

FOCUS

Note

• Focus adjustment can also be made on the setting menu. For operating the setting menu, refer to “Making Basic Settings” on page 31.

5. Adjust sound volume

■ Adjust sound volume with the remote control’s VOL.

(+/–) buttons.

■ When you press the VOL. (+) button:

The sound volume becomes higher. (0 → 50)

■ When you press the VOL. (–) button:

The sound volume becomes lower. (50 → 0)

• When you press either button, the corresponding AUDIO-VOL.

level is displayed on the screen (the display will disappear in about five seconds).

Remote control unit

VOL.

Screen display

AUDIO-VOL. 25

Note

• Sound volume can be adjusted on the setting menu. For operating the setting menu, refer to “Making Basic Settings” on page 31.

G1000[D] p.26-33 99.2.24, 5:51 PM28

Basic Operations (Cont.)

■ Remote control unit

OPERATE

VOL.

PAGE BACK

PRESET

QUICK ALIGN.

COMPUTER VIDEO

ZOOM FOCUS

MENU/ENTER

MUTING

QUICK ALIGN. button

AV MUTING button

¶ For Operating Other Functions

■ To turn off video image and audio sound temporarily

Press the AV MUTING button.

■ Press once:

Video image and audio sound turn off (do not come out).

■ Press again:

Video image and audio sound come out again.

Remote control unit

MUTING

■ To use the quick alignment function

The quick alignment function is used to automatically adjust (set) the screen settings of “TRACKING, PHASE, H. POS. and V . POS.” of computer system input video.

• Use either the remote control’s or projector’s button.

■ When using the remote control unit:

Press the QUICK ALIGN. button.

■ When using the projector:

Clear the menu display, and press the projector’s QUICK ALIGN. “+ 3” and “– 2” buttons at the same time.

■ Projector’s button

STAND BY

LAMP

TEMP

EMERGENCY

VIDEO

COMPUTER

SETTING

QUICK ALIGN.

QUICK ALIGN. buttons

* During the automatic adjustment, “QUICK ALIGNMENT” appears

on the screen and disappears automatically after the adjustment is completed.

Remote control unit Projector

QUICK

QUICK ALIGN.

ALIGN.

Screen display

QUICK ALIGNMENT

Note

• This function works only for computer system inputs.

It does not work for AV inputs.

ENGLISH

G1000[D] p.26-33 99.2.24, 5:51 PM29

CAUTION

• When performing automatic adjustment using the quick alignment function:

Use a bright, still-picture screen. It may not function correctly on a dark or motion-picture screen. If the condition adjusted by using the quick alignment function is not good, manually adjust TRACKING, PHASE, H. POS. and V. POS. (see pages 31, 37 and 38).

Basic Operations (Cont.)

■ Projector button

STAND BY

LAMP

TEMP

EMERGENCY

VIDEO

COMPUTER

SETTING

QUICK ALIGN.

■ To display the SETTING menu

The setting menu is used to make basic adjustments and settings (TRACKING, PHASE, H. POS., V. POS., FOCUS, ZOOM and AUDIO-VOL.) of the video picture being projected after installation (connection) or after inputs are switched. For operating the setting menu, refer to “Making Basic Settings” on page 31.

• Press the projector’s SETTING button.

The setting menu is displayed on the screen.

Projector

SETTING

SETTING button

■ To display the MAIN menu

The main menu is used to adjust or set the projected video picture and the projector’s condition, etc. (PIXEL CLOCK, POSITION, PICTURE, SOUND, OPTIONS, SOURCE DECODER and LANGUAGE). For operating the main menu, refer to pages 34 to

47.

• Press the remote control’s MENU/ENTER button.

The main menu appears on the screen.

Remote control unit

■ Remote control unit

OPERATE

VOL.

PAGE BACK

PRESET

QUICK ALIGN.

COMPUTER VIDEO

ZOOM FOCUS

MENU/ENTER

MUTING

MENU/ENTER button

MENU/ENTER

Note

• To change the menu language displayed

English is set when the projector is shipped from the factory. The language displayed can be selected from the following six languages: (Japanese), ENGLISH, DEUTSCH (German), ESPAÑOL (Spanish), ITALIANO (Italian), and FRANÇAIS (French). However, some words such as “QUICK ALIGNMENT“ are displayed only in English. Pronouns such as line display and source display are similarly treated.

■ To use the remote control’s PRESET button

The PRESET button is used for adjustments made on the main menu or setting menu.

• When resetting only the selected settings to the factory-set values, press the remote control’s PRESET button.

Only the selected item’s setting is reset to the factory-set value.

Remote control unit

PRESET

PRESET button

G1000[D] p.26-33 99.2.24, 5:51 PM30

Notes

• This button works only for numeric values. It does not work for switching between ON and OFF.

• For items such as PIXEL CLOCK (TRACKING and PHASE), POSITION (H. POS. and V. POS.), SOUND (TREBLE and BASS), both settings are reset at the same time.

Operating the Setting Menu

Making Basic Settings

■ Projector’s buttons

EMERGENCY

VIDEO

COMPUTER

SETTING

QUICK ALIGN.

■ Setting menu

SETTING TRACKING

PHASE H.POS. V.POS. FOCUS – ZOOM W AUDIO -VOL.

SETTING button

QUICK ALIGN. buttons

0 0 0 0 + T 0

Here, we make basic video adjustment and sound volume adjustment which are set up after installation (connection).

Notes

• This adjustment menu (setting menu) can be displayed with only the projector’s button. After displaying the setting menu, you can select or set (adjust) items with cursor buttons on the remote control unit.

• If settings and connections are changed, adjust and set those items again.

• After this adjustment (setting menu), if video picture adjustment is necessary by using the devices connected, perform the details setting and adjustment on the main menu (pages 34 to 47).

• For computer-related inputs, use of the quick alignment function allows automatic adjustment of TRACKING, PHASE, H. POS. and V. POS. (See pages 31, 37 and 38).

Press the SETTING button of the

projector.

• The setting menu is displayed on the screen.

Press the SETTING button to

select the desired item.

• The selected item is shown in magenta color. Each time you press the button, the selected item changes as follows:

TRACKING

Menu clearing AUDIO-VOL. ZOOM

PHASE H. POS. V. POS.

FOCUS

Adjustment • setting level

Description of adjustment and setting items

TRACKING : If wide vertical stripes appear on the screen,

adjust the lateral video size and display area so that they disappear. (–255 ↔ 0 ↔ +255)

PHASE : If characters on the screen flicker or become

dim, adjust so they become clear. (–127 ↔ 0 ↔ +127)

H. POS. : If the screen position is displaced to the right

or left, adjust the horizontal position of the screen. (–255 ↔ 0 ↔ +255)

V . POS. : If the screen position is displaced upward or

downward, adjust the vertical position of the screen. (–120 ↔ 0 ↔ +120)

FOCUS : Adjust the focus of video picture.

–: Focuses on near points. +: Focuses on farther points.

ZOOM : Adjust the screen size (angle of view).

T : Becomes smaller. W: Becomes larger.

AUDIO-VOL. : Adjust the sound level.

(0 ↔ 50)

Memo

To select items using the remote control unit:

Items can be selected using the cursor buttons 5 (backward) or ∞(forward) on the remote control unit. In this case, menu clearing in

the above order is not available. The selection changes from AUDIOVOL to TRACKING directly.

Adjust and set the selected item

using the QUICK ALIGN. buttons +3or –2.

• To adjust and set multiple items, repeat steps 2 and 3.

• To reset the adjustment value of the selected item (TRACKING, PHASE, H. POS. or V. POS.) to the factory-set value, press the remote control’s PRESET button. This button does not work for focus, zoom or

sound volume.

Memo

To adjust and set items using the remote control unit:

Items can be adjusted and set using the cursor buttons 2 or 3 on the remote control unit.

Clear the setting menu by

pressing the SETTING button repeatedly.

Memo

To clear the setting menu using the remote control unit:

You can also clear the setting menu by pressing the PAGE BACK button on the remote control unit.

ENGLISH

G1000[D] p.26-33 99.2.24, 5:51 PM31

Memo

Using the quick alignment function:

This function works only for computer-related signals inputted. Press the remote control’s QUICK ALIGN. button, or after clearing the menu displayed, press the projector’s QUICK ALIGN. buttons “+3“ and “– 2“ at the same time. TRACKING, PHASE, H. POS. and V. POS. are automatically adjusted. During the adjustment, “QUICK ALIGNMENT” appears on the screen, and disappears after the adjustment finishes.

Operating the Main Menu

Configuration the Main Menu (AV Input)

For computer inputs, see the following page.

You can adjust video quality (PICTURE), audio quality (SOUND), etc. using the menus. The menus are configured as follows:

Main menu (AV inputs : During AV IN input signal)

PIXEL CLOCK TRACKING : Normally, no adjustment is required. The lateral size and display area of video image are adjusted.

PHASE : Normally, no adjustment is required. Flickering or dim video image is adjusted.

POSITION V. POS. : The vertical position of the video image being projected is adjusted.

H. POS. : The horizontal position of the video image being projected is adjusted.

PICTURE BRIGHTNESS : The brightness of the video image being projected is adjusted.

CONTRAST : The contrast of the video image being projected is adjusted. SHARPNESS : The sharpness of the video image being projected is adjusted. COLOR : The color density of the video image being projected is adjusted. TINT : The tint of the video image being projected is adjusted. (Displayed only for NTSC signal) ALL RESET : All the items adjusted are reset.

SOUND TREBLE : The treble of the audio sound being input is adjusted.

BASS : The bass of the audio sound being input is adjusted.

OPTIONS MENU AUTO OFF : Sets whether to turn off menu display automatically (YES) or not (NO).

LINE DISPLAY : Sets whether to make the line display effective (ON) or not (OFF) for about 5 seconds after input

switching. RIGHT LEFT REV.: Video image is reversed right-to-left (for upside-down hanging (ceiling)). TOP BOTTOM INV. CLAMP : Sets the clamp pulse’s position at the back porch (BP) or on the sink tip (ST). Normally, the clamp

RESIZE : Does not work with AV (video) input. (RESIZE is shown in gray.) BACK COLOR : Specifies the background color when there is no video signal. Background color can be selected

COLOR TEMP. : Adjusts the color temperature of the image being projected. Make adjustment when the image

: Video image is inverted top-to-bottom (for upside-down hanging (ceiling)).

pulse is used at BP. If, with some PCs or workstations, the screen becomes unstable such as

being too dark or too bright, try to switch to ST.

from BLUE, CYAN, BLACK, GREEN, MAGENTA, RED, and YELLOW.

becomes reddish or bluish.

Color temperature can be set to LOW, MIDDLE, or HIGH.

ASPECT CHANGE

SLEEP TIME : Sets the length of sleep time. A set sleep time after input signal is depleted, the projector goes into

LAMP TIME : Indicates the accumulated used hours of the light-source lamp.

SOURCE : Normally used in AUTO. If use in AUTO is unstable such as color not appearing, the screen being disturbed or the

screen being intermitted, set to the dedicated source (forced mode) in accordance with the input signal.

DECODER : Normally, set to AUTO. The color system of an input signal is automatically identified and shown in ( ). When use

in AUTO is unstable such as no color being shown, set the dedicated color system in accordance with the input signal. You can select from AUTO, NTSC(480i), NTSC4.43, PAL, and SECAM.

LANGUAGE : Text on the screen can be changed to a language other than English. Languages that can be displayed are the

following six : (Japanese), ENGLISH, DEUTSCH (German), ESPAÑOL (Spanish), ITALIANO (Italian), and FRANÇAIS (French). However, some text such as “QUICK ALIGNMENT”, etc. are shown only in English.

: Selects the vertical-to-horizontal ratio of the image projected. The factory-set ratio is 4 : 3. When

projecting high-vision video image, a ratio of 16 : 9 can be selected.

a stand-by state. Sleep time can be selected from 10 minutes, 20 minutes, 30 minutes, and 60

minutes.

G1000[D] p.26-33 99.2.24, 5:51 PM32

Operating the Main Menu (Cont.)

Configuration of the Main Menu (Computer-related input)

Main menu (Computer-related inputs : During COMPUTER IN-1 or -2 input signal)

PIXEL CLOCK TRACKING : The lateral size and display area of video image are adjusted.

PHASE : Flickering or dim video image is adjusted.

POSITION V. POS. : The vertical position of the video image being projected is adjusted.

H. POS. : The horizontal position of the video image being projected is adjusted.

PICTURE BRIGHTNESS : The brightness of the video image being projected is adjusted.

CONTRAST : The contrast of the video image being projected is adjusted. R-GAIN : The gain in red signal of the video image being projected is adjusted. G-GAIN : The gain in green signal of the video image being projected is adjusted. B-GAIN : The gain in blue signal of the video image being projected is adjusted. TEXT MODE : Adjust easiness for reading text during RESIZE.

Normal Text 1 Text 2

ALL RESET : All the items adjusted are reset.

SOUND TREBLE : The treble of the audio sound being input is adjusted.

BASS : The bass of the audio sound being input is adjusted.

: Normal

: Display the outline of small letters already.

: Makes the outline of large letters sharp.

OPTIONS MENU AUTO OFF : Sets whether to turn off menu display automatically (YES) or not (NO).

LINE DISPLAY : Sets whether to make the line display effective (ON) or not (OFF) for about 5 seconds after input

switching. RIGHT LEFT REV . : Image is reversed right-to-left (for upside-down hanging (ceiling)). TOP BOTT OM INV. : Image is inverted top-to-bottom (for upside-down hanging (ceiling)). CLAMP : Sets the clamp pulse’s position at the back porch (BP) or on the sink tip (ST). Normally, the clamp

pulse is used at BP. If, with some PCs or workstations, the screen becomes unstable such as

being too dark or too bright, try to switch to ST. RESIZE : When the number of pixels (resolution) sought by the video image input is smaller than that

(resolution) of D-ILA device, the video image is then enlarged to a virtually full screen size of D-ILA

device and projected. (Resizing indication) BACK COLOR : Specifies the background color when there is no image signal. Background color can be selected

from BLUE, CYAN, BLACK, GREEN, MAGENTA, RED, and YELLOW.

COLOR TEMP. : Adjusts the color temperature of the video image being projected. Make adjustment when the

video image becomes reddish or bluish.

Color temperature can be set to LOW, MIDDLE, or HIGH.

ASPECT CHANGE : Selects the vertical-to-horizontal ratio of the video image projected. The factory-set ratio is 4 : 3.

When projecting high-vision image, a ratio of 16 : 9 can be selected.

SLEEP TIME : Sets the length of sleep time. A set sleep time after input signal is depleted, the projector goes into

a stand-by state. Sleep time can be selected from 10 minutes, 20 minutes, 30 minutes, and 60

minutes.

ENGLISH

LAMP TIME : Indicates accumulated used hours of the light-source lamp.

SOURCE : Normally used in AUTO. If use in AUTO is unstable such as color not appearing, the screen being disturbed or the

screen being intermitted, set to the dedicated source (forced mode) in accordance with the input signal.

DECODER : Does not work with computer-related inputs. (The color system is indicated in gray.)

LANGUAGE : Text on the screen can be changed to a language other than English. Languages that can be displayed are the

G1000[D] p.26-33 99.2.24, 5:51 PM33

Operating the Main Menu (Cont.)

Operating the Main Menu (Basic Operation of the Main Menu)

■ Remote control unit

MENU/ENTER

MUTING

button

Cursor buttons

OPERATE

VOL.

PAGE BACK

PRESET

QUICK ALIGN.

PAGE BACK button

COMPUTER VIDEO

ZOOM FOCUS

MENU/ENTER

For projector’s menus, the setting menu and the main menu are available. Here, we explain about the operation of the main menu. (see pages 34 to 47) For the setting menu, refer to “Making Basic Settings” on page 31.

Press the MENU/ENTER button.

• The main menu is displayed on the screen.

Select an item with the cursor button

5 or ∞.

• The selected item (displayed text) is shown in magenta color on the screen.

Set (adjust) the item.

■ When you have selected DECODER or LANGUAGE,

• Set it with the cursor button 2 or 3. * To finish the main menu, press the PAGE BACK button.

■ When you have selected an item on the submenu,

• Press the MENU/ENTER button to display the submenu, then set (adjust) the item with the cursor buttons 2 / 3 or 5 / ∞.

* To return to the main menu, press PAGE BACK again. (To

finish the main menu from the submenu, press PAGE BACK twice.)

■ Main menu

(Example: During video signal input)

Input line Source

VIDEO AUTO(NTSC(480i)) PIXEL CLOCK

POSITION PICTURE SOUND OPTIONS SOURCE

DECODER LANGUAGE

Decoder (color system) Language

AUTO(NTSC(480i)) ENGLISH

Submenu items

■ About main menu display:

Line display: The selected input-mode designation is

displayed. For input-mode designation, “Y/ C”, “VIDEO”, “Y, P “COMPUTER 1” and “COMPUTER 2” are available.

Source display: The type of signal being input is displayed.

With this projector, unique designations are previously given to specific horizontal and vertical frequencies. This allows the source selected under SOURCE (submenu item) to be indicated. The source setting can be selected from AUTO mode and dedicated (forced) modes. When AUTO is selected, the horizontal and vertical frequencies of a signal being input are detected and the matched designation is displayed in ( ). Display example: “AUTO (NTSC(480i))” Therefore, be careful as the source display does not always correspond to the indication or type of the input signal. For the unique designations for the specific horizontal and vertical frequencies, see pages 19 and 46.

Submenu item display:

PIXEL CLOCK: See page 37. POSITION : See page 38. PICTURE : See pages 39~41. SOUND : See page 42. OPTIONS : See pages 43~45. SOURCE : See pages 46 and 47.

Decoder (Color system) display: See page 35. Language display : See page 36.

/B-Y, PR/R-Y”,

G1000[D] p.34-45 99.2.24, 5:51 PM34

Operating the Main Menu (Cont.)

Changing the Color System

■ Remote control unit

MENU/ENTER

MUTING

button

Cursor buttons

OPERATE

VOL.

PAGE BACK

PRESET

QUICK ALIGN.

PAGE BACK button

COMPUTER VIDEO

ZOOM FOCUS

MENU/ENTER

AUTO is set for the color system when the projector is shipped from the factory. Normally, use it in AUTO. If operation in AUT O is unstable such as with color not being shown, set to a dedicated color system in accordance with the color system of the signal being input.

Press the MENU/ENTER button.

• The main menu is shown on the screen.

Select “DECODER” with the cursor

button 5 or ∞.

• The selected item (displayed in text) is shown in magenta color on the screen.

Set the color system with the cursor

button 2 or 3.

• Each time you press the cursor button 2 or 3, the color system changes as follows. 3 : Forward / 2 : Backward

AUTO................... Normally, set to AUTO. The color

system of a signal being input is automatically identified.

■ Main menu

VIDEO NTSC(480i) PIXEL CLOCK

POSITION PICTURE SOUND OPTIONS SOURCE

DECODER LANGUAGE

Color system (DECODER) display

Note

• When computer-related signal is input, the display of the color system is changed to gray color, making operation impossible. When video signals from AV devices are input, the item for the color system can be set.

AUTO(NTSC(480i)) ENGLISH

NTSC(480i).......... Dedicated to NTSC(480i).

NTSC4.43 ............ Dedicated to NTSC4.43.

PAL ...................... Dedicated to PAL.

SECAM ................ Dedicated to SECAM.

Memo

About automatic signal identification

• AUTO is selected when shipped from the factory. In AUTO, the color system (DECODER) of the signal being input is automatically identified and indicated in ( ). Refer to the main menu display.

• If operation in AUTO is unstable such as with color not being shown, set to a dedicated color system in accordance with the color system of the signal being input. When the dedicated color system is set, be careful as automatic identification does not work.

¶ To finish the main menu, press the P AGE BACK

button.

ENGLISH

G1000[D] p.34-45 99.2.24, 5:51 PM35

Operating the Main Menu (Cont.)

Changing the Language Display

■ Remote control unit

MENU/ENTER

MUTING

button

Cursor buttons

OPERATE

VOL.

PAGE BACK

PRESET

QUICK ALIGN.

PAGE BACK button

COMPUTER VIDEO

ZOOM FOCUS

MENU/ENTER

The language in the menu display is set to English when shipped from the factory. When you want to change to another language, set it as follows.

Press the MENU/ENTER button.

• The main menu is shown on the screen.

Select “LANGUAGE” with the cursor

button 5 or ∞.

• The selected item (displayed in text) is shown in magenta color on the screen.

Set the desired language with the

cursor button 2 or 3.

• Each time you press the cursor button 2 or 3, the selected language changes as follows.

3 : Forward / 2 : Backward

............ Japanese

............ English

■ Main menu

VIDEO NTSC(480i) PIXEL CLOCK

POSITION PICTURE SOUND OPTIONS SOURCE

DECODER LANGUAGE

Language display

Note

• The selected item is shown in magenta color. Items shown in gray cannot be operated or set in the current mode.

AUTO(NTSC(480i)) ENGLISH

............ German

............ Spanish

............ Italian

............ French

Memo

About language display

English is selected when the projector is shipped from the factory. The languages in the menu display are the following six : (Japanese), ENGLISH, DEUTSCH (German), ESPAÑOL (Spanish), and FRANÇAIS (French). However, some text such as “QUICK ALIGNMENT” is displayed only in English. Unique designations such as line display and source display are similarly indicated.

¶ T o finish the main menu, press the P AGE BACK

button.

G1000[D] p.34-45 99.2.24, 5:51 PM36

Operating the Main Menu (Cont.)

Adjusting the Pixel Clock

■ Remote control unit

MENU/ENTER

MUTING

button

Cursor buttons

OPERATE

VOL.

PAGE BACK

PRESET

QUICK ALIGN.

PAGE BACK button

COMPUTER VIDEO

ZOOM FOCUS

MENU/ENTER

The pixel clock should be adjusted mainly for computer-related inputs. (Normally , it does not need to be adjusted for video inputs.) If a wide stripe appears on the screen, adjust the lateral size of video image and the display area (tracking adjustment) so the stripe disappears. Also, if text on the video screen appears flickering or dim, make adjustment so it becomes clear (phase adjustment).

Press the MENU/ENTER button.

• The main menu appears on the screen.

Select “PIXEL CLOCK” with the cursor

button 5 or ∞.

• The selected item (displayed in text) is shown in magenta color on the screen.

Press the MENU/ENTER button.

• The submenu items of the PIXEL CLOCK menu appears on the screen.

PIXEL CLOCK TRACKING PHASE

0 0

■ Main menu

COMPUTER1 SXGA2

PIXEL CLOCK POSITION PICTURE SOUND OPTIONS SOURCE

DECODER AUTO( ) LANGUAGE ENGLISH

Submenu item (PIXEL CLOCK)

Notes

• The selected item is shown in magenta color. Items shown in gray color cannot be operated or set in the current mode.

• A dim screen could be caused by insufficient adjustment of brightness and contrast. Before adjusting phase, make sure that brightness and contrast are correctly adjusted.

(PIXEL CLOCK menu)

Adjust “TRACKING” and “PHASE” with

the cursor buttons.

• Adjust the tracking and phase of the video screen being projected. To adjust the phase, first check for correct tracking adjustment.

Adjustment item Button Adjustment content

The screen shrinks laterally (right-

TRACKING

PHASE

to-left). (–255 ← 0 ← +255) The screen extends laterally

(right-to-left). (–255 → 0 → +255) Set to a position where text

appears clear. (–127 → 0 → +127)

(–127 ← 0 ← +127)

∞

* To reset to the factory-set adjustment values, press the remote

control’s PRESET button. Tracking and phase are reset to the factory-set adjustment values.

¶ To return to the main menu, press the PAGE

BACK button. To finish the main menu, press P AGE BACK again.

• To finish the menu display from the submenu display (PIXEL CLOCK menu), press PAGE BACK twice.

ENGLISH

G1000[D] p.34-45 99.2.24, 5:51 PM37

Operating the Main Menu (Cont.)

Adjusting the Screen Position

■ Remote control unit

MENU/ENTER

OPERATE

VOL.

PAGE BACK

PRESET

QUICK ALIGN.

PAGE BACK button

COMPUTER VIDEO

ZOOM FOCUS

MENU/ENTER

MUTING

button

Cursor buttons

Adjust the position of the screen if it is displaced.

Press the MENU/ENTER button.

• The main menu appears on the screen.

Select “POSITION” with the cursor

button 5 or ∞.

• The selected item (displayed in text) is shown in magenta color on the screen.

Press the MENU/ENTER button.

• The submenu items of the POSITION menu appear on the screen.

POSITION H.POS. H.POS.

0 0

(POSITION menu)

■Main menu

VIDEO NTSC(480i) PIXEL CLOCK

POSITION PICTURE SOUND OPTIONS SOURCE

DECODER LANGUAGE

Submenu item (POSITION)

Note

• The selected item is shown in magenta color. Items shown in gray color cannot be operated or set in the current mode.

AUTO(NTSC(480i)) ENGLISH

Adjust “H. POS.” and “V . POS.” with the

cursor buttons.

• Adjust the horizontal and vertical positions of the video picture screen being projected.

Adjustment item Button Adjustment content

The screen moves to the left.

H. POS.

V. POS.

(–255 ← 0 ← +255) The screen moves to the right.

(–255 → 0 → +255) The screen moves upwards.

(–120 → 0 → +120) The screen moves downwards.

∞

(–120 ← 0 ← +120)

* To reset to the factory-set adjustment values, press the remote

control’s PRESET button. H. POS. and V. POS. are reset to the factory-set adjustment values.

¶ To return to the main menu, press the PAGE

BACK button. To finish the main menu, press P AGE BACK again.

• T o finish the menu display from the submenu display (POSITION menu), press PAGE BACK twice.

G1000[D] p.34-45 99.2.24, 5:51 PM38

Operating the Main Menu (Cont.)

Adjusting Picture Quality

■ Remote control unit

MENU/ENTER

OPERATE

VOL.

PAGE BACK

PRESET

QUICK ALIGN.

COMPUTER VIDEO

ZOOM FOCUS

MENU/ENTER

PAGE BACK button

MUTING

button

Cursor buttons

Adjust brightness, contrast, etc. so you have the desired screen. Adjustment items (on the PICTURE menu) are different when videorelated signals are input and when computer-related signals are input.

Press the MENU/ENTER button.

• The main menu appears on the screen.

Select “PICTURE” with the cursor

button 5 or ∞.

• The selected item (displayed in text) is shown in magenta color on the screen.

Press the MENU/ENTER button.

• The submenu items of the PICTURE menu appear on the screen.

■When AV signals are input

PICTURE (NTSC(480i))

BRIGHTNESS CONTRAST SHARPNESS COLOR – TINT 1 ALL RESET

0 0 3 3

■ Main menu

VIDEO NTSC(480i) PIXEL CLOCK

POSITION PICTURE SOUND OPTIONS SOURCE

DECODER LANGUAGE

Submenu item (PICTURE)

Notes

• The selected item is shown in magenta color. Items shown in gray color cannot be operated or set in the current mode.

• Adjustment items (on the PICTURE menu) are different when AV signals are input and when computer-related signals are input.

AUTO(NTSC(480i)) ENGLISH

(PICTURE menu)

■When computer-related signals are input

PICTURE (SXGA2)

BRIGHTNESS CONTRAST R-GAIN G-GAIN B-GAIN TEXT MODE NORMAL ALL RESET

(PICTURE menu)

Select the item to adjust with the cursor

button 5 or ∞.

• The items to adjust (shown in text) is displayed in magenta color.

0 0 0 0 0

ENGLISH

G1000[D] p.34-45 99.2.24, 5:51 PM39

(To be continued on the next page)

Operating the Main Menu (Cont.)

Adjusting Picture Quality (Cont.)

■Remote control unit

MENU/ENTER

MUTING

button

Cursor buttons

OPERATE

VOL.

PAGE BACK

PRESET

QUICK ALIGN.

PAGE BACK button

COMPUTER VIDEO

ZOOM FOCUS

MENU/ENTER

■Submenu items

[PICTURE menu]

PICTURE (NTSC(480i))

BRIGHTNESS CONTRAST SHARPNESS COLOR – TINT 1 ALL RESET

Make adjustment with the cursor

button 2 or 3.

■For video system input

• To adjust multiple items, repeat steps 4 and 5.

• T o reset all items (to factory-set adjustment values “0”), select ALL RESET with the cursor buttons and press the MENU/ ENTER button.

• To reset only the selected items (ALL RESET excluded) to the factory-set adjustment value, press the remote control’s PRESET button. The selected item is reset to the factory-set adjustment value.

Adjustment item Button Adjustment content

Gets darker.

BRIGHTNESS

CONTRAST

SHARPNESS

COLOR

TINT

0 0 3 3

ALL RESET

MENU/

ENTER

Notes

• The adjustment item, TINT, is displayed only for NTSC system. It is not displayed (cannot be adjusted) when PAL or SECAM system signals are input.

• When video signals are input to the COMPUTER IN-2 terminal, adjustment items “COLOR” and “TINT” are indicated but cannot be adjusted.

(–30 ← 0 ← +30) Gets brighter.

(–30 → 0 → +30) Gets lower.

(–30 ← 0 ← +30) Gets higher.

(–30 → 0 → +30) Gets softer.

(0 ← 7) Gets sharper.

(0 → 7) Gets softer.

(–30 ← 0 ← +30) Gets deeper.

(–30 → 0 → +30) Gets reddish.

(–30 ← 0 ← +30) Gets greenish.

(–30 → 0 → +30) Resets all adjustment values of

items on the PICTURE menu to the factory-set values (0).

Notes

• The selected item is shown in magenta color. Items shown in gray color cannot be operated or set in the current mode.

• Adjustment items (on the PICTURE menu) are different when AV signals are input and when computer-related signals are input.

G1000[D] p.34-45 99.2.24, 5:51 PM40

■For computer system input

• To adjust multiple items, repeat steps 4 and 5.

• To reset all items (to factory-set adjustment values “0”), select ALL RESET with the cursor buttons and press the MENU/ENTER button.

(To be continued on the next page)

Operating the Main Menu (Cont.)

NORMAL

TEXT1

TEXT2

NORMAL

TEXT1

TEXT2

Adjusting Picture Quality (Cont.)

■Remote control unit

MENU/ENTER

OPERATE

VOL.

PAGE BACK

PRESET

QUICK ALIGN.

COMPUTER VIDEO

ZOOM FOCUS

MENU/ENTER

PAGE BACK button

MUTING

button

Cursor buttons

Adjustment item Button Adjustment content

Gets darker.

BRIGHTNESS

CONTRAST

R-GAIN

G-GAIN

B-GAIN

TEXT MODE

(–30 ← 0 ← +30) Gets brighter.

(–30 → 0 → +30) Gets lower.

(–30 ← 0 ← +30) Gets higher.

(–30 → 0 → +30) Gets less reddish.

(–30 ← 0 ← +30) Gets more reddish.

(–30 → 0 → +30) Gets less greenish.

(–30 ← 0 ← +30) Gets more greenish.

(–30 → 0 → +30) Gets less bluish.

(–30 ← 0 ← +30) Gets more bluish.

(–30 → 0 → +30) Sets a mode which allows easy

text reading.

■Submenu items

[PICTURE menu]

PICTURE (SXGA2)

BRIGHTNESS CONTRAST R-GAIN G-GAIN B-GAIN TEXT MODE NORMAL ALL RESET

Notes

• The selected item is shown in magenta color. Items shown in gray color cannot be operated or set in the current mode.

• Adjustment items (on the PICTURE menu) are different when AV signals are input and when computer-related signals are input.

0 0 0 0 0

Resets all adjustment values of

ALL RESET

MENU/

ENTER

items on the PICTURE quality menu to the factory-set status (adjustment values: 0, text mode: NORMAL).

Note

• There is a relationship between the adjustment of items R-GAIN, G-GAIN, and B-GAIN and that of item CONTRAST. For example, when adjustment values are : R-GAIN: 0, G-GAIN: 5, B-GAIN: 0, and CONTRAST : 0, changing CONTRAST to 1 changes the adjustment values as follows: R-GAIN: 1, GGAIN: 6, and B-GAIN: 1. Also, when the adjustment value of any of R-GAIN, G-GAIN, and B-GAIN has reached -30 (minimum) or +30 (maximum), CONTRAST cannot be adjusted to any higher value. For example, when R-GAIN is 0, G-GAIN is 5, B-GAIN is 0, and CONTRAST is 0, increasing CONTRAST allows the other adjustment values to increase until R-GAIN: 25, G-GAIN: 30, and B-GAIN: 25, then CONTRAST becomes 25 and cannot be adjusted to any higher value.

¶ To return to the main menu, press the PAGE

BACK button. To finish the main menu, press P AGE BACK again.

ENGLISH

G1000[D] p.34-45 99.2.24, 5:51 PM41

• To finish the menu display from the submenu display (PICTURE menu), press PAGE BACK twice.

Operating the Main Menu (Cont.)

Adjusting Sound Quality

■ Remote control unit

MENU/ENTER

MUTING

button

Cursor buttons

OPERATE

VOL.

PAGE BACK

PRESET

QUICK ALIGN.

PAGE BACK button

COMPUTER VIDEO

ZOOM FOCUS

MENU/ENTER

Adjust the quality (treble/bass) of sound.

Press the MENU/ENTER button.

• The main menu appears on the screen.

Select the “SOUND” with the cursor

button 5 or ∞.

• The selected item (displayed in text) is shown in magenta color on the screen.

Press the MENU/ENTER button.

•The submenu items of the SOUND menu appear on the screen.

SOUND TREBLE BASS

0 0

(SOUND menu)

■ Main menu

VIDEO NTSC(480i) PIXEL CLOCK

POSITION PICTURE SOUND OPTIONS SOURCE

DECODER LANGUAGE

Submenu item (SOUND)

Note

• The selected item is shown in magenta color. Items shown in gray color cannot be operated or set in the current mode.

AUTO(NTSC(480i))

ENGLISH

Adjust “TREBLE” and “BASS” with the

cursor buttons.

• Adjust the quality (TREBLE and BASS) of sound.

Adjustment item Button Adjustment content

Gets weaker.

∞

(–5 ← 0 ← +5) Gets stronger.

(–5 → 0 → +5) Gets stronger.

(–5 → 0 → +5) Gets weaker.

(–5 ← 0 ← +5)

TREBLE

BASS

* To reset to the factory-set adjustment values, press the remote

control’s PRESET button. The treble and bass are reset to the factory-set adjustment values.

¶ To return to the main menu, press the PAGE

BACK button. To finish the main menu, press P AGE BACK again.

• To finish the menu display from the submenu display (SOUND menu), press PAGE BACK twice.

G1000[D] p.34-45 99.2.24, 5:52 PM42

Operating the Main Menu (Cont.)

Setting and Adjusting Other Functions (OPTIONS)

■ Remote control unit

MENU/ENTER

OPERATE

VOL.

PAGE BACK

PRESET

QUICK ALIGN.

PAGE BACK button

COMPUTER VIDEO

ZOOM FOCUS

MENU/ENTER

MUTING

button

Cursor buttons

The following optional functions can be set (adjusted).

• MENU AUTO OFF • LINE DISPLAY • RIGHT LEFT REV.

• TOP BOTTOM INV. • CLAMP • RESIZE

• BACK COLOR • COLOR TEMPERATURE

• ASPECT CHANGE • SLEEP TIME • LAMP TIME

Memo

About the lamp use time

The lamp use time indicates the accumulated used hours of the light-source lamp and cannot be set or adjusted. When you have replaced with a new light-source lamp, reset the lamp use time (see page 50).

Note

• The RESIZE function works for only computer system input. It does not work for video system input.

Press the MENU/ENTER button.

• The main menu appears on the screen.

Select the “OPTIONS” with the cursor

button 5 or ∞.

• The selected item (displayed in text) is shown in magenta color on the screen.

■ Main menu

VIDEO NTSC(480i) PIXEL CLOCK

POSITION PICTURE SOUND OPTIONS SOURCE

DECODER LANGUAGE

Submenu item (OPTIONS)

Note

• The selected item is shown in magenta color. Items shown in gray color cannot be operated or set in the current mode.

• Items to be set (adjusted) are different when A V signals are input and when computer system signals are input.

AUTO(NTSC(480i)) ENGLISH

Press the MENU/ENTER button.

• The submenu items of the OPTIONS menu are displayed.

OPTIONS MENU AUTO OFF

LINE DISPLAY RIGHT LEFT REV. TOP BOTTOM INV. CLAMP RESIZE BACK COLOR COLOR TEMP. ASPECT CHANGE SLEEP TIME LAMP TIME

(OPTIONS menu)

Select the item to set (adjust) with the

cursor button 5 or ∞.

NO ON OFF OFF BP ON BLUE MIDDLE 4:3 30 Min. 10 H.

• The item to set (adjust) is shown in magenta color.

ENGLISH

G1000[D] p.34-45 99.2.24, 5:52 PM43

(To be continued on the next page)

Operating the Main Menu (Cont.)

Setting and Adjusting Other Functions (OPTIONS) (Cont.)

■Remote control unit

MENU/ENTER

OPERATE

VOL.

PAGE BACK

PRESET

COMPUTER VIDEO

ZOOM FOCUS

MENU/ENTER

button

Cursor buttons

QUICK ALIGN.

MUTING

PAGE BACK button

■Submenu items

[OPTIONS menu]

OPTIONS MENU AUTO OFF

LINE DISPLAY RIGHT LEFT REV. TOP BOTTOM INV. CLAMP RESIZE BACK COLOR COLOR TEMP. ASPECT CHANGE SLEEP TIME LAMP TIME

Notes

• The selected item is shown in magenta color. Items shown in gray color cannot be operated or set in the current mode.

• Items to be set (adjusted) are different when A V signals are input and when computer-system signals are input.

• When you turn the RESIZE function ON, allowing the screen to be enlarged virtually to its full size for projection (resizing display), the video image (resolution) becomes coarse.

NO ON OFF OFF BP ON BLUE MIDDLE 4:3 30 Min. 10 H.

Set (adjust) the desired item with the

cursor button 2 or 3.

• To adjust multiple items, repeat steps 4 and 5.

Adjustment item Button Adjustment content

Sets whether to clear the menu display automatically a fixed time later or not. (Factory setting : NO)

MENU AUTO OFF

LINE DISPLAY

RIGHT LEFT REV .

TOP BOTTOM INV.

CLAMP

RESIZE

YES: Clears the display automatically in

2/3

about 25 seconds.

NO : Does not clear the display

automatically.

NO YES Sets whether to show the line display (Y/C,

VIDEO, etc.) at the top of the projected screen or not. (Factory setting : ON)

OFF: Does not show the line display. ON : Shows the line display.

(The line display disappears about 5 seconds after it is shown.)

OFF ON Reverses video image right-to-left.

(Factory setting : OFF)

OFF: For the front method ON : For upside hanging from the ceiling

OFF ON

Inverses video image upside-down. (Factory setting : OFF)

OFF: For normal set-up ON : For upside hanging from the ceiling

OFF ON

Sets the clamp pulse’s position at the back porch (BP) or on the sink tip (ST). Normally, the clamp is used at BP. If, with some PCs or workstations, the screen becomes unstable such as being too dark or too bright, try to switch to ST. (factory setting: BP)

BP : The clamp pulse is positioned at the

back porch.

ST : The clamp pulse is positioned on the

sink tip.

BP ST When the number of pixels (resolution)

sought by the input video is smaller than that (resolution) of D-ILA device, the video image is then enlarged to virtually full screen size of D-ILA device and projected (resizing display). (Factory setting : ON) Does not work (cannot be set) for video system input.

OFF : Does not enlarge the video image for

projection. When the number of pixels sought by video image is smaller than that of D-ILA device, projection takes place on a small screen size with a black area around the screen.

ON : Enlarges virtually to the full screen

size of D-ILA device for projection (resizing display).

OFF ON

G1000[D] p.34-45 99.2.24, 5:52 PM44

(To be continued on the next page)

Operating the Main Menu (Cont.)

Setting and Adjusting Other Functions (OPTIONS) (Cont.)

■Remote control unit

MENU/ENTER

OPERATE

VOL.

PAGE BACK

PRESET

COMPUTER VIDEO

ZOOM FOCUS

MENU/ENTER

button

Cursor buttons

QUICK ALIGN.

MUTING

PAGE BACK button

■Submenu items

[OPTIONS menu]

Adjustment item Button Adjustment content

Sets background color when there is no input signal. (Factory setting : BLUE)

BACK COLOR

BLUE CYAN BLACK GREEN

2/3

YELLOW RED MAGENTA

Sets the color temperature of the video image being projected. Make adjustment when the image becomes reddish or bluish. (Factory setting : MIDDLE)

LOW : Color temperature decreases

COLOR TEMP.

2/3

MIDDLE: Results in middle color

(video image becoming reddish).

temperature.

HIGH : Color temperature increases

(video image becoming bluish).

LOW MIDDLE HIGH

Sets the vertical-to-horizontal ratio (4 : 3 or 16 : 9) of the video image projected. (Factory setting : 4 : 3)

4 : 3 : The aspect ratio of the screen

ASPECT CHANGE

2/3

becomes 4 : 3. Set it to 4 : 3 for video of NTSC, NTSC4.43, PAL, SECAM.

16 : 9: The aspect ratio of the screen

becomes 16 : 9. Set it to 16 : 9 for HiVision devices (W-VHS VCR, etc.)

4 : 3 16 : 9

Sets the length of sleep time which automatically brings the projector into standby state. You can select one of the following

SLEEP TIME

2/3

sleep times : 10 minutes, 20 minute, 30 minutes, and 60 minutes. (Factory setting : 30 minutes)

10 20 30 60

OPTIONS MENU AUTO OFF

LINE DISPLAY RIGHT LEFT REV. TOP BOTTOM INV. CLAMP RESIZE BACK COLOR COLOR TEMP. ASPECT CHANGE SLEEP TIME LAMP TIME

NO ON OFF OFF BP ON BLUE MIDDLE 4:3 30 Min. 10 H.

Notes

• The selected item is shown in magenta color. Items shown in gray color cannot be operated or set in the current mode.

• Items to be set (adjusted) are different when A V signals are input and when computer-system signals are input.

ENGLISH

¶ To return to the main menu, press the PAGE

BACK button. To finish the main menu, press P AGE BACK again.

• T o finish the menu display from the submenu display (OPTIONS menu), press PAGE BACK twice.

Note

• When you view a conventional (normal) 4 :3 video picture, which is not wide video picture, on the projector’s screen the aspect change function, the upper and lower parts of the video picture become partially invisible. View such an original video picture in 4 :3 mode, respecting the producer’s intention.

G1000[D] p.34-45 99.2.24, 5:52 PM45

Operating the Main Menu (Cont.)

Changing (Setting) the Source

■ Remote control unit

MENU/ENTER

MUTING

button

Cursor buttons

OPERATE

VOL.

PAGE BACK

PRESET

QUICK ALIGN.

COMPUTER VIDEO

ZOOM FOCUS

MENU/ENTER

PAGE BACK button

Normally , use the source setting in AUT O. If use in AUT O is unstable such as color not appearing, the screen being disturbed or the screen being intermitted, set to the dedicated source (forced mode) in accordance with the input signal.

• When shipped from the factory, the source settings are as follows:

Input mode Factory setting Input mode Factory setting

VIDEO NTSC(480i) COMPUTER 1 AUTO

Y/C NTSC(480i) COMPUTER 2 AUTO

Y, PB/B-Y, PR/R-Y AUTO — —

Notes

• Depending on the signal from a device connected, adjustment may be needed after a dedicated source is set. If that is the case, adjust the appropriate items.

• When the input mode (SOURCE) is VIDEO or Y/C, and if AUTO is set, the automatic detecting function may work, possibly causing the screen to be intermitted or disturbed. In that case, set to a dedicated source (forced mode).

• When special effect playback (fast-forward/ twice-speed/triple-speed) is performed on a video deck, etc, the picture may be disturbed or intermitted, depending on the device.

• When inputting 480p or 720p-DTV-format signal in COMPUTER2 input mode, use the dedicated source mode “SDTV(480p)” or “HDTV1(720p)”. (At AUTO, 480p or 720p signal can not be detected.)

■Main menu

VIDEO AUTO(NTSC(480i)) PIXEL CLOCK

POSITION PICTURE SOUND OPTIONS SOURCE

DECODER LANGUAGE

Submenu item [SOURCE]

Notes

• The selected item is shown in magenta color. Items shown in gray color cannot be operated or set in the current mode.

• Items that can be set are different when video signals are input and when computer signals are input.

• For dedicated source signals (corresponding frequency, etc.) for computer signals, see page 19.

AUTO(NTSC(480i)) ENGLISH

Press the MENU/ENTER button.

• The main menu appears on the screen.

Select a submenu item “SOURCE”

using the cursor button 5 or ∞.

• The SOURCE item (shown in text) is indicated in magenta color .

Press the MENU/ENTER button.

• The submenu items, SOURCE menu, appears on the screen.

SOURCE (AUTO)

AUTO NTSC(480i) SDTV(480p) HDTV1(720p) HDTV2(1080i) PAL/SECAM PC-98 VGA1 VGA3 MAC13 VGA VESA

SVGA1 SVGA2 MAC16 XGA1 XGA2 MAC19 MAC21 SXGA1 SXGA2 SXGA3

The display in ( ) shows the currently set status.

(SOURCE menu)

Select the item to set using the cursor

buttons 5/∞ or 2/3.

• The item to set is shown in magenta color.

SOURCE (AUTO)

AUTO NTSC(480i) SDTV(480p) HDTV1(720p) HDTV2(1080i) PAL/SECAM PC-98 VGA1 VGA3 MAC13 VGA VESA

SVGA1 SVGA2 MAC16 XGA1 XGA2 MAC19 MAC21 SXGA1 SXGA2 SXGA3

(To be continued on the next page)

G1000[D] p.46-59 99.2.24, 5:52 PM46

Operating the Main Menu (Cont.)

Changing (Setting) the Source (Cont.)

■ Remote control unit

MENU/ENTER

OPERATE

VOL.

PAGE BACK

PRESET

COMPUTER VIDEO

ZOOM FOCUS

MENU/ENTER

button

Cursor buttons

QUICK ALIGN.

MUTING

PAGE BACK button

■ Submenu item

Press the MENU/ENTER button to set

(fix) it.

■When AUTO is selected:

The main menu is automatically cleared, completing the setting procedure, and the source display inputted appears.

• Both line display and source display appear on the screen and disappear in five seconds. However, they do not appear if the line display is set to OFF.

SOURCE (AUTO)

AUTO NTSC(480i) SDTV(480p) HDTV1(720p) HDTV2(1080i) PAL/SECAM PC-98 VGA1 VGA3 MAC13 VGA VESA

SVGA1 SVGA2 MAC16 XGA1 XGA2 MAC19 MAC21 SXGA1 SXGA2 SXGA3

VIDEO AUTO(NTSC(480i))

▲

■When other than AUTO is selected:

The selected item is shown in ( ) beneath the indicated text “SOURCE” at the top of the screen, completing the setting procedure.

• To finish the menu display, press the PAGE BACK button twice (the first press returns you to the main menu and the second press clears it).

(SOURCE menu)

SOURCE (AUTO)

AUTO NTSC(480i) SDTV(480p) HDTV1(720p) HDTV2(1080i) PAL/SECAM PC-98 VGA1 VGA3 MAC13 VGA VESA

SVGA1 SVGA2 MAC16 XGA1 XGA2 MAC19 MAC21 SXGA1 SXGA2 SXGA3

Notes

• The selected item is shown in magenta color. Items shown in gray color cannot be operated or set in the current mode.

• Items that can be set are different when video signals are input and when computer signals are input.

• For dedicated source signals (corresponding frequency, etc.) for computer signals, see page 19.

SOURCE (NTSC(480i))

AUTO NTSC(480i) SDTV(480p) HDTV1(720p) HDTV2(1080i) PAL/SECAM PC-98 VGA1 VGA3 MAC13 VGA VESA

▲

SVGA1 SVGA2 MAC16 XGA1 XGA2 MAC19 MAC21 SXGA1 SXGA2 SXGA3

PAGE BACK

Press the PAGE BACK button.

VIDEO PIXEL CLOCK

POSITION PICTURE SOUND OPTIONS SOURCE

DECODER LANGUAGE

AUTO

(NTSC(480i))

ENGLISH

▲

NTSC(480i)

PAGE BACK

Press the PAGE BACK button.

The menu display is finished.

ENGLISH

G1000[D] p.46-59 99.2.24, 5:52 PM47

Replacing the Light-Source Lamp

The light-source lamp has its service life. It is approximately 1000 hours.

When the light-source lamp approaches the end of its service life, its degradation progresses rapidly. When the lamp’s used hours exceed 900 hours, the projector’s LAMP indicator comes on. Also, at the start of projection (lamp energized), the message “REPL.-LAMP” appears on the projection screen for about two minutes. Then, replace with a new light-source lamp, or arrange for a replacement lamp. When lamp’s service has reached 1000 hours, the projector’s LAMP indicator starts blinking, and if you press the OPERATE button (or press the remote control’s OPERA TE button for more than one second), the light-source lamp does not turn on. The specified lamp replacement period is 1000 hours, but depending on use conditions, the replacement period may vary. If video image is dark and its color tint is extraordinary even after you have adjusted color tint and brightness, replace the light-source lamp a little earlier. Purchase new light-source lamps (part No. : G1000-LAMP) from the authorized dealer where you have purchased the projector, or consult the Service center.

CAUTIONS and NOTES

• If the projector is set up in a tight place which is unsuitable for work, and if you perform replacement work there, this could hurt you. Move the projector to a place wide enough for work, and then replace the lamp.

• Use a genuine product for the light-source lamp. If you use other than a genuine product, this could cause a malfunction. Also, never use an old light-source lamp. An old lamp could cause marked degradation in performance or explode itself, possibly causing the projector to malfunction. Also, its broken pieces could come out of the projector and harm you when replacing the light-source lamp.

• Do not replace the light-source lamp immediately after the projector has been used. The temperature of the light-source lamp is still high and could cause a burn. Be sure to allow a cooling period of one hour or more before performing replacement work.

• Before starting lamp replacement work, turn off the MAIN POWER switch (see page 26), and disconnect the power cord from the wall outlet. If you perform the replacement work with the power cord left connected, this could cause harm or electric shock.

• Never discard an old light-source lamp (used lamp), as is. Otherwise, this could involve a great danger. The lamp contains a xenon gas inside, which is applying a high pressure. If the gas is not removed, it could cause the lamp to explode. For handling used lamps, refer to the manual supplied with the new replacement lamp you have purchased. If you have any questions, consult a authorized dealer where you have bought the replacement lamp or Service center.

Remove the lamp-replacement

opening cover by loosening screws.

Loosen the two screws with a flat-end screwdriver.

Note

• The screws are fitted so that they do not come off the lampreplacement opening cover.

Screw

Lamp-replacement opening cover

Be careful not to damage the claw.

G1000[D] p.46-59 99.2.24, 5:52 PM48

Replacing the Light-Source Lamp (Cont.)

Loosen the lamp-unit screws, raise

the handle, and pull out the lamp unit.

Loosen the two screws with a flat-end screwdriver.

Note

• The screws are fitted so that they do not come off the lampunit.

Insert the new lamp unit fully

inside and fasten the screws.

Fasten the two screws with a flat-end screwdriver.

CAUTION

• Do not touch the glass surface of the light-source lamp directly with your hand as well as staining it. If you touch with a bare hand, stains on your hand may adhere to the lamp, possibly preventing the lamp from performing as specified due to a shortened lamp life, a darkened screen, etc. To handle a new light-source lamp, hold its plastic part. Never touch the metal part or the front glass surface.

Handle

Screw

Lamp unit

Handle

Lamp unit

Screw

ENGLISH

Replace the lamp-replacement

opening cover and fasten the

Lamp-replacement opening cover

screws.

Fasten the two screws with a flat-end screwdriver.

Be careful not to damage the claw.

CAUTIONS

• Install the lamp unit and close the lamp-replacement opening cover correctly; otherwise, a safety switch is activated to prevent the projector from operating.

• If the claw on the lamp-replacement opening cover is damaged, the projector may not possibly operate. Then, replace with a new lamp-replacement opening cover.

• After replacing the lamp, be sure to reset the lamp use time (see page 50).

G1000[D] p.46-59 99.2.24, 5:52 PM49

Replacing the Light-source Lamp (Cont.)

Resetting the Lamp Use Time

After replacing with a new light-source lamp, reset the counter inside the projector. This works to reset the life calculation of the light-source lamp, allowing the used time of the new light-source lamp to be accumulated.

Turn on the MAIN POWER switch

■Projector’s button

[MAIN POWER switch]

to go into stand-by mode.

• ON [ ❙ ]:The main power turns ON and the STAND BY indicator lights.

Press and hold down the “VIDEO”,

“SETTING” and “QUICK ALIGN. + 3 ” at the same time for six seconds or more.

• The STAND BY and OPERATE indicators come on at

the same time.

While the STAND BY and

[Control panel]

STAND BY indicator

STAND BY

OPERATE indicator

OPERA TE indicators are on, press the “VIDEO”, “SETTING”, and “COMPUTER” buttons at the same time.

• The STAND BY and OPERATE indicators blink two

seconds alternately, and after blinking, the projector returns to stand-by state (the ST AND BY indicator lights).

LAMP

TEMP

EMERGENCY

VIDEO

COMPUTER

SETTING

QUICK ALIGN.

* This completes the resetting of the lamp use time.

Memo

To check the lamp use time has been reset :

You can check it by LAMP TIME on the OPTIONS menu.

CAUTIONS

• After replacing with a new light-source lamp, be sure to reset the lamp use time. When the lamp use time indicates 1000 hours, and if it is not reset, the projector does not operate. (The light-source lamp does not turn on.)

• Reset the lamp use time only when you have replaced with a new light-source lamp. Never reset it at a halfway time. Otherwise, the replacement time may become unclear, degrade performance markedly, or cause lamp explosion.

G1000[D] p.46-59 99.2.24, 5:52 PM50

Cleaning and Replacing the Filter

Clean the filter periodically. If the filter is heavily stained and does not get clean, or if it is damaged, replace the filter with a new filter (part No.: LC30208). Otherwise, dirt may get inside and appear on the screen, possibly preventing you from enjoying the video image fully . If dirt gets inside or if you need information about the filter, consult a authorized dealer where you have purchased the projector or Service center.

Turn off the MAIN POWER switch.

After the projector goes into stand-by state with the STAND BY indicator on, turn off the main power switch and pull out the power cord from the projector and the wall outlet.

Remove the filter.

Loosen the screw with a flat-end screwdriver.

Screw

Clean the filter.

Clean the filter with a neutral detergent, wash it in water, and then dry it in the shade.

Notes

• The screws are fitted so that they do not come off the filter.

• If the filter is clogged with dirt, etc., the projector goes into an emergency mode (the EMERGENCY indicator blinks). So, clean the filter periodically. For the emergency mode, refer to pages 9 and 25.

Be careful not to damage the claws.

Filter

Reinstall the filter.

Fasten the screw with a flat-end screwdriver.

Notes

• Install the filter correctly. Otherwise, the projector does not operate. (Goes into an emergency mode.)

• If the filter’s claws are damaged, the projector may not operate. Then, replace with a new filter.

ENGLISH

CAUTIONS

• Put on rubber gloves when using neutral detergent.

• After you have washed the filter in water, make sure the filter is completely dry before reinstalling it. Otherwise, electric shock or malfunction could occur.

• Do not clean the filter using a vacuum cleaner. Since the filter is soft, it may be sucked into the vacuum cleaner or damaged.

G1000[D] p.46-59 99.2.24, 5:52 PM51

Troubleshooting

Solutions to common problems related to your projector are described here. If none of the solutions presented here solves the problem, unplug the projector and consult a authorized dealer or service center.

Symptom Probable cause Corrective action Page

Power is not supplied.

Light is not emitted, or light level is low.

With power on, operation starts but stops in a few minutes.

Video image does not appear, or audio sound does not occur.

Video image dims.

Color is poor or unstable.

• Is the power cord disconnected?

• Is the main power switch turned on?

• Is the lamp-replacement opening cover closed correctly?

• Is the air filter closed correctly?

• Has the lamp life expired? (Has the lamp use time reached 1000 hours?)

• Is the lens cap removed?

• Is the lamp life near its end?

• Is the air intake or exhaust area blocked?

• Is the correct input selected?

• Are connected devices connected correctly?

• Are signals being supplied from the connected devices?

• Are input signals (scanning frequency, etc.) appropriate?

• Is the source setting correctly selected? Isn’t a wrong source (forced mode) selected?

• Is brightness adjusted correctly?

• Is volume set at minimum?

• Aren’t video and audio turned off by pressing the remote control’s AV MUTING button?

• Is focus adjusted correctly?

• Is distance too short or too long?

• Are TRACKING and PHASE adjusted correctly?

• Is picture quality (color density, etc.) adjusted correctly?

• Is the correct broadcast system (color system) selected?

• Are signals (scanning frequency, etc.) to connected devices appropriate?

• Is the source setting correctly selected? Isn’t a wrong source (forced mode) selected?

• Insert the power cord (plug) firmly.

• Turn on the MAIN POWER switch.

• Turn off the MAIN POWER switch, close the lamp-replacement opening cover, and turn on the main power switch again.

• Turn off the MAIN POWER switch, fit the air filter correctly, and turn on the main power switch again.

• Turn off the MAIN POWER switch, replace with a new light-source lamp, and turn on the MAIN POWER switch. Reset the lamp use time after replacing with a new lamp.

• Remove the lens cap.

• Check the lamp use time on the menu, and if the lamp life is near its end, arrange for a replacement lamp, or replace a little earlier.

• Turn off the MAIN POWER switch, remove any blocking objects, and turn on the MAIN POWER switch again.

• Select the correct inputs with the VIDEO and COMPUTER buttons.

• Connect connected devices correctly.

• Set connected devices correctly.

• Check if the signal is correct as input (scanning frequency, etc.). Input the appropriate signal.

• Set the source setting to AUTO or to the correct dedicated source (forced mode).

• Adjust brightness on the menu.

• Adjust volume with the remote control’s VOL. (+/–) buttons.

• Press the remote control’s AV MUTING button to turn video and audio on.

• Adjust focus with the remote control’s FOCUS (+/–) buttons.

• Set the projector at the correct distance.

• Adjust TRACKING and PHASE on the menu.

• Adjust picture quality on the menu.

• Set the broadcast system (color system) to AUTO.

• Check if the signal is appropriate (scanning frequency, etc.), and input the appropriate signal.

• Set the source setting to AUTO. If the problem still persists, set it to the correct dedicated source (forced mode).

24 26

26, 48

26, 51

26, 48, 50

6, 8, 15, 26

–––

46, 47

39 28

28, 31

16, 17

31, 37

39 35

G1000[D] p.46-59 99.2.24, 5:52 PM52

Symptom Probable cause Corrective action Page

The upper part of the video image bows or distorts.

Video image and audio sound suddenly go out.

Remote control unit does not work.

* This projector is equipped with a microcomputer that may operate abnormally due to interference from external components.

If this happens, turn off the main power and disconnect the power cord from the wall AC outlet. Then reconnect the power cord to AC outlet and turn on the main power again. (For the turning on and off the power, see pages 25 to 26.)

• While computer system signal is input, isn’t a sync signal for composite sync (Cs) or G on sync being input?

• Isn’t signal with much jitter or skew distortion being input to a video deck?

• Is the source setting correctly selected? Isn’t a wrong source (forced mode) selected?

• Are video picture and audio turned off by pressing the AV MUTING button on the remote control unit?

• Are batteries installed correctly?

• Are batteries exhausted?

• Is there a shielding object between the remote control unit and the remote sensor?

• Is the distance too long?

• Input separate sync signals for vertical sync (V) and horizontal sync (H) signals.

• Input signals with little jitter or distortion.

• Set the source setting to AUTO. If the problem still persists, set it to the correct dedicated source (forced mode).

• Turn on video picture and audio by pressing the remote control’s AV MUTING.

• Match the polarities of batteries correctly (+ to + and - to -).

• Replace with new batteries.

• Remove any shielding objects.

• Use the remote control unit at a nearer point.

—

14 14

Maintenance

• Stains on the cabinet

Should be wiped off with a soft cloth. If the cabinet is heavily stained, wipe it with a cloth soaked in water-diluted neutral detergent and wrung well, then wipe clean with a dry cloth.

• Since the cabinet may deteriorate in quality, become damaged or get its paint peeled off, be careful about the following:

– Do not wipe it with a hard cloth. – Do not wipe it strong. – Do not wipe it with thinner or benzene. – Do not apply any volatile substance such as insecticides to it. – Do not allow any rubber or vinyl article to remain in contact with it for a long time.

• Stains on the lens

Sould be cleaned off with commercially available blowers or lens cleaning paper (for cleaning glasses and cameras). Do not use liquid cleaning agents. This could cause the surface coating to be removed. Do not rub or hit the lens as its surface is prone to damage.

ENGLISH

G1000[D] p.46-59 99.2.24, 5:52 PM53

Specifications

Optical mechanism system

• Projection method 3D-ILA device, 1 lens, 3 primary color optical shutter method

• D-ILA device 0.9" measured diagonally (1365 ×1024 pixels) × 3 (Total number of pixels : 4,193,280)

• Projecting lens Electric-driven zoom of 1.5 ×

• Screen size 42" to 300" [recommended] to 521" [maximum] measured diagonally (*with aspect ratio : 4 : 3)

• Light-source lamp 400 W xenon lamp

Electrical system

• Color system NTSC, NTSC4.43, PAL, SECAM (* Automatic switching / manual switching)

• Resolution 1365 × 1024 dots (*S-XGA full resolution, during RGB input) 1000TV lines (*Horizontal resolution, aspect ratio 4 : 3, during video input)

• Scanning frequency Horizontal frequency : 15 kHz ~ 82 kHz Vertical frequency : 50 Hz ~ 78 Hz

Input / output

[AV IN (AV IN input)]

• Y/C 1-line, mini-DIN 4 pin × 1 Y (luminance signal) : 1Vp-p, 75Ω (negative sync) C (chroma signal) : 0.286Vp-p (burst signal), 75Ω [NTSC]

: 0.3Vp-p (burst signal), 75Ω [P AL]

• VIDEO 1-line, BNC × 1 Composite video signal : 1Vp-p, 75Ω (negative sync)

• Y, P

B/B-Y, P

• AUDIO L/R (for AV IN) 1-line, RCA × 2

[COMPUTER IN (COMPUTER input)]

• COMPUTER IN-1 (PC) 1-line, D-sub 3-row 15 pin × 1

/R-Y 1-line, BNC × 3

Component (Y,B-Y,R-Y) signals Y : 1Vp-p, 75Ω (negative sync) B-Y : 0.7Vp-p, 75Ω R-Y : 0.7Vp-p, 75Ω DTV-format signals [480i (ITU-R BT. 601-4), 480p (SMPTE 293M)] Y : 1Vp-p, 75Ω (negative sync) P

, PR: 0.7Vp-p, 75Ω

[720p (SMPTE 296M), 1080i (SMPTE 274M)] Y : 1Vp-p, 75Ω (3-value sync) P

, PR: 0.7Vp-p, 75Ω

Audio signal : 0.5Vrms, high impedance

Analog RGB signal R : 0.7Vp-p, 75Ω B : 0.7Vp-p, 75Ω G : 0.7Vp-p, 75Ω G on Sync : 1Vp-p, 75Ω (negative sync) Sync signal : 1 to 5Vp-p, high impedance (positive/negative polarity) * Some connected devices may not correspond to composite sync (Cs) or G on sync signal.

• AUDIO 1-line, stereo mini-jack × 1

(For COMPUTER IN-1) 0.5Vrms, high impedance

• COMPUTER IN-2 1-line, BNC × 5

G1000[D] p.46-59 99.2.24, 5:52 PM54

Analog RGB signal R : 0.7Vp-p, 75Ω B : 0.7Vp-p, 75Ω G : 0.7Vp-p, 75Ω G on sync : 1Vp-p, 75Ω (negative sync)

Specifications (Cont.)

Horizontal sync/composite sync signal (H/Cs) H : 1 to 5Vp-p, high impedance (positive/negative polarity) Cs : 1 to 5Vp-p, high impedance (positive/negative polarity) Vertical sync signal (V) V : 1 to 5Vp-p, high impedance (positive/negative polarity) * Some connected devices may not correspond to composite sync (Cs) or G on sync signal.

• AUDIO 1-line, stereo mini-jack × 1 (For COMPUTER IN-2) 0.5Vrms, high impedance

[COMPUTER OUT (COMPUTER OUTPUT)]

• COMPUTER OUT 1-line, D-sub 3-row 15-pin × 1

Analog RGB signal R : 0.7Vp-p, 75Ω B : 0.7Vp-p, 75Ω G : 0.7Vp-p, 75Ω G on sync : 1Vp-p, 75Ω (negative sync) Horizontal sync/composite sync signal (H/Cs) H : TTL level (Polarity : Same for input) Cs : TTL level (Polarity : Same for input) Vertical sync signal (V) V : TTL level (Polarity : Same for input)

• AUDIO OUT 1-line, stereo mini-jack × 1

0 to 0.5Vrms (variable output)

[CONTROL]

• RS-232C : 1-line, D-sub 9-pin × 1

* RS-232C-interface specified control terminal for controlling this projector with a personal

computer.

• REMOTE : 1-line, mini-jack × 1

* Remote terminal for connecting an infrared remote sensor extension unit, etc.

[Other]

• Audio power output 1 W + 1 W

(effective)

• Built-in speaker 6 × 3 cm (2-

/8" × 1-1/8") oval type × 2, impedance 8 Ω

General

• Power requirements AC120 V, 60 Hz

• Power consumption 8 A (7 W during stand-by)

• Allowable operation temperature + 5°C to + 35°C (41°F to 95°F)

• Allowable relative humidity 20% to 80% (no condensation)

• Allowable storage temperature – 10°C to + 60°C (14°F to 140°F)

• Maximum outside dimensions Approx. (W)425 × (H)246 × (D)375 mm (16-

(excluding protruding parts)

• Weight Approx. 32.56 lbs.(14.8kg)

• Accessories (Refer to page 5.)

/4" × 9-3/8" × 14-7/8")

* Design and specifications are subject to change without notice. * D-ILA devices are manufactured with a very high-precision technology, allowing 99.99% of the pixels to be effective. Only

0.01% or less of the pixels are missing or always on.

* For easy understanding, pictures and illustrations are shown by being emphasized, omitted or composed, and may be more

or less different from actual products.

*TRADEMARKS

IBM ,IBM PC, and VGA are registered trademarks of International Business Machines Corporation. Macintosh is registered trademarks of Apple Computer, Inc.

VESA is a trademark of the non-profit organization Video Electronios Standard Association.

All other product names mentioned herein are used for identification purposes only, and may be the trademarks or registered trademarks of their respective companies.

ENGLISH

G1000[D] p.46-59 99.2.24, 5:52 PM55

Specifications (Cont.)

Outside dimensions

■Top

16-3/4 (425)*

ALIGN QUICK

SETTING

COMPUTER

VIDEO

EMERGENCY

TEMP

LAMP

STAND BY

(φ104)

4-1/8

5-1/4 (133)*

Unit: Inch (mm)

*1: Protrusion excluded

/8 (339)

/8 (375)

13-

14-

■Front ■Side

14-1/4 (361)

/8 (246)

/8 (187)

6-5/8 (168)

8-1/8 (205)*

16-3/4 (425)*

DTV-format signals

* The following are DTV-format signals that can be input.

DTV-Formats 480i 480p 720p 1080i Signal Standard ITU-R BT. 601-4 SMPTE 293M SMPTE 296M SMPTE 274M Scanning Line / Frame 525 525 750 1125 Effective Samples x Scanning Lines 720 x 485 720 x 483 1280 x 720 1920 x 1080 Samples / Total Line 858 858 1650 2200 Field Frequency(Hz) 59.94 59.94 60/59.94 60/59.94 Line Frequency(Hz) 15734 31468.5 45000/44955 33750/33716.25 Interlace Ratio 0.5 1 1 0.5

14-7/8 (375)

9-1/8 (231)

/8 (193)

(41)

2-1/4 (55.5)

/8 (246)

G1000[D] p.46-59 99.2.24, 5:52 PM56

Specifications (Cont.)

Pin assignment (Specifications for terminals)

■Y/C terminal

Pin number Signal name

■RS-232C terminal

1 GND (Y) 2 GND (C) 3Y 4C

Pin number Signal name

6 7

8 9

2 3 4 5

1 N/C 2RD 3TD 4 N/C 5 GND

■COMPUTER IN-1 (PC) / COMPUTER OUT Terminal

Pin number Signal name

1 Red 2 Green 3 Blue 4 N/C 5 N/C 6 GND (Red) 7 GND (Green) 8 GND (Blue)

14 13 12

5 4 3

2 1

7 6

Pin number Signal name

6 N/C 7 N/C 8 N/C 9 N/C

Pin number Signal name

9 N/C 10 GND (SYNC) 11 GND 12 N/C 13 H.SYNC 14 V.SYNC 15 N/C

ENGLISH

G1000[D] p.46-59 99.2.24, 5:52 PM57

G1000[D] p.46-59 99.2.24, 5:52 PM58

ENGLISH

G1000[D] p.46-59 99.2.24, 5:52 PM59

JVC G1000 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
