SERVICE MANUAL

LCD FLAT TELEVISION

YA33320058

LT-26X506/S, LT-32X506

BASIC CHASSIS

TABLE OF CONTENTS

1 PRECAUTION. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-3

2 SPECIFIC SERVICE INSTRUCTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-6

3 DISASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-9

4 ADJUSTMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-14

5 TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-16

No.YA333

2005/8

Page 2

SPECIFICATION

Items

Dimensions ( W × H × D )

Mass 16 kg (35.2 lbs) [Included stand]

Power Input AC120 V, 60 Hz

Power Consumption 124 W 186 W

TV RF System CCIR (M)

Color System NTSC

Sound System BTSC (Multi Channel Sound)

Teletext System Closed Caption (T1 - T4 / CC1 - CC4)

TV Receiving Channels and Frequency

TV / CATV Total Channel

Intermediate Frequency Video IF

Color Sub Carrier 3.58 MHz

LCD panel 26V-inch wide aspect (16 : 9) 32V-inch wide aspect (16 : 9)

Screen Size

Display Pixels Horizontal : 1366 dots × Vertical : 768 dots (W-XGA)

Audio Power Output 5 W + 5 W

Speaker 6.6 cm, round type × 2 (Oblique corn) Antenna terminal (VHF/UHF) F-type connector, 75 Ω unbalanced, coaxial

Video / Audio input [INPUT-1/2/3]

Headphone 3.5 mm stereo mini jack × 1 Remote Control Unit RM-C1271G (AA/R6 dry cell battery × 2)

Design & specifications are subject to change without notice.

Component Video

VHF low

VHF high

Sound IF

[INPUT-1]

1125i / 750p

525p / 525i

S-Video

[INPUT-1/2]

68.6 cm × 52.7 cm × 30.8 cm (27-1/8"

68.6 cm × 47.4 cm × 12.2 cm (27-1/8" × 18-3/4" × 4-7/8") [TV only]

12.5 kg (27.5 lbs) [TV only]

02ch - 06ch: 54 MHz - 88 MHz 07ch - 13ch: 174 MHz - 216 MHz

UHF

14ch - 69ch: 470 MHz - 806 MHz

CATV

54MHz - 804 MHz Low Band: 02 - 06 High Band: 07 - 13 Mid Band: 14 - 22 Super Band: 23 - 36 Hyper Band: 37 - 64 Ultra Band: 65 - 94, 100 - 135 Sub Mid Band: 01, 96 - 99

181 Channels [Reception of channel A-5 ("95" of the TV set’s on-screen CABLE channel) is recommended for your TV set.]

45.75 MHz

41.25 MHz (4.5 MHz)

Diagonal : 65 cm (H: 57.6 cm × V: 32.4 cm) Diagonal : 80 cm (H: 69.7 cm × V: 39.2 cm)

RCA pin jack × 3 Y : 1 V (p-p) (Sync signal: 0.35V(p-p), 3-value sync.), 75 Ω

Pb/Pr : ±0.35V(p-p), 75 Ω Y : 1 V (p-p), Positive (Negative sync provided), 75 Ω Cb/Cr : 0.7V(p-p), 75 Ω Mini-DIN 4 pin × 2 Y: 1 V (p-p), Positive (Negative sync provided), 75 Ω C: 0.286V (p-p) (Burst signal), 75 Ω

Video

1 V (p-p), Positive (Negative sync provided), 75 Ω, RCA pin jack × 3

Audio

500 mV (rms), High impedance, RCA pin jack × 6

LT-26X506 LT-32X506

20-3/4" × 12-1/4") [Included stand]

Contents

82.0 cm (32-3/8"

82.0 cm × 55.1 cm × 12.7 cm (32-3/8" × 21-3/4" × 5") [TV only]

20 kg (44.0 lbs) [Included stand]

16.5 kg (36.3 lbs) [TV only]

60.4 cm × 30.8 cm

23-7/8" × 12-1/4") [Included stand]

1-2 (No.YA333)

Page 3

SECTION 1

PRECAUTION

1.1 SAFETY PRECAUTIONS

(1) The design of this product contains special hardware,

many circuits and components specially for safety purposes. For continued protection, no changes should be made to the original design unless authorized in writing by the manufacturer. Replacement parts must be identical to those used in the original circuits. Service should be performed by qualified personnel only.

(2) Alterations of the design or circuitry of the products should

not be made. Any design alterations or additions will void the manufacturer's warranty and will further relieve the manufacturer of responsibility for personal injury or property damage resulting therefrom.

(3) Many electrical and mechanical parts in the products have

special safety-related characteristics. These characteristics are often not evident from visual inspection nor can the protection afforded by them necessarily be obtained by using replacement components rated for higher voltage, wattage, etc. Replacement parts which have these special safety characteristics are identified in the parts list of Service manual. Electrical components

having such features are identified by shading on the schematics and by ( ) on the parts list in Service manual. The use of a substitute replacement which does

not have the same safety characteristics as the recommended replacement part shown in the parts list of Service manual may cause shock, fire, or other hazards.

(4) Don't short between the LIVE side ground and

ISOLATED (NEUTRAL) side ground or EARTH side ground when repairing.

Some model's power circuit is partly different in the GND. The difference of the GND is shown by the LIVE : ( ) side GND, the ISOLATED (NEUTRAL) : ( ) side GND and EARTH : ( ) side GND. Don't short between the LIVE side GND and ISOLATED (NEUTRAL) side GND or EARTH side GND and never measure the LIVE side GND and ISOLATED (NEUTRAL) side GND or EARTH side GND at the same time with a measuring apparatus (oscilloscope etc.). If above note will not be kept, a fuse or any parts will be broken.

(5) When service is required, observe the original lead dress.

Extra precaution should be given to assure correct lead dress in the high voltage circuit area. Where a short circuit has occurred, those components that indicate evidence of overheating should be replaced. Always use the manufacturer's replacement components.

(6) Isolation Check (Safety for Electrical Shock Hazard)

After re-assembling the product, always perform an isolation check on the exposed metal parts of the cabinet (antenna terminals, video/audio input and output terminals, Control knobs, metal cabinet, screw heads, earphone jack, control shafts, etc.) to be sure the product is safe to operate without danger of electrical shock.

a) Dielectric Strength Test

The isolation between the AC primary circuit and all metal parts exposed to the user, particularly any exposed metal part having a return path to the chassis should withstand a voltage of 3000V AC (r.m.s.) for a period of one second. (. . . . Withstand a voltage of 1100V AC (r.m.s.) to an appliance rated up to 120V, and 3000V AC (r.m.s.) to an appliance rated 200V or more, for a period of one second.) This method of test requires a test equipment not generally found in the service trade.

b) Leakage Current Check

Plug the AC line cord directly into the AC outlet (do not use a line isolation transformer during this check.). Using a "Leakage Current Tester", measure the leakage current from each exposed metal part of the cabinet, particularly any exposed metal part having a return path to the chassis, to a known good earth ground (water pipe, etc.). Any leakage current must not exceed 0.5mA AC (r.m.s.). However, in tropical area, this must not exceed 0.2mA AC (r.m.s.).

Alternate Check Method

Plug the AC line cord directly into the AC outlet (do not use a line isolation transformer during this check.). Use

an AC voltmeter having 1000Ω per volt or more sensitivity in the following manner. Connect a 1500Ω 10W resistor paralleled by a 0.15µF AC-type capacitor

between an exposed metal part and a known good earth ground (water pipe, etc.). Measure the AC voltage across the resistor with the AC voltmeter. Move the resistor connection to each exposed metal part, particularly any exposed metal part having a return path to the chassis, and measure the AC voltage across the resistor. Now, reverse the plug in the AC outlet and repeat each measurement. Any voltage measured must not exceed 0.75V AC (r.m.s.). This corresponds to

0.5mA AC (r.m.s.). However, in tropical area, this must not exceed 0.3V AC (r.m.s.). This corresponds to 0.2mA AC (r.m.s.).

AC VOLTMETER (HAVING 1000 /V, OR MORE SENSITIVITY)

0.15 F AC-TYPE

GOOD EARTH GROUND

1500 10W

PLACE THIS PROBE ON EACH EXPOSED ME TAL PAR T

(No.YA333)1-3

Page 4

1.2 INSTALLATION

1.2.1 HEAT DISSIPATION

If the heat dissipation vent behind this unit is blocked, cooling efficiency may deteriorate and temperature inside the unit will rise. The temperature sensor that protects the unit will be activated when internal temperature exceeds the pre-determined level and power will be turned off automatically.Therefore, please make sure pay attention not to block the heat dissipation vent as well as the ventilation outlet behind the unit and ensure that there is room for ventilation around it.

Ventilation hole

1.2.3 INSTALLATION REQUIREMENTS

To ensure safety in an emergency such as an earthquake, and to prevent accidents, ensure that measures are taken to prevent the TV dropping or falling over.

It fixes in a band.

TV Stand

Ventilation hole

*Diagram differs from actual appearance.

1.2.2 INSTALLATION REQUIREMENTS

Ensure that the minimal distance is maintained, as specified below, between the unit with and the surrounding walls, as well as the floor etc.Install the unit on stable flooring or stands.Take precautionary measures to prevent the unit from tipping in order to protect against accidents and earthquakes.

150 mm

200 mm

150 mm

INPUT

+ CHANNEL Ð

OPERATE

+ VOLUME Ð

POWER

200 mm

50 mm

*Diagram differs from actual appearance.

1.2.4 NOTES ON HANDLING

(1) WHEN TAKING UNIT OUT OF A PACKING CASE

When taking the unit out of a packing case, do not grasp the upper part of the unit. If you take the unit out while grasping the upper part, the LCD PANEL may be damaged because of a pressure. Instead of grasping the upper part, put your hands on the lower backside or sides of the unit.

(2) AS FOR PRESSING OR TOUCHING A SPEAKER

Be careful not to press the opening of the speaker in the lower part of the unit and around them since the decorative sheet on the surface of the openings may be deformed.

*Diagram differs from actual appearance.

1-4 (No.YA333)

Page 5

1.3 HANDLING LCD PANEL

1.3.1 PRECAUTIONS FOR TRANSPORTATION

When transporting the unit, pressure exerted on the internal LCD panel due to improper handling (such as tossing and dropping) may cause damages even when the unit is carefully packed. To prevent accidents from occurring during transportation, pay careful attention before delivery, such as through explaining the handling instructions to transporters. Ensure that the following requirements are met during transportation, as the LCD panel of this unit is made of glass and therefore fragile:

(1) USE A SPECIAL PACKING CASE FOR THE LCD PANEL

When transporting the LCD panel of the unit, use a special packing case (packing materials). A special packing case is used when a LCD panel is supplied as a service spare part.

(2) ATTACH PROTECTION SHEET TO THE FRONT

Since the front (display part) of the panel is vulnerable, attach the protection sheet to the front of the LCD panel before transportation. Protection sheet is used when a LCD panel is supplied as a service spare part.

(3) AVOID VIBRATIONS AND IMPACTS

The unit may be broken if it is toppled sideways even when properly packed. Continuous vibration may shift the gap of the panel, and the unit may not be able to display images properly. Ensure that the unit is carried by at least 2 persons and pay careful attention not to exert any vibration or impact on it.

(4) DO NOT PLACE EQUIPMENT HORIZONTALLY

Ensure that it is placed upright and not horizontally during transportation and storage as the LCD panel is very vulnerable to lateral impacts and may break. During transportation, ensure that the unit is loaded along the traveling direction of the vehicle, and avoid stacking them on one another. For storage, ensure that they are stacked in 2 layers or less even when placed upright.

1.3.2 OPTICAL FILTER (ON THE FRONT OF THE LCD PANEL)

(1) Avoid placing the unit under direct sunlight over a

prolonged period of time. This may cause the optical filter to deteriorate in quality and COLOUR.

(2) Clean the filter surface by wiping it softly and lightly with a

soft and lightly fuzz cloth (such as outing flannel).

(3) Do not use solvents such as benzene or thinner to wipe the

filter surface. This may cause the filter to deteriorate in quality or the coating on the surface to come off. When cleaning the filter, usually use the neutral detergent diluted with water. When cleaning the dirty filter, use water-diluted ethanol.

(4) Since the filter surface is fragile, do not scratch or hit it with

hard materials. Be careful enough not to touch the front surface, especially when taking the unit out of the packing case or during transportation.

1.3.3 PRECAUTIONS FOR REPLACEMENT OF EXTERIOR PARTS

Take note of the following when replacing exterior parts (REAR COVER, FRONT PANEL, etc.):

(1) Do not exert pressure on the front of the LCD panel (filter

surface). It may cause irregular COLOUR.

(2) Pay careful attention not to scratch or stain the front of the

LCD panel (filter surface) with hands.

(3) When replacing exterior parts, the front (LCD panel) should

be placed facing downward. Place a mat, etc. underneath to avoid causing scratches to the front (filter surface).

(No.YA333)1-5

Page 6

SECTION 2

SPECIFIC SERVICE INSTRUCTIONS

2.1 FEATURES

ASPECT

This feature will help you adjust the picture you are watching to give you the best possible picture quality.

NATURAL CINEMA

Watching the movie or animation, press the Natural Cinema to adjust the out line of the images to make thin more sharp.

VIDEO STATUS

Expression of a favorite screen can be chosen by the VIDEO STATUS function.

2.2 MAIN DIFFERENCE LIST

Item LT-26X506/S LT-32X506/S

LCD PANEL UNIT QLD0370-001 QLD0371-001

MTS STEREO

The voice multiplex function of the MTS system is built in. (MTS = Multi channel Television Sound system)

HYPER SURROUND

Creates a deep, three-dimensional sound effect by channeling the audio through the TV's front-firing speakers.

1-6 (No.YA333)

Page 7

2.3 TECHNICAL INFORMATION

2.3.1 LCD PANEL

This unit uses the flat type panel LCD (Liquid Crystal Display) panel that occupies as little space as possible, instead of the conventional CRT (Cathode Ray Tube), as a display unit. Since the unit has the two polarizing filter that are at right angles to each other, the unit adopts "normally black" mode, where light does not pass through the polarizing filter and the screen is black when no voltage is applied to the liquid crystals.

2.3.1.1 SPECIFICATIONS

The following table shows the specifications of this unit.

Item

Maximum dimensions ( W × H × D ) 626.0 mm × 373.0 mm × 51.0 mm 760.0 mm × 450.0 mm × 50.0 mm

Weight 4.7 kg 7.5 kg

Effective screen size Diagonal: 650 mm (H: 576 mm × V: 324 mm) Diagonal: 800 mm (H: 697 mm × V: 392 mm)

Aspect ratio 16 : 9

Drive device / system a-Si-TFT active matrix system

Resolution Horizontally 1366 × Vertically 768 × RGB < W-XGA > 3147264 dots in total

Pixel pitch (pixel size) Horizontally: 0.4215 mm Vertically: 0.4215mm

Displayed colour 16777216 colours 256 colours for R G and B

Brightness 500cd/m2

Contrast ratio 800 : 1 1000 : 1

Response time 8ms

View angle Horizontally: 170° Vertically: 170°

Surface polarizer Anti-Glare type Low reflective coat

Colour filter Vertical stripe

Backlight U-type Cold cathode fluorescent lamp × 8

Power supply voltage in LCD 6.5 V

Power supply voltage in inverter 26.4 V 25.2 V

Panel interface system LVDS (Low Voltage Differential Signaling)

LT-26X506 LT-32X506

Specifications

Horizontally: 0.51075 mm Vertically: 0.51075 mm

Direct-type Cold cathode fluorescent lamp × 16

2.3.1.2 PIXEL FAULT

There are three pixel faults - bright fault , dark fault and flicker fault - that are respectively defined as follows.

 BRIGHT FAULT

In this pixel fault, a cell that should not light originally is lighting on and off. For checking this pixel fault, input ALL BLACK SCREEN and find out the cell that is lighting on and off.

 DARK FAULT

In this pixel fault, a cell that should light originally is not lighting or lighting with the brightness twice as brighter as originally lighting. For checking this pixel fault, input 100% of each R/G/B colour and find out the cell that is not lighting.

 FLICKER FAULT

In the pixel fault, a cell that should light originally or not light originally is flashing on and off. For checking this pixel fault, input ALL BLACK SCREEN signal or 100% of each RGB colour and find out the cell that is flashing on and off.

(No.YA333)1-7

Page 8

2.3.2 MAIN CPU PIN FUNCTION [U302 : MAIN PWB]

Pin Pin name I/O Function Pin Pin name I/O Function

1-8 (No.YA333)

Page 9

SECTION 3

DISASSEMBLY

3.1 DISASSEMBLY PROCEDURE

CAUTION AT DISASSEMBLY:

• Make sure that the power cord is disconnected from the outlet.

• Pay special attention not to break or damage the parts.

• When removing each board, remove the connectors as required. Taking notes of the connecting points (connector numbers) makes service procedure manageable.

• Make sure that there is no bent or stain on the connectors before inserting, and firmly insert the connectors.

3.1.1 REMOVING THE STAND

(1) Remove the JACK COVER. (2) Remove the 2 screws [A], then remove the STAND

COVER.

(3) Remove the 4 screws [B], then remove the STAND.

3.1.2 REMOVING THE REAR COVER

• Remove the STAND. (1) Remove the 8 screws [C], 1 screw [D] and 2 screws [E],

then remove the REAR COVER.

3.1.3 REMOVING THE POWER PWB

• Remove the STAND.

• Remove the REAR COVER. (1) Remove the 3 screws [F] and 1 screw [G], then remove the

TERMINAL BASE.

(2) Remove the 8 screws [H], then remove the BACK

BRACKET.

(3) Remove the 6 screws [J], then remove the POWER PWB

SHIELD.

(4) Remove the 5 screws [K], then remove the POWER PWB.

3.1.4 REMOVING THE MAIN PWB

• Remove the STAND.

• Remove the REAR COVER.

• Remove the TERMINAL BASE.

• Remove the BACK BRACKET.

• Remove the POWER PWB SHIELD. (1) Remove the 6 screws [L], then remove the MAIN PWB.

3.1.7 REMOVING THE LED PWB

• Remove the STAND.

• Remove the REAR COVER. (1) Remove the 2 screws [Q], then remove the LED PWB.

3.1.8 REMOVING THE SPEAKER

• Remove the STAND.

• Remove the REAR COVER. (1) Remove the 6 screws [R], then remove the SPEAKER (L/

R).

CAUTION:

Please do not disassembly the SPEAKER. When the speaker is decomposed, the performance cannot be kept.

3.1.9 REMOVING THE LCD PANEL UNIT

• Remove the STAND.

• Remove the REAR COVER.

• Remove the TERMINAL BASE.

• Remove the BACK BRACKET. (1) Remove the 6 screws [S], then remove the MAIN BASE. (2) Remove the 6 screws [T], then remove the FRONT

PANEL. (3) Remove the 2 screws [U], then remove the TOP FRAME. (4) Remove the 2 screws [V], then remove the BOTTOM

FRAME.

3.1.5 REMOVING THE DIGITAL PWB

• Remove the STAND.

• Remove the REAR COVER.

• Remove the TERMINAL BASE.

• Remove the BACK BRACKET. (1) Remove the 4 screws [M], then remove the DIGITAL PWB.

3.1.6 REMOVING THE CONTROL PWB

• Remove the STAND.

• Remove the REAR COVER. (1) Remove the 2 screws [P], then remove the CONTROL

PWB.

(No.YA333)1-9

Page 10

STAND COVER

JACK COVER

REAR COVER

BACK BRACKET

STAND

DIGITAL PWB

POWER PWB SHIELD

MAIN PWB

POWER PWB

POWER CORD

INSULATOR

TOP FRAME

LCD PANEL UNIT

BOTTOM FRAME

This exploded view shows the LT-26X506. LT-32X506 slightly differs from this exploded view, however it can be disassembled in the same procedure as LT-26X506.

CONTROL PWB

KNOB BASE

Fig.1

MAIN BASE

CONTROL KNOB

LED PWB

SPEAKER

TERMINAL BASE

SPEAKER

FRONT PANEL

1-10 (No.YA333)

Page 11

3.2 MEMORY IC REPLACEMENT

SERVICE MENU

1.ADJUST

2.SELF_CHECK

3.I2C STOP

S001 R DRIVE 126 NT FULL STD H

• This model uses the memory IC.

• This memory IC stores data for proper operation of the video and drive circuits.

• When replacing, be sure to use an IC containing this (initial value) data.

3.2.1 MEMORY IC REPLACEMENT PROCEDURE

1. Power off

Switch off the power and disconnect the power plug from the AC outlet.

2. Replace the memory IC

Be sure to use the memory IC written with the initial setting values.

3. Power on

Connect the power plug to the AC outlet and switch on the power.

4. Receiving channel setting

Refer to the OPERATING INSTRUCTIONS and set the receive channels (Channels Preset) as described.

5. User setting

Check the user setting items according to the given in page later. Where these do not agree, refer to the OPERATING INSTRUCTIONS and set the items as described.

6. SERVICE MODE setting

Verify what to set in the SERVICE MODE, and set whatever is necessary (Fig.1). Refer to the SERVICE ADJUSTMENT for setting.

3.2.2 SERVICE MODE SETTING

SERVICE MODE SCREEN

Not used

(Display only)

SETTING ITEM

Setting items Settings Item No.

Video system setting Adjust S001 - S024

SERVICE MODE SCREEN

SERVICE MENU

1.ADJUST

2.SELF_CHECK

3.I2C STOP

ADJUSTMENT MODE SCREEN

S001 R DRIVE 126 NT FULL STD H

Fig.1

NOTE:

As self check feature is not used in this TV, “2. SELF CHECK” cannot be selected (screen display only).

(No.YA333)1-11

Page 12

3.2.3 SETTINGS OF FACTORY SHIPMENT

3.2.3.1 BUTTON OPERATION 3.2.3.2 REMOTE CONTROL DIRECT OPERATION

Setting item Setting position

POWER Off

CHANNEL CABLE-02

VOLUME 10

3.2.3.3 REMOTE CONTROL MENU OPERATION

1. PICTURE ADJUST

Customers can adjust the picture setting of menu screen as their own like but the picture standard value during factory shipment is as below.

< NTSC MODE >

Setting item

PICTURE 00 00 00 00

BRIGHT 00 00 00 00

COLOR +10 00 -10 00

TINT 00 00 00 00

DETAIL +05 00 00 00

ENERGY SAVER MODE

COLOR TEMPERATURE

DIG. NOISE CLEAR OFF OFF OFF OFF

NATURAL CINEMA AUTO AUTO AUTO AUTO

< HD MODE >

Setting item

PICTURE 00 00 00 00

BRIGHT 00 00 00 00

COLOR +05 00 -10 00

TINT 00 00 00 00

DETAIL +05 00 00 00

ENERGY SAVER MODE

COLOR TEMPERATURE

DIG. NOISE CLEAR OFF OFF OFF OFF

NATURAL CINEMA AUTO AUTO AUTO AUTO

DYNAMIC

HIGH LOW HIGH HIGH

DYNAMIC

HIGH LOW HIGH HIGH

STANDARD

+30 +20 00 -10

STANDARD

+30 +20 00 -10

GAME

THEATER

INPUT TV

CHANNEL CABLE-02

VOLUME 10

DISPLAY OFF

ASPECT NTSC PANORAMA

SLEEP TIMER OFF

VIDEO STATUS DYNAMIC

HYPER SURROUND OFF

2. SOUND ADJUST

BASS 00

TREBLE 00

BALANCE 00

3. CLOCK / TIMERS

ON / OFF TIMER OFF

4. INITIAL SETUP

NOISE MUTING ON

FRONT PANEL LOCK OFF

POWER INDICATOR HIGH

LANGUAGE ENG.

CLOSED CAPTION OFF(CC1/T1)

AUTO SHUT OFF OFF

XDS ID ON

V-CHIP OFF

Setting item Setting position

HD / ATSC FULL

Setting item Setting position

1-12 (No.YA333)

Page 13

3.3 REPLACEMENT OF CHIP COMPONENT

3.3.1 CAUTIONS

(1) Avoid heating for more than 3 seconds. (2) Do not rub the electrodes and the resist parts of the pattern. (3) When removing a chip part, melt the solder adequately. (4) Do not reuse a chip part after removing it.

3.3.2 SOLDERING IRON

(1) Use a high insulation soldering iron with a thin pointed end of it. (2) A 30w soldering iron is recommended for easily removing parts.

3.3.3 REPLACEMENT STEPS

1. How to remove Chip parts

2. How to install Chip parts

[Resistors, capacitors, etc.]

(1) As shown in the figure, push the part with tweezers and

alternately melt the solder at each end.

(2) Shift with the tweezers and remove the chip part.

[Transistors, diodes, variable resistors, etc.]

(1) Apply extra solder to each lead.

SOLDER

[Resistors, capacitors, etc.]

(1) Apply solder to the pattern as indicated in the figure.

(2) Grasp the chip part with tweezers and place it on the

solder. Then heat and melt the solder at both ends of the chip part.

[Transistors, diodes, variable resistors, etc.]

(1) Apply solder to the pattern as indicated in the figure. (2) Grasp the chip part with tweezers and place it on the

solder.

(3) First solder lead A as indicated in the figure.

(2) As shown in the figure, push the part with tweezers and

alternately melt the solder at each lead. Shift and remove the chip part.

NOTE :

After removing the part, remove remaining solder from the pattern.

(4) Then solder leads B and C.

(No.YA333)1-13

Page 14

SECTION 4

SERVICE MENU

1.ADJUST

2.SELF_CHECK

3.I2C STOP

S001 R DRIVE 126 NT FULL STD H

ADJUSTMENT

4.1 ADJUSTMENT PREPARATION

(1) There are 2 ways of adjusting this TV : One is with the

REMOTE CONTROL UNIT and the other is the conventional method using adjustment parts and components.

(2) The adjustment using the REMOTE CONTROL UNIT is

made on the basis of the initial setting values. The setting values which adjust the screen to the optimum condition can be different from the initial setting values.

(3) Make sure that connection is correctly made AC to AC

power source.

(4) Turn on the power of the TV and measuring instruments for

warming up for at least 30 minutes before starting adjustments.

(5) If the receive or input signal is not specified, use the most

appropriate signal for adjustment.

(6) Never touch the parts (such as variable resistors,

transformers and condensers) not shown in the adjustment items of this service adjustment.

4.2 PRESET SETTING BEFORE ADJUSTMENTS

Unless otherwise specified in the adjustment items, preset the following functions with the REMOTE CONTROL UNIT.

Setting item Settings position

PICTURE MODE STANDARD

PICTURE adjustments Centre

COLOUR TEMP. NORMAL

SOUND adjustments Centre

4.3 MEASURING INSTRUMENT AND FIXTURES

• Signal generator (Pattern generator)[NTSC]

• Remote control unit

4.4 ADJUSTMENT ITEMS

 VIDEO CIRCUIT

• WHITE BALANCE (HIGH LIGHT) adjustment

4.5 BASIC OPERATION OF SERVICE MODE

4.5.1 HOW TO ENTER THE SERVICE MODE

(1) Set to 0 minutes using the [SLEEP TIMER] key. (2) Press the [VIDEO STATUS] key and [DISPLAY] key

simultaneosly, then enter the SERVICE MODE.

NOTE:

• As self check feature is not used in this TV, “2. SELF CHECK” cannot be selected (screen display only).

• Before entering the SERVICE MODE, confirm that the setting of TV/CATV switch of the REMOTE CONTROL UNIT is at the "TV" side and the setting of VCR/DVD switch is at the "VCR" side. If the switches have not been properly set, you cannot enter the SERVICE MODE.

• When a number key other than the [1] keys is pressed in the SERVICE MENU SCREEN, the other relevant screen may be displayed. This is not used in the adjustment procedure. Press the [MENU] key to return to the SERVICE MENU SCREEN.

Not used

(Display only)

SERVICE MODE SCREEN

SERVICE MENU

1.ADJUST

2.SELF_CHECK

3.I2C STOP

1-14 (No.YA333)

ADJUSTMENT MODE SCREEN

S001 R DRIVE 126 NT FULL STD H

4.5.2 HOW TO EXIT THE SERVICE MODE Press the [BACK] key to exit the Service mode.

Page 15

4.5.3 DESCRIPTION OF STATUS DISPLAY OF

S001 R DRIVE 126 NT FULL STD H

ADJUSTMENT MODE

SETTING VALUE (DATA)SETTINGITEM No. SETTING ITEM

S001 R DRIVE 126 NT FULL STD H

4.5.4 CHANGE AND MEMORY OF SETTING VALUE

SELECTION OF SETTING ITEM

• [CH+] / [CH-] key. Change the setting items up/ down.

CHANGE OF SETTING VALUE (DATA)

• [VOL+] / [VOL-] key. Change the setting values up/down.

MEMORY OF SETTING VALUE (DATA)

Changed setting value is memorized by pressing [MUTING] key.

4.5.5 SERVICE MODE SELECT KEY LOCATION

SIGNAL SYSTEM

SCREEN MODE

PICTURE MODE

(1) SIGNAL SYSTEM

The signal displayed on the screen is displayed.

NT : 525i (Composite / S-video input) 5I : 525i (Component input) 5P : 525p 1I : 1125i 7P : 750p

(2) SCREEN MODE

FULL : FULL 1609 : CINEMA, CINEMA ZOOM PANO : PANORAMA, HD PANORAMA REGU : REGULAR

(3) VIDEO STATUS

STD : STANDARD DYN : DYNAMIC TH : THEATER GAME : GAME

(4) COLOR TEMPERATURE

H : HIGH L: LOW

COLOUR TEMP.

TV/CATV switch

DISPLAY

SLEEP TIMER

VIDEO STATUS

VOL-

ASPECT

RM-C1271G

VCR/DVD switch

POWER

NUMBER

CH+

VOL+

EXIT

CH-

(5) SETTING ITEM NAME

Setting item name are displayed. The setting item numbers to be displayed are listed below.

Item No. Setting item

S001 - S024 Video system setting

(6) SETTING ITEM NO.

Setting item numbers are displayed. For the setting item names to be displayed, refer to "Initial setting value of adjustment mode".

(7) SETTING VALUE (DATA)

The SETTING VALUE is displayed.

(No.YA333)1-15

Page 16

4.6 INITIAL SETTING VALUES IN THE SERVICE MODE

• Perform fine-tuning based on the "initial values" using the remote control when in the Service mode.

• The "initial values" serve only as an indication rough standard and therefore the values with which optimal display can be achieved may be different from the default values. But, don't change the values that are not written in "ADJUSTMENT PROCEDURE". They are fixed values.

4.6.1 VIDEO SYSTEM SETTING

Item No. Item name Variable range Setting value

S001 R DRIVE 0 - 255 115

S002 G DRIVE 0 - 255 118

S003 B DRIVE 0 - 255 113

S004 R ST LO HD -62 - 63 00

S005 G ST LO HD -62 - 63 00

S006 B ST LO HD -62 - 63 00

S007 R ST HI SD -62 - 63 -06

S008 G ST HI SD -62 - 63 -04

S009 B ST HI SD -62 - 63 00

S010 R ST HI HD -62 - 63 -06

S011 G ST HI HD -62 - 63 -04

S012 B ST HI HD -62 - 63 00

Item No. Item name Variable range Setting value

S013 R TH LO SD -62 - 63 00

S014 G TH LO SD -62 - 63 -09

S015 B TH LO SD -62 - 63 -24

S016 R TH LO SD -62 - 63 00

S017 G TH LO HD -62 - 63 00

S018 B TH LO HD -62 - 63 -09

S019 R TH HI SD -62 - 63 00

S020 G TH HI SD -62 - 63 -01

S021 B TH HI SD -62 - 63 -15

S022 R TH HI HD -62 - 63 00

S023 G TH HI HD -62 - 63 -01

S024 B TH HI HD -62 - 63 -15

4.7 ADJUSTMENT PROCEDURE

4.7.1 VIDEO CIRCUIT

Item

WHITE BALANCE (HIGHLIGHT)

Measuring

instrument

Remote control unit

Signal generator

Test point Adjustment part Description

[1.ADJUST] S001: R DRIVE (Red drive) S002: G DRIVE (Green drive) S003: B DRIVE (Blue drive)

(1) Receive a NTSC 75% all white signal. (2) Set "VIDEO STATUS" to "STANDARD". (3) Set "ASPECT" to "FULL". (4) Select "COLOUR TEMPERATURE" to "LOW". (5) Select "1.ADJUST" from the SERVICE MODE. (6) Adjust to keep one of < S001 > (Red drive),

< S002 > (Green drive) or < S003 > (Blue drive) unchanged, then lower the other two so that the all-white screen is equally white throughout.

NOTE:

Set one or more of < S001 >, < S002 >, and < S003 > to "145".

(7) Check that white balance is properly tracked

from low light to high light. If the white balance tracking is deviated, adjust to correct it.

(8) Press the [MUTING] key to memoirze the set

value.

1-16 (No.YA333)

SECTION 5

TROUBLESHOOTING

This service manual does not describe TROUBLESHOOTING.

Page 17

Victor Company of Japan, Limited AV & MULTIMEDIA COMPANY DISPLAY CATEGORY 12, 3-chome, Moriya-cho, Kanagawa-ku, Yokohama-city, Kanagawa-prefecture, 221-8528, Japan

(No.YA333)

Printed in Japan

VPT

Page 18

LCD Flat Television Users Guide

For Models:

LT-32X506 LT-26X506

Illustration of LT-32X506 and RM-C1271G

Important Note:

In the spaces below, enter the model and serial number of your television (located at the rear of the television cabinet). Staple your sales receipt or invoice to the inside cover of this guide. Keep this user’s guide in a convenient place for future reference. Keep the carton and original packaging for future use.

Model Number:

Serial Number:

LCT1899-001A-A

0605TNH-II-IM

Page 19

Important Safety Precautions

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION: To reduce the risk of electric shock. Do not

remove cover (or back). No user serviceable parts inside. Refer servicing to qualified service personnel.

The lightning flash with arrowhead symbol, within an equilateral triangle is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

WARNING: TO PREVENT FIRE OR SHOCK HAZARDS, DO NOT EXPOSE THIS TV SET

TO RAIN OR MOISTURE.

CAUTION: TO INSURE PERSONAL SAFETY, OBSERVE THE FOLLOWING RULES

REGARDING THE USE OF THIS UNIT.

1. Operate only from the power source specified on the unit.

2. Avoid damaging the AC plug and power cord.

3. Avoid Improper installation and never position the unit where good ventilation is unattainable.

4. Do not allow objects or liquid into the cabinet openings.

5. In the event of trouble, unplug the unit and call a service technician. Do not attempt to repair it yourself or remove the rear cover.

Changes or modifications not approved by JVC could void the warranty.

* When you don’t use this TV set for a long period of time, be sure to disconnect both the

power plug from the AC outlet and antenna for your safety.

* To prevent electric shock do not use this polarized plug with an extension cord, receptacle or

other outlet unless the blades can be fully inserted to prevent blade exposure.

IMPORTANT RECYCLING INFORMATION

This product has a fluorescent lamp that contains a small amount of mercury. It also

contains lead in some components. Disposal of the materials may be regulated in your

community due to environmental considerations. For disposal or recycling information,

please contact your local authorities, or the Electronic Industries Alliance:

http://www.eiae.org

Page 20

• As an “ENERGY STAR®” partner, JVC has determined that this product or product model meets the “ENERGY STAR®” guidelines for energy efficiency.

IMPORTANT SAFETY INSTRUCTIONS

1) Read these instructions.

2) Keep these instructions.

3) Heed all warnings.

4) Follow all instructions.

5) Do not use this apparatus near water.

6) Clean only with dry cloth.

7) Do not block any ventilation openings. Install in accordance with the manufacturer's

instructions.

8) Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.

9) Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.

10) Protect the power cord from being walked on or pinched particularly at plugs, convenience

receptacles, and the point where they exit from the apparatus.

11) Only use attachments/accessories specified by the manufacturer.

12) Use only with a cart, stand, tripod, bracket, or table specified by the manufacturer, or

sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.

Page 21

13) Unplug this apparatus during lightning storms or when unused for long periods of time.

14) Refer all servicing to qualified service personnel. Servicing is required when the apparatus has

been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

15) Apparatus shall not be exposed to dripping or splashing and no objects filled with liquids, such as vases, shall be placed on the apparatus.

16) Avoid improper installation and never position the unit where good ventilation is impossible. When installing this TV, distance recommendations must be maintained between the set and the wall, as well as inside a tightly enclosed area or piece of furniture. Keep to the minimum distance guidelines shown for safe operation.

150 mm

200 mm

150 mm

INPUT

+ CHANNEL –

OPERATE

+ VOLUME –

POWER

200 mm

50 mm

17) Cautions for installation

— Do not tilt the TV towards the left or right, or towards the back.

— Install the TV in a corner on the floor so as to keep cords out of the way. — The TV will generate a slight amount of heat during operation. Ensure that sufficient space is

available around the TV to allow satisfactory cooling.

Page 22

Warnings

Avoiding Ghost Images

Displaying ﬁ xed images for extended periods of time can leave a subtle but temporary ghost image on your screen. To avoid this, mix your viewing pattern.

Examples include, but are not limited to the following:

• Stock-market report bars

• Shopping channel logos and pricing

displays

• Video game patterns or scoreboards

• Bright station logos

• Internet web sites or other computer-style

images.

• DVD discs, video tapes, laser discs

• Broadcast, cable, satellite channels or

digital television tuners/converters.

TV on

Caring for the Cabinet

Normally, light dusting with a soft, non-scratching duster will keep your TV clean.

If you wish to wipe down the television, first unplug it. Then wipe gently with a soft cloth, slightly moistened with water. You can add a few drops of mild liquid detergent to the water to help remove spots of oily dirt.

• DO NOT allow liquid to enter the TV through the ventilation slots.

• DO NOT use strong or abrasive cleaners on the TV.

• DO NOT spray liquids or cleaners directly on the TV’s surface.

• DO NOT rub or scrub the TV harshly. Wipe the set gently with a soft cloth.

For example...

TV off

XYZ XYZ

Caring for the Screen

The screen is treated with an electrostatic-proof coating. When it gets dirty, wipe it gently with a soft cloth. If the screen is very dirty, wipe it down with a cloth dipped in a diluted kitchen cleaner and thoroughly wrung-out. Then wipe immediately after with a clean, dry cloth.

Do not apply alcohol, organic solvents (like acetone), acidic or alkaline cleansers to the screen. These will remove the coating layer and cause discolorations.

Do not push or hit the screen. This could cause scratches on the screen surface and image distortions.

Page 23

Warnings (Continued...)

How to move the cabinet

Your fingers may become trapped under the TV, causing injuries. Hold the TV at the bottom in the middle, and do not allow the TV to tilt up or down.

The TV may fall causing injuries. Hold the bottom of the stand with your hand and tilt the TV up or down.

Page 24

Table of Contents

Important Safety Precautions . . 2

Warnings . . . . . . . . . . . . . 5

Quick Setup . . . . . . . . . . . 8

Unpacking your TV . . . . . . . . . . . . 8

TV Model . . . . . . . . . . . . . . . . 9

TV Remote Control . . . . . . . . . . . 10

Getting Started . . . . . . . . . . . . . 11

Using the Stand . . . . . . . . . . 11

The Remote Control . . . . . . . 12

Connecting Your Devices . . . . . . 13

Auto Tuner Setup . . . . . . . . . 18

Remote Programming . . . . . 19

Setting CATV, VCR and DVD Codes . . . 19

CATV or Satellite Codes . . . . . . . . 19

VCR Codes . . . . . . . . . . . . . . 20

DVD Codes . . . . . . . . . . . . . . 21

Search Codes . . . . . . . . . . . . . 22

Onscreen Menus . . . . . . . . 23

Using the Guide . . . . . . . . . . . . . 23

Onscreen Menu System . . . . . . . . . 24

Initial Setup . . . . . . . . . . 26

Auto Tuner Setup . . . . . . . . . . . . 26

Channel Summary . . . . . . . . . . . . 26

V-Chip . . . . . . . . . . . . . . . . . . 27

Set Lock Code . . . . . . . . . . . . . 33

Language . . . . . . . . . . . . . . . . 34

Closed Caption . . . . . . . . . . . . . 34

Auto Shut Off . . . . . . . . . . . . . . 35

XDS ID . . . . . . . . . . . . . . . . . 35

Noise Muting . . . . . . . . . . . . . . 35

Front Panel Lock . . . . . . . . . . . . 36

Position Adjustment . . . . . . . . . . . 36

Power Indicator . . . . . . . . . . . . . 37

Picture Adjust . . . . . . . . . 38

Picture Settings . . . . . . . . . . . . . 38

Adjust Picture Settings . . . . . . . . . 38

Color Temperature . . . . . . . . . . . . 39

Digital Noise Clear . . . . . . . . . . . . 39

Natural Cinema . . . . . . . . . . . . 39

Reset . . . . . . . . . . . . . . . . . . 40

Sound Adjust . . . . . . . . . 41

Sound Settings . . . . . . . . . . . . . 41

Adjust Sound Settings . . . . . . . . . 41

MTS (Multi-channel Sound) . . . . . . . 41

Reset . . . . . . . . . . . . . . . 41

Clock Timers . . . . . . . . . . 42

Set Clock . . . . . . . . . . . . . . . . 42

On/Off Timer . . . . . . . . . . . . . . . 43

Button Functions . . . . . . . 44

Power . . . . . . . . . . . . . . . . . . 44

Number Buttons . . . . . . . . . . . . . 44

100+ . . . . . . . . . . . . . . . . . 44

Channel +/- . . . . . . . . . . . . . 44

Volume +/- . . . . . . . . . . . . . 44

Muting . . . . . . . . . . . . . . . . . . 44

Menu . . . . . . . . . . . . . . . . . . 44

Return + . . . . . . . . . . . . . . . . 45

Input . . . . . . . . . . . . . . . . . . . 45

Display . . . . . . . . . . . . . . . . . 46

Sleep Timer . . . . . . . . . . . . . . . 46

Sound . . . . . . . . . . . . . . . . . . 47

Video Status . . . . . . . . . . . . . . . 47

TheaterPro D6500K . . . . . . . . . . . 47

OK . . . . . . . . . . . . . . . . . . . 47

Back . . . . . . . . . . . . . . . . . . . 47

Aspect . . . . . . . . . . . . . . . . . 48

Aspect Ratios . . . . . . . . . . . . . 48

TV/CATV Slide Switch . . . . . . . . . . 49

VCR/DVD Slide Switch . . . . . . . . . 49

VCR Buttons . . . . . . . . . . . . . . . 49

DVD Buttons . . . . . . . . . . . . . . . 49

Appendices . . . . . . . . . . 50

No Program . . . . . . . . . . . . . . . 50

Troubleshooting . . . . . . . . . . . . . 51

Warranty . . . . . . . . . . . . . . . . . 52

Authorized Service Centers . . . . . . . 53

Specifications . . . . . . . . . . . . . . . 54

Notes . . . . . . . . . . . . . . . . . . 55

Page 25

Quick Setup Unpacking your TV

Thank you for your purchase of a JVC LCD Flat Television. Before you begin setting up your new television, please check to make sure you have all of the following items. In addition to this guide, your television box should include:

1 Television

1 Remote Control

POWER

CATVVCR

DVD

INPUT

DISPLAY

SLEEP TIMER

SOUND

RETURN+

100+

VIDEO STATUS

THEATER PRO

ASPECT

MUTING

CH +

VOL

–

CH –

BACK

VCR/DVD

VCR CHANNEL

TV/VCR

POWER

PREV NEXT

PLAY FFREW

REC

STOP PAUSE

STILL/PAUSE

RM-C1271G

Two AA

Batteries

AA Alkaline

Once you have unpacked your television, the next step is to connect it to your antenna/ cable or satellite system and to connect the audio/video devices you want to use with your television. To make these connections you will use plugs like the ones illustrated below.

Coaxial Cables

Component Cables

Composite Cables

Audio Cables

Used to connect an external antenna or cable TV system to your TV.

S-Video Cable

Used to connect audio/ video devices like VCRs, DVD players, stereo amplifiers, game consoles, etc.

Used to make video connections with S-Video VCRs, Camcorders and DVD players.

We recommend that before you start using your new television, you read your entire User’s Guide so you can learn about your new television’s many great features. If you’re anxious to start using your television right away, a quick setup guide follows on the next few pages.

Page 26

Quick Setup TV Model

NOTE: Before you connect your television to another device, please refer to the proper

diagrams for your specific TV and remote. These will help assist you in understanding how to connect your television to another device, as well as use the remote to set up your television.

Rear Panel Diagram

In the rear cover

Side Panel Diagram

AUDIO OUT

L - AUDIO - R

L I

VIDEO

AUDIO

INPUT 3

I R

VIDEO

AUDIO

S-

INPUT 2

VIDEO

INPUT 1

VIDEO

Y Pb Pr

AUDIO

S-

VIDEO

OPERATE

75Ω (VHF/UHF)

INPUT

+ CHANNEL -

+ VOLUME -

POWER

Page 27

Quick Setup TV Remote Control

CATV VCR

INPUT

DISPLAY

SLEEP TIMER

SOUND

VIDEO STATUS

THEATER PRO

MUTING

VOL

–

VCR CHANNEL

PREV NEXT

REC

DVD

100+

ASPECT

CH +

CH –

VCR/DVD

POWER

PLAY FFREW

STOP PAUSE

STILL/PAUSE

RM-C1271G

POWER

VOL

BACK

TV/VCR

RETURN+

RM-C1271G

Note:

• For information on remote control buttons, see pages 44 - 49.

Page 28

Quick Setup Getting Started

Getting Started

These quick setup pages will provide you, in three easy steps, with the basic information you need to begin using your new television right away.

If you have questions, or for more detailed information on any of these steps, please consult other sections of this manual.

Step 1 - Using the stand

This TV comes with a Table Top Stand already attached.

This stand can be used to adjust the direction of the TV screen 5° up, 10° down and 20° to the left or right.

Tilt the TV up or down

While holding the bottom of the stand with one hand, use your other hand to hold the middle of the top of the TV, and slowly tilt the TV up or down.

• As a safety measure, the stand is constructed so that it requires a certain amount of force to tilt the TV.

Rotate the TV left or right

While holding the bottom of the stand with one hand, use your other hand to hold the edge of the panel and slowly adjust the direction of the TV stand.

Page 29

Quick Setup Getting Started

Step 2 – The Remote Control

Before you can operate your remote control, you first need to install the batteries (included).

Lift and pull the latch on the back of the remote control to open. Insert two batteries (included) carefully noting the “+” and “–” markings, placing the “–” end in the unit first. Snap the cover back into place.

When you change the batteries, try to complete the task within three minutes. If you take longer than three minutes, the remote control codes for your VCR, DVD, and/or cable box/satellite receiver may have to be reset. See pages 19 - 22.

Key Feature Buttons

The four key feature buttons at the center of the remote can be used for basic operation of the television. The top and bottom buttons will scan forward and back through the available channels. To move rapidly through the channels using JVC’s Hyperscan feature, press and hold CH+ or CH –. The channels will zip by at a rate of five channels per second. The right and left buttons will turn the volume up or down. These buttons are also marked with four arrows and are used with JVC’s onscreen menu system. To use the onscreen menus, press the M

ENU button.

MUTING

VOL

–

CH +

CH –

VOL

BACK

Basic Operation

Turn the television on and off by pressing the POWER button at the top right corner of the remote.

• Make sure the TV/CATV switch is set to TV. Move the switch to CATV only if you need to operate a cable box.

• Slide the VCR/DVD selector switch to VCR to control a VCR. Slide to DVD to control a DVD player. Please see pages 19 to 22 for instructions on programming your remote control to operate a cable box, VCR or DVD player.

POWER

CATV

VCR

DVD

Page 30

Quick Setup Connections

Step 3 - Connecting your devices

Remove the terminal cover

There are connection terminals behind the cover on the rear of the TV. Remove the cover before connecting an antenna or other devices. The cover can be removed by removing the hooks. When replacing the cover, place the bottom of the cover against the TV and insert the hooks.

Note:

• Leave the terminal covers off if they do not fit properly. Do not force to replace the covers. Doing so may damage the connection cables and covers.

Connections

Please follow the flow chart below to determine which connection setup is right for you. Then, refer to the appropriate diagrams to connect your television to other devices that you may have. After you are finished connecting your devices, plug the power cord into the nearest power outlet and turn on the TV.

A VCR is not necessary for operation of the television. If you follow these diagrams and the television does not work properly, contact your local cable operator.

• To connect a DVD player, see Diagram #3. A DVD player is optional.

• If you have a satellite television system, please refer to the satellite TV manual.

Do you use a Cable TV Box?

Yes

Do you have a VCR? Do you have a VCR?

Yes No Yes No

Diagram #2

Diagram #1 Diagram #3 Diagram #1

Page 31

Quick Setup Connections

Diagram #1

Cable or Antenna

Output

Coaxial Cable

75Ω

(VHF/UHF)

IN OUT

TV Rear Panel

Cable Box

Note:

• If you do not have a cable box, connect the cable wire from the wall outlet into the back of the TV.

Diagram #2

L I

AUDIO

VIDEO

AUDIO

S-

INPUT 2

VIDEO

INPUT 1

VIDEO

AUDIO

Y Pb Pr

S-

VIDEO

Cable or Antenna

Output

Cable Box

OUT IN

75Ω

V L R

(VHF/UHF)

OUT

OUT OUT

VCR

OUT

Coaxial Cable

Two-Way

Splitter

75Ω (VHF/UHF)

TV Rear Panel

Notes:

• If your VCR is a mono sound unit, it will have only one audio out jack. Connect it to the LEFT AUDIO INPUT on the rear of the TV.

• Use the S-Video connection if possible for superior picture quality.

• Your VCR must be turned on to view premium cable channels.

Page 32

Quick Setup Connections

Notes:

• Green, blue and red are the most common colors for DVD cables. Some models may vary colors. Please consult the user’s manual for your DVD player for more information.

• Be careful not to confuse the red DVD cable with the red audio cable. It is best to complete one set of connections (DVD or audio output) before starting the other to avoid accidentally switching the cables.

• You may also connect the DVD player to Input 1.

Diagram #3

Cable or Antenna

Output

Coaxial Cable

Two-Wa y

Splitter

OUT OUT

75Ω (VHF/UHF)

TV Rear Panel

L I

UDIO

VIDEO

AUDIO

S-

INPUT 2

VIDEO

INPUT 1

VIDEO

AUDIO

Y Pb Pr

S-

VIDEO

75Ω (VHF/UHF)

OUT

V L R

VCR

OUT

TV Rear Panel

Green

AUDIO OUT

L R

OUT

Blue Red

DVD Player (OPTIONAL)

Page 33

Quick Setup Connections

Connecting to a Camcorder

You can connect a camcorder to you televison by using the input jacks located on the back of the television.

TV Rear Panel

CAMCORDER

AUDIO OUT

L - AUDIO - R

INPUT 3

VIDEO

AUDIO

INPUT 2

SVIDEO

VIDEO

AUDIO

L I

I R

VIDEO

AUDIO

INPUT 1

Y Pb Pr

VIDEO

S-

1) Connect a yellow composite cable from the camcorder VIDEO OUT, into the VIDEO IN on the back of the TV, OR connect an S-Video cable from the camcorder to the back of the TV.

2) Connect a white cable from the camcorder LEFT AUDIO OUT, into the LEFT AUDIO IN on the back of the TV.

3) Connect a red cable from the camcorder RIGHT AUDIO OUT, into the RIGHT AUDIO IN on the back of the TV.

Note:

• If your camcorder is a mono sound model it will have only one AUDIO OUT. Connect it to the

LEFT AUDIO IN on the back of the TV.

Headphone Connection

You can connect a pair of headphones to the television using the headphone jack located on the side of the television.

1) Plug a headphone jack into the headphone jack on the television’s side panel.

ME -

POWER

Page 34

Quick Setup Connections

Connecting to an External Amplifier

TV Rear Panel

L - AUDIO - R

AUDIO OUT

INPUT 3

VIDEO

AUDIO

Speaker

L I

INPUT 2

VIDEO

S- VIDEO

AUDIO

VIDEO

AUDIO

Amplifier

S-

VIDEO

INPUT 1

Y Pb Pr

Speaker

1) Connect a white cable from the LEFT AUDIO OUTPUT on the back of the TV to the LEFT AUDIO INPUT on the amplifier.

2) Connect a red cable from the RIGHT AUDIO OUTPUT on the back of the TV to the RIGHT AUDIO INPUT on the amplifier.

Notes:

• Refer to your amplifier’s manual for more information.

• You can use AUDIO OUTPUT for your home theater system.

75Ω

(VHF/UHF)

Page 35

Quick Setup Auto Tuner Setup

Step 4 – Auto Tuner Setup

JVC’s onscreen menu system lets you set your television up to meet your own personal viewing preferences. The menu screens and their features are discussed in detail in this book. The menu settings are optional, you can set as many or as few of them as you wish. But to begin watching your television right away you will need to run the Auto Tuner Setup. This lets your television learn the channels it is able to receive. To run the Auto Tuner Setup follow the steps below.

Press the MENU button on the remote control

π†

To AUTO TUNER SETUP

√®

To operate

AUTO TUNER SETUP

TUNER MODE

PRESS TO START

SELECT OPERATE EXIT

√®

To choose CABLE (if you are connected to a cable system) or AIR (if you use an

antenna)

Press the OK button

The Auto Tuner will now memorize all of the clear, active channels your television can receive. This will take one or two minutes.

CABLE

NOW

PROGRAMMING !

When the setup is finished, PROGRAMMING OVER ! is displayed. Your quick setup is now complete. You can now begin watching your television, or you can continue on in this guide for more information on programming your remote control, or using the JVC onscreen menu system to customize your television viewing experience.

Cable Box and Satellite Users: After your auto tuner setup is complete, you may, (depending on the type of hookup), have only 1 channel, usually 3 or 4 in the auto tuner memory. This is normal.

STOP

The Quick Setup is complete

Page 36

Remote Programming

Setting the CATV, VCR and DVD Codes

You can program your remote to operate your cable box, satellite receiver, VCR or DVD player by using the instructions and codes listed below. If the equipment does not respond to any of the codes listed below or to the code search function, use the remote control supplied by the manufacturer.

Cable Box or Satellite Codes

The remote control is programmed with cable box and satellite codes for power on/off, channel up/down, and 10 key operation.

1) Find the cable box or satellite brand from the list of codes shown below.

2) Slide the 2-way selector switch to “CATV”.

3) Press and hold down the D key pad.

4) Release the DISPLAY button, and confirm the operation of the cable box/satellite receiver.

• If your cable or satellite box does not respond to the first code, try the others listed. If it does

not respond to any code, try the search codes function, on page 22.

ISPLAY button, then enter the first code number listed with the 10

Cable Box CODES

ABC Archer

Cableview

Citizen Curtis Diamond

Eagle Eastern GC Brand

Gemini General Instrument

Hamlin

Hitachi

Jerrold

Macom

Magnavox

Memorex Movietime

Oak

Panasonic

Paragon

Philips

Pioneer

Pulsar

024 032, 025

051, 032

022, 051 058, 059 024, 032, 025

029 034 032, 051

022, 043 065, 024, 025,

026, 027, 020, 021, 022, 057, 023 040, 041, 042, 045, 058, 064 049, 024

065, 024, 025, 026, 027, 020, 021, 022, 057, 023

049, 050, 051, 054

033

030

032, 051

039, 037, 048

055, 056, 060, 071, 073

063

028, 029, 030, 052, 053, 031, 069

047, 062

051, 032

Cable Box CODES

Puser

RCA Realistic

Regal

Regency

Rembrandt

Samsung

Scientific Atlanta

SLMark

Sprucer

Stargate

Telecaption

Teleview

Texscan

Tocom

Toshiba

Unika

Universal

Videoway

Viewstar

Zenith

Zenith/Drake Satellite

032

061, 070 032 058, 064, 040,

041, 042, 045, 068 034

037, 032, 051, 038

051

057, 058, 059

051, 047

051, 056

032, 051

067

047, 051

044

035, 036, 066

050

032, 025

022, 032

052

029, 030

063, 046

046

Digital Satellite Systems

Echostar

Express VU

G.E.

G.I.

Gradiente

Hitachi

HNS (Hughes)

Panasonic

Philips

Primestar

Proscan

RCA

Sony

Star Choice

Toshiba

Uniden

CODES

100, 113, 114, 115

100, 113

106

108

112

104, 111

104

105

102, 103

108

106, 109, 110

107

104, 108

101

102, 103

Page 37

Remote Programming

VCR Codes

The remote control is programmed with VCR codes for power on/off, play, stop, fast-forward, rewind, pause, record, channel up/down operation.

1) Find the VCR brand from the list of codes shown below.

2) Slide the first 2-way selector switch to “TV” and the other 2-way selector switch to “VCR”.

3) Press and hold down the D key pad.

4) Release the D

ISPLAY button, and confirm the operation of the VCR.

• If your VCR does not respond to the first code, try the others listed. If it does not respond to

any of the codes, try the search codes function on page 22.

• After you program your remote, some VCR buttons may not work properly. If so, use the

VCR’s remote.

• To record, hold down the R

ISPLAY button, then enter the first code number listed with the 10

EC button on the remote and press PLAY.

VCRs CODES

Admiral Aiwa

Akai

Audio Dynamic Bell & Howell Broksonic

Canon CCE Citizen

Craig Curtis Mathes

Daewoo

DBX Dimensia

Emerson

Fisher

Funai

G.E. Go Video

Goldstar

Gradiente

Hitachi

Instant Replay

Jensen

JVC

Kenwood

LXI 027, 064, 058,

Magnavox

035 027, 032, 095

029, 072, 073, 074

003, 005 063, 071 020, 026, 094

023, 025 043 064

063, 029, 064 045, 024, 027,

093 043, 059, 024,

092 003, 004, 005 045, 093

043, 026, 077, 061, 025, 042, 020, 076

063, 066, 067, 065, 071, 091

027, 026, 020, 000

033, 045, 024

037, 051, 049, 050, 089

064

083, 084, 081, 000, 001

023, 045, 058, 027, 081, 093

024, 023

003

000, 001, 002, 003, 004, 005

003, 004, 064, 005

065, 066, 063, 067

031, 023, 024, 086

VCRs CODES

Marantz

Marta Memorex

MGA

Minolta

Mitsubishi

Multitech

NEC

Olympic

Optimus

Orion Panasonic

Penney

Pentax

Philco

Philips

Pioneer

Proscan

Quasar

Radio Shack

RCA

Realistic 024, 063, 036,

003, 004, 005

064 024, 067 038, 040, 047,

048, 041, 042 058, 045, 093

038, 040, 047, 048, 041, 042, 078, 090

047, 027, 062

003, 004, 005, 000 024, 023

028, 021, 035, 064 026, 020

023, 024, 021, 022

024, 058, 045, 063, 003, 004, 005, 093

058, 005, 045, 093

031, 024, 027, 023, 026, 020, 043

031, 023, 024, 086

023

045, 058, 023, 024, 031, 046, 059, 060, 033, 087, 093

021, 022, 023, 024

033, 024, 063, 036, 067, 040, 027

033, 045, 058, 023, 024, 031, 046, 059, 060, 083, 084, 085, 087, 093

067, 040, 027

VCRs CODES

Samsung

Samtron

Sansui

Sanyo

Scott

Sears

Shintom Sharp

Signature 2000

Singer

Sony

SV 2000 Sylvania

Symphonic

Tashiro

Tatung Tea c

Technics

Teknika Toshiba

Vector Research

Wards

Yamaha

Zenith 044, 082, 064,

037, 060, 062, 033, 089

089

003, 026, 020, 052

063, 067, 091, 071

059, 060, 062, 067, 038, 040, 047, 048, 026, 020

063, 064, 065, 066, 058, 000, 001 075

035, 036, 080, 088 027, 035

075 028, 029, 030,

053, 054, 055

027 031, 023, 024,

027 027, 081

064

003, 004, 005 003, 004, 027,

005

021, 022, 023, 024

024, 027, 070 059, 046, 079

005

035, 036, 067, 044, 064

063, 003, 004, 005

094

Page 38

Remote Programming

DVD Codes

The remote control is programmed with DVD codes for power on/off, play, stop, fast-forward, rewind, previous/next chapter, tray open/close, and still/pause operation.

1) Find the DVD player brand from the list of codes shown below.

2) Slide the first 2-way selector switch to “TV” and the other 2-way selector switch to “DVD”.

3) Press and hold down the DISPLAY button, then enter the first code number listed with the 10 key pad.

4) Release the D

• If your DVD player does not respond to the first code, try the others listed. If it does not

respond to any of the codes, try the search codes function on page 22.

• After you program your remote, some DVD buttons may not work properly. If so, use the

DVD player’s remote.

ISPLAY button, and confirm the operation of the DVD player.

DVD Player CODES

Aiwa Apex

Denon Hitachi JVC Kenwood

Konka Mitsubishi Onkyo

Oritron Panasonic Philips

Pioneer

Raite

043 040

020, 037 030, 031 000 035

039 025 041

044 020 023, 036

022 033

DVD Player CODES

RCA

Sampo Samsung Sharp

Silvania

Sony

Technics

Toshiba Vialta 050

Wave Yamaha Zenith

021, 026

034 030 028

038

024, 045, 046, 047

020

023

042 020 027, 032

Page 39

Remote Programming

Search Codes

Cable/Satellite Search Codes Function

1) Slide the first 2-Way Mode Selector switch to CATV.

2) Press the P

3) Press the P

4) If there was a response, press RETURN+. The codes are now set. If there was no response, repeat Step 3. If you repeat Step 3 a total of 80 times without a response, use the remote control that came with your equipment.

5) Press RETURN+ to exit.

VCR/DVD Search Codes Function

1) Slide the first 2-way selector switch to “TV” and the other 2-way selector switch to “VCR” or “DVD”.

2) Press the VCR or DVD P release.

3) Press the VCR or DVD POWER button, and see if the VCR or DVD responds.

4) If there was a response, press RETURN+. The codes are now set. If there was no response, repeat Step 3. If you repeat Step 3 a total of 80 times for the VCR (40 times for the DVD player), and there is no response, use the remote control that came with your equipment.

5) Press RETURN+ to exit.

OWER and RETURN+ buttons. Hold for at least three seconds and release. OWER button on the remote, and see if the cable or satellite box responds.

OWER and RETURN+ buttons. Hold for at least three seconds and

Page 40

Onscreen Menus

Using the Guide

Certain symbols are used throughout this guide to help you learn about the features of your new television. The ones you will see most frequently are:

π†

Up and Down arrows mean press the CH+ or CH– buttons. Pressing the CH+ or CH–

buttons let you:

• Move vertically in a main menu screen

• Move through a submenu screen

• Move to the next letter, number, or other choice in a submenu

• Back up to correct an error

• Scan through TV channels (when not in a menu screen)

√®

Left and right arrows mean press the VOLUME+ or VOLUME- buttons to move left or right

to:

• Select a highlighted menu item

• Select an item in a submenu

• Select numbers in certain menu options

• Turn the volume up or down (when not in a menu screen)

The “press button” icon means you should press the button named on your remote

control. (Button names appear in S

To bring up the onscreen menu, press the MENU button on the remote control. The item that appears in green is the one currently selected. If you use the Menu button on the TV’s front panel instead of the remote, an additional menu screen showing INPUT, VIDEO STATUS and ASPECT will appear between INITIAL SETUP and PICTURE ADJUST.

MALL CAPITAL LETTERS.)

PREVIOUS AUTO TUNER SETUP

CHANNEL SUMMARY

V-CHIP

SET LOCK CODE

SELECT OPERATE EXIT

INITIAL SETUP

(3/3)

Note:

• Menus shown in this book are illustrations, not exact replications of the television’s onscreen displays.

Page 41

Onscreen Menus

The Onscreen Menu System

Your television comes with JVC’s onscreen menu system. The onscreen menus let you make adjustments to your television’s operation simply and quickly. Examples of the onscreen menus are shown on the next page. Detailed explanations on using each menu follow later in this guide

The Onscreen Menu System

To open the onscreen menu system, press the MENU button on the remote control. You navigate within the onscreen menus by using the four directional arrow buttons on the remote control. (These buttons are also the CH +/– and VOL +/– buttons. Channel and volume functions will not operate when the onscreen menu is active).

The selected feature and option on a menu screen are highlighted in a different color.

Selected Option (Green)

To move to a different feature use the π† arrows to move up or down the list. When you press the up arrow at the top of the list or the down arrow at the bottom, the next menu screen will appear. Use the arrows √ ® to select an option from the highlighted feature. Pressing

ENU on the remote control will close the onscreen menu system and return you to normal

M television viewing.

Each menu and its features will be discussed in the following pages of this guide.

Notes:

• If you do not press any buttons for a few seconds, the onscreen menu will automatically shut off.

• Button names in this guide are shown in S

• Menus may appear in different sizes onscreen depending on the aspect ratio selected.

• Some menu items may not appear in menu screens when certain aspect ratios or inputs are selected.

LANGUAGE

CLOSED CAPTION

ENG. FRAN. ESP.

MALL CAPITAL LETTERS.

Selected Option (Blue)

Page 42

Press the MENU button

Onscreen Menus

PREVIOUS AUTO TUNER SETUP

CHANNEL SUMMARY

V-CHIP

SET LOCK CODE

SELECT OPERATE EXIT

INITIAL SETUP

INITIAL SETUP 03

PICTURE ADJUST

TINT

COLOR


BRIGHT

DETAIL

ENERGY SAVER MODE

SELECT OPERATE

STANDARD

PICTURE ADJUST 01

PICTURE ADJUST

PREVIOUS STANDARD

COLOR TEMPERATURE

DIG. NOISE CLEAR

NATURAL CINEMA

LOW

OFF

AUTO

(3/3)

Note:

• When the Menu button on the TV side panel is pressed, the FRONT PANEL

(1/2)

EXIT

CONTROL menu between INITIAL SETUP 03 and PICTURE ADJUST will appear.

PREVIOUS LANGUAGE

CLOSED CAPTION

AUTO SHUT OFF

XDS ID

SELECT OPERATE EXIT

INITIAL SETUP

ENG. FRAN. ESP.

OFF

INITIAL SETUP 02

PREVIOUS NOISE MUTING

FRONT PANEL LOCK

POSITION ADJUSTMENT

POWER INDICATOR

SELECT OPERATE EXIT

INITIAL SETUP

OFF

INITIAL SETUP 01

CLOCK / TIMERS

SET CLOCK

ON / OFF TIMER

(2/3)

(1/3)

RESET

SELECT OPERATE EXIT

PICTURE ADJUST 02

SOUND ADJUST

STEREO SAP MONO

BASS

TREBLE

BALANCE

MTS

RESET

SELECT OPERATE EXIT

SOUND ADJUST

(2/2)

SELECT OPERATE EXIT

CLOCK/TIMERS

Page 43

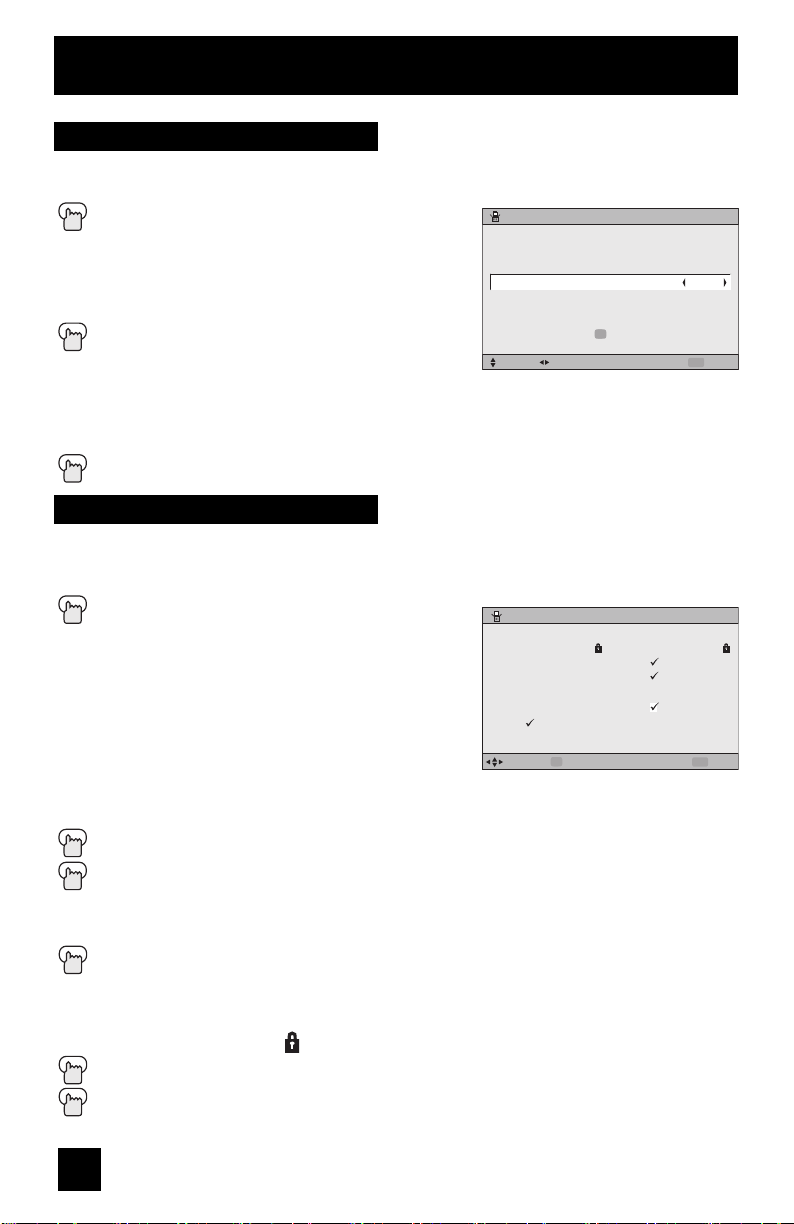

Initial Setup

Auto Tuner Setup

If you have already run the Auto Tuner as part of the quick setup earlier in this guide, please skip ahead to “Channel Summary” to continue setting up your television.

Press the M

π†

√® √®

To AUTO TUNER SETUP

To operate

To choose CABLE or AIR

Press the OK button to start

Programming will take approximately 1 to 2 minutes. The auto tuner is finished when the message PROGRAMMING OVER! appears onscreen.

ENU button

AUTO TUNER SETUP

TUNER MODE

PRESS TO START

SELECT OPERATE EXIT

CABLE

Press the Menu button when finished

Channel Summary

Channel summary allows you to customize the line-up of channels received by your TV. You can add or delete channels from the line-up as you like or prevent any unauthorized viewers from watching any or all 181 channels.

Press the M

π†

√®

To CHANNEL SUMMARY

To operate

The Channel summary screen will now be displayed with the channels set to scan marked with an “√”. You can delete channels from the scan by removing the “√”. If any channels were missed during auto tuner setup and you wish to add them, you may by placing an “√” next to the channel number.

π† √® To the SCAN column

Press the OK button to include or delete from scan

Press the MENU button when finished

You can block access to a channel by activating the channel lock.

Press the MENU button

π†

To CHANNEL SUMMARY

√®

To operate

π† √® To the Lock Column ( )

Press the ZERO button to lock or unlock that channel

Press the MENU button when finished

ENU button

CHANNEL SUMMARY

CHNO.

SCAN CHNO. SCAN 01

SELECT OPERATE EXIT

Page 44

Initial Setup

Channel Guard Message

When a viewer attempts to watch a guarded channel, the following message appears:

To watch a channel that you have locked, enter the Lock Code using the 10 key pad. If the wrong code is entered, the message “INVALID LOCK CODE!” will flash on the screen.

The channel cannot be accessed until the correct code is entered.

Notes:

• Once a channel has been unlocked, it will remain unlocked until the television is turned off.

• See also “Set Lock Code”, page 33.

V-Chip

Your TV is equipped with V-Chip technology which enables you to block channels or content that you feel to be inappropriate for children, based on US and Canada rating guidelines. V-Chip has no effect on video signals from DVD discs or Camcorder connection.

Note: Some programs, and movies are broadcast without a ratings signal. Even if you set up V-CHIP ratings limits, these programs will not be blocked. See page 28 for information on how to block unrated programs.

Note (for Canadian viewers): The V-Chip function is based on specifications designed for the United States and therefore may not work properly in Canada.

THIS CHANNEL IS LOCKED BY CHANNEL GUARD. PLEASE ENTER LOCK CODE BY 10 KEY PAD TO UNLOCK IT.

O. - - - -

You can customize the V-Chip settings of your television to match your personal tastes. The V-Chip menu below is the starting point for your V-Chip settings

You can use US V-Chip settings (for programming broadcast from the United States), Canadian V-Chip settings (for programming broadcast from Canada), and movie ratings. You may use any or all of the settings (US V-Chip, Canada V-Chip, Movie ratings). Descriptions for setting each of the three V-Chip formats appear in the next six pages along with descriptions of the rating categories.

To access the rating categories:

Press the M

π†

√®

To V-CHIP To operate (Lock icon will appear)

Press ZERO to access the V-Chip menu

√®

To turn V-Chip ON or OFF (V-Chip must be

ENU button

V-CHIP

SET US TV RATINGS

SET MOVIE RATINGS

SET CANADIAN RATINGS ENG

SET CANADIAN RATINGS FRE

UNRATED

OFF

VIEW

turned ON for rating settings to operate)

π†

To move to SET US TV RATINGS,

SELECT OPERATE EXIT

SET MOVIE RATINGS, or SET CANADIAN RATINGS (see following pages for descriptions of each item)

Page 45

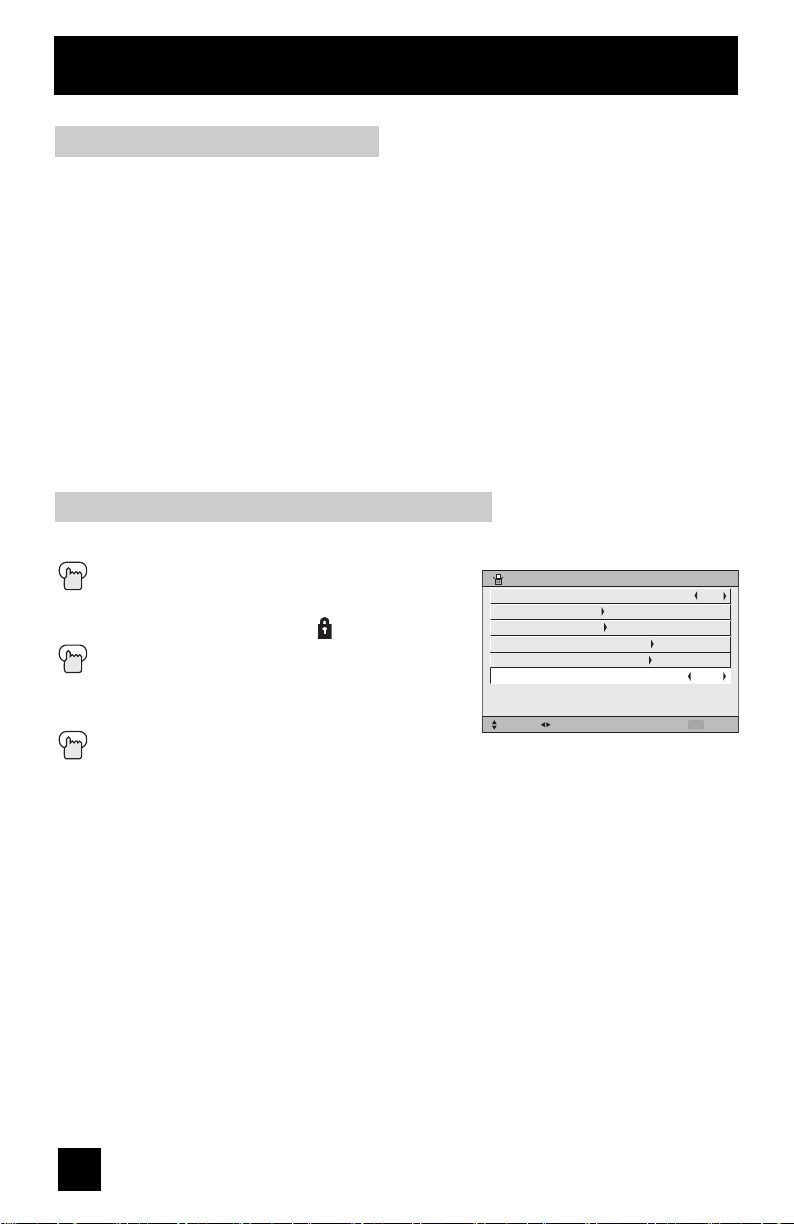

Initial Setup

Unrated Programs

Unrated programming refers to any programming which does not contain a rating signal. Programming on television stations which do not broadcast rating signals will be placed in the “Unrated Programming” category.

Examples of Unrated programs:

• Emergency Bulletins • Locally Originated Programming

• News • Political Programs

• Public Service Announcements • Religious Programs

• Sports • Weather

• Some Commercials

Note:

• TV programs or movies that do not have rating signals will be blocked if the unrated category is set to BLOCK.

Directions to Block Unrated Programs

You can block programs that are not rated.

Press the MENU button

π†

√®

To V-CHIP To operate (The lock icon appears)

Press ZERO to access V-Chip setup options

π†

√®

Press M

To UNRATED To VIEW or BLOCK

ENU when done

V-CHIP

SET US TV RATINGS

SET MOVIE RATINGS

SET CANADIAN RATINGS ENG

SET CANADIAN RATINGS FRE

UNRATED

SELECT OPERATE EXIT

OFF

VIEW

Page 46

Initial Setup

US V-Chip Ratings

U.S. PARENTAL RATING SYSTEMS Programs with the following ratings are appropriate for children.

❏ TV Y is Appropriate for All Children

Programs are created for very young viewers and should be suitable for all ages, including children ages 2 - 6.

❏ TV Y7 is for Older Children

Most parents would find such programs suitable for children 7 and above. These programs may contain some mild fantasy violence or comedic violence, which children should be able to discern from reality.

Programs with the following ratings are designed for the entire audience. ❏ TV G stands for General Audience

Most parents would find these programs suitable for all age groups. They contain little or no violence, no strong language, and little or no sexual dialog or situations.

❏ TV PG Parental Guidance Suggested

May contain some, but not much, strong language, limited violence, and some suggestive sexual dialog or situations. It is recommended that parents watch these programs first, or with their children.

❏ TV 14 Parents Strongly Cautioned

Programs contain some material that may be unsuitable for children under the age of 14 including possible intense violence, sexual situations, strong coarse language, or intensely suggestive dialog. Parents are cautioned against unattended viewing by children under 14.

❏ TV MA Mature Audiences Only

These programs are specifically for adults and may be unsuitable for anyone under 17 years of age. TV MA programs may have extensive V, S, L, or D.

Viewing Guidelines

In addition to the ratings categories explained above, information on specific kinds of content are also supplied with the V-Chip rating. These types of content may also be blocked. The content types are:

• V/FV is for VIOLENCE/FANTASY VIOLENCE

• S stands for SEXUAL CONTENT

• L stands for strong LANGUAGE

• D stands for suggestive DIALOG

Page 47

Initial Setup

Setting US V-Chip Ratings

Press the MENU button

π†

√®

To V-CHIP To operate (lock icon appears)

Press ZERO to access the V-Chip menu

√®

π†

√®

To turn V-Chip ON or OFF To move to SET US TV RATINGS

To operate

V-CHIP

SET US TV RATINGS

SET MOVIE RATINGS

SET CANADIAN RATINGS ENG

SET CANADIAN RATINGS FRE

UNRATED

SELECT OPERATE EXIT

OFF

VIEW

Directions to set US V-Chip Ratings

Line up the cursor in the column (TV PG, TV G, etc.) with the content row (V/FV, S, etc.) and press the feature on or off. An item is locked if the icon appears instead of a “—”.

For example. To block viewing of all TV 14 shows, move the cursor to the top row of that column and add a lock icon. Once you’ve put a lock on the top row, everything in that column is automatically locked.

π† √®

Press the MENU button when finished

Note:

• If you want to change the setup, move the cursor to

π† or √®

to move the cursor to the correct location. Press OK to turn the locking

To the TV 14 Column

Press the OK button to lock

the top column and change the lock icon to “—” by pressing OK again. You may then select individual categories to block.

SET US TV RATINGS

TVMATV14TVPGTVGTVY7TV

V/FV

SELECT OPERATE

EXIT

Page 48

Initial Setup

Movies Ratings

❒ NR – Not Rated

This is a film which has no rating. In many cases these films were imported from countries which do not use the MPAA ratings system. Other NR films may be from amateur producers who didn’t intend to have their film widely released.

NR (Not Rated) Programming may contain all types of programming including children’s programming, foreign programs, or adult material.

❒ G – General Audience

In the opinion of the review board, these films contain nothing in the way of sexual content, violence, or language that would be unsuitable for audiences of any age.

❒ PG – Parental Guidance

Parental Guidance means the movie may contain some contents such as mild violence, some brief nudity, and strong language. The contents are not deemed intense.

❒ PG-13 – Parents Strongly Cautioned

Parents with children under 13 are cautioned that the content of movies with this rating may include more explicit sexual, language, and violence content than movies rated PG.

❒ R – Restricted

These films contain material that is explicit in nature and is not recommended for unsupervised children under the age of 17.

❒ NC-17 – No One Under 17

These movies contain content which most parents would feel is too adult for their children to view. Content can consist of strong language, nudity, violence, and suggestive or explicit subject matter.

❒ X – No One under 18

Inappropriate material for anyone under 18.

Directions to set Movie (MPAA) Ratings

Press the MENU button

π†

√®

Press ZERO to access V-Chip setup options

π†

√®

For example:

To block viewing of X and NC-17 rated from shows:

π† √®

Press the MENU button to finish

To V-CHIP To operate (Lock icon appears)

To SET MOVIE RATINGS To enter movies menu

To the X Column

Press the OK button to lock

To the NC-17 Column

Press the OK button to lock

SET MOVIE RATINGS

SELECT OPERATE

EXIT

Page 49

Initial Setup

Canadian V-Chip Ratings

❒ E – Exempt

Exempt programming includes: news, sports, documentaries and other information programming, talk shows, music videos, and variety programming.

❒ C – Programming Intended for Children

Violence Guidelines: There will be no realistic scenes of violence. Depictions of aggressive behavior will be infrequent and limited to portrayals that are clearly imaginary, comedic or unrealistic in nature.

❒ C8+ – Programming Intended for Children 8 and Over

Violence Guidelines: Any realistic depictions of violence will be infrequent, discreet, of low intensity and will show the consequences of the acts. There will be no offensive language, nudity or sexual content.

❒ G – General Audience

Programming will contain little violence and will be sensitive to themes which could affect younger children.

❒ PG – Parental Guidance

Programming intended for a general audience, but which may not be suitable for younger children. Parents may consider some content not appropriate for children aged 8-13.

❒ 14+ – 14 Years and Older

Parents are strongly cautioned to exercise discretion in permitting viewing by pre-teens and early teens. Programming may contain mature themes and scenes of intense violence.

❒ 18+ – Adult

Material intended for mature audiences only.

Directions to set Canadian V-Chip Ratings

Press the MENU button

π†

√®

To V-CHIP To operate (lock icon appears)

Press ZERO to access V-Chip setup options

π†

√®

To SET CANADIAN RATINGS ENG (for English) To enter ratings menu

For example:

To block viewing of programming rated 14+ and 18+:

√®

To the 18+ Column Press the OK button to lock

To the 14+ Column

Press the OK button to lock

Press the MENU button to finish

SET CANADIAN RATINGS ENG

14+

18+

SELECT OPERATE

EXIT

Note:

• For instructions on “SET CANADIAN RATINGS FRE (in French)”, please see page 32 in the French side of this user’s guide.

Page 50

Initial Setup

Set Lock Code

Channel guard and V-Chip settings are protected by a four-digit lock code. Your TV comes preset with a lock code of “0000”. You may change the code to any four-digit number you wish. To change the lock code, follow the steps below.

Press the M

π†

√®

To SET LOCK CODE

To operate (lock icon appears)

Press ZERO to access the lock code

ENU button

SET LOCK CODE

LOCK CODE

0000

The first digit will be highlighted

√®

To select the number

π†

To move to the next digit

SELECT OPERATE EXIT

PRESS TO FINISH

Continue to follow these directions for all four numbers

Press the OK button to finish (your lock code is now set)

Press the Menu button when finished

When a viewer attempts to watch a blocked channel, this message appears:

THIS PROGRAMMING EXCEEDS YOUR RATING LIMITS. PLEASE ENTER LOCK CODE BY 10 KEY PAD TO UNLOCK IT. N

O. - - - -

The channel will remain blocked until the correct lock code is entered (see above for information on setting your lock code).

Notes:

• After a power interruption you must reset the lock code.

• Write your lock code number down and keep it hidden from potential viewers.

• If you forget the lock code, a new code may be set using the steps listed above.

Page 51

Initial Setup

Language

You can choose to view your onscreen menus in three languages: English, French (Français) or Spanish (Español).

Press the Menu button

π†

√®

To LANGUAGE

To choose a language: ENG. (English),

FRAN. (French) or ESP. (Spanish)

Press the M

ENU button when finished

PREVIOUS LANGUAGE

CLOSED CAPTION

AUTO SHUT OFF

XDS ID

INITIAL SETUP

ENG. FRAN. ESP.

OFF

SELECT OPERATE EXIT

(2/3)

Closed Caption

Many broadcasts now include an onscreen display of dialog called closed captions. Some broadcasts may also include displays of additional information in text form. Your television can access and display this information using the closed caption feature. To activate the closed caption feature, follow the steps below.

Press the M

π†

√® √®

π†

√®

To CLOSED CAPTION To operate To select CAPTION, TEXT or OFF in MODE

To select CAPTION or TEXT

To select a caption (CC1 to CC4) or text

channel (T1 to T4)

Press the OK button to save

Press the M

Notes:

• Closed caption subtitles are usually found on closed caption channel CC1. Some programs may include additional text information which is usually found on text channel T1. The other channels are available for future use.

• Closed captioning may not work correctly if the signal being received is weak or if you are playing a video tape.

• Most broadcasts containing closed captioning will display a notice at the start of the program.

• If you connect an external device and want to use closed caption, closed caption can not be displayed if you have connected your device using "Component" or "S-Video" input. If you want to be able to view closed caption, connect your device using the "Video (composite video)" input.

• Closed Caption may not fit on the screen at the top or bottom if you are watching a program in CINEMA aspect mode, or depending on the format of the software (DVD, VHS, etc.)

ENU button

ENU button when finished

CLOSED CAPTION

CAPTION

TEXT

PRESS TO FINISH

SELECT OPERATE EXIT

TEXTMODE

CC1

Page 52

Initial Setup

Auto Shut Off

This function automatically shuts off your TV when there is no signal from the channel the TV is on.

Press the MENU button

π†

To AUTO SHUT OFF

√®

To turn ON or OFF

Press the M

ENU button when finished

• If the channel that you have on does not receive a signal for more than one minute, the blinking text “NOT RECEIVING A SIGNAL AUTO SHUT OFF

LANGUAGE

CLOSED CAPTION

AUTO SHUT OFF

XDS ID

SELECT OPERATE EXIT

IN 9 MIN.” appears on the screen, and starts the countdown. If no signal is being received within 10 minutes, the TV shuts itself off.

XDS ID

XDS ID Display provides a channel’s call letters, the network’s name, and even a program name. The XDS ID information is provided by the broadcaster.

Press the MENU button

π†

To XDS ID

√®

To turn ON or OFF

Press the MENU button when finished

LANGUAGE

CLOSED CAPTION

AUTO SHUT OFF

XDS ID

INITIAL SETUP

ENG. FRAN. ESP.

INITIAL SETUP

ENG. FRAN. ESP.

OFF

(2/3)

OFF

SELECT OPERATE EXIT

Noise Muting

This feature inserts a blank gray screen over channels which are not broadcasting or are too weak to be received clearly.

Press the MENU button

π†

√®

To NOISE MUTING

To turn noise muting ON or OFF

Press the MENU button when finished

Note:

PREVIOUS NOISE MUTING

FRONT PANEL LOCK

POSITION ADJUSTMENT

POWER INDICATOR

SELECT OPERATE EXIT

INITIAL SETUP

OFF

• Noise muting will not work during auto tuner setup or when you operate channel summary.

(2/3)

(1/3)

Page 53

Initial Setup

Front Panel Lock

This allows you to lock the keys on the front of the TV, so that a child may not accidentally change your viewing preferences.

Press the M

π†

To FRONT PANEL LOCK

√®

To turn ON or OFF

Press the MENU button when finished

You can turn off this feature in the following ways:

• Unplug the power cord, and plug it back in. Do this if your batteries die, or you lose your remote control.

• Use the remote control.

• Press the M for FRONT PANEL LOCK will appear.

Note:

• To turn ON/OFF the TV, press the power button for more than 3 seconds. This feature will remain ON.

Position Adjustment

Position adjustment allows you to adjust the position of the picture on the screen vertically when the aspect is set to panorama, cinema, or full.

ENU button

NOISE MUTING

FRONT PANEL LOCK

POSITION ADJUSTMENT

POWER INDICATOR

SELECT OPERATE EXIT

ENU button on the front of the TV for more than 3 seconds. In this case, the OSD

INITIAL SETUP

OFF

(1/3)

Press the MENU button

π†

To POSITION ADJUSTMENT

√®

π†

To enter

√®

To adjust the position

Press the MENU button to finish

Notes:

OPERATE

RESET EXIT

• To reset the adjustment to the center, press the

K button.

• When the arrow disappears, while you are adjusting the position, the position is at it’s maximum limit.

• If you select regular size with aspect, position adjustment option is not seen.

• When you change the screen size, perform the position adjustment again.

Page 54

Initial Setup

Power Indicator

Power indicator allows you to adjust the brightness of the power indicator

Press the M

π†

To POWER INDICATOR

√®

To adjust POWER INDICATOR LOW, HIGH

ENU button

or OFF

Notes :

• When OFF is selected :

The LED disappears if you have a TV signal. The LED is lit as “LOW” when there is no TV signal.

• When the On Timer turns ON, the LED is lit as "LOW" when you turn the power off.

PREVIOUS NOISE MUTING

FRONT PANEL LOCK

POSITION ADJUSTMENT

POWER INDICATOR

SELECT OPERATE EXIT

INITIAL SETUP

OFF

(1/3)

Page 55

Picture Adjust

Picture Settings

These settings allow you to change and adjust the way the picture appears on your television.

TINT

Tint allows you to adjust the levels of red and green in your TV picture.

COLOR

The color function lets you make all the colors in the TV picture appear either more vivid or subtle.


Picture allows you to adjust the levels of black and white on the TV screen, giving you a darker or brighter picture overall.

BRIGHT

You can adjust the overall brightness of the TV picture with the Bright control.

DETAIL

The Detail feature adjusts the level of fine detail displayed in the picture.

ENERGY SAVER MODE

The energy saver mode adjusts the level of brightness on the TV screen.

Adjust the Picture Settings

Press the MENU button

π† To TINT, COLOR, PICTURE, BRIGHT,

DETAIL or ENERGY SAVER MODE

√ ®

To enter

TINT

√ ®

To adjust the setting

π†

To move to the next setting

+02

Press the MENU button when finished

PICTURE ADJUST

TINT

COLOR


BRIGHT

DETAIL

ENERGY SAVER MODE

SELECT OPERATE

STANDARD

(1/2)

EXIT

Page 56

Picture Adjust

Color Temperature

You can decide how strong or dull the colors appear on the TV screen.

Press the M

π†

To COLOR TEMPERATURE

√®

To enter

COLOR TEMPERATURE LOW HIGH

√®

To set LOW or HIGH

Press the M

Digital Noise Clear

With digital noise clear, this helps take our static or noise from a channel that may not be coming in clearly.

Press the MENU button

π†

To DIG. NOISE CLEAR

√®

To enter

π†

To select the mode “LOW”, “HIGH” or “OFF”

Press the MENU button when finished

ENU button

ENU button when finished

PICTURE ADJUST

PREVIOUS STANDARD

COLOR TEMPERATURE

DIG. NOISE CLEAR

NATURAL CINEMA

RESET

SELECT OPERATE EXIT

DIG. NOISE CLEAR

LOW

OFF

AUTO

HIGH

(2/2)

OFF

LOW

Natural Cinema

Natural cinema corrects the problem of blurred edges which may occur when viewing a program originally shot on film (such as motion pictures) or animation. If you notice blurring at the edges of these programs, choose N

ATURAL CINEMA and set it to AUTO. Natural Cinema helps correct

conversion errors that occur when film, which is shot at 24 frames-per-second, is broadcast at the television rate of 30 frames-per-second.

Press the MENU button

π†

To NATURAL CINEMA

√®

To enter

π†

To select the mode “AUTO" or "OFF”

NATURAL CINEMA

AUTO

OFF

Press the MENU button when finished

Page 57

Picture Adjust

Reset

Reset resets all picture adjustments (tint, color, picture, bright, detail, color temperature and dig. noise clear) at once to the default settings.

Press the M

π†

To RESET

√®

To enter

The onscreen menu disappears for a moment,

and then the settings are reset to the default setting for all the picture adjustments.

Press the MENU button when finished

ENU button

PICTURE ADJUST

PREVIOUS STANDARD

COLOR TEMPERATURE

DIG. NOISE CLEAR

NATURAL CINEMA

RESET

SELECT OPERATE EXIT

LOW

AUTO

OFF

(2/2)

Page 58

Sound Adjust

Sound Settings

These settings allow you to change and adjust the sound on your television.

You can increase or decrease the level of low-frequency sound in the TV’s audio with

BASS –

TREBLE –

BALANCE –

Adjust the Sound Settings

Press the MENU button

π† To BASS, TREBLE or BALANCE

√ ®

π†

Press the MENU button when finished

Note:

• You can reset the sound adjustments (BASS, TREBLE and BALANCE) you set at once as

MTS (Multi-Channel Television Sound)

MTS technology allows several audio signals to be broadcast at once, giving you a choice in what you wish to hear with a TV program. In addition to mono or stereo sound, an MTS broadcast may also include a second audio program (SAP).

Press the MENU button

π†

√®

(The ON AIR arrow tells you if a broadcast is in stereo and/or contains an SAP).

Press the MENU button when finished

Notes:

• Keep the TV in stereo mode to get the best sound quality. The sound will work in stereo

• Choose the mono setting to reduce excessive noise on a certain channel or broadcast.

• Selecting SAP will allow you to hear an alternative soundtrack, if one is available.

• MTS unavailable if your television’s input source is in input 1, 2, 3 or 4 mode, as described

the bass adjustment.

Use treble to adjust the level of high-frequency sound in your TV’s audio.

Adjust the level of sound between the TV’s left and right speakers with the

balance setting.

To adjust the setting

To move to the next setting

the default setting when you select reset. See page 40.

To MTS

Select the mode

mode even if a certain broadcast is in mono sound only.

on page 45.

SOUND ADJUST

STEREO SAP MONO

BASS

TREBLE

BALANCE

MTS

RESET

SELECT OPERATE EXIT

BASS

TREBLE

BALANCE

MTS

RESET

SELECT OPERATE EXIT

Reset

Reset resets all Sound Adjustments (Bass, Treble and Balance) at once to the default settings. See page 40 on how to use reset.

Page 59

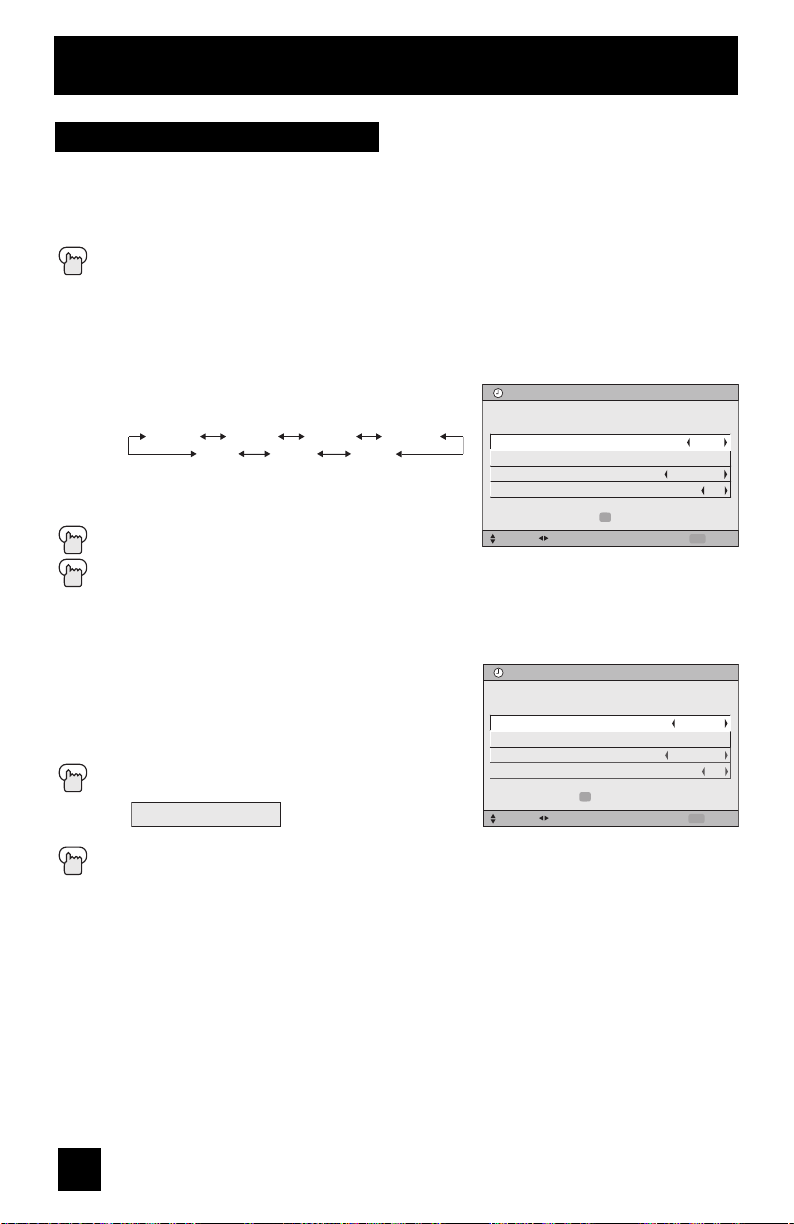

Clock/Timers

Set Clock

Before you use any of your TV’s timer functions, you must first set the clock. You may precisely set your clock using the XDS time signal broadcast by most public broadcasting stations. If you do not have this in your area, you will have to set the clock manually. See manual clock set below. To set the clock using the XDS signal:

Press the M

π†

To SET CLOCK

√®

To operate

When you set the clock automatically, choose AUTO by pressing the √ or ® arrows.

ENU button

π†

√®

π†

√®

Press OK to finish

To TIME ZONE

To select your time zone

ATLANTIC

EASTERN

HAWAII

CENTRAL

ALASKA

To D.S.T. (daylight savings time)

To turn D.S.T. ON or OFF

PACIFIC

MOUNTAIN

SET CLOCK

MODE

TIME

TIME ZONE D.S.T.

PRESS TO FINISH

SELECT OPERATE EXIT

AUTO

-- : -- --

ATLANTIC

Press the MENU button when finished

When you set the clock manually, choose MANUAL by pressing the √ or ® arrows.

π†

√®

π†

√®

Press OK to start clock

To move to the hour

To set the hour

To move to minutes

To set the minutes

THANK YOU !!

SET CLOCK

MODE TIME

TIME ZONE D.S.T.

PRESS TO START CLOCK

SELECT OPERATE EXIT

MANUAL

-- : -- --

ATLANTIC

Press the MENU button when finished

Notes:

• D.S.T. can be used only for US and Canada when it is set to ON in the SET CLOCK menu.

• Only when the MODE set to AUTO, the Daylight Savings Time feature automatically adjusts your TV’s clock for Daylight Savings. The clock will move forward one hour at 2:00 am on the first Sunday in April. The clock will move back one hour at 2:00 am on the last Sunday in October.

• You will have to reset the clock after a power interruption. You must set the clock before operating any timer functions.

Page 60

Clock/Timers

On/Off Timer

The on/off timer lets you program your television to turn itself on or off. You can use it as an alarm to wake up, to help you remember important programs, or as a decoy when you’re not home.

Press the M

π†

√® √®

To ON/OFF TIMER

To operate (begins with ON TIME)

To set the hour (AM/PM) you want the TV to

turn on

†

To move to minutes

√®

To set the minutes

†

To accept ON TIME and move to OFF TIME (the time the TV will turn off). Set the

OFF TIME the same way as ON TIME

†

To accept OFF TIME and move to CHANNEL

√®

To select channel

†

To ON VOLUME

√®

To set the volume level

†

To move to MODE

√®

Choose ONCE or EVERYDAY

†

To ON/OFF TIMER

√®

Choose YES to accept the timer setting, choose NO if you don’t wish to accept

Press the OK button to finish

Press the MENU button to exit the menu

ENU button

ON/OFF TIMER

ON TIME

OFF TIME

CHANNEL

ON VOLUME

MODE

ON/OFF TIMER

SELECT OPERATE EXIT

PRESS TO FINISH

7:00 PM

10:00 PM

CURRENT

EVERYDAY

Notes:

• The on/off time cannot be set to locked or guarded channels.

• In order for the on/off timer to work, the clock must be set.

• After a power interruption, the timer settings must be reset.

Page 61

Button Functions

Power

Turns the TV on or off.

Press the POWER button

Number Buttons - 10Key Pad

Use the number buttons on the remote control to move directly to a specific channel. For example, to move to channel 12:

1 (One)

2 (Two)

100+ Button

Use the 100+ button to directly access channels above channel 99. For example, to move to channel 124, press 100+, 2 (Two), 4 (Four).

Channel +/–

Use these buttons to move up or down all the available channels your TV is able to receive.

Volume +/–

Use these buttons to raise or lower the TV’s volume level.

Muting

The MUTING button instantly turns the volume down completely when you press it. Press MUTING and the volume level will instantly go to zero. To restore the volume to its previous level, press MUTING again.

The MENU button allows you to access JVC’s onscreen menu system. Press MENU to activate the onscreen menu system.

• See individual topics like “Sound Adjust” for specific information on using menus.

Page 62

Button Functions

Return +

The RETURN+ button has two functions:

Return - Returns to the channel viewed just before the channel currently onscreen.

Return+ - Lets you program a specific channel to return to while scanning through the

channels using the CH+ and CH– buttons.

ETURN+ and hold for three seconds

RETURN CHANNEL

PROGRAMMED!

The channel currently active has been programmed as your return+ channel. Now scan

RETURN+

• To cancel your return+ channel, press and hold the RETURN+ button for three seconds. The message “RETURN CHANNEL CANCELLED!” will appear.

• Return+ works only with the Channel+/– buttons. Pressing any number key will cancel return+.

through the channels using the CHANNEL+/– buttons.

You will return to your programmed channel.

Input

Selects the signal input source for the television: VIDEO-1, VIDEO-2 or VIDEO-3 for video devices like VCRs, DVD players, or camcorders.

Press the INPUT button

Notes:

• You can also select the input by pressing the I the remote control.

NPUT button on the side of the TV instead of

Page 63

Button Functions

Display

The display screen shows the current status of timers, inputs, and XDS ID.

Press the D

ISPLAY button

The screen to the right shows the following information:

•

The current channel or AV input (Channel 05)

• The current time (12:20 pm)

• Sleep timer status/minutes remaining (The Sleep Timer is off)

• On/off timer status (Set to turn on everyday at 7:00 PM, off at 10:00 PM)

• Each Press of the D

ISPLAY button changes the

05 KLVX PBS JAZZ FESTIVAL NOW SLEEP TIMER ON/OFF TIMER ON TIME OFF TIME

12:20 PM

OFF

EVERYDAY

7:00 PM

10:00 PM

display mode:

Display Time Channel Off

Display - Full screen shown above

Time - Shows the current time only

Channel - Shows the current channel

Off - Turns display off

Notes:

• You may also turn off the display at any step by pressing M

ENU.

• If the clock, sleep timer or on/off timer are not set, the display screen will show: “CLOCK NOT SET”, “SLEEP TIMER OFF”, and “ON/OFF TIMER OFF” respectively.

Sleep Timer

The Sleep Timer can turn the TV off for you after you fall asleep. Program it to work in intervals of 15 minutes, for a total time of up to 180 minutes.

Press the S

60 seconds before the automatic shutoff, this message will appear:

You then have 60 seconds to press the SLEEP TIMER button to

LEEP TIMER button

0 15 30 45 60 75 90 105 120 135 150 165 180

Sleep Timer Message

GOOD NIGHT!

PUSH SLEEP TIMER BUTTON

TO EXTEND.

delay the shut off for another 15 minutes.

Page 64

Button Functions

Sound

Hyper Surround - Creates a deep, three-dimensional sound effect by channeling the audio

through the TV’s front-firing speakers.

Press the S

π†

√®

Press the MENU when finished

To select HYPER SURROUND

To choose the setting

Video Status

The VIDEO STATUS button gives you a choice of four TV picture display settings, including a display of your own preferences.

Standard - Resets the picture display to the factory settings.

Dynamic - Gives a vivid picture with better contrast when viewing in

Theater - Gives a rich, film-like look to video when viewing in a

Game - Used for when you are playing video games connected to

Press the V By every press of the VIDEO STATUS button, you change the mode.

a brightly lit room.

dimly lit room.

your TV.

OUND button

IDEO STATUS button

SOUND EFFECT

HYPER SURROUND

OPERATE EXIT

SELECT

ON OFF

VIDEO STATUS

STANDARD

DYNAMIC

THEATER

GAME

Note:

π†

• You can also change the mode by pressing the

• You can also access the FRONT PANEL CONTROL screen by using the MENU button on the side of the TV instead of the remote control. It appears between INITIAL SETUP and PICTURE ADJUST screen, and it has VIDEO STATUS and ASPECT menus. Choose VIDEO STATUS by pressing MENU† on the side panel and choose a mode by using the CHANNEL +/- buttons ( √ OPERATE ® ).

buttons.

TheaterPro D6500K

The TheaterPro D6500K color temperature technology function makes sure that the video you watch is set to the standard color temperature, so that what you see is as true to what the film to video editors intended it to be.

Press the THEATERPRO button

This button confirms your selection when you are in one of the onscreen menus.

Back

This button allows you to go back in the menu to change a selection or correct a mistake.

Page 65

Button Functions

Aspect

This feature will help you adjust the picture you are watching to give you the best possible picture quality.

Press the ASPECT button

• By pressing the ASPECT button, you can change the size.

PANORAMA CINEMA FULL REGULAR

When you change the aspect ratios, it is different from their broadcast or recorded program.

Aspect Ratios

PANORAMA - With this ratio a normal

4:3 aspect picture is stretched to fit the dimensions of the 16:9 aspect screen.

CINEMA - This ratio “zooms in” on the center part of a 4:3 aspect picture, blowing it up to fill the 16:9 screen.

FULL - This is the ratio to use when watching 16:9 High-Definition broadcasts.

Notes:

• You can also access the FRONT PANEL CONTROL screen by using the M on the side of the TV instead of the remote control. It appears between INITIAL SETUP and PICTURE ADJUST screen, and it has VIDEO STATUS and ASPECT menus. Choose ASPECT by pressing MENU† on the side panel and choose a mode by using the CHANNEL +/- buttons (

√

OPERATE ® ).

REGULAR - The regular ratio is used when you want to watch a 4:3 broadcast or recorded program without modifying the original picture to fit the dimensions of your 16:9 screen. The 4:3 picture will fill the screen from top to bottom, while black bars will appear to fill up the remaining space along the picture’s sides. The 4:3 picture will be centered within the boundaries of the 16:9 screen.

ENU button

Page 66

Button Functions

TV/CATV Slide Switch

Use either the television’s own tuner or a cable box to select channels. Set this switch to TV to operate the television’s built-in tuner. Move the switch to CATV to operate a cable box.

Note:

• See page 19 for information on programming your remote for cable box operation.

VCR/DVD Slide Switch

You can control a VCR or DVD player with the buttons on the lower part of the remote control. Move the slide switch to VCR or DVD to operate.

Notes:

• The remote is preset with the code 000 to control JVC-brand VCR’s. For any other manufacturer’s brand VCR, please see the code chart and instructions on page 20.

• The remote is preset with the code 000 to control JVC-brand DVD players. For any other manufacturer’s brand DVD player, please see the code chart and instructions on page 21.

VCR Buttons

You can use this remote control to operate the basic functions of your VCR. These functions include: play, record, rewind, fast-forward, stop, pause, channel scan, TV/VCR, power on, and power off.

Move the selector switch to VCR to operate.

• The remote is preset with the code 000 to control JVC-brand VCR’s. For any other manufacturer’s brand VCR, please see the code chart and instructions on page 20.

DVD Buttons

You can also use this remote control to operate the basic functions of your DVD player. These functions include: play, rewind, fast-forward, stop, still/pause, previous/next, tray open/close, power on, and power off.

Move the selector switch to DVD to operate.

• The remote is preset with the code 000 to control JVC-brand DVD players. For any other manufacturer’s brand DVD player, please see the code chart and instructions on page 21.

Page 67

No Program

If the TV channel you selected, or were watching is not receiving a signal, "NO PROGRAM" appears on the television screen. It appears when that channel is not receiving a signal and you have the Noise Muting function OFF and you have a single screen. It moves automatically every two seconds.

Note:

• Even if "NO PROGRAM" appears on the screen, your timer functions and auto shut off functions that you set, are still active.

Page 68

Troubleshooting

PROBLEMS CHECK

There is no power

There is no picture or sound

• See if the power cord became unplugged.

• Check for a blown fuse or circuit breaker or a power outage.

• The antenna could be disconnected.

• The input mode could be set improperly. See page 45.

• The tuner (Auto Tuner Setup) could be set improperly. See page 26.

• The TV station may be having difficulties. Check to see if other stations are working.

Remote control is not operating properly or at all

You cannot select a certain channel

The power turns off by itself

The clock is wrong

The color quality is poor

There are lines across the picture

The picture is spotted

There are double pictures (ghosts)

Picture is snowy (image noise)

Screen is 40% black

Stereo or bilingual programs can't be heard

Static electricity

• Check to see that the batteries are still working and properly installed.

• Make sure the remote has a clear sight path to the TV.

• Check that the TV/CATV switch is in the proper position.

• You may be too far from the TV. You must be within 23 feet (7 meters).

• Make sure the channels have been programmed. See "Channel Summary", page 26.

• Check to see if the channel is locked. See "Channel Summary - Lock" page 27.

• Make sure the set did not become unplugged.

• Perhaps the On/Off Timer is set. See page 43.

• Check to see if the Sleep Timer was set. See page 46.

• The power was interrupted and the clock was not reset. See page 42.

• Tint and Color may be improperly adjusted. See page 38.

• The Video Status mode may be turned to the wrong setting. See page 47.

• There could be interference from another electrical appliance, such as a computer, another TV or VCR. Move any such appliances further away from the TV.

• There could be interference from a high-wattage appliance, like a hairdryer or vacuum, operating nearby. Move the antenna away from the appliance or change to a coaxial cable connection which is less prone to interference.

• A building or passing airplane can reflect the original signal and produce a second, slightly delayed one. Adjust your antenna position.

• Your antenna may be damaged, disconnected or turned. Check the antenna connection. If the antenna is damaged, replace it.

• The Closed Caption Text mode is on. Turn it off in the Closed Caption Menu, page 34.

• Make sure the MTS settings are correct. See "MTS" on page 41.

• It is normal to feel static electricity if you brush or touch the screen.

You hear occasional crackling sounds

• It is normal for the TV to make crackling sounds when first turned on or off. Unless the sound or picture become abnormal, this is fine.

Page 69

Page 70

Page 71

Specifications

Model LT-26X506

LCD Flat TelevisionType

Reception Format

Reception Range

Power Source

Power Consumption

Screen Size

Speakers 6.6 cm round X 2

Audio Output Full Range - 5W + 5W

Antenna Terminal 75 ohms (VHF/UHF) (F-type connector)

External Input Jacks

Conponent Input

Jack

S-Video Input Jacks

Audio Output Jacks

(FIX)

Headphone Jack Ø 3.5 mm X 1

Dimensions (inch) W x H x D (cm)

VHF 2 to 13, UHF 14 to 69 Sub, Mid, Super, Hyper and Ultra bands

FIX: 500mVrms (-4dBs) Low impedance (1000 Hz when modulated 100%)

27 1/8 x 20 3/4 x 12 1/4 (With Stand)

68.6 x 52.7 x 30.8 (With Stand)

27 1/8 x 18 3/4 x 4 7/8 (Without Stand)

68.6 x 47.4 x 12.2 (Without Stand)

NTSC, BTSC System (Multi-Channel Sound)

(180 channel frequency synthesizer system)

AC 120V, 60 Hz

124W

26 inch / 65 cm

measured diagonally,

16:9 ratio

Video: 1 Vp-p, 75 ohms

Audio: 500 mVrms (-4dBs) high impedance

Y: 1Vp-p positive, 75 ohms (negative sync provided)

Pb/Pr: 0.7 Vp-p 75 ohms

C: 0.286 Vp-p (burst signal), 75 ohms

LT-32X506

186W

32 inch / 80 cm

measured diagonally,

16:9 ratio

32 3/8 x 23 7/8 x 12 1/4 (With Stand)

82.0 x 60.4 x 30.8 (With Stand)

32 3/8 x 21 3/4 x 5 (Without Stand)

82.0 x 55.1 x 12.7 (Without Stand)

Weight (lbs / kg)

Accessories

35.2 / 16 (With Stand)

27.5 / 12.5 (Without Stand)

Remote control unit / AA batteries X 2

44.0 / 20 (With Stand)

36.3 / 16.5 (Without Stand)

Specifications subject to change without notice.

Note:

• Reception of channel A-5 ("95" of the TV set's on-screen cable channel numbers) is not recommended for your TV set.

Page 72

Notes

Page 73

JVC COMPANY OF AMERICA

Division of JVC Americas Corp.

1700 Valley Road

Wayne, New Jersey, 07470

JVC CANADA, INC.

21 Finchdene Square Scarborough, Ontario

Canada, M1X 1A7

Page 74

Preliminary

SCHEMATIC DIAGRAMS

LCD FLAT TELEVISION

YA33320057

LT-26X506/S, LT-32X506

CD-ROM No.SML200507

No.YA333

2005/7

Page 75

LT-26X506/S, LT-32X506

STANDARD CIRCUIT DIAGRAM

NOTE ON USING CIRCUIT DIAGRAMS

1.SAFETY

The components identified by the symbol and shading are critical for safety. For continued safety replace safety ciritical components only with manufactures recommended parts.

2.SPECIFIED VOLTAGE AND WAVEFORM VALUES

The voltage and waveform values have been measured under the following conditions.

(1)Input signal : Colour bar signal

(2)Setting positions of each knob/button and variable resistor

(3)Internal resistance of tester

(4)Oscilloscope sweeping time

(5)Voltage values

Since the voltage values of signal circuit vary to some extent according to adjustments, use them as reference values.

: Original setting position when shipped

: DC 20kΩ/V

: H

: V

: Othters

: All DC voltage values

20µs / div

5ms / div

Sweeping time is specified

3.INDICATION OF PARTS SYMBOL [EXAMPLE]

In the PW board

: R209

R209

Type

No indication

MM PP

MPP

MF TF BP

TAN

(3)Coils

No unit

Others

(4)Power Supply

Respective voltage values are indicated

(5)Test point

: Test point

(6)Connecting method

: Ceramic capacitor : Metalized mylar capacitor

: Polypropylene capacitor : Metalized polypropylene capacitor : Metalized film capacitor : Thin film capacitor : Bipolar electrolytic capacitor : Tantalum capacitor

: [µH]

: As specified

: B1

: 9V

: Connector

: Receptacle

: Only test point display

: Wrapping or soldering

: B2 (12V

: 5V

)

4.INDICATIONS ON THE CIRCUIT DIAGRAM

(1)Resistors

Resistance value

No unit : [Ω]

K M

Rated allowable power No indication : 1/16 [W]

Others : As specified

Type

No indication

OMR

MFR

MPR

UNFR

Composition resistor 1/2 [W] is specified as 1/2S or Comp.

(2)Capacitors

Capacitance value

1 or higher : [pF]

less than 1

Withstand voltage

No indication : DC50[V]

Others : DC withstand voltage [V]

AC indicated

Electrolytic Capacitors

47/50[Example]: Capacitance value [µF]/withstand voltage[V]

: [kΩ]

: [MΩ]

: Carbon resistor

: Oxide metal film resistor

: Metal film resistor

: Metal plate resistor

: Uninflammable resistor

: Fusible resistor

: [µF]

: AC withstand voltage [V]

(7)Ground symbol

: LIVE side ground

: ISOLATED(NEUTRAL) side ground

: EARTH ground

: DIGITAL ground

5.NOTE FOR REPAIRING SERVICE

This model's power circuit is partly different in the GND. The difference of the GND is shown by the LIVE : ( ) side GND and the ISOLATED(NEUTRAL) : ( ) side GND. Therefore, care must be taken for the following points.

(1)Do not touch the LIVE side GND or the LIVE side GND and the ISOLATED(NEUTRAL) side GND simultaneously. if the above caution is not respected, an electric shock may be caused. Therefore, make sure that the power cord is surely removed from the receptacle when, for example, the chassis is pulled out.

(2)Do not short between the LIVE side GND and ISOLATED(NEUTRAL side GND or never measure with a measuring apparatus measure with a measuring apparatus ( oscilloscope, etc.) the LIVE side GND and ISOLATED(NEUTRAL) side GND at the same time. If the above precaution is not respected, a fuse or any parts will be broken.

Since the circuit diagram is a standard one, the circuit and circuit constants may be subject to change for improvement without any notice.

NOTE Due improvement in performance, some part numbers show in the circuit diagram may not agree with those indicated in the part list. When ordering parts, please use the numbers that appear in the Parts List.

)

(No.YA333)2-1

Page 76

CONTENTS

SEMICONDUCTOR SHAPES ......................................................................2-2

WIRING DIAGRAM ........................................................................................2-x

BLOCK DIAGRAM ........................................................................................2-x

CIRCUIT DIAGRAMS

MAIN PWB CIRCUIT DIAGRAM ................................................................................................................ 2-5

DIGITAL SIGNAL PWB CIRCUIT DIAGRAM ........................................................................................... 2-xx

POWER PWB CIRCUIT DIAGRAM [LT-26X506/S] ...................................................................................2-xx

POWER PWB CIRCUIT DIAGRAM [LT-32X506/S] ...................................................................................2-xx

LED BOARD PWB CIRCUIT DIAGRAM ................................................................................................... 2-xx

SWITCH PWB CIRCUIT DIAGRAM .........................................................................................................2-xx

PATTERN DIAGRAMS

MAIN PWB PWB PATTERN ..................................................................................................................... 2-xx

DIGITAL SIGNAL PWB PATTERN ........................................................................................................... 2-xx

POWERPWB PATTERN [LT-26X506/S] .................................................................................................... 2-xx

POWERPWB PATTERN [LT-32X506/S] .................................................................................................... 2-xx

LED BOARD PWB PATTERN ................................................................................................................... 2-xx

SWITCH PWB PATTERN ......................................................................................................................... 2-xx

VOLTAGE CHATRS................................................................................... 2-xx

WAVEFORMS ............................................................................................ 2-xx

USING P.W. BOARD

P.W.B ASS’Y name

MAIN P.W BOARD

DIGITAL SIGNAL P.W BOARD

POWER P.W BOARD

KEY BOARD P.W BOARD

LED BOARD SW P.W BOARD

LT-26X506/S

xxxxxxxxxx

LT-32X506/S

xxxxxxxxxx

SEMICONDUCTOR SHAPES

TRANSISTOR

BOTTOM VIEW FRONT VIEW TOP VIEW

CHIP TR

E C B

ECB

BOTTOM VIEW FRONT VIEW TOP VIEW

OUT E

IN OUTE

B (G)E(S)C(D)

1 N

ECB

1 N

CHIP IC

2-2(No.YA333)

TOP VIEW

Page 77

WIRING DIAGRAM

TOP

LCD PANEL UNIT

TOP

101 4115

CN3 CN4

CN2

LCD PANEL UNIT

TOP

CP1012

TOP

DIGITAL SIGNAL PWB

CP1008

1 112 1 10 718

CW1002 CW703 CW501 CW502

CP1005 CP1009 CP1014

11018

J207

CONTROL PWB

CP706

LED PWB

CN1

POWER CORD

TOP

FU1 250V/5A

POWER PWB

CP1802

CP708

CP701

CP705

CP1801

MAIN PWB

CP602

CP601

TU401

U/V TUNER

SPEAKER (R) SPEAKER (L)

2-4(No.YA333)(No.YA333)2-3

Page 78

CIRCUIT DIAGRAMS

MAIN PWB CIRCUIT DIAGRAM (1/5)

SWA-R

SWA-L

VOL-L

VOL-R

SDA

SCL

DOWN-MUTE

HP-MUTE

SWA-R

HP-VOL

VOL-R

S-MUTE

DOWN-MUTE

VOL-L

SWA-L

DOWN-MUTE

(No.YA333)2-5 2-6(No.YA333)

Page 79

MAIN PWB CIRCUIT DIAGRAM (2/5)

TO DIGITAL

5V_SDA 5V_SCL 7

PG3 PG2 PG1 PG0

PGCLK

PGEN

6 5 4 3 2 1

TO OPE

TO LED

FOR ENGINEERING ONLY

FLASH WRITE

TO INVERTER

24V 24V 24V 24V

24V GND GND GND GND GND

CCFL A-DIMMER D-DIMMER

S1-TIN2

DATA1

VSS

PWR-LED-D

RMT-IN

XIN

SYNC-IN

XOUT

S1-TIN1

PG0

D-TIN

PG1

PG2

PG3

HP-DET

CCFL

PNL-PWR

D-DIMMER

A-DIMMER

1 2 3 4 5 6 7 8

9 10 11 12 13 14

1 2 3 4 5 6 7 8 9

PWR-LED-B

HP-VOL

THERMAL

LVDS-PWR

VDD

PGCLK

TV-PWR

PGEN

AFT

IIC DATA

IIC CLOCK

AV-RST

CVIN

FILTER

RESET

KEY1

KEY2

PEX7

PEX6

PEX5

PEX4

BUS MONITOR

SDA

CLK

ADD

PEX0

PEX1

PEX2

PEX3

2-8(No.YA333)(No.YA333)2-7

Page 80

MAIN PWB CIRCUIT DIAGRAM (3/5)

TO POWER

1 2 3 4 5 6 7 8

9 10 11 12 13 14 15

1 2 3 4 5 6 7 8

9 10 11 12 13 14 15

12V 12V

12V GND GND GND

5V 5V

5V GND GND GND

STB5V

GND

STB-SW

10 11 12 13 14 15

TO DIGITAL

P12V

1 2 3 4

GND

5 6 7 8 9

GND

M5V0

GND

TV-PWR

GND

P3V3

LCD5V0

P5V0

GND

P5V0

P12V

P3V3

GND

M5V0

12 11 10

9 8 7 6 5 4 3 2 1

TO POWER

1 2 3 4

GND

1 2 3 4

24V 2 3 4 SGND

SGND GND

GND

Dr-C

Ipk

Vcc

Comp

GND

SW-C

SW-E

GND

P9V0

P30V

GND

TU5V0

(No.YA333)2-9 2-10(No.YA333)

1 2

GNDGND

Page 81

MAIN PWB CIRCUIT DIAGRAM (4/5)

AFT

TUCV

TU-R

TU-L

SCL

SDA

SIF

SCL

SDA

SIF

2-12(No.YA333)(No.YA333)2-11

Page 82

MAIN PWB CIRCUIT DIAGRAM (5/5)

VIDEO1

VIDEO2

V(Y)

L(W)

R(R)

V(Y)

L(W)

R(R)

G1G2G3 7

GND

D-TIN

V1Y

V1CB

V1CR

GND

S1-TIN1

V1SC

V1SY

GND

V1CV

A1-L

A1-R

GND

S1-TIN2

V2SC

V2SY

GND

V2CV

A2-L

A2-R

V3CV

A3-L

V2SY

A3-R

V2SC

V2CV

A2-L

V1SY

A2-R

V1SC

V1CV

A1-L

A1-R

GND

Cout

Yout

Vout

16 17

MM9V

GND

MM9V

GND

P9V0

TU-L

TUCV

TU-R

Cout

Yout

SWV-C

SWV-SY

SWV-CV

Vout

SWA-L

SWA-R

GND

SCL

SDA

TO DIGITAL

MM9V

P9V0

SWV-C

CCD-R CCD-G CCD-B CCD-YS

7 6 5 4 3 2 1

GND

TO DIGITAL

GND

SWV-SY

HD-IN VD-IN LVDS-PWR SWV-CV

SWV-Y V-CB V-CR

AVRESET

V1CB

Y-SW

GND

P5V0 GND

V1CR

GND

AUDI O OUT

9 8 7 6 5 4 3 2 1

GND

C-IN

GND

R-IN

G-IN B-IN

3 2

YS-IN1

GND

HD VD

LVDS-PWR

CVBS

GND

Y-IN

CB-IN

CR-IN

GND

AVRESET

V1Y

SWV-Y

V-CB

V-CR

GND

VIDEO3

V(Y)

L(W)

R(R)

GND

SWA-L

V3CV

A3-L

A3-R

SWA-R

GND

EXT-MUTE

(No.YA333)2-13 2-14(No.YA333)

P9V0

GND

GND GND

GND

Page 83

DIGITAL SIGNAL PWB CIRCUIT DIAGRAM (1/4)

C-IN

GND

R-IN G-IN B-IN

YS-IN1

GND

HD VD

LVDS-PWR

CVBS

GND

Y-IN CB-IN CR-IN

GND

AVRESET

C-IN

R-IN G-IN B-IN YS-IN1

HD-IN VD-IN LVDS-PWR CVBS

Y-IN CB-IN CR-IN

AVRESET

PNL-PWR

SCR0 SCR1 SCR2 SCR3 SCR4 SCR7 SCR5 SCG0 SCG1 SCG2 SCG6 SCG7 SCG3 SCG4 SCG5 SCB0 SCB6 SCB7 SCB1 SCB2 SCB3 SCB4 SCB5

SCHS SCVS SCEN SCR6

TX0TX0+

TX1TX1+

TX2TX2+

TXCTXC+

TX3TX3+

1 2 3 4 5 6 7 8

9 10 11 12 13 14 15 16 17 18 19 20

5V_SDA 5V_SCL

SCL SDA

PG3

PG2

PG1

PG0

PGCLK

5V_SCL

5V_SDA

SCDCK

HMS1

LVDS-PWR

TX0TX0+

TX1TX1+

TX2TX2+

TXCTXC+

TX3TX3+

LVDS-OPTION

ࡅࡠ࠮Њ⥶ⓨ㔚 ሶ

PGEN

2-16(No.YA333)(No.YA333)2-15

Page 84

DIGITAL SIGNAL PWB CIRCUIT DIAGRAM (2/4)

CVBS

Y-IN

C-IN

CB-IN

DY-IN

SDA SCL SW-CR

SW-CB

YUV-C0 YUV-C1 YUV-C2 YUV-C3 YUV-C4 YUV-C5 YUV-C6 YUV-C7

YUV-Y0 YUV-Y1 YUV-Y2 YUV-Y3 YUV-Y4 YUV-Y5 YUV-Y6 YUV-Y7

YUV-CLK YUV-HD YUV-VD

CR-IN

R-IN

G-IN

B-IN

DCB-IN

DCR-IN

SW-Y

DCR-IN

DY-IN

DCB-IN

5V_SCL 5V_SDA

SW-CR

SW-Y

SW-CB

VD-IN

HD-IN

YS-INYS-IN1

(No.YA333)2-17 2-18(No.YA333)

Page 85

DIGITAL SIGNAL PWB CIRCUIT DIAGRAM (3/4)

DSVD

DSHD

AVRESET

PG3 PG2 PG1 PG0 PGCLK PGEN

DSCLK DSDE DSR7 DSR6 DSR5 DSR4 DSR3 DSR2 DSR1 DSR0 DSG7 DSG6 DSG5 DSG4 DSG3 DSG2 DSG1 DSG0 DSB7 DSB6 DSB5 DSB4 DSB3 DSB2 DSB1 DSB0 SCL SDA

MVSYNC

SCB3 SCB2 SCB1 SCB0

SCR7 SCR6 SCR5 SCR4 SCR3 SCR2 SCR1 SCR0 SCG7 SCG6 SCG5 SCG4 SCG3 SCG2 SCG1 SCG0 SCB7 SCB6 SCB5 SCB4

SCDCK

SCEN

MVSYNC

HMS1

2-20(No.YA333)(No.YA333)2-19

Page 86

DIGITAL SIGNAL PWB CIRCUIT DIAGRAM (4/4)

YUV-Y6

YUV-Y7

YUV-Y4

YUV-Y5

YUV-Y2

YUV-Y3

YUV-Y0

YUV-Y1

YUV-C6

YUV-C7

YUV-C4

YUV-C5

YUV-C1

YUV-C2

YUV-C3

YUV-C0

YUV-HD

YUV-CLK

YUV-VD

YS-IN

DSR0 DSR1 DSR2 DSR3 DSR4 DSR5 DSR6 DSR7 DSG0 DSG1 DSG2 DSG3 DSG4 DSG5 DSG6 DSG7 DSB0 DSB1 DSB2 DSB3 DSB4 DSB5 DSB6 DSB7

DSCLK

DSDE DSHD DSVD

AVRESET SCL SDA

(No.YA333)2-21 2-22(No.YA333)

Page 87

POWER PWB CIRCUIT DIAGRAM (1/3) [LT-26X506/S]

2-24(No.YA333)(No.YA333)2-23

Page 88

POWER PWB CIRCUIT DIAGRAM (2/3) [LT-26X506/S]

(No.YA333)2-25 2-26(No.YA333)

Page 89

POWER PWB CIRCUIT DIAGRAM (3/3) [LT-26X506/S]

2-28(No.YA333)(No.YA333)2-27

Page 90

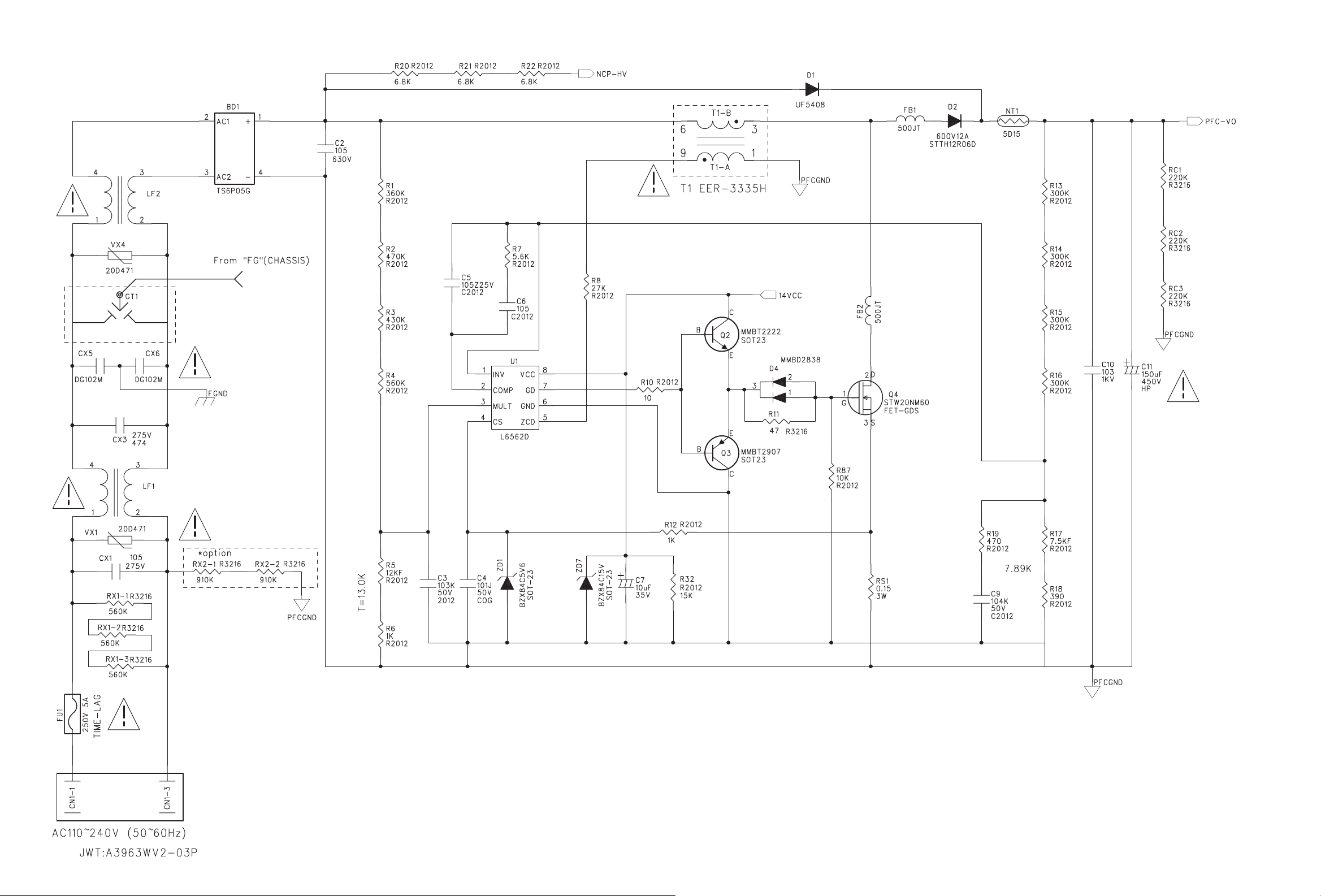

POWER PWB CIRCUIT DIAGRAM (1/3) [LT-32X506/S]

(No.YA333)2-29 2-30(No.YA333)

Page 91

POWER PWB CIRCUIT DIAGRAM (2/3) [LT-32X506/S]

2-32(No.YA333)(No.YA333)2-31

Page 92

POWER PWB CIRCUIT DIAGRAM (3/3) [LT-32X506/S]

(No.YA333)2-33 2-34(No.YA333)

Page 93

LED PWB CIRCUIT DIAGRAM SWITCH PWB CIRCUIT DIAGRAM

ฃశㇱ/LED

Rem-IN

2-36(No.YA333)(No.YA333)2-35

Page 94

PATTERN DIAGRAMS

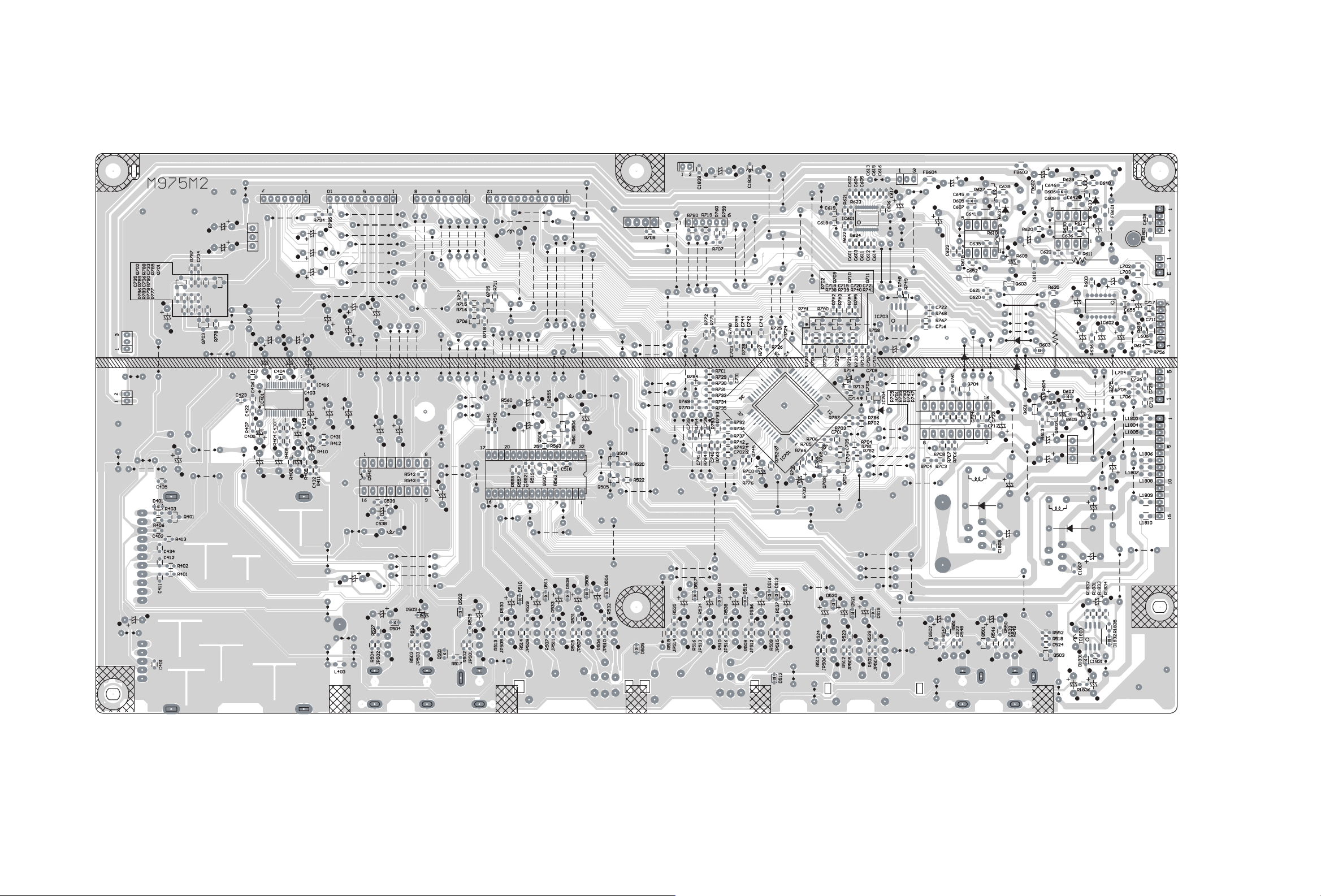

MAIN PWB PATTERN [SOLDER SIDE]

(No.YA333)2-37 2-38(No.YA333)

Page 95

MAIN PWB PATTERN [PARTS SIDE]

2-40(No.YA333)(No.YA333)2-39

Page 96

DIGITAL SIGNAL PWB PATTERN [SOLDER SIDE]

(No.YA333)2-41 2-42(No.YA333)

Page 97

DIGITAL SIGNAL PWB PATTERN [PARTS SIDE]

2-44(No.YA333)(No.YA333)2-43

Page 98

POWER PWB PATTERN [LT-26X506/S]

[SOLDER SIDE]

(No.YA333)2-45 2-46(No.YA333)

Page 99

POWER PWB PATTERN [LT-26X506/S]

[PARTS SIDE]

2-48(No.YA333)(No.YA333)2-47

Page 100

POWER PWB PATTERN [LT-32X506/S]

[SOLDER SIDE]

(No.YA333)2-49 2-50(No.YA333)

JVC FU_LT-26X506 Service Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
