PARTS LIST
[ FS-H100 ]
* All printed circuit boards and its assemblies are not available as service parts.
Area suffix
J ----------------------------- U.S.A.
MB182
- Contents -
Exploded view of general assembly and parts list (Block No.M1)
Electrical parts list (Block No.01~04)

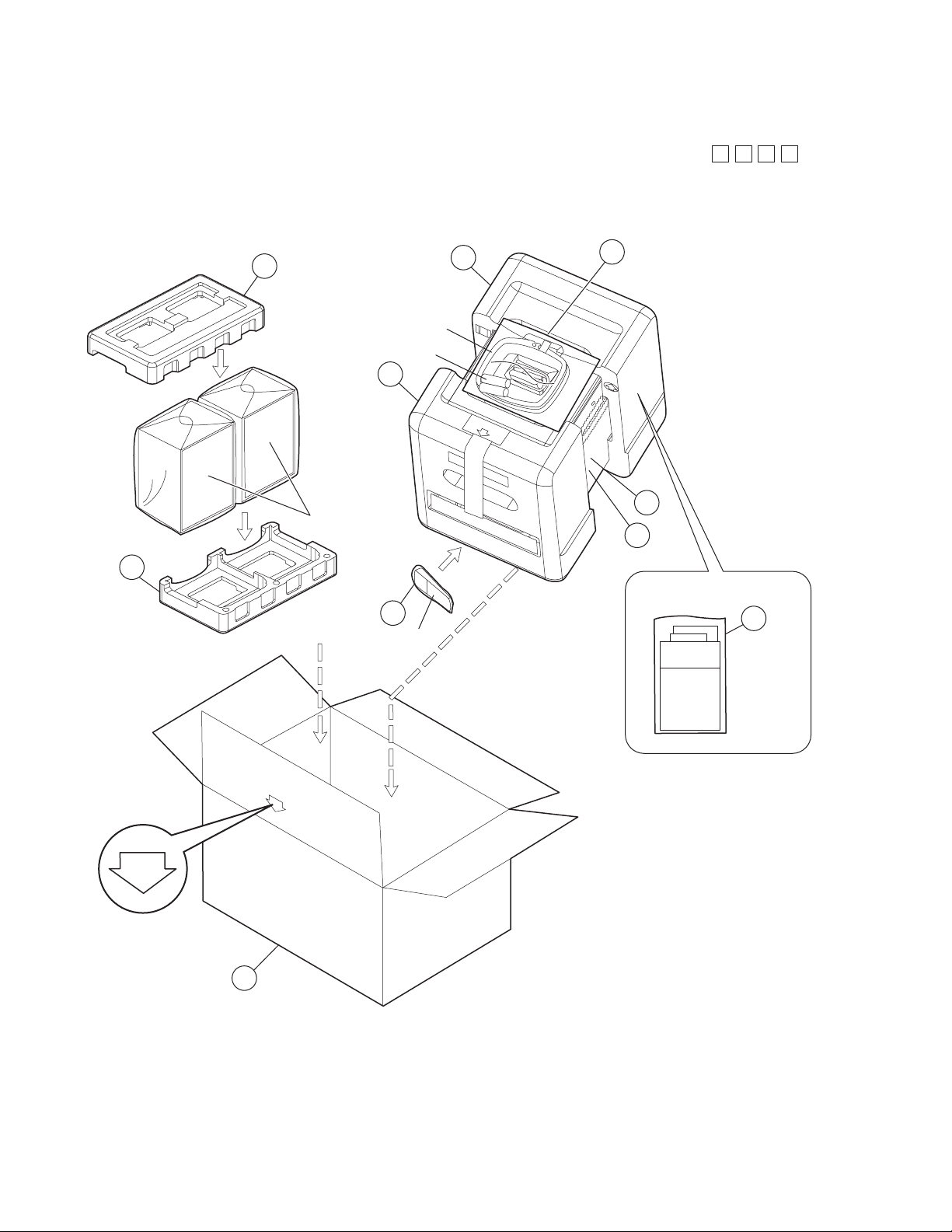

Packing materials and accessories parts list (Block No.M3)
3-2
3-5
3-8
- Note-
Parts number of normal capacitors and normal resistors doesn't listed on the parts list
3-1
Exploded view of general assmbly and parts list
Block No.
32
30
31
M
M
1
M
33
29
10
29
28
16
10
17
41
18
Front board
12
16
17
18
CD board
15
7
13
4
6
17
18
16
14
17
16
16
11
9
16
40
16
16
38
21
3-2
8
2
1
5
35
35
3
25
34
26
37
26
26
16
16
40
16
16
19
Main board
39
F901
Transformer board
25
16
23
16
25
25
21
38
36
26
35
3-3
General assembly and parts list
Block No. [M][1][M][M]
Symbol No.
1 BI1077060101VN CASSETTE-LENS
2 BI1077050101VN CASSETTE-HOLDER
3 BI202705010101 CASS-SPRING
4 BI1077040101VN WINDOW-LENS
5 BI1077120101U1 VOLUME-KNOB
6 BI1077110101VN VOLUME-RING
7 BI1077039101VN FRONT CABINET
8 BI1077100101U1 CASSETTE-BUTTON
9 BI2027070101W1 CASS-KNOB-BRK
10 BI300924010101 DAMPER-GEAR-ASM (x2)
11 BI2027060101W1 GEAR-BRACKET
12 BI3101561U CASSETTE MECHA
13 BI1077070101U1 SELECT BUTTON
14 BI1077080101U1 FUNCTION-BUTTON
15 BI1077090101U1 POWER-BUTTON
16 BIBT000605P31 SCREW M3XL8(x30)
17 BI300856010101 WASHER (x4)
18 BIBT000418 SCREW M2.6XL8(x4)
19 BIBT001112B31 SCREW M4XL12(x4)
21 BI1077139101V1 BOTTOM BASE
23 BI202708010101 HEAT SINK A1050P T=3MM
25 BIKT000627 SCREW M3XL12(x8)
26 BIRT000612B3 SCREW M3XL10(x9)
28 BI3401011U CD MECHANISM
29 BI300940010101 CUSHION (x4)
30 BI1077210101U1 PANEL-CD
31 BI202704010101 CD-SPRING
32 BI1077160101U1 CD-DOOR
33 BI1077159101V1 CHASSIS-CD
34 BI1077149101V1 REAR COVER
35 BI103362020102 RUBBER FOOT (x4)
36 BI1401321U AC POWER CORD
37 BIAN01251V ANT WIRE FM ANT
38 BI211041005001W POWER TRANS PT901
39 BI403241 FUSE F901 800mA 250V
40 BI1077170101U1 LCD HOLDER
41 BI1077180101U1 LED HOLDER
Part No. Part Name Description Local
3-4
Electrical parts list
Main board
Block No. [0][1][0][0]
Symbol No.
IC1 LA1823 IC BI113251
IC2 LC72136N IC BI113271
IC201 BD3881FV IC BI112721
IC202 LA4636 IC BI116701
IC203 M74HC4094 IC BI114371
IC204 NJM4565D IC BI115111
IC205 KIA7809AP IC BI111971
Q1 KTC3194 TRANSISTOR BI2KTC3194P000V
Q2 KTC3194Y TRANSISTOR BI2KTC3194YP000
Q3 DTC114YS DIGI TRANSISTOR BI2DTC114YKA011
Q4 DTC114YS DIGI TRANSISTOR BI2DTC114YKA011
Q5 KRA107S TRANSISTOR BI2DTA114YKA018
Q7 2SC3052 TRANSITOR BI2SC3052FA013H
Q8 KTA1267G TRANSISTOR BI2KTA1267GP000
Q201 2SK2158 FET BI2SK2158A015V1
Q202 2SK2158 FET BI2SK2158A015V1
Q203 2SK2158 FET BI2SK2158A015V1
Q204 2SA1235F TRANSISTOR BI2SA1235FA012H
Q205 2SA1235F TRANSISTOR BI2SA1235FA012H
Q206 DTA124EK DIGI TRANSISTOR BI2DTA124EKA008
Q207 DTA124EK DIGI TRANSISTOR BI2DTA124EKA008
Q208 DTC124ES DIGI.TRANSITOR BI2DTC124EKA018
Q209 2SC5343 TRANSISTOR BI2SC5343GP0000
Q210 2SC5343 TRANSISTOR BI2SC5343GP0000
Q211 2SC5343 TRANSISTOR BI2SC5343GP0000
Q212 2SC3052 TRANSITOR BI2SC3052FA013H
Q213 2SA1980 TRANSISTOR BI2SA1980GP0000
Q214 DTC114TK DIGI.TRANSITOR BI2DTC114TKA011
Q215 2SB1370 TRANSISTOR BI2SC3266GRP000
Q216 2SB1370 TRANSISTOR BI22SB1370E7
Q217 2SC5343 TRANSISTOR BI2SC5343GP0000
Q218 2SC5343 TRANSISTOR BI2SC5343GP0000
Q219 2SC3052 TRANSITOR BI2SC3052FA013H
Q220 2SC3052 TRANSITOR BI2SC3052FA013H
Q221 2SA1980 TRANSISTOR BI2SA1980GP0000
Q222 2SC3052 TRANSITOR BI2SC3052FA013H
Q223 2SC3052 TRANSITOR BI2SC3052FA013H
Q226 DTC114TS TRANSISTOR
Q227 2SA1980 TRANSISTOR BI2SA1980GP0000
Q230 DTC323TK DIGI TRANSISTOR BI2DTC323TKA011
Q231 DTC323TK DIGI TRANSISTOR BI2DTC323TKA011
Q232 2SC3052 TRANSITOR BI2SC3052FA013H
Q233 2SC3052 TRANSITOR BI2SC3052FA013H
Q235 2SC3052 TRANSITOR BI2SC3052FA013H
Q330 2SC3052 TRANSITOR BI2SC3052FA013H
Q380 2SC3052 TRANSITOR BI2SC3052FA013H
Q381 2SA1235F TRANSISTOR BI2SA1235FA012H
Q383 2SC3052 TRANSITOR BI2SC3052FA013H
Q384 2SC3052 TRANSITOR BI2SC3052FA013H
D1 1SS133 FR DIODE BI31SS133M0007
D2 1SS133 FR DIODE BI31SS133M0007
D3 1SS133 FR DIODE BI31SS133M0007
D4 1SS133 FR DIODE BI31SS133M0007
D5 1SS133 FR DIODE BI31SS133M0007
D6 1SS133 FR DIODE BI31SS133M0007
D7 SVC203CP VARI-CAP DIODE BI3SVC203CPA000
D8 SVC203CP VARI-CAP DIODE BI3SVC203CPA000
D9 1SS133 FR DIODE BI31SS133M0007
D10 1SS133 FR DIODE BI31SS133M0007
D11 1SS133 FR DIODE BI31SS133M0007
D12 1SS133 FR DIODE BI31SS133M0007
D13 MTZJ4.3B Z DIODE BI3UZ4.3BSBM000
D14 KDS160 FR DIODE BI3KDS160A0078
D202 1SS133 FR DIODE BI31SS133M0007
D203 UZ4.7BSA Z DIODE BI3UZ4.7BSAM000
D204 UZ4.7BSA Z DIODE BI3UZ4.7BSAM000
D205 1SS133 FR DIODE BI31SS133M0007
D206 1SS133 FR DIODE BI31SS133M0007
D207 UZ6.8BSB Z DIODE BI3UZ6.8BSBM000
Part No. Part Name Description Local
BI2DTC114TSP002
7
Symbol No.
D208 UZ5.6BSB Z DIODE BI3UZ5.6BSBM000
D209 1SS133 FR DIODE BI31SS133M0007
D210 1SS133 FR DIODE BI31SS133M0007
D211 IN5402 FR DIODE BI31N5402GW1V
D212 IN5402 FR DIODE BI31N5402GW1V
D213 IN5402 FR DIODE BI31N5402GW1V
D214 IN5402 FR DIODE BI31N5402GW1V
D218 MC2838 FR DIODE BI3MC2838A002H
D219 1SS133 FR DIODE BI31SS133M0007
D220 1SS133 FR DIODE BI31SS133M0007
D221 UZ6.8BSB Z DIODE BI3UZ6.8BSBM000
D222 UZ6.8BSB Z DIODE BI3UZ6.8BSBM000
D223 1SS133 FR DIODE BI31SS133M0007
D250 FR202 FR DIODE BI3FR202L1F2
D251 FR202 FR DIODE BI3FR202L1F2
D252 FR202 FR DIODE BI3FR202L1F2
D253 FR202 FR DIODE BI3FR202L1F2
D254 MC2838 FR DIODE BI3MC2838A002H
D255 MC2836 FR DIODE BI3MC2836A002H
L1 BI26027000KM002 FIXED INDUCTOR 2.7UH
L3 BI7A0170 FM COIL FM COIL
L4 BI7A0171 FM COIL FM COIL
L5 BI26101000KM002 FIXED INDUCTOR 100uH
L6 BI26220000KM002 FIXED INDUCTOR 22UH
L50 BI26221000KM002 FIXED INDUCTOR 220UH
L201 BI18A843556N000 FILTER BEAD 843556 TB36
L202 BI18A843556N000 FILTER BEAD 843556 TB36
L203 BI18A843556N000 FILTER BEAD 843556 TB36
L205 BI18A843556N000 FILTER BEAD 843556 TB36
L206 BI26101000KM002 FIXED INDUCTOR 100uH
L207 BI26101000KM002 FIXED INDUCTOR 100uH
L208 BI26010000KM002 FIXED INDUCTOR 1UH
L209 BI2600702V CHOKE COIL 1UH
L210 BI2600702V CHOKE COIL 1UH
L211 BI2600702V CHOKE COIL 1UH
L212 BI2600702V CHOKE COIL 1UH
L215 BI18A843556N000 FILTER BEAD 843556 TB36
T1 BI2901541 CF&COIL 450KHz
T2 BI605082 AM PACK COIL AM PACK COIL
T201 BI603141V COIL OSC 85K
CF1 BI29LT10.7MP015 CERAMIC FILTER 10.7MHz
CF2 BI29JT10.7MP015 CERAMIC FILTER 10.7MHz
CF4 BI29GFMB3TP0151 B P FILTER 10.7MHz
CLP20 BI11A050M0V BLACK WIRE
CN201 BI12S300001 CONNECTOR 30PIN
CN202 BI12S70023V CONNECTOR 7P
CN203 BI12S80018 CONNECTOR 8P
CN204 BI12S70023V CONNECTOR 7P
CN205 BI12P70080V CONNECTOR 7P
J3 BI12S20056 CONNECTOR 2 PINS
JK201 BI23B1301V BLACK STEREO
JK202 BI2301451V TERMINAL SREAKER
JW22 BI18A843556N000 FILTER BEAD 843556 TB36
PIN1 BI2004771 PCB TERMINAL Terminal
X1 BI2100942 CRYSTAL 75KHz
XXXXX BIBT000605P3-1 SCREW BH/TS
XXXXX BI301635010101 CUSH-S PWB CUSH
Part No. Part Name Description Local
Front board
Block No. [0][2][0][0]
Symbol No.
IC401 S3C825A IC BI116411
IC402 PRM1740-V4 IC BI115291
IC403 PST3430 IC BI116481
Q401 2SA1980 TRANSISTOR BI2SA1980GP0000
Q402 2SC3052 TRANSITOR BI2SC3052FA013V
Q403 2SC3052 TRANSITOR BI2SC3052FA013V
Part No. Part Name Description Local
3-5
Symbol No.
Part No. Part Name Description Local
Symbol No.
Part No. Part Name Description Local
Q404 2SC3052 TRANSITOR BI2SC3052FA013V
Q405 DTC114YK DIGI.TRANSITOR BI2DTC114YKA018
Q406 DTC114EK DIGI.TRANSITOR BI2DTC114EKA018
Q407 DTA114EK TRANSISTOR BI2DTA114EKA011
Q408 2SA1980 TRANSISTOR BI2SA1980GP0000
D401 1SS133 FR DIODE BI31SS133M0007
D402 1SS133 FR DIODE BI31SS133M0007
D403 1SS133 FR DIODE BI31SS133M0007
D404 1SS133 FR DIODE BI31SS133M0007
D405 1SS133 FR DIODE BI31SS133M0007
D406 1SS133 FR DIODE BI31SS133M0007
D407 KDS160 FR DIODE BI3KDS160A0078
D408 KDS160 FR DIODE BI3KDS160A0078
D409 IN4148 FR DIODE BI31N4148M0007
D410 BI28B4531EP0110 RED LED
D420 UZ3.9BSB Z DIODE BI3UZ3.9BSBM000
D421 UZ5.1BSB Z DIODE BI3UZ5.1BSBM000
D440 BI2801141 LED UNIT
D450 1SS133 FR DIODE BI31SS133M0007
VR401 BI804691 SW RTRY RE012304PVB25F
L401 BI26100000KM002 FIXED INDUCTOR 10UH
L402 BI18A843556N000 FILTER BEAD 843556 TB36
L411 BI26101000KM002 FIXED INDUCTOR 1UH
L502 BI18A843556N000 FILTER BEAD 843556 TB36
CN401 BI12S300002 CONNECTOR 30P
CN402 BI12S120044 CONNECTOR 12PIN
CN403 BI12S120044 CONNECTOR 12PIN
CN404 BI12P30234V PLUG CONN ASSY 3P WITH WIRE
JK501 BI2301381V MINIATURE JACK PJ-330H
LD401 BI2702051 LCD DISPLAY 92-42604-B01
S401 BI8SKRGAED0P015 TACT SWITCH SKRGAED010
S402 BI8SKRGAED0P015 TACT SWITCH SKRGAED010
S403 BI8SKRGAED0P015 TACT SWITCH SKRGAED010
S404 BI8SKRGAED0P015 TACT SWITCH SKRGAED010
S405 BI8SKRGAED0P015 TACT SWITCH SKRGAED010
S406 BI8SKRGAED0P015 TACT SWITCH SKRGAED010
S407 BI8SKRGAED0P015 TACT SWITCH SKRGAED010
S408 BI8SKRGAED0P015 TACT SWITCH SKRGAED010
S409 BI8SKRGAED0P015 TACT SWITCH SKRGAED010
X401 BI29ZTA8.00P015 CERAMIC RESONTO 8MHz
X402 BI2101012 X'TAL 32.768 KHz
XXXXX BI202583010101 BRACKET REMOTE
XXXXX BI251286G01V FRONT PWB
HPGND BI11B240K2 RED WIRE AWG 240MM
PR902 BI4700112N0002 FUSE PROTECTOR
PT902 BI2110410070001 POWER TRANS Transformer
RY901 BI8RL00171 RELAY DC 9V
CD board
Block No. [0][4][0][0]
Symbol No.
IC701 SIL9226X IC BI116431
IC703 KA9258D IC BI116451
IC801 S5L9279 IC BI116401
IC802 TM50S116T IC BI116461
IC803 GM117-1.8ST IC BI116441
Q701 KTA1266 TRANSISTOR BI2KTA1266GP000
Q702 KTA1266 TRANSISTOR BI2KTA1266GP000
Q703 KTC3205 TRANSISTOR BI2KTC3205P0008
D701 MTZJ3.6B Z DIODE BI3UZ3.6BSBM000
D710 1SS133 FR DIODE BI31SS133M0007
L701 BI18A843556N000 FILTER BEAD 843556 TB36
L710 BI26100000KN000 COIL 10UH
L801 BI26100000KN000 COIL 10UH
L802 BI26100000KN000 COIL 10UH
L803 BI26100000KN000 COIL 10UH
L804 BI26100000KN000 COIL 10UH
L805 BI26100000KN000 COIL 10UH
L806 BI26100000KN000 COIL 10UH
L807 BI18A843556N000 FILTER BEAD 843556 TB36
L808 BI18A843556N000 FILTER BEAD 843556 TB36
L809 BI18A843556N000 FILTER BEAD 843556 TB36
CN701 BI12S160031V CONNECTOR 16P
CN702 BI12P60154V PH-6P+UL1007 UL1007 AWG
CN703 BI12S120044 CONNECTOR 12PIN
CN704 BI12S120044 CONNECTOR 12PIN
CN705 BI12S200161 SOCKET CONNECTO 2 PINS SOCKET
CW705 BI12P70079V PH-7P+UL1007 UL1007 AWG
X801 BI2100796 VIB XTAL 16.9344MHz
XXXXX BI251287G01V PWB CD PCB
Part No. Part Name Description Local
Transformer board
Block No. [0][3][0][0]
Symbol No.
Q901 2SC1815GR TRANSISTOR BI2SC1815GRP000
Q920 2SC1815GR TRANSISTOR BI2SC1815GRP000
D901 1SS133 FR DIODE BI31SS133M0007
D902 1SS133 FR DIODE BI31SS133M0007
D903 1SS133 FR DIODE BI31SS133M0007
D904 1SS133 FR DIODE BI31SS133M0007
D920 UZ13BSC Z DIODE BI3UZ13BSCM0000
D925 1SS133 FR DIODE BI31SS133M0007
D926 1SS133 FR DIODE BI31SS133M0007
D927 1SS133 FR DIODE BI31SS133M0007
D928 1SS133 FR DIODE BI31SS133M0007
L901 BI2601102 LINE FILTER
CLP90 BI11A050M0V BLACK WIRE 50MM
CLP90 BI11A050M0V BLACK WIRE 50MM
CN901 BI12S200691U CONNECTOR 2P
CN902 BI12S70040V CONNECTOR 7P
FC901 BI201196010101 FUSE HOLDER
FC902 BI201196010101 FUSE HOLDER
3-6
Part No. Part Name Description Local
<MEMO>
3-7
Packing materials and accessories parts list
Block No.
M
M
3
M
P5
P4
A8
P7
P8
A5
A7
A6
P6
P3
P9
P10
P2
A1 A2
A4
3-8
FRONT
P1
Packing and accessories
Block No. [M][3][M][M]
Symbol No.
A 1 BI4032613U REGIST CARD BT-51034-1
A 2 BI4032603U SAFTEY CARD
A 4 BI4412812W INST BOOK
A 5 ------------ BATTERY (x2)
A 6 BIAN01261U AM LOOP ANT
A 7 BI600UXH10050 REMOTE CONTROL
A 8 BI601UXH1005SV0 SPEAKER BOX (x2)
P 1 BI4313921U CARTON
P 2 BI4710312U POLY BAG INST BOOK
P 3 BI4710572U POLY BAG ANT LOOP
P 4 BI4513021U POLY FORM TOP Speaker Box
P 5 BI4513031U POLY FORM BTTM Speaker Box
P 6 BI4512821U POLY FORM REAR UNIT
P 7 BI4512811U POLY FORM FRONT UNIT
P 8 BI4005355 POLY BAG
P 9 BI4513302U EPE FOAM PAPER UNIT
P 10 BI4000144 POLY BAG UNIT
Part No. Part Name Description Local
LVT1190-001B
ENG
REMOTE
CONTROL
3-9
Loading...
