JVC FS-5000, FS-6000 User Manual

ULTRA COMPACT COMPONENT SYSTEM

SISTEMAS DE COMPONENTES ULTRA COMPACTOS
SYSTEME DE COMPOSANTS ULTRA COMPACT

FS-5000
FS-6000

PRESET

REMOTE CONTROL RM-RXFS5000

SLEEP POWERDIMMER

FM MODE AUXDISPLAY

AUTO

AHB.

PRESET

SUPER PRO

RANDOM REPEATPROGRAM

TREBLE CANCELBASS

UP

SET

DOWN

TUNER

MD

BAND

/TAPE

VOLUME

AHB.

TUNING

SUPER PRO

POWER

AUX

CD

CD

STANDBY

ULTRA COMPACT COMPONENT SYSTEM

SLEEP

UPMULTI CONTROLDOWN

CLOCK

OPEN/CLOSE

TUNER

MD/TAPE

CD

BAND

TIMER/SNOOZE

VOLUME

FS-5000

PHONES

REMOTE CONTROL RM-RXFS5000

SLEEP POWERDIMMER

FM MODE AUXDISPLAY

AHB.

AUTO

SUPER PRO

PRESET

RANDOM REPEATPROGRAM

TREBLE CANCELBASS

UP

SET

DOWN

TUNER

MD

BAND

/TAPE

VOLUME

CD

CD

AHB.

SUPER PRO

POWER

PRESET
TUNING

AUX

MD/TAPE

STANDBY

ULTRA COMPACT COMPONENT SYSTEM

SLEEP

UPMULTI CONTROLDOWN

CLOCK

OPEN/CLOSE

TUNER

CD

BAND

TIMER/SNOOZE

VOLUME

FS-6000

PHONES

FS-5000

INSTRUCTIONS

MANUAL DE INSTRUCCIONES

MANUEL D’INSTRUCTIONS

FS-6000

For Customer Use:

Enter below the Model No. and Serial No.
which are located either on the rear, bot­tom or side of the cabinet. Retain this
information for future reference.

Model No.
Serial No.

LVT0086-001A

[J]

Warnings, Cautions and Others /
Mises en garde, précautions et indications diverses

(For U.S.A)

CAUTION

RISK OF ELECTRIC

SHOCK

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK

REFER SERVICING T O QUALIFIED SER VICE PERSONNEL.

DO NOT REMOVE COVER (OR BACK)
NO USER SERVICEABLE PARTS INSIDE

The lightning flash with arrowhead symbol,
within an equilateral triangle is intended to
alert the user to the presence of uninsulated
“dangerous voltage” within the product’s
enclosure that may be of sufficient magni­tude to constitute a risk of electric shock to
persons.

The exclamation point within an equilateral
triangle is intended to alert the user to the
presence of important operating and mainte­nance (servicing) instructions in the literature
accompanying the appliance.

WARNING: TO REDUCE THE RISK OF FIRE
OR ELECTRIC SHOCK, DO NOT EXPOSE
THIS APPLIANCE TO RAIN OR MOISTURE.

IDENTIFICATION AND CERTIFICATION LABEL

US JVC CORP, 41SLATER DRIVE ELMWOOD PARK, N.J.07407
MANUFACTURED A T

Product complies with DHHS Rules 21 CFR
Subchapter J in effect at date of manufacture.
MANUFACTURED

*1

*2

• PLACED ON EXTERIOR SURFACE

Notes:

*1 The date of manufacture.
*2 The ID code of manufacturing plant.

INFORMATION

This equipment has been tested and found to com­ply with the limits for a Class B digital device, pursu­ant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against
harmful interference in a residential installation. This
equipment generates, uses, and can radiate radio
frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful
interference to radio communications. However,
there is no guarantee that interference will not occur
in a particular installation. If this equipment does
cause harmful interference to radio or television
reception, which can be determined by turning the
equipment off and on, the user is encouraged to try
to correct the interference by one or more of the fol­lowing measures:

– Reorient or relocate the receiving antenna.
– Increase the separation between the equipment

and receiver.

– Connect the equipment into an outlet on a circuit

different from that to which the receiver is con­nected.

– Consult the dealer or an experienced radio/TV

technician for help.

G-1

For Canada/pour le Canada

CAUTION: TO PREVENT ELECTRIC SHOCK, MATCH

WIDE BLADE OF PLUG TO WIDE SLOT, FULLY INSERT.
PRECAUTION: POUR EVITER LES CHOCS ELEC­TRIQUES, INTRODUIRE LA LAME LA PLUS LARGE DE LA
FICHE DANS LA BORNE CORRESPONDANTE DE LA
PRISE ET POUSSER JUSQUAU FOND.

1. CLASS 1 LASER PRODUCT

2. DANGER: Invisible laser radiation when open and
interlock failed or defeated. Avoid direct exposure to
beam.

3. CAUTION: Do not open the top cover. There are no
user serviceable par ts inside the unit; leave all ser­vicing to qualitied service personnel.

CAUTION

To reduce the risk of electrical shocks, fire, etc.:

1. Do not remove screws, covers or cabinet.

2. Do not expose this appliance to rain or moisture.

Caution — POWER switch!

Disconnect the mains plug to shut the power off com­pletely. The POWER switch in any position does not
disconnect the mains line. The power can be remote
controlled.

1. PRODUIT LASER CLASSE 1

2. ATTENTION: Radiation laser invisible quand
l’appareil est ouvert ou que le verrouillage est en
panne ou désactivé. Eviter une exposition directe
au rayon.

3. ATTENTION: Ne pas ouvrir le couvercle du de ssu s.
Iln’y a aucune pièce utilisable à l’intérier. Laisser à
un personnel qualifié le soin de réparer votre appar­eil.

ATTENTION

Afin d’èviter tout risque d’électrocution, d’lncendie. etc.:

1. Ne pas enlever les vis ni les panneaux et ne pas
ouvrir le coffret de l’appareil.

2. Ne pas exposer l’appareil à la pluie ni à l’humidité.

Attention — Commutateur POWER!

Déconnecter la fiche de secteur poru couper comp lète­ment le courant. Le commutateur POWER ne coupe
jamais complètement la ligne de secteur, quelle que
soit sa position. Le courant peut être télécommandé.

G-2

Thank you for purchasing the JVC Ultra Compact Component System.
We hope it will be a valued addition to your home, giving you years of enjoyment.
Be sure to read this instruction manual carefully before operating your new stereo system.
In it you will find all the information you need to set up and use the system.

English

If you have a query that is not answered by the manual, please contact your dealer.

Features

Here are some of the things that make your System both powerful and simple to use.

■ The controls and operations have been redesigned to make them very easy to use, freeing you to just enjoy the music.

• With JVC’s COMPU PLAY you can turn on the System and automatically start the Radio or CD Player with a

single touch.

■ The System incorporates Active Hyper Bass Super PRO circuitry to faithfully reproduce low frequency sounds.

■ A 45-station preset capability (30 FM and 15 AM) in addition to auto-seek and manual tuning.

■ Versatile CD options include repeat, random and program play.

■ Timer functions; set the system to automatically come on, switch off.

■ You can connect various external units, such as an MD recorder, tape deck, etc.

How This Manual Is Organized

• Basic information that is the same for many different functions - e.g. setting the volume - is given in the section ‘Common Operations’,
and not repeated under each function.

• The names of buttons/controls and display messages are written in all capital letters: e.g. TUNER BAND, “NO DISC”.

• System functions are written with an initial capital letter only: e.g. Normal Play.

Use the table of contents to look up specific information you require.
We’ve enjoyed making this manual for you, and hope it serves you in enjoying the many features built into your System.

IMPORTANT CAUTIONS

1. Installation of the System

■

• Select a place which is level, dry and neither too hot nor too cold. (Between 5°C and 35°C or 41°F and 95°F.)

• Leave sufficient distance between the System and a TV.

• Do not use the System in a place subject to vibrations.

2. Power cord

■

• Do not handle the power cord with wet hands!

• Some power (5W) is always consumed as long as the power cord is connected to the wall outlet.

• When unplugging the System from the wall outlet, always pull the plug, not the power cord.

3. Malfunctions, etc.

■

• There are no user serviceable parts inside. In case of system failure, unplug the power cord and consult your dealer.

• Do not insert any metallic object into the System.

■■

Features ............................................................................... 1

How This Manual Is Organized ..........................................1

IMPORTANT CAUTIONS ................................................1

Table of Contents

Troubleshooting .................................................... 16

Specifications ....................................... ................. 16

Getting Started .........................................................2

Common Operations ................................................6

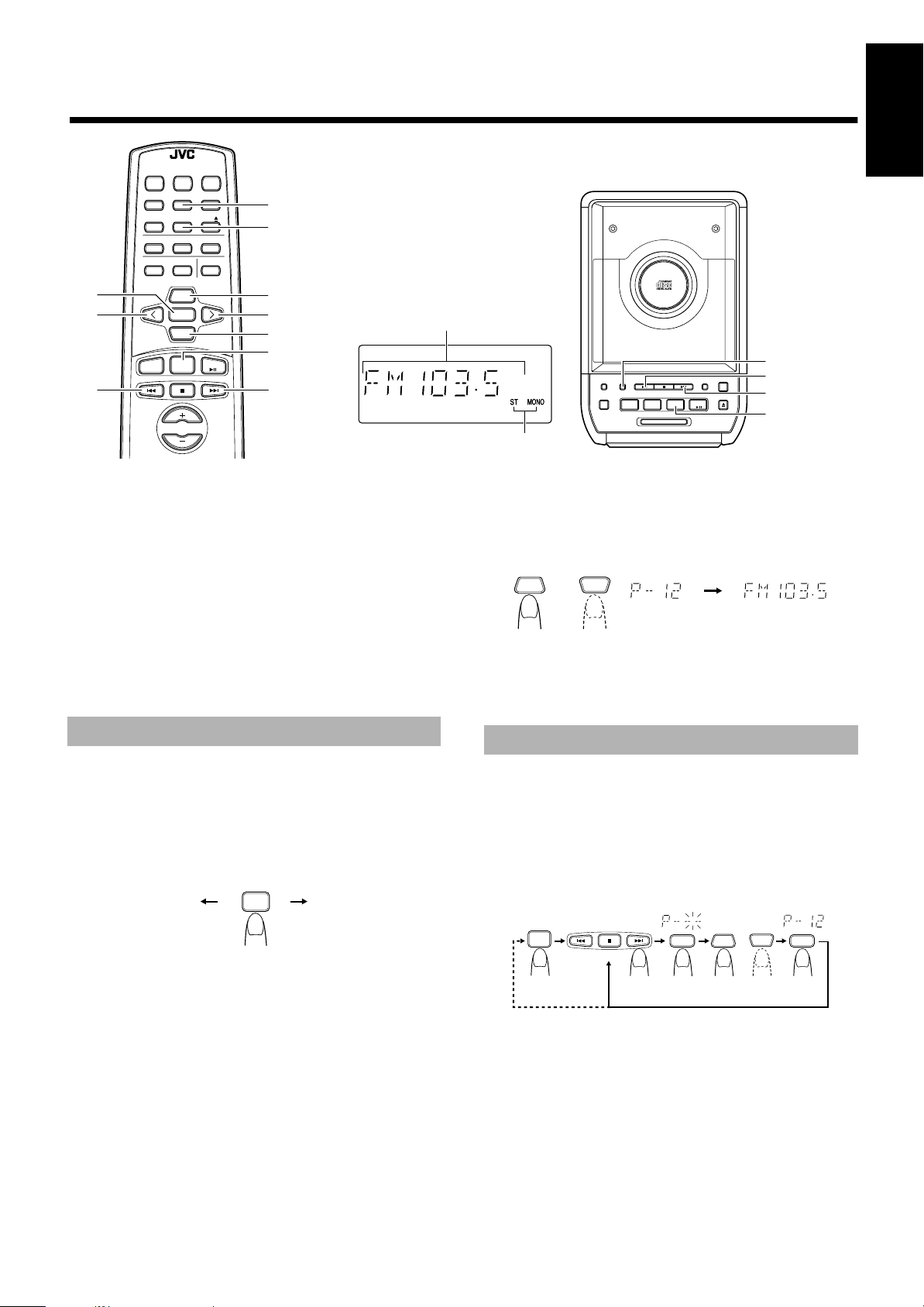

Using the Tuner ................................................. ... ... . 8

Using the CD Player ............................................... 10

Listening to External Equipments.........................12

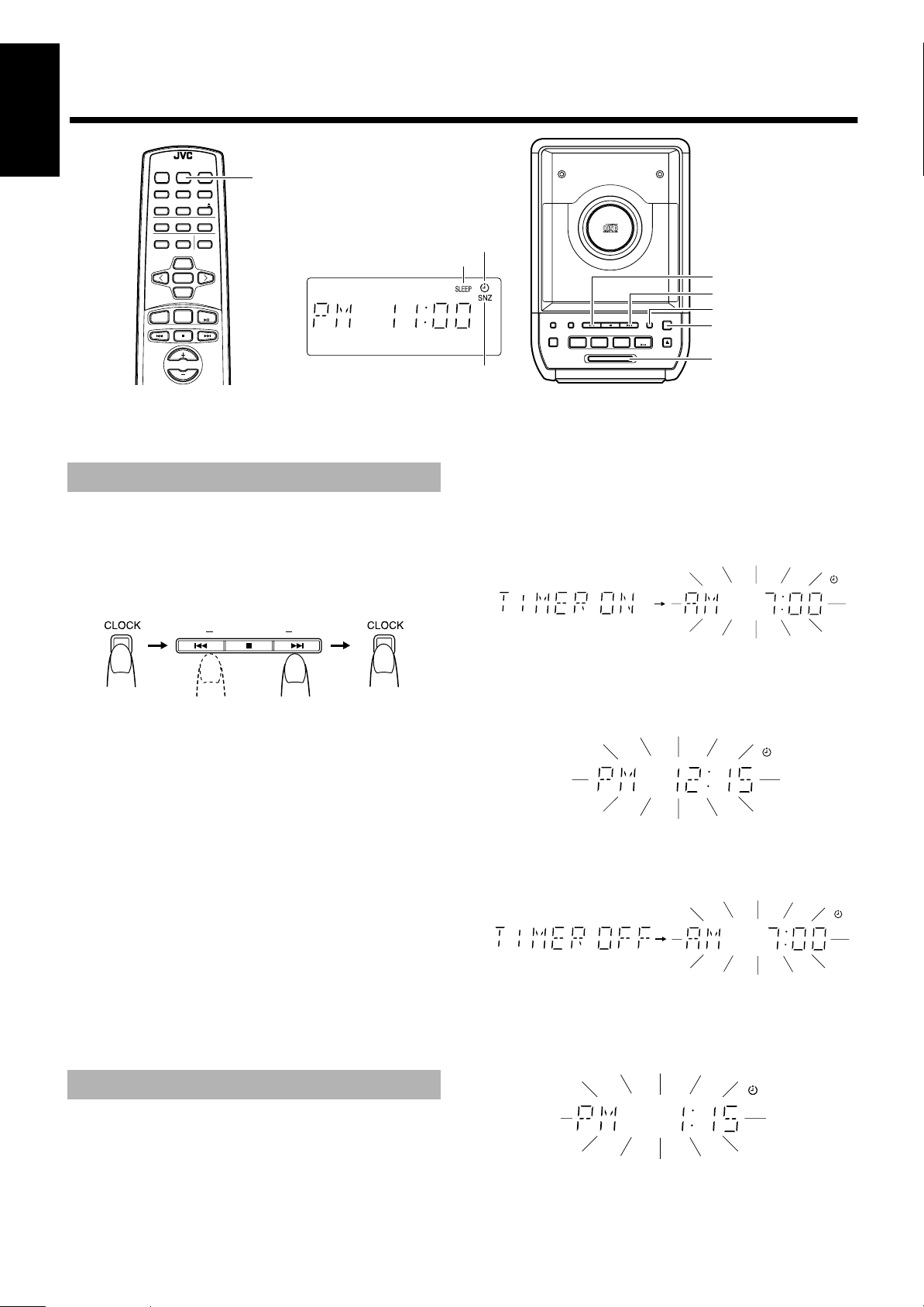

Using the Timers ........... ... .... ... ... ... .... ... ... ... .... ... ... .. 13

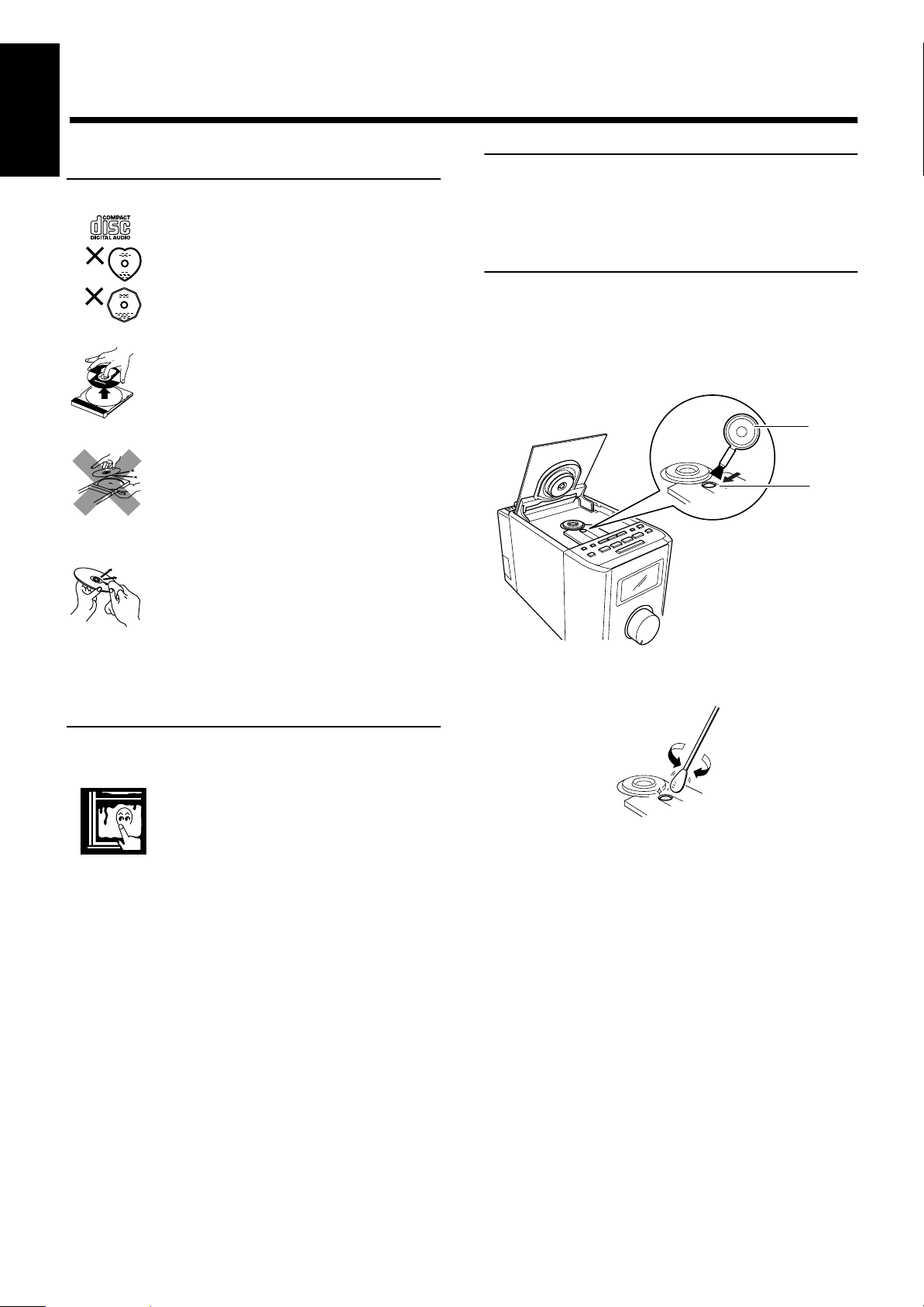

Care And Maintenance ..........................................15

1

■■

PHONES

VOLUME

STANDBY

ULTRA COMPACT COMPONENT SYSTEM

PRESET
TUNING

AHB.

SUPER PRO

AUX

POWER

MD/TAPE

TIMER/SNOOZE

TUNER

BAND

CD

OPEN/CLOSE

SLEEP

CLOCK

UPMULTI CONTROLDOWN

Remote sensor

Getting Started

Accessories

Check that you have all of the following items, which are supplied with the System.

Power Cord (1)
AM Loop Antenna (1)
Remote Control (1)
Batteries (2)
FM Wire Antenna (1)
Speaker Cords (2)

If any of these items are missing, contact your dealer immediately.

How To Put Batteries In the Remote Control

Match the polarity (+ and –) on the batteries with the + and – markings in the battery compartment.

R6P(SUM-3)/AA(15F)

English

CAUTION: Handle batteries properly.

To avoid battery leakage or explosion:

• Remove batteries when the Remote Control will not be used for a long time.

• When you need to replace the batteries, replace both batteries at the same time with new ones.

• Don’t use an old battery with a new one.

• Don’t use different types of batteries together.

Using the Remote Control

The Remote Control makes it easy to use many of the functions of the System from a distance of up to 7m (23 feet) away.
You need to point the Remote Control at the remote sensor on the System’s front panel.

2

CAUTION: Make all connections before plugging the System into an AC power outlet.

Turn the loop until you have the best reception.

Connecting the FM Antenna

English

Using the Supplied Wire Antenna

AC IN

R

L

FM wire antenna (supplied)

Using the Coaxial Type Connector (Not Supplied)

$ýæèðRKPý DQWHQQDý ZLWKýFRD[LDOý W\SHý FRQQHFWRUý VKRXOGý EHý FRQQHFWHG
WRýWKHý)0ýæèðRKPý&2$;,$/ýWHUPLQDOï

,IýUHFHSWLRQýLVýSRRUñýFRQQHFWýWKHýRXWVLGHýDQWHQQDïý

FM outdoor antenna

Coaxial cable

Note: Before attaching a 75 ohm coaxial lead (the kind with a

round wire going to an outside antenna), disconnect the sup­plied FM Wire Antenna.

CAUTION: To avoid noise, keep antennas away
from the System, the connecting cord and the AC
power cord.

(option)

Connecting the AM Antenna

R

AC IN

L

AM loop antenna (Supplied)

Attach the AM loop to its base by snapping the tabs on the
loop into the slot in the base.

AM EXT

AM LOOP

3

CAUTION: Make all connections before plugging the System into an AC power outlet.

Connecting the Speakers

1. Open the Speaker terminals on the rear of the Unit, and on the Speakers themselves.

2. Connect the speaker cords between the terminals as shown below.
Connect the cords with a black line to the (–) terminals and cords without a black line to the (+) terminals.
Close each of the terminals to securely connect the cords.

Right speaker (rear side) Left speaker (rear side)

Marked with a black line

SPEAKERS

LEFT

RIGHT

SPEAKER CORD

1 2

English

CAUTION: A TV may display irregular colors if located near the speakers. If this happens, set the speak­ers away from the TV.

Removing the speaker grilles

The speaker grilles can be removed.

When removing,

When Attaching the speaker grille

1. Insert your fingers at the top and pull towards you.

2. Also pull the bottom towards you.

Speaker grille

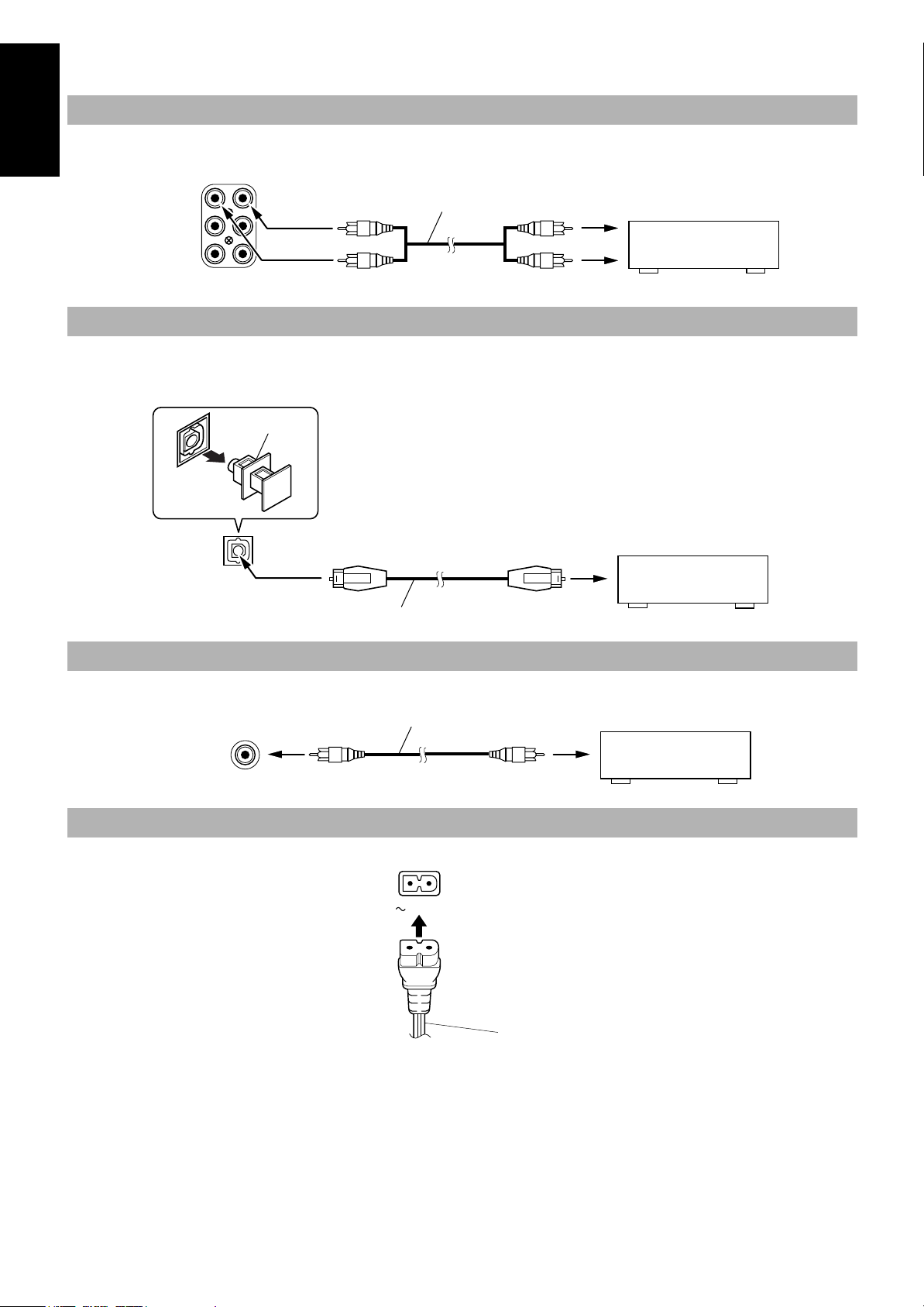

Connecting an MD Recorder/Tape Deck

Connect (optional) signal cords between the System’s MD/TAPE IN/OUT terminals and the output/input terminals of the external MD recorder,
tape deck, etc.
You can then listen to the external source through the System, or record the System’s CD player or tuner to the external unit

Signal cord (optional)

MD recorder or tape deck (optional)

.

R

L

IN

MD/TAPE

OUT

Pin-plug x 2

Pin-plug x 2

Pin-plug x 2

Signal cord (optional)

Pin-plug x 2

4

CAUTION: Make all connections before plugging the System into an AC power outlet.

Connecting Auxiliary Equipment

English

Connect an (optional) signal cord between the AUX terminals on the System and the output terminals of your auxiliary equipment, (e.g. turn­table). You can listen to this source.

R

L

AUX

Pin-plug x 2

Signal cord (optional)

Pin-plug x 2

Turntable (with built-in equalizer)
(optional)

Connecting an MD Recorder, etc (Digital Output)

Unplug the cap and connect an (optional) optical digital cord between the System’s OPTICAL DIGITAL OUT terminal and the input terminal
of the MD recorder, etc.
You can record the digital output signal from the System’s CD Player to the MD recorder, etc.

Cap

OPTICAL

DIGITAL

OUT

Optical digital cord (optional)

MD recorder, etc. (optional)

Connecting a Subwoofer System

Connect an (optional) signal cord between the SUB WOOFER OUT terminal and an external JVC subwoofer system, etc.

SUB

WOOFER

OUT

Signal cord (optional)

Subwoofer system (optional)

Connecting the AC Power Cord

Firmly insert the supplied AC power cord into the AC inlet on the back of the Unit.

AC IN

Power cord

The provided AC power cord for this unit has certain one-way direction connections to prevent electric shock. Refer to the illu stration for correct
connection.

CAUTIONS:

• ONLY USE THE JVC POWER CORD PROVIDED WITH THIS SYSTEM TO AVOID MALFUNCTION OR DAM­AGE TO THE SYSTEM.

• BE SURE TO UNPLUG THE POWER CORD FROM THE OUTLET WHEN GOING OUT OR WHEN THE SYS­TEM IS NOT IN USE FOR AN EXTENDED PERIOD OF TIME.

Now you can plug the AC power cord into the wall outlet, and your System is at your command!

5

COMPU PLAY

PHONES

VOLUME

STANDBY

ULTRA COMPACT COMPONENT SYSTEM

JVC’s COMPU PLAY feature lets you control the most frequently used System functions with a single touch.
With One Touch Operation you can play a CD, turn on the radio, or listen to an external equipment with a single press of the play button for
that function. One Touch Operation turns the power on for you, then starts the function you have specified. If the System is not ready (no CD
in place), the System still powers on so you can insert a CD.
How One Touch Operation works in each case is explained in the section dealing with that function.
The COMPU PLAY buttons are:

English

On the Unit

CD 38 button
TUNER BAND button
MD/TAPE button
AUX button

■■

DISPLAY

AHB SUPER
PRO

VOLUME+,–

Common Operations

DIMMER

BASS

TREBLE

REMOTE CONTROL RM-RXFS5000

SLEEP POWERDIMMER

FM MODE AUXDISPLAY

AUTO

AHB.

PRESET

SUPER PRO

RANDOM REPEATPROGRAM

TREBLE CANCELBASS

UP

SET

DOWN

TUNER

MD

BAND

/TAPE

VOLUME

CD

CD

On the Remote Control

CD 38 button
TUNER BAND button
MD/TAPE button
AUX button

POWER

PRESET

AHB.

TUNING

AHB SUPER
PRO

POWER

SUPER PRO

POWER

Turning the Power On and Off

Turning the System On ——————

Press the POWER button.

The display comes on and the STANDBY indicator goes out.
The System comes on ready to continue in the mode it was in when
the power was last turned off.

POWER

STANDBY

For example, if the last thing you were doing was listening to a

■

CD, you are now ready to listen to a CD again. If you wish, you
can change to another source.
If you were listening to the Tuner last, the Tuner comes on play-

■

ing the station it was last set to.

Turning the System Off ——————

Press the POWER button again.

The STANDBY indicator lights up and the display is blank, except
for the clock display.

POWER

U

L

T

R

A

C

O

M

P

A

AUX

MD/TAPE

C

T

C

TIMER/SNOOZE

M

E

T

S

Y

S

T

N

E

N

O

P

M

O

SLEEP

CLOCKUPMULTI CONTROLDOWN

OPEN/CLOSE

CD

TUNER

BAND

Some power (5W) is always consumed even though power is

■

CLOCK

STANDBY
indicator

VOLUME

Volume
illumination

PHONES

turned off (called Standby Mode).
To switch off the System completely, unplug the AC power

■

cord from the AC outlet. When you unplug the AC power cord,
the clock will be reset to AM 12:00 after about 20 minutes, and
preset Tuner stations will be erased after about 24 hours.

Adjusting the Brightness
(DIMMER)

You can adjust the brightness of the display.
To make the display brighter, press the DIMMER button on
the Remote Control.
To make the display darker, press the DIMMER button on the
Remote Control again.

• The brightness of the volume illumination is also adjusted.
In Standby mode, the normal brightness is the same as the dark-

■

er brightness for the powered System. When you press the DIM­MER button in Standby mode, the brightness becomes further
darker.
In standby mode, the volume illumination does not light.

STANDBY

6

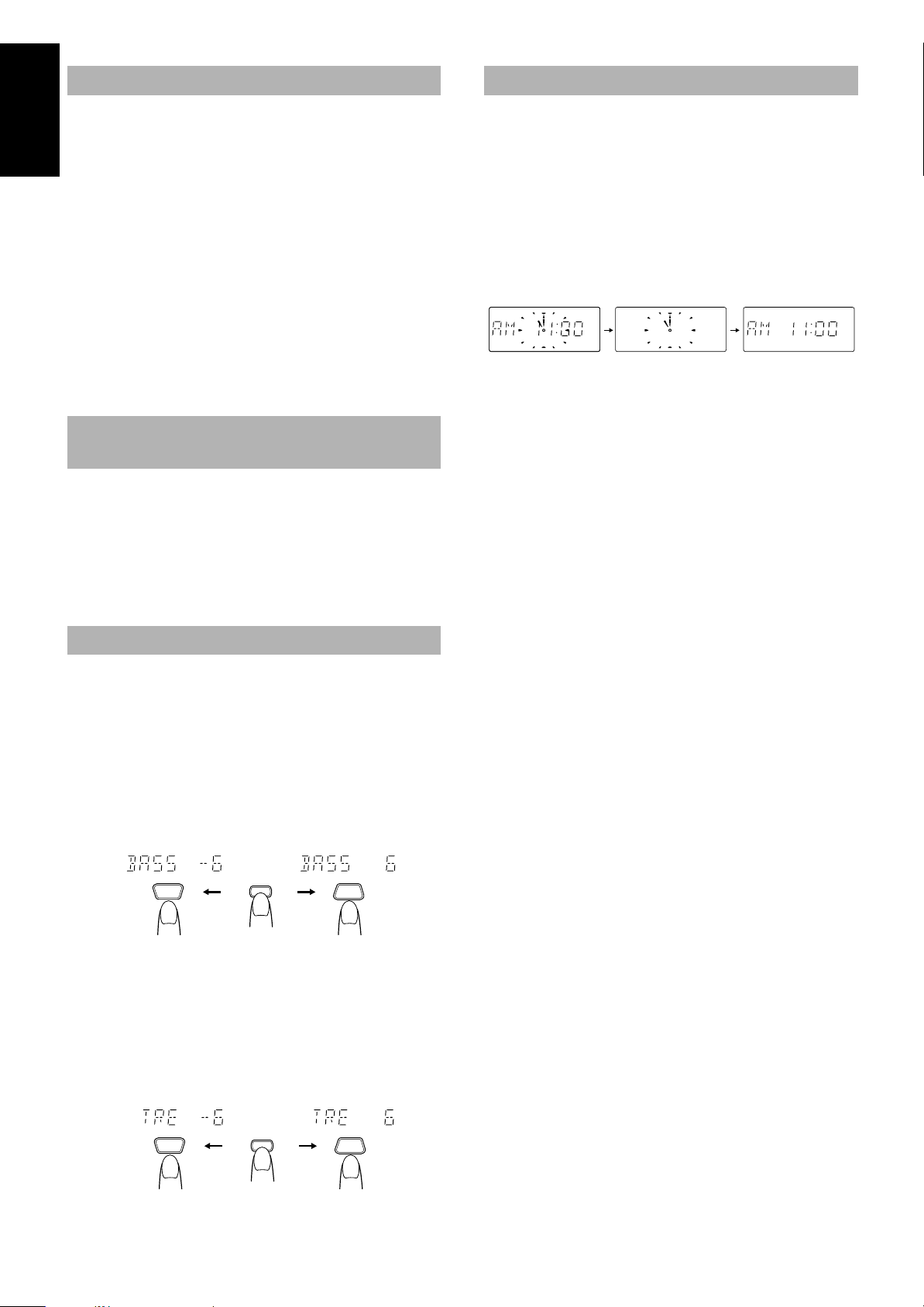

Adjusting the Volume

Showing the Time (DISPLAY)

Turn the VOLUME control of the Unit clockwise to increase the
volume or counterclockwise to decrease it.

English

With the System turned on, press the VOLUME + button on the Re­mote Control to increase the volume or press the VOLUME – button
to decrease it.

CAUTION: DO NOT turn on the System and/or
start playing any source without first setting the
VOLUME control to minimum, as a sudden blast of
sound could damage your hearing, speakers and/
or headphones.

OR

For private listening

Connect a pair of headphones to the PHONES jack. No sound
comes out of the speakers.
Be sure to turn down the volume before connecting or putting on
headphones.

Reinforcing the Bass Sound
(AHB SUPER PRO)

You can reinforce the bass sound to maintain rich, full bass at low
volume (you can use this effect only for playback):
To get the effect, press the AHB (Active Hyper Bass) SUPER
PRO button on the Unit or the Remote Control.
The “BASS” indicator lights up on the display.
To cancel the effect, press the button again.
The “BASS” indicator goes out.

In addition to a standard digital clock, an analogue clock (which ad­vances every five minutes) can be displayed. The clock display or­der varies according to the System mode:

In Standby mode ——————————

Every time you press the DISPLAY button on the Remote Control
(or the CLOCK button on the Unit), the clock display changes as
shown below.

Digital Clock + Analogue Clock

= (back to the beginning)

Clock

= Analogue Clock = Digital

When the System is turned on ———

Every time you press the DISPLAY button on the Remote Control
(or the CLOCK button on the Unit), the time display changes as fol­lows:

Current Source + Analogue Clock
Clock = Current Source = (back to the beginning)

Note: The clock must be set to the correct time first. (See “Setting

the Clock” on page 13.)

= Analogue Clock = Digital

Tone Control (BASS/TREBLE)

You can control the tone by changing the bass and treble.

BASS Control ———————————

You can adjust the bass level (low frequency range level) between
–6 and 6. (0: Flat)

1. Press the BASS button on the Remote Con-

■

trol.

2. Press the UP or DOWN button on the

■

Remote Control to adjust the bass level.

DOWN

TREBLE Control ——————————

You can adjust the treble level (high frequency range level) between
–6 and 6. (0: Flat)

1. Press the TREBLE button on the Remote

■

Control.

2. Press the UP or DOWN button on the

■

Remote Control to adjust the treble level.

BASS

UP

7

DOWN

TREBLE

UP

■■

(After 1 second)

When changing the
Band

VOLUME

CD

TUNER

BAND

MD

/TAPE

DOWN

SET

UP

TREBLE CANCELBASS

RANDOM REPEATPROGRAM

AUTO

PRESET

CD

AHB.

SUPER PRO

FM MODE AUXDISPLAY

SLEEP POWERDIMMER

REMOTE CONTROL RM-RXFS5000

PRESET
TUNING

AHB.

SUPER PRO

AUX

POWER

MD/TAPE

TIMER/SNOOZE

TUNER
BAND

OPEN/CLOSE

SLEEP

CLOCKUPMULTI CONTROLDOWN

U

L

T

R

A

C

O

M

P

A

C

T

C

O

M

P

O

N

E

N

T

S

Y

S

T

E

M

CD

TUNER BAND

4
¢

PRESET TUNING

Using the Tuner

English

FM MODE
AUTO PRESET

SET

<

UP
>

DOWN

Band display, Frequency display,
Preset channel

TUNER BAND

4

¢

When the System is in use, the display shows other items as well.

For simplicity, we show here only the items described in this section.
You can listen to FM and AM stations. Stations can be tuned in
manually, automatically, or from preset memory storage.

Before listening to the radio:

■

• Check that both the FM and AM antennas are correctly con­nected. (See page 3).

One Touch Radio —————————

Just press the TUNER BAND button to turn on the System and start
playing the station you were last tuned to.

You can switch from any other sound source to the radio by

■

pressing the TUNER BAND button.

Tuning In a Station

FM mode indicators

the desired preset number. After 1 second the display will show
the preset number’s band and frequency.
Example:Press the UP button until the preset number 12 “P--

12” appears.

UP

Preset Tuning using the Unit (Possible only after pre-

■

DOWN

or

setting stations)

Press the PRESET TUNING button to select the desired preset
number. Its band and frequency are displayed.

Presetting Stations

■

■

■

■

■

1. Press the TUNER BAND button.

The Band and Frequency you were last tuned to appear on the
display.
(If the last station was selected using the preset number, the pre­set number appears first.)
Each time you press the button, the band alternates between FM
and AM.

AM FM

TUNER

BAND

2. Select a station using one of the following
methods.

Manual Tuning

Press the 4 or ¢ button on the Unit or the Remote Control
repeatedly to move from frequency to frequency until you find
the station you want.

Auto Tuning

If you press and hold the
Remote Control for one second or more, the frequency changes
down, or up, automatically until a station is found.

Preset Tuning using the Remote Control (Possible
only after presetting stations)

Press the UP or DOWN button on the Remote Control to select

OR

4 or ¢ button on the Unit or the

OR

You can preset up to 30 FM stations and up to 15 AM stations using
the Remote Control.
Note: Preset numbers may have been set to factory test frequen-

cies prior to shipment. This is not a malfunction. You can
preset the stations you want into memory by following one
of the presetting methods below.

Manual Presetting —————————

TUNER

BAND

1. Select a band by pressing the TUNER

■

SET

FM = 30, AM = 15

BAND button.

2. Press the 4 or ¢ button to tune in a sta-

■

tion.

3. Press the SET button.

■

“P------” is displayed. The lower 2 digits blink.

DOWN

UP

or

SET

8

4. Press the UP, DOWN, >, or < button to

■

select the preset number.

UP button: Increases the preset number by 1.
DOWN button: Decreases the preset number by 1.

English

> button: Increases the preset number by ten.
< button: Decreases the preset number by ten.

5. Press the SET button.

■

After 1 second, the display returns to the broadcast frequency
display.

6. Repeat above steps 1 to 5 for each station

■

you want to store in memory with a preset
number.

To cancel during presetting, press the CANCEL button in
step 3 or 4.
To change the preset stations, repeat the same steps as
above.

Auto Presetting

In each band, you can automatically preset FM-30, AM-15 stations.
Preset numbers will be allocated as stations are found, starting from
the lowest frequency and moving up the frequency.

AUTO

TUNER

BAND

PRESET

(for 2 seconds)

1. Select a band by pressing the TUNER

■

BAND button.

2. Press the AUTO PRESET button on the

■

Remote Control for more than two sec­onds.

3. Repeat steps 1-2 for the other band.

■

If you want to change the preset stations, carry out the Manual

■

Presetting for the desired preset numbers.

CAUTION: If the System is unplugged or if a pow­er failure occurs, the preset stations will be
erased after about 24 hours. If this happens, you
will need to preset the stations again.

To Change the FM
Reception Mode

When you are tuned into an FM stereo broadcast, the “ST (Stereo)”
indicator lights up and you can hear stereo effects.
If an FM stereo broadcast is hard to receive or noisy, you can select
Monaural mode. Reception improves, but you lose any stereo ef­fect.

Press the FM MODE button on the Remote Control so that
the “MONO” indicator lights up on the display.

ST(Stereo) MONO

FM MODE

To restore the stereo effect, press the FM MODE button on the
Remote Control so that the “MONO” indicator goes off.

9

■■

PRESET
TUNING

AHB.

SUPER PRO

AUX

POWER

MD/TAPE

TIMER/SNOOZE

TUNER
BAND

OPEN/CLOSE

SLEEP

CLOCKUPMULTI CONTROLDOWN

U

L

T

R

A

C

O

M

P

A

C

T

C

O

M

P

O

N

E

N

T

S

Y

S

T

E

M

CD

Total track number

Total playback time

PROGRAM

SET

<

Using the CD Player

REMOTE CONTROL RM-RXFS5000

SLEEP POWERDIMMER

FM MODE AUXDISPLAY

AUTO

AHB.

SUPER PRO

MD

/TAPE

PRESET

RANDOM REPEATPROGRAM

TREBLE CANCELBASS

UP

SET

DOWN

TUNER

BAND

VOLUME

CD

CD

CD

0

REPEAT
RANDOM

UP

>

DOWN

CD

38

Pause Indicator

Play Indicator

¢

7

4

Track number, Playing time,
Preset number

Repeat Indicator

When the System is in use, the display shows other items as well.
For simplicity, we show here only the items described in this section.

Play mode
Indicator

CD Holder

4
7

¢

OPEN/
CLOSE

CD

38

English

0

You can use Normal, Random, Program or Repeat Play. Repeat
Play can repeat all the tracks or just one of the tracks on the CD.

Here are the basic things you need to know to play a CD and locate
the different tracks on it.

The Quickest Way To Start a CD Is With the
One Touch Operation

Press the CD 38 button.

■

• The power is automatically turned on. If a CD is a lready in-

serted, it will start playing from the first track.

• If no CD is inserted, “NO DISC” appears on the display and

the CD Player remains in Stop mode.

To Insert a CD

1. Press the OPEN/CLOSE 0 button (or the CD

■

0

button on the Remote Control).

The CD holder opens.

2. Place a CD, with its label side up as shown

■

below.

CAUTION:DO NOT try to close the CD holder by
hand as it will be damaged.

Basics of Using the
CD Player - Normal Play

To Play a CD ————————————

1. Insert a CD.

■

2. Press the CD 38 button.

■

The Play (3) indicator lights up on the display and the first
track of the CD begins playing.
The CD Player automatically stops when the last track of the
CD has finished playing.

To stop playing the CD, press the 7 button on the Unit or the
Remote Control.
The following information for the CD is displayed.

To stop playing and remove the CD, press the

0 button to

open the CD holder.
To pause, press the CD

38 button. The Pause (

) indicator will

8

light up on the display.
To cancel pause, press the same button again. Play continues
from the point where it was paused.

3. Press the 0 button again to close the CD

■

holder.

You can place an 8 cm (3'') CD without an adaptor.

■

If the CD cannot be read correctly (because it is scratched, for

■

example), “00 0000” appears on the display.

To Select a Track or Passage within
a Track ———————————————

During playback, press the 4 or ¢ button on the Unit or the Re­mote Control to select the track you want.
The selected track starts playing.

10

• Press the ¢ button once to skip to the beginning of the

Programme order number

Track number

next track.

• Press the

English

ing played. Press twice quickly to skip to the beginning of
the previous track.

4 button to skip to the beginning of the track be-

Search Play ————————————

Holding down the 4 or ¢ button on the Unit or the Remote Con­trol, during playback, will fast forward/backwards the CD so you can
quickly find a particular passage in the track you are listening to.

Programming the
Playing Order of the Tracks

You can program the playing order of the tracks using the Remote
Control.

■ You can program up to 20 tracks in any desired order.

■ You can only make a program when the CD Player is stopped.

1. Insert a CD.

■

2. Press the CD 38 button.

■

3. Press the e button to stop the CD.

■

4. Press the PROGRAM button.

■

The System enters the programming mode and the “PRGM” in­dicator lights up.

To cancel the programming before playing, press the CAN­CEL button in above step 4, 5 or 6.
To confirm the programmed tracks, press the PROGRAM
button; the tracks making up the program will successively be dis­played in the programmed order.

To stop playing, press the e button once.
To delete all the tracks in a program, press the 7 button (or

the CANCEL button on the Remote Control)ýwhile the CD Player
is stopped. The “PRGM” indicator goes out and the program is de­leted. Normal Play is resumed.
The program will also be deleted when you press the
open the CD holder.

Note: If the total playback time of the programmed tracks exceeds

99 minutes 59 seconds, the total playback time will go out
on the display.

0 button to

Random Play

PROGRAM

5. Press the UP, DOWN, >, or < button to

■

select the track to program.

UP button: Increases the track number by 1.
DOWN button: Decreases the track number by 1.
> button: Increases the the track number by ten.
< button: Decreases the track number by ten.

• Example: for track 2, press the UP button twice. For track

12, press the > button, then press the UP button twice (or
simply press the UP button 12 times).

6. Press the SET button.

■

UP

DOWN

7. Repeat steps 5 and 6 to select the other

■

tracks for the program.

You can see the total playback time of programmed tracks on
the display.

8. Press the CD 38 button.

■

The System plays the tracks in the order you have programmed
them.

SET

Total playback time of the programmed tracks

■ You can skip to a particular program track by pressing the 4

or ¢ button during Program Play.

The tracks will play in no special order when you use this mode.

Press the RANDOM button on the Remote
Control.

Playback automatically starts and the “RADM” indicator lights up
on the display.
To skip a track during playback, press the ¢ button to jump
to the next track in the random sequence. Press the
jump back to the start of a track being played.
To cancel random play, press the RANDOM button again. The
“RADM” indicator goes out and Normal Play is resumed.

4 button to

Repeating Tracks

You can set the program or individual track playing to repeat as
many times as you like.

Press the REPEAT button on the Remote
Control.

The Repeat indicator changes with each press of the button, as
shown below.

= ALL =blank display = (back to the beginning)

: Repeats one track.

In Random Play mode, this indicator is skipped

ALL : In Normal Play mode, repeats all the tracks.

In Program Play mode, repeats all the tracks in the
program.
In Random Play mode, repeats all the tracks in ran­dom order.

To exit Repeat mode, press the REPEAT button until the Repeat
indicator on the display goes out

11

■■

PRESET
TUNING

AHB.

SUPER PRO

AUX

POWER

MD/TAPE

TIMER/SNOOZE

TUNER
BAND

OPEN/CLOSE

SLEEP

CLOCKUPMULTI CONTROLDOWN

U

L

T

R

A

C

O

M

P

A

C

T

C

O

M

P

O

N

E

N

T

S

Y

S

T

E

M

CD

Listening to External Equipments

REMOTE CONTROL RM-RXFS5000

SLEEP POWERDIMMER

MD/TAPE

AHB.

SUPER PRO

MD

/TAPE

FM MODE AUXDISPLAY

AUTO

PRESET

RANDOM REPEATPROGRAM

TREBLE CANCELBASS

UP

SET

DOWN

TUNER

BAND

VOLUME

CD

CD

AUX

.

Listening to an External MD
Recorder/Tape Deck

You can play an external MD recorder, tape deck, etc. through the
system.

First make sure that the external equipment is properly connect-

■

ed to the System. (See page 4).

1. Set the VOLUME control to minimum.

■

2. Press the MD/TAPE button.

■

When the System is in Standby mode, the System is automati­cally turned on.
“MD/TAPE” appears on the display.

AUX

MD/TAPE

When the System is in Standby mode, the System is automati­cally turned on.
“AUX” appears on the display.

3. Start playing the auxiliary equipment.

■

4. Adjust the VOLUME control to the desired

■

listening level.

5. Apply sound effects, if you wish.

■

Press the AHB Super PRO button to reinforce the bass sound.

■

Press the BASS/TREBLE button to control the tone.

■

(See “Tone Control” on page 7.)

English

3. Start playing the external equipment.

■

4. Adjust the VOLUME control to the desired

■

listening level.

5. Apply sound effects, if you wish.

■

Press the AHB Super PRO button to reinforce the bass sound.

■

Press the BASS/TREBLE button to control the tone.

■

(See “Tone Control” on page 7.)

To exit MD/TAPE mode

You will automatically switch out of MD/TAPE mode when you se­lect another source.

Note: You can also record the System’s output signal to the exter-

nal equipment. For operation, refer to the equipment’s own
instructions.

Listening to Auxiliary Equip­ment

You can listen to a turntable or other auxiliary equipment.

First make sure that the external equipment is properly connect-

■

ed to the System. (See page 5).

To exit AUX mode

You will automatically switch out of AUX mode when you select
other source.

Note: For operation of the auxiliary equipment, refer to its own In-

structions.

1. Set the VOLUME to minimum position.

■

2. Press the AUX button.

■

12

■■

PRESET
TUNING

AHB.

SUPER PRO

AUX

POWER

MD/TAPE

TIMER/SNOOZE

TUNER

BAND

OPEN/CLOSE

SLEEP

CLOCKUPMULTI CONTROLDOWN

U

L

T

R

A

C

O

M

P

A

C

T

C

O

M

P

O

N

E

N

T

S

Y

S

T

E

M

CD

VOLUME

CD

TUNER

BAND

MD

/TAPE

DOWN

SET

UP

TREBLE CANCELBASS

RANDOM REPEATPROGRAM

AUTO

PRESET

CD

AHB.

SUPER PRO

FM MODE AUXDISPLAY

SLEEP POWERDIMMER

REMOTE CONTROL RM-RXFS5000

(After 2 seconds)

(After 2 seconds)

Using the Timers

English

SLEEP

When the System is in use, the display shows other items as well.
For simplicity, we show here only the items described in this section.

The timers let you control listening functions automatically.

Setting the Clock

You can set the clock whether the System is on or off.

Notes:

• The clock must be correctly set for the timers to work.

• The procedure must be completed within two minutes. Other­wise, the setting is cleared and must be repeated from the
beginning.

UPMULTI CONTROLDOWN

(for 2 seconds)

1. Press the CLOCK button on the Unit for

■

more than two seconds.

The clock rapidly blinks.

Timer indicator

SLEEP indicator

SNZ indicator

4
¢

CLOCK
SLEEP

TIMER/SNOOZE

1. Press the POWER button to turn on the Sys-

■

tem.

2. Setting the ON time (Example: PM 12:15)

■

1. Press the TIMER/SNOOZE button on the Unit.
The Timer indicator lights up and the current ON time
blinks on the display.

2. Press the

¢ or 4 button on the Unit to set the time you

want the Unit to come on.
Pressing the

¢ button moves the time forwards and press-

ing the 4 button moves the time backwards. Hold down
the button to move the time in 10-minute intervals..

2. Press the 4 or ¢ button on the Unit to set

■

the time.

Pressing the ¢ button moves the time forwards and pressing

4 button moves it backwards. Hold down the button to

the
move the time in 10-minute intervals.

3. Press the CLOCK button.

■

The selected time is set and the seconds start counting from 0.

• Each time the hour’s digits change from 11 to 12, the display
alternates between AM andPM. (12 midnight is indicated as
“AM 12:00” and 12 noon is indicated as “PM 12:00”.)

CAUTION: If there is a power failure, the clock
loses its setting after about 20 minutes. The dis­play shows “AM 12:00” and blinks, and the clock
must be reset.

Note: The clock may gain or lose one to two minutes per month.

Setting the Daily Timer

You can set the timer whether the System is on or off.
Once you have set the Daily Timer, the timer will be activated at the

same time every day. It can be cancelled and re-activated whenever
you wish.
The Timer indicator on the display shows when the Daily Timer you
have set is in effect.

Note: Perform each setting within 30 seconds. Otherwise, the set-

13

ting is cleared and the procedure must be repeated from the
beginning.

3. Setting the OFF time (Example: PM 1:15)

■

1. Press the TIMER/SNOOZE button on the Unit.
The current OFF time blinks on the display.

2. Press the ¢ or 4 button on the Unit to set the time you
want the Unit to be turned off.
Pressing the ¢ button moves the time forwards and press-

4 button moves the time backwards. Hold down

ing the
the button to move the time in 10-minute intervals..

4. Selecting the music source

■

1. Press the TIMER/SNOOZE button on the Unit.
“TUNER” blinks on the display.

2. Press the ¢ or 4 button to select the music source you

V

want to listen to.
The display changes as shown below.

5. Setting the volume level

■

1. Press the TIMER/SNOOZE button on the Unit.
The current volume setting blinks on the display.

2. Press the

-- : The current volume level wil be used.
1 to 5: Low (1) to high (5) level. When the timer is turned

¢ or 4 button to select the volume level

on, the Volume will be automatically turned to the
set position.

VOLUME

VOL 5

Setting the SLEEP Timer

Use the Sleep Timer to turn the System off after a certain number of
minutes when it is playing. By setting the Sleep Timer, you can fall
asleep to music and know that your System will turn off by itself
rather than play all night.

You can only set the Sleep Timer when the System is on and a

■

source is playing.

1. Play a CD or tune in to the desired station.

■

2. Press the SLEEP button on the Unit or the

■

Remote Control.

The “SLEEP” indicator lights up.

3. Set the length of time you want the source

■

to play before shutting off.

• Each time you press the SLEEP button, it changes the
number of minutes shown on the display in this sequence:

English

VOL 5: Approx. 11 o’clock position
VOL 1: Approx. 8 o’clock position

6. Press the TIMER/SNOOZE button on the

■

Unit.

The timer setting is completed and the display returns to the dis­play before you set the timer (The Timer indicator remains lit).

7. Before turning off the Unit, prepare the

■

music source selected in step 4.

Tuner: Tune to the desired station.
CD: Insert a CD.

8. Press the POWER button to turn off the

■

System.

To cancel the timer, press the TIMER/SNOOZE button. The
Timer indicator goes out on the display.
To re-activate the cancelled timer, press the TIMER/
SNOOZE button to light the Timer indicator. Then, press the TIM­ER/SNOOZE button repeatedly, until the display returns to the
original display before setting the timer (Be sure that the Timer in­dicator is lit.).
To confirm the timer settings, cancel the timer once by press­ing the TIMER/SNOOZE button. Then, press the TIMER/
SNOOZE button repeatedly, and you can see the current timer set­tings (ON time, OFF time, source, and volume).
To change the timer setting, repeat the setting procedure from
the beginning.

OL 1

= 30 = 60 = 90 = 120 = Cancelled = (back to the begin-

ning)

After setting the number of minutes for the Sleep Timer, the display
will stop blinking after 5 seconds and return to the display as before
setting the Sleep Timer.
The System is now set to turn off after the number of minutes you
set.

To Confirm the Sleep Time

When the SLEEP button is pressed, the remaining sleep time is dis­played. Wait for 5 seconds until the display returns to the original
display.

To Cancel the SLEEP Timer Setting

Press the SLEEP button until the “SLEEP” indicator goes off on the
display.
Turning off the System also cancels the SLEEP Timer.

If you are setting the Daily Timer, the System will be turned on

■

at the set time to wake you up.

• When the timer turns on, the Timer indicator starts blinking.

• When the timer turns on, it is possible to fade in the sound from
volume level 0 (zero) to the preset volume.

CAUTION: If the System is unplugged, or a power
failure occurs, the timer setting will be lost after
about 24 hours. You will need to reset the clock
first, then the timer.

5-Minute Snoozing —————————

When the timer turns on the music source you can, if you wish, ac­tivate the 5-minute snoozing function to temporarily stop playback.

Press the TIMER/SNOOZE button on the Unit.

The “SNZ” indicator lights up on the display and the power is
turned off for five minutes for snoozing.

14

■■

Blower

Lens

Care And Maintenance

English

Handle your CDs carefully, and they will last a long time.

Compact Discs

• Only CDs bearing this mark can be used with
this System. However, continued use of irregu­lar shape CDs (heart-shape, octagonal, etc.)
can damage the System.

• Remove the CD from its case by holding it at
the edges while pressing the case’s center hole
lightly.

• Do not touch the shiny surface of the CD, or
bend the CD.

• Put the CD back in its case after use to prevent
warping.

• Be careful not to scratch the surface of the CD
when placing it back in the case.

• Avoid exposure to direct sunlight, temperature
extremes, and moisture.

General Notes

,QýJHQHUDOñý\RXýZLOOýKDYHýWKHýEHVWýSHUIRUPDQFHýE\ýNHHSLQJý\RXUý&'Vý

DQGýWKHýPHFKDQLVPýFOHDQï

• Store CDs in their cases, and keep them in cabinets or on
shelves.

• Keep the system’s CD holder closed when not in use.

Cleaning the lens

,IýWKHýOHQVýLQýWKHý&'ýSLFNXSýLVýGLUW\ñýGURSRXWñýHWFïñýFRXOGýGHJUDGHý

VRXQGï

2SHQýWKHý&'ýKROGHUýDQGýFOHDQýWKHýOHQVýDVýVKRZQï

• Use a blower (available from a camera store) to blow dust off
the lens.

• A dirty CD may not play correctly. If a CD
does become dirty , wipe it with a soft cloth in a
straight line from center to edge.

CAUTION: Do not use any solvent (for example,
conventional record cleaner, spray thinner, ben­zine, etc.) to clean a CD.

Moisture Condensation

Moisture may condense on the lens inside the
System in the following cases:

• After turning on heating in the room.

• In a damp room.

• If the System is brought directly from a cold

to a warm place.
Should this occur, the System may malfunction.
In this case, leave the System turned on for a
few hours until the moisture evaporates, unplug
the AC power cord, and then plug it in again.

• If there are fingerprints, etc. on the lens, gently wipe clean with
a cotton swab.

15

■■

• If you are having a problem with your System, check this list for a possible solution before calling for service.

• If you cannot solve the problem from the hints given here, or the System has been physically damaged, call a qualified person, such as your
dealer, for service.

Troubleshooting

Symptom Possible Cause Action

English

No sound is heard. • Connections are incorrect, or loose.

• Headphones are connected.

Poor radio reception • The antenna is disconnected.

• The AM Loop Antenna is too close
to the System.

• The FM Wire Antenna is not prop­erly extended and positioned.

The CD skips. The CD is dirty or scratched. Clean or replace the CD.
The CD does not play. The CD is upside down. Put the CD in with the label side up.
Unable to operate the Remote Control. • The path between the Remote Con-

trol and the sensor on the Unit is
blocked

• The batteries have lost their charge.

Operations are disabled. The built-in microprocessor has mal-

functioned due to external electrical
interference.

■■

Amplifier

2XWSXWý3RZHU ìêýZDWWVýSHUýFKDQQHOñýPLQïý506ñýDWýéýRKPVý

,QSXWý6HQVLWLYLW\î,PSHGDQFHýõìýN+]ô

$8; èííýP9îèäýNRKPV
0'î7$3( èííýP9îèäýNRKPV

2XWSXWý6HQVLWLYLW\î,PSHGDQFHýõìýN+]ô

0'î7$3( иннэP9ойпдэNRKPV
2SWLFDOэRXW ¤ëìýG%Pýðý¤ìèýG%P
6XEZRRIHU нэрэмииэP9омнэNRKPV
6SHDNHUэWHUPLQDOV йэрэмзэRKPV
3KRQHV мзэRKPэрэмэNRKPV

CD Player

6LJQDOð7Rð1RLVHý5DWLR äíýG%
:RZý$QGý)OXWWHU 8QPHDVXUDEOH

Specifications

IURPэен+]эWRэлнN+]сэZLWKэQRэ PRUHэWKDQэмншэ
WRWDOэKDUPRQLFэGLVWRUWLRQэхIRUэ8п6п$ф
кнэ:эхмиэ:этэмиэ:фэDWэ йэ RKPVэ х0D[пфэ х)RUэ
&DQDGDф

нэрэмиэP:оFKэRXWSXWэLQWRэклэRKPV

'LPHQVLRQV ìëíý

0DVV $SSUR[пэмпиэNJэхкпкмэOEVф

General

'LPHQVLRQV êåíý✕эмзйэ✕элдиэPPэх:о+о'фэ

0DVV $SSUR[пэзпнэNJэхмкпкэOEVф

Accessories

Power Specifications

3RZHUý5HTXLUHPHQWV $&эмлнэ9эaэсэзнэ+]э
3RZHUэ&RQVXPSWLRQ êíýZDWWVýõSRZHUýRQýPRGHô

• Check all connections and make cor­rections. (See pages 4 - 5.)

• Disconnect the headphones.

• Reconnect the antenna securely.

• Change the position and direction of
the AM Loop Antenna.

• Extend FM Wire Antenna to the best
reception position.

• Remove the obstruction.

• Replace the batteries.

Unplug the System then plug it back in.

✕эмзнэ✕эмезэPPэх:о+о'фэ

хйркойццэ✕эзриомзццэ✕эжркоеццэф

✕эзрмолццэ✕эммриоеццэф

хмиццэ

3RZHUэ&RUGэхмф
$0э/RRSэ$QWHQQDэхмф
5HPRWHэ&RQWUROэхмф
%DWWHULHVэ5з3эх680ркфо$$эхми)фэхлф
)0э:LUHэ$QWHQQDэхмф
6SHDNHUэ&RUGVэхлф

èýZDWWVýõLQý6WDQGE\ýPRGHô

Tuner

)0ý7XQHU
7XQLQJý5DQJH ежпиэрэмнепнэ0+]
$0э7XQHU
7XQLQJэ5DQJHэ икнэрэмсжмнэN+]

Speaker Specifications

õHDFKýXQLWô
6SHDNHUV еэFPэхкркомзццфэFRQH
,PSHGDQFH éýRKPV

'HVLJQýDQGýVSHFLILFDWLRQVýDUHýVXEMHFWýWRýFKDQJHýZLWKRXWýQRWLFHï

16

VICTOR COMPANY OF JAPAN, LIMITED

EN, SP, FR 0598MNMCREJSC
