SERVICE MANUAL
COMPACT COMPONENT SYSTEM
MB53120066
DX-T99A,DX-T99EE,DX-T99US,DX-T99UW,
DX-T99UX,DX-T99UG,DX-T99UN,
DX-T77EE,DX-T77US,DX-T77UW,DX-T77UX,
DX-T77UY,DX-T77UG,DX-T77UN,
DX-T66EE,DX-T66US,DX-T66UW,DX-T66UX,
DX-T66UY,DX-T66UG,DX-T66UN
SP-DXT99C
CA-DXT99SP-DXT99S SP-DXT99SSP-DXT99WSP-DXT99W SP-DXT99FSP-DXT99F
SUPER VIDEO
CA-DXT66SP-DXT99W SP-DXT66FSP-DXT66F CA-DXT77SP-DXT77S SP-DXT77SSP-DXT99WSP-DXT99FSP-DXT99F
SUPER VIDEO
Lead free solder used in the board (material : Sn-Ag-Cu, melting point : 219 Centigrade)
SUPER VIDEO
SP-DXT77C
TABLE OF CONTENTS
1 PRECAUTION. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-6
2 SPECIFIC SERVICE INSTRUCTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-9
3 DISASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-10
4 ADJUSTMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-62
5 TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-65
COPYRIGHT © 2006 Victor Company of Japan, Limited
No.MB531
2006/6
SPECIFICATION
DX-T99
Amplifier section Output Power FRONT SPEAKERS 150 W per channel, min. RMS, driven into 4 Ω at 1 kHz with no more
than 10% total harmonic distortion.
CENTER SPEAKER 140 W per channel, min. RMS, driven into 6
than 10% total harmonic distortion.
SURROUND SPEAKERS 130 W per channel, min. RMS, driven into 6
than 10% total harmonic distortion. (for austraria and russia)
140 W per channel, min. RMS, driven into 6
than 10% total harmonic distortion. (for asia)
SUBWOOFERS 150 W per channel, min. RMS, driven into 4
than 10% total harmonic distortion. (for austraria and russia)
150 W per channel, min. RMS, driven into 4
than 10% total harmonic distortion. (for asia)
Digital output OPTICAL DIGITAL OUTPUT -21 dBm to -15 dBm (660 nm ±30 nm)
Audio input sensitivity/
Impedance*
VIDEO OUT Color system NTSC/PAL selectable
VIDEO (composite) 1 V(p-p)/75
S-VIDEO Y (luminance) 1 V(p-p)/75 Ω
COMPONENT
(Interlace/Progressive)
Speaker Terminals 4 Ω - 16 Ω (front speakers/subwoofers)
Tuner section FM tuning range 87.50 MHz - 108.00 MHz
AM (MW) tuning range 531 kHz - 1 710 kHz (for austraria)
Disc player section
Cassette deck section Frequency response Normal (type I) 50 Hz - 14 000 Hz
General Power requirement AC 110 V / AC 127 V / AC 220 V / AC 230 V - AC 240 V , (adjustable
Playable disc DVD Video/DVD Audio/CD/VCD/SVCD
Dynamic range 80 dB
Horizontal resolution 500 lines
Wow and flutter Immeasurable
Wow and flutter 0.15% (WRMS)
Power consumption 335 W (at operation)
Dimensions (W/H/D) (approx.) 185 mm
Mass (approx.) 11.4 kg
AUX 300 mV/47 kΩ
MIC 1/2 3.0 mV/50 kΩ
Ω
C (chrominance, burst) NTSC : 0.286 V(p-p)/75 Ω
(Y) 1 V(p-p)/75 Ω
(PB/PR) 0.7 V(p-p)/75 Ω
PAL : 0.3 V(p-p)/75 Ω
6
Ω - 16 Ω (surround/center speakers)
531 kHz - 1 710 kHz (at 9 kHz) (for asia)
530 kHz - 1 710 kHz (at 10 kHz) (for asia)
522 kHz - 1 629 kHz (for russia)
CD-R/CD-RW (recorded in Audio CD/Video CD/Super Video CD formats and MP3/WMA/JPEG/MPEG-1/MPEG-2/ASF/DivX files)
DVD-R (recorded in DVD Video format)
DVD-RW (recorded in DVD Video format or DVD-VR format)
with the voltage selector), 50 Hz / 60 Hz
29 W (on standby)
× 460 mm × 361 mm
Ω at 1 kHz with no more
Ω at 1 kHz with no more
Ω at 1 kHz with no more
Ω at 63 Hz with no more
Ω at 1 kHz with no more
1-2 (No.MB531)
DX-T77
Amplifier section Output Power FRONT SPEAKERS 150 W per channel, min. RMS, driven into 4 Ω at 1 kHz with no more
than 10% total harmonic distortion.
CENTER SPEAKER 50 W per channel, min. RMS, driven into 6
than 10% total harmonic distortion.
SURROUND SPEAKERS 50 W per channel, min. RMS, driven into 6
SUBWOOFERS 150 W per channel, min. RMS, driven into 4
Digital output OPTICAL DIGITAL OUTPUT -21 dBm to -15 dBm (660 nm ±30 nm)
Audio input sensitivity/
Impedance*
VIDEO OUT Color system NTSC/PAL selectable
VIDEO (composite) 1 V(p-p)/75
S-VIDEO Y (luminance) 1 V(p-p)/75 Ω
COMPONENT
(Interlace/Progressive)
Speaker Terminals 4 Ω - 16 Ω (front speakers/subwoofers)
Tuner section FM tuning range 87.50 MHz - 108.00 MHz
AM (MW) tuning range 531 kHz - 1 710 kHz (at 9 kHz) (for asia)
Disc player section Playable disc DVD Video/DVD Audio/CD/VCD/SVCD
Dynamic range 80 dB
Horizontal resolution 500 lines
Wow and flutter Immeasurable
Cassette deck section Frequency response Normal (type I) 50 Hz - 14 000 Hz
Wow and flutter 0.15% (WRMS)
General Power requirement AC 110 V / AC 127 V / AC 220 V / AC 230 V - AC 240 V , (adjustable
Power consumption 270 W (at operation)
Dimensions (W/H/D) (approx.) 185 mm
Mass (approx.) 11.4 kg
AUX 300 mV/47 kΩ
MIC 1/2 3.0 mV/50 kΩ
C (chrominance, burst) NTSC : 0.286 V(p-p)/75 Ω
(Y) 1 V(p-p)/75 Ω
(PB/PR) 0.7 V(p-p)/75 Ω
than 10% total harmonic distortion.
than 10% total harmonic distortion. (for asia)
150 W per channel, min. RMS, driven into 4
than 10% total harmonic distortion. (for russia)
Ω
PAL : 0.3 V(p-p)/75 Ω
6
Ω - 16 Ω (surround/center speakers)
530 kHz - 1 710 kHz (at 10 kHz) (for asia)
522 kHz - 1 629 kHz (for russia)
CD-R/CD-RW (recorded in Audio CD/Video CD/Super Video CD formats and MP3/WMA/JPEG/MPEG-1/MPEG-2/ASF/DivX files)
DVD-R (recorded in DVD Video format)
DVD-RW (recorded in DVD Video format or DVD-VR format)
with the voltage selector), 50 Hz / 60 Hz
25 W (on standby)
× 460 mm × 361 mm
Ω at 1 kHz with no more
Ω at 1 kHz with no more
Ω at 1kHz with no more
Ω at 63 Hz with no more
(No.MB531)1-3
DX-T66
Amplifier section Output Power FRONT SPEAKERS 150 W per channel, min. RMS, driven into 4 Ω at 1 kHz with no more
than 10% total harmonic distortion.
SUBWOOFERS 150 W per channel, min. RMS, driven into 4
than 10% total harmonic distortion. (for asia)
150 W per channel, min. RMS, driven into 4
than 10% total harmonic distortion. (for russia)
Digital output OPTICAL DIGITAL OUTPUT -21 dBm to -15 dBm (660 nm ±30 nm)
Audio input sensitivity/
Impedance*
VIDEO OUT Color system NTSC/PAL selectable
VIDEO (composite) 1 V(p-p)/75
S-VIDEO Y (luminance) 1 V(p-p)/75 Ω
COMPONENT
(Interlace/Progressive)
Speaker Terminals 4 Ω - 16 Ω (front speakers/subwoofers)
Tuner section FM tuning range 87.50 MHz - 108.00 MHz
AM (MW) tuning range 531 kHz - 1 710 kHz (at 9 kHz) (for asia)
Disc player section Playable disc DVD Video/DVD Audio/CD/VCD/SVCD
Dynamic range 80 dB
Horizontal resolution 500 lines
Wow and flutter Immeasurable
Cassette deck section Frequency response Normal (type I) 50 Hz - 14 000 Hz
Wow and flutter 0.15% (WRMS)
General Power requirement AC 110 V / AC 127 V / AC 220 V / AC 230 V - AC 240 V , (adjustable
Power consumption 205 W (at operation)
Dimensions (W/H/D) (approx.) 185 mm
Mass (approx.) 10.8 kg
AUX 300 mV/47 kΩ
MIC 1/2 3.0 mV/50 kΩ
Ω
C (chrominance, burst) NTSC : 0.286 V(p-p)/75 Ω
PAL : 0.3 V(p-p)/75 Ω
(Y) 1 V(p-p)/75 Ω
(PB/PR) 0.7 V(p-p)/75 Ω
6
Ω - 16 Ω (surround/center speakers)
530 kHz - 1 710 kHz (at 10 kHz) (for asia)
522 kHz - 1 629 kHz (for russia)
CD-R/CD-RW (recorded in Audio CD/Video CD/Super Video CD for-
mats and MP3/WMA/JPEG/MPEG-1/MPEG-2/ASF/DivX files)
DVD-R (recorded in DVD Video format)
DVD-RW (recorded in DVD Video format or DVD-VR format)
with the voltage selector), 50 Hz / 60 Hz
23 W (on standby)
× 460 mm × 361 mm
Ω at 1kHz with no more
Ω at 63 Hz with no more
1-4 (No.MB531)
Speaker section
Main Speakers Type 3-Way 3-Speaker Bass Reflex (Magnetically-Shielded Type)
Speaker systems Woofer 18 cm cone
Mid 6.5 cm cone
Tweeter 2 cm dome
Power handling capacity 150 W
Impedance 4
Frequency range 35 Hz - 25 000 Hz
Sound pressure level 85 dB/W·m
Dimensions (W/H/D) (approx.) 204 mm
Mass (approx.) 5.2 kg each
Subwoofer Type 1-Way Bass-Reflex (Magnetically-Shielded Type)
Speaker systems 20 cm cone
Power handling capacity 150 W
Impedance 4
Frequency range 35 Hz - 5 000 Hz
Sound pressure level 88 dB/W·m
Dimensions (W/H/D) (approx.) 238 mm
Mass (approx.) 7.1 kg
Ω
Ω
× 1
× 1
× 1
× 460 mm × 273 mm
× 1
× 460 mm × 273 mm
* Measured at 1 kHz, with tape recording signal 300 mV
Design and specifications are subject to change without notice.
(No.MB531)1-5
SECTION 1
PRECAUTION
1.1 Safety Precautions
(1) This design of this product contains special hardware and
many circuits and components specially for safety purposes. For continued protection, no changes should be made
to the original design unless authorized in writing by the
manufacturer. Replacement parts must be identical to
those used in the original circuits. Services should be performed by qualified personnel only.
(2) Alterations of the design or circuitry of the product should
not be made. Any design alterations of the product should
not be made. Any design alterations or additions will void
the manufacturers warranty and will further relieve the
manufacture of responsibility for personal injury or property
damage resulting therefrom.
(3) Many electrical and mechanical parts in the products have
special safety-related characteristics. These characteristics are often not evident from visual inspection nor can the
protection afforded by them necessarily be obtained by using replacement components rated for higher voltage, wattage, etc. Replacement parts which have these special
safety characteristics are identified in the Parts List of Service Manual. Electrical components having such features
are identified by shading on the schematics and by ( ) on
the Parts List in the Service Manual. The use of a substitute
replacement which does not have the same safety characteristics as the recommended replacement parts shown in
the Parts List of Service Manual may create shock, fire, or
other hazards.
(4) The leads in the products are routed and dressed with ties,
clamps, tubings, barriers and the like to be separated from
live parts, high temperature parts, moving parts and/or
sharp edges for the prevention of electric shock and fire
hazard. When service is required, the original lead routing
and dress should be observed, and it should be confirmed
that they have been returned to normal, after reassembling.
(5) Leakage shock hazard testing
After reassembling the product, always perform an isolation check on the exposed metal parts of the product (antenna terminals, knobs, metal cabinet, screw heads,
headphone jack, control shafts, etc.) to be sure the product
is safe to operate without danger of electrical shock.Do not
use a line isolation transformer during this check.
• Plug the AC line cord directly into the AC outlet. Using a
"Leakage Current Tester", measure the leakage current
from each exposed metal parts of the cabinet, particularly any exposed metal part having a return path to the
chassis, to a known good earth ground. Any leakage current must not exceed 0.5mA AC (r.m.s.).
• Alternate check method
Plug the AC line cord directly into the AC outlet. Use an
AC voltmeter having, 1,000Ω per volt or more sensitivity
in the following manner. Connect a 1,500Ω 10W resistor
paralleled by a 0.15µF AC-type capacitor between an ex-
posed metal part and a known good earth ground.
Measure the AC voltage across the resistor with the AC
voltmeter.
Move the resistor connection to each exposed metal
part, particularly any exposed metal part having a return
path to the chassis, and measure the AC voltage across
the resistor. Now, reverse the plug in the AC outlet and
repeat each measurement. Voltage measured any must
not exceed 0.75 V AC (r.m.s.). This corresponds to 0.5
mA AC (r.m.s.).
AC VOLTMETER
(Having 1000
ohms/volts,
or more sensitivity)
0.15 F AC TYPE
Place this
probe on
1500 10W
Good earth ground
1.2 Warning
(1) This equipment has been designed and manufactured to
meet international safety standards.
(2) It is the legal responsibility of the repairer to ensure that
these safety standards are maintained.
(3) Repairs must be made in accordance with the relevant
safety standards.
(4) It is essential that safety critical components are replaced
by approved parts.
(5) If mains voltage selector is provided, check setting for local
voltage.
1.3 Caution
Burrs formed during molding may be left over on some parts
of the chassis.
Therefore, pay attention to such burrs in the case of preforming repair of this system.
1.4 Critical parts for safety
In regard with component parts appearing on the silk-screen
printed side (parts side) of the PWB diagrams, the parts that are
printed over with black such as the resistor ( ), diode ( )
and ICP ( ) or identified by the " " mark nearby are critical
for safety. When replacing them, be sure to use the parts of the
same type and rating as specified by the manufacturer.
(This regulation dose not Except the J and C version)
each exposed
metal part.
1-6 (No.MB531)
1.5 Preventing static electricity
Electrostatic discharge (ESD), which occurs when static electricity stored in the body, fabric, etc. is discharged, can destroy the laser
diode in the traverse unit (optical pickup). Take care to prevent this when performing repairs.
1.5.1 Grounding to prevent damage by static electricity
Static electricity in the work area can destroy the optical pickup (laser diode) in devices such as laser products.
Be careful to use proper grounding in the area where repairs are being performed.
(1) Ground the workbench
Ground the workbench by laying conductive material (such as a conductive sheet) or an iron plate over it before placing the
traverse unit (optical pickup) on it.
(2) Ground yourself
Use an anti-static wrist strap to release any static electricity built up in your body.
(caption)
Anti-static wrist strap
1M
Conductive material
(conductive sheet) or iron palate
(3) Handling the optical pickup
• In order to maintain quality during transport and before installation, both sides of the laser diode on the replacement optical
pickup are shorted. After replacement, return the shorted parts to their original condition.
(Refer to the text.)
• Do not use a tester to check the condition of the laser diode in the optical pickup. The tester's internal power source can easily
destroy the laser diode.
1.6 Handling the traverse unit (optical pickup)
(1) Do not subject the traverse unit (optical pickup) to strong shocks, as it is a sensitive, complex unit.
(2) Cut off the shorted part of the flexible cable using nippers, etc. after replacing the optical pickup. For specific details, refer to the
replacement procedure in the text. Remove the anti-static pin when replacing the traverse unit. Be careful not to take too long a
time when attaching it to the connector.
(3) Handle the flexible cable carefully as it may break when subjected to strong force.
(4) I t is not possible to adjust the semi-fixed resistor that adjusts the laser power. Do not turn it.
1.7 Attention when traverse unit is decomposed
*Please refer to "Disassembly method" in the text for the pickup unit.
• Apply solder to the short land sections before the card wire is disconnected from the connecto on the servo board. (If the card wire
is disconnected without applying solder, the pickup may be destroyed by static electricity.)
• In the assembly, be sure to remove solder from the short land sections after connecting the card wire.
DVD changer mechanism assembly
DVD servo board
Switch board
DVD traverse mechanism assembly
(No.MB531)1-7
1.8 Important for laser products
1.CLASS 1 LASER PRODUCT
2.CAUTION :
(For U.S.A.) Visible and/or invisible class II laser radiation
when open. Do not stare into beam.
(Others) Visible and/or invisible class 1M laser radiation
when open. Do not view directly with optical instruments.
3.CAUTION : Visible and/or invisible laser radiation when
open and inter lock failed or defeated. Avoid direct
exposure to beam.
4.CAUTION : This laser product uses visible and/or invisible
laser radiation and is equipped with safety switches which
prevent emission of radiation when the drawer is open and
the safety interlocks have failed or are defeated. It is
dangerous to defeat the safety switches.
5.CAUTION : If safety switches malfunction, the laser is able
to function.
6.CAUTION : Use of controls, adjustments or performance of
procedures other than those specified here in may result in
hazardous radiation exposure.
!
Please use enough caution not to
see the beam directly or touch it
in case of an adjustment or operation
check.
REPRODUCTION AND POSITION OF LABELS and PRINT
WARNING LABEL and PRINT
1-8 (No.MB531)
SECTION 2
SPECIFIC SERVICE INSTRUCTIONS
This service manual does not describe SPECIFIC SERVICE INSTRUCTIONS.
(No.MB531)1-9
SECTION 3
r
DISASSEMBLY
3.1 Main body section
3.1.1 Removing the metal cover
(See Fig.1, 2)
(1) From the both sides of the main body, remove the six
screws A attaching the metal cover. (See Fig.1)
(2) From the back side of the main body, remove the eight
screws B attaching the metal cover. (See Fig.2)
(3) Remove the metal cover from the main body while lifting
the rear section of the metal cover in the direction of the arrow. (See Fig.1)
Metal cover
A
Fig.1
B
Metal cove
A
1-10 (No.MB531)
BB
Fig.2
3.1.2 Removing the front panel assembly
(See Fig.3 to 5)
• Remove the metal cover.
(1) From the right side of the main body, disconnect the card
wire from the connectors CN740
main board. (See Fig.3)
(2) From the left side of main body, disconnect the card wires
from the connectors (CN720
of the main board. (See Fig.4)
(3) Disconnect the parallel wire while releasing the lock of the
connector CN105
the arrow. (See Fig.4)
(4) From the both side of the main body, remove the two
screws C attaching the front panel assembly to the main
body. (See Fig.3, 4)
(5) From the bottom side of the main body, remove the two
screws D attaching the front panel assembly. (See Fig.5)
(6) From the both side of main body, release the claws a and
remove the front panel assembly from the main body in the
direction of the arrow. (See Fig.3, 4)
Front panel assembly Main board
on the primary board in the direction of
on the reverse side of the
, CN730) on the forward side
Front panel assemblyMain board
CN730 CN720
C
C
Primary board
CN105
Fig.4
Front panel assembly
a
CN740
Fig.3
a
Lock
D
Fig.5
(No.MB531)1-11
3.1.3 Removing the tuner
(See Fig.6)
• Remove the metal cover.
(1) From the back side of the main body, remove the two
screws E attaching the tuner to the rear panel.
(2) Take out the tuner from the main body and disconnect the
card wire from the connector CN1
on the tuner.
Rear panel
Tuner
E
CN1
Tuner
Fig.6
1-12 (No.MB531)
3.1.4 Removing the DVD changer mechanism assembly
(See Fig.7 to 9)
• Remove the metal cover.
(1) From the left side of the main body, disconnect the card
wires from the connectors (CN800
board. (See Fig.7) [For DX-T99, DX-T77]
(2) Form the left side of the main body, disconnect the card
wires from the connector on the CN800
(See Fig.7) [For DX-T66]
(3) From the top side of the main body, remove the two screws
F attaching the DVD changer mechanism assembly on the
mecha chassis. (See Fig.8)
(4) Take out the DVD changer mechanism assembly from the
main body and disconnect the card wire from the connector
on the video board. (See Fig.8)
CN930
Reference:
When the resolution of the DVD changer mechanism assembly is done sequentially, release the claws b of the tray fitting
and remove the five tray fitting from the DVD changer mechanism assembly. (See Fig.9)
, CN810) on the main
on the main board.
DVD changer mechanism assembly
DVD changer mechanism assembly
CN800 CN810
Main board
Fig.7
Video board
CN930
Tray fitting
FF
Fig.8
bb
DVD changer mechanism assembly
Fig.9
(No.MB531)1-13
3.1.5 Removing the DVD changer mechanism assembly
(See Fig.10, 11)
• Remove the metal cover and DVD changer mechanism as-
sembly.
(1) From the back side of the metal body, remove the three
screws G attaching the video board to the rear panel. (See
Fig.10)
(2) From the top side of the main body, disconnect the card
wires from the connectors (CN920
board. (See Fig.11)
(3) Take out the video board in the direction of the arrow while
removing it from the sections c of the mecha chassis. (See
Fig.11)
, CN931) on the video
Video board
G
Rear panel
Fig.10
Mecha chassis
CN920
cc
Video board
Fig.11
CN931
1-14 (No.MB531)
3.1.6 Removing the fan
r
(See Fig.12, 13)
• Remove the metal cover.
(1) From the back side of the main body, remove the screw H
attaching the rear cover to the rear panel. (See Fig.12)
(2) Remove the joints d and remove the rear cover. (See
Fig.12) From the left side of the main body, disconnect the
wire from the connector CN304
(See Fig.13) [DX-T99]
(3) Remove the joints d and remove the rear cover. (See
Fig.12) From the left side of the main body, disconnect the
wire from the connector CN604
(See Fig.13) [For DX-T66, DX-T77]
(4) Release the two joints e of the fan bracket in the direction
of the arrow and take out the fan with the fan bracket. (See
Fig.13)
Reference:
Remove the fan from the fan bracket as required.
on the amplifier 2 board.
on the amplifier 2 board.
H
dd
Fan bracket
e
Amplifier 2
board
CN304
(CN604)
d
Fan
Fig.13
d
d
d
d
Rear panel Rear cove
Fig.12
(No.MB531)1-15
3.1.7 Removing the rear panel
(See Fig.14)
• Remove the metal cover and fan.
(1) Remove the two screws J and eleven screws K attaching
the rear panel. [For DX-T99, DX-T77]
(2) Remove the two screws J and ten screws K attaching the
rear panel. [For DX-T66]
(3) Release the section f of the rear panel and remove the
joints g of the mecha chassis in the direction of the arrow.
(4) Remove the rear panel from the main body.
[DX-T99, DX-T77]
K
g
Rear panel
K
Mecha chassis
g
K
K
f
[DX-T66]
K
g
K
J
f
Rear panel
K
Mecha chassis
g
1-16 (No.MB531)
K
K
K
J
ff
Fig.14
3.1.8 Removing the main board
(See Fig.15)
• Remove the metal cover, tuner, fan and rear panel.
(1) From the right side of the main body, remove the screw L
and screw M attaching the main board.
(2) From the inside of the main body, disconnect the card wires
from the connectors (CN820
of the main board.
(3) Disconnect the main board from the bridge board toward
this side while releasing the claw h of the connector CN850
on the main board.
(4) Disconnect the main board from the surround terminal
board in the direction of the arrow while releasing the claw
I of the connector CN860
[For DX-T99, DX-T77]
Note:
When releasing the claws (h, j) take care not to break them.
, CN830) on the forward side
on the surround terminal board.
M
Main board
L
Main board
j
CN860
CN820
CN830
Main board
h
CN850
Bridge board
Surround
terminal board
Fig.15
(No.MB531)1-17
3.1.9 Removing the amplifier 1 and amplifier 2 boards
(See Fig.16 to 18) [For DX-T99]
• Remove the metal cover, tuner, fan, rear panel and main
board.
(1) From the right side of the main body, remove the screw N
attaching the earth wires to the bottom chassis. (See
Fig.16)
Reference:
After reassembling, fix the earth wires with the spacer as
before. (See Fig.16)
(2) Disconnect the amplifier 2 board from the bridge board in
the direction of the arrow while releasing the claw k of the
connector CN200
(3) Disconnect the amplifier 1 board from the bridge board in
the direction of the arrow while releasing the claw k of the
connector CN201
Note:
When releasing the claws (k, l), take care not to break
them. (See Fig.17, 18)
(4) Take out the amplifier 1 board and amplifier 2 board togeth-
er from the main body.
(5) Remove the two screws P and remove the leaf spring. (See
Fig.18)
(6) Remove the two screws P and remove the amplifier 1
board from the heat sink. (See Fig.18)
(7) Remove the four screws P and remove the amplifier 2
board from the heat sink. (See Fig.18)
3.1.10 Removing the amplifier 1 and amplifier 2 boards
(See Fig.16 to 18) [For DX-T77, DX-T66]
• Remove the metal cover, tuner, fan, rear panel and main
board.
(1) From the right side of the main body, remove the crew N
attaching the earth wires to the bottom chassis. (See
Fig.16)
Reference:
After reassembling, fix the earth wires with the spacer as
before. (See Fig.16)
(2) Disconnect the amplifier 2 board from the bridge board in
the direction of the arrow while releasing the claw k of the
connector CN200
(3) Disconnect the amplifier 1 board from the bridge board in
the direction of the arrow while releasing the claw l of the
connector CN201
Note:
When releasing the claws (k, l), take care not to break
them. (See Fig.16, 17)
(4) Take out the amplifier 1 board and amplifier 2 board togeth-
er from the main board.
(5) Remove the two screws P and remove the leaf spring. (See
Fig.18)
(6) Remove the two screws P and remove the amplifier 1
board from the heat sink. (See Fig. 18) [For DX-T77]
(7) Remove the three screws P and remove the amplifier 2
board from the heat sink. (See Fig.18)
on the bridge board. (See Fig.16)
on the bridge board. (See Fig.17)
on the bridge board. (See Fig.16)
on the bridge board. (See Fig.17)
Bridge board Amplifier 2 board
Earth wires
N
Spacer
Amplifier 1 board
CN200
Bridge board
Fig.16
l
CN201
Bottom chassis
k
Bridge board
1-18 (No.MB531)
Bridge board
Fig.17
[DX-T99]
Amplifier 1 board Amplifier 2 board
[DX-T77]
P
P
Leaf spring
Amplifier 1 board Amplifier 2 board
Heat sink
P
P
P
P
P
P
[DX-T66]
Leaf spring
Amplifier 1 board Amplifier 2 board
Heat sink
P
Leaf spring
Fig.18
Heat sink
P
P
(No.MB531)1-19
3.1.11 Removing the primary board
(See Fig.19)
• Remove the metal cover, tuner, fan ,rear panel, main board,
amplifier 1 board and amplifier 2 board.
(1) From the left side of the main body, remove the screw Q at-
taching the primary board.
(2) Disconnect the wires from the connectors (CN103
on the primary board.
(3) Release the claw m of the connector CN104
board.
Note:
When releasing the claw m, take care not to break it.
(4) Disconnect the wires from connectors (CN101
the forward side of the primary board.
(5) Disconnect the power cord from the connector CN100
the primary board.
(6) Take out the primary board from the main body.
, CN106)
on the primary
, CN102) on
on
CN102
CN101
Bridge board
m
CN104
Primary board
CN103
CN106
3.1.12 Removing the primary board
(See Fig.20)
• Remove the metal cover, tuner, fan, rear panel, main board,
amplifier 1 board, amplifier 2 board and primary board.
(1) Remove the wire holders bundling the wires.
References:
After reassembling, bundle the wires with the wire hold-
ers as before.
(2) Remove the screw R attaching the bridge board.
(3) Take out the bridge board from the main body.
CN100
Power cord
Q
Primary board
Fig.19
Wire holders
1-20 (No.MB531)
Bridge board
R
Fig.20
3.1.13 Removing the surround terminal board
(See Fig.21) [For DX-T99, DX-T77]
• Remove the metal cover, tuner, fan, rear panel, main board,
amplifier 1 board, amplifier 2 board, primary board and bridge
board.
(1) Remove the screw S attaching the surround terminal board
on the bottom chassis.
(2) Remove the surround terminal board from the section (p,
q) of the bottom chassis.
(3) Take out the surround terminal board from the main body.
3.1.14 Removing the power transformer
(See Fig.21)
• Remove the metal cover, tuner, fan, rear panel, main board,
amplifier 1 board, amplifier 2 board, primary board and bridge
board.
(1) Remove the four screws T attaching the power transform-
er.
(2) Take out the power transformer from the main body.
Bottom chassis
T
q
T
Power transformer
TT
T
3.1.15 Removing the FL board
(See Fig.22)
• Remove the metal cover and front panel assembly.
(1) From the inside of the front panel assembly, remove the
parallel wire from the wire holder.
(2) Remove the eleven screws U and take out the FL board.
Surround terminal board
Front panel assembly
U
Fig.21
U
S
p
U
FL board
Fig.22
U
Wire holder
(No.MB531)1-21
3.1.16 Removing the cassette A mechanism assembly
(See Fig.23)
• Remove the metal cover and front panel assembly.
(1) From the inside of the front panel assembly, remove the
four screws V and W attaching the cassette A mechanism
assembly.
(2) Disconnect the card wires from the connectors (CN46
CN47) on the cassette A mechanism assembly.
(3) Take out the cassette A mechanism assembly from the
front panel assembly.
Reference:
Remove the trans shield as required.
Cassette A mechanism assembly
,
V
V
CN46
W
CN47
V
V
3.1.17 Removing the cassette B mechanism assembly
(See Fig.24)
• Remove the metal cover and front panel assembly.
(1) From the inside of the front panel assembly, remove the
four screws V and screw W attaching the cassette B mechanism assembly.
(2) Take out the cassette B mechanism assembly from the
front panel assembly.
Reference:
Remove the trans shield as required.
Front panel assembly Trans shield
Fig.23
Front panel assembly
VV
W
V
V
1-22 (No.MB531)
Cassette B mechanism assembly
Fig.24
Trans shield
3.1.18 Removing the microphone amplifier board
(See Fig.25, 26)
• Remove the metal cover, front panel assembly and cassette B
mechanism assembly.
(1) From the front side of the front panel assembly, pull out the
microphone volume knob. (See Fig.25)
(2) From the inside of the front panel assembly, remove the
two screws X and remove the support 1 board. (See
Fig.26)
(3) Remove the screw Y and remove the support 2 board.
(See Fig.26)
(4) Take out the microphone amplifier board from the front
panel assembly.
References:
After attaching the microphone amplifier board, fix the card
wire the spacer as before.
Front panel assembly
Microphone
volume knob
Fig.25
Front panel assembly Support 1 board
Support 2 board
Spacer
X
Y
Microphone amplifier board
Fig.26
(No.MB531)1-23
3.2 DVD changer mechanism assembly section (For DX-T99, DX-T77)
Remove the DVD changer mechanism assembly from the main body. (See "Removing the DVD changer mechanism assembly".)
3.2.1 Removing the tray assemblies
(See Figs.1 to 5)
(1) From the top side of the main body, remove the two screws
A from the top cover and release the two joints a on the
both sides of the DVD changer mechanism assembly. (See
Figs.1 and 2.)
(2) Remove the two rods from the top cover and remove the
top cover from the lifter assembly. (See Figs.1 and 2.)
(3) Remove the open det. lever on the left side of the DVD
changer mechanism assembly. (See Fig.3.)
(4) From the right side of the DVD changer mechanism as-
sembly, draw out the tray assemblies toward the front while
pushing the part b of the side (R) assembly. (See Figs.4
and 5.)
Note:
The tray can be locked if all tray assemblies are attached.
(5) From the topside of the DVD changer mechanism assem-
bly, move the stopper tabs c in the direction of the arrow
and release them. Pull out the tray assemblies from the
DVD changer mechanism assembly. (See Fig. 5.)
Note:
Remove the tray assembly from top tray 5 in order.
Reference:
When reattaching the tray assembly, or when removing the
disc remaining inside, refer to another section "3.3.15 Taking
out the disc in the play mode".
A
a
Lifter assembly
Fig.1
Rods
Top cover
A
a
Rods
Top cover
a
a
Lifter assembly
Fig.2
1-24 (No.MB531)
Fig.3
r
Open det. leve
Tray assemblies
c
b
Side(R) assembly
Fig.4
Tray assembly
Fig.5
(No.MB531)1-25
3.2.2 Removing the DVD servo board
(See Figs.6 to 8)
Caution:
Solder the short land sections d on the DVD pickup before disconnecting the card wire extending from the DVD pickup. If
you do not follow this instruction, the DVD pickup may be damaged.
(1) From the topside of the DVD changer mechanism assem-
bly, solder the short land sections d on the DVD pick up.
(See Fig.6.)
(2) From the bottom side of the DVD changer mechanism as-
sembly, disconnect the card wire from the connectors
(CN201
Reference:
(3) Disconnect the wires from the connectors (CN452
on the DVD servo board. (See Fig.7.)
(4) Remove the two screws B attaching the DVD servo board.
(See Fig.7.)
(5) From the reverse side of the DVD servo board, release the
lock of the connector CN101
and disconnect the card wire. (See Fig.8.)
Caution:
Unsolder the solders from the short land sections d after reassembling. (See Fig.6.)
3.2.3 Removing the switch board
(1) From the bottom side of the DVD changer mechanism as-
sembly, remove the screw C attaching the switch board on
the DVD changer mechanism assembly.
(2) Disconnect the wires from the connectors (CN452
on the DVD servo board.
(3) Release the wires from the section f and remove the switch
board.
(4) Release the wires from the sections g and remove the
switch board.
Reference:
When reassembling, pass the wires through the sections (f, g)
as before.
, CN451) on the DVD servo board. (See Fig.7.)
When connecting the card wire to the connector CN451
pass it through the sections e on the DVD traverse
mechanism assembly. (See Fig.7.)
, CN453)
in the direction of the arrow
(See Fig.7)
, CN453)
d
,
DVD changer mechanism assembly
Fig.6
DVD changer mechanism assembly
e
CN451
DVD pickup
CN453
f
g
Switch board
B
C
CN201
DVD servo board
DVD traverse mechanism assembly
DVD servo board
B
Fig.7
CN452
CN101
1-26 (No.MB531)
Lock
Fig.8
3.2.4 Removing the motor board
(See Figs.9 and 10)
(1) From the top side of the DVD changer mechanism assem-
bly, remove the two belts from the motor pulleys. (See
Fig.9.)
Note:
Take care not to attach grease on the belt.
(2) Remove the two screws D attaching the motors to the load-
er assembly. (See Fig.9.)
(3) From the bottom side of the DVD changer mechanism as-
sembly, remove the two screws E. (See Fig.10.)
(4) Disconnect the connector CN2
tray switch board and remove the motor board. (See
Fig.10.)
(5) Disconnect the card wire from the connector CN1
forward side of the motor board. (See Fig.10.)
Note:
When connecting the card wire, let the card wire through the
slots h of the motor board. (See Fig.10.)
Reference:
You need not to remove the tray assemblies, and in such case,
move it.
3.2.5 Removing the motor
(See Fig. 10)
• Remove the motor board.
(1) From the reverse side of the motor board, unsolder the four
soldered sections i on the motor board.
(2) From the forward side of the motor board, remove the mo-
tors.
on the motor board from the
on the
D
Belt
Motor Motor
Motor pulleys
Belt
D
Loader assembly
Fig.9
Motors
Motor board
i
Tray switch
board
E
CN2
CN1
h
DVD changer mechanism assembly
Fig.10
Motors
Motor board
E
(No.MB531)1-27
3.2.6 Removing the DVD traverse mechanism assembly
(See Fig.11)
• Remove the tray assemblies and DVD servo board.
(1) From the bottom side of the DVD changer mechanism as-
sembly, remove the three screws F attaching the DVD
traverse mechanism assembly.
(2) Remove the wires from the section j.
(3) Take out the DVD traverse mechanism assembly from the
DVD changer mechanism assembly.
DVD changer mechanism assembly
F
j
F
F
DVD traverse mechanism assembly
Fig.11
1-28 (No.MB531)

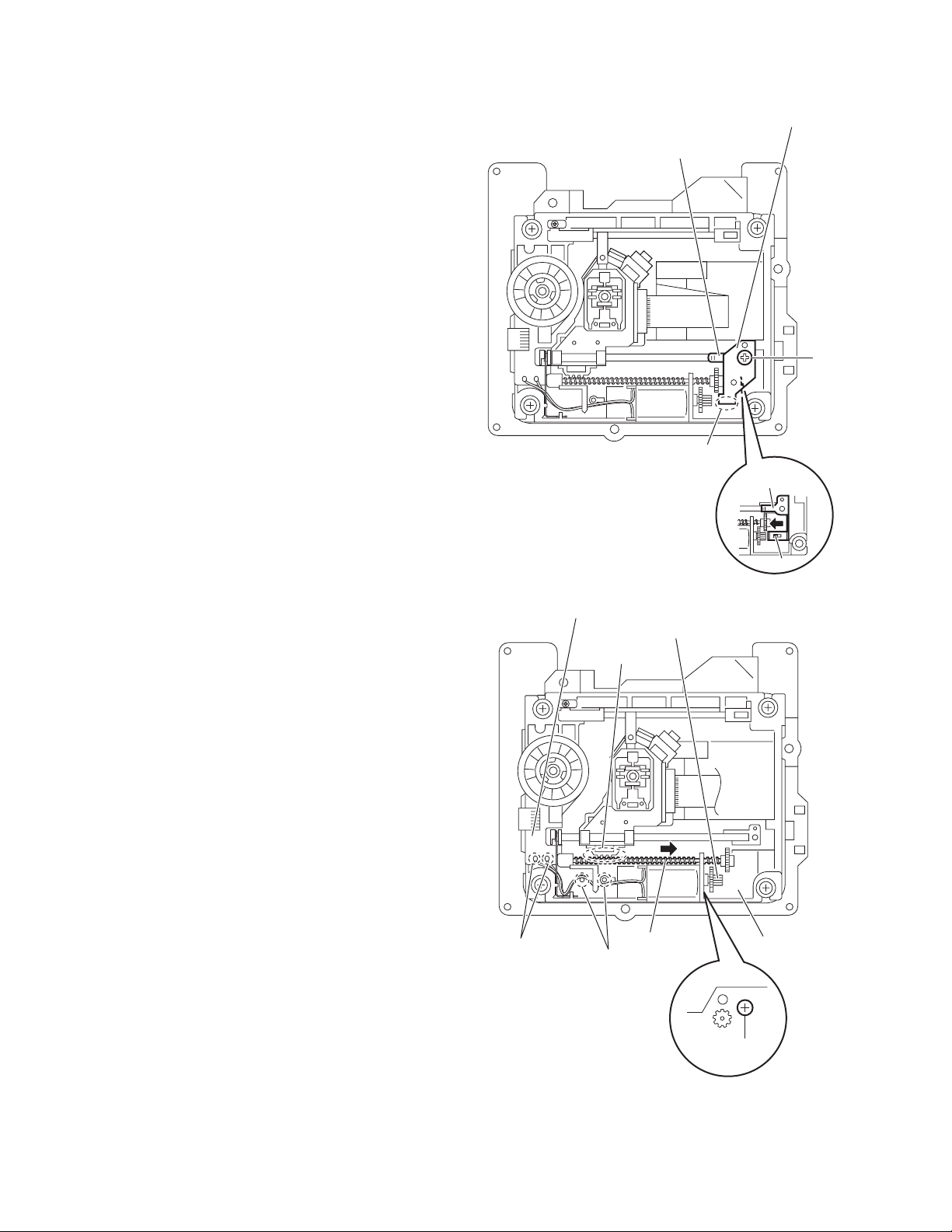

3.2.7 Removing the DVD pickup
(See Figs.12 to 14)
• Remove the tray assemblies, DVD servo board and DVD
traverse mechanism assembly.
(1) From the top side of the DVD traverse mechanism assem-
bly, release the lock of the connector on the DVD pickup
and disconnect the card wire in the direction of the arrow.
(See Fig.12.)
(2) Turn the screw shaft gear in the direction of the arrow 1 to
move the DVD pickup in the direction of the arrow 2. (See
Fig.12.)
(3) Remove the screw G attaching the feed bracket and re-
move the feed bracket from the sections k. (See Fig.12.)
(4) Release the claw m of the thrust spring in the direction of
the arrow and remove the thrust spring. (See Fig.12.)
(5) Remove the guide shaft from the sections (n, p) on the
C.TM chassis. (See Fig.13.)
(6) Remove the section q of the DVD pickup. (See Fig.13.)
(7) Remove the two screws H attaching the rack arm spring
and rack arm. (See Fig.14.)
(8) Pull the guide shaft from the DVD pickup in the direction of
the arrow. (See Fig.14.)
3.2.8 Attaching the DVD pickup
(See Figs.12 to 14)
(1) Attach the guide shaft to the DVD pickup and attach the
rack arm spring and rack arm with the screws H. (See
Fig.14.)
(2) Attach the section q of the DVD pickup to the C.TM chassis
first and attach the guide shaft to the sections (n, p). (See
Fig.13.)
Reference:
When attaching the guide shaft to the section p, attach it
under the rod spring. (See Fig.13.)
(3) Attach the thrust spring and feed bracket with the screw G.
(See Fig.12.)
(4) Turn the screw shaft gear in the direction of the arrow 1 to
move the DVD pickup in the direction of the arrow 2. (See
Fig.15.)
(5) Connect the card wire to the connector on the DVD pickup.
(See Fig.15.)
DVD traverse mechanism assembly
Thrust spring
Connector
Screw shaft gear
DVD pickup
Fig.12
DVD pickup
1
k
Thrust spring
q
Feed bracket
2
G
m
p
Rod spring
n
Guide shaft
C.TM chassis
Fig.13
(No.MB531)1-29
Guide shaft
DVD pickup
Rack arm
H
Rack arm spring
Fig.14
Connector
DVD pickup
222
Screw shaft gear
Fig.15
1
1-30 (No.MB531)
3.2.9 Removing the spindle motor board
(See Figs.16 and 17)
• Remove the tray assemblies, DVD servo board and DVD
traverse mechanism assembly.
(1) From the top side of the DVD traverse mechanism assem-
bly, remove the wires from the soldered sections r on the
spindle motor board. (See Fig.16.)
(2) From the bottom side of the DVD traverse mechanism as-
sembly, remove the three screws J attaching the spindle
motor board. (See Fig.17.)
Reference:
When attaching the spindle motor board, let the card wire
through the hole s on the C.TM chassis. (See Fig.17.)
DVD traverse mechanism assembly
Spindle motor board
r
Fig.16
DVD traverse mechanism assembly
s
J
C.TM chassis
Fig.17
(No.MB531)1-31
3.2.10 Removing the feed motor
(See Figs.18 and 19)
• Remove the tray assemblies and DVD traverse mechanism
assembly.
(1) From the top side of the DVD traverse mechanism assem-
bly, remove the screw K attaching the feed bracket and remove the feed bracket from the sections t. (See Fig.18.)
(2) Release the claw u of the thrust spring in the direction of
the arrow and remove the thrust spring. (See Fig.18.)
(3) Remove the screw shaft from the section v and remove it
in the direction of the arrow. (See Fig.19.)
(4) Remove the middle gear. (See Fig.19.)
(5) Remove the screw L attaching the feed motor to the C.TM
chassis. (See Fig.19.)
(6) Remove the wires from the soldered sections w on the
spindle motor board. (See Fig.19.)
(7) Take out the feed motor from the motor base.
Reference:
After attaching the feed motor, pass the wires through the sections x on the C.TM chassis as before. (See Fig.19.)
Feed bracket
Thrust spring
K
t
Thrust spring
Spindle motor board
w
x
Fig.18
Middle gear
v
Screw shaft
u
C.TM chassis
1-32 (No.MB531)
L
Fig.19
3.2.11 Removing the side (L) and tray switch board
(See Figs.20 to 22)
• Remove the tray assemblies.
(1) From the topside of the DVD changer mechanism assem-
bly, remove the two screws M attaching the side (L). (See
Fig.20.)
(2) From the left side of the DVD changer mechanism assem-
bly, disconnect the connector CN3
from the motor board and detach the side (L) in an upward
direction. (See Fig.21.)
(3) Remove the screw N attaching the tray switch board to the
side (L). (See Fig.22.)
(4) Release the joint tab y of the side (L) in the direction of the
arrow 1 and release the joint tab z while removing the tray
switch board in the direction of the arrow 2. (See Fig.22.)
on the tray switch board
SIde(L)
M
M
DVD changer mechanism assembly
Fig.20
M
Side(L)
M
CN3
Tray switch board
Motor board
Side(L)
Fig.21
y
1
Tray switch board
Fig.22
2
z
N
(No.MB531)1-33
3.2.12 Removing the side (R) assembly
(See Fig.23 to 27)
• Remove the tray assemblies and DVD servo board.
(1) From the inside of the side (R) assembly, release the two
tabs aa of the gear cover and remove the gear cover outward. (See Figs.23 and 24.)
(2) From the right side of the DVD changer mechanism as-
sembly, remove the elevator spring attached to the hook
ab of the loader assembly. (See Figs.24 and 25.)
(3) From the top side of the DVD changer mechanism assem-
bly, turn the gear 1 clockwise to move the elevator cam
rearward. (See Fig.25.)
(4) Move the two slots ac and joint ad of the elevator cam and
remove the elevator cam outward. (See Fig.25.)
(5) Remove the three screws P and detaches the side (R) as-
sembly upward. (See Figs.26 and 27.)
Note:
When reattaching the side (R) assembly, make sure to fit the
shaft (part ae) into the slot of the select lever. (See Fig.26.)
Side(R) assembly
aa
P
Elevator spring
ac
Fig.25
P
ae
ab
Elevator cam
acad
Select lever
Side(R) assembly
Gear cover
Loader assembly
P
Fig.23
Elevator spring
Gear 1
Side(R) assembly
Fig.26
P
ab
P
Fig.24
Side(R) assembly
Fig.27
1-34 (No.MB531)
3.2.13 Removing the lifter assembly
(See Figs.28 to 32)
• Remove the tray assemblies, DVD servo board, side (L) and
side (R) assembly.
(1) From the top side of the DVD changer mechanism assem-
bly, turn the gear 1 clockwise to move the lifter assembly
upward. (See Figs.28 and 29.)
(2) Turn the gear 2 clockwise to move the hook toward the
front until it stops. (See Figs.28 and 29.)
(3) Move the hook stopper in the direction of the arrow 2 while
pushing the tab af of the hook stopper to unlock it in the direction of the arrow 1 and release four joints ag to detach
from the rack holder. (See Fig.30.)
(4) Release the rod (L) from part ah. (See Fig.30.)
(5) Turn the gear 1 clockwise again to move the lifter assembly
upward. (See Fig.31.)
(6) Remove the lifter assembly from the DVD changer mecha-
nism assembly upward at the positions ai where the four
pins on the both sides of the lifter assembly fit to the notch-
es of the loader assembly. (See Fig.31.)
(7) Move the lifter assembly in the direction of the arrow and
release it from the hook. (See Fig.32.)
Hook stopper
Gear 2
Gear 1
ag
Rack holder
af
Hook
ag
1
ag
Hook stopper
Fig.30
Lifter assembly
ag
2
Rod(L)
ai
ah
ai
Hook
Gear 2
Lifter assembly
Fig.28
Gear 1
Lifter assembly
Gear 1
ai
Loader assembly
Fig.31
Lifter assembly
ai
Hook stopper
Hook
Fig.32
Hook
Fig.29
(No.MB531)1-35
3.2.14 Removing the sensor board and SV resistor
(See Fig.33)
• Remove the tray assemblies, side (L), side (R) assembly and
lifter assembly.
(1) Remove the solders from the soldered sections aj on the
sensor board and remove the wires.
(2) Remove the two screws Q and take out the sensor board
with the SV resistor.
Reference:
• Remove the soldered section ap on the sensor board as required.
• When reassembling, pass the wires through the slot ak of
the sensor board as before.
Note:
When reattaching the SV. resister, fit the projection am on the
bottom of the SV. resister into slot an of the sensor slider.
Sensor board
Q
ap
Q
ak
aj
SV resistor
am
an
SV resistor
Slider
Fig.33
1-36 (No.MB531)
3.2.15 Taking out the disc in the play mode
(See Fig.34 to 37)
Reference:
Refer to "3.3.1 Removing the tray assemblies".
(1) From the top side of the DVD changer mechanism assem-
bly, remove the top cover.
(2) Unlock the tray assemblies and draw out the tray assem-
blies toward the front.
(3) From the top side of the DVD changer mechanism assem-
bly, turn the gear 1 clockwise to move the lifter assembly
upward. (See Fig.34.)
(4) Turn the gear 2 clockwise to move the sub tray remaining
inside the lifter assembly toward the front, then pull out.
(See Fig.34.)
(5) Take out the disc on the sub tray. (See Fig.35.)
(6) After clearing away the disc, insert the sub tray into the
main tray. (See Fig.36.)
Note:
When reattaching the sub tray, move the tray stopper on
the bottom of the main tray in the direction of the arrow
to lock the sub tray certainly. (See Figs.36 and 37.)
(7) Push the tray assembly toward the DVD changer mecha-
nism assembly and reattach.
Tray assembly
Gear 2
Gear 1
Sub tray
Fig.34
Tray assembly
Fig.35
Disc
Sub tray
(No.MB531)1-37
Tray stopper
r
Main tray
Sub tray
Fig.36
Tray stoppe
1-38 (No.MB531)
Fig.37
3.3 DVD changer mechanism assembly section (For DX-T66)
Remove the DVD changer mechanism assembly from the main body. (See "Removing the DVD changer mechanism assembly".)

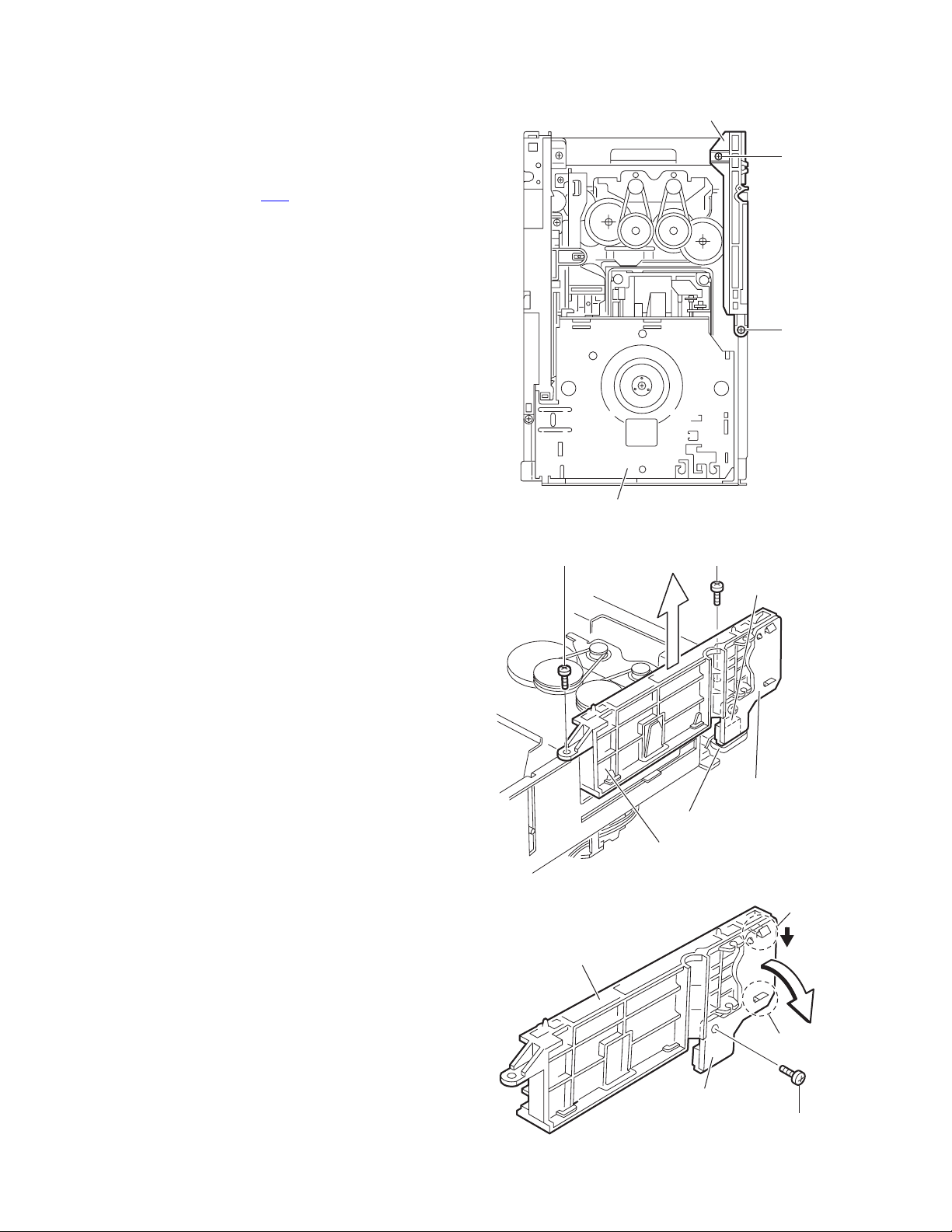

3.3.1 Removing the tray assemblies
(See Figs.1 to 5)
(1) From the top side of the main body, remove the two screws
A from the top cover and release the two joints a on the
both sides of the DVD changer mechanism assembly. (See
Figs.1 and 2.)
(2) Remove the two rods from the top cover and remove the
top cover from the lifter assembly. (See Figs.1 and 2.)
(3) Remove the open det. lever on the left side of the DVD
changer mechanism assembly. (See Fig.3.)
(4) From the right side of the DVD changer mechanism as-
sembly, draw out the tray assemblies toward the front while
pushing the part b of the side (R) assembly. (See Figs.4
and 5.)
Note:
The tray can be locked if all tray assemblies are attached.
(5) From the topside of the DVD changer mechanism assem-
bly, move the stopper tabs c in the direction of the arrow
and release them. Pull out the tray assemblies from the
DVD changer mechanism assembly. (See Fig. 5.)
Note:
Remove the tray assembly from top tray 5 in order.
Reference:
When reattaching the tray assembly, or when removing the
disc remaining inside, refer to another section "3.3.15 Taking
out the disc in the play mode".
A
a
Lifter assembly
Fig.1
Rods
Top cover
A
a
Rods
Top cover
a
a
Lifter assembly
Fig.2
(No.MB531)1-39
Fig.3
r
Open det. leve
Tray assemblies
c
b
Side(R) assembly
Fig.4
Tray assembly
1-40 (No.MB531)
Fig.5
3.3.2 Removing the DVD servo board
(See Figs.6 to 8)
Caution:
Solder the short land sections d on the DVD pickup before disconnecting the card wire extending from the DVD pickup. If
you do not follow this instruction, the DVD pickup may be damaged.
(1) From the topside of the DVD changer mechanism assem-
bly, solder the short land sections d on the DVD pick up.
(See Fig.6.)
(2) From the bottom side of the DVD changer mechanism as-
sembly, disconnect the card wire from the connectors
(CN201
Reference:
(3) Disconnect the wires from the connectors (CN452
on the DVD servo board. (See Fig.7.)
(4) Remove the two screws B attaching the DVD servo board.
(See Fig.7.)
(5) From the reverse side of the DVD servo board, release the
lock of the connector CN101
and disconnect the card wire. (See Fig.8.)
Caution:
Unsolder the solders from the short land sections d after reassembling. (See Fig.6.)
3.3.3 Removing the switch board
(1) From the bottom side of the DVD changer mechanism as-
sembly, remove the screw C attaching the switch board on
the DVD changer mechanism assembly.
(2) Disconnect the wires from the connectors (CN452
on the DVD servo board.
(3) Release the wires from the section f and remove the switch
board.
(4) Release the wires from the sections g and remove the
switch board.
Reference:
When reassembling, pass the wires through the sections (f, g)
as before.
, CN451) on the DVD servo board. (See Fig.7.)
When connecting the card wire to the connector CN451
pass it through the sections e on the DVD traverse
mechanism assembly. (See Fig.7.)
, CN453)
in the direction of the arrow
(See Fig.7)
, CN453)
d
,
DVD changer mechanism assembly
Fig.6
DVD changer mechanism assembly
e
CN451
DVD pickup
CN453
f
g
Switch board
B
C
CN201
DVD servo board
DVD traverse mechanism assembly
DVD servo board
B
Fig.7
CN452
CN101
Fig.8
Lock
(No.MB531)1-41
3.3.4 Removing the motor board
(See Figs.9 and 10)
(1) From the top side of the DVD changer mechanism assem-
bly, remove the two belts from the motor pulleys. (See
Fig.9.)
Note:
Take care not to attach grease on the belt.
(2) Remove the two screws D attaching the motors to the load-
er assembly. (See Fig.9.)
(3) From the bottom side of the DVD changer mechanism as-
sembly, remove the two screws E. (See Fig.10.)
(4) Disconnect the connector CN2
tray switch board and remove the motor board. (See
Fig.10.)
(5) Disconnect the card wire from the connector CN1
forward side of the motor board. (See Fig.10.)
Note:
When connecting the card wire, let the card wire through the
slots h of the motor board. (See Fig.10.)
Reference:
You need not to remove the tray assemblies, and in such case,
move it.
3.3.5 Removing the motor
(See Fig. 10)
• Remove the motor board.
(1) From the reverse side of the motor board, unsolder the four
soldered sections i on the motor board.
(2) From the forward side of the motor board, remove the mo-
tors.
on the motor board from the
on the
D
Belt
Motor Motor
Motor pulleys
Belt
D
Loader assembly
Fig.9
Motors
Motor board
i
Tray switch
board
E
CN2
CN1
h
DVD changer mechanism assembly
Fig.10
Motors
Motor board
E
1-42 (No.MB531)
3.3.6 Removing the DVD traverse mechanism assembly
(See Fig.11)
• Remove the tray assemblies and DVD servo board.
(1) From the bottom side of the DVD changer mechanism as-
sembly, remove the three screws F attaching the DVD
traverse mechanism assembly.
(2) Remove the wires from the section j.
(3) Take out the DVD traverse mechanism assembly from the
DVD changer mechanism assembly.
DVD changer mechanism assembly
F
j
F
F
DVD traverse mechanism assembly
Fig.11
(No.MB531)1-43
3.3.7 Removing the DVD pickup
(See Figs.12 to 14)
• Remove the tray assemblies, DVD servo board and DVD
traverse mechanism assembly.
(1) From the top side of the DVD traverse mechanism assem-
bly, release the lock of the connector on the DVD pickup
and disconnect the card wire in the direction of the arrow.
(See Fig.12.)
(2) Turn the screw shaft gear in the direction of the arrow 1 to
move the DVD pickup in the direction of the arrow 2. (See
Fig.12.)
(3) Remove the screw G attaching the feed bracket and re-
move the feed bracket from the sections k. (See Fig.12.)
(4) Release the claw m of the thrust spring in the direction of
the arrow and remove the thrust spring. (See Fig.12.)
(5) Remove the guide shaft from the sections (n, p) on the
C.TM chassis. (See Fig.13.)
(6) Remove the section q of the DVD pickup. (See Fig.13.)
(7) Remove the two screws H attaching the rack arm spring
and rack arm. (See Fig.14.)
(8) Pull the guide shaft from the DVD pickup in the direction of
the arrow. (See Fig.14.)
3.3.8 Attaching the DVD pickup
(See Figs.12 to 14)
(1) Attach the guide shaft to the DVD pickup and attach the
rack arm spring and rack arm with the screws H. (See
Fig.14.)
(2) Attach the section q of the DVD pickup to the C.TM chassis
first and attach the guide shaft to the sections (n, p). (See
Fig.13.)
Reference:
When attaching the guide shaft to the section p, attach it
under the rod spring. (See Fig.13.)
(3) Attach the thrust spring and feed bracket with the screw G.
(See Fig.12.)
(4) Turn the screw shaft gear in the direction of the arrow 1 to
move the DVD pickup in the direction of the arrow 2. (See
Fig.15.)
(5) Connect the card wire to the connector on the DVD pickup.
(See Fig.15.)
DVD traverse mechanism assembly
Thrust spring
Connector
Screw shaft gear
DVD pickup
Fig.12
DVD pickup
1
k
Thrust spring
q
Feed bracket
2
G
m
1-44 (No.MB531)
p
Rod spring
n
Guide shaft
C.TM chassis
Fig.13
Guide shaft
DVD pickup
Rack arm
H
Rack arm spring
Fig.14
Connector
DVD pickup
222
Screw shaft gear
Fig.15
1
(No.MB531)1-45
3.3.9 Removing the spindle motor board
(See Figs.16 and 17)
• Remove the tray assemblies, DVD servo board and DVD
traverse mechanism assembly.
(1) From the top side of the DVD traverse mechanism assem-
bly, remove the wires from the soldered sections r on the
spindle motor board. (See Fig.16.)
(2) From the bottom side of the DVD traverse mechanism as-
sembly, remove the three screws J attaching the spindle
motor board. (See Fig.17.)
Reference:
When attaching the spindle motor board, let the card wire
through the hole s on the C.TM chassis. (See Fig.17.)
DVD traverse mechanism assembly
Spindle motor board
r
Fig.16
DVD traverse mechanism assembly
s
J
C.TM chassis
Fig.17
1-46 (No.MB531)
3.3.10 Removing the feed motor
(See Figs.18 and 19)
• Remove the tray assemblies and DVD traverse mechanism
assembly.
(1) From the top side of the DVD traverse mechanism assem-
bly, remove the screw K attaching the feed bracket and remove the feed bracket from the sections t. (See Fig.18.)
(2) Release the claw u of the thrust spring in the direction of
the arrow and remove the thrust spring. (See Fig.18.)
(3) Remove the screw shaft from the section v and remove it
in the direction of the arrow. (See Fig.19.)
(4) Remove the middle gear. (See Fig.19.)
(5) Remove the screw L attaching the feed motor to the C.TM
chassis. (See Fig.19.)
(6) Remove the wires from the soldered sections w on the
spindle motor board. (See Fig.19.)
(7) Take out the feed motor from the motor base.
Reference:
After attaching the feed motor, pass the wires through the sections x on the C.TM chassis as before. (See Fig.19.)
Feed bracket
Thrust spring
K
t
Thrust spring
Spindle motor board
w
x
Fig.18
Middle gear
v
Screw shaft
u
C.TM chassis
Fig.19
L
(No.MB531)1-47
3.3.11 Removing the side (L) and tray switch board
(See Figs.20 to 22)
• Remove the tray assemblies.
(1) From the topside of the DVD changer mechanism assem-
bly, remove the two screws M attaching the side (L). (See
Fig.20.)
(2) From the left side of the DVD changer mechanism assem-
bly, disconnect the connector CN3
from the motor board and detach the side (L) in an upward
direction. (See Fig.21.)
(3) Remove the screw N attaching the tray switch board to the
side (L). (See Fig.22.)
(4) Release the joint tab y of the side (L) in the direction of the
arrow 1 and release the joint tab z while removing the tray
switch board in the direction of the arrow 2. (See Fig.22.)
on the tray switch board
SIde(L)
M
M
DVD changer mechanism assembly
Fig.20
M
Side(L)
M
CN3
Tray switch board
Motor board
Side(L)
Fig.21
y
1
1-48 (No.MB531)
2
z
Tray switch board
N
Fig.22
3.3.12 Removing the side (R) assembly
(See Fig.23 to 27)
• Remove the tray assemblies and DVD servo board.
(1) From the inside of the side (R) assembly, release the two
tabs aa of the gear cover and remove the gear cover outward. (See Figs.23 and 24.)
(2) From the right side of the DVD changer mechanism as-
sembly, remove the elevator spring attached to the hook
ab of the loader assembly. (See Figs.24 and 25.)
(3) From the top side of the DVD changer mechanism assem-
bly, turn the gear 1 clockwise to move the elevator cam
rearward. (See Fig.25.)
(4) Move the two slots ac and joint ad of the elevator cam and
remove the elevator cam outward. (See Fig.25.)
(5) Remove the three screws P and detaches the side (R) as-
sembly upward. (See Figs.26 and 27.)
Note:
When reattaching the side (R) assembly, make sure to fit the
shaft (part ae) into the slot of the select lever. (See Fig.26.)
Side(R) assembly
aa
P
Elevator spring
ac
Fig.25
P
ae
ab
Elevator cam
acad
Select lever
Side(R) assembly
Gear cover
Loader assembly
P
Fig.23
Elevator spring
Gear 1
Side(R) assembly
Fig.26
P
ab
P
Fig.24
Side(R) assembly
Fig.27
(No.MB531)1-49
3.3.13 Removing the lifter assembly
(See Figs.28 to 32)
• Remove the tray assemblies, DVD servo board, side (L) and
side (R) assembly.
(1) (1) From the top side of the DVD changer mechanism as-
sembly, turn the gear 1 clockwise to move the lifter assembly upward. (See Figs.28 and 29.)
(2) Turn the gear 2 clockwise to move the hook toward the
front until it stops. (See Figs.28 and 29.)
(3) Move the hook stopper in the direction of the arrow 2 while
pushing the tab af of the hook stopper to unlock it in the direction of the arrow 1 and release four joints ag to detach
from the rack holder. (See Fig.30.)
(4) Release the rod (L) from part ah. (See Fig.30.)
(5) Turn the gear 1 clockwise again to move the lifter assembly
upward. (See Fig.31.)
(6) Remove the lifter assembly from the DVD changer mecha-
nism assembly upward at the positions ai where the four
pins on the both sides of the lifter assembly fit to the notch-
es of the loader assembly. (See Fig.31.)
(7) Move the lifter assembly in the direction of the arrow and
release it from the hook. (See Fig.32.)
Hook stopper
Gear 2
Gear 1
ag
Rack holder
af
Hook
ag
1
ag
Hook stopper
Fig.30
Lifter assembly
ag
2
Rod(L)
ai
ah
ai
Hook
Gear 2
Lifter assembly
Fig.28
Gear 1
Lifter assembly
Gear 1
ai
Loader assembly
Fig.31
Lifter assembly
ai
Hook stopper
1-50 (No.MB531)
Hook
Fig.32
Hook
Fig.29
3.3.14 Removing the sensor board and SV resistor
(See Fig.33)
• Remove the tray assemblies, side (L), side (R) assembly and
lifter assembly.
(1) Remove the solders from the soldered sections aj on the
sensor board and remove the wires.
(2) Remove the two screws Q and take out the sensor board
with the SV resistor.
Reference:
• Remove the soldered section ap on the sensor board as required.
• When reassembling, pass the wires through the slot ak of
the sensor board as before.
Note:
When reattaching the SV. resister, fit the projection am on the
bottom of the SV. resister into slot an of the sensor slider.
Sensor board
Q
ap
Q
ak
aj
SV resistor
am
an
SV resistor
Slider
Fig.33
(No.MB531)1-51
3.3.15 Taking out the disc in the play mode
(See Fig.34 to 37)
Reference:
Refer to "3.3.1 Removing the tray assemblies".
(1) From the top side of the DVD changer mechanism assem-
bly, remove the top cover.
(2) Unlock the tray assemblies and draw out the tray assem-
blies toward the front.
(3) From the top side of the DVD changer mechanism assem-
bly, turn the gear 1 clockwise to move the lifter assembly
upward. (See Fig.34.)
(4) Turn the gear 2 clockwise to move the sub tray remaining
inside the lifter assembly toward the front, then pull out.
(See Fig.34.)
(5) Take out the disc on the sub tray. (See Fig.35.)
(6) After clearing away the disc, insert the sub tray into the
main tray. (See Fig.36.)
Note:
When reattaching the sub tray, move the tray stopper on
the bottom of the main tray in the direction of the arrow
to lock the sub tray certainly. (See Figs.36 and 37.)
(7) Push the tray assembly toward the DVD changer mecha-
nism assembly and reattach.
Tray assembly
Gear 2
Gear 1
Sub tray
Fig.34
Tray assembly
Fig.35
Disc
Sub tray
1-52 (No.MB531)
Tray stopper
r
Main tray
Sub tray
Fig.36
Tray stoppe
Fig.37
(No.MB531)1-53
3.4 Cassette mechanism assembly (For cassette A)
3.4.1 Removing the Play head
(See Fig.1 to 3)
(1) While moving the trigger arm on the right side of the head
mount in the direction of the arrow, turn the flywheel R
counterclockwise until the head mount comes ahead and
clicks.
(2) The head turns counterclockwise as you turn the flywheel
R counterclockwise (See Fig.2 and 3).
(3) Disconnect the flexible wire from connector CN48
head amplifier board.
(4) Remove the spring from the back of the head.
(5) Loosen the azimuth screw for reversing attaching the head.
(6) Remove the head on the front side of the head mount.
on the
Cassette mechanism assembly
Fly wheel R
Head mount
Head
Flexible wire
Head
Trigger arm
Fig.1
Fly wheel R
Fig.2
Azimuth screw
for reversing
Spring
1-54 (No.MB531)
CN48
Fig.3
3.4.2 Removing the head amplifier board
(See Fig.4)
(1) Turn over the cassette mechanism assembly and remove
the three screws A attaching the head amplifier board.
(2) Disconnect the flexible wire from connector CN8
head amplifier board.
(3) Disconnect connector CN41
from connector CN1 on the cassette switch board.
Reference:
If necessary, unsolder the 4-pin wire soldered to the main motor.
3.4.3 Removing the main motor
(See Fig.4 to 7)
(1) Remove the two screws B.
(2) Half raise the motor and remove the capstan belt from the
motor pulley.
Attention:
Be careful to keep the capstan belt from grease. When reassembling, refer to Fig.6 and 7 for attaching the capstan belt.
Head amplifier board
of the head amplifier board
on the
Main motor assembly
Motor pulley
Capstan belt
Fig.6
CN48
Flexible wire
Capstan belt
A
A
CN41
4pin wire
A
Main motor assembly
Fig.4
Main motor assembly
B
Fly wheel
Capstan belt
Main motor assembly
Motor pulley
Fig.7
Fig.5
(No.MB531)1-55
3.4.4 Removing the flywheel
(See Fig.8, 9)
• Prior to performing the following procedure, remove the head
amplifier board and the main motor assembly.
(1) From the front side of the cassette mechanism, remove the
slit washers attaching the capstan shaft L and R.
(2) Pull out the flywheels backward.
Fly wheel R Fly wheel L
Fig.8
3.4.5 Removing the cassette switch board and solenoid
(See Fig.10)
• Prior to performing the following procedure, remove the head
amplifier board.
(1) Remove the screw C.
(2) Release the tab a, b, c, d and e retaining the cassette
switch board.
(3) Release the tab f and g attaching the solenoid on the cas-
sette switch board.
(4) The cassette switch board and solenoid come off.
Fly wheel R
Capstan shaft R
Solenoid
g
f
Fly wheel L
Slit washer
Fig.9
Cassette switch board
c
b
a
Capstan shaft L
d
C
1-56 (No.MB531)
e
Fig.10
3.4.6 Reattaching the Play head
r
(See Fig.11 to 13)
(1) Reattaching the head mount assembly.
a) Change front of the direction cover of the head mount
assembly to the left (Turn the head forward).
b) Fit the bosses O', P', Q', U' and V' on the head mount
assembly to the holes P and V, the slots O, U and Q of
the mechanism sub assembly (See Fig.11 to 13).
(2) Tighten the azimuth screw for reversing.
(3) Reattach the spring from the back of the Play head.
(4) Connect the flexible wire to connector CN48
amplifier board.
on the head
P'O'P'
V'
V'
U' Q'
Head mount assembly
Head mount assembly
O
P
Q
V
Direction cove
Fig.11
Direction
cover
U
Fig.12
Head
Spring
Flexible wire
Azimuth screw for reversing
CN48
Head amplifier board
Fig.13
Head mount
(No.MB531)1-57
3.5 Cassette mechanism assembly (For cassette B)
3.5.1 Removing the Play/Record & Clear head
(See Fig.1~3)
(1) While moving the trigger arm on the right side of the head
mount in the direction of the arrow, turn the flywheel R
counterclockwise until the head mount comes ahead and
clicks.
(2) The head turns counterclockwise as you turn the flywheel
R counterclockwise (See Fig.2 and 3).
(3) Disconnect the flexible wire from connector CN31
head amplifier & mechanism control board.
(4) Remove the spring from the back of the head.
(5) Loosen the azimuth screw for reversing attaching the head.
(6) Remove the head on the front side of the head mount.
on the
Cassette mechanism assembly
Fig.1
Head
Fly wheelR
Trigger armHead mount
Flexible wire
Fly wheel R
Fig.2
Azimuth screw
Head
for reversing
Spring
CN31
Head amplifer & mecha control board
Fig.3
1-58 (No.MB531)
3.5.2 Removing the head amplifier & mechanism control board
(See Fig.4)
(1) Turn over the cassette mechanism assembly and remove
the three screws A attaching the head amplifier & mechanism control board.
(2) Disconnect the flexible wire from connector CN31
head amplifier & mechanism control board.
(3) Disconnect connector CN32
anism control board from connector CN1
board.REFERENCE: If necessary, unsolder the 4-pin wire
soldered to the main motor.
3.5.3 Removing the main motor
(See Fig.4~7)
(1) Remove the two screws B .
(2) Half raise the motor and remove the capstan belt from the
motor pulley.
ATTENTION:
Be careful to keep the capstan belt from grease. When reassembling, refer to Fig.6 and 7 for attaching the capstan belt.
Head amplifier & mecha control board
of the head amplifier & mech-
on the reel pulse
on the
Main motor assembly
Capstan belt
Fig.5
Main motor assembly
CN31
Flexible wire
A
AA
Fig.4
CN32
4pin wire
B
Main motor assembly
Motor pulley
Capstan belt
Fig.6
Main motor assembly
Fly wheel
Capstan belt
Motor pulley
Fig.7
(No.MB531)1-59
3.5.4 Removing the flywheel
(See Fig.8, 9)
• Prior to performing the following procedure, remove the head
amplifier & mechanism control board and the main motor assembly.
(1) From the front side of the cassette mechanism, remove the
slit washers attaching the capstan shaft L and R. Pull out
the flywheels backward.
Fly wheel R Fly wheel L
Fig.8
Fly wheel R
Capstan shaft R Capstan shaft L
Slit washer
Fig.9
3.5.5 Removing the reel pulse board and solenoid
(See Fig.10)
• Prior to performing the following procedure, remove the head amplifier & mechanism control board.
(1) Remove the screw C.
(2) Release the tab a, b, c, d and e retaining the reel pulse board.
(3) Release the tab f and g attaching the solenoid on the reel pulse board.
(4) The reel pulse board and the solenoid come off.
Fly wheel L
bc
a
Solenoid
g
f
d
Reel pulse board
C
e
Fig.10
1-60 (No.MB531)
3.5.6 Reattaching the Play/ Record & Clear head
r
r
(See Fig.11~13)
(1) Reattaching the head mount assembly.
a) Change front of the direction cover of the head
mount assembly to the left (Turn the head forward).
b) Fit the bosses O', P', Q', U' and V' on the head mount
assembly to the holes P and V, the slots O, U and Q
of the mechanism sub assembly (See Fig.11 to 13).
CAUTION:
To remove the head mount assembly, turn the direction
cover to the left to disengage the gear. If the gear can not
be disengaged easily, push up the boss Q' slightly and
raise the rear side of the head mounts slightly to return
the direction lever to the reversing side.
(2) Tighten the azimuth screw for reversing.
(3) Reattach the spring from the back of the Play/ Record &
Clear head.
(4) Connect the flexible wire to connector CN31
amplifier & mechanism control board.
on the head
U' Q'
Head mount assembly
Head mount assembly
O'
Fig.11
P'
P'
V'
V'
Direction cove
Spring
Flexible wire
V
O
P
Q
Head
Direction cove
U
Fig.12
Azimuth screw for reversing
Head mount
CN31
Fig.13
Head amplifier &
mechanism control board
(No.MB531)1-61
SECTION 4
ADJUSTMENT
4.1 ATTENTION IN SERVICE OF DVD SECTION
(1) When pickup, Flash ROM, DVD module board were changed, initialize EEPROM by all means.
(2) When full initialization was executed, execute learning with a DVD test disc by all means.
Test disc : VT-501, VT-502
Learning method : It is adjusted automatically by normal playback of a DVD disc.
4.2 TEST MODE
ITEM OPERATION MANAGEMENT
TUNER AM switch to
9kHz step
TUNER AM switch to
10kHz step
STOP [key] +
(Only source TUNER)
STOP [key] +
(Only source TUNER)
AM frequency change to 9kHz at U-version.(During STANDBY MODE)
AM frequency change to 10kHz at U-version.(During STANDBY MODE)
Tray lock Loader-mecha is locked.
Cold start Cold start processing.
CLOCK FAST
FORWARDING
FAN ON/OFF setting Toggle between FAN switch ON and OFF.
VOLUME LARGE STEP
CHANGE
MICON VERSION DISPLAY TEMPORARY DISPLAY FOR MICON VERSION (5SEC)
LCD ALL SEGMENT
BLINKING
STOP [key] + DISC 1 EJECT
(Only during Standby mode)
[Remocon Key]
STANDBY/ON + ENTER + 0
[Remocon Key]
STANDBY/ON + ENTER + 2
STOP [key] + DISC 2 EJECT
(During STANDBY MODE)
[Remocon key]
STANDBY/ON + ENTER + 3
[Remocon key]
STANDBY/ON + ENTER + SET
[Remocon key]
STANDBY/ON + ENTER + 10
EJECT processing isn't done by pushing EJECT key at tray
lock on state.
Then display to LOCKED / UNLOCKED.
EJECT 1 is pushed, pushing STOP again, tray lock is off.
Back up to tray locked ON/OFF.
After cold start is activated, LCD 8 Segment temporary
display COLD' for 2 seconds. Then return to previous
display.
To activate cold start AC OFF system, then AC ON again.
Fast Forward clock (Increase clock counter speed)
Can only be activated after SYSTEM clock is set to exit
this TEST mode, AC OFF the system, then AC ON again.
(FAN-CTL : L -> H TOGGLE)
This test mode is only effective during STANDBY MODE.
Test mode exit when system STANDBY -> P.ON
VOLUME change
Volume step MAX (31) -> Volume step CENTER (15) toggle
Normal operation TEST mode.
System returns to normal operation after performing
VOLUME CHANGE.
After 5 seconds, return to previous display.
Each key press will toggle temporary display for the following:
SYSCON VERSION -> DVD LSI (BE) VERSION) -> DVD
MECHA VERSION
* DVD LSI (BE & FE) version can only been display during
system power on in DVD mode (When DVD LSI P.ON)
* IF there is no information feedback, sys-con will display
"WAIT" blinking 0.5sec ON & OFF
LCD all segment blinking (0.5sec : ON/0.5sec : OFF)
Each key press will toggle this TEST mode ON/OFF.
1-62 (No.MB531)
ITEM OPERATION MANAGEMENT
TUNER version
Test key code
DVD test mode Enters DVD-TEST mode.
DVD initialize DVD module initialized.
DVD region confirm mode Into the DVD region confirm mode.
[Remocon key]
STANDBY/ON + ENTER +1
STOP [key] + DISC 5 EJECT
(Hold during AC In)
PAUSE [key] during DVD test mode
STOP + EJECT4 [key]
Each key pressed will display the current Sys-con Tuner
Version for 5 second and then changed back to previous
display.
U1 - 9KHz Display " 0 V U S N E 9 K "
U1 - 10KHz Display " 0 V U S N E 1 0 K "
U2 - 9KHz Display " 1 V U W 9 K "
U2 - 10KHz Display " 1 V U W 1 0 K "
U3 - 9KHz Display " 2 V U X 9 K "
U3 - 10KHz Display " 2 V U X 1 0 K "
U4 - 9KHz Display " 3 V E E 9 K "
U5 - 10KHz Display " 4 V J C 1 0 K "
DVD-TEST mode specification based on DVD-MODULE
spec.
To exit DVD-TEST mode, AC OFF the system, then AC
ON again.
For region rewrite and DVD-AUDIO device key writing, refer
to region rewrite and device key writing section below for
exit procedure.
Display will return to DVD test mode area display
(" T xxy vw ")
Press Power key to exit this TEST mode.
* DVD region check can only been display during system
power on in DVD mode (when DVD LSI P.ON)
Temporary display region code on LCD for 5 seconds.
* If there is no information feedback, sys-con will display
"WAIT" blinking 0.5SEC ON & OFF.
* LCD will display "AREA xxRY" where "AREAxx" is the
DESTINATION INFO & R is the REGION INFO.
After 5 seconds, return to previous display.
4.3 Other test mode's operation
4.3.1 To enter DVD TEST mode
a. AC power off.
b. Press and hold STOP + DVD5 EJECT/CLOSE keys.
c. AC power On while holding STOP + DVD5 EJECT/CLOSE keys.
d. DVD mecha will start in TEST MODE, LCD will display:
Txyxvw
xx is the received DESTINATION information. Display as follows;
xx = JC/1U/D/E/2U/3U/UB/UT/4U/UY/EE/UF
y = region number
v = study state information from MECHA-CON (Display Byte3 when Byte7 is "0x09)
w = initialization state from MECHA-CON (Display Byte4 when Byte7 is "0x09". Display blank when Byte4 is "0xFF".)
4.3.2 To exit DVD TEST mode
a. During TEST MODE (except for Device key write & DVD Region Re-write), press POWER key and wait until "POFF OK" is
displayed for 5sec, then system goes into Standby Mode & Backlight LED is off.
This means that System now successfully exit the DVD Test Mode & back to normal mode.
4.3.3 EEPROM initialization
(1) Normal initialization
a. During DVD TEST MODE, press 3D PHONIC key on remote control to start NORMAL EEPROM INITIALIZATION.
b. Mecha will feedback the following information after finish INITIALIZATION;
Status: Byte 0 = 0x00 (NORMAL), Byte 7 = 0x09, Byte 4 = initialization state
c. When received status, LCD will display;
Txyxvw
w = initialization state from MECHA-CON (Display Byte4 when Byte7 is "0x09. Display blank when Byte4 is "0xFF".)
(2) Full initialization
a. During DVD TEST MODE, press >>| key on set 2 seconds control to start FULL INITIALIZATION.
b. Mecha will feedback the following information after finish INITIALIZATION;
Status: Byte 0 = 0x00 (NORMAL), Byte 7 = 0x09, Byte 4 = initialization state
c. When received status, LCD will display;
Txyxvw
w = initialization state from MECHA-CON (Display Byte4 when Byte7 is "0x09. Display blank when Byte4 is "0xFF".)
(No.MB531)1-63
4.3.4 DVD check modes
Press MENU key again to enter CHECK MODE. (TEST MODE, MODE STATE, CHECK MODE)
LCD display
CHECK
Press "1" key on remote control to start playback.
LCD display
PL A AYB KC
Press "2" key on remote control to perform SEARCH TNO+1
LCD display
WO B EBL
Status: 00 (NORMAL) XX XX cc cc jj jj
ccc jcj jj
Press "3" key on remote control to perform SEARCH TNO+1
LCD display
CHECK
Press "4" key on remote control to light up CD_LD and display laser current.
LCD display
CDL LDRS
Status: 00 (NORMAL) XX XX cc cc jj jj
ccc jcj jj
Press "5" key on remote control to light up DVD_LD and display laser current.
LCD display
DVDL LDRS
Status: 00 (NORMAL) XX XX cc cc jj jj
ccc jcj jj
Press "6" key on remote control to enter DVD x 2 jitter measurement mode
LCD display
JI TX1
Status: 00 (NORMAL) XX XX cc cc jj jj
ccc jcj jj
Press "9" key on remote control to perform SEARCH DVD_SL DESIGNATED POSITION and JITTER MEASUREMENT
LCD display
DLVD S
Status: 00 (NORMAL) XX XX cc cc jj jj
ccc jcj jj
Press "+10" key to INITIALIZE EEPROM (MECHA)
LCD display
INIT
(2 seconds)
cccc: Byte 0 = 0x00, Byte 7 = 0x00, Byte 3,4 -> DISPLAY
j j j j: Byte 0 = 0x00, Byte 7 = 0x00, Byte 5,6 -> DISPLAY
(2 seconds)
(Static)
cccc: Byte 0 = 0x00, Byte 7 = 0x00, Byte 3,4 -> DISPLAY
j j j j: Byte 0 = 0x00, Byte 7 = 0x00, Byte 5,6 -> DISPLAY
(2 seconds)
(Static)
cccc: Byte 0 = 0x00, Byte 7 = 0x00, Byte 3,4 -> DISPLAY
j j j j: Byte 0 = 0x00, Byte 7 = 0x00, Byte 5,6 -> DISPLAY
(2 seconds)
(Static)
cccc: Byte 0 = 0x00, Byte 7 = 0x00, Byte 3,4 -> DISPLAY
j j j j: Byte 0 = 0x00, Byte 7 = 0x00, Byte 5,6 -> DISPLAY
(2 seconds)
(Static)
cccc: Byte 0 = 0x00, Byte 7 = 0x00, Byte 3,4 -> DISPLAY
j j j j: Byte 0 = 0x00, Byte 7 = 0x00, Byte 5,6 -> DISPLAY
Press PLAY key on remote control to start PLAYING and obtain LASER CURRENT and JITTER value.
LCD display
LTSR J I
ccc jcj jj
Press STOP key on remote control to stop JITTER measurement.
LCD display
CH KEC
During CHECK mode, at any time press MENU key to exit CHECK mode and return to starting screen of DVD TEST MODE.
* During TEST mode, at press POWER key send POWER OFF command to MECHA-CON and if power off permit flag is 1,
display "POFF OK"
PO KFFO
1-64 (No.MB531)
(2 seconds)
Status: 00 (NORMAL) XX XX cc cc jj jj
(Static)
cccc: Byte 0 = 0x00, Byte 7 = 0x00, Byte 3,4 -> DISPLAY
j j j j: Byte 0 = 0x00, Byte 7 = 0x00, Byte 5,6 -> DISPLAY
(Static)
SECTION 5
TROUBLESHOOTING
This service manual does not describe TROUBLESHOOTING.
(No.MB531)1-65
Victor Company of Japan, Limited
Audio/Video Systems Category 10-1,1chome,Ohwatari-machi,Maebashi-city,371-8543,Japan
(No.MB531)
Printed in Japan
VPT
SCHEMATIC DIAGRAMS
COMPACT COMPONENT SYSTEM
DX-T99A,DX-T99EE,DX-T99US,DX-T99UW
DX-T99UX,DX-T99UG,DX-T99UN
DX-T77EE,DX-T77US,DX-T77UW,DX-T77UX
DX-T77UY,DX-T77UG,DX-T77UN
DX-T66EE,DX-T66US,DX-T66UW,DX-T66UX
DX-T66UY,DX-T66UG,DX-T66UN
CD-ROM No.SML200606
SP-DXT99C
SUPER VIDEO
CA-DXT66SP-DXT99W SP-DXT66FSP-DXT66F CA-DXT77SP-DXT77S SP-DXT77SSP-DXT99WSP-DXT99FSP-DXT99F
SUPER VIDEO
Lead free solder used in the board (material : Sn-Ag-Cu, melting point : 219 Centigrade)
Contents
Block diagrams
Standard schematic diagrams
Printed circuit boards
COPYRIGHT 2006 Victor Company of Japan, Limited.
CA-DXT99SP-DXT99S SP-DXT99SSP-DXT99WSP-DXT99W SP-DXT99FSP-DXT99F
SP-DXT77C
SUPER VIDEO
2-1
2-4
2-23 to 29
No.MB531SCH
2006/6
In regard with component parts appearing on the silk-screen printed side (parts side) of the PWB diagrams, the
parts that are printed over with black such as the resistor ( ), diode ( ) and ICP ( ) or identified by the " "
mark nearby are critical for safety.
Block diagrams
DVD servo and system control section
A, B, C, D, E, F, RF+, LPC1, LPC2
DVD traverse
mechanism
DVD traverse
mechanism
PB
HEAD
REC/PB
ERASE
HEAD
CN101
LD(CD)
LD(DVD)
FM+/WOUT
VOUT
UOUT
CN201
COM
F+/T+/-
IC201
SPDRV, TRSDRV
FODRV, TRDRV, FG
DRVMUTE, SPMUTE
DRVER
DVD tray control section
SW1 to SW5
TRAY CLOSE SW
SW6
TRAY OPEN SW
TRAY/POSITION
MOTOR
M
IC1, IC2
TRAY / POSITION
MOTOR DRIVER
Tape A playback section
CN48 FW100
VR37
MOTOR
SPEED Adj.
M
MB
SOLENOID
IC41
AMP
Q460,Q461
PB MUTE
SW2,SW6
SWITCH
PLAY
TAP E
Tape B record and playback section
CN31 FW100
REC/PLAY
FREQUENCY
RESPONSE Adj.
L301
BIAS
OSC
VR37
MOTOR
SPEED Adj.
M
MB
SW1,SW2
SW5,SW6
SWITCH
RREC,FREC
PLAY,TAPE
SOLENOID
(for DX-T99)
LPCO1, LPCO2
Q101
CDLDCUR,DVDLDCUR
to
Q104
TR1_CL to
TR5_CL
M.TR_OP
CN3
CN2
TR_OP, TR_CL
POS_UP, POS_DOWN
A_PBL/R
PBMUTE
IC1
REEL
PULSE
PHOTO+B
SOL
Q302,Q305
BIAS OSC/CONT.
PULSE
PHOTO+B
SOL
CN1
IC32
AUDIO SIGNAL
PROCESSOR
IC1
REEL
CN42
X301
27MHz
TRVSW
IC301
DV3.2
R1
POSITION
SENSOR
SW8
SUB TRAY
END SW
IC43
SERIAL TO PARALLEL
PORT EXTENSION
SOLCTRL
Q485,Q486
SOLENOID
DRIVE
SOL
CN41
RECL/R
B_PBL/R
RECL/R
B_PBL/R
RECH
PBMUTE
RECB
SERIAL TO PARALLEL
PORT EXTENSION
SOLCTRL
Q375,Q376
SOLENOID
DRIVE
CN32
SOL
MA0 to MA11, BA0, BA1, MCK
MDQ0 to 15, DQM0, DQM1
NCSM, NRAS, NCAS, NWE
SDA, SCL, WP
IC510
EEPROM
DISCSET, DISCSTP
SCS, UCS, UCLK, S2UDT, U2SDT
CPURST
EXADT0 to 15
EXDT0 to 15, EXADR16 to 20
NEXCE,NEXOE, NEXWE
IC509
FLASH ROM
CN453
W2
LSENSOR
CN452
W1
STEDSW
CLSWT1 to 5
MOTPSW
CN451
CN1
STTA_A
MOTOR
Q481,Q482
MOTOR
DRIVE
MB
PLAYA
PHOTOA
KEY_A
SDATA
SCK
STTA_B
IC33
MOTOR
Q371,Q372
MOTOR
DRIVE
MB
POSMUP
POSMDN
MTOP, MTCL
SDATA
SCK
CN46CN47
CN33CN34
X451
8MHz
KEYB
PLAYB
PHOTOB
STTA_B
PLAYB
PHOTOB
KEY_B
IC505
SDRAM
IC451
MECHA
CONT.
EEPROM
CN45
TO
TUNER
PAC K
AUX IN
DISPRST
DISPBUSY
DISPCS
DISPCK
DISPD2S
DISPS2D
EPDI
EPDO
EPCS
EPSK
IC452
TX, DAC1OUT (Y-2)
DAC2OUT (Cb), DAC3OUT (Cr)
DAC4OUT (Y-1), DAC5OUT (C)
AOUT1
AOUT2
BCK
LRCK
DAC1CS
DAC2CS
DACPDN
DACCK
DCLK
DDATA
IC702
IC703
RAOUTL/R
CAOUT
SWAOUT
CN701
CN703 CN702
DAC
AOUT0
BCK
LRCK
DAC0CS
DACPDN
DACCK
DCLK
DADATA
ADIN
BCK
LRCK
DACCK
ADCPDN
IC701
DAC
IC704
FAOUTL/R
AINL/R
ADC
LRMUTE
RECL/R
CN730
S-CK,S-DATA
A-STTA,B-STTA
A-PHOTO,B-PHOTO
A-PLAY,B-PLAY
TUDI
TUDO
TUCK
TUCE
CN750
J800
A-KEY,B-KEY
SLC-SAFETY
LVR IN
RVRIN
A-PBL/R
B-PBL/R
TUL/R
AUXL/R
IC820
MAIN
V-DI,V-CK,V-CEM
VOL
External input, source selector
and system control section
FL display section
D5004,Q5004
RHYTHM AX
LED
D5006
Q5006,Q5010
PRESET
LED
LED-RHY
D5005,Q5005
KARAOKE
SCORING LED
LDE-DIM, LED-ILLU
S5000
to S5034
KEY MATRIX
Video output section
CN930
DISPRST, DISPBUSY
DISPCS, DISPCK
DISPD2S, DISPS2D
DISPD2S, DISPCK
DISPCS, CPURST
VIDEO-MUTE
CN810 CN800
Q8070
RAOUTL/R
Q8170
LR MUTE
Q8080
CA MUTE
LRMUTE
FAOUTL/R
SWAOUT
IC800,IC801
FRONT
MIX AMP.
& LPF
Q8000,Q8100
FRONT
MIX MUTE
FL, FR
ADINL/R
IC810
DSP SW
LSELO
RSELO
SURROUND
PROCESSOR
EFFECTOR
F-KEY1 to F-KEY4
IC850
SP-OUTL/R
IC860
RHYTM
LED-KAOK
DELAY
MIC-SIG
Q7080
Q7081
RESET
EEPROM
IC888
MIC AMP.
CN720
CN500
IC500
DRIVER
Y-1 ,Y- 2
C,Cb,Cr
IC920
VIDEO
DRIVER
VIDEO-MUTE
CN920
CN760
DISPS2D
DISPBUSY
CS, U2SDT
LEVEL CONV.
V-DI,V-CK
V-CE 2
IC870
SURROUND
VOL
CENTER/REAR MUTE
CAOUT
IC880
V-DI
C &
V-CK
V-CE 1
MIC+ECHO
IC881
SW
VOL
SW
SW-AHB
AMP.
Q7798
SMUTE
RELAY-F/SW
DSP-SW
SP-DA
SP-CK
SP-WR
SP-REQ
SP-STB
IC770
SYSTEM
INH
RESET
IC771
MIC-DETECT
F-KEY1 to F-KEY4, REM, LED-STBY
LED-RHY,
FL-DA, FL-LA, FL-CK, FL-BK, FL-ON
FL-CON, FL-DATA
FL-CLK, FL-BK
FL-LATCH
FL
CPU
SDA
SCL
LED-KAOK, LED-ILLU, LED-DIM
LED-STBY
REM
REMOCON RECEIVER
P1 to P35
1G to 10G
+VPP
D5V,D5.6V
S5V,M5V,M9V
CN931
IC760
Q8071
Q8171
C/R-MUTE
Q7794
C/R-MUTE
Q8081
Q8180
C/SW
MUTE
SMUTE
IC830
AHB
LOUT
ROUT
RELAY-C/R
HPSW, HP-MUTE
D5007,Q5009
STANDBY LED
IC510
FL500
FL
Y,Cb,Cr
Y,C,CV
AMP-PON
POUT/FDVD
FAN-SPEED
FAN-CTRL
PRT
AMP-PON
RLIN
RRIN
C-IN
SWIN
FLIN
FRIN
Q8040
Q8140
SW
MUTE
RY712
RY767
Q7000
RELAY
RY734
RY750
RY756
Q7010
RELAY
MIC-IN
FL1
FL2
IC930
TX
DIGITAL OPTICAL OUT
J920
COMPONENT VIDEO OUT
J921
S-VIDEO/COMPOSITE VIDEO OUT
DC regulator and audio output section
CN830 CN820
CN302
AMP-PON
Q3101 to Q3104
STANDBY CTRL
SUR-L/R, CENTER
SURROUND/CENTER
Audio output section
CN402
Q4901 to Q4904
FL
FR
TO
SW
FRONT SPEAKER
AMP-PON
Q4101,Q4201
Q4601,Q4701
PROTECTOR
Q4401 to Q4404
STANDBY CTRL
FLIN
FRIN
SWIN
PRT
IC401,IC402
FRONT/SUBWOOFER
DC
IMP
AMP.
CN401
FL, FR
SW1,SW2
+/-VH,+/-VL
& SUBWOOFER
RL
RR
C
CN860J700
CN990
TO
J990
SURROUND
& CENTER
SPEAKER
CN200 CN201
DC, IMP
SW1, SW2
CN850
CN203
RL, RR, C
FL, FR
+/-VH
+/-VL
D2001
+/- VL BRIDGE
CN740
S2
CN204
S3
S3CT
CN104
D1000 to D1003
REGULATOR
S3
BRIDGE
S3
S2,S3CT
+/-VH
D1004 to D1011
+/- VH BRIDGE
S1
Q1001
FL BIAS
S4CT
FW500
VPP
CN105
Q1000
35V
REG.
VPP
F+/-
Primary board with main transformer section
IC301
AMP.
C
Q3401,Q3501
RL
RR
+/-VH
PROTECTOR
+/-VL
DC
IMP
CN301
Microphone circuit
section
FW910
CN202
HPL
HPR
HP-MUTE
CN101 CN102
S1
S2,S3
S3CT
CN103CN106
S4
S4CT
Q3601
FAN SPEED
FAN CTRL
Q3901,Q3902
FAN CONT.
POUT/FDVD
S3, S3CT
Q9100
to Q9104
HP MUTE
HP-SW
IC901
AMP.
MIC-IN
CN901
S1000
VOLTAGE
SELECTOR
SWTCH
T1001
TRANS.
CN303
D5V
D5.6V
S5V
M5V
M9V
FAN12V
IC302 to IC308
REG.
J910
PHONES
J901/J902
MIC1
MIC2
CN100
AC
INPUT
CN304
TO
FAN
2-1
(for DX-T77)
DVD traverse
mechanism
DVD traverse
mechanism
PB
HEAD
M
REC/PB
ERASE
HEAD
M
DVD servo and system control section
A, B, C, D, E, F, RF+, LPC1, LPC2
CN101
FM+/WOUT
VOUT
UOUT
CN201
COM
LD(CD)
LD(DVD)
F+/T+/-
IC201
DRVER
LPCO1, LPCO2
Q101
CDLDCUR,DVDLDCUR
to
Q104
SPDRV, TRSDRV
FODRV, TRDRV, FG
DRVMUTE, SPMUTE
X301
27MHz
TRVSW
DVD tray control section
SW1 to SW5
TRAY CLOSE SW
SW6
TRAY OPEN SW
TRAY/POSITION
MOTOR
TR1_CL to
TR5_CL
M.TR_OP
CN3
CN2
POSITION
SENSOR
SUB TRAY
END SW
M
IC1, IC2
TRAY / POSITION
MOTOR DRIVER
TR_OP, TR_CL
POS_UP, POS_DOWN
Tape A playback section
CN48 FW100
VR37
MOTOR
SPEED Adj.
MB
IC41
AMP
SW2,SW6
SWITCH
PLAY
TAP E
SOLENOID
Q460,Q461
PB MUTE
PHOTO+B
SOL
A_PBL/R
IC1
REEL
PULSE
PBMUTE
SERIAL TO PARALLEL
Q485,Q486
SOLENOID
CN41
CN1
PORT EXTENSION
DRIVE
Tape B record and playback section
CN31 FW100
REC/PLAY
FREQUENCY
RESPONSE Adj.
VR37
MOTOR
SPEED Adj.
MB
SOLENOID
L301
BIAS
OSC
SW1,SW2
SW5,SW6
SWITCH
RREC,FREC
PLAY,TAPE
BIAS OSC/CONT.
PHOTO+B
SOL
IC32
AUDIO SIGNAL
PROCESSOR
Q302,Q305
IC1
REEL
PULSE
CN42
RECB
Q375,Q376
SOLENOID
CN32
MA0 to MA11, BA0, BA1, MCK
MDQ0 to 15, DQM0, DQM1
NCSM, NRAS, NCAS, NWE
SDA, SCL, WP
IC301
DISCSET, DISCSTP
DV3.2
SCS, UCS, UCLK, S2UDT, U2SDT
CPURST
EXADT0 to 15
EXDT0 to 15, EXADR16 to 20
NEXCE,NEXOE, NEXWE
R1
SW8
IC43
SOLCTRL
SOL
RECL/R
B_PBL/R
RECL/R
B_PBL/R
RECH
PBMUTE
SERIAL TO PARALLEL
PORT EXTENSION
SOLCTRL
DRIVE
SOL
CN453
W2
CN452
W1
CN451
CN1
STTA_A
MOTOR
Q481,Q482
MOTOR
DRIVE
MB
PLAYA
PHOTOA
KEY_A
SDATA
SCK
STTA_B
IC33
Q371,Q372
MOTOR
DRIVE
IC510
EEPROM
IC509
FLASH ROM
LSENSOR
STEDSW
CLSWT1 to 5
MOTPSW
POSMUP
POSMDN
MTOP, MTCL
SDATA
SCK
CN46CN47
CN33CN34
MOTOR
MB
X451
8MHz
KEYB
PLAYB
PHOTOB
STTA_B
PLAYB
PHOTOB
KEY_B
IC505
SDRAM
IC451
MECHA
CONT.
EEPROM
CN45
TO
TUNER
PAC K
AUX IN
DISPRST
DISPBUSY
DISPCS
DISPCK
DISPD2S
DISPS2D
EPDI
EPDO
EPCS
EPSK
IC452
TX, DAC1OUT (Y-2)
DAC2OUT (Cb), DAC3OUT (Cr)
DAC4OUT (Y-1), DAC5OUT (C)
AOUT1
AOUT2
BCK
LRCK
DAC1CS
DAC2CS
DACPDN
DACCK
DCLK
DDATA
IC702
IC703
RAOUTL/R
CAOUT
SWAOUT
CN701
CN703 CN702
DAC
AOUT0
BCK
LRCK
DAC0CS
DACPDN
DACCK
DCLK
DADATA
ADIN
BCK
LRCK
DACCK
ADCPDN
IC701
DAC
IC704
FAOUTL/R
AINL/R
ADC
LRMUTE
RECL/R
CN730
S-CK,S-DATA
A-STTA,B-STTA
A-PHOTO,B-PHOTO
A-PLAY,B-PLAY
TUDI
TUDO
TUCK
TUCE
CN750
J800
A-KEY,B-KEY
SLC-SAFETY
LVR IN
RVRIN
A-PBL/R
B-PBL/R
TUL/R
AUXL/R
IC820
MAIN
V-DI,V-CK,V-CEM
VOL
External input, source selector
and system control section
FL display section
D5004,Q5004
RHYTHM AX
LED
D5006
Q5006,Q5010
PRESET
LED
LED-RHY
D5005,Q5005
KARAOKE
SCORING LED
LDE-DIM, LED-ILLU
S5000
to S5034
KEY MATRIX
Video output section
CN930
DISPRST, DISPBUSY
DISPCS, DISPCK
DISPD2S, DISPS2D
DISPD2S, DISPCK
DISPCS, CPURST
VIDEO-MUTE
CN810 CN800
Q8070
RAOUTL/R
Q8170
LR MUTE
Q8080
CA MUTE
LRMUTE
FAOUTL/R
SWAOUT
IC800,IC801
FRONT
MIX AMP.
& LPF
Q8000,Q8100
FRONT
MIX MUTE
FL, FR
ADINL/R
IC810
DSP SW
LSELO
RSELO
IC850
SURROUND
PROCESSOR
IC860
EFFECTOR
F-KEY1 to F-KEY4
SP-OUTL/R
RHYTM
LED-KAOK
DELAY
MIC-SIG
Q7080
Q7081
RESET
EEPROM
IC888
MIC AMP.
CN720
CN500
IC500
DRIVER
Y-1 ,Y- 2
C,Cb,Cr
IC920
VIDEO
DRIVER
VIDEO-MUTE
CN920
CN760
DISPS2D
DISPBUSY
CS, U2SDT
LEVEL CONV.
V-DI,V-CK
V-CE 2
IC870
SURROUND
VOL
CENTER/REAR MUTE
CAOUT
IC880
V-DI
C &
V-CK
V-CE 1
MIC+ECHO
IC881
SW
VOL
SW
SW-AHB
AMP.
LOUT
ROUT
Q7798
SMUTE
RELAY-F/SW
DSP-SW
SP-DA
SP-CK
SP-WR
SP-REQ
SP-STB
IC770
SYSTEM
INH
RESET
IC771
MIC-DETECT
F-KEY1 to F-KEY4, REM, LED-STBY
LED-RHY,
FL-DA, FL-LA, FL-CK, FL-BK, FL-ON
FL-CON, FL-DATA
FL-CLK, FL-BK
FL-LATCH
FL
CPU
SDA
SCL
LED-KAOK, LED-ILLU, LED-DIM
LED-STBY
REM
REMOCON RECEIVER
P1 to P35
1G to 10G
+VPP
D5V,D5.6V
S5V,M5V,M9V
CN931
IC760
PRT
AMP-PON
Q8071
Q8171
C/R-MUTE
Q7794
C/R-MUTE
Q8081
Q8180
C/SW
MUTE
SMUTE
IC830
AHB
RY712
RY767
Q7000
RELAY
RELAY-C/R
HPSW, HP-MUTE
D5007,Q5009
STANDBY LED
IC510
FL500
FL
TX
Y,Cb,Cr
Y,C,CV
AMP-PON
POUT/FDVD
FAN-SPEED
FAN-CTRL
RLIN
RRIN
C-IN
SWIN
FLIN
FRIN
Q8040
Q8140
SW
MUTE
FL
FR
SW
RY734
RY750
RY756
Q7010
RELAY
MIC-IN
FL1
FL2
IC930
DIGITAL OPTICAL OUT
J920
COMPONENT VIDEO OUT
J921
S-VIDEO/COMPOSITE VIDEO OU
DC regulator and audio output section
CN830 CN820
CN602
AMP-PON
Q6001,Q6002
STANDBY CTRL
SUR-L/R, CENTER
SURROUND/CENTER
Audio output section
AMP-PON
CN652
Q6701 to Q6704
Q6511,Q6521
PROTECTOR
Q6601 to Q6604
STANDBY CTRL
FLIN
FRIN
SWIN
FRONT/SUBWOOFER
PRT
Q6531
DC
IMP
IC650
AMP.
CN651
FL, FR
SW1
+/-VH,+/-VL
TO
FRONT SPEAKER
& SUBWOOFER
C
RL
RR
CN860J700
CN970
TO
J970
SURROUND
& CENTER
SPEAKER
CN200 CN201
DC, IMP
SW1, SW2
CN850
CN203
RL, RR, C
FL, FR
+/-VH
+/-VL
D2001
+/- VL BRIDGE
CN740
S2
CN204
S3
S3CT
CN104
D1000 to D1003
REGULATOR
S3
BRIDGE
S3
S2,S3CT
+/-VH
D1004 to D1011
+/- VH BRIDGE
S1
Q1001
FL BIAS
S4CT
FW500
VPP
CN105
Q1000
35V
REG.
VPP
F+/-
Primary board with main transformer section
IC601
AMP.
C
Q6211,Q6221
RL
RR
+/-VL
PROTECTOR
DC
IMP
CN601
Microphone circuit
section
FW910
CN202
HPL
HPR
HP-MUTE
CN101 CN102
S1
S2,S3
S3CT
CN103CN106
S4
S4CT
Q6231
FAN SPEED
FAN CTRL
Q6351,Q6352
FAN CONT.
POUT/FDVD
S3, S3CT
Q9100
to Q9104
HP MUTE
HP-SW
IC901
AMP.
MIC-IN
CN901
S1000
VOLTAGE
SELECTOR
SWTCH
T1001
TRANS.
CN603
D5V
D5.6V
S5V
M5V
M9V
FAN12V
IC602 to IC608
REG.
J910
PHONES
J901/J902
MIC1
MIC2
CN100
AC
INPUT
CN604
TO
FAN
2-2
(for DX-T66)
DVD traverse
mechanism
DVD traverse
mechanism
PB
HEAD
M
REC/PB
ERASE
HEAD
M
DVD servo and system control section
A, B, C, D, E, F, RF+, LPC1, LPC2
CN101
FM+/WOUT
VOUT
UOUT
CN201
COM
LD(CD)
LD(DVD)
F+/T+/-
IC201
DRVER
LPCO1, LPCO2
Q101
CDLDCUR,DVDLDCUR
to
Q104
SPDRV, TRSDRV
FODRV, TRDRV, FG
DRVMUTE, SPMUTE
X301
27MHz
TRVSW
DVD tray control section
SW1 to SW5
TRAY CLOSE SW
SW6
TRAY OPEN SW
TRAY/POSITION
MOTOR
TR1_CL to
TR5_CL
M.TR_OP
CN3
CN2
POSITION
SENSOR
SUB TRAY
END SW
M
IC1, IC2
TRAY / POSITION
MOTOR DRIVER
TR_OP, TR_CL
POS_UP, POS_DOWN
Tape A playback section
CN48 FW100
VR37
MOTOR
SPEED Adj.
MB
SOLENOID
IC41
AMP
Q460,Q461
PB MUTE
SW2,SW6
SWITCH
PLAY
TAP E
PHOTO+B
SOL
A_PBL/R
IC1
REEL
PULSE
PBMUTE
CN1
SERIAL TO PARALLEL
PORT EXTENSION
Q485,Q486
SOLENOID
DRIVE
CN41
Tape B record and playback section
CN31 FW100
REC/PLAY
FREQUENCY
RESPONSE Adj.
VR37
MOTOR
SPEED Adj.
MB
SOLENOID
L301
BIAS
OSC
SW1,SW2
SW5,SW6
SWITCH
RREC,FREC
PLAY,TAPE
Q302,Q305
BIAS OSC/CONT.
PHOTO+B
SOL
IC32
AUDIO SIGNAL
PROCESSOR
IC1
REEL
PULSE
CN42
RECB
Q375,Q376
SOLENOID
CN32
MA0 to MA11, BA0, BA1, MCK
MDQ0 to 15, DQM0, DQM1
NCSM, NRAS, NCAS, NWE
SDA, SCL, WP
IC301
DISCSET, DISCSTP
DV3.2
SCS, UCS, UCLK, S2UDT, U2SDT
CPURST
EXADT0 to 15
EXDT0 to 15, EXADR16 to 20
NEXCE,NEXOE, NEXWE
R1
SW8
IC43
SOLCTRL
SOL
RECL/R
B_PBL/R
RECL/R
B_PBL/R
RECH
PBMUTE
SERIAL TO PARALLEL
PORT EXTENSION
SOLCTRL
DRIVE
SOL
CN453
W2
CN452
W1
CN451
CN1
STTA_A
MOTOR
Q481,Q482
MOTOR
DRIVE
MB
PLAYA
PHOTOA
KEY_A
SDATA
SCK
STTA_B
IC33
MOTOR
Q371,Q372
MOTOR
DRIVE
MB
IC510
EEPROM
IC509
FLASH ROM
LSENSOR
STEDSW
CLSWT1 to 5
MOTPSW
POSMUP
POSMDN
MTOP, MTCL
SDATA
SCK
KEYB
PLAYB
PHOTOB
STTA_B
CN46CN47
CN33CN34
PLAYB
PHOTOB
KEY_B
IC505
SDRAM
MECHA
X451
8MHz
DISPRST
DISPBUSY
DISPCS
DISPCK
DISPD2S
DISPS2D
IC451
CONT.
IC452
EEPROM
CN45
TO
TUNER
PAC K
AUX IN
TX, DAC1OUT (Y-2)
DAC2OUT (Cb), DAC3OUT (Cr)
DAC4OUT (Y-1), DAC5OUT (C)
AOUT0
BCK
LRCK
DAC0CS
DACPDN
DACCK
DCLK
EPDI
EPDO
EPCS
EPSK
DADATA
RECL/R
CN730
TUDI
TUDO
TUCK
TUCE
CN750
J800
FAOUTL/R
IC701
DAC
LRMUTE
S-CK,S-DATA
A-STTA,B-STTA
A-PHOTO,B-PHOTO
A-PLAY,B-PLAY
A-KEY,B-KEY
SLC-SAFETY
LVR IN
RVRIN
A-PBL/R
B-PBL/R
TUL/R
IC820
AUXL/R
MAIN
VOL
External input, source selector
and system control section
FL display section
D5004,Q5004
RHYTHM AX
LED
D5006
Q5006,Q5010
PRESET
LED
LED-RHY
SCORING LED
LDE-DIM, LED-ILLU
KEY MATRIX
CN701
CN930
CN702
CN800
V-DI,V-CK,V-CEM
D5005,Q5005
KARAOKE
S5000
to S5034
Video output section
DISPRST, DISPBUSY
DISPCS, DISPCK
DISPD2S, DISPS2D
CN920
DISPD2S, DISPCK
DISPCS, CPURST
VIDEO-MUTE
FAOUTL/R
LRMUTE
Q8000
Q8100
LR MUT
FL, FR
IC810
DSP SW
LSELO
RSELO
IC850
SURROUND
PROCESSOR
SP-OUTL/R
IC860
EFFECTOR
RHYTM
LED-KAOK
F-KEY1 to F-KEY4
CN760
MIC-SIG
Q7080
Q7081
RESET
IC771
EEPROM
IC888
MIC AMP.
CN720
CN500
IC500
FL
DRIVER
Y-1 ,Y- 2
C,Cb,Cr
IC920
VIDEO
DRIVER
VIDEO-MUTE
DISPS2D
DISPBUSY
CS, U2SDT
SWIN
IC881
IC760
LEVEL CONV.
BASE1
BASE2
to Q8405
SW MUTE
SW-AHB
D5V,D5.6V
S5V,M5V,M9V
IC830
AMP.
LOUT
ROUT
Q7798
SMUTE
RELAY-F/SW
DSP-SW
SP-DA
SP-CK
SP-WR
SP-REQ
SP-STB
IC770
SYSTEM
INH
RESET
MIC-DETECT
F-KEY1 to F-KEY4, REM, LED-STBY
LED-RHY,
FL-DA, FL-LA, FL-CK, FL-BK, FL-ON
FL-CON, FL-DATA
FL-CLK, FL-BK
FL-LATCH
CPU
SDA
SCL
LED-KAOK, LED-ILLU, LED-DIM
LED-STBY
REM
REMOCON RECEIVER
P1 to P35
1G to 10G
+VPP
CN931
AMP-PON
POUT/FDVD
FAN-SPEED
FAN-CTRL
PRT
AMP-PON
Q8403
SMUTE
SWIN
FLIN
FRIN
Q8040
Q8140
AHB
MUTE
RY712
RY767
Q7000
RELAY
HPSW, HP-MUTE
D5007,Q5009
STANDBY LED
IC510
FL500
FL
TX
Y,Cb,Cr
Y,C,CV
SW
SW
MIC-IN
FL1
FL2
IC930
DIGITAL OPTICAL OUT
J920
COMPONENT VIDEO OUT
J921
S-VIDEO/COMPOSITE VIDEO OU
DC regulator section
POUT/FDVD
CN602
CN830 CN820
FAN SPEED, FAN CTRL
+VL
Audio output section
AMP-PON
CN652
Q6701 to Q6704
Q6511,Q6521
PROTECTOR
Q6601 to Q6604
STANDBY CTRL
FLIN
FRIN
SWIN
FRONT/SUBWOOFER
PRT
Q6531
IC650
AMP.
CN651
FL, FR
SW1
+/-VH,+/-VL
TO
FRONT SPEAKER
FL
& SUBWOOFER
FR
TO
J701J700
MATRIX
SURROUND
SPEAKER
CN200 CN201
+/-VH
SW1
CN850
CN203
FL, FR
+/-VL +VL
D2001
+/- VL BRIDGE
CN740
S2
CN204
S3
S3CT
CN104
D1000 to D1003
REGULATOR
S3
BRIDGE
S3
S2,S3CT
+/-VH
D1006,D1007
D1010,D1011
+/- VH BRIDGE
S1
Q1001
FL BIAS
S4CT
FW500
VPP
CN105
Q1000
35V
REG.
VPP
F+/-
Primary board with main transformer section
Q6351,Q6352
CN601
Microphone circuit
section
FW910
CN202
HPL
HPR
HP-MUTE
CN101 CN102
S1
S2,S3
S3CT
CN103CN106
S4
S4CT
FAN CONT.
S3, S3CT
Q9100
to Q9104
HP MUTE
HP-SW
IC901
AMP.
MIC-IN
CN901
S1000
VOLTAGE
SELECTOR
SWTCH
T1001
TRANS.
CN603
D5V
D5.6V
S5V
M5V
M9V
FAN12V
IC602 to IC608
REG.
J910
PHONES
J901/J902
MIC1
MIC2
CN100
AC
INPUT
CN604
TO
FAN
2-3
Standard schematic diagrams
Primary section (for DX-T99)
P.GND
S3CT
CN203
QGB2510K2-15
SAFETY
R2012
470
R2011
470
HPR
HPL
CN202
QGD2504C1-03Z
RL
RR
C
IMP
DC
S3
CN201
QGB2510J1-20
SW2
DC
IMP
SW1
FR
FL
-VH
-VL
+VH
CN200
QGB2510J1-16
FR
FL
D2009
C2010
680 0.01/50
R2004
KTC3199/GL/-T
R2002
100K
C2006
R2000
MTZJ5.1C-T2
R2005
2.7K
6800/35
100K
SW1
220P/50
Q2009
C2011
6800/63
C
R2007
C2000
R2006
680
RR
RL
4.7K
1K
R2008
!
D2001
GBU803
Q2008
KTC3199/GL/-T
1K
R2009
C2005
NI
Q2007
KTA1046/Y/
1K
R2010
C2007
C2009
0.1/250
SW2
T3.15AL,250V
0.1
C1010
D1002
!
C1012
!
D2013
1SS133-T2
CN204
QGB2510K2-13
C2013
6800/25
C2012
100K
C2008
C2004
4700/16
6800/35
6800/63
D2008
2A02-M
R2003
NI
100K
R2001
R2013
27K
CN104
QGB2510J1-13
F+
+VPP
F-
CN105
QGD2503F1-03
!
F1009
T5AL,250V
!!
100K
MTZJ6.2B-T2
D1012
KTC3203/OY/-T
10/50
!
T5AL,250V
C1005
D1009
D1008
C1014
Q1001
0.1
!
F1010
D1005
C1013
0.1
D1004
!
R1003
R1002
!
F1006
D1000
!
0.1/50
D1001D1003
!
C1011
0.1
100K
C1003
!
F1005
!
F1004
!
F1003
F1007
T5AL,250V
!!
C1004
KTC2026/Y/
0.01
D1013
D1011
F1008
T5AL,250V
Q1000
D1014
MTZJ18B-T2
D1007
D1006 D1010
!
22/50
!
!
!
R1001
MTZJ18B-T2
T1.25AL,250V
T6.3AL,250V
T6.3AL,250V
75K
R1005
C1002
C1015
1N4003S-T5
75K
22/50
C1016
!
CN101
QGA7901C1-02
CN100
QGA7901C1-03
CN102
T1001
QQT0477-003
!
!
F1001
T8AL,250V
!
S1000
QSW0812-001
F1002
!
T6.3AL,250V
QGA7901C1-04
0.1
CN106
QGA3901F1-03
CN103
QGA3901F1-08
D1017
1N4003S-T5
!
R1000
D1015
47/100
D1016
C1017
100/50
1N4003S-T5
47
2-4
Parts are safety assurance parts.
When replacing those parts make
sure to use the specified one.
Main section (for DX-T99)
CN720
QGF1036C2-19
CN730
QGF1205C2-25
D7330
CN740
QGF1205F2-05
QGF1205C2-19
CN830
CN820
QGF1205C2-08
REM
LED-STBY
FL-DA
FL-LA
FL-CK
FL-ON
FL-BK
LED-KAOK
LED-RHY
F-KEY1
F-KEY3
F-KEY2
LED-DIM
LED-ILLU
F-KEY4
A-STTA
S-CK
SLC-SAFETY
S-DATA
B-PHOTO
B-PLAY
B-KEY
A-KEY
A-PLAY
A-PHOTO
B-STTA
R8194
R8193
R8094
R8093
R8095
1N4003S-T5( T99)
RRIN
RLIN
C-IN
C7101
*
10K
10K
R8096
R8196
MIC-IN
HPSW
HP-MUTE
AMP-PON
FAN-SAFETY
FAN-SPEED
FAN-CTL
POUT/FDVD
AMP-PON
15K
KTC3875/YG/-X
Q8030
1K
R8170
R8120
C8127
0.1
0.1
C8027
R8020
R8032
12K
C8170
RAOUTL
R8090
AUXL
C8128C8028
0.10.1
3.9K
QGF1036C2-10
15K
R8071 R8171
10/50
RAOUTR
LOUT
3.9K
C8129C8029
B/WB/W
ROUT
CN800
NI
B/W
D8901
D8900
10/50
C8903
C8902
10/50
K8000
K8001
1K
C8900
R8900
1/50
KRA104S-X
Q8900
ADINR
ADINL
LOUT
*
C8130
3.3K
R8131
C8131
R8130
4.7K
0.1
IC830
RC4558D-X
*
R8133
*
R8033
4.7K
3.3K
R8031
0.1
C8031
*
R8030
C8030
SW-AHB
ROUT
10/50
C8172
Q8170
R8172
10K
IC870
Q8070
LC75342M-X
R8072
10K
100K 100K
1K
R8070
10/50
C8072
2SD2114K/VW/-X 2SD2114K/VW/-X
10/50
C8070
LRMUTE
0.1/50
C8173
DELAY
B/W
0.01
NI
0
0
100/16
C8222
C8221
C8220
R8224
R8223
R8220
R8225
V-CEM
V-CK
V-DI
MIC-IN
LRMUTE
FANOUTL
FANOUTR
RAOUTL
*
SMUTE
R8142
*
C8132
10K
Q8140
R8143
10K
R8043
47K
NI
B/W
47K
*
Q8040
C8332
R8134
R8034
C8032
R8332
*
R8042
RECL
FRIN
0.1/50
C8272
100/16
0.1/50
C8076 C8176
RECR
B/W
820K
R8434
9.1K
R8432
C8432
C8433
0.0022
0.0022
RAOUTR
FLIN
2SD2114K/VW/-X
2SD2114K/VW/-X
C8402
0
R8407
0.00220.0022
9.1K
R8433
CN810
QGF1036C2-08
CAOUT
10/50
C8202
39K39K
R8146R8046
0.022
C8203
22K
R8203
10K
R8202
V-CK
V-DI
V-CE2
C/R-MUTE
1K
1/50
C8174
Q8171
10K
R8173
B/W
Q8071
10K
R8270
R8073
1K
R8074
C8074
1/50
NI
C8270
4.7K
68K
R8403
R8404
IC888
RC4558D-X
R8435
0
1/50
C8431C8430
C8434
NI
C8436
R8431R8430
9.1K9.1K
NI
R8436
B/W
R8400
RC4558D-X
R8174
0.1/50
C8437
R8206
R8204
RRIN
D8401
10/50
NI
C8400
10K
22K
C8403
QGF1205C2-08
C7360
IC801
C8204
R8075 R8175
10K 10K
100K
R8402
4.7K
4.7K
R8401
CN760
NI
IC760
IC1
R8205
24K
0.022
100K
2SD2114K/VW/-X
R8081
R8080
10/50
C8080
2SD2114K/VW/-X
CAOUT
47K
R8409
C8404
R8405
C8401
47/25
1K
R8201
10K
R8082
LRMUTE
NI
MIC-SIG
IC4
C8201
NI
B/W
C8082
0.1/50
KRC109S-X
D8402
C8405
R8406
DISPS2D
Q8080
C8184
SW
Q8401
NI
NI
NI
DISPD2S
DISPBUSY
C8086
2SD2114K/VW/-X
*
22K
R8007
RECR
RECL
MIC-DETECT
DISPCS
CPURST
DISPCK
U2SDT
IC3
SN74AHCT08NS-X
IC2
FANOUTR
C8000
10/35
47K
R8000
47K
150P047K
R8001
C8003
0.1/50
C8083
RLIN
22K
R8107
DELAY
V-MUTE
FANOUTL
C8100
R8100
R8101
MIC+ECHO
0.1/50
IC880
LC75342M-X
2.2K
R8269
RHYTHM
47K
150P
C8103
DVD-SAFETY
CS
10/35
C8264
C8265
KTC3199/GL/-T
TUDI
TUCE
TUDO
TUCK
R8102
R8103
22K
22K
IC800
RC4558D-X
22K
22K
R8002
R8003
B/W
R8200
MIC-IN
NI
B/W
B8007
B8008
1/50
C8085
NI
NI
C8186
C8187
NI
C8282
R8188
R8263
4.7M
0.022
2.2/50
C8263
10/50
15K
470K
100
R8264
R8261
R8262
R8260
IC860
JCV8011-X
*
33/25
10/50
C8266
4.7/50
Q8260
C8361
C8360
C8269
C8267
4.7/50
5.6K
4.7K
R8265
R8266
6.2K
10K
0.47/50
C8268
100K
C8362
R8267
R8268
R8162
0.22/50
D7350
1N4003S-T5( T99)
C8101
10/35
C8001
10/35
V-DI
V-CE1
NI
100/16
RVRIN
C8262
470K
C8062
4.7/50
10K
R8062
C8200
C8280
10/35
10K
R8161
NI
V-CK
C8185
SP-OUTR
LVRIN
10/35
C8162
10K
R8061
CN750
QGF1205F2-11
36K
R8192
*
R8098
*
R8198
TUL
1.5K
R8104
**
R8005 R8105
R8004
1.5K
C/R-MUTE
C8084
1/50
R8084
R8083
10K
B/W
R8280
R8186
10K
R8187
2.7K
*
SP-OUTL
*
47/25
C8261
C8060
*
C8061
*
47/25
C8363
R8060
RECR
R7875
INH
10k
R7081
36K
R7080
10/35
10K
SWIN
R8064
NI
NI
C8260
680
R7084
1000/6.3
2SD2114K/VW/-X
10/35
C8102
C8002
FR
FL
R8085
4.7K
R8189
D7082
C7085
KRA102S-X
2SD2114K/VW/-X
1N4003S-T5
2SD2114K/VW/-X
2SD2114K/VW/-X
C-IN
NI
C7084
KRA102S-X
Q7798
D7713
D7711
22K
R8574
C8574
10/35
RSELO
22K
0.01
R7082
D7081
Q7081
1K
C7083
MTZJ4.7B-T2
KRC111S-X
Q7794
22K
R8575
C8577
C8575
10/35
1/50 B/W
LSELO
MIC-SIG
R7892
10/50
C7794
10K
R7897
C7798
100/16
SP-OUTR
DELAY
SP-OUTL
C8564
B/W
0.022
C8572
C8576
0.15
10K
680
R8578
R8579
1/50
C8579
C8578
0.15
C8581
680
R8092
R7085
TUR
LRMUTE
Q8100
R8106
10K
R8006
10K
Q8000
1K
Q8081
Q8180
R8164
*
C8160
NI
*
C8161
B/W
R8360
*
R8160
RECL
RESET
SDA
SCL
4.7/50
C7082
2.2K
C7080
Q7080
IC771
KRC107S-X
BR24L02F-W-X
D7080
0.001
R7083
10K
R7876
100K
R7878
10K
R7879
10K
R7881
C/R-MUTE
LED-RHY
POUT/FDVD
FAN-CTL
FAN-SPEED
FAN-SAFETY
10K
AMP-PON
PRT
C7788
10/50
KRA102S-X
RHYTHM
C8539
R8539
8.2K
100/16
C8563
B/W
0.0015
0.15
0.0015
2.2/50
C8506
C8502
C8583
C8504
MIC+ECHO
Q7788
DSP-SW
C8553 C8551
0.1/50
C8555
C8556
0.1
IC850
M65851FP
24K
0.001
R8510
C8508
C8512
2.2/50
24K
R8511
24K
24K
R8509
24K
24K
R8508
R8512
R8513
R8507
C8513
47K
2.2/50
C8509
0.0033
2.2K
R7776
1K
R7777
2.2K
R7778
2.2K
R7779
2.2K
R7780
2.2K
R7781
2.2K
R7786
2.2K
R7788
2.2K
R7789
1K
R7790
1K
R7791
1K
R7792
2.2K
R7794
2.2K
R7796
1K
R7797
1K
R7798
NI
R7799
R7899
10K
L7711
QUY150-050Y
LEVEL
10/50
C8550
C8546
C8548
C8552
NI
0.068
0.001
0.0047
0.068
0.001
0.1
0.1
C8514
24K
C8590
C8591
C8516
R8514
C8515
0.0047
100K
100K
R7771
R7867
10K
2.2K
R7871
100K
R7775
QUY150-050Y
K7711
NI
R7802
R8551
22K
1/50
C8541
C8542
C8598
C8597
0.1
0.1
0.068
0.0047
0.1
C8593
0.068
47/25
100/16
C8524
C8522
C8520
24K
R8521
4.7
1K
2.2K
2.2K1K1K
R7773
R7772
R7774
R7702
R7703
R7704
1K1K1K1K2.2K
2.2K
F-KEY1
F-KEY2
10K
10K
R7804
R7803
DISPCK
US5V
0.001
SP-WR
SP-DA
C8531
R8529
11K
A5V
KTC3203/OY/-T
Q8524 D8524
R8524
560
R8523
10K
R7886
HPSW
SP-WR
R7770
R7705
R7706
F-KEY3
F-KEY4
10K
R7805
C8540
0.1
HP-MUTE
VOL-CEM
SCL
2.2K
R7769
R7768
R7707
R7708
2.2K
A-KEY
B-KEY
10K
10K
R7806
R7807
C8525
NI
******
SDA
RELAY-C/R
RELAY-F/SW
2.2K
1K
002.2K
R7763
R7765
R7764
R7767
R7766
IC770
MN101C49GFA
R7709
C7711
100/16
C7710
QAX0711-002Z20P
0.01
2.2K
C7712
MIC-DETECT
10K
10K
R7809
R7808
MTZJ5.6B-T2
2.2K
LED-ILLU
R7762
X7700
R7010
Q7010
R7004
R7011
RELAY-C/R
SP-REQ
SP-STR
SP-CK
R7761
R7760
R7715
10K
18P
KTC3199/GL/-T
KTC3199/GL/-T
*
*
R7012
R7016
*
R7015
*
R7014
*
C7008
C7007
R7759
******
R7717
10K
C7713
*
NI
NI
R7861
R7860
R7718
1K1K1K
VOL-DI
VOL-CE2
R7013
*
LED-DIM
R7859
2.2K
R7756
R7719
R7720
VOL-CK
Q7000
RY712
C7003
LED-RHY
LED-KAOK
2.2K
2.2K
R7755
R7754
R7721
R7722
1.2K
1.2K
DISPD2S
U2SDT
LEVEL
RELAY-F/SW
R7000
*
R7002
NININI
C7004
FL-ON
1K
R7753
R7723
1.2K
VOL-CEM
2.2K
C7050
D7000 R7003R7001
R7005
C7005
DVD-SAFETY
VIDEO-MUTE
2.2K
2.2K
R7752
R7751
R7724
R7725
1.2K
CPURST
DISPCS
4.7/50
R7050
*
C7006
100K
R7852
LED-STBY
1K
R7749
R7748
R7747
R7746
R7745
R7744
R7743
R7742
R7740
R7739
R7738
R7737
R7736
R7735
*
B8005
R7921
1.2K
NI
R7824
2.2K
2.2K
R7821
2.2K
R7823
2.2K
R7825
39K
R8293
D7050
56k
MTZJ5.1B-T2
**
R7006
*
D7001
RY767
*
( T77)
B7870
D7010
*
NI
C7009
C7010
NI
*
J700
CN970
QGB2510J1-04
FL-BK
1K
SP-CK
0
SP-STB
1K
SP-DA
10K
FL-CK
1K
FL-LA
1K
FL-DA
1K
TUCE
1K
TUDI
1K
TUCK
1K
TUDO
1K
NI
VOL-CE1
1K
INH
RESET
*
R7732
2.2K
R7731
REM
2.2K
R7728
R7726
CN799
*
D7152
D7151
R7151
R7152
12k
12k
*
D7011
RY750
D7153
R7153
12k
J970
D7154
*
R7154
R7157 D7157
12k
*
QNB0301-001
CS
100
SP-REQ
D7155
D7156
R7155
R7156
2.2K
12k
12k
R7251
D7012
*
RY756
CN860
*
QGB2510J1-06
DVD-SAFETY
SP-CK
SP-DA
SP-STB
*
2.2K
2.7K
2.7K
2.7K
2.2K
*
CN850
R7255
R7256
R7254
R7253
R7257
R7252
RY734
CN990
J990
QNB0263-001
NI
NI
R7880
CN789
D7780
NI
AVC-IN
27K
R7200
FB
13K
B-PBL
47
A-PBL
13K
B-PBR
47
A-PBR
*
RECR
*
RECL
R8195
SWIN
FRIN
FLIN
NI
CN788
NI
Q7780
AVC-OUT
D7390
*
NI
NI
C8233
C8231
47/25
C8230
R8231
4.7K
R8810
4.7K
NI
R8812
NI
IC810
SW-C
PRT
Q8212
KRC104S-X
DSP-SW
CN787
QGF1210G1-05
AVC-IN
*
1/50
C8232
R8232
D8230
KTC3875/YG/-X
100K
R8121
ADINR
220K
R8235
220K
R8335
Q8031
C8180
0.012
R8181
R8888
FL
KRC104S-X
AVC-OUT
100
R8035
Q8032
RC4558D-X
NI
B/W
ADINL
LSELO
SW-ASW-B
10K
R8212
R8211
22K
NI
Q8211
C8210
AVC-OUT
AVC-IN
NI
C8234
*
R8230
KTC3875/YG/-X
C8810
R8811
100/16
R8813
C8812
NI
CD4066BM-X
SW-D
RSELO
FR
J800
QNN0420-001
B7046
NI
C8190
NI
C8090
R8190
NI
C8191
150K
R8191
NI
C8091
150K
R8091
AUXR
100
100
12K
R8132
R8135
R8136
100
R8036
Q8132
Q8131
Q8130
KTC3875/YG/-X
1M
KTC3875/YG/-X
R8199
KTC3875/YG/-X
1M
R8099
R8180
22K
0.1
C8181
IC881
22K
R8183
0.015
C8182
R8288
B/W
16K
R8182
NI
C8288
SW-AHB
100K
R8021
IC820
LC75342M-X
B/W
R8210
SW
TUL
AUXL
A-PBL
B-PBL
LVRIN
C8122
C8121
C8123
C8120
C8125
C8126
*
4.7/50
4.7/50NI4.7/50
4.7/50
10/50
*
10/50
4.7/501K4.7/50
4.7/50
4.7/50
C8025
C8021
C8022
C8023
C8020
C8026
A-PBR
B-PBR
TUR
AUXR
RVRIN
UN2111-X UN2213-XUN2113-X UN2214-XUN2215-X
RC4558D-X
2-5
Amplifier section (for DX-T99)
CN303
QGF1205F2-11
!
IC301
STK413-430
!
IC308
KIA7805API
C3851
47/25
IC306
!
KIA278R09PI
C3811
C3812
C3852
100/16
47/25
100/16
!
IC402
STK412-430 STK412-430
D3811
MTZJ11B-T2
IC305
KIA278R05PI
!
100/16
C3702
R3701
10K
D3701
C3701
47/25
MTZJ6.2B-T2
IC304
KIA7810API
!
D3821
C3822
C3821
47/25
100/16
!
IC307
KIA7808API
1K
R3902
D3901
MTZJ13B-T2
D3903
KRC102M-T
MTZJ4.3B-T2
Q3902
QGA2501F1-03
MTZJ11C-T2
Q3901
KTC3203/OY/-T
CN304
!
IC303
KIA7805API
1K
R3831
47/25
C3831
R3907
1K
10K
R3908
D3832
D3831
C3832
100/16
MTZJ6.2B-T2
10K
R3906
D3902
!
IC302
KIA7809API
C3841
D3841
MTZJ11B-T2
C3842
47/25
100/16
Q3102
KTC1027/OY/-T
1/50
C3104
KTA1023/OY/-T
!
R3105
47
Q3104
!
R3108
47
!
0.22
R3601
R3602
56K
C3201
C3602
220P
15P
R3606
R3611
2K
2K
C3601
NI
R3605
1K
L3601
Q3601
0.39
C3603
47/63
47/63
10
R3603
!
!
680
KTC3199/GL/-T
680
R3609
10
R3604
C3604C3605
D3601
0.10.1
47K
R3607
5.6K
R3608
100K
R3610
0.22
R3506
Q3501
KTC3199/GL/-T
D3501
R3508
C3402
15P
C3221
R3402
56K
R3501
0.22
!
C3502
15P
R3502
2K
56K
C3501
NI
!
R3505
1K
10
0.39
R3503
L3501
!
10
R3504
0.1
47K
R3507
C3504
0.1
R3510
5.6K
C3505
100K
C3211
220P
220P
C3403
47/63
C3503
33K
R3306
!
!
680
R3509
R3409
R3305
10
!
D3302
D3301
MTZJ15B-T2
MTZJ15B-T2
6.8K
6.8K
R3301
D3303
6.8K
R3303
R3302
MTZJ36A-T2
2K
2K
C3401
R3406
R3411
NI
FW301
R3405
1K
Q3401
FW301
KTC3199/GL/-T
CN301
QGB2510K2-20
!
IC401
L3401
D3401
47K
R3407
5.6K
R3408
R3410
R3401
6.8K
!
R3304
D3304
MTZJ36A-T2
2K
R3511
!
0.39
1010
R3403R3404
0.1
C3404
100K
0.1
C3405
R3103
10K
10K
Q3101
R3104
KTC3200/GL/-T
R3106
10K
10K
R3107
KTA1268/GL/-T
C3102
C3103
0.1
0.1
C3203
680P
R3204
C3202
R3201
1k
10/50
R3202
1k
C3212
10/50
C3213
56k 56k56k
R3205
680P
C3223
680P
R3206
C3222
R3203
1k
10/50
D3101
C3101
R3102
100/16
Q3103
100K
2.2K
R3101
CN302
QGF1205C2-19
Q4402
KTA1023/OY/-T
!
C4811
10
R4505
MTZJ15B-T2
MTZJ15B-T2
6.8K
R4503
KTC3199/GL/-T
D4901
D4502
6.8K
R4504
10/50
R4905
10K
KTA1268/GL/-T
Q4904
R4906
R4610
!
D4504
6.8K
R4601
R4701
0.22
!
MTZJ36A-T2
C4903
100K
100K
R4710
!
0.22
C4602
22P
2K
R4606
R4602
56K
R4603
!
10
L4601
R4604
10
0.10.1
C4604
C4605
100K
0.39
C4601
R4607
NI
R4605
1K
Q4601
KTC3199/GL/-T
47K
2K
R4611
C4603
D4601
R4609
!
5.6K
R4608
FW401
10
MTZJ15B-T2
MTZJ15B-T2
6.8K
R4003
R4005
!
D4002
6.8K
6.8K
D4004
R4004
R4101
MTZJ36A-T2
!
0.22
C4102
15P
R4102
C4101
56K
R4105
0.39
R4103
L4101
!
10
10
R4104
0.10.1
C4104C4105
R4107
D4001
R4001
6.8K
R4002
D4003
MTZJ36A-T2
R4201
!
NI
1K
Q4101
KTC3199/GL/-T
47K
C4311
33K
R4006
220P
0.22
2K
R4206
2K
2K
R4106
R4111
C4103
D4101
R4109
5.6K
R4108
C4201
NI
R4205
1K
47/63
D4201
680
5.6K
R4208
C4301
220P
2K
R4211
Q4201
KTC3199/GL/-T
47K
R4207
C4302
10/35
56K56K
R4302
C4312
R4312
R4203
L4201
0.39
!
R4204
C4204
C4205
R4311
470P
C4313
1K
10/35
C4202
15P
R4202
56K
10
10
0.1
0.1
100K
R4210
R4110
C4405
1/50
C4203
47/63
R4209
680
100K
FW401
QUM154-10Z4Z4
C4901
Q4902
KTA1268/GL/-T
D4501
R4502
6.8K
D4503
R4501
MTZJ36A-T2
R4901
10K
10/50
KTC3200/GL/-T
Q4901
R4903
R4902
10K
100K
Q4903
R4904
C4902
100K
47/25
C4801
33K
R4506
220P
220P
47/63
680
2K
R4706
KTC3199/GL/-T
R4708
KTC1027/OY/-T
!
R4408
47
10/35
56K56K
R4802R4812
2K
R4711
C4701
NI
R4705
1K
L4701
0.39
Q4701
R4703
!
!
R4704
D4701
47K
R4707
C4704C4705
5.6K
R4405
47
Q4404
R4407
C4802
R4801
C4403
1K
100P
C4803
C4813
100P
C4812
R4811
10/35
10
10
0.10.1
1K
C4702
22P
R4702
56K
C4703
47/63
R4709
!
680
R4403
10K
Q4401
10K
KTC3200/GL/-T
R4404
R4406
10K
10K
0.1
C4402
0.1
C4404
1/50
Q4403
KTA1268/GL/-T
D4401
2.2K
R4401
100K
R4402
C4401
100/16
Parts are safety assurance parts.
When replacing those parts make
sure to use the specified one.
QGB2510K2-16
CN401
CN402
QGF1205C2-08
2-6
Front and Video section (for DX-T99)
C5000
22/50
NI
NI
NI
C5001
22/50
R5047
R5048
R5049
IC510
GP1UM281XKVF
C5002
R5000
R5001
R5003 R5002
R5005
R5007 R5006 R5004
R5008
0.001
10/25
C5003
Q5007
KRC102M-T
FL-CON
R5042
10K
Q5008
KTA1023/OY/-T
1K
1K
2.7K 1.8K 1.2K5.6K 3.9K 2.2K
10K
S5010
S5011
S5012
S5013
S5014
S5015
S5016
S5017
R5010 R5009
R5011
R5012
R5013
R5014R5015
1K 1K
1.2K
1.8K
2.2K
2.7K3.9K
R5043
REM
LED-STBY
FL-DATA
FL-LATCH
FL-CLK
FL-CON
FL-BK
LED-KARAOKE
LED-RHYTHM
F-KEY1
F-KEY3
F-KEY2
LED-ILLUMINATION
LED-GND
F-KEY4
DAVSS
CN500
QGF1036F2-19
S4
+VPP
S4
FW500
QUM153-18DGZ4-E
270
D5007
SLR-343VC-T
Q5009
KRC102M-T
F-KEY4
F-KEY3
F-KEY2
F-KEY1
S5000
S5001
S5002
S5003
S5004
S5005
S5006
S5007
S5008
S5009
9G8G7G
6G
2G3G4G
5G
10G
R5046
100K
C5004
0.1
P29
P30
P31
P32
P33
P34
P35
C5005
100p
S5018
S5019
S5020
S5021
S5022
S5023
S5024
S5025
S5026
R5021R5022
R5023 R5017R5019R5020 R5016R5018
2.7K3.9K
5.6K 1K1.8K2.2K 1K1.2K
P1
P2
P3
P4
P5
S5027
S5028
S5029
S5030
S5031
S5032
S5033
S5034
P28
P6P7P8
P27
C5006
R5024
R5025
R5026
R5027
R5029
R5030 R5028
P26
100/10
1K1K
1.8K 1.2K3.9K 2.2K
2.7K
P14
P13
P12
P11
P10
P9
P25
P22
P24
P21
P20
P19
P23
IC500
PT6305
1K
1K
R5040
R5041
0.1
C5007
FL-CLK
FL-DATA
R5035
D5004
P15
P18
160
P16
P17
1K
R5039
FL-LATCH
P20
P19
P18
P17
P16
P15
P14
P13
1K
R5038
FL-BK
LED-RHYTHM
D5005
SLI-343URC-W-T
Q5004
KRC102M-T
R5036
P21
P12
160
P24
P23
P22
P11
LED-KARAOKE
SLI-343URC-W-T
Q5005
KRC102M-T
DISPRST
CN930
QGF1036C2-28
P26
P25
820
R5044
SELU2E10C-P
DISPCS
DISPBUSY
P27
R5037
D5006
P10
P9
P8
P7
P6
P5
P4
P3
P2
P1
1G
2G
3G
4G
5G
6G
7G
8G
9G
10G
P28
P29
56
KRC110M-T
KRC102M-T
DISPCK
DISPD2S
P30
Q5010
0.01
C5008
Q5006
DISPS2D
P31
R5045
R5050
P35
P34
P33
P32
100K
LED-ILLUMINATION
10K
KTC3199/GL/-T
47
R9310
Q5011
KTC3199/GL/-T
Q9303
2.2( 1W)
100/16
C9300
R9300
R9303
270
R9302
C9303D9303
100/16MTZJ3.9B-T2
D9302
D9301
CN901
QGF1205F2-05
Q9300
680
Q9301
R9015
R9017
100K
C9005
0.1/50
R9005
KRA110M-T
Cb
Y-1
KRC110M-T
D9002
470K
R9007
560K
C9031
68P
560K
NI
C9002
C9003
VR901
QVQ0342-B24
2SD2114K/VW/-X
R9103
4.7k
R9104
4.7k
2SD2114K/VW/-X2SD2114K/VW/-X
BH7868FS-X
R9003
5.6K
0.47/50
Q9104Q9102
Q9103
NI220
IC901
RC4580ID-X
270K
R9004
C9004
B9005
C9007
NI
NI
0.01/50
C9206
1/50
C9201
C9204
0.1/10
68P
C9216
470/10
C9032
C9209
C9211
C9213
C9215
C9200
1/50
1/50
1/50
0.1/50
68P
C9033
R9016
NI
2SD2114K/VW/-X
Q9101
R9101
4.7k
R9102
4.7k
560K
R9032
R9033
10/25
100
R9036
B9004
0
R9010
IC920
R9030 R9031
560K
C9030
68P
1K
D9001
Q9004
NI
C9006
1/50
430
390
390
130
390
130
390
430
390
430
Y-2
C
Cr
DISPS2D
DISPD2S
DISPBUSY
NI
R9201
R9202
R9203
R9204
R9205
R9206
R9207
R9208
R9209
R9210
DISPCK
R9009
Q9100
KRA111S-X
DISPCS
DISPRST
VIDEO-MUTE
Q9003
C
VIDEO-MUTE
Y-1
Y-2
Cb
VIDEO-MUTE
Cr
DVD-SAFETY
CN920
QGF1205C2-08
FW910
QUM153-21DGZ4-E
D9313
1SS133-T2
D9312
1SS133-T2
MTZJ3.0B-T2
D9311
1SS133-T2
4.7
MTZJ2.0A-T2
MTZJ3.3B-T2
Y-1
Cb
Cr
D9310
R9301
2A02-M
D9300
DVD-SAFETY
C
Y-2
CN931
QGF1205C2-11
C9035
39K
R9035
1/50
C9008
C9001
0.1/50
R9006
820
KTC3875/YG/-X
L9100
QQL231K-2R2Y
C9232
0.01/50
C9230
470/6.3
C9227
470/6.3
C9224
470/6.322/50
C9221
470/6.3
C9218
470/6.3
R9013
R9000
10K
Q9001
KTC3875/YG/-X
K9100
L9101
L9102
0.001
C9101
C9010
100/16
Q9002
C9102
R9011
0.001
820K
R9012
16K
10K
R9014
C9009
10K
47/25
R9002
1K
0.0022
R9001
C9000
QQR1183-001Z
QQL231K-470Y
QQL231K-470Y
D9100
C9100
C9311
NI
10K
R9034
C9034
QNS0252-001
0.47/50
4.7K
R9021
0.0010.001
4.7K
R9022
100K
QNS0266-001
3900P
C9104
C9103
*
*
GP1FAV30TK0F
NI
L9310
QNN0572-001
75
R9224
75
R9221
75
R9218
QNN0557-002
75
R9227
75
R9232
C9231
NI
75
R9230
W910
C9021C9022
J910
3900P
NI
C9229
C9226
C9105
C9223
C9220
C9217
J901
0.001
IC930
C9310
J921
NI
NI
J920
NI
NI
NI
J902
QNS0252-001
CHASIS
CHASIS
2-7
Primary section (for DX-T77)
S3CT
PGND
CN203
QGB2510K2-13
SAFETY
R2012
470
R2011
470
HPR
HPL
CN202
QGD2504C1-03Z
RL
RR
C
IMP
DC
S3
CN201
QGB2510J1-20
DC
IMP
SW1
FR
FL
-VL
+VL
CN200
QGB2510J1-16
FR
FL
D2009
0.01/50
C2010
680
R2004
KTC3199/GL/-T
100K
R2002
C2006
R2000
MTZJ5.1C-T2
R2005
2.7K
3300/50
100K
SW1
Q2009
220P/50
C2011
4700/80
C
R2007
R2006
C2000
RR
RL
D2013
1SS133-T2
!
Q2007
KTA1046/Y/
4.7K
Q2008
680
KTC3199/GL/-T
1K
1K
1K
R2009
R2010
R2008
!
D2001
GBU803
C2007
NI
C2009
0.1/250
C2005
NI
R2001
100K
D2008
2A02-M
R2003
100K
C2004
C2013
C2012
C2008
6800/25
4700/16
3300/50
4700/80
R2013
27K
CN204
QGB2510K2-13
CN104
F+
+VPP
F-
CN105
QGD2503F1-03 QGB2510J1-13
T4AL,250V
!!
D1005
C1013
0.1
D1004
!
R1003
!
T4AL,250V
100K
MTZJ6.2B-T2
D1012
KTC3203/OY/-T
C1005
10/50
F1009
D1009
D1008
C1014
Q1001
0.1
C1010
D1002
!
0.1/50
!
!
0.1
!
F1010
C1008
!
T3.15AL,250V
F1006
D1000
!
C1012
D1001D1003
!
C1011
R1002
0.1
100K
C1003
!
!
!
!!
D1007
D1006 D1010
!
!
KTC2026/Y/
C1004
0.01
22/50
F1005
F1004
F1003
F1007
T4AL,250V
F1008
T4AL,250V
C1006
Q1000
D1014
D1013
MTZJ18B-T2
!
D1011
!
MTZJ18B-T2
T1.25AL,250V
T6.3AL,250V
T6.3AL,250V
!
R1001
!
CN100
CN101
CN103
QGA7901C1-02
CN102
QGA7901C1-03
T1001
QQT0476-001
!
!
F1001
T6.3AL,250V
!
S1000
QSW0812-001
F1002
!
T5AL,250V
QGA7901C1-04
0.1
C1015
C1007
D1017
1N4003S-T5
1N4003S-T5
D1015
C1017
47/100
D1016
100/50
1N4003S-T5
75K
75K
R1005
C1016
C1002
22/50
!
R1000
47
CN106
QGA3901F2-03
QGA3901F1-08
2-8
Parts are safety assurance parts.
When replacing those parts make
sure to use the specified one.
Main section (for DX-T77)
CN720
QGF1036C2-19
CN730
QGF1205C2-25
D7330
CN740
QGF1205F2-05
CN830
QGF1205C2-19
CN820
QGF1205C2-08
REM
LED-STBY
FL-DA
FL-LA
FL-CK
FL-ON
FL-BK
LED-KAOK
LED-RHY
F-KEY1
F-KEY3
F-KEY2
LED-DIM
LED-ILLU
F-KEY4
A-STTA
S-CK
SLC-SAFETY
S-DATA
B-PHOTO
B-PLAY
B-KEY
A-KEY
A-PLAY
A-PHOTO
B-STTA
1N4003S-T5( T99)
C7101
*
R8194
R8193
R8094
R8093
R8095
10K
R8096
MIC-IN
HPSW
HP-MUTE
RRIN
RLIN
C-IN
AMP-PON
FAN-SAFETY
FAN-SPEED
FAN-CTL
POUT/FDVD
10K
R8196
SWIN
FRIN
FLIN
AMP-PON
Q8030
KTC3875/YG/-X
1K
R8170
RAOUTL
R8120
C8127
0.1
0.1
C8027
R8020
R8032
12K
C8170
R8090
AUXL
C8128C8028
0.10.1
3.9K
QGF1036C2-10
15K
R8071 R8171
10/50
RAOUTR
LOUT
3.9K
C8129C8029
B/WB/W
ROUT
CN800
NI
B/W
D8901
C8903
ADINL
IC870
LC75342M-X
D8900
K8000
K8001
10/50
1K
R8900
C8900
1/50
KRA104S-X
Q8900
LRMUTE
FANOUTL
FANOUTR
RAOUTL
*
SMUTE
R8142
*
C8132
10K
Q8140
R8143
10K
R8043
B/W
NI
47K
47K
*
Q8040
C8332
R8332
R8034
C8032
R8134
*
R8042
RECL
FRIN
0.1/50
C8272
100/16
C8076 C8176
0.1/50
RECR
B/W
820K
R8434
9.1K
R8432
C8433
C8432
0.0022
0.0022
C8902
10/50
ADINR
LOUT
*
C8130
3.3K
R8131
R8130
C8131
4.7K
0.1
IC830
RC4558D-X
*
R8133
*
R8033
4.7K
R8031
3.3K
C8031
0.1
*
R8030
C8030
SW-AHB
ROUT
10/50
C8172
Q8170
R8172
10K
Q8070
R8072
10K
100K 100K
1K
R8070
10/50
C8072
2SD2114K/VW/-X 2SD2114K/VW/-X
C8070
10/50
LRMUTE
0.1/50
C8173
DELAY
0.01
NI
0
0
B/W
100/16
C8220
C8222
C8221
R8225
R8223
R8224
R8220
V-CK
V-CEM
V-DI
-IN
MIC
RAOUTR
FLIN
2SD2114K/VW/-X
2SD2114K/VW/-X
C8402
0
R8407
0.00220.0022
R8433
9.1K
CN810
QGF1036C2-08
CAOUT
10/50
C8202
39K39K
R8146R8046
0.022
C8203
22K
R8203
10K
R8202
V-CK
V-DI
V-CE2
C/R-MUTE
1K
1/50
C8174
Q8171
10K
R8173
B/W
Q8071
10K
R8270
R8073
1K
R8074
C8074
1/50
NI
C8270
4.7K
68K
R8403
R8404
IC888
RC4558D-X
R8435
0
1/50
C8431C8430
C8434
NI
C8436
R8431R8430
9.1K9.1K
NI
R8436
B/W
R8400
RC4558D-X
R8174
0.1/50
C8437
10K
R8206
R8204
RRIN
D8401
10/50
NI
C8400
QGF1205C2-08
IC801
22K
C8403
4.7K
4.7K
NI
C7360
R8205
24K
C8204
0.022
2SD2114K/VW/-X
R8075 R8175
10K 10K
2SD2114K/VW/-X
R8405
100K
R8402
R8401
CN760
TUDI
TUCE
TUDO
DISPCK
DISPCS
CPURST
V-MUTE
DVD-SAFETY
DISPD2S
DISPBUSY
DISPS2D
IC4
IC760
IC1
C8201
NI
B/W
R8201
C8082
0.1/50
100K
10K
Q8080
R8081
R8082
2SD2114K/VW/-X
1K
R8080
*
C8184
C8080
10/50
22K
SW
CAOUT
LRMUTE
R8007
RECR
47K
R8409
NI
Q8401
C8404
KRC109S-X
NI
D8402
C8405
NI
NI
R8406
C8401
47/25
MIC-DETECT
MIC-SIG
U2SDT
SN74AHCT08NS-X
IC2
FANOUTR
10/35
47K
R8000
47K
R8001
C8086
0.1/50
C8083
RLIN
22K
R8107
DELAY
RECL
C8000
150P047K
C8003
IC3
FANOUTL
R8100
R8101
IC880
LC75342M-X
2.2K
C8100
47K
150P
C8103
MIC+ECHO
0.1/50
R8269
RHYTHM
10/35
C8264
C8265
KTC3199/GL/-T
CS
10/50
10/50
Q8260
TUCK
R8103
R8102
22K
22K
IC800
RC4558D-X
22K
22K
R8003
R8002
B/W
R8200
MIC-IN
NI
B/W
B8008
B8007
C8085
1/50
NI
NI
C8186
C8187
NI
C8282
R8188
R8263
4.7M
0.022
2.2/50
C8263
R8264
R8261
R8262
15K
C8266
4.7/50
R8260
470K
100
IC860
JCV8011-X
*
C8361
C8360
C8269
C8267
33/25
4.7/50
4.7K
5.6K
R8265
R8266
6.2K
10K
0.47/50
C8268
100K
C8362
R8267
R8268
R8162
0.22/50
D7350
1N4003S-T5( T99)
C8101
10/35
C8001
10/35
V-DI
V-CE1
NI
100/16
RVRIN
C8262
470K
C8062
4.7/50
10K
R8062
C8200
C8280
10/35
10K
R8161
NI
V-CK
C8185
SP-OUTR
LVRIN
C8162
10/35
10K
R8061
CN750
QGF1205F2-11
36K
R8192
*
R8098
*
R8198
TUL
1.5K
R8104
**
R8005 R8105
R8004
1.5K
C/R-MUTE
C8084
1/50
R8084
R8083
10K
B/W
R8280
R8186
10K
R8187
2.7K
*
SP-OUTL
C8060
C8261
*
47/25
*
C8061
47/25
*
C8363
R8060
RECR
R7875
INH
R7081
680
10/35
10K
SWIN
R8064
NI
NI
C8260
B/W
680
R7084
C8102
FL
R8085
4.7K
R8189
R7080
D7082
C7085
1000/6.3
2SD2114K/VW/-X
KRA102S-X
2SD2114K/VW/-X
10/35
C8002
FR
2SD2114K/VW/-X
2SD2114K/VW/-X
C-IN
NI
C7084
KRA102S-X
Q7798
1N4003S-T5
22K
R8574
C8574
10/35
RSELO
10k
22K
0.01
R7082
D7081
Q7081
1K
C7083
MTZJ4.7B-T2
KRC111S-X
Q7794
D7713
D7711
22K
R8575
C8577
C8575
10/35
1/50 B/W
MIC-SIG
LSELO
R7892
C7794
10/50
10K
10K
R7897
C7798
100/16
SP-OUTR
DELAY
SP-OUTL
C8564
B/W
0.022
C8572
C8576
0.15
10K
680
R8578
R8579
1/50
C8579
C8578
0.15
C8581
36K
R8092
R7085
TUR
LRMUTE
Q8100
R8106
10K
R8006
10K
Q8000
1K
Q8081
Q8180
R8164
C8160
*
NI
*
C8161
R8360
*
R8160
RECL
RESET
SDA
SCL
4.7/50
C7082
2.2K
C7080
Q7080
IC771
KRC107S-X
BR24L02F-W-X
D7080
0.001
R7083
10K
R7876
R7878
100K
R7879
10K
R7881
10K
C/R-MUTE
LED-RHY
POUT/FDVD
FAN-CTL
FAN-SPEED
FAN-SAFETY
AMP-PON
PRT
C7788
10/50
KRA102S-X
Q7788
RHYTHM
C8553 C8551
0.1/50
C8539
R8539
8.2K
C8555
100/16
C8556
C8563
B/W
0.1
24K
0.001
C8508
0.0015
0.15
0.0015
2.2/50
C8506
C8502
24K
C8583
C8504
24K
R8509
24K
R8508
R8507
MIC+ECHO
47K
C8509
0.0033
R7776
2.2K
R7777
1K
R7778
2.2K
R7779
2.2K
R7780
2.2K
R7781
2.2K
R7786
2.2K
R7788
2.2K
R7789
2.2K
R7790
1K
R7791
1K
R7792
1K
R7794
2.2K
R7796
2.2K
R7797
1K
R7798
1K
R7799
NI
R7899
10K
L7711
QUY150-050Y
DSP-SW
LEVEL
10/50
C8550
C8546
C8548
C8552
NI
0.068
0.001
0.0047
IC850
M65851FP
R8510
0.068
C8512
0.001
0.1
0.1
2.2/50
C8514
R8511
24K
24K
C8590
C8591
C8516
24K
R8512
R8514
R8513
C8513
2.2/50
C8515
0.0047
100K
R7771
100K
R7867
10K
2.2K
R7871
100K
R7775
QUY150-050Y
K7711
NI
R7802
R8551
1/50
22K
C8541
C8598
C8597
C8542
0.1
0.1
0.068
0.0047
0.1
C8593
0.068
47/25
100/16
C8524
C8522
C8520
24K
R8521
4.7
2.2K
2.2K1K1K
1K
R7773
R7772
R7774
R7702
R7703
R7704
1K1K1K1K2.2K
2.2K
F-KEY1
F-KEY2
F-KEY3
10K
10K
R7804
R7803
DISPCK
US5V
0.001
SP-WR
SP-DA
C8531
0.1
R8529
11K
A5V
KTC3203/OY/-T
Q8524 D8524
R8524
560
R8523
10K
R7886
HPSW
SP-WR
R7770
R7705
R7706
F-KEY4
10K
R7805
C8540
HP-MUTE
VOL-CEM
SCL
2.2K
R7768
R7769
R7707
R7708
2.2K
A-KEY
B-KEY
10K
10K
R7806
R7807
C8525
NI
******
SDA
RELAY-C/R
RELAY-F/SW
002.2K
2.2K
1K
R7767
R7766
R7763
R7765
R7764
IC770
MN101C49GFA
R7709
C7711
100/16
C7710
QAX0711-002Z20P
0.01
2.2K
C7712
MIC-DETECT
10K
10K
R7808
R7809
MTZJ5.6B-T2
2.2K
Q7010
SP-REQ
SP-STR
SP-CK
LED-ILLU
R7762
X7700
RELAY-C/R
R7010
R7004
R7011
R7761
R7760
R7715
10K
18P
KTC3199/GL/-T
KTC3199/GL/-T
*
R7012
*
R7016
*
R7015
*
R7014
*
C7008
C7007
R7759
******
R7717
10K
C7713
*
NI
NI
R7861
R7860
R7718
1K1K1K
VOL-DI
R7013
R7859
R7719
VOL-CE2
*
C7003
LED-DIM
2.2K
R7756
R7720
VOL-CK
Q7000
RY712
FL-ON
LED-RHY
LED-KAOK
2.2K
2.2K
1K
R7753
R7755
R7754
R7721
R7722
R7723
1.2K
1.2K
1.2K
DISPD2S
U2SDT
LEVEL
RELAY-F/SW
R7000
*
R7002
NININI
C7004
VOL-CEM
2.2K
C7050
D7000 R7003R7001
R7005
C7005
DVD-SAFETY
VIDEO-MUTE
2.2K
2.2K
R7752
R7751
R7724
R7725
1.2K
CPURST
DISPCS
4.7/50
R7050
*
100K
R7852
R7749
R7748
R7747
R7746
R7745
R7744
R7743
R7742
R7740
R7739
R7738
R7737
R7736
R7735
*
B8005
R7921
1.2K
NI
R7824
2.2K
R7821
2.2K
R7823
2.2K
R7825
2.2K
39K
D7050
R8293
56k
MTZJ5.1B-T2
**
R7006
*
D7001
RY767
*
B7870
( T77)
D7010
C7006
C7009
NI
C7010
NI
*
J700
CN970
QGB2510J1-04
LED-STBY
1K
FL-BK
1K
SP-CK
0
SP-STB
1K
SP-DA
10K
FL-CK
1K
FL-LA
1K
FL-DA
1K
TUCE
1K
TUDI
1K
TUCK
1K
TUDO
1K
NI
VOL-CE1
1K
INH
RESET
R7732
*
R7731
2.2K
D7153
R7153
12k
J970
2.2K
D7154
*
R7154
R7157 D7157
12k
*
QNB0301-001
REM
CS
100
SP-REQ
D7155
D7156
R7155
R7156
2.2K
12k
12k
R7251
D7012
*
RY756
CN860
*
QGB2510J1-06
DVD-SAFETY
SP-CK
SP-DA
SP-STB
2.2K
R7252
CN990
*
*
2.2K
2.7K
2.7K
2.7K
CN850
R7253
R7255
R7256
R7254
R7257
RY734
J990
QNB0263-001
R7728
R7726
CN799
*
D7152
D7151
R7151
R7152
12k
12k
*
D7011
*
RY750
NI
NI
R7880
CN789
D7780
NI
AVC-IN
27K
R7200
FB
13K
B-PBL
47
A-PBL
13K
B-PBR
47
A-PBR
*
RECR
*
RECL
R8195
NI
CN788
NI
Q7780
AVC-OUT
D7390
NI
NI
C8231
C8233
C8230
47/25
4.7K
R8810
4.7K
NI
R8812
NI
IC810
SW-C
PRT
Q8212
KRC104S-X
DSP-SW
CN787
QGF1210G1-05
AVC-IN
*
1/50
C8232
R8232
D8230
KTC3875/YG/-X
100K
R8121
ADINR
220K
R8235
220K
R8335
Q8031
C8180
0.012
R8181
R8888
FL
KRC104S-X
AVC-OUT
100
R8035
Q8032
RC4558D-X
NI
B/W
ADINL
LSELO
SW-ASW-B
10K
R8212
R8211
22K
NI
Q8211
C8210
AVC-OUT
AVC-IN
*
NI
C8234
R8231
R8230
*
KTC3875/YG/-X
C8810
R8811
100/16
R8813
C8812
NI
CD4066BM-X
SW-D
RSELO
FR
J800
QNN0420-001
B7046
C8190
NI
C8090
NI
15K
R8190
C8191
NI
R8191
150K
C8091
NI
R8091
150K
AUXR
100
100
R8135
R8136
R8132
1M
R8199
KTC3875/YG/-X
C8182
16K
100K
12K
Q8132
Q8130
KTC3875/YG/-X
KTC3875/YG/-X
0.1
C8181
22K
R8183
0.015
R8288
B/W
NI
C8288
SW
TUL
AUXL
B-PBL
LVRIN
A-PBL
C8121
C8122
C8123
C8120
C8126
C8125
*
4.7/50
4.7/50
4.7/50NI4.7/50
10/50
*
10/50
4.7/501K4.7/50
4.7/50
4.7/50
C8023
C8026
C8025
C8021
C8022
C8020
TUR
AUXR
B-PBR
A-PBR
RVRIN
100
R8036
Q8131
1M
R8099
R8180
22K
IC881
R8182
SW-AHB
R8021
IC820
LC75342M-X
B/W
R8210
UN2111-X UN2213-XUN2113-X UN2214-XUN2215-X
RC4558D-X
2-9
Amplifier section (for DX-T77)
KIA7805API
C6401
CN603
QGF1205F2-11
D6311
MTZJ11B-T2
IC605
KIA278R05PI
!
C6322
R6321
10K
D6321
C6321
47/25
100/16
MTZJ6.2B-T2
IC604
KIA7809API
!
D6331
C6332
100/16
C6331
47/25
IC607
KIA7808API
!
D6353
KRC102M-T
Q6352
R6352
MTZJ4.3B-T2
MTZJ11B-T2
1K
D6351
MTZJ13B-T2
Q6351
KTC3203/OY/-T
!
IC603
KIA7805API
1K
R6342
47/25
C6341
R6357
1K
10K
R6356
D6342
C6342
D6341
100/16
MTZJ6.2B-T2
10K
R6358
D6352
!
IC602
KIA7809API
MTZJ11B-T2
D6361
C6362
C6361
100/16
47/25
KTC3199/GL/-T
!
IC608
47/25
IC606
!
KIA278R09PI
C6311
C6312
47/25
C6402
100/16
100/16
IC601
!
STK402-240
!
R6001
100
C6111
220P
D6001
MTZJ9.1B-T2
1K
R6215
Q6211
D6211
R6216
!
L6211
0.39
R6213R6214
47K
R6217
5.6K
C6213
100K
C6214
R6219
!
33K
R6005
C6002
R6211
C6001
0.22
100/50
C6212
15P
R6212
56K
1010
0.1
0.1
1K
R6225
820
R6218
C6211
47/63
D6221
R6226
Q6001
R6221
0.22
KRC102M-T
D6002
MTZJ9.1B-T2
C6003
10/50
10/50
100
R6002
100/50
Q6002
C6004
KTA1267/YG/-T
C6121
C6131
220P
10K
R6003
C6222
15P
R6222
56K
!
Q6221
10
KTC3199/GL/-T
R6223
0.39
L6221
!
10
R6224
47K
0.1
R6227
C6223
5.6K
100K
R6229
C6224
220P
R6004
10K
C6221
47/63
10
R6006
820
R6228
0.1
!
0.22
R6231
C6232
15P
R6232
56K
L6231
C6231
47/63
10
R6233
!
!
820
10
R6234
R6238
0.10.1
C6233
C6234
R6239
0.39
KTC3199/GL/-T
R6237
47K
100K
1K
R6235
Q6231
1/50
D6231
R6236
C6005
5.6K
C6133
470P
R6132
C6132
R6131
1k
10/50
R6111
1k
C6112
10/50
C6113
56k 56k56k
R6112
470P
C6123
470P
R6122
C6122
R6121
1k
10/50
QGF1205C2-19
CN602
C6701
R6702
Q6702
KTA1268/GL/-T
CN604
QGA2501F1-03
!
STK413-430
IC650
R6805
10
!
D6802
D6801
MTZJ15B-T2
MTZJ15B-T2
6.8K
MTZJ36B-T2
R6515
NI
Q6511
KTC3199/GL/-T
R6516
R6803
R6801
R6802
6.8K
2K
1K
C6510
L6511
D6511
47K
R6517
5.6K
R6519
D6803
KTC3199/GL/-T
D6701
C6703
10/50
R6705
10K
KTA1268/GL/-T
Q6704
R6706
100K
R6701
10K
10/50
KTC3200/GL/-T
Q6701
R6703
10K
100K
Q6703
R6704
C6702
100K
47/25
2K
R6501
R6511
6.8K
R6804
D6804
6.8K
!
MTZJ36B-T2
2K
R6502
!
R6513R6514
0.39
1010
KTC3199/GL/-T
D6521
0.1
C6513C6514
R6526
100K
0.1
C6512
22P
C6911
R6512
56K
0.22
R6521
0.22
!
C6522
22P
R6522
2K
R6520R6510
R6525
56K
1K
C6520
!
NI
Q6521
5.6K
10
R6523
0.39
L6521
!
10
R6524
C6523
47K
0.1
R6527
0.1
C6524
100K
R6529
C6921
220P
220P
C6521
47/63
47/63
C6511
33K
R6806
!
!
!
680
680
R6528
R6518
QGB2510K2-20
CN601
Q6602
KTC1027/OY/-T
1/50
C6604
KTA1023/OY/-T
!
R6605
47
Q6604
!
R6608
47
R6932
R6922
!
R6531
0.22
R6532
56K
C6532
C6931
4.7P
220P
2K
C6530
NI
0.39
C6531
R6538
R6530
R6533
47/63
10
!
Q6531
L6531
KTC3199/GL/-T
680
R6534
10
0.10.1
R6537
C6533C6534
100K
R6539
2K
R6535
R6503
1K
D6531
47K
5.6K
R6536
R6606
10K
10K
R6607
C6603
0.1
C6932
10/35
C6922
10/35
56k 56k56k
R6912
C6912 R6911
10/35
R6603
10K
10K
Q6601
R6604
KTC3200/GL/-T
D6601
100/16
R6602
100K
KTA1268/GL/-T
Q6603
0.1
C6602
C6933
470P
R6931
1k
1k
R6921
C6923
100P
C6913
100P
1k
2.2K
R6601
C6601
QGB2510K2-16
CN651
CN652
QGF1205C2-08
Parts are safety assurance parts.
When replacing those parts make
sure to use the specified one.
2-10
Front and Video section (for DX-T77)
C5000
22/50
NI
NI
NI
C5001
22/50
R5047
R5048
R5049
IC510
GP1UM281XKVF
C5002
R5000
R5001
R5003 R5002
R5005
R5007 R5006 R5004
R5008
0.001
C5003
10/25
Q5007
KRC102M-T
FL-CON
R5042
10K
Q5008
KTA1023/OY/-T
1K
1K
2.7K 1.8K 1.2K5.6K 3.9K 2.2K
10K
S5010
S5011
S5012
S5013
S5014
S5015
S5016
S5017
R5010 R5009
R5011
R5012
R5013
R5014R5015
1K 1K
1.2K
1.8K
2.2K
2.7K3.9K
R5043
REM
LED-STBY
FL-DATA
FL-LATCH
FL-CLK
FL-CON
FL-BK
LED-KARAOKE
LED-RHYTHM
F-KEY1
F-KEY3
F-KEY2
LED-ILLUMINATION
LED-GND
F-KEY4
DAVSS
CN500
QGF1036F2-19
S4
+VPP
S4
FW500
QUM153-18DGZ4-E
270
D5007
SLR-343VC-T
Q5009
KRC102M-T
F-KEY4
F-KEY3
F-KEY2
F-KEY1
S5000
S5001
S5002
S5003
S5004
S5005
S5006
S5007
S5008
S5009
9G8G7G
6G
2G3G4G
5G
10G
R5046
100K
C5004
0.1
P29
P30
P31
P32
P33
P34
P35
100p
C5005
S5018
S5019
S5020
S5021
S5022
S5023
S5024
S5025
S5026
R5021R5022
R5023 R5017R5019R5020 R5016R5018
2.7K3.9K
5.6K 1K1.8K2.2K 1K1.2K
P1
P2
P3
P4
P5
S5027
S5028
S5029
S5030
S5031
S5032
S5033
S5034
P28
P6P7P8
P27
C5006
R5024
R5025
R5026
R5027
R5029
R5030 R5028
P26
100/10
1K1K
1.8K 1.2K3.9K 2.2K
2.7K
P14
P13
P12
P11
P10
P9
P25
P22
P24
P21
P20
P19
P23
IC500
PT6305
1K
1K
R5040
R5041
0.1
C5007
FL-CLK
FL-DATA
R5035
D5004
P15
P18
160
P16
P17
1K
R5039
FL-LATCH
Q5004
P20
P19
P18
P17
P16
P15
P14
P13
1K
R5038
FL-BK
LED-RHYTHM
R5036
D5005
SLI-343URC-W-T
KRC102M-T
P21
P12
160
P24
P23
P22
P11
SLI-343URC-W-T
Q5005
KRC102M-T
CN930
QGF1036C2-28
P27
P26
P25
P10
P9
P8
P7
P6
P5
P4
P3
P2
P1
1G
2G
3G
4G
5G
6G
7G
8G
9G
10G
LED-KARAOKE
R5037
56
820
R5044
D5006
SELU2E10C-P
DISPCS
DISPCK
DISPRST
DISPBUSY
P28
P29
KRC110M-T
0.01
Q5006
KRC102M-T
DISPD2S
DISPS2D
P32
P31
P30
R5045
100K
LED-ILLUMINATION
Q5010
10K
C5008
R5050
47
R9310
P33
P35
P34
KTC3199/GL/-T
Q5011
KTC3199/GL/-T
Q9303
2.2( 1W)
C9300
100/16
R9300
R9303
270
R9302
C9303D9303
100/16MTZJ3.9B-T2
D9302
D9301
CN901
QGF1205F2-05
Q9300
680
R9017
KRA110M-T
Q9301
KRC110M-T
R9015
100K
C9005
0.1/50
R9005
1K
D9002
D9001
470K
R9007
Q9004
1/50
C9006
NI
R9009
Q9100
KRA111S-X
R9201
430
R9202
390
R9203
390
R9204
130
R9205
390
R9206
130
R9207
390
R9208
430
R9209
390
R9210
430
Y-2
C
Cr
Cb
Y-1
DISPCS
DISPCK
DISPS2D
DISPD2S
DISPRST
DISPBUSY
B9005
C9007
68P
C9032
NI
Q9003
NI
C9201
C9204
0.01/50
C9206
1/50
C9209
C9211
1/50
C9213
1/50
C9215
1/50
C9216
0.1/10
C9200
470/10
DVD-SAFETY
0.1/50
68P
C9033
R9016
NI
2SD2114K/VW/-X
Q9101
R9101
4.7k
R9102
4.7k
560K
R9036
R9032
B9004
C9031
560K
R9033
10/25
C9003
100
0
R9010
IC920
R9030 R9031
560K
C9030
68P
NI
C
VIDEO-MUTE
Y-1
Y-2
Cb
VIDEO-MUTE
Cr
VIDEO-MUTE
CN920
QGF1205C2-08
560K
68P
NI
C9002
VR901
QVQ0342-B24
2SD2114K/VW/-X
R9103
4.7k
R9104
4.7k
2SD2114K/VW/-X2SD2114K/VW/-X
BH7868FS-X
R9003
5.6K
0.47/50
Q9103
Q9104Q9102
NI220
IC901
RC4580ID-X
270K
R9004
C9004
QQL231K-2R2Y
C9035
39K
R9035
1/50
C9008
C9001
0.1/50
R9006
820
KTC3875/YG/-X
L9100
C9232
0.01/50
C9230
470/6.3
C9227
470/6.3
C9224
470/6.322/50
C9221
470/6.3
C9218
470/6.3
FW910
QUM153-21DGZ4-E
D9313
1SS133-T2
D9312
1SS133-T2
MTZJ3.0B-T2
D9311
1SS133-T2
4.7
MTZJ2.0A-T2
MTZJ3.3B-T2
Y-1
Cb
Cr
D9310
R9301
2A02-M
D9300
DVD-SAFETY
C
Y-2
CN931
QGF1205C2-11
R9013
R9000
10K
Q9001
KTC3875/YG/-X
K9100
L9101
L9102
0.001
C9101
C9010
100/16
Q9002
C9102
R9011
0.001
820K
10K
R9014
R9012
16K
10K
R9002
1K
0.0022
C9000
QQR1183-001Z
QQL231K-470Y
QQL231K-470Y
D9100
C9100
C9311
C9009
47/25
4.7K
R9021
4.7K
R9022
R9001
QNS0266-001
NI
R9227
R9232
R9230
10K
R9034
C9034
0.47/50
100K
3900P
C9104
C9103
*
*
GP1FAV30TK0F
L9310
QNN0572-001
75
R9224
75
R9221
75
R9218
QNN0557-002
75
75
C9231
NI
75
QNS0252-001
0.0010.001
C9021C9022
J910
3900P
C9105
W910
IC930
NI
C9223
C9220
C9217
C9226
NI
C9229
J901
0.001
C9310
NI
NI
J921
QNS0252-001
J920
NI
NI
NI
J902
CHASIS
CHASIS
2-11
Primary section (for DX-T66)
CN203
S3CT
QGB2510K2-07
SAFETY
R2012
470
R2011
470
HPR
HPL
CN202
QGD2504C1-03Z
CN201
QGB2510J1-09
SW1
FR
FL
CN200
QGB2510J1-13
FR
FL
D2009
C2010
680 0.01/50
R2004
R2002
C2006
100K
R2000
SW1
220P/50
MTZJ5.1C-T2
R2005
2.7K
Q2009
KTC3199/GL/-T
2200/50
100K
C2011
!
GBU803
4700/80
R2007
D2001
R2006
C2000
680
C2005
!
0.1
C1010
D1002
!
C1012
0.1/50
!
C1011
D2013
!
Q2007
KTA1046/Y/
4.7K
Q2008
KTC3199/GL/-T
1K
1K
1K
R2009
R2010
R2008
C2007
NI
C2009
0.1/250
NI
R2001
100K
R2003
D2008
2A02-M
100K
C2008
C2004
C2013
C2012
2200/50
4700/80
4700/25
4700/16
R2013
27K
CN204
QGB2510K2-13
CN104
S4
+VPP
S4
CN105
QGD2503F1-03 QGB2510J1-13
R1004
R1006
C1013
0.1
1
1
R1003
100K
MTZJ6.2B-T2
D1012
KTC3203/OY/-T
C1005
10/50
Q1001
C1014
0.1
C1008
NI
R1002
T3.15AL,250V
F1006
D1000
!
D1001D1003
!
0.1
!
F1005
!
F1004
!
F1003
!
F1007
T8AL,250V
!!
22/50
C1004
T8AL,250V
!
KTC2026/Y/
0.01
D1013
D1011
!
F1008
Q1000
D1014
MTZJ18B-T2
D1007
D1006 D1010
!
100K
C1003
!
C1006
NI
MTZJ18B-T2
T1.6AL,250V
T6.3AL,250V
T6.3AL,250V
R1001
75K
C1007
NI
R1005
C1002
C1015
75K
22/50
0.1
1N4003S-T5
C1016
D1015
22/160
D1016
D1017
C1017
100/100
1N4003S-T5
!
T6.3AL,250V
!
QSW0812-001
1N4003S-T5
S1000
R1000
F1001
47
!
F1002
!
T3.15AL,250V
QGA7901C1-04
CN106
QGA3901F2-03
QGA3901F1-08
CN101
CN103
CN100
QGA7901C1-02
CN102
QGA7901C1-03
!
!
T1001
QQT0516-001
2-12
Parts are safety assurance parts.
When replacing those parts make
sure to use the specified one.
Main section (for DX-T66)
CN720
QGF1036C2-19
CN730
QGF1205C2-25
CN740
QGF1205F2-05
CN830
QGF1205C2-13
CN820
QGF1205C2-08
27K
LED-STBY
LED-KAOK
R7200
A-STTA
SLC-SAFETY
S-DATA
REM
FL-DA
FL-LA
FL-CK
FL-ON
FL-BK
LED-RHY
F-KEY1
F-KEY3
F-KEY2
LED-DIM
LED-ILLU
F-KEY4
S-CK
B-PHOTO
B-PLAY
B-KEY
A-KEY
A-PLAY
A-PHOTO
B-STTA
100P
36K
22K
FAN-SAFETY
FAN-SPEED
FAN-CTL
POUT/FDVD
B7423
NI
C7101
1/50
C8232
KTC3875/YG/-X
RC4558D-X
J800
QNN0420-001
B7046
NI
C8190
NI
NI
C8090
R8190
NI
C8191
15K
R8191
C8091
NI
15K
R8091
AUXR
75K
100
100
R8035
R8036
R8235
R8232
220K
R8335
Q8031
220K
KTC3875/YG/-X
1M
R8099
R8180
22K
0.1
C8181
C8407
IC881
C8182
0.0082
R8182
33K
SW-AHB
R8021
0
R8210
47/63
22K
R8183
R8288
NI
0
C8288
TUL
AUXL
A-PBL
B-PBL
C8122
C8121
C8123
C8120
4.7/50
4.7/50
4.7/50
4.7/50
IC820
100K
LC75342M-X
4.7/501K4.7/50
4.7/50
4.7/50
C8021
C8022
C8023
C8020
B-PBR
TUR
AUXR
A-PBR
NI
R7880
NI
D7780
NI
AVC-IN
18K
36K
R8198
B-PBL
R8194
R8197
22K
A-PBL
R8193
R8098
B-PBR
R8094
R8097
R8093
A-PBR
R8095
RECR
1.5K
R8195
RECL
1.5K
10K
10K
R8096
R8196
HPSW
HP-MUTE
C7792
NI
SWIN
FRIN
FLIN
AMP-PON
NI
CN789
Q7780
AVC-OUT
D7390
C8230
FB
NI
R8812
18K18K18K
NI
MIC-
IN
NI
R8810
IC810
PRT
DSP-SW
CN787
QGF1210G1-05
AVC-IN
AVC-OUT
NI
5.1K
R8231
10K
C8233
R8230
C8811
C8810
CD4066BM-X
RSELO
D8230
0.012
C8180
0
R8888
FL
LSELO
100K
R8121
SW-ASW-B
SW-D
10K
R8212
R8211
22K
Q8211
KRC104S-X
47/25
R8813
NI
NI
NI
R8811
SW-C
Q8212
KRC104S-X
FR
CN800
QGF1036C2-10
NI
B/W
B8901
B8900
K8000
K8001
36K
36K
R8090
AUXL
100
100
R8135
Q8131
1M
Q8032
R8412
16K
LVRIN
C8125
C8126
10/50
0.0027
0.0027
10/50
C8025
C8026
RVRIN
KTC3875/YG/-X
Q8132
R8199
MTZJ3.9B-T2
R8120
C8128C8028
C8127
0.10.1
0.1
0.1
C8027
3.9K
R8020
R8136
KTC3875/YG/-X
BASS1
D8406
22K
LOUTROUT
3.9K
B8129
B8029
12K
R8132
Q8130
KTC3875/YG/-X
16K
R8414
R8413
Q8403
KTC3875/YG/-X
0
0.01
0
NI
100/16
C8222
C8221
C8220
R8225
R8220
V-CK
MIC-IN
FAOUTL
Q8030
MTZJ3.9B-T2
0
0
R8223
R8224
V-DI
V-CEM
FAOUTR
R8032
12K
KTC3875/YG/-X
BASS2
D8407
22K
R8415
R8900
KRA104S-X
Q8900
R8416
LR-MUTE
6.8K
Q8404
1K
C8900
1/50
R8130
KTC3875/YG/-X
0.0022
C8430
R8430
9.1K
LOUT
0.1
C8130
C8131
0.1
4.7K
R8133
120K
R8033
120K
0.1
3.3K
C8031
4.7K
R8030
C8030
R8031
0.1
ROUT
4.7K
R8403
RC4558D-X
B/W
C8402
0
R8407
820K
R8434
9.1K
C8433
C8432
0.0022
1/50
0.0022
C8431
9.1K
R8432
R8433
C8434
R8431
9.1K
0.0022
RC4558D-X
IC888
10/50ra2
SW-AHB
R8435
CN760
QGF1205C2-08
DISPS2D
DISPBUSY
IC4
NI
C7360
IC760
IC1
3.3K
R8131
10/50ra2
C8132
IC830
0
47K
47K
NI
C8032
R8332
R8034
R8134
C8332
68K
R8404
0
NI
C8436
NI
R8436
47K
D8401
R8409
R8405
10/50
C8403
C8404
100K
0.1/50
C8437
0
R8402
4.7K
NI
C8401
C8400
R8400
4.7K
47/25
R8401
NI
MIC-SIG
U2SDT
SN74AHCT08NS-X
IC2
3.9K
SMUTE
R8142
10K
R8143
R8043
10K
R8042
Q8401
KRC109S-X
NI
D8402
C8405
NI
NI
R8406
3.9K
IC3
MIC-DETECT
Q8140
Q8040
RHYTHM
DVD-SAFETY
CS
FLIN
2SD2114K/VW/-X
2SD2114K/VW/-X
FRIN
2.2K
R8269
R7600
DISPCK
DISPCS
CPURST
V-MUTE
DISPD2S
8.2K 1K
R8146
8.2K
R8046
C8264
C8265
10/50
10/50
Q8260
KTC3199/GL/-T
TUDO
TUCK
TUDI
TUCE
FAOUTL
11K
R8104
C8101
10/35
FAOUTR
R8004
11K
C8001
10/35
4.7M
R8263
2.2/50
C8263
15K
100
R8264
R8261
R8262
IC860
33/25
C8360
C8269
C8267
C8266
4.7/50
1/50ra2
5.6K
R8265
R8266
4.7K
0.47/50
C8268
100K
C8362
R8267
0.22/50
470K
JCV8011-X
4.7/50
6.2K
R8268
CN750
QGF1205F2-11
R7875
INH
10k
SP-OUTR
C8060
C8061
R8060
RECR
R7081
22K
R7080
680
680
R7085
R7084
D7082
NI
NI
C7084
C7085
1000/6.3
SMUTE
Q8100
2SD2114K/VW/-X
Q7798
10/50ra2
10/50ra2
5.6K
KRA102S-X
2SD2114K/VW/-X
10/35
1N4003S-T5
10/35
C8002
C8102
D7713
FL
FR
D7711
100K
R8418
R8160
RECL
SP-OUTL
C8160
C8161
10/50ra2
10/50ra2
5.6K
FB
C8575
C8574
NI
10/35
10/35
C8260
0
R8360
LSELO
RSELO
SWIN
Q8000
0.01
R7082
D7081
Q7081
1K
C7083
MTZJ4.7B-T2
KRC111S-X
C7081
R7892
10K
10K
R7897
C7798
100/16
SP-OUTR
SP-OUTL
B/W
C8564
C8576
0.15
27k
1K
R8578
R8579
C8577
1/50
1/50 B/W
C8579
C8578
MIC-SIG
33K
33K
R8192
R8092
24K
R8189
24K
R8089
TUR
TUL
LRMUTE
R8106
10K
R8006
10K 10K
10K
R8005 R8105
2SD2114K/VW/-X
R8417
10K
Q8405
LVRIN
RVRIN
0.022
C8262
470K
47/25
C8261
R8260
C8363
47/25
10/35
10/35
C8162
C8062
C8361
4.7/50
R8162
R8062
15K
15K
R8161
R8061
10K
10K
RESET
SDA
SCL
4.7/50
C7082
2.2K
C7080
Q7080
IC771
KRC107S-X
BR24L02F-W-X
D7080
0.001
R7083
R7876
10K
100K
10K
10K
AMP-PON
PRT
1500P
0.15
C8502
C8581
R7878
R7879
R7881
BASS1
BASS2
POUT/FDVD
FAN-CTL
FAN-SPEED
FAN-SAFETY
KRA102S-X
RHYTHM
B/W
C8563
0.15
C8583
LED-RHY
A-PLAY
2.2K
R7776
1K
B-PLAY
24K
R8509
R7777
2.2K
R7778
2.2K
R7779
R7780
2.2K
R7781
2.2K
R7786
2.2K
2.2K
R7788
R7789
2.2K
R7790
1K
R7791
1K
R7792
1K
2.2K
R7796
1K
R7797
R7798
1K
10K
R7799
R7899
NI
L7711
QUY150-050Y
DSP-SW
LEVEL
C8548
C8552
C8550
0.22
4700P
0.001
IC850
M65851FP
C8514
R8510
0.068
0.1
C8512
2.2/50
0.001
R8511
24K
24K
C8590
C8516
24K
R8512
R8514
R8513
C8513
C8515
4700P
B-STTA
B-PHOTO
AVC-OUT
AVC-IN
C7788
10/50
Q7788
C8555
100/16
C8556
0.1
24K
0.001
C8508
1500P
2.2/50
C8506
C8504
24K
24K
R8508
R8507
47K
2.2/50
C8509
3300P
100K
SLC-SAFETY
100K
R7771
R7867
10K
0.1
A-PHOTO
2.2K
R7871
100K
R7775
QUY150-050Y1K1K1K1K
K7711
NI
R7802
C8598
C8597
C8541
C8542
C8546
0.1
0.1
4700P
0.068
0.068
0.1
C8593
0.068
47/25
100/16
C8524
C8522
C8591
C8520
24K
R8521
R8523
4.7
A-STTA
1K
R7774
R7702
2.2K
S-DATA
2.2K
2.2K1K1K
R7773
R7772
R7703
R7704
F-KEY1
F-KEY2
10K
10K
R7804
R7803
DISPCK
US5V
SP-WR
SP-DA
A5V
KTC3203/OY/-T
Q8524
R8524
560
10K
R7886
SP-WR
R7770
R7705
R7706
F-KEY3
F-KEY4
10K
R7805
0.001
C8531
0.1
R8529
11K
HP-MUTE
VOL-CEM
SCL
SDA
HPSW
RELAY-C/R
2.2K
2.2K
1K02.2K
R7769
R7766
R7768
R7767
R7709
R7707
R7708
0.01
2.2K
2.2K
2.2K
A-KEY
B-KEY
10K
10K
10K
10K
R7809
R7806
R7807
R7808
DGND
C8540
D8524
C8525
MTZJ5.6B-T2
100/16
RELAY-F/SW
0
R7764
R7765
MN101CF49KYD
100/16
C7711
C7710
C7712
R7763
IC770
QAX0711-002Z20P
LED-ILLU
R7762
X7700
150
SP-REQ
SP-STR
SP-CK
R7004
R7761
*
R7861
*
DVD-SAFETY
R7715
10K
18P
KTC3199/GL/-T
C7008
C7007
R7759
R7760
LED-DIM
*
*
R7860
1K
*
*
R7756
R7859
R7718
R7719
R7720
R7717
1K1K1K
10K
C7713
VOL-DI
VOL-CE2
VOL-CK
LEVEL
Q7000
150
R7002
RY712
NI
C7003
NI
NI
LED-RHY
2.2K
R7755
R7721
1.2K
DISPD2S
FL-ON
LED-KAOK
2.2K
2.2K
R7754
R7753
R7722
R7723
1.2K
1.2K
U2SDT
RELAY-F/SW
R7000
NI
C7004
VOL-CEM
2.2K
C7050
100K
R7852
V-MUTE
2.2K
2.2K
R7752
R7751
1K
R7732
R7731
R7728
R7726
CN799
QGF1210G1-06
D7152
D7151
R7151
R7152
12k
12k
LED-STBY
1K
FL-BK
0
SP-CK
1K
SP-STB
10K
SP-DA
1K
FL-CK
1K
FL-LA
1K
FL-DA
TUCE
1K
TUDI
1K
TUCK
1K
TUDO
1K
1K
VOL-CE1
INH
RESET
10K
2.2K
REM
2.2K
100
CS
SP-DA
SP-CK
SP-REQ
SP-STB
D7153
R7153
12k
2.2K
2.2K
2.2K
CN850
R7251
QGB2510J1-07
R7252
R7253
J701
QNN0792-001
R7749
R7748
R7747
R7746
R7745
R7744
R7743
R7742
R7740
R7739
R7738
R7737
R7735
B8008
R7921
1.2K
R7724
R7725
NI
2.2K
R7824
R7821
2.2K
1.2K
2.2K
R7823
R7825
2.2K
DISPCS
CPURST
39K
R8293
D7050
*
56k
MTZJ5.1B-T2
R7050
150150
D7000 R7003R7001
R7006
R7005
150
150
D7001
RY767
NI
C7005
NI
C7006
QNB0288-001
J700
UN2111-X UN2213-XUN2113-X UN2214-XUN2215-X
RC4558D-X
2-13
Amplifier section (for DX-T66)
QGF1205F2-11
CN603
!
KIA7805API
C6401
IC606
!
IC608
47/25
KIA278R09PI
C6311
C6402
C6312
100/16
100/16
47/25
D6311
MTZJ11B-T2
!
IC605
KIA278R05PI
C6321
47/25
IC602
!
KIA7809API
47/25
C6361
CN601
QGB2510K2-09
D6361
C6362
MTZJ11B-T2
100/16
CN602
QGF1205C2-13
KTC3203/OY/-T
QGA2501F1-03
!
IC603
KIA7805API
1K
R6342
47/25
C6341
C6342
D6341
R6357
1K
Q6351
10K
R6356
CN604
10K
R6358
D6342
100/16
MTZJ6.2B-T2
D6352
IC604
KIA7809API
!
100/16
C6322
R6321
10K
D6321
MTZJ6.2B-T2
C6331
IC607
KIA7808API
!
Q6352
KRC102M-T
D6331
C6332
100/16
47/25
D6353
R6352
MTZJ4.3B-T2
MTZJ11B-T2
1k
D6351
MTZJ13B-T2
C6701
Q6702
10/50
100K
R6702
KTA1268/GL/-T
!
STK413-430
IC650
Q6602
R6604
R6606
10K
10K
R6607
C6603
0.1
C6602
C6932
10/35
C6922
10/35
56k 56k56k
R6912
C6912 R6911
10/35
R6603
10K
10K
Q6601
KTC3200/GL/-T
D6601
100/16
R6602
100K
KTA1268/GL/-T
Q6603
0.1
C6933
470P
R6931
1k
1k
R6921
C6923
100P
C6913
100P
1k
2.2K
R6601
C6601
!
R6531
R6805
10
!
D6802
D6801
MTZJ15B-T2
MTZJ15B-T2
R6511
6.8K
6.8K
6.8K
R6801
R6802
R6803
R6804
MTZJ36B-T2
R6515
R6516
6.8K
D6804
!
MTZJ36B-T2
NI
R6510
C6510
NI
Q6511
L6511
0.39
D6511
47K
5.6K
R6517
100K
R6539
NI
R6502
1K
!
R6513
1010
KTC3199/GL/-T
R6514
D6521
0.1
C6513C6514
0.1
R6526
D6803
10K
R6701
Q6701
KTC3200/GL/-T
R6703
10K
Q6703
100K
R6704
C6702
47/25
C6703 R6525
10/50
R6705
10K
KTA1268/GL/-T
Q6704
100K
R6706
KTC3199/GL/-T
D6701
R6501
1K
KTC3199/GL/-T
C6512
22p
C6911
R6512
0.22
56K
R6521
0.22
!
C6522
22p
R6522
R6520
56K
1K1K
NI
Q6521
5.6K
!
C6520
10
0.39
R6523
L6521
!
10
R6524
47K
C6523
0.1
R6527
0.1
C6524
100K
R6519
C6921
220P
220P
C6521
47/63
47/63
C6511
33K
R6806
!
!
680
680
R6528
R6518
0.22
R6532
56K
C6931
C6532
4.7P220P
C6530
NI
L6531
C6531
!
R6538
R6530
1K
0.39
47/63
R6533
10
!
Q6531
KTC3199/GL/-T
680
10
R6534
0.10.1
C6533C6534
R6537
47K
100K
R6529
KTC1027/OY/-T
NI
1K
R6503
R6535
D6531
C6604
5.6K
R6536
KTA1023/OY/-T
R6605
!
15
Q6604
!
R6608
15
R6932
1/50
R6922
Parts are safety assurance parts.
When replacing those parts make
sure to use the specified one.
CN651
QGB2510K2-13
CN652
QGF1205C2-08
2-14
Front and VIdeo section (for DX-T66)
C5000
22/50
NI
NI
NI
C5001
22/50
R5047
R5048
R5049
IC510
GP1UM281XKVF
C5002
R5000
R5001
R5003 R5002
R5005
R5007 R5006 R5004
R5008
0.001
10/25
C5003
Q5007
KRC102M-T
FL-CON
R5042
10K
Q5008
KTA1023/OY/-T
1K
1K
2.7K 1.8K 1.2K5.6K 3.9K 2.2K
10K
S5010
S5011
S5012
S5013
S5014
S5015
S5016
S5017
R5010 R5009
R5011
R5012
R5013
R5014R5015
1K 1K
1.2K
1.8K
2.2K
2.7K3.9K
R5043
REM
LED-STBY
FL-DATA
FL-LATCH
FL-CLK
FL-CON
FL-BK
LED-KARAOKE
LED-RHYTHM
F-KEY1
F-KEY3
F-KEY2
LED-ILLUMINATION
LED-GND
F-KEY4
DAVSS
CN500
QGF1036F2-19
S4
+VPP
S4
FW500
QUM153-18DGZ4-E
270
D5007
SLR-343VC-T
Q5009
KRC102M-T
F-KEY4
F-KEY3
F-KEY2
F-KEY1
S5000
S5001
S5002
S5003
S5004
S5005
S5006
S5007
S5008
S5009
9G8G7G
6G
2G3G4G
5G
10G
R5046
100K
C5004
0.1
P29
P30
P31
P32
P33
P34
P35
C5005
100p
S5018
S5019
S5020
S5021
S5022
S5023
S5024
S5025
S5026
R5021R5022
R5023 R5017R5019R5020 R5016R5018
2.7K3.9K
5.6K 1K1.8K2.2K 1K1.2K
P1
P2
P3
P4
P5
S5027
S5028
S5029
S5030
S5031
S5032
S5033
S5034
P6P7P8
P28
P27
P26
C5006
100/10
1K1K
R5024
R5025
R5026
1.8K 1.2K3.9K 2.2K
R5027
2.7K
R5029
R5030 R5028
P14
P13
P12
P11
P10
P9
P25
P22
P24
P21
P20
P19
P23
IC500
PT6305
1K
1K
R5040
R5041
0.1
C5007
FL-CLK
FL-DATA
R5035
D5004
P15
P18
160
P16
P17
1K
R5039
FL-LATCH
Q5004
P20
P19
P18
P17
P16
P15
P14
P13
1K
R5038
FL-BK
LED-RHYTHM
R5036
D5005
SLI-343URC-W-T
KRC102M-T
P21
P12
160
P24
P23
P22
P11
SLI-343URC-W-T
Q5005
KRC102M-T
CN930
QGF1036C2-28
P27
P26
P25
P10
P9
P8
P7
P6
P5
P4
P3
P2
P1
1G
2G
3G
4G
5G
6G
7G
8G
9G
10G
LED-KARAOKE
R5037
56
820
R5044
D5006
SELU2E10C-P
DISPCS
DISPCK
DISPRST
DISPBUSY
P28
P29
KRC110M-T
0.01
Q5006
KRC102M-T
DISPD2S
DISPS2D
P33
P32
P31
P30
R5045
100K
LED-ILLUMINATION
Q5010
10K
C5008
R5050
47
R9310
P35
P34
KTC3199/GL/-T
Q5011
KTC3199/GL/-T
Q9303
2.2( 1W)
C9300
100/16
R9300
R9302
R9303
270
C9303D9303
100/16MTZJ3.9B-T2
D9302
D9301
CN901
QGF1205F2-05
R9017
KRA110M-T
KRC110M-T
Q9301
R9015
R9030 R9031
C9006
430
Y-2
DISPS2D
DISPBUSY
D9001
NI
R9201
R9202
R9203
R9204
R9205
R9206
R9207
R9208
R9209
R9210
DISPCK
DISPD2S
Q9004
R9009
Q9100
KRA111S-X
DISPCS
DISPRST
560K
C9030
NI
VIDEO-MUTE
100K
C9005
0.1/50
R9005
1K
D9002
470K
R9007
1/50
430
390
390
130
390
130
390
430
390
C
Cr
Cb
Y-1
68P
Q9003
C
VIDEO-MUTE
Y-1
Y-2
Cb
VIDEO-MUTE
Cr
DVD-SAFETY
CN920
QGF1205C2-08
NI
NI
0.01/50
C9206
1/50
C9201
C9204
0.1/10
68P
C9209
C9211
C9213
C9215
C9216
470/10
C9032
1/50
1/50
1/50
C9200
B9005
C9007
0.1/50
68P
C9033
R9016
NI
2SD2114K/VW/-X
Q9101
R9101
4.7k
R9102
4.7k
560K
R9036
R9032
B9004
100
IC920
R9010
R9033
10/25
0
560K
C9031
68P
560K
NI
C9002
C9003
VR901
QVQ0342-B24
2SD2114K/VW/-X
R9103
4.7k
R9104
4.7k
2SD2114K/VW/-X2SD2114K/VW/-X
BH7868FS-X
R9003
5.6K
0.47/50
Q9104Q9102
NI220
R9004
Q9103
IC901
RC4580ID-X
270K
C9004
QQL231K-2R2Y
C9035
39K
R9035
1/50
C9008
C9001
0.1/50
R9006
820
KTC3875/YG/-X
L9100
C9232
0.01/50
C9230
470/6.3
C9227
470/6.3
C9224
470/6.322/50
C9221
470/6.3
C9218
470/6.3
FW910
QUM153-21DGZ4-E
D9313
1SS133-T2
D9312
1SS133-T2
MTZJ3.0B-T2
D9311
1SS133-T2
4.7
MTZJ2.0A-T2
MTZJ3.3B-T2
Y-1
Cb
Cr
D9310
2A02-M
D9300
C
Y-2
Q9300
680
R9301
DVD-SAFETY
CN931
QGF1205C2-11
R9013
R9000
C9010
10K
100/16
Q9002
Q9001
KTC3875/YG/-X
K9100
L9101
L9102
0.001
C9101
C9102
R9011
0.001
820K
R9012
16K
10K
R9014
C9009
10K
47/25
R9002
1K
0.0022
R9001
C9000
QQR1183-001Z
QQL231K-470Y
QQL231K-470Y
D9100
C9100
C9311
NI
10K
R9034
C9034
QNS0252-001
0.47/50
4.7K
R9021
0.0010.001
4.7K
R9022
100K
QNS0266-001
3900P
C9104
C9103
*
W910
*
GP1FAV30TK0F
NI
L9310
QNN0572-001
75
R9224
75
R9221
75
R9218
QNN0557-002
75
R9227
75
R9232
C9231
NI
75
R9230
C9021C9022
J910
3900P
C9229
C9226
NI
C9105
C9223
C9220
C9217
J901
0.001
IC930
C9310
NI
NI
J920
NI
NI
NI
J921
J902
QNS0252-001
CHASIS
CHASIS
2-15
DVD section (1/2) (for DX-T99 and DX-T77)
LPC2
C109NIC110
TP112
Q105
R126
NI
NI
K101
NQR0502-001X
UOUT
0.022C260
0.022C261
0.022C262
NIR252
1/2W
0.39
R251
9V0V0V0V0V
9V
9V
FR
NC
SPRF
VCC1
UOUT
SPFC
VREF
SGND
AMP4IN-
AMP4IN+
0V
0V
0V
0V
1.8V
0.1C256
10kR259
TP221
R215
NI
TRSDRV
LPC1
CDLDCUR
NI
R111
HFM
SW
VOUT
WOUT
VOUT
WOUT
OUT4F
OUT4R
DRIVER
AMP3OUT
AMPOUT
AMP3IN-
AMP3IN+
1.8V
2.1V
2.2V
6.8k
R221
R213
10k
C211
0.022
10k
R214
TRSDRV
PICKUP
QAL0786-***
(OPA-652PH*)
TRA
MECHA
FXL-D20-1M
FEED
QAR0165-001
SPINDLE
QAR0334-002
MOTOR
ASS'Y
MOTOR
ASS'Y
LD(DVD)
VR(DVD)
VCC(HF)
PD(DVD)
MECHA
CHASSIS
TRVSW
SWGND
PD(CD)
VR(CD)
LD(CD)
TP118
TP122
TP119
TP120
TP124
TP121
TP123
C101
C102
24
GND
23
VS
F
0.1
22
VCC
F
0.1
21
E
20
F
19
D
18
A
B
17
C
16
15
+RF
NC
14
13
12
GND
11
10
9
C103
0.1
F
8
GND
7
C104
0.1
F
6
5
4
F+
3
F-
2
T+
1
T-
CN101
QGF0523F3-24W
8
FM+
7
FM-
6
5
4
WOUT
3
VOUT
2
UOUT
1
COM
CN201
QGF1016F8-08W
TP291
TP292
F+
F-
T+
T-
TP101
TP103
TP104
TP102
TP207
TP208
TP206
FM+
FM-
WOUT
VOUT
UOUT
COM
TP201
TP203
TP202
TP204
C291
NI
C292
NI
TP114
TP116
TP117
0.1C107 F
TP109
TP106
TP107
R202
1k
TP205
TP108
TP115
VREFH
E
F
D
A
B
C
RF+
100
R101
R102
100
TP110
TP113
TP111
TP105
COM
M9V
0.1
F
100/16
C263
C217
MCOM
SPCTL
25 26 27 28 29 30 31 32 33 34 35 36 50 37 38 39 40 41 42 43 44 45 46 47 48
1.8V
NIR257
NI
R255
TP220
SPDRV
SPDRV
MGND
R112
4.3k
or
KTA1001/Y/-X
2SB1424/R/-W
5.6k
FM+
C203
0.01
0.9V
0V
MGND
OUT3F
AMPIN+
AMPIN-
0V
0V
LASER
1/4W
R113
18
Q103
2SC4617/R/-X
0V
0V
MGND
MGND
IC201
LA6502-X
MGND
SPVCOIN
0V0V0V0V3V
0V
0.47C251
R354
D1.2V
3.3V
INDEX
TRACK
COPY
DEMP
K352
NQR0502-001X
REG.
9
C328
IC510
LRMUTE
0.01
0V
3
GND
0V
2
NC
C359
1.2V
1
Vo
IC302
TP321
0.1C564 F
0V
0V
3
A2
0V
2
A1
0V
1
A0
EEPROM
R375
1k
TRVSW
100kR309
0.1C310
F
FG
SPMUTE
DRVMUTE
SPDRV
TRSDRV
C352
0.015
0.01
C351
R378
1k
C335
0.1
47/4
C301
F
C330
0.1
F
R348
0
R335
0
R334
0
R337
0
R336
0
F
C349
0.1
5
Cont4Cn
6
NC
7
NC
8
Vin
MM1701CH-X
5
SDA4GND
6
SCL
7
WP
3.1V
8
VCC
BR24L16F-W-X
SCS
S2UDT
U2SDT
UCLK
UCS
D1.2V
EXADT2
3.1V
1.2V
3.1V
3.1V
3.1V
3.1V
2.2V
65 P0
66 P1
67 P2
0V
68 VSS
69 VDD33
70 P3
71 P4
72 P5
73 P6
74 P7
75 P8
76 P9
77 P10
78 P11
79 P12
80 P13
81 P14
0V
82 VSS
83 VDD12
84 NRST
85 FG
86 DRV5
87 DRV4
88 DRV3
89 DRV2
90 DRV1
91 DRV0
0V
92 VSS
93 VDD33
94 MONI7
95 MONI6
96 MONI5
97 MONI4
98
99 MONI2
100 MONI1
101 MONI0
102 AVDDD
103 PLFIL1
0V
104 AVSSD
105 VREFH7
106 VREFL7
107 CCAPA
0V
108 AVSSC
109 CDATA
110 AVDDC
111 ANAMONI1
112 ANAMONI2
113 RFINN
114 RFINP
115 VIN1RF
116 VIN2RF
117 VIN4RF
118 VIN3RF
119 AVDDB
120 VREFH5
121 VREFL5
0V
122 AVSSB
123 LPC1
124 LPCO1
125 LPC2
126 LPCO2
127 VREFH
128 VHALF
MONI3
(EXADR20)
(DDATA)
(DCLK)
(DAC0CS)
(SERIAL1OUT)
(SCS)
(S2UDT)
(U2SDT)
(UCLK)
(UCS)
(SDA)
(SCK)
(ADIN)
(TALK)
(TRVSW)
(INDEX)
(TRACK)
(COPY)
(DEMP)
(WP)
EXADT1
VIN10
129
130
2.2V
2.2V
0R338
0R339
E
F
1
C303
47/4
10k
R319
DDATA
DCLK
DAC0CS
R350
C334
C309
C308
F
750
ADIN
F
F
EXADR20
330R325
330R326
0.1
0.1
0.1
TP309
330R324
R316 1k
100R383
100R353
100R310
TP304
R371
NI
R308
10k
1kR376
C350
1kR377
0.01
HAGUP
TP326
NIR374
10kR373
10kR372
R320
NI
R321
NI
R322
NI
R323
NI
TP306
TP308
TP307
0.033C331
0.1C333 F
0.1C332 F
0.0056C338
0.018C337
TP315
TP314
0.1C347
0.1C348
0.1C323
0.1C322
0.1C320
0.1C321
C314
0.1
F
C319
F
0.1
1.55V
1C340 F
1C324 F
D2V
1C304
NIC336
DGND
47kR541
47kR542
LPCO2
DVDLDCUR
DRIVER
R103
VCC2
BR
NI
2.4V
AMP2OUT
MUTE3
0V
27k
R104
4.3k
or
KTA1001/Y/-X
2SB1424/R/-W
5.6k
C205
270p
R206
30k
2.2V
1.8V
12345678910111249131415161718192021222324
AMP2IN-
AMP2IN+
MUTE1
MUTE2
0V
0V
SPMUTE
DRVMUTE
T
1/4W
C106
R105
18
R106
Q101
2SC4617/R/-X
R204
27k
R219
18k
T
C108
22/6.3
470
2.2
R116
R114
R118
R115
1k
Q104
330
R117
M5V
F+
T-
F-
T+
FM-
220p
220p
C202
C201
NI
C264
C204
0.1
F
0.9V
OUT3R
SPCX
0.0082C257
C210
TP226
9V
0.9V
0.9V
0.9V
0.9V
NC
NC
OUT2F
OUT1F
OUT2R
OUT1R
SPC1
AMP1IN-
AMP1OUT
AMP1IN+
SPC2
SPFGO
0V
2.4V
2.1V
1.8V
0.015C2581
0.015C259
24k
R220
R207
F
47k
C206
150p
FODRV
TP231
R205
NI
R254
FG
FODRV
S5V
LPCO1
1
R125
22/6.3
NI
2.2
470
R110
R108
VHALF2
HFMON
R127
47/6.3
R128
C105
330
S5V
S3.3V
HFMON
TRVSW
TRDRV
R384
1k
1k
1
F
R385
R107
1k
Q102
R109
TRDRV
TP227
NI
R208
C371
DVDPWR
CPURST
4.3k
AD4
5.6k
DISCSET
DISCSTP
RF+
A
B
D
C
LPC1
LPCO1
LPC2
LPCO2
VREFH
R355
NI
NI
NEXWE
EXADT6
EXADT5
EXADT4
EXADT3
EXADT7
EXADR17
VIN9
VIN5
VIN6
VIN7
VIN8
VIN3
VIN4
131
132
133
134
135
136
137
2.2V
2.2V
2.2V
2.2V
2.2V
2.2V
C342 NI
C343 NI
C344 NI
0.01
TH301
C393
NAD0025-103X
10k
R392
TP381
TEMPDET
EXADR18
2.2V
AD4
EXADT9
EXADT8
EXADT11
EXADR19
EXADT10
0.1
C375
F
3.1V
VIN2
VIN1
AD0
AD1
AD2
AD4
AVSSH
139
DVDLDCUR
PWM1
140
141
142
143
144
145
0V
0.1
C312
F
TP300
TP301
22k
20k
C354
R346
560p
R347
C353
560p
TRDRV
FODRV
138
2.2V
CDLDCUR
NOTES
VOLTAGES ARE DC-MEASURED WITH A DIGITAL
1.
CONDITION ---
UNLESS OTHERWISE SPECIFIED.
2.
A
DVD
ALL RESISTORS ARE
ALL CAPACITORS ARE
ALL RESISTANCE VALUES ARE
ALL CAPACITANCE VALUES ARE IN F(p=pF).
ALL E.CAPACITORS ARE SHOWN IN THE FORM
ALL INDUCTANCE VALUES
1/16W
50V
ARE IN H(m=mH).
the
in
1
Tray
METAL GLAZE RESISTOR.
5%
,25V
16V
10V CERAMIC CAPACITOR
,
IN OHM( ).
,disc
or
VOLT METER
STOPand
6.3V,
OF
CAPACITANCE( F)
WITHOUT INPUT SIGNAL.
mode
.
OR
0.5% METAL GLAZE RESISTOR.
/RATED VOLTAGE (V).
.
R356
R361
R363
NI
NI
NI
EXADT13
EXADT12
EXADT15
EXADT14
EXADR16
0.1
C329
0V0V1.2V
PWM0
AVDDH
DAC3OUT
DAC2OUT
DAC1OUT
AVDDF
COMP1
146
3.1V
3.
VREF
147
148
149
150
151
152
153
0.99V
1
C341
F
C316 0.1
0.1
F
R342
C318
R341
DAC3OUT
DAC2OUT
DAC1OUT
NI STANDS FOR NOT INSERTED PARTS.
EXDT15
30k
R340
A
EXDT9
EXDT4
EXDT1
EXDT8
EXDT0
EXDT3
EXDT7
EXDT6
EXDT14
EXDT13
NI
C374
F
0V
3.1V
DV3.2
IC301
MN2DS0009AA
IREF1
COMP2
AVSSF
DAC4OUT
DAC5OUT
AVDDE
AVSSE
154
155
156
157
158
159
160
0V
0V
3.1V
1
0.5%
C356
0R301
2.4k
10pC326
0.5%
5.1k
NAX0741-001X
0.5%
DAC5OUT
DAC4OUT
EXDT2
EXDT5
EXDT11
EXDT10
EXDT12
AVDDG
AVSSG
OSCI
OSCO
VSS
VDD12
DACCK
161
162
163
164
165
166
167
0V
0V
3.1V
1.2V
10/6.3
C339
T
C313 0.1
F
R352
220
1M
680
R351
R345
X301
12p
C325
DACCK
27MHz
NEXOE
NEXCE
EXADT0
0.1
C307
0.1
C315
F
3.1V
1.2V0V0V
LRCK
SRCK
ADOUT3
ADOUT2
ADOUT1
ADOUT0
IECOUT
VSS
VDD33
VDIO7
VDIO6
168
169
170
171
172
TP338
220
R367
NI
220
NI
NI
220
R359
R365
R364
R358
R366
AOUT2
LRCK
BCK
BCKM
LRCKM
DATAM
VDIO5
173
174
175
176
177
178
179
0V
3.1V
NI
C311
TP335
TP332
TP334
TP333
47
220
220
R357
R362
R360
AOUT0
AOUT1
TX
NI
0.1
C373
C372
F
3.1V
3.1V0V0V
VDIO4
VDIO3
VDIO2
VDIO1
VDIO0
VDD33
VSS
180
181
182
183
184
185
186
0V
3.1V
0.1
F
TP330
TP331
TP329
TP328
C376
R307
R306
1
MDQ182VSS3VDD334MDQ285MDQ196MDQ277MDQ208VDD339VSS10MDQ2611MDQ2112MDQ2513MDQ2214MDQ2415MDQ2316VSS17VDD3318EXADT019NEXCE20NEXOE21VSS22VDD1223EXDT024EXDT825EXDT126EXDT927EXDT228EXDT1029EXDT330EXDT1131EXDT432EXDT1233EXDT534VSS35VDD3336EXDT1337EXDT638EXDT1439EXDT740EXDT1541EXADR1642EXADT1543EXADT1444VSS45VDD1246EXADT1347EXADT1248EXADT1149EXADT1050EXADT951EXADT852VSS53VDD3354EXADR1955NEXWE56EXADR1857EXADR1758EXADT759EXADT660EXADT561EXADT462EXADT363EXADT264EXADT1
(IECIN)
EXTRG1
SCLOCK
SDATA
EXTRG0
TRCCLK
TRCDATA0
TRCDATA1
(SWMUTE)
187
188
189
190
191
192
TP325
TP320
NIR318
330
R332
DAC2CS
RX
SWMUTE
1k
1k
CPURST
D301
NI
CN301
NI
12345
VCC
SCLK
RESET
for
256DQM29
255DQM17
254MDQ30
253MDQ16
252MDQ31
251DQM3
250DQM2
3.1V
249VDD33
0V
248VSS
247MA3
246MA4
245MA2
244MA5
243MA1
242MA6
241MA0
240MA7
3.1V
239DVV33
0V
238VSS
237MA10
236MA8
235BA1
1.2V
234VDD12
0V
233VSS
232MA9
231BA0
MA11
230
229NCSM
228NRAS
227NCAS
0V
226VSS
225MCKI
3.1V
VDD33
224
223MCK
0V
222VSS
221NWE
220DQM1
219DQM0
1.2V
218VDD12
217MDQ7
216MDQ8
0V
215VSS
3.1V
214VDD33
213MDQ6
212MDQ9
211MDQ5
210MDQ10
209MDQ4
208MDQ11
207MDQ3
206MDQ12
0V
205VSS
3.1V
204VDD33
203MDQ2
202MDQ13
201MDQ1
200MDQ14
199MDQ0
198MDQ15
3.1V
197VDD33
0V
196VSS
195TRCST
(DACPDN)
194TRCDATA3
(ADCPDN)
193TRCDATA2
(DAC1CS)
(DAC2CS)
LVA10543-401C (1/2)
6
DGND
DGND
SDATA
ICE
P3.3V
C302
47/4
C300
0.1
F
MA3
MA4
MA2
MA5
MA1
MA6
MA0
MA7
C383
0.1
F
MA10
MA8
BA1
C306
0.1
F
MA9
BA0
MA11
NCSM
NRAS
NCAS
C386
0.1
F
MCK
R303
22
NWE
DQM1
DQM0
C379
0.1
F
MDQ7
MDQ8
C378
MDQ6
NI
MDQ9
MDQ5
MDQ10
MDQ4
MDQ11
MDQ3
MDQ12
C377
0.1
MDQ2
MDQ13
MDQ1
MDQ14
MDQ0
MDQ15
C305
0.1
F
DACPDN
R327
330
ADCPDN
R330
330
DAC1CS
R331
330
B
D
E
F
G
2-16
DVD section (2/2) (for DX-T99 and DX-T77)
LOADER ASS'Y
CH5-BASE-1
See
LVS20135-002A
A
B
D
E
F
G
TP473
3
2
1
CN453
QGA2001F6-03X
2
1
CN452
QGA2001F6-02X
TP457
TP454
TP456
TP455
CN451
QGF1016F8-15W
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
TP461
TP462
NOTES
VOLTAGES ARE DC-MEASURED WITH A DIGITAL
1.
CONDITION ---
UNLESS OTHERWISE SPECIFIED.
2.
ALL RESISTORS ARE
ALL CAPACITORS ARE
ALL RESISTANCE VALUES ARE
ALL CAPACITANCE VALUES ARE IN
ALL E.CAPACITORS ARE SHOWN IN THE FORM
ALL INDUCTANCE VALUES
TP711
TP712
SWMUTE
TP713
CN704
NI
BCK
1
DGND
2
DATA
3
DEMP
4
LRCLK
5
COPY
6
TRACK
7
INDEX
8
TP717
TP716
TP714
TP715
TP718
TP733TP725
TP732
TP731
TP740
TP750
TP727
LRMUTE
TP738
TP735
TP736
TP737
TP734
CN701
QGF1016F8-28W
DISPRST
1
DISPBUSY
2
DISPCS
3
DISPCK
4
DISPD2S
5
DISPS2D
6
B3.3V
7
TX
8
M9V
9
M9V
10
M5V
11
RX
12
TP743
TP742
TP747
TP751
TP756
TP754
TP752
TP705
TP707
TP709
TP710
TP722
TP723
K749
0
K740
NI
MGND
13
MGND
14
15
MGND
D2V
16
D2V
17
18
D4V
S5V
19
DAC4OUT
20
DGND
21
22
DAC2OUT
DGND
23
DAC3OUT
24
DGND
25
26
DAC5OUT
DGND
27
DACOUT1
28
TP758
TP701
TP703
TP702
TP704
CN702
QGF1016F8-10W
AINR
1
A6V
2
AINL
3
AGND
4
FAOUTL
5
AGND
6
FAOUTR
7
A6V
8
LRMUTE
9
RESERVED
10
TP721
CN703
QGF1016F8-08W
RAOUTL
1
AGND
2
RAOUTR
3
4
AGND
CAOUT
5
AGND
6
SWAOUT
7
8
AGND
for
MD
for
SYSTEM
for
SYSTEM
for
SYSTEM
MODULE
P3.3V
FDATA
MTCL
MTOP
EPDO
EPDI
10k
3.3V
2.8V
3.3V
2.8V
2.8V
0V
2.7V
2.8V
3.3V
2.7V
3.1V
0V
2.3V
1.1V
3.3V
2.4V
3.2V
3.1V
3.1V
3.0V
0V
1.6V
1.6V
0V
0V
0V
0.7V
R455
10k
R454
12345
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
3.3V
60
3.3V
59
0V
58
0V
57
3.3V
56
3.3V
55
0V
54
0V
53
0V
52
0V
51
3.3V
50
0V
49
0V
48
0V
47
0V
46
3.3V
45
3.3V
3.3V
43 44
42
0V
41
VDD
DQ0
VDDQ
DQ1
DQ2
VSSQ
DQ3
DQ4
VDDQ
DQ5
DQ6
VSSQ
DQ7
VDD
LDMQ
/WE
/CAS
/RAS
/CS
BA0
BA1
A10/AP
A0
A1
A2
A3
VDD
EPDI
EPDO
SDRAM
IC505
K4S641632K-UC75
R465
1k
6
NC/RFU
DQ15
VSSQ
DQ14
DQ13
VDDQ
DQ12
DQ11
VSSQ
DQ10
VDDQ
UDQM
DISCSET
DISCSTP
POSMDN
POSMUP
MTCL
MTOP
STEDSW
MOTPSW
CLSWT5
CLSWT4
CLSWT3
CLSWT2
CLSWT1
STSTSW
0V
VSS
54
2.7V
53
0V
52
2.7V
51
2.8V
50
3.3V
49
2.7V
48
2.6V
47
0V
46
2.8V
45
2.8V
DQ9
44
3.3V
43
2.8V
DQ8
42
0V
VSS
41
0V
40
2.4V
39
1.6V
CLK
38
0V
CKE
37
1.6V
NC
36
A11
35
0V
A9
34
0V
A8
33
0.6V
A7
32
1.6V
A6
31
1.6V
A5
30
1.6V
A4
29
1.6V
VSS
28
BR93L56RF-W-X
R456
10k
EPCS
1
CS
EPSK
2
SK
EPDI
3
DI
EPDO
C556
F
0.001
47/4
K501
NQR0502-001X
IC452
MDQ15
MDQ14
MDQ13
MDQ12
1
MDQ11
MDQ10
C557
MDQ9
MDQ8
DQM1
MCK
C550
MCK
NI
F
MA11
MA9
MA8
MA7
MA6
MA5
MA4
C558
DACCK
ADIN
LRCK
BCK
ADCPDN
B3.3V
3.3V
8
VCC
7
NC
C453
0.1
6
NC
F
0V
5
GND4DO
DGND
AOUT0
DAC0CS
DCLK
DDATA
AOUT1
DAC1CS
AOUT2
DACPDN
DAC2CS
K351
NQR0502-001X
DISPRST
DISPBUSY
D4V
S5V
S3.3V
C381
470p
C382
K710
NQR0022-002X
R716
1.8V
470
1.6V
1.6V
1.6V
3.1V
R720
0V
47k
4.9V
0V
1.6V
1.6V
0V
1.6V
3.1V
3.1V
3.1V
3.1V
1.6V
1.6V
0V
1.6V
3.1V
3.1V
3.1V
3.1V
1.6V
1.6V
0V
1.6V
3.1V
3.1V
47kR717
3.1V
3.1V
3.1V
TP380
IC305
MM1563BF-X
3.1V
1234
Vout
NC
2.2
0V
GND
1.9V
Cn
AUDIO
ADC
IC704
AK5358ET-X
SDOUT
DGND
LRCK
MCLK
AGND
SCLK
VCOM
PDN
DIF
CKS2
CKS0
16 15 14 13 12 11 10 9
AUDIO
IC701
AK4387ET-X
MCLK
BICK
SDTI
LRCK
PDN
CSN
CCLK
CDTI
87654321
IC702
AK4387ET-X
MCLK
BICK
SDTI
LRCK
PDN
CSN
CCLK
CDTI
87654321
IC703
AK4387ET-X
MCLK
BICK
SDTI
LRCK
PDN
CSN
CCLK
CDTI
87654321
CKS1
DAC
AOUTL
AOUTR
AOUTL
AOUTR
AOUTL
AOUTR
REG
C380
4.0V
Vin
Sub
Cont
VD
VA
AINL
AINR
DZF
DVDD
AVDD
VSS
VCOM
P/S
DZF
DVDD
AVDD
VSS
VCOM
P/S
DZF
DVDD
AVDD
VSS
VCOM
P/S
0V
3.3V
567
0V
87654321
4.9V
4.9V
0V
2.4V
0V
2.4V
2.4V
0V
161514131211109
4.9V
4.9V
0V
2.4V
2.4V
2.4V
0V
0V
161514131211109
4.9V
4.9V
0V
2.4V
2.4V
2.4V
0V
0V
161514131211109
4.9V
4.9V
0V
2.4V
2.4V
2.4V
0V
1
C706
F
0.1
C705
C704
F
F
1
C707
C708
10/16
R719
5.1
C712
C714
F
F
0.1
C713
10/16
C715
C716
F
F
0.1
C717
C718
F
F
0.1
TP749
NI
R380
0.1
10/16
NI
C710
C711
R722
0
0.1
C709
0.1
0.1
M9V
D2V
TP748
NI
A5V
REG
R701
2.2
47/6.3
B3.3V
M5V
TP741
MGND
0.1
NI
C722
R721
F
1C703
0.01
C702
1.3V
Noise
45
5.0V
R702
NI
2
3
-
NI
D701
1
DISPCS
DISPCK
DISPD2S
DISPS2D
TX
RX
DAC4OUT
DAC2OUT
DAC3OUT
DGND
DAC5OUT
DAC1OUT
3.3V
0V
123
Cont
GND
IC705
Vout
Vin
MM1615AN-X
C701
6.0V
1
FLASH ROM
IC509
EXADT15
EXADT14
EXADT13
EXADT12
EXADT11
EXADT10
EXADT9
EXADT8
EXADR19
EXADR20
NEXWE
CPURST
EXADR18
EXADR17
EXADT7
EXADT6
EXADT5
EXADT4
EXADT3
EXADT2
EXADT1
TP474
K454 0
K455 0
0
K456
TP472
STEDSW
TP471
TP452
TP453
TP451
CLSWT3
CLSWT2
CLSWT4
CLSWT1
CLSWT5
STSTSW
M9V
MOTPSW
TP458
MGND
POSMUP
MTOP
POSMDN
MTCL
TP459
TP460
in
DVD
disc
A
5%
1/16W
25V
,
50V
IN OHM( ).
ARE IN H(m=mH).
X451
NAX0248-001X
321
8MHz
the
Tray
1
METAL GLAZE RESISTOR.
,
16V
,
10V
or
F(p=pF).
NI
R451
VOLT METER
,
and
6.3V
OF
STOP
CERAMIC CAPACITOR
CAPACITANCE( F)
SG32A90TFIR3
0.4V
0.7V
0.5V
0.7V
0.7V
1.7V
1.8V
1.3V
0.1V
0V
3.3V
3.3V
0V
R535
3.3V
47k
0.9V
0.3V
0.4V
1.1V
1.3V
1.3V 3.3V
2.0V
2.0V
2.0V
1.8V
242322212019181716151413121110987654321
2.7V
DET
D1.2V
S3.3V
0.01
C454
1.2V
3.1V
1.2V
3.3V
R466
NI
R453
3.3V
10k C451
3.3V
0.1
F
3.3V
1.6V
1.6V
3.3V
R464
3.3V
DISPS2D
100
DISPD2S
3.3V
DISPCK
WITHOUT INPUT SIGNAL.
mode
.
METAL GLAZE RESISTOR.
0.5%
OR
A15
A14
A13
A12
A11
A10
A9
A8
A19
A20
/WE
*/RST
NC
VPP
*R/B
A18
A17
A7
A6
A4
A3
A2
A1
0V
0V
0V
0V
0V
0V
0V
0V
S-80827CNNB-G-W
R460
NI
R459
NI
1
VREF-
2
LSENSOR
3
DET3.3V
4
DET1.2V
567
SM1/SM2
8
OUTC
9
VPP
VREF+
10
VDD
11
OSC2
12
OSC1
13
VSS
14
XI
15
XO
16
MMOD
17
DISPS2D
18
DISPD2S
19
DISPCK
20
.
0.5V
A16
484746454443424140393837363534333231302928272625
3.3V
*/BYTE
0V
VSS
0.8V
D15
1.5V
D7
0.8V
D14
1.6V
D6
1.0V
D13
1.2V
D5
1.3V
D12
1.4V
D4
3.3V
VCC
0.9V
D11
1.8V
D3
1.3V
D10
1.6V
D2
1.3V
D9
1.3V
D1
1.1V
D8
1.3V
D0A5
1.7V
/OE
0V
VSS
0.9V
/CE
1.7V
A0
IC453
12
VSS
OUT
NC
VDD
DVDPWR
3.3V
80DVDPWR
21 S2UDT
22 U2SDT
3.3V
3.3V
R457
100
U2SDT
S2UDT
C554
R530
34
C455
23 UCLK2425 /RESET
3.3V
3.3V
UCLK
C452
0.1
F
3.3V
DISPRST
F
0.1
NI
0.01
C456
NI
12
IC454
26 SCS
3.3V
3.3V
R452 2.2k
R461 100
CPURST
SCS
3.
EXADR16
EXDT15
EXDT7
EXDT14
EXDT6
EXDT13
EXDT5
EXDT12
EXDT4
EXDT11
EXDT3
EXDT10
EXDT2
EXDT9
EXDT1
EXDT8 NCSM
EXDT0
NEXOE
NEXCE
EXADT0
NI
R462
R458
1k
34
NI
IC451
MN101C61GNW
MECHA CONTOROLLER
27 CPURST
28 DISPBUSY2930
31 UCS
3.3V
3.3V
3.3V
R463
100
DISPBUSY
UCS
NI STANDS FOR NOT INSERTED PARTS.
/RATED VOLTAGE (V).
MDQ0
MDQ1
MDQ2
MDQ3
MDQ4
MDQ5
MDQ6
MDQ7
DQM0
NWE
NCAS
NRAS
BA0
BA1
MA10
MA0
MA1
MA2
MA3
32 DISPCS
33 INT343536373839 EPCS
3.3V
TP417
DISPCS
C551
F
0.1
C563
F
0.1
C559
F
0.1
C560
F
0.1
C555
F
0.1
61626364656667686970717273747576777879
DISCSET
DISCSTP
POSMDN
FCLOCK
POSMUP
STEDSW
MTOPSW
CLSWT5
CLSWT4
CLSWT3
CLSWT2
CLSWT1
STSTSW
40 EPSK
0V
0V
EPCS
EPSK
CN455
NI
BCKM
K721 NI
DATAMDATAM
K723 NI
K724 NI
DEMP
LRCKM
K725 NI
K726 NI
COPY
K727 NI
TRACK
K728 NI
INDEX
NI
NIC736
NI
NI
C734
C732
C735NIC733
K732 0
K733 0
K734 0
K735 0
K736 0
K737 0
K738 NQR0022-005X
100R715
100R714
0
K744
0
K748
K741
NQR0022-002X
470R704
470R703
470R706
470R705
470R707
470R708
LVA10543-401C (2/2)
1kR731
330R732
K750
NQR0022-002X
K752
NQR0022-002X
K754
NQR0022-002X
K756
NQR0022-002X
K758
NQR0022-002X
C737
NI
C738
NI
2-17
DVD section (1/2) (for DX-T66)
TP116
TP118
TP122
TP119
TP120
TP124
PICKUP
QAL0786-***
(OPA-652PH*)
TRA
MECHA
FXL-D20-1M
FEED
QAR0165-001
SPINDLE
QAR0334-002
MOTOR
MOTOR
ASS'Y
ASS'Y
LD(DVD)
VR(DVD)
VCC(HF)
PD(DVD)
TRVSW
SWGND
MECHA
CHASSIS
PD(CD)
VR(CD)
LD(CD)
WOUT
UOUT
TP121
TP123
C102
C101
24
GND
23
VS
F
0.1
22
VCC
F
0.1
21
E
20
F
19
D
18
A
B
17
C
16
15
+RF
NC
14
13
12
GND
11
10
9
C103
0.1
F
8
GND
7
C104
0.1
F
6
5
4
F+
3
F-
2
T+
1
T-
CN101
QGF0523F3-24W
8
FM+
7
FM-
6
5
4
3
VOUT
2
1
COM
CN201
QGF1016F8-08W
TP291
TP292
F+
F-
T+
T-
TP101
TP103
TP104
TP102
TP208
TP207
TP206
FM+
FM-
WOUT
VOUT
UOUT
COM
TP201
TP203
TP202
TP204
C291
NI
C292
NI
TP115
TP117
0.1C107 F
TP110
TP109
TP106
TP107
R202
1k
TP205
LPC2
TP114
TP108
LPC1
CDLDCUR
LASER
VREFH
E
F
D
A
B
C
RF+
100
R101
R102
100
TP113
TP111
TP105
M9V
100/16
C263
C217
NI
R255
TP220
SPDRV
MGND
NI
C109NIC110
TP112
Q105
R126
NI
NI
K101
NQR0502-001X
COM
VOUT
WOUT
UOUT
0.022C260
0.022C261
0.022C262
0.1
NIR252
1/2W
F
0.39
R251
0V9V9V
9V9V0V0V0V
FR
NC
SPRF
VCC1
VOUT
UOUT
MCOM
SPFC
VREF
SGND
AMP4IN-
SPCTL
AMP4IN+
1.8V
10kR259
TRSDRV
AMP3IN+
0V
0V
0V
0V
1.8V
2.1V
0.1C256
6.8k
R221
R214
TP221
R215
NI
TRSDRV
25 26 27 28 29 30 31 32 33 34 35 36 50 37 38 39 40 41 42 43 44 45 46 47 48
1.8V
NIR257
SPDRV
R111
HFM
WOUT
OUT4F
DRIVER
AMP3OUT
AMP3IN-
2.2V
R213
10k
C211
0.022
10k
R112
4.3k
or
2SB1424/R/-W
5.6k
SW
FM+
0.9V
OUT3F
OUT4R
AMPOUT
AMPIN-
0V
R113
KTA1001/Y/-X
C203
0.01
0V
0V
MGND
AMPIN+
0V
0V
Q103
MGND
MGND
1/4W
18
0V
0.47
C251
2SC4617/R/-X
MGND
IC201
LA6502-X
SPVCOIN
R354
131
EXADT3
2.2V
EXADT4
VIN5
132
2.2V
TH301
R392
EXADT6
EXADT5
VIN6
VIN7
133
134
2.2V
2.2V
C342NIC343NIC344
NAD0025-103X
10k
VIN8
135
C393
TP381
EXADT7
58
2.2V
NI
0.01
NI
NI
EXADR17
EXADT759EXADT660EXADT561EXADT462EXADT363EXADT264EXADT1
VIN3
136
2.2V
TEMPDET
R355
VIN4
137
EXADR18
56
2.2V
AD4
EXADR1857EXADR17
VIN2
NEXWE
55
138
2.2V
CDLDCUR
EXADR19
54
NEXWE
VIN1
139
DVDLDCUR
C375
3.1V
53
EXADR19
AD0
140
EXADT9
EXADT8
EXADT11
EXADT10
0.1
F
0V
50
52
VSS
VDD33
EXADT951EXADT8
AD1
AD2
AD4
AVSSH
PWM1
PWM0
141
142
143
144
145
0V
0.1
C312
F
TP300
TP301
22k
20k
C354
R346
560p
R347
C353
560p
TRDRV
FODRV
D1.2V
3.3V
COPY
DEMP
NQR0502-001X
5
Cont4Cn
6
NC
7
NC
8
Vin
IC302
MM1701CH-X
5
SDA4GND
6
SCL
7
WP
8
VCC
IC510
BR24L16F-W-X
LRMUTE
SCS
S2UDT
U2SDT
UCLK
UCS
REG.
9
GND
TRVSW
FG
SPMUTE
DRVMUTE
SPDRV
TRSDRV
R378
C301
C328
0.01
0V
3
0V
2
NC
C359
1.2V
1
Vo
TP321
0.1C564 F
0V
0V
3
A2
0V
2
A1
0V3.1V
1
A0
EEPROM
R375
1k
100kR309
0.1C310
F
C352
0.01
0.015
C351
1k
C335
0.1
47/4
F
C330
0.1
F
R348
0
R335
0
R334
0
R337
0
R336
0
F
C349
0.1
D1.2V
EXADT2
3.1V
0V
1.2V
0V
3.1V
3.1V
0V
0V
3.1V
3.1V
0V
2.2V
65 P0
66 P1
67 P2
0V
68 VSS
69 VDD33
70 P3
71 P4
72 P5
73 P6
74 P7
75 P8
76 P9
77 P10
78 P11
79 P12
80 P13
81 P14
82 VSS
83 VDD12
84 NRST
85 FG
86 DRV5
87 DRV4
88 DRV3
89 DRV2
90 DRV1
91 DRV0
92 VSS
93 VDD33
94 MONI7
95 MONI6
96 MONI5
97 MONI4
98
99 MONI2
100 MONI1
101 MONI0
102 AVDDD
103 PLFIL1
104 AVSSD
105 VREFH7
106 VREFL7
107 CCAPA
108 AVSSC
109 CDATA
110 AVDDC
111 ANAMONI1
112 ANAMONI2
113 RFINN
114 RFINP
115 VIN1RF
116 VIN2RF
117 VIN4RF
118 VIN3RF
119 AVDDB
120 VREFH5
121 VREFL5
122 AVSSB
123 LPC1
124 LPCO1
125 LPC2
126 LPCO2
127 VREFH
128 VHALF
MONI3
(EXADR20)
(DDATA)
(DCLK)
(DAC0CS)
(SERIAL1OUT)
(SCS)
(S2UDT)
(U2SDT)
(UCLK)
(UCS)
(SDA)
(SCK)
(ADIN)
(TALK)
(TRVSW)
(INDEX)
(TRACK)
(COPY)
(DEMP)
(WP)
EXADT1
129
2.2V
0R338
F
VIN10
VIN9
130
2.2V
0R339
E
1
C303
47/4
10k
R319
DDATA
DCLK
C308
F
DAC0CS
R350
750
ADIN
C334
F
C309
F
0.1
0.1
0.1
TP309
EXADR20
330R325
330R326
330R324
R316 1k
100R383
100R353
100R310
TP304
R371
NI
R308
10k
1kR376
C350
1k
R377
0.01
HAGUP
TP326
NIR374
10kR373
10kR372
R320
NI
R321
NI
R322
NI
R323
NI
TP306
TP308
TP307
C331
0.033
0.1C333 F
0.1C332 F
0.0056C338
0.018C337
TP315
TP314
0.1C347
0.1C348
0.1C323
0.1C322
0.1C320
0.1C321
C314
0.1
F
C319
F
0.1
1.55V
1C340 F
1C324 F
D2V
1C304
NIC336
DGND
47kR541
47kR542
LPCO2
DVDLDCUR
DRIVER
T
C108
22/6.3
2.2
470
R116
R114
R118
R115
1k
Q104
330
R117
M5V
F+
T-
F-
T+
FM-
220p
220p
C202
C201
NI
C264
C204
0.1
F
0.9V
0.9V
0.9V
0.9V
0.9V
NC
NC
OUT1F
OUT3R
SPC1
SPCX
0.0082
0.015
C258
C257
1
F
C210
TP226
VCC2
OUT2F
OUT1R
OUT2R
AMP1IN-
AMP1OUT
SPFGO
AMP1IN+
SPC2
BR
3V0V0V0V0V
0V
1.8V
2.1V
2.4V
0.015
24k
R220
C259
R207
47k
C206
150p
FODRV
TP231
R205
NI
R254
FG
FODRV
NI
R103
2.4V
AMP2OUT
MUTE3
0V
27k
R105
R104
4.3k
or
KTA1001/Y/-X
2SB1424/R/-W
5.6k
C205
270p
R206
30k
2.2V
1.8V
12345678910111249131415161718192021222324
AMP2IN-
AMP2IN+
MUTE1
MUTE2
0V
0V
SPMUTE
DRVMUTE
1/4W
18
Q101
2SC4617/R/-X
R219
18k
T
C106
R106
R208
R204
27k
S5V
LPCO1
1
R125
22/6.3
2.2
TP227
NI
470
R110
R108
R107
1k
Q102
R109
HFMON
R127
47/6.3
R128
C105
330
S3.3V
S5V
HFMON
TRVSW
TRDRV
NI
TRDRV
R384
VHALF2
1k
1k
1
F
C371
R385
DVDPWR
CPURST
4.3k
AD4
5.6k
LPC1
LPCO1
LPC2
LPCO2
VREFH
INDEX
TRACK
DISCSET
DISCSTP
K352
RF+
A
B
D
C
NOTES
1.
VOLTAGES ARE DC-MEASURED WITH A DIGITAL
CONDITION --- the
2.orUNLESS OTHERWISE SPECIFIED.
ALL RESISTORS ARE
ALL CAPACITORS ARE
ALL RESISTANCE VALUES ARE
ALL CAPACITANCE VALUES ARE IN
ALL E.CAPACITORS ARE SHOWN IN THE FORM
ALL INDUCTANCE VALUES
disc
A
DVD
1/16W
50V
in
METAL GLAZE RESISTOR.
5%
,
, CERAMIC CAPACITOR25V
16V
IN OHM( ).
F(p=pF).
ARE IN H(m=mH).
Tray
1
10V
,
VOLT METER
, STOP
and
6.3V
OF
WITHOUT INPUT SIGNAL.
mode
OR
CAPACITANCE( F)
.
0.5%
METAL GLAZE RESISTOR.
.
/RATED VOLTAGE (V).
R356
R361
R363
NI
NI
NI
EXADT12
146
EXADT13
46
AVDDH
147
3.1V
3.
EXDT15
EXADT15
EXADT14
EXADR16
0.1
C329
0V
1.2V
40
41
42
44
45
VSS
VDD12
EXADT1543EXADT14
EXADT1347EXADT1248EXADT1149EXADT10
EXADR16
DAC3OUT
DAC2OUT
DAC1OUT
AVDDF
COMP1
VREF
148
149
150
151
152
153
0.99V
30k
1
C341
R340
F
C316 0.1
0.1
F
R342
C318
R341
DAC3OUT
DAC1OUT
DAC2OUT
NI STANDS FOR NOT INSERTED PARTS.
5.1k
0.5%
EXDT15
IREF1
A
EXDT3
EXDT7
EXDT6
EXDT14
EXDT13
NI
C374
F
0V
3.1V
34
35
36
37
38
39
VSS
EXDT6
EXDT7
VDD33
EXDT13
EXDT14
DV3.2
IC301
MN2DS0009AA
COMP2
AVSSF
DAC4OUT
DAC5OUT
AVDDE
AVSSE
154
155
156
157
158
159
160
0V
0V
3.1V
1
0.5%
C356
0
R301
2.4k
10pC326
0.5%
NAX0741-001X
DAC5OUT
DAC4OUT
EXDT5
33
3.1V
EXDT5
AVDDG
161
27MHz
EXDT12
32
0V
C339
R352
X301
EXDT12
AVSSG
162
1M
EXDT2
EXDT9
EXDT4
EXDT11
EXDT10
28
29
30
31
EXDT3
EXDT4
EXDT10
EXDT11
OSCI
OSCO
VSS
VDD12
DACCK
163
164
165
166
167
0V
1.2V
10/6.3
T
C313 0.1
F
220
680
R351
R345
NI
12p
C325
R366
DACCK
LRCKM
NEXOE
EXDT1
LRCK
168
R367
220
LRCK
NEXCE
EXDT8
EXDT0
EXADT0
0.1
C307
0.1
C315
F
3.1V
0V
1.2V
16
17
18
19
20
21
22
23
EXDT024EXDT825EXDT126EXDT927EXDT2
SRCK
ADOUT3
ADOUT2
169
170
171
TP338
220
NI
NI
R365
R358
R364
BCK
BCKM
DATAM
VDD12
ADOUT1
172
NI
R359
AOUT2
VSS
ADOUT0
173
R360
NI
AOUT1
NEXOE
IECOUT
VSS
VDD33
NEXCE
EXADT0
VSS
VDD33
VDIO7
VDIO6
VDIO5
VDIO4
174
175
176
177
178
179
0V
3.1V
NI
C311
TP332
TP334
TP333
TP335
47
220
R362
R357
AOUT0
TX
NI
0.1
C373
C372
F
3.1V
0V
3.1V
0V
8
9
10
VSS
VDD33
MDQ2611MDQ2112MDQ2513MDQ2214MDQ2415MDQ23
VDIO3
VDIO2
VDIO1
VDIO0
VDD33
VSS
180
181
182
183
184
185
186
0V
3.1V
0.1
F
TP331
TP329
TP328
TP330
C376
R307
R306
1
2
3
4
VSS
VDD33
MDQ18
MDQ285MDQ196MDQ277MDQ20
(DACPDN)
SCLOCK
188
CN301
SDATA
189
NI
EXTRG0
TRCCLK
190
TP325
TP320
12345
VCC
191
TRCDATA0
(SWMUTE)
192
NIR318
SWMUTE
CPURST
D301
RESET
for
TRCDATA3
TRCDATA1
NI
R332
DAC2CS
NI
SCLK
(IECIN)
EXTRG1
187
RX
1k
1k
P3.3V
256DQM29
255DQM17
254MDQ30
253MDQ16
252MDQ31
251DQM3
250DQM2
3.1V
249VDD33
0V
248VSS
247MA3
246MA4
245MA2
244MA5
243MA1
242MA6
241MA0
240MA7
3.1V
239DVV33
0V
238VSS
237MA10
236MA8
235BA1
1.2V
234VDD12
0V
233VSS
232MA9
231BA0
MA11
230
229NCSM
228NRAS
227NCAS
0V
226VSS
225MCKI
3.1V
VDD33
224
223MCK
0V
222VSS
221NWE
220DQM1
219DQM0
1.2V
218VDD12
217MDQ7
216MDQ8
0V
215VSS
3.1V
214VDD33
213MDQ6
212MDQ9
211MDQ5
210MDQ10
209MDQ4
208MDQ11
207MDQ3
206MDQ12
0V
205VSS
3.1V
204VDD33
203MDQ2
202MDQ13
201MDQ1
200MDQ14
199MDQ0
198MDQ15
3.1V
197VDD33
0V
196VSS
TRCST
195
194
(ADCPDN)
193
TRCDATA2
(DAC1CS)
(DAC2CS)
LVA10543-411C (1/2)
6
DGND
DGND
SDATA
ICE
C302
47/4
C300
0.1
F
F
F
F
F
F
MA3
MA4
MA2
MA5
MA1
MA6
MA0
MA7
C383
0.1
MA10
MA8
BA1
C306
0.1
MA9
BA0
MA11
NCSM
NRAS
NCAS
C386
0.1
R303
MCK
22
NWE
DQM1
DQM0
C379
0.1
MDQ7
MDQ8
C378
MDQ6
NI
MDQ9
MDQ5
MDQ10
MDQ4
MDQ11
MDQ3
MDQ12
C377
0.1
MDQ2
MDQ13
MDQ1
MDQ14
MDQ0
MDQ15
C305
0.1
DACPDN
R327
330
ADCPDN
R330
NI
DAC1CS
R331
NI
B
D
E
F
G
2-18
DVD section (2/2) (for DX-T66)
LOADER ASS'Y
CH5-BASE-1
See
LVS20135-002A
A
B
D
E
F
G
3
2
1
CN453
QGA2001F6-03X
2
1
CN452
QGA2001F6-02X
TP457
TP456
CN451
QGF1016F8-15W
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
NOTES
1.
VOLTAGES ARE DC-MEASURED WITH A DIGITAL
CONDITION ---
UNLESS OTHERWISE SPECIFIED.
2.
TP474
TP473
K454 0
K455 0
0
K456
TP472
STEDSW
TP471
TP452
TP454
TP453
TP455
TP451
CLSWT3
CLSWT2
CLSWT4
CLSWT1
CLSWT5
STSTSW
M9V
MOTPSW
TP458
MGND
POSMUP
MTOP
POSMDN
MTCL
TP461
TP459
TP460
TP462
in
DVD
disc
A
ALL RESISTORS ARE
ALL CAPACITORS ARE
ALL RESISTANCE VALUES ARE
ALL CAPACITANCE VALUES ARE IN
ALL E.CAPACITORS ARE SHOWN IN THE FORM
ALL INDUCTANCE VALUES
1/16W
50V
25V
,
ARE IN H(m=mH).
NI
R451
X451
NAX0248-001X
321
8MHz
Tray
the
METAL GLAZE RESISTOR.
5%
16V
,
10V
,
IN OHM( ).
F(p=pF).
,
1
or
EXADT15
EXADT14
EXADT13
EXADT12
EXADT11
EXADT10
EXADT9
EXADT8
EXADR19
EXADR20
NEXWE
CPURST
R535
EXADR18
EXADR17
EXADT7
EXADT6
EXADT5
EXADT4
EXADT3
EXADT2
EXADT1
DISPS2D
DISPD2S
DISPCK
VOLT METER
and
6.3V
OF
0.4V
0.7V
0.5V
0.7V
0.7V
1.7V
1.8V
1.3V
0.1V
0V
3.3V
3.3V
0V
3.3V
0.9V
47k
0.3V
0.4V
1.1V
1.3V
1.3V
2.0V
2.0V
2.0V
1.8V
2.7V
DET
D1.2V
S3.3V
C454
R466
R453
10k C451
0.1
F
R464
100
WITHOUT INPUT SIGNAL.
mode
STOP
OR
CERAMIC CAPACITOR
CAPACITANCE( F)
FLASH ROM
SG32A90TFIR3
A15
A14
A13
A12
A11
A10
A9
A8
A19
A20
/WE
*/RST
NC
VPP
*R/B
A18
A17
A7
A6
A4
A3
A2
A1
24 23 22 21 20 19 18 17 16 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1
0.01
0V
1.2V
3.1V
1.2V
0V
0V
3.3V
0V
NI
3.3V
3.3V
3.3V
1.6V
1.6V
0V
0V
3.3V
0V
3.3V
0V
3.3V
.
0.5%
IC509
0.5V
A16
484746454443424140393837363534333231302928272625
3.3V
*/BYTE
0V
VSS
0.8V
D15
1.5V
D7
0.8V
D14
1.6V
D6
1.0V
D13
1.2V
D5
1.3V
D12
1.4V
D4
3.3V
VCC
0.9V
D11
1.8V
D3
1.3V
D10
1.6V
D2
1.3V
D9
1.3V
D1
1.1V
D8
1.3V
D0A5
1.7V
/OE
0V
VSS
0.9V
/CE
1.7V
A0
IC453
S-80827CNNB-G-W
12
OUT
VSS
NC
VDD
DVDPWR
R460
NI
R459
NI
3.3V
80DVDPWR
1
VREF-
2
LSENSOR
3
DET3.3V
4
DET1.2V
567
SM1/SM2
8
OUTC
9
VPP
VREF+
10
VDD
11
OSC2
12
OSC1
13
VSS
14
XI
15
XO
16
MMOD
17
DISPS2D
18
DISPD2S
19
DISPCK
20
21 S2UDT
3.3V
3.3V
R457
100
U2SDT
S2UDT
METAL GLAZE RESISTOR.
.
/RATED VOLTAGE (V).
34
22 U2SDT
23 UCLK2425 /RESET
3.3V
UCLK
C554
R530
C455
3.3V
3.3V
DISPRST
F
C452
0.1
F
0.1
NI
0.01
C456
NI
12
IC454
NI
26 SCS
27 CPURST
3.3V
3.3V
R452 2.2k
R461 100
CPURST
SCS
EXADR16
EXDT15
EXDT7
EXDT14
EXDT6
EXDT13
EXDT5
EXDT12
EXDT4
EXDT11
EXDT3
EXDT10
EXDT2
EXDT9
EXDT1
EXDT8 NCSM
EXDT0
NEXOE
NEXCE
EXADT0
NI
R462
R458
MN101C61GNW
MECHA CONTOROLLER
28 DISPBUSY2930
3.3V
R463
DISPBUSY
3.
C551
F
MDQ0
C563
F
MDQ1
MDQ2
MDQ3
MDQ4
MDQ5
MDQ6
MDQ7
DQM0
NWE
NCAS
NRAS
BA0
BA1
MA10
MA0
MA1
MA2
MA3
1k
34
IC451
31 UCS
32 DISPCS
33 INT343536373839 EPCS
3.3V
3.3V
3.3V
100
TP417
DISPCS
UCS
NI STANDS FOR NOT INSERTED PARTS.
TP711
TP712
SWMUTE
TP713
CN704
NI
BCK
1
DGND
2
DATA
3
DEMP
4
LRCLK
5
COPY
6
TRACK
7
INDEX
8
TP717
TP716
TP714
TP715
TP718
TP733TP725
TP732
TP731
TP740
TP750
TP727
LRMUTE
TP738
TP735
TP736
TP737
TP734
CN701
QGF1016F8-28W
DISPRST
1
DISPBUSY
2
DISPCS
3
DISPCK
4
DISPD2S
5
DISPS2D
6
B3.3V
7
TX
8
M9V
9
M9V
10
M5V
11
RX
12
TP743
TP742
TP747
TP751
TP756
TP754
TP752
TP705
TP707
TP709
TP710
TP722
TP723
K749
0
K740
NI
MGND
13
MGND
14
15
MGND
D2V
16
D2V
17
18
D4V
S5V
19
DAC4OUT
20
DGND
21
22
DAC2OUT
DGND
23
DAC3OUT
24
DGND
25
26
DAC5OUT
DGND
27
DACOUT1
28
TP758
TP701
TP704
TP703
TP702
CN702
QGF1016F8-10W
AINR
1
A6V
2
AINL
3
AGND
4
FAOUTL
5
AGND
6
FAOUTR
7
A6V
8
LRMUTE
9
RESERVED
10
TP721
CN703
NI
RAOUTL
1
AGND
2
RAOUTR
3
4
AGND
CAOUT
5
AGND
6
SWAOUT
7
8
AGND
for
MD
for
SYSTEM
for
SYSTEM
for
SYSTEM
MODULE
P3.3V
SDRAM
IC505
K4S641632K-UC75
3.3V
1
VDD
2.8V
0.1
2
DQ0
3.3V
3
VDDQ
0.1
2.8V
4
DQ1
2.8V
5
DQ2
0V
6
VSSQ
2.7V
7
DQ3
2.8V
C559
F
C560
F
C555
F
8
DQ4
3.3V
9
VDDQ
2.7V
0.1
DQ5
10
3.1V
DQ6
11
0V
VSSQ
12
2.3V
DQ7
13
1.1V
VDD
14
0.1
3.3V
LDMQ
15
2.4V
/WE
16
3.2V
/CAS
17
3.1V
/RAS
18
3.1V
/CS
19
3.0V
BA0
20
0V
BA1
21
1.6V
A10/AP
22
1.6V
A0
23
0V
A1
24
0V
A2
25
0V
A3
26
0.1
0.7V
VDD
27
61626364656667686970717273747576777879
R465
3.3V
1k
60
3.3V
DISCSET
59
0V
DISCSTP
58
0V
POSMDN
57
3.3V
FCLOCK
56
3.3V
FDATA
55
0V
POSMUP
54
0V
MTCL
53
0V
MTOP
52
0V
STEDSW
51
3.3V
MTOPSW
50
0V
CLSWT5
49
0V
CLSWT4
48
0V
CLSWT3
47
0V
CLSWT2
46
3.3V
CLSWT1
45
3.3V
STSTSW
3.3V
43 44
0V
EPDO
42
0V
EPDI
41
40 EPSK
0V
0V
EPSK
EPCS
EPDI
EPDO
R455
10k
R454
10k
CN455
NI
12345
6
NC/RFU
DISCSET
DISCSTP
POSMDN
POSMUP
MTCL
MTOP
STEDSW
MOTPSW
CLSWT5
CLSWT4
CLSWT3
CLSWT2
CLSWT1
STSTSW
0V
VSS
54
2.7V
DQ15
53
0V
VSSQ
52
2.7V
DQ14
51
2.8V
DQ13
50
3.3V
VDDQ
49
2.7V
DQ12
48
2.6V
DQ11
47
0V
VSSQ
46
2.8V
DQ10
45
2.8V
DQ9
44
3.3V
VDDQ
43
2.8V
DQ8
42
0V
VSS
41
0V
40
2.4V
UDQM
39
1.6V
CLK
38
0V
CKE
37
1.6V
NC
36
3.3V
A11
35
0V
A9
34
0V
A8
33
0.6V
A7
32
1.6V
A6
31
1.6V
A5
30
1.6V
A4
29
1.6V
VSS
28
BR93L56RF-W-X
R456
10k
EPCS
1
CS
EPSK
2
SK
EPDI
3
DI
EPDO
0.001
47/4
K501
NQR0502-001X
IC452
MDQ15
MDQ14
C556
MDQ13
1
MDQ12
F
MDQ11
MDQ10
C557
MDQ9
MDQ8
DQM1
C550
MCK
MCK
NI
F
MA11
MA9
MA8
MA7
MA6
MA5
MA4
C558
DACCK
ADIN
LRCK
BCK
ADCPDN
B3.3V
3.3V
8
VCC
7
NC
0.1
C453
6
NC
F
0V
5
GND4DO
DGND
AOUT0
DAC0CS
DCLK
DDATA
AOUT1
DAC1CS
AOUT2
DACPDN
DAC2CS
K351
NQR0502-001X
NIC736
C735NIC733
DISPRST
DISPBUSY
S5V
S3.3V
C381
C382
K710
NQR0022-002X
R716
NI
R720
NI
1.6V
1.6V
0V
1.6V
3.3V
3.3V
3.3V
3.3V
47kR717
3.1V
TP380
MM1563BF-X
3.1V
1234
Vout
NC
2.2
0V
GND
1.9V
Cn
470p
AUDIO
IC704
NI
SDOUT
LRCK
MCLK
SCLK
PDN
DIF
CKS2
CKS0
16 15 14 13 12 11 10 9
AUDIO
IC701
AK4387ET-X
MCLK
BICK
SDTI
LRCK
PDN
CSN
CCLK
CDTI
87654321
IC702
NI
MCLK
BICK
SDTI
LRCK
PDN
CSN
CCLK
CDTI
87654321
IC703
NI
MCLK
BICK
SDTI
LRCK
PDN
CSN
CCLK
CDTI
87654321
REG
IC305
C380
4.0V
Vin
Sub
Cont
0V
3.3V
567
1
NI
R380
ADC
DGND
AGND
VCOM
C706
87654321
VD
VA
CKS1
AINL
AINR
C705
NI
C704
NI
NI
NI
C707
C708
NI
R719
NI
NI
C711
R722
NI
DAC
0V
DZF
161514131211109
4.9V
DVDD
4.9V
AVDD
VSS
VCOM
AOUTL
AOUTR
P/S
DZF
161514131211109
DVDD
AVDD
VSS
VCOM
AOUTL
AOUTR
P/S
DZF
161514131211109
DVDD
AVDD
VSS
VCOM
AOUTL
AOUTR
P/S
C712
0V
C714
F
2.4V
2.4V
2.4V
0V
0.1
F
0.1
C713
10/16
C715
C716
NI
NI
C717
C718
NI
NI
M5V
D2V
D4V
TP748
TP749
NI
C710
A5V
REG
R701
2.2
C709
47/6.3
B3.3V
M9V
TP741
MGND
0.1
NI
C722
R721
F
1C703
0.01
C702
0V
1.3V
Noise
Vout
45
5.0V
R702
NI
2
3
-
NI
D701
1
DISPCS
DISPCK
DISPD2S
DISPS2D
TX
RX
DAC4OUT
DAC2OUT
DAC3OUT
DGND
DAC5OUT
DAC1OUT
K744
3.3V
123
Cont
GND
Vin
MM1615AN-X
C701
6.0V
1
K748
IC705
NI
NI
C734
0
0
K741
NI
K721 NI
BCKM
DATAMDATAM
K723 NI
DEMP
K724 NI
K725 NI
LRCKM
COPY
K726 NI
TRACK
K727 NI
INDEX
K728 NI
NI
C732
K732 0
K733 0
K734 0
K735 0
K736 0
K737 0
K738 NQR0022-005X
330R732
K750
NQR0022-002X
K752
NQR0022-002X
K754
NQR0022-002X
K756
NQR0022-002X
K758
NQR0022-002X
NIR715
NIR714
470R704
470R703
NIR706
NIR705
C737
NI
C738
NI
NIR707
NIR708
1kR731
LVA10543-411C (2/2)
2-19
Loader section (common)
R1R1
QVY0027-B14
SW8
QSW0923-001
TP5
TP4
TP3
TP2
TP1
WJM0331-001A
WJM0330-002A
W2
W1
QSW0854-002
SW5
QSW0844-001
TR5_CL
SW6
SW4
QSW0844-001
TR4_CL
SW3
QSW0844-001
TR3_CL
SW2
QSW0844-001
TR2_CL
SW1
QSW0844-001
TR1_CL
QGB2024J1-07S
CN3
TR5_CL
TR4_CL
TR3_CL
TR2_CL
TR1_CL TR1_CL
QGB2024K1-07S
CN2
M.TR_OP
TR5_CL
TR4_CL
TR3_CL
TR2_CL
LB1641 LB1641
IC2 IC1
C5
0.01/50
POS_UP
POS_DOWN
M2
QRA0164-001
D1
MTZJ6.2A-T2
TR_OP
TR_CL
C6C7
0.1/500.1/50
M1
QRA0164-001
C2
C3
0.1/50
0.01/50
C1
100/10
SW7
NI
TR3_CL
TR2_CL
TR4_CL
TR1_CL
TR5_CL
M.TR_OP
POS_UP
TR_OP
POS_DOWN
TR_CL
QGF1036F1-15
CN1
2-20
Cassette-A section (common)
QGF1210G1-10
C461
R449
47/16
C449
R467
47K
C458
100/10
R463
CN48
QGF1205F1-06
C450 C451
R450
820P
CN47
RECL
RECR
B_PBL
B_PBR
R451
820P
NI
NI
R452
56K
C468
2.2/50
C469
2.2/50
R453
100
Q460
2SC3576-JVC-T
R468
4.7K
R469
4.7K
R457
220
R466
13K
0.01
R461
330K
47K
56K
R470
4.7K
R460
330K
R456
13K
R454
100
C463
2.2/50
47K
C459
Q461
2SC3576-JVC-T
IC41
NJM4565
C452
100P
C460
0.01
R462
100
C462
100/10
R471
390P
C465
R465
100
100/10
100P
C453
C467
2.2/50
R458
4.7K
R459
47K
390P
C466
2SB562/C/-T
Q485
C486
Q486
KTC3199/GL/-T
150
R486
R485
MSI-5U2LWA
0.01
D485
MTZJ5.1B-T2
4.7K
KRC107M-T
FW100
Q481
Q482
R371
12K
QVP0077-103Z
KTA1271/OY/-T
R482
IC43
SW5
VR37
1K
CD4094BC
SW1
QSW0832-001
SW2
QSW0832-001
C484
SW6
QSW0832-001
R483
680
R488
3.3K
R487
3.3K
4.7/25
QSW0859-001
QGF1205F1-09
QGF1205F1-09
IC1
SG-105F3
CN1
CN41
1SR139-400-T2
24K
R489
C481
100/10
VKZ3174-00B
D1
12K
R480
18K
R481
QGF1210G1-09
CN46
STTA_B
SDATA
PLAYB
PHOTOB
SW5V
SCK
KEYB
SCK
SDATA
PHOTOB
PLAYB
KEYB
STTA_B
SW5V
B_PBL
B_PBR
RECL
RECR
CN45
QGF1205F1-25
D482
1SS133-T2
D483
1SS133-T2
QGF1201F3-10
CN43
CN44
QGF1205F1-09
C480
47/16
2-21
Cassette-B section (common)
QAH0101-001
CN31
TP100
C220
QGF1205F1-06
4.7P/50
C120
4.7P/50
R327
470K
C301
R344
R345
R346
Q342
R306
4.7K
4.7K
4.7K
4.7K
100/10
R301
IC1
SW6
QSW0859-001
QGF1205F1-09
QGF1205F1-09
R340
470
R338
3.9K
R337
3.3K
R347
10K
GP2S24CJ000F
CN42
CN32
Q348
22/16
C331
1SR139-400-T2
24K
R342
C374
100/10
KRC113M-T
SW1
SW2
SW5
QSW0832-001
QSW0832-001
Q347
C371
QSW0832-001
4.7/25
1.5/50
C314
L303
R206
11K
R106
11K
C212
270P/50
R105
R205
100K
C105
C205
100K
R313
330P/50
390P/50
Q302
2SK2001
2.2
R310
4.7
2SK2001
!
10
Q305
C310
R339
100K
R336
22K
R353
R315
R210
10k
!
100
0.022/50
C304
10/16
R335
2.2K
C208
C306
0.01/50
220/10
R314
15K
C308
0.0015/16
C107
1/50
C207
270P/50
Q372
KRC107M-T
FW100
Q371
R371
12K
QVP0077-103Z
KTA1271/OY/-T
1K
R372
IC33
VR37
CD4094BC
KRC107M-T
NI
R108
RECL
27K
PRL
R110
10k
R304
100
R305
10K
C300
C307
R208
27K
RECR
PBR
0.001/50
KTC3199/GL/-T
Q375
Q376
R375
2SB562/C/
150
C376
R376
0.01/16
4.7K
MSI-5U2LWA
D375
MTZJ5.1B-T
B345
D340
MTZJ5.1B-T
2.2K
R303
R302
2.2K
KRA111M-T
Q343
2SC3576-JVC-T
Q344
2SC3576-JVC-T
Q345
2SC3576-JVC-T
Q346
2SC3576-JVC-T
220
R207
9.1K
R107
9.1K
R121
15K
R221
15K
C209
R216
R116
C109
0.0068/16
0.0068/16
4.7/25
1K
C121
330P/50
C221
330P/50
1K
4.7/25
C110
C210
C101
820P/50
QVP0008-203Z
C201
VR31
820P/50
1/50
47/50
0.0047/50
C319
47/50
C214
150P/50
C104
NI
C340
C341
C342
C204
C211
150P/50
NI
0.022/10
C316
C102
0.01/16
C202
0.01/16
QQR1118-001
R102
R101
HA12238F
R201
R202
L301
2.2K
R104
5.1K
5.1K
0.1/50
0.1/50
C113
C106
2.2/50
C103
IC32
C203
0.1/50
C213
C206
2.2/50
5.1K
0.1/50
5.1K
2.2K
R204
VQP0033-100Z
100/10
C313
D1
VKZ3174-00B
12K
R341
18K
R343
2-22
CN34
QGF1201F3-10
CN33
QGF1205F1-09
Parts are safety assurance parts.
When replacing those parts make
sure to use the specified one.
Printed circuit boards
Main board
(Microphone board)
(for DX-T99,DX-T77)
C9005
C9034
R9034
C9035
R9004
C9002
C9004
R9003
R7016
C9010
VR901
RY734
R9035
C9003
R7015
D7012
CN860
CN901
R9015
R9009
Q9004
C9007
R9016
Q9003
R7013
RY750
R9017
B9005
R7012
D7011
C7009
B9004
R7011
C7010
Lead free solder used in the board (material : Sn-Ag-Cu, melting point : 219 Centigrade)
C9009
D9001
D9002
R9011
IC901
R7014
D7010
RY756
C7006
R9036
CN740
R9031
C9033
R9005
R9030
Q7010
Q7000
C9008
R9033
R9032C9032
R9010
J901
R7005
R7006
D7001
C7005
R7010
RY767
R9014
R9012
C9031 C9030
R9021
C9021
R7000
R9013
C9001
C8400
C8430
C7000
R7004
C9023
R8400
R9006
R8432
R7254
C7004
R8401
D7154
R9000
C8401
C8402
R8430
R7153
R9007
R9001
R8402
J902
R7253
R8434
R7003
C9006
R9022
C9022
R8293
R7154
R9002
R8433
C8432
W911
C8431
C8433
C7003
C9000
D7153
R7002
RY712
Q9002
Q9001
R8431
R8139
B8009
D7000
R8403
C8434
R7001
D9101
R8436
R8039
R8404
C7050
R9103
C8436
C9106
R9104
R8435
IC888
R8407
J700
Q9104
Q9100
C8437
R8437
R9101
D8401
Q9103
R9102
R8408
D7050
R7050
R7252
R7152
C8403
R8406
C7007
D7157
D7152
R8405
R7157
C7008
K9100
C8404
R7257
FW910
R8223
C9105
R8409
R8224
CN850
R8225
Q9101
Q9102
D8402
C8405
D7151
C8225
Q8401
C8224
L9101
C8233
R8231
C8220
C8223
J910
R8230
C8222
C9103
R8220
C8221
C9101
C9104
R7151
R7155
R7156
C8128
C8230
C8126
W910
C8234
C8231
R7251
R7256
C8028
L9100
D7155
R7255
D7156
R8120
C9100
R8020
C8544
C8545
C8550
R8199
C8597
C8598
C8599
C8546
C9102
D8230
R8232
C8595
C8547
C8552
C8580
C8025
C8127
L9102
R8136
C8232
R8539
R8524
D9100
R8035
R8335
C8541
C8539
C8027
Q8132
R8099
C8596
D8524
C8023
C8125
R8523
C8525
R8235
Q8031
Q8524
R8036
C8542
C8026
IC820
Q8032
C8594
C8549
C8548
C8022
C8120
C8121
C8123
C8020
Q8131
R8551
C8551
C8555
C8540
R8135
C8554
C8531
C8556
C8530
C8122
C8518
C8591
C8021
R8529
B8003
C8553
(Main board)
R8492
D8493
R8491
D8492
CN789
C8491
R7880
D8491
D8331
C8517
C8509
C8590
C8524
C8564
R8521
C8523
B8000
C8593
R8574
IC850
C8592
C8586
C8520
C8572
R8210
C8516
C8589
C8522
C8563
C8129
Q7780
C8515
R8510
C8506
C8573
R8575
C8574
C8408
CN788
C8514
C8587
R8512
D7330
C8581
C8210
C8588
R8514
C8501
R8493
D7780
Q8211
CN787
C8502
C8582
R8578
C8492
C8575
R8212
R8495
C8513
C8508
C8585
R8211
R8195
R8511
R8196
R8513
R8579
R8494
R8096
C8512
Q8212
Q8491
C8576
C8504
C8584
C8503
C8583
R8095
R8507
R8509
R8508
R7763
R7764
R7765
R8094
R8093
B8007
C8579
R8097
R8197
C8094
B8008
C8577
C8578
C8160
R8021
R7847
R7845
IC810
R8121
R8163
C8194
C8029
R8193
R8063
R8360
R8194
C8261
C8363
C8260
C8018
R7875
C8019
C8061
R8812
R7876
C8162
R8810
R8019
R7807
C8812
R8813
R8064
R7808
R8164
C8161
R8161
R8162
C8060
D8330
R8018
R8029
R7879
R8119
C8119
R8160
R8261
C7792
D7713
R8061
C8062
R7878
R8060
R8262
B8004
R8260
R8083
R8062
Q8081
C8262
D7390
CN730
Q8171
R8175
R8811
C8810
R8129
R7200
R7881
R8085
C8118
R8173
C8362
C8361
C8360
R8263
R7897
R8174
R8269
IC860
C8130
Q8260
R8132
R7805
R7802
R7775
R7777
R7776
C8265
C8131
R8118
C8174
C8263
R8131
R8268
R8130
C8264
C8030
R8084
C8268
R8033
R7806
R8264
R8133
C8031
R8074
R8267
R8266
Q8130
IC830
R7803
R
7
77
8
CN830
R8265
C8267
C8084
C8266
R8030
R8075
Q8071
C8269
C8032
R7809
C8074
R8142
C8332
R7
779
R8073
Q8140
C8002
R8031
Q8100
Q8000
C8132
R8032
R7804
R7871
R7769
R7770
R8105
R8005
R7886
R8034
R7771
R7787
R7789
K8003
R7867
R7786
R7790
R7791
R8006
C8102
R8146
R7766
R7767
R7772
Q8040
R8042
Q7788
R8046
R7773
C7788
R8332
Q8030
K8002
C7100
R8186
C7794
R8043
R8143
R7788
R8134
Q7794
C7101
R7762
R7774
R7780
R7781
R8106
R7892
R7794
R8189
R8187
R7768
R7792
R8104
C8001
R7761
R7796
IC771
CN820
R7859
R7759
IC770
R7793
R7797
Q8180
R7861
R7760
R7860
C8101
R8004
R8107
R8888
Q8900
R8183
R8181
R7899
Q7798
C8900
C8082
R7798
C8185
C8180
C7798
C8083
R8180
C8176
R7731
R7755
R7754
R7753
R7799
C8103
K8001
C8003
C8182
R7756
R7703 R7704
C8100
R8900
C8181
R8182
R8101
R8001
R8007
C8184
R7705
C8200
C8076
C8072
C8086
X7700
R7707
R8100
C8085
R7747
R7702
R7708
C8000
C7713
R7706
D8901
C8288
R7746
R7738
C7710
R7709
R8000
IC881
R7735
R8102
R8103
C8172
R8288
R7732
D8900
R7745
D7711
C8186
L7711
C8204
R7748
R7744
R8003
CN800
C8173
R8188
C7712
R8200
R8204
C8903
R7720
R7717
K7711
IC800
C8282
B8005
R7719
C7711
R8002
C8902
IC880
R8206
C8187
W800
R7718
R7715
C8203
R7749
R7743
R7739
R7736
R8190
IC760
R8205
R8081
IC870
R7921
R8080
C8272
C8281
K8000
Q8080
C8191
R8191
R8098
R8082
IC801
C8080
R8192
R8092
R7728
R7726
R8203
C8202
C8271
C8280
C8190
R7742
R8070
R8071
Q8070
R8072
R8280
R7081
C7360
C8201
R8201
C8270
B8006
R7740
R7737
C7083
R8202
CN810
R8270
R7751
Q7080
C8070
R7721
CN799
R8198
C8090
C7082
B8002
R7722
R8170
C7350
Q7350
R7350
R8090
B8001
R7752
C7080
R7724
R7723
CN760
R7725
J800
R7600
R8091
C8170
Q7081
R7082
R8172
D7350
C8091
R8171
Q8170
C7085
R7825
C7825
R7824
C7824
R7823
C7823
R7821
C7821
D7082
R7351
R7085
R7084
R7080
CN720
R7083
D7081
D7080
C7084
CN750
R7852
Q7351
2-23
Main board
(for DX-T66)
(Microphone board)
CN901
R9015
R9009
Q9004
C9007
R9016
Q9003
B9005
R9017
B9004
R9004
C9005
C9002
C9004
R9003
VR901
C9034
C9010
Lead free solder used in the board (material : Sn-Ag-Cu, melting point : 219 Centigrade)
C9009
D9001
D9002
R9011
R9034
C9035
R9035
IC901
C9003
R9036
CN740
R9031
R9030
C9033
R9005
C9008
R9033
R9032C9032
R9010
J901
R8430
C8432
C8433
R9021
C9021
R8431
R9014
R9012
C9031 C9030
R9013
C9001
C8400
C9023
R8400
R8401
R9006
C8401
R9000
B8004
C8430
R9007
R9001
R8402
C8402
C9006
W911
C9000
R9002
R9022
C9022
J902
R8434
R8432
R8433
Q9002
Q9001
C8431
C8434
D9101
R8436
C9106
Q9103
Q9104
R9102
Q9100
R9101
R9104
R9103
R8404R8403
D8401
IC888
R8407
R8435
C8437
R8437
C8436
R8408
C8403
K9100
R8405
C8404
FW910
R8409
C9105
Q9101
Q9102
C8231
C8233
R8231
Q8401
L9101
W910
C9101
C9103
C9104
J910
D8402
C8405
C8234
R8230
C8230
D8230
L9100
R8136
R8199
C9100
R8335
R8232
C9102
C8232
L9102
D9100
R8099
R8235
Q8132
R8035
Q8131
Q8031
R8036
R8135
Q8032
(Main board)
D8493
D8492
R8491
CN789
C8491
CN787
D8491
C8586
C8588
D7330
R8492
C8492
CN788
R8493
Q7780
D7780
R7880
R8195
C8493
R8196
R8495
R8494
R8096
Q8491
R8095
R8094
R8093
R8097
R8098
R7847
R7845
R8197
R7763
R7764
R7765
R8198
R8193
R8194
R7875
R7876
R7807
D7390
R7808
R7200
B8007
R7879
R7805
R7881
R7878
D7713
CN730
R7778
R7786
R7787
C7792
R7775
R7776
R7777
R7791
R7806
R7803
R7804
R7779
R7790
R7886
R7770
R7789
R7769
R7867
R7766
R7771
R7871
Q7788
C7794
R7772
R7781
C7788
R7792
Q7794
R7773
R7762
R7767
R7774
IC771
R7892
R7788
R7768
R7793
R7794
R7897
R7761
R7861
R7760
R7860
R7859
R7759
R7780
R7796
R7797
R7899
R7799
IC770
Q7798
C7798
R7798
R7756
R7802
R7731
R7702
R7753
R7703
R7704
R7755
R7754
R7707
X7700
C7712
R7705 R7706
R7747
R7708
R7738
C7713
R7746
R7709
R7809
R7735
C7710
R7745
L7711
D7711
K8000
R7732
C7711
R7748
R7744
R7720
K7711
R7719
R7715
R7749
R7743
R7739
R7736
B8008
R7718
R7717 R7921
IC760
K8001
R7728
R7726
R7081
R7742
R7740
R7737
C7360
R7751
C7083
R7721
CN799
C7082
Q7080
B8002
R7722
B8009
C7080
R7723
R7752
R7724
R7725
C7085
Q7081
R7082
R7825
C7825
R7824
C7824
R7823
C7823
R7821
C7821
D7082
R7085
CN720
D7080
C7084
R7080
R7083
D7081
R7084
C7081
R7852
C7009
D7152
D7153
R7251
R7151
R7252
R7152
R7253
R7153
R8293
R7010
Q7010
Q7000
R7011
R7012
R7013
R7006
D7011
RY756
C7006
J701
D7001
R7004
R7005
R7000
RY767
C7005
C7000
C7004
R7001
R7002
R7003
D7000
RY712
C7003
R8039
R8139
D7151
C7007
C7008
J700
C7050
R7050
R8223
D7050
R8224
R8225
C8224
C8225
C8223
C8220
C8222
R8220
C8221
C8128
C8126
CN850
C8028
R8120
R8020
C8598
C8546
C8547
C8025
C8580
C8127
R8524
C8544
C8545
C8550
C8027
C8541
C8595
C8596
C8599
C8023
C8597
C8552
D8524
R8523
C8525
C8125
C8542
Q8524
C8026
IC820
C8594
C8548
C8022
C8120
C8121
C8123
C8538
C8020
C8540
R8551
C8551
C8556
C8555
C8531
C8554
C8530
C8122
C8518
C8021
R8529
B8003
C8553
C8563
C8522
C8524
C8564
C8591
B8000
C8590
C8523
C8593
C8592
R8574
IC850
C8517
R8521
R8210
C8573
C8520
R8511
C8516
R8510
C8574
C8509
C8572
C8506
C8589
R8575
C8514
R8512
R8579
C8515
C8581
B8902
C8587
C8501
R8212
R8514
C8575
C8582
Q8211
C8210
C8513
C8508
C8504
R8578
C8576
C8503
R8513
C8502
R8211
C8512
C8577
Q8212
C8585
C8584
C8583
C8579
C8578
R8507
R8509
R8508
B8051
B8050
C8160
R8021
IC810
R8121
R8360
R8810
C8260
C8261
C8363
R8811
C8811
C8061
R8813
C8162
R8812
C8810
C8161
R8162
R8161
C8060
R8160
R8261
C8129
R8061
C8062
R8060
R8262
C8029
R8260
R8062
C8262
C8362
C8361
C8360
R8263
R8119
C8119
R8269
IC860
R8019
C8019
C8265
CN830
C8263
Q8260
R8268
R8118
C8264
C8118
R8264
C8018
C8268
R8267
C8266
C8267
C8269
R8265
R8266
R8018
Q8130
R8129
R8130
R8029
C8130
R8132
C8131
B8001
R8133 R8033
C8031
C8030
Q8140
R8131
R8030
R8146
IC830
R8034
C8032
C7101
Q8030
Q8040
C8332
C7100
R8142
C8132
R8032
CN820
R8046
R8042
R8031
C8102
C8002
B8332
R8332
C8900
R8043
Q8900
R8143
R8134
Q8000
R8418
R8414
R8417
D8901
R8106
R8416
R8183
R8006
R8412
Q8100
Q8405
C8180
R8888
R8181
R8105
R8180
D8900
R8005
R8004
R8104
R8900
C8182
C8001
C8101
D8406
R8182
CN800
D8407
C8407
C8181
W800
R8415
Q8404
Q8403
IC881
R8413
C8288
R8288
R8190
R8191
R8192
R8092
R8089
C8191
C8190
R8189
Q7350
R7350
C8090
C7350
R8090
CN760
J800
R7600
R8091
D7350
C8091
R7351
CN750
Q7351
2-24
Amplifier board
(for DX-T99)
Lead free solder used in the board (material : Sn-Ag-Cu, melting point : 219 Centigrade)
(Amplifier board 2)
CN304
CN303
FW301
R3303
R3304
D3304
R3302
R3301
D3303
C9906
C9905
(Surround terminal board)
PP301
C3852
Q3902
R3902
C3401
D3401
R3408
D3903
D3301
D3902
IC307
D3901
Q3401
IC308
HS301
C3405
R3405
R3411
R3403
D3302
C3505
C3404
R3407
L3401
Q3901
Q3501
R3406
R3404
R3305
C3851
C3504
R3908
R3901
R3504
R3508
R3510
R3507
IC301
C9903
R3505
C3501
R3506
R3401
C9902
(Amplifier board 1)
R3906
R3907
R3203
R3410
C3222
D3501
R3503
R3206
L3501
R3409
R3511
C3223
C3403
R3502
R3402
C3221
R3501
C3502
R3205
C3503
C3402
R3202
C3213
C3104
C3212
R3306
R3509
C3211
C3603
C9901
CN302
R3609
C3201
R3201
R3204
R3611
R3606
C3202
R3601
C3203
R3608
J990
R3605
C3602
D3601
R3607
R3105
R3610
L3601
R3602
C9904
R3604
C3601
C3702
D3701
IC305
Q3601
R3603
C3605
C3604
R3701
R3104
R3103
C3701
C3102
Q3102
C3103
Q3101
R3107
Q3104
C3832
D3832
R3832
R3108
R3102
C3101
D3101
R3106
Q3103
IC303
D3831
R3101
C3831
R3831
IC304
D3821
R3821
CN990
W305
C3821
C3822
R3842
IC302
D3841
C3842
C3841
IC306
FW301
C3812
D3811
CN301
C3811
(FL board)
FW500
Q5007
S5026
D5007
CN401
R4502
D4503
R4501
R5043
R4504
R4503
D4504
C5001
S5025
R5023
R4210
R4902
D4501
S5024
R5022
Q5008
R5042
R4904
C4902
Q4902
R4610
R4710
R4505
IC401
S5017
R4603
D
R5021
4
50
S5009
S5008
R4903
R4110
Q4903
C4901
Q4901
R4901
R4604
R4906
FW401
R4606
R4601
L4601
2
R5030
S5034
R5020
S5023
S5007
R5008
R5007
S5006
S5016
R5015
R5047
R5049
R5048
C5005
R4608
R4607
C4601
R5006
D4601
R4611
R5045
R4605
R5014
S5033
S5022
C4903
C4604
Q4601
R4703
R4701
R5046
D4901
R4905
C4605
R4704
S5005
R4707
R4602
R5029
R5039
R5038
R4708
D4701
S5004
R5005
R5004
C5004
Q4904
C4701
C4602
C4811
R4705
L4701
S5015
C4704
Q4701
R4711
R5040
R4706
S5032
S5021
C4404
C4705
C4603
S5003
S5002
D4951
R4957
R4956
R4953
C4812
R4812
C4801
R5028
R5003
R5002
R5013
R4955
R4609
C4703
C4951
C4813
R5019
R5041
R4811
R5018
C4952
C4802
S5020
R4802
S5014
R4709
R4001
R4002
D4003
S5000
R4954
Q4951
R4952
R4801
R4004
R4003
D4004
S5031
S5001
C5007
C4803
R4506
R5001
R5000
R4951
R4702
R5027
R5017
C4702
R4403
R4404
R4405
D4001
Q5011
Q4401
R5012
R5044
S5013
R4401
C4402
S
IC500
P
5
Q4402
D4002
S5030
R5037
00
D4401
R4402
R4407
Q4404
C4401
R4408
D5004
R4406
S5019
Q4403
C4403
R5011
D5008
C5008
S5011
Q5010
R4105
R4101
R4005
R4207
Q4101
R4107
Q4201
C4101
L4101
R5026
D5005
R5016
R5010
D5006
R5050
S5012
C5006
S5018
R4108
D4101
R4103
R4205
R4111
C4201
R4106
C4311
R5009
IC510
C4102
R4201
Q5006
FL500
R4102
R4208
D4201
S5029
CN402
R4203
S5010
C5003
R5035
L4201
C5000
C4105
C4103
R4202
S5028
S5027
C4104
R4006
IC402
C5002
C4205
R5036
R4206
R4211
R4209
R5025
R4109
C4203
C4202
C4204
R4312
R5024
Q5009
R4104
C4301
R4204
C4312
R4311
C4405
C4313
C4302
R4302
Q5004
Q5005
CN500
2-25
Amplifier board
(for DX-T77,Dx-T66)
Lead free solder used in the board (material : Sn-Ag-Cu, melting point : 219 Centigrade)
(Amplifier board 2)
CN604
Q6352
C6005
C6211
D6352
R6218
(Surround terminal board)
H6001
C6402
IC608
CN603
Q6351
R6352
Q6211
IC601
C6112
R6112
D6353
L6211
R6005
R6217
R6356
R6216
D6211
R6215
R6213
R6211
C6113
R6212
C6212
C6111
D6351
IC607
R6111
R6001
D6001
C6001
R6351
C6213
C6401
R6214
R6004
R6003
C6002
C6214
C6004
R6002
C9704
C9702
(Amplifier board 1)
R6358
R6357
R6227
R6226
D6221
Q6221
R6225
Q6002
R6221
L6221
D6002
R6223
R6006
Q6001
C6003
R6224
C6223
R6228
C6224
C6231
C6222
R6222
C6121
CN602
C6221
C6122
R6121
R6122
C9701
R6232
C6232
C6131
L6231
C6123
R6131
C6132
J970
R6219
C6133
C9703
R6229
C6233
R6231
R6132
R6233
R6235
IC605
R6234
Q6231
C6234
D6321
C6321
C6322
R6236
D6231
R6921
C6933
R6922
R6528
C6931
C6932
IC650
R6931
R6531
R6536
R6932
CN652
R6538
D6531
R6535
C6531
Q6531
R6532
C6532
R6537
R6533
R6503
L6531
C6533 C6534
C6530
R6530
R6534
CN970
CN651
R6519
R6539
R6529
R6608
C6602
R6605
R6705
C6703
Q6704
R6706
EP651
C6701
R6701
R6602
Q6701
C6603
R6704
R6703
Q6601
R6604
R6702
R6603
R6606
C6702
C6601
D6601
Q6702
Q6603
R6607
R6601
Q6703
Q6602
R6802
R6801
D6803
D6701
Q6604
R6804
R6510
R6803
D6511
C6510
D6804
C6514
D6801
R6516
Q6511
R6501
R6514
C6513
R6515
R6517
D6802
R6805
C6524
C6520
R6520
L6511
R6513
R6511
R6523
R6524
C6523
Q6521
L6521
R6521
R6527
R6502
R6526
D6521
C6912
R6525
C6512
R6522
R6512
R6912
C6913
C6604
R6518
C6911
R6911
C6522
C6521
R6806
C6923
C6922
C6511
C6921
(FL board)
FW500
R5030
S5017
R5021
S5009
S5008
R5008
R5007
R5015
S5034
S5023
R5047
R5048
C5005
R5020
S5007
R5006
S5006
S5016
R5049
S5024
R5022
CN601
S5025
R6239
Q5007
C5001
Q5008
R5042
R6237R6238
R6311
R6331
C6332
D6331
R6361
IC602
C6331
C6361
D6361
C6362
IC606
C6311
D6311
C6312
R6321
C6342
R6341
D6342
IC603
D6341
C6341
R6342
IC604
R5045
R5014
S5033
S5022
R5046
R5029
S5005
R5038
S5004
R5039
R5005
C5004
R5004
S5015
R5040
S5032
S5021
S5003
S5002
R5028
R5003
R5002
R5013
R5019
R5041
R5018
S5020
S5014
S5000
S5031
S5001
C5007
R5001
R5000
R5027
R5017
Q5011
R5012
R5044
IC500
S5013
S5030
D5004
S5019
R5037
R5011
D5008
C5008
S
P
5
0
0
S5011
Q5010
R5026
R5016
S5012
C5006
R5010
R5050
D5005
D5006
S5018
R5009
IC510
Q5006
S5029
S5010
C5003
R5035
C5000
S5028
S5027
R5036
C5002
R5025
R5024
Q5004
Q5005
CN500
Q5009
D5007
2-26
S5026
R5043
R5023
FL500
Video board
(common)
Lead free solder used in the board (material : Sn-Ag-Cu, melting point : 219 Centigrade)
(Video board)
C1010
C1012
(Primary board)
CN100
Z1002
D1000
Z1010
Z1012
Z1011
Z1009
D1001
D1002
EP101
D1003
D1015
Z1008
Z1006
Z1001
Z1003
C1013
C1016
C1011
D1005
D1006
D1007
D1004
D1016
Z1007
Z1005
C1014
C1015
Z1004
C1017
CN101
D1008
D1009
D1010
D1011
R1005
R1001
C1002
D1017
R1000
Z1020
Z1018
Z1016
Z1014
D1014
D1013
Q1000
C1004
C1005
C1003
S1000
Z1019
Z1017
Z1015
Q1001
R1002
CN102
D1012
C1008
Z1013
R1003
R1004
R1006
C1007
CN105
C1006
CN104
CN106
CN103
EP201
D2101
(Bridge boad)
R2005
C2011
D2009
C2010
Q2009
Q2102
R2101
R2102
Q2101
CN200
D2201
D2202
R2004
R2008
R2202
R2206
R2009
R2010
R2201
R2205
R2203
R2007
R2006
Q2203
Q2201
Q2008
R2204
H2001
Q2202
Q2204
Q9320
D9320
C9320
R9320
R9218
Q2007
C9217
J920
D2008
C2004
CN931
D9300
R9210
R9209
R9204
R9203
R9206
R9205
C9218 C9221
CN201
C2013
C2006
R2001
R9221
CN204
C9215
C9216
C9213
C9200
C9220
D9302
R9300
D9301
C9224
C9211
IC920
R9224
R2013
R2002
C9223
C9209
C2008
C2012
R2003
C9206
C2000
C9227
CN203
R9201
R9202
C9204
R9227
C9226
C9300
C9230
R2000
D9303
R9207
C9201
D2013
C2007
R9208
R9230
J921
R2012
R2011
C9303
R9303
CN930
HS202
C9229
Q9303
R9232
R9302
C2009
R9304
C9232
R9301
Q9301
C9231
C2005
CN920
Q9300
D2001
R9310
D9311
D9310
C9310
C9311
D9312
D9313
L9310
IC930
PP201
PP203
PP202
CN202
2-27
DVD board
forward side
(common)
Lead free solder used in the board (material : Sn-Ag-Cu, melting point : 219 Centigrade)
Loader board
(common)
Lead free solder used in the board (material : Sn-Ag-Cu, melting point : 219 Centigrade)
IC201
Q105
C105
C558
C263
CN101
IC510
C264
IC705
C713
C709
X301
CN452 CN453
D701
C707
C708
C301
C303
IC505
C302
X451
IC454
IC451
IC302
IC453
C336
(Motor board)
CN1
IC2
C7
C5
CN2
C1
M2
reverse side
K737
TP471
K732
K733
K734
K735
K736
CN455
TP462
TP451
CN451
K738
TP461
TP460
TP459
TP458
TP457
TP456
TP455
TP454
TP453
TP452
TP473
K455
K456
TP417
K454
TP334
TP332
TP330
TP292
TP474
TP748
TP751
TP338
TP335
TP333
TP331
TP749
IC305
CN301
TP380
TP472
R301
K750
CN701
K752
TP300
TP301
TP321
TP328
K754
IC452
K756
TP329
K758
K710
C339
IC704
TP381
TP307
TP306
TP314
TP315
IC701
TP325
TP320
CN702
TP308
TP309
IC702
TP323
TP324
TP326
TP226
CN703
IC703
TP304
TP108
K721
K723
IC301
K724
TP221
K725
K726
TP231
CN704
K727
TP111
TP220
K728
TP109
TP105
TP102
TP104
Q103
Q101
TP291
TP103
TP101
R107
IC509
TP202
TP201
C108
Q104
C106
Q102
TP208
TP207
TP203
TP204
TP205
TP206
TP227
CN201
(Switch board)
C2
C6
D1
TP1
TP2
SW8
SW1
SW6
SW4SW3SW2
SW5
M1
C3
IC1
SW7
CN3
(Sensor board)
R1
TP3
TP4
TP5
(Tray switch board)
2-28
Cassette A board
(common)
Lead free solder used in the board (material : Sn-Ag-Cu, melting point : 219 Centigrade)
(Head amplifier board)
CN44
D483
D482
CN45
Q461
Q460
C467
C461
C458
C449
R459
R449
R458
C466
R457
R465
R466
R461
R467
C453
CN47
IC41
R454
R463
C459
C465
R471
R470
C463
C452
R453
R462
C460
R456
R452
R460
CN43
C469
AGND
C468
R450
R468
R469
C462
C450
R451
C451
CN48
R489
CN46
R480
C480
R481
R486
R485
C484
C481
Q481
R482
Q486
Q482
Q485
(Switch board)
CN41
VR37
CN1
R371
SW6
FW100
IC1
D1
R483
D485
C486
R488
R487
IC43
P1
Cassette B board
(common)
Lead free solder used in the board (material : Sn-Ag-Cu, melting point : 219 Centigrade)
(Head amplifier board)
PP300
Q305
R310
R314
C121
C221
R108
C107
C310
C314
C313
R335
L301
R353
L303
R339
R304
C113
R121
R221
R102
C212
R303
R302
Q343
R104
C308
R327
VR31
R315
R313
Q302
C316
C319
C301
C207
R110
Q342
C304
R301
C105
C205
C103
R208
C106
R306
R101
C104
R106
Q344
C306
CN34
R344
R105
C102
Q345
R205
C208
R345
R336
C340
R346
C307
R107
C206
R206
W1
Q346
C214
R305
C110
C341
R210
C300
R372
Q372
C120
C371
R116
CN33
IC32
C109
CN31
C201
C101
Q371
C374
C211
C220
R216
R376
Q375
C202
C376
C204
R343
R341
CN32
D375
R340
R342
Q376
R338
R375
R337
C331
R204
C213
R201
C203
R202
C210
C342
C209
W1
R207
R347
Q347
Q348
IC33
(Switch board)
P1
VR37
CN1
R371
SW6
FW100
IC1
D1
2-29
Victor Company of Japan, Limited
Audio/Video Systems Category 10-1,1chome,Ohwatari-machi,Maebashi-city,371-8543,Japan
(No.MB531SCH)
Printed in Japan
VPT
PARTS LIST
DX-T99A,DX-T99EE,DX-T99US,DX-T99UW
DX-T99UX,DX-T99UG,DX-T99UN
DX-T77EE,DX-T77US,DX-T77UW,DX-T77UX
DX-T77UY,DX-T77UG,DX-T77UN
DX-T66EE,DX-T66US,DX-T66UW,DX-T66UX
DX-T66UY,DX-T66UG,DX-T66UN
* All printed circuit boards and its assemblies are not available as service parts.
- Contents -
Exploded view of general assembly and parts list (Block No.M1) (DX-T99)
Exploded view of general assembly and parts list (Block No.M2) (DX-T77)
Exploded view of general assembly and parts list (Block No.M3) (DX-T66)
DVD mechanism assembly and parts list (Block No.MJ) (Common)
DVD changer mechanism assembly and parts list (Block No.MK)
(FMU-SB4-1M) (DX-T99,DX-T77)
DVD changer mechanism assembly and parts list (Block No.MS)
(FMU-SB4-11M) (DX-T66)
Cassette mechanism assembly and parts list (Block No.MP) (SLC-S401M)
(Cassette A) (Common)
Cassette mechanism assembly and parts list (Block No.MQ) (SLC-S304M)
(Cassette B) (Common)
Electrical parts list (Block No.01~15)
Packing materials and accessories parts list (Block No.M4) (DX-T99)
Packing materials and accessories parts list (Block No.M5) (DX-T77)
Packing materials and accessories parts list (Block No.M6) (DX-T66)
3- 2
3- 6
3-10
3-14
3-16
3-18
3-20
3-22
3-24
3-52
3-54
3-56
No.MB531
3-1
Exploded view of general assembly and parts list
B
6
8
6
(DX-T99)
94
94
94
94
94
23
9
8
7
6
5
23
22
125
62
E
D
C
Block No.
123
D
M
M
1
M
57
g
43
42
40
41
24
49
49
46
39
3
39
4
45
A
44
20
2
47
47
1
17
15
24
12
94
22
10
36
21
B
14
20
13
F
G
17
55
Microphone amplifier board
11
37
38
33
t
38
37
34
21
97
51
36
33
32
54
19
FL board
98
97
Cassette A
35
32
50
34
35
50
51
54
56
a
121
C
B
16
1
96
99
48
F
111
16
31
48
31
2
G
Cassette
2
3-2
Loading...
