Jvc DR-MV1 User Manual

DVD VIDEO RECORDER & VIDEO CASSETTE RECORDER
DR-MV1S
DVDTV
CABLE/DBS
TV/CBL/DBS
DVD
VCR
VCR
/DVD
TIMER
/DVD
TIMER
NUMBER/ TV CH /DVD CHNUMBER/ TV CH /DVD CH
3
1
2
ABC DEF
5
6
4
JKL MNO
GHI
8
9
7
TUV
PQRS WXYZ
0
MEMO/MARK
AUX
CANCEL
PROG/CHECK
DISPLAYON SCREEN
PROGRESSIVE
VCR PLUS+
SCAN
N O I
T
A G I
V
U
MENU
A
N
N
E M P
O
T
ENTER
S
N
E
T
R
U
U
T
P
E
R
PREVIOUS NEXT
SLOW
SLOW
PLAY/SELECT
CLEAR
PAUSESTOP/
REMAIN REC
REC MODE
ANGLE
LIVE CHECK
TV/VCR
TV/DVD
SUBTITLE
CH
AUDIO
TV/CBL/DVD
POWER
TV
VOL.
VCR EJECT
TV
VCR/DVD TIMER VCR REC OPEN/CLOSE STOP PLAY
PULL-OPEN
DVD
S-VIDEO
VIDEO (MONO) L - AUDIO - R
F-1
TIMER DVD DVDREC VCR DUBBING
REMAIN
REC PAUSE REW FF
PULL-OPEN
REC LINK
DV IN
CH
<< >>
DVD
INSTRUCTIONS
For Customer Use:
Enter below the Model No. and Serial No. which are located on the rear of cabinet. Retain this information for future reference.
Model No.
Serial No.
LPT0918-001B
2 EN
A
Dear Customer,
Thank you for purchasing the JVC DVD video recorder. Before use, please read the safety information and precautions to ensure safe use of your new unit.
CAUTIONS
The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.
The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.
WAR N I N G :
TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS UNIT TO RAIN OR MOISTURE.
CAUTION:
This unit should be used with AC 120Vd, 60Hz only.
To prevent electric shocks and fire hazards, DO NOT use any other power source.
CAUTION:
TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE SLOT, FULLY INSERT.
TTENTION:
POUR ÉVITER LES CHOCS ÉLECTRIQUES, INTRODUIRE LA LAME LA PLUS LARGE DE LA FICHE DANS LA BORNE CORRESPONDANTE DE LA PRISE ET POUSSER JUSQU’AU FOND.
Note to CATV system installer:
This reminder is provided to call the CATV system installer’s attention to Article 820-40 of the NEC that provides guidelines for proper grounding and, in particular, specifies that the cable ground shall be connected to the grounding system of the building, as close to the point of cable entry as practical.
CAUTION:
Changes or modifications not approved by JVC could void user’s authority to operate the equipment.
CAUTION:
A UNIT IS A CLASS 1 LASER PRODUCT. HOWEVER THIS UNIT USES A VISIBLE LASER BEAM WHICH COULD CAUSE HAZARDOUS RADIATION EXPOSURE IF DIRECTED. BE SURE TO OPERATE THE UNIT CORRECTLY AS INSTRUCTED.
WHEN THIS UNIT IS PLUGGED INTO THE WALL OUTLET, DO NOT PLACE YOUR EYES CLOSE TO THE OPENING OF THE DISC TRAY AND OTHER OPENINGS TO LOOK INTO THE INSIDE OF THIS UNIT.
USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE.
DO NOT OPEN COVERS AND DO NOT REPAIR YOURSELF. REFER SERVICING TO QUALIFIED PERSONNEL.
CLASS 1 LASER PRODUCT REPRODUCTION OF LABELS
WARNING LABEL INSIDE OF THE UNIT
IMPORTANT PRODUCT SAFETY
A
INSTRUCTIONS
Electrical energy can perform many useful functions. But improper use can result in potential electrical shock or fire hazards. This product has been engineered and manufactured to assure your personal safety. In order not to defeat the built-in safeguards, observe the following basic rules for its installation, use and servicing.
TTENTION:
Follow and obey all warnings and instructions marked on your product and its operating instructions. For your safety, please read all the safety and operating instructions before you operate this product and keep this booklet for future reference.
INSTALLATION
1. Grounding or Polarization
(A)Your product may be equipped with a polarized alternating-
current line plug (a plug having one blade wider than the other). This plug will fit into the power outlet only one way. This is a safety feature. If you are unable to insert the plug fully into the outlet, try reversing the plug. If the plug should still fail to fit, contact your electrician to replace your obsolete outlet. Do not defeat the safety purpose of the polarized plug.
(B)Your product may be equipped with a 3-wire grounding-type
plug, a plug having a third (grounding) pin. This plug will only fit into a grounding-type power outlet. This is a safety feature. If you are unable to insert the plug into the outlet, contact your electrician to replace your obsolete outlet. Do not defeat the safety purpose of the grounding-type plug.
2. Power Sources
Operate your product only from the type of power source indicated on the marking label. If you are not sure of the type of power supply to your home, consult your product dealer or local power company. If your product is intended to operate from battery power, or other sources, refer to the operating instructions.
3. Overloading
Do not overload wall outlets, extension cords, or integral convenience receptacles as this can result in a risk of fire or electric shock.
4. Power Cord Protection
Power supply cords should be routed so that they are not likely to be walked on or pinched by items placed upon or against them, paying particular attention to cords at plugs, convenience receptacles, and the point where they exit from the product.
5. Ventilation
Slots and openings in the cabinet are provided for ventilation. To ensure reliable operation of the product and to protect it from overheating, these openings must not be blocked or covered.
Do not block the openings by placing the product on a bed, sofa, rug or other similar surface.
Do not place the product in a built-in installation such as a bookcase or rack unless proper ventilation is provided or the manufacturer’s instructions have been adhered to.
6. Wall or Ceiling Mounting
The product should be mounted to a wall or ceiling only as recommended by the manufacturer.
EN 3
ANTENNA INSTALLATION INSTRUCTIONS
1. Outdoor Antenna Grounding
If an outside antenna or cable system is connected to the product, be sure the antenna or cable system is grounded so as to provide some protection against voltage surges and built-up static charges. Article 810 of the National Electrical Code, ANSI/NFPA 70, provides information with regard to proper grounding of the mast and supporting structure, grounding of the lead-in wire to an antenna discharge unit, size of grounding connectors, location of antenna discharge unit, connection to grounding electrodes, and requirements for the grounding electrode.
2. Lightning
For added protection for this product during a lightning storm, or when it is left unattended and unused for long periods of time, unplug it from the wall outlet and disconnect the antenna or cable system. This will prevent damage to the product due to lightning and power-line surges.
3. Power Lines
An outside antenna system should not be located in the vicinity of overhead power lines or other electric light or power circuits, or where it can fall into such power lines or circuits. When installing an outside antenna system, extreme care should be taken to keep from touching such power lines or circuits as contact with them might be fatal.
4 EN
USE
1. Accessories
To avoid personal injury:
Do not place this product on an unstable cart, stand, tripod, bracket, or table. It may fall, causing serious injury to a child or adult, and serious damage to the product.
Use only with a cart, stand, tripod, bracket, or table recommended by the manufacturer or sold with the product.
Use a mounting accessory recommended by the manufacturer and follow the manufacturer’s instructions for any mounting of the product.
Do not try to roll a cart with small casters across thresholds or deep­pile carpets.
2. Product and Cart Combination
A product and cart combination should be moved with care. Quick stops, excessive force, and uneven surfaces may cause the product and cart combination to overturn.
3. Water and Moisture
Do not use this product near water—for example, near a bath tub, wash bowl, kitchen sink or laundry tub, in a wet basement, or near a swimming pool and the like.
4. Object and Liquid Entry
Never push objects of any kind into this product through openings as they may touch dangerous voltage points or short-out parts that could result in a fire or electric shock. Never spill liquid of any kind on the product.
5. Attachments
Do not use attachments not recommended by the manufacturer of this product as they may cause hazards.
6. Cleaning
Unplug this product from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. Use a damp cloth for cleaning.
7. Heat
The product should be situated away from heat sources such as radiators, heat registers, stoves, or other products (including amplifiers) that produce heat.
SERVICING
1. Servicing
If your product is not operating correctly or exhibits a marked change in performance and you are unable to restore normal operation by following the detailed procedure in its operating instructions, do not attempt to service it yourself as opening or removing covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel.
2. Damage Requiring Service
Unplug this product from the wall outlet and refer servicing to qualified service personnel under the following conditions: a. When the power supply cord or plug is damaged. b. If liquid has been spilled, or objects have fallen into the product. c. If the product has been exposed to rain or water. d. If the product does not operate normally by following the
operating instructions. Adjust only those controls that are covered by the operating instructions as an improper adjustment of other controls may result in damage and will often require extensive work by a qualified technician to restore the
product to its normal operation. e. If the product has been dropped or damaged in any way. f. When the product exhibits a distinct change in performance—
this indicates a need for service.
3. Replacement Parts
When replacement parts are required, be sure the service technician has used replacement parts specified by the manufacturer or which have the same characteristics as the original part. Unauthorized substitutions may result in fire, electric shock or other hazards.
4. Safety Check
Upon completion of any service or repairs to this product, ask the service technician to perform safety checks to determine that the product is in safe operating condition.
HOW TO USE THIS INSTRUCTION MANUAL
All major sections and subsections are listed in the Table Of Contents
on page 7. Use this when searching for information on a specific procedure or feature.
The Index on pages 12 – 16 lists frequently-used terms, and the
number of the page on which they are used or explained in the manual. This section also illustrates the controls and connections on the front and rear panel, the front display panel and the remote control.
mark signals a reference to another page for instructions or
The
related information.
Operation buttons necessary for the various procedures are clearly
indicated through the use of illustrations at the beginning of each major section.
BEFORE YOU INSTALL YOUR NEW UNIT . . .
. . . please read the sections/literature listed below.
“CAUTIONS” on page 2
“IMPORTANT PRODUCT SAFETY INSTRUCTIONS” on pages 3 – 5
Declaration of Conformity
3
TM
A
Model Number: DR-MV1S Trade Name: JVC Responsible Party: JVC Americas Corp. Address: 1700 Valley Road Wayne, N.J. 07470 Telephone Number:973-317-5000
This device complies with Part 15 of FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help.
VCR Plus+, C and PlusCode are registered trademarks of Gemstar Development Corporation. The VCR Plus+ system is manufactured under license from Gemstar Development Corporation.
TM
DSS is an official trademark of DIRECTV, Inc., a unit of GM Hughes Electronics. DISH Network is a trademark of Echostar Communications Corporation.
Manufactured under licence from Dolby Laboratories. “Dolby” and double-D symbol are trademarks of Dolby Laboratories.
“DTS” and “DTS Digital Out” are trademarks of Digital Theater Systems, Inc.
This product incorporates copyright protection technology that is protected by method claims of certain U.S. patents and other intellectual property rights owned by Macrovision Corporation and other rights owners. Use of this copyright protection technology must be authorized by Macrovision Corporation, and is intended for home and other limited viewing users only unless otherwise authorized by Macrovision Corporation. Reverse engineering or disassembly is prohibited.
EN 5
When the equipment is installed in a cabinet or a shelf, make sure that it has sufficient space on all sides to allow for ventilation (10 cm or more on both sides, on top and at the rear).
When discarding batteries, environmental problems must be considered and the local rules or laws governing the disposal of these batteries must be followed strictly.
Failure to heed the following precautions may result in damage to the unit, remote control or disc/cassette.
1. DO NOT place the unit —
— in an environment prone to extreme temperatures or humidity. — in direct sunlight. — in a dusty environment. — in an environment where strong magnetic fields are generated. — on a surface that is unstable or subject to vibration.
2. DO NOT
block the unit’s ventilation openings or holes.
(If the ventilation openings or holes are blocked by a newspaper or cloth, etc., the heat may not be able to get out.)
3. DO NOT
4. DO NOT
place heavy objects on the unit or remote control. place anything which might spill on top of the unit
or remote control.
(If water or liquid is allowed to enter this equipment, fire or electric shock may be caused.)
5. DO NOT
6. DO NOT
expose the apparatus to dripping or splashing. use this equipment in a bathroom or places with
water. Also DO NOT place any containers filled with water or
liquids (such as cosmetics or medicines, flower vases, potted plants, cups, etc.) on top of this unit.
7. DO NOT
place any naked flame sources, such as lighted
candles, on the apparatus.
8. AVOID
violent shocks to the unit during transport.
MOISTURE CONDENSATION
Moisture in the air will condense on the unit when you move it from a cold place to a warm place, or under extremely humid conditions—just as water droplets form on the surface of a glass filled with cold liquid. In conditions where condensation may occur, disconnect the unit’s power plug from the wall and keep it disconnected for a few hours to let the moisture dry, then turn on the unit.
TTENTION:
To mobile phone users:
Using a mobile phone in the vicinity of the unit may cause picture vibration on the TV screen or change the screen to a blue back display.
On placing the unit:
Some TVs or other appliances generate strong magnetic fields. Do not place such appliances on top of the unit as it may cause picture disturbance.
6 EN
Features of this unit
This unit allows you various types of playback and recording because this unit has two tuners.
Record programs on both DVD deck and VCR deck simultaneously
1 Start recording on the DVD deck. (pg. 38) 2 Start recording on the VCR deck. (pg. 50)
NOTE:
DV IN connector is available for DVD deck only.
Recording Recording
F-1
Watch another program while recording on the unit
Pressing VCR/DVD switches to the other tuner.
1 Start recording on the DVD deck or VCR deck. (pg. 38, 50) 2 Press VCR/DVD. 3 Press CH +/– to select the desired channel.
Recording
Another program
Operate the DVD deck while recording on the VCR deck
1 Start recording on the VCR deck. (pg. 50) 2 Press VCR/DVD. 3 Operate the DVD deck.
Recording Playback, recording, etc.
F-1
Operate the VCR deck while the DVD deck is in timer standby mode
1 Engage the DVD deck’s timer mode. (pg. 41)
The VCR deck is automatically selected and the VCR lamp lights up on the unit.
2 Operate the VCR deck.
Playback, recording, etc. Timer standby mode
F-1
Operate the VCR deck while recording on the DVD deck
Pressing VCR/DVD switch to the other tuner.
1 Start recording on the DVD deck. (pg. 38) 2 Press VCR/DVD. 3 Operate the VCR deck.
Playback, recording, etc. Recording
F-1
F-1
Operate the DVD deck while the VCR deck is in timer standby mode
1 Engage the VCR deck’s timer mode. (pg. 52)
The DVD deck is automatically selected and the DVD lamp lights up on the unit.
2 Operate the DVD deck.
Timer standby mode Playback, recording, etc.
F-1
DISC INFORMATION 8
About Discs ................................................................................... 8
INDEX 12
INSTALLING YOUR NEW UNIT 17
Basic Connection ........................................................................17
INITIAL SETTINGS 18
Plug & Play Set ...........................................................................18
Language ....................................................................................19
Clock Set .....................................................................................20
Tuner Set ....................................................................................21
Cable Box and/or DBS Receiver Control Setting (DVD Deck
Only) .................................................................................. 22
Monitor Set (DVD Deck Only) .....................................................24
OPERATIONS ON DVD DECK 25
Basic Playback ............................................................................25
Playback Features ......................................................................26
Live Memory Playback ................................................................ 29
Using The On-screen Bar ...........................................................33
Parental Lock ..............................................................................37
Basic Recording .......................................................................... 38
Recording Features .....................................................................39
VCR Plus+
Manual Timer Programing ...........................................................42
On-Disc Timer Programing .........................................................43
Automatic Satellite Program Recording (DVD Deck Only) .......... 46
®
Timer Programing ....................................................41
OPERATIONS ON VCR DECK 47
Basic Playback ............................................................................47
Playback Features ......................................................................48
Basic Recording .......................................................................... 50
Recording Features .....................................................................50
VCR Plus+
Manual Timer Programing ...........................................................53
®
Timer Programing ....................................................52
NAVIGATION (DVD DECK ONLY) 55
Library Database DVD Navi ........................................................ 55
Modify Original Information .........................................................56
Modify Play List Information ........................................................ 58
Modify Library Information ........................................................... 60
Playback With MP3/JPEG Navigation .........................................61
EDITING 62
Tape Dubbing (From VCR To DVD) ...........................................62
Manual Dubbing (From VCR To DVD) ........................................63
Disc Dubbing (From DVD To VCR) ............................................. 64
Manual Dubbing (From DVD To VCR) ........................................65
DV Dubbing (DVD Deck Only) ....................................................66
Edit From A Camcorder ..............................................................67
Edit To Or From Another Recorder ............................................. 68
Digital Audio Dubbing .................................................................. 69
REMOTE CONTROL 70
Remote Control Functions ..........................................................70

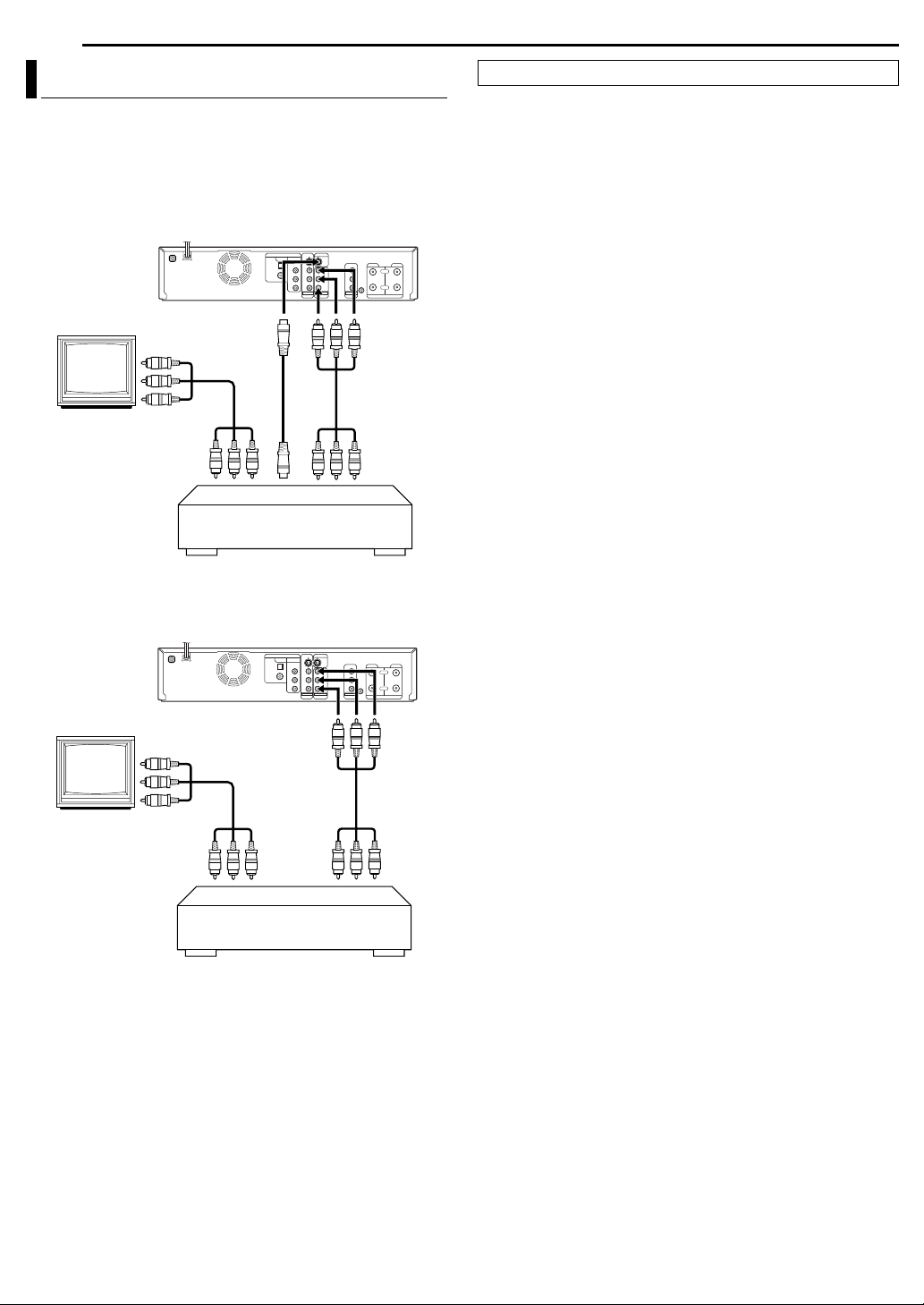

SYSTEM CONNECTIONS 72
Connecting To A Dolby Digital Decoder Or An Amplifier With
Built-in DTS ...........................................................................72

CONTENTS

EN 7
SUBSIDIARY SETTINGS 73
Mode Set (DVD Deck) ................................................................ 73
Mode Set (VCR Deck) ................................................................ 75
Changing VCR Plus+
Format A Disc (DVD Deck Only) ................................................ 78
Finalize A Disc (DVD Deck Only) ............................................... 79
Scan Mode Set ........................................................................... 80
Tray Lock (DVD Deck Only) ....................................................... 80
®
Setting ..................................................... 77
TROUBLESHOOTING 81
GLOSSARY 86
SPECIFICATIONS 87
APPENDIX 88
LIST OF TERMS 91
WARRANTY 92
8 EN

DISC INFORMATION

About Discs

Recordable/playable Discs

You can use discs with the following logos for recording and playback.
DVD-RAM
12 cm: 4.7 GB/9.4 GB 8 cm: 1.4 GB/2.8 GB Ver. 2 . 0 Ver. 2 . 1
DVD- R
12 cm: 4.7 GB 8 cm: 1.4 GB General Ver. 2.0 (Video mode)
The above table is based on the information as of February 2004.
Recording and playback may not be performed depending on the
characteristics and condition of the disc used, leading to unsatisfactory results. Using discs manufactured by JVC is recommended since they have been tested to be compatible with this unit.
DVD-RW
12 cm: 4.7 GB/9.4 GB Ver. 1.0 (VR mode) Ver. 1.1 (Video mode/VR mode)
After finalizing —
After a DVD-R/RW disc (Video mode) has been finalized, it is possible to play back the recorded programs (video and/or audio) on a standard DVD video player as a DVD VIDEO disc.
Edited titles are displayed as the “DVD menu” in video mode.
It is impossible to record, edit or delete the data either in video mode or in VR mode.
Either in video mode or in VR mode, although the disc can be played back on DVD players from other manufacturers, sometimes it may not be possible to play back depending on the disc and recording conditions.
It is impossible to record on CD-R/RW or DVD-R discs used for authoring.
It is impossible to record onto DVD-R/RW (Video mode) discs broadcasts that allow you to copy once. The copy once programs can only be recorded onto DVD-RW discs formatted in VR mode.
NOTE:
The following may result if you play back a DVD-R disc recorded on another unit.
The disc does not play.
A mosaic pattern (block noise) appears on the screen.
Video or audio may be dropped out.
The unit stops during playback.

Discs For Playback Only

You can use discs with the following logos for playback only.
DVD VIDEO Video CD/Super Video CD
DVD-RAM Discs
It is only possible to use discs which conform with DVD-RAM standard Version 2.0 or 2.1.
It is impossible to record on DVD-RAM discs which do not conform to this standard. If you use a disc formatted under a different standard version, format it on this unit before use.
It may not be possible to record, play back, edit or dub a DVD-RAM disc even if it conforms to the standard if it was recorded or edited on the devices from other manufacturers or on a PC, or if it has far too many titles, or if there is very little available capacity remaining on the disc.
Some DVD-RAM discs are contained in a cartridge. This unit cannot handle this type of disc. Remove the disc from the cartridge (only discs with a removable cartridge); or the use of DVD-RAM discs not contained in a cartridge is recommended.
DVD-RAM discs recorded on this unit cannot be played back on an incompatible DVD player.
It is possible to record copy-once programs of digital broadcasts only onto 4.7/9.4 GB DVD-RAM discs (2.8 GB DVD-RAM discs are not compatible).
DVD-R/RW Discs
It is only possible to use DVD-R discs which conform with DVD-R standard Version 2.0. When a DVD-R/RW disc (Video mode) is finalized (pg. 79), it can be played back on a standard DVD player as a DVD VIDEO disc. When a DVD-RW disc (VR mode) is finalized (pg. 79), it can be played back on a standard DVD player compatible with the VR mode of DVD-RW discs.
Before finalizing —
— it is possible to record on unrecorded areas of the disc, edit the disc title and program titles, and delete programs.
It is impossible to record or edit DVD-R/RW discs recorded on other devices even if they have not been finalized.
It is impossible to overwrite recorded areas of DVD-R discs.
Available recording capacity does not increase even if a recorded
program is deleted from a DVD-R disc.
(example of region code indications)
Audio CD
CD-DA files
CD-R
CD-DA/JPEG/ MP3 files
CD-RW
CD-DA/JPEG/
CD-ROM
JPEG/MP3 files
MP3 files
Playback may not be performed depending on the characteristics and condition of the disc used.
DTS Audio CDs can also be played back (An optional DTS decoder is required).
MP3 and JPEG discs can be played back on this unit only when they have been recorded in the ISO9660 or Joliet format and finalized.
JPEG files that can be played back on this unit must conform to JFIF/ Baseline process, and the maximum resolution of a JPEG file is 3,840 x 2,160 pixels.
CD-R/RW discs recorded in music CD format need to be finalized to play back on this unit.
Operation and audio quality of this unit are not guaranteed for discs that do not conform to the Compact Disc specification (CD-DA). Before you play back a CD, check for the CD logo and read the notes on the package to confirm that it conforms to the Compact Disc specification.
Depending on the intentions of the author of the software, recording conditions of DVD discs and Video CD discs may be restricted. Since this unit plays back discs according to the intentions of the author of the software as indicated on the disc, some functions may not operate as commanded.
When switching from the first layer to the second layer of double­layered DVD VIDEO discs, the image and sound may be momentarily distorted. This is not a malfunction.
When switching from the first layer to the second layer of double­layered DVD VIDEO discs, the image and sound may be momentarily distorted. This is not a malfunction.
DVD-AUDIO discs compatible with DVD video players can be played.
Super Audio CDs (SACD) compatible with conventional CD players
can be played.

Unplayable Discs

The following types of discs cannot be played using this unit. Do not attempt to play back any kind of disc that is damaged (cracked, warped, or repaired with adhesive tape) or discs in unusual shapes (heart-shaped, octagonal, or other forms). If such discs are accidentally played back, it may cause noise that can lead to speaker damage.
CD-ROM discs (including PHOTO-CD and CD-G)
Discs recorded in Packet Write (UDF) format.
1.3-GB double density CDs (DDCD)
High density CDs (HDCD)
The following discs also cannot be played back.
Discs of a region number other than “1”
DVD-RAM (2.6 GB/5.2 GB)
DVD-RAM (TYPE1)

Region Number

The world is divided into 6 regions for DVD VIDEO discs. DVD VIDEO discs are assigned a region number to indicate which region they may be played back in. A disc cannot be played back on this unit unless the region number of the disc matches that of the unit. The region number for this unit is “1”. Only discs whose region number includes “1” or “ALL” can be played back such as shown below.
Examples of DVD VIDEO labels which can be played back using this unit.
Marks of discs in this instruction manual
Allows operation with a DVD-RAM disc.
Allows operation with a DVD-R disc.
Allows operation with a DVD - RW d isc.
Allows operation with a DVD VIDEO disc.
Allows operation with a Video CD disc.
Allows operation with an Audio CD disc.
Allows operation with a disc including MP3 files.
Allows operation with a disc including JPEG files.
DISC INFORMATION
EN 9

Recording Medium And Format

DVD-RAM
Recording and erasing can be performed as many times as possible on a disc.
Editing can be performed after recording, such as deleting unwanted parts.
While recording, it is possible not only to star t playback of a program currently being recorded, but also to watch another program previously recorded.
DVD-RW (VR mode)
Recording and erasing can be performed as many times as possible on a disc.
Editing can be performed after recording, such as deleting unwanted parts.
DVD-RW (Video mode)
Can be played back on other DVD players.
New recording can be performed by erasing all the data on a disc
once played back.
DVD-R
Can be played back on other DVD players.
Suitable when keeping a recorded disc for a long time.

File Structure Of Discs

DVD VIDEO
Typically, DVD VIDEO discs are made up of larger units called “titles”. Each title has a number (title number) that can be used to select desired titles. Titles are further divided into units called “chapters”. Each chapter has a number (chapter number) that can also be used to select desired chapters. Note that some discs are not divided into titles and chapters.
When you record a program on a DVD-RAM/RW (VR mode) disc
A single recording session results in a single title (a single chapter). However, chapter marks are automatically inserted when recording is paused, or audio changes from monaural to stereo due to commercial breaks, etc. It is also possible to insert chapter marks at desired locations during playback. (墌 pg. 27)
When you record a program on a DVD-R/RW (Video mode) disc
A single recording session results in a single title (a single chapter). However, chapter marks are automatically inserted when recording is paused, or audio changes due to commercial breaks, etc. It is also possible to insert chapter marks at desired locations during either recording or playback. Once the disc has been finalized, these chapter marks are deleted and new chapter marks are assigned automatically approximately every 5 minutes.
DVD-RAM, DVD-RW, DVD-R or DVD VIDEO disc
Title 1 Title 2
Chapter 1 Chapter 2
In Video mode, even before finalizing, it is impossible to perform editing operations other than changing the disc name and/or title names and deleting programs and/or titles.
After finalizing, it is impossible to perform editing operations.
Chapter 3
Chapter 1
Chapter 2
Chapter 3
10 EN
DISC INFORMATION
Audio CD/Video CD
Typically, Audio CD discs are divided into separate tracks each containing one song. Each track is assigned a number. For example, the third track is Track 3. The same is true for Video CD discs. However, some discs are not divided into tracks.
S
Track 1 Track 2 Track 3 Track 4
Audio CD or Video CD
JPEG/MP3 Disc (CD-R/RW/ROM)
MP3/JPEG files put in directories nested in several levels on a disc will be organized as if they were put in single level directories (groups) by the MP3/JPEG Navigation of this unit. (墌 pg. 61)
File structure of a disc before starting the MP3/JPEG Navigation
Directory MP3 file JPEG file
File structure of the disc after starting the MP3/JPEG Navigation
Files are automatically grouped as follows and displayed on the MP3/JPEG Navigation screen. Data is displayed in the alphabetical order of file name. Files are grouped based on roots.
DVD VIDEO Marks
Sometimes marks are printed on a DVD disc and/or on its packaging to indicate information regarding the contents and functions of the disc. Check the marks indicating the contents and functions of the disc. Note, however, that in some cases a disc may not include a mark even for a function it supports.
Marks related to video
Number of subtitles Number of angles
Recorded under the standard 4:3 aspect ratio
Video playback is in Wide video mode (16:9) on wide televisions, but in letter box on televisions with standard 4:3 aspect ratio.
Video playback is in Wide video mode (16:9) on wide televisions, but pan and scan is used on televisions with standard 4:3 aspect ratio (either the left or right side of the image is cut-out).
Marks related to audio
Number of audio tracks
Dolby Digital mark It has been developed by Dolby Laboratories as a digital surround system.
DTS (Digital Theater Systems) You can enjoy DTS audio if you connect an amplifier with a built-in DTS decoder to the DIGITAL AUDIO OUT connector of the unit.
Screen includes black bands at the top and the bottom of image which has a standard 4:3 aspect ratio (letter box)
This unit can recognise up to 9 hierarchies including directories and files. Also, it can recognise up to 250 files in each group, and up to 99 groups on a disc.
NOTES:
Video CD discs that support Playback Control (PBC)
The contents of a disc are recorded into several hierarchies, and played back according to the instructions on the screen while navigating through the hierarchies. It is also possible to playback recorded tracks consecutively without activating the PBC function even when playing a PBC-compatible disc. (
Regarding the contents recorded on discs
Some files may not be played back depending on the file types and other factors.
pg. 29)
DISC INFORMATION
P
EN 11

Placing A Disc

Opening the disc tray
Press x (OPEN/CLOSE) to open the disc tray.
x
F-1
Pressing the button again closes the disc tray.
Use the buttons to open and close the disc tray.
Do not block the disc tray with your hand while it is opening or closing
as this may result in hardware failure.
Do not place unplayable discs or any object other than a disc on the disc tray.
Do not press down strongly on the disc tray or place any heavy objects on it.
Discs without cartridges
Place the disc on the disc tray with the label side facing up. Since disc size changes depending on the disc to be played back, be sure to correctly align the disc with the grooves for its size. If the disc is not in its groove, it may be scratched or otherwise damaged. To insert an 8 cm disc, place it according
P
O T S
E
S O L
C / N
E
to the inner groove.
DVD-RAM discs contained in cartridges
Double-sided discs:
Remove the disc from the cartridge. Align the disc with the grooves on the disc tray as shown in the illustration and insert with the side you wish to play back or record facing down. If you insert the disc with “Side A” facing down, programs are recorded on the side A.
Single-sided discs:
Remove the disc from the cartridge. Align the disc with the grooves on the disc tray as shown in the illustration and insert with the label side facing up.
D V
D
G N I B
B U
D
R C V
N E P
O
-
C
L
L
E
U
R
P
D V
D R E
N
M
I
I
T
V
D K N I
L
C E R
Y A
L
H
P
C F F
W E R
D V
E
D
S
U A P
C E R
N
I A M
E R
>
W
O L S
<> <
E
D O M
C E R

Care And Handling Of Discs

How to handle discs
When handling a disc, do not touch the surface of the disc. Since discs are made of plastic, they are easily damaged. If a disc gets dirty, dusty, scratched or warped, the images and sound will not be picked up correctly, and such a disc may cause the unit to malfunction.
Label side
Do not damage the label side, stick paper to or use any adhesives on its surface.
Recording side
Make sure that discs are not scratched and dirty on the recording side before use. Scratches and dirt on the recording side of a disc may hinder proper playback and recording. Also be careful that a DVD-RAM disc may get scratched or dirt when removed from cartridge then put back in after use.
Storage
Make sure that discs are kept in their cases. If discs are piled on top of one another without their protective cases, they can be damaged. Do not put discs in a location where they may be exposed to direct sunlight, or in a place where the humidity or temperature is high. Avoid leaving discs in your car!
Maintenance of discs
If there are fingerprints or other dirt adhering to a disc, wipe with a soft dry cloth, moving from the centre outwards. If a disc is difficult to clean, wipe with a cloth moistened with water. Never use record cleaners, petrol, alcohol or any anti-static agents.
CAUTION:
Sometimes during playback, noise may appear or images may be garbled. This is sometimes due to the disc. (It may not be up to industry standards.) These symptoms are caused by the discs, not by the malfunction of the unit.
12 EN
P

INDEX

Front View

A B C D GFE IH J
POWER
VCR EJECT
VCR/DVD TIMER VCR REC OPEN/CLOSE STOP PLAY
DVD
S-VIDEO
VIDEO (MONO) L - AUDIO - R
F-1
A Standby/On Button (1) B VCR/DVD Button C VCR Timer Lamp (TIMER)
VCR Lamp
pg. 47
VCR Recording Lamp (REC)
pg. 52
pg. 50
D Cassette Loading Slot E Open/Close Button (x (OPEN/CLOSE)) F Stop Button (8) G Play Button (4) H DVD Timer Lamp (TIMER)
DVD L a mp DVD Recording Lamp (REC)
pg. 25, 47
pg. 25, 47
pg. 41
pg. 19, 25
pg. 38
pg. 11
I Disc Tray J Dubbing Button (DUBBING)
Dubbing Direction Button (VCR]/}DVD)
K Eject Button (x (VCR EJECT))
pg. 62
pg. 62, 64
pg. 47
L S-video Input Connectors (S-VIDEO) (DVD deck only)
pg. 67
M Video/Audio Input Connectors (VIDEO/AUDIO (L/R))
pg. 67
When using a monaural audio cable, use AUDIO L (MONO) input connector. In this case, the sound on the left channel is also recorded on the right channel.
TIMER DVD DVDREC VCR DUBBING
REC PAUSE REW FF
REMAIN
REC MODE SLOW
<< >>
REC LINK
CH
DV IN
DVD
PONLMK Q S TRUWV
N Front Display Panel pg. 14 O Infrared Beam Receiving Window P Remain Button (REMAIN)
Recording Mode Button (REC MODE)
Q Record Button (7) R Pause Button (9)
pg. 25, 47
S Reverse Search Button (3) (DVD deck)
Rewind Button (3) (VCR deck) Reverse Slow Button (SLOW –)
T Forward Search Button (5) (DVD deck)
Fast Forward Button (5) (VCR deck) Forward Slow Button (SLOW +)
U Channel Button (CH +/–) V Automatic Satellite Program Recording Button (REC
LINK) (DVD deck only)
W DV Input connector (DV IN (i*)) (DVD deck only)
pg. 66
* i (i.Link) refers to the IEEE1394-1995 industry specification and
extensions thereof. The i logo is used for products compliant with the i.Link standard.
To access covered connectors, pull and open the connector cover.
pg. 28, 39
pg. 38, 50
pg. 38, 50
pg. 46
pg. 38, 50
pg. 47, 48
pg. 27
pg. 47, 48
pg. 27
TIMER DVD DVDREC VCR DUBBING
AUSE REW FF
CH
<< >>
SLOW
pg. 26, 32
pg. 26, 32
PULL-OPEN
REC LINK
DV IN
DVD

Rear View

INDEX
EN 13
A B C DFE
1
A Region Number Label pg. 9 B AC Power Cord
pg. 17
C Cooling Fan
This prevents the temperature from rising inside the unit. Do not remove it.
Install the unit so as not to block the area around the fan.
The cooling fan on the rear of the unit may be activated even if
the unit is turned off in the following cases;
— in the Automatic Satellite Program Recording standby mode
pg. 46)
(
— when “AUTO CLOCK” is set to “ON” (
pg. 20)
D Digital Audio Output Connectors
(DIGITAL AUDIO OUT (COAXIAL/OPTICAL)) (DVD deck only)
pg. 69, 72
E Component Video Output Connectors (COMPONENT
VIDEO OUT)
pg. 17
F S-video/Video/Audio Output Connectors (S-VIDEO/
VIDEO/AUDIO OUTPUT) (DVD deck only)
PCM/ STREAM
pg. 17, 68
DVD DVD
DIGITAL
AUDIO OUT
OPTICAL
COAXIAL
COMPONENT
VIDEO OUT
S-VIDEO
Y
VIDEO
PB
L
AUDIO
PR
R
OUTPUT
DVD
G
VIDEO
AUDIO
INPUT L-1 DVD/VCR
S-VIDEO
L
R
VIDEO
L
CABLE
AUDIO
BOX
R
OUTPUT
DVD/VCR VHF/UHF
J
H
DVD
ANT. LOOP OUT TV OUT
VCR
IN
OUT
LKI
G S-video Input Connector (S-VIDEO INPUT) (DVD deck
only)
pg. 68
H Antenna Input Connectors (VHF/UHF IN (DVD/VCR))
pg. 17
I Video/Audio Input Connectors (VIDEO/AUDIO INPUT
(L-1))
pg. 68
J Video/Audio Output Connectors (VIDEO/AUDIO
OUTPUT)
pg. 17, 68
K Cable Box Control Connector (CABLE BOX) (DVD deck
only)
pg. 22
L Antenna Output Connectors (VHF/UHF OUT (ANT.
LOOP. OUT/TV OUT))
pg. 17
14 EN
INDEX

Front Display Panel

ABCD GFEIHJ
A Disc Type Indicator
When a disc is loaded, the type of the disc is indicated.
Disc Status Indicator
When a disc is running, the disc marks rotate. During High-Speed Search: Rotate faster than normal playback. During Slow Motion: Rotate slower than normal playback. While recording: Inner red ring lights in the same way
While paused: Disc marks blink when either
While stopped: Disc marks all light. While resume stopped: Disc marks all blink. While the disc tray opened: Disc marks all light out. No disc on the disc tray: Disc marks all light out.
B VR Mode Indicator pg. 78
Lights when a DVD-RW disc is formatted in VR mode.
C Indicator pg. 43
Lights when a disc set up for On-Disc Timer Programing is loaded.
D Recording Mode Indicator (XP/SP/LP/EP/FR) pg. 38
Blinks when recording mode is being set. While “FR” is blinking, the left 3 digits of the Multi Display (N O) indicate setting values ranging from “60” to “480”. After the value has been set, only “FR” lights.
E Group/Title Indicator (GRP/TITLE)
“GRP” or “TITLE” lights depending on a disc loaded while the left 2 digits of the Multi Display (N) indicate the numbers explained below. “GRP”: Total number of groups or group number being played
“TITLE”: Total number of titles or title number being played back
back are displayed on the Multi Display.
are displayed on the Multi Display.
F Track/Chapter Indicator (TRK/CHAP)
“TRK” or “CHAP” lights depending on a disc loaded while the 3rd and 4th digits from the left of the Multi Display (O) indicate the numbers explained below. “TRK”: Total number of tracks or track number being played
“CHAP”: Chapter number being played back are displayed on the
back are displayed on the Multi Display.
Multi Display.
G Simulated Surround Effect Indicator (3D) pg. 35
Lights when a simulated surround effect is set to “3D-ON” on the on­screen bar.
H Linear PCM Indicator (LPCM)
Lights when “XP MODE REC AUDIO” is set to “LINEAR PCM”
pg. 74) for recording with DVD-RAM, DVD-R and DVD-RW
( discs, and when Linear PCM audio is played.
I Random/Program Playback Mode Indicator (RND/
PRGM)
“RND”: Lights when Random Playback mode is set. “PRGM”: Lights when Program Playback mode is set.
pg. 36
as normal playback. During Instant Timer Recording (ITR), inner red ring slowly blinks.
recording or playing back.
PONLMKQR
J Repeat Mode Indicator ( /1/A–B) pg. 34, 49
Select Repeat Playback mode on the on-screen bar. “ ”: Whole disc is played back repeatedly.
1”: A single title/chapter/track is played back repeatedly. “ A–B”: The selected part (A–B) is played back repeatedly. No display: Repeat Playback mode is off.
K Automatic Satellite Program Recording Indicator
pg. 46
Lights up when the DVD deck is in the Auto Sattellite Program Recording standby mode while the VCR deck is used.
L VCR Indicator pg. 39, 50
Lights up when the mode is switched to the VCR mode using the TV/VCR button. When switching the mode, “VCR” or “TV” appears for about 2 seconds on the Multi Display (Q).
M Video Output Indicator ( ) pg. 80
No display:Indicates that interlace mode is engaged.
: Indicates that progressive mode is engaged. (Example) lights when video output mode is in progressive mode.
N Group/Title Number Display O Track/Chapter Number Display P Remaining Time/Elapsed Time Indicator
Lights when remaining time of DVD-RAM, DVD-R and DVD-RW discs is displayed, and lights out when elapsed time is displayed. The right 6 digits of the Multi Display (Q) indicate elapsed or remaining time of each track. No display:Indicates elapsed time of the disc. Displayed: Indicates remaining time of the disc.
Q Remaining Time/Elapsed Time Display pg. 28, 39 R Multi Display
Displays clock, received channel, elapsed time, and remaining time. Also displays status of the unit (NO DISC/OPEN/CLOSE/ READING).
It also lights up during the Repeat Playback on the VCR deck.
pg. 28, 39
INDEX
EN 15

On-Screen Display (DVD deck)

When “SUPERIMPOSE” is set to “AUTO” and ON SCREEN on the remote control is pressed, various operational indicators appear on the TV screen. To clear the operational indicators, press ON SCREEN twice.
A Disc Display
Displays the type of the disc loaded on the disc tray.
B Title Number*
Displays number of the title currently being played back.
C Playback Operation Status Indicator*
Indicates playback operation status by pictographs.
D Playback Time*
Displays playback time of the title currently being played back.
E Recording Mode
Displays recording mode as XP, SP, LP, EP, FR, FR60–FR360, FR420 and FR480. Current recording mode is displayed during recording, and recording mode in which the program was recorded is displayed during playback. The recording mode is not displayed during play list playback.
F Title Number
Displays playback title number during playback, and recording title number during recording.
G Chapter Number
Displays playback chapter number during playback, and recording chapter number during recording.
H Clock Display I Bar Meter Display
Displays playback point and other information in bar meter.
pg. 31
J Title Name Display
Displays title name newly registered to the title recorded on DVD­RAM/RW/R discs, or file name of JPEG and MP3 files.
K Operation Status Indicator
Indicates operation status by pictographs. (Also indicates its speed for forward high-speed search, reverse high-speed search and slow motion.)
L Time Display
Displays single title playback elapsed time, single track playback elapsed time, single track remaining time, total elapsed time, total remaining time, and other information in turn.
M Audio Mode Display
Displays audio that is being input.
N Channel Position Number/Auxiliary Input Indicator (L-1
or F-1)
Displays currently selected input.
* During Live Memory playback, playback operation status is displayed.
During normal playback, the multichannel encoding method is displayed.

On-Screen Display (VCR deck)

When “SUPERIMPOSE” is set to “AUTO” and ON SCREEN on the remote control is pressed, various operational indicators appear on the TV screen. To clear the operational indicators, press ON SCREEN again.
A Operation Mode Indicators B Recording Mode (SP/EP) C Tape Position Indicator
The tape position indicator appears on the TV screen when you press 3 or 5 from the Stop mode or perform an Index Search. ( of “q” in relation to “0” (Beginning) or “+” (End) shows you where you are on the tape.
NOTE:
Depending on the type of tape being used, the tape position indicator may not appear correctly.
pg. 48) The position
Beginning End
D Index number pg. 48 E Tape Remaining Time Indicator
pg. 51
F Counter Display G Audio Mode Display H SAP Indicator I Stereo Program Indicator
pg. 49
pg. 51
pg. 51
J Day/Clock Display K Channel Position Number/Auxiliary Input Indicator (L-1
or F-1)
L “Cassette Loaded” Mark
16 EN
INDEX

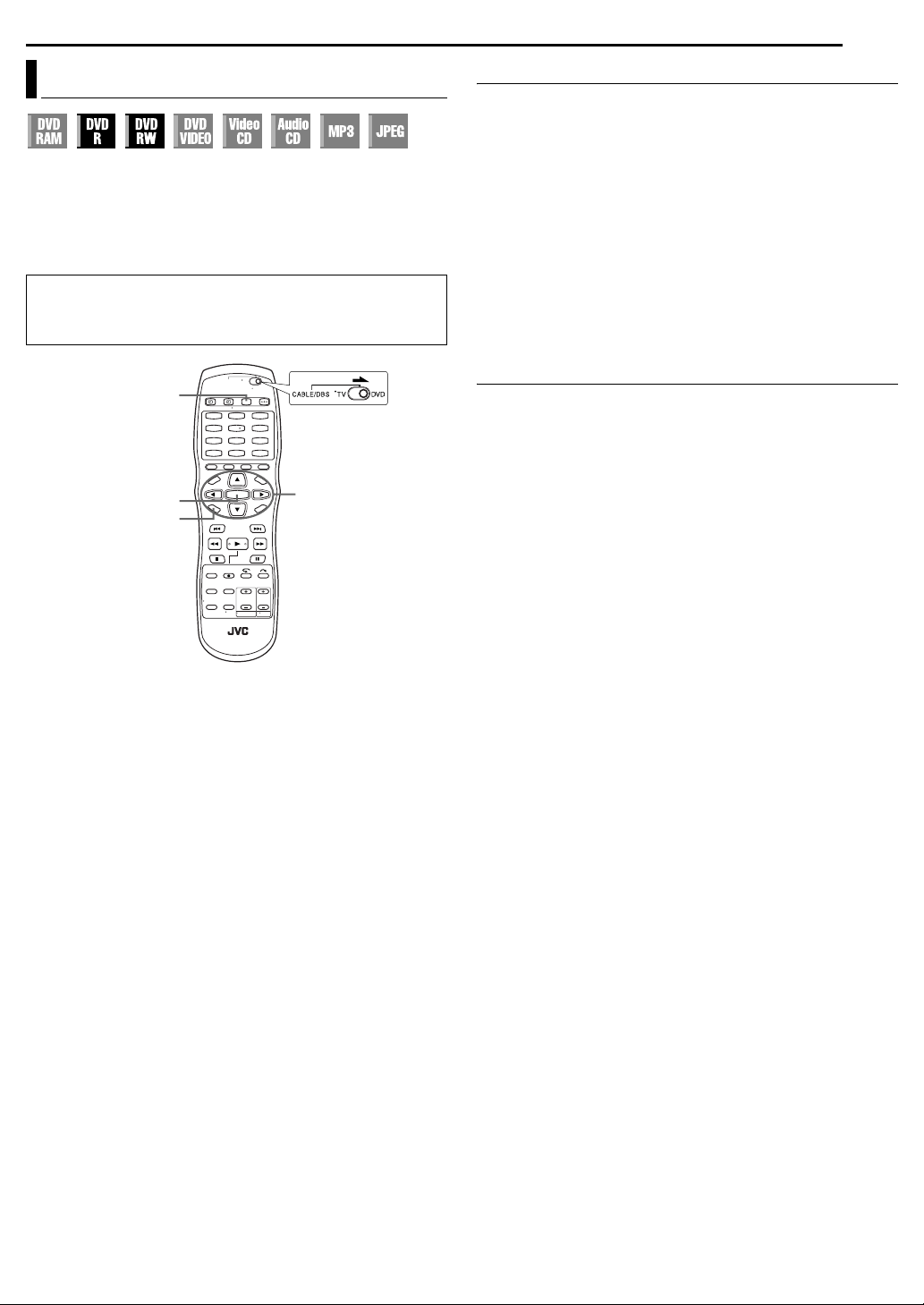

Remote Control

CABLE/DBS
DVD
VCR
TIMER
TIMER
NUMBER / TV CH /DVD CHNUMBER / TV CH /DVD CH
1
2
ABC DEF
5
4
JKL MNO
GHI
PQRS WXYZ
CANCEL
VCR PLUS+
NAVIGATION
SET UP
PREVIOUS NEXT
SLOW
REMAIN REC
REC MODE
ANGLE
LIVE CHECK
TV/VCR
TV/DVD
7
PROG/CHECK
TOP MENU
CLEAR
SUBTITLE
AUDIO
8
TUV
0
AUX
ENTER
PLAY/SELECT
TV/CBL /DVD
The glow-in-the-dark buttons shown in grey on the illustration above are helpful when using the remote control in darkened rooms.
Buttons with a small dot on the left side of the name can also be used to operate your TV. (墌 pg. 70)
A DVD Timer Button (DVD TIMER (#)) (DVD deck only)
pg. 41
B VCR Timer Button (VCR TIMER (#)) (VCR deck only)
pg. 52
C Number Keys
pg. 21, 38, 50
Character keys (DVD deck only)
D Auxiliary Button (AUX) E Cancel Button (CANCEL)
pg. 41
F Program Check Button (PROG/CHECK)
53, 54,
G VCR Plus+ Button
pg. 41, 52
H Top Menu Button (TOP MENU) (DVD deck only)
pg. 26
Navigation Button (NAVIGATION) (DVD deck only)
pg. 55
I rt Button
pg. 19
J Set Up Button (SET UP) (DVD deck only) K Reverse Skip Button (2) (DVD deck)
Index Button (2) (VCR deck) Previous Button (PREVIOUS) (DVD deck only)
DVDTV
TV/CBL/DBS
VCR
/DVD
/DVD
3
6
9
MEMO/MARK
DISPLAY ON SCREEN
PROGRESSIVE SCAN
MENU
RETURN
SLOW
PAU S ESTOP/
TV
CH
VOL.
TV
pg. 57
pg. 48
pg. 42, 45,
pg. 19
pg. 26, 32
pg. 29
L Play Button (4)
Select Button (SELECT) (DVD deck only)
M Reverse Search Button (3) (DVD deck)
Rewind Button (3) (VCR deck) Reverse Slow Button (SLOW –)
N Stop Button (8)
Clear Button (CLEAR) (DVD deck only)
O Record Button (7) P Remain Button (REMAIN)
Recording Mode Button (REC MODE)
Q Subtitle Button (SUBTITLE) (DVD deck only) R Angle Button (ANGLE) (DVD deck only)
pg. 25, 47
pg. 25, 56
pg. 26, 32
pg. 47, 48
pg. 27
pg. 25, 47
pg. 35, 41
pg. 38, 50
pg. 28, 39
pg. 38, 50
pg. 28
pg. 28
Live Check Button (LIVE CHECK) (DVD deck only)
pg. 30, 32
S TV/VCR Button T Audio Button (AUDIO)
TV Muting Button ( )
U TV/CABLE/DBS/DVD switch V VCR/DVD Button
pg. 39, 50
pg. 28, 49pg. 70
pg. 19
pg. 19
W TV/CBL/DBS/DVD Standby/On Button (1) X Memo Button (MEMO) (DVD deck only)
Mark Button (MARK) (DVD deck only)
pg. 56, 59, 61
pg. 27
Y On-Screen Button (ON SCREEN) (DVD deck only)
pg. 15, 33
Progressive Scan Button (PROGRESSIVE SCAN)
pg. 80
Z Display Button (DISPLAY) a Menu Button (MENU) (DVD deck only) b we Button
pg. 19
c Enter Button (ENTER) d Return Button (RETURN) e Forward Skip Button (6) (DVD deck)
Index Button (6) (VCR deck) Next Button (NEXT) (DVD deck only)
f Forward Search Button (5) (DVD deck)
Fast Forward Button (5) (VCR deck) Forward Slow Button (SLOW +)
g Pause Button (9)
pg. 25, 47
h Skip Search Button ( ) i One Touch Replay Button ( ) j TV Volume Button (TV VOL.) k TV/CBL DVD Channel Button (CH +/–)
How To Use
Before use, insert two AA size batteries into the remote control with the polarity ( and ) matched correctly as indicated on the battery compartment or on the lid.
The remote control can operate most of your unit’s functions, as well as basic functions of TV sets of JVC and other brands. (pg. 70)
Point the remote control toward the receiving window.
The maximum operating distance of the remote control is about
8m.
NOTE:
If the remote control doesn’t work properly, remove its batteries, wait a short time, replace the batteries and then try again.
pg. 28, 39
pg. 26
pg. 19
pg. 29, 41
pg. 26, 32
pg. 48
pg. 29
pg. 26, 32
pg. 47, 48
pg. 27
pg. 27, 32
pg. 32, 48
pg. 70
pg. 38, 70

Basic Connection

Antenna or Cable
Coaxial cable
Flat feeder
Matching transformer (not supplied)
RF cable (supplied)
AC outlet
AC power cord
VHF/UHF IN (DVD/VCR)
COMPONENT VIDEO OUTPUT
1
Back of unit
Component
video cable
(not supplied)
S-VIDEO OUTPUT
S-Video cable
(not supplied)
To 75 ohm terminal
It’s essential that your unit be properly connected.
THESE STEPS MUST BE COMPLETED BEFORE ANY VIDEO OPERATION CAN BE PERFORMED.
1 Make sure the package contains all of the accessories listed in
“SPECIFICATIONS” on page 87.
2 Place the unit on a stable, horizontal surface. 3 Connect the unit to a TV depending on the TV and cables you
use.
8 RF Connection To connect to a TV with NO AV input connectors —
A Disconnect the TV antenna from the TV. B Connect the TV antenna cable to the VHF/UHF IN (DVD/VCR)
connectors on the rear panel of the unit via antenna splitter. C Connect an optional cable between the TV OUT connector on the rear panel of the unit and the TV’s antenna terminal.
NOTES:
If you do not use antenna splitter, connect the TV antenna cable to VHF/UHF IN (DVD) connector. However, it is not possible to record the TV program on the VCR deck.
Connect the unit’s ANT. LOOP OUT connector to the antenna input connector on another vide unit.
Antenna splitter
(supplied)
RF cable (supplied)
AUDIO/VIDEO OUTPUT
Audio/video cable (not supplied)
TV
TV OUT
RF cable (not supplied)

INSTALLING YOUR NEW UNIT

EN 17
8 AV Connection To connect to a TV with AV input connectors —
A Perform A – B in “RF Connection”. B Connect an optional audio/video cable between the AUDIO/
VIDEO OUTPUT connectors on the rear panel of the unit and the TV’s audio/video input connectors.
8 S-Video Connection (DVD deck only) To connect to TV’s S-VIDEO input and AUDIO input connectors
A Perform A – B in “RF Connection”. B Connect the unit’s S-VIDEO OUTPUT connector to the TV’s
S-VIDEO input connector. C Connect the unit’s AUDIO OUTPUT connectors to the TV’s AUDIO input connectors.
You can obtain high-quality S-VHS pictures.
If your TV is not stereo-capable, use the unit’s AUDIO OUTPUT
connectors to connect to an audio amplifier for Hi-Fi stereo sound reproduction.
8 Component Video Connection To connect to TV’s component video input connectors
A Perform A – B in “RF Connection”. B Connect the unit’s COMPONENT VIDEO OUT connectors to
the TV’s component video input connectors. C Connect the unit’s AUDIO OUTPUT connectors to the TV’s AUDIO input connectors.
You can obtain high-quality component video pictures.
If your TV is not stereo-capable, use the unit’s AUDIO OUTPUT
connectors to connect to an audio amplifier for Hi-Fi stereo sound reproduction.
By using the component video connection, you can view the images in the progressive mode. For switching to the progressive mode, refer to “Scan Mode Set” (
pg. 80).
4 Plug the end of the AC power cord into an AC outlet. This unit
performs Plug & Play Set automatically. (pg. 18)
The clock and tuner channels will automatically be set when the
antenna is connected and when the AC power cord is first connected to an AC outlet. (If “AUTO” and the channel indicator are displayed on the front display panel before the unit is powered on, the clock and tuner channels are being set automatically. Wait for the time to be displayed on the front display panel before turning on the unit.)
“LOADING” blinks on the front display panel when the AC plug of the power cord is connected into a mains outlet and it takes approximately 50 seconds for the unit to be turned on. This is not a malfunction.
5 Set the video channel. The video channel is the channel on
which you can watch the picture from the unit on the TV when only using RF connection.
With RF Connection
Set the video channel to “3 CH” or “4 CH”. To set the video channel, perform steps A – C below:
The video channel is preset to “3 CH”. Set to “4 CH” if the Channel 3 is used for broadcasting in your area.
With AV/Component Video Connection
Set the video channel to “– CH” (off). To set the video channel, perform steps A – C below:
With S-Video Connection (DVD deck only)
Set the video channel to “– CH” (off). To set the video channel, perform steps A – C below:
How To Set The Video Channel
A Make sure that there is no cassette in the unit. B Press 1 to turn off the unit, then press 8 on the unit for more
than 5 seconds. “3 CH” appears on the front display panel. C Press CH +/– on the remote control to select “3 CH”, “4 CH” or “– CH” (off), then press ENTER. When either “3 CH” or “4 CH” is selected, the TV/VCR indicator lights up.
18 EN
A

INITIAL SETTINGS

Plug & Play Set

Auto Clock Set/Auto Tuner Set

This unit sets the clock and tuner channels automatically when AC power cord is first connected to an AC outlet. The antenna cable must be connected for the Plug & Play setting. The time and date can be set automatically by the clock setting data transmitted from one of the regular TV broadcast channels. We call this TV channel the “host channel” and it is a PBS channel in your area.
TTENTION:
If you use a cable box, Plug&Play will not function; set the clock and tuner channels separately. (
Depending on areas or reception conditions, the unit may not receive the Auto clock setting data from the PBS channel. If this function is taking a considerable amount of time, it may be necessary to perform the Semiauto or Manual Clock Set procedure.
pg. 20 – 21)
1 Connect the antenna cable to the unit. (墌 pg. 17) Then connect
the AC power cord to an AC outlet. Do not turn on the unit. The clock and tuner channels will be set automatically.
“LOADING” blinks on the front display panel when the AC plug of the power cord is connected into a mains outlet and it takes approximately 50 seconds for the unit to be turned on. This is not a malfunction.
NOTES:
Auto Clock Set is performed first. “AUTO” blinks on the front display panel during Auto Clock Set.
Auto Channel Set is performed next. Auto Channel Set scans all the channels that are receivable by your unit. During Auto Channel Set, the channel numbers are displayed as they are scanned and set.
When Plug & Play setting has been complete successfully, the correct clock time is displayed. If you perform Plug & Play setting successfully, there is no need to perform “Clock Set” ( “Tuner Set” ( channels, refer to “Manual Channel Set” (
pg. 21). If, however, you want to add or delete
pg. 21).
During Auto Clock Set
“AUTO” blinks.
pg. 20) and
F-1
INFORMATION
If “AUTO CLOCK” is set to “ON” (pg. 20), the clock will be adjusted automatically by the host channel every hour (except 11:00 PM, midnight, 1:00 AM and 2:00 AM) using the incoming PBS channel clock setting data. (This automatic clock adjustment can only be performed when the unit is turned off. The clock will be adjusted just on these hours — on the time displayed on the front display panel, not on the actual real time.) The default setting of “AUTO CLOCK” is “ON”. (
If the memory backup fails, because a power outage occurs or because the AC power cord is unplugged, Plug & Play will be performed when power is restored to the unit.
pg. 20)
What to do if Plug & Play setting failed
If an incorrect time is displayed on the front display panel, you may be receiving the clock setting data of a PBS channel from an adjacent time zone, or an incorrect PBS channel from a cable TV system. In this case, perform “Semiauto Clock Set” ( “Manual Clock Set” (
If “– –:– –” appears on the front display panel, your antenna cable may not be connected to the unit or there may not be a Host PBS signal available in your area. Ensure that the antenna cable is connected correctly. Then turn on and off the unit; the Plug & Play setting will be automatically reactivated. If Plug & Play setting is not performed though the antenna cable is connected correctly, perform “Manual Clock Set” (
pg. 21) or “Manual Channel Set” (pg. 21).
(
pg. 20).
pg. 20) and “Auto Channel Set”
pg. 20) or
During Auto Channel Set
The channel numbers are displayed and “AUTO” blinks as they are scanned and set.
Plug&Play Completed
The current time is displayed.
If an incorrect clock time or “– –:– –” appears on the front display panel, see “What to do if Plug & Play setting failed” (
pg. 18).
INITIAL SETTINGS
EN 19

Language

Turn on the unit.
Turn on the TV and select the video channel (or AV mode).
Slide the TV/CABLE/DBS/DVD switch to DVD.
VCR/DVD
3
1
2
5
6
4
8
9
7
0
ENTER
SET UP
rtw e

On-screen Language Set

This unit offers you the choice to view on-screen messages in 3 different languages.
1 Press VCR/DVD repeatedly so that the DVD lamp lights up on
the unit.
2 Press SET UP to access the Main Menu screen. 3 Press we to select “FUNCTION SET UP”, then press ENTER. 4 Press we to select “DISPLAY
SET”, then press ENTER.
5 Press rt to select “ON
SCREEN LANGUAGE”, then press ENTER.
6 Press rt to select your
desired language, then press ENTER.
7 Press SET UP to complete the setting.

Menu/Audio/Subtitle Language Set (DVD deck only)

Some DVD discs contain the DVD menu display, audio and subtitles in multiple languages. With these discs, you can set the default language as you like.
The procedure shows how to set “MENU LANGUAGE” as an example.
1 Press VCR/DVD repeatedly so that the DVD lamp lights up on
the unit.
2 Press SET UP to access the Main Menu screen. 3 Press we to select “DVD SET UP”, then press ENTER. 4 Press we to select
“LANGUAGE SET”, then press ENTER.
5 Press rt to select “MENU
LANGUAGE”, then press ENTER.
6 Press rt to select your
desired language, then press ENTER.
See “Language Code List”
pg. 88).
(
7 Press SET UP to complete the setting.
NOTE:
When the selected language is not available on the disc, the disc’s default menu language is played back.
20 EN
INITIAL SETTINGS

Clock Set

Perform clock setting only if the clock has not been set correctly by the Plug&Play setting.
Turn on the unit.
Turn on the TV and select the video channel (or AV mode).
Slide the TV/CABLE/DBS/DVD switch to DVD.
VCR/DVD
3
1
2
5
6
4
8
9
7
0
ENTER
SET UP

Semiauto Clock Set

You can change the host channel/D.S.T. (Daylight Saving Time)/ time zone setting manually.
NOTE:
The time set previously will be erased when “AUTO CLOCK”, “HOST CH”, “D.S.T.” or “TIME ZONE” setting is changed.
1 Press VCR/DVD repeatedly so that the DVD lamp lights up on
the unit.
2 Press SET UP to access the Main Menu screen. 3 Press we to select “INITIAL SET UP”, then press ENTER. 4 Press we to select “CLOCK
SET”, then press ENTER.
5 Press rt to select “AUTO
CLOCK”, then press ENTER. Press rt to select “ON”, then press ENTER.
6 Press rt to select “HOST
CH”, then press ENTER. Press rt to select “AUTO” or the desired PBS channel number, then press ENTER.
NOTE:
Some PBS channels do not transmit clock setting data.
7 Press rt to select “D.S.T.”, then press ENTER. Press rt to
select the desired setting, then press ENTER.
AUTO: Select if you want to adjust your unit’s clock automatically by
the incoming signal from the host channel. Be sure to select the correct time zone manually in step 8.
ON: Adjustment will be made by the built-in clock itself. OFF: Select when Daylight Saving Time does not apply to you.
8 Press rt to select “TIME ZONE”, then press ENTER. Press
rt to select “AUTO” or the desired time zone, then press ENTER.
Each time you press rt, the time zone changes as follows:
{AUTO{ATLANTIC{EASTERN{CENTRAL{
MOUNTAIN{PACIFIC{ALASKA{HAWAII{ (back to the beginning)
rtw e
NOTE:
If an incorrect time is displayed by the Plug & Play function, you may be receiving the clock setting data of a PBS channel from an adjacent time zone or from an incorrect PBS channel from a cable TV system. If you selected “AUTO” for the host channel in step 6, be sure to select the correct time zone manually.
9 Press SET UP to complete the setting.
IMPORTANT:
Turn off the unit after performing Semiauto Clock. “AUTO” will appear on the front display panel while the clock is being set. The current clock time will appear automatically when the clock setting is complete.
Auto Daylight Saving Time
This function enables automatic adjustment of the unit’s clock at the start and end of Daylight Saving Time. With Auto DST activated, — — on the first Sunday of April at 2:00 AM, the clock is adjusted to 3:00 AM. — on the last Sunday of October at 2:00 AM, the clock is adjusted to 1:00 AM.
NOTE:
Timer recording may not function correctly at the time Daylight Saving Time is adjusted.

Manual Clock Set

1 Press VCR/DVD repeatedly so that the DVD lamp lights up on
the unit.
2 Press SET UP to access the Main Menu screen. 3 Press we to select “INITIAL SET UP”, then press ENTER. 4 Press we to select “CLOCK
SET”, then press ENTER.
5 Press rt to select “AUTO
CLOCK”, then press ENTER. Press rt to select “OFF”, then press ENTER.
6 Press rt to select “TIME”,
then press ENTER. Press rt until the desired time appears, then press ENTER to start clock.
Set the date and year in the same way.
Holding rt changes the time in 30-minute intervals, or changes the date in 15-day intervals.
7 Press rt to select “D.S.T.”, then press ENTER. Press rt to
select the desired setting, then press ENTER.
ON: Adjustment will be made by the built-in clock itself.
OFF: Select when Daylight Saving Time does not apply to you.
8 Press SET UP to complete the setting.
INITIAL SETTINGS
EN 21

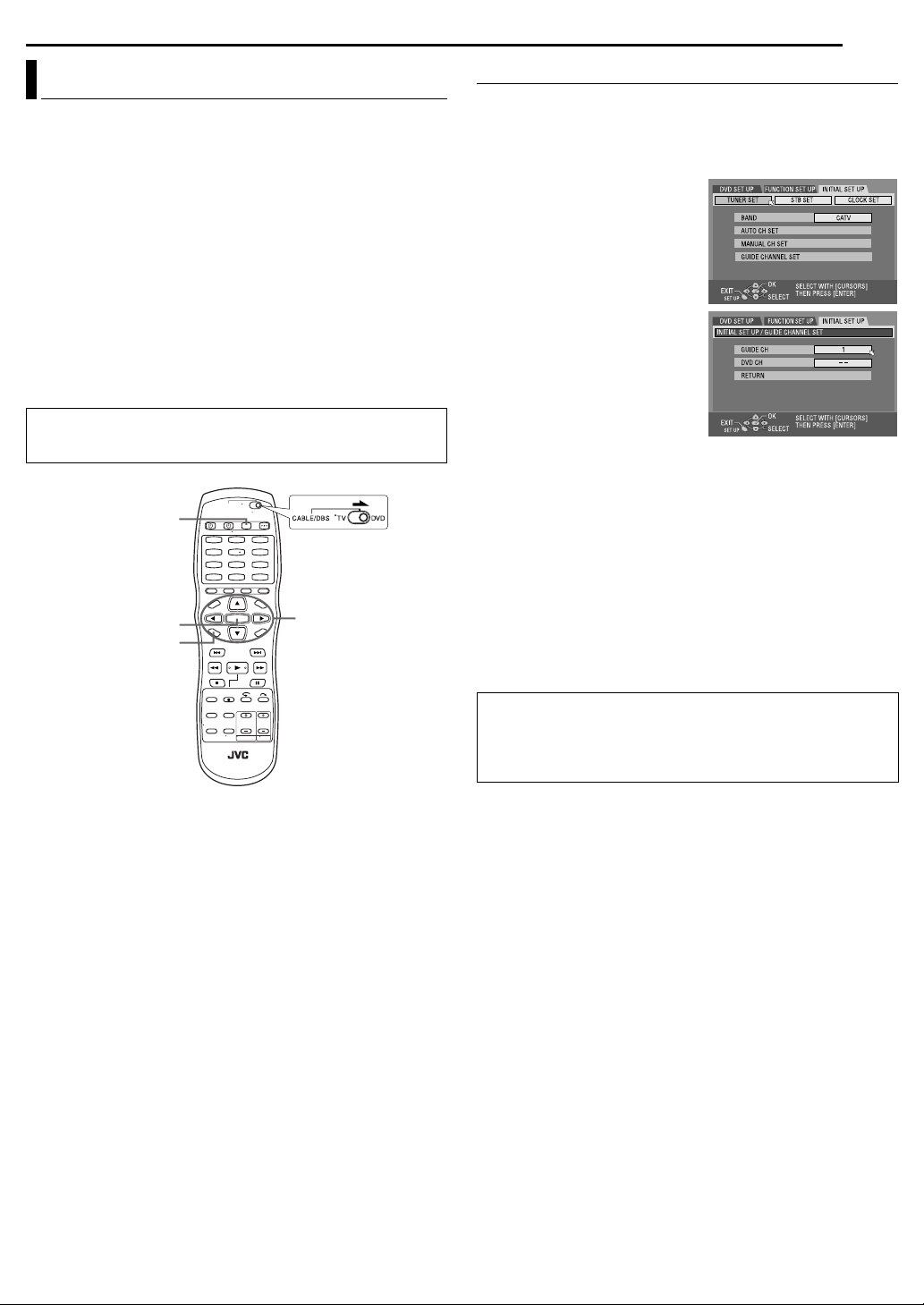

Tuner Set

Turn on the unit.
Turn on the TV and select the video channel (or AV mode).
Slide the TV/CABLE/DBS/DVD switch to DVD.
VCR/DVD
3
1
2
5
6
4
8
9
7
0
ENTER
SET UP
INFORMATION
The unit selects the correct band (TV or CATV) automatically during Auto Channel Set. The selected band will be displayed on the right side of “BAND” on the Tuner Set screen.

Auto Channel Set

Perform Auto Channel Set only if channels have not been set correctly by the Plug&Play setting.
1 Press VCR/DVD repeatedly so that the DVD lamp lights up on
the unit.
2 Press SET UP to access the Main Menu screen. 3 Press we to select “INITIAL SET UP”, then press ENTER. 4 Press we to select “TUNER
SET”, then press ENTER.
rtw e

Manual Channel Set

You can add the channels you want or delete the channels you do not want manually.
1 Press VCR/DVD repeatedly so that the DVD lamp lights up on
the unit.
2 Press SET UP to access the Main Menu screen. 3 Press we to select “INITIAL SET UP”, then press ENTER. 4 Press we to select “TUNER
SET”, then press ENTER.
5 Press rt to select “MANUAL
CH SET”, then press ENTER.
6 Add or skip the desired
channels.
To add channels
A Press rt to select “CH”, then press ENTER. B Press rt to select a channel number you want to add, then press ENTER.
C Press rt to select “ADD/SKIP”, then press ENTER. D Press rt to select “ADD”, then press ENTER. E Repeat B – D to add other channels.
To skip channels
A Press rt to select “CH”, then press ENTER. B Press rt to select a channel number you want to skip, then
press ENTER.
C Press rt to select “ADD/SKIP”, then press ENTER. D Press rt to select “SKIP”, then press ENTER. E Repeat B – D to skip other channels.
7 Press SET UP to complete the setting.
5 Press rt to select “AUTO CH
SET”, then press ENTER. You can automatically set the receivable channels in your area in the order of their frequencies.
When Auto Channel Set is complete, “SCAN COMPLETED” appears on the TV screen.
If the scan was unsuccessful, “SCAN COMPLETED–NO SIGNAL–” appears on screen. Check the connections and start again.
6 Press SET UP to complete the setting.
22 EN
INITIAL SETTINGS

Cable Box and/or DBS Receiver Control Setting (DVD Deck Only)

The following procedure is required if you receive your TV channels through a cable box (descrambler) and/or if you receive satellite channels through DBS (Direct Broadcast Satellite) receiver. The Controller allows the unit to automatically switch the cable box or DBS receiver’s channel during timer recording.
NOTES:
The Controller is not supplied with this unit. It can be requested by mailing in the completed JVC Cable Mouse Certificate that is included with the accessory package.
The Controller is effective for “VCR Plus+
pg. 41), “Manual Timer Programing” (pg. 42), or “On-Disc
( Timer Programing” (
When connecting your cable box, refer to its instruction manual.
pg. 43).

Installing Controller

1 If both a cable box and a DBS receiver are used, position the
Controller so its signal reaches the receiving windows of both the cable box and DBS receiver.
2 Fix securely using the adhesive strip attached on the back of the
Controller.
®
Timer Programing”
Cable box or DBS receiver
If your cable box or DBS receiver does not have audio/video output connectors
Connect the RF output connector on the cable box or DBS receiver to the VHF/UHF IN (DVD) connector on the rear of your unit via antenna splitter.
If your cable box or DBS receiver has audio/video output connectors
Connect the audio/video output connectors on the cable box or DBS receiver to the AUDIO/VIDEO INPUT connectors on the rear of the unit.
If both a cable box and a DBS receiver are used, it is recommended that you connect the DBS receiver to your unit’s AUDIO/VIDEO INPUT connectors and the cable box to your unit’s VHF/UHF IN (DVD) connector via antenna splitter.
4 Connect the Controller to the CABLE BOX connector on the rear
panel.
VCR/DVD
3
1
2
5
6
4
8
9
7
0
ENTER
SET UP
rtw e
Your unit
3 Connect the controller to the unit.
a
Cable box or DBS receiver
To RF output To Audio/video
Controller
Transmitter
To VHF/UHF IN
Your unit
Controller (suggested locations)
(DVD)
CABLE
BOX
output
or
To AUDIO/ VIDEO INPUT

Setting Brand And Channel

After installation, set the cable box or DBS receiver’s brand and channel correctly; otherwise, the Controller cannot work correctly.
Turn on the unit.
Turn on the TV and select the video channel (or AV mode).
Slide the TV/CABLE/DBS/DVD switch to DVD.
1 Turn on the cable box or DBS receiver. 2 Press VCR/DVD repeatedly so that the DVD lamp lights up on
the unit.
3 Press SET UP to access the Main Menu screen. 4 Press we to select “INITIAL SET UP”, then press ENTER. 5 Press we to select “STB SET”, then press ENTER. 6 Press rt to select “CABLE
BOX SET” or “DBS RECEIVER SET”, then press ENTER.
7 Press rt to select “CABLE
BOX OUTPUT CH” or “DBS RECEIVER OUTPUT CH”, then press ENTER.
8 Select the output channel.
Your selection depends on how the cable box or DBS receiver is connected to your unit.
If the cable box or DBS receiver is connected to your unit’s VHF/
UHF IN (DVD) connector on the rear panel, press rt to select the
channel number representing the cable box’s output (CH2 – CH9), then press ENTER.
If the cable box or DBS receiver is connected to your unit’s
AUDIO/VIDEO Input connectors on the front panel, press rt to select “F-1”, then press ENTER.
If the cable box or DBS receiver is connected to your unit’s
AUDIO/VIDEO INPUT connectors on the rear panel, press rt to select “L-1”, then press ENTER.
If you do not use a cable box or DBS receiver, press rt to select “OFF”, then press ENTER.
9 Enter the cable box’s brand. 10 Press rt to select “CABLE BOX BRAND” or “DBS
RECEIVER BRAND”, then press ENTER. Press rt to select the brand code from the following list, then press ENTER.
11 Press rt to select “TEST MODE”, then press ENTER.
CABLE BOX BRAND CODE
ARCHER CABLETENNA CABLEVIEW CITIZEN CURTIS DIAMOND GC BRAND GEMINI GENERAL INSTRUMENTS HAMLIN JASCO JERROLD NOVAVISION OAK PANASONIC PULSER RCA REGAL REMBRANDT SAMSUNG SCIENTIFIC ATLANTA SIGMA SL MARX SPRUCER STARGATE TELEVIEW TOCOM UNIKA UNIVERSAL VIDEOWAY ZENITH
DBS RECEIVER BRAND CODE
JVC (DISH Network) ECHOSTAR (DISH Network) SONY (DSS) RCA (DSS)
1, 5, 17 1, 17 15, 16, 17, 21, 25 15, 16, 17, 21, 25 2, 8 1, 17 15, 16, 17, 21, 25 15 1, 4, 6, 11, 12, 15, 28 10, 18, 23 15 1, 4, 6, 11, 12, 15, 28 2, 8 7, 20 13, 14 15, 16, 17, 21, 25 13, 14 10, 18, 23 1, 16, 17 5, 16, 24 2, 8 7, 20 5, 16, 17, 24, 25 13, 14 5, 15, 16, 17, 21, 24, 25 5, 16, 24 1, 4, 16 1, 17 16, 17, 25 3, 9, 22 3, 9, 22
51 51 41 40
INITIAL SETTINGS
EN 23
8 For cable box If the cable box’s channel changes to 9, setting is complete.
Press ENTER and “CABLE BOX CONTROL IS ON” appears on the screen for about 5 seconds, then the screen in step 6 appears.
If the cable box’s channel does not change to 9;
A Press we to select “NO”, then press ENTER. B Repeat step 10 – 11 until the cable box’s channel changes to 9 by entering another code. C If the channel does not change after going through all the code numbers listed for your model of cable box, then try all the other numbers.
8 For DBS receiver If the DBS receiver’s channel changes to the channel listed below for your brand, setting is complete.
Press ENTER and “DBS RECEIVER CONTROL IS ON” appears on the screen for about 5 seconds, then press ENTER. The screen in step 6 appears.
JVC ] 100 SONY ] 205 ECHOSTAR ] 100 RCA ] 205
If the DBS receiver’s channel does not change as shown above;
A Press we to select “NO”, then press ENTER. B Repeat step 10 – 11.
NOTES:
The Controller may not work with all types of cable box or DBS receiver.
If your cable box does not respond to any code between 1 and 28, you cannot use the Controller to change cable box channels. In this case, make sure to leave the cable box turned on and tuned to the proper channel before the scheduled start time of timer recording. Contact your cable company about the possibility of exchanging your current cable box with the one compatible with your unit.
If your DBS receiver does not respond to the code, you cannot use the Controller to change satellite channels. In this case, make sure to leave the DBS receiver turned on and tuned to the proper channel before the scheduled start time of timer recording.
The unit can only change the cable box or satellite channel through the Controller during timer recording.
If your cable box or DBS receiver cannot be operated with a remote control (because it has no receiving window), you cannot use the Controller to change its channels. Make sure to leave the cable box or DBS receiver turned on and tuned to the proper channel before the scheduled start time of timer recording.
If the unit’s memory backup expires because of a power failure, set the cable box or DBS receiver output channel and brand again.
For customers in U.S.A.: If you are unable to set the Controller, contact JVC toll free at 1-800-252-5722.
24 EN
INITIAL SETTINGS

Monitor Set (DVD Deck Only)

You can select the monitor type depending on the TV used when you play back DVD VIDEO discs recorded for wide-screen TVs.
Turn on the unit.
Turn on the TV and select the video channel (or AV mode).
Slide the TV/CABLE/DBS/DVD switch to DVD.
VCR/DVD
3
1
2
5
6
4
8
9
7
0
ENTER
SET UP
rtw e
1 Press VCR/DVD repeatedly so that the DVD lamp lights up on
the unit.
2 Press SET UP to access the Main Menu screen. 3 Press we to select “FUNCTION SET UP”, then press ENTER. 4 Press we to select “VIDEO IN/
OUT”, then press ENTER.
5 Press rt to select “MONITOR
TYPE”, then press ENTER.
6 Press rt to select the desired
option, then press ENTER.
7 Press SET UP to complete the
setting.
*The boldface settings below indicate the settings at your
purchase.
8 MONITOR TYPE4:3LB / 4:3PS / 16:9 AUTO / 16:9 FIX
4:3LB (Letter Box conversion): Select this when the aspect ratio of
your TV is 4:3 (conventional TV). While viewing a wide screen picture, the black bars appear on the top and the bottom of the screen.
4:3PS (Pan&Scan): Select this when the aspect ratio of your TV is
4:3 (conventional TV). While viewing a wide screen picture, the black bars do not appear; however, the left and right edges of the pictures will not be shown on the screen.
16:9 AUTO (Wide television conversion): Select this when the
aspect ratio of your TV is 16:9 (wide TV).
16:9 FIX (Wide television conversion): Select this when the aspect
ratio of your TV is fixed to 16:9 (wide TV). The unit automatically adjusts the screen width of the output signal correctly when playing back a picture whose aspect ratio is 4:3.
Pan&Scan/Letter Box
In general, DVD VIDEO disc are produced for a wide-screen TV with 16:9 aspect ratio. Material with this ratio will not fit to a TV with 4:3 aspect ratio. There are two styles to display the image, “Pan&Scan” (PS) and “Letter Box” (LB).
Pan&Scan
The right and left side of the image are cut off. The image fills the screen.
The picture will be shown in the “4:3LB” mode depending on the disc even if the “4:3PS” mode is selected.
Letter Box
Black bands appear at the top and bottom of the image. The image itself appears in 16:9 aspect ratio.

Basic Playback

A
Turn on the unit.
Turn on the TV and select the video channel (or AV mode).
Slide the TV/CABLE/DBS/DVD switch to DVD.
x
4
F-1
VCR/DVD
VCR/DVD
ENTER
1
2
5
4
8
7
0
8
9
3
6
9
4
SELECT
98

OPERATIONS ON DVD DECK

EN 25
To play back an MP3/JPEG disc, see “Playback With MP3/JPEG Navigation” (pg. 61).
1 Load a disc.
For details, refer to “Placing A Disc” (墌 pg. 11).
Pressing 4 also closes the disc tray.
Playback begins automatically if an auto-playback DVD disc is
loaded.
2 Press VCR/DVD repeatedly so that the DVD lamp lights up on
the unit.
3 Press 4 to start playback.
If you load a DVD disc whose region code does not match the unit, “REGION CODE ERROR” appears on the TV screen. For details, refer to “Region Number” (
pg. 9).
If “CAN NOT PLAY BACK DISC UNDER CURRENT SETTING”
appears on the TV screen, refer to “Parental Lock” (
pg. 37).
With Video CD discs with PBC control or some DVD discs, the menu
display may appear on the TV screen after starting playback. In this case, select an item which you want to play back from the menu. Otherwise, the playback cannot go forward. Refer to “Playback Control (PBC) Function” ( Using The DVD Menu” (
pg. 29) or “Locating A Desired Scene
pg. 26).
The Library Database DVD Navi also enables you to search and
select the desired programs. (
pg. 56)
4 Press 9 to pause playback.
To resume normal playback, press 4.
5 Press 8 to stop playback.
When a recordable disc is played, playback stops and a program received with the unit’s tuner resumes on the TV screen.
When a playback-only disc is played, playback stops and the still image at the time you press 8 remains on the TV screen. Pressing 8 again resumes a program received with the unit’s tuner.
If x (OPEN/CLOSE) is pressed during playback, playback stops, then the disc tray opens.
NOTE:
When the Library Database DVD Navi screen appears, choose a thumbnail image of the desired program on the TV screen, then press SELECT(4) or ENTER. (
pg. 56)
TTENTION:
It takes approximately 30 seconds to read a disc depending on the type and condition of the disc since this unit is multi-disc compatible (DVD-RAM, DVD-RW, DVD-R). It may even take several minutes when a disc is dirty, scratched or warped.
It may take a few seconds to start playback. This is not a malfunction.
Forward/reverse high-speed search and other operations cannot be performed while playback is stopped.
26 EN
OPERATIONS ON DVD DECK

Playback Features

Turn on the unit.
Turn on the TV and select the video channel (or AV mode).
Slide the TV/CABLE/DBS/DVD switch to DVD.
Press VCR/DVD repeatedly so that the DVD lamp lights up on the
unit.
1
3
2
5
4
6
9
0 – 9
MARK
MENU
rtw e
6 4
SLOW+ (5) 98
8
7
0
TOP MENU
ENTER
2
SLOW– (3)

Locating A Desired Scene Using The DVD Menu

Locating The Start Point Of The Item Or Skip The Item

Press 2 or 6 during playback.
Pressing 6 locates the start point of the item or skips the item for forward direction, then resumes playback.
Pressing 2 locates the start point of the item or skips the item for reverse direction, then resumes playback.
When a DVD-RAM/RW/R disc is played
Current program
News
Reverse Forward
Previous program
Drama
: marked points (pg. 27)
Example:
To locate the beginning of the next item, press 6 once. To locate the beginning of the current item, press 2 once. To locate the beginning of the previous item, press 2 three times.
When a DVD VIDEO, Audio CD or Video CD disc is played
Playba ck point
Next
program
Movie
DVD VIDEO discs may have top menu and disc menu.
Top m e n u
DVD discs generally have their own menus which show the disc contents. These menus contain various items such as titles of a movie, names of songs, or artist information. You can locate a desired scene by using the top menu displayed on the TV screen. Press TOP MENU to access the top menu.
Disc menu
Disc menus include playback data (angle menu, subtitle menu, etc.) specific to each title. Press MENU to access the disc menu.
1 Press TOP MENU or MENU to
access the DVD menu.
2 Press rt w e to select a
desired title, then press ENTER. Playback starts.
It may be possible to select the desired item using the number keys depending on the menu display.
NOTE:
When “X” appears on the TV screen in step 1, the disc does not have a top menu or disc menu.
Example:
Scene 2
(Chapter 2)
or
Tra c k 2
Reverse Forward
Scene 3
(Chapter 3)
or
Tra c k 3
Scene 4
(Chapter 4)
or
Track 4
Example:
To locate the beginning of the next item, press 6 once. To locate the beginning of the current item, press 2 once.

High-Speed Search

During playback, press 5 for forward high-speed search, or 3 for reverse high-speed search.
Each press of the button increases the search speed for each direction.
To resume normal playback, press 4.
OR
During playback, press and hold 6 for 2 or more seconds for forward high-speed search, or press and hold 2 for 2 or more seconds for reverse high-speed search.
Releasing the button resumes normal playback.

Still Picture/Frame-By-Frame Playback

1 Press 9 to pause during playback. 2 Press 9 or we to activate frame-by-frame playback.
Each press of 9 advances the still picture frame by frame.
Each press of we advances/reverses the still picture frame by
frame.
Frame-by-frame playback for reverse direction cannot be performed with Video CD discs.
To resume normal playback, press 4.

Slow Motion

1 Press 9 to pause during playback. 2 Press SLOW – (3) or SLOW + (5).
Each press of SLOW – (3) or SLOW + (5) increases the slow motion speed for each direction (from 1/16 to 1/2 times the normal speed).
Slow motion for reverse direction cannot be performed with Video CD discs.
OR
Press SLOW – (3) or SLOW + (5) for 2 or more seconds.

Skip Search

During playback, press .
Each press initiates an approximately 30-second period of fast­motion playback. Normal playback resumes automatically.

Resume Function

It is possible to memorize the position where you stop playback and resume playback from that position.
Be sure to set “RESUME” to “ON” or “DISC RESUME”. (pg. 74)
1 Press 8 during playback to memories a resume point.
The unit enters Resume Stop mode and memorises the position where you have stopped playback as a resume point. (The inside of the disc status indicator on the front display panel blinks while memorising.)
The unit retains a memory of the resume points of the last 30 discs played back, even though they have been ejected if “RESUME” is set to “DISC RESUME”. (
To clear the resume points: (The inside of the disc status indicator stops blinking and lights.)
When “RESUME” is set to “ON”:
• Press 1 to turn off the unit.
• Press x (OPEN/CLOSE) to take out the disc.
• Press 8 in stop mode.
• Press TOP MENU to display the top menu, then start playback by selecting an item, etc.
• Press MENU to display the disc menu, then start playback by selecting an item, etc.
When “RESUME” is set to “DISC RESUME”:
• Set “RESUME” to “OFF”. (pg. 74)
• Press 8 in stop mode.
• Press TOP MENU to display the top menu, then start playback by selecting an item, etc.
• Press MENU to display the disc menu, then start playback by selecting an item, etc.
2 Press 4 in stop mode to resume playback. The unit starts
playback from the resume point.
pg. 74)
OPERATIONS ON DVD DECK
EN 27
NOTES:
“DISC RESUME” setting works on DVD VIDEO, VCD and already finalised DVD-R/DVD-RW (video mode) discs. For other types of discs, the function under “ON” setting will be applied even if “RESUME” is set to “DISC RESUME”. (
If you stop the playback of a disc for which an resume point has already been memorized, the memory will be updated with the new resume point.
After the unit has memorized the resume point for 30 discs, remembering a new resume point will cause the unit to delete the oldest memorized point. Stopping playback of a disc for which a resume point is already stored may change the order in which the points are stored. This may potentially change the order in which points are deleted.
When the unit memorizes a resume point for a disc, it also remembers audio language, subtitle and angle settings.
This function may not work for some Video CD.
When “RESUME” is changed to “ON” or “OFF” (
points of the discs memorized with “RESUME” set to “DISC RESUME” will be cleared.
Resume points are memorized for each side of a double-sided disc.
pg. 74)
pg. 74), resume

Marking Positions To Play Back Again Later

It is possible to mark positions (up to 999 points) where you want to play back once again later, and start playback from a marked position. Marking onto DVD-RAM/RW/R discs when recording is helpful to locate a start point when you play back the discs later.
To mark positions:
During playback, press MARK at positions you want to mark.
“MARK” appears on the TV screen. You can easily locate the marked positions using 2 or 6 when you play back the disc.
To delete the marked positions:
While paused, press 2 or 6 to locate a marked position you want to delete, then press MARK.
Crossed “MARK” appears on the TV screen, and the marked position is deleted.
NOTES:
When a monaural program changes to a stereo program while recording, a mark signal is automatically recorded.
When a DVD-R/RW (Video mode) disc is finalized, marked points marked before finalizing will be deleted, and programs will be divided automatically into “chapters” approximately every 5 minutes.
pg. 79)
(
28 EN
OPERATIONS ON DVD DECK
1
2
5
4
8
7
0
TOP MENU
ENTER
PREVIOUS (2)
8
REMAIN
ANGLE AUDIO
3
6
9
0 – 9
DISPLAY MENU
rtw e
RETURN NEXT (6)
4
SUBTITLE

Checking The Time Information

You can check time information of a disc on the front display panel and the TV screen. Press DISPLAY once to display the lastly displayed information. To changes the display, press DISPLAY repeatedly.
8 DVD-RAM/DVD-R/DVD-RW During playback or recording
Clock time (front display panel only) ] Current title elapsed time ] Disc remaining time* ] (back to the beginning)
* only discs before finalizing
Clock time is displayed only when a recordable disc is played back.
In stop mode
It is possible to check disc remaining time according to recording modes also by pressing REMAIN.
In FR mode, it is possible to set recording time in detail. While the recording mode and the disc remaining time are displayed by pressing REMAIN, press rt to select “FR”, then press we to select the desired recording time. (
It is not possible to switch the recording mode during playback or while recording.
pg. 40)
8 Video CD/Audio CD During playback or in stop mode
Total remaining time ] Current track elapsed time ] Current track remaining time ] Total elapsed time ] (back to the beginning)
NOTE:
When a PBC-compatible Video CD disc is loaded, deactivate the PBC function. (
pg. 29)

Angle Selection

To clear the angle selection display, press ENTER. In addition, the angle selection display disappears automatically if no operation is done for 10 seconds.

Subtitle Selection

Some DVD VIDEO discs contain more than one subtitle language, from among which you can choose the desired subtitle language. “ ” appears on the TV screen at the beginning of the part where more than one subtitle language are recorded.
1 Press SUBTITLE during
playback. The subtitle selection display appears on the TV screen.
Each time you press SUBTITLE, the subtitle display is switched on and off.
When 3 subtitle languages are contained.
ENGLISH
2 Press we to select your desired language.
To clear the subtitle selection display, press ENTER.
NOTES:
When “X” appears on the TV screen, no subtitle language is recorded.
When the subtitle language won’t be changed with the procedure above, change the subtitle on a disc menu displayed by pressing MENU.

Audio Language/Sound Selection

Some DVD VIDEO discs contain the multiple audio language or sound. You can select the desired audio language or sound. For some Video CD discs, you can switch the audio channel to choose Karaoke either with or without the vocal.
1 Press AUDI O during playback.
The Audio Language/Sound selection display appears.
2 Press AUDI O or we to select
your desired audio language/ sound.
Each time you press AUDIO or we, the audio language/sound changes.
To clear the Audio Language/Sound selection display, press ENTER.
NOTES:
When “X” appears on the TV screen, no audio language is recorded.
When the audio language won’t be changed with the procedure
above, change the audio on a disc menu displayed by pressing MENU.
It is only possible to select the audio language in stop mode. The audio language cannot be selected during playback.
When 3 audio languages are contained.
You can enjoy a variety of scene angles if a DVD VIDEO disc contains “multi-angle” parts, where the same scene was shot from different angles. If the disc contains “multi-angle” parts, “ ” appears on the TV screen at the beginning of the “multi-angle” part.
1 Press ANGLE during playback.
The angle selection display appears on the TV screen.
2 Press ANGLE or we to select
your desired angle.
Each time you press ANGLE or
we, the angle changes.
When “X” appears on the TV screen, the current scene is not
recorded from multiple angles. In addition, some discs prohibit angle selection.
When 3 scene angles are contained.

Audio Channel Selection

OPERATIONS ON DVD DECK
EN 29
It is called “Live Memory Playback” to start playback of the program being recorded, with a time-lag between a recording point and a playback point, as shown in the figure below.
When playing discs on which you recorded stereo programs, you can choose the desired audio channel.
When “SUPERIMPOSE” is set to “AUTO”, you can confirm on the TV screen the audio channel you have chosen. (
pg. 74)
Each time you press AUD IO, the audio channel
changes.
TRACK
On-Screen Display
USE
For stereo discs
For audio of left channel
For audio of right channel

Playback Control (PBC) Function

Some Video CD discs support the PBC function. PBC is an abbreviation of “Play Back Control”. A Video CD disc recorded with PBC has its own menus, such as a list of the songs on the disc. You can locate a specific scene by using the menu.
1 Press 4 in stop mode. The PBC menu appears. 2 Press the number keys to enter the number of the desired
scene. The unit starts playback of the selected item.
“PBC” appears on the front display panel.
When “NEXT” or “PREVIOUS” appears on the TV screen:
Pressing NEXT (6) advances to the next page. Pressing PREVIOUS (2) returns to the previous page.
You can return to the menu by pressing RETURN.
The method of the operation is different depending on the disc.
NOTES:
If you want to playback a PBC-compatible Video CD disc without activating the PBC function, star t playback in stop mode by using the number keys, instead of the 4 button, to choose the track, then press ENTER.
To activate the PBC function when a PBC-compatible Video CD disc is being played back without the PBC function, press TOP MENU , or press 8 then press 4.
Current playback point
(Live Memory Playback)
Current recording position
Playback continues
(Recording point)
Recording continues
Recording start point
0 30 min. 1 hour
Currently elapsed recording time
Not only can this unit play back a program previously recorded while recording or timer recording another program, but the unit also allows you to play back from the beginning of a program while continuing to record the same program.

Recording/playback Status Display

3
1
2
5
6
4
8
9
7
0
Press DISPLAY. The current status is superimposed on the TV screen.
DISPLAY
Live Memory Playback status can be checked by pressing DISPLAY to display the bar meter on the superimpose display.
Bar meter display

Live Memory Playback

This unit records pictures onto DVD-RAM discs, instead of video tapes, then plays back the pictures recorded on the discs. This makes it possible to achieve high-speed writing and read-out that has not been possible with conventional VCRs, enabling recording and playback simultaneously.
High-speed spin
(High-speed writing)
Recording
Image figure of DVD-RAM disc
Playback (High-speed read-out)
Superimpose display
