JVC DLA-HD2K Brochure & Specs

JVC’s 3-Chip

Native High Definition

Projection System

Bring the true movie experience home.

DLA-HD2K

D-ILA® HD Projection System

(

3-Chip D-ILA

®

Projector + Digital Video Processor

)

B

B

17-1/4"

(438)

11-15/16"

(303)

1-25/32"

(45)

3 Native 1920 x 1080p
D-ILA Chips

Thanks to the newly developed HD D-ILA
devices, the native resolution of the DLA-HD2K is
1920 x 1080p, the extreme HD resolution
available today for home theater projector
applications.This makes the system suitable
not only for high-end home theater use but also
for critical viewing venues such as museums
and postproduction screening rooms.

Cost-effective NSH Lamp

To ensure lower running costs, the DLA-HD2K
uses a 250W ultra high-pressure mercury
NSH lamp, which should be replaced after
approximately 2,000 hours of operation. And in
most applications, the homeowner can easily
change the lamp without removing the projector
from its mounts.

D-ILA. The Most Advanced LCOS
Technology On The Market Today

JVC pioneered the use of LCOS (Liquid Crystal
on Silicon) technology and is the world’s leading
supplier of LCOS projectors. JVC’s patented
D-ILA chips are the most highly refined form
of LCOS, offering unique performance
characteristics not found elsewhere.The DLA­HD2K also boasts optimum color illumination
and a newly developed projection lens for its
optical system that is explained below.This
combination of advanced technologies allows
the DLA-HD2K to realize a high contrast ratio of
2000:1 and breathtaking color reproduction.

■ Optimum Color Illumination

is achieved from an economical ultra
high-pressure mercury NSH lamp that uses
illumination optics to optimize the f-number
for each primary color.This exclusive JVC
process ensures optimum contrast of
individual colors and a D65 color
temperature that provides vivid, natural­looking color reproduction.

■ Newly Developed Projection Lens

employs a 10-group, 13-layer 100% glass lens
with an aluminum tube and anti-flare finish.
This high-quality construction embodies
JVC’s no-compromise approach to answering
the performance potential of HD-compatibility.
The optimized lens aperture is also carefully
calibrated to match the zoom position.

Finally,a home cinema
projector with such stunning
resolution,it will “wow”
even the toughest critics.

1920 x 1080p Native High Definition Resolution

black body locus

D65

ITU-R BT.709/
SMPTE240

B

B

17-1/4"

(438)

11-15/16"

(303)

1-25/32"

(45)

black body locus

D65

ITU-R BT.709/
SMPTE240

■ Comparison of gradation characteristics

■ DLA-HD2K Color Coordinates

D-ILA:Accurate colors with absolute white and black

Conventional projector (bluish white and reddish black)

Infrared Remote Controls

Remote controls employ discrete IR commands
for common features and have discrete buttons
for easy capture of IR data to third-party control
systems.

Exclusive Digital Video Processor

The DLA-HD2K is equipped with a digital video
processor co-developed with Faroudja®,a
company renowned worldwide for creating
powerful processing technologies.This
exclusive JVC digital video processor can be
connected to various sources including 480i,
480p and 576i SD signals,as well as 720p and
1080i HD signals. Faroudja’s color matrixing
provides accurate color profiles for NTSC and
HDTV, allowing the processor to convert
standard analog and digital DVI video signals to
a high-resolution digital video signal that can be
transmitted via the DVI-D connector to the
projector and is fully HDCP compliant.This
processor also allows for detailed video
adjustment to suit viewer preferences, and user
setup between it and the projector can be
profiled. Furthermore, the processor features
motion adaptive de-interlacing with DCDi and
3:2 pull-down technology to ensure error-free
progressive signals.

Convenient, Space-Saving
2-Piece Design

Unlike bulky one-piece units, the projector head
of the DLA-HD2K is only 11.75" W x 5.25" H x

14.1875" D and weighs a mere 13 lbs.This
smaller size allows for less conspicuous and
more flexible installation as well as easier ceiling
mounting.The projector head is connected to a
standard rack-mountable electronics unit by a
single zero-loss digital cable (DVI-D) transmitting
the 1080/60p signal.The projector head and
electronics unit can be separated by up to 160 feet
— an ideal configura tion that keeps the cabling
to other electronic components to an absolute
minimum while preserving full digital quality at
the projector head.

JVC Exclusive 3-Chip D-ILA

(Direct Drive Image Light Amplifier)

■ Three D-ILA chips: JVC’s exclusive

3-chip D-ILA technology produces rich,
natural colors without the annoying flicker
or “rainbow effect”that plagues single­panel projectors. Images are as smooth as
film, boasting incredible detail and vibrant,
breathtakingly natural colors.

■ Cinema-quality picture with no

visible grid: There is no visible grid or
“screen door effect” with JVC’s D-ILA.
Since the gaps between pixels are not
noticeable, the picture is extremely
smooth.You can enjoy the benefits of
both film-like resolution and accurate
reproduction of natural colors.

■ Superior Color Reproduction: JVC’s

unique optical engine produces rich,
natural colors with smooth gradations and
low noise. By setting the color tempera ture
at the D65 standard, source media can be
faithfully reproduced with the same
gradations as the original picture. D65
color temperature is the home theater
standard.This makes all color gradations
natural and consistent, including absolute
black and absolute white. Furthermore,
JVC’s exclusive AG* technology produces
highly accurate gradations with low noise,
particularly in darker areas of less than
20% brightness.

*Analog gradation

■ True black reproduction:One

important characteristic of D-ILA devices
is that the crystals are aligned vertically,
meaning that the D-ILA technology can
reproduce blacks that are truly black. It also
offers a uniform response,irrespective of
brightness, so it can display a wide range
of intermediate tones.

To download HD2K Gamma Customization Software

from our Web site,access the following URL:

http://www.jvc.com/pro

DLA-HD2K

ITU-R BT.709/
SMPTE240M

ITU-R BT.709/

ITU-R BT.709/
SMPTE240

M

SMPTE240M

black body locus

black body locus

D65

D65

Digital Cable (DVI-D)

Max. 5-meter cable

recommended

10m to 50m for

optical transmission

1080p

Digital Video Processor

Projector

1080i

D-VHS Recorder with

720/480/1080i

Switcher

DVI-D HDCP

Switcher

Component

720/480/1080i

1080i

1080i

720/480i

HDMI Output

HDCP Compatible

DVD Player

D-VHS Recorder

DVD Player

HDCP Compatible

Satellite Tuner

HDMI Compatible

Equipment

DIMENSIONS

(Unit: inches/mm)

B

B

Projector

Digital Video

Processor

17-1/4"

(438)

11-15/16"

(303)

1-25/32"

(45)

CONNECTORS

ACCESSORIES

OPTIONAL LY-Z0021 Wide Conversion Lens
PROVIDED Projector: Instructions, Warranty Card, Power Cord, DVI-D

Cable (5m), Remote Control (RM-MH2K),
Two AAA Batteries

Processor: Instructions, Power Cord, Remote Control,

Two AA Batteries,Warranty Card

Projector

Digital Video Processor

HDCP Compatible

Satellite Tuner

HDMI Compatible

Equipment

®

,a

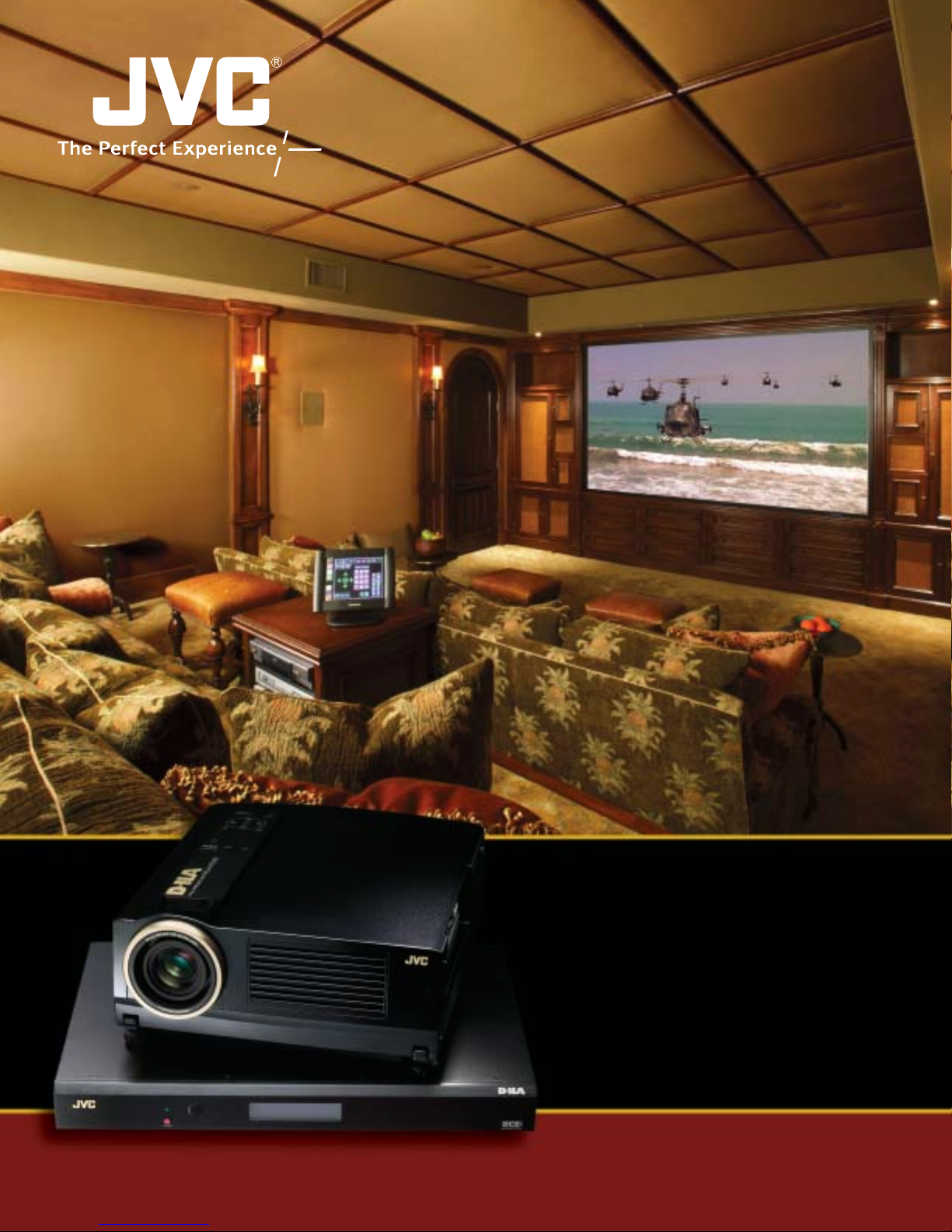

You simply won’t believe your eyes.

Imagine colors so vivid they literally take your
breath away.And picture quality that’s so
lifelike, you’ll swear you’ve been transported
right inside the screen.These are just two of
the reasons JVC’s new DLA-HD2K Projection
System is redefining the entire category of
home cinema.There are many more.

The HD2K Projection System features a
combination of three patented D-ILA chips and
LCOS technology that delivers 1920 x 1080p
Native High Definition Resolution.The system
also offers a high contrast ratio of 2000:1 plus
breathtaking color reproduction. It all adds up
to bringing the true movie experience home
like never before.

And if one-of-a-kind performance isn’t enough,
JVC offers the two-piece system with one of
the smallest projector footprints available and
a separate processing unit featuring Faroudja

®

technology,allowing for the most flexible
installation options.

JVC’s new DLA-HD2K Projection System.
Get ready for rave reviews.

DLA-HD2K

D-ILA® HD Projection System

(

3-Chip D-ILA

®

Projector + Digital Video Processor

)

PROJECTOR

Image Device 3-chip D-ILA® (0.82-inch diagonal)
Aspect Ratio 16:9
Screen size/Throw Distance 40" to 200" (16:9)/1.6m to 10.5m (16:9)
Resolution 1920 x 1080 pixels (16:9) x 3 chips;

Total resolution: 6,220,800 pixels

Projection Lens 1.3X zoom lens (1:8 ~ 2.35:1, manual zoom/

manual focus, 50% offset)
Lamp 250W NSH (Model No. BHL5006-S)
Contrast Ratio 2000:1
Color Temperature D65/user selectable 1/user selectable 2
Gamma Control Normal, A, B, and CUSTOM

TERMINALS

Input Digital x1 (HDCP compatible DVI-D)
Serial Control RS-232C x1

GENERAL

Power Requirement 100V-240V AC, 50/60Hz
Power Consumption 350W (5W at standby)
Calorific Power 1260kJ/h (1194 Btu)
Dimensions (W x H x D) 11-3/4" x 5-1/4" 14-3/16"

(298 x 134 x 360mm) without protrusions

Weight 13.66 lbs (6.2kg)

CONTROL TERMINALS

Serial Control 1 source (RS-232C)

DIGITAL VIDEO PROCESSOR

Input Signals 480i (H: 15.7kHz, V: 29.97Hz), 480p (H: 31.5kHz, V: 59.97Hz)

576i (H: 15.6kHz, V: 25.00Hz), 576p (H: 31.3kHz, V: 50.00Hz)
720p (H: 37.5kHz, V: 50.00Hz), 720p (H: 45.0kHz, V: 59.97Hz)
1080i (H: 28.1kHz, V: 25.00Hz), 1080i (H: 33.7kHz, V: 29.97Hz)

INPUT TERMINALS

RGBCs (BNC) x1

*Shared with YPbPr bnc input

DVI (HDCP compatible DVI-D)* x1

*HDMI compliant with optional adaptor cable

Video (BNC) x1
Y/C (Mini DIN) x1
YPbPr (BNC) x1
Serial Control 1 source (RS-232C)

OUTPUT TERMINAL

DVI-D (HDCP compatible DVI-D)* x1

*Terminals other than DVI are not used for DLA-HD2K Projection System

CONTROL TERMINALS

Remote 1 source
Trigger 1 source
Serial Output 1 source (RS-232C)

GENERAL

Power Requirement 100V-240V AC, 50/60Hz
Power Consumption 35W
Calorific Power 126kJ/h (119 Btu)
Dimensions (W x H x D) 17-1/4" x 1-3/4" x 11-15/16"

(438 x 45 x 303mm) without protrusions

Weight 14 lbs (6.3kg)

Printed in the United States.

DLA HP04HD2K

"JVC" is the trademark or registered trademark of Victor Company of Japan, Limited.

DISTRIBUTED BY

JVC Professional Products Company

DIVISION OF JVC AMERICAS CORP.

1700 Valley Road, Wayne, N.J. 07470

TEL: [phone] FAX: [phone]

Internet Web Site http://www.jvc.com/pro

E-mail: [e-mail]

JVC Canada Inc.

21 Finchdene Square, Scarborough, Ontario M1X 1A7

TEL: [phone] FAX: [phone]

Internet Web Site http://www.jvc.ca/en/pro/

SPECIFICATIONS THROW DISTANCE vs.SCREEN WIDTH

DLA-HD2K

D-ILA® HD Projection System

(

3-Chip D-ILA

®

Projector + Digital Video Processor

)

PROJECTOR

Image Device 3-chip D-ILA® (0.82-inch diagonal)
Aspect Ratio 16:9
Screen size/Throw Distance 40" to 200" (16:9)/1.6m to 10.5m (16:9)
Resolution 1920 x 1080 pixels (16:9) x 3 chips;

Total resolution: 6,220,800 pixels

Projection Lens 1.3X zoom lens (1:8 ~ 2.35:1, manual zoom/

manual focus, 50% offset)
Lamp 250W NSH (Model No. BHL5006-S)
Contrast Ratio 2000:1
Color Temperature D65/user selectable 1/user selectable 2
Gamma Control Normal, A, B, and CUSTOM

TERMINALS

Input Digital x1 (HDCP compatible DVI-D)
Serial Control RS-232C x1

GENERAL

Power Requirement 100V-240V AC, 50/60Hz
Power Consumption 350W (5W at standby)
Calorific Power 1260kJ/h (1194 Btu)
Dimensions (W x H x D) 11-3/4" x 5-1/4" 14-3/16"

(298 x 134 x 360mm) without protrusions

Weight 13.66 lbs (6.2kg)

CONTROL TERMINALS

Serial Control 1 source (RS-232C)

DIGITAL VIDEO PROCESSOR

Input Signals 480i (H: 15.7kHz, V: 29.97Hz), 480p (H: 31.5kHz, V: 59.97Hz)

576i (H: 15.6kHz, V: 25.00Hz), 576p (H: 31.3kHz, V: 50.00Hz)
720p (H: 37.5kHz, V: 50.00Hz), 720p (H: 45.0kHz, V: 59.97Hz)
1080i (H: 28.1kHz, V: 25.00Hz), 1080i (H: 33.7kHz, V: 29.97Hz)

INPUT TERMINALS

RGBCs (BNC) x1

*Shared with YPbPr bnc input

DVI (HDCP compatible DVI-D)* x1

*HDMI compliant with optional adaptor cable

Video (BNC) x1
Y/C (Mini DIN) x1
YPbPr (BNC) x1
Serial Control 1 source (RS-232C)

OUTPUT TERMINAL

DVI-D (HDCP compatible DVI-D)* x1

*Terminals other than DVI are not used for DLA-HD2K Projection System

CONTROL TERMINALS

Remote 1 source
Trigger 1 source
Serial Output 1 source (RS-232C)

GENERAL

Power Requirement 100V-240V AC, 50/60Hz
Power Consumption 35W
Calorific Power 126kJ/h (119 Btu)
Dimensions (W x H x D) 17-1/4" x 1-3/4" x 11-15/16"

(438 x 45 x 303mm) without protrusions

Weight 14 lbs (6.3kg)

Printed in the United States.

DLA HP04HD2K

"JVC" is the trademark or registered trademark of Victor Company of Japan, Limited.

DISTRIBUTED BY

JVC Professional Products Company

DIVISION OF JVC AMERICAS CORP.
1700 Valley Road, Wayne, N.J. 07470

TEL: [phone] FAX: [phone]

Internet Web Site http://www.jvc.com/pro

E-mail: [e-mail]

JVC Canada Inc.

21 Finchdene Square, Scarborough, Ontario M1X 1A7

TEL: [phone] FAX: [phone]

Internet Web Site http://www.jvc.ca/en/pro/

SPECIFICATIONS THROW DISTANCE vs.SCREEN WIDTH

Simulated screen shot from Francis Ford Coppola’s

restored masterpiece,“Apocalypse Now Redux.”

Copyright © 2000 Zoetrope Corporation.

All rights reserved. www.zoetrope.com

Representative home cinema environment provided by

Bradford Wells + Associates, Los Angeles, CA.

Design and specifications subject to change without notice.

D-ILA is a registered trademark of Victor Company of Japan,Limited

All brand or product names may be trademarks and/or

registered trademarks of their respective owners.

Any rights not expressly granted herein are reserved.

Copyright © 2004,Victor Company of Japan, Limited (JVC).

All Rights Reserved.

Screen Size Throw Distance

Diagonal Width Wide Tele

in. mm ft. m ft. m ft.

40.5 897 2.94 1.600 5.24 2.093 6.86
82 1815 5.96 3.274 10.74 4.268 14.00
92 2037 6.68 3.677 12.06 4.792 15.72

100 2214 7.26 4.000 13.12 5.212 17.09
110 2435 7.99 4.403 14.44 5.736 18.81
123 2723 8.93 4.928 16.16 6.417 21.05
135 2989 9.81 5.412 17.75 7.046 23.11
150 3321 10.89 6.017 19.74 7.832 25.69
160 3542 11.62 6.420 21.06 8.357 27.41
165 3653 11.98 6.622 21.72 8.619 28.27
180 3985 13.07 7.227 23.71 9.405 30.85
192 4250 13.95 7.711 25.29 10.034 32.91
200 4428 14.53 8.034 26.35 10.453 34.29

Recommended distance is between 6.6ft to 26.2ft (2m to 8m )
