JVC DLA-HD10KS Brochure & Specs

D-ILA®HD Projection Systems

DLA-HD10K

DLA-HD10KS

A

Dream

Ultimate Home Theater Performance with

Full HD Pictures and Stylish Design

C

ome

T

rue

Fill Your Screen With

The Amazing Film-Like Quality

Of Full HD Images.

— Indulge in the ultimate visionary experience.

Being able to watch a movie at home, while enjoying the same

superior resolution and excellent color reproduction that you get in a

movie theater, is a dream shared by film buffs the world over.

Now, with JVC's DLA-HD10K/KS, that dream has come true.

Thanks to our original D-ILA device, everything from skin tones to the

rough texture of a rock is reproduced with pristine, film-like quality.

With such extraordinary realism, you won’t just watch a movie,

you’ll experience it as if you were really there.

Film-like Images and Excellent Color Reproduction

SMPTE240



3 D-ILA chip imaging with
native 1080p resolution

JVC’s D-ILA imaging

chips with native 1920 x

1080 resolution utilize

“Non-Moving” mirror

reflective technology to

produce the full HD

resolution you need to enjoy Hollywood films

at their very best.



High contrast ratio/
D65 color temperature

Thanks to the proven reliability of JVC’s optical

engine design and Dynamic Square Aperture,

high contrast is achieved in all modes from

Wide to Tele. The 2000:1 contrast ratio

produces intensely deep blacks for awesome

high-impact images. Accurate color

reproduction of video or film-originated

programming is ensured by the reference

standard D65 color temperature. An

illumination system with RGB-optimized

f-number delivers true D65 performance and

dynamic range.

JVC’s original D-ILA technology

 Three D-ILA chips for smooth, flicker-free high-resolution images

JVC’s original 3-chip D-ILA (Direct Drive Image Light Amplifier) technology produces rich, natural colors without the annoying
flicker or “rainbow effect” that plagues single panel projectors. Images are as smooth as film, boasting incredible detail and
vibrant, breathtakingly natural colors.

 Cinema-quality picture with no visible grid

There is no visible grid or “screen door effect” with JVC’s D-ILA. You can enjoy the benefits of both film-like resolution and
accurate reproduction of natural colors.

Superior color reproduction

 Professional-standard gray scale reproduction

JVC’s unique optical engine produces rich, natural colors with smooth gradations and low noise. Color temperature is set at
6500K, providing optimal cinema reproduction.

 Analog gradation technology

JVC’s exclusive AG (Analog Gradation) technology produces highly accurate gradations with low noise, particularly in darker
areas of less than 20% brightness.

 High contrast ratio of 2000:1

High contrast of 2000:1 for excellent gray-scale reproduction enables reproduction of high-precision,
high-quality pictures without black paint even when the scene on screen is dark.

 Tr ue black reproduction

As the D-ILA’s liquid crystals are aligned vertically, the pixels are “normally black” when no voltage is applied. As a result, D­ILA technology reproduces blacks that are truly black. It also offers a uniform response, irrespective of brightness, displaying
a wide range of intermediate tones.

 Comparison of gradation

(accurate colors with absolute
white and black)

Conventional projector (bluish white and
reddish black)

Advantages of 3-chip D-ILA technology

 DLA-HD10K Color Coordinates

characteristics

SMPTE240

SMPTE240

D65

D65

DLA-HD2K
SMPTE240

Sleek Design and Easy Setup

Designed to impress with a sleek stylishness that

will attract envious glances in any home theater,

these flagship projectors offer the flexibility you

need for home installation. Both long-focus and

short-focus models are available, and each

features a lens shift function to ensure the highest

degree of installation flexibility.



Flexible installation

To accommodate the widest variety of theater sizes, two models

are available, each offering a different range of lens throw

distances. The DLA-HD10KS has a lens throw ratio of 1.5 –

2.1:1, while the DLA-HD10K has a lens throw ratio of 2.0 – 3.8:1.

Precision high-resolution all-glass lenses with motorized zoom

and focus make installation a snap, while installation flexibility is

further enhanced by lens shift capability. The light path is

centered horizontally, allowing the projector to be perfectly

centered in the theater.

The low-cost, long-life lamp (200 W NUP) can be easily replaced

without removing the projector from the ceiling.



Low fan noise design

Any external noise can be annoying when you are trying to enjoy

a movie. That’s why JVC has developed an original new airflow

design that provides optimum cooling while keeping the noise

level down to a near silent 27 dB. Thanks to this low fan noise

design, subtle sounds in quiet scenes on-screen are not

overwhelmed by outside noise.



Stylish design suitable for high-end
home theater

Designed as the centerpiece of the movie fan’s ultimate space,

this projector adds a touch of elegance and beauty to any home

theater. The projector’s gorgeous alumite finish compliments the

grandest home theater décor.

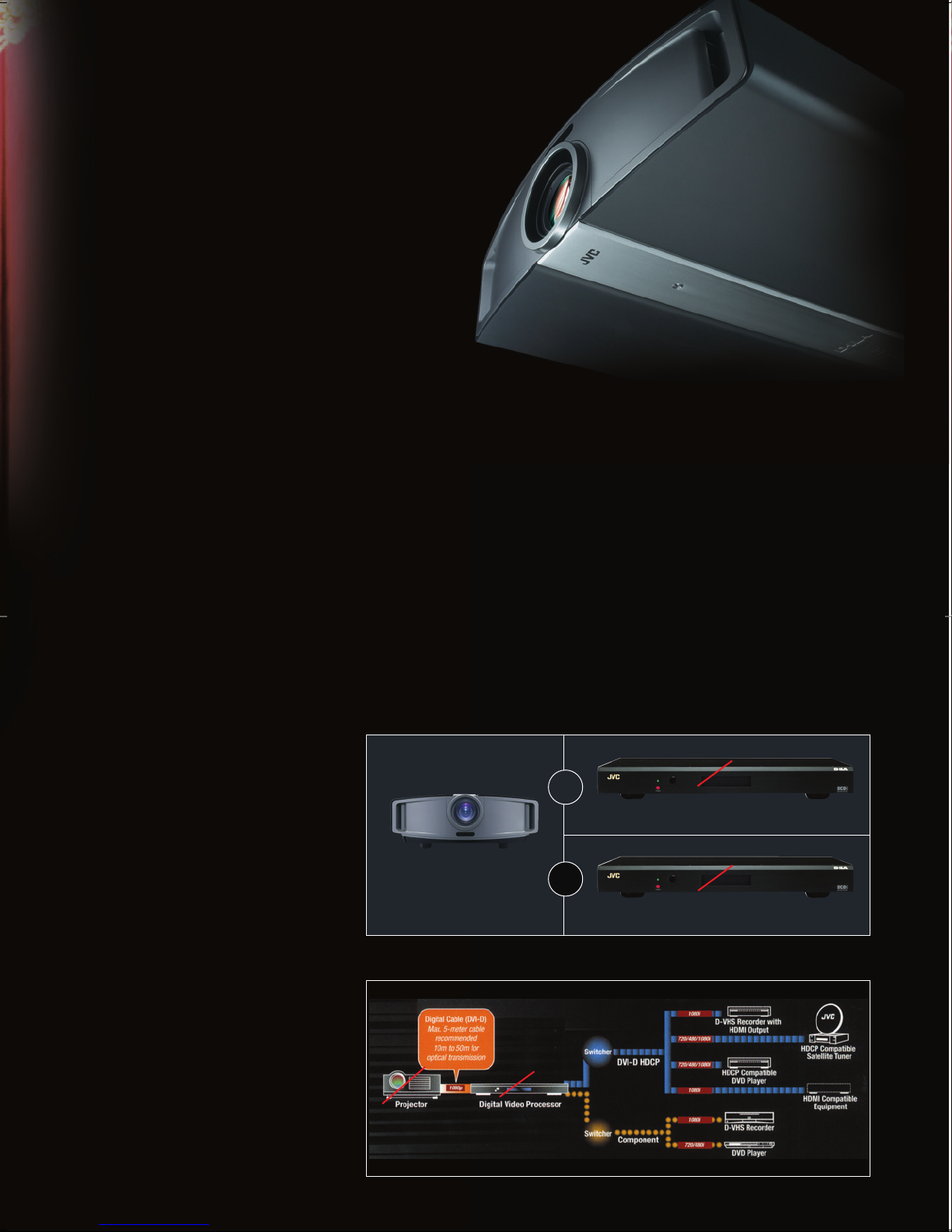

Two Processors Available

Installation flexibility is enhanced still

more by a compact 2-piece design.

Two types of processor are available.

Simply choose the one most

appropriate to your needs. Also ready

for the future with HTPC

compatibility.



Convenient 2-piece
installation

The lightweight 37-lb. Projector is located in

the theater itself, while the critical Digital Video

Processor is mounted in the equipment rack

adjacent to the video sources. Only one DVI

interface cable is required between the

processor and projector, ensuring that

maximum signal integrity is maintained.

You can choose from 2 optional processors – a

standard one and an exclusive one developed

in cooperation with Faroudja.

DLA-HD10

+

LD-HD2K

+

LD-HD2KS

Specifications

Projectors

Image Device 3-chip D-ILA®(0.82-inch diagonal)
Aspect Ratio 16:9
Throw Distance (16:9) Short focus: 6.43 ft to 30.57 ft (1.9 m to 9.3 m)

Screen Size (16:9) 60" to 200" diagonal
Resolution 1920 x 1080 pixels (16:9) x 3 chips;

Projection Lens Short focus: 1.3X zoom lens (1.5 – 2.1:1)

Lamp 200 W NUP
Contrast Ratio 2000:1
Color Temperature D65/user selectable 1/user selectable 2
Gamma Control Normal, A, B, and CUSTOM
Noise Level 27 dB

TERMINALS

Input Digital x 1 (HDCP compatible DVI-D)
Serial Control RS-232C x 1, screen trigger (12 V) x 1

GENERAL

Power Requirement 100 V – 240 V AC, 50/60 Hz

Power Consumption 350 W (5 W at standby)

Calorific Power 1260 kJ/h (1194 Btu)

Dimensions (WHD) 20-1/4" x 7-11/16" x 22-1/16" (513 x 193.7 x 558.5 mm)

Weight Approx. 37 lbs. (17 kg)

CONTROL TERMINALS

Serial Control 1 source (RS-232C)

Digital Video Processors

Input Signals 480i (H: 15.7 kHz, V: 29.97 Hz), 480p (H: 31.5 kHz, V: 59.97 Hz)

TERMINALS

Input Terminals RGBCs (BNC), DVI (HDCP compatible Coaxial x 2, Optical x 2,

Output Terminals DVI (HDCP compatible DVI-D)* RGB/YPbPr (HDMI),

Control Terminals Remote: 1 source, Trigger: 1 source,

(Output active only when Serial Control: 1 source (RS-232C)
DVI-D output is not enabled.)

GENERAL

Power Requirement 100 V – 240 V AC, 50/60 Hz
Power Consumption 35 W
Calorific Power 126 kJ/h (119 Btu)
Dimensions (W x H x D) 17-1/4" x 1-3/4" x 11-15/16" 17-1/8" x 2-3/16" x 10-3/8"

Weight 14 lbs. (6.3 kg) 6.4 lbs. (2.9 kg)

Long focus: 8.46 ft to 49.23 ft (2.5 m to 15.0 m)

To tal resolution: 6,220,800 pixels

Long focus: 1.9X zoom lens (2 – 3.8:1)
Power zoom/focus, 0 - 60% offset with manual shift

LD-HD2K LD-HD1K

576i (H: 15.6 kHz, V: 25.00 Hz), 576p (H: 31.3 kHz, V: 50.00 Hz)

720p (H: 37.5 kHz, V; 50.00 Hz), 720p (H: 45.0 kHz, V: 59.97 Hz)

1080i (H: 28.1 kHz, V: 25.00 Hz), 1080i (H: 33.7 kHz, V: 29.97 Hz)

DVI-D)*, Video (BNC), Y/C (Mini DIN), HDMI x 4, RCA (L/R) x 1
YPbPr (BNC), Serial Control:
1 source (RS-232C)

* HDMI compliant with optional

adapter cable

* Terminals other than DVI are not used

for D-ILA HD Projection System.

(438 x 45 x 303 mm) (434 x 55 x 263 mm)
without protrusions

RGNHV/YPbPr/RGBs/RGB
(BNC),digital audio x 6

Throw Distance vs. Screen Size

Short-focus Zoom (1.5 to 2.1: 1 lens, aspect ratio: 16:9)

Diagonal Width Wide Tele

Long-focus Zoom (2.0 to 3.8, aspect ratio: 16:9)

Diagonal Width Wide Tele

Screen Size Throw Distance

in. mm ft. m ft. m ft.

60 1328 4.36 1.96 6.43 2.77 9.09
70 1550 5.08 2.29 7.51 3.23 10.59
80 1771 5.81 2.63 8.63 3.70 12.14

90 1992 6.53 2.96 9.71 4.17 13.68
100 2214 7.26 3.29 10.79 4.64 15.22
110 2435 7.99 3.63 11.91 5.11 16.76
120 2657 8.71 3.96 12.99 5.57 16.27
130 2878 9.44 4.29 14.07 6.04 19.81
140 3099 10.16 4.63 15.19 6.51 21.35
150 3321 10.89 4.96 16.27 6.98 22.89
160 3542 11.62 5.30 17.38 7.45 24.44
170 3764 12.35 5.63 18.47 7.91 25.94
180 3985 13.07 5.96 19.55 8.38 27.49
190 4206 13.80 6.30 20.66 8.85 29.03
200 4428 14.53 6.63 21.75 9.32 30.57

Screen Size Throw Distance

in. mm ft. m ft. m ft.

60 1328 4.36 2.58 8.46 4.94 16.20

70 1550 5.08 3.02 9.91 5.78 18.96

80 1771 5.81 3.46 11.35 6.62 21.71

90 1992 6.53 3.90 12.79 7.46 24.47
100 2214 7.26 4.34 14.24 8.30 27.22
110 2435 7.99 4.79 15.71 9.14 29.98
120 2657 8.71 5.23 17.15 9.98 32.73
130 2878 9.44 5.67 18.60 10.82 35.49
140 3099 10.16 6.11 20.04 11.65 38.21
150 3321 10.89 6.55 21.48 12.49 40.97
160 3542 11.62 6.99 22.93 13.33 43.72
170 3764 12.35 7.43 24.37 14.17 46.48
180 3985 13.07 7.88 25.85 15.01 49.23
190 4206 13.80 8.32 27.29
200 4428 14.53 8.76 28.73

Dimensions

Projector

Connectors

Provided accessories

Projector: Remote control unit, power cord, instructions
Processor: Remote control unit, power cord, two AA batteries,

instructions, warning card
