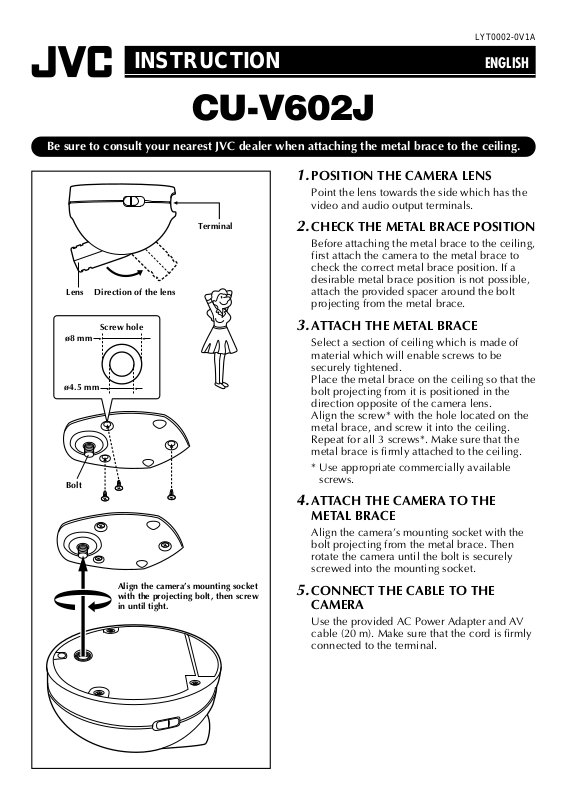

JVC CU-V602J User Manual

LYT0002-0V1A

INSTRUCTION ENGLISH

CU-V602J

Be sure to consult your nearest JVC dealer when attaching the metal brace to the ceiling.

1.

POSITION THE CAMERA LENS

Point the lens towards the side which has the
video and audio output terminals.

Lens

Direction of the lens

ø8 mm

ø4.5 mm

Bolt

Screw hole

Terminal

Align the camera’s mounting socket
with the projecting bolt, then screw
in until tight.

2.

CHECK THE METAL BRACE POSITION

Before attaching the metal brace to the ceiling,
first attach the camera to the metal brace to
check the correct metal brace position. If a
desirable metal brace position is not possible,
attach the provided spacer around the bolt
projecting from the metal brace.

3.

ATTACH THE METAL BRACE

Select a section of ceiling which is made of
material which will enable screws to be
securely tightened.
Place the metal brace on the ceiling so that the
bolt projecting from it is positioned in the
direction opposite of the camera lens.
Align the screw* with the hole located on the
metal brace, and screw it into the ceiling.
Repeat for all 3 screws*. Make sure that the
metal brace is firmly attached to the ceiling.

* Use appropriate commercially available

screws.

4.

ATTACH THE CAMERA TO THE
METAL BRACE

Align the camera’s mounting socket with the
bolt projecting from the metal brace. Then
rotate the camera until the bolt is securely
screwed into the mounting socket.

5.

CONNECT THE CABLE TO THE
CAMERA

Use the provided AC Power Adapter and AV
cable (20 m). Make sure that the cord is firmly
connected to the terminal.
