JVC CA-UXEP25, SP-UXEP25 User Manual

MICRO COMPONENT SYSTEM

COMPACT COMPONENT SYSTEM

—

UX-EP25

Consists of CA-UXEP25 and SP-UXEP25

INSTRUCTIONS

LVT1598-003B

[

Warnings, Cautions and Others

IMPORTANT for the U.K. DO NOT cut off the mains plug from this equipment. If the plug ﬁ tted is not suitable for the power points in your home or the cable is too short to reach a power point, then obtain an appropriate safety approved extension lead or consult your dealer.

BE SURE to replace the fuse only with an identical approved type, as originally ﬁ tted.

If nontheless the mains plug is cut off ensure to remove the fuse and dispose of the plug immediately, to avoid a possible shock hazard by inadvertent connection to the mains supply.

If this product is not supplied ﬁ tted with a mains plug then follow the instructions given below:

IMPORTANT:

DO NOT make any connection to the terminal which is

marked with the letter E or by the safety earth symbol or coloured green or green-and-yellow.

The wires in the mains lead on this product are coloured in accordance with the following code:

Blue : Neutral

Brown : Live

As these colours may not correspond with the coloured markings identifying the terminals in your plug proceed as follows:

The wire which is coloured blue must be connected to the terminal which is marked with the letter N or coloured black.

The wire which is coloured brown must be connected to the terminal which is marked with the letter L or coloured red.

IF IN DOUBT - CONSULT A COMPETENT ELECTRICIAN.

Caution — STANDBY/ON button!

Disconnect the mains plug to shut the power off completely (all lamps and indications go off). The

STANDBY/ON button in any position does not

disconnect the mains line.

• When the unit is on standby, the STANDBY lamp

lights red.

• When the unit is turned on, the STANDBY lamp

goes off.

The power can be remote controlled.

Caution: Proper Ventilation

To avoid risk of electric shock and ﬁ re, and to prevent damage, locate the apparatus as follows:

1 Front: No obstructions and open spacing. 2 Sides/ Top/ Back: No obstructions should be placed in

the areas shown by the dimensions below.

3 Bottom: Place on the level surface. Maintain an

adequate air path for ventilation by placing on a stand

with a height of 10 cm or more.

About the cooling fan

A cooling fan is mounted on the right side of the unit to prevent abnormal temperature inside the unit, thus assuring normal operation of the unit. The cooling fan automatically starts rotating to intake

external cool air when the volume is increased up to more than a certain level.

CAUTION

To reduce the risk of electric shocks, ﬁ re, etc.:

1 Do not remove screws, covers or cabinet. 2 Do not expose this appliance to rain or moisture.

15 cm

2 cm

15 cm

10 cm

15 cm

2 cm

IMPORTANT FOR LASER PRODUCTS

1. CLASS 1 LASER PRODUCT

2. CAUTION: Do not open the top cover. There are no user

serviceable parts inside the Unit; leave all servicing to qualiﬁ ed service personnel.

3. CAUTION: Visible and invisible laser radiation when open and interlock failed or defeated. Avoid direct exposure to beam.

4. REPRODUCTION OF LABEL: CAUTION LABEL, PLACED INSIDE THE UNIT.

CAUTION

1 Do not block the ventilation openings or holes. (If

the ventilation openings or holes are blocked by a newspaper or cloth, etc., the heat may not be able to get out.)

2 Do not place any naked ﬂ ame sources, such as lighted

candles, on the apparatus.

3 When discarding batteries, environmental problems

must be considered and local rules or laws governing the disposal of these batteries must be followed strictly.

4 Do not expose this apparatus to rain, moisture, dripping

or splashing and that no objects ﬁ lled with liquids, such as vases, shall be placed on the apparatus.

Dear Customer,

This apparatus is in conformance with the valid European directives and standards regarding electromagnetic compatibility and electrical safety.

European representative of Victor Company of Japan, Limited is: JVC Technology Centre Europe GmbH P.O. Box 10 05 52 61145 Friedberg Germany

G-1

SAFETY INSTRUCTIONS

“SOME DOS AND DON’TS ON THE SAFE USE OF EQUIPMENT”

This equipment has been designed and manufactured to meet international safety standards but, like any electrical equipment, care must be taken if you are to obtain the best results and safety is to be assured.

Do read the operating instructions before you attempt to use the equipment. Do ensure that all electrical connections (including the mains plug, extension leads and interconnections between pieces of

equipment) are properly made and in accordance with the manufacturer’s instructions. Switch off and withdraw the mains plug when making or changing connections.

Do consult your dealer if you are ever in doubt about the installation, operation or safety of your equipment. Do be careful with glass panels or doors on equipment.

DON’T continue to operate the equipment if you are in any doubt about it working normally, or if it is damaged in any way–switch off, withdraw the mains plug and consult your dealer.

DON’T remove any ﬁ xed cover as this may expose dangerous voltages. DON’T leave equipment switched on when it is unattended unless it is speciﬁ cally stated that it is designed for unattended

operation or has a standby mode. Switch off using the switch on the equipment and make sure that your family know how to do this. Special arrangements may need to be made for inﬁ rm or handicapped people. DON’T use equipment such as personal stereos or radios so that you are distracted from the requirements of trafﬁ c safety. It

is illegal to watch television whilst driving. DON’T listen to headphones at high volume as such use can permanently damage your hearing. DON’T obstruct the ventilation of the equipment, for example with curtains or soft furnishings. Overheating will cause damage and shorten the life of the equipment. DON’T use makeshift stands and NEVER ﬁ x legs with wood screws — to ensure complete safety always ﬁ t the manufactur-

er’s approved stand or legs with the ﬁ xings provided according to the instructions. DON’T allow electrical equipment to be exposed to rain or moisture. ABOVE ALL

— NEVER let anyone, especially children, push anything into holes, slots or any other opening in the case - this

could result in a fatal electrical shock.; — NEVER guess or take chances with electrical equipment of any kind. It is better to be safe than sorry!

Information for Users on Disposal of Old Equipment

[European Union]

This symbol indicates that the electrical and electronic equipment should not be disposed as general household waste at its end-of-life. Instead, the product should be handed over to the applicable collection point for the recycling of electrical and electronic equipment for proper treatment, recovery and recycling in accordance with your national legislation.

By disposing of this product correctly, you will help to conserve natural resources and will help prevent potential negative effects on the environment and human health which could otherwise be caused by inappropriate waste handling of this product. For more information about collection point and recycling of this product, please contact your local municipal office, your household waste disposal service or the shop where you purchased the product.

Attention:

This symbol is only valid in the European Union.

Penalties may be applicable for incorrect disposal of this waste, in accordance with national legislation.

(Business users)

If you wish to dispose of this product, please visit our web page www.jvceurope.com to obtain information about the take-back of the product.

[Other Countries outside the European Union]

If you wish to dispose of this product, please do so in accordance with applicable national legislation or other rules in your country for the treatment of old electrical and electronic equipment.

G-2

Contents

Introduction ...............................................................................................................................2

Precautions ............................................................................................................................................................2

How to Read This Manual ...................................................................................................................................3

Getting Started ..........................................................................................................................4

Step 1: Unpack ......................................................................................................................................................4

Step 2: Prepare the Remote Control ..................................................................................................................4

Step 3: Hook Up ..................................................................................................................................................... 5

To assemble and connect the AM loop antenna ............................................................................................. 7

To connect the speaker cords ............................................................................................................................7

Before Operating the System .................................................................................................8

Daily Operations— Playback — ...........................................................................................9

Listening to the Radio .........................................................................................................................................10

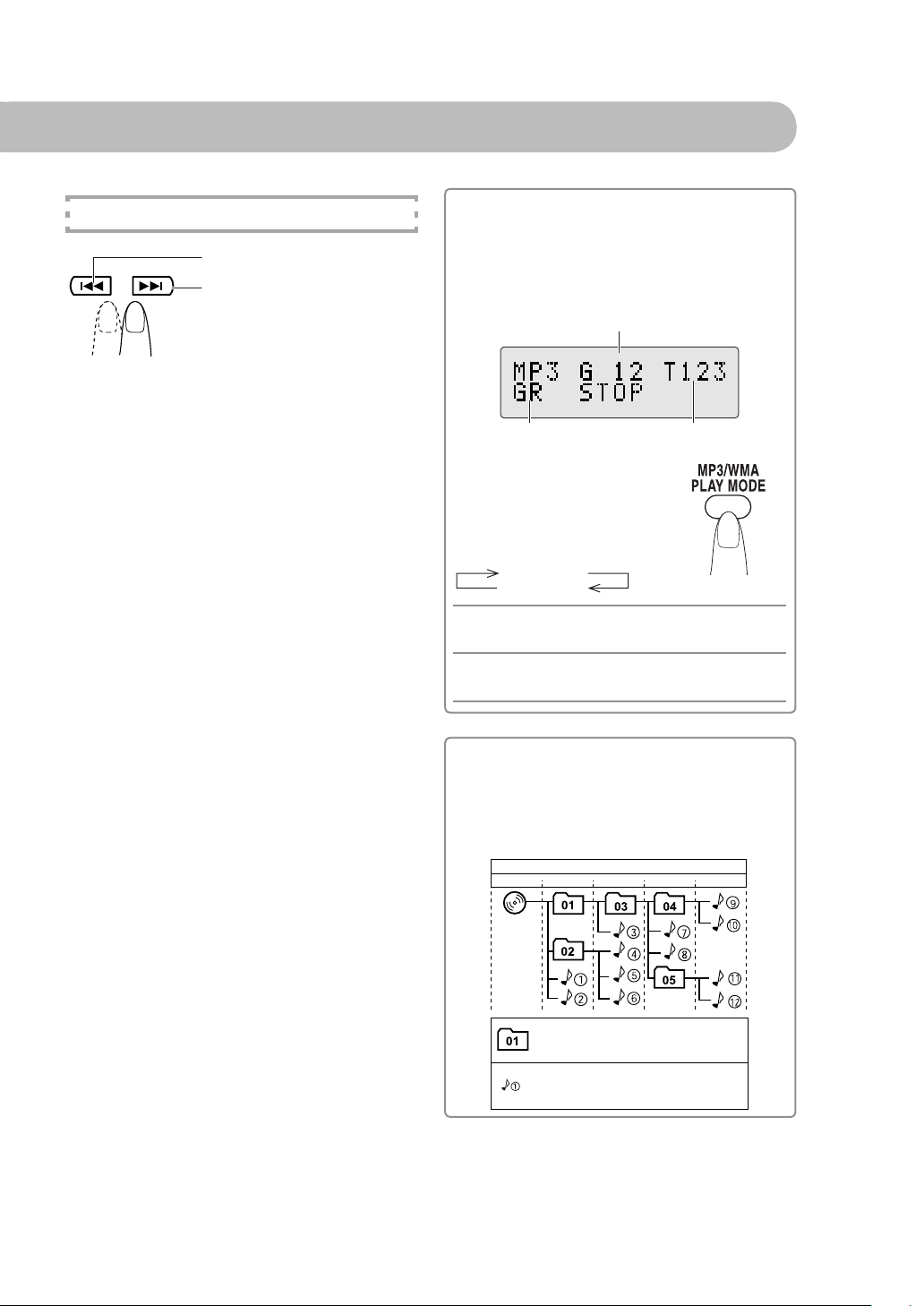

Playing Back a Disc ............................................................................................................................................11

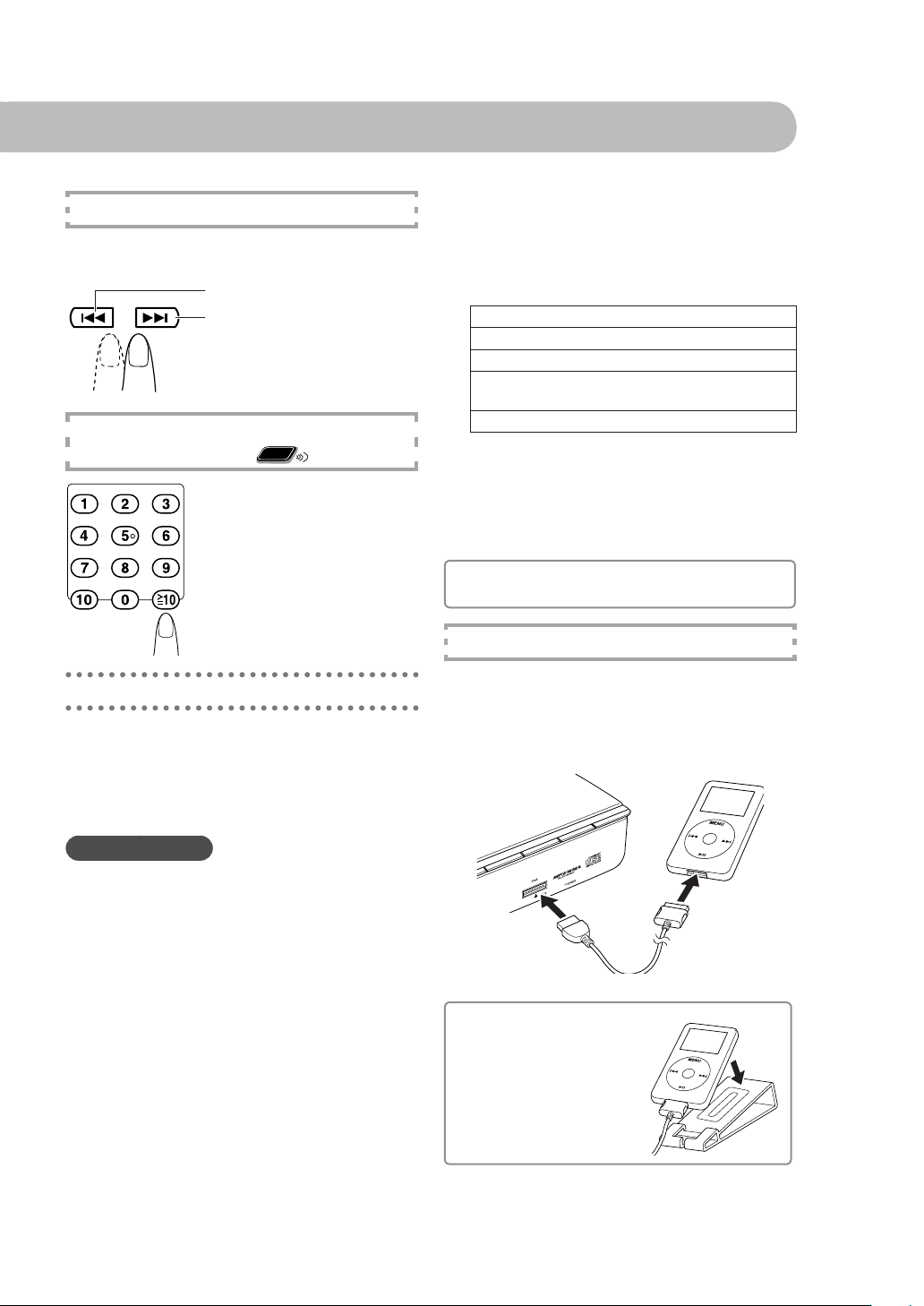

Playing back from iPod ......................................................................................................................................12

Playing Back from the USB mass storage class device ..............................................................................13

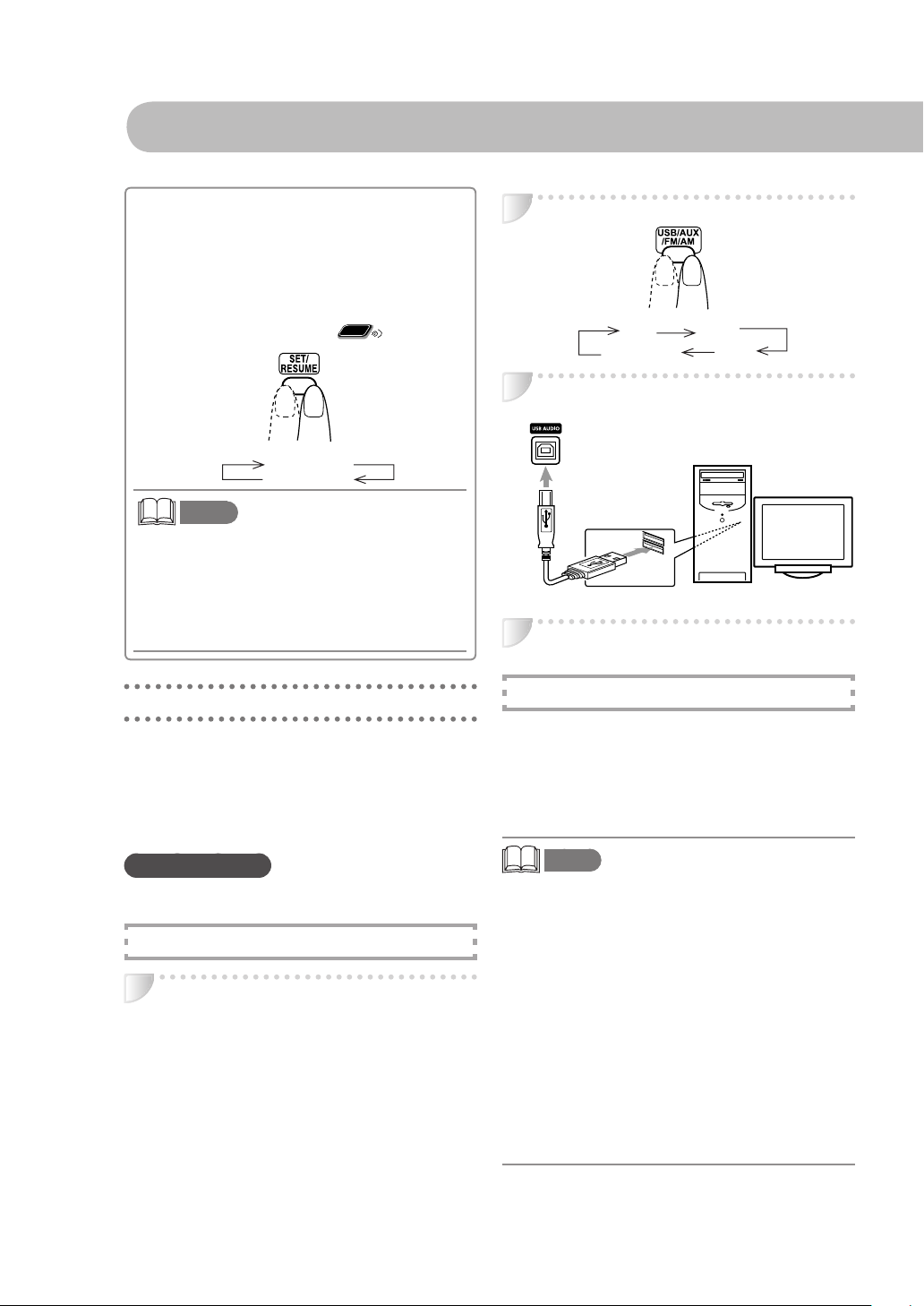

Playing Back from the PC .................................................................................................................................. 15

Playing Back from Other Equipment ................................................................................................................16

Receiving FM Stations with Radio Data System ...........................................................................................16

Daily Operations— Sound & Other Adjustments — ........................................................20

Adjusting the Volume .........................................................................................................................................20

Adjusting the Sound Changing the Display Brightness — DIMMER Setting the Clock Turning Off the Power Automatically

Remote ONLY

............................................................................................................................. 20

Remote ONLY

..................................................................................................................................21

Remote ONLY

................................................................................21

................................................................................................ 22

Advanced Disc/USB mass storage class device Operations ........................................23

Remote

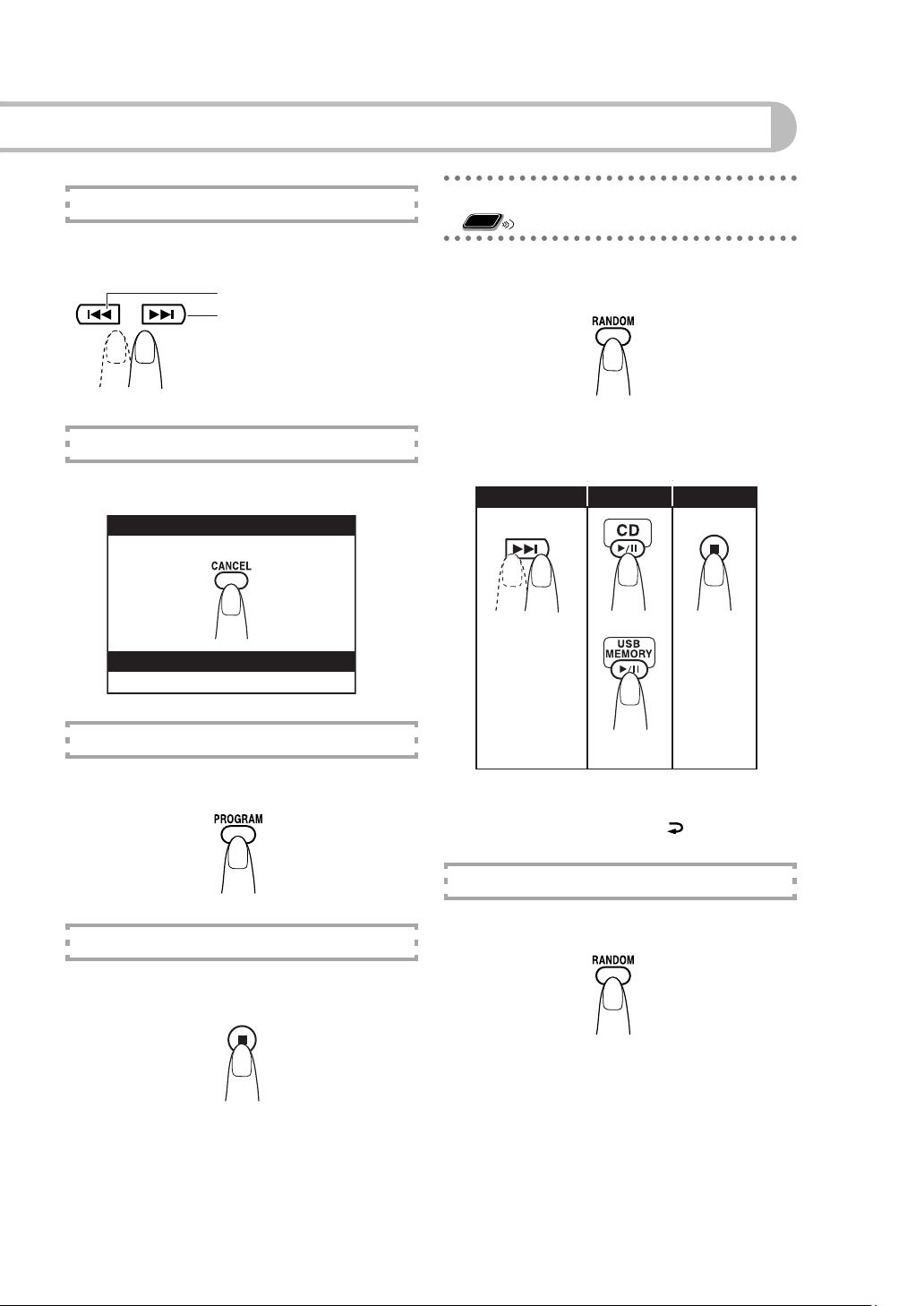

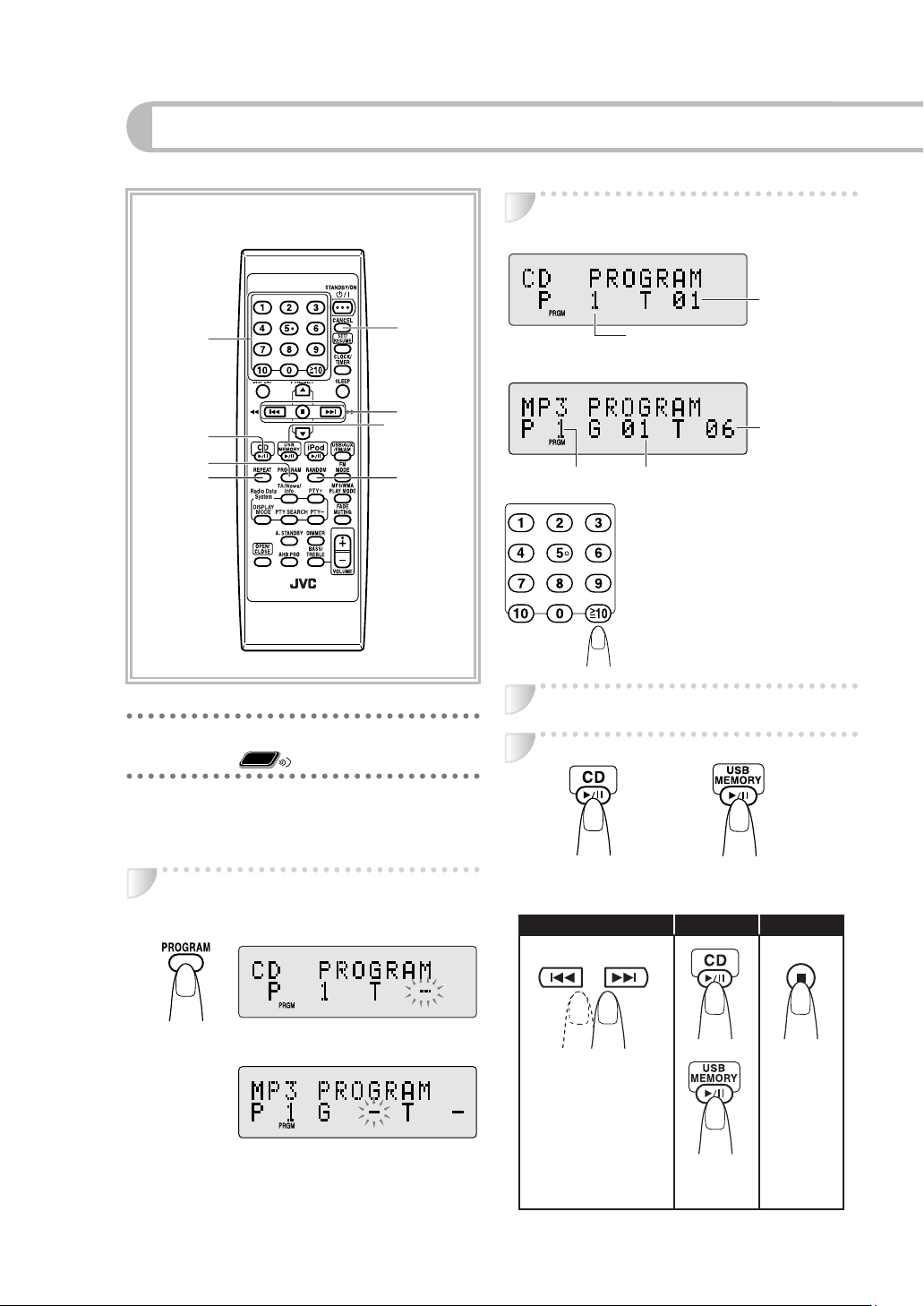

Programming the Playing Order — Program Play Playing at Random — Random Play Playing Repeatedly — Repeat Play

Remote ONLY

ONLY

...........................................................................23

.................................................................................................24

..................................................................................................25

Timer Operations ....................................................................................................................26

Remote

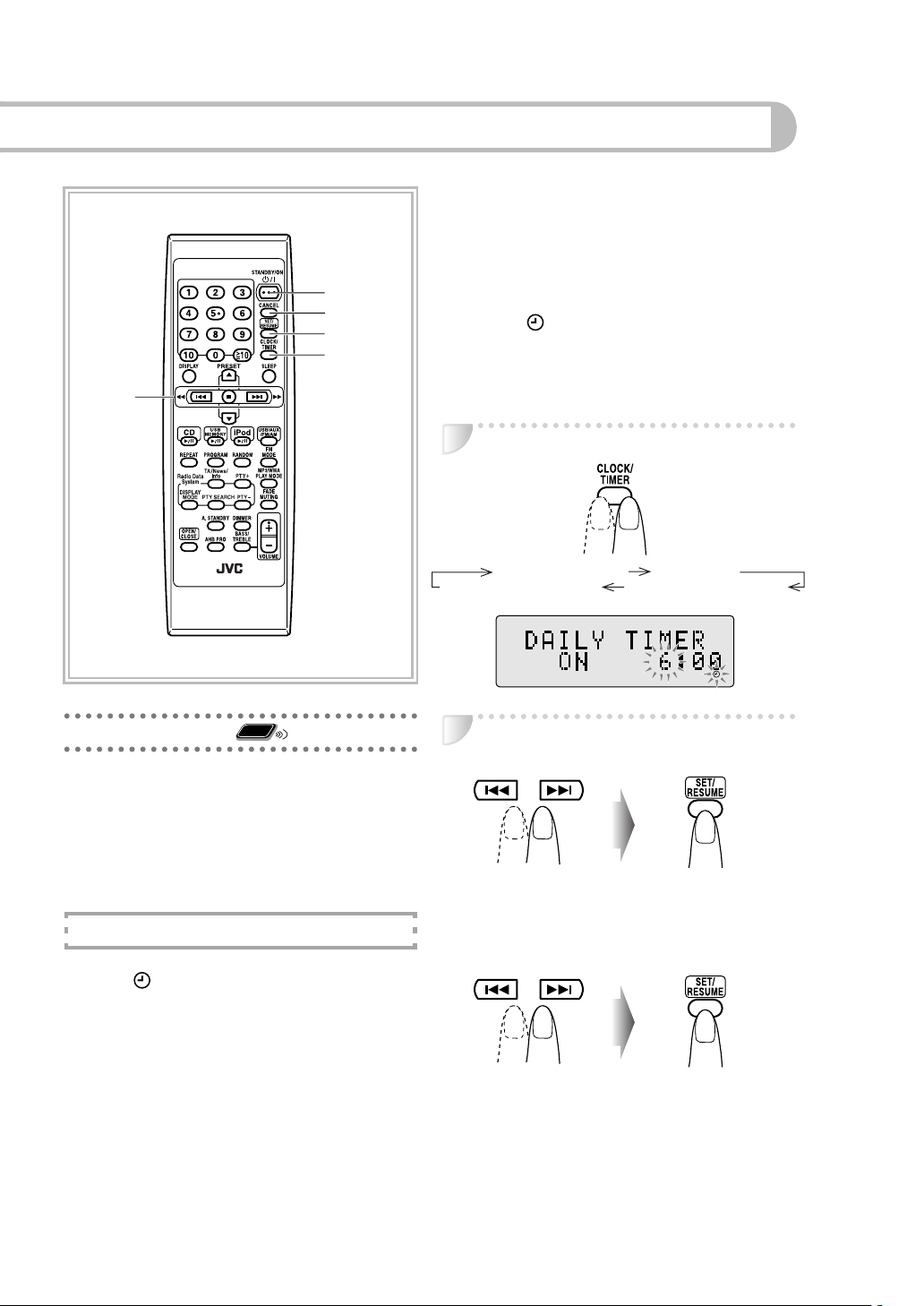

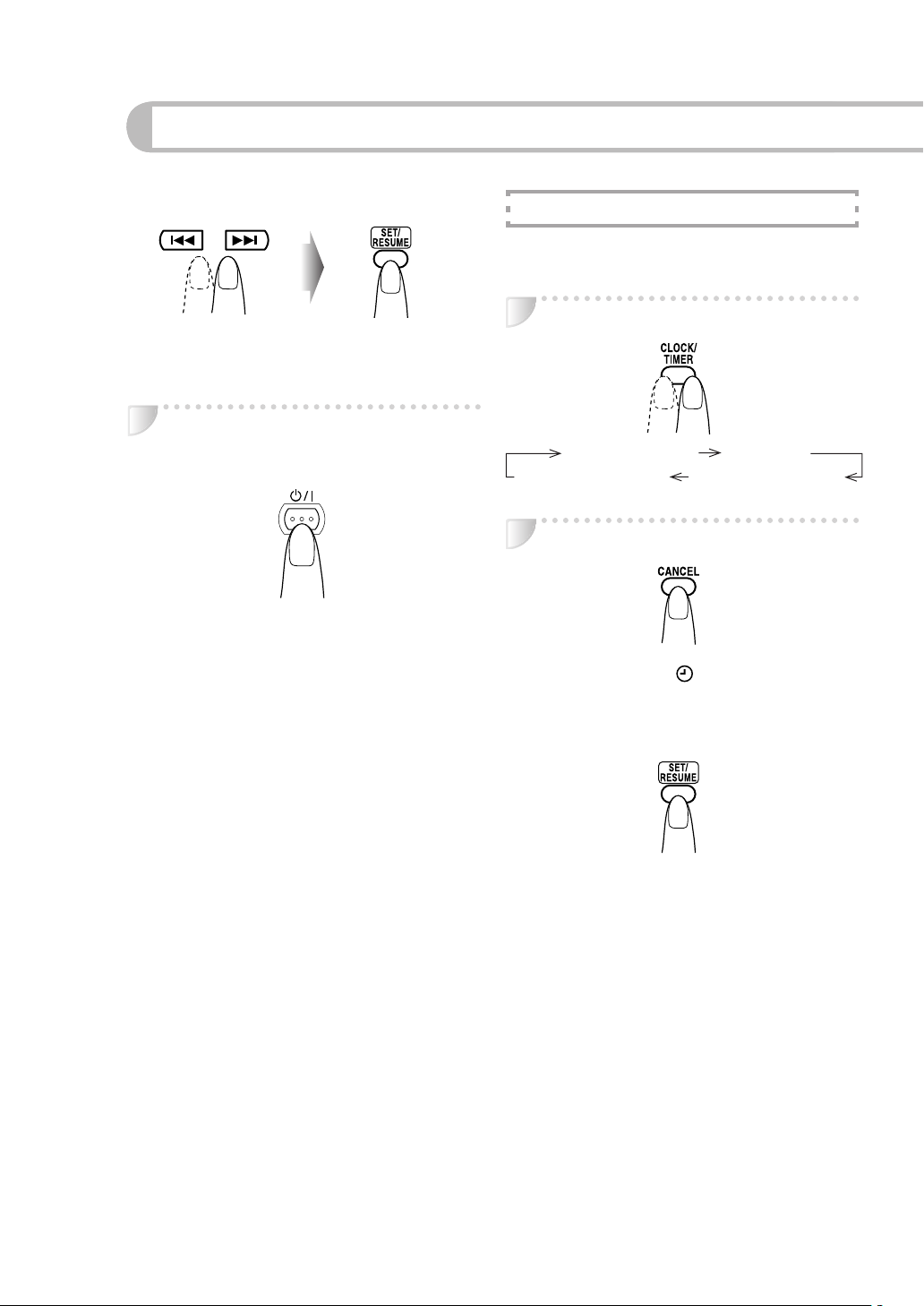

Setting the Timer

ONLY

..................................................................................................................................26

Additional Information...........................................................................................................28

Learning More about This System ................................................................................................................... 28

Troubleshooting ..................................................................................................................................................29

Maintenance .......................................................................................................................................................30

Speciﬁ cations ...................................................................................................................................................... 30

Parts Index ........................................................................................................................................................... 31

Introduction

Thank you for purchasing the JVC Micro Component System. We hope it will be a valued addition to your home, giving you years of enjoyment. Be sure to read this instruction manual carefully before operating your new stereo system. In it you will ﬁ nd all the information you need to set up and use the system. If you have a query that is not answered by the manual, please contact your dealer.

Precautions

Installation

• Install in a place which is level, dry and neither

too hot nor too cold—between 5°C and 35°C.

• Install the System in a location with adequate

ventilation to prevent internal heat buildup inside the System.

DO NOT install the System in a location

near heat sources, or in a place subject to

direct sunlight, excessive dust or vibration.

• Leave sufﬁ cient distance between the System

and the TV.

• Keep the speakers away from the TV to avoid

interference with TV.

Internal heat

• A cooling fan is mounted on the right side

of the unit to prevent heat buildup inside the main unit (see page G-1).

For safety, observe the following carefully:

• Make sure there is good ventilation the

main unit. Poor ventilation could overheat and damage the System.

• DO NOT block the cooling fan and the

ventilation openings or holes. If they are blocked by a newspaper or cloth, etc., the heat may not be able to get out.

Power sources

• When unplugging the System from the wall

outlet, always pull on the plug, not the AC power cord.

DO NOT handle the AC power cord with

wet hands.

Moisture condensation

Moisture may condense on the lenses inside the System in the following cases:

• After starting to heat the room

• In a damp room

• If the System is brought directly from a cold to a warm place

Should this occur, the System may malfunction. In this case, leave the System turned on for a few hours until the moisture evaporates, unplug the AC power cord, then plug it in again.

Others

• Should any metallic object or liquid fall into

the System, unplug the AC power cord and consult your dealer before operating any further.

Indicates that you press the button brieﬂ y.

Indicates that you press the button brieﬂ y and repeatedly until an option you want is selected.

DO NOT disassemble the System since there are no user serviceable parts inside.

• If you are not going to operate the System for

an extended period of time, unplug the AC power cord from the wall outlet.

If anything goes wrong, unplug the AC power

cord and consult your dealer.

How to Read This Manual

To make this manual as simple and easy-tounderstand as possible, we have adapted the following methods:

• Button and control operations are explained

as listed in the table below. In this manual, the operations using the remote control is mainly explained; however, you can use the buttons and controls on the main unit if they have the same (or similar) name and marks.

• Some related tips and notes are explained

later in the sections “Learning More about This System” and “Troubleshooting,” but not in the same section explaining the operations.

If you want to know more about the functions,

or if you have a doubt about the functions, go to these sections and you will ﬁ nd the answers.

Remote ONLY

2 sec.

Indicates that you press one of the buttons.

Indicates that you press and hold the button for speciﬁ ed seconds.

• The number above indicates the

period of press (in this example, 2 seconds).

• If no number is indicated,press

and hold until the entire procedure is complete or until you get a result you want.

Indicates that this operation is only possible using the remote control.

Getting Started

Step 1: Unpack the package and check the

accessories.

Step 2: Prepare the remote control.

Step 3: Hook up the components such as

AM/FM antennas, speakers, etc. (see pages 5 to 7).

Step 1: Unpack

After unpacking, check to be sure that you have all the following items. The number in parentheses indicates the quantity of each piece supplied.

• FM antenna (1)

• AM loop antenna (1)

• Speaker cords (2)

• Remote control (1)

• Batteries (2)

• iPod connection cable (1)

• iPod stand (1) If any item is missing, consult your dealer immediately.

Step 2: Prepare the Remote Control

Insert the batteries into the remote control by matching the polarity (+ and –) correctly.

Finally plug the AC power cord. Now you can operate the System.

R6P(SUM-3) / AA (15F)

• DO NOT use an old battery together with

a new one.

• DO NOT use different types of batteries

together.

• DO NOT expose batteries to heat or

ﬂ ame.

•

DO NOT leave the batteries in the battery

compartment when you are not going to use the remote control for an extended period of time. Otherwise, the remote control will be damaged from battery leakage.

Step

Hook Up

If you need more detailed information, see page 7.

Illustrations of the input/output terminals below are typical examples. When you connect other components, refer also to their manuals since the terminal names actually printed on the rear may vary.

Turn the power off to all components before connections.

For better FM/AM reception

Outdoor FM antenna (not supplied)

Vynil-covered wire (not supplied)

Extend it horizontally.

AM loop antenna

Keep it connected.

Disconnect the supplied FM antenna, and connect to an outdoor FM antenna using a 75 Ω wire with coaxial type connector.

To a wall outlet Plug the AC power cord only after all connections are complete.

FM antenna (supplied)

Extend it so that you can obtain the best reception.

Speaker cord (supplied)

Connect the black cord to the black (−) terminal.

AM loop antenna (supplied)

Turn it until the best reception is obtained.

Speaker cord (supplied)

Connect the white cord to the red (+) terminal.

To assemble and connect the AM loop antenna

To assemble the AM loop antenna

To connect the AM loop antenna

Make sure to connect the wire correctly.

• If the AM loop antenna wire or speaker cords

are covered with vinyl, remove the vinyl to expose the tip of the antenna by twisting the vinyl.

• Make sure the antenna conductors do not

touch any other terminals, connecting cords and power cord. Also, keep the antennas away from metallic parts of the System, connecting cords, and the AC power cord. This could cause poor reception.

To connect the speaker cords

Make sure the both speakers are connected correctly and ﬁ rmly.

When connecting the speaker cords, match the polarity of the speaker terminals. Red (+) terminal : white cord of the speaker

cord

Black (–) terminal : black cord of the speaker

cord

• DO NOT connect more than one speaker

to each terminal.

• DO NOT allow the conductor of the

speaker cords to be in touch with the metallic parts of the System.

Before Operating the System

The indications on the display teach you a lot of things while you are operating the System. Before operating the System, be familiar with when and how the indicator illuminates on the display.

63 72 54

Indications on the main display

While listening to radio: While selecting USB:

While receiving Radio

Band

While playing a CD: While selecting AUX:

While playing an MP3*: While selecting iPod:

While selecting USB MEMORY (WMA*):

While disc play is stopped:

MP3/WMA:

•While in “TRACK” mode: •While in “GROUP” mode:

Data System signals

Frequency Preset station number

Track number Elapsed playing time

Current track number

Elapsed playing time

Data type

Total track number Total playing time

Elapsed playing time

Current status

Current track number

Total group number

Source name

Current status

Main display

FM reception indicators

• ST (stereo): Lights while an FM stereo station

with sufﬁ cient signal strength is tuned in.

• MONO: Lights while the FM monaural mode

is activated.

Play mode indicators

• PRGM (program): Lights when Program Play

mode is activated.

• RND: Lights when Random Play mode is

activated.

: Lights when Repeat mode is activated.

•

– : Repeats the current track. (in GROUP mode): Repeats all tracks in

the current group.

– ALL: Repeats all tracks on the disc.

AHB PRO (Active Hyper Bass Pro) indicator

• Lights when the AHB PRO is activated (see

page 20).

Radio Data System indicators

• TA (Trafﬁ c Announcement): Lights when the

Radio Data System mode (TA) is activated.

• News: Lights when the Radio Data System

mode (News) is activated.

• Info: Lights when the Radio Data System

mode (Info) is activated.

A (auto). STANDBY indicator

• Lights when Auto Standby is activated.

• Flashes when disc playback stops with Auto

Standby activated.

Timer indicators

• SLEEP: Lights when the Sleep Timer is acti-

vated.

•

: Lights when Daily Timer stands by;

ﬂ ashes while working.

• STANDBY/

is ON.

: Flashes slowly when the timer

Indications on the main unit

Total track number

* When you start playing an MP3/WMA source, the

group number, track number, track name, (and ID3 Tag for MP3) will be shown before the elapsed playing time appears.

+ 24 hidden pages
