COMPACT COMPONENT MD SYSTEM

SISTEMAS MD DE COMPONENTES COMPACTOS SISTEMA MD DE COMPONENTE COMPACTO

CA-MD70

PLAY

TITLE

MODE

INPUT

SLEEP

MARK ABC DEF

321

DISPLAY /CHARA

GHI JKL MNO

654

CANCEL

PQRS TUV WXYZ

987

SET

ENTER

BASSSOUNDFM MODE

CD3

AUXTAPEFM/AM

CD2

REC PAUSE

CD1

FADE MUTING

REPEAT

VOLUME

REMOTE CONTROL RM-SEM70EU

COMPACT

INSTRUCTIONS

MANUAL DE INSTRUCCIONES

INSTRUÇÕES

DIGITAL AUDIO

For Customer Use:

Enter below the Model No. and Serial No. which are located either on the rear, bottom or side of the cabinet. Retain this information for future reference.

Model No. Serial No.

LVT0075-001B

[ U, UT, US, UB ]

Mains (AC) Line Instruction (not applicable for Europe, U.S.A., Canada, and U.K.) Instrucción sobre la línea de la red (CA) (no aplicable para Europa, EE.UU., Canadá, ni el Grã-Bretanha) Instrução sobre a tensão da rede eléctrica (CA) (não aplicável para a Europa, os E.U.A., o Canadá, e o Reino Unido)

IMPORTANT for mains (AC) line

BEFORE PLUGGING IN, do check that your mains (AC) line voltage corresponds with the position of the voltage selector switch provided on the outside of this equipment and, if different, reset the voltage selector switch, to prevent from a damage or risk of fire/electric shock.

IMPORTANTE para la línea de la red (CA)

ANTES DE ENCHUFAR EL EQUIPO, compruebe si la tensión de la línea de la red (CA) corresponde con la posición del selector de tensión situado en la parte exterior del equipo, y si es diferente, reajuste el selector de tensión para evitar el riesgo de incendios/ descargas eléctricas.

IMPORTANTE para a ligação à tensão da rede (CA)

ANTES DE LIGAR O APARELHO A UMA TOMADA DA REDE, verifique se a tensão da rede CA corresponde à posição do seletor de voltagem localizado na parte externa deste equipamento. Caso não corresponda, reajuste o seletor de voltagem a fim de evitar avarias ou riscos de incêndio e choque elétrico.

AM EXT

COAXIAL

GND

LOOP

220V

LINE VOLTS

110V

230 – 240V

127V

EN, SP, PR, CH, AR

VICTOR COMPANY OF JAPAN, LIMITED

1198JTMMDWJEM

JVC

Warnings, Cautions and Others

Avisos, precauciones y otras notas

Advertências, precauções e outras notas

Caution –– switch!

Disconnect the mains plug to shut the power off completely (the STANDBY/ON lamp goes off). The switch in any position does not disconnect the mains line.

• When the unit is on standby, the STANDBY/ON lamp lights red.

• When the unit is turned on, the STANDBY/ON lamp lights orange.

The power can be remote controlled.

Precaución –– Interruptor !

Desconecte el enchufe de la red para desconectar la alimentación por completo (la lámpara STANDBY/ON se apaga). El interruptor no desconectará completamente la alimentación principal, cualquiera que sea su posición.

• Cuando la unidad está en espera, la lámpara STANDBY/ON se enciende en rojo.

• Cuando conecta la unidad, la lámpara STANDBY/ON se enciende en naranja.

La alimentacion puede ser controlada a distancia.

Precaução –– Interruptor !

Desconecte o cabo de alimentação para desligar completamente a alimentação de energia (o indicador luminoso STANDBY/ON se apaga). O interruptor não desconecta totalmente a alimentação seja qual for a sua posição.

• Quando o aparelho estiver em standby, o indicador luminoso

estará vermelho.

• Quando o aparelho estiver ligado, o indicador luminoso estará

laranja.

A alimentação pode ser controlada remotamente.

The STANDBY/ON lamp Lámpara STANDBY/ON Indicador luminoso STANDBY/ON

– G-1 –

CAUTION

To reduce the risk of electrical shocks, fire, etc.:

1. Do not remove screws, covers or cabinet.

2. Do not expose this appliance to rain or moisture.

PRECAUCIÓN

Para reducir riesgos de choques eléctricos, incendio, etc.:

1. No extraiga los tornillos, los cubiertas ni la caja.

2. No exponga este aparato a la lluvia o a la humedad.

PRECAUÇÃO

Para reduzir riscos de choques elétricos, incêndio, etc.:

1. Não remova parafusos e tampas ou desmonte a caixa.

2. Não exponha este aparelho à chuva nem à umidade.

– G-2 –

Caution: Proper Ventilation

To avoid risk of electric shock and fire, and to prevent damage, locate the apparatus as follows: 1 Front: No obstructions and open spacing. 2 Sides/ Top/ Back: No obstructions should be placed in the areas shown by the dimensions below. 3 Bottom: Place on the level surface. Maintain an adequate air path for ventilation by placing on a stand

with a height of 10 cm or more.

Precaución: el aparato debe estar bien ventilado

Para evitar posibles riesgos de descargas eléctricas e incendios y prevenir cualquier posible daño, coloque el aparato del modo siguiente: 1 Parte delantera: No ponga nada delante, deje el espacio libre. 2 Laterales/ parte superior/ parte trasera: No se debería colocar nada en las áreas y las distancias que se

detallan a continuación.

3 Parte inferior: Coloque el aparato sobre una superficie recta. Debe haber buena circulación de aire; para

ello, coloque el aparato sobre una base a una altura mínima de 10 cm.

Precaução: Ventilação adequada

Para evitar riscos de choques elétricos e incêndios, e prevenir avarias, instale o aparelho como segue: 1 Parte frontal: Sem obstruções e espaços abertos. 2 Partes laterais/Tampa/Posterior: Nenhuma obstrução deverá ser colocada entre as áreas cujas dimensões são

indicadas abaixo.

3 Parte inferior: Instale-o sobre uma superfície plana. Deverá ser mantido espaço suficiente para a ventilação

se este for instalado numa posição que tenha uma altura de 10 cm ou mais.

1 cm

15 cm

15 cm 15 cm

15 cm

15 cm 15 cm

1 cm

15 cm

1 cm1 cm

15 cm

CA-D3SCA-D3S

CA-MD70 CA-MD70

10 cm

– G-3 –

IMPORTANT FOR LASER PRODUCTS / IMPORTANTE PARA PRODUCTOS LÁSER / IMPOTANTE PARA PRODUTOS LASER /

REPRODUCTION OF LABELS / REPRODUCCIÓN DE ETIQUETAS / REPRODUÇÃO DE ETIQUETAS /

1 CLASSIFICATION LABEL, PLACED ON REAR ENCLO-

SURE

1 ETIQUETA DE CLASIFICACIÓN, PEGADA EN LA PARTE

POSTERIOR DE LA CAJA

1 ETIQUETA DE CLASSIFICAÇÃO LOCALIZADA NA PARTE

POSTERIOR DA CAIXA DO APARELHO.

CLASS 1 LASER PRODUCT

1. CLASS 1 LASER PRODUCT

2. DANGER: Invisible laser radiation when open and interlock failed or defeated. Avoid direct exposure to beam.

3. CAUTION: Do not open the top cover. There are no user serviceable parts inside the Unit; leave all servicing to qualified service personnel.

2 WARNING LABEL, PLACED INSIDE THE UNIT

2 ETIQUETA DE ADVERTENCIA, PEGADA EN EL INTE-

RIOR DE LA UNIDAD

2 ETIQUETA DE ADVERTÊNCIA LOCALIZADA NA PARTE

INTERNA DA UNIDADE.

DANGER: Invisible laser radiation when open and interlock failed or defeated. AVOID DIRECT EXPOSURE TO BEAM. (e)

ADVARSEL: Usynlig laserstråling ved åbning, når sikkerhedsafbrydere er ude af funktion. Undgå udsættelse for stråling (d)

VARNING: Osynlig laserstrålning när denna del är öppnad och spärren är urkopplad. Betrakta ej strålen. (s)

VARO: Avattaessa ja suojalukitus ohitettaessa olet alttiina näkymättömälle lasersäteilylle. Älä katso säteeseen. (f)

1. PRODUCTO LÁSER CLASE 1

2. PELIGRO: En el interior hay radiación láser invisible. Evite el contacto directo con el haz.

3. PRECAUCIÓN: No abra la tapa superior. En el interior de la unidad no existen piezas reparables por el usuario; deje todo servicio técnico en manos de personal calificado.

1. PRODUTO LASER CLASSE 1

2. PERIGO: O laser emite uma rediação invisível que é perigosa, caso o aparelho esteja aberto e a trava inoperante ou danificada. Evite exposição direta ao feixe dos raios.

3. CUIDADO: Não abra a caixa do aparelho. Não existem peças reparáveis pelo usuário na parte interna da unidade. Solicite assistência técnica somente a pessoal técnico qualificado.

– G-4 –

Introduction

English

We would like to thank you for purchasing one of our JVC products.

Before operating this unit, read this manual carefully and thoroughly to

obtain the best possible performance from your unit, and retain this manual

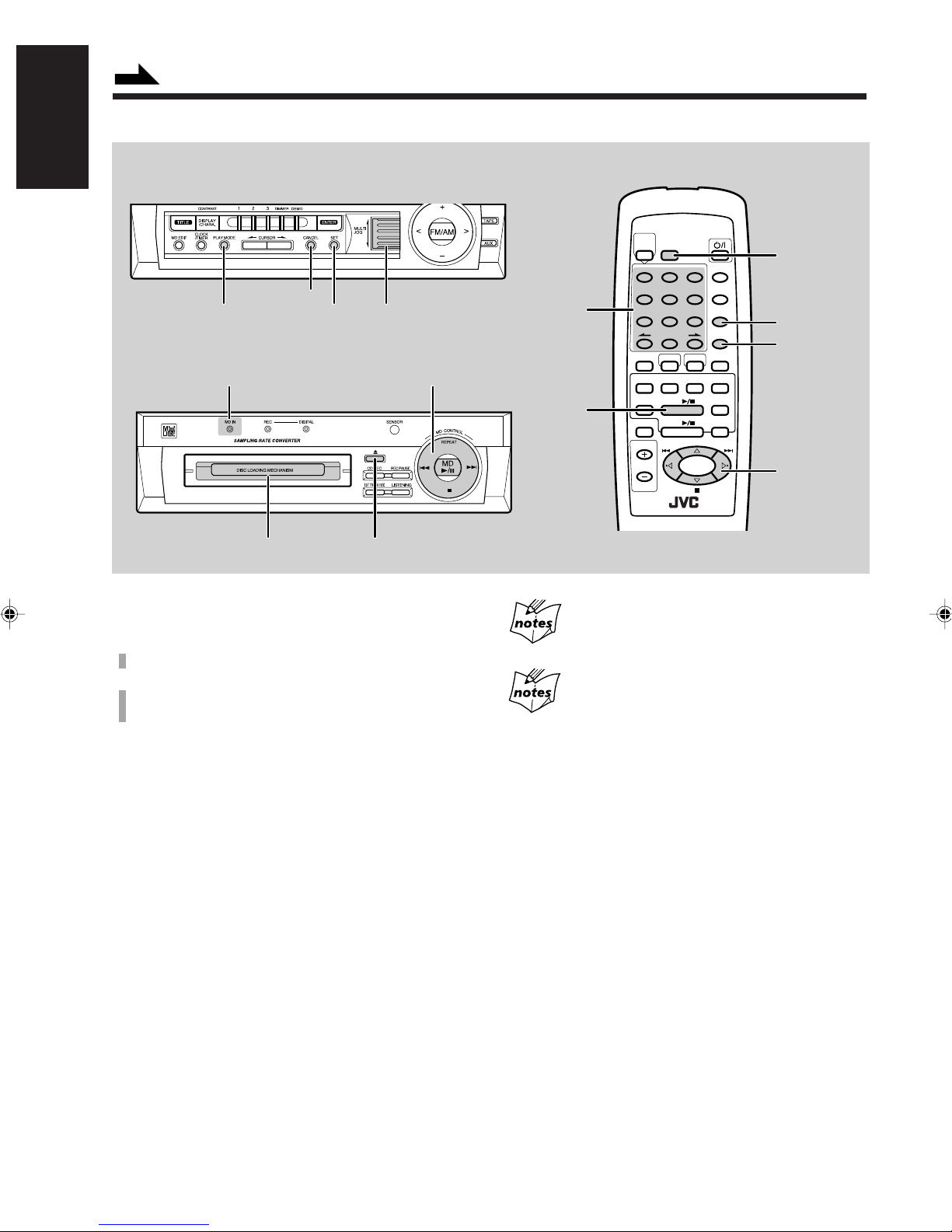

About This Manual

This manual is organized as follows:

• The manual mainly explains operations using the buttons

and controls on the unit. You can also use the buttons on the remote control if they have the same or similar names (or marks) as those on the unit. If operation using the remote control is different from that using the unit, it is then explained.

• Basic and common information that is the same for

many functions is grouped in one place, and is not repeated in each procedure. For instance, we do not repeat the information about turning on/off the unit, setting the volume, changing the sound effects, and others, which are explained in the section “Basic Settings” and “Common Operations” on pages 10, 11, and 12.

• The following marks are used in this manual:

Gives you warnings and cautions to prevent from a damage or risk of fire/electric shock. Also gives you information which is not good for obtaining the best possible performance from the unit.

for future reference.

Power sources

• When unplugging from the wall outlet, always pull the plug, not the AC power cord.

DO NOT handle the AC power cord with wet hands.

Moisture condensation

Moisture may condense on the lens inside the unit in the following cases:

• After starting heating in the room

• In a damp room

• If the unit is brought directly from a cold to a warm place

Should this occur, the unit may malfunction. In this case, leave the unit turned on for a few hours until the moisture evaporates, unplug the AC power cord, and then plug it in again.

Others

• Should any metallic object or liquid fall into the unit, unplug the unit and consult your dealer before operating any further.

• If you are not going to operate the unit for an extended period of time, unplug the AC power cord from the wall outlet.

Gives you information and hints you had better know.

Precautions

Installation

• Install in a place which is level, dry and neither too hot nor too cold — between 5˚C and 35˚C.

• Install the unit in a location with adequate ventilation to prevent internal heat built-up in the unit.

• Leave sufficient distance between the unit and the TV.

• Keep the speakers away from the TV to avoid interference with TV.

DO NOT install the unit in a location near heat sources, or in a place subject to direct sunlight, excessive dust or vibration.

DO NOT disassemble the unit since there are no user serviceable parts inside.

If anything goes wrong, unplug the AC power cord and consult your dealer.

– 1 –

Contents

Location of the Buttons and Controls........... 3

Front Panel ............................................................. 4

Remote Control...................................................... 5

Getting Started................................................ 6

Unpacking .............................................................. 6

Putting the Batteries into the Remote Control ....... 6

Connecting Antennas ............................................. 6

Connecting Speakers.............................................. 7

Connecting Other Equipment ................................ 8

Adjusting the Voltage Selector ............................... 9

Basic Settings ................................................ 10

Setting the Clock..................................................10

Changing the Display Pattern .............................. 10

Common Operations .................................... 11

Turning On the Po wer and Selecting the Sources.. 11

Adjusting the Volume...........................................11

Reinforcing the Bass Sound.................................12

Selecting the Sound Modes.................................. 12

Creating Your Own Sound Mode — MANUAL

Mode .............................................................. 12

Listening to FM and AM Broadcasts.......... 13

Setting the AM Tuner Interval Spacing................ 13

Tuning in a Station...............................................13

Presetting Stations................................................ 14

Tuning in a Preset Station .................................... 14

Playing Back CDs ......................................... 15

Loading CDs ........................................................ 15

Playing Back the Entire Discs

— Continuous Play........................................ 16

Basic CD Operations ........................................... 16

Programming the Playing Order of the Tracks

— Program Play ............................................ 16

Playing at Random — Random Play ................... 18

Repeating Tracks or CDs — Repeat Play............18

Prohibiting Disc Ejection — Disc Lock .............. 18

Recording onto an MD ................................. 23

Things to Know Before You Start Recording ...... 23

Recording FM/AM Broadcasts or from the

Cassette Deck ................................................ 24

Recording from the External (AUX) Equipment ... 25

Recording CDs.....................................................26

Editing MDs .................................................. 28

Introducing MD Editing Functions ...................... 28

DIVIDE Function ................................................ 29

JOIN Function...................................................... 30

MOVE Function................................................... 31

ERASE Function.................................................. 32

ALL ERASE Function......................................... 33

Erasing a Portion of a Track ................................ 33

Assigning Titles to MDs................................ 34

Assigning a Title Using the Unit.......................... 34

Assigning a Title Using the Remote Control ....... 37

Using the Timers........................................... 39

Using Recording Timer........................................ 39

Using Daily Timer ............................................... 40

Using Sleep Timer ............................................... 42

Timer Priority....................................................... 42

Maintenance .................................................. 43

Additional Information ................................ 44

MD Disc Types .................................................... 44

ATRAC (Ada ptive TRansform Acoustic Coding)..44

UTOC (User Table Of Contents) ......................... 44

SCMS (Serial Copy Management System).......... 44

Sound Skip Guard Memory ................................. 45

Troubleshooting ............................................ 46

MD Messages ...................................................... 47

Specifications................................................. 48

English

Playing Back an MD..................................... 19

Playing Back the Entire MD

— Continuous Play........................................ 19

Basic MD Operations........................................... 19

Programming the Playing Order of the Tracks

— Program Play ............................................ 20

Playing at Random — Random Play ................... 22

Repeating Tracks — Repeat Play ........................ 22

– 2 –

Location of the Buttons and Controls

English

Become familiar with the buttons and controls on your unit.

Front Panel

Amplifier/ tuner section

MD recorder section

CD player section

2 3

4 5

6 7 8

9 ;

a s

q w e

r t y

u i o

Display Window

– 3 –

/ z

Continued

See pages in the parentheses for details.

Front Panel

Amplifier/tuner section

1 button and STANDBY/ON lamp (11) 2 SOUND button and lamp (12) 3 ACTIVE BASS EX. (extension) button and lamp (12) 4 CONTRAST/DISPLAY/CHARA. (character) button

(10, 20, 34)

5 TITLE button (34) 6 MD EDIT button (29) 7 CLOCK/TIMER button (10, 39) 8 PLAY MODE button (16, 18, 20, 22) 9 CURSOR ø / Ø buttons (12, 35) p DISPLAY PATTERN buttons (10)

• 1, 2, 3, DIMMER, and DEMO buttons

Pressing DEMO also turns on the unit.

DIRECT TITLE INPUT buttons (35)

q Display window w VOLUME control (11) e ENTER button (35) r MULTI JOG dial t TAPE button (11)

Pressing this button also turns on the unit.

y Tuner control buttons (13)

• FM/AM, + / –, and < / > buttons

Pressing FM/AM also turns on the unit.

u AUX button (11, 25)

Pressing this button also turns on the unit.

i SET button o CANCEL button

CD player section

h Disc number lamps

• CD 1, CD 2, and CD 3 lamps

j Disc compartment k CD CONTROL buttons (15)

• CD 6, REPEAT, 4 / ¢, and 7 buttons

Pressing CD 6 also turns on the unit.

l Disc number buttons (16)

• CD 1, CD 2, and CD 3 buttons

Pressing one of these buttons also turns on the unit.

/ 0 (open/close) buttons (15)

• 0 1, 0 2, and 0 3 buttons

Pressing one of these buttons also turns on the unit.

z PHONES jack (11)

Display window

1 Main display 2 MD/CD playback mode indicators

• PROGRAM, RANDOM, REPEAT mode indicators

3 Timer mode indicators

• DAILY (daily timer) and REC (recording timer) indicators

4 STEREO indicator 5 Analog clock

About the indications in the main display

When operating the unit using the remote control, the indications in the main display appear enlarged (without the audio level indicator), then become diminished (with the audio level indicator). On the other hand, they do not appear enlarged when using the buttons on the unit.

English

MD recorder section

; MD recorder operation lamps

• MD IN, REC, and DIGITAL lamps

a 0 (eject) button (19)

Pressing this button also turns on the unit.

s MD loading slot d SENSOR (remote sensor) f MD CONTROL buttons (19)

• MD 6, REPEAT, 4 / ¢, and 7 buttons

Pressing MD 6 also turns on the unit.

g Recording buttons (24 – 27)

• CD REC, REC PAUSE, 1ST TRACK REC, and LISTENING buttons

Ex. When using the remote control

The illustrations of the main display used in this manual are of those shown by using the buttons on the unit.

– 4 –

Continued

English

Remote Control

4 5 6 7 8 9 p

PLAY

TITLE

MODE

INPUT

MARK ABC DEF

GHI JKL MNO

PQRS TUV WXYZ

REC PAUSE

FADE MUTING

VOLUME

REMOTE CONTROL RM-SEMD70EU

321

654

987

BASSSOUNDFM MODE

AUXTAPEFM/AM

REPEAT

SLEEP

DISPLAY

/CHARA

CANCEL

SET

ENTER

CD3

CD2

CD1

w e r t

y u i

;

Remote Control

1 PLAY MODE button (16, 18, 20, 22) 2 MD TITLE INPUT button (37) 3 Number buttons*

• 1 – 10, +10 buttons (14, 16, 20)

• Character entry buttons (A – Z) (37)

• ø / Ø buttons (37)

4 SOUND button (12) 5 FM MODE button (13) 6 Source selecting buttons (11, 13, 25)

• FM/AM, TAPE, and AUX buttons

Pressing one of these buttons also turns on the unit.

7 MD 6 button (19)

Pressing this button also turns on the unit.

8 MD REC PAUSE button (25) 9 CD 6 button (15)

Pressing this button also turns on the unit.

p FADE MUTING button (11) q VOLUME + / – button (11) w e SLEEP button (42) r DISPLAY/CHARA (character) button (20, 34) t CANCEL button y SET button u BASS button (12) i ENTER button (35) o Disc number buttons (16)

; CD/MD/tuner control buttons*

button (11)

• CD 1, CD 2, and CD 3 buttons

Pressing one of these buttons also turns on the unit.

• REPEAT, 4 / ¢, 7, and @ / # / % / ﬁ buttons

When using the remote control, point it at the remote sensor on the front panel.

* Before using these buttons:

For tuner operations, press FM/AM on the remote control

first. For CD operations, press one of the disc number buttons (CD 1, CD 2, and CD 3) or CD 6 on the remote control first. For MD operations, press MD 6 on the remote control first.

• The number buttons are also used for the following:

To enter an MD title, press MD TITLE INPUT on the remote control first.

To operate the unit correctly using the remote control

Make sure that the operation mode for the unit is the same for the remote control.

– 5 –

Getting Started

Continued

Unpacking

After unpacking, check to be sure that you have all the following items. The number in the parentheses indicates the quantity of the pieces supplied.

• AM loop antenna (1)

• FM antenna (1)

• Remote control (1)

• Batteries (2)

• AC plug adaptor (1) — except for Hong Kong If any is missing, consult your dealer immediately.

Putting the Batteries into the Remote Control

Insert the batteries — R6P(SUM-3)/AA(15F) — into the remote control, by matching the polarity (+ and –) on the batteries with the + and – markings on the battery compartment. When the remote control can no longer operate the unit, replace both batteries at the same time.

Connecting Antennas

FM antenna

FM antenna (supplied)

ANTENNA

AM EXT

COAXIAL

GND

LOOP

1 Attach the FM antenna to the FM 75 Ω COAXIAL

terminal.

2 Extend the FM antenna. 3 Fasten it up in the position which gives you the best

reception.

English

R6P(SUM-3)/AA(15F)

• DO NOT use an old battery together with a new one.

• DO NOT use different types of batteries together.

• DO NOT expose batteries to heat or flame.

• DO NOT leave the batteries in the battery compartment when you are not going to use the remote control for an extended period of time. Otherwise, it will be damaged from battery leakage.

About the supplied FM antenna

The FM antenna supplied with this unit can be used as temporary measure. If reception is poor, you can connect an outside FM antenna.

To connect an outside FM antenna

Before connecting it, disconnect the supplied FM antenna.

Outside FM antenna (not supplied)

ANTENNA

AM EXT

COAXIAL

GND

LOOP

A 75Ω antenna with coaxial type connector (DIN 45325) should be used.

– 6 –

Continued

English

AM antenna

Vinyl-covered wire (not supplied)

ANTENNA

GND

LOOP

AM loop antenna (supplied)

AM EXT

COAXIAL

Connecting Speakers

You can connect the speakers using the speaker cords.

Red

Black

3, 4

Speaker cord

SPEAKERS

Speaker cord

RIGHT LEFT

1 Connect the AM loop antenna to the AM LOOP

terminals as illustrated.

2 Turn the AM loop antenna until you have the best

reception.

To connect an outside AM antenna

When reception is poor, connect a single vinyl-covered wire to the AM EXT terminal and extend it horizontally. (The AM loop antenna must remain connected.)

For better reception of both FM and AM

• Make sure the antenna conductors do not touch any other terminals and connecting cords.

• Keep the antennas away from metallic parts of the unit, connecting cords, and the AC power cord.

Right speaker

Left speaker

1 Twist the core of the cord at the end of

each cord, then remove the insulation.

2 Open the speaker terminal. 3 Insert the end of the speaker cord to the terminal.

Match the polarity of the speaker terminals: Red (+) to red (+) and black (–) to black (–).

4 Close the speaker terminal on the rear of the unit.

Use only speakers with the same speaker impedance as indicated by the speaker terminals on the rear of the unit.

– 7 –

Continued

Connecting Other Equipment

You can connect the following equipment to this unit:

• Cassette deck — used as a playback and recording device.

• Audio equipment — used only as an analog playback device.

• Audio equipment with an optical digital output terminal — used only as a digital playback device.

When you connect and use these equipment, refer also to the manuals supplied with them.

Be sure that the plugs of the audio cords and the jacks on the rear of the unit are color coded: White plugs and jacks are for left audio signals, and red ones for right audio signals.

• DO NOT connect other equipment while the power is on.

• DO NOT plug in any equipment until all connections are complete.

To connect a cassette deck

To connect audio equipment without a digital output terminal

220V

LINE VOLTS

110V

230 – 240V

GND

AM EXT

COAXIAL

LOOP

LEFT

RIGHT

IN (PLAY)

LEFT

RIGHT

LEFT

RIGHT

OUT (REC)

DIGITAL IN

OPTICAL

LEFTRIGHT

To output

Audio equipment without a digital output

Connect the audio output jacks on the other equipment and the AUX jacks, using an audio cord (not supplied).

127V

English

220V

LINE VOLTS

110V

230 – 240V

127V

LEFT

RIGHT

IN (PLAY)

LEFT

RIGHT

LEFT

RIGHT

OUT (REC)

DIGITAL IN

OPTICAL

GND

AM EXT

COAXIAL

LOOP

LEFTRIGHT

To input

Cassette deck

To output

By using audio cords (not supplied), connect:

• Between the audio input jacks on the cassette deck and the TAPE OUT (REC) jacks.

• Between the audio output jacks on the cassette deck and the TAPE IN (PLAY) jacks.

– 8 –

Continued

English

To connect audio equipment with an optical digital output terminal

GND

AM EXT

COAXIAL

LOOP

LEFT

RIGHT

IN (PLAY)

LEFT

RIGHT

LEFT

RIGHT

OUT (REC)

DIGITAL IN

OPTICAL

LEFTRIGHT

Adjusting the Voltage Selector

Before plugging in the unit, set the correct voltage for your area with the voltage selector on the rear of the unit.

220V

LINE VOLTS

110V

230 – 240V

127V

220V

LINE VOLTS

110V

230 – 240V

AM EXT

COAXIAL

Use a screwdriver to rotate the voltage selector so the voltage number the arrow is pointing at is the same as the voltage where you are plugging in the unit.

127V

Voltage selector

Protective plug

Before connecting the other equipment, remove the protective plug from the terminal.

To optical digital output

Audio equipment with an optical digital output

To audio output

By using both an optical digital cord (not supplied) and an audio cord (not supplied), connect:

• Between the optical digital output terminal on the other equipment and the AUX DIGITAL IN OPTICAL terminal.

• Between the audio output jacks on the other equipment and the AUX jacks.

DO NOT plug in before setting the voltage selector switch on the rear of the unit and all connection procedures are complete.

NOW, you can plug in the unit and other connected equipment FINALLY!

LEFT

RIGHT

IN (PLAY)

LEFT

RIGHT

LEFT

RIGHT

OUT (REC)

DIGITAL IN

OPTICAL

If the wall outlet does not match the AC plug, use the supplied AC plug adaptor.

LEFTRIGHT

To a wall outlet

When connecting the AC power cord into a wall outlet, the unit automatically starts display demonstration.

To stop the display demonstration, press any button on the unit or the remote control.

– 9 –

Basic Settings

Amplifier/Tuner

English

DISPLAY PATTERN

MULTI JOG

CONTRAST

(DISPLAY/CHARA.)

Before operating the unit any further, first set the clock built in this unit, then some other basic settings.

CLOCK/TIMER

CANCEL

Setting the Clock

You can set the clock whether the unit is turned on or in standby mode.

1 Press CLOCK/TIMER.

The hour digit in the main display starts flashing.

2 Rotate MULTI JOG to adjust the hour,

then press SET.

• If you want to correct the hour after pressing SET, press CANCEL. The hour digit starts flashing again.

3 Rotate MULTI JOG to adjust the

minute, then press SET.

SET

Changing the Display Pattern

To change the display pattern of the audio level indicator

The audio level indicator appears in the main display only while playing a source.

Press 1, 2 or 3.

• 1: For the following pattern:

• 2: For the following pattern:

• 3: For erasing the audio level indicator:

The audio level indicator is not shown, and other indications — the disc number or track number, playing time — become enlarged in the main display. To restore the previous audio level indicator, press 3 again. (The other indications in the main display are diminished.)

After completing the clock setting...

The analog clock in the display window shows the current time. This analog clock advances its long hand twice every 5 minutes. (When 3 minutes pass, it advances once. Then 2 minutes pass, it advances again.)

If there is a power failure

The clock loses the setting and is reset to “0:00.” You need to set the clock again.

To dim the display window

Press DIMMER.

Each time you press the button, the display window and the MULTI JOG dial dim and brighten alternately.

To start the display demonstration

Press DEMO.

• If the unit is in standby mode, the power turns on automatically.

To stop the demonstration, press any button. “DEMO OFF” appears.

To adjust the contrast of the display window

1 Press and hold CONTRAST (DISPLAY/CHARA.)

for more than 2 seconds.

The contrast adjustment display appears.

2 Rotate MULTI JOG to adjust the contrast.

After completing contrast adjustment...

Pressing any button restores the previous display.

– 10 –

Common Operations

SLEEP

PLAY

MODE

DISPLAY

/CHARA

CANCEL

SET

ENTER

MARK ABC DEF

GHI JKL MNO

PQRS TUV WXYZ

BASSSOUNDFM MODE

654

987

REPEAT

321

CD3

AUXTAPEFM/AM

CD2

REC PAUSE

CD1

FADE MUTING

VOLUME

MD TITLE INPUT

English

Amplifier/Tuner

SOUND

STANDBY/ON

CURSOR ø / Ø

ACTIVE BASS EX.

SET

Here are basic and common things that apply to all the functions of the unit.

Turning On the Power and Selecting the Sources

When you press the play button for a particular source, the unit automatically turns on (and starts playing the source).

To select the external equipment as the source, press TAPE or AUX so that the unit automatically turns on.

MULTI JOG

VOLUME

Remote control

SOUND

FADE

MUTING

VOLUME

+ / –

BASS

Adjusting the Volume

You can adjust the volume level only while the unit is turned on.

Turn VOLUME clockwise to increase the volume or counterclockwise to decrease it.

When using the remote control, press VOLUME + to increase the volume or press VOLUME – to decrease it.

To turn on the unit without playing, press STANDBY/ON lamp lights orange.

To turn off the unit (on standby), press the STANDBY/ON lamp lights red. A little power is always consumed even while the unit is in standby mode. To switch off the power supply completely, unplug the AC power cord from the AC outlet. The STANDBY/ON lamp goes off.

When you unplug the AC power cord or if a power failure occurs

The clock is reset to 0:00 right away, while the tuner preset

stations will be erased in a few days.

so that the

again so that

For private listening

Connect a pair of headphones to the PHONES jack. No sound comes out of the speakers. Be sure to turn down the volume before connecting or putting headphones.

PHONES jack

DO NOT turn off (on standby) the unit with the volume set to an extremely high level; otherwise, the sudden blast of sound can damage your hearing, speakers and/or headphones when you turn on the unit or start playing any source. REMEMBER you cannot adjust the volume level while the unit is in standby mode.

To turn down the volume level temporarily

Press FADE MUTING on the remote control. To restore the sound, press the button again.

– 11 –

Reinforcing the Bass Sound

The richness and fullness of the bass sound is maintained regardless of how low you set the volume. You can use this effect only for playback.

To get the effect, press ACTIVE BASS EX. (extension) on the unit or BASS on the remote control so that the ACTIVE BASS EX. lamp lights on the unit.

Creating Your Own Sound Mode — MANUAL Mode

You can create and store your own sound mode only by using the buttons and controls on the unit.

• There is a time limit in doing the following steps. If the setting is canceled before you finish, start from step 1 again.

Press SOUND repeatedly until “MANUAL” appears in the main display.

English

(In the main display)

To cancel the effect, press the button again so that the lamp goes off.

Selecting the Sound Modes

You can select one of the 6 preset sound modes. The sound modes can be applied only to playback sounds, and cannot be used for recording.

To select the sound modes, press SOUND so that the SOUND lamp lights on the unit.

• Each time you press the button, the sound modes change as follows:

D.CLUB

(Dance CLUB)

OFF

(Canceled)

D.CLUB: Increases resonance and bass. HALL: Adds depth and brilliance to the sound. STADIUM: Adds clarity and spreads the sound, like in an

ROCK: Boosts low and high frequency. Good for

POP: Good for vocal music. CLASSIC: Good for classical music. MANUAL: Your individual mode stored in memory. See

OFF: Cancels the sound mode.

HALL STADIUM ROCK

CLASSICMANUAL

outdoor stadium.

acoustic music.

“Creating Your Own Sound Mode — MANUAL Mode.”

POP

Equalizer pattern

Press SET.

Adjustable frequency range

Adjust the equalizer pattern.

1) Press CURSOR ø / Ø to select the frequency range to adjust (LOW, MID, HIGH).

2) Rotate MULTI JOG to adjust the level (–3 to +3) of the selected frequency range.

Adjustable frequency range

3) Repeat steps 1) and 2) to adjust the level of the other frequency ranges.

Press SET again.

The equalizer pattern you have created are stored in memory.

To use your own sound mode

Select MANUAL when using the sound modes. See “Selecting the Sound Modes.”

– 12 –

Listening to FM and AM Broadcasts

SLEEP

PLAY

MODE

DISPLAY

/CHARA

CANCEL

SET

ENTER

MARK ABC DEF

GHI JKL MNO

PQRS TUV WXYZ

BASSSOUNDFM MODE

654

987

REPEAT

321

CD3

AUXTAPEFM/AM

CD2

REC PAUSE

CD1

FADE MUTING

VOLUME

MD TITLE INPUT

English

Amplifier/Tuner

MULTI JOG

FM/AM

Remote control

Number

buttons

FM MODE

FM/AM

CANCEL SET

CANCEL

SET

Tuner control

(– / + / < / >)

When using the number buttons on the remote control, make sure that they are ready for tuner operations.

• Pressing FM/AM on the remote control makes the number buttons ready for tuner operations.

• Check the AM tuner interval spacing (9 kHz or 10 kHz) for your area (see below).

Setting the AM Tuner Interval Spacing

Some countries space AM stations 9 kHz apart, and some countries use 10 kHz spacing. When shipped, the built-in AM tuner is set to 9 kHz spacing.

To set the AM tuner to the 10 kHz spacing, be sure that the unit is turned off, but is plugged into a wall outlet. Hold down > of the tuner control and then press

To set it back to the 9 kHz spacing, be sure that the unit is turned off, but is plugged into a wall outlet. Hold down < of the tuner control and then press

Tuner control (% / ﬁ/ @ / #)

Tuning in a Station

Press FM/AM.

The unit automatically turns on and tunes in the previously tuned station (either FM or AM).

• Each time you press the button, the band alternates between FM and AM.

On the unit: Press and hold + or – of the tuner control buttons. On the remote control: Press and hold % or ﬁ of the tuner control buttons.

The unit starts searching stations and stops when a station of sufficient signal strength is tuned in. If a program is broadcast in stereo, the STEREO indicator also lights.

To stop during searching, press + / – (or % / ﬁ) of the tuner control buttons again.

When you press + / – (or % / ﬁ) briefly and repeatedly

The frequency changes step by step.

To change the FM reception mode

When an FM stereo broadcast is hard to receive or noisy, press FM MODE on the remote control so that “MONO” appears in the main display. Reception improves.

To restore the stereo effect, press FM MODE again so that “AUTO” appears in the main display. In this stereo mode, you can hear stereo sounds when a program is broadcast in stereo.

– 13 –

Presetting Stations

You can preset 30 FM and 15 AM stations at random. In some cases, test frequencies have been already memorized for the tuner since the factory examined the tuner preset function before shipment. This is not a malfunction. You can preset the stations you want into memory by following the presetting method.

• There is a time limit in doing the following steps. If the setting is canceled before you finish, start from step 1 again.

Tune in the station you want to preset.

• See “Tuning in a Station.”

Press SET.

The current preset number starts flashing.

Select a preset number. On the unit: Rotate MULTI JOG, or press < or > of the tuner control buttons. On the remote control: Press @ or # of the tuner control buttons.

• You can also use the number buttons. (Make sure that you have pressed FM/AM on the remote control before pressing the Number buttons.) For preset number 5, press 5. For preset number 15, press +10 then 5. For preset number 20, press +10, then 10. For preset number 30, press +10, +10, then 10.

Press SET again.

The tuned station in step 1 is stored in the preset number selected in step 3.

• Storing a new station on a used number erases the previously stored one.

When you unplug the AC power cord or if a power failure occurs

The preset stations will be erased in a few days. If this happens, preset the stations again.

Tuning in a Preset Station

Press FM/AM.

The unit automatically turns on and tunes in the previously tuned station (either FM or AM).

• Each time you press the button, the band alternates between FM and AM.

Select a preset number. On the unit: Rotate MULTI JOG, or press < or > of the tuner control buttons. On the remote control: Press @ or # of the tuner control buttons.

To erase a preset station

The following procedure is only possible on the unit.

1 Select a preset station number you want to erase. 2 Press CANCEL.

The preset number starts flashing in the main display.

3 Press SET.

“CANCEL” appears in the main display, and the station frequency stored in the preset number is erased.

English

“MEMORY” does not appear if you press SET on the remote control.

– 14 –

Playing Back CDs

SLEEP

PLAY

MODE

DISPLAY

/CHARA

CANCEL

SET

ENTER

MARK ABC DEF

GHI JKL MNO

PQRS TUV WXYZ

BASSSOUNDFM MODE

654

987

REPEAT

321

CD3

AUXTAPEFM/AM

CD2

REC PAUSE

CD1

FADE MUTING

REMOTE CONTROL RM-SEM70EU

VOLUME

MD TITLE INPUT

English

Amplifier/tuner

PLAY MODE

CD player

Disc number lamp

(CD 1, CD 2, CD 3)

Disc compartment

CD CONTROL

(CD 6, 7, 4, ¢)

Open/close buttons

(0 1, 0 2, 0 3)

Remote control

Number

buttons

CD 6

Disc number buttons

(CD 1, CD 2, CD 3)

PLAY MODE

Disc number buttons (CD 1, CD 2 CD 3)

CD control (7, 4, ¢)

When using the remote control, make sure that it is ready for CD operations.

• Pressing CD 1, CD 2, CD 3, or CD 6 on the remote control makes the remote control ready for CD operations.

Loading CDs

Press one of the open/close buttons (0 1 to 0 3) for the disc tray (CD 1 to 3) you want to load a CD onto.

The unit automatically turns on and the disc compartment comes out with the specified disc tray on the top.

Place a disc correctly on the circle of the disc tray, with its label side up.

• When using a CD single (8 cm), place it on the

Good

inner circle of the disc tray.

No good

Press the same open/close button (0 1 to 0 3) you have pressed in step 1.

The disc compartment closes, and the corresponding disc number lamp (CD 1 to CD 3) lights.

Repeat steps 1 to 3 to place other CDs.

When loading more than one CD continuously

Press the open/close button (0 1 to 0 3) for the next tray you want to place a CD onto, the disc compartment automatically closes and then opens with the next tray on the top.

About the disc number lamps (CD 1 to CD 3)

Each disc number lamp corresponds to the disc tray of the same number.

• It lights orange when the unit has recognized that there is a CD on the corresponding disc tray.

• It lights green when a CD on the corresponding disc tray is selected as the current disc or played back.

– 15 –

Continued

Playing Back the Entire Discs — Continuous Play

You can play CDs continuously.

Load CDs.

Press one of the disc number buttons (CD 1, CD 2 and CD 3) for the disc you want to play.

CD playback starts from the first track of the selected disc.

Disc No.

• Pressing CD 6 instead of the disc number buttons starts playing back the CD whose disc number lamp lights green.

To stop during play, press 7 of the CD control. To remove the disc, press the corresponding open/close

buttons (0 1 to 0 3).

CD playback sequence

When 3 CDs are loaded in the disc compartment, they are played in one of the following sequences.

• When CD 1 is pressed : CD 1 ] CD 2 ] CD 3 (then stops)

• When CD 2 is pressed : CD 2 ] CD 3 ] CD 1 (then stops)

• When CD 3 is pressed : CD 3 ] CD 1 ] CD 2 (then stops) * When only 2 CDs are loaded, they are played in the same order,

but the disc tray without a CD is skipped.

Track No.

Elapsed playing time

To locate a particular point in a track

During play, press and hold 4 or ¢ of the CD control.

• 4 : Fast reverses the disc.

• ¢ : Fast forwards the disc.

To go to another track

Press 4 or ¢ of the CD control repeatedly before or during playback.

• 4 :Goes back to the beginning of the current or previous tracks.

• ¢ :Skips to the beginning of the next or succeeding tracks.

Rotating MULTI JOG on the unit also changes the tracks.

To go to another track directly using the number buttons

Pressing the number button(s) allows you to start playing the track number you want. (Make sure that you have pressed one of the following buttons — disc number buttons (CD 1, CD 2, CD 3) and CD 6 — on the remote control before using the number buttons.)

Ex.: For track number 5, press 5.

For track number 15, press +10 then 5. For track number 20, press +10, then 10. For track number 32, press +10 , +10, +10, then 2.

Programming the Playing Order of the Tracks — Program Play

You can arrange the order in which the tracks play before you start playing. You can program up to 32 tracks.

English

Basic CD Operations

While playing a CD, you can do the following operations.

To exchange CDs during playback of another

Press the open/close button (0 1 to 0 3) corresponding to a disc number whose disc number lamp is lit orange to eject that disc tray and exchange the CD. When CDs are exchanged during playback, playback stops after playing the last exchanged CD.

To stop playback for a moment

Press CD 6. To resume play, press CD 6 again.

– 16 –

Load discs.

• If the current playing source is not the CD player, press CD 6, then 7 of the CD control before going to the next step.

Press PLAY MODE so that “PROGRAM” appears in the main display.

• Each time you press the button, play mode changes as follows:

PROGRAM

Canceled

(Continuous play)

Disc No.

Track No.

RANDOM

Step No.

Continued

English

Continued

Amplifier/tuner

PLAY MODE

CD player

Disc number lamp

(CD 1, CD 2, CD 3)

Disc compartment

CANCEL

SET

(CD 6, 7, 4, ¢, REPEAT)

Open/Close buttons

(0 1, 0 2, 0 3)

MULTI JOG

CD CONTROL

Disc number buttons

(CD 1, CD 2, CD 3)

Remote control

Number

buttons

CD 6

PLAY

TITLE

MODE

INPUT

MARK ABC DEF

GHI JKL MNO

PQRS TUV WXYZ

REC PAUSE

FADE MUTING

VOLUME

REMOTE CONTROL RM-SEM70EU

321

654

987

BASSSOUNDFM MODE

AUXTAPEFM/AM

REPEAT

SLEEP

DISPLAY

/CHARA

CANCEL

SET

ENTER

CD3

CD2

CD1

PLAY MODE

CANCEL SET

Disc number buttons (CD 1, CD 2, CD 3)

CD control (7, 4, ¢, REPEA T)

Continued

Press one of the disc number buttons (CD 1, CD 2, and CD 3) to select the disc number you want to play.

Ex. Disc No. 2 is selected

Select the track from the CD selected in the above step. On the unit: Rotate MULTI JOG to select the track number, then press SET. On the remote control: Press the number buttons.

• For how to use the number buttons, see “To go to another track directly using the number buttons” on page 16.

Ex. Track No. 8 is selected

Press CD 6.

The tracks are played in the order you have programed.

To stop during play, press 7 of the CD control. To exit from program play mode, press PLAY MODE

once or twice so that the unit enters another playback mode (Random play or Continuous play mode).

To check the program contents

Before playing, you can check the program contents by pressing 4 or ¢ of the CD control.

• ¢ :Shows the programed tracks in the programed order.

• 4 :Shows them in the reverse order.

To modify the program

Before playing, you can erase the last programed track by pressing CANCEL. Each time you press the button, the last programed track is erased from the program. To add tracks in the program before you start play, simply select track numbers you want to add.

Program other tracks you want.

• To program tracks from the same disc, repeat step 4.

• To program tracks from a different disc, repeat steps 3 and 4.

– 17 –

If you try to program a 33rd step

“PROGRAM FULL” will appear in the main display.

Repeating Tracks or CDs — Repeat Play

English

You can have all the CDs, the program or the individual track currently playing repeat as many times as you like.

If your entry is ignored

You have tried to program a track from an empty tray, or a track number that does not exist on the CD (for example, selecting track 14 on a CD that only has 12 tracks). Such entries are ignored.

Playing at Random — Random Play

The tracks of all loaded CDs will play at random.

Prepare discs.

• If the current playing source is not the CD player, press CD 6, then 7 of the CD control before going to the next step.

Press PLAY MODE repeatedly until “RANDOM” appears in the main display.

• Each time you press the button, play mode changes as follows:

PROGRAM

Canceled

(Continuous play)

RANDOM

To repeat play, press REPEAT during or before playing. Each time you press the button, Repeat play mode changes as follows, and appears in the main display:

REPEAT ALL REPEAT 1CD

Canceled

(Continuous play)

REPEA T ALL: Repeats all the tracks on all the CDs

(continuously or at random), or all the tracks in the program.

REPEAT 1CD*: Repeats all the tracks on one CD. REPEAT 1: Repeats one track on one CD.

* REPEAT 1CD is not used for Program play and

Random Play.

To cancel Repeat play, press REPEAT repeatedly until no REPEAT indication (REPEAT ALL, REPEAT 1CD, or REPEAT 1) lights on the display window.

• REPEAT 1CD is also canceled when you press PLAY MODE to change the play mode.

REPEAT 1

Prohibiting Disc Ejection — Disc Lock

Press CD 6.

The tracks are played at random. Random play ends when all the tracks are played once.

• Random play also ends when the disc compartment is opened.

To stop during play, press 7 of the CD control. To exit from Random play mode, press PLAY MODE

once or twice so that the unit enters another playback mode (Continuous play or Program play mode).

You can prohibit CD and MD ejection from the unit and can lock discs.

• This operation is only possible using the unit.

To prohibit disc ejection, press 0 1 while holding 7 of the CD control with the unit set in standby mode. “LOCKED” appears for a while, and the loaded discs (both CDs and MD) are locked.

If you try to eject the locked discs

“LOCKED” appears to inform you that the Disc Lock is in use.

To cancel the prohibition and unlock the discs, press 0 1 again while holding 7 of the CD control with the unit set in standby mode. “UNLOCKED” appears for a while, and the loaded discs (both CDs and MD) are unlocked.

– 18 –

Playing Back an MD

English

Amplifier/tuner

PLAY MODE

MD recorder

MD IN lamp

MD loading slot

DISPLAY/CHARA.

(CONTRAST)

MD CONTROL

(MD 6, 7, 4, ¢)

Remote control

PLAY

TITLE

MODE

INPUT

SLEEP

321

DISPLAY /CHARA

654

CANCEL

987

SET

ENTER

BASSSOUNDFM MODE

CD3

AUXTAPEFM/AM

CD2

CD1

REPEAT

Number

buttons

MD 6

MARK ABC DEF

GHI JKL MNO

PQRS TUV WXYZ

REC PAUSE

FADE MUTING

VOLUME

REMOTE CONTROL RM-SEM70EU

US and foreign patents licensed from Dolby Laboratories Licensing Corporation.

PLAY MODE

MD control (7, 4, ¢)

When using the remote control, make sure that it is ready for MD operations.

• Pressing MD 6 on the remote control makes the

remote control ready for MD operations.

Playing Back the Entire MD — Continuous Play

You can play an MD continuously.

Insert an MD into the MD loading slot.

The MD is pulled in automatically. The MD IN lamp lights.

Insert an MD in the same way as indicated on the MD.

T otal T rack No.

(After a few seconds)

Current Track No.

Total Playing time

Playing time of the current track

Press MD 6.

MD playback starts from the first track.

Track No.

Elapsed playing time

To stop during play, press 7 of the MD control. To remove the disc, press 0.

If the MD or track has a title

The title will be shown at the lower portion of the main display. (If a title is long and cannot be shown at a time, the unit scrolls the title to show the entire title.)

Basic MD Operations

While playing an MD, you can do the following operations.

To stop playback for a moment

Press MD 6. To resume play, press MD 6 again.

– 19 –

Continued

To locate a particular point in a track

During play, press and hold 4 or ¢ of the MD control.

• 4 : Fast reverses the disc.

• ¢ : Fast forwards the disc.

To go to another track

Press 4 or ¢ of the MD control repeatedly before or during playback.

• 4 :Goes back to the beginning of the current or previous tracks.

• ¢ :Skips to the beginning of the next or succeeding tracks.

Rotating MULTI JOG on the unit also changes the tracks.

To go to another track directly using the number buttons

Pressing the number button(s) allows you to start playing the track number you want. (Make sure that you have pressed MD 6 on the remote control before using the Number buttons.)

Ex.: For track number 5, press 5.

For track number 15, press +10 then 5. For track number 20, press +10, then 10. For track number 32, press +10 , +10, +10, then 2.

Programming the Playing Order of the Tracks — Program Play

You can arrange the order in which the tracks play before you start playing. You can program up to 32 tracks.

Insert an MD.

• If the current playing source is not the MD recorder, press MD 6, then 7 of the MD control before going to the next step.

Press PLAY MODE so that “PROGRAM” appears in the main display.

• Each time you press the button, play mode changes as follows:

PROGRAM

Canceled

(Continuous play)

Track No.

RANDOM

English

To change the display Indications

The main display can show 4 track titles at a time. Each time you press DISPLAY/CHARA. (CONTRAST), the indications in the main display changes as follows:

Normal

indication mode

4 track title

indication mode

If a track title cannot be shown at a time while in 4 track title indication mode

The unit scrolls the title. However, if it consists of more than 32 characters, the entire title cannot be shown.

Step No.

Select the track. On the unit: Rotate MULTI JOG to select the track number, then press SET. On the remote control: Press the number buttons.

• For how to use the number buttons, see “To go to another track directly using the number buttons.”

Ex. Track No. 5 is selected

• If the selected track has a title, it will be shown at the lower

portion of the main display. (If the title is long and cannot be shown at a time, the unit scrolls the title to show the entire title)

Continued

If you change the tracks quickly while in 4 track title indication mode

The unit cannot catch up with the changing speed and, therefore, cannot show the track titles correctly.

– 20 –

English

Continued

Amplifier/tuner

PLAY MODE

MD recorder

MD IN lamp

CANCEL

SET

MUL TI JOG

MD CONTROL

(MD 6, 7, 4, ¢, REPEAT)

Remote control

Number

buttons

MD 6

PLAY

TITLE

MODE

INPUT

MARK ABC DEF

GHI JKL MNO

PQRS TUV WXYZ

REC PAUSE

FADE MUTING

VOLUME

REMOTE CONTROL RM-SEM70EU

321

654

987

BASSSOUNDFM MODE

AUXTAPEFM/AM

REPEAT

SLEEP

DISPLAY /CHARA

CANCEL

SET

ENTER

CD3

CD2

CD1

PLAY MODE

CANCEL SET

MD control (7, 4, ¢, REPEA T)

MD loading slot

Continued

Repeat step 3 to program other tracks you want.

Press MD 6.

The tracks are played in the order you have programed.

To stop during play, press 7 of the MD control. To exit from Program play mode, press PLAY MODE

once or twice so that the unit enters another playback mode (Random play or Continuous play mode).

To check the program contents

Before playing, you can check the program contents by pressing 4 or ¢ of the MD control.

• ¢ :Shows the programmed tracks in the programmed order.

• 4 :Shows them in the reverse order.

To modify the program

If you try to program a 33rd step

“PROGRAM FULL” will appear on the display.

If your entry is ignored

You have tried to program a track that does not exist on the MD (for example, selecting track 14 on an MD that only has 12 tracks). Such entries are ignored.

– 21 –

Playing at Random — Random Play

Repeating Tracks — Repeat Play

English

The tracks of the loaded MD will play at random.

Insert an MD.

• If the current playing source is not the MD recorder,

press MD 6, then 7 of the MD control before going to the next step.

Press PLAY MODE repeatedly until “RANDOM” appears in the main display.

• Each time you press the button, play mode changes

as follows:

PROGRAM

Canceled

(Continuous play)

Press MD 6.

The tracks are played at random. Random play ends when all the tracks are played once.

• Random play also ends when the MD is ejected.

To stop during play, press 7 of the MD control. To exit from Random play mode, press PLAY MODE

once or twice so that the unit enters another playback mode (Continuous play or Program play mode).

RANDOM

You can have all the tracks, the program or the individual track currently playing repeat as many times as you like.

To repeat play, press REPEAT during or before playing. Each time you press the button, Repeat play mode changes as follows, and appears in the main display:

REPEAT ALL REPEAT 1

Canceled

(Continuous play)

REPEA T ALL: Repeats all the tracks in the MD

(continuously or at random), or all the tracks in the program.

REPEAT 1: Repeats one track.

To cancel Repeat play, press REPEAT repeatedly until no

REPEAT indication (REPEAT ALL or REPEAT 1) lights on the display window.

To prohibit disc ejection — Disc Lock

You can prohibit CD and MD ejection from the unit, and can lock discs.

See page 18 for details.

– 22 –

Recording onto an MD

English

Things to Know Before You Start Recording

• It may be unlawful to record or play back copyrighted material without the consent of the copyright owner.

• When you record onto partially recorded MD, its contents are not erased or overwritten. The recording starts from the point following the last recorded track of the MD. If you want to record on such an MD from the beginning, you have to erase its contents first (see “ALL ERASE Function” on page 33).

• The recording level is automatically set correctly, so it is not affected by the VOLUME control. Thus, during recording you can adjust the sound you are actually listening to without affecting the recording level.

• While recording, you can hear sound modes and/or the active bass extension effect through the speakers or headphones. However, the sound is recorded without these effects (see page 12).

About the track marks

When playing an MD, you can move among the tracks using MULTI JOG or 4 / ¢ of the MD control, or even select directly a track using the remote control. You can do this because there is a mark recorded at the front of each track enabling you to locate the track. This mark is called a “track mark” and the portion between two adjacent track marks is called a “track.”

• When recording from a digital source such as the CD player, a track mark is recorded automatically at the beginning of each track.

• When recording from an analog source such as FM/AM broadcasts, no track mark is recorded on the MD. This means that, when playing this MD, the MD recorder will regard the entire recording as one track (track 1). You will not be able to select directly a song or navigate through songs.

However, if there is a blank of 3 seconds or more, the MD recorder will consider it as a blank separating 2 tracks and consequently put a track mark.

To put a track mark manually while recording an analog source, press SET at the place you want to put a

track mark.

To avoid erasing important recordings

Recordable MDs have an erasure prevention tab so that important recordings are not accidentally erased. When you finish recording or editing, slide open the erasure prevention tab on the cartridge side surface. New recording or editing is now no longer possible. To do re-recording or editing, return the tab to the closed position.

Erasure prevention tab

Recording/Editing possible

Disc protected: Recording/Editing not possible

To add a track mark after recording is over, you can use the DIVIDE function (see page 29).

– 23 –

Continued

SLEEP

PLAY

MODE

DISPLAY

/CHARA

CANCEL

SET

ENTER

MARK ABC DEF

GHI JKL MNO

PQRS TUV WXYZ

BASSSOUNDFM MODE

654

987

REPEAT

321

CD3

AUXTAPEFM/AM

CD2

REC PAUSE

CD1

FADE MUTING

REMOTE CONTROL RM-SEM70EU

VOLUME

MD TITLE INPUT

Amplifier/tuner

MD recorder

MD IN lamp

MD loading slot

REC lamp

FM/AM

REC PAUSE

TAPE

MD CONTROL

(MD 6)

MD CONTROL (7)

Remote control

FM/AM

MD REC

PAUSE

English

TAPE

MD 6

MD control (7)

When using the remote control, make sure that it is ready for MD operations.

• Pressing MD 6 on the remote control makes the remote control ready for MD operations.

Recording FM/AM Broadcasts or from the Cassette Deck

You can record FM/AM broadcasts or sounds from the cassette deck connected to the TAPE jacks on the rear.

Insert a recordable MD.

The MD IN lamp lights.

Start playing the source — FM, AM, or cassette deck connected to the TAPE jacks.

• When recording an FM/AM broadcast, press FM/ AM, then tune into a station you want.

• When recording from the cassette deck, press TAPE to select it as the playback source.

Press REC PAUSE on the unit (or MD REC PAUSE on the remote control).

The REC lamp on the unit starts flashing.

Ex.: When recording an FM station

Remaining time for recording

Press MD 6.

The REC lamp stops flashing and remains lit, and recording starts.

To stop recording, press 7 of the MD control. To stop recording temporarily, press REC PAUSE (or

MD REC PAUSE) again. To resume recording, press MD 6 again.

To remove the MD, press 0.

– 24 –

English

Amplifier/tuner

MD recorder

Continued

MD IN lamp

MD loading slot

REC lamp

CD REC

1ST TRACK REC

DIGITAL lamp

REC PAUSE

AUX

MD CONTROL

(MD 6)

MD CONTROL

(7)

Remote control

MD REC

PAUSE

PLAY

TITLE

MODE

INPUT

MARK ABC DEF

GHI JKL MNO

PQRS TUV WXYZ

REC PAUSE

FADE MUTING

VOLUME

REMOTE CONTROL RM-SEM70EU

321

654

987

BASSSOUNDFM MODE

AUXTAPEFM/AM

REPEAT

SLEEP

DISPLAY

/CHARA

CANCEL

SET

ENTER

CD3

CD2

CD1

AUX

MD 6

MD control (7)

Recording from the External (AUX) Equipment

Both analog and digital recording is possible from the external equipment connected to the AUX jacks.

For digital recording: Connect;

• Between the optical digital output terminal on the other equipment and the AUX DIGITAL IN OPTICAL terminal, by using an optical digital cord (not supplied).

• Between the audio output jacks on the other equipment and the AUX jacks, by using an audio cord (not supplied).

Insert a recordable MD.

The MD IN lamp lights.

Press AUX once, then start playing the source.

Press REC PAUSE on the unit (or MD REC PAUSE on the remote control).

The REC lamp on the unit starts flashing.

Press A UX again.

• Each time you press the button, analog or digital input is selected alternately.

• If you select the digital input, the DIGITAL lamp on the unit lights.

DIGITAL: Enables digital recording through the

optical digital cord connected to the AUX DIGITAL IN OPTICAL terminal. A sampling rate converter built in this unit allows you to record from a digital device whose sampling frequency is 32 kHz,

44.1 kHz, or 48 kHz.

ANALOG: Enables analog recording through the

audio cord connected to the AUX jacks.

Press MD 6.

The REC lamp stops flashing and remains lit, and recording starts.

– 25 –

Continued

To stop recording, press 7 of the MD control. To stop recording temporarily, press REC PAUSE (or

MD REC PAUSE) again.

To resume recording, press MD 6 again. To remove the MD, press 0.

Recording CDs

You have 3 methods to record from a CD onto an MD.

• Synchronized Recording — Records the entire CD or

the program you have made.

• First Track Recording — Records the first track of

each CD.

• Listening Edit Recording — Allows you to make a

program while listening to the CD.

Synchronized Recording

This is the easiest way of CD recording. Only by pressing CD REC, you can start playing a CD and recording on an MD.

To record a single track while playing a CD

Press CD REC while playing back a CD track you want to record. The playback of that CD track is stopped, and the same track starts playing from the beginning again. This time, the MD recorder starts recording the CD track.

First Track Recording

First Track Recording allows you to record the first track of each loaded CD. You can, for example, make a directory of all your best CDs.

Prepare CDs, and a recordable MD.

• Always place a CD on the CD 1 tray. If not, this function does not work.

Press 1ST TRACK REC.

The REC and DIGITAL lamps light, and First Track Recording starts from the CD on the CD 1 tray.

English

Insert a recordable MD.

The MD IN lamp lights.

Prepare a CD.

• Place a CD on one of the disc tray (CD 1, CD 2, or CD 3), press the corresponding Disc Number button (CD 1, CD 2, or CD 3), then 7 of the CD control before going to the next step. Make sure that the correct Disc Number lamp lights on the unit.

• You can make a program if you want (see page 16).

Press CD REC on the unit.

The REC and DIGITAL lamps on the unit light.

To stop recording, press 7 (of either the CD control or the MD control).

When the first track of the CD on the CD 1 tray is recorded, the first track of the CD on the CD 2 tray will be recorded. Recording continues until the first track of each loaded CD is recorded.

Replace the CDs on the trays whose disc number lamp does not light green.

• You can change CDs to continue the First Track Recording using more than 3 CDs.

When the first track of the last loaded CD is recorded, First Track Recording stops.

To stop recording, press 7 (of either the CD control or the MD control).

– 26 –

English

Continued

Amplifier/tuner

MD recorder

MD IN lamp

MD loading slot

MULTI JOG

Listening Edit Recording

Listening Edit Recording allows you to make a program while listening and checking each track of the loaded CDs, then to start recording the program.

• You can program up to 32 tracks.

Prepare CDs, and a recordable MD.

• Always place a CD on the CD 1 tray. If not, this function does not work.

REC lamp

CD REC

If you do not either press the button or rotate MULTI JOG, the unit will play the same track repeatedly.

Repeat step 3 to program other tracks.

When you finish checking all CDs or if there is no more remaining time for recording on the MD, Listening Edit Recording starts automatically. The REC and DIGITAL lamps light.

DIGITAL lamp

LISTENING

MD CONTROL (7)

Press LISTENING.

Listening Edit starts from the CD on the CD 1 tray.

Remaining time for recording

Decide if you want to include the current track in the program or skip it.

• To include the current playing track in the program, press LISTENING again.

The current track is programed (“Memory” appears for a while) and the next track starts playing. (If the last track of a CD is programed, the first track of the next CD starts playing.)

• To skip the current track, rotate MULTI JOG downward or press ¢ of the CD control. The current playing track is not programed and the next track starts playing.

To stop any time during editing process and start recording, press CD REC.

To stop recording, press 7 (of either the CD control or the

MD control). To erase the program, press 7 of the CD control while

checking the contents of the loaded CDs.

To modify the program

Before you start recording (or move to the next disc programming), you can go back to a previous track of the currently programming disc by pressing 4 of the CD control (programmed tracks, up to the track you have returned to, are erased from the program). Start programming from that track again.

• By rotating MULTI JOG downward, you can also go back to a previous track of the currently programming disc.

– 27 –

Editing MDs

Continued

Introducing MD Editing Functions

A recorded MD can be edited in many ways. The MD editing functions include dividing, joining, moving, erasing a single track, erasing the entire disc, and more than one of them can be combined as required.

Dividing a track (DIVIDE) : Page 29

This function divides a track by adding a track marking(s) in the desired point(s) in the middle or where you want to search later.

2nd

3rd 4th

C D

3rd 4th

Track No.

5th

After track B division

1st

B C DA E

1st

Joining a track (JOIN) : Page 30

This function joins two adjacent tracks into a single track by deleting a track marking.

2nd

After track B joining

1st

3rd 4th 5th

C D E

2nd

3rd 4th

C D E

Track No.

Moving a track (MOVE) : Page 31

This function moves a track by reordering the track numbers.

2nd

After track B movement

1st

C D E

3rd 4th 5th

C D E

2nd

3rd 4th 5th

Track No.

Erasing all tracks (ALL ERASE) : Page 33

This function erases data in a disc entirely.

2nd

After All Erase

1st

3rd 4th 5th

C D E

Track No.

Combining MD editing functions

By combining “DIVIDE”, “ERASE” and “JOIN”, for example, it is possible to erase only a part of an existing track.

Dividing track A into 3 tracks

Erasing track

Joining

tracks and

a c

1st

a c

1st

a c

2nd

Part to be erased

B C

3rd

2nd

4th

3rd

Track No.

5th

Track No.

English

Erasing a track (ERASE) : Page 32

This function erases a specified track. After the erasure, the subsequent tracks are justified and their track numbers are decremented automatically.

2nd

1st

After track B erasure

1st

C D E

2nd

3rd 4th 5th

C D E

3rd 4th

Track No.

You can also assign titles to MDs and/or tracks (See page 34.)

A title can be assigned to a track or disc. Once a title is assigned, it is displayed in later playback for confirmation. Each title can be composed of up to 64 characters, and can be input using alphabetic characters (uppercase and lowercase), symbols and numerals.

– 28 –

English

Continued

Amplifier/tuner

MD recorder

MD EDIT

MD IN lamp

CANCEL

MD Loading slot

SET

DIVIDE Function

This function allows you to divide one track into two separate tracks. It is useful, for example, when you want to add track marks at a certain point within a track or if you want to separate a recording.

• To do the following procedures, use the buttons and controls on the unit.

• To stop any time during editing process, press MD EDIT.

Insert an MD you want to edit into the MD loading slot.

The MD IN lamp lights.

ENTER

MULTI JOG

• If you have selected a wrong track, press CANCEL then select the correct track.

Press SET when you find the point where you want to divide the track.

The MD recorder repeats the selected point — a portion of 3 seconds length following the dividing point.

Press MD EDIT.

The MD recorder enters editing mode (with DIVIDE function selected).

Press SET.

The information of the first track (or the current track, if during play) of the MD appears in the main display, and playback starts.

Rotate MULTI JOG to select the track you want to divide.

Ex. When you want to divide track 3

• If the dividing point is satisfactory, go to step 7.

• If the dividing point is not satisfactory, go to the next step

Rotate MULTI JOG to precisely adjust the dividing point.

• You can shift the dividing point up to ±128. This range (±128) corresponds to approximately ±8 seconds from the original point (Position 0).

When you stop rotating the MULTI JOG dial, the unit repeats the newly selected dividing point.

• When you find the right position, go to the next step.

– 29 –

Continued

Press SET.

• If you want to cancel the editing, press CANCEL.

Press ENTER to finish the editing procedures.

Press 0 to eject the MD.

“WRITING” appears while the editing you have made is being recorded on the MD.

To join the divided tracks again, see the JOIN function.

JOIN Function

This function allows you to join two adjacent tracks into one track.

• To do the following procedures, use the buttons and controls on the unit.

• To stop any time during editing process, press MD EDIT.

Press SET.

Rotate MULTI JOG to select the two adjacent tracks you want to join.

Ex.: When joining tracks 1 and 2

Press SET.

• If you have selected wrong tracks, press CANCEL, then select the correct tracks by rotating MULTI JOG.

• If you want to cancel the editing, press CANCEL.

Press ENTER to finish the editing procedures.

English

Insert an MD you want to edit into the MD loading slot.

The MD IN lamp lights.

Press MD EDIT.

The MD recorder enters editing mode (with DIVIDE function selected).

Rotate MULTI JOG until “JOIN” is selected.

Press 0 to eject the MD.

“WRITING” appears while the editing you have made is being recorded on the MD.

To divide the joined tracks, see the DIVIDE function.

– 30 –

English

Continued

Amplifier/tuner

MD recorder

MD EDIT

MD IN lamp

CANCEL

MD Loading slot

SET

MOVE Function

This function allows you to move a track to the position you prefer. It is useful to change the order of the tracks as you like.

• To do the following procedures, use the buttons and controls on the unit.

• To stop any time during editing process, press MD EDIT.

Insert an MD you want to edit into the MD loading slot.

The MD IN lamp lights.

ENTER

MULTI JOG

Rotate MULTI JOG to select the track you want to move.

Ex.: When moving track 2

Press SET.

Press MD EDIT.

The MD recorder enters editing mode (with DIVIDE function selected).

Rotate MULTI JOG until “MOVE” is selected.

Press SET.

• If you have selected a wrong track number, press CANCEL, then select the correct track number again.

Rotate MULTI JOG to select the position where you want to move the track.

Ex.: When moving to the track 4 position

– 31 –

Press SET.

• If you have selected wrong tracks, press CANCEL, then select the correct tracks by rotating MULTI JOG.

• If you want to cancel the editing, press CANCEL.

Press ENTER to finish the editing procedures.

Press 0 to eject the MD.

“WRITING” appears while the editing you have made is being recorded on the MD.

Continued

Rotate MULTI JOG until “ERASE” is selected.

Press SET.

Rotate MULTI JOG to select the track you want to erase.

Press SET.

• If you have selected a wrong track number, press CANCEL, then select the correct track number.

English

ERASE Function

This function allows you to erase an unwanted track.

• To do the following procedures, use the buttons and controls on the unit.

• To stop any time during editing process, press MD EDIT.

Insert an MD you want to edit into the MD loading slot.

The MD IN lamp lights.

Press MD EDIT.

The MD recorder enters editing mode (with DIVIDE function selected).

Repeat steps 5 and 6 if you want to erase more tracks (up to 16).

Press ENTER to finish your selection of tracks to erase.

• If you want to cancel the editing, press CANCEL.

Press ENTER again.

Press 0 to eject the MD.

“WRITING” appears while the editing you have made is being recorded on the MD.

– 32 –

English

Continued

Amplifier/tuner

MD recorder

MD EDIT

MD IN lamp

CANCEL

MD Loading slot

SET

ALL ERASE Function

This function allows you to erase all the tracks on an MD.

• To do the following procedures, use the buttons and controls on the unit.

• To stop any time during editing process, press MD EDIT.

Insert an MD you want to edit into the MD loading slot.

The MD IN lamp lights.

Press MD EDIT.

The MD recorder enters editing mode (with DIVIDE function selected).

Rotate MULTI JOG until “ALL ERASE” is selected.

ENTER

MULTI JOG

Press 0 to eject the MD.

“WRITING” appears while the editing you have made is being recorded on the MD.

Erasing a Portion of a Track

You can erase just a portion of one track by using the DIVIDE, ERASE and JOIN functions.

• To do the following procedures, use the buttons and controls on the unit.

• To stop any time during editing process, press MD EDIT.

Insert an MD you want to edit into the MD loading slot.

The MD IN lamp lights.

Press SET.

• If you want to cancel the editing, press CANCEL.

Press ENTER.

– 33 –

Press MD EDIT.

The MD recorder enters editing mode (with DIVIDE function selected).

Divide a track into 3 portions to isolate the portion to erase.

• Use the DIVIDE function by referring to page 29.

Erase the middle portion.

• Use the ERASE function by referring to page 32.

Join the two remaining portions.

• Use the JOIN function by referring to page 30.

Assigning Titles to MDs

Amplifier/tuner

DISPLAY/CHARA.

(CONTRAST)

DIRECT TITLE INPUT

(DISPLA Y P A TTERN)

ENTER

MULTI

JOG

Continued

English

MD recorder

TITLE ø CURSOR Ø

You can assign a name to each MD and to each track. Once a title is assigned, it is displayed in later playback for confirmation. Each title can be composed of up to 64 characters, and can be input using alphabetic characters (uppercase and lowercase), symbols and numerals.

CANCEL

Assigning a Title Using the Unit

• To stop any time during the process, press TITLE.

Insert an MD you want to edit into the MD loading slot.

The MD IN lamp lights.

Press TITLE.

The MD recorder enters title entry mode.

• Disc title entry indication (mode): appears when

you press TITLE while the disc information is shown in the main display.

MD IN lamp

SET

Rotate MULTI JOG to change the title entry mode.

• Title entry mode changes as follows:

Disc

title

Last track

title

Ex.: When selecting 3rd track title entry mode

Press SET to enter the selected title entry mode.

MD Loading slot

1st track

title

2nd track

3rd track

Character entry position

title

• Track title entry indication (mode): appears when

you press TITLE while the track information is shown in the main display.

– 34 –

Press DISPLAY/CHARA. (CONTRAST) to select the character set you want.

• Each time you press the button, the character sets

change as follows:

Capital letters

& Symbols

Numerals

& Symbols

See the character set table on page 36 to know what characters and symbols you can use.

Small letters

& Symbols

Continued

English

DISPLAY/CHARA.

Continued

Amplifier/tuner

(CONTRAST)

DIRECT TITLE INPUT

(DISPLA Y P A TTERN)

ENTER

MULTI

JOG

MD recorder

TITLE ø CURSOR Ø

Continued

Input a character.

• EX. When entering “H”

1) Rotate MULTI JOG to select the row where a character you want exists.

• In this example, select the row of “F G H I J.”

Select the row

2) Press one of the DIRECT TITLE INPUT buttons to select the character position in the row.

The selected character is input, and the character entry position moves to the next.

• In this example, press 3 which corresponds to

“H” in the row of “F G H I J.”

CANCEL

MD IN lamp

SET

• To move the character entry position while entering a title, press ø CURSOR Ø.

• If you have entered an incorrect character, press CANCEL to cancel the last entry.

Repeat steps 5 and 6 to input other characters.

• The main display can only show 7 characters at a time. If you enter the 8th character, the first character disappears, and so on.

Press ENTER twice to finish title entry.

• If you want to cancel the editing, press TITLE after pressing ENTER once in this step.

Press 0 to eject the MD.

“WRITING” appears while the editing you have made is being recorded on the MD.

You can assign titles during play or recording

• During play: Entering a track title

The MD recorder repeats playback of the current track until you press ENTER twice in step 8 above. When you press it twice, MD stops play.

Entering a disc title

The MD recorder repeats playback of all tracks of the MD until you press ENTER twice in step 8 above. When you press it twice, MD stops play.

• During recording:Entering a track title

The MD recorder continues recording even after you press ENTER twice in step 8 above. When you press it twice, a track title is assigned to the track where you have started the title entry.

MD Loading slot

– 35 –

Continued

Changing the Title

You can make a correction or change the title.

Follow steps 1 to 4 of page 34.

Press ø CURSOR Ø to select the character you want to correct.

• Make sure that the character you want to change is flashing.

Press CANCEL to delete the character you have selected in the above step.

Input the correct character.

1) Press DISPLAY/CHARA. (CONTRAST) to select

the character set you want.

2) Rotate MULTI JOG then press one of the DIRECT

TITLE INPUT buttons.

Available Characters

Repeat steps 2 to 4 of the current procedure to correct more characters.

Press ENTER twice to finish correcting the title.

• If you want to cancel the correction, press TITLE after pressing ENTER once in this step.

Press 0 to eject the MD.

“WRITING” appears while the editing you have made is being recorded on the MD.

To erase all the characters

Press CANCEL repeatedly in step 3 above to erase all the characters, then go to step 6.

English

Capital letters & Symbols Small letters & Symbols Numerals & Symbols

(Blank)

(Blank) (Blank)

(Blank)

– 36 –

English

entry buttons

Continued

Remote control

MD TITLE

INPUT

Character

ø / Ø

PLAY

TITLE

MODE

INPUT

MARK ABC DEF

GHI JKL MNO

PQRS TUV WXYZ

REC PAUSE

FADE MUTING

MD recorder

SLEEP

321

DISPLAY

/CHARA

654

CANCEL

987

SET

ENTER

BASSSOUNDFM MODE

CD3

AUXTAPEFM/AM

CD2

CD1

DISPLAY/CHARA CANCEL SET ENTER

MD IN lamp

MD Loading slot

Assigning a Title Using the Remote Control

• To stop any time during the following process, press MD TITLE INPUT.

Insert an MD you want to edit into the MD loading slot on the unit.

The MD IN lamp lights.

Press MD TITLE INPUT.

The MD recorder enters title entry mode.

• Disc title entry indication (mode): appears when

you press MD TITLE INPUT while the disc information is shown in the main display.

• Track title entry indication (mode): appears when

you press MD TITLE INPUT while the track information is shown in the main display.

Press ø or Ø to change the title entry mode.

• Title entry mode changes as follows:

Disc

title Last track

title

1st track

title

2nd track

title

3rd track

title

Press SET to enter the selected title entry mode.

Press DISPLAY/CHARA to select the character set you want.

• Each time you press the button, the character sets change as follows:

Capital letters Small letters

Numerals

Input a character.

1) Press the character entry button for a character

you want to input.

Examples:

• To input an “A” or “a,” press ABC once. To input a “B” or “b,” press ABC twice. To input a “C” or “c,” press ABC three times.

To input a “D” or “d,” press DEF once. To input an “E” or “e,” press DEF twice. To input an “F” or “f,” press DEF three times.

............

• To input a symbol, press MARK repeatedly until the desired mark appears.

• To move the character entry position while entering a title, press ø or Ø.

• If you have entered an incorrect character, press CANCEL to cancel the last entry.

– 37 –

Name!!

2) Press the button for the next character you want to input.

• If the next character you want to input is assigned

to the same button you have just pressed in step 6-1), press Ø first to move the character entry position to right.

Repeat steps 5 and 6 to input other characters.

• The main display can only show 8 characters at a

time. If you enter the 9th character, the first character disappears, and so on.

Press ENTER twice to finish the title entry.

• If you want to cancel the editing, press MD TITLE

INPUT after pressing ENTER once in this step.

Press 0 on the unit to eject the MD.

“WRITING” appears while the editing you have made is being recorded on the MD.

You can assign titles during play or recording

• During play: Entering a track title

The MD recorder repeats playback of the current track until you press ENTER twice in step 8 above. When you press it twice, MD stops play.

Entering a disc title

The MD recorder repeats playback of all tracks of the MD until you press ENTER twice in step 8 above. When you press it twice, MD stops play.

• During recording:Entering a track title

The MD recorder continues recording even after you press ENTER twice in step 8 above. When you press it twice, a track title is assigned to the track where you have started the title entry.

Changing the Title

You can make a correction or change the title.

Follow steps 1 to 4 of page 37.

Press ø or Ø to select the character you want to correct.

• Make sure that the character you want to change is flashing.

Press CANCEL to delete the character you have selected in the above step.

Input the correct character by pressing one of the text entry buttons.

Repeat steps 2 to 4 of the current procedure to correct more characters.

Press ENTER twice to finish correcting the title.

• If you want to cancel the correction, press MD TITLE INPUT after pressing ENTER once in this step.

Press 0 on the unit to eject the MD.

“WRITING” appears while the editing you have made is being recorded on the MD.

To erase all the characters

Press CANCEL repeatedly in step 3 above to erase all the characters, then go to step 6.

English

Available Characters

Capital letters

Small letters Symbols

Numerals

(Blank)

– 38 –

Using the Timers

English

Amplifier/tuner

CLOCK/TIMER

There are three timers available — Recording Timer, Daily Timer, and Sleep Timer. Before using these timers, you need to set the clock built in the unit. (See page 10.)

CANCEL

Using Recording Timer

With Recording Timer, you can make an MD of a radio broadcast automatically.

• You can set Recording Timer whether the unit is turned on or off.

• To correct a mis-entry any time during the setting process, press CANCEL.

How Recording Timer actually works

The unit automatically turns on, tunes into the specified station, turns off the volume, and starts recording on the MD recorder when the timer-on time comes. Then, when the timer-off time comes, the unit automatically turns off (stands by). The timer settings remain stored in memory until you reset them or disconnect the AC power cord.

SET

MULTI JOG

Rotate MULTI JOG to set the hour of the timer-on time, then press SET.

Rotate MULTI JOG to set the minute of the timeron time, then press SET.

Rotate MULTI JOG to set the hour of the timer-off time, then press SET.

Rotate MULTI JOG to set the minute of the timeroff time, then press SET.

Press CLOCK/TIMER repeatedly until “REC SET” appears in the main display.

• Each time you press the button, the timer mode changes as follows:

DAILY ON/OFF? REC ON/OFF?

Previous indication

DAILY SET

Clock

REC SET

– 39 –

Rotate MULTI JOG to select either “FM” or “AM,” then press SET.

Continued

Rotate MULTI JOG to select a preset channel, then press SET.

After completing the settings...

The REC indicator lights on the display window, and Recording Timer is ready for unattended recording.

After a timer recording is complete...

Set the volume to an appropriate listening level.

If you press a certain button while Recording Timer is operating

Recording will stop.

To use the same Recording timer settings repeatedly

Once you have set Recording Timer, it remains stored in memory until you change it. To activate Recording Timer with the previous settings recalled, follow the procedure below:

Using Daily Timer

With Daily Timer, you can wake up to your favorite music or radio program.

• You can set Daily Timer whether the unit is turned on or off.

How Daily Timer actually works

The unit automatically turns on, and starts playing the specified source when the timer-on time comes. Then, when the timer-off time comes, the unit automatically turns off (stands by). The timer settings remain stored in memory until you reset them or disconnect the AC power cord.

Press CLOCK/TIMER repeatedly until “DAILY SET” appears in the main display.

• Each time you press the button, the timer mode changes as follows:

DAILY ON/OFF? REC ON/OFF?

Previous indication

DAILY SET

Clock

REC SET

English

1 Press CLOCK/TIMER repeatedly until “REC ON/

OFF?” appears in the main display.

2 Press SET to use the previous settings for next timer

recording.

The REC indicator lights on the display window.

• To deactivate Recording Timer, press CANCEL in this step.

Rotate MULTI JOG to set the hour of the timer-on time, then press SET.

Rotate MULTI JOG to set the minute of the timeron time, then press SET.

Rotate MULTI JOG to set the hour of the timer-off time, then press SET.

Rotate MULTI JOG to set the minute of the timeroff time, then press SET.

Continued

– 40 –

English

SLEEP

PLAY

MODE

DISPLAY

/CHARA

CANCEL

SET

ENTER

MARK ABC DEF

GHI JKL MNO

PQRS TUV WXYZ

BASSSOUNDFM MODE

654

987

321

CD3

AUXTAPEFM/AM

CD2

REC PAUSE

MD TITLE INPUT

Continued

Amplifier/tuner

Remote control

SLEEP

CLOCK/TIMER

CANCEL

SET

MULTI JOG

Continued

Rotate MULTI JOG to set the source, then press SET.

FM AM CD

AUX

TAPE

FM: Tunes into a preset FM station. Go to step 7. AM: Tunes into a preset AM station. Go to step 7. CD: Plays a CD. Prepare a CD, then go to step 7. MD: Plays an MD. Prepare an MD. TAPE*: Selects “TAPE” as the source. Make the

cassette deck ready for playback.

AUX*: Selects “AUX” as the source. Make the

external equipment ready for playback.

* To use these equipment with the Daily Timer, they

also have the timer function.

If you have selected FM or AM as the source in the above step, select a preset channel.

1) Rotate MULTI JOG to select a preset channel.

2) Press SET.

If you have selected CD as the source in the above step, select a disc.

1) Rotate MULTI JOG to select a disc.

2) Press SET.

Rotate MULTI JOG to set the volume level, then press SET.

• You can adjust the volume within the range of “00” to “50.” If you select “– –,” the volume is set to the previous level when the unit is turned off.

Rotate MULTI JOG to select either “FADE” or “ NO FADE,” then press SET.

FADE: Volume fades in (gradually becomes

louder and is set to the specified level) when the timer-on time comes.

NO FADE: No fade-in effect. Volume is set to the

specified level when the timer-on time comes.

After completing the settings...

The DAILY indicator lights on the display window. Turns off the unit (on standby) if you have set Daily Timer with the unit turned on.

Ex.: When selecting “CD 2”

If you press a certain button while Daily Timer is operating

The unit will not turn off automatically.

– 41 –

ZZZ...

To use the same Recording timer settings repeatedly

Once you have set Daily Timer, it remains stored in memory until you change it. To activate Daily Timer with the previous settings recalled, follow the procedure below:

1 Press CLOCK/TIMER repeatedly until “DAILY

ON/OFF?” appears in the main display.

2 Press SET to activate Daily timer.

• To deactivate Daily Timer, press CANCEL in this step.

Using Sleep Timer

With Sleep Timer, you can fall asleep to your favorite music. You can set Sleep Timer when the unit is turned on.

How Sleep Timer actually works

The unit automatically turns off after the specified time length passes.

Press SLEEP on the remote control.

• Each time you press the button, the time length changes as follows:

20 30 60 90 120

OFF

(Canceled)

Timer Priority

Since each timer can be set separately, you may wonder what happens if the setting for these timers overlaps. Here are the priorities for each timer.

• Recording Timer has priority over Daily Timer and Sleep Timer.

If Daily Timer is set to come on while Recording Timer is operating, Daily Timer will not come on at all.

6:00

Recording Timer

Daily Timer

does not work.

If Recording Timer is set to come on while Sleep Timer is operating, Sleep Timer will be canceled several seconds before Recording Timer comes on.

6:00

Recording Timer

Sleep Timer

6:30

canceled.

7:00

• Sleep Timer has priority over Daily Timer.

If Daily Timer is set to come on while Sleep Timer is operating, Daily Timer will not come on at all.

6:00

Sleep Timer

Daily Timer

7:006:30

7:307:006:30

7:30

English

Wait for about 3 seconds after specifying the time length.

The display window dims.

To check the remaining time until the shut-off time,

press SLEEP once. The remaining time until the shut-off time appears for about 5 seconds.

To change the shut-off time, press SLEEP repeatedly until the desired time length appears.

To cancel the setting, press SLEEP repeatedly until “SLEEP OFF” appears.

• Turning off the unit also cancels Sleep Timer

does not work.

Therefore, the equation is like this —

Recording Timer > Sleep Timer > Daily Timer

– 42 –

Maintenance

English

To get the best performance of the unit, keep your discs and mechanism clean.

General Notes

In general, you will have the best performance by keeping your CDs, MDs and the mechanism clean.

• Store CDs and MDs in their cases, and keep them in cabinets or on shelves.

• Keep the CD disc compartment, and the MD loading slot cover closed when not in use.

Handling CDs

• Remove the CD from its case by holding it at the edge while pressing the center hole lightly.

• Do not touch the shiny surface of the disc, or bend the CD.

• Put the CD back in its case after use to prevent warping.

• Be careful not to scratch the surface of the CD when placing it back in its case.

• Avoid exposure to direct sunlight, temperature extremes, and moisture.

Handling MDs

• Do not open the shutter.

- The shutter is locked so that it will not open. Trying to force it open will break the MD. If the shutter opens accidentally, c lose it again quickly without touching the MD inside.

• Do not place MDs in the following places:

- High temperature areas such as

in direct sunlight or inside a car.

- High humidity areas, e.g. in a

bathroom.

- On a beach or sandy area.

• Clean MDs regularly.

- If dust or dirt gets on cartridge, wipe it off with a soft dry cloth.

To clean the CD

Wipe the CD with a soft cloth in a straight line from center to edge.

DO NOT use any solvent — such as conventional record cleaner, spray, thinner, or benzine — to clean the CD.

– 43 –

Additional Information

MD Disc Types

There are two types of MDs: Premastered (prerecorded) and Recordable (blank).

Premastered MDs

Premastered MDs, which have been recorded at music studio, can be played back like regular CDs. On an MD of this type, data is recorded as the presence or absence of tiny pits. A laser beam focuses on the pits on the surface of the MD and reflects the detection back to the lens in the MD recorder. The MD recorder then decodes the signals and plays them back as music. This type of MD is called an “optical disc.”

Recordable MDs

Recordable MDs, which use magneto-optical technology, can be recorded and played back repeatedly. The laser inside the MD recorder applies heat to the MD, demagnetizing the magnetic layer of the MD for recording and playback. This type of MD is called an “magnetic-optical disc.”

ATRAC (Adaptive TRansform Acoustic Coding)

The MD provides 74 minutes recording and playback time, the same as an audio CD, but in a diameter of only 64 mm. This ability to store such a large amount of data is the result of ATRAC, an audio compression technique developed for MD. This technology cuts out faint sounds that would not be heard by the human beings. This technology, based on human sensitivity to sounds, reduces recorded data volume up to about one-fifth of that of the original data.

English

UTOC (User Table Of Contents)

Found only on recordable MDs, this area contains sub-data (track number, recording data, etc.) which can be rewritten by the user. UTOC enables us to search tracks quickly and edit tracks on the MD.

3:12 4:15

6:05

SCMS (Serial Copy Management System)

The MD recorder integrated to this unit uses the Serial Copy Management System which allows only first-generation digital copies to be made of premastered software (like CDs or prerecorded MDs).

1st Generation 2nd Generation

ABCDEFG

– 44 –

English

Sound Skip Guard Memory

The biggest weakness of discs is their susceptibility to vibration. The “Sound Skip Guard Memory” has been developed to cope with this weakness. With this function, a few seconds of signals read by the optical read head from the disc are first stored in memory before being reproduced as audio signals. Thus, even when vibration or shock interrupts signals being read, these stored signals can continue to reproduce sounds for the few seconds. Thus, the user will enjoy uninterrupted music.

Normally....

MD limitations

The MD records data in an original format that differs from that of conventional cassette tapes or DATs. Since there are some limitations with this recording format, the following types of symptoms may occur. These symptoms are not malfunctions.

When “vibrated”....

Symptoms

“DISC FULL” appears, even though there is still enough remaining time on an MD.

“DISC FULL” appears even though the number of tracks and recording time do not reach the limit.

The JOIN function sometimes does not work.

The remaining time on the MD does not increase even when tracks are erased.

The sound drops out during fast forward or fast rewind.

The amount of recorded time on the MD added to the amount of remaining time is shorter than the MD’s total possible recording time.

Cause

There is a maximum number of tracks which can be recorded, regardless of recording time. More than 254 tracks cannot be recorded on an MD.

• Repeating erasure and recording on the same MD creates many blank portions sparsely on the MD. When recording on such an MD, a track is recorded on these blank portions sparsely. If a track is divided and recorded into so many portions, “DISC FULL” appears.

• If a divided portion of less than 8 seconds is made while a track is recorded on the MD, that track cannot be joined to another track using the JOIN function. Furthermore, if that track is erased, the remaining time of the MD may not increase exactly by the erased amount.

• If a track has been divided into many portions while being recorded on the MD, sounds will drop out while fast forwarding or reversing such an MD.

You cannot record on a blank portion of less than 2 seconds in the MD. For this reason, the actual recording time of discs may become shorter.

– 45 –

Troubleshooting

If you are having a problem with your unit, check this list for a possible solution before calling for service. If you cannot solve the problem from the hints given here, or the unit has been physically damaged, call a qualified person, such as your dealer, for service.

Symptom

No sound is heard.

Unable to record on an MD.

Poor radio reception.

The CD skips. Unable to operate the remote control.

The number buttons and CD/MD/tuner control buttons on the remote control do not function correctly.

Loaded CDs and MD cannot be ejected.

The CD does not play. Operations are disabled.

Connections are incorrect, or loose.

• You are using a prerecorded MD.

• The MD is write-protected.

• The antenna is not connected correctly.

• The AM loop antenna is too close to the unit.

• The FM antenna is not properly extended and positioned.

The CD is dirty or scratched.

• The path between the remote control and the remote sensor on the unit is blocked.

• The batteries have lost their charge.

The operation modes for the unit and for the remote control do not match.

• The main AC power cord is not plugged in.

• The Disc Lock function is turned on.

The CD is upside down. The built-in microprocessor has

malfunctioned due to external electrical interference.

Possible Cause

Action

Check all connections and make corrections. (See pages 6 – 9.)

• Change it with a recordable MD.

• Unprotect the MD. (See page 47.)

• Reconnect the antenna securely.

• Change the position and direction of the AM loop antenna.

• Extend FM antenna to the best reception position.

Clean or replace the CD. (See page 43.)

• Remove the obstruction.

• Replace the batteries.

Match them correctly.

• Plug in the AC power plug.

• Turn off the Disc Lock function. (See page 18.)

Put the CD in with the label side up. Unplug the unit then plug it back in.

English

– 46 –

English

MD Messages

Message

BLANK DISC

CANNOT JOIN

DISC ERROR

DISC FULL

EMERGENCY STOP

MD NO DISC

NON-AUDIO

CANNOT COPY

PLAYBACK MD

DISC PROTECTED

SCMS CANNOT

COPY

DIGITAL IN

UNLOCK

Signification

The disc is blank.

You are trying to join tracks which cannot be joined.

There is a problem with this MD. There is no more space on the MD or

there are over 254 tracks. A malfunction has occurred during the

recording. There is no MD. You are trying to copy a non-audio disc

like a CD-ROM or a Video CD. You are trying to edit or record on a

playback-only MD. The MD is write-protected.

Digital copy of the 2nd generation is prohibited.

There is no digital device connected to the AUX DIGITAL IN OPTICAL terminal.

Solution

Change the MD with another if you want to enjoy playback.

This is not a malfunction. (See MD limitations on page 45.)

Change the MD. Use another recordable MD or erase

some tracks. Eject the MD and re-insert it.

Put an MD. Stop recording.

Use a recordable MD.

Unprotect the MD or use another. (See page 23.)

Use an analog recording method.

Connect a digital device using digital optical cord.

– 47 –

Specifications

Amplifier

Output Power (IEC 268-3/DIN) 35 watts per channel, min. RMS, both channels driven into 6 ohms at 1 kHz with no more than 0.9% total harmonic distortion.

Audio input sensitivity/Impedance (at 1 kHz)

Analog input:

TAPE 200 mV/47 kohms AUX 500 mV/47 kohms

Digital input:

AUX: Optical

Signal wave length: 660 nm Input level: –23 dBm to –15 dBm (With the built-in sampling rate

converter, corresponding to 32 kHz/

44.1 kHz/48 kHz)

Audio output level/Impedance (at 1 kHz)

TAPE 170 mV/3.9 kohms

Speakers/Impedance: 6 ohms

Tuner

FM tuning range: 87.50 — 108.00 MHz AM tuning range:

531 — 1,602 kHz (at 9 kHz channel spacing) 530 — 1,710 kHz (at 10 kHz channel spacing)

CD player

CD Capacity: 3 CDs Dynamic range: 92 dB Signal-to-noise ratio: 100dB Wow and flutter: Immeasurable

General

Power requirement:

For Singapore and Hong Kong:

AC 110V/127V/220V/

(adjustable with the voltage

230V selector), 50/60 Hz

For other countries:

AC 110V/127V/220V/ 230–240V (adjustable with the voltage selector), 50/60 Hz

Power consumption: 105 watts (at operation)

11 watts (on standby: with Demo

off)

15 watts (on standby: with Demo

on)

Maximum power consumption (for Taiwan only)

240 watts

Dimensions (approx.): 245 x 280 x 346 mm (W/H/D)

Mass (approx.): 7.8 kg (17.2 lbs)

/16 x 111/16 x 135/8 in.)

Supplied accessories

See page 6.

Design and specifications are subject to change without notice.

English

MD recorder

Audio playing system: MiniDisc digital audio system Recording system: Magneto-optical overwrite system Reading system: Non-contact, semiconductor laser

pickup (λ=780 nm)

Error correction system:

Sampling frequency: 44.1 kHz

Audio compression system:

CIRC (Cross Interleave ReedSolomon Code)

(With sampling rate converter for recording — 32 kHz/44.1 kHz/ 48 kHz)

ATRAC (Adaptive TRansform Acoustic Coding)

– 48 –
