JVC AV D37 HC Service Manual

AV-D37

SERVICE MANUAL

STEREO RECEIVER

• This Service Manual contains information about the difference between AV-D37 (HCNHM) and AV-D37 (HC). If requiring other information, see Service Manual of AV-D37 (HR,HC,HT) (S/M Code No. 09-009-428-4R2).

S/M Code No. 09-011-428-4S1

SUPPLEMENT

DATA

SPECIFICATIONS

FM tuner section Tuning range 87.5 MHz to 108 MHz Usable sensitivity (IHF) 13.2 dBf Antenna terminals 75 ohms (unbalanced)

AM tuner section Tuning range 531 kHz to 1602 kHz (9 kHz step)

530 kHz to 1710 kHz (10 kHz step)

Usable sensitivity 350 µV/m Antenna Loop antenna

Amplifier section Power output [Stereo Mode]

Front

Rated: 100 W + 100 W (8 ohms, T.H.D. 1 %, 1 kHz) Reference: 130 W + 130 W (8 ohms, T.H.D. 10 %, 1 kHz)

[Dolby Pro Logic or 5.1 CH Mode] Front

Rated: 60 W + 60 W (8 ohms, T.H.D. 1 %, 1 kHz) Reference: 70 W + 70 W (8 ohms, T.H.D. 10 %, 1 kHz)

Rear (Surround)

Rated: 60 W + 60 W (8 ohms, T.H.D. 1 %, 1 kHz) Reference: 70 W + 70 W (8 ohms, T.H.D. 10 %, 1 kHz)

Center

Rated: 60 W (8 ohms, T.H.D. 1 %, 1 kHz) Reference: 70 W (8 ohms, T.H.D. 10 %, 1 kHz)

Total harmonic distortion 0.08 % (30 W, 1 kHz, 8 ohms, Front) Inputs AUDIO IN

PHONO: 2.5 mV, adjustable (47 kohms) CD, VIDEO 1/DVD/MD, VIDEO 2/ LD/TV, VIDEO 3: 300 mV, adjustable (47 kohms) TAPE MONITOR: 350 mV (47 kohms) AUX: 250 mV, adjustable (47 kohms)

5.1 INPUT FRONT, CENTER: 300 mV, adjustable (47 kohms) SURROUND: 300mV, adjustable (47 kohms) SUB-WOOFER: 300 mV, adjustable (47 kohms)

VIDEO IN: 1 Vp-p (75 ohms)

Outputs AUDIO OUT (REC OUT): 200 mV

(1 kohm) VIDEO OUT (MONITOR): 1 Vp-p (75 ohms) SUB WOOFER: 1.2 V FRONT SPEAKERS IMP: 8 ohms (front speakers A and B ): accepts speakers of 8 ohms or more SURROUND SPEAKERS IMP: 8 ohms (surround speakers): accepts speakers of 8 ohms or more CENTER SPEAKER IMP: 8 ohms accepts speaker of 8 ohms or more PHONES (stereo jack): accepts headphones of 32 ohms or more

Muting -20 dB

General Power requirements 120/220-230/240 V AC, switchable

50/60 Hz

Power consumption 190 W Power consumption in ECO OFF: 31 W standby mode ECO ON: 1.2 W Dimensions 430 x 155 x 402 mm (W x H x D) Weight 10.4 kg

• Design and specifications are subject to change without notice.

• Manufactured under license from Dolby Laboratories Licensing

Corporation.

“DOLBY”, the double-D symbol and "PRO LOGIC" are

trademarks of Dolby Laboratories Licensing Corporation.

• The word "BBE"and the "BBE symbol" are trademarks of BBE

Sound, Inc.

Under license from BBE Sound,Inc.

– 2 –

ELECTRICAL MAIN PARTS LIST

REF. NO.

87-A21-419-040 C-IC,NJM14558MD-TE2 87-017-022-080 C-IC,NJM2068M D(T1) 87-020-784-080 C-IC,TC4053BF 87-A20-056-010 IC,BA3880S 87-017-726-080 C-IC,BU4052BCF

87-A21-202-040 C-IC,M62445AFP 87-A21-481-040 C-IC,HD74HC4051FP 8A-AR4-601-210 C-IC,UPD780228GF-076-3BA 87-070-083-010 IC,GP1U281X 87-A20-820-010 IC,BA7625

87-017-917-080 C-IC,BU4066BCF 87-A20-913-010 IC,LA1837NL 87-070-127-110 IC,LC72131D 87-A20-437-010 C-IC,M62431FP 87-A20-561-040 C-IC,M65847AFP

87-A21-844-040 C-IC,KIA4558F 87-070-417-010 IC,NJM4558DD 87-A21-097-040 C-IC,M62463AFP 87-A21-015-040 C-IC,M62491FP

TRANSISTOR

87-A30-197-080 TR,KTA1267GR 87-026-245-080 TR,DTC114ES 87-A30-198-080 TR,KTC3199GR 89-110-372-080 C-TR,2SA1037K(R) 87-A30-071-080 C-TR,RT1N 144C

89-213-702-010 TR,2SB1370E 87-A30-083-080 TR,CSD1489B 87-A30-075-080 C-TR,2SA1235F 87-A30-076-080 C-TR,2SC3052F 87-A30-074-080 C-TR,RT1P 141C

87-026-610-080 TR,KTC3198GR 87-A30-086-070 C-TR,CSD1306E 87-026-609-080 TR,KTA1266GR 87-A30-257-080 C-TR,2SD1306E 87-A30-107-070 C-TR,CMBT5401

87-A30-190-080 TR,CC5551 87-A30-097-010 TR,FN1016 87-A30-098-010 TR,FP1016 87-A30-106-070 C-TR,CMBT5551 87-A30-186-010 FET,2SK3053

87-A30-072-080 C-TR,RT1P 144C 87-A30-454-040 C-TR,DTA144WKA 87-A30-087-080 C-FET,2SK2158 89-327-143-080 C-TR,2SC2714O 87-A30-196-080 TR,2SC4115SRS

87-A30-268-040 C-TR,2SA1514K(S) 87-A30-273-040 C-TR,DTC124EKA 87-026-462-080 TR,2SC1740SRS 87-A30-435-040 C-TR,DTC144EKA

DIODE

87-020-465-080 DIODE,1SS133 87-A40-345-080 ZENER,MTZJ10C 87-A40-269-080 C-DIODE,MC2836 87-A40-115-060 DIODE,RS603M 87-A40-270-080 C-DIODE,MC2838

87-A40-004-080 ZENER,MTZJ16A 87-A40-335-080 ZENER,MTZJ11C T-72 87-A40-224-010 DIODE,GBU8DL 87-070-274-080 DIODE,1N4003 SEM 87-A40-435-080 ZENER,MTZJ30D

87-A40-646-010 DIODE,FMB-G16L 87-070-136-080 ZENER,MTZJ5.1B 87-A40-344-080 ZENER,MTZJ6.2C 87-A40-488-080 DIODE,1SS244 87-A40-438-080 ZENER,MTZJ4.7A

PART NO. DESCRIPTIONREF. NO. KANRI

KANRI NO.

DESCRIPTION

PART NO.

NO.

87-017-931-080 ZENER,MTZJ5.6B 87-A40-348-080 ZENER,MTZJ3.3A 87-017-148-080 ZENER,HZS6A1L 87-A40-002-080 ZENER,MTZJ5.1C 87-A40-003-080 ZENER,MTZJ4.3A

MAIN C.B

C001 87-012-368-080 C-CAP,S 0.1-50 ZF C101 87-010-235-080 CAP,E 470-16 M SME C102 87-010-235-080 CAP,E 470-16 M SME C103 87-010-384-080 CAP,E 100-25 M 11L SME C104 87-010-382-080 CAP,E 22-25 M 11L SME

C105 87-010-247-080 CAP,E 100-50 M SME C106 87-010-384-080 CAP,E 100-25 M 11L SME C108 87-012-140-080 C-CAP,S 470P-50 J CH C109 87-012-368-080 C-CAP,S 0.1-50 Z F C110 87-012-368-080 C-CAP,S 0.1-50 Z F

C111 87-012-368-080 C-CAP,S 0.1-50 Z F C112 87-012-368-080 C-CAP,S 0.1-50 Z F C113 87-A12-300-010 CAP,E 3900-35 LXZ C114 87-A12-300-010 CAP,E 3900-35 LXZ C115 87-012-368-080 C-CAP,S 0.1-50 Z F

C116 87-012-368-080 C-CAP,S 0.1-50 Z F C117 87-012-368-080 C-CAP,S 0.1-50 Z F C118 87-012-368-080 C-CAP,S 0.1-50 Z F C119 87-A10-461-090 CAP,E 6800-71 SMG VB C120 87-A10-461-090 CAP,E 6800-71 SMG VB

C121 87-010-260-080 CAP,E 47-25 M 11L SME C122 87-010-403-080 CAP,E 3.3-50 M 11L SME C123 87-010-385-080 CAP,E 220-25 M SME C124 87-010-385-080 CAP,E 220-25 M SME C125 87-010-247-080 CAP,E 100-50 M SME

C126 87-010-263-080 CAP,E 100-10 M 11L SME C127 87-010-197-080 C-CAP,S 0.01-25 K B C2012 C131 87-010-378-080 CAP,E 10-16 M 11L SME C133 87-010-378-080 CAP,E 10-16 M 11L SME C135 87-012-368-080 C-CAP,S 0.1-50 Z F

C136 87-012-368-080 C-CAP,S 0.1-50 Z F C143 87-A10-712-080 C-CAP,S 0.22-50 Z F C144 87-A10-712-080 C-CAP,S 0.22-50 Z F C203 87-010-176-080 C-CAP,S 680P-50 J SL C204 87-010-176-080 C-CAP,S 680P-50 J SL

C205 87-010-405-080 CAP,E 10-50 M 11L SME C206 87-010-405-080 CAP,E 10-50 M 11L SME C209 87-010-392-080 CAP,E 33-35 M 11L SME C210 87-010-392-080 CAP,E 33-35 M 11L SME C211 87-010-322-080 C-CAP,S 100P-50 J CH GRM

C212 87-010-322-080 C-CAP,S 100P-50 J CH GRM C215 87-A10-897-080 CAP,E 100-25 BP SME C216 87-A10-897-080 CAP,E 100-25 BP SME C217 87-A10-516-080 C-CAP,S 100P-200 J CH C218 87-A10-516-080 C-CAP,S 100P-200 J CH

C221 87-016-526-080 C-CAP,S 0.47-16 BK C222 87-016-526-080 C-CAP,S 0.47-16 BK C223 87-010-402-080 CAP,E 2.2-50 M 11L SME C224 87-010-402-080 CAP,E 2.2-50 M 11L SME C225 87-010-196-080 C-CAP,S 0.1-25 Z F C2012

C226 87-016-251-080 CAP,E 220-16 M SMG C227 87-010-178-080 C-CAP,S 1000P-50 K B C2012 C228 87-010-178-080 C-CAP,S 1000P-50 K B C2012 C229 87-016-251-080 CAP,E 220-16 M SMG C230 87-A10-354-080 C-CAP,S 0.047-50 K B

C231 87-A10-354-080 C-CAP,S 0.047-50 K B C285 87-010-186-080 C-CAP,S 4700P-50 K B C2012 C291 87-012-368-080 C-CAP,S 0.1-50 Z F C292 87-012-368-080 C-CAP,S 0.1-50 Z F C293 87-012-368-080 C-CAP,S 0.1-50 Z F

C294 87-012-368-080 C-CAP,S 0.1-50 Z F C295 87-012-368-080 C-CAP,S 0.1-50 Z F

– 3 –

PART NO.

NO.

C296 87-012-368-080 C-CAP,S 0.1-50 Z F C297 87-012-368-080 C-CAP,S 0.1-50 Z F C298 87-012-368-080 C-CAP,S 0.1-50 Z F C303 87-010-179-080 C-CAP,S 1200P-50 K B GRM C304 87-010-179-080 C-CAP,S 1200P-50 K B GRM

C305 87-010-406-080 CAP,E 22-50 M 11L SME C306 87-010-406-080 CAP,E 22-50 M 11L SME C308 87-016-299-080 CAP,E 10-100 M SME C309 87-010-260-080 CAP,E 47-25 M 11L SME C310 87-010-260-080 CAP,E 47-25 M 11L SME

C311 87-010-322-080 C-CAP,S 100P-50 J CH GRM C312 87-010-322-080 C-CAP,S 100P-50 J CH GRM C315 87-A10-897-080 CAP,E 100-25 BP SME C316 87-A10-897-080 CAP,E 100-25 BP SME C317 87-A10-516-080 C-CAP,S 100P-200 J CH

C318 87-A10-516-080 C-CAP,S 100P-200 J CH C321 87-016-526-080 C-CAP,S 0.47-16 BK C322 87-016-526-080 C-CAP,S 0.47-16 BK C323 87-010-402-080 CAP,E 2.2-50 M 11L SME C324 87-010-402-080 CAP,E 2.2-50 M 11L SME

C325 87-010-196-080 C-CAP,S 0.1-25 Z F C2012 C327 87-010-178-080 C-CAP,S 1000P-50 K B C2012 C328 87-010-178-080 C-CAP,S 1000P-50 K B C2012 C330 87-A10-354-080 C-CAP,S 0.047-50 K B C331 87-A10-354-080 C-CAP,S 0.047-50 K B

C334 87-A10-918-080 CAP,E 100-16 SMG C335 87-A10-918-080 CAP,E 100-16 SMG C385 87-010-186-080 C-CAP,S 4700P-50 K B C2012 C391 87-012-368-080 C-CAP,S 0.1-50 Z F C392 87-012-368-080 C-CAP,S 0.1-50 Z F

C393 87-012-368-080 C-CAP,S 0.1-50 Z F C394 87-012-368-080 C-CAP,S 0.1-50 Z F C402 87-010-181-080 C-CAP,S 1800P-50 K B GRM C403 87-010-405-080 CAP,E 10-50 M 11L SME C405 87-010-406-080 CAP,E 22-50 M 11L SME

C406 87-010-322-080 C-CAP,S 100P-50 J CH GRM C408 87-A10-897-080 CAP,E 100-25 BP SME C409 87-A10-516-080 C-CAP,S 100P-200 J CH C411 87-016-526-080 C-CAP,S 0.47-16 BK C412 87-010-402-080 CAP,E 2.2-50 M 11L SME

C413 87-010-196-080 C-CAP,S 0.1-25 Z F C2012 C414 87-010-178-080 C-CAP,S 1000P-50 K B C2012 C416 87-016-299-080 CAP,E 10-100 M SME C420 87-A10-354-080 C-CAP,S 0.047-50 K B C485 87-010-186-080 C-CAP,S 4700P-50 K B C2012

C491 87-012-368-080 C-CAP,S 0.1-50 Z F C492 87-012-368-080 C-CAP,S 0.1-50 Z F C501 87-010-404-080 CAP,E 4.7-50 M 11L SME C502 87-010-404-080 CAP,E 4.7-50 M 11L SME C503 87-012-157-080 C-CAP,S 330P-50 J CH GRM

C504 87-012-157-080 C-CAP,S 330P-50 J CH GRM C511 87-010-404-080 CAP,E 4.7-50 M 11L SME C512 87-010-404-080 CAP,E 4.7-50 M 11L SME C513 87-010-260-080 CAP,E 47-25 M 11L SME C514 87-010-260-080 CAP,E 47-25 M 11L SME

C515 87-010-370-080 CAP,E 330-6.3 M SME C516 87-010-370-080 CAP,E 330-6.3 M SME C517 87-010-196-080 C-CAP,S 0.1-25 Z F C2012 C518 87-010-196-080 C-CAP,S 0.1-25 Z F C2012 C519 87-010-196-080 C-CAP,S 0.1-25 Z F C2012

C520 87-010-196-080 C-CAP,S 0.1-25 Z F C2012 C531 87-010-213-080 C-CAP,S 0.015-25 K B GRM C532 87-010-992-080 C-CAP,S 0.047-25 K B MK212 C533 87-015-785-080 C-CAP, 0.1-25 Z F C3216 C535 87-010-404-080 CAP,E 4.7-50 M 11L SME

C536 87-010-404-080 CAP,E 4.7-50 M 11L SME C539 87-010-401-080 CAP,E 1-50 M 11L SME C540 87-010-401-080 CAP,E 1-50 M 11L SME C541 87-010-185-080 C-CAP,S 3900P-50 K B C542 87-010-185-080 C-CAP,S 3900P-50 K B

DESCRIPTIONREF. NO. KANRI

PART NO.

NO.

C547 87-010-404-080 CAP,E 4.7-50 M 11L SME C548 87-010-404-080 CAP,E 4.7-50 M 11L SME C549 87-016-081-080 C-CAP,S 0.1-16 K R GRM C550 87-016-081-080 C-CAP,S 0.1-16 K R GRM C554 87-010-196-080 C-CAP,S 0.1-25 Z F C2012

C555 87-010-405-080 CAP,E 10-50 M 11L SME C556 87-010-248-080 CAP,E 220-10 M 11L SME C557 87-010-405-080 CAP,E 10-50 M 11L SME C558 87-010-992-080 C-CAP,S 0.047-25 KB MK212 C559 87-010-181-080 C-CAP,S 1800P-50 K B GRM

C561 87-012-140-080 C-CAP,S 470P-50 J CH C562 87-012-140-080 C-CAP,S 470P-50 J CH C565 87-010-404-080 CAP,E 4.7-50 M 11L SME C566 87-010-404-080 CAP,E 4.7-50 M 11L SME C601 87-010-378-080 CAP,E 10-16 M 11L SME

C602 87-010-378-080 CAP,E 10-16 M 11L SME C603 87-012-156-080 C-CAP,S 220P-50 J CH C604 87-012-156-080 C-CAP,S 220P-50 J CH C605 87-010-405-080 CAP,E 10-50 M 11L SME C606 87-010-405-080 CAP,E 10-50 M 11L SME

C607 87-012-140-080 C-CAP,S 470P-50 J CH C608 87-012-140-080 C-CAP,S 470P-50 J CH C609 87-010-188-080 C-CAP,S 6800P-50 KB C2012 C610 87-010-188-080 C-CAP,S 6800P-50 KB C2012 C611 87-010-197-080 C-CAP,S 0.01-25 KB C2012

C612 87-010-195-080 C-CAP,S 0.068-25 ZF C2012 C613 87-010-195-080 C-CAP,S 0.068-25 ZF C2012 C614 87-010-197-080 C-CAP,S 0.01-25 KB C2012 C615 87-010-404-080 CAP,E 4.7-50 M 11L SME C616 87-010-404-080 CAP,E 4.7-50 M 11L SME

C617 87-010-404-080 CAP,E 4.7-50 M 11L SME C618 87-010-404-080 CAP,E 4.7-50 M 11L SME C619 87-010-404-080 CAP,E 4.7-50 M 11L SME C620 87-010-101-080 CAP,E 220-16 M SME C621 87-010-260-080 CAP,E 47-25 M 11L SME

C701 87-010-196-080 C-CAP,S 0.1-25 Z F C2012 C702 87-010-196-080 C-CAP,S 0.1-25 Z F C2012 C723 87-010-401-080 CAP,E 1-50 M 11L SME C726 87-010-401-080 CAP,E 1-50 M 11L SME C745 87-010-190-080 C-CAP,S 0.01-50 ZF C2012

C746 87-012-368-080 C-CAP,S 0.1-50 Z F C747 87-018-209-080 CAP,TC-U 0.1-50 ZF C750 87-010-196-080 C-CAP,S 0.1-25 Z F C2012 C901 87-010-406-080 CAP,E 22-50 M 11L SME C902 87-010-406-080 CAP,E 22-50 M 11L SME

C903 87-010-406-080 CAP,E 22-50 M 11L SME C904 87-010-406-080 CAP,E 22-50 M 11L SME C905 87-010-406-080 CAP,E 22-50 M 11L SME C906 87-010-260-080 CAP,E 47-25 M 11L SME C907 87-010-196-080 C-CAP,S 0.1-25 Z F C2012

C908 87-010-387-080 CAP,E 470-25 M SME C909 87-010-371-080 CAP,E 470-6.3 M SME C910 87-010-371-080 CAP,E 470-6.3 M SME C911 87-010-371-080 CAP,E 470-6.3 M SME C912 87-010-196-080 C-CAP,S 0.1-25 Z F C2012

C913 87-010-196-080 C-CAP,S 0.1-25 Z F C2012 C914 87-010-196-080 C-CAP,S 0.1-25 Z F C2012 C995 87-A12-314-080 CAP,CER 47P-500 C996 87-A12-314-080 CAP,CER 47P-500 C997 87-A12-314-080 CAP,CER 47P-500

C998 87-A12-314-080 CAP,CER 47P-500 C999 87-A12-314-080 CAP,CER 47P-500 CN110 87-A60-621-010 CONN,4P V 2MM JMT CN501 87-A60-039-010 CONN,32P V 9604S-32C CN502 87-A60-061-010 CONN,06P V 9604S-06C

CN503 87-A60-056-010 CONN,12P V 9604S-12C CN504 87-099-567-010 CONN,10P TUC-P10P-B1 CN505 87-099-570-010 CONN,13P V TUC-P13P-B1 CN509 87-099-667-010 CONN,8P H TUC-P08P-B1 CN601 87-A60-627-010 CONN,10P V 2MM JMT

DESCRIPTIONREF. NO. KANRI

– 4 –

PART NO.

DESCRIPTIONREF. NO. KANRI

NO.

CN702 87-099-668-010 CONN,9P TUC-P 9P-B1 CN901 87-A60-619-010 CONN,2P V 2MM JMT CNA003 8A-AR3-654-010 CONN ASSY,9P VH CNA201 8Z-AR4-606-010 CONN ASSY,8P VH CNA202 8Z-AR4-605-010 CONN ASSY,6P VH

FFC502 8A-AR3-645-010 FF-CABLE,6P 1.25 380MM J501 87-A60-947-010 JACK,PIN 4P W/R GLD J502 87-A60-947-010 JACK,PIN 4P W/R GLD J715 87-A61-059-010 JACK,PIN 1P BLK W/O SW GOLD J750 87-A61-304-010 JACK,PIN 6P HSP-246V6-58

J901 87-A60-949-010 JACK,PIN 3P R/W/Y V GLD J902 87-A60-950-010 JACK,PIN 3P R/W/Y W/E GLD J903 87-A60-949-010 JACK,PIN 3P R/W/Y V GLD J904 87-A60-949-010 JACK,PIN 3P R/W/Y V GLD J905 87-A60-949-010 JACK,PIN 3P R/W/Y V GLD

L291 87-A50-610-010 COIL,1UH K(MDEC) L292 87-A50-610-010 COIL,1UH K(MDEC) L293 87-A50-610-010 COIL,1UH K(MDEC) L294 87-A50-610-010 COIL,1UH K(MDEC) L391 87-A50-610-010 COIL,1UH K(MDEC)

L392 87-A50-610-010 COIL,1UH K(MDEC) L491 87-A50-610-010 COIL,1UH K(MDEC) L901 87-005-239-080 COIL,100UH K LAL03

PR101 87-026-682-080 PROTECTOR,10A 491 SERIES 60V

PR104 87-026-682-080 PROTECTOR,10A 491 SERIES 60V

PR201 87-026-682-080 PROTECTOR,10A 491 SERIES 60V

PR202 87-026-682-080 PROTECTOR,10A 491 SERIES 60V

PR301 87-026-682-080 PROTECTOR,10A 491 SERIES 60V

PR302 87-026-682-080 PROTECTOR,10A 491 SERIES 60V

PR401 87-026-682-080 PROTECTOR,10A 491 SERIES 60V

PR402 87-026-682-080 PROTECTOR,10A 491 SERIES 60V R109 87-029-060-080 RES,FUSE 33-1/4W J R211 87-A00-571-050 RES,M/F 0.15-2W J RZ R212 87-A00-571-050 RES,M/F 0.15-2W J RZ R231 87-A00-571-050 RES,M/F 0.15-2W J RZ

R232 87-A00-571-050 RES,M/F 0.15-2W J RZ R233 87-A00-571-050 RES,M/F 0.15-2W J RZ R234 87-A00-571-050 RES,M/F 0.15-2W J RZ R281 87-A00-373-050 RES,M/F 270-1W J VTP R282 87-A00-373-050 RES,M/F 270-1W J VTP

R283 87-A00-373-050 RES,M/F 270-1W J VTP R284 87-A00-373-050 RES,M/F 270-1W J VTP R331 87-A00-571-050 RES,M/F 0.15-2W J RZ R332 87-A00-571-050 RES,M/F 0.15-2W J RZ R333 87-A00-571-050 RES,M/F 0.15-2W J RZ

R334 87-A00-571-050 RES,M/F 0.15-2W J RZ R416 87-A00-571-050 RES,M/F 0.15-2W J RZ R417 87-A00-571-050 RES,M/F 0.15-2W J RZ R424 87-A00-571-050 RES,M/F 0.15-2W J RZ R587 87-A00-126-080 RES,M/F 220-1W J VTP

R590 87-A00-571-050 RES,M/F 0.15-2W J RZ R611 87-A00-571-050 RES,M/F 0.15-2W J RZ R905 87-010-317-080 C-CAP,S 39P-50 J CH S291 87-A90-174-010 SW,PUSH 2-2-2 R2121382ES S292 87-A90-174-010 SW,PUSH 2-2-2 R2121382ES

TH201 87-A91-081-080 C-THMS,100K-K 20P TH202 87-A91-081-080 C-THMS,100K-K 20P TH301 87-A91-081-080 C-THMS,100K-K 20P TH302 87-A91-081-080 C-THMS,100K-K 20P TH401 87-A91-081-080 C-THMS,100K-K 20P

WH101 87-A90-510-010 HLDR,WIRE 2.5-9P

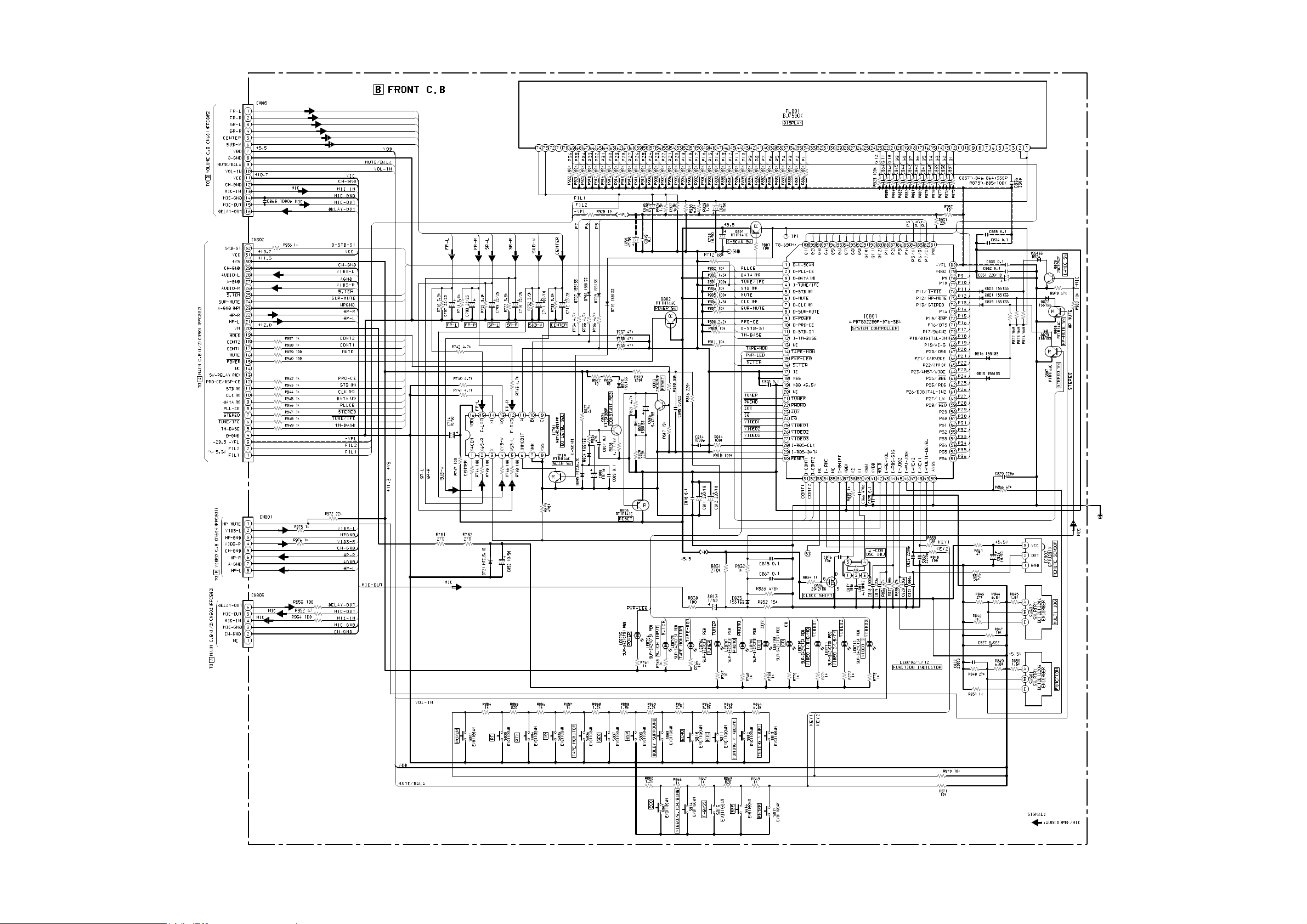

FRONT C.B

C707 87-010-382-040 CAP,E 22-25 M 11L SME C708 87-010-382-040 CAP,E 22-25 M 11L SME C709 87-010-382-040 CAP,E 22-25 M 11L SME C710 87-010-382-040 CAP,E 22-25 M 11L SME C711 87-010-263-040 CAP,E 100-10 M 11L SME

PART NO.

DESCRIPTIONREF. NO. KANRI

NO.

C712 87-010-382-040 CAP,E 22-25 M 11L SME C714 87-010-560-040 CAP,E 10-50 M 5L MA C723 87-010-405-040 CAP,E 10-50 M 11L SME C801 87-010-322-080 C-CAP,S 100P-50 J CH GRM C803 87-010-196-080 C-CAP,S 0.1-25 Z F C2012

C805 87-010-198-080 C-CAP,S 0.022-25 K B C2012 C806 87-010-400-040 CAP,E 0.47-50 M 11L SME C807 87-010-196-080 C-CAP,S 0.1-25 Z F C2012 C808 87-010-498-040 CAP,E 10-16 M 5L SRE C809 87-010-196-080 C-CAP,S 0.1-25 Z F C2012

C810 87-010-196-080 C-CAP,S 0.1-25 Z F C2012 C811 87-A10-189-040 CAP,E 220-10 M 5L C812 87-A10-189-040 CAP,E 220-10 M 5L C813 87-010-401-040 CAP,E 1-50 M 11L C814 87-010-178-080 C-CAP,S 1000P-50 K B C2012

C815 87-010-196-080 C-CAP,S 0.1-25 Z F C2012 C816 87-010-312-080 C-CAP,S 15P-50 J CH GRM C817 87-012-155-080 C-CAP,S 180P-50 J CH GRM C818 87-010-178-080 C-CAP,S 1000P-50 K B C2012 C819 87-012-156-080 C-CAP,S 220P-50 J CH GRM

C820 87-012-156-080 C-CAP,S 220P-50 J CH GRM C821 87-010-178-080 C-CAP,S 1000P-50 K B C2012 C822 87-010-182-080 C-CAP,S 2200P-50 K B C2012 C823 87-010-182-080 C-CAP,S 2200P-50 K B C2012 C824 87-010-182-080 C-CAP,S 2200P-50 K B C2012

C825 87-010-196-080 C-CAP,S 0.1-25 Z F C2012 C826 87-010-405-040 CAP,E 10-50 M 11L SME C827 87-010-198-080 C-CAP,S 0.022-25 K B C2012 C829 87-012-156-080 C-CAP,S 220P-50 J CH GRM C831 87-A10-189-040 CAP,E 220-10 M 5L

C832 87-010-196-080 C-CAP,S 0.1-25 Z F C2012 C833 87-012-368-080 C-CAP,S 0.1-50 Z F C834 87-012-368-080 C-CAP,S 0.1-50 Z F C835 87-012-368-080 C-CAP,S 0.1-50 Z F C836 87-012-157-080 C-CAP,S 330P-50 J CH GRM

C837 87-012-157-080 C-CAP,S 330P-50 J CH GRM C838 87-012-157-080 C-CAP,S 330P-50 J CH GRM C839 87-012-157-080 C-CAP,S 330P-50 J CH GRM C840 87-012-157-080 C-CAP,S 330P-50 J CH GRM C841 87-012-157-080 C-CAP,S 330P-50 J CH GRM

C842 87-012-157-080 C-CAP,S 330P-50 J CH GRM C843 87-012-157-080 C-CAP,S 330P-50 J CH GRM C844 87-012-157-080 C-CAP,S 330P-50 J CH GRM C845 87-012-157-080 C-CAP,S 330P-50 J CH GRM C846 87-012-157-080 C-CAP,S 330P-50 J CH GRM

C847 87-015-699-040 CAP,E 10-50 7L C848 87-010-405-040 CAP,E 10-50 SME C849 87-012-368-080 C-CAP,S 0.1-50 Z F C850 87-010-408-040 CAP,E 47-50 M 11L SME C852 87-010-560-040 CAP,E 10-50 M 5L SMA

C863 87-010-178-080 C-CAP,S 1000P-50 KB C2012 C864 87-012-157-080 C-CAP,S 330P-50 J CH GRM C866 87-012-140-080 C-CAP,S 470P-50 J CH C867 87-010-196-080 C-CAP,S 0.1-25 ZF C2012 CN801 87-A60-079-010 CONN,08P H 9604S-08F

CN802 87-A60-064-010 CONN,32P H 9604S-32F CN803 87-A60-081-010 CONN,06P H 9604S-06F CN805 87-099-757-010 CONN,16P H 9604 FFC801 88-908-101-110 FF-CABLE,8P 1.25 100MM FFC802 8A-AR3-643-010 FF-CABLE,32P 1.25 430

FFC805 88-916-101-110 FF-CABLE,16P-1.25 100MM FL801 8A-AR1-602-010 FL,BJ759GK L801 87-A50-434-010 COIL,CLK 4.19M(TOKO) LED703 87-A40-317-010 LED,SLR-342VCT31 RED LED704 87-A40-317-080 LED,SLR-342VCT31 RED

LED705 87-A40-317-080 LED,SLR-342VCT31 RED LED706 87-A40-317-080 LED,SLR-342VCT31 RED LED707 87-A40-317-080 LED,SLR-342VCT31 RED LED708 87-A40-317-080 LED,SLR-342VCT31 RED LED709 87-A40-317-080 LED,SLR-342VCT31 RED

– 5 –

NO.

DESCRIPTIONREF. NO. PART NO.

LED710 87-A40-317-080 LED,SLR-342VCT31 RED LED711 87-A40-317-080 LED,SLR-342VCT31 RED LED712 87-A40-317-080 LED,SLR-342VCT31 RED S801 87-A90-095-080 SW,TACT EVQ11G04M S802 87-A90-095-080 SW,TACT EVQ11G04M

S803 87-A90-095-080 SW,TACT EVQ11G04M S804 87-A90-095-080 SW,TACT EVQ11G04M S805 87-A90-095-080 SW,TACT EVQ11G04M S806 87-A90-095-080 SW,TACT EVQ11G04M S807 87-A90-095-080 SW,TACT EVQ11G04M

S808 87-A90-095-080 SW,TACT EVQ11G04M S809 87-A90-095-080 SW,TACT EVQ11G04M S810 87-A90-095-080 SW,TACT EVQ11G04M S811 87-A90-095-080 SW,TACT EVQ11G04M S812 87-A90-095-080 SW,TACT EVQ11G04M

S813 87-A90-095-080 SW,TACT EVQ11G04M S814 87-A90-095-080 SW,TACT EVQ11G04M S815 87-A90-095-080 SW,TACT EVQ11G04M S816 87-A90-095-080 SW,TACT EVQ11G04M S817 87-A90-095-080 SW,TACT EVQ11G04M

SW801 87-A91-646-010 SW,RTRY EC12E12204 SW802 87-A91-647-010 SW,RTRY EC12E12504

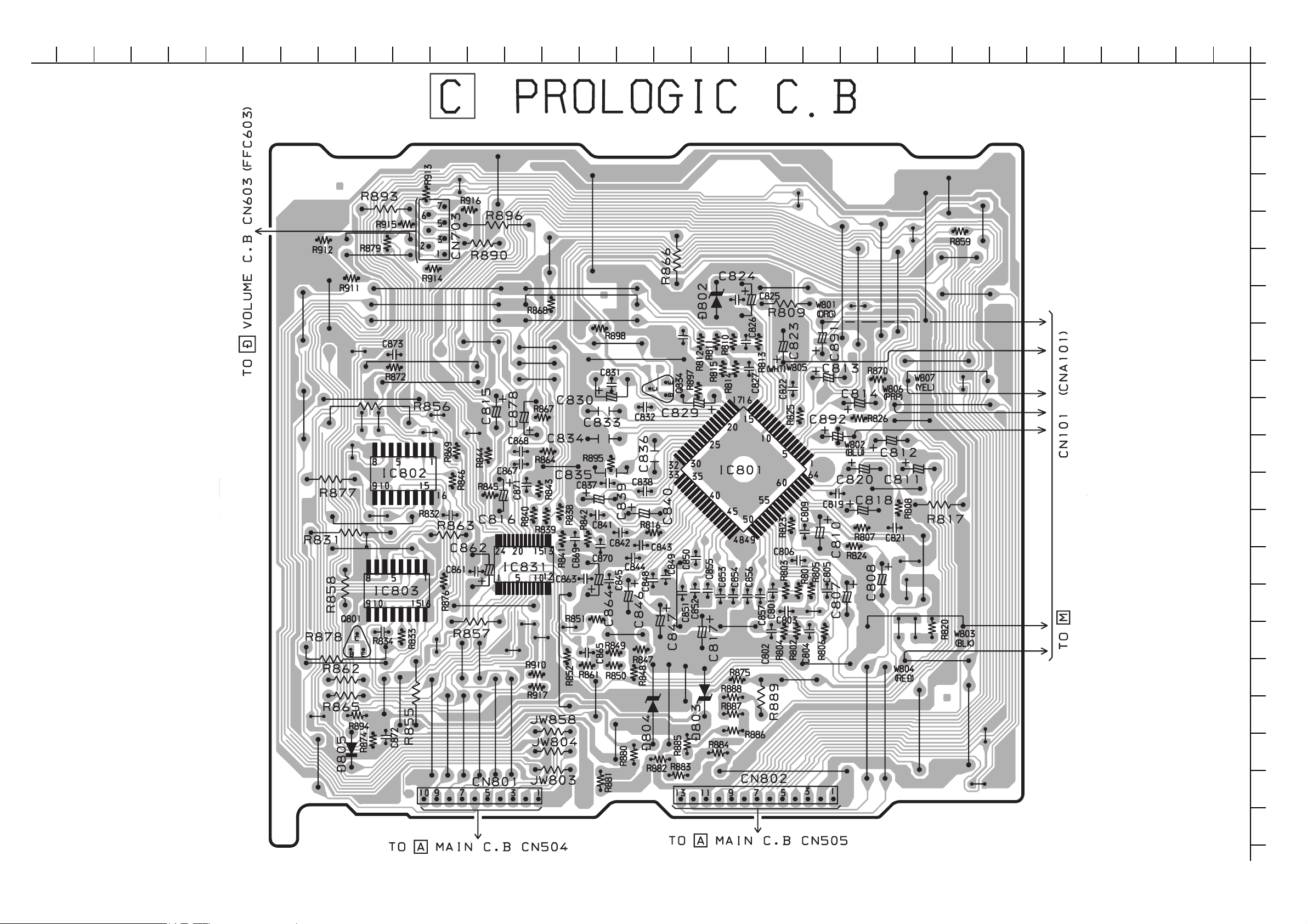

PROLOGIC C.B

C801 87-010-176-080 C-CAP,S 680P-50 SL C802 87-010-176-080 C-CAP,S 680P-50 SL C803 87-010-949-080 CHIP CAPACITOR,S 0.01-50 BJ C804 87-010-949-080 CHIP CAPACITOR,S 0.01-50 BJ C805 87-010-949-080 CHIP CAPACITOR,S 0.01-50 BJ

C806 87-010-949-080 CHIP CAPACITOR,S 0.01-50 BJ C807 87-010-405-080 CAP, ELECT 10-50V C808 87-010-405-080 CAP, ELECT 10-50V C809 87-016-081-080 C-CAP,S 0.1-16 RK C810 87-010-112-080 CAP, ELECT 100-16V

C811 87-010-402-080 CAP, ELECT 2.2-50V C812 87-010-402-080 CAP, ELECT 2.2-50V C813 87-010-400-080 CAP, ELECT 0.47-50V C814 87-010-401-080 CAP, ELECT 1-50V C815 87-010-546-080 CAP, ELECT 0.33-50V

C816 87-010-546-080 CAP, ELECT 0.33-50V C817 87-010-263-080 CAP, ELECT 100-10V C818 87-010-367-080 CAP,E 4.7-25 BP C819 87-010-188-080 CAP,CHIP 6800P C820 87-010-374-080 CAP, ELECT 47-10V

C821 87-016-081-080 C-CAP,S 0.1-16 RK C822 87-016-083-080 C-CAP,S 0.15-16 RK C823 87-010-263-080 CAP, ELECT 100-10V C824 87-010-374-080 CAP, ELECT 47-10V C825 87-016-081-080 C-CAP,S 0.1-16 RK

C826 87-010-166-080 C-CAP,S 100P-50 SL C827 87-010-166-080 C-CAP,S 100P-50 SL C828 87-010-166-080 C-CAP,S 100P-50 SL C829 87-010-401-080 CAP,ELECT 1-50V C830 87-010-546-080 CAP, ELECT 0.33-50V

C831 87-010-971-080 C-CAP,S 4700P-50 B J C832 87-012-349-080 C-CAP,S 1000P-50 CH C837 87-010-971-080 C-CAP,S 4700P-50 B J C838 87-012-349-080 C-CAP,S 1000P-50 CH C839 87-010-401-080 CAP, ELECT 1-50V

C840 87-010-401-080 CAP, ELECT 1-50V C841 87-A10-799-080 C-CAP,S 5600P-16 J B CM C842 87-A10-802-080 C-CAP,S 0.047-16 J B CM C843 87-A10-229-080 C-CAP,S 0.68-10 K W5 C844 87-012-393-080 C-CAP,S 0.22-16 R K

C845 87-012-393-080 C-CAP,S 0.22-16 R K C846 87-010-404-080 CAP, ELECT 4.7-50V C847 87-010-404-080 CAP, ELECT 4.7-50V C848 87-012-393-080 C-CAP,S 0.22-16 R K C849 87-012-393-080 C-CAP,S 0.22-16 R K

KANRI NO.

C850 87-016-081-080 C-CAP,S 0.1-16 RK C851 87-A10-802-080 C-CAP,S 0.047-16 J B CM C852 87-A10-802-080 C-CAP,S 0.047-16 J B CM C853 87-016-081-080 C-CAP,S 0.1-16 RK C854 87-016-081-080 C-CAP,S 0.1-16 RK

C855 87-A10-801-080 C-CAP,S 0.022-16 J B CM C856 87-A10-801-080 C-CAP,S 0.022-16 J B CM C857 87-016-081-080 C-CAP,S 0.1-16 RK C861 87-016-081-080 C-CAP,S 0.1-16 RK C862 87-010-263-080 CAP, ELECT 100-10V

C863 87-016-081-080 C-CAP,S 0.1-16 RK C864 87-010-263-080 CAP, ELECT 100-10V C865 87-016-083-080 C-CAP,S 0.15-16 RK C867 87-A10-201-080 C-CAP,S0.33-16 KB C868 87-A10-060-080 C-CAP,S 0.18-16 K B

C869 87-010-166-080 C-CAP,S 100P-50 SL C870 87-010-166-080 C-CAP,S 100P-50 SL C871 87-010-166-080 C-CAP,S 100P-50 SL C872 87-016-081-080 C-CAP,S 0.1-16 RK C873 87-016-081-080 C-CAP,S 0.1-16 RK

C878 87-010-401-080 CAP, ELECT 1-50V C891 87-010-404-080 CAP, ELECT 4.7-50V C892 87-010-404-080 CAP, ELECT 4.7-50V CNA101 8A-AR4-655-010 CONN ASSY,7P V130 MM CN703 87-A60-060-010 CONN,07P V 9604S-07C

CN801 87-099-556-010 CONN,10P TUC-P10X-B1 CN802 87-099-559-010 CONN,13P TUC-P13X-B1 R832 87-016-552-080 C-CAP,S 0.082-16 K B C2012 R834 87-016-552-080 C-CAP,S 0.082-16 K B C2012

VOLUME C.B

C601 87-010-195-080 C-CAP,S 0.068-25 Z F C2012 C602 87-010-195-080 C-CAP,S 0.068-25 Z F C2012 C603 87-010-195-080 C-CAP,S 0.068-25 Z F C2012 C604 87-010-195-080 C-CAP,S 0.068-25 Z F C2012 C605 87-010-195-080 C-CAP,S 0.068-25 Z F C2012

C606 87-010-805-080 C-CAP,S 1-16 Z F C607 87-010-178-080 C-CAP,S 1000P-50 K B C2012 C608 87-010-186-080 C-CAP,S 4700P-50 K B C2012 C610 87-010-196-080 C-CAP,S 0.1-25 Z F C2012 C611 87-010-196-080 C-CAP,S 0.1-25 Z F C2012

C612 87-010-196-080 C-CAP,S 0.1-25 Z F C2012 C613 87-010-196-080 C-CAP,S 0.1-25 Z F C2012 C614 87-010-196-080 C-CAP,S 0.1-25 Z F C2012 C615 87-010-196-080 C-CAP,S 0.1-25 Z F C2012 C634 87-010-374-080 CAP,E 47-10 M 11L SME

CN601 87-099-757-010 CONN,16P H 9604 CN602 87-009-371-010 CONN,6P V BLK BTMK CN603 87-A60-080-010 CONN,07P H 9604S-07F FFC603 88-907-301-110 FF-CABLE,7P 1.25 S601 87-A90-095-080 SW,TACT EVQ11G04M

S602 87-A90-095-080 SW,TACT EVQ11G04M SW601 87-A91-645-010 SW,RTRY EC12E24304NON-CLICK

VIDEO C.B

C501 87-A11-148-080 CAP,TC U 0.1-50 Z F C502 87-A11-148-080 CAP,TC U 0.1-50 Z F C503 87-010-188-080 C-CAP,S 6800P-50 K B C2012 C504 87-010-188-080 C-CAP,S 6800P-50 K B C2012 C507 87-A11-148-080 CAP,TC U 0.1-50 Z F

CN604 87-099-201-010 CONN,8P H BLK 6216 CN605 8A-AR3-652-110 CONN ASSY,2P -VIDEO 3 FB501 87-008-372-080 FLTR,EMI BL01RN1 FB602 87-008-372-080 FLTR,EMI BL01RN1 J501 87-A60-948-010 JACK,PIN 3P R/W/Y GLD

J603 87-A60-550-010 JACK,DIA6.3 BLK ST W/SW KM

DESCRIPTIONREF. NO. PART NO.KANRI

– 6 –

KANRI

DESCRIPTIONREF. NO. PART NO.

NO.

GEQ C.B

C758 87-010-404-080 CAP, ELECT 4.7-50V C759 87-012-368-080 C-CAP,S 0.1-50 F C761 87-010-198-080 CAP, CHIP 0.022 C762 87-010-197-080 CAP, CHIP 0.01 DM C764 87-010-185-080 C-CAP,S 3900P-50 B

C765 87-010-194-080 CAP, CHIP 0.047 C766 87-010-181-080 CAP,CHIP S 1800P C767 87-010-198-080 CAP, CHIP 0.022 C768 87-010-994-080 C-CAP,S 680P-50 C769 87-010-188-080 CAP,CHIP 6800P

C770 87-012-145-080 CAP, CHIP S 270P CH C771 87-010-183-080 C-CAP,S 2700P-50 B C772 87-012-145-080 CAP, CHIP S 270P CH C773 87-010-188-080 CAP,CHIP 6800P C774 87-010-994-080 C-CAP,S 680P-50 CH

C775 87-010-198-080 CAP, CHIP 0.022 C776 87-010-181-080 CAP,CHIP S 1800P C777 87-010-194-080 CAP, CHIP 0.047 C778 87-010-185-080 C-CAP,S 3900P-50 B C780 87-010-197-080 CAP, CHIP 0.01 DM

C782 87-010-183-080 C-CAP,S 2700P-50 B C783 87-010-198-080 CAP, CHIP 0.022 C786 87-010-402-080 CAP, ELECT 2.2-50V C787 87-010-402-080 CAP, ELECT 2.2-50V C788 87-010-260-080 CAP, ELECT 47-25V

C789 87-010-260-080 CAP, ELECT 47-25V C790 87-010-260-080 CAP, ELECT 47-25V C791 87-010-405-080 CAP, ELECT 10-50V C792 87-010-405-080 CAP, ELECT 10-50V C793 87-012-368-080 C-CAP,S 0.1-50 F

C794 87-012-368-080 C-CAP,S 0.1-50 F C797 87-010-322-080 C-CAP,S 100P-50 CH C798 87-010-322-080 C-CAP,S 100P-50 CH C799 87-010-322-080 C-CAP,S 100P-50 CH CN701 87-099-670-010 CONN,9P TUC-P9X-B1

CN702 8A-AR3-653-010 CONN ASSY,10P (GEQ)

TUNER C.B

C701 87-010-260-080 CAP, ELECT 47-25V C702 87-010-404-080 CAP, ELECT 4.7-50V C703 87-012-286-080 CAP, U 0.01-25 C704 87-012-286-080 CAP, U 0.01-25 C709 87-012-195-080 C-CAP,U 100P-50CH

C711 87-010-263-080 CAP, ELECT 100-10V C712 87-010-196-080 CHIP CAPACITOR,0.1-25 C713 87-012-286-080 CAP, U 0.01-25 C714 87-012-286-080 CAP, U 0.01-25 C717 87-012-286-080 CAP, U 0.01-25

C719 87-012-286-080 CAP, U 0.01-25 C721 87-012-176-080 CAP 15P C722 87-012-176-080 CAP 15P C723 87-012-274-080 CHIP CAP,U 1000P-50B C725 87-012-274-080 CHIP CAP,U 1000P-50B

C727 87-010-196-080 CHIP CAPACITOR,0.1-25 C728 87-010-248-080 CAP, ELECT 220-10V C755 87-012-286-080 CAP, U 0.01-25 C756 87-012-286-080 CAP, U 0.01-25 C757 87-012-188-080 C-CAP,U 47P-50 CH

C758 87-012-167-080 C-CAP,U 5P-50 CH C761 87-010-196-080 CHIP CAPACITOR,0.1-25 C763 87-010-829-080 CAP, U 0.047-16 C764 87-012-337-080 C-CAP,U 56P-50 CH C765 87-012-286-080 CAP, U 0.01-25

C769 87-010-408-080 CAP, ELECT 47-50 M 11L C770 87-010-829-080 CAP, U 0.047-16 C771 87-010-383-080 CAP, ELECT 33-25 M 11L C772 87-010-829-080 CAP, U 0.047-16

NO.

DESCRIPTIONREF. NO. PART NO. KANRI

C773 87-010-196-080 CHIP CAPACITOR,0.1-25 C774 87-010-263-080 CAP, ELECT 100-10V C775 87-010-404-080 CAP, ELECT 4.7-50V C776 87-012-286-080 CAP, U 0.01-25 C777 87-010-400-080 CAP, ELECT 0.47-50V

C778 87-010-401-080 CAP, ELECT 1-50V C779 87-010-401-080 CAP, ELECT 1-50V C780 87-010-196-080 CHIP CAPACITOR,0.1-25 C781 87-010-405-080 CAP, ELECT 10-50V C782 87-010-405-080 CAP, ELECT 10-50V

C783 87-012-286-080 CAP, U 0.01-25 C784 87-012-286-080 CAP, U 0.01-25 C785 87-010-805-080 CAP, S 1-16 C786 87-010-805-080 CAP, S 1-16 C787 87-012-280-080 CAP, U 3300P-50

C788 87-012-280-080 CAP, U 3300P-50 C789 87-012-275-080 C-CAP,U 1200P-50 B C790 87-012-275-080 C-CAP,U 1200P-50 B C791 87-010-405-080 CAP, ELECT 10-50V C793 87-012-273-080 C-CAP,U 820P-50 B

C794 87-010-406-080 CAP, ELECT 22-50 C795 87-010-194-080 C-CAP,S 0.047-25 ZF C796 87-010-403-080 CAP, ELECT 3.3-50V C797 87-012-276-080 CAP, U 1500P-50 C798 87-012-276-080 CAP, U 1500P-50

C799 87-010-829-080 CAP, U 0.047-16 C812 87-012-286-080 CAP, U 0.01-25 C813 87-010-196-080 CHIP CAPACITOR,0.1-25 C814 87-012-286-080 CAP, U 0.01-25 C819 87-010-197-080 CAP, CHIP 0.01 DM

C820 87-010-260-080 CAP, ELECT 47-25V C821 87-012-286-080 CAP, U 0.01-25 C822 87-012-286-080 CAP, U 0.01-25 C823 87-012-286-080 CAP, U 0.01-25 C828 87-010-196-080 CHIP CAPACITOR,0.1-25

C829 87-010-196-080 CHIP CAPACITOR,0.1-25 C959 87-010-196-080 CHIP CAPACITOR,0.1-25 C960 87-010-196-080 CHIP CAPACITOR,0.1-25 C961 87-012-170-080 C-CAP,U 8P-50 CH CF801 87-008-261-010 FILTER, SFE10.7MA5-A

CF802 87-008-261-010 FILTER, SFE10.7MA5-A CN601 87-099-028-010 CONN,11P 6216 H FFC601 88-912-161-110 FF-CABLE,12P 1.25 160 FFE801 A8-6ZA-191-130 6ZA-1 FEENM J801 87-A60-657-010 TERMINAL,4P HSP-154V5-02

L771 87-A50-266-010 COIL,FM DET-2N(TOK) L772 87-A90-733-010 FLTR,PCFAZH-450 L781 87-005-847-080 COIL,2.2UH(CECS) L791 87-A50-027-010 COIL,1 POLE MPX(TOK) L792 87-A50-027-010 COIL,1 POLE MPX(TOK)

L832 87-005-847-080 COIL,2.2UH(CECS) L981 87-NF4-650-010 COIL,AM PACK4N(TOK) X721 87-A70-061-010 VIB,XTAL 4.500MHZ CSA-309

PT C.B

C1 87-010-387-080 CAP,E 470-25 M SME C2 87-010-403-080 CAP,E 3.3-50 M 11L SME C3 87-A11-148-080 CAP,TC U 0.1-50 Z F C4 87-A11-148-080 CAP,TC U 0.1-50 Z F

C7 87-A10-922-090 CAP,CER 0.01-250 M F KH

C8 87-A10-922-090 CAP,CER 0.01-250 M F KH C13 87-A11-148-080 CAP,TC U 0.1-50 Z F CN101 88-805-042-690 CONN ASSY,4P CN103 87-A61-057-010 CONN,9P V THL-P09P-A1

PR105 87-026-682-080 PROTECTOR,10A 491SERIES 60V

PR106 87-026-682-080 PROTECTOR,10A 491SERIES 60V

PT2 8Z-NF8-663-010 PT,SUB ZNF-8(H)

PT101 8A-AR4-606-010 PT,AAR-4 (HC)

RY1 87-A90-454-010 RELAY,12V DJ12D2-O(M)

– 7 –

KANRI

SPEAKER C.B

C1 87-010-190-080 C-CAP,S 0.01-50 ZF C2 87-010-190-080 C-CAP,S 0.01-50 ZF C4 87-010-190-080 C-CAP,S 0.01-50 ZF C5 87-010-190-080 C-CAP,S 0.01-50 ZF C6 87-010-190-080 C-CAP,S 0.01-50 ZF

C8 87-010-190-080 C-CAP,S 0.01-50 ZF C9 87-010-190-080 C-CAP,S 0.01-50 ZF C12 87-010-190-080 C-CAP,S 0.01-50 ZF C13 87-010-190-080 C-CAP,S 0.01-50 ZF C16 87-010-190-080 C-CAP,S 0.01-50 ZF

CN201 87-099-799-010 CONN,8P V B 8P-VH CN202 87-009-663-010 CONN,6P V VH J901 87-033-210-010 TERMINAL,SPKR 8P LTS0810-1002 J902 87-A61-172-010 TERMINAL,SPKR 6P-LTS0610-1002

AC SW C.B

F101 87-035-458-010 FUSE,4A 250V T 218

F102 87-035-458-010 FUSE,4A 250V T 218

FC101 87-033-147-010 FUSE CLAMP,MT 20

FC102 87-033-147-010 FUSE CLAMP,MT 20

FC103 87-033-147-010 FUSE CLAMP,MT 20

FC104 87-033-147-010 FUSE CLAMP,MT 20

SW101 87-A90-165-010 SW,SL 1-2-3 SWS2301

T101 87-A60-317-010 TERMINAL, 1P MSC

T102 87-A60-317-010 TERMINAL, 1P MSC

MIC C.B

C601 87-010-196-080 C-CAP,S 0.1-25 ZF C602 87-010-560-040 CAP,E 10-50 M 5L MA C603 87-010-491-040 CAP,E 0.22-50 M 5L SRE C604 87-A10-189-040 CAP,E 220-10 M 5L C605 87-010-322-080 C-CAP,S 100P-50 J CH

C606 87-010-321-080 C-CAP,S 82P-50 J CH C607 87-010-196-080 C-CAP,S 0.1-25 ZF C608 87-010-186-080 C-CAP,S 4700P-50 KB C609 87-010-188-080 C-CAP,S 6800P-50 KB C610 87-010-560-040 CAP,E 10-50 M 5L MA

NO.

DESCRIPTIONREF. NO. PART NO.

KANRI NO.

C611 87-010-322-080 C-CAP,S 100P-50 J CH C612 87-010-177-080 C-CAP,S 820P-50 J SL C613 87-010-552-040 CAP,E 22-16 M 5L SRE C614 87-016-462-080 C-CAP,S 1-16 ZF CN601 87-009-362-010 CONN,6P H BLK BTMK

J601 87-A60-188-010 JACK,6.3 BLK MONO W/SW MIC J602 87-A60-188-010 JACK,6.3 BLK MONO W/SW MIC

KEY CON C.B

C652 87-010-196-080 C-CAP,S 0.1-25 Z F C653 87-012-154-080 C-CAP,S 150P-50 J CH C654 87-010-183-080 C-CAP,S 2700P-50 KB C655 87-010-196-080 C-CAP,S 0.1-25 ZF C656 87-012-154-080 C-CAP,S 150P-50 J CH

C657 87-010-183-080 C-CAP,S 2700P-50 KB C658 87-012-145-080 C-CAP,S 270P-50 J CH C659 87-010-177-080 C-CAP,S 820P-50 K SL C670 87-012-145-080 C-CAP,S 270P-50 J CH C671 87-010-177-080 C-CAP,S 820P-50 K SL

C672 87-010-196-080 C-CAP,S 0.1-25 ZF C674 87-010-196-080 C-CAP,S 0.1-25 ZF C675 87-010-263-080 CAP,E 100-10 M 11L SME C676 87-010-374-080 CAP,E 47-10 M 11L SME CN508 87-099-669-010 CONN,8P H TUC-08PX-B1

PROLOGIC SUB C.B

C101 87-010-405-080 CAP,E 10-50 M 11L SME C102 87-010-260-080 CAP,E 47-25 M 11L SME C103 87-010-405-080 CAP,E 10-50 M 11L SME C104 87-010-404-080 CAP,E 4.7-50 M 11L SME C105 87-010-402-080 CAP,E 2.2-50 M 11L SME

C106 87-010-402-080 CAP,E 2.2-50 M 11L SME C107 87-010-404-080 CAP,E 4.7-50 M 11L SME CN101 87-009-035-010 CONN,7P V WHT PH

DESCRIPTIONREF. NO. PART NO.

CHIP RESISTOR PART CODE

Chip Resistor Part Coding

Resistor Code

Chip resistor

Wattage Type Tolerance

1/16W 1005 5% CJ

1/16W

1/10W

1/8W

1608

2125

3216

Symbol

Figure

Value of resistor

Form

– 8 –

Dimensions (mm)

0.55

Resistor Code

108

118

128

LW t

1.0 0.5 0.35 104

1.6 0.8 0.45

2 1.25 0.45

3.2

1.6

: A : A

TRANSISTOR ILLUSTRATION

E C B

CC5551 KTA1266GR KTC3198GR

DGS

2SK3053

B C E

2SB1370E FN1016 FP1016

2SA1037K(R) 2SA1235F 2SA1514K(S) 2SC2714O 2SC3052F 2SD1306E CMBT5401 CMBT5551

E C B

2SC1740SRS

E C B

CSD1489B 2SC4115SRS DTC114ES KTA1267GR KTC3199GR

CSD1306E

2SK2158 DTA144WKA DTC124EKA DTC144EKA RT1N144C RT1P141C RT1P144C

– 9 –

WIRING  1 (MAIN)

32 31 30 29 28 27 26 25 24 23 22 21 20 19 18 17 16 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1

 10 

SCHEMATIC DIAGRAM – 1 (MAIN 1 / 2)

– 11 –

+ 23 hidden pages
