JVC AV D37 Service Manual

AV-D37

HR, HC, HT

SERVICE MANUAL

STEREO AV RECEIVER

• Replace this Service manual with “Revision Publishing” when it is issued.

S/M Code No. 09-006-428-4T2

SIMPLE

DATA

PARTS LIST

! = ! SAFTY PARTS
C = Components marked

K NO. = Only use japanese.

01 -- HCNM AV-D37
01 -- HRJNM AV-D37
01 -- HTNM AV-D37
O 5.1CH SEL,JACK C 0001 87-012-368-080 0E C-CAP,S 0.1-50 Z F HCNM AV-D37
O 5.1CH SEL,JACK C 0001 87-012-368-080 0E C-CAP,S 0.1-50 Z F HRJNM AV-D37
O 5.1CH SEL,JACK C 0001 87-012-368-080 0E C-CAP,S 0.1-50 Z F HTNM AV-D37
O 5.1CH SEL,JACK C 0750 87-010-196-080 0E C-CAP,S 0.1-25 Z F C2012 HCNM AV-D37
O 5.1CH SEL,JACK C 0750 87-010-196-080 0E C-CAP,S 0.1-25 Z F C2012 HRJNM AV-D37
O 5.1CH SEL,JACK C 0750 87-010-196-080 0E C-CAP,S 0.1-25 Z F C2012 HTNM AV-D37
O 5.1CH SEL,JACK J 0750 87-A61-304-010 1C JACK,PIN 6P HSP-246V6- 58 HCNM AV-D37

O 5.1CH SEL,JACK J 0750 87-A61-304-010 1C JACK,PIN 6P HSP-246V6- 58 HRJNM AV-D37
O 5.1CH SEL,JACK J 0750 87-A61-304-010 1C JACK,PIN 6P HSP-246V6- 58 HTNM AV-D37
X 5.1CH SEL,JACK JR 0315 88-118-000-080 0E C-JUMPER,S HCNM AV-D37
X 5.1CH SEL,JACK JR 0315 88-118-000-080 0E C-JUMPER,S HRJNM AV-D37
X 5.1CH SEL,JACK JR 0315 88-118-000-080 0E C-JUMPER,S HTNM AV-D37
X 5.1CH SEL,JACK JR 0336 88-118-000-080 0E C-JUMPER,S HCNM AV-D37
X 5.1CH SEL,JACK JR 0336 88-118-000-080 0E C-JUMPER,S HRJNM AV-D37
X 5.1CH SEL,JACK JR 0336 88-118-000-080 0E C-JUMPER,S HTNM AV-D37
X 5.1CH SEL,JACK JR 0930 88-118-000-080 0E C-JUMPER,S HCNM AV-D37
X 5.1CH SEL,JACK JR 0930 88-118-000-080 0E C-JUMPER,S HRJNM AV-D37

X 5.1CH SEL,JACK JR 0930 88-118-000-080 0E C-JUMPER,S HTNM AV-D37
X 5.1CH SEL,JACK JR 0931 88-118-000-080 0E C-JUMPER,S HCNM AV-D37
X 5.1CH SEL,JACK JR 0931 88-118-000-080 0E C-JUMPER,S HRJNM AV-D37
X 5.1CH SEL,JACK JR 0931 88-118-000-080 0E C-JUMPER,S HTNM AV-D37
X 5.1CH SEL,JACK JR 0932 88-118-000-080 0E C-JUMPER,S HCNM AV-D37
X 5.1CH SEL,JACK JR 0932 88-118-000-080 0E C-JUMPER,S HRJNM AV-D37
X 5.1CH SEL,JACK JR 0932 88-118-000-080 0E C-JUMPER,S HTNM AV-D37
X 5.1CH SEL,JACK JR 0933 88-118-000-080 0E C-JUMPER,S HCNM AV-D37
X 5.1CH SEL,JACK JR 0933 88-118-000-080 0E C-JUMPER,S HRJNM AV-D37
X 5.1CH SEL,JACK JR 0933 88-118-000-080 0E C-JUMPER,S HTNM AV-D37

All components used on this model at the production line are shown in this service manual.
However, please note that not all components will be available as spare parts for after-sales service.
Components marked S and O are designated as spare parts for service and will be stocked at the spare parts centers.
Components marked X and R are not designated as spare parts for after sales service, and will not be stocked at the spare parts centers.

C UNIT NAME REF NO. MODEL NAME! DESCRIPTIONK NO.PARTS CODE SUFFIX

X 5.1CH SEL,JACK R 0708 88-118-000-080 0E C-JUMPER,S HCNM AV-D37
X 5.1CH SEL,JACK R 0708 88-118-000-080 0E C-JUMPER,S HRJNM AV-D37
X 5.1CH SEL,JACK R 0708 88-118-000-080 0E C-JUMPER,S HTNM AV-D37
X 5.1CH SEL,JACK R 0709 88-118-223-080 0E C-RES,S 22K-1/10W J HCNM AV-D37
X 5.1CH SEL,JACK R 0709 88-118-223-080 0E C-RES,S 22K-1/10W J HRJNM AV-D37
X 5.1CH SEL,JACK R 0709 88-118-223-080 0E C-RES,S 22K-1/10W J HTNM AV-D37
X 5.1CH SEL,JACK R 0710 88-118-243-080 0E C-RES,S 24K-1/10W J HCNM AV-D37
X 5.1CH SEL,JACK R 0710 88-118-243-080 0E C-RES,S 24K-1/10W J HRJNM AV-D37
X 5.1CH SEL,JACK R 0710 88-118-243-080 0E C-RES,S 24K-1/10W J HTNM AV-D37
X 5.1CH SEL,JACK R 0712 88-118-473-080 0E C-RES,S 47K-1/10W J HCNM AV-D37

X 5.1CH SEL,JACK R 0712 88-118-473-080 0E C-RES,S 47K-1/10W J HRJNM AV-D37
X 5.1CH SEL,JACK R 0712 88-118-473-080 0E C-RES,S 47K-1/10W J HTNM AV-D37
X 5.1CH SEL,JACK R 0713 88-118-473-080 0E C-RES,S 47K-1/10W J HCNM AV-D37
X 5.1CH SEL,JACK R 0713 88-118-473-080 0E C-RES,S 47K-1/10W J HRJNM AV-D37
X 5.1CH SEL,JACK R 0713 88-118-473-080 0E C-RES,S 47K-1/10W J HTNM AV-D37
X 5.1CH SEL,JACK R 0714 88-118-473-080 0E C-RES,S 47K-1/10W J HCNM AV-D37
X 5.1CH SEL,JACK R 0714 88-118-473-080 0E C-RES,S 47K-1/10W J HRJNM AV-D37
X 5.1CH SEL,JACK R 0714 88-118-473-080 0E C-RES,S 47K-1/10W J HTNM AV-D37
X 5.1CH SEL,JACK R 0715 88-118-473-080 0E C-RES,S 47K-1/10W J HCNM AV-D37
X 5.1CH SEL,JACK R 0715 88-118-473-080 0E C-RES,S 47K-1/10W J HRJNM AV-D37

X 5.1CH SEL,JACK R 0715 88-118-473-080 0E C-RES,S 47K-1/10W J HTNM AV-D37
X 5.1CH SEL,JACK R 0763 88-118-182-080 0E C-RES,S 1.8K-1/10W J HCNM AV-D37
X 5.1CH SEL,JACK R 0763 88-118-182-080 0E C-RES,S 1.8K-1/10W J HRJNM AV-D37
X 5.1CH SEL,JACK R 0763 88-118-182-080 0E C-RES,S 1.8K-1/10W J HTNM AV-D37
X 5.1CH SEL,JACK R 0765 88-118-182-080 0E C-RES,S 1.8K-1/10W J HCNM AV-D37
X 5.1CH SEL,JACK R 0765 88-118-182-080 0E C-RES,S 1.8K-1/10W J HRJNM AV-D37
X 5.1CH SEL,JACK R 0765 88-118-182-080 0E C-RES,S 1.8K-1/10W J HTNM AV-D37
X 5.1CH SEL,JACK R 0769 88-118-152-080 0E C-RES,S 1.5K-1/10W J HCNM AV-D37
X 5.1CH SEL,JACK R 0769 88-118-152-080 0E C-RES,S 1.5K-1/10W J HRJNM AV-D37
X 5.1CH SEL,JACK R 0769 88-118-152-080 0E C-RES,S 1.5K-1/10W J HTNM AV-D37

X 5.1CH SEL,JACK R 0771 88-118-152-080 0E C-RES,S 1.5K-1/10W J HCNM AV-D37
X 5.1CH SEL,JACK R 0771 88-118-152-080 0E C-RES,S 1.5K-1/10W J HRJNM AV-D37
X 5.1CH SEL,JACK R 0771 88-118-152-080 0E C-RES,S 1.5K-1/10W J HTNM AV-D37
O AC-SW FC 0101 87-033-147-010 0E FUSE CLAMP,MT-20 HCNM AV-D37
O AC-SW FC 0101 87-033-147-010 0E FUSE CLAMP,MT-20 HRJNM AV-D37
O AC-SW FC 0101 87-033-147-010 0E FUSE CLAMP,MT-20 HTNM AV-D37
O AC-SW FC 0102 87-033-147-010 0E FUSE CLAMP,MT-20 HCNM AV-D37
O AC-SW FC 0102 87-033-147-010 0E FUSE CLAMP,MT-20 HRJNM AV-D37
O AC-SW FC 0102 87-033-147-010 0E FUSE CLAMP,MT-20 HTNM AV-D37
O AC-SW FC 0103 87-033-147-010 0E FUSE CLAMP,MT-20 HCNM AV-D37

-2-

PARTS LIST

! = ! SAFTY PARTS
C = Components marked

K NO. = Only use japanese.

O AC-SW FC 0103 87-033-147-010 0E FUSE CLAMP,MT-20 HRJNM AV-D37
O AC-SW FC 0103 87-033-147-010 0E FUSE CLAMP,MT-20 HTNM AV-D37
O AC-SW FC 0104 87-033-147-010 0E FUSE CLAMP,MT-20 HCNM AV-D37
O AC-SW FC 0104 87-033-147-010 0E FUSE CLAMP,MT-20 HRJNM AV-D37
O AC-SW FC 0104 87-033-147-010 0E FUSE CLAMP,MT-20 HTNM AV-D37
! O AC-SW SW 0101 87-A90-165-010 1A SW,SL 1-2-3 SWS2301 HCNM AV-D37
! O AC-SW SW 0101 87-A90-165-010 1A SW,SL 1-2-3 SWS2301 HRJNM AV-D37
! O AC-SW SW 0101 87-A90-165-010 1A SW,SL 1-2-3 SWS2301 HTNM AV-D37
O AC-SW T 0101 87-A60-317-010 0E TERMINAL, 1P MSC HCNM AV-D37
O AC-SW T 0101 87-A60-317-010 0E TERMINAL, 1P MSC HRJNM AV-D37

O AC-SW T 0101 87-A60-317-010 0E TERMINAL, 1P MSC HTNM AV-D37
O AC-SW T 0102 87-A60-317-010 0E TERMINAL, 1P MSC HCNM AV-D37
O AC-SW T 0102 87-A60-317-010 0E TERMINAL, 1P MSC HRJNM AV-D37
O AC-SW T 0102 87-A60-317-010 0E TERMINAL, 1P MSC HTNM AV-D37
X AC-SW W 0102 8Z-AR4-607-010 0E WIRE,ASSY 1P (Y) HCNM AV-D37
X AC-SW W 0102 8Z-AR4-607-010 0E WIRE,ASSY 1P (Y) HRJNM AV-D37
X AC-SW W 0102 8Z-AR4-607-010 0E WIRE,ASSY 1P (Y) HTNM AV-D37
X AC-SW W 0103 8Z-AR4-610-010 0E WIRE,ASSY 1P (GRAY) HCNM AV-D37
X AC-SW W 0103 8Z-AR4-610-010 0E WIRE,ASSY 1P (GRAY) HRJNM AV-D37
X AC-SW W 0103 8Z-AR4-610-010 0E WIRE,ASSY 1P (GRAY) HTNM AV-D37

X AC-SW W 0104 89-MK1-626-010 0E WIRE ASSY 1P(G) HCNM AV-D37
X AC-SW W 0104 89-MK1-626-010 0E WIRE ASSY 1P(G) HRJNM AV-D37
X AC-SW W 0104 89-MK1-626-010 0E WIRE ASSY 1P(G) HTNM AV-D37
X AC-SW W 0105 8Z-AR4-609-010 0E WIRE,ASSY 1P (WHT) HCNM AV-D37
X AC-SW W 0105 8Z-AR4-609-010 0E WIRE,ASSY 1P (WHT) HRJNM AV-D37
X AC-SW W 0105 8Z-AR4-609-010 0E WIRE,ASSY 1P (WHT) HTNM AV-D37
X AC-SW W 0106 8Z-AR4-611-010 0E WIRE,ASSY 1P (BL) HCNM AV-D37
X AC-SW W 0106 8Z-AR4-611-010 0E WIRE,ASSY 1P (BL) HRJNM AV-D37
X AC-SW W 0106 8Z-AR4-611-010 0E WIRE,ASSY 1P (BL) HTNM AV-D37
X AC-SW W 0107 8Z-AR4-608-010 0E WIRE,ASSY 1P (BLK) HCNM AV-D37

All components used on this model at the production line are shown in this service manual.
However, please note that not all components will be available as spare parts for after-sales service.
Components marked S and O are designated as spare parts for service and will be stocked at the spare parts centers.
Components marked X and R are not designated as spare parts for after sales service, and will not be stocked at the spare parts centers.

C UNIT NAME REF NO. MODEL NAME! DESCRIPTIONK NO.PARTS CODE SUFFIX

X AC-SW W 0107 8Z-AR4-608-010 0E WIRE,ASSY 1P (BLK) HRJNM AV-D37
X AC-SW W 0107 8Z-AR4-608-010 0E WIRE,ASSY 1P (BLK) HTNM AV-D37
O ACCESSORY 87-043-115-010 1A FEEDER-ANT,FM HCNM AV-D37
O ACCESSORY 87-043-115-010 1A FEEDER-ANT,FM HRJNM AV-D37
O ACCESSORY 87-043-115-010 1A FEEDER-ANT,FM HTNM AV-D37
! O ACCESSORY 87-A91-015-010 1A PLUG,CONVERSION JT-0475A HCNM AV-D37
! O ACCESSORY 87-A91-017-010 1A PLUG,CONVERSION JT-0476 HRJNM AV-D37
! O ACCESSORY 87-A91-017-010 1A PLUG,CONVERSION JT-0476 HTNM AV-D37
O ACCESSORY 8A-AR3-704-010 2P RC UNIT,RC-AAR03 HCNM AV-D37
O ACCESSORY 8A-AR3-704-010 2P RC UNIT,RC-AAR03 HRJNM AV-D37

O ACCESSORY 8A-AR3-704-010 2P RC UNIT,RC-AAR03 HTNM AV-D37
O ACCESSORY ANT 87-006-225-010 1D ANT,LOOP ANT NC2 HCNM AV-D37
O ACCESSORY ANT 87-006-225-010 1D ANT,LOOP ANT NC2 HRJNM AV-D37
O ACCESSORY ANT 87-006-225-010 1D ANT,LOOP ANT NC2 HTNM AV-D37
! O APPEARANCE 87-CE3-023-010 0E BADGE,AIWA 30N SILV HCNM AV-D37
! O APPEARANCE 87-CE3-023-010 0E BADGE,AIWA 30N SILV HRJNM AV-D37
! O APPEARANCE 87-CE3-023-010 0E BADGE,AIWA 30N SILV HTNM AV-D37
O APPEARANCE 8A-AR3-032-010 -- PANEL,FR H GLD HCNM AV-D37
O APPEARANCE 8A-AR3-032-010 -- PANEL,FR H GLD HRJNM AV-D37
O APPEARANCE 8A-AR3-032-010 -- PANEL,FR H GLD HTNM AV-D37

O APPEARANCE 8A-AR4-012-010 -- PANEL,REAR HCBM HCNM AV-D37
O APPEARANCE 8A-AR4-014-010 -- PANEL,REAR HRJNM HRJNM AV-D37
O APPEARANCE 8A-AR4-015-010 -- PANEL,REAR HTNM HTNM AV-D37
O APPEARANCE 8Z-AR1-020-110 1A RING,FOOT SIL HCNM AV-D37
O APPEARANCE 8Z-AR1-020-110 1A RING,FOOT SIL HRJNM AV-D37
O APPEARANCE 8Z-AR1-020-110 1A RING,FOOT SIL HTNM AV-D37
O APPEARANCE 8Z-AR1-021-110 1A FOOT,REAR HCNM AV-D37
O APPEARANCE 8Z-AR1-021-110 1A FOOT,REAR HRJNM AV-D37
O APPEARANCE 8Z-AR1-021-110 1A FOOT,REAR HTNM AV-D37
O APPEARANCE 8Z-AR1-050-110 2A CABI,STEEL GLD HCNM AV-D37

O APPEARANCE 8Z-AR1-050-110 2A CABI,STEEL GLD HRJNM AV-D37
O APPEARANCE 8Z-AR1-050-110 2A CABI,STEEL GLD HTNM AV-D37
O APPEARANCE * 8A-AR4-002-010 -- CABI,FR H GLD HCNM AV-D37
O APPEARANCE * 8A-AR4-002-010 -- CABI,FR H GLD HRJNM AV-D37
O APPEARANCE * 8A-AR4-002-010 -- CABI,FR H GLD HTNM AV-D37
O ATT SW C 0548 87-010-404-080 0E CAP,E 4.7-50 M 11L SME HCNM AV-D37
O ATT SW C 0548 87-010-404-080 0E CAP,E 4.7-50 M 11L SME HRJNM AV-D37
O ATT SW C 0548 87-010-404-080 0E CAP,E 4.7-50 M 11L SME HTNM AV-D37
O ATT SW C 0723 87-010-401-080 0E CAP,E 1-50 M 11L SME HCNM AV-D37
O ATT SW C 0723 87-010-401-080 0E CAP,E 1-50 M 11L SME HRJNM AV-D37

-3-

PARTS LIST

! = ! SAFTY PARTS
C = Components marked

K NO. = Only use japanese.

O ATT SW C 0723 87-010-401-080 0E CAP,E 1-50 M 11L SME HTNM AV-D37
O ATT SW C 0726 87-010-401-080 0E CAP,E 1-50 M 11L SME HCNM AV-D37
O ATT SW C 0726 87-010-401-080 0E CAP,E 1-50 M 11L SME HRJNM AV-D37
O ATT SW C 0726 87-010-401-080 0E CAP,E 1-50 M 11L SME HTNM AV-D37
O ATT SW CN 0601 87-A60-627-010 0E CONN,10P V 2MM JMT HCNM AV-D37
O ATT SW CN 0601 87-A60-627-010 0E CONN,10P V 2MM JMT HRJNM AV-D37
O ATT SW CN 0601 87-A60-627-010 0E CONN,10P V 2MM JMT HTNM AV-D37
X ATT SW JR 0567 88-118-000-080 0E C-JUMPER,S HCNM AV-D37
X ATT SW JR 0567 88-118-000-080 0E C-JUMPER,S HRJNM AV-D37
X ATT SW JR 0567 88-118-000-080 0E C-JUMPER,S HTNM AV-D37

X ATT SW JR 0590 88-129-000-080 0E C-JUMPER,3216 HCNM AV-D37
X ATT SW JR 0590 88-129-000-080 0E C-JUMPER,3216 HRJNM AV-D37
X ATT SW JR 0590 88-129-000-080 0E C-JUMPER,3216 HTNM AV-D37
S ATT SW Q 0721 87-A30-086-070 0E C-TR,CSD1306E HCNM AV-D37
S ATT SW Q 0721 87-A30-086-070 0E C-TR,CSD1306E HRJNM AV-D37
S ATT SW Q 0721 87-A30-086-070 0E C-TR,CSD1306E HTNM AV-D37
X ATT SW R 0730 88-118-222-080 0E C-RES,S 2.2K-1/10W J HCNM AV-D37
X ATT SW R 0730 88-118-222-080 0E C-RES,S 2.2K-1/10W J HRJNM AV-D37
X ATT SW R 0730 88-118-222-080 0E C-RES,S 2.2K-1/10W J HTNM AV-D37
X ATT SW R 0732 88-118-101-080 0E C-RES,S 100-1/10W J HCNM AV-D37

X ATT SW R 0732 88-118-101-080 0E C-RES,S 100-1/10W J HRJNM AV-D37
X ATT SW R 0732 88-118-101-080 0E C-RES,S 100-1/10W J HTNM AV-D37
O AV SEL C 0901 87-010-406-080 0E CAP,E 22-50 M 11L SME HCNM AV-D37
O AV SEL C 0901 87-010-406-080 0E CAP,E 22-50 M 11L SME HRJNM AV-D37
O AV SEL C 0901 87-010-406-080 0E CAP,E 22-50 M 11L SME HTNM AV-D37
O AV SEL C 0902 87-010-406-080 0E CAP,E 22-50 M 11L SME HCNM AV-D37
O AV SEL C 0902 87-010-406-080 0E CAP,E 22-50 M 11L SME HRJNM AV-D37
O AV SEL C 0902 87-010-406-080 0E CAP,E 22-50 M 11L SME HTNM AV-D37
O AV SEL C 0903 87-010-406-080 0E CAP,E 22-50 M 11L SME HCNM AV-D37
O AV SEL C 0903 87-010-406-080 0E CAP,E 22-50 M 11L SME HRJNM AV-D37

All components used on this model at the production line are shown in this service manual.
However, please note that not all components will be available as spare parts for after-sales service.
Components marked S and O are designated as spare parts for service and will be stocked at the spare parts centers.
Components marked X and R are not designated as spare parts for after sales service, and will not be stocked at the spare parts centers.

C UNIT NAME REF NO. MODEL NAME! DESCRIPTIONK NO.PARTS CODE SUFFIX

O AV SEL C 0903 87-010-406-080 0E CAP,E 22-50 M 11L SME HTNM AV-D37
O AV SEL C 0904 87-010-406-080 0E CAP,E 22-50 M 11L SME HCNM AV-D37
O AV SEL C 0904 87-010-406-080 0E CAP,E 22-50 M 11L SME HRJNM AV-D37
O AV SEL C 0904 87-010-406-080 0E CAP,E 22-50 M 11L SME HTNM AV-D37
O AV SEL C 0905 87-010-406-080 0E CAP,E 22-50 M 11L SME HCNM AV-D37
O AV SEL C 0905 87-010-406-080 0E CAP,E 22-50 M 11L SME HRJNM AV-D37
O AV SEL C 0905 87-010-406-080 0E CAP,E 22-50 M 11L SME HTNM AV-D37
O AV SEL C 0906 87-010-260-080 0E CAP,E 47-25 M 11L SME HCNM AV-D37
O AV SEL C 0906 87-010-260-080 0E CAP,E 47-25 M 11L SME HRJNM AV-D37
O AV SEL C 0906 87-010-260-080 0E CAP,E 47-25 M 11L SME HTNM AV-D37

O AV SEL C 0907 87-010-196-080 0E C-CAP,S 0.1-25 Z F C2012 HCNM AV-D37
O AV SEL C 0907 87-010-196-080 0E C-CAP,S 0.1-25 Z F C2012 HRJNM AV-D37
O AV SEL C 0907 87-010-196-080 0E C-CAP,S 0.1-25 Z F C2012 HTNM AV-D37
O AV SEL C 0908 87-010-387-080 1A CAP,E 470-25 M SME HCNM AV-D37
O AV SEL C 0908 87-010-387-080 1A CAP,E 470-25 M SME HRJNM AV-D37
O AV SEL C 0908 87-010-387-080 1A CAP,E 470-25 M SME HTNM AV-D37
O AV SEL C 0909 87-010-371-080 0E CAP,E 470-6.3 M SME HCNM AV-D37
O AV SEL C 0909 87-010-371-080 0E CAP,E 470-6.3 M SME HRJNM AV-D37
O AV SEL C 0909 87-010-371-080 0E CAP,E 470-6.3 M SME HTNM AV-D37
O AV SEL C 0910 87-010-371-080 0E CAP,E 470-6.3 M SME HCNM AV-D37

O AV SEL C 0910 87-010-371-080 0E CAP,E 470-6.3 M SME HRJNM AV-D37
O AV SEL C 0910 87-010-371-080 0E CAP,E 470-6.3 M SME HTNM AV-D37
O AV SEL C 0911 87-010-371-080 0E CAP,E 470-6.3 M SME HCNM AV-D37
O AV SEL C 0911 87-010-371-080 0E CAP,E 470-6.3 M SME HRJNM AV-D37
O AV SEL C 0911 87-010-371-080 0E CAP,E 470-6.3 M SME HTNM AV-D37
O AV SEL C 0912 87-010-196-080 0E C-CAP,S 0.1-25 Z F C2012 HCNM AV-D37
O AV SEL C 0912 87-010-196-080 0E C-CAP,S 0.1-25 Z F C2012 HRJNM AV-D37
O AV SEL C 0912 87-010-196-080 0E C-CAP,S 0.1-25 Z F C2012 HTNM AV-D37
O AV SEL C 0913 87-010-196-080 0E C-CAP,S 0.1-25 Z F C2012 HCNM AV-D37
O AV SEL C 0913 87-010-196-080 0E C-CAP,S 0.1-25 Z F C2012 HRJNM AV-D37

O AV SEL C 0913 87-010-196-080 0E C-CAP,S 0.1-25 Z F C2012 HTNM AV-D37
O AV SEL C 0914 87-010-196-080 0E C-CAP,S 0.1-25 Z F C2012 HCNM AV-D37
O AV SEL C 0914 87-010-196-080 0E C-CAP,S 0.1-25 Z F C2012 HRJNM AV-D37
O AV SEL C 0914 87-010-196-080 0E C-CAP,S 0.1-25 Z F C2012 HTNM AV-D37
O AV SEL CN 0901 87-A60-619-010 0E CONN,2P V 2MM JMT HCNM AV-D37
O AV SEL CN 0901 87-A60-619-010 0E CONN,2P V 2MM JMT HRJNM AV-D37
O AV SEL CN 0901 87-A60-619-010 0E CONN,2P V 2MM JMT HTNM AV-D37
S AV SEL D 0901 87-070-136-080 0E ZENER,MTZJ5.1B HCNM AV-D37
S AV SEL D 0901 87-070-136-080 0E ZENER,MTZJ5.1B HRJNM AV-D37
S AV SEL D 0901 87-070-136-080 0E ZENER,MTZJ5.1B HTNM AV-D37

-4-

PARTS LIST

! = ! SAFTY PARTS
C = Components marked

K NO. = Only use japanese.

S AV SEL D 0902 87-020-465-080 0E DIODE,1SS133 HCNM AV-D37
S AV SEL D 0902 87-020-465-080 0E DIODE,1SS133 HRJNM AV-D37
S AV SEL D 0902 87-020-465-080 0E DIODE,1SS133 HTNM AV-D37
S AV SEL D 0903 87-020-465-080 0E DIODE,1SS133 HCNM AV-D37
S AV SEL D 0903 87-020-465-080 0E DIODE,1SS133 HRJNM AV-D37
S AV SEL D 0903 87-020-465-080 0E DIODE,1SS133 HTNM AV-D37
S AV SEL IC 0901 87-A20-820-010 1C IC,BA7625 HCNM AV-D37
S AV SEL IC 0901 87-A20-820-010 1C IC,BA7625 HRJNM AV-D37
S AV SEL IC 0901 87-A20-820-010 1C IC,BA7625 HTNM AV-D37
S AV SEL IC 0902 87-017-917-080 1A C-IC,BU4066BCF HCNM AV-D37

S AV SEL IC 0902 87-017-917-080 1A C-IC,BU4066BCF HRJNM AV-D37
S AV SEL IC 0902 87-017-917-080 1A C-IC,BU4066BCF HTNM AV-D37
O AV SEL J 0901 87-A60-949-010 1B JACK,PIN 3P R/W/Y V GLD HCNM AV-D37
O AV SEL J 0901 87-A60-949-010 1B JACK,PIN 3P R/W/Y V GLD HRJNM AV-D37
O AV SEL J 0901 87-A60-949-010 1B JACK,PIN 3P R/W/Y V GLD HTNM AV-D37
O AV SEL J 0902 87-A60-950-010 1B JACK,PIN 3P R/W/Y W/E GLD HCNM AV-D37
O AV SEL J 0902 87-A60-950-010 1B JACK,PIN 3P R/W/Y W/E GLD HRJNM AV-D37
O AV SEL J 0902 87-A60-950-010 1B JACK,PIN 3P R/W/Y W/E GLD HTNM AV-D37
O AV SEL J 0903 87-A60-949-010 1B JACK,PIN 3P R/W/Y V GLD HCNM AV-D37
O AV SEL J 0903 87-A60-949-010 1B JACK,PIN 3P R/W/Y V GLD HRJNM AV-D37

O AV SEL J 0903 87-A60-949-010 1B JACK,PIN 3P R/W/Y V GLD HTNM AV-D37
O AV SEL J 0904 87-A60-949-010 1B JACK,PIN 3P R/W/Y V GLD HCNM AV-D37
O AV SEL J 0904 87-A60-949-010 1B JACK,PIN 3P R/W/Y V GLD HRJNM AV-D37
O AV SEL J 0904 87-A60-949-010 1B JACK,PIN 3P R/W/Y V GLD HTNM AV-D37
O AV SEL J 0905 87-A60-949-010 1B JACK,PIN 3P R/W/Y V GLD HCNM AV-D37
O AV SEL J 0905 87-A60-949-010 1B JACK,PIN 3P R/W/Y V GLD HRJNM AV-D37
O AV SEL J 0905 87-A60-949-010 1B JACK,PIN 3P R/W/Y V GLD HTNM AV-D37
X AV SEL JR 0525 88-129-000-080 0E C-JUMPER,3216 HCNM AV-D37
X AV SEL JR 0525 88-129-000-080 0E C-JUMPER,3216 HRJNM AV-D37
X AV SEL JR 0525 88-129-000-080 0E C-JUMPER,3216 HTNM AV-D37

All components used on this model at the production line are shown in this service manual.
However, please note that not all components will be available as spare parts for after-sales service.
Components marked S and O are designated as spare parts for service and will be stocked at the spare parts centers.
Components marked X and R are not designated as spare parts for after sales service, and will not be stocked at the spare parts centers.

C UNIT NAME REF NO. MODEL NAME! DESCRIPTIONK NO.PARTS CODE SUFFIX

X AV SEL JR 0530 88-118-000-080 0E C-JUMPER,S HCNM AV-D37
X AV SEL JR 0530 88-118-000-080 0E C-JUMPER,S HRJNM AV-D37
X AV SEL JR 0530 88-118-000-080 0E C-JUMPER,S HTNM AV-D37
X AV SEL JR 0548 88-129-000-080 0E C-JUMPER,3216 HCNM AV-D37
X AV SEL JR 0548 88-129-000-080 0E C-JUMPER,3216 HRJNM AV-D37
X AV SEL JR 0548 88-129-000-080 0E C-JUMPER,3216 HTNM AV-D37
X AV SEL JR 0550 88-118-000-080 0E C-JUMPER,S HCNM AV-D37
X AV SEL JR 0550 88-118-000-080 0E C-JUMPER,S HRJNM AV-D37
X AV SEL JR 0550 88-118-000-080 0E C-JUMPER,S HTNM AV-D37
X AV SEL JR 0552 88-129-000-080 0E C-JUMPER,3216 HCNM AV-D37

X AV SEL JR 0552 88-129-000-080 0E C-JUMPER,3216 HRJNM AV-D37
X AV SEL JR 0552 88-129-000-080 0E C-JUMPER,3216 HTNM AV-D37
X AV SEL JR 0750 88-118-000-080 0E C-JUMPER,S HCNM AV-D37
X AV SEL JR 0750 88-118-000-080 0E C-JUMPER,S HRJNM AV-D37
X AV SEL JR 0750 88-118-000-080 0E C-JUMPER,S HTNM AV-D37
X AV SEL JR 0901 88-118-000-080 0E C-JUMPER,S HCNM AV-D37
X AV SEL JR 0901 88-118-000-080 0E C-JUMPER,S HRJNM AV-D37
X AV SEL JR 0901 88-118-000-080 0E C-JUMPER,S HTNM AV-D37
X AV SEL JR 0902 88-118-000-080 0E C-JUMPER,S HCNM AV-D37
X AV SEL JR 0902 88-118-000-080 0E C-JUMPER,S HRJNM AV-D37

X AV SEL JR 0902 88-118-000-080 0E C-JUMPER,S HTNM AV-D37
X AV SEL JR 0903 88-118-000-080 0E C-JUMPER,S HCNM AV-D37
X AV SEL JR 0903 88-118-000-080 0E C-JUMPER,S HRJNM AV-D37
X AV SEL JR 0903 88-118-000-080 0E C-JUMPER,S HTNM AV-D37
X AV SEL JR 0904 88-118-000-080 0E C-JUMPER,S HCNM AV-D37
X AV SEL JR 0904 88-118-000-080 0E C-JUMPER,S HRJNM AV-D37
X AV SEL JR 0904 88-118-000-080 0E C-JUMPER,S HTNM AV-D37
X AV SEL JR 0905 88-129-000-080 0E C-JUMPER,3216 HCNM AV-D37
X AV SEL JR 0905 88-129-000-080 0E C-JUMPER,3216 HRJNM AV-D37
X AV SEL JR 0905 88-129-000-080 0E C-JUMPER,3216 HTNM AV-D37

X AV SEL JR 0906 88-118-000-080 0E C-JUMPER,S HCNM AV-D37
X AV SEL JR 0906 88-118-000-080 0E C-JUMPER,S HRJNM AV-D37
X AV SEL JR 0906 88-118-000-080 0E C-JUMPER,S HTNM AV-D37
X AV SEL JR 0908 88-118-000-080 0E C-JUMPER,S HCNM AV-D37
X AV SEL JR 0908 88-118-000-080 0E C-JUMPER,S HRJNM AV-D37
X AV SEL JR 0908 88-118-000-080 0E C-JUMPER,S HTNM AV-D37
X AV SEL JR 0909 88-129-000-080 0E C-JUMPER,3216 HCNM AV-D37
X AV SEL JR 0909 88-129-000-080 0E C-JUMPER,3216 HRJNM AV-D37
X AV SEL JR 0909 88-129-000-080 0E C-JUMPER,3216 HTNM AV-D37
X AV SEL JR 0910 88-118-000-080 0E C-JUMPER,S HCNM AV-D37

-5-

PARTS LIST

! = ! SAFTY PARTS
C = Components marked

K NO. = Only use japanese.

X AV SEL JR 0910 88-118-000-080 0E C-JUMPER,S HRJNM AV-D37
X AV SEL JR 0910 88-118-000-080 0E C-JUMPER,S HTNM AV-D37
X AV SEL JR 0911 88-118-000-080 0E C-JUMPER,S HCNM AV-D37
X AV SEL JR 0911 88-118-000-080 0E C-JUMPER,S HRJNM AV-D37
X AV SEL JR 0911 88-118-000-080 0E C-JUMPER,S HTNM AV-D37
X AV SEL JR 0912 88-129-000-080 0E C-JUMPER,3216 HCNM AV-D37
X AV SEL JR 0912 88-129-000-080 0E C-JUMPER,3216 HRJNM AV-D37
X AV SEL JR 0912 88-129-000-080 0E C-JUMPER,3216 HTNM AV-D37
X AV SEL JR 0913 88-118-000-080 0E C-JUMPER,S HCNM AV-D37
X AV SEL JR 0913 88-118-000-080 0E C-JUMPER,S HRJNM AV-D37

X AV SEL JR 0913 88-118-000-080 0E C-JUMPER,S HTNM AV-D37
X AV SEL JR 0914 88-118-000-080 0E C-JUMPER,S HCNM AV-D37
X AV SEL JR 0914 88-118-000-080 0E C-JUMPER,S HRJNM AV-D37
X AV SEL JR 0914 88-118-000-080 0E C-JUMPER,S HTNM AV-D37
X AV SEL JR 0915 88-118-000-080 0E C-JUMPER,S HCNM AV-D37
X AV SEL JR 0915 88-118-000-080 0E C-JUMPER,S HRJNM AV-D37
X AV SEL JR 0915 88-118-000-080 0E C-JUMPER,S HTNM AV-D37
X AV SEL JR 0916 88-129-000-080 0E C-JUMPER,3216 HCNM AV-D37
X AV SEL JR 0916 88-129-000-080 0E C-JUMPER,3216 HRJNM AV-D37
X AV SEL JR 0916 88-129-000-080 0E C-JUMPER,3216 HTNM AV-D37

X AV SEL JR 0917 88-129-000-080 0E C-JUMPER,3216 HCNM AV-D37
X AV SEL JR 0917 88-129-000-080 0E C-JUMPER,3216 HRJNM AV-D37
X AV SEL JR 0917 88-129-000-080 0E C-JUMPER,3216 HTNM AV-D37
X AV SEL JR 0918 88-118-000-080 0E C-JUMPER,S HCNM AV-D37
X AV SEL JR 0918 88-118-000-080 0E C-JUMPER,S HRJNM AV-D37
X AV SEL JR 0918 88-118-000-080 0E C-JUMPER,S HTNM AV-D37
X AV SEL JR 0920 88-129-000-080 0E C-JUMPER,3216 HCNM AV-D37
X AV SEL JR 0920 88-129-000-080 0E C-JUMPER,3216 HRJNM AV-D37
X AV SEL JR 0920 88-129-000-080 0E C-JUMPER,3216 HTNM AV-D37
X AV SEL JR 0921 88-118-000-080 0E C-JUMPER,S HCNM AV-D37

All components used on this model at the production line are shown in this service manual.
However, please note that not all components will be available as spare parts for after-sales service.
Components marked S and O are designated as spare parts for service and will be stocked at the spare parts centers.
Components marked X and R are not designated as spare parts for after sales service, and will not be stocked at the spare parts centers.

C UNIT NAME REF NO. MODEL NAME! DESCRIPTIONK NO.PARTS CODE SUFFIX

X AV SEL JR 0921 88-118-000-080 0E C-JUMPER,S HRJNM AV-D37
X AV SEL JR 0921 88-118-000-080 0E C-JUMPER,S HTNM AV-D37
X AV SEL JR 0922 88-118-000-080 0E C-JUMPER,S HCNM AV-D37
X AV SEL JR 0922 88-118-000-080 0E C-JUMPER,S HRJNM AV-D37
X AV SEL JR 0922 88-118-000-080 0E C-JUMPER,S HTNM AV-D37
X AV SEL JR 0923 88-118-000-080 0E C-JUMPER,S HCNM AV-D37
X AV SEL JR 0923 88-118-000-080 0E C-JUMPER,S HRJNM AV-D37
X AV SEL JR 0923 88-118-000-080 0E C-JUMPER,S HTNM AV-D37
O AV SEL L 0901 87-005-239-080 0E COIL,100UH K LAL03 HCNM AV-D37
O AV SEL L 0901 87-005-239-080 0E COIL,100UH K LAL03 HRJNM AV-D37

O AV SEL L 0901 87-005-239-080 0E COIL,100UH K LAL03 HTNM AV-D37
S AV SEL Q 0901 87-A30-075-080 0E C-TR,2SA1235F HCNM AV-D37
S AV SEL Q 0901 87-A30-075-080 0E C-TR,2SA1235F HRJNM AV-D37
S AV SEL Q 0901 87-A30-075-080 0E C-TR,2SA1235F HTNM AV-D37
S AV SEL Q 0902 87-A30-075-080 0E C-TR,2SA1235F HCNM AV-D37
S AV SEL Q 0902 87-A30-075-080 0E C-TR,2SA1235F HRJNM AV-D37
S AV SEL Q 0902 87-A30-075-080 0E C-TR,2SA1235F HTNM AV-D37
S AV SEL Q 0903 87-A30-075-080 0E C-TR,2SA1235F HCNM AV-D37
S AV SEL Q 0903 87-A30-075-080 0E C-TR,2SA1235F HRJNM AV-D37
S AV SEL Q 0903 87-A30-075-080 0E C-TR,2SA1235F HTNM AV-D37

S AV SEL Q 0904 87-A30-076-080 0E C-TR,2SC3052F HCNM AV-D37
S AV SEL Q 0904 87-A30-076-080 0E C-TR,2SC3052F HRJNM AV-D37
S AV SEL Q 0904 87-A30-076-080 0E C-TR,2SC3052F HTNM AV-D37
S AV SEL Q 0905 87-A30-071-080 0E C-TR,RT1N 144C HCNM AV-D37
S AV SEL Q 0905 87-A30-071-080 0E C-TR,RT1N 144C HRJNM AV-D37
S AV SEL Q 0905 87-A30-071-080 0E C-TR,RT1N 144C HTNM AV-D37
S AV SEL Q 0906 87-A30-074-080 0E C-TR,RT1P 141C HCNM AV-D37
S AV SEL Q 0906 87-A30-074-080 0E C-TR,RT1P 141C HRJNM AV-D37
S AV SEL Q 0906 87-A30-074-080 0E C-TR,RT1P 141C HTNM AV-D37
S AV SEL Q 0907 87-A30-075-080 0E C-TR,2SA1235F HCNM AV-D37

S AV SEL Q 0907 87-A30-075-080 0E C-TR,2SA1235F HRJNM AV-D37
S AV SEL Q 0907 87-A30-075-080 0E C-TR,2SA1235F HTNM AV-D37
X AV SEL R 0903 88-118-334-080 0E C-RES,S 330K-1/10W J HCNM AV-D37
X AV SEL R 0903 88-118-334-080 0E C-RES,S 330K-1/10W J HRJNM AV-D37
X AV SEL R 0903 88-118-334-080 0E C-RES,S 330K-1/10W J HTNM AV-D37
X AV SEL R 0904 88-118-334-080 0E C-RES,S 330K-1/10W J HCNM AV-D37
X AV SEL R 0904 88-118-334-080 0E C-RES,S 330K-1/10W J HRJNM AV-D37
X AV SEL R 0904 88-118-334-080 0E C-RES,S 330K-1/10W J HTNM AV-D37
O AV SEL R 0905 87-010-317-080 0E C-CAP,S 39P-50 J CH HCNM AV-D37
O AV SEL R 0905 87-010-317-080 0E C-CAP,S 39P-50 J CH HRJNM AV-D37

-6-

PARTS LIST

! = ! SAFTY PARTS
C = Components marked

K NO. = Only use japanese.

O AV SEL R 0905 87-010-317-080 0E C-CAP,S 39P-50 J CH HTNM AV-D37
X AV SEL R 0907 88-118-334-080 0E C-RES,S 330K-1/10W J HCNM AV-D37
X AV SEL R 0907 88-118-334-080 0E C-RES,S 330K-1/10W J HRJNM AV-D37
X AV SEL R 0907 88-118-334-080 0E C-RES,S 330K-1/10W J HTNM AV-D37
X AV SEL R 0908 88-118-334-080 0E C-RES,S 330K-1/10W J HCNM AV-D37
X AV SEL R 0908 88-118-334-080 0E C-RES,S 330K-1/10W J HRJNM AV-D37
X AV SEL R 0908 88-118-334-080 0E C-RES,S 330K-1/10W J HTNM AV-D37
X AV SEL R 0909 88-118-750-080 0E C-RES,S 75-1/10W J HCNM AV-D37
X AV SEL R 0909 88-118-750-080 0E C-RES,S 75-1/10W J HRJNM AV-D37
X AV SEL R 0909 88-118-750-080 0E C-RES,S 75-1/10W J HTNM AV-D37

X AV SEL R 0910 88-118-750-080 0E C-RES,S 75-1/10W J HCNM AV-D37
X AV SEL R 0910 88-118-750-080 0E C-RES,S 75-1/10W J HRJNM AV-D37
X AV SEL R 0910 88-118-750-080 0E C-RES,S 75-1/10W J HTNM AV-D37
X AV SEL R 0911 88-118-750-080 0E C-RES,S 75-1/10W J HCNM AV-D37
X AV SEL R 0911 88-118-750-080 0E C-RES,S 75-1/10W J HRJNM AV-D37
X AV SEL R 0911 88-118-750-080 0E C-RES,S 75-1/10W J HTNM AV-D37
X AV SEL R 0912 88-118-750-080 0E C-RES,S 75-1/10W J HCNM AV-D37
X AV SEL R 0912 88-118-750-080 0E C-RES,S 75-1/10W J HRJNM AV-D37
X AV SEL R 0912 88-118-750-080 0E C-RES,S 75-1/10W J HTNM AV-D37
X AV SEL R 0913 88-121-820-080 0E RES,82-1/8W J HCNM AV-D37

X AV SEL R 0913 88-121-820-080 0E RES,82-1/8W J HRJNM AV-D37
X AV SEL R 0913 88-121-820-080 0E RES,82-1/8W J HTNM AV-D37
X AV SEL R 0914 88-128-820-080 0E C-RES, 82-1/8W J HCNM AV-D37
X AV SEL R 0914 88-128-820-080 0E C-RES, 82-1/8W J HRJNM AV-D37
X AV SEL R 0914 88-128-820-080 0E C-RES, 82-1/8W J HTNM AV-D37
X AV SEL R 0915 88-128-820-080 0E C-RES, 82-1/8W J HCNM AV-D37
X AV SEL R 0915 88-128-820-080 0E C-RES, 82-1/8W J HRJNM AV-D37
X AV SEL R 0915 88-128-820-080 0E C-RES, 82-1/8W J HTNM AV-D37
X AV SEL R 0916 88-118-102-080 0E C-RES,S 1K-1/10W J HCNM AV-D37
X AV SEL R 0916 88-118-102-080 0E C-RES,S 1K-1/10W J HRJNM AV-D37

All components used on this model at the production line are shown in this service manual.
However, please note that not all components will be available as spare parts for after-sales service.
Components marked S and O are designated as spare parts for service and will be stocked at the spare parts centers.
Components marked X and R are not designated as spare parts for after sales service, and will not be stocked at the spare parts centers.

C UNIT NAME REF NO. MODEL NAME! DESCRIPTIONK NO.PARTS CODE SUFFIX

X AV SEL R 0916 88-118-102-080 0E C-RES,S 1K-1/10W J HTNM AV-D37
X AV SEL R 0917 88-118-102-080 0E C-RES,S 1K-1/10W J HCNM AV-D37
X AV SEL R 0917 88-118-102-080 0E C-RES,S 1K-1/10W J HRJNM AV-D37
X AV SEL R 0917 88-118-102-080 0E C-RES,S 1K-1/10W J HTNM AV-D37
X AV SEL R 0918 88-118-682-080 0E C-RES,S 6.8K-1/10W J HCNM AV-D37
X AV SEL R 0918 88-118-682-080 0E C-RES,S 6.8K-1/10W J HRJNM AV-D37
X AV SEL R 0918 88-118-682-080 0E C-RES,S 6.8K-1/10W J HTNM AV-D37
X AV SEL R 0919 88-118-682-080 0E C-RES,S 6.8K-1/10W J HCNM AV-D37
X AV SEL R 0919 88-118-682-080 0E C-RES,S 6.8K-1/10W J HRJNM AV-D37
X AV SEL R 0919 88-118-682-080 0E C-RES,S 6.8K-1/10W J HTNM AV-D37

X AV SEL R 0920 88-118-104-080 0E C-RES,S 100K-1/10W J HCNM AV-D37
X AV SEL R 0920 88-118-104-080 0E C-RES,S 100K-1/10W J HRJNM AV-D37
X AV SEL R 0920 88-118-104-080 0E C-RES,S 100K-1/10W J HTNM AV-D37
X AV SEL R 0921 88-118-101-080 0E C-RES,S 100-1/10W J HCNM AV-D37
X AV SEL R 0921 88-118-101-080 0E C-RES,S 100-1/10W J HRJNM AV-D37
X AV SEL R 0921 88-118-101-080 0E C-RES,S 100-1/10W J HTNM AV-D37
X AV SEL R 0922 88-130-471-080 0E RES,470-1/4W J HCNM AV-D37
X AV SEL R 0922 88-130-471-080 0E RES,470-1/4W J HRJNM AV-D37
X AV SEL R 0922 88-130-471-080 0E RES,470-1/4W J HTNM AV-D37
X AV SEL R 0923 88-118-101-080 0E C-RES,S 100-1/10W J HCNM AV-D37

X AV SEL R 0923 88-118-101-080 0E C-RES,S 100-1/10W J HRJNM AV-D37
X AV SEL R 0923 88-118-101-080 0E C-RES,S 100-1/10W J HTNM AV-D37
X AV SEL R 0924 88-130-471-080 0E RES,470-1/4W J HCNM AV-D37
X AV SEL R 0924 88-130-471-080 0E RES,470-1/4W J HRJNM AV-D37
X AV SEL R 0924 88-130-471-080 0E RES,470-1/4W J HTNM AV-D37
X AV SEL R 0925 88-118-101-080 0E C-RES,S 100-1/10W J HCNM AV-D37
X AV SEL R 0925 88-118-101-080 0E C-RES,S 100-1/10W J HRJNM AV-D37
X AV SEL R 0925 88-118-101-080 0E C-RES,S 100-1/10W J HTNM AV-D37
X AV SEL R 0926 88-130-471-080 0E RES,470-1/4W J HCNM AV-D37
X AV SEL R 0926 88-130-471-080 0E RES,470-1/4W J HRJNM AV-D37

X AV SEL R 0926 88-130-471-080 0E RES,470-1/4W J HTNM AV-D37
X AV SEL R 0927 88-121-750-080 0E RES,75-1/8W J HCNM AV-D37
X AV SEL R 0927 88-121-750-080 0E RES,75-1/8W J HRJNM AV-D37
X AV SEL R 0927 88-121-750-080 0E RES,75-1/8W J HTNM AV-D37
X AV SEL R 0928 88-118-750-080 0E C-RES,S 75-1/10W J HCNM AV-D37
X AV SEL R 0928 88-118-750-080 0E C-RES,S 75-1/10W J HRJNM AV-D37
X AV SEL R 0928 88-118-750-080 0E C-RES,S 75-1/10W J HTNM AV-D37
X AV SEL R 0929 88-121-750-080 0E RES,75-1/8W J HCNM AV-D37
X AV SEL R 0929 88-121-750-080 0E RES,75-1/8W J HRJNM AV-D37
X AV SEL R 0929 88-121-750-080 0E RES,75-1/8W J HTNM AV-D37

-7-

PARTS LIST

! = ! SAFTY PARTS
C = Components marked

K NO. = Only use japanese.

X AV SEL R 0930 88-118-000-080 0E C-JUMPER,S HCNM AV-D37
X AV SEL R 0930 88-118-000-080 0E C-JUMPER,S HRJNM AV-D37
X AV SEL R 0930 88-118-000-080 0E C-JUMPER,S HTNM AV-D37
X AV SEL R 0931 88-118-102-080 0E C-RES,S 1K-1/10W J HCNM AV-D37
X AV SEL R 0931 88-118-102-080 0E C-RES,S 1K-1/10W J HRJNM AV-D37
X AV SEL R 0931 88-118-102-080 0E C-RES,S 1K-1/10W J HTNM AV-D37
X AV SEL R 0932 88-128-102-080 0E C-RES, 1K-1/8W J HCNM AV-D37
X AV SEL R 0932 88-128-102-080 0E C-RES, 1K-1/8W J HRJNM AV-D37
X AV SEL R 0932 88-128-102-080 0E C-RES, 1K-1/8W J HTNM AV-D37
X AV SEL R 0933 88-118-103-080 0E C-RES,S 10K-1/10W J HCNM AV-D37

X AV SEL R 0933 88-118-103-080 0E C-RES,S 10K-1/10W J HRJNM AV-D37
X AV SEL R 0933 88-118-103-080 0E C-RES,S 10K-1/10W J HTNM AV-D37
X AV SEL R 0934 88-118-102-080 0E C-RES,S 1K-1/10W J HCNM AV-D37
X AV SEL R 0934 88-118-102-080 0E C-RES,S 1K-1/10W J HRJNM AV-D37
X AV SEL R 0934 88-118-102-080 0E C-RES,S 1K-1/10W J HTNM AV-D37
X AV SEL R 0935 88-118-102-080 0E C-RES,S 1K-1/10W J HCNM AV-D37
X AV SEL R 0935 88-118-102-080 0E C-RES,S 1K-1/10W J HRJNM AV-D37
X AV SEL R 0935 88-118-102-080 0E C-RES,S 1K-1/10W J HTNM AV-D37
X AV SEL R 0936 88-118-104-080 0E C-RES,S 100K-1/10W J HCNM AV-D37
X AV SEL R 0936 88-118-104-080 0E C-RES,S 100K-1/10W J HRJNM AV-D37

X AV SEL R 0936 88-118-104-080 0E C-RES,S 100K-1/10W J HTNM AV-D37
X AV SEL R 0937 88-118-102-080 0E C-RES,S 1K-1/10W J HCNM AV-D37
X AV SEL R 0937 88-118-102-080 0E C-RES,S 1K-1/10W J HRJNM AV-D37
X AV SEL R 0937 88-118-102-080 0E C-RES,S 1K-1/10W J HTNM AV-D37
X AV SEL R 0938 88-118-102-080 0E C-RES,S 1K-1/10W J HCNM AV-D37
X AV SEL R 0938 88-118-102-080 0E C-RES,S 1K-1/10W J HRJNM AV-D37
X AV SEL R 0938 88-118-102-080 0E C-RES,S 1K-1/10W J HTNM AV-D37
X AV SEL R 0939 88-118-473-080 0E C-RES,S 47K-1/10W J HCNM AV-D37
X AV SEL R 0939 88-118-473-080 0E C-RES,S 47K-1/10W J HRJNM AV-D37
X AV SEL R 0939 88-118-473-080 0E C-RES,S 47K-1/10W J HTNM AV-D37

All components used on this model at the production line are shown in this service manual.
However, please note that not all components will be available as spare parts for after-sales service.
Components marked S and O are designated as spare parts for service and will be stocked at the spare parts centers.
Components marked X and R are not designated as spare parts for after sales service, and will not be stocked at the spare parts centers.

C UNIT NAME REF NO. MODEL NAME! DESCRIPTIONK NO.PARTS CODE SUFFIX

X AV SEL R 0940 88-118-473-080 0E C-RES,S 47K-1/10W J HCNM AV-D37
X AV SEL R 0940 88-118-473-080 0E C-RES,S 47K-1/10W J HRJNM AV-D37
X AV SEL R 0940 88-118-473-080 0E C-RES,S 47K-1/10W J HTNM AV-D37
X AV SEL R 0941 88-118-102-080 0E C-RES,S 1K-1/10W J HCNM AV-D37
X AV SEL R 0941 88-118-102-080 0E C-RES,S 1K-1/10W J HRJNM AV-D37
X AV SEL R 0941 88-118-102-080 0E C-RES,S 1K-1/10W J HTNM AV-D37
X AV SEL R 0942 88-118-102-080 0E C-RES,S 1K-1/10W J HCNM AV-D37
X AV SEL R 0942 88-118-102-080 0E C-RES,S 1K-1/10W J HRJNM AV-D37
X AV SEL R 0942 88-118-102-080 0E C-RES,S 1K-1/10W J HTNM AV-D37
X AV SEL R 0943 88-118-473-080 0E C-RES,S 47K-1/10W J HCNM AV-D37

X AV SEL R 0943 88-118-473-080 0E C-RES,S 47K-1/10W J HRJNM AV-D37
X AV SEL R 0943 88-118-473-080 0E C-RES,S 47K-1/10W J HTNM AV-D37
X AV SEL R 0944 88-118-473-080 0E C-RES,S 47K-1/10W J HCNM AV-D37
X AV SEL R 0944 88-118-473-080 0E C-RES,S 47K-1/10W J HRJNM AV-D37
X AV SEL R 0944 88-118-473-080 0E C-RES,S 47K-1/10W J HTNM AV-D37
X AV SEL R 0945 88-118-102-080 0E C-RES,S 1K-1/10W J HCNM AV-D37
X AV SEL R 0945 88-118-102-080 0E C-RES,S 1K-1/10W J HRJNM AV-D37
X AV SEL R 0945 88-118-102-080 0E C-RES,S 1K-1/10W J HTNM AV-D37
X AV SEL R 0946 88-118-102-080 0E C-RES,S 1K-1/10W J HCNM AV-D37
X AV SEL R 0946 88-118-102-080 0E C-RES,S 1K-1/10W J HRJNM AV-D37

X AV SEL R 0946 88-118-102-080 0E C-RES,S 1K-1/10W J HTNM AV-D37
X AV SEL R 0947 88-118-473-080 0E C-RES,S 47K-1/10W J HCNM AV-D37
X AV SEL R 0947 88-118-473-080 0E C-RES,S 47K-1/10W J HRJNM AV-D37
X AV SEL R 0947 88-118-473-080 0E C-RES,S 47K-1/10W J HTNM AV-D37
X AV SEL R 0948 88-118-473-080 0E C-RES,S 47K-1/10W J HCNM AV-D37
X AV SEL R 0948 88-118-473-080 0E C-RES,S 47K-1/10W J HRJNM AV-D37
X AV SEL R 0948 88-118-473-080 0E C-RES,S 47K-1/10W J HTNM AV-D37
X AV SEL R 0949 88-118-103-080 0E C-RES,S 10K-1/10W J HCNM AV-D37
X AV SEL R 0949 88-118-103-080 0E C-RES,S 10K-1/10W J HRJNM AV-D37
X AV SEL R 0949 88-118-103-080 0E C-RES,S 10K-1/10W J HTNM AV-D37

X AV SEL R 0950 88-118-473-080 0E C-RES,S 47K-1/10W J HCNM AV-D37
X AV SEL R 0950 88-118-473-080 0E C-RES,S 47K-1/10W J HRJNM AV-D37
X AV SEL R 0950 88-118-473-080 0E C-RES,S 47K-1/10W J HTNM AV-D37
O BBE C 0601 87-010-378-080 0E CAP,E 10-16 M 11L SME HCNM AV-D37
O BBE C 0601 87-010-378-080 0E CAP,E 10-16 M 11L SME HRJNM AV-D37
O BBE C 0601 87-010-378-080 0E CAP,E 10-16 M 11L SME HTNM AV-D37
O BBE C 0602 87-010-378-080 0E CAP,E 10-16 M 11L SME HCNM AV-D37
O BBE C 0602 87-010-378-080 0E CAP,E 10-16 M 11L SME HRJNM AV-D37
O BBE C 0602 87-010-378-080 0E CAP,E 10-16 M 11L SME HTNM AV-D37
O BBE C 0603 87-012-156-080 0E C-CAP,S 220P-50 J CH GRM HCNM AV-D37

-8-

PARTS LIST

! = ! SAFTY PARTS
C = Components marked

K NO. = Only use japanese.

O BBE C 0603 87-012-156-080 0E C-CAP,S 220P-50 J CH GRM HRJNM AV-D37
O BBE C 0603 87-012-156-080 0E C-CAP,S 220P-50 J CH GRM HTNM AV-D37
O BBE C 0604 87-012-156-080 0E C-CAP,S 220P-50 J CH GRM HCNM AV-D37
O BBE C 0604 87-012-156-080 0E C-CAP,S 220P-50 J CH GRM HRJNM AV-D37
O BBE C 0604 87-012-156-080 0E C-CAP,S 220P-50 J CH GRM HTNM AV-D37
O BBE C 0605 87-010-405-080 0E CAP,E 10-50 M 11L SME HCNM AV-D37
O BBE C 0605 87-010-405-080 0E CAP,E 10-50 M 11L SME HRJNM AV-D37
O BBE C 0605 87-010-405-080 0E CAP,E 10-50 M 11L SME HTNM AV-D37
O BBE C 0606 87-010-405-080 0E CAP,E 10-50 M 11L SME HCNM AV-D37
O BBE C 0606 87-010-405-080 0E CAP,E 10-50 M 11L SME HRJNM AV-D37

O BBE C 0606 87-010-405-080 0E CAP,E 10-50 M 11L SME HTNM AV-D37
O BBE C 0607 87-012-140-080 0E C-CAP,S 470P-50 J CH HCNM AV-D37
O BBE C 0607 87-012-140-080 0E C-CAP,S 470P-50 J CH HRJNM AV-D37
O BBE C 0607 87-012-140-080 0E C-CAP,S 470P-50 J CH HTNM AV-D37
O BBE C 0608 87-012-140-080 0E C-CAP,S 470P-50 J CH HCNM AV-D37
O BBE C 0608 87-012-140-080 0E C-CAP,S 470P-50 J CH HRJNM AV-D37
O BBE C 0608 87-012-140-080 0E C-CAP,S 470P-50 J CH HTNM AV-D37
O BBE C 0609 87-010-188-080 0E C-CAP,S 6800P-50 K B C2012 HCNM AV-D37
O BBE C 0609 87-010-188-080 0E C-CAP,S 6800P-50 K B C2012 HRJNM AV-D37
O BBE C 0609 87-010-188-080 0E C-CAP,S 6800P-50 K B C2012 HTNM AV-D37

O BBE C 0610 87-010-188-080 0E C-CAP,S 6800P-50 K B C2012 HCNM AV-D37
O BBE C 0610 87-010-188-080 0E C-CAP,S 6800P-50 K B C2012 HRJNM AV-D37
O BBE C 0610 87-010-188-080 0E C-CAP,S 6800P-50 K B C2012 HTNM AV-D37
O BBE C 0611 87-010-197-080 0E C-CAP,S 0.01-25 K B C2012 HCNM AV-D37
O BBE C 0611 87-010-197-080 0E C-CAP,S 0.01-25 K B C2012 HRJNM AV-D37
O BBE C 0611 87-010-197-080 0E C-CAP,S 0.01-25 K B C2012 HTNM AV-D37
O BBE C 0612 87-010-195-080 0E C-CAP,S 0.068-25 Z F C2012 HCNM AV-D37
O BBE C 0612 87-010-195-080 0E C-CAP,S 0.068-25 Z F C2012 HRJNM AV-D37
O BBE C 0612 87-010-195-080 0E C-CAP,S 0.068-25 Z F C2012 HTNM AV-D37
O BBE C 0613 87-010-195-080 0E C-CAP,S 0.068-25 Z F C2012 HCNM AV-D37

All components used on this model at the production line are shown in this service manual.
However, please note that not all components will be available as spare parts for after-sales service.
Components marked S and O are designated as spare parts for service and will be stocked at the spare parts centers.
Components marked X and R are not designated as spare parts for after sales service, and will not be stocked at the spare parts centers.

C UNIT NAME REF NO. MODEL NAME! DESCRIPTIONK NO.PARTS CODE SUFFIX

O BBE C 0613 87-010-195-080 0E C-CAP,S 0.068-25 Z F C2012 HRJNM AV-D37
O BBE C 0613 87-010-195-080 0E C-CAP,S 0.068-25 Z F C2012 HTNM AV-D37
O BBE C 0614 87-010-197-080 0E C-CAP,S 0.01-25 K B C2012 HCNM AV-D37
O BBE C 0614 87-010-197-080 0E C-CAP,S 0.01-25 K B C2012 HRJNM AV-D37
O BBE C 0614 87-010-197-080 0E C-CAP,S 0.01-25 K B C2012 HTNM AV-D37
O BBE C 0615 87-010-404-080 0E CAP,E 4.7-50 M 11L SME HCNM AV-D37
O BBE C 0615 87-010-404-080 0E CAP,E 4.7-50 M 11L SME HRJNM AV-D37
O BBE C 0615 87-010-404-080 0E CAP,E 4.7-50 M 11L SME HTNM AV-D37
O BBE C 0616 87-010-404-080 0E CAP,E 4.7-50 M 11L SME HCNM AV-D37
O BBE C 0616 87-010-404-080 0E CAP,E 4.7-50 M 11L SME HRJNM AV-D37

O BBE C 0616 87-010-404-080 0E CAP,E 4.7-50 M 11L SME HTNM AV-D37
O BBE C 0617 87-010-404-080 0E CAP,E 4.7-50 M 11L SME HCNM AV-D37
O BBE C 0617 87-010-404-080 0E CAP,E 4.7-50 M 11L SME HRJNM AV-D37
O BBE C 0617 87-010-404-080 0E CAP,E 4.7-50 M 11L SME HTNM AV-D37
O BBE C 0618 87-010-404-080 0E CAP,E 4.7-50 M 11L SME HCNM AV-D37
O BBE C 0618 87-010-404-080 0E CAP,E 4.7-50 M 11L SME HRJNM AV-D37
O BBE C 0618 87-010-404-080 0E CAP,E 4.7-50 M 11L SME HTNM AV-D37
O BBE C 0619 87-010-404-080 0E CAP,E 4.7-50 M 11L SME HCNM AV-D37
O BBE C 0619 87-010-404-080 0E CAP,E 4.7-50 M 11L SME HRJNM AV-D37
O BBE C 0619 87-010-404-080 0E CAP,E 4.7-50 M 11L SME HTNM AV-D37

O BBE C 0620 87-010-101-080 0E CAP,E 220-16 M SME HCNM AV-D37
O BBE C 0620 87-010-101-080 0E CAP,E 220-16 M SME HRJNM AV-D37
O BBE C 0620 87-010-101-080 0E CAP,E 220-16 M SME HTNM AV-D37
O BBE C 0621 87-010-260-080 0E CAP,E 47-25 M 11L SME HCNM AV-D37
O BBE C 0621 87-010-260-080 0E CAP,E 47-25 M 11L SME HRJNM AV-D37
O BBE C 0621 87-010-260-080 0E CAP,E 47-25 M 11L SME HTNM AV-D37
S BBE D 0601 87-A40-269-080 0E C-DIODE,MC2836 HCNM AV-D37
S BBE D 0601 87-A40-269-080 0E C-DIODE,MC2836 HRJNM AV-D37
S BBE D 0601 87-A40-269-080 0E C-DIODE,MC2836 HTNM AV-D37
S BBE D 0602 87-A40-269-080 0E C-DIODE,MC2836 HCNM AV-D37

S BBE D 0602 87-A40-269-080 0E C-DIODE,MC2836 HRJNM AV-D37
S BBE D 0602 87-A40-269-080 0E C-DIODE,MC2836 HTNM AV-D37
S BBE IC 0601 87-A20-056-010 1E IC,BA3880S HCNM AV-D37
S BBE IC 0601 87-A20-056-010 1E IC,BA3880S HRJNM AV-D37
S BBE IC 0601 87-A20-056-010 1E IC,BA3880S HTNM AV-D37
X BBE JR 0604 88-118-000-080 0E C-JUMPER,S HCNM AV-D37
X BBE JR 0604 88-118-000-080 0E C-JUMPER,S HRJNM AV-D37
X BBE JR 0604 88-118-000-080 0E C-JUMPER,S HTNM AV-D37
X BBE JR 0605 88-118-000-080 0E C-JUMPER,S HCNM AV-D37
X BBE JR 0605 88-118-000-080 0E C-JUMPER,S HRJNM AV-D37

-9-

PARTS LIST

! = ! SAFTY PARTS
C = Components marked

K NO. = Only use japanese.

X BBE JR 0605 88-118-000-080 0E C-JUMPER,S HTNM AV-D37
X BBE JR 0701 88-129-000-080 0E C-JUMPER,3216 HCNM AV-D37
X BBE JR 0701 88-129-000-080 0E C-JUMPER,3216 HRJNM AV-D37
X BBE JR 0701 88-129-000-080 0E C-JUMPER,3216 HTNM AV-D37
X BBE JR 0703 88-118-000-080 0E C-JUMPER,S HCNM AV-D37
X BBE JR 0703 88-118-000-080 0E C-JUMPER,S HRJNM AV-D37
X BBE JR 0703 88-118-000-080 0E C-JUMPER,S HTNM AV-D37
X BBE R 0601 88-121-102-080 0E RES,1K-1/8W J HCNM AV-D37
X BBE R 0601 88-121-102-080 0E RES,1K-1/8W J HRJNM AV-D37
X BBE R 0601 88-121-102-080 0E RES,1K-1/8W J HTNM AV-D37

X BBE R 0602 88-118-102-080 0E C-RES,S 1K-1/10W J HCNM AV-D37
X BBE R 0602 88-118-102-080 0E C-RES,S 1K-1/10W J HRJNM AV-D37
X BBE R 0602 88-118-102-080 0E C-RES,S 1K-1/10W J HTNM AV-D37
X BBE R 0603 88-128-101-080 0E C-RES, 100-1/8W J HCNM AV-D37
X BBE R 0603 88-128-101-080 0E C-RES, 100-1/8W J HRJNM AV-D37
X BBE R 0603 88-128-101-080 0E C-RES, 100-1/8W J HTNM AV-D37
X BBE R 0604 88-118-822-080 0E C-RES,S 8.2K-1/10W J HCNM AV-D37
X BBE R 0604 88-118-822-080 0E C-RES,S 8.2K-1/10W J HRJNM AV-D37
X BBE R 0604 88-118-822-080 0E C-RES,S 8.2K-1/10W J HTNM AV-D37
X BBE R 0605 88-118-102-080 0E C-RES,S 1K-1/10W J HCNM AV-D37

X BBE R 0605 88-118-102-080 0E C-RES,S 1K-1/10W J HRJNM AV-D37
X BBE R 0605 88-118-102-080 0E C-RES,S 1K-1/10W J HTNM AV-D37
X BBE R 0606 88-118-332-080 0E C-RES,S 3.3K-1/10W J HCNM AV-D37
X BBE R 0606 88-118-332-080 0E C-RES,S 3.3K-1/10W J HRJNM AV-D37
X BBE R 0606 88-118-332-080 0E C-RES,S 3.3K-1/10W J HTNM AV-D37
X BBE R 0607 88-118-562-080 0E C-RES,S 5.6K-1/10W J HCNM AV-D37
X BBE R 0607 88-118-562-080 0E C-RES,S 5.6K-1/10W J HRJNM AV-D37
X BBE R 0607 88-118-562-080 0E C-RES,S 5.6K-1/10W J HTNM AV-D37
X BBE R 0608 88-118-102-080 0E C-RES,S 1K-1/10W J HCNM AV-D37
X BBE R 0608 88-118-102-080 0E C-RES,S 1K-1/10W J HRJNM AV-D37

All components used on this model at the production line are shown in this service manual.
However, please note that not all components will be available as spare parts for after-sales service.
Components marked S and O are designated as spare parts for service and will be stocked at the spare parts centers.
Components marked X and R are not designated as spare parts for after sales service, and will not be stocked at the spare parts centers.

C UNIT NAME REF NO. MODEL NAME! DESCRIPTIONK NO.PARTS CODE SUFFIX

X BBE R 0608 88-118-102-080 0E C-RES,S 1K-1/10W J HTNM AV-D37
X BBE R 0609 88-118-473-080 0E C-RES,S 47K-1/10W J HCNM AV-D37
X BBE R 0609 88-118-473-080 0E C-RES,S 47K-1/10W J HRJNM AV-D37
X BBE R 0609 88-118-473-080 0E C-RES,S 47K-1/10W J HTNM AV-D37
O ELECTRICAL 87-003-317-010 1C F-BEAD,15-25-15 E2515MRT HCNM AV-D37
O ELECTRICAL 87-003-317-010 1C F-BEAD,15-25-15 E2515MRT HRJNM AV-D37
O ELECTRICAL 87-003-317-010 1C F-BEAD,15-25-15 E2515MRT HTNM AV-D37
O ELECTRICAL 87-018-209-080 0E CAP,TC U 0.1-50 Z F UP050 HCNM AV-D37
O ELECTRICAL 87-018-209-080 0E CAP,TC U 0.1-50 Z F UP050 HRJNM AV-D37
O ELECTRICAL 87-018-209-080 0E CAP,TC U 0.1-50 Z F UP050 HTNM AV-D37

! X ELECTRICAL 87-069-033-010 0E CABLE,TIE HCNM AV-D37
! X ELECTRICAL 87-069-033-010 0E CABLE,TIE HRJNM AV-D37
! X ELECTRICAL 87-069-033-010 0E CABLE,TIE HTNM AV-D37
X ELECTRICAL 87-069-036-010 0E CABLE,TIE 146(N) HCNM AV-D37
X ELECTRICAL 87-069-036-010 0E CABLE,TIE 146(N) HRJNM AV-D37
X ELECTRICAL 87-069-036-010 0E CABLE,TIE 146(N) HTNM AV-D37
! O ELECTRICAL 87-085-185-010 0E BUSHING,AC CORD(E) CM-22B HCNM AV-D37
! O ELECTRICAL 87-085-185-010 0E BUSHING,AC CORD(E) CM-22B HRJNM AV-D37
! O ELECTRICAL 87-085-185-010 0E BUSHING,AC CORD(E) CM-22B HTNM AV-D37
! X ELECTRICAL 87-098-363-010 0E LBL,FUSE 4A 250V T L HCNM AV-D37

! X ELECTRICAL 87-098-363-010 0E LBL,FUSE 4A 250V T L HRJNM AV-D37
! X ELECTRICAL 87-098-363-010 0E LBL,FUSE 4A 250V T L HTNM AV-D37
! X ELECTRICAL 87-839-301-510 0E TUBE,UL 3-15 HCNM AV-D37
! X ELECTRICAL 87-839-301-510 0E TUBE,UL 3-15 HRJNM AV-D37
! X ELECTRICAL 87-839-301-510 0E TUBE,UL 3-15 HTNM AV-D37
! O ELECTRICAL 87-A80-083-010 1C AC CORD,HC BLK HCNM AV-D37
! O ELECTRICAL 87-A80-092-010 1C AC CORD ASSY,E BLK SUN FAI HRJNM AV-D37
! O ELECTRICAL 87-A80-092-010 1C AC CORD ASSY,E BLK SUN FAI HTNM AV-D37
O ELECTRICAL 88-907-301-110 0E FF-CABLE, 7P 1.25 HCNM AV-D37
O ELECTRICAL 88-907-301-110 0E FF-CABLE, 7P 1.25 HRJNM AV-D37

O ELECTRICAL 88-907-301-110 0E FF-CABLE, 7P 1.25 HTNM AV-D37
O ELECTRICAL 88-908-101-110 0E FF-CABLE, 8P 1.25 100MM HCNM AV-D37
O ELECTRICAL 88-908-101-110 0E FF-CABLE, 8P 1.25 100MM HRJNM AV-D37
O ELECTRICAL 88-908-101-110 0E FF-CABLE, 8P 1.25 100MM HTNM AV-D37
O ELECTRICAL 88-912-161-110 0E FF-CABLE,12P 1.25 160MM HCNM AV-D37
O ELECTRICAL 88-912-161-110 0E FF-CABLE,12P 1.25 160MM HRJNM AV-D37
O ELECTRICAL 88-912-161-110 0E FF-CABLE,12P 1.25 160MM HTNM AV-D37
O ELECTRICAL 88-916-101-110 0E FF-CABLE, 16P 1.25 100MM HCNM AV-D37
O ELECTRICAL 88-916-101-110 0E FF-CABLE, 16P 1.25 100MM HRJNM AV-D37
O ELECTRICAL 88-916-101-110 0E FF-CABLE, 16P 1.25 100MM HTNM AV-D37

-10-

PARTS LIST

! = ! SAFTY PARTS
C = Components marked

K NO. = Only use japanese.

O ELECTRICAL 8A-AR3-643-010 1D FF-CABLE,32P 1.25 430MM HCNM AV-D37
O ELECTRICAL 8A-AR3-643-010 1D FF-CABLE,32P 1.25 430MM HRJNM AV-D37
O ELECTRICAL 8A-AR3-643-010 1D FF-CABLE,32P 1.25 430MM HTNM AV-D37
O ELECTRICAL 8A-AR3-645-010 1A FF-CABLE,6P 1.25 380MM HCNM AV-D37
O ELECTRICAL 8A-AR3-645-010 1A FF-CABLE,6P 1.25 380MM HRJNM AV-D37
O ELECTRICAL 8A-AR3-645-010 1A FF-CABLE,6P 1.25 380MM HTNM AV-D37
X ELECTRICAL 8A-AR4-201-010 -- PLATE,SUB PT 4H HCNM AV-D37
X ELECTRICAL 8A-AR4-201-010 -- PLATE,SUB PT 4H HRJNM AV-D37
X ELECTRICAL 8A-AR4-201-010 -- PLATE,SUB PT 4H HTNM AV-D37
O ELECTRICAL 8A-AR4-606-010 2C PT,AAR-4(HC) HCNM AV-D37

O ELECTRICAL 8A-AR4-606-010 2C PT,AAR-4(HC) HRJNM AV-D37
O ELECTRICAL 8A-AR4-606-010 2C PT,AAR-4(HC) HTNM AV-D37
X ELECTRICAL 8Z-AR2-609-010 0E TUBE,UL 11.1-80 HCNM AV-D37
X ELECTRICAL 8Z-AR2-609-010 0E TUBE,UL 11.1-80 HRJNM AV-D37
X ELECTRICAL 8Z-AR2-609-010 0E TUBE,UL 11.1-80 HTNM AV-D37
X ELECTRICAL A8-AZA-892-030 -- AZA-8 HCM HCNM AV-D37
X ELECTRICAL A8-AZA-892-030 -- AZA-8 HCM HRJNM AV-D37
X ELECTRICAL A8-AZA-892-030 -- AZA-8 HCM HTNM AV-D37
S ELECTRICAL D 0107 87-A40-115-060 1C DIODE,RS603M HCNM AV-D37
S ELECTRICAL D 0107 87-A40-115-060 1C DIODE,RS603M HRJNM AV-D37

S ELECTRICAL D 0107 87-A40-115-060 1C DIODE,RS603M HTNM AV-D37
S ELECTRICAL D 0121 87-A40-224-010 1E DIODE,GBU8DL HCNM AV-D37
S ELECTRICAL D 0121 87-A40-224-010 1E DIODE,GBU8DL HRJNM AV-D37
S ELECTRICAL D 0121 87-A40-224-010 1E DIODE,GBU8DL HTNM AV-D37
! S ELECTRICAL F 0101 87-035-458-010 0E FUSE,4A 250V T 218 HCNM AV-D37
! S ELECTRICAL F 0101 87-035-458-010 0E FUSE,4A 250V T 218 HRJNM AV-D37
! S ELECTRICAL F 0101 87-035-458-010 0E FUSE,4A 250V T 218 HTNM AV-D37
! S ELECTRICAL F 0102 87-035-458-010 0E FUSE,4A 250V T 218 HCNM AV-D37
! S ELECTRICAL F 0102 87-035-458-010 0E FUSE,4A 250V T 218 HRJNM AV-D37
! S ELECTRICAL F 0102 87-035-458-010 0E FUSE,4A 250V T 218 HTNM AV-D37

All components used on this model at the production line are shown in this service manual.
However, please note that not all components will be available as spare parts for after-sales service.
Components marked S and O are designated as spare parts for service and will be stocked at the spare parts centers.
Components marked X and R are not designated as spare parts for after sales service, and will not be stocked at the spare parts centers.

C UNIT NAME REF NO. MODEL NAME! DESCRIPTIONK NO.PARTS CODE SUFFIX

! O ELECTRICAL PT 0002 8Z-NF8-663-010 1D PT,SUB ZNF-8(H) HCNM AV-D37
! O ELECTRICAL PT 0002 8Z-NF8-663-010 1D PT,SUB ZNF-8(H) HRJNM AV-D37
! O ELECTRICAL PT 0002 8Z-NF8-663-010 1D PT,SUB ZNF-8(H) HTNM AV-D37
S ELECTRICAL Q 0108 89-213-702-010 1A TR,2SB1370E HCNM AV-D37
S ELECTRICAL Q 0108 89-213-702-010 1A TR,2SB1370E HRJNM AV-D37
S ELECTRICAL Q 0108 89-213-702-010 1A TR,2SB1370E HTNM AV-D37
S ELECTRICAL Q 0109 89-213-702-010 1A TR,2SB1370E HCNM AV-D37
S ELECTRICAL Q 0109 89-213-702-010 1A TR,2SB1370E HRJNM AV-D37
S ELECTRICAL Q 0109 89-213-702-010 1A TR,2SB1370E HTNM AV-D37
S ELECTRICAL Q 0213 87-A30-097-010 1C TR,FN1016 HCNM AV-D37

S ELECTRICAL Q 0213 87-A30-097-010 1C TR,FN1016 HRJNM AV-D37
S ELECTRICAL Q 0213 87-A30-097-010 1C TR,FN1016 HTNM AV-D37
S ELECTRICAL Q 0214 87-A30-097-010 1C TR,FN1016 HCNM AV-D37
S ELECTRICAL Q 0214 87-A30-097-010 1C TR,FN1016 HRJNM AV-D37
S ELECTRICAL Q 0214 87-A30-097-010 1C TR,FN1016 HTNM AV-D37
S ELECTRICAL Q 0215 87-A30-098-010 1C TR,FP1016 HCNM AV-D37
S ELECTRICAL Q 0215 87-A30-098-010 1C TR,FP1016 HRJNM AV-D37
S ELECTRICAL Q 0215 87-A30-098-010 1C TR,FP1016 HTNM AV-D37
S ELECTRICAL Q 0216 87-A30-098-010 1C TR,FP1016 HCNM AV-D37
S ELECTRICAL Q 0216 87-A30-098-010 1C TR,FP1016 HRJNM AV-D37

S ELECTRICAL Q 0216 87-A30-098-010 1C TR,FP1016 HTNM AV-D37
S ELECTRICAL Q 0313 87-A30-097-010 1C TR,FN1016 HCNM AV-D37
S ELECTRICAL Q 0313 87-A30-097-010 1C TR,FN1016 HRJNM AV-D37
S ELECTRICAL Q 0313 87-A30-097-010 1C TR,FN1016 HTNM AV-D37
S ELECTRICAL Q 0314 87-A30-097-010 1C TR,FN1016 HCNM AV-D37
S ELECTRICAL Q 0314 87-A30-097-010 1C TR,FN1016 HRJNM AV-D37
S ELECTRICAL Q 0314 87-A30-097-010 1C TR,FN1016 HTNM AV-D37
S ELECTRICAL Q 0315 87-A30-098-010 1C TR,FP1016 HCNM AV-D37
S ELECTRICAL Q 0315 87-A30-098-010 1C TR,FP1016 HRJNM AV-D37
S ELECTRICAL Q 0315 87-A30-098-010 1C TR,FP1016 HTNM AV-D37

S ELECTRICAL Q 0316 87-A30-098-010 1C TR,FP1016 HCNM AV-D37
S ELECTRICAL Q 0316 87-A30-098-010 1C TR,FP1016 HRJNM AV-D37
S ELECTRICAL Q 0316 87-A30-098-010 1C TR,FP1016 HTNM AV-D37
S ELECTRICAL Q 0407 87-A30-097-010 1C TR,FN1016 HCNM AV-D37
S ELECTRICAL Q 0407 87-A30-097-010 1C TR,FN1016 HRJNM AV-D37
S ELECTRICAL Q 0407 87-A30-097-010 1C TR,FN1016 HTNM AV-D37
S ELECTRICAL Q 0408 87-A30-098-010 1C TR,FP1016 HCNM AV-D37
S ELECTRICAL Q 0408 87-A30-098-010 1C TR,FP1016 HRJNM AV-D37
S ELECTRICAL Q 0408 87-A30-098-010 1C TR,FP1016 HTNM AV-D37
O FRCB MECHA * 8A-AR3-201-010 0E GUIDE,FL HCNM AV-D37

-11-

PARTS LIST

! = ! SAFTY PARTS
C = Components marked

K NO. = Only use japanese.

O FRCB MECHA * 8A-AR3-201-010 0E GUIDE,FL HRJNM AV-D37
O FRCB MECHA * 8A-AR3-201-010 0E GUIDE,FL HTNM AV-D37
O FUNCTION C 0501 87-010-404-080 0E CAP,E 4.7-50 M 11L SME HCNM AV-D37
O FUNCTION C 0501 87-010-404-080 0E CAP,E 4.7-50 M 11L SME HRJNM AV-D37
O FUNCTION C 0501 87-010-404-080 0E CAP,E 4.7-50 M 11L SME HTNM AV-D37
O FUNCTION C 0502 87-010-404-080 0E CAP,E 4.7-50 M 11L SME HCNM AV-D37
O FUNCTION C 0502 87-010-404-080 0E CAP,E 4.7-50 M 11L SME HRJNM AV-D37
O FUNCTION C 0502 87-010-404-080 0E CAP,E 4.7-50 M 11L SME HTNM AV-D37
O FUNCTION C 0503 87-012-157-080 0E C-CAP,S 330P-50 J CH GRM HCNM AV-D37
O FUNCTION C 0503 87-012-157-080 0E C-CAP,S 330P-50 J CH GRM HRJNM AV-D37

O FUNCTION C 0503 87-012-157-080 0E C-CAP,S 330P-50 J CH GRM HTNM AV-D37
O FUNCTION C 0504 87-012-157-080 0E C-CAP,S 330P-50 J CH GRM HCNM AV-D37
O FUNCTION C 0504 87-012-157-080 0E C-CAP,S 330P-50 J CH GRM HRJNM AV-D37
O FUNCTION C 0504 87-012-157-080 0E C-CAP,S 330P-50 J CH GRM HTNM AV-D37
X FUNCTION C 0505 88-700-860-810 0E CAP,M 0.068-50 J AMZV HCNM AV-D37
X FUNCTION C 0505 88-700-860-810 0E CAP,M 0.068-50 J AMZV HRJNM AV-D37
X FUNCTION C 0505 88-700-860-810 0E CAP,M 0.068-50 J AMZV HTNM AV-D37
X FUNCTION C 0506 88-700-860-810 0E CAP,M 0.068-50 J AMZV HCNM AV-D37
X FUNCTION C 0506 88-700-860-810 0E CAP,M 0.068-50 J AMZV HRJNM AV-D37
X FUNCTION C 0506 88-700-860-810 0E CAP,M 0.068-50 J AMZV HTNM AV-D37

X FUNCTION C 0507 88-700-629-810 0E CAP,M 1200P-50 J HCNM AV-D37
X FUNCTION C 0507 88-700-629-810 0E CAP,M 1200P-50 J HRJNM AV-D37
X FUNCTION C 0507 88-700-629-810 0E CAP,M 1200P-50 J HTNM AV-D37
X FUNCTION C 0508 88-700-629-810 0E CAP,M 1200P-50 J HCNM AV-D37
X FUNCTION C 0508 88-700-629-810 0E CAP,M 1200P-50 J HRJNM AV-D37
X FUNCTION C 0508 88-700-629-810 0E CAP,M 1200P-50 J HTNM AV-D37
X FUNCTION C 0509 88-700-889-810 0E CAP,M 0.018-50 J HCNM AV-D37
X FUNCTION C 0509 88-700-889-810 0E CAP,M 0.018-50 J HRJNM AV-D37
X FUNCTION C 0509 88-700-889-810 0E CAP,M 0.018-50 J HTNM AV-D37
X FUNCTION C 0510 88-700-889-810 0E CAP,M 0.018-50 J HCNM AV-D37

All components used on this model at the production line are shown in this service manual.
However, please note that not all components will be available as spare parts for after-sales service.
Components marked S and O are designated as spare parts for service and will be stocked at the spare parts centers.
Components marked X and R are not designated as spare parts for after sales service, and will not be stocked at the spare parts centers.

C UNIT NAME REF NO. MODEL NAME! DESCRIPTIONK NO.PARTS CODE SUFFIX

X FUNCTION C 0510 88-700-889-810 0E CAP,M 0.018-50 J HRJNM AV-D37
X FUNCTION C 0510 88-700-889-810 0E CAP,M 0.018-50 J HTNM AV-D37
O FUNCTION C 0511 87-010-404-080 0E CAP,E 4.7-50 M 11L SME HCNM AV-D37
O FUNCTION C 0511 87-010-404-080 0E CAP,E 4.7-50 M 11L SME HRJNM AV-D37
O FUNCTION C 0511 87-010-404-080 0E CAP,E 4.7-50 M 11L SME HTNM AV-D37
O FUNCTION C 0512 87-010-404-080 0E CAP,E 4.7-50 M 11L SME HCNM AV-D37
O FUNCTION C 0512 87-010-404-080 0E CAP,E 4.7-50 M 11L SME HRJNM AV-D37
O FUNCTION C 0512 87-010-404-080 0E CAP,E 4.7-50 M 11L SME HTNM AV-D37
O FUNCTION C 0513 87-010-260-080 0E CAP,E 47-25 M 11L SME HCNM AV-D37
O FUNCTION C 0513 87-010-260-080 0E CAP,E 47-25 M 11L SME HRJNM AV-D37

O FUNCTION C 0513 87-010-260-080 0E CAP,E 47-25 M 11L SME HTNM AV-D37
O FUNCTION C 0514 87-010-260-080 0E CAP,E 47-25 M 11L SME HCNM AV-D37
O FUNCTION C 0514 87-010-260-080 0E CAP,E 47-25 M 11L SME HRJNM AV-D37
O FUNCTION C 0514 87-010-260-080 0E CAP,E 47-25 M 11L SME HTNM AV-D37
O FUNCTION C 0515 87-010-370-080 0E CAP,E 330-6.3 M SME HCNM AV-D37
O FUNCTION C 0515 87-010-370-080 0E CAP,E 330-6.3 M SME HRJNM AV-D37
O FUNCTION C 0515 87-010-370-080 0E CAP,E 330-6.3 M SME HTNM AV-D37
O FUNCTION C 0516 87-010-370-080 0E CAP,E 330-6.3 M SME HCNM AV-D37
O FUNCTION C 0516 87-010-370-080 0E CAP,E 330-6.3 M SME HRJNM AV-D37
O FUNCTION C 0516 87-010-370-080 0E CAP,E 330-6.3 M SME HTNM AV-D37

O FUNCTION C 0517 87-010-196-080 0E C-CAP,S 0.1-25 Z F C2012 HCNM AV-D37
O FUNCTION C 0517 87-010-196-080 0E C-CAP,S 0.1-25 Z F C2012 HRJNM AV-D37
O FUNCTION C 0517 87-010-196-080 0E C-CAP,S 0.1-25 Z F C2012 HTNM AV-D37
O FUNCTION C 0518 87-010-196-080 0E C-CAP,S 0.1-25 Z F C2012 HCNM AV-D37
O FUNCTION C 0518 87-010-196-080 0E C-CAP,S 0.1-25 Z F C2012 HRJNM AV-D37
O FUNCTION C 0518 87-010-196-080 0E C-CAP,S 0.1-25 Z F C2012 HTNM AV-D37
O FUNCTION C 0519 87-010-196-080 0E C-CAP,S 0.1-25 Z F C2012 HCNM AV-D37
O FUNCTION C 0519 87-010-196-080 0E C-CAP,S 0.1-25 Z F C2012 HRJNM AV-D37
O FUNCTION C 0519 87-010-196-080 0E C-CAP,S 0.1-25 Z F C2012 HTNM AV-D37
O FUNCTION C 0520 87-010-196-080 0E C-CAP,S 0.1-25 Z F C2012 HCNM AV-D37

O FUNCTION C 0520 87-010-196-080 0E C-CAP,S 0.1-25 Z F C2012 HRJNM AV-D37
O FUNCTION C 0520 87-010-196-080 0E C-CAP,S 0.1-25 Z F C2012 HTNM AV-D37
O FUNCTION C 0531 87-010-213-080 0E C-CAP,S 0.015-25 K B GRM HCNM AV-D37
O FUNCTION C 0531 87-010-213-080 0E C-CAP,S 0.015-25 K B GRM HRJNM AV-D37
O FUNCTION C 0531 87-010-213-080 0E C-CAP,S 0.015-25 K B GRM HTNM AV-D37
O FUNCTION C 0532 87-010-992-080 0E C-CAP,S 0.047-25 K B MK212 HCNM AV-D37
O FUNCTION C 0532 87-010-992-080 0E C-CAP,S 0.047-25 K B MK212 HRJNM AV-D37
O FUNCTION C 0532 87-010-992-080 0E C-CAP,S 0.047-25 K B MK212 HTNM AV-D37
O FUNCTION C 0533 87-015-785-080 0E C-CAP, 0.1-25 Z F C3216 HCNM AV-D37
O FUNCTION C 0533 87-015-785-080 0E C-CAP, 0.1-25 Z F C3216 HRJNM AV-D37

-12-

PARTS LIST

! = ! SAFTY PARTS
C = Components marked

K NO. = Only use japanese.

O FUNCTION C 0533 87-015-785-080 0E C-CAP, 0.1-25 Z F C3216 HTNM AV-D37
O FUNCTION C 0535 87-010-404-080 0E CAP,E 4.7-50 M 11L SME HCNM AV-D37
O FUNCTION C 0535 87-010-404-080 0E CAP,E 4.7-50 M 11L SME HRJNM AV-D37
O FUNCTION C 0535 87-010-404-080 0E CAP,E 4.7-50 M 11L SME HTNM AV-D37
O FUNCTION C 0536 87-010-404-080 0E CAP,E 4.7-50 M 11L SME HCNM AV-D37
O FUNCTION C 0536 87-010-404-080 0E CAP,E 4.7-50 M 11L SME HRJNM AV-D37
O FUNCTION C 0536 87-010-404-080 0E CAP,E 4.7-50 M 11L SME HTNM AV-D37
X FUNCTION C 0537 88-710-919-810 0E CAP,M 0.1-50 J TFL HCNM AV-D37
X FUNCTION C 0537 88-710-919-810 0E CAP,M 0.1-50 J TFL HRJNM AV-D37
X FUNCTION C 0537 88-710-919-810 0E CAP,M 0.1-50 J TFL HTNM AV-D37

X FUNCTION C 0538 88-710-919-810 0E CAP,M 0.1-50 J TFL HCNM AV-D37
X FUNCTION C 0538 88-710-919-810 0E CAP,M 0.1-50 J TFL HRJNM AV-D37
X FUNCTION C 0538 88-710-919-810 0E CAP,M 0.1-50 J TFL HTNM AV-D37
O FUNCTION C 0539 87-010-401-080 0E CAP,E 1-50 M 11L SME HCNM AV-D37
O FUNCTION C 0539 87-010-401-080 0E CAP,E 1-50 M 11L SME HRJNM AV-D37
O FUNCTION C 0539 87-010-401-080 0E CAP,E 1-50 M 11L SME HTNM AV-D37
O FUNCTION C 0540 87-010-401-080 0E CAP,E 1-50 M 11L SME HCNM AV-D37
O FUNCTION C 0540 87-010-401-080 0E CAP,E 1-50 M 11L SME HRJNM AV-D37
O FUNCTION C 0540 87-010-401-080 0E CAP,E 1-50 M 11L SME HTNM AV-D37
O FUNCTION C 0541 87-010-185-080 0E C-CAP,S 3900P-50 K B HCNM AV-D37

O FUNCTION C 0541 87-010-185-080 0E C-CAP,S 3900P-50 K B HRJNM AV-D37
O FUNCTION C 0541 87-010-185-080 0E C-CAP,S 3900P-50 K B HTNM AV-D37
O FUNCTION C 0542 87-010-185-080 0E C-CAP,S 3900P-50 K B HCNM AV-D37
O FUNCTION C 0542 87-010-185-080 0E C-CAP,S 3900P-50 K B HRJNM AV-D37
O FUNCTION C 0542 87-010-185-080 0E C-CAP,S 3900P-50 K B HTNM AV-D37
X FUNCTION C 0543 88-710-969-810 0E CAP,M 0.12-50 J TFL ECQV HCNM AV-D37
X FUNCTION C 0543 88-710-969-810 0E CAP,M 0.12-50 J TFL ECQV HRJNM AV-D37
X FUNCTION C 0543 88-710-969-810 0E CAP,M 0.12-50 J TFL ECQV HTNM AV-D37
X FUNCTION C 0544 88-710-969-810 0E CAP,M 0.12-50 J TFL ECQV HCNM AV-D37
X FUNCTION C 0544 88-710-969-810 0E CAP,M 0.12-50 J TFL ECQV HRJNM AV-D37

All components used on this model at the production line are shown in this service manual.
However, please note that not all components will be available as spare parts for after-sales service.
Components marked S and O are designated as spare parts for service and will be stocked at the spare parts centers.
Components marked X and R are not designated as spare parts for after sales service, and will not be stocked at the spare parts centers.

C UNIT NAME REF NO. MODEL NAME! DESCRIPTIONK NO.PARTS CODE SUFFIX

X FUNCTION C 0544 88-710-969-810 0E CAP,M 0.12-50 J TFL ECQV HTNM AV-D37
X FUNCTION C 0545 88-710-989-810 0E CAP,M 0.056-50 J TFL HCNM AV-D37
X FUNCTION C 0545 88-710-989-810 0E CAP,M 0.056-50 J TFL HRJNM AV-D37
X FUNCTION C 0545 88-710-989-810 0E CAP,M 0.056-50 J TFL HTNM AV-D37
X FUNCTION C 0546 88-710-989-810 0E CAP,M 0.056-50 J TFL HCNM AV-D37
X FUNCTION C 0546 88-710-989-810 0E CAP,M 0.056-50 J TFL HRJNM AV-D37
X FUNCTION C 0546 88-710-989-810 0E CAP,M 0.056-50 J TFL HTNM AV-D37
O FUNCTION C 0547 87-010-404-080 0E CAP,E 4.7-50 M 11L SME HCNM AV-D37
O FUNCTION C 0547 87-010-404-080 0E CAP,E 4.7-50 M 11L SME HRJNM AV-D37
O FUNCTION C 0547 87-010-404-080 0E CAP,E 4.7-50 M 11L SME HTNM AV-D37

O FUNCTION C 0549 87-016-081-080 0E C-CAP,S 0.1-16 K R GRM HCNM AV-D37
O FUNCTION C 0549 87-016-081-080 0E C-CAP,S 0.1-16 K R GRM HRJNM AV-D37
O FUNCTION C 0549 87-016-081-080 0E C-CAP,S 0.1-16 K R GRM HTNM AV-D37
O FUNCTION C 0550 87-016-081-080 0E C-CAP,S 0.1-16 K R GRM HCNM AV-D37
O FUNCTION C 0550 87-016-081-080 0E C-CAP,S 0.1-16 K R GRM HRJNM AV-D37
O FUNCTION C 0550 87-016-081-080 0E C-CAP,S 0.1-16 K R GRM HTNM AV-D37
O FUNCTION C 0554 87-010-196-080 0E C-CAP,S 0.1-25 Z F C2012 HCNM AV-D37
O FUNCTION C 0554 87-010-196-080 0E C-CAP,S 0.1-25 Z F C2012 HRJNM AV-D37
O FUNCTION C 0554 87-010-196-080 0E C-CAP,S 0.1-25 Z F C2012 HTNM AV-D37
O FUNCTION C 0555 87-010-405-080 0E CAP,E 10-50 M 11L SME HCNM AV-D37

O FUNCTION C 0555 87-010-405-080 0E CAP,E 10-50 M 11L SME HRJNM AV-D37
O FUNCTION C 0555 87-010-405-080 0E CAP,E 10-50 M 11L SME HTNM AV-D37
O FUNCTION C 0556 87-010-248-080 0E CAP,E 220-10 M 11L SME HCNM AV-D37
O FUNCTION C 0556 87-010-248-080 0E CAP,E 220-10 M 11L SME HRJNM AV-D37
O FUNCTION C 0556 87-010-248-080 0E CAP,E 220-10 M 11L SME HTNM AV-D37
O FUNCTION C 0557 87-010-405-080 0E CAP,E 10-50 M 11L SME HCNM AV-D37
O FUNCTION C 0557 87-010-405-080 0E CAP,E 10-50 M 11L SME HRJNM AV-D37
O FUNCTION C 0557 87-010-405-080 0E CAP,E 10-50 M 11L SME HTNM AV-D37
O FUNCTION C 0558 87-010-992-080 0E C-CAP,S 0.047-25 K B MK212 HCNM AV-D37
O FUNCTION C 0558 87-010-992-080 0E C-CAP,S 0.047-25 K B MK212 HRJNM AV-D37

O FUNCTION C 0558 87-010-992-080 0E C-CAP,S 0.047-25 K B MK212 HTNM AV-D37
O FUNCTION C 0559 87-010-181-080 0E C-CAP,S 1800P-50 K B GRM HCNM AV-D37
O FUNCTION C 0559 87-010-181-080 0E C-CAP,S 1800P-50 K B GRM HRJNM AV-D37
O FUNCTION C 0559 87-010-181-080 0E C-CAP,S 1800P-50 K B GRM HTNM AV-D37
O FUNCTION C 0561 87-012-140-080 0E C-CAP,S 470P-50 J CH HCNM AV-D37
O FUNCTION C 0561 87-012-140-080 0E C-CAP,S 470P-50 J CH HRJNM AV-D37
O FUNCTION C 0561 87-012-140-080 0E C-CAP,S 470P-50 J CH HTNM AV-D37
O FUNCTION C 0562 87-012-140-080 0E C-CAP,S 470P-50 J CH HCNM AV-D37
O FUNCTION C 0562 87-012-140-080 0E C-CAP,S 470P-50 J CH HRJNM AV-D37
O FUNCTION C 0562 87-012-140-080 0E C-CAP,S 470P-50 J CH HTNM AV-D37

-13-

PARTS LIST

! = ! SAFTY PARTS
C = Components marked

K NO. = Only use japanese.

O FUNCTION C 0565 87-010-404-080 0E CAP,E 4.7-50 M 11L SME HCNM AV-D37
O FUNCTION C 0565 87-010-404-080 0E CAP,E 4.7-50 M 11L SME HRJNM AV-D37
O FUNCTION C 0565 87-010-404-080 0E CAP,E 4.7-50 M 11L SME HTNM AV-D37
O FUNCTION C 0566 87-010-404-080 0E CAP,E 4.7-50 M 11L SME HCNM AV-D37
O FUNCTION C 0566 87-010-404-080 0E CAP,E 4.7-50 M 11L SME HRJNM AV-D37
O FUNCTION C 0566 87-010-404-080 0E CAP,E 4.7-50 M 11L SME HTNM AV-D37
! O FUNCTION CN 0501 87-A60-039-010 1A CONN,32P V 9604S-32C HCNM AV-D37
! O FUNCTION CN 0501 87-A60-039-010 1A CONN,32P V 9604S-32C HRJNM AV-D37
! O FUNCTION CN 0501 87-A60-039-010 1A CONN,32P V 9604S-32C HTNM AV-D37
! O FUNCTION CN 0502 87-A60-061-010 0E CONN,06P V 9604S-06C HCNM AV-D37

! O FUNCTION CN 0502 87-A60-061-010 0E CONN,06P V 9604S-06C HRJNM AV-D37
! O FUNCTION CN 0502 87-A60-061-010 0E CONN,06P V 9604S-06C HTNM AV-D37
! O FUNCTION CN 0503 87-A60-056-010 0E CONN,12P V 9604S-12C HCNM AV-D37
! O FUNCTION CN 0503 87-A60-056-010 0E CONN,12P V 9604S-12C HRJNM AV-D37
! O FUNCTION CN 0503 87-A60-056-010 0E CONN,12P V 9604S-12C HTNM AV-D37
O FUNCTION CN 0702 87-099-668-010 0E CONN,9P TUC-P 9P-B1 HCNM AV-D37
O FUNCTION CN 0702 87-099-668-010 0E CONN,9P TUC-P 9P-B1 HRJNM AV-D37
O FUNCTION CN 0702 87-099-668-010 0E CONN,9P TUC-P 9P-B1 HTNM AV-D37
S FUNCTION D 0501 87-A40-438-080 0E ZENER,MTZJ4.7A HCNM AV-D37
S FUNCTION D 0501 87-A40-438-080 0E ZENER,MTZJ4.7A HRJNM AV-D37

S FUNCTION D 0501 87-A40-438-080 0E ZENER,MTZJ4.7A HTNM AV-D37
S FUNCTION D 0502 87-A40-438-080 0E ZENER,MTZJ4.7A HCNM AV-D37
S FUNCTION D 0502 87-A40-438-080 0E ZENER,MTZJ4.7A HRJNM AV-D37
S FUNCTION D 0502 87-A40-438-080 0E ZENER,MTZJ4.7A HTNM AV-D37
S FUNCTION D 0503 87-070-274-080 0E DIODE,1N4003 SEM HCNM AV-D37
S FUNCTION D 0503 87-070-274-080 0E DIODE,1N4003 SEM HRJNM AV-D37
S FUNCTION D 0503 87-070-274-080 0E DIODE,1N4003 SEM HTNM AV-D37
X FUNCTION D 0504 88-100-000-010 0E PLATING-JW, 0.58 SN95 HCNM AV-D37
X FUNCTION D 0504 88-100-000-010 0E PLATING-JW, 0.58 SN95 HRJNM AV-D37
X FUNCTION D 0504 88-100-000-010 0E PLATING-JW, 0.58 SN95 HTNM AV-D37

All components used on this model at the production line are shown in this service manual.
However, please note that not all components will be available as spare parts for after-sales service.
Components marked S and O are designated as spare parts for service and will be stocked at the spare parts centers.
Components marked X and R are not designated as spare parts for after sales service, and will not be stocked at the spare parts centers.

C UNIT NAME REF NO. MODEL NAME! DESCRIPTIONK NO.PARTS CODE SUFFIX

S FUNCTION IC 0501 87-017-022-080 1A C-IC,NJM2068M-D(T1) HCNM AV-D37
S FUNCTION IC 0501 87-017-022-080 1A C-IC,NJM2068M-D(T1) HRJNM AV-D37
S FUNCTION IC 0501 87-017-022-080 1A C-IC,NJM2068M-D(T1) HTNM AV-D37
S FUNCTION IC 0502 87-017-726-080 1B C-IC,BU4052BCF HCNM AV-D37
S FUNCTION IC 0502 87-017-726-080 1B C-IC,BU4052BCF HRJNM AV-D37
S FUNCTION IC 0502 87-017-726-080 1B C-IC,BU4052BCF HTNM AV-D37
S FUNCTION IC 0503 87-A21-202-040 1H C-IC,M62445AFP HCNM AV-D37
S FUNCTION IC 0503 87-A21-202-040 1H C-IC,M62445AFP HRJNM AV-D37
S FUNCTION IC 0503 87-A21-202-040 1H C-IC,M62445AFP HTNM AV-D37
O FUNCTION J 0501 87-A60-947-010 1C JACK,PIN 4P W/R GLD HCNM AV-D37

O FUNCTION J 0501 87-A60-947-010 1C JACK,PIN 4P W/R GLD HRJNM AV-D37
O FUNCTION J 0501 87-A60-947-010 1C JACK,PIN 4P W/R GLD HTNM AV-D37
O FUNCTION J 0502 87-A60-947-010 1C JACK,PIN 4P W/R GLD HCNM AV-D37
O FUNCTION J 0502 87-A60-947-010 1C JACK,PIN 4P W/R GLD HRJNM AV-D37
O FUNCTION J 0502 87-A60-947-010 1C JACK,PIN 4P W/R GLD HTNM AV-D37
X FUNCTION JR 0152 88-118-000-080 0E C-JUMPER,S HCNM AV-D37
X FUNCTION JR 0152 88-118-000-080 0E C-JUMPER,S HRJNM AV-D37
X FUNCTION JR 0152 88-118-000-080 0E C-JUMPER,S HTNM AV-D37
X FUNCTION JR 0158 88-118-000-080 0E C-JUMPER,S HCNM AV-D37
X FUNCTION JR 0158 88-118-000-080 0E C-JUMPER,S HRJNM AV-D37

X FUNCTION JR 0158 88-118-000-080 0E C-JUMPER,S HTNM AV-D37
X FUNCTION JR 0501 88-118-000-080 0E C-JUMPER,S HCNM AV-D37
X FUNCTION JR 0501 88-118-000-080 0E C-JUMPER,S HRJNM AV-D37
X FUNCTION JR 0501 88-118-000-080 0E C-JUMPER,S HTNM AV-D37
X FUNCTION JR 0502 88-118-000-080 0E C-JUMPER,S HCNM AV-D37
X FUNCTION JR 0502 88-118-000-080 0E C-JUMPER,S HRJNM AV-D37
X FUNCTION JR 0502 88-118-000-080 0E C-JUMPER,S HTNM AV-D37
X FUNCTION JR 0504 88-118-000-080 0E C-JUMPER,S HCNM AV-D37
X FUNCTION JR 0504 88-118-000-080 0E C-JUMPER,S HRJNM AV-D37
X FUNCTION JR 0504 88-118-000-080 0E C-JUMPER,S HTNM AV-D37

X FUNCTION JR 0505 88-118-000-080 0E C-JUMPER,S HCNM AV-D37
X FUNCTION JR 0505 88-118-000-080 0E C-JUMPER,S HRJNM AV-D37
X FUNCTION JR 0505 88-118-000-080 0E C-JUMPER,S HTNM AV-D37
X FUNCTION JR 0506 88-118-000-080 0E C-JUMPER,S HCNM AV-D37
X FUNCTION JR 0506 88-118-000-080 0E C-JUMPER,S HRJNM AV-D37
X FUNCTION JR 0506 88-118-000-080 0E C-JUMPER,S HTNM AV-D37
X FUNCTION JR 0507 88-118-000-080 0E C-JUMPER,S HCNM AV-D37
X FUNCTION JR 0507 88-118-000-080 0E C-JUMPER,S HRJNM AV-D37
X FUNCTION JR 0507 88-118-000-080 0E C-JUMPER,S HTNM AV-D37
X FUNCTION JR 0509 88-118-000-080 0E C-JUMPER,S HCNM AV-D37

-14-

PARTS LIST

! = ! SAFTY PARTS
C = Components marked

K NO. = Only use japanese.

X FUNCTION JR 0509 88-118-000-080 0E C-JUMPER,S HRJNM AV-D37
X FUNCTION JR 0509 88-118-000-080 0E C-JUMPER,S HTNM AV-D37
X FUNCTION JR 0513 88-118-000-080 0E C-JUMPER,S HCNM AV-D37
X FUNCTION JR 0513 88-118-000-080 0E C-JUMPER,S HRJNM AV-D37
X FUNCTION JR 0513 88-118-000-080 0E C-JUMPER,S HTNM AV-D37
X FUNCTION JR 0522 88-118-000-080 0E C-JUMPER,S HCNM AV-D37
X FUNCTION JR 0522 88-118-000-080 0E C-JUMPER,S HRJNM AV-D37
X FUNCTION JR 0522 88-118-000-080 0E C-JUMPER,S HTNM AV-D37
X FUNCTION JR 0524 88-129-000-080 0E C-JUMPER,3216 HCNM AV-D37
X FUNCTION JR 0524 88-129-000-080 0E C-JUMPER,3216 HRJNM AV-D37

X FUNCTION JR 0524 88-129-000-080 0E C-JUMPER,3216 HTNM AV-D37
X FUNCTION JR 0531 88-118-000-080 0E C-JUMPER,S HCNM AV-D37
X FUNCTION JR 0531 88-118-000-080 0E C-JUMPER,S HRJNM AV-D37
X FUNCTION JR 0531 88-118-000-080 0E C-JUMPER,S HTNM AV-D37
X FUNCTION JR 0532 88-118-000-080 0E C-JUMPER,S HCNM AV-D37
X FUNCTION JR 0532 88-118-000-080 0E C-JUMPER,S HRJNM AV-D37
X FUNCTION JR 0532 88-118-000-080 0E C-JUMPER,S HTNM AV-D37
X FUNCTION JR 0534 88-118-000-080 0E C-JUMPER,S HCNM AV-D37
X FUNCTION JR 0534 88-118-000-080 0E C-JUMPER,S HRJNM AV-D37
X FUNCTION JR 0534 88-118-000-080 0E C-JUMPER,S HTNM AV-D37

X FUNCTION JR 0538 88-128-473-080 0E C-RES, 47K-1/8W J HCNM AV-D37
X FUNCTION JR 0538 88-128-473-080 0E C-RES, 47K-1/8W J HRJNM AV-D37
X FUNCTION JR 0538 88-128-473-080 0E C-RES, 47K-1/8W J HTNM AV-D37
X FUNCTION JR 0539 88-129-000-080 0E C-JUMPER,3216 HCNM AV-D37
X FUNCTION JR 0539 88-129-000-080 0E C-JUMPER,3216 HRJNM AV-D37
X FUNCTION JR 0539 88-129-000-080 0E C-JUMPER,3216 HTNM AV-D37
X FUNCTION JR 0540 88-118-000-080 0E C-JUMPER,S HCNM AV-D37
X FUNCTION JR 0540 88-118-000-080 0E C-JUMPER,S HRJNM AV-D37
X FUNCTION JR 0540 88-118-000-080 0E C-JUMPER,S HTNM AV-D37
X FUNCTION JR 0541 88-129-000-080 0E C-JUMPER,3216 HCNM AV-D37

All components used on this model at the production line are shown in this service manual.
However, please note that not all components will be available as spare parts for after-sales service.
Components marked S and O are designated as spare parts for service and will be stocked at the spare parts centers.
Components marked X and R are not designated as spare parts for after sales service, and will not be stocked at the spare parts centers.

C UNIT NAME REF NO. MODEL NAME! DESCRIPTIONK NO.PARTS CODE SUFFIX

X FUNCTION JR 0541 88-129-000-080 0E C-JUMPER,3216 HRJNM AV-D37
X FUNCTION JR 0541 88-129-000-080 0E C-JUMPER,3216 HTNM AV-D37
X FUNCTION JR 0542 88-118-000-080 0E C-JUMPER,S HCNM AV-D37
X FUNCTION JR 0542 88-118-000-080 0E C-JUMPER,S HRJNM AV-D37
X FUNCTION JR 0542 88-118-000-080 0E C-JUMPER,S HTNM AV-D37
X FUNCTION JR 0543 88-118-000-080 0E C-JUMPER,S HCNM AV-D37
X FUNCTION JR 0543 88-118-000-080 0E C-JUMPER,S HRJNM AV-D37
X FUNCTION JR 0543 88-118-000-080 0E C-JUMPER,S HTNM AV-D37
X FUNCTION JR 0544 88-129-000-080 0E C-JUMPER,3216 HCNM AV-D37
X FUNCTION JR 0544 88-129-000-080 0E C-JUMPER,3216 HRJNM AV-D37

X FUNCTION JR 0544 88-129-000-080 0E C-JUMPER,3216 HTNM AV-D37
X FUNCTION JR 0553 88-118-000-080 0E C-JUMPER,S HCNM AV-D37
X FUNCTION JR 0553 88-118-000-080 0E C-JUMPER,S HRJNM AV-D37
X FUNCTION JR 0553 88-118-000-080 0E C-JUMPER,S HTNM AV-D37
X FUNCTION JR 0554 88-118-000-080 0E C-JUMPER,S HCNM AV-D37
X FUNCTION JR 0554 88-118-000-080 0E C-JUMPER,S HRJNM AV-D37
X FUNCTION JR 0554 88-118-000-080 0E C-JUMPER,S HTNM AV-D37
X FUNCTION JR 0555 88-118-000-080 0E C-JUMPER,S HCNM AV-D37
X FUNCTION JR 0555 88-118-000-080 0E C-JUMPER,S HRJNM AV-D37
X FUNCTION JR 0555 88-118-000-080 0E C-JUMPER,S HTNM AV-D37

X FUNCTION JR 0556 88-118-000-080 0E C-JUMPER,S HCNM AV-D37
X FUNCTION JR 0556 88-118-000-080 0E C-JUMPER,S HRJNM AV-D37
X FUNCTION JR 0556 88-118-000-080 0E C-JUMPER,S HTNM AV-D37
X FUNCTION JR 0557 88-118-000-080 0E C-JUMPER,S HCNM AV-D37
X FUNCTION JR 0557 88-118-000-080 0E C-JUMPER,S HRJNM AV-D37
X FUNCTION JR 0557 88-118-000-080 0E C-JUMPER,S HTNM AV-D37
X FUNCTION JR 0560 88-118-000-080 0E C-JUMPER,S HCNM AV-D37
X FUNCTION JR 0560 88-118-000-080 0E C-JUMPER,S HRJNM AV-D37
X FUNCTION JR 0560 88-118-000-080 0E C-JUMPER,S HTNM AV-D37
X FUNCTION JR 0561 88-118-000-080 0E C-JUMPER,S HCNM AV-D37

X FUNCTION JR 0561 88-118-000-080 0E C-JUMPER,S HRJNM AV-D37
X FUNCTION JR 0561 88-118-000-080 0E C-JUMPER,S HTNM AV-D37
X FUNCTION JR 0562 88-118-000-080 0E C-JUMPER,S HCNM AV-D37
X FUNCTION JR 0562 88-118-000-080 0E C-JUMPER,S HRJNM AV-D37
X FUNCTION JR 0562 88-118-000-080 0E C-JUMPER,S HTNM AV-D37
X FUNCTION JR 0563 88-118-000-080 0E C-JUMPER,S HCNM AV-D37
X FUNCTION JR 0563 88-118-000-080 0E C-JUMPER,S HRJNM AV-D37
X FUNCTION JR 0563 88-118-000-080 0E C-JUMPER,S HTNM AV-D37
X FUNCTION JR 0564 88-129-000-080 0E C-JUMPER,3216 HCNM AV-D37
X FUNCTION JR 0564 88-129-000-080 0E C-JUMPER,3216 HRJNM AV-D37

-15-

PARTS LIST

! = ! SAFTY PARTS
C = Components marked

K NO. = Only use japanese.

X FUNCTION JR 0564 88-129-000-080 0E C-JUMPER,3216 HTNM AV-D37
X FUNCTION JR 0565 88-129-000-080 0E C-JUMPER,3216 HCNM AV-D37
X FUNCTION JR 0565 88-129-000-080 0E C-JUMPER,3216 HRJNM AV-D37
X FUNCTION JR 0565 88-129-000-080 0E C-JUMPER,3216 HTNM AV-D37
X FUNCTION JR 0575 88-118-000-080 0E C-JUMPER,S HCNM AV-D37
X FUNCTION JR 0575 88-118-000-080 0E C-JUMPER,S HRJNM AV-D37
X FUNCTION JR 0575 88-118-000-080 0E C-JUMPER,S HTNM AV-D37
X FUNCTION JR 0576 88-118-000-080 0E C-JUMPER,S HCNM AV-D37
X FUNCTION JR 0576 88-118-000-080 0E C-JUMPER,S HRJNM AV-D37
X FUNCTION JR 0576 88-118-000-080 0E C-JUMPER,S HTNM AV-D37

X FUNCTION JR 0577 88-129-000-080 0E C-JUMPER,3216 HCNM AV-D37
X FUNCTION JR 0577 88-129-000-080 0E C-JUMPER,3216 HRJNM AV-D37
X FUNCTION JR 0577 88-129-000-080 0E C-JUMPER,3216 HTNM AV-D37
X FUNCTION JR 0578 88-129-000-080 0E C-JUMPER,3216 HCNM AV-D37
X FUNCTION JR 0578 88-129-000-080 0E C-JUMPER,3216 HRJNM AV-D37
X FUNCTION JR 0578 88-129-000-080 0E C-JUMPER,3216 HTNM AV-D37
X FUNCTION JR 0579 88-129-000-080 0E C-JUMPER,3216 HCNM AV-D37
X FUNCTION JR 0579 88-129-000-080 0E C-JUMPER,3216 HRJNM AV-D37
X FUNCTION JR 0579 88-129-000-080 0E C-JUMPER,3216 HTNM AV-D37
X FUNCTION JR 0580 88-129-000-080 0E C-JUMPER,3216 HCNM AV-D37

X FUNCTION JR 0580 88-129-000-080 0E C-JUMPER,3216 HRJNM AV-D37
X FUNCTION JR 0580 88-129-000-080 0E C-JUMPER,3216 HTNM AV-D37
X FUNCTION JR 0583 88-129-000-080 0E C-JUMPER,3216 HCNM AV-D37
X FUNCTION JR 0583 88-129-000-080 0E C-JUMPER,3216 HRJNM AV-D37
X FUNCTION JR 0583 88-129-000-080 0E C-JUMPER,3216 HTNM AV-D37
X FUNCTION JR 0584 88-118-000-080 0E C-JUMPER,S HCNM AV-D37
X FUNCTION JR 0584 88-118-000-080 0E C-JUMPER,S HRJNM AV-D37
X FUNCTION JR 0584 88-118-000-080 0E C-JUMPER,S HTNM AV-D37
X FUNCTION JR 0585 88-129-000-080 0E C-JUMPER,3216 HCNM AV-D37
X FUNCTION JR 0585 88-129-000-080 0E C-JUMPER,3216 HRJNM AV-D37

All components used on this model at the production line are shown in this service manual.
However, please note that not all components will be available as spare parts for after-sales service.
Components marked S and O are designated as spare parts for service and will be stocked at the spare parts centers.
Components marked X and R are not designated as spare parts for after sales service, and will not be stocked at the spare parts centers.

C UNIT NAME REF NO. MODEL NAME! DESCRIPTIONK NO.PARTS CODE SUFFIX

X FUNCTION JR 0585 88-129-000-080 0E C-JUMPER,3216 HTNM AV-D37
X FUNCTION JR 0586 88-129-000-080 0E C-JUMPER,3216 HCNM AV-D37
X FUNCTION JR 0586 88-129-000-080 0E C-JUMPER,3216 HRJNM AV-D37
X FUNCTION JR 0586 88-129-000-080 0E C-JUMPER,3216 HTNM AV-D37
X FUNCTION JR 0588 88-118-000-080 0E C-JUMPER,S HCNM AV-D37
X FUNCTION JR 0588 88-118-000-080 0E C-JUMPER,S HRJNM AV-D37
X FUNCTION JR 0588 88-118-000-080 0E C-JUMPER,S HTNM AV-D37
X FUNCTION JR 0589 88-118-000-080 0E C-JUMPER,S HCNM AV-D37
X FUNCTION JR 0589 88-118-000-080 0E C-JUMPER,S HRJNM AV-D37
X FUNCTION JR 0589 88-118-000-080 0E C-JUMPER,S HTNM AV-D37

X FUNCTION JR 0593 88-129-000-080 0E C-JUMPER,3216 HCNM AV-D37
X FUNCTION JR 0593 88-129-000-080 0E C-JUMPER,3216 HRJNM AV-D37
X FUNCTION JR 0593 88-129-000-080 0E C-JUMPER,3216 HTNM AV-D37
X FUNCTION JR 0638 88-118-000-080 0E C-JUMPER,S HCNM AV-D37
X FUNCTION JR 0638 88-118-000-080 0E C-JUMPER,S HRJNM AV-D37
X FUNCTION JR 0638 88-118-000-080 0E C-JUMPER,S HTNM AV-D37
X FUNCTION JR 0639 88-118-000-080 0E C-JUMPER,S HCNM AV-D37
X FUNCTION JR 0639 88-118-000-080 0E C-JUMPER,S HRJNM AV-D37
X FUNCTION JR 0639 88-118-000-080 0E C-JUMPER,S HTNM AV-D37
X FUNCTION JR 0705 88-118-000-080 0E C-JUMPER,S HCNM AV-D37

X FUNCTION JR 0705 88-118-000-080 0E C-JUMPER,S HRJNM AV-D37
X FUNCTION JR 0705 88-118-000-080 0E C-JUMPER,S HTNM AV-D37
X FUNCTION JR 0706 88-118-000-080 0E C-JUMPER,S HCNM AV-D37
X FUNCTION JR 0706 88-118-000-080 0E C-JUMPER,S HRJNM AV-D37
X FUNCTION JR 0706 88-118-000-080 0E C-JUMPER,S HTNM AV-D37
X FUNCTION JR 0707 88-118-000-080 0E C-JUMPER,S HCNM AV-D37
X FUNCTION JR 0707 88-118-000-080 0E C-JUMPER,S HRJNM AV-D37
X FUNCTION JR 0707 88-118-000-080 0E C-JUMPER,S HTNM AV-D37
X FUNCTION JR 0708 88-118-000-080 0E C-JUMPER,S HCNM AV-D37
X FUNCTION JR 0708 88-118-000-080 0E C-JUMPER,S HRJNM AV-D37

X FUNCTION JR 0708 88-118-000-080 0E C-JUMPER,S HTNM AV-D37
X FUNCTION JR 0813 88-129-000-080 0E C-JUMPER,3216 HCNM AV-D37
X FUNCTION JR 0813 88-129-000-080 0E C-JUMPER,3216 HRJNM AV-D37
X FUNCTION JR 0813 88-129-000-080 0E C-JUMPER,3216 HTNM AV-D37
X FUNCTION R 0501 88-118-330-080 0E C-RES,S 33-1/10W J HCNM AV-D37
X FUNCTION R 0501 88-118-330-080 0E C-RES,S 33-1/10W J HRJNM AV-D37
X FUNCTION R 0501 88-118-330-080 0E C-RES,S 33-1/10W J HTNM AV-D37
X FUNCTION R 0502 88-118-330-080 0E C-RES,S 33-1/10W J HCNM AV-D37
X FUNCTION R 0502 88-118-330-080 0E C-RES,S 33-1/10W J HRJNM AV-D37
X FUNCTION R 0502 88-118-330-080 0E C-RES,S 33-1/10W J HTNM AV-D37

-16-

PARTS LIST

! = ! SAFTY PARTS
C = Components marked

K NO. = Only use japanese.

X FUNCTION R 0503 88-118-104-080 0E C-RES,S 100K-1/10W J HCNM AV-D37
X FUNCTION R 0503 88-118-104-080 0E C-RES,S 100K-1/10W J HRJNM AV-D37
X FUNCTION R 0503 88-118-104-080 0E C-RES,S 100K-1/10W J HTNM AV-D37
X FUNCTION R 0504 88-118-104-080 0E C-RES,S 100K-1/10W J HCNM AV-D37
X FUNCTION R 0504 88-118-104-080 0E C-RES,S 100K-1/10W J HRJNM AV-D37
X FUNCTION R 0504 88-118-104-080 0E C-RES,S 100K-1/10W J HTNM AV-D37
X FUNCTION R 0505 88-118-104-080 0E C-RES,S 100K-1/10W J HCNM AV-D37
X FUNCTION R 0505 88-118-104-080 0E C-RES,S 100K-1/10W J HRJNM AV-D37
X FUNCTION R 0505 88-118-104-080 0E C-RES,S 100K-1/10W J HTNM AV-D37
X FUNCTION R 0506 88-118-104-080 0E C-RES,S 100K-1/10W J HCNM AV-D37

X FUNCTION R 0506 88-118-104-080 0E C-RES,S 100K-1/10W J HRJNM AV-D37
X FUNCTION R 0506 88-118-104-080 0E C-RES,S 100K-1/10W J HTNM AV-D37
X FUNCTION R 0507 88-118-101-080 0E C-RES,S 100-1/10W J HCNM AV-D37
X FUNCTION R 0507 88-118-101-080 0E C-RES,S 100-1/10W J HRJNM AV-D37
X FUNCTION R 0507 88-118-101-080 0E C-RES,S 100-1/10W J HTNM AV-D37
X FUNCTION R 0508 88-118-101-080 0E C-RES,S 100-1/10W J HCNM AV-D37
X FUNCTION R 0508 88-118-101-080 0E C-RES,S 100-1/10W J HRJNM AV-D37
X FUNCTION R 0508 88-118-101-080 0E C-RES,S 100-1/10W J HTNM AV-D37
X FUNCTION R 0509 88-118-473-080 0E C-RES,S 47K-1/10W J HCNM AV-D37
X FUNCTION R 0509 88-118-473-080 0E C-RES,S 47K-1/10W J HRJNM AV-D37

X FUNCTION R 0509 88-118-473-080 0E C-RES,S 47K-1/10W J HTNM AV-D37
X FUNCTION R 0510 88-118-473-080 0E C-RES,S 47K-1/10W J HCNM AV-D37
X FUNCTION R 0510 88-118-473-080 0E C-RES,S 47K-1/10W J HRJNM AV-D37
X FUNCTION R 0510 88-118-473-080 0E C-RES,S 47K-1/10W J HTNM AV-D37
X FUNCTION R 0511 88-118-392-080 0E C-RES,S 3.9K-1/10W J HCNM AV-D37
X FUNCTION R 0511 88-118-392-080 0E C-RES,S 3.9K-1/10W J HRJNM AV-D37
X FUNCTION R 0511 88-118-392-080 0E C-RES,S 3.9K-1/10W J HTNM AV-D37
X FUNCTION R 0512 88-118-392-080 0E C-RES,S 3.9K-1/10W J HCNM AV-D37
X FUNCTION R 0512 88-118-392-080 0E C-RES,S 3.9K-1/10W J HRJNM AV-D37
X FUNCTION R 0512 88-118-392-080 0E C-RES,S 3.9K-1/10W J HTNM AV-D37

All components used on this model at the production line are shown in this service manual.
However, please note that not all components will be available as spare parts for after-sales service.
Components marked S and O are designated as spare parts for service and will be stocked at the spare parts centers.
Components marked X and R are not designated as spare parts for after sales service, and will not be stocked at the spare parts centers.

C UNIT NAME REF NO. MODEL NAME! DESCRIPTIONK NO.PARTS CODE SUFFIX

X FUNCTION R 0513 88-118-101-080 0E C-RES,S 100-1/10W J HCNM AV-D37
X FUNCTION R 0513 88-118-101-080 0E C-RES,S 100-1/10W J HRJNM AV-D37
X FUNCTION R 0513 88-118-101-080 0E C-RES,S 100-1/10W J HTNM AV-D37
X FUNCTION R 0514 88-118-101-080 0E C-RES,S 100-1/10W J HCNM AV-D37
X FUNCTION R 0514 88-118-101-080 0E C-RES,S 100-1/10W J HRJNM AV-D37
X FUNCTION R 0514 88-118-101-080 0E C-RES,S 100-1/10W J HTNM AV-D37
X FUNCTION R 0515 88-128-221-080 0E C-RES, 220-1/8W J HCNM AV-D37
X FUNCTION R 0515 88-128-221-080 0E C-RES, 220-1/8W J HRJNM AV-D37
X FUNCTION R 0515 88-128-221-080 0E C-RES, 220-1/8W J HTNM AV-D37
X FUNCTION R 0516 88-128-221-080 0E C-RES, 220-1/8W J HCNM AV-D37

X FUNCTION R 0516 88-128-221-080 0E C-RES, 220-1/8W J HRJNM AV-D37
X FUNCTION R 0516 88-128-221-080 0E C-RES, 220-1/8W J HTNM AV-D37
X FUNCTION R 0517 88-118-101-080 0E C-RES,S 100-1/10W J HCNM AV-D37
X FUNCTION R 0517 88-118-101-080 0E C-RES,S 100-1/10W J HRJNM AV-D37
X FUNCTION R 0517 88-118-101-080 0E C-RES,S 100-1/10W J HTNM AV-D37
X FUNCTION R 0518 88-118-101-080 0E C-RES,S 100-1/10W J HCNM AV-D37
X FUNCTION R 0518 88-118-101-080 0E C-RES,S 100-1/10W J HRJNM AV-D37
X FUNCTION R 0518 88-118-101-080 0E C-RES,S 100-1/10W J HTNM AV-D37
X FUNCTION R 0519 88-118-332-080 0E C-RES,S 3.3K-1/10W J HCNM AV-D37
X FUNCTION R 0519 88-118-332-080 0E C-RES,S 3.3K-1/10W J HRJNM AV-D37

X FUNCTION R 0519 88-118-332-080 0E C-RES,S 3.3K-1/10W J HTNM AV-D37
X FUNCTION R 0520 88-118-332-080 0E C-RES,S 3.3K-1/10W J HCNM AV-D37
X FUNCTION R 0520 88-118-332-080 0E C-RES,S 3.3K-1/10W J HRJNM AV-D37
X FUNCTION R 0520 88-118-332-080 0E C-RES,S 3.3K-1/10W J HTNM AV-D37
X FUNCTION R 0521 88-118-000-080 0E C-JUMPER,S HCNM AV-D37
X FUNCTION R 0521 88-118-000-080 0E C-JUMPER,S HRJNM AV-D37
X FUNCTION R 0521 88-118-000-080 0E C-JUMPER,S HTNM AV-D37
X FUNCTION R 0522 88-118-000-080 0E C-JUMPER,S HCNM AV-D37
X FUNCTION R 0522 88-118-000-080 0E C-JUMPER,S HRJNM AV-D37
X FUNCTION R 0522 88-118-000-080 0E C-JUMPER,S HTNM AV-D37

X FUNCTION R 0523 88-118-823-080 0E C-RES,S 82K-1/10W J HCNM AV-D37
X FUNCTION R 0523 88-118-823-080 0E C-RES,S 82K-1/10W J HRJNM AV-D37
X FUNCTION R 0523 88-118-823-080 0E C-RES,S 82K-1/10W J HTNM AV-D37
X FUNCTION R 0524 88-118-823-080 0E C-RES,S 82K-1/10W J HCNM AV-D37
X FUNCTION R 0524 88-118-823-080 0E C-RES,S 82K-1/10W J HRJNM AV-D37
X FUNCTION R 0524 88-118-823-080 0E C-RES,S 82K-1/10W J HTNM AV-D37
X FUNCTION R 0529 88-118-103-080 0E C-RES,S 10K-1/10W J HCNM AV-D37
X FUNCTION R 0529 88-118-103-080 0E C-RES,S 10K-1/10W J HRJNM AV-D37
X FUNCTION R 0529 88-118-103-080 0E C-RES,S 10K-1/10W J HTNM AV-D37
X FUNCTION R 0530 88-118-103-080 0E C-RES,S 10K-1/10W J HCNM AV-D37

-17-

PARTS LIST

! = ! SAFTY PARTS
C = Components marked

K NO. = Only use japanese.

X FUNCTION R 0530 88-118-103-080 0E C-RES,S 10K-1/10W J HRJNM AV-D37
X FUNCTION R 0530 88-118-103-080 0E C-RES,S 10K-1/10W J HTNM AV-D37
X FUNCTION R 0531 88-118-183-080 0E C-RES,S 18K-1/10W J HCNM AV-D37
X FUNCTION R 0531 88-118-183-080 0E C-RES,S 18K-1/10W J HRJNM AV-D37
X FUNCTION R 0531 88-118-183-080 0E C-RES,S 18K-1/10W J HTNM AV-D37
X FUNCTION R 0532 88-118-183-080 0E C-RES,S 18K-1/10W J HCNM AV-D37
X FUNCTION R 0532 88-118-183-080 0E C-RES,S 18K-1/10W J HRJNM AV-D37
X FUNCTION R 0532 88-118-183-080 0E C-RES,S 18K-1/10W J HTNM AV-D37
X FUNCTION R 0533 88-118-153-080 0E C-RES,S 15K-1/10W J HCNM AV-D37
X FUNCTION R 0533 88-118-153-080 0E C-RES,S 15K-1/10W J HRJNM AV-D37

X FUNCTION R 0533 88-118-153-080 0E C-RES,S 15K-1/10W J HTNM AV-D37
X FUNCTION R 0534 88-118-153-080 0E C-RES,S 15K-1/10W J HCNM AV-D37
X FUNCTION R 0534 88-118-153-080 0E C-RES,S 15K-1/10W J HRJNM AV-D37
X FUNCTION R 0534 88-118-153-080 0E C-RES,S 15K-1/10W J HTNM AV-D37
X FUNCTION R 0535 88-121-392-080 0E RES,3.9K-1/8W J HCNM AV-D37
X FUNCTION R 0535 88-121-392-080 0E RES,3.9K-1/8W J HRJNM AV-D37
X FUNCTION R 0535 88-121-392-080 0E RES,3.9K-1/8W J HTNM AV-D37
X FUNCTION R 0536 88-128-562-080 0E C-RES, 5.6K-1/8W J HCNM AV-D37
X FUNCTION R 0536 88-128-562-080 0E C-RES, 5.6K-1/8W J HRJNM AV-D37
X FUNCTION R 0536 88-128-562-080 0E C-RES, 5.6K-1/8W J HTNM AV-D37

X FUNCTION R 0537 88-118-223-080 0E C-RES,S 22K-1/10W J HCNM AV-D37
X FUNCTION R 0537 88-118-223-080 0E C-RES,S 22K-1/10W J HRJNM AV-D37
X FUNCTION R 0537 88-118-223-080 0E C-RES,S 22K-1/10W J HTNM AV-D37
X FUNCTION R 0538 88-118-223-080 0E C-RES,S 22K-1/10W J HCNM AV-D37
X FUNCTION R 0538 88-118-223-080 0E C-RES,S 22K-1/10W J HRJNM AV-D37
X FUNCTION R 0538 88-118-223-080 0E C-RES,S 22K-1/10W J HTNM AV-D37
X FUNCTION R 0539 88-118-822-080 0E C-RES,S 8.2K-1/10W J HCNM AV-D37
X FUNCTION R 0539 88-118-822-080 0E C-RES,S 8.2K-1/10W J HRJNM AV-D37
X FUNCTION R 0539 88-118-822-080 0E C-RES,S 8.2K-1/10W J HTNM AV-D37
X FUNCTION R 0540 88-118-822-080 0E C-RES,S 8.2K-1/10W J HCNM AV-D37

All components used on this model at the production line are shown in this service manual.
However, please note that not all components will be available as spare parts for after-sales service.
Components marked S and O are designated as spare parts for service and will be stocked at the spare parts centers.
Components marked X and R are not designated as spare parts for after sales service, and will not be stocked at the spare parts centers.

C UNIT NAME REF NO. MODEL NAME! DESCRIPTIONK NO.PARTS CODE SUFFIX

X FUNCTION R 0540 88-118-822-080 0E C-RES,S 8.2K-1/10W J HRJNM AV-D37
X FUNCTION R 0540 88-118-822-080 0E C-RES,S 8.2K-1/10W J HTNM AV-D37
X FUNCTION R 0541 88-118-273-080 0E C-RES,S 27K-1/10W J HCNM AV-D37
X FUNCTION R 0541 88-118-273-080 0E C-RES,S 27K-1/10W J HRJNM AV-D37
X FUNCTION R 0541 88-118-273-080 0E C-RES,S 27K-1/10W J HTNM AV-D37
X FUNCTION R 0542 88-118-273-080 0E C-RES,S 27K-1/10W J HCNM AV-D37
X FUNCTION R 0542 88-118-273-080 0E C-RES,S 27K-1/10W J HRJNM AV-D37
X FUNCTION R 0542 88-118-273-080 0E C-RES,S 27K-1/10W J HTNM AV-D37
X FUNCTION R 0543 88-118-103-080 0E C-RES,S 10K-1/10W J HCNM AV-D37
X FUNCTION R 0543 88-118-103-080 0E C-RES,S 10K-1/10W J HRJNM AV-D37

X FUNCTION R 0543 88-118-103-080 0E C-RES,S 10K-1/10W J HTNM AV-D37
X FUNCTION R 0544 88-118-103-080 0E C-RES,S 10K-1/10W J HCNM AV-D37
X FUNCTION R 0544 88-118-103-080 0E C-RES,S 10K-1/10W J HRJNM AV-D37
X FUNCTION R 0544 88-118-103-080 0E C-RES,S 10K-1/10W J HTNM AV-D37
X FUNCTION R 0545 88-118-473-080 0E C-RES,S 47K-1/10W J HCNM AV-D37
X FUNCTION R 0545 88-118-473-080 0E C-RES,S 47K-1/10W J HRJNM AV-D37
X FUNCTION R 0545 88-118-473-080 0E C-RES,S 47K-1/10W J HTNM AV-D37
X FUNCTION R 0546 88-118-473-080 0E C-RES,S 47K-1/10W J HCNM AV-D37
X FUNCTION R 0546 88-118-473-080 0E C-RES,S 47K-1/10W J HRJNM AV-D37
X FUNCTION R 0546 88-118-473-080 0E C-RES,S 47K-1/10W J HTNM AV-D37

X FUNCTION R 0547 88-118-392-080 0E C-RES,S 3.9K-1/10W J HCNM AV-D37
X FUNCTION R 0547 88-118-392-080 0E C-RES,S 3.9K-1/10W J HRJNM AV-D37
X FUNCTION R 0547 88-118-392-080 0E C-RES,S 3.9K-1/10W J HTNM AV-D37
X FUNCTION R 0548 88-118-392-080 0E C-RES,S 3.9K-1/10W J HCNM AV-D37
X FUNCTION R 0548 88-118-392-080 0E C-RES,S 3.9K-1/10W J HRJNM AV-D37
X FUNCTION R 0548 88-118-392-080 0E C-RES,S 3.9K-1/10W J HTNM AV-D37
X FUNCTION R 0549 88-118-000-080 0E C-JUMPER,S HCNM AV-D37
X FUNCTION R 0549 88-118-000-080 0E C-JUMPER,S HRJNM AV-D37
X FUNCTION R 0549 88-118-000-080 0E C-JUMPER,S HTNM AV-D37
X FUNCTION R 0550 88-118-473-080 0E C-RES,S 47K-1/10W J HCNM AV-D37

X FUNCTION R 0550 88-118-473-080 0E C-RES,S 47K-1/10W J HRJNM AV-D37
X FUNCTION R 0550 88-118-473-080 0E C-RES,S 47K-1/10W J HTNM AV-D37
X FUNCTION R 0551 88-118-472-080 0E C-RES,S 4.7K-1/10W J HCNM AV-D37
X FUNCTION R 0551 88-118-472-080 0E C-RES,S 4.7K-1/10W J HRJNM AV-D37
X FUNCTION R 0551 88-118-472-080 0E C-RES,S 4.7K-1/10W J HTNM AV-D37
X FUNCTION R 0552 88-118-472-080 0E C-RES,S 4.7K-1/10W J HCNM AV-D37
X FUNCTION R 0552 88-118-472-080 0E C-RES,S 4.7K-1/10W J HRJNM AV-D37
X FUNCTION R 0552 88-118-472-080 0E C-RES,S 4.7K-1/10W J HTNM AV-D37
X FUNCTION R 0553 88-118-473-080 0E C-RES,S 47K-1/10W J HCNM AV-D37
X FUNCTION R 0553 88-118-473-080 0E C-RES,S 47K-1/10W J HRJNM AV-D37

-18-

PARTS LIST

! = ! SAFTY PARTS
C = Components marked

K NO. = Only use japanese.

X FUNCTION R 0553 88-118-473-080 0E C-RES,S 47K-1/10W J HTNM AV-D37
X FUNCTION R 0554 88-118-473-080 0E C-RES,S 47K-1/10W J HCNM AV-D37
X FUNCTION R 0554 88-118-473-080 0E C-RES,S 47K-1/10W J HRJNM AV-D37
X FUNCTION R 0554 88-118-473-080 0E C-RES,S 47K-1/10W J HTNM AV-D37
X FUNCTION R 0555 88-118-392-080 0E C-RES,S 3.9K-1/10W J HCNM AV-D37
X FUNCTION R 0555 88-118-392-080 0E C-RES,S 3.9K-1/10W J HRJNM AV-D37
X FUNCTION R 0555 88-118-392-080 0E C-RES,S 3.9K-1/10W J HTNM AV-D37
X FUNCTION R 0556 88-118-392-080 0E C-RES,S 3.9K-1/10W J HCNM AV-D37
X FUNCTION R 0556 88-118-392-080 0E C-RES,S 3.9K-1/10W J HRJNM AV-D37
X FUNCTION R 0556 88-118-392-080 0E C-RES,S 3.9K-1/10W J HTNM AV-D37

X FUNCTION R 0557 88-118-562-080 0E C-RES,S 5.6K-1/10W J HCNM AV-D37
X FUNCTION R 0557 88-118-562-080 0E C-RES,S 5.6K-1/10W J HRJNM AV-D37
X FUNCTION R 0557 88-118-562-080 0E C-RES,S 5.6K-1/10W J HTNM AV-D37
X FUNCTION R 0558 88-118-562-080 0E C-RES,S 5.6K-1/10W J HCNM AV-D37
X FUNCTION R 0558 88-118-562-080 0E C-RES,S 5.6K-1/10W J HRJNM AV-D37
X FUNCTION R 0558 88-118-562-080 0E C-RES,S 5.6K-1/10W J HTNM AV-D37
X FUNCTION R 0559 88-118-184-080 0E C-RES,S 180K-1/10W J HCNM AV-D37
X FUNCTION R 0559 88-118-184-080 0E C-RES,S 180K-1/10W J HRJNM AV-D37
X FUNCTION R 0559 88-118-184-080 0E C-RES,S 180K-1/10W J HTNM AV-D37
X FUNCTION R 0560 88-118-184-080 0E C-RES,S 180K-1/10W J HCNM AV-D37

X FUNCTION R 0560 88-118-184-080 0E C-RES,S 180K-1/10W J HRJNM AV-D37
X FUNCTION R 0560 88-118-184-080 0E C-RES,S 180K-1/10W J HTNM AV-D37
X FUNCTION R 0561 88-121-102-080 0E RES,1K-1/8W J HCNM AV-D37
X FUNCTION R 0561 88-121-102-080 0E RES,1K-1/8W J HRJNM AV-D37
X FUNCTION R 0561 88-121-102-080 0E RES,1K-1/8W J HTNM AV-D37
X FUNCTION R 0562 88-118-102-080 0E C-RES,S 1K-1/10W J HCNM AV-D37
X FUNCTION R 0562 88-118-102-080 0E C-RES,S 1K-1/10W J HRJNM AV-D37
X FUNCTION R 0562 88-118-102-080 0E C-RES,S 1K-1/10W J HTNM AV-D37
X FUNCTION R 0563 88-121-102-080 0E RES,1K-1/8W J HCNM AV-D37
X FUNCTION R 0563 88-121-102-080 0E RES,1K-1/8W J HRJNM AV-D37

All components used on this model at the production line are shown in this service manual.
However, please note that not all components will be available as spare parts for after-sales service.
Components marked S and O are designated as spare parts for service and will be stocked at the spare parts centers.
Components marked X and R are not designated as spare parts for after sales service, and will not be stocked at the spare parts centers.

C UNIT NAME REF NO. MODEL NAME! DESCRIPTIONK NO.PARTS CODE SUFFIX

X FUNCTION R 0563 88-121-102-080 0E RES,1K-1/8W J HTNM AV-D37
X FUNCTION R 0564 88-118-102-080 0E C-RES,S 1K-1/10W J HCNM AV-D37
X FUNCTION R 0564 88-118-102-080 0E C-RES,S 1K-1/10W J HRJNM AV-D37
X FUNCTION R 0564 88-118-102-080 0E C-RES,S 1K-1/10W J HTNM AV-D37
X FUNCTION R 0565 88-121-102-080 0E RES,1K-1/8W J HCNM AV-D37
X FUNCTION R 0565 88-121-102-080 0E RES,1K-1/8W J HRJNM AV-D37
X FUNCTION R 0565 88-121-102-080 0E RES,1K-1/8W J HTNM AV-D37
X FUNCTION R 0566 88-118-102-080 0E C-RES,S 1K-1/10W J HCNM AV-D37
X FUNCTION R 0566 88-118-102-080 0E C-RES,S 1K-1/10W J HRJNM AV-D37
X FUNCTION R 0566 88-118-102-080 0E C-RES,S 1K-1/10W J HTNM AV-D37

X FUNCTION R 0567 88-118-103-080 0E C-RES,S 10K-1/10W J HCNM AV-D37
X FUNCTION R 0567 88-118-103-080 0E C-RES,S 10K-1/10W J HRJNM AV-D37
X FUNCTION R 0567 88-118-103-080 0E C-RES,S 10K-1/10W J HTNM AV-D37
X FUNCTION R 0568 88-118-103-080 0E C-RES,S 10K-1/10W J HCNM AV-D37
X FUNCTION R 0568 88-118-103-080 0E C-RES,S 10K-1/10W J HRJNM AV-D37
X FUNCTION R 0568 88-118-103-080 0E C-RES,S 10K-1/10W J HTNM AV-D37
X FUNCTION R 0569 88-118-102-080 0E C-RES,S 1K-1/10W J HCNM AV-D37
X FUNCTION R 0569 88-118-102-080 0E C-RES,S 1K-1/10W J HRJNM AV-D37
X FUNCTION R 0569 88-118-102-080 0E C-RES,S 1K-1/10W J HTNM AV-D37
X FUNCTION R 0570 88-118-102-080 0E C-RES,S 1K-1/10W J HCNM AV-D37

X FUNCTION R 0570 88-118-102-080 0E C-RES,S 1K-1/10W J HRJNM AV-D37
X FUNCTION R 0570 88-118-102-080 0E C-RES,S 1K-1/10W J HTNM AV-D37
X FUNCTION R 0571 88-118-103-080 0E C-RES,S 10K-1/10W J HCNM AV-D37
X FUNCTION R 0571 88-118-103-080 0E C-RES,S 10K-1/10W J HRJNM AV-D37
X FUNCTION R 0571 88-118-103-080 0E C-RES,S 10K-1/10W J HTNM AV-D37
X FUNCTION R 0572 88-118-103-080 0E C-RES,S 10K-1/10W J HCNM AV-D37
X FUNCTION R 0572 88-118-103-080 0E C-RES,S 10K-1/10W J HRJNM AV-D37
X FUNCTION R 0572 88-118-103-080 0E C-RES,S 10K-1/10W J HTNM AV-D37
X FUNCTION R 0573 88-118-102-080 0E C-RES,S 1K-1/10W J HCNM AV-D37
X FUNCTION R 0573 88-118-102-080 0E C-RES,S 1K-1/10W J HRJNM AV-D37

X FUNCTION R 0573 88-118-102-080 0E C-RES,S 1K-1/10W J HTNM AV-D37
X FUNCTION R 0574 88-118-103-080 0E C-RES,S 10K-1/10W J HCNM AV-D37
X FUNCTION R 0574 88-118-103-080 0E C-RES,S 10K-1/10W J HRJNM AV-D37
X FUNCTION R 0574 88-118-103-080 0E C-RES,S 10K-1/10W J HTNM AV-D37
X FUNCTION R 0575 88-118-473-080 0E C-RES,S 47K-1/10W J HCNM AV-D37
X FUNCTION R 0575 88-118-473-080 0E C-RES,S 47K-1/10W J HRJNM AV-D37
X FUNCTION R 0575 88-118-473-080 0E C-RES,S 47K-1/10W J HTNM AV-D37
X FUNCTION R 0576 88-118-473-080 0E C-RES,S 47K-1/10W J HCNM AV-D37
X FUNCTION R 0576 88-118-473-080 0E C-RES,S 47K-1/10W J HRJNM AV-D37
X FUNCTION R 0576 88-118-473-080 0E C-RES,S 47K-1/10W J HTNM AV-D37

-19-

PARTS LIST

! = ! SAFTY PARTS
C = Components marked

K NO. = Only use japanese.

X FUNCTION R 0577 88-128-470-080 0E C-RES, 47-1/8W J HCNM AV-D37
X FUNCTION R 0577 88-128-470-080 0E C-RES, 47-1/8W J HRJNM AV-D37
X FUNCTION R 0577 88-128-470-080 0E C-RES, 47-1/8W J HTNM AV-D37
X FUNCTION R 0578 88-129-000-080 0E C-JUMPER,3216 HCNM AV-D37
X FUNCTION R 0578 88-129-000-080 0E C-JUMPER,3216 HRJNM AV-D37
X FUNCTION R 0578 88-129-000-080 0E C-JUMPER,3216 HTNM AV-D37
X FUNCTION R 0579 88-128-560-080 0E C-RES, 56-1/8W J HCNM AV-D37
X FUNCTION R 0579 88-128-560-080 0E C-RES, 56-1/8W J HRJNM AV-D37
X FUNCTION R 0579 88-128-560-080 0E C-RES, 56-1/8W J HTNM AV-D37
X FUNCTION R 0580 88-118-822-080 0E C-RES,S 8.2K-1/10W J HCNM AV-D37

X FUNCTION R 0580 88-118-822-080 0E C-RES,S 8.2K-1/10W J HRJNM AV-D37
X FUNCTION R 0580 88-118-822-080 0E C-RES,S 8.2K-1/10W J HTNM AV-D37
X FUNCTION R 0581 88-118-822-080 0E C-RES,S 8.2K-1/10W J HCNM AV-D37
X FUNCTION R 0581 88-118-822-080 0E C-RES,S 8.2K-1/10W J HRJNM AV-D37
X FUNCTION R 0581 88-118-822-080 0E C-RES,S 8.2K-1/10W J HTNM AV-D37
X FUNCTION R 0582 88-128-680-080 0E C-RES, 68-1/8W J HCNM AV-D37
X FUNCTION R 0582 88-128-680-080 0E C-RES, 68-1/8W J HRJNM AV-D37
X FUNCTION R 0582 88-128-680-080 0E C-RES, 68-1/8W J HTNM AV-D37
X FUNCTION R 0583 88-128-680-080 0E C-RES, 68-1/8W J HCNM AV-D37
X FUNCTION R 0583 88-128-680-080 0E C-RES, 68-1/8W J HRJNM AV-D37

X FUNCTION R 0583 88-128-680-080 0E C-RES, 68-1/8W J HTNM AV-D37
X FUNCTION R 0584 88-128-680-080 0E C-RES, 68-1/8W J HCNM AV-D37
X FUNCTION R 0584 88-128-680-080 0E C-RES, 68-1/8W J HRJNM AV-D37
X FUNCTION R 0584 88-128-680-080 0E C-RES, 68-1/8W J HTNM AV-D37
X FUNCTION R 0585 88-128-180-080 0E C-RES, 18-1/8W J HCNM AV-D37
X FUNCTION R 0585 88-128-180-080 0E C-RES, 18-1/8W J HRJNM AV-D37
X FUNCTION R 0585 88-128-180-080 0E C-RES, 18-1/8W J HTNM AV-D37
X FUNCTION R 0586 88-128-680-080 0E C-RES, 68-1/8W J HCNM AV-D37
X FUNCTION R 0586 88-128-680-080 0E C-RES, 68-1/8W J HRJNM AV-D37
X FUNCTION R 0586 88-128-680-080 0E C-RES, 68-1/8W J HTNM AV-D37

All components used on this model at the production line are shown in this service manual.
However, please note that not all components will be available as spare parts for after-sales service.
Components marked S and O are designated as spare parts for service and will be stocked at the spare parts centers.
Components marked X and R are not designated as spare parts for after sales service, and will not be stocked at the spare parts centers.

C UNIT NAME REF NO. MODEL NAME! DESCRIPTIONK NO.PARTS CODE SUFFIX

X FUNCTION R 0587 88-121-680-080 0E RES,68-1/8W J HCNM AV-D37
X FUNCTION R 0587 88-121-680-080 0E RES,68-1/8W J HRJNM AV-D37
X FUNCTION R 0587 88-121-680-080 0E RES,68-1/8W J HTNM AV-D37
X FUNCTION R 0588 88-128-680-080 0E C-RES, 68-1/8W J HCNM AV-D37
X FUNCTION R 0588 88-128-680-080 0E C-RES, 68-1/8W J HRJNM AV-D37
X FUNCTION R 0588 88-128-680-080 0E C-RES, 68-1/8W J HTNM AV-D37
X FUNCTION R 0591 88-118-103-080 0E C-RES,S 10K-1/10W J HCNM AV-D37
X FUNCTION R 0591 88-118-103-080 0E C-RES,S 10K-1/10W J HRJNM AV-D37
X FUNCTION R 0591 88-118-103-080 0E C-RES,S 10K-1/10W J HTNM AV-D37
X FUNCTION R 0592 88-128-560-080 0E C-RES, 56-1/8W J HCNM AV-D37

X FUNCTION R 0592 88-128-560-080 0E C-RES, 56-1/8W J HRJNM AV-D37
X FUNCTION R 0592 88-128-560-080 0E C-RES, 56-1/8W J HTNM AV-D37
X FUNCTION R 0593 88-118-102-080 0E C-RES,S 1K-1/10W J HCNM AV-D37
X FUNCTION R 0593 88-118-102-080 0E C-RES,S 1K-1/10W J HRJNM AV-D37
X FUNCTION R 0593 88-118-102-080 0E C-RES,S 1K-1/10W J HTNM AV-D37
X FUNCTION R 0594 88-118-102-080 0E C-RES,S 1K-1/10W J HCNM AV-D37
X FUNCTION R 0594 88-118-102-080 0E C-RES,S 1K-1/10W J HRJNM AV-D37
X FUNCTION R 0594 88-118-102-080 0E C-RES,S 1K-1/10W J HTNM AV-D37
X FUNCTION R 0595 88-118-124-080 0E C-RES,S 120K-1/10W J HCNM AV-D37
X FUNCTION R 0595 88-118-124-080 0E C-RES,S 120K-1/10W J HRJNM AV-D37

X FUNCTION R 0595 88-118-124-080 0E C-RES,S 120K-1/10W J HTNM AV-D37
X FUNCTION R 0596 88-118-124-080 0E C-RES,S 120K-1/10W J HCNM AV-D37
X FUNCTION R 0596 88-118-124-080 0E C-RES,S 120K-1/10W J HRJNM AV-D37
X FUNCTION R 0596 88-118-124-080 0E C-RES,S 120K-1/10W J HTNM AV-D37
X FUNCTION R 0597 88-118-473-080 0E C-RES,S 47K-1/10W J HCNM AV-D37
X FUNCTION R 0597 88-118-473-080 0E C-RES,S 47K-1/10W J HRJNM AV-D37
X FUNCTION R 0597 88-118-473-080 0E C-RES,S 47K-1/10W J HTNM AV-D37
X FUNCTION R 0598 88-118-473-080 0E C-RES,S 47K-1/10W J HCNM AV-D37
X FUNCTION R 0598 88-118-473-080 0E C-RES,S 47K-1/10W J HRJNM AV-D37
X FUNCTION R 0598 88-118-473-080 0E C-RES,S 47K-1/10W J HTNM AV-D37

X FUNCTION R 0599 88-118-473-080 0E C-RES,S 47K-1/10W J HCNM AV-D37
X FUNCTION R 0599 88-118-473-080 0E C-RES,S 47K-1/10W J HRJNM AV-D37
X FUNCTION R 0599 88-118-473-080 0E C-RES,S 47K-1/10W J HTNM AV-D37
X FUNCTION R 0638 88-118-104-080 0E C-RES,S 100K-1/10W J HCNM AV-D37
X FUNCTION R 0638 88-118-104-080 0E C-RES,S 100K-1/10W J HRJNM AV-D37
X FUNCTION R 0638 88-118-104-080 0E C-RES,S 100K-1/10W J HTNM AV-D37
O GEQ C 0758 87-010-404-080 0E CAP,E 4.7-50 M 11L SME HCNM AV-D37
O GEQ C 0758 87-010-404-080 0E CAP,E 4.7-50 M 11L SME HRJNM AV-D37
O GEQ C 0758 87-010-404-080 0E CAP,E 4.7-50 M 11L SME HTNM AV-D37
O GEQ C 0759 87-012-368-080 0E C-CAP,S 0.1-50 Z F HCNM AV-D37

-20-

PARTS LIST

! = ! SAFTY PARTS
C = Components marked

K NO. = Only use japanese.

O GEQ C 0759 87-012-368-080 0E C-CAP,S 0.1-50 Z F HRJNM AV-D37
O GEQ C 0759 87-012-368-080 0E C-CAP,S 0.1-50 Z F HTNM AV-D37
X GEQ C 0760 88-710-949-810 1A CAP,M 0.47-50 J TFL HCNM AV-D37
X GEQ C 0760 88-710-949-810 1A CAP,M 0.47-50 J TFL HRJNM AV-D37
X GEQ C 0760 88-710-949-810 1A CAP,M 0.47-50 J TFL HTNM AV-D37
O GEQ C 0761 87-010-198-080 0E C-CAP,S 0.022-25 K B C2012 HCNM AV-D37
O GEQ C 0761 87-010-198-080 0E C-CAP,S 0.022-25 K B C2012 HRJNM AV-D37
O GEQ C 0761 87-010-198-080 0E C-CAP,S 0.022-25 K B C2012 HTNM AV-D37
O GEQ C 0762 87-010-197-080 0E C-CAP,S 0.01-25 K B C2012 HCNM AV-D37
O GEQ C 0762 87-010-197-080 0E C-CAP,S 0.01-25 K B C2012 HRJNM AV-D37

O GEQ C 0762 87-010-197-080 0E C-CAP,S 0.01-25 K B C2012 HTNM AV-D37
X GEQ C 0763 88-710-969-810 0E CAP,M 0.12-50 J TFL ECQV HCNM AV-D37
X GEQ C 0763 88-710-969-810 0E CAP,M 0.12-50 J TFL ECQV HRJNM AV-D37
X GEQ C 0763 88-710-969-810 0E CAP,M 0.12-50 J TFL ECQV HTNM AV-D37
O GEQ C 0764 87-010-185-080 0E C-CAP,S 3900P-50 K B HCNM AV-D37
O GEQ C 0764 87-010-185-080 0E C-CAP,S 3900P-50 K B HRJNM AV-D37
O GEQ C 0764 87-010-185-080 0E C-CAP,S 3900P-50 K B HTNM AV-D37
O GEQ C 0765 87-010-194-080 0E C-CAP,S 0.047-25 Z F HCNM AV-D37
O GEQ C 0765 87-010-194-080 0E C-CAP,S 0.047-25 Z F HRJNM AV-D37
O GEQ C 0765 87-010-194-080 0E C-CAP,S 0.047-25 Z F HTNM AV-D37

O GEQ C 0766 87-010-181-080 0E C-CAP,S 1800P-50 K B GRM HCNM AV-D37
O GEQ C 0766 87-010-181-080 0E C-CAP,S 1800P-50 K B GRM HRJNM AV-D37
O GEQ C 0766 87-010-181-080 0E C-CAP,S 1800P-50 K B GRM HTNM AV-D37
O GEQ C 0767 87-010-198-080 0E C-CAP,S 0.022-25 K B C2012 HCNM AV-D37
O GEQ C 0767 87-010-198-080 0E C-CAP,S 0.022-25 K B C2012 HRJNM AV-D37
O GEQ C 0767 87-010-198-080 0E C-CAP,S 0.022-25 K B C2012 HTNM AV-D37
O GEQ C 0768 87-010-994-080 0E C-CAP,S 680P-50 J CH HCNM AV-D37
O GEQ C 0768 87-010-994-080 0E C-CAP,S 680P-50 J CH HRJNM AV-D37
O GEQ C 0768 87-010-994-080 0E C-CAP,S 680P-50 J CH HTNM AV-D37
O GEQ C 0769 87-010-188-080 0E C-CAP,S 6800P-50 K B C2012 HCNM AV-D37

All components used on this model at the production line are shown in this service manual.
However, please note that not all components will be available as spare parts for after-sales service.
Components marked S and O are designated as spare parts for service and will be stocked at the spare parts centers.
Components marked X and R are not designated as spare parts for after sales service, and will not be stocked at the spare parts centers.

C UNIT NAME REF NO. MODEL NAME! DESCRIPTIONK NO.PARTS CODE SUFFIX

O GEQ C 0769 87-010-188-080 0E C-CAP,S 6800P-50 K B C2012 HRJNM AV-D37
O GEQ C 0769 87-010-188-080 0E C-CAP,S 6800P-50 K B C2012 HTNM AV-D37
O GEQ C 0770 87-012-145-080 0E C-CAP,S 270P-50 J CH GRM HCNM AV-D37
O GEQ C 0770 87-012-145-080 0E C-CAP,S 270P-50 J CH GRM HRJNM AV-D37
O GEQ C 0770 87-012-145-080 0E C-CAP,S 270P-50 J CH GRM HTNM AV-D37
O GEQ C 0771 87-010-183-080 0E C-CAP,S 2700P-50 K B GRM HCNM AV-D37
O GEQ C 0771 87-010-183-080 0E C-CAP,S 2700P-50 K B GRM HRJNM AV-D37
O GEQ C 0771 87-010-183-080 0E C-CAP,S 2700P-50 K B GRM HTNM AV-D37
O GEQ C 0772 87-012-145-080 0E C-CAP,S 270P-50 J CH GRM HCNM AV-D37
O GEQ C 0772 87-012-145-080 0E C-CAP,S 270P-50 J CH GRM HRJNM AV-D37

O GEQ C 0772 87-012-145-080 0E C-CAP,S 270P-50 J CH GRM HTNM AV-D37
O GEQ C 0773 87-010-188-080 0E C-CAP,S 6800P-50 K B C2012 HCNM AV-D37
O GEQ C 0773 87-010-188-080 0E C-CAP,S 6800P-50 K B C2012 HRJNM AV-D37
O GEQ C 0773 87-010-188-080 0E C-CAP,S 6800P-50 K B C2012 HTNM AV-D37
O GEQ C 0774 87-010-994-080 0E C-CAP,S 680P-50 J CH HCNM AV-D37
O GEQ C 0774 87-010-994-080 0E C-CAP,S 680P-50 J CH HRJNM AV-D37
O GEQ C 0774 87-010-994-080 0E C-CAP,S 680P-50 J CH HTNM AV-D37
O GEQ C 0775 87-010-198-080 0E C-CAP,S 0.022-25 K B C2012 HCNM AV-D37
O GEQ C 0775 87-010-198-080 0E C-CAP,S 0.022-25 K B C2012 HRJNM AV-D37
O GEQ C 0775 87-010-198-080 0E C-CAP,S 0.022-25 K B C2012 HTNM AV-D37

O GEQ C 0776 87-010-181-080 0E C-CAP,S 1800P-50 K B GRM HCNM AV-D37
O GEQ C 0776 87-010-181-080 0E C-CAP,S 1800P-50 K B GRM HRJNM AV-D37
O GEQ C 0776 87-010-181-080 0E C-CAP,S 1800P-50 K B GRM HTNM AV-D37
O GEQ C 0777 87-010-194-080 0E C-CAP,S 0.047-25 Z F HCNM AV-D37
O GEQ C 0777 87-010-194-080 0E C-CAP,S 0.047-25 Z F HRJNM AV-D37
O GEQ C 0777 87-010-194-080 0E C-CAP,S 0.047-25 Z F HTNM AV-D37
O GEQ C 0778 87-010-185-080 0E C-CAP,S 3900P-50 K B HCNM AV-D37
O GEQ C 0778 87-010-185-080 0E C-CAP,S 3900P-50 K B HRJNM AV-D37
O GEQ C 0778 87-010-185-080 0E C-CAP,S 3900P-50 K B HTNM AV-D37
X GEQ C 0779 88-710-969-810 0E CAP,M 0.12-50 J TFL ECQV HCNM AV-D37

X GEQ C 0779 88-710-969-810 0E CAP,M 0.12-50 J TFL ECQV HRJNM AV-D37
X GEQ C 0779 88-710-969-810 0E CAP,M 0.12-50 J TFL ECQV HTNM AV-D37
O GEQ C 0780 87-010-197-080 0E C-CAP,S 0.01-25 K B C2012 HCNM AV-D37
O GEQ C 0780 87-010-197-080 0E C-CAP,S 0.01-25 K B C2012 HRJNM AV-D37
O GEQ C 0780 87-010-197-080 0E C-CAP,S 0.01-25 K B C2012 HTNM AV-D37
X GEQ C 0781 88-710-949-810 1A CAP,M 0.47-50 J TFL HCNM AV-D37
X GEQ C 0781 88-710-949-810 1A CAP,M 0.47-50 J TFL HRJNM AV-D37
X GEQ C 0781 88-710-949-810 1A CAP,M 0.47-50 J TFL HTNM AV-D37
O GEQ C 0782 87-010-183-080 0E C-CAP,S 2700P-50 K B GRM HCNM AV-D37
O GEQ C 0782 87-010-183-080 0E C-CAP,S 2700P-50 K B GRM HRJNM AV-D37

-21-

PARTS LIST

! = ! SAFTY PARTS
C = Components marked

K NO. = Only use japanese.

O GEQ C 0782 87-010-183-080 0E C-CAP,S 2700P-50 K B GRM HTNM AV-D37
O GEQ C 0783 87-010-198-080 0E C-CAP,S 0.022-25 K B C2012 HCNM AV-D37
O GEQ C 0783 87-010-198-080 0E C-CAP,S 0.022-25 K B C2012 HRJNM AV-D37
O GEQ C 0783 87-010-198-080 0E C-CAP,S 0.022-25 K B C2012 HTNM AV-D37
X GEQ C 0784 88-710-949-810 1A CAP,M 0.47-50 J TFL HCNM AV-D37
X GEQ C 0784 88-710-949-810 1A CAP,M 0.47-50 J TFL HRJNM AV-D37
X GEQ C 0784 88-710-949-810 1A CAP,M 0.47-50 J TFL HTNM AV-D37
X GEQ C 0785 88-710-969-810 0E CAP,M 0.12-50 J TFL ECQV HCNM AV-D37
X GEQ C 0785 88-710-969-810 0E CAP,M 0.12-50 J TFL ECQV HRJNM AV-D37
X GEQ C 0785 88-710-969-810 0E CAP,M 0.12-50 J TFL ECQV HTNM AV-D37

O GEQ C 0786 87-010-402-080 0E CAP,E 2.2-50 M 11L SME HCNM AV-D37
O GEQ C 0786 87-010-402-080 0E CAP,E 2.2-50 M 11L SME HRJNM AV-D37
O GEQ C 0786 87-010-402-080 0E CAP,E 2.2-50 M 11L SME HTNM AV-D37
O GEQ C 0787 87-010-402-080 0E CAP,E 2.2-50 M 11L SME HCNM AV-D37
O GEQ C 0787 87-010-402-080 0E CAP,E 2.2-50 M 11L SME HRJNM AV-D37
O GEQ C 0787 87-010-402-080 0E CAP,E 2.2-50 M 11L SME HTNM AV-D37
O GEQ C 0788 87-010-260-080 0E CAP,E 47-25 M 11L SME HCNM AV-D37
O GEQ C 0788 87-010-260-080 0E CAP,E 47-25 M 11L SME HRJNM AV-D37
O GEQ C 0788 87-010-260-080 0E CAP,E 47-25 M 11L SME HTNM AV-D37
O GEQ C 0789 87-010-260-080 0E CAP,E 47-25 M 11L SME HCNM AV-D37

O GEQ C 0789 87-010-260-080 0E CAP,E 47-25 M 11L SME HRJNM AV-D37
O GEQ C 0789 87-010-260-080 0E CAP,E 47-25 M 11L SME HTNM AV-D37
O GEQ C 0790 87-010-260-080 0E CAP,E 47-25 M 11L SME HCNM AV-D37
O GEQ C 0790 87-010-260-080 0E CAP,E 47-25 M 11L SME HRJNM AV-D37
O GEQ C 0790 87-010-260-080 0E CAP,E 47-25 M 11L SME HTNM AV-D37
O GEQ C 0791 87-010-405-080 0E CAP,E 10-50 M 11L SME HCNM AV-D37
O GEQ C 0791 87-010-405-080 0E CAP,E 10-50 M 11L SME HRJNM AV-D37
O GEQ C 0791 87-010-405-080 0E CAP,E 10-50 M 11L SME HTNM AV-D37
O GEQ C 0792 87-010-405-080 0E CAP,E 10-50 M 11L SME HCNM AV-D37
O GEQ C 0792 87-010-405-080 0E CAP,E 10-50 M 11L SME HRJNM AV-D37

All components used on this model at the production line are shown in this service manual.
However, please note that not all components will be available as spare parts for after-sales service.
Components marked S and O are designated as spare parts for service and will be stocked at the spare parts centers.
Components marked X and R are not designated as spare parts for after sales service, and will not be stocked at the spare parts centers.

C UNIT NAME REF NO. MODEL NAME! DESCRIPTIONK NO.PARTS CODE SUFFIX

O GEQ C 0792 87-010-405-080 0E CAP,E 10-50 M 11L SME HTNM AV-D37
O GEQ C 0793 87-012-368-080 0E C-CAP,S 0.1-50 Z F HCNM AV-D37
O GEQ C 0793 87-012-368-080 0E C-CAP,S 0.1-50 Z F HRJNM AV-D37
O GEQ C 0793 87-012-368-080 0E C-CAP,S 0.1-50 Z F HTNM AV-D37
O GEQ C 0794 87-012-368-080 0E C-CAP,S 0.1-50 Z F HCNM AV-D37
O GEQ C 0794 87-012-368-080 0E C-CAP,S 0.1-50 Z F HRJNM AV-D37
O GEQ C 0794 87-012-368-080 0E C-CAP,S 0.1-50 Z F HTNM AV-D37
X GEQ C 0795 88-710-969-810 0E CAP,M 0.12-50 J TFL ECQV HCNM AV-D37
X GEQ C 0795 88-710-969-810 0E CAP,M 0.12-50 J TFL ECQV HRJNM AV-D37
X GEQ C 0795 88-710-969-810 0E CAP,M 0.12-50 J TFL ECQV HTNM AV-D37

X GEQ C 0796 88-710-949-810 1A CAP,M 0.47-50 J TFL HCNM AV-D37
X GEQ C 0796 88-710-949-810 1A CAP,M 0.47-50 J TFL HRJNM AV-D37
X GEQ C 0796 88-710-949-810 1A CAP,M 0.47-50 J TFL HTNM AV-D37
O GEQ C 0797 87-010-322-080 0E C-CAP,S 100P-50 J CH GRM HCNM AV-D37
O GEQ C 0797 87-010-322-080 0E C-CAP,S 100P-50 J CH GRM HRJNM AV-D37
O GEQ C 0797 87-010-322-080 0E C-CAP,S 100P-50 J CH GRM HTNM AV-D37
O GEQ C 0798 87-010-322-080 0E C-CAP,S 100P-50 J CH GRM HCNM AV-D37
O GEQ C 0798 87-010-322-080 0E C-CAP,S 100P-50 J CH GRM HRJNM AV-D37
O GEQ C 0798 87-010-322-080 0E C-CAP,S 100P-50 J CH GRM HTNM AV-D37
O GEQ C 0799 87-010-322-080 0E C-CAP,S 100P-50 J CH GRM HCNM AV-D37

O GEQ C 0799 87-010-322-080 0E C-CAP,S 100P-50 J CH GRM HRJNM AV-D37
O GEQ C 0799 87-010-322-080 0E C-CAP,S 100P-50 J CH GRM HTNM AV-D37
O GEQ CN 0701 87-099-670-010 0E CONN,9P TUC-P9X-B1 HCNM AV-D37
O GEQ CN 0701 87-099-670-010 0E CONN,9P TUC-P9X-B1 HRJNM AV-D37
O GEQ CN 0701 87-099-670-010 0E CONN,9P TUC-P9X-B1 HTNM AV-D37
O GEQ CN 0702 8A-AR3-653-010 1B CONN ASSY,10P (GEQ) HCNM AV-D37
O GEQ CN 0702 8A-AR3-653-010 1B CONN ASSY,10P (GEQ) HRJNM AV-D37
O GEQ CN 0702 8A-AR3-653-010 1B CONN ASSY,10P (GEQ) HTNM AV-D37
S GEQ D 0721 87-A40-344-080 0E ZENER,MTZJ6.2C HCNM AV-D37
S GEQ D 0721 87-A40-344-080 0E ZENER,MTZJ6.2C HRJNM AV-D37

S GEQ D 0721 87-A40-344-080 0E ZENER,MTZJ6.2C HTNM AV-D37
S GEQ D 0722 87-A40-002-080 0E ZENER,MTZJ5.1C HCNM AV-D37
S GEQ D 0722 87-A40-002-080 0E ZENER,MTZJ5.1C HRJNM AV-D37
S GEQ D 0722 87-A40-002-080 0E ZENER,MTZJ5.1C HTNM AV-D37
S GEQ D 0723 87-A40-344-080 0E ZENER,MTZJ6.2C HCNM AV-D37
S GEQ D 0723 87-A40-344-080 0E ZENER,MTZJ6.2C HRJNM AV-D37
S GEQ D 0723 87-A40-344-080 0E ZENER,MTZJ6.2C HTNM AV-D37
S GEQ IC 0701 87-A20-437-010 2A C-IC,M62431FP HCNM AV-D37
S GEQ IC 0701 87-A20-437-010 2A C-IC,M62431FP HRJNM AV-D37
S GEQ IC 0701 87-A20-437-010 2A C-IC,M62431FP HTNM AV-D37

-22-

PARTS LIST

! = ! SAFTY PARTS
C = Components marked

K NO. = Only use japanese.

X GEQ JR 0703 88-118-000-080 0E C-JUMPER,S HCNM AV-D37
X GEQ JR 0703 88-118-000-080 0E C-JUMPER,S HRJNM AV-D37
X GEQ JR 0703 88-118-000-080 0E C-JUMPER,S HTNM AV-D37
X GEQ JR 0704 88-118-000-080 0E C-JUMPER,S HCNM AV-D37
X GEQ JR 0704 88-118-000-080 0E C-JUMPER,S HRJNM AV-D37
X GEQ JR 0704 88-118-000-080 0E C-JUMPER,S HTNM AV-D37
X GEQ JR 0705 88-118-000-080 0E C-JUMPER,S HCNM AV-D37
X GEQ JR 0705 88-118-000-080 0E C-JUMPER,S HRJNM AV-D37
X GEQ JR 0705 88-118-000-080 0E C-JUMPER,S HTNM AV-D37
X GEQ JR 0706 88-118-000-080 0E C-JUMPER,S HCNM AV-D37

X GEQ JR 0706 88-118-000-080 0E C-JUMPER,S HRJNM AV-D37
X GEQ JR 0706 88-118-000-080 0E C-JUMPER,S HTNM AV-D37
X GEQ R 0507 88-118-750-080 0E C-RES,S 75-1/10W J HCNM AV-D37
X GEQ R 0507 88-118-750-080 0E C-RES,S 75-1/10W J HRJNM AV-D37
X GEQ R 0507 88-118-750-080 0E C-RES,S 75-1/10W J HTNM AV-D37
X GEQ R 0508 88-118-109-080 0E C-RES,S 1-1/10W J HCNM AV-D37
X GEQ R 0508 88-118-109-080 0E C-RES,S 1-1/10W J HRJNM AV-D37
X GEQ R 0508 88-118-109-080 0E C-RES,S 1-1/10W J HTNM AV-D37
X GEQ R 0781 88-128-470-080 0E C-RES, 47-1/8W J HCNM AV-D37
X GEQ R 0781 88-128-470-080 0E C-RES, 47-1/8W J HRJNM AV-D37

X GEQ R 0781 88-128-470-080 0E C-RES, 47-1/8W J HTNM AV-D37
X GEQ R 0782 88-128-470-080 0E C-RES, 47-1/8W J HCNM AV-D37
X GEQ R 0782 88-128-470-080 0E C-RES, 47-1/8W J HRJNM AV-D37
X GEQ R 0782 88-128-470-080 0E C-RES, 47-1/8W J HTNM AV-D37
X GEQ R 0783 88-128-470-080 0E C-RES, 47-1/8W J HCNM AV-D37
X GEQ R 0783 88-128-470-080 0E C-RES, 47-1/8W J HRJNM AV-D37
X GEQ R 0783 88-128-470-080 0E C-RES, 47-1/8W J HTNM AV-D37
X GEQ R 0784 88-128-470-080 0E C-RES, 47-1/8W J HCNM AV-D37
X GEQ R 0784 88-128-470-080 0E C-RES, 47-1/8W J HRJNM AV-D37
X GEQ R 0784 88-128-470-080 0E C-RES, 47-1/8W J HTNM AV-D37

All components used on this model at the production line are shown in this service manual.
However, please note that not all components will be available as spare parts for after-sales service.
Components marked S and O are designated as spare parts for service and will be stocked at the spare parts centers.
Components marked X and R are not designated as spare parts for after sales service, and will not be stocked at the spare parts centers.

C UNIT NAME REF NO. MODEL NAME! DESCRIPTIONK NO.PARTS CODE SUFFIX

X GEQ R 0785 88-128-122-080 0E C-RES, 1.2K-1/8W J HCNM AV-D37
X GEQ R 0785 88-128-122-080 0E C-RES, 1.2K-1/8W J HRJNM AV-D37
X GEQ R 0785 88-128-122-080 0E C-RES, 1.2K-1/8W J HTNM AV-D37
X GEQ R 0788 88-118-103-080 0E C-RES,S 10K-1/10W J HCNM AV-D37
X GEQ R 0788 88-118-103-080 0E C-RES,S 10K-1/10W J HRJNM AV-D37
X GEQ R 0788 88-118-103-080 0E C-RES,S 10K-1/10W J HTNM AV-D37
X GEQ R 0789 88-118-103-080 0E C-RES,S 10K-1/10W J HCNM AV-D37
X GEQ R 0789 88-118-103-080 0E C-RES,S 10K-1/10W J HRJNM AV-D37
X GEQ R 0789 88-118-103-080 0E C-RES,S 10K-1/10W J HTNM AV-D37
X GEQ R 0790 88-118-102-080 0E C-RES,S 1K-1/10W J HCNM AV-D37

X GEQ R 0790 88-118-102-080 0E C-RES,S 1K-1/10W J HRJNM AV-D37
X GEQ R 0790 88-118-102-080 0E C-RES,S 1K-1/10W J HTNM AV-D37
X GEQ R 0792 88-128-470-080 0E C-RES, 47-1/8W J HCNM AV-D37
X GEQ R 0792 88-128-470-080 0E C-RES, 47-1/8W J HRJNM AV-D37
X GEQ R 0792 88-128-470-080 0E C-RES, 47-1/8W J HTNM AV-D37
X GEQ R 0793 88-118-102-080 0E C-RES,S 1K-1/10W J HCNM AV-D37
X GEQ R 0793 88-118-102-080 0E C-RES,S 1K-1/10W J HRJNM AV-D37
X GEQ R 0793 88-118-102-080 0E C-RES,S 1K-1/10W J HTNM AV-D37
X GEQ R 0794 88-118-102-080 0E C-RES,S 1K-1/10W J HCNM AV-D37
X GEQ R 0794 88-118-102-080 0E C-RES,S 1K-1/10W J HRJNM AV-D37

X GEQ R 0794 88-118-102-080 0E C-RES,S 1K-1/10W J HTNM AV-D37
X GEQ R 0795 88-118-000-080 0E C-JUMPER,S HCNM AV-D37
X GEQ R 0795 88-118-000-080 0E C-JUMPER,S HRJNM AV-D37
X GEQ R 0795 88-118-000-080 0E C-JUMPER,S HTNM AV-D37
X GEQ R 0796 88-118-000-080 0E C-JUMPER,S HCNM AV-D37
X GEQ R 0796 88-118-000-080 0E C-JUMPER,S HRJNM AV-D37
X GEQ R 0796 88-118-000-080 0E C-JUMPER,S HTNM AV-D37
X GEQ R 0797 88-128-470-080 0E C-RES, 47-1/8W J HCNM AV-D37
X GEQ R 0797 88-128-470-080 0E C-RES, 47-1/8W J HRJNM AV-D37
X GEQ R 0797 88-128-470-080 0E C-RES, 47-1/8W J HTNM AV-D37

! O KEY CON SW CN 0509 87-099-667-010 0E CONN,8P H TUC-P08P-B1 HCNM AV-D37
! O KEY CON SW CN 0509 87-099-667-010 0E CONN,8P H TUC-P08P-B1 HRJNM AV-D37
! O KEY CON SW CN 0509 87-099-667-010 0E CONN,8P H TUC-P08P-B1 HTNM AV-D37
X KEY CON SW JR 0651 88-118-000-080 0E C-JUMPER,S HCNM AV-D37
X KEY CON SW JR 0651 88-118-000-080 0E C-JUMPER,S HRJNM AV-D37
X KEY CON SW JR 0651 88-118-000-080 0E C-JUMPER,S HTNM AV-D37
X KEY CON SW JR 0652 88-129-000-080 0E C-JUMPER,3216 HCNM AV-D37
X KEY CON SW JR 0652 88-129-000-080 0E C-JUMPER,3216 HRJNM AV-D37
X KEY CON SW JR 0652 88-129-000-080 0E C-JUMPER,3216 HTNM AV-D37
X KEY CON SW JR 0653 88-118-000-080 0E C-JUMPER,S HCNM AV-D37

-23-

PARTS LIST

! = ! SAFTY PARTS
C = Components marked

K NO. = Only use japanese.

X KEY CON SW JR 0653 88-118-000-080 0E C-JUMPER,S HRJNM AV-D37
X KEY CON SW JR 0653 88-118-000-080 0E C-JUMPER,S HTNM AV-D37
X KEY CON SW JR 0654 88-118-000-080 0E C-JUMPER,S HCNM AV-D37
X KEY CON SW JR 0654 88-118-000-080 0E C-JUMPER,S HRJNM AV-D37
X KEY CON SW JR 0654 88-118-000-080 0E C-JUMPER,S HTNM AV-D37
X KEY CON SW JR 0655 88-118-000-080 0E C-JUMPER,S HCNM AV-D37
X KEY CON SW JR 0655 88-118-000-080 0E C-JUMPER,S HRJNM AV-D37
X KEY CON SW JR 0655 88-118-000-080 0E C-JUMPER,S HTNM AV-D37
O KNOB 8A-AR3-050-010 0E KEY,POWER GLD HCNM AV-D37
O KNOB 8A-AR3-050-010 0E KEY,POWER GLD HRJNM AV-D37

O KNOB 8A-AR3-050-010 0E KEY,POWER GLD HTNM AV-D37
O KNOB 8A-AR3-051-010 0E KEY,ECO GLD HCNM AV-D37
O KNOB 8A-AR3-051-010 0E KEY,ECO GLD HRJNM AV-D37
O KNOB 8A-AR3-051-010 0E KEY,ECO GLD HTNM AV-D37
O KNOB 8A-AR3-052-010 0E KEY,BAL GLD HCNM AV-D37
O KNOB 8A-AR3-052-010 0E KEY,BAL GLD HRJNM AV-D37
O KNOB 8A-AR3-052-010 0E KEY,BAL GLD HTNM AV-D37
O KNOB 8A-AR3-053-010 -- COVER, MIC GLD HCNM AV-D37
O KNOB 8A-AR3-053-010 -- COVER, MIC GLD HRJNM AV-D37
O KNOB 8A-AR3-053-010 -- COVER, MIC GLD HTNM AV-D37

O KNOB 8A-AR3-054-010 0E KNOB,RTRY JOG GLD HCNM AV-D37
O KNOB 8A-AR3-054-010 0E KNOB,RTRY JOG GLD HRJNM AV-D37
O KNOB 8A-AR3-054-010 0E KNOB,RTRY JOG GLD HTNM AV-D37
O KNOB 8A-AR3-055-010 1A KNOB,RTRY VOL GLD HCNM AV-D37
O KNOB 8A-AR3-055-010 1A KNOB,RTRY VOL GLD HRJNM AV-D37
O KNOB 8A-AR3-055-010 1A KNOB,RTRY VOL GLD HTNM AV-D37
O KNOB 8A-AR3-056-010 1A BTN,SP GLD HCNM AV-D37
O KNOB 8A-AR3-056-010 1A BTN,SP GLD HRJNM AV-D37
O KNOB 8A-AR3-056-010 1A BTN,SP GLD HTNM AV-D37
X KNOB 8A-AR3-057-010 -- KEY,BASS H GLD HCNM AV-D37

All components used on this model at the production line are shown in this service manual.
However, please note that not all components will be available as spare parts for after-sales service.
Components marked S and O are designated as spare parts for service and will be stocked at the spare parts centers.
Components marked X and R are not designated as spare parts for after sales service, and will not be stocked at the spare parts centers.

C UNIT NAME REF NO. MODEL NAME! DESCRIPTIONK NO.PARTS CODE SUFFIX

X KNOB 8A-AR3-057-010 -- KEY,BASS H GLD HRJNM AV-D37
X KNOB 8A-AR3-057-010 -- KEY,BASS H GLD HTNM AV-D37
X KNOB 8A-AR3-058-010 -- KEY,MONITOR H GLD HCNM AV-D37
X KNOB 8A-AR3-058-010 -- KEY,MONITOR H GLD HRJNM AV-D37
X KNOB 8A-AR3-058-010 -- KEY,MONITOR H GLD HTNM AV-D37
O KNOB 8A-AR3-059-010 -- KEY,ASSY DOLBY H GLD HCNM AV-D37
O KNOB 8A-AR3-059-010 -- KEY,ASSY DOLBY H GLD HRJNM AV-D37
O KNOB 8A-AR3-059-010 -- KEY,ASSY DOLBY H GLD HTNM AV-D37
O KNOB 8A-AR3-060-010 -- KEY,ASSY ENTER H GLD HCNM AV-D37
O KNOB 8A-AR3-060-010 -- KEY,ASSY ENTER H GLD HRJNM AV-D37

O KNOB 8A-AR3-060-010 -- KEY,ASSY ENTER H GLD HTNM AV-D37
X KNOB 8A-AR3-061-010 -- BTN,SUR GLD HCNM AV-D37
X KNOB 8A-AR3-061-010 -- BTN,SUR GLD HRJNM AV-D37
X KNOB 8A-AR3-061-010 -- BTN,SUR GLD HTNM AV-D37
X KNOB 8A-AR3-062-010 -- BTN,DSP GLD HCNM AV-D37
X KNOB 8A-AR3-062-010 -- BTN,DSP GLD HRJNM AV-D37
X KNOB 8A-AR3-062-010 -- BTN,DSP GLD HTNM AV-D37
X KNOB 8A-AR3-063-010 -- BTN,GEQ GLD HCNM AV-D37
X KNOB 8A-AR3-063-010 -- BTN,GEQ GLD HRJNM AV-D37
X KNOB 8A-AR3-063-010 -- BTN,GEQ GLD HTNM AV-D37

X KNOB 8A-AR3-064-010 -- BTN,ENTER GLD HCNM AV-D37
X KNOB 8A-AR3-064-010 -- BTN,ENTER GLD HRJNM AV-D37
X KNOB 8A-AR3-064-010 -- BTN,ENTER GLD HTNM AV-D37
X KNOB 8A-AR3-065-010 -- BTN,UP GLD HCNM AV-D37
X KNOB 8A-AR3-065-010 -- BTN,UP GLD HRJNM AV-D37
X KNOB 8A-AR3-065-010 -- BTN,UP GLD HTNM AV-D37
X KNOB 8A-AR3-066-010 -- BTN,DOWN GLD HCNM AV-D37
X KNOB 8A-AR3-066-010 -- BTN,DOWN GLD HRJNM AV-D37
X KNOB 8A-AR3-066-010 -- BTN,DOWN GLD HTNM AV-D37
O KNOB 8A-AR3-068-010 1D RING,VOL GLD HCNM AV-D37

O KNOB 8A-AR3-068-010 1D RING,VOL GLD HRJNM AV-D37
O KNOB 8A-AR3-068-010 1D RING,VOL GLD HTNM AV-D37
O KNOB 8A-AR3-069-010 1D RING,FUN GLD HCNM AV-D37
O KNOB 8A-AR3-069-010 1D RING,FUN GLD HRJNM AV-D37
O KNOB 8A-AR3-069-010 1D RING,FUN GLD HTNM AV-D37
X LBL,POP 8A-AR3-972-010 0E LBL,POP LH HCNM AV-D37
X LBL,POP 8A-AR3-972-010 0E LBL,POP LH HRJNM AV-D37
X LBL,POP 8A-AR3-972-010 0E LBL,POP LH HTNM AV-D37
O MACB MECHA 87-067-579-010 0E BVT2+3-8 W/0 SL0T HCNM AV-D37
O MACB MECHA 87-067-579-010 0E BVT2+3-8 W/0 SL0T HRJNM AV-D37

-24-

PARTS LIST

! = ! SAFTY PARTS
C = Components marked

K NO. = Only use japanese.

O MACB MECHA 87-067-579-010 0E BVT2+3-8 W/0 SL0T HTNM AV-D37
X MACB MECHA 88-AR1-213-010 0E HT-SINK,FET HCNM AV-D37
X MACB MECHA 88-AR1-213-010 0E HT-SINK,FET HRJNM AV-D37
X MACB MECHA 88-AR1-213-010 0E HT-SINK,FET HTNM AV-D37
X MACB MECHA 88-AR1-220-010 0E HT-SINK,TR VCC HCNM AV-D37
X MACB MECHA 88-AR1-220-010 0E HT-SINK,TR VCC HRJNM AV-D37
X MACB MECHA 88-AR1-220-010 0E HT-SINK,TR VCC HTNM AV-D37
X MECHANICAL 8Z-AR1-201-210 2M CHAS,MAIN HCNM AV-D37
X MECHANICAL 8Z-AR1-201-210 2M CHAS,MAIN HRJNM AV-D37
X MECHANICAL 8Z-AR1-201-210 2M CHAS,MAIN HTNM AV-D37

O MIC C 0601 87-010-196-080 0E C-CAP,S 0.1-25 Z F C2012 HCNM AV-D37
O MIC C 0601 87-010-196-080 0E C-CAP,S 0.1-25 Z F C2012 HRJNM AV-D37
O MIC C 0601 87-010-196-080 0E C-CAP,S 0.1-25 Z F C2012 HTNM AV-D37
O MIC C 0602 87-010-560-040 0E CAP,E 10-50 M 5L MA HCNM AV-D37
O MIC C 0602 87-010-560-040 0E CAP,E 10-50 M 5L MA HRJNM AV-D37
O MIC C 0602 87-010-560-040 0E CAP,E 10-50 M 5L MA HTNM AV-D37
O MIC C 0603 87-010-491-040 0E CAP,E 0.22-50 M 5L SRE HCNM AV-D37
O MIC C 0603 87-010-491-040 0E CAP,E 0.22-50 M 5L SRE HRJNM AV-D37
O MIC C 0603 87-010-491-040 0E CAP,E 0.22-50 M 5L SRE HTNM AV-D37
O MIC C 0604 87-A10-189-040 0E CAP,E 220-10 M 5L HCNM AV-D37

O MIC C 0604 87-A10-189-040 0E CAP,E 220-10 M 5L HRJNM AV-D37
O MIC C 0604 87-A10-189-040 0E CAP,E 220-10 M 5L HTNM AV-D37
O MIC C 0605 87-010-322-080 0E C-CAP,S 100P-50 J CH GRM HCNM AV-D37
O MIC C 0605 87-010-322-080 0E C-CAP,S 100P-50 J CH GRM HRJNM AV-D37
O MIC C 0605 87-010-322-080 0E C-CAP,S 100P-50 J CH GRM HTNM AV-D37
O MIC C 0606 87-010-321-080 0E C-CAP,S 82P-50 J CH HCNM AV-D37
O MIC C 0606 87-010-321-080 0E C-CAP,S 82P-50 J CH HRJNM AV-D37
O MIC C 0606 87-010-321-080 0E C-CAP,S 82P-50 J CH HTNM AV-D37
O MIC C 0607 87-010-196-080 0E C-CAP,S 0.1-25 Z F C2012 HCNM AV-D37
O MIC C 0607 87-010-196-080 0E C-CAP,S 0.1-25 Z F C2012 HRJNM AV-D37

All components used on this model at the production line are shown in this service manual.
However, please note that not all components will be available as spare parts for after-sales service.
Components marked S and O are designated as spare parts for service and will be stocked at the spare parts centers.
Components marked X and R are not designated as spare parts for after sales service, and will not be stocked at the spare parts centers.

C UNIT NAME REF NO. MODEL NAME! DESCRIPTIONK NO.PARTS CODE SUFFIX

O MIC C 0607 87-010-196-080 0E C-CAP,S 0.1-25 Z F C2012 HTNM AV-D37
O MIC C 0608 87-010-186-080 0E C-CAP,S 4700P-50 K B C2012 HCNM AV-D37
O MIC C 0608 87-010-186-080 0E C-CAP,S 4700P-50 K B C2012 HRJNM AV-D37
O MIC C 0608 87-010-186-080 0E C-CAP,S 4700P-50 K B C2012 HTNM AV-D37
O MIC C 0609 87-010-188-080 0E C-CAP,S 6800P-50 K B C2012 HCNM AV-D37
O MIC C 0609 87-010-188-080 0E C-CAP,S 6800P-50 K B C2012 HRJNM AV-D37
O MIC C 0609 87-010-188-080 0E C-CAP,S 6800P-50 K B C2012 HTNM AV-D37
O MIC C 0610 87-010-560-040 0E CAP,E 10-50 M 5L MA HCNM AV-D37
O MIC C 0610 87-010-560-040 0E CAP,E 10-50 M 5L MA HRJNM AV-D37
O MIC C 0610 87-010-560-040 0E CAP,E 10-50 M 5L MA HTNM AV-D37

O MIC C 0611 87-010-322-080 0E C-CAP,S 100P-50 J CH GRM HCNM AV-D37
O MIC C 0611 87-010-322-080 0E C-CAP,S 100P-50 J CH GRM HRJNM AV-D37
O MIC C 0611 87-010-322-080 0E C-CAP,S 100P-50 J CH GRM HTNM AV-D37
O MIC C 0612 87-010-177-080 0E C-CAP,S 820P-50 J SL C2012 HCNM AV-D37
O MIC C 0612 87-010-177-080 0E C-CAP,S 820P-50 J SL C2012 HRJNM AV-D37
O MIC C 0612 87-010-177-080 0E C-CAP,S 820P-50 J SL C2012 HTNM AV-D37
O MIC C 0613 87-010-552-040 0E CAP,E 22-16 M 5L SRE HCNM AV-D37
O MIC C 0613 87-010-552-040 0E CAP,E 22-16 M 5L SRE HRJNM AV-D37
O MIC C 0613 87-010-552-040 0E CAP,E 22-16 M 5L SRE HTNM AV-D37
O MIC C 0614 87-016-462-080 0E C-CAP,S 1-16 Z F HCNM AV-D37

O MIC C 0614 87-016-462-080 0E C-CAP,S 1-16 Z F HRJNM AV-D37
O MIC C 0614 87-016-462-080 0E C-CAP,S 1-16 Z F HTNM AV-D37
O MIC CN 0601 87-009-362-010 0E CONN,6P H BLK BTMK HCNM AV-D37
O MIC CN 0601 87-009-362-010 0E CONN,6P H BLK BTMK HTNM AV-D37
X MIC CN 0601 87-009-362-010 0E CONN,6P H BLK BTMK HRJNM AV-D37
S MIC D 0601 87-020-465-080 0E DIODE,1SS133 HCNM AV-D37
S MIC D 0601 87-020-465-080 0E DIODE,1SS133 HRJNM AV-D37
S MIC D 0601 87-020-465-080 0E DIODE,1SS133 HTNM AV-D37
X MIC EP 0601 81-689-212-010 0E PLATE,EARTH HCNM AV-D37
X MIC EP 0601 81-689-212-010 0E PLATE,EARTH HRJNM AV-D37

X MIC EP 0601 81-689-212-010 0E PLATE,EARTH HTNM AV-D37
X MIC FB 0601 88-100-000-010 0E PLATING-JW, 0.58 SN95 HCNM AV-D37
X MIC FB 0601 88-100-000-010 0E PLATING-JW, 0.58 SN95 HRJNM AV-D37
X MIC FB 0601 88-100-000-010 0E PLATING-JW, 0.58 SN95 HTNM AV-D37
S MIC IC 0601 87-A21-419-040 0E C-IC,NJM14558MD-TE2 HCNM AV-D37
S MIC IC 0601 87-A21-419-040 0E C-IC,NJM14558MD-TE2 HRJNM AV-D37
S MIC IC 0601 87-A21-419-040 0E C-IC,NJM14558MD-TE2 HTNM AV-D37
O MIC J 0601 87-A60-188-010 1A JACK,6.3 BLK MONO W/SW MIC HCNM AV-D37
O MIC J 0601 87-A60-188-010 1A JACK,6.3 BLK MONO W/SW MIC HRJNM AV-D37
O MIC J 0601 87-A60-188-010 1A JACK,6.3 BLK MONO W/SW MIC HTNM AV-D37

-25-

PARTS LIST

! = ! SAFTY PARTS
C = Components marked

K NO. = Only use japanese.

O MIC J 0602 87-A60-188-010 1A JACK,6.3 BLK MONO W/SW MIC HCNM AV-D37
O MIC J 0602 87-A60-188-010 1A JACK,6.3 BLK MONO W/SW MIC HRJNM AV-D37
O MIC J 0602 87-A60-188-010 1A JACK,6.3 BLK MONO W/SW MIC HTNM AV-D37
X MIC JR 0601 88-129-000-080 0E C-JUMPER,3216 HCNM AV-D37
X MIC JR 0601 88-129-000-080 0E C-JUMPER,3216 HRJNM AV-D37
X MIC JR 0601 88-129-000-080 0E C-JUMPER,3216 HTNM AV-D37
X MIC JR 0602 88-118-000-080 0E C-JUMPER,S HCNM AV-D37
X MIC JR 0602 88-118-000-080 0E C-JUMPER,S HRJNM AV-D37
X MIC JR 0602 88-118-000-080 0E C-JUMPER,S HTNM AV-D37
S MIC Q 0601 87-A30-087-080 0E C-FET,2SK2158 HCNM AV-D37

S MIC Q 0601 87-A30-087-080 0E C-FET,2SK2158 HRJNM AV-D37
S MIC Q 0601 87-A30-087-080 0E C-FET,2SK2158 HTNM AV-D37
X MIC R 0601 88-118-472-080 0E C-RES,S 4.7K-1/10W J HCNM AV-D37
X MIC R 0601 88-118-472-080 0E C-RES,S 4.7K-1/10W J HRJNM AV-D37
X MIC R 0601 88-118-472-080 0E C-RES,S 4.7K-1/10W J HTNM AV-D37
X MIC R 0602 88-118-472-080 0E C-RES,S 4.7K-1/10W J HCNM AV-D37
X MIC R 0602 88-118-472-080 0E C-RES,S 4.7K-1/10W J HRJNM AV-D37
X MIC R 0602 88-118-472-080 0E C-RES,S 4.7K-1/10W J HTNM AV-D37
X MIC R 0603 88-128-101-080 0E C-RES, 100-1/8W J HCNM AV-D37
X MIC R 0603 88-128-101-080 0E C-RES, 100-1/8W J HRJNM AV-D37

X MIC R 0603 88-128-101-080 0E C-RES, 100-1/8W J HTNM AV-D37
X MIC R 0604 88-118-222-080 0E C-RES,S 2.2K-1/10W J HCNM AV-D37
X MIC R 0604 88-118-222-080 0E C-RES,S 2.2K-1/10W J HRJNM AV-D37
X MIC R 0604 88-118-222-080 0E C-RES,S 2.2K-1/10W J HTNM AV-D37
X MIC R 0605 88-118-222-080 0E C-RES,S 2.2K-1/10W J HCNM AV-D37
X MIC R 0605 88-118-222-080 0E C-RES,S 2.2K-1/10W J HRJNM AV-D37
X MIC R 0605 88-118-222-080 0E C-RES,S 2.2K-1/10W J HTNM AV-D37
X MIC R 0606 88-118-222-080 0E C-RES,S 2.2K-1/10W J HCNM AV-D37
X MIC R 0606 88-118-222-080 0E C-RES,S 2.2K-1/10W J HRJNM AV-D37
X MIC R 0606 88-118-222-080 0E C-RES,S 2.2K-1/10W J HTNM AV-D37

All components used on this model at the production line are shown in this service manual.
However, please note that not all components will be available as spare parts for after-sales service.
Components marked S and O are designated as spare parts for service and will be stocked at the spare parts centers.
Components marked X and R are not designated as spare parts for after sales service, and will not be stocked at the spare parts centers.

C UNIT NAME REF NO. MODEL NAME! DESCRIPTIONK NO.PARTS CODE SUFFIX

X MIC R 0607 88-118-101-080 0E C-RES,S 100-1/10W J HCNM AV-D37
X MIC R 0607 88-118-101-080 0E C-RES,S 100-1/10W J HRJNM AV-D37
X MIC R 0607 88-118-101-080 0E C-RES,S 100-1/10W J HTNM AV-D37
X MIC R 0608 88-118-274-080 0E C-RES,S 270K-1/10W J HCNM AV-D37
X MIC R 0608 88-118-274-080 0E C-RES,S 270K-1/10W J HRJNM AV-D37
X MIC R 0608 88-118-274-080 0E C-RES,S 270K-1/10W J HTNM AV-D37
X MIC R 0609 88-118-104-080 0E C-RES,S 100K-1/10W J HCNM AV-D37
X MIC R 0609 88-118-104-080 0E C-RES,S 100K-1/10W J HRJNM AV-D37
X MIC R 0609 88-118-104-080 0E C-RES,S 100K-1/10W J HTNM AV-D37
X MIC R 0610 88-118-224-080 0E C-RES,S 220K-1/10W J HCNM AV-D37

X MIC R 0610 88-118-224-080 0E C-RES,S 220K-1/10W J HRJNM AV-D37
X MIC R 0610 88-118-224-080 0E C-RES,S 220K-1/10W J HTNM AV-D37
X MIC R 0611 88-118-101-080 0E C-RES,S 100-1/10W J HCNM AV-D37
X MIC R 0611 88-118-101-080 0E C-RES,S 100-1/10W J HRJNM AV-D37
X MIC R 0611 88-118-101-080 0E C-RES,S 100-1/10W J HTNM AV-D37
X MIC R 0612 88-118-222-080 0E C-RES,S 2.2K-1/10W J HCNM AV-D37
X MIC R 0612 88-118-222-080 0E C-RES,S 2.2K-1/10W J HRJNM AV-D37
X MIC R 0612 88-118-222-080 0E C-RES,S 2.2K-1/10W J HTNM AV-D37
X MIC R 0613 88-118-102-080 0E C-RES,S 1K-1/10W J HCNM AV-D37
X MIC R 0613 88-118-102-080 0E C-RES,S 1K-1/10W J HRJNM AV-D37

X MIC R 0613 88-118-102-080 0E C-RES,S 1K-1/10W J HTNM AV-D37
X MIC R 0614 88-118-471-080 0E C-RES,S 470-1/10W J HCNM AV-D37
X MIC R 0614 88-118-471-080 0E C-RES,S 470-1/10W J HRJNM AV-D37
X MIC R 0614 88-118-471-080 0E C-RES,S 470-1/10W J HTNM AV-D37
X MIC R 0615 88-118-273-080 0E C-RES,S 27K-1/10W J HCNM AV-D37
X MIC R 0615 88-118-273-080 0E C-RES,S 27K-1/10W J HRJNM AV-D37
X MIC R 0615 88-118-273-080 0E C-RES,S 27K-1/10W J HTNM AV-D37
X MIC CB MECHA SLD0601 8Z-AR1-211-010 0E PLATE,SHIELD MIC HCNM AV-D37
X MIC CB MECHA SLD0601 8Z-AR1-211-010 0E PLATE,SHIELD MIC HRJNM AV-D37
X MIC CB MECHA SLD0601 8Z-AR1-211-010 0E PLATE,SHIELD MIC HTNM AV-D37

X MICON * 8A-AR4-611-110 1D PWB,FRONT 2M HCNM AV-D37
X MICON * 8A-AR4-611-110 1D PWB,FRONT 2M HRJNM AV-D37
X MICON * 8A-AR4-611-110 1D PWB,FRONT 2M HTNM AV-D37
O MICON C 0707 87-010-382-040 0E CAP,E 22-25 M 11L SME HCNM AV-D37
O MICON C 0707 87-010-382-040 0E CAP,E 22-25 M 11L SME HRJNM AV-D37
O MICON C 0707 87-010-382-040 0E CAP,E 22-25 M 11L SME HTNM AV-D37
O MICON C 0708 87-010-382-040 0E CAP,E 22-25 M 11L SME HCNM AV-D37
O MICON C 0708 87-010-382-040 0E CAP,E 22-25 M 11L SME HRJNM AV-D37
O MICON C 0708 87-010-382-040 0E CAP,E 22-25 M 11L SME HTNM AV-D37
O MICON C 0709 87-010-382-040 0E CAP,E 22-25 M 11L SME HCNM AV-D37

-26-

PARTS LIST

! = ! SAFTY PARTS
C = Components marked

K NO. = Only use japanese.

O MICON C 0709 87-010-382-040 0E CAP,E 22-25 M 11L SME HRJNM AV-D37
O MICON C 0709 87-010-382-040 0E CAP,E 22-25 M 11L SME HTNM AV-D37
O MICON C 0710 87-010-382-040 0E CAP,E 22-25 M 11L SME HCNM AV-D37
O MICON C 0710 87-010-382-040 0E CAP,E 22-25 M 11L SME HRJNM AV-D37
O MICON C 0710 87-010-382-040 0E CAP,E 22-25 M 11L SME HTNM AV-D37
O MICON C 0711 87-010-263-040 0E CAP,E 100-10 M 11L SME HCNM AV-D37
O MICON C 0711 87-010-263-040 0E CAP,E 100-10 M 11L SME HRJNM AV-D37
O MICON C 0711 87-010-263-040 0E CAP,E 100-10 M 11L SME HTNM AV-D37
O MICON C 0712 87-010-382-040 0E CAP,E 22-25 M 11L SME HCNM AV-D37
O MICON C 0712 87-010-382-040 0E CAP,E 22-25 M 11L SME HRJNM AV-D37

O MICON C 0712 87-010-382-040 0E CAP,E 22-25 M 11L SME HTNM AV-D37
O MICON C 0714 87-010-560-040 0E CAP,E 10-50 M 5L MA HCNM AV-D37
O MICON C 0714 87-010-560-040 0E CAP,E 10-50 M 5L MA HRJNM AV-D37
O MICON C 0714 87-010-560-040 0E CAP,E 10-50 M 5L MA HTNM AV-D37
O MICON C 0723 87-010-405-040 0E CAP,E 10-50 M 11L SME HCNM AV-D37
O MICON C 0723 87-010-405-040 0E CAP,E 10-50 M 11L SME HRJNM AV-D37
O MICON C 0723 87-010-405-040 0E CAP,E 10-50 M 11L SME HTNM AV-D37
O MICON C 0801 87-010-322-080 0E C-CAP,S 100P-50 J CH GRM HCNM AV-D37
O MICON C 0801 87-010-322-080 0E C-CAP,S 100P-50 J CH GRM HRJNM AV-D37
O MICON C 0801 87-010-322-080 0E C-CAP,S 100P-50 J CH GRM HTNM AV-D37

O MICON C 0803 87-010-196-080 0E C-CAP,S 0.1-25 Z F C2012 HCNM AV-D37
O MICON C 0803 87-010-196-080 0E C-CAP,S 0.1-25 Z F C2012 HRJNM AV-D37
O MICON C 0803 87-010-196-080 0E C-CAP,S 0.1-25 Z F C2012 HTNM AV-D37
O MICON C 0805 87-010-198-080 0E C-CAP,S 0.022-25 K B C2012 HCNM AV-D37
O MICON C 0805 87-010-198-080 0E C-CAP,S 0.022-25 K B C2012 HRJNM AV-D37
O MICON C 0805 87-010-198-080 0E C-CAP,S 0.022-25 K B C2012 HTNM AV-D37
O MICON C 0806 87-010-400-040 0E CAP,E 0.47-50 M 11L SME HCNM AV-D37
O MICON C 0806 87-010-400-040 0E CAP,E 0.47-50 M 11L SME HRJNM AV-D37
O MICON C 0806 87-010-400-040 0E CAP,E 0.47-50 M 11L SME HTNM AV-D37
O MICON C 0807 87-010-196-080 0E C-CAP,S 0.1-25 Z F C2012 HCNM AV-D37

All components used on this model at the production line are shown in this service manual.
However, please note that not all components will be available as spare parts for after-sales service.
Components marked S and O are designated as spare parts for service and will be stocked at the spare parts centers.
Components marked X and R are not designated as spare parts for after sales service, and will not be stocked at the spare parts centers.

C UNIT NAME REF NO. MODEL NAME! DESCRIPTIONK NO.PARTS CODE SUFFIX

O MICON C 0807 87-010-196-080 0E C-CAP,S 0.1-25 Z F C2012 HRJNM AV-D37
O MICON C 0807 87-010-196-080 0E C-CAP,S 0.1-25 Z F C2012 HTNM AV-D37
O MICON C 0808 87-010-498-040 0E CAP,E 10-16 M 5L SRE HCNM AV-D37
O MICON C 0808 87-010-498-040 0E CAP,E 10-16 M 5L SRE HRJNM AV-D37
O MICON C 0808 87-010-498-040 0E CAP,E 10-16 M 5L SRE HTNM AV-D37
O MICON C 0809 87-010-196-080 0E C-CAP,S 0.1-25 Z F C2012 HCNM AV-D37
O MICON C 0809 87-010-196-080 0E C-CAP,S 0.1-25 Z F C2012 HRJNM AV-D37
O MICON C 0809 87-010-196-080 0E C-CAP,S 0.1-25 Z F C2012 HTNM AV-D37
O MICON C 0810 87-010-196-080 0E C-CAP,S 0.1-25 Z F C2012 HCNM AV-D37
O MICON C 0810 87-010-196-080 0E C-CAP,S 0.1-25 Z F C2012 HRJNM AV-D37

O MICON C 0810 87-010-196-080 0E C-CAP,S 0.1-25 Z F C2012 HTNM AV-D37
O MICON C 0811 87-A10-189-040 0E CAP,E 220-10 M 5L HCNM AV-D37
O MICON C 0811 87-A10-189-040 0E CAP,E 220-10 M 5L HRJNM AV-D37
O MICON C 0811 87-A10-189-040 0E CAP,E 220-10 M 5L HTNM AV-D37
O MICON C 0812 87-A10-189-040 0E CAP,E 220-10 M 5L HCNM AV-D37
O MICON C 0812 87-A10-189-040 0E CAP,E 220-10 M 5L HRJNM AV-D37
O MICON C 0812 87-A10-189-040 0E CAP,E 220-10 M 5L HTNM AV-D37
O MICON C 0813 87-010-401-040 0E CAP,E 1-50 M 11L SME HCNM AV-D37
O MICON C 0813 87-010-401-040 0E CAP,E 1-50 M 11L SME HRJNM AV-D37
O MICON C 0813 87-010-401-040 0E CAP,E 1-50 M 11L SME HTNM AV-D37

O MICON C 0814 87-010-178-080 0E C-CAP,S 1000P-50 K B C2012 HCNM AV-D37
O MICON C 0814 87-010-178-080 0E C-CAP,S 1000P-50 K B C2012 HRJNM AV-D37
O MICON C 0814 87-010-178-080 0E C-CAP,S 1000P-50 K B C2012 HTNM AV-D37
O MICON C 0815 87-010-196-080 0E C-CAP,S 0.1-25 Z F C2012 HCNM AV-D37
O MICON C 0815 87-010-196-080 0E C-CAP,S 0.1-25 Z F C2012 HRJNM AV-D37
O MICON C 0815 87-010-196-080 0E C-CAP,S 0.1-25 Z F C2012 HTNM AV-D37
O MICON C 0816 87-010-312-080 0E C-CAP,S 15P-50 J CH GRM HCNM AV-D37
O MICON C 0816 87-010-312-080 0E C-CAP,S 15P-50 J CH GRM HRJNM AV-D37
O MICON C 0816 87-010-312-080 0E C-CAP,S 15P-50 J CH GRM HTNM AV-D37
O MICON C 0817 87-012-155-080 0E C-CAP,S 180P-50 J CH GRM HCNM AV-D37

O MICON C 0817 87-012-155-080 0E C-CAP,S 180P-50 J CH GRM HRJNM AV-D37
O MICON C 0817 87-012-155-080 0E C-CAP,S 180P-50 J CH GRM HTNM AV-D37
O MICON C 0818 87-010-178-080 0E C-CAP,S 1000P-50 K B C2012 HCNM AV-D37
O MICON C 0818 87-010-178-080 0E C-CAP,S 1000P-50 K B C2012 HRJNM AV-D37
O MICON C 0818 87-010-178-080 0E C-CAP,S 1000P-50 K B C2012 HTNM AV-D37
O MICON C 0819 87-012-156-080 0E C-CAP,S 220P-50 J CH GRM HCNM AV-D37
O MICON C 0819 87-012-156-080 0E C-CAP,S 220P-50 J CH GRM HRJNM AV-D37
O MICON C 0819 87-012-156-080 0E C-CAP,S 220P-50 J CH GRM HTNM AV-D37
O MICON C 0820 87-012-156-080 0E C-CAP,S 220P-50 J CH GRM HCNM AV-D37
O MICON C 0820 87-012-156-080 0E C-CAP,S 220P-50 J CH GRM HRJNM AV-D37

-27-

PARTS LIST

! = ! SAFTY PARTS
C = Components marked

K NO. = Only use japanese.

O MICON C 0820 87-012-156-080 0E C-CAP,S 220P-50 J CH GRM HTNM AV-D37
O MICON C 0821 87-010-178-080 0E C-CAP,S 1000P-50 K B C2012 HCNM AV-D37
O MICON C 0821 87-010-178-080 0E C-CAP,S 1000P-50 K B C2012 HRJNM AV-D37
O MICON C 0821 87-010-178-080 0E C-CAP,S 1000P-50 K B C2012 HTNM AV-D37
O MICON C 0822 87-010-182-080 0E C-CAP,S 2200P-50 K B C2012 HCNM AV-D37
O MICON C 0822 87-010-182-080 0E C-CAP,S 2200P-50 K B C2012 HRJNM AV-D37
O MICON C 0822 87-010-182-080 0E C-CAP,S 2200P-50 K B C2012 HTNM AV-D37
O MICON C 0823 87-010-182-080 0E C-CAP,S 2200P-50 K B C2012 HCNM AV-D37
O MICON C 0823 87-010-182-080 0E C-CAP,S 2200P-50 K B C2012 HRJNM AV-D37
O MICON C 0823 87-010-182-080 0E C-CAP,S 2200P-50 K B C2012 HTNM AV-D37

O MICON C 0824 87-010-182-080 0E C-CAP,S 2200P-50 K B C2012 HCNM AV-D37
O MICON C 0824 87-010-182-080 0E C-CAP,S 2200P-50 K B C2012 HRJNM AV-D37
O MICON C 0824 87-010-182-080 0E C-CAP,S 2200P-50 K B C2012 HTNM AV-D37
O MICON C 0825 87-010-196-080 0E C-CAP,S 0.1-25 Z F C2012 HCNM AV-D37
O MICON C 0825 87-010-196-080 0E C-CAP,S 0.1-25 Z F C2012 HRJNM AV-D37
O MICON C 0825 87-010-196-080 0E C-CAP,S 0.1-25 Z F C2012 HTNM AV-D37
O MICON C 0826 87-010-405-040 0E CAP,E 10-50 M 11L SME HCNM AV-D37
O MICON C 0826 87-010-405-040 0E CAP,E 10-50 M 11L SME HRJNM AV-D37
O MICON C 0826 87-010-405-040 0E CAP,E 10-50 M 11L SME HTNM AV-D37
O MICON C 0827 87-010-198-080 0E C-CAP,S 0.022-25 K B C2012 HCNM AV-D37

O MICON C 0827 87-010-198-080 0E C-CAP,S 0.022-25 K B C2012 HRJNM AV-D37
O MICON C 0827 87-010-198-080 0E C-CAP,S 0.022-25 K B C2012 HTNM AV-D37
O MICON C 0829 87-012-156-080 0E C-CAP,S 220P-50 J CH GRM HCNM AV-D37
O MICON C 0829 87-012-156-080 0E C-CAP,S 220P-50 J CH GRM HRJNM AV-D37
O MICON C 0829 87-012-156-080 0E C-CAP,S 220P-50 J CH GRM HTNM AV-D37
O MICON C 0831 87-A10-189-040 0E CAP,E 220-10 M 5L HCNM AV-D37
O MICON C 0831 87-A10-189-040 0E CAP,E 220-10 M 5L HRJNM AV-D37
O MICON C 0831 87-A10-189-040 0E CAP,E 220-10 M 5L HTNM AV-D37
O MICON C 0832 87-010-196-080 0E C-CAP,S 0.1-25 Z F C2012 HCNM AV-D37
O MICON C 0832 87-010-196-080 0E C-CAP,S 0.1-25 Z F C2012 HRJNM AV-D37

All components used on this model at the production line are shown in this service manual.
However, please note that not all components will be available as spare parts for after-sales service.
Components marked S and O are designated as spare parts for service and will be stocked at the spare parts centers.
Components marked X and R are not designated as spare parts for after sales service, and will not be stocked at the spare parts centers.

C UNIT NAME REF NO. MODEL NAME! DESCRIPTIONK NO.PARTS CODE SUFFIX

O MICON C 0832 87-010-196-080 0E C-CAP,S 0.1-25 Z F C2012 HTNM AV-D37
O MICON C 0833 87-012-368-080 0E C-CAP,S 0.1-50 Z F HCNM AV-D37
O MICON C 0833 87-012-368-080 0E C-CAP,S 0.1-50 Z F HRJNM AV-D37
O MICON C 0833 87-012-368-080 0E C-CAP,S 0.1-50 Z F HTNM AV-D37
O MICON C 0834 87-012-368-080 0E C-CAP,S 0.1-50 Z F HCNM AV-D37
O MICON C 0834 87-012-368-080 0E C-CAP,S 0.1-50 Z F HRJNM AV-D37
O MICON C 0834 87-012-368-080 0E C-CAP,S 0.1-50 Z F HTNM AV-D37
O MICON C 0835 87-012-368-080 0E C-CAP,S 0.1-50 Z F HCNM AV-D37
O MICON C 0835 87-012-368-080 0E C-CAP,S 0.1-50 Z F HRJNM AV-D37
O MICON C 0835 87-012-368-080 0E C-CAP,S 0.1-50 Z F HTNM AV-D37

O MICON C 0836 87-012-157-080 0E C-CAP,S 330P-50 J CH GRM HCNM AV-D37
O MICON C 0836 87-012-157-080 0E C-CAP,S 330P-50 J CH GRM HRJNM AV-D37
O MICON C 0836 87-012-157-080 0E C-CAP,S 330P-50 J CH GRM HTNM AV-D37
O MICON C 0837 87-012-157-080 0E C-CAP,S 330P-50 J CH GRM HCNM AV-D37
O MICON C 0837 87-012-157-080 0E C-CAP,S 330P-50 J CH GRM HRJNM AV-D37
O MICON C 0837 87-012-157-080 0E C-CAP,S 330P-50 J CH GRM HTNM AV-D37
O MICON C 0838 87-012-157-080 0E C-CAP,S 330P-50 J CH GRM HCNM AV-D37
O MICON C 0838 87-012-157-080 0E C-CAP,S 330P-50 J CH GRM HRJNM AV-D37
O MICON C 0838 87-012-157-080 0E C-CAP,S 330P-50 J CH GRM HTNM AV-D37
O MICON C 0839 87-012-157-080 0E C-CAP,S 330P-50 J CH GRM HCNM AV-D37

O MICON C 0839 87-012-157-080 0E C-CAP,S 330P-50 J CH GRM HRJNM AV-D37
O MICON C 0839 87-012-157-080 0E C-CAP,S 330P-50 J CH GRM HTNM AV-D37
O MICON C 0840 87-012-157-080 0E C-CAP,S 330P-50 J CH GRM HCNM AV-D37
O MICON C 0840 87-012-157-080 0E C-CAP,S 330P-50 J CH GRM HRJNM AV-D37
O MICON C 0840 87-012-157-080 0E C-CAP,S 330P-50 J CH GRM HTNM AV-D37
O MICON C 0841 87-012-157-080 0E C-CAP,S 330P-50 J CH GRM HCNM AV-D37
O MICON C 0841 87-012-157-080 0E C-CAP,S 330P-50 J CH GRM HRJNM AV-D37
O MICON C 0841 87-012-157-080 0E C-CAP,S 330P-50 J CH GRM HTNM AV-D37
O MICON C 0842 87-012-157-080 0E C-CAP,S 330P-50 J CH GRM HCNM AV-D37
O MICON C 0842 87-012-157-080 0E C-CAP,S 330P-50 J CH GRM HRJNM AV-D37

O MICON C 0842 87-012-157-080 0E C-CAP,S 330P-50 J CH GRM HTNM AV-D37
O MICON C 0843 87-012-157-080 0E C-CAP,S 330P-50 J CH GRM HCNM AV-D37
O MICON C 0843 87-012-157-080 0E C-CAP,S 330P-50 J CH GRM HRJNM AV-D37
O MICON C 0843 87-012-157-080 0E C-CAP,S 330P-50 J CH GRM HTNM AV-D37
O MICON C 0844 87-012-157-080 0E C-CAP,S 330P-50 J CH GRM HCNM AV-D37
O MICON C 0844 87-012-157-080 0E C-CAP,S 330P-50 J CH GRM HRJNM AV-D37
O MICON C 0844 87-012-157-080 0E C-CAP,S 330P-50 J CH GRM HTNM AV-D37
O MICON C 0845 87-012-157-080 0E C-CAP,S 330P-50 J CH GRM HCNM AV-D37
O MICON C 0845 87-012-157-080 0E C-CAP,S 330P-50 J CH GRM HRJNM AV-D37
O MICON C 0845 87-012-157-080 0E C-CAP,S 330P-50 J CH GRM HTNM AV-D37

-28-

PARTS LIST

! = ! SAFTY PARTS
C = Components marked

K NO. = Only use japanese.

O MICON C 0846 87-012-157-080 0E C-CAP,S 330P-50 J CH GRM HCNM AV-D37
O MICON C 0846 87-012-157-080 0E C-CAP,S 330P-50 J CH GRM HRJNM AV-D37
O MICON C 0846 87-012-157-080 0E C-CAP,S 330P-50 J CH GRM HTNM AV-D37
O MICON C 0847 87-015-699-040 0E CAP,E 10-50 M 7L SRA HCNM AV-D37
O MICON C 0847 87-015-699-040 0E CAP,E 10-50 M 7L SRA HRJNM AV-D37
O MICON C 0847 87-015-699-040 0E CAP,E 10-50 M 7L SRA HTNM AV-D37
O MICON C 0848 87-010-405-040 0E CAP,E 10-50 M 11L SME HCNM AV-D37
O MICON C 0848 87-010-405-040 0E CAP,E 10-50 M 11L SME HRJNM AV-D37
O MICON C 0848 87-010-405-040 0E CAP,E 10-50 M 11L SME HTNM AV-D37
O MICON C 0849 87-012-368-080 0E C-CAP,S 0.1-50 Z F HCNM AV-D37

O MICON C 0849 87-012-368-080 0E C-CAP,S 0.1-50 Z F HRJNM AV-D37
O MICON C 0849 87-012-368-080 0E C-CAP,S 0.1-50 Z F HTNM AV-D37
O MICON C 0850 87-010-408-040 0E CAP,E 47-50 M 11L SME HCNM AV-D37
O MICON C 0850 87-010-408-040 0E CAP,E 47-50 M 11L SME HRJNM AV-D37
O MICON C 0850 87-010-408-040 0E CAP,E 47-50 M 11L SME HTNM AV-D37
O MICON C 0852 87-010-560-040 0E CAP,E 10-50 M 5L MA HCNM AV-D37
O MICON C 0852 87-010-560-040 0E CAP,E 10-50 M 5L MA HRJNM AV-D37
O MICON C 0852 87-010-560-040 0E CAP,E 10-50 M 5L MA HTNM AV-D37
O MICON C 0863 87-010-178-080 0E C-CAP,S 1000P-50 K B C2012 HCNM AV-D37
O MICON C 0863 87-010-178-080 0E C-CAP,S 1000P-50 K B C2012 HRJNM AV-D37

O MICON C 0863 87-010-178-080 0E C-CAP,S 1000P-50 K B C2012 HTNM AV-D37
O MICON C 0864 87-012-157-080 0E C-CAP,S 330P-50 J CH GRM HCNM AV-D37
O MICON C 0864 87-012-157-080 0E C-CAP,S 330P-50 J CH GRM HRJNM AV-D37
O MICON C 0864 87-012-157-080 0E C-CAP,S 330P-50 J CH GRM HTNM AV-D37
O MICON C 0866 87-012-140-080 0E C-CAP,S 470P-50 J CH HCNM AV-D37
O MICON C 0866 87-012-140-080 0E C-CAP,S 470P-50 J CH HRJNM AV-D37
O MICON C 0866 87-012-140-080 0E C-CAP,S 470P-50 J CH HTNM AV-D37
O MICON C 0867 87-010-196-080 0E C-CAP,S 0.1-25 Z F C2012 HCNM AV-D37
O MICON C 0867 87-010-196-080 0E C-CAP,S 0.1-25 Z F C2012 HRJNM AV-D37
O MICON C 0867 87-010-196-080 0E C-CAP,S 0.1-25 Z F C2012 HTNM AV-D37

All components used on this model at the production line are shown in this service manual.
However, please note that not all components will be available as spare parts for after-sales service.
Components marked S and O are designated as spare parts for service and will be stocked at the spare parts centers.
Components marked X and R are not designated as spare parts for after sales service, and will not be stocked at the spare parts centers.

C UNIT NAME REF NO. MODEL NAME! DESCRIPTIONK NO.PARTS CODE SUFFIX

! O MICON CN 0801 87-A60-079-010 0E CONN,08P H 9604S-08F HCNM AV-D37
! O MICON CN 0801 87-A60-079-010 0E CONN,08P H 9604S-08F HRJNM AV-D37
! O MICON CN 0801 87-A60-079-010 0E CONN,08P H 9604S-08F HTNM AV-D37
! O MICON CN 0802 87-A60-064-010 1A CONN,32P H 9604S-32F HCNM AV-D37
! O MICON CN 0802 87-A60-064-010 1A CONN,32P H 9604S-32F HRJNM AV-D37
! O MICON CN 0802 87-A60-064-010 1A CONN,32P H 9604S-32F HTNM AV-D37
! O MICON CN 0803 87-A60-081-010 0E CONN,06P H 9604S-06F HCNM AV-D37
! O MICON CN 0803 87-A60-081-010 0E CONN,06P H 9604S-06F HRJNM AV-D37
! O MICON CN 0803 87-A60-081-010 0E CONN,06P H 9604S-06F HTNM AV-D37
O MICON CN 0805 87-099-757-010 0E CONN,16P H 9604 HCNM AV-D37

O MICON CN 0805 87-099-757-010 0E CONN,16P H 9604 HRJNM AV-D37
O MICON CN 0805 87-099-757-010 0E CONN,16P H 9604 HTNM AV-D37
S MICON D 0707 87-020-465-080 0E DIODE,1SS133 HCNM AV-D37
S MICON D 0707 87-020-465-080 0E DIODE,1SS133 HRJNM AV-D37
S MICON D 0707 87-020-465-080 0E DIODE,1SS133 HTNM AV-D37
S MICON D 0708 87-020-465-080 0E DIODE,1SS133 HCNM AV-D37
S MICON D 0708 87-020-465-080 0E DIODE,1SS133 HRJNM AV-D37
S MICON D 0708 87-020-465-080 0E DIODE,1SS133 HTNM AV-D37
S MICON D 0709 87-020-465-080 0E DIODE,1SS133 HCNM AV-D37
S MICON D 0709 87-020-465-080 0E DIODE,1SS133 HRJNM AV-D37

S MICON D 0709 87-020-465-080 0E DIODE,1SS133 HTNM AV-D37
S MICON D 0710 87-020-465-080 0E DIODE,1SS133 HCNM AV-D37
S MICON D 0710 87-020-465-080 0E DIODE,1SS133 HRJNM AV-D37
S MICON D 0710 87-020-465-080 0E DIODE,1SS133 HTNM AV-D37
S MICON D 0721 87-070-136-080 0E ZENER,MTZJ5.1B HCNM AV-D37
S MICON D 0721 87-070-136-080 0E ZENER,MTZJ5.1B HRJNM AV-D37
S MICON D 0721 87-070-136-080 0E ZENER,MTZJ5.1B HTNM AV-D37
X MICON D 0801 88-100-000-010 0E PLATING-JW, 0.58 SN95 HCNM AV-D37
X MICON D 0801 88-100-000-010 0E PLATING-JW, 0.58 SN95 HRJNM AV-D37
X MICON D 0801 88-100-000-010 0E PLATING-JW, 0.58 SN95 HTNM AV-D37

S MICON D 0802 87-020-465-080 0E DIODE,1SS133 HCNM AV-D37
S MICON D 0802 87-020-465-080 0E DIODE,1SS133 HRJNM AV-D37
S MICON D 0802 87-020-465-080 0E DIODE,1SS133 HTNM AV-D37
S MICON D 0803 87-020-465-080 0E DIODE,1SS133 HCNM AV-D37
S MICON D 0803 87-020-465-080 0E DIODE,1SS133 HRJNM AV-D37
S MICON D 0803 87-020-465-080 0E DIODE,1SS133 HTNM AV-D37
S MICON D 0804 87-020-465-080 0E DIODE,1SS133 HCNM AV-D37
S MICON D 0804 87-020-465-080 0E DIODE,1SS133 HRJNM AV-D37
S MICON D 0804 87-020-465-080 0E DIODE,1SS133 HTNM AV-D37
S MICON D 0805 87-A40-344-080 0E ZENER,MTZJ6.2C HCNM AV-D37

-29-

PARTS LIST

! = ! SAFTY PARTS
C = Components marked

K NO. = Only use japanese.

S MICON D 0805 87-A40-344-080 0E ZENER,MTZJ6.2C HRJNM AV-D37
S MICON D 0805 87-A40-344-080 0E ZENER,MTZJ6.2C HTNM AV-D37
X MICON D 0807 88-100-000-010 0E PLATING-JW, 0.58 SN95 HCNM AV-D37
X MICON D 0807 88-100-000-010 0E PLATING-JW, 0.58 SN95 HRJNM AV-D37
X MICON D 0807 88-100-000-010 0E PLATING-JW, 0.58 SN95 HTNM AV-D37
S MICON D 0813 87-020-465-080 0E DIODE,1SS133 HCNM AV-D37
S MICON D 0813 87-020-465-080 0E DIODE,1SS133 HRJNM AV-D37
S MICON D 0813 87-020-465-080 0E DIODE,1SS133 HTNM AV-D37
S MICON D 0816 87-020-465-080 0E DIODE,1SS133 HCNM AV-D37
S MICON D 0816 87-020-465-080 0E DIODE,1SS133 HRJNM AV-D37

S MICON D 0816 87-020-465-080 0E DIODE,1SS133 HTNM AV-D37
S MICON D 0819 87-020-465-080 0E DIODE,1SS133 HCNM AV-D37
S MICON D 0819 87-020-465-080 0E DIODE,1SS133 HRJNM AV-D37
S MICON D 0819 87-020-465-080 0E DIODE,1SS133 HTNM AV-D37
S MICON D 0820 87-020-465-080 0E DIODE,1SS133 HCNM AV-D37
S MICON D 0820 87-020-465-080 0E DIODE,1SS133 HRJNM AV-D37
S MICON D 0820 87-020-465-080 0E DIODE,1SS133 HTNM AV-D37
S MICON D 0821 87-020-465-080 0E DIODE,1SS133 HCNM AV-D37
S MICON D 0821 87-020-465-080 0E DIODE,1SS133 HRJNM AV-D37
S MICON D 0821 87-020-465-080 0E DIODE,1SS133 HTNM AV-D37

S MICON D 0822 87-020-465-080 0E DIODE,1SS133 HCNM AV-D37
S MICON D 0822 87-020-465-080 0E DIODE,1SS133 HRJNM AV-D37
S MICON D 0822 87-020-465-080 0E DIODE,1SS133 HTNM AV-D37
S MICON D 0823 87-020-465-080 0E DIODE,1SS133 HCNM AV-D37
S MICON D 0823 87-020-465-080 0E DIODE,1SS133 HRJNM AV-D37
S MICON D 0823 87-020-465-080 0E DIODE,1SS133 HTNM AV-D37
S MICON D 0824 87-020-465-080 0E DIODE,1SS133 HCNM AV-D37
S MICON D 0824 87-020-465-080 0E DIODE,1SS133 HRJNM AV-D37
S MICON D 0824 87-020-465-080 0E DIODE,1SS133 HTNM AV-D37
S MICON D 0825 87-020-465-080 0E DIODE,1SS133 HCNM AV-D37

All components used on this model at the production line are shown in this service manual.
However, please note that not all components will be available as spare parts for after-sales service.
Components marked S and O are designated as spare parts for service and will be stocked at the spare parts centers.
Components marked X and R are not designated as spare parts for after sales service, and will not be stocked at the spare parts centers.

C UNIT NAME REF NO. MODEL NAME! DESCRIPTIONK NO.PARTS CODE SUFFIX

S MICON D 0825 87-020-465-080 0E DIODE,1SS133 HRJNM AV-D37
S MICON D 0825 87-020-465-080 0E DIODE,1SS133 HTNM AV-D37

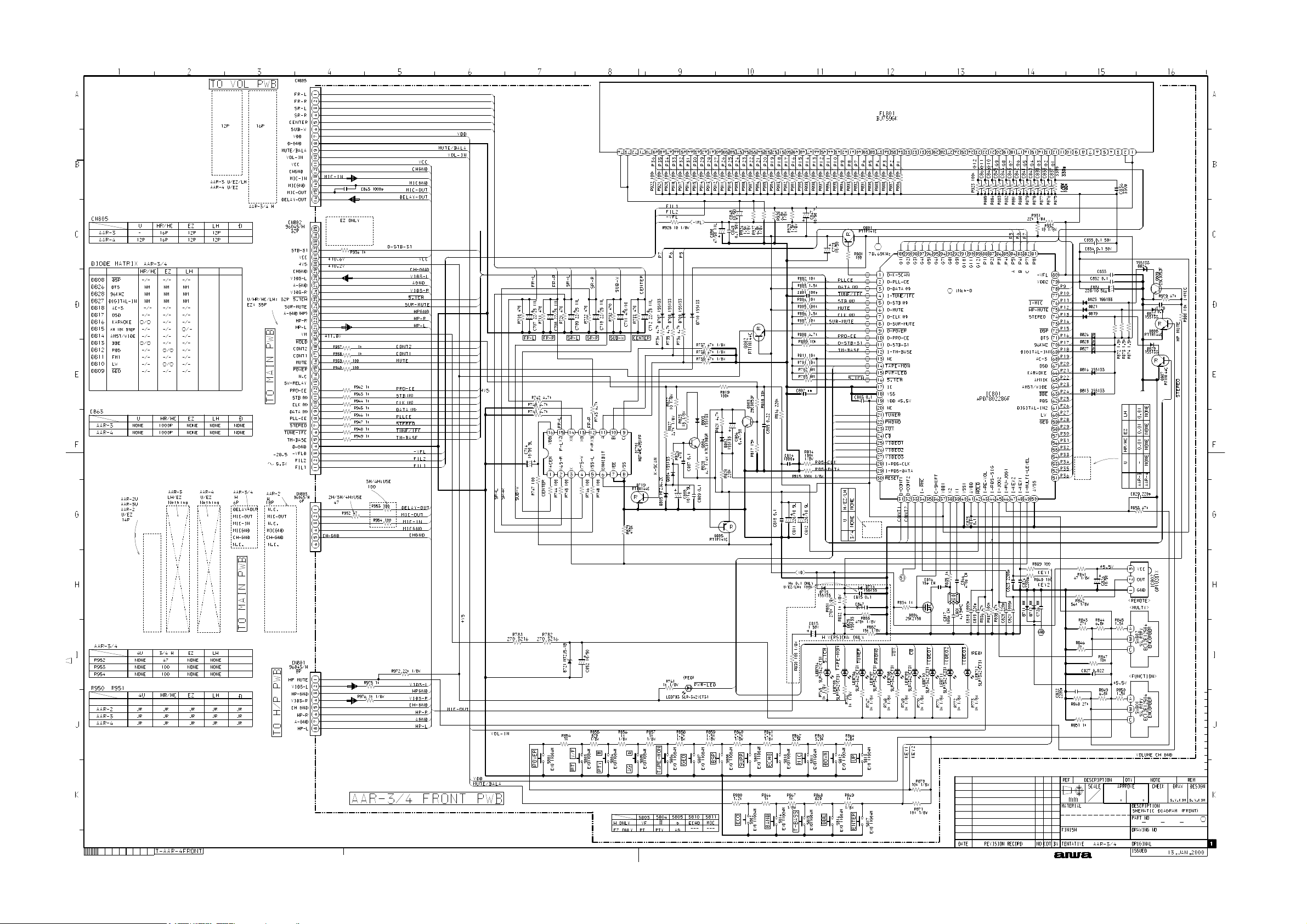

O MICON FL 0801 8A-AR1-602-010 2Y FL,BJ759GK HCNM AV-D37
O MICON FL 0801 8A-AR1-602-010 2Y FL,BJ759GK HRJNM AV-D37
O MICON FL 0801 8A-AR1-602-010 2Y FL,BJ759GK HTNM AV-D37
S MICON IC 0701 87-A21-481-040 1B C-IC,HD74HC4051FP HCNM AV-D37
S MICON IC 0701 87-A21-481-040 1B C-IC,HD74HC4051FP HRJNM AV-D37
S MICON IC 0701 87-A21-481-040 1B C-IC,HD74HC4051FP HTNM AV-D37
S MICON IC 0801 8A-AR4-601-010 1H C-IC,UPD780228GF-067 HCNM AV-D37
S MICON IC 0801 8A-AR4-601-110 1H C-IC,UPD780228GF-070 HRJNM AV-D37

S MICON IC 0801 8A-AR4-601-110 1H C-IC,UPD780228GF-070 HTNM AV-D37
S MICON IC 0802 87-070-083-010 1C IC,GP1U281X HCNM AV-D37
S MICON IC 0802 87-070-083-010 1C IC,GP1U281X HRJNM AV-D37
S MICON IC 0802 87-070-083-010 1C IC,GP1U281X HTNM AV-D37
X MICON JR 0801 88-129-000-080 0E C-JUMPER,3216 HCNM AV-D37
X MICON JR 0801 88-129-000-080 0E C-JUMPER,3216 HRJNM AV-D37
X MICON JR 0801 88-129-000-080 0E C-JUMPER,3216 HTNM AV-D37
X MICON JR 0802 88-129-000-080 0E C-JUMPER,3216 HCNM AV-D37
X MICON JR 0802 88-129-000-080 0E C-JUMPER,3216 HRJNM AV-D37
X MICON JR 0802 88-129-000-080 0E C-JUMPER,3216 HTNM AV-D37

X MICON JR 0803 88-129-000-080 0E C-JUMPER,3216 HCNM AV-D37
X MICON JR 0803 88-129-000-080 0E C-JUMPER,3216 HRJNM AV-D37
X MICON JR 0803 88-129-000-080 0E C-JUMPER,3216 HTNM AV-D37
X MICON JR 0804 88-129-000-080 0E C-JUMPER,3216 HCNM AV-D37
X MICON JR 0804 88-129-000-080 0E C-JUMPER,3216 HRJNM AV-D37
X MICON JR 0804 88-129-000-080 0E C-JUMPER,3216 HTNM AV-D37
X MICON JR 0805 88-129-000-080 0E C-JUMPER,3216 HCNM AV-D37
X MICON JR 0805 88-129-000-080 0E C-JUMPER,3216 HRJNM AV-D37
X MICON JR 0805 88-129-000-080 0E C-JUMPER,3216 HTNM AV-D37
X MICON JR 0806 88-129-000-080 0E C-JUMPER,3216 HCNM AV-D37

X MICON JR 0806 88-129-000-080 0E C-JUMPER,3216 HRJNM AV-D37
X MICON JR 0806 88-129-000-080 0E C-JUMPER,3216 HTNM AV-D37
X MICON JR 0807 88-129-000-080 0E C-JUMPER,3216 HCNM AV-D37
X MICON JR 0807 88-129-000-080 0E C-JUMPER,3216 HRJNM AV-D37
X MICON JR 0807 88-129-000-080 0E C-JUMPER,3216 HTNM AV-D37
X MICON JR 0808 88-129-000-080 0E C-JUMPER,3216 HCNM AV-D37
X MICON JR 0808 88-129-000-080 0E C-JUMPER,3216 HRJNM AV-D37
X MICON JR 0808 88-129-000-080 0E C-JUMPER,3216 HTNM AV-D37
X MICON JR 0809 88-129-000-080 0E C-JUMPER,3216 HCNM AV-D37
X MICON JR 0809 88-129-000-080 0E C-JUMPER,3216 HRJNM AV-D37

-30-
