JVC AV-56WP30 Parts List

V-56WP3

PARTS LIST

CAUTION

! The pa rts identified b y the ! symbol ar e import ant for t he s afe ty. W hene ver r epl acing these par ts, be s ure to us e s pec if ied o nes to se cure

the safet y .

T he parts n ot i nd ic ate d i n this P arts L i s t a nd tho se which ar e fil l ed wi th li nes 　　 in the Parts No. columns will not be supplied.

! P. W. Board Ass'y will not be supplied, but those which are filled with the Parts No. in the Parts No. colu mns will be s upplied.

ABBREVIATIONS OF RESISTOR S, CAP ACITORS AND TOLERANCE S

RESISTORS CAPACITORS

C R Carbon Resistor C CAP. Ceramic Capacitor

F R Fusible Resistor E CAP. Electrolytic Capacitor

P R Plat e Res istor M CAP. Mylar Capacitor

V R

HV R High Voltage Resistor MF CAP. Metalized Film Capacitor

MF R Metal Film Resistor MM CAP. Metalized Mylar Capacitor

MG R Metal Glazed Resistor MP CAP. Metalized Polystyrol Capacitor

MP R M etal Pl ate R esi sto r PP CA P. Po ly p ropyl en e Ca pa cit or

OM R Metal Oxide Fil m Resi s tor

CMF R Coating Metal Film Resistor TF CAP. Thin Film Capacitor

UNF R Non-Flammable R es i sto r MPP C AP . Metal i ze d P olyprop ylene C ap acito r

CH V R Chip Variable Resistor TAN. CAP. Tantalum Capacit or

CH MG R Chip Metal Glazed Resistor CH C CAP. Chip Ceramic Capac it or

COMP . R Composi t ion Re sist or BP E CAP . Bi-Pol a r E lectr ol yti c Ca pac i t or

LP T C R

Variable Resistor

Lin ear P ositive T emper at ure C o eff ici e nt Resistor

HV CAP. High Voltage Capacitor

PS CAP.

CH AL E CAP. Chip Aluminum Electrolytic Capacitor

CH AL BP CA P.

CH TAN. E CAP.

Polystyrol Capacitor

Chip A l um i num Bi-Po lar Cap ac i tor

Chip T antalum El ec trolytic C ap acitor

CH AL BP E CAP.

Chip T antalum Bi - Po lar El ec tr o lyt ic C a pacit or

TOLERANCES

FGJ K MNRHZP

10 %

20 %

30 %

+30%

-10%

No. 52007

+50%

-10%

+80%

-20%

+100 %

-0%

V-56WP30

CONTENTS

!!!!

USIN G P W BOAR D & RE M OTE CON TR OL UN IT

!!!!

EXPLODED VIEW PARTS LIST

!!!!

EXPLODED VIEW

!!!!

PRINTED WIRING BOARD PARTS LIST

MAIN PW BOARD ASS’Y

POWER & DEF. PW BOARD ASS’Y

R CRT SOCKET PW BO ARD ASS’Y

G CRT SO CKET PW BOARD ASS’Y

B CRT SOCKET PW BOARD ASS’Y

CONVERGENCE PW BOARD ASS’Y

R VM PW BOARD ASS’Y

G VM PW BOARD ASS’Y

B VM PW BOARD ASS’Y

REMOCON SENSOR PW BOARD ASS’Y

LINE FILTER PW BOARD ASS’Y

CENTER SPEAKER PW BOARD ASS’Y

DEF. OSC. PW BOARD ASS’Y

AV JACK PW BOARD ASS’Y

FRONT CONTROL PW BOARD ASS’Y

RECEIVER PW BOARD ASS’Y

CONVERGENCE OSD PW BOARD ASS ’Y

DIGITAL INPUT MOD ULE PW BOARD ASS’Y

I-P CONVERT MODULE PW BOARD ASS’Y

･････････････････････････････････････････････････････････････････････････････････････････ 56, 57, 58

･･･････････････････････････････････････････････････････････････････････････････ 56, 58

･･････････････････････････････････････････････････････････････････････････････････････ 59

････････････････････････････････････････････････････････････････････････････ 65

･･･････････････････････････････････････････････････････････････････････････ 67 ･･･････････････････････････････････････････････････････････････････････････ 68 ･･･････････････････････････････････････････････････････････････････････････ 68

･･････････････････････････････････････････････････････････････････････････ 69 ･･････････････････････････････････････････････････････････････････････････････････････ 70 ･･････････････････････････････････････････････････････････････････････････････････････ 70 ･･････････････････････････････････････････････････････････････････････････････････････ 71

･･･････････････････････････････････････････････････････････････････････････････ 71

･･･････････････････････････････････････････････････････････････････････ 71

･････････････････････････････････････････････････････････････････････････････････

･･･････････････････････････････････････････････････････････････････････････････････

･････････････････････････････････････････････････････････････････････････

････････････････････････････････････････････････････････････････････････････････

･････････････････････････････････････････････････････････････････

･･････････････････････････････････････････････････････････････････････ 71

72 73 75 75

･････････････････････････････････････････････････････････････････････

･･････････････････････････････････････････････････････････････････

･･･････････････････････････････････････････････････････････････････ 77

77 77

REM OT E C ONT ROL U NI T PART S L IST ･･････････････････････････････････････････････････････････････････････････ 78

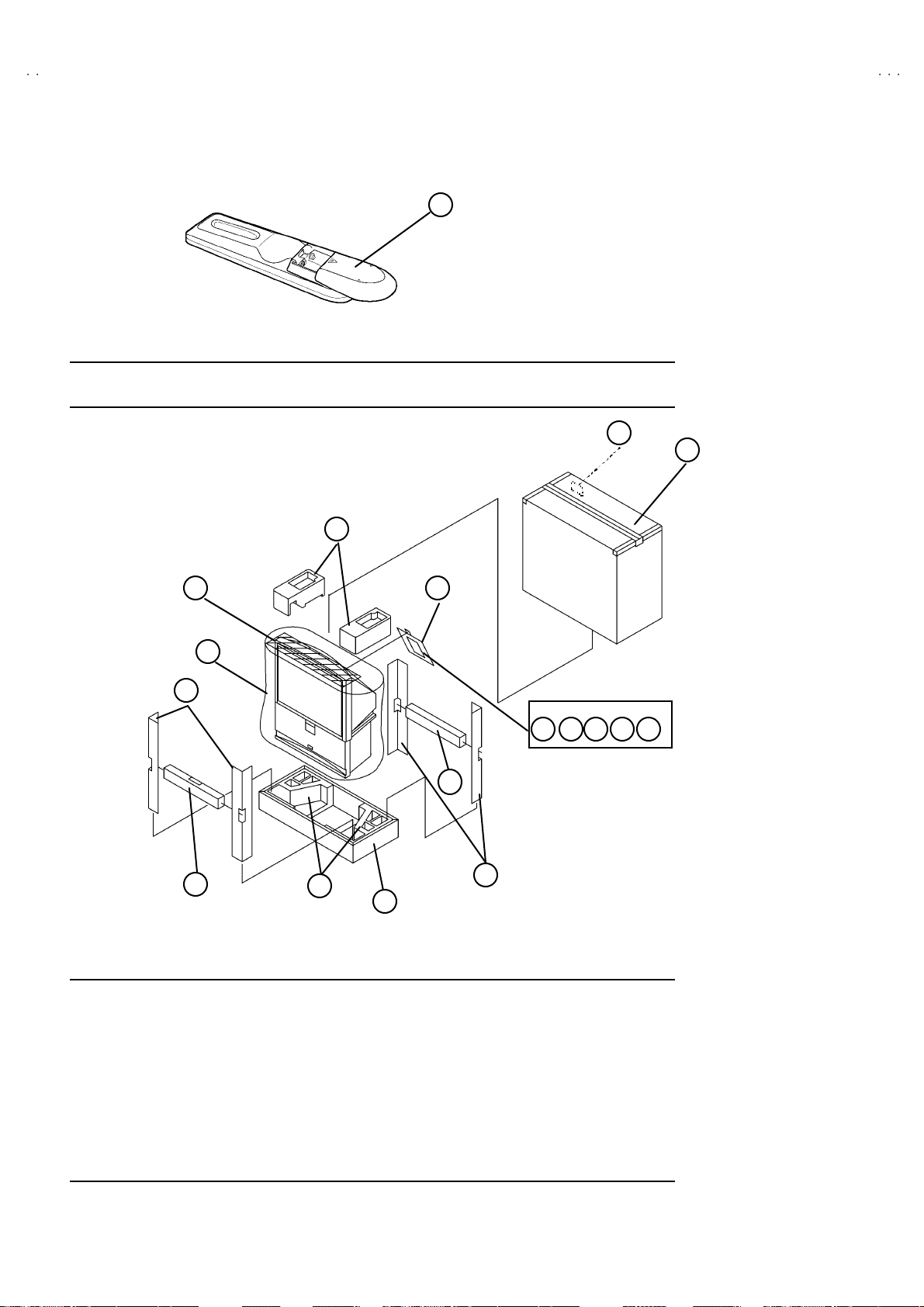

PA CK I N G

PACKING PARTS LIST･･･････････････････････････････････････････････････････････････････････････････････････････ 78

･･･････････････････････････････････････････････････････････････････････････････････････････････････････ 78

No. 52007

USING PW BOARD & REMOTE CONTROL UNIT

V-56WP3

Model

PW B AS S’ Y

MAIN PWB AS SY

POWE R& DE F. PW B ASSY

R CRT SOCKET PW B A SSY

G CRT SO CK ET PWB ASSY

B CR T SO CK ET PW B ASSY

CONVER GE NCE PW B AS SY

R VM PW B ASS Y

G VM PW B ASS Y

B VM PW B ASS Y

FR ON T CONTROL PW B ASSY

FRONT I/F PW B ASS Y

REC EIVE R PWB AS SY

CEN TER SP EAK ER PWB ASS Y

AV JACK PWB ASSY

LINE F ILTE R PWB ASS Y

DEF. OS C. PW B ASS Y SS B0H05 3A -M 2

CONVER GE NC E OSD PWB ASS Y

REMO CON SENSO R PWB ASSY

DIGITA L INP UT M ODULE PWB

I-P CONVERT MODULE PWB

REMOTE CONTROL UNIT RM-C322G-1A

AV-56WP30

SS B-105 3A-M2

SS B-205 3A-M2

SS B-315 3A-M2

SS B-325 3A-M2

SS B-335 3A-M2

SS B-505 3A-M2

SS B-715 3A-M2

SS B-725 3A-M2

SS B-735 3A-M2

SS B0L 05 3A- M 2

SS B0L 25 3A- M 2

SS B0R253A -M2

SS B0A 05 3A-M2

SS B0J0 53A- M2

SS B-905 3A-M2

SS B0T053A - M2

SS B-805 3A-M2

SS B-785 3A-M2

SS B0D053A -M2

No. 52007

V-56WP30

EXPLODED VIEW PARTS LIST (

Ref.No. Part No. Part Name Description

1 QY SBS FG4 016M TA P S CRE W (x 19) 3 QY SBS AG4 018M TA P S CRE W (x 8) 4LC317 49- 001A-A LED LENS

5LC31751- 002A -A KN OB 6 QY SBS F30 12M TAP S CRE W (x2) 7 CM 477 52- 004 BRAND MA RK

8 QY NSS 300 0P PU SH NUT 9LC319 54- 001A -A MI RRO R

! 10LC114 07- 001B -A BA CK COV ER

11 LC 406 90- 001A CL AMP (x 2)

! 12LC311 39- 001A -A RA TIN G L ABE L

13LC41237- 001A RU BBE R C ATC H (x6) 14QAS0113- 001 SPEAK ER (x 2)S P01 -02 15QAS01 05- 001 SPEAK ER (x 2)S P03 -04 16LC31757- 001D -A FRONT BO ARD

17 LC 209 81- 003A -A SHADI NG BOA RD

18LC114 06- 001B -A SP EAK ER GRI LL 19 QY SBS FG4 020M TA P S CRE W (x 4)

! 20 LC 209 82- 001B -A BA CK BO AR D ! 21 LC 414 24- 001A -A HD CP WAR NING

22 QY SBS F30 12M TA P S CRE W (x 2) 23 CM 227 65- 001- A CO OLA NT P 24 QY SBS F40 12Z TA P S CRE W (x 2)

! 100 LC 318 83- 002B -A CO NTR OL ASS Y Inc.N o.1 01～102

! 101 LC 318 29- 002A -A DO OR ! 102 PU 601 09 CATCH ER

! 200 56 WP3 0SC SAM2 SC REE N A SSY In c.N o.2 01(S ERV ICE) ! 201 LC 114 05- 001B -A FR ONT PA NEL

! 300 LC 114 08- 001A -A BO DY In c.N o.3 01

30 1 CM 363 96- 00B- A CASTE R (x 4)

ⅠⅠⅠⅠ

)

EXPLODED VIEW (ⅠⅠⅠⅠ)

CONT ROL PANEL

10 1

10 0

FRONT CONTROL PWB

10 2

No. 52007

V-56WP3

20 1

20 0

193

to UN IT B EA M

10 0

30 1

No. 52007

30 0

V-56WP30

RECEIVER PW B

DIGITAL INPUT MODULE

EXPLODED VIEW PARTS LIST (

Re f.N o. Pa rt No. Pa rt Nam e De scr ipt ion

ⅡⅡⅡⅡ

)

25 LC31736-001A-A PJ LENS D

26 R CRT SA-M2 R CRT ASSY

27 G CRT SA-M2 G CRT ASSY

28 B CRT SA-M2 B CRT ASSY

29 QQD0069-001 DEF YOKE 30 QAL0398-001 PC MAGNET

31 QAE0006-001 FOCUS PACK

32 QAE0005-001 DIVIDER

33 QNZ0563-001 ANODE WIRE

! !

34 LC11249-001A-A CHASSIS BASE 35 LC11250-001B-A AV BOARD

EXPLODED VIEW (ⅡⅡⅡⅡ)

REMOCON SENSOR P WB

Re f.N o. Pa rt No. Pa rt Nam e Des cri pti on

36 QYSBSF3012M TAP SCREW (x7) 37 CHFD125-06BD FFC WIRE (x2) 38 WJX0014-001A E-COAXIAL

39 QMPD200-200-JC POWER CORD or QMPD390-200-JS

40 LC20106-001D-A POWER CORD CLAMP

41 GQ30034-001A-A WARNING LABEL

42 QAM0411-001 F CABLE

43 QQR0490-001 NOISE FILTER

T2502 QQH0113-002 FBT

! !

QQR0491-001 CORE FILTER (x3) QQR0942-001 CORE FILTER

27!28

FRO NT I /F P WB

CONVERGENCE PWB

LINE FI LT ER P W B

CONVERGENCE OSD P WB

MAIN PWB

CENTER SPEAK ER PWB

POWER&DEF. PWB

DEF. OSC. PWB

R VM PWB G VM PWB B VM PWB

R CRT SOCKET PWB G CRT SOCKET PWB B CRT SOCKET PWB

I-P CONVERT MODULE PWB

T2502

AV J ACK PWB

PWB

No. 52007

PRINTED WIRING BOARD PARTS LIST

MAIN P.W. BOARD ASS’Y (SSB-1053 A-M 2)

Symbol No. Part No. Part Name Description

RESISTOR

R1001 NRSA63J-222X MG R 2.2kΩ 1/16W J R1004 NRSA63J-332X MG R 3.3kΩ 1/16W J

R1005 NRSA63J-473X MG R 47kΩ 1/16W J R1006 NRSA63J-473X MG R 47kΩ 1/16W J R1007 NRSA63J-152X MG R 1.5kΩ 1/16W J R1011 NRSA63J-102X MG R 1kΩ 1/16W J R1013 NRSA63J-101X MG R 100Ω 1/16W J R1014 NRSA63J-223X MG R 22kΩ 1/16W J

R1020 NRSA63J-473X MG R 47kΩ 1/16W J R1021 NRSA63J-103X MG R 10kΩ 1/16W J R1022 NRSA63J-101X MG R 100Ω 1/16W J R1023 NRSA63J-101X MG R 100Ω 1/16W J R1024 NRSA63J-391X MG R 390Ω 1/16W J R1025 NRSA63J-182X MG R 1.8kΩ 1/16W J

R1050 NRSA63J-0R0X MG R 0.0Ω 1/16W J R1051 NRSA63J-0R0X MG R 0.0Ω 1/16W J R1052 NRSA63J-0R0X MG R 0.0Ω 1/16W J R1101 NRSA63J-473X MG R 47kΩ 1/16W J R1102 NRSA63J-0R0X MG R 0.0Ω 1/16W J R1103 NRSA63J-0R0X MG R 0.0Ω 1/16W J

R1104 NRSA63J-0R0X MG R 0.0Ω 1/16W J R1117 QRN143J-0R0X C R 0.0Ω 1/4W J R1122 NRSA63J-0R0X MG R 0.0Ω 1/16W J R1131 NRSA63J-0R0X MG R 0.0Ω 1/16W J R1133 NRSA63J-121X MG R 120Ω 1/16W J R1134 NRSA63J-0R0X MG R 0.0Ω 1/16W J

R1135 NRSA63J-121X MG R 120Ω 1/16W J R1136 NRSA63J-0R0X MG R 0.0Ω 1/16W J R1137 NRSA63J-121X MG R 120Ω 1/16W J R1140 NRSA63J-222X MG R 2.2kΩ 1/16W J R1141 NRSA63J-222X MG R 2.2kΩ 1/16W J R1143 NRSA63J-101X MG R 100Ω 1/16W J

R1144 NRSA63J-222X MG R 2.2kΩ 1/16W J R1145 NRSA63J-471X MG R 470Ω 1/16W J R1147 NRSA63J-681X MG R 680Ω 1/16W J R1149 NRSA63J-681X MG R 680Ω 1/16W J R1153 NRSA63J-221X MG R 220Ω 1/16W J R1154 NRSA63J-221X MG R 220Ω 1/16W J

R1157 NRSA63J-470X MG R 47Ω 1/16W J R1158 NRSA63J-0R0X MG R 0.0Ω 1/16W J R1159 NRSA63J-0R0X MG R 0.0Ω 1/16W J R1161 NRSA63J-222X MG R 2.2kΩ 1/16W J R1163 NRSA63J-224X MG R 220kΩ 1/16W J R1164 NRSA63J-224X MG R 220kΩ 1/16W J

R1165 NRSA63J-224X MG R 220kΩ 1/16W J R1166 NRSA63J-471X MG R 470Ω 1/16W J R1167 NRSA63J-0R0X MG R 0.0Ω 1/16W J R1174 NRSA63J-101X MG R 100Ω 1/16W J R1175 NRSA63J-224X MG R 220kΩ 1/16W J R1176 NRSA63J-224X MG R 220kΩ 1/16W J

R1177 NRSA63J-224X MG R 220kΩ 1/16W J R1179 NRSA63J-0R0X MG R 0.0Ω 1/16W J R1180 NRSA63J-221X MG R 220Ω 1/16W J R1181 NRSA63J-221X MG R 220Ω 1/16W J R1182 NRSA63J-221X MG R 220Ω 1/16W J R1183 NRSA63J-101X MG R 100Ω 1/16W J

R1184 NRSA63J-101X MG R 100Ω 1/16W J R1185 NRSA63J-101X MG R 100Ω 1/16W J R1186 NRSA63J-101X MG R 100Ω 1/16W J R1187 NRSA63J-224X MG R 220kΩ 1/16W J R1188 NRSA63J-224X MG R 220kΩ 1/16W J R1189 NRSA63J-224X MG R 220kΩ 1/16W J

R1190 NRSA63J-101X MG R 100Ω 1/16W J R1198 NRSA63J-271X MG R 270Ω 1/16W J R1199 NRVA63D-102X MF R 1kΩ 1/16W D R1202 NRSA63J-101X MG R 100Ω 1/16W J R1203 NRSA63J-101X MG R 100Ω 1/16W J R1213 NRSA63J-101X MG R 100Ω 1/16W J

R1214 NRSA63J-101X MG R 100Ω 1/16W J R1218 NRSA63J-822X MG R 8.2kΩ 1/16W J R1219 NRSA63J-331X MG R 330Ω 1/16W J

V-56WP3

Symbol No. Part No. Part Name Description

RESISTOR

R1220 NRSA63J-101X MG R 100Ω 1/16W J R1221 NRSA63J-101X MG R 100Ω 1/16W J

R1224 NRSA63J-101X MG R 100Ω 1/16W J R1225 NRSA63J-101X MG R 100Ω 1/16W J R1226 NRSA63J-103X MG R 10kΩ 1/16W J R1227 NRSA63J-103X MG R 10kΩ 1/16W J R1228 NRSA63J-222X MG R 2.2kΩ 1/16W J R1229 NRSA63J-103X MG R 10kΩ 1/16W J

R1230 NRSA63J-101X MG R 100Ω 1/16W J R1231 NRSA63J-221X MG R 220Ω 1/16W J R1232 NRSA63J-562X MG R 5.6kΩ 1/16W J R1234 NRSA63J-562X MG R 5.6kΩ 1/16W J R1235 NRSA63J-221X MG R 220Ω 1/16W J R1236 NRSA63J-562X MG R 5.6kΩ 1/16W J

R1241 NRSA63J-0R0X MG R 0.0Ω 1/16W J R1242 NRSA63J-0R0X MG R 0.0Ω 1/16W J R1250 NRSA63J-332X MG R 3.3kΩ 1/16W J R1251 NRSA63J-101X MG R 100Ω 1/16W J R1252 NRSA63J-152X MG R 1.5kΩ 1/16W J

R1253 NRSA63J-102X MG R 1kΩ 1/16W J R1254 NRSA63J-393X MG R 39kΩ 1/16W J R1258 NRSA63J-102X MG R 1kΩ 1/16W J R1260 NRSA63J-102X MG R 1kΩ 1/16W J R1264 NRSA63J-152X MG R 1.5kΩ 1/16W J R1265 NRSA63J-153X MG R 15kΩ 1/16W J

R1268 NRSA63J-272X MG R 2.7kΩ 1/16W J R1269 NRSA63J-332X MG R 3.3kΩ 1/16W J R1270 NRSA63J-222X MG R 2.2kΩ 1/16W J R1271 NRSA63J-332X MG R 3.3kΩ 1/16W J R1272 NRSA63J-101X MG R 100Ω 1/16W J R1273 NRSA63J-101X MG R 100Ω 1/16W J

R1274 NRSA02J-394X MG R 390kΩ 1/10W J R1275 NRSA63J-101X MG R 100Ω 1/16W J R1276 NRSA63J-101X MG R 100Ω 1/16W J R1278 NRSA63J-471X MG R 470Ω 1/16W J R1279 NRSA63J-331X MG R 330Ω 1/16W J R1280 NRSA63J-101X MG R 100Ω 1/16W J

R1282 NRVA63D-103X MF R 10kΩ 1/16W D R1283 NRSA63J-682X MG R 6.8kΩ 1/16W J R1284 NRSA63J-391X MG R 390Ω 1/16W J R1301 NRSA63J-0R0X MG R 0.0Ω 1/16W J R1302 NRSA63J-472X MG R 4.7kΩ 1/16W J R1303 NRSA63J-392X MG R 3.9kΩ 1/16W J

R1304 NRSA63J-101X MG R 100Ω 1/16W J R1306 NRSA63J-105X MG R 1MΩ 1/16W J R1307 NRSA63J-123X MG R 12kΩ 1/16W J R1308 NRSA63J-222X MG R 2.2kΩ 1/16W J R1309 NRSA63J-124X MG R 120kΩ 1/16W J R1310 NRSA63J-272X MG R 2.7kΩ 1/16W J

R1311 NRSA63J-101X MG R 100Ω 1/16W J R1312 NRSA63J-101X MG R 100Ω 1/16W J R1313 NRSA63J-222X MG R 2.2kΩ 1/16W J R1314 NRSA63J-103X MG R 10kΩ 1/16W J R1317 NRSA63J-0R0X MG R 0.0Ω 1/16W J R1318 NRSA63J-821X MG R 820Ω 1/16W J

R1319 NRSA63J-222X MG R 2.2kΩ 1/16W J R1320 NRSA63J-222X MG R 2.2kΩ 1/16W J R1321 NRSA63J-222X MG R 2.2kΩ 1/16W J R1322 NRSA63J-222X MG R 2.2kΩ 1/16W J R1323 NRSA63J-104X MG R 100kΩ 1/16W J R1324 NRSA63J-221X MG R 220Ω 1/16W J

R1325 NRSA63J-221X MG R 220Ω 1/16W J R1326 NRSA63J-0R0X MG R 0.0Ω 1/16W J R1327 NRSA63J-221X MG R 220Ω 1/16W J R1328 NRSA63J-101X MG R 100Ω 1/16W J R1329 NRSA63J-101X MG R 100Ω 1/16W J

R1330 NRSA63J-182X MG R 1.8kΩ 1/16W J R1331 NRSA63J-223X MG R 22kΩ 1/16W J R1332 NRSA63J-182X MG R 1.8kΩ 1/16W J R1333 NRSA63J-104X MG R 100kΩ 1/16W J R1334 NRSA63J-151X MG R 150Ω 1/16W J

No. 52007

V-56WP30

Symbol No. Part No. Part Name Description

RESISTOR

R1335 NRSA63J-151X MG R 150Ω 1/16W J R1336 NRSA63J-151X MG R 150Ω 1/16W J R1337 NRSA63J-151X MG R 150Ω 1/16W J R1338 NRSA63J-182X MG R 1.8kΩ 1/16W J

R1339 NRSA63J-104X MG R 100kΩ 1/16W J R1340 NRSA63J-151X MG R 150Ω 1/16W J R1341 NRSA63J-151X MG R 150Ω 1/16W J R1342 NRVA63D-152X MF R 1.5kΩ 1/16W D R1343 NRVA63D-122X MF R 1.2kΩ 1/16W D R1344 NRSA63J-471X MG R 470Ω 1/16W J

R1345 NRSA63J-471X MG R 470Ω 1/16W J R1346 NRSA63J-680X MG R 68Ω 1/16W J R1347 NRSA63J-680X MG R 68Ω 1/16W J R1348 NRSA63J-680X MG R 68Ω 1/16W J R1349 NRSA63J-471X MG R 470Ω 1/16W J R1350 NRSA63J-563X MG R 56kΩ 1/16W J

R1352 NRSA63J-103X MG R 10kΩ 1/16W J R1353 NRSA63J-223X MG R 22kΩ 1/16W J R1354 NRSA63J-471X MG R 470Ω 1/16W J R1355 NRSA63J-562X MG R 5.6kΩ 1/16W J R1356 NRSA63J-182X MG R 1.8kΩ 1/16W J

R1359 NRSA63J-101X MG R 100Ω 1/16W J R1363 NRSA63J-101X MG R 100Ω 1/16W J R1364 NRSA63J-102X MG R 1kΩ 1/16W J R1366 NRSA63J-471X MG R 470Ω 1/16W J R1367 NRSA63J-222X MG R 2.2kΩ 1/16W J R1368 NRSA63J-103X MG R 10kΩ 1/16W J

R1369 NRSA63J-0R0X MG R 0.0Ω 1/16W J R1370 NRVA63D-182X MF R 1.8kΩ 1/16W D R1371 NRSA63J-222X MG R 2.2kΩ 1/16W J R1373 NRSA63J-332X MG R 3.3kΩ 1/16W J R1374 NRSA63J-472X MG R 4.7kΩ 1/16W J R1377 NRSA63J-103X MG R 10kΩ 1/16W J

R1378 NRSA63J-152X MG R 1.5kΩ 1/16W J R1379 NRSA63J-102X MG R 1kΩ 1/16W J R1380 NRSA63J-562X MG R 5.6kΩ 1/16W J R1391 NRSA63J-221X MG R 220Ω 1/16W J R1392 NRSA63J-221X MG R 220Ω 1/16W J R1395 NRSA63J-102X MG R 1kΩ 1/16W J

R1396 NRSA63J-561X MG R 560Ω 1/16W J R1401 NRSA63J-101X MG R 100Ω 1/16W J R1408 NRSA63J-0R0X MG R 0.0Ω 1/16W J R1415 NRSA63J-0R0X MG R 0.0Ω 1/16W J R1430 NRSA63J-101X MG R 100Ω 1/16W J R1432 NRSA63J-682X MG R 6.8kΩ 1/16W J

R1434 NRSA63J-103X MG R 10kΩ 1/16W J R1435 NRSA63J-473X MG R 47kΩ 1/16W J R1441 NRSA63J-223X MG R 22kΩ 1/16W J R1442 NRSA63J-103X MG R 10kΩ 1/16W J R1450 NRSA63J-221X MG R 220Ω 1/16W J R1451 NRSA63J-182X MG R 1.8kΩ 1/16W J

R1452 NRSA63J-101X MG R 100Ω 1/16W J R1453 NRSA63J-391X MG R 390Ω 1/16W J R1454 NRSA63J-561X MG R 560Ω 1/16W J R1455 NRSA63J-562X MG R 5.6kΩ 1/16W J R1456 NRSA63J-223X MG R 22kΩ 1/16W J R1463 NRSA63J-102X MG R 1kΩ 1/16W J

R1464 NRSA63J-122X MG R 1.2kΩ 1/16W J R1465 NRSA63J-102X MG R 1kΩ 1/16W J R1467 NRSA63J-103X MG R 10kΩ 1/16W J R1468 NRSA63J-101X MG R 100Ω 1/16W J R1469 NRSA63J-472X MG R 4.7kΩ 1/16W J R1470 NRSA63J-563X MG R 56kΩ 1/16W J

R1472 NRSA63J-101X MG R 100Ω 1/16W J R1473 NRSA63J-152X MG R 1.5kΩ 1/16W J R1474 NRSA63J-562X MG R 5.6kΩ 1/16W J R1475 NRSA63J-102X MG R 1kΩ 1/16W J R1477 NRSA63J-562X MG R 5.6kΩ 1/16W J

R1478 NRSA63J-152X MG R 1.5kΩ 1/16W J R1479 NRSA63J-101X MG R 100Ω 1/16W J R1480 NRSA63J-223X MG R 22kΩ 1/16W J R1481 NRSA63J-101X MG R 100Ω 1/16W J R1482 NRSA63J-103X MG R 10kΩ 1/16W J

Symbol No. Part No. Part Name Description

RESISTOR

R1483 NRSA63J-182X MG R 1.8kΩ 1/16W J R1484 NRSA63J-221X MG R 220Ω 1/16W J R1485 NRSA63J-391X MG R 390Ω 1/16W J

R1486 NRSA63J-561X MG R 560Ω 1/16W J R1487 NRSA63J-562X MG R 5.6kΩ 1/16W J R1488 NRSA63J-223X MG R 22kΩ 1/16W J R1490 NRSA63J-102X MG R 1kΩ 1/16W J R1491 NRSA63J-122X MG R 1.2kΩ 1/16W J R1492 NRSA63J-102X MG R 1kΩ 1/16W J

R1493 NRSA63J-102X MG R 1kΩ 1/16W J R1495 NRSA63J-103X MG R 10kΩ 1/16W J R1496 NRSA63J-101X MG R 100Ω 1/16W J R1497 NRSA63J-472X MG R 4.7kΩ 1/16W J R1498 NRSA63J-563X MG R 56kΩ 1/16W J R1501 NRSA63J-221X MG R 220Ω 1/16W J

R1502 NRSA63J-221X MG R 220Ω 1/16W J R1503 NRSA63J-103X MG R 10kΩ 1/16W J R1507 NRSA63J-101X MG R 100Ω 1/16W J R1508 NRSA63J-101X MG R 100Ω 1/16W J R1514 NRSA63J-102X MG R 1kΩ 1/16W J R1515 NRSA63J-221X MG R 220Ω 1/16W J

R1516 NRSA63J-682X MG R 6.8kΩ 1/16W J R1517 NRSA63J-221X MG R 220Ω 1/16W J R1518 NRSA63J-682X MG R 6.8kΩ 1/16W J R1519 NRSA63J-221X MG R 220Ω 1/16W J R1521 NRSA63J-221X MG R 220Ω 1/16W J R1522 NRSA63J-221X MG R 220Ω 1/16W J

R1524 NRSA63J-221X MG R 220Ω 1/16W J R1526 NRSA63J-682X MG R 6.8kΩ 1/16W J R1527 NRSA63J-221X MG R 220Ω 1/16W J R1528 NRSA63J-682X MG R 6.8kΩ 1/16W J R1529 NRSA63J-221X MG R 220Ω 1/16W J R1530 NRSA63J-102X MG R 1kΩ 1/16W J

R1531 NRSA63J-101X MG R 100Ω 1/16W J R1532 NRSA63J-0R0X MG R 0.0Ω 1/16W J R1533 NRSA63J-221X MG R 220Ω 1/16W J R1534 NRSA63J-682X MG R 6.8kΩ 1/16W J R1535 NRSA63J-221X MG R 220Ω 1/16W J R1536 NRSA63J-682X MG R 6.8kΩ 1/16W J

R1537 NRSA63J-221X MG R 220Ω 1/16W J R1538 NRSA63J-221X MG R 220Ω 1/16W J R1539 NRSA63J-682X MG R 6.8kΩ 1/16W J R1547 NRSA63J-682X MG R 6.8kΩ 1/16W J R1548 NRSA63J-0R0X MG R 0.0Ω 1/16W J

R1549 NRSA63J-682X MG R 6.8kΩ 1/16W J R1551 NRSA63J-0R0X MG R 0.0Ω 1/16W J R1554 NRSA63J-0R0X MG R 0.0Ω 1/16W J R1555 NRSA63J-103X MG R 10kΩ 1/16W J R1556 NRSA63J-101X MG R 100Ω 1/16W J R1557 NRSA63J-101X MG R 100Ω 1/16W J

R1560 NRSA63J-102X MG R 1kΩ 1/16W J R1561 NRSA63J-101X MG R 100Ω 1/16W J R1562 NRSA63J-101X MG R 100Ω 1/16W J R1570 NRSA63J-103X MG R 10kΩ 1/16W J R1571 NRVA63D-152X MF R 1.5kΩ 1/16W D R1572 NRSA02F-471X MG R 470Ω 1/10W F

R1576 NRSA63J-273X MG R 27kΩ 1/16W J R1577 NRSA63J-221X MG R 220Ω 1/16W J R1578 NRSA63J-682X MG R 6.8kΩ 1/16W J R1579 NRSA63J-221X MG R 220Ω 1/16W J R1581 NRSA63J-101X MG R 100Ω 1/16W J R1586 NRSA63J-0R0X MG R 0.0Ω 1/16W J

R1587 NRSA63J-0R0X MG R 0.0Ω 1/16W J R1588 NRSA63J-0R0X MG R 0.0Ω 1/16W J R1589 NRSA63J-0R0X MG R 0.0Ω 1/16W J R1611 NRSA63J-563X MG R 56kΩ 1/16W J R1612 NRSA63J-563X MG R 56kΩ 1/16W J R1613 NRSA63J-102X MG R 1kΩ 1/16W J

R1614 NRSA63J-104X MG R 100kΩ 1/16W J R1615 NRSA63J-563X MG R 56kΩ 1/16W J R1616 NRSA63J-153X MG R 15kΩ 1/16W J R1618 NRSA63J-0R0X MG R 0.0Ω 1/16W J R1619 NRSA63J-0R0X MG R 0.0Ω 1/16W J

No. 52007

V-56WP3

Ref.No. Part No. Part Name Description

RESISTOR

R1634 NRSA63J-0R0X MG R 0.0Ω 1/16W J R1635 NRSA63J-0R0X MG R 0.0Ω 1/16W J

R1638 NRSA63J-0R0X MG R 0.0Ω 1/16W J R1639 NRSA63J-0R0X MG R 0.0Ω 1/16W J R1644 NRSA63J-0R0X MG R 0.0Ω 1/16W J R1654 NRSA63J-0R0X MG R 0.0Ω 1/16W J R1655 NRSA63J-0R0X MG R 0.0Ω 1/16W J

R1656 NRSA63J-0R0X MG R 0.0Ω 1/16W J R1658 NRSA63J-103X MG R 10kΩ 1/16W J R1659 NRSA63J-103X MG R 10kΩ 1/16W J R1661 NRSA63J-0R0X MG R 0.0Ω 1/16W J R1663 NRSA63J-0R0X MG R 0.0Ω 1/16W J R1665 NRSA63J-222X MG R 2.2kΩ 1/16W J

R1666 NRSA63J-472X MG R 4.7kΩ 1/16W J R1667 NRSA63J-222X MG R 2.2kΩ 1/16W J R1668 NRSA63J-222X MG R 2.2kΩ 1/16W J R1669 NRSA63J-472X MG R 4.7kΩ 1/16W J R1670 NRSA63J-222X MG R 2.2kΩ 1/16W J

R1671 QRJ146J-2R2X C R 2.2Ω 1/4W J R1672 QRJ146J-2R2X C R 2.2Ω 1/4W J

R1673 QRK126J-102X C R 1kΩ 1/2W J

R1674 QRK126J-102X C R 1kΩ 1/2W J

R1680 NRSA63J-822X MG R 8.2kΩ 1/16W J R1681 NRSA63J-473X MG R 47kΩ 1/16W J R1682 NRSA63J-103X MG R 10kΩ 1/16W J

R1691 NRSA63J-104X MG R 100kΩ 1/16W J R1701 NRSA63J-104X MG R 100kΩ 1/16W J R1702 NRSA63J-103X MG R 10kΩ 1/16W J R1703 NRSA63J-0R0X MG R 0.0Ω 1/16W J R1704 NRSA63J-221X MG R 220Ω 1/16W J R1706 NRSA63J-104X MG R 100kΩ 1/16W J

R1707 NRSA63J-0R0X MG R 0.0Ω 1/16W J R1709 NRSA63J-104X MG R 100kΩ 1/16W J R1710 NRSA63J-104X MG R 100kΩ 1/16W J R1712 NRSA63J-0R0X MG R 0.0Ω 1/16W J R1714 NRSA63J-103X MG R 10kΩ 1/16W J R1715 NRSA63J-101X MG R 100Ω 1/16W J

R1716 NRSA63J-101X MG R 100Ω 1/16W J R1719 NRSA63J-0R0X MG R 0.0Ω 1/16W J R1721 NRSA63J-102X MG R 1kΩ 1/16W J R1722 NRSA63J-0R0X MG R 0.0Ω 1/16W J R1724 NRSA63J-103X MG R 10kΩ 1/16W J R1725 NRSA63J-101X MG R 100Ω 1/16W J

R1726 NRSA63J-101X MG R 100Ω 1/16W J R1727 NRSA63J-103X MG R 10kΩ 1/16W J R1728 NRSA63J-102X MG R 1kΩ 1/16W J R1729 NRSA63J-101X MG R 100Ω 1/16W J R1730 NRSA63J-272X MG R 2.7kΩ 1/16W J R1731 NRSA63J-101X MG R 100Ω 1/16W J

R1732 NRSA63J-272X MG R 2.7kΩ 1/16W J R1733 NRSA63J-102X MG R 1kΩ 1/16W J R1735 NRSA63J-104X MG R 100kΩ 1/16W J R1736 NRSA63J-333X MG R 33kΩ 1/16W J R1737 NRSA63J-101X MG R 100Ω 1/16W J R1738 NRSA63J-333X MG R 33kΩ 1/16W J

R1744 NRSA63J-101X MG R 100Ω 1/16W J R1746 NRSA63J-332X MG R 3.3kΩ 1/16W J R1747 NRSA63J-0R0X MG R 0.0Ω 1/16W J R1748 NRSA63J-102X MG R 1kΩ 1/16W J R1749 NRSA63J-124X MG R 120kΩ 1/16W J R1750 NRSA63J-104X MG R 100kΩ 1/16W J

R1751 NRSA63J-473X MG R 47kΩ 1/16W J R1752 NRSA63J-333X MG R 33kΩ 1/16W J R1753 NRSA63J-333X MG R 33kΩ 1/16W J R1754 NRSA63J-0R0X MG R 0.0Ω 1/16W J R1756 NRSA63J-103X MG R 10kΩ 1/16W J R1760 NRSA63J-0R0X MG R 0.0Ω 1/16W J

R1761 NRSA63J-102X MG R 1kΩ 1/16W J R1762 NRSA63J-124X MG R 120kΩ 1/16W J R1763 NRSA63J-333X MG R 33kΩ 1/16W J R1764 NRSA63J-333X MG R 33kΩ 1/16W J

Symbol No. Part No. Part Name Description

RESISTOR

R1765 NRSA63J-102X MG R 1kΩ 1/16W J R1766 NRSA63J-332X MG R 3.3kΩ 1/16W J R1767 NRSA63J-151X MG R 150Ω 1/16W J R1768 NRSA63J-101X MG R 100Ω 1/16W J R1770 NRSA63J-101X MG R 100Ω 1/16W J R1773 NRSA63J-0R0X MG R 0.0Ω 1/16W J R1775 NRSA63J-332X MG R 3.3kΩ 1/16W J

R1776 NRSA63J-333X MG R 33kΩ 1/16W J R1777 NRSA63J-103X MG R 10kΩ 1/16W J R1778 NRSA63J-103X MG R 10kΩ 1/16W J R1779 NRSA63J-102X MG R 1kΩ 1/16W J R1780 NRSA63J-103X MG R 10kΩ 1/16W J

R1781 NRSA63J-333X MG R 33kΩ 1/16W J R1782 NRSA63J-681X MG R 680Ω 1/16W J R1783 NRSA63J-101X MG R 100Ω 1/16W J R1784 NRSA63J-682X MG R 6.8kΩ 1/16W J R1785 NRSA63J-103X MG R 10kΩ 1/16W J R1787 NRSA63J-472X MG R 4.7kΩ 1/16W J

R1788 NRSA63J-680X MG R 68Ω 1/16W J R1789 NRSA63J-680X MG R 68Ω 1/16W J R1790 NRSA63J-680X MG R 68Ω 1/16W J R1791 NRSA63J-101X MG R 100Ω 1/16W J R1792 NRSA63J-102X MG R 1kΩ 1/16W J R1793 NRSA63J-104X MG R 100kΩ 1/16W J

R1794 NRSA63J-101X MG R 100Ω 1/16W J R1802 NRSA63J-104X MG R 100kΩ 1/16W J R1803 NRSA63J-473X MG R 47kΩ 1/16W J R1804 NRSA63J-101X MG R 100Ω 1/16W J R1806 NRSA63J-101X MG R 100Ω 1/16W J R1808 NRSA63J-151X MG R 150Ω 1/16W J

R1811 NRSA63J-101X MG R 100Ω 1/16W J R1814 NRSA63J-102X MG R 1kΩ 1/16W J R1815 NRSA63J-0R0X MG R 0.0Ω 1/16W J R1816 NRSA63J-0R0X MG R 0.0Ω 1/16W J R1817 NRSA63J-101X MG R 100Ω 1/16W J R1818 NRSA63J-0R0X MG R 0.0Ω 1/16W J

R1820 NRSA63J-393X MG R 39kΩ 1/16W J R1822 NRSA63J-472X MG R 4.7kΩ 1/16W J R1823 NRSA63J-124X MG R 120kΩ 1/16W J R1829 NRSA63J-103X MG R 10kΩ 1/16W J R1830 NRSA63J-102X MG R 1kΩ 1/16W J R1831 NRSA63J-102X MG R 1kΩ 1/16W J

R1832 NRSA63J-103X MG R 10kΩ 1/16W J R1834 NRSA63J-102X MG R 1kΩ 1/16W J R1836 NRSA63J-101X MG R 100Ω 1/16W J R1837 NRSA63J-333X MG R 33kΩ 1/16W J R1838 NRSA63J-101X MG R 100Ω 1/16W J R1839 NRSA63J-333X MG R 33kΩ 1/16W J

R1840 NRSA63J-102X MG R 1kΩ 1/16W J R1843 NRSA63J-103X MG R 10kΩ 1/16W J R1844 NRSA63J-103X MG R 10kΩ 1/16W J R1847 NRSA63J-101X MG R 100Ω 1/16W J R1850 NRSA63J-0R0X MG R 0.0Ω 1/16W J R1880 NRSA63J-102X MG R 1kΩ 1/16W J

R1881 NRSA63J-221X MG R 220Ω 1/16W J R1882 NRSA63J-222X MG R 2.2kΩ 1/16W J R1883 NRSA63J-103X MG R 10kΩ 1/16W J R1884 NRSA63J-102X MG R 1kΩ 1/16W J R1887 NRSA63J-221X MG R 220Ω 1/16W J

R1888 NRSA63J-222X MG R 2.2kΩ 1/16W J R1889 NRSA63J-103X MG R 10kΩ 1/16W J R1891 NRSA63J-221X MG R 220Ω 1/16W J R1892 NRSA63J-221X MG R 220Ω 1/16W J R1893 NRSA63J-221X MG R 220Ω 1/16W J R1894 NRSA63J-221X MG R 220Ω 1/16W J

R1895 NRSA63J-221X MG R 220Ω 1/16W J R1896 NRSA63J-563X MG R 56kΩ 1/16W J R1897 NRSA63J-563X MG R 56kΩ 1/16W J R1901 NRSA63J-471X MG R 470Ω 1/16W J R1902 NRSA63J-182X MG R 1.8kΩ 1/16W J R1904 NRSA02F-222X MG R 2.2kΩ 1/10W F

No. 52007

V-56WP30

Symbol No. Part No. Part Name Description

RESISTOR

R1905 NRSA02F-222X MG R 2.2kΩ 1/10W F R1907 NRSA63J-0R0X MG R 0.0Ω 1/16W J R1908 NRSA63J-183X MG R 18kΩ 1/16W J R1931 NRSA63J-332X MG R 3.3kΩ 1/16W J R1932 NRSA63J-101X MG R 100Ω 1/16W J R1933 NRSA63J-683X MG R 68kΩ 1/16W J R1935 QRT039J-8R2 MF R 8.2Ω 3W J R1936 QRL039J-100 OM R 10Ω 3W J R1941 QRK126J-5R6X C R 5.6Ω 1/2W J

R1942 NRSA63J-152X MG R 1.5kΩ 1/16W J R1943 NRSA63J-152X MG R 1.5kΩ 1/16W J R1944 QRK126J-220X C R 22Ω 1/2W J R1945 NRSA63J-102X MG R 1kΩ 1/16W J R1946 NRSA63J-102X MG R 1kΩ 1/16W J R1947 NRSA63J-152X MG R 1.5kΩ 1/16W J

R1949 NRSA02F-122X MG R 1.2kΩ 1/10W F R1950 NRSA63J-822X MG R 8.2kΩ 1/16W J R1952 NRSA63J-0R0X MG R 0.0Ω 1/16W J R1953 NRSA63J-224X MG R 220kΩ 1/16W J R1954 NRSA63J-473X MG R 47kΩ 1/16W J R1955 NRSA63J-473X MG R 47kΩ 1/16W J

R1959 NRSA02F-182X MG R 1.8kΩ 1/10W F R1961 NRSA63J-821X MG R 820Ω 1/16W J R1962 NRSA63J-682X MG R 6.8kΩ 1/16W J R1963 NRSA63J-182X MG R 1.8kΩ 1/16W J R1964 NRSA63J-223X MG R 22kΩ 1/16W J R1965 NRSA63J-821X MG R 820Ω 1/16W J

R1966 NRSA63J-123X MG R 12kΩ 1/16W J R1967 NRSA63J-122X MG R 1.2kΩ 1/16W J R1968 NRSA63J-821X MG R 820Ω 1/16W J R1969 NRSA63J-821X MG R 820Ω 1/16W J R1981 QRG01GJ-181 OM R 180Ω 1W J R1986 QRG01GJ-331 OM R 330Ω 1W J

R1991 NRSA63J-273X MG R 27kΩ 1/16W J R1992 NRSA63J-123X MG R 12kΩ 1/16W J R1993 NRSA63J-123X MG R 12kΩ 1/16W J R1994 NRSA63J-333X MG R 33kΩ 1/16W J R1996 NRSA63J-101X MG R 100Ω 1/16W J R1997 NRSA63J-101X MG R 100Ω 1/16W J

R1998 NRSA63J-101X MG R 100Ω 1/16W J

CAPACITOR

C1001 QETN0JM-108Z E CAP. 1000μF 6.3V M C1002 NCF31AZ-105X C CAP. 1µF 10V Z

C1003 NCF31AZ-105X C CAP. 1µF 10V Z C1011 NDC31HJ-100X C CAP. 10pF 50V J C1012 NCF31CZ-104X C CAP. 0.1µF 16V Z

C1013 NDC31HJ-5R0X C CAP. 5.0pF 50V J C1021 NCF11EZ-105X C CAP. 1µF 25V Z

C1102 QETN1CM-477Z E CAP. 470µF 16V M C1103 QETN1HM-106Z E CAP. 10µF 50V M C1104 QETN1HM-106Z E CAP. 10µF 50V M C1108 QETN1HM-106Z E CAP. 10µF 50V M C1131 QETN1EM-476Z E CAP. 47µF 25V M C1132 QETN1EM-476Z E CAP. 47µF 25V M

C1133 QETN1EM-476Z E CAP. 47µF 25V M C1134 NCF11EZ-105X C CAP. 1µF 25V Z C1135 NCB11CK-105X C CAP. 1µF 16V K C1136 NCB11CK-105X C CAP. 1µF 16V K C1137 NCB11CK-105X C CAP. 1µF 16V K

C1138 QRN143J-0R0X C R 0.0Ω 1/4W J C1139 QRN143J-0R0X C R 0.0Ω 1/4W J C1140 QRN143J-0R0X C R 0.0Ω 1/4W J C1148 NCB31EK-104X C CAP. 0.1µF 25V K C1149 QETN1CM-107Z E CAP. 100µF 16V M C1150 NCF21CZ-105X C CAP. 1µF 16V Z

C1151 NCF21CZ-105X C CAP. 1µF 16V Z C1152 NCF21CZ-105X C CAP. 1µF 16V Z C1160 QETN1CM-107Z E CAP. 100µF 16V M

Symbol No. Part No. Part Name Description

CAPACITOR

C1162 NCB31EK-104X C CAP. 0.1µF 25V K C1173 NCB11CK-105X C CAP. 1µF 16V K C1174 NCB11CK-105X C CAP. 1µF 16V K C1175 NCB11CK-105X C CAP. 1µF 16V K

C1176 NCB31HK-103X C CAP. 0.01µF 50V K C1177 NCB31HK-103X C CAP. 0.01µF 50V K C1178 NCB31HK-103X C CAP. 0.01µF 50V K C1213 QETN1CM-107Z E CAP. 100µF 16V M C1214 QETN1HM-225Z E CAP. 2.2µF 50V M C1215 QFLC1HJ-103Z M CAP. 0.01µF 50V J

C1216 NCF11CZ-475X C CAP. 4.7µF 16V Z C1218 QENC1HM-105Z E CAP. 1µF 50V M C1219 NCF11CZ-475X C CAP. 4.7µF 16V Z

C1233 NDC31HJ-180X C CAP. 18pF 50V J C1241 NCF31CZ-104X C CAP. 0.1µF 16V Z C1242 NCF31CZ-104X C CAP. 0.1µF 16V Z C1243 QETN1CM-476Z E CAP. 47µF 16V M C1244 NCF31CZ-104X C CAP. 0.1µF 16V Z

C1245 QETN1CM-476Z E CAP. 47µF 16V M C1250 NCF31CZ-104X C CAP. 0.1µF 16V Z C1251 NCF31CZ-104X C CAP. 0.1µF 16V Z C1252 QENC1EM-106Z BP E CAP. 10µF 25V M C1253 NCB31HK-103X C CAP. 0.01µF 50V K C1254 QETN1CM-227Z E CAP. 220µF 16V M

C1255 QETN1HM-474Z E CAP. 0.47µF 50V M C1256 NCB11CK-105X C CAP. 1µF 16V K C1259 NCF31CZ-104X C CAP. 0.1µF 16V Z C1260 NCF31CZ-104X C CAP. 0.1µF 16V Z

C1261 NDC31HJ-150X C CAP. 15pF 50V J C1262 NDC31HJ-471X C CAP. 470pF 50V J

C1263 NCB31HK-103X C CAP. 0.01µF 50V K C1264 NDC31HJ-101X C CAP. 100pF 50V J C1265 NDC31HJ-101X C CAP. 100pF 50V J

C1266 NCF31CZ-104X C CAP. 0.1µF 16V Z C1269 QETN1HM-475Z E CAP. 4.7µF 50V M C1270 QETN1HM-474Z E CAP. 0.47µF 50V M C1271 QETN1HM-474Z E CAP. 0.47µF 50V M C1272 QETN1HM-105Z E CAP. 1µF 50V M

C1273 NCB31HK-472X C CAP. 4700pF 50V K C1275 QETN1HM-105Z E CAP. 1µF 50V M C1276 QETN1CM-227Z E CAP. 220µF 16V M

C1277 NCB31HK-103X C CAP. 0.01µF 50V K C1278 NCB31HK-103X C CAP. 0.01µF 50V K C1301 QENC1HM-105Z E CAP. 1µF 50V M C1302 QENC1HM-105Z E CAP. 1µF 50V M C1303 QENC1HM-105Z E CAP. 1µF 50V M C1304 QETN1HM-105Z E CAP. 1µF 50V M

C1305 NCF11CZ-475X C CAP. 4.7µF 16V Z C1306 QETN1AM-477Z E CAP. 470µF 10V M

C1307 NCB31HK-472X C CAP. 4700pF 50V K C1308 NCB31CK-104X C CAP. 0.1µF 16V K C1309 NCB31CK-104X C CAP. 0.1µF 16V K C1310 NCB31CK-104X C CAP. 0.1µF 16V K C1311 NCB31CK-104X C CAP. 0.1µF 16V K

C1312 NCB31CK-104X C CAP. 0.1µF 16V K C1313 NCB31CK-104X C CAP. 0.1µF 16V K C1315 NCB31HK-472X C CAP. 4700pF 50V K

C1316 NCB31HK-472X C CAP. 4700pF 50V K C1317 QETN1CM-227Z E CAP. 220µF 16V M

C1318 QETN1HM-225Z E CAP. 2.2µF 50V M C1319 QETN1HM-105Z E CAP. 1µF 50V M C1320 QETN1HM-475Z E CAP. 4.7µF 50V M C1321 QETN1HM-335Z E CAP . 3.3μF 50V M C1322 QETN1HM-335Z E CAP . 3.3μF 50V M

C1323 QETN1HM-335Z E CAP . 3.3μF 50V M C1325 NCB11CK-105X C CAP. 1µF 16V K C1326 NCB11CK-105X C CAP. 1µF 16V K C1327 NCB11CK-105X C CAP. 1µF 16V K

C1329 NCB31HK-103X C CAP. 0.01µF 50V K C1332 NCB21AK-105X C CAP. 1μF 10V K

C1333 NCB21AK-105X C CAP. 1μF 10V K C1334 NCB21AK-105X C CAP. 1μF 10V K C1335 QETN1EM-476Z E CAP. 47µF 25V M

C1336 NCB31HK-472X C CAP. 4700pF 50V K

No. 52007

Symbol No. Part No. Part Name Description

CAPACITOR

C1339 NCF11CZ-475X C CAP. 4.7µF 16V Z C1341 NCF11EZ-105X C CAP. 1µF 25V Z C1342 NCF11EZ-105X C CAP. 1µF 25V Z C1343 NCF11EZ-105X C CAP. 1µF 25V Z C1344 NCF11EZ-105X C CAP. 1µF 25V Z

C1345 NCF11EZ-105X C CAP. 1µF 25V Z C1346 NCF11EZ-105X C CAP. 1µF 25V Z C1351 NCF31AZ-105X C CAP. 1µF 10V Z

C1352 NDC31HJ-151X C CAP. 150pF 50V J C1357 NCB31HK-102X C CAP. 1000pF 50V K

C1358 NDC31HJ-100X C CAP. 10pF 50V J C1359 NCB31HK-472X C CAP. 4700pF 50V K C1361 QETN1HM-226Z E CAP. 22µF 50V M

C1362 NCB31CK-563X C CAP. 0.056μF 16V K C1363 QETN1HM-226Z E CAP. 22µF 50V M

C1364 NCB31CK-104X C CAP. 0.1µF 16V K C1366 NCF11EZ-105X C CAP. 1µF 25V Z C1386 NCF31AZ-105X C CAP. 1µF 10V Z C1391 NCF31AZ-105X C CAP. 1µF 10V Z C1401 QETN1AM-477Z E CAP. 470µF 10V M C1402 QETN0JM-108Z E CAP. 1000μF 6.3V M C1403 QETN1CM-107Z E CAP. 100µF 16V M C1404 QETN1AM-108Z E CAP. 1000µF 10V M C1405 QETN0JM-108Z E CAP. 1000μF 6.3V M C1409 QETN1HM-106Z E CAP. 10µF 50V M C1410 NCB31CK-104X C CAP. 0.1µF 16V K C1411 NCB31CK-104X C CAP. 0.1µF 16V K

C1413 NCB31HK-103X C CAP. 0.01µF 50V K C1414 QETN1EM-476Z E CAP. 47µF 25V M C1415 NCB31HK-103X C CAP. 0.01µF 50V K C1416 QETN1EM-476Z E CAP. 47µF 25V M C1417 NCB31HK-103X C CAP. 0.01µF 50V K C1418 QETN1EM-476Z E CAP. 47µF 25V M

C1424 QETN1CM-336Z E CAP. 33µF 16V M C1425 QETN1CM-336Z E CAP. 33µF 16V M C1426 QETN1CM-336Z E CAP. 33µF 16V M C1428 QRN143J-0R0X C R 0.0Ω 1/4W J C1429 QRN143J-0R0X C R 0.0Ω 1/4W J C1438 NCB31HK-103X C CAP. 0.01µF 50V K

C1442 NCB31HK-103X C CAP. 0.01µF 50V K C1444 NCB11CK-225X C CAP. 2.2µF 16V K C1445 NCB31HK-103X C CAP. 0.01µF 50V K

C1446 NCB31HK-102X C CAP. 1000pF 50V K C1447 NDC31HJ-151X C CAP. 150pF 50V J

C1449 NDC31HJ-560X C CAP. 56pF 50V J C1450 NCB31HK-103X C CAP. 0.01µF 50V K

C1451 NCB31HK-103X C CAP. 0.01µF 50V K C1452 NCB31HK-102X C CAP. 1000pF 50V K

C1453 NCB31AK-474X C CAP. 0.47µF 10V K C1454 NCB11CK-225X C CAP. 2.2µF 16V K C1480 NCB31HK-103X C CAP. 0.01µF 50V K C1481 NCB31HK-103X C CAP. 0.01µF 50V K C1482 NCB11CK-225X C CAP. 2.2µF 16V K C1483 NCB31HK-103X C CAP. 0.01µF 50V K

C1484 NCB31HK-103X C CAP. 0.01µF 50V K C1485 NCB31HK-102X C CAP. 1000pF 50V K

C1486 NDC31HJ-151X C CAP. 150pF 50V J C1487 NCB31HK-102X C CAP. 1000pF 50V K C1488 NDC31HJ-7R0X C CAP. 7.0pF 50V J C1489 NDC31HJ-560X C CAP. 56pF 50V J

C1490 NCB31HK-103X C CAP. 0.01µF 50V K C1491 NCB11CK-225X C CAP. 2.2µF 16V K C1501 NCB31EK-104X C CAP. 0.1µF 25V K C1502 QETN1EM-476Z E CAP. 47µF 25V M

C1519 QETN1EM-476Z E CAP. 47µF 25V M C1520 NDC31HJ-100X C CAP. 10pF 50V J C1521 QENC1CM-336Z E CAP. 33μF 16V M C1522 NCB31HK-103X C CAP. 0.01µF 50V K C1532 QETN1HM-226Z E CAP. 22µF 50V M C1539 QETN1HM-106Z E CAP. 10µF 50V M

C1560 NCF11EZ-105X C CAP. 1µF 25V Z C1579 QETN1EM-476Z E CAP. 47µF 25V M C1582 QENC1CM-336Z E CAP. 33μF 16V M C1583 NCB11CK-225X C CAP. 2.2µF 16V K C1663 NRSA63J-0R0X MG R 0.0Ω 1/16W J C1665 NRSA63J-0R0X MG R 0.0Ω 1/16W J

V-56WP3

Symbol No. Part No. Part Name Description

CAPACITOR

C1667 QETN1HM-106Z E CAP. 10µF 50V M C1668 NDC31HJ-101X C CAP. 100pF 50V J

C1669 NCB11CK-105X C CAP. 1µF 16V K C1670 QETN1HM-106Z E CAP. 10µF 50V M

C1671 NDC31HJ-101X C CAP. 100pF 50V J C1672 NCB11CK-105X C CAP. 1µF 16V K C1673 QETN1HM-107Z E CAP. 100µF 50V M C1674 QETM1VM-228 E CAP. 2200µF 35V M

C1675 QFV71HJ-124Z MF CAP. 0.12µF 50V J C1676 QFV71HJ-124Z MF CAP. 0.12µF 50V J C1677 QETN1EM-108Z E CAP. 1000µF 25V M C1678 QETN1EM-108Z E CAP. 1000µF 25V M C1679 QETN1HM-475Z E CAP. 4.7µF 50V M C1680 QETN1HM-106Z E CAP. 10µF 50V M

C1696 QETN1HM-106Z E CAP. 10µF 50V M C1697 QETN1EM-476Z E CAP. 47µF 25V M C1701 NCB31EK-104X C CAP. 0.1µF 25V K C1702 NCB11CK-225X C CAP. 2.2µF 16V K C1703 QETN1EM-476Z E CAP. 47µF 25V M C1704 NCB11CK-225X C CAP. 2.2µF 16V K

C1706 NCB11CK-105X C CAP. 1µF 16V K C1708 NDC31HJ-470X C CAP. 47pF 50V J

C1709 NDC31HJ-101X C CAP. 100pF 50V J C1710 NCB31EK-104X C CAP. 0.1µF 25V K

C1711 NCF31CZ-104X C CAP. 0.1µF 16V Z C1712 QETN1HM-106Z E CAP. 10µF 50V M

C1715 NDC31HJ-102X C CAP. 1000pF 50V J C1716 NCB31HK-103X C CAP. 0.01µF 50V K C1717 NCF31CZ-104X C CAP. 0.1µF 16V Z C1718 QETN1EM-476Z E CAP. 47µF 25V M C1719 QETN1HM-475Z E CAP. 4.7µF 50V M

C1720 NDC31HJ-102X C CAP. 1000pF 50V J C1721 NCB31HK-103X C CAP. 0.01µF 50V K C1722 QETN1HM-475Z E CAP. 4.7µF 50V M

C1723 NCB31HK-152X C CAP. 1500pF 50V K C1724 QETN1HM-105Z E CAP. 1µF 50V M

C1725 NDC31HJ-470X C CAP. 47pF 50V J C1726 QETN1HM-105Z E CAP. 1µF 50V M C1727 QETN1HM-105Z E CAP. 1µF 50V M

C1728 NCB21AK-105X C CAP. 1μF 10V K C1729 QETN1EM-476Z E CAP. 47µF 25V M

C1730 QETN1HM-105Z E CAP. 1µF 50V M C1731 QETN1HM-105Z E CAP. 1µF 50V M

C1732 NCB31HK-103X C CAP. 0.01µF 50V K C1733 QETN1HM-475Z E CAP. 4.7µF 50V M

C1734 NDC31HJ-470X C CAP. 47pF 50V J C1735 NCB31HK-153X C CAP. 0.015 µF 50V K

C1743 NDC31HJ-8R0X C CAP. 8.0pF 50V J C1744 NDC31HJ-8R0X C CAP. 8.0pF 50V J

C1745 NCB31HK-153X C CAP. 0.015 µF 50V K C1752 NCB11CK-105X C CAP. 1µF 16V K

C1754 NCB31HK-122X C CAP. 1200pF 50V K C1755 QETN1HM-105Z E CAP. 1µF 50V M

C1756 NCB31HK-122X C CAP. 1200pF 50V K C1757 QETN1HM-105Z E CAP. 1µF 50V M

C1801 NDC31HJ-391X C CAP. 390pF 50V J C1802 QETN1HM-106Z E CAP. 10µF 50V M C1901 QETN1EM-107Z E CAP. 100µF 25V M C1902 QETN1CM-107Z E CAP. 100µF 16V M C1908 QETN1CM-107Z E CAP. 100µF 16V M C1909 QETN1CM-107Z E CAP. 100µF 16V M

C1932 QETN1EM-476Z E CAP. 47µF 25V M C1941 QETN1VM-108Z E CAP . 1000μF 35V M

C1942 QETN1CM-108Z E CAP. 1000µF 16V M C1944 QETN1VM-108Z E CAP . 1000μF 35V M

C1945 QEZ0256-128 E CAP. 1200µF 10V M C1947 QETN1CM-477Z E CAP. 470µF 16V M

C1948 QETN1CM-477Z E CAP. 470µF 16V M C1949 QETN0JM-108Z E CAP . 1000μF 6.3V M C1950 QETN0JM-108Z E CAP . 1000μF 6.3V M

C1951 QETN1VM-108Z E CAP . 1000μF 35V M C1952 QEZ0256-128 E CAP. 1200µF 10V M C1953 QETN0JM-108Z E CAP . 1000μF 6.3V M C1954 QETN0JM-108Z E CAP . 1000μF 6.3V M C1957 QETN0JM-108Z E CAP . 1000μF 6.3V M

C1958 QETN0JM-228Z E CAP . 2200μF 6.3V M

No. 52007

V-56WP30

Symbol No. Part No. Part Name Description

CAPACITOR

C1961 QETN1HM-105Z E CAP. 1µF 50V M C1988 NCB31HK-222X C CAP. 2200pF 50V K

COIL

L1101 QRN143J-0R0X C R 0.0Ω 1/4W J L1102 QRN143J-0R0X C R 0.0Ω 1/4W J L1211 QQL25CK-100Z COIL 10µH K

L1243 NQL024J-100X COIL 10µH L1244 NQL024J-100X COIL 10µH L1401 QQL25CK-100Z COIL 10µH K

L1402 QQL26AK-100Z CHOKE COIL L1403 QRN143J-0R0X C R 0.0Ω 1/4W J L1404 QRN143J-0R0X C R 0.0Ω 1/4W J

L1430 NQL085J-560X INDUCTOR L1431 NQL085J-560X INDUCTOR L1481 NQL085J-560X INDUCTOR

L1482 NQL085J-560X INDUCTOR L1711 NQL085J-2R2X INDUCTOR L1712 NQL085J-3R3X INDUCTOR L1713 NQL085J-3R3X INDUCTOR L1714 NQL085J-3R3X INDUCTOR

L1941 QQR1129-001 CHOKE COIL L1942 QQR1127-001 CHOKE COIL L1943 QQL50AK-330Z CHOKE COIL

L1944 QQL26AK-330Z COIL 33µH K L1945 QQL26AK-220Z COIL 22µH K

L1946 QQL26AK-220Z COIL 22µH K L1947 QQR1127-001 CHOKE COIL

L1948 QQL50AK-100Z CHOKE COIL L1949 QQL26AK-220Z COIL 22µH K L1950 QQL26AK-820Z COIL 82µH K

DIODE

D1301 MA111-X SI.DIODE D1302 MA111-X SI.DIODE D1304 MA111-X SI.DIODE D1305 MA111-X SI.DIODE

D1306 MA111-X SI.DIODE D1308 MA8100/M/-X ZENER DIODE D1352 MA111-X SI.DIODE D1353 MA8150/M/-X ZENER DIODE D1354 MA8030/H/-X ZENER DIODE D1431 MA111-X SI.DIODE

D1432 MA111-X SI.DIODE D1481 MA111-X SI.DIODE D1482 MA111-X SI.DIODE D1662 MA3330/L/-X ZENER DIODE D1663 MA3330/L/-X ZENER DIODE

D1667 MA111-X SI.DIODE D1668 MA111-X SI.DIODE D1669 MA111-X SI.DIODE D1701 1SR35-400A-T2 DIODE D1702 MA111-X SI.DIODE

D1704 MA111-X SI.DIODE D1708 MA111-X SI.DIODE D1709 MA111-X SI.DIODE D1710 MA111-X SI.DIODE D1711 MA111-X SI.DIODE

D1713 MA111-X SI.DIODE D1714 MA111-X SI.DIODE D1715 MA111-X SI.DIODE D1716 MA111-X SI.DIODE D1718 MA111-X SI.DIODE

D1719 NRSA63J-0R0X MG R 0.0Ω 1/16W J D1721 MA704A-X S B DIODE D1722 MA704A-X S B DIODE

D1891 UDZS8.2B-X ZENER DIODE D1892 UDZS8.2B-X ZENER DIODE D1893 UDZS5.1B-X ZENER DIODE D1894 UDZS5.1B-X ZENER DIODE D1895 UDZS5.1B-X ZENER DIODE

D1901 1SR35-400A-T2 DIODE D1903 1SR35-400A-T2 DIODE D1931 MA111-X SI.DIODE D1932 MA111-X SI.DIODE

Symbol No. Part No. Part Name Description

DIODE

D1933 UDZS5.1B-X ZENER DIODE D1941 RK34-LFC4 S B DIODE D1942 SF5S4 S B DIODE D1943 SF5S4 S B DIODE

D1962 MA3030/H/-X ZENER DIODE D1964 MA111-X SI.DIODE D1965 MA111-X SI.DIODE D1967 PTZ11B-X ZENER DIODE D1968 PTZ6.8B-X ZENER DIODE

D1969 PTZ11B-X ZENER DIODE D1970 MA111-X SI.DIODE

TRANSISTOR

Q1001 2SC2412K/QR/-X SI.TRANSISTOR Q1021 2SC2412K/QR/-X SI.TRANSISTOR Q1151 2SC3837K/NP/-X SI.TRANSISTOR Q1152 2SC3837K/NP/-X SI.TRANSISTOR

Q1153 2SC3837K/NP/-X SI.TRANSISTOR Q1232 2SA1037AK/QR/-X SI.TRANSISTOR Q1242 2SC2412K/QR/-X SI.TRANSISTOR Q1243 2SC2412K/QR/-X SI.TRANSISTOR Q1246 2SC2412K/QR/-X SI.TRANSISTOR

Q1248 2SA1037AK/QR/-X SI.TRANSISTOR Q1249 2SA1037AK/QR/-X SI.TRANSISTOR Q1301 2SA1022/BC/-X SI.TRANSISTOR Q1302 2SA1022/BC/-X SI.TRANSISTOR Q1303 2SA1022/BC/-X SI.TRANSISTOR

Q1304 2SC3837K/NP/-X SI.TRANSISTOR Q1305 2SC3837K/NP/-X SI.TRANSISTOR Q1306 2SC3837K/NP/-X SI.TRANSISTOR Q1321 IMX1-XW TRANSISTOR Q1323 2SC2412K/QR/-X SI.TRANSISTOR

Q1324 2SA1022/BC/-X SI.TRANSISTOR Q1431 2SC2412K/QR/-X SI.TRANSISTOR Q1432 2SA1037AK/QR/-X SI.TRANSISTOR Q1433 2SC2412K/QR/-X SI.TRANSISTOR Q1436 2SC2412K/QR/-X SI.TRANSISTOR Q1437 2SC2412K/QR/-X SI.TRANSISTOR

Q1438 2SC2412K/QR/-X SI.TRANSISTOR Q1439 2SA1037AK/QR/-X SI.TRANSISTOR Q1481 2SC2412K/QR/-X SI.TRANSISTOR Q1482 2SC2412K/QR/-X SI.TRANSISTOR Q1483 2SC2412K/QR/-X SI.TRANSISTOR

Q1484 2SC2412K/QR/-X SI.TRANSISTOR Q1485 2SA1037AK/QR/-X SI.TRANSISTOR Q1505 2SC2412K/QR/-X SI.TRANSISTOR Q1668 DTC144EKA-X SI.TRANSISTOR Q1669 2SC2412K/QR/-X SI.TRANSISTOR

Q1672 2SC2412K/QR/-X SI.TRANSISTOR Q1673 2SA1037AK/QR/-X SI.TRANSISTOR Q1701 DTC144EKA-X SI.TRANSISTOR Q1702 2SA1037AK/QR/-X SI.TRANSISTOR Q1703 2SA1037AK/QR/-X SI.TRANSISTOR

Q1704 2SA1037AK/QR/-X SI.TRANSISTOR Q1705 2SA1037AK/QR/-X SI.TRANSISTOR Q1706 2SC2412K/QR/-X SI.TRANSISTOR Q1707 2SC2412K/QR/-X SI.TRANSISTOR Q1710 2SC2412K/QR/-X SI.TRANSISTOR

Q1711 2SC2412K/QR/-X SI.TRANSISTOR Q1714 2SC2785/JH/-T SI.TRANSISTOR Q1715 2SA1037AK/QR/-X SI.TRANSISTOR Q1931 2SC2412K/QR/-X SI.TRANSISTOR Q1961 2SC2412K/QR/-X SI.TRANSISTOR Q1962 2SC2412K/QR/-X SI.TRANSISTOR

Q1964 2SC2412K/QR/-X SI.TRANSISTOR Q1965 2SC2412K/QR/-X SI.TRANSISTOR Q1981 2SC4682-T TRANSISTOR Q1984 2SC4682-T TRANSISTOR

IC1001 TC74HC02AF-X I.C. IC1002 TC74HC14AF-X I.C. IC1011 TC7W04F-X I.C. IC1021 TC4W66F-X I.C. IC1131 M52055FP-X I.C.

IC1151 MM1519XQ I.C.

No. 52007

Symbol No. Part No. Part Name Description

IC1211 TA1318N I.C. IC1212 TC7W08F-X I.C. IC1241 CXA2019AQ I.C. IC1242 TA78L09F-X I.C.

IC1301 AN5392FBQ I.C. IC1302 CXA1875AM-X I.C. IC1351 TC74HC4538AF-X I.C. IC1431 TC4W66F-X I.C. IC1501 CXA2069Q I.C.

IC1502 M62320FP-X I.C. IC1511 PQ15RW11 I.C. IC1521 CE42599-002 COMB FILTER IC1560 BU2098F-X I.C. IC1661 AN5277 I.C. IC1701 MN102H57KPB I.C.

IC1702 S-80828CLNB-W I.C. IC1703 AT24C32-48WP30 I.C. (SERVICE) IC1704 TA48M033F-X I.C. IC1901 PQ12RF1 I.C. IC1903 BA17805T I.C.

IC1903 AN7805F I.C. IC1941 SI-8090S I.C. IC1942 SI-8050S I.C. IC1943 PQ1CG2032FZ I.C. IC1944 PQ070XH02Z-W I.C.

OTHERS

CF1241 QAX0529-001 C RESONATOR CN1001 QGB1506L1-16 B TO B CONNECTOR

CN1002 QGB1506L1-16 B TO B CONNECTOR CN1003 QGB1506L1-16 B TO B CONNECTOR CN1004 QGC2507C1-96 CARD EDGE CN1005 QGB1505J1-40 B TO B CONNECTOR

CN1006 QGB1505J1-40 B TO B CONNECTOR CN1007 QGB1505J1-25 B TO B CONNECTOR CN1010 QGB1505J1-40 B TO B CONNECTOR

K1151 NRSA63J-0R0X MG R 0.0Ω 1/16W J K1703 NQR0199-004X FERRITE BEADS K1704 NQR0413-003X BEADS CORE K1705 NQR0413-003X BEADS CORE K1943 CE42050-001Z BEADS CORE

K1944 CE42050-001Z BEADS CORE LC1131 NQR0169-001X EMI FILTER SL1211 CSB503F30-T2 C RESONATOR SL1701 QAX0248-001Z C RESONATOR TU1101 QAU0206-001 TUNER

X1241 CE41651-001Z X-TAL

V-56WP3

POWER & DEF. P.W. BOARD ASS’Y

(SS B-2 053A- M2)

Symbol No. Part No. Part Name Description

RESISTOR

R2201 QRA14CF-1803Y MF R 180kΩ 1/4W F R2202 QRA14CF-2703Y MF R 270kΩ 1/4W F R2203 QRA14CF-2703Y MF R 270kΩ 1/4W F R2401 QRE141J-562Y C R 5.6kΩ 1/4W J R2402 QRE141J-103Y C R 10kΩ 1/4W J R2403 QRE121J-180Y C R 18Ω 1/2W J R2404 QRA14CF-6801Y MF R 6.8kΩ 1/4W F

R2405 QRA14CF-6801Y MF R 6.8kΩ 1/4W F R2406 QRA14CF-1002Y MF R 10kΩ 1/4W F R2407 QRA14CF-8200Y MF R 820Ω 1/4W F R2408 QRA14CF-8200Y MF R 820Ω 1/4W F R2409 QRL029J-221 OM R 220Ω 2W J R2410 QRT029J-2R2 MF R 2.2Ω 2W J

R2411 QRE121J-8R2Y C R 8.2Ω 1/2W J R2412 QRE141J-472Y C R 4.7kΩ 1/4W J R2413 QRE141J-104Y C R 100kΩ 1/4W J R2415 QRE141J-154Y C R 150kΩ 1/4W J R2416 QRE141J-103Y C R 10kΩ 1/4W J R2418 QRE141J-222Y C R 2.2kΩ 1/4W J

R2420 QRE141J-101Y C R 100Ω 1/4W J R2421 QRE141J-682Y C R 6.8kΩ 1/4W J R2430 QRE121J-101Y C R 100Ω 1/2W J R2431 QRE121J-101Y C R 100Ω 1/2W J R2432 QRE121J-101Y C R 100Ω 1/2W J R2501 QRE141J-471Y C R 470Ω 1/4W J

R2502 QRE121J-123Y C R 12kΩ 1/2W J R2503 QRE121J-152Y C R 1.5kΩ 1/2W J R2504 QRL039J-272 OM R 2.7kΩ 3W J R2505 QRL039J-332 OM R 3.3kΩ 3W J R2506 QRE121J-5R6Y C R 5.6Ω 1/2W J R2512 QRL029J-331 OM R 330Ω 2W J

R2521 QRE141J-103Y C R 10kΩ 1/4W J R2522 QRE141J-103Y C R 10kΩ 1/4W J R2523 QRE141J-822Y C R 8.2kΩ 1/4W J R2524 QRE141J-682Y C R 6.8kΩ 1/4W J R2525 QRE141J-102Y C R 1kΩ 1/4W J R2526 QRE141J-470Y C R 47Ω 1/4W J

R2531 QRL029J-102 OM R 1kΩ 2W J R2532 QRL029J-820 OM R 82Ω 2W J R2533 QRL029J-820 OM R 82Ω 2W J R2534 QRE141J-102Y C R 1kΩ 1/4W J R2535 QRE141J-470Y C R 47Ω 1/4W J R2536 QRE141J-470Y C R 47Ω 1/4W J

R2561 QRA14CF-4701Y MF R 4.7kΩ 1/4W F R2562 QRA14CF-5601Y MF R 5.6kΩ 1/4W F R2565 QRE141J-223Y C R 22kΩ 1/4W J R2591 QRF154K-3R3 UNF R 3.3Ω 15W K R2701 QRL01EJ-220X OM R 22Ω 1W J R2702 QRE121J-123Y C R 12kΩ 1/2W J

R2703 QRZ0056-103Z COMP R 10kΩ 1/2W K R2901 QRF154K-R51 UNF R 0.51Ω 15W K

R2902 QRG01GJ-470 OM R 47Ω 1W J R2903 QRF154K-R51 UNF R 0.51Ω 15W K

R2910 QRE121J-152Y C R 1.5kΩ 1/2W J R2911 QRL029J-183 OM R 18kΩ 2W J

R2912 QRT029J-R18 MF R 0.18Ω 2W J R2913 QRT029J-R18 MF R 0.18Ω 2W J R2914 QRK126J-681X C R 680Ω 1/2W J

R2916 QRT029J-R22 MF R 0.22Ω 2W J

R2917 QRK126J-332X C R 3.3kΩ 1/2W J R2918 QRE121J-152Y C R 1.5kΩ 1/2W J

R2920 QRE121J-684Y C R 680kΩ 1/2W J R2941 QRL039J-333 OM R 33kΩ 3W J

R2944 QRE121J-222Y C R 2.2kΩ 1/2W J R2951 QRE141J-473Y C R 47kΩ 1/4W J

R2952 QRE141J-222Y C R 2.2kΩ 1/4W J R2953 QRE121J-181Y C R 180Ω 1/2W J R2954 QRE121J-221Y C R 220Ω 1/2W J R2955 QRT039J-1R0 MF R 1.0Ω 3W J R2959 QRE121J-121Y C R 120Ω 1/2W J

R2960 QRE141J-473Y C R 47kΩ 1/4W J R2961 QRE141J-103Y C R 10kΩ 1/4W J R2962 QRE141J-472Y C R 4.7kΩ 1/4W J R2963 QRA14CF-4701Y MF R 4.7kΩ 1/4W F

No. 52007

V-56WP30

Symbol No. Part No. Part Name Description

RESISTOR

R2964 QRA14CF-4701Y MF R 4.7kΩ 1/4W F R2965 QRE141J-153Y C R 15kΩ 1/4W J R2966 QRE141J-473Y C R 47kΩ 1/4W J R2967 QRE141J-473Y C R 47kΩ 1/4W J R2968 QRA14CF-1802Y MF R 18kΩ 1/4W F R2972 QRA14CF-1101Y MF R 1.1kΩ 1/4W F R2973 QRA14CF-7501Y MF R 7.5kΩ 1/4W F

R2975 QRE121J-223Y C R 22kΩ 1/2W J R2977 QRE141J-473Y C R 47kΩ 1/4W J R2978 QRE141J-333Y C R 33kΩ 1/4W J

R2999 QRZ0111-685 C R 6.8MΩ 1/2W K

CAPACITOR

C2201 QFV71HJ-334Z MF CAP. 0.33µF 50V J C2401 QETN1VM-108Z E CAP. 1000μF 35V M

C2402 QFN31HJ-152Z M CAP. 1500pF 50V J C2403 QCS32HJ-180Z C CAP. 18pF 500V J

C2404 QFLC2AJ-104Z M CAP. 0.1µF 100V J C2405 QFV71HJ-104Z MF CAP. 0.1µF 50V J C2406 QETN1VM-107Z E CAP. 100µF 35V M C2407 QETN1HM-105Z E CAP. 1µF 50V M C2408 QFLC2AJ-104Z M CAP. 0.1µF 100V J C2409 QETN1HM-106Z E CAP. 10µF 50V M

C2411 QCB31HK-222Z C CAP. 2200pF 50V K C2412 QENC1CM-226Z E CAP. 22μF 16V M

C2413 QENC1CM-226Z E CAP. 22μF 16V M C2416 QCB31HK-682Z C CAP. 6800pF 50V K

C2417 QETN1VM-107Z E CAP. 100µF 35V M C2501 QCB32HK-331Z C CAP. 330pF 500V K

C2502 QFN32DK-103 M CAP. 0.01µF 200V K C2503 QFV71HJ-224Z MF CAP. 0.22µF 50V J C2506 QFZ0122-452 MPP CAP. 4500pF1.8kVH±3%

C2507 QFZ0122-392 MPP CAP. 3900pF1.8kVH±3%

C2508 QFP32JJ-153 PP CAP. 0.015µF 630V J C2509 QFZ0128-154 MPP CAP. 0.15µF 400V±3%

! !

C2510 QFZ0197-154 MPP CAP. 0.15µF 250V J

C2511 QFZ0128-254 MPP CAP. 0.25µF 400V±3% C2513 QEZ0414-226 E CAP. 22µF 50V M

C2514 QCS32HJ-561 C CAP. 560pF 500V J C2521 QCZ0122-681 C CAP. 680pF 2kV K C2522 QCZ0122-681 C CAP. 680pF 2kV K

C2523 QFN32AJ-682Z M CAP. 6800pF 100V J C2524 QCS31HJ-470Z C CAP. 47pF 50V J C2525 QCB31HK-682Z C CAP. 6800pF 50V K

C2527 QETN1EM-476Z E CAP. 47µF 25V M C2533 QCS32HJ-561 C CAP. 560pF 500V J C2534 QFN32DK-222Z M CAP. 2200pF 200V K C2536 QFN32DK-222Z M CAP. 2200pF 200V K

C2562 QETN1HM-475Z E CAP. 4.7µF 50V M C2591 QEZ0203-107 E CAP. 100µF 160V M C2701 QFLC2AJ-273Z M CAP. 0.027µF 100V J C2801 QETN1EM-108Z E CAP. 1000µF 25V M C2802 QETN1EM-108Z E CAP. 1000µF 25V M

C2803 QETM2EM-336 E CAP. 33µF 250V M C2811 QETN1VM-107Z E CAP. 100µF 35V M C2902 QFZ9072-104 MF CAP. 0.1µFAC275V K

C2904 QCZ9054-102 C CAP. 1000pFAC250V Z

! !

C2905 QCZ9054-102 C CAP. 1000pFAC250V Z

C2906 QCZ9054-102 C CAP. 1000pFAC250V Z C2907 QEZ0572-128 E CAP. 1000μF 35V M

C2908 QCZ9054-102 C CAP. 1000pFAC250V Z

C2912 QCZ0340-332 C CAP. 3300pF 2kV K C2913 QFLC1HJ-471Z M CAP. 470pF 50V J

C2914 QETN1HM-227Z E CAP. 220μF 50V M C2916 QCS31HJ-331Z C CAP. 330pF 50V J

C2917 QFN31HJ-182Z M CAP. 1800pF 50V J C2918 QFV71HJ-104Z MF CAP. 0.1µF 50V J C2919 QFP32GJ-103Z PP CAP. 0.01µF 400V J

C2920 QCZ0115-151Z C CAP. 150pF 2kV K C2930 QCS31HJ-181Z C CAP. 180pF 50V J

C2931 QEZ0203-227 E CAP. 220μF 160V M C2932 QETM1EM-228 E CAP. 2200µF 25V M C2934 QETM1VM-228 E CAP. 2200µF 35V M C2935 QETM1VM-228 E CAP. 2200µF 35V M

Symbol No. Part No. Part Name Description

CAPACITOR

C2937 QCZ0340-152 C CAP. 1500pF 2kV K C2942 QETN1HM-105Z E CAP. 1µF 50V M

C2943 QETN1CM-477Z E CAP. 470µF 16V M C2944 QETN1CM-227Z E CAP. 220µF 16V M C2945 QETM1VM-228 E CAP. 2200µF 35V M C2946 QETN1VM-108Z E CAP. 1000μF 35V M C2954 QETN1HM-226Z E CAP. 22µF 50V M C2971 QETN1CM-107Z E CAP. 100µF 16V M C2972 QETN1EM-476Z E CAP. 47µF 25V M C2973 QETN1HM-106Z E CAP. 10µF 50V M

C2993 QCZ9074-472 C CAP. 4700pFAC250V M C2994 QCZ9074-472 C CAP. 4700pFAC250V M

C2995 QCZ9074-472 C CAP. 4700pFAC250V M

! !

C2997 QCZ9074-472 C CAP. 4700pFAC250V M

C2998 QCZ9074-472 C CAP. 4700pFAC250V M

C2999 QCZ9074-472 C CAP. 4700pFAC250V M

TRANSF

T2501 QQR1111-001 DRIVE TRANSF. T2502 QQH0113-002 FBT

T2701 QQR1096-001 DEF TRANSF T2921 QQS0133-001 SW TRANSF.

COIL

L2501 QQLZ025-180 CHOKE COIL L2502 QQR1230-001 CHOKE COIL

L2504 QQR0915-003 LINEARITY COIL L2531 QQL43AJ-222 COIL 2.2mH J L2701 QQL43AJ-222 COIL 2.2mH J L2801 QQLZ026-140 HEATER CHOKE

L2931 QQL26AK-470Z COIL 47µH K L2933 QQL26AK-470Z COIL 47µH K

L2934 QQLZ018-220 HEATER CHOKE L2935 QQL60AK-220 INDUCTOR

L2936 QQL26AK-220Z COIL 22µH K

DIODE

D2201 1SR35-400A-T2 DIODE D2401 MTZJ75-T2 ZENER DIODE

D2402 1SR35-400A-T2 DIODE D2403 1SS133-T2 SI.DIODE D2404 MTZJ9.1B-T2 ZENER DIODE D2405 1SS133-T2 SI.DIODE D2406 MTZJ6.8C-T2 ZENER DIODE

D2407 1SR35-400A-T2 DIODE D2501 1SS81-T5 SI.DIODE D2504 RG2A-LFC4 SI.DIODE D2505 V11CA-C1 SI.DIODE D2506 FMV-3FU-F1 SI.DIODE

D2521 MTZJ12C-T2 ZENER DIODE D2522 1SS81-T5 SI.DIODE D2531 RGP10J-5025-T3 SI.DIODE D2561 MTZJ7.5S-T2 ZENER DIODE D2562 MTZJ7.5S-T2 ZENER DIODE D2583 1SS133-T2 SI.DIODE

D2801 EU2-T3 SI.DIODE D2802 EU2-T3 SI.DIODE D2803 RU30A-F1 SI.DIODE D2811 1SR124-400A-T2 SI.DIODE D2901 RBV-606 BRIDGE DIODE

D2910 MA700A-T2 S B DIODE D2911 RGP10J-5025-T3 SI.DIODE D2912 AU01Z-T2 SI.DIODE D2913 AU01Z-T2 SI.DIODE D2914 1SS133-T2 SI.DIODE

D2915 SARS01-T2 DIODE D2916 1SS133-T2 SI.DIODE D2917 MTZJ27B-T2 ZENER DIODE D2918 MTZJ5.1B-T2 ZENER DIODE D2920 1SS133-T2 SI.DIODE

D2931 RU4AM-F1 SI.DIODE D2932 RU30A-F1 SI.DIODE D2934 RU4AM-F1 SI.DIODE D2935 RU3YX-LFC4 SI.DIODE

No. 52007

V-56WP3

Symbol No. Part No. Part Name Description

DIODE

D2936 FMX-G12S SI.DIODE D2937 EU2-T3 SI.DIODE D2938 FMX-G12S SI.DIODE D2941 MTZJ33B-T2 ZENER DIODE

D2952 MTZJ12C-T2 ZENER DIODE D2953 1SS244-T2 SI.DIODE D2954 1SS133-T2 SI.DIODE D2956 1SS133-T2 SI.DIODE D2958 MTZJ6.8C-T2 ZENER DIODE

D2959 1SS133-T2 SI.DIODE D2972 MTZJ15B-T2 ZENER DIODE D2973 1SS133-T2 SI.DIODE

TRANSISTOR

Q2401 2SC3311A/QR/-T SI.TRANSISTOR Q2402 2SC3311A/QR/-T SI.TRANSISTOR Q2501 BSN304-T F.E.T. Q2503 2SC5552-RL POWER TRANSISTOR H.OUT

Q2521 2SC3311A/QR/-T SI.TRANSISTOR Q2531 IRFI620G F.E.T. Q2532 2SC1959/Y/-T SI.TRANSISTOR Q2533 2SA562TM/Y/-T SI.TRANSISTOR Q2951 2SC1627A/Y/-T SI.TRANSISTOR

Q2952 2SC3311A/QR/-T SI.TRANSISTOR Q2953 2SC3311A/QR/-T SI.TRANSISTOR Q2954 2SC3311A/QR/-T SI.TRANSISTOR Q2971 2SA1208/ST/Z1-T SI.TRANSISTOR

IC2401 LA7876NZ I.C. IC2911 STR-F6629B/F7 I.C.

IC2921 SE140N I.C.

OTHERS

CN2001 QGB1506M1-16 B TO B CONNECTOR CN2002 QGB1506M1-16 B TO B CONNECTOR

CN2003 QGB1506M1-16 B TO B CONNECTOR CN2010 QGB1505J1-35 B TO B CONNECTOR CP2934 ICP-N70-T I.C.PROTECT

CP2936 ICP-N38-Y I.C.PROTECT

! !

CP2941 ICP-N70-T I.C.PROTECT

CP2942 ICP-N70-T I.C.PROTECT

CP2943 ICP-N20-Y I.C.PROTECT F2905 QMFZ034-5R0Z-J1 FUSE 5.0A

! !

FR2801 QRZ9011-1R0 F R 1.0 Ω 1/2W J

FR2802 QRZ9011-1R0 F R 1.0 Ω 1/2W J

FR2811 QRZ9011-4R7 F R 4.7Ω 1/2W J FR2915 QRZ9017-330 F R 33 Ω 1/4W J

K2401 QQR0621-002Z BEADS CORE K2504 QQR0679-001 FERRITE BEADS K2505 QQR0679-001 FERRITE BEADS

K2912 QQR0582-001Z BEADS CORE K2914 QQR0582-001Z BEADS CORE K2930 QQR0621-002Z BEADS CORE K2931 QQR0621-002Z BEADS CORE K2935 QQR0621-002Z BEADS CORE

K2937 QQR0621-002Z BEADS CORE K2938 QQR0621-002Z BEADS CORE

PC2921 PC123F2 PHOTO COUPLER RY2951 QSK0118-001 RELAY

RY2952 QSK0083-001 RELAY

! !

RY2952 or QSK0084-001 RELAY

R CRT SOCKET P.W. BOARD ASS’Y

(SS B-3 153A- M2)

Symbol No. Part No. Part Name Description

RESISTOR

R3005 QRE121J-105Y C R 1MΩ 1/2W J R3006 QRC121K-102Z MF R 1kΩ 1/2W K R3008 QRC121K-152Z MF R 1.5kΩ 1/2W K R3101 NRSA63J-681X MG R 680Ω 1/16W J R3103 NRSA63J-821X MG R 820Ω 1/16W J R3104 QRL039J-473 OM R 47kΩ 3W J R3106 NRSA63J-0R0X MG R 0.0Ω 1/16W J R3107 NRSA63J-0R0X MG R 0.0Ω 1/16W J

R3108 QRC121K-561Z MF R 560Ω 1/2W K R3110 NRSA63J-0R0X MG R 0.0Ω 1/16W J

CAPACITOR

C3002 QETN2EM-106Z E CAP. 10µF 250V M C3006 QFZ9027-472 MF CAP. 4700pFAC125V K

C3007 QETN2EM-106Z E CAP. 10µF 250V M C3101 QETN1 HM-106Z E CAP. 10µF 50V M C3102 NCB31HK-103X C CAP. 0.01µF 50V K C3103 QETN1EM-476Z E CAP. 47µF 25V M C3106 QFK62EK-104Z MM CAP. 0.1µF 250V K

C3107 NDC31HJ-561X C CAP. 560pF 50V J C3108 NDC31HJ-100X C CAP. 10pF 50V J

COIL

L3002 QQL26AJ-102Z COIL 1mH J

DIODE

D3001 RM2C-LFA1 SI.DIODE D3101 EU01N-T2 SI.DIODE D3102 1SR124-400A-T2 SI.DIODE

IC3101 TDA6111Q I.C.

OTHERS

SG3001 CE42447-501 ARRESTOR

SK3001 CE42535-001J1 CRT SOCKET

No. 52007

V-56WP30

G CRT SOCKET P.W. BOARD ASS’Y

(SS B-3 253A- M2)

Symbol No. Part No. Part Name Description

RESISTOR

R3001 NRVA63D-123X MF R 12kΩ 1/16W D

R3002 NRVA63D-223X MF R 22kΩ 1/16W D R3003 NRVA63D-472X MF R 4.7kΩ 1/16W D

R3005 QRE121J-105Y C R 1MΩ 1/2W J R3006 QRC121K-102Z MF R 1kΩ 1/2W K R3008 QRC121K-152Z MF R 1.5kΩ 1/2W K R3013 NRSA63J-0R0X MG R 0.0Ω 1/16W J R3014 NRSA63J-0R0X MG R 0.0Ω 1/16W J R3101 NRSA63J-681X MG R 680Ω 1/16W J R3102 NRSA63J-182X MG R 1.8kΩ 1/16W J R3103 NRSA63J-821X MG R 820Ω 1/16W J R3104 QRL039J-473 OM R 47kΩ 3W J R3106 NRSA63J-0R0X MG R 0.0Ω 1/16W J

R3107 NRSA63J-103X MG R 10kΩ 1/16W J R3108 QRC121K-561Z MF R 560Ω 1/2W K

R3110 NRSA63J-0R0X MG R 0.0Ω 1/16W J

CAPACITOR

C3001 QETN2EM-106Z E CAP. 10µF 250V M

C3002 QETN2EM-106Z E CAP. 10µF 250V M C3003 QFLC1HJ-223Z M CAP. 0.022 µF 50V J

C3006 QFZ9027-472 MF CAP. 4700pFAC125V K C3007 QETN2EM-106Z E CAP. 10µF 250V M C3101 QETN1HM-106Z E CAP. 10µF 50V M

C3102 NCB31HK-103X C CAP. 0.01µF 50V K C3103 QETN1EM-476Z E CAP. 47µF 25V M C3105 NDC31HJ-120X C CAP. 12pF 50V J

C3106 QFK62EK-104Z MM CAP. 0.1µF 250V K C3107 NDC31HJ-561X C CAP. 560pF 50V J

C3108 NDC31HJ-100X C CAP. 10pF 50V J

COIL

L3001 QQL26AJ-102Z COIL 1mH J L3002 QQL26AJ-102Z COIL 1mH J

L3101 QQL244K-5R6Z COIL 5.6µH K

DIODE

D3001 RM2C-LFA1 SI.DIODE D3101 EU01N-T2 SI.DIODE D3102 1SR124-400A-T2 SI.DIODE

IC3101 TDA6111Q I.C.

OTHERS

FR3007 QRZ9009-1R5 F R 1.5 Ω 1/2W J SG3001 CE42447-501 ARRESTOR

SK3001 CE42535-001J1 CRT SOCKET

B CRT SOCKET P.W. BOARD ASS’Y

(SS B-3 353A- M2)

Symbol No. Part No. Part Name Description

RESISTOR

R3005 QRE121J-105Y C R 1MΩ 1/2W J R3006 QRC121K-102Z MF R 1kΩ 1/2W K R3008 QRC121K-152Z MF R 1.5kΩ 1/2W K R3031 NRVA63D-123X MF R 12kΩ 1/16W D R3032 NRVA63D-562X MF R 5.6kΩ 1/16W D R3033 NRSA63J-104X MG R 100kΩ 1/16W J R3101 NRSA63J-681X MG R 680Ω 1/16W J R3102 NRSA63J-332X MG R 3.3kΩ 1/16W J R3103 NRSA63J-821X MG R 820Ω 1/16W J R3104 QRL039J-473 OM R 47kΩ 3W J

R3105 NRSA63J-681X MG R 680Ω 1/16W J R3106 NRSA63J-0R0X MG R 0.0Ω 1/16W J R3107 NRSA63J-103X MG R 10kΩ 1/16W J R3108 QRC121K-561Z MF R 560Ω 1/2W K R3110 NRSA63J-0R0X MG R 0.0Ω 1/16W J

CAPACITOR

C3002 QETN2EM-106Z E CAP. 10µF 250V M C3006 QFZ9027-472 MF CAP. 4700pFAC125V K

C3007 QETN2EM-106Z E CAP. 10µF 250V M C3101 QETN1HM-106Z E CAP. 10µF 50V M C3102 NCB31HK-103X C CAP. 0.01µF 50V K

C3103 QETN1EM-476Z E CAP. 47µF 25V M C3105 NDC31HJ-270X C CAP. 27pF 50V J

C3106 QFK62EK-104Z MM CAP. 0.1µF 250V K C3107 NDC31HJ-561X C CAP. 560pF 50V J

C3108 NDC31HJ-100X C CAP. 10pF 50V J C3109 NDC31HJ-270X C CAP. 27pF 50V J

COIL

L3002 QQL26AJ-102Z COIL 1mH J L3101 QQL244K-5R6Z COIL 5.6µH K

DIODE

D3001 RM2C-LFA1 SI.DIODE D3101 EU01N-T2 SI.DIODE D3102 1SR124-400A-T2 SI.DIODE

D3103 MA111-X SI.DIODE

TRANSISTOR

Q3031 2SA1037AK/QR/-X SI TRANSISTOR

IC3101 TDA6111Q I.C.

OTHERS

SG3001 CE42447-501 ARRESTOR

SK3001 CE42535-001J1 CRT SOCKET

No. 52007

CONVERGENC E P.W. BOARD ASS’Y

(SS B-5 053A- M2)

Symbol No. Part No. Part Name Description

RESISTOR

R5801 NRSA63J-272X MG R 2.7kΩ 1/16W J R5802 NRSA63J-272X MG R 2.7kΩ 1/16W J R5803 NRSA63J-272X MG R 2.7kΩ 1/16W J

R5804 NRSA63J-272X MG R 2.7kΩ 1/16W J R5805 NRSA63J-272X MG R 2.7kΩ 1/16W J R5806 NRSA63J-272X MG R 2.7kΩ 1/16W J R5807 NRSA63J-272X MG R 2.7kΩ 1/16W J R5808 NRSA63J-272X MG R 2.7kΩ 1/16W J R5809 QRE121J-471Y C R 470Ω 1/2W J

R5810 NRSA63J-122X MG R 1.2kΩ 1/16W J R5812 NRSA63J-102X MG R 1kΩ 1/16W J R5813 NRSA63J-102X MG R 1kΩ 1/16W J R5814 NRSA63J-333X MG R 33kΩ 1/16W J R5815 NRSA63J-473X MG R 47kΩ 1/16W J R5818 NRSA63J-101X MG R 100Ω 1/16W J

R5826 NRSA63J-473X MG R 47kΩ 1/16W J R5827 NRSA63J-103X MG R 10kΩ 1/16W J R5828 NRSA63J-101X MG R 100Ω 1/16W J R5829 NRSA63J-101X MG R 100Ω 1/16W J R5830 NRSA63J-101X MG R 100Ω 1/16W J R5831 NRSA63J-102X MG R 1kΩ 1/16W J

R5832 NRSA63J-102X MG R 1kΩ 1/16W J R5833 NRSA63J-102X MG R 1kΩ 1/16W J R5834 NRSA63J-473X MG R 47kΩ 1/16W J R5835 NRSA63J-473X MG R 47kΩ 1/16W J R5836 NRSA63J-473X MG R 47kΩ 1/16W J R5837 NRSA63J-473X MG R 47kΩ 1/16W J

R5838 NRSA63J-473X MG R 47kΩ 1/16W J R5839 NRSA63J-473X MG R 47kΩ 1/16W J R5840 NRSA63J-332X MG R 3.3kΩ 1/16W J R5842 QRX01GJ-2R2 MF R 2.2Ω 1W J R5843 QRL029J-221 OM R 220Ω 2W J R5844 NRSA63J-332X MG R 3.3kΩ 1/16W J

R5846 QRX01GJ-1R5 MF R 1.5Ω 1W J R5847 QRL029J-151 OM R 150Ω 2W J R5848 NRSA63J-332X MG R 3.3kΩ 1/16W J R5850 QRX01GJ-2R2 MF R 2.2Ω 1W J R5851 QRL029J-221 OM R 220Ω 2W J R5852 NRSA63J-332X MG R 3.3kΩ 1/16W J

R5854 QRX01GJ-1R5 MF R 1.5Ω 1W J R5855 QRL029J-151 OM R 150Ω 2W J R5856 NRSA63J-332X MG R 3.3kΩ 1/16W J R5858 QRX01GJ-3R3 MF R 3.3Ω 1W J R5859 QRL029J-221 OM R 220Ω 2W J R5860 NRSA63J-332X MG R 3.3kΩ 1/16W J

R5862 QRX01GJ-1R8 MF R 1.8Ω 1W J R5863 QRL029J-151 OM R 150Ω 2W J R5864 NRSA63J-101X MG R 100Ω 1/16W J R5893 NRSA63J-0R0X MG R 0.0Ω 1/16W J C5801 QETN1CM-107Z E CAP. 100µF 16V M C5802 QETN1CM-107Z E CAP. 100µF 16V M

C5803 QETN1CM-107Z E CAP. 100µF 16V M C5804 NCB31EK-104X C CAP. 0.1µF 25V K C5805 QETN1CM-107Z E CAP. 100µF 16V M C5806 NCB31EK-104X C CAP. 0.1µF 25V K C5807 QETN1CM-107Z E CAP. 100µF 16V M C5808 NCB31EK-104X C CAP. 0.1µF 25V K

C5809 NCB31EK-104X C CAP. 0.1µF 25V K C5810 QETN1EM-107Z E CAP. 100µF 25V M C5813 NCB31EK-104X C CAP. 0.1µF 25V K C5814 NCB31EK-104X C CAP. 0.1µF 25V K

C5815 NCB31HK-102X C CAP. 1000pF 50V K C5818 NCB31HK-103X C CAP. 0.01µF 50V K C5819 NCB31HK-103X C CAP. 0.01µF 50V K

C5820 NDC31HJ-151X C CAP. 150pF 50V J C5821 NDC31HJ-151X C CAP. 150pF 50V J C5822 NDC31HJ-151X C CAP. 150pF 50V J

C5823 NDC31HJ-151X C CAP. 150pF 50V J C5824 NDC31HJ-151X C CAP. 150pF 50V J C5825 NDC31HJ-151X C CAP. 150pF 50V J

C5827 QETN1HM-477Z E CAP. 470μF 50V M C5828 QETN1HM-477Z E CAP. 470μF 50V M C5829 NDC31HJ-151X C CAP. 150pF 50V J

C5830 NDC31HJ-151X C CAP. 150pF 50V J C5831 NDC31HJ-151X C CAP. 150pF 50V J C5832 NDC31HJ-151X C CAP. 150pF 50V J

V-56WP3

Symbol No. Part No. Part Name Description

CAPACITOR

C5833 NDC31HJ-151X C CAP. 150pF 50V J C5834 NDC31HJ-151X C CAP. 150pF 50V J

C5838 NCB31EK-104X C CAP. 0.1µF 25V K C5843 NCB31HK-103X C CAP. 0.01µF 50V K

COIL

L5802 QQL521J-470 INDUCTOR

DIODE

D5804 1SR153-400-T2 SI.DIODE D5805 1SR153-400-T2 SI.DIODE

D5816 RD33E/B2/-T2 ZENER DIODE D5817 RD33E/B2/-T2 ZENER DIODE D5818 RD33E/B2/-T2 ZENER DIODE D5819 RD33E/B2/-T2 ZENER DIODE D5820 RD33E/B2/-T2 ZENER DIODE

D5821 RD33E/B2/-T2 ZENER DIODE D5822 RD33E/B2/-T2 ZENER DIODE D5823 RD33E/B2/-T2 ZENER DIODE D5824 RD33E/B2/-T2 ZENER DIODE D5825 RD33E/B2/-T2 ZENER DIODE

D5826 RD33E/B2/-T2 ZENER DIODE D5827 RD33E/B2/-T2 ZENER DIODE D5839 NRSA63J-0R0X MG R 0.0Ω 1/16W J

D5841 PTZ6.8B-X ZENER DIODE D5842 PTZ6.8B-X ZENER DIODE D5843 PTZ6.8B-X ZENER DIODE

TRANSISTOR

Q5801 2SC3852A SI TRANSITOR Q5802 2SA673/C/-T SI TRANSITOR Q5803 2SA673/C/-T SI TRANSITOR Q5806 2SD601A/QR/-X SI TRANSITOR

Q5807 2SD601A/QR/-X SI TRANSITOR Q5808 2SD601A/QR/-X SI TRANSITOR Q5811 2SD601A/QR/-X SI TRANSITOR

IC5801 BA17805T I.C. IC5803 BA178 05T I.C. IC5804 STK392-110 I.C.

IC5805 STK392-110 I.C.

OTHERS

CN5011 QGB2510J1-15 B TO B CONNECTOR CN5012 QGB2510J1-09 B TO B CONNECTOR K5801 QQR0621-002Z BEADS CORE K5802 QQR0621-002Z BEADS CORE K5803 QQR0621-002Z BEADS CORE

K5804 QQR0621-002Z BEADS CORE K5805 QQR0621-002Z BEADS CORE K5806 QQR0621-002Z BEADS CORE K5807 QQR0621-002Z BEADS CORE K5808 QQR0621-002Z BEADS CORE K5809 QQR0621-002Z BEADS CORE

K5810 QQR0621-002Z BEADS CORE K5811 QQR0621-002Z BEADS CORE MD5001 QAL0382-003 CONVER MODULE S5801 QSW0619-003Z PUSH SWITCH SERVICE SW

No. 52007

V-56WP30

R VM P.W. BOARD ASS’Y (SSB-7153A-M2)

Symbol No. Part No. Part Name Description

RESISTOR

R7101 NRSA63J-101X MG R 100Ω 1/16W J R7102 NRSA63J-223X MG R 22kΩ 1/16W J R7103 NRSA63J-332X MG R 3.3kΩ 1/16W J

R7104 NRSA63J-332X MG R 3.3kΩ 1/16W J R7105 NRSA63J-391X MG R 390Ω 1/16W J R7106 NRSA63J-471X MG R 470Ω 1/16W J R7107 NRSA63J-392X MG R 3.9kΩ 1/16W J

R7110 QRJ146J-182X C R 1.8kΩ 1/4W J R7111 NRSA63J-104X MG R 100kΩ 1/16W J

R7112 NRSA63J-104X MG R 100kΩ 1/16W J R7113 QRJ146J-182X C R 1.8kΩ 1/4W J

R7114 QRJ146J-470X UNF C R 47Ω 1/4W J

! !

R7115 QRJ146J-470X UNF C R 47Ω 1/4W J R7116 QRG01GJ-150 OM R 15Ω 1W J R7117 NRSA63J-104X MG R 100kΩ 1/16W J

R7118 NRSA63J-104X MG R 100kΩ 1/16W J R7119 QRG01GJ-180 OM R 18Ω 1W J R7120 QRL039J-330 OM R 33Ω 3W J R7121 QRL039J-330 OM R 33Ω 3W J R7122 QRL039J-330 OM R 33Ω 3W J R7124 NRSA63J-101X MG R 100Ω 1/16W J

CAPACITOR

C7101 NCB31HK-102X C CAP. 1000pF 50V K C7102 QETN1HM-106Z E CAP. 10µF 50V M

C7103 NCF21HZ-104X C CAP. 0.1µF 50V Z C7104 NCB31HK-472X C CAP. 4700pF 50V K

C7107 QFN32DK-103 M CAP. 0.01µF 200V K C7108 QFN32DK-103 M CAP. 0.01µF 200V K C7109 QETN2CM-106Z E CAP. 10µF 160V M C7110 QETN2CM-226Z E CAP. 22μF 160V M C7111 QETN2CM-226Z E CAP. 22μF 160V M C7112 QFN31HJ-222Z M CAP. 2200pF 50V J

C7113 QFN31HJ-222Z M CAP. 2200pF 50V J C7116 QCS32HJ-330Z C CAP. 33pF 500V J

C7117 QFN32DK-103 M CAP. 0.01µF 200V K C7118 QFN32DK-103 M CAP. 0.01µF 200V K C7119 QCB32HK-103 C CAP. 0.01µF 500V K

C7120 QCB32HK-102Z C CAP. 1000pF 500V K

DIODE

D7101 1SS355-X SI.DIODE D7102 RH1S-T3 SI.DIODE D7103 RH1S-T3 SI.DIODE

TRANSISTOR

Q7101 2SC1906-T SI.TRANSISTOR Q7102 2SA1005/MLK/-T SI.TRANSISTOR

Q7103 2SC1959/Y/-T SI.TRANSISTOR Q7104 2SA562TM/Y/-T SI.TRANSISTOR Q7105 2SJ403 F.E.T. Q7106 IRFI620G F.E.T.

OTHERS

K7101 CE41492-001Z CHOKE COIL LC7101 NQR0169-001X EMI FILTER

G VM P.W. BOAR D ASS’Y (SSB-7253A-M 2)

Symbol No. Part No. Part Name Description

RESISTOR

R7101 NRSA63J-101X MG R 100Ω 1/16W J R7102 NRSA63J-223X MG R 22kΩ 1/16W J R7103 NRSA63J-332X MG R 3.3kΩ 1/16W J

R7104 NRSA63J-332X MG R 3.3kΩ 1/16W J R7105 NRSA63J-391X MG R 390Ω 1/16W J R7106 NRSA63J-471X MG R 470Ω 1/16W J R7107 NRSA63J-392X MG R 3.9kΩ 1/16W J

R7110 QRJ146J-182X C R 1.8kΩ 1/4W J R7111 NRSA63J-104X MG R 100kΩ 1/16W J

R7112 NRSA63J-104X MG R 100kΩ 1/16W J R7113 QRJ146J-182X C R 1.8kΩ 1/4W J

R7114 QRJ146J-470X UNF C R 47Ω 1/4W J

! !

R7115 QRJ146J-470X UNF C R 47Ω 1/4W J R7116 QRG01GJ-150 OM R 15Ω 1W J R7117 NRSA63J-104X MG R 100kΩ 1/16W J

CAPACITOR

C7101 NCB31HK-102X C CAP. 1000pF 50V K C7102 QETN1HM-106Z E CAP. 10µF 50V M

C7103 NCF21HZ-104X C CAP. 0.1µF 50V Z C7104 NCB31HK-472X C CAP. 4700pF 50V K

C7107 QFN32DK-103 M CAP. 0.01µF 200V K C7108 QFN32DK-103 M CAP. 0.01µF 200V K C7109 QETN2CM-106Z E CAP. 10µF 160V M C7110 QETN2CM-226Z E. CAP 22μF 160V M C7111 QETN2CM-226Z E. CAP 22μF 160V M C7112 QFN31HJ-222Z M CAP. 2200pF 50V J

C7113 QFN31HJ-222Z M CAP. 2200pF 50V J C7116 QCS32HJ-330Z C CAP. 33pF 500V J

C7117 QFN32DK-103 M CAP. 0.01µF 200V K C7118 QFN32DK-103 M CAP. 0.01µF 200V K C7119 QCB32HK-103 C CAP. 0.01µF 500V K

C7120 QCB32HK-102Z C CAP. 1000pF 500V K

DIODE

D7101 1SS355-X SI.DIODE D7102 RH1S-T3 SI.DIODE D7103 RH1S-T3 SI.DIODE

TRANSISTOR

Q7101 2SC1906-T SI.TRANSISTOR Q7102 2SA1005/MLK/-T SI.TRANSISTOR

Q7103 2SC1959/Y/-T SI.TRANSISTOR Q7104 2SA562TM/Y/-T SI.TRANSISTOR Q7105 2SJ403 F.E.T. Q7106 IRFI620G F.E.T.

OTHERS

K7101 CE41492-001Z CHOKE COIL LC7101 NQR0169-001X EMI FILTER

No. 52007

V-56WP3

B VM P.W. BOARD ASS’Y (SSB-7353A-M2)

Symbol No. Part No. Part Name Description

RESISTOR

R7101 NRSA63J-101X MG R 100Ω 1/16W J

R7102 NRSA63J-223X MG R 22kΩ 1/16W J

R7103 NRSA63J-332X MG R 3.3kΩ 1/16W J

R7104 NRSA63J-332X MG R 3.3kΩ 1/16W J

R7105 NRSA63J-391X MG R 390Ω 1/16W J

R7106 NRSA63J-471X MG R 470Ω 1/16W J

R7107 NRSA63J-392X MG R 3.9kΩ 1/16W J

R7110 QRJ146J-182X C R 1.8kΩ 1/4W J

R7111 NRSA63J-104X MG R 100kΩ 1/16W J

R7112 NRSA63J-104X MG R 100kΩ 1/16W J

R7113 QRJ146J-182X C R 1.8kΩ 1/4W J

R7114 QRJ146J-470X UNF C R 47Ω 1/4W J

! !

R7115 QRJ146J-470X UNF C R 47Ω 1/4W J

R7116 QRG01GJ-150 OM R 15Ω 1W J

R7117 NRSA63J-104X MG R 100kΩ 1/16W J

R7118 NRSA63J-104X MG R 100kΩ 1/16W J

R7119 QRG01GJ-180 OM R 18Ω 1W J

R7120 QRL039J-330 OM R 33Ω 3W J

R7121 QRL039J-330 OM R 33Ω 3W J

R7122 QRL039J-330 OM R 33Ω 3W J

R7124 NRSA63J-101X MG R 100Ω 1/16W J

CAPACITOR

C7101 NCB31HK-102X C CAP. 1000pF 50V K

C7102 QETN1HM-106Z E CAP. 10µF 50V M

C7103 NCF21HZ-104X C CAP. 0.1µF 50V Z

C7104 NCB31HK-472X C CAP. 4700pF 50V K

C7107 QFN32DK-103 M CAP. 0.01µF 200V K

C7108 QFN32DK-103 M CAP. 0.01µF 200V K

C7109 QETN2CM-106Z E CAP. 10µF 160V M

C7110 QETN2CM-226Z E CAP. 22μF 160V M

C7111 QETN2CM-226Z E CAP. 22μF 160V M

C7112 QFN31HJ-222Z M CAP. 2200pF 50V J

C7113 QFN31HJ-222Z M CAP. 2200pF 50V J

C7116 QCS32HJ-330Z C CAP. 33pF 500V J

C7117 QFN32DK-103 M CAP. 0.01µF 200V K

C7118 QFN32DK-103 M CAP. 0.01µF 200V K

C7119 QCB32HK-103 C CAP. 0.01µF 500V K

C7120 QCB32HK-102Z C CAP. 1000pF 500V K

DIODE

D7101 1SS355-X SI.DIODE

D7102 RH1S-T3 SI.DIODE

D7103 RH1S-T3 SI.DIODE

TRANSISTOR

Q7101 2SC1906-T SI.TRANSISTOR

Q7102 2SA1005/MLK/-T SI.TRANSISTOR

Q7103 2SC1959/Y/-T SI.TRANSISTOR

Q7104 2SA562TM/Y/-T SI.TRANSISTOR

Q7105 2SJ403 F.E.T.

Q7106 IRFI620G F.E.T.

OTHERS

K7101 CE41492-001Z CHOKE COIL

LC7101 NQR0169-001X EMI FILTER

REMOCON S ENSOR P.W. BOARD ASS ’Y

(SS B-8 053A- M2)

Symbol No. Part No. Part Name Description

RESISTOR

R8001 NRSA63J-102X MG R 1kΩ 1/16W J

CAPACITOR

C8001 NCB31CK-104X C CAP. 0.1µF 16V K C8002 QETN1EM-476Z E CAP. 47µF 25V M

DIODE

D8001 MA3068/M/-X ZENER DIODE

IC8001 GP1U281Q IR DETECT UNIT

LINE FILTER P.W. BOARD ASS’Y (SSB-9053A-M 2)

Symbol No. Part No. Part Name Description

RESISTOR

R9901 QRZ9041-275 C R 2.7MΩ 1/2W K R9911 QRE121J-5R6Y C R 5.6Ω 1/2W J

CAPACITOR

C9901 QFZ9072-104 MF CAP. 0.1µFAC275V K

! !

C9902 QFZ9072-104 MF CAP. 0.1µFAC275V K

C9903 QFZ9072-104 MF CAP. 0.1µFAC275V K C9911 QETN1CM-108Z E CAP. 1000µF 16V M

C9921 QETM1HM-108 E CAP. 1000µF 50V M

TRANSF

T9911 QQT0361-001 POWER TRANSF.

DIODE

D9911 1SR35-400A-T2 SI.DIODE D9912 1SR35-400A-T2 SI.DIODE

D9913 1SR35-400A-T2 SI.DIODE D9914 1SR35-400A-T2 SI.DIODE D9921 1SR35-400A-T2 SI.DIODE

OTHERS

CN90PW QMPD200-200-JC POWER CORD or QMPD390-200-JS

F9901 QMF61U1-7R0-S FUSE 7.0A

LF9901 QQR0972-002 LINE FILTER

! !

LF9902 QQR0972-002 LINE FILTER

LF9903 QQR1281-001 LINE FILTER VA9901 ERZV10V621CS VARISTOR

CENTE R SPEAKER P.W. BOARD ASS ’Y

(SSB0A053A-M2)

Symbol No. Part No. Part Name Description

OTHERS

J0001 CEMT019-001 SP TERMINAL

No. 52007

V-56WP30

DEF. OSC. P.W. BOARD ASS’Y (SSB0H053A-M2)

Symbol No. Part No. Part Name Description

RESISTOR

R0101 NRSA63J-102X MG R 1kΩ 1/16W J R0103 NRSA63J-681X MG R 680Ω 1/16W J

R0104 NRSA63J-103X MG R 10kΩ 1/16W J R0105 NRSA63J-473X MG R 47kΩ 1/16W J R0106 NRSA63J-123X MG R 12kΩ 1/16W J R0107 NRSA63J-103X MG R 10kΩ 1/16W J R0109 NRSA63J-682X MG R 6.8kΩ 1/16W J

R0110 NRSA63J-223X MG R 22kΩ 1/16W J R0111 NRVA63D-153X MF R 15kΩ 1/16W D R0112 NRVA63D-182X MF R 1.8kΩ 1/16W D R0113 NRVA63D-123X MF R 12kΩ 1/16W D R0114 NRSA63J-222X MG R 2.2kΩ 1/16W J R0116 NRVA63D-182X MF R 1.8kΩ 1/16W D

R0117 NRSA63J-332X MG R 3.3kΩ 1/16W J R0120 NRSA63J-183X MG R 18kΩ 1/16W J R0121 NRSA63J-152X MG R 1.5kΩ 1/16W J R0122 QRG01GJ-470 OM R 47Ω 1W J

R0123 QRK126J-101X C R 100Ω 1/2W J R0126 NRSA63J-103X MG R 10kΩ 1/16W J

R0127 NRSA63J-103X MG R 10kΩ 1/16W J R0129 NRVA63D-183X MF R 18kΩ 1/16W D R0131 NRSA63J-102X MG R 1kΩ 1/16W J R0133 NRSA63J-151X MG R 150Ω 1/16W J R0134 NRSA63J-334X MG R 330kΩ 1/16W J R0137 NRSA63J-103X MG R 10kΩ 1/16W J

R0139 NRSA63J-223X MG R 22kΩ 1/16W J R0140 NRSA63J-103X MG R 10kΩ 1/16W J R0141 NRSA63J-472X MG R 4.7kΩ 1/16W J R0142 NRSA63J-103X MG R 10kΩ 1/16W J R0143 NRSA63J-471X MG R 470Ω 1/16W J R0161 NRSA63J-221X MG R 220Ω 1/16W J

R0162 NRSA63J-221X MG R 220Ω 1/16W J R0163 NRSA63J-101X MG R 100Ω 1/16W J R0164 NRSA63J-101X MG R 100Ω 1/16W J R0167 NRSA63J-472X MG R 4.7kΩ 1/16W J R0168 NRSA63J-472X MG R 4.7kΩ 1/16W J R0169 NRSA63J-332X MG R 3.3kΩ 1/16W J

R0170 NRSA63J-472X MG R 4.7kΩ 1/16W J R0171 NRSA63J-223X MG R 22kΩ 1/16W J R0172 NRSA63J-473X MG R 47kΩ 1/16W J R0174 NRSA63J-102X MG R 1kΩ 1/16W J R0175 NRSA63J-102X MG R 1kΩ 1/16W J R0176 NRSA63J-222X MG R 2.2kΩ 1/16W J

R0177 NRSA63J-123X MG R 12kΩ 1/16W J R0178 NRSA63J-821X MG R 820Ω 1/16W J R0179 NRVA63D-562X MF R 5.6kΩ 1/16W D R0180 NRVA63D-152X MF R 1.5kΩ 1/16W D R0182 NRSA63J-102X MG R 1kΩ 1/16W J R0183 NRSA63J-102X MG R 1kΩ 1/16W J

R0184 NRVA63D-473X MF R 47kΩ 1/16W D R0185 NRVA63D-103X MF R 10kΩ 1/16W D R0186 NRSA63J-103X MG R 10kΩ 1/16W J R0187 NRSA63J-472X MG R 4.7kΩ 1/16W J R0188 NRVA63D-101X MF R 100Ω 1/16W D

R0189 NRSA63J-0R0X MG R 0.0Ω 1/16W J R0190 NRSA63J-181X MG R 180Ω 1/16W J R0216 NRSA63J-221X MG R 220Ω 1/16W J R0217 NRSA63J-221X MG R 220Ω 1/16W J R0223 NRSA63J-101X MG R 100Ω 1/16W J R0224 NRSA63J-101X MG R 100Ω 1/16W J

R0226 NRSA63J-101X MG R 100Ω 1/16W J R0227 NRSA63J-102X MG R 1kΩ 1/16W J R0230 NRSA63J-223X MG R 22kΩ 1/16W J R0321 NRSA63J-0R0X MG R 0.0Ω 1/16W J R0326 NRSA63J-224X MG R 220kΩ 1/16W J R0327 NRSA63J-224X MG R 220kΩ 1/16W J

R0328 NRSA63J-563X MG R 56kΩ 1/16W J R0329 NRSA63J-224X MG R 220kΩ 1/16W J R0330 NRSA63J-683X MG R 68kΩ 1/16W J R0751 NRSA63J-183X MG R 18kΩ 1/16W J R0752 NRSA63J-103X MG R 10kΩ 1/16W J R0753 NRSA63J-822X MG R 8.2kΩ 1/16W J

Symbol No. Part No. Part Name Description

RESISTOR

R0754 NRSA63J-183X MG R 18kΩ 1/16W J R0755 NRSA63J-183X MG R 18kΩ 1/16W J R0756 NRSA63J-392X MG R 3.9kΩ 1/16W J R0757 NRSA63J-152X MG R 1.5kΩ 1/16W J R0761 QRE121J-184Y C R 180kΩ 1/2W J

R0762 QRE121J-184Y C R 180kΩ 1/2W J R0763 QRE121J-184Y C R 180kΩ 1/2W J R0764 QRE121J-184Y C R 180kΩ 1/2W J R0765 QRE121J-184Y C R 180kΩ 1/2W J

CAPACITOR

C0102 NCB31HK-103X C CAP. 0.01µF 50V K C0103 NCB31HK-103X C CAP. 0.01µF 50V K

C0104 NDC31HJ-561X C CAP. 560pF 50V J C0106 NDC31HJ-102X C CAP. 1000pF 50V J C0107 NDC21HJ-122X C CAP. 1200pF 50V J

C0108 QETN1HM-475Z E CAP. 4.7µF 50V M C0109 NCB31HK-103X C CAP. 0.01µF 50V K

C0110 NCB31HK-102X C CAP. 1000pF 50V K C0111 QETN1HM-225Z E CAP. 2.2µF 50V M

C0112 QETN1HM-225Z E CAP. 2.2µF 50V M C0113 NDC21HJ-122X C CAP. 1200pF 50V J

C0114 NDC31HJ-102X C CAP. 1000pF 50V J C0115 NDC31HJ-102X C CAP. 1000pF 50V J

C0116 NCB31HK-103X C CAP. 0.01µF 50V K C0117 QTMN1CM-477Z E CAP. 470µF 16V M

C0118 NCB31HK-103X C CAP. 0.01µF 50V K C0119 QETN1EM-476Z E CAP. 47µF 25V M C0120 QETN1EM-476Z E CAP. 47µF 25V M C0121 QETN1CM-107Z E CAP. 100µF 16V M C0122 NCB31HK-103X C CAP. 0.01µF 50V K C0123 NCB31HK-103X C CAP. 0.01µF 50V K

C0124 NCB31HK-103X C CAP. 0.01µF 50V K C0131 NDC31HJ-101X C CAP. 100pF 50V J C0132 QETN1HM-105Z E CAP. 1µF 50V M

C0133 NCB21EK-124X C CAP. 0.12µF 25V K C0134 NCB31EK-273X C CAP. 0.027 µF 25V K

C0135 NDC31HJ-102X C CAP. 1000pF 50V J C0136 NDC31HJ-102X C CAP. 1000pF 50V J

C0137 NDC31HJ-102X C CAP. 1000pF 50V J C0138 NDC31HJ-151X C CAP. 150pF 50V J

C0161 QETN1CM-108Z E CAP . 1000µF 16V M C0162 NCB31HK-103X C CAP. 0.01µF 50V K

C0163 QETN1AM-477Z E CAP. 470µF 10V M C0164 NCB31HK-103X C CAP. 0.01µF 50V K C0165 NCB31CK-104X C CAP. 0.1µF 16V K C0166 QETN1HM-106Z E CAP. 10µF 50V M

C0167 NCB31HK-332X C CAP. 3300pF 50V K C0168 NCB31HK-103X C CAP. 0.01µF 50V K C0169 NCB31CK-104X C CAP. 0.1µF 16V K C0170 NCB31HK-103X C CAP. 0.01µF 50V K C0171 QFV71HJ-184Z MF CAP. 0.18µF 50V J

C0172 QFV71HJ-394Z MF CAP. 0.39µF 50V J C0173 NCB31HK-153X C CAP. 0.015 µF 50V K

C0174 NCB31HK-272X C CAP. 2700pF 50V K C0175 NCB31HK-152X C CAP. 1500pF 50V K

C0176 QFV71HJ-184Z MF CAP. 0.18µF 50V J C0178 NCB31CK-104X C CAP. 0.1µF 16V K C0179 NCB31CK-104X C CAP. 0.1µF 16V K C0180 NCB31CK-104X C CAP. 0.1µF 16V K C0181 NCB31CK-104X C CAP. 0.1µF 16V K

C0182 NCB31CK-104X C CAP. 0.1µF 16V K C0212 QETN1HM-106Z E CAP. 10µF 50V M C0221 QETN1HM-105Z E CAP. 1µF 50V M

C0321 NCB31HK-102X C CAP. 1000pF 50V K C0751 QFLC1HJ-563Z M CAP. 0.056 µF 50V J C0752 QETN1VM-476Z E CAP . 47μF 35V M C0753 QFZ0200-153 MPP CAP. 0.015μF1.5kVH±3%

! !

C0761 QFZ0122-682 MPP CAP. 6800pF1.8kVH±3% C0762 QCZ0122-471 C CAP. 470pF 2kV K C0763 QCZ0122-471 C CAP. 470pF 2kV K

No. 52007

Symbol No. Part No. Part Name Description

COIL

L0101 QQL01BK-470Z COIL 47µH K

L0103 NQL092K-100X COIL 10µH

L0104 NQL092K-100X COIL 10µH

L0105 QQL01BK-101Z COIL 100µH K

DIODE

D0164 1SS355-X SI.DIODE

D0165 NRSA63J-0R0X MG R 0.0Ω 1/16W J

D0221 1SS355-X SI.DIODE

D0321 1SS355-X SI.DIODE

D0751 ES1F-LFG2 SI.DIODE

D0752 ES1F-LFG2 SI.DIODE

TRANSISTOR

Q0101 2SD601A/QR/-X SI.TRANSISTOR

Q0102 2SD601A/QR/-X SI.TRANSISTOR

Q0131 2SD601A/QR/-X SI.TRANSISTOR

Q0132 2SD601A/QR/-X SI.TRANSISTOR

Q0162 2SD601A/QR/-X SI.TRANSISTOR

Q0167 2SD601A/QR/-X SI.TRANSISTOR

Q0168 2SD601A/QR/-X SI.TRANSISTOR

Q0751 2SD601A/QR/-X SI.TRANSISTOR

Q0752 2SD601A/QR/-X SI.TRANSISTOR

Q0753 2SC4632 POWER TRANSISTOR

IC0101 LA7860M-X I.C.

IC0102 BA12FP-X I.C.

IC0161 AN5441SA-W I.C.

IC0162 BA10393F-XE I.C.

IC0212 CXA1875AM-X I.C.

V-56WP3

AV JACK P.W. BOARD ASS’Y (SSB0J053A-M2)

Symbol No. Part No. Part Name Description

RESISTOR

R0101 NRSA63J-333X MG R 33kΩ 1/16W J R0102 NRSA63J-750X MG R 75Ω 1/16W J R0103 NRSA63J-750X MG R 75Ω 1/16W J

R0104 NRSA63J-750X MG R 75Ω 1/16W J R0105 NRSA63J-224X MG R 220kΩ 1/16W J R0106 NRSA63J-224X MG R 220kΩ 1/16W J R0107 NRSA63J-0R0X MG R 0.0Ω 1/16W J R0108 NRSA63J-0R0X MG R 0.0Ω 1/16W J R0125 NRSA63J-750X MG R 75Ω 1/16W J

R0126 NRSA63J-224X MG R 220kΩ 1/16W J R0127 NRSA63J-224X MG R 220kΩ 1/16W J R0131 NRSA63J-0R0X MG R 0.0Ω 1/16W J R0132 NRSA63J-0R0X MG R 0.0Ω 1/16W J R0133 NRSA63J-0R0X MG R 0.0Ω 1/16W J R0141 NRSA63J-333X MG R 33kΩ 1/16W J

R0142 NRSA63J-750X MG R 75Ω 1/16W J R0143 NRSA63J-750X MG R 75Ω 1/16W J R0144 NRSA63J-750X MG R 75Ω 1/16W J R0145 NRSA63J-224X MG R 220kΩ 1/16W J R0146 NRSA63J-224X MG R 220kΩ 1/16W J R0147 NRSA63J-0R0X MG R 0.0Ω 1/16W J

R0148 NRSA63J-0R0X MG R 0.0Ω 1/16W J R0201 NRSA63J-0R0X MG R 0.0Ω 1/16W J R0202 NRSA63J-0R0X MG R 0.0Ω 1/16W J R0203 NRSA63J-0R0X MG R 0.0Ω 1/16W J R0204 NRSA63J-0R0X MG R 0.0Ω 1/16W J R0205 NRSA63J-0R0X MG R 0.0Ω 1/16W J

R0206 NRSA63J-0R0X MG R 0.0Ω 1/16W J R0207 NRSA63J-0R0X MG R 0.0Ω 1/16W J R0209 NRSA63J-0R0X MG R 0.0Ω 1/16W J R0211 NRSA63J-151X MG R 150Ω 1/16W J R0213 NRSA63J-151X MG R 150Ω 1/16W J R0215 NRSA63J-0R0X MG R 0.0Ω 1/16W J

R0216 NRSA63J-0R0X MG R 0.0Ω 1/16W J R0217 NRSA63J-0R0X MG R 0.0Ω 1/16W J R0218 NRSA63J-0R0X MG R 0.0Ω 1/16W J R0219 NRSA63J-0R0X MG R 0.0Ω 1/16W J R0220 NRSA63J-151X MG R 150Ω 1/16W J R0322 NRSA63J-750X MG R 75Ω 1/16W J

R0325 NRSA63J-750X MG R 75Ω 1/16W J R0328 NRSA63J-750X MG R 75Ω 1/16W J R0342 NRSA63J-750X MG R 75Ω 1/16W J R0345 NRSA63J-750X MG R 75Ω 1/16W J R0348 NRSA63J-750X MG R 75Ω 1/16W J

R0401 NRSA63J-0R0X MG R 0.0Ω 1/16W J R0402 NRSA63J-0R0X MG R 0.0Ω 1/16W J R0403 NRSA63J-0R0X MG R 0.0Ω 1/16W J R0404 NRSA63J-0R0X MG R 0.0Ω 1/16W J R0405 NRSA63J-0R0X MG R 0.0Ω 1/16W J R0409 NRSA63J-0R0X MG R 0.0Ω 1/16W J

R0410 NRSA63J-0R0X MG R 0.0Ω 1/16W J R0411 NRSA63J-0R0X MG R 0.0Ω 1/16W J R0412 NRSA63J-0R0X MG R 0.0Ω 1/16W J R0436 NRSA63J-0R0X MG R 0.0Ω 1/16W J R0438 NRSA63J-0R0X MG R 0.0Ω 1/16W J R0439 NRSA63J-0R0X MG R 0.0Ω 1/16W J

R0440 NRSA63J-0R0X MG R 0.0Ω 1/16W J R0441 NRSA63J-0R0X MG R 0.0Ω 1/16W J R0471 NRSA02J-221X MG R 220Ω 1/10W J R0473 NRSA02J-121X MG R 120Ω 1/10W J R0475 NRSA02J-221X MG R 220Ω 1/10W J R0477 NRSA02J-121X MG R 120Ω 1/10W J

R0481 NRSA02J-101X MG R 100Ω 1/10W J R0482 NRSA02J-101X MG R 100Ω 1/10W J R0601 NRSA02J-0R0X MG R 0.0Ω 1/10W J R0602 NRSA02J-103X MG R 10kΩ 1/10W J R0603 NRSA02J-473X MG R 47kΩ 1/10W J R0604 NRSA02J-393X MG R 39kΩ 1/10W J

R0605 NRSA02J-104X MG R 100kΩ 1/10W J R0607 NRSA02J-333X MG R 33kΩ 1/10W J R0608 NRSA02J-103X MG R 10kΩ 1/10W J R0609 NRSA02J-0R0X MG R 0.0Ω 1/10W J

No. 52007

V-56WP30

Symbol No. Part No. Part Name Description

CAPACITOR

C0101 NCB11CK-105X C CAP. 1µF 16V K C0102 NCB31HK-103X C CAP. 0.01µF 50V K C0103 QETN1HM-106Z E CAP. 10µF 50V M C0104 QETN1HM-106Z E CAP. 10µF 50V M C0105 QETN1HM-105Z E CAP. 1µF 50V M C0106 QETN1HM-105Z E CAP. 1µF 50V M C0126 QETN1HM-106Z E CAP. 10µF 50V M

C0127 QETN1HM-105Z E CAP. 1µF 50V M C0128 QETN1HM-105Z E CAP. 1µF 50V M C0141 NCB11CK-105X C CAP. 1µF 16V K C0142 NCB31HK-103X C CAP. 0.01µF 50V K C0143 QETN1HM-106Z E CAP. 10µF 50V M

C0144 QETN1HM-106Z E CAP. 10µF 50V M C0145 QETN1HM-105Z E CAP. 1µF 50V M C0146 QETN1HM-105Z E CAP. 1µF 50V M C0321 QETN1EM-476Z E CAP. 47µF 25V M C0322 QETN1EM-476Z E CAP. 47µF 25V M C0323 QETN1EM-476Z E CAP. 47µF 25V M

C0341 QETN1HM-105Z E CAP. 1µF 50V M C0342 QETN1HM-105Z E CAP. 1µF 50V M C0343 QETN1HM-105Z E CAP. 1µF 50V M C0421 NCF11EZ-105X C CAP. 1µF 25V Z

C0431 NDC21HJ-221X C CAP. 220pF 50V J C0432 QENC1HM-106Z BP E CAP. 10µF 50V M C0433 QENC1HM-106Z BP E CAP. 10µF 50V M

C0434 NDC21HJ-221X C CAP. 220pF 50V J C0435 QENC1HM-106Z BP E CAP. 10µF 50V M C0436 QENC1HM-106Z BP E CAP. 10µF 50V M

C0601 NDC21HJ-680X C CAP. 68pF 50V J C0602 QENC1HM-105Z E CAP. 1µF 50V M C0603 QETN1EM-476Z E CAP. 47µF 25V M

C0604 QETN1EM-476Z E CAP. 47µF 25V M C0605 QETN1HM-474Z E CAP. 0.47µF 50V M

C0606 NCB21HK-222X C CAP. 2200pF 50V K C0607 NCB21HK-472X C CAP. 4700pF 50V K

C0608 NCB21HK-473X C CAP. 0.047µF 50V K C0610 QETN1HM-474Z E CAP. 0.47µF 50V M C0612 QETN1HM-475Z E CAP. 4.7µF 50V M

C0613 NDC21HJ-681X C CAP. 680pF 50V J C0614 NCB21HK-153X C CAP. 0.015 µF 50V K

C0615 NDC21HJ-102X C CAP. 1000pF 50V J C0616 NDC21HJ-821X C CAP. 820pF 50V J

C0617 NDC21HJ-680X C CAP. 68pF 50V J C0618 NDC21HJ-121X C CAP. 120pF 50V J

C0619 NCF11EZ-105X C CAP. 1µF 25V Z C0620 NCF11EZ-105X C CAP. 1µF 25V Z

C0621 NDC21HJ-100X C CAP. 10pF 50V J C0622 NDC21HJ-331X C CAP. 330pF 50V J

COIL

Symbol No. Part No. Part Name Description

DIODE

D0402 UDZS9.1B-X ZENER DIODE D0403 UDZS9.1B-X ZENER DIODE

D0404 UDZS9.1B-X ZENER DIODE D0405 UDZS9.1B-X ZENER DIODE D0406 UDZS9.1B-X ZENER DIODE D0471 MA153A-X SI.DIODE D0473 MA153A-X SI.DIODE

IC0601 M52001SP I.C.

OTHERS

CN0006 QGB1505K1-40 B TO B CONNECTOR CN0007 QGB1505K1-25 B TO B CONNECTOR

J0101 QNZ0484-006 AV JACK J0141 QNZ0484-004 AV JACK J0321 QNN0463-001 JACK J0341 QNN0463-001 JACK LC0321 NQR0169-001X EMI FILTER

LC0322 NQR0169-001X EMI FILTER LC0323 NQR0169-001X EMI FILTER LC0341 NQR0169-001X EMI FILTER LC0342 NQR0169-001X EMI FILTER LC0343 NQR0169-001X EMI FILTER

L0431 QQL25CK-100Z COIL 10µH K

DIODE

D0101 UDZS10B-X ZENER DIODE D0141 UDZS10B-X ZENER DIODE D0201 UDZS10B-X ZENER DIODE

D0202 UDZS10B-X ZENER DIODE D0203 UDZS10B-X ZENER DIODE D0204 UDZS10B-X ZENER DIODE D0207 UDZS10B-X ZENER DIODE D0209 UDZS10B-X ZENER DIODE

D0210 UDZS10B-X ZENER DIODE D0211 UDZS10B-X ZENER DIODE D0212 UDZS10B-X ZENER DIODE D0213 UDZS10B-X ZENER DIODE D0215 UDZS10B-X ZENER DIODE

D0216 UDZS10B-X ZENER DIODE D0217 UDZS10B-X ZENER DIODE D0218 UDZS10B-X ZENER DIODE D0219 UDZS10B-X ZENER DIODE D0220 UDZS10B-X ZENER DIODE

D0401 UDZS9.1B-X ZENER DIODE

No. 52007

V-56WP3

FRONT CONTROL P.W. BOARD ASS’Y

(SS B0L 053A- M2)

Symbol No. Part No. Part Name Description

RESISTOR

R0201 NRSA63J-472X MG R 4.7kΩ 1/16W J

R0202 NRSA63J-0R0X MG R 0.0Ω 1/16W J

R0203 NRSA63J-822X MG R 8.2kΩ 1/16W J

R0204 NRSA63J-0R0X MG R 0.0Ω 1/16W J

R0401 NRSA63J-750X MG R 75Ω 1/16W J

R0402 NRSA63J-224X MG R 220kΩ 1/16W J

R0403 NRSA63J-224X MG R 220kΩ 1/16W J

R0404 NRSA63J-750X MG R 75Ω 1/16W J

R0405 NRSA63J-750X MG R 75Ω 1/16W J

R0406 NRSA63J-0R0X MG R 0.0Ω 1/16W J

R0411 NRSA63J-0R0X MG R 0.0Ω 1/16W J

R0412 NRSA63J-0R0X MG R 0.0Ω 1/16W J

R0413 NRSA63J-0R0X MG R 0.0Ω 1/16W J

R0414 NRSA63J-0R0X MG R 0.0Ω 1/16W J

R0415 NRSA63J-0R0X MG R 0.0Ω 1/16W J

R0416 NRSA63J-0R0X MG R 0.0Ω 1/16W J

R0417 NRSA63J-0R0X MG R 0.0Ω 1/16W J

R0418 NRSA63J-0R0X MG R 0.0Ω 1/16W J

R0419 NRSA63J-0R0X MG R 0.0Ω 1/16W J

R0420 NRSA63J-0R0X MG R 0.0Ω 1/16W J

R0702 NRSA63J-0R0X MG R 0.0Ω 1/16W J

R0703 NRSA63J-0R0X MG R 0.0Ω 1/16W J

R0706 NRSA63J-101X MG R 100Ω 1/16W J

R0707 NRSA63J-103X MG R 10kΩ 1/16W J

R0708 NRSA63J-333X MG R 33kΩ 1/16W J

R0711 NRSA63J-102X MG R 1kΩ 1/16W J

R0712 NRSA63J-333X MG R 33kΩ 1/16W J

R0732 NRSA63J-333X MG R 33kΩ 1/16W J

R0748 NRSA63J-562X MG R 5.6kΩ 1/16W J

R0749 NRSA63J-153X MG R 15kΩ 1/16W J

R0750 NRSA63J-562X MG R 5.6kΩ 1/16W J

R0751 NRSA63J-153X MG R 15kΩ 1/16W J

CAPACITOR

C0442 QETN1HM-105Z E CAP. 1µF 50V M

C0443 QETN1HM-105Z E CAP. 1µF 50V M

C0444 QETN1HM-106Z E CAP. 10µF 50V M

C0445 QETN1HM-106Z E CAP. 10µF 50V M

C0446 QFLC1HJ-103Z M CAP. 0.01µF 50V J

C0711 QETN1CM-336Z E CAP. 33µF 16V M

C0712 NCB31CK-104X C CAP. 0.1µF 16V K

C0713 NCB31CK-104X C CAP. 0.1µF 16V K

DIODE

D0402 UDZS10B-X ZENER DIODE

D0403 UDZS10B-X ZENER DIODE

D0404 UDZS10B-X ZENER DIODE

D0405 UDZS10B-X ZENER DIODE

D0406 UDZS10B-X ZENER DIODE

D0701 SELU5E20C LED

D0735 UDZS10B-X ZENER DIODE

TRANSISTOR

Q0201 DTC124EKA-X DIGI.TRANSISTOR

Q0701 2SC2412K/QR/-X SI.TRANSISTOR

Q0702 2SC2412K/QR/-X SI.TRANSISTOR

IC0201 PC123F2 I.C.(PHOTO COUPLER)

IC0702 MM1437AF-X I.C.

OTHERS

J0401 QNZ0438-001 AV JACK

S0701 QSW0619-003Z PUSH SWITCH POWER

S0702 QSW0619-003Z PUSH SWITCH MENU

S0703 QSW0619-003Z PUSH SWITCH CH-

S0704 QSW0619-003Z PUSH SWITCH CH+

S0705 QSW0619-003Z PUSH SWITCH VOL-

S0706 QSW0619-003Z PUSH SWITCH VOL+

S0707 QSW0619-003Z PUSH SWITCH POWER

RECEIVER P.W. BOARD AS S’Y (SSB0R253A-M2)

Symbol No. Part No. Part Name Description

RESISTOR

R0101 NRSA63J-103X MG R 10kΩ 1/16W J R0102 NRSA63J-103X MG R 10kΩ 1/16W J R0103 NRSA63J-333X MG R 33kΩ 1/16W J R0104 NRSA63J-103X MG R 10kΩ 1/16W J R0105 NRSA63J-0R0X MG R 0.0Ω 1/16W J R0106 NRSA63J-0R0X MG R 0.0Ω 1/16W J

R0107 NRSA63J-0R0X MG R 0.0Ω 1/16W J R0108 NRSA63J-473X MG R 47kΩ 1/16W J R0109 NRSA63J-0R0X MG R 0.0Ω 1/16W J R0110 NRSA63J-0R0X MG R 0.0Ω 1/16W J R0111 NRSA63J-101X MG R 100Ω 1/16W J R0113 NRSA63J-0R0X MG R 0.0Ω 1/16W J

R0125 NRSA63J-0R0X MG R 0.0Ω 1/16W J R0126 NRSA63J-0R0X MG R 0.0Ω 1/16W J R0201 NRSA63J-102X MG R 1kΩ 1/16W J R0202 NRSA63J-682X MG R 6.8kΩ 1/16W J R0203 NRSA63J-153X MG R 15kΩ 1/16W J R0204 NRSA63J-332X MG R 3.3kΩ 1/16W J

R0205 NRVA02D-153X MF R 15kΩ 1/10W D R0206 NRSA63J-333X MG R 33kΩ 1/16W J R0207 NRSA63J-683X MG R 68kΩ 1/16W J R0208 NRVA02D-152X MF R 1.5kΩ 1/10W D R0209 NRSA63J-101X MG R 100Ω 1/16W J R0210 NRSA63J-101X MG R 100Ω 1/16W J

R0211 NRSA63J-563X MG R 56kΩ 1/16W J R0212 NRSA63J-562X MG R 5.6kΩ 1/16W J R0213 NRSA63J-221X MG R 220Ω 1/16W J R0214 NRSA63J-221X MG R 220Ω 1/16W J R0217 NRSA63J-0R0X MG R 0.0Ω 1/16W J

R0218 NRSA63J-0R0X MG R 0.0Ω 1/16W J R0531 NRSA63J-221X MG R 220Ω 1/16W J R0532 NRSA63J-221X MG R 220Ω 1/16W J R0533 NRSA63J-823X MG R 82kΩ 1/16W J R0534 NRSA63J-221X MG R 220Ω 1/16W J R0535 NRSA63J-221X MG R 220Ω 1/16W J

R0536 NRSA63J-823X MG R 82kΩ 1/16W J R0537 NRSA63J-223X MG R 22kΩ 1/16W J R0538 NRSA63J-223X MG R 22kΩ 1/16W J R0539 NRSA63J-223X MG R 22kΩ 1/16W J R0540 NRSA63J-223X MG R 22kΩ 1/16W J R0543 NRSA63J-153X MG R 15kΩ 1/16W J

R0551 NRSA63J-224X MG R 220kΩ 1/16W J R0552 NRSA63J-224X MG R 220kΩ 1/16W J R0631 NRSA63J-102X MG R 1kΩ 1/16W J R0632 NRSA63J-223X MG R 22kΩ 1/16W J R0633 NRSA63J-223X MG R 22kΩ 1/16W J R0634 NRSA63J-102X MG R 1kΩ 1/16W J

R0635 NRSA63J-223X MG R 22kΩ 1/16W J R0636 NRSA63J-223X MG R 22kΩ 1/16W J R0637 NRSA63J-0R0X MG R 0.0Ω 1/16W J R0640 NRSA63J-0R0X MG R 0.0Ω 1/16W J R0641 NRSA63J-103X MG R 10kΩ 1/16W J R0651 NRSA63J-101X MG R 100Ω 1/16W J

R0653 NRSA63J-101X MG R 100Ω 1/16W J R0654 NRSA63J-103X MG R 10kΩ 1/16W J R0656 NRSA63J-101X MG R 100Ω 1/16W J R0657 NRSA63J-101X MG R 100Ω 1/16W J R0658 NRSA63J-103X MG R 10kΩ 1/16W J R0659 NRSA63J-104X MG R 100kΩ 1/16W J

R0660 NRSA63J-103X MG R 10kΩ 1/16W J R0661 NRSA63J-472X MG R 4.7kΩ 1/16W J R0662 NRSA63J-562X MG R 5.6kΩ 1/16W J R0663 NRSA63J-472X MG R 4.7kΩ 1/16W J R0664 NRSA63J-562X MG R 5.6kΩ 1/16W J R0666 NRSA63J-0R0X MG R 0.0Ω 1/16W J

R0667 NRSA63J-0R0X MG R 0.0Ω 1/16W J R0669 NRSA63J-0R0X MG R 0.0Ω 1/16W J R0670 NRSA63J-0R0X MG R 0.0Ω 1/16W J R0701 NRSA63J-102X MG R 1kΩ 1/16W J

No. 52007

V-56WP30

Symbol No. Part No. Part Name Description

CAPACITOR

C0102 QETN1CM-477Z E CAP. 470µF 16V M C0103 QETN1HM-106Z E CAP. 10µF 50V M C0104 QETN1HM-106Z E CAP. 10µF 50V M

C0201 QETN1HM-105Z E CAP. 1µF 50V M C0202 NCF31CZ-104X C CAP. 0.1µF 16V Z C0203 QETN1CM-107Z E CAP. 100µF 16V M C0204 QETN1EM-476Z E CAP. 47µF 25V M C0207 QENC1HM-105Z E CAP. 1µF 50V M C0208 NCB31HK-104X C CAP. 0.1µF 50V K

C0209 QENC1HM-475Z E CAP. 4.7µF 50V M C0210 NCB31HK-473X C CAP. 0.047 µF 50V K C0211 QETN1HM-474Z E CAP. 0.47µF 50V M C0212 QETN1HM-225Z E CAP. 2.2µF 50V M C0213 NCB31HK-104X C CAP. 0.1µF 50V K C0214 NCB31HK-104X C CAP. 0.1µF 50V K

C0215 QBTC1CK-335Z TAN.CAP. 3.3µF 16V K C0216 QETN1HM-105Z E CAP. 1µF 50V M C0217 QBTC1CK-106Z TAN.CAP. 10µF 16V K C0218 QETN1HM-105Z E CAP. 1µF 50V M C0219 QETN1HM-105Z E CAP. 1µF 50V M C0220 QETN1HM-475Z E CAP. 4.7µF 50V M

C0221 QETN1HM-105Z E CAP. 1µF 50V M C0531 QETN1HM-474Z E CAP. 0.47µF 50V M C0532 QETN1HM-474Z E CAP. 0.47µF 50V M C0551 QETN1HM-105Z E CAP. 1µF 50V M C0552 QETN1HM-105Z E CAP. 1µF 50V M C0601 QENC1HM-105Z E CAP. 1µF 50V M

C0602 QENC1HM-105Z E CAP. 1µF 50V M C0605 QETN1HM-225Z E CAP. 2.2µF 50V M C0606 QETN1HM-225Z E CAP. 2.2µF 50V M C0607 NCB31HK-104X C CAP. 0.1µF 50V K

C0608 NCB31HK-222X C CAP. 2200pF 50V K C0609 NCB31HK-104X C CAP. 0.1µF 50V K

C0610 NCB31HK-222X C CAP. 2200pF 50V K C0611 NCB21HK-273X C CAP. 0.027 µF 50V K C0631 QENC1HM-106Z BP E CAP. 10µF 50V M

C0632 QENC1HM-106Z BP E CAP. 10µF 50V M C0633 QETN1HM-226Z E CAP. 22µF 50V M C0634 QFLC1HJ-473Z M CAP. 0.047 µF 50V J C0635 QFLC1HJ-333Z M CAP. 0.033 µF 50V J C0636 QFLC1HJ-473Z M CAP. 0.047 µF 50V J C0637 QFLC1HJ-333Z M CAP. 0.033 µF 50V J

C0638 QETN1EM-476Z E CAP. 47µF 25V M C0639 NCF31CZ-104X C CAP. 0.1µF 16V Z C0640 QETN1HM-106Z E CAP. 10µF 50V M C0651 NCF31CZ-104X C CAP. 0.1µF 16V Z C0652 QETN1EM-476Z E CAP. 47µF 25V M C0661 QEZ0206-335Z E CAP. 3.3µF 50V M

C0662 QEZ0206-335Z E CAP. 3.3µF 50V M

Symbol No. Part No. Part Name Description

TRANSISTOR

Q0101 2SC2412K/QR/-X SI.TRANSISTOR Q0531 DTC323TK-X DIGI.TRANSISTOR Q0532 DTC323TK-X DIGI.TRANSISTOR

Q0533 DTC323TK-X DIGI.TRANSISTOR Q0534 DTC323TK-X DIGI.TRANSISTOR Q0651 2SC2412K/QR/-X SI.TRANSISTOR Q0652 2SA1037AK/QR/-X SI.TRANSISTOR Q0661 2SC3311A/QR/-T SI.TRANSISTOR

Q0662 2SC3311A/QR/-T SI.TRANSISTOR

IC0201 UPC1851BCU I.C. IC0631 NJM2150AD I.C. IC0651 M62320FP-X I.C.

OTHERS

CN0005 QGB1505K1-40 B TO B CONNECTOR J0531 CEMN036-004 PIN JACK

J0701 QNS0001-001 JACK RY0661 QSK0133-001 RELAY RY0662 QSK0133-001 RELAY TU0101 QAU0206-001 TUNER

UD0101 QAU0283-001 RF SPLITTER

COIL

L0101 QRN143J-0R0X C R 0.0Ω 1/4W J L0102 QRN143J-0R0X C R 0.0Ω 1/4W J

DIODE

D0213 UDZS8.2B-X ZENER DIODE D0214 UDZS8.2B-X ZENER DIODE

D0531 UDZS10B-X ZENER DIODE D0532 UDZS10B-X ZENER DIODE D0533 MA111-X SI.DIODE D0534 MA111-X SI.DIODE

D0551 UDZS9.1B-X ZENER DIODE D0552 UDZS9.1B-X ZENER DIODE D0661 1SS133-T2 SI.DIODE D0662 1SS133-T2 SI.DIODE D0701 UDZS8.2B-X ZENER DIODE

No. 52007

V-56WP3

CONVERGENC E OSD P.W. BOARD ASS’Y

(SS B0T 053A- M2)

Symbol No. Part No. Part Name Description

RESISTOR

R0701 NRSA63J-562X MG R 5.6kΩ 1/16W J

R0702 NRSA63J-471X MG R 470Ω 1/16W J

R0703 NRSA63J-0R0X MG R 0.0Ω 1/16W J

R0704 NRSA63J-562X MG R 5.6kΩ 1/16W J

R0705 NRSA63J-471X MG R 470Ω 1/16W J

R0706 NRSA63J-0R0X MG R 0.0Ω 1/16W J

R0707 NRSA63J-0R0X MG R 0.0Ω 1/16W J

R0708 NRSA63J-471X MG R 470Ω 1/16W J

R0709 NRSA63J-562X MG R 5.6kΩ 1/16W J

R0713 NRSA63J-0R0X MG R 0.0Ω 1/16W J

R0714 NRSA63J-473X MG R 47kΩ 1/16W J

R0715 NRSA63J-102X MG R 1kΩ 1/16W J

R0716 NRSA63J-473X MG R 47kΩ 1/16W J

R0717 NRSA63J-102X MG R 1kΩ 1/16W J

R0718 NRSA63J-0R0X MG R 0.0Ω 1/16W J

R0721 NRSA63J-183X MG R 18kΩ 1/16W J

R0722 NRSA63J-333X MG R 33kΩ 1/16W J

R0723 NRSA63J-221X MG R 220Ω 1/16W J

R0724 NRSA63J-221X MG R 220Ω 1/16W J

R0725 NRSA63J-221X MG R 220Ω 1/16W J

R0731 NRSA63J-683X MG R 68kΩ 1/16W J

R0732 NRSA63J-0R0X MG R 0.0Ω 1/16W J

R0733 NRSA63J-683X MG R 68kΩ 1/16W J

R0735 NRSA63J-102X MG R 1kΩ 1/16W J

R0736 NRSA63J-683X MG R 68kΩ 1/16W J

R0737 NRSA63J-683X MG R 68kΩ 1/16W J

R0738 NRSA63J-0R0X MG R 0.0Ω 1/16W J

R0740 NRSA63J-102X MG R 1kΩ 1/16W J

R0741 NRSA63J-683X MG R 68kΩ 1/16W J

R0742 NRSA63J-683X MG R 68kΩ 1/16W J

R0743 NRSA63J-0R0X MG R 0.0Ω 1/16W J

R0745 NRSA63J-102X MG R 1kΩ 1/16W J

CAPACITOR

C0701 QETN1HM-106Z E CAP. 10µF 50V M

C0702 NCF31CZ-104X C CAP. 0.1µF 16V Z

C0707 NCB11CK-105X C CAP. 1µF 16V K

C0708 NCB11CK-105X C CAP. 1µF 16V K

C0709 NCB11CK-105X C CAP. 1µF 16V K

C0711 NCF31CZ-104X C CAP. 0.1µF 16V Z

C0714 NDC31HJ-181X C CAP. 180pF 50V J

COIL

L0701 NQL054J-100X COIL 10µH

TRANSISTOR

Q0701 2SC2412K/QR/-X SI.TRANSISTOR

Q0702 2SC2412K/QR/-X SI.TRANSISTOR

Q0703 2SC2412K/QR/-X SI.TRANSISTOR

Q0704 2SC2412K/QR/-X SI.TRANSISTOR

Q0705 2SC2412K/QR/-X SI.TRANSISTOR

IC0701 TC74HC4053AF-XE I.C.

DIGITAL INPUT MODULE P.W. BOARD ASS’Y

（（（（SSB- 7853 A-M2 ））））

Symbol No. Part No. Part Name Description

OTHER

SSB-7853A-M2 DIGITAL INPUT MODULE

I-P CONV ERT MODULE P.W. BOARD ASS’Y

（（（（

Symbol No. Part No. Part Name Description

OTHER

SSB0D053A-M2 I-P CONVERT MODULE

SSB0D053A-M2

））））

No. 52007

V-56WP30

REMOTE CONTROL UNIT PARTS LIST (RM-C322G-1A)

Ref.No. Part No. Part Name Description

1 UR52EC1286C BATTERY COVER

PACKING

8 9 10

PACKING PARTS LIST

Ref.No. Part No. Part Name Description

1 LC11253-002A-A P.CASE 2 LC31759-002A-A BOTTOM CASE 3 LC11410-002A-A CUSHION ASSY 4pcs in 1set

4 CP30055-007-A TOP COVER 5 CP30056-011-A POLY BAG 6 LC31956-001A-A PAD (x4) 7 LC32083-001A-A PROTECT PAD (x2) 8 RM-C322G-1A REMOCON UNIT

9 LCT1237-001A-A INST BOOK

10 LCT1238-001A-A INST BOOK

11 BT-51028-2Q REGISTRATION C 12 BT-52006-1Q WARRANTY CARD

13 QPA02503505 POLY BAG 14 GQ30037-001A-A CORNER LABEL

No. 52007

Memo

V-56WP3

No. 52007

JVC SERVICE & ENGINEERING COMPANY OF AMERICA

DIVISION OF JVC AMERICAS CORP.

He ad o ffice : 1700 Valley Road, Wayne, New Jersey 07470 (973)315-5000 East Coast : 10 New Maple Avenue, Pine Brook, New Jersey 07058 (973)396-1000

Midwe st : 705 E n terpri se St. Aur ora, Ill in ois 605 04 (630)851-7855 West C oas t : 5665 Corporate Avenue, Cypress, California 90630 (714)229-8011 Southwest : 10700 Hammerly, Suite 105, Houston,Texas 77043 (713)935-9331

Hawaii : 2969 Mapunapuna Place, Honolulu, Hawaii 96819 (808)833-5828 South east

: 150 0 Lake s Par kwa y, Lawre nce vi lle , Ge org ia 30 24 3 (7 70 )3 39-2 58 2

JVC CANADA INC.

He ad o ffice : 21 Finchdene Square Scarborough, Ontario M1X 1A7 (416)293-1311

Vancouver : 13040 Worster Court Richmond B.C. V6V 2B3 (604)270-1311



56W P30-UCM

VP 0206 DP205180

JVC AV-56WP30 Parts List

Specifications and Main Features

Frequently Asked Questions

User Manual

USING PW BOARD & REMOTE CONTROL UNIT

PRINTED WIRING BOARD PARTS LIST

REMOTE CONTROL UNIT PARTS LIST (RM-C322G-1A)

PACKING

PACKING PARTS LIST
