JVC AV29WX14 Service Manual

SERVICE MANUAL

FLAT COLOUR TELEVISION

AV-29WX14 AV-29WX14 AV-29WX24 AV-2954W

/E

/G

/S

/L

BASIC CHASSIS

CW

TABLE OF CONTENTS

1 PRECAUTION ......................................................................................................................................................... 1-3

2 SPECIFIC SERVICE INSTRUCTIONS ................................................................................................................... 1-4

3 DISASSEMBLY ....................................................................................................................................................... 1-8

4 ADJUSTMENT ...................................................................................................................................................... 1-14

5 TROUBLESHOOTING ........................................................................................................................................... 1-33

No.YA104

2004/7

SPECIFICATION

Contents

Items

Dimentions (W x H x D) 81.2cm x 58.4cm x 51.8cm

Mass 41kg 43kg

TV RF System B, G, I, D, K, M

Colour System TV Mode PAL / SECAM / NTSC3.58 / NTSC 4.43

Video Mode PAL / SECAM / NTSC3.58 / NTSC4.43

Stereo System Playback

Teletext system FLOF (Fastext), WST (World Standard Text)

Receiving Frequency VHF Low 46.25MHz ~ 140.25MHz (AS0 ~ S6)

VHF High 147.25MHz ~ 423.25MHz (S7 ~ S36)

UHF 431.25MHz ~ 863.25MHz (S37 ~ CHINA 57)

CATV Mid: X ~ Z, S1 ~ S10

Super: S11 ~ S20

Hyper: S21 ~ S41

Intermediate VIF 38.0MHz

Frequency SIF

Colour Sub Carrier Frequency 4.43MHz (PAL), 4.40MHz / 4.25MHz (SECAM), 3.58MHz / 4.43MHz (NTSC)

Aerial Input Terminal 75Ω unbalanced, coaxial

Power Input AC110V ~ AC240V, 50Hz / 60Hz

Power Consumption 166W (Max.) / 109 W (Avg.)

Picture Tube

High Voltage 32kV -1.5kV / +1.0kV (at zero beam current)

Speaker 6.5cm x 13cm, oval type x 2

Audio Output 10W + 10W

Video / Audio Input S-Video [1] Mini-DIN 4pin

(1/2/3) Y : 1V (p-p), positive (negative sync provided), 75

Video / Audio Output Video 1V (p-p), 75Ω, RCA pin jack x 1

Headphone 3.5mm stereo mini jack

Remote Control Unit

Design & specifications are subject to change without notice.

1-2 (No. YA104)



Video [1/2/3] 1V (p-p), negative sync, 75Ω, RCA pin jack x 3

Audio [1/2/3] 500mV (rms) (-4dBs), High impedance, RCA pin jack x 6

Component RCA pin jack x 3

Video [2] Y: 1V(p-p), positive (negative sync), 75

D/K: 31.5MHz (6.5MHz) D/K: 31.5MHz (6.5MHz) D/K: 31.5MHz (6.5MHz) [NICAM: 32.15MHz I: 32.0MHz (6.0MHz) [NICAM: 32.15MHz (5.85MHz)] B/G: 32.5MHz (5.5MHz) (5.85MHz)] I: 32.0MHz (6.0MHz) M: 33.5MHz (4.5MHz) I: 32.0MHz (6.0MHz) [NICAM: 31.45MHz [NICAM: 31.45MHz (6.55MHz)] (6.55MHz)] B/G: 32.5MHz (5.5MHz) B/G: 32.5MHz (5.5MHz) [A2: 32.26MHz [A2: 32.26MHz (5.74MHz)] (5.74MHz)] [NICAM: 32.15MHz [NICAM: 32.15MHz (5.85MHz) (5.85MHz) M: 33.5MHz (4.5MHz) M: 33.5MHz (4.5MHz)

A68LZU185X A68QCU770X52K

29-inch, aspect ratio 4:3, flat square face type, tinted

Visible size: 67.6cm (Diagonal) / 54.1cm x 40.6cm (H x V)

C : 0.286V (p-p) (Burst signal), 75

CB/CR : 0.7V(p-p), 75

Audio

500mV (rms) (-4dBs), Low inpedance (400Hz when modulated 100%), RCA pin jack x 2

RM-C1281-2H RM-C1280-2H

(AA/R06/UM-3 battery x 2)

AV-29WX14/G

Ω

AV-29WX14/S AV-29WX24/L

Ω

(AA/R06/UM-3 battery x 2)

AV-2954W/E

A2(B/G) / NICAM(B/G,I,D/K)

SECTION 1

PRECAUTION

1. 1 SAFETY PRECAUTIONS

(1) The design of this product contains special hardware,

many circuits and components specially for safety purposes. For continued protection, no changes should be made to the original design unless authorized in writing by the manufacturer. Replacement parts must be identical to those used in the original circuits. Service should be performed by qualified personnel only.

(2) Alterations of the design or circuitry of the products should

not be made. Any design alterations or additions will void the manufacturer's warranty and will further relieve the manufacturer of responsibility for personal injury or property damage resulting therefrom.

(3) Many electrical and mechanical parts in the products have

special safety-related characteristics. These characteristics are often not evident from visual inspection nor can the protection afforded by them necessarily be obtained by using replacement components rated for higher voltage, wattage, etc. Replacement parts which have these special safety characteristics are identified in the parts list of Service manual. Electrical components

having such features are identified by shading on the schematics and by (

The use of a substitute replacement which does not have the same safety characteristics as the recommended replacement part shown in the parts list of Service manual may cause shock, fire, or other hazards.

(4) Don't short between the LIVE side ground and ISOLATED

(NEUTRAL) side ground or EARTH side ground when repairing.

Some model's power circuit is partly different in the GND. The difference of the GND is shown by the LIVE : ( GND, the ISOLATED (NEUTRAL) : ( EARTH : ( side GND and ISOLATED (NEUTRAL) side GND or EARTH side GND and never measure the LIVE side GND and ISOLATED (NEUTRAL) side GND or EARTH side GND at the same time with a measuring apparatus (oscilloscope etc.). If above note will not be kept, a fuse or any parts will be broken.

(5) If any repair has been made to the chassis, it is

recommended that the B1 setting should be checked or adjusted (See ADJUSTMENT OF B1 POWER SUPPLY).

(6) The high voltage applied to the picture tube must conform

with that specified in Service manual. Excessive high voltage can cause an increase in X-Ray emission, arcing and possible component damage, therefore operation under excessive high voltage conditions should be kept to a minimum, or should be prevented. If severe arcing occurs, remove the AC power immediately and determine the cause by visual inspection (incorrect installation, cracked or melted high voltage harness, poor soldering, etc.). To maintain the proper minimum level of soft X-Ray emission, components in the high voltage circuitry including the picture tube must be the exact replacements or alternatives approved by the manufacturer of the complete product.

(7) Do not check high voltage by drawing an arc. Use a high

voltage meter or a high voltage probe with a VTVM. Discharge the picture tube before attempting meter connection, by connecting a clip lead to the ground frame and connecting the other end of the lead through a 10k 2W resistor to the anode button.

) on the parts list in Service manual.

) side

) side GND and

) side GND. Don't short between the LIVE

(8) When service is required, observe the original lead dress.

Extra precaution should be given to assure correct lead dress in the high voltage circuit area. Where a short circuit has occurred, those components that indicate evidence of overheating should be replaced. Always use the manufacturer's replacement components.

(9) Isolation Check

(Safety for Electrical Shock Hazard)

After re-assembling the product, always perform an isolation check on the exposed metal parts of the cabinet (antenna terminals, video/audio input and output terminals, Control knobs, metal cabinet, screw heads, earphone jack, control shafts, etc.) to be sure the product is safe to operate without danger of electrical shock.

a) Dielectric Strength Test

The isolation between the AC primary circuit and all metal parts exposed to the user, particularly any exposed metal part having a return path to the chassis should withstand a voltage of 3000V AC (r.m.s.) for a period of one second.

(. . . . Withstand a voltage of 1100V AC (r.m.s.) to an

appliance rated up to 120V, and 3000V AC (r.m.s.) to an appliance rated 200V or more, for a period of one second.) This method of test requires a test equipment not generally found in the service trade.

b) Leakage Current Check

Plug the AC line cord directly into the AC outlet (do not use a line isolation transformer during this check.). Using a "Leakage Current Tester", measure the leakage current from each exposed metal part of the cabinet, particularly any exposed metal part having a return path to the chassis, to a known good earth ground (water pipe, etc.). Any leakage current must not exceed 0.5mA AC (r.m.s.). However, in tropical area, this must not exceed 0.2mA AC (r.m.s.).

Alternative Check Method

Plug the AC line cord directly into the AC outlet (do not use a line isolation transformer during this check.). Use an AC voltmeter having 1000 ohms per volt or more sensitivity in the following manner. Connect a 1500

Ω 10W resistor paralleled by a 0.15µF AC-type

capacitor between an exposed metal part and a known good earth ground (water pipe, etc.). Measure the AC voltage across the resistor with the AC voltmeter. Move the resistor connection to each exposed metal part, particularly any exposed metal part having a return path to the chassis, and measure the AC voltage across the resistor. Now, reverse the plug in the AC outlet and repeat each measurement. Any voltage measured must not exceed 0.75V AC (r.m.s.). This corresponds to 0.5mA AC (r.m.s.). However, in tropical area, this must not exceed 0.3V AC (r.m.s.). This corresponds to 0.2mA AC (r.m.s.).

AC VOLTMETER (HAVING 1000Ω/V, OR MORE SENSITIVITY)

0.15µF AC-TYPE

PLACE THIS PROBE

1500Ω 10W

Ω

GOOD EARTH GROUND

ON EACH EXPOSED ME TAL PART

(No. YA104) 1-3

SECTION 2

SPECIFIC SERVICE INSTRUCTIONS

2. 1 FEATURES

• New chassis design enables use of an interactive on-screen control.

• Pure flat CRT produces fine textured picture in every detail.

• Wide range voltage (110V ~ 240V) for AC power input.

• With AUDIO/VIDEO/S-VIDEO/COMPONENT input terminals.

2

• I

C bus control utilizes single chip ICs.

• By means of AUTO PROGRAM, the TV stations can be selected automatically and the TV channels can also be rearranged

automatically.

• Built-in DIGITAL ECO MODE (ECONOMY, ECOLOGY).

In accordance with the brightness in a room, the brightness and/or contrast of the picture can be adjusted automatically to make the optimum picture which is easy on the eye.

• Built-in OFF TIMER & RETURN +.

2. 2 MAIN DIFFERENCE LIST

 Items AV-29WX14/G AV-29WX14/S AV-29WX24/L AV-2954W/E

 MAIN PWB ASS’Y SCW-1012A-H2 SCW-1025A-H2 SCW-1068A-H2 SCW-1013A-H2  FRONT CABINET ASS’Y GG10189-002A-H ← GG10189-006A-H GG10189-011A-H  PICTURE TUBE A68LZU185X ←←A68QCU770X52K  POWER CORD QMPR340-165-K2 QMPR650-165-JC QMPR340-165-K2 ←

2.3 FUNCTIONS

J

REMOTE CONTROL UNIT

RM-C1281-2H

1

2

3

4 5 6

7

8

9

10

11 12 13 14 15 16 17

18

19

20

21

22

23

24

25 26 27 28 29 30 31

SOUND SYSTEM key

1

COLOUR SYSTEM key

2

FAVORITE CHANNEL keys

3

DISPLAY BACK key

4

MENU (OK) key

5

TEXT key

6

7

SOUND TURBO key

8

PICTURE MODE key

9

SOUND setting key (Stereo/Bilingual Ι/Bilingual ΙΙ/Monaural)

OFF TIMER key

10

RETURN + key

11

CHANNEL (-/+) keys

12

MODE key

13

INDEX key

14

15

REVEAL key

16

Not used

STORE key

17

ECO key

18

19

POWER key

TV / VIDEO key

20

21

MENU (/, /) keys

22

MUTING key

23

Number keys

-/-- key

24

25

VOLUME (-/+) keys

26

SUBPAGE key

27

HOLD key

28

CANCEL key

SIZE key

29

BASS key

30

CINEMA SURROUND key

31

1-4 (No. YA104)

J

FRONT PANEL CONTROLS

J

REAR TERMINAL

L/MONO

VR

IN (VIDEO-3)

3

1

2

HEADPHONE jack

1

IN (VIDEO-3) : VIDEO

2

IN (VIDEO-3) : AUDIO L/MONO

3

IN (VIDEO-3) : AUDIO R

4

MENU (OK) button

5

CHANNEL (-/+) buttons

6

4

MENU

OK

5

CHANNEL

6 7

VOLUM E

TV/VIDEO

EXIT

8

10

9

7

VOLUME (-/+) buttons

8

TV/VIDEO EXIT buttons

9

Remote control sensor

10

ECO sensor

11

POWER lamp

12

MAIN POWER button

POWER

11 12

VIDEO-1 INPUT TERMINAL

S-VIDEO

1

VIDEO-1

INPUT

S

OVER

V

L

/

MONO

R

5 6 10 118

COMPONENT

(VIDEO-2)

INPUT

Y

/

V

L

B

C

/

MONO

C

R

OUTPUT

V

L

RR

VIDEO

2

AUDIO L/MONO

3

AUDIO R

4

COMPONENT (VIDEO-2) INPUT TERMINAL

Y/VIDEO

5

6

B

C

CR

7

8

AUDIO L/MONO

9

AUDIO R

OUTPUT TERMINAL

VIDEO

10

4

3

2

9

7

12

13

11

AUDIO L

12

AUDIO R

13

Aerial input terminal

(No. YA104) 1-5

IC701 Pin Function List (1/2)

Pin no. Terminal name Port name I/O Remark

1 VssP2 VSSP2 - GND 2 VssC4 VSSC4 - GND 3 V1.8C4 VDDC4 I 1.8V (Digital) 4 V3.3A3 VDDA3(3.3V) I 3.3V 5 VrefP_Sdac VREF_POS_LSL I 3.3V (Positive) 6 VrefN_Sdac VREF_NEG_LSL+HPL - GND 7 VrefP_Sdac VREF_POS_LSR+HPR I 3.3V (Negative) 8 VrefN_Sdac VREF_NEG_HPL+HPR - GND

9 VrefP_Sdac VREF_POS_HPR I 3.3V (Positive) 10 XtalIn XTALIN I Crystal oscillator input (24.576 MHz) 11 XtalOut XTALOUT O Crystal oscillator input (24.576 MHz) 12 VssA1 VSSA1 - GND 13 NECK VGUARD/SWIO I V-guard input/ I/O switch 14 CONT DECDIG I Decoupling digital supply 15 V5P1 VP1 I +5V 16 Ph2 PH2LF - Phase-2 filter 17 Ph1 PH1LF - Phase-1 filter 18 Gnd1 GND1 - GND 19 SecPll SECPLL - SECAM PLL decoupling 20 Dec8G DECBG - Bandgap decoupling 21 EW EWD/AVL O East-West drive output or AVL capacitor 22 VDRB- VDRB O Vertical drive B output 23 VDRA+ VDRA O Vertical drive A output 24 Vif1 VIFIN1 I IF input 1 25 Vif2 VIFIN2 I IF input 2 26 Vsc VSC - Vertical sawtooth capacitor 27 Iref IREF I Reference current input 28 GndIF GNDIF - GND 29 Sif1 SIFIN1/DVBIN1 I SIF input 1 30 Sif2 SIFIN2/DVBIN2 I SIF input 2 31 AGC AGCOUT O Tuner AGC output 32 EHT EHTO I EHT/overvoltage protection input

O Automatic Volume Levelling/ sound IF input / subcarrier

33 Ssif/RefIn/Avl/RefOut

34 L 3 AUDIOIN5L I Audio-L3 input (left signal) 35 R 5 AUDIOIN5R I Audio-R3 input (right signal) 36 L_OUT AUDOUTSL O Audio L output 37 R_OUT AUDOUTSR O Audio R output 38 DecsDem DECSDEM - Decoupling sound demodulator

39 QssO/AmO/AudeEm QSSO/AMOUT/AUDEEM

40 Gnd2 GND2 - GND 41 PllIf PLLIF - IF-PLL loop filter 42 SifAgc SIFAGC/DVBAGC - AGC sound IF 43 IfVo/FmRo/DvbO DVBO/IFVO/FMRO O Not used 44 NC DVBO/FMRO O Not used 45 V8AudioSwitches VCC8V I 8V 46 AgcSsif AGC2SIF - AGC capacitor second sound IF 47 V5P2 VP2 I 5V 48 V_OUT IFVO/SVO/CVBSI O Video output 49 L 1 AUDIOIN4L I Audio-L1 input 50 R 1 AUDIOIN4R I Audio-R1 input 51 V3 CVBS4/Y4 I Video V3 52 C4 C4 I Not used 53 Audio2InL AUDIOIN2L I Not used 54 Audio2InR AUDIOIN2R I Not used 55 V2/Y CVBS2/Y2 I Component Y/Video V2 56 L 2 AUDIOIN3L I Audio L2 input (Left signal) 57 R 2 AUDIOIN3R I Audio R2 input (right signal) 58 Y3/Cvbs CVBS3/Y3 I S-Video Y1 59 C1 C2/C3 I S-Video C1 60 AudioLsL AUDOUTLSL O Audio L output for audio power amplifier 61 AudioLsR AUDOUTLSR O Audio R output for audio power amplifier 62 HP_L AUDOUTHPL O Headphone L 63 HP_R AUDOUTHPR O Headphone R 64 CVBSO/PIP CVBSO/PIP O CVBS / PIP output

1-6 (No. YA104)

AVL/SWO/SSIF/REFO/REFIN

reference output / external reference signal input for I signal mixer for DVB operation

O QSS intercarrier output / AM output / deemphasis / (front-

end audio out)

IC701 Pin Function List (2/2)

Pin no. Terminal name Port name I/O Remark

65 SVM SVM O Scan velocity modulation output

66 FbiSo FBISO/CSY

67 Hout HOUT O Horizontal output 68 VssComb VSScomb - GND 69 V5Comb VDDcomb I 5V 70 Vin/R2/Pr VIN (R/PRIN2/CX) I PIP R input 71 Uin/B2/Pb UIN (B/PBIN2) I PIP B input 72 Yin/G2/Y YIN (G/YIN2/CVBS-YX) I PIP G input 73 Ysync YSYNC I Not used 74 Yout YOUT O Not used 75 Uout/INSSW2 UOUT (INSSW2) O RGB / YPBPR insertion input 76 NC VOUT (SWO1) O Not used 77 INSSW3 INSSW3 I YPBPR insertion input 78 R3/Pr R/PRIN3 I Component PR input (Video-2) 79 G3/Y G/YIN3 I Component Y input (Video-2) 80 B3/Pb B/PBIN3 I Component PB input (Video-2) 81 Gnd3 GND3 - GND 82 V5P3 VP3 I 5V 83 BCL BCLIN I Beam current limiter input 84 BLKIN BLKIN I Black current input 85 Rout RO O R output 86 Gout GO O G output 87 Bout BO O B output 88 V3.3A1 VDDA1 I 3.3V 89 RefAdN VREFAD-NEG - GND 90 V3.3RefAdP VREFAD_POS I 3.3V (Positive) 91 RefAd VREFAD I 3.3/2V 92 GndA GNDA - GND 93 V1.8A VDDA(1.8V) I 1.8V 94 V3.3A2 VDDA2(3.3) I 3.3V 95 VssADC VSSadc - GND 96 V1.8ADC VDDadc(1.8) I 1.8V 97 REMOTE INT0/P0.5 I Remote control input 98 PW_LED P1.0/INT1 I POWER LED control

99 P11/TO P1.1/T0 I POWER LED control 100 V1.8C2 VDDC2 I 1.8V 101 VssC2 VSSC2 - GND 102 COMPONENT-PIP P0.4/12SWS - Not used 103 COMB_SW_NT3.5/OTHER P0.3/12SCLK - Not used 104 VER_PROTECT P0.2/12SDO2 O XRAY PROTECT 105 S_REDUCE P0.1/12SDO1 O Sound control 106 P00/I2SDI1 P0.0/12SDI1/O O Not used 107 POWER P1.3/T1 O SUB POWER control 108 SCL1 P1.6/SCL I I2C BUS CLOCK 109 SDA1 P1.7/SDA I/O I2C BUS•@DATA 110 V3.3P VDDP(3.3V) I 3.3V

111 ROTATION P2.0/TPWM O ROTATION 112 3.58/OTHER P2.1/PWMO O 3.58 detection 113 A_MUTE P2.2/PWM1 O AUDIO MUTE 114 4.5/OTHER P2.3/PWM2 O 4.5 detection 115 PROT P3.0/ADC0 I PROTECT 116 ECO_IN P3.1/ADC1 I ECO INPUT 117 V1.8C1 VDDC1 I 1.8V (Digital) 118 DecV1V8 DECV1V8 I 1.8V 119 KEY_IN P3.2/ADC2 I KEY INPUT 120 VDO_DET P3.3/ADC3 I VDO DET IN 121 VSSC1+P1 VSSC/P - Digital GND 122 P24/PWM3 P24/PWM3 I SV DET IN 123 P25/PWM4 P25/PWM4 O GTVA_RESET 124 V1.8C3 VDDC3 I 1.8V (Digital) 125 VssC3 VSSC3 - GND 126 P12/Int2 P1.2/INT2 I External interrupt 127 SDA0 P1.4/RX I/O I2C BUS DATA (Memory) 128 SCL0 I I2C BUS CLOCK (Memory)

I Flyback input/sandcastle output or composite H/V

timing output

(No. YA104) 1-7

SECTION 3

DISASSEMBLY

3.1 DISASSEMBLY PROCEDURE

3.1.1 REMOVING THE REAR COVER

• Unplug the power cord. (1) Remove the 16 screws [A] as shown in Fig.1.

(2) Withdraw the REAR COVER toward you.

CAUTION:

When reinstalling the rear cover, carefully push it inward after inserting the MAIN PWB into the REAR COVER groove.

3.1.2 REMOVING THE CHASSIS (CHASSIS BASE AND

CONTROL BASE)

• Remove the REAR COVER. (1) Slightly raise the both sides of the CHASSIS by hand

and remove the 2 claws [B] under the CHASSIS from the front cabinet as shown in Fig.1.

(2) Withdraw the CHASSIS backward.

(If necessary, take off the wire clamp, connectors etc.)

NOTE:

When conducting a check with power supplied, be sure to confirm that the CRT earth wire is connected to the CRT SOCKET PWB and the MAIN PWB.

3.1.3 REMOVING THE AV TERMINAL BOARD

• Remove the REAR COVER. (1) Remove the 4 screws [C] as shown in Fig.1.

(2) When you pull out the AV TERMINAL BOARD in the

direction of arrow [D] as shown in Fig.1, it can be removed.

3.1.4 REMOVING THE CONTROL BASE

• Remove the REAR COVER.

• Remove the CHASSIS.

(1) While pushing down the 2 claws [E] as shown in Fig.

2 and pull out the CONTROL BASE in the direction of arrow [F] as shown in Fig. 2, the control base can be removed. (If necessary, take off the wire, connectors etc.)

3.1 .5 REMOVING THE SPEAKER

• Remove the REAR COVER. (1) Remove the 2 screws [G] as shown in Fig.1.

(2) Withdraw the SPEAKER backward. (3) Follow the same steps when removing the other hand

SPEAKER.

3.1.6 CHECKING THE MAIN PW BOARD

• To check the back side of the MAIN PWB. (1) Pull out the CHASSIS and CONTROL BASE. (Refer to

the procedure described in REMOVING THE CHASSIS)

(2) Put the CHASSIS in upright position with the MAIN

PWB's solderside faced to the right. The FBT must be positioned on top. (Viewed from the rear)

(3) Put the CONTROL PWBs in an appropriate position,

taking care not giving tension to the ribbon cables that connect to the MAIN PWB.

CAUTIONS:

• Use insulating materials, if necessary, to avoid possible electrical contacts between PWBs and expose terminals, etc.

• Before turning on power, make sure that the CRT earth wire and other connectors are properly connected.

• When repairing, connect the DEG. COIL to the DEG. connector on the MAIN PWB.

3.1.7 WIRE CLAMPING AND CABLE TYING

(1) Be sure to clamp the wire. (2) Never remove the cable tie used for tying the wires

together. Should it be inadvertently removed, be sure to tie the wires with a new cable tie.

1-8 (No. YA104)

[FRONT SIDE]

CONTROL BASE

E

PICTURE TUBE

SPEAKER

FRONT CABINET

G

FRONT CONTROL PWB (1/2)

(X2)

CONTROL BASE

CHASSIS BASE

SPEAKER

CRT SOCKET PWB

Fig.2

CLAW B (under side)

(X2)

CHASSIS

G

BASE

FRONT CONTROL PWB (2/2)

CLAW B (under side)

MAIN PWB

F

Fig.2

FBT

AV TERMINAL BOARD

D

C

(×4)

REAR COVER

Fig. 1

A

(×16)

(No. YA104) 1-9

3.2 REPLACEMENT OF MEMORY IC

3.2.1 MEMORY IC

This TV uses the following memory IC.

Memory IC: IC702 on MAIN PWB

The memory IC memorizes data for correctly operating the video and deflection circuits. When replacing the memory IC, be sure to use the same type IC written with the initial values of data. In other words, use the specific IC listed in “PRINTED WIRING BOARD PARTS LIST”. For its mounting location, refer to “ADJUSTMENT LOCATIONS”.

3.2.2 PROCEDURE FOR REPLACING MEMORY IC

1. Power off

Switch the power off and unplug the power cord from the wall outlet.

2. Replacing the memory IC

Replace the memory IC with new one. Be sure to use the memory IC written with the initial data values.

3. Power on

Plug the power cord into the wall outlet and switch the power on.

4. Check and setting of SYSTEM CONSTANT SET:

(1) Press the [DISPLAY] key and the [PICTURE MODE]

key on the remote control unit simultaneously. The SERVICE MENU screen will be displayed.(See Fig.1.)

(2) In the SERVICE MENU, press the [DISPLAY] key and

[PICTURE MODE] key simultaneously. Then, the SYSTEM CONSTANT SET screen will be displayed.(See Fig.2.)

(3) Check whether the setting values of the SYSTEM

CONSTANT SET are the same as those indicated in Table1. If the value is different, select the setting item with the MENU [ with the MENU

]/[] key, and set the correct value

[]/[] key.

(4) Press the [DISPLAY] key twice to return to the normal

screen.

5. Receive channel setting

Refer to the OPERATING INSTRUCTIONS and set the receive channels (channels preset).

6. User setting

Check the user setting values in Table 2 and Table 3. If setting value is different, set the correct value. For setting, refer to the OPERATING INSTRUCTIONS.

7. Setting of SERVICE MENU

Verify the setting for each setting item in the SERVICE MENU.(See Table 4.) If readjustment is necessary, perform adjustment referring to “ADJUSTMENTS PROCEDURE”.

NAME OF REMOTE CONTROL KEYS

SERVICE MENU

1. IF

3. AUDIO

5. VSM W/B

7. PLUG & PLAY (OFF)

1-7 : SELECT DISPLAY : EXIT

******* **** ***** ***** **** **** *** ***

Fig. 1

SYSTEM CONSTANT-1

SYSTEM CONSTANT SET 1

SYSTEM COMB TILT SUPER BASS TEXT LANGUAGE

: SEL  : OPE



SYSTEM CONSTANT-2

SYSTEM CONSTANT SET 2

SOUND BILINGUAL BLUE BACK MUTE COLOUR AUTO ECO SENSOR

: SEL  : OPE



SYSTEM CONSTANT-3

SYSTEM CONSTANT SET 3

SURROUND

: SEL  : OPE



2. V/C

4. DEF

6. S TATUS

: MULTI

DISP : EXIT

YES YES NO NO ERAPF

PB NO NO YES YES

YES

NOPICTURE BOOSTER

YESCOMPONENT

NOPIP

YESS INPUT

DISPLAY / BACK

MENU

MENU OK

PICTURE MODE

1-10 (No. YA104)

MENU

Fig. 2

3.2.3 FACTORY SHIPMENT SETTING VALUE

SETTING OF SYSTEM CONSTANT SET

Setting item Setting content

Setting value

AV-29WX14/G AV-29WX14/S AV-29WX24/L AV-2954W/E

SYSTEM MULTI ←←←

COMB YES ←←←

TILT YES ←←←

SUPER BASS NO ←←←

TEXT NO ← SINGLE NO

LANGUAGE --- --- E/R/C/M/I ---

SOUND PB ←←STEREO

BILINGUAL NO ←←←

BLUE BACK MUTE NO YES NO ←

COLOUR AUTO YES ← NO ←

ECO SENSOR YES ←←←

SURROUND YES ←←←

MULTI TRIPLE PAL THAI

YES NO

SINGLE NO PAT

E/R/A/P/F

E/R/C/M/I E/C

E/R/U

STEREO PB MONO

YES NO

E/R/A/P/F ← --- ---

--- --- --- E/R/U

PICTURE BOOSTER NO ←←←

COMPONENT YES ←←←

PIP NO ←←←

S INPUT YES ←←←

YES NO

Table 1

(No. YA104) 1-11

SETTING OF BASIC FUNCTIONS

Setting item Setting value

SERVICE MENU SETTING ITEMS

Setting item Setting value

POWER Off

SUB POWER On

VOLUME 15

COLOR SYSTEM PA L

SOUND SYSTEM B/G

PICTURE MODE(VSM) BRIGHT

CINEMA SURROUND OFF

OFF TIMER OFF

STEREO MODE STEREO[AV-2954W/E]

CHANNEL POSITION PRESET 1

Table 2

SETTING OF MENU SCREEN

Setting item Setting value

INPUT TV

VNR AUTO

COMPRESS (16:9) OFF PICTURE TILT 

AUTO SHUTOFF OFF

CHILD LOCK OFF

BLUE BACK ON

VIDEO-2 SET VIDEO

AUTO PROGRAM Refer to OPERATING INSTRUCTIONS

EDIT / MANUAL Refer to OPERATING INSTRUCTIONS

LANGUAGE ENG

TEXT LANGUAGE GROUP-3[AV-2954W/E]

TINT Centre

COLOUR Centre

BRIGHT Centre

CONT Maximum

SHARP Centre

BALANCE Centre

SOUND MODE DYNAMIC

SOUND TURBO OFF

AI VOLUME ON

FAVORITE CH RED PR01

FAVORITE CH GREEN PR02

FAVORITE CH YELLOW PR03

FAVORITE CH BLUE PR04

AI ECO SENSOR OFF

AI ECO DISPLAY ON

1. IF 1. VCO

2. DELAY POINT

2. V/C 1. SCREEN

2. CUTOFF(B/G)

3. WDR(R/G/B)

4. BRIGHT(TV/VDO 1/2/3)

5.

CONT(TV/VDO 1/2/3/TV 16:9/VDO 16:9)

6. COLOUR(TV/VDO 1/2/3/DVD)

7. TINT(TV/VDO 1/2/3)

8. SHARP

9. Y DELAY

10. TINT DVD

11. AMP T. SHARP

3. AUDIO 1. DCXO ADJ

[Do not adjust] 2. NICAM lower ERRLIM

3. NICAM upper ERRLIM

4. A2 ID THR

5. MENU EQUALIZER

4. DEF 1. V-SHIFT

2. V-SLOPE

3. V-SIZE

4. H-CENT

5. H-SIZE

6. TRAPEZ

7. EW-PIN

8. COR-UP

9. COR-LO

10. ANGLE

11. BOW

12. V-S.CR

13. V-LIN

14. V-ZOOM

15. V-SCROLL

5. VSM W/B 1. BRIGHT

(BRIGHT/STANDARD/SOFT) 2. CONT

3. COLOUR

4. SHARP

5. HUE

(COOL/WARM/NORMAL) 1. R DRIVE

2. G DRIVE

3. B DRIVE

6. STATUS

[Display only]

7. PLUG & PLAY(ON)

[Display only]

[Do not adjust]

1-12 (No. YA104)

Table 3

Table 4

3.3 REPLACEMENT OF CHIP COMPONENT

A

B

C

3.3.1 CAUTIONS

(1) Avoid heating for more than 3 seconds. (2) Do not rub the electrodes and the resist parts of the pattern. (3) When removing a chip part, melt the solder adequately. (4) Do not reuse a chip part after removing it.

3.3.2 SOLDERING IRON

(1) Use a high insulation soldering iron with a thin pointed end of it. (2) A 30w soldering iron is recommended for easily removing parts.

3.3.3 REPLACEMENT STEPS

1. How to remove Chip parts

[Resistors, capacitors, etc.]

(1) As shown in the figure, push the part with tweezers and

alternately melt the solder at each end.

(2) Shift with tweezers and remove the chip part.

2. How to install Chip parts

[Resistors, capacitors, etc.]

(1) Apply solder to the pattern as indicated in the figure.

(2) Grasp the chip part with tweezers and place it on the

solder. Then heat and melt the solder at both ends of the chip part.

[Transistors, diodes, variable resistors, etc.]

(1) Apply extra solder to each lead.

SOLDER

(2) As shown in the figure, push the part with tweezers and

alternately melt the solder at each lead. Shift and remove the chip part.

Note :

After removing the part, remove remaining solder from the pattern.

[Transistors, diodes, variable resistors, etc.]

(1) Apply solder to the pattern as indicated in the figure. (2) Grasp the chip part with tweezers and place it on the

solder.

(3) First solder lead A as indicated in the figure.

(4) Then solder leads B and C.

A

B

C

(No. YA104) 1-13

SECTION 4

ADJUSTMENT

4. 1 ADJUSTMENT PREPARATION

(1) You can make the necessary adjustments for this unit with either the remote control unit or with the adjustment

equipment and parts as given below.

(2) Adjustment with the remote control unit is made on the basis of the initial setting values, however, the new setting

values used for setting the screen to its optimum condition may differ from the initial settings.

(3) Make sure that AC power is turned on correctly. (4) Turn on the power for the set and test equipment before use, and start the adjustment procedures after waiting at least 30

minutes. (5) Unless otherwise specified, prepare the most suitable reception or input signal for adjustment. (6) Never touch any adjustment parts, which are not specified in the list for this variable resistors, transformers, trimmer

capacitors, etc.

4. 2 PRESETTING BEFORE ADJUSTMENT

Unless otherwise specified in the adjustment instructions, preset the following functions with the remote control unit.

User mode setting position

Setting item Setting value

PICTURE MODE (VSM) BRIGHT

TINT, COLOUR, BRIGHT,SHARP Centre

CONT Maximum

VNR OFF

AI ECO SENSOR OFF

BALANCE Centre

SOUND TURBO OFF

CINEMA SURROUND OFF

COMPRESS 4:3

4. 3 MEASURING INSTRUMENT AND FIXTURES

(1) DC voltmeter (or Digital voltmeter) (2) Oscilloscope (3) Signal generator (Pattern generator) [PAL/SECAM/NTSC] (4) Remote control unit

4. 4 ADJUSTMENT ITEMS

 B1 VOLTAGE

 FOCUS ADJUSTMENT

 IF CIRCUIT ADJUSTMENTS

• IF VCO adjustment

• DELAY POINT (AGC TAKE-OVER) adjustment

 VIDEO CIRCUIT ADJUSTMENTS

• WHITE BALANCE (Low light) adjustment

• WHITE BALANCE (High light) adjustment

• SUB BRIGHT adjustment

• SUB CONTRAST adjustment

• SUB COLOUR 1 adjustment

• SUB COLOUR 2 adjustment

• SUB TINT 1 adjustment

• SUB TINT 2 adjustment

 AUDIO SETTING

 DEFLECTION CIRCUIT ADJUSTMENTS

• V.SLOPE adjustment

• V.POSITION adjustment

• V.HEIGHT adjustment

• H.POSITION adjustment

• H. WIDTH adjustment

• SIDE PIN adjustment

• TRAPEZIUM adjustment

• V.S-CURVE adjustment

• CORNER adjustment

• H. PARALLEL adjustment

• H.BOW adjustment

 VSM PRESET SETTING  PURITY AND CONVERGENCE ADJUSTMENTS

• PURITY adjustment

• STATIC CONVERGENCE adjustment

• DYNAMIC CONVERGENCE adjustment

1-14 (No. YA104)

4. 5 ADJUSTMENT LOCATIONS

FRONT CONTROL PWB ASS’Y (1/2) FRONT CONTROL PWB ASS’Y (2/2)

POWER CORD

S901

PW

MAIN PWB ASS’Y

CN00W

W

CNDEG

DEG COIL

CN001

FRONT

ROTATION COIL

T

IC701

SPEAKER (L)

1

8

S804

IC702

S805

S806 S802

R

CN002

SPEAKER (R)

S803S801

J804 J803 J802

CN00S

J801

FRONT

CN002

CRT EARTH

(BRAIDED ASS'Y)

J804J801J805 J802 J803

TU001

CRT SOCKET PWB ASS’Y

TP-47R

TP-47G

T

18

E2

CN00C

CNOOX

1. B1

2. NC

3. X-RAY2

4. X-RAY1

5. GND

16

61

U

15

TP-47B

E1

DEF YOKE

HV

16

HVT

UPPER : FOCUS

LOWER : SCREEN

(SOLDER SIDE)

TOP

TP-E

CRT EARTH

(BRAIDED ASS'Y)

16

U

(No. YA104) 1-15

4.6 BASIC OPERATION IN SERVICE MENU

Operate the SERVICE MENU with the remote control unit.

4.6.1 SERVICE MENU ITEMS

With the SERVICE MENU, various settings (adjustments) can be made, and they are broadly classified in the following items of settings:

1. IF For entering/adjusting the setting values (adjustment values) of the IF circuit.

2. V/C For entering/adjusting the setting values (adjustment values) of the VIDEO circuit.

3. AUDIO For entering/adjusting the setting values (adjustment values) of the AUDIO circuit.

4. DEF For entering/adjusting the setting values (adjustment values) of the DEFLECTION circuit.

5. VSM W/B For setting the values of STANDARD, SOFT, BRIGHT and COOL, NORMAL, WARM.

6. STATUS This is not used for service. PLUG & PLAY (ON)

7.

4.6.2 BASIC OPERATION IN SERVICE MENU

1. HOW TO ENTER SERVICE MEN

Press the [DISPLAY] key and the [PICTURE MODE] key on the remote control unit simultaneously. The SERVICE MENU screen will be displayed. (See Fig. 1 on the next page.)

2. SELECTION OF SUB MENU SCREEN

Press one of the keys 1 to 6 on the remote control unit, and select the SUB MENU SCREEN from the SERVICE MENU. (See Fig.1 on the next page.)

SERVICE MENU

1. IF 5. VSM W/B

2. V/C 6. STATUS

3. AUDIO 7. PLUG & PLAY (ON)

4. DEF

This is not used for service.

U

→ SUB MENU

3. METHOD OF SETTING

NOTES:

• Once the setting values are set, they are memorized automatically.

• It must not be adjusted without inputting a signal.

(1) 1. IF

[1.VCO ] : Under normal conditions, no adjustment is required.

(a) [1] key Select 1. IF. (b) [1] key Select 1. VCO. (c) [DISPLAY] key When this is pressed twice, you will return to the SERVICE MENU.

[2.DELAY POINT ]

(a) [1] key Select 1. IF. (b) [2] key Select 2. DELAY POINT. (c)

MENU []/[] key

(d) [DISPLAY] key When this is pressed twice, you will return to the SERVICE MENU.

(2) 2. V/C, 3. AUDIO and 4. DEF

(a) [2] ~[4] keys Select one from 2. V/C and 3. AUDIO, 4. DEF. (b)

MENU []/[] key MENU []/[] key

(c)

(d) [DISPLAY] key When this is pressed, you will return to the SERVICE MENU.

(3) 5. VSM W/B

(a) [5] key Select 5. VSM W/B. (b) MENU [OK] key Select preset items. (c)

MENU []/[] key

(d)

MENU []/[] key

(e) [DISPLAY] key When this is pressed, you will return to the SERVICE MENU.

Adjust the setting value.

Select setting items. Adjust the setting values of the setting items.

Use the number keys on the remote control unit for setting the WHITE BALANCE. For the setting, refer to each item concerned.

Adjust setting items. Adjust the setting values of the setting items.

(4) 6. STATUS

This is for display only.

(5) 7. PLUG & PLAY (ON)

This is not used for service.

4. Release of SERVICE MENU

After completing the setting, return to the SERVICE MENU by pressing the [DISPLAY] key, then again press the [DISPLAY] key to return to the normal screen.

1-16 (No. YA104)

4.6.3 SERVICE MENU FLOW CHART

SERVICE MENU

1. IF

3. AUDIO

5. VSM W/B

7. PLUG & PLAY (OFF)

1-7 : SELECT DISPLAY : EXIT

******* **** ***** ***** **** **** *** ***

2. V/C

4. DEF

6. STATUS

IF SERVICE MENU

1. VCO

2. DELAY POINT

V/C

1. SCREEN

1. IF

2. V/C

PAL

HBC

WBC

BRI

VCO (CW)

TOO HIGH ABOVE REFERENCE JUST REFERENCE BELOW REFERENCE TOO LOW

DELAY POINT

AGC TAKEOVER

Setting item

1. SCREEN

2. CUTOFF (B/G)

** ** **

3. WDR (R/G/B)

4. BRIGHT (TV/VDO1/2/3)

5. CONT (TV/VDO1/2/3/TV 16:9/VDO16:9)

6. COLOUR (TV/VDO1/2/3/ DVD)

7. TINT (TV/VDO1/2/3)

8. SHARP (TV/VDO1/2/3) Y DELAY (TV/VDO1/2/3

9.

/S-DVO))

10. TINT DVD

11. AMP T.SHARP

*****

**

MHz

6. STATUS

STATUS

V/C STATUS

ECO EOF NOL VNR

***********

COSMIC STATUS

** ** ** ** ** ** ** **

5. VSM W/B

VSM PRESET BRIGHT

1. BRIGHT

***

1. BRIGHT

2. CONT

3. COLOUR

4. SHARP

5.HUE

Setting item

1. R-DRIVE

2. G-DRIVE

3. B-DRIVE

3. AUDIO

AUDIO

1. DCXO ADJ. = NOT NICAM

0002

0009

000A

***

******* *******

*******

4. DEF

DEF FULL 50Hz

1. V-SHIFT

***

(**)

Setting item

1. DCXO ADJ

2. NICAM lower ERRLIM

3. NICAM upper EERLIM

4. A2 ID THR

MENU EQUALIZER DYNAMIC MUSIC NEWS USER

4 : 3 / 16 : 9

Setting item

1. V-SHIFT

2. V-SLOPE

3. V-SIZE

4. H-CENT

5. H-SIZE

6. TRAPEZ

7. EW-PIN

8. COR-UP

Setting value (Hexadecimal)

Setting value

Sereen size

FULL COMPRESS

9. COR-LO

10. ANGLE

11. BOW

12. V-S. CR

13. V-LIN

14. V-ZOOM

15. V-SCROLL

Fig. 1

(No. YA104) 1-17

4.7 ADJUSTMENT PROCEDURE

y

4.7.1 B1 VOLTAGE

Item

Measuring instrument

Test point Adjustment part Description

B1 VOLTAGE check

Signal generator

DC voltmeter

4.7.2 FOCUS ADJUSTMENT

Item

FOCUS adjustment

Measuring instrument

Signal generator

B1 (pin 1) GND (pin 5) [CN00X connector

(1) Receive a black and white signal. (2) Connect a DC voltmeter between B1 and GND (between

pins 1 and 5 of the connector CN00S).

(3) Make sure that the voltage is DC134.5V ± 2V. in MAIN PWB]

Test point Adjustment part Description

FOCUS VR [In HVT]

Notes:

• Set PICTURE MODE (VSM) to “BRIGHT”.

[AV-29WX14/G, AV-29WX14/S, AV-29WX24/L only]

• The final adjustment of CONVERGENCE must be done

after the FOCUS adjustment. (CONVERGENCE is affected by the FOCUS adjustment.) If any aeviation in CONVERGENCE is found, PURITY must be adjusted to restore the convergence.

(1) Receive a crosshatch signal.

(2) Adjust the FOCUS VR so that the vertical and horizontal

lines will be clear and in fine detail on the screen.

(3) Make sure that the picture is in focus even when the screen

gets darkened.

4.7.3 IF CIRCUIT ADJUSTMENTS

Item

IF VCO check

DELAY POINT (AGC

Measuring instrument

Remote control unit

VCO (CW)

TOO HIGH ABOVE REFERENCE JUST REFERENCE BELOW REFERENCE TOO LOW

Remote control unit

Test point Adjustment part Description

. MHz

DISPLAY : EXIT

TAKE-OVER) adjustment

Adjustment item

2. DELAY POINT

(AGC TAKE-OVER)

[1. IF]

1. VCO (CW)

Receiving frequenc

YELLOW

[1. IF]

2. DELAY POINT

Initial setting value

NTSC 3.58

OTHERS

VHF UHF VHF UHF

30

303030

Note:

• Under normal conditions, no adjustment is required.

(1) Receive a broadcast signal.

(2) Select 1. IF from the SERVICE MENU.

(3) Select 1. VCO.

(4) Check the characters colour of the JUST REFERENCE

displayed to yellow.

(5) Press the [DISPLAY] key three times to return to normal

screen.

(1) Receive a black and white broadcast signal (colour off).

(2) Select 1. IF from the SERVICE MENU.

(3) Select 2. DELAY POINT.

(4) Adjust in order to eliminate any noise or beat from the

image. Any increase above the initial value produces the noise and any decrease below it produces the beat.

(5) Press the [DISPLAY] key three times to return to the normal

screen.

(6) Turn to other channels and make sure that there are no

irregularities.

1-18 (No. YA104)

4.7.4 VIDEO CIRCUIT ADJUSTMENTS

• The setting (adjustment) using the remote control unit is made on the basis of the initial setting values.

• The setting values which adjust the screen to the optimum condition can be different from the initial setting values.

• Do not change the initial setting values of the setting (adjustment) items not listed in “ADJUSTMENT PROCEDURE”.

• The initial setting values in parenthesis ( ) are fixed offset values, needing no further adjustment.

[AV-29WX14/G, AV-29WX14/S, AV-29WX24/L]

Initial setting value

Adjustment item

1. SCREEN BRI 0 ~ 63 32 32 32 32 32 32

2. CUTOFF B 0 ~ 63(-32 ~ +31) 11 11 11 11 (-3) (-3) G 0 ~ 63(-32 ~ +31) 7 7 7 7 (-5) (-5)

3. WDR R 0 ~ 63(-32 ~ +31) 3 2 3 2 32 3 2 (0) (0) G 0 ~ 63(-32 ~ +31) 32 3 2 32 3 2 (0) (0) B 0 ~ 63(-32 ~ +31) 45 45 4 5 4 5 (0) (0)

4. BRIGHT RF 0 ~ 63(-32 ~ +31) 39 39 3 9 39 --- --VIDEO 1(COMPOSITE/S) VIDEO 2(COMPONENT) VIDEO 3(COMPOSITE)

5. CONT. RF 0 ~ 63 3 2 3 2 3 2 32 --- --VIDEO (-32 ~ +31) (+2) (+2) (+2) (+2) (+2) (+2) RF 16:9 (-32 ~ +31) (0) (0) (0) (0) --- --VIDEO 16:9 (-32 ~ +31) --- --- --- --- --- ---

6. COLOUR RF 0 ~ 63(-32 ~ +31) 4 2 32 3 7 (-3) --- --VIDEO (-32 ~ +31) (-1) (0) (-3) (0) (+4) (-5)

7. TINT RF 0 ~ 63(-32 ~ +31) --- --- 2 7 (-4) --- --VIDEO (-32 ~ +31) --- --- (+4) ( +11) --- ---

8. SHARP RF 0 ~ 63 22 22 22 22 --- --VIDEO 0 ~ 63 35 35 35 35 15 15

9. Y DELAY RF 0 ~ 15 9 7 1 2 7 --- --VIDEO 0 ~ 15 7 7 7 7 --- --S-VIDEO 0 ~ 15 9 1 0 11 11 --- ---

10. TINT DVD RF, VIDEO, S-VIDEO 0 ~ 63 3 4 3 2 32 3 2 --- --COMPONENT (-32 ~ +31) --- --- --- --- (-2) (-2)

11. AMP T.SHARP RF, VIDEO 0 ~ 63 0 0 0 0 0 0

[AV-2954W/E]

Adjustment item

1. SCREEN BRI 0 ~ 63 32 32 32 32 32 32

2. CUTOFF B 0 ~ 63(-32 ~ +31) 11 11 11 11 (-3) (-3) G 0 ~ 63(-32 ~ +31) 7 7 7 7 (-5) (-5)

3. WDR R 0 ~ 63(-32 ~ +31) 32 32 32 3 2 (0) (0) G 0 ~ 63(-32 ~ +31) 32 3 2 3 2 32 (0) (0) B 0 ~ 63(-32 ~ +31) 45 45 4 5 4 5 (0) (0)

4. BRIGHT RF 0 ~ 63(-32 ~ +31) 39 39 39 3 9 --- --VIDEO 1(COMPOSITE/S) VIDEO 2(COMPONENT) VIDEO 3(COMPOSITE)

5. CONT. RF 0 ~ 63 3 2 3 2 3 2 32 --- --VIDEO (-32 ~ +31) (+2) (+2) (+2) (+2) (+2) (+2) RF 16:9 (-32 ~ +31) (0) (0) (0) (0) --- --VIDEO 16:9 (-32 ~ +31) --- --- --- --- --- ---

6. COLOUR RF 0 ~ 63(-32 ~ +31) 4 2 3 2 3 7 (-3) --- --VIDEO (-32 ~ +31) (-1) (0) (-3) (+3) (+6) (-4)

7. TINT RF 0 ~ 63(-32 ~ +31) --- --- 2 7 (-4) --- --VIDEO (-32 ~ +31) --- --- (+4) (+2) --- ---

8. SHARP RF 0 ~ 63 22 22 22 22 --- --VIDEO 0 ~ 63 35 35 35 35 15 15

9. Y DELAY RF 0 ~ 15 9 7 12 7 --- --VIDEO 0 ~ 15 7 7 7 7 --- --S-VIDEO 0 ~ 15 9 1 0 11 11 --- ---

10. TINT DVD RF, VIDEO, S-VIDEO 0 ~ 63 2 9 3 2 32 3 2 --- --COMPONENT (-32 ~ +31) --- --- --- --- (-2) (-2)

11. AMP T.SHARP RF, VIDEO 0 ~ 63 0 0 0 0 0 0

Variable range

(-32 ~ +31) (-1) (-1) (-1) (-1) --- --(-32 ~ +31) (0) (0) (0) (0) (0) (0)

(-32 ~ +31) (0) (0) ( 0) (0) --- ---

Variable range

(-32 ~ +31) (-1) (-1) (-1) (-1) --- --(-32 ~ +31) (0) (0) (0) (0) (0) (0) (-32 ~ +31) (0) (0) (0) (0) --- ---

PAL SECAM NTSC3.58 NTSC4.43

Initial setting value

PAL SECAM NTSC3.58 NTSC4.43

COMPONENT(V-2)

525i 625i

COMPONENT(V-2)

525i 625i

(No. YA104) 1-19

Item

Measuring instrument

Test point Adjustment part Description

WHITE BALANCE (Low light) adjustment

B CUTOFF (

Signal generator

Remote control unit

2. CUTOFF

REMOTE CONTROL UNIT

12 3





4

)

789

)

56

V/C

[2. V/C]

2.CUTOFF (B)

2.CUTOFF (G)

SCREEN VR [In HVT]

PAL

(B)

(**)

**

(G)

G CUTOFF ( )

G CUTOFF (

)

(

**



Note:

• Set PICTURE MODE (VSM) to “BRIGHT”.

(1) Receive a PAL black and white signal (colour off). (2) Select 2. V/C from the SERVICE MENU. (3) Select 2. CUTOFF (B) and (G). (4) Set each value to initial setting value with the [4] / [7] keys

and [5] / [8] keys.

(5) Turn the SCREEN VR fully counterclockwise, then slowly

turn it clockwise to where a red, blue or green colour is faintly visible.

(6) Use the [4] / [7] and [5] / [8] keys to adjust so that the

other 2 colours appear white.

(7) Turn the SCREEN VR to where the single horizontal line

glows faintly. (8) Press the [2] key to return to 2. CUTOFF screen. (9) Press the [DISPLAY] key twice to return to the normal

screen.

Adjustment Item

2. CUTOFF

B 0 ~ 63 11

G 0 ~ 63 7

)

Variable Initial setting

range value

WHITE BALANCE (High light) adjustment

R DRIVE (

Signal generator

[2. V/C]

3.WDR (R)

3.WDR (G)

Remote

3.WDR (B)

control unit

V/C

3. WDR

REMOTE CONTROL UNIT

12 3

4

) B DRIVE ()





789

)

56

PAL

(R)

(G) (B)

G DRIVE ()

B DRIVE (

G DRIVE (

** ** **(**

(**)

(

**



Notes:

• Proceed to the following adjustment after having completed

the WHITE BALANCE (Low light) adjustment.

• Set PICTURE MODE (VSM) to “BRIGHT”.

(1) Receive a PAL black and white signal (colour off). (2) Select 2. V/C from the SERVICE MENU. (3) Select 3. WDR (R), (G) and (B). (4) Set each value to initial setting value with the [4] to [9]

) )

)

keys. (5) Use the [4] to [9] keys to produce a white screen. (6) Press the [DISPLAY] key twice to return to the normal

screen.

Adjustment Item

Variable Initial setting

range value

R 0 ~ 63 32

3. WDR G 0 ~ 63 3 2

B 0 ~ 63 45

1-20 (No. YA104)

Item

Measuring

instrument

Test point Adjustment part Description

SUB BRIGHT adjustment

SUB CONTRAST adjustment

Remote control unit

[2. V/C]

4. BRIGHT

[2. V/C]

5. CONT

Notes:

• Proceed to the following adjustment after having completed

the WHITE BALANCE (Low light) and WHITE BALANCE (High light) adjustment.

• Set PICTURE MODE (VSM) to “BRIGHT”.

(1) Receive a broadcast. (2) Select 2. V/C from the SERVICE MENU. (3) Select 4. BRIGHT. (4) Set the initial setting value. (5) If the brightness is not best with the initial setting value,

make fine adjustment until you get the best brightness.

(6) Press the [DISPLAY] key twice to return to the normal

screen.

Notes:

• Proceed to the following adjustment after having completed

the SUB BRIGHT adjustment.

• Set PICTURE MODE (VSM) to “BRIGHT”.

(1) Receive a broadcast. (2) Select 2. V/C from the SERVICE MENU. (3) Select 5. CONT. (4) Set the initial setting value. (5) If the contrast is not best with the initial setting value,

make fine adjustment until you get the best contrast.

(6) Press the [DISPLAY] key twice to return to the normal

screen.

SUB COLOUR 1 adjustment

Remote control unit

[2. V/C]

6. COLOUR

[Method of adjustment without measuring instrument] Notes:

• Proceed to the following adjustment after having completed

the SUB CONTRAST adjustment.

• Set PICTURE MODE (VSM) to “BRIGHT”.

- PAL COLOUR -

(1) Receive a PAL broadcast. (2) Select 2. V/C from the SERVICE MENU. (3) Select 6. COLOUR. (4) Set the initial setting value for PAL COLOUR. (5) If the colour is not best with the initial setting value, adjust

until you get the best colour.

(6) Press the [DISPLAY] key twice to return to the normal

screen.

- SECAM COLOUR -

(1) Receive a SECAM broadcast. (2) Press the [COLOUR SYSTEM] key to select the SECAM

colour system.

(3) Adjust SECAM COLOUR in the same way as for “PAL

COLOUR”.

- NTSC 3.58 COLOUR -

(1) Receive a NTSC 3.58MHz broadcast. (2) Press the [COLOUR SYSTEM] key to select the NTSC

3.58 colour system.

(3) Adjust NTSC 3.58 COLOUR in the same way as for “PAL

COLOUR”.

- NTSC 4.43 COLOUR -

When adjustment is done for NTSC 3.58 COLOUR, appropriate values are automatically set for NTSC 4.43 COLOUR.

(No. YA104) 1-21

Item

SUB COLOUR 2 adjustment

Measuring instrument

Signal generator

Oscilloscope

Remote control unit

C

Y

W

Test point Adjustment part Description

TP-47G TP-E [CRT SOCKET PWB]

[2. V/C]

6. COLOUR

[Method of adjustment using measuring instrument] Notes:

• Proceed to the following adjustment after having completed

the SUB CONTRAST adjustment.

• Set PICTURE MODE (VSM) to “BRIGHT”.

- PAL COLOUR -

(1) Receive a PAL colour bar signal (full field colour bar 75%

white). (2) Select 2. V/C from the SERVICE MENU. (3) Select 6. COLOUR. (4) Set the initial setting value of PAL COLOUR. (5) Connect the oscilloscope between TP-47G and TP-E. (6) Adjust PAL COLOUR to set the value (A) in the figure to

+18V [AV-29WX14/G, AV-29WX14/S, AV-29WX24/L] or

B

M

R

(A)

(–) 0V

G

(+)

+16V [AV-2954W/E].

- SECAM COLOUR -

(1) Receive a SECAM colour bar signal (colour bar 75%

white). (2) Press the [COLOUR SYSTEM] key to select the SECAM

colour system. (3) Set the initial setting value of SECAM COLOUR. (4) Adjust SECAM COLOUR to set the value (A) in the figure

to +7V [AV-29WX14/G, AV-29WX14/S, AV-29WX24/L] or

+2V [AV-2954W/E].

- NTSC 3.58 COLOUR -

(1) Receive a NTSC 3.58 colour bar signal (full field colour

bar 75% white). (2) Press the [COLOUR SYSTEM] key to select the NTSC

3.58 colour system. (3) Set the initial setting value of NTSC 3.58 COLOUR. (4) Adjust NTSC 3.58 COLOUR to set the value (A) in the

figure to +8V [AV-29WX14/G, AV-29WX14/S, AV-29WX24/

L] or +15V [AV-2954W/E].

- NTSC 4.43 COLOUR -

When adjustment is done for NTSC 3.58 COLOUR, appropriate values are automatically set for NTSC 4.43 COLOUR.

SUB TINT 1 adjustment

Signal generator

Remote control unit

[2. V/C]

7. TINT

[Method of adjustment without measuring instrument]

Notes:

• Proceed to the following adjustment after having completed

the SUB CONTRAST adjustment.

• Set PICTURE MODE (VSM) to “BRIGHT”.

- NTSC 3.58 TINT -

(1) Receive a NTSC 3.58 colour bar signal (full field colour

bar 75% white).

(2) Press the [COLOUR SYSTEM] key to select the NTSC

3.58 colour system. (3) Select 2. V/C from the SERVICE MENU. (4) Select 7. TINT. (5) Set the initial setting value of NTSC 3.58. (6) If you cannot get the best tint with the initial setting value,

make fine adjustment until you get the best tint.

(7) Press the [DISPLAY] key twice to return to the normal

screen.

- NTSC 4.43 TINT -

When adjustment is done for NTSC 3.58 TINT, appropriate values are automatically set for NTSC 4.43 TINT.

1-22 (No. YA104)

Item

Measuring

instrument

Test point Adjustment part Description

SUB TINT 2 adjustment

Signal generator

Oscilloscope

Remote control unit

(B)

C

W

Y

TP-47G TP-E [CRT SOCKET PWB]

B

M

R

G

[2. V/C]

7. TINT

(–) 0V (+)

[Method of adjustment using measuring instrument]

Notes:

• Proceed to the following adjustment after having completed

the SUB CONTRAST adjustment.

• Set PICTURE MODE (VSM) to “BRIGHT”.

- NTSC 3.58 TINT -

(1) Receive a NTSC 3.58 colour bar signal (full field colour

bar 75% white).

(2) Press the [COLOUR SYSTEM] key to select the NTSC

3.58 colour system. (3) Select 2. V/C from the SERVICE MENU. (4) Select 7. TINT. (5) Set the initial setting value of NTSC 3.58. (6) Connect the oscilloscope between TP-47G and TP-E. (7) Adjust NTSC 3.58 TINT to set the value (B) in the figure to

+9V [AV-29WX14/G, AV-29WX14/S, AV-29WX24/L] or +13V [AV-2954W/E].

(8) Press the [DISPLAY] key twice to return to the normal

screen.

- NTSC 4.43 TINT -

When adjustment is done for NTSC 3.58 TINT, appropriate values are automatically set for NTSC 4.43 TINT.

4.7.5 AUDIO SETTING

This submenu is for display only, no adjustment is required.

Function Item Setting value

AUDIO 1. DC XO ADJ FOH

2. NICAM LOWER ERR LIM 6FH

3. NICAM UPPER ERR LIM BOH

4. A2 ID THR 00H

Function Item 100Hz 300Hz 1kHz 3kHz 8kHz

MENU EQUALIZER DYNAMIC +4 +3 -10 +3 +4

MUSIC +7 +2 +5 +2 +7 NEWS -6 +1 +6 +1 -6 USER 0 0 0 0 0

(No. YA104) 1-23

4.7.6 DEFLECTION CIRCUIT ADJUSTMENTS

• The setting (adjustment) using the remote control unit is made on the basis of the initial setting values.

• The setting values which adjust the screen to the optimum condition can be different from the initial setting values.

• When performing deflection circuit adjustment, adjusts PAL signal (fv: 50 Hz) in 4:3 mode and 16:9 mode respectively, and

adjust the NTSC signal (fv: 60 Hz) similarly.

Note:

Proceed to the following adjustment after having completed the adjustments of SUB BRIGHT and SUB PICTURE.

4. DEF

Variable range

Adjustment item

4:3

50Hz

Others

50Hz

4:3

1. V-SHIFT 0 ~ 63 -32 ~ +31 0* 0* 0* 0*

2. V-SLOPE 0 ~ 63 -32 ~ +31 0* 0* 0* 0*

3. V-SIZE 0 ~ 63 -32 ~ +31 +15* 0* -4* -2*

4. H-CENT 0 ~ 63 -32 ~ +31 +35* 0* 0* 0*

5. H-SIZE 0 ~ 63 -32 ~ +31 +45* 0* 0* 0*

6. TRAPEZ 0 ~ 63 -32 ~ +31 0* 0* 0* 0*

7. EW-PIN 0 ~ 63 -32 ~ +31 -12* 0* 0* 0*

8. COR-UP 0 ~ 63 -32 ~ +31 0* 0* 0* 0*

9. COR-LO 0 ~ 63 -32 ~ +31 0* 0* 0* 0*

10. ANGLE 0 ~ 63 -32 ~ +31 0* 0* 0* 0*

11. BOW 0 ~ 63 -32 ~ +31 0* 0* 0* 0*

12. V-S.CR 0 ~ 63 -32 ~ +31 0* 0* 0* 0*

13. V-LIN 0 ~ 63 -32 ~ +31 0* 0 * 0* 0*

14. V-ZOOM 0 ~ 63 -32 ~ +31 (+25) (0) -23* +3*

15. V-SCROLL 0 ~ 63 -32 ~ +31 (+32) (0) (0) (0)

NOTE: The value with an asterisk * is variable for adjustment. The value in parenthesis ( ) are fixed values.

Initial setting value

60Hz

COMPRESS (16:9)

50Hz

60Hz

COMPRESS : OFF (4:3)

Item

V. SLOPE adjustment

Measuring instrument

Signal generator

Remote control unit

V. POSITION adjustment

Signal generator

Remote control unit

Test point Adjustment part Description

[4. DEF]

2. V-SLOPE

- PAL V. SLOPE -

(1) Receive a PAL circle pattern signal of vertical frequency

50Hz. (2) Select 4. DEF from the SERVICE MENU. (3) Select 2. V-SLOPE. (4) Set the initial setting value of 2. V-SLOPE. (5) Adjust 2. V-SLOPE to make “A = B”. (6) Press the [DISPLAY] key to refurn to SERVICE MENU

A

Blanking line

B

screen.

- NTSC V. SLOPE -

(1) Receive a NTSC circle pattern signal of vertical frequency

60Hz. (2) Make similar adjustment of NTSC V- SLOPE in the same

[4. DEF]

1. V-SHIFT

way as for

- PAL V. POSITION -

(1) Receive a PAL circle pattern signal of vertical frequency

“PAL V-SLOPE”.

50Hz. (2) Select 1. V-SHIFT. (3) Set the initial setting value of 1. V-SHIFT. (4) Adjust 1. V-SHIFT to make “A = B”.

1-24 (No. YA104)

- NTSC V. POSITION -

(1) Receive a NTSC circle pattern signal of vertical frequency

60Hz. (2) Make similar adjustment of NTSC V. POSITION in the

same way as for “PAL V. POSITION”.

Item

Measuring

instrument

Test point Adjustment part Description

V. HEIGHT adjustment

Screen

size

92%

H. POSITION adjustment

Signal generator

[4. DEF]

3. V-SIZE

14. V-ZOOM Remote control unit

Picture size 100%

Signal generator

[4. DEF]

4. H-CENT

Remote control unit

CD

- PAL V. HEIGHT -

(1) Receive a PAL crosshatch signal. (2) Select 3. V-SIZE. (3) Set the initial setting value of 3. V-SIZE. (4) Select 14. V-ZOOM. (5) Set the initial setting value of 14. V-ZOOM. (6) Adjust 14. V-ZOOM to make the vertical screen size to

92% of the picture size.

- NTSC V. HEIGHT -

(1) Receive a NTSC crosshatch signal. (2) Make similar adjustment of NTSC V. HEIGHT in the same

way as for “PAL V. HEIGHT”.

- PAL H. POSITION -

(1) Receive a PAL circle pattern signal. (2) Select 4. H-CENT. (3) Set the initial setting value of 4. H-CENT. (4) Adjust 4. H-CENT to make “C = D”.

- NTSC H. POSITION -

(1) Receive a NTSC circle pattern signal. (2) Make similar adjustment of NTSC H. POSITION in the

same way as for “PAL H. POSITION”.

H. WIDTH adjustment

Signal generator

Remote control unit

Screen size 91%

Picture size 100%

[4.DEF]

5. H-SIZE

- PAL H. WIDTH -

(1) Receive a PAL crosshatch signal. (2) Select 5. H-SiZE. (3) Set the initial setting value of 5. H-SIZE. (4) Adjust 5. H-SIZE to make the horizontal screen size to

91% of the picture size.

- NTSC H. WIDTH -

(1) Receive a NTSC crosshatch signal. (2) Make similar adjustment of NTSC H. WIDTH in the same

way as for “PAL H. WIDTH”.

(No. YA104) 1-25

Item

Measuring instrument

Test point Adjustment part Description

SIDE PIN adjustment

TRAPEZIUM adjustment

Signal generator

Remote control unit

Signal generator

Remote control unit

Straight

[4. DEF]

7. EW-PIN

[4.DEF]

6. TRAPEZ

- PAL SIDE PIN -

(1) Receive a PAL crosshatch signal. (2) Select 7. EW-PIN. (3) Set the initial setting value of 7. EW-PIN. (4) Adjust 7. EW-PIN so that the first vertical lines at the left

and right edges on the screen are straight.

- NTSC SIDE PIN -

(1) Receive a NTSC crosshatch signal. (2) Make similar adjustment of NTSC SIDE PIN in the same

way as for “PAL SIDE PIN”.

- PAL TRAPEZIUM -

(1) Receive a PAL crosshatch signal. (2) Select 6. TRAPEZ. (3) Set the initial setting value of 6. TRAPEZ. (4) Adjust 6. TRAPEZ so that the vertical lines at the left and

right edges on the screen are in parallel.

V. LINEARITY adjustment

Signal generator

Remote control unit

Parallel

[4. DEF]

12. V-S.CR

13. V-LIN

TOP

CENTRE

- NTSC TRAPEZIUM -

(1) Receive a NTSC crosshatch signal. (2) Make similar adjustment of NTSC TRAPEZIUM in the

same way as for “PAL TRAPEZIUM”.

- PAL V. LINEARITY -

(1) Receive a PAL crosshatch signal. (2) Select 12. V-S.CR. (3) Set the initial setting value of 12. V-S.CR.

(4) Select 13. V-LIN. (5) Set the initial setting value of 13. V-LIN.

(6) Adjust 12. V-S.CR and 13. V-LIN so that the spaces of

each line on TOP, CENTRE and BOTTOM become uniform.

- NTSC V. LINEARITY -

(1) Receive a NTSC crosshatch signal. (2) Make similar adjustment of NTSC V-S. CR in the same

way as for “PAL V-S. CR”.

1-26 (No. YA104)

BOTTOM

Item

Measuring

instrument

Test point Adjustment part Description

CORNER PIN adjustment

H. PARALLEL adjustment

Signal generator

Remote control unit

Signal generator

Remote control unit

Parallel

[4. DEF]

8. COR-UP

9. COR-LO

[4.DEF]

10. ANGLE

- PAL CORNER PIN -

(1) Receive a PAL crosshatch signal. (2) Select 8. COR-UP. (3) Set the initial setting value of 8. COR-UP. (4) Select 9. COR-LO. (5) Set the initial setting value of 9. COR-LO. (6) Adjust 8. COR-UP and 9. COR-LO so that the vertical lines

at the four corners on the screen are straight.

- NTSC CORNER PIN (1) Receive a NTSC crosshatch signal. (2) Make similar adjustment of NTSC CORNER in the same

way as for “PAL CORNER”.

- PAL H. PARALLEL -

(1) Receive a PAL crosshatch signal. (2) Select 10. ANGLE. (3) Set the initial setting value of 10. ANGLE. (4) Adjust 10. ANGLE to optimize the trapezium distortion at

the centre of the screen.

- NTSC H. PARALLEL -

(1) Receive a NTSC crosshatch signal. (2) Make similar adjustment of NTSC H. PARALLEL in the

same way as for “PAL H. PARALLEL”.

H. BOW adjustment

Signal generator

Remote control unit

Straight

[4.DEF]

11. BOW

- PAL H. BOW -

(1) Receive a PAL crosshatch signal. (2) Select 11. BOW. (3) Set the initial setting value of 11. BOW. (4) Adjust 11. BOW to optimize the horizontal arc distortion.

- NTSC H. BOW -

(1) Receive a NTSC crosshatch signal. (2) Make similar adjustment of NTSC H. BOW in the same

way as for “PAL H. BOW”.

(3) Press the [DISPLAY] key twice to return to the normal

screen.

(No. YA104) 1-27

COMPRESS : ON (16:9)

Item

Measuring instrument

Test point Adjustment part Description

V. HEIGHT adjustment

Screen

size

Signal generator

Remote control unit

Screen size

[4.DEF]

14. V. ZOOM

3. V-SIZE

Vertical amplitude

- PAL V. HEIGHT -

(1) Receive a PAL crosshatch signal of vertical frequency

50Hz. (2) Press the [MENU] key and select PICTURE. (3) Select PICTURE FEATURES. (4) Select COMPRESS (16 : 9) and set COMPRESS to ON. (5) Select 4. DEF from the SERVICE MENU. (6) Set the initial setting value of 14. V. ZOOM. (7) Select 3. V-SIZE. (8) Set the initial setting value of 3. V-SIZE. (9) Adjust 3. V-SIZE to set the vertical amplitude of the image

to 305mm.

- NTSC V. HEIGHT -

(1) Receive a NTSC crosshatch signal of vertical frequency

60Hz. (2) Make similar adjustment of NTSC V. HEIGHT in the same

way as for “PAL V. HEIGHT”.

V. SLOPE adjustment

Signal generator

Remote control unit

[4.DEF]

2. V-SLOPE

- PAL V. SLOPE -

(1) Receive a PAL circle pattern signal of vertical frequency

50Hz. (2) Select 4. DEF from the SERVICE MENU. (3) Select 2. V-SLOPE. (4) Set the initial setting value of 2. V-SLOPE. (5) Adjust 2. V-SLOPE to make “A = B”. (6) Press the [DISPLAY] key to return to SERVICE MENU

screen.

- NTSC V. SLOPE -

(1) Receive a NTSC circle pattern signal of vertical frequency

A

Blanking

B

line

60Hz. (2) Make similar adjustment of NTSC V. SLOPE in the same

way as for “PAL V. SLOPE”.

1-28 (No. YA104)

Item

Measuring

instrument

Test point Adjustment part Description

SIDE PIN adjustment

TRAPEZIUM adjustment

Signal generator

Remote control unit

Signal generator

Remote control unit

Straight

[4. DEF]

7. EW-PIN

[4. DEF]

6. TRAPEZ

- PAL SIDE PIN -

(1) Receive a PAL crosshatch signal. (2) Select 7. EW-PIN. (3) Set the initial setting value of 7. EW-PIN. (4) Adjust 7. EW-PIN so that the first vertical lines at the left

and right edges on the screen are straight.

- NTSC SIDE PIN -

(1) Receive a NTSC crosshatch signal. (2) Make similar adjustment of NTSC SIDE PIN in the same

way as for “PAL SIDE PIN”.

- PAL TRAPEZIUM PIN -

(1) Receive a PAL crosshatch signal. (2) Select 6. TRAPEZ. (3) Set the initial setting value of 6. TRAPEZ. (4) Adjust 6. TRAPEZ so that the vertical lines at the left and

right edges on the screen are in parallel.

CORNER PIN adjustment

Signal generator

Remote control unit

Parallel

Straigt

[4. DEF]

8. COR-UP

9. CO-LO

- NTSC TRAPEZIUM PIN -

(1) Receive a NTSC crosshatch signal. (2) Make similar adjustment of NTSC TRAPEZIUM in the

same way as for “PAL TRAPEZIUM”.

- PAL CORNER PIN -

(1) Receive a PAL crosshatch signal. (2) Select 8. COR-UP. (3) Set the initial setting value of 8. COR-UP. (4) Select 9. COR-LO. (5) Set the initial setting value of 9. COR-LO. (6) Adjust 8. COR-UP and 9. COR-LO so that the vertical lines

at the four corners on the screen are straight.

- NTSC CORNER PIN -

(1) Receive a NTSC crosshatch signal. (2) Make similar adjustment of NTSC CORNER in the same

way as for “PAL CORNER”.

(3) Press the [DISPLAY] key twice to return to the normal

screen.

(No. YA104) 1-29

VIDEO - 2 SET : COMPONENT

Item

Measuring instrument

Test point Adjustment part Description

H. POSITION adjustment

Signal generator

Remote control unit

CD

4.7.7 VSM PRESET SETTING

Item

VSM PRESET

Measuring instrument

Remote control unit

setting

[4. DEF]

4. H-CENT

(1) Receive a PAL circle pattern signal to VIDEO-2 component

terminal. (2) Select VIDEO-2 SET from the MENU and set VIDEO-2

SET to COMPONENT. (3) Select 4. DEF from the SERVICE MENU. (4) Select 4. H-CENT. (5) Set the initial setting value of 4. H-CENT. (6) Adjust 4. H-CENT to make “C=D”. (7) Press the [DISPLAY] key twice to return to the normal

screen.

Test point Adjustment part Description

[5. VSM W/B]

1. BRIGHT

2. CONT

3. COLOUR

4. SHARP

5. HUE

1. R-DRIVE

2. G-DRIVE

3. B-DRIVE

(1) Select 5. VSM W/B from the SERVICE MENU. (2) Select BRIGHT with the MENU [OK] key. (3) Set the value of 1. BRIGHT ~ 5. HUE to the values shown in

the table. (4) Respectively select the VSM PRESET mode for SOFT and

STANDARD. (5) Select COOL with the MENU [OK] key. (6) Set the values of 1. R-DRIVE ~ 3. B-DRIVE to the value

shown in the table. (7) Select the W/B preset for WARM and NORMAL, respectively. (8) Press the [DISPLAY] key twice to return to the normal

screen.

1-30 (No. YA104)

SUB MENU 5. VSM W/B

VSM PRESET BRIGHT

1. BRIGHT

***

[Setting Values for SUB 5. VSM W/B]

VSM preset

BRIGHT STANDARD SOFT

Setting item

1. BRIGHT 00+2

2. CONT +15 0 -3

3. COLOUR 000

4. SHARP 0 0 -10

5. HUE 000

W/B preset

COOL WARM NOMAL

Setting item

1. R-DRIVE 0 +10 +2

2. G-DRIVE 0-40

3. B-DRIVE 0 -12 -10

4.7.8 PURITY AND CONVERGENCE [AV-29WX14/G, AV-29WX14/S, AV-29WX24/L]

R



PURITY ADJUSTMENT

Note:

The final adjustment of CONVERGENCE must be done after the FOCUS adjustment. (CONVERGENCE is affected by the FOCUS adjustment.) If CONVERGENCE is found deviated after the FOCUS adjustment, the PURITY adjustment should be checked and reset, if required.

(1) Demagnetize the CRT with the demagnetizer. (2) Loosen the retainer screw of the deflection yoke. (3) Remove the wedges. (4) Input a green raster signal from the signal generator, and

turn the screen to green raster. (5) Move the deflection yoke backward. (6) Bring the long lug of the purity magnets on the short lug and

position them horizontally. (Fig. 2) (7) Adjust the gap between two lugs so that the GREEN

RASTER will come into the centre of the screen. (Fig. 3) (8) Move the deflection yoke forward, and fix the position of the

• P/C MAGNETS

P : PURITY MAGNET 4 : 4 POLES (convergence magnets) 6 : 6 POLES (convergence magnets)

deflection yoke so that the whole screen will become green. (9) Insert the wedge to the top side of the deflection yoke so that

it will not move. (10)Input a crosshatch signal. (11) Verify that the screen is horizontal. (12)Input red and blue raster signals, and make sure that the

purity is properly adjusted.

CRT

WEDGE

Fig. 1

DEFLECTION YOKE

P

4 6

P / C

MAGNETS

Long lug

Short lug

(FRONT VIEW)

PURITY MAGNETS

Bring the long lug over the short lug and position them horizontally.

Fig. 2

GREEN RASTE

CENTRE

Fig. 3

(No. YA104) 1-31



STATIC CONVERGENCE ADJUSTMENT

(1) Input a crosshatch signal. (2) Using 4-pole convergence magnets, overlap the red and

blue lines in the centre of the screen (Fig. 4) and turn them to magenta (red/blue).

(3) Using 6-pole convergence magnets, overlap the

magenta(red/blue) and green lines in the centre of the screen and turn them to white.

(4) Repeat (2) and (3) above, and make the best convergence.



DYNAMIC CONVERGENCE ADJUSTMENT

(1) Move the deflection yoke up and down and overlap the lines

in the periphery. (Fig. 5)

(2) Move the deflection yoke from the left to the right and overlap

the lines in the periphery. (Fig. 6) (3) Repeat (1) and (2) above, and make the best convergence. (4) Adjust XV by XV coil. (Fig.7)

NOTES:

• After the adjustment, fix the wedge at the original position.

• Fasten the retainer screw of the deflection yoke.

• Fix the P/C magnets with glue.

(FRONT VIEW)

RED

BLUE

RED

BLUE

GREEN

BLUE

RED

GREENGREEN

BLUE

RED

(FRONT VIEW)

GREEN GREEN

RED

(FRONT VIEW)

BLUE

RED

GREEN

BLUE

BLUE GREEN

RED

GREEN

1-32 (No. YA104)

After about 5 seconds

Power on Port

Start of detection

Detection of an abnormality

SUB-POWER OFF

Flashing LED

SECTION 5

TROUBLESHOOTING

5.1

SELF CHECK FUNCTIONS

5.1.1

OUTLINE

This model has self check functions given below. When an abnormality has been detected, the SUB POWER is turned off and POWER LED flashes to inform of the failure. An abnormality is detected by the signal input state of the control line connected to the microcomputer.

SELF CHECK ITEMS

5.1.2

Check item Details of detection Method of detection State of abnormality

B1 over-current protection

An over-current on the low B1 line is detected.

CRT neck broken protection

Operation of CRT neck protection circuit

5.1.3

SELF CHECK INDICATING FUNCTION

When an abnormality has been detected at about 5 seconds after the power was turned on, the SUB POWER is turned off immediately and the POWER LED flashes.

The main microcomputer detects the possible abnormality at 24-msec. intervals and judges the results in every 16 time. Of the 16 times, if NG is detected more than 9 times, it is judged that there is an abnormality.

When an abnormality has been detected, the SUBPOWER is turned off. While the SUB-POWER is being turned off, the POWER key on the remote control unit is not operational until the power cord is disconnected and connected again.

[ INDICATION BY THE POWER LED]

Item LED flashing intervals

B1 over-current protection / CRT neck broken portection

0.3 seconds

(No. YA104) 1-33

Victor Company of Japan, Limited

AV & MULTIMEDIA COMPANY VIDEO DISPLAY CATEGORY 12, 3-chome, Moriya-cho, kanagawa-ku, Yokohama, kanagawa-prefecture, 221-8528, Japan

(No. YA104)

Printed in Japan

WPC

SCHEMATIC DIAGRAMS

FLAT COLOUR TELEVISION

AV-29WX14 AV-29WX14 AV-29WX24 AV-2954W

CD-ROM No. SML200407

/E

/G

/S

/L

BASIC CHASSIS

CW

No.YA104

2004/7

AV-29WX14/G, AV-29WX14/S, AV-29WX14/L, AV-2954W/E

STANDARD CIRCUIT DIAGRAM

 



 

NOTE ON USING CIRCUIT DIAGRAMS

1. SAFETY

The components identified by the are critical for safety. For continued safety replace safety critical components only with the manufacturer’s recommended parts.



 symbol and shading



2. SPECIFIED VOLTAGE AND WAVEFORM VALUES

The voltage and waveform values have been measured under the following conditions.

(1) Input signal : Colour bar signal (2)

Setting positions of each knob/button and variable resistor

(3) Internal resistance of tester : DC 20kΩ/V (4) Oscilloscope sweeping time : H ⇒ 20µs/div

(5) Voltage values : All DC voltage values

: Original setting position when

shipped

:V ⇒ 5ms/div : Others ⇒ Sweeping time is

specified

∗Since the voltage values of signal circuit vary to some extent

according to adjustments, use them as reference values.

3. INDICATION OF PARTS SYMBOL [EXAMPLE]

In the PW board : R1209 → R209

•

4. INDICATIONS ON THE CIRCUIT DIAGRAM

(1) Resistors

Resistance value

•

No unit : [Ω] k:[kΩ] M:[MΩ] Rated allowable power

•

No indication : 1/16 [W] Others : As specified Type

•

No indication : Carbon resistor OMR : Oxide metal film resistor MFR : Metal film resistor MPR : Metal plate resistor UNFR : Uninflammable resistor FR : Fusible resistor

∗Composition resistor 1/2 [W] is specified as 1/2S or Comp.

(2) Capacitors

Capacitance value

•

1 or higher : [pF] less than 1 : [µF] Withstand voltage

•

No indication : DC50[V] AC indicated : AC withstand voltage [V] Others : DC withstand voltage [V]

∗Electrolytic Capacitors

47/50[Example] : Capacitance value [µF]/withstand voltage[V]

Type

•

No indication : Ceramic capacitor MY : Mylar capacitor MM : Metalized mylar capacitor PP : Polypropylene capacitor MPP : Metalized polypropylene capacitor MF : Metalized film capacitor TF : Thin film capacitor BP : Bipolar electrolytic capacitor TAN : Tantalum capacitor

(3) Coils

No unit : [µH] Others : As specified

(4) Power Supply

:B1

: B2(12V)

: 3.3V

:5V

∗Respective voltage values are indicated

(5) Test point

: Test point

: Only test point display

(6) Connecting method

: Connector

: Wrapping or soldering

: Receptacle

(7) Ground symbol

: LIVE side ground

: ISOLATED(NEUTRAL) side ground

: EARTH ground

: DIGITAL ground

5. NOTE FOR REPAIRING SERVICE

This model’s power circuit is partly different in the GND. The difference of the GND is shown by the LIVE : ( ) side GND and the ISOLATED(NEUTRAL) : ( ) side GND. Therefore, care must be taken for the following points.

(1) Do not touch the LIVE side GND or the LIVE side GND and the

ISOLATED(NEUTRAL) side GND simultaneously. If the above caution is not observed, an electric shock may be caused. Therefore, make sure that the power cord is surely removed from the receptacle when, for example, the chassis is pulled out.

(2)Do not short between the LIVE side GND and ISOLATED(NEUTRAL)

side GND or never measure the LIVE side GND and ISOLATED(NEUTRAL) side GND at the same time with a measuring apparatus ( oscilloscope, etc.). If the above precaution is not observed, a fuse or any parts will be broken.

♦

Since the circuit diagram is a standard one, the circuit and circuit constants may be subject to change for improvement without any notice.

NOTE

♦

As a result of later perfermance improvement some part numbers shown in the circuit diagram may not agree with those indicated in the part list. When ordering parts, please use the numbers that appear in the Parts List.

(No. YA104) 2-1

CONTENTS

SEMICONDUCTOR SHAPES .................................................................................................................................... 2-2

BLOCK DIAGRAM ............................................................................................................................................................2-3

CIRCUIT DIAGRAMS

MAIN PWB CIRCUIT DIAGRAM (1/2) ...............................................................................................................................2-5

MAIN PWB CIRCUIT DIAGRAM (2/2) ...............................................................................................................................2-7

CRT SOCKET PWB CIRCUIT DIAGRAM ......................................................................................................................... 2-9

FRONT CONTROL PWB CIRCUIT DIAGRAM .............................................................................................................. 2-11

PATTERN DIAGRAMS

MAIN PWB PATTERN ...................................................................................................................................................... 2-13

CRT SOCKER PWB PATTERN ....................................................................................................................................... 2-15

FRONT CONTROL PWB PATTERN ............................................................................................................................... 2-16

VOLTAGE CHART ......................................................................................................................................................... 2-17

WAVEFORMS ................................................................................................................................................................... 2-18

SEMICONDUCTOR SHAPES

TRANSISTOR

TOP VIEWBOTTOM VIEW FRONT VIEW

CHIP TR

E

C

B

ECB

EC

B

(G)(D)(S)

ECB

C

B

E

IC

TOP VIEWBOTTOM VIEW FRONT VIEW

OUT

E

IN

IN E OUT

1N

CHIP IC

TOP VIEW

N

1

N

1

N

USING P.W. BOARD

P.W. BOARD ASS’Y NAME AV-29WX14/G AV-2954W/E AV-29WX24/L AV-29WX14/S

MAIN P.W. BOARD SCW-1012A-H2 SCW-1013A-H2 SCW-1008A-M2 SCW-1025A-H2 CRT SOCKET P.W. BOARD SCW-3001A-H2 ←←← FRONT CONTROL P.W. BOARD SCW-8001A-H2 ←←←

2-2 (No. YA104)

J801

VIDEO-1

INPUT

TU001

TUNER

VIDEO

SW1

Y

C

AUDIO L/MONO

AUDIO R

IF

J802,J803

COMPONENT

(VIDEO-2)

INPUT

CB

CR

AUDIO R

J804

OUTPUT

AUDIO L

AUDIO R

V/Y

AUDIO L/MONO

VIDEO OUT

SF101

SAW FILTER

SF102

SAW FILTER

IC601

AUDIO AMP

MAIN PWB

7

12

5

2

VOL+

REMOCON

RECEIVER

VOL- CH+ CH- MENU

POWER

LED

AC IN

F901

POWER SW

S901

TV/VIDEO

FRONT CONTROL PWB (1/2)

J802~J804

FRONT IN

(VIDEO-3)

VIDEO

AUDIO L/MONO

AUDIO R

IC481

ROTATION

COIL

3, 6

2, 8

T522

FBT

B1

SCREEN

FOCUS

EHV

D901 RECT

T921

SW

TRANSF.

L951

8V

12V

5V

STB3.3V

32V

IC951

ERROR

AMP

PC901

VOLTAGE

FEEDBACK

IC921

POWER

REG

IC973

12V REG

IC975

5V REG

IC972

3.3V REG

IC976

1.8V REG

IC974

1.8V REG

1, 7

5

IC401

V. OUT

Q522

H. OUT

IC451

PARABOLA AMP

Q461

PARABOLA DRIVE

FRONT CONTROL PWB (2/2)

SPEAKER L

SPEAKER R

J801

HEADPHONE

CRT SOCKET PWB

R

G

B

V01

VM COIL

IC351

RGB OUT

Q208,Q209

VM OUT

V

H

DY01

DEF YOKE

1.8V

V1.8V

IC702

MAIN MEMORY

29, 30

SIF IN

IF IN

SIF DETECT

VIDEO IDENT.

AUDIO

CONTROL

COMB FILTER

Y DELAY ADJ.

COLOUR

DEMOD

SYNC

SEP.

PARABOLA GENERATE

H. DRIVE

VIF DETECT/AGC/AFT

SOUND TRAP

TELETEXT DECODER

DIGITAL SIGNAL PROCESS

PEAKING SCAN

VELOCITY MOD.

U/V DELAY

RGB MATRIX

&

GAMMA

AUDIO

SELECT

VIDEO

SELECT

I/O

PORT

AUDIO

SELECT

Y

PB

PR

V2

Y/V1

C

V3

L1

L2

L3

R1

R2

R3

VOUT

LOUT

ROUT

24, 25

SV_DET

122

79

80

78

55

58

59

51

49

50

56

57

34

35

48

36

37

ROUT

85

GOUT

BOUT

86

87

VDA,VDB

EWD

HOUT

22, 23

21

75

OUT_L

OUT_R

60

61

RRGGB

B

I2C

BUS

KEY_IN

REMOTE

LED

SCL0, SDA0

ROTATION

111

98,99

97

119

127,128

MAIN MICROCOMPUTER, TELETEXT DECODER, VIDEO/SYNC/DEF PROCESSOR

IC701

V. DRIVE

MICRO

COMPUTER

BASE-BAND DELAY LINE

Y

C

B-Y R-Y

SKIN TONE

U/V TINT

SATURATION

OSD/TEXT INSERT

BLOCK DIAGRAM

No. YA104

2-3 2-4

No. YA104

: NRSA63J-0R0X

: UN2212-X

: NQL092K-100X

: MA111-X

: 2SA1530A/QR/-X

: 2SC3928A/QR/-X

: NON MOUNT

∗

3

∗

5

: UN2112-X

∗

6

: KTC3199/YG/-X

∗

7

: MA8091/H/-X

∗

8

∗

4

∗

1

∗

2

X 0

: QUY160-050Y

BW

NOTE

R753

C764

C766

3.3V

R101

L710

L711

L709

C765

C101

C753

C752

C751

R782

R004

R729

D101

C780

C750

C749

C748

L101

C746

R107

Y004

L716

Q103

D601

C760

SF101

L002

NECK

LC803

R740

R002

C107

SF102

R001

C004

CN001

C003

R766

R767

C001

C106

R345

J803

Y601

Y003

Y602

R804

LC802

IC601

Y804

Y803

R806

Y806

Y805

LC804

Y808

J802

D813

Y807

D603

R318

Q307

R320 R321

C316

R802

C315

C313

R803

J804

C312

C311

C310

C309

L303

R728

R726

R727

R724

C705

C757

C756

C718

C747

L706

C754

C755

R732

R733

R734

R735

L708

Y301

C759

L707

X701

C709

C712

CN00T

Q001

C761

C717

IC701

R005

C005

C706

R731

D708

R701C710

C711

C762

R708

C763

R709

D701

C713

R702

C714

C707

C708

R705

R703

R704

C716

C715

R706

R707

C719

C720

Q705

TU001

CF101

R617

D602

C605

C606

R607

R601

R662

R602

R603

R611

R612

R615

Q603 Q604

Q606

Q602

R610C609

Q601

R609

R608

C607

C608

R623 R620

Q608

Q607

R621

C613

R624

R622

R616

R341

R812

C802

C803

R811

R813

Q803

Q805

Q791

C779

R755

R344

R343

L301

D341

CF702

D342

D343

D344

D345

C314

R319

Y705

LC801

Y706

D810

C302

C303

R309

R312

C305

R314

C304

3.3V_STB

8V

5V

R779

R781

J802

R805

R725

R722

R723

Y603

LC701

Y703

D812

D811

CN00C

GND

32V

L717

C308

C307

C306

R308

GND

R307

Y007

R310

Q305

Q306

R780

R313

X301

L302

IC301

IC974

Y303

L702

L701

L703

C702

C701

Y791

Y008

K301

12V

C777

R760

R761

R342

C341

Q341

CN002

Q701

IC651

BL_GND

J805

R656

R651

R652

R653

R654

R658R657 R659

R660

R661

R655

C651

C654

C652

C653

C659

C660

D651

CF701

C722Y701

C789

Q703

D803

D804

R664

R663

C657

C658

A_VCC

A_GND

Y973

K701

R778

STB1

Q002

Y981

VDRA+

VDRB-

EW

H_DRIVE

P_ON/OFF

HFB

ABL

PROTECT

Y006

Y005

C965C983

C758

R801

Y802

Y801

R816

D801

D802

J801

C985

C986

C809

R808

Q801

R807

R809

C804

R815

IC976

R978

R006

Y712

Y713

Y714

Y715

Y816

K107

Y716

C785

C778

D706

VER_PROTECT

R974

R737

Q704

R738 W-A2

GND

R792

Y817

Y818

Y819

L304

C317

Y717

Y718

Y815

GND GND

C111

C110

R790

Q706

Y302

C661

R632

R629

R630

R631

CP650

R756

R793

R795 Q707

Q708

R796

D707

R794

C792

W-C1

W-C

W-B1

Y725

K702

Y721

Y720

Y719

Y711

Y604

Y010

Y009

Y722

GND GND

Y012 Y011 Y726 Y727 Y723

Y724 Y728

Y814 Y813

GND GND GND

GND GND

GND

K601

Q101

L001

R105

R106

R104

C109

R108

C102

R102R103

Q102

C743

C742

R716

C108

C103

C104

R110

C105

C740

C737

C006

C736

R003

R109

C002

C721

R715

C723

C724

C727

C728

L705

R777

Y710

R710

C739

C738

C725

C726

C729

C732

R741

R742

R744

R746

R747

R749

R751

R752

R754

R771

R757

C703

C704

R736

C767

L712

C775

L715

L704

C731

C734

C730

C733

L713

C769

C768

R745

R743

R758

R759

L714

C773

C774

Y704

C771

C772

D709

C776

R750

C770

R618

C601

C655

C656

C602

R605

R604

C603C604R606

D605

D604

D606

C614

R613

R614

R619

C610

Q605

R810

D806

D805

Q804

R814

C784

R730

R783

R776

C783

R718

R713

R711

C781

C782

Q702

K103

Y702

K104

R762

R763

R764

R765

R712

R714

C735

R717

D703

D702

D704

R719

L003

C982

K101

R311

R315

R316

R317

D710

R772

IC702

R748

L651

R720

R721

C612 C611

R769

R770

R625

C744

C745

R785

R784

R007

R008

D001

R768

Y707

R774

R773

R775

C741

Y708

W-A1

C790

Y709

Q609

Q610

Q611

R626

R627

R628

W-B

R739

C786

C791

D711

D712

1SS268-X

QQLZ014-R82

QAX0663-001

QQL244J-4R7Z

QQR1199-001

QAX0731-001

QGF1220C2-09

CH

QNN0348-001

QQR1199-001

AN5277

QQR1199-001

QNN0349-002

QNN0349-001

CH

QJK002-083633

DGS

/16

INSSW3

Uout/INSSW2

VssP2

VssC4

V1.8C4

V3.3A3

VrefP_Sdac

VrefN_Sdac

VrefP_Sdac

VrefN_Sdac

VrefP_Sdac

XtalIn

XtalOut

VssA1

NECK

CONT

V5P1

Ph2

Ph1

Gnd1

SecPll

Dec8G

EW

VDRB-

VDRA+

Vif1

Vif2

Vsc

Iref

GndIF

Sif1

Sif2

AGC

EHT SVM

FbiSo

Hout

VssComb

V5Comb

Vin/R2/Pr

Uin/B2/Pb

Yin/G2/Y

Ysync

Yout

NC

R3/Pr

G3/Y

B3/Pb

Gnd3

V5P3

BCL

BLKIN

Rout

Gout

Bout

V3.3A1

RefAdN

V3.3RefAdP

RefAd

GndA

V1.8ADC

VssADC

V3.3A2

V1.8A

∗

CH

D

G

S

SSM3K02F-X

IF

NC

32V

LOCK

5V

BM

SDA

SCL

AS

BT

AGC

QAU0383-001

TUNER

1/2W

DTC323TK-X

DTC124ESA-T

QNN0349-002

QUY160-075Y

QGA2501C5-06Z

MM1561JF-X

QGF1220C2-19

MA8091/H/-X

QUY160-150Y

DGS

MA8091/H/-X

QNZ0454-002

KTA1267/YG/-T

1/2W

MM1561JF-X

QUY160-100Y

QQR1114-001Z

MA8036-X

CH

QUY160-075Y

D

G

S

SSM3K02F-X

ICP-N38-Y

QQR1114-001Z

QUY160-125Y

QUY160-150Y

QUY160-100Y

QUY160-125Y

QQR1114-001Z

2SC5083/L-P/-T

QQL244K-8R2Z

NCNCNCNCNCNCNC

NC

RIN

BINRFGND

LINNCB_MUTE

L_OUT

L_R_MUTE

GND_B

VCC

B_OUT

STB

ROUT

CH

SCLO

SDAO

P12/Int2

VssC3

V1.8C3

P25/PWM4

P24/PWM3

L3R3L_OUT

R_OUT

DecsDem

QssO/AmO/AudeEm

Gnd2

PllIf

SifAgc

IfVo/FmRo/DvbONCV8AudioSwitches

AgcSsif

V5P2

V_OUTL1R1V3C4

Audio2InL

Audio2InR

V2/YL2R2

Y3/CvbsC1AudOutLsL

AudOutLsR

HP_L

HP_R

CVBSO/PIP

VssC1+P1

VDO_DET

KEY_IN

DecV1V8

V1.8C1

ECO_IN

PROT

4.5/OTHER

A_MUTE

3.58/OTHER

ROTATION

V3.3P

SDA1

SCL1

POWER

P00/I2SDI1

S_REDUCE

VER_PROTECT

COMB_SW_NT3.5/OTHER

COMPONANT-PIP

VssC2

V1.8C2

P11/TO

REMOTE

PW_LED

Ssif/RefIn/Avl/RefOut

1/2W

MA8300/H/-X

DTC323TK-X

QUY160-150Y

QQL244J-4R7Z

ANALOG

DIGITAL

A0A1A2

VSS

VCCWPSCL

SDA

AT24C16-29VS24

NN

1.2K

.1

.22

10

∗

4

∗

4

∗

4

100/16

.0047

.1

1.2K

27K

X

.1

4.7K

0

∗

4

∗

5

∗

3

.22

15K

220

.01

220

470/16

.1

X

.01

18p

0

X

BW

150

X

75

X

∗

3

X

XX

X

0

X

0

X

100

27K

10k

1K

3p

560p

.1

10/50

∗

4

.1

10/50

1k

100

∗

4

X

100/16

∗

4

.01

.22

X

.1

.047

75

.0022

3p

1k

∗

3

12K6800p

2.2/50

100/16

100K

.22

1M

∗

3

10/50

100

.022

.1

100/16

39K

100

.001

220

56K

.01

.001

X

.22

2.2

2.2K

X

2.2K

1K

8.2K

100K

X

∗

2

100K33/16

∗

2

27K

X

220/16

33K 10K

∗

1

∗

1

2.2K

10/50

68K

10K

X

0

390

10/50

82K

∗

2

10/50

1.2K

0

X

∗

3

X

∗

3

∗

3

X

∗

3

X

0

X

0

∗

8

X

10K

4.7K

75

47

470

X

0

∗

8

∗

8

*4

X

100K

X

BW

*4

.22

X

.1

100

X

220/16

∗

2

X

XX

X

1n

X

47/50

∗

2

X

0

.1

47/16

.22

7500

75

47/16 .1

X

100

0

470/16

75

3.3K

X

0

BW

0

.22

47/16

1K

3.3K

*1

10K

X

0

BW

X

0

X

470/16

.1

1K

X

220/16

1K

2.7K

X

2.7K

100

100K

∗

1

∗

2

0

∗

3

2.2K

.1

X

0

BW

0

BW X X X

X

XBW

22

100

180

.0047

2.2K

.0047

6.8K2.7K

∗

5

10/50

5.6K

.0047

10/50

2.2K

.0047

.1

33/16

.01

3.9K

2.2K

10/50

1n

390

1

3300p

.1

∗

4

100

0

X

1

.1

10/50

2.2/50

220

100

10k

100

1K

100

220

1K

4.7K

470/16

.1

100

.22

∗

4

.22

∗

4

∗

4

.1

10/50

∗

4

.1

.22

3.3K

3.3k

∗

4

2.2/50

.1

0

22/50

.22

∗

3

.1

X

.1

10K

10/50X100/50

10/50

X

10K

.22.222.2

X

100K

X

10/50

390

XX

100K

X

150

15K

1/50

5.6K

1

∗

1

0

220

10K

.1

10K

X

∗

8

*8

10K

47/16

x

X

∗

8

5.6K

10K

X

XX

X

.1

10K

X

100

0

5.6K

10K

.1

X

27p

0

∗

5

X

∗

5

270

X

270

75

X

5V

L2

R2

SDA1

SCL1

5V

SCL0

1.8V

SDA0

Y1/CVBS1

PW

R_OUT

CONT

S_V_DET

NECK

R1

5V

3.58/OTHER

SCL1

3.3V

SDA1

V2/Y_GND

L1

VDO_DET

V2/Y

V2/Y_GND

5V

L_OUT

C1

PB_GND

CVBSO/PIP_GND

CVBSO/PIP

12V

PB

PB_GND

PR_GND

PR

GND

Y_GND

PROT

A_VCC

PB

V2/Y

PR

STB1

4.5/OTHER

8V

A_GND

SDA1

V_OUT

SCL1

VDRB-

PR_GND

EW

VDRB-

VDRA+

12V

1.8V

3.3V

NECK

SCL0

SDA0

BASS

A_GND

PROTECT

C1_GND

STB1

V1.8A

EW

VDRA+

H_DRIVE

P_ON/OFF

VER_PROTECT

ABL

HFB

5V

CONT

5V

P_ON/OFF

5V

NECK

5V

8V

A_VCC

A_MUTE

L2

R_AOUT

R2

V3

12V

HP_L

REMOTE

R_OUT

L_OUT

8V

PW_LED

A_MUTE

3.58/OTHER

SDA1

SCL1

V3

OFF_MUTE

PW

H_DRIVE

HFB

OFF_MUTE

Y1/CVBS1

V2/Y

12V

V_OUT

C1_GND

R3

L3

P_ON/OFF

ABL

S_V_DET

Y_GND

PW_LED

KEYIN

ECO_IN

PROT

B_MUTE

CVBSO/PIP

CVBSO/PIP_GND

ROTATION

5V

1.8V

ABL

12V

ECO_IN

5V

HP_R

V1.8A

1.8V

L1

4.5/OTHER

VDO_DET

5V

BASS

L3

GND_INR3KEYIN

12V

ROTATION

REMOTE

Y_GND

B_MUTE

L_AOUT

12V

A_GND

R_AOUT

Y_GND

A_GND

R1

HP_R

HP_L

PROTECT

L_AOUT

C1

VER_PROTECT

MAIN PWB ASS'Y (1/2) SCW-1012A-H2 [AV-29WX14/G] SCW-1025A-H2 [AV-29WX14/S] SCW-1068A-H2 [AV-29WX24/L] SCW-1013A-H2 [AV-2954W/E]

NOTES) 1. Please refer to page 2-17 for voltages of this circuit diagram.

2. Please refer to page 2-18 for waveforms of this circuit diagram.

FRONT CONTROL PWB

CRT SOCKET PWB

VIDEO-1 S-VIDEO INPUT

VIDEO-2 COMPONENT INPUT

OUTPUT

S1

V1

L1

R1

V2/Y

Pb

Pr

L2

R2

MICRO COMPUTER/TELETEXT DECODE/ IF࡮VIDEO࡮RGB࡮SYNC࡮DEF PROCESS

AUDIO OUT

CHT32KKO-16-N

DIFFERENCE PARTS LIST (∗PARTS)

∗

IC701

SCW-1012A-H2 SCW-1025A-H2

TDA12027-ERAPF

SCW-1068A-H2

TDA12027-ERCMI

SCW-1013A-H2

TDA12027-ERU

MAIN PWB CIRCUIT DIAGRAM (1/2)

CIRCUIT DIAGRAMS

2-5 2-6

No. YA104

: NRSA63J-0R0X

: UN2212-X

: MA3100/M/-X

: MA111-X

: 2SA1530A/QR/-X

: 2SC3928A/QR/-X

: OPTION (OPEN)

∗

3

∗

5

: RGP10J-5025-T3

∗

6

: QQR1113-001Z

∗

7

: MA8091/H/-X

∗

8

∗

4

∗

1

∗

2

X

0

: QUY160-050Y

BW

NOTE

L951

C950

D931

IC921

IC451

K954

R902

Q592

C953

R951

L421

C423

C954

C952

IC972

C581

R437

C979

R439

IC975

R582

C924

R430

R554

R474

R956

C555

R473

K922

C429

D923

K957

R435

C978

R434

L975

R438

L530

PC901

C521

C951

C522

Q952

C969

T522

R957

R953

R440

R959

R958

D551

C980

R952

C981

CN00U

L973

LF902

L972

C989

D972

Y908

D973

R431

Y905

C926

C963

Y906

R591

C424

D423

C427

C431

C928

Y907

C420

Q471

R583

CP953K953

D954

R581

R960

C959

IC973

C435

R555

C436

D977

R448

C529

R923

IC401

C987

D523

R527

C961

R976

R972

CN00X

R962

D959

D962

R975

C525

Q957

Q958

C922

D927

D593

C593R594

R921

R924

R595

D928

Q591

D929

D922

R934

R596

Q951

R980

D554

R970

C931

D571

D958

C921

R901

R597

C904

C542

L523

D961

D594

R955

C573

K901

C430

T921

R954

C572

Q572

C984

D925

D970

C975

C977

C976

CP954

D592

C591

C428

C916

D957

R950

Q571

C945

K902

C917

CN0HV

R991

R791

R981

C940

D971

R973

D974

R965

Y965

R977

C580

D524

C949

D936

Y961

HS972

C993

D530

R573

D924

D930

T521

R471

R933

Q921 D921

C471

D471

R455

C925

R453

R433

C592R593

D581

D591

R592

R935

D791

D451

R475

D976

D472

Y982 Y980 Y979 Y978 Y974

Y975

K955

K102

D955

Y976

Y983

C454

Y971

R451

Y915

Y984

R454

Y914 Y913

GND GND

Q522

C955

CP955

C960

GNDGND

C962

GNDGND

GND GND

K105

R456

R522

R457

R459

R461

R528

D520

Q521

IC971

L971

C973

C972

C971

R971

C974

D960

R575

R530

R458

R462

R463

C452

C451

C520

C453

R460

Q461

R464

C531

L521

R452

R525

C964

R524

C523

C528

R930

C905

C991

IC951

K952

C956

D953

R533

C958

D555

C582

R572

C553

D901

R552

C530

C556

R551

R574

C532

C571

C551

D975

D951

C527

R521

R520

D552

C929

D952

CP952

C968

C957

C992

C967

K921

K951

CN00W

L522

C552

C422

NECK

C915

R411

R523

D422

STB1

R427

R426

C901

D932

C526

HFB

ABL

C524

C902

R472

H_DRIVE

R922

R929

Y972

R932

R412

C903

BL_GND

12V

D933

D934

D935

Y977

Y912

L952

P_ON/OFF

R432

L954

FR901

Y911

VER_PROTECT

PROTECT

3.3V

3.3V_STB

A_GND

A_VCC8V5V

32V

VDRB-EWVDRA+

C906

D926

R571

C554

D521

D522

QQLZ034-480

MA8068/M/-X

D

NC

S/GND

VCC

FB

OLP

OCP

STR-W6756-F5

UPC358G2-XE

QRL039J-823

QCB32HK-222Z

1/2W

QQL26AK-220Z

QCB32HK-222Z

BA33BC0T

1/2W

PQ050RDA1SZ

1/2W

MY

QFLC2AJ-103Z

QQL26AK-820Z

QQL244K-220Z

PS2581AL1/QW/

QCZ0364-561

MY

EHT

FOCUS2

FOCUS1

SCREEN

FBT

QQH0184-001

1/2W

QRG01GJ-331

1/2W

QJK002-063231

QQL244J-5R6Z

QQR1356-001

QQL244J-5R6Z

1SR124-400A-T2

1/2W

QFLC1HJ-472Z

QFLC2AJ-683Z

1N4003-T2

AMP

1/2W

CP

ICP-N38-Y

1/2W

PQ120RDA1SZ

NCF21HZ-334X

1/2W

QENC2AM-225Z

2W

V.OUT

Vcc -Vcc

PUMP

UP

THERMAL

PROTECTION

AN15526A

QRL039J-393

QGA2501F1-05

QRL029J-223

MA8330/M/-X

QFZ0196-123

2SA1013/RO/-T

1/2W

MA8240/M/-X

1SS133-T2

1/2W

MA8051/L/-X

1/2W

QCZ0364-102

MA8075/H/-X

QUY160-100Y

QRF154K-2R2

QCZ9015-102Z

QQR1114-001Z

QFLC2AJ-563Z

QQS0267-001

1/2W

MA8082/M/-X

CP

ICP-N38-Y

QEHR1VM-107Z

MA8039/H/-X

2SA1208/ST/Z1-T

QQR1113-001Z

QCB32HK-181Z

HV

QGZ5003C1-06

QRZ9046-825Z

QUY160-100Y

QCZ0364-122

MA8091/H/-X

1SS133-T2

AC400V

QCZ9079-102

EU2-T3

MA8330/M/-X

MA8240/M/-X

QQR1229-001

2SC3852A

1SR124-400A-T2

QRE121J-3R9Y

1/2W

MA8043/L/-X

QUY160-100Y QUY160-200Y QUY160-125Y QUY160-200Y

QUY160-100Y

FSF05A20

QUY160-200Y

1/2W

QUY160-075Y

QUY160-125Y

TT2142-YD

QCB32HK-222Z

CP

ICP-N75-Y

QUY160-150Y

1/2W

H_DRIVE

D

G

S

BSN304-T

QRZ9017-4R7

1/2W

2SD1267A/QP/

QRL039J-330

QEZ0195-475

QQR1138-001

QRL039J-121

400V

QFP32JJ-223

QRL039J-473

AC400V

QCZ9015-102Z

QCZ9079-471

SE135N

QEZ0203-227

QRZ9017-4R7

QFZ0197-204

QRA14CF-1202Y

QEHR1EM-108Z

GSIB460

FR

QRZ9021-1R0

QCB32HK-561Z

FR

QRZ9021-1R0

1/2W

QETM2CM-227

QCB32HK-561Z

31DF6N-FC5

∗

QCB32HK-103

FSF05A20

CP

ICP-N38-Y

QCZ9079-471

QGA7901C1-02

QQR1243-001

QCB32HK-561Z

QFLC1HJ-223Z

QCS32HJ-560Z

VINVOGND

CONT

QCZ0325-391

QRL029J-271

MTZJ75-T2

QFZ9072-224

MTZJ36A-T2

QFZ0196-252

VINVOGND

CONT

QFZ0196-202

QFZ9077-104

QRZ0237-R18

QUY160-075Y

QRZ9017-100

QCZ9015-102Z

MTZJ9.1C-T2

QUY160-075Y

QUY160-100Y

QQL26AK-820Z

QRX01GJ-1R2

QQL244J-5R6Z

QUY160-100Y

VONCGNDCNCONT

SUB

VIN

QEZ0633-337

RGP10M-5010-T3

QRZ0225-2R2

QEHR1EM-108Z

RH3G-F1

31DF6N-FC5

.1

∗

7

X

1K

.001

.1

X

4.7/50

X

82K

1/50

4.7K

1.8K

220K

0

68K

∗

7

X

∗

3

X

47/50

6.8K

1M

.0033

.022

∗

1

X 15K

3.3K

15K

18K

∗

6

100/16

X

100/16

.1

X

∗

3

X

.001

X

1000/35

.1

1000P

X

180K

∗

7

*6

8.2K

22K

330/35

X

∗

3

1

.47

1/50

∗

6

X

390

X

0

2.2K

∗

1

.1

∗

3

X

XX

100

33K

X

∗

3

1.8K

X

∗

1

5.6K

1.8K

22/50

X

0

47/25

3.3K

100/16

∗

5

47/50

∗

6

470/10

47/50

4700p

X

22/50

8.2M

10K

∗

3

10K

X

BW

X

1000/10

X

.001

3.3K

1M

10K

∗

6

3.3/50

12K

22/100

22K

XX

*6

X

1K

X

∗

3

BW

∗

7

BW

X

680

BW

5.6K

X

2200/35

.1

5.6K

22

82K

8.2K

5.6K

470

X

0

2.2K

33K

1.2K

1K

22/50

X

0

10/50

22K

4.7/250

2.7K

100/35

47/35

.022

47K

.001

∗

10

∗

6

4.7

330/25

X

1

18K

10/250

220/160

∗

3

100K

470

∗

6

.01/500

1000/10

∗

10

∗

10

4.7K

270

6.8K

4.7K

120K

1K

4.7K

X

8V

A_VCC

5V

H_DRIVE

P_ON/OFF

32V

12V

VDRA+

3.3V_STB

STB

NECK

ABL

32V

HFB

PROTECT

12V

8V

VDRB-

P_ON/OFF

5V

P_ON/OFF

PROTECT

P_ON/OFF

HFB

ABL

A_VCC

NECK

STB

VDRA+

VDRB-

EW

12V

STB

STB1

3.3V_STB

EW

STB1

H_DRIVE

VER_PROTECT

3.3V_STB

VER_PROTECT

PROTECT

FRONT CONTROL PWB

CRT SOCKET PWB

NOTES) 1. Please refer to page 2-17 for voltages of this circuit diagram.

2. Please refer to page 2-18 for waveforms of this circuit diagram.

MAIN PWB ASS'Y (2/2) SCW-1012A-H2 [AV-29WX14/G] SCW-1025A-H2 [AV-29WX14/S] SCW-1068A-H2 [AV-29WX24/L] SCW-1013A-H2 [AV-2954WE]

∗

DIFFERENCE PARTS LIST (∗PART)

∗

SCW-1013A-H2

DY01 With ITC

SCW-1025A-H2 SCW-1068A-H2

SCW-1012A-H2

QQD0106-001

C527 QFZ0197-204QFZ0197-224

DEF YOKE

MAIN PWB CIRCUIT DIAGRAM (2/2)

No. YA104 2-7 2-8

No. YA104

: NRSA63J-0R0X

: UN2212-X

: MA3100/M/-X

: MA111-X

: 2SA1530A/QR/-X

: 2SC3928A/QR/-X

: OPTION (NON MOUNTED)

∗

3

∗

5

: KTC3199/YG/-T

∗

6

: KTA1267/YG/-T

∗

7

: CE41492-001Z

∗

8

: PDEX04-003

∗

9

∗

4

∗

1

∗

2

X

0

: QUY160-050Y

BW

NOTE

R219

R210

CN00T

R209

R352

R207

R221

TP-47B

R358

R359

R360

R353

R354

C201

C202

R213

R351

C351

R212

Q373

Q372

Q371

R211

K202

R222

R223

R214

R215

R217

R216

R218

K203

R225

R229

R208

D201

R227

D202

R228

Q203

K207

R371

Q204

Q206

R224

R220

FR201

R226

C216

C217

C219

C218

C214

C213

C215

C211

R372

Q209

Q208

D203

D204

K204

R232

K206

CN0VM

C212

Q207

R369

Q205

C205

K205

C360

CN0E1

C206

C352

CN0E2

C207

C210

R373

TP-E

R377

R375

D372

Q374

R376

R203

C358

C371

D371

TP-47G

IC351

D363

SG353

SK351

SG351

R374

SG352

SK351

CN0SC

SG354

Y354

Y353

R201 R204

R205

C208

C209

K201

R202

R206

R350

CN00U

C359

C203

Q201

Q202

R355

R356

R357

C220

D354

D355

D356

TP-47R

C353

L351

D357

K208

D350

C204

QGA2501C5-08Z

QRZ0107-152Z

CH

1/2W

1/4W

QRE121J-121Y

1/2W

QUY160-150Y

QRZ9021-561

1/2W

CH

2SC5511/DE/

2SA2005/DE/

RGP10J-5025-T3

QUY160-150Y

OMR

QRL029J-391

CE41832-001

WJM0048-002A

QCB32HK-472Z

QRZ9023-1R2

CE41832-001

QCS31HJ-5R0Z

TDA6107AJF/N1

QNZ0536-001

QRZ0107-474Z

QNZ0536-001

QGZ0017C1-01Z

QGA2501C5-06Z

N

QRC121K-561Z

QCS32HJ-680Z

EU01N-T2

QFKC2EK-104Z

QQL244J-5R6Z

EU01N-T2

QQR1113-001Z

MA8075/M/-X

NDC31HJ-471X

47

2.7K

1.8K

100

0

1.2K

1.5K

100

220/16

X

220

100

100p

150

X

1.5K

∗

8

56K

10

X

∗

8

39

15K

0

2.7

0

39

∗

6

33K

∗

6

∗

7

1.2K

47

560

2.7

10/160

100/10

330/10

100/10

10/160

1000p

.0047

820p

33K

390

X

560p

X

3.3/50

4.7/250

5p

X

33K

12K

X

∗

3

∗

2

6.8K

X

100/16

∗

3

X

470K

X

XX

X

100/16

∗

8

X

.0022

10/50

X

HB

GNDH HEATER

HEATER

GNDH

HB

GNDH

MAIN PWB ASS'Y

CRT SOCKET PWB ASS'Y SCW-3001A-H2

V01

NOTES) 1. Please refer to page 2-17 for voltages of this circuit diagram.

2. Please refer to page 2-18 for waveforms of this circuit diagram.

RGB OUT

DIFFERENCE PART LIST (∗ PART)

AV-2954W/E

AV-29WX14/G

AV-29WX14/S AV-29WX24/L

A68QCU770X52K

MODEL

V01 A68LZU185X

∗

CRT SOCKET PWB CIRCUIT DIAGRAM

No. YA104

2-9 2-10

No. YA104

: NRSA63J-0R0X

: QUY160-050Y

: OPEN (NON MOUNT)

: MA111-X

: 2SA1530A/QR/-X

: 2SC3928A/QR/-X

∗

3

BW

X

∗

1

∗

2

0

NOTE

CN002

R301

R481

S805

S806

S801

S802

F901

S803

S804

R901

R483

R302

R484

C481

CN00S

LF901

Q482

R816

R303

R815

R806

C482

D601

J803 J802

J804

D602

J801

R807

R486

R487

Q481

R814

R493

D491

R809

R495

R488

CN0PW

C488

C901

VA901

CN00W

Y801

C804

S901

R808

R494

R304

R306

C489

R499

C487

Q301

R491

R305

R497

D301

R307

C301

R813

R812

IC301

K401

CNDEG

K402

RY901

L401

TH901

C483

C484

C902

C485

CN00R

R492

R496

D805

R811

R810

D956

Q955

R960

R961

D957

C965

IC801

R801

D802

C802

C801

R802

CN001

R803

IC481

R601

R604

R602

R482

R603

C601

Y904

C602

Y902

R485

Y901

Y903

D804

R489

R490

D803Y802

Y803

LC801

Y804

K403

C803

D801

QGF1220C2-19

QUY153-050Y

QSW0619-003Z

QMF51E2-4R0J4

QSW0619-003Z

QRZ0111-474

NCB31CK-224X

LLRR

+- - +

QGA2501C5-04Z

QQR1356-001

NCB31CK-224X

QNN0656-002 QNN0656-003QNN0657-001

QNS0155-001

QGA7901C1-02

QFZ9072-224

QAF0060-621

CHGH0001-0H

QSW0750-001

CH

QRE121J-561Y

QFLC1HJ-103Z

S9066-11

QUY160-100Y

QGZ5004C1-02

QUY160-100Y

QSK0061-002

QQL244K-820Z

QAD0145-2R3

NCB31CK-224X

QFZ9072-224

QGA2501C5-03Z

MA8091/H/-X

RPM7238-H5

QGF1220C2-09

LA6515

QRE121J-271Y

QETM1VM-108

MA8091/H/-X

QQR1199-001

QUY160-150Y

QUY153-050Y

POWER_LED( RED)

LH22440-T16

0

68K

x

6.8K

.22

*2

820

100K

470

0

.22

X

33K

3.3K

*1

330

X

0

1.5K

150K

1/50

0

.1

X

68K

0

X

560p

X

0

5.6K

X

0

3.3/50

220

180

.22

47/16

10K

22K

0

X

*3

*1

22K

47K

*3

100/16

1K

X

100/16

.1

47

470

1K

120K

1K

1000/35

X

1000/35

X

5.6K

X

100K

X

KEYIN

ROTATION

M_GND

BL_GND

12V

M_GND

V_GND

AUDIO_R

B_MUTE

R

AUDIO_L

VIDEO

A_GND

AUDIO_R

M_GND

AUDIO_L

KEYIN

12V

BL_GND

ROTATION

M_GND

L

A_GND

V_GND

L01 DEG COIL

L01 ROTATION COIL

VIDEO-3

HEADPHONE

MAIN PWB CN001

MAIN PWB CN002

SPEAKER

FRONT CONTROL PWB ASS'Y SCW-8001A-H2

NOTE) Please refer to page 2-17 for voltages of this circuit diagram.

DIFFERENCE PARTS LIST (∗PART)

AV-29WX14/G

AV-29WX24/L

AV-2954W/E

∗

POWER

CORD

QMPR340-165-K2

AV-29WX14/S

QMPR650-165-JC

FRONT CONTROL PWB CIRCUIT DIAGRAM

No. YA104 2-11 2-12

No. YA104

C542

CN00X

C931

R922

R923

C924

C922

R929

C928

R924

HS522

C926

D927

D928

D929

R934

D922

R932

D921

R930

C929

D926

C906

CN001

K921

R901

R902

K922

HS601

W031

D923

D924

D925

Q921

Y905

R933 D930

LF902

T522

C925

R935

D931

Y907

Y908

Y906

Q957

R980

IC973

R957

C979

R956

C981

Q951

L973

D959

Q958

R970

C969

R960

IC972

C984

D970

R958

R959

R975

C950

W014

R952

R976

R955

Q571

C978

D961

L972

D951

C951

C971

C003

R962

C614

D962

C004

W048

D606

D955

R7

90

C601

R571

D604

R572

D605

CP955

C960

C603

C956

C604

C973

C605

C962

D960

IC921

C606

R606

C963

R607

C656

D601

D952

D603

R951

R7

83

C572

R473

C002

C917

K902

R474

C005

C953

C006

C611

C612

R625

D602

R605

R619

C602

R604

C954

C655

C959

R617

IC971

R618

IC975

C987

R601

R602

R603

L975

R573

R971

C972

L971

C974

D972

R972

R953

Q603

Q604

Q605

Q606

D471

D422

C431

C427

R615

R520

C423

D423

C430

R611

R448

R430

R426

R612 R613

C428

D451

R614

C451

C607

R464

C452

L421

C521

C522

C523

C524

C525

C526

C527

C528

C529

C530

R552

C532

R551

D551

D555

R533

R592

R594

D593

R581

D581

C608

R574

C592

Q572

R608

W011

W012

R575

D571

C573

D530

L530

R555

R530

C552

C581

R609

R610

Y972

R582

Q601

Y603

Q602

C609

C610

R616

R622

R620

R621

R623

R624

C901

C902

C903

C904

C905

Q607

Q608

C613

R662

83

R5

R591

D591

C591

Q471

R593

C101

D592

C571

C593

R595

W030

R596

R597

Q591

Q592

D594

C554

J805

D552

C553

C551

D554

R554

C661

R521

C556

C555

L521

C989

C531

Q461

R460

R458

R459

R461

R462

C992

C993

W022

R463

R4 75

R471

R472

C471

C453

IC451

R451

R452

R453

R454

R455

R456

R457

C454

R439

C435

C436

R431

R432

R433

R434

R435

R440

R437

R438

C429

R427

R411

R412

C420

C422

C102

C103

C424

L522

C104

R528

C582

C520

D520

R522

R525

R523

C105

C106 C107

C108

C109

W091

R726

R720

X701

W130

C308

W092

W001

K107

W016

W017

K103

W018

W115

W123

IC701

R813

R705

R706

C7 19

W024

W207

CN0HV

D901

C991

R742

W026

W103

R743

R744

C789

Y981

D710

IC601

IC974

CN00U

C717

C718

R745

R778

C715

R702

R772

W013

C720

R703

R775

41 R7

C7

21

D521

C713

D522

D523

C708

C712

Y791

R701 C710

L717

C709

Q791

R965

W185

W032

C741

D802

D801

C803

C804

L701

Y803

L702

W085

C802

W042

W124

W125

C781

C782

W086

C657

D101

Y702

C724

W156

D803

D804

R714

IC702

R816

J802

J803

J804

03 C7

R768

L002

L101

W197

L001

LC801

LC802

LC803

Y801

Q522

Y802

L715

W037

Y710

C740

R801

R802

W039

R803

Q101

Q102

Q103

Y804

C753

05 Y8

Q706

Y806

W0 40

LC804

Y807

Y808

C7 51

W041

C752

L703

C714

C706

C716

R707

R708

07

C7

R709

D701

C711

D524

W071

W088

C705

CF701

Q801

C809

Q521

Q803 Q804

R001

R002

R003

R004

CF702

R101

W019

R102

R103

R104

R105

R106

R107

R108

R109

R110

R815

R814

C722

Q805

R807

W043

W044

W045

W046

Y003

Y301

C775

C723

R7 10

Y701

Q701

R767

R766

C742

C704

R712

R713

W047

W204

W049

W050

W052

W063

W064

W065

W066

W067

W068

C7

25

C726

W055

C727

R715

C728

29

C7

C733

C732

W211

L704

W023

L705

W056

W059

W159

W060

W061

W069

W070

C735

C736

C744

D702

C745

C737

D703

C738

C739

R716

R717

R718

W101

R719

D708

W072

W073

W074

Y703

W034

CN00C

C743

W029

W075

R704

W025

W076

W077

W080

W082

C730

C731

C734

R721

R974

C915

HS921

R760

R770

LC701

Y706

W083

R632

Y705

Y707

IC651

L651

R651

R652

R653

R654

C6

51

R524

D651

R527

R663 R664

R655

R656

R657 R658

R659 R660

R661

C652

C660

C659 C653

R711

W188

C654

R7

22

R723

R808

R809

R810

R811

R812

W081

R724

CP954

R725

Q702

CF101

X301

C302

C303

R309

W003

R312

W196

C305

W195

C304

W036

C306

W038

C307

C309

R307

R308

R310

R311

R313

W098

R314

Q305

TU001

Q306

SF101

SF102

K301

C310

L301

L302

L303

R315

R316

R317

C311

C312

C313

R761

C314

C315

C316

R318

R319

R320

R321

Q307

66

C7

L711

W210

C764

W053

W035

C7

65

W097

L710

C761

C762

W090

63 C7

L709

R732

R7

33

R734

35

R7

R978

C760

C758

C759

L707

W079

W087

L708

C702

W078

W102

W094

W095

Y302

W191

K104

Y303

W114

R739

R730

W209

W113

Y714

CP650

R626

W110

R627

Y708

R628

CN00T

36

R7

C701

K701

W140

R755

R751

R7 47

T521

L7

12

C767

W006

W104

C916

R950

D957

C945

C921

K601

D932

D933

D934

D935

W147

W007

W134

W220

W148

Q703

HS401

R793

R729

C780

W1 86

W187

C750

C748

C749

W111

W054

C658

W057

W058

W033

C746

C747

R785

L716

W062

55

C7

R728

R757

54 C7

C7 56

C7

57

L706

W089

W116

W117

W119

W005

W118

R758

W120

W121

W122

R759

IC976

C776

R784

W131

W132

W133

R776

W137

W135

R740

R748

W192

W136

W021

W205

W015

W105

W106

38

W1

W139

K957

R754

W208

IC301

W028

R005

W144

W084

W206

W107

C779

R753

R773

C985

Y704

Y004

W2

13

W150

IC401

W151

W152

W153

W154

W143

W155

C982

W212

D813

C965

R7 74

C773

W141

C774

D709

R7 71

R777

C7

83

L714

K901

C001

W157

C771

D805

D806

W203

D8

11

C772

W161

W163

W164

W165

R752

C770

W168

W169

W170

R750

W173

W174

R749

W142

W146

R746

C769

C768

L713

W158

C

R727

W096

Q705

W183

W160

W166

W167

W172

W181

W193

W194

R629

W175

W176

W198

D704

Q609

W199

W177

W178

C777

R780

R781

R779

C983

Y973

R737

R731

W108

W202

D973

D975

W109

W112

W126

W189

W127

W201

Y601

W128

Y602

W190

L003

W145

W149

W162

W171

D953

D954

W179

W180

W182

CN002

D958

R8 04

CP953

Y818

R805

CP952

R954

R762

R763

R764

R765

W008

W002

W004

HS972

W009

C975

W010

R806

C958

Q610

W020

E4

Y961

K101

L523

T921

C964

C977

E5

C976

C952

C955

C957

C968

L951

L954

D472

IC951

K955

K952

K953

K954

K951

Q952

CN00W

Y965

D974

Y723

C110

R977

Y715

C940

W093

C785

C7 84

Y977

C580

Y971

R973

C980

PC901

R991

Q704

D971

D810

J801

D812

R769

W214

W215

W216

W051

W129

R791

R738

D791

Y817

W217

W218

W2

19

C986

Q707

Q708

R794

D001

R795

Y816

R796

C791

C792

C778

D707

R782

C967

Y712

Y7 13

R006

R007

R008

Y005

Y006

Q001

Q002

C

Q611

W184

Y716

C949

L952

K102

K105

A

Y815

A

R792

C790

Y911

FR901

R981

D977

Y007

Y008

D706

D976

B

K702

Y819

Y717

L304

Y709

R630

Y718

C317

C111

R341

R342

R631

R343

R344

Q341

D344

D345

D341

D342

D343

R345

C341

Y912

D936

Y724

Y725

Y814

Y604

R756

Y012

C786

Y974

D711

D712

Y975

Y976

Y978

Y979

Y980

Y982

Y009

Y010

Y011

Y711

Y719

Y720

Y983

Y984

Y913

Y721

Y722

Y914

Y915

Y813

Y726

Y727

Y728

R921

C961

FRONT

()

B1

MAIN PWB PATTERN

PATTERN DIAGRAM

No. YA104

2-13 2-14

No. YA104

CRT SOCKET PWB PATTERN

TOP

()

HS351

C201

D350 R350

Q373

R373

Q374

Q372

R372

R377

Q371

R376

R371

D372

IC351

W002

W003

R375

D363

D371

R351

W001

R352

R353

C351

C353

C352

R354

K207

CN0E3

Y353

L351

CN00T

C371

D357

R359

SG352

R356

CN0E2

W004

D355

TP-47R

TP-47G

R355

R357

SG353

D354

SK351

W008

W007

R360

D356

R358

SG351

TP-47B

SG354

R369

CN0SC

W009

W010

C359

C360

TP-E

R374

W015

W014

CN00U

C358

CN0E1

W011

W012

Y354

C218

C206

K206

C219

R210 R205

R203

R227

W005

C213

R228

R224

C212

R213

C215

C211

W013

R206

D204

R229

R219

R220

C202

Q201

R202

Q209

K203

W021

R214

C205 R212

Q203

R201

D203

R223

W020

R215

R207

R226

K205

Q205

Q207

Q206

C203

Q202

C204

Q204

D202

R208 R204

R209

R232

C214

C220

K208

W019

CL001

R225

K204

C208

K201

C217

R217

C210 R218 R216 D201

W017

W016

C209

R211

Q208

R221

R222

CN0VM

W018

C216

K202

C207

FR201

No. YA104 2-15

FRONT CONTROL PWB PATTERN

FRONT

()

W108

W107

CN001

R801

D957

TH901

C965

R960

R961

Q955

D956

CNDEG

FRONT

R303

C802

C301

RY901

IC801

CN00W

Q301

R802 C801

D802

W109

C902

IC301

W111

R307

D301

Y904

Y903

Y902

Y901

LF901

D801

R301

R304

R305

R302

R803

R306

C901

S901

R901

VA901

F901

CN0PW

J801

R601

W103

R604

CN00S

R603

R602

J802

Y804

W102

Y803

D803

W101

LC801

Y802

D602

R810

C804

C803

C602

J803

Y801

D804

R811

J804

D805

R809

C601

R808

W104

D601

No. YA1042-16

R806 R807

R494

C489

D491

R812 R495 R493

Q481

R496

R492

R487 R491

K402

Q482

R484

R497

R486

W106

CN002

R485

R488

R489

S801 S802 S803

R813 R815 R816

R814

R481

C488

C481

IC481

W112

R483

W110

R482

C485

W113

W105

C487

K401

K403

R499

R

L401

R490

C482 C484

W114

C483

S805 S806

S804

()

VOLTAGE CHART

PIN NO.

VOLTAGE(V)

PIN NO.

VOL AGE(V)

IC401

1 0.5 2 13.8 3 -11.7 4 -13.3 5 0 6 14.1 7 0.6

IC451

1 1.6 2 4.2 3 4.1 4 0 5 2.2 6 2.2 7 4.4 8 11.8

IC601

1 0 2 0 3 31.0 4 0 5 0 6 0 7 15.6 8 0.6 9 0 10 32.4 11 19.1 12 15.6

IC701

1 0 2 0 3 1.7 4 3.2 5 3.2 6 0 7 3.2 8 0 9 3.2 10 1.6 11 1.5 12 0 13 0 14 0 15 0 16 1.9 17 0 18 0 19 0 20 2.3 21 2.1 22 1.4 23 1.4 24 1.9 25 1.9 26 2.4 27 2.0 28 0 29 1.9 30 1.9 31 2.0 32 1.8 33 0.6 34 2.2 35 2.1 36 0 37 3.5 38 2.3 39 2.5 40 0 41 2.0 42 1.8 43 2.0 44 0 45 8.3 46 0 47 4.9 48 1.2 49 2.2 50 2.2 51 1.4 52 1.6 53 2.2 54 2.2 55 1.4 56 2.2 57 0 58 0 59 0 60 3.6 61 3.5 62 3.6 63 3.5 64 0

PIN NO.

VOLTAGE(V)

PIN NO.

VOL AGE(V)

65 2.0 66 0.3 67 1.6 68 0 69 4.9 70 1.3 71 1.4 72 1.3 73 1.9 74 1.7 75 0.1 76 0 77 3.2 78 1.2 79 1.2 80 0 81 0 82 4.9 83 2.3 84 3.7 85 1.9 86 2.0 87 2.0 88 3.2 89 0 90 3.2 91 1.5 92 0 93 1.8 94 3.1 95 0 96 1.7 97 3.1 98 0 99 0 100 1.8 101 0 102 3.2 103 3.2 104 0.7 105 0 106 0 107 0 108 1.9 109 1.9 110 3.2 111 1.6 112 3.2 113 0 114 3.2 115 0 116 2.6 117 1.8 118 1.8 119 3.2 120 3.1 121 0 122 3.2 123 0 124 1.8 125 0 126 3.2 127 3.1 128 3.1

IC1702

1 0 2 0 3 0 4 0 5 3.1 6 3.0 7 0 8 3.2

IC1921

1 297.5 3 0 4 19.9 5 0.2 6 1.0 7 1.3

IC1951

1 135.3 2 24.9 3 0

IC1972

1 6.4 2 0 3 3.3

IC1973

1 15.8 2 11.8 3 0 4 2.8

PIN NO.

IC974

1 0 2 0 3 0 4 0.5 5 2.9 6 0 7 3.2

IC976

1 1.8 2 0 3 0 4 0.5 5 2.9 6 0 7 3.2

Q101

E 2.1 C 11.6 B 2.9

Q102

E 0 C 0 B 3.1

Q103

E 0 C 0 B 3.1

Q461

E 0 C 19.7 B 0.5

Q521

E 0 C 0 B 1.6

Q522

E 0 C 131.0 B -0.1

Q571

E 135.2 C 0 B 134.9

Q572

E 0 C 3.2 B 0

Q601

E 8.2 C 0.2 B 8.2

Q602

E 0.2 C -0.3 B 0

Q603

E 0 C 0 B -0.4

Q605

E 0 C 0 B -0.3

Q607

E 0 C 0 B 0.6

Q608

E 0 C 21.6 B 0

Q702

E 1.3 C 4.7 B 2.0

Q703

E 3.2 C 0 B 3.2

Q801

E 1.9 C 0 B 1.2

Q803

E 0 C 0 B -0.4

Q804

E 0 C 0 B -0.5

VOLTAGE(V)

VOL AGE(V)

VOLTAGE(V)T T T T

VOL AGE(V)

PIN NO.

IC351

Q203

Q204

Q206

Q208

Q209

PIN NO.

Q805

E 0.2 C -0.5 B 0

Q921

E 20.4 C 53.8 B 20.8

Q951

E 0 C 28.3 B 0.1

Q952

E 0 C 0 B 0.7

Q957

E 0 C 30.3 B 0.1

Q958

E 30.4 C 6.4 B 30.3

TU001

1 2.2 2 3.7 3 0 4 1.9 5 1.9 6 4.9 7 4.9 8 0 9 35.0 10 0 11 0

VOLTAGE(V)

VOL AGE(V)

1 2.0 2 2.0 3 2.0 4 0 5 5.0 6 0 7 130.8 8 127.0 9 0

E 1.1 C 7.3 B 1.8

E 7.0 C 11.8 B 7.3

E 7.1 C 0 B 7.3

E 125.1 C 64.1 B 124.4

E 2.7 C 64.1 B 3.2

PIN NO.

VOLTAGE(V)T T

PIN NO.

VOL AGE(V)

IC481

1 6.2 2 6.2 3 7.3 4 7.4 5 0 6 8.0 7 8.0 8 8.5 9 8.4 10 11.8

IC801

1 3.1 2 3.2 3 0

Q481

E 0.8 C 6.6 B 1.4

Q482

E 7.3 C 0 B 6.6

Q955

E 0 C 11.8 B 0

No. YA104 2-17

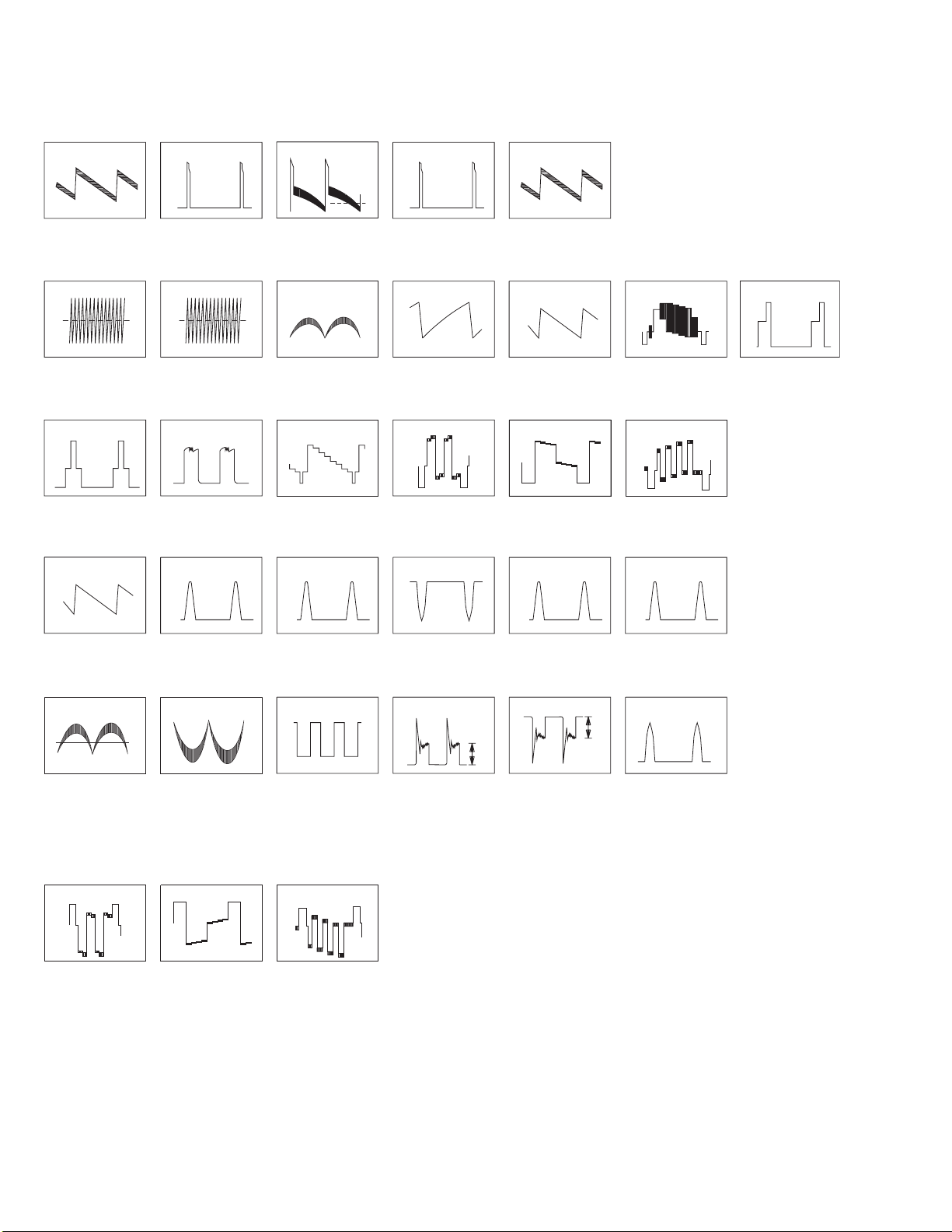

WAVEFORMS

-MAIN PWB-

IC401-1

IC401-3

[V]

IC401-5

[V]

IC401-6

[V]

IC401-7

[V]

IC701-10

IC701-66

T522-2

0.8Vp-p

[0.2us/div] [0.2us/div]

2.4Vp-p

[H]

5.4Vp-p

[H]

9.0Vp-p

30Vp-p

IC701-11

3.0Vp-p

IC701-67

4.0Vp-p

T522-3

64Vp-p

[H]

IC701-21

IC701-74

T522-4

55Vp-p

30mVp-p

1.0Vp-p

130Vp-p

[V]

[H]

IC701-22

IC701-85

T522-5

28Vp-p

1.2Vp-p

2.0Vp-p

130Vp-p

[H]

IC701-23

IC701-86

T522-7

0.6Vp-p

1.8Vp-p

1.5Vp-p

26Vp-p

IC701-48

[V][V]

1.7Vp-p

IC701-87

[H]

2.4Vp-p

T522-9

[H] [H]

135Vp-p

[H]

IC701-65

[H]

5.4Vp-p

Q461-B

0.6Vp-p

Q461-C

[V]

-CRT SOCKET PWB-

IC351-7

150Vp-p

IC351-8

[H]

17Vp-p

110Vp-p

[H]

Q521-B

[V]

4.5Vp-p

IC351-9

180Vp-p

[H]

Q521-C

50Vp-p

[H]

Q522-B

2.8Vp-p

Q522-C

[H][H]

1050Vp-p

[H]

No. YA1042-18

Victor Company of Japan, Limited

AV & MULTIMEDIA COMPANY VIDEO DISPLAY CATEGORY 12, 3-chome, Moriya-cho, kanagawa-ku, Yokohama, kanagawa-prefecture, 221-8528, Japan

(No. YA104)

Printed in Japan

WPC

SERVICE MANUAL

COLOUR TELEVISION

YA104B20048

BASIC CHASSIS

AV-2934W/ESK,

CW

AV-2953W

/ESK

Supplementary

The following items for the AV-2934W/ESK and AV-2953W/ESK were changed partly from AV-2954W/E. Therefore, this service manual describes only the items which differ from those of the AV-2954W/E service manual. For details other than those described in this manual, please refer to the AV-2954W/E service manual (No.YA104, 2004/7).

FEATURE LIST

Item AV-2954W/E AV-2934W/ESK AV-2953W/ESK

Production place THAILAND RUSSIA (Kit production) ←

Stereo system A2(B/G) / NICAM(B/G,I,D/K) Playback A2(B/G) / NICAM(B/G,I,D/K)

No.YA104B

2004/8

DIFFERENCE LIST

USING P.W. BOARD (Page 3-3)

P.W.B ASS'Y Name AV-2954W/E AV-2934W/ESK DESCRIPTION

MAINP.W.B SCW-1013A-H2 SCW-1076A-H2 Non compatible

CRT SOCKET P.W.B SCW-3001A-H2 SCW-3016A-H2 Non compatible

P.W.B ASS'Y Name AV-2954W/E AV-2953W/ESK DESCRIPTION

MAINP.W.B SCW-1013A-H2 SCW-1071A-H2 Non compatible

CRT SOCKET P.W.B SCW-3001A-H2 SCW-3006A-H2 Non compatible

FRONT CONTROL P.W.B SCW-8001A-H2 SCW-8005A-H2 Non compatible

EXPLODED VIEW PARTS LIST-1 (Page 3-3)

 Ref. No.

 100 GG10189-001A-H GG10189-006A-HK FRONT CABINET ASS'Y Inc.No.101-102

101 GG20027-001B-H GG20027-006B-H DOOR

 Ref. No.

 100 GG10189-001A-H GG10189-001A-HK FRONT CABINET ASS'Y Inc.No.101-102

AV-2954W/E AV-2934W/ESK

AV-2954W/E AV-2953W/ESK

Part No.

PART NAME DESCRIPTION

EXPLODED VIEW PARTS LIST-2 (Page 3-4)

Part No.

 Ref. No.

 V01 A68QCU770X52K A68QCU770X52ND ITC Inc.DEF YOKE/PC MAGNET/WEDGE

 12 GG10192-001B-H GG10192-001B-HK REAR COVER

 17 LC11061-001A-H LC11061-001A-HK CHASSIS BASE

21 CE42568-00A --- PC MAGNET (Delete)

22 CE40764-00A --- WEDGE ASS'Y (Delete)

AV-2954W/E

AV-2934W/ESK AV-2953W/ESK

PART NAME DESCRIPTION

1-2 (No.YA104B)

PRINTED WIRING BOARD PARTS LIST [AV-2934W/ESK]

MAIN P.W. BOARD ASS’Y (Page 3-19)

Part No.

 Ref. No.

SCW-1013A-H2 SCW-1076A-H2

D705 MA8039/H/-X --- Z DIODE (Delete)

D714 MA8030/H/-X --- Z DIODE (Delete)

D751 MA8091/H/-X MTZJ9.1C-T2 Z DIODE

D753 MA8091/H/-X MTZJ9.1C-T2 Z DIODE

D814 MA8091/H/-X MTZJ9.1C-T2 Z DIODE

C725 NCB31HK-104X --- C CAPACITOR 0.1uF 50V K

R520 NRSA63J-471X QRE141J-471Y C RESISTOR 470Ω 1/4W J

PART NAME DESCRIPTIONAV-2954W/E AV-2934W/ESK

CRT SOCKET P.W. BOARD ASS’Y (Page 3-20)

The number of PWB have been changed. However, there is no change in component parts.

PRINTED WIRING BOARD PARTS LIST [AV-2953W/ESK]

MAIN P.W. BOARD ASS’Y (Page 3-19)

Part No.

 Ref. No.

SCW-1013A-H2 SCW-1071A-H2

D423 GP10DE-5009-T2 1N4003-T2 SI DIODE

D705 MA8039/H/-X --- Z DIODE (Delete)

D714 MA8030/H/-X --- Z DIODE (Delete)

D751 MA8091/H/-X MTZJ9.1C-T2 Z DIODE

D753 MA8091/H/-X MTZJ9.1C-T2 Z DIODE

D814 MA8091/H/-X MTZJ9.1C-T2 Z DIODE

D815 MA8091/H/-X --- Z DIODE (Delete)

C771 --- MTZJ3.3A-T2 Z DIODE (Addition)

C784 --- MTZJ4.7B-T2 Z DIODE (Addition)

R520 NRSA63J-471X QRE141J-471Y C RESISTOR 470Ω 1/4W J

K923 QUY160-050Y --- (Delete)

K924 QUY160-050Y --- (Delete)

PART NAME DESCRIPTIONAV-2954W/E AV-2953W/ESK

(No.YA104B)1-3

CRT SOCKET P.W. BOARD ASS'Y (SCW-3006A-H2)



Ref No. Part No. Part Name Description Local

IC351 TDA6107AJF/N1 IC

Q203 KTC3199/YG/-T TRANSISTOR Q204 KTC3199/YG/-T TRANSISTOR Q206 KTA1267/YG/-T TRANSISTOR Q208 2SA2005/DE/ POW TRANSISTOR Q209 2SC5511/DE/ POW TRANSISTOR Q374 2SA933AS/QR/-T TRANSISTOR

D201 1SS244-T2 SI DIODE D202 1SS244-T2 SI DIODE D203 RGP10J-5025-T3 SI DIODE D204 RGP10J-5025-T3 SI DIODE D350 MTZJ7.5C-T2 Z DIODE D354 EU01N-T2 SI DIODE D355 EU01N-T2 SI DIODE D356 EU01N-T2 SI DIODE D357 EU01N-T2 SI DIODE D371 1SS244-T2 SI DIODE D372 1SS244-T2 SI DIODE

C201 QETM1CM-227 E CAPACITOR 220uF 16V M C203 QETM1HM-106 E CAPACITOR 10uF 50V M C204 QCB32HK-471 C CAPACITOR 470pF 500V K C205 QCB32HK-561 C CAPACITOR 560pF 500V K C206 QETM1HM-335 E CAPACITOR 3.3uF 50V M C207 QCS31HJ-5R0 C CAPACITOR 5pF 50V J C209 QETM1CM-107 E CAPACITOR 100uF 16V M C211 QCB31HK-821Z C CAPACITOR 820pF 50V K C212 QCB32HK-472 C CAPACITOR 4700pF 500V K C213 QCB32HK-102 C CAPACITOR 1000pF 500V K C214 QETM2CM-106 E CAPACITOR 10uF 160V M C215 QCB32HK-472 C CAPACITOR 4700pF 500V K C216 QETM2CM-106 E CAPACITOR 10uF 160V M C217 QETM1AM-107 E CAPACITOR 100uF 10V M C218 QETM1AM-107 E CAPACITOR 100uF 10V M C219 QETM1AM-337 E CAPACITOR 330uF 10V M C220 QCS32HJ-680 C CAPACITOR 68pF 500V J C351 QCB32HK-102Z C CAPACITOR 1000pF 500V K C352 QETM2EM-475 E CAPACITOR 4.7uF 250V M C353 QFKC2EK-104Z MM CAPACITOR 0.1uF 250V K C359 QCZ0131-222 C CAPACITOR 2200pF 2kV K C371 QETM1CM-107 E CAPACITOR 100uF 16V M

R207 QRE142J-0R0 C RESISTOR 0Ω 1/4W J R208 QRE142J-153 C RESISTOR 15kΩ 1/4W J R209 QRE142J-152 C RESISTOR 1.5kΩ 1/4W J R210 QRE142J-272 C RESISTOR 2.7kΩ 1/4W J R211 QRE142J-152 C RESISTOR 1.5kΩ 1/4W J R212 QRE142J-151 C RESISTOR 150Ω 1/4W J R213 QRE142J-221 C RESISTOR 220Ω 1/4W J R214 QRJ146J-100X UNF C RESISTOR 10Ω 1/4W J R219 QRE142J-470 C RESISTOR 47Ω 1/4W J R220 QRE142J-470 C RESISTOR 47 R221 QRE142J-122 C RESISTOR 1.2k R222 QRE122J-563 C RESISTOR 56k R223 QRE122J-563 C RESISTOR 56kΩ 1/2W J R224 QRE142J-122 C RESISTOR 1.2k R225 QRE142J-390 C RESISTOR 39Ω 1/4W J R226 QRE122J-2R7 C RESISTOR 2.7 R227 QRE122J-2R7 C RESISTOR 2.7 R228 QRE142J-390 C RESISTOR 39 R229 QRE122J-121 C RESISTOR 120Ω 1/2W J R232 QRL029J-391 OMF RESISTOR 390Ω 2W J

Ω

1/4W J

Ω

1/4W J

Ω

1/2W J

Ω

1/4W J

Ω

1/2W J

Ω

1/2W J

Ω

1/4W J



Ref No. Part No. Part Name Description Local

R351 QRE142J-101 C RESISTOR 100Ω 1/4W J R352 QRE142J-101 C RESISTOR 100Ω 1/4W J R353 QRE142J-101 C RESISTOR 100Ω 1/4W J R354 QRE142J-101 C RESISTOR 100Ω 1/4W J R355 QRC122K-561 COMP RESISTOR 560Ω 1/2W K R356 QRC122K-561 COMP RESISTOR 560Ω 1/2W K R357 QRC122K-561 COMP RESISTOR 560Ω 1/2W K R358 QRZ0111-152 C RESISTOR 1.5k R359 QRZ0111-152 C RESISTOR 1.5k R360 QRZ0111-152 C RESISTOR 1.5kΩ 1/2W K R369 QRZ9023-1R2 FUSI RESISTOR 1.2Ω 2W J R371 QRE142J-333 C RESISTOR 33kΩ 1/4W J R372 QRE142J-333 C RESISTOR 33kΩ 1/4W J R373 QRE142J-333 C RESISTOR 33kΩ 1/4W J R374 QRZ0111-474 C RESISTOR 470k R376 QRE142J-682 C RESISTOR 6.8k R377 QRE142J-123 C RESISTOR 12kΩ 1/4W J

L351 QQL244J-5R6Z COIL 5.6uH J

CN0VM WJM0048-002A E-SI C WIRE C-F



FR201 QRZ9021-561 FUSI RESISTOR 560Ω 1W J HS208 CEHP00N-001QS HEAT SINK HS209 CEHP00N-001QS HEAT SINK HS351 LC31150-002A HEAT SINK/AL-F1 K201 CE41492-001Z CHOKE COIL K202 CE41492-001Z CHOKE COIL K203 CE41492-001Z CHOKE COIL K204 CH41005-H-15C FORMING BUS WIR K205 CE41832-001 LEAD CORE K206 CE41832-001 LEAD CORE K207 CH41005-H-15C FORMING BUS WIR K208 QQR1113-001Z FERRITE BEADS



SK351 QNZ0536-001 CRT SOCKET

Ω

1/2W K

Ω

1/2W K

Ω

1/2W K

Ω

1/4W J

FRONT CONTROL P.W. BOARD ASS’Y (Page 3-10)

The number of PWB have been changed. However, there is no change in component parts.

Victor Company of Japan, Limited AV & MULTIMEDIA COMPANY VIDEO DISPLAY CATEGORY 12, 3-chome, Moriya-cho, kanagawa-ku, Yokohama, kanagawa-prefecture, 221-8528, Japan

(No.YA104B)

Printed in Japan

WPC

PARTS LIST

CAUTION

J The parts identified by the  symbol are important for the safety . Whenever replacing these parts, be sure to use specified ones to secure the

safety.

J The parts not indicated in this Parts List and those which are filled with lines --- in the Parts No. columns will not be supplied.

J P.W. BOARD Ass'y will not be supplied, but those which are filled with the Parts No. in the Parts No. columns will be supplied.

ABBREVIATIONS OF RESISTORS, CAPACITORS AND TOLERANCES

RESISTORS CAPACITORS

CR Carbon Resistor C CAP. Ceramic Capacitor

FR Fusible Resistor E CAP. Electrolytic Capacitor

PR Plate Resistor M CAP. Mylar Capacitor

VR Variable Resistor CH CAP. Chip Capacitor

HV R High Voltage Resistor HV CAP. High Voltage Capacitor

MF R Metal Film Resistor MF CAP. Metalized Film Capacitor

MG R Metal Glazed Resistor MM CAP. Metalized Mylar Capacitor

MP R Metal Plate Resistor MP CAP. Metalized Polystyrol Capacitor

OM R Metal Oxide Film Resistor PP CAP. Polypropylene Capacitor

CMF R Coating Metal Film Resistor PS CAP. Polystyrol Capacitor

UNF R Non-Flammable Resistor TF CAP. Thin Film Capacitor

CH V R Chip Variable Resistor MPP CAP. Metalized Polypropylene Capacitor

CH MG R Chip Metal Glazed Resistor TAN. CAP. Tantalum Capacitor

COMP. R Composition Resistor CH C CAP. Chip Ceramic Capacitor

LPTC R Linear Positive Temperature Coefficient Resistor BP E CAP. Bi-Polar Electrolytic Capacitor

CH AL E CAP. Chip Aluminum Electrolytic Capacitor

CH AL BP CAP. Chip Aluminum Bi-Polar Capacitor

CH TAN. E CAP. Chip Tantalum Electrolytic Capacitor

CH AL BP E CAP. Chip Tantalum Bi-Polar Electrolytic Capacitor

RESISTORS

FGJKMNRHZ P

±1% ±2% ±5% ±10% ±20% ±30%

+30%

-10%

+50%

-10%

+80%

-20%

+100%

-0%

(No.YA104)3-1

CONTENTS

USING P.W. BOARD & REMOTE CONTROL UNIT ................................................................................................... 3-3

EXPLODED VIEW PARTS LIST -1 ............................................................................................................................. 3-3

EXPLODED VIEW -1 ................................................................................................................................................... 3-3

EXPLODED VIEW PARTS LIST -2 ............................................................................................................................. 3-4

EXPLODED VIEW -2 ................................................................................................................................................... 3-5

PRINTED WIRING BOARD PARTS LIST [AV-29WX14/G] ........................................................................................ 3-6

MAIN P.W. BOARD ASS'Y (SCW-1012A-H2) ................................................................................................... 3-6

CRT SOCKET P.W. BOARD ASS'Y (SCW-3001A-H2) .....................................................................................3-9

FRONT CONTROL P.W. BOARD ASS'Y (SCW-8001A-H2) ........................................................................... 3-10

PRINTED WIRING BOARD PARTS LIST [AV-29WX14/S] ...................................................................................... 3-11

MAIN P.W. BOARD ASS'Y (SCW-1025A-H2) ................................................................................................. 3-11

CRT SOCKET P.W. BOARD ASS'Y (SCW-3001A-H2) ................................................................................... 3-14

FRONT CONTROL P.W. BOARD ASS'Y (SCW-8001A-H2) ........................................................................... 3-14

PRINTED WIRING BOARD PARTS LIST [AV-29WX24/L] ...................................................................................... 3-15

MAIN P.W. BOARD ASS'Y (SCW-1068A-H2) ................................................................................................. 3-15

CRT SOCKET P.W. BOARD ASS'Y (SCW-3001A-H2) ................................................................................... 3-18

FRONT CONTROL P.W. BOARD ASS'Y (SCW-8001A-H2) ........................................................................... 3-18

PRINTED WIRING BOARD PARTS LIST [AV-2954W/E] ......................................................................................... 3-19

MAIN P.W. BOARD ASS'Y (SCW-1013A-H2) ................................................................................................. 3-19

CRT SOCKET P.W. BOARD ASS'Y (SCW-3001A-H2) ................................................................................... 3-22

FRONT CONTROL P.W. BOARD ASS'Y (SCW-8001A-H2) ........................................................................... 3-22

REMOTE CONTROL UNIT PARTS LIST (RM-C1281-2H) ....................................................................................... 3-22

PACKING ................................................................................................................................................................... 3-23

PACKING PARTS LIST ............................................................................................................................................. 3-23

3-2(No.YA104)

USING P.W. BOARD & REMOTE CONTROL UNIT

P.W.B ASS'Y AV-29WX14/G AV-29WX14/S AV-29WX24/L AV-2954W/E

MAIN P.W.B SCW-1012A-H2 SCW-1025A-H2 SCW-1068A-H2 SCW-1013A-H2

CRT SOCKET P.W.B SCW-3001A-H2 ←←← FRONT CONTROL P.W.B SCW-8001A-H2 ←←← REMOTE CONTROL UNIT RM-C1281-2H ←←←

EXPLODED VIEW PARTS LIST -1

 Ref.No. Part No. Part Name Description Local

1 GG20028-003A-H OPERATION SHEET 2 CM48229-00A-C DOOR LATCH 3 LC41037-003A-H JVC MARK 4 CM35235-003-H SPRING 5 GG30050-001C-H REMOCON LENS 6 GG30049-001D-H LED LENS

 100 GG10189-002A-H FRONT CABINET ASS'Y Inc.101,102 AV-29WX14/G,AV-29WX14/S  100 GG10189-006A-H FRONT CABINET ASS'Y Inc.101,102 AV-29WX24/L  100 GG10189-001A-H FRONT CABINET ASS'Y Inc.101,102 AV-2954W/E

101 GG20027-002B-H DOOR AV-29WX14/G,AV-29WX14/S 101 GG20027-006B-H DOOR AV-29WX24/L 101 GG20027-001B-H DOOR AV-2954W/E 102 GG30048-001B-H POWER KNOB

EXPLODED VIEW -1

100

1

3

5

6

101

2

102

4

(No.YA104)3-3

EXPLODED VIEW PARTS LIST -2

 Ref.No. Part No. Part Name Description Local

 V01 A68LZU185X PICTURE TUBE AV-29WX14/G,AV-29WX14/S,AV-29WX24/L  V01 A68QCU770X52K PICTURE TUBE(ITC) Inc.DEF YOKE AV-2954W/E  DY01 QQD0106-001 DEF YOKE AV-29WX14/G,AV-29WX14/S,AV-29WX24/L  L01 QQW0187-001 DEG COIL Inc.ROTATION COIL  T522 QQH0184-001 FB TRANSF

11 QYSBSFG4016Z TAP SCREW M4 x 16mm(x16)

 12 GG10192-001B-H REAR COVER

13 QYSBSF3012M TAP SCREW M3 x 12mm(x4)

 14 LC11064-001B-H AV BOARD  15 CM23167-A01-H POWER CORD CLAMP  16 QMPR340-165-K2 POWER CORD 1.65m BLACK AV-29WX14/G,AV-29WX24/L,AV-2954W/E  16 QMPR650-165-JC POWER CORD 1.65m BLACK AV-29WX14/S  17 LC11061-001A-H CHASSIS BASE

18 LC11062-001E-H CONTROL BASE 19 QUQ212-0916CH FFC WIRE 9pin 16cm 20 WJS0052-001A E-FL/RB WIRE 21 CE42568-00A PC MAGNET 22 CE40764-00A WEDGE ASS'Y (x4) 23 A48457-3-H SPRING 24 WJY0018-001A BRAIDED ASS'Y 25 CHGB0017-0C BRAIDED SUB ASS'Y (x2) 26 LC30103-001B-H CHASSIS ADAPTER (x2) 27 LC40317-002A-H TAP SCREW (x4) 28 LC40226-004A-H SPACER (x4) 29 GG20057-001A-H SP HOLDER (x4) 30 QAS0139-001 SPEAKER (x2) SP01,SP02

 31 GG20024-001B-H RATING LABEL

 40 SCW-1012A-H2 MAIN PWB AV-29WX14/G  40 SCW-1025A-H2 MAIN PWB AV-29WX14/S  40 SCW-1068A-H2 MAIN PWB AV-29WX24/L  40 SCW-1013A-H2 MAIN PWB AV-2954W/E  41 SCW-3001A-H2 CRT SOCKET PWB  42 SCW-8001A-H2 FRONT CONTROL PWB

3-4(No.YA104)

EXPLODED VIEW -2

29

28

L01

30

FRONT CABINET

V01

24

28

26

27

25

42

22

18

26

21

23

29

DY01

28

41

19

28

27

30

42

20

40

T522

14

17

13

15

16

12

11

31

(No.YA104)3-5

PRINTED WIRING BOARD PARTS LIST [AV-29WX14/G]



MAIN P.W. BOARD ASS'Y (SCW-1012A-H2)



Ref No. Part No. Part Name Description Local

IC401 AN15526A IC IC451 UPC358G2-XE IC IC601 AN5277 IC IC701 TDA12027-ERAPF IC(MCU) (SERVICE) IC702 AT24C16-29VS24 IC (SERVICE) IC921 STR-W6756-F5 IC IC951 SE135N IC IC972 BA33BC0T IC IC973 PQ120RDA1SZ IC IC974 MM1561JF-X IC IC975 PQ050RDA1SZ IC IC976 MM1561JF-X IC

Q101 2SC5083/L-P/-T TRANSISTOR Q102 UN2212-X DIGI TRANSISTOR Q103 UN2212-X DIGI TRANSISTOR Q341 2SA1530A/QR/-X TRANSISTOR Q461 2SD1267A/QP/ POW TRANSISTOR Q521 BSN304-T TRANSISTOR



Q522 TT2142-YD TRANSISTOR Q571 2SA1208/ST/Z1-T TRANSISTOR Q572 UN2212-X DIGI TRANSISTOR Q601 2SA1530A/QR/-X TRANSISTOR Q602 2SA1530A/QR/-X TRANSISTOR Q603 DTC323TK-X DIGI TRANSISTOR Q605 DTC323TK-X DIGI TRANSISTOR Q607 2SC3928A/QR/-X TRANSISTOR Q608 2SC3928A/QR/-X TRANSISTOR Q609 UN2212-X DIGI TRANSISTOR Q611 UN2212-X DIGI TRANSISTOR Q702 2SC3928A/QR/-X TRANSISTOR Q703 2SA1530A/QR/-X TRANSISTOR Q704 2SC3928A/QR/-X TRANSISTOR Q705 SSM3K02F-X MOS FET Q706 SSM3K02F-X MOS FET Q707 2SC3928A/QR/-X TRANSISTOR Q708 2SA1530A/QR/-X TRANSISTOR Q791 DTC124ESA-T DIGI TRANSISTOR Q801 KTA1267/YG/-T TRANSISTOR Q803 DTC323TK-X DIGI TRANSISTOR Q804 DTC323TK-X DIGI TRANSISTOR Q805 2SA1530A/QR/-X TRANSISTOR Q921 2SC3852A POW TRANSISTOR Q951 2SC3928A/QR/-X TRANSISTOR Q952 2SC3928A/QR/-X TRANSISTOR Q957 2SC3928A/QR/-X TRANSISTOR Q958 2SA1013/RO/-T TRANSISTOR

D101 1SS268-X SI DIODE D341 MA111-X SI DIODE D342 MA111-X SI DIODE D343 MA111-X SI DIODE D345 MA111-X SI DIODE D422 MTZJ75-T2 Z DIODE D423 1N4003-T2 SI DIODE D451 MA8043/L/-X Z DIODE D471 1SR124-400A-T2 SI DIODE D472 MA111-X SI DIODE D521 RH3G-F1 SI DIODE D522 31DF6N-FC5 SI DIODE D523 RGP10J-5025-T3 SI DIODE D524 MA8091/H/-X Z DIODE D530 EU2-T3 SI DIODE D551 RGP10J-5025-T3 SI DIODE D552 RGP10J-5025-T3 SI DIODE D554 MA8051/L/-X Z DIODE D571 MA8075/H/-X Z DIODE D581 RGP10J-5025-T3 SI DIODE D601 MA111-X SI DIODE D603 MA111-X SI DIODE D604 MA8300/H/-X Z DIODE D605 MA8300/H/-X Z DIODE D607 MA111-X SI DIODE D701 MA111-X SI DIODE D702 MA8091/H/-X Z DIODE D704 MA8091/H/-X Z DIODE D706 MA8036-X Z DIODE D707 MA111-X SI DIODE D708 MA111-X SI DIODE D709 MA111-X SI DIODE D710 MA8091/H/-X Z DIODE D791 MA8062/M/-X Z DIODE D801 MA8091/H/-X Z DIODE

Ref No. Part No. Part Name Description Local

D802 MA8091/H/-X Z DIODE D803 MA8091/H/-X Z DIODE D804 MA8091/H/-X Z DIODE D810 MA8091/H/-X Z DIODE D811 MA8091/H/-X Z DIODE D812 MA8091/H/-X Z DIODE D901 GSIB460 BRIDGE DIODE D921 RGP10J-5025-T3 SI DIODE D922 1SS133-T2 SI DIODE D923 MA111-X SI DIODE D924 MA8330/M/-X Z DIODE D925 RGP10J-5025-T3 SI DIODE D926 RGP10M-5010-T3 SI DIODE D927 MA111-X SI DIODE D928 MA8240/M/-X Z DIODE D929 MA111-X SI DIODE D930 MA8240/M/-X Z DIODE D931 MA8062/M/-X Z DIODE D932 MTZJ36A-T2 Z DIODE D933 MTZJ9.1C-T2 Z DIODE D934 MTZJ9.1C-T2 Z DIODE D935 MTZJ9.1C-T2 Z DIODE D936 1SS133-T2 SI DIODE D951 31DF6N-FC5 SI DIODE D952 FSF05A20 SI DIODE D953 RGP10J-5025-T3 SI DIODE D954 RGP10J-5025-T3 SI DIODE D955 FSF05A20 SI DIODE D957 MA8039/H/-X Z DIODE D959 NRSA63J-0R0X MG RESISTOR 0Ω 1/16W J D960 NRSA63J-0R0X MG RESISTOR 0Ω 1/16W J D962 MA8330/M/-X Z DIODE D970 MA8082/M/-X Z DIODE D971 MA111-X SI DIODE D972 1SR124-400A-T2 SI DIODE D973 MA111-X SI DIODE D975 MA111-X SI DIODE D977 MA111-X SI DIODE

C001 NCB31HK-103X C CAPACITOR 0.01uF 50V K C002 QETN1HM-106Z E CAPACITOR 10uF 50V M C003 NCB31HK-104X C CAPACITOR 0.1uF 50V K C004 QETN1CM-477Z E CAPACITOR 470uF 16V M C005 NCB31HK-222X C CAPACITOR 2200pF 50V K C006 QETN1CM-336Z E CAPACITOR 33uF 16V M C101 NCB31HK-472X C CAPACITOR 4700pF 50V K C102 NCB31HK-472X C CAPACITOR 4700pF 50V K C103 NCB31HK-472X C CAPACITOR 4700pF 50V K C104 QETN1HM-106Z E CAPACITOR 10uF 50V M C105 NCB31HK-472X C CAPACITOR 4700pF 50V K C106 NDC31HJ-180X C CAPACITOR 18pF 50V J C107 NCB31HK-103X C CAPACITOR 0.01uF 50V K C108 NCB31HK-472X C CAPACITOR 4700pF 50V K C109 NCB31HK-472X C CAPACITOR 4700pF 50V K C110 NCB31HK-104X C CAPACITOR 0.1uF 50V K C111 QETN1CM-477Z E CAPACITOR 470uF 16V M C341 QETN1CM-227Z E CAPACITOR 220uF 16V M C422 QCS32HJ-560Z C CAPACITOR 56pF 500V J C423 NDC31HJ-102X C CAPACITOR 1000pF 50V J C424 QFLC2AJ-683Z M CAPACITOR 0.068uF 100V J C427 QETN1VM-108Z E CAPACITOR 1000uF 35V M C428 QEHR1VM-107Z E CAPACITOR 100uF 35V M C430 QFLC2AJ-563Z M CAPACITOR 0.056uF 100V J C431 NCB31HK-104X C CAPACITOR 0.1uF 50V K C435 NCF21HZ-334X C CAPACITOR 0.33uF 50V Z C436 NCF21HZ-334X C CAPACITOR 0.33uF 50V Z C452 QETN1HM-226Z E CAPACITOR 22uF 50V M C453 QETN1HM-106Z E CAPACITOR 10uF 50V M C471 QETN1HM-106Z E CAPACITOR 10uF 50V M C520 NRSA63J-0R0X MG RESISTOR 0 C521 QCB31HK-332Z C CAPACITOR 3300pF 50V K C522 QFLC1HJ-223Z M CAPACITOR 0.022uF 50V J C523 QETN1VM-476Z E CAPACITOR 47uF 35V M



C524 QFZ0196-202 MPP CAPACITOR 2000pF 1.5kV H C525 QFZ0196-123 MPP CAPACITOR 0.012uF 1.5kV H C526 QFZ0196-252 MPP CAPACITOR 2500pF 1.5kV H C527 QFZ0197-224 MPP CAPACITOR 0.22uF 250V J C528 QFP32JJ-223 PP CAPACITOR 0.022uF 630V J C529 QENC2AM-225Z BP E CAPACITOR 2.2uF 100V M C530 QCB32HK-561Z C CAPACITOR 560pF 500V K C531 QEZ0195-475 BP E CAPACITOR 4.7uF 50V M C532 QETN2EM-106Z E CAPACITOR 10uF 250V M C551 QCB32HK-561Z C CAPACITOR 560pF 500V K C552 QCB32HK-561Z C CAPACITOR 560pF 500V K

Ω

1/16W J

3-6(No.YA104)



Ref No. Part No. Part Name Description Local



Ref No. Part No. Part Name Description Local

C553 QEHR1EM-108Z E CAPACITOR 1000uF 25V M C554 QEHR1EM-108Z E CAPACITOR 1000uF 25V M C555 QFLC2AJ-103Z M CAPACITOR 0.01uF 100V J C571 QETM2CM-227 E CAPACITOR 220uF 160V M C572 QETN1CM-107Z E CAPACITOR 100uF 16V M C573 QETN1EM-476Z E CAPACITOR 47uF 25V M C581 QFVF1HJ-104Z MF CAPACITOR 0.1uF 50V J C582 QFZ0197-204 MPP CAPACITOR 0.2uF 250V J C601 QETN1HM-106Z E CAPACITOR 10uF 50V M C602 QETN1HM-106Z E CAPACITOR 10uF 50V M C603 NCB31CK-224X C CAPACITOR 0.22uF 16V K C604 NCB31CK-224X C CAPACITOR 0.22uF 16V K C605 NCB31CK-224X C CAPACITOR 0.22uF 16V K C606 NCB31CK-224X C CAPACITOR 0.22uF 16V K C607 QETN1CM-227Z E CAPACITOR 220uF 16V M C608 QETN1CM-227Z E CAPACITOR 220uF 16V M C609 QETN1HM-225Z E CAPACITOR 2.2uF 50V M C610 QETN1HM-106Z E CAPACITOR 10uF 50V M C613 QETN1HM-106Z E CAPACITOR 10uF 50V M C656 QETN1HM-107Z E CAPACITOR 100uF 50V M C661 QETN1CM-227Z E CAPACITOR 220uF 16V M C701 NCB31CK-224X C CAPACITOR 0.22uF 16V K C702 NCB31CK-224X C CAPACITOR 0.22uF 16V K C703 QETN1AM-108Z E CAPACITOR 1000uF 10V M C704 NCB31HK-104X C CAPACITOR 0.1uF 50V K C705 NDC31HJ-3R0X C CAPACITOR 3pF 50V J C706 NDC31HJ-3R0X C CAPACITOR 3pF 50V J C707 NCB31HK-104X C CAPACITOR 0.1uF 50V K C708 QETN1CM-107Z E CAPACITOR 100uF 16V M C709 NCB31HK-103X C CAPACITOR 0.01uF 50V K C710 NCB31HK-682X C CAPACITOR 6800pF 50V K C711 QETN1HM-225Z E CAPACITOR 2.2uF 50V M C712 QFVF1HJ-224Z MF CAPACITOR 0.22uF 50V J C713 QETN1HM-106Z E CAPACITOR 10uF 50V M C714 NCB31HK-223X C CAPACITOR 0.022uF 50V K C715 NCB31HK-102X C CAPACITOR 1000pF 50V K C716 NCB31HK-102X C CAPACITOR 1000pF 50V K C717 NCB31HK-473X C CAPACITOR 0.047uF 50V K C718 QFVF1HJ-104Z MF CAPACITOR 0.1uF 50V J C719 NCB31HK-103X C CAPACITOR 0.01uF 50V K C720 NCB31HK-102X C CAPACITOR 1000pF 50V K C723 NCB21CK-105X C CAPACITOR 1uF 16V K C724 NCB21CK-105X C CAPACITOR 1uF 16V K C725 NCB31HK-104X C CAPACITOR 0.1uF 50V K C726 QETN1HM-106Z E CAPACITOR 10uF 50V M C727 NCB31HK-332X C CAPACITOR 3300pF 50V K C728 NCB31HK-104X C CAPACITOR 0.1uF 50V K C729 QETN1HM-225Z E CAPACITOR 2.2uF 50V M C730 QETN1HM-227Z E CAPACITOR 220uF 50V M C731 NCB31HK-104X C CAPACITOR 0.1uF 50V K C732 QETN1HM-225Z E CAPACITOR 2.2uF 50V M C733 QETN1HM-106Z E CAPACITOR 10uF 50V M C734 NCB31HK-104X C CAPACITOR 0.1uF 50V K C735 NCB31HK-104X C CAPACITOR 0.1uF 50V K C736 NCB31HK-103X C CAPACITOR 0.01uF 50V K C737 NCB31HK-104X C CAPACITOR 0.1uF 50V K C738 NCB21CK-105X C CAPACITOR 1uF 16V K C739 NCB21CK-105X C CAPACITOR 1uF 16V K C740 NCB31HK-104X C CAPACITOR 0.1uF 50V K C741 NCB31HK-104X C CAPACITOR 0.1uF 50V K C742 QETN1HM-106Z E CAPACITOR 10uF 50V M C743 QETN1HM-106Z E CAPACITOR 10uF 50V M C744 NCB31HK-104X C CAPACITOR 0.1uF 50V K C745 NCB31HK-104X C CAPACITOR 0.1uF 50V K C746 NCB31HK-104X C CAPACITOR 0.1uF 50V K C747 QETN1HM-106Z E CAPACITOR 10uF 50V M C748 NCB31HK-104X C CAPACITOR 0.1uF 50V K C749 NCB31HK-104X C CAPACITOR 0.1uF 50V K C750 NCB31HK-104X C CAPACITOR 0.1uF 50V K C751 NCB31HK-104X C CAPACITOR 0.1uF 50V K C752 NCB31HK-104X C CAPACITOR 0.1uF 50V K C753 NCB31HK-104X C CAPACITOR 0.1uF 50V K C754 NCB31HK-104X C CAPACITOR 0.1uF 50V K C755 QETN1HM-106Z E CAPACITOR 10uF 50V M C756 NCB31HK-104X C CAPACITOR 0.1uF 50V K C757 NDC31HJ-561X C CAPACITOR 560pF 50V J C758 NCB31CK-224X C CAPACITOR 0.22uF 16V K C759 QETN1CM-107Z E CAPACITOR 100uF 16V M C760 NCB31CK-224X C CAPACITOR 0.22uF 16V K C761 NCB31HK-104X C CAPACITOR 0.1uF 50V K C762 QETN1CM-107Z E CAPACITOR 100uF 16V M C763 NCB31CK-224X C CAPACITOR 0.22uF 16V K C764 NCB31HK-104X C CAPACITOR 0.1uF 50V K C765 QETN1CM-107Z E CAPACITOR 100uF 16V M C766 NCB31CK-224X C CAPACITOR 0.22uF 16V K C767 NCB31CK-224X C CAPACITOR 0.22uF 16V K C768 NCB31CK-224X C CAPACITOR 0.22uF 16V K

C769 NCB31HK-104X C CAPACITOR 0.1uF 50V K C770 NCB31HK-104X C CAPACITOR 0.1uF 50V K C771 MTZJ3.3A-T2 Z DIODE C772 NCB31CK-224X C CAPACITOR 0.22uF 16V K C773 QETN1HM-225Z E CAPACITOR 2.2uF 50V M C774 NCB31HK-104X C CAPACITOR 0.1uF 50V K C775 NCB31CK-224X C CAPACITOR 0.22uF 16V K C776 NCB31HK-104X C CAPACITOR 0.1uF 50V K C777 NCB31HK-104X C CAPACITOR 0.1uF 50V K C778 QETN1CM-476Z E CAPACITOR 47uF 16V M C779 QETN1HM-106Z E CAPACITOR 10uF 50V M C780 NCB31HK-104X C CAPACITOR 0.1uF 50V K C781 NCB21CK-105X C CAPACITOR 1uF 16V K C782 NCB21CK-105X C CAPACITOR 1uF 16V K C783 QETN1HM-105Z E CAPACITOR 1uF 50V M C784 MTZJ4.7B-T2 Z DIODE C785 NCB21EK-224X C CAPACITOR 0.22uF 25V K C789 QETN1HM-476Z E CAPACITOR 47uF 50V M C790 NDC31HJ-270X C CAPACITOR 27pF 50V J C792 NCB31HK-104X C CAPACITOR 0.1uF 50V K C802 QETN1HM-106Z E CAPACITOR 10uF 50V M C803 QETN1HM-106Z E CAPACITOR 10uF 50V M C804 QETN1CM-477Z E CAPACITOR 470uF 16V M



C901 QFZ9072-224 MM CAPACITOR 0.22uF AC250V K



C902 QFZ9077-104 MPP CAPACITOR 0.1uF 250V M C903 QCZ9015-102Z C CAPACITOR 1000pF AC250V Z C904 QCZ9015-102Z C CAPACITOR 1000pF AC250V Z C905 QCZ9015-102Z C CAPACITOR 1000pF AC250V Z C906 QEZ0633-337 E CAPACITOR 330uF 450V M C915 QCZ0325-391 C CAPACITOR 390pF 2kV K C917 QCB32HK-181Z C CAPACITOR 180pF 500V K C921 QETN1HM-226Z E CAPACITOR 22uF 50V M C922 NCB31HK-104X C CAPACITOR 0.1uF 50V K C924 QETN1HM-105Z E CAPACITOR 1uF 50V M C925 QETN2AM-226Z E CAPACITOR 22uF 100V M C926 QFLC1HJ-472Z M CAPACITOR 4700pF 50V J C928 QFLC1HJ-102Z M CAPACITOR 1000pF 50V J C929 QCB32HK-103 C CAPACITOR 0.01uF 500V K C931 QCZ0364-102 C CAPACITOR 1000pF 2kV K C940 QCZ0364-122 C CAPACITOR 1200pF 2kV K C945 QETN1HM-226Z E CAPACITOR 22uF 50V M C949 QETN1AM-228Z E CAPACITOR 2200uF 10V M C950 NCB31HK-104X C CAPACITOR 0.1uF 50V K C951 QCZ0364-561 C CAPACITOR 560pF 2kV K C952 QCB32HK-222Z C CAPACITOR 2200pF 500V K C953 QCB32HK-222Z C CAPACITOR 2200pF 500V K C954 QCB32HK-222Z C CAPACITOR 2200pF 500V K C955 QCB32HK-222Z C CAPACITOR 2200pF 500V K C956 QEZ0203-227 E CAPACITOR 220uF 160V M C957 QETN1AM-228Z E CAPACITOR 2200uF 10V M C958 QETN1EM-337Z E CAPACITOR 330uF 25V M C959 QETN1VM-337Z E CAPACITOR 330uF 35V M C960 QETM1VM-228 E CAPACITOR 2200uF 35V M C962 NCB31HK-104X C CAPACITOR 0.1uF 50V K C963 NCB31HK-102X C CAPACITOR 1000pF 50V K C964 QETN1VM-107Z E CAPACITOR 100uF 35V M C965 NCB31HK-104X C CAPACITOR 0.1uF 50V K C967 QETN1CM-477Z E CAPACITOR 470uF 16V M C968 QETN1CM-477Z E CAPACITOR 470uF 16V M C975 QETN1AM-477Z E CAPACITOR 470uF 10V M C976 NCB31HK-472X C CAPACITOR 4700pF 50V K C977 QETN1HM-476Z E CAPACITOR 47uF 50V M C978 QETN1HM-476Z E CAPACITOR 47uF 50V M C979 QETN1HM-475Z E CAPACITOR 4.7uF 50V M C980 QETN1CM-107Z E CAPACITOR 100uF 16V M C981 QETN1CM-107Z E CAPACITOR 100uF 16V M C982 QETN1CM-476Z E CAPACITOR 47uF 16V M C983 QETN1HM-106Z E CAPACITOR 10uF 50V M C984 QETN1HM-476Z E CAPACITOR 47uF 50V M C985 QETN1CM-476Z E CAPACITOR 47uF 16V M C986 NCB31HK-104X C CAPACITOR 0.1uF 50V K C987 QETN1HM-105Z E CAPACITOR 1uF 50V M C989 NCB31HK-104X C CAPACITOR 0.1uF 50V K



C991 QCZ9079-471 C CAPACITOR 470pF AC250V K



C992 QCZ9079-471 C CAPACITOR 470pF AC250V K



C993 QCZ9079-102 C CAPACITOR 1000pF AC250V M

Ω

R001 NRSA63J-221X MG RESISTOR 220 R002 NRSA63J-221X MG RESISTOR 220Ω 1/16W J R003 NRSA63J-392X MG RESISTOR 3.9k R004 NRSA63J-273X MG RESISTOR 27kΩ 1/16W J R005 NRSA63J-750X MG RESISTOR 75 R101 NRSA63J-100X MG RESISTOR 10 R102 NRSA63J-682X MG RESISTOR 6.8kΩ 1/16W J R103 NRSA63J-272X MG RESISTOR 2.7kΩ 1/16W J R104 NRSA63J-181X MG RESISTOR 180 R105 NRSA63J-220X MG RESISTOR 22

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

(No.YA104)3-7



Ref No. Part No. Part Name Description Local



Ref No. Part No. Part Name Description Local

R106 NRSA63J-101X MG RESISTOR 100Ω 1/16W J R107 NRSA63J-472X MG RESISTOR 4.7kΩ 1/16W J R108 NRSA63J-222X MG RESISTOR 2.2kΩ 1/16W J R109 NRSA63J-222X MG RESISTOR 2.2kΩ 1/16W J R110 NRSA63J-222X MG RESISTOR 2.2kΩ 1/16W J R341 NRSA63J-0R0X MG RESISTOR 0Ω 1/16W J R343 NRSA63J-0R0X MG RESISTOR 0Ω 1/16W J R344 NRSA63J-0R0X MG RESISTOR 0Ω 1/16W J R345 NRSA63J-0R0X MG RESISTOR 0Ω 1/16W J R411 NRSA63J-472X MG RESISTOR 4.7kΩ 1/16W J R412 NRSA63J-472X MG RESISTOR 4.7kΩ 1/16W J R426 NRSA63J-472X MG RESISTOR 4.7kΩ 1/16W J R427 NRSA63J-682X MG RESISTOR 6.8kΩ 1/16W J R430 NRSA63J-472X MG RESISTOR 4.7kΩ 1/16W J R432 QRX01GJ-1R2 MF RESISTOR 1.2Ω 1W J R433 QRE121J-3R9Y C RESISTOR 3.9Ω 1/2W J R434 NRSA63J-682X MG RESISTOR 6.8kΩ 1/16W J R438 NRSA63J-105X MG RESISTOR 1MΩ 1/16W J R440 QRG01GJ-331 OMF RESISTOR 330Ω 1W J R448 QRE121J-1R0Y C RESISTOR 1Ω 1/2W J R451 QRE121J-681Y C RESISTOR 680Ω 1/2W J R452 NRSA63J-272X MG RESISTOR 2.7kΩ 1/16W J R453 NRSA63J-223X MG RESISTOR 22kΩ 1/16W J R454 NRSA63J-562X MG RESISTOR 5.6kΩ 1/16W J R455 NRSA63J-123X MG RESISTOR 12kΩ 1/16W J R456 NRSA63J-562X MG RESISTOR 5.6k R457 NRSA63J-823X MG RESISTOR 82k R458 NRSA63J-333X MG RESISTOR 33kΩ 1/16W J R459 NRSA63J-822X MG RESISTOR 8.2kΩ 1/16W J R460 QRE121J-223Y C RESISTOR 22kΩ 1/2W J R461 NRSA63J-562X MG RESISTOR 5.6kΩ 1/16W J R462 NRSA63J-122X MG RESISTOR 1.2kΩ 1/16W J R463 NRSA63J-102X MG RESISTOR 1kΩ 1/16W J R464 QRL039J-330 OMF RESISTOR 33Ω 3W J R471 NRSA63J-105X MG RESISTOR 1MΩ 1/16W J R472 NRSA63J-124X MG RESISTOR 120kΩ 1/16W J R473 NRSA63J-683X MG RESISTOR 68kΩ 1/16W J R474 NRSA63J-224X MG RESISTOR 220kΩ 1/16W J R520 QRE141J-471Y C RESISTOR 470Ω 1/4W J R521 NRSA63J-104X MG RESISTOR 100kΩ 1/16W J R522 QRE121J-220Y C RESISTOR 22Ω 1/2W J R523 QRL029J-271 OMF RESISTOR 270Ω 2W J R524 QRL039J-121 OMF RESISTOR 120Ω 3W J R525 QRL039J-121 OMF RESISTOR 120Ω 3W J R527 QRL039J-393 OMF RESISTOR 39kΩ 3W J R528 QRE121J-471Y C RESISTOR 470Ω 1/2W J



R530 QRZ9017-4R7 FUSI RESISTOR 4.7Ω 1/4W J



R533 QRZ9017-4R7 FUSI RESISTOR 4.7Ω 1/4W J



R551 QRZ9021-1R0 FUSI RESISTOR 1Ω 1W J



R552 QRZ9021-1R0 FUSI RESISTOR 1Ω 1W J R554 NRSA63J-182X MG RESISTOR 1.8kΩ 1/16W J R571 QRZ0225-2R2 UNF RESISTOR 2.2Ω 7W K R572 QRA14CF-1202Y CMF RESISTOR 12kΩ 1/4W F R573 NRSA63J-332X MG RESISTOR 3.3kΩ 1/16W J R574 QRE121J-183Y C RESISTOR 18kΩ 1/2W J R575 NRSA63J-222X MG RESISTOR 2.2k R581 QRE121J-822Y C RESISTOR 8.2kΩ 1/2W J R582 QRE121J-823Y C RESISTOR 82k R583 QRE121J-184Y C RESISTOR 180k R601 NRSA63J-222X MG RESISTOR 2.2kΩ 1/16W J R602 NRSA63J-222X MG RESISTOR 2.2kΩ 1/16W J R603 NRSA63J-102X MG RESISTOR 1kΩ 1/16W J R604 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J R606 QRE121J-2R2Y C RESISTOR 2.2 R607 QRE121J-2R2Y C RESISTOR 2.2 R609 NRSA63J-273X MG RESISTOR 27k R610 NRSA63J-104X MG RESISTOR 100k R611 NRSA63J-822X MG RESISTOR 8.2k R612 NRSA63J-104X MG RESISTOR 100k R614 NRSA63J-104X MG RESISTOR 100k R618 NRSA63J-103X MG RESISTOR 10k R620 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J R621 NRSA63J-222X MG RESISTOR 2.2k R622 NRSA63J-103X MG RESISTOR 10k R623 NRSA63J-333X MG RESISTOR 33kΩ 1/16W J R624 NRSA63J-683X MG RESISTOR 68k R626 NRSA63J-271X MG RESISTOR 270Ω 1/16W J R628 NRSA63J-271X MG RESISTOR 270 R629 NRSA63J-332X MG RESISTOR 3.3kΩ 1/16W J R631 NRSA63J-332X MG RESISTOR 3.3k R632 NRSA63J-102X MG RESISTOR 1kΩ 1/16W J R701 NRSA63J-123X MG RESISTOR 12k R702 NRSA63J-101X MG RESISTOR 100 R703 NRSA63J-101X MG RESISTOR 100Ω 1/16W J R704 NRSA63J-101X MG RESISTOR 100Ω 1/16W J R705 NRSA63J-393X MG RESISTOR 39k R706 NRSA63J-221X MG RESISTOR 220

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/2W J

Ω

1/2W J

Ω

1/2W J

Ω

1/2W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

R707 NRSA63J-563X MG RESISTOR 56kΩ 1/16W J R708 NRSA63J-104X MG RESISTOR 100kΩ 1/16W J R709 NRSA63J-105X MG RESISTOR 1MΩ 1/16W J R711 NRSA63J-562X MG RESISTOR 5.6kΩ 1/16W J R712 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J R713 NRSA63J-562X MG RESISTOR 5.6kΩ 1/16W J R714 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J R715 NRSA63J-391X MG RESISTOR 390Ω 1/16W J R716 NRSA63J-562X MG RESISTOR 5.6kΩ 1/16W J R717 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J R718 NRSA63J-562X MG RESISTOR 5.6kΩ 1/16W J R719 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J R722 NRSA63J-471X MG RESISTOR 470Ω 1/16W J R723 NRSA63J-471X MG RESISTOR 470Ω 1/16W J R724 NRSA63J-102X MG RESISTOR 1kΩ 1/16W J R725 NRSA63J-470X MG RESISTOR 47Ω 1/16W J R726 NRSA63J-273X MG RESISTOR 27kΩ 1/16W J R727 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J R728 NRSA63J-101X MG RESISTOR 100Ω 1/16W J R729 NRSA63J-472X MG RESISTOR 4.7kΩ 1/16W J R730 NRSA63J-151X MG RESISTOR 150Ω 1/16W J R731 NRSA63J-102X MG RESISTOR 1kΩ 1/16W J R732 NRSA63J-102X MG RESISTOR 1kΩ 1/16W J R733 NRSA63J-101X MG RESISTOR 100Ω 1/16W J R734 NRSA63J-101X MG RESISTOR 100Ω 1/16W J R735 NRSA63J-101X MG RESISTOR 100 R736 NRSA63J-101X MG RESISTOR 100 R737 NRSA63J-332X MG RESISTOR 3.3kΩ 1/16W J R738 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J R739 NRSA63J-750X MG RESISTOR 75Ω 1/16W J R740 NRSA63J-153X MG RESISTOR 15kΩ 1/16W J R741 NRSA63J-221X MG RESISTOR 220Ω 1/16W J R742 NRSA63J-101X MG RESISTOR 100Ω 1/16W J R743 NRSA63J-332X MG RESISTOR 3.3kΩ 1/16W J R744 NRSA63J-101X MG RESISTOR 100Ω 1/16W J R745 NRSA63J-332X MG RESISTOR 3.3kΩ 1/16W J R746 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J R747 NRSA63J-101X MG RESISTOR 100Ω 1/16W J R748 NRSA63J-272X MG RESISTOR 2.7kΩ 1/16W J R749 NRSA63J-102X MG RESISTOR 1kΩ 1/16W J R751 NRSA63J-102X MG RESISTOR 1kΩ 1/16W J R752 NRSA63J-101X MG RESISTOR 100Ω 1/16W J R753 NRSA63J-122X MG RESISTOR 1.2kΩ 1/16W J R754 NRSA63J-221X MG RESISTOR 220Ω 1/16W J R755 NRSA63J-122X MG RESISTOR 1.2kΩ 1/16W J R756 NRSA63J-101X MG RESISTOR 100Ω 1/16W J R757 NRSA63J-472X MG RESISTOR 4.7kΩ 1/16W J R758 NRSA63J-332X MG RESISTOR 3.3kΩ 1/16W J R759 NRSA63J-332X MG RESISTOR 3.3kΩ 1/16W J R760 NRSA63J-101X MG RESISTOR 100Ω 1/16W J R761 NRSA63J-101X MG RESISTOR 100Ω 1/16W J R762 NRSA63J-221X MG RESISTOR 220Ω 1/16W J R763 NRSA63J-221X MG RESISTOR 220Ω 1/16W J R764 NRSA63J-221X MG RESISTOR 220Ω 1/16W J R765 NRSA63J-221X MG RESISTOR 220Ω 1/16W J R768 NRSA63J-101X MG RESISTOR 100 R771 NRSA63J-102X MG RESISTOR 1kΩ 1/16W J R772 NRSA63J-562X MG RESISTOR 5.6k R773 NRSA63J-103X MG RESISTOR 10k R774 NRSA63J-562X MG RESISTOR 5.6kΩ 1/16W J R775 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J R776 NRSA63J-153X MG RESISTOR 15kΩ 1/16W J R777 NRSA63J-101X MG RESISTOR 100Ω 1/16W J R779 NRSA63J-103X MG RESISTOR 10k R780 NRSA63J-104X MG RESISTOR 100k R781 NRSA63J-472X MG RESISTOR 4.7k R782 NRSA63J-122X MG RESISTOR 1.2k R783 NRSA63J-153X MG RESISTOR 15k R784 NRSA63J-103X MG RESISTOR 10k R785 NRSA63J-103X MG RESISTOR 10k R790 NRSA63J-102X MG RESISTOR 1k R791 QRE121J-102Y C RESISTOR 1kΩ 1/2W J R792 QRE123J-330X C RESISTOR 33 R793 NRSA63J-101X MG RESISTOR 100 R794 NRSA63J-222X MG RESISTOR 2.2kΩ 1/16W J R795 NRSA63J-104X MG RESISTOR 100k R796 NRSA63J-0R0X MG RESISTOR 0Ω 1/16W J R801 NRSA63J-750X MG RESISTOR 75 R802 NRSA63J-0R0X MG RESISTOR 0Ω 1/16W J R803 NRSA63J-0R0X MG RESISTOR 0 R804 NRSA63J-151X MG RESISTOR 150Ω 1/16W J R805 NRSA63J-750X MG RESISTOR 75 R806 NRSA63J-750X MG RESISTOR 75 R807 QRE121J-101Y C RESISTOR 100Ω 1/2W J R809 NRSA63J-0R0X MG RESISTOR 0Ω 1/16W J R810 NRSA63J-391X MG RESISTOR 390 R811 NRSA63J-823X MG RESISTOR 82k

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/2W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

3-8(No.YA104)



Ref No. Part No. Part Name Description Local



Ref No. Part No. Part Name Description Local

R812 NRSA63J-391X MG RESISTOR 390Ω 1/16W J R813 NRSA63J-823X MG RESISTOR 82kΩ 1/16W J R814 NRSA63J-104X MG RESISTOR 100kΩ 1/16W J R815 NRSA63J-750X MG RESISTOR 75Ω 1/16W J R816 NRSA63J-750X MG RESISTOR 75Ω 1/16W J R901 QRF154K-2R2 UNF WW RESISTOR 2.2Ω 15W K R902 QRL039J-823 OMF RESISTOR 82kΩ 3W J R921 QRE121J-101Y C RESISTOR 100Ω 1/2W J R922 QRZ0237-R18 UNF WW RESISTOR 0.18Ω 3W J R923 QRT029J-R47 MF RESISTOR 0.47Ω 2W J R924 NRSA63J-333X MG RESISTOR 33kΩ 1/16W J R929 NRSA63J-102X MG RESISTOR 1kΩ 1/16W J R930 QRL039J-473 OMF RESISTOR 47kΩ 3W J



R932 QRZ9017-100 FUSI RESISTOR 10Ω 1/4W J R933 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J R934 QRE121J-182Y C RESISTOR 1.8kΩ 1/2W J R935 QRE121J-102Y C RESISTOR 1kΩ 1/2W J R951 QRE121J-102Y C RESISTOR 1kΩ 1/2W J R953 QRE121J-332Y C RESISTOR 3.3kΩ 1/2W J R954 QRE121J-332Y C RESISTOR 3.3kΩ 1/2W J R955 NRSA63J-0R0X MG RESISTOR 0Ω 1/16W J R956 NRSA63J-0R0X MG RESISTOR 0Ω 1/16W J R957 NRSA63J-153X MG RESISTOR 15kΩ 1/16W J R958 NRSA63J-183X MG RESISTOR 18kΩ 1/16W J R959 NRSA63J-153X MG RESISTOR 15kΩ 1/16W J R960 QRE121J-223Y C RESISTOR 22k R962 QRL029J-223 OMF RESISTOR 22k R970 QRE121J-182Y C RESISTOR 1.8kΩ 1/2W J R973 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J R974 NRSA63J-102X MG RESISTOR 1kΩ 1/16W J R975 NRSA63J-222X MG RESISTOR 2.2kΩ 1/16W J R976 NRSA63J-391X MG RESISTOR 390Ω 1/16W J R978 NRSA63J-332X MG RESISTOR 3.3kΩ 1/16W J R980 NRSA63J-562X MG RESISTOR 5.6kΩ 1/16W J R981 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J



R991 QRZ9046-825Z C RESISTOR 8.2MΩ 1/2W K

L001 QQL244K-8R2Z PEAKING COIL 8.2uH K L002 QQL244J-4R7Z INDUCTIOR 4.7uH J L003 QQL244J-4R7Z INDUCTIOR 4.7uH J L101 QQLZ014-R82 COIL 0.82uH 100mA L L421 QQL26AK-220Z CHOKE COIL 22uH K L521 QQR1138-001 CHOKE COIL L522 QQR1243-001 LINEARITY COIL L530 QQL244K-220Z PEAKING COIL 22uH K L701 NQL092K-100X COIL 10uH K L702 NQL092K-100X COIL 10uH K L703 NQL092K-100X COIL 10uH K L704 NQL092K-100X COIL 10uH K L705 NQL092K-100X COIL 10uH K L706 NQL092K-100X COIL 10uH K L707 NQL092K-100X COIL 10uH K L708 NQL092K-100X COIL 10uH K L709 NQL092K-100X COIL 10uH K L710 NQL092K-100X COIL 10uH K L711 NQL092K-100X COIL 10uH K L712 NQL092K-100X COIL 10uH K L713 NQL092K-100X COIL 10uH K L714 NQL092K-100X COIL 10uH K L715 NQL092K-100X COIL 10uH K L716 NQL092K-100X COIL 10uH K L717 NQL092K-100X COIL 10uH K L951 QQLZ034-480 HEATER CHOKE 48uH L952 QQL26AK-820Z CHOKE COIL 82uH K L954 QQL244J-5R6Z COIL 5.6uH J L972 QQL244J-5R6Z COIL 5.6uH J L973 QQL244J-5R6Z COIL 5.6uH J L975 QQL26AK-820Z CHOKE COIL 82uH K T521 QQR1229-001 DRIVE TRANSF



T921 QQS0267-001 SW TRANSF



PC901 PS2581AL1/QW/ PHOTO COUPLER

CP650 ICP-N38-Y IC PROTECTOR 1.5A CP952 ICP-N38-Y IC PROTECTOR 1.5A CP953 ICP-N38-Y IC PROTECTOR 1.5A CP954 ICP-N38-Y IC PROTECTOR 1.5A CP955 ICP-N75-Y IC PROTECTOR 2.7A

J801 QNZ0454-002 PIN JACK VIDEO1 IN J802 QNN0349-002 PIN JACK J803 QNN0348-001 PIN JACK VIDEO2 L R IN J804 QNN0349-001 PIN JACK OUTPUT K107 QQR1114-001Z FERRITE BEADS K702 QQR1113-001Z FERRITE BEADS K901 QQR1114-001Z FERRITE BEADS K902 QQR1113-001Z FERRITE BEADS K921 QQR1114-001Z FERRITE BEADS

COMP/VIDEO2 IN

Ω

1/2W J

Ω

2W J

K922 QQR1113-001Z FERRITE BEADS K951 QQR1114-001Z FERRITE BEADS K952 QQR1114-001Z FERRITE BEADS K953 QQR1113-001Z FERRITE BEADS K954 QQR1113-001Z FERRITE BEADS K955 QQR1113-001Z FERRITE BEADS LC801 QQR1199-001 EMI FILTER LC802 QQR1199-001 EMI FILTER LC803 QQR1199-001 EMI FILTER LC804 QQR1199-001 EMI FILTER

LF902 QQR1356-001 LINE FILTER

SF101 QAX0663-001 SAW FILTER SF102 QAX0731-001 SAW FILTER TU001 QAU0383-001 TUNER X701 QAX0799-001Z CRYSTAL

CRT SOCKET P.W. BOARD ASS'Y (SCW-3001A-H2)



Ref No. Part No. Part Name Description Local

IC351 TDA6107AJF/N1 IC

Q203 KTC3199/YG/-T TRANSISTOR Q204 KTC3199/YG/-T TRANSISTOR Q206 KTA1267/YG/-T TRANSISTOR Q208 2SA2005/DE/ POW TRANSISTOR Q209 2SC5511/DE/ POW TRANSISTOR Q374 2SA1530A/QR/-X TRANSISTOR

D201 MA111-X SI DIODE D202 MA111-X SI DIODE D203 RGP10J-5025-T3 SI DIODE D204 RGP10J-5025-T3 SI DIODE D350 MA8075/M/-X Z DIODE D354 EU01N-T2 SI DIODE D355 EU01N-T2 SI DIODE D356 EU01N-T2 SI DIODE D357 EU01N-T2 SI DIODE D371 MA111-X SI DIODE D372 MA111-X SI DIODE

C201 QETN1CM-227Z E CAPACITOR 220uF 16V M C203 QETN1HM-106Z E CAPACITOR 10uF 50V M C204 NDC31HJ-471X C CAPACITOR 470pF 50V J C205 NCB31HK-561X C CAPACITOR 560pF 50V K C206 QETN1HM-335Z E CAPACITOR 3.3uF 50V M C207 QCS31HJ-5R0Z C CAPACITOR 5pF 50V J C209 QETN1CM-107Z E CAPACITOR 100uF 16V M C211 NDC31HJ-821X C CAPACITOR 820pF 50V J C212 QCB32HK-472Z C CAPACITOR 4700pF 500V K C213 NCB31HK-102X C CAPACITOR 1000pF 50V K C214 QETN2CM-106Z E CAPACITOR 10uF 160V M C215 QCB32HK-472Z C CAPACITOR 4700pF 500V K C216 QETN2CM-106Z E CAPACITOR 10uF 160V M C217 QETN1AM-107Z E CAPACITOR 100uF 10V M C218 QETN1AM-107Z E CAPACITOR 100uF 10V M C219 QETN1AM-337Z E CAPACITOR 330uF 10V M C220 QCS32HJ-680Z C CAPACITOR 68pF 500V J C351 NDC31HJ-101X C CAPACITOR 100pF 50V J C352 QETN2EM-475Z E CAPACITOR 4.7uF 250V M C353 QFKC2EK-104Z MM CAPACITOR 0.1uF 250V K C359 QCZ0131-222 C CAPACITOR 2200pF 2kV K C371 QETN1CM-107Z E CAPACITOR 100uF 16V M

Ω

R207 NRSA63J-0R0X MG RESISTOR 0 R208 NRSA63J-153X MG RESISTOR 15k R209 NRSA63J-152X MG RESISTOR 1.5k R210 NRSA63J-272X MG RESISTOR 2.7k R211 NRSA63J-152X MG RESISTOR 1.5k R212 NRSA63J-151X MG RESISTOR 150 R213 NRSA63J-221X MG RESISTOR 220 R214 QRJ146J-100X UNF C RESISTOR 10 R219 NRSA63J-470X MG RESISTOR 47 R220 NRSA63J-470X MG RESISTOR 47 R221 NRSA63J-122X MG RESISTOR 1.2kΩ 1/16W J R222 QRE121J-563Y C RESISTOR 56k R223 QRE121J-563Y C RESISTOR 56kΩ 1/2W J R224 NRSA63J-122X MG RESISTOR 1.2k R225 NRSA63J-390X MG RESISTOR 39Ω 1/16W J R226 QRE121J-2R7Y C RESISTOR 2.7 R227 QRE121J-2R7Y C RESISTOR 2.7Ω 1/2W J R228 NRSA63J-390X MG RESISTOR 39 R229 QRE121J-121Y C RESISTOR 120Ω 1/2W J R232 QRL029J-391 OMF RESISTOR 390 R351 NRSA63J-101X MG RESISTOR 100 R352 NRSA63J-101X MG RESISTOR 100Ω 1/16W J

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/4W J

Ω

1/16W J

Ω

1/16W J

Ω

1/2W J

Ω

1/16W J

Ω

1/2W J

Ω

1/16W J

Ω

2W J

Ω

1/16W J

(No.YA104)3-9



Ref No. Part No. Part Name Description Local



Ref No. Part No. Part Name Description Local

R353 NRSA63J-101X MG RESISTOR 100Ω 1/16W J R354 NRSA63J-101X MG RESISTOR 100Ω 1/16W J R355 QRC121K-561Z COMP RESISTOR 560Ω 1/2W K R356 QRC121K-561Z COMP RESISTOR 560Ω 1/2W K R357 QRC121K-561Z COMP RESISTOR 560Ω 1/2W K R358 QRZ0107-152Z C RESISTOR 1.5kΩ 1/2W K R359 QRZ0107-152Z C RESISTOR 1.5kΩ 1/2W K R360 QRZ0107-152Z C RESISTOR 1.5kΩ 1/2W K R369 QRZ9023-1R2 FUSI RESISTOR 1.2Ω 2W J R371 NRSA63J-333X MG RESISTOR 33kΩ 1/16W J R372 NRSA63J-333X MG RESISTOR 33kΩ 1/16W J R373 NRSA63J-333X MG RESISTOR 33kΩ 1/16W J R374 QRZ0107-474Z C RESISTOR 470kΩ 1/2W K R376 NRSA63J-682X MG RESISTOR 6.8kΩ 1/16W J R377 NRSA63J-123X MG RESISTOR 12kΩ 1/16W J

L351 QQL244J-5R6Z COIL 5.6uH J



FR201 QRZ9021-561 FUSI RESISTOR 560Ω 1W J K201 CE41492-001Z CHOKE COIL K202 CE41492-001Z CHOKE COIL K203 CE41492-001Z CHOKE COIL K205 CE41832-001 LEAD CORE K206 CE41832-001 LEAD CORE K208 QQR1113-001Z FERRITE BEADS



SK351 QNZ0536-001 CRT SOCKET

FRONT CONTROL P.W. BOARD ASS'Y (SCW-8001A-H2)



Ref No. Part No. Part Name Description Local

IC301 S9066-11 PHOTO CONDUCTOR IC481 LA6515 IC IC801 RPM7238-H5 IR DETECT UNIT

Q481 2SC3928A/QR/-X TRANSISTOR Q482 2SA1530A/QR/-X TRANSISTOR Q955 2SC3928A/QR/-X TRANSISTOR

D801 LH22440-T16 LED POWER D803 MA8091/H/-X Z DIODE D804 MA8091/H/-X Z DIODE D805 MA8091/H/-X Z DIODE D956 MA111-X SI DIODE D957 MA111-X SI DIODE

C301 QETN1HM-105Z E CAPACITOR 1uF 50V M C481 NCB31CK-224X C CAPACITOR 0.22uF 16V K C482 NCB31CK-224X C CAPACITOR 0.22uF 16V K C483 NCB31CK-224X C CAPACITOR 0.22uF 16V K C484 NCB31CK-224X C CAPACITOR 0.22uF 16V K C485 QETN1CM-476Z E CAPACITOR 47uF 16V M C487 QFLC1HJ-103Z M CAPACITOR 0.01uF 50V J C488 QETN1HM-105Z E CAPACITOR 1uF 50V M C489 NDC31HJ-561X C CAPACITOR 560pF 50V J C601 QETM1VM-108 E CAPACITOR 1000uF 35V M C602 QETM1VM-108 E CAPACITOR 1000uF 35V M C801 NCB31HK-104X C CAPACITOR 0.1uF 50V K C802 QETN1CM-107Z E CAPACITOR 100uF 16V M C804 NCB31HK-104X C CAPACITOR 0.1uF 50V K



C901 QFZ9072-224 MM CAPACITOR 0.22uF AC250V K



C902 QFZ9072-224 MM CAPACITOR 0.22uF AC250V K C965 QETN1CM-107Z E CAPACITOR 100uF 16V M

Ω

R301 NRSA63J-0R0X MG RESISTOR 0 R303 NRSA63J-334X MG RESISTOR 330k R304 NRSA63J-0R0X MG RESISTOR 0 R305 NRSA63J-0R0X MG RESISTOR 0 R307 NRSA63J-0R0X MG RESISTOR 0 R482 NRSA63J-124X MG RESISTOR 120k R483 NRSA63J-683X MG RESISTOR 68k R484 NRSA63J-682X MG RESISTOR 6.8k R485 NRSA63J-562X MG RESISTOR 5.6k R486 NRSA63J-333X MG RESISTOR 33k R487 NRSA63J-332X MG RESISTOR 3.3kΩ 1/16W J R488 NRSA63J-154X MG RESISTOR 150k R489 NRSA63J-104X MG RESISTOR 100kΩ 1/16W J R491 NRSA63J-0R0X MG RESISTOR 0 R492 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J R494 NRSA63J-683X MG RESISTOR 68k R495 NRSA63J-152X MG RESISTOR 1.5kΩ 1/16W J R496 NRSA63J-223X MG RESISTOR 22k R497 NRSA63J-562X MG RESISTOR 5.6kΩ 1/16W J R499 QRE121J-561Y C RESISTOR 560 R601 QRE121J-271Y C RESISTOR 270 R602 NRSA63J-102X MG RESISTOR 1kΩ 1/16W J

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/2W J

Ω

1/2W J

R603 NRSA63J-102X MG RESISTOR 1kΩ 1/16W J R604 QRE121J-271Y C RESISTOR 270Ω 1/2W J R801 NRSA63J-102X MG RESISTOR 1kΩ 1/16W J R802 NRSA63J-470X MG RESISTOR 47Ω 1/16W J R803 NRSA63J-471X MG RESISTOR 470Ω 1/16W J R806 NRSA63J-0R0X MG RESISTOR 0Ω 1/16W J R809 NRSA63J-0R0X MG RESISTOR 0Ω 1/16W J R811 NRSA63J-0R0X MG RESISTOR 0Ω 1/16W J R812 NRSA63J-181X MG RESISTOR 180Ω 1/16W J R813 NRSA63J-221X MG RESISTOR 220Ω 1/16W J R814 NRSA63J-331X MG RESISTOR 330Ω 1/16W J R815 NRSA63J-471X MG RESISTOR 470Ω 1/16W J R816 NRSA63J-821X MG RESISTOR 820Ω 1/16W J



R901 QRZ0111-474 C RESISTOR 470kΩ 1/2W K R960 NRSA63J-223X MG RESISTOR 22kΩ 1/16W J R961 NRSA63J-473X MG RESISTOR 47kΩ 1/16W J

L401 QQL244K-820Z PEAKING COIL 82uH K



F901 QMF51E2-4R0J4 FUSE 4A AC250V J801 QNS0155-001 3.5 JACK HEADPHONE J802 QNN0656-003 PIN JACK VIDEO3 V IN J803 QNN0656-002 PIN JACK VIDEO3 L IN J804 QNN0657-001 PIN JACK VIDEO3 R IN K401 QQR1114-001Z FERRITE BEADS K403 QQR1114-001Z FERRITE BEADS LC801 QQR1199-001 EMI FILTER



LF901 QQR1356-001 LINE FILTER



RY901 QSK0061-002 RELAY S801 QSW0619-003Z TACT SWITCH CH+ S802 QSW0619-003Z TACT SWITCH CHS803 QSW0619-003Z TACT SWITCH MENU S804 QSW0619-003Z TACT SWITCH TV/VIDEO S805 QSW0619-003Z TACT SWITCH VOL+ S806 QSW0619-003Z TACT SWITCH VOL-



S901 QSW0750-001 PUSH SWITCH POWER TH901 QAD0145-2R3 P THERMISTOR 2.3



VA901 QAF0060-621 VARISTOR 620V

LC41232-001A-H EE HOLDER CM36626-B01-H LED HOLDER

Ω

3-10(No.YA104)

PRINTED WIRING BOARD PARTS LIST [AV-29WX14/S]



MAIN P.W. BOARD ASS'Y (SCW-1025A-H2)



Ref No. Part No. Part Name Description Local

IC401 AN15526A IC IC451 UPC358G2-XE IC IC601 AN5277 IC IC701 TDA12027-ERAPF IC(MCU) (SERVICE) IC702 AT24C16-29VS24 IC (SERVICE) IC921 STR-W6756-F5 IC IC951 SE135N IC IC972 BA33BC0T IC IC973 PQ120RDA1SZ IC IC974 MM1561JF-X IC IC975 PQ050RDA1SZ IC IC976 MM1561JF-X IC

Q101 2SC5083/L-P/-T TRANSISTOR Q102 UN2212-X DIGI TRANSISTOR Q103 UN2212-X DIGI TRANSISTOR Q341 2SA1530A/QR/-X TRANSISTOR Q461 2SD1267A/QP/ POW TRANSISTOR Q521 BSN304-T TRANSISTOR



Q522 TT2142-YD TRANSISTOR Q571 2SA1208/ST/Z1-T TRANSISTOR Q572 UN2212-X DIGI TRANSISTOR Q601 2SA1530A/QR/-X TRANSISTOR Q602 2SA1530A/QR/-X TRANSISTOR Q603 DTC323TK-X DIGI TRANSISTOR Q605 DTC323TK-X DIGI TRANSISTOR Q607 2SC3928A/QR/-X TRANSISTOR Q608 2SC3928A/QR/-X TRANSISTOR Q609 UN2212-X DIGI TRANSISTOR Q611 UN2212-X DIGI TRANSISTOR Q702 2SC3928A/QR/-X TRANSISTOR Q703 2SA1530A/QR/-X TRANSISTOR Q704 2SC3928A/QR/-X TRANSISTOR Q705 SSM3K02F-X MOS FET Q706 SSM3K02F-X MOS FET Q707 2SC3928A/QR/-X TRANSISTOR Q708 2SA1530A/QR/-X TRANSISTOR Q791 DTC124ESA-T DIGI TRANSISTOR Q801 KTA1267/YG/-T TRANSISTOR Q803 DTC323TK-X DIGI TRANSISTOR Q804 DTC323TK-X DIGI TRANSISTOR Q805 2SA1530A/QR/-X TRANSISTOR Q921 2SC3852A POW TRANSISTOR Q951 2SC3928A/QR/-X TRANSISTOR Q952 2SC3928A/QR/-X TRANSISTOR Q957 2SC3928A/QR/-X TRANSISTOR Q958 2SA1013/RO/-T TRANSISTOR

D101 1SS268-X SI DIODE D341 MA111-X SI DIODE D342 MA111-X SI DIODE D343 MA111-X SI DIODE D345 MA111-X SI DIODE D422 MTZJ75-T2 Z DIODE D423 1N4003-T2 SI DIODE D451 MA8043/L/-X Z DIODE D471 1SR124-400A-T2 SI DIODE D472 MA111-X SI DIODE D521 RH3G-F1 SI DIODE D522 31DF6N-FC5 SI DIODE D523 RGP10J-5025-T3 SI DIODE D524 MA8091/H/-X Z DIODE D530 EU2-T3 SI DIODE D551 RGP10J-5025-T3 SI DIODE D552 RGP10J-5025-T3 SI DIODE D554 MA8051/L/-X Z DIODE D571 MA8075/H/-X Z DIODE D581 RGP10J-5025-T3 SI DIODE D601 MA111-X SI DIODE D603 MA111-X SI DIODE D604 MA8300/H/-X Z DIODE D605 MA8300/H/-X Z DIODE D607 MA111-X SI DIODE D701 MA111-X SI DIODE D702 MA8091/H/-X Z DIODE D704 MA8091/H/-X Z DIODE D706 MA8036-X Z DIODE D707 MA111-X SI DIODE D708 MA111-X SI DIODE D709 MA111-X SI DIODE D710 MA8091/H/-X Z DIODE D791 MA8062/M/-X Z DIODE D801 MA8091/H/-X Z DIODE

Ref No. Part No. Part Name Description Local

D802 MA8091/H/-X Z DIODE D803 MA8091/H/-X Z DIODE D804 MA8091/H/-X Z DIODE D810 MA8091/H/-X Z DIODE D811 MA8091/H/-X Z DIODE D812 MA8091/H/-X Z DIODE D901 GSIB460 BRIDGE DIODE D921 RGP10J-5025-T3 SI DIODE D922 1SS133-T2 SI DIODE D923 MA111-X SI DIODE D924 MA8330/M/-X Z DIODE D925 RGP10J-5025-T3 SI DIODE D926 RGP10M-5010-T3 SI DIODE D927 MA111-X SI DIODE D928 MA8240/M/-X Z DIODE D929 MA111-X SI DIODE D930 MA8240/M/-X Z DIODE D931 MA8062/M/-X Z DIODE D932 MTZJ36A-T2 Z DIODE D933 MTZJ9.1C-T2 Z DIODE D934 MTZJ9.1C-T2 Z DIODE D935 MTZJ9.1C-T2 Z DIODE D936 1SS133-T2 SI DIODE D951 31DF6N-FC5 SI DIODE D952 FSF05A20 SI DIODE D953 RGP10J-5025-T3 SI DIODE D954 RGP10J-5025-T3 SI DIODE D955 FSF05A20 SI DIODE D957 MA8039/H/-X Z DIODE D959 NRSA63J-0R0X MG RESISTOR 0Ω 1/16W J D960 NRSA63J-0R0X MG RESISTOR 0Ω 1/16W J D962 MA8330/M/-X Z DIODE D970 MA8082/M/-X Z DIODE D971 MA111-X SI DIODE D972 1SR124-400A-T2 SI DIODE D973 MA111-X SI DIODE D975 MA111-X SI DIODE D977 MA111-X SI DIODE

C001 NCB31HK-103X C CAPACITOR 0.01uF 50V K C002 QETN1HM-106Z E CAPACITOR 10uF 50V M C003 NCB31HK-104X C CAPACITOR 0.1uF 50V K C004 QETN1CM-477Z E CAPACITOR 470uF 16V M C005 NCB31HK-222X C CAPACITOR 2200pF 50V K C006 QETN1CM-336Z E CAPACITOR 33uF 16V M C101 NCB31HK-472X C CAPACITOR 4700pF 50V K C102 NCB31HK-472X C CAPACITOR 4700pF 50V K C103 NCB31HK-472X C CAPACITOR 4700pF 50V K C104 QETN1HM-106Z E CAPACITOR 10uF 50V M C105 NCB31HK-472X C CAPACITOR 4700pF 50V K C106 NDC31HJ-180X C CAPACITOR 18pF 50V J C107 NCB31HK-103X C CAPACITOR 0.01uF 50V K C108 NCB31HK-472X C CAPACITOR 4700pF 50V K C109 NCB31HK-472X C CAPACITOR 4700pF 50V K C110 NCB31HK-104X C CAPACITOR 0.1uF 50V K C111 QETN1CM-477Z E CAPACITOR 470uF 16V M C341 QETN1CM-227Z E CAPACITOR 220uF 16V M C422 QCS32HJ-560Z C CAPACITOR 56pF 500V J C423 NDC31HJ-102X C CAPACITOR 1000pF 50V J C424 QFLC2AJ-683Z M CAPACITOR 0.068uF 100V J C427 QETN1VM-108Z E CAPACITOR 1000uF 35V M C428 QEHR1VM-107Z E CAPACITOR 100uF 35V M C430 QFLC2AJ-563Z M CAPACITOR 0.056uF 100V J C431 NCB31HK-104X C CAPACITOR 0.1uF 50V K C435 NCF21HZ-334X C CAPACITOR 0.33uF 50V Z C436 NCF21HZ-334X C CAPACITOR 0.33uF 50V Z C452 QETN1HM-226Z E CAPACITOR 22uF 50V M C453 QETN1HM-106Z E CAPACITOR 10uF 50V M C471 QETN1HM-106Z E CAPACITOR 10uF 50V M C520 NRSA63J-0R0X MG RESISTOR 0 C521 QCB31HK-332Z C CAPACITOR 3300pF 50V K C522 QFLC1HJ-223Z M CAPACITOR 0.022uF 50V J C523 QETN1VM-476Z E CAPACITOR 47uF 35V M



C524 QFZ0196-202 MPP CAPACITOR 2000pF 1.5kV H C525 QFZ0196-123 MPP CAPACITOR 0.012uF 1.5kV H C526 QFZ0196-252 MPP CAPACITOR 2500pF 1.5kV H C527 QFZ0197-224 MPP CAPACITOR 0.22uF 250V J C528 QFP32JJ-223 PP CAPACITOR 0.022uF 630V J C529 QENC2AM-225Z BP E CAPACITOR 2.2uF 100V M C530 QCB32HK-561Z C CAPACITOR 560pF 500V K C531 QEZ0195-475 BP E CAPACITOR 4.7uF 50V M C532 QETN2EM-106Z E CAPACITOR 10uF 250V M C551 QCB32HK-561Z C CAPACITOR 560pF 500V K C552 QCB32HK-561Z C CAPACITOR 560pF 500V K

Ω

1/16W J

(No.YA104)3-11



Ref No. Part No. Part Name Description Local



Ref No. Part No. Part Name Description Local

C553 QEHR1EM-108Z E CAPACITOR 1000uF 25V M C554 QEHR1EM-108Z E CAPACITOR 1000uF 25V M C555 QFLC2AJ-103Z M CAPACITOR 0.01uF 100V J C571 QETM2CM-227 E CAPACITOR 220uF 160V M C572 QETN1CM-107Z E CAPACITOR 100uF 16V M C573 QETN1EM-476Z E CAPACITOR 47uF 25V M C581 QFVF1HJ-104Z MF CAPACITOR 0.1uF 50V J C582 QFZ0197-204 MPP CAPACITOR 0.2uF 250V J C601 QETN1HM-106Z E CAPACITOR 10uF 50V M C602 QETN1HM-106Z E CAPACITOR 10uF 50V M C603 NCB31CK-224X C CAPACITOR 0.22uF 16V K C604 NCB31CK-224X C CAPACITOR 0.22uF 16V K C605 NCB31CK-224X C CAPACITOR 0.22uF 16V K C606 NCB31CK-224X C CAPACITOR 0.22uF 16V K C607 QETN1CM-227Z E CAPACITOR 220uF 16V M C608 QETN1CM-227Z E CAPACITOR 220uF 16V M C609 QETN1HM-225Z E CAPACITOR 2.2uF 50V M C610 QETN1HM-106Z E CAPACITOR 10uF 50V M C613 QETN1HM-106Z E CAPACITOR 10uF 50V M C656 QETN1HM-107Z E CAPACITOR 100uF 50V M C661 QETN1CM-227Z E CAPACITOR 220uF 16V M C701 NCB31CK-224X C CAPACITOR 0.22uF 16V K C702 NCB31CK-224X C CAPACITOR 0.22uF 16V K C703 QETN1AM-108Z E CAPACITOR 1000uF 10V M C704 NCB31HK-104X C CAPACITOR 0.1uF 50V K C705 NDC31HJ-3R0X C CAPACITOR 3pF 50V J C706 NDC31HJ-3R0X C CAPACITOR 3pF 50V J C707 NCB31HK-104X C CAPACITOR 0.1uF 50V K C708 QETN1CM-107Z E CAPACITOR 100uF 16V M C709 NCB31HK-103X C CAPACITOR 0.01uF 50V K C710 NCB31HK-682X C CAPACITOR 6800pF 50V K C711 QETN1HM-225Z E CAPACITOR 2.2uF 50V M C712 QFVF1HJ-224Z MF CAPACITOR 0.22uF 50V J C713 QETN1HM-106Z E CAPACITOR 10uF 50V M C714 NCB31HK-223X C CAPACITOR 0.022uF 50V K C715 NCB31HK-102X C CAPACITOR 1000pF 50V K C716 NCB31HK-102X C CAPACITOR 1000pF 50V K C717 NCB31HK-473X C CAPACITOR 0.047uF 50V K C718 QFVF1HJ-104Z MF CAPACITOR 0.1uF 50V J C719 NCB31HK-103X C CAPACITOR 0.01uF 50V K C720 NCB31HK-102X C CAPACITOR 1000pF 50V K C723 NCB21CK-105X C CAPACITOR 1uF 16V K C724 NCB21CK-105X C CAPACITOR 1uF 16V K C725 NCB31HK-104X C CAPACITOR 0.1uF 50V K C726 QETN1HM-106Z E CAPACITOR 10uF 50V M C727 NCB31HK-332X C CAPACITOR 3300pF 50V K C728 NCB31HK-104X C CAPACITOR 0.1uF 50V K C729 QETN1HM-225Z E CAPACITOR 2.2uF 50V M C730 QETN1HM-227Z E CAPACITOR 220uF 50V M C731 NCB31HK-104X C CAPACITOR 0.1uF 50V K C732 QETN1HM-225Z E CAPACITOR 2.2uF 50V M C733 QETN1HM-106Z E CAPACITOR 10uF 50V M C734 NCB31HK-104X C CAPACITOR 0.1uF 50V K C735 NCB31HK-104X C CAPACITOR 0.1uF 50V K C736 NCB31HK-103X C CAPACITOR 0.01uF 50V K C737 NCB31HK-104X C CAPACITOR 0.1uF 50V K C738 NCB21CK-105X C CAPACITOR 1uF 16V K C739 NCB21CK-105X C CAPACITOR 1uF 16V K C740 NCB31HK-104X C CAPACITOR 0.1uF 50V K C741 NCB31HK-104X C CAPACITOR 0.1uF 50V K C742 QETN1HM-106Z E CAPACITOR 10uF 50V M C743 QETN1HM-106Z E CAPACITOR 10uF 50V M C744 NCB31HK-104X C CAPACITOR 0.1uF 50V K C745 NCB31HK-104X C CAPACITOR 0.1uF 50V K C746 NCB31HK-104X C CAPACITOR 0.1uF 50V K C747 QETN1HM-106Z E CAPACITOR 10uF 50V M C748 NCB31HK-104X C CAPACITOR 0.1uF 50V K C749 NCB31HK-104X C CAPACITOR 0.1uF 50V K C750 NCB31HK-104X C CAPACITOR 0.1uF 50V K C751 NCB31HK-104X C CAPACITOR 0.1uF 50V K C752 NCB31HK-104X C CAPACITOR 0.1uF 50V K C753 NCB31HK-104X C CAPACITOR 0.1uF 50V K C754 NCB31HK-104X C CAPACITOR 0.1uF 50V K C755 QETN1HM-106Z E CAPACITOR 10uF 50V M C756 NCB31HK-104X C CAPACITOR 0.1uF 50V K C757 NDC31HJ-561X C CAPACITOR 560pF 50V J C758 NCB31CK-224X C CAPACITOR 0.22uF 16V K C759 QETN1CM-107Z E CAPACITOR 100uF 16V M C760 NCB31CK-224X C CAPACITOR 0.22uF 16V K C761 NCB31HK-104X C CAPACITOR 0.1uF 50V K C762 QETN1CM-107Z E CAPACITOR 100uF 16V M C763 NCB31CK-224X C CAPACITOR 0.22uF 16V K C764 NCB31HK-104X C CAPACITOR 0.1uF 50V K C765 QETN1CM-107Z E CAPACITOR 100uF 16V M C766 NCB31CK-224X C CAPACITOR 0.22uF 16V K C767 NCB31CK-224X C CAPACITOR 0.22uF 16V K C768 NCB31CK-224X C CAPACITOR 0.22uF 16V K

C769 NCB31HK-104X C CAPACITOR 0.1uF 50V K C770 NCB31HK-104X C CAPACITOR 0.1uF 50V K C771 MTZJ3.3A-T2 Z DIODE C772 NCB31CK-224X C CAPACITOR 0.22uF 16V K C773 QETN1HM-225Z E CAPACITOR 2.2uF 50V M C774 NCB31HK-104X C CAPACITOR 0.1uF 50V K C775 NCB31CK-224X C CAPACITOR 0.22uF 16V K C776 NCB31HK-104X C CAPACITOR 0.1uF 50V K C777 NCB31HK-104X C CAPACITOR 0.1uF 50V K C778 QETN1CM-476Z E CAPACITOR 47uF 16V M C779 QETN1HM-106Z E CAPACITOR 10uF 50V M C780 NCB31HK-104X C CAPACITOR 0.1uF 50V K C781 NCB21CK-105X C CAPACITOR 1uF 16V K C782 NCB21CK-105X C CAPACITOR 1uF 16V K C783 QETN1HM-105Z E CAPACITOR 1uF 50V M C784 MTZJ4.7B-T2 Z DIODE C785 NCB21EK-224X C CAPACITOR 0.22uF 25V K C789 QETN1HM-476Z E CAPACITOR 47uF 50V M C790 NDC31HJ-270X C CAPACITOR 27pF 50V J C792 NCB31HK-104X C CAPACITOR 0.1uF 50V K C802 QETN1HM-106Z E CAPACITOR 10uF 50V M C803 QETN1HM-106Z E CAPACITOR 10uF 50V M C804 QETN1CM-477Z E CAPACITOR 470uF 16V M



C901 QFZ9072-224 MM CAPACITOR 0.22uF AC250V K



C902 QFZ9077-104 MPP CAPACITOR 0.1uF 250V M C903 QCZ9015-102Z C CAPACITOR 1000pF AC250V Z C904 QCZ9015-102Z C CAPACITOR 1000pF AC250V Z C905 QCZ9015-102Z C CAPACITOR 1000pF AC250V Z C906 QEZ0633-337 E CAPACITOR 330uF 450V M C915 QCZ0325-391 C CAPACITOR 390pF 2kV K C917 QCB32HK-181Z C CAPACITOR 180pF 500V K C921 QETN1HM-226Z E CAPACITOR 22uF 50V M C922 NCB31HK-104X C CAPACITOR 0.1uF 50V K C924 QETN1HM-105Z E CAPACITOR 1uF 50V M C925 QETN2AM-226Z E CAPACITOR 22uF 100V M C926 QFLC1HJ-472Z M CAPACITOR 4700pF 50V J C928 QFLC1HJ-102Z M CAPACITOR 1000pF 50V J C929 QCB32HK-103 C CAPACITOR 0.01uF 500V K C931 QCZ0364-102 C CAPACITOR 1000pF 2kV K C940 QCZ0364-122 C CAPACITOR 1200pF 2kV K C945 QETN1HM-226Z E CAPACITOR 22uF 50V M C949 QETN1AM-228Z E CAPACITOR 2200uF 10V M C950 NCB31HK-104X C CAPACITOR 0.1uF 50V K C951 QCZ0364-561 C CAPACITOR 560pF 2kV K C952 QCB32HK-222Z C CAPACITOR 2200pF 500V K C953 QCB32HK-222Z C CAPACITOR 2200pF 500V K C954 QCB32HK-222Z C CAPACITOR 2200pF 500V K C955 QCB32HK-222Z C CAPACITOR 2200pF 500V K C956 QEZ0203-227 E CAPACITOR 220uF 160V M C957 QETN1AM-228Z E CAPACITOR 2200uF 10V M C958 QETN1EM-337Z E CAPACITOR 330uF 25V M C959 QETN1VM-337Z E CAPACITOR 330uF 35V M C960 QETM1VM-228 E CAPACITOR 2200uF 35V M C962 NCB31HK-104X C CAPACITOR 0.1uF 50V K C963 NCB31HK-102X C CAPACITOR 1000pF 50V K C964 QETN1VM-107Z E CAPACITOR 100uF 35V M C965 NCB31HK-104X C CAPACITOR 0.1uF 50V K C967 QETN1CM-477Z E CAPACITOR 470uF 16V M C968 QETN1CM-477Z E CAPACITOR 470uF 16V M C975 QETN1AM-477Z E CAPACITOR 470uF 10V M C976 NCB31HK-472X C CAPACITOR 4700pF 50V K C977 QETN1HM-476Z E CAPACITOR 47uF 50V M C978 QETN1HM-476Z E CAPACITOR 47uF 50V M C979 QETN1HM-475Z E CAPACITOR 4.7uF 50V M C980 QETN1CM-107Z E CAPACITOR 100uF 16V M C981 QETN1CM-107Z E CAPACITOR 100uF 16V M C982 QETN1CM-476Z E CAPACITOR 47uF 16V M C983 QETN1HM-106Z E CAPACITOR 10uF 50V M C984 QETN1HM-476Z E CAPACITOR 47uF 50V M C985 QETN1CM-476Z E CAPACITOR 47uF 16V M C986 NCB31HK-104X C CAPACITOR 0.1uF 50V K C987 QETN1HM-105Z E CAPACITOR 1uF 50V M C989 NCB31HK-104X C CAPACITOR 0.1uF 50V K



C991 QCZ9079-471 C CAPACITOR 470pF AC250V K



C992 QCZ9079-471 C CAPACITOR 470pF AC250V K



C993 QCZ9079-102 C CAPACITOR 1000pF AC250V M

Ω

R001 NRSA63J-221X MG RESISTOR 220 R002 NRSA63J-221X MG RESISTOR 220Ω 1/16W J R003 NRSA63J-392X MG RESISTOR 3.9k R004 NRSA63J-273X MG RESISTOR 27kΩ 1/16W J R005 NRSA63J-750X MG RESISTOR 75 R101 NRSA63J-100X MG RESISTOR 10 R102 NRSA63J-682X MG RESISTOR 6.8kΩ 1/16W J R103 NRSA63J-272X MG RESISTOR 2.7kΩ 1/16W J R104 NRSA63J-181X MG RESISTOR 180 R105 NRSA63J-220X MG RESISTOR 22

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

3-12(No.YA104)



Ref No. Part No. Part Name Description Local



Ref No. Part No. Part Name Description Local

R106 NRSA63J-101X MG RESISTOR 100Ω 1/16W J R107 NRSA63J-472X MG RESISTOR 4.7kΩ 1/16W J R108 NRSA63J-222X MG RESISTOR 2.2kΩ 1/16W J R109 NRSA63J-222X MG RESISTOR 2.2kΩ 1/16W J R110 NRSA63J-222X MG RESISTOR 2.2kΩ 1/16W J R341 NRSA63J-0R0X MG RESISTOR 0Ω 1/16W J R343 NRSA63J-0R0X MG RESISTOR 0Ω 1/16W J R344 NRSA63J-0R0X MG RESISTOR 0Ω 1/16W J R345 NRSA63J-0R0X MG RESISTOR 0Ω 1/16W J R411 NRSA63J-472X MG RESISTOR 4.7kΩ 1/16W J R412 NRSA63J-472X MG RESISTOR 4.7kΩ 1/16W J R426 NRSA63J-472X MG RESISTOR 4.7kΩ 1/16W J R427 NRSA63J-682X MG RESISTOR 6.8kΩ 1/16W J R430 NRSA63J-472X MG RESISTOR 4.7kΩ 1/16W J R432 QRX01GJ-1R2 MF RESISTOR 1.2Ω 1W J R433 QRE121J-3R9Y C RESISTOR 3.9Ω 1/2W J R434 NRSA63J-682X MG RESISTOR 6.8kΩ 1/16W J R438 NRSA63J-105X MG RESISTOR 1MΩ 1/16W J R440 QRG01GJ-331 OMF RESISTOR 330Ω 1W J R448 QRE121J-1R0Y C RESISTOR 1Ω 1/2W J R451 QRE121J-681Y C RESISTOR 680Ω 1/2W J R452 NRSA63J-272X MG RESISTOR 2.7kΩ 1/16W J R453 NRSA63J-223X MG RESISTOR 22kΩ 1/16W J R454 NRSA63J-562X MG RESISTOR 5.6kΩ 1/16W J R455 NRSA63J-123X MG RESISTOR 12kΩ 1/16W J R456 NRSA63J-562X MG RESISTOR 5.6k R457 NRSA63J-823X MG RESISTOR 82k R458 NRSA63J-333X MG RESISTOR 33kΩ 1/16W J R459 NRSA63J-822X MG RESISTOR 8.2kΩ 1/16W J R460 QRE121J-223Y C RESISTOR 22kΩ 1/2W J R461 NRSA63J-562X MG RESISTOR 5.6kΩ 1/16W J R462 NRSA63J-122X MG RESISTOR 1.2kΩ 1/16W J R463 NRSA63J-102X MG RESISTOR 1kΩ 1/16W J R464 QRL039J-330 OMF RESISTOR 33Ω 3W J R471 NRSA63J-105X MG RESISTOR 1MΩ 1/16W J R472 NRSA63J-124X MG RESISTOR 120kΩ 1/16W J R473 NRSA63J-683X MG RESISTOR 68kΩ 1/16W J R474 NRSA63J-224X MG RESISTOR 220kΩ 1/16W J R520 QRE141J-471Y C RESISTOR 470Ω 1/4W J R521 NRSA63J-104X MG RESISTOR 100kΩ 1/16W J R522 QRE121J-220Y C RESISTOR 22Ω 1/2W J R523 QRL029J-271 OMF RESISTOR 270Ω 2W J R524 QRL039J-121 OMF RESISTOR 120Ω 3W J R525 QRL039J-121 OMF RESISTOR 120Ω 3W J R527 QRL039J-393 OMF RESISTOR 39kΩ 3W J R528 QRE121J-471Y C RESISTOR 470Ω 1/2W J



R530 QRZ9017-4R7 FUSI RESISTOR 4.7Ω 1/4W J



R533 QRZ9017-4R7 FUSI RESISTOR 4.7Ω 1/4W J



R551 QRZ9021-1R0 FUSI RESISTOR 1Ω 1W J



R552 QRZ9021-1R0 FUSI RESISTOR 1Ω 1W J R554 NRSA63J-182X MG RESISTOR 1.8kΩ 1/16W J R571 QRZ0225-2R2 UNF RESISTOR 2.2Ω 7W K R572 QRA14CF-1202Y CMF RESISTOR 12kΩ 1/4W F R573 NRSA63J-332X MG RESISTOR 3.3kΩ 1/16W J R574 QRE121J-183Y C RESISTOR 18kΩ 1/2W J R575 NRSA63J-222X MG RESISTOR 2.2k R581 QRE121J-822Y C RESISTOR 8.2kΩ 1/2W J R582 QRE121J-823Y C RESISTOR 82k R583 QRE121J-184Y C RESISTOR 180k R601 NRSA63J-222X MG RESISTOR 2.2kΩ 1/16W J R602 NRSA63J-222X MG RESISTOR 2.2kΩ 1/16W J R603 NRSA63J-102X MG RESISTOR 1kΩ 1/16W J R604 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J R606 QRE121J-2R2Y C RESISTOR 2.2 R607 QRE121J-2R2Y C RESISTOR 2.2 R609 NRSA63J-273X MG RESISTOR 27k R610 NRSA63J-104X MG RESISTOR 100k R611 NRSA63J-822X MG RESISTOR 8.2k R612 NRSA63J-104X MG RESISTOR 100k R614 NRSA63J-104X MG RESISTOR 100k R618 NRSA63J-103X MG RESISTOR 10k R620 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J R621 NRSA63J-222X MG RESISTOR 2.2k R622 NRSA63J-103X MG RESISTOR 10k R623 NRSA63J-333X MG RESISTOR 33kΩ 1/16W J R624 NRSA63J-683X MG RESISTOR 68k R626 NRSA63J-271X MG RESISTOR 270Ω 1/16W J R628 NRSA63J-271X MG RESISTOR 270 R629 NRSA63J-332X MG RESISTOR 3.3kΩ 1/16W J R631 NRSA63J-332X MG RESISTOR 3.3k R632 NRSA63J-102X MG RESISTOR 1kΩ 1/16W J R701 NRSA63J-123X MG RESISTOR 12k R702 NRSA63J-101X MG RESISTOR 100 R703 NRSA63J-101X MG RESISTOR 100Ω 1/16W J R704 NRSA63J-101X MG RESISTOR 100Ω 1/16W J R705 NRSA63J-393X MG RESISTOR 39k R706 NRSA63J-221X MG RESISTOR 220

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/2W J

Ω

1/2W J

Ω

1/2W J

Ω

1/2W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

R707 NRSA63J-563X MG RESISTOR 56kΩ 1/16W J R708 NRSA63J-104X MG RESISTOR 100kΩ 1/16W J R709 NRSA63J-105X MG RESISTOR 1MΩ 1/16W J R711 NRSA63J-562X MG RESISTOR 5.6kΩ 1/16W J R712 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J R713 NRSA63J-562X MG RESISTOR 5.6kΩ 1/16W J R714 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J R715 NRSA63J-391X MG RESISTOR 390Ω 1/16W J R716 NRSA63J-562X MG RESISTOR 5.6kΩ 1/16W J R717 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J R718 NRSA63J-562X MG RESISTOR 5.6kΩ 1/16W J R719 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J R722 NRSA63J-471X MG RESISTOR 470Ω 1/16W J R723 NRSA63J-471X MG RESISTOR 470Ω 1/16W J R724 NRSA63J-102X MG RESISTOR 1kΩ 1/16W J R725 NRSA63J-470X MG RESISTOR 47Ω 1/16W J R726 NRSA63J-273X MG RESISTOR 27kΩ 1/16W J R727 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J R728 NRSA63J-101X MG RESISTOR 100Ω 1/16W J R729 NRSA63J-472X MG RESISTOR 4.7kΩ 1/16W J R730 NRSA63J-151X MG RESISTOR 150Ω 1/16W J R731 NRSA63J-102X MG RESISTOR 1kΩ 1/16W J R732 NRSA63J-102X MG RESISTOR 1kΩ 1/16W J R733 NRSA63J-101X MG RESISTOR 100Ω 1/16W J R734 NRSA63J-101X MG RESISTOR 100Ω 1/16W J R735 NRSA63J-101X MG RESISTOR 100 R736 NRSA63J-101X MG RESISTOR 100 R737 NRSA63J-332X MG RESISTOR 3.3kΩ 1/16W J R738 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J R739 NRSA63J-750X MG RESISTOR 75Ω 1/16W J R740 NRSA63J-153X MG RESISTOR 15kΩ 1/16W J R741 NRSA63J-221X MG RESISTOR 220Ω 1/16W J R742 NRSA63J-101X MG RESISTOR 100Ω 1/16W J R743 NRSA63J-332X MG RESISTOR 3.3kΩ 1/16W J R744 NRSA63J-101X MG RESISTOR 100Ω 1/16W J R745 NRSA63J-332X MG RESISTOR 3.3kΩ 1/16W J R746 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J R747 NRSA63J-101X MG RESISTOR 100Ω 1/16W J R748 NRSA63J-272X MG RESISTOR 2.7kΩ 1/16W J R749 NRSA63J-102X MG RESISTOR 1kΩ 1/16W J R751 NRSA63J-102X MG RESISTOR 1kΩ 1/16W J R752 NRSA63J-101X MG RESISTOR 100Ω 1/16W J R753 NRSA63J-122X MG RESISTOR 1.2kΩ 1/16W J R754 NRSA63J-221X MG RESISTOR 220Ω 1/16W J R755 NRSA63J-122X MG RESISTOR 1.2kΩ 1/16W J R756 NRSA63J-101X MG RESISTOR 100Ω 1/16W J R757 NRSA63J-472X MG RESISTOR 4.7kΩ 1/16W J R758 NRSA63J-332X MG RESISTOR 3.3kΩ 1/16W J R759 NRSA63J-332X MG RESISTOR 3.3kΩ 1/16W J R760 NRSA63J-101X MG RESISTOR 100Ω 1/16W J R761 NRSA63J-101X MG RESISTOR 100Ω 1/16W J R762 NRSA63J-221X MG RESISTOR 220Ω 1/16W J R763 NRSA63J-221X MG RESISTOR 220Ω 1/16W J R764 NRSA63J-221X MG RESISTOR 220Ω 1/16W J R765 NRSA63J-221X MG RESISTOR 220Ω 1/16W J R768 NRSA63J-101X MG RESISTOR 100 R771 NRSA63J-102X MG RESISTOR 1kΩ 1/16W J R772 NRSA63J-562X MG RESISTOR 5.6k R773 NRSA63J-103X MG RESISTOR 10k R774 NRSA63J-562X MG RESISTOR 5.6kΩ 1/16W J R775 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J R776 NRSA63J-153X MG RESISTOR 15kΩ 1/16W J R777 NRSA63J-101X MG RESISTOR 100Ω 1/16W J R779 NRSA63J-103X MG RESISTOR 10k R780 NRSA63J-104X MG RESISTOR 100k R781 NRSA63J-472X MG RESISTOR 4.7k R782 NRSA63J-122X MG RESISTOR 1.2k R783 NRSA63J-153X MG RESISTOR 15k R784 NRSA63J-103X MG RESISTOR 10k R785 NRSA63J-103X MG RESISTOR 10k R790 NRSA63J-102X MG RESISTOR 1k R791 QRE121J-102Y C RESISTOR 1kΩ 1/2W J R792 QRE123J-330X C RESISTOR 33 R793 NRSA63J-101X MG RESISTOR 100 R794 NRSA63J-222X MG RESISTOR 2.2kΩ 1/16W J R795 NRSA63J-104X MG RESISTOR 100k R796 NRSA63J-0R0X MG RESISTOR 0Ω 1/16W J R801 NRSA63J-750X MG RESISTOR 75 R802 NRSA63J-0R0X MG RESISTOR 0Ω 1/16W J R803 NRSA63J-0R0X MG RESISTOR 0 R804 NRSA63J-151X MG RESISTOR 150Ω 1/16W J R805 NRSA63J-750X MG RESISTOR 75 R806 NRSA63J-750X MG RESISTOR 75 R807 QRE121J-101Y C RESISTOR 100Ω 1/2W J R809 NRSA63J-0R0X MG RESISTOR 0Ω 1/16W J R810 NRSA63J-391X MG RESISTOR 390 R811 NRSA63J-823X MG RESISTOR 82k

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/2W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

(No.YA104)3-13



Ref No. Part No. Part Name Description Local



Ref No. Part No. Part Name Description Local

R812 NRSA63J-391X MG RESISTOR 390Ω 1/16W J R813 NRSA63J-823X MG RESISTOR 82kΩ 1/16W J R814 NRSA63J-104X MG RESISTOR 100kΩ 1/16W J R815 NRSA63J-750X MG RESISTOR 75Ω 1/16W J R816 NRSA63J-750X MG RESISTOR 75Ω 1/16W J R901 QRF154K-2R2 UNF WW RESISTOR 2.2Ω 15W K R902 QRL039J-823 OMF RESISTOR 82kΩ 3W J R921 QRE121J-101Y C RESISTOR 100Ω 1/2W J R922 QRZ0237-R18 UNF WW RESISTOR 0.18Ω 3W J R923 QRT029J-R47 MF RESISTOR 0.47Ω 2W J R924 NRSA63J-333X MG RESISTOR 33kΩ 1/16W J R929 NRSA63J-102X MG RESISTOR 1kΩ 1/16W J R930 QRL039J-473 OMF RESISTOR 47kΩ 3W J



R932 QRZ9017-100 FUSI RESISTOR 10Ω 1/4W J R933 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J R934 QRE121J-182Y C RESISTOR 1.8kΩ 1/2W J R935 QRE121J-102Y C RESISTOR 1kΩ 1/2W J R951 QRE121J-102Y C RESISTOR 1kΩ 1/2W J R953 QRE121J-332Y C RESISTOR 3.3kΩ 1/2W J R954 QRE121J-332Y C RESISTOR 3.3kΩ 1/2W J R955 NRSA63J-0R0X MG RESISTOR 0Ω 1/16W J R956 NRSA63J-0R0X MG RESISTOR 0Ω 1/16W J R957 NRSA63J-153X MG RESISTOR 15kΩ 1/16W J R958 NRSA63J-183X MG RESISTOR 18kΩ 1/16W J R959 NRSA63J-153X MG RESISTOR 15kΩ 1/16W J R960 QRE121J-223Y C RESISTOR 22k R962 QRL029J-223 OMF RESISTOR 22k R970 QRE121J-182Y C RESISTOR 1.8kΩ 1/2W J R973 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J R974 NRSA63J-102X MG RESISTOR 1kΩ 1/16W J R975 NRSA63J-222X MG RESISTOR 2.2kΩ 1/16W J R976 NRSA63J-391X MG RESISTOR 390Ω 1/16W J R978 NRSA63J-332X MG RESISTOR 3.3kΩ 1/16W J R980 NRSA63J-562X MG RESISTOR 5.6kΩ 1/16W J R981 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J



R991 QRZ9046-825Z C RESISTOR 8.2MΩ 1/2W K

L001 QQL244K-8R2Z PEAKING COIL 8.2uH K L002 QQL244J-4R7Z INDUCTIOR 4.7uH J L003 QQL244J-4R7Z INDUCTIOR 4.7uH J L101 QQLZ014-R82 COIL 0.82uH 100mA L L421 QQL26AK-220Z CHOKE COIL 22uH K L521 QQR1138-001 CHOKE COIL L522 QQR1243-001 LINEARITY COIL L530 QQL244K-220Z PEAKING COIL 22uH K L701 NQL092K-100X COIL 10uH K L702 NQL092K-100X COIL 10uH K L703 NQL092K-100X COIL 10uH K L704 NQL092K-100X COIL 10uH K L705 NQL092K-100X COIL 10uH K L706 NQL092K-100X COIL 10uH K L707 NQL092K-100X COIL 10uH K L708 NQL092K-100X COIL 10uH K L709 NQL092K-100X COIL 10uH K L710 NQL092K-100X COIL 10uH K L711 NQL092K-100X COIL 10uH K L712 NQL092K-100X COIL 10uH K L713 NQL092K-100X COIL 10uH K L714 NQL092K-100X COIL 10uH K L715 NQL092K-100X COIL 10uH K L716 NQL092K-100X COIL 10uH K L717 NQL092K-100X COIL 10uH K L951 QQLZ034-480 HEATER CHOKE 48uH L952 QQL26AK-820Z CHOKE COIL 82uH K L954 QQL244J-5R6Z COIL 5.6uH J L972 QQL244J-5R6Z COIL 5.6uH J L973 QQL244J-5R6Z COIL 5.6uH J L975 QQL26AK-820Z CHOKE COIL 82uH K T521 QQR1229-001 DRIVE TRANSF



T921 QQS0267-001 SW TRANSF



PC901 PS2581AL1/QW/ PHOTO COUPLER

CP650 ICP-N38-Y IC PROTECTOR 1.5A CP952 ICP-N38-Y IC PROTECTOR 1.5A CP953 ICP-N38-Y IC PROTECTOR 1.5A CP954 ICP-N38-Y IC PROTECTOR 1.5A CP955 ICP-N75-Y IC PROTECTOR 2.7A

J801 QNZ0454-002 PIN JACK VIDEO1 IN J802 QNN0349-002 PIN JACK J803 QNN0348-001 PIN JACK VIDEO2 L R IN J804 QNN0349-001 PIN JACK OUTPUT K107 QQR1114-001Z FERRITE BEADS K702 QQR1113-001Z FERRITE BEADS K901 QQR1114-001Z FERRITE BEADS K902 QQR1113-001Z FERRITE BEADS K921 QQR1114-001Z FERRITE BEADS

COMP/VIDEO2 IN

Ω

1/2W J

Ω

2W J

K922 QQR1113-001Z FERRITE BEADS K951 QQR1114-001Z FERRITE BEADS K952 QQR1114-001Z FERRITE BEADS K953 QQR1113-001Z FERRITE BEADS K954 QQR1113-001Z FERRITE BEADS K955 QQR1113-001Z FERRITE BEADS LC801 QQR1199-001 EMI FILTER LC802 QQR1199-001 EMI FILTER LC803 QQR1199-001 EMI FILTER LC804 QQR1199-001 EMI FILTER

LF902 QQR1356-001 LINE FILTER

SF101 QAX0663-001 SAW FILTER SF102 QAX0731-001 SAW FILTER TU001 QAU0383-001 TUNER X701 QAX0799-001Z CRYSTAL

CRT SOCKET P.W. BOARD ASS'Y (SCW-3001A-H2)

REFER TO PARTS LIST IN PAGE 3-9 FOR THIS P.W. BOARD.

FRONT CONTROL P.W. BOARD ASS'Y (SCW-8001A-H2)

REFER TO PARTS LIST IN PAGE 3-10 FOR THIS P.W. BOARD.

3-14(No.YA104)

PRINTED WIRING BOARD PARTS LIST [AV-29WX24/L]



MAIN P.W. BOARD ASS'Y (SCW-1068A-H2)



Ref No. Part No. Part Name Description Local

IC401 AN15526A IC IC451 UPC358G2-XE IC IC601 AN5277 IC IC701 TDA12027-ERCMI IC(MCU) (SERVICE) IC702 AT24C16-29VS24 IC (SERVICE) IC921 STR-W6756-F5 IC IC951 SE135N IC IC972 BA33BC0T IC IC973 PQ120RDA1SZ IC IC974 MM1561JF-X IC IC975 PQ050RDA1SZ IC IC976 MM1561JF-X IC

Q101 2SC5083/L-P/-T TRANSISTOR Q102 UN2212-X DIGI TRANSISTOR Q103 UN2212-X DIGI TRANSISTOR Q341 2SA1530A/QR/-X TRANSISTOR Q461 2SD1267A/QP/ POW TRANSISTOR Q521 BSN304-T TRANSISTOR



Q522 TT2142-YD TRANSISTOR Q571 2SA1208/ST/Z1-T TRANSISTOR Q572 UN2212-X DIGI TRANSISTOR Q601 2SA1530A/QR/-X TRANSISTOR Q602 2SA1530A/QR/-X TRANSISTOR Q603 DTC323TK-X DIGI TRANSISTOR Q605 DTC323TK-X DIGI TRANSISTOR Q607 2SC3928A/QR/-X TRANSISTOR Q608 2SC3928A/QR/-X TRANSISTOR Q609 UN2212-X DIGI TRANSISTOR Q611 UN2212-X DIGI TRANSISTOR Q702 2SC3928A/QR/-X TRANSISTOR Q703 2SA1530A/QR/-X TRANSISTOR Q704 2SC3928A/QR/-X TRANSISTOR Q705 SSM3K02F-X MOS FET Q706 SSM3K02F-X MOS FET Q707 2SC3928A/QR/-X TRANSISTOR Q708 2SA1530A/QR/-X TRANSISTOR Q791 DTC124ESA-T DIGI TRANSISTOR Q801 KTA1267/YG/-T TRANSISTOR Q803 DTC323TK-X DIGI TRANSISTOR Q804 DTC323TK-X DIGI TRANSISTOR Q805 2SA1530A/QR/-X TRANSISTOR Q921 2SC3852A POW TRANSISTOR Q951 2SC3928A/QR/-X TRANSISTOR Q952 2SC3928A/QR/-X TRANSISTOR Q957 2SC3928A/QR/-X TRANSISTOR Q958 2SA1013/RO/-T TRANSISTOR

D101 1SS268-X SI DIODE D341 MA111-X SI DIODE D342 MA111-X SI DIODE D343 MA111-X SI DIODE D345 MA111-X SI DIODE D422 MTZJ75-T2 Z DIODE D423 1N4003-T2 SI DIODE D451 MA8043/L/-X Z DIODE D471 1SR124-400A-T2 SI DIODE D472 MA111-X SI DIODE D521 RH3G-F1 SI DIODE D522 31DF6N-FC5 SI DIODE D523 RGP10J-5025-T3 SI DIODE D524 MA8091/H/-X Z DIODE D530 EU2-T3 SI DIODE D551 RGP10J-5025-T3 SI DIODE D552 RGP10J-5025-T3 SI DIODE D554 MA8051/L/-X Z DIODE D571 MA8075/H/-X Z DIODE D581 RGP10J-5025-T3 SI DIODE D601 MA111-X SI DIODE D603 MA111-X SI DIODE D604 MA8300/H/-X Z DIODE D605 MA8300/H/-X Z DIODE D607 MA111-X SI DIODE D701 MA111-X SI DIODE D702 MA8091/H/-X Z DIODE D704 MA8091/H/-X Z DIODE D706 MA8036-X Z DIODE D707 MA111-X SI DIODE D708 MA111-X SI DIODE D709 MA111-X SI DIODE D710 MA8091/H/-X Z DIODE D751 MTZJ9.1C-T2 Z DIODE D753 MTZJ9.1C-T2 Z DIODE

Ref No. Part No. Part Name Description Local

D791 MA8062/M/-X Z DIODE D801 MA8091/H/-X Z DIODE D802 MA8091/H/-X Z DIODE D803 MA8091/H/-X Z DIODE D804 MA8091/H/-X Z DIODE D810 MA8091/H/-X Z DIODE D811 MA8091/H/-X Z DIODE D812 MA8091/H/-X Z DIODE D813 MA8091/H/-X Z DIODE D814 MTZJ9.1C-T2 Z DIODE D901 GSIB460 BRIDGE DIODE D921 RGP10J-5025-T3 SI DIODE D922 1SS133-T2 SI DIODE D923 MA111-X SI DIODE D924 MA8330/M/-X Z DIODE D925 RGP10J-5025-T3 SI DIODE D926 RGP10M-5010-T3 SI DIODE D927 MA111-X SI DIODE D928 MA8240/M/-X Z DIODE D929 MA111-X SI DIODE D930 MA8240/M/-X Z DIODE D931 MA8062/M/-X Z DIODE D932 MTZJ36A-T2 Z DIODE D933 MTZJ9.1C-T2 Z DIODE D934 MTZJ9.1C-T2 Z DIODE D935 MTZJ9.1C-T2 Z DIODE D936 1SS133-T2 SI DIODE D951 31DF6N-FC5 SI DIODE D952 FSF05A20 SI DIODE D953 RGP10J-5025-T3 SI DIODE D954 RGP10J-5025-T3 SI DIODE D955 FSF05A20 SI DIODE D957 MA8039/H/-X Z DIODE D959 NRSA63J-0R0X MG RESISTOR 0Ω 1/16W J D960 NRSA63J-0R0X MG RESISTOR 0Ω 1/16W J D962 MA8330/M/-X Z DIODE D970 MA8082/M/-X Z DIODE D971 MA111-X SI DIODE D972 1SR124-400A-T2 SI DIODE D973 MA111-X SI DIODE D975 MA111-X SI DIODE D977 MA111-X SI DIODE

C001 NCB31HK-103X C CAPACITOR 0.01uF 50V K C002 QETN1HM-106Z E CAPACITOR 10uF 50V M C003 NCB31HK-104X C CAPACITOR 0.1uF 50V K C004 QETN1CM-477Z E CAPACITOR 470uF 16V M C005 NCB31HK-222X C CAPACITOR 2200pF 50V K C006 QETN1CM-336Z E CAPACITOR 33uF 16V M C101 NCB31HK-472X C CAPACITOR 4700pF 50V K C102 NCB31HK-472X C CAPACITOR 4700pF 50V K C103 NCB31HK-472X C CAPACITOR 4700pF 50V K C104 QETN1HM-106Z E CAPACITOR 10uF 50V M C105 NCB31HK-472X C CAPACITOR 4700pF 50V K C106 NDC31HJ-180X C CAPACITOR 18pF 50V J C107 NCB31HK-103X C CAPACITOR 0.01uF 50V K C108 NCB31HK-472X C CAPACITOR 4700pF 50V K C109 NCB31HK-472X C CAPACITOR 4700pF 50V K C110 NCB31HK-104X C CAPACITOR 0.1uF 50V K C111 QETN1CM-477Z E CAPACITOR 470uF 16V M C341 QETN1CM-227Z E CAPACITOR 220uF 16V M C422 QCS32HJ-560Z C CAPACITOR 56pF 500V J C423 NDC31HJ-102X C CAPACITOR 1000pF 50V J C424 QFLC2AJ-683Z M CAPACITOR 0.068uF 100V J C427 QETN1VM-108Z E CAPACITOR 1000uF 35V M C428 QEHR1VM-107Z E CAPACITOR 100uF 35V M C430 QFLC2AJ-563Z M CAPACITOR 0.056uF 100V J C431 NCB31HK-104X C CAPACITOR 0.1uF 50V K C435 NCF21HZ-334X C CAPACITOR 0.33uF 50V Z C436 NCF21HZ-334X C CAPACITOR 0.33uF 50V Z C452 QETN1HM-226Z E CAPACITOR 22uF 50V M C453 QETN1HM-106Z E CAPACITOR 10uF 50V M C471 QETN1HM-106Z E CAPACITOR 10uF 50V M C520 NRSA63J-0R0X MG RESISTOR 0Ω 1/16W J C521 QCB31HK-332Z C CAPACITOR 3300pF 50V K C522 QFLC1HJ-223Z M CAPACITOR 0.022uF 50V J C523 QETN1VM-476Z E CAPACITOR 47uF 35V M



C524 QFZ0196-202 MPP CAPACITOR 2000pF 1.5kV H C525 QFZ0196-123 MPP CAPACITOR 0.012uF 1.5kV H C526 QFZ0196-252 MPP CAPACITOR 2500pF 1.5kV H C527 QFZ0197-224 MPP CAPACITOR 0.22uF 250V J C528 QFP32JJ-223 PP CAPACITOR 0.022uF 630V J C529 QENC2AM-225Z BP E CAPACITOR 2.2uF 100V M C530 QCB32HK-561Z C CAPACITOR 560pF 500V K

(No.YA104)3-15



Ref No. Part No. Part Name Description Local



Ref No. Part No. Part Name Description Local

C531 QEZ0195-475Z BP E CAPACITOR 4.7uF 50V M C532 QETN2EM-106Z E CAPACITOR 10uF 250V M C551 QCB32HK-561Z C CAPACITOR 560pF 500V K C552 QCB32HK-561Z C CAPACITOR 560pF 500V K C553 QEHR1EM-108Z E CAPACITOR 1000uF 25V M C554 QEHR1EM-108Z E CAPACITOR 1000uF 25V M C555 QFLC2AJ-103Z M CAPACITOR 0.01uF 100V J C571 QETM2CM-227 E CAPACITOR 220uF 160V M C572 QETN1CM-107Z E CAPACITOR 100uF 16V M C573 QETN1EM-476Z E CAPACITOR 47uF 25V M C581 QFVF1HJ-104Z MF CAPACITOR 0.1uF 50V J C582 QFZ0197-204 MPP CAPACITOR 0.2uF 250V J C601 QETN1HM-106Z E CAPACITOR 10uF 50V M C602 QETN1HM-106Z E CAPACITOR 10uF 50V M C603 NCB31CK-224X C CAPACITOR 0.22uF 16V K C604 NCB31CK-224X C CAPACITOR 0.22uF 16V K C605 NCB31CK-224X C CAPACITOR 0.22uF 16V K C606 NCB31CK-224X C CAPACITOR 0.22uF 16V K C607 QETN1CM-227Z E CAPACITOR 220uF 16V M C608 QETN1CM-227Z E CAPACITOR 220uF 16V M C609 QETN1HM-225Z E CAPACITOR 2.2uF 50V M C610 QETN1HM-106Z E CAPACITOR 10uF 50V M C613 QETN1HM-106Z E CAPACITOR 10uF 50V M C656 QETN1HM-107Z E CAPACITOR 100uF 50V M C661 QETN1CM-227Z E CAPACITOR 220uF 16V M C701 NCB31CK-224X C CAPACITOR 0.22uF 16V K C702 NCB31CK-224X C CAPACITOR 0.22uF 16V K C703 QETN1AM-108Z E CAPACITOR 1000uF 10V M C704 NCB31HK-104X C CAPACITOR 0.1uF 50V K C705 NDC31HJ-3R0X C CAPACITOR 3pF 50V J C706 NDC31HJ-3R0X C CAPACITOR 3pF 50V J C707 NCB31HK-104X C CAPACITOR 0.1uF 50V K C708 QETN1CM-107Z E CAPACITOR 100uF 16V M C709 NCB31HK-103X C CAPACITOR 0.01uF 50V K C710 NCB31HK-682X C CAPACITOR 6800pF 50V K C711 QETN1HM-225Z E CAPACITOR 2.2uF 50V M C712 QFVF1HJ-224Z MF CAPACITOR 0.22uF 50V J C713 QETN1HM-106Z E CAPACITOR 10uF 50V M C714 NCB31HK-223X C CAPACITOR 0.022uF 50V K C715 NCB31HK-102X C CAPACITOR 1000pF 50V K C716 NCB31HK-102X C CAPACITOR 1000pF 50V K C717 NCB31HK-473X C CAPACITOR 0.047uF 50V K C718 QFVF1HJ-104Z MF CAPACITOR 0.1uF 50V J C719 NCB31HK-103X C CAPACITOR 0.01uF 50V K C720 NCB31HK-102X C CAPACITOR 1000pF 50V K C723 NCB21CK-105X C CAPACITOR 1uF 16V K C724 NCB21CK-105X C CAPACITOR 1uF 16V K C725 NCB31HK-104X C CAPACITOR 0.1uF 50V K C726 QETN1HM-106Z E CAPACITOR 10uF 50V M C727 NCB31HK-332X C CAPACITOR 3300pF 50V K C728 NCB31HK-104X C CAPACITOR 0.1uF 50V K C729 QETN1HM-225Z E CAPACITOR 2.2uF 50V M C730 QETN1HM-227Z E CAPACITOR 220uF 50V M C731 NCB31HK-104X C CAPACITOR 0.1uF 50V K C732 QETN1HM-225Z E CAPACITOR 2.2uF 50V M C733 QETN1HM-106Z E CAPACITOR 10uF 50V M C734 NCB31HK-104X C CAPACITOR 0.1uF 50V K C735 NCB31HK-104X C CAPACITOR 0.1uF 50V K C736 NCB31HK-103X C CAPACITOR 0.01uF 50V K C737 NCB31HK-104X C CAPACITOR 0.1uF 50V K C738 NCB21CK-105X C CAPACITOR 1uF 16V K C739 NCB21CK-105X C CAPACITOR 1uF 16V K C740 NCB31HK-104X C CAPACITOR 0.1uF 50V K C741 NCB31HK-104X C CAPACITOR 0.1uF 50V K C742 QETN1HM-106Z E CAPACITOR 10uF 50V M C743 QETN1HM-106Z E CAPACITOR 10uF 50V M C744 NCB31HK-104X C CAPACITOR 0.1uF 50V K C745 NCB31HK-104X C CAPACITOR 0.1uF 50V K C746 NCB31HK-104X C CAPACITOR 0.1uF 50V K C747 QETN1HM-106Z E CAPACITOR 10uF 50V M C748 NCB31HK-104X C CAPACITOR 0.1uF 50V K C749 NCB31HK-104X C CAPACITOR 0.1uF 50V K C750 NCB31HK-104X C CAPACITOR 0.1uF 50V K C751 NCB31HK-104X C CAPACITOR 0.1uF 50V K C752 NCB31HK-104X C CAPACITOR 0.1uF 50V K C753 NCB31HK-104X C CAPACITOR 0.1uF 50V K C754 NCB31HK-104X C CAPACITOR 0.1uF 50V K C755 QETN1HM-106Z E CAPACITOR 10uF 50V M C756 NCB31HK-104X C CAPACITOR 0.1uF 50V K C757 NDC31HJ-561X C CAPACITOR 560pF 50V J C758 NCB31CK-224X C CAPACITOR 0.22uF 16V K C759 QETN1CM-107Z E CAPACITOR 100uF 16V M C760 NCB31CK-224X C CAPACITOR 0.22uF 16V K C761 NCB31HK-104X C CAPACITOR 0.1uF 50V K C762 QETN1CM-107Z E CAPACITOR 100uF 16V M C763 NCB31CK-224X C CAPACITOR 0.22uF 16V K C764 NCB31HK-104X C CAPACITOR 0.1uF 50V K

C765 QETN1CM-107Z E CAPACITOR 100uF 16V M C766 NCB31CK-224X C CAPACITOR 0.22uF 16V K C767 NCB31CK-224X C CAPACITOR 0.22uF 16V K C768 NCB31CK-224X C CAPACITOR 0.22uF 16V K C769 NCB31HK-104X C CAPACITOR 0.1uF 50V K C770 NCB31HK-104X C CAPACITOR 0.1uF 50V K C771 MTZJ3.3A-T2 Z DIODE C772 NCB31CK-224X C CAPACITOR 0.22uF 16V K C773 QETN1HM-225Z E CAPACITOR 2.2uF 50V M C774 NCB31HK-104X C CAPACITOR 0.1uF 50V K C775 NCB31CK-224X C CAPACITOR 0.22uF 16V K C776 NCB31HK-104X C CAPACITOR 0.1uF 50V K C777 NCB31HK-104X C CAPACITOR 0.1uF 50V K C778 QETN1CM-476Z E CAPACITOR 47uF 16V M C779 QETN1HM-106Z E CAPACITOR 10uF 50V M C780 NCB31HK-104X C CAPACITOR 0.1uF 50V K C781 NCB21CK-105X C CAPACITOR 1uF 16V K C782 NCB21CK-105X C CAPACITOR 1uF 16V K C783 QETN1HM-105Z E CAPACITOR 1uF 50V M C784 MTZJ4.7B-T2 Z DIODE C785 NCB21EK-224X C CAPACITOR 0.22uF 25V K C789 QETN1HM-476Z E CAPACITOR 47uF 50V M C790 NDC31HJ-270X C CAPACITOR 27pF 50V J C792 NCB31HK-104X C CAPACITOR 0.1uF 50V K C802 QETN1HM-106Z E CAPACITOR 10uF 50V M C803 QETN1HM-106Z E CAPACITOR 10uF 50V M C804 QETN1CM-477Z E CAPACITOR 470uF 16V M



C901 QFZ9072-224 MM CAPACITOR 0.22uF AC250V K



C902 QFZ9077-104 MPP CAPACITOR 0.1uF 250V M C903 QCZ9015-102Z C CAPACITOR 1000pF AC250V Z C904 QCZ9015-102Z C CAPACITOR 1000pF AC250V Z C905 QCZ9015-102Z C CAPACITOR 1000pF AC250V Z C906 QEZ0633-337 E CAPACITOR 330uF 450V M C915 QCZ0325-391 C CAPACITOR 390pF 2kV K C917 QCB32HK-181Z C CAPACITOR 180pF 500V K C921 QETN1HM-226Z E CAPACITOR 22uF 50V M C922 NCB31HK-104X C CAPACITOR 0.1uF 50V K C924 QETN1HM-105Z E CAPACITOR 1uF 50V M C925 QETN2AM-226Z E CAPACITOR 22uF 100V M C926 QFLC1HJ-472Z M CAPACITOR 4700pF 50V J C928 QFLC1HJ-102Z M CAPACITOR 1000pF 50V J C929 QCB32HK-103 C CAPACITOR 0.01uF 500V K C931 QCZ0364-102 C CAPACITOR 1000pF 2kV K C940 QCZ0364-122 C CAPACITOR 1200pF 2kV K C945 QETN1HM-226Z E CAPACITOR 22uF 50V M C949 QETN1AM-228Z E CAPACITOR 2200uF 10V M C950 NCB31HK-104X C CAPACITOR 0.1uF 50V K C951 QCZ0364-561 C CAPACITOR 560pF 2kV K C952 QCB32HK-222Z C CAPACITOR 2200pF 500V K C953 QCB32HK-222Z C CAPACITOR 2200pF 500V K C954 QCB32HK-222Z C CAPACITOR 2200pF 500V K C955 QCB32HK-222Z C CAPACITOR 2200pF 500V K C956 QEZ0203-227 E CAPACITOR 220uF 160V M C957 QETN1AM-228Z E CAPACITOR 2200uF 10V M C958 QETN1EM-337Z E CAPACITOR 330uF 25V M C959 QETN1VM-337Z E CAPACITOR 330uF 35V M C960 QETM1VM-228 E CAPACITOR 2200uF 35V M C962 NCB31HK-104X C CAPACITOR 0.1uF 50V K C963 NCB31HK-102X C CAPACITOR 1000pF 50V K C964 QETN1VM-107Z E CAPACITOR 100uF 35V M C965 NCB31HK-104X C CAPACITOR 0.1uF 50V K C967 QETN1CM-477Z E CAPACITOR 470uF 16V M C968 QETN1CM-477Z E CAPACITOR 470uF 16V M C975 QETN1AM-477Z E CAPACITOR 470uF 10V M C976 NCB31HK-472X C CAPACITOR 4700pF 50V K C977 QETN1HM-476Z E CAPACITOR 47uF 50V M C978 QETN1HM-476Z E CAPACITOR 47uF 50V M C979 QETN1HM-475Z E CAPACITOR 4.7uF 50V M C980 QETN1CM-107Z E CAPACITOR 100uF 16V M C981 QETN1CM-107Z E CAPACITOR 100uF 16V M C982 QETN1CM-476Z E CAPACITOR 47uF 16V M C983 QETN1HM-106Z E CAPACITOR 10uF 50V M C984 QETN1HM-476Z E CAPACITOR 47uF 50V M C985 QETN1CM-476Z E CAPACITOR 47uF 16V M C986 NCB31HK-104X C CAPACITOR 0.1uF 50V K C987 QETN1HM-105Z E CAPACITOR 1uF 50V M C989 NCB31HK-104X C CAPACITOR 0.1uF 50V K



C991 QCZ9079-471 C CAPACITOR 470pF AC250V K



C992 QCZ9079-471 C CAPACITOR 470pF AC250V K



C993 QCZ9079-102 C CAPACITOR 1000pF AC250V M

Ω

R001 NRSA63J-221X MG RESISTOR 220 R002 NRSA63J-221X MG RESISTOR 220 R003 NRSA63J-392X MG RESISTOR 3.9kΩ 1/16W J R004 NRSA63J-273X MG RESISTOR 27kΩ 1/16W J R005 NRSA63J-750X MG RESISTOR 75 R101 NRSA63J-100X MG RESISTOR 10

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

3-16(No.YA104)



Ref No. Part No. Part Name Description Local



Ref No. Part No. Part Name Description Local

R102 NRSA63J-682X MG RESISTOR 6.8kΩ 1/16W J R103 NRSA63J-272X MG RESISTOR 2.7kΩ 1/16W J R104 NRSA63J-181X MG RESISTOR 180Ω 1/16W J R105 NRSA63J-220X MG RESISTOR 22Ω 1/16W J R106 NRSA63J-101X MG RESISTOR 100Ω 1/16W J R107 NRSA63J-472X MG RESISTOR 4.7kΩ 1/16W J R108 NRSA63J-222X MG RESISTOR 2.2kΩ 1/16W J R109 NRSA63J-222X MG RESISTOR 2.2kΩ 1/16W J R110 NRSA63J-222X MG RESISTOR 2.2kΩ 1/16W J R341 NRSA63J-0R0X MG RESISTOR 0Ω 1/16W J R343 NRSA63J-0R0X MG RESISTOR 0Ω 1/16W J R344 NRSA63J-0R0X MG RESISTOR 0Ω 1/16W J R345 NRSA63J-0R0X MG RESISTOR 0Ω 1/16W J R411 NRSA63J-472X MG RESISTOR 4.7kΩ 1/16W J R412 NRSA63J-472X MG RESISTOR 4.7kΩ 1/16W J R426 NRSA63J-472X MG RESISTOR 4.7kΩ 1/16W J R427 NRSA63J-682X MG RESISTOR 6.8kΩ 1/16W J R430 NRSA63J-472X MG RESISTOR 4.7kΩ 1/16W J R432 QRX01GJ-1R2 MF RESISTOR 1.2Ω 1W J R433 QRE121J-3R9Y C RESISTOR 3.9Ω 1/2W J R434 NRSA63J-682X MG RESISTOR 6.8kΩ 1/16W J R438 NRSA63J-105X MG RESISTOR 1MΩ 1/16W J R440 QRG01GJ-331 OMF RESISTOR 330Ω 1W J R448 QRE121J-1R0Y C RESISTOR 1Ω 1/2W J R451 QRE121J-681Y C RESISTOR 680Ω 1/2W J R452 NRSA63J-272X MG RESISTOR 2.7k R453 NRSA63J-223X MG RESISTOR 22k R454 NRSA63J-562X MG RESISTOR 5.6kΩ 1/16W J R455 NRSA63J-123X MG RESISTOR 12kΩ 1/16W J R456 NRSA63J-562X MG RESISTOR 5.6kΩ 1/16W J R457 NRSA63J-823X MG RESISTOR 82kΩ 1/16W J R458 NRSA63J-333X MG RESISTOR 33kΩ 1/16W J R459 NRSA63J-822X MG RESISTOR 8.2kΩ 1/16W J R460 QRE121J-223Y C RESISTOR 22kΩ 1/2W J R461 NRSA63J-562X MG RESISTOR 5.6kΩ 1/16W J R462 NRSA63J-122X MG RESISTOR 1.2kΩ 1/16W J R463 NRSA63J-102X MG RESISTOR 1kΩ 1/16W J R464 QRL039J-330 OMF RESISTOR 33Ω 3W J R471 NRSA63J-105X MG RESISTOR 1MΩ 1/16W J R472 NRSA63J-124X MG RESISTOR 120kΩ 1/16W J R473 NRSA63J-683X MG RESISTOR 68kΩ 1/16W J R474 NRSA63J-224X MG RESISTOR 220kΩ 1/16W J R520 QRE141J-471Y C RESISTOR 470Ω 1/4W J R521 NRSA63J-104X MG RESISTOR 100kΩ 1/16W J R522 QRE121J-220Y C RESISTOR 22Ω 1/2W J R523 QRL029J-271 OMF RESISTOR 270Ω 2W J R524 QRL039J-121 OMF RESISTOR 120Ω 3W J R525 QRL039J-121 OMF RESISTOR 120Ω 3W J R527 QRL039J-393 OMF RESISTOR 39kΩ 3W J R528 QRE121J-471Y C RESISTOR 470Ω 1/2W J



R530 QRZ9017-4R7 FUSI RESISTOR 4.7Ω 1/4W J



R533 QRZ9017-4R7 FUSI RESISTOR 4.7Ω 1/4W J



R551 QRZ9021-1R0 FUSI RESISTOR 1Ω 1W J



R552 QRZ9021-1R0 FUSI RESISTOR 1Ω 1W J R554 NRSA63J-182X MG RESISTOR 1.8kΩ 1/16W J R571 QRZ0225-2R2 UNF RESISTOR 2.2 R572 QRA14CF-1202Y CMF RESISTOR 12kΩ 1/4W F R573 NRSA63J-332X MG RESISTOR 3.3k R574 QRE121J-183Y C RESISTOR 18k R575 NRSA63J-222X MG RESISTOR 2.2kΩ 1/16W J R581 QRE121J-822Y C RESISTOR 8.2kΩ 1/2W J R582 QRE121J-823Y C RESISTOR 82kΩ 1/2W J R583 QRE121J-184Y C RESISTOR 180kΩ 1/2W J R601 NRSA63J-222X MG RESISTOR 2.2k R602 NRSA63J-222X MG RESISTOR 2.2k R603 NRSA63J-102X MG RESISTOR 1k R604 NRSA63J-103X MG RESISTOR 10k R606 QRE121J-2R2Y C RESISTOR 2.2 R607 QRE121J-2R2Y C RESISTOR 2.2 R609 NRSA63J-273X MG RESISTOR 27k R610 NRSA63J-104X MG RESISTOR 100k R611 NRSA63J-822X MG RESISTOR 8.2kΩ 1/16W J R612 NRSA63J-104X MG RESISTOR 100k R614 NRSA63J-104X MG RESISTOR 100k R618 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J R620 NRSA63J-103X MG RESISTOR 10k R621 NRSA63J-222X MG RESISTOR 2.2kΩ 1/16W J R622 NRSA63J-103X MG RESISTOR 10k R623 NRSA63J-333X MG RESISTOR 33kΩ 1/16W J R624 NRSA63J-683X MG RESISTOR 68k R626 NRSA63J-271X MG RESISTOR 270Ω 1/16W J R628 NRSA63J-271X MG RESISTOR 270 R629 NRSA63J-332X MG RESISTOR 3.3k R631 NRSA63J-332X MG RESISTOR 3.3kΩ 1/16W J R632 NRSA63J-102X MG RESISTOR 1kΩ 1/16W J R701 NRSA63J-123X MG RESISTOR 12k R702 NRSA63J-101X MG RESISTOR 100

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/2W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/2W J

Ω

1/2W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

7W K

R703 NRSA63J-101X MG RESISTOR 100Ω 1/16W J R704 NRSA63J-101X MG RESISTOR 100Ω 1/16W J R705 NRSA63J-393X MG RESISTOR 39kΩ 1/16W J R706 NRSA63J-221X MG RESISTOR 220Ω 1/16W J R707 NRSA63J-563X MG RESISTOR 56kΩ 1/16W J R708 NRSA63J-104X MG RESISTOR 100kΩ 1/16W J R709 NRSA63J-105X MG RESISTOR 1MΩ 1/16W J R711 NRSA63J-562X MG RESISTOR 5.6kΩ 1/16W J R712 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J R713 NRSA63J-562X MG RESISTOR 5.6kΩ 1/16W J R714 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J R715 NRSA63J-391X MG RESISTOR 390Ω 1/16W J R716 NRSA63J-562X MG RESISTOR 5.6kΩ 1/16W J R717 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J R718 NRSA63J-562X MG RESISTOR 5.6kΩ 1/16W J R719 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J R722 NRSA63J-471X MG RESISTOR 470Ω 1/16W J R723 NRSA63J-471X MG RESISTOR 470Ω 1/16W J R724 NRSA63J-102X MG RESISTOR 1kΩ 1/16W J R725 NRSA63J-470X MG RESISTOR 47Ω 1/16W J R726 NRSA63J-273X MG RESISTOR 27kΩ 1/16W J R727 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J R728 NRSA63J-101X MG RESISTOR 100Ω 1/16W J R729 NRSA63J-472X MG RESISTOR 4.7kΩ 1/16W J R730 NRSA63J-151X MG RESISTOR 150Ω 1/16W J R731 NRSA63J-102X MG RESISTOR 1k R732 NRSA63J-102X MG RESISTOR 1k R733 NRSA63J-101X MG RESISTOR 100Ω 1/16W J R734 NRSA63J-101X MG RESISTOR 100Ω 1/16W J R735 NRSA63J-101X MG RESISTOR 100Ω 1/16W J R736 NRSA63J-101X MG RESISTOR 100Ω 1/16W J R737 NRSA63J-332X MG RESISTOR 3.3kΩ 1/16W J R738 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J R739 NRSA63J-750X MG RESISTOR 75Ω 1/16W J R740 NRSA63J-153X MG RESISTOR 15kΩ 1/16W J R741 NRSA63J-221X MG RESISTOR 220Ω 1/16W J R742 NRSA63J-101X MG RESISTOR 100Ω 1/16W J R743 NRSA63J-332X MG RESISTOR 3.3kΩ 1/16W J R744 NRSA63J-101X MG RESISTOR 100Ω 1/16W J R745 NRSA63J-332X MG RESISTOR 3.3kΩ 1/16W J R746 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J R747 NRSA63J-101X MG RESISTOR 100Ω 1/16W J R748 NRSA63J-272X MG RESISTOR 2.7kΩ 1/16W J R749 NRSA63J-102X MG RESISTOR 1kΩ 1/16W J R751 NRSA63J-102X MG RESISTOR 1kΩ 1/16W J R752 NRSA63J-101X MG RESISTOR 100Ω 1/16W J R753 NRSA63J-122X MG RESISTOR 1.2kΩ 1/16W J R754 NRSA63J-221X MG RESISTOR 220Ω 1/16W J R755 NRSA63J-122X MG RESISTOR 1.2kΩ 1/16W J R756 NRSA63J-101X MG RESISTOR 100Ω 1/16W J R757 NRSA63J-472X MG RESISTOR 4.7kΩ 1/16W J R758 NRSA63J-332X MG RESISTOR 3.3kΩ 1/16W J R759 NRSA63J-332X MG RESISTOR 3.3kΩ 1/16W J R760 NRSA63J-101X MG RESISTOR 100Ω 1/16W J R761 NRSA63J-101X MG RESISTOR 100Ω 1/16W J R762 NRSA63J-221X MG RESISTOR 220 R763 NRSA63J-221X MG RESISTOR 220Ω 1/16W J R764 NRSA63J-221X MG RESISTOR 220 R765 NRSA63J-221X MG RESISTOR 220 R768 NRSA63J-101X MG RESISTOR 100Ω 1/16W J R771 NRSA63J-102X MG RESISTOR 1kΩ 1/16W J R772 NRSA63J-562X MG RESISTOR 5.6kΩ 1/16W J R773 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J R774 NRSA63J-562X MG RESISTOR 5.6k R775 NRSA63J-103X MG RESISTOR 10k R776 NRSA63J-153X MG RESISTOR 15k R777 NRSA63J-101X MG RESISTOR 100 R779 NRSA63J-103X MG RESISTOR 10k R780 NRSA63J-104X MG RESISTOR 100k R781 NRSA63J-472X MG RESISTOR 4.7k R782 NRSA63J-122X MG RESISTOR 1.2k R783 NRSA63J-153X MG RESISTOR 15kΩ 1/16W J R784 NRSA63J-103X MG RESISTOR 10k R785 NRSA63J-103X MG RESISTOR 10k R790 NRSA63J-102X MG RESISTOR 1kΩ 1/16W J R791 QRE121J-102Y C RESISTOR 1k R792 QRE123J-330X C RESISTOR 33Ω 1/2W J R793 NRSA63J-101X MG RESISTOR 100 R794 NRSA63J-222X MG RESISTOR 2.2kΩ 1/16W J R795 NRSA63J-104X MG RESISTOR 100k R796 NRSA63J-0R0X MG RESISTOR 0Ω 1/16W J R801 NRSA63J-750X MG RESISTOR 75 R802 NRSA63J-0R0X MG RESISTOR 0 R803 NRSA63J-0R0X MG RESISTOR 0Ω 1/16W J R804 NRSA63J-151X MG RESISTOR 150Ω 1/16W J R805 NRSA63J-750X MG RESISTOR 75 R806 NRSA63J-750X MG RESISTOR 75

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/2W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

(No.YA104)3-17



Ref No. Part No. Part Name Description Local



Ref No. Part No. Part Name Description Local

R807 QRE121J-101Y C RESISTOR 100Ω 1/2W J R809 NRSA63J-0R0X MG RESISTOR 0Ω 1/16W J R810 NRSA63J-391X MG RESISTOR 390Ω 1/16W J R811 NRSA63J-823X MG RESISTOR 82kΩ 1/16W J R812 NRSA63J-391X MG RESISTOR 390Ω 1/16W J R813 NRSA63J-823X MG RESISTOR 82kΩ 1/16W J R814 NRSA63J-104X MG RESISTOR 100kΩ 1/16W J R815 NRSA63J-750X MG RESISTOR 75Ω 1/16W J R816 NRSA63J-750X MG RESISTOR 75Ω 1/16W J R901 QRF154K-2R2 UNF WW RESISTOR 2.2Ω 15W K R902 QRL039J-823 OMF RESISTOR 82kΩ 3W J R921 QRE121J-101Y C RESISTOR 100Ω 1/2W J R922 QRZ0237-R18 UNF WW RESISTOR 0.18Ω 3W J R923 QRT029J-R47 MF RESISTOR 0.47Ω 2W J R924 NRSA63J-333X MG RESISTOR 33kΩ 1/16W J R929 NRSA63J-102X MG RESISTOR 1kΩ 1/16W J R930 QRL039J-473 OMF RESISTOR 47kΩ 3W J



R932 QRZ9017-100 FUSI RESISTOR 10Ω 1/4W J R933 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J R934 QRE121J-182Y C RESISTOR 1.8kΩ 1/2W J R935 QRE121J-102Y C RESISTOR 1kΩ 1/2W J R951 QRE121J-102Y C RESISTOR 1kΩ 1/2W J R953 QRE121J-332Y C RESISTOR 3.3kΩ 1/2W J R954 QRE121J-332Y C RESISTOR 3.3kΩ 1/2W J R955 NRSA63J-0R0X MG RESISTOR 0Ω 1/16W J R956 NRSA63J-0R0X MG RESISTOR 0 R957 NRSA63J-153X MG RESISTOR 15k R958 NRSA63J-183X MG RESISTOR 18kΩ 1/16W J R959 NRSA63J-153X MG RESISTOR 15kΩ 1/16W J R960 QRE121J-223Y C RESISTOR 22kΩ 1/2W J R962 QRL029J-223 OMF RESISTOR 22kΩ 2W J R970 QRE121J-182Y C RESISTOR 1.8kΩ 1/2W J R973 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J R974 NRSA63J-102X MG RESISTOR 1kΩ 1/16W J R975 NRSA63J-222X MG RESISTOR 2.2kΩ 1/16W J R976 NRSA63J-391X MG RESISTOR 390Ω 1/16W J R978 NRSA63J-332X MG RESISTOR 3.3kΩ 1/16W J R980 NRSA63J-562X MG RESISTOR 5.6kΩ 1/16W J R981 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J



R991 QRZ9046-825Z C RESISTOR 8.2MΩ 1/2W K

L001 QQL244K-8R2Z PEAKING COIL 8.2uH K L002 QQL244J-4R7Z INDUCTIOR 4.7uH J L003 QQL244J-4R7Z INDUCTIOR 4.7uH J L101 QQLZ014-R82 COIL 0.82uH 100mA L L421 QQL26AK-220Z CHOKE COIL 22uH K L521 QQR1138-001 CHOKE COIL L522 QQR1243-001 LINEARITY COIL L530 QQL244K-220Z PEAKING COIL 22uH K L701 NQL092K-100X COIL 10uH K L702 NQL092K-100X COIL 10uH K L703 NQL092K-100X COIL 10uH K L704 NQL092K-100X COIL 10uH K L705 NQL092K-100X COIL 10uH K L706 NQL092K-100X COIL 10uH K L707 NQL092K-100X COIL 10uH K L708 NQL092K-100X COIL 10uH K L709 NQL092K-100X COIL 10uH K L710 NQL092K-100X COIL 10uH K L711 NQL092K-100X COIL 10uH K L712 NQL092K-100X COIL 10uH K L713 NQL092K-100X COIL 10uH K L714 NRSA63J-0R0X MG RESISTOR 0 L715 NQL092K-100X COIL 10uH K L716 NQL092K-100X COIL 10uH K L717 NQL092K-100X COIL 10uH K L951 QQLZ034-480 HEATER CHOKE 48uH L952 QQL26AK-820Z CHOKE COIL 82uH K L954 QQL244J-5R6Z COIL 5.6uH J L972 QQL244J-5R6Z COIL 5.6uH J L973 QQL244J-5R6Z COIL 5.6uH J L975 QQL26AK-820Z CHOKE COIL 82uH K T521 QQR1229-001 DRIVE TRANSF



T921 QQS0267-001 SW TRANSF



PC901 PS2581AL1/QW/ PHOTO COUPLER



CP650 ICP-N38-Y IC PROTECTOR 1.5A



CP952 ICP-N38-Y IC PROTECTOR 1.5A



CP953 ICP-N38-Y IC PROTECTOR 1.5A



CP954 ICP-N38-Y IC PROTECTOR 1.5A



CP955 ICP-N75-Y IC PROTECTOR 2.7A J801 QNZ0454-002 PIN JACK VIDEO1 IN J802 QNN0349-002 PIN JACK COMP/VIDEO2 IN J803 QNN0348-001 PIN JACK VIDEO2 L R IN J804 QNN0349-001 PIN JACK OUTPUT K107 QQR1114-001Z FERRITE BEADS

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

K702 QQR1113-001Z FERRITE BEADS K901 QQR1114-001Z FERRITE BEADS K902 QQR1113-001Z FERRITE BEADS K921 QQR1114-001Z FERRITE BEADS K922 QQR1113-001Z FERRITE BEADS K951 QQR1114-001Z FERRITE BEADS K952 QQR1114-001Z FERRITE BEADS K953 QQR1113-001Z FERRITE BEADS K954 QQR1113-001Z FERRITE BEADS K955 QQR1113-001Z FERRITE BEADS LC801 QQR1199-001 EMI FILTER LC802 QQR1199-001 EMI FILTER LC803 QQR1199-001 EMI FILTER LC804 QQR1199-001 EMI FILTER



LF902 QQR1356-001 LINE FILTER SF101 QAX0663-001 SAW FILTER SF102 QAX0731-001 SAW FILTER TU001 QAU0383-001 TUNER X701 QAX0799-001Z CRYSTAL

CRT SOCKET P.W. BOARD ASS'Y (SCW-3001A-H2)

REFER TO PARTS LIST IN PAGE 3-9 FOR THIS P.W. BOARD.

FRONT CONTROL P.W. BOARD ASS'Y (SCW-8001A-H2)

REFER TO PARTS LIST IN PAGE 3-10 FOR THIS P.W. BOARD.

3-18(No.YA104)

PRINTED WIRING BOARD PARTS LIST [AV-2954W/E]



MAIN P.W. BOARD ASS'Y (SCW-1013A-H2)



Ref No. Part No. Part Name Description Local

IC401 AN15526A IC IC451 UPC358G2-XE IC IC601 AN5277 IC IC701 TDA12027-ERU IC(MCU) (SERVICE) IC702 AT24C16-29VS24 IC (SERVICE) IC921 STR-W6756-F5 IC IC951 SE135N IC IC972 BA33BC0T IC IC973 PQ120RDA1SZ IC IC974 MM1561JF-X IC IC975 PQ050RDA1SZ IC IC976 MM1561JF-X IC

Q101 2SC5083/L-P/-T TRANSISTOR Q102 UN2212-X DIGI TRANSISTOR Q103 UN2212-X DIGI TRANSISTOR Q341 2SA1530A/QR/-X TRANSISTOR Q461 2SD1267A/QP/ POW TRANSISTOR Q521 BSN304-T TRANSISTOR



Q522 TT2142-YD TRANSISTOR Q571 2SA1208/ST/Z1-T TRANSISTOR Q572 UN2212-X DIGI TRANSISTOR Q601 2SA1530A/QR/-X TRANSISTOR Q602 2SA1530A/QR/-X TRANSISTOR Q603 DTC323TK-X DIGI TRANSISTOR Q605 DTC323TK-X DIGI TRANSISTOR Q607 2SC3928A/QR/-X TRANSISTOR Q608 2SC3928A/QR/-X TRANSISTOR Q609 UN2212-X DIGI TRANSISTOR Q611 UN2212-X DIGI TRANSISTOR Q702 2SC3928A/QR/-X TRANSISTOR Q703 2SA1530A/QR/-X TRANSISTOR Q704 2SC3928A/QR/-X TRANSISTOR Q705 SSM3K02F-X MOS FET Q706 SSM3K02F-X MOS FET Q707 2SC3928A/QR/-X TRANSISTOR Q708 2SA1530A/QR/-X TRANSISTOR Q791 DTC124ESA-T DIGI TRANSISTOR Q801 KTA1267/YG/-T TRANSISTOR Q803 DTC323TK-X DIGI TRANSISTOR Q804 DTC323TK-X DIGI TRANSISTOR Q805 2SA1530A/QR/-X TRANSISTOR Q921 2SC3852A POW TRANSISTOR Q951 2SC3928A/QR/-X TRANSISTOR Q952 2SC3928A/QR/-X TRANSISTOR Q957 2SC3928A/QR/-X TRANSISTOR Q958 2SA1013/RO/-T TRANSISTOR

D101 1SS268-X SI DIODE D341 MA111-X SI DIODE D342 MA111-X SI DIODE D343 MA111-X SI DIODE D345 MA111-X SI DIODE D422 MTZJ75-T2 Z DIODE D423 1N4003-T2 SI DIODE D451 MA8043/L/-X Z DIODE D471 1SR124-400A-T2 SI DIODE D472 MA111-X SI DIODE D521 RH3G-F1 SI DIODE D522 31DF6N-FC5 SI DIODE D523 RGP10J-5025-T3 SI DIODE D524 MA8091/H/-X Z DIODE D530 EU2-T3 SI DIODE D551 RGP10J-5025-T3 SI DIODE D552 RGP10J-5025-T3 SI DIODE D554 MA8051/L/-X Z DIODE D571 MA8075/H/-X Z DIODE D581 RGP10J-5025-T3 SI DIODE D601 MA111-X SI DIODE D603 MA111-X SI DIODE D604 MA8300/H/-X Z DIODE D605 MA8300/H/-X Z DIODE D607 MA111-X SI DIODE D701 MA111-X SI DIODE D702 MA8091/H/-X Z DIODE D704 MA8091/H/-X Z DIODE D706 MA8036-X Z DIODE D707 MA111-X SI DIODE D708 MA111-X SI DIODE D709 MA111-X SI DIODE D710 MA8091/H/-X Z DIODE D791 MA8062/M/-X Z DIODE D801 MA8091/H/-X Z DIODE

Ref No. Part No. Part Name Description Local

D802 MA8091/H/-X Z DIODE D803 MA8091/H/-X Z DIODE D804 MA8091/H/-X Z DIODE D810 MA8091/H/-X Z DIODE D811 MA8091/H/-X Z DIODE D812 MA8091/H/-X Z DIODE D901 GSIB460 BRIDGE DIODE D921 RGP10J-5025-T3 SI DIODE D922 1SS133-T2 SI DIODE D923 MA111-X SI DIODE D924 MA8330/M/-X Z DIODE D925 RGP10J-5025-T3 SI DIODE D926 RGP10M-5010-T3 SI DIODE D927 MA111-X SI DIODE D928 MA8240/M/-X Z DIODE D929 MA111-X SI DIODE D930 MA8240/M/-X Z DIODE D931 MA8062/M/-X Z DIODE D932 MTZJ36A-T2 Z DIODE D933 MTZJ9.1C-T2 Z DIODE D934 MTZJ9.1C-T2 Z DIODE D935 MTZJ9.1C-T2 Z DIODE D936 1SS133-T2 SI DIODE D951 31DF6N-FC5 SI DIODE D952 FSF05A20 SI DIODE D953 RGP10J-5025-T3 SI DIODE D954 RGP10J-5025-T3 SI DIODE D955 FSF05A20 SI DIODE D957 MA8039/H/-X Z DIODE D959 NRSA63J-0R0X MG RESISTOR 0Ω 1/16W J D960 NRSA63J-0R0X MG RESISTOR 0Ω 1/16W J D962 MA8330/M/-X Z DIODE D970 MA8082/M/-X Z DIODE D971 MA111-X SI DIODE D972 1SR124-400A-T2 SI DIODE D973 MA111-X SI DIODE D975 MA111-X SI DIODE D977 MA111-X SI DIODE

C001 NCB31HK-103X C CAPACITOR 0.01uF 50V K C002 QETN1HM-106Z E CAPACITOR 10uF 50V M C003 NCB31HK-104X C CAPACITOR 0.1uF 50V K C004 QETN1CM-477Z E CAPACITOR 470uF 16V M C005 NCB31HK-222X C CAPACITOR 2200pF 50V K C006 QETN1CM-336Z E CAPACITOR 33uF 16V M C101 NCB31HK-472X C CAPACITOR 4700pF 50V K C102 NCB31HK-472X C CAPACITOR 4700pF 50V K C103 NCB31HK-472X C CAPACITOR 4700pF 50V K C104 QETN1HM-106Z E CAPACITOR 10uF 50V M C105 NCB31HK-472X C CAPACITOR 4700pF 50V K C106 NDC31HJ-180X C CAPACITOR 18pF 50V J C107 NCB31HK-103X C CAPACITOR 0.01uF 50V K C108 NCB31HK-472X C CAPACITOR 4700pF 50V K C109 NCB31HK-472X C CAPACITOR 4700pF 50V K C110 NCB31HK-104X C CAPACITOR 0.1uF 50V K C111 QETN1CM-477Z E CAPACITOR 470uF 16V M C341 QETN1CM-227Z E CAPACITOR 220uF 16V M C422 QCS32HJ-560Z C CAPACITOR 56pF 500V J C423 NDC31HJ-102X C CAPACITOR 1000pF 50V J C424 QFLC2AJ-683Z M CAPACITOR 0.068uF 100V J C427 QETN1VM-108Z E CAPACITOR 1000uF 35V M C428 QEHR1VM-107Z E CAPACITOR 100uF 35V M C430 QFLC2AJ-563Z M CAPACITOR 0.056uF 100V J C431 NCB31HK-104X C CAPACITOR 0.1uF 50V K C435 NCF21HZ-334X C CAPACITOR 0.33uF 50V Z C436 NCF21HZ-334X C CAPACITOR 0.33uF 50V Z C452 QETN1HM-226Z E CAPACITOR 22uF 50V M C453 QETN1HM-106Z E CAPACITOR 10uF 50V M C471 QETN1HM-106Z E CAPACITOR 10uF 50V M C520 NRSA63J-0R0X MG RESISTOR 0 C521 QCB31HK-332Z C CAPACITOR 3300pF 50V K C522 QFLC1HJ-223Z M CAPACITOR 0.022uF 50V J C523 QETN1VM-476Z E CAPACITOR 47uF 35V M



C524 QFZ0196-202 MPP CAPACITOR 2000pF 1.5kV H C525 QFZ0196-123 MPP CAPACITOR 0.012uF 1.5kV H C526 QFZ0196-252 MPP CAPACITOR 2500pF 1.5kV H C527 QFZ0197-204 MPP CAPACITOR 0.2uF 250V J C528 QFP32JJ-223 PP CAPACITOR 0.022uF 630V J C529 QENC2AM-225Z BP E CAPACITOR 2.2uF 100V M C530 QCB32HK-561Z C CAPACITOR 560pF 500V K C531 QEZ0195-475 BP E CAPACITOR 4.7uF 50V M C532 QETN2EM-106Z E CAPACITOR 10uF 250V M C551 QCB32HK-561Z C CAPACITOR 560pF 500V K C552 QCB32HK-561Z C CAPACITOR 560pF 500V K

Ω

1/16W J

(No.YA104)3-19



Ref No. Part No. Part Name Description Local



Ref No. Part No. Part Name Description Local

C553 QEHR1EM-108Z E CAPACITOR 1000uF 25V M C554 QEHR1EM-108Z E CAPACITOR 1000uF 25V M C555 QFLC2AJ-103Z M CAPACITOR 0.01uF 100V J C571 QETM2CM-227 E CAPACITOR 220uF 160V M C572 QETN1CM-107Z E CAPACITOR 100uF 16V M C573 QETN1EM-476Z E CAPACITOR 47uF 25V M C581 QFVF1HJ-104Z MF CAPACITOR 0.1uF 50V J C582 QFZ0197-204 MPP CAPACITOR 0.2uF 250V J C601 QETN1HM-106Z E CAPACITOR 10uF 50V M C602 QETN1HM-106Z E CAPACITOR 10uF 50V M C603 NCB31CK-224X C CAPACITOR 0.22uF 16V K C604 NCB31CK-224X C CAPACITOR 0.22uF 16V K C605 NCB31CK-224X C CAPACITOR 0.22uF 16V K C606 NCB31CK-224X C CAPACITOR 0.22uF 16V K C607 QETN1CM-227Z E CAPACITOR 220uF 16V M C608 QETN1CM-227Z E CAPACITOR 220uF 16V M C609 QETN1HM-225Z E CAPACITOR 2.2uF 50V M C610 QETN1HM-106Z E CAPACITOR 10uF 50V M C613 QETN1HM-106Z E CAPACITOR 10uF 50V M C656 QETN1HM-107Z E CAPACITOR 100uF 50V M C661 QETN1CM-227Z E CAPACITOR 220uF 16V M C701 NCB31CK-224X C CAPACITOR 0.22uF 16V K C702 NCB31CK-224X C CAPACITOR 0.22uF 16V K C703 QETN1AM-108Z E CAPACITOR 1000uF 10V M C704 NCB31HK-104X C CAPACITOR 0.1uF 50V K C705 NDC31HJ-3R0X C CAPACITOR 3pF 50V J C706 NDC31HJ-3R0X C CAPACITOR 3pF 50V J C707 NCB31HK-104X C CAPACITOR 0.1uF 50V K C708 QETN1CM-107Z E CAPACITOR 100uF 16V M C709 NCB31HK-103X C CAPACITOR 0.01uF 50V K C710 NCB31HK-682X C CAPACITOR 6800pF 50V K C711 QETN1HM-225Z E CAPACITOR 2.2uF 50V M C712 QFVF1HJ-224Z MF CAPACITOR 0.22uF 50V J C713 QETN1HM-106Z E CAPACITOR 10uF 50V M C714 NCB31HK-223X C CAPACITOR 0.022uF 50V K C715 NCB31HK-102X C CAPACITOR 1000pF 50V K C716 NCB31HK-102X C CAPACITOR 1000pF 50V K C717 NCB31HK-473X C CAPACITOR 0.047uF 50V K C718 QFVF1HJ-104Z MF CAPACITOR 0.1uF 50V J C719 NCB31HK-103X C CAPACITOR 0.01uF 50V K C720 NCB31HK-102X C CAPACITOR 1000pF 50V K C723 NCB21CK-105X C CAPACITOR 1uF 16V K C724 NCB21CK-105X C CAPACITOR 1uF 16V K C725 NCB31HK-104X C CAPACITOR 0.1uF 50V K C726 QETN1HM-106Z E CAPACITOR 10uF 50V M C727 NCB31HK-332X C CAPACITOR 3300pF 50V K C728 NCB31HK-104X C CAPACITOR 0.1uF 50V K C729 QETN1HM-225Z E CAPACITOR 2.2uF 50V M C730 QETN1HM-227Z E CAPACITOR 220uF 50V M C731 NCB31HK-104X C CAPACITOR 0.1uF 50V K C732 QETN1HM-225Z E CAPACITOR 2.2uF 50V M C733 QETN1HM-106Z E CAPACITOR 10uF 50V M C734 NCB31HK-104X C CAPACITOR 0.1uF 50V K C735 NCB31HK-104X C CAPACITOR 0.1uF 50V K C736 NCB31HK-103X C CAPACITOR 0.01uF 50V K C737 NCB31HK-104X C CAPACITOR 0.1uF 50V K C738 NCB21CK-105X C CAPACITOR 1uF 16V K C739 NCB21CK-105X C CAPACITOR 1uF 16V K C740 NCB31HK-104X C CAPACITOR 0.1uF 50V K C741 NCB31HK-104X C CAPACITOR 0.1uF 50V K C742 QETN1HM-106Z E CAPACITOR 10uF 50V M C743 QETN1HM-106Z E CAPACITOR 10uF 50V M C744 NCB31HK-104X C CAPACITOR 0.1uF 50V K C745 NCB31HK-104X C CAPACITOR 0.1uF 50V K C746 NCB31HK-104X C CAPACITOR 0.1uF 50V K C747 QETN1HM-106Z E CAPACITOR 10uF 50V M C748 NCB31HK-104X C CAPACITOR 0.1uF 50V K C749 NCB31HK-104X C CAPACITOR 0.1uF 50V K C750 NCB31HK-104X C CAPACITOR 0.1uF 50V K C751 NCB31HK-104X C CAPACITOR 0.1uF 50V K C752 NCB31HK-104X C CAPACITOR 0.1uF 50V K C753 NCB31HK-104X C CAPACITOR 0.1uF 50V K C754 NCB31HK-104X C CAPACITOR 0.1uF 50V K C755 QETN1HM-106Z E CAPACITOR 10uF 50V M C756 NCB31HK-104X C CAPACITOR 0.1uF 50V K C757 NDC31HJ-561X C CAPACITOR 560pF 50V J C758 NCB31CK-224X C CAPACITOR 0.22uF 16V K C759 QETN1CM-107Z E CAPACITOR 100uF 16V M C760 NCB31CK-224X C CAPACITOR 0.22uF 16V K C761 NCB31HK-104X C CAPACITOR 0.1uF 50V K C762 QETN1CM-107Z E CAPACITOR 100uF 16V M C763 NCB31CK-224X C CAPACITOR 0.22uF 16V K C764 NCB31HK-104X C CAPACITOR 0.1uF 50V K C765 QETN1CM-107Z E CAPACITOR 100uF 16V M C766 NCB31CK-224X C CAPACITOR 0.22uF 16V K C767 NCB31CK-224X C CAPACITOR 0.22uF 16V K C768 NCB31CK-224X C CAPACITOR 0.22uF 16V K

C769 NCB31HK-104X C CAPACITOR 0.1uF 50V K C770 NCB31HK-104X C CAPACITOR 0.1uF 50V K C771 MTZJ3.3A-T2 Z DIODE C772 NCB31CK-224X C CAPACITOR 0.22uF 16V K C773 QETN1HM-225Z E CAPACITOR 2.2uF 50V M C774 NCB31HK-104X C CAPACITOR 0.1uF 50V K C775 NCB31CK-224X C CAPACITOR 0.22uF 16V K C776 NCB31HK-104X C CAPACITOR 0.1uF 50V K C777 NCB31HK-104X C CAPACITOR 0.1uF 50V K C778 QETN1CM-476Z E CAPACITOR 47uF 16V M C779 QETN1HM-106Z E CAPACITOR 10uF 50V M C780 NCB31HK-104X C CAPACITOR 0.1uF 50V K C781 NCB21CK-105X C CAPACITOR 1uF 16V K C782 NCB21CK-105X C CAPACITOR 1uF 16V K C783 QETN1HM-105Z E CAPACITOR 1uF 50V M C784 MTZJ4.7B-T2 Z DIODE C785 NCB21EK-224X C CAPACITOR 0.22uF 25V K C789 QETN1HM-476Z E CAPACITOR 47uF 50V M C790 NDC31HJ-270X C CAPACITOR 27pF 50V J C792 NCB31HK-104X C CAPACITOR 0.1uF 50V K C802 QETN1HM-106Z E CAPACITOR 10uF 50V M C803 QETN1HM-106Z E CAPACITOR 10uF 50V M C804 QETN1CM-477Z E CAPACITOR 470uF 16V M



C901 QFZ9072-224 MM CAPACITOR 0.22uF AC250V K



C902 QFZ9077-104 MPP CAPACITOR 0.1uF 250V M C903 QCZ9015-102Z C CAPACITOR 1000pF AC250V Z C904 QCZ9015-102Z C CAPACITOR 1000pF AC250V Z C905 QCZ9015-102Z C CAPACITOR 1000pF AC250V Z C906 QEZ0633-337 E CAPACITOR 330uF 450V M C915 QCZ0325-391 C CAPACITOR 390pF 2kV K C917 QCB32HK-181Z C CAPACITOR 180pF 500V K C921 QETN1HM-226Z E CAPACITOR 22uF 50V M C922 NCB31HK-104X C CAPACITOR 0.1uF 50V K C924 QETN1HM-105Z E CAPACITOR 1uF 50V M C925 QETN2AM-226Z E CAPACITOR 22uF 100V M C926 QFLC1HJ-472Z M CAPACITOR 4700pF 50V J C928 QFLC1HJ-102Z M CAPACITOR 1000pF 50V J C929 QCB32HK-103 C CAPACITOR 0.01uF 500V K C931 QCZ0364-102 C CAPACITOR 1000pF 2kV K C940 QCZ0364-122 C CAPACITOR 1200pF 2kV K C945 QETN1HM-226Z E CAPACITOR 22uF 50V M C949 QETN1AM-228Z E CAPACITOR 2200uF 10V M C950 NCB31HK-104X C CAPACITOR 0.1uF 50V K C951 QCZ0364-561 C CAPACITOR 560pF 2kV K C952 QCB32HK-222Z C CAPACITOR 2200pF 500V K C953 QCB32HK-222Z C CAPACITOR 2200pF 500V K C954 QCB32HK-222Z C CAPACITOR 2200pF 500V K C955 QCB32HK-222Z C CAPACITOR 2200pF 500V K C956 QEZ0203-227 E CAPACITOR 220uF 160V M C957 QETN1AM-228Z E CAPACITOR 2200uF 10V M C958 QETN1EM-337Z E CAPACITOR 330uF 25V M C959 QETN1VM-337Z E CAPACITOR 330uF 35V M C960 QETM1VM-228 E CAPACITOR 2200uF 35V M C962 NCB31HK-104X C CAPACITOR 0.1uF 50V K C963 NCB31HK-102X C CAPACITOR 1000pF 50V K C964 QETN1VM-107Z E CAPACITOR 100uF 35V M C965 NCB31HK-104X C CAPACITOR 0.1uF 50V K C967 QETN1CM-477Z E CAPACITOR 470uF 16V M C968 QETN1CM-477Z E CAPACITOR 470uF 16V M C975 QETN1AM-477Z E CAPACITOR 470uF 10V M C976 NCB31HK-472X C CAPACITOR 4700pF 50V K C977 QETN1HM-476Z E CAPACITOR 47uF 50V M C978 QETN1HM-476Z E CAPACITOR 47uF 50V M C979 QETN1HM-475Z E CAPACITOR 4.7uF 50V M C980 QETN1CM-107Z E CAPACITOR 100uF 16V M C981 QETN1CM-107Z E CAPACITOR 100uF 16V M C982 QETN1CM-476Z E CAPACITOR 47uF 16V M C983 QETN1HM-106Z E CAPACITOR 10uF 50V M C984 QETN1HM-476Z E CAPACITOR 47uF 50V M C985 QETN1CM-476Z E CAPACITOR 47uF 16V M C986 NCB31HK-104X C CAPACITOR 0.1uF 50V K C987 QETN1HM-105Z E CAPACITOR 1uF 50V M C989 NCB31HK-104X C CAPACITOR 0.1uF 50V K



C991 QCZ9079-471 C CAPACITOR 470pF AC250V K



C992 QCZ9079-471 C CAPACITOR 470pF AC250V K



C993 QCZ9079-102 C CAPACITOR 1000pF AC250V M

Ω

R001 NRSA63J-221X MG RESISTOR 220 R002 NRSA63J-221X MG RESISTOR 220Ω 1/16W J R003 NRSA63J-392X MG RESISTOR 3.9k R004 NRSA63J-273X MG RESISTOR 27kΩ 1/16W J R005 NRSA63J-750X MG RESISTOR 75 R101 NRSA63J-100X MG RESISTOR 10 R102 NRSA63J-682X MG RESISTOR 6.8kΩ 1/16W J R103 NRSA63J-272X MG RESISTOR 2.7kΩ 1/16W J R104 NRSA63J-181X MG RESISTOR 180 R105 NRSA63J-220X MG RESISTOR 22

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

3-20(No.YA104)



Ref No. Part No. Part Name Description Local



Ref No. Part No. Part Name Description Local

R106 NRSA63J-101X MG RESISTOR 100Ω 1/16W J R107 NRSA63J-472X MG RESISTOR 4.7kΩ 1/16W J R108 NRSA63J-222X MG RESISTOR 2.2kΩ 1/16W J R109 NRSA63J-222X MG RESISTOR 2.2kΩ 1/16W J R110 NRSA63J-222X MG RESISTOR 2.2kΩ 1/16W J R341 NRSA63J-0R0X MG RESISTOR 0Ω 1/16W J R343 NRSA63J-0R0X MG RESISTOR 0Ω 1/16W J R344 NRSA63J-0R0X MG RESISTOR 0Ω 1/16W J R345 NRSA63J-0R0X MG RESISTOR 0Ω 1/16W J R411 NRSA63J-472X MG RESISTOR 4.7kΩ 1/16W J R412 NRSA63J-472X MG RESISTOR 4.7kΩ 1/16W J R426 NRSA63J-472X MG RESISTOR 4.7kΩ 1/16W J R427 NRSA63J-682X MG RESISTOR 6.8kΩ 1/16W J R430 NRSA63J-472X MG RESISTOR 4.7kΩ 1/16W J R432 QRX01GJ-1R2 MF RESISTOR 1.2Ω 1W J R433 QRE121J-3R9Y C RESISTOR 3.9Ω 1/2W J R434 NRSA63J-682X MG RESISTOR 6.8kΩ 1/16W J R438 NRSA63J-105X MG RESISTOR 1MΩ 1/16W J R440 QRG01GJ-331 OMF RESISTOR 330Ω 1W J R448 QRE121J-1R0Y C RESISTOR 1Ω 1/2W J R451 QRE121J-681Y C RESISTOR 680Ω 1/2W J R452 NRSA63J-272X MG RESISTOR 2.7kΩ 1/16W J R453 NRSA63J-223X MG RESISTOR 22kΩ 1/16W J R454 NRSA63J-562X MG RESISTOR 5.6kΩ 1/16W J R455 NRSA63J-123X MG RESISTOR 12kΩ 1/16W J R456 NRSA63J-562X MG RESISTOR 5.6k R457 NRSA63J-823X MG RESISTOR 82k R458 NRSA63J-333X MG RESISTOR 33kΩ 1/16W J R459 NRSA63J-822X MG RESISTOR 8.2kΩ 1/16W J R460 QRE121J-223Y C RESISTOR 22kΩ 1/2W J R461 NRSA63J-562X MG RESISTOR 5.6kΩ 1/16W J R462 NRSA63J-122X MG RESISTOR 1.2kΩ 1/16W J R463 NRSA63J-102X MG RESISTOR 1kΩ 1/16W J R464 QRL039J-330 OMF RESISTOR 33Ω 3W J R471 NRSA63J-105X MG RESISTOR 1MΩ 1/16W J R472 NRSA63J-124X MG RESISTOR 120kΩ 1/16W J R473 NRSA63J-683X MG RESISTOR 68kΩ 1/16W J R474 NRSA63J-224X MG RESISTOR 220kΩ 1/16W J R520 QRE141J-471Y C RESISTOR 470Ω 1/4W J R521 NRSA63J-104X MG RESISTOR 100kΩ 1/16W J R522 QRE121J-220Y C RESISTOR 22Ω 1/2W J R523 QRL029J-271 OMF RESISTOR 270Ω 2W J R524 QRL039J-121 OMF RESISTOR 120Ω 3W J R525 QRL039J-121 OMF RESISTOR 120Ω 3W J R527 QRL039J-393 OMF RESISTOR 39kΩ 3W J R528 QRE121J-471Y C RESISTOR 470Ω 1/2W J



R530 QRZ9017-4R7 FUSI RESISTOR 4.7Ω 1/4W J



R533 QRZ9017-4R7 FUSI RESISTOR 4.7Ω 1/4W J



R551 QRZ9021-1R0 FUSI RESISTOR 1Ω 1W J



R552 QRZ9021-1R0 FUSI RESISTOR 1Ω 1W J R554 NRSA63J-182X MG RESISTOR 1.8kΩ 1/16W J R571 QRZ0225-2R2 UNF RESISTOR 2.2Ω 7W K R572 QRA14CF-1202Y CMF RESISTOR 12kΩ 1/4W F R573 NRSA63J-332X MG RESISTOR 3.3kΩ 1/16W J R574 QRE121J-183Y C RESISTOR 18kΩ 1/2W J R575 NRSA63J-222X MG RESISTOR 2.2k R581 QRE121J-822Y C RESISTOR 8.2kΩ 1/2W J R582 QRE121J-823Y C RESISTOR 82k R583 QRE121J-184Y C RESISTOR 180k R601 NRSA63J-222X MG RESISTOR 2.2kΩ 1/16W J R602 NRSA63J-222X MG RESISTOR 2.2kΩ 1/16W J R603 NRSA63J-102X MG RESISTOR 1kΩ 1/16W J R604 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J R606 QRE121J-2R2Y C RESISTOR 2.2 R607 QRE121J-2R2Y C RESISTOR 2.2 R609 NRSA63J-273X MG RESISTOR 27k R610 NRSA63J-104X MG RESISTOR 100k R611 NRSA63J-822X MG RESISTOR 8.2k R612 NRSA63J-104X MG RESISTOR 100k R614 NRSA63J-104X MG RESISTOR 100k R618 NRSA63J-103X MG RESISTOR 10k R620 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J R621 NRSA63J-222X MG RESISTOR 2.2k R622 NRSA63J-103X MG RESISTOR 10k R623 NRSA63J-333X MG RESISTOR 33kΩ 1/16W J R624 NRSA63J-683X MG RESISTOR 68k R626 NRSA63J-271X MG RESISTOR 270Ω 1/16W J R628 NRSA63J-271X MG RESISTOR 270 R629 NRSA63J-332X MG RESISTOR 3.3kΩ 1/16W J R631 NRSA63J-332X MG RESISTOR 3.3k R632 NRSA63J-102X MG RESISTOR 1kΩ 1/16W J R701 NRSA63J-123X MG RESISTOR 12k R702 NRSA63J-101X MG RESISTOR 100 R703 NRSA63J-101X MG RESISTOR 100Ω 1/16W J R704 NRSA63J-101X MG RESISTOR 100Ω 1/16W J R705 NRSA63J-393X MG RESISTOR 39k R706 NRSA63J-221X MG RESISTOR 220

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/2W J

Ω

1/2W J

Ω

1/2W J

Ω

1/2W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

R707 NRSA63J-563X MG RESISTOR 56kΩ 1/16W J R708 NRSA63J-104X MG RESISTOR 100kΩ 1/16W J R709 NRSA63J-105X MG RESISTOR 1MΩ 1/16W J R711 NRSA63J-562X MG RESISTOR 5.6kΩ 1/16W J R712 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J R713 NRSA63J-562X MG RESISTOR 5.6kΩ 1/16W J R714 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J R715 NRSA63J-391X MG RESISTOR 390Ω 1/16W J R716 NRSA63J-562X MG RESISTOR 5.6kΩ 1/16W J R717 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J R718 NRSA63J-562X MG RESISTOR 5.6kΩ 1/16W J R719 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J R722 NRSA63J-471X MG RESISTOR 470Ω 1/16W J R723 NRSA63J-471X MG RESISTOR 470Ω 1/16W J R724 NRSA63J-102X MG RESISTOR 1kΩ 1/16W J R725 NRSA63J-470X MG RESISTOR 47Ω 1/16W J R726 NRSA63J-273X MG RESISTOR 27kΩ 1/16W J R727 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J R728 NRSA63J-101X MG RESISTOR 100Ω 1/16W J R729 NRSA63J-472X MG RESISTOR 4.7kΩ 1/16W J R730 NRSA63J-151X MG RESISTOR 150Ω 1/16W J R731 NRSA63J-102X MG RESISTOR 1kΩ 1/16W J R732 NRSA63J-102X MG RESISTOR 1kΩ 1/16W J R733 NRSA63J-101X MG RESISTOR 100Ω 1/16W J R734 NRSA63J-101X MG RESISTOR 100Ω 1/16W J R735 NRSA63J-101X MG RESISTOR 100 R736 NRSA63J-101X MG RESISTOR 100 R737 NRSA63J-332X MG RESISTOR 3.3kΩ 1/16W J R738 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J R739 NRSA63J-750X MG RESISTOR 75Ω 1/16W J R740 NRSA63J-153X MG RESISTOR 15kΩ 1/16W J R741 NRSA63J-221X MG RESISTOR 220Ω 1/16W J R742 NRSA63J-101X MG RESISTOR 100Ω 1/16W J R743 NRSA63J-332X MG RESISTOR 3.3kΩ 1/16W J R744 NRSA63J-101X MG RESISTOR 100Ω 1/16W J R745 NRSA63J-332X MG RESISTOR 3.3kΩ 1/16W J R746 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J R747 NRSA63J-101X MG RESISTOR 100Ω 1/16W J R748 NRSA63J-272X MG RESISTOR 2.7kΩ 1/16W J R749 NRSA63J-102X MG RESISTOR 1kΩ 1/16W J R751 NRSA63J-102X MG RESISTOR 1kΩ 1/16W J R752 NRSA63J-101X MG RESISTOR 100Ω 1/16W J R753 NRSA63J-122X MG RESISTOR 1.2kΩ 1/16W J R754 NRSA63J-221X MG RESISTOR 220Ω 1/16W J R755 NRSA63J-122X MG RESISTOR 1.2kΩ 1/16W J R756 NRSA63J-101X MG RESISTOR 100Ω 1/16W J R757 NRSA63J-472X MG RESISTOR 4.7kΩ 1/16W J R758 NRSA63J-332X MG RESISTOR 3.3kΩ 1/16W J R759 NRSA63J-332X MG RESISTOR 3.3kΩ 1/16W J R760 NRSA63J-101X MG RESISTOR 100Ω 1/16W J R761 NRSA63J-101X MG RESISTOR 100Ω 1/16W J R762 NRSA63J-221X MG RESISTOR 220Ω 1/16W J R763 NRSA63J-221X MG RESISTOR 220Ω 1/16W J R764 NRSA63J-221X MG RESISTOR 220Ω 1/16W J R765 NRSA63J-221X MG RESISTOR 220Ω 1/16W J R768 NRSA63J-101X MG RESISTOR 100 R771 NRSA63J-102X MG RESISTOR 1kΩ 1/16W J R772 NRSA63J-562X MG RESISTOR 5.6k R773 NRSA63J-103X MG RESISTOR 10k R774 NRSA63J-562X MG RESISTOR 5.6kΩ 1/16W J R775 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J R776 NRSA63J-153X MG RESISTOR 15kΩ 1/16W J R777 NRSA63J-101X MG RESISTOR 100Ω 1/16W J R779 NRSA63J-103X MG RESISTOR 10k R780 NRSA63J-104X MG RESISTOR 100k R781 NRSA63J-472X MG RESISTOR 4.7k R782 NRSA63J-122X MG RESISTOR 1.2k R783 NRSA63J-153X MG RESISTOR 15k R784 NRSA63J-103X MG RESISTOR 10k R785 NRSA63J-103X MG RESISTOR 10k R790 NRSA63J-102X MG RESISTOR 1k R791 QRE121J-102Y C RESISTOR 1kΩ 1/2W J R792 QRE123J-330X C RESISTOR 33 R793 NRSA63J-101X MG RESISTOR 100 R794 NRSA63J-222X MG RESISTOR 2.2kΩ 1/16W J R795 NRSA63J-104X MG RESISTOR 100k R796 NRSA63J-0R0X MG RESISTOR 0Ω 1/16W J R801 NRSA63J-750X MG RESISTOR 75 R802 NRSA63J-0R0X MG RESISTOR 0Ω 1/16W J R803 NRSA63J-0R0X MG RESISTOR 0 R804 NRSA63J-151X MG RESISTOR 150Ω 1/16W J R805 NRSA63J-750X MG RESISTOR 75 R806 NRSA63J-750X MG RESISTOR 75 R807 QRE121J-101Y C RESISTOR 100Ω 1/2W J R809 NRSA63J-0R0X MG RESISTOR 0Ω 1/16W J R810 NRSA63J-391X MG RESISTOR 390 R811 NRSA63J-823X MG RESISTOR 82k

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/2W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

(No.YA104)3-21



Ref No. Part No. Part Name Description Local



Ref No. Part No. Part Name Description Local

R812 NRSA63J-391X MG RESISTOR 390Ω 1/16W J R813 NRSA63J-823X MG RESISTOR 82kΩ 1/16W J R814 NRSA63J-104X MG RESISTOR 100kΩ 1/16W J R815 NRSA63J-750X MG RESISTOR 75Ω 1/16W J R816 NRSA63J-750X MG RESISTOR 75Ω 1/16W J R901 QRF154K-2R2 UNF WW RESISTOR 2.2Ω 15W K R902 QRL039J-823 OMF RESISTOR 82kΩ 3W J R921 QRE121J-101Y C RESISTOR 100Ω 1/2W J R922 QRZ0237-R18 UNF WW RESISTOR 0.18Ω 3W J R923 QRT029J-R47 MF RESISTOR 0.47Ω 2W J R924 NRSA63J-333X MG RESISTOR 33kΩ 1/16W J R929 NRSA63J-102X MG RESISTOR 1kΩ 1/16W J R930 QRL039J-473 OMF RESISTOR 47kΩ 3W J



R932 QRZ9017-100 FUSI RESISTOR 10Ω 1/4W J R933 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J R934 QRE121J-182Y C RESISTOR 1.8kΩ 1/2W J R935 QRE121J-102Y C RESISTOR 1kΩ 1/2W J R951 QRE121J-102Y C RESISTOR 1kΩ 1/2W J R953 QRE121J-332Y C RESISTOR 3.3kΩ 1/2W J R954 QRE121J-332Y C RESISTOR 3.3kΩ 1/2W J R955 NRSA63J-0R0X MG RESISTOR 0Ω 1/16W J R956 NRSA63J-0R0X MG RESISTOR 0Ω 1/16W J R957 NRSA63J-153X MG RESISTOR 15kΩ 1/16W J R958 NRSA63J-183X MG RESISTOR 18kΩ 1/16W J R959 NRSA63J-153X MG RESISTOR 15kΩ 1/16W J R960 QRE121J-223Y C RESISTOR 22k R962 QRL029J-223 OMF RESISTOR 22k R970 QRE121J-182Y C RESISTOR 1.8kΩ 1/2W J R973 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J R974 NRSA63J-102X MG RESISTOR 1kΩ 1/16W J R975 NRSA63J-222X MG RESISTOR 2.2kΩ 1/16W J R976 NRSA63J-391X MG RESISTOR 390Ω 1/16W J R978 NRSA63J-332X MG RESISTOR 3.3kΩ 1/16W J R980 NRSA63J-562X MG RESISTOR 5.6kΩ 1/16W J R981 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J



R991 QRZ9046-825Z C RESISTOR 8.2MΩ 1/2W K

L001 QQL244K-8R2Z PEAKING COIL 8.2uH K L002 QQL244J-4R7Z INDUCTIOR 4.7uH J L003 QQL244J-4R7Z INDUCTIOR 4.7uH J L101 QQLZ014-R82 COIL 0.82uH 100mA L L421 QQL26AK-220Z CHOKE COIL 22uH K L521 QQR1138-001 CHOKE COIL L522 QQR1243-001 LINEARITY COIL L530 QQL244K-220Z PEAKING COIL 22uH K L701 NQL092K-100X COIL 10uH K L702 NQL092K-100X COIL 10uH K L703 NQL092K-100X COIL 10uH K L704 NQL092K-100X COIL 10uH K L705 NQL092K-100X COIL 10uH K L706 NQL092K-100X COIL 10uH K L707 NQL092K-100X COIL 10uH K L708 NQL092K-100X COIL 10uH K L709 NQL092K-100X COIL 10uH K L710 NQL092K-100X COIL 10uH K L711 NQL092K-100X COIL 10uH K L712 NQL092K-100X COIL 10uH K L713 NQL092K-100X COIL 10uH K L714 NQL092K-100X COIL 10uH K L715 NQL092K-100X COIL 10uH K L716 NQL092K-100X COIL 10uH K L717 NQL092K-100X COIL 10uH K L951 QQLZ034-480 HEATER CHOKE 48uH L952 QQL26AK-820Z CHOKE COIL 82uH K L954 QQL244J-5R6Z COIL 5.6uH J L972 QQL244J-5R6Z COIL 5.6uH J L973 QQL244J-5R6Z COIL 5.6uH J L975 QQL26AK-820Z CHOKE COIL 82uH K T521 QQR1229-001 DRIVE TRANSF



T921 QQS0267-001 SW TRANSF



PC901 PS2581AL1/QW/ PHOTO COUPLER



CP650 ICP-N38-Y IC PROTECTOR 1.5A



CP952 ICP-N38-Y IC PROTECTOR 1.5A



CP953 ICP-N38-Y IC PROTECTOR 1.5A



CP954 ICP-N38-Y IC PROTECTOR 1.5A



CP955 ICP-N75-Y IC PROTECTOR 2.7A J801 QNZ0454-002 PIN JACK VIDEO1 IN J802 QNN0349-002 PIN JACK COMP/VIDEO2 IN J803 QNN0348-001 PIN JACK VIDEO2 L R IN J804 QNN0349-001 PIN JACK OUTPUT K107 QQR1114-001Z FERRITE BEADS K702 QQR1113-001Z FERRITE BEADS K901 QQR1114-001Z FERRITE BEADS K902 QQR1113-001Z FERRITE BEADS K921 QQR1114-001Z FERRITE BEADS

Ω

1/2W J

Ω

2W J

K922 QQR1113-001Z FERRITE BEADS K951 QQR1114-001Z FERRITE BEADS K952 QQR1114-001Z FERRITE BEADS K953 QQR1113-001Z FERRITE BEADS K954 QQR1113-001Z FERRITE BEADS K955 QQR1113-001Z FERRITE BEADS LC801 QQR1199-001 EMI FILTER LC802 QQR1199-001 EMI FILTER LC803 QQR1199-001 EMI FILTER LC804 QQR1199-001 EMI FILTER



LF902 QQR1356-001 LINE FILTER SF101 QAX0663-001 SAW FILTER SF102 QAX0731-001 SAW FILTER TU001 QAU0383-001 TUNER X701 QAX0799-001Z CRYSTAL

CRT SOCKET P.W. BOARD ASS'Y (SCW-3001A-H2)

REFER TO PARTS LIST IN PAGE 3-9 FOR THIS P.W. BOARD.

FRONT CONTROL P.W. BOARD ASS'Y (SCW-8001A-H2)

REFER TO PARTS LIST IN PAGE 3-10 FOR THIS P.W. BOARD.

REMOTE CONTROL UNIT PARTS LIST (RM-C1281-2H)



Ref No. Part No. Part Name Description Local

R25-8566 BATTERY COVER

3-22(No.YA104)

PACKING

2

11

4

2

6

7 8 9 10

3

5

2

12

2

PACKING PARTS LIST

 Ref.No. Part No. Part Name Description Local

4

12

1

1 GG10282-018A-H PACKING CASE AV-29WX14/G 1 GG10044-096A-H PACKING CASE AV-29WX14/S,AV-29WX24/L,AV-2954W/E 2 GG10193-001E-H CUSHION ASS'Y 8pcs in 1set 3 GG20011-008A-H SUPPORT PAD AV-29WX14/S,AV-29WX24/L,AV-2954W/E 4 GG20011-009A-H SUPPORT PAD (x2) AV-29WX14/S,AV-29WX24/L,AV-2954W/E 5 GG30097-004A-H POLY BAG 6 GG30096-001A-H POLY BAG 7 ------------ BATTERY AA/R6 (x2)

 8 GGT0045-001C-H INST BOOK AV-29WX14/G,AV-29WX14/S,AV-29WX24/L  8 GGT0050-001C-H INST BOOK AV-2954W/E  9 GGT0046-001B-H DIGEST MANUAL AV-29WX14/G,AV-29WX14/S

10 BT-54012-4H WARRANTY CARD AV-2954W/E 11 RM-C1281-2H REMOCON UNIT 12 GG20025-005A-H CORNER LABEL (x2)

(No.YA104)3-23

COLOUR TELEVISION EQUALIZER • CINEMA SURROUND • COMPONENT INPUT

Contents

AV-29LS24 AV-21CS24 AV-29LX14 AV-21CX14 AV-29VS24 AV-21DX14 AV-29VX54 AV-21LX14 AV-29VX74 AV-21VS24 AV-29WX14 AV-21VX14 AV-29WX24 AV-21VX54 AV-25LS24 AV-21VX74 AV-25LX14 AV-21WS24 AV-25VS24 AV-21WX14 AV-25VX54 AV-21YX14 AV-25VX74

Knowing your TV’s features ....................................................... 3

Remote control buttons and basic functions .............................. 4

TV buttons and functions ........................................................... 6

Setting up your TV ..................................................................... 7

Basic setting for picture .............................................................. 9

Advanced setting for picture ..................................................... 11

Original features for picture ...................................................... 12

Basic setting for sound ............................................................. 14

Advanced setting for sound ..................................................... 15

Favorite channel and video setting .......................................... 16

Customized setting .................................................................. 17

TV channel presetting .............................................................. 19

Additional preparation .............................................................. 22

Troubleshooting ....................................................................... 23

Specifications .............................................................. Back cover

INSTRUCTIONS

GGT0045-001B-H

Thank you for buying this JVC colour television.

To make sure you understand how to use your new TV, please read this manual thoroughly before you begin.

WARNING: TO PREVENT FIRE OR SHOCK HAZARD, DO NOT

CAUTION: TO ENSURE PERSONAL SAFETY, OBSERVE THE

1 Operate only from the power source indicated on the rear of the TV. 2 Avoid damaging the power cord and mains plug. When unplugging the

TV, grasp the mains plug. Do not pull on the power cord.

3 Never block or cover the ventilation openings.

Never install the TV where good ventilation is unattainable. When installing this TV, leave spaces for ventilation around the TV of

more than the minimum distances as shown.

4 Do not allow objects or liquid into the cabinet openings. 5 In the event of a fault, unplug the unit and call a service technician. Do

not attempt to repair it yourself or remove the rear cover.

6 The surface of the TV screen is easily damaged. Be very careful with it

when handling the TV. Should the TV screen become soiled, wipe it with a soft dry cloth. Never rub it forcefully. Never use any cleaner or detergent on it.

EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.

FOLLOWING RULES REGARDING THE USE OF THIS TV.

15 cm

10 cm 10 cm

15 cm

7 If you are not going to use this TV for a long period of time, be sure to

disconnect the AC plug from the AC socket.

8 The apparatus shall not be exposed to dripping or splashing and that

no objects filled with liquids, such as vases, shall be placed on the apparatus.

WARNING: <AV-21WS24/AV-21WX14/AV-21YX14 only>

A REMOVABLE PLASTIC COVER IS FIXED TO THE TELEVISION’S FRONT AUDIO/VIDEO CONNECTOR. TO PREVENT THIS COVER FROM BEING ACCIDENTALLY SWALLOWED BY BABIES OR CHILDREN, REMOVE IT FROM THE TELEVISION AND STORE IT IN A SAFE PLACE. IF THE COVER IS SWALLOWED SEEK THE ADVICE OF A DOCTOR IMMEDIATELY.

2

Knowing your TV’s features

Main features

PIP (Picture in Picture) You can view two different sources (e.g. TV programme and VCR sources) at the same

4

TELETEXT You can view teletext programmes which are broadcasted by some TV channels. Teletext

A2/NICAM You can listen to the stereo sound or bilingual sound from TV programme broadcasting by A2 (STEREO / I■II) or NICAM Sound-multiplex system.

5

FAVORITE CH (Channel) You can register up to four favorite channels for quick recall with one press.

AI ECO TV detects the brightness of your room and automatically adjust the picture brightness to a

1

AI VOLUME TV adjusts the volume automatically to the same level for all TV channels to avoid sudden

Confirm your TV’s functions

Some functions written in this instruction manual may not be available for your TV.

6

2 3

Please see the chart below and check the functions that are equipped for your TV’s model number. The model number is indicated at the rear of your TV. When you press a button concerned to a function that is not available for your TV, it does not work and the logo “Ø” appears on the screen. For a function that is not available for your TV, it is not displayed in the menu.

Model No.

No.

Function

1 2

*PICTURE BOOSTER –– – – – – ––––– – – – ––_

3

*ECO – _ – ____– _ –– ___–––

PIP control buttons

4,6

(Green label)

TELETEXT control

5,6

buttons (Black label)

– PICTURE TILT __ ––_ – ___ –– – _ – –––

– COMPRESS (16:9) __ _ _ _ _ ____ – ___– _ –

(STEREO/I■II) –– – – – – –__ _ _ _ – – –––

time.

programme is an information in text form.

suitable level for a better eye care.

change of the volume when selecting different TV channel.

–– – – __ ––––– – __–––

–– – – – – _____ _ _ _ –––

AV-29LX14

AV-29WX14

AV-25LX14

AV-21LX14

AV-21VX14

AV-21WX14

AV-29VX54

AV-25VX54

AV-21VX54

AV-29WX24

AV-29LS24

AV-29VS24

AV-25LS24

AV-21CS24

AV-25VS24

AV-21WS24

AV-21VS24

AV-29VX74

AV-25VX74

AV-21VX74

AV-21CX14

AV-21DX14

AV-21YX14

3

Remote control buttons and basic functions

No. Press To

1

POWER Turn on or off the TV from standby mode.

2

MENU/OK Display menu and confirm selected function.

3

5 / ∞ / 2 / 3 Select and adjust menu function.

4

CHANNEL -/+ Select the desired channel number.

5

VOLUME -/+ Adjust the volume level.

6

TV/VIDEO Select TV or video terminal input.

7

MUTING Turn off the volume.

8

DISPLAY Display the programme number or video terminal number, stereo/bilingual broadcast system

9

0~9, -/-- Select the programme number. For two digits programme number, press -/--, then press the

Ä

RETURN

Press this button again to resume the volume.

and PR list (channel list) on the screen. You can select the channel using the PR list.

1 Press the DISPLAY button once to display the PR list. 2 Press 5 / ∞ / 2 / 3 buttons to choose a channel, then press the MENU/OK button.

You can confirm the favorite channels in the PR list. The channels set to favorite channels are indicated with coloured mark.

number button.

+

a) Return to the frequently view channel with one touch.

1 Choose the channel you want to register. 2 Press and hold RETURN+ button until “RETURN PLUS PROGRAMMED!” appears.

To cancel, press and hold RETURN+ button until “RETURN PLUS CANCELED!” appears.

b) Return to the previously viewed channel, if you have not set or have cancelled the Return

channel as above.

1

8

2

! 4

6

3

7

9

5

4

Remote control buttons and basic functions (continued)

How to operate menus and menus locations

To

Display the MENU

Display the top menu

Display the 2nd menu

Display the 3rd menu

Return to the previous menu

Choose the setting of a function

Adjust the effect level of a function

Display the sub menu of a function.

Press the MENU/OK button 2.

Press 5/∞ buttons 3 to choose a menu title. Then press MENU/OK button 2.

Press the DISPLAY button 8.

Press 5/∞ buttons 3 to choose a function. Then press the 2/3 buttons 3 to change the setting.

Press 5/∞ buttons 3 to choose a function. Then press the 2/3 buttons 3 to adjust the effect level.

Press the 5/∞ buttons 3 to choose a function. Then press MENU/OK button 2 to display the sub menu.

The following chart shows locations of functions in menus. In this manual, location of a function is described as follows:

MENU Top menu

MENU 2nd menu

Top menu

Note: Some functions have the 4th menus as the sub-menus.

Operation

2nd menu

Note

To exit the MENU, press the DISPLAY button 8 or choose EXIT menu.

Press ∞ button 3 to display the next page for more functions.

–

Press the MENU/OK button 2 to exit from the menu.

–

3rd menu

Top menu 2nd menu Location 3rd menu Location

MENU INPUT EXT. INPUT P.18 – –

PICTURE PICTURE MODE P.9 – – *If you want to

adjust PICTURE SETTING menu, you must set PICTURE MODE menu to USER.

SOUND STEREO/ *If you want to

adjust EQUALIZER menu, you must set SOUND MODE menu to USER.

FEATURES OFF TIMER P.17 – –

INSTALL AUTO PROGRAM P.19 – –

EXIT – – – –

DISPLAY P.18 – –

PICTURE SETTING P.10 – – WHITE BALANCE P.10 – – PICTURE – VNR P.17

FEATURES

I■II

AI VOLUME P.15 – – SOUND MODE P.14 – – EQUALIZER P.15 – – BALANCE P.14 – – SOUND TURBO P.14 – – CINEMA SURROUND

CHILD LOCK P.17 – – AI ECO SENSOR P.11 – – PIP – PIP,SUB INPUT,SWAP P.12

EDIT/MANUAL P.19 DELETE, MOVE, P.19-

LANGUAGE P.17 LANGUAGE P.17 BLUE BACK P.11 – – AUTO SHUTOFF P.18 – – VIDEO-2 SETTING P.18 – – AI ECO DISPLAY P.11 – – TEXT LANGUAGE P.13 TEXT LANGUAGE P.13

FAVORITE CH SETTING VIDEO SETTING P.16 COLOUR SYSTEM P.9 PICTURE BOOSTER P.10 COMPRESS (16:9) P.11 PICTURE TILT P.11

P.15 – –

MANUAL, INSERT P.20

P.16

5

TV buttons and functions

The illustrations shown below is for AV-29VS24 and AV-21CS24 only, which are used for explanation purpose. Your TV may not look exactly the same as illustrated.

Front of the TV

AV-29VS24

!9 8765

L/MONO

VR

IN (VIDEO-3)

MENU

CHANNEL

OK

VOLUME

TV/VIDEO

EXIT

34

2

POWE

1

R

AV-21CS24

!9 876 4

CH

VOLUME

A

N

E

L

MENU

V

R

L / MO

N

O

IN (VIDEO-2)

OK

21

POWER

Rear of the TV

AV-29VS24

COMPONENT

VIDEO-1

(VIDEO-2)

INPUT

S

OVER

Y

V

/

V

L

B

C

/

MONO

C

R

$

%

MONO

OUTPUT

V

LRRL

# "

AV-21CS24

VIDEO-1

INPUT

V

L

/

MONO

R

%

OUTPUT

V

L

R

#"

6

No. Button/terminal Description Page

1

L (main power) Press to turn on or turn off the TV’s main power. –

2

POWER lamp Indicate the TV is being turned on or off. –

No colour : TV’s main power is being turned off. Red : TV’s main power is being turned on. Note: When you turn off the power switch while TV is in standby mode, the light of power lamp will be off in 10 -15 seconds.

3

ECO sensor –

4

Remote control sensor –

5

TV/VIDEO Press to select TV or video mode. –

6

VOLUME -/+ Press to adjust the volume level. –

7

CHANNEL -/+ Press to select the desired channel. –

8

MENU Press to display the menu. –

9

IN (VIDEO-3) Video and audio input jacks for VIDEO-3 mode. 22 IN (VIDEO-2) Video and audio input jacks for VIDEO-2 mode. 22

Ä Å Ç

OUTPUT Video and audio output jacks. (The component video 22

Headphone jack. 22 Aerial socket. 7

signal cannot be output.)

É

COMPONENT Video or component video, and audio input jacks for 22 (VIDEO-2) INPUT VIDEO-2 mode. You can select the input signal by setting

the “VIDEO-2 SETTING” function (see page 18).

Ñ

VIDEO-1 INPUT Video or S-VIDEO, and audio input jacks for VIDEO-1 7

mode

How to operate the menus with the TV button

TV button

Work as same as the button on the remote control unit

MENU MENU/OK button To display main menu and exit

CHANNEL -/+ 5/∞ button To select menu function. VOLUME -/+ 2/3 button To adjust the desired function.

Note

menu after finish setting.

Setting up your TV

CAUTION

• Turn off the equipment including the TV before connecting.

1 Connecting the aerial cable.

VHF/UHF outdoor aerial

75-ohm coaxial cable (not supplied)

If you connect a VCR, connect the aerial output jack of your VCR and the aerial jack on the TV with the aerial cable. Then connect the output jacks of your VCR and the VIDEO-1 input jacks of the TV with the video cable (or S-VIDEO cable if available) and audio cables. For details, see the manual of your VCR.

Rear of TV

AV-29VS24

To video output

To S-video output

VCR

To audio output

To aerial input

To RF output

The illustration shown is just a sample. It may not be same as your TV.

VHF/UHF outdoor aerial

COMPONENT

VIDEO-1

(VIDEO-2)

OUTPUT

INPUT

S

OVER

V

Y

V

/

V

LRRL

L

C

B

/

MONO

C

R

2 Connecting the compatible main plug to the AC outlet.

3 Inserting batteries into the remote control.

Insert two batteries by following the + and polarities and inserting the - end first.

CAUTION:

Follow the cautions printed on the batteries. Notes:

• Use AA/R6/UM-3 dry cell batteries.

• If the remote control does not work properly, fit new batteries. The supplied batteries are for testing, not regular use.

4 Turn on the TV by pressing the main power button.

JVC logo appears on the screen.

7

Setting up your TV (continued)

5 Making the initial settings

Set up your TV by pressing any button except POWER button, then operate the TV menu by following the steps as below:

LANGUAGE

ENGLISH

кмллдав

FRANÇAIS

BACK ■

OK

• Press 5/∞ button to select your desired language, then press MENU/OK button.

TEXT LANGUAGE

GROUP–1

GROUP–2

GROUP–3

GROUP–4

BACK ■

OK

• Press 5/∞ button to select your desired Teletext language group. For details, see page 13. (For CS24/LS24/ VS24/VX74/WS24/ WX24 series only)

22%

CH 12

OK

• TV will start searching for the channels.

To stop AUTO PROGRAM, press MENU/OK button.

AUTO PROGRAMAUTO PROGRAM

SETUP TOUR RESTART?

OK

RESTART

■

NO

• Press the red button to cancel the SETUP TOUR RESTART function. If you want to make initial settings again when the next time you turn on the TV, press the MENU/OK button to activate the SETUP TOUR RESTART function.

If the JVC logo does not appear, use LANGUAGE, TEXT LANGUAGE, and AUTO PROGRAM functions to make the initial settings. Those functions are located in the INSTALL menu.

If the JVC logo appears, although you had made the initial settings, press the TV/VIDEO button to exit from initial settings.

EDIT

PR CH/CC 7 CH 09 8 CH 11 9 ■ CH 13 10 11 12 13

BACK ■

OK

■

3

■

MOVE ■DELETE

INSERT

MANUAL

• To complete the initial setting, press the MENU/OK button. To edit the channel list, see page 19.

8

Basic setting for picture

COLOUR SYSTEM

You can select the appropriate colour system when the picture is not clear or no colour appears. Press the COLOUR SYSTEM button to select a setting.

AUTO PAL SECAM NTSC3.58

NTSC4.43

To operate this function with a menu:

❇

MENU

COLOUR SYSTEM

For the colour system in each country or region, see the table below:

Area Country or Region System

Asia, Middle China, Vietnam, etc. PAL East Hong Kong, etc. PAL

Europe

Oceania Australia, New Zealand, etc. PAL

Africa Nigeria, etc. PAL

PICTURE menu

Bahrain, Kuwait, Oman, Qatar, United Arab Emirates, Yemen, etc. PAL Indonesia, Malaysia, Singapore, Thailand, India, etc.

Islamic Republic of Iran, Lebanon, Saudi Arabia, etc. SECAM Philippines, Taiwan, Myanmar, etc. NTSC Russia, etc. SECAM Czech Republic, Poland, etc. PAL Germany, Holland, Belgium, etc. PAL UK, etc. PAL

Republic of South Africa, etc. PAL

Egypt, Morocco, etc. SECAM

PICTURE FEATURES menu

PICTURE MODE

You can choose the desired picture setting with one-touch. Press the PICTURE MODE button to select a setting.

SOFT Softens contrast and sharpness. BRIGHT Heightens contrast and sharpness. STANDARD Standard picture setting. USER You can change this picture setting as you like.

*TINT can only be adjusted in NTSC system.

To operate this function with a menu:

❇

MENU

To return the USER setting to the default, press the blue button when the PICTURE SETTING menu appears.

❇ About the basic operations of the menu, please see the “How

to operate menus and menus locations” on page 5.

Select USER and adjust following items in the PICTURE SETTING menu. (CONTRAST, BRIGHT, SHARP, COLOUR, TINT*)

PICTURE menu

PICTURE MODE

9

Basic setting for picture (continued)

Adjusting the picture – USER

You can adjust the desired picture setting when selecting USER in PICTURE MODE.

1 Select the USER in PICTURE MODE under PICTURE menu.

❇

MENU

USER

PICTURE menu

PICTURE MODE

2 Select the PICTURE SETTING in PICTURE menu, then adjust

the setting.

❇

MENU

CONTRAST 2 : Lower contrast 3 : Higher contrast BRIGHT 2 : Darker 3 : Brighter SHARP 2 : Softer 3 : Higher COLOUR 2 : Lighter 3 : Deeper TINT* 2 : Reddish 3 : Greenish

*TINT can only be adjusted in NTSC system.

PICTURE BOOSTER

You can improve picture clarity when the picture is unclear due to the low signal reception. Press the PICTURE BOOSTER button to select the desired mode.

HIGH Perform at maximum level. LOW Perform at minimum level. OFF Cancel the function

To operate this function with a menu:

❇

MENU

PICTURE BOOSTER

PICTURE menu

PICTURE SETTING

PICTURE FEATURES menu

WHITE BALANCE

You can change the white balance of the picture to better match the type of video being viewed. Select the WHITE BALANCE in the PICTURE menu, then choose the desired setting.

❇

MENU

NORMAL Normal white balance. COOL Bluish white. WARM Reddish white.

❇ About the basic operations of the menu, please see the “How

to operate menus and menus locations” on page 5.

PICTURE menu

WHITE BALANCE

10

Advanced setting for picture

AI ECO SENSOR (ECO)

You can adjust TV screen contrast according to the brightness of your room. Press the ECO button to select the desired mode.

1 Mild contrast (recommended). 2 Even contrast. OFF Cancel the function.

To operate this function with a menu:

❇

MENU

FEATURES menu

AI ECO SENSOR

You can display the graphic of AI ECO SENSOR on the screen. Select the AI ECO DISPLAY in the INSTALL menu, then choose ON or OFF.

❇

MENU

INSTALL menu

AI ECO DISPLAY

Correcting the Slanting Picture (PICTURE TILT)

You can correct the picture tilt caused by the earth’s magnetic force.

1 Select the PICTURE TILT in the PICTURE FEATURES menu

under PICTURE menu, then press MENU/OK button.

❇

MENU

PICTURE TILT

The following display appears.

PICTURE menu

PICTURE TILT

PICTURE FEATURES menu

2 Press the 5/∞ buttons until the picture become level. Then

press the MENU/OK button.

COMPRESS (16:9)

You can convert a normal picture (4:3 aspect ratio) into a wide picture (16:9 aspect ratio). Select the COMPRESS (16:9) in the PICTURE FEATURES menu under PICTURE menu, then choose ON or OFF.

❇

MENU

COMPRESS (16:9)

BLUE BACK

You can set the TV to automatically change to a blue screen and mute the sound if the signal is weak or absent, or when there is no input from an antenna.

Select the BLUE BACK in the INSTALL menu, then choose ON or OFF.

❇

MENU

If you wish to continue viewing the poor picture, cancel the BLUE BACK function.

❇ About the basic operations of the menu, please see the “How

to operate menus and menus locations” on page 5.

PICTURE menu

INSTALL menu

PICTURE FEATURES menu

BLUE BACK

BACK ■

OK

11

Original features for picture

PIP

You can display a sub picture on the screen. Press the PIP operation buttons to display and change the sub picture setting.

PIP Display the sub picture.

SUB-P -/+ Select the desired channel for sub picture.

(Input) Select the input source for the sub picture. (Swap) Swap between the main picture and sub picture.

(Position) Change the sub picture position.

(Freeze) Freeze the sub picture to be still.

To cancel, press the PIP button again.

Notes:

• You can hear the sound from the main picture only.

• Main picture and sub picture will use different input

sources, which are TV and VIDEO mode. When the same input source are selected, the sub picture input source will change as follows: Main picture Sub picture TV VIDEO-1 = VIDEO-2 = VIDEO-3 VIDEO-1 TV = VIDEO-2 = VIDEO-3 VIDEO-2 TV = VIDEO-1 = VIDEO-3 VIDEO-3 TV = VIDEO-1 = VIDEO-2

Each time you press on (Position) button, the sub picture position will change as follows:

lower right lower left upper left

upper right

To operate this function with a menu:

❇

MENU

FEATURES menu

PIP

When VIDEO-2 is set to component, you can’t select VIDEO-2 for sub picture.

12

When VIDEO-2 is set to component, if the input source of main picture is set to VIDEO-2 with component, PIP button is disabled and sub picture can’t be displayed.

TELETEXT

You can watch the Teletext broadcast channel with TEXT function.

1 Press the TEXT button to select the desired mode as follows:

TV mode TEXT mode MIX mode

2 Press the CHANNEL -/+ buttons, number buttons or colour

buttons to select other Teletext pages.

3 Press TEXT or TV/VIDEO button to return to TV mode.

You can also operate the teletext using the following buttons:

(Hold) Hold a teletext page.

The (Hold) are displayed at the top left of the screen. To cancel, press (Hold) button again.

(Reveal) Display the hidden text (e.g. answers to a quiz).

To cancel, press (Reveal) button again. (Size) Enlarge the teletext display. (Index) Return to the index page instantly. (Cancel) Watch TV programme while waiting for a teletext page.

When the teletext page is found, a page number

appears at the upper left of the screen.

Press (Cancel) to view the teletext page. (Sub-page) Operate the (Sub-page) function.

Sub-page numbers are displayed at the left of the

screen.

To cancel sub-page function, press (Sub-page)

button again.

❇ About the basic operations of the menu, please see the “How

to operate menus and menus locations” on page 5.

Original features for picture (continued)

Using the List mode

You can store and recall the favorite teletext pages in memory using the colour buttons.

1 In TEXT mode, press the MODE button to enter the List mode. 2 Press a colour button, then press the number buttons to enter

the page number.

3 Press and hold down the (Store) button.

The page number is blinking white to indicate that they are stored in memory.

4 To store other favorite teletext pages, repeat Step 2 to 3.

To recall the favorite teletext page, press the MODE button, then press the colour button. To exit the List mode, press the MODE button again. When viewing teletext programme, menu operations are not available. If characters on a teletext programme do not appear properly, change the TEXT LANGUAGE setting.

TEXT LANGUAGE

You can set the Teletext language group that corresponds to the programmes. Select TEXT LANGUAGE in the INSTALL menu, then choose the desired language group.

❇

MENU

GROUP-1 English, German, Swedish / Finnish / Danish /

GROUP-2 Polish, German, Estonian, Slovenian, Czech /

GROUP-3 Polish, German, Estonian, Lettish, Russian, Ukrainian GROUP-4 English, French, Turkish, Arabic, Iranian

Depending on the broadcast, the language set may not display properly.

❇ About the basic operations of the menu, please see the “How

to operate menus and menus locations” on page 5.

INSTALL menu

Hungarian, Italian, French, Spanish / Portuguese, Turkish

Slovakian, Rumanian

TEXT LANGUAGE

13

Basic setting for sound

SOUND SYSTEM

You can select an appropriate sound system when abnormal sound occurs even when the picture appears normally. Press the SOUND SYSTEM button to select a setting.

B/G I D/K M

This function is not available in video mode. For the sound system in each country or region, see the table below:

Area Country or Region System

Asia, Middle China, Vietnam, etc. D/K East Hong Kong, etc. I

Europe

Oceania Australia, New Zealand, etc. B/G

Africa Nigeria, etc. B/G

Bahrain, Kuwait, Oman, Qatar, United Arab Emirates, Yemen, etc. B/G Indonesia, Malaysia, Singapore, Thailand, India, etc.

Islamic Republic of Iran, Lebanon, Saudi Arabia, etc. B/G Philippines, Taiwan, Myanmar, etc. M Russia, etc. D/K Czech Republic, Poland, etc. D/K Germany, Holland, Belgium, etc. B/G UK, etc. I

Republic of South Africa, etc. I

Egypt, Morocco, etc. B/G

SOUND MODE

You can choose the desired sound setting. Select the SOUND MODE in SOUND menu, then choose the setting.

❇

MENU SOUND menu

USER You can change this sound setting as you like.

Select USER and adjust the frequencies in EQUALIZER (0.1, 0.3, 1.0, 3.0, 8.0KHz).

For details, see “EQUALIZER” on page 15. DYNAMIC Emphasize on both vocal sound and music. MUSIC Emphasize on music effect. NEWS Emphasize on vocal sound.

SOUND MODE

BALANCE

You can adjust the volume balance between the left and right speakers. Select the BALANCE in SOUND menu, then adjust the setting.

❇

MENU SOUND menu

BALANCE

SOUND TURBO

You can set the sound frequency to emphasize the low and high frequency levels.

Press the SOUND TURBO to select ON or OFF. To operate this function with a menu:

❇

MENU SOUND menu

SOUND TURBO

14

❇ About the basic operations of the menu, please see the “How

to operate menus and menus locations” on page 5.

Advanced setting for sound

CINEMA SURROUND

You can enjoy an enhanced sound for wider audience. Press the CINEMA SURROUND button to select a setting.

OFF Cancel the function. LOW Listen to sound with less wider audience effect. HIGH Listen to sound with more wider audience effect. MONO Listen to mono sound with stereo effect.

To operate this function with a menu:

❇

MENU

SOUND menu

CINEMA SURROUND

If slight volume distortion occurs when you select HIGH mode, change the setting to LOW mode. The CINEMA SURROUND effect will be less noticeable.

STEREO / I■II ( )

You can enjoy the stereo and bilingual broadcasted programmes. Press the button to select the desired mode.

Select stereo sound. Select monaural sound.

I Select bilingual I (sub I). II Select bilingual II (sub II).

MONO Cancels the Multi Sound function, and the sound

This function is not available in video mode. To operate this function with a menu:

❇

MENU

becomes monaural.

SOUND menu

STEREO / I■II

EQUALIZER

You can adjust the sound frequencies when selecting USER mode in SOUND MODE.

1 Select the USER in SOUND MODE under SOUND menu.

❇

MENU

SOUND menu

SOUND MODE USER

2 Select the EQUALIZER in SOUND menu.

❇

MENU

The following display appears.

SOUND menu

EQUALIZER

IIIIIIIIIIII

0.1 0.3 1.0 3.0 8.0 KHz

BACK ■

OK

IIIIIIIIIIIIIIIII

IIIIIIIIIIIIIIIIIIIIIIIII

IIIIIIIIIIIIIIIIIIIIIII

EQUALIZER

IIIIIIIIIIII

3 Select and adjust the desired frequencies. 4 Press the MENU/OK button to exit the menu.

Adjust high frequency will affect higher pitch sound and vice versa.

AI VOLUME

You can adjust the volume of all the channels and video inputs to the same level automatically. Select the AI VOLUME in SOUND menu, then choose ON or OFF.

❇

MENU

SOUND menu

AI VOLUME

❇ About the basic operations of the menu, please see the “How

to operate menus and menus locations” on page 5.

15

Favorite channel and video setting

To register the favorite channel

You can register and recall 4 favorite channels by using the colour buttons (red, green, yellow, blue).

1 In TV mode, select a TV channel (PR01-99) you desired to register. 2 Press and hold a colour button for 3 seconds or more.

“FAVORITE CHANNEL ■ PROGRAMMED” appears on the screen and current channel is registered.

3 To register other favorite channels, repeat Step 1 to 2.

To recall the favorite channel, press the colour button. When the TV is in Text mode, Picture in Picture or menu mode, favorite channel function is not available.

To adjust favorite channel setting (FAVORITE CH SETTING)

You can adjust the picture and sound settings for the favorite channels.

1 Display the PICTURE menu and select FAVORITE CH

SETTING in PICTURE FEATURES menu.

❇

MENU PICTURE menu

FAVORITE CH SETTING

PICTURE FEATURES menu

2 Select FAVORITE CHANNEL in FAVORITE CH SETTING

menu, then choose the desired favorite channel.

❇

FAVORITE CH SETTING

3 Select EFFECT, then press 2/3 button

to choose ON. To cancel the settings, choose OFF.

FAVORITE CHANNEL

FAVORITE CH SETTING

FAVORITE CHANNEL ■ PR 01 CONTRAST BRIGHT SHARP COLOUR TINT SOUND MODE USER EFFECT ON

BACK ■

OK

16

4 Select the desired item that you wish to adjust.

CONTRAST BRIGHT SHARP COLOUR

SOUND MODE (USER, DYNAMIC, MUSIC, NEWS)

TINT

5 Press the MENU/OK button to exit the menu.

To adjust the video setting (VIDEO SETTING)

You can adjust the picture and sound settings for video inputs.

1 Display the PICTURE menu and select VIDEO SETTING in

PICTURE FEATURES menu.

❇

MENU PICTURE menu

VIDEO SETTING

PICTURE FEATURES menu

2 Select VIDEO STATUS in VIDEO SETTING menu, then

choose the desired video input.

❇

VIDEO SETTING

3 Select EFFECT, then press 2/3 button

to choose ON. To cancel the settings, choose OFF.

VIDEO STATUS

VIDEO SETTING

VIDEO STATUS VIDEO-1 CONTRAST BRIGHT SHARP COLOUR TINT SOUND MODE USER EFFECT ON

BACK ■

OK

■

RESET

4 Select the desired item that you wish to adjust.

CONTRAST BRIGHT SHARP COLOUR

SOUND MODE (USER, DYNAMIC, MUSIC, NEWS)

TINT

5 Press the MENU/OK button to exit the menu.

❇ About the basic operations of the menu, please see the “How

to operate menus and menus locations” on page 5.

Customized setting

VNR

You can reduce the noise. Select the VNR in the PICTURE FEATURES menu under PICTURE menu, then choose a setting of VNR function.

❇

MENU

VNR

OFF VNR is turned off. AUTO Effect of VNR is automatically controlled. MIN Effect of VNR becomes minimum level. MAX Effect of VNR becomes maximum level.

PICTURE menu

PICTURE FEATURES menu

If you select MAX, the picture becomes softer even if the original picture is sharp.

LANGUAGE

You can choose your desired on screen display language. Select the LANGUAGE in the INSTALL menu, then choose a language.

❇

MENU

INSTALL menu

LANGUAGE

CHILD LOCK

You can disable the front control buttons of the TV. Select the CHILD LOCK in the FEATURES menu, then choose ON or OFF.

❇

MENU

FEATURES menu

CHILD LOCK

OFF TIMER

You can set the TV to turn off automatically to standby mode after a set time. Press the OFF TIMER button to select a desired period of time.

OFF TIMER

0 120

10

BACK ■

OK

To operate this function with a menu:

❇

MENU

FEATURES menu

When the elapsed of time left one minute, “GOODNIGHT!” appears on the screen. You can display the OFF TIMER menu again to confirm or change the remaining time.

You can set the period of time to a maximum of 120 minutes in 10 minutes step.

OFF TIMER

❇ About the basic operations of the menu, please see the “How

to operate menus and menus locations” on page 5.

17

Customized setting (continued)

AUTO SHUTOFF

You can set the TV to turn off automatically when no signal is received for about 15 minutes or longer after the end of a broadcast. Select AUTO SHUTOFF in INSTALL menu, then choose ON or OFF.

❇

MENU INSTALL menu

AUTO SHUTOFF

The AUTO SHUTOFF function does not turn off the TV’s main power. The AUTO SHUTOFF function is not available in video mode.

EXT. INPUT (TV/VIDEO)

You can select TV or video terminal input with one touch. Press the TV/VIDEO button to select an input. To operate this function with a menu:

❇

MENU

INPUT menu

EXT. INPUT

DISPLAY

You can display the programme number, video terminal number, stereo/bilingual broadcast system and PR list on the screen. Press the DISPLAY button to display the information on screen. To operate this function with a menu:

❇

MENU

INPUT menu

DISPLAY

VIDEO-2 SETTING

You can set the VIDEO-2 SETTING according to the video signal output from the external devices connected to the VIDEO-2 terminal. Select the VIDEO-2 SETTING in INSTALL menu, then choose a setting.

❇

MENU INSTALL menu

VIDEO If a normal video signal (composite video signal) is

input.

COMPONENT If a component video signal (Y/CB/CR) is input.

For connecting methods, see “Additional Preparation” on page

22.

❇ About the basic operations of the menu, please see the “How

to operate menus and menus locations” on page 5.

VIDEO-2 SETTING

18

TV channel presetting

To register the TV channels automatically

You can register the TV channels into the TV’s channel list automatically.

1 Display the INSTALL menu.

❇

MENU

INSTALL menu

2 Choose AUTO PROGRAM, then press the MENU/OK button.

AUTO PROGRAM function starts, and the channels received

are registered in the channel list (PR LIST) automatically.

3 “SETUP TOUR RESTART?” appears.

To start the SETUP Press the MENU/OK button. Then proceed to TOUR step 5 of “Setting up your TV” on page 8. To skip the SETUP Press the Red button. TOUR

4 The EDIT menu appears.

To edit the channel Proceed to the Step 3 of “To edit the channel list list (PR LIST)” on page 20. If a channel is not Proceed to the Step 3 of “To register the TV registered channels manually” on this page. To exit the menu Press the MENU/OK button.

For details of “SETUP TOUR”, see page 8.

To register the TV channels manually (MANUAL in the EDIT menu)

You can register the TV channels into the TV’s channel list manually.

1 Display the INSTALL menu.

❇

MENU

INSTALL menu

2 Choose EDIT/MANUAL, then press the MENU/OK button.

EDIT menu appears.

EDIT

PR CH/CC 7 CH 09 8 CH 11 9 ■ CH 13 10 11 12 13

BACK ■

OK

■

3

■

INSERT

MOVE ■DELETE

MANUAL

3 Choose the channel which you want to register. 4 Press the blue button to activate the MANUAL function.

The sound system of the channel appears at the right of the CH/CC number.

5 Press the 3 button to choose an appropriate sound system.

For details, see “SOUND SYSTEM” on page 14.

6 Press the green or red button to search for the TV channel.

Searching stops when a channel is found and displayed.

7 Repeat step 5 until your desired TV channel appears.

If the reception is poor Press the blue or yellow button to fine tune

If noisy sound is heard Press the 3 button to choose an appropriate

the TV channel.

sound system.

8 Press the MENU/OK button to exit the menu.

❇ About the basic operations of the menu, please see the “How

to operate menus and menus locations” on page 5.

19

TV channel presetting (continued)

To edit the channel list (PR LIST) (MOVE and DELETE in the EDIT menu)

You can edit the TV channel list as you like. Note: After this operation, other channel’s PR numbers will be changed.

1 Display the INSTALL menu.

❇

MENU

INSTALL menu

2 Choose EDIT/MANUAL, then press the MENU/OK button.

EDIT menu appears.

EDIT

PR CH/CC 7 CH 09 8 CH 11 9 ■ CH 13 10 11 12 13

BACK ■

OK

■

3

■

MOVE ■DELETE

INSERT

MANUAL

3 Choose the channel which you want to change PR number, or

delete.

4 Do the following action:

To change the PR Press the 3 button. Then move it to the PR number (MOVE) number you want to use it for the channel.

To delete the Press the yellow button. channel (DELETE)

Finally press the 2 button.

5 Press the MENU/OK button to exit the menu.

To add in the new channel (INSERT in the EDIT menu)

You can add in the new channel in the TV channel list as you like. You need to find the “CH/CC” number for the TV channel. Find the “CH/CC” number corresponding to the channel number of the TV channel from the attached sheet “CH/CC number list” on page 21.

1 Display the INSTALL menu.

❇

MENU

INSTALL menu

2 Choose EDIT/MANUAL, then press the MENU/OK button.

EDIT menu appears.

3 Choose the PR number for which you will register a new TV

channel. When you add a new TV channel of NTSC-M system, press the SOUND SYSTEM button to change the sound system to M. Then proceed to the next step.

4 Press the green button, then press 5/∞ buttons to choose

“CC” or “CH”.

5 Press the number button to enter the remaining CH/CC

number. The TV starts to search the TV channel, and the picture of the TV channel appears. If the TV finds no TV channel, a noisy

picture appears. When a TV channel has already been registered in PR99, using the INSERT function deletes that TV channel.

❇ About the basic operations of the menu, please see the “How

to operate menus and menus locations” on page 5.

20

TV channel presetting (continued)

CH/CC number

When you want to use the INSERT function on page 20, find the CH/CC number corresponding to the channel number of the TV channel from this table.

Channel No. Country

US United States, Philippines, etc.. CCIR Middle East, Southeast Asia,

OIRT Eastern Europe, Russia,

AUSTRALIA Australia, etc..

Channel

CH US CCIR OIRT AUSTRALIA

CH 02 US-2 E2 R1 AU-0 CH 03 US-3 E3 AU-1 CH 04 US-4 E4 R2 AU-2 CH 05 US-5 E5 R6 AU-6 CH 06 US-6 E6 R7 AU-7 CH 07 US-7 E7 R8 AU-8 CH 08 US-8 E8 R9 AU-9 CH 09 US-9 E9 CH 10 US-10 E10 R10 AU-10 CH 11 US-11 E11 R11 AU-11 CH 12 US-12 E12 R12 CH 13 US-13 CH 14 US-14, W+29 CH 15 US-15, W+30 CH 16 US-16, W+31 CH 17 US-17, W+32 CH 18 US-18, W+33 CH 19 US-19, W+34 CH 20 US-20, W+35 CH 21 US-21, W+36 E21 CH 22 US-22, W+37 E22 CH 23 US-23, W+38 E23 CH 24 US-24, W+39 E24 CH 25 US-25, W+40 E25 CH 26 US-26, W+41 E26 CH 27 US-27, W+42 E27 CH 28 US-28, W+43 E28 CH 29 US-29, W+44 E29 CH 30 US-30, W+45 E30 CH 31 US-31, W+46 E31 CH 32 US-32, W+47 E32

etc..

Vietnam, etc..

CH US CCIR OIRT AUSTRALIA

CH 33 US-33, W+48 E33 CH 34 US-34, W+49 E34 CH 35 US-35, W+50 E35 CH 36 US-36, W+51 E36 CH 37 US-37, W+52 E37 CH 38 US-38, W+53 E38 CH 39 US-39, W+54 E39 CH 40 US-40, W+55 E40 CH 41 US-41, W+56 E41 CH 42 US-42, W+57 E42 CH 43 US-43, W+58 E43 CH 44 US-44, W+59 E44 CH 45 US-45, W+60 E45 CH 46 US-46, W+61 E46 CH 47 US-47, W+62 E47 CH 48 US-48, W+63 E48 CH 49 US-49, W+64 E49 CH 50 US-50, W+65 E50 CH 51 US-51, W+66 E51 CH 52 US-52, W+67 E52 CH 53 US-53, W+68 E53 CH 54 US-54, W+69 E54 CH 55 US-55, W+70 E55 CH 56 US-56, W+71 E56 CH 57 US-57, W+72 E57 CH 58 US-58, W+73 E58 CH 59 US-59, W+74 E59 CH 60 US-60, W+75 E60 CH 61 US-61, W+76 E61 CH 62 US-62, W+77 E62 CH 63 US-63, W+78 E63 CH 64 US-64, W+79 E64 CH 65 US-65, W+80 E65 CH 66 US-66, W+81 E66 CH 67 US-67, W+82 E67 CH 68 US-68, W+83 E68 CH 69 US-69, W+84 E69

CC US CCIR OIRT AUSTRALIA

CC 01 S-1 AU-5 CC 02 S-2 CC 03 S-3 CC 04 S-4 CC 05 S-5 CC 06 S-6 AU-5A CC 07 S-7 CC 08 S-8 CC 09 S-9 CC 10 S-10 CC 11 S-11 CC 12 S-12 CC 13 S-13 CC 14 A S-14 CC 15 B S-15 CC 16 C S-16 CC 17 D S-17

CC US CCIR OIRT AUSTRALIA

CC 18 E S-18 CC 19 F S-19 CC 20 G S-20 CC 21 H S-21 CC 22 I S-22 CC 23 J S-23 CC 24 K S-24 CC 25 L S-25 CC 26 M S-26 CC 27 N S-27 CC 28 O S-28 CC 29 P S-29 CC 30 Q S-30 CC 31 R S-31 CC 32 S S-32 CC 33 T S-33 CC 34 U S-34 CC 35 V S-35 CC 36 W S-36 CC 37 W+1 S-37 CC 38 W+2 S-38 CC 39 W+3 S-39 CC 40 W+4 S-40 CC 41 W+5 S-41 CC 42 W+6 CC 43 W+7 CC 44 W+8 CC 45 W+9 CC 46 W+10 CC 47 W+11 CC 48 W+12 CC 49 W+13 CC 50 W+14 CC 51 W+15 CC 52 W+16 CC 53 W+17 CC 54 W+18 CC 55 W+19 CC 56 W+20 CC 57 W+21 CC 58 W+22 CC 59 W+23 CC 60 W+24 CC 61 W+25 CC 62 W+26 CC 63 W+27 CC 64 W+28 CC 75 X CC 76 Y R3 CC 77 Z R4 AU-3 CC 78 Z+1 R5 CC 79 Z+2 AU-4 CC 95 A-5 CC 96 A-4 CC 97 A-3 CC 98 A-2 CC 99 A-1

21

Additional preparation

The illustrations shown in this section are for AV-29VS24 and AV-21CS24 only, which are used for explanation purpose. Your TV may not look exactly the same as illustrated.

Before connecting

• Read the manuals provided with the devices for the proper connection.

• Turn off all the devices including the TV.

• Note that connecting cables are not supplied.

Connecting to front video input terminal

Front of TV

Headphones

AV-29VS24

AV-21CS24

Camcorder or TV game

R

L/MONO

V

MENU

OK

IN (VIDEO-3)

MENU

V

R

L / MONO

IN (VIDEO-2)

OK

22

Connecting to rear component/video input terminal and output terminal

Rear of TV

AV-29VS24

COMPONENT

VIDEO-1

(VIDEO-2)

Y

/

V

B

C

R

VIDEO-1

INPUT

V

L

/

MONO

R

INPUT

/

MONO

OUTPUT

V

LRRL

OUTPUT

V

L

R

Rear of TV

INPUT

S

OVER

V

L

/

MONO

R

AV-21CS24

When you use VIDEO-1 INPUT, you should choose to connect S-VIDEO or video input. If S-VIDEO connector and video input are connected at the same time, no picture displays on the screen and the message “PLEASE DISCONNECT VIDEO-1 CABLE!” appears. In this case, you should disconnect either S-VIDEO or video input. When connecting to COMPONENT (VIDEO-2) input, depending on the connection, choose the appropriate video input using the menu (see page 18).

VCR (for playing) DVD player (composite signals)

VCR (for recording)

DVD player (component video signals)

VCR (for playing)

VCR (for recording)

Troubleshooting

If a problem occurs when you are using the TV, check the below troubleshooting guide before calling for repair.

• No picture,

no sound

• Snowy picture

• Stripes appear on

the picture

• Double-pictures

(ghosting) occur

• Poor picture

• White and bright still

image look as if it were coloured

• Top of the image

from software products or video tape is distorted

• Poor sound

• Stereo or bilingual

sound is unclear

• Deactivate the BLUE BACK function if it is turned on.

• Choose the appropriate sound system. Refer to “SOUND SYSTEM” on page 14.

• Check the aerial cable and its connection with the

TV.

• Interference occurs caused by other devices such as an amplifier, personal computer, or a hair drier. Move such devices away from your TV.

• Interference occurs caused by signal reflecting from mountains or building. Try to adjust the aerial’s direction or use a better directionality antenna.

• Choose the appropriate colour system. Refer to “COLOUR SYSTEM” on page 9.

• Adjust the COLOUR or BRIGHT setting. Refer to “Adjusting the picture - USER” on page 10.

• Inevitable phenomenon due to the nature of the

picture tube. This is not a malfunction.

• This is due to the condition of the video signal whereby the image was not recorded properly. This is not a malfunction.

• Adjust the sound frequency properly. Refer to “EQUALIZER” on page 15.

• TV channel reception is poor. Change the stereo/

bilingual mode to mono sound (see page 15).

• Cannot operate the remote control

• Cannot operate the menus

• Cannot operate the front control buttons

• TV is turned off suddenly

• Colour patches appear at the corner of the screen

• Picture is tilted

• Image takes a short

period to be displayed

• TV may emitted crackling sound

• Feel a slight electric shock when touching the TV screen

• The batteries may be exhausted. Replace with new batteries (see page 7).

• Ensure that you are operating the remote less than seven meters from the front of your TV.

• Press TV/VIDEO button to return to TV mode and try operating the menus.

• Deactivate the CHILD LOCK function if it is turned on (see page 17).

• This may due to the AUTO SHUT OFF function is activated. Press the POWER button to turn on the TV.

• This may due to the magnetized device such as a speaker near to your TV. Keep the device apart from your TV. Alternately, you can also use the magnetic-shielded speaker.

• This may due to the earth magnetism. Refer to “PICTURE TILT” on page 11 to correct the tilt.

• Image required time to stabilize before display.

This is not a malfunction.

• This is due to a sudden change in temperature and it is not a malfunction. If the crackling sound is too frequent, request your service technician for inspection.

• This is due to the static electricity of the picture tube and it will not harm the human body. This is not a malfunction.

23

Specifications

TV RF systems

B, G, I, D, K, M

Colour systems

PAL, SECAM, NTSC 3.58 MHz, NTSC 4.43 MHz

Receiving channels

VHF low channel (VL), VHF high channel (VH), UHF channel (U) Receives cable channels in mid band, super band and hyper band.

External input / output

VIDEO-1: S-video input*, VIDEO input, AUDIO L/R input VIDEO-2/COMPONENT: VIDEO input, AUDIO L/R input, COMPONENT VIDEO (Y/C

AV-21CX14/AV-21YX14) VIDEO-3: VIDEO input, AUDIO L/R input (Except for AV-21CS24/AV-21CX14/AV-21YX14) OUTPUT: VIDEO output, AUDIO L/R output Headphone jack: Stereo mini jack (3.5 mm diameter)

*Except for AV-29LS24/AV-29LX14/AV-25LS24/AV-25LX14/AV-21CS24/AV-21CX14/AV-21DX14/AV-21LX14/AV-21YX14.

**Sound-multiplex systems

A2 or NICAM (B/G, I, D/K)

**Teletext system

FLOF (Fastext), WST (World Standard Text)

**Language displayed by teletext

Please see the table in the description “TEXT LANGUAGE” on page 13.

■

**Depends on the models, STEREO/I

II function for the Sound-multiplex systems or Teletext function may not be available. Please

confirm with the chart on page 3.

) input (Except for AV-21CS24/

B/CR

Design and specifications subject to change without notice.

VICTOR COMPANY OF JAPAN, LIMITED

0304-FLE-JMT

COLOUR TELEVISION EQUALIZER • CINEMA SURROUND • COMPONENT INPUT

Contents

AV-2934LE AV-2584VE AV-2934WE AV-25LS24 AV-2953WE AV-2134YE AV-2954WE AV-2134WE AV-2983VE AV-2144LE AV-2984VE AV-2153W AV-29LS24 AV-2154CE AV-2534LE AV-2154LE AV-2553LE AV-2154W AV-2554LE AV-2174VE AV-2583VE AV-2184VE

AV-2183VE

Knowing your TV’s features ....................................................... 3

Remote control buttons and basic functions .............................. 4

TV buttons and functions ........................................................... 6

Setting up your TV ..................................................................... 7

Basic setting for picture .............................................................. 9

Advanced setting for picture ..................................................... 11

Original features for picture...................................................... 12
