JVC AV-21VP14/T Parts List

PARTS LIST

CAUTION

J The parts identified by the  symbol are important for the safety . Whenever replacing these parts, be sure to use specified ones to secure the

safety.

J The parts not indicated in this Parts List and those which are filled with lines --- in the Parts No. columns will not be supplied.

J P.W. BOARD Ass'y will not be supplied, but those which are filled with the Parts No. in the Parts No. columns will be supplied.

ABBREVIATIONS OF RESISTORS, CAPACITORS AND TOLERANCES

RESISTORS CAPACITORS

CR Carbon Resistor C CAP. Ceramic Capacitor

FR Fusible Resistor E CAP. Electrolytic Capacitor

PR Plate Resistor M CAP. Mylar Capacitor

VR Variable Resistor CH CAP. Chip Capacitor

HV R High Voltage Resistor HV CAP. High Voltage Capacitor

MF R Metal Film Resistor MF CAP. Metalized Film Capacitor

MG R Metal Glazed Resistor MM CAP. Metalized Mylar Capacitor

MP R Metal Plate Resistor MP CAP. Metalized Polystyrol Capacitor

OM R Metal Oxide Film Resistor PP CAP. Polypropylene Capacitor

CMF R Coating Metal Film Resistor PS CAP. Polystyrol Capacitor

UNF R Non-Flammable Resistor TF CAP. Thin Film Capacitor

CH V R Chip Variable Resistor MPP CAP. Metalized Polypropylene Capacitor

CH MG R Chip Metal Glazed Resistor TAN. CAP. Tantalum Capacitor

COMP. R Composition Resistor CH C CAP. Chip Ceramic Capacitor

LPTC R Linear Positive Temperature Coefficient Resistor BP E CAP. Bi-Polar Electrolytic Capacitor

CH AL E CAP. Chip Aluminum Electrolytic Capacitor

CH AL BP CAP. Chip Aluminum Bi-Polar Capacitor

CH TAN. E CAP. Chip Tantalum Electrolytic Capacitor

CH AL BP E CAP. Chip Tantalum Bi-Polar Electrolytic Capacitor

RESISTORS

FGJ KMNRHZP

±1% ±2% ±5% ±10% ±20% ±30%

+30%

-10%

+50%

-10%

+80%

-20%

+100%

-0%

(No.YA190)3-1

CONTENTS

USING P.W. BOARD & REMOTE CONTROL UNIT ................................................................................................... 3-3

EXPLODED VIEW PARTS LIST -1 ............................................................................................................................. 3-3

EXPLODED VIEW -1 ................................................................................................................................................... 3-3

EXPLODED VIEW PARTS LIST -2 ............................................................................................................................. 3-4

EXPLODED VIEW -2 ................................................................................................................................................... 3-5

PRINTED WIRING BOARD PARTS LIST ................................................................................................................... 3-6

MAIN P.W. BOARD ASS'Y (SCW-1085A-H2) ................................................................................................... 3-6

REMOTE CONTROL UNIT PARTS LIST (RM-C1281-2H) ....................................................................................... 3-10

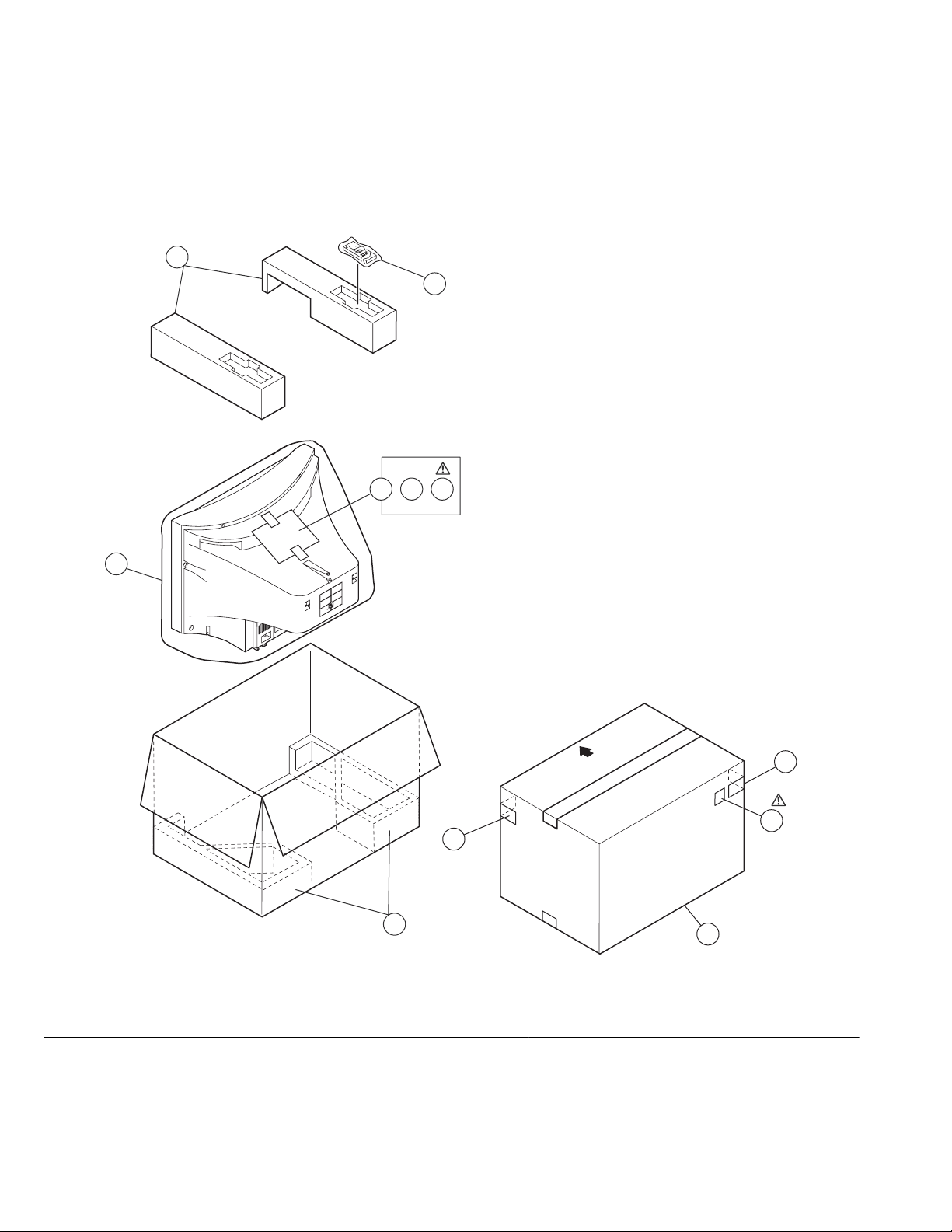

PACKING ................................................................................................................................................................... 3-10

PACKING PARTS LIST ............................................................................................................................................. 3-10

3-2(No.YA190)

USING P.W. BOARD & REMOTE CONTROL UNIT

P.W.B ASS'Y AV-21VP14/T

MAIN P.W.B SCW-1085A-H2

REMOTE CONTROL UNIT RM-C1282-2H

EXPLODED VIEW PARTS LIST -1

 Ref.No. Part No. Part Name Description Local

1 GG30068-001A-H AV SHEET
2 GG40023-003A-H JVC MARK
3 GG30044-001B-H REMOCON LENS
4 GG30042-001B-H LED LENS

 100 GG10238-008A-H FRONT CABINET ASS'Y Inc.101,102,103,104

101 GG20044-004A-H DOOR
102 GG30043-002A-H POWER KNOB
103 CM35235-003-H SPRING
104 GG20022-002B-H CONTROL KNOB

EXPLODED VIEW -1

100

1

101

104

4

3

2

103

102

(No.YA190)3-3

EXPLODED VIEW PARTS LIST -2

 Ref.No. Part No. Part Name Description Local

 V01 A51LVV896X CRT
 DY01 QQD0082-001 DEF YOKE
 L01 QQW0118-001 DEG COIL
 T522 QQH0188-001 FB TRANSF

11 QYSBSBG4016ZA TAP SCREW M4 x 16mm(x9)
12 QYSBSF3010ZA TAP SCREW M3 x 10mm(x4)

 13 GG10187-007A-H REAR COVER
 14 GG40039-001A-H POWER CORD CLAMP
 15 QMPR520-170-JC POWER CORD 1.7m BLACK

16 QAL0608-001 PC MAGNET
17 CE40764-00A WEDGE ASS'Y (x3)
18 A48457-3-H SPRING
19 CHGB0028-0A BRAIDED ASS'Y
20 CHGB0017-0C BRAIDED SUB ASS'Y
21 CM36623-B01-H CHASSIS RAIL (x2)
22 GG40046-001A-H TAPPING SCREW (x4)
23 LC40226-004A-H SPACER (x4)
24 GG20057-001A-H SP HOLDER (x4)
25 QAS0139-001 SPEAKER (x2) SP01,SP02

 26 GG20024-001B-H RATING LABEL
 27 GG30037-001A-H TAIWAN LABEL

 30 SCW-1085A-H2 MAIN PWB

3-4(No.YA190)

EXPLODED VIEW -2

V01

FRONT CABINET

24

23

22

25

24

23

24

25

L01

23

19

22

14

20

21

17

15

21

16

18

DY01

MAIN PWB

30

(CRT SOCKET PWB)

24

23

T522

30
MAIN PWB

13

11

26

12

27

(No.YA190)3-5

PRINTED WIRING BOARD PARTS LIST



MAIN P.W. BOARD ASS'Y (SCW-1085A-H2)



Ref No. Part No. Part Name Description Local

IC302 S9066-11 PHOTO CONDUCTOR
IC351 TDA6107AJF/N1 IC
IC401 AN15525A IC
IC601 AN5277 IC
IC701 TDA12027-NTSC IC(MCU) (SERVICE)
IC702 AT24C16-21VT34 IC (SERVICE)
IC801 RPM7238-H5 IR DETECT UNIT
IC921 STR-W6756-F5 SW IC
IC951 SE135N IC
IC972 BA33BC0T REGULATOR IC
IC973 PQ120RDA1SZ IC
IC974 MM1561JF-X IC
IC975 PQ050RDA1SZ IC
IC976 MM1561JF-X IC

Q001 2SK1374-X MOS FET
Q002 2SK1374-X MOS FET
Q101 2SC5083/L-P/-T TRANSISTOR
Q341 2SA1530A/QR/-X TRANSISTOR
Q521 2SC2655/Y/-T TRANSISTOR



Q522 TT2190LS-YB11 TRANSISTOR
Q571 2SA1208/ST/Z1-T TRANSISTOR
Q572 UN2212-X DIGI TRANSISTOR
Q601 2SA1530A/QR/-X TRANSISTOR
Q602 2SA1530A/QR/-X TRANSISTOR
Q603 DTC323TK-X DIGI TRANSISTOR
Q605 DTC323TK-X DIGI TRANSISTOR
Q607 2SC3928A/QR/-X TRANSISTOR
Q608 2SC3928A/QR/-X TRANSISTOR
Q609 UN2212-X DIGI TRANSISTOR
Q611 UN2212-X DIGI TRANSISTOR
Q703 2SA1530A/QR/-X TRANSISTOR
Q704 2SC3928A/QR/-X TRANSISTOR
Q705 SSM3K02F-X MOS FET
Q706 SSM3K02F-X MOS FET
Q707 2SC3928A/QR/-X TRANSISTOR
Q708 2SA1530A/QR/-X TRANSISTOR
Q791 DTC124ESA-T DIGI TRANSISTOR
Q801 KTA1267/YG/-T TRANSISTOR
Q803 DTC323TK-X DIGI TRANSISTOR
Q804 DTC323TK-X DIGI TRANSISTOR
Q805 2SA1530A/QR/-X TRANSISTOR
Q955 2SC3928A/QR/-X TRANSISTOR

D341 MA8033/H/-X Z DIODE
D342 MA8033/H/-X Z DIODE
D343 MA8033/H/-X Z DIODE
D345 MA111-X SI DIODE
D349 MA8120/M/-X Z DIODE
D350 MA8075/M/-X Z DIODE
D351 EU01N-T2 SI DIODE
D354 RGP10J-5025-T3 SI DIODE
D355 RGP10J-5025-T3 SI DIODE
D356 RGP10J-5025-T3 SI DIODE
D422 MTZJ75-T2 Z DIODE
D423 1N4003-T2 SI DIODE
D471 1SR124-400A-T2 SI DIODE
D472 MA111-X SI DIODE
D520 MA111-X SI DIODE
D521 ERB06-15-F1 SI DIODE
D522 RU3AM-LFC4 SI DIODE
D523 RGP10J-5025-T3 SI DIODE
D530 RGP10J-5025-T3 SI DIODE
D551 RGP10J-5025-T3 SI DIODE
D552 RGP10J-5025-T3 SI DIODE
D554 MA8051/L/-X Z DIODE
D571 MA8075/H/-X Z DIODE
D581 RGP10J-5025-T3 SI DIODE
D601 NRSA63J-0R0X MG RESISTOR 0Ω 1/16W J
D603 MA111-X SI DIODE
D604 MA8300/H/-X Z DIODE
D605 MA8300/H/-X Z DIODE
D607 1SS133-T2 SI DIODE
D701 MA111-X SI DIODE
D702 MA8091/H/-X Z DIODE
D704 MA8091/H/-X Z DIODE
D706 MA8036-X Z DIODE
D707 MA111-X SI DIODE
D708 MA111-X SI DIODE
D709 MA111-X SI DIODE
D710 MA8091/H/-X Z DIODE
D711 MA8051/M/-X Z DIODE

Ref No. Part No. Part Name Description Local

D712 MA8051/M/-X Z DIODE
D713 MA8039/H/-X Z DIODE
D714 MA8030/H/-X Z DIODE
D751 MA8091/H/-X Z DIODE
D753 MA8091/H/-X Z DIODE
D791 MA8062/M/-X Z DIODE
D801 NCB31HK-152X C CAPACITOR 1500pF 50V K
D802 NCB31HK-152X C CAPACITOR 1500pF 50V K
D803 NCB31HK-152X C CAPACITOR 1500pF 50V K
D804 NCB31HK-152X C CAPACITOR 1500pF 50V K
D808 LH22440-T16 LED POWER(RED)
D810 MA8091/H/-X Z DIODE
D811 MA8091/H/-X Z DIODE
D812 MA8091/H/-X Z DIODE
D813 MA8091/H/-X Z DIODE
D814 MA8091/H/-X Z DIODE
D815 NCB31HK-152X C CAPACITOR 1500pF 50V K
D816 NCB31HK-152X C CAPACITOR 1500pF 50V K
D817 MA8091/H/-X Z DIODE
D901 GSIB460 BRIDGE DIODE
D921 RGP10J-5025-T3 SI DIODE
D922 1SS133-T2 SI DIODE
D926 RGP10M-5010-T3 SI DIODE
D927 1SS133-T2 SI DIODE
D928 MA8240/M/-X Z DIODE
D929 MA111-X SI DIODE
D931 MA8062/M/-X Z DIODE
D932 MTZJ27B-T2 Z DIODE
D933 MTZJ9.1C-T2 Z DIODE
D934 MTZJ9.1C-T2 Z DIODE
D935 MTZJ9.1C-T2 Z DIODE
D951 31DF6N-FC5 SI DIODE
D952 FSF05A20 SI DIODE
D953 RGP10J-5025-T3 SI DIODE
D955 FSF05A20 SI DIODE
D956 MA111-X SI DIODE
D957 MA111-X SI DIODE
D962 MA8330/M/-X Z DIODE
D970 MA8082/M/-X Z DIODE
D971 MA111-X SI DIODE
D973 MA111-X SI DIODE
D975 MA111-X SI DIODE
D977 MA111-X SI DIODE
D980 QQR1114-001Z FERRITE BEADS

C001 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C002 QETN1HM-106Z E CAPACITOR 10uF 50V M
C003 NCB31HK-104X C CAPACITOR 0.1uF 50V K
C004 QETN1CM-477Z E CAPACITOR 470uF 16V M
C005 NCB31HK-222X C CAPACITOR 2200pF 50V K
C006 QETN1CM-336Z E CAPACITOR 33uF 16V M
C101 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C102 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C103 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C104 QETN1EM-476Z E CAPACITOR 47uF 25V M
C106 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C109 NRSA63J-0R0X MG RESISTOR 0
C110 NCB31HK-104X C CAPACITOR 0.1uF 50V K
C111 QETN1CM-477Z E CAPACITOR 470uF 16V M
C317 QETN1HM-105Z E CAPACITOR 1uF 50V M
C341 QETN1CM-107Z E CAPACITOR 100uF 16V M
C351 NDC31HJ-102X C CAPACITOR 1000pF 50V J
C352 QETN2EM-475Z E CAPACITOR 4.7uF 250V M
C353 QFKC2EK-104Z MM CAPACITOR 0.1uF 250V K
C358 QCZ0364-152 C CAPACITOR 1500pF 2kV K
C422 QCS32HJ-180Z C CAPACITOR 18pF 500V J
C423 NCB31HK-682X C CAPACITOR 6800pF 50V K
C424 QFLC2AJ-683Z M CAPACITOR 0.068uF 100V J
C427 QETM1VM-108 E CAPACITOR 1000uF 35V M
C428 QEHR1VM-227Z E CAPACITOR 220uF 35V M
C430 QFLC2AJ-563Z M CAPACITOR 0.056uF 100V J
C431 QFVF1HJ-184Z MF CAPACITOR 0.18uF 50V J
C435 NCF21HZ-334X C CAPACITOR 0.33uF 50V Z
C436 NCF21HZ-334X C CAPACITOR 0.33uF 50V Z
C471 QETN1HM-106Z E CAPACITOR 10uF 50V M
C520 NCB31HK-104X C CAPACITOR 0.1uF 50V K
C521 QCB31HK-332Z C CAPACITOR 3300pF 50V K
C522 QFLC1HJ-223Z M CAPACITOR 0.022uF 50V J
C523 QETN1VM-476Z E CAPACITOR 47uF 35V M



C524 QFZ0196-202 MPP CAPACITOR 2000pF 1.5kV H
C525 QFZ0196-502 MPP CAPACITOR 5000pF 1.5kV H
C526 QFZ0196-202 MPP CAPACITOR 2000pF 1.5kV H
C527 QFZ0197-124 MPP CAPACITOR 0.12uF 250V J
C528 QFP32GJ-393 PP CAPACITOR 0.039uF 400V J

Ω

1/16W J

3-6(No.YA190)



Ref No. Part No. Part Name Description Local



Ref No. Part No. Part Name Description Local

C529 QETN2EM-475Z E CAPACITOR 4.7uF 250V M
C530 QCB32HK-561Z C CAPACITOR 560pF 500V K
C532 QETN2EM-106Z E CAPACITOR 10uF 250V M
C551 QCB32HK-561Z C CAPACITOR 560pF 500V K
C552 QCB32HK-561Z C CAPACITOR 560pF 500V K
C553 QEHR1EM-108Z E CAPACITOR 1000uF 25V M
C554 QEHR1EM-108Z E CAPACITOR 1000uF 25V M
C555 QFLC2AJ-103Z M CAPACITOR 0.01uF 100V J
C571 QEZ0203-107 E CAPACITOR 100uF 160V M
C572 QETN1CM-107Z E CAPACITOR 100uF 16V M
C573 QETN1EM-476Z E CAPACITOR 47uF 25V M
C581 QFVF1HJ-104Z MF CAPACITOR 0.1uF 50V J
C582 QFZ0197-124 MPP CAPACITOR 0.12uF 250V J
C601 QETN1HM-106Z E CAPACITOR 10uF 50V M
C602 QETN1HM-106Z E CAPACITOR 10uF 50V M
C603 NCB31CK-224X C CAPACITOR 0.22uF 16V K
C604 NCB31CK-224X C CAPACITOR 0.22uF 16V K
C605 NCB31CK-224X C CAPACITOR 0.22uF 16V K
C606 NCB31CK-224X C CAPACITOR 0.22uF 16V K
C607 QETN1CM-227Z E CAPACITOR 220uF 16V M
C608 QETN1CM-227Z E CAPACITOR 220uF 16V M
C609 QETN1HM-336Z E CAPACITOR 33uF 50V M
C610 QETN1HM-106Z E CAPACITOR 10uF 50V M
C613 QETN1HM-106Z E CAPACITOR 10uF 50V M
C615 QETM1VM-108 E CAPACITOR 1000uF 35V M
C616 QETM1VM-108 E CAPACITOR 1000uF 35V M
C656 QETN1HM-107Z E CAPACITOR 100uF 50V M
C661 QETN1CM-227Z E CAPACITOR 220uF 16V M
C662 QETN1HM-106Z E CAPACITOR 10uF 50V M
C701 NCB31CK-224X C CAPACITOR 0.22uF 16V K
C702 NCB31CK-224X C CAPACITOR 0.22uF 16V K
C703 QETN1CM-477Z E CAPACITOR 470uF 16V M
C704 NCB31HK-104X C CAPACITOR 0.1uF 50V K
C705 NDC31HJ-3R0X C CAPACITOR 3pF 50V J
C706 NDC31HJ-3R0X C CAPACITOR 3pF 50V J
C707 NCB31HK-104X C CAPACITOR 0.1uF 50V K
C708 QETN1CM-107Z E CAPACITOR 100uF 16V M
C709 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C710 NCB31HK-682X C CAPACITOR 6800pF 50V K
C711 QETN1HM-225Z E CAPACITOR 2.2uF 50V M
C712 QFVF1HJ-224Z MF CAPACITOR 0.22uF 50V J
C713 QETN1HM-106Z E CAPACITOR 10uF 50V M
C714 NCB31HK-223X C CAPACITOR 0.022uF 50V K
C715 NCB31HK-102X C CAPACITOR 1000pF 50V K
C716 NCB31HK-102X C CAPACITOR 1000pF 50V K
C717 NCB31HK-473X C CAPACITOR 0.047uF 50V K
C718 QFVF1HJ-104Z MF CAPACITOR 0.1uF 50V J
C719 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C720 NCB31HK-102X C CAPACITOR 1000pF 50V K
C723 NCB21CK-105X C CAPACITOR 1uF 16V K
C724 NCB21CK-105X C CAPACITOR 1uF 16V K
C726 QETN1HM-106Z E CAPACITOR 10uF 50V M
C727 NCB31HK-332X C CAPACITOR 3300pF 50V K
C728 NCB31HK-104X C CAPACITOR 0.1uF 50V K
C729 QETN1HM-225Z E CAPACITOR 2.2uF 50V M
C730 QETN1HM-226Z E CAPACITOR 22uF 50V M
C731 NCB31HK-104X C CAPACITOR 0.1uF 50V K
C732 QETN1HM-225Z E CAPACITOR 2.2uF 50V M
C733 QETN1HM-106Z E CAPACITOR 10uF 50V M
C734 NCB31HK-104X C CAPACITOR 0.1uF 50V K
C735 NCB31HK-104X C CAPACITOR 0.1uF 50V K
C736 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C737 NCB31HK-104X C CAPACITOR 0.1uF 50V K
C738 NCB21CK-105X C CAPACITOR 1uF 16V K
C739 NCB21CK-105X C CAPACITOR 1uF 16V K
C740 NCB31HK-104X C CAPACITOR 0.1uF 50V K
C741 NCB31HK-104X C CAPACITOR 0.1uF 50V K
C742 QETN1HM-106Z E CAPACITOR 10uF 50V M
C743 QETN1HM-106Z E CAPACITOR 10uF 50V M
C744 NCB31HK-104X C CAPACITOR 0.1uF 50V K
C745 NCB31HK-104X C CAPACITOR 0.1uF 50V K
C746 NCB31HK-104X C CAPACITOR 0.1uF 50V K
C747 QETN1HM-106Z E CAPACITOR 10uF 50V M
C748 NCB31HK-104X C CAPACITOR 0.1uF 50V K
C749 NCB31HK-104X C CAPACITOR 0.1uF 50V K
C750 NCB31HK-104X C CAPACITOR 0.1uF 50V K
C751 NCB31HK-104X C CAPACITOR 0.1uF 50V K
C752 NCB31HK-104X C CAPACITOR 0.1uF 50V K
C753 NCB31HK-104X C CAPACITOR 0.1uF 50V K
C754 NCB31HK-104X C CAPACITOR 0.1uF 50V K
C755 QETN1HM-106Z E CAPACITOR 10uF 50V M
C756 NCB31HK-104X C CAPACITOR 0.1uF 50V K
C757 NDC31HJ-561X C CAPACITOR 560pF 50V J
C758 NCB31CK-224X C CAPACITOR 0.22uF 16V K
C759 QETN1CM-107Z E CAPACITOR 100uF 16V M
C760 NCB31CK-224X C CAPACITOR 0.22uF 16V K
C761 NCB31HK-104X C CAPACITOR 0.1uF 50V K

C762 QETN1CM-107Z E CAPACITOR 100uF 16V M
C763 NCB31CK-224X C CAPACITOR 0.22uF 16V K
C764 NCB31HK-104X C CAPACITOR 0.1uF 50V K
C765 QETN1CM-107Z E CAPACITOR 100uF 16V M
C766 NCB31CK-224X C CAPACITOR 0.22uF 16V K
C767 NCB31CK-224X C CAPACITOR 0.22uF 16V K
C768 NCB31CK-224X C CAPACITOR 0.22uF 16V K
C770 NCB31HK-104X C CAPACITOR 0.1uF 50V K
C771 QETN1HM-226Z E CAPACITOR 22uF 50V M
C772 NCB31CK-224X C CAPACITOR 0.22uF 16V K
C773 QETN1HM-225Z E CAPACITOR 2.2uF 50V M
C774 NCB31HK-104X C CAPACITOR 0.1uF 50V K
C775 NCB31CK-224X C CAPACITOR 0.22uF 16V K
C776 NCB31HK-104X C CAPACITOR 0.1uF 50V K
C777 NCB31HK-104X C CAPACITOR 0.1uF 50V K
C778 QETN1CM-476Z E CAPACITOR 47uF 16V M
C779 QETN1HM-106Z E CAPACITOR 10uF 50V M
C780 NCB31HK-104X C CAPACITOR 0.1uF 50V K
C781 NCB21CK-105X C CAPACITOR 1uF 16V K
C782 NCB21CK-105X C CAPACITOR 1uF 16V K
C783 QETN1HM-105Z E CAPACITOR 1uF 50V M
C789 QETN1HM-476Z E CAPACITOR 47uF 50V M
C790 NDC31HJ-270X C CAPACITOR 27pF 50V J
C792 NCB31HK-104X C CAPACITOR 0.1uF 50V K
C793 QETN1HM-105Z E CAPACITOR 1uF 50V M
C802 QETN1HM-106Z E CAPACITOR 10uF 50V M
C803 QETN1HM-106Z E CAPACITOR 10uF 50V M
C804 QETN1CM-477Z E CAPACITOR 470uF 16V M
C806 QETN1CM-107Z E CAPACITOR 100uF 16V M
C807 NCB31HK-104X C CAPACITOR 0.1uF 50V K



C901 QFZ9077-104 MPP CAPACITOR 0.1uF 250V M



C902 QFZ9072-473 MM CAPACITOR 0.047uF AC250V K



C903 QCZ9015-102Z C CAPACITOR 1000pF AC250V Z



C904 QCZ9015-102Z C CAPACITOR 1000pF AC250V Z



C905 QCZ9015-102Z C CAPACITOR 1000pF AC250V Z
C906 QEZ0649-227 E CAPACITOR 220uF 400V M



C910 QFZ9077-104 MPP CAPACITOR 0.1uF 250V M
C915 QCZ0122-471 C CAPACITOR 470pF 2kV K
C917 QCB32HK-181Z C CAPACITOR 180pF 500V K
C922 NCB31HK-104X C CAPACITOR 0.1uF 50V K
C924 QETN1HM-105Z E CAPACITOR 1uF 50V M
C925 QETN1HM-226Z E CAPACITOR 22uF 50V M
C926 QFLC1HJ-822Z M CAPACITOR 8200pF 50V J
C928 QCB31HK-102Z C CAPACITOR 1000pF 50V K
C929 QCB32HK-103 C CAPACITOR 0.01uF 500V K
C931 QCZ0364-102 C CAPACITOR 1000pF 2kV K
C940 QCZ0364-152 C CAPACITOR 1500pF 2kV K
C949 QETN1AM-108Z E CAPACITOR 1000uF 10V M
C950 NCB31HK-104X C CAPACITOR 0.1uF 50V K
C951 QCZ0364-561 C CAPACITOR 560pF 2kV K
C952 QCB32HK-471Z C CAPACITOR 470pF 500V K
C953 QCB32HK-471Z C CAPACITOR 470pF 500V K
C955 QCB32HK-471Z C CAPACITOR 470pF 500V K
C956 QEZ0203-107 E CAPACITOR 100uF 160V M
C957 QETN1CM-108Z E CAPACITOR 1000uF 16V M
C958 QETN1EM-477Z E CAPACITOR 470uF 25V M
C960 QETM1VM-228 E CAPACITOR 2200uF 35V M
C962 NCB31HK-104X C CAPACITOR 0.1uF 50V K
C963 NCB31HK-102X C CAPACITOR 1000pF 50V K
C964 QETN1VM-107Z E CAPACITOR 100uF 35V M
C965 NCB31HK-104X C CAPACITOR 0.1uF 50V K
C966 QETN1CM-107Z E CAPACITOR 100uF 16V M
C967 QETN1CM-476Z E CAPACITOR 47uF 16V M
C968 QETN1CM-476Z E CAPACITOR 47uF 16V M
C975 QETN1CM-477Z E CAPACITOR 470uF 16V M
C976 NCB31HK-472X C CAPACITOR 4700pF 50V K
C977 QETN1CM-476Z E CAPACITOR 47uF 16V M
C978 QETN1CM-476Z E CAPACITOR 47uF 16V M
C979 QETN1EM-107Z E CAPACITOR 100uF 25V M
C980 QETN1CM-107Z E CAPACITOR 100uF 16V M
C981 QETN1CM-107Z E CAPACITOR 100uF 16V M
C982 QETN1HM-475Z E CAPACITOR 4.7uF 50V M
C983 QETN1CM-106Z E CAPACITOR 10uF 16V M
C984 QETN1HM-336Z E CAPACITOR 33uF 50V M
C985 QETN1CM-476Z E CAPACITOR 47uF 16V M
C986 NCB31HK-104X C CAPACITOR 0.1uF 50V K
C989 NCB31HK-104X C CAPACITOR 0.1uF 50V K



C991 QCZ9079-102 C CAPACITOR 1000pF AC250V M



C992 QCZ9079-102 C CAPACITOR 1000pF AC250V M



C993 QCZ9079-102 C CAPACITOR 1000pF AC250V M
C994 QETN1HM-335Z E CAPACITOR 3.3uF 50V M

R001 NRSA63J-221X MG RESISTOR 220Ω 1/16W J
R002 NRSA63J-221X MG RESISTOR 220Ω 1/16W J
R003 NRSA63J-392X MG RESISTOR 3.9kΩ 1/16W J
R004 NRSA63J-273X MG RESISTOR 27k
R005 NRSA63J-820X MG RESISTOR 82

Ω

1/16W J

Ω

1/16W J

(No.YA190)3-7



Ref No. Part No. Part Name Description Local



Ref No. Part No. Part Name Description Local

R101 NRSA63J-0R0X MG RESISTOR 0Ω 1/16W J
R102 NRSA63J-822X MG RESISTOR 8.2kΩ 1/16W J
R103 NRSA63J-182X MG RESISTOR 1.8kΩ 1/16W J
R104 NRSA63J-101X MG RESISTOR 100Ω 1/16W J
R105 NRSA63J-220X MG RESISTOR 22Ω 1/16W J
R106 NRSA63J-270X MG RESISTOR 27Ω 1/16W J
R315 NRSA63J-0R0X MG RESISTOR 0Ω 1/16W J
R316 NRSA63J-0R0X MG RESISTOR 0Ω 1/16W J
R317 NRSA63J-0R0X MG RESISTOR 0Ω 1/16W J
R323 NRSA63J-0R0X MG RESISTOR 0Ω 1/16W J
R324 NRSA63J-0R0X MG RESISTOR 0Ω 1/16W J
R325 NRSA63J-0R0X MG RESISTOR 0Ω 1/16W J
R327 NRSA63J-334X MG RESISTOR 330kΩ 1/16W J
R328 NRSA63J-0R0X MG RESISTOR 0Ω 1/16W J
R341 NRSA63J-0R0X MG RESISTOR 0Ω 1/16W J
R343 NRSA63J-0R0X MG RESISTOR 0Ω 1/16W J
R344 NRSA63J-220X MG RESISTOR 22Ω 1/16W J
R345 NRSA63J-0R0X MG RESISTOR 0Ω 1/16W J
R351 NRSA63J-101X MG RESISTOR 100Ω 1/16W J
R352 NRSA63J-151X MG RESISTOR 150Ω 1/16W J
R353 NRSA63J-151X MG RESISTOR 150Ω 1/16W J
R354 NRSA63J-151X MG RESISTOR 150Ω 1/16W J
R355 QRE121J-222Y C RESISTOR 2.2kΩ 1/2W J
R356 QRE121J-222Y C RESISTOR 2.2kΩ 1/2W J
R357 QRE121J-222Y C RESISTOR 2.2kΩ 1/2W J
R358 QRZ0107-152Z C RESISTOR 1.5k
R359 QRZ0107-152Z C RESISTOR 1.5k
R360 QRZ0107-152Z C RESISTOR 1.5kΩ 1/2W K
R369 QRE121J-124Y C RESISTOR 120kΩ 1/2W J
R370 QRE121J-394Y C RESISTOR 390kΩ 1/2W J
R411 NRSA63J-222X MG RESISTOR 2.2kΩ 1/16W J
R412 NRSA63J-222X MG RESISTOR 2.2kΩ 1/16W J
R426 NRSA63J-123X MG RESISTOR 12kΩ 1/16W J
R427 NRSA63J-682X MG RESISTOR 6.8kΩ 1/16W J
R430 NRSA63J-123X MG RESISTOR 12kΩ 1/16W J
R432 QRX01GJ-2R7 MF RESISTOR 2.7Ω 1W J
R433 QRE121J-6R8Y C RESISTOR 6.8Ω 1/2W J
R434 NRSA63J-682X MG RESISTOR 6.8kΩ 1/16W J
R440 QRG01GJ-221 OMF RESISTOR 220Ω 1W J
R448 QRE121J-1R0Y C RESISTOR 1Ω 1/2W J
R471 NRSA63J-155X MG RESISTOR 1.5MΩ 1/16W J
R472 NRSA63J-124X MG RESISTOR 120kΩ 1/16W J
R473 NRSA63J-683X MG RESISTOR 68kΩ 1/16W J
R474 NRSA63J-224X MG RESISTOR 220kΩ 1/16W J
R520 NRSA63J-101X MG RESISTOR 100Ω 1/16W J
R521 NRSA63J-102X MG RESISTOR 1kΩ 1/16W J
R522 QRE121J-220Y C RESISTOR 22Ω 1/2W J
R523 QRL029J-271 OMF RESISTOR 270Ω 2W J
R524 QRL039J-470 OMF RESISTOR 47Ω 3W J
R527 QRL039J-393 OMF RESISTOR 39kΩ 3W J
R528 QRE121J-471Y C RESISTOR 470Ω 1/2W J



R530 QRZ9017-4R7 FUSI RESISTOR 4.7Ω 1/4W J



R533 QRZ9017-4R7 FUSI RESISTOR 4.7Ω 1/4W J
R551 QRX029J-R47 MF RESISTOR 0.47Ω 2W J
R552 QRX029J-R47 MF RESISTOR 0.47Ω 2W J
R554 NRSA63J-182X MG RESISTOR 1.8k
R569 QRZ0225-2R2 UNF RESISTOR 2.2Ω 7W K
R572 QRE121J-222Y C RESISTOR 2.2k
R573 NRSA63J-102X MG RESISTOR 1k
R574 QRE121J-183Y C RESISTOR 18kΩ 1/2W J
R575 NRSA63J-222X MG RESISTOR 2.2kΩ 1/16W J
R581 QRE121J-822Y C RESISTOR 8.2kΩ 1/2W J
R582 QRE121J-154Y C RESISTOR 150kΩ 1/2W J
R583 QRE121J-184Y C RESISTOR 180k
R601 NRSA63J-272X MG RESISTOR 2.7k
R602 NRSA63J-272X MG RESISTOR 2.7k
R603 MA111-X SI DIODE
R604 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J
R606 QRE121J-2R2Y C RESISTOR 2.2
R607 QRE121J-2R2Y C RESISTOR 2.2
R609 NRSA63J-273X MG RESISTOR 27k
R610 NRSA63J-104X MG RESISTOR 100kΩ 1/16W J
R611 NRSA63J-103X MG RESISTOR 10k
R612 NRSA63J-104X MG RESISTOR 100k
R614 NRSA63J-104X MG RESISTOR 100kΩ 1/16W J
R618 NRSA63J-103X MG RESISTOR 10k
R620 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J
R621 NRSA63J-222X MG RESISTOR 2.2k
R622 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J
R623 NRSA63J-333X MG RESISTOR 33k
R624 NRSA63J-683X MG RESISTOR 68kΩ 1/16W J
R626 NRSA63J-0R0X MG RESISTOR 0
R629 NRSA63J-0R0X MG RESISTOR 0
R630 QRE121J-271Y C RESISTOR 270Ω 1/2W J
R631 NRSA63J-102X MG RESISTOR 1kΩ 1/16W J
R632 QRE121J-271Y C RESISTOR 270
R633 NRSA63J-102X MG RESISTOR 1k

Ω

1/2W K

Ω

1/2W K

Ω

1/16W J

Ω

1/2W J

Ω

1/16W J

Ω

1/2W J

Ω

1/16W J

Ω

1/16W J

Ω

1/2W J

Ω

1/2W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/2W J

Ω

1/16W J

R634 NRSA63J-271X MG RESISTOR 270Ω 1/16W J
R636 NRSA63J-271X MG RESISTOR 270Ω 1/16W J
R637 NRSA63J-472X MG RESISTOR 4.7kΩ 1/16W J
R639 NRSA63J-472X MG RESISTOR 4.7kΩ 1/16W J
R640 NRSA63J-102X MG RESISTOR 1kΩ 1/16W J
R701 NRSA63J-123X MG RESISTOR 12kΩ 1/16W J
R702 NRSA63J-101X MG RESISTOR 100Ω 1/16W J
R703 NRSA63J-101X MG RESISTOR 100Ω 1/16W J
R704 NRSA63J-101X MG RESISTOR 100Ω 1/16W J
R705 NRSA63J-393X MG RESISTOR 39kΩ 1/16W J
R706 NRSA63J-221X MG RESISTOR 220Ω 1/16W J
R707 NRSA63J-223X MG RESISTOR 22kΩ 1/16W J
R708 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J
R709 NRSA63J-105X MG RESISTOR 1MΩ 1/16W J
R711 NRSA63J-222X MG RESISTOR 2.2kΩ 1/16W J
R712 NRSA63J-392X MG RESISTOR 3.9kΩ 1/16W J
R713 NRSA63J-222X MG RESISTOR 2.2kΩ 1/16W J
R714 NRSA63J-392X MG RESISTOR 3.9kΩ 1/16W J
R715 NRSA63J-391X MG RESISTOR 390Ω 1/16W J
R716 NRSA63J-222X MG RESISTOR 2.2kΩ 1/16W J
R717 NRSA63J-392X MG RESISTOR 3.9kΩ 1/16W J
R718 NRSA63J-222X MG RESISTOR 2.2kΩ 1/16W J
R719 NRSA63J-392X MG RESISTOR 3.9kΩ 1/16W J
R726 NRSA63J-273X MG RESISTOR 27kΩ 1/16W J
R727 NRSA63J-561X MG RESISTOR 560Ω 1/16W J
R728 NRSA63J-101X MG RESISTOR 100
R731 NRSA63J-102X MG RESISTOR 1k
R732 NRSA63J-102X MG RESISTOR 1kΩ 1/16W J
R733 NRSA63J-101X MG RESISTOR 100Ω 1/16W J
R734 NRSA63J-101X MG RESISTOR 100Ω 1/16W J
R735 NRSA63J-101X MG RESISTOR 100Ω 1/16W J
R736 NRSA63J-101X MG RESISTOR 100Ω 1/16W J
R737 NRSA63J-332X MG RESISTOR 3.3kΩ 1/16W J
R738 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J
R740 NRSA63J-153X MG RESISTOR 15kΩ 1/16W J
R741 NRSA63J-221X MG RESISTOR 220Ω 1/16W J
R742 NRSA63J-101X MG RESISTOR 100Ω 1/16W J
R743 NRSA63J-332X MG RESISTOR 3.3kΩ 1/16W J
R744 NRSA63J-101X MG RESISTOR 100Ω 1/16W J
R745 NRSA63J-332X MG RESISTOR 3.3kΩ 1/16W J
R747 NRSA63J-101X MG RESISTOR 100Ω 1/16W J
R748 NRSA63J-272X MG RESISTOR 2.7kΩ 1/16W J
R749 NRSA63J-102X MG RESISTOR 1kΩ 1/16W J
R751 NRSA63J-102X MG RESISTOR 1kΩ 1/16W J
R752 NRSA63J-101X MG RESISTOR 100Ω 1/16W J
R753 NRSA63J-122X MG RESISTOR 1.2kΩ 1/16W J
R754 NRSA63J-221X MG RESISTOR 220Ω 1/16W J
R755 NRSA63J-122X MG RESISTOR 1.2kΩ 1/16W J
R756 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J
R757 NRSA63J-472X MG RESISTOR 4.7kΩ 1/16W J
R758 NRSA63J-332X MG RESISTOR 3.3kΩ 1/16W J
R759 NRSA63J-332X MG RESISTOR 3.3kΩ 1/16W J
R760 NRSA63J-101X MG RESISTOR 100Ω 1/16W J
R761 NRSA63J-101X MG RESISTOR 100Ω 1/16W J
R762 NRSA63J-221X MG RESISTOR 220Ω 1/16W J
R763 NRSA63J-221X MG RESISTOR 220
R764 NRSA63J-221X MG RESISTOR 220Ω 1/16W J
R765 NRSA63J-221X MG RESISTOR 220
R768 NRSA63J-101X MG RESISTOR 100
R771 NRSA63J-102X MG RESISTOR 1kΩ 1/16W J
R772 NRSA63J-222X MG RESISTOR 2.2kΩ 1/16W J
R773 NRSA63J-392X MG RESISTOR 3.9kΩ 1/16W J
R774 NRSA63J-222X MG RESISTOR 2.2kΩ 1/16W J
R775 NRSA63J-392X MG RESISTOR 3.9k
R776 NRSA63J-153X MG RESISTOR 15k
R777 NRSA63J-101X MG RESISTOR 100
R779 NRSA63J-103X MG RESISTOR 10k
R780 NRSA63J-104X MG RESISTOR 100k
R781 NRSA63J-472X MG RESISTOR 4.7k
R782 NRSA63J-122X MG RESISTOR 1.2k
R783 NRSA63J-103X MG RESISTOR 10k
R785 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J
R786 NRSA63J-750X MG RESISTOR 75
R790 NRSA63J-102X MG RESISTOR 1k
R791 QRE121J-102Y C RESISTOR 1kΩ 1/2W J
R792 QRE123J-330X C RESISTOR 33
R793 NRSA63J-101X MG RESISTOR 100Ω 1/16W J
R794 NRSA63J-222X MG RESISTOR 2.2k
R795 NRSA63J-104X MG RESISTOR 100kΩ 1/16W J
R796 NRSA63J-0R0X MG RESISTOR 0
R801 NRSA63J-750X MG RESISTOR 75Ω 1/16W J
R802 NRSA63J-0R0X MG RESISTOR 0
R803 NRSA63J-0R0X MG RESISTOR 0
R804 NRSA63J-750X MG RESISTOR 75Ω 1/16W J
R805 NRSA63J-750X MG RESISTOR 75Ω 1/16W J
R806 NRSA63J-750X MG RESISTOR 75
R807 QRE121J-101Y C RESISTOR 100

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/2W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/2W J

3-8(No.YA190)



Ref No. Part No. Part Name Description Local



Ref No. Part No. Part Name Description Local

R809 NRSA63J-0R0X MG RESISTOR 0Ω 1/16W J
R810 NRSA63J-391X MG RESISTOR 390Ω 1/16W J
R811 NRSA63J-823X MG RESISTOR 82kΩ 1/16W J
R812 NRSA63J-391X MG RESISTOR 390Ω 1/16W J
R813 NRSA63J-823X MG RESISTOR 82kΩ 1/16W J
R814 NRSA63J-104X MG RESISTOR 100kΩ 1/16W J
R815 NRSA63J-750X MG RESISTOR 75Ω 1/16W J
R816 NRSA63J-750X MG RESISTOR 75Ω 1/16W J
R818 NRSA63J-181X MG RESISTOR 180Ω 1/16W J
R819 NRSA63J-221X MG RESISTOR 220Ω 1/16W J
R820 NRSA63J-331X MG RESISTOR 330Ω 1/16W J
R821 NRSA63J-471X MG RESISTOR 470Ω 1/16W J
R822 NRSA63J-102X MG RESISTOR 1kΩ 1/16W J
R823 QRE121J-470Y C RESISTOR 47Ω 1/2W J
R824 NRSA63J-471X MG RESISTOR 470Ω 1/16W J
R901 QRF154K-2R2 UNF WW RESISTOR 2.2Ω 15W K
R902 QRL029J-473 OMF RESISTOR 47kΩ 2W J
R903 QRL029J-333 OMF RESISTOR 33kΩ 2W J



R910 QRZ0107-474Z C RESISTOR 470kΩ 1/2W K
R921 QRE121J-101Y C RESISTOR 100Ω 1/2W J
R922 QRZ0237-R18 UNF WW RESISTOR 0.18Ω 3W J
R923 QRT029J-R47 MF RESISTOR 0.47Ω 2W J
R924 NRSA63J-223X MG RESISTOR 22kΩ 1/16W J
R929 NRSA63J-102X MG RESISTOR 1kΩ 1/16W J
R930 QRL039J-473 OMF RESISTOR 47kΩ 3W J



R932 QRZ9017-100 FUSI RESISTOR 10Ω 1/4W J
R934 QRE121J-102Y C RESISTOR 1k
R935 QRE121J-152Y C RESISTOR 1.5kΩ 1/2W J
R951 QRE121J-102Y C RESISTOR 1kΩ 1/2W J
R953 QRE121J-182Y C RESISTOR 1.8kΩ 1/2W J
R962 QRL029J-223 OMF RESISTOR 22kΩ 2W J
R963 NRSA63J-223X MG RESISTOR 22kΩ 1/16W J
R964 NRSA63J-473X MG RESISTOR 47kΩ 1/16W J
R965 QRT029J-R82 MF RESISTOR 0.82Ω 2W J
R970 QRE121J-182Y C RESISTOR 1.8kΩ 1/2W J
R973 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J
R974 NRSA63J-102X MG RESISTOR 1kΩ 1/16W J
R976 NRSA63J-391X MG RESISTOR 390Ω 1/16W J
R977 QRL039J-120 OMF RESISTOR 12Ω 3W J
R978 NRSA63J-332X MG RESISTOR 3.3kΩ 1/16W J
R981 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J



R991 QRZ9046-825Z C RESISTOR 8.2MΩ 1/2W K

L002 QQL244J-4R7Z PEAKING COIL 4.7uH J
L003 QQL244J-4R7Z PEAKING COIL 4.7uH J
L101 QQL244K-1R0Z PEAKING COIL 1uH K
L351 QQL244J-220Z COIL 22uH J
L522 QQR1005-004 LINEARITY COIL
L551 QQLZ034-280 HEATER CHOKE 28uH
L701 NQL092K-100X COIL 10uH K
L702 NQL092K-100X COIL 10uH K
L703 NQL092K-100X COIL 10uH K
L704 NQL092K-100X COIL 10uH K
L705 NQL092K-100X COIL 10uH K
L706 NQL092K-100X COIL 10uH K
L707 NQL092K-100X COIL 10uH K
L708 NQL092K-100X COIL 10uH K
L709 NQL092K-100X COIL 10uH K
L710 NQL092K-100X COIL 10uH K
L711 NQL092K-100X COIL 10uH K
L712 NQL092K-100X COIL 10uH K
L713 NQL092K-100X COIL 10uH K
L714 NRSA02J-0R0X MG RESISTOR 0
L715 NQL092K-100X COIL 10uH K
L716 NQL092K-100X COIL 10uH K
L717 NQL092K-100X COIL 10uH K
L951 QQLZ034-460 HEATER CHOKE 46uH
L952 QQL26AK-470Z CHOKE COIL 47uH K
L954 QQL244J-5R6Z COIL 5.6uH J
L972 QQL244J-5R6Z COIL 5.6uH J
L973 QQL244J-5R6Z COIL 5.6uH J
L975 QQL26AK-820Z CHOKE COIL 82uH K
L994 NRSA02J-0R0X MG RESISTOR 0
T521 QQR1522-001 DRIVE TRANSF



T921 QQS0271-001 SW TRANSF



PC901 PS2581AL1/QW/ PHOTO COUPLER

CF101 QAX0349-001 C TRAP 47.25MHz



CP650 ICP-N25-Y IC PROTECTOR 1.0A



CP952 ICP-N38-Y IC PROTECTOR 1.5A



CP953 ICP-N38-Y IC PROTECTOR 1.5A



CP955 ICP-N75-Y IC PROTECTOR 2.7A



F901 QMF51E2-4R0J4 FUSE 4A AC250V
J801 QNZ0454-002 PIN JACK VIDEO1/S-VIDEO
J802 QNN0349-002 PIN JACK VIDEO2/COMP
J803 QNN0348-001 PIN JACK VIDEO2/COMP

Ω

1/2W J

Ω

1/10W J

Ω

1/10W J

J804 QNN0349-001 PIN JACK VIDEO OUT
J806 QNN0281-003 PIN JACK VIDEO3(FRONT)/L3
J807 QNN0281-002 PIN JACK VIDEO3(FRONT)/R3
J808 QNN0282-001 PIN JACK VIDEO3(FRONT)/V3
J809 QNS0155-001 3.5 JACK HEADPHONE
K101 QQR1114-001Z FERRITE BEADS
K103 QQR1114-001Z FERRITE BEADS
K107 QQR1114-001Z FERRITE BEADS
K108 QQR1114-001Z FERRITE BEADS
K355 QQR1113-001Z FERRITE BEADS
K901 QQR1114-001Z FERRITE BEADS
K921 QQR1114-001Z FERRITE BEADS
K922 QQR1114-001Z FERRITE BEADS
K951 QQR1114-001Z FERRITE BEADS
K952 QQR1113-001Z FERRITE BEADS
K953 QQR1113-001Z FERRITE BEADS
K955 QQR1113-001Z FERRITE BEADS
LC801 QQR1199-001 EMI FILTER
LC802 QQR1199-001 EMI FILTER
LC803 QQR1199-001 EMI FILTER
LC804 QQR1199-001 EMI FILTER
LC805 QQR1199-001 EMI FILTER



LF901 QQR0673-004 LINE FILTER



LF902 QQR1035-002 LINE FILTER



RY901 QSK0061-002 RELAY
S801 QSW0619-003Z TACT SWITCH MENU
S802 QSW0619-003Z TACT SWITCH CH­S803 QSW0619-003Z TACT SWITCH CH+
S804 QSW0619-003Z TACT SWITCH VOL­S805 QSW0619-003Z TACT SWITCH VOL+



S901 QSW0750-001 PUSH SWITCH POWER
SF102 QAX0723-001 SAW FILTER



SK351 QNZ0536-001 CRT SOCKET



TH901 QAD0134-4R5 P THERMISTOR 4.5
TU001 QAU0353-001 TUNER



VA901 QAF0060-621 VARISTOR 620V
X701 QAX0799-001Z CRYSTAL

LC30114-001C-H LED HOLDER
LC41232-001A-H EE HOLDER

Ω

(No.YA190)3-9

REMOTE CONTROL UNIT PARTS LIST (RM-C1282-2H)



Ref No. Part No. Part Name Description Local

R25-8566 BATTERY COVER

PACKING

2

7

5

4

6

3

8

2

PACKING PARTS LIST

 Ref.No. Part No. Part Name Description Local

8

9

1

1 GG10044-089A-H PACKING CASE
2 GG10188-001C-H CUSHION ASS'Y 4pcs in 1set
3 GG30097-003A-H POLY BAG
4 GG30096-001A-H POLY BAG
5 ------------ BATTERY AA/R6 (x2)

 6 GGT0055-001A-H INST BOOK

7 RM-C1282-2H REMOCON UNIT
8 GG20025-005A-H CORNER LABEL (x2)

 9 GG30037-001A-H TAIWAN LABEL

3-10(No.YA190)
