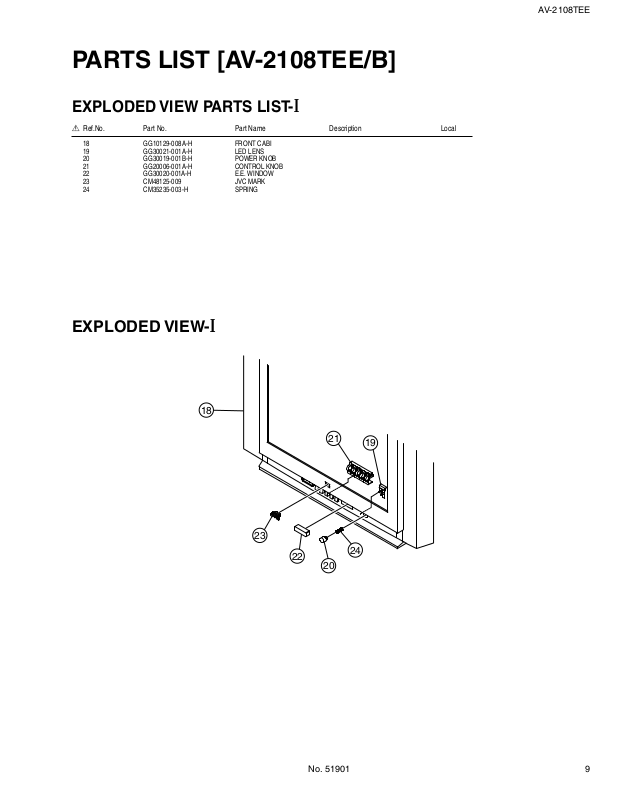

PARTS LIST [AV-2108TEE/B]
EXPLODED VIEW PARTS LIST-1
!
Ref.No. Part No. Part Name Description Local
18 GG10129-008A-H FRONT CABI
19 GG30021-001A-H LED LENS
20 GG30019-001B-H POWER KNOB
21 GG20006-001A-H CONTROL KNOB
22 GG30020-001A-H E.E. WINDOW
23 CM48125-009 JVC MARK
24 CM35235-003-H SPRING
AV-2108TEE
EXPLODED VIEW-1
18
23
22
20
21
19
24
No. 51901 9
AV-2108TEE
EXPLODED VIEW PARTS LIST-
!
Ref.No. Part No. Part Name Description Local
! V01 A51QDX992X PICTURE TUBE
! L01 QQW0118-001 DEG COIL
DY01 QQD0060-002 DEFLECTION YOKE
! T1551 QQH0104-001 FBT
! 1 QMP40D0-200J5 POWER CORD
! 2 CM47005-A01-H CORD CLAMP
3 CM36623-B01-H CHASSIS RAIL (X2)
4 CHGB0028-0A BRAIDED ASSY
5 CHGB0017-0C BRAIDED ASSY (SUB)
6 A48457-3-H SPRING
7 CM48144-002-H PB STOPPER
8 A75034-B PC MAGNET
9 CE40764-00A WEDGE ASSY (X3)
10 QAS0032-001 SPEAKER (X2) SP01, SP02
11 LC20371-001D-H SP HOLDER (X2)
12 LC40226-003A-H SPACER (X4)
13 LC40317-002A-H TAPPING SCREW (X4)
! 14 GG10130-001B-H REAR COVER
15 QYSBSFG4016Z TAPPING SCREW (X7)
16 QYSBSF3010Z TAPPING SCREW (X4)
! 17 LC20377-009B-H RATING LABEL
2
10 No. 51901

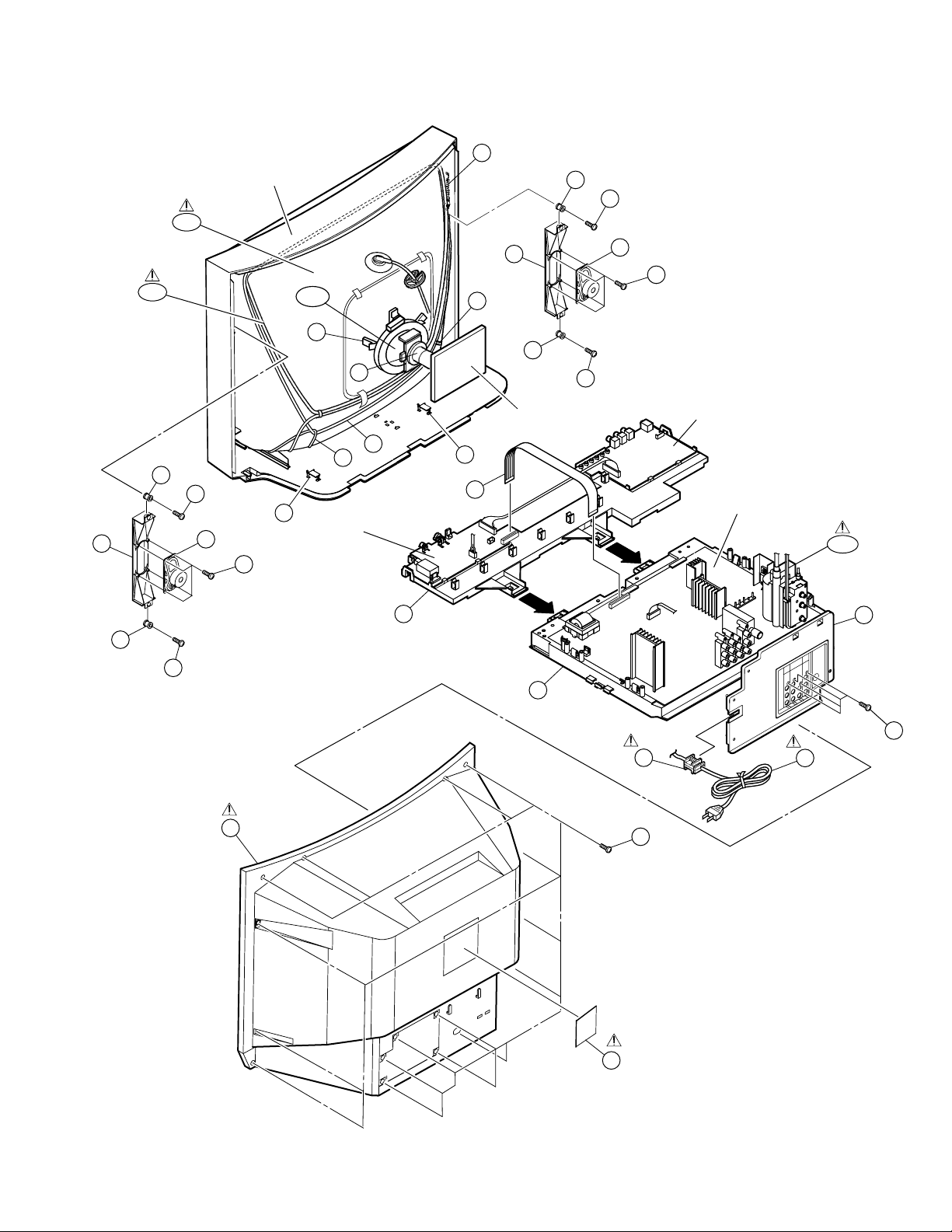

EXPLODED VIEW-2
!
AV-2108TEE
V01
12
4
10
DY01
9
!
L01
8
5
12
13
!
11
12
3
2
1
!
6
CRT SOCKET PWB
MAIN PWB
3
13
10
11
12
!
T1551
7
14
!
Except 21" model
15
Except 21" model
!
17
16
No. 51901 11
AV-2108TEE
PRINTED WIRING BOARD PARTS LIST (AV-2108TEE/B)
MAIN PW BOARD ASS’Y (SCH-1050A-H2)
! Symbol No. Part No. Part Name Description Local ! Symbol No. Part No. Part Name Description Local
RESISTOR
R1001-02 NRSA63J-221X MG R 220Ø 1/16W J
R1003 NRSA63J-392X MG R 3.9kØ 1/16W J
R1004 NRSA63J-221X MG R 220Ø 1/16W J
R1006 NRSA63J-273X MG R 27kØ 1/16W J
R1101 NRSA63J-100X MG R 10Ø 1/16W J
R1102 NRSA63J-682X MG R 6.8kØ 1/16W J
R1103 NRSA63J-272X MG R 2.7kØ 1/16W J
R1104 NRSA63J-181X MG R 180Ø 1/16W J
R1105 NRSA63J-220X MG R 22Ø 1/16W J
R1106 NRSA63J-101X MG R 100Ø 1/16W J
R1107 NRSA63J-472X MG R 4.7kØ 1/16W J
R1108-09 NRSA63J-222X MG R 2.2kØ 1/16W J
R1111 NRSA63J-102X MG R 1kØ 1/16W J
R1112 NRSA63J-103X MG R 10kØ 1/16W J
R1113 NRSA63J-271X MG R 270Ø 1/16W J
R1114 NRSA63J-821X MG R 820Ø 1/16W J
R1115 NRSA63J-181X MG R 180Ø 1/16W J
R1117 NRSA63J-102X MG R 1kØ 1/16W J
R1119 NRSA63J-102X MG R 1kØ 1/16W J
R1120 NRSA63J-471X MG R 470Ø 1/16W J
R1130 NRSA63J-472X MG R 4.7kØ 1/16W J
R1131 NRSA63J-471X MG R 470Ø 1/16W J
R1132 NRSA63J-222X MG R 2.2kØ 1/16W J
R1133 NRSA63J-152X MG R 1.5kØ 1/16W J
R1134 NRSA63J-182X MG R 1.8kØ 1/16W J
R1135 NRSA63J-561X MG R 560Ø 1/16W J
R1136 NRSA63J-472X MG R 4.7kØ 1/16W J
R1137 NRSA63J-103X MG R 10kØ 1/16W J
R1138 NRSA63J-561X MG R 560Ø 1/16W J
R1139 NRSA63J-222X MG R 2.2kØ 1/16W J
R1140 NRSA63J-152X MG R 1.5kØ 1/16W J
R1141 NRSA63J-182X MG R 1.8kØ 1/16W J
R1142 NRSA63J-561X MG R 560Ø 1/16W J
R1143 NRSA63J-471X MG R 470Ø 1/16W J
R1144 NRSA63J-220X MG R 22Ø 1/16W J
R1145 NRSA63J-821X MG R 820Ø 1/16W J
R1146 NRSA63J-103X MG R 10kØ 1/16W J
R1147 NRSA63J-101X MG R 100Ø 1/16W J
R1148 NRSA63J-332X MG R 3.3kØ 1/16W J
R1149 NRSA63J-122X MG R 1.2kØ 1/16W J
R1301-02 NRSA63J-222X MG R 2.2kØ 1/16W J
R1303 NRSA63J-562X MG R 5.6kØ 1/16W J
R1304-05 NRSA63J-222X MG R 2.2kØ 1/16W J
R1306 NRSA63J-562X MG R 5.6kØ 1/16W J
R1350-51 NRSA63J-151X MG R 150Ø 1/16W J
R1353 NRSA63J-151X MG R 150Ø 1/16W J
R1354 QRE121J-222Y C R 2.2kØ 1/2W J
R1361 NRSA63J-0R0X MG R 0.0Ø 1/16W J
R1362 NRSA63J-472X MG R 4.7kØ 1/16W J
R1363 QRZ0107-152Z C R 1.5kØ 1/2W K
R1364 QRE121J-222Y C R 2.2kØ 1/2W J
R1365 QRZ0107-152Z C R 1.5kØ 1/2W K
R1366 QRZ0107-474Z C R 470kØ 1/2W K
R1367 QRE121J-821Y C R 820Ø 1/2W J
R1368 QRZ0107-152Z C R 1.5kØ 1/2W K
R1369 QRE121J-222Y C R 2.2kØ 1/2W J
R1373 QRE121J-394Y C R 390kØ 1/2W J
R1374 QRE121J-124Y C R 120kØ 1/2W J
R1377 QRL029J-473 OM R 47kØ 2W J
R1380-83 NRSA63J-101X MG R 100Ø 1/16W J
R1384 NRSA63J-223X MG R 22kØ 1/16W J
R1401 NRSA63J-224X MG R 220kØ 1/16W J
R1403 NRSA63J-0R0X MG R 0.0Ø 1/16W J
R1405 NRSA63J-682X MG R 6.8kØ 1/16W J
R1406 NRSA63J-123X MG R 12kØ 1/16W J
R1408 NRSA63J-682X MG R 6.8kØ 1/16W J
R1410 NRSA63J-123X MG R 12kØ 1/16W J
R1411 QRG01GJ-221 OM R 220Ø 1W J
R1412 QRE121J-1R0Y C R 1.0Ø 1/2W J
R1413 QRX01GJ-2R7 MF R 2.7Ø 1W J
R1414 QRE121J-151Y C R 150Ø 1/2W J
R1425 NRSA63J-683X MG R 68kØ 1/16W J
RESISTOR
R1521 NRSA63J-101X MG R 100Ø 1/16W J
R1522 NRSA63J-102X MG R 1kØ 1/16W J
R1524 QRL02EJ-270X OM R 27Ø 2W J
R1526 QRG01GJ-271 OM R 270Ø 1W J
R1527 QRL03EJ-103X OM R 10kØ 3W J
R1528-29 QRX029J-1R2 MF R 1.2Ø 2W J
R1531 NRSA63J-222X MG R 2.2kØ 1/16W J
!
R1532 QRZ9017-4R7 F R 4.7Ø 1/4W J
!
R1540 QRZ9011-4R7 F R 4.7Ø 1/2W J
R1541-42 QRE121J-154Y C R 150kØ 1/2W J
R1543 QRE121J-471Y C R 470Ø 1/2W J
R1545 QRE121J-220Y C R 22Ø 1/2W J
R1546 QRE121J-822Y C R 8.2kØ 1/2W J
R1591 QRE121J-222Y C R 2.2kØ 1/2W J
R1592 QRZ0221-2R2 UNF R 2.2Ø
R1593 NRSA63J-102X MG R 1kØ 1/16W J
R1594 QRE121J-183Y C R 18kØ 1/2W J
R1595 NRSA63J-222X MG R 2.2kØ 1/16W J
R1621-22 NRSA63J-101X MG R 100Ø 1/16W J
R1626 NRSA63J-472X MG R 4.7kØ 1/16W J
R1627 NRSA63J-224X MG R 220kØ 1/16W J
R1628 NRSA63J-104X MG R 100kØ 1/16W J
R1629 NRSA63J-153X MG R 15kØ 1/16W J
R1630 NRSA63J-273X MG R 27kØ 1/16W J
R1631 NRSA63J-473X MG R 47kØ 1/16W J
R1632-33 NRSA63J-103X MG R 10kØ 1/16W J
R1650-51 NRSA63J-392X MG R 3.9kØ 1/16W J
R1652-53 NRSA63J-0R0X MG R 0.0Ø 1/16W J
R1654-55 NRSA63J-392X MG R 3.9kØ 1/16W J
R1658-59 QRE121J-2R2Y C R 2.2Ø 1/2W J
R1660 NRSA63J-103X MG R 10kØ 1/16W J
R1661 NRSA63J-683X MG R 68kØ 1/16W J
R1662 NRSA63J-333X MG R 33kØ 1/16W J
R1663 NRSA63J-103X MG R 10kØ 1/16W J
R1664 NRSA63J-222X MG R 2.2kØ 1/16W J
R1688 NRSA63J-273X MG R 27kØ 1/16W J
R1690 NRSA63J-104X MG R 100kØ 1/16W J
R1691 NRSA63J-682X MG R 6.8kØ 1/16W J
R1692 NRSA63J-104X MG R 100kØ 1/16W J
R1693 NRSA63J-103X MG R 10kØ 1/16W J
R1694 NRSA63J-472X MG R 4.7kØ 1/16W J
R1695 NRSA63J-562X MG R 5.6kØ 1/16W J
R1696 NRSA63J-222X MG R 2.2kØ 1/16W J
R1698-99 NRSA63J-104X MG R 100kØ 1/16W J
R1701 NRSA63J-103X MG R 10kØ 1/16W J
R1702-03 NRSA63J-101X MG R 100Ø 1/16W J
R1704-06 NRSA63J-102X MG R 1kØ 1/16W J
R1707-10 NRSA63J-472X MG R 4.7kØ 1/16W J
R1711-14 NRSA63J-101X MG R 100Ø 1/16W J
R1715-17 NRSA63J-103X MG R 10kØ 1/16W J
R1718-19 NRSA63J-221X MG R 220Ø 1/16W J
R1720 NRSA63J-102X MG R 1kØ 1/16W J
R1721-24 NRSA63J-221X MG R 220Ø 1/16W J
R1725 NRSA63J-103X MG R 10kØ 1/16W J
R1726 NRSA63J-472X MG R 4.7kØ 1/16W J
R1727 NRSA63J-104X MG R 100kØ 1/16W J
R1728 NRSA63J-103X MG R 10kØ 1/16W J
R1730 NRSA63J-223X MG R 22kØ 1/16W J
R1731 NRSA63J-101X MG R 100Ø 1/16W J
R1732 NRSA02F-393X MF R 39kØ 1/10W F
R1733 NRSA63J-273X MG R 27kØ 1/16W J
R1734 NRSA63J-391X MG R 390Ø 1/16W J
R1735 NRSA63J-104X MG R 100kØ 1/16W J
R1736 NRSA63J-333X MG R 33kØ 1/16W J
R1737 NRSA63J-272X MG R 2.7kØ 1/16W J
R1738 NRSA63J-103X MG R 10kØ 1/16W J
R1739-41 NRSA63J-101X MG R 100Ø 1/16W J
R1742 NRSA63J-0R0X MG R 0.0Ø 1/16W J
R1743 QRE141J-102Y C R 1kØ 1/4W J
R1744 NRSA63J-561X MG R 560Ø 1/16W J
R1745 NRSA63J-105X MG R 1MØ 1/16W J
R1746 NRSA63J-333X MG R 33kØ 1/16W J
12 No. 51901
AV-2108TEE
! Symbol No. Part No. Part Name Description Local ! Symbol No. Part No. Part Name Description Local
RESISTOR
R1747 NRSA63J-103X MG R 10kØ 1/16W J
R1748-49 NRSA02J-475X MG R 4.7MØ 1/10W J
R1750-51 QRE141J-0R0Y C R 0.0Ø 1/4W J
R1755-56 NRSA63J-101X MG R 100Ø 1/16W J
R1757-58 NRSA63J-222X MG R 2.2kØ 1/16W J
R1760 NRSA63J-682X MG R 6.8kØ 1/16W J
R1770 QRE121J-271Y C R 270Ø 1/2W J
R1771 NRSA63J-102X MG R 1kØ 1/16W J
R1772 QRE121J-271Y C R 270Ø 1/2W J
R1773 NRSA63J-102X MG R 1kØ 1/16W J
R1775 NRSA63J-332X MG R 3.3kØ 1/16W J
R1776 NRSA63J-392X MG R 3.9kØ 1/16W J
R1777 NRSA63J-682X MG R 6.8kØ 1/16W J
R1779 NRSA63J-272X MG R 2.7kØ 1/16W J
R1780 NRSA63J-471X MG R 470Ø 1/16W J
R1781 NRSA63J-122X MG R 1.2kØ 1/16W J
R1782 NRSA63J-181X MG R 180Ø 1/16W J
R1783 NRSA63J-221X MG R 220Ø 1/16W J
R1784 NRSA63J-331X MG R 330Ø 1/16W J
R1785 NRSA63J-471X MG R 470Ø 1/16W J
R1803 NRSA63J-333X MG R 33kØ 1/16W J
R1804-05 NRSA63J-750X MG R 75Ø 1/16W J
R1808 NRSA63J-823X MG R 82kØ 1/16W J
R1809 NRSA63J-391X MG R 390Ø 1/16W J
R1810 NRSA63J-823X MG R 82kØ 1/16W J
R1811 NRSA63J-391X MG R 390Ø 1/16W J
R1812 NRSA63J-104X MG R 100kØ 1/16W J
R1813 NRSA63J-222X MG R 2.2kØ 1/16W J
R1815 NRSA63J-101X MG R 100Ø 1/16W J
R1818 NRSA63J-222X MG R 2.2kØ 1/16W J
R1820 NRSA63J-101X MG R 100Ø 1/16W J
R1821 NRSA63J-222X MG R 2.2kØ 1/16W J
R1823 NRSA63J-101X MG R 100Ø 1/16W J
R1824 NRSA63J-222X MG R 2.2kØ 1/16W J
R1826 NRSA63J-101X MG R 100Ø 1/16W J
R1829 NRSA63J-750X MG R 75Ø 1/16W J
R1830-31 NRSA63J-222X MG R 2.2kØ 1/16W J
R1832 NRSA63J-122X MG R 1.2kØ 1/16W J
R1833 NRSA63J-102X MG R 1kØ 1/16W J
R1834-35 NRSA63J-562X MG R 5.6kØ 1/16W J
R1836 NRSA63J-750X MG R 75Ø 1/16W J
R1837 NRSA63J-101X MG R 100Ø 1/16W J
R1838 QRK126J-121X C R 120Ø 1/2W J
R1839-40 QRE121J-221Y C R 220Ø 1/2W J
R1841-42 NRSA63J-0R0X MG R 0.0Ø 1/16W J
R1843 NRSA63J-821X MG R 820Ø 1/16W J
R1844 NRSA63J-222X MG R 2.2kØ 1/16W J
R1845 NRSA63J-102X MG R 1kØ 1/16W J
R1846 NRSA63J-222X MG R 2.2kØ 1/16W J
R1847 NRSA63J-103X MG R 10kØ 1/16W J
R1848 NRSA63J-471X MG R 470Ø 1/16W J
R1849 NRSA63J-221X MG R 220Ø 1/16W J
R1880 NRSA63J-202X MG R 2kØ 1/16W J
R1881 NRSA63J-103X MG R 10kØ 1/16W J
R1882 NRSA63J-471X MG R 470Ø 1/16W J
R1883 NRSA63J-181X MG R 180Ø 1/16W J
R1884-85 QRE141J-750Y C R 75Ø 1/4W J
R1902 QRF154K-2R2 UNF R 2.2Ø 15W K
R1904 QRE121J-681Y C R 680Ø 1/2W J
R1905 QRM034J-R22 MP R 0.22Ø 3W J
R1907 NRSA63J-563X MG R 56kØ 1/16W J
R1908 QRL039J-333 OM R 33kØ 3W J
R1909 QRE121J-474Y C R 470kØ 1/2W J
R1910 QRE121J-152Y C R 1.5kØ 1/2W J
R1911 QRE121J-332Y C R 3.3kØ 1/2W J
R1912 NRSA63J-182X MG R 1.8kØ 1/16W J
!
R1915 QRZ0111-474 C R 470kØ 1/2W K
R1952 NRSA63J-332X MG R 3.3kØ 1/16W J
R1953 NRSA63J-101X MG R 100Ø 1/16W J
R1954 QRE121J-560Y C R 56Ø 1/2W J
R1955 QRG01GJ-330 OM R 33Ø 1W J
R1956 QRE121J-100Y C R 10Ø 1/2W J
RESISTOR
R1957 QRE121J-6R8Y C R 6.8Ø 1/2W J
R1960 NRSA63J-391X MG R 390Ø 1/16W J
R1961 QRL02EJ-223X OM R 22kØ 2W J
R1962 NRSA63J-561X MG R 560Ø 1/16W J
R1963 QRE121J-103Y C R 10kØ 1/2W J
R1964 NRSA63J-473X MG R 47kØ 1/16W J
R1965 NRSA63J-0R0X MG R 0.0Ø 1/16W J
R1966 NRSA63J-682X MG R 6.8kØ 1/16W J
R1967 NRSA63J-473X MG R 47kØ 1/16W J
R1970 NRSA63J-153X MG R 15kØ 1/16W J
R1971 NRSA63J-183X MG R 18kØ 1/16W J
!
R1991 QRZ0057-825 C R 8.2MØ 1W J
CAPACITOR
C1001 NCB31HK-103X C CAP. 0.01µF 50V K
C1002 QETN1HM-106Z E CAP. 10µF 50V M
C1003 QFV71HJ-104Z MF CAP. 0.1µF 50V J
C1004 QETN1CM-477Z E CAP. 470µF 16V M
C1005 NCB31HK-222X C CAP. 2200pF 50V K
C1006 QETN1CM-336Z E CAP. 33µF 16V M
C1007 NCB31HK-103X C CAP. 0.01µF 50V K
C1101-05 NCB31HK-472X C CAP. 4700pF 50V K
C1106-07 NCB31HK-103X C CAP. 0.01µF 50V K
C1109 QETN1HM-106Z E CAP. 10µF 50V M
C1130-32 NCB31HK-103X C CAP. 0.01µF 50V K
C1133 QETN1CM-107Z E CAP. 100µF 16V M
C1134 NCB31HK-103X C CAP. 0.01µF 50V K
C1135 QETN1EM-476Z E CAP. 47µF 25V M
C1136-38 NCB31HK-103X C CAP. 0.01µF 50V K
C1140-42 NCB31HK-103X C CAP. 0.01µF 50V K
C1143 QETN1HM-106Z E CAP. 10µF 50V M
C1144 NCB31HK-223X C CAP. 0.022µF 50V K
C1308 NCB31HK-103X C CAP. 0.01µF 50V K
C1352 QFK62EK-104Z MM CAP. 0.1µF 250V K
C1353 QETN2EM-475Z E CAP. 4.7µF 250V M
C1354 QCZ0131-222 C CAP. 2200pF 2000V K
C1355 QCZ0131-472 C CAP. 4700pF 2000V K
C1356 QETN1CM-107Z E CAP. 100µF 16V M
C1357 NDC31HJ-101X C CAP. 100pF 50V J
C1358 QETN1CM-477Z E CAP. 470µF 16V M
C1401 QETN1HM-105Z E CAP. 1µF 50V M
C1402 QCB31HK-682Z C CAP. 6800pF 50V K
C1403 QEHR1VM-227Z E CAP. 220µF 35V M
C1406 QFLC2AJ-683Z M CAP. 0.068µF 100V J
C1408 QFV71HJ-184Z MF CAP. 0.18µF 50V J
C1411-12 NCF21HZ-334X C CAP. 0.33µF 50V Z
C1413 QFLC2AJ-563Z M CAP. 0.056µF 100V J
C1422 QEHQ1VM-108 E CAP. 1000µF 35V M
C1521 QETN1VM-476Z E CAP. 47µF 35V M
C1522 QFLC1HJ-332Z M CAP. 3300pF 50V J
C1523 QFLC1HJ-223Z M CAP. 0.022µF 50V J
C1524 QFZ0200-612 MPP CAP. 6100pF 1.5kVH ±3%
C1525 QFZ0200-342 MPP CAP. 3400pF 1.5kVH ±3%
C1526 QFP32GJ-393 PP CAP. 0.039µF 400V J
C1527 QFZ0197-154 MPP CAP. 0.15µF 250V J
C1528 QFZ0197-124 MPP CAP. 0.12µF 250V J
C1529 QEHR2EM-475Z E CAP. 4.7µF 250V M
C1530 QCB32HK-561Z C CAP. 560pF 500V K
C1531 QEHR1EM-108Z E CAP. 1000µF 25V M
C1533 QEHR1EM-108Z E CAP. 1000µF 25V M
C1535 QCB32HK-101Z C CAP. 100pF 500V K
C1536 QFLC1HJ-103Z M CAP. 0.01µF 50V J
C1540 QFV71HJ-104Z MF CAP. 0.1µF 50V J
C1541 QETN2EM-475Z E CAP. 4.7µF 250V M
C1550 NCB31CK-104X C CAP. 0.1µF 16V K
C1591 QETN1AM-107Z E CAP. 100µF 10V M
C1592 QEZ0203-107 E CAP. 100µF 160V M
C1593 QETN1EM-476Z E CAP. 47µF 25V M
C1603 QETN1CM-228Z E CAP. 2200µF 16V M
C1625 QETN1HM-106Z E CAP. 10µF 50V M
AV-2108TEE
No. 51901 13
AV-2108TEE
! Symbol No. Part No. Part Name Description Local ! Symbol No. Part No. Part Name Description Local
CAPACITOR
C1626 QETN1CM-107Z E CAP. 100µF 16V M
C1629 QETN1HM-475Z E CAP. 4.7µF 50V M
C1630 NDC31HJ-471X C CAP. 470pF 50V J
C1631 NCB31EK-333X C CAP. 0.033µF 25V K
C1634 QETN1HM-106Z E CAP. 10µF 50V M
C1636-37 QETN1HM-105Z E CAP. 1µF 50V M
C1638 NCB31EK-333X C CAP. 0.033µF 25V K
C1639 NDC31HJ-471X C CAP. 470pF 50V J
C1640 QETN1HM-475Z E CAP. 4.7µF 50V M
C1641 QETN1CM-107Z E CAP. 100µF 16V M
C1642 NCB31CK-104X C CAP. 0.1µF 16V K
C1643 NCB31HK-562X C CAP. 5600pF 50V K
C1644 QETN1HM-475Z E CAP. 4.7µF 50V M
C1645-46 QETN1HM-106Z E CAP. 10µF 50V M
C1647 NCB31EK-393X C CAP. 0.039µF 25V K
C1648 NCB31HK-223X C CAP. 0.022µF 50V K
C1650 QEHR1HM-106Z E CAP. 10µF 50V M
C1651 QEHR1HM-107Z E CAP. 100µF 50V M
C1652 QETN1HM-106Z E CAP. 10µF 50V M
C1655-56 QEHQ1VM-108 E CAP. 1000µF 35V M
C1659-61 NCF21HZ-224X C CAP. 0.22µF 50V Z
C1662 QEHR1HM-106Z E CAP. 10µF 50V M
C1663 NCF21HZ-224X C CAP. 0.22µF 50V Z
C1665 NCF31AZ-105X C CAP. 1µF 10V Z
C1669 NCF31AZ-105X C CAP. 1µF 10V Z
C1681-82 QETN1CM-227Z E CAP. 220µF 16V M
C1683 QETN1CM-336Z E CAP. 33µF 16V M
C1684 QETN1HM-106Z E CAP. 10µF 50V M
C1685-86 NRSA63J-0R0X MG R 0.0Ø 1/16W J
C1702 QETN1HM-106Z E CAP. 10µF 50V M
C1703-04 NDC31HJ-220X C CAP. 22pF 50V J
C1706 NCB21EK-224X C CAP. 0.22µF 25V K
C1707 QETN1CM-107Z E CAP. 100µF 16V M
C1709 QETN1CM-107Z E CAP. 100µF 16V M
C1710 NCB21EK-224X C CAP. 0.22µF 25V K
C1711 NCB31CK-104X C CAP. 0.1µF 16V K
C1713 NCB31CK-104X C CAP. 0.1µF 16V K
C1714 QETN1CM-476Z E CAP. 47µF 16V M
C1720 QETN1CM-476Z E CAP. 47µF 16V M
C1725 NCB31HK-681X C CAP. 680pF 50V K
C1726 QETN1HM-106Z E CAP. 10µF 50V M
C1730-31 NCB21EK-224X C CAP. 0.22µF 25V K
C1732 QETN1CM-107Z E CAP. 100µF 16V M
C1733 NCB31CK-104X C CAP. 0.1µF 16V K
C1734-35 NCB31HK-222X C CAP. 2200pF 50V K
C1736-37 QETN1HM-105Z E CAP. 1µF 50V M
C1738 NCB31CK-104X C CAP. 0.1µF 16V K
C1739 NFV41CJ-104X MPP CAP. 0.1µF 16V J
C1740 QETN1HM-225Z E CAP. 2.2µF 50V M
C1741-42 NCB31CK-104X C CAP. 0.1µF 16V K
C1743 QETN1CM-107Z E CAP. 100µF 16V M
C1744 NCB21HK-102X C CAP. 1000pF 50V K
C1745-47 NCB31EK-473X C CAP. 0.047µF 25V K
C1749 QETN1HM-106Z E CAP. 10µF 50V M
C1751-53 NCB31CK-104X C CAP. 0.1µF 16V K
C1760 NCB21EK-104X C CAP. 0.1µF 25V K
C1761 QETN1CM-107Z E CAP. 100µF 16V M
C1770 QETN1HM-106Z E CAP. 10µF 50V M
C1801-04 QETN1HM-106Z E CAP. 10µF 50V M
C1805 QFLC1HJ-104Z M CAP. 0.1µF 50V J
C1807-08 NCF31AZ-105X C CAP. 1µF 10V Z
C1810 NCF31AZ-105X C CAP. 1µF 10V Z
C1811 QFLC1HJ-104Z M CAP. 0.1µF 50V J
C1812 NCF31AZ-105X C CAP. 1µF 10V Z
C1813 NCB31HK-103X C CAP. 0.01µF 50V K
C1814 QFLC1HJ-104Z M CAP. 0.1µF 50V J
C1815 NCF31AZ-105X C CAP. 1µF 10V Z
C1817 NCF31AZ-105X C CAP. 1µF 10V Z
C1819 QFLC1HJ-104Z M CAP. 0.1µF 50V J
C1820-21 NCF31AZ-105X C CAP. 1µF 10V Z
C1822 QETN1CM-477Z E CAP. 470µF 16V M
C1823-24 QETN1CM-107Z E CAP. 100µF 16V M
CAPACITOR
C1825 NCB31HK-103X C CAP. 0.01µF 50V K
C1826 QFLC1HJ-104Z M CAP. 0.1µF 50V J
C1827 NCB31HK-103X C CAP. 0.01µF 50V K
C1829-31 NCB31HK-103X C CAP. 0.01µF 50V K
C1833 QETN1HM-226Z E CAP. 22µF 50V M
C1834 NDC31HJ-181X C CAP. 180pF 50V J
!
C1901 QFZ9073-104 MF CAP. 0.1µF
!
C1902 QFZ9073-473 MF CAP. 0.047µF
C1903-05 QCZ9015-102Z C CAP. 1000pF 250V Z
!
C1906 QFZ9073-224 MF CAP. 0.22µF
C1907 QEZ0552-227 E CAP. 220µF
C1908 QCZ0364-222 C CAP. 2200pF
C1910 NDC21HJ-471X C CAP. 470pF 50V J
C1911 QEHR1EM-227Z E CAP. 220µF 25V M
C1914 QETN1EM-227Z E CAP. 220µF 25V M
C1915 QFLC1HJ-332Z M CAP. 3300pF 50V J
C1952 QCB32HK-471Z C CAP. 470pF 500V K
C1953 QEHQ1VM-108 E CAP. 1000µF 35V M
C1954 NCB31HK-102X C CAP. 1000pF 50V K
C1957 QCB32HK-471Z C CAP. 470pF 500V K
C1958 QEHQ1EM-108 E CAP. 1000µF 25V M
C1959 QCZ0364-561 C CAP. 560pF
C1960 QEZ0203-107 E CAP. 100µF 160V M
C1962 QETN1HM-106Z E CAP. 10µF 50V M
C1963 QETN1CM-476Z E CAP. 47µF 16V M
C1964 QEHR1VM-476Z E CAP. 47µF 35V M
C1968 NCB31CK-104X C CAP. 0.1µF 16V K
C1972 QEHR1VM-476Z E CAP. 47µF 35V M
C1973 QEHR1CM-107Z E CAP. 100µF 16V M
C1974 NCB31CK-104X C CAP. 0.1µF 16V K
C1975 QEHR1CM-227Z E CAP. 220µF 16V M
C1976 QEHR1CM-107Z E CAP. 100µF 16V M
C1977 QEHR1AM-477Z E CAP. 470µF 10V M
C1978 NCB21HK-104X C CAP. 0.1µF 50V K
C1980 QETN1CM-107Z E CAP. 100µF 16V M
!
C1991-93 QCZ9079-102 C CAP. 1000pF 250V M
TRANSFORMER
T1521 CE40203-00CJ1 DRIVE TRANSF.
!
T1551 QQH0104-001 H.V.TRANSF.
!
T1901 QQS0117-001 SWTICH.TRANSF.
COIL
L1001-02 QQL244K-8R2Z COIL 8.2µH K
L1101-02 QQL244J-5R6Z COIL 5.6µH J
L1103 QQL244K-100Z COIL 10µH K
L1104 QQL244K-180Z COIL 18µH K
L1351 QQL03BJ-5R6Z COIL 5.6µH J
L1523 QQR1005-004 LINEARITY COIL
L1524 QQLZ034-360 CHOKE COIL 36µH
L1701-02 QQL244K-100Z COIL 10µH K
L1731 QQL244J-5R6Z COIL 5.6µH J
L1951 QQLZ034-460 CHOKE COIL 46µH
L1953-54 QQL244J-5R6Z COIL 5.6µH J
DIODE
D1101 DAN235K-X SI.DIODE
D1351 MA111-X SI.DIODE
D1356 MA111-X SI.DIODE
D1357 RGP10J-5025-T3 SI.DIODE
D1358 RGP10J-5025-T3 SI.DIODE
D1359 RGP10J-5025-T3 SI.DIODE
D1360 MA3075/M/-X ZENER DIODE
D1361-64 MA111-X SI.DIODE
14 No. 51901
AV-2108TEE
! Symbol No. Part No. Part Name Description Local ! Symbol No. Part No. Part Name Description Local
DIODE
D1401 RGP10J-5025-T3 SI.DIODE
D1402 MTZJ75-T2 ZENER DIODE
D1405 1N4003-T2 SI.DIODE
D1408 MA111-X SI.DIODE
D1521 ERB06-15-F1 SI.DIODE
D1522 RU3AM-LFC4 SI.DIODE
D1523 RGP10J-5025-T3 SI.DIODE
D1541 RGP10J-5025-T3 SI.DIODE
D1550 MA111-X SI.DIODE
D1551 RGP10J-5025-T3 SI.DIODE
D1553-54 RGP10J-5025-T3 SI.DIODE
D1592 MA3075/H/-X ZENER DIODE
D1652-53 MA3330/L/-X ZENER DIODE
D1682 MA111-X SI.DIODE
D1702 MA3024-X ZENER DIODE
D1730-33 MA111-X SI.DIODE
D1760 SLR-342VR-T16 L.E.D.
D1770 MA111-X SI.DIODE
D1771 P1241-04 C.D.S.
D1806-07 MTZJ12C-T2 ZENER DIODE
D1901 GSIB460 DIODE
D1903 MTZJ12C-T2 ZENER DIODE
D1904 EG01C-T2 SI.DIODE
D1906 EG01C-T2 SI.DIODE
D1907 MA3300/M/-X CHIP ZENER DIODE
D1908 MTZJ27B-T2 ZENER DIODE
D1909 MA111-X SI.DIODE
D1910 NRSA63J-0R0X MG R 0.0Ø 1/16W J
D1911 RGP10J-TS-T3 SI.DIODE
D1912 1SS133-T2 SI.DIODE
D1914 ERC30-02L38 SI.DIODE
D1952 ERC30-02L38 SI.DIODE
D1954 RGP30B-F1 SI.DIODE
D1955 1SR35-400A-T2 SI.DIODE
D1956 RU3AM-LFC4 SI.DIODE
D1958 MTZJ5.1A-T2 ZENER DIODE
D1964 MA3330/L/-X ZENER DIODE
D1965 1SS133-T2 SI.DIODE
D1966 MA3068/M/-X ZENER DIODE
D1968-69 MA111-X SI.DIODE
TRANSISTOR
Q1101 2SC5083/L-P/-T SI.TRANSISTOR
Q1102 DTC124EKA-X DIGI.TRANSISTOR
Q1104 2SA1037AK/QR/-X SI.TRANSISTOR
Q1105-06 DTC124EKA-X DIGI.TRANSISTOR
Q1107 2SA1037AK/QR/-X SI.TRANSISTOR
Q1108 2SC2412K/QR/-X SI.TRANSISTOR
Q1109 2SA1037AK/QR/-X SI.TRANSISTOR
Q1110 DTC124EKA-X DIGI.TRANSISTOR
Q1111 2SC2412K/QR/-X SI.TRANSISTOR
Q1130 2SA1037AK/QR/-X SI.TRANSISTOR
Q1131 DTC124EKA-X DIGI.TRANSISTOR
Q1132 2SC2412K/QR/-X SI.TRANSISTOR
Q1133 2SA1037AK/QR/-X SI.TRANSISTOR
Q1134-35 DTC124EKA-X DIGI.TRANSISTOR
Q1136-37 2SC2412K/QR/-X SI.TRANSISTOR
Q1301-02 2SA1037AK/QR/-X SI.TRANSISTOR
Q1351 2SA1037AK/QR/-X SI.TRANSISTOR
Q1352 2SC4722/NP/ SI.TRANSISTOR
Q1353-55 2SC2412K/QR/-X SI.TRANSISTOR
Q1521 2SC2655/Y/-T SI.TRANSISTOR
Q1522 2SD2634-YD SI.TRANSISTOR
Q1591 2SA1208/ST/Z1-T SI.TRANSISTOR
Q1592 DTC124EKA-X DIGI.TRANSISTOR
Q1660-61 2SC2412K/QR/-X SI.TRANSISTOR
Q1683-84 2SA1037AK/QR/-X SI.TRANSISTOR
Q1685-86 DTC323TK-X DIGI.TRANSISTOR
Q1687 2SC2412K/QR/-X SI.TRANSISTOR
Q1688 2SA1037AK/QR/-X SI.TRANSISTOR
TRANSISTOR
Q1701-02 2SA1037AK/QR/-X SI.TRANSISTOR
Q1703 2SC2412K/QR/-X SI.TRANSISTOR
Q1720 2SA1037AK/QR/-X SI.TRANSISTOR
Q1770 2SA1037AK/QR/-X SI.TRANSISTOR
Q1801-02 DTC323TK-X DIGI.TRANSISTOR
Q1803 2SA1037AK/QR/-X SI.TRANSISTOR
Q1804 2SC1740S/QR/-T SI.TRANSISTOR
Q1860 2SC2412K/QR/-X SI.TRANSISTOR
Q1861-62 2SA1037AK/QR/-X SI.TRANSISTOR
Q1952-54 2SC2412K/QR/-X SI.TRANSISTOR
IC
IC1130 M52342SP I.C(MONO-ANA)
IC1351 TDA6107Q/N2 I.C(MONO-ANA)
IC1401 AN5522 I.C(MONO-ANA)
IC1602 BH3865S I.C(MONO-ANA)
IC1650 AN5276 I.C(MONO-ANA)
IC1701 TDA9365N13S0518 I.C(MICRO-COMP)
IC1702 AT24C08-21LS I.C(MEMORY-OTH) (SERVICE)
IC1760 GP1U281Q IFR DETECT UNIT
IC1801 MM1492AF I.C(MONO-ANA)
IC1901 STR-F6707A/F7 I.C(HYBRID)
IC1951 SE135N I.C(HYBRID)
IC1972 L88M33T-X I.C(MONO-ANA)
IC1974 BA51W12ST-V5 I.C(MONO-ANA)
OTHERS
LC30114-001C-H L.E.D.HOLDER
CF1103 TPSH6.0MB CERAMIC FILTER
CF1104 TPS5.5MW CERAMIC FILTER
CF1105 TPS6.5MB CERAMIC FILTER
CF1106 QAX0639-001Z CERAMIC FILTER
CF1130 QAX0642-001Z CERAMIC FILTER
CF1140 QAX0336-001 CERAMIC FILTER
CF1141 QAX0337-001 CERAMIC FILTER
CF1142 QAX0338-001 CERAMIC FILTER
CL1001 QZW0027-002 WIRE CLAMP
!
CP1951 ICP-N75-Y I.C.PROTECT
!
CP1953 ICP-N38-Y I.C.PROTECT
!
F1901 QMF51E2-4R0J4 FUSE
FC1901 CEMG002-001Z FUSE CLIP
J1770 QNS0155-001 JACK
J1771 QNN0282-003 PIN JACK
J1772 QNN0282-002 PIN JACK
J1773 QNN0282-001 PIN JACK
J1801 QNN0349-001 PIN JACK
J1802 QNN0349-002 PIN JACK
J1803 QNN0348-001 PIN JACK
J1804 QNN0349-001 PIN JACK
K1951 QQR1214-001Y FERRITE BEADS
K1954-55 QQR1214-001Y FERRITE BEADS
!
LF1901 QQR0673-004 LINE FILTER
!
LF1902 QQR1035-002 LINE FILTER
!
PC1901 PC123F2 I.C(PH.COUPLER)
!
RY1901 QSK0061-001 RELAY
S1780 QSW0619-003Z PUSH SWITCH MENU
S1781 QSW0619-003Z PUSH SWITCH CHS1782 QSW0619-003Z PUSH SWITCH CH+
S1783 QSW0619-003Z PUSH SWITCH VOLS1784 QSW0619-003Z PUSH SWITCH VOL+
!
S1901 QSW0846-001 PUSH SWITCH POWER
SF1101 QAX0325-001 SAW FILTER
SF1102 QAX0594-001 SAW FILTER
SG1301-03 QAF0006-501 ARRESTER
SG1304 QAF0041-272 ARRESTER
!
SK1351 CE42446-001 C.R.T.SOCKET
CM35921-005-H CDS HOLDER
AV-2108TEE
No. 51901 15
AV-2108TEE
! Symbol No. Part No. Part Name Description Local ! Symbol No. Part No. Part Name Description Local
OTHERS
TH1901 QAD0134-4R5 P.THERMISTOR
TU1001 QAU0185-004 TUNER
!
VA1901 QAF0052-621 VARISTOR
W1003 QQR1214-001Y FERRITE BEADS
W1008 NRSA63J-0R0X MG R 0.0Ø 1/16W J
W1010 NRSA63J-0R0X MG R 0.0Ø 1/16W J
W1052 QQR1214-001Y FERRITE BEADS
W1067 QQR1214-001Y FERRITE BEADS
W1071 NRSA63J-0R0X MG R 0.0Ø 1/16W J
W1096 NRSA63J-0R0X MG R 0.0Ø 1/16W J
W1107 QQR1214-001Y FERRITE BEADS
W1239 NRSA63J-0R0X MG R 0.0Ø 1/16W J
W1257 NRSA63J-0R0X MG R 0.0Ø 1/16W J
W1293 QQR1214-001Y FERRITE BEADS
W1307 NRSA63J-0R0X MG R 0.0Ø 1/16W J
W1309 NRSA63J-0R0X MG R 0.0Ø 1/16W J
W1318 QQR1214-001Y FERRITE BEADS
W1321-22 NRSA63J-0R0X MG R 0.0Ø 1/16W J
W1325-26 NRSA63J-0R0X MG R 0.0Ø 1/16W J
W1330 NRSA63J-0R0X MG R 0.0Ø 1/16W J
W1333 NRSA63J-0R0X MG R 0.0Ø 1/16W J
W1375 NRSA63J-0R0X MG R 0.0Ø 1/16W J
W1379 NRSA63J-0R0X MG R 0.0Ø 1/16W J
W1388 NRSA63J-0R0X MG R 0.0Ø 1/16W J
W1418 NRSA63J-0R0X MG R 0.0Ø 1/16W J
W1424 QQR1214-001Y FERRITE BEADS
W1430 NRSA63J-0R0X MG R 0.0Ø 1/16W J
X1701 QAX0688-001 CRYSTAL
Y1001-02 NRSA63J-0R0X MG R 0.0Ø 1/16W J
Y1103 QRE141J-0R0Y C R 0.0Ø 1/4W J
Y1130 NRSA63J-0R0X MG R 0.0Ø 1/16W J
Y1301-02 NRSA63J-0R0X MG R 0.0Ø 1/16W J
Y1601 NRSA63J-0R0X MG R 0.0Ø 1/16W J
Y1603 NRSA63J-0R0X MG R 0.0Ø 1/16W J
REMOTE CONTROL UNIT PARTS LIST (RM-C355-1C)
! Ref.No. Part No. Part Name Description Local
31392340128 BATTERY COVER
16 No. 51901
AV-2508TEE
PARTS LIST [AV-2508TEE/B]
EXPLODED VIEW PARTS LIST-1
!
Ref.No. Part No. Part Name Description Local
18 GG10133-006A-H FRONT CABI
19 GG30021-001A-H LED LENS
20 GG30019-001B-H POWER KNOB
21 GG20006-001A-H CONTROL KNOB
22 GG30020-001A-H E.E. WINDOW
23 CM48125-009 JVC MARK
24 CM35235-003-H SPRING
EXPLODED VIEW-1
Exploded VIEW-1 is the same as for AV-2108TEE/B. Refer to page 9.
EXPLODED VIEW PARTS LIST-
!
Ref.No. Part No. Part Name Description Local
! V01 A59QDF891X PICTURE TUBE
! L01 QQW0119-001 DEG COIL
DY01 QQD0062-001 DEFLECTION YOKE
! T1551 QQH0097-001 FBT
! 1 QMP40D0-200J5 POWER CORD
! 2 CM47005-A01-H CORD CLAMP
3 CM36623-B01-H CHASSIS RAIL (X2)
4 WJY0018-001A BRAIDED ASSY
5 CHGB0017-0C BRAIDED ASSY (SUB)
6 A48457-3-H SPRING
7 CM48144-002-H PB STOPPER
8 A75034-B PC MAGNET
9 CE40764-00A WEDGE ASSY (X4)
10 QAS0032-001 SPEAKER (X2) SP01, SP02
11 LC20371-001D-H SP HOLDER (X2)
12 LC40226-003A-H SPACER (X4)
13 LC40317-002A-H TAPPING SCREW (X4)
! 14 GG10134-001B-H REAR COVER
15 QYSBSFG4016Z TAPPING SCREW (X9)
16 QYSBSF3010Z TAPPING SCREW (X4)
! 17 LC20377-009B-H RATING LABEL
2
EXPLODED VIEW-2
Exploded VIEW-2 is the same as for AV-2108TEE/B. Refer to page 11.
PACKING
Packing is the same as for AV-2108TEE/B. Refer to page 17.
PACKING PARTS LIST
!
Ref.No. Part No. Part Name Description Local
1 CP30967-004-H POLY BAG
2 GG10044-026B-H P CASE
3 GG10135-001B-H CUSHION ASSY
4 RM-C355-1C RC HAND UNIT
5 GG20012-001A-H CORNER LABEL (X2)
6 CP30966-001-H POLY BAG
! 7 LCT1061-001A-H INST BOOK
8 BT-54012-2 WARRANTY CARD
9 LCT1058-001A-H INST SHEET
24 No. 51901
AV-2508TEE
PRINTED WIRING BOARD PARTS LIST (AV-2508TEE/B)
MAIN PW BOARD ASS’Y (SCH-1049A-H2)
! Symbol No. Part No. Part Name Description Local ! Symbol No. Part No. Part Name Description Local
RESISTOR
R1001-02 NRSA63J-221X MG R 220Ø 1/16W J
R1003 NRSA63J-392X MG R 3.9kØ 1/16W J
R1004 NRSA63J-221X MG R 220Ø 1/16W J
R1006 NRSA63J-273X MG R 27kØ 1/16W J
R1101 NRSA63J-100X MG R 10Ø 1/16W J
R1102 NRSA63J-682X MG R 6.8kØ 1/16W J
R1103 NRSA63J-272X MG R 2.7kØ 1/16W J
R1104 NRSA63J-181X MG R 180Ø 1/16W J
R1105 NRSA63J-220X MG R 22Ø 1/16W J
R1106 NRSA63J-101X MG R 100Ø 1/16W J
R1107 NRSA63J-472X MG R 4.7kØ 1/16W J
R1108-09 NRSA63J-222X MG R 2.2kØ 1/16W J
R1111 NRSA63J-102X MG R 1kØ 1/16W J
R1112 NRSA63J-103X MG R 10kØ 1/16W J
R1113 NRSA63J-271X MG R 270Ø 1/16W J
R1114 NRSA63J-821X MG R 820Ø 1/16W J
R1115 NRSA63J-181X MG R 180Ø 1/16W J
R1117 NRSA63J-102X MG R 1kØ 1/16W J
R1119 NRSA63J-102X MG R 1kØ 1/16W J
R1120 NRSA63J-471X MG R 470Ø 1/16W J
R1130 NRSA63J-472X MG R 4.7kØ 1/16W J
R1131 NRSA63J-471X MG R 470Ø 1/16W J
R1132 NRSA63J-222X MG R 2.2kØ 1/16W J
R1133 NRSA63J-152X MG R 1.5kØ 1/16W J
R1134 NRSA63J-182X MG R 1.8kØ 1/16W J
R1135 NRSA63J-561X MG R 560Ø 1/16W J
R1136 NRSA63J-472X MG R 4.7kØ 1/16W J
R1137 NRSA63J-103X MG R 10kØ 1/16W J
R1138 NRSA63J-561X MG R 560Ø 1/16W J
R1139 NRSA63J-222X MG R 2.2kØ 1/16W J
R1140 NRSA63J-152X MG R 1.5kØ 1/16W J
R1141 NRSA63J-182X MG R 1.8kØ 1/16W J
R1142 NRSA63J-561X MG R 560Ø 1/16W J
R1143 NRSA63J-471X MG R 470Ø 1/16W J
R1144 NRSA63J-220X MG R 22Ø 1/16W J
R1145 NRSA63J-821X MG R 820Ø 1/16W J
R1146 NRSA63J-103X MG R 10kØ 1/16W J
R1147 NRSA63J-101X MG R 100Ø 1/16W J
R1148 NRSA63J-332X MG R 3.3kØ 1/16W J
R1149 NRSA63J-122X MG R 1.2kØ 1/16W J
R1301-02 NRSA63J-222X MG R 2.2kØ 1/16W J
R1303 NRSA63J-562X MG R 5.6kØ 1/16W J
R1304-05 NRSA63J-222X MG R 2.2kØ 1/16W J
R1306 NRSA63J-562X MG R 5.6kØ 1/16W J
R1350-51 NRSA63J-151X MG R 150Ø 1/16W J
R1353 NRSA63J-151X MG R 150Ø 1/16W J
R1354 QRE121J-182Y C R 1.8kØ 1/2W J
R1361 NRSA63J-0R0X MG R 0.0Ø 1/16W J
R1363 QRZ0107-152Z C R 1.5kØ 1/2W K
R1364 QRE121J-182Y C R 1.8kØ 1/2W J
R1365 QRZ0107-152Z C R 1.5kØ 1/2W K
R1366 QRZ0107-474Z C R 470kØ 1/2W K
R1368 QRZ0107-152Z C R 1.5kØ 1/2W K
R1369 QRE121J-182Y C R 1.8kØ 1/2W J
R1373 QRE121J-124Y C R 120kØ 1/2W J
R1380-83 NRSA63J-101X MG R 100Ø 1/16W J
R1384 NRSA63J-223X MG R 22kØ 1/16W J
R1401 NRSA63J-224X MG R 220kØ 1/16W J
R1403 NRSA63J-0R0X MG R 0.0Ø 1/16W J
R1405 NRSA63J-682X MG R 6.8kØ 1/16W J
R1406 NRSA63J-123X MG R 12kØ 1/16W J
R1408 NRSA63J-682X MG R 6.8kØ 1/16W J
R1410 NRSA63J-123X MG R 12kØ 1/16W J
R1411 QRG01GJ-221 OM R 220Ø 1W J
R1412 QRE121J-1R0Y C R 1.0Ø 1/2W J
R1413 QRX01GJ-2R7 MF R 2.7Ø 1W J
R1414 QRE121J-8R2Y C R 8.2Ø 1/2W J
R1425 NRSA63J-683X MG R 68kØ 1/16W J
R1480 QRE121J-681Y C R 680Ø 1/2W J
R1481 NRSA63J-223X MG R 22kØ 1/16W J
R1482 NRSA63J-562X MG R 5.6kØ 1/16W J
R1483 NRSA63J-823X MG R 82kØ 1/16W J
RESISTOR
R1484-85 NRSA63J-562X MG R 5.6kØ 1/16W J
R1486 NRSA63J-272X MG R 2.7kØ 1/16W J
R1487 NRSA63J-333X MG R 33kØ 1/16W J
R1489 NRSA63J-122X MG R 1.2kØ 1/16W J
R1490 NRSA63J-102X MG R 1kØ 1/16W J
R1491 NRSA63J-562X MG R 5.6kØ 1/16W J
R1492 NRSA63J-822X MG R 8.2kØ 1/16W J
R1493 QRE121J-333Y C R 33kØ 1/2W J
R1494 QRL03EJ-470X OM R 47Ø 3W J
R1521 NRSA63J-101X MG R 100Ø 1/16W J
R1522 NRSA63J-102X MG R 1kØ 1/16W J
R1524 QRL03EJ-820X OM R 82Ø 3W J
R1526 QRL029J-271 OM R 270Ø 2W J
R1527 QRL03EJ-103X OM R 10kØ 3W J
R1528-29 QRX029J-R47 MF R 0.47Ø 2W J
R1531 NRSA63J-222X MG R 2.2kØ 1/16W J
!
R1532 QRZ9017-4R7 F R 4.7Ø 1/4W J
!
R1540 QRZ9011-4R7 F R 4.7Ø 1/4W J
R1541-42 QRE121J-124Y C R 120kØ 1/2W J
R1543 QRE121J-471Y C R 470Ø 1/2W J
R1545 QRE121J-220Y C R 22Ø 1/2W J
R1546 QRE121J-822Y C R 8.2kØ 1/2W J
R1591 QRE121J-472Y C R 4.7kØ 1/2W J
R1592 QRZ0221-3R9 UNF R 3.9Ø
R1593 NRSA63J-821X MG R 820Ø 1/16W J
R1594 QRE121J-183Y C R 18kØ 1/2W J
R1595 NRSA63J-222X MG R 2.2kØ 1/16W J
R1621-22 NRSA63J-101X MG R 100Ø 1/16W J
R1626 NRSA63J-472X MG R 4.7kØ 1/16W J
R1627 NRSA63J-224X MG R 220kØ 1/16W J
R1628 NRSA63J-104X MG R 100kØ 1/16W J
R1629 NRSA63J-153X MG R 15kØ 1/16W J
R1630 NRSA63J-273X MG R 27kØ 1/16W J
R1631 NRSA63J-473X MG R 47kØ 1/16W J
R1632-33 NRSA63J-103X MG R 10kØ 1/16W J
R1650-51 NRSA63J-392X MG R 3.9kØ 1/16W J
R1652-53 NRSA63J-0R0X MG R 0.0Ø 1/16W J
R1654-55 NRSA63J-392X MG R 3.9kØ 1/16W J
R1658-59 QRE121J-2R2Y C R 2.2Ø 1/2W J
R1660 NRSA63J-103X MG R 10kØ 1/16W J
R1661 NRSA63J-683X MG R 68kØ 1/16W J
R1662 NRSA63J-333X MG R 33kØ 1/16W J
R1663 NRSA63J-103X MG R 10kØ 1/16W J
R1664 NRSA63J-222X MG R 2.2kØ 1/16W J
R1688 NRSA63J-273X MG R 27kØ 1/16W J
R1690 NRSA63J-104X MG R 100kØ 1/16W J
R1691 NRSA63J-682X MG R 6.8kØ 1/16W J
R1692 NRSA63J-104X MG R 100kØ 1/16W J
R1693 NRSA63J-103X MG R 10kØ 1/16W J
R1694 NRSA63J-472X MG R 4.7kØ 1/16W J
R1695 NRSA63J-562X MG R 5.6kØ 1/16W J
R1696 NRSA63J-222X MG R 2.2kØ 1/16W J
R1698-99 NRSA63J-104X MG R 100kØ 1/16W J
R1701 NRSA63J-103X MG R 10kØ 1/16W J
R1702-03 NRSA63J-101X MG R 100Ø 1/16W J
R1704-06 NRSA63J-102X MG R 1kØ 1/16W J
R1707-10 NRSA63J-472X MG R 4.7kØ 1/16W J
R1711-14 NRSA63J-101X MG R 100Ø 1/16W J
R1715-17 NRSA63J-103X MG R 10kØ 1/16W J
R1718-19 NRSA63J-221X MG R 220Ø 1/16W J
R1720 NRSA63J-102X MG R 1kØ 1/16W J
R1721-24 NRSA63J-221X MG R 220Ø 1/16W J
R1725 NRSA63J-103X MG R 10kØ 1/16W J
R1726 NRSA63J-472X MG R 4.7kØ 1/16W J
R1727 NRSA63J-104X MG R 100kØ 1/16W J
R1728 NRSA63J-103X MG R 10kØ 1/16W J
R1730 NRSA63J-223X MG R 22kØ 1/16W J
R1731 NRSA63J-101X MG R 100Ø 1/16W J
R1732 NRSA02F-393X MF R 39kØ 1/10W F
R1733 NRSA63J-273X MG R 27kØ 1/16W J
R1734 NRSA63J-391X MG R 390Ø 1/16W J
R1735 NRSA63J-104X MG R 100kØ 1/16W J
AV-2508TEE
No. 51901 25
AV-2508TEE
! Symbol No. Part No. Part Name Description Local ! Symbol No. Part No. Part Name Description Local
RESISTOR
R1736 NRSA63J-333X MG R 33kØ 1/16W J
R1737 NRSA63J-272X MG R 2.7kØ 1/16W J
R1738 NRSA63J-103X MG R 10kØ 1/16W J
R1739-41 NRSA63J-101X MG R 100Ø 1/16W J
R1742 NRSA63J-0R0X MG R 0.0Ø 1/16W J
R1743 QRE141J-102Y C R 1kØ 1/4W J
R1744 NRSA63J-561X MG R 560Ø 1/16W J
R1745 NRSA63J-105X MG R 1MØ 1/16W J
R1746 NRSA63J-333X MG R 33kØ 1/16W J
R1747 NRSA63J-103X MG R 10kØ 1/16W J
R1748-49 NRSA63J-225X MG R 2.2MØ 1/16W J
R1750 QRE141J-0R0Y C R 0.0Ø 1/4W J
R1755-56 NRSA63J-101X MG R 100Ø 1/16W J
R1757-58 NRSA63J-222X MG R 2.2kØ 1/16W J
R1760 NRSA63J-682X MG R 6.8kØ 1/16W J
R1770 QRE121J-271Y C R 270Ø 1/2W J
R1771 NRSA63J-102X MG R 1kØ 1/16W J
R1772 QRE121J-271Y C R 270Ø 1/2W J
R1773 NRSA63J-102X MG R 1kØ 1/16W J
R1775 NRSA63J-332X MG R 3.3kØ 1/16W J
R1776 NRSA63J-392X MG R 3.9kØ 1/16W J
R1777 NRSA63J-682X MG R 6.8kØ 1/16W J
R1779 NRSA63J-272X MG R 2.7kØ 1/16W J
R1780 NRSA63J-471X MG R 470Ø 1/16W J
R1781 NRSA63J-122X MG R 1.2kØ 1/16W J
R1782 NRSA63J-181X MG R 180Ø 1/16W J
R1783 NRSA63J-221X MG R 220Ø 1/16W J
R1784 NRSA63J-331X MG R 330Ø 1/16W J
R1785 NRSA63J-471X MG R 470Ø 1/16W J
R1803 NRSA63J-333X MG R 33kØ 1/16W J
R1804-05 NRSA63J-750X MG R 75Ø 1/16W J
R1808 NRSA63J-823X MG R 82kØ 1/16W J
R1809 NRSA63J-391X MG R 390Ø 1/16W J
R1810 NRSA63J-823X MG R 82kØ 1/16W J
R1811 NRSA63J-391X MG R 390Ø 1/16W J
R1812 NRSA63J-104X MG R 100kØ 1/16W J
R1813 NRSA63J-222X MG R 2.2kØ 1/16W J
R1815 NRSA63J-101X MG R 100Ø 1/16W J
R1818 NRSA63J-222X MG R 2.2kØ 1/16W J
R1820 NRSA63J-101X MG R 100Ø 1/16W J
R1821 NRSA63J-222X MG R 2.2kØ 1/16W J
R1823 NRSA63J-101X MG R 100Ø 1/16W J
R1824 NRSA63J-222X MG R 2.2kØ 1/16W J
R1826 NRSA63J-101X MG R 100Ø 1/16W J
R1829 NRSA63J-750X MG R 75Ø 1/16W J
R1830-31 NRSA63J-222X MG R 2.2kØ 1/16W J
R1832 NRSA63J-122X MG R 1.2kØ 1/16W J
R1833 NRSA63J-102X MG R 1kØ 1/16W J
R1834-35 NRSA63J-562X MG R 5.6kØ 1/16W J
R1836 NRSA63J-750X MG R 75Ø 1/16W J
R1837 NRSA63J-101X MG R 100Ø 1/16W J
R1838 QRK126J-121X C R 120Ø 1/2W J
R1839-40 QRE121J-221Y C R 220Ø 1/2W J
R1841-42 NRSA63J-0R0X MG R 0.0Ø 1/16W J
R1843 NRSA63J-821X MG R 820Ø 1/16W J
R1844 NRSA63J-222X MG R 2.2kØ 1/16W J
R1845 NRSA63J-102X MG R 1kØ 1/16W J
R1846 NRSA63J-222X MG R 2.2kØ 1/16W J
R1847 NRSA63J-103X MG R 10kØ 1/16W J
R1848 NRSA63J-471X MG R 470Ø 1/16W J
R1849 NRSA63J-221X MG R 220Ø 1/16W J
R1880 NRSA63J-202X MG R 2kØ 1/16W J
R1881 NRSA63J-103X MG R 10kØ 1/16W J
R1882 NRSA63J-471X MG R 470Ø 1/16W J
R1883 NRSA63J-181X MG R 180Ø 1/16W J
R1884-85 QRE141J-750Y C R 75Ø 1/4W J
R1902 QRF154K-2R2 UNF R 2.2Ø 15W K
R1904 QRE121J-681Y C R 680Ø 1/2W J
R1905 QRM034J-R15 MP R 0.15Ø 3W J
R1907 NRSA63J-563X MG R 56kØ 1/16W J
R1908 QRL039J-333 OM R 33kØ 3W J
R1909 QRE121J-474Y C R 470kØ 1/2W J
RESISTOR
R1910 QRE121J-472Y C R 4.7kØ 1/2W J
R1911 QRE121J-332Y C R 3.3kØ 1/2W J
R1912 NRSA63J-152X MG R 1.5kØ 1/16W J
!
R1915 QRZ0111-474 C R 470kØ 1/2W K
R1952 NRSA63J-332X MG R 3.3kØ 1/16W J
R1953 NRSA63J-101X MG R 100Ø 1/16W J
R1954 QRE121J-560Y C R 56Ø 1/2W J
R1955 QRG01GJ-330 OM R 33Ø 1W J
R1956 QRE121J-100Y C R 10Ø 1/2W J
R1957 QRE121J-6R8Y C R 6.8Ø 1/2W J
R1960 NRSA63J-391X MG R 390Ø 1/16W J
R1961 QRL02EJ-223X OM R 22kØ 2W J
R1962 NRSA63J-561X MG R 560Ø 1/16W J
R1963 QRE121J-103Y C R 10kØ 1/2W J
R1964 NRSA63J-473X MG R 47kØ 1/16W J
R1965 NRSA63J-0R0X MG R 0.0Ø 1/16W J
R1966 NRSA63J-682X MG R 6.8kØ 1/16W J
R1967 NRSA63J-473X MG R 47kØ 1/16W J
R1970 NRSA63J-153X MG R 15kØ 1/16W J
R1971 NRSA63J-183X MG R 18kØ 1/16W J
!
R1991 QRZ0057-825 C R 8.2MØ 1W J
CAPACITOR
C1001 NCB31HK-103X C CAP. 0.01µF 50V K
C1002 QETN1HM-106Z E CAP. 10µF 50V M
C1003 QFV71HJ-104Z MF CAP. 0.1µF 50V J
C1004 QETN1CM-477Z E CAP. 470µF 16V M
C1005 NCB31HK-222X C CAP. 2200pF 50V K
C1006 QETN1CM-336Z E CAP. 33µF 16V M
C1007 NCB31HK-103X C CAP. 0.01µF 50V K
C1101-05 NCB31HK-472X C CAP. 4700pF 50V K
C1106-07 NCB31HK-103X C CAP. 0.01µF 50V K
C1109 QETN1HM-106Z E CAP. 10µF 50V M
C1130-32 NCB31HK-103X C CAP. 0.01µF 50V K
C1133 QETN1CM-107Z E CAP. 100µF 16V M
C1134 NCB31HK-103X C CAP. 0.01µF 50V K
C1135 QETN1EM-476Z E CAP. 47µF 25V M
C1136-38 NCB31HK-103X C CAP. 0.01µF 50V K
C1140-42 NCB31HK-103X C CAP. 0.01µF 50V K
C1143 QETN1HM-106Z E CAP. 10µF 50V M
C1144 NCB31HK-223X C CAP. 0.022µF 50V K
C1308 NCB31HK-103X C CAP. 0.01µF 50V K
C1353 QETN2EM-105Z E CAP. 1µF 250V M
C1355 QCZ0131-472 C CAP. 4700pF 2000V K
C1356 QETN1CM-108Z E CAP. 1000µF 16V M
C1357 NDC31HJ-101X C CAP. 100pF 50V J
C1358 QETN1CM-477Z E CAP. 470µF 16V M
C1401 QETN1HM-105Z E CAP. 1µF 50V M
C1402 QCB31HK-682Z C CAP. 6800pF 50V K
C1403 QEHR1VM-227Z E CAP. 220µF 35V M
C1406 QFLC2AJ-683Z M CAP. 0.068µF 100V J
C1408 QFV71HJ-184Z MF CAP. 0.18µF 50V J
C1411-12 NCF21HZ-334X C CAP. 0.33µF 50V Z
C1413 QFLC2AJ-563Z M CAP. 0.056µF 100V J
C1422 QEHQ1VM-108 E CAP. 1000µF 35V M
C1480 QETN1HM-106Z E CAP. 10µF 50V M
C1483 QEZ0195-475Z E CAP. 4.7µF 50V M
C1485 QETN1HM-226Z E CAP. 22µF 50V M
C1521 QETN1VM-476Z E CAP. 47µF 35V M
C1522 QFLC1HJ-332Z M CAP. 3300pF 50V J
C1523 QFLC1HJ-223Z M CAP. 0.022µF 50V J
C1524 QFZ0196-472 MPP CAP. 4700pF 1.5kVH ±3%
C1525 QFZ0200-113 MPP CAP. 0.011µF 1.5kVH ±3%
C1526 QFP32GJ-223 PP CAP. 0.022µF 400V J
C1527-28 QFZ0199-184 MPP CAP. 0.18µF 250V J
C1529 QENC2AM-225Z BP E CAP. 2.2µF 100V M
C1530 QCB32HK-561Z C CAP. 560pF 500V K
C1531 QEHR1EM-108Z E CAP. 1000µF 25V M
C1533 QEHR1EM-108Z E CAP. 1000µF 25V M
C1535 QCB32HK-101Z C CAP. 100pF 500V K
C1536 QFLC1HJ-103Z M CAP. 0.01µF 50V J
26 No. 51901
AV-2508TEE
! Symbol No. Part No. Part Name Description Local ! Symbol No. Part No. Part Name Description Local
CAPACITOR
C1540 QFV71HJ-104Z MF CAP. 0.1µF 50V J
C1541 QETN2EM-106Z E CAP. 10µF 250V M
C1550 NCB31CK-104X C CAP. 0.1µF 16V K
C1591 QETN1AM-107Z E CAP. 100µF 10V M
C1592 QETM2CM-227 E CAP. 220µF 160V M
C1593 QETN1EM-476Z E CAP. 47µF 25V M
C1603 QETN1CM-228Z E CAP. 2200µF 16V M
C1625 QETN1HM-106Z E CAP. 10µF 50V M
C1626 QETN1CM-107Z E CAP. 100µF 16V M
C1629 QETN1HM-475Z E CAP. 4.7µF 50V M
C1630 NDC31HJ-471X C CAP. 470pF 50V J
C1631 NCB31EK-333X C CAP. 0.033µF 25V K
C1634 QETN1HM-106Z E CAP. 10µF 50V M
C1636-37 QETN1HM-105Z E CAP. 1µF 50V M
C1638 NCB31EK-333X C CAP. 0.033µF 25V K
C1639 NDC31HJ-471X C CAP. 470pF 50V J
C1640 QETN1HM-475Z E CAP. 4.7µF 50V M
C1641 QETN1CM-107Z E CAP. 100µF 16V M
C1642 NCB31CK-104X C CAP. 0.1µF 16V K
C1643 NCB31HK-562X C CAP. 5600pF 50V K
C1644 QETN1HM-475Z E CAP. 4.7µF 50V M
C1645-46 QETN1HM-106Z E CAP. 10µF 50V M
C1647 NCB31EK-393X C CAP. 0.039µF 25V K
C1648 NCB31HK-223X C CAP. 0.022µF 50V K
C1650 QEHR1HM-106Z E CAP. 10µF 50V M
C1651 QEHR1HM-107Z E CAP. 100µF 50V M
C1652 QETN1HM-106Z E CAP. 10µF 50V M
C1655-56 QEHQ1VM-108 E CAP. 1000µF 35V M
C1659-61 NCF21HZ-224X C CAP. 0.22µF 50V Z
C1662 QEHR1HM-106Z E CAP. 10µF 50V M
C1663 NCF21HZ-224X C CAP. 0.22µF 50V Z
C1665 NCF31AZ-105X C CAP. 1µF 10V Z
C1669 NCF31AZ-105X C CAP. 1µF 10V Z
C1681-82 QETN1CM-227Z E CAP. 220µF 16V M
C1683 QETN1CM-336Z E CAP. 33µF 16V M
C1684 QETN1HM-106Z E CAP. 10µF 50V M
C1685-86 NRSA63J-0R0X MG R 0.0Ø 1/16W J
C1702 QETN1HM-106Z E CAP. 10µF 50V M
C1703-04 NDC31HJ-220X C CAP. 22pF 50V J
C1706 NCB21EK-224X C CAP. 0.22µF 25V K
C1707 QETN1CM-107Z E CAP. 100µF 16V M
C1709 QETN1CM-107Z E CAP. 100µF 16V M
C1710-11 NCB31CK-104X C CAP. 0.1µF 16V K
C1713 NCB31CK-104X C CAP. 0.1µF 16V K
C1714 QETN1CM-476Z E CAP. 47µF 16V M
C1720 QETN1CM-476Z E CAP. 47µF 16V M
C1725 NCB31HK-681X C CAP. 680pF 50V K
C1726 QETN1HM-106Z E CAP. 10µF 50V M
C1730-31 NCB21EK-224X C CAP. 0.22µF 25V K
C1732 QETN1CM-107Z E CAP. 100µF 16V M
C1733 NCB31CK-104X C CAP. 0.1µF 16V K
C1734-35 NCB31HK-222X C CAP. 2200pF 50V K
C1736-37 QETN1HM-105Z E CAP. 1µF 50V M
C1738 NCB31CK-104X C CAP. 0.1µF 16V K
C1739 NFV41CJ-104X MPP CAP. 0.1µF 16V J
C1740 QETN1HM-225Z E CAP. 2.2µF 50V M
C1741-42 NCB31CK-104X C CAP. 0.1µF 16V K
C1743 QETN1CM-107Z E CAP. 100µF 16V M
C1744 NCB21HK-102X C CAP. 1000pF 50V K
C1745-47 NCB31EK-473X C CAP. 0.047µF 25V K
C1749 QETN1HM-106Z E CAP. 10µF 50V M
C1751-53 NCB31CK-104X C CAP. 0.1µF 16V K
C1760 NCB21EK-104X C CAP. 0.1µF 25V K
C1761 QETN1CM-107Z E CAP. 100µF 16V M
C1770 QETN1HM-106Z E CAP. 10µF 50V M
C1801-04 QETN1HM-106Z E CAP. 10µF 50V M
C1805 QFLC1HJ-104Z M CAP. 0.1µF 50V J
C1807-08 NCF31AZ-105X C CAP. 1µF 10V Z
C1810 NCF31AZ-105X C CAP. 1µF 10V Z
C1811 QFLC1HJ-104Z M CAP. 0.1µF 50V J
C1812 NCF31AZ-105X C CAP. 1µF 10V Z
C1813 NCB31HK-103X C CAP. 0.01µF 50V K
CAPACITOR
C1814 QFLC1HJ-104Z M CAP. 0.1µF 50V J
C1815 NCF31AZ-105X C CAP. 1µF 10V Z
C1817 NCF31AZ-105X C CAP. 1µF 10V Z
C1819 QFLC1HJ-104Z M CAP. 0.1µF 50V J
C1820-21 NCF31AZ-105X C CAP. 1µF 10V Z
C1822 QETN1CM-477Z E CAP. 470µF 16V M
C1823-24 QETN1CM-107Z E CAP. 100µF 16V M
C1825 NCB31HK-103X C CAP. 0.01µF 50V K
C1826 QFLC1HJ-104Z M CAP. 0.1µF 50V J
C1827 NCB31HK-103X C CAP. 0.01µF 50V K
C1829-31 NCB31HK-103X C CAP. 0.01µF 50V K
C1833 QETN1HM-226Z E CAP. 22µF 50V M
C1834 NDC31HJ-181X C CAP. 180pF 50V J
!
C1901 QFZ9073-104 MF CAP. 0.1µF
!
C1902 QFZ9073-473 MF CAP. 0.047µF
C1903-05 QCZ9015-102Z C CAP. 1000pF 250V Z
!
C1906 QFZ9073-224 MF CAP. 0.22µF
C1907 QEZ0199-227 E CAP. 220µF 400V M
C1908 QCZ0364-222 C CAP. 2200pF
C1910 NDC21HJ-471X C CAP. 470pF 50V J
C1911 QEHR1EM-227Z E CAP. 220µF 25V M
C1914 QETN1EM-227Z E CAP. 220µF 25V M
C1915 QFLC1HJ-152Z M CAP. 1500pF 50V J
C1952 QCB32HK-471Z C CAP. 470pF 500V K
C1953 QEHQ1VM-108 E CAP. 1000µF 35V M
C1954 NCB31HK-102X C CAP. 1000pF 50V K
C1955 QCB32HK-471Z C CAP. 470pF 500V K
C1956 QETN1VM-227Z E CAP. 220µF 35V M
C1957 QCB32HK-471Z C CAP. 470pF 500V K
C1958 QEHQ1EM-108 E CAP. 1000µF 25V M
C1959 QCZ0364-561 C CAP. 560pF
C1960 QEZ0203-227 E CAP. 220µF 160V M
C1962 QETN1HM-106Z E CAP. 10µF 50V M
C1963 QETN1CM-476Z E CAP. 47µF 16V M
C1964 QEHR1VM-476Z E CAP. 47µF 35V M
C1968 NCB31CK-104X C CAP. 0.1µF 16V K
C1970 QEHR1HM-225Z E CAP. 2.2µF 50V M
C1972 QEHQ1EM-477 E CAP. 470µF 25V M
C1973 QEHR1CM-107Z E CAP. 100µF 16V M
C1974 NCB31CK-104X C CAP. 0.1µF 16V K
C1975-76 QEHR1CM-477Z E CAP. 470µF 16V M
C1977 QEHR1AM-477Z E CAP. 470µF 10V M
C1978 NCB21HK-104X C CAP. 0.1µF 50V K
C1980 QETN1CM-107Z E CAP. 100µF 16V M
!
C1991-93 QCZ9079-102 C CAP. 1000pF 250V M
TRANSFORMER
T1521 QQR1229-001 DRIVE TRANSF.
!
T1551 QQH0097-001 FLYBACK TRANSF.
!
T1901 QQS0116-001 SWITCH.TRANSF.
COIL
L1001-02 QQL244K-8R2Z COIL 8.2µH K
L1101-02 QQL244J-5R6Z COIL 5.6µH J
L1103 QQL244K-100Z COIL 10µH K
L1104 QQL244K-180Z COIL 18µH K
L1351 QQL03BJ-5R6Z COIL 5.6µH J
L1480 QQR1138-001 CHOKE COIL
L1523 QQR1137-005 LINEARITY COIL
L1524 QQLZ034-140 HEATER CHOKE 14µH
L1701-02 QQL244K-100Z COIL 10µH K
L1731 QQL244J-5R6Z COIL 5.6µH J
L1951 QQLZ034-460 CHOKE COIL 46µH
L1953-54 QQL244J-5R6Z COIL 5.6µH J
AV-2508TEE
No. 51901 27
AV-2508TEE
! Symbol No. Part No. Part Name Description Local ! Symbol No. Part No. Part Name Description Local
DIODE
D1101 DAN235K-X SI.DIODE
D1351 MA111-X SI.DIODE
D1356 MA111-X SI.DIODE
D1357-59 RGP10J-5025-T3 SI.DIODE
D1360 MA3075/M/-X ZENER DIODE
D1361-64 MA111-X SI.DIODE
D1401 RGP10J-5025-T3 SI.DIODE
D1402 MTZJ75-T2 ZENER DIODE
D1405 1N4003-T2 SI.DIODE
D1408 MA111-X SI.DIODE
D1480 MTZJ4.3A-T2 ZENER DIODE
D1521 RH3G-F1 SI.DIODE
D1522 31DF6N-FC5 DIODE
D1523 RGP10J-5025-T3 SI.DIODE
D1541 RGP10J-5025-T3 SI.DIODE
D1550 MA111-X SI.DIODE
D1551 RGP10J-5025-T3 SI.DIODE
D1553-54 RGP10J-5025-T3 SI.DIODE
D1592 MA3075/H/-X ZENER DIODE
D1652-53 MA3330/L/-X ZENER DIODE
D1682 MA111-X SI.DIODE
D1702 MA3024-X ZENER DIODE
D1730-33 MA111-X SI.DIODE
D1760 SLR-342VR-T16 L.E.D.
D1770 MA111-X SI.DIODE
D1771 P1241-04 C.D.S.
D1806-07 MTZJ12C-T2 ZENER DIODE
D1901 GSIB460 DIODE
D1903 MTZJ12C-T2 ZENER DIODE
D1904 EG01C-T2 SI.DIODE
D1906 EG01C-T2 SI.DIODE
D1907 MA3150/M/-X ZENER DIODE
D1908 MTZJ27B-T2 ZENER DIODE
D1909 MA111-X SI.DIODE
D1910 NRSA63J-0R0X MG R 0.0Ø 1/16W J
D1911 RGP10J-TS-T3 SI.DIODE
D1912 1SS133-T2 SI.DIODE
D1914 ERC30-02L38 SI.DIODE
D1952 ERC30-02L38 SI.DIODE
D1953 RGP10J-5025-T3 SI.DIODE
D1954 RGP30B-F1 SI.DIODE
D1955 1SR35-400A-T2 SI.DIODE
D1956 31DF6N-FC5 DIODE
D1958 MTZJ5.1A-T2 ZENER DIODE
D1964 MA3330/L/-X ZENER DIODE
D1965 1SS133-T2 SI.DIODE
D1966 MA3068/M/-X ZENER DIODE
D1968-69 MA111-X SI.DIODE
TRANSISTOR
Q1101 2SC5083/L-P/-T SI.TRANSISTOR
Q1102 DTC124EKA-X DIGI.TRANSISTOR
Q1104 2SA1037AK/QR/-X SI.TRANSISTOR
Q1105-06 DTC124EKA-X DIGI.TRANSISTOR
Q1107 2SA1037AK/QR/-X SI.TRANSISTOR
Q1108 2SC2412K/QR/-X SI.TRANSISTOR
Q1109 2SA1037AK/QR/-X SI.TRANSISTOR
Q1110 DTC124EKA-X DIGI.TRANSISTOR
Q1111 2SC2412K/QR/-X SI.TRANSISTOR
Q1130 2SA1037AK/QR/-X SI.TRANSISTOR
Q1131 DTC124EKA-X DIGI.TRANSISTOR
Q1132 2SC2412K/QR/-X SI.TRANSISTOR
Q1133 2SA1037AK/QR/-X SI.TRANSISTOR
Q1134-35 DTC124EKA-X DIGI.TRANSISTOR
Q1136-37 2SC2412K/QR/-X SI.TRANSISTOR
Q1301-02 2SA1037AK/QR/-X SI.TRANSISTOR
Q1351 2SA1037AK/QR/-X SI.TRANSISTOR
Q1354 2SC2412K/QR/-X SI.TRANSISTOR
Q1480 2SD1408/OY/-LB SI.TRANSISTOR
Q1521 2SC2655/Y/-T SI.TRANSISTOR
TRANSISTOR
Q1522 2SD2634-YD SI.TRANSISTOR
Q1591 2SA1208/ST/Z1-T SI.TRANSISTOR
Q1592 DTC124EKA-X DIGI.TRANSISTOR
Q1660-61 2SC2412K/QR/-X SI.TRANSISTOR
Q1683-84 2SA1037AK/QR/-X SI.TRANSISTOR
Q1685-86 DTC323TK-X DIGI.TRANSISTOR
Q1687 2SC2412K/QR/-X SI.TRANSISTOR
Q1688 2SA1037AK/QR/-X SI.TRANSISTOR
Q1701-02 2SA1037AK/QR/-X SI.TRANSISTOR
Q1703 2SC2412K/QR/-X SI.TRANSISTOR
Q1720 2SA1037AK/QR/-X SI.TRANSISTOR
Q1770 2SA1037AK/QR/-X SI.TRANSISTOR
Q1801-02 DTC323TK-X DIGI.TRANSISTOR
Q1803 2SA1037AK/QR/-X SI.TRANSISTOR
Q1804 2SC1740S/QR/-T SI.TRANSISTOR
Q1860 2SC2412K/QR/-X SI.TRANSISTOR
Q1861-62 2SA1037AK/QR/-X SI.TRANSISTOR
Q1952-54 2SC2412K/QR/-X SI.TRANSISTOR
IC
IC1130 M52342SP I.C(MONO-ANA)
IC1351 TDA6107Q/N2 I.C(MONO-ANA)
IC1401 AN5522 I.C(MONO-ANA)
IC1480 UPC358G2-XE I.C(MONO-ANA)
IC1602 BH3865S I.C(MONO-ANA)
IC1650 AN5276 I.C(MONO-ANA)
IC1701 TDA9365N13S0518 I.C(MICRO-COMP)
IC1702 AT24C08-25LS I.C(MEMORY-OTH) (SERVICE)
IC1760 GP1U281Q IFR DETECT UNIT
IC1801 MM1492AF I.C(MONO-ANA)
IC1901 STR-F6709A/F7 I.C(HYBRID)
IC1951 SE135N I.C(HYBRID)
IC1972 L88M33T-X I.C(MONO-ANA)
IC1974 BA51W12ST-V5 I.C(MONO-ANA)
OTHERS
LC30114-001C-H L.E.D.HOLDER
CF1103 TPSH6.0MB CERAMIC FILTER
CF1104 TPS5.5MW CERAMIC FILTER
CF1105 TPS6.5MB CERAMIC FILTER
CF1106 QAX0639-001Z CERAMIC FILTER
CF1130 QAX0642-001Z CERAMIC FILTER
CF1140 QAX0336-001 CERAMIC FILTER
CF1141 QAX0337-001 CERAMIC FILTER
CF1142 QAX0338-001 CERAMIC FILTER
CL1001 QZW0027-002 WIRE CLAMP
CL1002 QZW0028-002 WIRE CLAMP
!
CP1951 ICP-N75-Y I.C.PROTECT
!
CP1952 ICP-N50-Y I.C.PROTECT
!
CP1953 ICP-N75-Y I.C.PROTECT
!
F1901 QMF51E2-4R0J4 FUSE
FC1901 CEMG002-001Z FUSE CLIP
J1770 QNS0155-001 JACK
J1771 QNN0282-003 PIN JACK
J1772 QNN0282-002 PIN JACK
J1773 QNN0282-001 PIN JACK
J1801 QNN0349-001 PIN JACK
J1802 QNN0349-002 PIN JACK
J1803 QNN0348-001 PIN JACK
J1804 QNN0349-001 PIN JACK
K1902 CE41433-001Z BEADS CORE
K1951 QQR1214-001Y FERRITE BEADS
K1953-55 QQR1214-001Y FERRITE BEADS
!
LF1901 QQR0673-004 LINE FILTER
!
LF1902 QQR1035-002 LINE FILTER
!
PC1901 PC123F2 I.C(PH.COUPLER)
!
RY1901 QSK0061-001 RELAY
CM35921-005-H CDS HOLDER
28 No. 51901
AV-2508TEE
! Symbol No. Part No. Part Name Description Local ! Symbol No. Part No. Part Name Description Local
OTHERS
S1780 QSW0619-003Z PUSH SWITCH MENU
S1781 QSW0619-003Z PUSH SWITCH CHS1782 QSW0619-003Z PUSH SWITCH CH+
S1783 QSW0619-003Z PUSH SWITCH VOLS1784 QSW0619-003Z PUSH SWITCH VOL+
!
S1901 QSW0846-001 PUSH SWITCH POWER
SF1101 QAX0325-001 SAW FILTER
SF1102 QAX0594-001 SAW FILTER
SG1301-03 QAF0006-501 ARRESTER
SG1304 QAF0041-272 ARRESTER
!
SK1351 CE42446-001 C.R.T.SOCKET
TH1901 QAD0134-4R5 P.THERMISTOR
TU1001 QAU0185-004 TUNER
!
VA1901 QAF0052-621 VARISTOR
W1003 QQR1214-001Y FERRITE BEADS
W1008 NRSA63J-0R0X MG R 0.0Ø 1/16W J
W1010 NRSA63J-0R0X MG R 0.0Ø 1/16W J
W1052 QQR1214-001Y FERRITE BEADS
W1071 NRSA63J-0R0X MG R 0.0Ø 1/16W J
W1096 NRSA63J-0R0X MG R 0.0Ø 1/16W J
W1107 QQR1214-001Y FERRITE BEADS
W1239 NRSA63J-0R0X MG R 0.0Ø 1/16W J
W1257 NRSA63J-0R0X MG R 0.0Ø 1/16W J
W1293 QQR1214-001Y FERRITE BEADS
W1298 QQR1214-001Y FERRITE BEADS
W1307 NRSA63J-0R0X MG R 0.0Ø 1/16W J
W1309 NRSA63J-0R0X MG R 0.0Ø 1/16W J
W1321-22 NRSA63J-0R0X MG R 0.0Ø 1/16W J
W1325-26 NRSA63J-0R0X MG R 0.0Ø 1/16W J
W1330 NRSA63J-0R0X MG R 0.0Ø 1/16W J
W1333 NRSA63J-0R0X MG R 0.0Ø 1/16W J
W1375 NRSA63J-0R0X MG R 0.0Ø 1/16W J
W1379 NRSA63J-0R0X MG R 0.0Ø 1/16W J
W1388 NRSA63J-0R0X MG R 0.0Ø 1/16W J
W1418 NRSA63J-0R0X MG R 0.0Ø 1/16W J
W1424 QQR1214-001Y FERRITE BEADS
W1430 NRSA63J-0R0X MG R 0.0Ø 1/16W J
X1701 QAX0688-001 CRYSTAL
Y1001-02 NRSA63J-0R0X MG R 0.0Ø 1/16W J
Y1103 QRE141J-0R0Y C R 0.0Ø 1/4W J
Y1130 NRSA63J-0R0X MG R 0.0Ø 1/16W J
Y1301-02 NRSA63J-0R0X MG R 0.0Ø 1/16W J
Y1601 NRSA63J-0R0X MG R 0.0Ø 1/16W J
Y1603 NRSA63J-0R0X MG R 0.0Ø 1/16W J
REMOTE CONTROL UNIT PARTS LIST (RM-C355-1C)
! Ref.No. Part No. Part Name Description Local
31392340128 BATTERY COVER
AV-2508TEE
No. 51901 29
AV-2908TEE
PARTS LIST [AV-2908TEE/B]
EXPLODED VIEW PARTS LIST-1
!
Ref.No. Part No. Part Name Description Local
22 LC20778-001A-H OPERATION SHEET
23 LC31474-001A-H CONTROL WINDOW
24 LC31476-001B-H LED LENS
25 LC41037-001A JVC MARK
101 LC11193-004A-H FRONT CABINET ASS’Y Inc. No. 102-106
102 LC20776-004A-H DOOR
103 CM48229-00A-C DOOR LATCH
104 LC20777-001D-H CENTRE PLATE
105 LC31475-001B-H POWER KNOB
106 CM35235-003-H SPRING
EXPLODED VIEW-1
104
25
23
2
105
24
106
101
22
102
103
EXPLODED VIEW PARTS LIST-
!
Ref.No. Part No. Part Name Description Local
! V01 A68QCU259X PICTURE TUBE
! L01 QQW0113-001 DEG COIL
DY01 QQD0057-001 DEF YOKE
! T1551 QQH0096-001 FBT
1 LC11061-001A-H CHASSIS BASE
2 LC11062-001D-H CONTROL BASE
3 LC11064-002A-H AV TERMINAL BOARD
4 QYSBSF3012M TAPPING SCREW (X4)
5 CHFD125-18BD FFC WIRE
! 6 QMP40D0-200J5 POWER CORD
! 7 CM23167-A01-H POWER CORD CLAMP
8 LC30103-001B-H CHASSIS ADAPTER (X2)
9 LC11063-001C-H SP HOLDER (X2)
10 LC40226-003A-H SPACER (X4)
11 LC40317-002A-H TAPPING SCREW (X4)
12 QAS0083-001 SPEAKER (X2) SP01, SP02
13 QYSBSBG4016Z TAPPING SCREW (X8)
14 WJY0018-001A BRAIDED ASS’Y
15 CHGB0017-0C BRAIDED ASS’Y (SUB) (X2)
16 A48457-3-H SPRING
17 CE42568-00A PC MAGNET
18 CE40764-00A WEDGE ASS’Y (X4)
! 19 LC10763-004A-HH REAR COVER
20 QYSBSFG4016Z TAPPING SCREW (X16)
! 21 LC20377-009B-H RATING LABEL
40 No. 51901
EXPLODED VIEW-2
FRONT CABINET
V01
L01
10
11
9
12
13
DY01
8
18
17
14
15
FRONT CONTROL
PWB (1/2)
AV-2908TEE
16
10
11
9
15
10
CRT
SOCKET PWB
8
5
12
13
11
FRONT CONTROL PWB (2/2)
MAIN PWB
T1551
10
11
19
2
1
7
20
21
6
3
4
No. 51901 41
AV-2908TEE
PRINTED WIRING BOARD PARTS LIST (AV-2908TEE/B)
MAIN PW BOARD ASS’Y (SCH-1048A-H2)
! Symbol No. Part No. Part Name Description Local ! Symbol No. Part No. Part Name Description Local
RESISTOR
R1001-02 NRSA63J-221X MG R 220Ø 1/16W J
R1003 NRSA63J-392X MG R 3.9kØ 1/16W J
R1004 NRSA63J-221X MG R 220Ø 1/16W J
R1006 NRSA63J-273X MG R 27kØ 1/16W J
R1101 NRSA63J-100X MG R 10Ø 1/16W J
R1102 NRSA63J-682X MG R 6.8kØ 1/16W J
R1103 NRSA63J-272X MG R 2.7kØ 1/16W J
R1104 NRSA63J-181X MG R 180Ø 1/16W J
R1105 NRSA63J-220X MG R 22Ø 1/16W J
R1106 NRSA63J-101X MG R 100Ø 1/16W J
R1107 NRSA63J-472X MG R 4.7kØ 1/16W J
R1108-09 NRSA63J-222X MG R 2.2kØ 1/16W J
R1111 NRSA63J-102X MG R 1kØ 1/16W J
R1112 NRSA63J-103X MG R 10kØ 1/16W J
R1113 NRSA63J-271X MG R 270Ø 1/16W J
R1114 NRSA63J-821X MG R 820Ø 1/16W J
R1115 NRSA63J-181X MG R 180Ø 1/16W J
R1117 NRSA63J-102X MG R 1kØ 1/16W J
R1119 NRSA63J-102X MG R 1kØ 1/16W J
R1120 NRSA63J-471X MG R 470Ø 1/16W J
R1130 NRSA63J-472X MG R 4.7kØ 1/16W J
R1131 NRSA63J-471X MG R 470Ø 1/16W J
R1132 NRSA63J-222X MG R 2.2kØ 1/16W J
R1133 NRSA63J-152X MG R 1.5kØ 1/16W J
R1134 NRSA63J-182X MG R 1.8kØ 1/16W J
R1135 NRSA63J-561X MG R 560Ø 1/16W J
R1136 NRSA63J-472X MG R 4.7kØ 1/16W J
R1137 NRSA63J-103X MG R 10kØ 1/16W J
R1138 NRSA63J-561X MG R 560Ø 1/16W J
R1139 NRSA63J-222X MG R 2.2kØ 1/16W J
R1140 NRSA63J-152X MG R 1.5kØ 1/16W J
R1141 NRSA63J-182X MG R 1.8kØ 1/16W J
R1142 NRSA63J-561X MG R 560Ø 1/16W J
R1143 NRSA63J-471X MG R 470Ø 1/16W J
R1144 NRSA63J-220X MG R 22Ø 1/16W J
R1145 NRSA63J-821X MG R 820Ø 1/16W J
R1146 NRSA63J-103X MG R 10kØ 1/16W J
R1147 NRSA63J-101X MG R 100Ø 1/16W J
R1148 NRSA63J-332X MG R 3.3kØ 1/16W J
R1149 QRE141J-122Y C R 1.2kØ 1/4W J
R1301-02 NRSA63J-222X MG R 2.2kØ 1/16W J
R1303 NRSA63J-562X MG R 5.6kØ 1/16W J
R1304-05 NRSA63J-222X MG R 2.2kØ 1/16W J
R1306 NRSA63J-562X MG R 5.6kØ 1/16W J
R1307 NRSA63J-103X MG R 10kØ 1/16W J
R1308 NRSA63J-101X MG R 100Ø 1/16W J
R1309 NRSA63J-104X MG R 100kØ 1/16W J
R1310 NRSA63J-473X MG R 47kØ 1/16W J
R1311 NRSA63J-123X MG R 12kØ 1/16W J
R1401 NRSA63J-224X MG R 220kØ 1/16W J
R1403 NRSA63J-0R0X MG R 0.0Ø 1/16W J
R1405 NRSA63J-682X MG R 6.8kØ 1/16W J
R1406 NRSA63J-472X MG R 4.7kØ 1/16W J
R1408 NRSA63J-682X MG R 6.8kØ 1/16W J
R1410 NRSA63J-472X MG R 4.7kØ 1/16W J
R1411 QRG01GJ-221 OM R 220Ø 1W J
R1412 QRE121J-1R0Y C R 1.0Ø 1/2W J
R1413 QRX01GJ-1R2 MF R 1.2Ø 1W J
R1414 QRE121J-2R7Y C R 2.7Ø 1/2W J
R1425 NRSA63J-683X MG R 68kØ 1/16W J
R1478-79 NRSA63J-101X MG R 100Ø 1/16W J
R1480 QRE121J-681Y C R 680Ø 1/2W J
R1481 NRSA63J-223X MG R 22kØ 1/16W J
R1482 NRSA63J-562X MG R 5.6kØ 1/16W J
R1483 NRSA63J-823X MG R 82kØ 1/16W J
R1484 NRSA63J-562X MG R 5.6kØ 1/16W J
R1485 NRSA63J-123X MG R 12kØ 1/16W J
R1486 NRSA63J-272X MG R 2.7kØ 1/16W J
R1487 NRSA63J-333X MG R 33kØ 1/16W J
R1489 NRSA63J-122X MG R 1.2kØ 1/16W J
R1490 NRSA63J-102X MG R 1kØ 1/16W J
R1491 NRSA63J-562X MG R 5.6kØ 1/16W J
RESISTOR
R1492 NRSA63J-822X MG R 8.2kØ 1/16W J
R1493 QRE121J-223Y C R 22kØ 1/2W J
R1494 QRL03EJ-330X OM R 33Ø 3W J
R1521 NRSA63J-101X MG R 100Ø 1/16W J
R1522 NRSA63J-102X MG R 1kØ 1/16W J
R1523-24 QRL03EJ-151X OM R 150Ø 3W J
R1526 QRL029J-271 OM R 270Ø 2W J
R1527 QRL03EJ-103X OM R 10kØ 3W J
R1528-29 QRX029J-3R3 MF R 3.3Ø 2W J
R1531 NRSA63J-182X MG R 1.8kØ 1/16W J
!
R1532 QRZ9017-4R7 F R 4.7Ø 1/4W J
R1541-42 QRE121J-124Y C R 120kØ 1/2W J
R1543 QRE121J-471Y C R 470Ø 1/2W J
R1545 QRE121J-220Y C R 22Ø 1/2W J
R1546 QRE121J-822Y C R 8.2kØ 1/2W J
R1561 QRL02EJ-220X OM R 22Ø 2W J
R1562 QRE121J-123Y C R 12kØ 1/2W J
R1563 QRZ0056-103Z COMP.R 10kØ 1/2W K
R1591 QRA14CF-1202Y MF R 12kØ 1/4W F
R1592 QRZ0221-2R2 UNF R 2.2Ø
R1593 NRSA02F-332X MG R 3.3kØ 1/10W F
R1594 QRE121J-183Y C R 18kØ 1/2W J
R1595 NRSA63J-222X MG R 2.2kØ 1/16W J
R1621-22 NRSA63J-101X MG R 100Ø 1/16W J
R1626 NRSA63J-472X MG R 4.7kØ 1/16W J
R1627 NRSA63J-224X MG R 220kØ 1/16W J
R1628 NRSA63J-273X MG R 27kØ 1/16W J
R1629 NRSA63J-153X MG R 15kØ 1/16W J
R1630 NRSA63J-273X MG R 27kØ 1/16W J
R1631 NRSA63J-473X MG R 47kØ 1/16W J
R1632-33 NRSA63J-103X MG R 10kØ 1/16W J
R1640 QRE141J-102Y C R 1kØ 1/4W J
R1650-51 NRSA63J-392X MG R 3.9kØ 1/16W J
R1654-55 NRSA63J-392X MG R 3.9kØ 1/16W J
R1658-59 QRE121J-2R2Y C R 2.2Ø 1/2W J
R1660 NRSA63J-103X MG R 10kØ 1/16W J
R1661 NRSA63J-683X MG R 68kØ 1/16W J
R1662 NRSA63J-333X MG R 33kØ 1/16W J
R1663 NRSA63J-103X MG R 10kØ 1/16W J
R1664 NRSA63J-222X MG R 2.2kØ 1/16W J
R1688 NRSA63J-273X MG R 27kØ 1/16W J
R1690 NRSA63J-104X MG R 100kØ 1/16W J
R1692 NRSA63J-104X MG R 100kØ 1/16W J
R1693 NRSA63J-103X MG R 10kØ 1/16W J
R1694 NRSA63J-472X MG R 4.7kØ 1/16W J
R1695 NRSA63J-562X MG R 5.6kØ 1/16W J
R1696 NRSA63J-222X MG R 2.2kØ 1/16W J
R1701 NRSA63J-103X MG R 10kØ 1/16W J
R1702-03 NRSA63J-101X MG R 100Ø 1/16W J
R1704-05 NRSA63J-102X MG R 1kØ 1/16W J
R1706 NRSA63J-682X MG R 6.8kØ 1/16W J
R1707-10 NRSA63J-472X MG R 4.7kØ 1/16W J
R1711-14 NRSA63J-101X MG R 100Ø 1/16W J
R1715-17 NRSA63J-103X MG R 10kØ 1/16W J
R1718-19 NRSA63J-221X MG R 220Ø 1/16W J
R1720 NRSA63J-102X MG R 1kØ 1/16W J
R1721-24 NRSA63J-221X MG R 220Ø 1/16W J
R1725 NRSA63J-103X MG R 10kØ 1/16W J
R1726 NRSA63J-472X MG R 4.7kØ 1/16W J
R1727 NRSA63J-104X MG R 100kØ 1/16W J
R1728 NRSA63J-103X MG R 10kØ 1/16W J
R1730 NRSA63J-223X MG R 22kØ 1/16W J
R1731 NRSA63J-101X MG R 100Ø 1/16W J
R1732 NRSA02F-393X MF R 39kØ 1/10W F
R1733 NRSA63J-273X MG R 27kØ 1/16W J
R1734 NRSA63J-391X MG R 390Ø 1/16W J
R1735 NRSA63J-104X MG R 100kØ 1/16W J
R1736 NRSA63J-333X MG R 33kØ 1/16W J
R1737 NRSA63J-272X MG R 2.7kØ 1/16W J
R1738 NRSA63J-103X MG R 10kØ 1/16W J
R1739-41 NRSA63J-101X MG R 100Ø 1/16W J
R1742 NRSA63J-0R0X MG R 0.0Ø 1/16W J
42 No. 51901
AV-2908TEE
! Symbol No. Part No. Part Name Description Local ! Symbol No. Part No. Part Name Description Local
RESISTOR
R1744 NRSA63J-561X MG R 560Ø 1/16W J
R1745 NRSA63J-105X MG R 1MØ 1/16W J
R1746 NRSA63J-333X MG R 33kØ 1/16W J
R1747 NRSA63J-103X MG R 10kØ 1/16W J
R1748 QRE141J-394Y C R 390kØ 1/4W J
R1749 QRE141J-334Y C R 330kØ 1/4W J
R1755-56 NRSA63J-101X MG R 100Ø 1/16W J
R1757-58 NRSA63J-222X MG R 2.2kØ 1/16W J
R1803 NRSA63J-333X MG R 33kØ 1/16W J
R1804-07 NRSA63J-750X MG R 75Ø 1/16W J
R1808 NRSA63J-823X MG R 82kØ 1/16W J
R1809 NRSA63J-391X MG R 390Ø 1/16W J
R1810 NRSA63J-823X MG R 82kØ 1/16W J
R1811 NRSA63J-391X MG R 390Ø 1/16W J
R1812 NRSA63J-104X MG R 100kØ 1/16W J
R1813 NRSA63J-222X MG R 2.2kØ 1/16W J
R1815 NRSA63J-101X MG R 100Ø 1/16W J
R1818 NRSA63J-222X MG R 2.2kØ 1/16W J
R1820 NRSA63J-101X MG R 100Ø 1/16W J
R1821 NRSA63J-222X MG R 2.2kØ 1/16W J
R1823 NRSA63J-101X MG R 100Ø 1/16W J
R1824 NRSA63J-222X MG R 2.2kØ 1/16W J
R1826 NRSA63J-101X MG R 100Ø 1/16W J
R1830-31 NRSA63J-222X MG R 2.2kØ 1/16W J
R1832 QRE141J-391Y C R 390Ø 1/4W J
R1833 NRSA63J-331X MG R 330Ø 1/16W J
R1834-35 NRSA63J-562X MG R 5.6kØ 1/16W J
R1836 NRSA63J-750X MG R 75Ø 1/16W J
R1837 NRSA63J-101X MG R 100Ø 1/16W J
R1838 QRK126J-121X C R 120Ø 1/2W J
R1839-40 QRE121J-221Y C R 220Ø 1/2W J
R1841-42 NRSA63J-0R0X MG R 0.0Ø 1/16W J
R1843 NRSA63J-821X MG R 820Ø 1/16W J
R1844 NRSA63J-222X MG R 2.2kØ 1/16W J
R1845 NRSA63J-102X MG R 1kØ 1/16W J
R1846 NRSA63J-222X MG R 2.2kØ 1/16W J
R1847 NRSA63J-103X MG R 10kØ 1/16W J
R1848 NRSA63J-221X MG R 220Ø 1/16W J
R1849 NRSA63J-471X MG R 470Ø 1/16W J
R1880 NRSA63J-202X MG R 2kØ 1/16W J
R1881 NRSA63J-103X MG R 10kØ 1/16W J
R1882 NRSA63J-181X MG R 180Ø 1/16W J
R1883 NRSA63J-471X MG R 470Ø 1/16W J
R1902 QRF154K-2R2 UNF R 2.2Ø K
R1903 QRL039J-473 OM R 47kØ 3W J
R1904 QRE121J-681Y C R 680Ø 1/2W J
R1905 QRM034J-R10 MP R 0.1Ø 3W J
R1908 NRSA63J-103X MG R 10kØ 1/16W J
R1909 QRE121J-274Y C R 270kØ 1/2W J
R1911 QRE121J-472Y C R 4.7kØ 1/2W J
R1912 QRE121J-222Y C R 2.2kØ 1/2W J
!
R1913 QRZ9017-4R7 F R 4.7Ø 1/4W J
R1914 QRL039J-473 OM R 47kØ 3W J
R1915 QRE121J-394Y C R 390kØ 1/2W J
R1916 QRE121J-332Y C R 3.3kØ 1/2W J
R1917 NRSA63J-101X MG R 100Ø 1/16W J
R1918 NRSA63J-224X MG R 220kØ 1/16W J
R1919 NRSA63J-104X MG R 100kØ 1/16W J
R1920 NRSA63J-473X MG R 47kØ 1/16W J
R1921 QRE121J-563Y C R 56kØ 1/2W J
R1951 QRE121J-223Y C R 22kØ 1/2W J
R1952 NRSA63J-222X MG R 2.2kØ 1/16W J
R1953 QRE121J-152Y C R 1.5kØ 1/2W J
R1955 QRG01GJ-470 OM R 47Ø 1W J
R1957 QRE121J-5R6Y C R 5.6Ø 1/2W J
R1958 QRL039J-820 OM R 82Ø 3W J
R1959 QRE121J-820Y C R 82Ø 1/2W J
R1960 NRSA63J-391X MG R 390Ø 1/16W J
R1961 QRL02EJ-223X OM R 22kØ 2W J
R1963 QRE121J-332Y C R 3.3kØ 1/2W J
R1964 NRSA63J-103X MG R 10kØ 1/16W J
R1965 NRSA63J-0R0X MG R 0.0Ø 1/16W J
RESISTOR
R1966 NRSA63J-682X MG R 6.8kØ 1/16W J
R1967 NRSA63J-473X MG R 47kØ 1/16W J
R1969 QRT02EJ-2R7X MF R 2.7Ø 2W J
R1970 NRSA63J-153X MG R 15kØ 1/16W J
R1971 NRSA63J-183X MG R 18kØ 1/16W J
!
R1991 QRZ0057-825 C R 8.2MØ 1W J
CAPACITOR
C1001 NCB31HK-103X C CAP. 0.01µF 50V K
C1002 QETN1HM-106Z E CAP. 10µF 50V M
C1003 QFV71HJ-104Z MF CAP. 0.1µF 50V J
C1004 QETN1CM-477Z E CAP. 470µF 16V M
C1005 NCB31HK-222X C CAP. 2200pF 50V K
C1006 QETN1CM-336Z E CAP. 33µF 16V M
C1007 NCB31HK-103X C CAP. 0.01µF 50V K
C1101-05 NCB31HK-472X C CAP. 4700pF 50V K
C1106-07 NCB31HK-103X C CAP. 0.01µF 50V K
C1109 QETN1HM-106Z E CAP. 10µF 50V M
C1130-32 NCB31HK-103X C CAP. 0.01µF 50V K
C1133 QETN1CM-107Z E CAP. 100µF 16V M
C1134 NCB31HK-103X C CAP. 0.01µF 50V K
C1135 QETN1EM-476Z E CAP. 47µF 25V M
C1136-38 NCB31HK-103X C CAP. 0.01µF 50V K
C1140-42 NCB31HK-103X C CAP. 0.01µF 50V K
C1143 QETN1HM-106Z E CAP. 10µF 50V M
C1144 NCB31HK-223X C CAP. 0.022µF 50V K
C1301-02 NCB31CK-104X C CAP. 0.1µF 16V K
C1304-05 NCB31HK-103X C CAP. 0.01µF 50V K
C1306 NCB31CK-104X C CAP. 0.1µF 16V K
C1307 NDC31HJ-330X C CAP. 33pF 50V J
C1308 NCB31HK-103X C CAP. 0.01µF 50V K
C1401 QETN1HM-105Z E CAP. 1µF 50V M
C1402 QCB31HK-682Z C CAP. 6800pF 50V K
C1403 QEHR1VM-107Z E CAP. 100µF 35V M
C1411-12 NCF21HZ-334X C CAP. 0.33µF 50V Z
C1413 QFLC2AJ-563Z M CAP. 0.056µF 100V J
C1422 QEHQ1VM-108 E CAP. 1000µF 35V M
C1471 QETN1HM-106Z E CAP. 10µF 50V M
C1480 QETN1HM-106Z E CAP. 10µF 50V M
C1483 QEZ0195-475Z E CAP. 4.7µF 50V M
C1485 QETN1HM-226Z E CAP. 22µF 50V M
C1521 QETN1VM-476Z E CAP. 47µF 35V M
C1522 QFLC1HJ-332Z M CAP. 3300pF 50V J
C1523 QFLC1HJ-223Z M CAP. 0.022µF 50V J
C1524 QFZ0196-382 MPP CAP. 3800pF 1.5kVH ±3%
C1525 QFZ0200-143 MPP CAP. 0.014µF 1.5kVH ±3%
C1526 QFP32JJ-223 PP CAP. 0.022µF 630V J
C1527-28 QFZ0199-224 MPP CAP. 0.22µF 250V J
C1529 QENC2AM-225Z BP E CAP. 2.2µF 100V M
C1530 QCB32HK-561Z C CAP. 560pF 500V K
C1531 QEHR1EM-108Z E CAP. 1000µF 25V M
C1532 QCB32HK-561Z C CAP. 560pF 500V K
C1533 QEHR1EM-108Z E CAP. 1000µF 25V M
C1534 QCB32HK-561Z C CAP. 560pF 500V K
C1536 QFLC1HJ-103Z M CAP. 0.01µF 50V J
C1540 QFV71HJ-104Z MF CAP. 0.1µF 50V J
C1541 QETN2EM-106Z E CAP. 10µF 250V M
C1550 NCB31CK-104X C CAP. 0.1µF 16V K
C1561 QFV11HJ-683Z TF CAP. 0.068µF 50V J
C1566 QFZ0200-113 MPP CAP. 0.011µF 1.5kVH ±3%
C1591 QETN1AM-107Z E CAP. 100µF 10V M
C1592 QETM2CM-227 E CAP. 220µF 160V M
C1593 QETN1EM-476Z E CAP. 47µF 25V M
C1625 QETN1HM-106Z E CAP. 10µF 50V M
C1626 QETN1CM-107Z E CAP. 100µF 16V M
C1629 QETN1HM-475Z E CAP. 4.7µF 50V M
C1630 NDC31HJ-471X C CAP. 470pF 50V J
C1631 NCB31EK-333X C CAP. 0.033µF 25V K
C1634 QETN1HM-106Z E CAP. 10µF 50V M
C1636-37 QETN1HM-105Z E CAP. 1µF 50V M
AV-2908TEE
No. 51901 43
AV-2908TEE
! Symbol No. Part No. Part Name Description Local ! Symbol No. Part No. Part Name Description Local
CAPACITOR
C1638 NCB31EK-333X C CAP. 0.033µF 25V K
C1639 NDC31HJ-471X C CAP. 470pF 50V J
C1640 QETN1HM-475Z E CAP. 4.7µF 50V M
C1641 QETN1CM-107Z E CAP. 100µF 16V M
C1642 NCB31CK-104X C CAP. 0.1µF 16V K
C1643 NCB31HK-562X C CAP. 5600pF 50V K
C1644 QETN1HM-475Z E CAP. 4.7µF 50V M
C1645-46 QETN1HM-106Z E CAP. 10µF 50V M
C1647 NCB31EK-393X C CAP. 0.039µF 25V K
C1648 NCB31HK-223X C CAP. 0.022µF 50V K
C1650 QEHR1HM-106Z E CAP. 10µF 50V M
C1651 QEHQ1HM-107 E CAP. 100µF 50V M
C1652 QETN1HM-106Z E CAP. 10µF 50V M
C1659-61 NCF21HZ-224X C CAP. 0.22µF 50V Z
C1662 QETN1HM-106Z E CAP. 10µF 50V M
C1663 NCF21HZ-224X C CAP. 0.22µF 50V Z
C1665 NCF31AZ-105X C CAP. 1µF 10V Z
C1669 NCF31AZ-105X C CAP. 1µF 10V Z
C1681-82 QETN1CM-227Z E CAP. 220µF 16V M
C1683 QETN1CM-336Z E CAP. 33µF 16V M
C1684 QETN1HM-106Z E CAP. 10µF 50V M
C1702 QETN1HM-106Z E CAP. 10µF 50V M
C1703-04 NDC31HJ-220X C CAP. 22pF 50V J
C1706 NCB21EK-224X C CAP. 0.22µF 25V K
C1707 QETN1CM-107Z E CAP. 100µF 16V M
C1709 QETN0JM-477Z E CAP. 470µF 6.3V M
C1710 QFV21HJ-224Z MF CAP. 0.22µF 50V J
C1711 NCB31CK-104X C CAP. 0.1µF 16V K
C1712 QETN1CM-476Z E CAP. 47µF 16V M
C1713 QFV11HJ-104Z TF CAP. 0.1µF 50V J
C1720 QETN1HM-476Z E CAP. 47µF 50V M
C1725 NCB31HK-681X C CAP. 680pF 50V K
C1730-31 NCB21EK-224X C CAP. 0.22µF 25V K
C1732 QETN1CM-107Z E CAP. 100µF 16V M
C1733 NCB31CK-104X C CAP. 0.1µF 16V K
C1734-35 NCB31HK-222X C CAP. 2200pF 50V K
C1736-37 QETN1HM-105Z E CAP. 1µF 50V M
C1738 NCB31CK-104X C CAP. 0.1µF 16V K
C1739 NFV41CJ-104X MPP CAP. 0.1µF 16V J
C1740 QETN1HM-225Z E CAP. 2.2µF 50V M
C1741-42 NCB31CK-104X C CAP. 0.1µF 16V K
C1743 QETN1CM-107Z E CAP. 100µF 16V M
C1744 NCB31HK-222X C CAP. 2200pF 50V K
C1745-47 NCB31EK-473X C CAP. 0.047µF 25V K
C1749 QETN1HM-106Z E CAP. 10µF 50V M
C1751-53 NCB21HK-104X C CAP. 0.1µF 50V K
C1801-04 QETN1HM-106Z E CAP. 10µF 50V M
C1805 QFLC1HJ-104Z M CAP. 0.1µF 50V J
C1807-08 NCF31AZ-105X C CAP. 1µF 10V Z
C1810 NCF31AZ-105X C CAP. 1µF 10V Z
C1811 QFLC1HJ-104Z M CAP. 0.1µF 50V J
C1812 NCF31AZ-105X C CAP. 1µF 10V Z
C1813 NCB31HK-103X C CAP. 0.01µF 50V K
C1814 QFLC1HJ-104Z M CAP. 0.1µF 50V J
C1815 NCF31AZ-105X C CAP. 1µF 10V Z
C1817 NCF31AZ-105X C CAP. 1µF 10V Z
C1819 QFLC1HJ-104Z M CAP. 0.1µF 50V J
C1820-21 NCF31AZ-105X C CAP. 1µF 10V Z
C1822 QETN1AM-477Z E CAP. 470µF 10V M
C1823-24 QETN1CM-107Z E CAP. 100µF 16V M
C1825 NCB31HK-103X C CAP. 0.01µF 50V K
C1826 QFLC1HJ-104Z M CAP. 0.1µF 50V J
C1827 NCB31HK-103X C CAP. 0.01µF 50V K
C1829-31 NCB31HK-103X C CAP. 0.01µF 50V K
C1833 QETN1HM-226Z E CAP. 22µF 50V M
C1834 NDC31HJ-181X C CAP. 180pF 50V J
!
C1902 QFZ9073-104 MF CAP. 0.1µF
C1903-05 QCZ9015-102Z C CAP. 1000pF 250V Z
C1907 QEZ0371-337 E CAP. 330µF 400V M
C1909 QCZ0325-821 C CAP. 820pF 2000V K
C1910 NDC31HJ-471X C CAP. 470pF 50V J
C1911 QETN1HM-476Z E CAP. 47µF 50V M
CAPACITOR
C1916 QETN1EM-476Z E CAP. 47µF 25V M
C1917 QCB32HK-181Z C CAP. 180pF 500V K
C1918 QCB32HK-103 C CAP. 0.01µF 500V K
C1919 QCZ0325-391 C CAP. 390pF 2000V K
C1952 QCB32HK-471Z C CAP. 470pF 500V K
C1953 QEHQ1VM-228 E CAP. 2200µF 35V M
C1955 QCB32HK-471Z C CAP. 470pF 500V K
C1956 QETN1VM-107Z E CAP. 100µF 35V M
C1957 QCB31HK-471Z C CAP. 470pF 50V K
C1958 QEHR1CM-108Z E CAP. 1000µF 16V M
C1959 QCZ0364-561 C CAP. 560pF
C1960 QEZ0203-227 E CAP. 220µF 160V M
C1962 QETN1HM-106Z E CAP. 10µF 50V M
C1963 QETN1CM-477Z E CAP. 470µF 16V M
C1964 QETN1CM-476Z E CAP. 47µF 16V M
C1965 QETN1VM-476Z E CAP. 47µF 35V M
C1966 QETN1CM-107Z E CAP. 100µF 16V M
C1968 NCB31CK-104X C CAP. 0.1µF 16V K
C1970 QETN1AM-107Z E CAP. 100µF 10V M
C1972 QETN1HM-476Z E CAP. 47µF 50V M
C1974 NCB31CK-104X C CAP. 0.1µF 16V K
C1975 QETN1CM-227Z E CAP. 220µF 16V M
C1977 QETN1EM-476Z E CAP. 47µF 25V M
C1978 NCB21HK-104X C CAP. 0.1µF 50V K
C1980 QETN1CM-107Z E CAP. 100µF 16V M
C1981 NCB31HK-102X C CAP. 1000pF 50V K
C1982 QETN1CM-476Z E CAP. 47µF 16V M
C1983 QETN1CM-107Z E CAP. 100µF 16V M
!
C1991 QCZ9079-102 C CAP. 1000pF 250V M
!
C1992-93 QCZ9079-471 C CAP. 470pF 250V K
TRANSFORMER
T1521 QQR1229-001 DRIVE TRANSF.
T1551 QQH0096-001 FLYBACK TRANSF.
T1561 QQR1153-001 DEF.TRANSF.
T1901 QQS0110-001 SWICH.TRANSF.
COIL
L1001-02 QQL244K-8R2Z COIL 8.2µH K
L1101-02 QQL244J-5R6Z COIL 5.6µH J
L1103 QQL244K-100Z COIL 10µH K
L1104 QQL244K-180Z COIL 18µH K
L1301 QQL244K-221Z COIL 220µH K
L1401 QQL26AK-220Z COIL 22µH K
L1480 QQR1138-001 CHOKE COIL
L1523 QQR1243-001 LINEARITY COIL
L1541 QQL244K-220Z COIL 22µH K
L1561 QQLZ028-272 CHOKE COIL 2.7mH
L1701-02 QQL244K-100Z COIL 10µH K
L1731 QRN143J-0R0X C R 0.0Ø 1/4W J
L1951 QQLZ034-460 CHOKE COIL 46µH
L1953 QQL244J-5R6Z COIL 5.6µH J
L1954 QQL26AK-820Z COIL 82µH K
DIODE
D1101 DAN235K-X SI.DIODE
D1401 RGP10J-5025-T3 SI.DIODE
D1402 MTZJ75-T2 ZENER DIODE
D1405 1N4003-T2 SI.DIODE
D1408 MA111-X SI.DIODE
D1480 MTZJ4.3A-T2 ZENER DIODE
D1521 RH3G-F1 SI.DIODE
D1522 31DF6N-FC5 DIODE
D1523 RGP10J-5025-T3 SI.DIODE
D1541 RGP10J-5025-T3 SI.DIODE
44 No. 51901
AV-2908TEE
! Symbol No. Part No. Part Name Description Local ! Symbol No. Part No. Part Name Description Local
DIODE
D1550 MA111-X SI.DIODE
D1551 EU2-T3 SI.DIODE
D1553 RGP10J-5025-T3 SI.DIODE
D1554 RGP10J-5025-T3 SI.DIODE
D1592 MA3075/H/-X ZENER DIODE
D1652-53 MA3330/L/-X ZENER DIODE
D1682 MA111-X SI.DIODE
D1683 NRSA63J-0R0X MG R 0.0Ø 1/16W J
D1702 MA3020-X ZENER DIODE
D1730-33 MA111-X SI.DIODE
D1801-02 MA3120/M/-X ZENER DIODE
D1901 GSIB460 DIODE
D1902 MTZJ33B-T2 ZENER DIODE
D1903 1SS133-T2 SI.DIODE
D1906 MTZJ27B-T2 ZENER DIODE
D1907 MTZJ33B-T2 ZENER DIODE
D1908 MA3200/M/-X ZENER DIODE
D1909 MA111-X SI.DIODE
D1910 MA3075/H/-X ZENER DIODE
D1911 RGP10J-5025-T3 SI.DIODE
D1912 RGP10J-5025-T3 SI.DIODE
D1913 RGP10M-5010-T3 SI.DIODE
D1914 1SS133-T2 SI.DIODE
D1915 MA3068/M/-X ZENER DIODE
D1916 MTZJ15B-T2 ZENER DIODE
D1950 RGP10J-5025-T3 SI.DIODE
D1952 ERC30-02L38 SI.DIODE
D1953 RGP10J-5025-T3 SI.DIODE
D1954 RU30A-F1 SI.DIODE
D1955 1SR35-400A-T2 SI.DIODE
D1956 31DF6N-FC5 DIODE
D1958 MTZJ5.1A-T2 ZENER DIODE
D1960 MA111-X SI.DIODE
D1964 MA3330/L/-X ZENER DIODE
D1966 MA3039/H/-X ZENER DIODE
D1968-69 MA111-X SI.DIODE
D1970 MTZJ9.1B-T2 ZENER DIODE
D1971 MA111-X SI.DIODE
TRANSISTOR
Q1101 2SC5083/L-P/-T SI.TRANSISTOR
Q1102 DTC124EKA-X DIGI.TRANSISTOR
Q1104 2SA1037AK/QR/-X SI.TRANSISTOR
Q1105-06 DTC124EKA-X DIGI.TRANSISTOR
Q1107 2SA1037AK/QR/-X SI.TRANSISTOR
Q1108 2SC2412K/QR/-X SI.TRANSISTOR
Q1109 2SA1037AK/QR/-X SI.TRANSISTOR
Q1110 DTC124EKA-X DIGI.TRANSISTOR
Q1111 2SC2412K/QR/-X SI.TRANSISTOR
Q1130 2SA1037AK/QR/-X SI.TRANSISTOR
Q1131 DTC124EKA-X DIGI.TRANSISTOR
Q1132 2SC2412K/QR/-X SI.TRANSISTOR
Q1133 2SA1037AK/QR/-X SI.TRANSISTOR
Q1134-35 DTC124EKA-X DIGI.TRANSISTOR
Q1136-37 2SC2412K/QR/-X SI.TRANSISTOR
Q1301-02 2SA1037AK/QR/-X SI.TRANSISTOR
Q1303 DTC124EKA-X DIGI.TRANSISTOR
Q1304 2SC2412K/QR/-X SI.TRANSISTOR
Q1480 2SD1408/OY/-LB SI.TRANSISTOR
Q1521 2SC2655/Y/-T SI.TRANSISTOR
Q1522 2SD2634-YD SI.TRANSISTOR
Q1591 2SA1208/ST/Z1-T SI.TRANSISTOR
Q1592 DTC124EKA-X DIGI.TRANSISTOR
Q1660-61 2SC2412K/QR/-X SI.TRANSISTOR
Q1683-84 2SA1037AK/QR/-X SI.TRANSISTOR
Q1685-86 DTC323TK-X DIGI.TRANSISTOR
Q1687 2SC2412K/QR/-X SI.TRANSISTOR
Q1688 2SA1037AK/QR/-X SI.TRANSISTOR
Q1701-02 2SA1037AK/QR/-X SI.TRANSISTOR
Q1703 2SC2412K/QR/-X SI.TRANSISTOR
Q1720 2SA1037AK/QR/-X SI.TRANSISTOR
Q1801-02 DTC323TK-X DIGI.TRANSISTOR
TRANSISTOR
Q1803 2SA1037AK/QR/-X SI.TRANSISTOR
Q1804 2SC1740S/QR/-T SI.TRANSISTOR
Q1860 2SC2412K/QR/-X SI.TRANSISTOR
Q1861-62 2SA1037AK/QR/-X SI.TRANSISTOR
Q1901 2SC3852A SI.TRANSISTOR
Q1902-03 2SA1037AK/QR/-X SI.TRANSISTOR
Q1951 2SA1013/RO/-T SI.TRANSISTOR
Q1952-54 2SC2412K/QR/-X SI.TRANSISTOR
IC
IC1130 M52342SP I.C(MONO-ANA)
IC1301 TDA9181T/N1-X I.C(MONO-ANA)
IC1401 LA78041 I.C(MONO-ANA)
IC1461 JLC1562BF-X I.C(DIGI-MOS)
IC1480 UPC358G2-XE I.C(MONO-ANA)
IC1602 BH3865S I.C(MONO-ANA)
IC1650 AN5277 I.C(MONO-ANA)
IC1701 TDA9365N13S0518 I.C(MICRO-COMP)
IC1702 AT24C08-29LS I.C(MEMORY-OTH) (SERVICE)
IC1801 MM1492AF I.C(MONO-ANA)
IC1901 STR-F6456S/F7 I.C(HYBRID)
IC1951 SE135N I.C(HYBRID)
IC1972 L88M33T-X I.C(MONO-ANA)
IC1973 BA17812T I.C(MONO-ANA)
IC1974 BA51W12ST-V5 I.C(MONO-ANA)
OTHERS
CF1103 TPSH6.0MB CERAMIC FILTER
CF1104 TPS5.5MW CERAMIC FILTER
CF1105 TPS6.5MB CERAMIC FILTER
CF1106 QAX0639-001Z CERAMIC FILTER
CF1130 QAX0642-001Z CERAMIC FILTER
CF1140 QAX0336-001 CERAMIC FILTER
CF1141 QAX0337-001 CERAMIC FILTER
CF1142 QAX0338-001 CERAMIC FILTER
!
CP1650 ICP-N50-Y I.C.PROTECT
!
CP1951 ICP-N75-Y I.C.PROTECT
!
CP1953 ICP-N38-Y I.C.PROTECT
J1801 QNN0349-001 PIN JACK
J1802 QNN0349-002 PIN JACK
J1803 QNN0348-001 PIN JACK
J1804 QNN0349-001 PIN JACK
K1301 CE41433-001Z BEADS CORE
K1903 QQR1214-001Y FERRITE BEADS
K1904 CE42050-001Z CORE
K1951 QQR1214-001Y FERRITE BEADS
K1953-55 QQR1214-001Y FERRITE BEADS
!
LF1901 QQR1035-002 LINE FILTER
!
PC1901 PC123F2 I.C(PH.COUPLER)
!
RY1901 QSK0061-001 RELAY
SF1101 QAX0325-001 SAW FILTER
SF1102 QAX0594-001 SAW FILTER
TH1901 QAD0134-4R5 P.THERMISTOR
TU1001 QAU0185-004 TUNER
W1010 NRSA63J-0R0X MG R 0.0Ø 1/16W J
W1071 NRSA63J-0R0X MG R 0.0Ø 1/16W J
W1239 NRSA63J-0R0X MG R 0.0Ø 1/16W J
W1257 NRSA63J-0R0X MG R 0.0Ø 1/16W J
W1260 NRSA63J-0R0X MG R 0.0Ø 1/16W J
W1273 NRSA63J-0R0X MG R 0.0Ø 1/16W J
W1304 QRE121J-221Y C R 220Ø 1/2W J
W1306-07 NRSA63J-0R0X MG R 0.0Ø 1/16W J
W1309 NRSA63J-0R0X MG R 0.0Ø 1/16W J
W1310 QRE121J-221Y C R 220Ø 1/2W J
W1321-22 NRSA63J-0R0X MG R 0.0Ø 1/16W J
W1325-26 NRSA63J-0R0X MG R 0.0Ø 1/16W J
W1330 NRSA63J-0R0X MG R 0.0Ø 1/16W J
AV-2908TEE
No. 51901 45
AV-2908TEE
! Symbol No. Part No. Part Name Description Local ! Symbol No. Part No. Part Name Description Local
OTHERS
W1333 NRSA63J-0R0X MG R 0.0Ø 1/16W J
W1339-40 NRSA63J-0R0X MG R 0.0Ø 1/16W J
W1347 NRSA63J-0R0X MG R 0.0Ø 1/16W J
W1355 NRSA63J-0R0X MG R 0.0Ø 1/16W J
W1366 NRSA63J-0R0X MG R 0.0Ø 1/16W J
W1379 NRSA63J-0R0X MG R 0.0Ø 1/16W J
W1386 NRSA63J-0R0X MG R 0.0Ø 1/16W J
W1395 NRSA63J-0R0X MG R 0.0Ø 1/16W J
W1397 NRSA63J-0R0X MG R 0.0Ø 1/16W J
W1402-03 NRSA63J-0R0X MG R 0.0Ø 1/16W J
W1408 NRSA63J-0R0X MG R 0.0Ø 1/16W J
W1418 NRSA63J-0R0X MG R 0.0Ø 1/16W J
W1423 NRSA63J-0R0X MG R 0.0Ø 1/16W J
W1426-27 QRE141J-0R0Y C R 0.0Ø 1/4W J
X1701 QAX0688-001 CRYSTAL
Y1001-02 NRSA63J-0R0X MG R 0.0Ø 1/16W J
Y1130 NRSA63J-0R0X MG R 0.0Ø 1/16W J
Y1601 NRSA63J-0R0X MG R 0.0Ø 1/16W J
CRT SOCKET PW BOARD ASS’Y(SCH-3001A-H2)
! Symbol No. Part No. Part Name Description Local
RESISTOR
R3101 NRSA63J-682X MG R 6.8kØ 1/16W J
R3102 NRSA63J-102X MG R 1kØ 1/16W J
R3103 NRSA63J-153X MG R 15kØ 1/16W J
R3104 NRSA63J-682X MG R 6.8kØ 1/16W J
R3105 NRSA63J-102X MG R 1kØ 1/16W J
R3106 NRSA63J-272X MG R 2.7kØ 1/16W J
R3107 NRSA63J-682X MG R 6.8kØ 1/16W J
R3108 NRSA63J-102X MG R 1kØ 1/16W J
R3109 NRSA63J-562X MG R 5.6kØ 1/16W J
R3142 NRSA63J-101X MG R 100Ø 1/16W J
R3150 QRZ0107-102Z C R 1kØ 1/2W K
R3152 NRSA63J-101X MG R 100Ø 1/16W J
R3160 NRSA63J-101X MG R 100Ø 1/16W J
R3165 QRE121J-474Y C R 470kØ 1/2W J
R3166 QRZ0107-102Z C R 1kØ 1/2W K
R3170 QRZ0107-474Z C R 470kØ 1/2W K
R3171 QRZ0107-102Z C R 1kØ 1/2W K
R3172 NRSA63J-101X MG R 100Ø 1/16W J
!
R3175 QRZ9021-1R5 F R 1.5Ø 1W J
R3211 NRSA63J-0R0X MG R 0.0Ø 1/16W J
R3212 NRSA63J-153X MG R 15kØ 1/16W J
R3213 NRSA63J-222X MG R 2.2kØ 1/16W J
R3214 NRSA63J-152X MG R 1.5kØ 1/16W J
R3215 NRSA63J-680X MG R 68Ø 1/16W J
R3216 NRSA63J-221X MG R 220Ø 1/16W J
!
R3217 QRJ146J-100X C R 10Ø 1/4W J
R3218 NRSA63J-683X MG R 68kØ 1/16W J
R3219-20 NRSA63J-473X MG R 47kØ 1/16W J
R3221-22 NRSA63J-470X MG R 47Ø 1/16W J
R3223 NRSA63J-683X MG R 68kØ 1/16W J
R3224 NRSA63J-122X MG R 1.2kØ 1/16W J
R3225-26 QRE121J-563Y C R 56kØ 1/2W J
R3227 NRSA63J-122X MG R 1.2kØ 1/16W J
R3228 NRSA63J-390X MG R 39Ø 1/16W J
R3229-30 QRE121J-2R7Y C R 2.7Ø 1/2W J
R3231 NRSA63J-390X MG R 39Ø 1/16W J
R3232 QRE121J-121Y C R 120Ø 1/2W J
R3233 QRL029J-391 OM R 390Ø 2W J
R3251 NRSA63J-472X MG R 4.7kØ 1/16W J
R3252 NRSA63J-222X MG R 2.2kØ 1/16W J
RESISTOR
R3253 NRSA63J-101X MG R 100Ø 1/16W J
R3254 NRSA63J-563X MG R 56kØ 1/16W J
R3255 NRSA63J-223X MG R 22kØ 1/16W J
R3256 NRSA63J-681X MG R 680Ø 1/16W J
R3257 NRSA63J-102X MG R 1kØ 1/16W J
R3258 NRSA63J-182X MG R 1.8kØ 1/16W J
R3259 NRSA63J-102X MG R 1kØ 1/16W J
R3260 NRSA63J-271X MG R 270Ø 1/16W J
R3261-63 NRSA63J-101X MG R 100Ø 1/16W J
R3264 NRSA63J-222X MG R 2.2kØ 1/16W J
R3265 NRSA63J-102X MG R 1kØ 1/16W J
R3266 NRSA63J-103X MG R 10kØ 1/16W J
R3267 NRSA63J-102X MG R 1kØ 1/16W J
R3268 NRSA63J-222X MG R 2.2kØ 1/16W J
R3269 NRSA63J-102X MG R 1kØ 1/16W J
R3270 NRSA63J-103X MG R 10kØ 1/16W J
R3271 NRSA63J-102X MG R 1kØ 1/16W J
R3272 NRSA63J-222X MG R 2.2kØ 1/16W J
R3273 NRSA63J-102X MG R 1kØ 1/16W J
R3274 NRSA63J-103X MG R 10kØ 1/16W J
R3275 NRSA63J-102X MG R 1kØ 1/16W J
CAPACITOR
C3101 QETN1CM-107Z E CAP. 100µF 16V M
C3102 QFK62EK-104Z MM CAP. 0.1µF 250V K
C3108 QETM2EM-336 E CAP. 33µF 250V M
C3109 QCZ0131-472 C CAP. 4700pF 2000V K
C3110 QCZ0131-222 C CAP. 2200pF 2000V K
C3204 NDC31HJ-561X C CAP. 560pF 50V J
C3205 QETN1HM-335Z E CAP. 3.3µF 50V M
C3206 QETN1HM-106Z E CAP. 10µF 50V M
C3208 QFLC1HJ-104Z M CAP. 0.1µF 50V J
C3209 QETN1CM-107Z E CAP. 100µF 16V M
C3210 QFLC1HJ-104Z M CAP. 0.1µF 50V J
C3211 NDC31HJ-561X C CAP. 560pF 50V J
C3212 QCB32HK-472Z C CAP. 4700pF 500V K
C3213 NDC31HJ-821X C CAP. 820pF 50V J
C3214 QETN2CM-106Z E CAP. 10µF 160V M
C3215 QCB32HK-472Z C CAP. 4700pF 500V K
C3216 QETN2CM-106Z E CAP. 10µF 160V M
C3217-18 QETN1AM-107Z E CAP. 100µF 10V M
C3219 QETN1AM-337Z E CAP. 330µF 10V M
C3251 QENC1HM-105Z BP E CAP. 1µF 50V M
C3252 NDC31HJ-151X C CAP. 150pF 50V J
C3253 NDC31HJ-560X C CAP. 56pF 50V J
C3255 NCB31HK-103X C CAP. 0.01µF 50V K
C3264-66 QETN1AM-107Z E CAP. 100µF 10V M
COIL
L3251 QQL244K-150Z COIL 15µH K
DIODE
D3115-17 EU01N-T2 SI.DIODE
D3201-02 1SS355-X SI.DIODE
TRANSISTOR
Q3101-03 2SC2412K/QR/-X SI.TRANSISTOR
Q3204-05 2SC1740S/QR/-T SI.TRANSISTOR
Q3206-07 2SA933AS/QR/-T SI.TRANSISTOR
Q3208 2SC1740S/QR/-T SI.TRANSISTOR
Q3209 2SA1964/DE/ SI.TRANSISTOR
Q3210 2SC5248/DE/ SI.TRANSISTOR
Q3251 2SA1037AK/QR/-X SI.TRANSISTOR
Q3252 2SC2412K/QR/-X SI.TRANSISTOR
46 No. 51901
AV-2908TEE
! Symbol No. Part No. Part Name Description Local ! Symbol No. Part No. Part Name Description Local
TRANSISTOR
Q3253 2SA1037AK/QR/-X SI.TRANSISTOR
Q3261-63 2SA1037AK/QR/-X SI.TRANSISTOR
Q3264-66 2SC2412K/QR/-X SI.TRANSISTOR
COIL
L8401 QQL244K-820Z COIL 82µH K
IC
IC3101 HCEX0070 MODE SWITCH
OTHERS
DL3261-63 CE41925-001 DELAY LINE
!
FR3201 QRZ9021-561 FUSI.RESISTOR
K3201-04 CE41492-001Z CHOKE COIL
!
SK3001 CE42446-001 C.R.T.SOCKET
FRONT CONTROL PW BOARD ASS’Y (SCH-8001A-H2)
! Symbol No. Part No. Part Name Description Local
RESISTOR
R8481 QRK126J-100X C R 10Ø 1/2W J
R8482 NRSA63J-124X MG R 120kØ 1/16W J
R8483 NRSA63J-683X MG R 68kØ 1/16W J
R8484-85 NRSA63J-562X MG R 5.6kØ 1/16W J
R8486 NRSA63J-333X MG R 33kØ 1/16W J
R8487 NRSA63J-472X MG R 4.7kØ 1/16W J
R8488 NRSA63J-154X MG R 150kØ 1/16W J
R8489 NRSA63J-104X MG R 100kØ 1/16W J
R8490 QRK126J-100X C R 10Ø 1/2W J
R8491 NRSA63J-0R0X MG R 0.0Ø 1/16W J
R8492 NRSA63J-474X MG R 470kØ 1/16W J
R8494 NRSA63J-682X MG R 6.8kØ 1/16W J
R8495 NRSA63J-151X MG R 150Ø 1/16W J
R8496 NRSA63J-223X MG R 22kØ 1/16W J
R8497 NRSA63J-562X MG R 5.6kØ 1/16W J
R8801 NRSA63J-562X MG R 5.6kØ 1/16W J
R8802 NRSA63J-392X MG R 3.9kØ 1/16W J
R8803 NRSA63J-682X MG R 6.8kØ 1/16W J
R8805 NRSA63J-682X MG R 6.8kØ 1/16W J
R8807 NRSA63J-181X MG R 180Ø 1/16W J
R8808 NRSA63J-221X MG R 220Ø 1/16W J
R8809 NRSA63J-331X MG R 330Ø 1/16W J
R8810 NRSA63J-471X MG R 470Ø 1/16W J
R8811 NRSA63J-821X MG R 820Ø 1/16W J
R8812 NRSA63J-122X MG R 1.2kØ 1/16W J
R8813 NRSA63J-471X MG R 470Ø 1/16W J
R8814 NRSA63J-750X MG R 75Ø 1/16W J
R8815-16 QRE121J-271Y C R 270Ø 1/2W J
R8817-18 NRSA63J-102X MG R 1kØ 1/16W J
R8826 NRSA63J-101X MG R 100Ø 1/16W J
R8827-28 NRSA63J-333X MG R 33kØ 1/16W J
R8830-31 NRSA63J-222X MG R 2.2kØ 1/16W J
!
R8901 QRZ0111-474 C R 470kØ 1/2W K
CAPACITOR
C8801 QETN1HM-106Z E CAP. 10µF 50V M
C8802 QETN1CM-107Z E CAP. 100µF 16V M
C8803 NCB31CK-104X C CAP. 0.1µF 16V K
C8814 QETN1HM-106Z E CAP. 10µF 50V M
!
C8901 QFZ9075-224 MP CAP. 0.22µF
DIODE
D8801 1SS355-X SI.DIODE
D8802 P1241-04 C.D.S.
D8803 SLR-342VR-T16 L.E.D.
TRANSISTOR
Q8481 2SC2412K/QR/-X SI.TRANSISTOR
Q8482 2SA1037AK/QR/-X SI.TRANSISTOR
Q8801 2SA1037AK/QR/-X SI.TRANSISTOR
IC
IC8481 LA6515 I.C(MONO-ANA)
IC8801 GP1U281Q IFR DETECT UNIT
OTHERS
CM35921-005-H CDS HOLDER
!
F8901 QMF51E2-4R0J4 FUSE
FC8901 CEMG002-001Z FUSE CLIP
J8302 QNN0279-003 PIN JACK
J8303 QNN0279-002 PIN JACK
J8304 QNN0279-001 PIN JACK
J8801 QNS0155-001 JACK
S8801 QSW0619-003Z PUSH SWITCH CH+
S8802 QSW0619-003Z PUSH SWITCH CHS8803 QSW0619-003Z PUSH SWITCH MENU
S8804 QSW0619-003Z PUSH SWITCH TV/VIDEO
S8805 QSW0619-003Z PUSH SWITCH VOL+
S8806 QSW0619-003Z PUSH SWITCH VOL-
!
S8901 QSW0750-001 PUSH SWITCH POWER
!
VA8901 ERZV10V621CS VARISTOR
LC30596-001B-C L.E.D.HOLDER
REMOTE CONTROL UNIT PARTS LIST (RM-C355-1C)
! Ref.No. Part No. Part Name Description Local
31392340128 BATTERY COVER
AV-2908TEE
CAPACITOR
C8481-84 NCB21EK-224X C CAP. 0.22µF 25V K
C8485 QETN1EM-476Z E CAP. 47µF 25V M
C8660-61 QETM1VM-228 E CAP. 2200µF 35V M
No. 51901 47
AV-2908TEE
PACKING
3
11
10
3
4
7!89
6
1
2
3
5
3
PACKING PARTS LIST
!
Ref.No. Part No. Part Name Description Local
1 CP30967-004-H POLY BAG
2 GG10044-022B-H P CASE
3 LC11066-002B-H CUSHION ASSY
4 RM-C355-1C RC HAND UNIT
5 GG20012-001A-H CORNER LABEL (X2)
6 CP30966-001-H POLY BAG
! 7 LCT1061-001A-H INST BOOK
8 BT-54012-2 WARRANTY CARD
9 LCT1058-001A-H INST SHEET
10 LC30946-001A-H CRT PROTECTOR
11 LC30947-002A-H CAUTION SHEET
5
48 No. 51901
AV-3408TEE
PARTS LIST [AV-3408TEE/B]
EXPLODED VIEW PARTS LIST-1
!
Ref.No. Part No. Part Name Description Local
23 LC20778-004A-H OPERATION SHEET
24 LC31474-001A-H CONTROL WINDOW
25 LC31476-001B-H LED LENS
26 LC41037-001A JVC MARK
101 LC11231-007A-H FRONT CABI ASSY
102 LC20776-004A-H DOOR
103 CM48229-00A-C DOOR LATCH
104 LC20777-001D-H CENTRE PLATE
105 LC31475-001B-H POWER KNOB
106 CM35235-003-H SPRING
EXPLODED VIEW-1
Inc.No.102–106
104
26
24
2
105
25
106
101
23
102
103
EXPLODED VIEW PARTS LIST-
!
Ref.No. Part No. Part Name Description Local
! V01 A80LTM350X PICTURE TUBE
! L01 QQW0121-001 DEG COIL
DY01 QQD0065-001 DEF YOKE
! T1551 QQH0077-001 FBT
! 1 QMP40D0-200J5 POWER CORD
! 2 CM23167-A01-H CORD CLAMP
3 WJY0018-002A BRAIDED ASSY
4 CHGB0017-0C BRAIDED SUB ASSY (X2)
5 A48457-3-H SPRING
6 LC11100-001A-H SP HOLDER (X2)
7 QAS0083-001 SPEAKER (X2) SP01, SP02
8 QYSBSFG4016Z TAPPING SCREW (X8)
! 9 LC10180-004A-HH REAR COVER
10 QYSBSFG4016Z TAPPING SCREW (X18)
! 11 LC20377-009B-H RATING LABEL [AV-3408TEE]
12 CHFD125-18BD FFC WIRE
13 LC11064-002A-H AV TERMINAL BOARD
14 QYSBSF3012M TAPPING SCREW (X4)
15 LC11061-001A-H CHASSIS BASE
16 LC11062-001D-H CONTROL BASE
17 LC40226-003A-H SPACER (X4)
18 LC40573-002A-H WASHER (X4)
19 LC40317-002A-H TAPPING SCREW (X4)
20 CE42735-00A PC MAGNET
21 CE41488-00A WEDGE ASSY (X4)
22 LC30103-001B-H CHASSIS ADAPTER (X2)
54 No. 51901
EXPLODED VIEW-2
AV-3408TEE
5
!
V01
17
18
19
!
L01
DY01
21
20
17
18
19
FRONT CONTROL
6
17
18
7
19
FRONT CONTROL
PWB (1/2)
PWB (1/2)
8
22
16
4
3
4
22
6
17
CRT
SOCKET PWB
12
15
18
7
8
19
FRONT CONTROL PWB (2/2)
FRONT CONTROL PWB (2/2)
MAIN PWB
MAIN PWB
!
T1551
13
!
!
2
!
9
10
10
!
11
10
10
10
1
14
No. 51901 55
AV-3408TEE
PRINTED WIRING BOARD PARTS LIST (AV-3408TEE/B)
MAIN PW BOARD ASS’Y (SCH-1047A-H2)
! Symbol No. Part No. Part Name Description Local ! Symbol No. Part No. Part Name Description Local
RESISTOR
R1001-02 NRSA63J-221X MG R 220Ø 1/16W J
R1003 NRSA63J-392X MG R 3.9kØ 1/16W J
R1004 NRSA63J-221X MG R 220Ø 1/16W J
R1006 NRSA63J-273X MG R 27kØ 1/16W J
R1101 NRSA63J-100X MG R 10Ø 1/16W J
R1102 NRSA63J-682X MG R 6.8kØ 1/16W J
R1103 NRSA63J-272X MG R 2.7kØ 1/16W J
R1104 NRSA63J-181X MG R 180Ø 1/16W J
R1105 NRSA63J-220X MG R 22Ø 1/16W J
R1106 NRSA63J-101X MG R 100Ø 1/16W J
R1107 NRSA63J-472X MG R 4.7kØ 1/16W J
R1108-09 NRSA63J-222X MG R 2.2kØ 1/16W J
R1111 NRSA63J-102X MG R 1kØ 1/16W J
R1112 NRSA63J-103X MG R 10kØ 1/16W J
R1113 NRSA63J-271X MG R 270Ø 1/16W J
R1114 NRSA63J-821X MG R 820Ø 1/16W J
R1115 NRSA63J-181X MG R 180Ø 1/16W J
R1117 NRSA63J-102X MG R 1kØ 1/16W J
R1119 NRSA63J-102X MG R 1kØ 1/16W J
R1120 NRSA63J-471X MG R 470Ø 1/16W J
R1130 NRSA63J-472X MG R 4.7kØ 1/16W J
R1131 NRSA63J-471X MG R 470Ø 1/16W J
R1132 NRSA63J-222X MG R 2.2kØ 1/16W J
R1133 NRSA63J-152X MG R 1.5kØ 1/16W J
R1134 NRSA63J-182X MG R 1.8kØ 1/16W J
R1135 NRSA63J-561X MG R 560Ø 1/16W J
R1136 NRSA63J-472X MG R 4.7kØ 1/16W J
R1137 NRSA63J-103X MG R 10kØ 1/16W J
R1138 NRSA63J-561X MG R 560Ø 1/16W J
R1139 NRSA63J-222X MG R 2.2kØ 1/16W J
R1140 NRSA63J-152X MG R 1.5kØ 1/16W J
R1141 NRSA63J-182X MG R 1.8kØ 1/16W J
R1142 NRSA63J-561X MG R 560Ø 1/16W J
R1143 NRSA63J-471X MG R 470Ø 1/16W J
R1144 NRSA63J-220X MG R 22Ø 1/16W J
R1145 NRSA63J-821X MG R 820Ø 1/16W J
R1146 NRSA63J-103X MG R 10kØ 1/16W J
R1147 NRSA63J-101X MG R 100Ø 1/16W J
R1148 NRSA63J-332X MG R 3.3kØ 1/16W J
R1149 QRE141J-122Y C R 1.2kØ 1/4W J
R1301-02 NRSA63J-222X MG R 2.2kØ 1/16W J
R1303 NRSA63J-562X MG R 5.6kØ 1/16W J
R1304-05 NRSA63J-222X MG R 2.2kØ 1/16W J
R1306 NRSA63J-562X MG R 5.6kØ 1/16W J
R1307 NRSA63J-103X MG R 10kØ 1/16W J
R1308 NRSA63J-101X MG R 100Ø 1/16W J
R1309 NRSA63J-104X MG R 100kØ 1/16W J
R1310 NRSA63J-473X MG R 47kØ 1/16W J
R1311 NRSA63J-123X MG R 12kØ 1/16W J
R1401 NRSA63J-224X MG R 220kØ 1/16W J
R1403 NRSA63J-0R0X MG R 0.0Ø 1/16W J
R1405 NRSA63J-682X MG R 6.8kØ 1/16W J
R1406 NRSA63J-472X MG R 4.7kØ 1/16W J
R1408 NRSA63J-682X MG R 6.8kØ 1/16W J
R1410 NRSA63J-472X MG R 4.7kØ 1/16W J
R1411 QRG01GJ-221 OM R 220Ø 1W J
R1412 QRE121J-1R0Y C R 1.0Ø 1/2W J
R1413 QRX01GJ-1R2 MF R 1.2Ø 1W J
R1414 QRE121J-1R5Y C R 1.5Ø 1/2W J
R1425 NRSA63J-683X MG R 68kØ 1/16W J
R1478-79 NRSA63J-101X MG R 100Ø 1/16W J
R1480 QRE121J-681Y C R 680Ø 1/2W J
R1481 NRSA63J-223X MG R 22kØ 1/16W J
R1482 NRSA63J-562X MG R 5.6kØ 1/16W J
R1483 NRSA63J-823X MG R 82kØ 1/16W J
R1484 NRSA63J-562X MG R 5.6kØ 1/16W J
R1485 NRSA63J-123X MG R 12kØ 1/16W J
R1486 NRSA63J-272X MG R 2.7kØ 1/16W J
R1487 NRSA63J-333X MG R 33kØ 1/16W J
R1489 NRSA63J-122X MG R 1.2kØ 1/16W J
R1490 NRSA63J-102X MG R 1kØ 1/16W J
R1491 NRSA63J-562X MG R 5.6kØ 1/16W J
RESISTOR
R1492 NRSA63J-822X MG R 8.2kØ 1/16W J
R1493 QRE121J-223Y C R 22kØ 1/2W J
R1494 QRL03EJ-330X OM R 33Ø 3W J
R1521 NRSA63J-101X MG R 100Ø 1/16W J
R1522 NRSA63J-102X MG R 1kØ 1/16W J
R1523-24 QRL03EJ-181X OM R 180Ø 3W J
R1526 QRL029J-271 OM R 270Ø 2W J
R1527 QRL03EJ-103X OM R 10kØ 3W J
R1528-29 QRX029J-3R3 MF R 3.3Ø 2W J
R1531 NRSA63J-182X MG R 1.8kØ 1/16W J
!
R1532 QRZ9017-4R7 F R 4.7Ø 1/2W J
R1541 QRE121J-124Y C R 120kØ 1/2W J
R1542 QRE121J-104Y C R 100kØ 1/2W J
R1543 QRE121J-471Y C R 470Ø 1/2W J
R1545 QRE121J-220Y C R 22Ø 1/2W J
R1546 QRE121J-822Y C R 8.2kØ 1/2W J
R1547 QRG01GJ-181 OM R 180Ø 1W J
R1561 QRL02EJ-220X OM R 22Ø 2W J
R1562 QRE121J-123Y C R 12kØ 1/2W J
R1563 QRZ0056-103Z COMP.R 10kØ 1/2W K
R1564-68 QRE121J-184Y C R 180kØ 1/2W J
R1576 NRSA63J-472X MG R 4.7kØ 1/16W J
R1577 NRSA63J-683X MG R 68kØ 1/16W J
R1578 NRSA63J-0R0X MG R 0.0Ø 1/16W J
R1579 NRSA63J-222X MG R 2.2kØ 1/16W J
R1580 NRSA63J-223X MG R 22kØ 1/16W J
R1581 NRSA63J-183X MG R 18kØ 1/16W J
R1582 NRSA63J-392X MG R 3.9kØ 1/16W J
R1583 NRSA63J-183X MG R 18kØ 1/16W J
R1584 NRSA63J-152X MG R 1.5kØ 1/16W J
R1585 QRE121J-822Y C R 8.2kØ 1/2W J
R1591 QRA14CF-1202Y MF R 12kØ 1/4W F
R1592 QRZ0221-2R2 UNF R 2.2Ø
R1593 NRSA02F-332X MG R 3.3kØ 1/10W F
R1594 QRE121J-183Y C R 18kØ 1/2W J
R1595 NRSA63J-222X MG R 2.2kØ 1/16W J
R1621-22 NRSA63J-101X MG R 100Ø 1/16W J
R1626 NRSA63J-472X MG R 4.7kØ 1/16W J
R1627 NRSA63J-224X MG R 220kØ 1/16W J
R1628 NRSA63J-104X MG R 100kØ 1/16W J
R1629 NRSA63J-153X MG R 15kØ 1/16W J
R1630 NRSA63J-273X MG R 27kØ 1/16W J
R1631 NRSA63J-473X MG R 47kØ 1/16W J
R1632-33 NRSA63J-103X MG R 10kØ 1/16W J
R1640 QRE141J-102Y C R 1kØ 1/4W J
R1650-51 NRSA63J-392X MG R 3.9kØ 1/16W J
R1653 QRE141J-104Y C R 100kØ 1/4W J
R1654-55 NRSA63J-392X MG R 3.9kØ 1/16W J
R1657 QRE141J-104Y C R 100kØ 1/4W J
R1658-59 QRE121J-2R2Y C R 2.2Ø 1/2W J
R1660 NRSA63J-103X MG R 10kØ 1/16W J
R1661 NRSA63J-683X MG R 68kØ 1/16W J
R1662 NRSA63J-333X MG R 33kØ 1/16W J
R1663 NRSA63J-103X MG R 10kØ 1/16W J
R1664 NRSA63J-222X MG R 2.2kØ 1/16W J
R1688 NRSA63J-273X MG R 27kØ 1/16W J
R1690 NRSA63J-104X MG R 100kØ 1/16W J
R1692 NRSA63J-104X MG R 100kØ 1/16W J
R1693 NRSA63J-103X MG R 10kØ 1/16W J
R1694 NRSA63J-472X MG R 4.7kØ 1/16W J
R1695 NRSA63J-562X MG R 5.6kØ 1/16W J
R1696 NRSA63J-222X MG R 2.2kØ 1/16W J
R1701 NRSA63J-103X MG R 10kØ 1/16W J
R1702-03 NRSA63J-101X MG R 100Ø 1/16W J
R1704-05 NRSA63J-102X MG R 1kØ 1/16W J
R1706 NRSA63J-682X MG R 6.8kØ 1/16W J
R1707-10 NRSA63J-472X MG R 4.7kØ 1/16W J
R1711-14 NRSA63J-101X MG R 100Ø 1/16W J
R1715-17 NRSA63J-103X MG R 10kØ 1/16W J
R1718-19 NRSA63J-221X MG R 220Ø 1/16W J
R1720 NRSA63J-102X MG R 1kØ 1/16W J
R1721-24 NRSA63J-221X MG R 220Ø 1/16W J
56 No. 51901
AV-3408TEE
! Symbol No. Part No. Part Name Description Local ! Symbol No. Part No. Part Name Description Local
RESISTOR
R1725 NRSA63J-103X MG R 10kØ 1/16W J
R1726 NRSA63J-472X MG R 4.7kØ 1/16W J
R1727 NRSA63J-104X MG R 100kØ 1/16W J
R1728 NRSA63J-103X MG R 10kØ 1/16W J
R1730 NRSA63J-223X MG R 22kØ 1/16W J
R1731 NRSA63J-101X MG R 100Ø 1/16W J
R1732 NRSA02F-393X MF R 39kØ 1/10W F
R1733 NRSA63J-273X MG R 27kØ 1/16W J
R1734 NRSA63J-391X MG R 390Ø 1/16W J
R1735 NRSA63J-104X MG R 100kØ 1/16W J
R1736 NRSA63J-333X MG R 33kØ 1/16W J
R1737 NRSA63J-272X MG R 2.7kØ 1/16W J
R1738 NRSA63J-103X MG R 10kØ 1/16W J
R1739-41 NRSA63J-101X MG R 100Ø 1/16W J
R1742 NRSA63J-0R0X MG R 0.0Ø 1/16W J
R1744 NRSA63J-561X MG R 560Ø 1/16W J
R1745 NRSA63J-105X MG R 1MØ 1/16W J
R1746 NRSA63J-333X MG R 33kØ 1/16W J
R1747 NRSA63J-103X MG R 10kØ 1/16W J
R1755-56 NRSA63J-101X MG R 100Ø 1/16W J
R1757-58 NRSA63J-222X MG R 2.2kØ 1/16W J
R1803 NRSA63J-333X MG R 33kØ 1/16W J
R1804 NRSA63J-750X MG R 75Ø 1/16W J
R1805-07 QRE141J-750Y C R 75Ø 1/4W J
R1808 NRSA63J-823X MG R 82kØ 1/16W J
R1809 NRSA63J-391X MG R 390Ø 1/16W J
R1810 NRSA63J-823X MG R 82kØ 1/16W J
R1811 NRSA63J-391X MG R 390Ø 1/16W J
R1812 NRSA63J-104X MG R 100kØ 1/16W J
R1813 NRSA63J-222X MG R 2.2kØ 1/16W J
R1815 NRSA63J-101X MG R 100Ø 1/16W J
R1818 NRSA63J-222X MG R 2.2kØ 1/16W J
R1820 NRSA63J-101X MG R 100Ø 1/16W J
R1821 NRSA63J-222X MG R 2.2kØ 1/16W J
R1823 NRSA63J-101X MG R 100Ø 1/16W J
R1824 NRSA63J-222X MG R 2.2kØ 1/16W J
R1826 NRSA63J-101X MG R 100Ø 1/16W J
R1830-31 NRSA63J-222X MG R 2.2kØ 1/16W J
R1832 QRE141J-391Y C R 390Ø 1/4W J
R1833 NRSA63J-331X MG R 330Ø 1/16W J
R1834-35 NRSA63J-562X MG R 5.6kØ 1/16W J
R1836 NRSA63J-750X MG R 75Ø 1/16W J
R1837 NRSA63J-101X MG R 100Ø 1/16W J
R1838 QRK126J-121X C R 120Ø 1/2W J
R1839-40 QRE121J-221Y C R 220Ø 1/2W J
R1841-42 NRSA63J-0R0X MG R 0.0Ø 1/16W J
R1843 NRSA63J-821X MG R 820Ø 1/16W J
R1844 NRSA63J-222X MG R 2.2kØ 1/16W J
R1845 NRSA63J-102X MG R 1kØ 1/16W J
R1846 NRSA63J-222X MG R 2.2kØ 1/16W J
R1847 NRSA63J-103X MG R 10kØ 1/16W J
R1848 NRSA63J-221X MG R 220Ø 1/16W J
R1849 NRSA63J-471X MG R 470Ø 1/16W J
R1880 NRSA63J-202X MG R 2kØ 1/16W J
R1881 NRSA63J-103X MG R 10kØ 1/16W J
R1882 NRSA63J-181X MG R 180Ø 1/16W J
R1883 NRSA63J-471X MG R 470Ø 1/16W J
R1902 QRF154K-2R2 UNF R 2.2Ø K
R1903 QRL039J-473 OM R 47kØ 3W J
R1904 QRE121J-681Y C R 680Ø 1/2W J
R1905 QRM034J-R10 MP R 0.1Ø 3W J
R1908 NRSA63J-103X MG R 10kØ 1/16W J
R1909 QRE121J-274Y C R 270kØ 1/2W J
R1911 QRE121J-472Y C R 4.7kØ 1/2W J
R1912 QRE121J-222Y C R 2.2kØ 1/2W J
!
R1913 QRZ9017-4R7 F R 4.7Ø 1/4W J
R1914 QRL039J-473 OM R 47kØ 3W J
R1915 QRE121J-394Y C R 390kØ 1/2W J
R1916 QRE121J-332Y C R 3.3kØ 1/2W J
R1917 NRSA63J-101X MG R 100Ø 1/16W J
R1918 NRSA63J-224X MG R 220kØ 1/16W J
R1919 NRSA63J-104X MG R 100kØ 1/16W J
RESISTOR
R1920 NRSA63J-473X MG R 47kØ 1/16W J
R1921 QRE121J-563Y C R 56kØ 1/2W J
R1951 QRE121J-223Y C R 22kØ 1/2W J
R1952 NRSA63J-222X MG R 2.2kØ 1/16W J
R1953 QRE121J-152Y C R 1.5kØ 1/2W J
R1955 QRG01GJ-470 OM R 47Ø 1W J
R1957 QRE121J-5R6Y C R 5.6Ø 1/2W J
R1958 QRL039J-820 OM R 82Ø 3W J
R1959 QRE121J-820Y C R 82Ø 1/2W J
R1960 NRSA63J-391X MG R 390Ø 1/16W J
R1961 QRL02EJ-223X OM R 22kØ 2W J
R1963 QRE121J-332Y C R 3.3kØ 1/2W J
R1964 NRSA63J-103X MG R 10kØ 1/16W J
R1965 NRSA63J-0R0X MG R 0.0Ø 1/16W J
R1966 NRSA63J-682X MG R 6.8kØ 1/16W J
R1967 NRSA63J-473X MG R 47kØ 1/16W J
R1969 QRT02EJ-2R7X MF R 2.7Ø 2W J
R1970 NRSA63J-153X MG R 15kØ 1/16W J
R1971 NRSA63J-183X MG R 18kØ 1/16W J
!
R1991 QRZ0057-825 C R 8.2MØ 1W J
CAPACITOR
C1001 NCB31HK-103X C CAP. 0.01µF 50V K
C1002 QETN1HM-106Z E CAP. 10µF 50V M
C1003 QFV71HJ-104Z MF CAP. 0.1µF 50V J
C1004 QETN1CM-477Z E CAP. 470µF 16V M
C1005 NCB31HK-222X C CAP. 2200pF 50V K
C1006 QETN1CM-336Z E CAP. 33µF 16V M
C1007 NCB31HK-103X C CAP. 0.01µF 50V K
C1101-05 NCB31HK-472X C CAP. 4700pF 50V K
C1106-07 NCB31HK-103X C CAP. 0.01µF 50V K
C1109 QETN1HM-106Z E CAP. 10µF 50V M
C1130-32 NCB31HK-103X C CAP. 0.01µF 50V K
C1133 QETN1CM-107Z E CAP. 100µF 16V M
C1134 NCB31HK-103X C CAP. 0.01µF 50V K
C1135 QETN1EM-476Z E CAP. 47µF 25V M
C1136-38 NCB31HK-103X C CAP. 0.01µF 50V K
C1140-42 NCB31HK-103X C CAP. 0.01µF 50V K
C1143 QETN1HM-106Z E CAP. 10µF 50V M
C1144 NCB31HK-223X C CAP. 0.022µF 50V K
C1301-02 NCB31CK-104X C CAP. 0.1µF 16V K
C1304-05 NCB31HK-103X C CAP. 0.01µF 50V K
C1306 NCB31CK-104X C CAP. 0.1µF 16V K
C1307 NDC31HJ-330X C CAP. 33pF 50V J
C1308 NCB31HK-103X C CAP. 0.01µF 50V K
C1309 QETN1HM-106Z E CAP. 10µF 50V M
C1401 QETN1HM-105Z E CAP. 1µF 50V M
C1402 QCB31HK-682Z C CAP. 6800pF 50V K
C1403 QEHR1VM-107Z E CAP. 100µF 35V M
C1411-12 NCF21HZ-334X C CAP. 0.33µF 50V Z
C1413 QFLC2AJ-563Z M CAP. 0.056µF 100V J
C1422 QEHQ1VM-108 E CAP. 1000µF 35V M
C1471 QETN1HM-106Z E CAP. 10µF 50V M
C1480 QETN1HM-106Z E CAP. 10µF 50V M
C1483 QEZ0195-475Z E CAP. 4.7µF 50V M
C1485 QETN1HM-226Z E CAP. 22µF 50V M
C1521 QETN1VM-476Z E CAP. 47µF 35V M
C1522 QFLC1HJ-332Z M CAP. 3300pF 50V J
C1523 QFLC1HJ-223Z M CAP. 0.022µF 50V J
C1524 QFZ0200-372 MPP CAP. 3700pF 1.5kVH ±3%
C1525 QFZ0200-123 MPP CAP. 0.012µF 1.5kVH ±3%
C1526 QFP32JJ-223 PP CAP. 0.022µF 630V J
C1527 QFZ0199-184 MPP CAP. 0.18µF 250V Z
C1528 QFZ0199-204 MPP CAP. 0.2µF 250V Z
C1529 QENC2AM-225Z BP E CAP. 2.2µF 100V M
C1530 QCB32HK-561Z C CAP. 560pF 500V K
C1531 QEHR1EM-108Z E CAP. 1000µF 25V M
C1532 QCB32HK-561Z C CAP. 560pF 500V K
C1533 QEHR1EM-108Z E CAP. 1000µF 25V M
C1534 QCB32HK-561Z C CAP. 560pF 500V K
AV-3408TEE
No. 51901 57
AV-3408TEE
! Symbol No. Part No. Part Name Description Local ! Symbol No. Part No. Part Name Description Local
CAPACITOR
C1536 QFLC1HJ-103Z M CAP. 0.01µF 50V J
C1540 QFV71HJ-104Z MF CAP. 0.1µF 50V J
C1541 QETN2EM-106Z E CAP. 10µF 250V M
C1542 QFZ0128-473 MPP CAP. 0.047µF 400V ±3%
C1550 NCB31CK-104X C CAP. 0.1µF 16V K
C1561 QFV11HJ-683Z TF CAP. 0.068µF 50V J
C1563-64 QCZ0122-471 C CAP. 470pF 2000V K
C1565 QFZ0122-682 MPP CAP. 6800pF 1.8kVH ±3%
C1566 QFZ0200-113 MPP CAP. 0.011µF 1.5kVH ±3%
C1571 QETN1CM-476Z E CAP. 47µF 16V M
C1572 QETN1EM-476Z E CAP. 47µF 25V M
C1574 QFLC1HJ-153Z M CAP. 0.015µF 50V J
C1575 QETN1EM-476Z E CAP. 47µF 25V M
C1591 QETN1AM-107Z E CAP. 100µF 10V M
C1592 QETM2CM-227 E CAP. 220µF 160V M
C1593 QETN1EM-476Z E CAP. 47µF 25V M
C1610 QETN1CM-228Z E CAP. 2200µF 16V M
C1625 QETN1HM-106Z E CAP. 10µF 50V M
C1626 QETN1CM-107Z E CAP. 100µF 16V M
C1629 QETN1HM-475Z E CAP. 4.7µF 50V M
C1630 NDC31HJ-471X C CAP. 470pF 50V J
C1631 NCB31EK-333X C CAP. 0.033µF 25V K
C1634 QETN1HM-106Z E CAP. 10µF 50V M
C1636-37 QETN1HM-105Z E CAP. 1µF 50V M
C1638 NCB31EK-333X C CAP. 0.033µF 25V K
C1639 NDC31HJ-471X C CAP. 470pF 50V J
C1640 QETN1HM-475Z E CAP. 4.7µF 50V M
C1641 QETN1CM-107Z E CAP. 100µF 16V M
C1642 NCB31CK-104X C CAP. 0.1µF 16V K
C1643 NCB31HK-562X C CAP. 5600pF 50V K
C1644 QETN1HM-475Z E CAP. 4.7µF 50V M
C1645-46 QETN1HM-106Z E CAP. 10µF 50V M
C1647 NCB31EK-393X C CAP. 0.039µF 25V K
C1648 NCB31HK-223X C CAP. 0.022µF 50V K
C1650 QEHR1HM-106Z E CAP. 10µF 50V M
C1651 QEHQ1HM-107 E CAP. 100µF 50V M
C1652 QETN1HM-106Z E CAP. 10µF 50V M
C1659-61 NCF21HZ-224X C CAP. 0.22µF 50V Z
C1662 QETN1HM-106Z E CAP. 10µF 50V M
C1663 NCF21HZ-224X C CAP. 0.22µF 50V Z
C1665 NCF31AZ-105X C CAP. 1µF 10V Z
C1669 NCF31AZ-105X C CAP. 1µF 10V Z
C1681-82 QETN1CM-227Z E CAP. 220µF 16V M
C1683 QETN1CM-336Z E CAP. 33µF 16V M
C1684 QETN1HM-106Z E CAP. 10µF 50V M
C1702 QETN1HM-106Z E CAP. 10µF 50V M
C1703-04 NDC31HJ-220X C CAP. 22pF 50V J
C1706 NCB21EK-224X C CAP. 0.22µF 25V K
C1707 QETN1CM-107Z E CAP. 100µF 16V M
C1709 QETN0JM-477Z E CAP. 470µF 6.3V M
C1710 QFV21HJ-224Z MF CAP. 0.22µF 50V J
C1711 NCB31CK-104X C CAP. 0.1µF 16V K
C1712 QETN1CM-476Z E CAP. 47µF 16V M
C1713 QFV11HJ-104Z TF CAP. 0.1µF 50V J
C1720 QETN1HM-476Z E CAP. 47µF 50V M
C1725 NCB31HK-681X C CAP. 680pF 50V K
C1730-31 NCB21EK-224X C CAP. 0.22µF 25V K
C1732 QETN1CM-107Z E CAP. 100µF 16V M
C1733 NCB31CK-104X C CAP. 0.1µF 16V K
C1734-35 NCB31HK-222X C CAP. 2200pF 50V K
C1736-37 QETN1HM-105Z E CAP. 1µF 50V M
C1738 NCB31CK-104X C CAP. 0.1µF 16V K
C1739 NFV41CJ-104X MPP CAP. 0.1µF 16V J
C1740 QETN1HM-225Z E CAP. 2.2µF 50V M
C1741-42 NCB31CK-104X C CAP. 0.1µF 16V K
C1743 QETN1CM-107Z E CAP. 100µF 16V M
C1744 NCB31HK-222X C CAP. 2200pF 50V K
C1745-47 NCB31EK-473X C CAP. 0.047µF 25V K
C1749 QETN1HM-106Z E CAP. 10µF 50V M
C1751-53 NCB21HK-104X C CAP. 0.1µF 50V K
C1803-04 QETN1HM-106Z E CAP. 10µF 50V M
C1805 QFLC1HJ-104Z M CAP. 0.1µF 50V J
CAPACITOR
C1807-08 NCF31AZ-105X C CAP. 1µF 10V Z
C1810 NCF31AZ-105X C CAP. 1µF 10V Z
C1811 QFLC1HJ-104Z M CAP. 0.1µF 50V J
C1812 NCF31AZ-105X C CAP. 1µF 10V Z
C1813 NCB31HK-103X C CAP. 0.01µF 50V K
C1814 QFLC1HJ-104Z M CAP. 0.1µF 50V J
C1815 NCF31AZ-105X C CAP. 1µF 10V Z
C1817 NCF31AZ-105X C CAP. 1µF 10V Z
C1819 QFLC1HJ-104Z M CAP. 0.1µF 50V J
C1820-21 NCF31AZ-105X C CAP. 1µF 10V Z
C1822 QETN1AM-477Z E CAP. 470µF 10V M
C1823-24 QETN1CM-107Z E CAP. 100µF 16V M
C1825 NCB31HK-103X C CAP. 0.01µF 50V K
C1826 QFLC1HJ-104Z M CAP. 0.1µF 50V J
C1827 NCB31HK-103X C CAP. 0.01µF 50V K
C1829-31 NCB31HK-103X C CAP. 0.01µF 50V K
C1833 QETN1HM-226Z E CAP. 22µF 50V M
C1834 NDC31HJ-181X C CAP. 180pF 50V J
C1835 QETN1CM-476Z E CAP. 47µF 16V M
!
C1902 QFZ9073-104 MF CAP. 0.1µF
C1903-05 QCZ9015-102Z C CAP. 1000pF 250V Z
C1907 QEZ0371-337 E CAP. 330µF 400V M
C1909 QCZ0325-821 C CAP. 820pF 2000V K
C1910 NDC31HJ-471X C CAP. 470pF 50V J
C1911 QETN1HM-476Z E CAP. 47µF 50V M
C1916 QETN1EM-476Z E CAP. 47µF 25V M
C1917 QCB32HK-181Z C CAP. 180pF 500V K
C1918 QCB32HK-103 C CAP. 0.01µF 500V K
C1919 QCZ0325-391 C CAP. 390pF 2000V K
C1952 QCB32HK-471Z C CAP. 470pF 500V K
C1953 QEHQ1VM-228 E CAP. 2200µF 35V M
C1955 QCB32HK-471Z C CAP. 470pF 500V K
C1956 QETN1VM-107Z E CAP. 100µF 35V M
C1957 QCB31HK-471Z C CAP. 470pF 50V K
C1958 QEHR1CM-108Z E CAP. 1000µF 16V M
C1959 QCZ0364-561 C CAP. 560pF
C1960 QEZ0203-227 E CAP. 220µF 160V M
C1962 QETN1HM-106Z E CAP. 10µF 50V M
C1963 QETN1CM-477Z E CAP. 470µF 16V M
C1964 QETN1CM-476Z E CAP. 47µF 16V M
C1965 QETN1VM-476Z E CAP. 47µF 35V M
C1966 QETN1CM-107Z E CAP. 100µF 16V M
C1968 NCB31CK-104X C CAP. 0.1µF 16V K
C1972 QETN1HM-476Z E CAP. 47µF 50V M
C1974 NCB31CK-104X C CAP. 0.1µF 16V K
C1975 QETN1CM-227Z E CAP. 220µF 16V M
C1977 QETN1EM-476Z E CAP. 47µF 25V M
C1978 NCB21HK-104X C CAP. 0.1µF 50V K
C1980 QETN1CM-107Z E CAP. 100µF 16V M
C1981 NCB31HK-102X C CAP. 1000pF 50V K
C1982 QETN1CM-476Z E CAP. 47µF 16V M
C1983 QETN1CM-107Z E CAP. 100µF 16V M
C1984 QETN1CM-476Z E CAP. 47µF 16V M
!
C1991 QCZ9079-102 C CAP. 1000pF 250V M
!
C1992-93 QCZ9079-471 C CAP. 470pF 250V K
TRANSFORMER
T1521 QQR1229-001 DRIVE TRANSF.
!
T1551 QQH0077-001 H.V.TRANSF.
T1561 QQR1153-001 DEF.TRANSF.
!
T1901 QQS0110-001 SWICH.TRANSF.
COIL
L1001-02 QQL244K-8R2Z COIL 8.2µH K
L1101-02 QQL244J-5R6Z COIL 5.6µH J
L1103 QQL244K-100Z COIL 10µH K
L1104 QQL244K-180Z COIL 18µH K
L1301 QQL244K-221Z COIL 220µH K
L1401 QQL26AK-220Z COIL 22µH K
58 No. 51901
AV-3408TEE
! Symbol No. Part No. Part Name Description Local ! Symbol No. Part No. Part Name Description Local
COIL
L1480 QQR1138-001 CHOKE COIL
L1522 QQLZ028-501 CHOKE COIL
L1523 QQR1243-001 LINEARITY COIL
L1541 QQL244K-221Z COIL 220µH K
L1561 QQLZ028-272 CHOKE COIL 2.7mH
L1701-02 QQL244K-100Z COIL 10µH K
L1731 QRN143J-0R0X C R 0.0Ø 1/4W J
L1801 QQL244J-101Z COIL 100µH J
L1951 QQLZ034-460 CHOKE COIL 46µH
L1953 QQL244J-5R6Z COIL 5.6µH J
L1954 QQL26AK-820Z COIL 82µH K
DIODE
D1101 DAN235K-X SI.DIODE
D1401 RGP10J-5025-T3 SI.DIODE
D1402 MTZJ75-T2 ZENER DIODE
D1405 1N4003-T2 SI.DIODE
D1408 MA111-X SI.DIODE
D1480 MTZJ4.3A-T2 ZENER DIODE
D1521 RH3G-F1 SI.DIODE
D1522 31DF6N-FC5 DIODE
D1523 RGP10J-5025-T3 SI.DIODE
D1541 RGP10J-5025-T3 SI.DIODE
D1550 MA111-X SI.DIODE
D1551 EU2-T3 SI.DIODE
D1553 RGP10J-5025-T3 SI.DIODE
D1554 RGP10J-5025-T3 SI.DIODE
D1561-62 ES1F-LFG2 SI.DIODE
D1592 MA3075/H/-X ZENER DIODE
D1652-53 MA3330/L/-X ZENER DIODE
D1682 MA111-X SI.DIODE
D1683 NRSA63J-0R0X MG R 0.0Ø 1/16W J
D1702 MA3020-X ZENER DIODE
D1730-33 MA111-X SI.DIODE
D1801-02 MA3120/M/-X ZENER DIODE
D1901 GSIB460 DIODE
D1902 MTZJ33B-T2 ZENER DIODE
D1903 1SS133-T2 SI.DIODE
D1906 MTZJ27B-T2 ZENER DIODE
D1907 MTZJ33B-T2 ZENER DIODE
D1908 MA3200/M/-X ZENER DIODE
D1909 MA111-X SI.DIODE
D1910 MA3075/H/-X ZENER DIODE
D1911 RGP10J-5025-T3 SI.DIODE
D1912 RGP10J-5025-T3 SI.DIODE
D1913 RGP10M-5010-T3 SI.DIODE
D1914 1SS133-T2 SI.DIODE
D1915 MA3068/M/-X ZENER DIODE
D1916 MTZJ15B-T2 ZENER DIODE
D1950 RGP10J-5025-T3 SI.DIODE
D1952 ERC30-02L38 SI.DIODE
D1953 RGP10J-5025-T3 SI.DIODE
D1954 RU30A-F1 SI.DIODE
D1955 1SR35-400A-T2 SI.DIODE
D1956 31DF6N-FC5 DIODE
D1958 MTZJ5.1A-T2 ZENER DIODE
D1960 MA111-X SI.DIODE
D1964 MA3330/L/-X ZENER DIODE
D1966 MA3039/H/-X ZENER DIODE
D1968-69 MA111-X SI.DIODE
D1970 MTZJ9.1B-T2 ZENER DIODE
D1971 MA111-X SI.DIODE
TRANSISTOR
Q1101 2SC5083/L-P/-T SI.TRANSISTOR
Q1102 DTC124EKA-X DIGI.TRANSISTOR
Q1104 2SA1037AK/QR/-X SI.TRANSISTOR
Q1105-06 DTC124EKA-X DIGI.TRANSISTOR
Q1107 2SA1037AK/QR/-X SI.TRANSISTOR
Q1108 2SC2412K/QR/-X SI.TRANSISTOR
Q1109 2SA1037AK/QR/-X SI.TRANSISTOR
TRANSISTOR
Q1110 DTC124EKA-X DIGI.TRANSISTOR
Q1111 2SC2412K/QR/-X SI.TRANSISTOR
Q1130 2SA1037AK/QR/-X SI.TRANSISTOR
Q1131 DTC124EKA-X DIGI.TRANSISTOR
Q1132 2SC2412K/QR/-X SI.TRANSISTOR
Q1133 2SA1037AK/QR/-X SI.TRANSISTOR
Q1134-35 DTC124EKA-X DIGI.TRANSISTOR
Q1136-37 2SC2412K/QR/-X SI.TRANSISTOR
Q1301-02 2SA1037AK/QR/-X SI.TRANSISTOR
Q1303 DTC124EKA-X DIGI.TRANSISTOR
Q1304 2SC2412K/QR/-X SI.TRANSISTOR
Q1480 2SD1408/OY/-LB SI.TRANSISTOR
Q1521 2SC2655/Y/-T SI.TRANSISTOR
Q1522 2SD2634-YD SI.TRANSISTOR
Q1573-74 2SC2412K/QR/-X SI.TRANSISTOR
Q1575 2SC4686A SI.TRANSISTOR
Q1591 2SA1208/ST/Z1-T SI.TRANSISTOR
Q1592 DTC124EKA-X DIGI.TRANSISTOR
Q1660-61 2SC2412K/QR/-X SI.TRANSISTOR
Q1683-84 2SA1037AK/QR/-X SI.TRANSISTOR
Q1685-86 DTC323TK-X DIGI.TRANSISTOR
Q1687 2SC2412K/QR/-X SI.TRANSISTOR
Q1688 2SA1037AK/QR/-X SI.TRANSISTOR
Q1701-02 2SA1037AK/QR/-X SI.TRANSISTOR
Q1703 2SC2412K/QR/-X SI.TRANSISTOR
Q1720 2SA1037AK/QR/-X SI.TRANSISTOR
Q1801-02 DTC323TK-X DIGI.TRANSISTOR
Q1803 2SA1037AK/QR/-X SI.TRANSISTOR
Q1804 2SC1740S/QR/-T SI.TRANSISTOR
Q1860 2SC2412K/QR/-X SI.TRANSISTOR
Q1861-62 2SA1037AK/QR/-X SI.TRANSISTOR
Q1901 2SC3852A SI.TRANSISTOR
Q1902-03 2SA1037AK/QR/-X SI.TRANSISTOR
Q1951 2SA1013/RO/-T SI.TRANSISTOR
Q1952-54 2SC2412K/QR/-X SI.TRANSISTOR
IC
IC1130 M52342SP I.C(MONO-ANA)
IC1301 TDA9181T/N1-X I.C(MONO-ANA)
IC1401 LA78041 I.C(MONO-ANA)
IC1461 JLC1562BF-X I.C(DIGI-MOS)
IC1480 UPC358G2-XE I.C(MONO-ANA)
IC1602 BH3865S I.C(MONO-ANA)
IC1650 AN5277 I.C(MONO-ANA)
IC1701 TDA9365N13S0518 I.C(MICRO-COMPO)
IC1702 AT24C08-34LS I.C(MEMORY-OTH) (SERVICE)
IC1801 MM1492AF I.C(MONO-ANA)
IC1901 STR-F6456S/F7 I.C(HYBRID)
IC1951 SE135N I.C(HYBRID)
IC1972 L88M33T-X I.C(MONO-ANA)
IC1973 BA17812T I.C(MONO-ANA)
IC1974 BA51W12ST-V5 I.C(MONO-ANA)
OTHERS
CF1103 TPSH6.0MB CERAMIC FILTER
CF1104 TPS5.5MW CERAMIC FILTER
CF1105 TPS6.5MB CERAMIC FILTER
CF1106 QAX0639-001Z CERAMIC FILTER
CF1130 QAX0642-001Z CERAMIC FILTER
CF1140 QAX0336-001 CERAMIC FILTER
CF1141 QAX0337-001 CERAMIC FILTER
CF1142 QAX0338-001 CERAMIC FILTER
!
CP1650 ICP-N50-Y I.C.PROTECT
!
CP1951 ICP-N75-Y I.C.PROTECT
!
CP1953 ICP-N38-Y I.C.PROTECT
J1801 QNN0349-001 PIN JACK
J1802 QNN0349-002 PIN JACK
J1803 QNN0348-001 PIN JACK
J1804 QNN0349-001 PIN JACK
K1301 CE41433-001Z BEADS CORE
AV-3408TEE
No. 51901 59
AV-3408TEE
! Symbol No. Part No. Part Name Description Local ! Symbol No. Part No. Part Name Description Local
OTHERS
K1902 QQR1214-001Y FERRITE BEADS
K1903 CE41433-001Z BEADS CORE
K1904 CE42050-001Z CORE
K1951 QQR1214-001Y FERRITE BEADS
K1953-55 QQR1214-001Y FERRITE BEADS
!
LF1901 QQR1035-002 LINE FILTER
!
PC1901 PC123F2 I.C(PH.COUPLER)
!
RY1901 QSK0061-001 RELAY
SF1101 QAX0325-001 SAW FILTER
SF1102 QAX0594-001 SAW FILTER
TH1901 QAD0134-4R5 P.THERMISTOR
TU1001 QAU0185-004 TUNER
W1010 NRSA63J-0R0X MG R 0.0Ø 1/16W J
W1071 NRSA63J-0R0X MG R 0.0Ø 1/16W J
W1239 NRSA63J-0R0X MG R 0.0Ø 1/16W J
W1257 NRSA63J-0R0X MG R 0.0Ø 1/16W J
W1260 NRSA63J-0R0X MG R 0.0Ø 1/16W J
W1273 NRSA63J-0R0X MG R 0.0Ø 1/16W J
W1304 QRE121J-221Y C R 220Ø 1/2W J
W1306-07 NRSA63J-0R0X MG R 0.0Ø 1/16W J
W1309 NRSA63J-0R0X MG R 0.0Ø 1/16W J
W1310 QRE121J-221Y C R 220Ø 1/2W J
W1321-22 NRSA63J-0R0X MG R 0.0Ø 1/16W J
W1325-26 NRSA63J-0R0X MG R 0.0Ø 1/16W J
W1330 NRSA63J-0R0X MG R 0.0Ø 1/16W J
W1333 NRSA63J-0R0X MG R 0.0Ø 1/16W J
W1336-37 QETN1HM-106Z E CAP. 10µF 50V M
W1339-40 NRSA63J-0R0X MG R 0.0Ø 1/16W J
W1347 NRSA63J-0R0X MG R 0.0Ø 1/16W J
W1355 NRSA63J-0R0X MG R 0.0Ø 1/16W J
W1366 NRSA63J-0R0X MG R 0.0Ø 1/16W J
W1379 NRSA63J-0R0X MG R 0.0Ø 1/16W J
W1386 NRSA63J-0R0X MG R 0.0Ø 1/16W J
W1393 QQR1214-001Y FERRITE BEADS
W1395 NRSA63J-0R0X MG R 0.0Ø 1/16W J
W1397 NRSA63J-0R0X MG R 0.0Ø 1/16W J
W1402-03 NRSA63J-0R0X MG R 0.0Ø 1/16W J
W1408 NRSA63J-0R0X MG R 0.0Ø 1/16W J
W1418 NRSA63J-0R0X MG R 0.0Ø 1/16W J
W1423 NRSA63J-0R0X MG R 0.0Ø 1/16W J
W1426-27 QRE141J-0R0Y C R 0.0Ø 1/4W J
X1701 QAX0688-001 CRYSTAL
Y1001-02 NRSA63J-0R0X MG R 0.0Ø 1/16W J
Y1130 NRSA63J-0R0X MG R 0.0Ø 1/16W J
Y1601 NRSA63J-0R0X MG R 0.0Ø 1/16W J
CRT SOCKET PW BOARD ASS’Y(SCH-3002A-H2)
! Symbol No. Part No. Part Name Description Local
RESISTOR
R3101 NRSA63J-682X MG R 6.8kØ 1/16W J
R3102 NRSA63J-102X MG R 1kØ 1/16W J
R3103 NRSA63J-153X MG R 15kØ 1/16W J
R3104 NRSA63J-682X MG R 6.8kØ 1/16W J
R3105 NRSA63J-102X MG R 1kØ 1/16W J
R3106 NRSA63J-272X MG R 2.7kØ 1/16W J
R3107 NRSA63J-682X MG R 6.8kØ 1/16W J
R3108 NRSA63J-102X MG R 1kØ 1/16W J
R3109 NRSA63J-562X MG R 5.6kØ 1/16W J
R3110-12 NRSA63J-101X MG R 100Ø 1/16W J
R3113 NRSA63J-563X MG R 56kØ 1/16W J
R3125 NRSA63J-222X MG R 2.2kØ 1/16W J
R3126 QRE121J-393Y C R 39kØ 1/2W J
R3128 NRSA63J-473X MG R 47kØ 1/16W J
R3129 NRSA63J-223X MG R 22kØ 1/16W J
R3142 NRSA63J-101X MG R 100Ø 1/16W J
RESISTOR
R3150 QRZ0107-152Z C R 1.5kØ 1/2W K
R3152 NRSA63J-101X MG R 100Ø 1/16W J
R3160 NRSA63J-101X MG R 100Ø 1/16W J
R3166 QRZ0107-152Z C R 1.5kØ 1/2W K
R3169 QVP0038-206 TRIM.R 20MØ
R3170 QRZ0107-474Z C R 470kØ 1/2W K
R3171 QRZ0107-152Z C R 1.5kØ 1/2W K
R3172 NRSA63J-101X MG R 100Ø 1/16W J
!
R3175 QRZ9022-R56 F R 0.56Ø 1W K
R3176 QRE121J-123Y C R 12kØ 1/2W J
R3211 NRSA63J-0R0X MG R 0.0Ø 1/16W J
R3212 NRSA63J-153X MG R 15kØ 1/16W J
R3213 NRSA63J-222X MG R 2.2kØ 1/16W J
R3214 NRSA63J-152X MG R 1.5kØ 1/16W J
R3215 NRSA63J-680X MG R 68Ø 1/16W J
R3216 NRSA63J-221X MG R 220Ø 1/16W J
!
R3217 QRJ146J-100X C R 10Ø 1/4W J
R3218 NRSA63J-683X MG R 68kØ 1/16W J
R3219-20 NRSA63J-473X MG R 47kØ 1/16W J
R3221-22 NRSA63J-470X MG R 47Ø 1/16W J
R3223 NRSA63J-683X MG R 68kØ 1/16W J
R3224 NRSA63J-122X MG R 1.2kØ 1/16W J
R3225-26 QRE121J-563Y C R 56kØ 1/2W J
R3227 NRSA63J-122X MG R 1.2kØ 1/16W J
R3228 NRSA63J-390X MG R 39Ø 1/16W J
R3229-30 QRE121J-2R7Y C R 2.7Ø 1/2W J
R3231 NRSA63J-390X MG R 39Ø 1/16W J
R3232 QRE121J-121Y C R 120Ø 1/2W J
R3233 QRL029J-391 OM R 390Ø 2W J
R3251 NRSA63J-472X MG R 4.7kØ 1/16W J
R3252 NRSA63J-222X MG R 2.2kØ 1/16W J
R3253 NRSA63J-101X MG R 100Ø 1/16W J
R3254 NRSA63J-563X MG R 56kØ 1/16W J
R3255 NRSA63J-223X MG R 22kØ 1/16W J
R3256 NRSA63J-681X MG R 680Ø 1/16W J
R3257 NRSA63J-102X MG R 1kØ 1/16W J
R3258 NRSA63J-182X MG R 1.8kØ 1/16W J
R3259 NRSA63J-102X MG R 1kØ 1/16W J
R3260 NRSA63J-271X MG R 270Ø 1/16W J
R3261-63 NRSA63J-101X MG R 100Ø 1/16W J
R3264 NRSA63J-222X MG R 2.2kØ 1/16W J
R3265 NRSA63J-102X MG R 1kØ 1/16W J
R3266 NRSA63J-103X MG R 10kØ 1/16W J
R3267 NRSA63J-102X MG R 1kØ 1/16W J
R3268 NRSA63J-222X MG R 2.2kØ 1/16W J
R3269 NRSA63J-102X MG R 1kØ 1/16W J
R3270 NRSA63J-103X MG R 10kØ 1/16W J
R3271 NRSA63J-102X MG R 1kØ 1/16W J
R3272 NRSA63J-222X MG R 2.2kØ 1/16W J
R3273 NRSA63J-102X MG R 1kØ 1/16W J
R3274 NRSA63J-103X MG R 10kØ 1/16W J
R3275 NRSA63J-102X MG R 1kØ 1/16W J
CAPACITOR
C3101 QETN1CM-477Z E CAP. 470µF 16V M
C3102 QFK62EK-104Z MM CAP. 0.1µF 250V K
C3107 QETM2EM-336 E CAP. 33µF 250V M
C3108 QETN2EM-226Z E CAP. 22µF 250V M
C3109 QCZ0131-472 C CAP. 4700pF 2000V K
C3110 QCZ0131-222 C CAP. 2200pF 2000V K
C3114 QCS31HJ-151Z C CAP. 150µF 50V J
C3121 QETN1HM-225Z E CAP. 2.2µF 50V M
C3123 QETN2EM-475Z E CAP. 4.7µF 250V M
C3204 NDC31HJ-561X C CAP. 560pF 50V J
C3205 QETN1HM-335Z E CAP. 3.3µF 50V M
C3206 QETN1HM-106Z E CAP. 10µF 50V M
C3208 QFLC1HJ-104Z M CAP. 0.1µF 50V J
C3209 QETN1CM-107Z E CAP. 100µF 16V M
C3210 QFLC1HJ-104Z M CAP. 0.1µF 50V J
C3211 NDC31HJ-561X C CAP. 560pF 50V J
C3212 QCB32HK-472Z C CAP. 4700pF 500V K
60 No. 51901
AV-3408TEE
FRONT CONTROL PW BOARD ASS’Y(SCH-8002A-H2)
! Symbol No. Part No. Part Name Description Local ! Symbol No. Part No. Part Name Description Local
CAPACITOR
C3213 NDC31HJ-821X C CAP. 820pF 50V J
C3214 QETN2CM-106Z E CAP. 10µF 160V M
C3215 QCB32HK-472Z C CAP. 4700pF 500V K
C3216 QETN2CM-106Z E CAP. 10µF 160V M
C3217-18 QETN1AM-107Z E CAP. 100µF 10V M
C3219 QETN1AM-337Z E CAP. 330µF 10V M
C3251 QENC1HM-105Z BP E CAP. 1µF 50V M
C3252 NDC31HJ-151X C CAP. 150pF 50V J
C3253 NDC31HJ-560X C CAP. 56pF 50V J
C3255 NCB31HK-103X C CAP. 0.01µF 50V K
C3264-66 QETN1AM-107Z E CAP. 100µF 10V M
C3267 QETN1CM-227Z E CAP. 220µF 16V M
COIL
L3121 QQL244J-5R6Z COIL 5.6µH J
L3251 QQL244K-150Z COIL 15µH K
DIODE
D3107 MA111-X SI.DIODE
D3108 MA3075/H/-X ZENER DIODE
D3109 MA3051/H/-X ZENER DIODE
D3110 MA111-X SI.DIODE
D3111 MA3051/H/-X ZENER DIODE
D3112 MA111-X SI.DIODE
D3113 MA3051/H/-X ZENER DIODE
D3114 MA111-X SI.DIODE
D3115 RGP10J-5025-T3 SI.DIODE
D3116 RGP10J-5025-T3 SI.DIODE
D3117 RGP10J-5025-T3 SI.DIODE
D3121-23 1N4003-T2 SI.DIODE
D3124 MA111-X SI.DIODE
D3125 MTZJ75-T2 ZENER DIODE
D3201-02 MA111-X SI.DIODE
D3203 RGP10J-5025-T3 SI.DIODE
D3204 RGP10J-5025-T3 SI.DIODE
TRANSISTOR
Q3101-03 2SC2412K/QR/-X SI.TRANSISTOR
Q3121 2SC4212/Z1/ SI.TRANSISTOR
Q3122 2SA1037AK/QR/-X SI.TRANSISTOR
Q3204-05 2SC1740S/QR/-T SI.TRANSISTOR
Q3206-07 2SA933AS/QR/-T SI.TRANSISTOR
Q3208 2SC1740S/QR/-T SI.TRANSISTOR
Q3209 2SA1964/DE/ SI.TRANSISTOR
Q3210 2SC5248/DE/ SI.TRANSISTOR
Q3251 2SA1037AK/QR/-X SI.TRANSISTOR
Q3252 2SC2412K/QR/-X SI.TRANSISTOR
Q3253 2SA1037AK/QR/-X SI.TRANSISTOR
Q3261-63 2SA1037AK/QR/-X SI.TRANSISTOR
Q3264-66 2SC2412K/QR/-X SI.TRANSISTOR
RESISTOR
R8482 NRSA63J-124X MG R 120kØ 1/16W J
R8483 NRSA63J-683X MG R 68kØ 1/16W J
R8484-85 NRSA63J-562X MG R 5.6kØ 1/16W J
R8486 NRSA63J-333X MG R 33kØ 1/16W J
R8487 NRSA63J-472X MG R 4.7kØ 1/16W J
R8488 NRSA63J-154X MG R 150kØ 1/16W J
R8489 NRSA63J-104X MG R 100kØ 1/16W J
R8491-92 NRSA63J-0R0X MG R 0.0Ø 1/16W J
R8495 NRSA63J-152X MG R 1.5kØ 1/16W J
R8497 NRSA63J-562X MG R 5.6kØ 1/16W J
R8499 QRE121J-561Y C R 56Ø 1/2W J
R8801 NRSA63J-332X MG R 3.3kØ 1/16W J
R8802 NRSA63J-392X MG R 3.9kØ 1/16W J
R8803 NRSA63J-682X MG R 6.8kØ 1/16W J
R8805 NRSA63J-682X MG R 6.8kØ 1/16W J
R8807 NRSA63J-181X MG R 180Ø 1/16W J
R8808 NRSA63J-221X MG R 220Ø 1/16W J
R8809 NRSA63J-331X MG R 330Ø 1/16W J
R8810 NRSA63J-471X MG R 470Ø 1/16W J
R8811 NRSA63J-821X MG R 820Ø 1/16W J
R8812 NRSA63J-122X MG R 1.2kØ 1/16W J
R8813 NRSA63J-471X MG R 470Ø 1/16W J
R8814 NRSA63J-750X MG R 75Ø 1/16W J
R8815-16 QRE121J-271Y C R 270Ø 1/2W J
R8817-18 NRSA63J-102X MG R 1kØ 1/16W J
R8819 NRSA63J-272X MG R 2.7kØ 1/16W J
R8826 NRSA63J-101X MG R 100Ø 1/16W J
R8830-31 NRSA63J-222X MG R 2.2kØ 1/16W J
!
R8901 QRZ0111-474 C R 470kØ 1/2W K
CAPACITOR
C8481-84 NCB21EK-224X C CAP. 0.22µF 25V K
C8485 QETN1EM-476Z E CAP. 47µF 25V M
C8487 QFLC1HJ-103Z E CAP. 0.01µF 50V J
C8660-61 QETM1VM-108 E CAP. 1000µF 35V M
C8801 QETN1HM-106Z E CAP. 10µF 50V M
C8802 QETN1CM-107Z E CAP. 100µF 16V M
C8803 NCB31CK-104X C CAP. 0.1µF 16V K
C8814 QETN1HM-106Z E CAP. 10µF 50V M
C8815 QETN1CM-107Z E CAP. 100µF 16V M
!
C8901 QFZ9073-224 MF CAP. 0.22µF
COIL
L8401 QQL244K-820Z COIL 82µH K
DIODE
D8601-02 MTZJ75-T2 ZENER DIODE
D8801 MA111-X SI.DIODE
D8802 P1241-04 C.D.S.
D8803 SLR-342VR-T16 L.E.D.
AV-3408TEE
IC
IC3101 TDA6107Q/N2 I.C(MONO-ANA)
OTHERS
DL3261-63 CE41925-001 DELAY LINE
!
FR3201 QRZ9021-561 FUSI.RESISTOR
K3201-04 CE41492-001Z CHOKE COIL
SG3101-03 QAF0006-501 ARRESTER
SG3104 QAF0041-272 ARRESTER
!
SK3001 CE42446-001 C.R.T.SOCKET
W3019 NRSA63J-0R0X MG R 0.0Ø 1/16W J
TRANSISTOR
Q8481 2SC2412K/QR/-X SI.TRANSISTOR
Q8801 2SA1037AK/QR/-X SI.TRANSISTOR
IC
IC8481 LA6515 I.C(MONO-ANA)
IC8801 GP1U281Q IFR DETECT UNIT
OTHERS
CM35921-005-H CDS HOLDER
CM36626-B01-H L.E.D.HOLDER
No. 51901 61
AV-3408TEE
! Symbol No. Part No. Part Name Description Local ! Symbol No. Part No. Part Name Description Local
OTHERS
!
F8901 QMF51E2-4R0J4 FUSE
FC8901 CEMG002-001Z FUSE CLIP
J8302 QNN0279-003 PIN JACK
J8303 QNN0279-002 PIN JACK
J8304 QNN0279-001 PIN JACK
J8801 QNS0155-001 JACK
!
LF8901 QQR1035-002 LINE FILTER
S8801 QSW0619-003Z PUSH SWITCH CH+
S8802 QSW0619-003Z PUSH SWITCH CHS8803 QSW0619-003Z PUSH SWITCH MENU
S8804 QSW0619-003Z PUSH SWITCH TV/VIDEO
S8805 QSW0619-003Z PUSH SWITCH VOL+
S8806 QSW0619-003Z PUSH SWITCH VOL-
!
S8901 QSW0750-001 PUSH SWITCH POWER
!
VA8901 QAF0052-621 VARISTOR
Y8401 NRSA63J-0R0X MG R 0.0Ø 1/16W J
REMOTE CONTROL UNIT PARTS LIST (RM-C355-1C)
! Ref.No. Part No. Part Name Description Local
31392340128 BATTERY COVER
62 No. 51901
PACKING
AV-3408TEE
3
3
4
!!
7
6
89
11
12
2
2
3
1
5
5
3
10
10
PACKING PARTS LIST
!
Ref.No. Part No. Part Name Description Local
1 CP30967-006-H POLY BAG
2 GG10144-001A-H P CASE
3 LC11084-002A-H CUSHION ASSY
4 RM-C355-1C RC HAND UNIT
5 GG20012-001A-H CORNER LABEL (X2)
6 CP30966-001-H POLY BAG
! 7 LCT1061-001A-H INST BOOK
8 BT-54012-2 WARRANTY CARD
! 9 LC10058-001A-H INST SHEET
10 CP30903-001 JOINT (X4)
11 LC30947-002A-H CAUTION SHEET
12 LC30946-001A-H CRT PROTECTOR
No. 51901 63
Loading...
