Page 1
DIGITAL VIDEO CAMERA
For Connectors
Video output :1 V (p-p), 75 Ω, analog
Audio output : 300 mV (rms), 1 kΩ, analog, stereo
DV Input/output : 4-pin, IEEE 1394 compliant
Headphone output : ø3.5 mm, stereo
AC Power Adapter/Charger AA-V51EN
Power requirement
U.S.A. and Canada : AC 120 V`, 60 Hz
Other countries : AC 110 V to 240 V`, 50 Hz/60 Hz
Power consumption : 23 W
Output
Charge : DC 7.2 V
, 0.77 A
VTR : DC 6.3 V
, 1.8 A
Dimensions (W x H x D) : 68 mm x 45 mm x 110 mm (2-11/16" x 1-13/16" x 4-3/8")
Weight : Approx. 254.5 g (0.57 lbs)
Docking Station
For General
Dimensions (W x H x D) : 55 mm x 36 mm x 107 mm (2-3/16" x 1-7/16" x 4-1/4")
Weight : Approx. 89.9 g (0.2 lbs)
For Connectors
S-Video : Y: 1 V (p-p), 75 Ω, analog output
C: 0.29 V (p-p), 75 Ω, analog output
Video : 1 V (p-p), 75 Ω, analog output
Audio : 300 mV (rms), 1 kΩ, analog output
JLIP/EDIT : ø3.5 mm, 4-pole, mini-head jack (compatible with RC-5325
plug)
PC : ø2.5 mm, 3-pole
External microphone input : 506 µV (rms), high impedance unbalanced with ø3.5 mm
(stereo)
PRINTER : For an optional video printer equipped with a PRINT DATA
connector
Specifications shown are for SP mode unless otherwise indicated. E & O.E. Design and specifications
subject to change without notice.
Camcorder
For General
Power supply : DC 6.3 V (Using AC Power Adapter/Charger)
DC 7.2 V
(Using battery pack)
Power consumption
LCD monitor off, viewfinder on : Approx. 4.6 W
LCD monitor on, viewfinder off : Approx. 5.5 W
Dimensions (W x H x D) : 51 mm x 125 mm x 97 mm (2-1/16" x 4-15/16" x 3-7/8")
(with the LCD monitor closed and the viewfinder pushed
back in)
Weight : Approx. 510 g (1.2 lbs)
(without cassette, MultiMediaCard and battery)
Approx. 585 g (1.3 lbs)
(incl. cassette, MultiMediaCard and battery)
Operating temperature :0°C to 40°C (32°F to 104°F)
Operating humidity : 35% to 80%
Storage temperature : –20°C to 50°C (–4°F to 122°F)
Pickup : 1/4" CCD (Progressive Scan)
Lens : F 1.8, f = 3.8 mm to 38 mm, 10:1 power zoom lens
Filter diameter : ø27 mm
LCD monitor : 2.5" diagonally measured, LCD panel/TFT active matrix
system
Viewfinder : Electronic viewfinder with 0.55" color LCD
Speaker : Monaural
For Digital Video Camera
Format : DV format (SD mode)
Signal format : NTSC standard
Recording/Playback format : Video: Digital component recording
: Audio: PCM digital recording, 32 kHz 4-channel (12-bit),
48 kHz 2-channel (16-bit)
Cassette : Mini DV cassette
Tape speed : SP: 18.8 mm/s
LP: 12.5 mm/s
Maximum recording time : SP: 80 min.
(using 80 min. cassette) LP: 120 min.
For Digital Still Camera
Storage media : MultiMediaCard
Compression system : JPEG (compatible)
File size : 2 modes (XGA: 1024 x 768 pixels/VGA: 640 x 480 pixels)
Picture quality : 2 modes (FINE/STANDARD)
Approximate number of storable images
(with the provided MultiMediaCard [8 MB], with Sound Effects pre-stored)
FINE : 46 (VGA), 21 (XGA)
STANDARD : 133 (VGA), 64 (XGA)
(with an optional MultiMediaCard [4 MB])
FINE : 26 (VGA), 12 (XGA)
STANDARD : 76 (VGA), 36 (XGA)
(with an optional MultiMediaCard [8 MB])
FINE : 54 (VGA), 24 (XGA)
STANDARD : 155 (VGA), 75 (XGA)
GR-DVM80UM/90UM
(AUDINAC KIT)
Regarding service information other than these sections, refer to the GR-DVM90U service manual (No. 86565).
Also, be sure to note important safety precautions provided in the service manual.
VICTOR COMPANY OF JAPAN, LIMITED
VIDEO DIVISION
S40894
Printed in Japan
SPECIFICATIONS
0
(The specifications shown pertain specifically to the model GR-DVM90UM)
This service manual is printed on 100% recycled paper.
COPYRIGHT
© 2000 VICTOR COMPANY OF JAPAN, LTD.
No. 86591
November 2000
Page 2
TABLE OF CONTENTS
DIFFERENT TABLE ................................................................................................................................................................ 1 to 3
4. CHARTS AND DIAGRAMS
4.1 MONITOR CIRCUIT BOARD.....................................................................................................................................4-1
5. PARTS LIST
5.1 P ACKING AND ACCESSORY ASSEMBLY <M1> ..................................................................................................... 5-1
5.2 FINAL ASSEMBL Y <M2> ...........................................................................................................................................5-3
5.3 MONITOR ASSEMBL Y <M5> ....................................................................................................................................5-6
5.4 ELECTRICAL PARTS LIST
MAIN BOARD ASSEMBLY <01> ...............................................................................................................................5-7
MMC BOARD ASSEMBLY <06> ............................................................................................................................. 5-17
AUDIO VF BOARD ASSEMBLY <08> .....................................................................................................................5-17
6. AC ADAPTER CHARGER
6.1 CABINET ASSEMBL Y <MA> .....................................................................................................................................6-1
6.2 SCHEMATIC DIAGRAM ............................................................................................................................................6-2
6.3 CIRCUIT BOARD.......................................................................................................................................................6-4
6.4 ELECTRICAL PARTS LIST........................................................................................................................................ 6-5
The following table indicate main different points between models GR-DVM90U, DVM90UM and GR-DVM80UM.
MODEL
ITEM
AC ADAPTER CHARGER AA-V51U AA-V51EN
A/V RCA CABLE Optional Provided
S CABLE,S-VIDEO CABLE Optional Provided
DOCKING STATION CU-V502U CU-V503U
STROBE Used Not used
DSC Used Not used
MULTIMEDIA CARD Used
Note: Mark
The following table indicate different parts number between models GR-DVM90U, DVM90UM and GR-DVM80UM.
PACKING AND ACCESSORY ASSEMBLY <M1> Note: As for IB (INSTRUCTION), refer to sec. 5.
REF. NO.
1 PACKING CASE LY31717-001A – –
!
5 AC ADAPTER CHARGER LY20603-001B LY20603-012A
!
6 DOCKING STATION LY20590-001A LY20590-003A
8 CD ROM * LY31133-013A LY31133-013B LY31133-015A
9 MULTIMEDIA CARD QAM0262-002 –
29 WARRANTY INF. BT-51005-4 – –
34 REGIST. CARD BT-51020-2 – –
35 SHEET (ATT.) LYT0584-007A – –
36 MINI DV TAPE Not used Used
37 A/V RCA CABLE – YQ31953A
38 S CABLE, S-VIDEO CABLE – QAM0004-004
39 CORE FILTER, X2 – QQR0918-002
is same as left.
ITEM
MODEL
GR-DVM90U GR-DVM90UM GR-DVM80UM
Not used
GR-DVM90U GR-DVM90UM GR-DVM80UM
Note: Mark – is not used. Mark
is same as left. Mark * reference model was also changed.
1
Page 3
FINAL ASSEMBLY <M2>
REF. NO.
!101 LOWER CASE ASSY LY20576-001B LY20576-003B
106 ARM ASSY * LY20601-001A LY20601-001B
114 ZOOM UNIT * LY31680-001A LY31680-001B LY31680-002B
115 MICROPHONE * LY31671-001A LY31671-001B
121 CASS.COVER ASSY LY20602-001A LY20602-003A
121A PLATE (HINGE) LY31675-001A
121B BRACKET (HINGE) LY42261-001A –
121C SHAFT (C) LY30014-009A
121E COVER (C.C) LY20599-001A LY20599-002A
123 GRIP BELT * LY31745-001A LY31745-001B
134 SUB OPE ASSY LY31684-001A
135 CAMERA OPE UNIT LY20600-001A LY20600-003A
140 SPACER (A) * LY30029-054B LY30029-0B7A
141 SHEET ––LY42406-001A
146 FRONT COVER ASSY LY20581-001D LY20581-003D
146C WINDOW(STB) LY42278-001A
147 FRONT COVER 2 * LY31761-002A LY31761-002B
151 HOOD ASSY * LY31767-001A LY31767-001B
152 HOOK * LY31691-001A LY31691-001B
168 SPECIAL SCREW * L Y30018-008A L Y30018-0B9A
176 SPECIAL SCREW LY30018-060A
197 SPECIAL SCREW, X5 LY30018-070A LY30018-049A
204 SCREW, X2 * QYSPSPT1730R QYSPSPT1735R
205 SPECIAL SCREW * L Y30018-060A L Y30018-0B7A
206 SPECIAL SCREW * L Y30018-060A L Y30018-0B7A
223 BASE (T.P.) * LY31693-001A LY31693-001B
225 BRACKET (BASE)2 * L Y42291-001A LY42291-001B
228 HEAT T APE * LY42756-001A L Y42756-001B
ITEM
MODEL
GR-DVM90U GR-DVM90UM GR-DVM80UM
–
–
–
–
–
ELECTRONIC VIEWFINDER ASSEMBLY <M4>
REF. NO.
300 VF UNIT * LY31749-001A LY31749-001C
MONITOR ASSEMBLY <M5>
REF. NO.
!500 MONITOR ASSY * LYH20164-001B LYH20164-001C LYH20164-002C
!504 MONITOR COVER ASSY LY20585-001A LY20585-003A
504C SPECIAL SCREW, X2 * QYSPSPT1720R LY30018-057A
520 SPACER(A) *
Note: Mark – is not used. Mark
2
ITEM
ITEM
MODEL
MODEL
GR-DVM90U GR-DVM90UM GR-DVM80UM
GR-DVM90U GR-DVM90UM GR-DVM80UM
–
is same as left. Mark * reference model was also changed.
LY30029-0A1A
Page 4
MAIN BOARD ASSEMBLY <01>
REF. NO.
PW MAIN BOARD ASSY * YB10284B-02 YB10284B-07 YB10284C-05
MDA BOARD ASSEMBLY <02>
REF. NO.
R4850 MG RESISTOR * NRSA6AJ-104W ––
CCD BOARD ASSEMBLY <03>
REF. NO.
WR1 E-SH C WIRE C-F * WJR0017-001A WJR0017-001C
MONITOR BOARD ASSEMBLY <04>
REF. NO.
ITEM
ITEM
ITEM
ITEM
MODEL
MODEL
MODEL
MODEL
GR-DVM90U GR-DVM90UM GR-DVM80UM
GR-DVM90U GR-DVM90UM GR-DVM80UM
GR-DVM90U GR-DVM90UM GR-DVM80UM
GR-DVM90U GR-DVM90UM GR-DVM80UM
PW MONITOR BOARD ASSY * YB10289A-01 YB10289A-04
MMC BOARD ASSEMBLY <06>
REF. NO.
PW3 MMC BOARD ASSY * YB10288A3 YB10288A3-01 YB10288B3-01
STROBE BOARD ASSEMBLY <07>
REF. NO.
PW STROBE BOARD ASSY YB10249C
AUDIO VF BOARD ASSEMBLY <08>
REF. NO.
PW1 AUDIO VF BOARD ASSY YB10285B2-02
ITEM
ITEM
ITEM
MODEL
MODEL
MODEL
GR-DVM90U GR-DVM90UM GR-DVM80UM
GR-DVM90U GR-DVM90UM GR-DVM80UM
GR-DVM90U GR-DVM90UM GR-DVM80UM
YB10285C2-02
–
Note: Mark – is not used. Mark
is same as left. Mark * reference model was also changed.
3
Page 5
SECTION 6
AC ADAPTER CHARGER (AA-V51EN)
SAFETY PRECAUTION
Parts identified by the ! symbol are critical for safety. Replace only with specified part numbers.
6.1 CABINET ASSEMBLY <MA>
1
MAIN&
TERMINAL<91>
2
11
9
3
10
5
6
7
8
4
RATING LABEL
#!REF No. PART No. PART NAME, DESCRIPTION
----------------------- ------------------------------ ----------------------------------------------------------------------------
✽✽✽✽✽✽✽✽✽✽✽✽✽✽✽✽✽✽✽✽✽✽✽✽✽✽✽✽✽✽✽✽✽✽
CABINET ASSEMBLY <MA>
! 1 PTY20603-013 UPPER CASE ASSY
! 2 PTY20483-023 LOWER CASE
! 3 PTY20483-035 POWER CORD
4 YQ10531-011 SCREW,x2
! 5 PTY20483-078 INSULATOR B
! 6 PTY20483-076 SHILED PLATE
#!REF No. PART No. PART NAME, DESCRIPTION
----------------------- ------------------------------ ----------------------------------------------------------------------------
! 7 PTY20483-077 INSULAT OR A
8 PTY20483-079 SCREW, for shield plate
9 PTY20603-055 LOCK LEVER
10 PTY20545-055 SCREW
11 PTY20603-054 TERMINAL HOLDER
6-1
Page 6

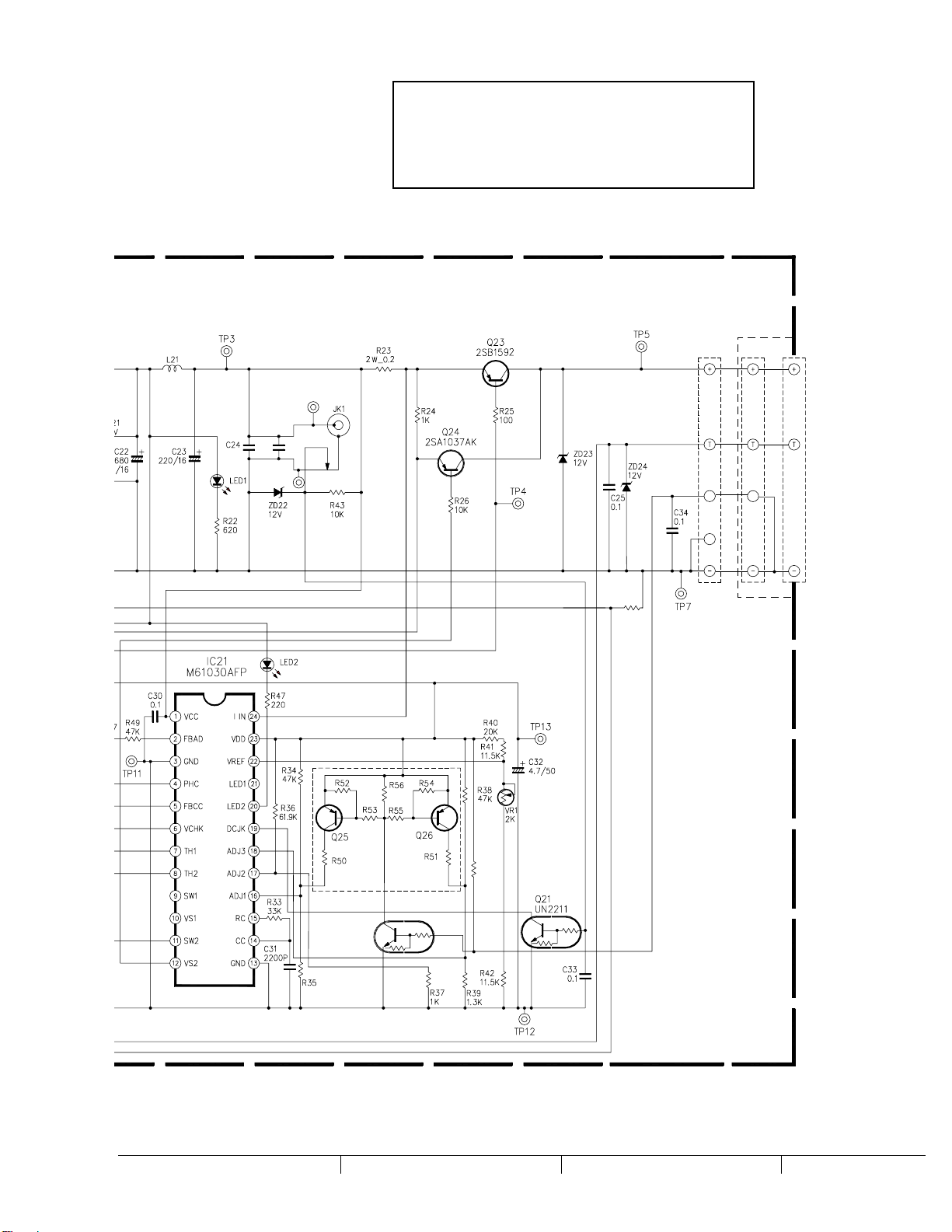

6.2 SCHEMATIC DIAGRAM
NOTE:
When ordering parts, be sure to order according to
the Part Number indicated in the Parts List.
5
MAIN & TERMINAL
CN1
4
AC110
2200P
2200P
1221304
3
PC123YS
2
C36
0.22
PC123YS
1
6-2
ABCD
Page 7
0.22
C35
0.22
TP16
TP15
Safety precautions
The components identified by the symbol
! are
critical for safety . For continued safety, replace safety
critical components only with manufacturer’s recommended parts.
CN2
SV
SV
OPEN
OPEN OPEN
OPEN OPEN
OPEN
Q27
OPEN
8.45k
OPEN
OPEN
OPEN
R60
OPEN
R57
10
TERMINAL
EFG
H
6-3
Page 8
6.3 CIRCUIT BOARD
250V
T1.0A
6-4
Page 9
6.4 ELECTRICAL PARTS LIST
#!REF No. PART No. PART NAME, DESCRIPTION
----------------------- ------------------------------ ----------------------------------------------------------------------------
✽✽✽✽✽✽✽✽✽✽✽✽✽✽✽✽✽✽✽✽✽✽✽✽✽✽✽✽✽✽✽✽✽✽
MAIN & TERMINAL BOARD ASSEMBLY <91>
! PW1 PTY20603-503 MAIN & TERMINAL BOARD ASSY
! HS1 PTY20483-071 HEAT SINK A
! HS2 PTY20591-072 HEAT SINK B
OT1 PTY10067-551 SCREW
IC21 M61030AFP CHARGE COTROL IC 24pin SOP
Q1 FS2KM18A MOS FET
Q2 2SD2227 TRANSISTER
Q3 2SD2227 TRANSISTER
Q21 UN2211TX DIG.TRANSISTER
Q22 2SA1037AK/QR/-X CHIP TRANSISTER
Q23 2SB1592 TRANSISTER
Q24 2SA1037AK/QR/-X TRANSISTER
D1 S1WBA60 B.DIODE! 600V 1A
D5 1SS244T77 DIODE 200V 6A
D6 1SS244T77 DIODE 200V 6A
D21 MA7D56 DIODE 60V 10A
ZD1 MTZJ12C-T2 ZENER DIODE 12V
ZD2 MTZJ6.2B-T2 ZENER DIODE 6.2V 500mW
ZD21 MTZJ12C-T2 ZENER DIODE 12V
ZD22 MTZJ12C-T2 ZENER DIODE 12V
ZD23 MTZJ12C-T2 ZENER DIODE 12V
ZD24 MTZJ12C-T2 ZENER DIODE 12V
ZD25 MA4047NM ZENER DIODE 4.7V 500mW
LED1 YQ10531-540 LED RED POWER
LED2 YQ10531-542 LED GREEN CHARGE
R1 QRN141J-105 RESISTOR 1MΩ 1/4W
R3 PTY10067-601 MF RESISTOR 0.62Ω 1W
R4 QRE141J-334Y RESISTOR 330kΩ 1/4W
R5 QRE141J-334Y RESISTOR 330kΩ 1/4W
R7 QRE141J-751Y RESISTOR 750Ω 1/4W
R8 NRSA02J-103X MG RESISTOR 10kΩ 1/10W
R9 NRSA02J-272X MG RESISTOR 2.7kΩ 1/10W
R10 NRSA02J-104X MG RESISTOR 100kΩ 1/10W
R11 NRSA02J-682X MG RESISTOR 6.8kΩ 1/10W
R12 QRE141J-181Y RESISTOR 180Ω 1/4W
R13 QRE141J-334Y RESISTOR 330kΩ 1/4W
R14 QRE141J-334Y RESISTOR 330kΩ 1/4W
R15 NRSA02J-182X MG RESISTOR 1.8kΩ 1/10W
R16 NRSA02J-753X MG RESISTOR 75kΩ 1/10W
R22 NRSA02J-621X MG RESISTOR 620Ω 1/10W
R23 PTY20539-605 MF RESISTOR 0.20Ω 2W
R24 NRSA02J-102X MG RESISTOR 1kΩ 1/10W
R25 NRSA02J-101X MG RESISTOR 100Ω 1/10W
R26 NRSA02J-103X MG RESISTOR 10kΩ 1/10W
R27 NRSA02J-102X MG RESISTOR 1kΩ 1/10W
R28 NRSA02J-151X MG RESISTOR 150Ω 1/10W
R29 PTY20539-601 MG RESISTOR 47.0kΩ 1/10W
R30 PTY20539-601 MG RESISTOR 47.0kΩ 1/10W
R31 PTY20292-227 MG RESISTOR 10.0kΩ 1/10W
R32 NRSA02J-103X MG RESISTOR 10kΩ 1/10W
R33 NRSA02J-333X MG RESISTOR 33kΩ 1/10W
R34 PTY20539-601 MG RESISTOR 47.0kΩ 1/10W
R35 NRSA02F-8451X MG RESISTOR 8.45kΩ 1/10W
R36 NRSA02F-6192X MG RESISTOR 61.9kΩ 1/10W
R37 PTY20539-603 MG RESISTOR 1.0kΩ 1/10W
R38 PTY20539-601 MG RESISTOR 47.0kΩ 1/10W
R39 PTY20539-604 MG RESISTOR 1.3kΩ 1/10W
R40 PTY20450-200 MG RESISTOR 20.0kΩ 1/4W
R41 NRSA02F-1152X MG RESISTOR 11.5kΩ 1/10W
R42 NRSA02F-1152X MG RESISTOR 11.5kΩ 1/10W
#!REF No. PART No. PART NAME, DESCRIPTION
----------------------- ------------------------------ ----------------------------------------------------------------------------
R43 QRE141J-103Y MF RESISTOR 10kΩ 1/4W
R45 NRSA02J-222X MG RESISTOR 2.2kΩ 1/10W
R46 NRSA02J-472X MG RESISTOR 4.7kΩ 1/10W
R47 NRSA02J-221X MG RESISTOR 220Ω 1/10W
R48 NRSA02J-102X MG RESISTOR 1kΩ 1/10W
R49 NRSA02J-473X MG RESISTOR 47kΩ 1/10W
R57 NRSA02J-100X MG RESISTOR 10Ω 1/10W
! C1 QFZ9072-104 CAPACITOR 0.1µF 275V
C2 YQ10626-402 E CAPACITOR 47µF 400V
C3 PTY10067-651 CAPACITOR 1500pF 250V
C4 NCB21CK-224X CAPACITOR 0.22µF 16V
C5 PTY10067-653 CAPACITOR 0.01µF 50V
C6 NCB31HK-391X CAPACITOR 390pF 50V
! C7 PTY20538-611 CAPACITOR 2200pF 250V
! C8 PTY20538-611 CAPACITOR 2200pF 250V
C9 NDC31HJ-680X CAPACITOR 68pF 50V
C10 NDC31HJ-151X CAPACITOR 150pF 50V
C11 NDC31HJ-151X CAPACITOR 150pF 50V
C21 PTY10067-657 CAPACITOR 0.01µF 250V
C22 PTY20292-321 E CAPACITOR 680µF 16V
C23 QETL1CM-227 E CAPACITOR 220µF 16V
C24 PTY20603-601 CAPACITOR 0.22µF 10V
C25 NCF31EZ-104X CAPACITOR 0.1µF 25V
C26 PTY20603-601 CAPACITOR 0.22µF 10V
C27 NCB31CK-473X CAPACITOR 0.047µF 16V
C28 NCB31CK-473X CAPACITOR 0.047µF 16V
C29 NCB31CK-104X CAPACITOR 0.1µF 16V
C30 NCF31EZ-104X CAPACITOR 0.1µF 25V
C31 NCB31HK-222X CAPACITOR 0.0022µF 50V
C32 QEHA1HM-475 E CAPACITOR 4.7µF 50V
C33 NCF31EZ-104X CAPACITOR 0.1µF 25V
C34 NCF31EZ-104X CAPACITOR 0.1µF 25V
C35 QFLA1HJ-224 F CAPACITOR 0.22µF 50V
C36 NCB21CK-224X CAPACITOR 0.22µF 16V
! T1 PTY20538-801 SW TRANS
VR1 PTY20483-101 VOLUME 2kΩ
! F1 PTY20450-041 FUSE 1A 250V
JK1 YQ21032-301 DC JACK
! L1 PTY20450-401 LINE FILTER
L12 PTY10067-702 BEAD INDUCTOR
L21 PTY10067-703 COIL
! PHC1 PC123YS PHOTO COUPLER
TB1 PTY20603-053 TERMINAL, x3
WR1 PTY20603-052 FLAT CABLE, (4P)
CN1 PTY20603-056 CONNECTOR
6-5
Loading...
