COLOUR TELEVISION
INSTRUCTIONS
Thank you for buying this JVC colour
television.
To make sure you understand how to
use your new TV, please read this
manual thoroughly before you begin.
AV-16N311
AV-21V311
AV-21V331
AV-21W311
AV-21Y311
AV-25V311
AV-25V331
AV-29V311
AV-29V331
Contents
Safety precautions
Preparation 3
1 Confirm which remote control you have..3
2 Insert the batteries into the remote control..3
3 Connecting the aerial and VCR
4 Connecting other devices
5 Connect the power cord to the AC outlet
6 SETUP TOUR
..............................................
Basic operation 7
Remote control buttons and functions 8
MUTING button
BASS button
PICTURE BOOSTER button
COLOUR SYSTEM button
SOUND SYSTEM button
CINEMA SURROUND button
DISPLAY button
ECO SENSOR button
PICTURE MODE button
OFF TIMER button
RETURN + button
CHANNEL SCAN button
FAVORITE CH button
.............................................
..................................................
.............................................
.....................................
...............................
.......................................
........................................
..............................
...................................

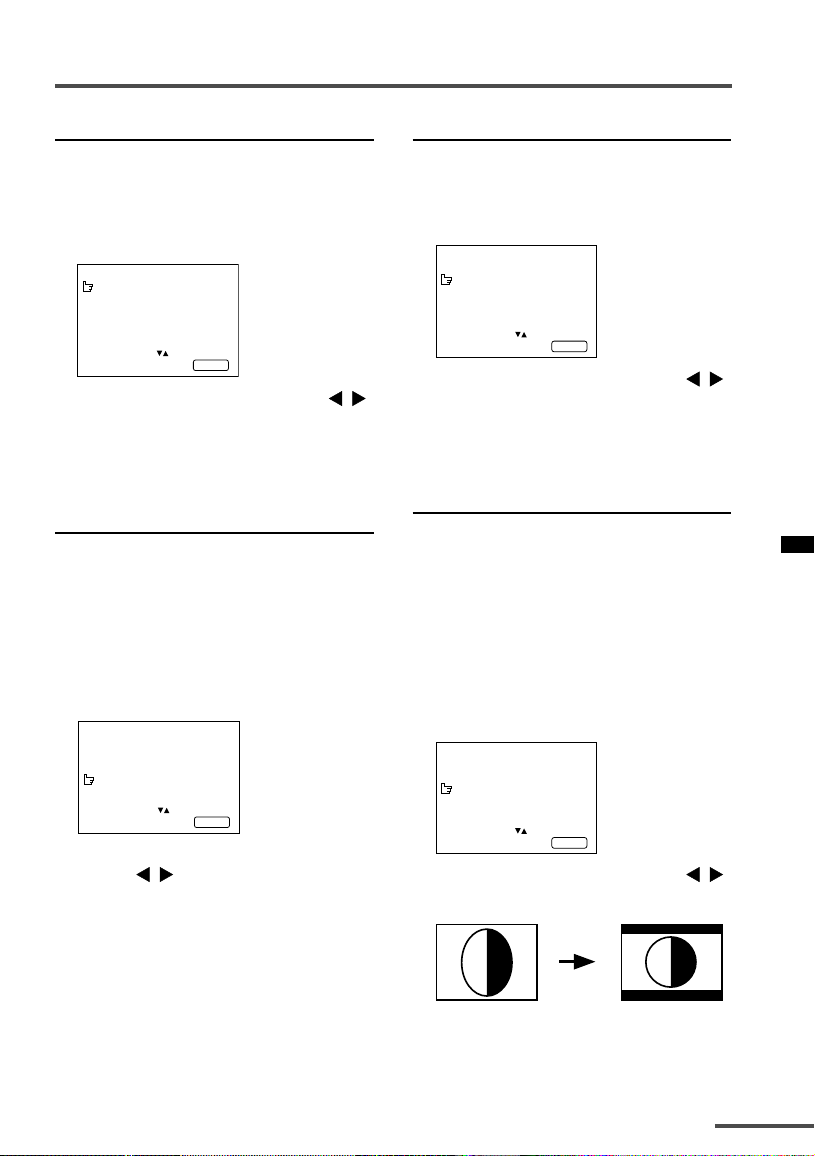

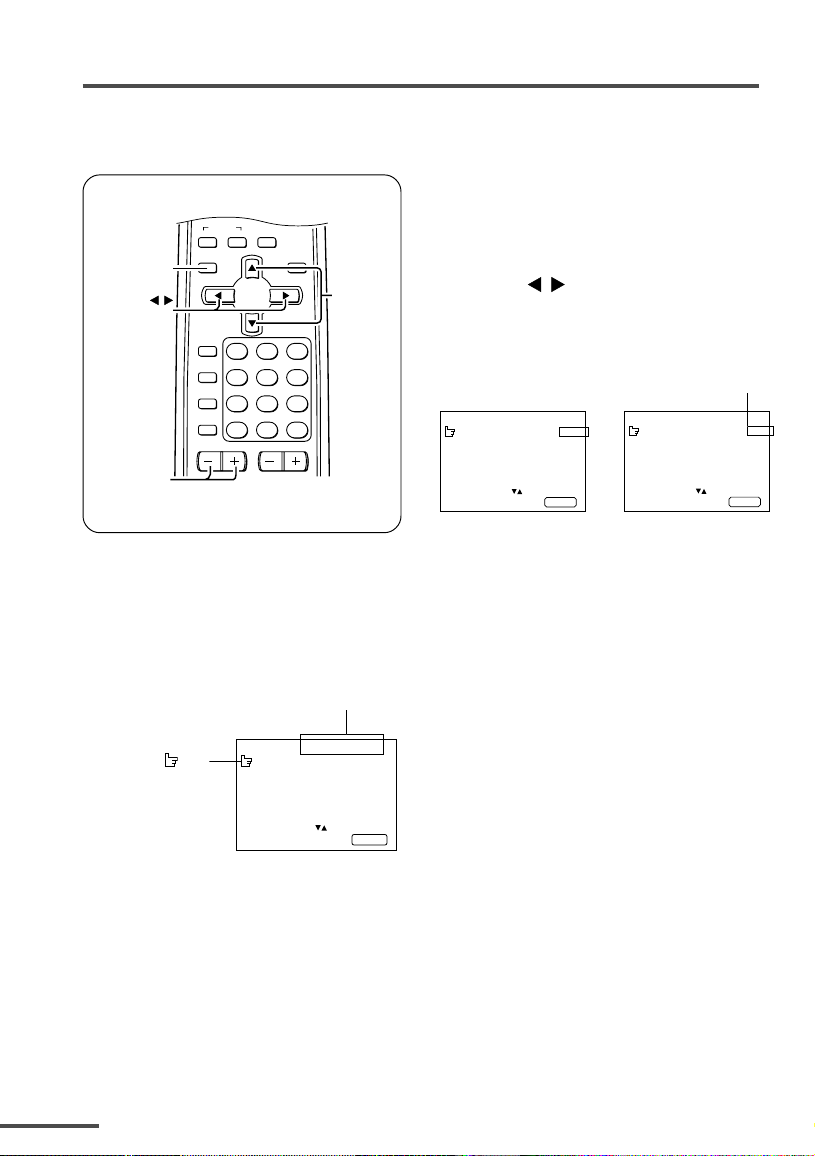

Using the TV’s menus 12
Basic operation
...........................................................
INPUT
PICTURE TILT
...............................................................
VNR
COMPRESS (16:9)
AUTO SHUTOFF
CHILD LOCK
BLUE BACK
VIDEO-2 SET
AUTO CH PRESET
SETUP TOUR
LANGUAGE
MANUAL CH PRESET
..............................................................
SKIP
SUPER BASS

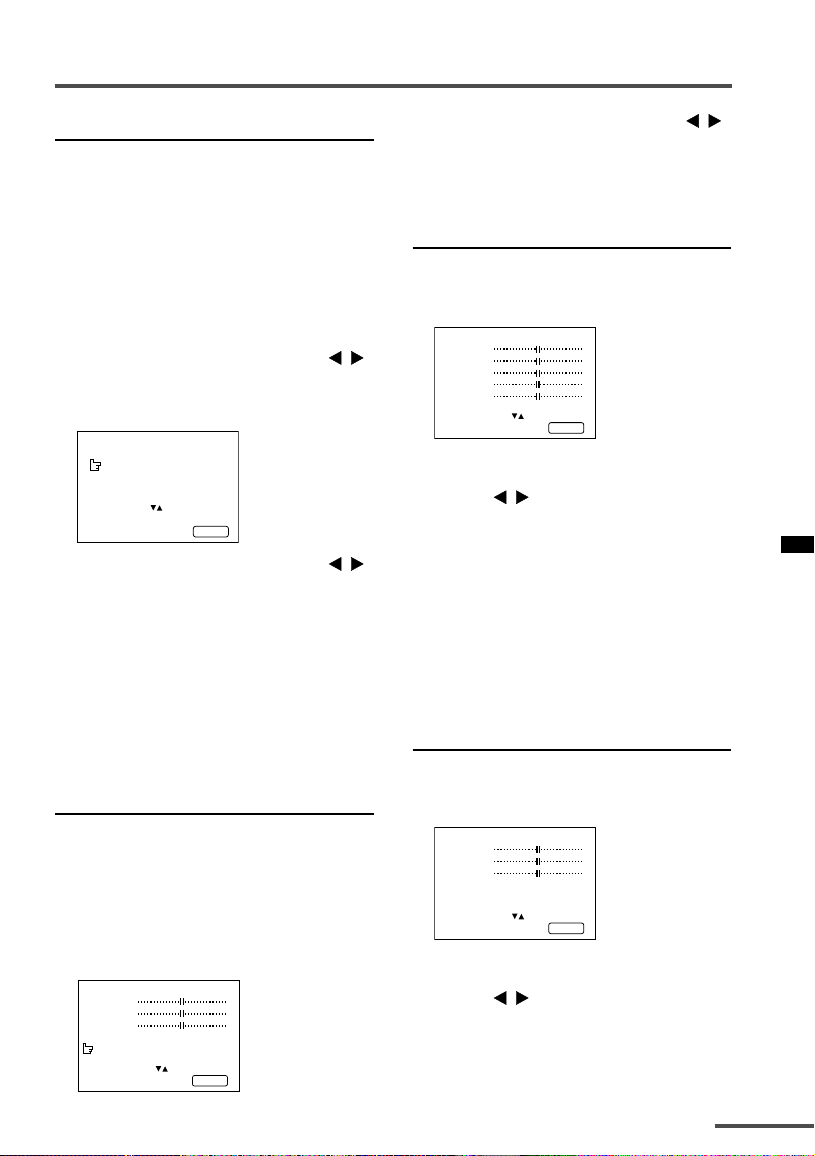

Picture Adjustments
Sound Adjustments
AI VOLUME
FAVORITE CH SETTING
VIDEO SETTING
AI ECO SENSOR
AI ECO DISPLAY
............................................
...............................................
........................................
..........................................
.................................................
..................................................
................................................
.......................................
...............................................
..................................................
..................................
................................................
....................................
.....................................
..................................................
...............................
...........................................
..........................................
..........................................
Attaching the Twin Port Bass Blaster Unit 20

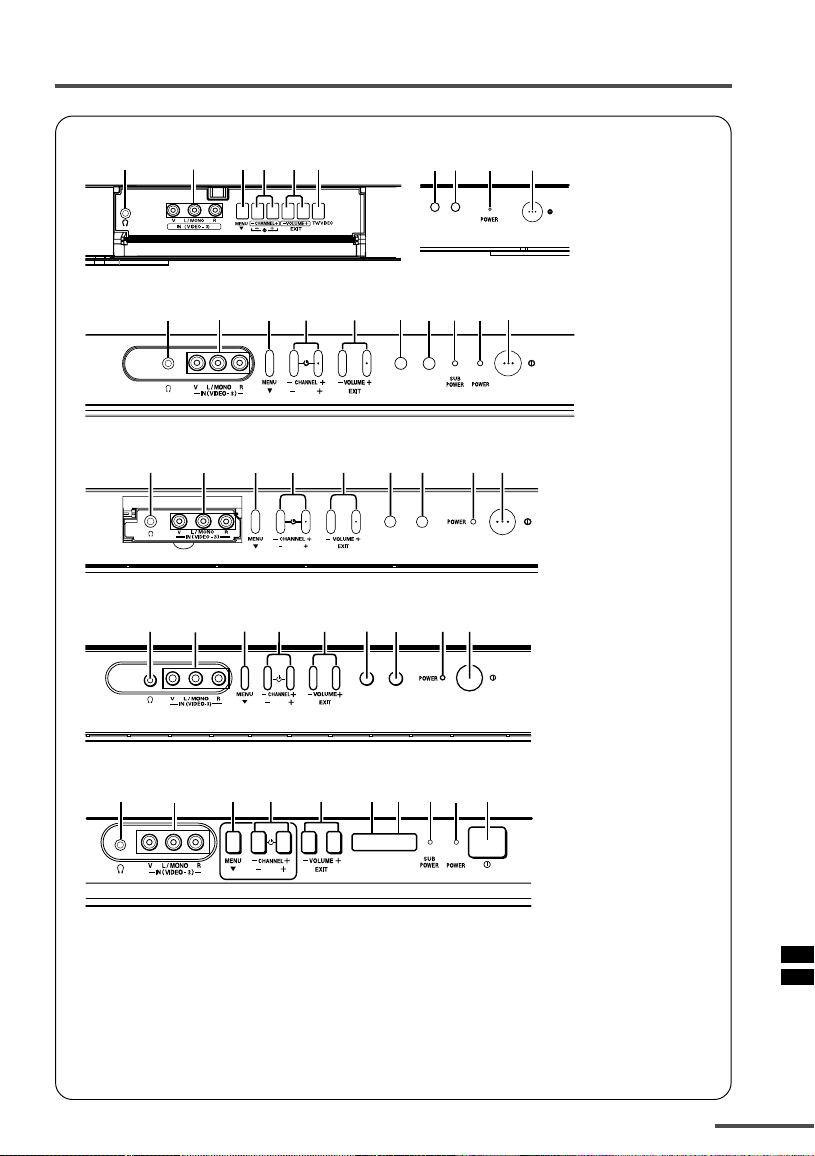

TV buttons and parts 21
Using the buttons on the TV 22
Troubleshooting 23
Specifications 24
..................
..........................
......
...........................
.............................
...............................
........................
10
10
10
11
11
12
13
13
13
13
14
14
14
14
15
15
15
16
17
17
17
17
18
18
19
19
19
2
4
5
5
6
8
8
8
8
8
9
9
9
GGT0016-001A-E
0803-NIC-JMT
© 2003 VICTOR COMPANY OF JAPAN, LIMITED
Safety precautions
WARNING
TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS
APPLIANCE TO RAIN OR MOISTURE.
CAUTION
TO ENSURE PERSONAL SAFETY, OBSERVE THE FOLLOWING RULES REGARDING
THE USE OF THIS TV.
• Operate only from the power source specified on the TV.
•Avoid damaging the power cord and main plug. When you unplug the TV, pull it out
by the main plug. Do not pull on the power cord.
•Never block or cover the cabinet opening
for ventilation. Never install the TV where
good ventilation is unattainable. When
installing this TV, leave spaces for
ventilation around the TV more than the
minimum distances shown in the diagram.
• Do not allow objects or liquid into the
cabinet openings.
• In the event of a fault, unplug the TV and bring to JVC service centre. Do not attempt
to repair it by yourself or remove the rear cover.
• The surface of the TV screen is easily damaged. Be very careful with it when
handling the TV. Should the TV screen become soiled, wipe it with a soft dry cloth.
Never rub it forcefully. Never use any cleaner or detergent on it.
•When you don’t use this TV for a long period of time, be sure to disconnect the
power plug from the AC outlet.
• The apparatus shall not be exposed to dripping or splashing and that no objects filled
with liquids, such as vases, shall be placed on the apparatus.
10 cm
15 cm
15 cm10 cm
WARNING
<AV-21W311 only>
A removable plastic cover is fixed to the television’s front Audio/Video connector. To
prevent this cover from being accidentally swallowed by babies or children, remove it
from the television and store it in a safe place. If the cover is swallowed seek the
advice of a doctor immediately.
<AV -21V331/AV-25V331/AV-29V331>
The Twin Port Bass Blaster Unit is packaged together with the TV.
Before you use the TV, mount the Twin Port Bass Blaster Unit correctly on the TV.
2
Preparation
1 Confirm which remote control you have
Your TV comes with one of the three remote controls shown below. Functions you
can operate differ depending on the type of remote control.
RM-C1306
RM-C1308 RM-C1313
For TV model: For TV model: For TV model:
AV-21V311 AV-21V331 AV-16N311
AV-21W311 AV-25V331 AV-21Y311
AV-25V311 AV-29V331
AV-29V311
MUTING
SYSTEM
COLOUR SOUND
DISPLAY
TV/VIDEO
OFF
TIMER
MODE
CHANNEL
SCAN
CHANNEL
POWER
CINEMA
SURROUND
ECO
SENSOR
MENU
123
456
789
+
RETURN
0-/
VOLUME
FAVORITE CH
RM-C1306
TV
MUTING BASS
SYSTEM
MENU
123
OFF
456
789
RETURN
CHANNEL
FAVORITE CH
RM-C1308
CINEMA
SURROUND
+
0-/
TV
VOLUME
COLOUR SOUND
DISPLAY
TV/VIDEO
TIMER
MODE
CHANNEL
--
SCAN
POWER
ECO
SENSOR
--
MUTING
SYSTEM
COLOUR SOUND
DISPLAY
TV/VIDEO
OFF
TIMER
MODE
CHANNEL
RETURN
SCAN
CHANNEL
POWER
BOOSTER
ECO
SENSOR
MENU
123
456
789
+
--
0-/
VOLUME
FAVORITE CH
RM-C1313
TV
2 Insert the batteries into the remote control
Correctly insert two batteries, observing the , and
polarities and inserting the . end first.
CAUTION:
Follow the cautions printed on the batteries.
Notes:
• Use AA/R6/UM-3 dry cell batteries.
• If the remote control does not work properly, fit new
batteries.
The supplied batteries are for testing, not regular use.
.
3
Preparation
3 Connecting the aerial and VCR
•Read the manuals provided with the devices. Depending on the device, the connection
method may be different from the diagrams. Also the device settings may need to change
depending on the connection method.
•Turn off all the devices including the TV.
• Connecting cables are not supplied.
• When connecting monaural audio to the TV, use the L/MONO jack.
• The AV-21Y311 and AV-16N311 are supplied with rod aerial but without matching aerial
adapters.
•You can connect an S-VIDEO compatible device (such as an S-VHS VCR) to the S-connector
with an S-VIDEO cable and enjoy the high quality picture of the S-VIDEO signal (Y/C
signal). In that case, do not connect it to the TV with a video cable.
• If you connect the VCR to the TV only with an aerial cable, you should preset the video
channel from the VCR to the AV channel (channel number 0) on this TV. See “MANUAL CH
PRESET” on page 16 and preset it manually.
Connecting the aerial
To install rod aerial:
Install into the top-rear aerial holder. Once installed, it cannot be removed.
VHF/UHF outdoor aerial
Matching
aerial
adapter
(supplied)
COMPONENT
VIDEO-1
(
)
VIDEO-2
OUTPUT
INPUT
INPUT
S
OVER
V
V
Y
/
V
L
L
L
C
B
/
/
MONO
MONO
R
R
R
C
R
• Illustration of AV-21Y311
Connecting the aerial and VCR
COMPONENT
VIDEO-1
(
VIDEO-2
INPUT
INPUT
S
OVER
V
Y
/
L
/
MONO
RRRC
V
C
B
R
To video
output
3
To audio
output
To RF
output
Rod aerial
)
L
/
MONO
(1)
Indoor aerial
(2)
(3)
VHF/UHF outdoor aerial
OUTPUT
V
L
2
To S-video
output
VCR
To aerial input
1
4
Preparation
4 Connecting other devices
If you are not connecting any other devices, skip step 4 and perform step 5.
• Use the headphones with a stereo mini jack (3.5 mm in diameter). When you connect the
headphones, the TV speakers go off.
• The OUTPUT terminal outputs the video and sound signals which you are viewing on the
TV. You can dub them onto the VCR connected to the OUTPUT terminal.
(The OUTPUT terminal cannot output S-VIDEO signals or component video signals. Also it
cannot output any signals when the TV is turned off.)
• Connect components outputting a component signal (Y/CB/CR signal), such as a DVD player,
to the VIDEO-2 terminal, and set VIDEO-2 SET function to “COMPONENT”. (See page 14.)
• The following illustrations are for the AV-21V311/AV-21V331/AV-25V311/AV-25V331. Your
TV’s front and rear panels may not look exactly like the illustrations.
Front
Headphones
Rear
VIDEO-1
INPUT
S
OVER
V
L
/
MONO
RRR
COMPONENT
(
VIDEO-2
INPUT
Y
/
V
V
C
B
L
/
R
)
MONO
OUTPUT
V
L
RC
Camcorder or TV game
VCR (for playing)
DVD player
(composite signals)
VCR (for recording)
DVD player
(component video signals)
5 Connect the power cord to the AC outlet
Operate only from the power source indicated on the rear of the TV.
5
Preparation
6 SETUP TOUR
When the TV is first turned on, it enters the SETUP TOUR mode, and the JVC logo
is displayed. Follow the instructions on the on-screen display to perform the SETUP
TOUR.
• In case of resetting that the reason for such as removal, you can set the AUTO CH PRESET
function on the “MENU 3” menu. For details, see page 15.
1 Press the Main power button
on the TV.
The POWER lamp lights. After the
JVC logo has been displayed, the
TV automatically switches to the
language setting mode.
SETUP TOUR
2 Press the CHANNEL –/+ or
/
the MENU
buttons to
select the on-screen
language.
SETUP TOUR
LANGUAGE
ENGLISH
NEXT
OPERATE BY -+
EXIT BY
DIS PLAY
DISPLAY
button
MENU
buttons
CHANNEL –/+
buttons
/
POWER lamp
SYSTEM
COLOUR SOUND
DISPLAY
TV/VIDEO
OFF
TIMER
MODE
CHANNEL
SCAN
CHANNEL
Main power button
CINEMA
SURROUND
ECO
SENSOR
MENU
123
456
789
RETURN+
0-/
VOLUME
MENU t
--
buttons
3 The AUTO PROGRAMMING
function will start and the
indicator blinks.
SETUP TOUR
NOW PROGRAMMING
STOP BY
-+
•To stop the AUTO PROGRAMMING
function, press the CHANNEL m or
/
the MENU
buttons.
When all the TV channels that can
be received on your TV have been
preset, the display goes out and
the AUTO PROGRAMMING
function operation is completed.
6
• If a TV channel you want to view is
not set to the channel, set it with the
MANUAL CH PRESET function.
For details, see page 16.
4 Upon the completion of
AUTO PROGRAMMING
function, the message below
is displayed.
SETUP TOUR
THANK YOU!
Basic operation
The illustration below is for the remote
control RM-C1308. Your remote control
may not look exactly like the
illustration.
SURROUND
MENU
+
CINEMA
0-/
VOLUME
POWER
ECO
SENSOR
--
MUTING BASS
SYSTEM
COLOUR SOUND
DISPLAY
TV/VIDEO
123
OFF
TIMER
456
MODE
789
CHANNEL
RETURN
SCAN
CHANNEL
FAVORITE CH
RM-C1308
TV
1 Press the POWER button to
turn your TV on.
• If your TV does not turn on, press the
Main power button on the TV, then
press the POWER button again.
•You can also turn on your TV by
pressing any of the following buttons;
- the CHANNEL
m button
- the Number buttons
- the TV/VIDEO button
2 Select a channel.
■ Press the CHANNEL m button.
• Up/down selection cannot be selected
for channels to which the SKIP has
been set to “YES”.
See page 17.
■ Press the Number buttons to enter
the channel number.
• If you want to enter a two-digit
number, press the -/-- button to select
the two digit mode “--”, then enter the
channel number.
3 Press the VOLUME –/+ button
to adjust the sound.
4To turn your TV off, press the
POWER button.
•We recommend that you press the Main
power button on the TV to turn the
main power off if you do not plan to use
your TV for a long time or if you wish
to save energy.
If the picture is not clear:
Press the COLOUR SYSTEM button
to select another colour system,
see page 8.
If the sound is not clear:
Press the SOUND SYSTEM button to
select another sound system, see page 8.
Viewing Images from an External
Device:
Press the TV/VIDEO button to select the
VIDEO mode.
•You can also use the INPUT function to
select the VIDEO mode. For details, refer to
page 13.
7
Remote control buttons and functions
MUTING button
You can turn the sound off instantly.
Press this button.
To turn the sound on, press this button
again.
BASS button
<
AV -21V331/AV-25V331/AV-29V331 only
>
You can enjoy a powerful bass sound by
using the BASS (Bass Reflex) function.
Press this button to turn the BASS
function on or off.
• To use this function, you must first mount
the Twin Port Bass Blaster Unit packaged
with the TV on top of the TV. For details,
see page 20.
PICTURE BOOSTER button
<AV -16N311/AV-21Y311 only>
When the picture is unclear because the
reception level of the TV signal is low,
activating the Picture Booster improves
the picture clarity in some situations.
Repeatedly press the PICTURE BOOSTER
button to select the desired mode.
HIGH:
The Picture Booster is functioning at
maximum.
LOW:
The Picture Booster is functioning at
minimum.
OFF:
The Picture Booster is off.
• If the picture becomes abnormal when you
set the Picture Booster to HIGH, then set it
to LOW or OFF.
COLOUR SYSTEM button
If the picture is not clear or no colour
appears, change the current colour
system to another colour system.
Press this button to select the colour
system.
AUTO PAL
NTSC4.43
SECAM
NTSC3.58
AUTO:
Automatic colour system selection.
•For the colour systems in each country or
region, see the table “Broadcasting systems”
on Back cover.
• If the picture is not normal in the AUTO
mode, change the AUTO mode to another
colour system.
SOUND SYSTEM button
If the sound is not clear even when the
picture appears normal, change the
current sound system to another sound
system.
Press this button to select the sound
system.
B/G MD/K
•For the sound systems in each country or
region, see the table “Broadcasting
systems” on Back cover.
•You cannot select any sound system when
in a VIDEO mode.
8
Remote control buttons and functions
CINEMA SURROUND button
<AV -21V311/AV-21V331/AV-21W311/
AV -25V311/AV-25V331/AV-29V311/
AV -29V331 only>
You can enjoy an enhanced sound for a
wider audience by using CINEMA
SURROUND function.
Press this button to select one of the
CINEMA SURROUND mode.
HIGH/LOW:
When you listen to the stereo sound,
please select HIGH mode or LOW mode.
You can enjoy the sound for a wider
audience similar to the experience at the
theatre.
• In case that you setting up the CINEMA
SURROUND function to HIGH mode, there
may be slight volume distortion. In case that
occurs, please switch the HIGH mode to
LOW mode, the effect of CINEMA
SURROUND functions will be less
noticeable, however, the volume distortion
will be corrected.
MONO SURROUND:
Select the MONO SURROUND mode,
when you listen to the mono sound.
You can enjoy the sound for a wider
audience similar to stereo sound.
OFF:
The CINEMA SURROUND function
swiches off.
ECO SENSOR button
You can adjust this TV so that the screen
automatically adjusts to the optimum
contrast according to the brightness of
your room. This function reduces eye
strain and the power consumption of
this TV.
Press this button to select the desired
mode.
AI ECO SENSOR 1:
The AI ECO SENSOR function switches
on.
Usually, it is recommended to watch the
TV in this mode.
AI ECO SENSOR 2:
The AI ECO SENSOR function switches
on.
If you feel the screen in the “AI ECO
SENSOR 1” mode is too dark, select this
mode.
AI ECO SENSOR OFF:
The AI ECO SENSOR function switches
off.
• You can display on the screen the effect of
the AI ECO SENSOR function.
For details, see “AI ECO DISPLAY” on
page 19.
DISPLAY button
You can continuously display the current
channel number or VIDEO mode on the
screen.
Press this button.
To turn the display off, press this button
again.
• When selecting a VIDEO mode with no
signal, indication of the VIDEO mode
becomes fixed on the screen.
9
Remote control buttons and functions
PICTURE MODE button
You can select one of three picture
adjustment settings as you like.
Press this button to select a mode.
BRIGHT:
Heightens contrast and sharpness.
STANDARD:
Standardizes picture adjustments.
SOFT:
Softens contrast and sharpness.
•Pressing this button returns all the picture
settings in “MENU 4” to their default
settings.
OFF TIMER button
You can set the TV to automatically turn
off after a set time.
Press this button to select the period
of time.
•You can set the period of time to a
maximum of 120 minutes in 10 miniute
increments.
•1 minute before the OFF TIMER function
turns off the TV, “GOOD NIGHT!” appears.
To display the remaining time, press this
button once.
To cancel the OFF TIMER function,
press this button to set the period of
time to “0”.
• The OFF TIMER function will not turn off
the TV’s main power.
RETURN + button
You can set a channel you frequently
view to the Return Channel and you can
view that channel at any time with onetouch.
To set the channel to the Return
Channel:
1 Select the channel you want to set
to the Return Channel.
2 Press this button and hold until the
message “RETURN PLUS
PROGRAMMED!” appears.
• When you turn off the TV, the Return
Channel setting is canceled.
To view the Return Channel:
Press this button.
•You can view two channels (current channel
and Return Channel) alternately by pressing
this button.
To cancel the Return Channel setting:
Press this button and hold until the
message “RETURN PLUS CANCELED!”
appears.
If no channel is set to the Return
Channel:
You can view the channel selected right
before the current channel by pressing
this button.
10
Remote control buttons and functions
CHANNEL SCAN button
You can quickly view all TV channels
programmes that you can view on your
TV, and search for the programme you
want to view.
1 Press this button to start scanning
TV channels.
The TV channel programmes are each
displayed for several seconds.
• The programmes of TV channels for
which the SKIP function is set to “YES”
are not displayed.
2When you find the programme you
want to view, press this button
again to stop scanning.
FAVORITE CH button
You can correlate 4 channels out of 99
channels (PR01-PR99) with FAVORITE
CH buttons RED, GREEN, YELLOW and
BLUE.
Press one of the FAVORITE CH buttons
for more than 3 seconds to correlate
currently watching channel. After the
channel and button are correlated, you
can directly select favorite channel by
the correlated button.
• When MENU is displayed, FAVORITE CH
cannot be correlated.
• Correlation of FAVORITE CH button and the
channel cannot be reset eventhough the
main power is turned off.
11
Using the TV’s menus
This TV has a number of functions you can operate using the menus. To use all your
TV’s functions fully, you need to understand how to use the menus.
3 Repeatedly press the
SYSTEM
123
OFF
TIMER
456
MODE
789
RETURN+
SCAN
CHANNEL
SURROUND
MENU
CINEMA
0-/
VOLUME
ECO
SENSOR
--
MENU t
buttons
DISPLAY
button
MENU
buttons
CHANNEL –/+
buttons
COLOUR SOUND
DISPLAY
/
TV/VIDEO
CHANNEL
3 Basic operation
1 Press the MENU T buttons.
One of the 6 menus is displayed.
MENU number
MENU T buttons to select
a desired function.
4 Press the CHANNEL –/+ or the
MENU
buttons to change
/
function settings.
Example:
Changes the AUTO
SHUTOFF setting.
MENU 2
AUTO SHUTOFF OFF
CHILD LOCK OFF
BLUE BACK ON
VIDEO-2 SET COMPONENT
SELECT BY EXIT BY
OPERATE BY -+
DISPLAY
• With some functions, the operation
method may differ.
MENU 2
AUTO SHUTOFF ON
CHILD LOCK OFF
BLUE BACK ON
⇔
VIDEO-2 SET COMPONENT
SELECT BY EXIT BY
OPERATE BY -+
5 Press the DISPLAY button to
turn the display off.
•To operate a menu using the buttons on
the front panel of the TV, refer to
“Operating menus” on page 22.
DISPLAY
The icon
on
the left indicates
the currently
selected function.
MENU 1
INPUT TV
VNR ON
COMPRESS(16:9) ON
PICTURE TILT 00
SELECT BY EXIT BY
OPERATE BY -+
2 Repeatedly press the
MENU T buttons to display
a desired menu.
• If you hold down the y button, the next
menu is displayed.
• If the selected function is on the first
line, pressing the r button displays the
preceding menu.
12
DISPLAY
Using the TV’s menus
INPUT
You can view images from VCRs or other
devices connected to your TV.
1 Press MENU T to display the
“MENU 1” menu, then select
“INPUT”.
MENU 1
INPUT TV
VNR ON
COMPRESS(16:9) ON
PICTURE TILT 00
SELECT BY EXIT BY
OPERATE BY -+
2 Press CHANNEL –/+ or MENU
DISPLAY
/
to select “VIDEO-1”, “VIDEO-2” or
“VIDEO-3”.
TV mode changes to VIDEO mode.
PICTURE TILT
<AV -29V311/AV-29V331 only>
There are cases where the Earth’s
magnetic force may make the picture tilt.
If this happens, you can correct the
picture tilt.
1 Press MENU T to display the
“MENU 1” menu, then select
“PICTURE TILT”.
MENU 1
INPUT TV
VNR ON
COMPRESS(16:9) ON
PICTURE TILT 00
SELECT BY EXIT BY
OPERATE BY -+
2 Continue pressing CHANNEL –/+ or
MENU
becomes level.
DIS PLAY
until the picture
/
VNR
You can reduce picture noise.
1 Press MENU T to display the
“MENU 1” menu, then select
“VNR”.
MENU 1
INPUT TV
VNR ON
COMPRESS(16:9) ON
PICTURE TILT 00
SELECT BY EXIT BY
OPERATE BY -+
2 Press CHANNEL –/+ or MENU
DISPLAY
/
to select “ON”.
To cancel the VNR function, select
“OFF”.
COMPRESS (16:9)
This function converts a normal picture
(4:3 aspect ratio) into a wide picture
(16:9 aspect ratio).
Use for pictures with a 16:9 aspect ratio
that have been squeezed into a normal
picture (4:3 aspect ratio), to restore their
original dimensions.
1 Press MENU T to display the
“MENU 1” menu, then select
“COMPRESS (16:9)”.
MENU 1
INPUT TV
VNR ON
COMPRESS(16:9) ON
PICTURE TILT 00
SELECT BY EXIT BY
OPERATE BY -+
2 Press CHANNEL –/+ or MENU
to select “ON”.
DISPLAY
/
To cancel the COMPRESS (16:9)
function, select “OFF”.
13
Using the TV’s menus
AUTO SHUTOFF
You can set your TV to turn off if no
signals are received for about 15 minutes
or longer after the end of a broadcast.
1 Press MENU T to display the
“MENU 2” menu, then select
“AUTO SHUTOFF”.
MENU 2
AUTO SHUTOFF ON
CHILD LOCK ON
BLUE BACK ON
VIDEO-2 SET COMPONENT
SELECT BY EXIT BY
OPERATE BY -+
DISPLAY
2 Press CHANNEL –/+ or MENU
to select “ON”.
To cancel the AUTO SHUTOFF
function, select “OFF”.
• The AUTO SHUTOFF function does not
turn off the TV’s main power.
• The AUTO SHUTOFF will not work for a
VIDEO mode.
CHILD LOCK
You can disable the front control buttons
of the TV.
When this function is set to “ON”, the
TV can be operated using only the
remote control.
Use this function to prevent children
from operating the TV without parental
consent.
1 Press MENU T to display the
“MENU 2” menu, then select
“CHILD LOCK”.
MENU 2
AUTO SHUTOFF ON
CHILD LOCK ON
BLUE BACK ON
VIDEO-2 SET COMPONENT
SELECT BY EXIT BY
OPERATE BY -+
DISPLAY
2 Press CHANNEL –/+ or MENU
to select “ON”.
To cancel the CHILD LOCK function,
select “OFF”.
• The CHILD LOCK function is canceled
when you turn the power off.
14
BLUE BACK
If no signal is being received or the signal
is very weak, a blue screen automatically
becomes the picture background.
If you wish to continue viewing the poor
picture, you must set the BLUE BACK
function to “OFF”.
1 Press MENU T to display the
“MENU 2” menu, then select
“BLUE BACK”.
MENU 2
AUTO SHUTOFF ON
CHILD LOCK ON
BLUE BACK ON
VIDEO-2 SET COMPONENT
/
SELECT BY EXIT BY
OPERATE BY -+
DISPLAY
2 Press CHANNEL –/+ or MENU
/
to select “ON”.
To cancel the BLUE BACK function,
select “OFF”.
VIDEO-2 SET
Set the VIDEO-2 SET correctly according
to the video signal input from the external
device connected to the VIDEO-2 terminal.
If this setting is incorrect, images will not
be displayed.
1 Press MENU T to display the
“MENU 2” menu, then select
“VIDEO-2 SET”.
MENU 2
AUTO SHUTOFF ON
CHILD LOCK ON
BLUE BACK ON
VIDEO-2 SET COMPONENT
SELECT BY EXIT BY
OPERATE BY -+
2 Set the VIDEO-2 SET according to
the video signal input from the
VIDEO-2 terminal.
If a normal video signal (composite
/
video signal) is input:
Press the CHANNEL –/+ or the
MENU
If a component video signal
(Y/C
B/CR
Press the CHANNEL –/+ or the
MENU
“COMPONENT”.
DISPLAY
/
buttons to select “VIDEO”.
signals) is input:
/
buttons to select
Using the TV’s menus
AUTO CH PRESET
You can automatically preset all TV
channels that can be received by your
TV to channels.
1 Press MENU T to display the
“MENU 3” menu, then select
“AUTO CH PRESET”.
MENU 3
AUTO CH PRESET
MANUAL CH PRESET
SETUP TOUR
LANGUAGE ENGLISH
SELECT BY EXIT BY
OPERATE BY -+
2 Press CHANNEL –/+ or MENU
to start the AUTO CH PRESET
function.
“>>>ON SEARCH” is displayed on
the screen.
When all the TV channels that can be
received on your TV have been preset,
the display goes out and the AUTO
CH PRESET function operation is
completed.
To stop the AUTO CH PRESET:
Press the CHANNEL –/+ or the
MENU
• The AUTO CH PRESET function does not
preset a TV channel to the AV channel
(channel number 0).
• If the TV cannot preset the TV channel
you want to view, preset it manually. For
details, see “MANUAL CH PRESET” on
page 16.
/
buttons.
DISPLAY
SETUP TOUR
You can start the SETUP TOUR function.
1 Press MENU T to display the
“MENU 3” menu, then select
“SETUP TOUR”.
MENU 3
AUTO CH PRESET
MANUAL CH PRESET
SETUP TOUR
LANGUAGE ENGLISH
SELECT BY EXIT BY
OPERATE BY -+
DISPLAY
2 Press CHANNEL M or MENU / .
/
JVC logo appears and the SETUP
TOUR function will start.
For details, see page 6.
LANGUAGE
You can select the language for the
on-screen display.
1 Press MENU T to display the
“MENU 3” menu, then select
“LANGUAGE”.
MENU 3
AUTO CH PRESET
MANUAL CH PRESET
SETUP TOUR
LANGUAGE ENGLISH
SELECT BY EXIT BY
OPERATE BY -+
2 Press CHANNEL –/+ or MENU
to select language.
The on-screen display indications are
in the selected language.
DISPLAY
/
15
Using the TV’s menus
MANUAL CH PRESET
You can manually preset desired TV
channels to desired channels.
1 Press MENU T to display the
“MENU 3” menu, then select
“MANUAL CH PRESET”.
MENU 3
AUTO CH PRESET
MANUAL CH PRESET
SETUP TOUR
LANGUAGE ENGLISH
SELECT BY EXIT BY
OPERATE BY -+
2 Press CHANNEL –/+ or MENU /.
The sub-menu is displayed.
MANUAL
FINE
SKIP NO
SOUND SYSTEM B/G
EXIT
SELECT BY PR 1 VL
PROGRAM BY -+ EXIT BY
SEARCH BY VOL-+
• The channel number is displayed as a PR
number. For example, channel 1 will be
displayed as PR 1. However, the AV
channel will be displayed as AV.
3 Press CHANNEL –/+ or MENU
to select the channel number.
4 Press VOLUME M to start
searching for the TV channel.
“>>>” or “<<<” is displayed on
the screen.
When the TV finds a TV channel, the
“>>>” or “<<<” display goes out,
and the TV channel is preset to the
currently selected channel number.
• If the TV channel you want to preset is
not displayed, repeat step 4 until the TV
finds the TV channel you want to preset.
•To stop the MANUAL CH PRESET
function, press any button other than the
VOLUME m button.
DISPLAY
DISPLAY
/
If the picture is not clear:
Fine-tune the TV channel.
1 Press MENU t to select “FINE”.
MANUAL
FINE
SKIP NO
SOUND SYSTEM B/G
EXIT
SELECT BY PR 1 VL
PROGRAM BY -+ EXIT BY
FINE BY VOL-+
DISPLAY
2 Hold VOLUME m down to fine-tune
the TV channel so that the best
image is displayed on screen.
“>” or “<” indicates that the TV is
fine-tuning the TV channel.
If the sound is not clear:
1 Press MENU t to select
“SOUND SYSTEM”.
MANUAL
FINE
SKIP NO
SOUND SYSTEM B/G
EXIT
SELECT BY PR 1 VL
PROGRAM BY -+ EXIT BY
CHANGE BY VOL-+
DISPLAY
2 Press VOLUME m to select the
appropriate sound system.
•For the sound systems in each
country or region, refer to the table
“Broadcasting systems” on Back
cover.
5 Press MENU T to select
“MANUAL”.
6 Repeat steps 3 to 5 if you want to
preset another TV channel to a
channel.
16
Using the TV’s menus
SKIP
You can set undesired channels to be
skipped. Channels set to be skipped
cannot be selected by the CHANNEL m
buttons or the CHANNEL SCAN button.
• Channels to which TV channels have not
been preset are automatically set to be
skipped.
1 Press MENU T to display the
“MENU 3” menu, then select
“MANUAL CH PRESET”.
2 Press CHANNEL –/+ or MENU
/
The sub-menu is displayed.
3 Press MENU T to select “SKIP”.
MANUAL
FINE
SKIP NO
SOUND SYSTEM B/G
EXIT
SELECT BY PR 1 VL
PROGRAM BY -+ EXIT BY
YES/NO BY VOL-+
4 Press CHANNEL –/+ or MENU
DISPLAY
/
to select the channel you want to
skip.
5 Press VOLUME M to select “YES”.
The channel is set to be skipped.
To cancel the SKIP function, select
“NO”.
6 Repeat steps 4 and 5 if you want to
set another channel to skip.
SUPER BASS
<
AV 21V331/AV-25V331/AV-29V331 only
You can enjoy a powerful bass sound by
using the SUPER BASS (Bass Reflex)
function.
1 Press MENU T to display the
“MENU 5” menu, then select
“SUPER BASS”.
MENU 5
BASS
TREBLE
BALANCE
AI VOLUME ON
SUPER BASS ON
SELECT BY EXIT BY
OPERATE BY -+
DISPLAY
>
2 Press CHANNEL –/+ or MENU
to select “ON”.
To cancel the SUPER BASS function,
select “OFF”.
Picture Adjustments
You can adjust the picture as you like.
1 Press MENU T to display the
“MENU 4” menu.
MENU 4
.
TINT
COLOUR
BRIGHT
CONT
SHARP
SELECT BY EXIT BY
OPERATE BY -+
DISPLAY
2 Press MENU y to select an item
and press CHANNEL –/+ or
MENU
TINT* n : Reddish + : Greenish
COLOUR n : Lighter + : Deeper
BRIGHT n : Darker + : Brighter
CONT n : Lower + : Higher
SHARP n : Softer + : Sharper
* TINT (tint) is displayed only when
viewing images from NTSC3.58 or
NTSC4.43 colour systems.
/
to adjust it.
Sound Adjustments
You can adjust the sound as you like.
1 Press MENU T to display the
“MENU 5” menu.
MENU 5
BASS
TREBLE
BALANCE
AI VOLUME ON
SUPER BASS ON
SELECT BY EXIT BY
OPERATE BY -+
2 Press MENU y to select an item
and press CHANNEL –/+ or
MENU
BASS n : Weaker + : Stronger
TREBLE n : Weaker + : Stronger
BALANCE n : Left + : Right
DISPLAY
/
to adjust it.
/
17
Using the TV’s menus
AI VOLUME
You can prevent the sudden increase or
decrease of volume that occurs when
changing channels or switching VIDEO
modes.
1 Press MENU T to display the
“MENU 5” menu, then select
“AI VOLUME”.
MENU 5
BASS
TREBLE
BALANCE
AI VOLUME ON
SUPER BASS ON
SELECT BY EXIT BY
OPERATE BY -+
DISPLAY
2 Press CHANNEL –/+ or MENU
to select “ON”.
To cancel the AI VOLUME function,
select “OFF”.
• The AI VOLUME function may not
operate as expected if the sound input
level from a broadcast station (or video
software) is extremely low.
• The AI VOLUME function for TV mode
and VIDEO mode can be set separately.
For example, you can set it to be off in
TV mode and on in VIDEO mode. If you
set the AI VOLUME function while
viewing a TV channel, the setting is
registered as the setting for TV mode. If
you set the AI VOLUME function while
viewing images from a VIDEO terminal,
the setting is registered as the setting for
VIDEO mode.
18
FAVORITE CH SETTING
You can set PICTURE MODE, VNR and
PICTURE EFFECT functions for the
favorite channels using FAVORITE CH
SETTING menu.
1 Press MENU T to display the
“MENU 6“ menu, then select
“FAVORITE CH SETTING”.
MENU 6
FAVORITE CH SETTING
VIDEO SETTING
AI ECO SENSOR 1
AI ECO DISPLAY ON
SELECT BY EXIT BY
OPERATE BY -+
/
2 Press CHANNEL –/+ or MENU /.
The sub-menu is displayed.
FAVORITE CHANNEL :
PR xx
PICTURE MODE : STANDARD
VNR : ON
PICTURE EFFECT : ON
SELECT BY EXIT BY
OPERATE BY -+
3 Press CHANNEL –/+ or MENU
to select one of the colours of
“RED”, “GREEN”, “YELLOW” or
“BLUE” assigned to FAVORITE CH
button.
4 Press MENU T to select
“PICTURE MODE”, then press
CHANNEL –/+ or MENU
select the picture mode of
“BRIGHT”, “STANDARD”
or “SOFT”.
5 Press MENU T to select “VNR”,
then press CHANNEL –/+ or
MENU
or “OFF”.
6 Press MENU T to select
“PICTURE EFFECT”, then press
CHANNEL –/+ or MENU
select PICTURE EFFECT “ON”
or “OFF”.
• PICTURE MODE and VNR settings are
changed only when you press the
FAVORITE CH button while PICTURE
EFFECT is ON. Otherwise, PICTURE
MODE and VNR are not changed.
DISPLAY
DISPLAY
/
to select VNR “ON”
/
/
to
/
to
Using the TV’s menus
VIDEO SETTING
You can set PICTURE MODE, VNR and
PICTURE EFFECT functions for VIDEO
mode using VIDEO SETTING menu.
1 Press MENU T to display the
“MENU 6” menu, then select
“VIDEO SETTING”.
MENU 6
FAVORITE CH SETTING
VIDEO SETTING
AI ECO SENSOR 1
AI ECO DISPLAY ON
SELECT BY EXIT BY
OPERATE BY -+
2 Press CHANNEL –/+ or MENU /.
The sub-menu is displayed.
VIDEO STATUS : VIDEO-1
PICTURE MODE : STANDARD
VNR : ON
PICTURE EFFECT : ON
RESET BY 0
SELECT BY EXIT BY
OPERATE BY -+
3 Press CHANNEL –/+ or MENU
to select “VIDEO-1”, “VIDEO-2”
or “VIDEO-3”.
4 Press MENU T to select
“PICTURE MODE”, then press
CHANNEL –/+ or MENU
select the picture mode of
“BRIGHT”, “STANDARD”
or “SOFT”.
5 Press MENU T to select “VNR”,
then press CHANNEL –/+ or
MENU
or “OFF”.
6 Press MENU T to select
“PICTURE EFFECT”, then press
CHANNEL –/+ or MENU
select PICTURE EFFECT “ON”
or“OFF”.
• PICTURE MODE and VNR settings are
changed only when VIDEO input mode
is selected while PICTURE EFFECT is
ON. Otherwise, PICTURE MODE and
VNR are not changed.
•Press 0 button to reset the setting.
DISPLAY
DISPLAY
to select VNR “ON”
/
/
/
to
/
to
AI ECO SENSOR
You can enable this function so that the
brightness of TV screen is automatically
adjusted according to the brightness of
your room.
1 Press MENU T to display the
“MENU 6” menu, then select
“AI ECO SENSOR”.
MENU 6
FAVORITE CH SETTING
VIDEO SETTING
AI ECO SENSOR 1
AI ECO DISPLAY ON
SELECT BY EXIT BY
OPERATE BY -+
2 Press CHANNEL –/+ or MENU
DISPLAY
/
to select “OFF”, “1” or “2”.
•For detailed description, see the
“ECO SENSOR button” on page 9.
AI ECO DISPLAY
You can display on the screen the effect
of the AI ECO SENSOR function.
1 Press MENU T to display the
“MENU 6” menu, then select
“AI ECO DISPLAY”.
MENU 6
FAVORITE CH SETTING
VIDEO SETTING
AI ECO SENSOR 1
AI ECO DISPLAY ON
SELECT BY EXIT BY
OPERATE BY -+
2 Press CHANNEL –/+ or MENU
to select “ON”.
The clover mark indicating the
brightness of your room is displayed
for several seconds each time the
brightness changes. The number of
clover marks displayed on screen
increases as your room becomes
darker.
To cancel the AI ECO DISPLAY
function, select “OFF”.
DISPLAY
/
19
Attaching the Twin Port Bass Blaster Unit
<AV-21V331/AV-25V331/AV-29V331 only>
The Twin Port Bass Blaster Unit is packaged together with the TV. Before you use the
TV, mount the Twin Port Bass Blaster unit correctly on the TV.
Note:
• The BASS functions do not work unless the Twin Port Bass Blaster Unit is connected correctly to
the TV. For details on the BASS functions, see page 8.
CAUTION:
• The Twin Port Bass Blaster Unit is just placed on top of the TV and is not held in place by a
screw. When using the unit, pay attention to the following cautions. Otherwise, the unit or TV
may fall over and be damaged, or cause unexpected injury.
- Do not rest your hands or elbows on the Twin Port Bass Blaster Unit.
- Do not move the TV with the Twin Port Bass Blaster Unit mounted on top of the TV. Before
you move the TV, be sure to remove the unit.
- Do not move the TV by holding the Twin Port Bass Blaster Unit.
1 Place the unit on top of the TV
making sure that the mounting
pin on the bottom of the unit fits
into the mounting hole on the top
of the TV.
• When you mount the unit, make sure
that the mounting pin fits properly into
the mounting hole. Otherwise, it may
slide off the top of the TV. This may
cause damage or cause unexpected
injury.
2 Firmly insert the Twin Port Bass
Blaster Unit connector into the
BASS SPEAKER OUT terminal.
Twin Port Bass Blaster Unit
20
BASS
SPEAKER
OUT
VIDEO-1
INPUT
S
OVER
V
L
/
MONO
RRRC
COMPONENT
(
VIDEO-2
INPUT
Y
/
V
L
C
B
/
MONO
R
)
OUTPUT
V
L
TV buttons and parts
<AV-29V311/AV-29V331>
2
1
<AV-21Y311>
12345
<AV-21V311/AV-21V331/AV-25V311/AV-25V331>
<AV-21W311>
1
3 645
31
2789
2
4
5
3
4
5
78
7
7
8
-
9
908
0
9
0
0
<AV-16N311>
1
3
2
1 Headphone jack
2 VIDEO-3 terminal
3 MENU button
4 CHANNEL m buttons
5 VOLUME m buttons
6 TV/VIDEO button
7 ECO sensor
8 Remote control sensor
4
7
5
-
8
0
9
9 POWER lamp
0 Main power button
- SUB POWER lamp
<AV-16N311/AV-21Y311 only>
When the main power is switched on,
the POWER lamp turns red.
When the TV is turned on (the sub power
is on), the SUB POWER lamp turns green.
21
Using the buttons on the TV
Basic operation
Check to make sure the CHILD LOCK
function is set to “OFF”. When the
CHILD LOCK function is set to “ON”,
the TV cannot be operated using the
front control buttons. For details, see
“CHILD LOCK” on page 14.
1 Press CHANNEL –/+ to turn the TV
on from standby mode.
2 Press CHANNEL –/+ to select a
channel.
3 Press VOLUME –/+ to adjust the
volume.
4To turn your TV off, press the Main
power button to turn off the TV’s
main power.
To change the TV mode to the VIDEO
mode:
•Press the TV/VIDEO button if the TV has
one. See page 7.
• If the TV has no TV/VIDEO button, select
the VIDEO mode with the INPUT function
in “MENU 1”.
Operating menus
You can operate function in menus using
the front control buttons on the TV.
1 Press MENU y to display a menu.
2 Press MENU y repeatedly to
display the menu you want to use.
3 Press MENU y to select the desired
function or item.
4 Press CHANNEL –/+ or
VOLUME –/+ to carry out the
desired operation.
For details, see the description for
each function.
5 Press VOLUME –/+ to turn the
menu display off.
To turn the sub-menu display off:
1 Press MENU y to select “EXIT”.
MANUAL
FINE
SKIP NO
SOUND SYSTEM M
EXIT
SELECT BY PR 3 VL
PROGRAM BY -+ EXIT BY
EXIT BY VOL-+
2 Press VOLUME –/+ to turn the display
off.
DISPLAY
22
Troubleshooting
If there is no picture or the TV does not operate normally, make sure the problem isn’t
due to the reasons indicated below.
If the problem persists even after taking the measures indicated, please contact a
service technician.
Cannot turn the TV on
•Press the Main power button on the TV.
• Connect the power cord to the AC outlet.
The screen turns blue
• Is the BLUE BACK function on?
(see page 14).
Remote control inoperable
•Replace the batteries. (see page 3).
Buttons on front of the TV do not
work
•Switch the CHILD LOCK function off.
(see page 14).
TV does not respond immediately
•Press the main power button on the TV to
turn off the main power. Press the main
power button again to turn on the TV. If the
TV returns to a normal state, operation is
normal.
The TV turns off suddenly
• Is the OFF TIMER function set to operate?
(see page 10).
• Is the AUTO SHUTOFF function on?
(see page 14).
Poor sound
•Press the SOUND SYSTEM button to select
another sound system. (see page 8).
•Adjust the sound settings.
(see page 17).
Poor picture
•Press the COLOUR SYSTEM button to select
another colour system. (see page 8).
•Adjust the picture settings. (see page 17).
• Is a component signal output device, such
as a DVD player, connected correctly?
(see page 5).
• Is the VIDEO-2 SET function setting correct?
(see page 14).
• If noise (snow) totally blocks out the
picture, check the following.
- Have the TV and aerial been connected
properly?
- Has the aerial cable been damaged?
- Is the aerial pointing in the right direction?
- Is the aerial itself faulty?
• If the TV or aerial suffer interference from
other equipment, stripes or noise may
appear in the picture. Move any equipment
which can cause interference away from the
TV.
• If the TV or aerial suffer interference from
signals reflecting from mountains or
buildings, double-pictures (ghosting) will
occur. Change the aerial’s direction or
replace it with an aerial with better
directionality.
• When a white and bright still image (such
as a white dress) is displayed on the screen,
the white part may look as if it is coloured.
When the image disappears from the screen,
the unnatural colours will also disappear.
The picture is tilted
<AV-29V311/AV-29V331 only>
•A picture may be tilted due to the influence
of the earth’s magnetism. In this case, use
the PICTURE TILT function to adjust the tilt.
(see page 13).
23
Specifications
Model AV-16N311 AV-21Y311 AV-21W311
TV RF systems B/G, D/K, M
Colour systems PAL, SECAM, NTSC3.58 / 4.43
Channel and VHF low channel (VL) = 46.25 to 168.25 MHz
frequencies VHF high channel (VH) = 175.25 to 463.25 MHz
Power input AC 110 to 240 V, 50 / 60 Hz (operating AC 90 to 260 V, 50 / 60 Hz)
Power Maximum 82 W Maximum 95 W Maximum 126 W
consumption Average 56 W Average 65 W Average 81 W
Screen size
(measured Visible area 380 mm Visible area 508 mm Visible area 508 mm
diagonally)
Audio output 5 W + 5 W 5 W + 5 W 7 W + 7 W
(Rated power
output)
Speakers (5 cm x 9 cm) x 2 (6 cm x 12 cm) x 2 (6.5 cm x 13 cm) x 2
External input/ VIDEO-1: VIDEO input S-VIDEO input, VIDEO input, AUDIO L/R input
output AUDIO L/R
Dimension 518 x 391.5 x 403 649 x 470.5 x 477.5 649 x 465.5 x 471.5
(W x H x D)
(mm)
Weight 13 kg 21 kg 24.6 kg
Accessories • Remote control unit: • Remote control unit: • Remote control unit:
UHF channel (U) = 471.25 to 863.25 MHz
Receives cable channels in mid band (X to Z, S1 to S10), super band (S11
•
to S20) and hyper band (S21 to S41).
Picture tube 423 mm Picture tube 548 mm Picture tube 546.9 mm
input
VIDEO-2: VIDEO input, AUDIO L/R input,
VIDEO-3: VIDEO input, AUDIO L/R input
OUTPUT: VIDEO output, AUDIO L/R output
Headphone jack: stereo mini jack (3.5 mm diameter)
RM-C1313 x 1 RM-C1313 x 1 RM-C1306 x 1
• AA / R6 /UM - 3 • AA / R6 /UM - 3 • AA / R6 /UM - 3
dry cell battery x 2 dry cell battery x 2 dry cell battery x 2
• Matching aerial • Matching aerial • Matching aerial
adapter x 1 adapter x 1 adapter x 1
• Rod aerial x 1 • Rod aerial x 1
COMPONENT VIDEO (Y/ C
/ CR) input
B
24
Specifications
Model AV-21V311 AV-21V331 AV-25V311
TV RF systems B/G, D/K, M
Colour systems PAL, SECAM, NTSC3.58 / 4.43
Channel and VHF low channel (VL) = 46.25 to 168.25 MHz
frequencies VHF high channel (VH) = 175.25 to 463.25 MHz
Power input AC 110 to 240 V, 50 / 60 Hz (operating AC 90 to 260 V, 50 / 60 Hz)
Power Maximum 126 W Maximum 150 W Maximum 164 W
consumption Average 81 W Average 93 W Average 102 W
Screen size
(measured Visible area 508 mm Visible area 508 mm Visible area 590 mm
diagonally)
Audio output 7 W + 7 W 7 W + 7 W + 13 W 7 W + 7 W
(Rated power
output)
Speakers (6.5 cm x 13 cm) x 2 (6.5 cm x 13 cm) x 2 (6.5 cm x 13 cm) x 2
External input/ VIDEO-1: S-VIDEO input, VIDEO input, AUDIO L/R input
output VIDEO-2: VIDEO input, AUDIO L/R input,
Dimension 649 x 465.5 x 473.5 649 x 478 x 473.5 728 x 536 x 481.5
(W x H x D)
(mm)
Weight 24.5 kg 26.9 kg 32.5 kg
Accessories • Remote control unit: • Remote control unit: • Remote control unit:
UHF channel (U) = 471.25 to 863.25 MHz
Receives cable channels in mid band (X to Z, S1 to S10), super band (S11
•
to S20) and hyper band (S21 to S41).
Picture tube 546.9 mm Picture tube 546.9 mm Picture tube 634 mm
13 cm round x 1
VIDEO-3: VIDEO input, AUDIO L/R input
COMPONENT VIDEO (Y/ C
OUTPUT: VIDEO output, AUDIO L/R output
Headphone jack: stereo mini jack (3.5 mm diameter)
RM-C1306 x 1 RM-C1308 x 1 RM-C1306 x 1
• AA / R6 /UM - 3 • AA / R6 /UM - 3 • AA / R6 /UM - 3
dry cell battery x 2 dry cell battery x 2 dry cell battery x 2
• Matching aerial • Matching aerial • Matching aerial
adapter x 1 adapter x 1 adapter x 1
/ CR) input
B
25
Specifications
Model AV-25V331 AV-29V311 AV-29V331
TV RF systems B/G, D/K, M
Colour systems PAL, SECAM, NTSC3.58 / 4.43
Channel and VHF low channel (VL) = 46.25 to 168.25 MHz
frequencies VHF high channel (VH) = 175.25 to 463.25 MHz
Power input AC 110 to 240 V, 50 / 60 Hz (operating AC 90 to 260 V, 50 / 60 Hz)
Power Maximum 184 W Maximum 190 W Maximum 212 W
consumption Average 112 W Average 145 W Average 145 W
Screen size
(measured Visible area 597 mm Visible area 676 mm Visible area 676 mm
diagonally)
Audio output 7 W + 7 W + 13 W 10 W + 10 W 7 W + 7 W + 13 W
(Rated power
output)
Speakers (6.5 cm x 13 cm) x 2 (6.5 cm x 13 cm) x 2 (6.5 cm x 13 cm) x 2
External input/ VIDEO-1: S-VIDEO input, VIDEO input, AUDIO L/R input
output VIDEO-2: VIDEO input, AUDIO L/R input,
Dimension 728 x 549 x 481.5 812 x 584.2 x 520.5 812 x 584.2 x 520.5
(W x H x D)
(mm)
Weight 34.9 kg 43.5 kg 45.9 kg
Accessories • Remote control unit: • Remote control unit: • Remote control unit:
UHF channel (U) = 471.25 to 863.25 MHz
Receives cable channels in mid band (X to Z, S1 to S10), super band (S11
•
to S20) and hyper band (S21 to S41).
Picture tube 649 mm Picture tube 728 mm Picture tube 728 mm
13 cm round x 1 13 cm round x 1
COMPONENT VIDEO (Y/ C
VIDEO-3: VIDEO input, AUDIO L/R input
/ CR) input
B
OUTPUT: VIDEO output, AUDIO L/R output
Headphone jack: stereo mini jack (3.5 mm diameter)
RM-C1308 x 1 RM-C1306 x 1 RM-C1308 x 1
• AA / R6 /UM - 3 • AA / R6 /UM - 3 • AA / R6 /UM - 3
dry cell battery x 2 dry cell battery x 2 dry cell battery x 2
• Matching aerial • Matching aerial • Matching aerial
adapter x 1 adapter x 1 adapter x 1
Loading...
