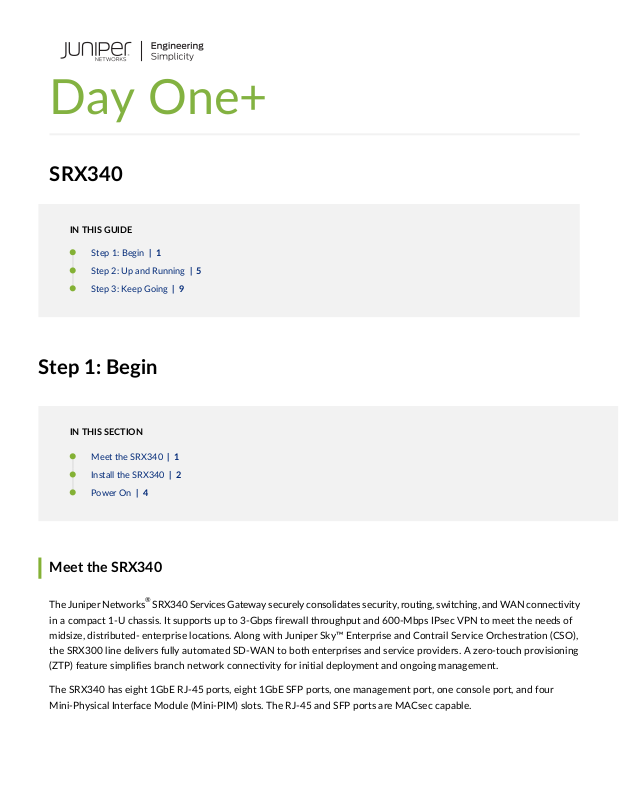

Juniper SRX340 User Manual
Day One+
SRX340
IN THIS GUIDE
Step 1: Begin | 1
Step 2: Up and Running | 5
Step 3: Keep Going | 9
Step 1: Begin
IN THIS SECTION
Meet the SRX340 | 1
Install the SRX340 | 2
Power On | 4
Meet the SRX340
The Juniper Networks®SRX340 Services Gateway securely consolidates security, routing, switching, and WAN connectivity
in a compact 1-U chassis. It supports up to 3-Gbps firewall throughput and 600-Mbps IPsec VPN to meet the needs of
midsize, distributed- enterprise locations. Along with Juniper Sky™ Enterprise and Contrail Service Orchestration (CSO),
the SRX300 line delivers fully automated SD-WAN to both enterprises and service providers. A zero-touch provisioning
(ZTP) feature simplifies branch network connectivity for initial deployment and ongoing management.
The SRX340 has eight 1GbE RJ-45 ports, eight 1GbE SFP ports, one management port, one console port, and four
Mini-Physical Interface Module (Mini-PIM) slots. The RJ-45 and SFP ports are MACsec capable.
Install the SRX340
IN THIS SECTION
What’s in the Box? | 2
What Else Do I Need? | 2
Install the SRX340 in a Rack | 3
2
What’s in the Box?
SRX340 Services Gateway
•
Power cord appropriate for your geographic location
•
RJ-45 cable
•
DB-9 adapter
•
USB console cable
•
Two mounting brackets
•
Eight mounting screws to attach the mounting brackets to the SRX340
•
What Else Do I Need?
You’ll also need:
Someone to help you do the installation
•
Rack mount screws appropriate for your rack
•
A number two Phillips (+) screwdriver
•

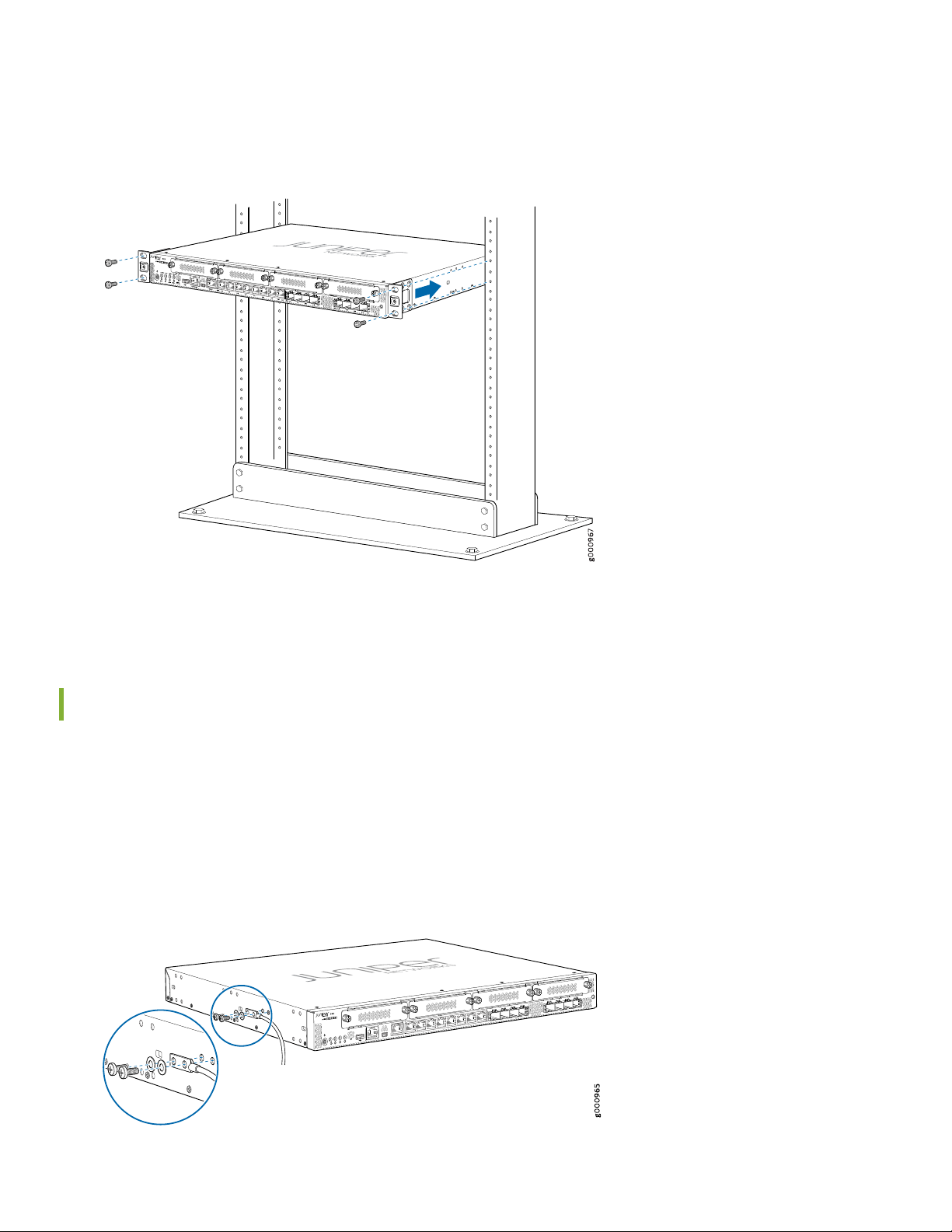

Install the SRX340 in a Rack
Here’s how to install the SRX340 in a rack:
1. Review General Safety Guidelines and Warnings.
2. Wrap and fasten one end of the electrostatic discharge (ESD) grounding strap around your bare wrist, and connect the
other end to a site ESD point.
3. Attach the mounting brackets to the sides of the SRX340 using the eight mounting screws and the screwdriver.
Depending on how you’d like the SRX340 to sit in the rack, you can attach the mounting brackets to the front or center
mounting holes.
3
4. Lift the SRX340 and position it in the rack. Line up the bottom hole in each mounting bracket with a hole in each rack
rail, making sure that the SRX340 is level.
