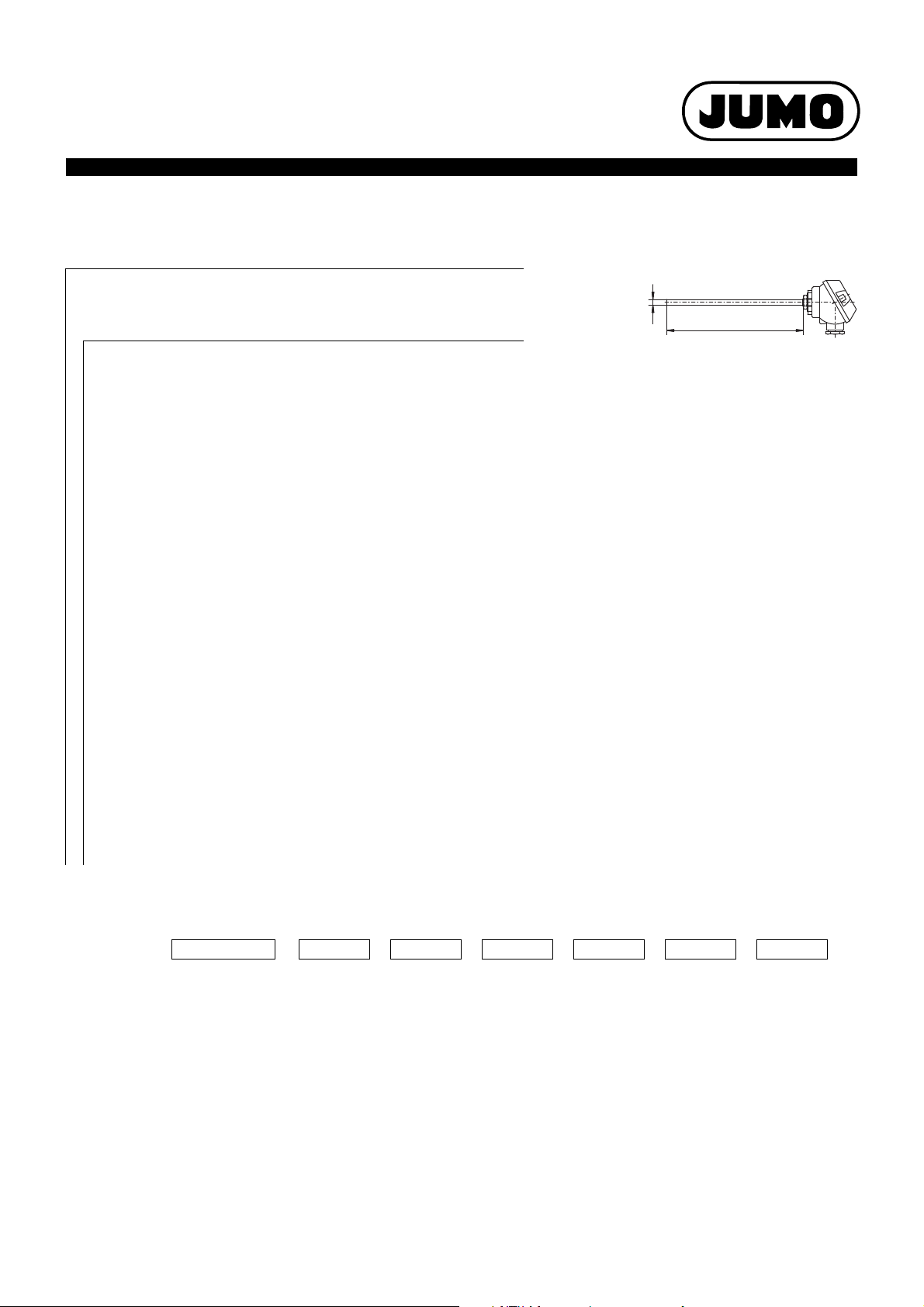

Push-in RTD Temperature Probe
for Heat and Cold Meters
with Terminal Head for Thermowells (Type PL)

• For temperatures between 0 and 180 °C

• Approval for heat meters as replaceable temperature probes;
MID and domestic approvals

• Fulfills the requirements of DIN EN 1434, AGFW 202, and FW211

• Paired and calibrated according to the German calibration regulations

• Production certified according to module D of MID (CE and metrology identification
marking)

• Adapted accessories for installation (data sheet 902440)

• Approval for cold meter

Heat and cold meter RTD temperature probes are installed to measure temperatures in closed
pipeline systems. Thanks to insertion into thermowells with matching tolerance, emptying the
system for the regular replacement at the end of the certification period is no longer necessary.
The temperature probes are approved according to the EU directive 2004/22/EC (MID) as well
as according to the German calibration regulations (domestic approval). The temperature probes
are available in paired and calibrated versions. The officially recognized testing agency for heat
KF2 is available for this. Moreover, the production is certified according to module D of MID, and
the temperature probes are also available with the CE and metrology identification marking.

Technical data

Terminal head Form J or B, aluminum diecast,

M16 × 1.5 or M24 × 1.5, IP65,

ambient temperature -20 to +100 °C

Process connection Push-in RTD temperature probe

for thermowells (immersion sleeves)

Protection tube Stainless steel, Ø 6 mm with matching tolerance

for thermowell

Measuring insert Platinum temperature sensor according to DIN

EN 60751

Nominal value: Pt100, Pt500, Pt1000; class B

Connection: two-wire or four-wire circuit

Temperature 0 to 180 °C

Temperature difference 3 to 180 K

Minimum immersion depth 25 mm

Insertion length 85 to 400 mm

Admissible rated pressure PN 40 bar (with thermowell)

Response behavior t
Thermoelectric voltage ≤ 5µV

Environmental conditions Climatic 0 to 70 °C

Accessories Thermowells, data sheet 902440

2014-04-01/00530101

≤ 10 s (installed in thermowell)

0.5

Protection type IP65

Electromagnetic E1

Mechanical M3

Environment class C

Heat meter

Cold meter

JUMO GmbH & Co. KG

Delivery address: Mackenrodtstraße 14

36039 Fulda, Germany

Postal address:

36035 Fulda, Germany
Phone: [phone]
Fax: [phone]
E-mail: [e-mail]
Internet: www.jumo.net

JUMO Instrument Co. Ltd.

JUMO House
Temple Bank, Riverway
Harlow, Essex CM20 2DY, UK
Phone: [phone]
Fax: [phone]
E-mail: [e-mail]
Internet: www.jumo.co.uk

JUMO Process Control, Inc.

6733 Myers Road
East Syracuse, NY 13057, USA
Phone: [phone]

1-800-554-5866
Fax: [phone]
E-mail: [e-mail]
Internet: www.jumousa.com

Dimensions

~33

~52

D

EL

4

D

EL

L = 60 (100)

75

10

M20 × 1.5

50

22

Ø29

Data sheet 902434 Page 2/5

Basic type 90.238-F25 (PL)

Basic type 902464/10 (PL)
Basic type 902434/10 (PL)
Basic type 902437/10 (PL)

Overview of approvals

Basic type Approval

Type Number

90.238-F25 Domestic (Germany) 22.30/90.04

902434/10 Domestic (Germany)

according to DIN EN 1434

902437/10 Module B of MID

902464/10 Domestic (Germany)

(Cold)

a

MID = Measuring Instruments Directive 2004/22/EC

a

22.70/00.02

DE-06-MI004-PTB015

22.77/13.01
