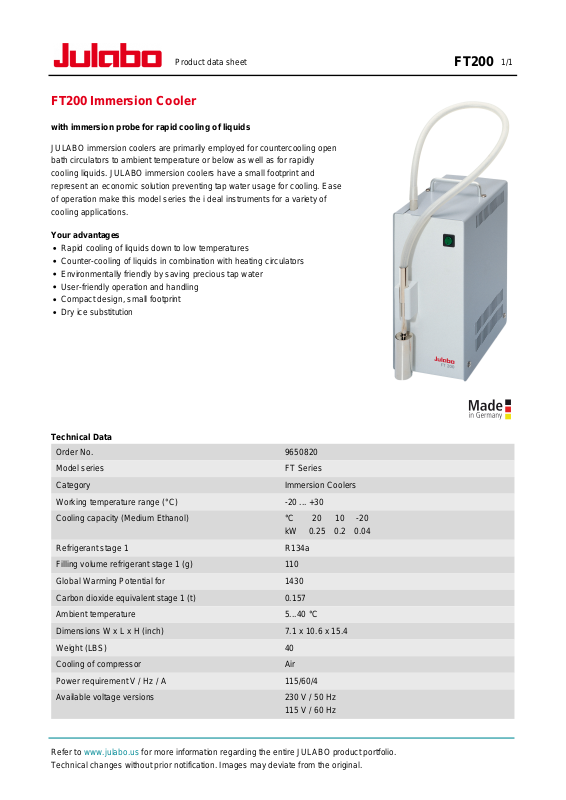

Julabo FT200 Data Sheet

Product data sheet 1/1

FT200 Immersion Cooler

with immersion probe for rapid cooling of liquids

JULABO immersion coolers are primarily employed for countercooling open bath circulators to ambient temperature or below as well as for rapidly cooling liquids. JULABO immersion coolers have a small footprint and represent an economic solution preventing tap water usage for cooling. Ease of operation make this model series the i deal instruments for a variety of cooling applications.

Your advantages

Rapid cooling of liquids down to low temperatures Counter-cooling of liquids in combination with heating circulators Environmentally friendly by saving precious tap water User-friendly operation and handling Compact design, small footprint Dry ice substitution

FT200

Technical Data

Order No. 9650820 Model series FT Series Category Immersion Coolers Working temperature range (°C) -20 ... +30 Cooling capacity (Medium Ethanol) °C 20 10 -20

kW 0.25 0.2 0.04 Refrigerant stage 1 R134a Filling volume refrigerant stage 1 (g) 110 Global Warming Potential for 1430 Carbon dioxide equivalent stage 1 (t) 0.157 Ambient temperature 5...40 °C Dimensions W x L x H (inch) 7.1 x 10.6 x 15.4 Weight (LBS) 40 Cooling of compressor Air Power requirement V / Hz / A 115/60/4 Available voltage versions 230 V / 50 Hz

115 V / 60 Hz

Refer to www.julabo.us for more information regarding the entire JULABO product portfolio. Technical changes without prior notification. Images may deviate from the original.
