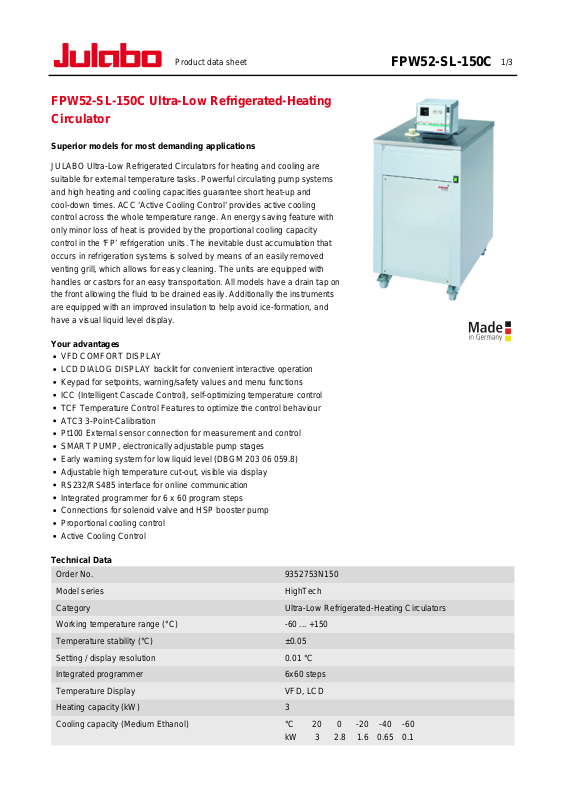

Product data sheet 1/3
FPW52-SL-150C Ultra-Low Refrigerated-Heating
Circulator
Superior models for most demanding applications
JULABO Ultra-Low Refrigerated Circulators for heating and cooling are
suitable for external temperature tasks. Powerful circulating pump systems
and high heating and cooling capacities guarantee short heat-up and
cool-down times. ACC ‘Active Cooling Control‘ provides active cooling
control across the whole temperature range. An energy saving feature with
only minor loss of heat is provided by the proportional cooling capacity
control in the ‘FP’ refrigeration units. The inevitable dust accumulation that
occurs in refrigeration systems is solved by means of an easily removed
venting grill, which allows for easy cleaning. The units are equipped with
handles or castors for an easy transportation. All models have a drain tap on
the front allowing the fluid to be drained easily. Additionally the instruments
are equipped with an improved insulation to help avoid ice-formation, and
have a visual liquid level display.
FPW52-SL-150C
Your advantages
VFD COMFORT DISPLAY
LCD DIALOG DISPLAY backlit for convenient interactive operation
Keypad for setpoints, warning/safety values and menu functions
ICC (Intelligent Cascade Control), self-optimizing temperature control
TCF Temperature Control Features to optimize the control behaviour
ATC3 3-Point-Calibration
Pt100 External sensor connection for measurement and control
SMART PUMP, electronically adjustable pump stages
Early warning system for low liquid level (DBGM 203 06 059.8)
Adjustable high temperature cut-out, visible via display
RS232/RS485 interface for online communication
Integrated programmer for 6 x 60 program steps
Connections for solenoid valve and HSP booster pump
Proportional cooling control
Active Cooling Control
Technical Data
Order No. 9352753N150
Model series HighTech
Category Ultra-Low Refrigerated-Heating Circulators
Working temperature range (°C) -60 ... +150
Temperature stability (°C) ±0.05
Setting / display resolution 0.01 °C
Integrated programmer 6x60 steps
Temperature Display VFD, LCD
Heating capacity (kW) 3
Cooling capacity (Medium Ethanol) °C 20 0 -20 -40 -60
kW 3 2.8 1.6 0.65 0.1
Product data sheet 2/3
Pump capacity flow rate (l/min) 22-26
Pump capacity flow pressure (psi) 5.8-10.2
Pump capacity flow suction (psi) 2.9-5.8
Bath opening / bath depth (W x L / D inch) Ø = 2.7 / 8.7
Pump connections M16x1
Barbed fittings diameter (inner dia. / mm) 8 / 12
Filling volume liters 24
Refrigerant stage 1 R404A
Filling volume refrigerant stage 1 (g) 850
Global Warming Potential for 3922
Carbon dioxide equivalent stage 1 (t) 3.334
External Pt100 sensor connection integrated
Digital interface RS232, RS485
Optional: Profibus
Ambient temperature 5...40 °C
FPW52-SL-150C
Dimensions W x L x H (inch) 23.2 x 29.9 x 45.7
Weight (LBS) 419
Classification according to DIN12876-1 Classification III (FL)
Included with each unit 2 each barbed fittings for tubing 8 and 12 mm inner dia.
(pump connections M16x1 female). Cooling water
connection G 3/4" male with barbed fittings for tubing 1/2"
inner dia.
Cooling of compressor Water
Power requirement V / Hz / A 3x 230/60/24
Available voltage versions 400 V / 3 Ph. / 50 Hz
230 V / 3 Ph. / 50 Hz
230 V / 3 Ph. / 60 Hz
Characteristics
Display
A perfect view
Ample, easy to read VFD Comfort
display for simultaneous display of 3
values, warning functions, high
temperature cut-off, pump stages
(resolution 0.01 °C)
Additional plain text information
Comfortable LCD dialog display for
interactive operation with plain text
display
Pump stage and liquid level
Backlit indicator for selected pump
stages and filling volume on Presto®
PLUS, Magnum 91 & Forte HT
Operation
Comfortable and detailed
Comfortable keypad with additional
menu functions for pump stages,
calibration, control parameters,
programmer, warnings, etc.
Temperature Control
For perfect results
‘Intelligent Cascade Control’,
automatic & self optimizing
adjustment of PID control
parameters, temperature stability
±0.005 °C internal, <±0.05 °C
external
Full control
‘Temperature Control Features’ for
individual optimization, access to all
important control parameters,
additional settings for band limit,
limits, Co-Speedfactor etc.
Product data sheet 3/3
FPW52-SL-150C
Highest measuring accuracy
‘Absolute Temperature Calibration’
for manual compensation of a
temperature difference, 3-point
calibration
Refrigeration Technology
Energy saving cooling
Proportional cooling control for
automatic adjustment of cooling
power or temporary switch-off of
compressor as needed to save up to
90 % energy in comparison to
unregulated cooling machines
Consistent cooling capacity
Easily removable venting grid for
quick and easy cleaning
100 % Cooling capacity
‘Active Cooling Control’ for cooling
available throughout the entire
working temperature range, fast
cool-down even at higher
temperatures
Condensation and ice protection
A heated cover plate prevents
condensation or ice build-up in the
bath
Technical Features
Automatic control of operating
time
Electronic countdown-timer function
for timer-programmed unit
shut-down, standby mode after
programmed time expires
Warning & Safety Functions
Early warning system for low
liquid level
Maximum safety for applications,
optical and audible alarm, allows
user to refill bath fluid before the unit
shuts down
Early warning system for high/low
temperature limits
Maximum safety for applications,
optical and audible alarm,
convertible to automated cut-off
function
Enhanced protective functions
Maximum safety, adjustable high
temperature cut-off or dry-running
protection, additional display of
setpoints permits easy and precise
adjustments
For flammable bath fluids
Classification III (FL) according to
DIN 12876-1
Clever pump system
Reliable and consistent pump
capacity, electronically adjustable
pump stages
Control from the external
application
External Pt100 sensor connection
for precise measurement and
control directly in the external
application
Connection compliant to standard
RS232/RS485 dual-interface for
serial data transmission according to
EIA-485 industry standard (2-wire
bus technology), upgradable with
Profibus DP
Optimal program control
For the execution of time and
temperature dependant profiles, 6
temperature profiles with 60 steps
max., with real time clock
