Product Characteristics | Functions
The icons can be found on the intro pages of each product group.
Display
Easy to read
Large LED temperature display for
actual value and setpoint
(display resolution 0.1 °C)
Several values at a glance
Large Multi-Display (LED), easy to read
across the room, for actual value and up
to 3 setpoints: warning functions, high
temperature cut-off, pump stages (display
resolution 0.01/0.1 °C)
A perfect view
Ample, easy to read VFD Comfort display
for simultaneous display of 3 values:
warning functions, high temperature cutoff, pump stages (display resolution 0.01
°C)
Additional plain text information
Comfortable LCD dialog display for interactive operation with plain text display,
backlit
Pump stage
Illuminated bar display for pump stages
Operation
Comfortable and detailed
Comfortable keypad with additional menu
functions for pump stages, calibration,
control parameters, programmer, warn
ings etc.
Time-saving
Comfortable and simple operation for setpoint adjustment
Temperature Control
Precise
PID Temperature control with set control parameters, temperature stability
±0.02...±0.2 °C
Highly precise
PID Temperature control with drift
compensation and adjustable
control parameters, temperature
stability ±0.01...±0.02 °C
For higher demands
PID Temperature control with drift compensation and adjustable parameters, improved temperature stability for external
applications, temperature stability ±0.01
°C internal, <±0.1 °C external
Technical Features
For perfect results
ഹIntelligent Cascade Control’, automatic &
self optimizing adjustment of PID control
parameters, temperature stability ±0.005
°C internal, <±0.05 °C external
Full control
ഹTemperature Control Features’ for indi
vidual optimization, access to all important control parameters, additional settings
for band limit, limits, co-speed- factor etc.
Direct control from external
application
External Pt100 sensor connection for
highly precise measurement and control
directly in the external application
Highest measuring accuracy
ഹAbsolute Temperature Calibration‘ for
compensation of a temperature difference,
3-point calibration
-
Refrigeration Technology
Consistent cooling capacity
Easily removable venting grid for quick
and easy dust removal
100 % cooling capacity
ഹActive Cooling Control’ for full utilization
-
of the cooling capacity available throughout the entire working temperature range,
fast cool-down even at higher temperatures
Energy-savingcooling
Proportional cooling control for automatic
adjustment of cooling power or temporary
switch-off of compressor as needed to
save up to 90 % energy in comparison to
unregulated refrigeration units
Condensation and ice protection
A heated cover plate prevents condensation or ice build-up in the bath
Warning & Safety Functions
Clever pump system
Reliable and consistent pump capacity,
electronically adjustable pump stages
Serial connection
RS232 interface for PC connection, e.g.
for data communication and recording of
measured values
Connection compliant to standard
Combined RS232/RS485 interface for
serial data transmission according to
EIA-485 industry standard (2-wire bus
technology), upgradeable with
Profibus DP
Connection of additional equipment
Stakei connections for solenoid valve, HSPbooster pump and HST booster heater
Easy program control
Integrated programmer for the execution
of time and temperature dependent profiles, 1 temperature profile with 10 steps
max., with real-time clock
Optimal program control
For the execution of time and temperature
dependent profiles, 6 temperature profiles
with 60 steps max., with real-time clock
Early warning system for low
liquid level
Maximum safety for applications, optical
and audible alarm, allows user to refill bath
fluid before the unit shuts down
Early warning system
for high/low temperature
Maximum safety for applications,
optical and audible alarm convertible to
automated ”cut-off” function.
Protective function
Adjustable high temperature cut-off or
dry-running protection
Enhanced protective function
Maximum safety, adjustable high temperature cut-off or dry-running protection, additional display of setpoints permits easy and
precise adjustments
For flammable bath fluids
Class III (FL) according to DIN 12876-1
2
TopTech | HighTech Circulators
Refrigerated Circulators .......................... 04
Refrigerated / Heating Circulators .....................08
Cryo-Compact Circulators ................................12
Ultra-Low Refrigerated Circulators ...................14
User Benefits and Helpful Tips ..........................18
Individual Solutions .........................................22
Accessories .....................................................24
Heating Circulators .................................. 32
Heating Immersion Circulators .........................36
Heating Circulators ..........................................38
User Benefits and Helpful Tips ..........................40
Individual Solutions .........................................44
Accessories .....................................................46
Technical Specifications ...........................54
3
Refrigerated Circulators
4
JULABO circulators and their well proven and reliable technology are valued by users
around the world and in all industries. They are designed for day-to-day work in research,
material testing or in production.
The JULABO range of circulators features functional solutions and has set the benchmark
for temperature control technology for decades.
The JULABO range of circulators has the matching equipment for working temperatures to
-95 °C. Choose your temperature control solution from two model series: TopTech Series &
HighTech Series.
- Models for working temperatures from -95 °C to +200 °C
- All models feature user-friendly, intuitive operation
- Extra bright, easy to read displays
- Quick and highly precise results thanks to state-of-the-art control technology
- Many professional functions for adjusting control parameters, temperature calibration,
temperature profiles, etc.
- High heating and cooling capacities for demanding applications
- Powerful circulating pumps, electronically adjustable in steps
- Intelligent warning and safety functions
- Unique early warning system for low liquid level
- Digital and analog interfaces for flexible communication
- Wireless monitoring and operation with WirelessTEMP
(accessory)
- Maximum cooling capacity at all temperatures (Active Cooling Control)
- Removable venting grids for quick and easy cleaning
- Energy-saving proportional cooling control (FP Series)
- Heated bath cover plate to prevent condensation or ice build-up
- All parts in contact with the bath fluid are made of
stainless steel or high grade plastic
5
TopTech | HighTech

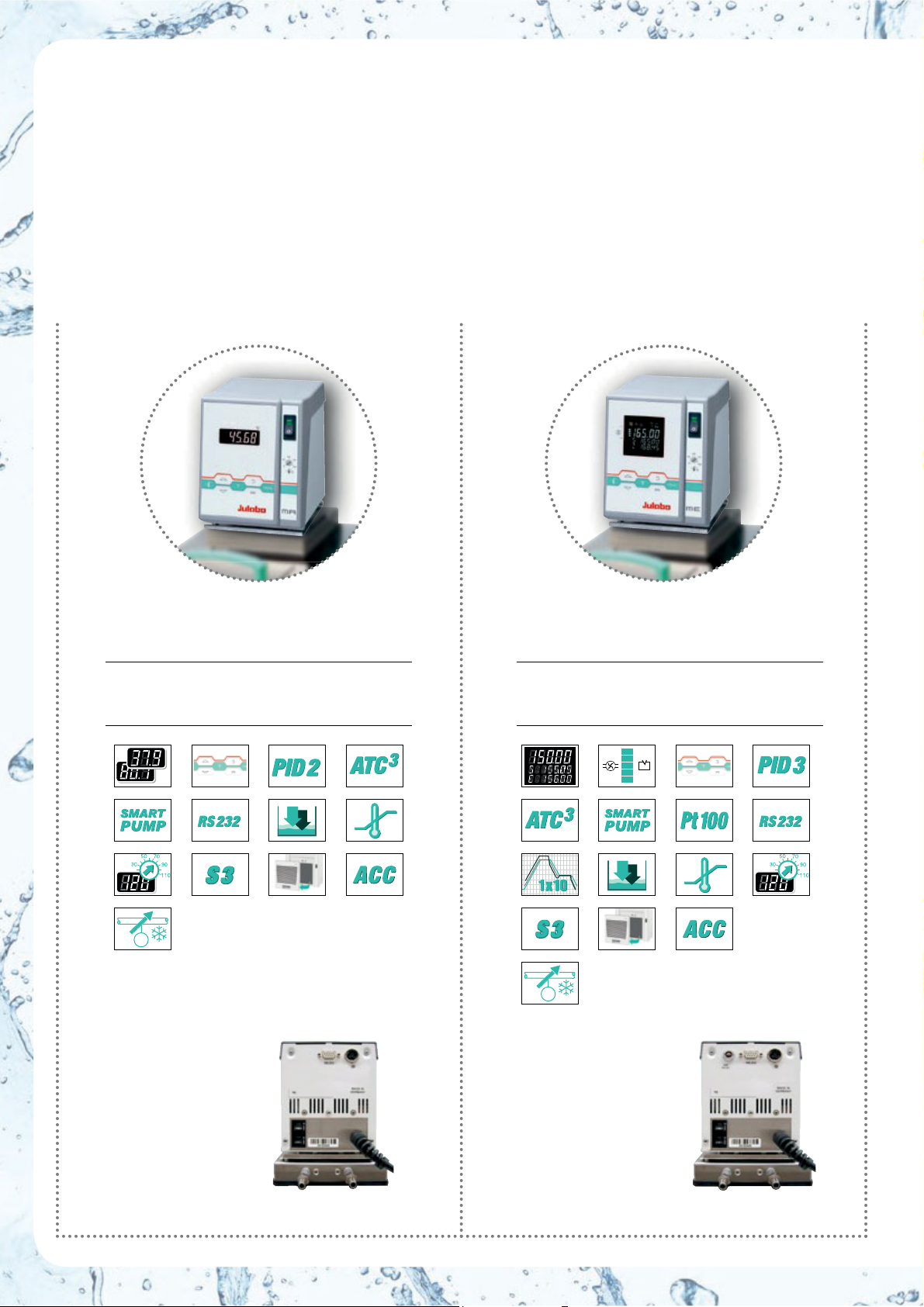

Circulators at a Glance
TopTech
MA Models
-50 °C ... +200 °C
Middle class for a broad
range of applications
FP Models
(in addition)
Connections for
dRS232
eRefrigeration unit
fPump
de
ME Models
-90 °C ... +200 °C
Upper middle class with external
Pt100 sensor connection
FP Models
(in addition)
Connections for
cExternal Pt100 sensor
dRS232
eRefrigeration unit
fPump
cde
f
Please refer to the beginning of the brochure for a description of the icons shown above.
6
f

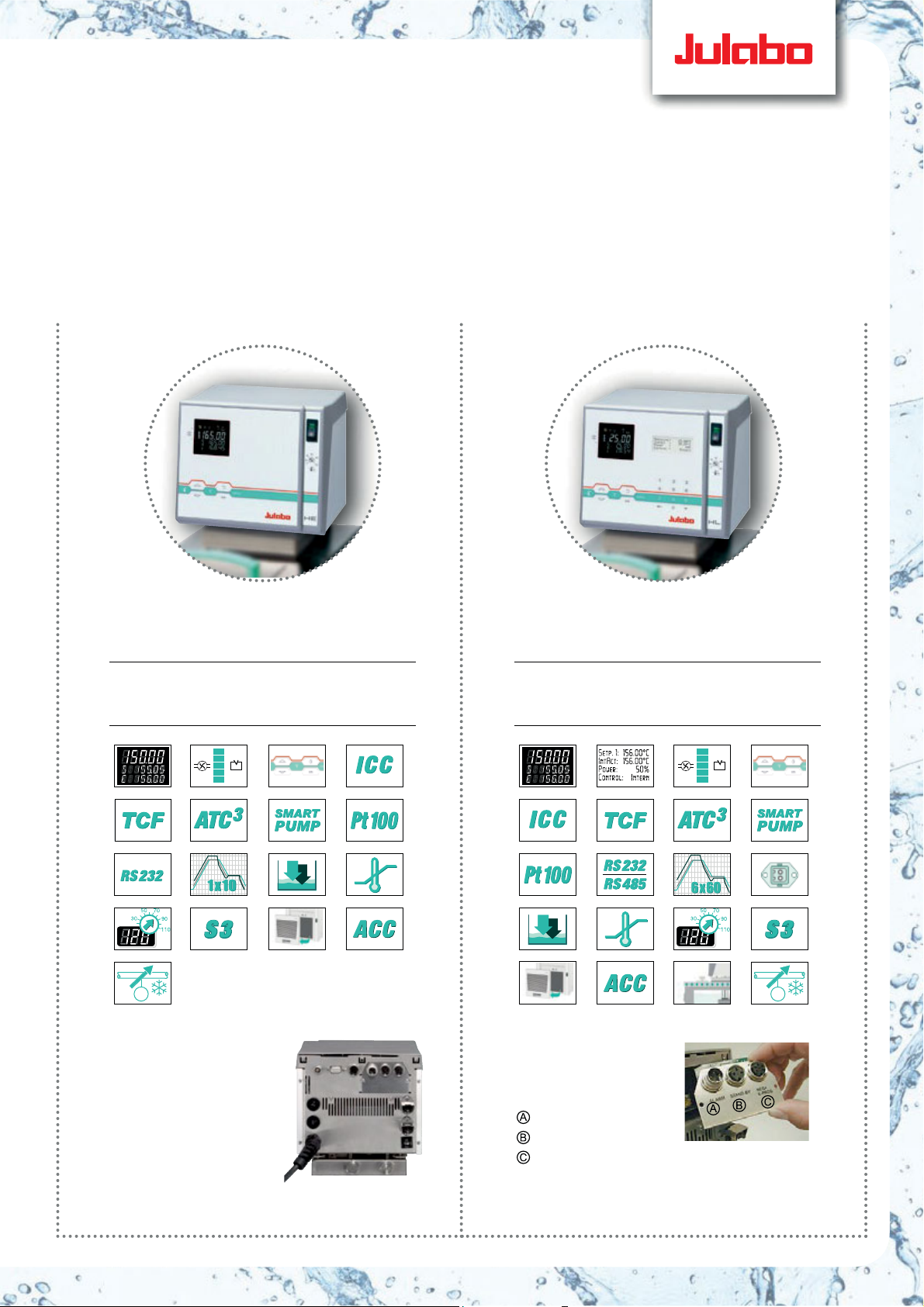

HighTech
HE/SE Models
-50 °C ... +200 °C
Powerful sophisticated models for
demanding applications
FP Models
(in addition)
Connections for
cExternal Pt100 sensor
dRS232 / RS485
eRefrigeration unit
fElectronic module (Optional)
gStakei connections (HL/SL)
hPump M16x1 male
cdef
h
HL/SL Models
-95 °C ... +200 °C
Top class for demanding applications
in any environment
Electronic module
with analog connections
Order No. 8 900 100
Optional for HighTech Series
g
Alarm output
Standby input
Analog interface with one input and two outputs for
external programming, flow sensor, pressure sensor or
temperature recorder, freely scalable (current/voltage)
7
A
Refrigerated Circulators

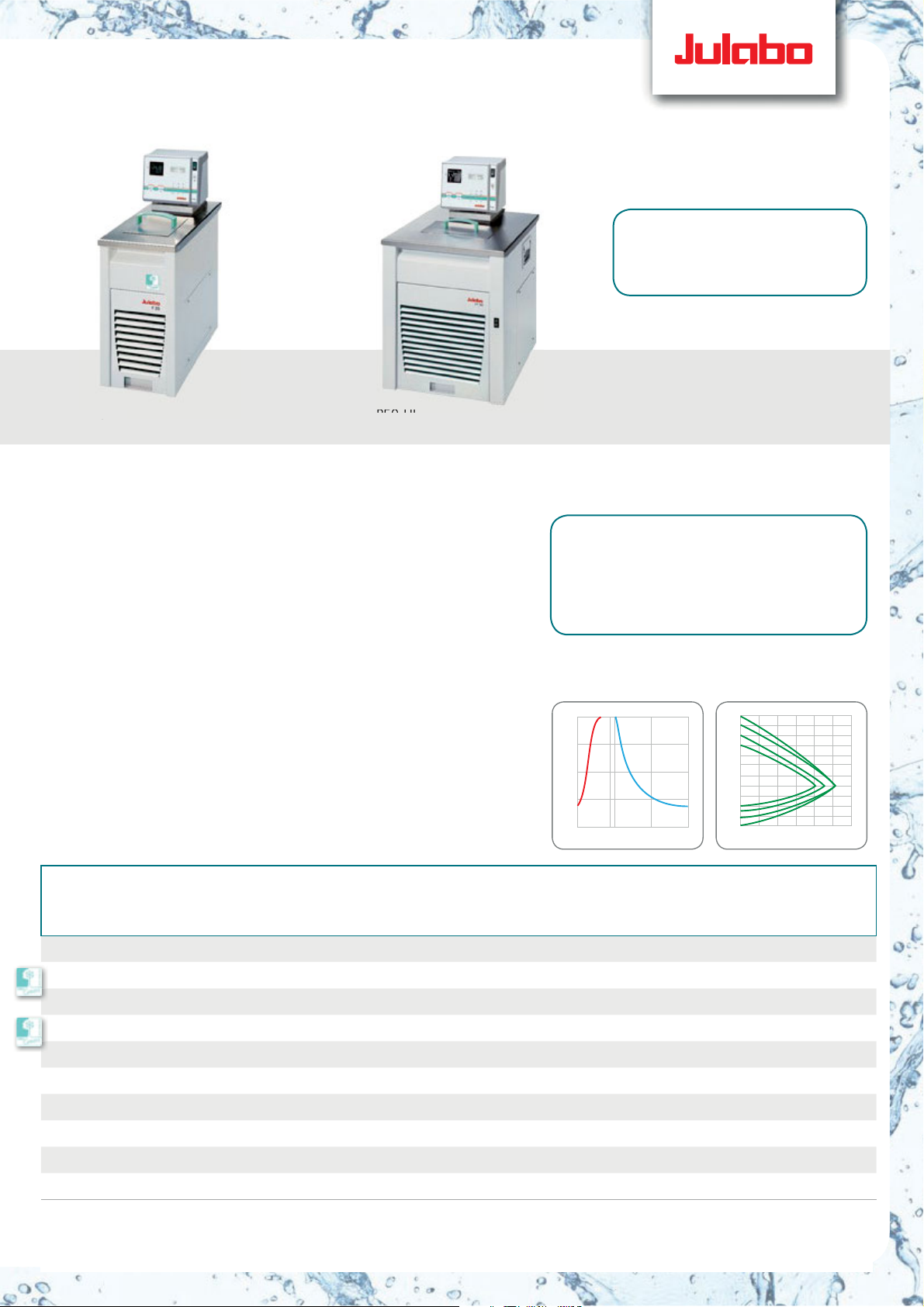

| F12-MA | F25-MA | FP35-MA
TopTech Series
for working temperatures from -50 °C to +200 °C
5-M
Heat-up time
Bath fluid: thermal
Refrigerated / heating circulators of the TopTech Series are designed for
demanding applications. They feature increased functionality and additional warning and safety functions.
Models with MA circulator
- PID2 temperature control, stability ±0.02 °C
- ATC 3-point calibration
Cool-down time
Bath fluid: thermal
- RS232 interface
- Early warning system for low liquid level and high/low temperature
- Pump capacity electronically adjustable
- Protection class III according to DIN 12876-1
___F25, F33,
150
FP40
100
50
FP50__
0
____F34
F32__
50 100˚C min0
-
F12__
_F25
150
___________F32
100
FP50
50
0
20 40˚C min0
Heat-up/cool-down time
Bath fluid: thermal
˚C
100
50
0
-50
15 0
____F33
FP40
____F34
FP35-MA
15
min0
Order No. Model Working
temperature
range °C
Temp.
stab.
°C
Heat.
Cooling capacity kW
cap.
(Bath fluid: ethanol)
kW
+20 0 -20 -30 -40 °C
Pump capacity
Flow rate / Pressure
l/min. bar
Bath opening/
Bath depth
W × L / D cm
Fill.
vol.
liters
9 153 612 F12-MA -20 ... +200 ±0.02 2 0.16 0.1 0.02 -- -- 11-16 0.23-0.45 13 x 15 / 13 4.5 20 x 36 x 56
9 153 625 F25-MA -28 ... +200 ±0.02 2 0.26 0.2 0.06 -- -- 11-16 0.23-0.45 12 x 14 / 14 4.5 23 x 42 x 61
9 153 625N FN25-MA -28 ... +200 ±0.02 2 0.26 0.2 0.06 -- -- 11-16 0.23-0.45 12 x 14 / 14 4.5 23 x 50 x 61
9 153 632 F32-MA -35 ... +200 ±0.02 2 0.45 0.39 0.15 0.06 -- 11-16 0.23-0.45 18 x 12 / 15 8 31 x 42 x 64
9 153 632N FN32-MA -35 ... +200 ±0.02 2 0.45 0.39 0.15 0.06 -- 11-16 0.23-0.45 18 x 12 / 15 8 31 x 50 x 64
9 153 633 F33-MA -30 ... +200 ±0.02 2 0.5 0.32 0.12 0.03 -- 11-16 0.23-0.45 23 x 14 / 20 16 36 x 46 x 69
9 153 634 F34-MA -30 ... +150 ±0.02 2 0.45 0.32 0.14 0.03 -- 11-16 0.23-0.45 24 x 30 / 15 20 38 x 58 x 62
9 153 618 FP35-MA -35 ... +150 ±0.02 2 0.45 0.39 0.15 0.05 -- 11-16 0.23-0.45 18 x 12 / -- 2.5 31 x 42 x 64
9 153 640 FP40-MA -40 ... +200 ±0.02 2 0.68 0.5 0.32 0.17 0.04 11-16 0.23-0.45 23 x 14 / 20 16 37 x 46 x 69
9 153 650 FP50-MA -50 ... +200 ±0.02 2 0.9 0.8 0.5 0.32 0.16 11-16 0.23-0.45 18 x 12 / 15 8 42 x 49 x 70
water-cooled model
9 153 651 FPW50-MA -50 ... +200 ±0.02 2 0.9 0.8 0.5 0.32 0.16 11-16 0.23-0.45 18 x 12 / 15 8 42 x 49 x 70
Included in delivery: 2 barbed fittings each for tubing 8 and 10 mm ID (pump connections M10x1 female)
8
Dimensions
W × L × H cm

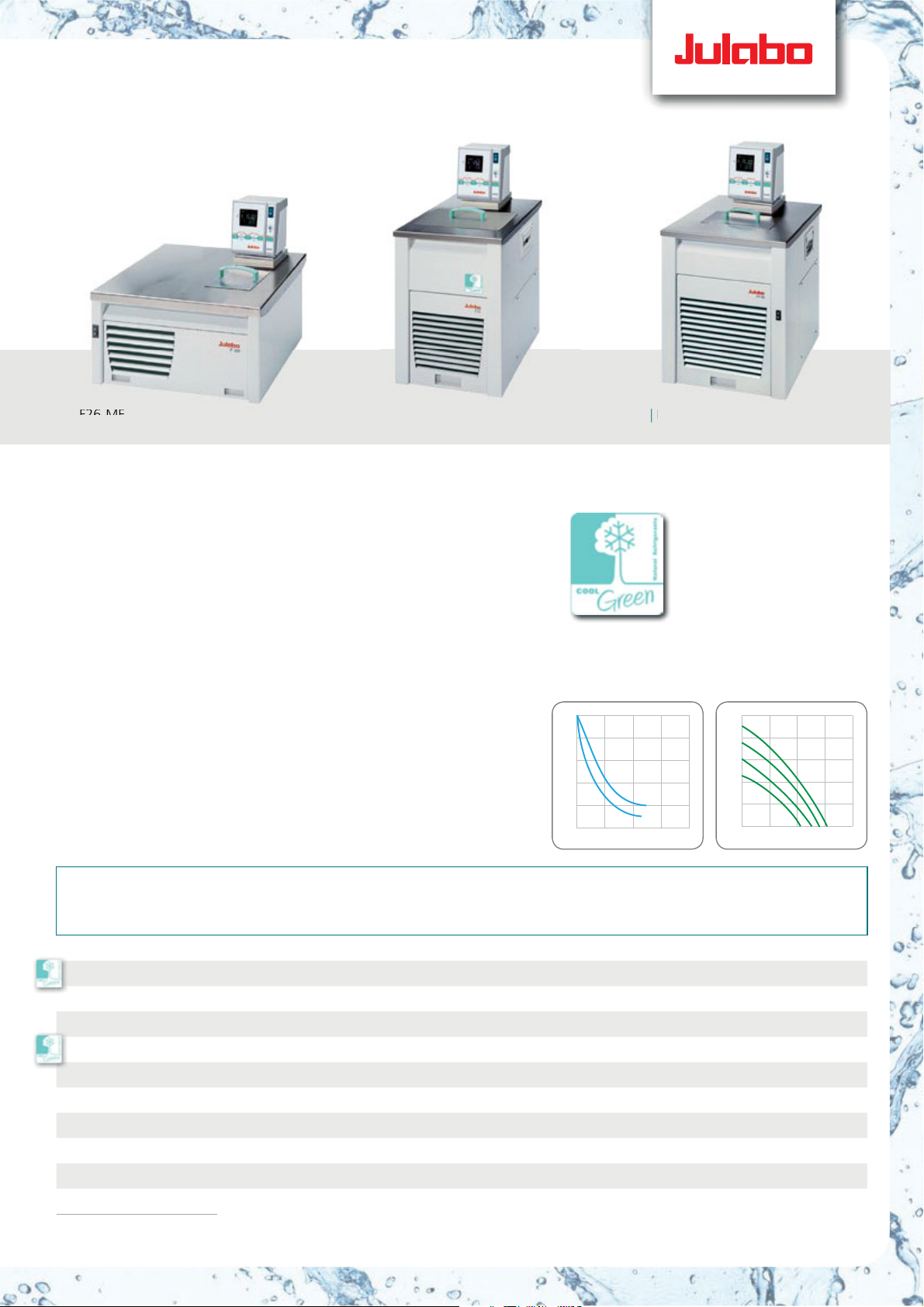

| FN32-ME | FP50-ME| F26-ME
-
TopTech Series
for working temperatures from -50 °C to +200 °C
More information on
circulators with natural
refrigerants at www.julabo.com
Models with ME circulators allow for a wide range of applications. The
units have a connection for an external Pt100 sensor for direct measuring
and control in an external application. The VFD Comfort display features
easy operation and shows all temperature values on one display.
Additional advantages of models with ME circulator
- PID3 temperature control, stability ±0.01 °C
- VFD Comfort display with simultaneous indication of setpoint and
internal and external actual value (resolution 0.01 °C)
- Integrated programmer (1 x 10 steps) with real-time clock
- Illuminated bar display for adjustable pump capacity
Note: FP models feature an energy-saving proportional cooling control.
Order No. Model Working
temperature
range °C
9 162 625 F25-ME -28 ... +200 ±0.01 2 0.26 0.2 0.06 -- -- 11-16 0.23-0.45 12 x 14 / 14 4.5 23 x 42 x 61
9 162 625N FN25-ME -28 ... +200 ±0.01 2 0.26 0.2 0.06 -- -- 11-16 0.23-0.45 12 x 14 / 14 4.5 23 x 50 x 61
9 162 626 F26-ME -28 ... +200 ±0.01 2 0.26 0.2 0.06 -- -- 11-16 0.23-0.45 12 x 14 / 14 4.5 42 x 42 x 42
9 162 632 F32-ME -35 ... +200 ±0.01 2 0.45 0.39 0.15 0.06 -- 11-16 0.23-0.45 18 x 12 / 15 8 31 x 42 x 64
9 162 632N FN32-ME -35 ... +200 ±0.01 2 0.45 0.39 0.15 0.06 -- 11-16 0.23-0.45 18 x 12 / 15 8 31 x 50 x 64
9 162 633 F33-ME -30 ... +200 ±0.01 2 0.5 0.32 0.12 0.03 -- 11-16 0.23-0.45 23 x 14 / 20 16 36 x 46 x 69
9 162 634 F34-ME -30 ... +150 ±0.01 2 0.45 0.32 0.14 0.03 -- 11-16 0.23-0.45 24 x 30 / 15 20 38 x 58 x 62
9 162 640 FP40-ME -40 ... +200 ±0.01 2 0.68 0.5 0.32 0.17 0.04 11-16 0.23-0.45 23 x 14 / 20 16 37 x 46 x 69
9 162 650 FP50-ME -50 ... +200 ±0.01 2 0.9 0.8 0.5 0.32 0.16 11-16 0.23-0.45 18 x 12 / 15 8 42 x 49 x 70
water-cooled model
9 162 651 FPW50-ME -50 ... +200 ±0.01 2 0.9 0.8 0.5 0.32 0.16 11-16 0.23-0.45 18 x 12 / 15 8 42 x 49 x 70
Included in delivery: 2 barbed fittings each for tubing 8 and 10 mm ID (pump connections M10x1 female)
Temp.
stab.
°C
Heat.
Cooling capacity kW
cap.
(Bath fluid: ethanol)
kW
+20 0 -20 -30 -40°C
Cool-down time
Bath fluid: ethanol
˚C
10
0
____F12
-10
-20
F25/F26______
-30
30
0
Pump capacity
low rate / Pressure
l/min. bar
90
60
Bath opening/
Bath depth
W × L / D cm
min
Pump capacity
Bath fluid: water
MA + ME, adjustable in stages
bar
0.4
0.3
0.2
0.1
0
__Stage 4
_____Stage 3
________Stage 2
51015
Fill.
Dimensions
vol.
W × L × H cm
________Stage 1
liters
l/min0
9
Refrigerated Circulators
| F25-HE | FN32-HE | FP50-HE
5-HE
HighTech Series
for working temperatures from -50 °C to +200 °C
The HighTech Series features refrigerated heating circulators with innovative technology for sophisticated applications. The instruments provide
powerful, electronically adjustable pressure and suction pumps.
The instruments can be used for internal as well as external temperature
control applications of closed and open systems.
Models with HE circulator
Heat-up time
Bath fluid: thermal
- The ICC Cascade Control guarantees highest precision, stability ±0.01 °C
_F25
- VFD Comfort display, simultaneous indication of setpoint and internal
and external actual value (resolution 0.01 °C)
- Integrated programmer (1 x 10 steps), real-time clock, RS232
- Powerful pressure and suction pump, electronically adjustable in steps,
automatic adjustment of pump capacity to viscosity characteristics
Order No. Model Working
temperature
range °C
9 212 625 F25-HE -28 ... +200 ±0.01 2 0.26 0.2 0.06 -- -- 22-26 0.4-0.7 0.2-0.4 12 x 14 / 14 4.5 23 x 42 x 64
9 212 625N FN25-HE -28 ... +200 ±0.01 2 0.26 0.2 0.06 -- -- 22-26 0.4-0.7 0.2-0.4 12 x 14 / 14 4.5 23 x 50 x 64
Temp.
stab.
°C
Heat.
Cooling capacity kW
cap.
(Bath fluid: ethanol)
kW
+20 0 -20 -30 -40 °C
150
___________F32
100
FP50
50
0
Pump capacity
Flow rate / Pressure / Suction
l/min. bar bar
____F33
FP40
____F34
20 40˚C min0
Cool-down time
Bath fluid: ethanol
˚C
10
0
-10
-20
-30
-40
-50
-60
Bath open./
Bath depth
W × L / D cm
FP50___
30
Fill.
vol.
liters
___F34
________F25
F32
60
Dimensions
W × L × H cm
_FP40
90
min0
9 212 632 F32-HE -35 ... +200 ±0.01 2 0.45 0.39 0.15 0.06 -- 22-26 0.4-0.7 0.2-0.4 18 x 12 / 15 8 31 x 42 x 66
9 212 632N FN32-HE -35 ... +200 ±0.01 2 0.45 0.39 0.15 0.06 -- 22-26 0.4-0.7 0.2-0.4 18 x 12 / 15 8 31 x 50 x 66
9 212 634 F34-HE -30 ... +150 ±0.01 2 0.45 0.32 0.14 0.03 -- 22-26 0.4-0.7 0.2-0.4 24 x 30 / 15 20 38 x 58 x 64
9 212 640 FP40-HE -40 ... +200 ±0.01 2 0.68 0.5 0.32 0.17 0.04 22-26 0.4-0.7 0.2-0.4 23 x 14 / 20 16 37 x 46 x 71
9 212 650 FP50-HE -50 ... +200 ±0.01 2 0.9 0.8 0.5 0.32 0.16 22-26 0.4-0.7 0.2-0.4 18 x 12 / 15 8 42 x 49 x 72
water-cooled model
9 212 651 FPW50-HE -50 ... +200 ±0.01 2 0.9 0.8 0.5 0.32 0.16 22-26 0.4-0.7 0.2-0.4 18 x 12 / 15 8 42 x 49 x 72
Included in delivery: 2 barbed fittings each for tubing 8 and 12 mm ID (pump connections M16x1 male)
10
| FN25-HL | FP50-HL
-
FP35-HL for external
temperature applications with
rapid temperature changes
HighTech Series
for working temperatures from -50 °C to +200 °C
Applications
External temperature control applications,
particularly for distillation apparatus and miniplant
The top models with HL circulators offer professional technology and
maximum functionality.
installations, jacketed reactors, autoclaves, kilo labs,
pilot plants etc.
Additional advantages of models with HL circulator
- Comfortable user guidance via additional LCD display
- Integrated programmer (6 x 60 steps) with real-time clock
- Combined RS232 / RS485 interface
- Temperature display in °C or °F, adjustable
- Stakei connections for connecting a solenoid valve
Note: FP models feature an energy-saving proportional cooling control.
Order No. Model Working
temperature
range °C
Temp.
stab.
°C
Heat.
Cooling capacity kW
cap.
(Bath fluid: ethanol)
kW
+20 0 -20 -30 -40°C
Heat-up/cool-down time
Bath fluid: thermal
˚C
100
50
0
-50
15 0
Pump capacity
Flow rate / Pressure / Suction
l/min. bar bar
FP35-HL
15
min0
Bath open./
Bath depth
W × L / D cm
9 312 625 F25-HL -28 ... +200 ±0.01 2 0.26 0.2 0.06 -- -- 22-26 0.4-0.7 0.2-0.4 12 x 14 / 14 4.5 23 x 42 x 64
9 312 625N FN25-HL -28 ... +200 ±0.01 2 0.26 0.2 0.06 -- -- 22-26 0.4-0.7 0.2-0.4 12 x 14 / 14 4.5 23 x 50 x 64
Pump capacity
Bath fluid: water
bar
0.6
__Stage 4
0.5
______Stage 3
0.4
0.3
0.2
0.1
-0.1
-0.2
-0.3
-0.4
0
_________Stage 2
_________Stage 1
5 10 15 20 25 l/min0
Fill.
vol.
Dimensions
W × L × H cm
liters
HE, HL
9 312 632 F32-HL -35 ... +200 ±0.01 2 0.45 0.39 0.15 0.06 -- 22-26 0.4-0.7 0.2-0.4 18 x 12 / 15 8 31 x 42 x 66
9 312 632N FN32-HL -35 ... +200 ±0.01 2 0.45 0.39 0.15 0.06 -- 22-26 0.4-0.7 0.2-0.4 18 x 12 / 15 8 31 x 50 x 66
9 312 633 F33-HL -30 ... +200 ±0.01 2 0.5 0.32 0.12 0.03 -- 22-26 0.4-0.7 0.2-0.4 23 x 14 / 20 16 36 x 46 x 71
9 312 618 FP35-HL -35 ... +150 ±0.01 2 0.45 0.39 0.15 0.05 -- 22-26 0.4-0.7 0.2-0.4 18 x 12 / -- 2.5 31 x 42 x 66
9 312 640 FP40-HL -40 ... +200 ±0.01 2 0.68 0.5 0.32 0.17 0.04 22-26 0.4-0.7 0.2-0.4 23 x 14 / 20 16 37 x 46 x 71
9 312 650 FP50-HL -50 ... +200 ±0.01 2 0.9 0.8 0.5 0.32 0.16 22-26 0.4-0.7 0.2-0.4 18 x 12 / 15 8 42 x 49 x 72
water-cooled model
9 312 651 FPW50-HL -50 ... +200 ±0.01 2 0.9 0.8 0.5 0.32 0.16 22-26 0.4-0.7 0.2-0.4 18 x 12 / 15 8 42 x 49 x 72
Included in delivery: 2 barbed fittings each for tubing 8 and 12 mm ID (pump connections M16x1 male)
11
Loading...
