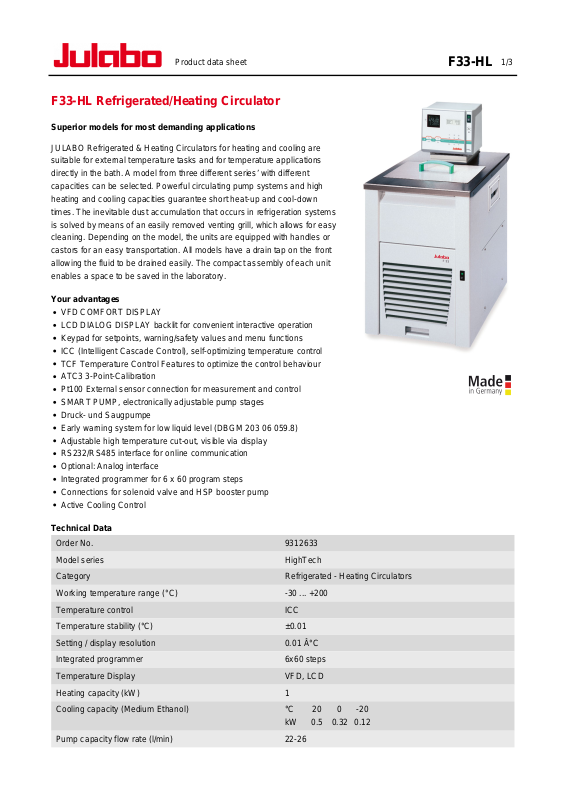

Product data sheet 1/3
F33-HL Refrigerated/Heating Circulator
Superior models for most demanding applications
JULABO Refrigerated & Heating Circulators for heating and cooling are
suitable for external temperature tasks and for temperature applications
directly in the bath. A model from three different series’ with different
capacities can be selected. Powerful circulating pump systems and high
heating and cooling capacities guarantee short heat-up and cool-down
times. The inevitable dust accumulation that occurs in refrigeration systems
is solved by means of an easily removed venting grill, which allows for easy
cleaning. Depending on the model, the units are equipped with handles or
castors for an easy transportation. All models have a drain tap on the front
allowing the fluid to be drained easily. The compact assembly of each unit
enables a space to be saved in the laboratory.
Your advantages
VFD COMFORT DISPLAY
LCD DIALOG DISPLAY backlit for convenient interactive operation
Keypad for setpoints, warning/safety values and menu functions
ICC (Intelligent Cascade Control), self-optimizing temperature control
TCF Temperature Control Features to optimize the control behaviour
ATC3 3-Point-Calibration
Pt100 External sensor connection for measurement and control
SMART PUMP, electronically adjustable pump stages
Druck- und Saugpumpe
Early warning system for low liquid level (DBGM 203 06 059.8)
Adjustable high temperature cut-out, visible via display
RS232/RS485 interface for online communication
Optional: Analog interface
Integrated programmer for 6 x 60 program steps
Connections for solenoid valve and HSP booster pump
Active Cooling Control
F33-HL
Technical Data
Order No. 9312633
Model series HighTech
Category Refrigerated - Heating Circulators
Working temperature range (°C) -30 ... +200
Temperature control ICC
Temperature stability (°C) ±0.01
Setting / display resolution 0.01 °C
Integrated programmer 6x60 steps
Temperature Display VFD, LCD
Heating capacity (kW) 1
Cooling capacity (Medium Ethanol) °C 20 0 -20
kW 0.5 0.32 0.12
Pump capacity flow rate (l/min) 22-26
Page 2
Product data sheet 2/3
Pump capacity flow pressure (psi) 5.8-10.2
Pump capacity flow suction (psi) 2.9-5.8
Bath opening / bath depth (W x L / D inch) 9.1 x 5.5 / 7.9
Pump connections M16x1
Barbed fittings diameter (inner dia. / mm) 8 / 12
Filling volume liters 16
Refrigerant stage 1 R134a
Filling volume refrigerant stage 1 (g) 145
Global Warming Potential for 1430
Carbon dioxide equivalent stage 1 (t) 0.207
External Pt100 sensor connection integrated
Digital interface RS232, RS485
Optional: Profibus
Ambient temperature 5...40 °C
Dimensions W x L x H (inch) 14.2 x 18.1 x 28
F33-HL
Weight (LBS) 99
Classification according to DIN12876-1 Classification III (FL)
Included with each unit 2 each barbed fittings for tubing 8 and 12 mm inner dia.
(pump connections M16x1 female).
Cooling of compressor Air
Power requirement V / Hz / A 115/60/15
Available voltage versions 230 V / 50 Hz
115 V / 60 Hz
230 V / 60 Hz
Characteristics
Display
A perfect view
Ample, easy to read VFD Comfort
display for simultaneous display of 3
values, warning functions, high
temperature cut-off, pump stages
(resolution 0.01 °C)
Additional plain text information
Comfortable LCD dialog display for
interactive operation with plain text
display
Pump stage and liquid level
Backlit indicator for selected pump
stages and filling volume on Presto®
PLUS, Magnum 91 & Forte HT
Operation
Comfortable and detailed
Comfortable keypad with additional
menu functions for pump stages,
calibration, control parameters,
programmer, warnings, etc.
Temperature Control
For perfect results
‘Intelligent Cascade Control’,
automatic & self optimizing
adjustment of PID control
parameters, temperature stability
±0.005 °C internal, <±0.05 °C
external
Full control
‘Temperature Control Features’ for
individual optimization, access to all
important control parameters,
additional settings for band limit,
limits, Co-Speedfactor etc.
Highest measuring accuracy
‘Absolute Temperature Calibration’
for manual compensation of a
temperature difference, 3-point
calibration
Refrigeration Technology
Consistent cooling capacity
Easily removable venting grid for
quick and easy cleaning
Page 3
Product data sheet 3/3
F33-HL
100 % Cooling capacity
‘Active Cooling Control’ for cooling
available throughout the entire
working temperature range, fast
cool-down even at higher
temperatures
Condensation and ice protection
A heated cover plate prevents
condensation or ice build-up in the
bath
Technical Features
Clever pump system
Reliable and consistent pump
capacity, electronically adjustable
pump stages
Control from the external
application
External Pt100 sensor connection
for precise measurement and
control directly in the external
application
Connection compliant to standard
RS232/RS485 dual-interface for
serial data transmission according to
EIA-485 industry standard (2-wire
bus technology), upgradable with
Profibus DP
Enhanced protective functions
Maximum safety, adjustable high
temperature cut-off or dry-running
protection, additional display of
setpoints permits easy and precise
adjustments
For flammable bath fluids
Classification III (FL) according to
DIN 12876-1
Optimal program control
For the execution of time and
temperature dependant profiles, 6
temperature profiles with 60 steps
max., with real time clock
Connection of additional
equipment
Stakei connections for solenoid
valve, HSP booster pump and HST
booster heater
Warning & Safety Functions
Early warning system for low
liquid level
Maximum safety for applications,
optical and audible alarm, allows
user to refill bath fluid before the unit
shuts down
Early warning system for high/low
temperature limits
Maximum safety for applications,
optical and audible alarm,
convertible to automated cut-off
function
