Juki MS191, M1190, M1190M User Manual
ML115VS-46-1B

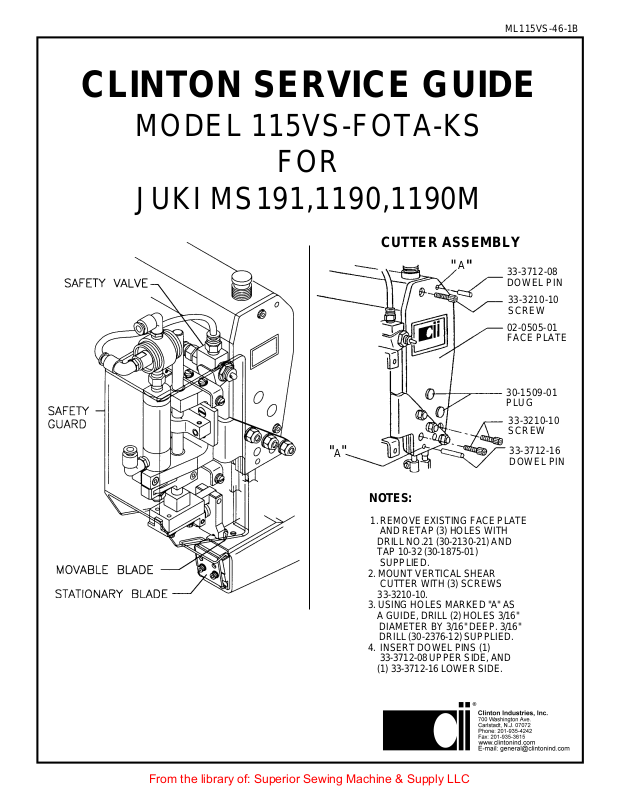

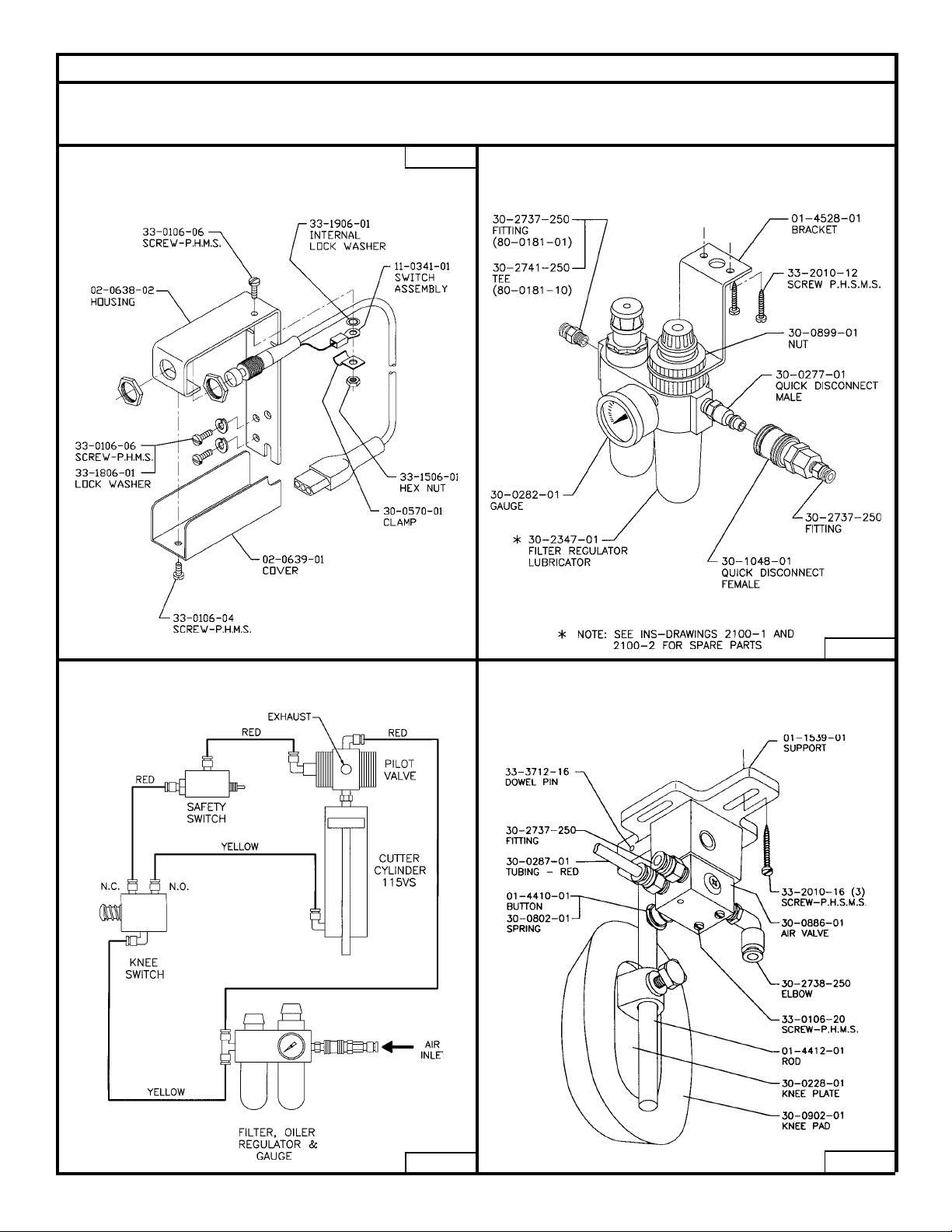

CLINTON SERVICE GUIDE
MODEL 115VS-FOTA-KS
FOR
JUKI MS191,1190,1190M
CUTTER ASSEMBLY
A
A
NOTES:
1. REMOVE EXISTING FACE PLATE
AND RETAP (3) HOLES WITH
DRILL NO.21 (30-2130-21) AND
TAP 10-32 (30-1875-01)
SUPPLIED.
2. MOUNT VERTICAL SHEAR
CUTTER WITH (3) SCREWS
33-3210-10.
3. USING HOLES MARKED "A" AS
A GUIDE, DRILL (2) HOLES 3/16"
DIAMETER BY 3/16" DEEP. 3/16"
DRILL (30-2376-12) SUPPLIED.
4. INSERT DOWEL PINS (1)
33-3712-08 UPPER SIDE, AND
(1) 33-3712-16 LOWER SIDE.
33-3712-08
DOWEL PIN
33-3210-10
SCREW
02-0505-01
FACE PLATE
30-1509-01
PLUG
33-3210-10
SCREW
33-3712-16
DOWEL PIN
STATIONARY BLADE
NOTE:
ASSEMBLE STATIONARY
BLADE AS SHOWN.
INSTALLATION & ADJUSTMENTS INSTRUCTIONS
INS-2300
NOTES:
1. ASSEMBLE MOVABLE BLADE
01-9448-01 WITH SCREWS
(2) 33-3106-04 AND LOCK
WASHERS (2) 33-1806-01.
2. DO NOT TIGHTEN MOVABLE
BLADE SCREWS AT THIS TIME.
REFER TO ALIGNMENT
ADJUSTMENT.
MOVABLE BLADE
33-3106-04
SCREW
33-1806-01
LOCK WASHER
ML115VS-46-2A
INS-2297
01-9448-01
MOVABLE BLADE
RADIAL
33-3108-08
SCREW
01-3051-01
SCREW
33-3106-08
ADJUSTING SCREWS
NOTES:
1. LOOSEN SCREW 01-3051-01
AND 33-3108-08 AND ROTATE
ASSEMBLY FOR PROPER
ENGAGEMENT.
2. LOOSEN SCREWS 33-3106-08
AND ADJUST MOVABLE BLADE
AGAINST STATIONARY BLADE
AND LOCK IN PLACE.
INS-2298
ALIGNMENT
30-2489-01
SET SCREW
CHECK ALIGNMENT
BETWEEN BLADES
AND ADJUST FOR
1/32" OVERLAP
NOTE:
LOOSEN SET SCREW 30-2489-01
AND ADJUST SCREW 02-0034-01
COUNTER-CLOCKWISE FOR
MORE CUTTING EDGE
ENGAGEMENT.
INS-2299
02-0034-01
ADJUSTING
SCREW
33-3106-04
SCREW
