USER MANUAL
Staco SV
120-240V 50/60Hz
1 to 3kVA
003-2655 Rev A
Staco Energy is highly specialized in the development and production of uninterruptible power
systems (UPS). The UPS in this series are high quality products, carefully designed and
manufactured to ensure optimum performance.
No reproduction of any part of this manual, even partial, is permitted without the authorization of Staco
Energy Products Company. The Staco Energy Products Company reserves the right to modify the
product described herein, in order to improve it, at any time and without notice.
2425 Technical Dr. • Miamisburg, Ohio 45342
U.S. Toll Free 866-261-1191
(937) 253-1191 • Fax: (937) 253-1723
Web site: www.stacoenergy.com
Thank you for choosing our product.
Page | ii
Safety Warnings
IMPORTANT SAFETY INSTRUCTIONS
SAVE THESE INSTRUCTIONS
This manual contains important instructions for Staco SV UPS that should be followed during installation
and maintenance of the UPS. Please read all instructions before operating the and save this manual for
future reference.
READ AND FOLLOW ALL SAFETY INSTRUCTIONS
a. Do not install outdoors.
b. Do not route wiring across or near hot surfaces.
c. Do not install near gas or electric heaters.
d. Use caution when servicing batteries. Battery acid can cause burns to skin and eyes. If acid is
spilled on skin or in eyes, flush acid with fresh water and contact a physician immediately.
e. Unit should be installed where it will not readily be subjected to tampering by unauthorized
personnel.
f. The use of accessory equipment not recommended by the manufacturer may present an unsafe
condition.
g. Do not use this UPS for anything other than intended use.
This UPS is designed and manufactured according to the relevant product standards for normal
use.
Page | iii
DANGER
WARNING
This UPS contains LETHAL VOLTAGES. All repairs and service should be performed by
AUTHORIZED SERVICE PERSONNEL ONLY. There are NO USER SERVICEABLE
PARTS inside UPS.
To reduce the risk of fire or electric shock, install this UPS in a temperature and
humidity controlled, indoor environment, free of conductive contaminants. Do not
operate near water or excessive humidity (95% maximum).
WARNING
Batteries present a risk of electrical shock or burn from high short circuit current.
Observe proper precautions. Servicing should be performed by qualified service
personnel knowledgeable of batteries and required precautions. Keep unauthorized
personnel away from batteries.
There is a risk of explosion if batteries are replaced with an incorrect type. Replace
with same type and rating only.
Proper disposal of batteries is required. Refer to your local codes for disposal
requirements. Never dispose of batteries in a fire.
Emergency Intervention
First aid intervention
Local and company procedures should be followed for any first aid intervention that may be
required.
Firefighting measures
1. Do not use water to put out a fire. Use fire extinguishers that are suitable for use with
electrical and electronic equipment.
2. If exposed to heat or fire, some products may release toxic fumes into the atmosphere.
Always use a respirator when extinguishing a fire.
Page | iv
Symbols used in the Manual
Danger / Risk of Electric Shock
adequate precautions are taken.
Warning
taken
Some elements are highlighted with graphic symbols to alert the user to dangerous operations.
This symbol indicates the possibility of serious
injury or substantial damage to the unit, unless
This symbol indicates important information which
must be understood. Stated precautions must be
Note
Protective Equipment
No maintenance operation should be carried out on the unit without wearing the Personal Protective
Equipment (PPE) described below. Personnel involved in the installation and/or maintenance of the unit
must be properly clothed.
The following signs show the protective equipment that should be worn. The various items of PPE must
be selected and sized according to the nature of the hazard (particularly electrical) posed by the unit.
Accident
prevention
footwear
Protective
clothing
Protective
eyewear
Helmet
Work gloves
GENERAL PRECAUTIONS
This manual contains detailed instructions for the use, installation and start-up of the Staco SV UPS.
Read the manual carefully before installation. For information on using the UPS, the manual should be
kept close at hand and consulted before carrying out any operation on the UPS.
Page | v
Table of Contents
Safety Warnings ....................................................................................................................................... iii
Emergency Intervention ........................................................................................................................... iv
First aid intervention ............................................................................................................................. iv
Firefighting measures ........................................................................................................................... iv
Symbols used in the Manual .................................................................................................................... v
Protective Equipment ............................................................................................................................... v
GENERAL PRECAUTIONS ...................................................................................................................... v
1. Important Safety Warnings ................................................................................................................... 1
1.1 Transportation ................................................................................................................................ 1
1.2 Preparation ..................................................................................................................................... 1
1.3 Installation ...................................................................................................................................... 1
1.4 Operation ....................................................................................................................................... 1
1.5 Maintenance, Service and Faults .................................................................................................... 2
1.6 FCC (120V Models) ........................................................................................................................ 3
1.7 EMC (230V Models) ....................................................................................................................... 3
2. Installation and setup ........................................................................................................................... 4

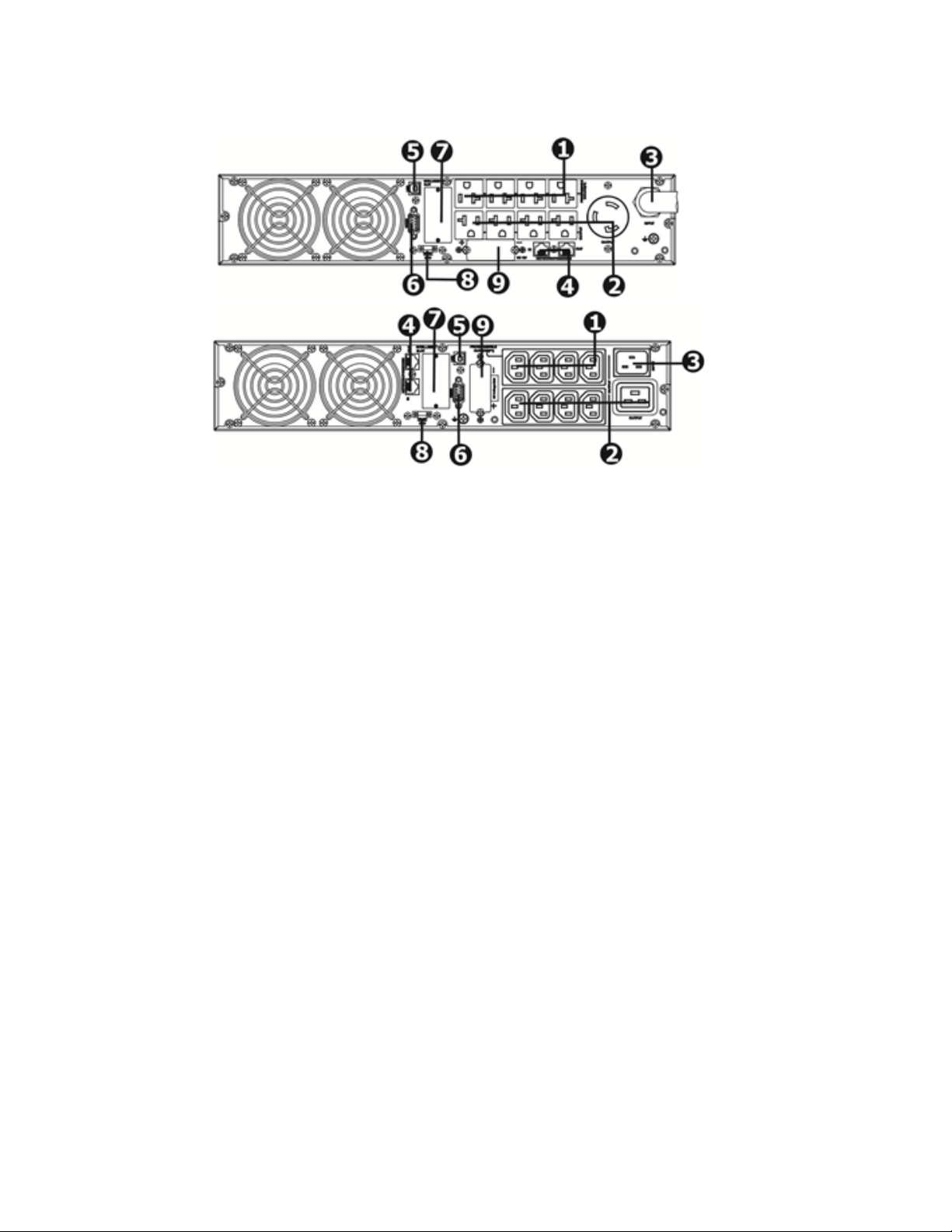

2.1 Rear panel view .............................................................................................................................. 4
2.1.1 1kVA & 1.5kVA Models .......................................................................................................... 4
2.1.2 2kVA Models ......................................................................................................................... 4
2.1.3 3kVA Models ......................................................................................................................... 5

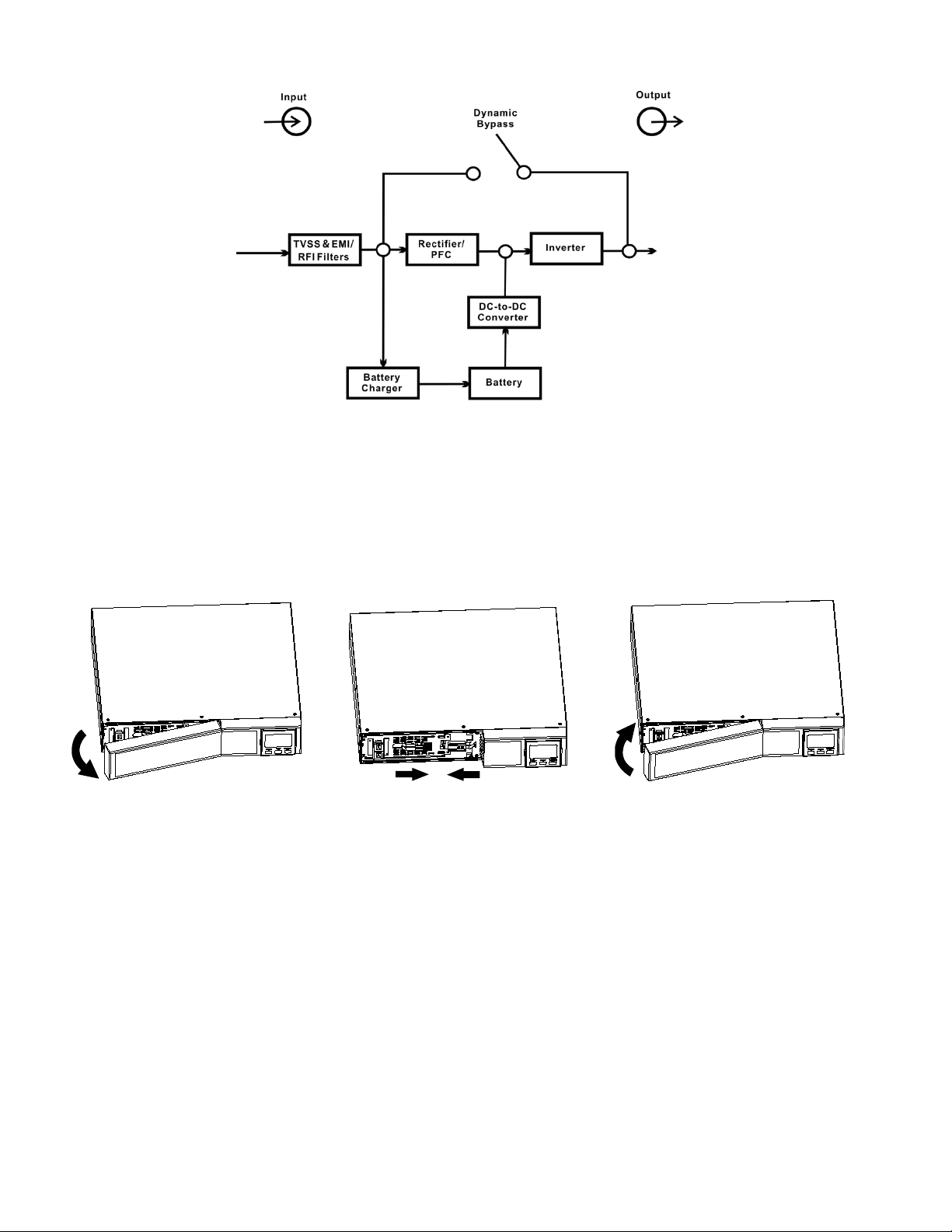

2.2 Operating principle ......................................................................................................................... 6
2.3 Install the UPS ................................................................................................................................ 6

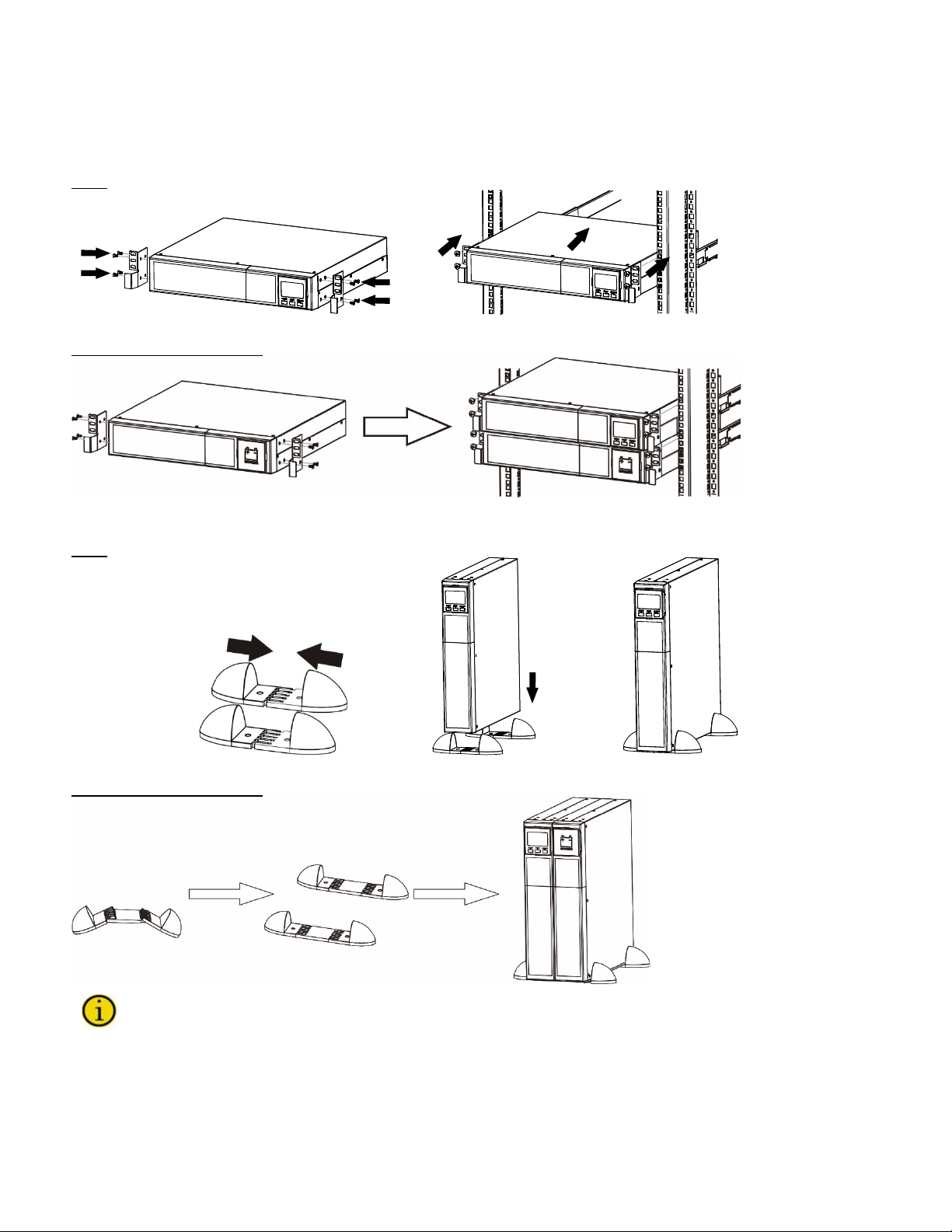

2.3.1 Rackmount Installation............................................................................................................. 7
2.3.2 Tower Installation ................................................................................................
2.4 UPS Setup ...................................................................................................................................... 8

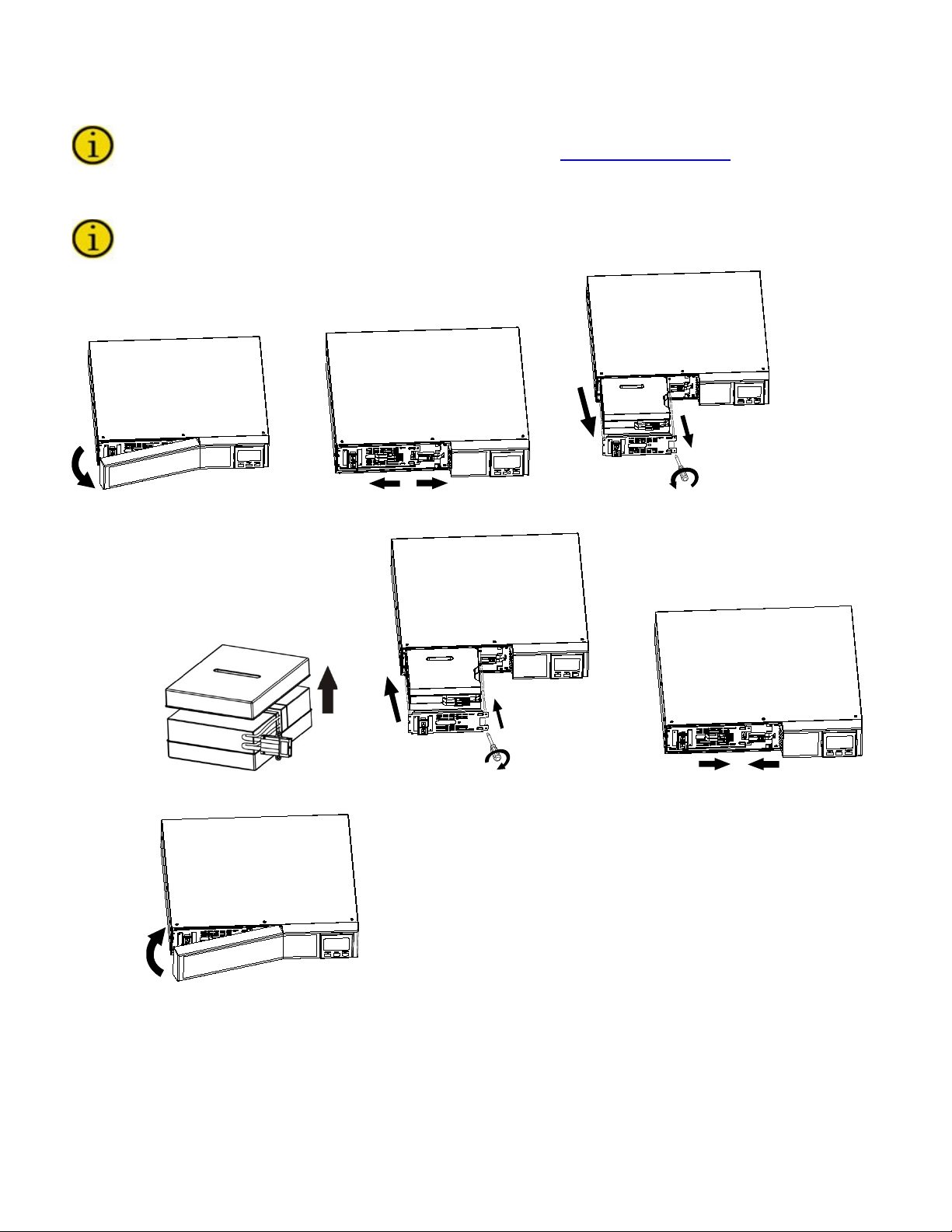

2.5 Battery Kit Replacement ................................................................................................................ 11

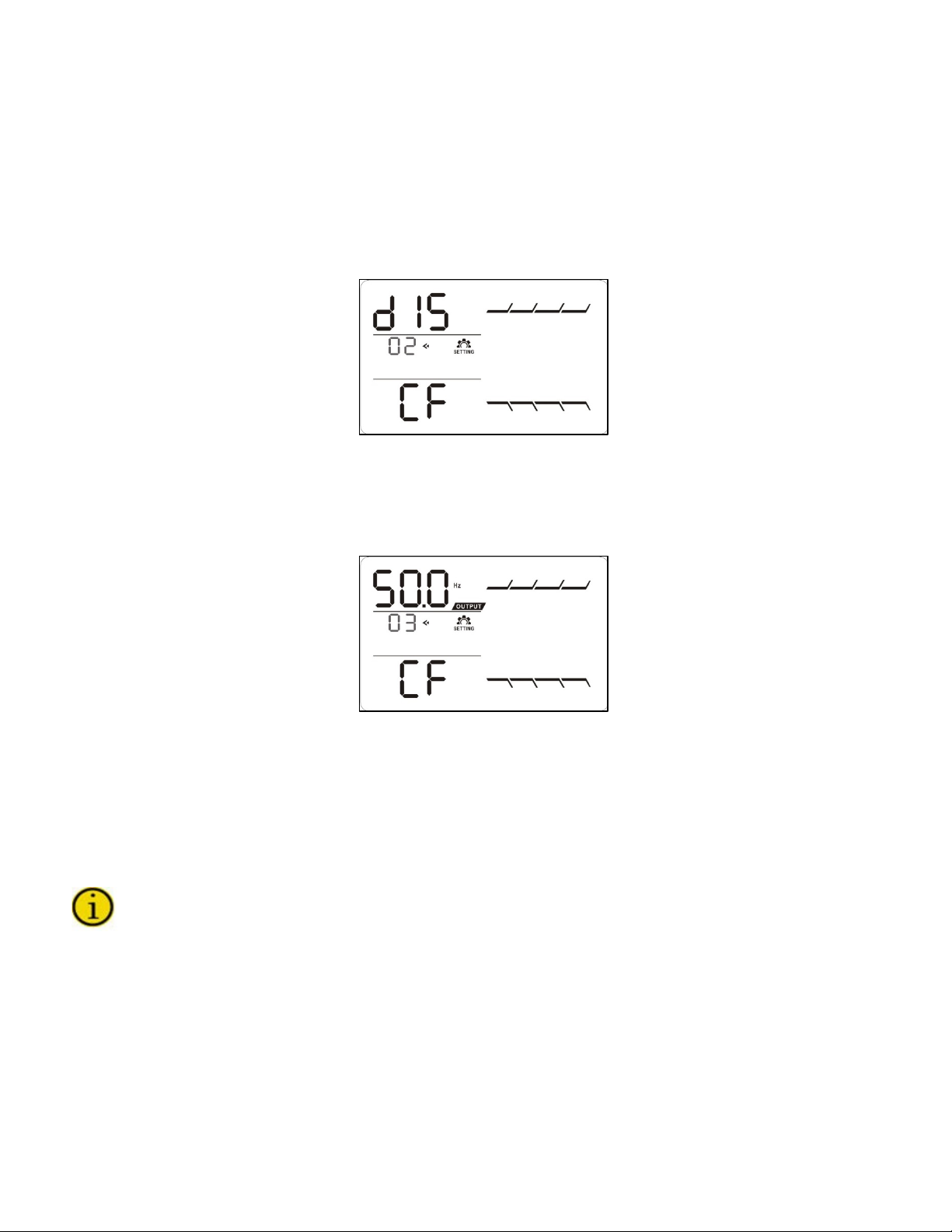

2.7 Frequency Converter Mode .......................................................................................................... 12
2.8 Power Conditioner Set-Up ............................................................................................................ 13
2.9 Permanently Silence Audible Alarm .............................................................................................. 14
3. Operation........................................................................................................................................ 15

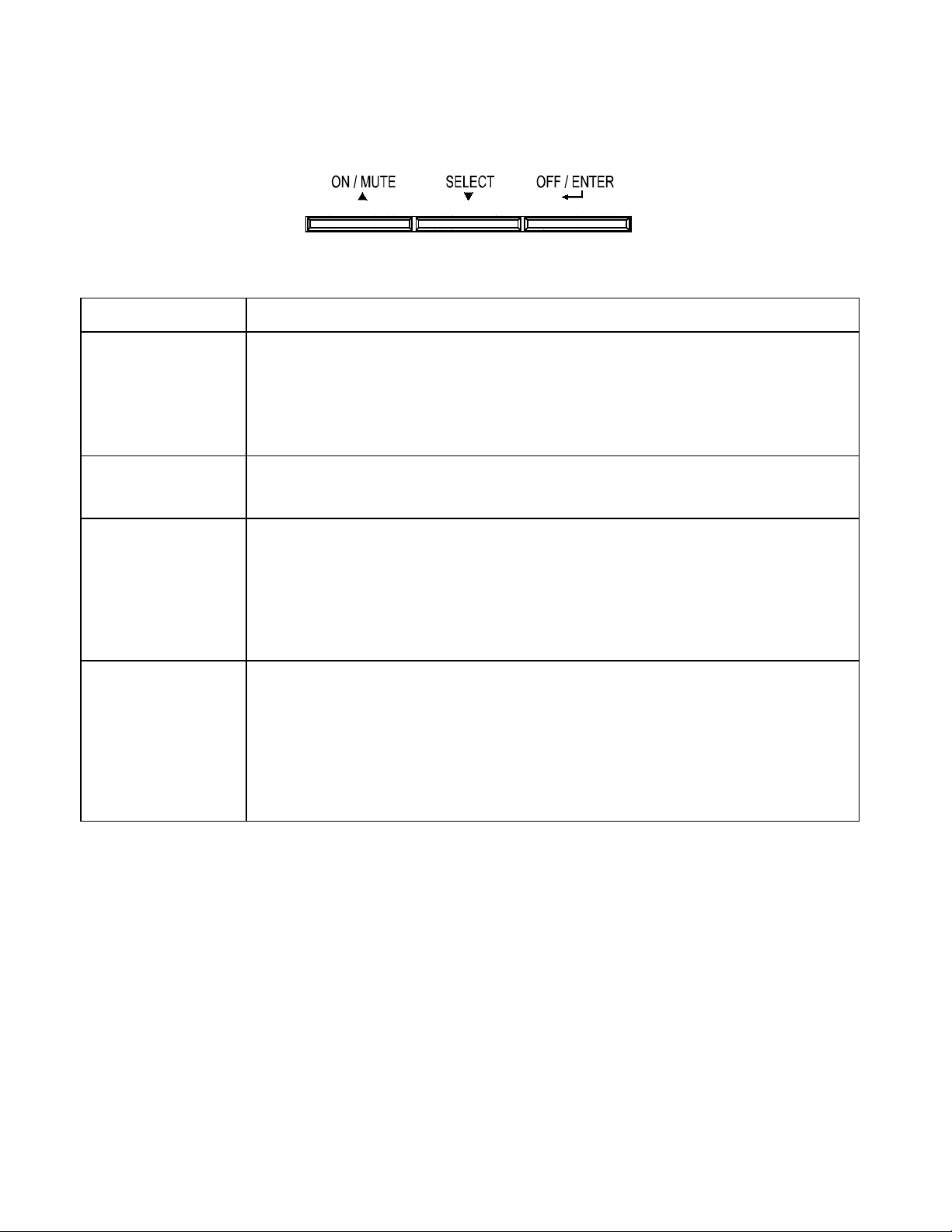

3.1 Button operation ........................................................................................................................... 15

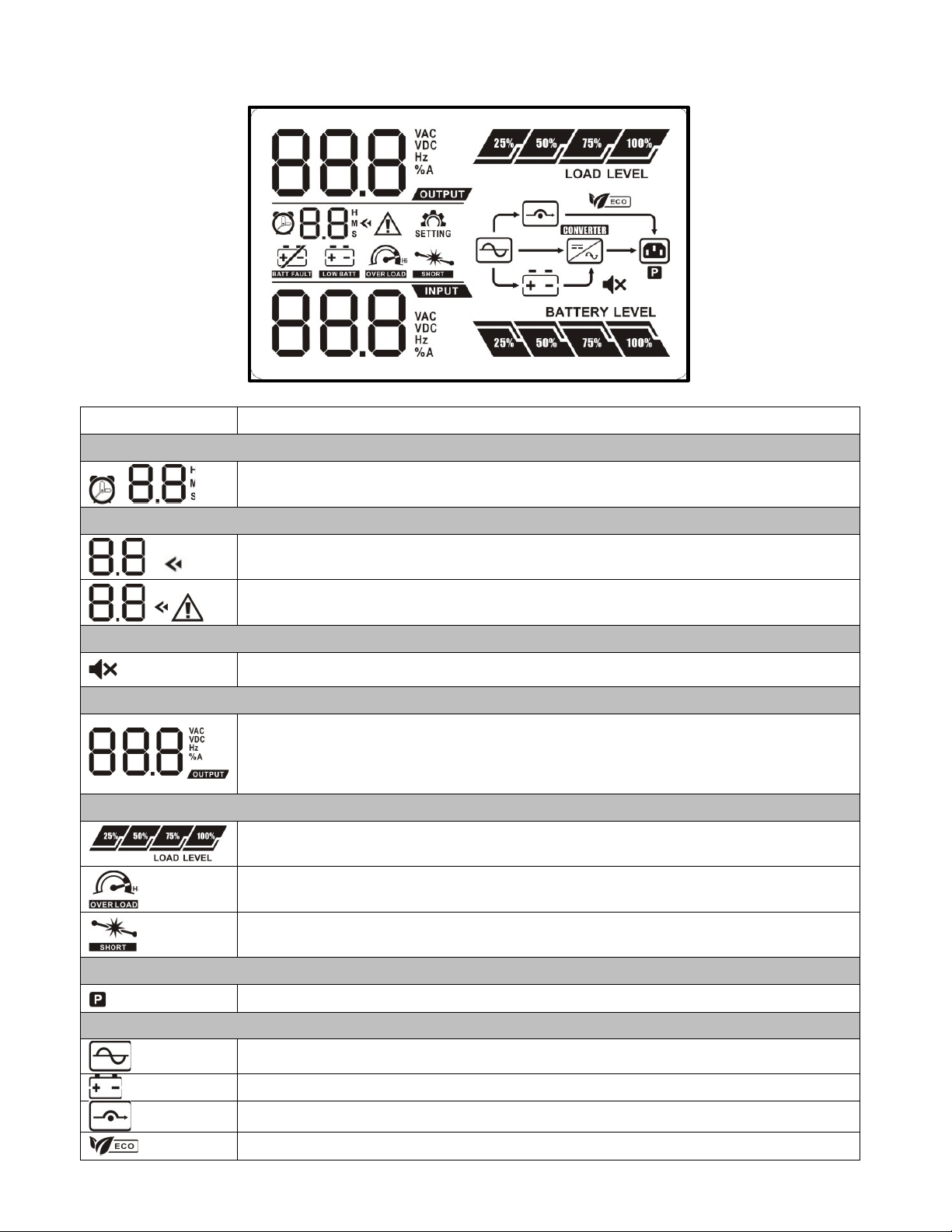

3.2 LCD Panel .................................................................................................................................... 16
3.3 Audible Alarm ............................................................................................................................... 17

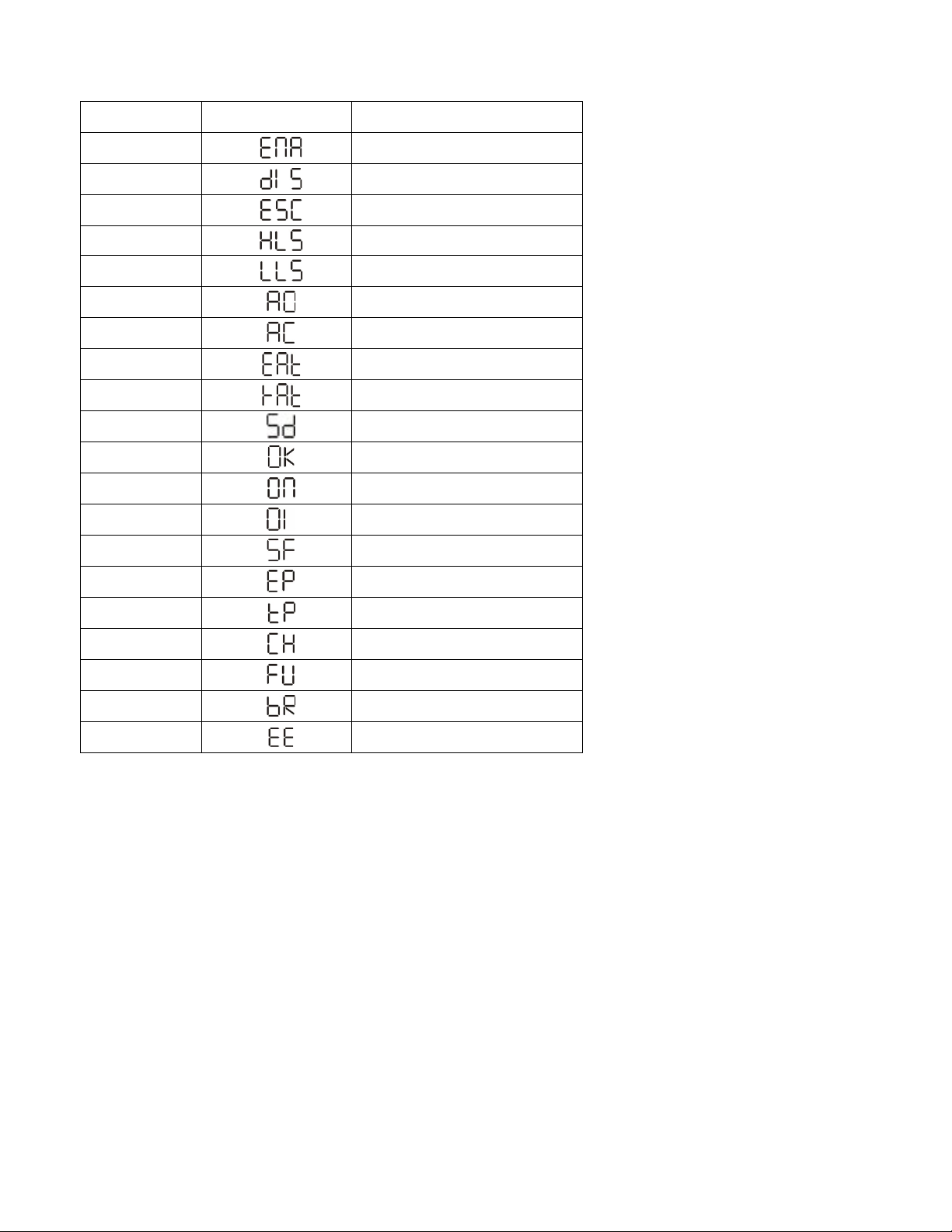

3.4 LCD display wordings index ......................................................................................................... 18

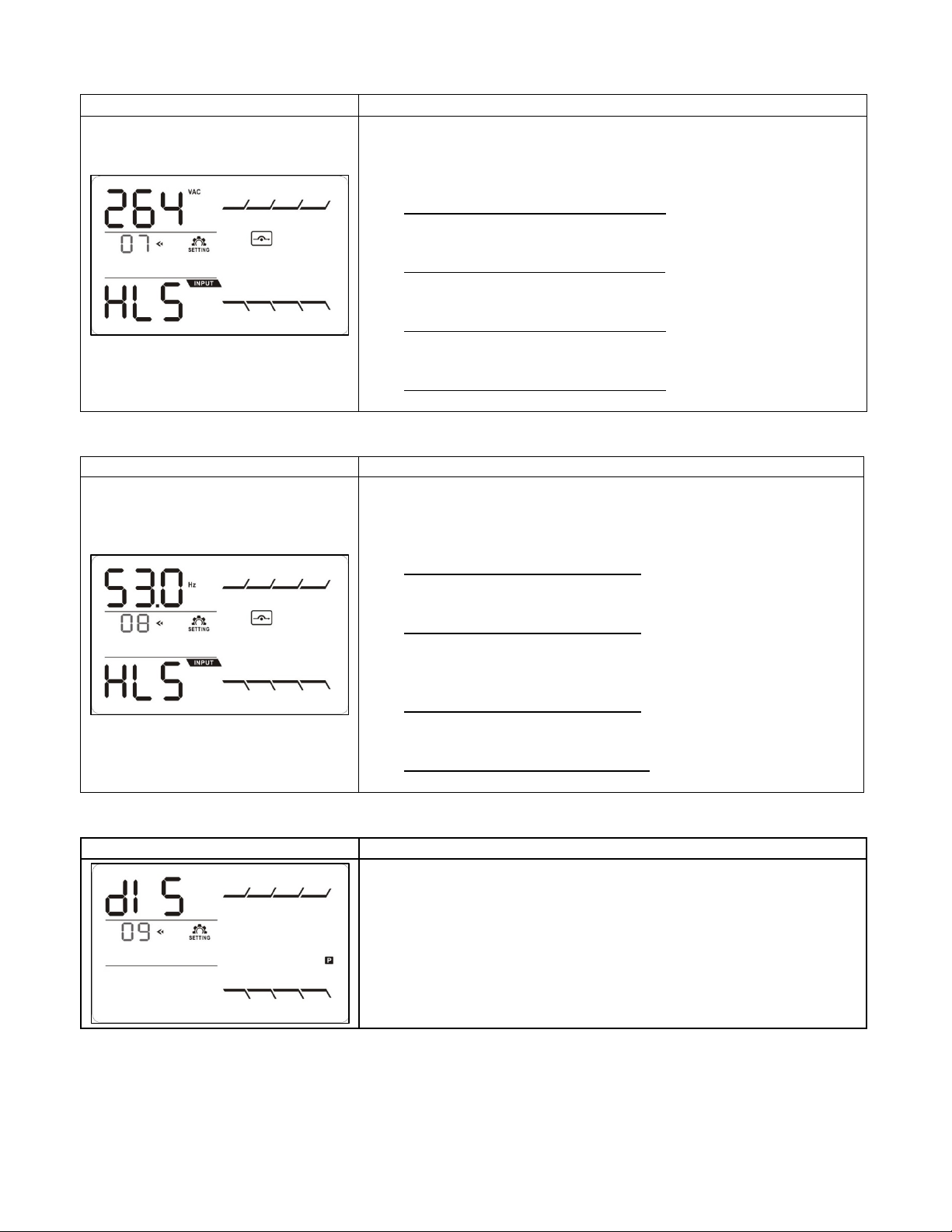

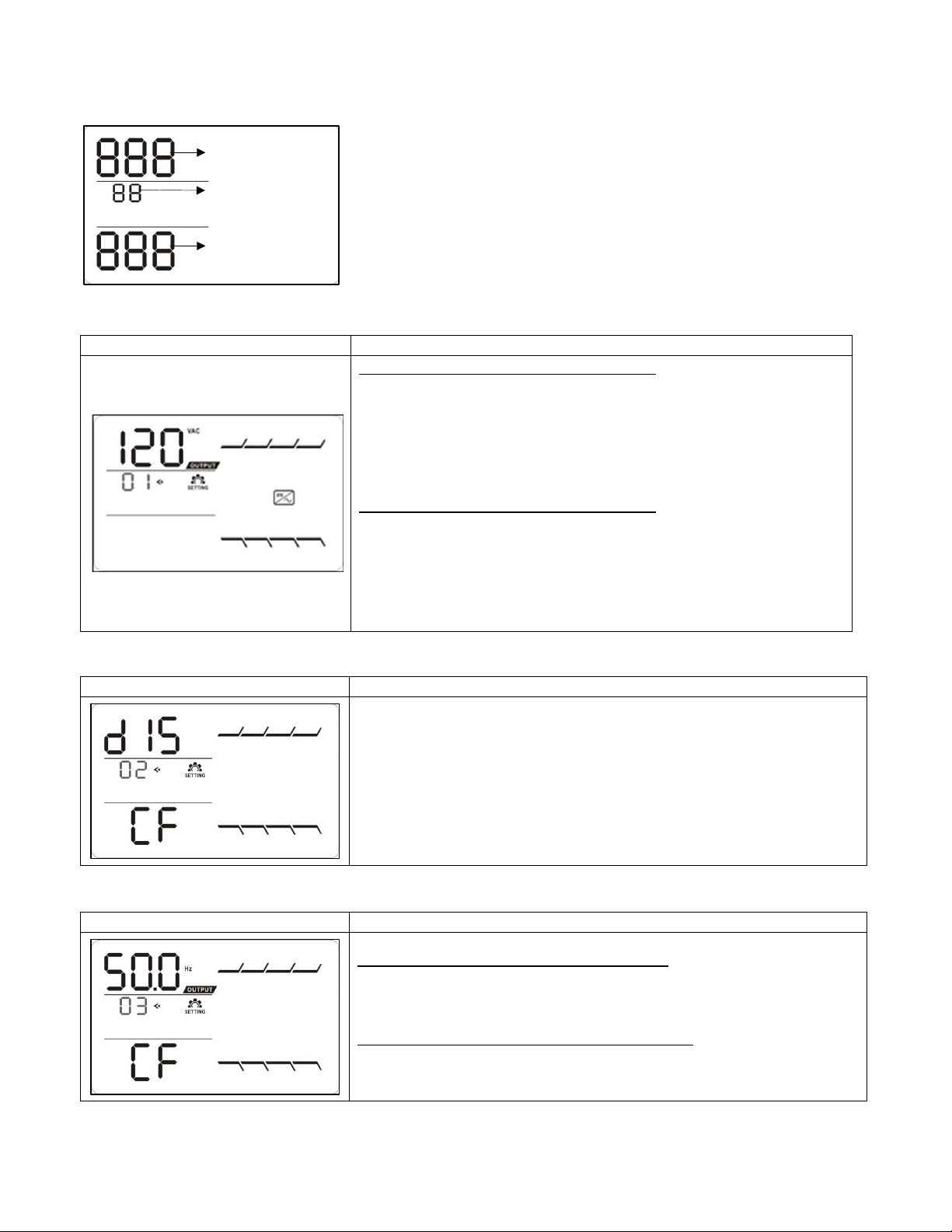

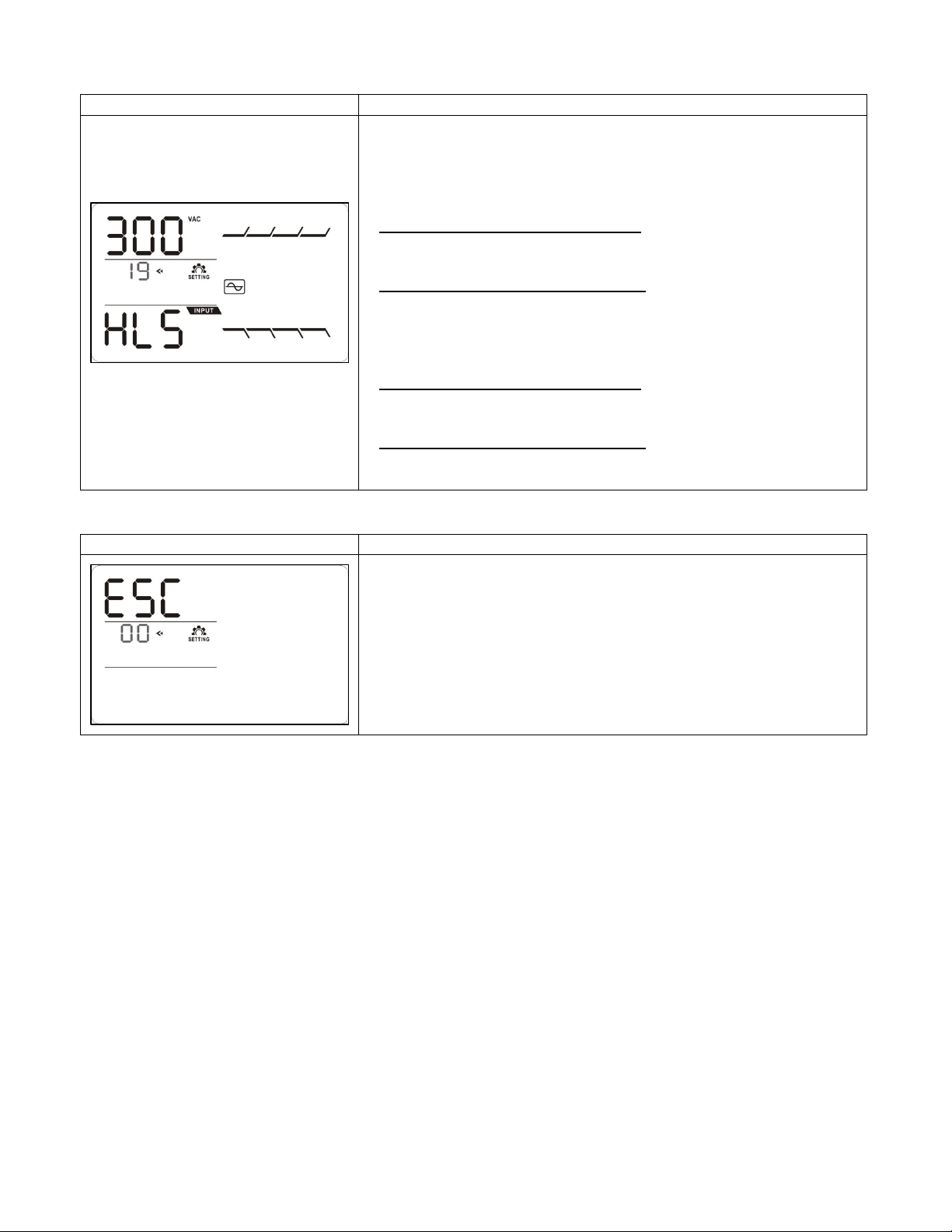

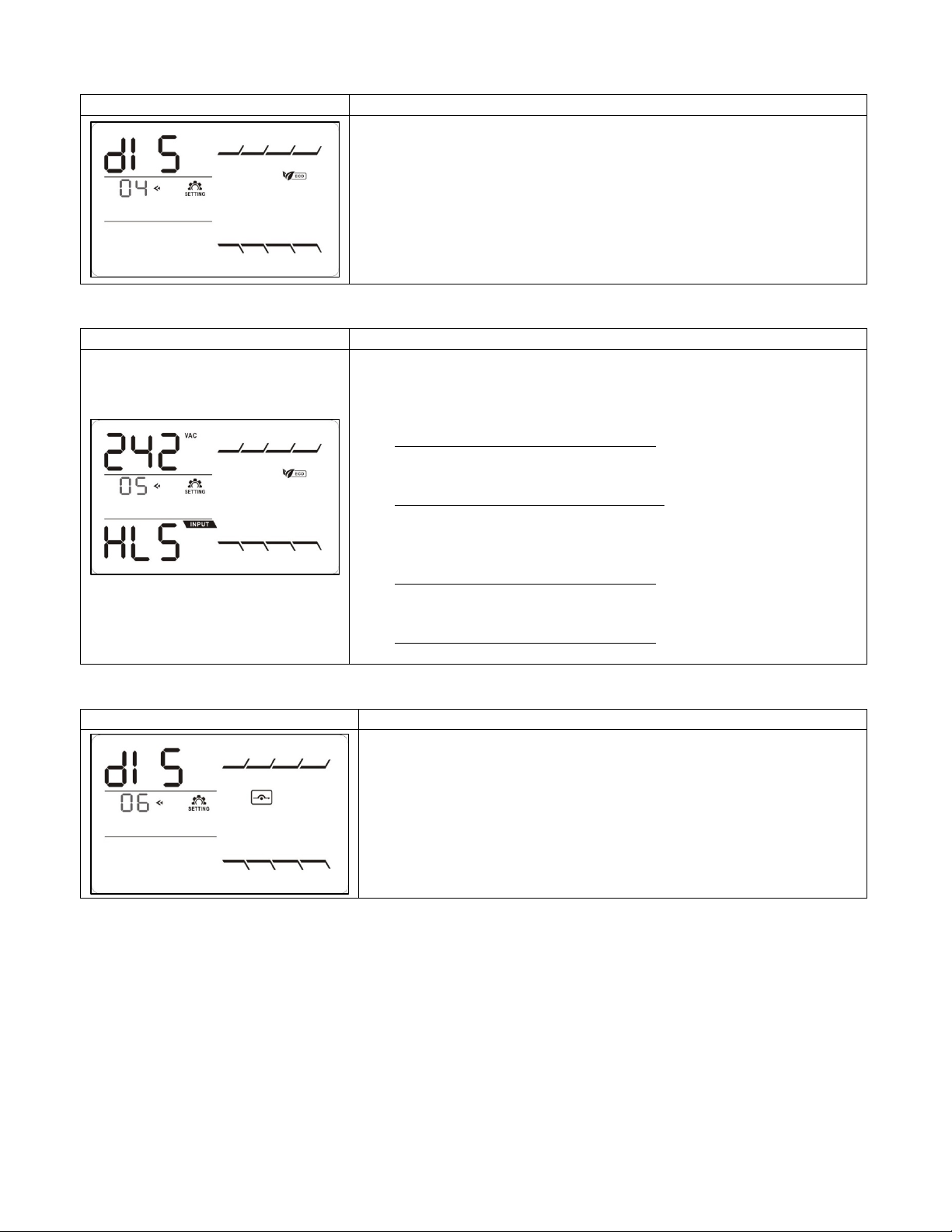

3.5 UPS Settings ................................................................................................................................ 19
3.6 Operating Mode Description ......................................................................................................... 26
3.7 Faults Reference Code ................................................................................................................. 27

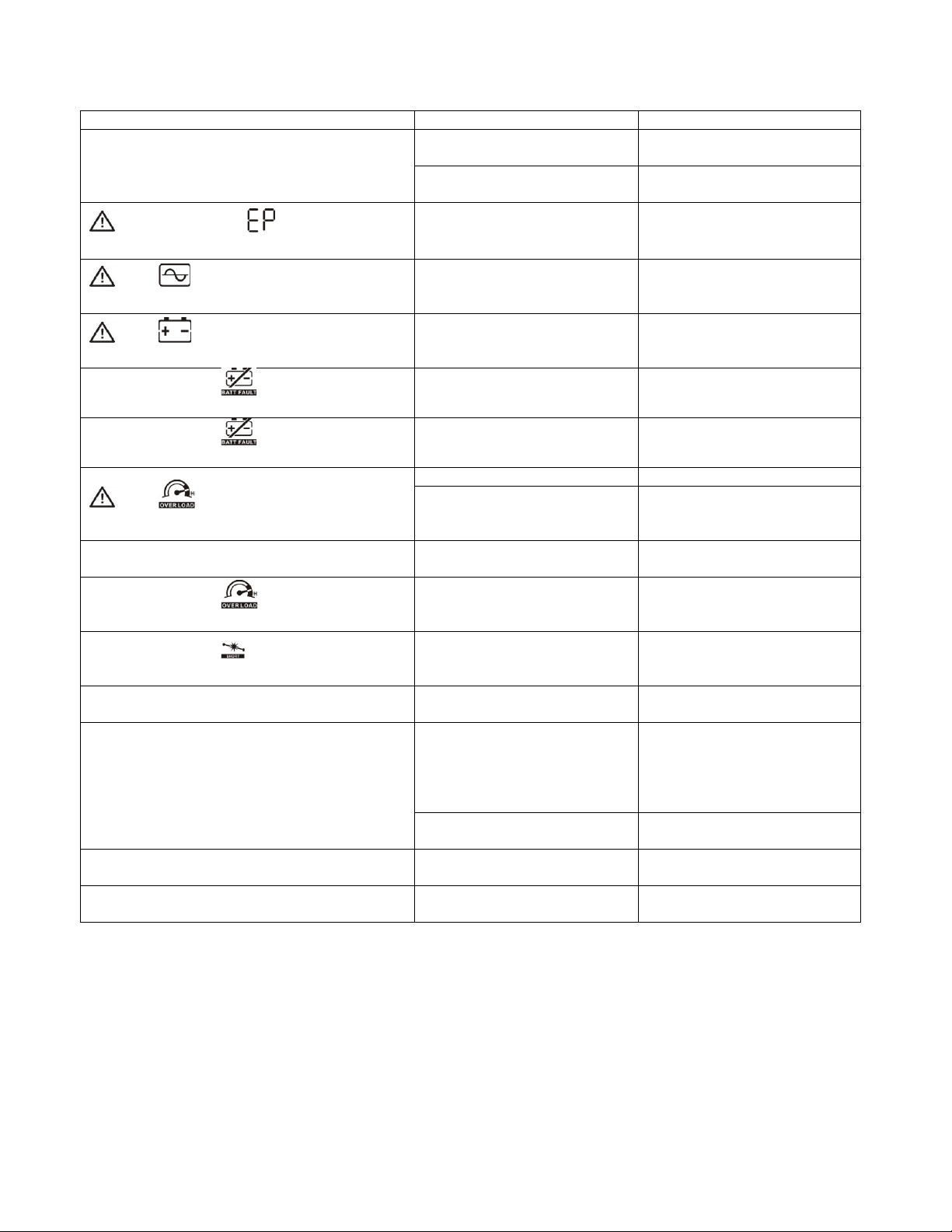

3.8 Warning indicator .......................................................................................................................... 27
4. Troubleshooting .................................................................................................................................. 28
5. Storage and Maintenance .................................................................................................................. 29
5.1 Operation ..................................................................................................................................... 29
5.2 Storage ......................................................................................................................................... 29
5.3 Recommended Replacement Intervals ......................................................................................... 29
6. UPS Specifications ............................................................................................................................. 30
6.1 120V Specifications ...................................................................................................................... 30
6.2 120V Power Rating ....................................................................................................................... 31
6.3 230V Specifications ...................................................................................................................... 32
6.4 Battery Pack Specification ............................................................................................................ 33
..................... 7
Page | vi
1. Important Safety Warnings
Strictly comply with all warnings and operating instructions in this manual. Save this manual and carefully
read the following instructions before installing the unit. Do not operate this unit before reading through all
safety information and operating instructions carefully.
1.1 Transportation
Transport the UPS system only in the original packaging to protect against shock and impact.
1.2 Preparation
• Condensation may occur if the UPS system is moved directly from cold to warm environment. The
UPS system must be absolutely dry before being installed. Please allow at least two hours for the
UPS system to acclimate to the environment.
• Do not install the UPS system near water or in moist environments.
• Do not install the UPS system where it would be exposed to direct sunlight or near a heater.
• Do not block ventilation holes in the UPS housing.
1.3 Installation
• Do not connect devices which may overload the UPS system (e.g. laser printers) to the UPS output
sockets.
• Ensure cables do not present a trip hazard.
• Do not connect domestic appliances (such as hair dryers) to UPS output sockets.
• The UPS may be operated by individuals with no previous experience.
• The UPS may be operated in TN & TT power distribution.
• Connect the UPS system only to an earthed shockproof outlet, easily accessible and close to the
UPS system.
• Use only UL-tested, UL-marked power cables to connect load(s) to the UPS system.
• Ensure that the sum of the leakage current of the UPS and the connected devices does not exceed
3.5mA.
• Units are considered acceptable for use in a maximum ambient of 104°F (40°C). See 5.1 Operation
for more detail.
• CAUTION: The unit is heavy; lifting it requires a minimum of two people.
1.4 Operation
• Do not disconnect the mains cable on the UPS system or the building wiring outlet (shockproof
socket outlet) during operation. This negates the protective earth of the UPS system and all
connected loads.
• The UPS system features its own internal power source (batteries). The UPS output sockets may
be electrically live even if the UPS system is not connected to the building outlet.
• In order to fully disconnect the UPS system, first press the OFF/Enter button and disconnect from
mains.
• Prevent fluids or other foreign objects from getting inside the UPS system.
• The EPO, RS-232 and USB circuits are IEC 60950 safety extra low voltage (SELV) circuits. This
circuit must remain separated from any hazardous voltage circuits by reinforced insulation.
Page | 1
1.5 Maintenance, Service and Faults
Manufacturer
Type
Rated
NPW45-12
12 V dc, 9.0 Ah
UXW460-12
12 V dc, 9.0 Ah
NPW36-12
12 V dc, 7.2 Ah
UXW360-12
12 V dc, 7.2 Ah
NPW45-12 FR
12 V dc, 7.0 Ah
UXW460-12/FR
12 V dc, 7.0 Ah
NPW36-12 FR
12 V dc, 7.0 Ah
UXW360-12/FR
12 V dc, 7.0 Ah
GP1272
12 V dc, 7.2 Ah
UPS 12460 F2
12 V dc, 9.0 Ah
UPS 12360 6
12 V dc, 6.5 Ah
UPS 12360 7
12 V dc, 6.5 Ah
HR 1234W
12 V dc, 8.5 Ah
HR 1234W FR
12 V dc, 8.5 Ah
Yuasa Battery (Guangdong) Co
Ltd (MH29616)
NPW45-12
12 V dc, 8.0 Ah
NPW45-12FR
12 V dc, 8.0 Ah
• The UPS system operates with hazardous voltages. Repairs should be carried out only by qualified
maintenance personnel.
DANGER - Risk of electric shock. Even after the unit is disconnected from the mains (building
wiring outlet), components inside the UPS system are still connected to the battery and
electrically live and dangerous.
• Before carrying out any kind of service and/or maintenance, disconnect the batteries and verify no
hazardous voltage exists in the terminals of capacitors such as BUS-capacitors.
• To avoid electrical shock, turn off the unit and unplug it from the AC power source before servicing
the battery.
• Only persons adequately familiar with batteries and required precautionary measures should
replace batteries and supervise operations.
DANGER - Risk of electric shock. The battery circuit is not isolated from the input voltage.
Hazardous voltages may occur between battery terminals and ground. Before touching, verify
that no voltage is present.
• Do not dispose of batteries in a fire.
• Do not open or destroy batteries. Escaping electrolyte may be toxic and cause injury to skin and
eyes.
• When replacing batteries, replace with the same number and type of batteries.
Toplite (Guangzhou) Technology
Battery Co Ltd (MH29104)
CSB Battery Co Ltd (MH14533)
DANGER – Batteries present a risk of electrical shock and high short-circuit current. The following
precautions should be observed when working on batteries:
a. Remove watches, rings, or other metal objects.
b. Use tools with insulated handles.
c. Wear rubber gloves
and boots.
d. Do not lay tools or metal parts on top of batteries.
e. Disconnect charging source prior to connecting or disconnecting battery terminals.
f. Verify battery is not inadvertently grounded. If inadvertently grounded, remove source
from ground. Contact with any part of a grounded battery can result in electrical shock.
The likelihood of such shock are reduced when such grounds are removed during
installation and maintenance.
Page | 2
1.6 FCC (120V Models)
This equipment has been tested and found to comply with the limits for a Class A digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference when the equipment is operated in a commercial environment. This
equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in
accordance with the instruction manual, may cause harmful interference to radio communications.
Operation of this equipment in a residential area is likely to cause harmful interference in which case
the user will be required to correct the interference at his own expense.
1.7 EMC (230V Models)
This is a category C2 UPS product. In a residential environment, this product may cause radio
interference, in which case the user may be required to take additional measures.
Page | 3
2. Installation and setup
Model No.
Type
Model No.
Type
Staco SV1000RTxxx
Staco SV1000RTXLxxx
Staco SV1500RTxxx
Staco SV1500RTXLxxx
Staco SV2000RTxxx
Staco SV2000RTXLxxx
Staco SV3000RTxxx
Staco SV3000RTXLxxx
120V version
120V version
230V version
230V version
NOTE: Prior to installation, inspect the unit. Ensure nothing inside the package is damaged.
Keep the original packaging in a safe place for future use.

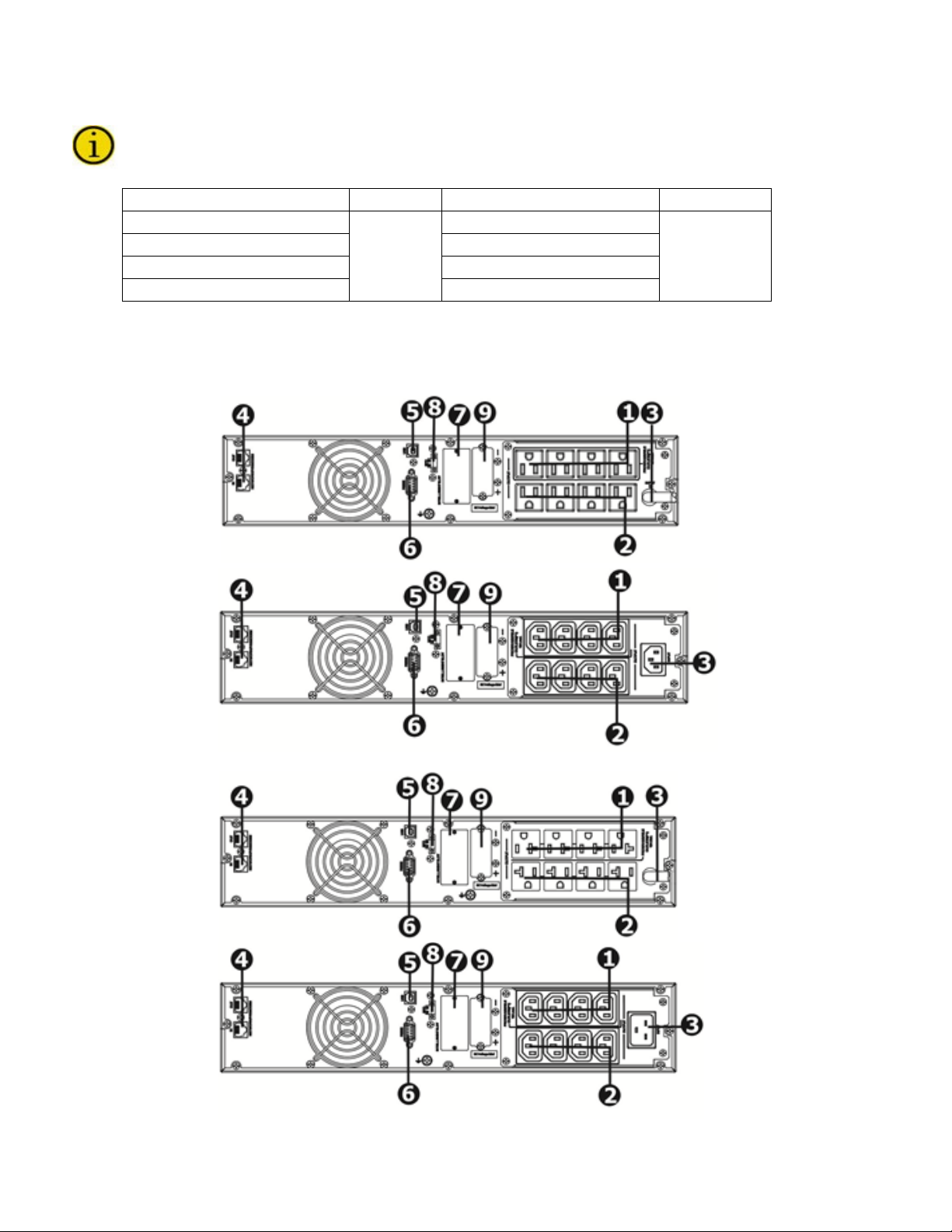

2.1 Rear panel view
2.1.1 1kVA & 1.5kVA Models
Standard
Model
Long-run
Model
2.1.2 2kVA Models
Page | 4
120V version
230V version
2.1.3 3kVA Models
1. Programmable outlets – connect to non-critical loads
2. Output receptacles – connect to mission-critical loads
3. AC input
4. RJ45 surge protection
5. USB port
6. RS-232 port
7. Communication card slot
8. Emergency power off function (EPO) connector
9. External battery connector
Page | 5
2.2 Operating principle
The UPS is comprised of mains input, TVSS and EMI/RFI filters, rectifier/PFC, inverter, battery charger,
DC-to-DC converter, battery, dynamic bypass and UPS output.
2.3 Install the UPS
To maximize battery life and for optimum safety, the UPS is shipped with the battery cable disconnected.
Prior to installation, reconnect the battery thus:
Step 1 Step 2 Step 3
Step 1: Remove front panel
Step 2: Remove battery panel and reconnect battery cable
Step 3: Replace battery panel and front panel
The UPS may be mounted in tower or rack orientation. Refer to the following section for mounting
procedures.
Page | 6
2.3.1 Rackmount Installation
CAUTION – Do NOT use the mounting brackets to lift the unit. Mounting brackets are solely for securing
the unit to the rack.
UPS
UPS and external battery
2.3.2 Tower Installation
UPS
UPS and external battery
NOTE: When mounting with feet, an additional 2.8 in (40mm) clearance is required either side.
Page | 7
2.4 UPS Setup
Step 1: UPS input connection
Plug the UPS into a two-pole, three-wire, grounded receptacle only. Avoid using extension cords.
Note: If the UPS is connected to an improperly wired outlet, the site wiring fault indicator will
show on the LCD. (Refer to 4. Troubleshooting).
WARNING: For 1 kVA and 1.5 kVA models, to reduce the risk of fire, connect only to a circuit
provided with 15 amperes maximum branch circuit overcurrent protection in accordance with the
National Electric Code, ANSI/NFPA 70.
WARNING: For 2 k VA models, to reduce the risk of fire, connect only to a circuit provided with 20
amperes maximum branch circuit overcurrent protection in accordance with the National Electric
Code, ANSI/NFPA 70.
WARNING: For 3 k VA models, to reduce the risk of fire, connect only to a circuit provided with
30 amperes maximum branch circuit overcurrent protection in accordance with the National
Step 2: UPS output connection
There are two outlet banks: programmable outlets and general outlets. Connect non-critical devices to
the programmable outlets and critical devices to the general outlets. During power failure, the backup
time may be extended to critical devices by providing shorter backup time for non-critical devices.
Step 3: Network connection

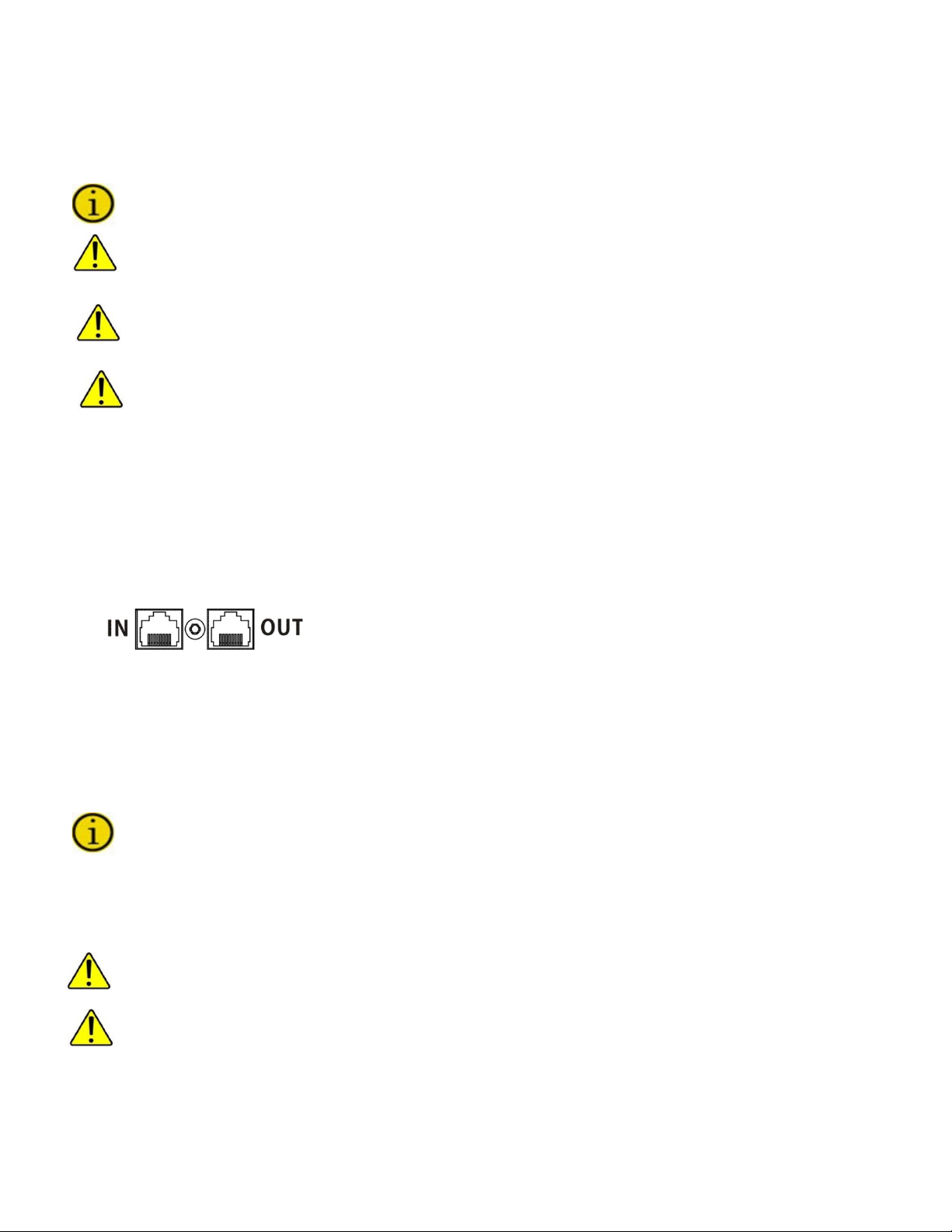

RJ45 surge port
Electric Code, ANSI/NFPA 70.
Connect a single modem/phone/fax line into surge-protected “IN” outlet on the back panel of the UPS
unit. Connect from “OUT” to the equipment with another modem/fax/phone line cable.
Step 4: Disable / Enable EPO function
Keep pin 1 and pin 2 closed for UPS normal operation. To activate EPO function, open contact between
pin 1 and pin 2.
Note: The EPO function logic may be adjusted via the LCD. Refer to Section 3.5 UPS Settings
for details.
Step 5: External battery connection
Connect the external battery cable between the UPS and matching battery cabinet. When multiple
battery cabinets are used, link the additional cabinets with the external battery cable.
WARNING – Connection to External Battery should be made by experienced Service personnel
only.
WARNING – Risk of fire hazard.
Step 6: Switch on the UPS
Press the ON/Mute button for two seconds to power on the UPS.
Page | 8
Note: The battery charges fully during the first five hours of normal operation. Battery runtime
capability may be reduced until the initial charge is completed.
Page | 9
Step 7: Install software
Install UPS monitoring software to fully configure UPS shutdown:
1. Download from www.stacoenergy.com
2. Load ViewPower CD if delivered with the UPS
or
Step 8: Communication connection

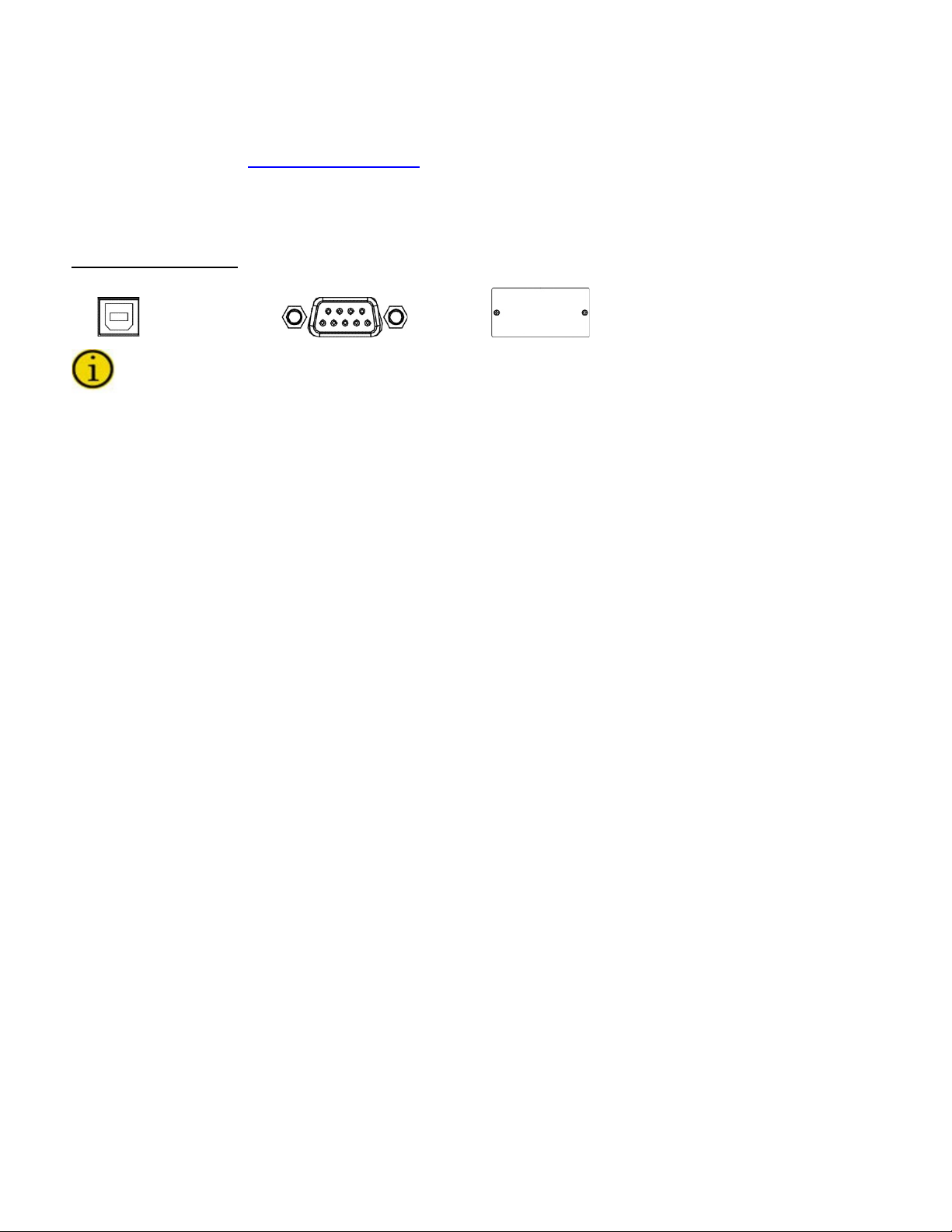

Communication ports:
USB port RS-232 port Intelligent slot
NOTE: The USB port and RS-232 port will not function concurrently
To allow for unattended UPS shutdown/start-up and status monitoring, connect the communication cable
between the RS232 or USB port and a PC. With the monitoring software installed, the following
operations may be performed:
• Remote Shutdown of UPS
• Send shutdown commands to remote computers
• Remotely set parameters of the UPS
• Set-up the number of battery strings connected
• Set-up voltage and frequency ranges
Refer to the operating manual provided with the software for details.
The UPS is equipped with an intelligent slot for either a SNMP or an AS400 card for advanced
communication and monitoring.
Page | 10
2.5 Battery Kit Replacement
NOTE: Only authorized service personnel should replace internal battery kits. Replacement
battery kits are available from Staco Energy, please visit www.stacoenergy.com
representative for details.
CAUTION - Consider all warnings, cautions, and notes before replacing batteries.
NOTE: Upon battery disconnection, equipment is not protected from power outages.
Step 1 Step 2 Step 3
or your local
Step 4 Step 5 Step 6
Step Step 7
Step 1: Remove front panel by pulling the cover outward
Step 2: Disconnect battery cable
Step 3: Unscrew battery panel and remove battery box
Step 4: Remove top cover of battery box and replace with enclosed battery kit
Step 5: Reinsert battery box and replace top cover. Replace mounting screws
Step 6: Reconnect battery cable
Step 7: Replace front panel
Page | 11
2.7 Frequency Converter Mode
1. Install the UPS system per the instructions herein
2. Verify mains input is connected correctly
3. If battery pack is installed: Verify battery is connected correctly, and the battery pack breaker is at
“ON” position
4. Apply input power
5. Press and hold the Select Button for 3 seconds to enter programming mode
6. Press down key (“SELECT”) until setting 02 displays
7. Press “OFF/ENTER” button to confirm selection
8. Press “ON/MUTE” button to “ENA”
9. Press “OFF/ENTER” button to apply selection
10. Press down key (“SELECT”) until setting 03 displays
11. Press “OFF/ENTER” button to confirm selection
12. Press “ON/MUTE” button to select the desired output frequency:
a. CF 50.0: output frequency is 50Hz
b. CF 60.0: output frequency is 60Hz
13. Press “OFF/ENTER” button to apply selection
14. Press down key (“SELECT”) until setting 00 displays to exit the programming mode
When the unit is used without batteries connected, there will be a constant battery open alarm.
To permanently silence this alarm, see Section 2.9 Permanently Silence Audible Alarm.
Page | 12
2.8 Power Conditioner Set-Up
NOTE: No batteries are connected
1. Install the UPS system per the instructions herein
2. Verify mains input is connected correctly
3. Apply input power
4. Press and hold the Select Button for 3 seconds to enter programming mode

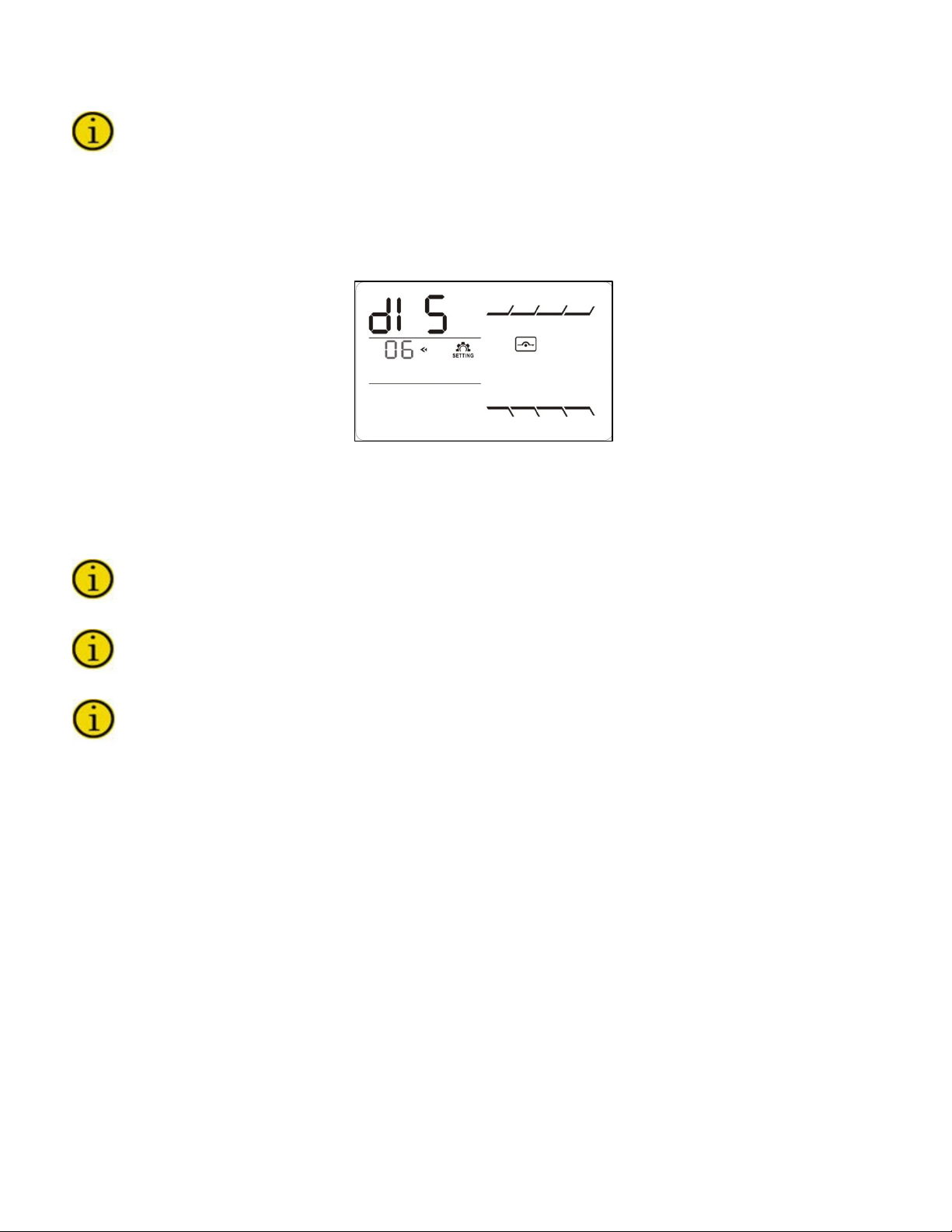

5. Press down key (“SELECT”) until setting 06 displays
6. Press “OFF/ENTER” button to confirm selection
7. Press “ON/MUTE” button to “ENA”. This will enable bypass mode
8. Press “OFF/ENTER” button to apply selection
9. Press down key (“SELECT”) until setting 00 displays to exit the programming mode
When input power is first applied, the unit will apply power to the output via the static bypass. When
the unit is switched on, it will transfer to inverter mode.
When input power is re-applied after a power outage, the unit will again deliver power via the static
bypass. To operate in inverter mode, the unit must be manually switched on via the front panel.
When the unit is used without batteries connected, there will be a constant battery open alarm.
To permanently silence this alarm, see Section 2.9 Permanently Silence Audible Alarm
.
Page | 13

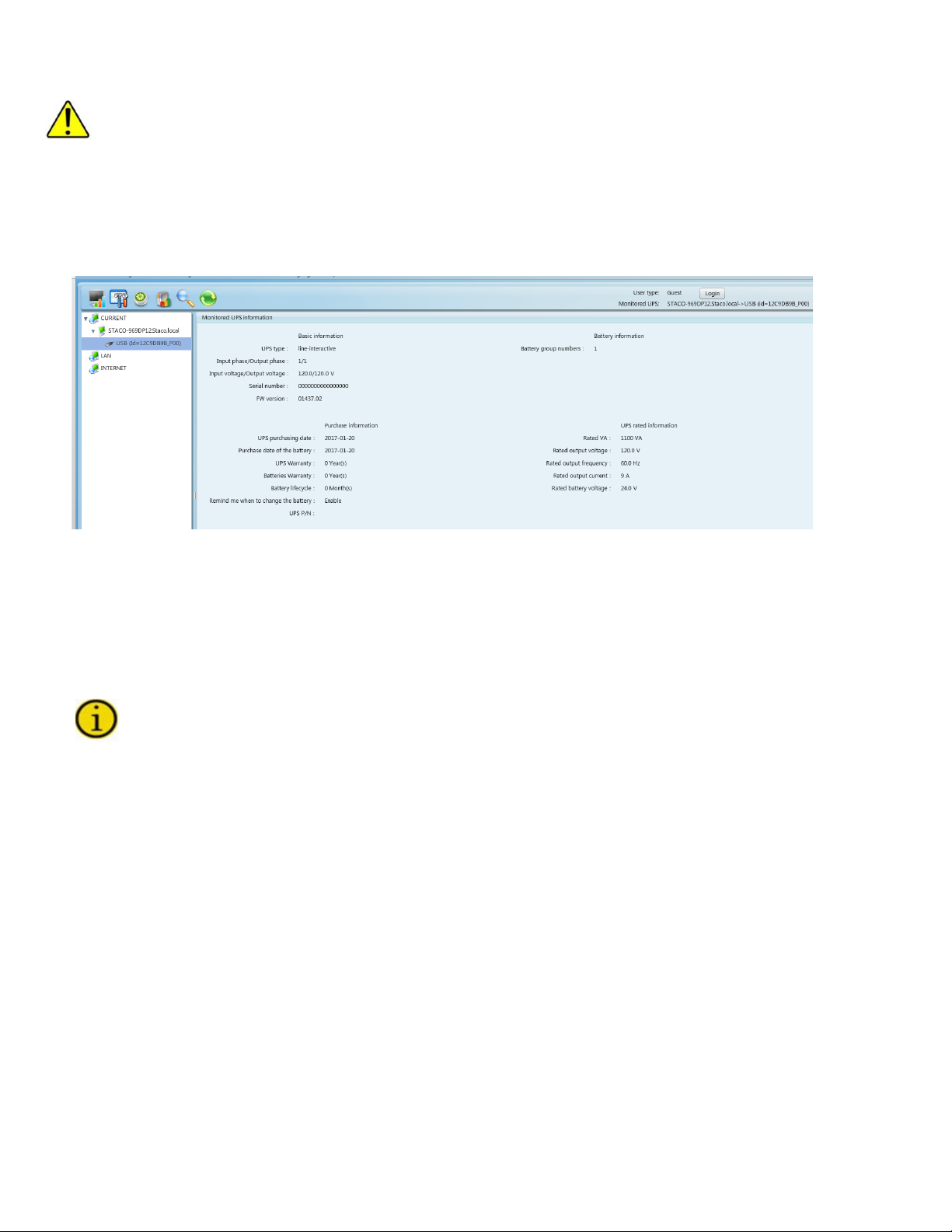

2.9 Permanently Silence Audible Alarm
WARNING: This procedure will fully disable all alarms
1. Install ViewPower software per instructions in section 2.4
2. Connect USB cord from computer to UPS (see Section 2.1 Rear panel view).
3. Open ViewPower software.
4. Select connected UPS
5. Click on Login in upper right corner
6. Enter password (default: administrator)
7. Click on UPS Settings
8. Click on Parameter Settings
9. Set parameter UPS Alarm to Disable
10. Click Apply
To switch on Audible Alarm, set UPS Alarm to Enable.
Page | 14
3. Operation
• Switch on UPS: Press and hold for at least 2 seconds
AC, ECO or converter mode.
• Switch off UPS: Press and hold for at least 2 seconds. UPS will be in
• Confirm selection key: Press to confirm selection in UPS setting mode
• Change LCD parameter: Press to change LCD parameter between input
• Down key: Press to display next selection in UPS programming mode
• Transfer to bypass: When the mains power is normal, press ON/Mute and
simultaneously to exit programming mode
3.1 Button operation
Button Function
ON/Mute Button
Button View
• Mute alarm: Once the UPS is switched on, press and hold for at least 3
seconds to disable or enable alarm
• Up key: Press to display previous selection in UPS programming mode.
• UPS self-test mode: Press for 3 seconds to enter UPS self-testing while in
OFF/Enter Button
Select Button
ON/Mute + Select
Button
bypass mode if mains is present and bypass is enabled
voltage, input frequency, input current, battery voltage, battery current,
battery capacity, ambient temperature, output voltage, output frequency,
load current or load percent
• Programming mode: Press and hold for 3 seconds to enter UPS
programming mode when in Standby or Bypass mode
Select buttons simultaneously for 3 seconds. UPS will enter bypass mode.
(This action will be ineffective when the input voltage is out of acceptable
range)
• Exit programming mode or return to the upper menu: When working in
programming mode, press ON/Mute and Select buttons simultaneously for
0.2 seconds to return to the upper menu. In upper menu, press
Page | 15

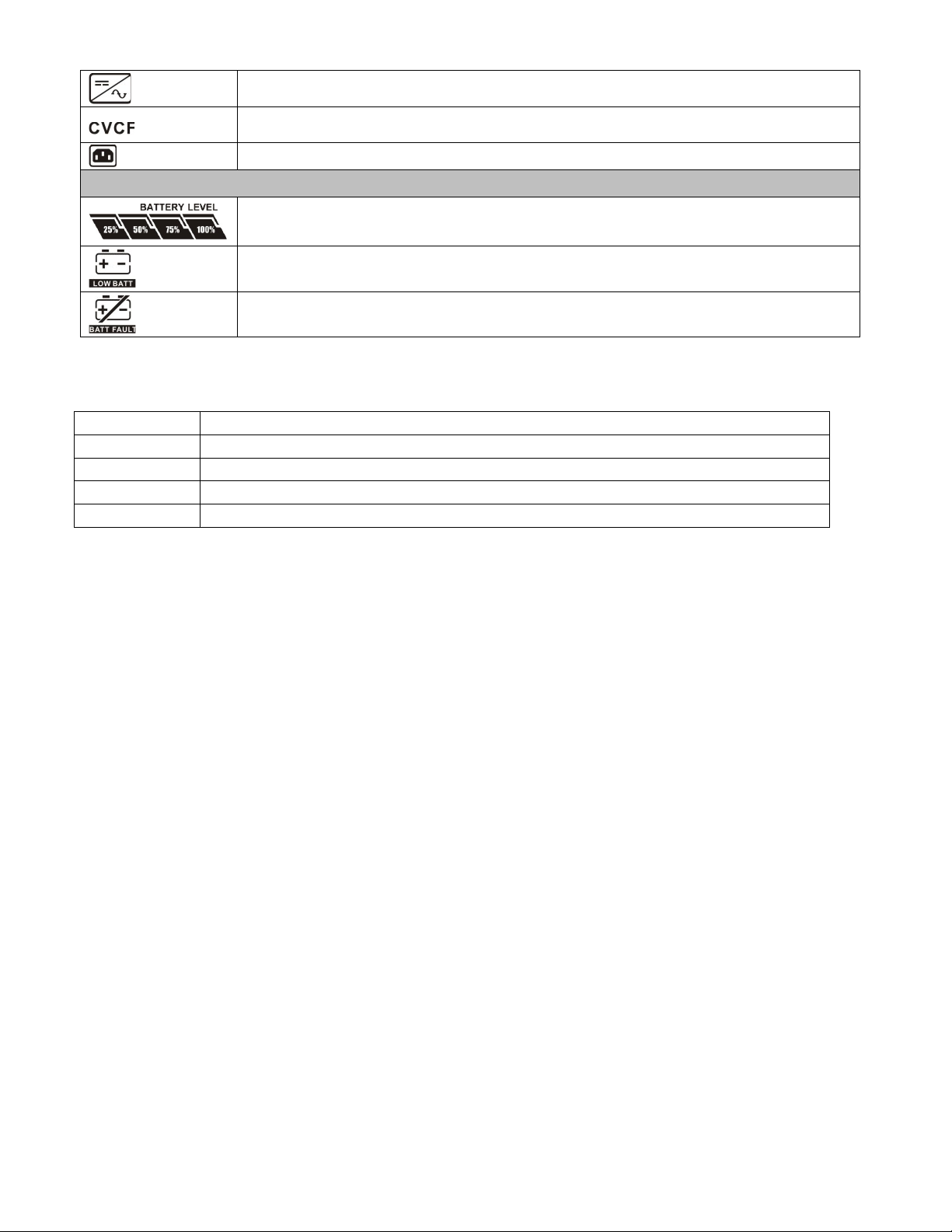

3.2 LCD Panel
Display
Function
Battery backup time remaining
H: hours, M: minutes, S: seconds
Displays input voltage, input frequency, input current, battery voltage, battery
frequency
Backup time information
Configuration and fault information
Configurable parameters. See section 3.5 for settings key

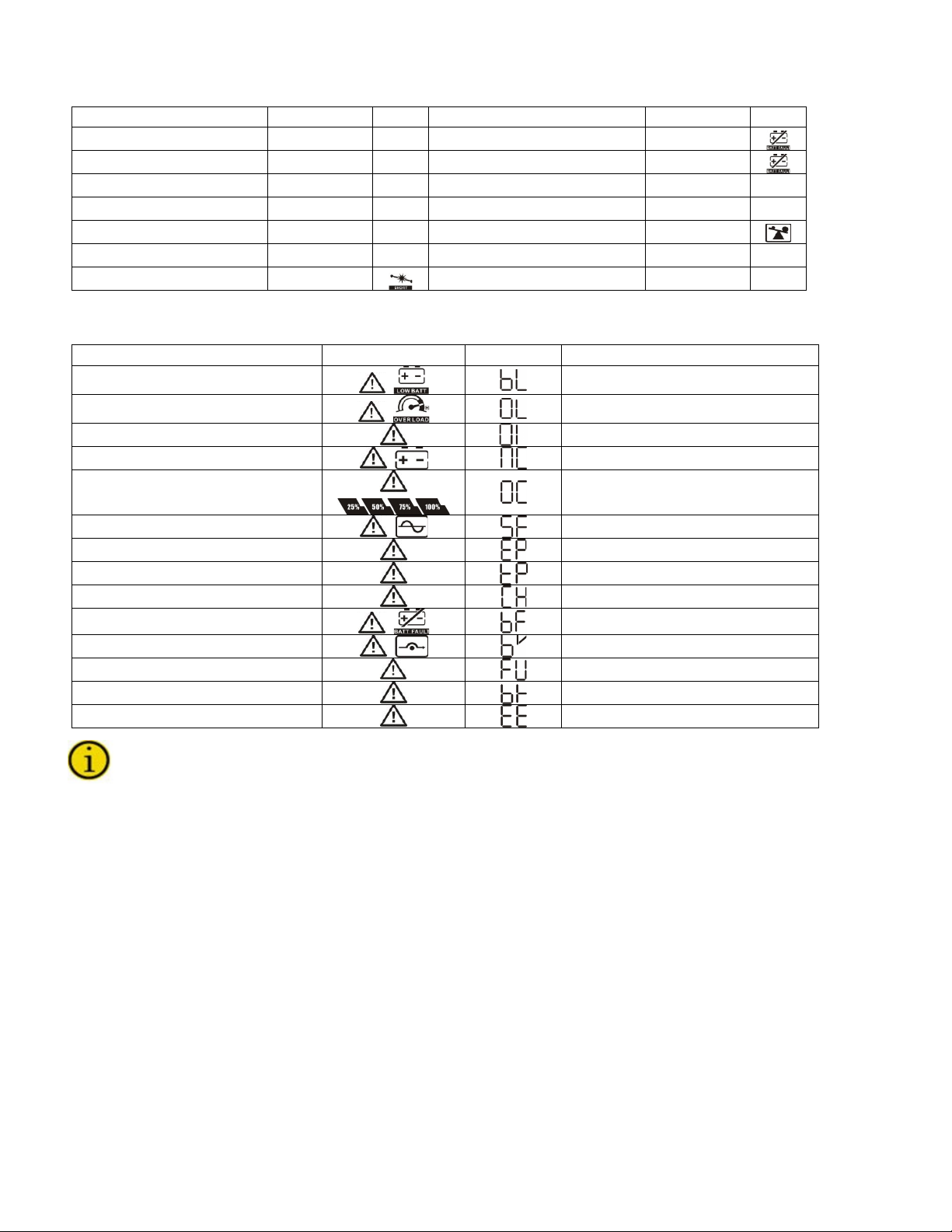

Warning/fault codes. See sections 3.7 and 3.8 for faults and warnings key
Mute operation
UPS alarms are disabled
Input, Battery, Temperature, Output & Load information
current, battery capacity, ambient temperature, output voltage, output
frequency, load current and load percent VAC: AC voltage, DC: DC voltage Hz:
Load information
Displays load level by 0-24%, 25-49%, 50-74% and 75-100%
UPS is overloaded
UPS output short circuit detected
Programmable outlets information
Programmable outputs have output voltage
Mode operation information
UPS is connected to an active AC source
Battery is functioning correctly
UPS is operating on bypass
UPS is operating in ECO mode
Page | 16
Inverter is functioning correctly
Battery Mode
Every 5 seconds
Low Battery
Every 2 seconds
Overload
Every second
Fault
Continuous
Bypass Mode
Every 10 seconds
Battery information
UPS is operating in frequency converter mode
UPS output is normal
Displays battery level by 0-24%, 25-49%, 50-74%, and 75-100%
Low battery
Battery Fault
3.3 Audible Alarm
Page | 17
3.4 LCD display wordings index
Abbreviation Display content Meaning
ENA
DIS
ESC
HLS
LLS
AO
AC
EAT
RAT
SD
OK
ON
OI
SF
EP
Enable
Disable
Escape
High loss
Low loss
Active open
Active close
Estimated autonomy time
Running autonomy time
Shutdown
OK
ON
Over input current
Site wiring fault
EPO
TP
CH
FU
BR
EE
Temperature
Charger
Bypass frequency unstable
Battery Replace
EEPROM error
Page | 18
3.5 UPS Settings
Parameter 3
Parameter 1
Parameter 2
There are three parameters to set up the UPS.
Interface
Setting
For 100/110/115/120/127 VAC models:
Interface
Setting
Interface
Setting
01: Output voltage setting
Parameter 1: Program alternatives. Refer to below table
Parameter 2/3: Setting options or values for each program
100: output voltage is 100Vac
110: output voltage is 110Vac
115: output voltage is 115Vac
120: output voltage is 120Vac (Default)
127: output voltage is 127Vac
For 200/208/220/230/240 VAC models:
200: output voltage is 200Vac
208: output voltage is 208Vac
220: output voltage is 220Vac
230: output voltage is 230Vac (Default)
240: output voltage is 240Vac
02: Frequency Converter enable/disable
03: Output frequency setting
Page | 19
Enable or disable frequency converter mode
CF ENA: Frequency converter enabled
CF DIS: Frequency converter disabled (Default)
Set the initial frequency on battery mode:
BAT 60.0: output frequency is 60Hz
BAT 50.0: output frequency is 50Hz
When frequency converter mode is enabled:
CF 60: output frequency is 60Hz
CF 50: output frequency is 50Hz
04: ECO enable/disable
Interface
Setting
Interface
Setting
Set the acceptable high voltage point and low voltage point for
from -7V to -24V of the nominal voltage (Default: -12V)
Interface
Setting
05: ECO voltage range setting
Enable or disable ECO function
ENA: ECO mode enabled
DIS: ECO mode disabled (Default)
ECO mode
HLS: High loss voltage in ECO mode
100/110/115/120/127 VAC models
+3V to +12V of the nominal voltage (Default: +6V)
200/208/220/230/240 VAC models
+7V to +24V of the nominal voltage (Default: +12V)
LLS: Low loss voltage in ECO mode
100/110/115/120/127 VAC models
-3V to -12V of the nominal voltage (Default: -6V)
200/208/220/230/240 VAC models
06: Bypass mode enable/disable when UPS is off
Enable or disable Bypass function
ENA: Bypass mode is enabled when UPS is off
DIS: Bypass mode is disabled when UPS is off (Default)
Page | 20
07: Bypass voltage range setting
Interface
Setting
Set the acceptable high voltage point and acceptable low voltage
170Vac to 220Vac (Default: 170Vac)
Interface
Setting
Set the acceptable high frequency point and acceptable low
45Hz to 49Hz (Default: 47.0Hz)
Interface
Setting
Enable or disable programmable outlets
08: Bypass frequency range setting
point for Bypass mode
HLS: Bypass high voltage point
100/110/115/120/127 VAC models:
120Vac to 140Vac (Default: 132Vac)
200/208/220/230/240 VAC models
230Vac to 264Vac (Default: 264Vac)
LLS: Bypass low voltage point
100/110/115/120/127 VAC models:
85Vac to 115Vac (Default: 85Vac)
200/208/220/230/240 VAC models:
frequency point for Bypass mode
HLS: Bypass high frequency point
60Hz output frequency models:
61Hz to 65Hz (Default: 63.0Hz)
50Hz output frequency models:
51Hz to 55Hz (Default: 53.0Hz)
LLS: Bypass low Frequency point
60Hz output frequency models:
55Hz to 59Hz (Default: 57.0Hz)
50Hz output frequency models:
09: Programmable Outlets Enable/Disable
ENA: Programmable outlets enabled
DIS: Programmable outlets disabled (Default)
Page | 21

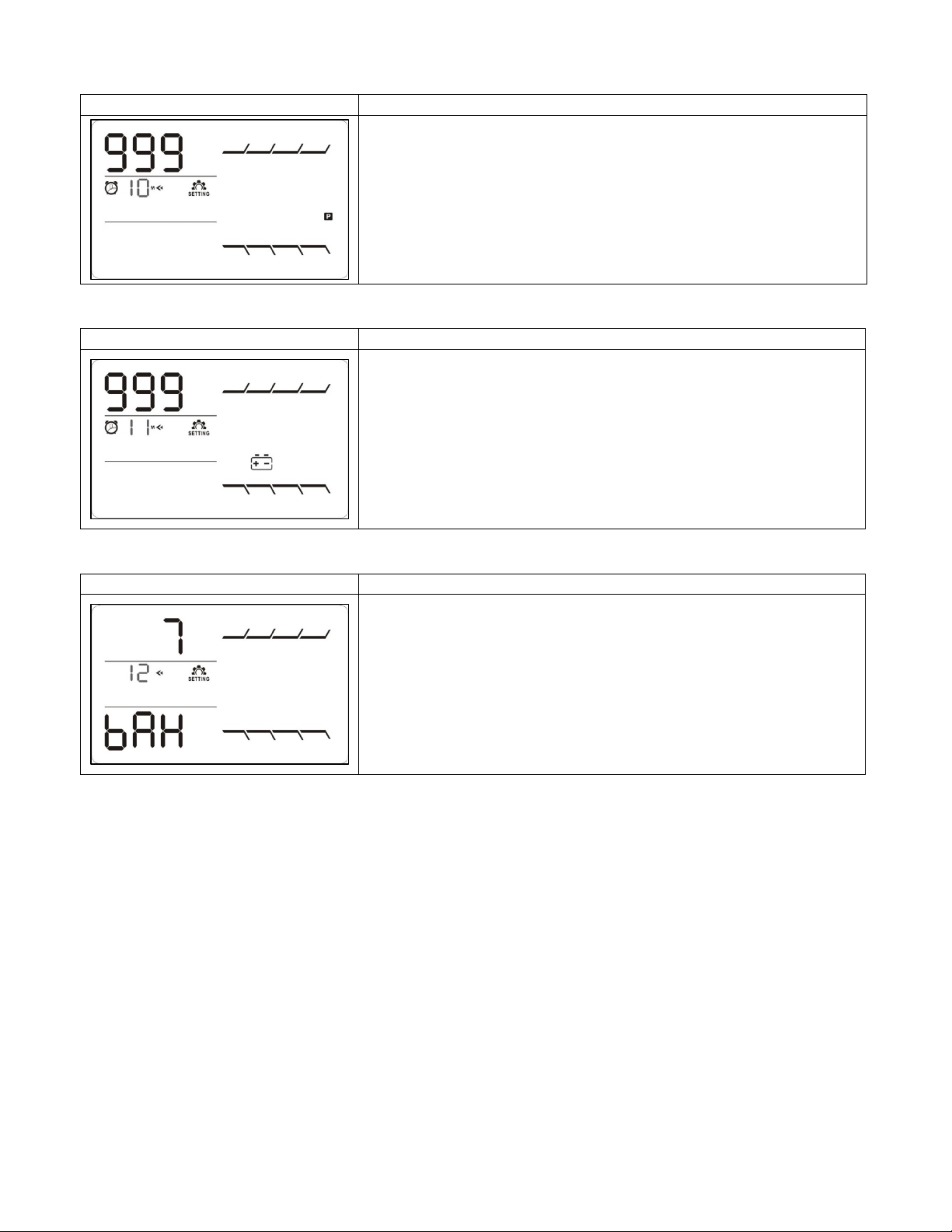

10: Programmable outlets setting
Interface
Setting
Backup time limits for programmable outlets
Interface
Setting
Backup time limits for general outlets
Interface
Setting
Total AH of Battery
11: Autonomy limitation setting
12: Battery total AH setting
0-999: Backup time in minutes from 0-999 for programmable
outlets (connected to non-critical devices) in battery
mode (Default: 999)
0-999: Backup time in minutes from 0-999 for general outlets
(connected to critical devices) in battery mode
DIS: Disable the autonomy limitation - backup time will depend
on battery capacity (Default)
Note: If setting is “0”, backup time will be 10 seconds
7-999: Battery total capacity from 7-999 in AH. If an external
battery pack is connected this value must be adjusted for
the correct runtime to be displayed
Page | 22

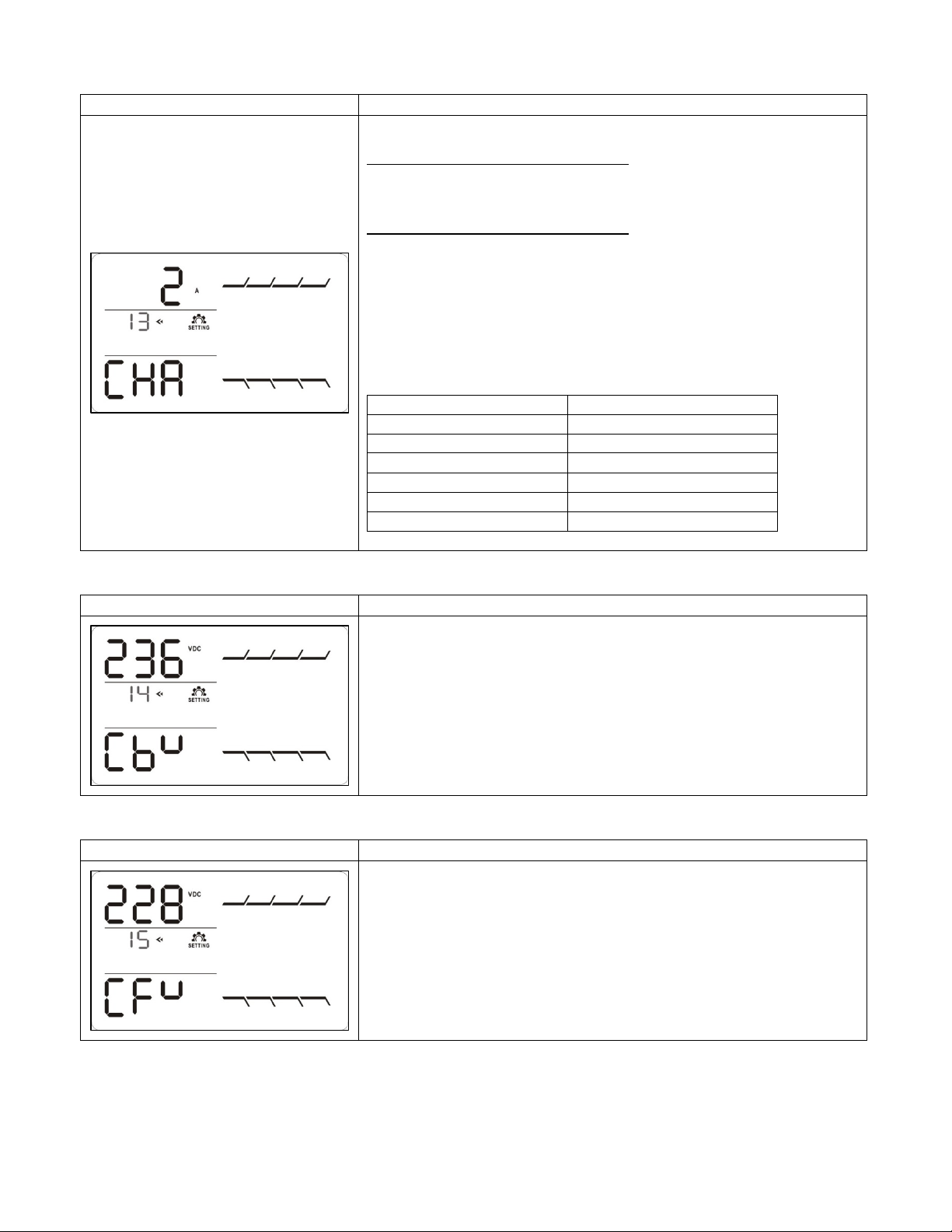

13: Maximum charger current setting
Interface
Setting
Charger current
Battery capacity(AH)
Total charging current (A)
7~20
2
20~40
4
40~60
6
60~80
8
80~100
10
100~150
12
Interface
Setting
Charger boost voltage
Interface
Setting
Charger float voltage
100/110/115/120/127 VAC models
1/2/4/6/8: Maximum charger current in Ampere
(Default: 2A)
200/208/220/230/240 VAC models:
1-2kVA: 1/2/4/6/8/10/12: Maximum charger current in Ampere
(Default: 2A)
3kVA: 1/2/4/6/8: Maximum charger current in Ampere
(Default: 2A)
Note: Set the appropriate charger current based on battery
capacity used. The recommended charging current is
0.1C~0.3C of battery capacity
14: Charger boost voltage setting
15: Charger float voltage setting
2.25-2.40: Charger boost voltage from 2.25 V/cell to 2.40V/cell
(Default: 2.36V/cell)
2.20-2.33: Charger float voltage from 2.20 V/cell to 2.33V/cell
(Default: 2.28V/cell)
Page | 23
Interface
Setting
EPO function control logic
and Pin 2 is closed
Interface
Setting
Soft start external transformer when UPS turns on
Interface
Setting
Display setting for autonomy time

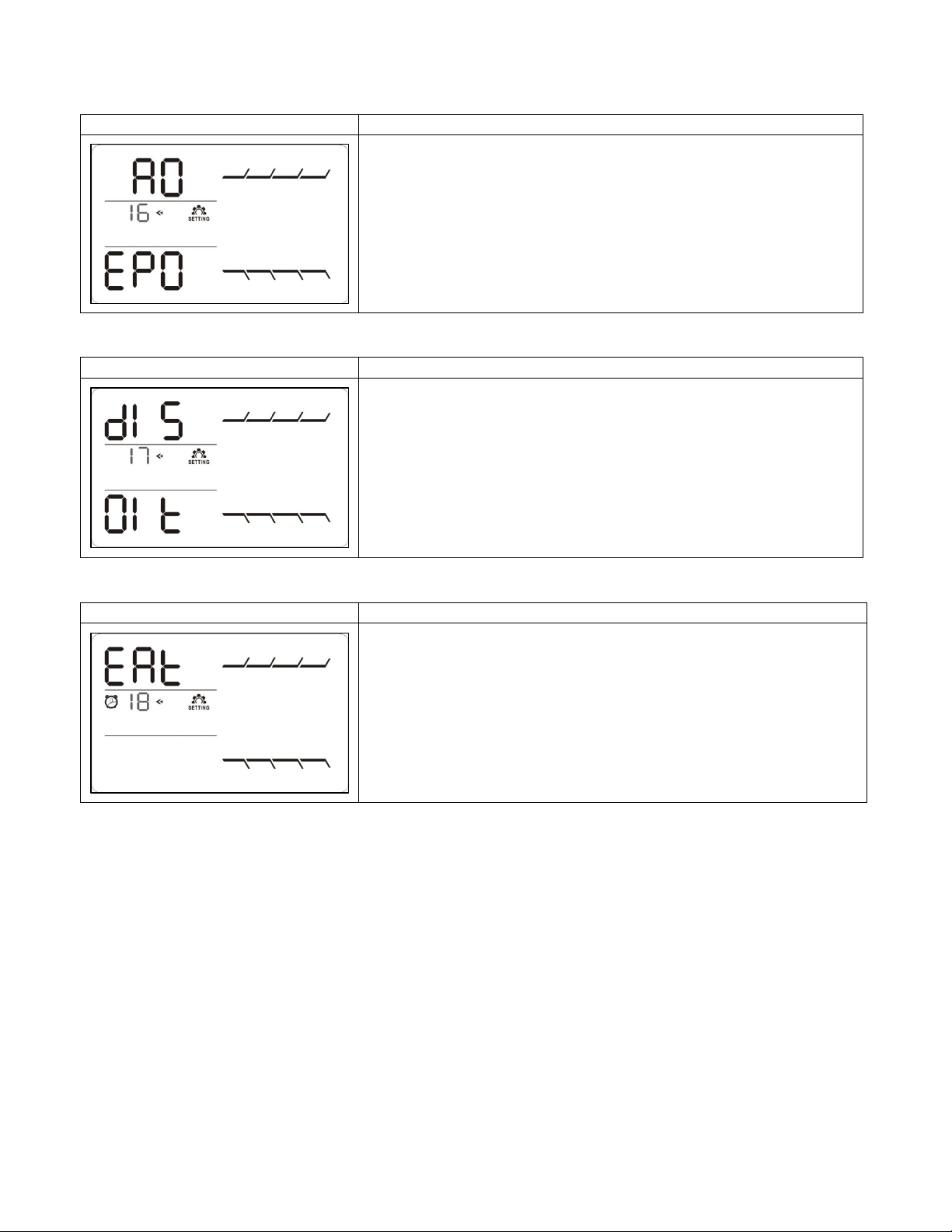

16: EPO logic setting
AO: Active Open (Default)
When AO is selected, EPO function will activate when Pin 1
and Pin 2 is open
AC: Active Closed
When AC is selected, EPO function will activate when Pin 1
17: External output isolation transformer connection
ENA: Connected to an external output isolation transformer
DIS: Not connected to external output isolation transformer
(Default)
18: Display setting for autonomy time
EAT: Display the remaining autonomy time (Default)
RAT: Display accumulated autonomy time
Page | 24
19: Acceptable input voltage range setting
Interface
Setting
Acceptable high voltage point and low voltage point for input
Interface
Setting
Exit programming mode
voltage range
HLS: Input high voltage point
100/110/115/120/127 VAC models:
140/145/150: High voltage point (Default: 150Vac)
200/208/220/230/240 VAC models:
280/290/300: High voltage point (Default: 300Vac)
LLS: Bypass low voltage point
100/110/115/120/127 VAC models:
55/60/65/70/75/80: Low voltage (Default: 55Vac)
200/208/220/230/240 VAC models:
110/120/130/140/150/160: Low voltage (Default: 110Vac)
00: Exit setting
Page | 25

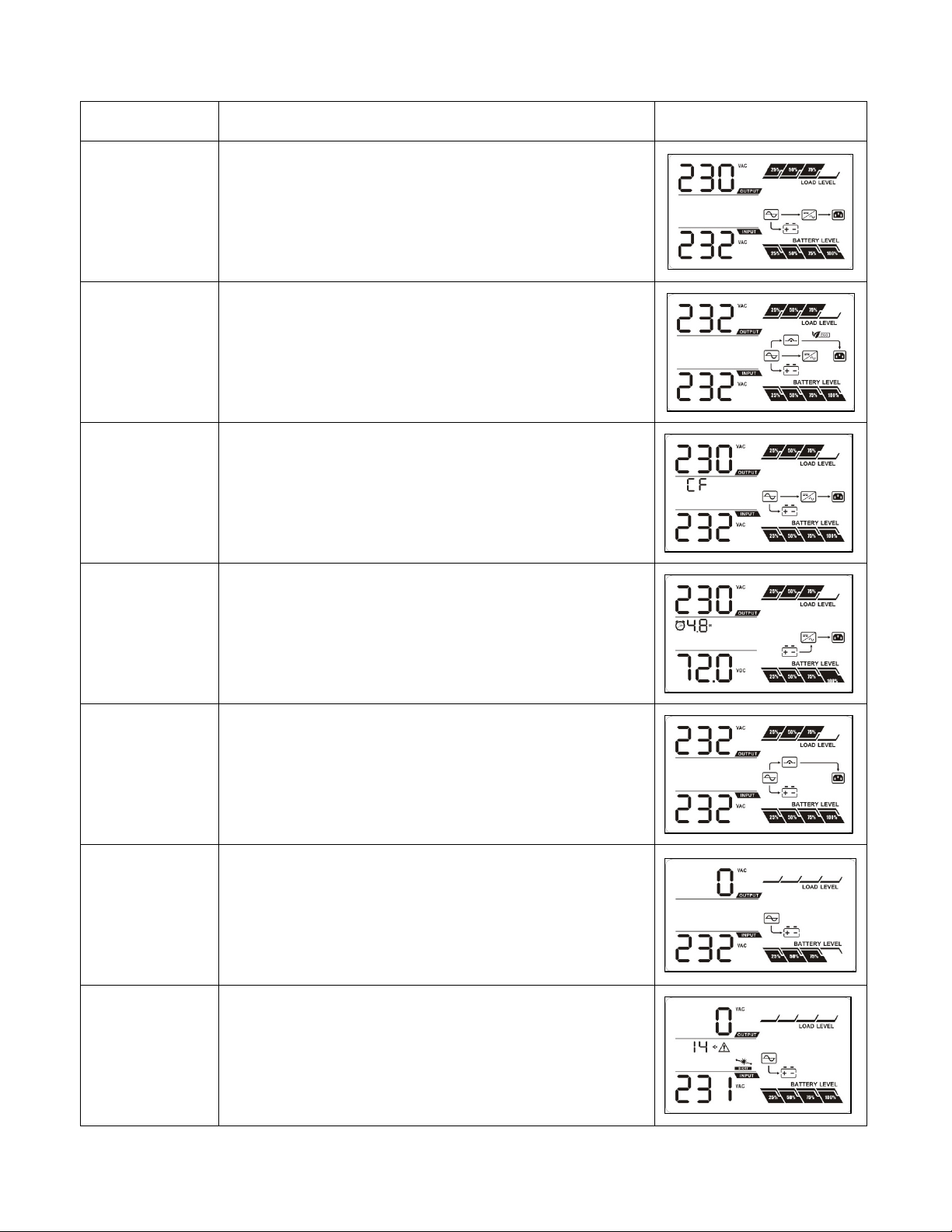

3.6 Operating Mode Description
Operating
mode
Description LCD display
When input voltage is within acceptable range, UPS
Online mode
ECO mode
will provide pure and stable AC power to output. The
UPS will charge the battery
Energy saving mode:
When input voltage is within voltage regulation range,
UPS will supply voltage to output for energy saving.
The UPS will charge the battery
Frequency
Converter
mode
Battery mode
Bypass mode
Standby mode
When input frequency is within 40 Hz to 70 Hz, the
UPS may be set at a constant output frequency, 50 Hz
or 60 Hz. The UPS will charge the battery
When input voltage is beyond the acceptable range or
power failure occurs, alarm will sound every 5 seconds
and UPS is transferred to battery
When input voltage is within acceptable range but UPS
is in overload, UPS will enter bypass mode. Alarm
sounds every 10 seconds.
UPS is powered off and without output power, batteries
may still be charged.
Page | 26
Fault mode
When a fault has occurred, the ERROR icon and the
fault code will be displayed
3.7 Faults Reference Code
Fault event
Fault code
Icon
Fault event
Fault code
Icon
Bus start fail
01
x
Battery voltage too high
27
Bus over
02
x
Battery voltage too low
28
Bus under
03
x
Charger output short
2A
x
Inverter soft start fail
11
x
Over temperature
41
x
Inverter voltage high
12
x
Overload
43
Inverter voltage Low
13
x
Charger failure
45
x
Inverter output short
14
Over input current
49
x
Warning
Icon (flashing)
Code
Alarm
Low Battery
Every 2 seconds
Overload
Every second
Over input current
Every 10 seconds, 2 beeps
Battery is not connected
Every 2 seconds
Every 2 seconds
Site wiring fault
Every 2 seconds
EPO enable
Every 2 seconds
Over temperature
Every 2 seconds
Charger failure
Every 2 seconds
Battery fault
Every 2 seconds
Out of bypass voltage range
Every 2 seconds
Bypass frequency unstable
Every 2 seconds
Battery replacement
Every 2 seconds
EEPROM error
Every 2 seconds
3.8 Warning indicator
Over Charge
NOTE: “Site Wiring Fault” function may be enabled/disabled via software. See software manual for
details.
Page | 27
4. Troubleshooting
Symptom
Possible cause
Remedy
The AC input power is not
connected properly.
Ensure input power cord is
firmly connected to the mains
The AC input is connected to
the UPS output.
Plug AC input power cord to
building AC outlet
• Remove EPO signal
correctly
Rotate mains power socket
UPS
The external or internal
properly
sounds continuously.
sounds continuously.
UPS is overloaded
Reduce loads on UPS output
After repeat overloads, the
mode
Reduce loads on UPS output.
restart
Fault code 49 flashes on LCD. Alarm sounds
continuously.
Reduce loads on UPS output.
restart
Check output wiring and
circuit
Fault code 01, 02, 03, 11, 12, 13 or 41 flashes
on LCD. Alarm sounds continuously.
UPS internal fault has
occurred
Charge the batteries for at
manufacturer
Contact your dealer to
replace the battery
Fault code 2A flashes on LCD. Alarm sounds
continuously.
Short circuit on charger
output.
Check output wiring and
cabling to external battery
Fault code 45 flashes on LCD. Alarm sounds
continuously.
No charger output; battery
voltage is less than 10V/PC.
UPS does not switch on even though the
mains is normal.
and warning code flash on LCD.
Alarm sounds every 2 seconds.
and flash on LCD. Alarm sounds
every 2 seconds.
and flash on LCD. Alarm sounds
every 2 seconds.
Fault code 27 and flash on LCD. Alarm
Fault code 28 and flash on LCD. Alarm
and flash on LCD. Alarm sounds
every second.
Fault code 43 and flash on LCD. Alarm
sounds continuously.
Fault code 14 and flash on LCD. Alarm
sounds continuously.
EPO function is activated.
Line and neutral conductors
of UPS input are reversed.
battery is not connected
High battery voltage and/or
charger fault
Low battery voltage and/or
charger fault
UPS is locked in bypass
UPS is over input current. Reduce loads on UPS output
UPS shut down due to
extreme overload
UPS shut down due to short
circuit
• Verify EPO logic is set
by 180° then reconnect to
Confirm all batteries are
connected properly
Contact manufacturer
Contact manufacturer
Power down the UPS then
Power down the UPS then
connected devices for short
Battery backup time is shorter than expected.
Page | 28
Batteries are not fully charged
Batteries defective
Contact manufacturer
least 5 hours, then check
capacity. If the problem
persists, contact
Contact manufacturer
5. Storage and Maintenance
Storage Temperature
Recharge Frequency
Charging Duration
-13°F - 86°F (-25°C - 30°C)
Every 8 months
5-8 hours
86°F - 104°F (30°C - 40°C)
Every 90 days
5-8 hours
104°F - 113°F (40°C - 45°C)
Every 30 days
5-8 hours
Component
Recommend Replace in:
Fans
4-5 years
Batteries
4-5 years
5.1 Operation
The UPS system contains no user-serviceable parts. If the battery service life (3-5 years at 77°F (25°C)
ambient temperature) has been exceeded, the batteries must be replaced. Contact Staco Energy
Products for replacement battery packs.
5.2 Storage
Before storing, charge the UPS for 5 hours. Store the UPS covered and upright in a cool, dry location.
During storage, recharge the battery in accordance with the following table:
5.3 Recommended Replacement Intervals
Do not discard the UPS or UPS batteries in landfill. The batteries in the UPS are
sealed lead acid and recyclable. Refer to local codes; for proper disposal contact
your local recycling/reuse or hazardous waste center.
The Staco UPS has a long design life. Due to the characteristics of the part, not the design of the UPS,
certain components used in the design have a limited life, even with proper maintenance.
Service and maintenance work should be performed only by factory authorized service
personnel.
Staco recommends these limited-life components be periodically inspected and replaced before the
expected expiration of their life cycle. The recommended replacement schedule is an estimate only. The
life of these parts depends on site conditions such as ambient temperature, load profile, cleanliness of
environment and other factors.
Staco Recommends a Factory Authorized Preventative Maintenance review is schedule at least once a
year.
The functional lifetime of VRLA batteries is significantly affected by the temperature at which they are
stored and operated. Ideally, VRLA batteries should be used in a 25ºC (77ºF) environment. For every
8.3ºC (15ºF) increase in temperature, the life expectancy of a battery will be halved. Exposure to
temperatures in excess of 32ºC (90ºF) should be limited to no more than 30 days per year. Under no
circumstances should the VRLA battery be exposed to temperatures over 40ºC (104ºF) which can lead to
thermal runaway, a condition that damages the battery. Thermal runaway can cause batteries to swell.
If the battery cases burst, the hazardous contents may be exposed.
Maintaining appropriate ambient temperature typically requires installing the UPS in a temperature
controlled space. Areas without AC do not generally maintain the proper conditions for good battery life.
See Staco’s website for warranty details:
http://www.stacoenergy.com/support/literature-download-center.html
Page | 29
6. UPS Specifications
1000 VA
1500VA
2000 VA
3000 VA
INPUT
Low Line
Comeback
High Line
Transfer
High Line
Comeback
Frequency Range
40Hz ~ 70 Hz
Power Factor
≧0.99
5% @ 100~130VAC
THDU < 1.6% @ input and full linear load condition
OUTPUT
Output Power Rating
See Table 6.2
Output Voltage
100/110/115/120/127VAC
AC Voltage Regulation
± 1% (Batt Mode)
Frequency Range
47 ~ 53 Hz or 57 ~ 63 Hz (Synchronized Range)
Frequency Range
50Hz ± 0.5% or 60Hz ± 0.5% (Bat. Mode)
Current Crest Ratio
3:1
Transfer Time
Zero
EFFICIENCY
AC Mode
≥89%
≥91%
Battery Mode
≥88%
≥90%
ECO MOde
≥96%
BATTERY
Numbers
2 3 4
6
Typical Recharge Time
3 hours to 95% capacity
Charging Current
2A (default) / up to 8A (adjustable)
Charging Voltage
27.4 VDC ± 1%
41.1 VDC ± 1%
54.7 VDC ± 1%
82.1VDC ± 1%
PHYSICAL
Dims
(in)
UPS
3.46 x 17.24 x 16.14
3.46 x 17.24 x 20.08
3.46 x 17.24 x 24.8
Weight
(lbs)
UPS
25.6
34.2
43.0
60.6
Shipping
30.4
39
48.5
66.1
Input
NEMA 5-15P
NEMA 5-20P
NEMA 5-30P
8x NEMA 5-20R & 1x
NEMA 5-30R
ENVIRONMENT
Humidity
20-95 % RH @ 32°F - 104°F (non-condensing) (0- 40°C)
Noise Level
Less than 50dBA @ 1 Meter
STANDARDS
EMI
FCC Class A
Safety
CTUVus complies with UL 1778: 2014 & CSA C22.2 No 107.3-14
MANAGEMENT
Smart RS-232/USB
Supports Windows® 2000/2003/XP/Vista/2008/7/8/10, Linux, Unix and MAC
Optional SNMP
Power management from SNMP manager and web browser
6.1 120V Specifications
Low Line
Transfer
Voltage
Range
THDi
Harmonic Distortion
(THDU)
Output Waveform Pure Sine wave
(based on load percentage 100%-80% / 80%-70% / 70%-60% / 60%-0)
80 VAC/70 VAC/60 VAC/55 VAC ± 5 %
87 VAC/77 VAC/67 VAC/62 VAC ± 5 %
150 VAC ± 5 %
145 VAC ± 5 %
≦
≦ 2% (Linear load)
≦ 4% (Non-Linear load)
Battery Type 12V/9Ah 12V/9Ah 12V/9Ah 12V/9Ah
HxW xD
Shipping 7.08 x 19.68 x 22.04 7.87 x 22.24 x 27.56 7.87 x 23.62 x 29.92
Output 8x NEMA 5-15R 8x NEMA 5-20R
Page | 30
6.2 120V Power Rating
1kVA
12A
1000VA/1000W
1500VA/1450W @ 127Vac input
1500VA/1040W @ 100Vac input
2000VA/1930W @ 127Vac input
2000VA/1500W @ 100Vac input
3000VA/2880W @ 127Vac input
3000VA/2300W @ 100Vac input
Model Input Max Current Output Max Power rating
1500VA/1430W @ 125Vac input
1.5kVA 12A
2kVA 16A
3kVA 24A
1500VA/1300W @ 120Vac input
1500VA/1270W @ 115Vac input
1500VA/1200W @ 110Vac input
2000VA/1930W @ 125Vac input
2000VA/1850W @ 120Vac input
2000VA/1740W @ 115Vac input
2000VA/1640W @ 110Vac input
3000VA/2850W @ 125Vac input
3000VA/2740W @ 120Vac input
3000VA/2650W @ 115Vac input
3000VA/2500W @ 110Vac input
Page | 31
6.3 230V Specifications
1000 VA
1500VA
2000 VA
3000 VA
INPUT
Low Line
Comeback
High Line
Transfer
High Line
Comeback
Frequency Range
40Hz ~ 70 Hz
Power Factor
≧0.99
5% @ 205~245VAC
THDU < 1.6% @ input and full linear load condition
OUTPUT
Output Power Rating*
1000W
1500W
2000W
3000W
Output Voltage
200/208/220/230/240VAC
AC Voltage Regulation
± 1% (Batt Mode)
Frequency Range
47 ~ 53 Hz or 57 ~ 63 Hz (Synchronized Range)
Frequency Range
50Hz ± 0.1 Hz or 60Hz ± 0.1 Hz (Bat. Mode)
Current Crest Ratio
3:1
Transfer Time
Zero
EFFICIENCY
AC Mode
≥89%
≥91%
Battery Mode
≥88%
≥90%
ECO Mode
≥96%
BATTERY
Numbers
2 3 4
6
Typical Recharge Time
3 hours recover to 95% capacity
2A (default) / 8A
(adjustable)
Charging Voltage
27.4 VDC ± 1%
41.1 VDC ± 1%
54.7 VDC ± 1%
82.1VDC ± 1%
PHYSICAL
Dims
(mm)
UPS
88 x 438 x 410
88 x 438 x 510
88 x 438 x 630
Weight
(kgs)
UPS
11.6
15.5
19.5
27.5
Shipping
13.8
17.7
22
30
Input
IEC 320 C14 (10A)
IEC 320 C20 (16A)
8x IEC 320 C13 & 1x
IEC 320 C19
ENVIRONMENT
Humidity
20-95 % RH @ 0- 40°C (non-condensing) (32°F - 104°F)
Noise Level
Less than 50dBA @ 1 Meter
STANDARDS
EMI
EN 62040-2:2006 (C2)
Safety
EN 62040-1:2008
MANAGEMENT
Smart RS-232/USB
Supports Windows® 2000/2003/XP/Vista/2008/7/8/10, Linux, Unix and MAC
Optional SNMP
Power management from SNMP manager and web browser
Low Line
Transfer
Voltage
Range
THDi
Harmonic Distortion
(THDU)
Output Waveform Pure Sine wave
(based on load percentage 100%-80% / 80%-70% / 70%-60% / 60%-0)
160VAC/140VAC/120VAC/110VAC ± 5 %
175VAC/155VAC/135VAC/125VAC ± 5 %
300 VAC ± 5 %
290 VAC ± 5 %
≦
≦ 2% (Linear load)
≦ 4% (Non-Linear load)
Battery Type 12V/9Ah 12V/9Ah 12V/9Ah 12V/9Ah
Charging Current 2A (default) / up to 12A (adjustable)
HxW xD
* Derate capacity to 80% of capacity when the output voltage is adjusted to 200VAC or 208VAC
Shipping 180 x 500 x 560 200 x 565 x 700 200 x 600 x 760
Output 4x IEC 320 C13 8x IEC 320 C13
Page | 32
6.4 Battery Pack Specification
1kVA
1.5kVA
2kVA
3kVA
Battery Type
12V 9Ah
12V 9Ah
12V 9Ah
12V 9Ah
Battery Quantity
4 6 8
12
Dimensions
HxWxD in (mm)
3.46 x 17.24 x 14.96 (88 x 438 x
380)
3.46 x 17.24 x 18.90
(88 x 438 x 480)
3.46 x 17.24 x 23.62
(88 x 438 x 600)
Net Weight lbs (kgs)
37.7 (17.1)
47.4 (21.5)
63.9 (29)
90.8 (41.2)
NOTE: Battery cabinet should be used with corresponding UPS
Page | 33
Notes:
Page | 34
Loading...
